Aspire 4935 - Laptop ACER - Free user manual and instructions

Product Type	Notebook PC
Brand	Acer
Model	Aspire 4935 Series
Operating System	Genuine Windows Vista®
Processor	Intel® Core™2 Duo (Intel® Centrino® 2 technology)
Chipset	Mobile Intel® PM45/GM45 Express Chipset*
Memory	Up to 2 GB DDR2 667 MHz (upgradeable to 4 GB)
Display	14" HD (1366 x 768) 16:9 aspect ratio
Graphics	Mobile Intel® GM45 Express Chipset* or NVIDIA® GeForce® 9300M GS*
Audio	Dolby®-optimized surround sound, two stereo speakers, S/PDIF support
Storage	2.5" HDD; Optical drive: Blu-ray™/DVD-Super Multi DL or DVD-Super Multi DL; 6-in-1 card reader
Wireless	Intel® Wireless WiFi Link 5100/5300 or 5150/5350; Bluetooth® 2.0+EDR
Dimensions (W x D x H)	342 x 239 x 23/38.6 mm (13.4 x 9.4 x 0.9/1.5 in)
Weight	2.4 kg (5.30 lbs) with 6-cell battery
Battery	48.8 Wh, 4400 mAh, 6-cell
AC Adapter	65 W or 90 W, 3-pin
Keyboard	88/89/93-key with numeric keypad
Pointing Device	Touchpad with left/center/right buttons; center button also serves as Acer Bio-Protection fingerprint reader*
Ports	USB 2.0 (x3), USB 2.0/eSATA, HDMI, VGA, ExpressCard/54, 6-in-1 card reader, Ethernet RJ-45, Modem RJ-11, audio jacks (headphone, microphone, line-in)
Security	Acer Bio-Protection fingerprint solution*, BIOS/HDD passwords, Kensington lock slot
Environmental (Operating)	Temperature: 5°C to 35°C; Humidity: 20% to 80% non-condensing
Maintenance	Clean with soft, dry cloth; avoid liquids; do not block ventilation slots
Spare Parts / Repairability	Hard disk, memory, battery are replaceable; optical drive may be replaceable
User Guides	Quick Guide, AcerSystem User Guide (PDF preloaded), Generic User Guide

Frequently Asked Questions - Aspire 4935 ACER

How do I access the full user guide for my Acer Aspire 4935?

Click Start, All Programs, AcerSystem, then AcerSystem User Guide. Adobe Reader is required and will be installed if missing.

What do the status indicator lights mean?

The status indicators (LEDs) show the status of computer functions like power, battery charge, disk activity, and wireless connectivity. Refer to the Generic User Guide for detailed descriptions.

How do I use the touchpad?

The touchpad functions like a mouse. Slide your finger to move the cursor, tap to click, and use the left/right buttons for primary and secondary clicks. The center button may serve as a fingerprint reader on some models.

How do I eject the optical drive tray when the computer is off?

Insert a paper clip into the emergency eject hole located near the optical drive eject button. This manually releases the tray.

How can I upgrade the memory?

The memory is located in the memory compartment on the base. It supports up to 2 GB DDR2 667 MHz standard, upgradeable to 4 GB using two soDIMM modules. Refer to the user guide for detailed steps.

What is Acer Bio-Protection and how do I use it?

Acer Bio-Protection is a fingerprint reader integrated into the touchpad button (on certain models). It allows secure login and password replacement. Enroll your fingerprint via the Bio-Protection software.

How do I connect an external monitor or projector?

Connect the external display to the VGA port (blue, 15-pin) or HDMI port (if available). Use the Fn + F5 hotkey to toggle display modes (LCD only, external only, or both).

How do I use the built-in webcam?

The Acer Crystal Eye webcam (on certain models) is located above the screen. It works with video communication software like Skype or Acer Video Conference. Enable it via the application.

What is the battery life and how do I maintain it?

The 6-cell battery provides up to approximately 2-3 hours depending on usage. To extend life, avoid complete discharges, store at 40-60% charge, and keep vents unblocked. Refer to ENERGY STAR® settings for power saving.

How do I clean my laptop safely?

Turn off the laptop and unplug it. Use a soft, lint-free cloth slightly dampened with water or a screen cleaner. Do not spray liquids directly; apply to cloth. Avoid abrasive materials and keep ventilation slots free of dust.

USER MANUAL Aspire 4935 ACER

Copyright © 2008. Acer Incorporated. All Rights Reserved.

Aspire 4935 Series Quick Guide Original Issue: 09/2008

This company makes no representations or warranties, either express or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose. Although care has been taken to ensure accuracy, this company shall not be liable for any errors (including, but not limited to, typos, factual errors, etc.) contained in this publication.

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Aspire 4935 Series Notebook PC

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Just for Starters... poster helps you get started with setting up your computer.

The Aspire Series Generic User Guide contains useful information applying to all models in the Aspire product series. It covers basic topics such as Acer's Empowering Technology, using the keyboard, audio, etc. Please understand that due to its nature, the Generic User Guide as well as the AcerSystem User Guide mentioned below will occasionally refer to functions or features which are only contained in certain models of the series, but not necessarily in the model you purchased. Such instances are marked in the text with language such as "only for certain models".

The Quick Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the AcerSystem User Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it:

1 Click on

Start, All Programs, AcerSystem.

2 Click on AcerSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

Your Acer notebook tour

After setting up your computer as illustrated in the Just for Starters... poster, let us show you around your new Acer notebook.

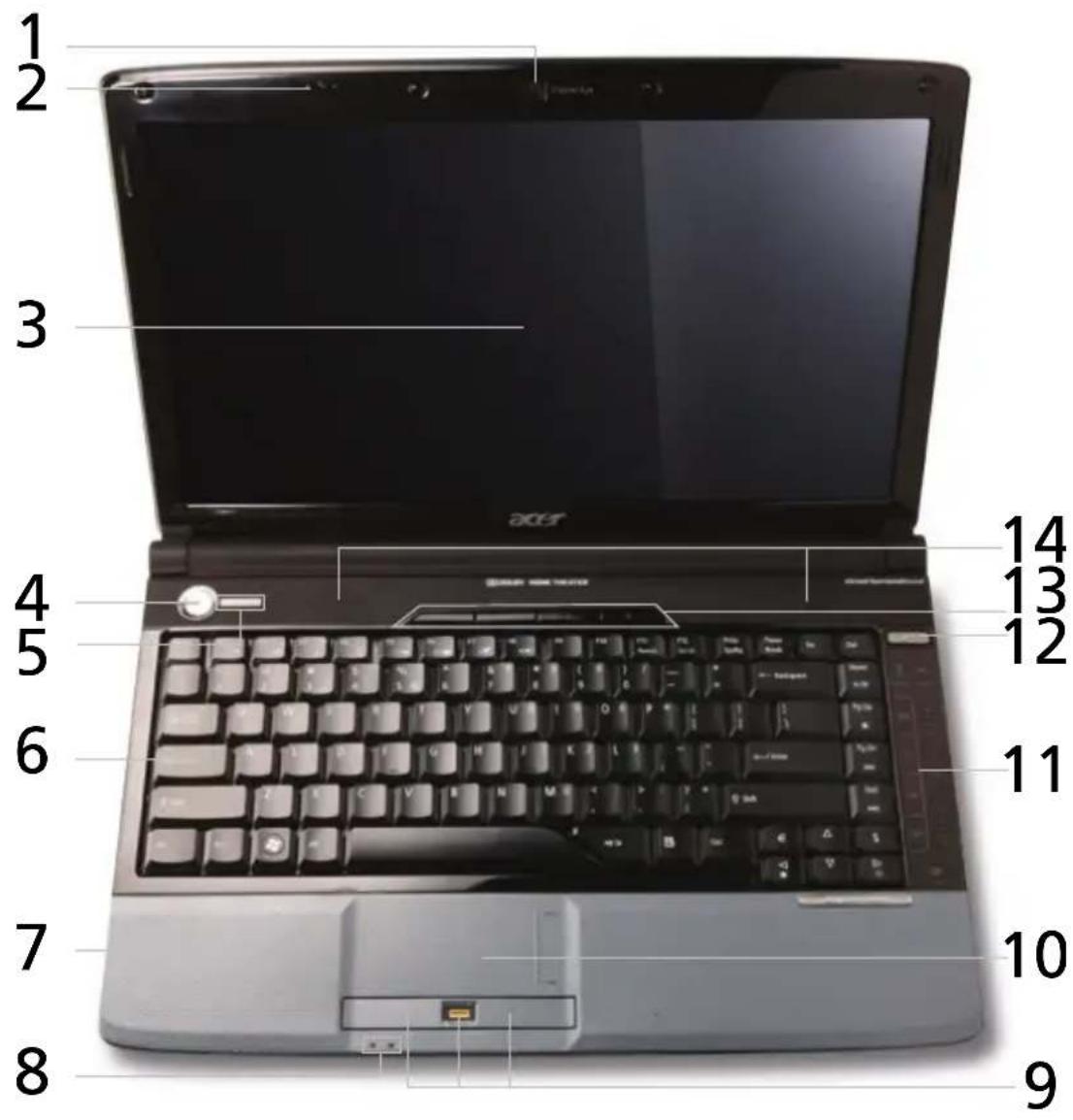

Top view

1 2 3 4 5 6 7 8 9 10 11 12 13 14 ACO PC

Icon Item Description

1 Acer Crystal Eye webcam	Web camera for video communication. (only for certain models)
# Icon Item Description
2 Microphone Internal microphone for sound recording.
3 Display screen Also called Liquid-Crystal Display (LCD), displays computer output (Configuration may vary by models).
4 Power button Turns the computer on and off.
5 Status indicators Light-Emitting Diodes (LEDs) that light up to show the status of the computer's functions and components. Please refer to the Generic User Guide for more details.
6 Keyboard For entering data into your computer.
7 Palmrest Comfortable support area for your hands when you use the computer.
8 Status indicators Light-Emitting Diodes (LEDs) that light up to show the status of the computer's functions and components. Please refer to the Generic User Guide for more details.
9 Click buttons (left, center* and right)	The left and right buttons function like the left and right mouse buttons. *The center button serves as Acer Bio-Protection fingerprint reader supporting Acer FingerNav 4-way control function (only for certain models).
10 Touchpad Touch-sensitive pointing device which functions like a computer mouse.
11 Acer MediaTek keys	For use with Acer Arcade and other media playing programs.
12 Easy-launch buttons	Buttons for launching frequently used programs. Please refer to the Generic User Guide for more details.
13 Empowering key Launch Acer Empowering Technology
14 Speakers Left and right speakers deliver stereo audio output.

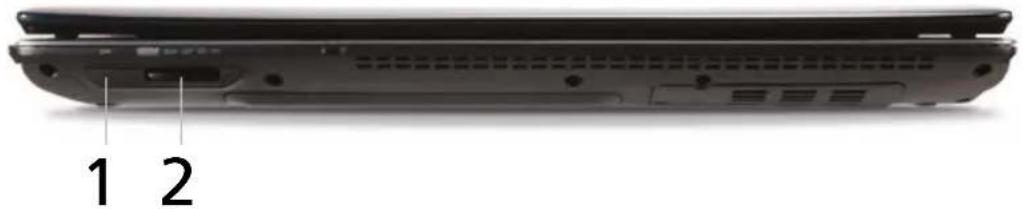

Closed front view

Back view of a laptop computer showing front and rear panels with labeled parts (no text or symbols on the device itself)

# Icon Item Description

1 CIR receiver Receives signals from a remote

control.

2 6-in-1 card reader Accepts Secure Digital (SD),

MultiMediaCard (MMC),

MultiMediaCardplus™ (MMCplus™), Memory Stick (MS), Memory Stick Pro (MS PRO), and xD-Picture Card.

Note: Push to remove/install the card. Only one card can operate at any given time.

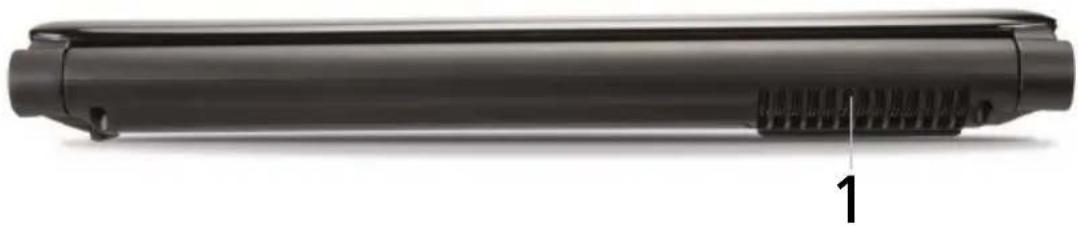

Rear view

Side view of a black cylindrical electronic device with a labeled component (1), no visible text or symbols on the body itself.

# Item Description

1 Ventilation slots Enable the computer to stay cool, even after prolonged use.

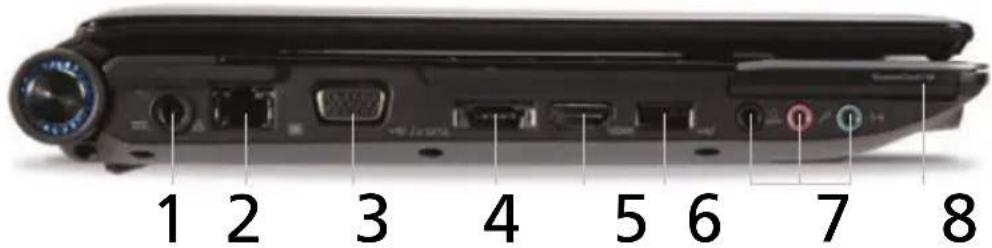

Left view

1 2 3 4 5 6 7 8

Icon Item Description

1 DC-in jack Connects to an AC adapter.

2 Ethernet (RJ-45) port	Connects to an Ethernet 10/100/1000-based network.
3 External display (VGA) port	Connects to a display device (e.g., external monitor, LCD projector).
4 USB 2.0 / eSATA port	Connects to USB 2.0 or eSATA devices (only for certain models).Note: If you plug an eSATA device you will have two USB ports available in the mean time.
5 HDMI HDMI port Supports high definition digital video connections (only for certain models).
6 USB 2.0 port Connects to USB 2.0 devices (e.g., USB mouse, USB camera).
7 Headphones/ speaker/line-out jack with S/PDIF support	Connects to audio line-out devices (e.g., speakers, headphones).
Microphone jack	Accepts inputs from external microphones.
Line-in jack Accepts audio line-in devices (e.g., audio CD player, stereo walkman, mp3 player)
8 ExpressCard/54ExpressCard / 54 slot	Accepts one ExpressCard/54 module.

Right view

1 2 3 4

5

# Icon Item Description

1 USB 2.0 port Connects to USB 2.0 devices

(e.g., USB mouse, USB camera).

2 Optical drive Internal optical drive; accepts CDs or

DVDs.

3 Optical disk access

indicator

Lights up when the optical drive is

active.

4 Optical drive eject

button

Ejects the optical disk from the drive.

5 Emergency eject

hole

Ejects the optical drive tray when the computer is turned off.

Note: Insert a paper clip to the emergency eject hole to eject the optical drive tray when the computer is off.

6

M

(RJ-11) port

o Connects to a phone line.

e

7 Kensington lock slot Connects to a Kensington-compatible

computer security lock.

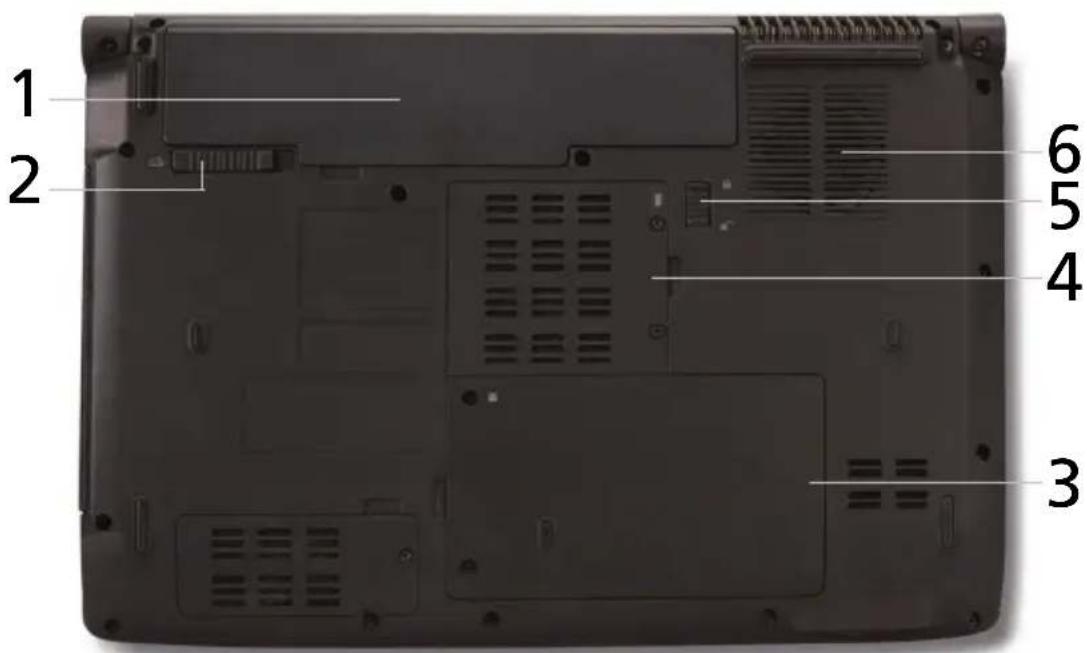

Base view

1 2 6 5 4 3

# Icon Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery release latch Releases the battery for removal.

3 Hard disk bay Houses the computer's hard disk (secured

with screws).

4 Memory compartment Houses the computer's main memory.

5 Battery lock Locks the battery in position.

6 Ventilation slots and cooling fan Enable the computer to stay cool, even after prolonged use.

Note: Do not cover or obstruct the opening of the fan.

Specifications

Operating system	•Genuine Windows Vista®
Platform	•Intel®Centrino®2 processor technology, featuring:•In®CortetM2Dud processor•Mobile Intel®PM45/GM45 Express Chipset*•In®WitelessWiFi Link 5100/5300*•In®WitelessWiFi Link 5150/5350*
System memory	•Dual-Channel support•Up to 2 GB of DDR2 667 MHz memory, upgradeable to 4 GB using two soDIMM modules
Display	•16:9 aspect ratio•14" HD 1366 x 768
Graphics	•Mobile Intel®GM45 Express Chipset*•NVIDIA®GeForce®9300M GS*
Audio	•Dolby®-optimized surround sound system with two built-in stereo speakers•True5.1-channel surround sound output•High-definition audio support•S/PDIF (Sony/Philips Digital Interface) support for digital speakers•Acer PureZone technology with two built-in stereo microphones•MS-Sound compatible
Storage subsystem	•2.5" hard disk drive•Optical drive option:•B I uTM/DVD-Super Multi double-layers drive*•DVD-Super Multi double-layer drive*•6-in-1 card reader
Communication Acer Video Conference, featuring:
	Integrated Acer Crystal Eye webcam*
	Acer PureZone technology*
	Optional Acer Xpress VoIP phone*
	WLAN:
	I® Wireless WiFi Link 5100/5300*
	Wi-Fi®/WiMAXTM:
	I® Wireless WiFi Link 5150/5350*
	WPAN: Bluetooth® 2.0+Enhanced Data Rate (EDR)*
	LAN: Gigabit Ethernet; Wake-on-LAN ready
	Modem: 56K ITU V.92; Wake-on-Ring ready
Privacy control	Acer Bio-Protection fingerprint solution*
	BIOS user, supervisor, HDD passwords
	Kensington lock slot
Dimensions and weight	342 (W) x 239 (D) x 23/38.6 (H) mm(13.4 x 9.4 x 0.9/1.5 inches)2.4 kg (5.30 lbs.) with 6-cell battery
Power subsystem	ACPI 3.0
	48.8 W 4400 mAh
	3-pin 65 W AC adapter*
	3-pin 90 W AC adapter*
	ENERGY STAR® 4.0*
Special keys and controls	88-/89-/93-key keyboard
	Touchpad pointing device
I/O interface	ExpressCardTM/54 slot6-in-1 card reader(SD/MMC/MMCplusTM/MS/MS PRO/xD)USB 2.0 portUSB 2.0 / eSATA port*
	Note: If you plug an eSATA device you will have two USB ports available in the mean time.
	Consumer infrared (CIR) portHDMITMport with HDCP support*External display (VGA) portHeadphones/speaker/line-out jack with S/PDIF support*Microphone-in jackLine-in jackEthernet (RJ-45) portModem (RJ-11) portDC-in jack for AC adapter
Environment	Temperature:Operating: 5 °C to 35 °CNon-operating: -20 °C to 65 °CHumidity (non-condensing):Operating: 20% to 80%Non-operating: 20% to 80%

Note: * Only for certain models

Note: The specifications listed above are for reference only. The exact configuration of your PC depends on the model purchased.
