USER MANUAL LSA5AB3VT6 LG

Line drawing of a 3D rectangular object with a rectangular cutout on top (no text or symbols)

Owner's Manual

Please read this manual carefully before operating the unit.

LG CUSTOMER SERVICE CALL 1800-180-9999 (MTNL/BSNL Tot Free) or 39-01-0909 (Prelix STD Code) CLICK [e-mail] www.lgindia.com SMS No. 5757554

P/No.: MFL39754829

TABLE OF CONTENTS

Safety Precautions....3

Prior to Operation 9

Introduction ......10

Electrical Safety 11

Operating Instructions......12

Maintenance and Service .....26

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■ Staple your receipt to this page in the event you need it to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

PRECAUTION

• Contact the authorized service technician for repair or maintenance of this unit.
• Please install your air-conditioner by company authorised service franchisee / authorised service and sales dealer.
• The air conditioner is not intended for use by young children or invalids without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only, using only genuine replacement parts.

We recommend usage of voltage stabilizer with high / low voltage cut off in areas having voltage fluctuations.

AC TONNAGE	STABILIZER KVA(3-STEP STABILIZER)
1.0	3
1.5	4
2.0	5

Safety Precautions

To prevent the injury of the user or other people and property damage, the following instructions must be followed.

■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications.

WARNING

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage to properties only.

■ The meanings of the symbols used in this manual are as shown below.

	Be sure not to do.
	Be sure to follow the instruction.

WARNING

■ Installation

Do not use damaged power cords, plugs, or a loose socket.

• There is risk of fire or electric shock.

For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center.

- There is risk of fire or electric shock.

Always use the power plug and socket with the ground terminal.

• There is risk of electric shock.

Illustration showing a phone emitting a megaphone with a prohibition symbol, accompanied by wings and plugging.

Illustration of a person reading a book with a speech bubble and exclamation mark (no text or symbols)

Illustration of two cartoon characters holding books, one open showing a smiling face, the other holding a document with a warning symbol (no text or symbols present)

Install the panel and the cover of control box securely.

- There is risk of fire or electric shock.

Do not modify or extend the power cord.

- There is risk of fire or electric shock.

Do not install, remove, or re-install the unit by yourself (customer).

• There is risk of fire, electric shock, explosion, or injury.

Illustration of a person using a computer to interact with a server, showing a warning symbol (no text present)

Illustration of a battery with an open fuse and a prohibition sign, no text or symbols present

Illustration of a person using a laptop to clean air conditioner units with a prohibition symbol (no text or labels)

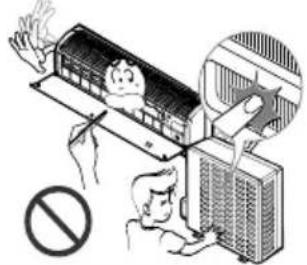

Be cautious when unpacking and installing the product.

- Sharp edges could cause injury. Be especially careful of the case edges and the fins on the condenser and evaporator.

Illustration of a person installing or adjusting an air conditioner unit with a prohibition symbol (no text or labels present)

Be sure the installation area does not deteriorate with age.

- If the base collapses, the air conditioner could fall with it, causing property damage, product failure, and personal injury.

Cartoon illustration of a person holding a large box with a 'B' sign, standing beside a building with a crossed-out 'No' symbol (no text or symbols on the diagram itself)

For installation, always contact the dealer or an Authorized Service Center.

• There is risk of fire, electric shock, explosion, or injury.

Illustration of a person using a phone to interact with a computer monitor, with an exclamation mark symbol nearby (no text or symbols present)

Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is left open.

- Moisture may condense and wet or damage furnishings.

Diagram showing a person cleaning a wall with a 'No' symbol, indicating no barrier or anti-counterfeit.

Do not install the product on a defective installation stand.

- It may cause injury, accident, or damage to the product.

Isometric line drawing of a cabinet or enclosure with exhaust flames and a no-smoking symbol (no text or labels)

Operation

Take care to ensure that power cords could not be pulled out or damaged during operation.

• There is risk of fire or electrical shock.

Safety warning illustration showing a hand using a plug to switch an electrical outlet with a no-smoking symbol nearby.

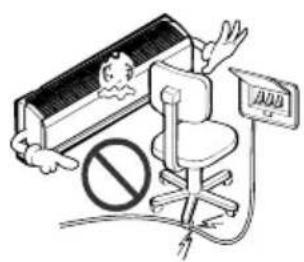

Do not place anything on the power cord.

• There is risk of fire or electric shock.

Illustration showing a person holding a book with a 'NOO' symbol, standing beside an office chair and a sign with 'NOO' text.

Do not turn the air-conditioner ON or OFF by plugging or unplugging the power plug.

• There is risk of fire or electrical shock.

Hand inserting a cable into an electrical socket with a prohibition symbol (no text or labels)

Use a dedicated outlet for this appliance.

• There is risk of fire or electrical shock.

Grasp the plug to remove the cord from the outlet. Do not touch it with wet hands.

• There is risk of fire or electrical shock.

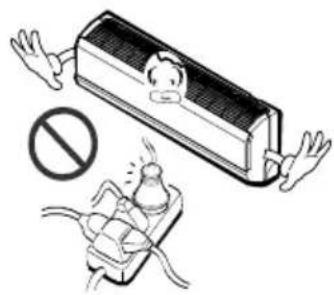

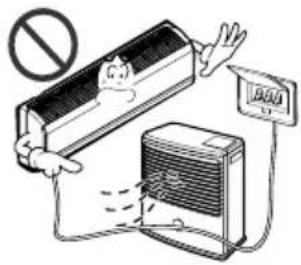

Do not place a heater or other appliances near the power cable.

• There is risk of fire and electric shock.

Illustration of a person falling from an open book with a prohibition symbol nearby (no text or labels)

Illustration showing a person using a device to stop a substance, with a no-smoking symbol nearby.

Illustration showing a cartoon character hanging from a large box connected to an air conditioner, with a 'No' symbol above and a sign reading '1000'.

Do not allow water to run into electric parts.

- It may cause There is risk of fire, failure of the product, or electric shock.

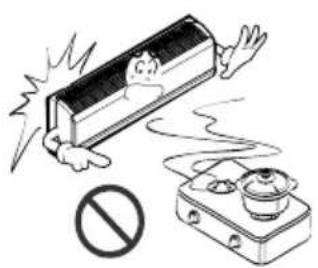

Do not store or use flammable gas or combustibles near the air conditioner.

- There is risk of fire or failure of product.

Do not use the product in a tightly closed space for a long time.

- Oxygen deficiency could occur.

Illustration of a person using a tool near a server unit with an exclamation mark (no text or symbols present)

Wax Thinner

Illustration of a person cleaning a wall-mounted air conditioner with a no-smoking symbol (no text or labels)

When flammable gas leaks, turn off the gas and open a window for ventilation before turn the product on. DO NOT use the telephone or turn switches on or off.

- There is risk of explosion or fire.

Unplug the unit if strange sounds, odors, or smoke comes from it.

• There is risk of electrical shock or fire

Stop operation and close the window in storm or hurricane. If possible, remove the air conditioner from the window before the hurricane arrives.

- There is risk of property damage, failure of product, or electric shock.

Illustration of a person using a large cylindrical device to interact with a portable stove and a crossed-out lamp (no text or symbols)

Illustration showing a person sitting at a desk with a cigarette stop sign, indicating no smoking or alcohol consumption.

Illustration of a damaged battery with warning symbol and lightning bolt, no text or symbols present

Do not open the inlet grill of the product during operation. (Do not touch the electrostatic filter, if the unit is so equipped.)

• There is risk of physical injury, electric shock, or product failure.

Illustration of a person using a fan to clean an air conditioner with a no-smoking symbol above (no text or labels)

When the product is soaked (flooded or submerged), contact an Authorized Service Center.

• There is risk of fire or eletric shock.

Illustration of a person using a phone to call into a microphone with an exclamation mark and thought bubble (no text or symbols)

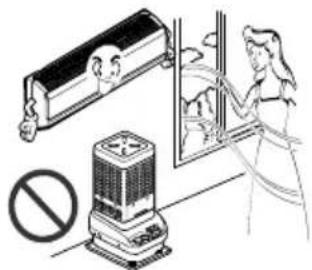

Ventilate the product from time to time when operating it together with a stove, etc.

• There is risk of fire or electrical shock.

Illustration of a person cleaning a window with a power heater and no warning symbol (no text or labels)

Unplug the appliance before performing cleaning or maintenance.

• There is risk of electrical shock.

Illustration of a person using a handheld device to interact with a mouse, with a warning symbol above (no text or labels)

When the product is not be used for a long time, disconnect the power supply plug or turn off the breaker.

- There is risk of product damage or failure, or unintended operation.

eration.

Take care to ensure that nobody could step on or fall onto the outdoor unit.

• This could result in personal injury and product damage.

Cartoon illustration showing a person falling off a refrigerator with a 'no' symbol above, indicating no smoking or no smoking.

CAUTION

■ Installation

Always check for gas (refrigerant) leakage after installation or repair of product.

- Low refrigerant levels may cause failure of product.

Diagram illustrating a device operation with warning symbol and labeled components

Install the drain hose to ensure that water is drained away properly.

• A bad connection may cause water leakage.

Illustration of two briefcases connected by a pipe with a warning symbol (no text or labels)

Keep level even when installing the product.

• To avoid vibration or water leakage.

90°

Do not install the product where the noise or hot air from the outdoor unit could damage the neighborhoods.

- It may cause a problem for your neighbors.

Use two or more people to lift and transport the air conditioner.

- Avoid personal injury.

Do not install the product where it will be exposed to sea wind (salt spray) directly.

- It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause product malfunction or inefficient operation.

Illustration of a person reacting to a photo on a wall-mounted device with a 'no' symbol above (no text or labels)

Illustration of two workers installing or maintaining a large TV (no text or symbols present)

Illustration of a fire extinguisher emitting smoke from a cloud, with a prohibition symbol below (no text or labels)

Operation

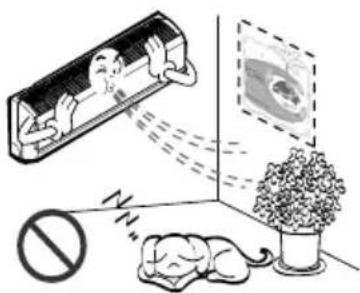

Do not direct airflow at room occupants. (Don't sit in the draft.)

• This could damage your health.

Illustration of a person exiting a refrigerated door with a stop sign, no text or symbols present

Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system.

• There is risk of damage or loss of property.

Illustration showing a person using a device to observe a window, with a prohibition symbol and a sleeping dog nearby.

Do not block the inlet or outlet of air flow.

- It may cause product failure.

Illustration showing a device with a prohibition symbol, indicating no restrictions or prohibition of the device.

Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.

• There is risk of fire, electric shock, or damage to the plastic parts of the product.

Illustration of a person using a mouse to interact with a computer monitor, with an exclamation mark in the background (no text or symbols on the devices)

Do not touch the metal parts of the product when removing the air filter. They are very sharp!

• There is risk of personal injury.

Illustration of a person holding a large industrial machine with a prohibition symbol above (no text or labels)

Do not step on or put anything on the product. (outdoor units)

• There is risk of personal injury and failure of product.

Illustration showing stacked boxes with a prohibition symbol, indicating no restrictions on the object.

Always insert the filter securely. Clean the filter every two weeks or more often if necessary.

- A dirty filter reduces the efficiency of the air conditioner and could cause product malfunction or damage.

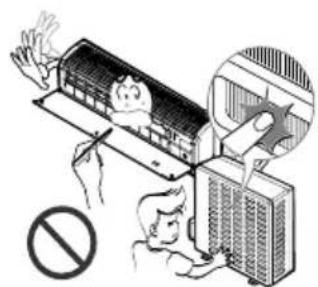

Do not insert hands or other objects through the air inlet or outlet while the air conditioner is plugged in.

• There are sharp and moving parts that could cause personal injury.

Do not drink the water drained from the unit.

• It is not sanitary and could cause serious health issues.

Illustration of a person using a computer with a smiling face and an exclamation mark (no text or symbols)

Illustration of a person installing or removing an air conditioner unit into a building, with no text or symbols present.

Illustration of a person falling with a broken pipe and a large block being compressed, no text or symbols present.

Use a firm stool or ladder when cleaning or maintaining the air conditioner.

- Be careful and avoid personal injury.

Illustration showing a person standing on a stool with a prohibition symbol, next to a book labeled 'No' and a smiling face.

Replace the all batteries in the remote control with new ones of the same type. Do not mix old and new batteries or different types of batteries.

• There is risk of fire or explosion

Diagram showing battery charging process with warning symbol and battery arrangement

■ Disuse

Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire.

• They may burn or explode.

If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote if the batteries have leaked.

- The chemicals in batteries could cause burns or other health hazards.

Illustration of a cigarette emitting smoke next to a no-smoking symbol and a battery pack (no text or labels)

Illustration of hands washing a pipe with a water tap, plus a warning symbol (no text or labels)

Prior to Operation

Preparing for Operation

1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement part.

Usage

1. Being exposed to direct airflow for a long time may be hazardous to your health. Do not expose occupants, pets, or plants to direct airflow for a long time.
2. Due to the possibility of oxygen deficiency, ventilate the room when using the appliance together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purpose (e.g. preserving precision devices, food, pets, plants, or art objects). Such use may damage your properties.

Cleaning and Maintenance

1. Do not touch the metal parts of the unit when removing the filter. Injury can occur.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a very high speed during operation. There is a possibility of injury if the unit's power is triggered while cleaning inner parts of the unit.

Service

For repair and maintenance, contact your authorized service dealer.

Introduction

Symbols used in this Manual

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that may cause harm to the air conditioner.

NOTICE

This symbol indicates special notes.

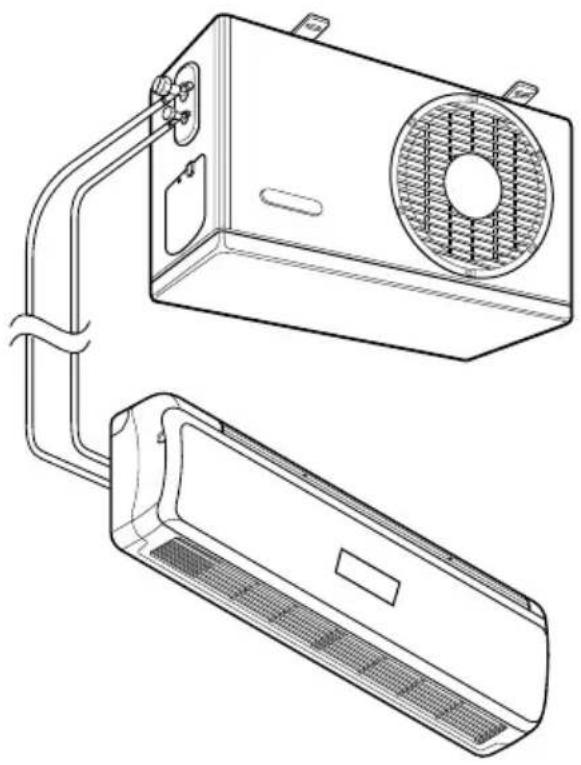

Features

▲ WARNING

This appliance should be installed in accordance with national wiring regulations. This guide acts as a guide to help to explain product features.

Indoor

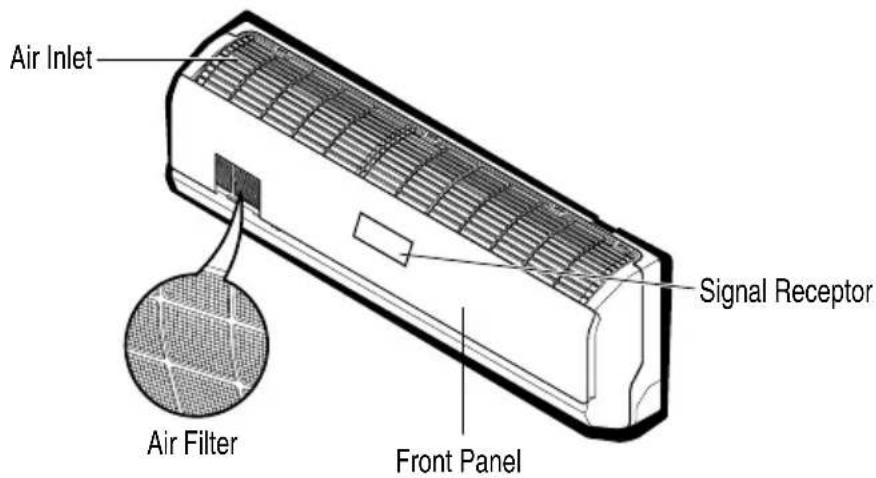

Air Inlet Signal Receptor Air Filter Front Panel

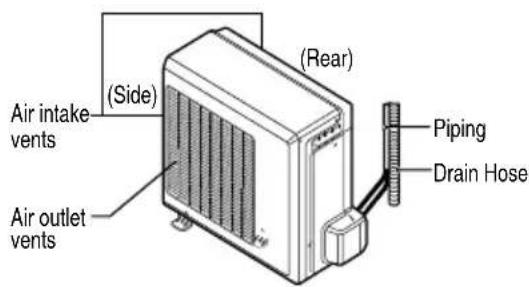

Outdoor

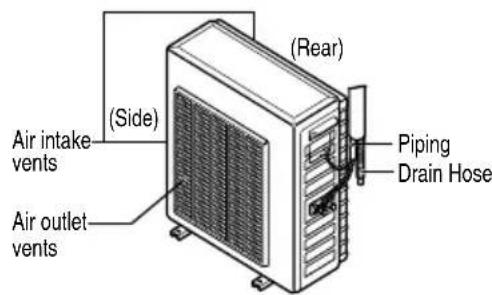

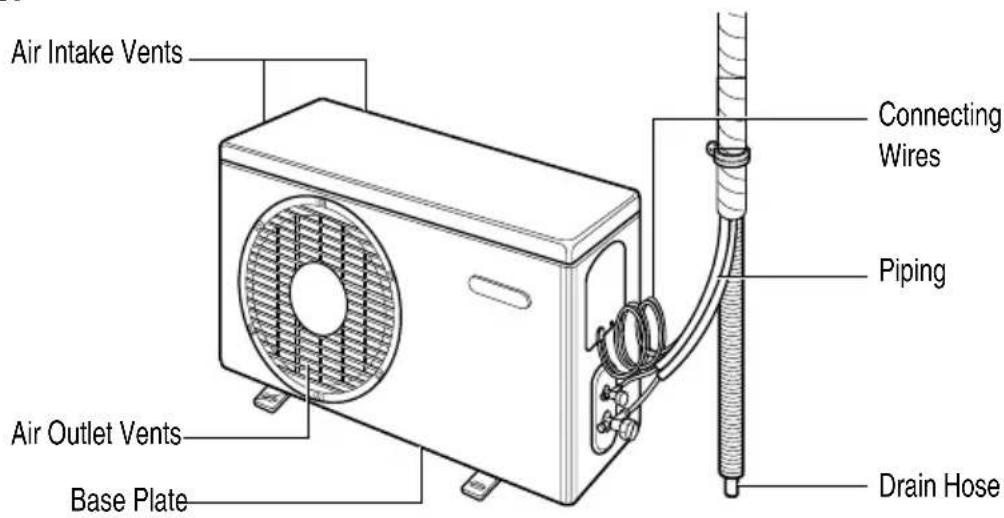

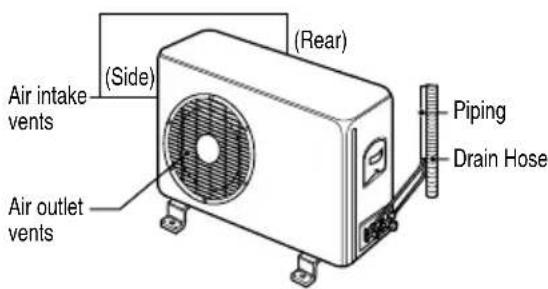

Air Intake Vents Connecting Wires Piping Air Outlet Vents Base Plate Drain Hose

Electrical Safety

▲ WARNING

• This appliance must be properly grounded.
To minimize the risk of electric shock, you must always plug into a grounded outlet.
- Do not cut or remove the grounding.
- Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal and not insulated, and the wall receptacle is grounded through the house wiring.
- If you have any doubt whether the air conditioner is properly grounded, have the wall receptacle and circuit checked by a qualified electrician.

Operating Instructions

How to insert the Batteries

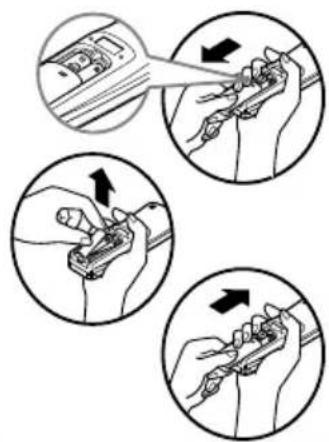

1. Remove the battery cover by pulling it according to the arrow direction.
2. Insert new batteries making sure that the (+) and (-) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.

NOTICE

Use 2 AAA(1.5volt) batteries.

Do not use rechargeable batteries.

Diagram illustrating three-step manual tool application steps for a mechanical component, showing hand positioning and tool path changes.

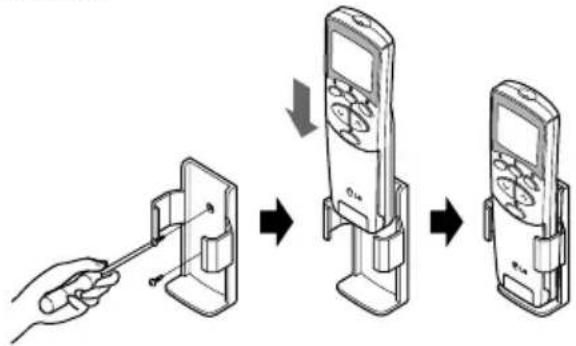

Storage and Tips for using the Remote Controller

- The remote controller may be stored by mounting it on a wall.

• To operate the room air conditioner, aim the remote controller at the signal receptor.

Diagram of a car air conditioner unit with a sensor emitting a liquid (no text or symbols)

Signal Receptor

Receives the signals from the remote control.(Signal receiving sound: two short beeps or one long beep.)

Operation Indication Lamps

Sleep Mode : Lights up during Sleep Mode Auto operation.

Timer : Lights up during Timer operation.

COOL MODE : Lights up during Cool Mode operation.

FAN MODE : Lights up during Fan Mode operation.

OUT

DOOR

OUTDOOR UNIT : Lights up during outdoor unit operation.

OPERATION (Cooling model only)

CHAOS

CHAOS : Lights up when vertical louver turned on or OPERATION intello eye operation is selected.

DRY

DRY MODE : Lights up during Dry Mode operation.

JET

JET MODE : Lights up during Jet Mode operation.

HEAT

HEAT MODE : Lights up during Heat Mode operation. (Heating model only)

NEO

PLASMA

Plasma : Lights up during Plasma Operation.

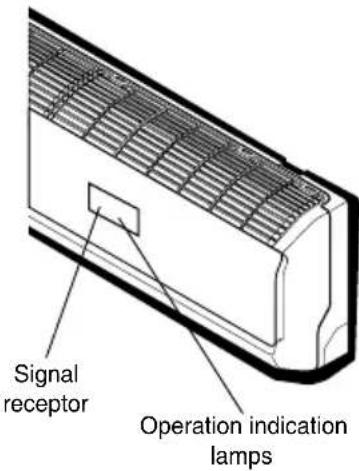

Signal receptor Operation indication lamps

Remote Control Operations

The remote control transmits the signals to the system.

Features of the Remote Control- Door Closed

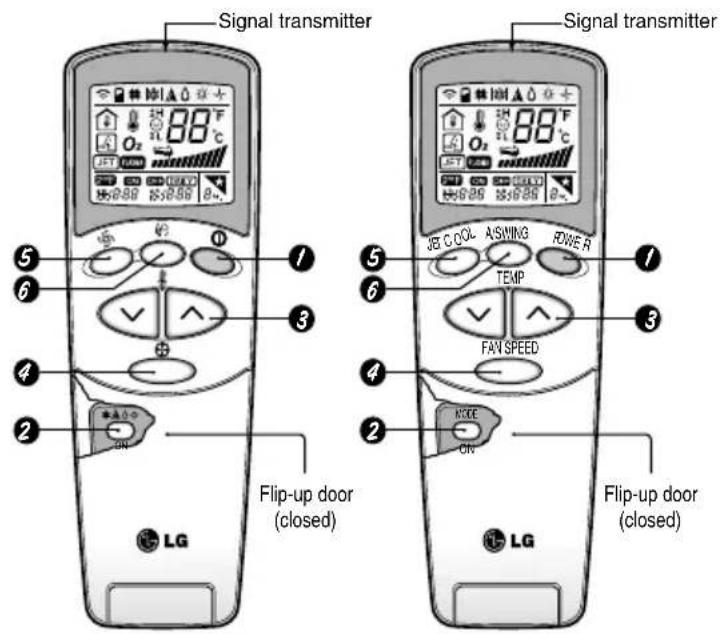

Signal transmitter Signal transmitter 5 1 6 3 4 2 2 LG Flip-up door (closed) 5 1 6 3 4 2 2 LG Flip-up door (closed)

TYPE A TYPE B

START/STOP BUTTON

Operation starts when this button is pressed and stops when the button is pressed again.

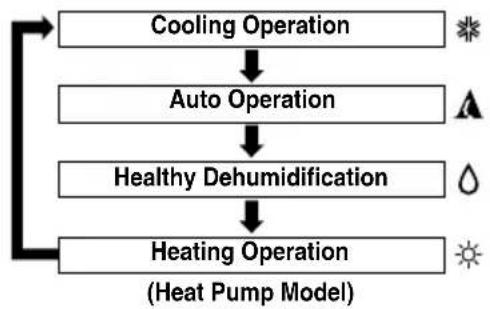

MODE SELECTION BUTTON

Used to select the operation mode.

3 ROOM TEMPERATURE SETTING BUTTONS

Used to select the room temperature.

INDOOR FAN SPEED SELECTOR

Used to select fan speed in four steps low, medium, high, or CHAOS.

JET COOL

Used to start or stop the speed cooling. (Speed cooling operates super high fan speed in cooling mode).

AIR SWING BUTTON

Used to stop or start louver movement and set the desired up/down airflow direction.

Auto Operation


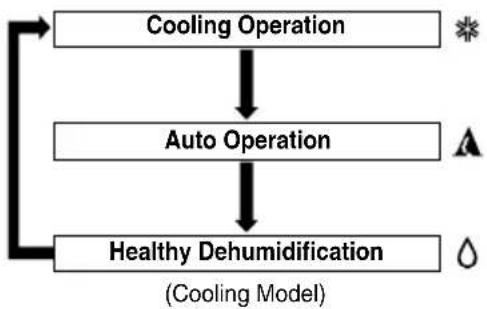

    A["Cooling Operation"] --> B["Auto Operation"]
    B --> C["Healthy Dehumidification\n(Cooling Model)"]
    style A fill:#f9f,stroke:#333
    style B fill:#f9f,stroke:#333
    style C fill:#ccf,stroke:#333

* Your unit shall have either Type A or Type B Remote Control.

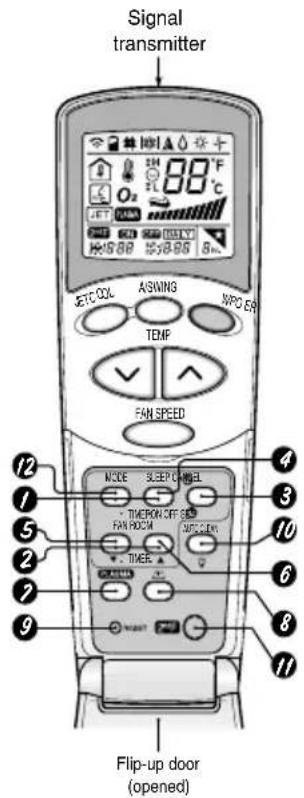

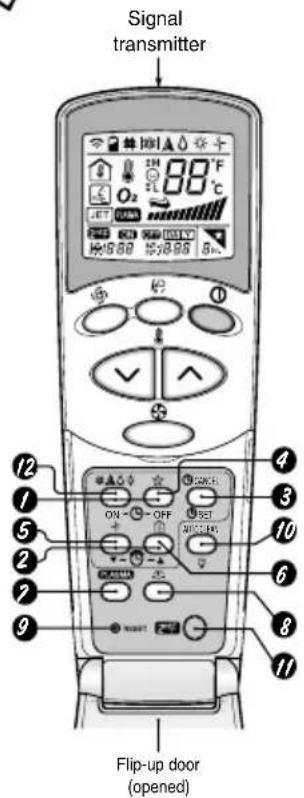

Features of the Remote Control- Door Opened

Signal transmitter 88°C ON SET OFF ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON SET ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Set ON Flip-up door (opened)

Signal transmitter SETC OOL ASWING WPO ER TEMP FAM SPEED MODE SLEEP CANCEL TIME ON OFF 300 FAN ROOM MCCC TIME Flip-up door (opened)

ON/OFF TIMER BUTTONS Used to set the time of starting and stopping operation.
2 TIME SETTING BUTTONS Used to adjust the time, (See page 22)
3 TIMER SET/CANCEL BUTTONS Used to set the timer when the desired time is obtained and to cancel the Timer operation. (See page 22)
4 SLEEP MODE AUTO BUTTON Used to set Sleep Mode Auto operation. (See page 22)
AIR CIRCULATION BUTTON Used to circulate the room air without cooling or heating. (See page 23)
ROOM TEMPERATURE CHECKING BUTTON Used to check the room temperature.
NEO PLASMA (OPTIONAL) Used to start or stop the plasma-purification function. (See page 20)
8 HORIZONTAL AIRFLOW DIRECTION CONTROL BUTTON (OPTIONAL) Used to set the desired horizontal airflow direction. (See page 23)
9 RESET BUTTON Used prior to resetting time or after replacing batteries.
10 AUTO CLEAN (OPTIONAL) Used to set Auto Clean mode.
2nd F Button Used prior to using modes printed in blue at the bottom of buttons. (See page 21)
12 Mode Used to change between Intello Eye operation / Auto mode, cooling mode and Healthy Dehumidification. (See page 16)

Cooling operation


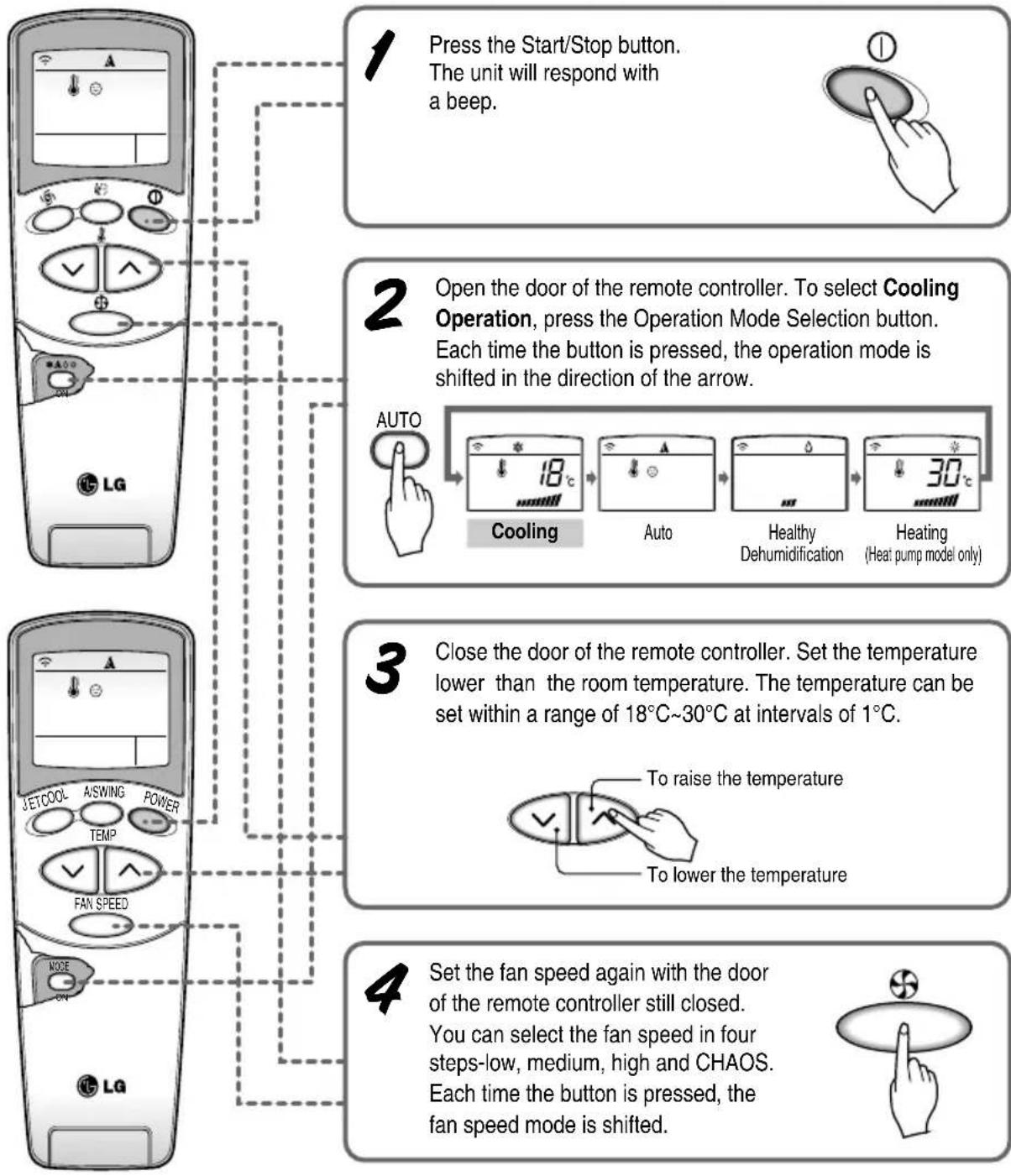

    A["1 Press the Start/Stop button.<br>The unit will respond with a beep."] --> B["2 Open the door of the remote controller. To select Cooling Operation, press the Operation Mode Selection button.<br>Each time the button is pressed, the operation mode is shifted in the direction of the arrow."]
    B --> C["3 Close the door of the remote controller. Set the temperature lower than the room temperature. The temperature can be set within a range of 18°C~30°C at intervals of 1°C."]
    C --> D["4 Set the fan speed again with the door of the remote controller still closed.<br>You can select the fan speed in four steps-low, medium, high and CHAOS.<br>Each time the button is pressed, the fan speed mode is shifted."]

Natural wind by the CHAOS logic

☐ For fresher feeling, press the Indoor fan speed selector and set to CHAOS mode. In this mode, the wind blows like a natural breeze by automatically changing fan speed according to the CHAOS logic.

Auto Operation


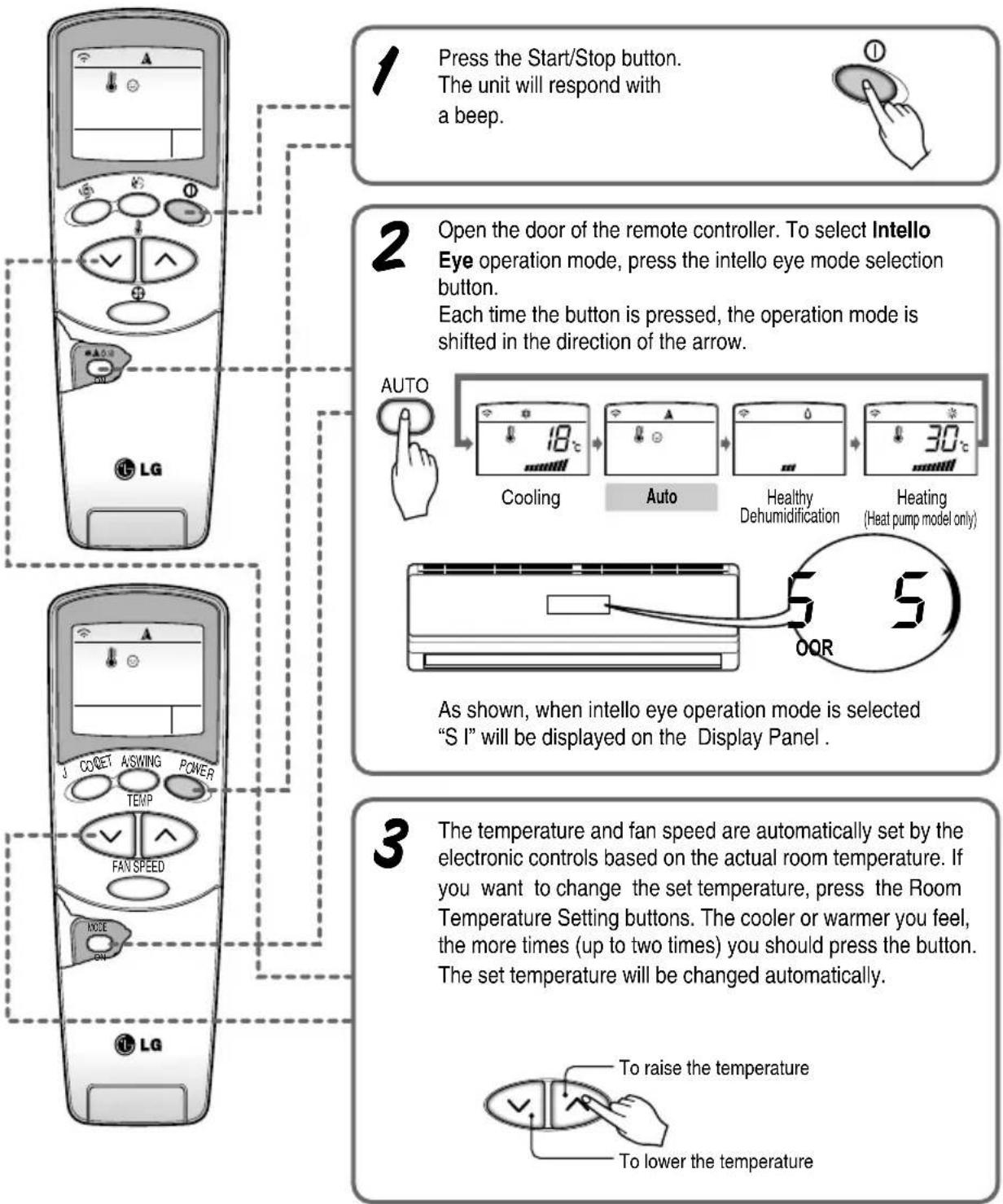

    A["1 Press the Start/Stop button.<br>The unit will respond with a beep."] --> B["2 Open the door of the remote controller. To select Intello Eye operation mode, press the intello eye mode selection button.<br>Each time the button is pressed, the operation mode is shifted in the direction of the arrow."]
    B --> C["3 As shown, when intello eye operation mode is selected &quot;S I&quot; will be displayed on the Display Panel."]
    C --> D["3 The temperature and fan speed are automatically set by the electronic controls based on the actual room temperature. If you want to change the set temperature, press the Room Temperature Setting buttons. The cooler or warmer you feel, the more times (up to two times) you should press the button. The set temperature will be changed automatically."]

During Auto Operation:

☐ You cannot switch the indoor fan speed. It has already been set by the Fuzzy rule.
☐ If the system is not operating as desired, manually switch to another mode. The system will not automatically switch from the cooling mode to the heating mode, or from heating mode to cooling mode, it must be done by manually resetting.
☐ During Auto Operation, pressing the chaos swing button makes the horizontal louvers swing up and down automatically. If you want to stop auto-swing, press the chaos swing button again.

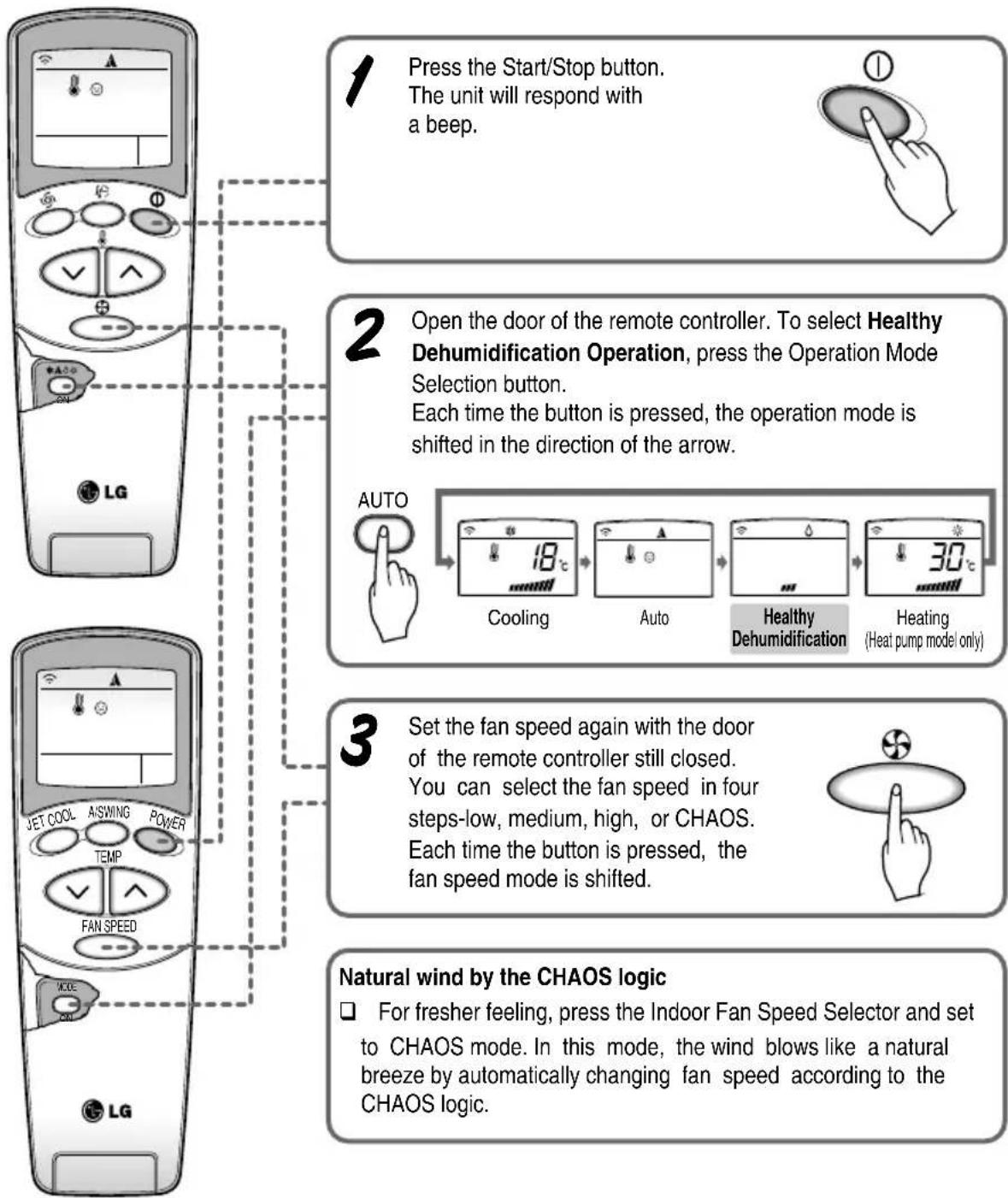

Healthy dehumidification operation

During Healthy Dehumidification Operation

☐ If you select the dehumidification mode on the operation selection button, the product starts to run the dehumidification function. It automatically sets the room temp. and airflow volume to the best condition for dehumidification, based on the sensed current room temp.

In this case, however, the setting temp. is not displayed on the remote controller and you are not able to control the room temp. either.

☐ During the healthy dehumidification function, the airflow volume is automatically set according to the optimization algorithm responding to the current room temp. status, so that the room condition is kept healthy and comfortable even in the very humid season.

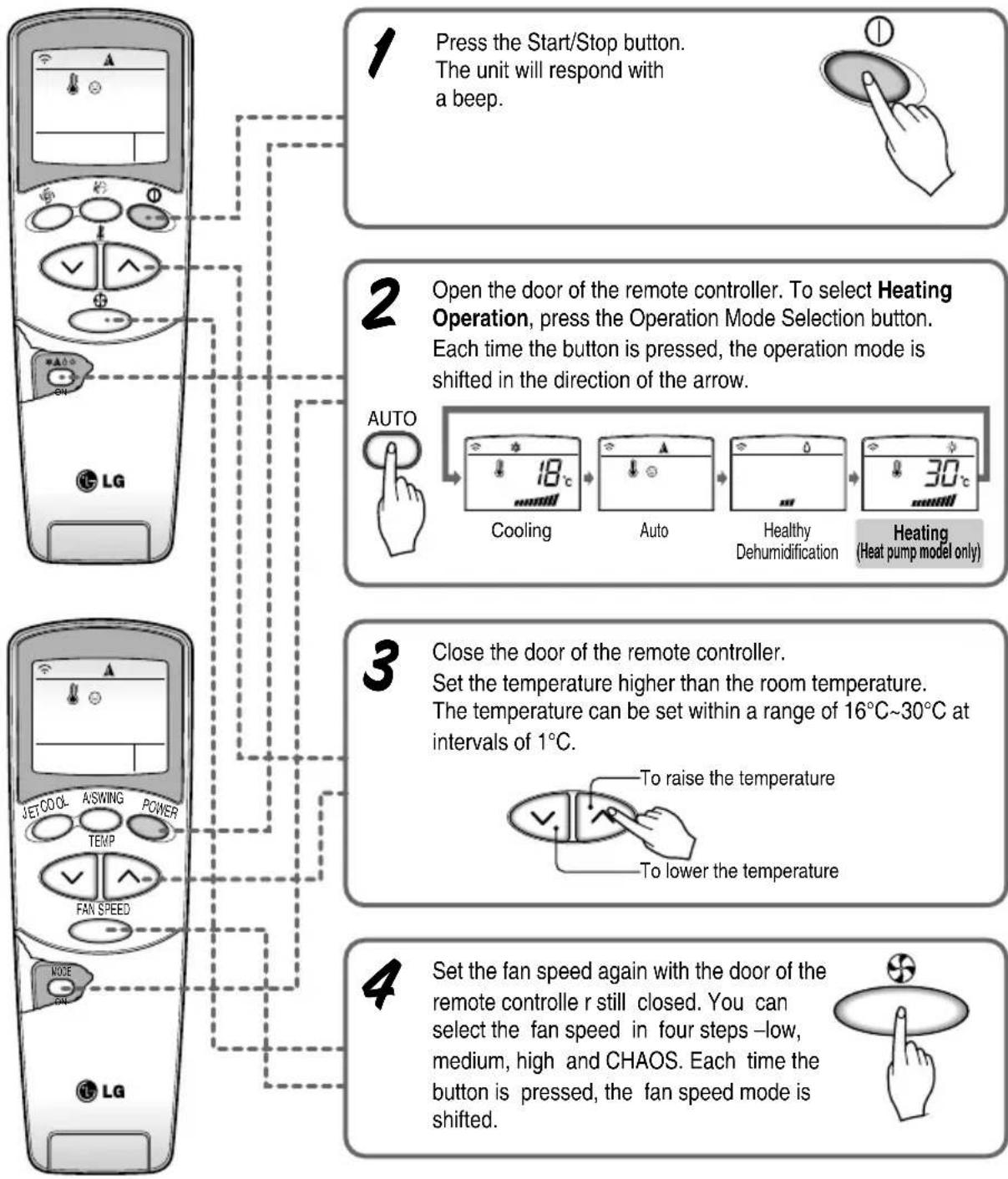

Heating operation (Heat pump model only)

Natural wind by the CHAOS logic

☐ For fresher feeling, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like a natural breeze by automatically changing fan speed according to the CHAOS logic.

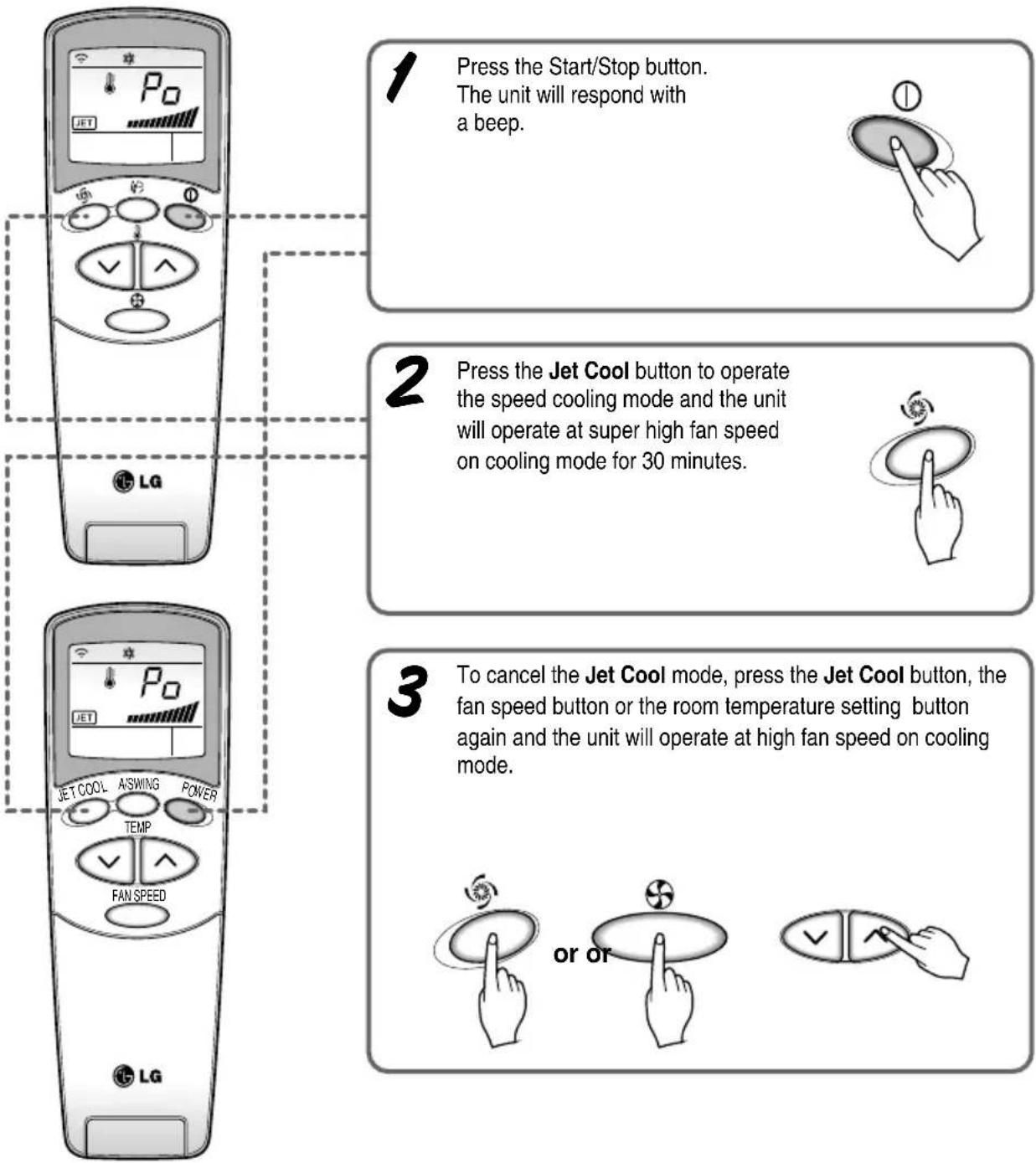

Jet cool operation

NOTICE

☐ During the JET COOL function at any moment, the A/C starts to blow the cool air at extremely high speed for 30 minutes setting the room temp. automatically to 18^ C. It is especially used to cool the room temp. quickly in a hot summer.

In heat pump mode or auto changeover mode, however, the JET COOL function is not available.

☐ In order to return to the normal cooling mode from the JET COOL mode, just press the operation mode selection button, airflow volume selection, temp. setting button or the JET COOL button again.

NEO PLASMA purification operation(Optional)


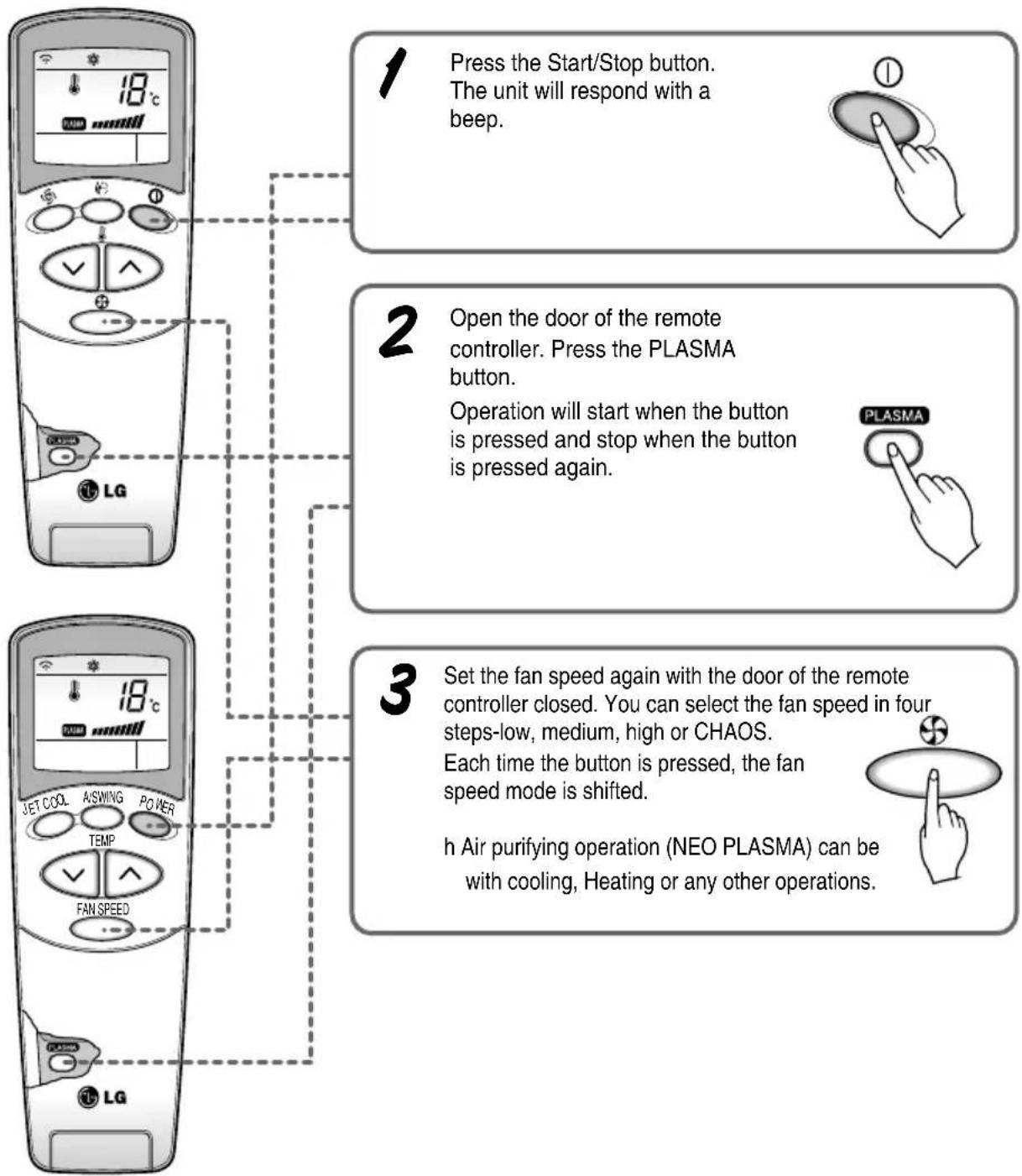

    A["1 Press the Start/Stop button.<br>The unit will respond with a beep."] --> B["2 Open the door of the remote controller.<br>Press the PLASMA button.<br>Operation will start when the button is pressed and stop when the button is pressed again."]
    B --> C["3 Set the fan speed again with the door of the remote controller closed. You can select the fan speed in four steps-low, medium, high or CHAOS.<br>Each time the button is pressed, the fan speed mode is shifted.<br>h Air purifying operation (NEO PLASMA) can be with cooling, Heating or any other operations."]

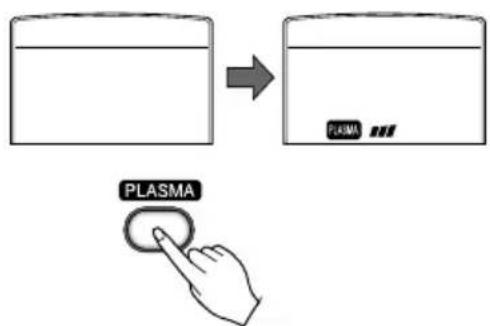

NEO PLASMA Air Purifying Operation only

PLASMA

If you press the only PLASMA button, only PLASMA purification function operates. Then, fan speed is low. You can select the fan speed in four steps-low, medium, high or CHAOS. Each time the Indoor Fan Speed Selector button is pressed, the fan speed mode is shifted.

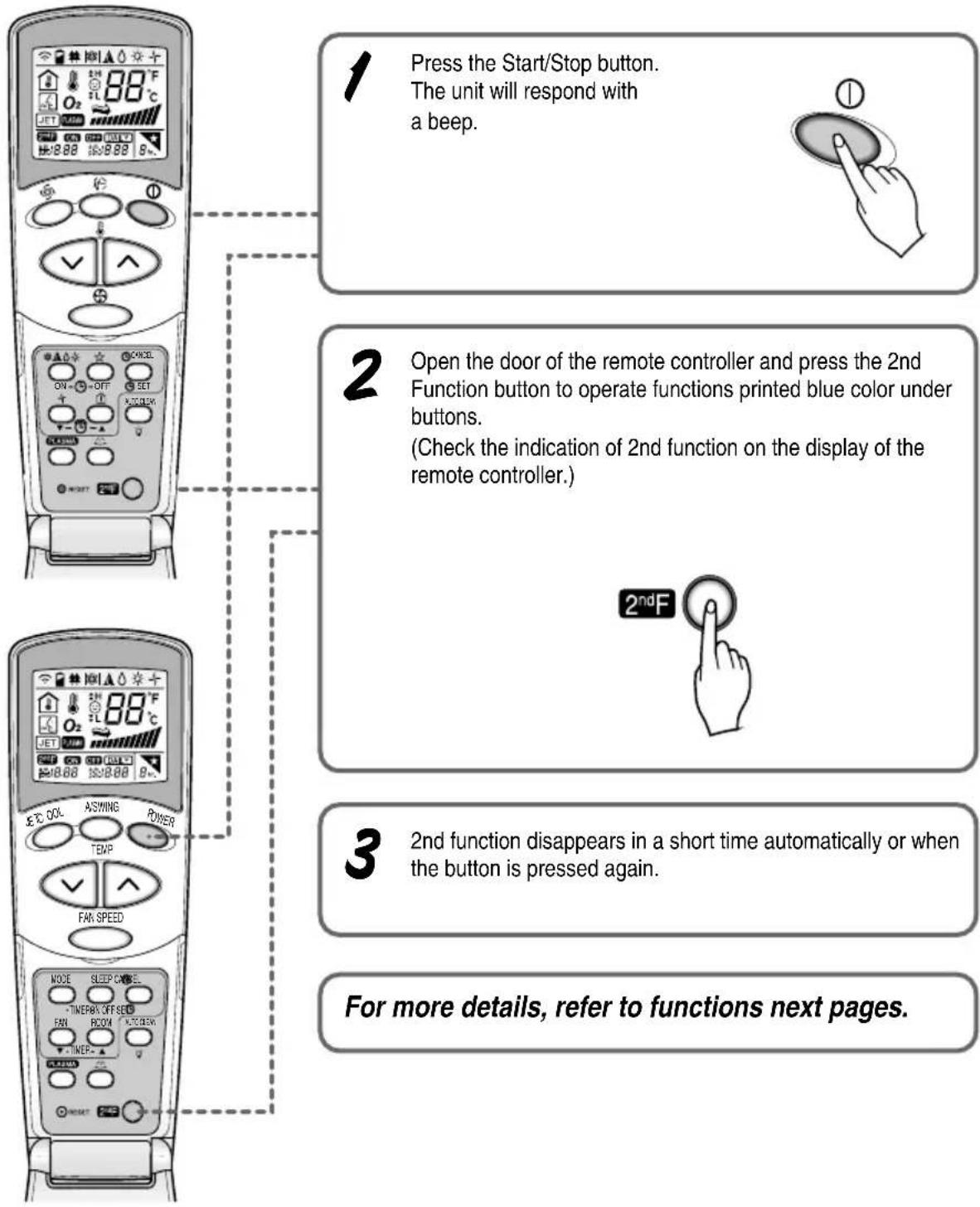

2nd F operation

Additional Features

Sleep mode

1. Press the Sleep Mode Auto button to set the time you want the unit to stop automatically.
2. The Timer is programmed in one-hour increments by pressing the Sleep Mode Auto button 1 to 7 times. The sleep mode is available for 1 to 7 times. To alter the time period in steps of 1 hour, press the Sleep Mode Button while aiming at air conditioner.
3. Make sure the Sleep Mode Auto LED lights up. To cancel the Sleep Mode, press the sleep Mode Auto button several times until the start (☆) disappears from the operation display.

NOTICE

The Sleep Mode will be operated at slow fan speed (cooling) or medium fan speed (heat pump only) for a comfortable sleep.

In cooling mode or healthy dehumidification mode:

The setting temperature will automatically rise by 1^ C over the next 30 minutes and by 2^ C in 1 hour for a comfortable sleep.

Setting the time

1. Time can be set only when you press the Reset button. Having replacing the batteries, you should press the reset buttons to reset the time. Press the Start/Stop button.

1. Press 2nd F button and check if 2nd F icon is on.

2. Press the Time Setting buttons until the desired time is set.

3. Press the Timer SET button.

NOTICE

Check the indicator for A.M. and P.M.

Delay start/Pre-set stop

1. Make sure the time is set correctly on the display of the remote controller.
2. Press 2nd F button.
3. Press the ON/OFF Timer buttons to turn Timer on or off.
4. Press the Time Setting buttons until the desired time is set.
5. To set the selected time, press the Timer setting button aiming the remote controller at the signal receptor.

ON-TIMER-OFF 3:00 3:30 et. -TIMER -

To cancel the timer setting

Check if 2nd F icon is off.

Press the Timer Cancel button aiming the remote controller at the signal receptor. (The timer lamp on the air conditioner and the display will go out.)

NOTICE

Select one of the following four types of operation.

with the unit running

OFF a.m. 12:00 ON a.m. 6:00 ON OFF a.m. 3:30 a.m. 3:00 ON OFF a.m. 3:00 a.m. 3:30

Delay OFF Timer Delay ON Timer Delay OFF and ON Timer Delay ON and OFF Timer

Vertical Airflow Direction Control

The up/down airflow (Vertical Airflow) can be adjusted by using the remote control.

Illustration of a car air conditioner unit with grid pattern and curved arrow indicating rotation (no text or symbols)

1. Press the Start/Stop button to start the unit.

2. Press Chaos Swing button and the louvers will swing up and down. Press the Chaos Swing button again to set the vertical louver at the desired airflow direction.

NOTICE

☐ If you press the Chaos Swing button, the horizontal airflow direction is changed automatically based on the CHAOS algorithm to distribute the air in the room evenly and at the same time to make the human body feel most comfortable, as if enjoying a natural breeze.

□ Always use the remote control to adjust the up/down airflow direction. Manually moving the vertical airflow direction louver by hand, could damage the air conditioner.

☐ When the unit is shut off, the up/down airflow direction louver will close the air outlet vent of the system.

☐ Do not change the louver position by hand. This may result in high air cutting noise.

Horizontal Airflow Direction Control (Optional)

The left/right(Horizontal Airflow) can be adjusted by using the remote control. Press the Start/Stop button to start the unit.

Open the door on the remote control. Press the Horizontal Airflow Direction button and the louvers will swing left and right. Press the Horizontal Airflow Direction Control Button again to set the horizontal louver at the desired airflow direction.

Illustration of a hand pressing a button on a car air conditioner panel (no text or symbols)

Air circulation mode

Circulates the room air without cooling or heating.

1. Press the Start/Stop button. the unit will respond with a beep.

2. Open the door on the remote control. Press the Air Circulation button. Close the door on the remote control. Now each time that you press the Indoor Fan Speed Selector button, the fan speed is shifted from low to CHAOS and back to low again.


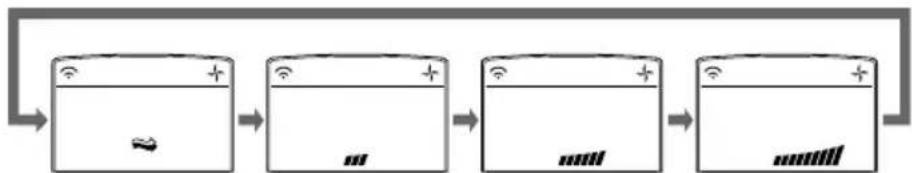

Fan speed is on low. Fan speed is on medium. Fan speed is on high. CHAOS Air

NOTICE

CHAOS Air economizes power consumption and prevents overcooling. The fan speed is automatically changed from high to low or vice versa, depending on the ambient temperature.

Auto clean (Optional)

AUTO CLEAN

1. Whenever you press the AUTO CLEAN button, Auto Clean Function will be reserved and cancelled.
2. Auto Clean function works before and after cooling or dehumidification mode. For details, refer to the below points.
3. When the unit is started after the reservation of Auto Clean, the Cool Start function operates and indoor Fan is started after 20 seconds.
4. When you press Start/Stop button to turn off the unit after the you have reserved Auto Clean function, the air-conditioner circulates the indoor air in the Auto Clean mode with no more Cooling or Dehumidification operation. It lasts for 30 minutes.
5. If you press the AUTO CLEAN button again during the product operation, Auto Clean function will be cancelled.

NOTICE

☐ During Auto Clean function, moisture left in indoor units after Cooling Operation or Healthy Dehumidification Operation can be removed.
☐ During Auto Clean function, only Start/Stop button, Plasma button and AUTO CLEAN button are available.
☐ During Auto Clean function, "o" will be displayed.

Dimmer

How to operate

1. Make sure that remote & Air conditioner are ON.
2. Press 2 ^n F button.
3. Press Dimmer Key to activate/deactivate dimmer function.

Dimmer Features

1. In Dimmer Mode Display will be turned OFF except Icon/Text of Mode in which the Unit is running.
2. If User selects the Dimmer Function then it remains activated during the Auto Restart Operation (when Power fails and resumes).

NOTICE

☐ Dimmer Mode will be cancelled if any key except 2 ^n F Key and Room Key is pressed (Power Key will turn OFF the Unit.

Forced operation

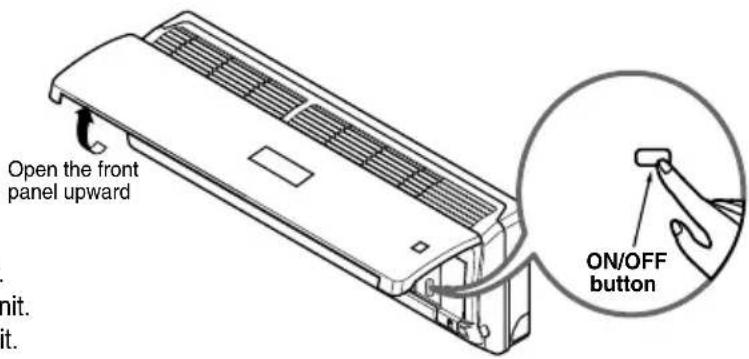

Please follow the step 1 to step 5 for forced operation.

1. Turn ON the unit using power button.
2. Turn OFF the unit using power button.
3. Switch OFF the mains supply to the unit.
4. Switch ON the mains supply to the unit.
5. Turn ON the unit using the power button.

After turning ON the unit will operate according to the table below :

Open the front panel upward ON/OFF button

	Cooling Model	Heat pump Model
		Room Temp. ≥ 24°C	21°C ≤ Room Temp. < 24°C	Room Temp. < 21°C
Operating mode	Cooling Cooling	Healthy Dehumidification Heating
Indoor FAN Speed	High High	High High
Setting Temperature	22°C	22°C 23°C 24°C

If you want to stop the unit, re-press the power button.

Test operation

During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of room temperature and unit will stop after 18 minutes.

During test operation, if remote controller signal is received, the unit operates as remote controller sets.

If you want to use this operation, Press and hold the ON/OFF button for 3\~5 seconds, then the buzzer sound 1 "beep".

If you want to stop the operation, re-press the button.

Helpful information

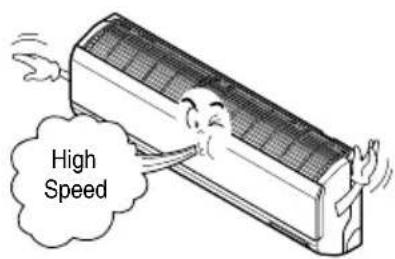

Fan speed and cooling capacity.

The cooling capacity indicated in the specification is the value when the fan speed is set to high, and the capacity will be lower at low or medium fan speed.

High fan speed is recommended when you wish to cool the room quickly.

High Speed

Maintenance and Service

▲ CAUTION

Before performing any maintenance, turn off the main power to the system.

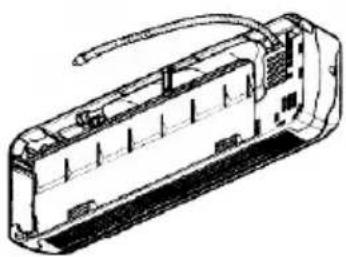

Indoor Unit

Grille, Case, and Remote Control

Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives.

NOTICE

Supply power must be disconnected before cleaning the indoor unit.

Air filters

The air filters behind the front grille should be checked and cleaned once in every 2 weeks or more often if necessary.

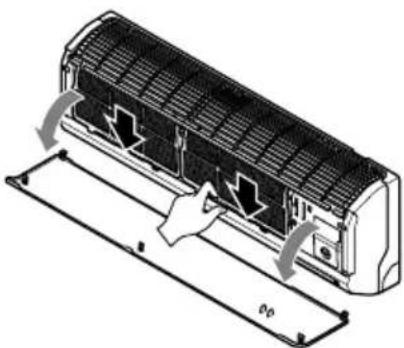

1. Pull the both sides and remove front panel.
2. Pull the filter tab slightly forward to remove the filter.

3. Clean the filter with a vacuum cleaner or warm, soapy water.

4. If dirt is conspicuous, wash with a solution of detergent in lukewarm water.

5. If hot water (40°C or more) is used, it may be deformed.

6. After washing with water, dry well in the shade.

7. Re-install the air filter.

NEO PLASMA filter (Optional)

The NEO PLASMA filter behind the air filters should be checked and cleaned once in every 3 months or more often if necessary.

1. After removing the air filters, pull slightly forward to remove the NEO PLASMA filter.
2. Clean NEO PLASMA filter with the vacuum cleaner. If it is very dirty, wash it with water.
3. Note the cuts of electric discharge lines.
4. Re-install the NEO PLASMA filter to the original position.

TRIPLE DEODORIZER filter (Optional)

1. After removing the air filters, pull slightly forward to remove the TRIPLE DEODORIZER filter.
2. Dry in the sunlight for two hours.
3. Re-install the TRIPLE DEODORIZER filter to the original position.

Air outlet vent Air filters (behind front panel) Vertical louver Horizontal louver

Technical illustration of a wall-mounted air conditioner unit with cooling fins and airflow arrows (no text or symbols)

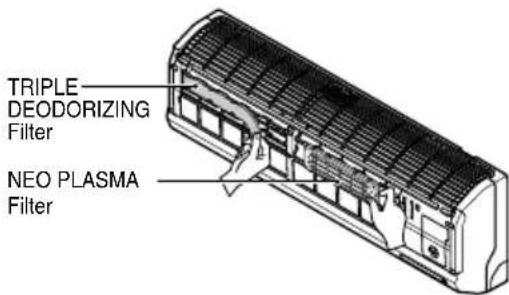

TRIPLE DEODORIZING Filter NEO PLASMA Filter

▲ CAUTION

Don't touch this NEO PLASMA Filter within 10 seconds after opening he inlet grille, it may cause an electric shock.

Never use any of the followings:

• Water hotter than 40^ C Could cause deformation and/or discoloration.
• Volatile substances Could damage the surfaces of the air conditioner.

Benzene 2-drug Gasoline

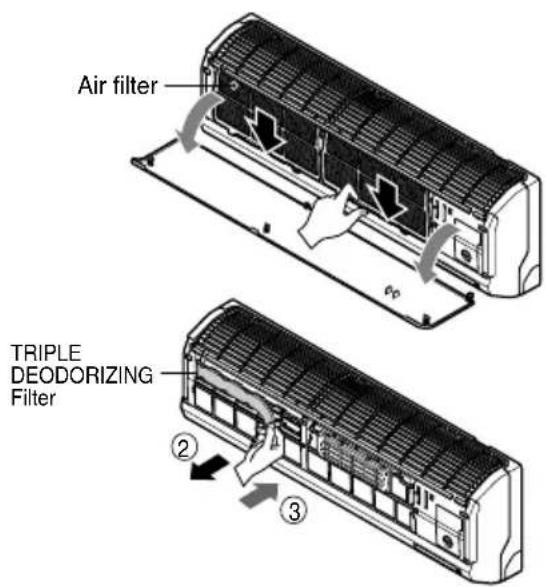

Replacement of purifying filter (Optional)

Recommended use period : About 2 years

1. Remove front panel and air filters.
2. Remove air purifying filters.
3. Insert new air purifying filters.

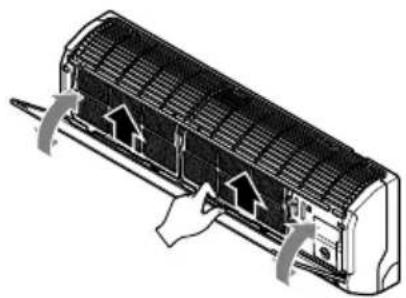

4. Reinsert air filters and close front panel.

Air filter TRIPLE DEODORIZING Filter ② ③

Diagram of a car air conditioner unit with airflow arrows indicating airflow direction (no text or symbols)

Outdoor Unit

The heat exchanger coils and panel vents of the outdoor unit should be checked regularly.

If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned.

NOTICE

Dirty or clogged coils will reduce the operating efficiency of the system and cause higher operating costs.

Air intake vents (Side) Air outlet vents (Rear) Piping Drain Hose

Air intake vents (Side) (Air outlet vents) (Rear) Piping Drain Hose

Air intake vents (Side) Air outlet vents (Rear) Piping Drain Hose

Common Problems and Solutions

Before calling for service

If you have problems with your air conditioner, read the following information and try to solve the problem. If you cannot find a solution, turn off the air conditioner and contact your dealer.

Air conditioner does not operate

1. Ensure that the air conditioner is plugged into a proper outlet.
2. Check the fuse or circuit breaker.
3. Check whether the voltage is unusually high or low.

Air does not feel cold enough on the cooling setting

1. Ensure that the temperature settings are correct.
2. Check to see if the air filter is clogged with dust. If so, replace the filter.
3. Ensure that the air flow from the outside is not obstructed and that there is a clearance of over 20" between the back of the air conditioner and the wall or fence behind it.
4. Close all doors and windows and check for any source of heat in the room.

Before calling for service, please review the following list of common problems and solutions.

The air conditioner is operating normally when:

• You hear a pinging noise. This is caused by water being picked up by the fan on rainy days or in highly humid conditions. This feature is designed to help remove moisture in the air and improve cooling efficiency.
• You see water dripping from the rear of the unit. Water may be collected in the base pan in highly humid conditions or on rainy days. This water overflows and drips from the rear of the unit.
• You hear the fan running while the compressor is silent. This is a normal operational feature.

When the air conditioner is not going to be used for a long time.

When air conditioner is not going to be used for a long time.

Operate the air conditioner on Air circulation mode (Refer to page 23) for 2 to 3 hours.

- This will dry out the internal mechanisms.

Turn off the circuit breaker, and disconnect the plug.

CAUTION

Turn off the circuit breaker when the air conditioner is not going to be used for a long time.

Dirt may collect and may cause a fire.

Remove the batteries from the remote control.

When the air conditioner is to be used again.

Clean the air filter and install it in the indoor unit.

(Refer to page 26 for cleaning filters.)

Check that the air inlet and outlet of the indoor/outdoor unit are not blocked.

Operation Tips

Do not overcool the room.

This is not good for the health and wastes electricity.

Make sure that the doors and windows are shut tight.

Avoid opening doors and windows as much as possible to keep the cool air in the room.

Keep blinds or curtains closed.

Do not let direct sunshine enter the room when the air conditioner is in operation.

Clean the air filter regularly.

Blockages in the air filter reduces the airflow and lowers the cooling and dehumidifying effects. Clean at least once in every two weeks.

Keep the room temperature uniform.

Adjust the vertical and horizontal airflow direction to ensure a uniform temperature in the room.

Ventilate the room occasionally.

Since windows are kept closed, it is a good idea to open them and ventilate the room now and then.

Troubleshooting Tips! Save time and money!

Check the following points before requesting repairs or service.... If the fault persists, please contact your dealer or service center.

Case Explanation See page
The air conditioner does not operate.	Have you made a mistake in timer operation?	22
	Has the fuse blown or has the circuit breaker been tripped?	-
The room has a peculiar odor.	Check that this is not a damp smell exuded by the walls, carpet, furniture, or cloth items in the room.	-
It seems that condensation is leaking from the air conditioner.	Condensation occurs when the airflow from the air conditioner cools the warm room air.	-
Air conditioner does not operate for about 3 minutes when restarted.	This is the protector of the mechanism.Wait about three minutes and operation will begin.	-
Does not cool or heat effectively.	Is the air filter dirty? See air filter cleaning instructions.	26
	Has the temperature been set incorrectly?	15
	Are the indoor unit's air inlet or outlet vents obstructed?	-
The air conditioner operation is noisy.	For a noise that sounds like water flowing.-This is the sound of freon flowing inside the air conditioner unit.For a noise that sounds like the compressed air releasing into atmosphere.-This is the sound of the dehumidifying water being processed inside the air conditioning unit.	-
Remote control display is faint, or no display at all.	Are the batteries depleted?Are the batteries inserted in the opposite (+) and (-) directions?	12
Crack sound is heard.	This sound is generated by the expansion/constriction of the front panel, etc. due to changes of temperature.	-

NOTE

WATER RESISTANT: The outdoor side of this appliance is WATER RESISTANT.

The indoor side is not water resistant and should not be exposed to excess water.

For any further information, please contact LGEIL Branches

BRANCH BRANCH OFFICE ADDRESS		STD CODE	PHONE NO. / FAX NO.
Ahmedabad	LGEIL, 233-234, Platinum Plaza, Judges Bunglow Road, Bodakdev Road, Ahmedabad-51	079	40040013-14
Asansol	LGEIL, Block-E, Ist Floor, P C Chattarjee Market, Rambandhu Tala, GT Road (E) Asansol-713303	0341	3292009/3292010 (Fax) 2215170
Aurangabad	LGEIL, 302 CIDCO No. 3, Opp. Hotel Ramgiri, Jalna Road, Aurangabad-431003	0240	5625705 / (Fax) 2474055/32095436/32095437/32095438
Bangalore	LGEIL, No. 914, 2nd Floor, Shri Venkateshwara Complex, Opp. IBP Petrol Bunk, 80ft Road, 6th Block, Koramangala - Bangalore - 560095	080	25507201/202 (Fax) 25507203
Bhopal	13A, Vignes Warehousing Corporation, Sector-G, Govindpura Industrial Area, J K Road, Bhopal	0755	4062900
Bhubaneshwar	LGEIL, Plot No.02,1st Flr., Bapuji Nagar, Bhubaneshwar-751009	0674	2531430, 2534280
Calcutta	LGEIL, 1, Ho-Chi-Min-Sarani, 6th Floor, Metro Towers, Calcutta-700071	033	22883254/4348 (51) Fax
Chandigarh	LGEIL, SCO No. 142-143, 3rd Floor, Sector-34A, Chandigarh-160002	0172	5087389/90 (Fax) 5089107
Chennai	LGEIL, AA11, 2nd Avenue, Fatima Tower, Anna Nagar West, Chennai-600040	044	65510501~04 (Fax) 26203506
Cochin	LGEIL, 40/1270, Vasudeva Buildings, T.D. Road, Emakulam Cochin-682011	0484	2369765,2369743 ,2370744, 4027444,4027555, 2360977 (Fax)
Coimbatore	LGEIL, 250A, Sanganur Main Road, Kannappa Nagar, Coimbatore-641027	0422	2332197, 2332195, 2332506, 9843909643
Delhi	LGEIL, A-27, Mohan Co-operative, Industrial Estate, New Delhi	011	26991412/11/13 (Fax) 26991410
Dehradun	LGEIL, M-22, Mobbewala, Tata Commercial Compound, Dehradun-Saharan Road, Dehradun	0135	2644213/283
Goa	LGEIL, Plot No. D-3&D-4, Rego Baug, Alto Santacruz, Bambolim, Goa-403	0832	3294955/3294956/3294759
Gurgaon	LGEIL, lInd Flr, A Block, Centre Point Bldg, Sushant Lok , Ph-I, Gurgaon-122001	0124	4047461- 62 - 63/4272867, 4047460 (Fax)
Ghaziabad	LGEIL, J-10, RDC Rajnagar, Ghaziabad - 201001	0120	9811354/152/3/64/65/266
Guwahati	LGEIL, Shantineer Bhawan, C K Aggarwal Path, Chenikurthi, Guwahati-781003	0361	2663895/2666958/2665983/2668984 (Telefax)
Hyderabad	LGEIL, 1st Floor, Survey No. 54, Pulla Reddy Building, Vikarampuri, Main Road, Kharkhana, Secunderabad-500004	040	27207504, 05, 06/27204094 27201462 (Fax)
Hubli	LGEIL, 603/1B, Ravi Nagar Road, Behind Renuka Petrol Pump, Gokul Road, Hubli-580030	0836	4250251/52
Indore	LGEIL, 3rd Flr., 304 Bansi Trade Centre, 581/5 M.G. Road, Indore-452003	0731	4065523~24, 4082157 (Fax)
Jaipur	LGEIL, B-71, Sahakar Marg, Lal Kothi Scheme, Jaipur-302015	0141	5111118/5113028/5105392, 5111540 (Fax)
Jammu	LGEIL, Plot No. 52,Yard No. 6,Transport Nagar, Narwal, Jammu-180006	0191	2477420, 2477419, 2474396, 2474384, Fax : [phone]
Jalandhar	LGEIL, Opp. Jassi Market, Village Khajurala, Near TVS Godown, GT Road	181	24502667/8/9/508025
Jodhpur	LGEIL, 22(1-A)/21(2-B)/2, RIICO Heavy Industrial Area, Jodhpur-342003	0291	2742384, 392 / 5120030 (Fax)
Kundli	LGEIL, Sunshine Enterprises, Sunder Cold Storage, GT Karnal Road, Kundli-Sonipat	0130	2219201, 2219202 (Telefax)
Lucknow	LGEIL, B-537, Hari Kunj, Keshav Nagar, Sitapur Road, Lucknow-226020	0522	2757538,39,2759121 (Fax) 2757559
Ludhiana	LGEIL, Village Jhande, Near Badowal Railway Station, Opp. Ferozpur Road, Ludhiana.	0161	2804412 - 19
Mumbai(N & S)	LGEIL, Trade Star, 4th Floor, A Wing, J.B. Nagar, Andheri Kurla Road, Andheri (E) Mumbai-400059	022	28352882-2887 / 28352889 (Fax)
Nagpur	LGEIL, 5A, Road No.13, Behind Msrtc Workshop, MIDC Hinga, Nagpur-440016	07104	235120, 235122, Fax : 234401
Patna	LGEIL, 2nd Floor, Ankit Chandra Deep Complex, Bander Bageecha, Near Samrat Hotel, Patna-800001.	0612	3298714, 2541845 (Fax)
Pune	LGEIL, 105/106, Premium Point, GM Road, Opp Modern High School, Illrd Floor, Shivaji Marg, Pune-411005	020	66030100,732/733/734/735, 66030740 (Fax)
Raipur	LGEIL, Nathani Compound, Near Gurudwara, Shyam Nagar, Katora Talab, Raipur (C.G)	0771	4053171/4037470, (Fax) 4038426/10/11
Ranchi	LGEIL, 402, Commerce Tower, Opp. Gel Church Complex, Main Road, Ranchi	0651	3294026, 2331815
Surat	LGEIL, 1001-1004, Ascon Plaza, lInd Flr, Anand Mahal Road, Behind Bhulka Bhavan School, Adajan, Surat-395009	0261	2730982/83, 2730984 (Fax)
Thane	LGEIL, Gall Shop No. 6-9, S-2, Golden Park Complex, Hardas Nagar, LBS Marg, Panchpakhadi, Thane (West)-400602	022	25472633/2637, 25472602 (Fax)
Varanasi	LGEIL, Pama Complex, DLW, Lahartara Road, Shivdaspur, Manduadih, Varanasi, UP-221002	0542	2373432/36/37
Vijaywada	LGEIL, Door No. 32-2/1-7, Ratnamamba Street, Prajasakti Nagar, Vijaywada-520010, Andhra Pradesh	866	2497283/87, (Fax) 2497284
Warangal	LGEIL, House No. 1-8-598/1, First Floor, Beside HDFC Bank, Nakkalgutta, Hanamakonda-506001 (Warangal)	870	2551453

the outdoor unit.

1. When the low-pressure gauge reading becomes 1 to 0.5kg/cm ^2 G(14.2 to 7.1 P.S.1.G.), fully close the gas side valve stem and then quickly turn off the unit. At that time, Pump Down has been completed and all refrigerant gas will have been collected in

Pump Down Procedure 1. Connect a low-pressure gauge manifold hose to the charge port on the gas side service valve. 2. Open the gas side service valve halfway and purge the air from the manifold hose using the refrigerant gas. 3. Close the liquid side service valve (all the way in). 4. Turn on the unit's operating switch and start the

CAUTION: Be sure to perform Pump Down procedure with the unit cooling mode.

This is performed when the unit is to be relocated or the refrigerant circuit is serviced. Pump Down means collecting all refrigerant in the outdoor unit without loss in refrigerant gas.

PUMP DOWN

NOTE: If the actual pressure are higher than shown, the system is most likely over-charged, and charge should be removed. If the actual pressure should be removed, undercharged, and charge should be added undercharged, and charge should be added. The air conditioner is now ready for use.

35°C(95°F)	4~5kg/cm2 G(56.8~71.0 P.S.I.G.)
Outside ambient TEM:	The pressure of the gas side service valve

1. For reference, the gas side pressure of optimum condition is as below. (Cooling)

Intake temperature Discharge air Discharge temperature

1. Ensure the difference between the intake temperature and the discharge is more than 8^ C (Cooling) or reversely (Heating).

discharge of air.

1. Measure the temperature of the intake and

valve.

1. Measure the pressure of the gas side service

system refrigerant charge:

Operate unit for 15\~20 minutes, then check the

Evaluation of the performance

Tubing connection

Bolt

anti-visualization rubber.

Anchor the outdoor unit with a bolt and nut of 10mm) heighty and horizontally on a concrete or rigid mount. When installing on the wall, roof or rooftop, anchor the mounting base securely with a nail or wire assuming the influence of wind and earthquake. In the case when the vibration of the unit is conveyed to the hose, secure the unit with an

Settlement of outdoor unit

time.

- Use 2 A(A)(1.5volt) batteries. Do not use rechargeable batteries. - Remove the batteries from the remote control if the system is not going to be used for a long

NOTE:

Illustration of a hand holding a tool with directional arrows indicating movement (no text or symbols)

Reactions the cover by pushing it back into position.

Inserf new batteries making sure that the (+) and (−) of battery are installed correctly.

Remove the battery cover by pulling it according to the arrow direction.

Prepare remote control

1. Check that all tubing and wiring have been properly connected.
2. Check that the gas and liquid side service valves are fully open.

Vacuum pump Open Close Manifold valve Pressure gauge Outdoor unit Indoor unit

Cap Hexagonal wrench 2-way valve (Open) 3-way valve (Close) Liquid side Gas side

■ With a service valve wrench, turn the valve stem of liquid side valve counter-clockwise to fully open the valve. ■ Turn the valve stem of gas side valve counter-clockwise to fully open the valve. ■ Loose the charge hose connected to the gas side service port slightly to release the pressure, then remove the hose. ■ Replace the flare nut and its bonnet on the gas side service port and fasten the flare nut securely with an adjustable wrench. This process is very important to prevent leakage from the system. ■ Replace the valve caps at both gas and liquid side service valves and fasten them tight. ■ The air conditioner is now ready to test run. ■ This completes air purging with a vacuum pump. ■ The air conditioner is now ready to test run.

D Finishing the job

When the desired vacuum is reached, close the "Lo" knob of the manifold valve and stop the vacuum pump.

Required time for evacuation when 30 gal/h vacuum pump is used
If tubing length is less than 10m (33 ft)	If tubing length is longer than 10m (33 ft)
10 min. or more 15	min. or more

Connect the charge hose end described in the preciding steps to the vacuum pump to evacuate the tubing and indoor unit. Confirm the "Lo" knob of the manifold valve is open. Then, run the vacuum pump. The operation time for evacuation varies with tubing length and capacity of the pump. The following table shows the time required for evacuation.

C Evacuation

(1) Remove the caps from the 2-way and 3-way valves. (2) Remove the service-point cap from the 3-way valves. (3) To open the 2-way valve turn the valve stem contactcockwise approximately 90°, wait for about 2\~3 sec, and close it. (4) Apply a soap water or a liquid neutral detergent on the indoor unit connection or outdoor unit connections by a soft brush to check for leakage of the connecting points of the piping. (5) If bubbles come out, the pipes have leakage.

Soap water method

Nitrogen gas cylinderin vertical standing position) Charge hose Manifold valve Pressure gauge Outdoor unit Indoor unit

Do a leak test of all joints of the tubing (both indoor and outdoor) and both gass and liquid side service valves. Dubbles indicate a leak. Be sure to wipe off the soap with a clean cloth. After the system is found to be free of leaks, relieve the nitrogen pressure by loosening the charge hose connector at the nitrogen cylinder. When the system pressure is reduced to normal, disconnect the hose from the cylinder.

To avoid nitrogen entering the refrigerant system in a liquid state, thatop of the cylinder must be higher than its bottom when you presume the system. Usually, the cylinder is used in a vertical standing position.

CAUTION

liquid soap.

Presuritize the system to no more than 150 P.S.L.G. with dry nitrogen gas and close the cylinder valve when the gauge reading reached 150 P.S.L.G. Next, test for leaks with

Be sure to use a manifold valve for air purginy. If it is not available, use a stop valve for this purpose. The "Hi" knob of the manifold valve must always be kept close.

CAUTION

Connect the manifold valve(with pressure gauges) and dry nitrogen gas cylinder to this service port with charge hoses.

Leak test

stage.

Check that each tube (both liquid and gas side tubes) between the indoor and outdoor units have been properly connected and all wiring for the test run has been completed. Remove the service value caps from both the gas and the liquid side on the outdoor unit. Note that both the liquid and the gas side service valves on the outdoor unit are kept closed at this

Preparation

dwnd

Air purging with vacuum

■ Pressure in the system rises. ■ Operating current rises. ■ Cooling (or heating) efficiency drops. ■ Moisture in the refrigerant circuit may freeze and block capillary tubing. ■ Water may lead to corrosion of parts in the refrigeration system. ■ Therefore, the indoor unit and tubing between the indoor and outdoor unit must be leak tested and evacuated to remove any noncondensables and moisture from the system.

below.

Air and moisture remaining in the refrigerant system have undesirable effects as indicated

Air purging

Tarp Tarp Tarp Seel a small opening around the pripings with gum type seeler.

equivalent.

■ Fix the piping onto the wall by saddle or

the room.

wall. Form a trap to prevent water entering

Secure the taped piping along the exterior

down to up.

Tape the piping, and connecting cable from

the following.

in cases where the Outdoor unit is installed above the Indoor unit perform

Tap is required to prevent water from entering into electrical panels. Turns Connecting cable Drain hose Taping around plippings with a gum type sealer.

wall using saddle or equivalent.

Secure the tapped piping along the exterior

concenting cable from down to up.

Tape the piping, drain hose and

the following.

in cases where the outdoor unit is installed below the indoor unit perform

hose appropriately.

rounded above the ground. Secure the drain

hose, the end of the drain outlet should be

If you want to connect an additional drain

kinds of vinyl tapes.

insulation material and secure it with two

connecting portion of the indoor unit with

Form the piping by wrapping the

Form the piping

Less than 50mm gap Ditch Tip of drain hose dipped in water Water leakage Waving Air Accumulated drain water Water leakage Water Do not raise

■ Do not make drain piping.

easy drain flow.

The drain hose should point downward for

C Drain piping

Technical line drawing of a device with two views: top shows a mounted air conditioner unit, bottom shows a closed air conditioner unit (no text or symbols)

and goes out the drain exit.

those of the indoor unit without any leakage

Ensure the water flows through the drain

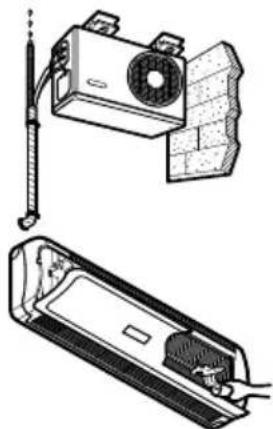

Pour a glass of water on the evaporator.

B To check the drainage.

Screw Pull the right-hand the left side.

(18K, 24K, 26K Btu models: 3EA)

sides of the grille toward you and iff it off.

front panel. Pull the lower left and right

Remove the securing screws that retain the

the position(horizontally) by hand.

Set the air direction lovers up-and-down to

indoor unit cabinet.

To remove the front panel from the indoor unit, remove the front panel from the indoor

Checking the drainage

conductors.

(9) The means for disconnection from a power supply shall be incorporated in the fixed wiring and have an air gap contact separation of at least 3mm in each active (phase)

normal function of the overload.

• Vibration of a magnetic switch, which will damage the contact point, fuse breaking, disturbance of the

8) The following would be caused by voltage drop.

7) Always install an earth leakage circuit breaker in a wet or moist area.

(Particulary note the relation between cable length and thickness. (Refer to page 11))

6) Confirm that the cable thickness is as specified in the power source specification.

voltage marked on the name plate.

5) See to that the starting voltage is maintained at more than 90 percent of the rated

4) Confirm that electrical capability is sufficient.

3) Specification of power source.

are loose, it could cause burn-out of the wires.)

(2) The screw which fasten the wiring in the casing of electrical fittings are liable to come loose from vibrations to which the unit is subjected during the course of transportation. Check them and make sure that they are all dignity fastened. (If they

COVER.

1) Never fail to have an individual power circuit specifically for the air conditioner. As for the method of wiring, be guided by the circuit diagram posted on the inside of control

After the confirmation of the above conditions, prepare the wiring as follows:

CAUTION

Cover Control Over 5mm Terminal block Connecting cable Connecting cable Outdoor Unit

be fitted.

adequately discount all supply lines must

and the unit. A disconnecting device to

25A (24K, 26K) between the power source

Use a recognized circuit breaker 20A (18K),

position with the screw.

Refix the control cover to the original

the cord clamp.

Secure the cable onto the control board with

control board individually.

Connect the wires to the terminals on the

loosening the screw.

Remove the control cover from the unit by

outdoor unit

Connect the cable to the

If a power plug is not to be used, provide a circuit breaker between power source and the unit as shown below

CAUTION

of the plug. The length of the power supply cord should be over 1.8m measured from the power supply cord entry of the cabinet to the middle of the live pin of the plug.

NORMAL CROSS-SECTIONAL AREA 0.75mm²

(Type H07RN-F approved by HAR or SAA).

specifications

The connecting cable connected to the indoor and outdoor unit should be compiled with the following

Capacity (bit/h)	NORMAL CROSS-SECTIONAL AREA
18K	1.5mm2
24K	2.5mm2

Pure electrical circuit lines without any symbols

(Type H07RN-F approved by HAR or SAA).

following specifications

The power connecting cable connected to the indoor and outdoor unit should be compiled with the

Capacity(Bt/ha)	NORMAL CROSS-SECTIONAL AREA
18K	1.5mm2
24K	2.5mm2

Pure electrical circuit lines without any symbols

(Type H05V-F approved by HAR or SAA).

The power cord connected to the indoor unit should be complied with the following specifications

CAUTION

• Heat pump model

• Cooling model

as those of the indoor unit.

outdoor unit and the terminal No. are the same

(Ensure that the color of the wires of the

outdoor unit connection.

control board individually according to the

connecting the wires to the terminals on the

Connect the cable to the indoor unit by

Indoor to outdoor unit.

Connect the cable from

Torque wrench Liquid side piping (Smaller diameter) Gas side piping (Bigger diameter) Outdoor unit

Capacity(Btu/h)	Pipe Size[Torque]
	GAS Liquid	1/4" [1.8kg·m]5/8"[6.6kg·m]
18K, 24K, 26K	1/2" [5.5kg·m]3/8"[4.2kg·m]	1/4" [1.8kg·m]5/8"[6.6kg·m]

When tightening the flare nut with torque wrench, ensure the direction for tightening follows the arrow on the wrench.

B Finally, tighten the flare nut with torque wrench until the wrench clicks.

Technical illustration of a mechanical assembly with bolts and a pin, showing a force application (no text or symbols)

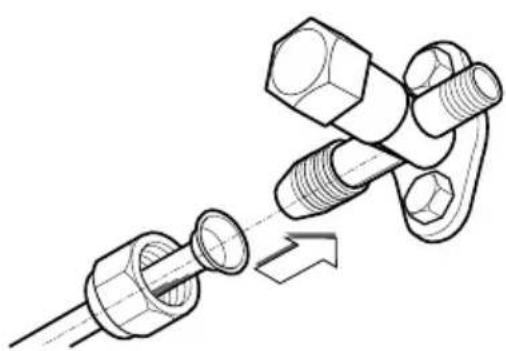

A) Align the center of the pippings and sufficiency tighten the flare nut by hand.

Conversion of the pipes-Outdoor

Presses the lower left and right sides of the unit against the installation plate until the hooks engage into their slots (clicking sound).

Drain hose Concenting cable

Remove the spacer. Ensure that the hooks are properly seated on the installation plate by moving it left and right.

indoor unit installation

① Hook ② Push Tubing holder

Set the pipsings and the drain hose to the back of the chassis with the tubing holder. Hook the edge of tubing holder to tap on chassis and push the bottom of tubing holder to be engaged at the bottom of chassis.

Piping for passage through piping hole

Reroute the pipyings and the drain hose across the back of the chassis.

Section. Drain hose Pipe Vinyl tape(narrow) Wrap with Vinyl tape(wide)

Bundle the piping and drain hose together by wrapping them with cloth tape over the range within which they fit into the rear piping housing

Connecting cable Vinyl tape(narrow) Pipe Wrap with vinyl tape Vinyl tape (wide) Indoor pipe pipe

■ Wrap the area which accommodates the rear piping housing section with vinyl tape.

Plastic bands insulation material

Overlap the connection pipe heat insulation and the indoor unit pipe heat insulation material. Bind them together with vinyl tape so that there is no gap.

5 Wrap the insulation material around the connciting portion.

Vinyl tape(narrow) Adhesive Indoor unit drain hose Drain pipe

When extending the drain hose at the indoor unit. Install the drain pipe.

Capacity (Btu/h)	Pipe Size [Toroque]
	GAS Liquid	1/4" [1.8kg·m] 5/8" [6.6kg·m]
18K, 24K, 26K	1/2" [5.5kg·m]	1/4" [1.8kg·m] 3/8" [4.2kg·m]

Tighten the flare nut with a wrench. Flare nut Spanner (fixed) Torque wrench Convection pipe Indoor unit tubing

Pinings Flare nut Indoor unit tubing

Connecting the pips to the indoor unit and the drain hose to drain pipe. ■ Align the center of the pips and sufficiency tighten the flare nut by hand.

80mm Installation plate Spacer Indoor unit

- Hang the indoor unit from the hooks at the top of the installation plate. - Insert the spacer etc. between the indoor unit and the installation plate and separate the bottom of the indoor unit from the wall.

indoor unit installation

Technical line drawing of a mechanical component or housing (no text or symbols visible)

- Connecting cable

Tape the drain hose and the connecting cable.

connection later.

■ Make a small loop with the cable for easy ■ Don't connect the cable to the indoor unit.

Insert the connecting cable into the indoor unit.

Connecting cable Drain pipe

B Insert the piping, drain hose and the connecting cable into the piping hole.

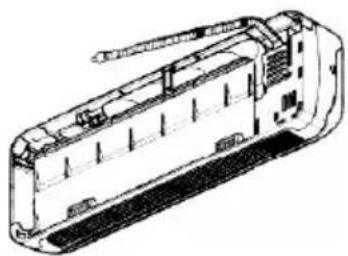

Technical line drawing of a rectangular electronic device with internal components and a curved cable (no text or symbols)

Route the indoor tubing and the drain hose to the required piping hole position.

For right rear piping

Wrap with vinyl tape Pipe Drain hose Vinyl tape(wide)

section.
Bundle the piping and drain hose together by warpiring them with vinyl tape over the range within which they fit into the rear piping housing

Vinyl tape(narrow) Pipe Connecting cable

Vinyl tape (wide) Wrap with vinyl tape Indoor pipe

Wrap the area which accommodates the rear piping housing section with vinyl tape.

Plastic bands Insulation material

Overlap the connection pipe insulation material and the indoor unit pipe insulation material. Bind them together with vinyl tape so that thee is no gap.

F Wrap the insulation material around the connecting portion.

Vinyl tape(narrow) Adhesive Indoor unit drain hose Drain pipe

When extending the drain nose at the indoor unit, install the drain pipe.

Capacity(Btu/h)	Pipe Size[Torque]
	GAS LIQUID	1/4" [1.8kg·m]5/8" [6.6kg·m]
18K, 24K, 26K	1/2" [5.5kg·m]	1/4" [1.8kg·m]3/8" [4.2kg·m]

Finer nut Fixture nut Connection pipe Tangible wrench Indoor unit tubing Spanner (fixed)

Tighten the flare nut with a wrench.

Flare nut Pimpings Indoor unit tubing

Ailgin the center of the pippings and sufficiency tighen the flare nut by hand.

E Connecting the pips to the indoor unit and drain hose to drain pipe.

Press the lower left and right sides of the unit against the installation plate until the hooks engage into their slots (clicking-sound).

Drain hose Connecting cable

Hook the indoor unit onto the upper portion of the installation plate. (Engage the two hooks of the rear top of the indoor unit with the upper edge of the installation plate.) Ensure that the hooks are properly seated on the installation plate by moving it left and right

D indoor unit installation

NOTE: If the drain hose is routed inside the room, insulate the hose with an insulation material so that dripping from "sweating" (condensation) will not damage furniture or floors. *Foamed polyethylene or equivalent is recommended.

Gas side binding Liquid side binding Drain hose Connecting cable Loop

C Tape the tubing, drain hose and the connecting cable. Be sure that the drain hose is located at the lowest side of the bundle. Locating at the upper side can cause drain pan to overflow inside the unit.

connection later.

Make a small loop with the cable for easy

Do not connect the cable to the indoor unit.

piping hole.

Insert the connecting cable into the indoor unit from the outdoor unit through the

Drain hose allocation on rear tire.

in the direction of rear left. Route the indoor tubing and the drain hose

For left rear piping

Technical line drawing of a mechanical component or bracket (no text or symbols visible)

When install, make sure that the remaining parts must be removed clearly so as not to damage the piping and drain hose, especially power cord, especially connecting cable.

CAUTION

To remove the holder, press the bottom of chassis near the holder upward and pull the tab out of its hole. Tubing holder

original position.

■ Prepare the plastic tubing holder in the ■ Replace the plastic tubing holder in the ■ drain hose away from chassis. ■ Illustration below) and pull the tubing and ■ Remove the plastic tubing retainer (see ■ Remove the plastic tubing retainer of these ■ Reduce the plastic tubing retainer of these ■ Remove the plastic tubing retainer of these ■ Reduce the plastic tubing retainer of these

--indoor Connection of piping

Inside is shiny without scratches. = Imperper flaring = Cracked Unven thickness Incinded Surface damaged Even length all round Smooth all round

- Compare the flared work with figure below. If there is noted to be defective, cut off the flared section and do flaring work again.

E Check

Red arrow mark Clamp handle Copper pipe Yoke Coine Bar Handle

Firmly hold copper pipe in a die in the dimension shown in the table above.

Outside diameter		A
mm	inch	mm
06.35	1/4	0~0.5
09.52	3/8	0~0.5
012.7	1/2	0~0.5
015.88	5/8	0~1.0

Carry out flaring work using flaring tool as shown below.

D Flaring work

Copper tube Flare nut ork)

Remove flare nuts attached to indoor and outdoor unit, then put them on pipe/lube having completed burr removal. (not possible to put them on after flaring

C Putting nut on Point down Reamer Pipe

- Completely remove all burs from the cut cross section of pipe/tube. - Put the end of the copper tube/pipe in a downward direction as you remove burs in order to avoid dropping burs into the tubing.

B Burns removal

Standed Uneven Rough 90° Copper pipe

Use the piping kit accessory or the pipes purchased locally. Measure the distance between the indoor and the outdoor unit. Cut the pipes a little longer than measured distance. Cut the cable 1.5m longer than the pipe length.

A Cut the pipes and the cable.

Main cause for gas leakage is due to defect in faring work. Carry out correct flaring work in the following procedure.

Flaring work

FLABING WORK AND CONNECTION OF PIPING

Drain Pipe Drain Pan Outdoor Unit

Ø70mm Hole center "D" "C" Left rear pinning Right rear pinning

during the Heat Mode.

Drain pan along with drain pipe (as shown below) can be used to drain the water accumulated in the outdoor

Usage of Drain Pan (Heat Pump)

safety.

B Measure the wall and mark the centerline. It is also important to use caution concerning the location of the installation plate-routing of walls typically. Drilling the hole through the wall for piping connections must be done

• Make sure that the drilled hole in the wall is properly sealed (using a proper sealant, for example cement, plaster of parls etc.) after passing the installation pipe, drainage pipe and the inter connecting cable.

CAUTION

5-7mm (0.2~0.3") OUTDOOR WALL Indoor

outdoor side.

Drill the piping hole with a 0.70mm hole core drill. Drill the piping hole at either the right or the left with the hole slightly slagnity slanted to the

Drill a hole in the wall

Installation Plate Type "A" screw marking-off line Thread Weight

Mount the installation plate horizontally by aliging the centerline using a level.

Mount the installation plate on the wall with four type A screws. If mounting the unit on a concrete wall, use anchor bolts.

The wall you select should be strong and solid enough to prevent vibration.

How to fix installation plate

• Oil trap should be installed every 5\~7 meters. • Capacity is based on standard length and maximum allowance length is on the basis of reliability.

CAUTION

In case more than 5m

Outdoor unit Oll trap indoor unit

Outdoor unit Indoor unit

Capacity (Btu/h)	Pipe Size		Standard Length (m)	Max. Length (g/m)	Additional Refrigerant (g/m)
	GAS	LQUID
18K (50HZ)	1/2"	1/4" 3 to	5	20 20
18K (60HZ)	5/8"	1/4" 3 to	5	20 20
24K Cooling	5/8"	8/8" 3 to	5	20 20
24K, 26K Cooling & Heat Pump	5/8"	8/8" 3 to	5

Piping length and elevation

If the outdoor unit is installed on a roof structure, be sure to level the unit. Ensure the roof structure and anchoring method are adequate for the unit location. Consult local codes regarding rooftop mounting.

Roofop Installations:

More than 60cm More than 10cm More than 10cm More than 70cm More than 80cm

disturb neighbors.

noise from the air conditioner do not

Select a place so that the warm air and

and vibration are minimum.

account and select a place where noise

Take the air conditioner weight into

path of the warm air.

Do not place animals and plants in the

space.

Ensure that the space around the back and sides is more than 10cm. The front of the unit should have more than 70cm of

condenser is not restricted.

make sure that heat radiation from the

prevent direct sunlight or rain exposure,

If an awning is built over the unit to

Outdoor unit

Install the indoor unit on the wall where the height from the floors more than 2.3 meters.

CAUTION

More than 2.3m More than 5cm More than 5cm

Use a stud finder to locate studs to prevent unnecessary damage to the wall.

5cm from ceiling.

right of the unit is more than 5cm. The unit should be installed as high on the wall as possible, allowing a minimum of

Ensure that the space around the left and

Do not install near a doorway.

can be convenience routed away.

Make sure that condensation drainage

obstacles in front of the unit.

Select a place where there are no

unit.

Do not have any heat or steam near the

indoor unit

Select the best location

Read completely, then follow step by step.

INSTALLATION OF INDOOR, OUTDOOR UNITS

If there is a defect in the drainage/piping work, water could leak from the unit and household goods could get wet and be damaged.

Perform the drainage/piping work according to the installation instruction.

If gas leaks and accumulates in the area surrounding the unit, it could cause an explosion.

Do not install the unit in a place where an inflammable gas leaks.

CAUTION

The use of defective parts could cause an injury due to a fire, electric shock, the unit failing, etc.

For the installation work. Be sure to use the part provided or specified parts

Check that the refrigerant gas does not leak after installation is completed.

Perfor electrical work according to the installation manual and be sure to use an exclusive circuit. If the capacity of the power circuit is insufficient or there is incomplete electrical work, it could result in a fire or an electric shock.

incorrect installation could cause a personal injury due to fire, electric shock, the unit falling or leakage of water.

Perform the installation security referring to the installation instruction.

If the electrical part cover of the indoor unit and/or the service panel of the outdoor unit are not attached securely, it could result in a fire or electric shock due to dust, water, etc.

Attach the electrical part cover to the indoor unit and the service panel to the outdoor unit securely.

Incorrect convection and fixing could cause fire.

Use the specified wires to connect the indoor and outdoor units securely and attach the wires firmly stresses of the wires is not applied to the sections.

When installed in an insufficiency strong place, the unit could fall causing injury.

Install the unit securely in a place which can bear the weight of the unit.

incorrect installation could cause injury due to fire, electric shock, the unit falling or leakage of water. Consult the dealer from whom you purchased the unit or special installer.

Do not install it yourself (customer).

WARNING

customers site.

After reading this instructions, be sure to keep it together with the owners' manual in a handy place on the

: Could lead to serious injury in particular environments when operated income.

Could lead to death, serous injury, etc.:

CAUTION

WARNING

The indications and meanings are as follows.

Be sure to observe the cautions specified here as they include important items related to safety.

conditioner.

Be sure to read "THE FOLLOWING SHOULD BE ALWAYS OBSERVED FOR SAFETY" before installing the air

THE FOLLOWING SHOULD BE ALWAYS OBSERVED FOR SAFETY

Installation Parts Provided Type "A" screw. Installation Plates. Type "B" screw. Holder Remote Controll. (For wireless model only) Air filter More than 20cm More than 10cm More than 60cm More than 10cm Gas side piping (×) Liquid side piping (×) Additional drain pipe (×) Viniy tape (Narrow) (×) Concrete cable Cooling & Heat Pump: 2EA Cooling only: 1EA • This illustration is for explanation purposes only. • The indoor unit will actually face a different way. • Application is for example purposes only. • Application parts must purchase (×) Installation parts you must purchase (×) • Apply after carrying out a drainate test test, remove the air filters and pour water into the heat exchanger. • To carry out the drainage • to carry out the drainage • to dry water into the heat encancer. • Vinyl tape (Wide) (×) • Air filter • Bond the pipe as closely on the wall as possible, out to car seat that it diesel break. • Bury(Gum Type Sealer) (×) • Bushing-Sleeve (×) • Pulling-Slem (×) • Sand the pipe as closely on the wall as possible, out to car seat that it diesel break. • Silicone (×) • Concrete sliding valve (×)

- Please read this instruction sheet completely before installing the product. - When the power cord is damaged, replacement work shall be performed by authorized personnel only. - Installation work must be performed in accordance with the national wiring standards by authorized personnel only.

INSTALLATION INSTRUCTIONS - SINGLE SPLIT WALL MOUNTED AIR CONDITIONER

The following should be always observed for safety ......3	Required Parts Required Tools
	Installation Requirements	Installation plate	Level gauge
	unit......4	Four type "A" screws	Screw driver
	4	Connecting cable	Electric drill
	Unit......3	Installation of indoor, outdoor	Level gauge
Flaring work and connection of piping......6	6	Pipes: Gas side ......1/2", 5/8"	Flaring tool set
Connection of piping (indoor)......7	7	For right rear piping	(Refer to page 4)
For left rear piping	Convection of piping (Outdoor)	For right rear piping	( Refer to page 10)
Connection of piping (Outdoor)	Convection of piping (Outdoor)	Outer Diameter-15.5mm)	Spanner......Half union
Connecting the cable between indoor unit and outdoor unit ......11
Checking the drainage and indoor unit and outdoor unit ......13
Air purging ......14
Forming the piping ......13
Testing running ......16	16	Two type "B" screws	Owners's manual
			Thermometer
			Holder Remote Control

SMS No. 5757554 [e-mail] www.igindla.com 39-01-0909 MINUL/BSNL Tool First or (Prkx Std Code) 1800-180-9999 CALL CUSTOMER SERVICE L6

Please read this manual carefully before installation.

Installation Instructions

Technical line drawing of a two-part air conditioner housing assembly (no text or symbols)
