USER MANUAL Eee PC 1011CX ASUS

Line drawing of a laptop computer with visible keyboard, ports, and screen (no text or symbols)

Table of Contents

Table of Contents ...... ii

About This User's Manual ....iv

Notes for This Manual ....iv

Safety Precautions....v

Transportation Precautions ......vi

Charging Your Batteries......vii

Airplane Precautions ......vii

Chapter 1: Knowing the Parts

Top Side 1-2

Bottom Side....1-5

Front Side 1-6

Right Side 1-7

Left Side 1-8

Keyboard Usage....1-10

Special Function Keys 1-10

Touchpad Usage 1-12

Chapter 2: Getting Started

Powering on your Eee PC 2-2

First-time Startup 2-3

Desktop....2-5

Network Connection....2-6

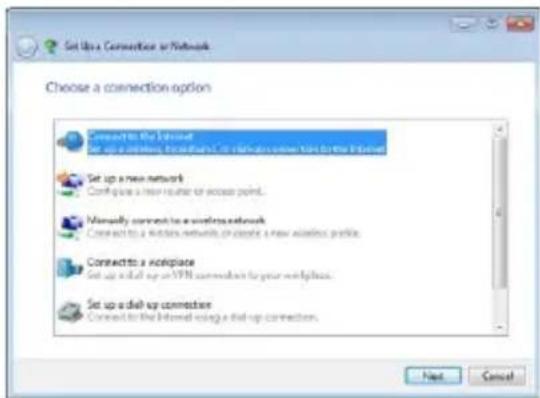

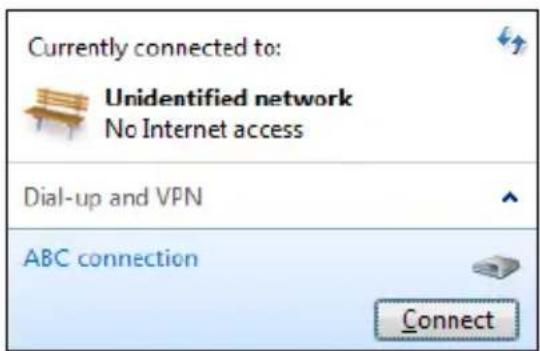

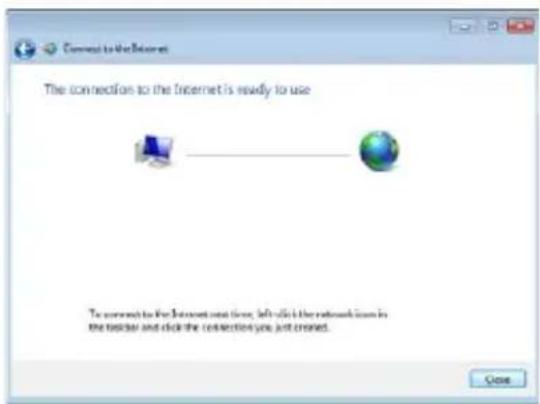

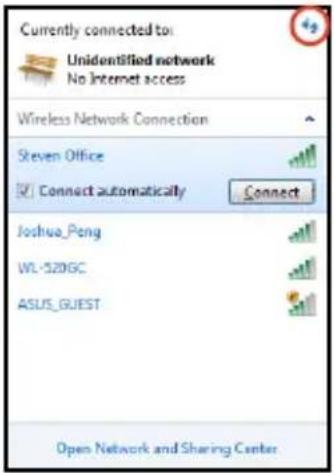

Configuring a wireless network connection....2-6

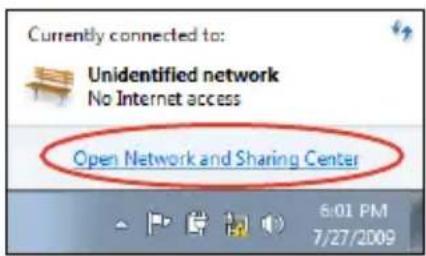

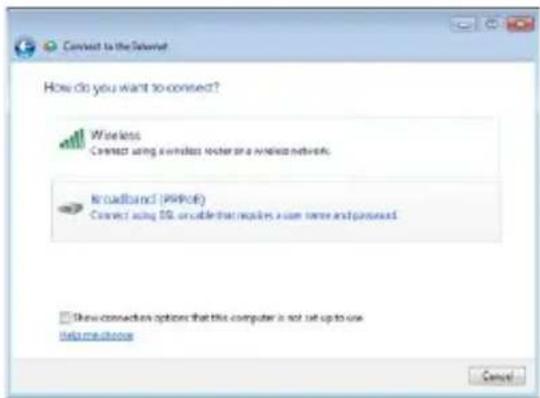

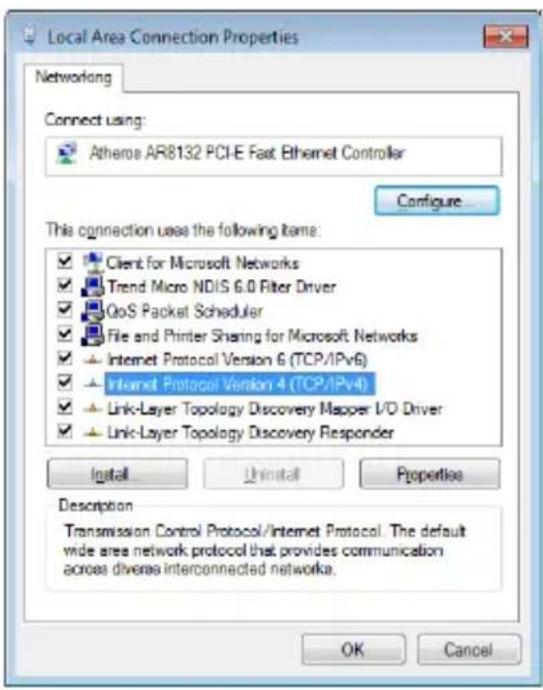

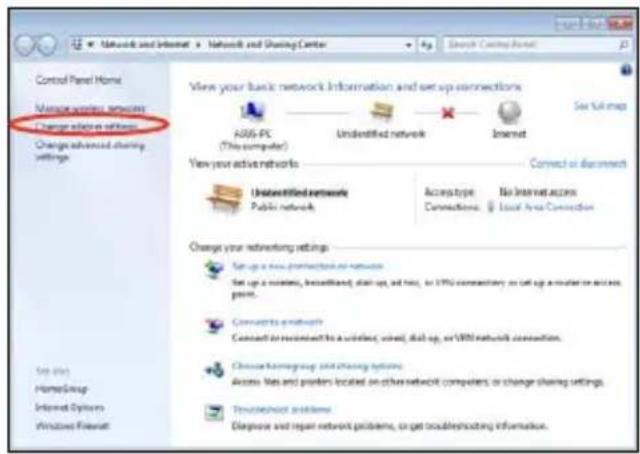

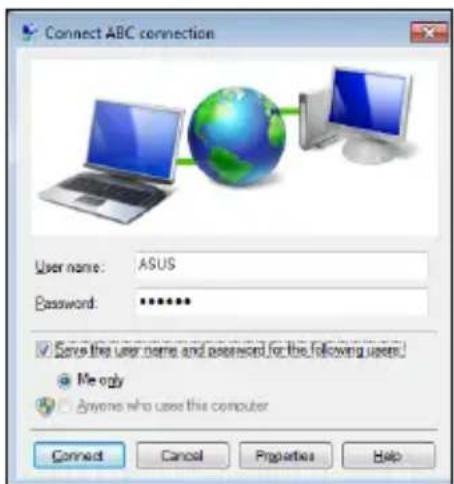

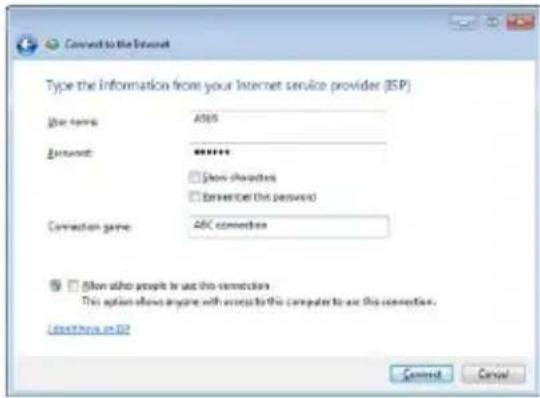

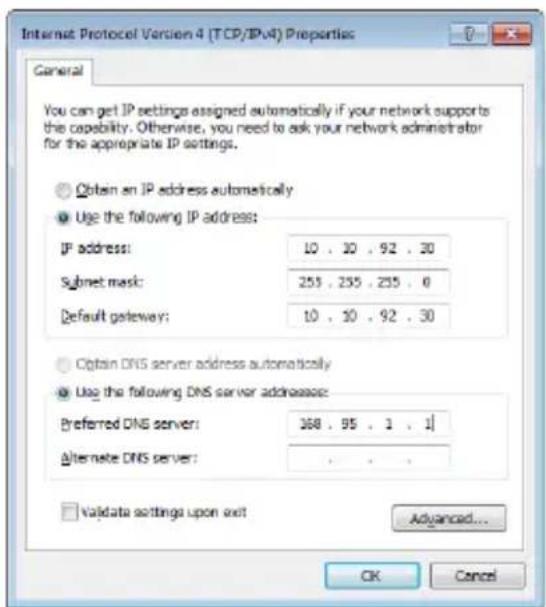

Local Area Network 2-7

Browsing web pages 2-10

Chapter 3: Using the Eee PC

ASUS Update....3-2

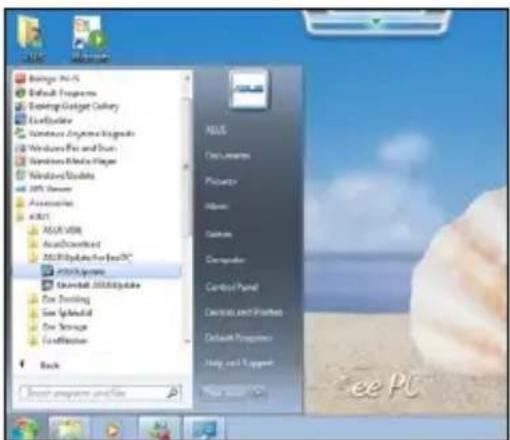

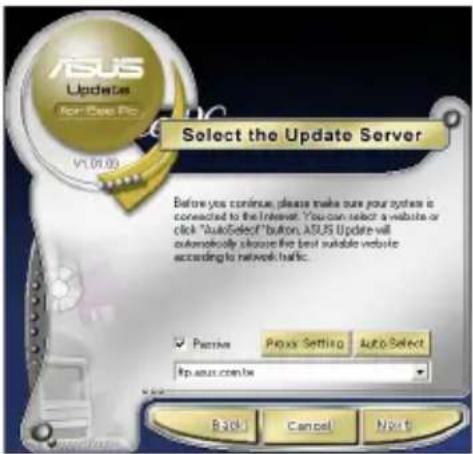

Updating the BIOS through the Internet 3-2

Updating the BIOS through a BIOS file ....3-3

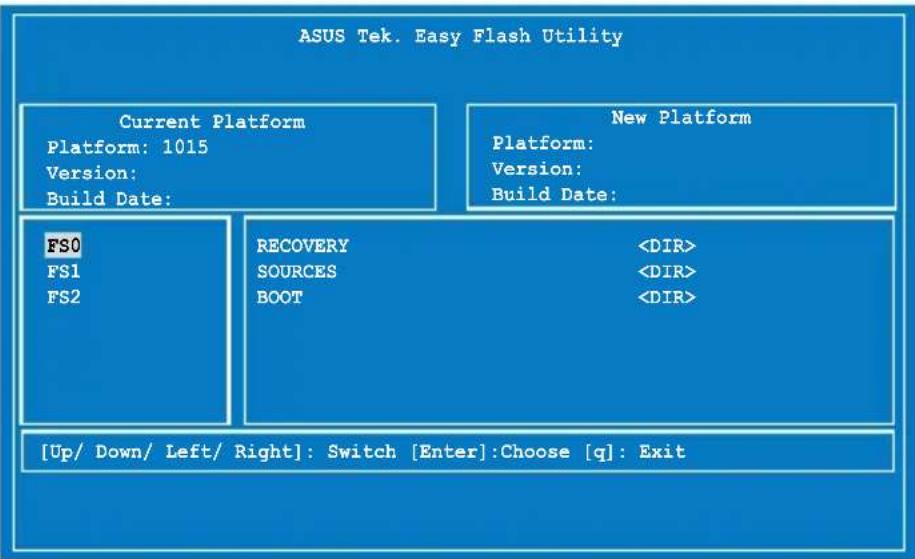

Updating BIOS via "Easy Flash"(on selected models) 3-4

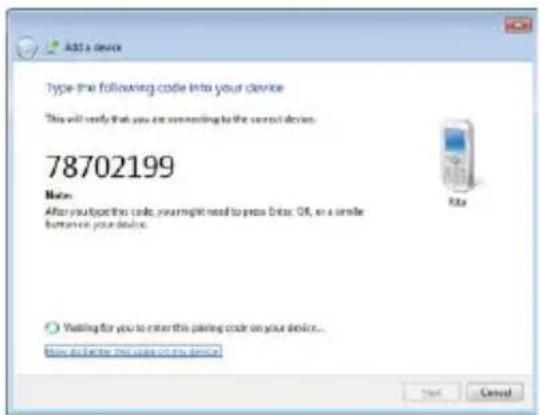

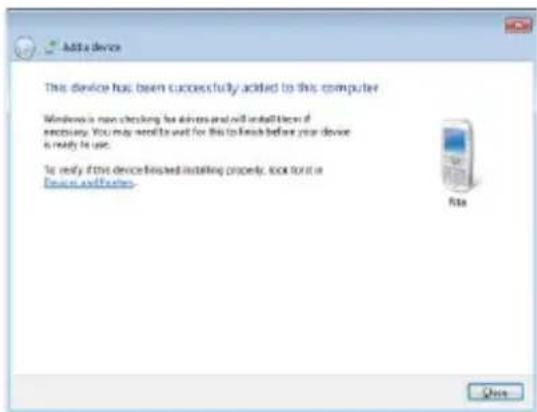

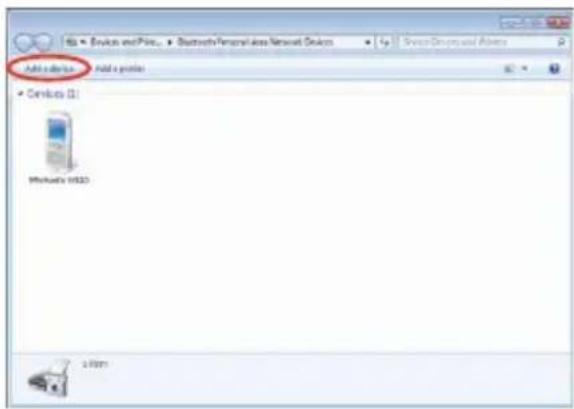

Bluetooth Connection (on selected models) 3-6

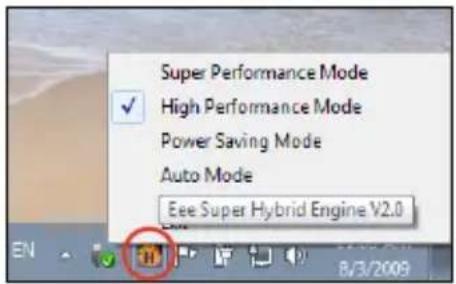

Super Hybrid Engine (on selected models) 3-8

Super Hybrid Engine Modes....3-8

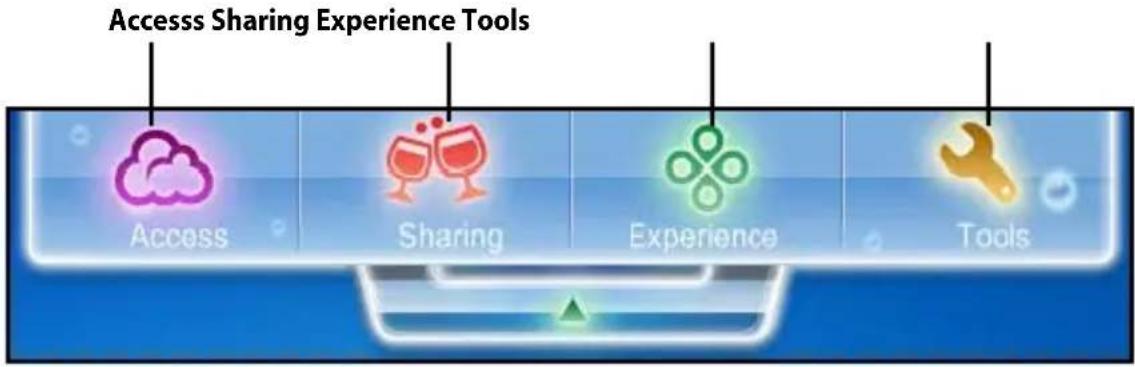

Eee Docking 3-9

Access 3-9

Sharing 3-10

Experience 3-10

Tools 3-10

OS Switch (on selected models)....3-11

Instant On (on selected models) 3-11

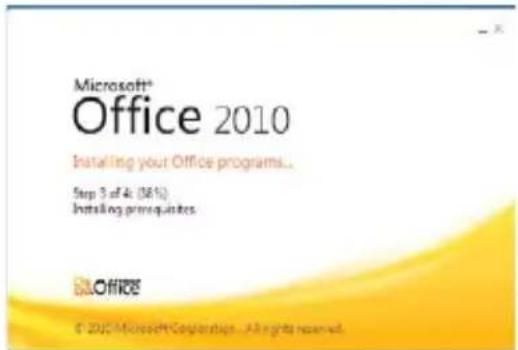

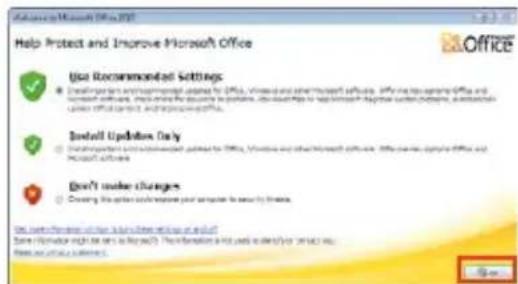

Microsoft ^® Office Starter 2010 ....3-12

Chapter 4: System Recovery

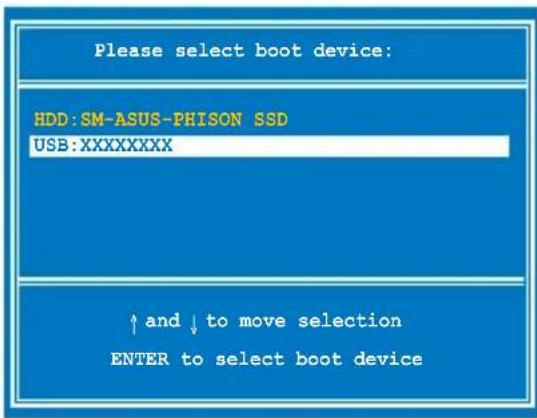

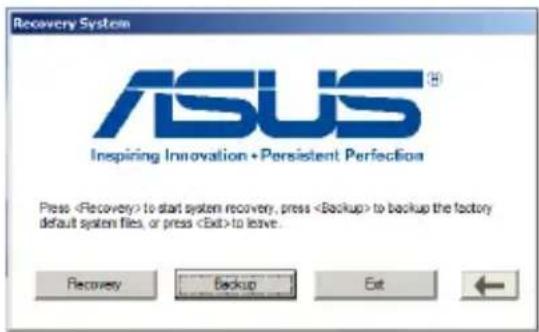

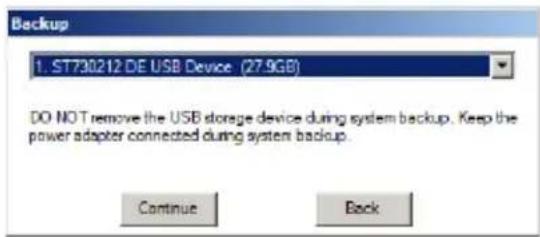

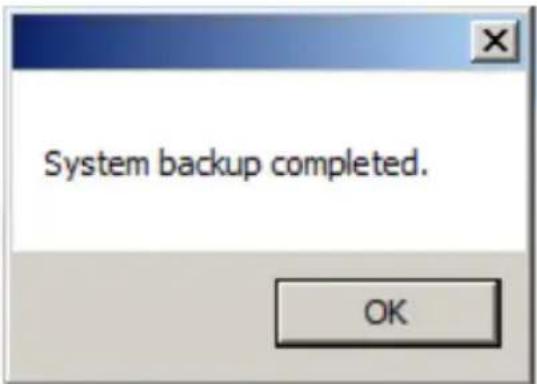

System Recovery....4-2

Boot Booster (on selected models) 4-5

Appendix

Declarations and Safety Statements ......A-2

Copyright Information......A-13

Limitation of Liability....A-14

Service and Support......A-14

About This User's Manual

You are reading the Eee PC User's Manual. This User's Manual provides information regarding the various components in the Eee PC and how to use them. The following are major sections of this User's Manual:

1. Knowing the Parts

Provides information on the Eee PC's components.

2. Getting Started

Provides information on getting started with the Eee PC.

3. Using the Eee PC

Provides information on using the Eee PC's utilities.

4. System Recovery

Gives you information on system recovery.

5. Appendix

Gives you safety statements.

The actual bundled applications differ by models and territories. There may be differences between your Eee PC and the pictures shown in this manual. Please accept your Eee PC as being correct.

Notes for This Manual

A few notes and warnings are used throughout this guide, allowing you to complete certain tasks safely and effectively. These notes have different degrees of importance as follows:

WARNING! Important information that must be followed for safe operation.

IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons.

TIP: Tips for completing tasks.

NOTE: Information for special situations.

Safety Precautions

The following safety precautions will increase the life of the Eee PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners, benzene, or other chemicals on or near the surface.

Disconnect the AC power before cleaning. Wipe the Eee PC using a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth.

DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.

DO NOT place or drop objects on top and do not shove any foreign objects into the Eee PC.

DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.

DO NOT expose to strong magnetic or electrical fields.

DO NOT press or touch the display panel. Do not place together with small items that may scratch or enter the Eee PC.

DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.

DO NOT leave the Eee PC on your lap or any part of the body to prevent discomfort or injury from heat exposure.

Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery.

SAFE TEMP: This Eee PC should only be used in environments with ambient temperatures between 5°C (41°F) and 35°C (95°F).

INPUT RATING: Refer to the rating label on the bottom of the Eee PC and be sure that your power adapter complies with the rating.

DO NOT carry or cover a Eee PC that is powered ON with any materials that will reduce air circulation such as a carrying bag.

Incorrect installation of battery may cause explosion and damage the Eee PC.

DO NOT throw the Eee PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Transportation Precautions

To prepare your Eee PC for transport, you should turn it OFF and disconnect all external peripherals to prevent damage to the connectors. The hard disk drive's head retracts when the power is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport your Eee PC while the power is still ON. Close the display panel to protect the keyboard and display panel.

The Eee PC's surface is easily dulled if not properly cared for. Be careful not to rub or scrape surfaces when transporting your Eee PC. You can put your Eee PC in a carrying case for protection from dirt, water, shock, and scratches.

Charging Your Batteries

If you intend to use battery power, be sure to fully charge your battery pack before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge the battery pack when the Eee PC is in use.

Remember to fully charge the battery (8 hours or more) before first use and whenever it is depleted to prolong battery life. The battery reaches its maximum capacity after a few full charging and discharging cycles.

Airplane Precautions

Contact your airline if you want to use the Eee PC on the airplane. Most airlines have restrictions for using electronic devices. Most airlines allow electronic use only between and not during takeoffs and landings.

There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand-held devices used on people or individual items). You can send your Eee PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Eee PC or diskettes through airport magnetic detectors or expose them to magnetic wands.

Top Side

Bottom Side

Front Side

Right Side

Left Side

Keyboard Usage

Touchpad Usage

Knowing the Parts

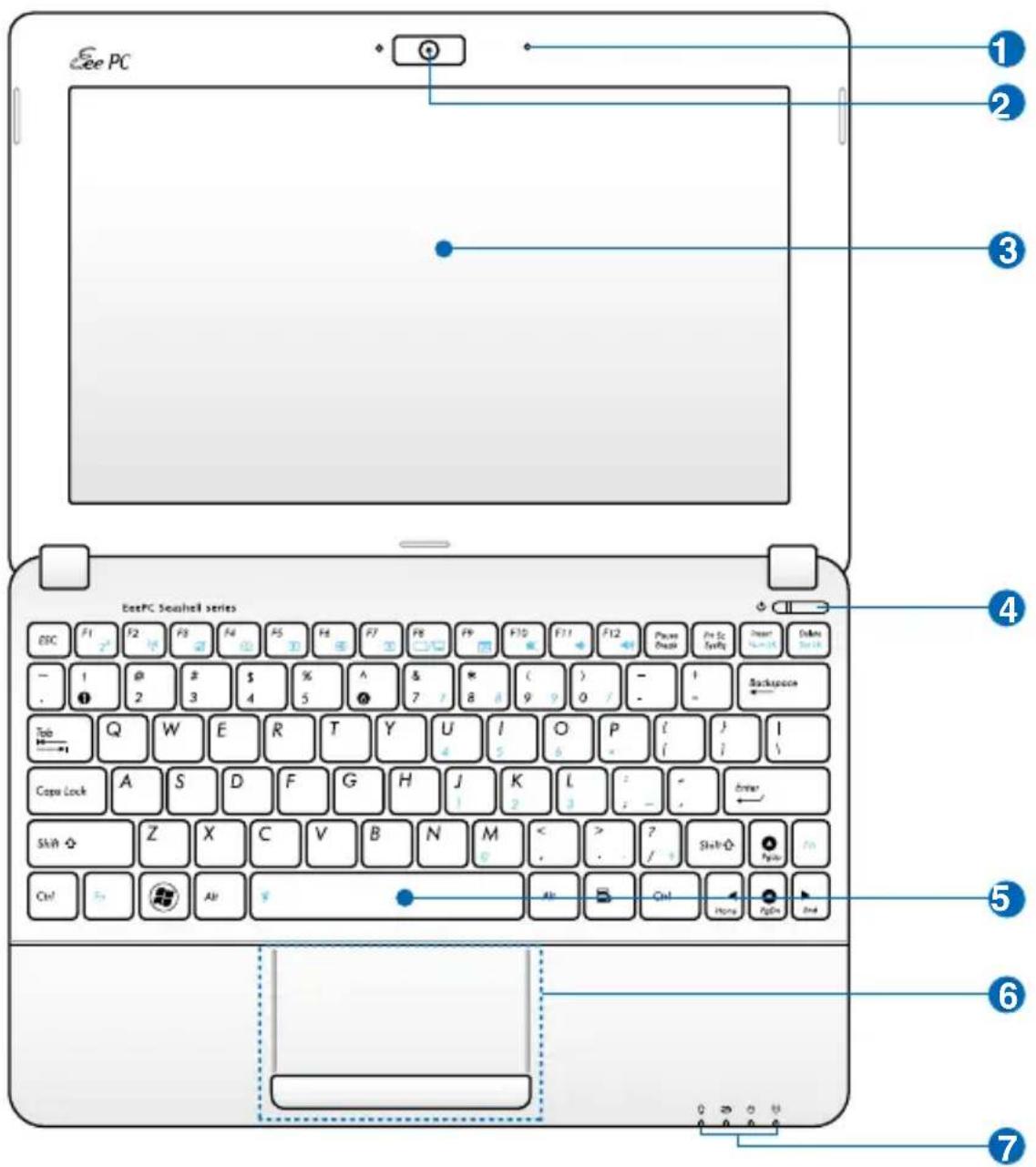

Top Side

Refer to the diagram below to identify the components on this side of the Eee PC.

The top side may vary in appearance depending on models.

Eee PC 1015PX / 1015BX / 1015CX / 1011PX / 1011CX / R051PX / R051BX / R051CX / R011PX / R011CX / 1011BX / R011BX

See PC EseePC Seashell series ESC F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 Place Check For Sc Scan - 1 @ # $ % ^ & * ( ) - F Backspace . 2 3 4 5 7 8 9 0 / - - Tab Q W E R T Y U I O P { } I Cape Lock A S D F G H J K L : - Enter Shift Z X C V B N M < > ? Shift Ctrl Ctrl Alt Alt Ctrl Home Print End 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 7

1 Microphone (Built-in)
2 Built-in Camera
3 Display Panel
4 Power Switch (Windows)

The power switch allows powering ON and OFF the Eee PC and recovering from standby mode. Press the switch once to turn ON and hold it to turn OFF the Eee PC. The power switch only works when the display panel is opened.

Power Indicator

The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Suspend-to-RAM (Sleep) mode. This indicator is OFF when the Eee PC is turned OFF.

5 Keyboard

The keyboard differs by territory.

6 Touchpad and Buttons
7 Status Indicators

Power Indicator

The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Suspend-to-RAM (Sleep) mode. This indicator is OFF when the Eee PC is turned OFF.

Battery Charge Indicator

The battery charge indicator (LED) shows the battery charging status as follows:

Powered ON

	With Adapter Without Adapter
High battery power (95%-100%)	Green ON Off
Medium battery power (11%-94%)	Orange ON Off
Low battery power (0%-10%)	Orange Blinking Orange Blinking

Powered OFF / Standby mode

	With Adapter Without Adapter
High battery power (95%-100%)	Green ON Off
Medium battery power (11%-94%)	Orange ON Off
Low battery power (0%-10%)	Orange Blinking Off

Hard Disk Drive (HDD) Indicator

The hard disk drive indicator blinks when data is written to or read from the disk drive.

Wireless/Bluetooth Indicator

This is only applicable on models with built-in wireless LAN/Bluetooth (on selected models). When the built-in wireless LAN/Bluetooth is enabled, this indicator lights.

Bottom Side

Refer to the diagram below to identify the components on this side of the Eee PC.

The bottom side may vary in appearance depending on model.

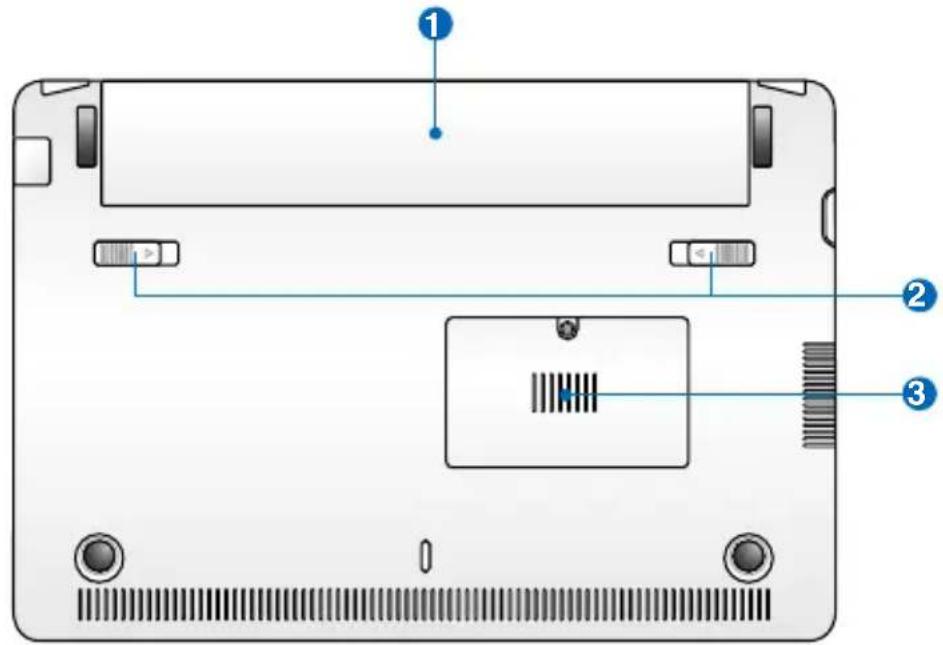

Eee PC 1015PX / 1011PX / R011PX / R051PX / 1015BX / R051BX / 1011BX / R011BX

Labeled diagram of a laptop rear panel showing internal components and ports

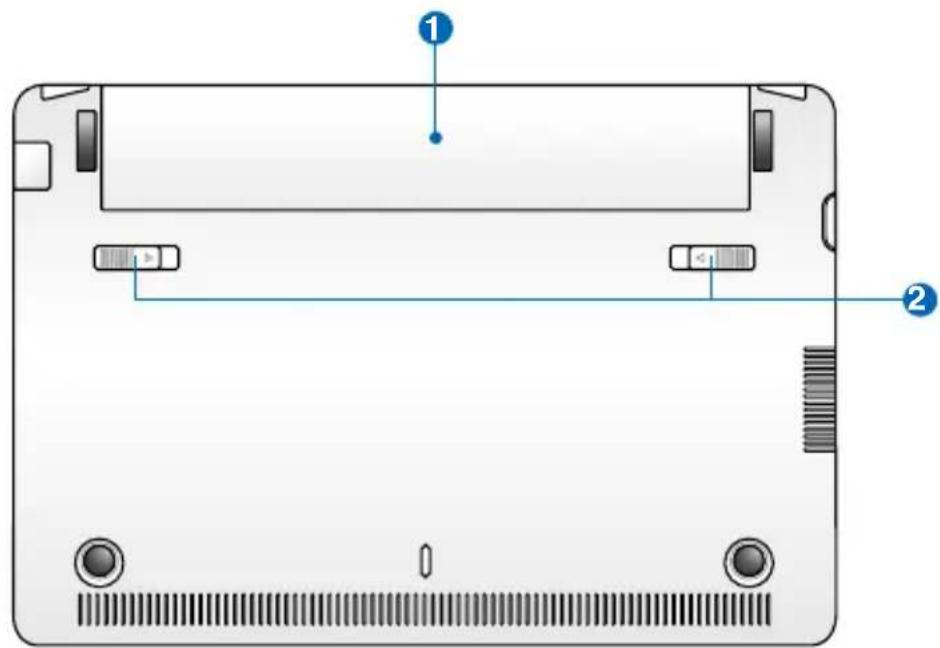

Eee PC 1015CX / 1011CX / R051CX / R011CX

Diagram of a computer rear panel with labeled components and directional arrows indicating movement or navigation.

The bottom of the Eee PC can get very hot. Be careful when handling the Eee PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. DO NOT USE ON SOFT SURFACES SUCH AS SOFAS OR BEDS, WHICH MAY BLOCK THE vENTS. DO NOT PUT THE Eee PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AvOID INJURY FROM THE HEAT.

1 Battery Pack

Battery time varies by usage and by the specifications for this Eee PC. The battery pack cannot be disassembled and must be purchased as a single unit.

2 Battery Lock

The battery lock secures the battery pack. When the battery pack is properly installed, it automatically locks in place. To remove the battery pack, slide the battery lock inward.

3 Memory Compartment

The memory module is secured in a dedicated compartment.

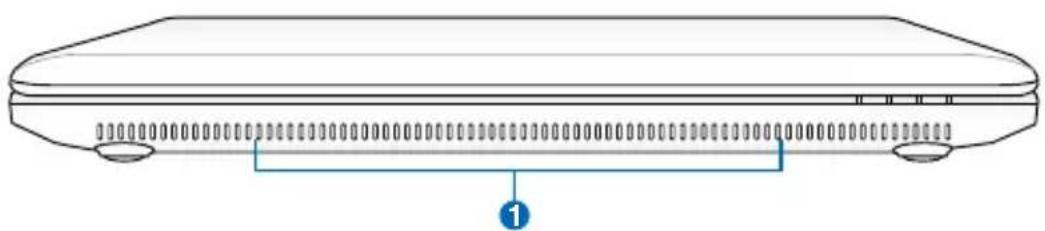

Front Side

Refer to the diagram below to identify the components on this side of the Eee PC.

Line drawing of a rectangular electronic device with ventilation slots and mounting points (no text or symbols)

1 Audio Speaker System

Audio features are software controlled.

Right Side

Eee PC 1015PX / 1011PX / R011PX / R051PX / 1015BX / R051BX / 1015CX / 1011CX / R011CX / 1011BX / R011BX / R051CX

1 2 3 4

1 Memory Card Slot
2 / Headphone Output / Microphone Input Combo Jack

This combo jack can be used to connect the Eee PC's audio out signal to amplified speakers or headphones, or can be used to connect an external microphone or output signals from audio devices. This jack automatically detects the connecting device and switches functions.

3 USB Port (2.0/1.1)

USB Charger+ (On USB 3.0 Models of 1015BX/R051BX/1011BX/R011BX)

Allows you to charge your mobile phones or digital audio players while your Eee PC is sleeping, hibernating or shut down. Launch the USB Charger+ application from Eee Docking tool bar and configure related settings.

4 USB Port (3.0 on selected models/2.0/1.1)
5 K Kensington® Lock port
6 品 LAN Port

Left Side

Refer to the diagram below to identify the components on this side of the Eee PC.

Eee PC 1015PX / 1011PX / R011PX / R051PX

Diagram of a device rear panel with labeled ports and connectors, marked with blue numbered indicators.

Eee PC 1015BX / R051BX / 1011BX / R011BX

1 2 5 4

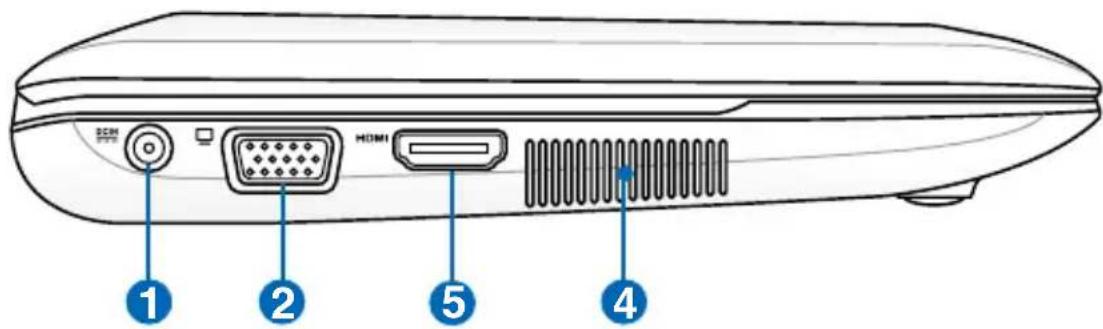

Eee PC 1015CX / R051CX / 1011CX / R011CX

HDMI 1

1 DCIN Power (DC) Input

The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Eee PC and charges the internal battery pack. To prevent damage to the Eee PC and battery pack, always use the supplied power adapter.

THE ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.

2 □ 15 pin D-Sub Display (Monitor) Output

3 USB Port (2.0/1.1)

USB Charge+ (on selected models)

Allows you to charge your mobile phones or digital audio players while your Eee PC is sleeping, hibernating or shut down. Launch the USB Charge+ application from Eee Docking tool bar and configure related settings.

4 Air vents

The air vents allow cool air to enter and warm air to exit the Eee PC.

Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.

5 HDMI HDMI Port

Keyboard Usage

Special Function Keys

The following defines the colored hot keys on the Eee PC's keyboard. The colored commands can only be accessed by first pressing and holding the function key while pressing a key with a colored command. Some function icons appear in the Notification area after activation.

Z ^z Icon (F1): Places the Eee PC in sleep mode

(Suspend-to-RAM).

Radio Tower (F2) (Wireless Models Only): Toggles the

internal wireless LAN or Bluetooth (on selected models) ON or OFF with an on-screen-display.

When enabled, the corresponding wireless indicator will light.

Touchpad (F3): Toggles the touchpad ON/OFF.

Resolution Selection (F4): Press to adjust the display resolution.

Sun Down Icon (F5): Decreases the display brightness.

Sun Up Icon (F6): Increases the display brightness.

Crossed Screen Icon (F7): Turns off the display backlight.

D/Monitor Icons (F8): Toggles between the Eee PC's LCD display and an external monitor.

Task Manager Icon (F9): Initiates the Task Manager to view the application process or terminates applications.

ssed Speaker Icon (F10): Mutes the speaker.

volume Down Icon (F11): Decreases speaker volume.

volume Up Icon (F12): Increases the speaker volume.

per Hybrid Engine (Space Bar): Toggles among various power saving modes. The selected mode is shown on the display.

Num Lk (Insert): Toggles the numeric keypad (number lock) ON and OFF. Allows use of a larger portion of the keyboard for number entering.

Scr Lk (Delete): Toggles the "Scroll Lock" ON and OFF. Allows you to use a larger portion of the keyboard for cell navigation.

Pg Up (↑): Press to scroll up in documents or the web browser.

Pg Dn (↓): Press to scroll down in documents or the web browser.

Home ( ← ): Press to move the pointer to the beginning of the line.

End ( → ): Press to move the pointer to the end of the line.

s icon: Displays the start menu.

ith pointer icon : Activates the properties menu and is equivalent to right-clicking the touchpad/mouse on an object.

Touchpad Usage

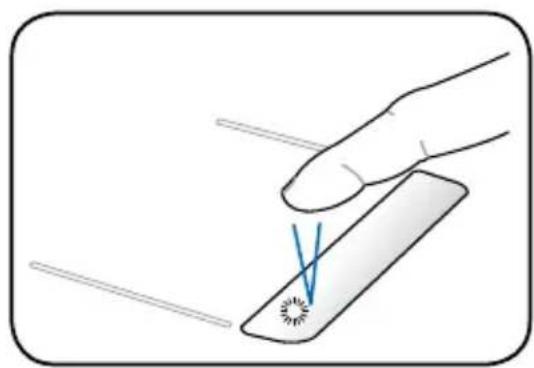

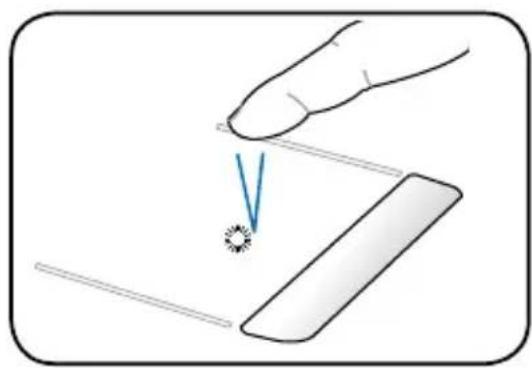

Clicking/Tapping - With the pointer over an item, press the left button or use your fingertip to touch the touchpad lightly, keeping your finger on the touchpad until the item is selected. The selected item will change color. The following 2 illustrations produce the same results.

Illustration of a hand holding a rectangular object with a blue V-shaped mark, no text or symbols present

Illustration of a hand holding a tool with a V-shaped pointer and a small circular symbol on a surface (no text or symbols present)

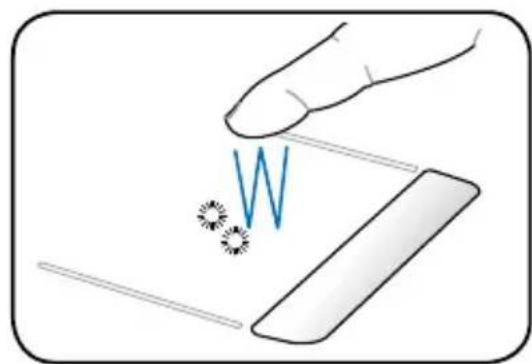

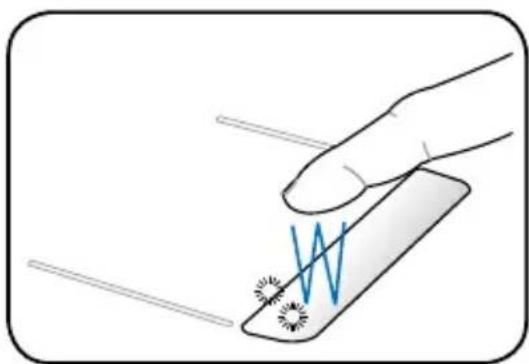

Double-clicking/Double-tapping - This is a common skill for launching a program directly from the corresponding icon you select. Move the pointer over the icon you wish to execute, press the left button or tap the pad twice in rapid succession, and the system launches the corresponding program. If the interval between the clicks or taps is too long, the operation will not be executed. The following 2 illustrations produce the same results.

Illustration of a hand holding a rectangular object with a blue zigzag line and small circular marks, no text or symbols present.

Illustration of a hand holding a magnet with a W-shaped magnet above it, no text or symbols present.

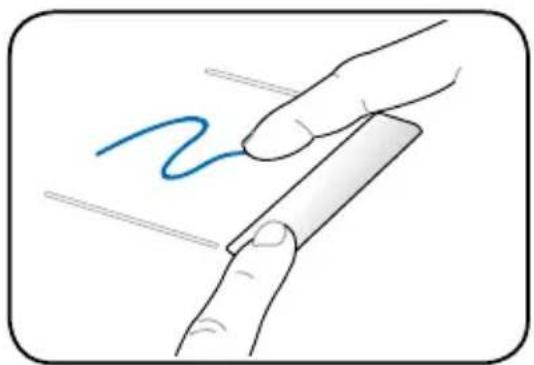

Dragging - Dragging means to pick up an item and place it anywhere on the screen you wish. You can move the pointer over the item you select, and while keeping the left button depressed, moving the pointer to the desired location, then release the button. Or, you can simply double-tap on the item and hold while dragging the item with your fingertip. The following illustrations produce the same results.

Illustration of a hand holding a pen with a blue wavy line drawn on it, no text or symbols present

Illustration of a hand holding a pen writing on paper with a blue wavy line (no text or symbols present)

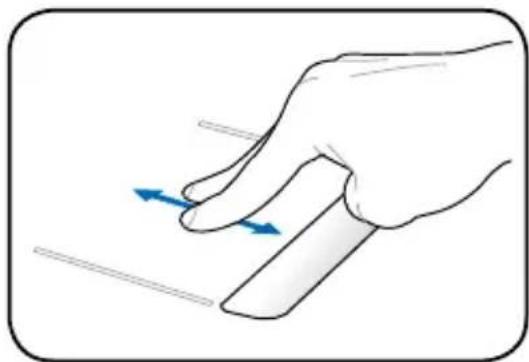

Scrolling - Use two fingertips to slide up/down on the touchpad to scroll a window up/down. If your display window includes several sub-windows, move the pointer on that pane before scrolling.

Illustration of a hand holding a pen with blue arrows indicating motion or force direction (no text or symbols)

Powering on your Eee PC

First-time Startup

Desktop

Network Connection

Getting Started

Powering on your Eee PC

These are only quick instructions for using your Eee PC.

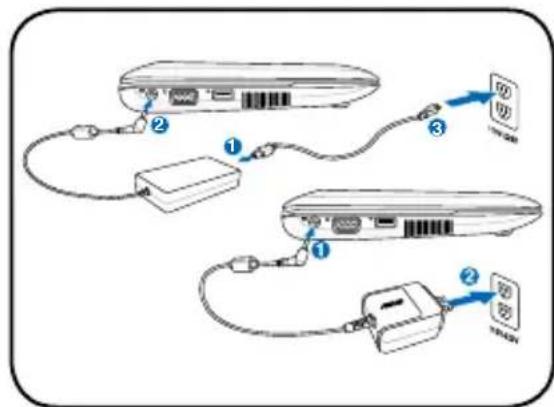

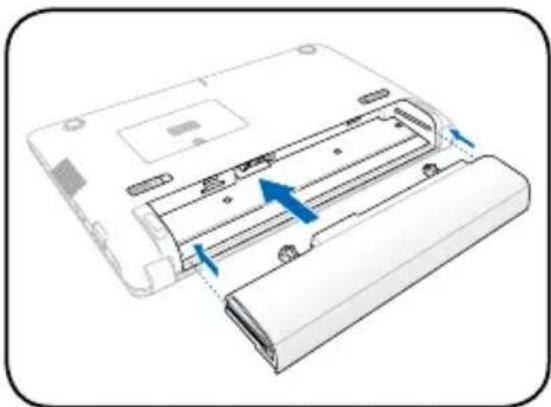

1. Install the battery pack 2. Connect the AC power adapter

Diagram of a laptop chassis showing internal components and blue directional arrows indicating movement (no text or symbols)

Diagram showing cable routing between two devices with labeled components and connection points

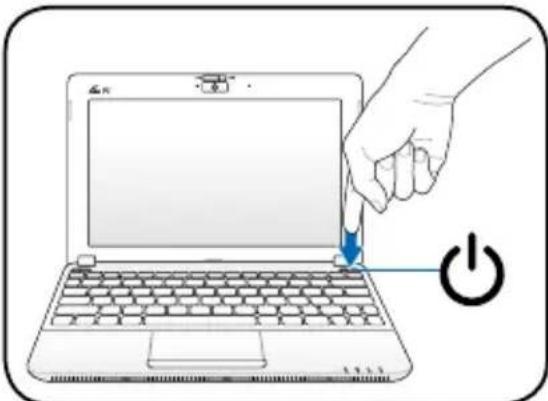

3. Turn ON the Eee PC

Illustration of a hand pressing down on a laptop keyboard with a power button (no text or symbols)

Damage may occur if you use a different adapter which is not provided together with your Eee PC to power it. You may damage your battery pack(s), adapter, and the Eee PC with a faulty AC-DC adapter.

• When you open the display panel, do not force it down to the table or else the hinges may break! Never lift the Eee PC by the display panel!
• Only use battery packs and power adapters supplied with this Eee PC or specifically approved by the manufacturer or retailer for use with this model or else damage may occur to the Eee PC. The input voltage range between the wall outlet and this adapter is AC 100V–240V.
• Never attempt to remove the battery pack while the Eee PC is turned ON, as this may result in the loss of working data.

Remember to fully charge the battery before first use and whenever it is depleted to prolong battery life.

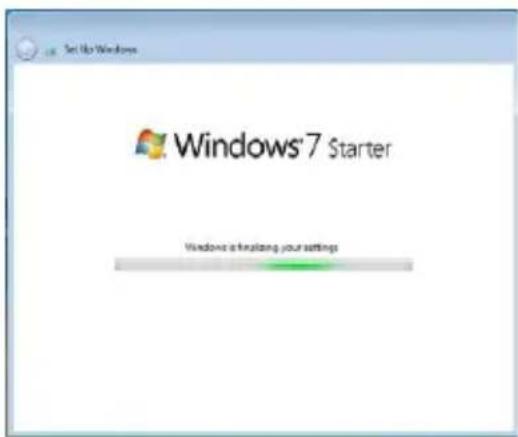

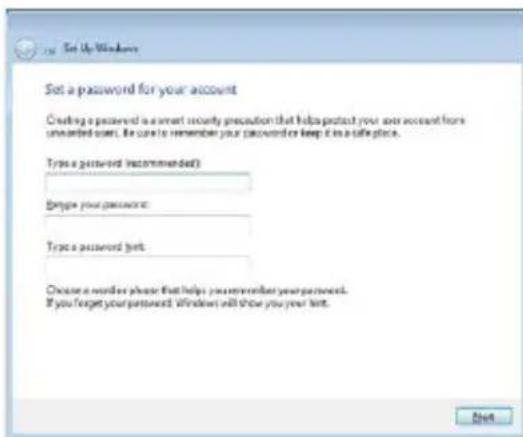

First-time Startup

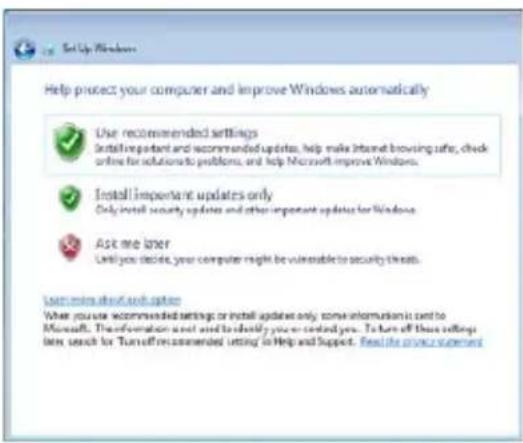

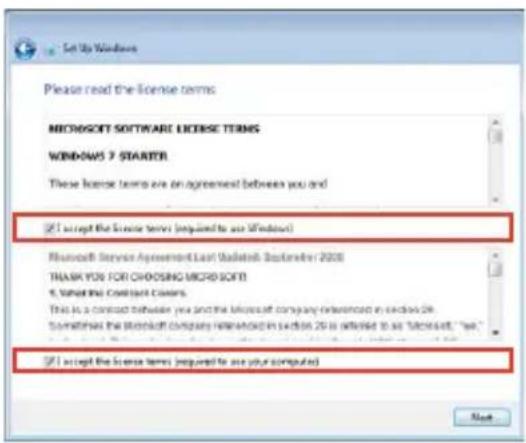

For the first time you start your Eee PC, the Windows wizard will launch automatically and lead you through setting up your preferences and some basic information.

Follow the wizard instructions to finish the initialization:

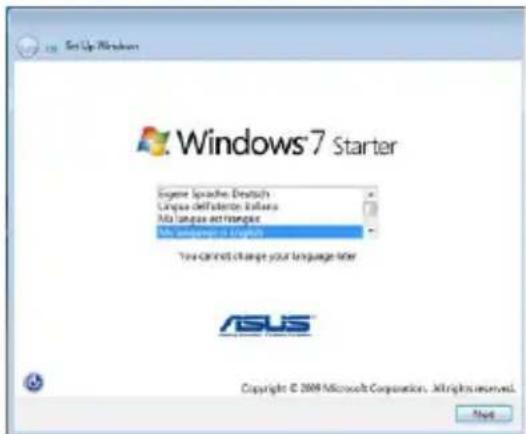

1. Select the language you use. Click Next to continue.

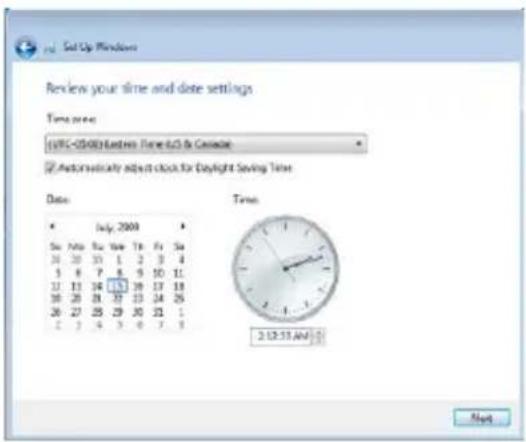

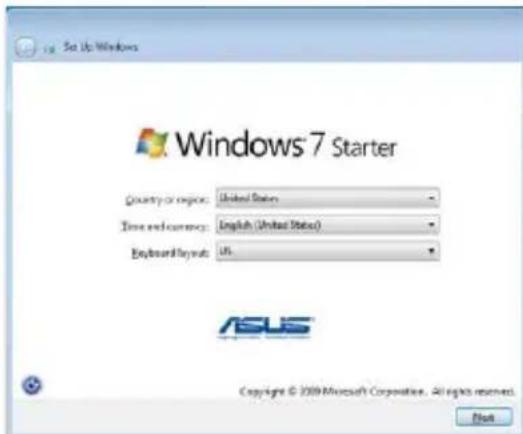

2. Select you system settings by specifying the region you are in, the time zone you are in, and the keyboard type you use. Click Next to continue.

Set Up Windows Windows®7 Starter Engine Specific Desktop Linkage Definitive Database No language support Win and Support for Windows You cannot change your language key ASUS Copyright © 2008 Microsoft Corporation, All rights reserved. Next

Set Up Windows Windows 7 Starter Country or region: United States Time and currency: English (United States) Keyboard Layout: US ASUS Copyright © 2009 Microsoft Corporation. All rights reserved. File

1. Type your user account name and your computer's name, then click Next to continue.

2. Set a password for your user account if you want. Click Next to continue.

Set Up Windows Windows 7 Starter Choose a user name for your account and name your computer to distinguish it on the network. Type: a user name (for example, join) Type: a computer name XC ASUS Copyright © 2008 Microsoft Corporation. All rights reserved. Next

Set a password for your account Creating a password is a smart security precaution that helps protect your user account from unrooted users. Be sure to remember your password or keep it in a safe place. Type a password (recommended): Begin your password: Type a password (net) Choose a number please that helps you remember your password. If you forget your password, Windows will show you your link.

1. Read the end user license agreement and check the two boxes before I accept the license terms. Click Next to continue.

Set Up Windows Please read the license terms MICROSOFT SOFTWARE LICENSE TERMS WINDOWS 7 STARTER These license terms are an agreement between you and ✓ I accept the license terms (required to use Windows) Microsoft Service Agreement Last Usdatlab September 2008 TRAVEN FOR CHOCING MICROSOFT

Potential Contract Colors

This is a contract between you and the Microsoft company referenced in subsection 26. Sometimes the Microsoft company referenced in section 26 is allowed to use Microsoft, "yes." ✓ I accept the license terms (required to use your computer) Next

1. Click Use recommended settings to get the latest important updates.

Help protect your computer and improve Windows automatically Use recommended settings Install important and recommended updates, help make Internet browsing safe, check online for solutions to problems, and help Microsoft improve Windows. Install important updates only Only install security updates and other important updates for Windows Ask me later Until you decide, your computer might be vulnerable to security threats. Last session about each other What you use recommended settings or install updates only, some information is sent to Microsoft. The information used and to identify your email you. To turn off these settings then, search for Turnoff recommended setting to Help and Support. Find the privacy statement

1. Specify the time zone you are in and the local date and time. Click Next to continue.

Set Up Windows Review your time and date settings Time press (UTC-05:00) Last Time & CS & Cascade Automatically adjust clock for Daylight Saving Time Date: July 2000 Sat 100 Fri 11 Fri 34 24 20 31 1 2 3 4 3 8 7 8 9 10 11 12 11 14 15 16 17 18 18 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 6 7 8 Time: 2:12:55 AM Next

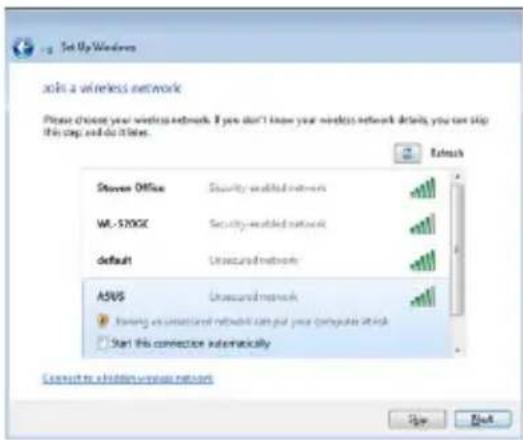

1. Connect to a wireless network and click Next to continue, or click Skip to set up the wireless connection later.

Set Up Windows join a wireless network Please choose your wireless network. If you don't know your wireless network details, you can stop this step, and do it later. Stevens Office Security-enabled network ML-520GC Security-enabled network default Unsecured network ASUS Unsecured network Starting an unsecured network can put your computer attack Start this connection automatically Consult to a hidden wireless network Up Back

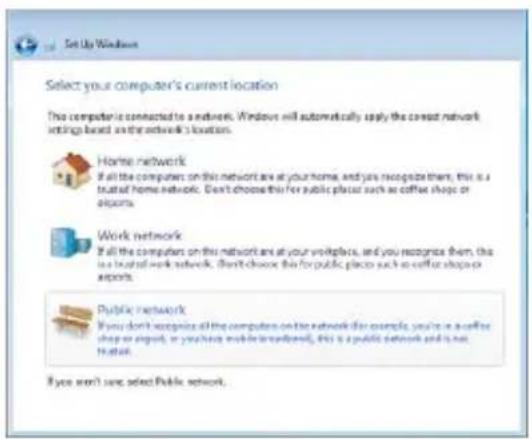

1. Select the network's location. Click Next to continue.

2. The initialization is finished.

Set Up Windows Select your computer's current location This computer is connected to a network. Windows will automatically apply the correct network settings based on the network's location. Home network If all the computers on this network are at your home, and you recognize them, this is a trustal home network. Don't choose this for public places such as coffee shops or airports. Work network If all the computers on this network are at your workplace, and you recognize them, this is a trustal work network, then choose this for public places such as coffee shops or airports. Public network If you don't recognize all the computers on the network for example, you're in a coffee shop or airport, or you have mobile internet(s), this is a public network and is not listed. If you aren't sure, select Public network.

Set Up Windows Windows® 7 Starter Windows to fix along your settings

Desktop

There are several shortcuts on the desktop. Double-click them to launch the corresponding applications and enter the specified folders. Some applications would form minimized icons in the Notification area.

The actual Desktop screen may vary according to different models.

Network Connection

Configuring a wireless network connection

1. Click the wireless network icon with an orange star in the Windows® Notification area.

If the wireless network icon with an orange star does not show in the Notification area, activate the wireless LAN function by pressing f_n + f2 ( + ) before configuring a wireless network connection.

1. Select the wireless access point you want to connect to from the list and click Connect to build the connection.

If you cannot find the desired access point, click the Refresh icon on the upper right corner to refresh and search in the list again.

Currently connected to: Unidentified network No Internet access Wireless Network Connection Steven Office Connect automatically Connect Joshua_Peng WL-52DGC ASUS_GUEST Open Network and Sharing Center

1. When connecting, you may have to enter a password.
2. After a connection has been established, the connection is shown on the list.
3. You can see the wireless network icon in the Notification area.

The crossed wireless network icon appears when you press + to disable the WLAN function.

Local Area Network

To establish a wired network, follow the instructions below:

Using a dynamic IP / PPPoE network connection:

1. Click the network icon with a yellow

warning triangle in the

Windows® Notification area and select Open Network and Sharing Center.

Currently connected to: Unidentified network No Internet access Open Network and Sharing Center 6:01 PM 7/27/2009

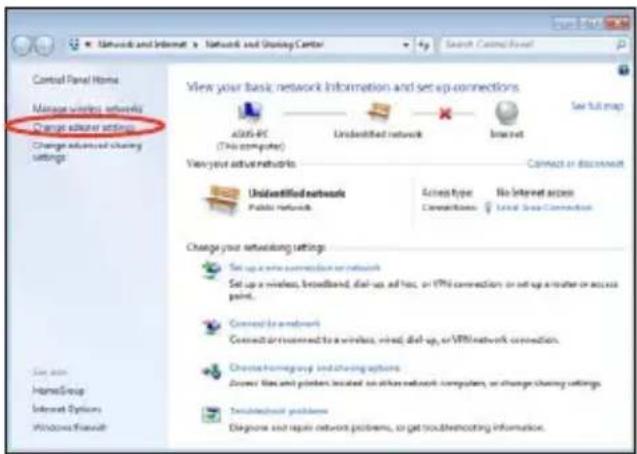

1. Click Change adapter settings in the left blue pane.

Control Panel Home Manage your network security Change options or settings Change advanced sharing settings Set up home HomeGroup Internet Options Windows Firewall Network and Internet > Network and Sharing Center View your basic network information and set up connections FOS-PC (This computer) Undidentified network Internet View your active networks Connect or download Undidentified network Public network Accept type Connections: No Internet access Local Area Connection Change your networking settings Set up a new product or network Set up a wireless, broadband, dial-up, and bus, or WiFi connectivity to call up a router or device port. Connect or network Connect to recommend to a wireless, wireless, dial-up, or WiFi network connection. Choose Network Group or sharing systems: Access: Web and parkers located on other network computers or change sharing settings. Trendeschool problems Describe and repair network problems, or get trouble/shooting information.

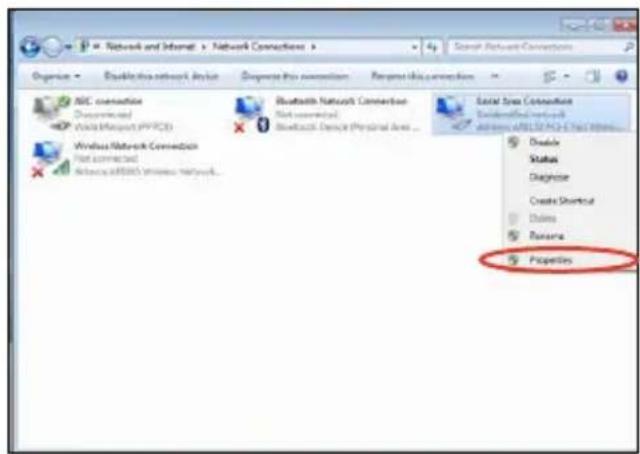

1. Right-click Local Area Connection and select Properties.

Network and Internet > Network Connections > Organize Disable this network Action Dispose this connection Prepare this connection NAC connection Discontinued Windows Network (PPTOS) Windows Network Connection Net connected Windows NTFS (Windows Network... Bluetooth Network Connection Net connected Bluetooth Device (Physical Area... Local Tree Connection Unidentified network address: ABL12.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04 Disable Status Diagnose Create Shortleaf Dialies Reserve Properties

1. Click Internet Protocol Version 4(TCP/IPv4) and click Properties.

Local Area Connection Properties Networking Connect using: Atheros AR8132 PCI-E Fast Ethernet Controller Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ Trend Micro NDIS 6.0 Filter Driver ✓ OoS Packet Scheduler ✓ File and Printer Sharing for Microsoft Networks ✓ Internet Protocol Version 6 (TCP/IPv6) ✓ Internet Protocol Version 4 (TCP/IPv4) ✓ Link-Layer Topology Discovery Mapper I/O Driver ✓ Link-Layer Topology Discovery Responder Install Install Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

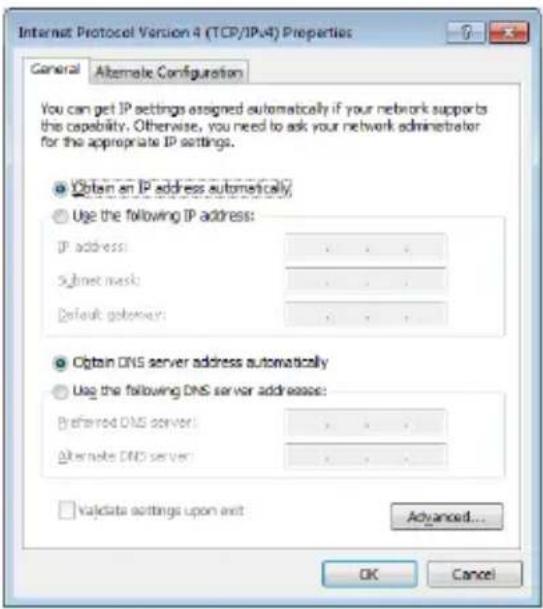

1. Click Obtain an IP address automatically and click OK.

Internet Protocol Version 4 (TCP/IPv4) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports the capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. ● Obtain an IP address automatically ○ Use the following IP address: IP address: . Submit mask: . Default gateway: . ● Obtain DNS server address automatically ○ Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . ✓ validate settings upon exit Advanced... OK Cancel

(Continue the following steps if using PPPoE)

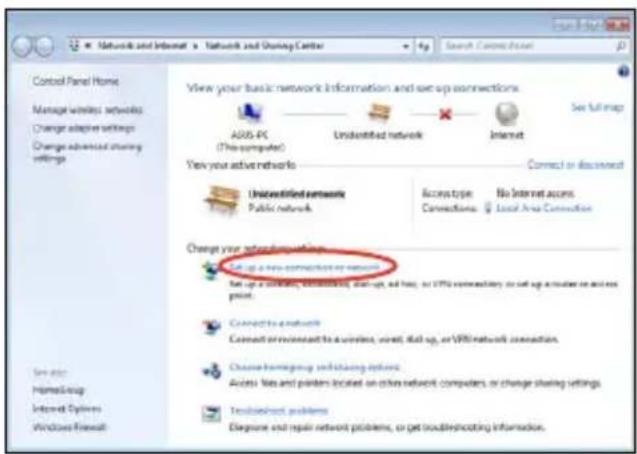

1. Return to the Network and Sharing Center and then click Set up a new connection or network.

Control Panel Home Manage wireless networks Change adaptive settings Change advanced sharing settings View your basic network information and set up connections ASUS PC (The computer) Unidentified network Internet See full map View your active networks Connect or Discontinued Unidentified network Public network Access to plane Connections: No Internet access Local Area Connection Change your networking settings Set up a new connection to the network Set up a network, unidentified start-up, add help, or OFFS connectivity to set up a router or next port. Connect to a network Connect to connected to a wireless, wireless, dial-up, or WiFi network connections. Choose homegroup networking options Access Web and problem located on other network computers, or change sharing settings. Tecnoblant problems Delaware and repair network problems, or get troubleshooting information.

7. Select Connect to the Internet and click Next.

Set Up a Connection or Network Choose a connection option Connect to the Internet Set up a wireless network (or 100% user link) for the Internet Set up a new network Configure a new router or access point. Manually connect to a wireless network Connect to a network of users in the network profile. Connect to a workplace Set up a dial-up on FTP connection to your workplace. Set up a dial-up connection Connect to the Internet using a dial-up connection. Next Cancel

9. Enter your User name and, Password, and Connection name. Click Connect.

Connect to the Internet Type the information from your Internet service provider (BSP) Your name: ABC5 Amount: ****** □ Show characters □ Enter Get this password Connection game: ABC connection □ Allow other people to use this connection. This option allows anyone with access to this computer to use this connection. Close here on BP Cancel Cancel

11. Click the network icon in the taskbar and click the connection you just created.

Currently connected to: Unidentified network No Internet access Dial-up and VPN ABC connection Connect

8. Select Broadband (PPPoE) and click Next.

Connect to the Internet How do you want to connect? Wireless Connect using a wireless router or a network network. Broadband (PHPOR) Connect using SQL or cable that requires a user name and password. Show connections options that this computer is not set up to use help me choose Cancel

10. Click Close to finish the configuration.

Connect to the Internet The connection to the Internet is ready to use To connect to the Internet user time, left click the network from the teacher and click the connection you just created. Close

12. Enter your user name and password. Click Connect to connect to the Internet.

Connect ABC connection User name: ASUS Password: ****** ✓ Save the user name and assessed for the following users: ● Me only ○ Anyone who use this computer Connect Cancel Properties Help

Using a static IP:

1. Repeat the step 1–4 of Using a dynamic IP to start the static IP network configuration.

2 Click Use the following IP address.

1. Enter the IP address, Subnet mask and Gateway from your service provider.

2. If needed, enter the preferred DNS Server address and alternative address.

3. After entering all the related values, click OK to build the network connection.

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports the capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 10 . 30 . 92 . 30 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 10 . 30 . 92 . 30 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: 368 . 95 . 1 . 1 Alternate DNS server: . Validate settings upon exit Advanced... OK Cancel

Contact your Internet Service Provider (ISP) if you have problems connecting to the network.

Browsing web pages

After you finish the network setup, click Internet Explorer on the desktop and start enjoying net surfing.

Visit our Eee PC homepage (http://eeepc.asus.com) to obtain the latest information and register at http://vip.asus.com for full service of your Eee PC.

ASUS Update

Updating BIOS via "Easy Flash" (on selected models)

Bluetooth Connection (on selected models)

Super Hybrid Engine (on selected models)

Eee Docking

OS Switch (on selected models)

Instant On (on selected models)

Microsoft® Office Starter 2010

ASUS Update

The ASUS Update is a utility that allows you to manage, save, and update the Eee PC BIOS in Windows® environment. The ASUS Update utility allows you to:

• Save the current BIOS file
• Download the latest BIOS file from the Internet
• Update the BIOS from an updated BIOS file
• Update the BIOS directly from the Internet, and
  • View the BIOS version information.

This utility is pre-loaded in your Eee PC.

ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).

Updating the BIOS through the Internet

To update the BIOS through the Internet

1. Launch the ASUS Update utility from the Windows® desktop by clicking Start > All Programs > ASUS > ASUSUpdate for Eee PC> ASUSUpdate. The ASUS Update main window appears.

File Options File Edit View Edit View Windows Active Users Windows Free and Save Windows Active Users Windows Options Windows Server Accessories ASUS V800 Access Diversified SQL System For Excel PC SQL System SQL System For Excel PC Excel System Excel System Excel System Back Start Programs and File Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office Microsoft Office

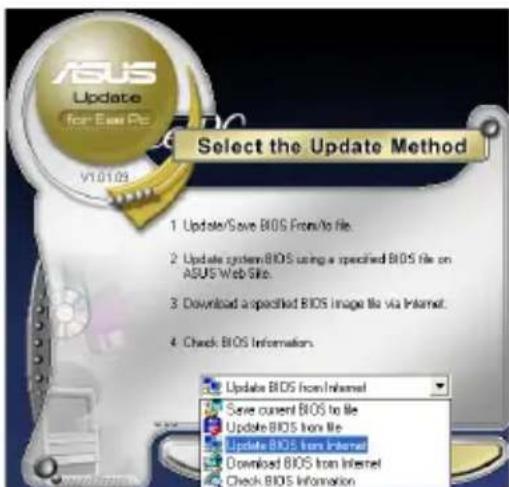

1. Select Update BIOS from Internet from the drop-down menu, then click Next.

Select the Update Method 1 Update/Save BIOS From/to file. 2 Update system BIOS using a specified BIOS file on ASUS Web Site. 3 Download a specified BIOS image file via Internet. 4 Check BIOS Information. Update BIOS from Internet Save current BIOS to file Update BIOS from file Update BIOS from Internet Download BIOS from Internet Check BIOS Information

1. Select the ASUS FTP site nearest you to avoid network traffic, or click Auto Select. Click Next.

2. From the FTP site, select the desired BIOS version and click Next.

3. Follow the screen instructions to complete the update process.

ASUS Updates for Copy Pro V1.06.03 Select the Update Server Before you continue, please make sure your system is connected to the Internet. You can select a website or click "AutoSelect" button. ASUS Update will automatically choose live best suitable website according to network hardie. Passive Proxy Setting Auto Select http.asus.com.be Back Cancel Next

The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features.

Updating the BIOS through a BIOS file

To update the BIOS through a BIOS file:

1. Launch the ASUS Update utility from the Windows® desktop by clicking Start > Programs > ASUS > ASUSUpdate for EeePC> ASUSUpdate. The ASUS Update main window appears.

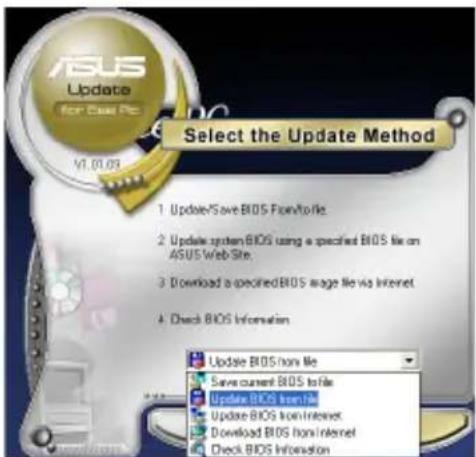

2. Select Update BIOS from file from the drop-down menu, then click Next.

ASUS Update for Base PC VI.01.03 Select the Update Method 1 Update/Save BIOS Flow/Info. 2 Update system BIOS using a specified BIOS file on ASUS Web Site. 3 Download a specified BIOS image file via Internet. 4 Check BIOS Information. Update BIOS from file Save current BIOS to file Update BIOS from file Update BIOS from Internet Download BIOS from Internet Check BIOS Information

1. Locate the BIOS file from the Open window, then click Open.
2. Follow the screen instructions to complete the update process.

Updating BIOS via "Easy Flash" (on selected models)

To update BIOS through Easy Flash:

1. Verify the exact model name of your EeePC and download the latest BIOS file for the model from the ASUS website. Save the BIOS file into your USB Flash Disk Drive.
2. Connect your USB Flash Disk Drive to the USB 2.0 port of your EeePC and then power on your EeePC.
3. Press as soon as you power on your EeePC to open BIOS menu.
4. By following the instructions shown in the right-hand boxes, use the Select Screen direction arrow buttons to go to Advanced page.
5. Select the Start Easy Flash function in the Advanced page.

Aptio Setup Utility - Copyright (C) 2010 American Megatrends, Inc.
Main Advanced Boot Security Exit Start Easy Flash ►CPU Configuration ►IDE Configuration ►Onboard Devices Configuration	Press ENTER to run the utility to select and update BIOS.
	←→: Select Screen ↑↓ : Select Item Enter: Select +/-: Change Opt. F1: General Help F9: Optimized Defaults F10: Save and Exit ESC: Exit
Version 2.01.1204. Copyright (C) 2010 American Megatrends, Inc.

1. Press ENTER to access ASUS Tek. Easy Flash Utility.

ASUS Tek. Easy Flash Utility Current Platform Platform: 1015 Version: Build Date: New Platform Platform: Version: Build Date: FS0 FS1 FS2 RECOVERY SOURCES BOOT [Up/ Down/ Left/ Right]: Switch [Enter]: Choose [q]: Exit

1. Locate the latest BIOS File and start updating the BIOS.
2. You must Load Setup Defaults and then Save Changes & Reset on the Exit page after updating the BIOS.

If you want to save the current BIOS, please use ASUS Update for EeePC on Windows OS.

Bluetooth Connection (on selected models)

This device contains FCC ID: MSQ15PNNE047 / MSQE15NE785 / MSQE15NE762 and IC ID: 3568A-15PNNE047 / 3568A-E15NE762.

Bluetooth technology eliminates the need for cables for connecting Bluetooth-enabled devices. Examples of Bluetooth-enabled devices may be Notebook PCs, Desktop PCs, mobile phones, and PDAs.

To connect to a Bluetooth-enabled device:

1. Press + repeatedly until Bluetooth ON or WLAN & Bluetooth ON is shown.

2. From Control Panel, go to Network and Internet > Network and Sharing Center and then click Change adapter settings in the left blue pane.

Control Panel Home Manage wireless networks Change adapter settings Change advanced sharing Settings View your basic network information and set up connections Alibi-PCI (This computer) Unidentified network Internet See full map View your actual networks Connect or disconnect Unidentified network Public network Access type Connections No Internet access Local Sea Connection Change your networking settings Set up a wire connection or network Set up a wireless, broadband, dial-up, ad hoc, or VPN connection or setup a router or account point. Connect by network Connect is returned to a wireless, wired, dial-up, or VPN network connection. Change homegroup networking options Close files and packets located on other network computers, or change sharing settings. Undiscount problems Diagnose and repair network problems, or get troubleshooting information.

1. Right-click Bluetooth Network Connection and select View Bluetooth Network Devices.

Network and Internet Network Connections Organize View Bluetooth network devices Disable this network device Remove this connections ARC connection Connected WIFI misqct (APPO) Wireless Network Connection Not connected Address: AFB201 Wireless Network... Bluetooth Network Connections Not connected Microsoft Device (Personal Area) Wireless Network Connection 2 Not connected Microsoft Virtual WIFI misqct 4 Local Area Connection Network ports employed User Create Shortout Resource Properties View Bluetooth Network Device Disable Status Create Shortout Resource Properties

1. Click Add a device to look for new devices.

Add options Add options • Devices (1) Products (MS2) 2 Film

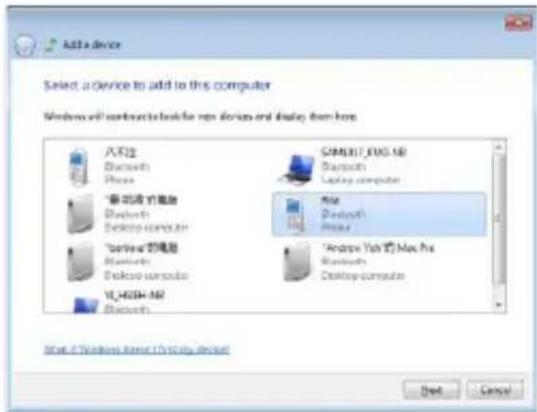

1. Select a Bluetooth-enabled device from the list and click Next.

Add a device Select a device to add to this computer Windows will continue to enable new devices and display them here. 八不加 Bluetooth Phase "启动安装电脑" Bluetooth Desktop computer "Server" 的地址 Bluetooth Desktop computer YL425H-MS Bluetooth COMEX7_E00.168 Bluetooth Desktop computer Alt Bluetooth Pire Bluetooth Pire Android Yoh 的 Mac Pcs Bluetooth Desktop computer Send 9 Windows Server 17:00:00:00:00 Next

1. Enter the Bluetooth security code into your device and start pairing.

Add a device Type the following code into your device This will verify that you are connecting to the correct device. 78702199 Note: After your target code, your right need to press Drive, OR, or a similar performance your device. OK Cancel

1. The paired relationship is successfully built. Click Close to finish the setting.

Add a device This device has been successfully added to this computer Windows is now checking for drivers and will install them if necessary. You may need to wait for this to finish before your device is ready to use. To verify if this device finished installing properly, you can get in a license or file.

Super Hybrid Engine (on selected models)

Super Hybrid Engine offers different power modes. The assigned instant key toggles power savings between various power saving modes. The power saving modes control many aspects of your Eee PC to maximize performance versus battery time. Applying or removing the power adapter will automatically switch the system between AC mode and battery mode. The selected mode is shown on the display.

To change the power mode

• Press + repeatedly to switch power modes.
• Press the Super Hybrid Engine button ⚙ (on selected models).
• Right-click the Super Hybrid Engine icon in the Notification area, and select a preferred power mode.

Super Performance Mode ✓ High Performance Mode Power Saving Mode Auto Mode Eee Super Hybrid Engine V2.0

Super Hybrid Engine Modes

Power Saving

High Performance

Super Performance

1. Auto High Performance and Auto Power-Saving mode are available only when applying or removing the power adapter.
2. The "Super Performance" feature is available on selected models.

Auto Power-Saving

Auto High-Performance

1. If your external monitor functions abnormally in Power Saving mode at a resolution of 1024 x 768 pixels or higher, press + repeatedly to switch the display mode to LCD Only or LCD + CRT Clone and reset the power mode to High Performance or Super Performance.
2. Super Performance mode is available in selected model.

Eee Docking

Eee Docking contains multiple useful applications. The Eee Docking tool bar is at the top of the desktop.

Access Sharing Experience Tools Access Sharing Experience Tools

• The applications in Eee Docking may vary depending on models.

- The names of the applications in Eee Docking are subject to change without notice.

Access

ASUS @vibe

ASUS @Vibe allows you to enjoy online entertainment contents including Radio, Live TV and Games, etc.

The ASUS @Vibe service contents differ for each territory.

Game Park (on selected models)

Game Park includes multiple interesting games.

ASUS AP Bank (on selected models)

ASUS AP Bank offers various software applications and multimedia enjoyment online.

ASUS WebStorage

Eee PC users can enjoy free online space. With Internet connection, you can access and share any files whenever you want and wherever you are. The ASUS WebStorage help file is accessible only when your Eee PC connects to the Internet.

Sharing

E-Cam (on selected models)

E-Cam provides interesting effects and useful add-ons for your webcam.

Syncables

The syncables desktop application makes it easier than ever to keep all your photos, music, videos, documents, bookmarks, and more in sync and up to date across all your computers.

Experience

Font Resizer

Font Resizer allows you to adjust the font/text size on your Eee PC screen.

Tools

Live Update

Live Update keeps your Eee PC up-to-date by checking the online updates.

USB Charge+ (on selected models)

USB Charge+ functions to charge your mobile phones or digital audio players while your Eee PC is sleeping, hibernating or shut down. The feature is disabled by default. When enabled, two modes are available for you to choose from, Adapter Mode, or Adapter + Battery Mode.

LocaleMe (on selected models)

LocaleMe is a web mapping service application, offering easy search for streets or companies sorted by multiple categories all over the world.

Docking Setting

Docking Setting allows you to configure the appearance and the position of the Eee Docking tool bar.

Power Recover (on selected models)

You are able to back up your system partition to the local disk drive in your EeePC or to a USB hard disk so that you could easily restore your Eee PC while any hardware or OS problem occurs.

OS Switch (on selected models)

The ASUS OS Switch utility allows you to switch the booting operating system between Microsoft Windows and the fast booting OS (OS version varies with models). Double-click the Boot Up Settings icon on your Windows desktop to launch the utility and select an OS to boot your Eee PC.

Instant On (on selected models)

Zero-wait system restarting gets you immediately back to work and play with saved system status. After activating it, the SHUT DOWN button in the Start Menu will be changed to SLEEP so you could enjoy fast resume to your last working state.

During WINDOWS UPDATE, the "Instant On" feature will be automatically disabled so the SHUT DOWN button in the Start Menu will not be changed to the SLEEP function before all updates are completed.

Microsoft® Office Starter 2010

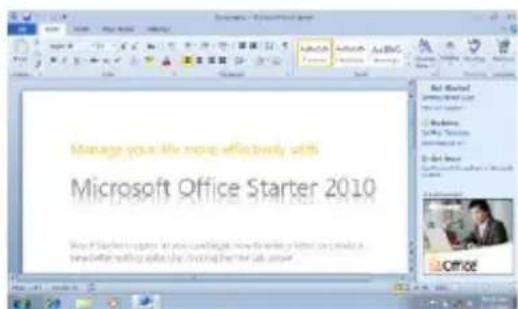

Eee PC users can enjoy Microsoft Office Starter 2010 that includes Word Starter 2010 and Excel Starter 2010 for basic word processing and spreadsheets. Do the following instructions for Office Starter 2010 first-time start-up.

1. Click Start > All Programs > Microsoft Office 2010.

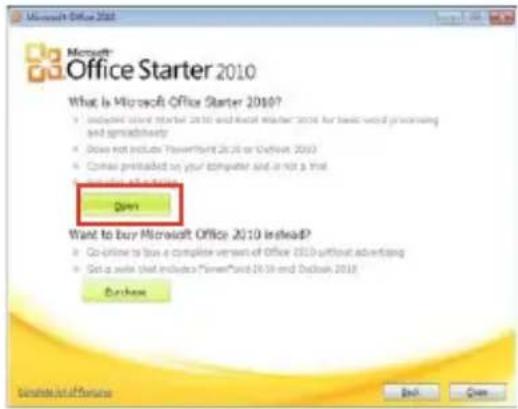

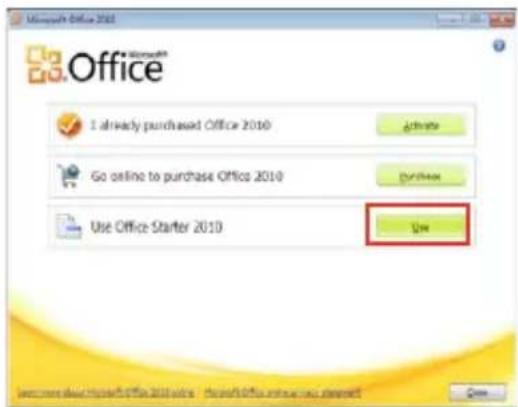

2. In the Microsoft Office 2010 window, click Use.

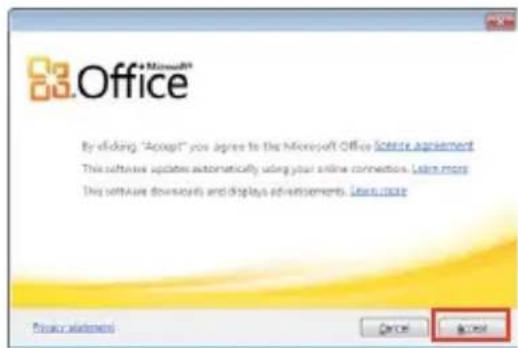

3. Click Open to continue.

4. Your Eee PC starts installing Microsoft Office Starter 2010 programs.

Microsoft Office 2010 Microsoft Office I already purchased Office 2010 Activate Go online to purchase Office 2010 Purchase Use Use Use more displayed office 2010 online - this office will have been removed

Microsoft Office 2010 What is Microsoft Office Starter 2010? • Included your start of 2010 and Excel start 2010 for basic word processing and spreadsheet. • Does not include PowerPoint 2010 or Outlook 2010 • Create preSweden on your computer and do not a trial <|vision_start|> an email address. Gain Want to Buy Microsoft Office 2010 instead? • Co online to buy a complete version of Office 2010 without advertising • Get a select that includes "PowerPoint" 2010 and Outlook 2010 Browse

Microsoft® Office 2010 Installing your Office programs... Step 3 of 4k (36%) Installing primequakes © 2010 Microsoft Corporation... All rights reserved.

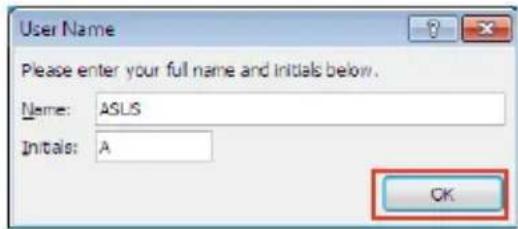

1. Once the programs are installed, you are required to enter your full name and initials. Click OK to continue.

User Name Please enter your full name and initials below. Name: ASLS Initials: A OK

1. Read through the Microsoft Office license agreement and click Accept to agree.

Microsoft Office By clicking "Accept" you agree to the Microsoft Office Science agreement. This software updates automatically using your online connections. Listen more. This software downloads and displays advertisements. Learn more Privacy statements Cancel Apply

1. Select a method you prefer to update Microsoft Office and click OK to continue.

Advance to Microsoft Office Help Protect and Improve Microsoft Office Use Recommended Settings • Install requirements applicable to Office, website and Microsoft software. If you need to approve Office and install software, then create the security system, or choose to install your own system, or implement your own security system. Install Updates Only • Install requirements applicable to Office, website and Microsoft software. If you need to approve Office and install software. Don't make changes • Clearing the order and response of any option to ensure it better. Do not change the order and response if you need to use this option. Save information right for next step in https://www.microsoft.com/ If you need to use this option.

1. You can now start using Microsoft Excel Starter 2010 and Microsoft Word Starter 2010.

Manage your life more effectively with Microsoft Office Starter 2010

• To use other Microsoft Office Starter 2010 programs in the future, click Start > All Programs > Microsoft Office Starter to select a desired program.

• To activate or purchase a complete version of Microsoft Office 2010, click Start > All Programs > Microsoft Office 2010.

System Recovery

Boot Booster (on selected models)

System Recovery

System Recovery

• Disable Boot Booster in BIOS setup before you perform system recovery from USB flash disk, external optical drive or hidden partition.
• Boot Booster function available in selected model.

Ensure to connect your Eee PC to the AC power adapter before using F9 recovery to avoid recovery failure.

Using recovery partition (F9 Recovery)

1. Press during bootup.

Ensure to press only once during bootup.

1. Select the language you use and click → to continue.

Language 1. English

1. Click Recovery in the Recovery System dialog box to start the system recovery.

Recovery System ASUS® Inspiring Innovation • Persistent Perfection Press to start system recovery, press to backup the factory default system files, or press to leave. Recovery Backup Exit

1. The system starts system recovery automatically and follows the onscreen instructions to complete the recovery process.

Back up the recovery files

1. Repeat the step 1—2 in the previous section.
2. Connect a USB storage device to your Eee PC and click Backup in the Recovery System dialog box to start the recovery files backup.

• The size of the connected USB storage device should be larger than 16GB.
  • Memory cards are not supported for this function.
• Please connect the storage device to USB 2.0 port.
• A dialog box appears as a reminder if you have not connected the USB storage

device for system recovery backup to your Eee PC.

Connect an external USB storage device before system backup.

1. Select a desired USB storage device if more than one USB storage device is connected to your Eee PC and click Continue.

Backup 1. ST730212 DE USB Device (27.9GB) DO NOT remove the USB storage device during system backup. Keep the power adapter connected during system backup. Continue Back

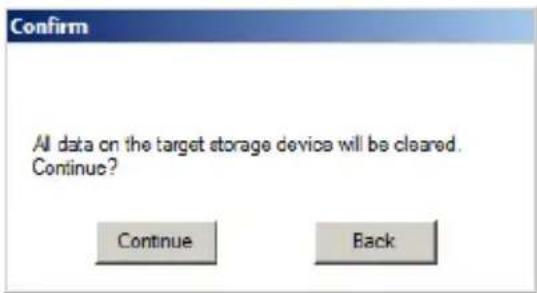

1. All the data on the selected USB storage device will be cleared. Click Continue to start the backup or click Back to backup your important data.

Confirm All data on the target storage device will be cleared. Continue? Continue Back

You will lose all your data on the selected USB storage device. Ensure to back up your important data beforehand

1. The system backup starts and click OK when done.

System backup completed. OK

Using the USB storage device (USB recovery)

Please use the USB 2.0 port to back up the recovery files.

1. Connect the USB storage device that you backup the system recovery files.

2. Press on bootup and the Please select boot device screen appears. Select USB: XXXXXX to boot from the connected USB storage device.

Please select boot device: HDD: SM-ASUS-PHISON SSD USB: XXXXXXXX ↑ and ↓ to move selection ENTER to select boot device

1. Select the language you use and click → to continue.

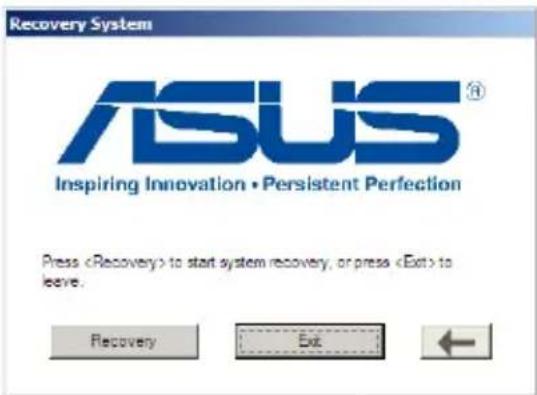

2. Click Recovery to start system recovery.

Recovery System ASUS® Inspiring Innovation • Persistent Perfection Press to start system recovery, or press to leave. Recovery Exit

1. Select a partition option and click Continue. Partition options:

• Recover system to a partition.

This option deletes all data on the system partition "C" and keeps the partition "D" unchanged.

Confirm Recover system to a partition You will lose all your data during system recovery. Ensure to back up your important data before recovery your system. Continue Back

• Recover system to entire HD.

This option deletes all partitions from your hard disk drive and creates a new system partition as drive "C" and a data partition as drive "D".

1. Follow the onscreen instructions to complete the recovery process.

Boot Booster (on selected models)

The Boot Booster item in BIOS setup helps shorten your Eee PC bootup time. However, you MUST disable this BIOS item before you change any Eee PC components or perform system recovery (from USB flash disk, external optical drive or hidden partition). Follow the instructions below to disable Boot Booster:

1. Start the system and press on bootup to show the POST screen. Press again to enter the BIOS setup.

2. Set Boot Booster to [Disabled].

If you fail to see the POST screen or enter the BIOS setup by doing the instruction above, restart the system and try pressing repeatedly on bootup.

Main Advanced Security Boot Exit BIOS SETUP UTILITY
▶ Boot Device Priority ▶ Boot Settings Configuration OnBoard LAN Boot ROM [Enabled] Boot Booster [Disabled]	Specifies the Boot Device Priority sequence. A virtual floppy disk drive (Floppy Drive B: ) may appear when you set the CD-ROM drive as the first boot device. ←→ Select Screen ↑↓ Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit
v02.58 (C)Copyright 1985-2005, American Megatrends, Inc.

1. Press to save the configuration and restart Eee PC.

Remember to enable Boot Booster after you complete hardware change or system recovery.

Declarations and Safety Statements

Copyright Information

Limitation of Liability

Service and Support

Declarations and Safety Statements

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office.)

FCC Radio Frequency (RF) Exposure Caution Statement

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. "The manufacture declares that this device is limited to Channels 1 through 11 in the 2.4GHz frequency by specified firmware controlled in the USA."

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Eee PC 1015PX / 1011PX / R011PX / R051PX / 1015BX / R051BX / 1015CX / R011CX / 1011BX / R011BX / 1011CX / R051CX

AR5B95 (AW-NE785H) Max. SAR Measurement (1g)

802.11b: 0.049 W/kg

802.11g: 0.044 W/kg

802.11n (20M): 0.038 W/kg

802.11n (40M): 0.039 W/kg

RT3090 (AW-NE762H) Max. SAR Measurement (1g)

802.11b: 0.052 W/kg

802.11g: 0.050 W/kg

802.11n (20M): 0.038 W/kg

802.11n (40M): 0.038 W/kg

BCM4313 (AW-NB047H) Max. SAR Measurement (1g)

802.11b: 0.022 W/kg

802.11g: 0.026 W/kg

802.11n (20M): 0.020 W/kg

Declaration of Conformity (R&TTE directive 1999/5/EC)

The following items were completed and are considered relevant and sufficient:

• Essential requirements as in [Article 3]
- Protection requirements for health and safety as in [Article 3.1a]
- Testing for electric safety according to [EN 60950]
- Protection requirements for electromagnetic compatibility in [Article 3.1b]
- Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301 489-17]
• Effective use of the radio spectrum as in [Article 3.2]
• Radio test suites according to [EN 300 328-2]

IC Radiation Exposure Statement for Canada

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Operation is subject to the following two conditions:

• This device may not cause interference and
- This device must accept any interference, including interference that may cause undesired operation of the device.

To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Eee PC 1015PX / 1011PX / R011PX / R051PX / 1015BX / R051BX / 1015CX / R051CX / 1011CX / R011CX / 1011BX / R011BX

AR5B95 (AW-NE785H) Max. SAR Measurement (1g)

802.11b: 0.049 W/kg

802.11g: 0.044 W/kg

802.11n (20M): 0.038 W/kg

802.11n (40M): 0.039 W/kg

RT3090 (AW-NE762H) Max. SAR Measurement (1g)

802.11b: 0.052 W/kg

802.11g: 0.050 W/kg

802.11n (20M): 0.038 W/kg

802.11n (40M): 0.038 W/kg

BCM4313 (AW-NB047H) Max. SAR Measurement (1g)

802.11b: 0.022 W/kg

802.11g: 0.026 W/kg

802.11n (20M): 0.020 W/kg

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

Country Code selection feature to be disabled for products marketed to the US/CANADA.

This Class [B] digital apparatus complies with Canadian ICES-003.

CE marking for devices without wireless LAN/Bluetooth

The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC "Electromagnetic compatibility" and 2006/95/EC "Low voltage directive".

CE!

CE marking for devices with wireless LAN/ Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity.

ENERGY STAR complied product

energy ENERGY STAR

ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.

All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default.

The monitor and computer are automatically set to sleep after 15 and 30 minutes of user inactivity. To wake your computer, click the mouse or press any key on the keyboard.

Please visit http://www.energy.gov/powermanagement for detail information on power management and its benefits to the environment. In addition, please visit http://www.energystar.gov for detail information on the ENERGY STAR joint program.

Energy Star is NOT supported on Freedos and Linux-based products.

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

France Restricted Wireless Frequency Bands

Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors are:

• 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)
  • 100mW for frequencies between 2446.5 MHz and 2483.5 MHz

Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz.

There are few possibilities for outdoor use: On private property or on the private property of public persons, use is subject to a preliminary authorization procedure by the Ministry of Defense, with maximum authorized power of 100mW in the 2446.5–2483.5 MHz band. Use outdoors on public property is not permitted.

In the departments listed below, for the entire 2.4 GHz band:

• Maximum authorized power indoors is 100mW
• Maximum authorized power outdoors is 10mW

Departments in which the use of the 2400–2483.5 MHz band is permitted with an EIRP of less than 100mW indoors and less than 10mW outdoors:

01 Ain 02 Aisne 03 Allier

05 Hautes Alpes 08 Ardennes 09 Ariège

11 Aude 12 Aveyron 16 Charente

24 Dordogne 25 Doubs 26 Drôme

This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.art-telecom.fr)

Your WLAN Card transmits less than 100mW, but more than 10mW.

UL Safety Notices

Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically connected to a telecommunication network that has an operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National Electrical Code (NFPA 70).

When using the Eee PC modem, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• DO NOT use the Eee PC near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• DO NOT use the Eee PC during an electrical storm. There may be a remote risk of electric shock from lightning.
• DO NOT use the Eee PC in the vicinity of a gas leak.

Required for UL 1642 covering primary (nonrechargeable) and secondary (rechargeable) lithium batteries for use as power sources in products. These batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or reversible chemical reaction.

• Do not dispose the Eee PC battery pack in a fire, as they may explode. Check with local codes for possible special disposal instructions to reduce the risk of injury to persons due to fire or explosion.
• Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm ^2 or H05VV-F, 2G, 0.75mm ^2 .

REACH Notice

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

Global Environmental Regulation Compliance and Declaration

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to http://csr.asus.com/english/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

• Japan JIS-C-0950 Material Declarations
• EU REACH SVHC
- Korea RoHS
- Swiss Energy Laws

ASUS Recycling/ Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

(English)

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2011 ASUSTeK COMPUTER INC. All Rights Reserved.

Limitation of Liability

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

Service and Support

Visit our multi-language web site at http://www.asus.com

Manufacturer ASUSTek COMPUTER INC.
Address, City No. 150, LI-T	E RD., PEITOU, TAIPEI 112, TAIWAN R.O.C
Country TAIWAN
Authorized Representative in Europe	ASUS COMPUTER GmbH
Address, City HARKORT S	TR. 21-23, 40880 RATINGEN
Country GERMANY
