USER MANUAL Eee PC 1201HAB ASUS

Line drawing of a laptop computer with visible keyboard, display screen, and ports (no text or symbols)

Table of Contents

About This User's Manual ....iv

Notes for This Manual ....iv

Safety Precautions....v

Transportation Precautions ......vi

Charging Your Batteries......vii

Airplane Precautions ......vii

Chapter 1: Knowing the Parts

Top Side 1-2

Bottom Side....1-5

Front Side 1-6

Right Side 1-7

Left Side 1-9

Keyboard Usage....1-11

Special Function Keys 1-11

Touchpad Usage 1-13

Multi-finger gesture input 1-13

Chapter 2: Getting Started

Powering on your Eee PC 2-2

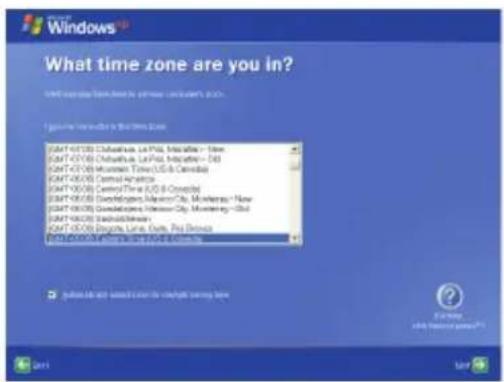

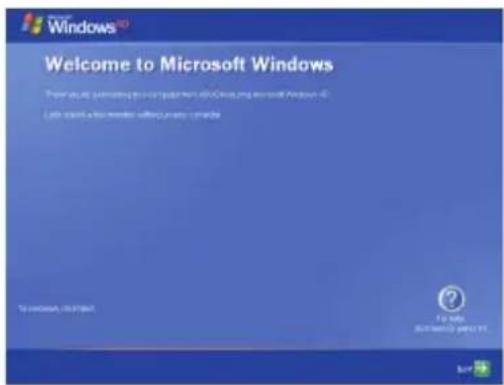

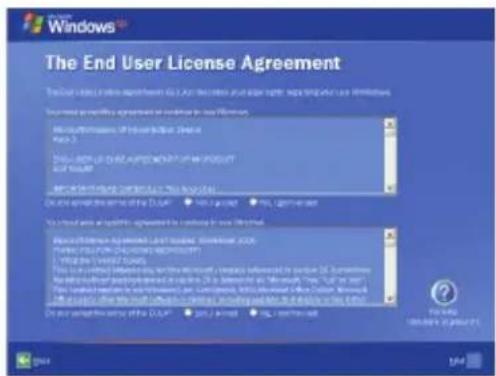

First-time Startup 2-3

Desktop....2-4

Network Connection....2-5

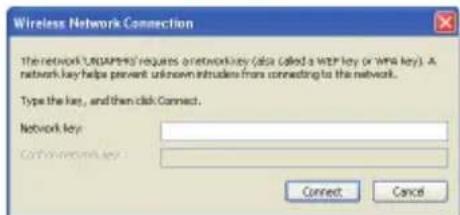

Configuring a wireless network connection....2-5

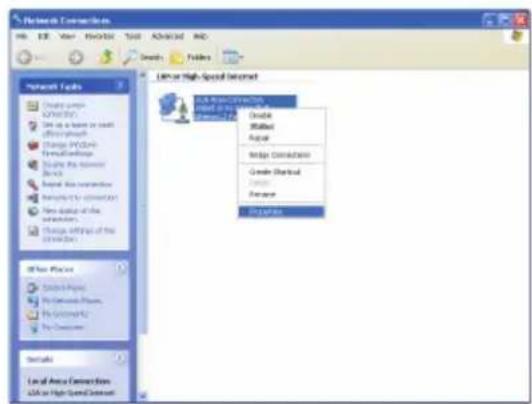

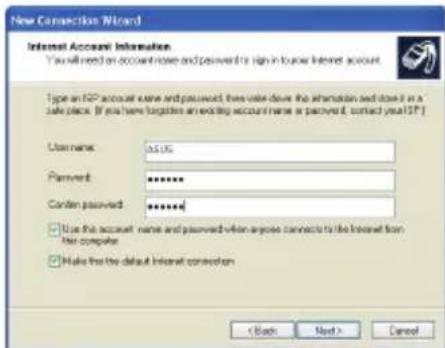

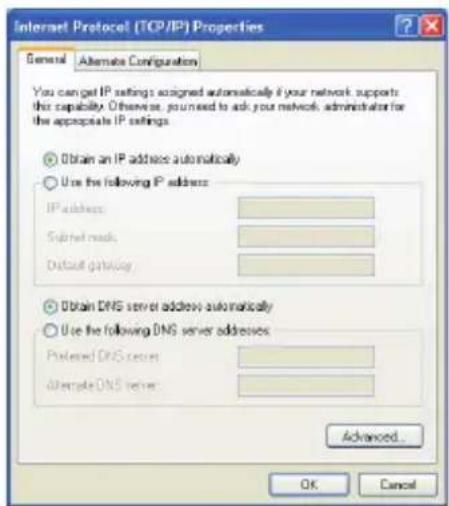

Local Area Network 2-6

Browsing web pages 2-9

Chapter 3: Using the Eee PC

ASUS Update....3-2

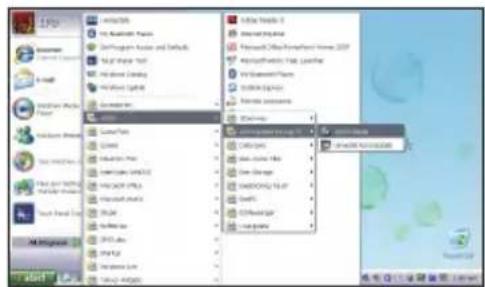

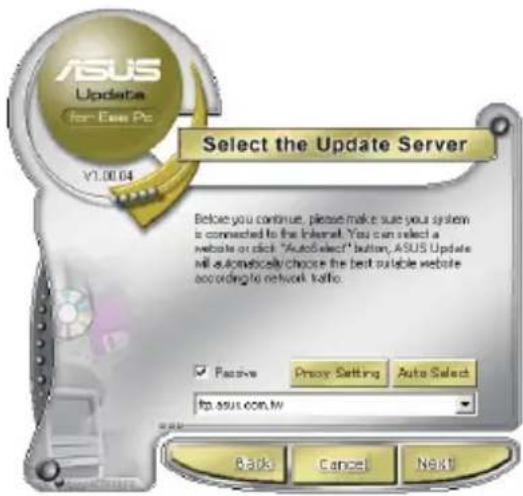

Updating the BIOS through the Internet 3-2

Updating the BIOS through a BIOS file ....3-3

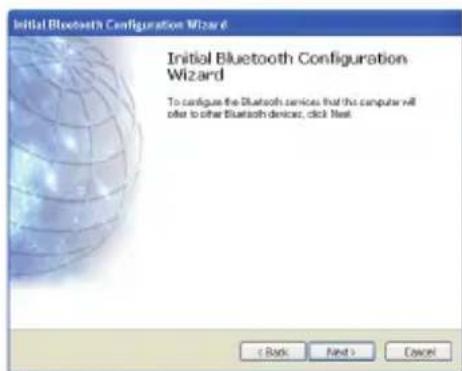

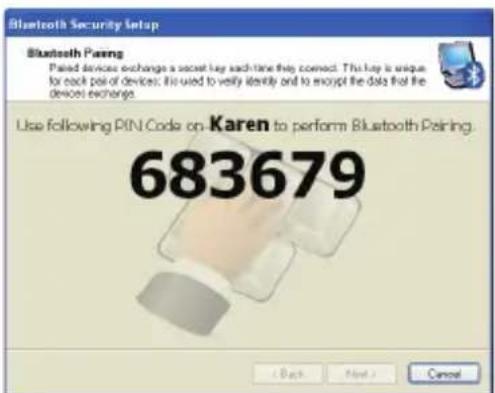

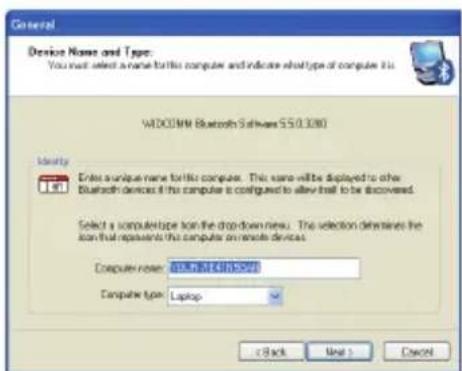

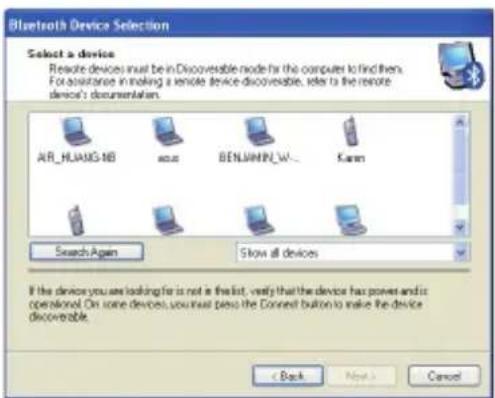

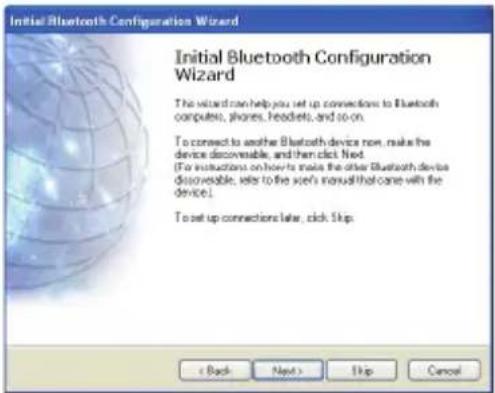

Bluetooth Connection(on selected models) 3-4

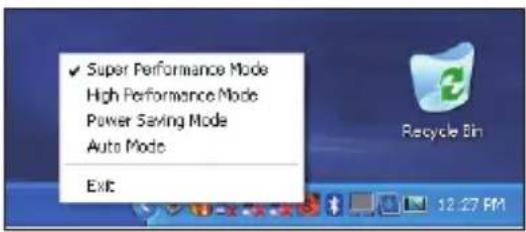

Super Hybrid Engine 3-6

Super Hybrid Engine Modes....3-6

Microsoft ^® Office Trial....3-7

Chapter 4: Support DVD & System Recovery

Support DVD information....4-2

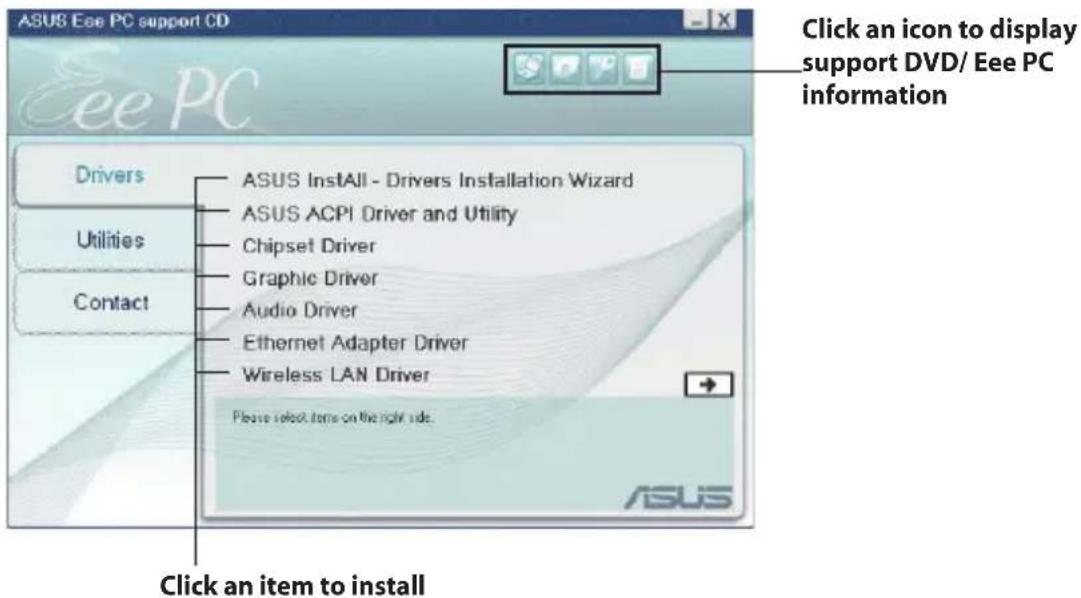

Running the support DVD 4-2

Drivers menu....4-3

Utilities menu....4-3

Contact....4-3

Other information 4-3

System Recovery....4-4

Using Recovery Partition 4-4

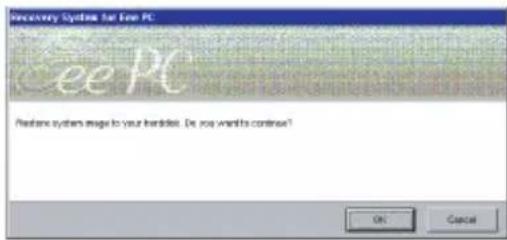

Using the Support DVD 4-5

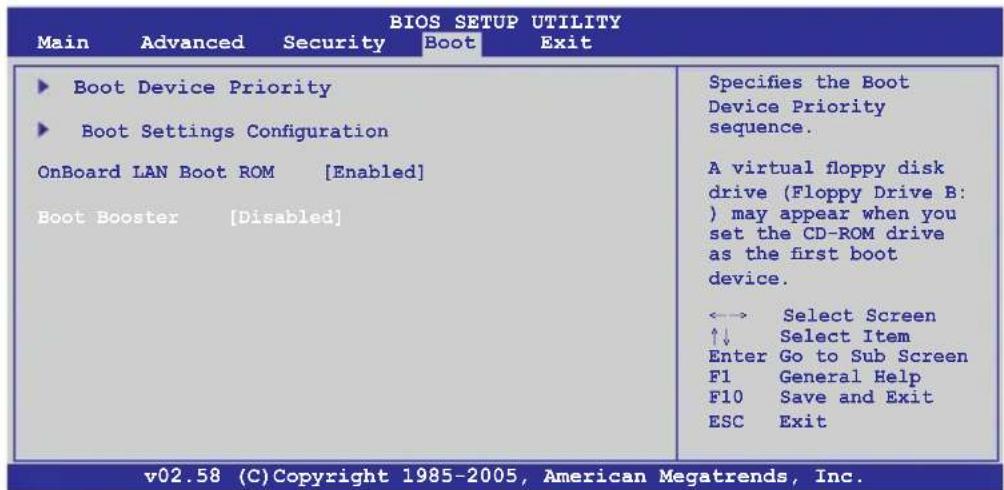

Boot Booster....4-6

Appendix

Declarations and Safety Statements ......A-2

Federal Communications Commission Statement ......A-2

FCC Radio Frequency (RF) Exposure Caution Statement ......A-3

Declaration of Conformity(R&TTE directive 1999/5/EC)......A-4

CE Marking.....A-4

IC Radiation Exposure Statement for Canada ......A-5

Wireless Operation Channel for Different Domains ......A-6

France Restricted Wireless Frequency Bands ......A-6

UL Safety Notices....A-7

REACH Notice....A-8

Power Safety Requirement ......A-8

Global Environmental Regulation Compliance and Declaration ......A-9

Takeback Services....A-9

Nordic Lithium Cautions (for lithium-ion batteries)......A-10

Copyright Information......A-12

Limitation of Liability ......A-13

Service and Support....A-13

About This User's Manual

You are reading the Eee PC User's Manual. This User's Manual provides information regarding the various components in the Eee PC and how to use them. The following are major sections of this User's Manual:

1. Knowing the Parts

Provides information on the Eee PC's components.

2. Getting Started

Provides information on getting started with the Eee PC.

3. Using the Eee PC

Provides information on using the Eee PC's utilities.

4. Support DVD and System Recovery

Gives you information on support DVD contents and system recovery.

5. Appendix

Gives you safety statements.

The actual bundled operating system and applications differ by models and territories. There may be differences between your Eee PC and the pictures shown in this manual. Please accept your Eee PC as being correct.

Notes for This Manual

A few notes and warnings are used throughout this guide, allowing you to complete certain tasks safely and effectively. These notes have different degrees of importance as follows:

WARNING! Important information that must be followed for safe operation.

IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons.

TIP: Tips for completing tasks.

NOTE: Information for special situations.

Safety Precautions

The following safety precautions will increase the life of the Eee PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners, benzene, or other chemicals on or near the surface.

Disconnect the AC power before cleaning. Wipe the Eee PC using a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth.

DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.

DO NOT place or drop objects on top and do not shove any foreign objects into the Eee PC.

DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.

DO NOT expose to strong magnetic or electrical fields.

DO NOT press or touch the display panel. Do not place together with small items that may scratch or enter the Eee PC.

DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.

DO NOT leave the Eee PC on your lap or any part of the body to prevent discomfort or injury from heat exposure.

Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery.

SAFE TEMP: This Eee PC should only be used in environments with ambient temperatures between 5°C (41°F) and 35°C (95°F)

INPUT RATING: Refer to the rating label on the bottom of the Eee PC and be sure that your power adapter complies with the rating.

DO NOT carry or cover a Eee PC that is powered ON with any materials that will reduce air circulation such as a carrying bag.

Incorrect installation of battery may cause explosion and damage the Eee PC.

DO NOT throw the Eee PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Transportation Precautions

To prepare your Eee PC for transport, you should turn it OFF and disconnect all external peripherals to prevent damage to the connectors. The hard disk drive's head retracts when the power is turned OFF to prevent scratching of the hard disk surface during transport.

Therefore, you should not transport your Eee PC while the power is still ON. Close the display panel to protect the keyboard and display panel.

The Eee PC's surface is easily dulled if not properly cared for. Be careful not to rub or scrape surfaces when transporting your Eee PC. You can put your Eee PC in a carrying case for protection from dirt, water, shock, and scratches.

Charging Your Batteries

If you intend to use battery power, be sure to fully charge your battery pack before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge the battery pack when the Eee PC is in use.

Remember to fully charge the battery (8 hours or more) before first use and whenever it is depleted to prolong battery life. The battery reaches its maximum capacity after a few full charging and discharging cycles.

Airplane Precautions

Contact your airline if you want to use the Eee PC on the airplane. Most airlines have restrictions for using electronic devices. Most airlines allow electronic use only between and not during takeoffs and landings.

There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand-held devices used on people or individual items). You can send your Eee PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Eee PC or diskettes through airport magnetic detectors or expose them to magnetic wands.

Top Side

Bottom Side

Front Side

Right Side

Left Side

Keyboard Usage

Touchpad Usage

Knowing the Parts

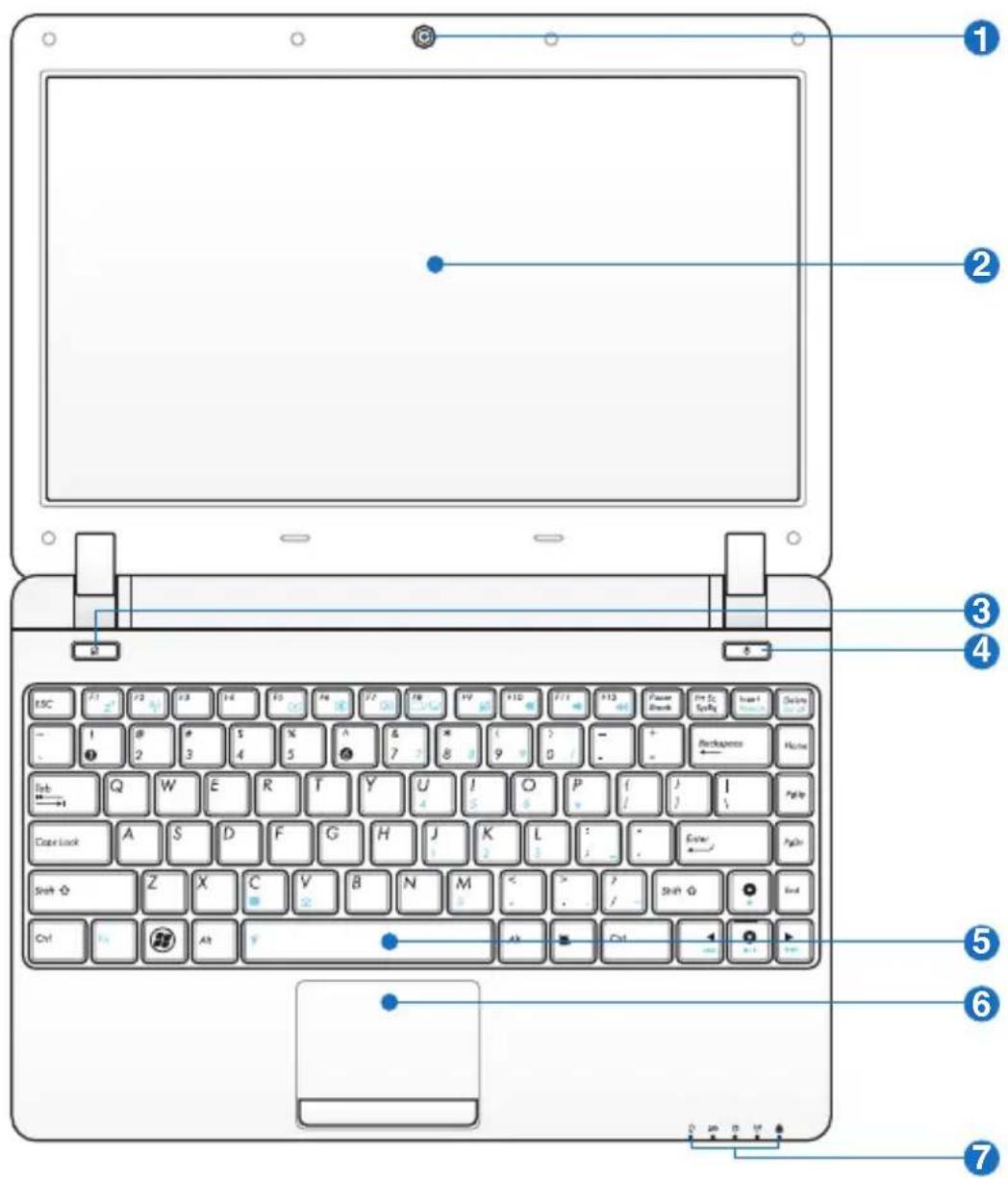

Top Side

Refer to the diagram below to identify the components on this side of the Eee PC.

The top side may vary in appearance depending on models.

Laptop keyboard layout diagram with numbered annotations pointing to key keys like ESC, Q, and Shift.

The keyboard differs for each territory.

1 Built-in Camera
2 Display Panel
③ Touchpad key

Toggles the touchpad ON/OFF. You can also turn on/off the function by pressing + .

4 Power Switch

The power switch allows powering ON and OFF the Eee PC and recovering from STR. Press the switch once to turn ON and hold it to turn OFF the Eee PC. The power switch only works when the display panel is opened.

5 Keyboard

The keyboard provides keys with comfortable travel (depth at which the keys can be depressed) and palm rest for both hands.

The keyboard differs depending on models.

6 Touchpad and Buttons

The touchpad and its buttons comprises a pointing device that provides the same functions as a desktop mouse.

7 Status Indicators

Power Indicator

The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Save-to-RAM (Suspend) mode. This indicator is OFF when the Eee PC is turned OFF.

Battery Charge Indicator

The battery charge indicator (LED) shows the battery charging status as follows:

Powered ON

	With Adapter Without Adapter
High battery power (95%-100%)	Green ON Off
Medium battery power (11%-94%)	Orange ON Off
Low battery power (0%-10%)	Orange Blinking Orange Blinking

Powered OFF / Standby mode

	With Adapter Without Adapter
High battery power (95%-100%)	Green ON Off
Medium battery power (11%-94%)	Orange ON Off
Low battery power (0%-10%)	Orange Blinking Off

Hard Disk Drive (HDD) Indicator

The hard disk drive indicator blinks when data is written to or read from the disk drive.

Wireless/Bluetooth Indicator

This is only applicable on models with built-in wireless LAN/Bluetooth (on selected models). When the built-in wireless LAN/Bluetooth is enabled, this indicator lights.

Capital Lock Indicator

Indicates that capital lock [Caps Lock] is activated when lighted.

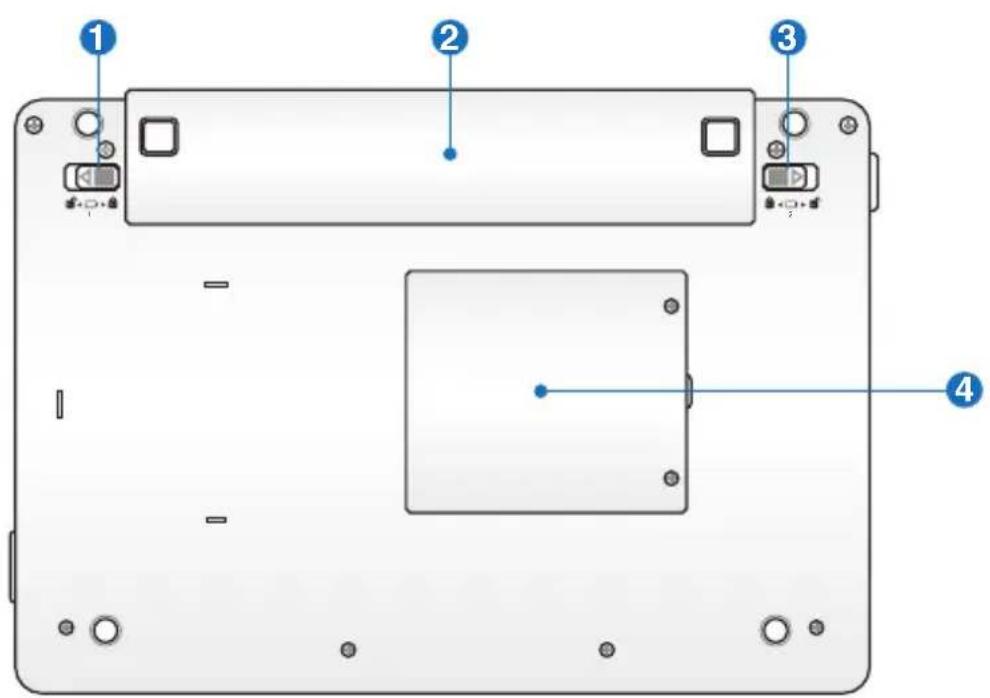

Bottom Side

Refer to the diagram below to identify the components on this side of the Eee PC.

The bottom side may vary in appearance depending on model.

Labeled diagram of a laptop rear panel showing front, back, and interior components with numbered annotations

The bottom of the Eee PC can get very hot. Be careful when handling the Eee PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. DO NOT use on soft surfaces such as beds or sofas, which may block the vents. DO NOT PUT THE Eee PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.

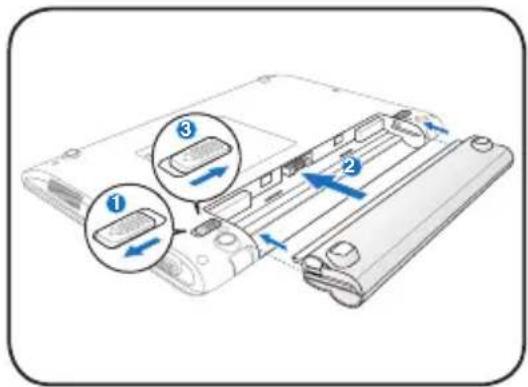

1 Battery Lock - Manual

The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked position to insert or remove the battery pack. Move the manual lock to the locked position after inserting the battery pack.

2 Battery Pack

The battery pack is automatically charged when connected to an AC power source and maintains power to the Eee PC when AC power is not connected. This allows use when moving temporarily between locations. Battery time varies by usage and by the specifications for this Eee PC. The battery pack cannot be disassembled and must be purchased as a single unit.

3 Battery Lock - Spring

The spring battery lock keeps the battery pack secure. When the battery pack is inserted, it will automatically lock. When removing the battery pack, this spring lock must be retained in the unlocked position.

4 Memory Compartment

The memory module is secured in a dedicated compartment.

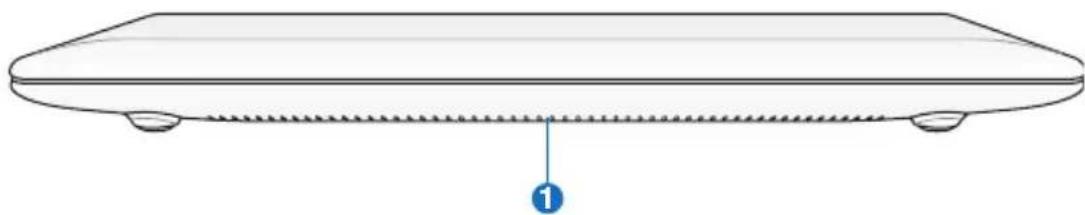

Front Side

Refer to the diagram below to identify the components on this side of the Eee PC.

Simple line drawing of a flat rectangular object with two circular bases and a labeled point (1) at the base, no text or symbols present.

1 Audio Speaker System

The built-in stereo speaker system allows you to hear audio without additional attachments. The multimedia sound system features an integrated digital audio controller that produces rich, vibrant sound (results improved with external stereo headphones or speakers). Audio features are software controlled.

Right Side

Refer to the diagram below to identify the components on this side of the Eee PC.

1 Memory Card Slot

The built-in memory card reader can read SD/SDHC/MMC cards.

2 Headphone Output Jack

The 1/8" stereo headphone jack (3.5mm) connects the Eee PC's audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speakers.

3 Microphone Jack

The microphone jack is designed to connect the microphone used for Skype, voice narrations, or simple audio recordings.

4 USB Port (2.0)

The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing devices, cameras, and storage devices, connected in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). Also, the USB supports hot-swapping function.

5 LAN Port

The eight-pin RJ-45 LAN port (10/100M bit) supports a standard Ethernet cable for connection to a local network. The built-in connector allows convenient use without additional adapters.

6 Kensington® Lock port

The Kensington ^® lock port allows the Eee PC to be secured using Kensington ^® compatible security products. These security products usually include a metal cable and lock that prevent the Eee PC to be removed from a fixed object.

Left Side

Refer to the diagram below to identify the components on this side of the Eee PC.

1 □ Display (Monitor) Output

The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a monitor or projector to allow viewing on a larger external display.

2 DCIN Power (DC) Input

The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Eee PC and charges the internal battery pack. To prevent damage to the Eee PC and battery pack, always use the supplied power adapter.

THE ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.

3 USB Port (2.0)

4 Air Vents

The air vents allow cool air to enter and warm air to exit the Eee PC.

Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.

5 HDMI HDMI Port

HDMI (High-Definition Multimedia Interface) is an uncompressed all-digital audio/video interface between any audio/video source, such as a set-top box, DVD player, and A/V receiver and an audio and/or video monitor, such as a digital television (DTV). Supports standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable. It transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements or requirements.

Keyboard Usage

Special Function Keys

The following defines the colored hot keys on the Eee PC's keyboard. The colored commands can only be accessed by first pressing and holding the function key while pressing a key with a colored command. Some function icons appear in the Notification area after activation.

The Hot Key locations on the function keys may vary depending on model but the functions should remain the same. Follow the icons whenever your hot key locations do not match the manual.

Z ^z Icon (F1): Places the Eee PC in suspend mode (Save-to-RAM).

Radio Tower (F2) (Wireless Models Only): Toggles the internal wireless LAN or Bluetooth (on selected models) ON or OFF with an on-screen-display. When enabled, the corresponding wireless indicator will light.

The default setting is WLAN ON / Bluetooth OFF.

Sun Down Icon (F5): Decreases the display brightness.

Sun Up Icon (F6): Increases the display brightness.

Crossed Screen Icon (F7): Turns off the display backlight.

LCD/Monitor Icons (F8): Toggles between the Eee PC's LCD display and an external monitor.

Touchpad (F9): Toggles the touchpad ON/OFF.

Crossed Speaker Icon (F10): Mutes the speaker.

Volume Down Icon (F11): Decreases speaker volume.

Volume Up Icon (F12): Increases the speaker volume.

Super Hybrid Engine (Fn+Space Bar): Toggles among

various power saving modes. The selected mode is shown on the display.

Num Lk (Insert): Toggles the numeric keypad

(number lock) ON and OFF. Allows use of a larger portion of the keyboard for number entering.

Scr Lk (Delete): Toggles the "Scroll Lock" ON and OFF.

Allows you to use a larger portion of the keyboard for cell navigation.

CD Play/Pause

During CD stop, begins CD play.

During CD play, pauses CD play.

Stop

During CD play: Stops CD play.

CD Skip to Previous Track (Rewind)

During CD play, skips to the previous audio track/movie chapter.

CD Skip to Next Track (Fast Forward)

During CD play, skips to the next audio track/movie chapter.

V: Toggles the camera applicaiotn ON. (on selected models)

C: Toggles the screensaver ON.

Window

vs icon: Displays the start menu.

Menu v

ith pointer icon : Activates the properties menu

and is equivalent to right-clicking the touchpad/mouse on an object.

Touchpad Usage

Multi-finger gesture input

Finger gesture Applications
Two-finger zooming in/out Adobe reader, Windows Photo Viewer
Two-finger rotating Adobe reader, Windows Photo Viewer
Two-finger scrolling up/down or left/right	Adobe reader, MS Word, MS Excel
Three-finger page up/down Adobe reader, MS Word, MS Excel

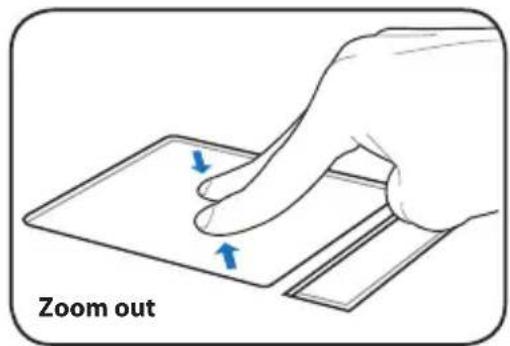

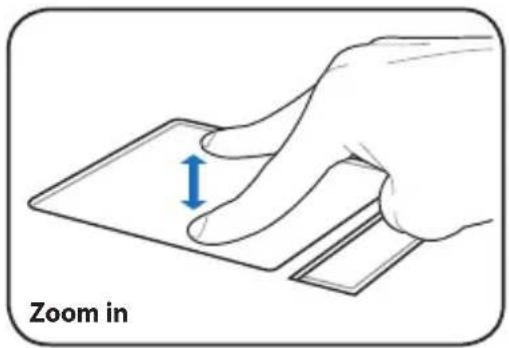

Two-finger zooming in/out - Moving two fingertips apart or together on the touchpad to zoom in or zoom out. This is convenient when viewing photos or reading documents.

Zoom in

Zoom out

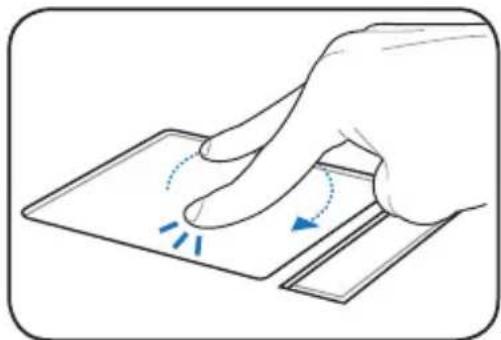

Two-finger rotating- Fix one fingertip on the touchpad and make an arc with the other to rotate the photo or the document you are viewing. You can make a clockwise or counterclockwise rotation based on your needs.

Illustration of a hand pressing down on a flat surface with motion arrows indicating movement (no text or symbols)

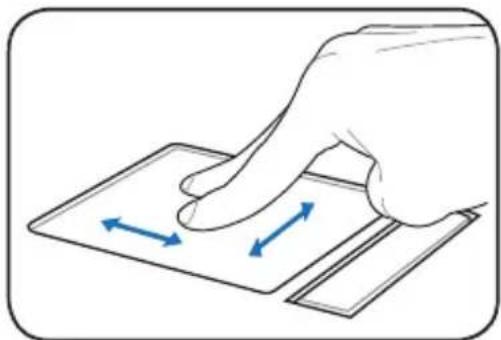

Two-finger scrolling up/down or left/right- Use two fingertips to slide up/down or left/right on the touchpad to scroll a window up/down or left/right. If your display window includes several sub-windows, move the pointer on that pane before scrolling.

Illustration of a hand pressing down on a sheet of paper with blue directional arrows indicating movement (no text or symbols)

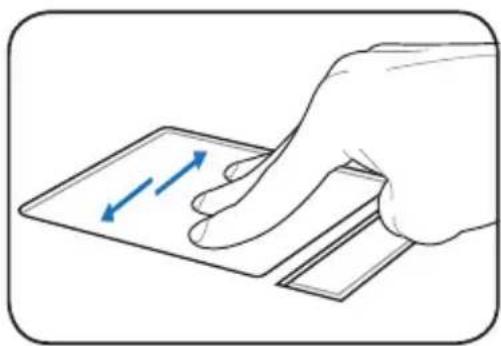

Three-finger page up/down- Use three fingers to move horizontally on the touchpad to swipe pages. Swipe from left to the right to view the next page or right to the left to return to the previous pages.

Illustration of a hand pressing down on a card with blue arrows indicating direction (no text or symbols)

Powering on your Eee PC

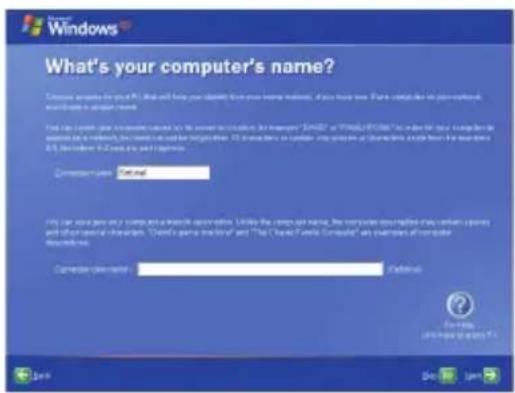

First-time Startup

Desktop

Network Connection

Getting Started

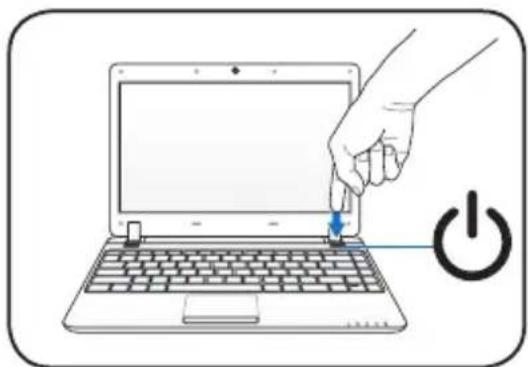

Powering on your Eee PC

These are only quick instructions for using your Eee PC.

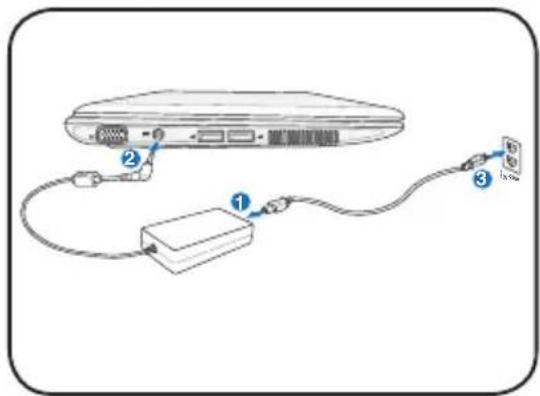

1. Install the battery pack 2. Connect the AC power adapter

Diagram of a device showing labeled components with directional arrows indicating movement or assembly.

Diagram of a network device showing connections between an external device and a cable, with numbered labels pointing to ports (no text or symbols present)

3. Turn ON the Eee PC

Illustration of a hand pressing a button on a laptop keyboard with an icon indicating power (no text or symbols)

Damage may occur if you use a different adapter to power the Eee PC. You may damage both your battery pack(s) and the Eee PC with a faulty AC-DC adapter.

• When you open the display panel, do not force it down to the table or else the hinges may break! Never lift the Eee PC by the display panel!
• Only use battery packs and power adapters supplied with this Eee PC or specifically approved by the manufacturer or retailer for use with this model or else damage may occur to the Eee PC. The output voltage of this adapter is +19Vdc, 2.1A.
• Never attempt to remove the battery pack while the Eee PC is turned ON, as this may result in the loss of working data.

Remember to fully charge the battery before first use and whenever it is depleted to prolong battery life.

First-time Startup

For the first time you start your Eee PC, the Windows wizard will launch automatically and lead you through setting up your preferences and some basic information.

Follow the wizard instructions to finish the initialization:

1. The Welcome message appears. Click Next to continue.

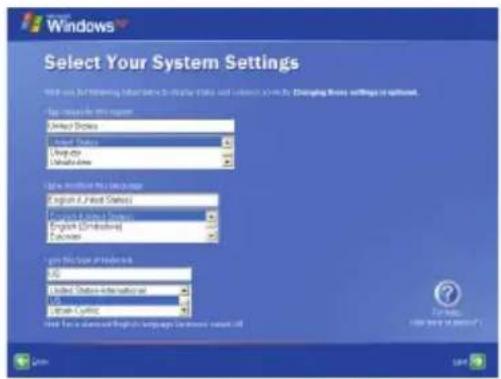

2. Select your system settings by specifying the region you are in, the language you use and the keyboard type you use. Click Next to continue.

Welcome to Microsoft Windows Your drive is continuing to complete all rights reserved. Microsoft Windows 6. Lab drive is continued after running on this device.

Windows® Select Your System Settings USB will not be following to display status and download from the Changing New settings in this context. New options include: Address Address Location Address Address Address New options include: Address (A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,X,Y,Z)... English (E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,X,Y,Z,X,Y,Z)... New options include: Address Address United States International US Region State Control User for a domain or English language to choose new sites. OK Cancel Help

1. Select the time zone you are in and click Next to continue.

2. Read the end user license agreement and click Yes, I accept. Click Next to continue.

What time zone are you in? GMT Express Transmission is also unmettled. This I imagine the next time zone. GMT-01/08: Chandra's, U.S. Post, Initiative - New GMT-01/08: Chandra's, U.S. Post, Initiative - 50 GMT-01/08: Monetron Time (USB) Canada GMT-02/08: Central America GMT-02/08: Central Time (USB) Canada GMT-02/08: GlobalLogos, Mexico City, Mexico - New GMT-02/08: GlobalLogos, Mexico City, Mexico - US GMT-02/08: GlobalLogos GMT-02/08: Google Linux, Google Post Service E-mail: [e-mail] My Web Get a new Job Information Services

The End User License Agreement This is not a contract between GLU and the other and other later. This is not a contract or an alternative. In order to be certified, you will have been certified in your website. A US Department of Technology (NDA) for March 2017 B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.nd.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://wucn.net/2018-03-06 B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ndu.com/ B.A. LLC (www.ndu.com) http://www.ncn.net/2018-03-06 B.A. LLC (www.ndu.com) http://www.ncn.net/2018-03-06 B.A. LLC (www.ndu.com) http://www.ncn.net/2018-03-06 B.A. LLC (www.ndu.com) http://www.ncn.net/2018-03-06 B.A. LLC (www.ndu.com) http://www.ncn.org/2018-03-06 B.A. LLC (www.ndu.com) http://www.ncn.org/2018-03-06 B.A. LLC (www.ndu.com) http://www.ncn.org/2018-03-06 B.A. LLC (www.ndu.com) http://www.ncn.org/2018-03-06 B.A. Inc. Do your initial service of the OJAP - Get it ahead - Add to the first time on the next day. Do your initial service of the OJAP - Get it ahead - Add to the first time on the next day. Do your initial service of the OJAP - Get it ahead - Add to the first time on the next day. Do your initial service of the OJAP - Get it ahead - Add to the first time on the next day. Do your initial service of the OJAP - Get it ahead - Add to the first time on the next day. Do your first service of the OJAP - Get it ahead - Add to the first time on the next day. Do your initial service of the OJAP - Get it ahead - Add to the first time on the next day. Do your initial service of the OJAP - Get it ahead - Add to the first time on the next day. Do your initial service of the OJAP - Get it ahead - Add to the first time on the next day. Do your initial service of the NDA - Get it ahead - Add to the first time on the next day. Do your initial service of the NDA - Get it ahead - Add to the first time on the next day. Do your initial service of the NDA - Get it ahead - Add to the first time on the next day. Do your initial service of the NDA - Get it ahead - Add to the first time on the next day. Do your initial service of the NDA - Get it ahead - Add to NDA Do your initial service of the NDA - Get it ahead - Add to NDA Do your initial service of the NDA - Get it ahead - Add to NDA Do your initial service of the NDA - Get it ahead - Add to NDA Do your initial service of the NDA - Get it ahead - Add to NDA Do your initial service of the NDA - Get it ahead - Add to NDA Do your initial service of the NDA - Put it ahead - Add to NDA Do your initial service of the NDA - Put it ahead - Add to NDA Do your initial service of the NDA - Put it ahead - Add to NDA Do your initial service of the NDA - Put it ahead - Add to NDA Do your initial service of the NDA - Put it ahead - Add to NDA Do your initial service of the NDA - Put it ahead - Add to NDA Do you start at www.mcp.cn or at www.mcp.cn

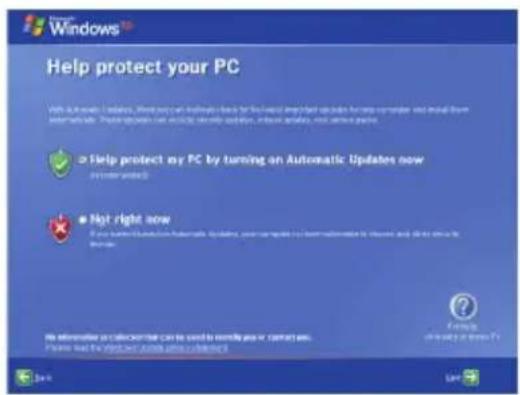

1. Click Help protect my PC by turning on Automatic Updates now to get the latest important updates and click Next to continue.

2. Type your computer's name in the Computer name box and click Next to continue.

Windows 9 Help protect your PC With Automatic Updates, when you can automatically choose for the specific impact of updates from computer and through other information. Please note that this update can be used to create updates, include updates, and create updates. Help protect my PC by turning on Automatic Updates now in order to add it Hot right now If you want to switch or remove Automatic Updates, you can replace your own information in these areas, and then use it to add it. No information can be saved to any other items. Please note that this update can be updated.

What's your computer's name? Browse names by your PC. What will help your identity for your name in terms, if you have new. You can choose to join your own website or any other name. Find the following: your computer name is not to be used to create a new computer. This is also available for your computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. YOU can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this device to create a new computer name. You can use this equipment to create a new computer name. You can use this equipment to create a new computer name. You can use this equipment to create a new computer name. You can use this equipment to create a new computer name. You can use this equipment to create a new computer name. You can use this equipment to create a new computer name. You can use this equipment to create a new computer name. You can use this equipment to create a new computer name. You can use this equipment to create a more complete computer name. You can use this equipment to create a more complete computer name. You can use this equipment to create a more complete computer name. You can use this equipment to create a more complete computer name. You can use this equipment to create a more complete computer name. You can use this equipment to create a more complete computer name. You can use this equipment to create a more complete computer name. You can use this equipment to create a more complete computer name. You can use this equipment type to create a more complete computer name. You can use this equipment type to create a more complete computer name. You can use this equipment type to create a more complete computer name. You can use this equipment type to create a more complete computer name. You can use this equipment type to create a more complete computer name. You can use this equipment type to create a more complete computer name. You can use this equipment type to create a more complete computer name. You can use this equipment type to generate a more complete computer name. You can use this equipment type to generate a more complete computer name. You can use this equipment type to generate a more complete computer name. You can use this equipment type to generate a more complete computer name. You can use this equipment type to generate a more complete computer name. You can use this equipment type to generate a more complete computer name. You can use this equipment type to generate a more complete computer name. You can use this equipment type to generate a less complete computer name. You can use this equipment type to generate a less complete computer name. You can use this equipment type to generate a less complete computer name. You can use this equipment type to generate a less complete computer name. You can use this equipment type to generate a less complete computer name. You can use this equipment type to generate a less complete computer name. You can use this equipment type to generate a less complete computer name. You can use this equipment type to generate a less complete computers

1. Follow the onscreen instructions to register with Microsoft and finish the initialization.

Desktop

There are several shortcuts on the desktop. Double-click them to launch the corresponding applications and enter the specified folders. Some applications would form minimized icons in the Notification area.

The actual Desktop screen may vary according to different models.

Network Connection

Configuring a wireless network connection

1. Double-click the crossed wireless network icon Notification area.

If the wireless connection icon does not show in the Notification area. Activate the wireless LAN function by pressing 60 + 30 ( + ) before configuring a wireless network connection.

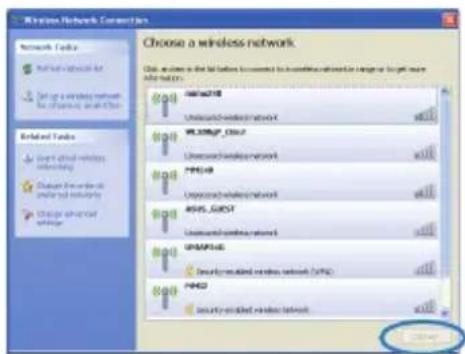

1. Select the wireless access point you want to connect to from the list and click Connect to build the connection.

If you cannot find the desired access point, click Refresh network list in the left pane and search in the list again.

1. When connecting, you may have to enter a password.

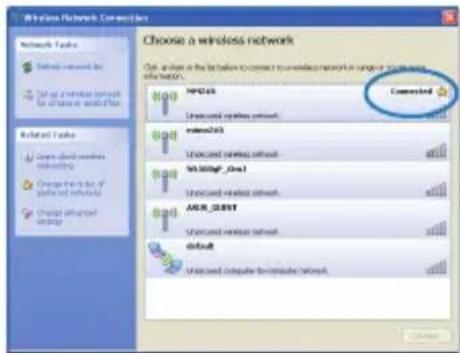

2. After a connection has been established, the connection is shown on the list.

3. You can see the wireless network icon in the Notification area.

Windows Network Connection Choose a wireless network Click as close to the next few seconds is connected to a wireless network in order to get more information. Network Tools Network-based list Setup up a wireless network for wireless network Networked Tasks Start virtual wireless networking Change forward at wireless network Change advanced networking NAT&T10 Unsecured wireless network WL300GP_CNCL Unsecured wireless network TPTC10 Unsecured wireless network ASYS_GUEST Unsecured wireless network UPMSP10 Security-enabled wireless network (SPG) PMSO Security-enabled wireless network

Wireless Network Connection The network UNIAPERS' requires anNetworkKey (data called a WEP key or WPA key). A network key helps prevent unknown intruder's from connecting to the network. Type the key, and then click Connect. Network Key: Connect... Cancel

Windows Network Connection Choose a wireless network Optimize the link between to connect wireless network in various connection information. HPD43 Connected Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet23 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet24 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet25 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet26 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet27 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28 Internet28

The wireless connection icon disappears when you Press 6 + 6 ( + ) to disable the WLAN function.

Local Area Network

To establish a wired network, follow the instructions below:

Using a dynamic IP:

1. Right-click the network icon with a yellow warning triangle
   in the notification area I select Open Network connections.

Disable Status Repair Change Windows Firewall settings Open Network Connections

1. Right-click Local Area Connection and select Properties.

Network Connections File Edit View Insert Tools Advanced Help Network Files Create a new or created Internet Create PC/PCs Create Web/Cable Create the Internet Create the connection New data of the connection. New data of the connection. Open Files Create Project Create Project Create Project Local Area Connections Local High Speed Connection Layer to High Speed Internet Layer to High Speed Internet Double Shifted Export Bridge Connection Create Shorted Export Exporter

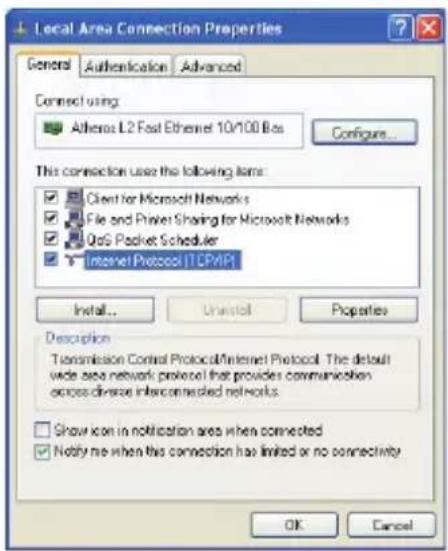

1. Click Internet Protocol (TCP/IP) and click Properties.

Local Area Connection Properties General Authentication Advanced Connect using: Atheros L2 Fast Ethernet 10/100 Bcs Configure... This connection uses the following items: Client for Microsoft Networks File and Printer Sharing for Microsoft Networks QoS Packet Scheduler Internet Protocol | TCP/IP Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol: The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification areas when connected Notify me when this connection has limited or no connectivity OK Cancel

1. Click Obtain an IP address automatically and click OK.

Internet Protocol (TCP/IP) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports the capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address Subnet mask Default gateway Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server Alternate DNS server Advanced... OK Cancel

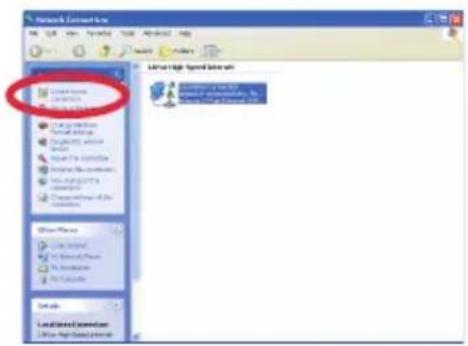

1. Click Create a new connection to start the New Connection Wizard.

Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection Network Connection System1 System2 System3 System4 System5 System6 System7 System8 System9 System10 System11 System12 System13 System14 System15 System16 System17 System18 System19 System20 System21 System22 System23 System24 System25 System26 System27 System28 System29 System30 System31 System32 System33 System34 System35 System36 System37 System38 System39 System40 System41 System42 System43 System44 System45 System46 System47 System48 System49 System50 System51 System52 System53 System54 System55 System56 System57 System58 System59 System60 System61 System62 System63 System64 System65 System66 System67 System68 System69 System70 System71 System72 System73 System74 System75 System76 System77 System78 System79 System80

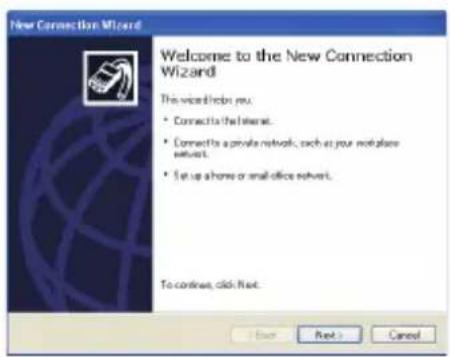

1. Click Next.

New Connection Wizard Welcome to the New Connection Wizard! This wizard helps you. • Connect to the Internet. • Connect to a private network, such as your workplace network. • Set up a phone or small office network. To continue, click next.

1. Select Connect to the Internet and click Next.

New Connection Wizard Network Connection Type What do you want to do? Connect to the Internet Connect to the Internet so you can borrow the Web and read email Connect to the network at my workplace Connect to a business network (using debug in VPN) so you can work from home. a fixed office, or another location Set up a home or small office network Connect to an existing home or small office network or set up a new window. Set up an advanced connection Connect directly to another computer comp your own, possible, or shared part, or set up this computer so that other computers can be connected to A < Back Next > Cancel

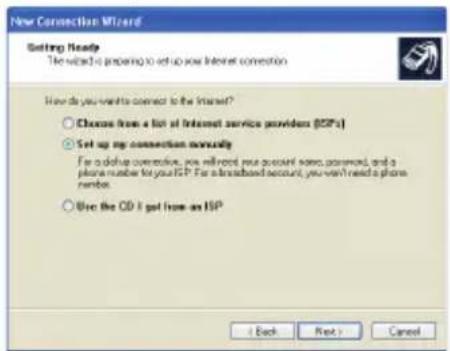

1. Select Set up my connection manually.

New Connection Wizard Setting Ready The wizard is preparing to set up your Internet connection How do you want to connect to the Internet? ○ Choose from a list of Internet service providers (ISP's) ○ Set up my connection commonly For a backup connection, you will need your account name, password, and a phone number for your ISP. For a broadband account, you won't need a phone number. ○ Use the CD to get from an ISP ( Back Next > Cancel

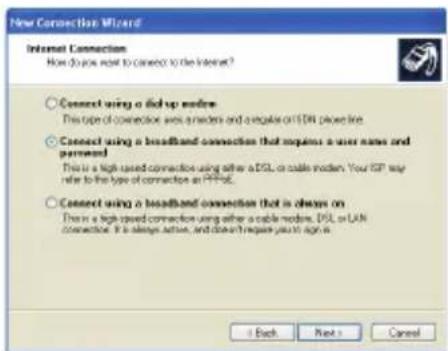

1. Select your connection type and click Next.

How Connection Wizard Internet Connection How do you want to connect to the Internet? Connect using a dial-up mode This type of connection was shared and active on LAN device like Connect using a broadband connection that requires a user name and password This is a high-speed connection using either a DSL or cable modem. Your ISP way refer to the type of connection as PPPUE. Connect using a broadband connection that is always on From a high-speed connection using either a cable modem, DSL or LAN connection. It is always active, and does not require you to sign it. + Back Next > Cancel

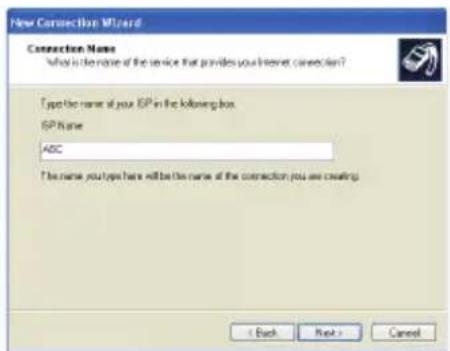

1. Enter your ISP Name and click Next.

New Connection MT/ard Connection Name What is the name of the service that provides your Internet connection? Type the name of your ISP in the following box: ISP Name ADC I'm name, you type here will be the name of the connection you are creating. < Back Next > Cancel

1. Enter your User name and Password. Click Next.

New Connection Wizard Internet Account Information You will need an account name and password to sign in your Internet account. Type an ISP account name and password, then value drive the information and store it in a safe place. If you have ignored an existing account name or password, contact your ISP! User name: AS US Password: ******** Cancel password: ******** Use this account name and password when Argentina connects to the Internet from the computer Make the default Internet connection < Back Next > Cancel

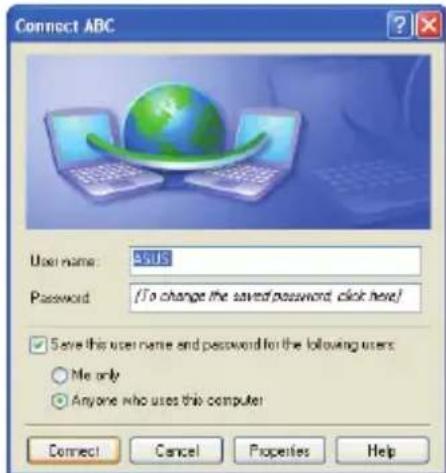

1. Enter your user name and password. Click Connect to connect to the Internet.

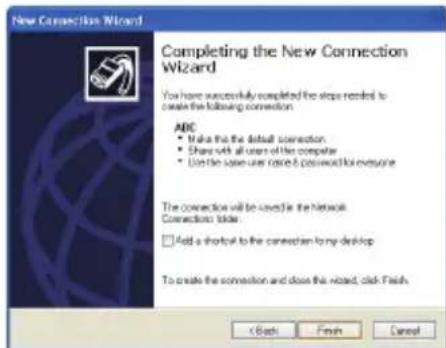

12 Click Finish to finish the configuration.

New Connection Wizard Completing the New Connection Wizard You have successfully completed the steps needed to create the following connection. ABC • Make the default connection • Share with all users of the computer • Use the same user to raise a password for everyone The connection will be used in the network Connections folder. □ Add a socket to the connection to my desktop To create the connection and close this wizard, click: Finish.

Connect ABC User name: 5015 Password: [To change the saved password, click here] ✓ Save this user name and password for the following users: ○ No only ● Anyone who uses this computer Connect Cancel Properties Help

Using a static IP:

1. Repeat the step 1–3 of Using a dynamic IP to start the static IP network configuration.
   2 Click Use the following IP address.
2. Enter the IP address, Subnet mask and Gateway from your service provider.
3. If needed, enter the preferred DNS Server address and alternative address.
4. After entering all the related values, click OK to build the network connection.

Contact your Internet Service Provider (ISP) if you have problems connecting to the network.

Browsing web pages

After you finish the network setup, click Internet Explorer on the desktop and start enjoying net surfing.

Visit our Eee PC homepage (http://eeepc.asus.com) to obtain the latest information and register at http://vip.asus.com for full service of your Eee PC.

ASUS Update

Bluetooth Connection

Super Hybrid Engine

Microsoft® Office Trial

Using the Eee PC

ASUS Update

The ASUS Update is a utility that allows you to manage, save, and update the Eee PC BIOS in Windows® environment. The ASUS Update utility allows you to:

• Save the current BIOS file
• Download the latest BIOS file from the Internet
• Update the BIOS from an updated BIOS file
• Update the BIOS directly from the Internet, and
  • View the BIOS version information.

This utility is pre-loaded in your Eee PC and is also available in the support DVD that comes with the Eee PC package.

ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).

Updating the BIOS through the Internet

To update the BIOS through the Internet

1. Launch the ASUS Update utility from the Windows® desktop by clicking Start > All Programs > ASUS > ASUSUpdate for Eee PC> ASUSUpdate. The ASUS Update main window appears.

Edit Tools New Image Delete Image Edit Tools New Image Delete Image Edit Tools New Image Delete Image Edit Tools New Image Delete Image Edit Tools New Image Delete Image Edit Tools New Image Delete Image Edit Tools New Image Delete Image Edit Tools New Image Delete Image Edit Tools New Image Delete Image Edit Tools New Image Delete Image Edit Tools New Image Delete Image Edit Tools New Image Delete Image edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Tools Edit Taside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Taside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit Subaside_text Edit SubasideText<|ref_end|><|rotate_up|>

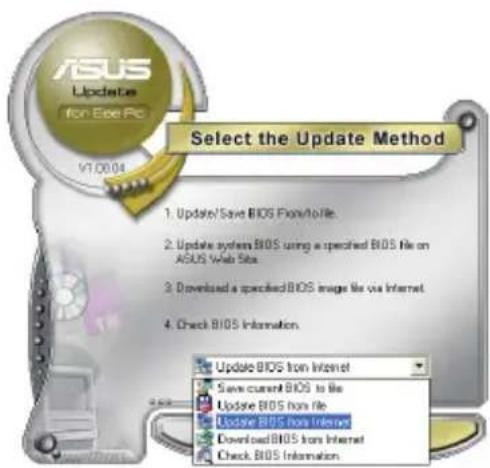

1. Select Update BIOS from Internet from the drop-down menu, then click Next.

Select the Update Method 1. Update/Save BIOS Flow/to file. 2. Update system BIOS using a specified BIOS file on ASUS Web Site. 3. Downloaded a specified BIOS image file via Internet. 4. Check BIOS Information. Update BIOS from Internet Save current BIOS to file Update BIOS from file Update BIOS from Internet Download BIOS from Internet Check BIOS Information.

1. Select the ASUS FTP site nearest you to avoid network traffic, or click Auto Select. Click Next.

2. From the FTP site, select the desired BIOS version and click Next.

3. Follow the screen instructions to complete the update process.

ASUS Update for Easy PC Y1.00.04 Select the Update Server Before you continue, please make sure your system is connected to the Internet. You can select a website or click "AutoSelect" button, ASUS Update will automatically choose the best suitable website according to network ratio. ✓ Passive Proxy Setting Auto Select fp.asus.com.tw Back Cancel Next

The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features.

Updating the BIOS through a BIOS file

To update the BIOS through a BIOS file:

1. Launch the ASUS Update utility from the Windows® desktop by clicking Start > Programs > ASUS > ASUSUpdate for EeePC> ASUSUpdate. The ASUS Update main window appears.

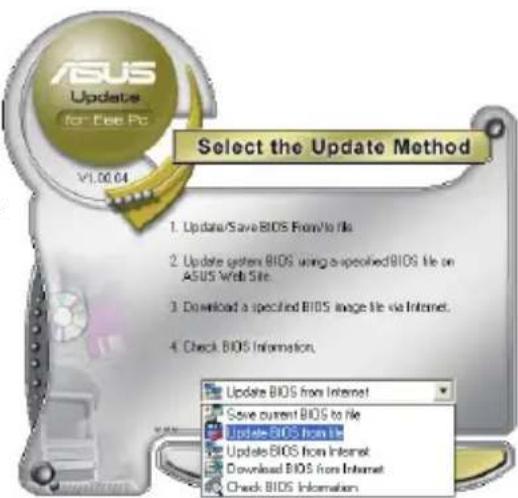

2. Select Update BIOS from file from the drop-down menu, then click Next.

ASUS Update for Dee PC V1.00.04 Select the Update Method 1. Update/Save BIOS From/To file 2. Update system BIOS using a specified BIOS file on ASUS Web Site. 3. Download a specified BIOS image file via Internet. 4. Check BIOS Information. Update BIOS from Internet Save current BIOS to file Update BIOS from file Update BIOS from Internet Download BIOS from Internet Check BIOS Information

1. Locate the BIOS file from the Open window, then click Open.
2. Follow the screen instructions to complete the update process.

Bluetooth Connection (on selected models)

Bluetooth technology eliminates the need for cables for connecting Bluetooth-enabled devices. Examples of Bluetooth-enabled devices may be Notebook PCs, Desktop PCs, mobile phones, and PDAs.

To connect to a Bluetooth-enabled device

1. Press + repeatedly until Bluetooth ON or WLAN & Bluetooth ON is shown.

2. Click My Bluetooth Places on the desktop and follow the onscreen instructions to finish initialization. Click Next to continue.

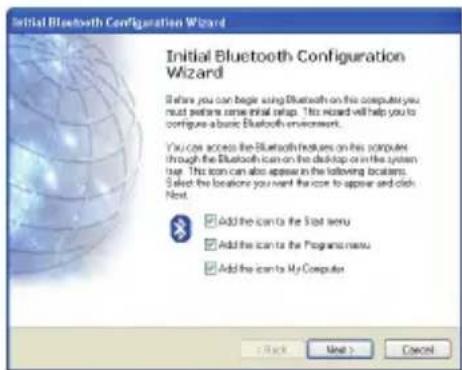

Initial Bluetooth Configuration Wizard Before you can begin using Bluetooth on this computer, you must perform some initial setup. This wizard will help you to configure a basic Bluetooth environment. You can access the Bluetooth features on this computer through the Bluetooth icon on the desktop or in the system bus. This icon can also appear in the following locations: Select the location you want the icon to appear and click Next. Add the icon to the Start menu Add the icon to the Programs menu Add the icon to My Computer

1. Name your Eee PC and select the device type. Click Next to continue.

2. To decide the Bluetooth services this device offers, click Next to continue.

General Device Name and Type: You must select a name for this computer and indicate what type of computer is. WDOOMM Bluetooth Software S5.0.3280 Identity Enter a unique name for this computer. This name will be displayed to other Bluetooth devices if the computer is configured to allow that to be discovered. Select a computer device on the drop-down menu. The selection determines the icon that represents this computer on minute devices. Computer name: 61.0.914-85507 Computer type: Laptop < Back Next > Cancel

Initial Bluetooth Configuration Wizard Initial Bluetooth Configuration Wizard To configure the Bluetooth services that this computer will offer to other Bluetooth devices, click Next < Back Next > Cancel

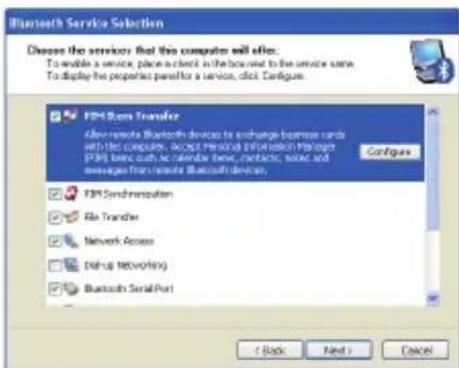

1. Select the service you would like to offer from the list and click Next to continue.

Bluetooth Service Selection Choose the services that this computer will offer. To enable a service, place a click in the local server to the service name. To display the properties panel for a service, click. Configure. TSM-Item Transfer Allow remote Bluetooth devices to exchange basic cards with the computer. Except wireless information packets (PLK) based on the calendar device, packets, slots and measures from remote Bluetooth devices. TCP Synchronization File Transfer Network Access Pre-up Networking Bluetooth Serial Port < Back Next > Cancel

1. Click Next to start setting up the Bluetooth connection.

Initial Bluetooth Configuration Wizard Initial Bluetooth Configuration Wizard The wizard can help you set up connections to Bluetooth computers, phones, headsets, and so on. To connect to another Bluetooth device now, make the device discoverable, and then click Next. (For instructions on how to make the other Bluetooth device discoverable, refer to the site's manual that come with the device.) To set up connections later, click Skip. < Back Next > Skip Cancel

1. Select a Bluetooth-enabled device from the list and click Next.

Bluetooth Device Selection Select a device Remote devices must be in Discoverable mode for the computer to find them. For assistance in making a remote device discoverable, refer to the remote devoc's documentation. AR_HUANG-MB sous BENJAMIN_W... Kann Search Again Show all devices If the device you are looking for is not at the list, verify that the device has power and is operational. On some devices, you must press the Connect button to make the device discoverable. < Back Next > Cancel

1. Enter the Bluetooth security code and start pairing.

Bluetooth Security Setup Bluetooth Pairing Paired devices exchange a secret key each time they connect. This key is unique for each pair of devices: this used to verify identity and to encrypt the data that the devices exchange. Use following PIN Code on Karen to perform Bluetooth Pairing. 683679 ( Back Next ) Cancel

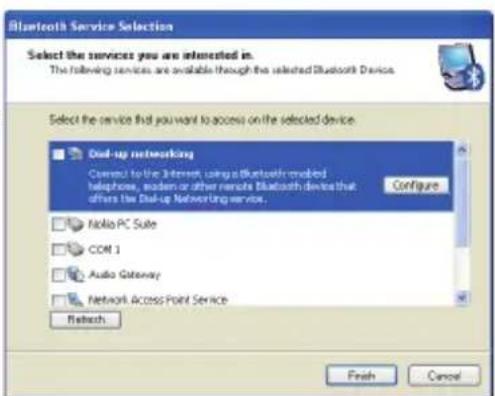

1. After the paired relationship is built, select the service you are interested in from the list and click Finish to use the selected service.

Bluetooth Service Selection Select the services you are interested in. The following services are available through the selected Bluetooth Device. Select the service that you want to access on the selected device. ■ Dial-up networking Command to the Internet, using a Bluetooth-enabled telephone, modem or other remote Bluetooth devices that offers the Dial-up Networking service. Configure Nollo PC Suite COM 1 Audio Gateway Network Access Point Service Refresh Finish Cancel

Super Hybrid Engine

Super Hybrid Engine offers different power modes. The power saving modes control many aspects of your Eee PC to maximize performance versus battery time. The selected mode is shown on the display.

To change the power mode

- Click Start > All Programs > ASUS > EeePC > SuperHybridEngine > SuperHybridEngine.

- Right-click the Super Hybrid Engine icon in the Notification area, and select a preferred power mode.

Super Performance Mode High Performance Mode Power Saving Mode Auto Mode Exit

Super Hybrid Engine Modes

Power Saving

High Performance

Super Performance

Auto High Performance and Auto Power-Saving mode are available only when applying or removing the power adapter.

Auto Power-Saving

Auto High-Performance

If your external monitor functions abnormally in Power Saving mode at a resolution of 1024 x 768 pixels or higher, press + repeatedly to switch the display mode to LCD Only or LCD + CRT Clone and reset the power mode to High Performance or Super Performance.

Microsoft® Office Trial

Eee PC users can enjoy Microsoft Office Suite free trial for 60 days. Do the following instructions to start the free trial.

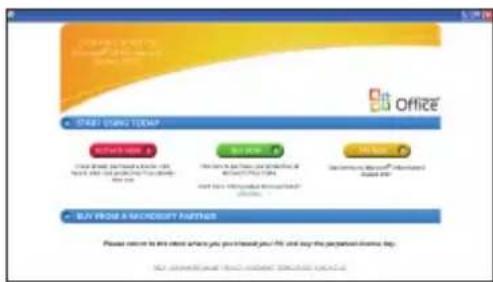

1. Ensure that your Eee PC is connected to the Internet and double-click Microsoft Office 60 Day Trial - Online on the desktop.

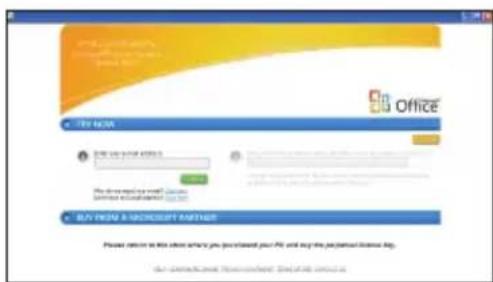

2. Click TRY NOW.

3. Enter your E-mail address and click SUBMIT.

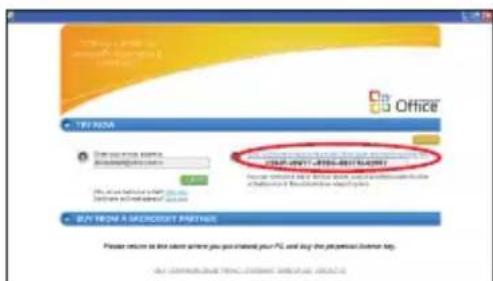

4. Copy your product key and click the link.

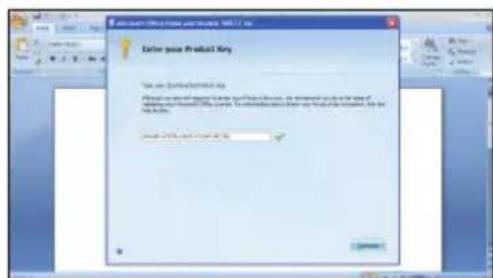

5. Enter your product key and follow the onscreen instructions to finish the activation process before starting the free trial.

Start Using TDMP Buy From a Store Buy Now Buy Now Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a Store Buy From a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buyfrom a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store Buy from a store BuyFrom a store BuyFrom a store

Office TEN LET NEW NAME OF WORKS File description or email address Email: 012-58739666 BUY FROM A MERCICIP PARTNER Please return to this online at any's you purchased your PC and buy the purchase price. Buy http://www.mercicip.net

Office ZIP-APRT-8001-8012007 BUY FROM A MICROSOFT PRETAGE Please return to this store where you put inside your PC and buy the product customer key. © 2016 Microsoft Internet Explorer

Enter your Product Key You can access your product key. This is not to use any other product. We have been used to create a product name or version of the product. You can use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name, or You can use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name or version of the Product. You can also use your product name, or You can use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of the product. You can also use your product name or version of 100%+ items. You can use your product name or version of the product. You can use your product name or version of the product. You can use your product name or version of the product. You can use your product name or version of the product. You can use your product name or version of the product. You can use your product name or version of the product. You can use your product name or version of the product. You can use your product name or version of the product. You can use your product name or version of the product. You can be used to use your product name or version of the product. You can be used to use your product name or version of the product. You can be used to use your product name or version of the product. You can be used to use your product name or version of the product. You can be used to use your product name or version of the product. You can be used to use your product name or version of the product. You can be used to use your product name or version of the product.

If you want to use other applications in the Microsoft Office Suite, click start and point to All Programs > Microsoft Office to select a desired application.

Support DVD information

System Recovery

Boot Booster

Support DVD & System Recovery

Support DVD information

The support DVD that comes with the Eee PC package contains the drivers, software applications, and utilities that you can install to avail all the features.

Running the support DVD

Insert the support DVD in the external optical drive. The DVD automatically displays the Drivers menu if Autorun is enabled in your computer.

ASUS Eee PC support CD Click an icon to display support DVD/ Eee PC information Drivers ASUS InstAll - Drivers Installation Wizard Utilities ASUS ACPI Driver and Utility Chipset Driver Graphic Driver Audio Driver Contact Ethernet Adapter Driver Wireless LAN Driver Please select items on the right side. Click an item to install

If Autorun is NOT enabled in your computer, browse the contents of the support DVD to locate the file ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE file to run the DVD.

The drivers and utilities bundled in the support DVD may vary by models and are subject to change without notice.

Drivers menu

The Drivers menu shows available device drivers when the system detects installed devices. Install the necessary drivers to activate the devices.

Utilities menu

The Utilities menu shows the applications that the Eee PC supports.

Contact

Click the Contact tab to display the ASUS contact information.

Other information

The icons on the top right corner of the screen provide additional information on the Eee PC and the contents of the support DVD. Click an icon to display the specified information.

System information

Technical support

DVD content

File list

System Recovery

Using Recovery Partition

About the Recovery Partition

The Recovery Partition is a space reserved on your hard disk drive used to restore the operating system, drivers, and utilities installed on your Eee PC at the factory.

Using the Recovery Partition:

1. Press during bootup (requires a Recovery Partition)

Disable Boot Booster in BIOS setup before you perform system recovery from USB flash disk, external optical drive or hidden partition. Refer to the end of this chapter for details.

Ensure to connect your Eee PC to the AC power adapter before using F9 recovery to avoid recovery failure.

1. Click the check mark button to start the system recovery.

2. The system starts system recovery automatically and follows the onscreen instructions to complete the recovery process.

Using the Support DVD

The Support DVD includes an image of the operating system, installed on your system at the factory. The Support DVD provides a comprehensive recovery solution that quickly restores your system to its original working state, provided that your system drive is in good working order. Before using the Support DVD, copy your data files to a USB storage device or to a network drive and make note of any customized configuration settings (such as network settings).

1. Connect an external optical drive to your Eee PC and insert the Support DVD into the optical drive (System needs to be powered ON).

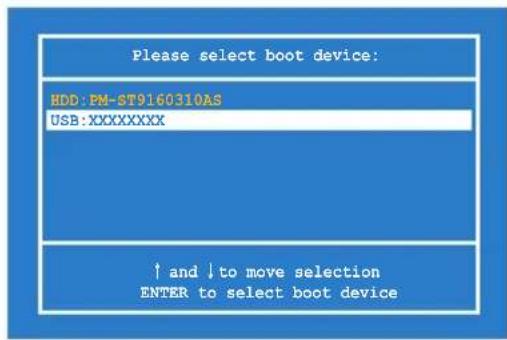

2. Press on bootup and the Please select boot device screen appears. Select USB: XXXXXX (may be labeled as the ODD brand name) to boot from the optical drive.

3. Press any key to boot from the optical drive.

4. Click OK in the Recovery System for Eee PC dialog box.

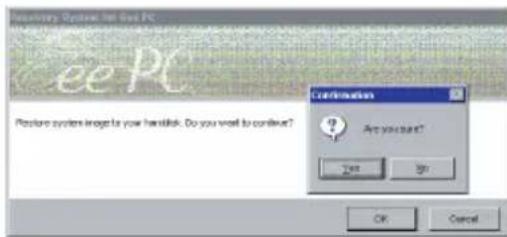

5. Click Yes to start the system recovery.

Please select boot device: HDD: PM-ST9160310AS USB:XXXXXXXX ↑ and ↓ to move selection ENTER to select boot device

Press any key to boot from CD...

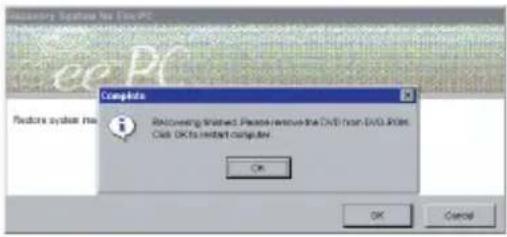

Recovery System for Free PC ee PC Recover system upgrade to your hard disk. Do you want to continue? OK Cancel

ce PC Restore system image to your helplink. Do you want to continue? Confirmation Are you sure! Yes No OK Cancel

You will lose all your data during the system recovery. Ensure to back up your important data before recovering your system.

1. After the system recovery is completed, eject the the Support DVD from the optical drive and click OK to restart the Eee PC.

Accumbrant Systems for Data PC Complete Recovering Status: Please remove the Data from Data Input. Click OK to reject computer. OK OK Cancel

Boot Booster

The Boot Booster item in BIOS setup helps shorten your Eee PC bootup time. However, you MUST disable this BIOS item before you change any Eee PC components or perform system recovery (from USB flash disk, external optical drive or hidden partition). Follow the instructions below to disable Boot Booster:

1. Start the system and press on bootup to show the POST screen. Press again to enter the BIOS setup.

2. Set Boot Booster to [Disabled].

If you fail to see the POST screen or enter the BIOS setup by doing the instruction above, restart the system and try pressing repeatedly on bootup.

BIOS SETUP UTILITY Main Advanced Security Boot Exit ► Boot Device Priority ► Boot Settings Configuration OnBoard LAN Boot ROM [Enabled] Boot Booster [Disabled] Specifies the Boot Device Priority sequence. A virtual floppy disk drive (Floppy Drive B: ) may appear when you set the CD-ROM drive as the first boot device. ←→ Select Screen ↑↓ Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit v02.58 (C)Copyright 1985-2005, American Megatrends, Inc.

1. Press to save the configuration and restart Eee PC.

Remember to enable Boot Booster after you complete hardware change or system recovery.

Declarations and Safety Statements

Copyright Information

Limitation of Liability

Service and Support

Declarations and Safety Statements

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993.

Washington DC: Office of the Federal Register, National Archives and Records

Administration, U.S. Government Printing Office.)

FCC Radio Frequency (RF) Exposure Caution Statement

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. "The manufacture declares that this device is limited to Channels 1 through 11 in the 2.4GHz frequency by specified firmware controlled in the USA."

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Declaration of Conformity (R&TTE directive 1999/5/EC)

The following items were completed and are considered relevant and sufficient:

• Essential requirements as in [Article 3]
- Protection requirements for health and safety as in [Article 3.1a]
- Testing for electric safety according to [EN 60950]
- Protection requirements for electromagnetic compatibility in [Article 3.1b]
- Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301 489-17]
• Effective use of the radio spectrum as in [Article 3.2]
• Radio test suites according to [EN 300 328-2]

CE Marking

CE

CE marking for devices without wireless LAN/Bluetooth

The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC "Electromagnetic compatibility" and 2006/95/EC "Low voltage directive".

CE!

CE marking for devices with wireless LAN/Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity.

IC Radiation Exposure Statement for Canada

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Operation is subject to the following two conditions:

• This device may not cause interference and
- This device must accept any interference, including interference that may cause undesired operation of the device.

To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

Country Code selection feature to be disabled for products marketed to the US/CANADA.

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

France Restricted Wireless Frequency Bands

Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors are:

- 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)

• 100mW for frequencies between 2446.5 MHz and 2483.5 MHz

Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz.

There are few possibilities for outdoor use: On private property or on the private property of public persons, use is subject to a preliminary authorization procedure by the Ministry of Defense, with maximum authorized power of 100mW in the 2446.5–2483.5 MHz band. Use outdoors on public property is not permitted.

In the departments listed below, for the entire 2.4 GHz band:

• Maximum authorized power indoors is 100mW

• Maximum authorized power outdoors is 10mW

Departments in which the use of the 2400–2483.5 MHz band is permitted with an EIRP of less than 100mW indoors and less than 10mW outdoors:

01 Ain 02 Aisne 03 Allier

05 Hautes Alpes 08 Ardennes 09 Ariège

11 Aude 12 Aveyron 16 Charente

24 Dordogne 25 Doubs 26 Drôme

This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.art-telecom.fr)

Your WLAN Card transmits less than 100mW, but more than 10mW.

UL Safety Notices

Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically connected to a telecommunication network that has an operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National Electrical Code (NFPA 70).

When using the Eee PC modem, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• DO NOT use the Eee PC near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• DO NOT use the Eee PC during an electrical storm. There may be a remote risk of electric shock from lightning.
• DO NOT use the Eee PC in the vicinity of a gas leak.

Required for UL 1642 covering primary (nonrechargeable) and secondary (rechargeable) lithium batteries for use as power sources in products. These batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or reversible chemical reaction.

• Do not dispose the Eee PC battery pack in a fire, as they may explode. Check with local codes for possible special disposal instructions to reduce the risk of injury to persons due to fire or explosion.
• Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm ^2 or H05VV-F, 2G, 0.75mm ^2 .

REACH Notice

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://green.asus.com/english/REACH.htm.

Global Environmental Regulation Compliance and Declaration

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to http://csr.asus.com/english/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

Japan JIS-C-0950 Material Declarations EU REACH SVHC Korea RoHS Swiss Energy Laws

Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detail recycling information in different region.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

(English)

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2009 ASUSTeK COMPUTER INC. All Rights Reserved.

Limitation of Liability

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

Service and Support

Visit our multi-language web site at http://www.asus.com

Manufacturer ASUSTek COMPUTER INC.
Address, City No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C
Country TAIWAN
Authorized Representative in Europe	ASUS COMPUTER GmbH
Address, City HARKORT S	TR. 21-23, 40880 RATINGEN
Country GERMANY
