USER MANUAL Eee PC Lamborghini VX6 ASUS

Line drawing of a laptop computer with visible keyboard, display screen, and control panel (no text or symbols)

Table of Contents

About This User's Manual iv

Notes for This Manual ....iv

Safety Precautions....v

Transportation Precautions ......vi

Charging Your Batteries......vii

Airplane Precautions ......vii

Chapter 1: Knowing the Parts

Top Side 1-2

Bottom Side....1-5

Front Side 1-6

Right Side 1-7

Left Side 1-8

Keyboard Usage....1-10

Special Function Keys 1-10

Touchpad Usage 1-12

Multi-finger gesture input 1-12

Chapter 2: Getting Started

Powering on your Eee PC 2-2

First-time Startup 2-3

Desktop....2-5

Network Connection....2-6

Configuring a wireless network connection....2-6

Local Area Network 2-7

Browsing web pages 2-10

Chapter 3: Using the Eee PC

ASUS Update....3-2

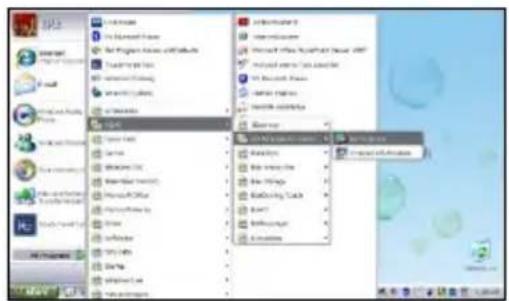

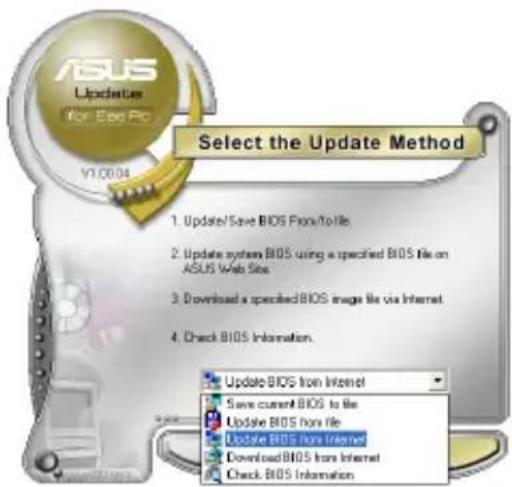

Updating the BIOS through the Internet 3-2

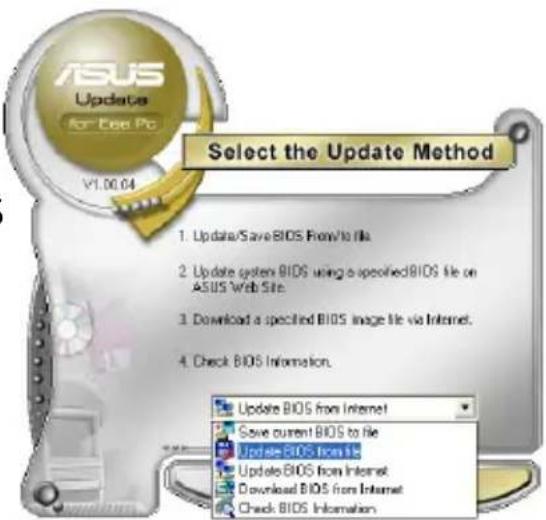

Updating the BIOS through a BIOS file ....3-3

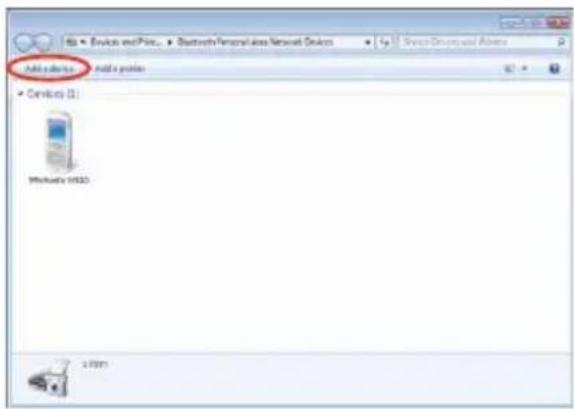

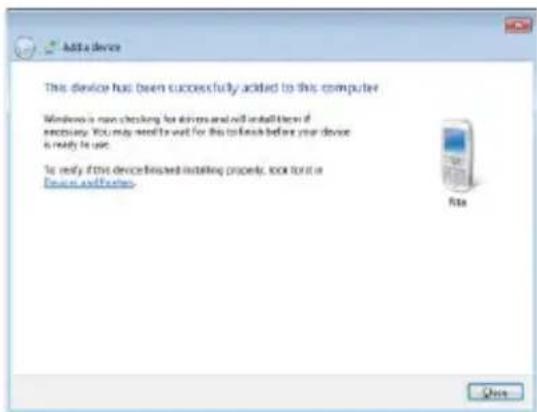

Bluetooth Connection (on selected models) 3-4

Super Hybrid Engine 3-6

Super Hybrid Engine Modes....3-6

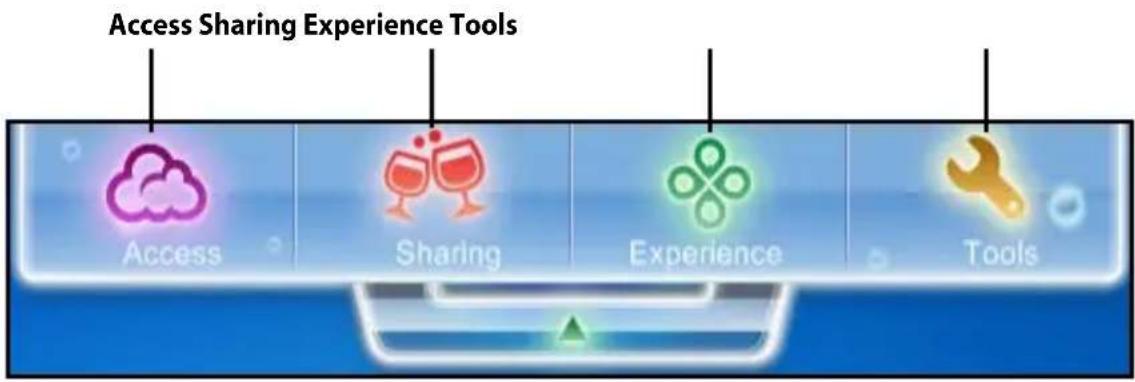

Eee Docking (on selected models) 3-7

Access....3-7

Sharing 3-8

Experience 3-8

Tools 3-8

Chapter 4: System Recovery

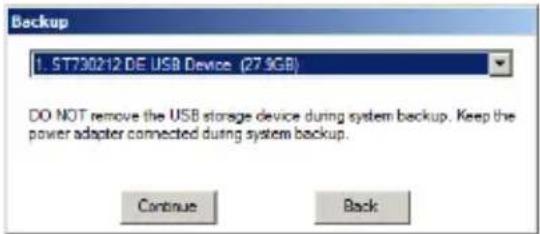

System Recovery....4-2

Boot Booster....4-5

Appendix

Declarations and Safety Statements ......A-2

Federal Communications Commission Statement ......A-2

FCC Radio Frequency (RF) Exposure Caution Statement ......A-3

Declaration of Conformity (R&TTE directive 1999/5/EC)......A-4

CE Marking.....A-4

IC Radiation Exposure Statement for Canada ......A-5

Wireless Operation Channel for Different Domains ......A-6

France Restricted Wireless Frequency Bands ......A-6

UL Safety Notices....A-7

REACH Notice....A-8

Power Safety Requirement ......A-8

Global Environmental Regulation Compliance and Declaration ......A-9

Takeback Services....A-9

Nordic Lithium Cautions (for lithium-ion batteries)....A-10

Copyright Information......A-12

Limitation of Liability....A-13

Service and Support......A-13

About This User's Manual

You are reading the Eee PC User's Manual. This User's Manual provides information regarding the various components in the Eee PC and how to use them. The following are major sections of this User's Manual:

1. Knowing the Parts

Provides information on the Eee PC's components.

2. Getting Started

Provides information on getting started with the Eee PC.

3. Using the Eee PC

Provides information on using the Eee PC's utilities.

4. System Recovery

Gives you information on system recovery.

5. Appendix

Gives you safety statements.

The actual bundled operating system and applications differ by models and territories. There may be differences between your Eee PC and the pictures shown in this manual. Please accept your Eee PC as being correct.

Notes for This Manual

A few notes and warnings are used throughout this guide, allowing you to complete certain tasks safely and effectively. These notes have different degrees of importance as follows:

WARNING! Important information that must be followed for safe operation.

IMPORTANT! Vital information that must be followed to prevent damage to data, components, or persons.

TIP: Tips for completing tasks.

NOTE: Information for special situations.

Safety Precautions

The following safety precautions will increase the life of the Eee PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners, benzene, or other chemicals on or near the surface.

Disconnect the AC power before cleaning. Wipe the Eee PC using a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth.

DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.

DO NOT place or drop objects on top and do not shove any foreign objects into the Eee PC.

DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.

DO NOT expose to strong magnetic or electrical fields.

DO NOT press or touch the display panel. Do not place together with small items that may scratch or enter the Eee PC.

DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.

DO NOT leave the Eee PC on your lap or any part of the body to prevent discomfort or injury from heat exposure.

Battery safety warning: DO NOT throw the battery in fire. DO NOT short circuit the contacts. DO NOT disassemble the battery.

SAFE TEMP: This Eee PC should only be used in environments with ambient temperatures between 5°C (41°F) and 35°C (95°F).

INPUT RATING: Refer to the rating label on the bottom of the Eee PC and be sure that your power adapter complies with the rating.

DO NOT carry or cover a Eee PC that is powered ON with any materials that will reduce air circulation such as a carrying bag.

Incorrect installation of battery may cause explosion and damage the Eee PC.

DO NOT throw the Eee PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Transportation Precautions

To prepare your Eee PC for transport, you should turn it OFF and disconnect all external peripherals to prevent damage to the connectors. The hard disk drive's head retracts when the power is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport your Eee PC while the power is still ON. Close the display panel to protect the keyboard and display panel.

The Eee PC's surface is easily dulled if not properly cared for. Be careful not to rub or scrape surfaces when transporting your Eee PC. You can put your Eee PC in a carrying case for protection from dirt, water, shock, and scratches.

Charging Your Batteries

If you intend to use battery power, be sure to fully charge your battery pack before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge the battery pack when the Eee PC is in use.

Remember to fully charge the battery (8 hours or more) before first use and whenever it is depleted to prolong battery life. The battery reaches its maximum capacity after a few full charging and discharging cycles.

Airplane Precautions

Contact your airline if you want to use the Eee PC on the airplane. Most airlines have restrictions for using electronic devices. Most airlines allow electronic use only between and not during takeoffs and landings.

There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand-held devices used on people or individual items). You can send your Eee PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Eee PC or diskettes through airport magnetic detectors or expose them to magnetic wands.

Top Side

Bottom Side

Front Side

Right Side

Left Side

Keyboard Usage

Touchpad Usage

Knowing the Parts

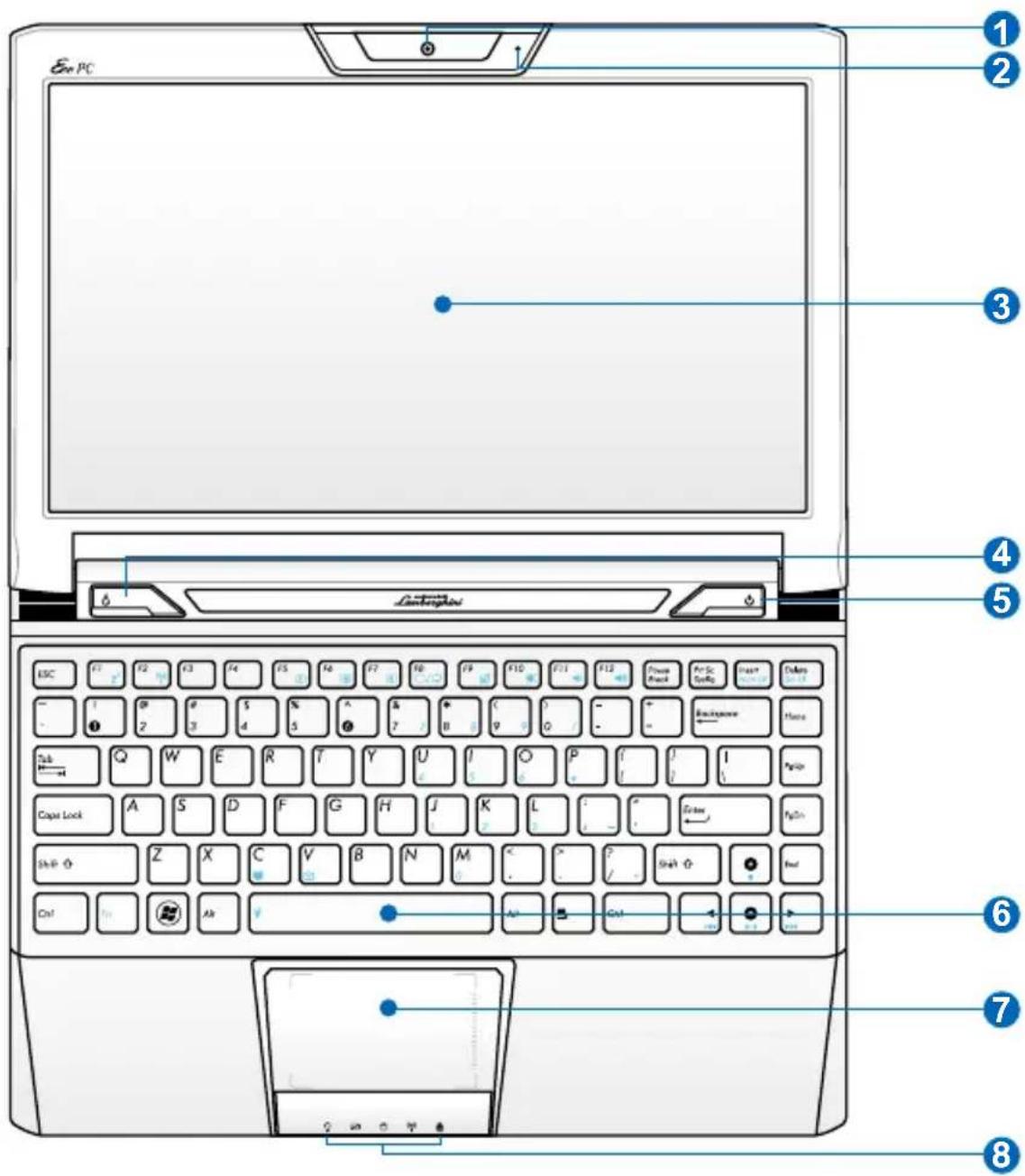

Top Side

Refer to the diagram below to identify the components on this side of the Eee PC.

The top side may vary in appearance depending on models.

Ex PC 1 2 3 4 5 6 7 8

The keyboard differs for each territory.

1 Built-in Camera

2 Microphone (Built-in)

3 Display Panel

4 Express Gate Button (on selected models)

When the Eee PC is turned off, pressing this button will launch Express Gate. Express Gate is an ASUS exclusive OS that provides you with quick access to the Internet and key applications without entering the Windows® OS.

Super Hybrid Power button

Under the Windows OS, this button functions as the Super Hybrid Power button. The button toggles power savings between various power saving modes. You can also control the function by press + .

5 Power Switch (Windows)

The power switch allows powering ON and OFF the Eee PC and recovering from standby mode. Press the switch once to turn ON and hold it to turn OFF the Eee PC. The power switch only works when the display panel is opened.

Power Indicator

The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Suspend-to-RAM (Sleep) mode. This indicator is OFF when the Eee PC is turned OFF.

6 Keyboard

7 Touchpad and Buttons

8 Status Indicators

Power Indicator

The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Save-to-RAM (Sleep) mode. This indicator is OFF when the Eee PC is turned OFF.

Battery Charge Indicator

The battery charge indicator (LED) shows the battery charging status as follows:

Powered ON

	With Adapter Without Adapter
High battery power (95%-100%)	Green ON Off
Medium battery power (11%-94%)	Orange ON Off
Low battery power (0%-10%)	Orange Blinking Orange Blinking

Powered OFF / Standby mode

	With Adapter Without Adapter
High battery power (95%-100%)	Green ON Off
Medium battery power (11%-94%)	Orange ON Off
Low battery power (0%-10%)	Orange Blinking Off

Hard Disk Drive (HDD) Indicator

The hard disk drive indicator blinks when data is written to or read from the disk drive.

Wireless/Bluetooth Indicator

This is only applicable on models with built-in wireless LAN/Bluetooth (on selected models). When the built-in wireless LAN/Bluetooth is enabled, this indicator lights.

Capital Lock Indicator

Indicates that capital lock [Caps Lock] is activated when lighted.

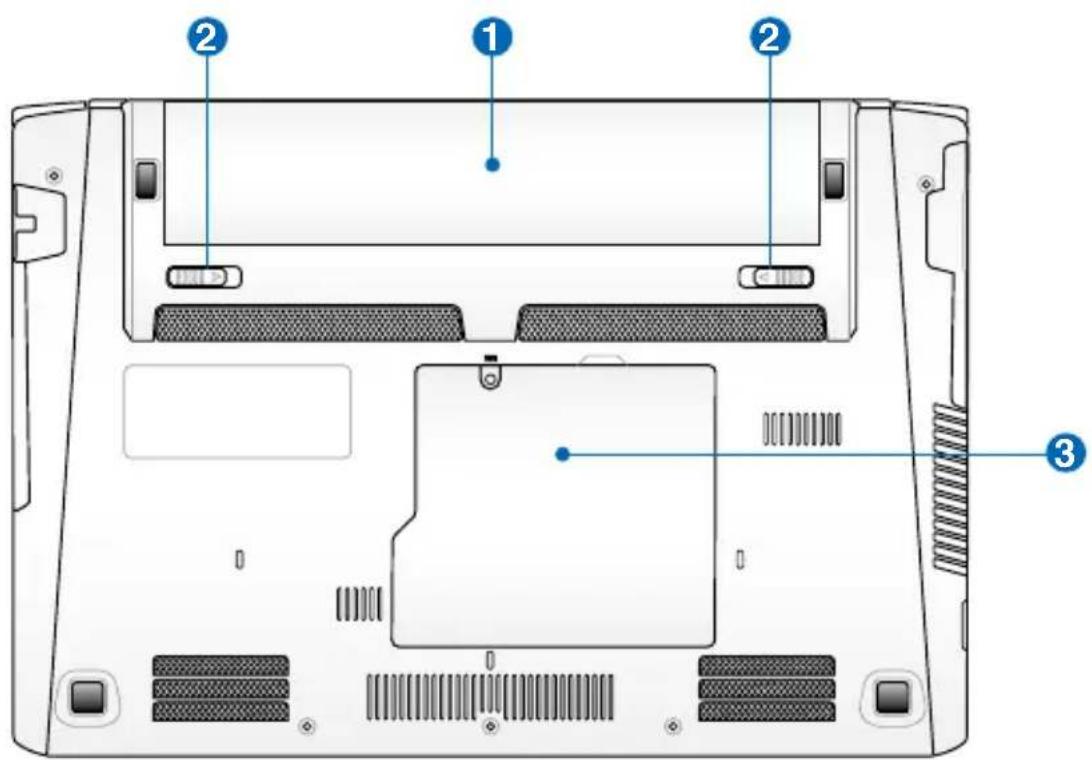

Bottom Side

Refer to the diagram below to identify the components on this side of the Eee PC.

The bottom side may vary in appearance depending on model.

Laptop rear panel diagram with numbered annotations pointing to internal components

The bottom of the Eee PC can get very hot. Be careful when handling the Eee PC while it is in operation or recently been in operation. High temperatures are normal during charging or operation. DO NOT USE ON SOFT SURFACES SUCH AS SOFAS OR BEDS, WHICH MAY BLOCK THE vENTS. DO NOT PUT THE Eee PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AvOID INJURY FROM THE HEAT.

1 Battery Pack

Battery time varies by usage and by the specifications for this Eee PC. The battery pack cannot be disassembled and must be purchased as a single unit.

2 Battery Lock

The battery lock secures the battery pack. When the battery pack is properly installed, it automatically locks in place. To remove the battery pack, slide the battery lock inward.

③ Memory Compartment

The memory module is secured in a dedicated compartment.

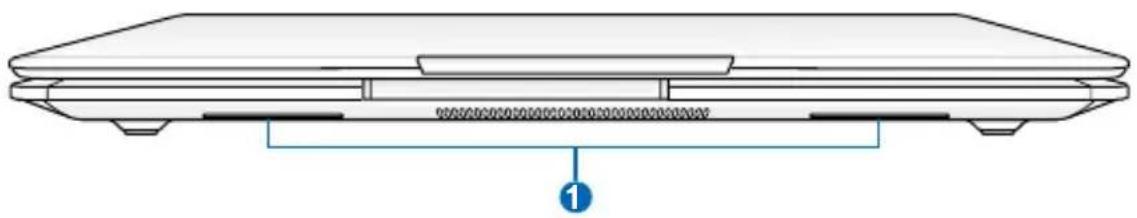

Front Side

Refer to the diagram below to identify the components on this side of the Eee PC.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

1 Audio Speaker System

Audio features are software controlled.

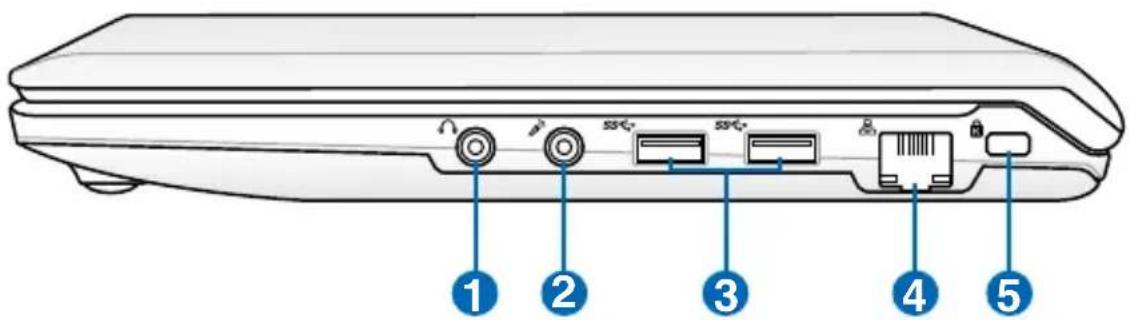

Right Side

Refer to the diagram below to identify the components on this side of the Eee PC.

1 2 3 4 5

1 Headphone Output Jack
2 Microphone Jack

The microphone jack is designed to connect the microphone used for voice narrations or simple audio recordings.

③ ss← USB Port (3.0)

The USB (Universal Serial Bus) port is compatible with USB 3.0, 2.0, or USB 1.1 devices such as keyboards, pointing devices, cameras, and storage devices.

4 LAN Port (10/100M bit)

The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network.

5 Kensington® Lock port

The Kensington® lock port allows the Eee PC to be secured using Kensington® compatible security products. These security products usually include a metal cable and lock that prevent the Eee PC to be removed from a fixed object.

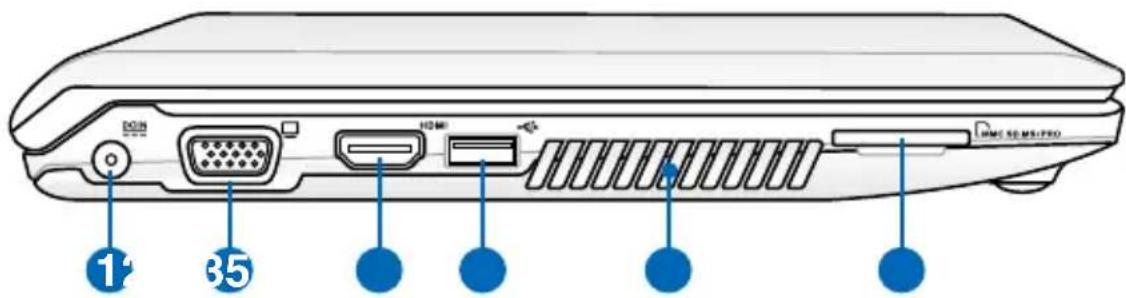

Left Side

Refer to the diagram below to identify the components on this side of the Eee PC.

1 35

1 DCIN Power (DC) Input

The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Eee PC and charges the internal battery pack. To prevent damage to the Eee PC and battery pack, always use the supplied power adapter.

THE ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.

2 □ 15 pin D-Sub Display (Monitor) Output

3 HDMI HDMI output

Remember to detach the HDMI cable when using your EeePC as the major video and audio playback device.

4 USB Port (2.0/1.1)

USB Charge+

Allows you to charge your mobile phones or digital audio players while your Eee PC is sleeping, hibernating or shut down. Launch the USB Charge+ application from Eee Docking tool bar and configure related settings.

5 Air vents

The air vents allow cool air to enter and warm air to exit the Eee PC.

Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.

6 Memory Card Slot

The built-in memory card reader can read SD/SDHC/SDXC/MMC cards.

Keyboard Usage

Special Function Keys

The following defines the colored hot keys on the Eee PC's keyboard. The colored commands can only be accessed by first pressing and holding the function key while pressing a key with a colored command. Some function icons appear in the Notification area after activation.

The Hot Key locations on the function keys may vary depending on model but the functions should remain the same. Follow the icons whenever your hot key locations do not match the manual.

Z ^z Icon (F1): Places the Eee PC in suspend mode

(Save-to-RAM).

Radio Tower (F2) (Wireless Models Only): Toggles the internal wireless LAN or Bluetooth (on selected models) ON FF with an on-screen-display. When enabled, the responding wireless indicator will light.

Sun Down Icon (F5): Decreases the display brightness.

Sun Up Icon (F6): Increases the display brightness.

Crossed Screen Icon (F7): Turns off the display backlight.

LCD/Monitor Icons (F8): Toggles between the Eee PC's

LCD display and an external monitor.

Touchpad (F9): Toggles the touchpad ON/OFF.

Crossed Speaker Icon (F10): Mutes the speaker.

volume Down Icon (F11): Decreases speaker volume.

volume Up Icon (F12): Increases the speaker volume.

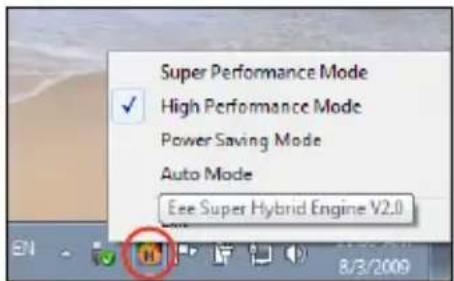

Super Hybrid Engine (Space Bar): Toggles among various

power saving modes. The selected mode is shown on the display.

Num Lk (Insert): Toggles the numeric keypad

(number lock) ON and OFF. Allows use of a larger portion of the keyboard for number entering.

Scr Lk (Delete): Toggles the "Scroll Lock" ON and OFF.

Allows you to use a larger portion of the keyboard for cell navigation.

Play/Pause ( ↓)

Begins or pauses media file playback.

p (↑)

Stops media file playback.

k( ←)

During media file playback, goes back to the previous song / movie chapter.

Forward ( )

During media file playback, skips to the next song / movie chapter.

v: Toggles the camera application ON.

C: Toggles the screensaver ON.

s icon: Displays the start menu.

Menu with pointer icon : Activates the properties menu and is equivalent to right-clicking the touchpad/mouse on an object.

Touchpad Usage

Multi-finger gesture input

Finger gesture Applications
Two-finger zooming in/out Adobe reader, Windows Photo Viewer
Two-finger rotating Adobe reader, Windows Photo Viewer
Two-finger scrolling up/down or left/right	Adobe reader, MS Word, MS Excel
Three-finger page up/down Adobe reader, MS Word, MS Excel

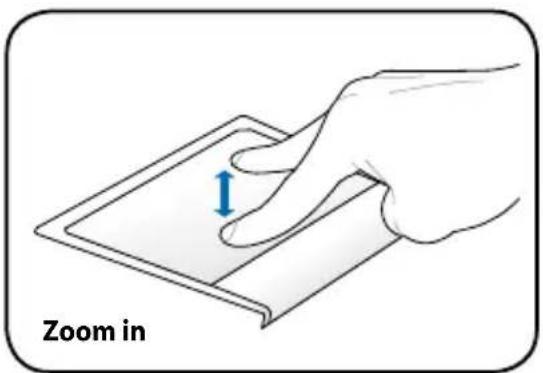

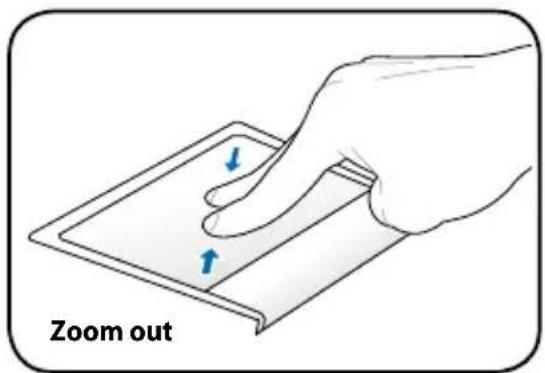

Two-finger zooming in/out - Moving two fingertips apart or together on the touchpad to zoom in or zoom out. This is convenient when viewing photos or reading documents.

Zoom in

Zoom out

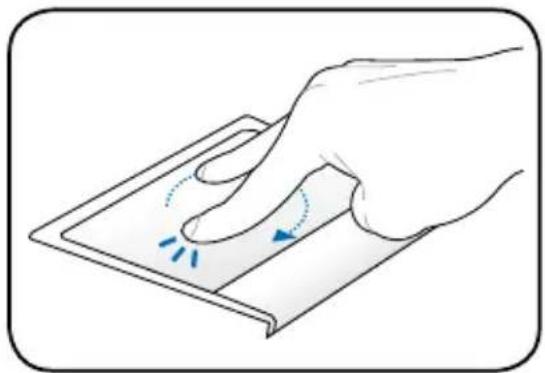

Two-finger rotating- Fix one fingertip on the touchpad and make an arc with the other to rotate the photo or the document you are viewing. You can make a clockwise or counterclockwise rotation based on your needs.

Illustration of a hand pressing down on a flat surface with motion arrows indicating movement (no text or symbols)

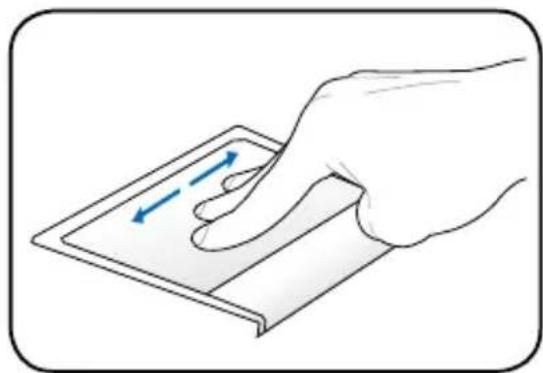

Two-finger scrolling up/down or left/right- Use two fingertips to slide up/down or left/right on the touchpad to scroll a window up/down or left/right. If your display window includes several sub-windows, move the pointer on that pane before scrolling.

Illustration of a hand pressing down on a flat surface with blue directional arrows indicating movement (no text or symbols)

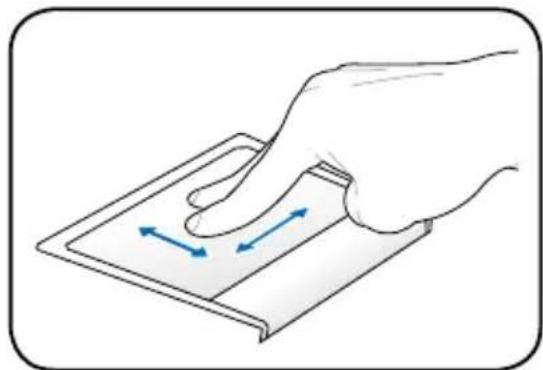

Three-finger page up/down- Use three fingers to move horizontally on the touchpad to swipe pages. Swipe from left to the right to view the next page or right to the left to return to the previous pages.

Illustration of a hand pressing down on a flat surface with directional arrows (no text or symbols)

Powering on your Eee PC

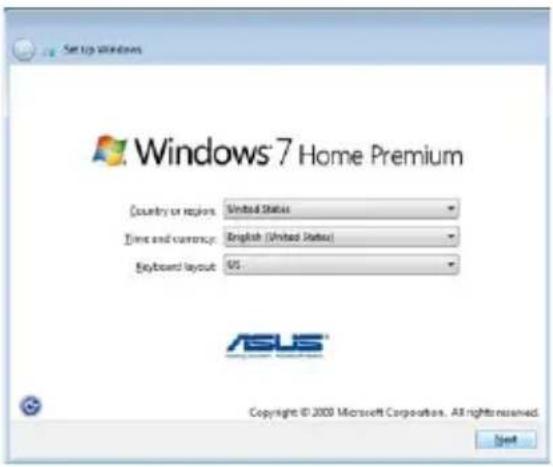

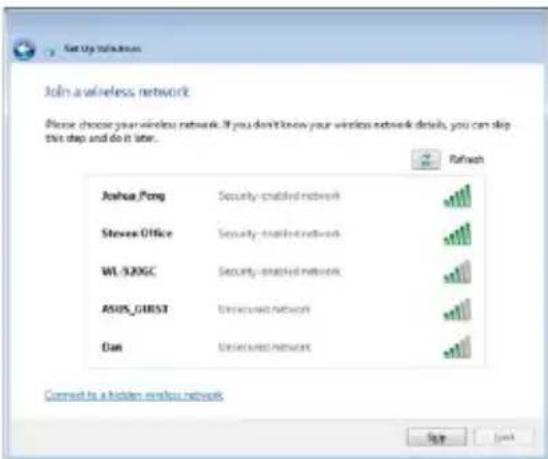

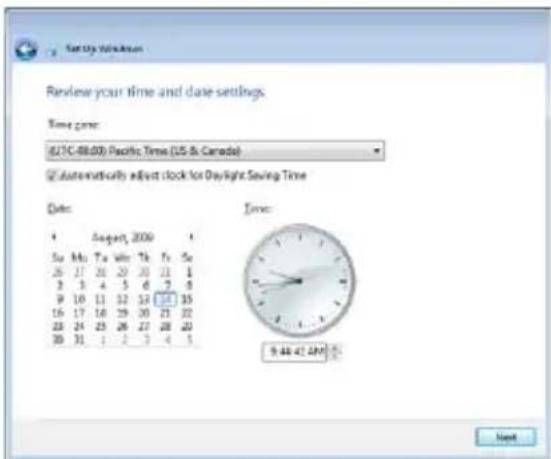

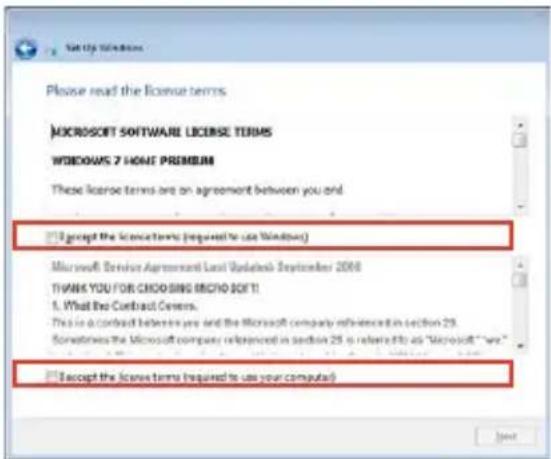

First-time Startup

Desktop

Network Connection

Getting Started

Powering on your Eee PC

These are only quick instructions for using your Eee PC.

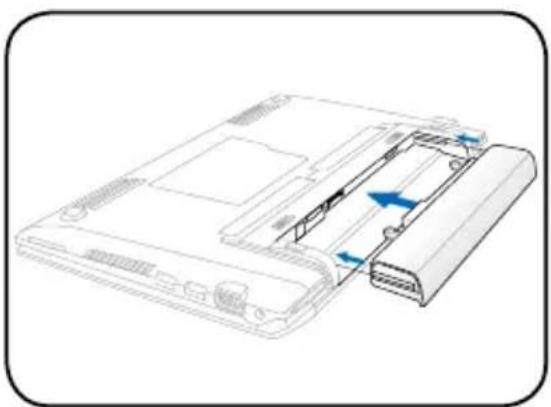

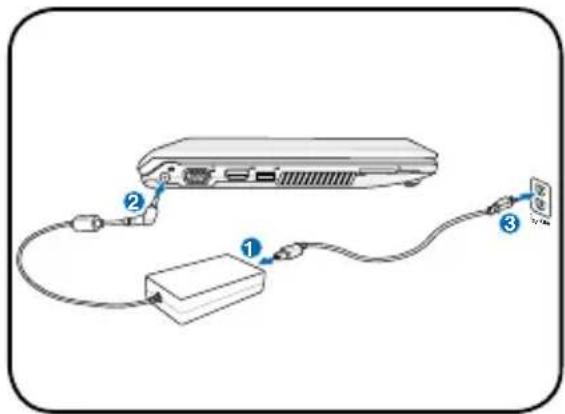

1. Install the battery pack 2. Connect the AC power adapter

Diagram of a computer chassis showing internal components and directional arrows (no text or symbols)

Diagram showing cable connection between a device with labeled ports and cable routing

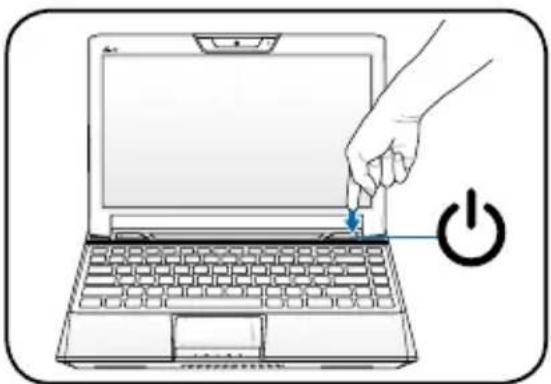

3. Turn ON the Eee PC

Line drawing of a hand pressing down on a laptop keyboard with a power button (no text or symbols)

Damage may occur if you use a different adapter to power the Eee PC. You may damage both your battery pack(s) and the Eee PC with a faulty AC-DC adapter.

• When you open the display panel, do not force it down to the table or else the hinges may break! Never lift the Eee PC by the display panel!
• Only use battery packs and power adapters supplied with this Eee PC or specifically approved by the manufacturer or retailer for use with this model or else damage may occur to the Eee PC. The input voltage range between the wall outlet and this adapter is AC 100V\~240V, and the output voltage of this adapter is +19Vdc, 2.1A.
• Never attempt to remove the battery pack while the Eee PC is turned ON, as this may result in the loss of working data.

Remember to fully charge the battery before first use and whenever it is depleted to prolong battery life.

First-time Startup

For the first time you start your Eee PC, the Windows wizard will launch automatically and lead you through setting up your preferences and some basic information.

Follow the wizard instructions to finish the initialization:

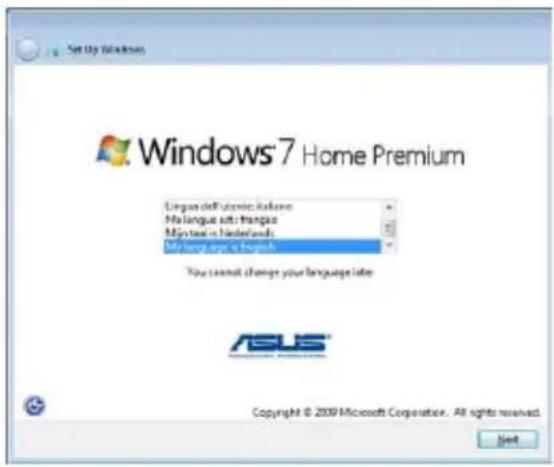

1. Select the language you use. Click Next to continue.

2. Select you system settings by specifying the region you are in, the time zone you are in, and the keyboard type you use. Click Next to continue.

Set Up Windows Windows®7 Home Premium Language of Different Languages No language sets/trangus My text in Netherlands My language is English. You cannot change your language lists ASUS® Copyright © 2009 Microsoft Corporation. All rights reserved. Next

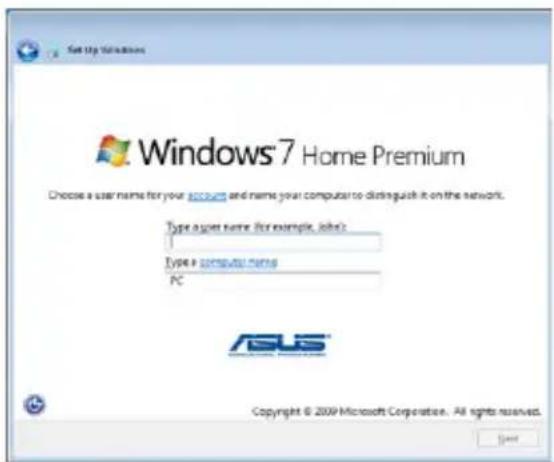

1. Type your user account name and your computer's name, then click Next to continue.

Set top windows Windows 7 Home Premium Country or regions: United States Time and currency: English (United States) Keyboard layout: US ASUS® Copyright © 2009 Microsoft Corporation. All rights reserved. Next

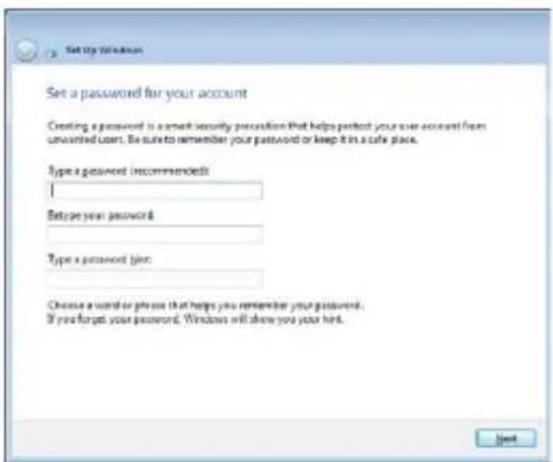

1. Set a password for your user account if you want. Click Next to continue.

Set up Windows Windows® 7 Home Premium Choose a user name for your secure and name your computer to distinguish it on the network. Type a user name: For example, jobs? Type b computer name: PC ASLS Copyright © 2009 Microsoft Corporation. All rights reserved. Enter

Set a password for your account Creating a password is a smart security perception that helps protect your user account from unvaried user. Be sure to remember your password or keep it in a cafe place. Type a password (recommended): Etype your password: Type a password (yes): Choose a word or please that helps you remember your password. If you forget your password, Windows will show you your help.

1. Read the end user license agreement and check the two boxes before I accept the license terms. Click Next to continue.

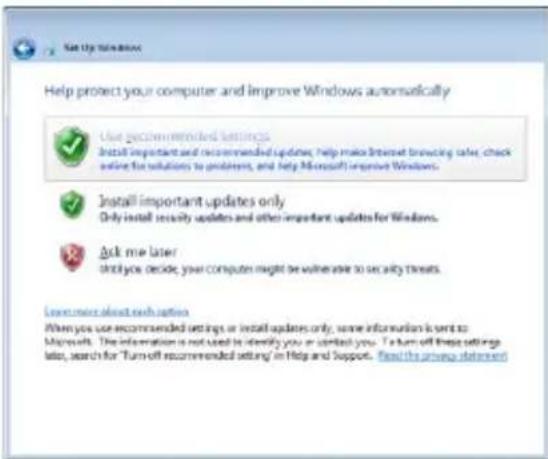

2. Click Use recommended settings to get the latest important updates.

Please read the license terms MICROSOFT SOFTWARE LICENSE TERMS WINDOWS 7 HOME PREMIUM These license terms are on agreement between you and □ Accept the license terms (required to use Windows) Microsoft Service Agreement Last Updateb September 2008 THANK YOU FOR CHOOSING INFO DO NOT! 1. What the Contract Centers. This is a contract between you and the Microsoft company referenced in section 29. Sometimes the Microsoft company referenced in section 29 is referred to as "Microsoft" we." □ Accept the license terms (required to use your computer)

Help protect your computer and improve Windows automatically Use recommended settings Install important and recommended updates, help make browser browsing data, check online for solutions to problems, and help Microsoft improve Windows. Install important updates only Only install security updates and other important updates for Windows. Ask me later until you decide, your computer might be vulnerable to security threats. Last review about each option When you use recommended settings or install updates only, some information is sent to Microsoft. The information is not used to identify you or contact you. To turn off these settings later, search for "Turn-off recommended setting" in Help and Support. Read the privacy statement

1. Specify the time zone you are in and the local date and time. Click Next to continue.

2. Connect to a wireless network and click Next to continue, or click Skip to set up the wireless connection later.

Set by Windows Review your time and date settings. Time zone: (27C-88.00) Pacific Time (US & Canada) Automatically adjust clock for Daylight Saving Time Date: 1 August 2000 Su Ma Ta Wee Tb Fs Su 26 27 28 29 30 31 1 3 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 Time: 9:44:47:4M Next

Join a wireless network Please choose your wireless network. If you don't know your wireless network details, you can skip this step and do it later. Joshua_Pong Steven Office WL SXGC ASUS_GIRST Dan Security-enabled network Security-enabled network Security-enabled network Unsecured network Unsecured network Connect to a hidden wireless network Stop Next

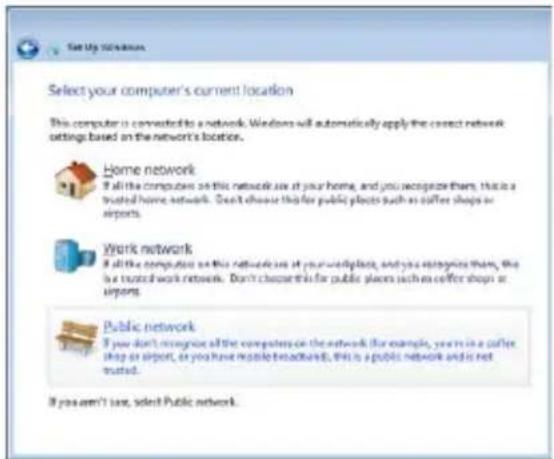

1. Select the network's location. Click Next to continue.

2. The initialization is finished.

Select your computer's current location This computer is converted to a network. Windows will automatically apply the correct network settings based on the network's location. Home network It all the computers on this network use at your home, and you recognize them, this is a trusted home network. Don't choose this for public places such as cutter shops or airports. Work network It still the computers on this network use at your workplace, and you recognize them, this is a trusted work network. Don't choose this for public places such as cutter shops or airports. Public network If you don't recognize all the computers on the network (for example, you're in a cutter shop or airport, or you have mobile headbuilt, this is a public network and is not trusted. If you aren't sure, select Public network.

Net Up Simulink Windows 7 Home Premium Windows is finishing your settings

Desktop

There are several shortcuts on the desktop. Double-click them to launch the corresponding applications and enter the specified folders. Some applications would form minimized icons in the Notification area.

The actual Desktop screen may vary according to different models.

Network Connection

Configuring a wireless network connection

1. Click the wireless network icon with an orange star in the Windows® Notification area.

If the wireless network icon with an orange star does not show in the Notification area, activate the wireless LAN function by pressing F_n + F_2 ( + ) before configuring a wireless network connection.

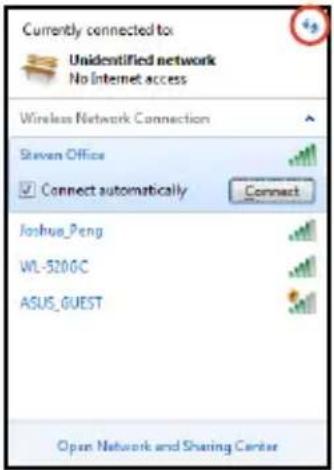

1. Select the wireless access point you want to connect to from the list and click Connect to build the connection.

If you cannot find the desired access point, click the Refresh icon on the upper right corner to refresh and search in the list again.

Currently connected to Unidentified network No Internet access Wireless Network Connection Steven Office Connect automatically Connect Joshua_Peng WL-3200C ASUS_GUEST Open Network and Sharing Center

1. When connecting, you may have to enter a password.

2. After a connection has been established, the connection is shown on the list.

3. You can see the wireless network icon in the Notification area.

The crossed wireless network icon appears when you press + to disable the WLAN function.

Local Area Network

To establish a wired network, follow the instructions below:

Using a dynamic IP / PPPoE network connection:

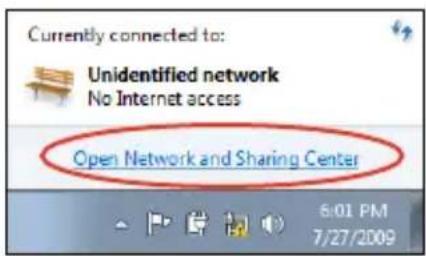

1. Click the network icon with a yellow

warning triangle in the

Windows® Notification area and select Open Network and Sharing Center.

Currently connected to: Unidentified network No Internet access Open Network and Sharing Center 6:01 PM 7/27/2009

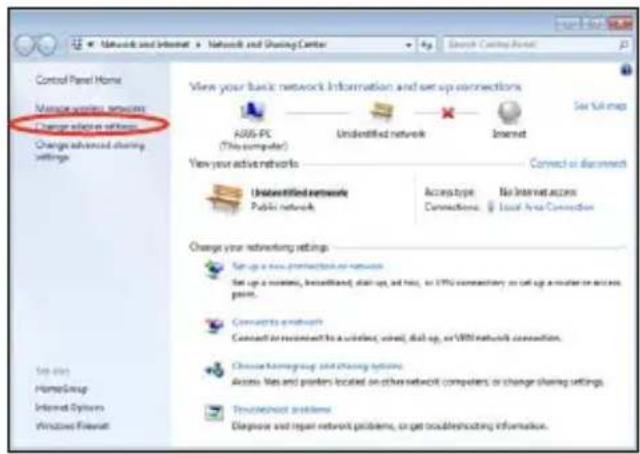

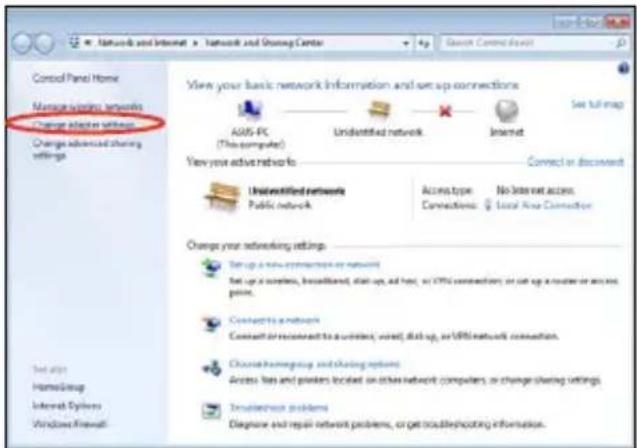

1. Click Change adapter settings in the left blue pane.

Control Panel Home Manage your network security Change options or settings Change advanced sharing settings Set up home HomeGroup Internet Options Windows Firewall View your basic network information and set up connections FOS-PC (This computer) Undidentified network Internet View your active networks Connect or download Undidentified network Public network Accept type Connections: No Internet access Local Area Connection Change your networking settings Set up a new product or network Set up a wireless, broadband, dial-up, and bus, or WiFi connectivity to call up a router or device port. Connect or network Connect to recommend to a wireless, wireless, dial-up, or WiFi network connection. Choose Network Group or sharing systems: Access: Web and parkers located on other network computers or change sharing settings. Networks/ problems Describe and repair network problems, or get trouble/shooting information.

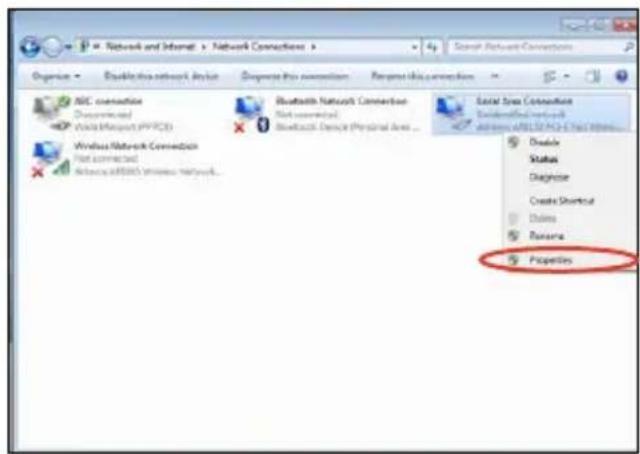

1. Right-click Local Area Connection and select Properties.

Network and Internet > Network Connections > Organize Disable this network Action Dispose this connection Prepare this connection NAC connection Discontinued Windows Network (PPTOS) Windows Network Connection Net connected Windows NTFS (Windows Network... Bluetooth Network Connection Net connected Bluetooth Device (Physical Area... Local Tree Connection Unidentified network address: ABL12.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04.03.04 Disable Status Diagnose Create Shortleaf Dialies Reserve Properties

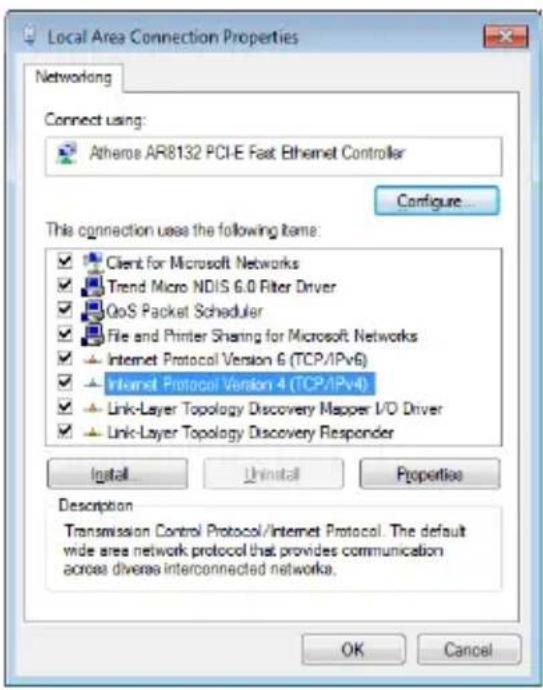

1. Click Internet Protocol Version 4(TCP/IPv4) and click Properties.

Local Area Connection Properties Networking Connect using: Atheros AR8132 PCI-E Fast Ethernet Controller Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ Trend Micro NDIS 6.0 Filter Driver ✓ OoS Packet Scheduler ✓ File and Printer Sharing for Microsoft Networks ✓ Internet Protocol Version 6 (TCP/IPv6) ✓ Internet Protocol Version 4 (TCP/IPv4) ✓ Link-Layer Topology Discovery Mapper I/O Driver ✓ Link-Layer Topology Discovery Responder Install Install Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

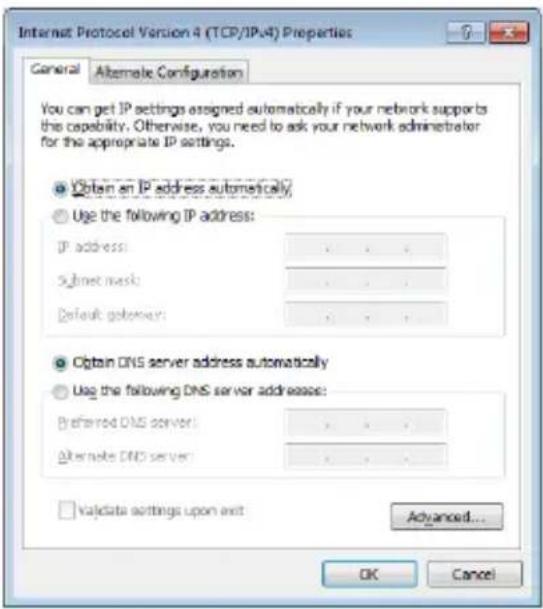

1. Click Obtain an IP address automatically and click OK.

Internet Protocol Version 4 (TCP/IPv4) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports the capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. ● Obtain an IP address automatically ○ Use the following IP address: IP address: . Submit mask: . Default gateway: . ● Obtain DNS server address automatically ○ Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . □ validate settings upon exit Advanced... OK Cancel

(Continue the following steps if using PPPoE)

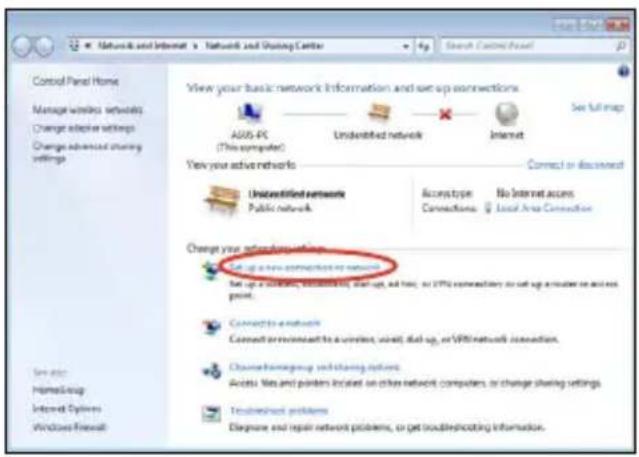

1. Return to the Network and Sharing Center and then click Set up a new connection or network.

Control Panel Home Manage wireless networks Change selective settings Change advanced sharing settings View your basic network information and set up connections. AGUS-PC (This computer) Unidentified network Internet See full map View your active networks Connect or download Unidentified network Public network Accrepty Connections No Internet access Local Area Connection Change your networking settings Set up a new connection to the network Set up a network, unconnected, start-up, add heat, or WiFi connectivity to start up a router on and rest point. Connect to a network Connect to recommend to a router, user, did up, or WiFi network connection. Charmhomegroup and sharing options: Access files and points installed on other network computers, or change sharing settings. Detailed problems Describe and repair network problems, or get troubleshooting information.

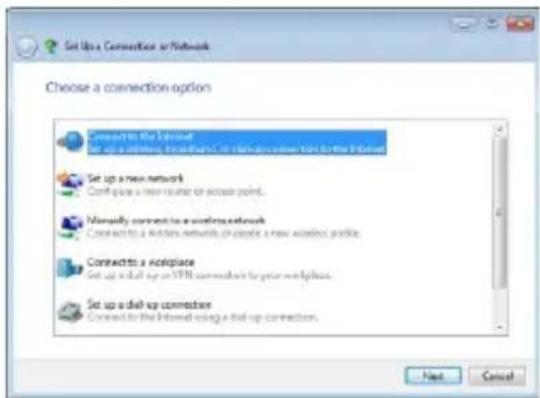

7. Select Connect to the Internet and click Next.

Set Up a Connection or Network Choose a connection option Connect to the Internet Set up a problem, including a network connection to the Internet Set up a new network Configure a new router or access point. Manually connect to a wireless network Connect to a network of users or users who use wireless profile. Connect to a workplace Set up a dial-up on FTP connection to your workplace. Set up a dial-up connection Connect to the Internet using a dial-up connection. Next Cancel

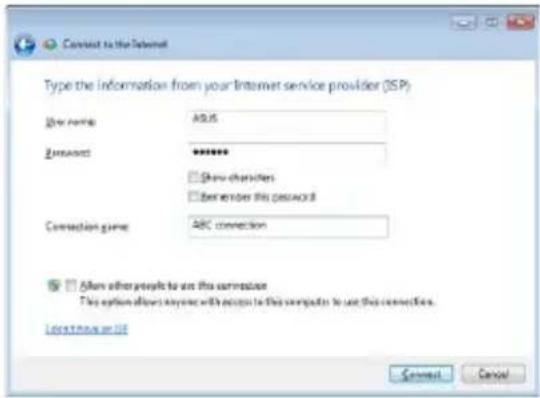

9. Enter your User name and, Password, and Connection name. Click Connect.

Connect to the Internet Type the information from your Internet service provider (ISP) New name: AUS Access: ******** Show characters Remove this password Connection game: ABC connection Allow other people to use this connection This option allows anyone with access to this computer to use this connection. Log this as US Connect Cancel

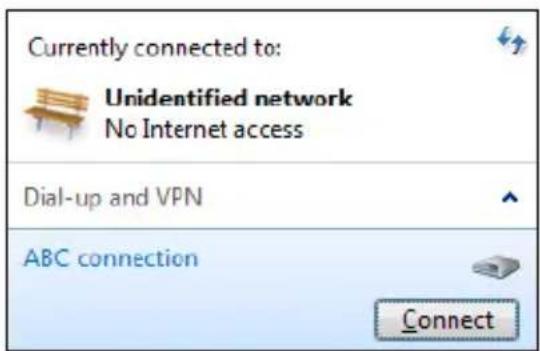

11. Click the network icon in the taskbar and click the connection you just created.

Currently connected to: Unidentified network No Internet access Dial-up and VPN ABC connection Connect

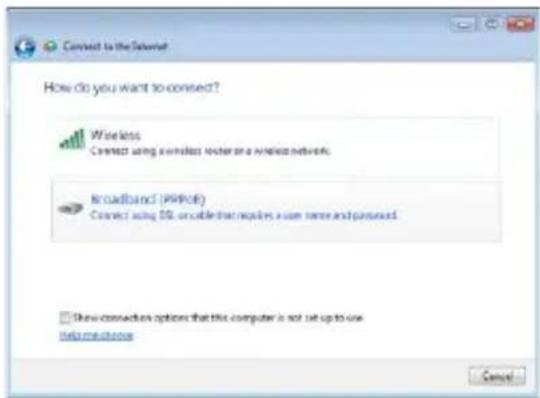

8. Select Broadband (PPPoE) and click Next.

Connect to the Internet How do you want to connect? Wireless Connect using a wireless router or a network network. Broadband (PHPOR) Connect using SQL or cable that requires a user name and password. Show connections options that this computer is not set up to use help me choose Cancel

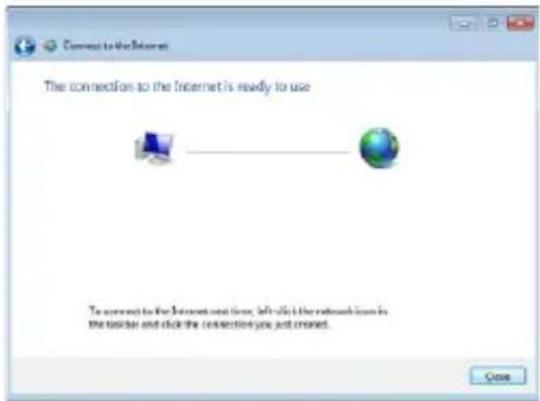

10. Click Close to finish the configuration.

Connect to the Internet The connection to the Internet is ready to use To connect to the Internet next time, left click the network from in the toolbar and click the connection you just created. Close

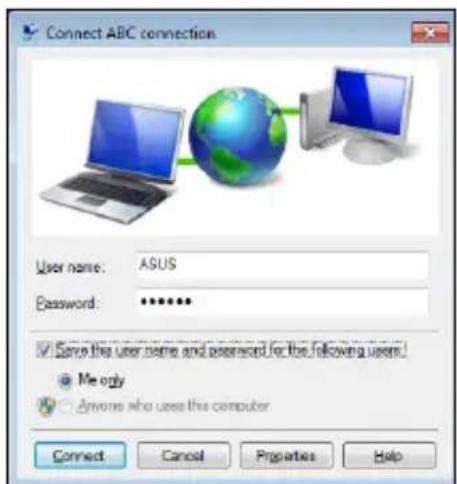

12. Enter your user name and password. Click Connect to connect to the Internet.

Connect ABC connection User name: ASUS Password: ****** ✓ Save the user name and password for the following users! ● Me only ○ Anyone who uses this computer Connect Cancel Properties Help

Using a static IP:

1. Repeat the step 1–4 of Using a dynamic IP to start the static IP network configuration.

2 Click Use the following IP address.

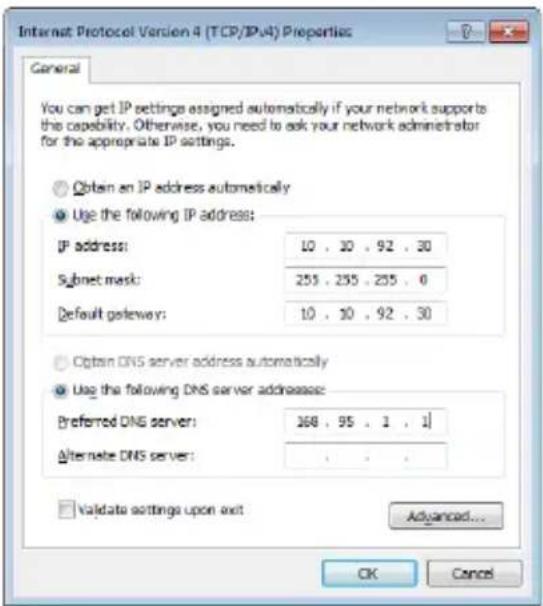

1. Enter the IP address, Subnet mask and Gateway from your service provider.

2. If needed, enter the preferred DNS Server address and alternative address.

3. After entering all the related values, click OK to build the network connection.

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports the capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. ○ Obtain an IP address automatically ● Use the following IP address: IP address: 10 , 30 , 92 , 30 Subnet mask: 255 , 255 , 255 , 0 Default gateway: 10 , 30 , 92 , 30 ○ Obtain DNS server address automatically ● Use the following DNS server addresses: Preferred DNS server: 168 , 95 , 1 , 1 Alternate DNS server: □ validate settings upon exit Advanced... OK Cancel

Contact your Internet Service Provider (ISP) if you have problems connecting to the network.

Browsing web pages

After you finish the network setup, click Internet Explorer on the desktop and start enjoying net surfing.

Visit our Eee PC homepage (http://eeepc.asus.com) to obtain the latest information and register at http://vip.asus.com for full service of your Eee PC.

ASUS Update

Bluetooth Connection (on selected models)

Super Hybrid Engine

Eee Docking

Using the Eee PC

ASUS Update

The ASUS Update is a utility that allows you to manage, save, and update the Eee PC BIOS in Windows® environment. The ASUS Update utility allows you to:

• Save the current BIOS file
• Download the latest BIOS file from the Internet
• Update the BIOS from an updated BIOS file
• Update the BIOS directly from the Internet, and
  • View the BIOS version information.

This utility is pre-loaded in your Eee PC.

ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).

Updating the BIOS through the Internet

To update the BIOS through the Internet

1. Launch the ASUS Update utility from the Windows® desktop by clicking Start > All Programs > ASUS > ASUSUpdate for Eee PC> ASUSUpdate. The ASUS Update main window appears.

File Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Remove Delete Add Imported from this folder (1) Imported from this folder (2) Imported from this folder (3) Imported from this folder (4) Imported from this folder (5) Imported from this folder (6) Imported from this folder (7) Imported from this folder (8) Imported from this folder (9) Imported from this folder (10) Imported from this folder (11) Imported from this folder (12) Imported from this folder (13) Imported from this folder (14) Imported from this folder (15) Imported from this folder (16) Imported from this folder (17) Imported from this folder (18) Imported from this folder (19) Imported from this folder (20) Imported from this folder (21) Imported from this folder (22) Imported from this folder (23) Imported from this folder (24) Imported from this folder (25) Imported from this folder (26) Imported from this folder (27) Imported from this folder (28) Imported from this folder (29) Imported from this folder (30) Imported from this folder (31) Imported from this folder (32) Imported from this folder (33) Imported from this folder (34) Imported from this folder (35) Imported from this folder (36) Imported from this folder (37) Imported from this folder (38) Imported from this folder (39) Imported from this folder (40) Imported from this folder (41) Imported from this folder (42) Imported from this folder (43) Imported from this folder (44) Imported from this folder (45) Imported from this folder (46) Imported from this folder (47) Imported from this folder (48) Imported from this folder (49) Imported from this folder (50) Imported from this folder (51) Imported from this folder (52) Imported from this folder (53) Imported from this folder (54) Imported from this folder (55) Imported from this folder (56) Imported from this folder (57) Imported from this folder (58) Imported from this folder (59) Imported from this folder (60) Imported from this folder (61) Imported from this folder (62) Imported from this folder (63) Imported from this folder (64) Imported from this folder (65) Imported from this folder (66) Imported from this folder (67) Imported from this folder (68) Imported from this folder (69) Imported from this folder (70) Imported from this folder (71) Imported from this folder (72) Imported from this folder (73) Imported from this folder (74) Imported from this folder (75) Imported from this folder (76) Imported from this folder (77) Imported from this folder (78) Imported from this folder (79) Imported from this folder (80) Imported from this folder (81) Imported from this folder (82) Imported from this folder (83) Imported from this folder (84) Imported from this folder (85) Imported from this folder (86) Imported from this folder (87) Imported from this folder (88) Imported from this folder (89) Imported from this folder (90) Imported from this folder (91) Imported from this folder (92) Imported from this folder (93) Imported from this folder (94) Imported from this folder (95) Imported from this folder (96) Imported from this folder (97) Imported from this folder (98) Imported from this folder (99) Imported from this folder (100)

1. Select Update BIOS from Internet from the drop-down menu, then click Next.

ASUS Update for Eye Pro V1.00.04 Select the Update Method 1. Update/Save BIOS From/To file 2. Update system BIOS using a specified BIOS file on ASUS Web Site 3. Download a specified BIOS image file via Internet 4. Check BIOS Information. Update BIOS from Internet Save current BIOS to file Update BIOS from file Update BIOS from Internet Download BIOS from Internet Check BIOS Information

1. Select the ASUS FTP site nearest you to avoid network traffic, or click Auto Select. Click Next.
2. From the FTP site, select the desired BIOS version and click Next.
3. Follow the screen instructions to complete the update process.

ASUS Update for Eas Pc V1.00.04 Select the Update Server Before you continue, please make sure your system is connected to the Internet. You can select a website or click "AutoSelect" button, ASUS Update will automatically choose the best suitable website according to network: https. ✓ Passive Proxy Setting Auto Select to asus.com.eu Back Cancel Next

The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features.

Updating the BIOS through a BIOS file

To update the BIOS through a BIOS file:

1. Launch the ASUS Update utility from the Windows® desktop by clicking Start > Programs > ASUS > ASUSUpdate for EeePC> ASUSUpdate. The ASUS Update main window appears.
2. Select Update BIOS from file from the drop-down menu, then click Next.

ASUS Update for Web PC V1.00.04 Select the Update Method 1. Update/Save BIOS From/To file 2. Update system BIOS using a specified BIOS file on ASUS Web Site. 3. Download a specified BIOS image file via Internet. 4. Check BIOS Information. Update BIOS from Internet Save current BIOS to file Update BIOS from file Update BIOS from Internet Download BIOS from Internet Check BIOS Information

1. Locate the BIOS file from the Open window, then click Open.
2. Follow the screen instructions to complete the update process.

Bluetooth Connection (on selected models)

Bluetooth technology eliminates the need for cables for connecting Bluetooth-enabled devices. Examples of Bluetooth-enabled devices may be Notebook PCs, Desktop PCs, mobile phones, and PDAs.

To connect to a Bluetooth-enabled device:

1. Press + repeatedly until Bluetooth ON or WLAN & Bluetooth ON is shown.

2. From Control Panel, go to Network and Internet > Network and Sharing Center and then click Change adapter settings in the left blue pane.

Control Panel Home Manage existing networks Change active settings Change advanced sharing settings View your basic network information and set up connections AAPS-PC (This computer) Undidentified network Internet Set full map View your active networks Connect or download Undidentified network Public network Access type No Internet access Connections: Local New Connection Change your networking settings Set up a mini networking or network Set up a wireless, broadband, dial-up, and hot, as WiFi connections; can set up a router or account pin. Connects a network Connect or recommend to a router, word, dial-up, or WiFi network connection. Change homegroup and sharing options Access lists and parkers located on other network computers; or change sharing settings. Troubleshoot problems Diagnose and repair network problems, or get trouble/shooting information.

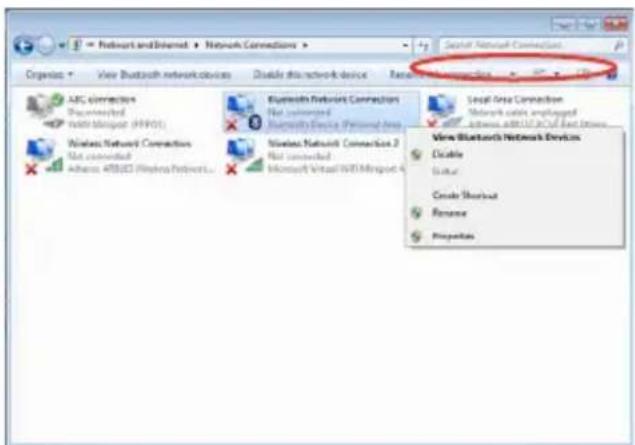

1. Right-click Bluetooth Network Connection and select View Bluetooth Network Devices.

Network and Internet > Network Connections > Organize View Bluetooth network devices Disable this network device Create Connection ABC Connection Connected WiFi Manager (FFI) Bluetooth Network Connections Not connected Adams A8300 (WiFi Project) Bluetooth Network Connections Not connected Machinery Device (Personal Area) Bluetooth Network Connections 2 Not connected Microsoft Virtual W/O Manager 4 Local Area Connection Machinery cable employed ✓ Select any other items of the next item. View Bluetooth Network Devices Disable Status Create Shortout Remove Properties.

1. Click Add a device to look for new devices.

Add options Add options Services 11 Products 1052 3 Film

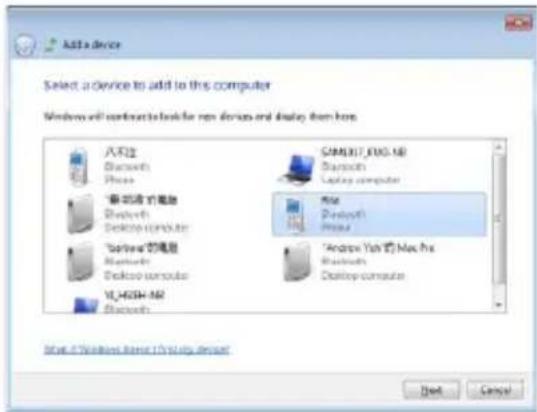

1. Select a Bluetooth-enabled device from the list and click Next.

Add a device Select a device to add to this computer Windows will continue to enable new devices and display them here. 八不加 Bluetooth Phase 最近添加的电脑 Bluetooth Desktop computer "Server" 的电脑 Bluetooth Desktop computer YL42SH-MS Bluetooth GAM317_E00.16B Bluetooth Desktop computer Alt Bluetooth Phase "Android Yok" 的 Mac Pcs Bluetooth Desktop computer My: Windows Server 13.xluy device Next Cancel

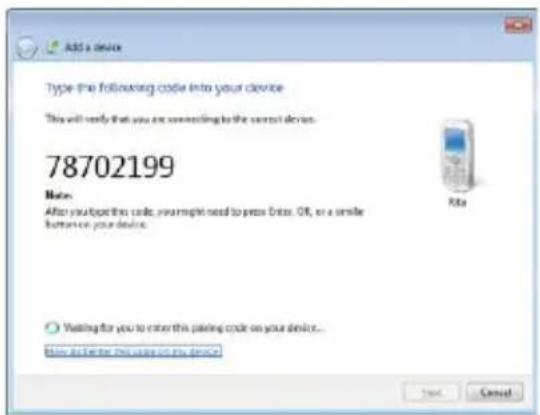

1. Enter the Bluetooth security code into your device and start pairing.

Add a device Type the following code into your device This will verify that you are connecting to the correct device. 78702199 Note: After your product code, your right need to press Drive, OR, or a similar performance your device. ○ Visiting for you to enter this pairing code on your device... How do better make more on your device? Next Cancel

1. The paired relationship is successfully built. Click Close to finish the setting.

Add a device This device has been successfully added to this computer Windows is now checking for drivers and will install them if necessary. You may need to wait for this to finish before your device is ready to use. To verify if this device finished installing property, you want to be done or run off.

Super Hybrid Engine

Super Hybrid Engine offers different power modes. The power saving modes control many aspects of your Eee PC to maximize performance versus battery time. The selected mode is shown on the display.

To change the power mode

- Click Start > All Programs > ASUS > EeePC > SuperHybridEngine > SuperHybridEngine.

- Right-click the Super Hybrid Engine icon in the Notification area, and select a preferred power mode.

- Press + .

Super Performance Mode ✓ High Performance Mode Power Saving Mode Auto Mode Eee Super Hybrid Engine V2.0

Super Hybrid Engine Modes

Power Saving

High Performance

Super Performance

Auto High Performance and Auto Power-Saving mode are available only when applying or removing the power adapter.

Auto Power-Saving

Auto High-Performance

If your external monitor functions abnormally in Power Saving mode at a resolution of 1024 x 768 pixels or higher, press + repeatedly to switch the display mode to LCD Only or LCD + CRT Clone and reset the power mode to High Performance or Super Performance.

Eee Docking (on selected models)

Eee Docking contains multiple useful applications. The Eee Docking tool bar is at the top of the desktop.

Access Sharing Experience Tools Access Sharing Experience Tools

- The applications in Eee Docking may vary depending on models.

- The names of the applications in Eee Docking are subject to change without notice.

Access

ASUS @vibe

ASUS @Vibe allows you to enjoy online entertainment contents including Radio, Live TV and Games, etc.

The ASUS @Vibe service contents differ for each territory.

Game Park

Game Park includes multiple interesting games.

ASUS AP Bank

ASUS AP Bank offers various software applications and multimedia enjoyment online.

ASUS WebStorage

Eee PC users can enjoy free online space. With Internet connection, you can access and share any files whenever you want and wherever you are. The ASUS WebStorage help file is accessible only when your Eee PC connects to the Internet.

Sharing

YouCAM

YouCAM provides interesting effects and useful add-ons for your webcam.

Syncables

The syncables desktop application makes it easier than ever to keep all your photos, music, videos, documents, bookmarks, and more in sync and up to date across all your computers.

Experience

Eee Splendid

Eee Splendid helps improve your Eee PC display in terms of the contrast, brightness, skin tone, and color saturation for red, green, and blue independently.

Tools

Live Update

Live Update keeps your Eee PC up-to-date by checking the online updates.

USB Charge+

USB Charge+ functions to charge your mobile phones or digital audio players while your Eee PC is sleeping, hibernating or shut down. The feature is disabled by default. When enabled, two modes are available for you to choose from, Adapter Mode, or Adapter + Battery Mode.

USB Charge+ is disabled while your Eee PC is powered on, and the USB port will be used for data transfer only.

Font Resizer

Font Resizer allows you to adjust the font/text size on your Eee PC screen.

LocaleMe

LocaleMe is a web mapping service application, offering easy search for streets or companies sorted by multiple categories all over the world.

Locale Me requires an Internet connection to operate.

Docking Setting

Docking Setting allows you to configure the appearance and the position of the Eee Docking tool bar.

System Recovery

Boot Booster

System Recovery

System Recovery

Disable Boot Booster in BIOS setup before you perform system recovery from USB flash disk, external optical drive or hidden partition.

Ensure to connect your Eee PC to the AC power adapter before using F9 recovery to avoid recovery failure.

Using recovery partition (F9 Recovery)

1. Press during bootup.

Ensure to press only once during bootup.

1. Select the language you use and click to continue.

Language 1. English

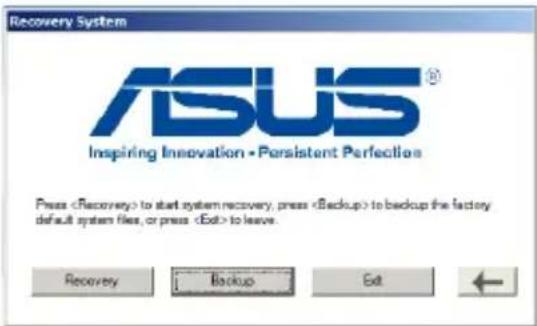

1. Click Recovery in the Recovery System dialog box to start the system recovery.

Recovery System ASUS® Inspiring Innovation • Persistent Perfection Press to start system recovery, press to backup the factory default system files, or press to leave. Recovery Backup Exit

1. The system starts system recovery automatically and follows the onscreen instructions to complete the recovery process.

Back up the recovery files

1. Repeat the step 1—2 in the previous section.
2. Connect a USB storage device to your Eee PC and click Backup in the Recovery System dialog box to start the recovery files backup.

• The size of the connected USB storage device should be larger than 16GB.
  • Memory cards are not supported for this function.
• A dialog box appears as a reminder if you have not connected the USB storage device for system recovery backup to your Eee PC.

Connect an external USB storage device before system backup.

1. Select a desired USB storage device if more than one USB storage device is connected to your Eee PC and click Continue.

Backup 1. ST730212 DE USB Device (27.9GB) DO NOT remove the USB storage device during system backup. Keep the power adapter connected during system backup. Continue Back

1. All the data on the selected USB storage device will be cleared. Click Continue to start the backup or click Back to backup your important data.

Confirm All data on the target storage device will be cleared. Continue? Continue Back

You will lose all your data on the selected USB storage device. Ensure to back up your important data beforehand

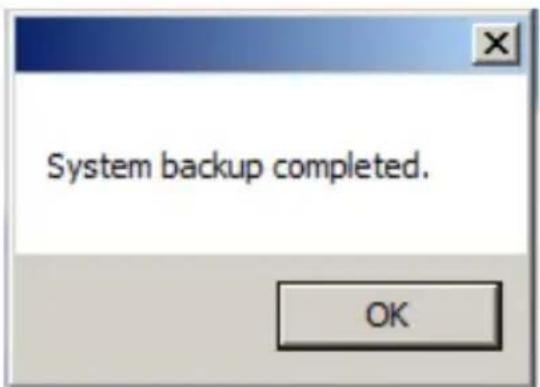

1. The system backup starts and click OK when done.

System backup completed. OK

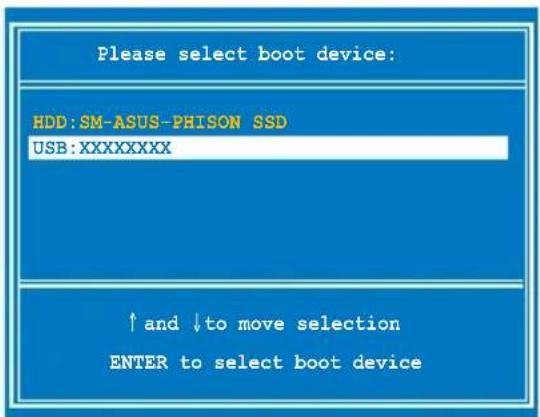

Using the USB storage device (USB recovery)

1. Connect the USB storage device that you backup the system recovery files.

2. Press on bootup and the Please select boot device screen appears. Select USB: XXXXXX to boot from the connected USB storage device.

Please select boot device: HDD:SM-ASUS-PHISON SSD USB:XXXXXXXXX ↑ and ↓ to move selection ENTER to select boot device

1. Select the language you use and click

→ to continue.

1. Click Recovery to start system recovery.

Recovery System ASUS® Inspiring Innovation • Persistent Perfection Press to start system recovery, or press to leave. Recovery Exit

1. Select a partition option and click Continue. Partition options:

• Recover system to a partition.

This option deletes all data on the system partition "C" and keeps the partition "D" unchanged.

Confirm Recover system to a partition You will lose all your data during system recovery. Ensure to back up your important data before recovery your system. Continue Back

• Recover system to entire HD.

This option deletes all partitions

from your hard disk drive and creates a new system partition as drive "C" and a data partition as drive "D".

1. Follow the onscreen instructions to complete the recovery process.

Boot Booster

The Boot Booster item in BIOS setup helps shorten your Eee PC bootup time. However, you MUST disable this BIOS item before you change any Eee PC components or perform system recovery (from USB flash disk, external optical drive or hidden partition). Follow the instructions below to disable Boot Booster:

1. Start the system and press on bootup to show the POST screen. Press again to enter the BIOS setup.

2. Set Boot Booster to [Disabled].

If you fail to see the POST screen or enter the BIOS setup by doing the instruction above, restart the system and try pressing repeatedly on bootup.

Main Advanced Security Boot Exit
▶ Boot Device Priority ▶ Boot Settings Configuration OnBoard LAN Boot ROM [Enabled] Boot Booster [Disabled]	Specifies the Boot Device Priority sequence. A virtual floppy disk drive (Floppy Drive B: ) may appear when you set the CD-ROM drive as the first boot device. ←→ Select Screen ↑↓ Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit
v02.58 (C)Copyright 1985-2005, American Megatrends, Inc.

1. Press to save the configuration and restart Eee PC.

Remember to enable Boot Booster after you complete hardware change or system recovery.

Declarations and Safety Statements

Copyright Information

Limitation of Liability

Service and Support

Declarations and Safety Statements

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office.)

FCC Radio Frequency (RF) Exposure Caution Statement

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. "The manufacture declares that this device is limited to Channels 1 through 11 in the 2.4GHz frequency by specified firmware controlled in the USA."

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Declaration of Conformity (R&TTE directive 1999/5/EC)

The following items were completed and are considered relevant and sufficient:

• Essential requirements as in [Article 3]
- Protection requirements for health and safety as in [Article 3.1a]
- Testing for electric safety according to [EN 60950]
- Protection requirements for electromagnetic compatibility in [Article 3.1b]
- Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301 489-17]
• Effective use of the radio spectrum as in [Article 3.2]
• Radio test suites according to [EN 300 328-2]

CE Marking

CE

CE marking for devices without wireless LAN/Bluetooth

The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC "Electromagnetic compatibility" and 2006/95/EC "Low voltage directive".

CE!

CE marking for devices with wireless LAN/ Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity.

IC Radiation Exposure Statement for Canada

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Operation is subject to the following two conditions:

• This device may not cause interference and
- This device must accept any interference, including interference that may cause undesired operation of the device.

To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

Country Code selection feature to be disabled for products marketed to the US/CANADA.

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

France Restricted Wireless Frequency Bands

Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors are:

- 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)

• 100mW for frequencies between 2446.5 MHz and 2483.5 MHz

Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz.

There are few possibilities for outdoor use: On private property or on the private property of public persons, use is subject to a preliminary authorization procedure by the Ministry of Defense, with maximum authorized power of 100mW in the 2446.5–2483.5 MHz band. Use outdoors on public property is not permitted.

In the departments listed below, for the entire 2.4 GHz band:

• Maximum authorized power indoors is 100mW

• Maximum authorized power outdoors is 10mW

Departments in which the use of the 2400–2483.5 MHz band is permitted with an EIRP of less than 100mW indoors and less than 10mW outdoors:

01 Ain 02 Aisne 03 Allier

05 Hautes Alpes 08 Ardennes 09 Ariège

11 Aude 12 Aveyron 16 Charente

24 Dordogne 25 Doubs 26 Drôme

This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.art-telecom.fr)

Your WLAN Card transmits less than 100mW, but more than 10mW.

UL Safety Notices

Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically connected to a telecommunication network that has an operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National Electrical Code (NFPA 70).

When using the Eee PC modem, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• DO NOT use the Eee PC near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• DO NOT use the Eee PC during an electrical storm. There may be a remote risk of electric shock from lightning.
• DO NOT use the Eee PC in the vicinity of a gas leak.

Required for UL 1642 covering primary (nonrechargeable) and secondary (rechargeable) lithium batteries for use as power sources in products. These batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or reversible chemical reaction.

• Do not dispose the Eee PC battery pack in a fire, as they may explode. Check with local codes for possible special disposal instructions to reduce the risk of injury to persons due to fire or explosion.
• Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm ^2 or H05VV-F, 2G, 0.75mm ^2 .

REACH Notice

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

Global Environmental Regulation Compliance and Declaration

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to http://csr.asus.com/english/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

• Japan JIS-C-0950 Material Declarations
• EU REACH SVHC
- Korea RoHS
- Swiss Energy Laws

Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detail recycling information in different region.

Nordic Lithium Cautions (for lithium-ion batteries)

(English)

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

National flag of Norway featuring red and blue vertical stripes (no text or symbols)

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2010 ASUSTeK COMPUTER INC. All Rights Reserved.

Limitation of Liability

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

Service and Support

Visit our multi-language web site at http://www.asus.com

Manufacturer ASUSTek COMPUTER INC.
Address, City No. 150, LI-T	E RD., PEITOU, TAIPEI 112, TAIWAN R.O.C
Country TAIWAN
Authorized Representative in Europe	ASUS COMPUTER GmbH
Address, City HARKORT S	TR. 21-23, 40880 RATINGEN
Country GERMANY
