Product Type	Laptop (Notebook)
Brand	Acer (eMachines)
Model	E625 Series
Operating System	Genuine Windows Vista®
Processor	AMD Athlon™ 64 X2 dual-core or AMD Athlon™ processor
Chipset	AMD M690V
Memory	Up to 2 GB DDR2 667 MHz, expandable to 4 GB (2 slots)
Display	15.6" HD (1366 x 768) widescreen, 16:9 aspect ratio
Graphics	ATI Radeon™ Xpress 1200
Storage	2.5" hard disk drive; DVD-Super Multi double-layer drive; 5-in-1 card reader (SD, MMC, MS, MS PRO, xD)
Audio	Two built-in stereo speakers, high-definition audio, MS-Sound compatible
Communication	Integrated webcam (selected models); WLAN: IEEE 802.11b/g; Fast Ethernet (Wake-on-LAN)
I/O Ports	USB 2.0, VGA external display, headphone/speaker/line-out, microphone-in, Ethernet RJ-45, DC-in jack
Special Keys/Controls	99-/100-/103-key keyboard; touchpad; hotkeys for brightness, volume, sleep, display toggle, speaker toggle
Dimensions	372.3 x 246.5 x 26.8/39.6 mm (14.4 x 10.8 x 1.1/1.5 in)
Weight	2.7 kg (6.0 lbs) with 6-cell battery
Power Subsystem	48.8 W 4400 mAh battery; 3-pin 65 W AC adapter; ENERGY STAR® 4.0; ACPI 3.0 compatible
Privacy/Security	BIOS passwords (user, supervisor, HDD); Kensington lock slot
Operating Environment	Temperature: 5°C to 35°C (operating), -20°C to 65°C (non-operating); Humidity: 20% to 80% (non-condensing)
Maintenance and Cleaning	Clean with soft, dry cloth; avoid liquids; do not block ventilation slots
Repairability	Upgradeable: memory (2 soDIMM slots), hard drive; battery removable; optical drive accessible

Frequently Asked Questions - E625 ACER

How do I access the full user guide for my eMachines E625?

Click Start, All Programs, eMachinesSystem, then eMachinesSystem User Guide. It is in PDF format; Adobe Reader may be installed automatically.

Can I upgrade the memory on the eMachines E625?

Yes, the laptop supports up to 4 GB of DDR2 667 MHz memory using two soDIMM modules. Access the memory compartment on the bottom of the laptop.

How do I use the hotkeys on my eMachines E625?

Press and hold the Fn key, then press the corresponding function key. For example, Fn+F6 toggles the touchpad, Fn+▲ increases volume, Fn+▼ decreases brightness.

What card types does the built-in card reader support?

The 5-in-1 card reader supports Secure Digital (SD), MultiMediaCard (MMC), Memory Stick (MS), Memory Stick PRO (MS PRO), and xD-Picture Card (xD). Only one card at a time.

How can I connect an external monitor or projector?

Use the VGA port on the left side of the laptop. Then press Fn+F5 (Display toggle) to switch between internal and external displays.

Why is the battery indicator light amber or blue?

Amber means the battery is charging. Blue (when AC power is connected) means the battery is fully charged. The indicator is on the front edge of the laptop.

What do I do if the optical drive does not open?

If the laptop is off, use the emergency eject hole on the right side. Insert a paper clip straight into the hole to manually release the tray.

How do I clean my eMachines E625?

Turn off the laptop and unplug it. Use a soft, lint-free cloth slightly dampened with water or a mild cleaner. Avoid getting moisture into openings. Do not use abrasive cleaners.

Can I use a security lock with this laptop?

Yes, there is a Kensington lock slot on the right side. Wrap the lock cable around a stationary object, insert the lock into the slot, and turn the key.

What are the dimensions and weight of the eMachines E625?

Dimensions: 372.3 x 246.5 x 26.8/39.6 mm (14.4 x 10.8 x 1.1/1.5 in). Weight: approximately 2.7 kg (6.0 lbs) with the 6-cell battery.

USER MANUAL E625 ACER

eMachines E625 Series

Quick Guide

Copyright © 2009. Acer Incorporated. All Rights Reserved.

eMachines E625 Series Quick Guide Original Issue: 02/2009

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.

This booklet has been reviewed for accuracy. Although Acer makes all reasonable attempts for this booklet to be printed in an accurate manner, Acer takes no responsibility for any inadvertent errors or misprints. Acer is liability with respect to this booklet is subject to any limitation of liability set out in the applicable product warranty.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

eMachines E625 Series Notebook PC

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

eMachines and the eMachines logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

First things first

We would like to thank you for making an eMachines notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your eMachines notebook, we have designed a set of guides:

First off, the Just for Starters... poster helps you get started with setting up your computer.

The eMachines Generic User Guide contains useful information applying to all models in the eMachines product series. It covers basic topics such as eMachines Recovery Management, using the keyboard, audio, etc. Please understand that due to its nature, the Generic User Guide as well as the eMachinesSystem User Guide mentioned below will occasionally refer to functions or features which are only contained in certain models of the series, but not necessarily in the model you purchased. Such instances are marked in the text with language such as "only for certain models".

The Quick Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the eMachinesSystem User Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook.

Follow these steps to access it:

1 Click on Start, All Programs, eMachinesSystem.

2 Click on eMachinesSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on eMachinesSystem User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

Your eMachines notebook tour

After setting up your computer as illustrated in the Just for Starters... poster, let us show you around your new eMachines notebook.

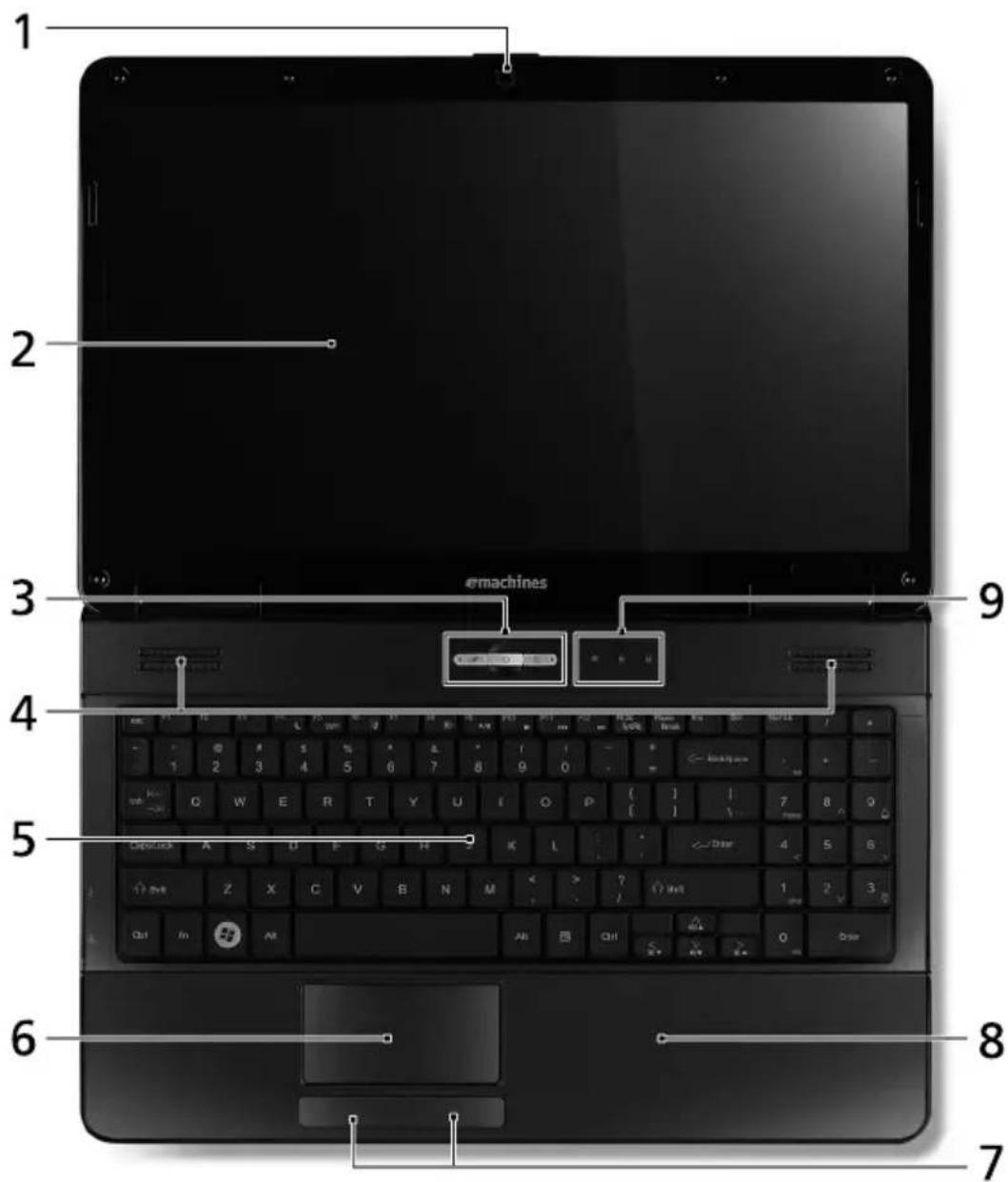

Top view

1 2 3 4 5 6 7 8 9 @machines

# Icon Item Description
1 Integrated	webcam	Web camera for video communication.(only for certain models)

#	Icon	Item	Description
2 Display screen Also called Liquid-Crystal Display (LCD), displays computer output.
3 Touchpad toggle Turns the internal touchpad on and off.
	Power button Turns the computer on and off.
	Wireless LAN communication button/indicator	Enables/disables the wireless LAN function. Indicates the status of wireless LAN communication.
4 Speakers Left and right speakers deliver stereo audio output.
5 Keyboard For entering data into your computer.
6 Touchpad Touch-sensitive pointing device which functions like a computer mouse.
7 Click buttons (left and right)		The left and right buttons function like the left and right mouse buttons.
8 Palmrest Comfortable support area for your hands when you use the computer.
9 HDD Indicates when the hard disk drive is active.
	Num Lock Lights up when Num Lock is activated.
	Caps Lock Lights up when Caps Lock is activated.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey Icon Function Description
	+		Sleep
	+		Display toggle
	+		Screen blank

+Fn> + <F8> Sp#er toggle Turns the speakers on and off.
+ <Δ	[WYZS] ▲	Volume up Increases the sound volume.
+ <▼	▼	Volume down Decreases the sound volume.
+ <▶	[T6ST] ▲	Brightness up Increases the screen brightness.
+ <※	▼	Decreases the screen brightness. down

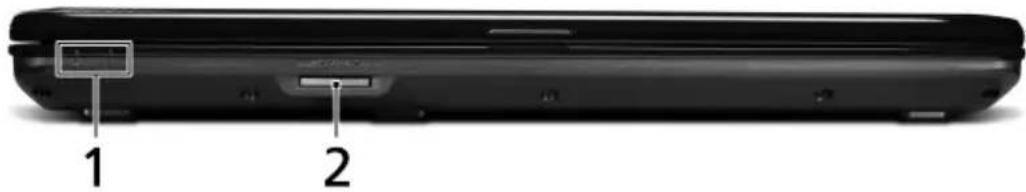

Closed front view

1 2

Item Description

1		Power ^1	Indicates the computer's power status.
	[6748]	Battery ^1	Indicates the computer's battery status.1. Charging: The light shows amber when the battery is charging.2. Fully charged: The light shows blue when in AC mode.
2		5 card reader	Accepts Secure Digital (SD), MultiMediaCard (MMC), Memory Stick (MS), Memory Stick PRO (MS PRO), xD-Picture Card (xD).Note: Push to remove/install the card. Only one card can operate at any given time.

1. The front panel indicators are visible even when the computer cover is closed up.

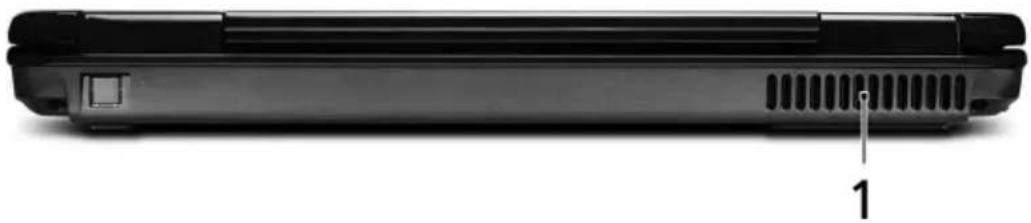

Rear view

Side view of a black laptop computer with ventilation slots and a labeled indicator '1' (no text or symbols on the device itself)

# Item Description

1 Ventilation slots Enable the computer to stay cool, even after prolonged use.

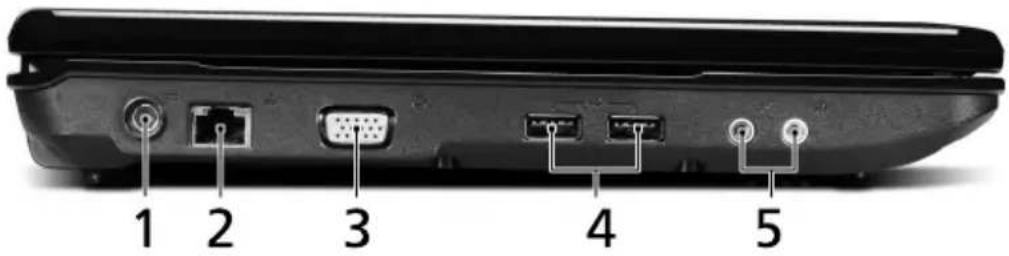

Left view

1 2 3 4 5

# Icon Item Description

1 DC-in jack Connects to an AC adapter.

2 Ethernet (RJ-45) port Connects to an Ethernet 10/100-based network.

3 External display (VGA) port

Connects to a display device (e.g., external monitor, LCD projector).

4 USB 2.0 port Connect to USB 2.0 devices (e.g., USB mouse, USB camera).

5 Microphone-in jack Accepts inputs from external microphones.

Headphones/speaker/ Line-out jack Connects to audio line-out devices (e.g., speakers, headphones).

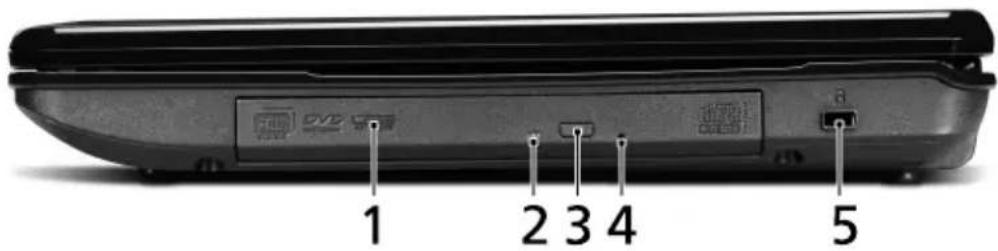

Right view

1 2 3 4 5

Icon Item Description

1 Optical drive Internal optical drive; accepts CDs or DVDs.
2 Optical disk access indicator	Lights up when the optical drive is active.
3 Optical drive eject button	Ejects the optical disk from the drive.
4 Emergency eject hole	Ejects the optical drive tray when the computer is turned off.Note: Insert a paper clip to the emergency eject hole to eject the optical drive tray when the computer is off.

5 Kensington lock slot Connects to a Kensington-compatible computer security lock.

Mechanical assembly diagram showing a tool interacting with a mounted device (no text or symbols visible)

Note: Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

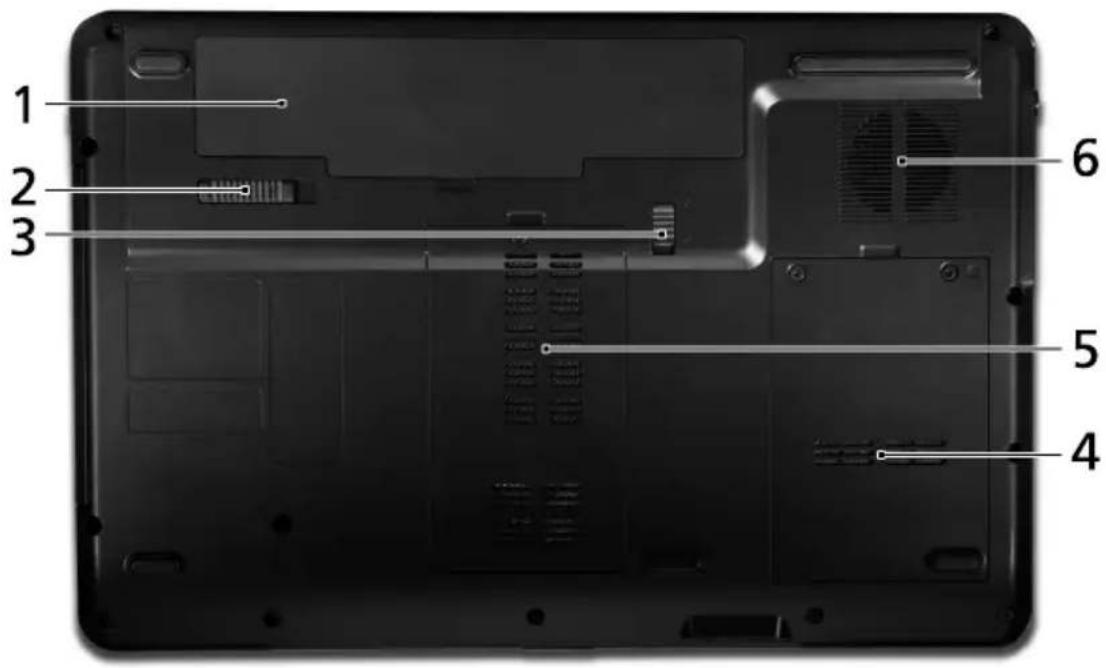

Base view

1 2 3 6 5 4

# Icon Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery release latch Releases the battery for removal.

3 Battery lock Locks the battery in position.

4 Hard disk bay Houses the computer's hard disk (secured

with screws).

emory compartment Houses the computer's main memory.

6 Ventilation slots and Enable the computer to stay cool, even

cooling fan

after prolonged use.

Note: Do not cover or obstruct the opening of the fan.

Specifications

Operating system	•Genuine Windows Vista®
Platform	•AMD Better By Design Program, featuring:• AMD AthlonTM 64 X2 dual-core processor*• AMD AthlonTM processor*• AMD M690V Chipset• IEEE 802.11b/g
System memory	•Dual-channel support•Up to 2 GB of DDR2 667 MHz memory, upgradeable to 4 GB using two soDIMM modules
Display	•15.6" HD 1366 x 768•16:9 aspect ratio
Graphics	•ATI RadeonTM Xpress 1200 Graphics
Storage subsystem	•2.5" hard disk drive• DVD-Super Multi double-layer drive• 5-in-1 card reader
Audio	•Two built-in stereo speakers•High-definition audio support• MS-Sound compatible
Communication	•Integrated webcam*•WLAN: IEEE 802.11b/g•LAN: Fast Ethernet; Wake-on-LAN ready
Dimensions	•372.3 (W) x 246.5 (D) x 26.8/39.6 (H) mm(14.4 x 10.8 x 1.1/1.5 inches)•2.7 kg (6.0 lbs.) with 6-cell battery pack
Privacy control	•BIOS user, supervisor, HDD passwords•Kensington lock slot
Power subsystem	•ACPI 3.0•48.8 W 4400 mAh•3-pin 65 W AC adapter•ENERGY STAR® 4.0*
Special keys and controls	•99-/100-/103-key keyboard•Touchpad pointing device
I/O interface	•USB 2.0 port•External display (VGA) port•Headphones/speaker/line-out jack•Microphone-in jack•Ethernet (RJ-45) port•DC-in jack for AC adapter

Environment

•Temperature:

• Operating: 5 °C to 35 °C
  • Non-operating: -20 °C to 65 °C

• Humidity (non-condensing):

• Operating: 20% to 80%
  • Non-operating: 20% to 80%

Note: * Only for certain models.

Note: The specifications listed above are for reference only. The exact configuration of your PC depends on the model purchased.
