PFM2000 - TV Stand Chief - Free user manual and instructions

Product Type	TV Stand / Mobile Cart
Brand	Chief
Model	PFM2000
Weight Capacity	200 lbs (90.72 kg)
Height Adjustment Range	37-5/8" to 49-5/8" (955 mm to 1261 mm) in 2" increments (ground to middle of screen)
Tilt Angle	+15° to +45° forward/backward
Width	36-1/8" (918 mm)
Depth	25-1/4" (640 mm)
Minimum Height	37-5/8" (955 mm)
Maximum Height	49-5/8" (1261 mm)
Material	Steel frame with plastic covers
Color	Black/Silver (typical)
Compatibility	Requires custom interface bracket (PSBU or MSBU) for display
Included Accessories	Legs (2), cross bracket, center post, head assembly, hardware, 3/16" hex key
Cable Management	Internal routing through center post with snap-on covers
Wheel Brakes	Yes, lockable on back wheels
Assembly Required	Yes, complete assembly with provided instructions
Safety Note	Must support 5x weight of equipment; do not exceed 200 lbs

Frequently Asked Questions - PFM2000 Chief

How to assemble the Chief PFM2000 cart?

Attach legs (A and B) to the cross bracket using four 5/16-18x4-1/4" button head cap screws and end caps. Then attach the center post (C or D) using four 5/16-18x2-3/4" screws and washers. Finally, attach the head assembly (G or H) with four 5/16-18x3/4" screws. Refer to the manual for detailed steps and torque.

How to attach a display to the PFM2000?

First, set the brakes on the back wheels. Adjust the height so the display does not rest on the lower part of the center post. Attach a PSBU or MSBU interface bracket to the display. While two people support the display, align the four mounting buttons on the bracket with the four holes on the head assembly. Lower the display until you hear an audible 'click' confirming the buttons are seated.

How to adjust the height of the cart?

Hold the top part of the post, pull out the knob on the center post, and turn it 90° to disengage the locking mechanism. Raise or lower the post to the desired height (available in 2" increments from 37-5/8" to 49-5/8"), then turn the knob back 90° to lock it in place. Ensure the knob engages fully in a hole.

How to tilt the display?

Loosen the tilt knob on the back of the head assembly by turning counterclockwise. Tilt the display forward or backward up to 45°. Tighten the knob clockwise to secure. For a midway tilt (30°), it is recommended to insert a bolt (not provided) through the head assembly to lock the position.

What is the maximum weight capacity of the PFM2000?

The maximum weight capacity is 200 lbs (90.72 kg). This includes the combined weight of all components on the cart. Exceeding this limit may cause serious injury or damage.

How to manage cables on the cart?

For the PFM2000, signal cables and power cords can be routed through the top of the center post and exit out the back. Accessory power cords can go through the front and down the post. Use the provided snap-on covers to close any unused openings.

How to lock the wheels?

The back wheels have brakes. Press down on the tab on each wheel to engage the brake and lock the cart in place. Always lock the wheels when the cart is stationary.

How to remove the display from the cart?

Remove any bolt or padlock from the faceplate. Pull back the flag on the upper mounting hole and press the pin down to the 'Open' position. With two people, carefully lift the display off the cart. Return the pin to the 'Closed' position after removal.

What tools are required for assembly?

The cart comes with a 3/16" hex key. Additionally, a power drill may be used with the provided hex head drill bit for final tightening, but screws must first be inserted by hand to avoid damaging the threads.

Can the PFM2000 cart be used outdoors?

The cart is designed for indoor use on level surfaces. It should not be used on uneven ground or exposed to weather. Always ensure the structure can support five times the combined weight of all equipment.

USER MANUAL PFM2000 Chief

INSTALLATION INSTRUCTIONS

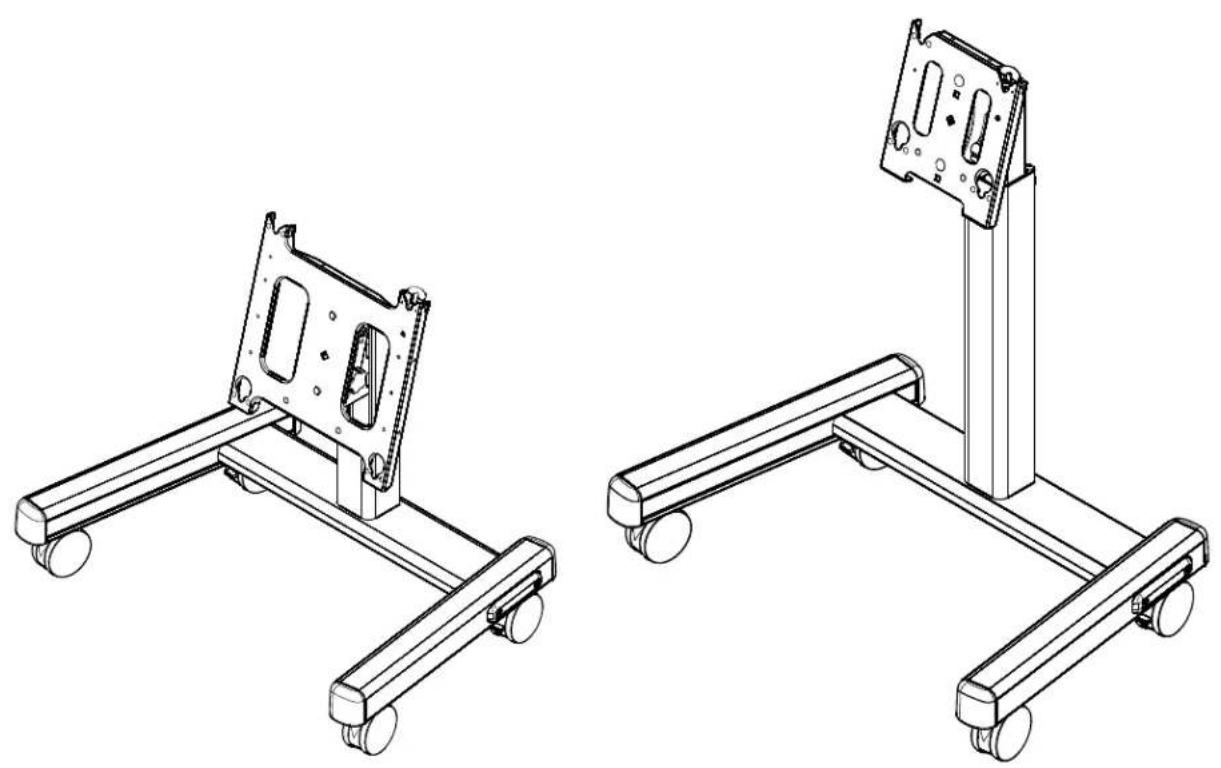

Technical line drawings of two mechanical device assemblies with wheels and mounting brackets (no text or symbols)

Confidence Carts

CHIEF MFM, PFM, MFQ, PFQ

DISCLAIMER

CSAV, Inc., and its affiliated corporations and subsidiaries (collectively, "CSAV"), intend to make this manual accurate and complete. However, CSAV makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. CSAV makes no representation of warranty, expressed or implied, regarding the information contained herein. CSAV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

IMPORTANT WARNINGS AND TIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components on the cart does not exceed 125 lbs (56.70 kg) for the MFM and MFQ, and 200 lbs (90.72 kg) for the PFM and PFQ.

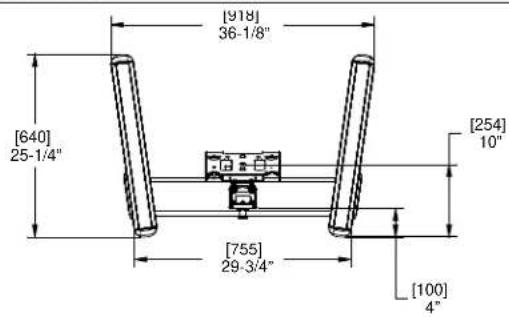

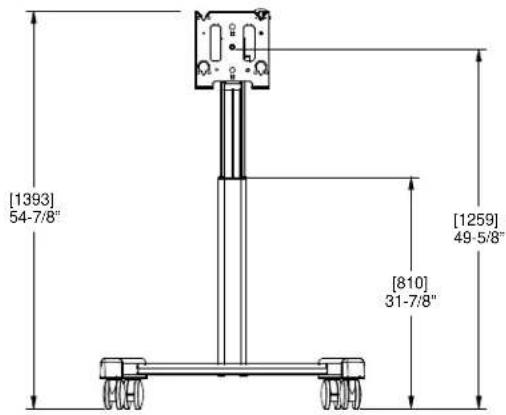

DIMENSIONS

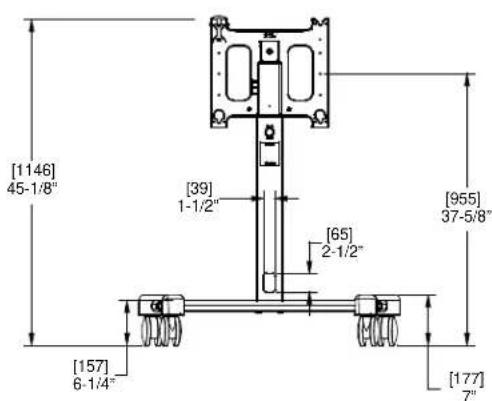

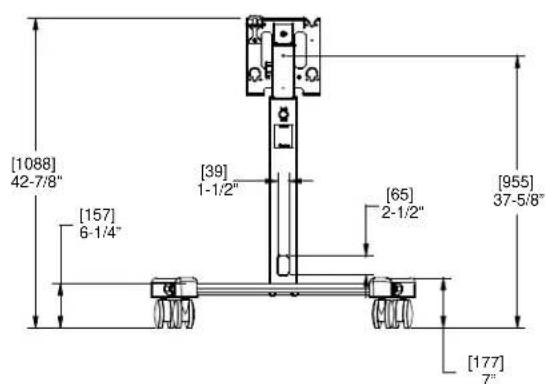

NOTE: CUSTOM INTERFACE BRACKET NOT SHOWN. THE CUSTOM INTERFACE BRACKET NEEDED FOR YOUR DISPLAY WILL ADD BETWEEN ½"AND 2" IN DEPTH AND MAY AFFECT LOCATION OF DISPLAY ON THE MOUNT. SEE PSBU DRAWING ALSO.

WEIGHT CAPACITY: 125 LBS HEIGHT ADJUSTMENT: 37-5/8" TO 49-5/8" IN 2" INCREMENTS (GROUND TO MIDDLE OF SCREEN) TILT/ROLL/YAW: +15° TO +45°±0°/±0°

ALL MEASUREMENTS IN: [MILLIMETERS] INCHES

MFM

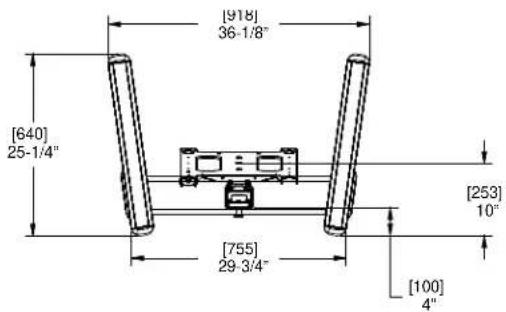

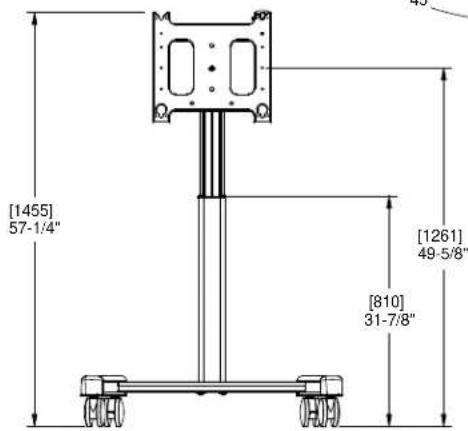

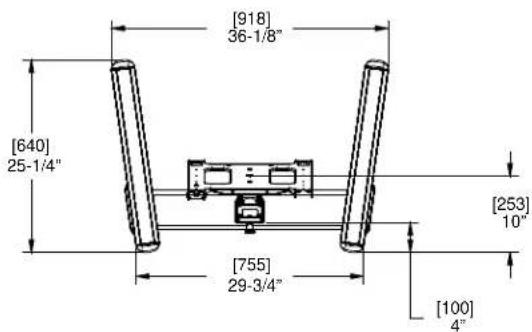

NOTE: CUSTOM INTERFACE BRACKET NOT SHOWN. THE CUSTOM INTERFACE BRACKET NEEDED FOR YOUR DISPLAY WILL ADD BETWEEN 1/2"AND 2" IN DEPTH AND MAY AFFECT LOCATION OF DISPLAY ON THE MOUNT. SEE PSBU DRAWING ALSO.

WEIGHT CAPACITY: 200 LBS HEIGHT ADJUSTMENT: 37-5/8" TO 49-5/8" IN 2" INCREMENTS (GROUND TO MIDDLE OF SCREEN) TILT/ROLL/YAW: +15° TO +45°/±0°/±0°

ALL MEASUREMENTS IN: [MILLIMETERS] INCHES

PFM

DIMENSIONS

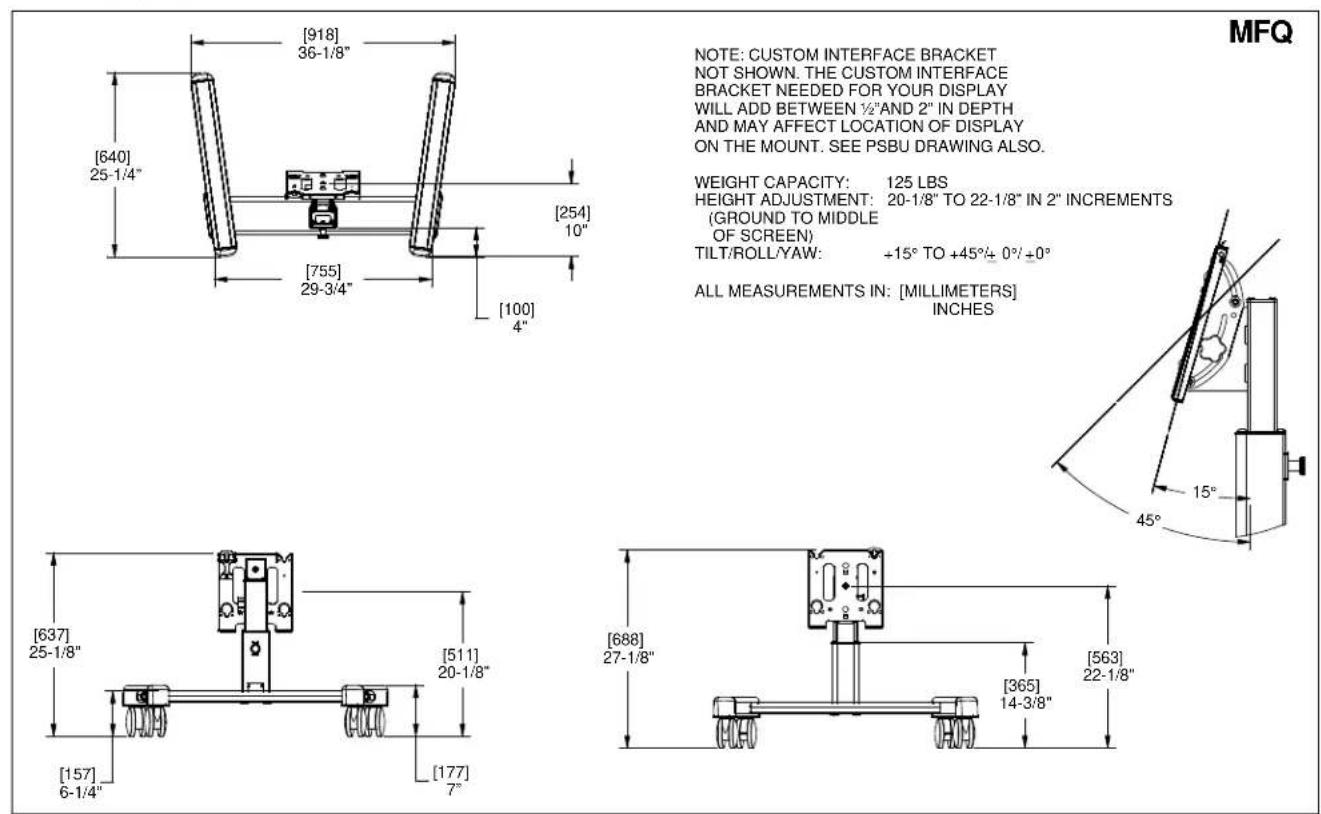

NOTE: CUSTOM INTERFACE BRACKET
NOT SHOWN. THE CUSTOM INTERFACE
BRACKET NEEDED FOR YOUR DISPLAY
WILL ADD BETWEEN 1/2"AND 2" IN DEPTH
AND MAY AFFECT LOCATION OF DISPLAY
ON THE MOUNT. SEE PSBU DRAWING ALSO.
WEIGHT CAPACITY: 125 LBS
HEIGHT ADJUSTMENT: 20-1/8" TO 22-1/8" IN 2" INCREMENTS
(GROUND TO MIDDLE
OF SCREEN)
TILT/ROLL/YAW: +15° TO +45°/+ 0°/+0°
ALL MEASUREMENTS IN: [MILLIMETERS]
INCHES

PFQ

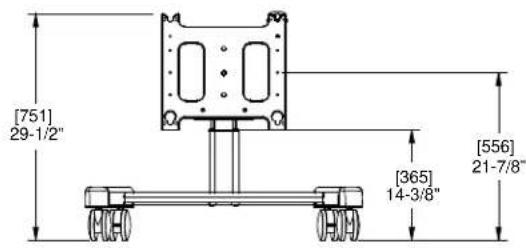

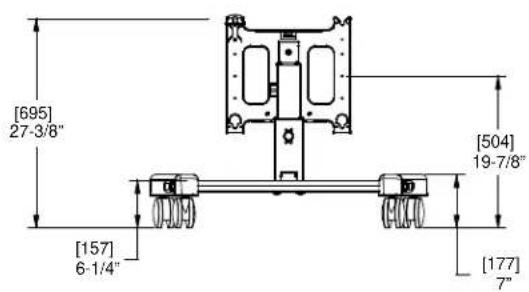

NOTE: CUSTOM INTERFACE BRACKET
NOT SHOWN. THE CUSTOM INTERFACE
BRACKET NEEDED FOR YOUR DISPLAY
WILL ADD BETWEEN 1/2"AND 2" IN DEPTH
AND MAY AFFECT LOCATION OF DISPLAY
ON THE MOUNT. SEE PSBU DRAWING ALSO.
WEIGHT CAPACITY: 200 LBS
HEIGHT ADJUSTMENT: 19-7/8" TO 21-7/8" IN 2" INCREMENTS
(GROUND TO MIDDLE
OF SCREEN)
TILT/ROLL/YAW: +15° TO +45°/± 0°/ ±0°
ALL MEASUREMENTS IN: [MILLIMETERS]
INCHES

LEGEND

	Tighten Fastener		Pencil Mark
	Apretar elemento de fijación		Marcar con lápiz
	Befestigungsteil festziehen		Stiftmarkierung
	Apertar fixador		Marcar com lápis
	Serrare il fissaggio		Segno a matita
	Bevestiging vastdraaien		Potloodmerkteken
	Serrez les fixations		Marquage au crayon
	Loosen Fastener		Drill Hole
	Aflojar elemento de fijación		Perforar
	Befestigungsteil lösen		Bohrloch
	Desapertar fixador		Fazer furo
	Allentare il fissaggio		Praticare un foro
	Bevestiging losdraaien		Gat boren
	Desserrez les fixations		Percez un trou
	Phillips Screwdriver		Adjust
	Destornillador Phillips		Ajustar
	Kreuzschlitzschraubendreher		Einstellen
	Chave de fendas Phillips		Ajustar
	Cacciavite a stella		Regolare
	Kruiskopschroevendraaier		Afstellen
	Tournevis à pointe cruciforme		Ajuster
	Open-Ended Wrench		Remove
	Llave de boca		Quitar
	Gabelschlüssel		Entfernen
	Chave de bocas		Remover
	Chiave a punte aperte		Rimuovere
	Steeksleutel		Verwijderen
	Clé à fourche		Retirez
	By Hand		Optional
	A mano		Opcional
	Von Hand		Optional
	Com a mão		Opcional
	A mano		Opzionale
	Met de hand		Optie
	À la main		En option
	Hex-Head Wrench		Security Wrench
	Llave de cabeza hexagonal		Llave de seguridad
	Sechskantschlüssel		Sicherheitsschlüssel
	Chave de cabeça sextavada		Chave de segurança
	Chiave esagonale		Chiave di sicurezza
	Zeskantsleutel		Veiligheidssleutel
	Clé à tête hexagonale		Clé de sécurité

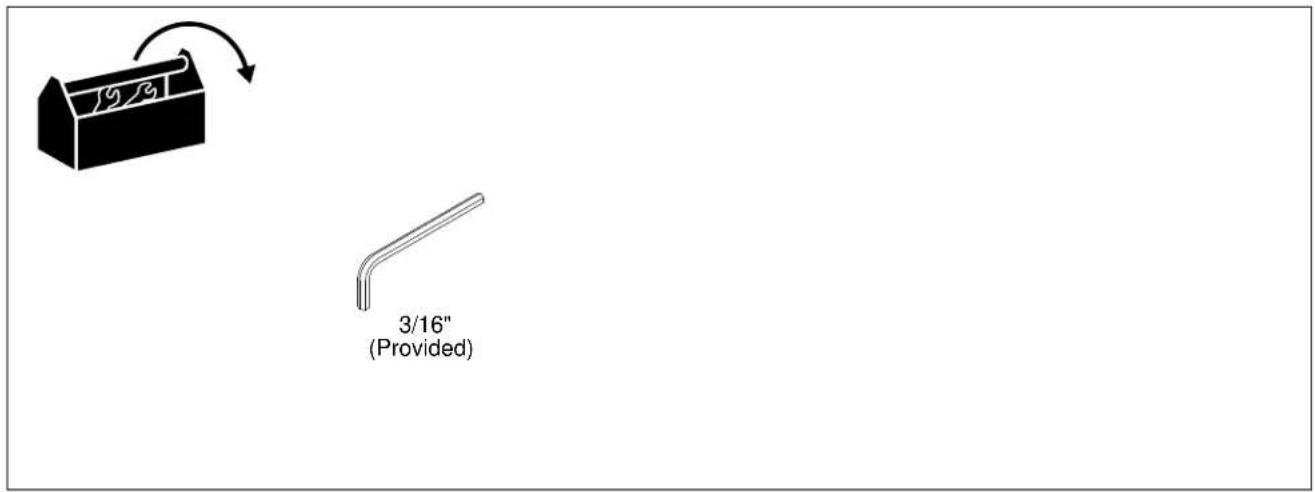

TOOLS REQUIRED FOR INSTALLATION

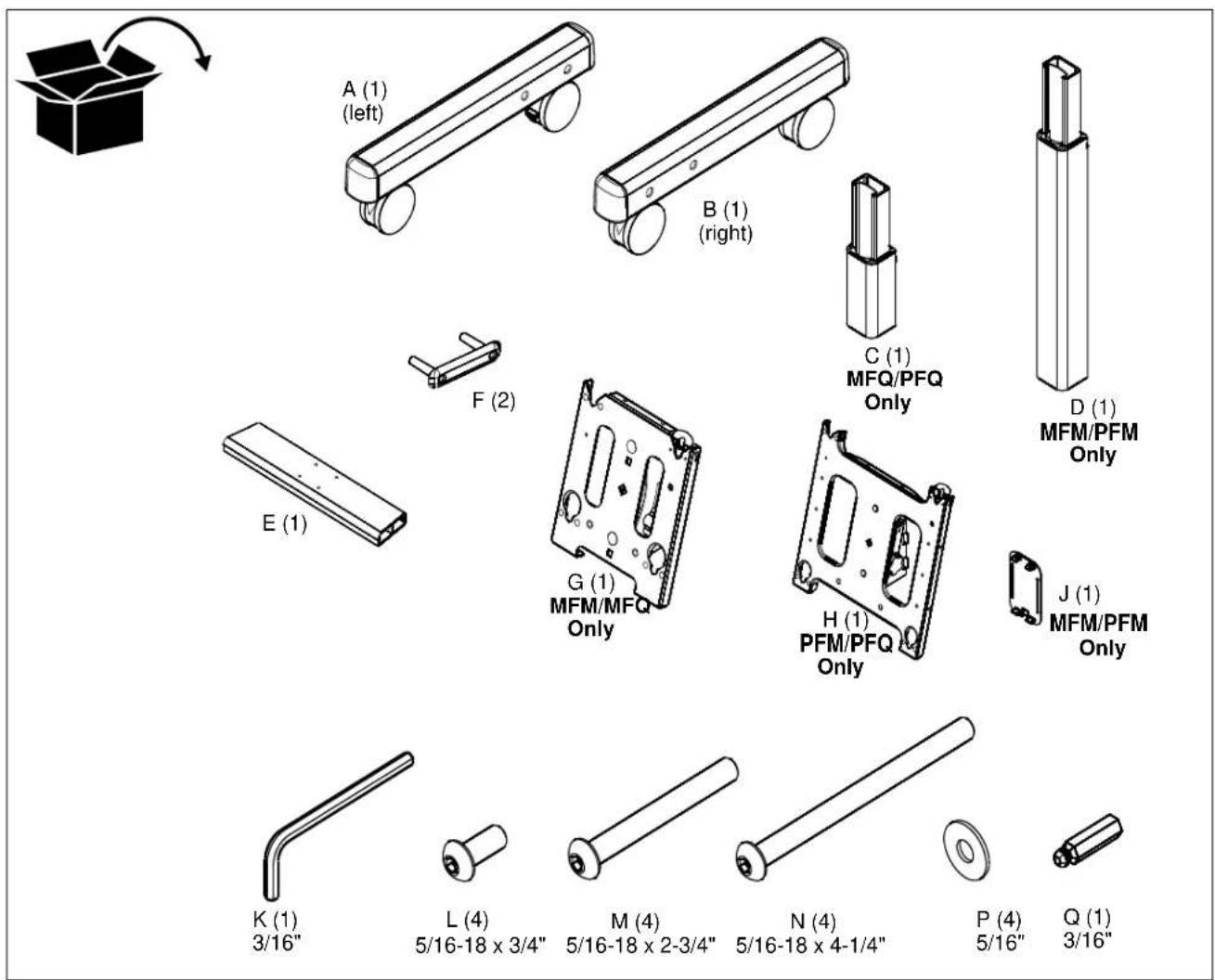

PARTS

ASSEMBLY

CAUTION: Attachment holes may be damaged if a power drill is used to insert button head cap screws. Screws should first be inserted and turned BY HAND with the hex key or with a handheld screwdriver BEFORE using the hex head drill bit (Q) and power drill to complete the attachment.

Assembling Cart

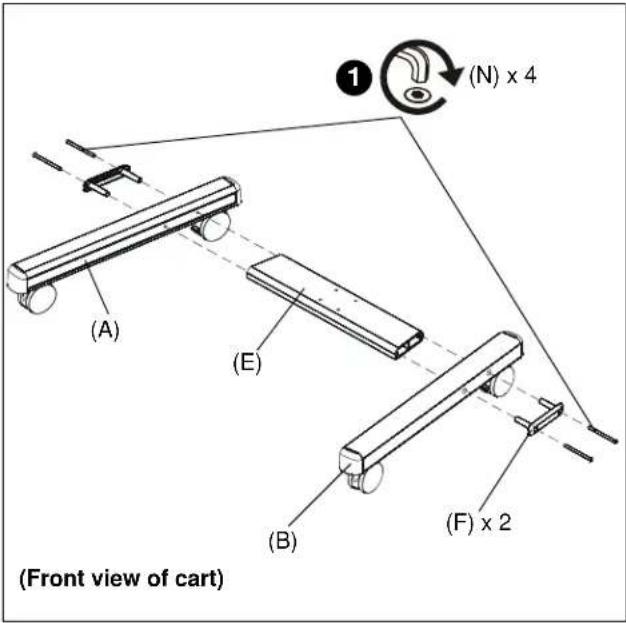

1. Assemble two legs (A) and (B) to the cart cross bracket (E) using two 5/16-18x4-1/4" button head cap screws (N) and one end cap (F) per leg. (See Figure 1)

Figure 1

CAUTION: Attachment holes may be damaged if a power drill is used to insert button head cap screws. Screws should first be inserted and turned BY HAND with the hex key or with a handheld screwdriver BEFORE using the hex head drill bit (Q) and power drill to complete the attachment.

NOTE: Insert and turn screws in order shown (1, 2, 3, 4) in Figure 2.

Figure 2

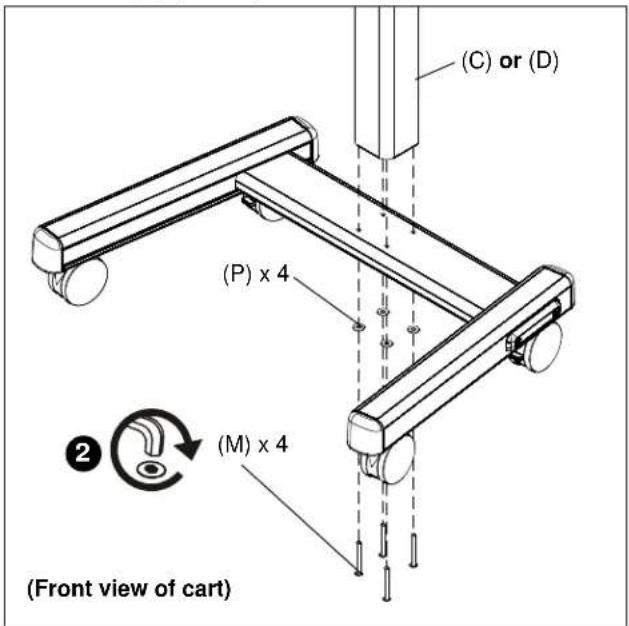

1. Attach center post (C or D) to leg assembly using four 5/16-18 x 2-3/4" button head cap screws (M) and four 5/16" washers (P). (See Figures 2 and 3)

Figure 3

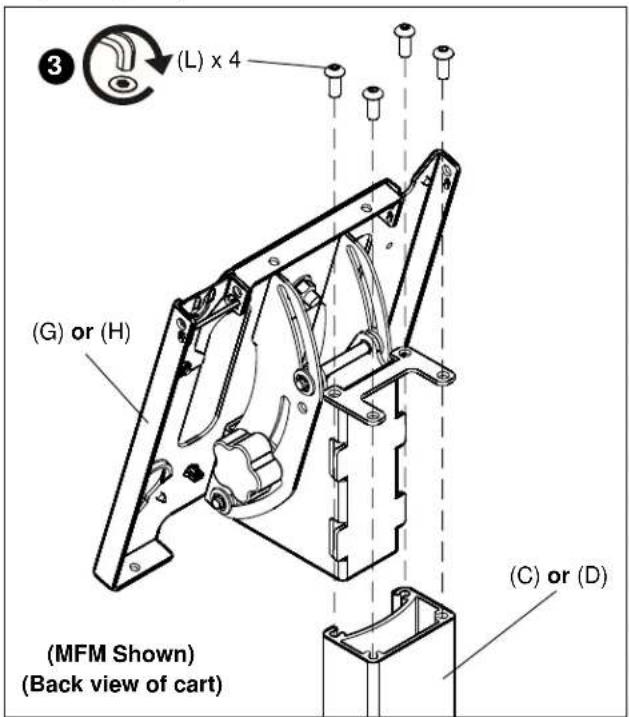

1. Attach head assembly (G) or (H) to the cart assembly using four 5/16-18 x 3/4" button head cap screws (L). (See Figure 4)

Figure 4

Attaching Display to Cart

WARNING: EXCEEDING MAXIMUM WEIGHT CAPACITY MAY LEAD TO SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installer's responsibility to ensure the total amount of weight placed on the cart does not exceed 125 lbs (56.70 kg) for the MFM and MFQ, and 200 lbs (90.72 kg) for the PFM and PFQ.

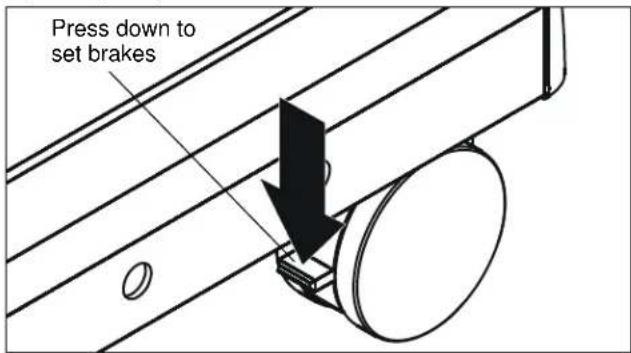

WARNING: Before attaching display to cart set the brakes on the back wheels by pressing down on the tab. (See Figure 5)

Figure 5

1. Adjust the cart to the desired height by holding the top part of the post, pulling out knob on the center post and turning 90^ in either direction to disengage the locking mechanism.
2. Raise or lower the center post, then turn the knob 90 ° either direction to engage the knob and lock the cart at desired height. (See Figure 6)

Figure 6

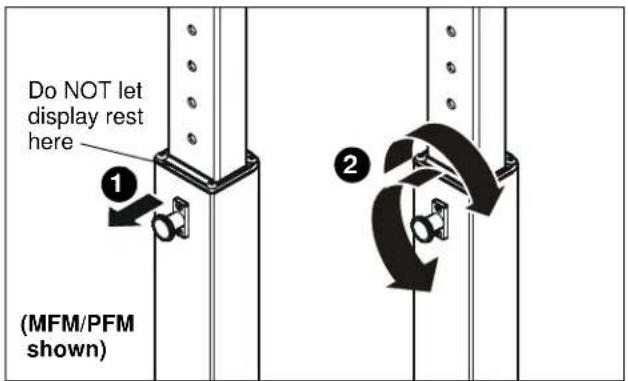

IMPORTANT ! : Set the height of the cart so the display does NOT rest on the lower part of the center post. (See Figure 6.) Always set the height so the knob is engaged in a hole in the center post.

1. Attach a PSBU or MSBU interface bracket to the display following the instructions included with the bracket.

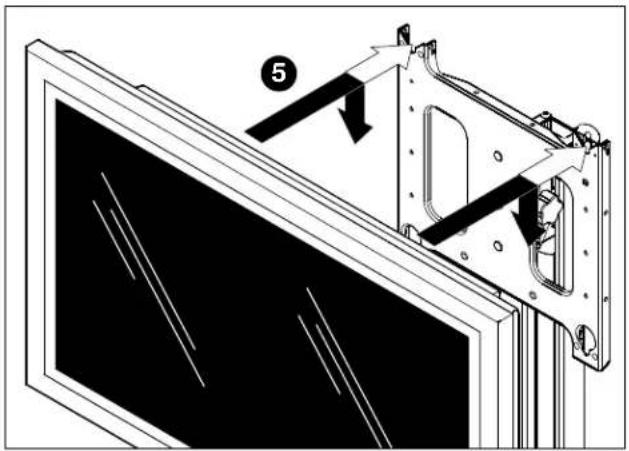

2. While supporting both sides of display, align four mounting buttons on display or interface bracket with four mounting holes in head assembly. (See Figures 7 and 8)

Figure 7

WARNING: DISPLAY MAY WEIGH IN EXCESS OF 40 LBS! Always use two people and proper lifting techniques when installing or positioning display on cart.

1. Lower display into place listening for audible "click" to ensure recessed area of mounting buttons are properly seated in lower area of mounting holes. (See Figures 7 & 8)

WARNING: IMPROPER INSTALLATION CAN LEAD TO CART OR DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Ensure mounting buttons are completely engaged in mounting holes.

NOTE: Holes are provided in the faceplate for use with a padlock or similar locking device, if desired. In addition, the pin and nut may be removed from the upper holes and moved to the lower holes for use as a more permanent locking device. (See Figure 8).

Figure 8

Tilting Display

The display can be tilted from 15^ to 45^ .

1. Turn knob counterclockwise on back of head assembly to loosen the tilt. (See Figure 9)

Figure 9

1. Tilt display as desired, to a maximum of 45 ° either forward or backward.

2. Turn knob clockwise to tighten display on head assembly. (See Figure 9)

CAUTION: Tighten knob on back of head assembly to prevent damage when moving the cart and display.

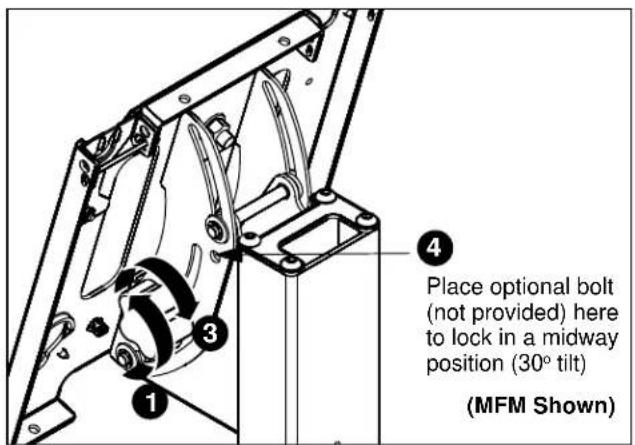

1. If leaving the display in a midway position (30 ° tilt), it is recommended that a bolt (not provided) be placed through the head assembly (see Figure 9) to lock the display into the midway position.

Cable Management

MFM/PFM Models Only

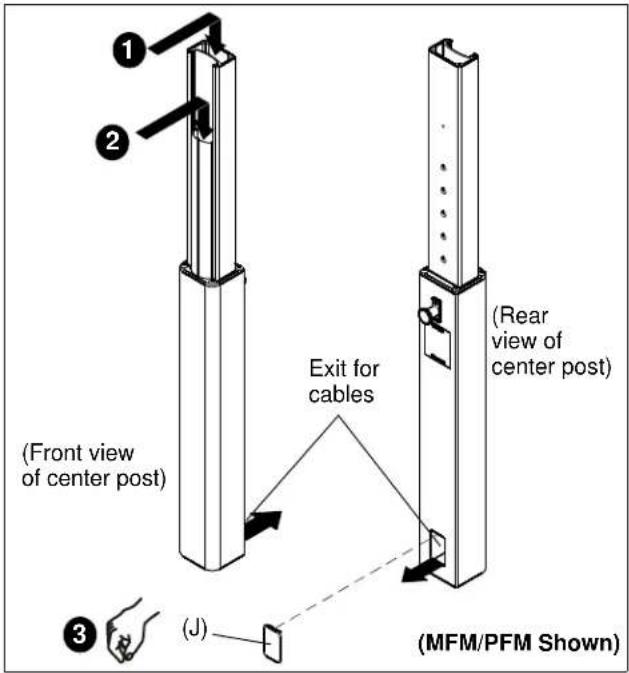

1. Signal cables and display power cord can be run through the top and down through the post to exit out the back. (See Figure 10)

2. Any accessory power cords can be run through the front and down through the post to exit out the back. (See Figure 10)

Figure 10

1. Install the snap-on covers to any opening that is not being used. (See Figure 10)
2. To remove the snap-on covers, grip the sides of the cover in the middle and pull off. They can also be removed by inserting a flat-blade screwdriver into the bottom slot and rotating the screwdriver.
3. Proceed to Cart Use and Maintenance.

MFQ/PFQ Models Only

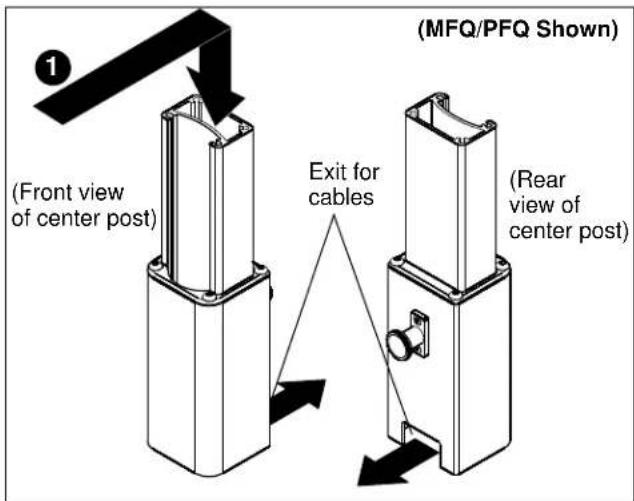

1. Signal cables and display/accessory power cords can be run through the top and down through the post to exit out the back. (See Figure 11)

Figure 11

Cart Use and Maintenance

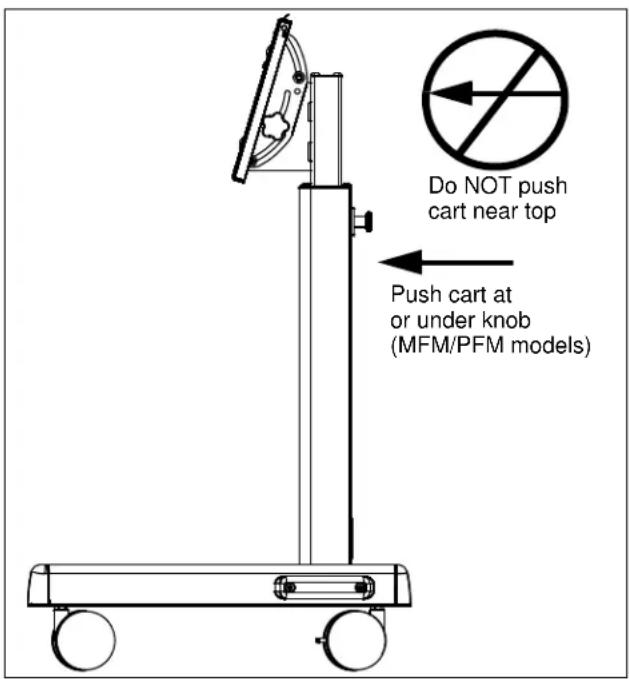

CAUTION: This cart is intended for use only with the products and maximum weights indicated (125 lbs (56.70 kg) for the MFM and MFQ, and 200 lbs (90.72 kg) for the PFM and PFQ). Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury.

WARNING: CART CAN TIP OVER RESULTING IN RISK OF INJURY. Do not allow children under 16 to move cart. Only adults should move this cart. Move cart slowly. Apply moving force on narrow dimension. Never apply force at top - always push near middle. Push, don't pull.

Figure 12

1. Always place cart on level surface.
2. Always lock the wheels when the cart is not moving.

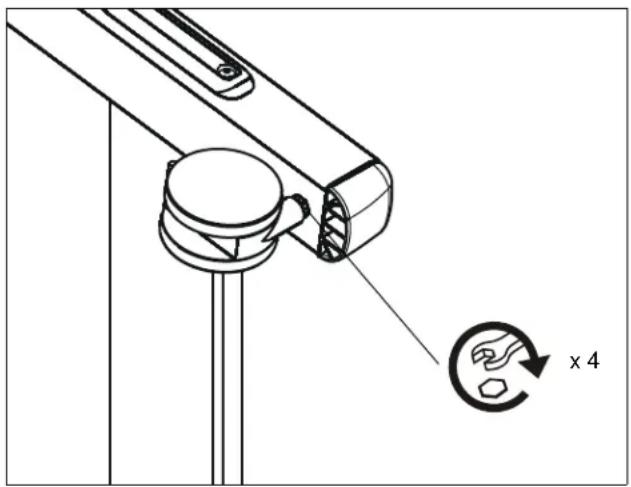

3. Check and tighten the hex nuts on the casters occasionally. (See Figure 12) These should be checked especially after use on uneven ground.

Figure 13

Removing Display from Cart

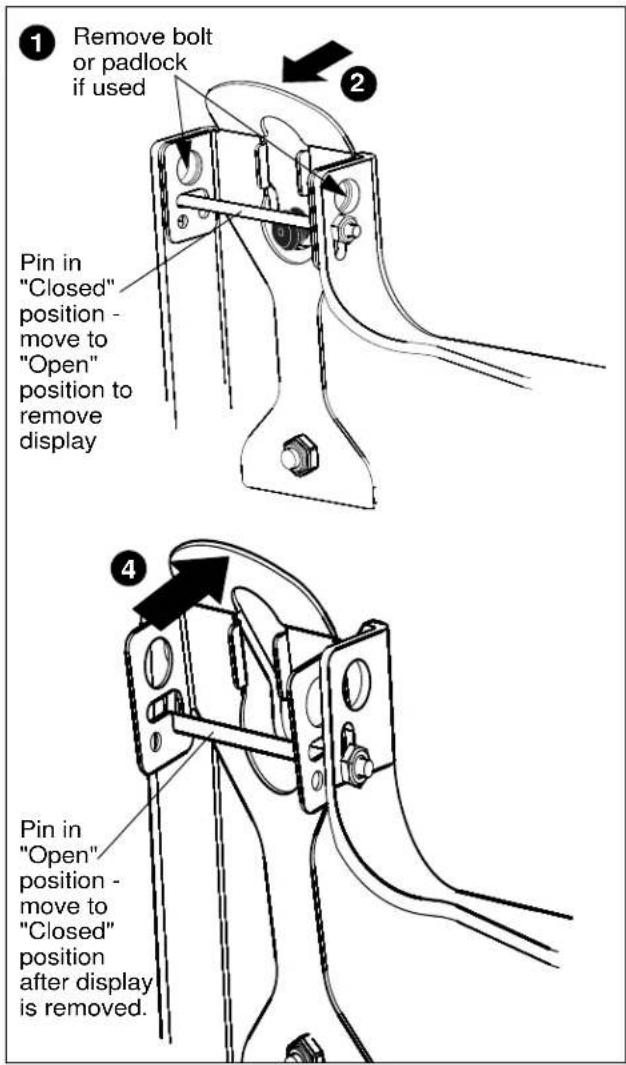

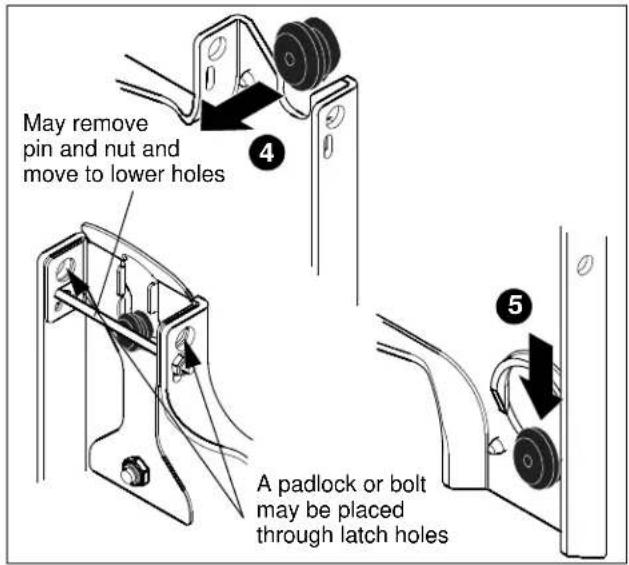

1. Remove bolt or padlock from faceplate (if used). (See Figure 13)
   NOTE: The pin may have been used as a more permanent locking device. If so, remove nut and pin and move from the lower holes to the upper holes.
2. Pull back on flag on upper mounting hole and press pin down into "Open" position. (See Figure 13)

WARNING: EACH DISPLAY MAY WEIGH IN EXCESS OF 40 LBS! Always use two people and proper lifting techniques when installing or positioning display on stand.

1. Carefully lift display from cart.
2. Lift up on pin and place flag back against faceplate to return it to "Closed" position. (See Figure 13)

Figure 14

CHIEF®

8809-000042

©2007 Chief Manufacturing

www.chiefmfg.com

08/07

USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378

P 800.582.6480 / 952.894.6280

F 877.894.6918 / 952.894.6918
