USER MANUAL ARUN240BTE5 LG

Please read this installation manual completely before installing the product. Installation work must be performed in accordance with the national wiring standards by authorized personnel only.

Please retain this installation manual for future reference after reading it thoroughly.

MULTI V.5

Heat Pump

Original instruction

Barcode image with black and white vertical bars, no visible text or symbols

MFL67221442

Rev.00_091818

TIPS FOR SAVING ENERGY

Here are some tips that will help you minimize the power consumption when you use the air conditioner. You can use your air conditioner more efficiently by referring to the instructions below:

• Do not cool excessively indoors. This may be harmful for your health and may consume more electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air conditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the air flow or weaken the cooling / dehumidifying functions.

For your records

Staple your receipt to this page in case you need it to prove the date of purchase or for warranty purposes. Write the model number and the serial number here:

Model number :

Serial number :

You can find them on a label on the side of each unit.

Dealer's name :

Date of purchase :

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product

WARNING

It can result in serious injury or death when the directions are ignored

CAUTION

It can result in minor injury or product damage when the directions are ignored

WARNING

• Installation or repairs made by unqualified persons can result in hazards to you and others.
• The information contained in the manual is intended for use by a qualified service technician familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment malfunction, property damage, personal injury and/or death.

Installation

• Have all electric work done by a licensed electrician according to "Electric Facility Engineering Standard" and "Interior Wire Regulations" and the instructions given in this manual and always use a special circuit.
• If the power source capacity is inadequate or electric work is performed improperly, electric shock or fire may result.
• Ask the dealer or an authorized technician to install the air conditioner.
• Improper installation by the user may result in water leakage, electric shock, or fire.
• Always ground the product.
• There is risk of fire or electric shock.
• Always install a dedicated circuit and breaker.
• Improper wiring or installation may cause fire or electric shock.
• For re-installation of the installed product, always contact a dealer or an Authorized Service Center.
• There is risk of fire, electric shock, explosion, or injury.
• Do not install, remove, or re-install the unit by yourself (customer). - There is risk of fire, electric shock, explosion, or injury.
• Do not store or use flammable gas or combustibles near the air conditioner.
• There is risk of fire or failure of product.
• Use the correctly rated breaker or fuse.
• There is risk of fire or electric shock.
• Prepare for strong wind or earthquake and install the unit at the specified place.
• Improper installation may cause the unit to topple and result in injury.
• Do not install the product on a defective installation stand. - It may cause injury, accident, or damage to the product.
• Use a vacuum pump or Inert(nitrogen) gas when doing leakage test or air purge. Do not compress air or Oxygen and do not use Flammable gases. Otherwise, it may cause fire or explosion.
• There is the risk of death, injury, fire or explosion.
• When installing and moving the air conditioner to another site, do not charge it with a different refrigerant from the refrigerant specified on the unit.
• If a different refrigerant or air is mixed with the original refrigerant, the refrigerant cycle may malfunction and the unit may be damaged.
• Do not reconstruct to change the settings of the protection devices. - If the pressure switch, thermal switch, or other protection device is shorted and operated forcibly, or parts other than those specified by LGE are used, fire or explosion may result.
• Ventilate before operating air conditioner when gas leaked out. - It may cause explosion, fire, and burn.
• Securely install the cover of control box and the panel.
• If the cover and panel are not installed securely, dust or water may enter the outdoor unit and fire or electric shock may result.
• If the air conditioner is installed in a small room, measures must be taken to prevent the refrigerant concentration from exceeding the safety limit when the refrigerant leaks.
• Consult the dealer regarding the appropriate measures to prevent the safety limit from being exceeded. Should the refrigerant leak and cause the safety limit to be exceeded, harzards due to lack of oxygen in the room could result.

Operation

• Do not damage or use an unspecified power cord.
• There is risk of fire, electric shock, explosion, or injury.
• Use a dedicated outlet for this appliance. - There is risk of fire or electrical shock.
• Be cautious that water could not enter the product. - There is risk of fire, electric shock, or product damage.
• Do not touch the power switch with wet hands.
• There is risk of fire, electric shock, explosion, or injury.
• When the product is soaked (flooded or submerged), contact an Authorized Service Center.
• There is risk of fire or electric shock.
• Be cautious not to touch the sharp edges when installing. - It may cause injury.
• Take care to ensure that nobody could step on or fall onto the outdoor unit.
• This could result in personal injury and product damage.
• Do not open the inlet grille of the product during operation. (Do not

touch the electrostatic filter, if the unit is so equipped.)

- There is risk of physical injury, electric shock, or product failure.

CAUTION

Installation

- Always check for gas (refrigerant) leakage after installation or repair of product.

Low refrigerant levels may cause failure of product.

- Do not install the product where the noise or hot air from the outdoor unit could damage the neighborhoods.

- It may cause a problem for your neighbors.

- Keep level even when installing the product. - To avoid vibration or water leakage.

- Do not install the unit where combustible gas may leak. - If the gas leaks and accumulates around the unit, an explosion may result.

- Use power cables of sufficient current carrying capacity and rating.

- Cables that are too small may leak, generate heat, and cause a fire.

- Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system.

There is risk of damage or loss of property.

- Keep the unit away from children. The heat exchanger is very sharp.

- It can cause the injury, such as cutting the finger. Also the damaged fin may result in degradation of capacity.

- When installing the unit in a hospital, communication station, or similar place, provide sufficient protection against noise.

- The inverter equipment, private power generator, high-frequency medical equipment, or radio communication equipment may cause the air conditioner to operate erroneously, or fail to operate. On the other hand, the air conditioner may affect such equipment by creating noise that disturbs medical treatment or image broadcasting.

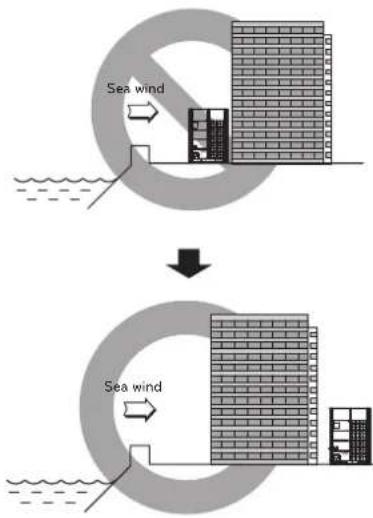

- Do not install the product where it is exposed to sea wind (salt spray) directly.

- It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause product malfunction or inefficient operation.

Operation

- Do not use the air conditioner in special environments.

- Oil, steam, sulfuric smoke, etc. can significantly reduce the performance of the air conditioner or damage its parts.

- Do not block the inlet or outlet.

- It may cause failure of appliance or accident.

- Make the connections securely so that the outside force of the cable may not be applied to the terminals.

- Inadequate connection and fastening may generate heat and cause a fire.

- Be sure the installation area does not deteriorate with age.

- If the base collapses, the air conditioner could fall with it, causing property damage, product failure, or personal injury.

- Install and insulate the drain hose to ensure that water is drained away properly based on the installation manual.

- A bad connection may cause water leakage.

- Be very careful about product transportation.

- Only one person should not carry the product if it weighs more than 20 kg.

- Some products use PP bands for packaging. Do not use any PP bands for a means of transportation. It is dangerous.

- Do not touch the heat exchanger fins. Doing so may cut your fingers.

- When transporting the outdoor unit, suspending it at the specified positions on the unit base. Also support the outdoor unit at four points so that it cannot slip sideways.

- Safely dispose of the packing materials.

- Packing materials, such as nails and other metal or wooden parts, may cause stabs or other injuries.

- Tear apart and throw away plastic packaging bags so that children may not play with them. If children play with a plastic bag which was not torn apart, they face the risk of suffocation.

- Turn on the power at least 6 hours before starting operation.

- Starting operation immediately after turning on the main power switch can result in severe damage to internal parts. Keep the power switch turned on during the operational season.

- Do not touch any of the refrigerant piping during and after operation.

- It can cause a burn or frostbite.

- Do not operate the air conditioner with the panels or guards removed.

- Rotating, hot, or high-voltage parts can cause injuries.

- Do not directly turn off the main power switch after stopping operation.

- Wait at least 5 minutes before turning off the main power switch.

Otherwise it may result in water leakage or other problems.

- Auto-addressing should be done in condition of connecting the power of all indoor and outdoor units. Auto-addressing should also be done in case of changing the indoor unit PCB.

- Use a firm stool or ladder when cleaning or maintaining the air conditioner.

- Be careful and avoid personal injury.

- Do not insert hands or other objects through the air inlet or outlet while the air conditioner is plugged in.

- There are sharp and moving parts that could cause personal injury.

TABLE OF CONTENTS

2 TIPS FOR SAVING ENERGY

2 IMPORTANT SAFETY INSTRUCTIONS

5 INSTALLATION PROCESS

5 OUTDOOR UNITS INFORMATION

5 ALTERNATIVE REFRIGERANT R410A

6 Individual Installation

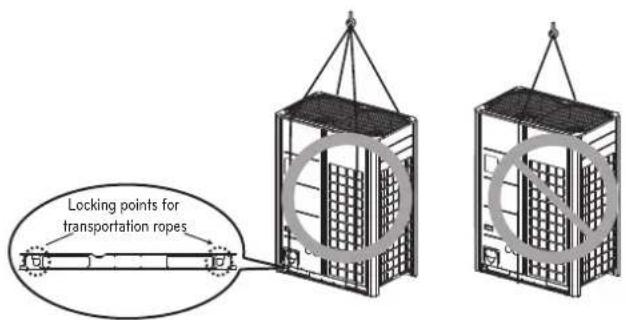

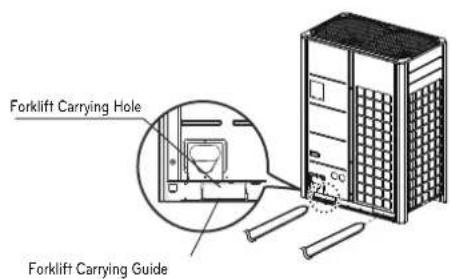

7 LIFTING METHOD

8 INSTALLATION

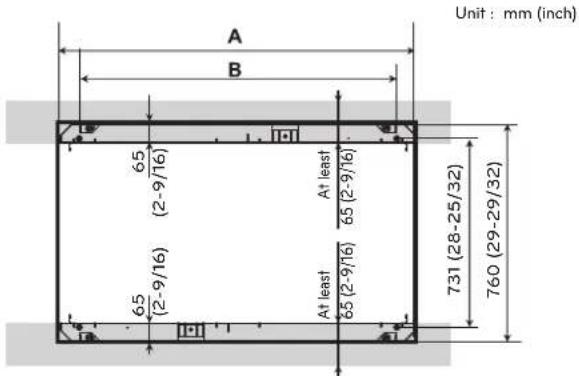

8 The location of the Anchor bolts

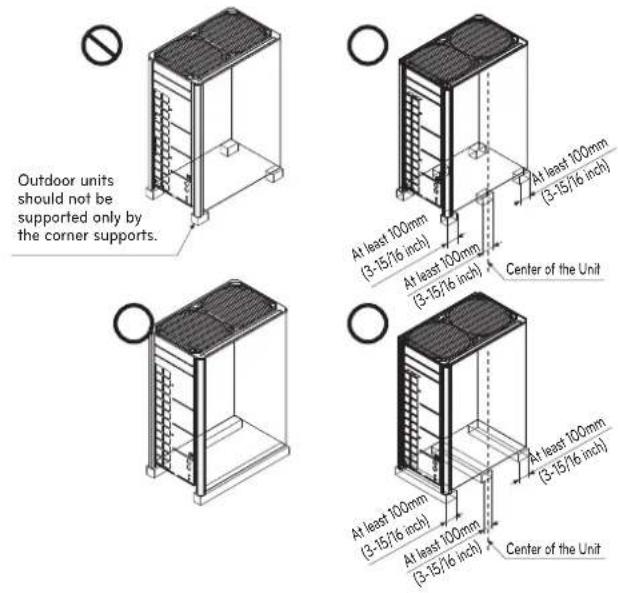

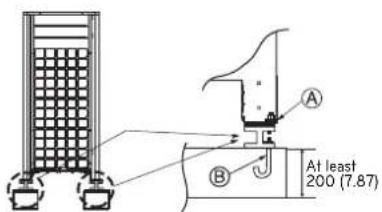

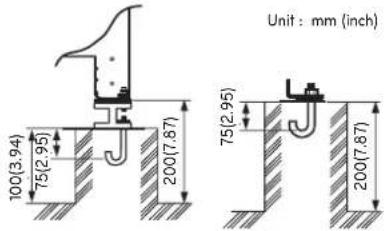

8 Foundation for Installation

8 Preparation of Piping

10 Plumbing materials and storage methods

11 REFRIGERANT PIPING INSTALLATION

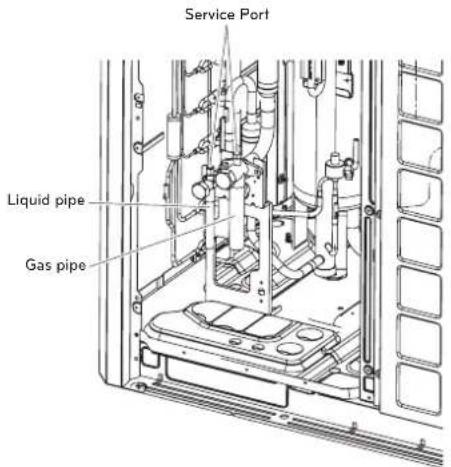

11 Precautions on Pipe connection / Valve operation

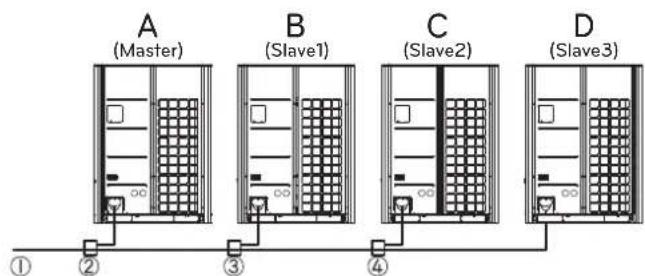

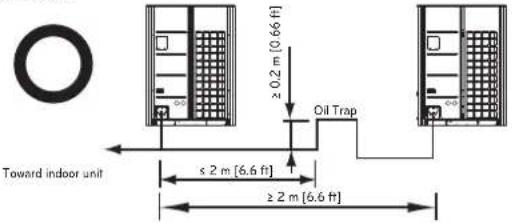

11 Connection of Outdoor units

11 Caution

12 PIPE CONNECTIONS BETWEEN INDOOR AND OUTDOOR UNIT

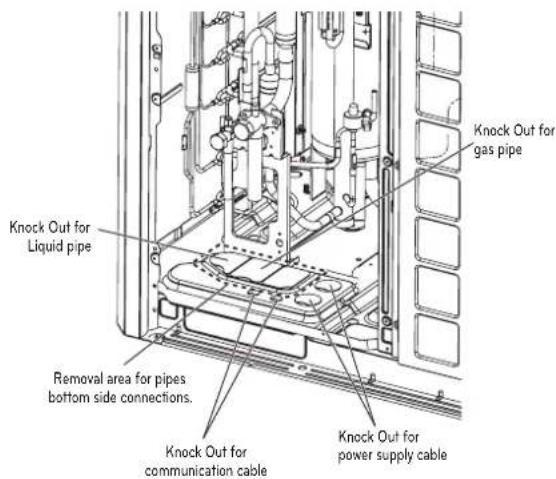

12 Preparation Work

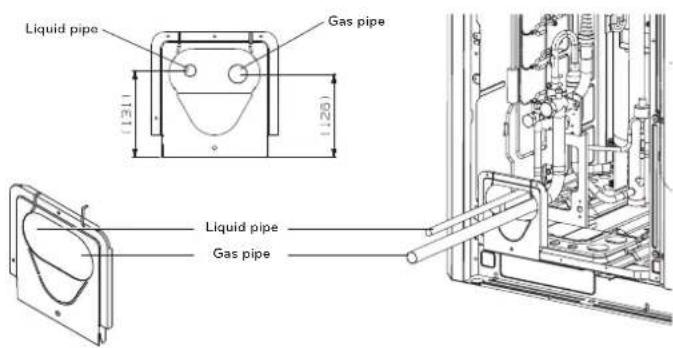

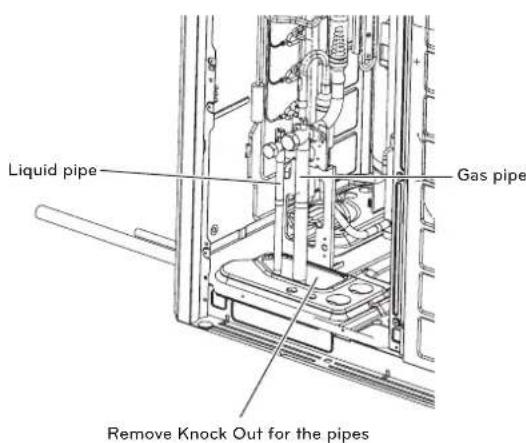

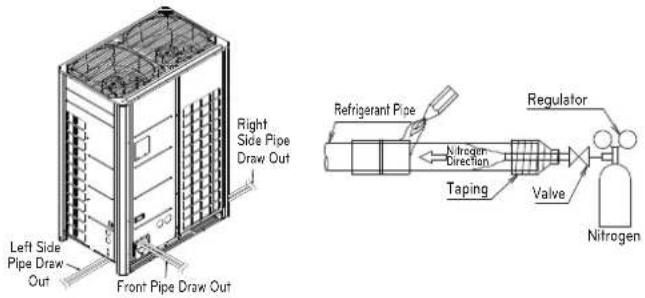

13 Pipe Drawing Out during Single / Series connection

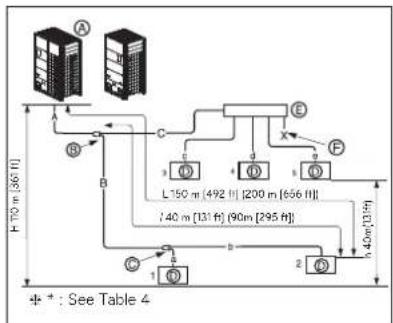

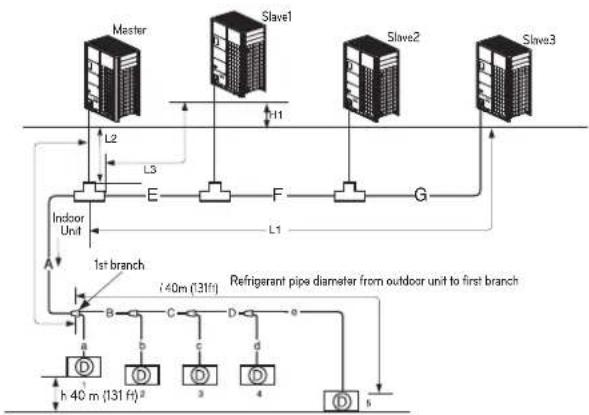

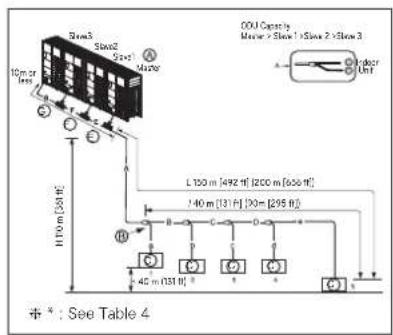

13 Refrigerant piping system

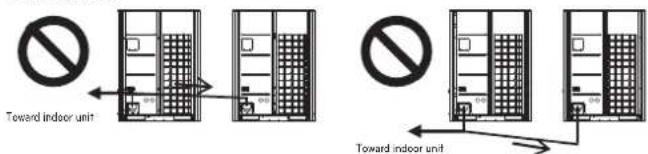

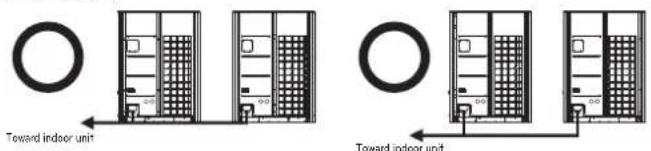

14 Pipe Connection Method between outdoor unit/indoor unit

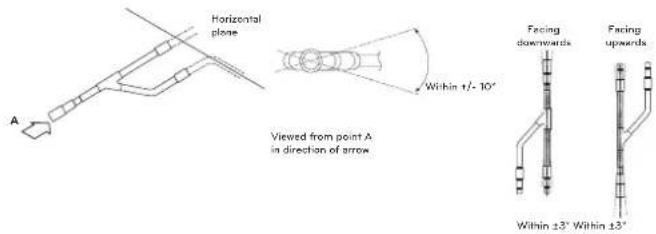

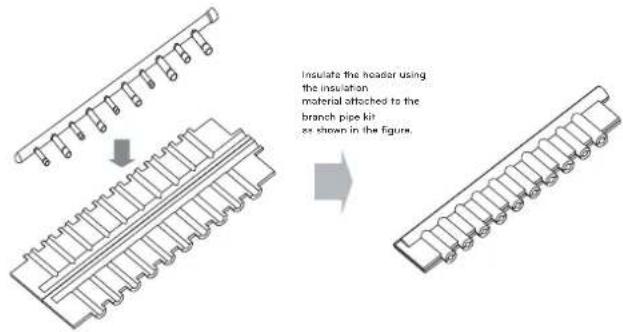

16 Branch pipe Fitting

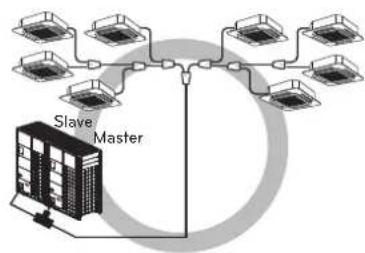

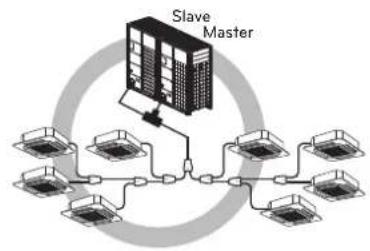

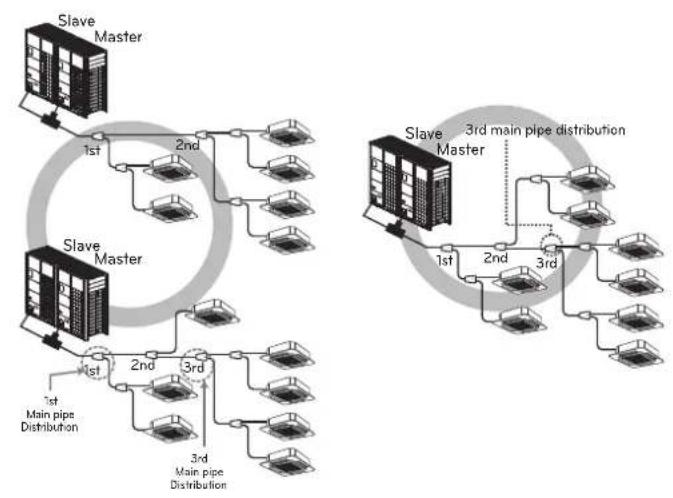

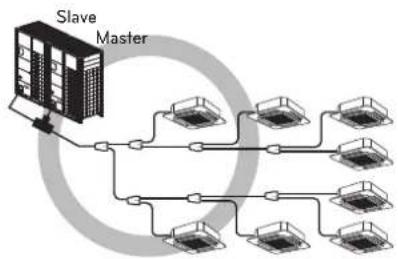

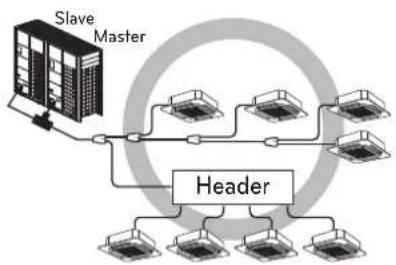

18 Distribution Method

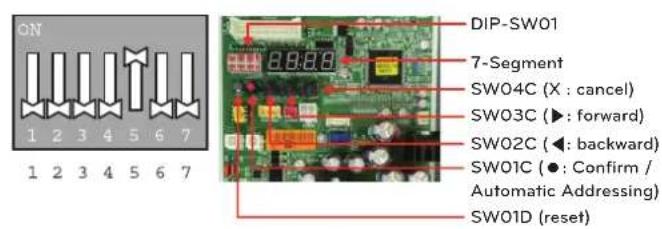

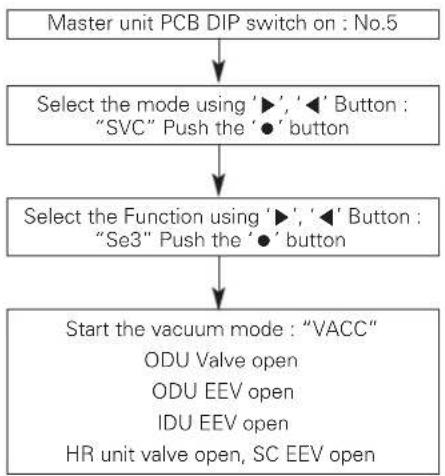

18 Vacuum Mode

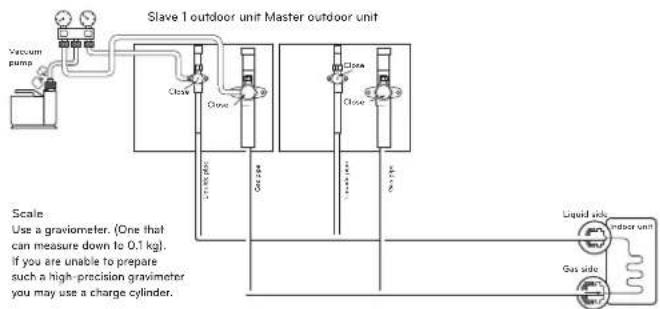

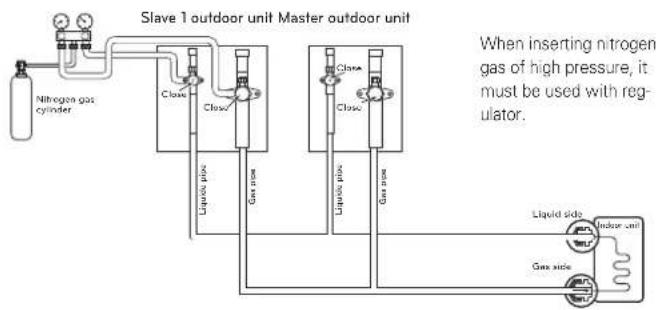

18 Leak Test and Vacuum drying

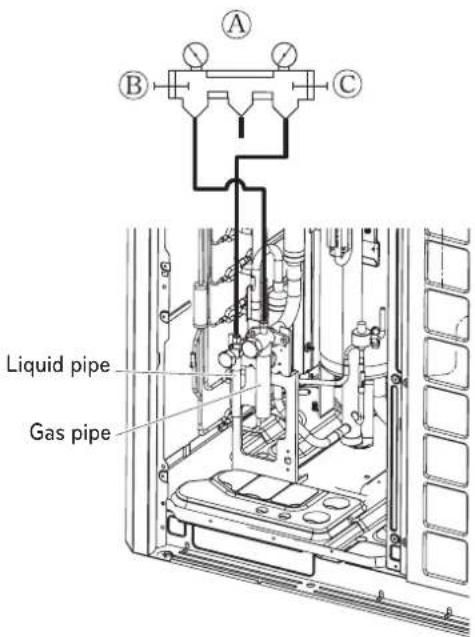

19 Refrigerant charging

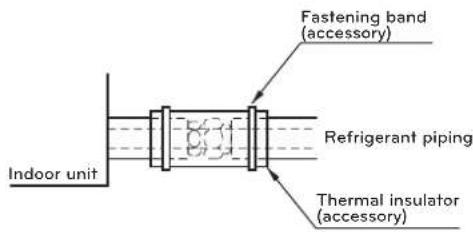

20 Thermal insulation of refrigerant piping

21 ELECTRICAL WIRING

21 Caution

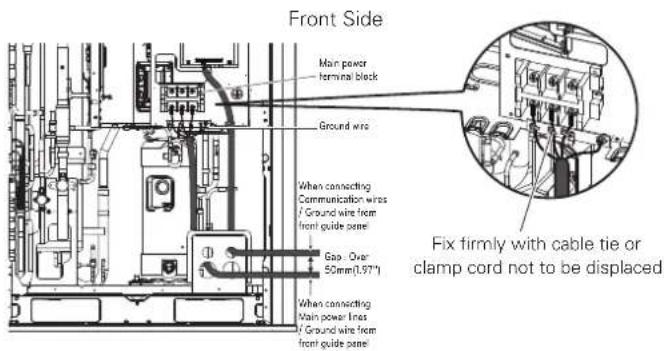

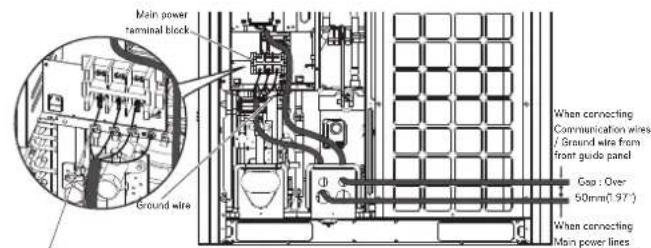

23 Control box and connecting position of wiring

23 Communication and Power Cables

24 Wiring of main power supply and equipment capacity

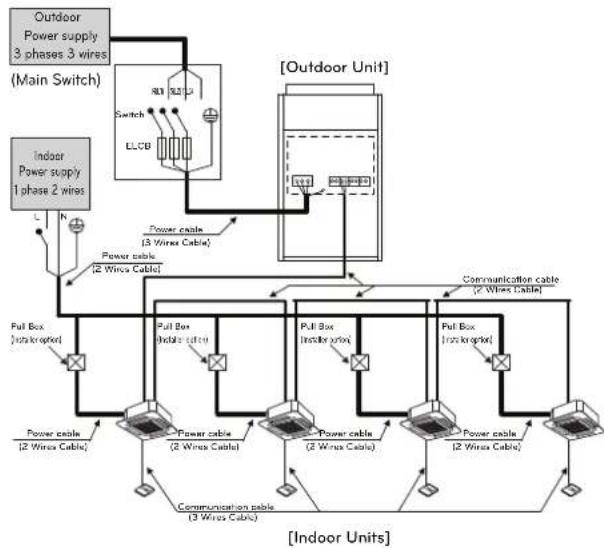

24 Field Wiring

26 Checking the setting of outdoor units

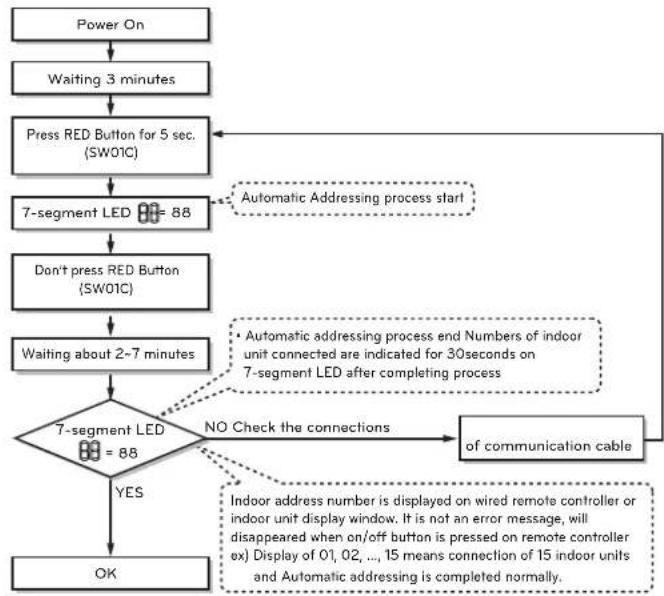

27 Automatic Addressing

27 The Procedure of Automatic Addressing

28 Cool & Heat selector

29 High Static Pressure Compensation mode

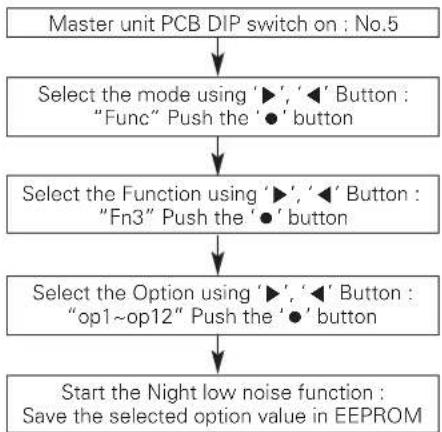

29 Night Low Noise Function

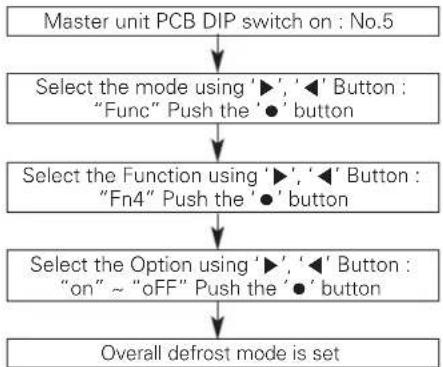

29 Overall defrost mode

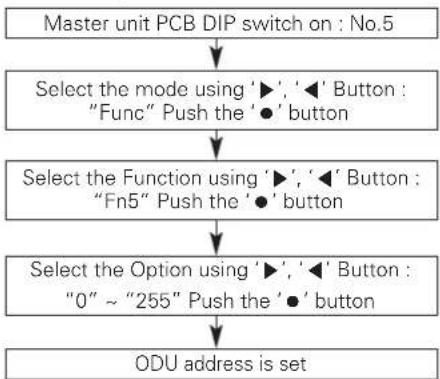

29 Setting the ODU address

30 Snow removal & rapid defrost

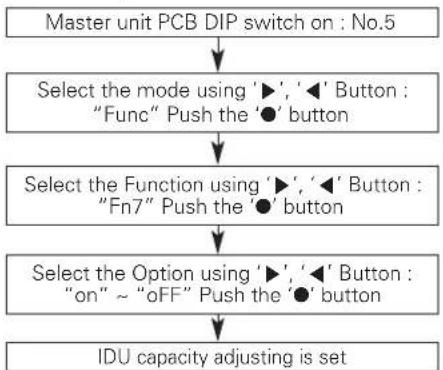

30 Setting Capacity Up Airflow Adjusting for IDU (Heating)

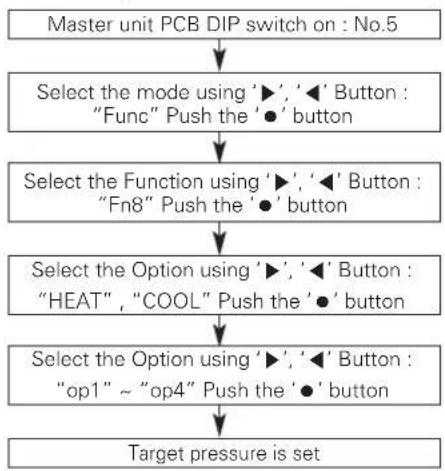

30 Target pressure adjusting

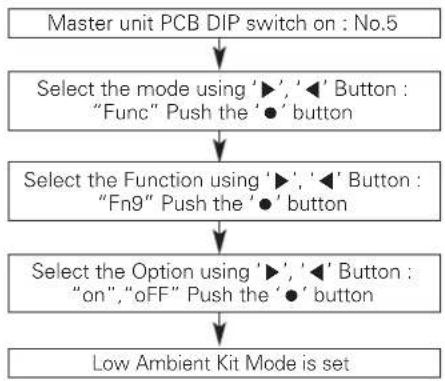

30 Low Ambient Kit

31 High Efficiency Mode (Cooling Operation)

31 Auto Dust Removal Mode

31 Compressor Max. Frequency Limit

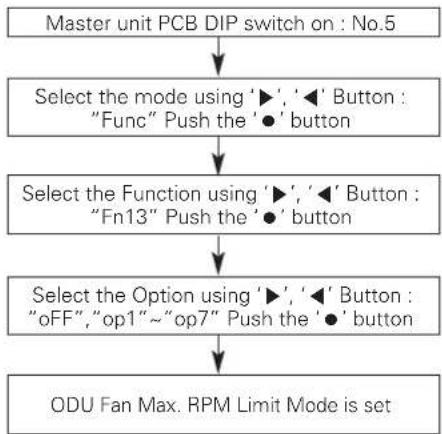

31 ODU Fan Max. RPM Limit

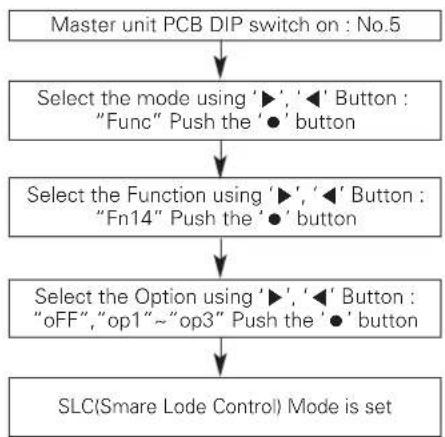

32 SLC (Smart Load Control)

32 Humidity Reference

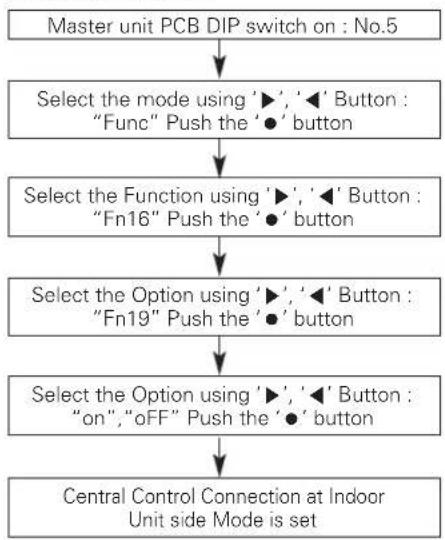

32 Central Control Connection at Indoor Unit side

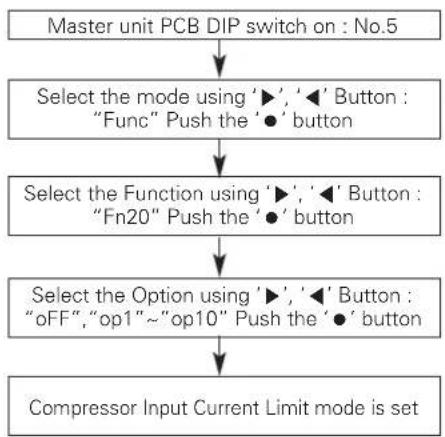

32 Compressor Input Current Limit

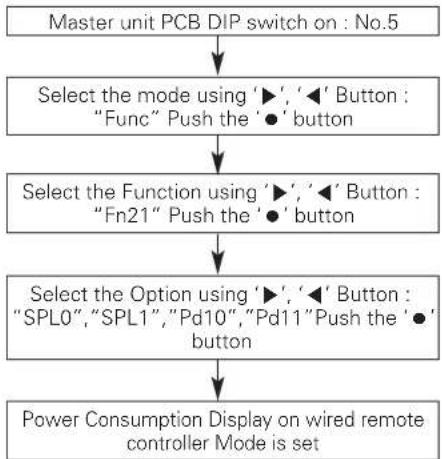

33 Power Consumption Display on wired remote controller

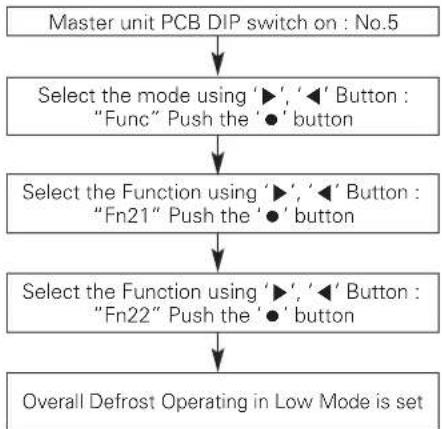

33 Overall Defrost Operating in Low temperature (Heating)

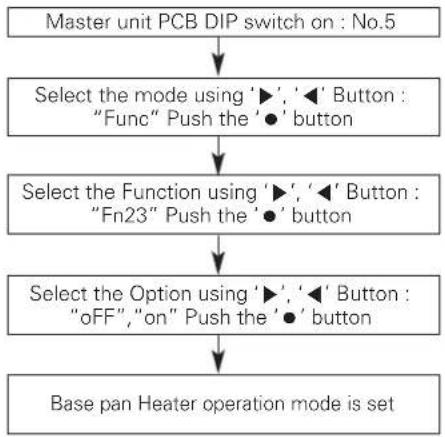

33 Base pan Heater operation

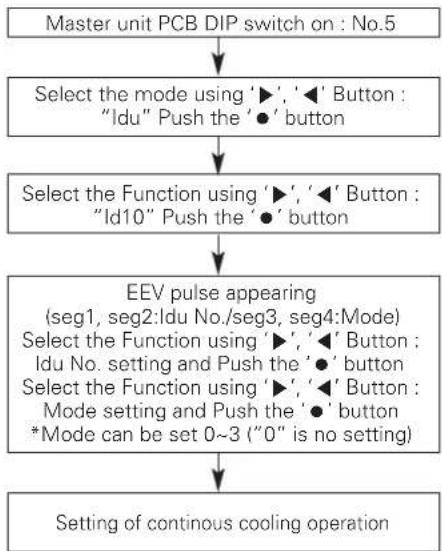

33 Comfort Cooling operation

34 Self-Diagnosis Function

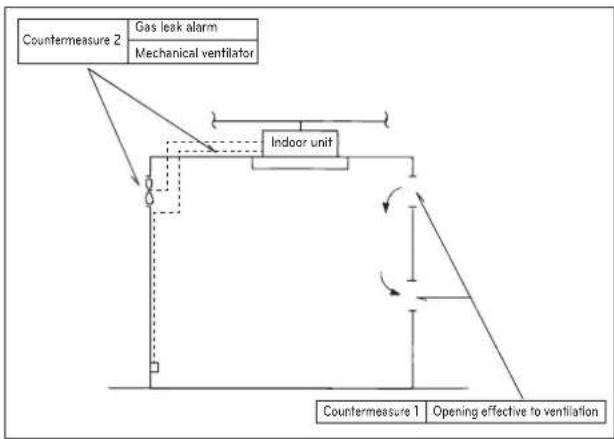

37 CAUTION FOR REFRIGERANT LEAK

37 Introduction

37 Checking procedure of limiting concentration

38 INSTALLATION GUIDE AT THE SEASIDE

38 Model Designation

38 Airborne Noise Emission

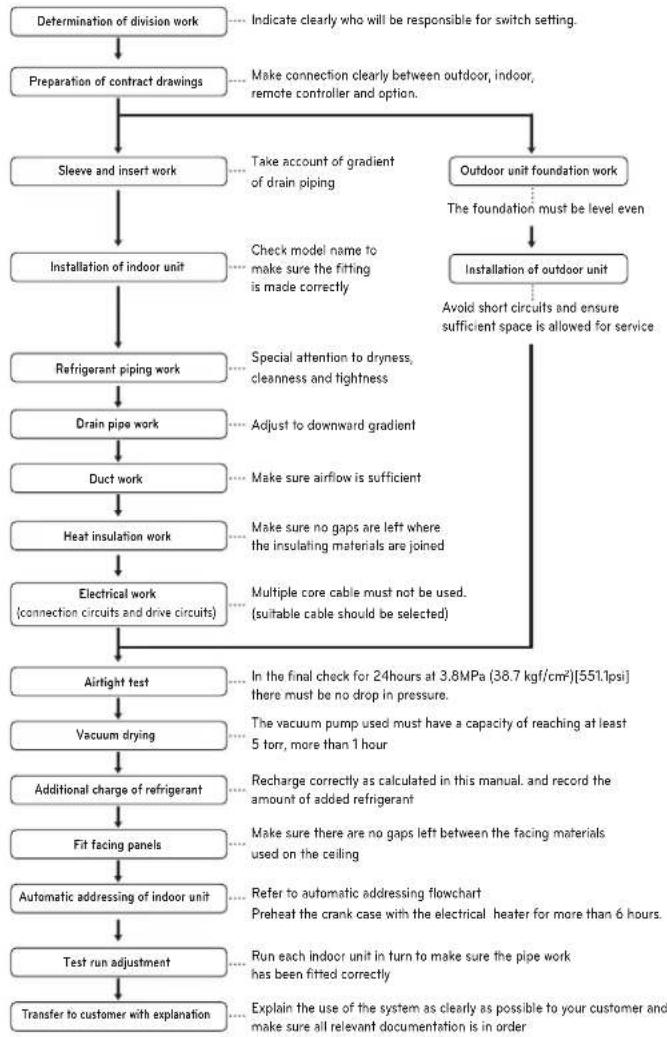

INSTALLATION PROCESS

    B --> Q["Make connection clearly between outdoor, indoor, remote controller and option."]
    C --> R["Take account of gradient of drain piping"]
    C --> S["Check model name to make sure the fitting is made correctly"]
    R --> T["The foundation must be level even"]
    S --> U["The foundation must be level even"]
    U --> V["Installation of outdoor unit"]
    V --> W["Avoid short circuits and ensure sufficient space is allowed for service"]

    E --> X["Special attention to dryness, cleanliness and tightness"]
    F --> Y["Adjust to downward gradient"]
    G --> Z["Make sure airflow is sufficient"]
    H --> AA["Make sure no gaps are left where the insulating materials are joined"]
    I --> AB["Multiple core cable must not be used. (suitable cable should be selected)"]

    J --> AC["In the final check for 24 hours at 3.8MPa (38.7 kgf/cm²)[551.1psi"] there must be no drop in pressure.]
    K --> AD["The vacuum pump used must have a capacity of reaching at least 5 torr, more than 1 hour"]
    L --> AE["Recharge correctly as calculated in this manual. and record the amount of added refrigerant"]
    M --> AF["Make sure there are no gaps left between the facing materials used on the ceiling"]
    N --> AG["Refer to automatic addressing flowchart Preheat the crank case with the electrical heater for more than 6 hours."]
    O --> AH["Run each indoor unit in turn to make sure the pipe work has been fitted correctly"]
    P --> AI["Explain the use of the system as clearly as possible to your customer and make sure all relevant documentation is in order"]

CAUTION

• The above list indicates the order in which the individual work operations are normally carried out but this order may be varied where local conditions warrants such change.
• The thickness of the piping should comply with the relevant local and national regulations for the designed pressure 3.8 MPa (551.1 psi).
• Since R410A is a mixed refrigerant, the required additional refrigerant must be charged in its liquid state. (If the refrigerant is charged in its gaseous state, its composition changes and the system will not work properly.)

OUTDOOR UNITS INFORMATION

CAUTION

Combination Ratio(50\~200%)

Outdoor Number Connection Ratio

Single outdoor units 200%

Double outdoor units 160%

Triple outdoor units 130%

Over the triple unit 130%

Notes: * We can guarantee the operation only within 130% combination. If you want to connect more than 130% combination, please contact us and discuss the requirement like below.

- If the operation of indoor unit is more than 130%, the airflow will be operated as low in the all indoor units.

ALTERNATIVE REFRIGERANT R410A

The refrigerant R410A has the property of higher operating pressure in comparison with R22.

Therefore, all materials have the characteristics of higher resisting pressure than R22 ones and this characteristic should also be considered during the installation.

R410A is an azeotrope of R32 and R125 mixed at 50:50, so the ozone depletion potential (ODP) of R410A is 0.

CAUTION

• The wall thickness of the piping should comply with the relevant local and national regulations for the designed pressure 3.8MPa [551.1psi]
• Since R410A is a mixed refrigerant, the required additional refrigerant must be charged in its liquid state. If the refrigerant is charged in its gaseous state, its composition changes and the system will not work properly.
• Do not place the refrigerant container under the direct rays of the sun to prevent it from exploding.
• For high-pressure refrigerant, any unapproved pipe must not be used.
• Do not heat pipes more than necessary to prevent them from softening.
• Be careful not to install wrongly to minimize economic loss because it is expensive in comparison with R22.

Select space for installing outdoor unit, which will meet the following conditions:

• No direct thermal radiation from other heat sources
• No possibility of annoying neighbors due to noise of unit

• No exposition to strong wind

- With strength which bears weight of unit

• Note that drain flows out of unit when heating

- Because of the possibility of fire, do not install unit to the space where generation, inflow, stagnation, and leakage of combustible gas is expected.

- Avoid unit installation in a place where acidic solution and spray (sulfur) are often used.

- Do not use unit under any special environment where oil, steam and sulfuric gas exist.

- It is recommended to fence round the outdoor unit in order to prevent any person or animal from accessing the outdoor unit.

- If installation site is area of heavy snowfall, then the following directions should be observed.

- Make the foundation as high as possible.

- Fit a snow protection hood.

- Select installation location considering following conditions to avoid bad condition when additionally performing defrost operation.

- Install the outdoor unit at a place well ventilated and having a lot of sunshine in case of installing the product at a place With a high humidity in winter (near beach, coast, lake, etc.)

(Ex : Rooftop where there is always sunshine.)

INSTALLATION SPACE

Individual Installation

During the installation of the unit, consider service, inlet, and outlet acquire the minimum space as shown in the figures below.

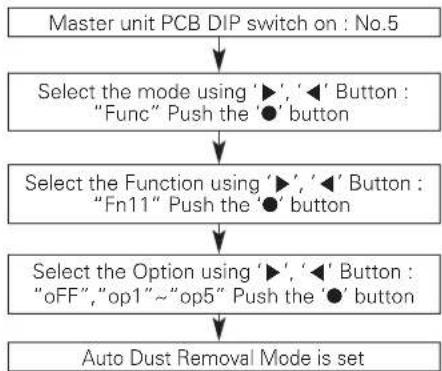

Side space should be more than 49 mm for operating of Auto Dust Removal mode.

Category	Installation Space		Case 1(10mm/13/32inch)≤SideSpace≤49mm/13/14inch	Case 2(Side Space≥49mm/13/14inch)
4 sides are walls			A≥10 (13/32)B≥300 (11-13/16)C≥10 (13/32)D≥500 (19-11/16)	A≥50 (1-31/32)B≥100 (3-15/16)C≥50 (1-31/32)D≥500(19-11/16)
			A≥10 (13/32)B≥300 (11-13/16)C≥10 (13/32)D≥500 (19-11/16)E≥20 (25/32)	A≥50 (1-31/32)B≥100 (3-15/16)C≥50 (1-31/32)D≥500 (19-11/16)E≥100 (3-15/16)
			A≥10 (13/32)B≥300 (11-13/16)C≥10 (13/32)D≥500 (19-11/16)E≥20 (25/32)F≥600 (23-5/8)	A≥50 (1-31/32)B≥100 (3-15/16)C≥50 (1-31/32)D≥500 (19-11/16)E≥100 (3-15/16)F≥500 (19-11/16)
			A≥10 (13/32)B≥300 (11-13/16)C≥10 (13/32)D≥300 (11-13/16)E≥20 (25/32)F≥500 (19-11/16)	A≥50 (1-31/32)B≥100 (3-15/16)C≥50 (1-31/32)D≥100 (3-15/16)E≥100 (3-15/16)F≥500 (19-11/16)
Rear to Rear			A≥10 (13/32)B≥500 (19-11/16)C≥10 (13/32)D≥500 (19-11/16)F≥900 (35-7/16)	A≥50 (1-31/32)B≥500 (19-11/16)C≥50 (1-31/32)D≥500 (19-11/16)F≥600 (23-5/8)
			A≥10 (13/32)B≥500 (19-11/16)C≥10 (13/32)D≥500 (19-11/16)E≥20 (25/32)F≥1200 (47-1/4)	A≥50 (1-31/32)B≥500 (19-11/16)C≥50 (1-31/32)D≥500 (19-11/16)E≥100 (3-15/16)F≥900 (35-7/16)
			A≥10 (13/32)B≥500 (19-11/16)C≥10 (13/32)D≥500 (19-11/16)E≥20 (25/32)F≥1800 (70-7/8)	A≥50 (1-31/32)B≥500 (19-11/16)C≥50 (1-31/32)D≥500 (19-11/16)E≥100 (3-15/16)F≥1200 (47-1/4)
Only 2 sides are walls			A≥10 (13/32)B≥300 (11-13/16)
			A≥10 (13/32)B≥300 (11-13/16)E≥20 (25/32)
Limitations on the height of the wall(Refer to 4 side walls)		The height of the wall on the front side must be 1500 mm (59 inch) or less.The height of the wall on the inlet side must be 500 mm (19-11/16") or less.There is no limit to the wall on Inlet side.If the height of the walls on the front and Inlet side are higher than the limit, there must be additional space on the front and the side.- Additional Space on the front side by 1/2 of h1- Additional Space on the inlet side by 1/2 of h2-h1 = A(Actual height) - 1500 (59 inch)- h2 = B(Actual height) - 500 (19-11/16")

Seasonal wind and cautions in winter

• Sufficient measures are required in a snow areas or severe cold areas in winter so that product can be operated well.
• Get ready for seasonal wind or snow in winter even in other areas.
  • Install a suction and discharge duct not to let in snow or rain.
• Install the outdoor unit In such a way that it should not come in contact with snow directly. If snow piles up and freezes on the air suction hole, the system may malfunction. If it is installed at snowy area, attach the hood to the system.
• Install the outdoor unit at the higher installation console by 50 cm (19.7 inch) than the average snowfall (annual average snowfall) if it is installed at the area with much snowfall.

• Where snow accumulated on the upper part of the Outdoor Unit by more than 10 cm (3.9 inch), always remove snow for operation.

• The height of H frame must be more than 2 times the snowfall and its width shall not exceed the width of the product. (If width of the frame is wider than that of the product, snow may accumulate)

• Don't install the suction hole and discharge hole of the Outdoor Unit facing the seasonal wind.

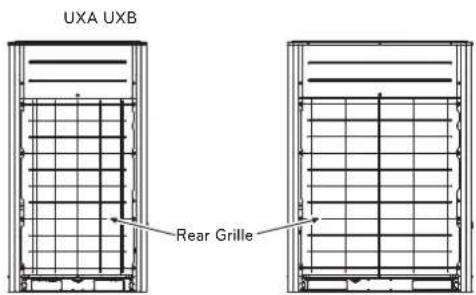

Remove the Rear Grille

• Remove the rear grille in snowy area.
• Make sure that heat exchanger should not be damaged.

UXA UXB Rear Grille

LIFTING METHOD

• When carrying the suspended, unit pass the ropes under the unit and use the two suspension points each at the front and rear.
  • Always lift the unit with ropes attached at four points so that impact is not applied to the unit.
• Attach the ropes to the unit at an angle of 40^ or less.

Locking points for transportation ropes

Forklift Carrying Hole Forklift Carrying Guide

CAUTION

Be very careful while carrying the product.

• Do not have only one person carry product if it is more than 20 kg (44lbs).
• PP bands are used to pack some products. Do not use them as a mean for transportation because they are dangerous.
• Do not touch heat exchanger fins with your bare hands. Otherwise you may get a cut in your hands.
• Tear plastic packaging bag and scrap it so that children cannot play with it. Otherwise plastic packaging bag may suffocate children to death.
• When carrying in Outdoor Unit, be sure to support it at four points. Carrying in and lifting with 3-point support may make Outdoor Unit unstable, resulting in a fall.
• Use 2 belts of at least 8 ~m (26.2 ft) long.
• Place extra cloth or boards in the locations where the casing comes in contact with the sling to prevent damage.
• Hoist the unit making sure it is being lifted at its center of gravity.

INSTALLATION

• Install at places where it can endure the weight and vibration/noise of the outdoor unit.
- The outdoor unit support blocks at the bottom shall have width of at least 100 mm (3-15/16 inch) under the Unit's legs before being fixed.
- The outdoor unit support blocks should have minimum height of 200 mm (7-7/8 inch).
- Anchor bolts must be inserted at least 75 mm (2-15/16 inch).

The location of the Anchor bolts

Unit : mm (inch) A B 65 (2-9/16) At least 65 (2-9/16) 65 (2-9/16) At least 65 (2-9/16) 731 (28-25/32) 760 (29-29/32)

Chassis A [mm (inch)] B [mm (inch)]
UXA 930 (36-5/8) 748 (29-9/20)
UXB 1240 (47-1/4) 1040 (40-15/16)

Foundation for Installation

• Fix the unit tightly with bolts as shown below so that unit will not fall down due to earthquake or gust.
• Use the H-beam support as a base support
• Noise and vibration may occur from the floor or wall since vibration is transferred through the installation part depending on installation status. Thus, use anti-vibration materials (cushion pad) fully (The base pad shall be more than 200 mm (7-7/8 inch)).

A B At least 200 (7.87)

Technical diagram of a computer tower with labeled components including CPU socket, drive, and base

Ⓐ The corner part must be fixed firmly. Otherwise, the support for the installation may be bent.
⑧ Get and use M10 Anchor bolt.
© Put Cushion Pad between the outdoor unit and ground support for the vibration protection in wide area.
⑭ Space for pipes and wiring (Pipes and wirings for bottom side)
© H-beam support
⑤ Concrete support

Unit : mm (inch) 100(3.94) 75(2.95) 200(7.87) 75(2.95) 200(7.87)

WARNING

• Install where it can sufficiently support the weight of the outdoor unit. If the support strength is not enough, the outdoor unit may drop and hurt people.
  • Install where the outdoor unit may not fall in strong wind or earthquake. If there is a fault in the supporting conditions, the outdoor unit may fall and hurt people.
• Please take extra cautions on the supporting strength of the ground, water outlet treatment(treatment of the water flowing out of the outdoor unit in operation), and the passages of the pipe and wiring, when making the ground support.
• Do not use tube or pipe for water outlet in the Base panel. Use drainage instead for water outlet. The tube or pipe may freeze and the water may not be drained.

CAUTION

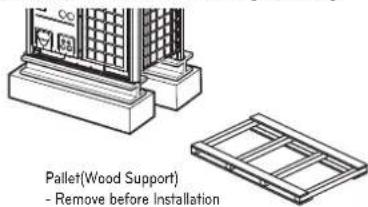

• Be sure to remove the Pallet(Wood Support) of the bottom side of the outdoor unit Base panel before fixing the bolt. It may cause the unstable state of the outdoor settlement, and may cause freezing of the heat exchanger resulting in abnormal operations.
• Be sure to remove the Pallet(Wood Support) of the bottom side of the outdoor unit before welding. Not removing Pallet(Wood Support) causes hazard of fire during welding.

Pallet(Wood Support) - Remove before Installation

Preparation of Piping

Main cause of gas leakage is defect in flaring work. Carry out correct flaring work in the following procedure.

Cut the pipes and the cable

• Use the accessory piping kit or the pipes purchased locally.
• Measure the distance between the indoor and the outdoor unit.
• Cut the pipes a little longer than measured distance.
• Cut the cable 1.5 m (4.92 ft) longer than the pipe length.

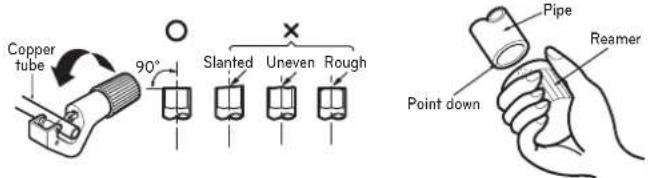

Copper tube 90° Slanted Uneven Rough Point down Pipe Reamer

Burrs removal

• Completely remove all burrs from the cut cross section of pipe/tube.
• Put the end of the copper tube/pipe to downward direction as you remove burrs in order to avoid to let burrs drop in the tubing.

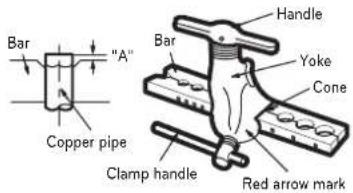

Bar "Copper pipe" "A" Handle Yoke Cone Clamp handle Red arrow mark

Flaring work

- Carry out flaring work using flaring tool as shown below.

Indoor unit[kW(Btu/h)]	Pipe(mm(inch)) 'A'Imm(inch)
	Gas Liquid Gas Liquid
<5.6(19,100)	012.7 (1/2) 06.35 (1/4) 0.5~0.8	(0.02~0.03) 0~0.5 (0~0.02)
<16.0(54,600)	015.88 (5/8) 09.52 (3/8) 0.8~1	0 (0.03~0.04) 0.5~0.8 (0.02~0.03)
<22.4(76,400)	019.05 (3/4) 09.52 (3/8) 1.0~1	1.3 (0.04~0.05) 0.5~0.8 (0.02~0.03)

Firmly hold copper tube in a bar(or die) as indicated dimension in the table above.

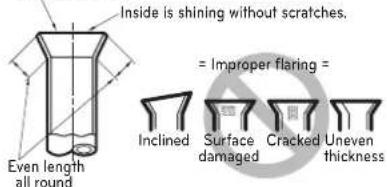

Check

• Compare the flared work with figure below.
• If flare is noted to be defective, cut off the flared section and do flaring work again.

Smooth all round

Inside is shining without scratches. Even length all round = Improper flaring = Inclined Surface damaged Cracked Uneven thickness

Flare shape and flare nut tightening torque

Precautions when connecting pipes

• See the following table for flare part machining dimensions.
• When connecting the flare nuts, apply refrigerant oil to the inside and outside of the flares and turn them three or four times at first. (Use ester oil or ether oil.)
• See the following table for tightening torque.(Applying too much torque may cause the flares to crack.)
• After all the piping has been connected, use nitrogen to perform a gas leak check.

Pipe size [mm (inch)]	Tightening Torque N·m (lbs ft)	A [mm (inch)] Flare shape
∅9.52 (3/8)	38±4 (28±3.0)	12.8 (0.5)~13.2 (0.52)
∅12.7 (1/2)	55±6 (41±4.4)	16.2 (0.64)~16.6 (0.65)
∅15.88 (5/8)	75±7 (55±5.2)	19.3 (0.76)~19.7(0.78)

! CAUTION

• Always use a charge hose for service port connection.
• After tightening the cap, check that no refrigerant leaks are present.
- When loosening a flare nut, always use two wrenches in combination. When connecting the piping, always use a spanner and torque wrench in combination to tighten the flare nut.
- When connecting a flare nut, coat the flare(inner and outer faces) with oil for R410A(PVE) and hand tighten the nut 3 to 4 turns as the initial tightening.

Opening shutoff valve

1 Remove the cap and turn the valve counter clockwise with the hexagon wrench.
2 Turn it until the shaft stops.

Do not apply excessive force to the shutoff valve. Doing so may break the valve body, as the valve is not a backseat type. Always use the special tool.

3 Make sure to tighten the cap securely.

Closing shutoff valve

1 Remove the cap and turn the valve clockwise with the hexagon wrench.
2 Securely tighten the valve until the shaft contacts the main body seal.
3 Make sure to tighten the cap securely.

* For the tightening torque, refer to the table on the below.

Tightening torque

Shut off valve size (mm (inch))	Tightening torque N·m (Ibs·ft) (Turn clockwise to close)
	Shaft (valve body)			Cap (Valve lid)	Service port	Flare nut	Gas line piping attached to unit
	Closed	Opened	Hexagonal wrench
∅6.35 (1/4)	6.0±0.6(4.4±0.4)	5.0±0.0(3.7±0.4)	4 mm(10.16 inch)	17.6±2.0(13.0±1.5)	12.7±2(9.4±1.5)	16±2(12±1.5)	-
∅9.52 (3/8)						38±4(28±3.0)
∅12.7 (1/2)	10.0±1.0(7.4±0.7)			20.0±2.0(14.8±1.5)		55±6(41±4.4)
∅15.88 (5/8)	12.0±1.2(8.9±0.9)		5 mm(10.24 inch)	25.0±2.5(18.4±1.8)		75±7(55±5.1)
∅19.05 (3/4)	14.0±1.4(10.3±1.0)					110±10(81.1±7.4)
∅22.2 (7/8)	30.0±3.0(22.1±2.2)		8 mm(10.31 inch)			-
∅25.4 (1)							25±3(18.5±2.2)

Insulation of shutoff valve

1 Use the heat insulation material for the refrigerant piping which has an excellent heat-resistance (over 120 °C [248 °F]).
2 Precautions in high humidity circumstance:

This air conditioner has been tested according to the "ISO Conditions with Mist" and confirmed that there is not any default. However, if it is operated for a long time in high humid atmosphere (dew point temperature: More than 23 °C [73.4 °F]), water drops are liable to fall. In this case, add heat insulation material according to the following procedure:

• Heat insulation material to be prepared: EPDM (Ethylene Propylene Diene Methylene)-over 120 °C [248 °F] the heat-resistance temperature.
• Add the insulation over 10 mm [0.39 inch] thickness at high humidity environment.

Fastening band (accessory) Refrigerant piping Thermal insulator (accessory) Indoor unit

Plumbing materials and storage methods

Pipe must be able to obtain the specified thickness and should be used with low impurities.

Also when handling storage, pipe must be careful to prevent a fracture, deformity and wound.

Should not be mixed with contaminations such as dust, moisture.

Two groups of sticks: one with circles and another with crosses, both showing different lengths (no text or symbols)

Refrigerant piping on three principles

	Drying	Cleanliness	Airtight
	Should be no moisture inside	No dust inside.	There is no refrigerant leakage
Items
Cause failure	- Significant hydrolysis of refrigerant oil- Degradation of refrigerant oil- Poor insula'tion of the compressor- Do not cold and warm- Clogging of EEV, Capillary	- Degradation of refrigerant oil- Poor insulation of the compressor- Do not cold and warm- Clogging of EEV, Capillary	- Gas shortages- Degradation of refrigerant oil- Poor insulation of the compressor- Do not cold and warm
Countermeasure	- No moisture in the pipe- Until the connection is completed, the plumbing pipe entrance should be strictly controlled.- Stop plumbing at rainy day.- Pipe entrance should be taken side or bottom.- When removal burr after cutting pipe, pipe entrance should be taken down.- Pipe entrance should be fitted cap when pass through the walls.	- No dust in the pipe.- Until the connection is completed, the plumbing pipe entrance should be strictly controlled.- Pipe entrance should be taken side or bottom.- When removal burr after cutting pipe, pipe entrance should be taken down.- Pipe entrance should be fitted cap when pass through the walls.	- Airtightness test should be.- Brazing operations to comply with standards.- Flare to comply with standards.- Flange connections to comply with standards.

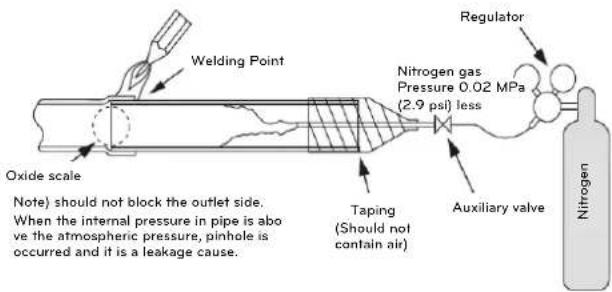

Nitrogen substitution method

Welding, as when heating without nitrogen substitution a large amount of the oxide film is formed on the internal piping.

The oxide film is a caused by clogging EEV, Capillary, oil hole of accumulator and suction hole of oil pump in compressor.

It prevents normal operation of the compressor.

In order to avoid this problem, Welding should be done after replacing air by nitrogen gas.

When welding plumbing pipe, the work is required.

Welding Point Regulator Nitrogen gas Pressure 0.02 MPa (2.9 psi) less Oxide scale Taping (Should not contain air) Auxiliary valve Nitrogen Note) should not block the outlet side. When the internal pressure in pipe is above the atmospheric pressure, pinhole is occurred and it is a leakage cause.

! CAUTION

• Always use the nitrogen.(not use oxygen, carbon dioxide, and a Chevron gas): Please use the following nitrogen pressure 0.02 MPa (2.9 psi) Oxygen - Promotes oxidative degradation of refrigerant oil. Because it is flammable, it is strictly prohibited to use Carbon dioxide - Degrade the drying characteristics of gas Chevron Gas - Toxic gas occurs when exposed to direct flame.
  • Always use a pressure reducing valve.
• Please do not use commercially available antioxidant. The residual material seems to be the oxide scale is observed. In fact, due to the organic acids generated by oxidation of the alcohol contained in the anti-oxidants, ants nest corrosion occurs. (causes of organic acid alcohol + copper + water + temperature)

REFRIGERANT PIPING INSTAL- LATION

Precautions on Pipe connection / Valve operation

Pipe connection is done by connecting from the end of the pipe to the branching pipes, and the refrigerant pipe coming out of the outdoor unit is divided at the end to connect to each indoor unit. Flare connection for the indoor unit, and welding connection for the outdoor pipe and the branching parts.

- Use hexagonal wrench to open/close the valve.

Service Port Liquid pipe Gas pipe

WARNING

• Always careful not to leak the refrigerant during welding.
- The refrigerant generates poisonous gas harmful to human body if combusted.
- Do not perform welding in a closed space.
- Be sure to close the cap of the service port to prevent gas leakage after the work.

CAUTION

Please block the pipe knock outs of the front and side panels after installing the pipes.

(Animals or foreign objects may be brought in to damage wires.)

Connection of Outdoor units

When installing ODU series, refer below picture.

A≥B≥C≥D

① IDU side connection pipe

② ODU to ODU connection pipe (1st branch)

③ ODU to ODU connection pipe (2st branch)

④ ODU to ODU connection pipe (3rd brach)

2, 3, 4 Outdoor Units

Outdoor units		Model	Liquid Pipe	Gas Pipe
2 Unit		ARCNN21
3 Unit		ARCNN31
4 Unit		ARCNN41

For more information, refer accessory installation manual.

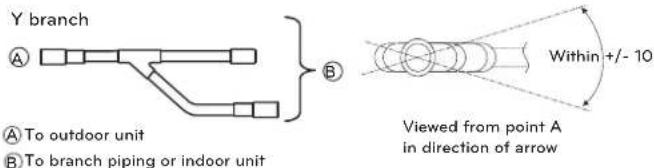

Y branch A To outdoor unit B To branch piping or indoor unit ⑧ Within +/- 10 Viewed from point A in direction of arrow

Facing downwards Facing upwards Within ± 3° Within ± 3°

Caution

1 Use the following materials for refrigerant piping.
- Material: Seamless phosphorous deoxidized copper pipe
- Wall thickness : Comply with the relevant local and national regulations for the designed pressure 3.8 MPa (551 psi). We recommend the following table as the minimum wall thickness.

Outer diameter [mm/inch]	6.35 (1/4)	9.52 (3/8)	12.7 (1/2)	5.68 (5/8)	19.05 (3/4)	22.2 (7/8)	25.4 (1)	28.58 (1-1/8)	31.8 (1-1/4)	34.9 (1-3/8)	38.1 (1-1/2)	41.3 (1-5/8)	44.45 (1-3/4)	53.96 (2-1/8)
Minimum thickness [mm/inch]	0.8 (0.03)	0.8 (0.03)	0.8 (0.03)	0.99 (0.04)	0.99 (0.04)	0.99 (0.04)	0.99 (0.04)	0.99 (0.04)	1.1 (0.04)	1.21 (0.05)	1.35 (0.05)	1.43 (0.06)	1.55 (0.06)	2.1 (0.08)

2 Commercially available piping often contains dust and other materials. Always blow it clean with a dry inert gas.
3 Use care to prevent dust, water or other contaminants from entering the piping during installation.
4 Reduce the number of bending portions as much as possible, and make bending radius as big as possible.
5 Always use the branch piping set shown below, which are sold separately.

Y branch	Header
	4 branches	7 branches	10 branches
ARBLB01621, ARBLB03321, ARBLB07121, ARBLB14521, ARBLB23220	ARBL054	ARBL057	ARBL1010
	ARBL104	ARBL107	ARBL2010

6 If the diameters of the branch piping of the designated refrigerant piping differs, use a pipe cutter to cut the connecting section and then use an adapter for connecting different diameters to connect the piping.
7 Always observe the restrictions on the refrigerant piping (such as rated length, difference in height, and piping diameter). Failure to do so can result in equipment failure or a decline in heating/cooling performance.
8 A second branch cannot be made after a header. (These are shown by ☑.)

A To Outdoor Unit
B Sealed Piping
    note right of G
        X
    end

9 The Multi V will stop due to an abnormality like excessive or insufficient refrigerant. At such a time, always properly charge the unit. When servicing, always check the notes concerning both the piping length and the amount of additional refrigerant.
10 Never perform a pump down. This will not only damage the compressor but also deteriorate the performance.
11 Never use refrigerant to perform an air purge. Always evacuate air by using a vacuum pump.
12 Always insulate the piping properly. Insufficient insulation will result in a decline in heating/cooling performance, drip of condensate and other such problems.
13 When connecting the refrigerant piping, make sure the service valves of the Outdoor Unit is completely closed (the factory setting) and do not operate it until the refrigerant piping for the Outdoor and Indoor Units has been connected, a refrigerant leakage test has been performed and the evacuation process has been completed.
14 Always use a non-oxidizing brazing material for brazing the parts and do not use flux. If not, oxidized film can cause clogging or damage to the compressor unit and flux can harm the copper piping or refrigerant oil.

WARNING

When installing and moving the air conditioner to another site, be sure to make recharge refrigerant after perfect evacuation.

• If a different refrigerant or air is mixed with the original refrigerant, the refrigerant cycle may malfunction and the unit may be damaged.
• After selecting diameter of the refrigerant pipe to suit total capacity of the indoor unit connected after branching, use an appropriate branch pipe set according to the pipe diameter of the indoor unit and the installation pipe drawing.

PIPE CONNECTIONS BETWEEN INDOOR AND OUTDOOR UNIT

• Pipe connections can be done on the front side or on the side according to the installation environments.
• Be sure to let 0.2 kgf/cm ^2 (2.8 psi) Nitrogen flow in the pipe when welding.
• If Nitrogen was not flown during welding, many oxidized membranes may form inside the pipe and disturb the normal operations of valves and condensers.

Left Side Pipe Draw Out Front Pipe Draw Out Right Side Pipe Draw Out Refrigerant Pipe Regulator Nitrogen Direction Taping Valve Nitrogen

Preparation Work

- Use Knock Outs of Base Pan of the outdoor unit for Left/Right or Bottom pipe drawing outs.

Knock Out for gas pipe Knock Out for Liquid pipe Removal area for pipes bottom side connections. Knock Out for communication cable Knock Out for power supply cable

! CAUTION

• Do not give damage to the pipe/base during the Knock Out work.
• Proceed to pipe work after removing burr after Knock Out work.
• Perform sleeve work to prevent damage to the wire when connecting wires using Knock Outs.

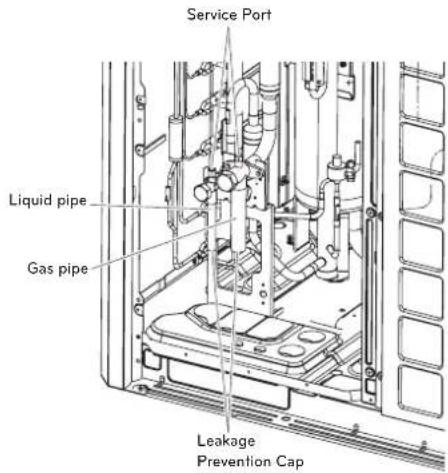

Remove leakage prevention cap

• Remove the leakage prevention cap attached to the outdoor unit service valve before pipe work.

• Proceed the leakage prevention cap removal as follows:

• Verify whether all the pipes are locked.

• Extract remaining refrigerant or air inside using the service port.
• Remove the leakage prevention cap

Service Port Liquid pipe Gas pipe Leakage Prevention Cap

Pipe Drawing Out during Single / Series connection

Method of drawing out pipes on the front side

- Proceed with the pipe work as shown in the below figure for front side pipe drawing out.

Liquid pipe Gas pipe Liquid pipe Gas pipe

Method of drawing out pipes on the bottom side

- Drawing out common pipe through side panel

Liquid pipe Gas pipe Remove Knock Out for the pipes

Refrigerant piping system

1 Outdoor Units

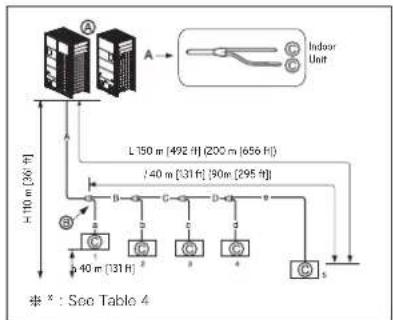

Y branch method

Ⓐ : Outdoor Unit
⑧ : 1st branch (Y branch)
©: Indoor Units

A A → Indoor Unit L 10 m [36' H] L 150 m [492 H] (200 m [656 H]) L 40 m [31 H] [90 m [295 H]) H B C D * : See Table 4

Combination of Y branch/header Method

Ⓐ : Outdoor Unit
⑧ : 1st branch (Y branch)
©: Y branch
⑭: Indoor Unit
E: Header
⑤ : Sealed piping

H 70 m [36 ft] L 150 m [492 ft] [200 m [656 ft]] 140 m [131 ft] [90m [295 ft]] 4.40m[139m] ⊕ + : See Table 4

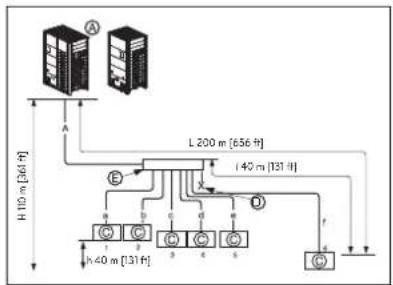

Header Method

Ⓐ : Outdoor Unit
©: Indoor Units
⑭: Sealed piping
E: Header

H10 m [361 ft] L 200 m [656 ft] 140 m [131 ft] h 40 m [131 ft]

Series Outdoor Units (2 Units \~ 4 Units)

Y branch method

Ⓐ : Outdoor Unit
⑧: 1st branch (Y branch)
©: Indoor Units
⑭: Downward Indoor Unit
⑤ : Connection branch pipe between Outdoor units: ARCNN41
⑤ : Connection branch pipe between Outdoor units : ARCNN31
G : Connection branch pipe between Outdoor units : ARCNN21

3.0mA 5.0mA 10m x 2x Power Mach COOL Capacity Max: > Slow 1 > Slow 2 > Slow 3 L 100 m [492 ft] [200 m [600 ft] 1-40 m [131 ft] [20 m [295 ft] 40 m [331 ft] * : See Table 4

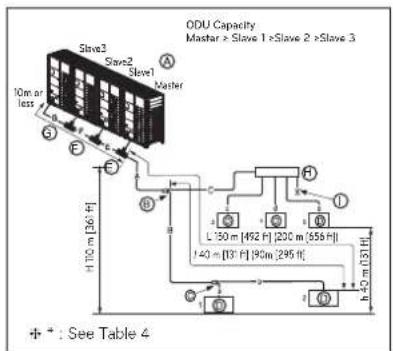

Combination of Y branch/ header Method

Ⓐ: Outdoor Unit
⑧: 1st branch(Y branch)
©: Y branch
⑭: Indoor Unit
⑤ : Connection branch pipe between Outdoor units : ARCNN41
⑤ : Connection branch pipe between Outdoor units : ARCNN31
⑥ : Connection branch pipe between Outdoor units : ARCNN21
⑧ : Header
① : Sealed piping

ODU Capacity Master > Slave 1 > Slave 2 > Slave 3 Slave3 Slave2 Slave1 Master 10m or less H 100 m [36 ft] L' 150 m [492 ft] [200 m (556 ft)] 140 m [131 ft] [90m] [295 ft] + * : See Table 4

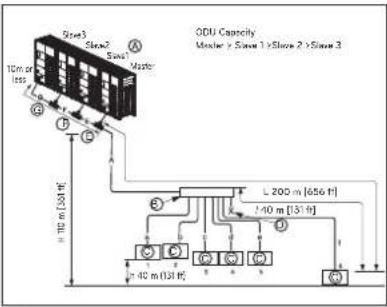

Header Method

Ⓐ : Outdoor Unit
⑧: Header branch
©: Indoor Units
⑭ : Sealed piping
⑤ : Connection branch pipe between Outdoor units : ARCNN41
⑤ : Connection branch pipe between Outdoor units : ARCNN31
©: Connection branch pipe between Outdoor units : ARCNN21

GDU Capacity Master > Screen 1 > Screen 2 > Screen 3 Size 5 Size 2 Size Master 10m or less 10m [50] ft L 200 m [656 ft] L 40 m [131 ft] +40 m [131 ft]

Pipe Connection Method between outdoor unit/indoor unit

\* See Table 2

A: Refrigerant pipe diameter from outdoor unit to first branch
E: Refrigerant pipe diameter for outdoor unit capacity (Slave 1+ Slave 2+ Slave 3)
F : Refrigerant pipe diameter for outdoor unit capacity (Slave 2+ Slave 3)
G : Refrigerant pipe diameter for outdoor unit capacity(Slave 3)

WARNING

• Branch pipe can not be used after header.
• It is recommended that difference in length of the pipes connected to the indoor units (a\~f) is minimized. Performance difference between indoor units may occur.

Level Difference(Outdoor unit ↔ Outdoor unit)	5 m [16.4 ft]
Max length from first branch to each outdoor unit (L1, L2, L3)	Less than 10 m [32.8 ft](equivalent length of piping 13 m[42.7 ft])

(Table 1) Limit Pipe length

			Y branch Method	Combination of Y branch/header Method	Header Method
Max pipe length	Outdoor Unit ↔ Indoor Unit	Longest pipe length(L)	A+B+C+D+a ≤ 150 m [492 ft] [200 m [656 ft] : Condi-tional application]*	A+B+b ≤ 150 m [492 ft] A+C+e ≤ 150 m [492 ft] (200 m [656 ft] : Condi-tional application)*	A+f ≤ 200 m [656 ft]
		Equivalent pipe length	175 m [574 ft] [225 m [738 ft] : Condi-tional application]*	175 m [574 ft] (225 m [738 ft] : Condi-tional application)*	225 m [738 ft]
		Total pipe length	1000 m [3281 ft] 1000 m [3281 ft]		1000 m [3281 ft]
Max difference in height	Outdoor Unit ↔ Indoor Unit	Difference in height(H)	110 m [361 ft] 110 m [361 ft] 110 m [361 ft]
	Indoor Unit ↔ Indoor Unit	Difference in height(h)	40 m [131 ft] 40 m [131 ft] 40 m [131 ft]
Longest pipe length after 1st branch		Pipe length(ℓ)	40 m [131 ft] [90 m [295 ft] : Condi-tional application]*	40 m [131 ft] [90 m [295 ft] : Condi-tional application]*	40 m [131 ft]

* : See Table 4

! WARNING

Increased Pipe Diameter(table 2)

• When pipe length is 90m [295 ft] or more from ODU to 1st branch
• When level difference is 50 m [164 ft] or more

(Table 2) Refrigerant pipe diameter from outdoor unit to first branch. (A)

ODU capacity (hp)	Pipe diameter when pipe length is < 90m (295ft) (Standard)		Pipe diameter when pipe length is ≥ 90m (295ft)		Pipe diameter when height differential IODU × IDU is > 50m (164ft)
	Liquid Pipe mm (inch)	Gas Pipe mm (inch)	Liquid Pipe mm (inch)	Gas Pipe mm (inch)	Liquid Pipe mm (inch)	Gas Pipe mm (inch)
8	∅9.52 (3/8)	∅19.05 (3/4) ∅1	∅27 (1/2) ∅22.2	∅17/8) ∅12.7 (1/2)	Not increased
10	∅9.52 (3/8)	∅22.2 (7/8)	∅12.7 (1/2)	∅28.58 (1-1/8)	∅12.7 (1/2)	Not increased
12~16	∅12.7 (1/2)	∅28.58 (1-1/8)	∅15.88 (5/8)	∅34.9 (1-3/8)	∅15.88 (5/8)	Not increased
18~22	∅15.88 (5/8)	∅28.58 (1-1/8)	∅19.05 (3/4)	∅34.9 (1-3/8)	∅19.05 (3/4)	Not increased
24	∅15.88 (5/8)	∅34.9 (1-3/8)	∅19.05 (3/4)	∅41.3 (1-5/8)	∅19.05 (3/4)	Not increased
26~34	∅19.05 (3/4)	∅34.9 (1-3/8)	∅22.2 (7/8)	∅41.3 (1-5/8)	∅22.2 (7/8)	Not increased
36~60	∅19.05 (3/4)	∅41.3 (1-5/8)	∅22.2 (7/8)	∅44.5 (1-3/4)	∅22.2 (7/8)	Not increased
62~64	∅22.2 (7/8)	∅44.5 (1-3/4)	∅25.4 (1)	∅53.98 (2-1/8)	∅25.4 (1)	Not increased
66~96	∅22.2 (7/8)	∅53.98 (2-1/8)	∅25.4 (1)	∅53.98 (2-1/8)	∅25.4 (1)	Not increased

(Table 3) Refrigerant pipe diameter from first branch to last branch (B,C,D)

Downward indoor unit total capacity [kW(Btu/h)]	Liquid pipe [mm(inch)]	Gas pipe [mm(inch)]
≤ 5.6(19,100)	∅6.35(1/4)	∅12.7(1/2)
< 16.0 (54,600)	∅9.52(3/8)	∅15.88(5/8)
≤ 22.4 (76,400)	∅9.52(3/8)	∅19.05(3/4)
< 33.6 (114,700)	∅9.52(3/8)	∅22.2(7/8)
< 50.4 (172,000)	∅12.7(1/2)	∅28.58(1-1/8)
< 67.2 (229,400)	∅15.88(5/8)	∅28.58(1-1/8)
< 72.8(248,500) ∅15.88(5/8)	∅34.9(1-3/8)
< 100.8(344,000)	∅19.05(3/4)	∅34.9(1-3/8)
< 173.6(592,500)	∅19.05(3/4)	∅41.3(1-5/8)
< 184.8(630,700) ∅22.2(7/8)	∅44.5(1-3/4)
≤ 224.0(764,400)	∅22.2(7/8)	∅53.98(2-1/8)

(Table 4) Conditional Application

• To satisfy below condition to make 40m 90m of pipe length after first branch.

	Condition	Example
1	Diameter of pipes between first branch and the last branch should be increased by one step, except pipe diameter B,C,D is same as Diameter A	40 m [131 ft] <B+C+D+e90 m [295 ft] → B, C, DChange a diameter	∅8.35(1/4) → ∅9.52(3/8), ∅9.52(3/8) →∅12.7(1/2), ∅12.7(1/2) → ∅15.88(5/8),∅15.88(5/8) → ∅19.05(3/4), ∅19.05(3/4) →∅22.2(7/8), ∅22.2(7/8) → ∅25.4(1),∅25.4(1) → ∅28.58(1-1/8), ∅28.58(1-1/8) →∅31.8(1-1/4), ∅31.8(1-1/4) → ∅34.9(1-3/8),∅34.9(1-3/8) → ∅38.1(1-1/2)
2	While calculating whole refrigerant pipe length, pipe B,C,D length should be calculated twice.	A+Bx2+Cx2+Dx2+a+b+c+d+e ≤ 1 000 m [3 281 ft]
3	Length of pipe from each indoor unit to the closest branch	a,b,c,d,e ≤ 40 m[131 ft]
4	Length of pipe from outdoor unit to the farthest indoor unit 5(A+B+C+D+e) - [Length of pipe outdoor unit to the closest indoor unit 1(A+a)] ≤ 40 m [131 ft]	(A+B+C+D+e)-(A+a) ≤ 40 m[131 ft]

! WARNING

- In case of pipe diameter B connected after first branch is bigger than the main pipe diameter A, B should be of the same size with A.

Ex) In case indoor unit combination ratio 120% is connected to 24HP(67.2 kW) outdoor unit.

1) Outdoor unit main pipe diameter A : ∅34.9(1-3/8)(Gas pipe), ∅15.88(5/8)(liquid pipe)

2) Pipe diameter B after first branch according to 120% indoor unit combination(80.6kW): ∅34.9(1-3/8)(gas pipe), ∅19.05(3/4)(liquid pipe)

Therefore, pipe diameter B connected after first branch would be ∅34.9(1-3/8)(gas pipe) / ∅15.88(5/8)(liquid pipe) which is same with main pipe diameter.

Indoor Unit Connection

Indoor Unit connecting pipe from branch (a,b,c,d,e,f)

Indoor Unit capacity [kW(Btu/h)]	Liquid pipe [mm(inch)]	Gas pipe [mm(inch)]
≤ 5.6(19,100)	∅6.35(1/4) ∅12.7(1/2)
< 16.0(54,600) ∅9.52(3/8) ∅15.88(5/8)
< 22.4(76,400) ∅9.52(3/8) ∅19.05(3/4)
< 28.0(95,900) ∅9.52(3/8) ∅22.2(7/8)

CAUTION

- Bending radius should be at least twice the diameter of the pipe.

- Bend pipe after 500mm [19.7 inch] or more from branch(or header). Do not bend U type. It may affect performance or result in noise. If U type bending is required, the R should be more than 200mm [7.9 inch]

500mm [19.7 inch] or more 500mm [19.7 inch] or more R

Pipe Connection Method/Precautions for Series connections between Outdoor units

• Separate Y branch joints are needed for series connections between outdoor units.
• Please refer to the below connection examples to install pipe connections between outdoor units.

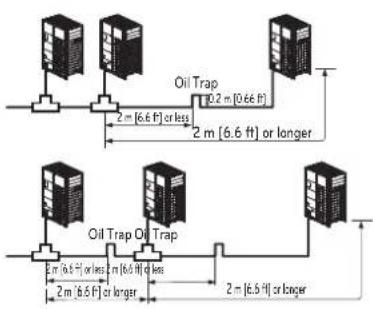

Pipe connection between outdoor units (General Case)

The maximum pipe length after the first branching between the outdoor units is 10 m [32.8 ft] or less

Pipes between outdoor units are 2 m [6.6 ft] or less

Pipes between outdoor units are 2 m [6.6 ft] or longer

Oil Trap 2 m [6.6 ft] or less 2 m [6.6 ft] or longer Oil Trap Oil Trap 2 m [6.6 ft] or less 2 m [6.6 ft] or longer 2 m [6.6 ft] or longer

• If the distance between the outdoor units becomes more than 2 m [6.6 ft], apply Oil Traps between the gas pipes.
• If the outdoor unit is located lower than the main pipe, apply Oil Trap.

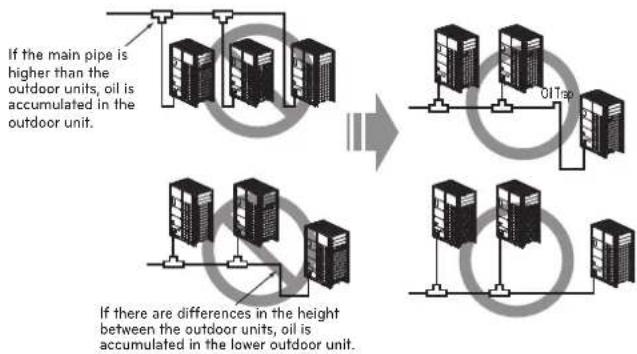

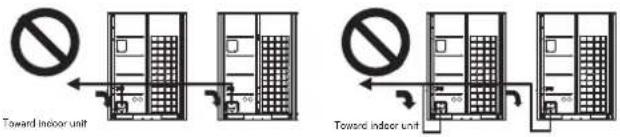

Examples of Wrong Pipe Connections

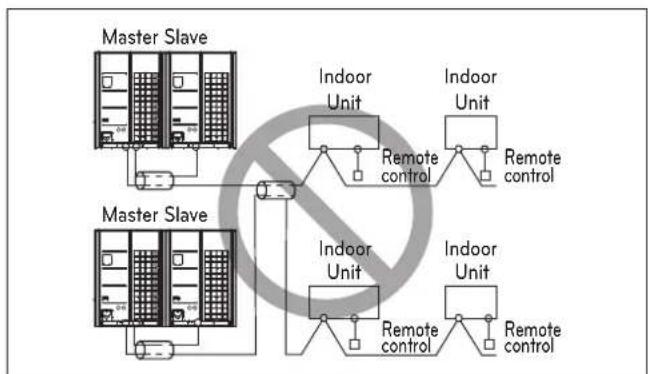

(Example 1)

Toward indoor unit Toward indoor unit

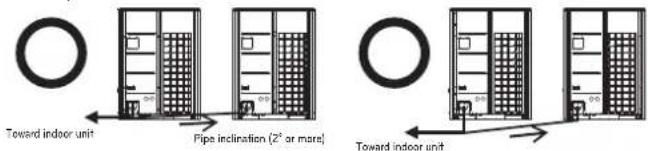

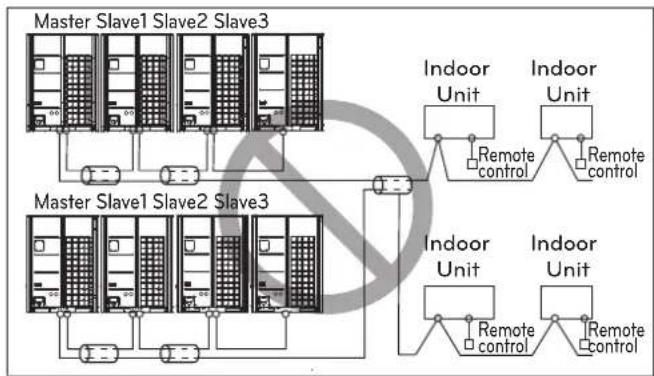

(Example 2)

Toward indoor unit Pipe inclination (2° or more) Toward indoor unit

(Example 3)

Toward indoor unit Toward indoor unit

- Apply Oil Trap as shown below when the length of the pipe between the outdoor units is more than 2 m [6.6 ft]. Otherwise, the unit may not operate properly.

(Example 1)

Toward indoor unit ≤ 2m

(Example 2)

Toward indoor unit ≤ 2 m [6.6 ft] ≥ 2 m [6.6 ft] Oil Trap

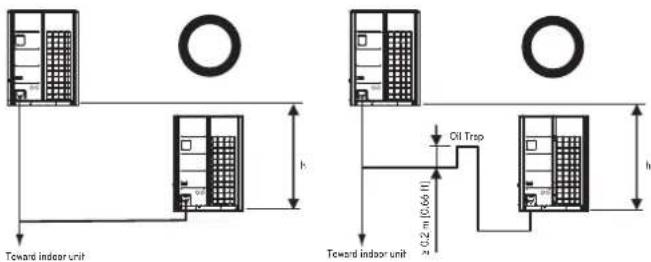

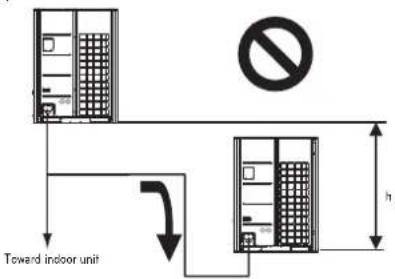

- When connecting the pipes between the outdoor units, the accumulation of oil in the slave outdoor unit should be avoided. Otherwise, the unit may not operate properly.

(Example 1)

Toward Indoor unit Toward Indoor Unit

(Example 2)

Toward indoor unit h

(Example 3)

Toward indoor unit h Oil Trap 2.02 m (0.66 mm) Toward indoor unit h

Branch pipe Fitting

Y branch

A To Outdoor Unit B To Branch Piping or Indoor Unit

- Ensure that the branch pipes are attached horizontally or vertically (see the diagram below.)

Horizontal plane A Viewed from point A in direction of arrow Within 1/- 10° Facing downwards Facing upwards Within ±3° Within ±3°

• There is no limitation on the joint mounting configuration.
• If the diameter of the refrigerant piping selected by the procedures described is different from the size of the joint, the connecting section should be cut with a pipe cutter.
• Branch pipe should be insulated with the insulator in each kit.

Insulator (included with kit) Liquid and gas pipe joints Tape (field supply) Insulator for field piping

Header

Diagram showing a mechanical or electrical component with labeled parts A and B, likely for assembly or measurement purposes.

Ⓐ To Outdoor Unit
⑧ To Indoor Unit

• The indoor unit having larger capacity must be installed closer to Ⓐ than smaller one.
• If the diameter of the refrigerant piping selected by the procedures described is different from the size of the joint, the connecting section should be cut with a pipe cutter.

© Pipe cutter

- When the number of pipes to be connected is smaller than the number of header branches, install a cap to the unconnected branches.

- When the number of indoor units to be connected to the branch pipes is less than the number of branch pipes available for connection then cap pipes should be fitted to the surplus branches.

B Pinched pipe

• Fit branch pipe lie in a horizontal plane.

View from point B in the direction of the arrow

- Header should be insulated with the insulator in each kit.

Insulate the header using the insulation material attached to the branch pipe kit as shown in the figure.

- Joints between branch and pipe should be sealed with the tape included in each kit.

Tape Insulator Insulator of field pipe

- Any cap pipe should be insulated using the insulator provided with each kit and then taped as described above.

Cap pipe Insulator for cap pipe Tape

Y branch pipe
[Unit:mm(inch)]

Models	Gas pipe Liquid pipe
ARBLN01621
ARBLN03321
ARBLN07121
ARBLN14521
ARBLN23220

Header
[Unit:mm(inch)]

Models	Gas pipe	Liquid pipe
4 branch ARBL054
7 branch ARBL057
4 branch ARBL104
7 branch ARBL107
10 branch ARBL1010
10 branch ARBL2010

Distribution Method

Horizontal Distribution
    subgraph_Master_Architecture["Slave Master"]
        A1["1st"] --> A2["2nd"]
        A2 --> A3["3rd"]
        A3 --> A4["1st"]
        A4 --> A5["2nd"]
        A5 --> A6["3rd"]
        A6 --> A7["1st"]
        A7 --> A8["2nd"]
        A8 --> A9["3rd"]
        A9 --> A10["1st"]
        A10 --> A11["2nd"]
        A11 --> A12["3rd"]
        A12 --> A13["1st"]
        A13 --> A14["2nd"]
        A14 --> A15["3rd"]
        A15 --> A16["1st"]
        A16 --> A17["2nd"]
        A17 --> A18["3rd"]
        A18 --> A19["1st"]
        A19 --> A20["2nd"]
        A20 --> A21["3rd"]
        A21 --> A22["1st"]
        A22 --> A23["2nd"]
        A23 --> A24["3rd"]
        A24 --> A25["1st"]
        A25 --> A26["2nd"]
        A26 --> A27["3rd"]
        A27 --> A28["1st"]
        A28 --> A29["2nd"]
        A29 --> A30["3rd"]
        A30 --> A31["1st"]
        A31 --> A32["2nd"]
        A32 --> A33["3rd"]
        A33 --> A34["1st"]
        A34 --> A35["2nd"]
        A35 --> A36["3rd"]
        A36 --> A37["1st"]
        A37 --> A38["2nd"]
        A38 --> A39["3rd"]
        A39 --> A40["1st"]
        A40 --> A41["2nd"]
        A41 --> A42["3rd"]
        A42 --> A43["1st"]
        A43 --> A44["2nd"]
        A44 --> A45["3rd"]
        A45 --> A46["1st"]
        A46 --> A47["2nd"]
        A47 --> A48["3rd"]
        A48 --> A49["1st"]
        A49 --> A50["2nd"]
        A50 --> A51["3rd"]
        A51 --> A52["1st"]
        A52 --> A53["2nd"]
        A53 --> A54["3rd"]
        A54 --> A55["1st"]
        A55 --> A56["2nd"]
        A56 --> A57["3rd"]
        A57 --> A58["1st"]
        A58 --> A59["2nd"]
        A59 --> A60["3rd"]
        A60 --> A61["1st"]
        A61 --> A62["2nd"]
        A62 --> A63["3rd"]
        A63 --> A64["1st"]
        A64 --> A65["2nd"]
        A65 --> A66["3rd"]
        A66 --> A67["1st"]
        A67 --> A68["2nd"]
        A68 --> A69["3rd"]
        A69 --> A70["1st"]
        A70 --> A71["2nd"]
        A71 --> A72["3rd"]
        A72 --> A73["1st"]
        A73 --> A74["2nd"]
        A74 --> A75["3rd"]
        A75 --> A76["1st"]
        A76 --> A77["2nd"]
        A77 --> A78["3rd"]
        A78 --> A79["1st"]
        A79 --> A80["2nd"]
        A80 --> A81["3rd"]
        A81 --> A82["1st"]
        A82 --> A83["2nd"]
        A83 --> A84["3rd"]
        A84 --> A85["1st"]
        A85 --> A86["2nd"]
        A86 --> A87["3rd"]
        A87 --> A88["1st"]
        A88 --> A89["2nd"]
        A89 --> A90["3rd"]
        A90 --> A91["1st"]
        A91 --> A92["2nd"]
        A92 --> A93["3rd"]
        A93 --> A94["1st"]
        A94 --> A95["2nd"]
        A95 --> A96["3rd"]
        A96 --> A97["1st"]
        A97 --> A98["2nd"]
        A98 --> A99["3rd"]
    end

Vertical Distribution

- Ensure that the branch pipes are attached vertically.

The others

Vacuum Mode

This function is used for creating vacuum in the system after compressor replacement, ODU parts replacement or IDU addition/replacement.

Vacuum mode setting method

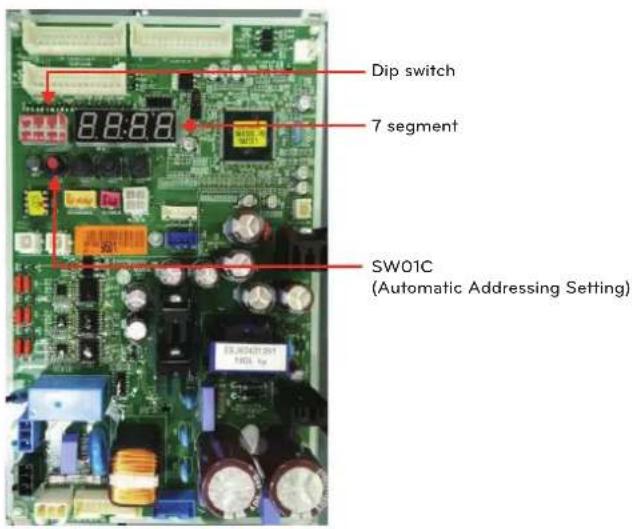

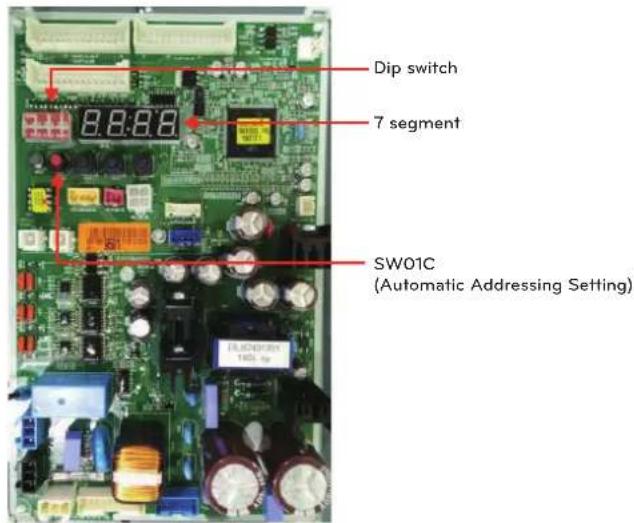

ON 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8:8:8:8 DIP-SW01 7-Segment SW04C (X : cancel) SW03C (►: forward) SW02C (◄: backward) SW01C (●: Confirm / Automatic Addressing) SW01D (reset)

Vacuum mode off method

Dip switch off and push the reset button on Master unit PCB

! CAUTION

ODU operation stops during vacuum mode. Compressor can't operate.

Leak Test and Vacuum drying

Leak test

Leak test should be made by pressurizing nitrogen gas to 3.8 MPa(38.7kgf/cm²). If the pressure does not drop for 24 hours, the system passes the test. If the pressure drops, check where the nitrogen leaks. For the test method, refer to the following figure. (Make a test with the service valves closed. Be also sure to pressurize liquid pipe, gas pipe and high pressure gas pipe)

The test result can be judged good if the pressure has not be reduced after leaving for about one day after completion of nitrogen gas pressurization.
    note right of B: When inserting nitrogen gas of high pressure, it must be used with regulator.

WARNING

Use a vacuum pump or Inert(nitrogen) gas when doing leakage test or air purge. Do not compress air or Oxygen and do not use Flammable gases. Otherwise, it may cause fire or explosion.

- There is the risk of death, injury, fire or explosion.

NOTE

If the ambient temperature differs between the time when pressure is applied and when the pressure drop is checked, apply the following correction factor

There is a pressure change of approximately 0.01Mpa(1.5psi) for each 33.8°F (1°C) of temperature difference.

Correction= (Temp. at the time of pressurization - Temp. at the time of check) X 0.1

For example: Temperature at the time of pressurization

3.8MPa(551psi) is 80.6°F (27°C)

24 hour later: 3.73MPa(541psi), 68°F (20°C)

In this case the pressure drop of 0.07MPa

(10psi) is because of temperature drop

And hence there is no leakage in pipe oc- curred.

CAUTION

To prevent the nitrogen from entering the refrigeration system in the liquid state, the top of the cylinder must be at higher position than the bottom when you pressurize the system.

Usually the cylinder is used in a vertical standing position.

Vacuum Drying

Vacuum drying should be made from the service port provided on the outdoor unit's service valve to the vacuum pump commonly used for liquid pipe, gas pipe and high/low pressure common pipe. (Make Vacuum from liquid pipe, gas pipe and high/low pressure common pipe with the service valve closed.)

* Never perform air purging using refrigerant.
- Vacuum drying: Use a vacuum pump that can evacuate to -100.7kPa (-14.6psi, 5 Torr, -755mmHg).

• Evacuate the system from the liquid and gas pipes with a vacuum pump for over 2 hrs and bring the system to -100.7kPa(-14.6psi). After maintaining system under that condition for over 1 hr, confirm the vacuum gauge rises. The system may contain moisture or leak.
• Following should be executed if there is a possibility of moisture remaining inside the pipe.

(Rainwater may enter the pipe during work in the rainy season or over a long period of time)

After evacuating the system for 2 hrs, give pressure to the system to 0.05MPa(7.3psi) (vacuum break) with nitrogen gas and then evacuate it again with the vacuum pump for 1hr to -100.7kPa(-

14.6psi)(vacuum drying). If the system cannot be evacuated to -100.7kPa(-14.6psi) within 2 hrs, repeat the steps of vacuum break and its drying. Finally, check if the vacuum gauge does not rise or not, after maintaining the system in vacuum for 1 hr.

! WARNING

Use a vacuum pump or Inert(nitrogen) gas when doing leakage test or air purge. Do not compress air or Oxygen and do not use Flammable gases. Otherwise, it may cause fire or explosion.
- There is the risk of death, injury, fire or explosion.

NOTE

Always add an appropriate amount of refrigerant. (For the refrigerant additional charge)

Too much or too little refrigerant will cause trouble.

To use the Vacuum Mode (If the Vacuum mode is set, all valves of Indoor units and Outdoor units will be opened.)

WARNING

When installing and moving the air conditioner to another site, recharge after perfect evacuation.

- If a different refrigerant or air is mixed with the original refrigerant, the refrigerant cycle may malfunction and the unit may be damaged.

Refrigerant charging

Heat Pump System Installation

Ⓐ Manifold Gauge
⑧ Low Pressure Side Handle
© High Pressure Side Handle

Liquid pipe Gas pipe

WARNING

• Pipe to be vacuumed: gas pipe, liquid pipe
• If the refrigerant amount is not exact, it may not operate properly.
• If additionally bottled refrigerant amount is over 10%, condenser burst or insufficient indoor unit performance may be caused.

The amount of Refrigerant

The calculation of the additional charge should take into account the length of pipe and CF(correction Factor) value of indoor unit.

Additional charge(kg)

=

Total liquid pipe : ∅25.4 mm (1.0 inch)

× 0.480 kg/m (0.323 lbs/ft)

+

Total liquid pipe : ∅22.2 mm (7/8 inch)

× 0.354 kg/m (0.238 lbs/ft)

+

Total liquid pipe : ∅19.05 mm (3/4 inch)

× 0.266 kg/m [0.179 lbs/ft]

+

Total liquid pipe : ∅15.88 mm (5/8 inch)

× 0.173 kg/m (0.116 lbs/ft)

+

Total liquid pipe : ∅12.7 mm (1/2 inch)

× 0.118 kg/m (0.079 lbs/ft)

+

Total liquid pipe : ∅9.52 mm (3/8 inch)

× 0.061 kg/m (0.041 lbs/ft)

+

Total liquid pipe : ∅6.35 mm (1/4 inch)

× 0.022 kg/m (0.015 lbs/ft)

CF value of indoor unit

Amount refrigerant of Indoor units

Example) 4Way Ceiling Cassette 14.5kW -1ea, Ceiling concealed

Duct 7.3kW-2ea,

Wall Mounted 2.3kW-4ea

CF = [0.64 kg (1.411 lbs)×1EA] + [0.26 kg (0.573

lbs)×2EA] + [0.26 kg (0.529 lbs)×4EA]

= 2.12 kg (4.67 lbs)

Attach the additional refrigerant table of IDU.

WARNING

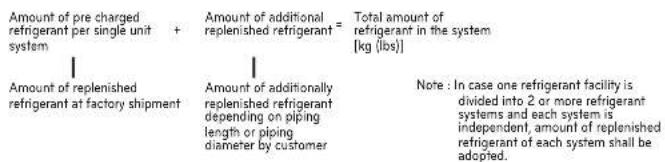

• Regulation for refrigerant leakage

: the amount of refrigerant leakage should satisfy the following equation for human safety.

Total amount of refrigerant in the system

≤0.44 kg/m³

Volume of the room at which Indoor Unit of the least capacity is installed

(0.028 lbs/ft³)

If the above equation can not be satisfied, then follow the following steps.

- Selection of air conditioning system: select one of the next

- Installation of effective opening part

- Reconfirmation of Outdoor Unit capacity and piping length

- Reduction of the amount of refrigerant

- Installation of 2 or more security device (alarm for gas leakage)

- Change Indoor Unit type

: installation position should be over 2 m (6.6 ft) from the floor (Wall mounted type → Cassette type)

- Adoption of ventilation system

: choose ordinary ventilation system or building ventilation system

- Limitation in piping work

: Prepare for earthquake and thermal stress

Thermal insulation of refrigerant piping

Be sure to give insulation work to refrigerant piping by covering liquid pipe and gas pipe separately with enough thickness heat-resistant polyethylene, so that no gap is observed in the joint between indoor unit and insulating material, and insulating materials themselves. When insulation work is insufficient, there is a possibility of condensation drip, etc. Pay special attention to insulation work to ceiling plenum.

Heat insulation material	Adhesive + Heat - resistant poly-ethylene foam + Adhesive tape
Outer covering	Indoor V	nyl tape
	Floor exposed	Water-proof hemp cloth + Bronze asphalt
	Outdoor	Water-proof hemp cloth + Zinc plate + Oily paint

Ⓐ Heat insulation material
⑧ Pipe
© Outer covering(Wind the connection part and cutting part of heat insulation material with a finishing tape.)

NOTE

When using polyethylene cover as covering material, asphalt roofing shall not be required.

Bad example

- Do not insulate gas or low pressure pipe and liquid or high pressure pipe together.

A B F C D E

Ⓐ Liquid pipe
⑧ Gas pipe
© Power lines
(d) Finishing tape
© Insulating material
f Communication lines

- Be sure to fully insulate connecting portion.

Technical diagram showing mechanical assembly with labeled component A and corresponding schematic diagrams

Ⓐ These parts are not insulated.

Good example

D C B D A E

Power lines Communication lines Separation

Ⓐ Liquid pipe
© Gas pipe
© Power lines
(d) Insulating material
© Communication lines

Technical drawing of mechanical components with cross-sectional views (no text or symbols)

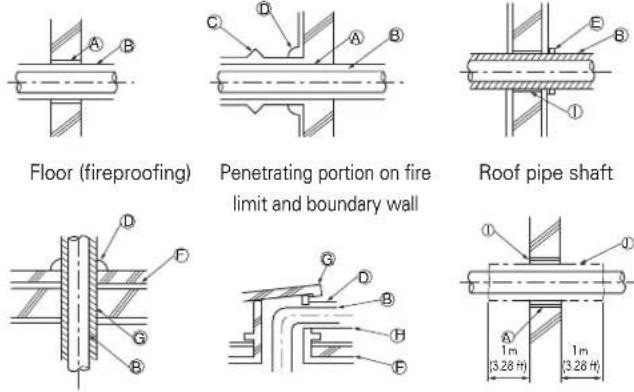

Penetrations

Inner wall (concealed) Outer wall Outer wall (exposed)

Ⓐ Sleeve
⑧ Heat insulating material
© Lagging
⑭ Caulking material
E Band
⑤ Waterproofing layer
© Sleeve with edge
⑧ Lagging material
① Mortar or other incombustible caulking
① Incombustible heat insulation material

When filling a gap with mortar, cover the penetration part with steel plate so that the insulation material will not be caved in. For this part, use incombustible materials for both insulation and covering. (Vinyl covering should not be used.)

ELECTRICAL WIRING

Caution

- Follow ordinance of your governmental organization for technical standard related to electrical equipment, wiring regulations and guidance of each electric power company.

WARNING

Be sure to have authorized electrical engineers do the electric work using special circuits in accordance with regulations and this installation manual.

If power supply circuit has a lack of capacity or electric work deficiency, it may cause an electric shock or fire.

• Install the Outdoor Unit communication cable away from the power source wiring so that it is not affected by electric noise from the power source. (Do not run it through the same conduit.)
• Be sure to provide designated grounding work to Outdoor Unit.

CAUTION

Be sure to correct the outdoor unit to earth. Do not connect ground wire to any gas pipe, liquid pipe, lightening rod or telephone earth line. If earth is incomplete, it may cause an electric shock.

• Give some allowance to wiring for electrical part box of Indoor and Outdoor Units, because the box is sometimes removed at the time of service work.
• Never connect the main power source to terminal block of communication cable. If connected, electrical parts will be burnt out.
• Use the 2-core shielded wires for communication cable.(○ mark in the figure below) If communication cable of different systems are wired with the same multiplecore cable, the resultant poor transmitting and receiving will cause erroneous operations. (⊗ mark in the figure below)
• Only the communication cable specified should be connected to the terminal block for Outdoor Unit communication.

2-core shielded cables

Multi-Core Cable

CAUTION

• Use the 2-core shielded wires for communication cables. Never use them together with power cables.
• The conductive shielding layer of cable should be grounded to the metal part of both units.
• Never use multi-core cable
• As this unit is equipped with an inverter, to install a phase leading capacitor not only will deteriorate power factor improvement effect, but also may cause capacitor abnormal heating. Therefore, never install a phase leading capacitor.
• Make sure that the power unbalance ratio is not greater than 2%. If it is greater the units lifespan will be reduced.

Precautions when laying power wiring

Use round pressure terminals for connections to the power terminal block.

When none are available, follow the instructions below.

• Do not connect wiring of different thicknesses to the power terminal block. (Slack in the power wiring may cause abnormal heat.)
• When connecting cable which is the same thickness, do as shown in the figure below.

Three identical diagrams showing a vehicle inside a container with circular components, no text or symbols present.

• For wiring, use the designated power cable and connect firmly, then secure to prevent outside pressure being exerted on the terminal block.
• Use an appropriate screwdriver for tightening the terminal screws. A screwdriver with a small head will strip the head and make proper tightening impossible.
• Over-tightening the terminal screws may break them.

Control box and connecting position of wiring

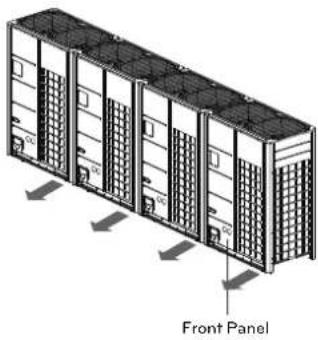

• Remove all of the screws at front panel and remove the panel by pulling it forward.
• Connect communication cable between main and sub outdoor unit through the terminal block.
• Connect communication cables between outdoor unit and indoor units through the terminal block.
• When the central control system is connected to the outdoor unit, a dedicated PCB must be connected between them.
• When connecting communication cable between outdoor unit and indoor units with shielded cable, connect the shield ground to the earth screw.

Isometric diagram of a multi-chamber server rack with front panel and directional arrows indicating movement (no text or symbols)

WARNING

The temperature sensor for outdoor air should not be exposed to direct sunlight.
- Provide an appropriate cover to intercept direct sunlight.

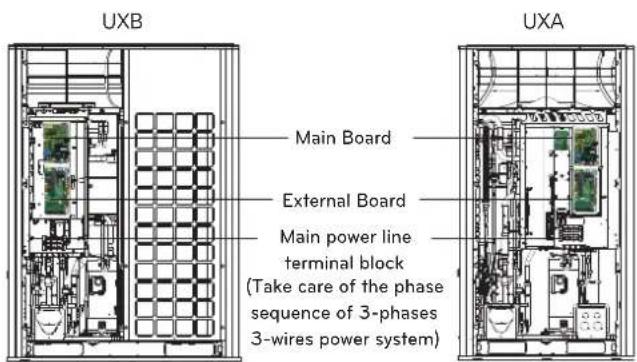

UXB Main Board External Board Main power line terminal block (Take care of the phase sequence of 3-phases 3-wires power system) UXA

Communication and Power Cables

Communication cable

• Types : shielded wires or unshielded wires
• Cross section: 1.0 \~ 1.5 mm ^2 (1.55 × 10 ^-3 \~ 2.32 × 10 ^-3 in ^2 )
• Maximum allowable temperature: 60 °C (140 °F)
• Maximum allowable cable length: under 1 000 m (3 281 ft)

Remote control cable

- Types : 3-core cables

Central control cable

Product type Cable	type Diameter
ACP&AC Manager	2-core wires (shielded)	1.0 ~ 1.5 mm ^2 (1.55 × 10 ^-3 ~ 2.32 × 10 ^-3 in ^2 )
AC Smart	2-core wires (shielded)	1.0 ~ 1.5 mm ^2 (1.55 × 10 ^-3 ~ 2.32 × 10 ^-3 in ^2 )
Simple central controller	4-core wires (shielded)	1.0 ~ 1.5 mm ^2 (1.55 × 10 ^-3 ~ 2.32 × 10 ^-3 in ^2 )
AC Ez	4-core wires (shielded)	1.0 ~ 1.5 mm ^2 (1.55 × 10 ^-3 ~ 2.32 × 10 ^-3 in ^2 )

! CAUTION

In case of using the shielded wires, it should be grounded.

Separation of communication and power cables

- If communication and power cables are installed alongside each other then there is a strong likelihood of operational faults developing due to interference in the signal wiring caused by electrostatic and electromagnetic coupling. The tables below indicate our recommendation as to appropriate spacing of communication and power cables where these are to be run side by side

Current capacity of power cable Spacing
100V or more	10A 300 mm (11-13/16 inch)
	50A 500 mm (19-11/16 inch)
	100A 1 000 mm (39-3/8 inch)
	Exceed 100A 1 500 mm (59-1/16 inch)

NOTE

• The figures are based on assumed length of parallel cabling up to 100 m [328 ft]. For length in excess of 100 m [328 ft] the figures will have to be recalculated in direct proportion to the additional length of cable involved.
• If the power supply waveform continues to exhibit some distortion the recommended spacing in the table should be increased.
• If the cable are laid inside conduits then the following point must also be taken into account when grouping various cable together for introduction into the conduits
• Power cable(including power supply to air conditioner) and communication cables must not be laid inside the same
• In the same way, when grouping the power wires and communication cables should not be bunched together.

! CAUTION

If apparatus is not properly earthed then there is always a risk of electric shock, the grounding of the apparatus must be carried out by a qualified person.

Wiring of main power supply and equipment capacity

• Use a separate power supply for the Outdoor Unit and Indoor Unit.
• Bear in mind ambient conditions (ambient temperature, direct sunlight, rain water, etc.) when proceeding with the wiring and connections.
• The cable size is the minimum value for metal conduit wiring. The power cord size should be 1 rank thicker taking into account the line voltage drops. Make sure the power-supply voltage does not drop more than 10%.
• Specific wiring requirements should adhere to the wiring regulations of the region.
• Power supply cords of parts of appliances for outdoor use should not be lighter than polychloroprene sheathed flexible cord.
• Don't install an individual switch or electrical outlet to disconnect each of indoor unit separately from the power supply.

	The thickness of Minimum wire (mm ^2 [ inch ^2 )			Leakage circuit breaker (4P ELCB)
	Main power wire	Branch wire	Ground wire
1 Unit	2.5~16[3.875 × 10 ^3 ~2.48 × 10 ^2 ]	-	2.5~4[3.875 × 10 ^3 ~6.2 × 10 ^3 ]	Below 20~60 A100 mA 0.1 sec
2 Unit	16~50[2.48 × 10 ^2 ~7.75 × 10 ^2 ]	-	4~10[6.2 × 10 ^3 ~1.55 × 10 ^3 ]	Below 75~150 A100 mA 0.1 sec
3 Unit	50~95[7.75 × 10 ^2 ~1.4725 × 10 ^-1 ]	-	10[1.55 × 10 ^2 ]	Below 150~200 A100 mA 0.1 sec
4 Unit	95~120[1.4725 × 10 ^-1 ~1.86 × 10 ^1 ]	-	10~16[1.55 × 10 ^2 ~2.48 × 10 ^3 ]	Below 200~250 A100 mA 0.1 sec

Ground wire

1 The power wire Between the master outdoor unit and slave1 outdoor unit - minimum : 6 mm ^2 [9.3 × 10 ^-3 inch ^2 ]
2 The power wire Between the slave1 outdoor unit and slave2 outdoor unit - minimum : 4 mm ^2 [6.2 × 10 ^-3 inch ^2 ]
3 The power wire Between the slave2 outdoor unit and slave3 outdoor unit - minimum : 2.5 mm ^2 [3.875 × 10 ^-3 inch ^2 ]
* The above standard is CV wire standard.
* Please use the 3-phases 4-wires quadrupole Leakage circuit breaker of circuit breaker.

WARNING

• Follow ordinance of your governmental organization for technical standard related to electrical equipment, wiring regulations and guidance of each electric power company.
• Make sure to use specified cables for connections so that no external force is imparted to terminal connections. If connections are not fixed firmly, it may cause heating or fire.
• Make sure to use the appropriate type of overcurrent protection switch. Note that generated overcurrent may include some amount of direct current.

CAUTION

• Some installation site may require attachment of an earth leakage breaker. If no earth leakage breaker is installed, it may cause an electric shock.
• Do not use anything other than breaker and fuse with correct capacity. Using fuse and wire or copper wire with too large capacity may cause a malfunction of unit or fire.

Field Wiring

• Outdoor : 220-240 V3\~ 50Hz / 220 V3\~ 60Hz
• Indoor : 220-240 V\~ 50Hz / 220 V\~ 60Hz

Single outdoor unit

WARNING

• Indoor Unit ground wires are required for preventing electrical shock accident during current leakage, Communication disorder by noise effect and motor current leakage (without connection to pipe).
• Don't install an individual switch or electrical outlet to disconnect each of indoor unit separately from the power supply.
  • Install the main switch that can interrupt all the power sources in an integrated manner because this system consists of the equipment utilizing the multiple power sources.
• If there exists the possibility of reversed phase, lose phase, momentary blackout or the power goes on and off while the product is operating, attach a reversed phase protection circuit locally. Running the product in reversed phase may break the compressor and other parts.

Between Indoor and Master Outdoor unit

⊗	⊗	⊗	⊗	⊗	⊗	⊗	⊗	⊗
SODU.B	SODU.A	IDU.B	IDU.A	CEN.B	CEN.A	DRY1	DRYZ	GND
⊗	⊗	⊗	⊗	⊗	⊗	⊗	⊗	⊗

Master Outdoor Unit

1 2 3 4

The GND terminal at the main PCB is a '-' terminal for dry contact, it is not the point to make ground connection.

Series outdoor units

When the power source is connected In series between the units.

! WARNING

When the total capacity is over than 68HP, Do not use single power source for connecting series units.

The First terminal block could be burnt out.

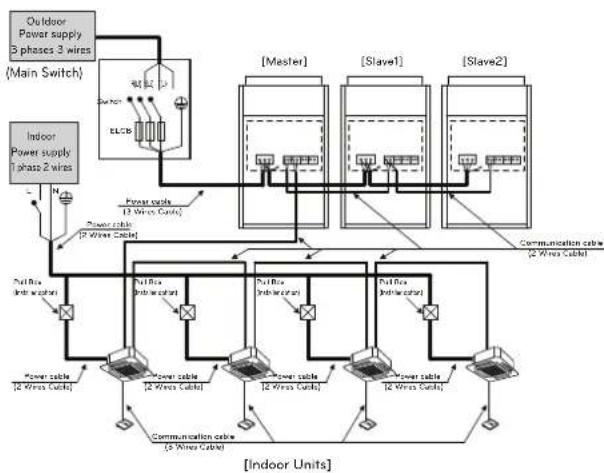

When the power source is supplied to Each outdoor unit individually.

WARNING

• Indoor Unit ground wires are required for preventing electrical shock accident during current leakage, Communication disorder by noise effect and motor current leakage (without connection to pipe).
• Don't install an individual switch or electrical outlet to disconnect each of indoor unit separately from the power supply.
• Install the main switch that can interrupt all the power sources in an integrated manner because this system consists of the equipment utilizing the multiple power sources.
• If there exists the possibility of reversed phase, lose phase, momentary blackout or the power goes on and off while the product is operating, attach a reversed phase protection circuit locally. Running the product in reversed phase may break the compressor and other parts.

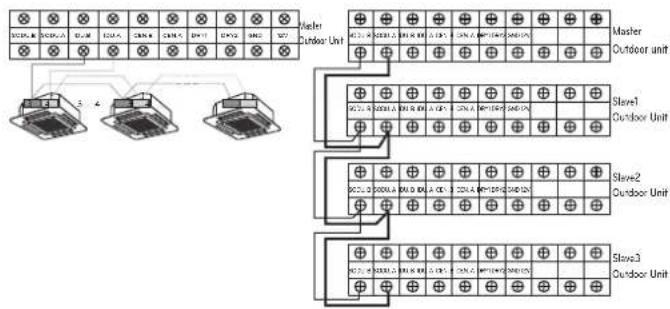

Between Indoor and Master Outdoor unit

The communication cables between indoor unit and master outdoor unit are possible to connect with BUS type or STAR type.

The GND terminal at the main PCB is a '-' terminal for dry contact. It is not the point to make ground connection.

- Make sure that terminal number of master and slave outdoor units are matched.(A-A, B-B)

Example) Connection of communication cable

[BUS type] [STAR type]

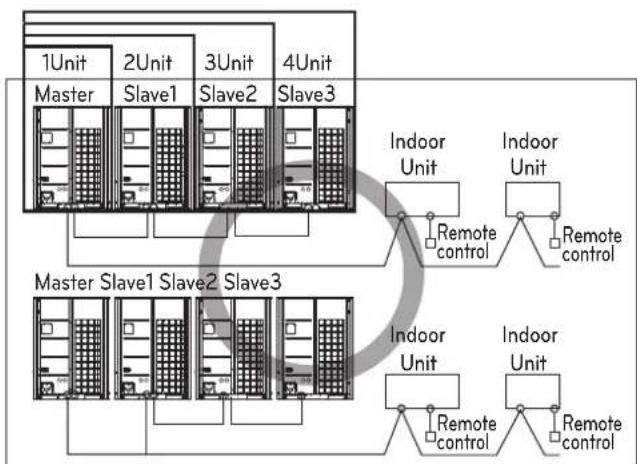

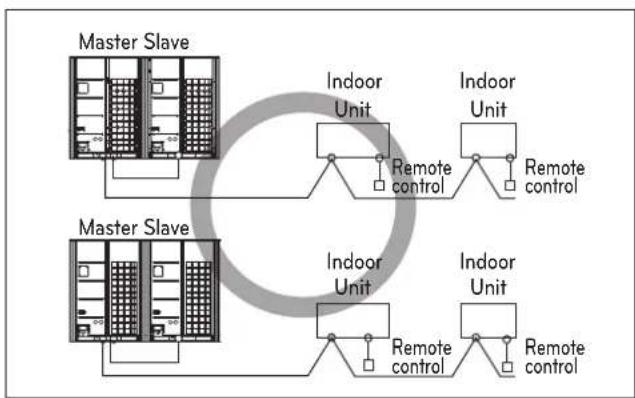

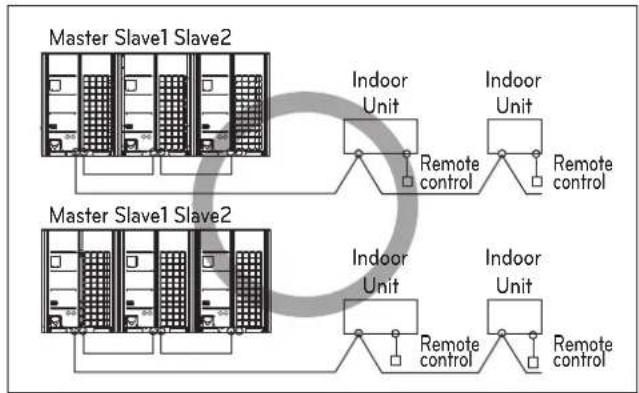

- Connection of communication cable must be installed like below figure between indoor unit to outdoor unit.

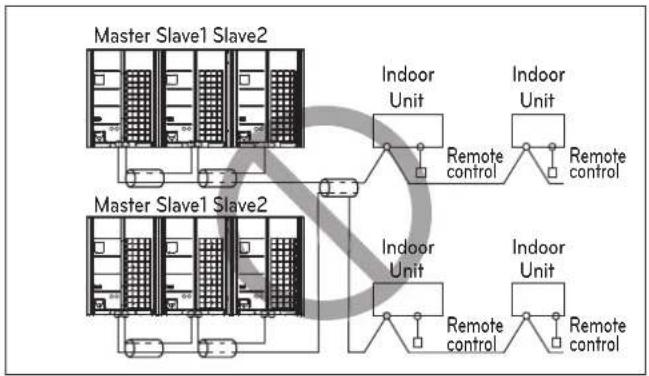

- Abnormal operation can be caused by communication defect, when connection of communication cable is installed like below figure(STAR type).

Example) Connection of power and communication cable (UXA)

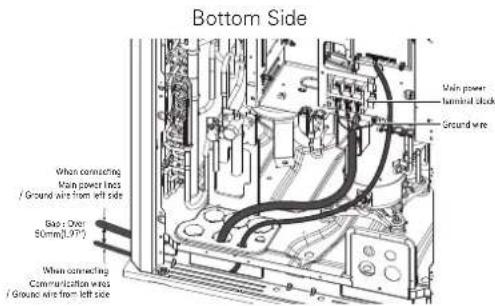

Bottom Side Main power luminated clock Ground wire When connecting Main power Ics / Ground wire from left side Base : Over 50mm(1.97°) When connecting Communication wire / Ground wire from left side

Front Side Main power terminal block Ground wire When connecting Communication wires / Ground wire from front guide panel Gap: Over 50mm(1.97") When connecting Main power lines / Ground wire from front guide panel Fix firmly with cable tie or clamp cord not to be displaced

Main power line connection

Main power terminal block Insulation sleeves sittingments Ground wire

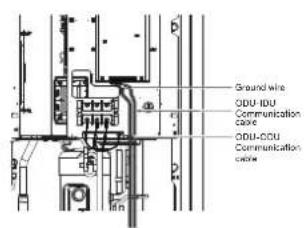

Communication/Ground wire connection

Ground wire ODU-IDU Communication cable ODU-ODU Communication cable

CAUTION

It should be wiring power cables or communication cables to avoid interference with the oil level sensor. Otherwise, That oil level sensor would be operated abnormally.

Example) Connection of power and communication cable (UXB) Bottom Side

Main power terminal block Ground wire When connecting Main power lines / Ground wire from left side Gap Over 50mm(1.97°) When connecting communication wires / Ground wire from left side

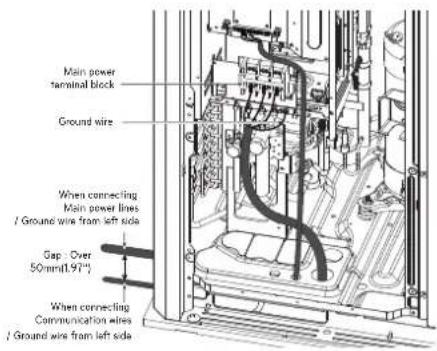

Front Side

Main power terminal block Ground wire When connecting Communication wires / Ground wire from front guide panel Gas : Over 50mm(1.97°) When connecting Main power lines

Fix firmly with cable tie or clamp cord not to be displaced

Main power line
connection

Main power terminal block Insulation sleeves attachments Ground wire

Communication/Ground wire connection

Ground wire ODU-IDU Communication cable ODU-ODU Communication cable

CAUTION

It should be wiring power cables or communication cables to avoid interference with the oil level sensor. Otherwise, That oil level sensor would be operated abnormally.

Checking the setting of outdoor units

Checking according to dip switch setting

- You can check the setting values of the Master outdoor unit from the 7 segment LED.

The dip switch setting should be changed when the power is OFF.

Checking the initial display

The number is sequentially appeared at the 7 segment in 5 seconds after applying the power. This number represents the setting condition.

[Main Board]

Dip switch 7 segment SW01C (Automatic Addressing Setting)

Quick control Setting

In the factory setting, main PCB dip switch setting is all "OFF".

• Check and make sure that all the indoor unit model name are ARNU*****4.
• Change the main PCB Dip switch No. 3 "OFF → ON" like below picture.
• Push the reset button.

7 segmentDip Switch Reset button

ON 1 2 3 4 5 6 7 1 2 3 4 5 6 7 ON 1 2 3 4 5 6 7 1 2 3 4 5 6 7

• Initial display order

Order No Mean
1	10~26 Master unit capacity
2	10~24 Slave 1 unit capacity
3	10~24 Slave 2 unit capacity
4	10~24 Slave 3 unit capacity
5	8~96 Total capacity
6	2 Heat Pump
7	38 380V model
	46 460V model
	22 220V model
8	50 Product type

• Example) ARUN620BTE5

62hp 220V Heat Pump System (Master unit: 18 hp, Slave 1: 16 hp, Slave 2: 14hp, Slave 3: 14hp)

1 2	3 4	5 6	7 8
18 16	14 14	62 2 22	50

Master/Slave dip switch setting

- Master Unit

- Slave Unit

Dip switch setting	ODU Setting	Dip switch setting	ODU Setting
	Factory Setting		Slave 1
			Slave 2
			Slave 3

Automatic Addressing

The address of indoor units would be set by Automatic Addressing

• Wait for 3 minutes after supplying power.
  (Master and Slave outdoor units, indoor units)
• Press RED button of the outdoor units for 5 seconds. (SW01C)
• A "88" is indicated on 7-segment LED of the outdoor unit PCB.
• For completing addressing, 2\~7 minutes are required depending on numbers of connected indoor units
  -Numbers of connected indoor units whose addressing is completed are indicated for 30 seconds on 7-segment LED of the outdoor unit PCB
• After completing addressing, address of each indoor unit is indicated on the wired remote control display window. (CH01, CH02,
  CH03, ....., CH06 : Indicated as numbers of connected indoor units)

Main Board

Dip switch 7 segment SW01C (Automatic Addressing Setting)

The Procedure of Automatic Addressing
    note right of C
        Automatic Addressing process start
        Automatic addressing process end Numbers of indoor unit connected are indicated for 30 seconds on 7-segment LED after completing process
    end
    note right of G
        Indoor address number is displayed on wired remote controller or indoor unit display window. It is not an error message, will disappeared when on/off button is pressed on remote controller ex) Display of 01, 02, ..., 15 means connection of 15 indoor units and Automatic addressing is completed normally.
    end

CAUTION

• In replacement of the indoor unit PCB, always perform Automatic addressing setting again (At that time, please check about using Independent power module to any indoor unit.)
• If power supply is not applied to the indoor unit, operation error occur.
• Automatic Addressing has to be performed after more than 3 minutes to improve indoor unit communition when initial power is supplied.
• Please be sure that all the dip switch (1\~7) of master outdoor unit is OFF before Automatic Addressing setting

Setting the optional function

Select the mode/function/option/value using '▶', '◀' Button and confirm that using the '●' button after dip switch No.5 is turned on.

1 2 3 4 5 6 7

DIP-SW01 7-Segment SW04C (X : cancel) SW03C (● : forward) SW02C (● : backward) SW01C (● : Confirm / Automatic Addressing) SW01D (reset)

Optional Mode Selection		Function Selection Option Selection				Remarks
Content	Display (©)	Content	Display(◄, ►→ ©)	Default	Optional(◄, ►→ ©)
FDD Fdd		Automatic Refrigerant Charging (Cooling)	Fd 1 --			* Refer FDD guidance
		Automatic Refrigerant Charging (Heating)	Fd 2 --
		Refrigerant Amount Check (Cooling)	Fd 3 --
		Refrigerant Amount Check (Heating)	Fd 4 --
		Automatic system check model(cooling or heating)	Fd 7 --
		All IDU operation (Cooling)	Fd 8 --			Compulsory Operation for 1 hour
		All IDU operation (Heating)	Fd 9 --
Installation Func		Cool & Heat Selector	Fn 1 cFF		oFF, oP1~oP2	Saving in EEPROM
		High Static Pressure Compensation mode	Fn 2 cFF		oFF, oP1~oP7
		Night Low Noise mode	Fn 3 cFF		oFF, oP1~oP12
		Overall Defrost mode	Fn 4	North America: oFF Europe: oFF Tropical: oN	on, oFF
		ODU address setting	Fn 5 0 255
		Snow Removal & Rapid Defrost	Fn 6 cFF		oFF, oP1~oP3
		Airflow Adjusting for IDU (Heating capacity up)	Fn 7 cFF	on, oFF
		Target Pressure Adjusting	Fn 8 cFF		oFF, oP1~oP4
		Low Ambient Kit	Fn 9 cFF on, oFF
		High Efficiency Mode (Cooling Operation)	Fn 10 cFF	on, oFF
		Auto Dust Removal Mode	Fn 11 cFF		oFF, oP1~oP5
		Compressor Max. Frequency Limit	Fn 12 cFF		oFF, oP1~oP9
		ODU Fan Max. RPM Limit Mode settling	Fn 13 cFF		oFF, oP1~oP7
		Smart Load Control Mode setting	Fn 14 cFF		oFF, oP1~oP3
		Humidity Reference Mode setting	Fn 16 on on, oFF
		Central Control Connection at Indoor Unit side	Fn 19 cFF	oFF, on
		Compressor Input Current Limit mode	Fn 20 cFF		oFF, oP1~oP10
		Power Consumption Display on wired remote controller	Fn 21 SPL0		SPL0, SPL1 [Pd10~Pd11]
		Overall Defrost Operating in Low temperature (Heating)	Fn 22 cFF	on, oFF
		Optional Base panel Heater	Fn 23 cFF	on, oFF
User Idu		Comfort Cooling Mode setting	Id 10 EAch		* Refer Comfort Cooling guidance	Saving in EEPROM
Service SvC Vaccum Mode SE 3 vACC			-			1time / 1 Selection

* Functions save in EEPROM will be maintained continuously, though the system power was reset.

CAUTION

- To perform the optional function should be sure that All the IDU is off mode, unless the function will not be performed.

Cool & Heat selector

Mode setting method

Function setting

Switch Control		Function
Switch (Up)	Switch (Down)	oFF	op1(mode)	op2(mode)
Right side (On)	Left side (On)	Not operate	Cooling	Cooling
Right side (On)	Right side (On)	Not operate	Heating Heating
Left side (Off)	- Not operate Fan mode Off

Left side | Right side

Switch (Up) Switch (Down)

CAUTION

• Ask an authorized technician to setting a function.
• If do not use a function, set an off-mode.
• If use a function, first install a Cool & Heat selector.

High Static Pressure Compensation mode

This function secures the air flow rate of ODU, in case static pressure has been applied like using duct at fan discharge of ODU.

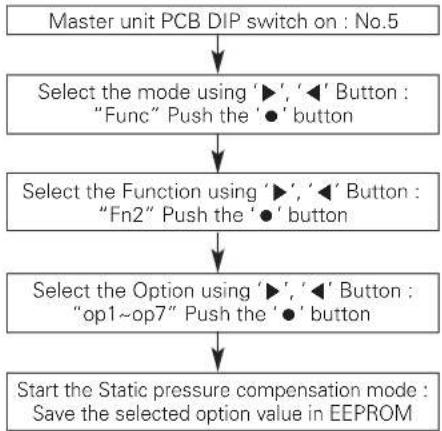

Static pressure compensation mode setting method

FAN Maximum RPM of each step

Chassis UXA UXB
Max. RPM	Standard 880	1000
	Overload / Low Temperature	1000 1150
	op1 860 950
	op2 840 900
	op3 820 850
	op4 800 800
	op5 780 750
	op6 760 700
	op7 740 650

Night Low Noise Function

In cooling mode, this function makes the ODU fan operate at low RPM to reduce the fan noise of ODU at night which has low cooling load.

Night low noise function setting method

Time Settings

Step Judgment	Time(Hr) Operation Time(Hr)
op1 8 9
op2 6.5 10.5
op3 5 12
op4 8 9
op5 6.5 10.5
op6 5 12
op7 8 9
op8 6.5 10
op9 5 12
op10 Continuous operation
op11 Continuous operation
op12 Continuous operation

Noise

Chassis UXA		UXB
Capacity	8~12hp	14~20hp	22~26hp
Step	Noise(dBA)
op1~op3,op10	55	59	60
op4~op6,op11	52	56	57
op7~op9,op12	49	53	55

! CAUTION

• Request installer to set the function during installation.
• If ODU RPM changes, cooling capacity may go down.

Overall defrost mode

Mode setting method

Mode setting

-on: Operate overall defrost
- off: Operate partial defrost

CAUTION

- Ask an authorized technician to setting a function.

Setting the ODU address

Mode setting method

CAUTION

• Ask an authorized technician to setting a function.
• If use a function, first install a Central controller.

Snow removal & rapid defrost

Mode setting method

Mode setting

setting Mode
oFF Not setting
op1 Snow removal mode
op2 Rapid defrost mode
op3 Snow removal mode. + Rapid defrost mode.

CAUTION

• Ask an authorized technician to setting a function.
• If do not use a function, set an off-mode.

Setting Capacity Up Airflow Adjusting for IDU (Heating)

If the operation of indoor unit is more than 130%, the air flow is operated as low in the all indoor units.

Mode setting method

Step Mode

OFF Not setting

ON Low capacity mode

CAUTION

- Ask an authorized technician to setting a function.

Target pressure adjusting

Mode setting method

Setting

Mode	Purpose		Condensing temperature variation	Evaporating temperature variation
	Heat Cool
op1	Increase capacity Increase capacity		+2°C(35.6°F)	-3°C(37.4°F)
op2	Decrease power consumption	Increase capacity	+2°C(35.6°F)	-1.5°C(-34.7°F)
op3	Decrease power consumption	Decrease power consumption	-4°C(-39.2°F)	+2.5°C(36.5°F)
op4	Decrease power consumption	Decrease power consumption	-6°C(-42.8°F)	-4.5°C(-40.1°F)

CAUTION

• Ask an authorized technician to setting a function.
• If do not use a function, set an off-mode.
• Change a power consumption or capacity.

Low Ambient Kit

Mode setting method

* Reference for functional logic of I/O Module

High Efficiency Mode (Cooling Operation)

Target low pressure will change according to ODU temperature during the cooling operation.

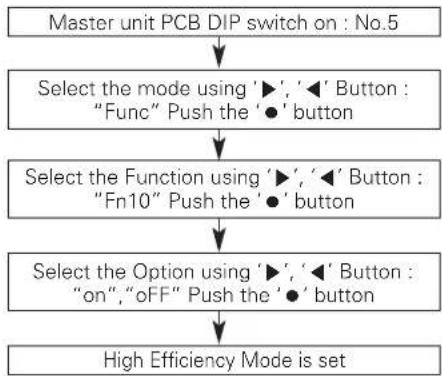

Mode setting method

Auto Dust Removal Mode

The ability to set reverse run outdoor fan to remove dust, heat exchanger.

Mode setting method

Mode Setting

Setting	Operation time	Operating time	Repeat cycle	Detail of function
op1	Stop +2hour	5minutes 2	hour	After product stopped 2 hour, fan operating 5min(Repeated every 2 hours)
op2	stop +5minutes	3minutes	Twice in 2 hour	after product stopped 5 minutes, fan operating 3min (Limited to two times within 2 hours)
op3	stop +5minutes	3minutes 1	time	after product stopped 2 hour, fan operating 5min(Repeated every 2 hours)
op4	Stop +1minutes	1minutes 1	time	after product stopped 5 minutes, fan operating 3min(when is module connection/one-time operation)
op5	Stop +1minutes	1minutes	Low speed	after product stopped 1minutes, fan operating 1min(every time the product stops)

Compressor Max. Frequency Limit

Mode setting method

Function setting

Setting Inverter (Hz)
oFF -
op1 143 Hz
op2 135 Hz
op3 128 Hz
op4 120 Hz
op5 113 Hz
op6 105 Hz
op7 98 Hz
op8 90 Hz
op9 83 Hz

CAUTION

• Ask an authorized technician to setting a function.
• If use a function, first install a Central controller.

ODU Fan Max. RPM Limit

Mode setting method

MAX. RPM Limit Setting

Chassis UXA UXB
Fan MAX. RPM Limit (RPM)	oFF 880 1000
	oP1 -20 -50
	oP2 -40 -100
	oP3 -60 -150
	oP4 -80 -200
	oP5 -100 -250
	oP6 -120 -300
	oP7 -140 -350

SLC (Smart Load Control)

Function for set the variable target pressure which for the high efficiency and comport operation depend on ODU load.

Mode setting method

SLC(Smare Lode Control) Mode

Setting Mode Detail of function
oFF Not Setting -
oP1 Smooth Mode Slowly control, a target pressure value
oP2 Normal Mode Normal control, a target pressure value
oP3 Peak Mode Fast control, a target pressure value

Humidity Reference

Mode setting method

Mode setting

-on:using humidity sensor

- oFF:not setting

- When used cooling operation of SLC function, it will improve energy efficiency because evaporation temperature will be decreased

- When used heating operation in case of high humidity condition, deforest will be delayed because target high/low pressure will be changed.

Central Control Connection at Indoor Unit side

Mode setting method

Compressor Input Current Limit

System Input Current Control

Mode setting method

Compressor Input Current Limit

Mode	Compressor Input Current Limit
op1	95%
op2	90%
op3	85%
op4	80%
op5	75%
op6	70%
op7	65%
op8	60%
op9	55%
op10	50%

CAUTION

• Ask an authorized technician to setting a function.
• If do not use a function, set an off-mode.
• If use a function, capacity may go down.

Power Consumption Display on wired remote controller

Mode setting method

Setting Detail of function

SPL0 Not used Smart plug logic

SPL1 Using smart plug logic

Pd10 Not installation

Pd11 PDI was installed

Overall Defrost Operating in Low temperature (Heating)

Mode setting method

Setting Detail of function
Default OFF
Setting ON/OFF Control

Base pan Heater operation

CAUTION

• Function to prevent freezing of ODU base pan in a cold area.
- Heater is accesory.(Sold separately)

Comfort Cooling operation

It is function to reduce the ODU energy consumption by the continuous operation without thermo off.

Mode setting method

Setting of continuous cooling operation

Mode setting Effect

0 No setting

1 Cooling capacity low,Power consumption low

2 Cooling capacity mid,Power consumption mid

3 Cooling capacity high,Power consumption high

Self-Diagnosis Function

Error Indicator

• This function indicates types of failure in self-diagnosis and occurrence of failure for air condition.
• Error mark is displayed on display window of indoor units and wired remote controller, and 7-segment LED of outdoor unit control board as shown in the table.
• If more than two troubles occur simultaneously, lower number of error code is first displayed.
• After error occurrence, if error is released, error LED is also released simultaneously.

Error Display

1st,2nd,3rd LED of 7-segment indicates error number, 4th LED indicates unit number. (^* = 1 : Master, 2: Slave 1, 3: Slave 2, 4: Slave 3)

Ex) 1051 : Error occurrence with error number 105 at No. 1 outdoor unit (=Master unit) In case of indoor unit error occurrence, the error number is only shown at remote controller without 7 segment LED of outdoor unit.

Ex) CH → 01 : Error occurrence with error number 01 (at remote controller) In case of compressor error occurrence, 7 segment LED of outdoor unit control board will display its error number alternately with compressor number.

Ex) 213 → C23 : It means that compressor error occurred with Error No. 21 at No. 3 Outdoor unit (=Slave2)

* Refer to the DX-Venitilation manual for DX-Venitilation error code.

Display Title Cause of Error
Indoor unit related errorOutdoor unit related error	0	1	-	Air temperature sensor of indoor unit	Air temperature sensor of indoor unit is open or short
	0	2	-	Inlet pipe temperature sensor of indoor unit	Inlet pipe temperature sensor of indoor unit is open or short
	0 3	-		Communication error : wired remote controller ↔ indoor unit	Failing to receive wired remote controller signal in indoor unit PCB
	0 4	- Drain pump Malfunction of drain pump
	0 5	-		Communication error : outdoor unit <> indoor unit	Failing to receive outdoor unit signal in indoor unit PCB
	0	6	-	Outlet pipe temperature sensor of indoor unit	Outlet pipe temperature sensor of indoor unit is open or short
	0	8	-	Hydro Kit Hot water storage tank Temperature sensor	Pipe temperature sensor is open or short
	0 9	- Indoor EEPROM Error			In case when the serial number marked on EEPROM of Indoor unit is 0 or FFFFFFF
	1 0	- Poor fan motor operation			Disconnecting the fan motor connector / Failure of indoor fan motor lock
	1 1	-		Communication error : Hydro Kit Indoor unit <> Inv.PCB	Failing to receive Inv. PCB signal in indoor unit
	1 2	- Hydro Kit Inv.PCB error Hydro Kit Inv.PCB error
	1	3	-	Hydro Kit Solar heat piping temperature sensor error	Pipe temperature sensor is open or short
	1 4	- Hydro Kit Indoor unit Flow switch error Flow switch flow detection error
	1	5	-	Hydro Kit Liquid pipe Strange overheat Error	Temperature sensor defective or hot water inflow
	1	6	-	Hydro KitIndoor unit Inlet and Outlet pipe Temperature sensor Error	Pipe temperature sensor is open or short
	1	7	-	Hydro Kit Indoor unit Inlet pipe Temperature sensor ErrorOutside air Introduction duct Inlet pipe Temperature sensor Error	Pipe temperature sensor is open or short
	1	8	-	Hydro Kit Indoor unit Outlet pipe Temperature sensor Error	Pipe temperature sensor is open or short
	2 1	*		Outdoor Unit Inverter Compressor IPM Fault	Outdoor Unit Inverter Compressor Drive IPM Fault
	2 2	*		Inverter PCB Input Over Current(RMS) of Master Outdoor Unit	Outdoor Unit Inverter PCB Input Current excess (RMS)
	2 3	*		Outdoor Unit Inverter Compressor DC Link Low or High Voltage	System is turned off by Master Outdoor Unit DC Link Low/High Voltage.
	2 4	* Outdoor Unit High Pressure Switch			System is turned off by Master Outdoor Unit high pressure switch.
	2 5	*		Outdoor Unit Input Voltage High/ Low Voltage	Over 537V or below 247V (ARUM***LTE5)Over 310V or below 143V (ARUM***BTE5)Over 598V or below 320V (ARUM***DTE5)

• 1: Master outdoor unit error, 2: salve 1 outdoor unit error
• 3: slave2 outdoor unit error, 4: slave3 outdoor unit error

Display Title Cause of Error
Outdoor unit related error	2 6	* Outdoor		Unit Inverter Compressor Start Failure	The first start failure by Outdoor Unit Inverter Compressor abnormality or Compressor locked
	2	9	*	Outdoor Unit Inverter Compressor Over Current	Outdoor Unit Inverter Compressor Fault OR Drive Fault
	3 2	*		Outdoor Unit Inverter Compressor1 High Discharge Temperature	Outdoor Unit Inverter Compressor1 High Discharge Temperature
	3 3	*		Outdoor Unit Inverter Compressor2 High Discharge Temperature	Outdoor Unit Inverter Compressor2 High Discharge Temperature
	3 4	* High Pressure of Outdoor Unit High Pressure of Outdoor Unit
	3 5	* Low Pressure of Outdoor Unit Low Pressure of Outdoor Unit
	4 0	* Outdoor		Unit Inverter Compressor CT Sensor Fault Outdoor Unit	Unit Inverter Compressor CT Sensor open or short
	4 1	*		Outdoor Unit Inverter Compressor1 Discharge Temperature Sensor Fault	Outdoor Unit Inverter Compressor Discharge Temperature Sensor open or short
	4 2	* Outdoor		Unit Low Pressure Sensor Fault Outdoor Unit Low Pressure Sensor open or short
	4 3	* Outdoor		Unit High Pressure Sensor Fault Outdoor Unit High Pressure Sensor open or short
	4	4	*	Outdoor Unit Air Temperature Sensor Fault	Outdoor Unit Air Temperature Sensor open or short
	4 5	*		Outdoor Unit Heat Exchanger Temperature Sensor (Front side) Fault	Outdoor Unit Heat Exchanger Temperature Sensor(Front side) open or short
	4	6	*	Outdoor Unit Suction Temperature Sensor Fault	Outdoor Unit Suction Temperature Sensor open or short
	4 7	*		Outdoor Unit Inverter Compressor2 Discharge Temperature Sensor Fault	Outdoor Unit Inverter Compressor2 Discharge Temperature Sensor open or short
	4 9	* Outdoor		Unit Faulty IPM Temperature Sensor Outdoor Unit IPM Temperature Sensor short/open
	5	0	*	Omitting connection of R, S, T power of Outdoor Unit	Omitting connection of outdoor unit
	5 1	* Excessive capacity of indoor units			Excessive connection of indoor units compared to capacity of Outdoor Unit
	5	2	*	Communication error: inverter PCB → Main PCB	Failing to receive inverter signal at main PCB of Outdoor Unit
	5	3	*	Communication error: indoor unit → Main PCB of Outdoor Unit	Failing to receive indoor unit signal at main PCB of Outdoor Unit.
	5	7	*	Communication error: Main PCB → inverter PCB	Failing to receive signal main PCB at inverter PCB of Outdoor Unit
	6 0	* Inverter		PCB EEPROM Error of Master Outdoor Unit Access Error of Inverter PCB of Outdoor Unit
	6 2	* Outdoor		Unit Inverter Heatsink High Temperature	System is turned off by Outdoor Unit Inverter Heatsink High Temperature
	6	5	*	Outdoor Unit Inverter Heatsink Temperature Sensor Fault	Outdoor Unit Inverter Heatsink Temperature Sensor open or short
	6 7	* Outdoor		Unit Fan Lock Restriction of Outdoor Unit
	7 1	* Inverter		CT Sensor Error of Master Outdoor Unit Inverter CT Sensor open or short of Outdoor Unit
	7 5	* Outdoor		Unit Fan CT Sensor Error Outdoor Unit Fan CT Sensor open or short
	7 7	* Outdoor		Unit Fan Over Current Error Outdoor Unit Fan Current is over 6A
	7 9	* Outdoor		Unit Fan Start Failure Error	The first start failure by Outdoor Unit Fan abnormality or Fan locked
	8 6	* Outdoor		Unit Main PCB EEPROM Error	Communication Fail Between Outdoor Unit Main MICOM and EEPROM or omitting EEPROM
	8 7	* Outdoor		Unit Fan PCB EEPROM Error	Communication Fail Between Outdoor Unit Fan MICOM and EEPROM or omitting EEPROM
	1	0	4	*	Communication Error Between Outdoor Unit and Other Outdoor Unit	Failing to receive Slave Unit signal at main PCB of Outdoor Unit
	1	0	5	*	Outdoor Unit Fan PCB Communication Error	Failing to receive fan signal at main PCB of Outdoor unit
	1	0	6	*	Outdoor Unit Fan IPM Fault Error	Instant Over Current at Outdoor Unit Fan IPM
Display Title Cause of Error
Outdoor unit related error	1	0	7	*	Outdoor Unit Fan DC Link Low Voltage Error
	1	1	3	*	Outdoor Unit Liquid pipe Temperature Sensor Error
	1	4	*		Outdoor Unit Subcooling Inlet Temperature Sensor Error
	1	1	5	*	Outdoor Unit Subcooling Outlet Temperature Sensor Error
	1	6	* Outdoor	Unit Oil Level Sensor Error Oil Level Sensor of Outdoor	Outdoor Unit is open or short
	1	4	5	*	Outdoor unit Main Board - External Board communication Error
	1	5	0	* Outdoor	Unit Discharge Superheat not satisfied
	1	5	1	*	Failure of operation mode conversion at Outdoor Unit
	1	5	3	*	Outdoor Unit Heat Exchanger Temperature Sensor (upper part) Fault
	1	5	4	*	Outdoor Unit Heat Exchanger Temperature Sensor (lower part) Fault
	1	8	2	*	Outdoor unit External Board Main-Sub Micom communication Error
	1	8	7	* Hydro - Kit P,HEX bursting error	Inlet water temperature is below 5 degree or water temperature error during defrosting operation.
	1	9	3	* Outdoor	Unit Fan Heatsink High Temperature
	1	9	4	*	Outdoor Unit Fan Heatsink Temperature Sensor Fault
Network error	2	4	2	* Network	error of cntral controller Communication wiring defect

CAUTION FOR REFRIGERANT LEAK

The installer and system specialist shall secure safety against leakage according to local regulations or standards.

The following standards may be applicable if local regulations are not available.

Introduction

Though the R410A refrigerant is harmless and incombustible itself, the room to equip the air conditioner should be large to such an extent that the refrigerant gas will not exceed the Concentration limit even if the refrigerant gas leaks in the room.

Concentration limit

Concentration limit is the limit of Freon gas concentration where immediate measures can be taken without hurting human body when refrigerant leaks in the air. The Concentration limit shall be described in the unit of [kg/m^3 (lbs/ft ^3 )] (Freon gas weight per unit air volume) for facilitating calculation.

Concentration limit: 0.44 kg/m ^3 (0.028 lbs/ft ^3 ) (R410A)

Checking procedure of limiting concentration

Check Concentration limit along following steps and take appropriate measure depending on the situation.

Calculate amount of all the replenished refrigerant [kg (lbs)] per each refrigerant system.

Amount of pre charged refrigerant per single unit + Amount of additional replenished refrigerant = Total amount of refrigerant in the system system | | [kg (lbs)] Amount of replenished refrigerant at factory shipment | Amount of additionally replenished refrigerant depending on piping length or piping diameter by customer Note : In case one refrigerant facility is divided into 2 or more refrigerant systems and each system is independent, amount of replenished refrigerant of each system shall be adopted.

Calculate refrigerant concentration level

Calculate the volume of the room where indoor unit is installed as single room or the smallest room.

- Without partition

- With partition but opened which serve passage of air to adjoining room

Outdoor unit Indoor unit Outdoor unit Indoor unit Opening Partition In the case of opening without door, or 0.15 % or more openings (to floor space) both above and below door)

- With partition and without opening which serve as passage of air to adjoining room

Calculate refrigerant concentration

$$ \frac {\text { Total amount of refrigerant system } [ \mathrm{kg} (\mathrm{lbs}) ]}{\text { Volume of smallest room where indoor unit is installed } [ \mathrm{m} ^ {3} (\mathrm{ft} ^ {2}) ]} = \frac {\text { Maximum concentration limit }}{[ \mathrm{kg} / \mathrm{m} ^ {3} (\mathrm{lbs} / \mathrm{ft} ^ {3}) ]} \tag {R410A} $$

- In case the result of calculation exceeds the Concentration limit, perform the same calculations by shifting to the second smallest, and the third smallest rooms until at last the result is below the Concentration limit.

In case the concentration exceeds the limit

When the concentration exceeds the limit, change original plan or take one of the countermeasures shown below:

- Countermeasure 1

Provide opening for ventilation. Provide 0.15% or More size of opening to floor space both above and below door, or provide opening without door.

- Countermeasure 2

Provide gas leak alarm linked with mechanical ventilator.

- Countermeasure 3

Reducing the system's refrigerant quantity by deviding into smaller separate system.

Pay a special attention to the place, such as a basement, etc. where refrigerant can stay, since refrigerant is heavier than air.

INSTALLATION GUIDE AT THE SEASIDE

CAUTION

• Air conditioners should not be installed in areas where corrosive gases, such as acid or alkaline gas, are produced.
- Avoid installing the product where it could be exposed to sea wind (salty wind) directly. It can result corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause product malfunction or inefficient operation.
- If outdoor unit is installed close to the seaside, should avoid direct exposure to the sea wind.

Selecting the location(Outdoor Unit)

If the outdoor unit is to be installed close to the seaside, direct exposure to the sea wind should be avoided. Install the outdoor unit on the opposite side of the sea wind direction.

Sea wind Sea wind

In case, to install the outdoor unit on the seaside, set up a windbreak not to be exposed to the sea wind.

Windbreak Sea wind

• It should be strong enough like concrete to prevent the sea wind from the sea.
• The height and width should be more than 150% of the outdoor unit.
• It should be kept more than 70 cm (2.3 ft) of distance between outdoor unit and the windbreak for smooth air flow.

Select a well-drained place.

- Periodic (1 times per 6 month) cleaning of the dust or salt particles stuck on the heat exchanger is necessary by using clean water

If there is improper installation or maintenance not complying with the installation guide, product's performance and reliability is not guaranteed.

Model Designation

Product information

• Product Name : Air conditioner
- Model Name :

Product Sales Name Model Factory Name

ARUx***yTE5 series

x = N (Heat Pump), V (Cooling Only), M (Heat Recovery / Heat Pump)

y = B (220-240V),D (460V)

*** = Numeric; (Cooling capacity)

• Additional information : Serial number is refer to the bar code on the product.

Airborne Noise Emission

The A-weighted sound pressure emitted by this product is below 70 dB.

** The noise level can vary depending on the site.

The figures quoted are emission level and are not necessarily safe working levels.

Whilst there is a correlation between the emission and exposure levels, this cannot be used reliably to determine whether or not further precautions are required.

Factor that influence the actual level of exposure of the workforce include the characteristics of the work room and the other sources of noise, i.e. the number of equipment and other adjacent processes and the length of time for which an operator exposed to the noise. Also, the permissible exposure level can vary from country to country.

This information, however, will enable the user of the equipment to make a better evaluation of the hazard and risk.

LG Life's Good
