USER MANUAL LS-C076ZRC0 LG

Room Air Conditioner OWNER'S MANUAL

• Please read carefully and thoroughly this manual before operating this unit.
• Contact the authorized SVC man for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
  • The appliance is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the appliance.

MODELS: LS-C07 Series

LS-H07_Series

LS-C09 Series

LS-H09_Series

LS-C12_Series

LS-H12_Series

AS-C07_Series

AS-H07_Series

AS-C09_Series

AS-H09_Series

AS-C12 Series

ies

C07L_Sears

C07A_S

C09L_Ses

C09A_

C12L series

C12 Series

Safety Construction Preparation before Are not able to prepare

Safety precautions

To prevent injury and property damage, follow these instructions.

Incorrect operation due to ignoring instructions will cause harm or damage, the seriousness of which is indicated by the following symbols.

WARNING

This symbol shows the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage to property.

■ The following items are classified by these symblos.

	Never Do This
	Always Do This

WARNING

- Otherwise, it will cause electric shock or fire due to heat generation or electric shock.

- It will cause electric shock or fire due to heat generation.

- It will cause electric shock or fire. - In the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. (Y Attachment)

- It will cause electric shock or fire due to heat generation.

• It may cause electric shock.

• This could damage your health.

- No grounding may cause electric shock.

- It may cause failure of machine or electric shock.

- No installation may cause fire and electric shock accident.

Scanned text fragment with partially visible Chinese characters, likely from a document or sign

• It may cause fire and electric shock accident.

Use the socket is lot on a single

• It may cause fire and electric shock.

Open the entrance during the day

• It may cause electric shock.

Abstract grayscale image with circular shapes and faint text, no discernible symbols or structured content.

- It may cause fire.

How, I have the power can close to the heave line.

• It may cause fire and electric shock.

WALO, E. 1000 have the power cord next thermable air (25) 1000-1000

• It may cause an explosion or fire.

WARNING

1. Continue before operating in conditioner out of the does out.

• It may cause explosion, fire and, burn.

① Plant disassemble or facility products ② Plant disassemble or facility products

• It may cause failure and electric shock.

CAUTION

① touch the metal parts

• They are sharp and may cause injury.

Cropped image showing partial text with visible Chinese characters, likely from a document or sign.

• Water may enter the unit and degrade the insulation. It may cause an electric shock.

a mobile well when used

• An oxygen shortage may occur

cleaning the unit, in secure the and the unit.

• Since the fan rotates at high speed during operation, it may cause injury.

Scanned text fragment with partial OCR artifacts and a circular logo, likely from a document or sign.

• This could injure the pet or plant.

Use appliance for special (1) 2015.06.07

• It may cause damage of animals or vegetables or loss of property.

Operation and close

• Operation with windows opened may cause wetting of indoor and soaking of household furniture.

① plug by the head of Sui

• It may cause electric shock and damage.

Scanned text fragment showing partial Chinese characters and a faint background image with indistinct shapes.

• It may cause failure of product or fire.

Cropped grayscale image showing partial text and circular patterns, possibly from a document or sign.

• It may cause failure of appliance or accident.

Scanned text fragment mentioning installation console and software interface

• If leaving appliance damaged, there is concern of damage due to the falling of product.

Scanned text fragment showing partial Chinese characters and numbers, likely from a document or form.

• Operation without filters may cause failure.

A large use of strong adiement

• Appearance may be deteriorated due to change of product color or scratching of its surface.

①. 1987. 12:30 (1) 1987. 12:30 (2) 1987. 12:30 (3) 1987. 12:30 (4) 1987. 12:30 (5) 1987. 12:30 (6) 1987. 12:30 (7) 1987. 12:30 (8) 1987. 12:30 (9) 1987. 12:30 (10) 1987. 12:30 (11) 1987. 12:30 (12) 1987. 12:30 (13) 1987. 12:30 (14) 1987. 12:30 (15) 1987. 12:30 (16) 1987. 12:30 (17) 1987. 12:30 (18) 1987. 12:30 (19) 1987. 12:30 (20) 1987. 12:30 (21) 1987. 12:30 (22) 1987. 12:30 (23) 1987. 12:30 (24) 1987. 12:30 (25) 1987. 12:30 (26) 1987. 12:30 (27) 1987. 12:30 (28) 1987. 12:30 (29) 1987. 12:30 (30) 1987. 12:30 (31) 1987. 12:30 (32) 1987. 12:30 (33) 1987. 12:30 (34) 1987. 12:30 (35) 1987. 12:30 (36) 1987. 12:30 (37) 1987. 12:30 (38) 1987. 12:30 (39) 1987. 12:30 (40) 1987. 12:30 (41) 1987. 12:30 (42) 1987. 12:30 (43) 1987. 12:30 (44) 1987. 12:30 (45) 1987. 12:30 (46) 1987. 12:30 (47) 1987. 12:30 (48) 1987. 12:30 (49) 1987. 12:30 (50) 1987. 12:30 (51) 1987. 12:30 (52) 1987. 12:30 (53) 1987. 12:30 (54) 1987. 12:30 (55) 1987. 12:30 (56) 1987. 12:30 (57) 1987. 12:30 (58) 1987. 12:30 (59) 1987. 12:30 (60) 1987. 12:30 (61) 1987. 12:30 (62) 1987. 12:30 (63) 1987. 12:30 (64) 1987. 12:30 (65) 1987. 12:30 (66) 1987. 12:30 (67) 1987. 12:30 (68) 1987. 12:30 (69) 1987. 12:30 (70) 1987. 12:30 (71) 1987. 12:30 (72) 1987. 12:30 (73) 1987. 12:30 (74) 1987. 12:30 (75) 1987. 12:30 (76) 1987. 12:30 (77) 1987. 12:30 (78) 1987. 12:30 (79) 1987. 12:30 (80) 1987. 12:30 (81) 1987. 12:30 (82) 1987. 12:30 (83) 1987. 12:30 (84) 1987. 12:30 (85) 1987. 12:30 (86) 1987. 12:30 (87) 1987. 12:30 (88) 1987. 12:30 (89) 1987. 12:30 (90) 1987. 12:30 (91) 1987. 12:30 (92) 1987. 12:30 (93) 1987. 12:30 (94) 1987. 12:30 (95) 1987. 12:30 (96) 1987. 12:30 (97) 1987. 12:30 (98) 1987. 12:30 (99) 1987. 12:30

• There is danger of fire or electric shock.

Drain of drain water drained

• It contains contaminants and will make you sick.

If the caution when unpackaging and installing. and it's could cause in the work.

• In order enters the product from the power • Main body of the main body of the main body • Main body of the main body of the main body

Preparation before operation

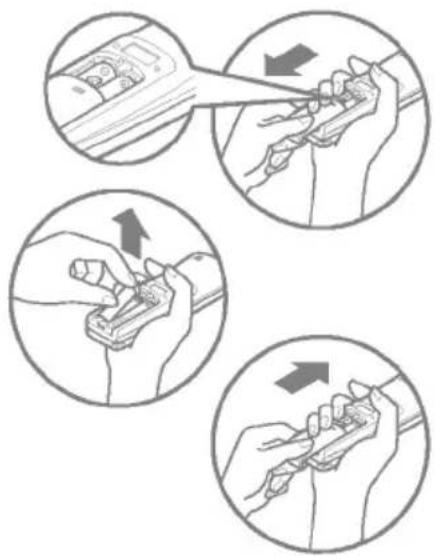

How to Insert the Batteries

Remove the battery cover by pulling it according to the arrow direction.
2 Insert new batteries making sure that the (+) and (-) of battery are installed correctly.
Reattach the cover by sliding it back into position.

NOTES:

- Use 2 AAA(1.5volt) batteries. Do not use rechargeable batteries

Illustration showing three-step hand tool application steps with arrows indicating direction of movement

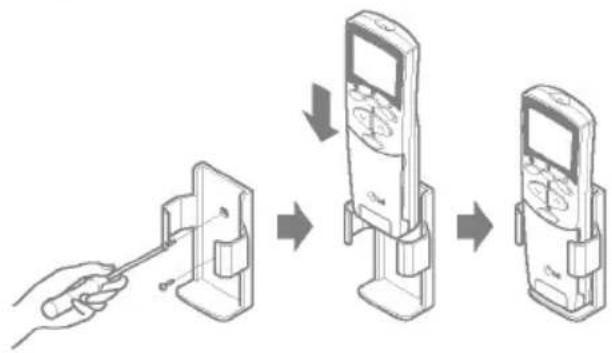

Storage and Tips For Using the Remote Control

- The remote control may be stored by mounting it on a wall.

• To operate the room air conditioner, aim the remote control at the signal receptor.

Illustration of a medical screwdriver inserted into a rectangular device (no text or symbols)

Signal Receptor

Each Icon turns on when the unit is operated, then the only Icon outline to be operated is bright.

Simple diagram showing a rectangular block with a shaded rectangle inside, connected by an arrow to a solid gray rectangle (no text or symbols)

Cooling Mode

Lights up during Cooling operation. (Outline)

Auto Operation Mode

Lights up during Auto operation. (Outline)

Healthy Dehumidification Mode

Lights up during Healthy Dehumidification operation. (Outline)

Heating Mode

Lights up during Heating operation. (Heat Pump model only) (Outline)

Defrost Mode

Lights up during Defrost control or Hot Start in Heating operation. (Outline)

Air circulation Mode

Lights up during Air Circulation operation. (Outline)

Sleep Mode

Lights up during Sleep Mode operation.

Timer Mode

Lights up during Timer operation.

Auto Cleaning Mode

Lights up during Auto Cleaning reservation.

JET COOL

Jet Cool Mode

Lights up during Jet Cool Operation.

PLASMA

Plasma

Lights up during Plasma operation.

Fan Speed (Low)

Lights up when Fan speed is low.

Fan Speed (Medium)

Lights up when Fan speed is Medium.

Fan Speed (High)

Lights up when Fan speed is High.

Fan Speed (Chaos)

Lights up when Fan speed is Chaos.

Desire temperature

indicator

• Cooling : 18\~30°C
• Dehumidification : 18\~30°C
• Heating : 16\~30°C

• AI : Auto Operation
- Po : Jet Cool
- Lo : Test Mode

• C1 : Indoor pipe sensor error

Desire temperature Icon

Indoor temperature icon

About the remote control on the system

The remote control transmits the signals to the system.

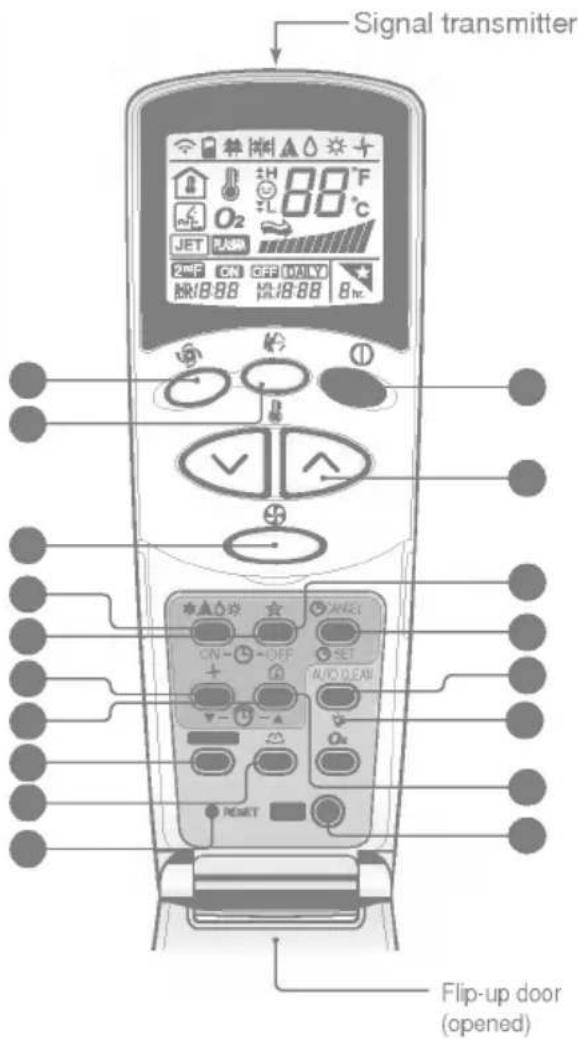

Features of the Remote Control- Door Opened

Signal transmitter Flip-up door (opened)

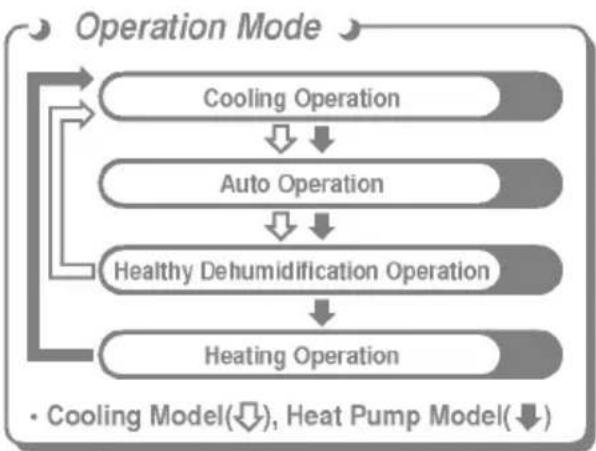


START/STOP BUTTON
Operation starts when this button is pressed and stops when the button is pressed again.
OPERATION MODE SELECTION BUTTON
Used to select the operation mode.
ROOM TEMPERATURE SETTING BUTTONS
Used to select the room temperature.

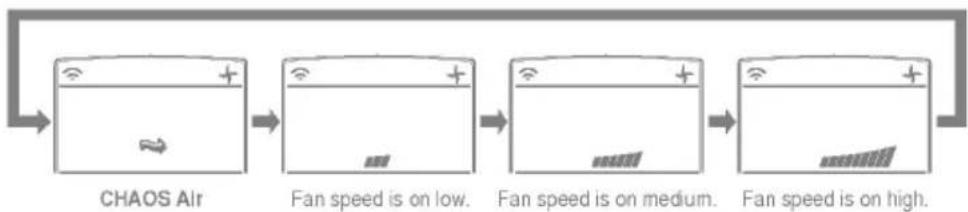

INDOOR FAN SPEED SELECTOR
Used to select fan speed in four steps low, medium, high and CHAOS.
JET COOL
Used to start or stop the speed cooling. (Speed cooling operates super high fan speed in cooling mode.)
CHAOS SWING BUTTON
Used to stop or start louver movement and set the desired up/down airflow direction.
ON/OFF TIMER BUTTONS
Used to set the time of starting and stopping operation. (See page 14)
TIME SETTING BUTTONS
Used to adjust the time. (See page 14)
TIMER SET/CANCEL BUTTON
Used to set the timer when the desired time is obtained and to cancel the Timer operation. (See page 14)
SLEEP MODE AUTO BUTTON
Used to set Sleep Mode Auto operation. (See page 14)
AIR CIRCULATION BUTTON
Used to circulate the room air without cooling or heating. (See page 15)
ROOM TEMPERATURE CHECKING BUTTON
Used to check the room temperature.
PLASMA(OPTIONAL)
Used to start or stop the plasma-purification function. (See page 12)
HORIZONTAL AIRFLOW DIRECTION
CONTROL BUTTON (NOT ON ALL MODELS)
Used to set the desired horizontal airflow direction. (See page 15)
RESET BUTTON
Used prior to resetting time or after replacing batteries.

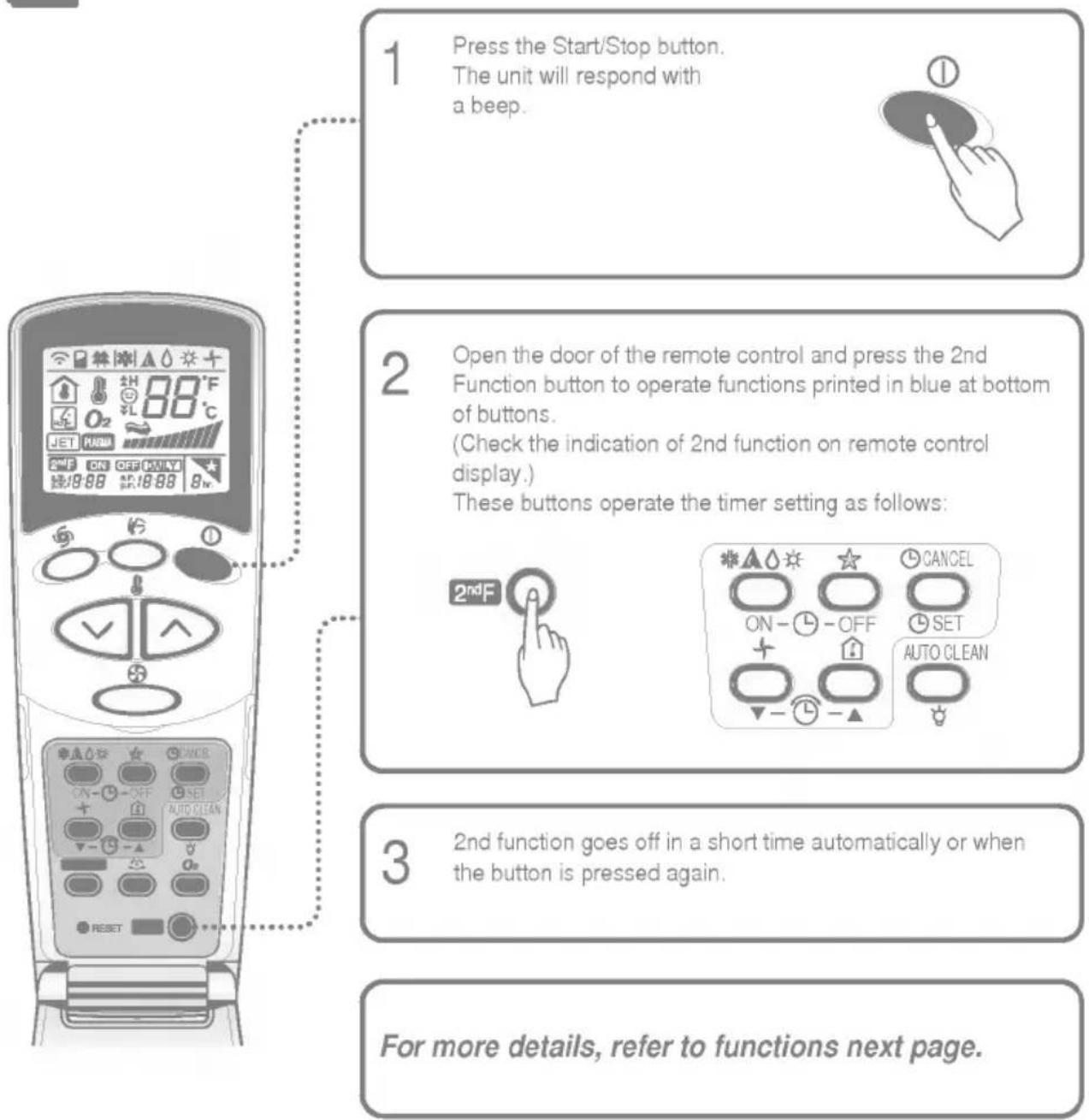

2nd F Button
Used prior to using modes printed in blue at the bottom of buttons. (See page 13)
AUTO CLEAN
Used to set Auto Clean mode.
LED LUMINOSITY
Used to adjust LED luminosity.

How to use the Operation Mode Selection button

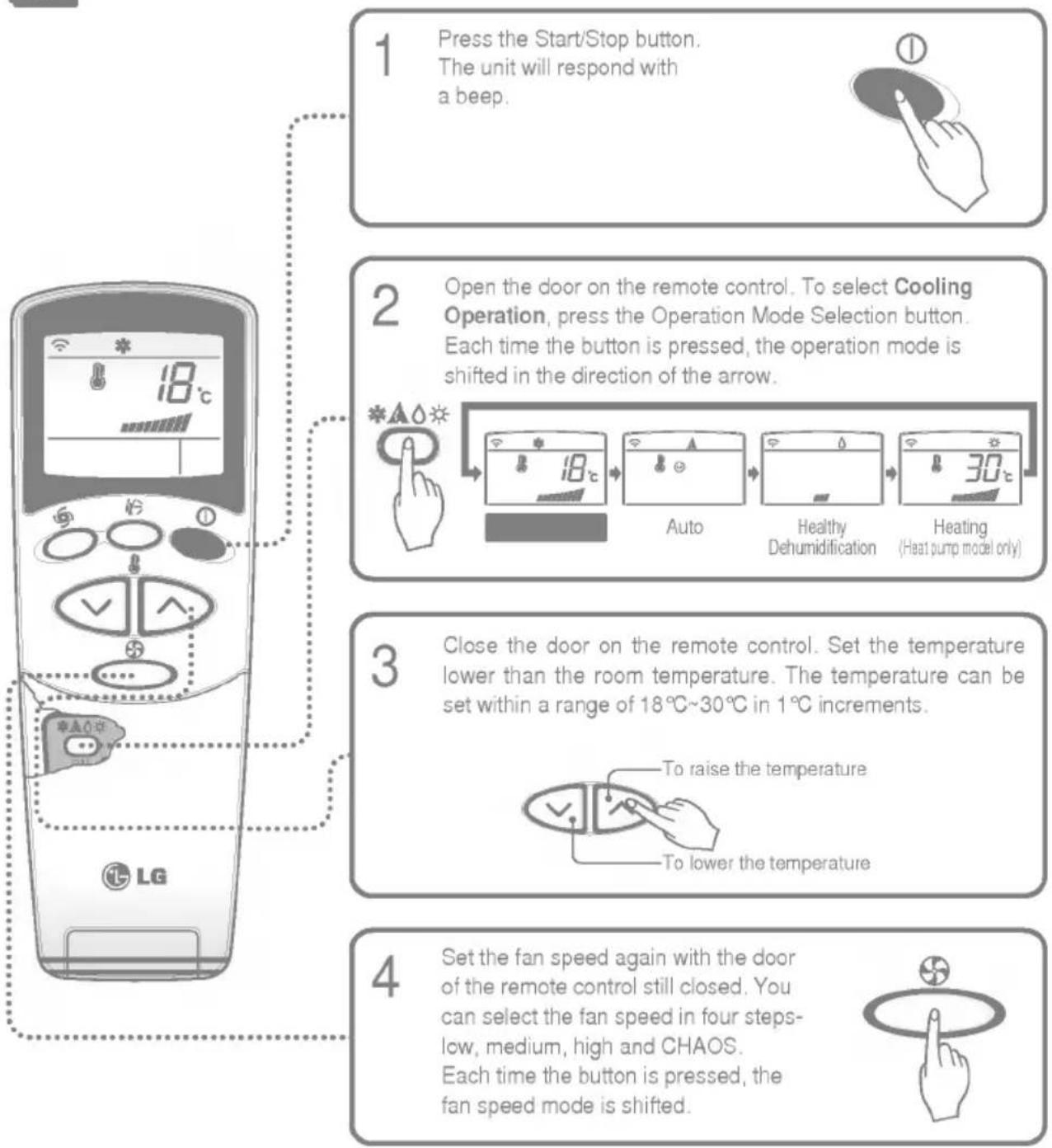

Cooling Operation

Natural wind by the CHAOS logic

☐ For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan speed according to the CHAOS logic.

Hand cursor clicking a button with an icon (no text or symbols)

1 Press the Start/Stop button. The unit will respond with a beep.

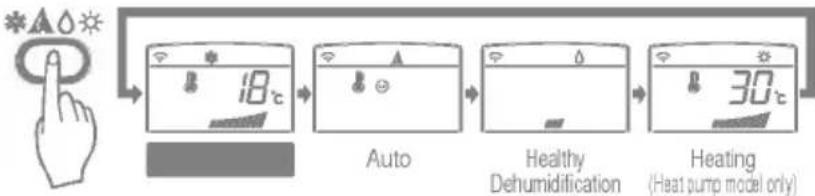

2 Open the door on the remote control. To select Cooling Operation, press the Operation Mode Selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow.

3 Close the door on the remote control. Set the temperature lower than the room temperature. The temperature can be set within a range of 18°C\~30°C in 1°C increments.

To raise the temperature To lower the temperature

4 Set the fan speed again with the door of the remote control still closed. You can select the fan speed in four steps-low, medium, high and CHAOS. Each time the button is pressed, the fan speed mode is shifted.

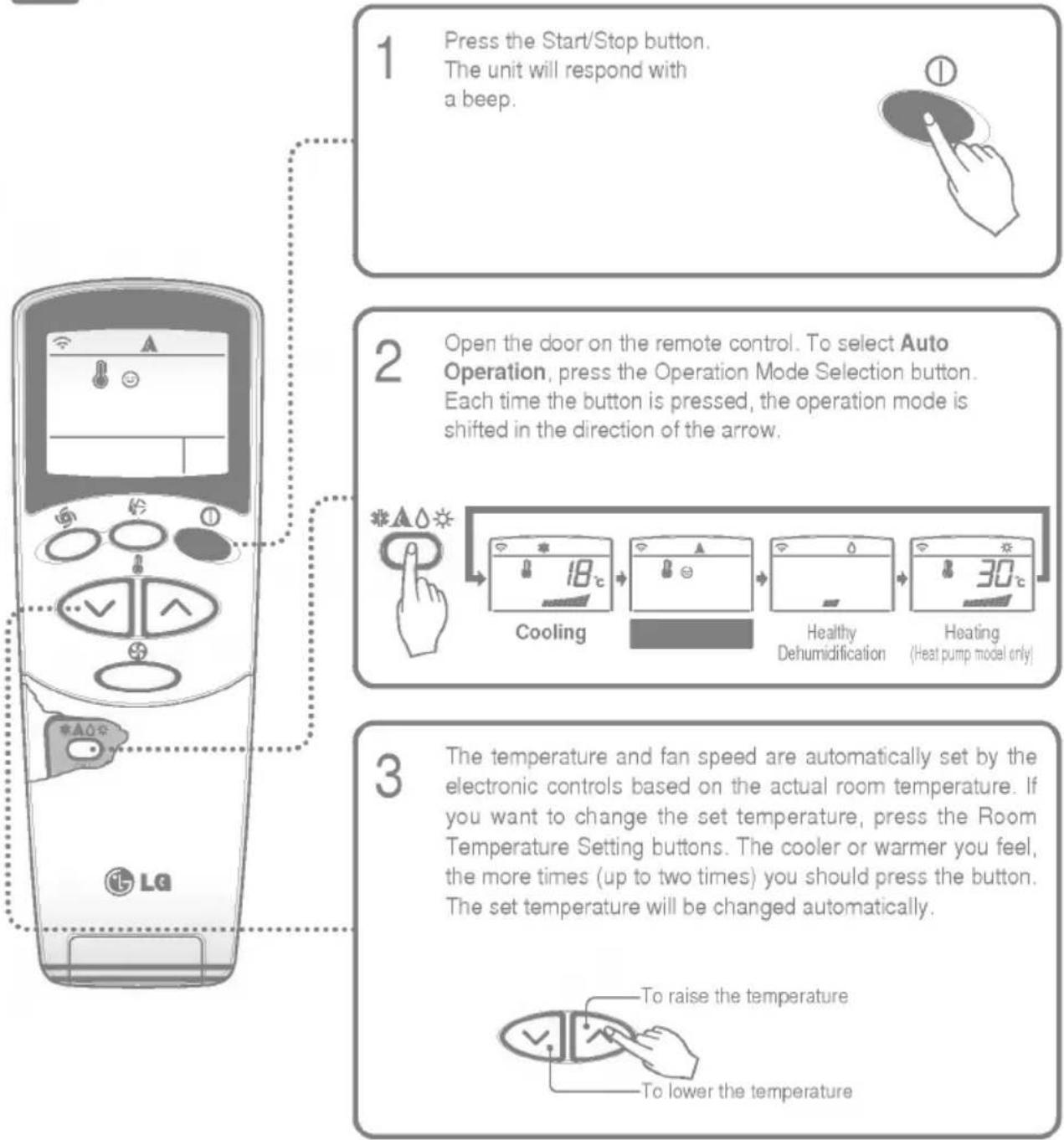

Auto Operation

During Auto Operation:

☐ You cannot switch the indoor fan speed. It has already been set by the Fuzzy rule.
☐ If the system is not operating as desired, manually switch to another mode. The system will not automatically switch from the cooling mode to the heating mode, or from heating mode to cooling mode, it must be done by manually resetting.
☐ During Auto Operation, pressing the chaos swing button makes the horizontal louvers swing up and down automatically. If you want to stop auto-swing, press the chaos swing button again.

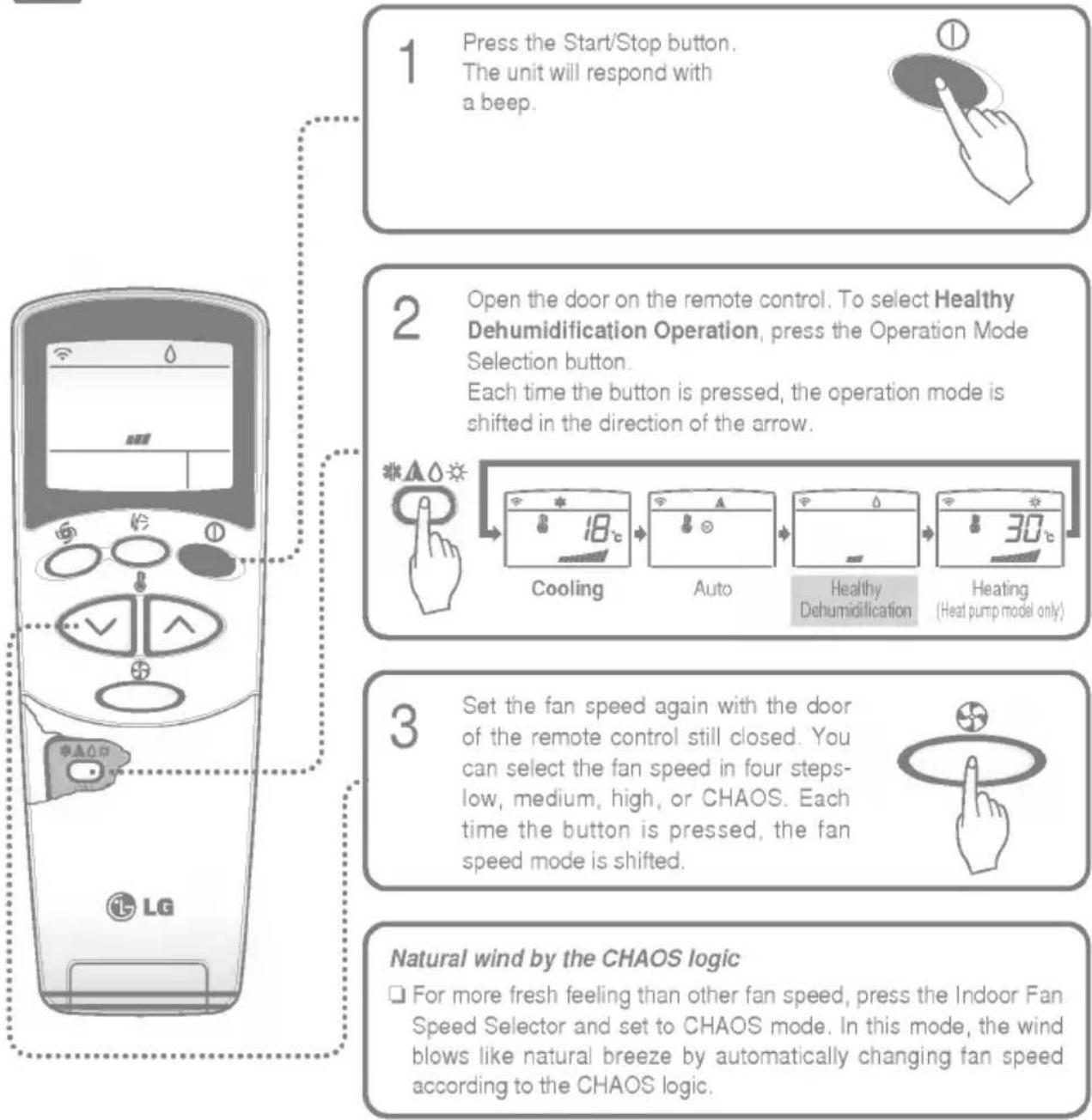

Healthy Dehumidification Operation

During Healthy Dehumidification Operation:

☐ If you select the dehumidification mode on the operation selection button, the A/C starts to run the dehumidification function. It automatically sets the room temp. and airflow volume to the best condition for dehumidification, based on the sensed current room temp.
In this case, however, the setting temp. is not displayed in the remote control and you are not able to control the room temp. either.
☐ During the healthy dehumidification function, the airflow volume is automatically set according to the optimization algorithm responding to the current room temp. status which makes the room condition healthy and comfortable even in the high humidity season.

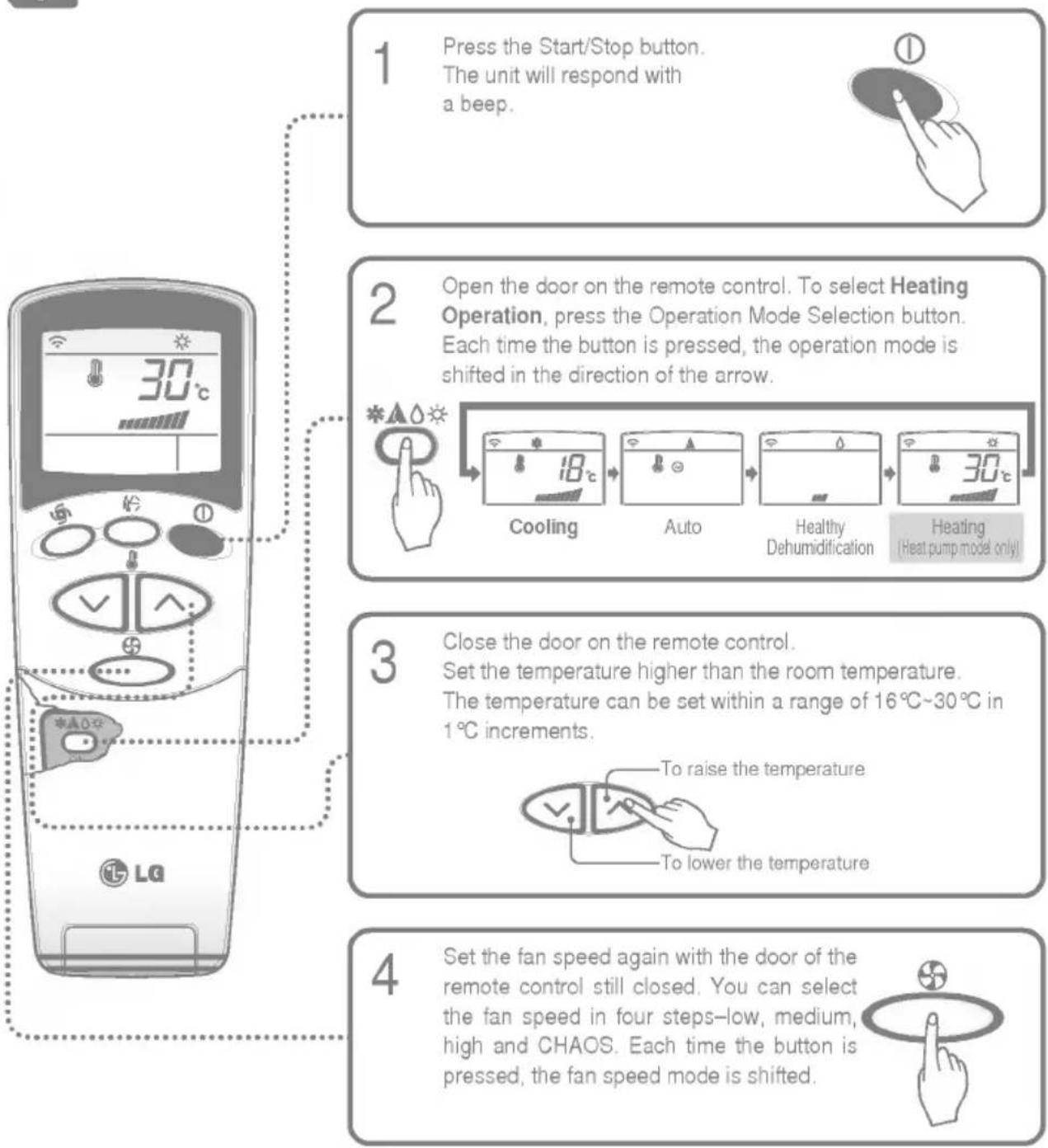

Heating Operation(Heat pump model only)

Natural wind by the CHAOS logic

☐ For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan speed according to the CHAOS logic.

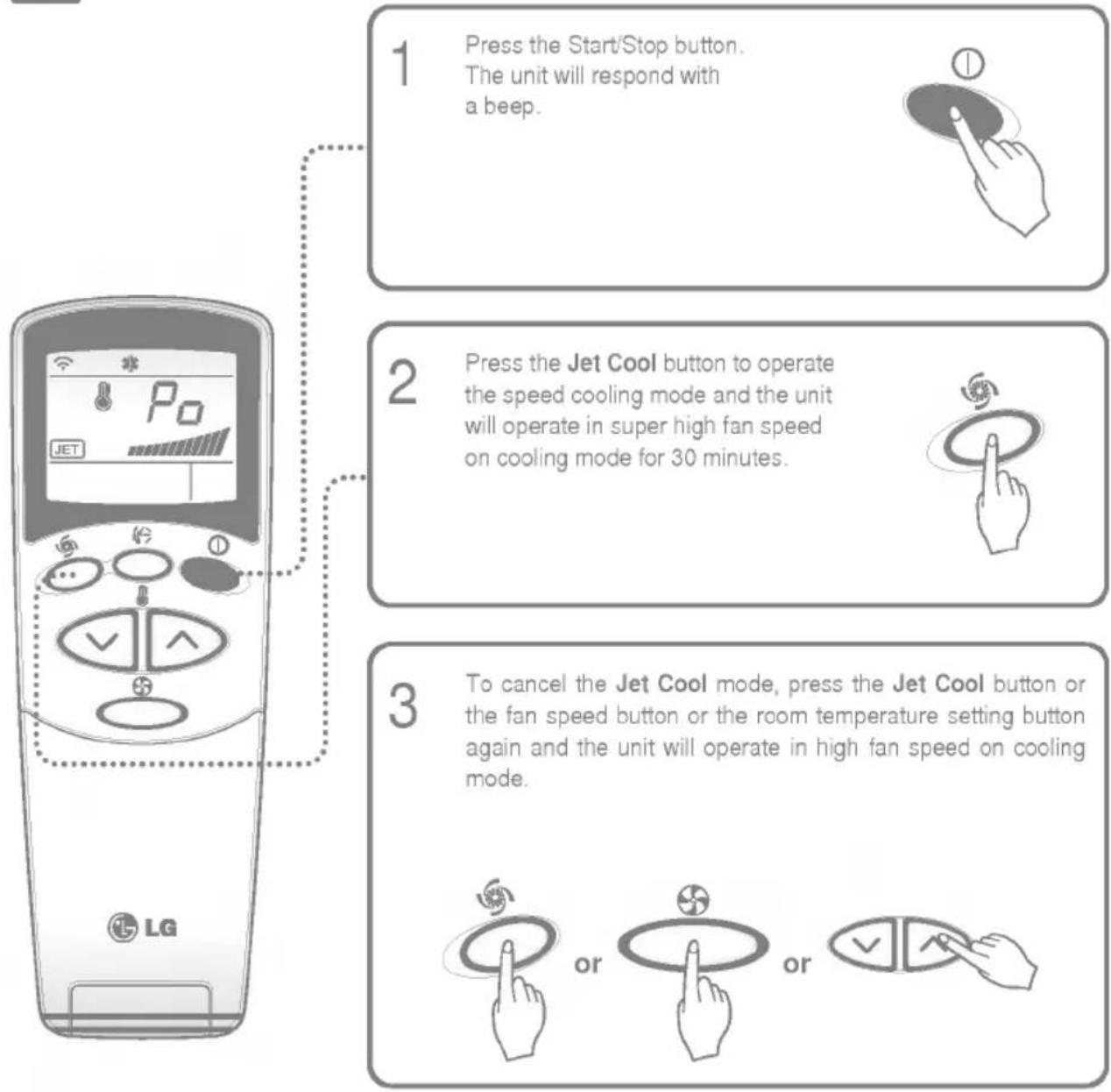

Jet Cool Operation

NOTE:

During the JET COOL function at any moment, the A/C starts to blow the cool air at extremely high speed for 30 minutes setting the room temp. automatically to 18°C. It is especially used to cool the room temp. in the shortest time in a hot summer.
In heat pump mode or neuro fuzzy mode, however, the JET COOL function is not available.

☐ In order to return to the normal cooling mode from the JET COOL mode, you just press either the operation mode selection button, airflow volume selection or temp. setting button or the JET COOL button again.

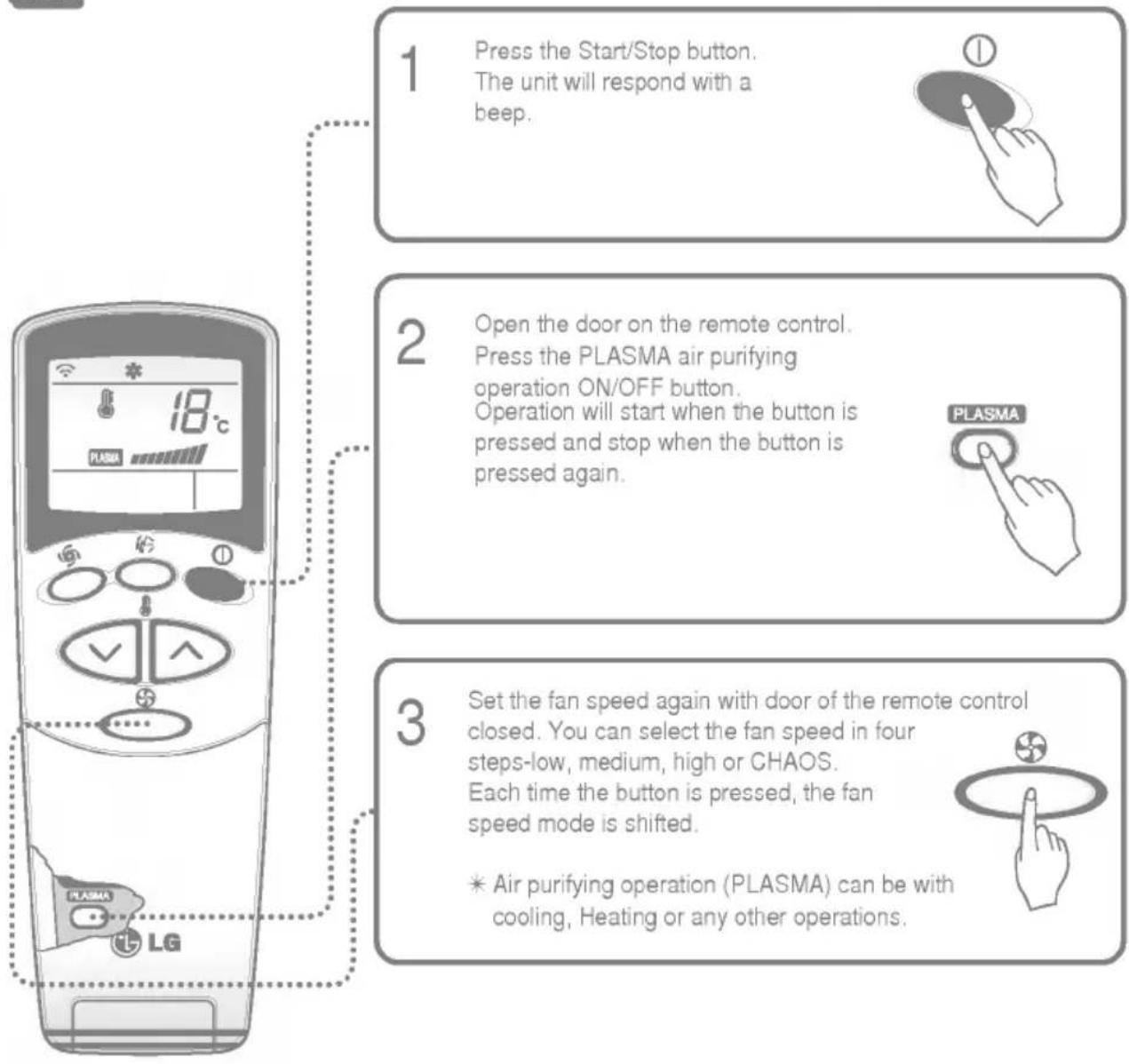

PLASMA Purification Operation(Optional)

1 Press the Start/Stop button. The unit will respond with a beep. 2 Open the door on the remote control. Press the PLASMA air purifying operation ON/OFF button. Operation will start when the button is pressed and stop when the button is pressed again. 3 Set the fan speed again with door of the remote control closed. You can select the fan speed in four steps-low, medium, high or CHAOS. Each time the button is pressed, the fan speed mode is shifted. * Air purifying operation (PLASMA) can be with cooling, Heating or any other operations.

PLASMA Air Purifying Operation only

PLASMA

If you press the only PLASMA button, only PLASMA air purifying operates.

Then, fan speed is low. You can select the fan speed in four steps-low, medium, high or CHAOS.

Each time the button ( ) is pressed, the fan speed mode is shifted.

2ndF

2nd F Operation

1 Press the Start/Stop button. The unit will respond with a beep. 2 Open the door of the remote control and press the 2nd Function button to operate functions printed in blue at bottom of buttons. (Check the indication of 2nd function on remote control display.) These buttons operate the timer setting as follows: 2nd F 3 2nd function goes off in a short time automatically or when the button is pressed again. For more details, refer to functions next page.

Additional features

Sleep Mode

Press the Sleep Mode Auto button to set the time you want the unit to turn off automatically.

The Timer is programmed in one-hour increments by pressing the Sleep Mode Auto button 1 to 7 times. The sleep mode is available for 1 to 7 times. To alter the time period in steps of 1 hour, press the Sleep Mode Button while aiming at air conditioner.

To cancel the Sleep Mode, press the sleep Mode Auto button several times until the star (★) disappears from the operation display.

Note: The Sleep Mode will be operated at slow fan speed (cooling) or medium fan speed (heat pump only) for quiet sleeping.

Make sure the Sleep Mode Auto LED lights up.

IN COOLING MODE OR HEALTHY DEHUMIDIFICATION MODE:

The temperature will automatically rise by 1°C over the next 30 minutes and by 2°C in 1 hour for comfortable sleeping.

Setting the Time

Time can be set only when you have pressed the Reset button. If you have just replaced the batteries, the Reset button should be pressed to reset the time.

Press the Start/Stop button.

Press 2nd F button and check if 2nd F icon is on.

Press the Time Setting buttons until the desired time is set. 3:00

Press the Timer SET button.

Note: Check the indicator for A.M. and P.M.

Delay Start/Pre-Set Stop

Make sure the time is set correctly on the remote control display.

Press 2nd F button. 2ndF

Press the ON/OFF Timer buttons to turn Timer on or off.

Press the Time Setting buttons until the desired time is set.

To set the selected time, press the Timer SET button while aiming the remote control at the signal receptor.

To cancel the timer setting

Check if 2nd F icon is off. Press the Timer Cancel button while aiming remote control at the signal receptor.

(The timer lamp on the air conditioner and the display will go out.)

NOTE: Select one of the following four types of operation.

with the unit running

Delay OFF Timer

Delay ON Timer

Delay OFF and ON Timer

Delay ON and OFF Timer

Vertical Airflow Direction Control

The up/down airflow (Vertical Airflow) can be adjusted by using the remote control.

Illustration of a wall-mounted air conditioner unit with cooling fan (no text or symbols)

Press the Start/Stop button to start the unit.

Press Chaos Swing button and the louvers will swing up and down. Press the Chaos Swing button again to set the vertical louver at the desired airflow direction.

Note:

☐ If you press the CHAOS swing button, the horizontal airflow direction is changed automatically based on the CHAOS algorithm to distribute the air in the room evenly and at the same time to make the human body feel most comfortable, as if enjoying a natural breeze.
□ Always use the remote control to adjust the up/down airflow direction. Manually moving the vertical airflow direction louver by hand, could damage the air conditioner.
☐ When the unit is shut off, the up/down airflow direction louver will close the air outlet vent of the system.

Horizontal Airflow Direction Control (Optional)

The left/right(Horizontal Airflow) can be adjusted by using the remote control. Press the Start/Stop button to start the unit.

Open the door on the remote control. Press the Airflow Direction Start/Stop button and the louvers will swing left and right. Press the Horizontal Airflow Direction Control Button again to set the horizontal louver at the desired airflow direction.

Illustration of a hand interacting with a wall-mounted air conditioner, showing rotational arrows and a finger icon (no text or symbols)

Air Circulation Mode

Circulates the room air without cooling or heating.

Press the Start/Stop button, the unit will respond with a beep.

Open the door on the remote control. Press the Air Circulation button. Close the door on the remote control. Now each time that you press the Indoor Fan Speed Selector, the fan speed is shifted from low to CHAOS and back to low again.

Note:

☐ CHAOS Air economizes power consumption and prevents overcooling. The fan speed is automatically changed from high to low or vice versa, depending on the ambient temperature.

Auto Clean

- Open the door on the remote control. Press the Auto Clean Button. Close the door on the remote control. Now each time that you press the start/stop button, the Air conditioner operates clean function automatically.

Display Luminosity

- The Display Luminosity can be adjusted by using the remote control. Press the start/stop button to start the unit. Open the door on the remote control, press the 2ndF button and, press display luminosity button. Display will be dark. Press the button again to set bright display.

Forced Operation

Operation procedures when the remote control can't be used.

The operation will be started if the power button is pressed.

If you want to stop operation, re-press the button.

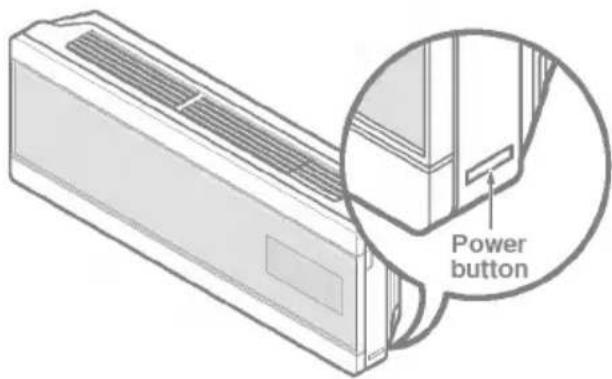

Power button

	Cooling Model	Heat pump Model
		Room Temp. ≥ 24°C	21°C ≤ Room Temp. < 24°C	Room Temp. < 21°C
Operating mode	Cooling	Cooling	Healthy Dehumidification	Heating
Indoor FAN Speed	High	High	High	High
Setting Temperature	22°C	22°C	23°C	24°C

Test operation

During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of room temperature and resets in 18 minutes.

During test operation, if remote controller signal is received, the unit operates as remote controller sets. If you want to use this operation, open the front panel upward and Press the power button let it be pressed for about 3 seconds.

If you want to stop the operation, re-press the button.

Auto restart

In case the power comes on again after a power failure, Auto Restarting Operation is the function to operate procedures automatically to the previous operating conditions.

So there is no need of activating this function by pressing any key or button.

In the initial mode, the fan operates at a low speed and the compressor starts 2.5\~3 minutes later.

As the compressor starts, the fan speed also resumes its previous setting mode.

Helpful information

Fan speed and cooling capacity.

The cooling capacity indicated in the specification is the value when the fan speed is set to high, and the capacity will be lower at low or medium fan speed.

High fan speed is recommended when you wish to cool the room quickly.

High Speed

Care and maintenance of the air conditioner

CAUTION: Before performing any maintenance, turn off the main power to the system.

Indoor Unit

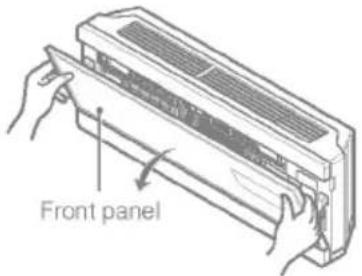

Open the upside of Front Panel

Front panel

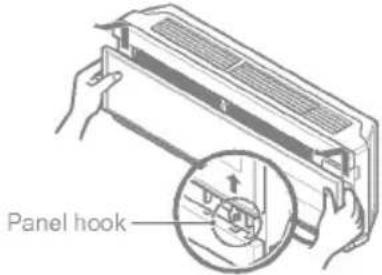

- Put up the Front panel. The hook of panel comes off.

Panel hook

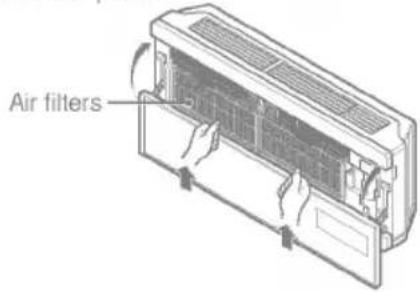

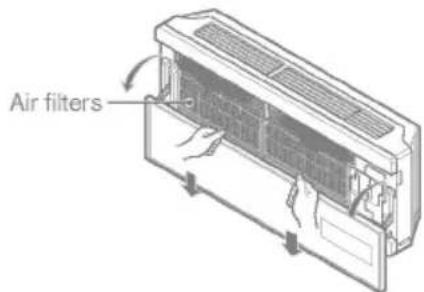

- Come down the panel and then remove air filters.

Air filters

Do cleaning by soft brush and a vacuum cleaner. If it has hard pollution, wash by water.

Technical line drawing of a mechanical component with a faucet and base plate (no text or symbols)

Don't touch this PLASMA Filter within 10 seconds after opening the inlet grille, it may cause an electric shock.

Relocate dried air filters at the shade and then close the panel.

Air filters

□ Never use any of the followings:

• Water hotter than 40°C Could cause deformation and/or discoloration.
• Volatile substances Could damage the surfaces of the air conditioner.

Aspirin Glucosin

1. Lift the front access panel and pull the filter tab slightly forward to remove the filter.
2. Clean the filter with a vacuum cleaner or warm, soapy water.

- If dirt is conspicuous, wash with a solution of detergent in lukewarm water.

- If hot water (40°C or more) is used, it may be deformed.

1. After washing with water, dry well in the shade.

2. Re-install the air filter.

3. After removing the air filters, pull slightly forward to remove the PLASMA filter.

4. Dip the PLASMA filter into the water mixed with neutral detergent, for 20\~30 minutes.
5. Dry the PLASMA filter in the shade for a day (Especially, the humidity must be removed perfectly on this parts).
6. Note the cuts of electric discharge lines.
7. Re-install the PLASMA filter to the original position.

Cleaning of Purifying Filter

• Recommended use period : About 3 months

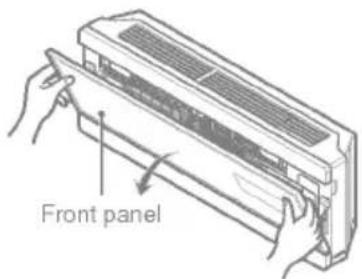

Open the upside of Front panel.

Front panel

● Put up the front panel. The hook of panel comes off.

Panel hook

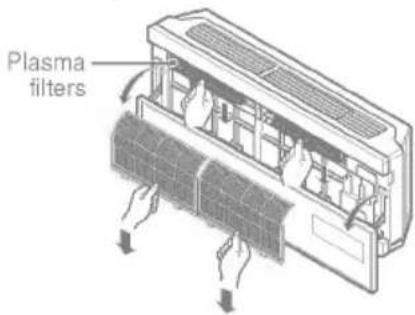

Remove air filter and then pull out plasma filters. (2 plasma filters)

Plasma filters

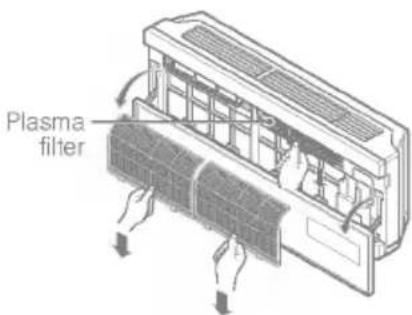

Remove air filter and then pull out plasma filter. (1 plasma filter)

Plasma filter

- Put in plasma filter in the neutral detergent for 1\~2 hours and then raise them.

Line drawing of a hand using a tool to lift a flat surface, no text or symbols present

Relocate dried plasma filters at the shade and then put in air filter.

Diagram of a car air conditioner unit with hands installing or adjusting the panel (no text or labels)

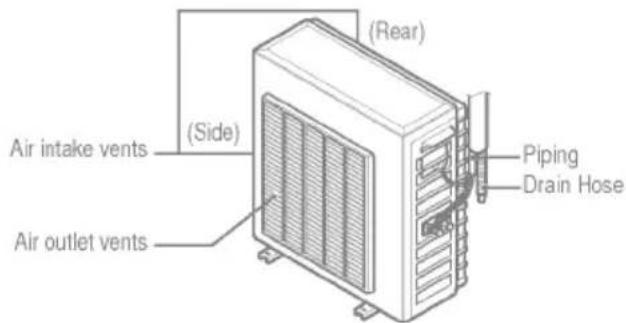

Outdoor Unit

The heat exchanger coils and panel vents of the outdoor unit should be checked regularly. If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned. Air in vent

NOTE:

Dirty or clogged coils will reduce the operating efficiency of the system and cause higher operating costs.

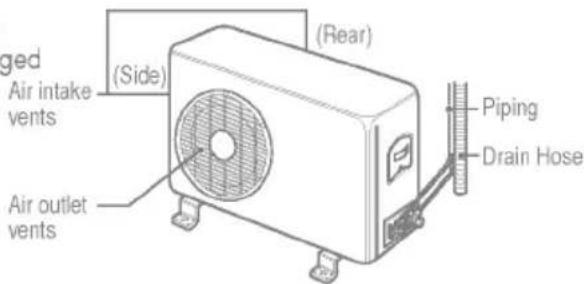

gged Air intake vents (Side) (Rear) Air outlet vents Piping Drain Hose

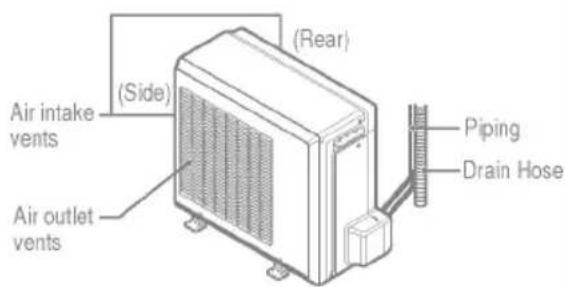

Air intake vents (Side) Air outlet vents (Rear) Piping Drain Hose

Air intake vents (Side) (Air outlet vents) (Rear) Piping Drain Hose

When the air conditioner is not going to be used for a long time.

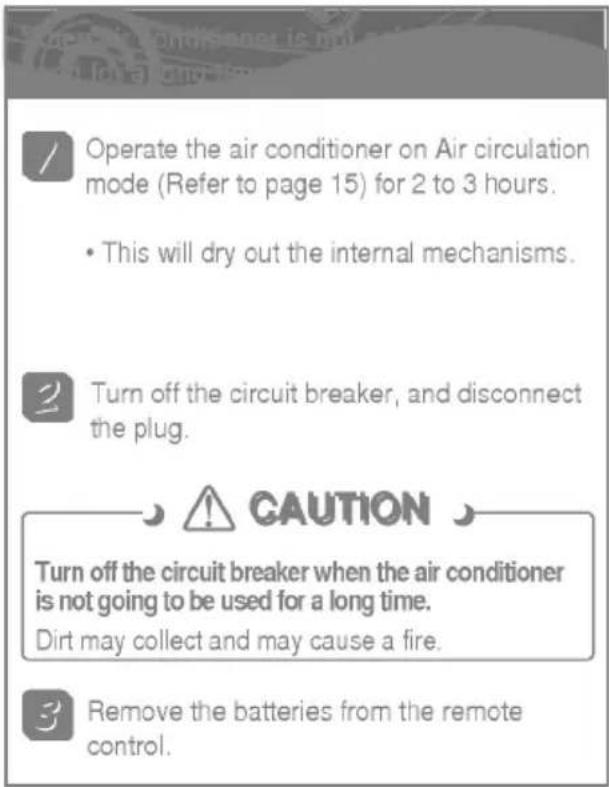

Operate the air conditioner on Air circulation mode (Refer to page 15) for 2 to 3 hours. • This will dry out the internal mechanisms. Turn off the circuit breaker, and disconnect the plug. CAUTION Turn off the circuit breaker when the air conditioner is not going to be used for a long time. Dirt may collect and may cause a fire. Remove the batteries from the remote control.

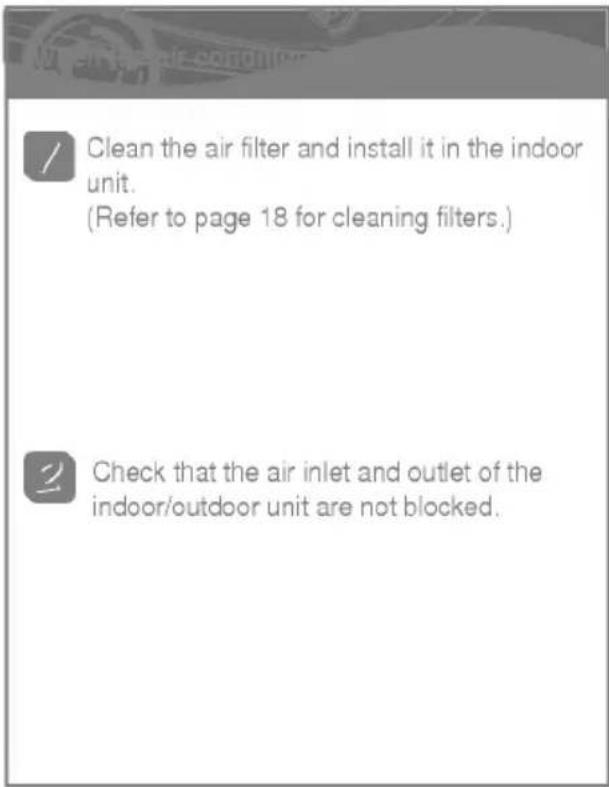

Clean the air filter and install it in the indoor unit. (Refer to page 18 for cleaning filters.) Check that the air inlet and outlet of the indoor/outdoor unit are not blocked.

Operation Tips

This is not good for the health and wastes electricity. Avoid opening doors and windows as much as possible to keep the cool air in the room.

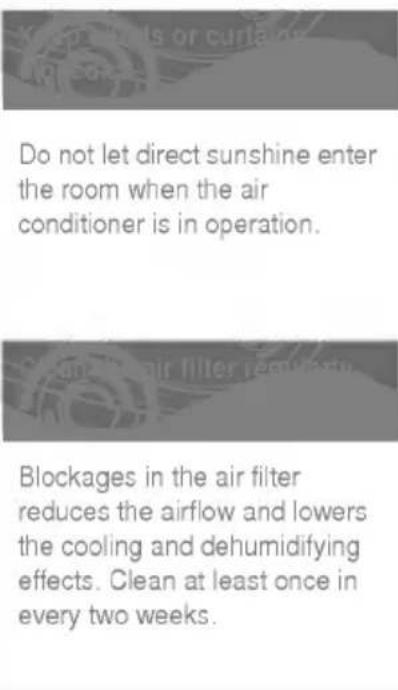

Do not let direct sunshine enter the room when the air conditioner is in operation. Blockages in the air filter reduces the airflow and lowers the cooling and dehumidifying effects. Clean at least once in every two weeks.

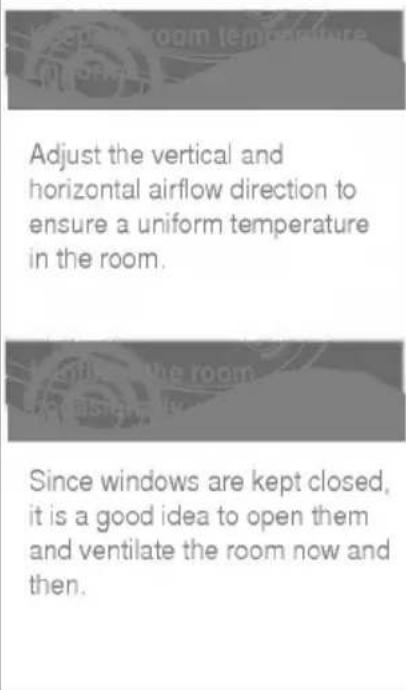

Adjust the vertical and horizontal airflow direction to ensure a uniform temperature in the room. Since windows are kept closed, it is a good idea to open them and ventilate the room now and then.

Troubleshooting Tips! Save time and money!

Check the following points before requesting repairs or service.... If the fault persists, please contact your dealer or service center.

Case	Explanation	See page
The air conditioner does not operate.	·Have you made a mistake in timer operation?	14
	·Has the fuse blown or has the circuit breaker been tripped?	-
The room has a peculiar odor.	·Check that this is not a damp smell exuded by the walls, carpet, furniture, or cloth items in the room.	-
It seems that condensation is leaking from the air conditioner.	·Condensation occurs when the airflow from the air conditioner cools the warm room air.	-
Air conditioner does not operate for about 3 minutes when restarted.	·This is the protector of the mechanism.·Wait about three minutes and operation will begin.	-
Does not cool or heat effectively.	·Is the air filter dirty? See air filter cleaning instructions.	18
	·Has the temperature been set incorrectly?	7, 10
	·Are the indoor unit's air inlet or outlet vents obstructed?	-
The air conditioner operation is noisy.	·For a noise that sounds like water flowing.-This is the sound of freon flowing inside the air conditioner unit.·For a noise that sounds like the compressed air releasing into atmosphere.-This is the sound of the dehumidifying water being processed inside the air conditioning unit.	-
Remote control display is faint, or no display at all.	·Are the batteries depleted?·Are the batteries inserted in the opposite (+) and (-) directions?	4
Crack sound is heard.	·This sound is generated by the expansion/constriction of the front panel, etc. due to changes of temperature.	-

Memo
