USER MANUAL AP41 Mist

The Mist AP41 delivers 4x4 MIMO with four spatial streams when operating in multi-user (MU) or single-user (SU) mode that supports the IEEE 802.11ac Wave 2 specification.

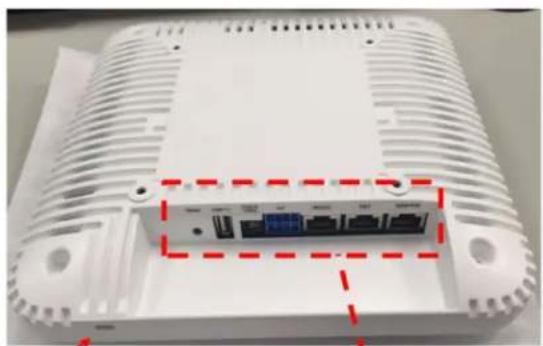

I/O ports and Kensington lock

Close-up of a white electronic device casing with ventilation grilles and a red dashed box highlighting a component (no visible text or symbols)

Kensington Lock

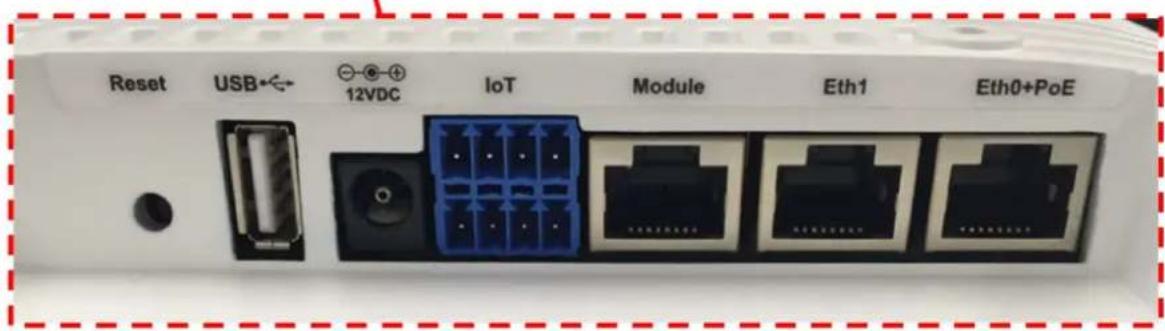

Reset USB← 12VDC IoT Module Eth1 Eth0+PoE

Reset Reset to the factory default settings
USB USB2.0 support interface
12VDC Support for the 12VDC power supply recommended by Mist
IoT	8-pin interface for digital input, digital output, analog input, and ground
Module 10/100/1000 BaseT RJ45 interface
Eth1 10/100/1000 BaseT RJ45 interface
Eth0+PoE	10/100/1000 BaseT RJ45 interface that supports 802.3at PoE PD

Mounting kit installation


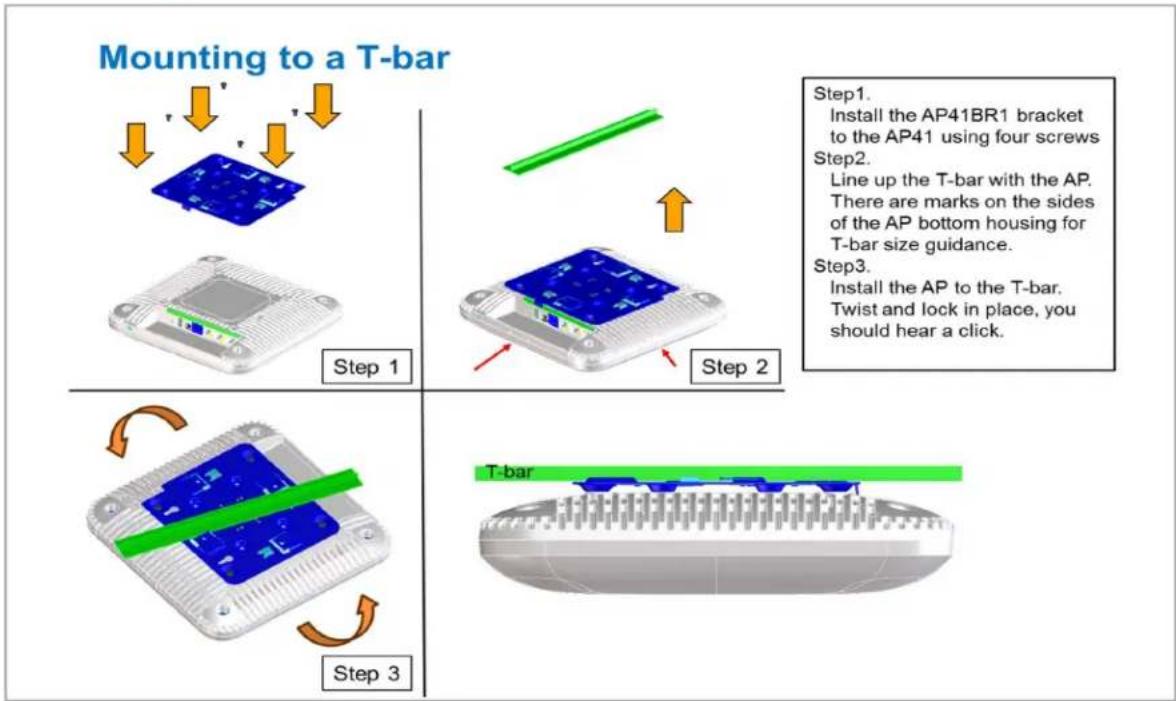

    A["Step 1: Mounting to a T-bar"] --> B["Step 2: Line up the T-bar with the AP. There are marks on sides of the AP bottom housing for T-bar size guidance."]
    B --> C["Step 3: Install the AP to the T-bar. Twist and lock in place, you should hear a click."]


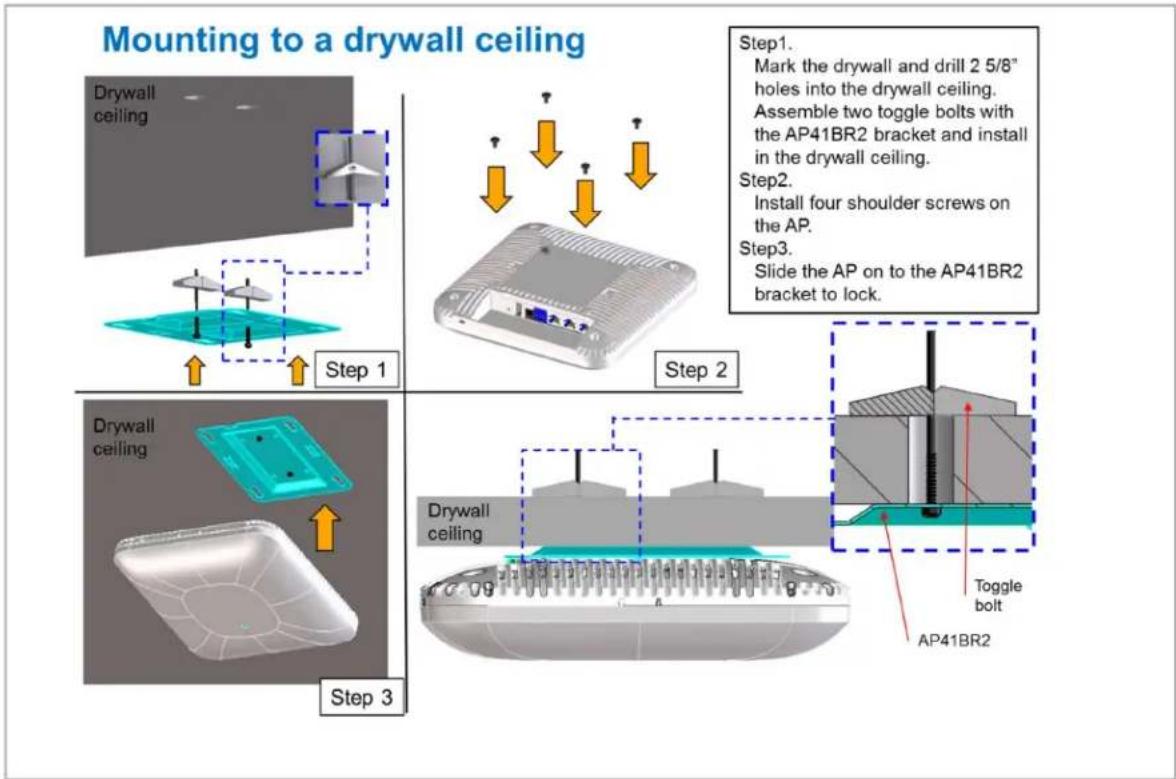

    A[" Drywall ceiling "] --> B[" Step 1 "]
    B --> C[" Step 2 "]
    C --> D[" Step 3 "]
    D --> E[" Step 3 "]
    E --> F[" Drop Button to Lock "]
    F --> G[" Toggle bolt AP41BR2 "]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333
    style G fill:#fcc,stroke:#333

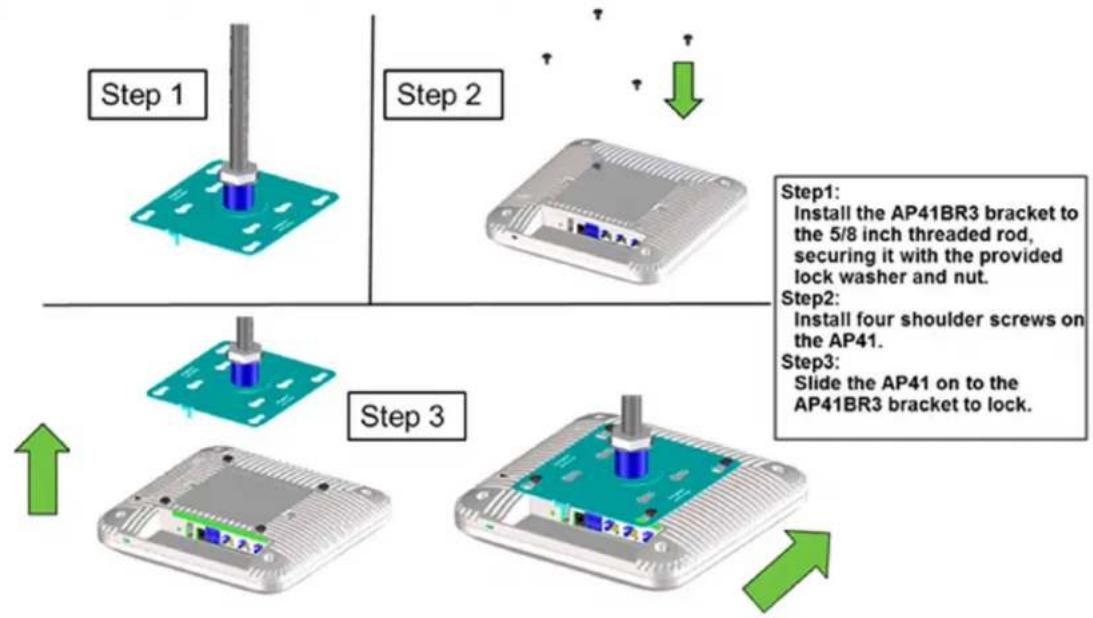

Mounting to a 5/8 inch threaded rod

In a wall mount installation, please use screws that have a 1/4in. (6.3mm) diameter head with a length at least 2 in. (50.8mm). The AP41BR3 attaches to a rod that is 5/8"-11.


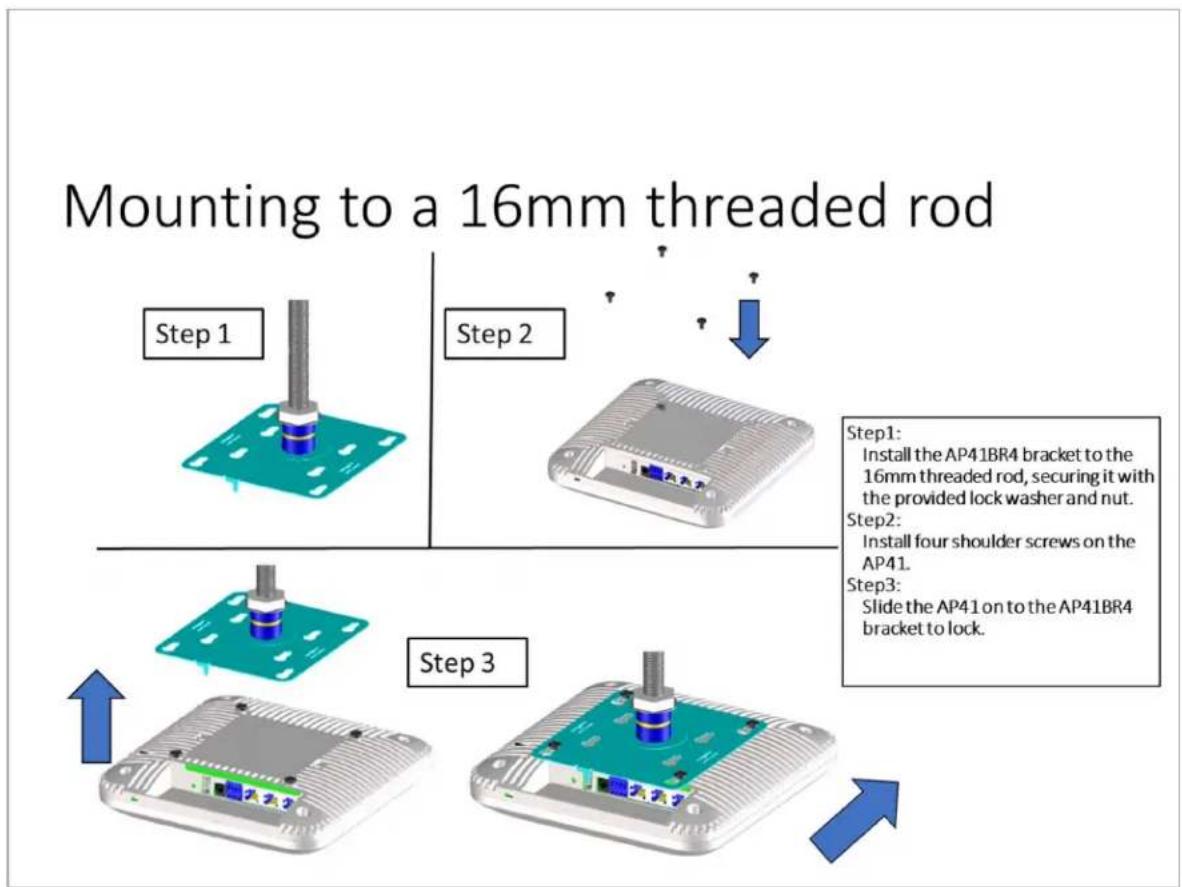

    A["Step 1: Mounting to a 16mm threaded rod"] --> B["Step 2: Install the AP41BR4 bracket to the 16mm threaded rod, securing it with the provided lock washer and nut."]
    B --> C["Step 3: Slide the AP41 on to the AP41BR4 bracket to lock."]

In a wall mount installation, please use screws that have a 1/4in. (6.3mm) diameter head with a length at least 2 in. (50.8mm). The AP41BR4 attaches to a rod that is M16-2.

Technical Specifications:

Feature Description
Power options	802.3at PoE12V/3A DC power supply
Powering adaptor	100-240VAC, 50-60 Hz, inputAll regions (output): 12V/3A DC output
Dimensions 215mm x 215mm x 52mm (8.46in x 8.46in x 2.05in)
Weight 1.6 kg (3.53 lbs)
Operating temperature	Internal antenna 0° to 40°CExternal antenna -20° to 50°C
Operating humidity	10% to 90% maximum relative humidity, non-condensing
Operating altitude 3,048m (10,000 ft)
Electromagnetic emissions	FCC Part 15 Class B
I/O	1 - 10/100/1000BASE-T auto-sensing RJ-45 with PoE1 - 10/100/1000BASE-T auto-sensing RJ-451 - 10/100/1000BASE-T auto-sensing RJ-45USB2.0IoT terminal block12VDC
RF	2.4GHz - 4x4:4 spatial streams 802.11ac MU-MIMO & SU-MIMO5GHz - 4x4:4 spatial streams 802.11ac MU-MIMO & SU-MIMO2.4GHz / 5GHz scanning radio2.4GHz BLE with Dynamic Antenna Array
Maximum PHY rate	Total maximum PHY rate - 2533Mbps5GHz - 1733 Mbps2.4GHz - 800Mbps
Indicators Multi-color status LED
Compliance standards	UL 60950-1CAN/CSA-C22.2 No. 60950-1UL 2043FCC Part 15.247, 15.407, 15.107, and 15.109RSS-247ICES-003 (Canada)EN 301 489-1 V2.1.1EN 301 489-17 V3.1.1EN 300 328 V2.1.1EN 301 893 V2.1.1EN 50385: 2002IEC/EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013EN 55032:2015 + AC:2016, Class B

Suitable for use in environmental air space in accordance with Section 300-22(C) of the National Electrical Code, and Sections 2-128, 12-010(3), and 12-100 of the Canadian Electrical Code, Part 1, CSA C22.1.

Warranty Information

The AP41 family of Access Points comes with a limited lifetime warranty.

Ordering Information:

Access Points

AP41-US Premium Wi-Fi & BLE Array AP with internal antennas for the US Regulatory domain

AP41E-US Premium Wi-Fi & BLE Array AP with external antenna connectors for the US Regulatory domain

AP41-WW Premium Wi-Fi & BLE Array AP with internal antennas for the WW Regulatory domain

AP41E-WW Premium Wi-Fi & BLE Array AP with external antenna connectors for the WW Regulatory domain

Mounting brackets

AP41BR1 Premium AP T-bar ceiling mounting bracket kit
AP41BR2 Premium AP drywall ceiling mounting bracket kit
AP41BR3 Premium AP 5/8 inch threaded mounting bracket kit
AP41BR4	Premium AP 16mm threaded mounting bracket kit

Power Supply options

12V DCsupply

100-240VAC, 50-60 Hz, inputAll regions (output): 12V/3A DC output

Regulatory Compliance Information:

This product and all interconnected equipment must be installed indoors within the same building, including the associated LAN connections as defined by the 802.3at Standard.

Operations in the 5.15GHz - 5.35GHz band are restricted to indoor usage only.

If you need further assistance with purchasing the power source, please contact Mist Systems, Inc.

FCC Requirement for Operation in the United States of America:

FCC Guideline for Human Exposure

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 35cm between the radiator & your body.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

• Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
• For operation within 5.15 \~ 5.25GHz / 5.47 \~ 5.725GHz frequency range, it is restricted to indoor environment.

Industry Canada

This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 44cm between the radiator & your body.

(i) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
(ii) The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
(iii) The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and
(iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Avertissement

This device complies with the Radio Equipment Directive, 2014/53/EU, issued by the Commission of the European Community.

Hereby, Mist Systems, Inc. declares that the radio equipment type (AP41) is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following:

https://www.mist.com/support/

The frequency and maximum EIRP Power in EU:

Bluetooth:

Frequency range (MHz)	Maximum EIRP in EU (dBm)
2400 - 2483.5 9.43

WLAN:

Frequency range (MHz) Maximum EIRP in EU (dBm)
2400 - 2483.5 19.84
5150 - 5250	22.90
5250 - 5350 22.68
5500 - 5700	29.62
