USER MANUAL Fascinate SAMSUNG

verizonwireless

IMPORTANT CUSTOMER INFORMATION

PLEASE BE ADVISED THAT MANY SERVICES AND APPLICATIONS OFFERED THROUGH THIS UNIQUE DEVICE ARE PROVIDED BY VARIOUS DEVICE, OPERATING SYSTEM, SOFTWARE AND APPLICATION DEVELOPERS (E.G. GOOGLE, MOTOROLA, MICROSOFT, PALM, RESEARCH IN MOTION). IF YOU USE, LINK TO OR DOWNLOAD SUCH A SERVICE, OR AN APPLICATION SUCH AS A NON-VERIZON WIRELESS LOCATION BASED GPS-TYPE SERVICE, CHAT ROOM, MARKETPLACE OR SOCIAL NETWORK FROM THIS DEVICE, YOU SHOULD CAREFULLY REVIEW THE TERMS OF SUCH SERVICE OR APPLICATION. IF YOU USE ANY OF THESE NON-VERIZON WIRELESS SERVICES OR APPLICATIONS, PERSONAL INFORMATION YOU SUBMIT MAY BE READ, COLLECTED, OR USED BY THE SERVICE OR APPLICATION PROVIDER AND/OR OTHER USERS OF THOSE FORUMS.

VERIZON WIRELESS IS NOT RESPONSIBLE FOR YOUR USE OF THOSE APPLICATIONS OR INFORMATION YOU CHOOSE TO SUBMIT OR SHARE WITH OTHERS. SPECIFIC TERMS AND CONDITIONS, TERMS OF USE, AND PRIVACY POLICES APPLY TO THOSE APPLICATIONS AND SERVICES. PLEASE REVIEW CAREFULLY ANY AND ALL TERMS AND CONDITIONS APPLICABLE TO THOSE APPLICATIONS AND SERVICES INCLUDING THOSE RELATED TO ANY LOCATION-BASED SERVICES FOR ANY PARTICULAR PRIVACY POLICIES, RISKS OR WAIVERS.

YOUR VERIZON WIRELESS CUSTOMER AGREEMENT TERMS AND CONDITIONS AND CERTAIN OTHER SPECIFICALLY IDENTIFIED TERMS GOVERN YOUR USE OF ANY VERIZON WIRELESS PRODUCTS AND SERVICES

Samsung Fascinate™

a GALAXYS ^TM phone exclusively at verizon

PORTABLE ALL DIGITAL

SMARTPHONE

User Manual

Please read this manual before operating your phone, and keep it for future reference.

Intellectual Property

All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the "Phone System"), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.

Samsung Telecommunications America (STA), LLC

Headquarters:	Customer Care Center:
1301 E. Lookout Drive	1000 Klein Rd.
Richardson, TX 75082	Plano, TX 75074
Toll Free Tel:	1.888.987.HELP (4357)

Internet Address: http://www.samsungusa.com

© 2010 Samsung Telecommunications America, LLC is a registered trademark of Samsung Electronics America, Inc. and its related entities.

Do you have questions about your Samsung Mobile Phone?

For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:

www.samsungtelecom.com/support

VZW_SCH-I500_Fascinate_English_UM_DH12_TE_081910_F5

GH68-31353A

The Bluetooth ^® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG.

Nuance ^® , VSuite ^TM , T9 ^® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications, Inc., or its affiliates in the United States and/or other countries.

microSD™, microSDHC™ and the microSD logo are Trademarks of the SD Card Association.

Swype and the Swype logos are trademarks of Swype, Inc. © 2010 Swype, Inc. All rights reserved.

DivX Certified ^® to play DivX ^® video up to HD 720p, including premium content.

DivX ^® , DivX Certified ^® and associated logos are registered trademarks of DivX, Inc. and are used under license. Pat. 7,295,673;7,460,668;7,515,710;7,519,274.

ABOUT DIVX VIDEO: DivX ^® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ^® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

Google, the Google logo, Gmail, Google Talk, YouTube, Picasa, Android and Android Market are trademarks of Google, Inc.

Samsung Telecommunications America, LLC ("Samsung"). Samsung, Galaxy S, Super AMOLED, and Fascinate are all trademarks of Samsung Electronics Co., Ltd. and/or its related entities. All product and brand names are trademarks or registered trademarks of their respective companies. Screen images simulated. Appearance of the phone may vary.

^© Verizon Wireless. Verizon Wireless and the Verizon Wireless logos are trademarks of Verizon Trademark Services LLC. All company names, trademarks, logos and copyrights not property of Verizon Wireless are the property of their respective owners.

Open Source Software

Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit:

http://opensource.samsung.com/category/mobile/mobile-phone/

Disclaimer of Warranties; Exclusion of Liability

EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.

Table of Contents

Section 1: Getting Started ....5

Understanding this User Manual 5

Activating your Phone 6

Battery 6

Turning Your Phone On and Off 9

Set-up Wizard 9

Your Google Account 10

Displaying Your Phone Number 10

System Tutorial 10

Voice Mail 10

TTY Mode 10

Roaming 10

Task Manager 11

Memory Card 12

Securing Your Phone 13

Section 2: Understanding Your Phone ....14

Features 14

Front View 15

Side Views 16

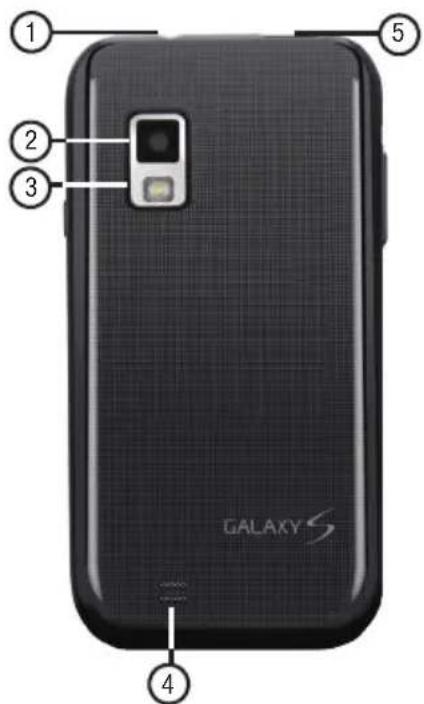

Back View 17

Navigation 18

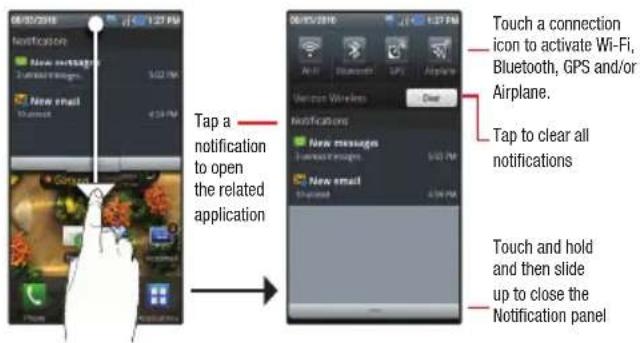

Notification Panel 19

Home Screen 20

Primary Shortcuts 23

Widgets 24

Shortcuts 26

Folders 27

Wallpaper 27

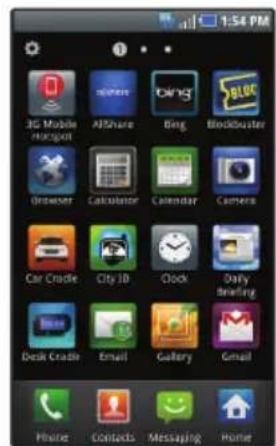

Applications 28

Section 3: Call Functions ...... 32

Making Calls 32

Answering Calls 34

Ending a Call 35

Call Log 36

Voicemail 37

Visual Voicemail 37

Section 4: Contacts and Accounts .... 38

Accounts 38

Feeds and Updates 41

Contacts 42

Favorites 47

My Profile 47

Groups 48

History 50

Activities 50

Speed Dials 51

Backup Assistant 51

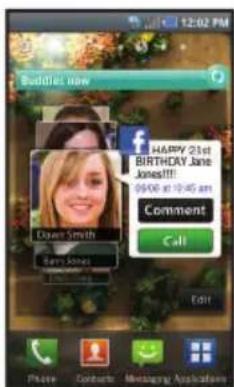

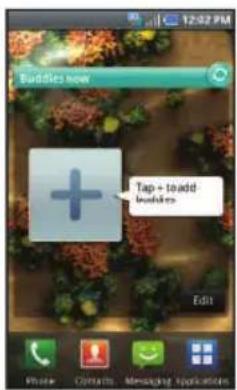

Buddies now 52

Section 5: Entering Text ....53

Virtual QWERTY Keyboard 53

Text Input Methods 53

Changing the Input Method 53

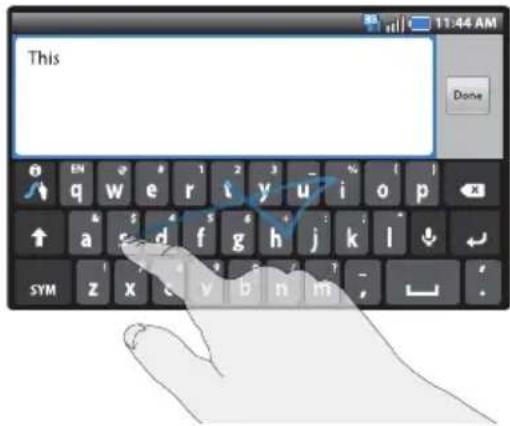

Entering Text Using Swype 54

Entering Text Using the Android Keyboard 56

Section 6: Messaging ....57

Types of Messages 57

Text and Multimedia Messaging 58

Gmail 60

Google Talk 62

Email 62

Mobile IM 65

Section 7: Web and Social Networking ......66

Bing 66

YouTube 66

Browser 66

Maps 71

Section 8: Music 73

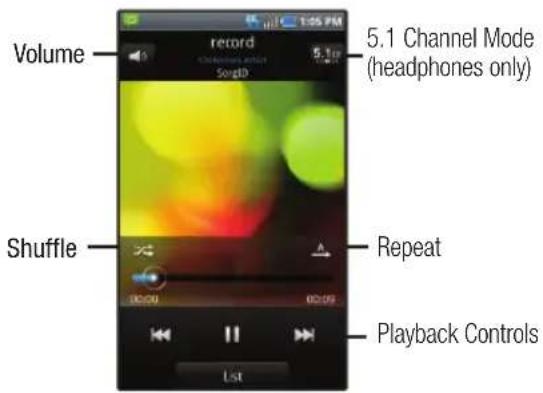

Music Player 73

Manage and Transfer Media 76

V CAST Music with Rhapsody 76

V CAST Tones 78

Section 9: Pictures and Video ....79

Camera 79

V CAST Videos 82

Video Player 83

Gallery 84

Section 10: Connections 86

Wi-Fi 86

3G Mobile Hotspot 88

Bluetooth 89

VPN 90

Dial Up Networking 91

Memory Card 92

Section 11: Applications and Widgets 94

Android Market 94

3G Mobile Hotspot 94

AllShare 94

Bing 95

Blockbuster 95

Browser 95

Buddies now 95

Calculator 95

Calendar 96

Camera 97

Car Cradle 97

City ID 97

Clock 97

Daily Briefing 98

Desk Cradle 98

Email 98

Feeds and Updates 99

Gallery 99
Gmail 99
Kindle 99
Memo 100
Music Player 100
My Files 100
My Verizon Mobile 101
NFS Shift 101
Settings 101
Skype Mobile 101
Task Manager 101
Talk 101
Tetris 102
ThinkFree Office 102
V CAST Music with Rhapsody 102
V CAST Tones 102
V CAST Videos 102
Video Player 102
Voice Recorder 103
Voice Search 103
Voice mail 103
VZ Navigator 103
Voice Commands 104
Weather Clock 107
Write & Go 108
YouTube 108

Section 12: Settings .... 109

Accessing Settings 109
Wireless & networks 109
Call settings 115
Sound & display 116
Location & security 121
Applications 125
Accounts & sync 127
Privacy 129
SD card & phone storage 130
USB Settings 131
Search 131
Language & keyboard 132
Accessibility 134
Text-to-speech 134
Date & time 135
About phone 135

Section 13: Health and Safety Information ...... 136

Health and Safety Information 136
Please Note the Following Information When Using Your Handset 137
Samsung Mobile Products and Recycling ..... 137
UL Certified Travel Adapter 138
Consumer Information on Wireless Phones 138
Road Safety 144
Responsible Listening 145
Operating Environment 147

Using Your Phone Near Other Electronic Devices .....147

FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices 148

Potentially Explosive Environments 150

Emergency Calls 150

FCC Notice and Cautions 151

Other Important Safety Information .... 152

Product Performance 152

Availability of Various Features/Ring Tones ..... 153

Battery Standby and Talk Time 153

Battery Precautions 153

Care and Maintenance 155

Section 14: Warranty Information .....156

Standard Limited Warranty 156

End User License Agreement for Software 159

Index 165

Section 1: Getting Started

This section helps you to quickly start using your phone.

Understanding this User Manual

The sections of this manual generally follow the features of your phone. A robust index for features begins on page 165.

Also included is important safety information beginning on page 136, that you should know before using your phone.

This manual gives navigation instructions according to the default display settings. If you select other settings, navigation steps may be different.

Unless otherwise specified, all instructions in this manual assume that you are starting from the Home screen. To get to the Home screen, you may need to unlock the phone or keypad. For more information, see “Securing Your Phone” on page 13.

Note: Instructions in this manual are based on default settings, and may vary from your phone, depending on the software version on your phone, and any changes to the phone's Settings.

Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.

All screen images in this manual are simulated. Actual displays may vary, depending on the software version of your phone and any changes to the phone's Settings.

Special Text

In this manual, you'll find text that is set apart from the rest. These are intended to point out important information, share quick methods for activating features, to define terms, and more. The definitions for these methods are as follows:

• Notes: Presents alternative options for the current feature, menu, or sub-menu.
• Tips: Provides quick or innovative methods, or useful shortcuts.
• Important: Points out important information about the current feature that could affect performance.
• Warning: Brings to your attention important information to prevent loss of data or functionality, or even prevent damage to your phone.

Text Conventions

This manual provides condensed information about how to use your phone. To make this possible, the following text conventions are used to represent often-used steps:

→ Arrows are used to represent the sequence of selecting successive options in longer, or repetitive, procedures. For example: "From the Home screen, touch ☐ Menu → Settings → Wireless & networks → Wi-Fi settings."

Getting Started

Activating your Phone

If you purchased your phone at a Verizon Wireless store, it is activated and ready to use. If you received a new phone by mail, it may need to be activated before you can use it.

To activate your phone, choose from the following:

• Visit a Verizon Wireless store.
• Contact Verizon Wireless customer support.
• Visit www.verizonwireless.com to manage your account online.

Battery

Your phone is powered by a rechargeable, standard Li-Ion battery. A Wall/USB Charger (Charging Head and USB cable) are included with the phone, for charging the battery.

Note: The battery comes partially charged. You must fully charge the battery before using your phone for the first time. A fully discharged battery requires up to 4 hours of charge time.

After the first charge, you can use the phone while charging.

Warning!: Use only Samsung-approved charging devices and batteries. Samsung accessories are designed to maximize battery life. Using other accessories may invalidate your warranty and may cause damage.

Battery Indicator

The battery icon in the Annunciator Line shows battery power level. Two to three minutes before the battery becomes too low to operate, the empty battery icon will flash and a tone will sound. If you continue to operate the phone without charging, the phone will power off.

Tip: Task Manager provides helpful information about extending battery life. For more information, see “Task Manager” on page 11.

Battery Cover

The battery is under a removable cover on the back of the phone.

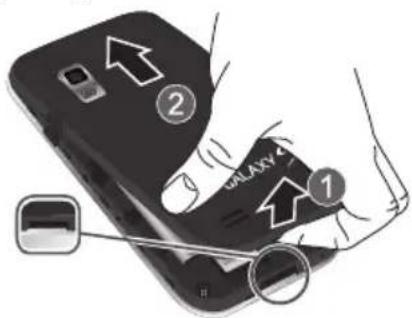

Removing the battery cover

▶ Pull up using the slot provided (1), while lifting the cover off the phone (2).

Diagram showing a smartphone touch panel with labeled parts and arrows indicating movement or repair steps

Installing the battery cover

Align the cover and press it firmly into place, making sure it snaps into place at the corners.

Installing and Removing the Battery

Installing the battery

1. Remove the battery cover.
2. Insert the battery into the phone, aligning the gold contacts on the battery with the gold contacts in the phone. Push down on the bottom of the battery until it snaps into place.
3. Replace the battery cover..

SAMSUNG

Removing the Battery

1. Remove the battery cover.
2. Lift the battery up and out of the phone, using the slot provided.
3. Replace the battery cover.

Charging the Battery

Your phone comes with a Wall/USB Charger (Charging Head and USB cable) to charge your phone from any 120/220 VAC outlet.

Note: The battery comes partially charged. You must fully charge the battery before using your phone for the first time. A fully discharged battery requires up to 4 hours of charge time.

After the first charge, you can use the phone while charging.

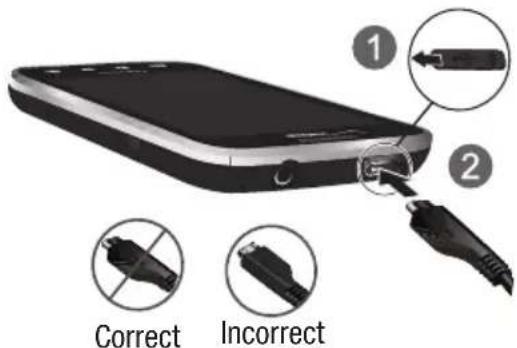

1. On the phone, slide the connector cover (1) to expose the connector.
2. Insert the USB cable into the port (2).

1 2 Correct Incorrect

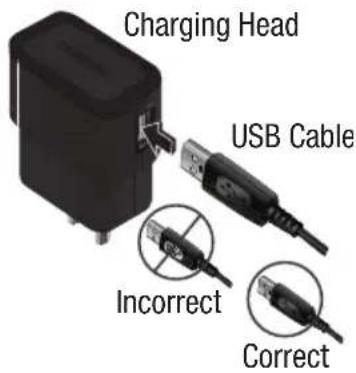

1. Connect the USB cable to the charging head.
2. Plug the charging head into a standard AC power outlet.
3. When charging is complete, unplug the charging head

from the power outlet and remove the USB cable from the phone.

Charging Head USB Cable Incorrect Correct

Non-Supported Batteries

Samsung phones do not support non-approved batteries.

Samsung charging accessories, such as the Wall/USB Charger, will only charge Samsung-approved batteries. If you install a non-supported battery and try to charge it, the phone will beep and display the message: "Battery is not connected"

If you receive this warning, battery charging is disabled.

Warning!: Using a non-supported battery may damage your phone.

Turning Your Phone On and Off

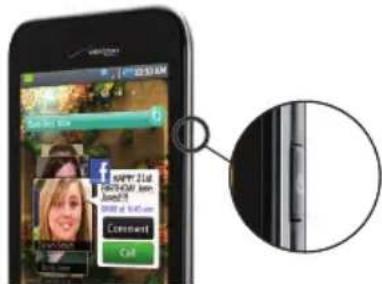

Turning Your Phone On

▶ Press and hold the Power/Lock Key for three seconds.

While powering on, the phone connects with the network, then displays the Home screen and active alerts.

www.1234567.com www.1234567.com www.1234567.com www.1234567.com www.1234567.com www.1234567.com www.1234567.com www.1234567.com www.1234567.com www.1234567.com @1234567.com @1234567.com @1234567.com @1234567.com @1234567.com @1234567.com @1234567.com @1234567.com @1234567.com @1234567.com #APP 21st #APP.COM App #APP 21st #APP 21st Comment Call

Note: Your phone's internal antenna is located along the bottom back of the phone. Do not block the antenna; doing so may affect call quality or cause the phone to operate at a higher power level than is necessary.

Turning Your Phone Off

1. Press and hold the seconds.

Power/Lock Key for two

1. At the prompt, tap Power off.

Set-up Wizard

The first time you turn your phone on, the Set-up Wizard will prompt you to customize your phone. Follow the prompts to set:

1. Language: Choose English or Espanol.

2. Backup Assistant Save your contacts to a secure web site. For more information, For more information, refer to "Backup Assistant" on page 51.

3. Add accounts: Configure access to your Facebook, Twitter, MySpace, Corporate or Google accounts. For more information, see "Accounts" on page 38.

4. My Location Configure your phone's use of location services. For more information, see "My Location" on page 121.

Your Google Account

Your new phone uses your Google account to fully utilize its Android features, including Gmail, Google Talk and the Android Market. When you turn on your phone for the first time, set up a connection with your existing Google account, or create a new Google account.

To create a Google account, or set up your Google account on your phone, use Accounts & sync settings (see "Accounts & sync" on page 127.)

Displaying Your Phone Number

▶ From the Home screen, touch ☐ Menu → Settings → About phone → Status.

Your phone number displays underMy phone number.

System Tutorial

Learn about important concepts to get the most out of your phone.

▶ From the Home screen, touch ☐ Menu → Settings → About phone → System tutorial.

Voice Mail

All unanswered calls to your phone are sent to voicemail, even if your phone is turned off, so you'll want to set up your voicemail and personal greeting as soon as you activate your phone.

For more information, see "Voicemail" on page 37.

TTY Mode

Your phone is fully TTY-compatible, allowing you to connect a TTY device to the phone's headset jack. Before you can use your phone with a TTY device, you'll need to enable TTY Mode.

For more information, see "TTY Mode" on page 116.

Roaming

When you travel outside your home network's coverage area, your phone can roam to acquire service on other compatible digital networks. When Roaming is active, the Roaming icon

appears in the Annunciator Line of the display.

Tip: You can set your phone's roaming behavior. For more information, see "Mobile networks" on page 114.

During roaming, some services may not be available. Depending on your coverage area and service plan, extra charges may apply when making or receiving calls. Contact Verizon Wireless for more information about your coverage area and service plan.

Task Manager

Your phone can run applications simultaneously, with some applications running in the background.

Use Task Manager to see which applications are running on your phone, and to end running applications to extend battery life. You can also uninstall applications from your phone and see how much memory is used by applications.

Task Manager provides information about applications, including:

• Active applications: View and end running applications.
- Package: View and uninstall application packages.
- Summary: View memory usage.
- Help: Useful tips for extending battery life.

1. From the Home screen, touch

Task Manager.

Applications →

1. Touch the Active applications tab to view applications running on your phone. Touch End to end an application, or End all to stop all running applications.
2. Touch the Package tab to view package information. Touch Uninstall to remove an application from your phone.
3. Touch the Summary tab for RAM and Storage memory statistics.
4. Touch the Help tab for information about extending battery life.

Tip: To launch Task Manager from any screen, touch and hold Home, then touch Task Manager.

You can also access Task Manager from the Program Monitor widget. For more information, see "Widgets" on page 24.

Memory Card

Your phone supports removable microSD™ or microSDHC™ memory cards of up to 32GB capacity, for storage of music, pictures, and other files.

Note: You can only store music files that you own (from a CD or purchased with the phone) on a memory card.

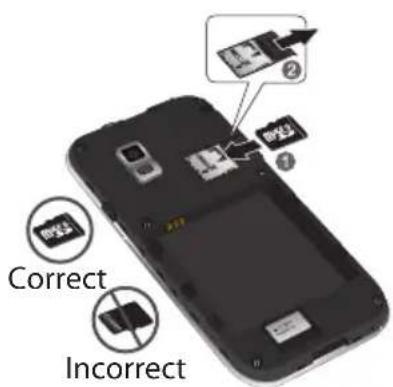

Correct Incorrect

Important!: To prevent damage to information stored on the memory card, always unmount the card before removing it from the phone.

Installing a Memory Card

1. Remove the battery cover. For more information, see "Removing the battery cover" on page 7.
2. With the gold contacts facing down, carefully slide the memory card into the slot, pushing gently until it clicks into place (1).
3. Install the battery cover. For more information, see "Installing the battery cover" on page 7.

Removing a Memory Card

Important!: To prevent damage to information stored on the memory card, unmount the card before removing it from the phone.

1. From the Home screen, touch ☐ Menu → Settings → SD card & phone storage → Unmount SD card.
2. Remove the rear cover. For more information, see "Removing the battery cover" on page 7.
3. Gently press on the memory card, then release so that it pops out from the slot, and carefully pull the card out (2).
4. Install the cover. For more information, see "Installing the battery cover" on page 7.

Securing Your Phone

By default, the phone locks automatically when the screen times out, or you can lock it manually. You can unlock the phone using one of the default Unlock screens, or for increased security, use a personal screen unlock pattern.

For more information about creating and enabling a Screen unlock pattern, see "Screen unlock pattern" on page 123.

Tip: When you use a Screen unlock pattern to secure your phone, the Emergency call feature is available on the lock screen, to allow you to make emergency calls even while the phone is locked.

For other settings related to securing your phone, see "Location & security" on page 121.

Note: Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.

Locking the phone manually

▶ Press the Power/Lock Key on the side of the phone.

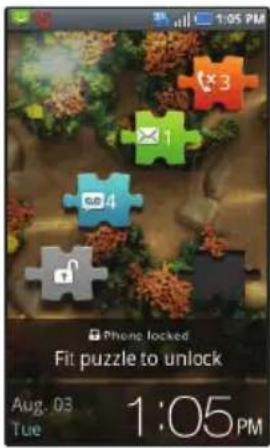

Unlocking the phone

1. Press the

Power/Lock Key to wake the screen.

1. Touch and drag a puzzle piece to fit it into the empty space.

Special puzzle pieces display for missed calls or new messages. Drag a missed call or message puzzle piece to the empty space to view the message or call log.

1:05 PM Phone locked Fit puzzle to unlock Aug. 03 Tue 1:05 PM

Note: You can choose the type of Unlock screen. For more information, see "Unlock screen" on page 120.

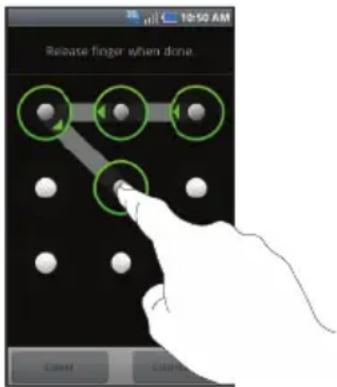

Unlocking with a Personal Screen Unlock Pattern

1. Press the

Power/Lock Key to wake the screen.

1. Draw your unlock pattern on the screen.

Section 2: Understanding Your Phone

This section outlines key features of your phone, including keys, displays, and icons.

Features

• 4-inch 800x480 Super AMOLED touch screen
• CDMA 1X/EVDO Rev-A Wireless Technology
- Android OS
- Google applications, including Google Talk and Gmail
- Android Market, plus pre-loaded applications
- Connections

• Wi-Fi 802.11 b/g/n
• 3G Mobile Hotspot
• Bluetooth 3.0
• VPN

• Dial Up Networking

• Messaging Services

• Text Messaging
  – Picture Messaging
• Video Messaging
  – Voice Messaging
• Email
  – Mobile Instant Messenger (IM)
• Chat

• 5 Megapixel CMOS Camera/Camcorder
- Picture Gallery, supporting JPEG, PNG, GIF, A-GIF, WBMP and BMP formats
- HD Video Player (720p), supporting H.263, H.264, MPEG4, 3GP, 3G2 (v9), Xvid and DivX formats
- DivX Certified® to play DivX® video up to HD 720p, including premium content.
- Music Player, supporting WAV, MP3, AAC, AAC+, eAAC+, AMR-NB, AMR-WB, WMA (v9/10), EVRC, QCELP, MIDI, and SP-MIDI formats
- V CAST Music with Rhapsody®, V CAST Tones and V CAST Videos
- Speakerphone
• Voice recognition by Nuance®
- Support for microSD™ and microSDHC™ Memory Cards up to 32GB capacity
- Bluetooth ^® 3.0 Wireless Technology. For more information about supported profiles, see “Bluetooth profiles” on page 110.

Front View

verizon 10:10AM Buddles row HAPPY 2 1st BIRTHDAY Jane Jones!!! COMMENT OF 10:45:4001 Comment Call Edit Dawn Smith Barry Jones Little Song Phone Contacts Message Applications SAMSUNG ① ② ③ ④ ⑤ ⑥

1. Earpiece and Sub-microphone: Listen to callers. In Speakerphone mode, captures your voice. While recording video, captures audio. Avoid covering the sub-microphone during Speakerphone mode or when recording video.
2. Microphone: Using during calls to allow callers to hear your voice, and when recording.
3. Menu Key: Touch to display options for the current screen.
4. Home Key: Touch to display the Home screen. Touch and hold to display recent applications or launch Task Manager.
5. Back Key: Touch to return to the previous screen or option.
6. Search Key: Touch to launch Search, to search your device or the web.

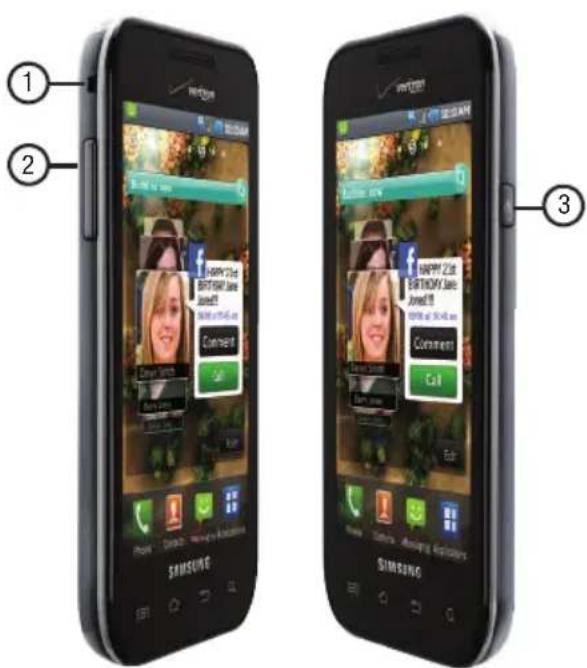

Side Views

Two smartphone screens displaying social media chat interface with app icons and UI labels, labeled 1, 2, and 3.

1. Strap holder: Attach an optional carrying strap (not included).
2. Volume Key: From the Home screen, press to adjust Master Volume. During calls or music playback, press to adjust volume. Press to mute the ringtone of an incoming call.
3. Power/Lock Key: Press and hold to turn the phone on or off. Press to lock the phone, or to wake the screen for unlocking.

Back View

1 2 3 4 5 GALAXY S

1. 3.5mm Headset Jack Plug in an optional headset or TTY equipment.

2. Camera Lens: Used when taking photos or recording videos.

3. Camera Flash: Used when taking photos.

4. External Speaker: Plays ringtones, call audio when in Speakerphone mode, music and other sounds.

5. USB Power/Accessory Port: Connect a USB cable for charging or to sync music and files.

Navigation

Navigate your phone's features using the command keys and the touch screen.

Warning!: If your handset has a touch screen display, please note that a touch screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. For more information, see "Warranty Information" on page 156.

Command Keys

Menu Key

Touch ☐ Menu to display a context-sensitive menu of options for the current screen or feature.

Home Key

Touch Home to display the Home screen.

Touch and hold Home to launch a menu of recent applications, or to launch Task Manager.

Back Key

Touch ➕ Back to return to the previous screen, option or step.

Search Key

Touch 🔒 Search to launch Quick Search, to search the web and your phone.

Context-sensitive Menus

While using your phone, context-sensitive menus offer options for the feature or screen. To access context-sensitive menus:

• Touch Menu.
• Touch and hold on an item.

Finger Gestures

Touch

Touch items to select or launch them. For example:

• Touch the on screen keyboard to enter characters or text.
• Touch a menu item to select it.
• Touch an application's icon to launch the application.

Touch and Hold

Activate onscreen items by a touch and hold gesture. For example:

• Touch and hold a widget on the home screen to move it.
• Touch and hold on a field to display a pop-up menu of options.

Swipe, Flick or Slide

Swipe, flick or slide your finger vertically or horizontally across the screen. For example:

• Unlocking the screen
• Scrolling the Home screen or a menu

Notification Panel

The Notification Panel shows information about connections, messages and other items.

▶ Sweep your finger downward from the top of the screen.

06/02/2018 Notification New messages 4:02 PM New email 4:02 PM Tap a notification to open the related application 06/05/2018 Touch a connection icon to activate Wi-Fi, Bluetooth, GPS and/or Airplane. New messages 4:02 PM New email 4:02 PM Tap to clear all notifications Touch and hold and then slide up to close the Notification panel

Connection Icons

Icons at the top of the Notification Panel show connection status for Wi-Fi, Bluetooth, GPS, and Airplane mode.

Touch an icon to enable the connection.

For more information about Connection settings, For more information, refer to "Wireless & networks" on page 109.

Clearing Notifications

1. Sweep your finger downward from the top of the screen to display the Notifications Panel.

2. Touch a notification to clear it.

- or - Touch Clear to clear all notifications

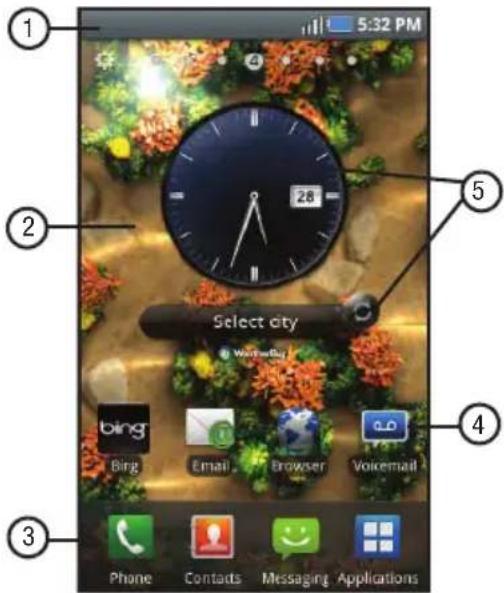

Home Screen

The Home screen is the starting point for using your phone.

1 2 3 5:32 PM Select city Wednesday bing Bing Email Browser Voicemail Phone Contacts Messaging Applications 4

Note: Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.

1. Annunciator Line: Presents icons to show network status, battery power, and connection details. For a list of icons, see "Annunciator Line" on page 22.

2. Home screen: The starting point for using your phone. Place icons, widgets and other items to customize your phone to your needs. For more information, see "Home Screen" on page 20.

3. Primary Shortcuts: Shortcuts to your phone's common features. For more information, see "Primary Shortcuts" on page 23.

4. Shortcuts: Shortcuts to common applications. These shortcuts are found on the Home screen by default. For more information, see "Shortcuts" on page 26.

5. Widgets: Applications that run on the Home screen. These widgets are found on the Home screen by default. For more information, see "Widgets" on page 24.

Display settings

You can customize display settings to your preferences. For more information, see "Display settings" on page 119.

Extended Home Screen

The Home screen consists of the Home panel, plus 6 panels that extend beyond the display width to provide more space for adding shortcuts, widgets and folders.

Slide your finger horizontally across the screen to scroll to the left or right side panels. As you scroll, the indicator at the top of the display shows your current position.

Customizing the Home Screen

Customize the Home screen to suit your preferences.

• Add Shortcuts. For more information, see "Shortcuts" on page 26.
• Add Widgets: For more information, see “Widgets” on page 24.
• Add Folders: For more information, see "Folders" on page 27.
• Change the Wallpaper. For more information, see “Wallpaper” on page 27.

Adding and removing Home screen panels

Your phone comes with 7 Home screen panels. You can customize the Home screen to include up to the seven default panels, and set one panel as Home.

1. From the Home screen, touch

Menu → Edit page.

1. Sweep your finger across the screen to scroll the panels, and use these controls to configure panels:

Delete: Remove the panel from the Home screen.

Add: Scroll the panels to display the location for a panel, then touch the Add button. Add previously-removed panels up to the default total of seven.

Set as home

Set as Home: Touch to assign a panel as the Home screen. The panel set as Home will display when you touch 📋 Home.

Annunciator Line

The Annunciator line displays icons to show network status, battery power, and other details.

Signal Strength: Current signal strength. The greater the number of bars, the stronger the signal.

Airplane Mode Active: All wireless communications are disabled. See "Airplane mode" on page 113.

System Alert: Check Notifications Panel for alerts.

Voice Call : A voice call is in progress.

Speakerphone: Speakerphone is enabled.

Missed Call: Displays when there is a missed call.

Battery Level: Shown fully charged.

Charging Indicator: Battery is charging.

Device Power Critical: Battery has only three percent power remaining. Charge immediately.

3G Connection Active: Phone is active on a 3G system.

USB Connected: The phone is connected to a computer using a USB cable.

New Message: You have new message(s).

New Voicemail: You have new voicemail.

New Email Message: You have new email.

Alarm Set: An alarm is active. For more information, refer to "Clock" on page 97.

Silent mode: All sounds except media and alarms are silenced. See "Silent mode" on page 116.

Vibrate mode All sounds are silenced, but the phone vibrates for alerts. See "Ringer volume" on page 117.

SD Card Ready: An optional memory card is installed.

SD Card Removed A memory card was uninstalled.

Bluetooth Active: Bluetooth is turned on.

Bluetooth Connected: The phone is paired with another Bluetooth device.

Wi-Fi Active: Wi-Fi is connected, active, and communicating with a Wireless Access Point (WAP).

Wi-Fi Action Needed Action needed to connect to Wireless Access Point (WAP).

TTY: TTY Mode is active.

Primary Shortcuts

Primary Shortcuts appear at the bottom of the display. You can edit the Primary Shortcuts, except for the Applications/Home shortcut.

Note: When you access Applications, the Home shortcut replaces the Applications shortcut to provide quick return to the Home screen.

Phone: Launches the Phone, to make calls. For more information, see "Making Calls" on page 32.

Contacts: Store and manage your contacts. For more information, see “Contacts” on page 42.

Messaging: Send and receive messages. For more information, see “Messaging” on page 57.

Applications: Access your phone's applications. For more information, see "Applications" on page 28.

Editing the Primary Shortcuts

1. From the Home screen, touch
2. Touch ☐ Menu → Edit.
3. Touch and hold an icon, then drag it to replace a primary shortcut.
4. When you are finished, touch ☐ Menu → Save.
   Applications.

Widgets

Widgets are self-contained applications that you can place on the Home screen to access favorite features.

Adding Widgets to the Home screen

1. Navigate to the desired Home screen, then touch and hold on the screen to display the Add to Home screen menu.
2. Touch Samsung Widgets or Android Widgets, then touch a widget to add it to the Home screen.

Removing Widgets

▶ Touch and hold the Widget until 📄 Trashcan appears, then drag the Widget to the Trashcan.

Samsung Widgets

Analog Clock 1: Display an analog clock.

Analog Clock 2: Display an analog clock.

Analog Clock 3: Display an analog clock.

Analog Clock 4: Display an analog clock.

Buddies now: Quickly call or send a message to favorite contacts, from the Home screen. Appears on the Home screen by default. For more information, see “Buddies now” on page 52.

Calendar Clock Display an analog clock with the current date.

Daily Briefing: Monitor the weather, financial information, news and your schedule from one convenient location on the Home screen. Appears on the Home screen by default. For more information, see “Daily Briefing” on page 98.

Digital Clock 1: Display a digital clock.

Digital Clock 2: Display a digital clock.

Dual Clock 1: Display two time zones.

Dual Clock 2: Display two time zones.

Feeds and Updates: Display feeds from your Facebook, MySpace, and Twitter accounts, and post an update to your accounts, right from the Home screen. Appears on the Home screen by default. For more information, see “Feeds and Updates” on page 41.

Program Monitor: Display the number of active applications. Touch to launch Task Manager. For more information, see "Task Manager" on page 11.

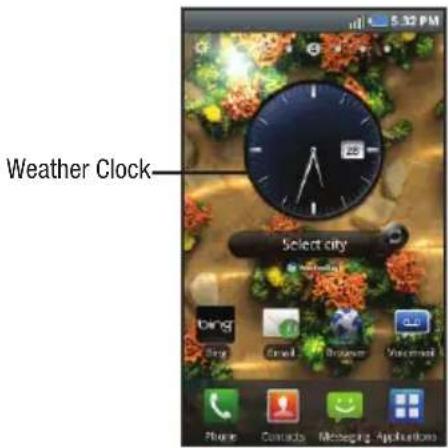

Weather Clock : Display a clock with weather information from WeatherBug. Appears on the Home screen by default. For more information, see "Weather Clock" on page 107.

Android Widgets

Bing: Launch Bing search. Appears by default on the Home screen. For more information, see "Bing" on page 66.

Data usage: View data usage for the billing period. Touch to launch My Verizon Mobile for information about data usage and other account details. For more information, see "My Verizon Mobile" on page 101.

Picture frame: Display a picture from the Gallery on the Home screen.

Power control : Control Wi Fi, Bluetooth, and GPS connections, and set automatic synchronization and brightness settings.

YouTube Search YouTube and watch videos.

Shortcuts

Use Shortcuts for quick access to applications or features.

Adding Shortcuts from the Home screen

1. Navigate to a Home screen panel, then touch and hold on the screen to display the Add to Home screen menu.
2. Touch Shortcuts, then touch a selection:

Applications: Launch an application. For a list, see "Applications" on page 28.

Bookmark Launch a bookmarked web page.

Contact: View a contact you specify.

Direct dial Automatically call a contact you specify.

Direct message: Create a message to a contact you specify.

Gmail label Launch a Gmail account.

Maps: Launch Bing Maps.

Settings: Go to a specific setting.

1. Follow the prompts to configure the Shortcut and add it to the Home screen.

Adding Shortcuts from Applications

1. Navigate to a Home screen panel.
2. Touch Applications.
3. Touch and hold on an application icon. The Shortcut icon is automatically placed on the selected Home screen.

Removing Shortcuts

▶ Touch and hold the Shortcut until 📄 Trashcan appears, then drag the Shortcut to the Trashcan.

Folders

Place Folders on the Home screen to organize items together on the Home screen.

1. Navigate to the desired Home screen, then touch and hold on the screen to display the Add to Home screen menu.

2. Touch Folders, then touch a selection:

New folder: Create a new empty folder.

All contacts Create a folder containing all contacts.

Contacts with phone numbers: Create a folder containing contacts with stored phone numbers.

Received list from Bluetooth Create a folder containing a list of items received via Bluetooth.

Recent documents Create a folder containing documents opened recently with ThinkFree Office.

Starred contacts: Create a folder containing contacts marked as Favorites.

Removing Folders

▶ Touch and hold the Folder until 📄 Trashcan appears, then drag the Folder to the Trashcan.

Wallpaper

Choose a picture to display in the background of the Home screen. You can choose from pre-loaded wallpaper images, or select a picture you've taken with the Camera or downloaded.

1. From the Home screen, touch and hold on the screen to display the Add to Home screen menu, then touch

Wallpapers

- or -

From the Home screen, touch ☐ Menu → Wallpaper.

1. Choose a source for images:

- G a l l: Across the Gallery to choose a picture from an installed memory card. Touch a picture to select it, then use the crop tool to resize the picture, if desired. Touch Save to save the picture as wallpaper.

- Live wallpapers: Choose from pre-loaded interactive animated wallpapers. Touch a wallpaper to see an example, then touch Set wallpaper.

- Wallpaper gallery: Choose from pre-loaded wallpaper images. Touch a wallpaper, then touch Set wallpaper

Applications

The Applications screen holds all applications installed on your wireless device. Applications that you download and install from Android Market or from the web are also added to the Applications screen.

You can place shortcuts to applications on the Home screen, for quick access to the application. For more information, see "Adding Shortcuts from Applications" on page 26.

1. From the Home screen, touch
2. Slide your finger left or right to scroll the Applications screens.
3. Touch an icon to launch the application.

1:54 PM 3G Mobile Hospool AlShare Bing Blockbuster Browser Calculator Calendar Camers Car Cradle City 1D Clock Daily Briefing Desk Cradle Email Gallery Email Phone Contacts Messaging Prime

Customizing the Applications Screens

Choosing a view

By default, application icons appear in Grid view. You can change the view to list view.

1. From the Home screen, touch

Applications.

1. Touch ☐ Menu → List View.

Moving Application icons

1. From the Home screen, touch

Applications.

1. Touch ☐ Menu → Edit.

2. Touch and hold an application icon, then drag it to a new location.

Tip: You can place Applications on the Primary Shortcuts bar, to allow access to the application from any screen. For more information, see "Editing the Primary Shortcuts" on page 23.

1. When you are finished, touch ☐ Menu → Save.

Applications

3G Mobile Hotspot Share your phone's mobile internet connection with a PC through Wi-Fi. For more information, see "3G Mobile Hotspot" on page 88.

AllShare: Synchronize your phone with your TV. For more information, see "AllShare" on page 94.

Bing: Search the web. For more information, see "Bing" on page 66.

Blockbuster: Browse and search the entire mobile catalog of Blockbuster On Demand titles. For more information, see "Blockbuster" on page 95.

Browser: Access the Internet. For more information, see "Browser" on page 66.

Calculator: Perform mathematical calculations. For more information, see "Calculator" on page 95.

Calendar: Record events and appointments to manage your schedule. For more information, see "Calendar" on page 96.

Camera: Take pictures or record videos. For more information, see "Camera" on page 79.

Car Cradle: Operate your phone with an optional Car Cradle accessory. For more information, see "Car Cradle" on page 97.

City ID: Subscribe to display the city and state for incoming calls. For more information, see “City ID” on page 97.

Clock: Keep track of time with Alarm, World clock, Stopwatch and Timer features.

Contacts: Save and manage contact information for your friends and colleagues. Appears in the Primary Shortcuts by default. For more information, see "Contacts" on page 42.

Daily Briefing: Monitor weather, financial information, news and your schedule, from one application. For more information, see “Daily Briefing” on page 98.

Desk Cradle: Operate your phone with an optional Desk Cradle accessory. For more information, see "Desk Cradle" on page 98.

Email: Send and receive email from your phone. For more information, see "Email" on page 62.

Gallery: View and manage pictures stored on your phone, or on an optional installed memory card. For more information, see "Gallery" on page 84.

Gmail: Send and receive emails via Gmail, Google's web-based email. For more information, see "Gmail" on page 60.

Kindle: Download Amazon books. For more information, see "Kindle" on page 99.

Market: Browse, download, and install Android applications. For more information, see “Android Market” on page 94.

Memo: Create text memos, and send memos via Bluetooth. For more information, see “Memo” on page 100.

Messaging: Send and receive messages. Appears by default in the Primary Shortcuts. For more information, see “Messaging” on page 57.

Mobile IM: Send and receive IMs via AOL, Windows Live, or Yahoo!. For more information, see "Mobile IM" on page 65.

Music Player: Play music stored on an optional installed memory card. For more information, see "Music Player" on page 73.

My Files: Find, view and manage files stored on an optional installed memory card. For more information, see "My Files" on page 100.

My Verizon Mobile: View details and manage your Verizon Wireless account. For more information, see "My Verizon Mobile" on page 101.

NFS Shift: Play the popular Need for Speed: Shift game on your phone.

Phone: Make and answer calls. Appears by default in Primary Shortcuts. For more information, see “Call Functions” on page 32.

Settings: Configure your phone to your preferences. For more information, see "Settings" on page 109.

Skype mobile™: Make calls and send instant messages to anyone who has Skype. For more information, see “Skype Mobile” on page 101.

Talk: Chat with other Google Talk users. For more information, see "Google Talk" on page 62.

Task Manager: View and manage active applications. For more information, see “Task Manager” on page 11.

Tetris : Play the popular game, right on your phone.

ThinkFree Office Suite for Android ^TM : View and manage files in a Microsoft ^® Office-compatible software suite. For more information, see “ThinkFree Office” on page 102.

VCAST Music with Rhapsody®: Browse and download songs from the V CAST with Rhapsody catalog. For more information, see “V CAST Music with Rhapsody” on page 76.

V CAST Tones: Preview, download and purchase ringtones and ringback tones. For more information, see "V CAST Tones" on page 78.

VCAST Videos: Browse and download videos from the VCAST library. For more information, see "VCAST Videos" on page 82.

Video Player : Play and manage videos stored on an installed memory card. For more information, see "Video Player" on page 83.

Voice Commands: Speak commands to make calls, and to launch other phone features. For more information, see "Voicemail" on page 37.

Voice Recorder: Record your voice or other sounds, and share recordings via Bluetooth, Messaging, or Gmail. For more information, see "Voice Recorder" on page 103.

Voice Search: Perform a Google search by speaking your search terms. For more information,

Voicemail: Retrieve messages from callers. For more information, see "Voicemail" on page 37.

VZ Navigator: Find, share and navigate to millions of locations. For more information, see “VZ Navigator” on page 103.

Write & Go: Capture ideas, then choose a format for sending via Gmail, saving to the Calendar or as a memo, or posting it to Facebook. For more information, see “Write & Go” on page 108.

YouTube View and upload YouTube videos, right from your phone. For more information, see "YouTube" on page 66.

Section 3: Call Functions

This section describes how to make, answer or end calls.

Making Calls

Your phone offers multiple ways to make calls:

• Use the touch screen Phone Dialer to enter the phone number or speed dial number.
• Call a contact from Contacts.
• Call a contact from Favorites.
• Return a call, or call a recent caller, from Call log.
  • Voice dial using Voice Commands.

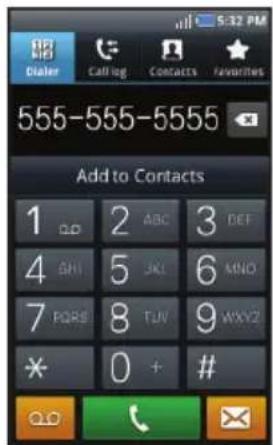

Making Calls Using the Phone Dialer

1. From a Home screen, touch
2. Touch the digits of the telephone or speed dial number on the Dialer keypad. While dialing, use these options:

- Touch ☐ Menu → Add to Contacts to add the number you entered to a new contact, or to update an existing contact.

- Touch ☐ Menu → Speed dial setting to dial or set Speed Dials.

- Touch ☐ Menu → Add 2 sec pause to insert a 2-second pause in the telephone number.

- Touch ☐ Menu → Add wait to insert a Wait pause in the telephone number, to pause dialing to wait for input from you.

1. Touch to place the call.

Phone.

532 PM Dialer Call log Contacts Favorites 555-555-5555 Add to Contacts 1 QD 2 ABC 3 DEF 4 GMI 5 JKL 6 MINO 7 PQRS 8 TUN 9 XXXV2 * 0 + # QQ

Making Calls using Speed Dials

Speed Dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you assign to contacts, to allow you to quickly call the contact. For more information about setting speed dials, see “Speed Dials” on page 51.

1. From a Home screen, touch

1. Touch the digits of the speed dial number on the Dialer keypad, holding the last digit until the number dials.

Making Calls from Contacts

A contact is an entry that you have created to store the name, numbers, and other information for people or groups of interest.

For more information, see "Contacts" on page 42.

1. From a Home screen, touch

1. Find the contact and touch it to open the Contact entry.

2. Touch to call the default number for the Contact.

Making Calls using Voice Commands

Place a call by speaking the name or number. For more information, see “Voice Commands” on page 104.

Making Calls using Favorites

Favorites are contacts that you designate as favorites by starring them. For more information about creating favorites, see "Favorites" on page 47.

1. From a Home screen, touch

1. Touch Favorites to display favorites.

2. Find the contact and touch it to open the Contact entry.

3. Touch Call to dial the default number for the Contact.

Making Calls from Call Log

Return a call, or call a number from a recent call stored in Call log. For more information about Call log, see “Call Log” on page 36.

1. From the Home screen, touch

1. Touch Call log to display recent calls.

2. Find a call, then touch Call to dial the number.

Three-Way Calling

Merge two calls to set up a three-way call between you and two other parties.

Setting up a Multi-Party Call

1. Establish a call, either by dialing or answering an incoming call.
2. Touch Add Call. The first call is placed on hold, and the Dialer displays.
3. Enter the second phone number, then touch .
4. Touch Merge. The two calls are joined into one, 3-way call.

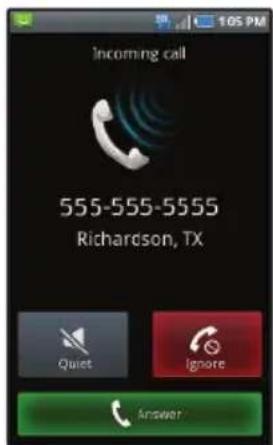

Answering Calls

You can answer incoming calls when the phone is locked or unlocked.

▶ With the phone unlocked, touch Answer: — or —

With the phone locked, touch and drag the Answer puzzle piece to the empty space.

Incoming call 555-555-5555 Richardson, TX Quiet Ignore Answer

Incoming call 555-555-5555 Richardson, TX

Tip: To silence the ringtone for an incoming call, use the Quiet button or puzzle piece, or press the Volume Key down.

Sending Calls to Voicemail

When your phone alerts you to an incoming call, you can ignore the call to send the caller to voice mail, or ignore the call and send a message to the caller.

Ignoring a call

▶ With the phone unlocked, touch Ignore.

- or -

With the phone locked, touch and drag the Ignore puzzle piece to the empty space.

Ignoring a call with a message

▶ With the phone unlocked, touch Ignore, then touch Message to choose a message or create a new message. — or —

With the phone locked, touch and drag the Ignore puzzle piece to the empty space, then touch Message. Unlock the phone to choose a message or create a new message.

Note: For more information about creating ignore messages, see “Ignore with message” on page 115.

Answering Call-Waiting Calls

When you receive a call while on a call:

• Touch Answer to answer the incoming call. The original call is placed on hold, and remains on hold until you end the second call, or swap calls back to the original call.
• Touch Swap to place a call on hold and return to the original call.

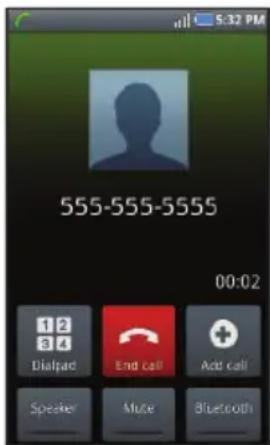

In-Call Options

While in a call, you can use these features:

• Dialpad: Display a dialpad to enter numbers.
  • End call: End the phone call.
• Add call: Display the Dialer to set up a multi-party call.
• Speakable or disable speakerphone.
• M u :theute or unmute your voice on the call.
• Bluetooth: Switch the call's audio to a Bluetooth headset.

555-555-5555 00:02 1 2 3 4 Dialpad End call Add call Speaker Mute Bluetooth

Ending a Call

Touch

Call Log

When you place, answer, or miss a call, a record of the call is saved in the Call log.

Accessing Call Log

▶ From the Home screen, touch Phone → Call log.

Sending Messages using Call Log

1. From the Home screen, touch Phone → Call log.

2. Touch and hold on a call record, then select Send message to create a new message, with the phone number entered in the To list.

3. Continue creating the message. For more information, see "Creating and Sending Messages" on page 58.

Creating or Updating Contacts Using Call Log

1. From the Home screen, touch Phone → Call log.

2. Touch and hold on a call record, then select Add to Contacts from the pop-up menu.

3. Choose Create contact or Update existing.

4. Continue entering contact information. For more information, see "Contacts" on page 42.

Managing the Call Log

Deleting Call log records

1. From the Home screen, touch Phone → Call log.

2. While viewing the Call log, touch ☐ Menu → Delete.

3. Touch call records to mark them for deletion, or touch Select all. A check appears in the check box to show marked records.

4. Touch Delete to delete marked records.

Filtering Call log records

1. From the Home screen, touch Phone → Call log.

2. While viewing the Call log, touch ☐ Menu → View by.

3. Select a filter type, from All calls, Missed calls, Dialled calls, or Received calls.

Viewing call durations

View the length of the Last call, all Dialled calls, all Received calls, or All calls.

1. From the Home screen, touch Phone → Call log.

2. While viewing the Call log, touch Menu Call duration.

Voicemail

All unanswered calls to your phone are sent to voicemail, even if your phone is turned off, so you'll want to set up your voicemail and personal greeting as soon as you activate your phone.

Setting up Voicemail

1. From the Home screen, touch

Voicemail.

- or -

From the Home screen, touch

Applications →

Voicemail→ Call Voice Mail.

1. Follow the automated instructions to set up your new password and record a greeting.

Checking Voicemail

1. From the Home screen, touch

Voice Mail.

- or -

From the Home screen, touch

Applications →

Voicemail→ Call Voice Mail.

1. Follow the automated instructions to manage voicemail.

Tip: You can also access Voicemail by dialing your phone number from any touch-tone phone.

Visual Voicemail

Use Visual Voicemail to view voice mail details right on your phone. You can choose messages to retrieve, without listening to all messages.

Note: Visual Voicemail requires a subscription. For more information, contact Verizon Wireless.

From the Home screen, touch 📄 Voicemail→ Visual Voicemail.

Section 4: Contacts and Accounts

This section explains how to manage your contacts and accounts.

Accounts

Your phone provides the ability to synchronize information from a variety of accounts, including Google, a Corporate Exchange server, and social networking sites such as Facebook, Twitter, and MySpace. With synchronization, you can ensure that information on your phone is updated with any information that changes in your accounts.

Synchronize contacts with your Facebook, Twitter and MySpace accounts.

Note: You must register your phone with your social network site before using the phone to access the networks.

With Corporate Exchange and Google accounts you can synchronize Calendar events and Contacts.

Tip: For more information on setting up your email, visit the Smartphone Resource Center at https://smartphones.verizonwireless.com, click on the Smartphone Support tab and select your phone.

Setting Up Your Accounts

Set up and manage your synchronized accounts with the Accounts & sync setting.

For information about setting up other, non-synchronized email accounts, see “Configuring Email Accounts” on page 62.

Adding a Google account

1. From the Home screen, touch ☐ Menu → Settings → Accounts & sync.
2. Touch Add account → Google.

3. At the Add a Google Account screen, touch Next to begin, then touch an option:

4. C re aFollow the prompts to create a new account.

5. Sign in: Enter your Google Username and Password, then touch Sign In.

6. The phone communicates with the Google server to set up your account. When complete, your Google account appears in the Manage accounts area of the Accounts & sync screen.

Managing a Google account

1. From the Home screen, touch ☐ Menu → Settings → Accounts & sync.
2. Tap your Google account to display the Data & synchronization screen.

3. Tap a setting to enable or disable synchronization. When enabled, a check mark appears in the check box:

4. Sync Con Warchenabled, synchronizes your Google contacts with your phone's Contacts.

5. Sync G: When enabled, synchronizes your Gmail messages on your phone.
6. Sync Calendar : When enabled, synchronizes your Google calendar with your phone.

Adding a Corporate account

1. From the Home screen, touch ☐ Menu → Settings → Accounts & sync.
2. Touch Add account → Corporate.
3. At the Set up email screen, enter your Email address and Password, then touch Next.
4. At the Server settings screen, enter server settings, then touch Next The phone communicates with the server to confirm your account.
5. At the Account options screen, select account settings, then touch Next.
6. At the Set up email screen, enter a name for the account (this name will display on screen), and enter your name to appear on outgoing messages. Touch Done to complete set-up.
7. Your Corporate account appears in the Manage accounts area of the Accounts & sync screen, and in the Email application.

Managing a Corporate Exchange account

1. From the Home screen, touch ☐ Menu → Settings → Accounts & sync.

2. Touch your Corporate account to display settings, then touch Account settings for these settings:

- General settings

• Account name: Enter a name to identify the account.
  — Your name Enter your name, to be used in outgoing emails.
• Email check frequency. Choose a frequency for the phone to check the server for new emails.
  — Amount to synchronize Choose a time period to determine how many days' email will synchronize.
• Default account Touch to assign or un-assign this account as the default account for sending email from your phone.

- Notification settings

• Email notifications: Enable or disable display of a new email icon in the Annunciator line when new mail arrives.
• Select ringtone: Assign a ringtone for new email notifications.
• Vibrate: Enable or disable vibration with new email notifications.

- Server settings

• Incoming settings: Modify server settings.
• Sync contacts Enable to synchronize your Exchange contacts with your phone's Contacts.

- Sync Calendar: Enable to synchronize your Exchange calendar with your phone's calendar.

1. Under Data & synchronization, configure these settings:

2. Sync Con Warchenabled, synchronizes your Exchange contacts with your phone's Contacts.

3. Sync Calendar : When enabled, synchronizes your Exchange contacts with your phone.

Setting Up a Facebook account

Note: You must register your phone with Facebook before using the phone to access the site. From your Facebook account, go to Account Settings and follow the “Activate a Phone” registration instructions.

1. From the Home screen, touch
   Menu → Settings →
   Accounts & sync → Add account →Facebook.
2. Enter your Email and Password, then touch Log in.
3. Follow the prompts to complete the set-up.

Setting Up a Twitter account

Note: You must register your phone with Twitter before using the phone to access the site. From Twitter.com Settings, follow the instructions in the Mobile area to register your phone.

1. From the Home screen, touch

Menu → Settings →

Accounts & sync → Add account → Twitter.

1. Enter your Email and Password, then touch Log in.
2. Follow the prompts to complete the set-up.

Setting Up a MySpace account

Note: You must register your phone with MySpace before using the phone to access the site. From the MySpace Account Settings, follow the "Mobile Activation" registration.

1. From the Home screen, touch

Menu → Settings →

Accounts & sync → Add account → MySpace.

1. Enter your Email and Password, then touch Log in.
2. Follow the prompts to complete the set-up.

Feeds and Updates

Feeds and Updates displays feeds from your Facebook, MySpace, and Twitter accounts, and allows you to post an update to your accounts, right from the Home screen.

Tip: The Feeds and Updates widget is available by default on the Home screen, or is available in the Samsung Widgets. For more information about placing widgets on the Home screen, see "Widgets" on page 24.

▶ From the Home screen, touch

Setup on the Feeds and

Updates widget to configure your preferences.

Note: When you set up Facebook, Myspace and Twitter accounts on your phone, your accounts automatically appear in Feeds and Updates.

Contacts

To access Contacts:

▶ From the Home screen, touch

Contacts.

Creating Contacts

1. From the Home screen, touch contact.

Contacts → Create

1. At the Save contact to prompt, touch an account for saving the contact (available options depend on the accounts you have set up):

• Phone : Saves to the phone's Contacts.
- Google: Saves to your Google account.
• Corporate Savings to your Corporate Exchange account.

1. Touch contact fields to enter information:

2. Touch Photo ID to choose a picture to identify the contact.

3. Touch First name, then enter a first name for the contact.
4. Touch Last name, then enter a last name for the contact. After entering a last name touch Expand to enter a Name prefix or Middle name.

5. Touch Phone number to enter a phone number, then touch the Label button to choose a label, fromMobile, Home, Work, Work Fax, Pager, Assistant, Other, or Custom to create a custom label. To add another number, touch Add phone number

6. Touch Email address to enter an email address, then touch the Label button to choose a label, from Home, Work, Mobile, Other, or Custom to create a custom label. To add another address, touch Add email address.

7. Touch Instant msg to enter an instant message address, then touch the label button to choose a label, from Google Talk, AIM, Windows Live, Yahoo, Skype, QQ, ICQ, Jabber, or Custom to create a custom label. To add another IM, touch Add IM.
8. Touch Groups to assign the contact to a group. For more information about Groups, see “Groups” on page 48.
9. Touch Ringtone to choose a ringtone for the contact.
10. Touch Company to enter a company name.
11. Touch Job title to enter a work title.

12. To add more fields, tap Add more fieldsto choose Nickname, Postal address, Web address, Birthday, Anniversary and Note.

13. When you finish entering information, touch . Save

Creating Contacts from Call log

Save a phone number from a recent call record to create a new contact, or update an existing contact.

For more information, see “Creating or Updating Contacts Using Call Log” on page 36.

Creating Contacts from the Phone Dialer

Enter a phone number with the Phone Dialer keypad, then save it.

1. From a Home screen, touch
2. Touch the digits of the phone number on the Dialer keypad.
3. Touch Add to Contacts, then select Create contact from the pop-up menu.
4. Continue entering contact information. For more information, see "Creating Contacts" on page 42.

Updating Contacts

Make changes to update an existing contact.

1. From the Home screen, touch

1. Touch a contact to view its information, then touch

Menu → Edit.

- or -

Touch and hold on a contact, then select Edit from the pop-up menu.

1. Continue entering contact information. For more information, see "Creating Contacts" on page 42.

Updating Contacts from the Phone Dialer

Enter a phone number with the Phone Dialer keypad, then save it.

1. From a Home screen, touch
2. Touch the digits of the phone number on the Dialer keypad.
3. Touch Add to Contacts, then select Update existing from the pop-up menu.
4. Select a contact to update, then touch Save, or continue entering contact information. For more information, see "Creating Contacts" on page 42.

Updating Contacts from Call log

Save a phone number from a recent call record to create a new contact, or update an existing contact.

For more information, see “Creating or Updating Contacts Using Call Log” on page 36.

Get Friends

Use the Get Friends feature to sync with your accounts. You can choose from an account you've already set up on your phone, or set up a new account.

For more information about setting up accounts on your phone, see "Setting Up Your Accounts" on page 38.

1. From the Home screen, touch Contacts.
2. Touch ☐ Menu → Get friends.
3. Touch Add Account, then touch an account.
4. Touch ☐ Menu → Sync now.

Contacts Display Options

1. From the Home screen, touch Contacts.

2. Touch ☐ Menu → Display options to set these options:

3. Touch Only contacts with phones to restrict display to contacts with phone numbers.

4. Touch Phone to choose contacts for display by group.

5. Touch an account to choose display categories.

6. Touch to save options.

Linked Contacts

Your phone can synchronize with multiple accounts, including Google, Corporate Exchange, and other email providers, plus social networking sites like Facebook, Twitter, and MySpace. When you synchronize contacts from these accounts with your phone, you may have multiple contacts for one person.

Linking imported contact records to a phone contact allows you to see all the contact's numbers and addresses together in one Contact entry. Linking also helps you keep your contacts updated, because any changes that your contacts make to their information in the respective accounts is automatically updated the next time you synchronize with the account.

Note: Phone contacts are always the primary contact for linking. You can link imported contacts to a Phone contact, but the Phone contact will always display; the imported contact will show as the linked contact.

Linking contacts

1. From the Home screen, touch

Contacts.

1. Touch a Phone contact (a contact with the display its information.

1. Touch

Menu → Link contact.

1. Touch an imported contact record to link it to the Phone contact.

Unlinking contacts

1. From the Home screen, touch

Contacts.

1. Touch a contact to display its information.

2. Touch the Linked Contacts field to display linked contacts.

3. Touch a contact to unlink it from the displayed contact.

Sending Namecards

Sending a Namecard (vCard)

You can send a contact namecard as a vCards via Bluetooth to other Bluetooth devices, or via Gmail as an attachment.

Important!: Not all Bluetooth devices will accept contacts, and not all devices support transfers of multiple contacts. Check the target device's documentation.

1. From the Home screen, touch

Contacts.

1. Touch a contact to display its information.

2. Touch ☐ Menu → Send namecard via.

3. At the prompt, choose a sending method, then follow the prompts to send the namecard:

- Bluetooth: For more information about sending via Bluetooth, see "Bluetooth" on page 89.

- G m aFol more information about sending Gmail, see "Composing and Sending Gmail" on page 61.

Sending multiple namecards via Bluetooth

You can send multiple contact namecards as vCards via Bluetooth to other Bluetooth devices.

Important!: Not all Bluetooth devices will accept contacts, and not all devices support transfers of multiple contacts. Check the target device's documentation.

1. From the Home screen, touch Contacts.
2. Touch ☐ Menu → More → Send via Bluetooth.
3. Touch contacts to mark them for sending, or touch Select all to mark all contacts. A check mark appears in the check box for marked contacts.
4. Follow the prompts to send the namecards. For more information about Bluetooth, see "Bluetooth" on page 89.

Backing Up Your Contacts

Use Backup Assistant to save a copy of your Contacts to a secure web site. For more information, see “Backup Assistant” on page 51.

1. From the Home screen, touch Contacts.
2. Touch ☐ Menu → Backup.
3. Follow the prompts to log in to your Backup Assistant account.

Exporting and Importing Contacts

You can export your contact list to an optional installed memory card, or import a list of contacts (previously exported) from a memory card.

1. From the Home screen, touch Contacts.
2. Touch ☐ Menu → More → Export/Import.
3. Touch Import from SD card or Export to SD card, then follow the prompts to complete the operation.

Favorites

Mark contacts with a star to identify them as Favorites.

Favorites display on the Favorites tab in the Phone Dialer, for fast dialing or messaging, and are indicated by the in Contacts.

Creating Favorites

1. From the Home screen, touch

Contacts.

1. Touch and hold on a contact, then select Add to favorites from the pop-up menu.

- or -

Touch a contact to display it, then touch the ★ Star at the top right of the screen.

My Profile

My profile is your own contact record. You can send My profile as a vCard via Bluetooth or as an attachment via Gmail.

Viewing My Profile

1. From the Home screen, touch

Contacts.

1. Touch ☐ Menu → More → My profile to display your contact information.

2. To add information to your profile, touch ☐ Menu → Edit. For more information, see “Creating Contacts” on page 42.

Sending My Profile

You can send My Profile as a vCard via Bluetooth to other Bluetooth devices, or as an attachment to a Gmail.

1. From the Home screen, touch

Contacts.

1. Touch ☐ Menu → More → My profile to display your contact information.

2. Touch ☐ Menu → Send via.

3. Choose a sending method, Bluetooth or Gmail, then follow the prompts to send the profile.

Groups

Assign contacts to Groups to make searching for contacts faster, or to quickly call or send messages to group members.

Accessing Groups

▶ From the Home screen, touch 📋 Contacts → Groups.

Creating a New Group

1. From the Home screen, touch Contacts → Groups.
2. Touch ☐ Menu → Create.
3. Touch the Name field to enter a Group Name.
4. Touch Ringtone to choose a ringtone for calls from members of this group. Touch Default Ringtone, or Phone Ringtone to select a new ringtone.
5. Touch to save the new group.

Editing a Group

1. From the Home screen, touch 📷 Contacts → Groups.
2. Touch a Group to display it.
3. Touch ☐ Menu → Edit group.
4. Touch the Group Name field to change the Group Name.
5. Touch Ringtone to choose a ringtone for calls from members of this group. Touch Default Ringtone or Phone Ringtone to select a new ringtone.
6. Touch to save the changes.

Deleting a Group

1. From the Home screen, touch 📷 Contacts → Groups.
2. Touch ☐ Menu → Delete.
3. Choose Group only or Group and group members.
4. Touch a group to mark it for deletion, or touch Select all to mark all groups. When selected, a check mark appears in the check box.
5. Touch to delete the group(s).

Adding Contacts to a Group

Tip: You can also add a contact to a group when you create the contact. For more information, see “Creating Contacts” on page 42.

1. From the Home screen, touch
   Contacts → Groups.
2. Touch a Group to display it, then touch Add member.
3. Touch contact(s) to mark them for addition, or touch Select all to mark all contacts. When selected, a check mark appears in the check box.
4. Touch Add to add the selected contact(s).

Removing Contacts from a Group

Tip: You can also add a contact to a group when you edit the contact. For more information, see "Updating Contacts" on page 43.

1. From the Home screen, touch
   Contacts → Groups.
2. Touch a Group to display it.
3. Touch ☐ Menu → Remove member.
4. Touch contact(s) to mark them for removal, or touch Select all to mark all contacts. When selected, a check mark appears in the check box.
5. Touch to remove the selected contact(s).

Sending a Message to Group Members

1. From the Home screen, touch Contacts → Groups.
2. Touch a Group to display it.
3. Touch ☐ Menu → Send Message.
4. Touch contacts to mark them as recipients for the new message, then touch . Send
5. The new message opens, with the marked contacts as recipients. Continue creating the message, as desired. For more information, see “Creating and Sending Messages” on page 58.

History

History displays all calls, messages, emails, IMs, and Facebook, MySpace and Twitter messages sent and received from contacts.

1. From the Home screen, touch
   Contacts → History.
2. A list of calls, messages and emails displays, sorted by time, with most recent first.

3. Touch ☐ Menu for these options:

4. Delete : Erase history records.

5. View: Filter records by type. Choose from Call, Message, Facebook, MySpace, or Twitter.

Activities

Use Activities to view updates to Contacts from your social networking accounts, such as Facebook, Twitter or MySpace.

Note: If you haven't updated Contacts from any accounts, the Activities tab will be blank.

▶ From the Home screen, touch 📋 Contacts → Activities.

Speed Dials

Speed Dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you assign to contacts, to allow you to quickly call the contact.

Note: Some Speed Dials are reserved by default, and cannot be assigned:

Speed Dial 1 is reserved for Voicemail.

Speed Dial 97 is reserved for balance inquiries.

Speed Dial 98 is reserved for minutes inquiries.

Speed Dial 99 is reserved for payment inquiries.

Speed Dial 100 is reserved for data call inquiries.

Assigning Speed Dials

1. From the Home screen, touch

Contacts.

1. Touch

Menu

→ More

→9

peed dial.

1. A list of speed dials displays. Touch a speed dial, then touch a contact to assign the contact to the speed dial.

Removing or Reassigning a Speed Dial

1. From the Home screen, touch

Contacts.

1. Touch

Menu

→ More

→S

peed dial.

1. Touch

Menu

, then to

uch

an option:

- Rem o Touch a speed dial to remove it.

- Change order : Touch and hold a speed dial, then drag it to a new location in the list.

Backup Assistant

Backup Assistant is a free wireless service that saves a copy of your Contacts to a secure web site. If your phone is lost, stolen or damaged, Backup Assistant can restore your saved contacts to a new phone, wirelessly. You can schedule backups to save your information manually or automatically. Log in to your web account for full access to your contacts for viewing, printing, adding, deleting and editing.

For more information about configuring Backup Assistant settings, see “Backup Assistant” on page 128.

Note: Subject to specific terms of use. Results may vary based on backup schedule and other factors.

See www.verizonwireless.com/backupassistant for more details.

▶ From the Home screen, touch

Contacts, then touch

Menu

→

Bac

kup.

- or -

▶ From the Home screen, touch

Menu → Settings →

Accounts & sync → Backup Assistant.

Buddies now

Buddies now is a quick way to create shortcuts to your favorite contacts, to make comments to your social networking sites, message, or call your contacts with one touch.

Tip: The Buddies now widget is available by default on the Home screen, or is available in the Samsung Widgets. For more information about placing widgets on the Home screen, see "Widgets" on page 24.

From the Home screen, tap the plus icon to add a buddy, then select a buddy from your Contacts. The contact is added to the Buddies now widget.

Buddles now + Tap + to add bubbles Edit Phone Controls Messaging Sparknotes

Buddles now HAPPY 21st BIRTHDAY Jane Jones!!! 9:00 at 12:45 am Comment Call Dave Smith Save Jones Edit Place Contacts Messaging Applications

Section 5: Entering Text

This section describes how to enter words, letters, punctuation and numbers when you need to enter text.

Virtual QWERTY Keyboard

Your phone uses a virtual QWERTY keyboard for text entry. Use the keyboard to enter letters, punctuation, numbers, and other characters into text entry fields or applications. Access the keyboard by touching any text entry field.

The virtual QWERTY keyboard displays at the bottom of the screen. By default, when you rotate the phone, the screen orientation updates to display the keyboard at the bottom of the screen.

Type to compose Next

Swype Keyboard

Text Input Methods

Your phone offers two text input methods:

- Swype: Swype is a new text input method that allows you to enter words by gliding your finger over the virtual QWERTY keyboard, lifting your finger between words. You can also enable Word prediction, which matches your key touches to common words.

- Android Keyboard: The Android Keyboard is a virtual QWERTY keyboard that allows you to enter text by touching keys on the screen. Android Keyboard includes predictive text, which matches your key touches to common words so that you can select the word to enter it into your text.

Changing the Input Method

When entering text, you can select the text input method.

▶ Touch and hold on a text input field, then select an input method:

- Swype

- Android keyboard

Entering Text Using Swype

Swype is a new way to enter text on touch screens. Instead of touching each key, use your finger to trace over each letter of a word. For each word, place your finger on the first letter and glide to the subsequent letters, lifting on the last letter.

This example shows how to enter the word "this". Put your finger down on the "t", and without lifting, glide it to the "h", then to the "i" then over to the "s".

This Done

Here are a few tips to get you started:

- Spacing is automatic: When you finish a word, just lift your finger and start the next word.

- Double letters: Just "scribble" on the key.

- Capitalization: Swype recognizes and capitalizes the first word of sentences. If you want to capitalize a word that isn't at the beginning of a sentence, just glide above the keyboard before gliding over the next letter.

- Contractions: Swype recognizes most words that include an apostrophe; just swype the letters of the word, including the apostrophe.

- Punctuation: Tap and hold a key to view a punctuation menu and make a selection.

- Accented characters: Just glide through the letters of the word. Swype usually recognizes the word and correctly accents the letters.

- Error correction: If you make a mistake, double-tap on the word you want to change.

Configuring Swype

Configure Swype to your preferences.

- For more information, see "Swype" on page 132.

- While entering text, touch the Swype Key → Options.

Tip: To customize predictive text, configure the User dictionary settings. For more information, see "User dictionary" on page 133.

Swype Help

While entering text, you can get tips and help about using Swype.

• Tap the Swype Key to show Tips.
• Tap the Swype Key Tutorial for an interactive tutorial.
• Tap the Swype Key → More Help to view Help.

Entering Symbols and Numbers

Using the Swype Keyboard:

• Touch and hold on a key to enter the symbol or number at the top of the key.
• Touch and hold on a key until a menu of all characters available on that key appears, then touch a character to enter it.
• Touch to switch to Symbol mode, then touch a key.
• Touch SYM → Shift, then touch the corresponding key.

Using the Numeric Keyboard

Switch to a Numeric Keyboard, to quickly enter numbers and mathematical operators:

▶ Touch and hold 123 ABC

From the Numeric Keyboard, you can switch to a Numeric Keyboard:

▶ Touch and hold 123 ABC

Editing Keyboard

The Editing Keyboard provides a quick way to move the cursor and highlight text. If the application in which you are working supports editing, you can cut, copy or paste highlighted text.

To access the Editing Keyboard:

▶ Swype from the Swype Key to the SYM SYM Key.

Using Swype Speech Recognition

Enter text by speaking. Swype recognizes your speech and enters text for you.

To use Speech recognition:

▶ Touch the 📋 Speech Recognition Key. At the Speak now prompt, speak the text you want to enter.

Entering Text Using the Android Keyboard

The Android Keyboard is a custom virtual QWERTY keyboard, featuring predictive text. Input characters by tapping the on-screen keys with your finger, or use speech recognition.

As you enter characters, predictive text matches your key touches to common words and displays them. Select a word from the display to insert it into your text.

1o Next q w e r t y u i o p a s d f g h j k l z x c v b n m H23

Configuring Android Keyboard

Configure the Android Keyboard to your preferences.

• For more information, see "Android keyboard" on page 133.
• While entering text, touch and hold ?123 or ALT, then touch
  Android keyboard settings.

Tip: To customize predictive text, configure the User dictionary settings. For more information, see "User dictionary" on page 133.

Entering Upper and Lower Case Letters

The default case is lower case (abc). Enter upper and lower case alphabet letters by touching the Shift key to toggle the case, before touching the letter key(s).

• Touch once to switch from abc to Abc mode
• Touch and hold to switch to ABC mode

Entering Symbols and Numbers

To enter common symbols, touch to switch to symbol mode, then touch the corresponding key.

To enter less-common symbols, touch ?123 → ALT, then touch the corresponding key.

Enter numbers by touching ? then touching the number keys.

Using Android Speech Recognition

Enter text by speaking. Android Keyboard recognizes your speech and enters text for you.

Note: Enable Speech Recognition in Android Keyboard settings. For more information, see "Android keyboard" on page 133.

▶ Touch the 📄 Speech Recognition Key

Section 6: Messaging

This section describes how to send and receive messages, and other features associated with messaging.

Types of Messages

Your phone supports these types of messages:

• Text messages : Send and receive simple messages containing text to other mobile phones or email addresses (also known as SMS).
• Multimedia messages: Send and receive text messages with pictures and/or sound to other mobile phones or email addresses (also known as MMS).
• Mobile IMs: Exchange Instant Messages to users of popular messaging sites.
• Email Send and receive email from your email accounts, including Corporate Exchange mail.
• Gmail Send and receive Gmail from your Google account.
• Google Talk Chat with other Google Talk users.

Note: Messaging service availability depends on your network and service plan. Multimedia Messaging charges apply per your Calling Plan. Monthly plans are available. Higher rates apply for International Multimedia Messaging (when available). Compatible Device required. Consult Verizon Wireless for more information.

Text and Multimedia Messaging

Your phone can send and receive text and multimedia messages to other mobile phones and to email addresses.

Creating and Sending Messages

1. From the Home screen, touch message.

Messaging → New

1. Tap the To field and enter the recipient's name, phone number or email address.

Note: As you enter a name, phone number or email address, matching contacts appear on the screen. Touch a contact to add it to the list, or continue entering characters.

Tip: If you are creating a message with the phone in portrait mode, touch Recent to choose a recent recipient, Contacts to select contacts, or Group to choose a group for the To list.

1. Touch the Type to compose field, or touch Next, and compose your message. While composing a message, touch ☐ Menu for these options:

- Add subject: Add a subject field to the message and enter a subject. (This option also converts the message to MMS.)

- Attach: Add content to the message to convert it to MMS.

– Pictures Add a picture.
- Capture picture: Take a new picture.
- Videos: Add a video.
– Capture video: Record a new video.
— Audio: Add a sound clip.
– Record audio Create a new audio clip.
- Slideshow Add a slideshow of pictures to this message.
- Add text : Select text from Contacts, Calendar, or Memo to add to the message.
- Insert smiley: Add a text emoticon to the message.
- Cancel: Discard the message.

1. Touch to send the message.

Managing Messages

Threaded View

Messages you send and receive to the same contact, number or address are grouped together as a "thread". Threaded messages allow you to see all the messages you exchanged with a contact, or other recipient, with the latest message displayed first.

1. From a Home screen, touch

Messaging.

1. Message threads display by contact, number, or address.

While viewing message threads, you have these options:

- Touch and hold a thread to choose from:

• View Contact / Add to contacts: View the contact record, or save the sender/recipient's information as a new contact, or to update an existing contact.
• Delete thread: Erase the entire message thread.

- Touch ☐ Menu for these options:

• Compose: Create a new message.
• Delete threads: Touch message threads to mark them for erasure, or touch Select all to mark all message threads for erasure.
  — Search: Enter characters to search messages and recipient lists.
• Settings: Configure message settings.

Message Settings

Configure message settings.

1. From a Home screen, touch

Messaging.

1. Touch ☐ Menu → Settings to set:

2. Delete old messages: Touch to enable or disable automatic erasure of messages when stored message reach default limits. When disabled, the phone will prompt you to delete old messages to make room.

3. Text message limit: Touch to set a limit for the number of text messages per thread.
4. Multimedia message limit: Touch to set a limit for the number of multimedia messages per thread.
5. Auto - reftondrecoverable or disable automatic retrieval of MMS messages. When enabled, MMS messages download automatically. When disabled, the phone prompts to download new MMS messages.
6. Roaming auto-retrieve: Touch to enable or disable automatic retrieval of MMS messages when in Roaming mode. When enabled, MMS messages download and display automatically. When disabled, the phone prompts you to download new MMS messages.
7. Notifications: Touch to enable or disable alerts in the status bar.
8. Select ringtone: Touch to select a ringtone for message alerts.
9. Vibrated to enable or disable vibration for message alerts.

Gmail

Send and receive emails via Gmail, Google's web-based email.

From the Home screen, select 📋 Applications → 📂 Gmail.

Setting Up Your Gmail Account

The first time you launch Gmail, your phone will prompt you to set up your Google account.

Note: You can use more than one Google account on your phone. To add another account, use the ☐ Menu → Accounts option.

1. From the Home screen, select Gmail.

Applications →

1. At the Set up your Google Account screen, touch Next to begin, then touch an option:

- Create aFollow the prompts to create a new account. - Sign in: Enter your Google Username and Password, then touch Sign In.

1. The phone communicates with the Google server to set up your account and synchronize your email. When complete, your Gmail appears in the Inbox.

Refreshing Your Gmail Account

Refresh your account to update your phone from the Gmail servers.

1. From the Home screen, select Gmail.

Applications →

1. Touch ☐ Menu → Refresh.

Managing Your Gmail Account

Use menu options to manage your Gmail.

1. From the Home screen, select Gmail.

Applications →

1. Touch ☐ Menu for these options:

2. Ref: Update your phone from the Gmail servers.
   • C o m p: Create and send new Gmail.

3. Accounts: Choose a Gmail account to display, or add a Google account.
   • View labels: View Gmail by label.
   • S e a r Enter keywords to search mail.
4. Settings: Configure Gmail account settings. For more information, see "Gmail account settings" on page 61.

Composing and Sending Gmail

1. From the Home screen, select

Applications →

Gmail.

1. Touch ☐ Menu → Compose.

2. Touch the To field to enter recipients. As you enter names or numbers, matching contacts display. Touch a contact to add it to the field.

3. Touch the Subject field to enter a subject.

4. Touch Compose Mail to enter the text of your email.

5. While composing a message, touch ☐ Menu for these options:

6. S e n Send the message.

7. Add Cc/Bcc : Create Cc (copy) and Bcc (blind copy) fields to the message. After creating the fields, touch to enter recipients.
8. Attach : Launch Gallery to select a picture to add to the message.

9. Edit subject: Modify the email's subject.
   • Disc: Close the message without saving.

10. Touch Sendto send the message.

Gmail account settings

1. From the Home screen, select

Applications→

Gmail.

1. Touch ☐ Menu for these options

2. Refr:Update Gmail on your phone from the Google servers.

3. C o m p: Create a new email.
   • Accounts : View and choose from your Google account(s).
   • View labels: View Google content by label.
   • S e a r Fcnd Gmail items.

- Settings :

– Signature: Create a text signature to add to outgoing messages.
- Confirm delete: Have your phone prompt you to confirm deletions.
- Batch operations: Allow changes to labels on more than one conversation.
- Clear search history: Remove previous searches you have performed.

- Labels: Choose which labels are synchronized.

- Email notifications When enabled, notifications for new email appears in the Notifications Panel.

- Select ringtone: Choose a ringtone for new email notifications.

- Vibrate : When enabled, the phone will vibrate for new email notifications, along with the ringtone (if a ringtone is selected.)

Google Talk

Chat with other Google Talk users.

Tip: Talk requires that you have a Google account set up on your phone. For more information, see "Setting Up Your Accounts" on page 38.

From the Home screen, select

Applications →

Talk.

Note: If you have already set up your Google account, you are automatically logged in. If you do not have a Google account, you can touch Create to create a new Google account.

Email

Send and receive email using popular email services.

Note: Only some paid "Plus" accounts include POP access to allow this program to connect. If you are not able to sign in with your correct email address and password, you may not have a paid "Plus" account. Please launch the Web browser to access your account.

Configuring Email Accounts

You can configure Email for most accounts in just a few steps.

Configuring the first email account

1. From the Home screen, select

Applications →

1. Touch Email address to enter your email address, then touch Password or touch Next to enter your password.

2. Touch a setup option:

3. Manual setup : Configure the account manually. Touch POP3, IMAP or Exchange, then enter the account details.

4. N e xConnect to the server to set up the account automatically. Follow the prompts to complete set-up, then touch Done.

Tip: For more information on setting up your email, visit the Smartphone Resource Center at https://smartphones.verizonwireless.com, click on the Smartphone Support tab and select your phone.

Configuring additional email accounts

1. From the Home screen, select

Email.

1. Touch

Menu → Accounts.

1. Touch

Menu → Add account.

1. Touch the

Email address field to enter your email address.

1. Touch the password

Password field or touch Next to enter your

1. Touch a setup option:

2. Manual setup : Configure the account manually. TouchPOP3, IMAP or Exchange, then enter the account details.

3. N e x Connect to the server to set up the account automatically. Follow the prompts to complete set-up, then touch Done.

Composing and Sending Email

1. From the Home screen, select

Applications→

Email.

1. Touch and hold on an account, then touch Compose.

2. Touch the To field to enter recipients. As you enter names or numbers, matching contacts display. Touch a contact to add it to the field.

3. Touch the Subject field to enter a subject.

4. Touch the text field to enter the text of your email.

5. While composing a message, touch options:

Menu for these

• Add Cc/Bcc: Create Cc (copy) and Bcc (blind copy) fields to the message. After creating the fields, touch to enter recipients.
• Save as draft: Close the message and save it in Drafts.

• Add text: Add text from a Contact record, from the Calendar, or from a Memo.

• Touch Attachto add a file to the message.

• Touch Send to send the message.

Managing Emails

Combined Inbox

Emails you receive to all accounts are presented in the combined Inbox, or you can view email accounts individually.

1. Touch ☐ Menu → Accounts.
2. Touch an account, or touch the Combined Inbox.

Refreshing Your Email Account

Refresh your account to update your phone from the servers.

1. From the Home screen, select

Applications →

Email.

1. Touch ☐ Menu → Refresh.

Email Account Settings

Use Account settings to configure handling of your email.

Note: Some email accounts may have different, or additional, settings.

1. From the Home screen, select

Email.

Applications →

1. Touch an account to view it, then touch ☐ Menu → Account settings.
2. Touch fields to configure the account:

- General settings :

• Account name: Enter a name for the account's display.
• Your name Enter your name, to be used on emails.
• Email check frequency. Choose an interval for checking for email.
• Default account When enabled, this account is the default account for sending email from your phone.

- Notification settings :

– Email notifications: Enable or disable alerts in the Status Bar.
- Select ringtone: Choose a ringtone to use for new email alerts.
- Vibrate : Enable or disable vibration with new email alerts.

- Server settings :

• Incoming settings: Modify incoming email server settings.
• Outgoing settings: Configure the SMTP server, Port and Security type, Username and Password settings.

Mobile IM

Use Mobile IM to send and receive instant messages via AIM, Windows Live, or Yahoo!.

Note: Create the Instant Messaging account on your PC before accessing it with your phone.

Important!: Mobile IM operates over the Verizon Wireless network only. If you use Mobile IM, any active Wi-Fi connection will be disconnected, and you will have to re-establish a connection before using Wi-Fi again.

1. From the Home screen, select

Mobile IM.

1. Read the Terms and Conditions, then touch Accept to continue.
2. Read the notice about Wi-Fi Support, then touch Accept to continue.
3. Touch your IM provider, then follow the prompts to sign in. Use the provider's on-screen functions to send and receive messages.

Section 7: Web and Social Networking

Bing

Bing Search is a powerful search tool for locating web content via your phone, tailored for your current location.

Note: Bing requires that you enable location services settings to determine your location for searches. For more information, see "My Location" on page 121.

From the Home screen, touch 📋 Applications → Bing.

Tip: Bing Search appears by default on the Home screen, and is also available as an Android Widget.. For information about displaying widgets on the Home screen, see "Adding Widgets to the Home screen" on page 24.

YouTube

View and upload YouTube videos, right from your phone.

From the Home screen, select Applications → YouTube.

Browser

Your phone is equipped with a full HTML Browser, which allows you to access the internet.

▶ From the Home screen, select Browser.

Navigating the web

Command Keys

• Touch Back to return to the previous page.
• Touch and hold Back to display a list of recent pages.
• To go forward, touch → Menu → Forward.

Touching and dragging

- Touch and drag your finger on the screen to navigate pages, and to reposition pages within the screen.

Entering text in a field

- While browsing, touch a text field to display the virtual QWERTY keyboard to enter text.

Zoom

- Tap the screen twice to zoom in or out.

Selecting items on a page

While browsing pages, use gestures and menus to navigate links on pages:

• Touch an item to select it.
• Touch a hyperlink to follow the link.

- Touch and hold on a hyperlink for these options:

• Open: Go to the linked page.
• Open in new window: Open a new window to display the linked page.
• Bookmark link Add a bookmark to linked page (without loading it).
• Save link: Save the linked page to Download history.
• Share link: Send the link via Bluetooth, Email, Gmail, or Message.
• Copy link URL: Save the link's URL to the clipboard.

Entering a URL

Access a website quickly by entering the URL.

1. From the Home screen, select

Browser.

1. Touch the URL field at the top of the screen, then enter the URL using the virtual QWERTY keyboard.
2. As you enter characters, potential matches display. Continue entering characters, or touch a match to complete the URL.
3. Touch Go to load the page.

You can have up to eight windows open at one time, switching between windows.

1. From the Home screen, select

Browser

1. To open a new window, touch

Menu → New window.

1. To switch to another open window, touch Windows. Touch a window to display it.

Menu →

1. To close a window, touch

Menu → Windows. Touch

× Close beside a window to close it.

Using Bookmarks

While browsing, bookmark a site to quickly access it later.

Creating a bookmark

1. From the Home screen, select
   Browser
2. Browse to the desired website, then touch next to the URL field.
   Bookmarks
3. The new website is displayed as a thumbnail with the command Add. Touch the bookmark to add it.
4. At the Addbookmark prompt, confirm the Name and Location for the bookmark, then touch OK to save the bookmark.

Web and Social Networking

Accessing bookmarks and history

Launch a bookmarked page, or reload recent pages.

1. From the Home screen, select

Browser.

1. Touch Bookmarks next to the URL field.

2. On the Bookmarks tab, use these options:

3. Touch a bookmark to load the page.

4. Touch and hold on a bookmark for these options:
5. Open: Launch the bookmarked page.
6. Open in new window Open the linked page in a new window.
7. Edit bookmark: Modify the URL.
8. Add shortcut to Home: Create a bookmark on the Home screen.
9. Share link: Send the link via Bluetooth, Gmail, or Messaging.
10. Copy link URL: Save the link's URL to the clipboard.
11. Delete bookmark: Remove the bookmark.
12. Set as homepage: Assign the bookmarked link as the home page.

13. Touch 📄 Menu → List view to view bookmarks as a list.

14. On the Most visited tab, use these options:

15. Touch a page to reload it.

16. Touch the star next to a page to bookmark it.
17. Touch and hold on a page for these options:
18. Open: Launch the web page.

19. Open in new window Launch the web page in a new window.

20. Add bookmark/Remove from bookmarks: Bookmark the page, or remove the bookmark for this page.

21. Share link: Send the page's URL via Bluetooth, Gmail, or Messaging.
22. Copy link URL: Copy the page's URL to the clipboard for pasting.
23. Remove from history: Remove the record of this page.

24. Set as homepage: Set this page as the default first page when opening the Browser.

25. On the History tab, use these options:

26. Touch a page to load it.

27. Touch the star next to a page to bookmark it.
28. To clear the history, touch ☐ Menu → Clear history.
29. Touch and hold on a page for these options:
30. Open: Launch the web page.
31. Open in new window: Launch the web page in a new window.
32. Add bookmark/Remove from bookmarks: Bookmark the page, or remove the bookmark for this page.
33. Share link: Send the page's URL via Bluetooth, Gmail, or Messaging.
34. Copy link URL: Copy the page's URL to the clipboard to paste in another location.
35. Remove from history: Remove the record of this page.
36. Set as homepage: Set this page as the default first page when opening the Browser.

Copying Fields or Text

Copy information from a web page to the clipboard for pasting.

Copying text

1. From the Home screen, select
   Browser.
2. Browse to the desired website.
3. Touch ☐ Menu → More → Select text.
4. On the web page, touch and drag over the text. When you lift your finger, the text is saved to the clipboard.
5. To paste the copied text, navigate to the desired field (or to another application), then touch and hold in a text field and touch Paste.

Copying a hyperlink or URL

1. From the Home screen, select

Browser.

1. Browse to the desired website.

2. Touch and hold on the URL in the URL field, then choose an option from the pop-up menu:

3. Share page: Send the link via Bluetooth, Gmail, or Messaging.

4. Copy page Save ReLink's URL to the clipboard.

Browser Menu

While viewing a web page, touch ☐ Menu for these options:

• New window: Open a new browser window. The previous browser windows remain open in the background (use the Windows option to switch between windows).
• Bookmarks: Create and manage bookmarks for favorite sites.
• Windows: Switch between windows, or open a new window.
• Refresh: Update the current page's content from the server.

• Forward: Move forward to a previously-viewed page.
  • More:

• Add bookmark: Create a bookmark for the current page.
  – Find on page: Search for content on the current page.

• Select text: Enable the text selector. Returns you to the web page, where you can drag your finger over text to select it and copy it to the clipboard.
• Page info: View information about the current page, including the URL.
• Share page: Send the current page's URL via Bluetooth, Gmail, or Messaging.
• Downloads: View a list of downloads. While viewing downloads, touch

Menu for access to Clear list and Cancel all downloads commands.

• Settings: Customize the Browser (see Browser Settings).
• Brightness Setting: Adjust the screen brightness, if the Brightness setting is not set to Automatic.

Web and Social Networking

Browser Settings

1. From the Home screen, select

Browser.

1. Touch ☐ Menu → More → Settings:

• Page content settings

• Text size : Choose a default size for web page content.
• Default zoom: Choose a default zoom level for web pages.
• Open pages in overview. When enabled, displays an overview of newly-opened pages.
• Text encoding Choose a default character set for web pages.
• Block pop-up windows: When enabled, blocks pop-up windows.
• Load images: When enabled, images are automatically loaded when you visit a page. When disabled, images are indicated by a link, which you can touch to download the picture.
  — Auto-fit pages When enabled, the browser automatically sizes web pages to fit your phone's display.
• Landscape-only display: When enabled, Browser displays all pages in the wider landscape orientation (rotate your phone counterclockwise to view pages in landscape mode).
• Enable JavaScript When enabled, Browser will automatically run JavaScript scripts on pages you visit.
• Enable plug-ins: When enabled, Browser will automatically load and run plug-ins on pages you visit.
• Open in background: When enabled, new windows open behind the current window.

- Set home page View and set the default first page that displays when you launch Browser.

- Privacy settings

• Clear cache: Delete content and databases stored on the phone.
  – Clear history: Delete the list of previously-visited pages.
• Accept cookies When enabled, allows Browser to save and read cookie information used by web pages.
  – Clear all cookie data Delete cookie information saved to the phone.
• Remember form data: When enabled, stores information you enter into forms to make future forms easier.
  – Clear form data: Deletes saved form information.
• Enable location: When enabled, sites you visit can request access to your location.
  – Clear location access: Clear location access for all web sites.

• Security settings

• Remember passwords: When enabled, saves usernames and passwords for sites you visit, to make future visits easier.
  – Clear passwords: Clear all saved usernames and passwords.
  — Show security warnings When enabled, Browser will warn you if there is a problem with a site's security.

- Advanced settings

– Website settings : View and manage settings for individual websites.
- Reset to default: Clear all browser data and reset all settings to the factory defaults.

Maps

Use Bing Maps to find your current location, get directions, and other location-based information. The Bing Maps shortcut appears by default on the Home screen.

Note: You must enable location services to use Maps, and some features require Standalone or Google location services. For more information, see "Location & security" on page 121.

▶ From the Home screen, touch 📋 Maps.

Navigating the Map

Zooming

• Double-tap on the screen to zoom in.
• Touch Zoom in or Zoom out.

Scrolling

- Touch and drag on the screen to reposition the map in the display.

Touch

- Touch an icon on the map to display information about the location.

Maps Menu

1. From the Home screen, touch

Maps.

1. While viewing a map, touch

Menu for these options:

• Home to Bing Maps homepage.
- Direct Geobriving, public transport, or walking directions.
- List v/WeeSearch results are displayed, view the results in a list rather than icons on the map.
- Map t: Choose Road, Satellite, Hybrid, or Traffic maps.
- F a v o r Views saved favorites. Touch a favorite to display it on the map.
- Hist: View recent search criteria. Touch an item to search the criteria again.

- More

– Clear map: Remove search results from the map.
– Full screen: When enabled, displays the map at full-screen.
- Settings: Configure the map. For more information, see "Maps Settings" on page 72.
- About: View information about Bing Maps, including the Service Agreement and Privacy Policy, and provide Feedback.

Maps Settings

Configure Maps to your preferences.

1. From the Home screen, touch

Maps.

1. While viewing a map, touch

Menu → More → Settings

for these settings:

• SafeSearch: Set the sensitivity for filtering explicit images from your search results.
• Daily image: When enabled, displays Bing Maps daily image when you go to the Bing Maps homepage.
• Search suggestions : When enabled, displays possible matches as you enter search criteria. You can then touch a match to display results.
• Loca tW/renenabled, uses your location information to display search results that are close to you.
• Clear history: Erase recent search criteria records.
• Restore defaults: Reset map settings to the factory defaults.
• Res: Remove recent searches, favorites, locations and changes to Bing settings.

Section 8: Music

Music Player

Music Player plays songs from an optional installed memory card.

Playing Music

1. From the Home screen, select

Applications →

Music Player.

1. Music Player scans your memory card and displays your songs on the All, Playlists Albums, Artists, or Genres tabs.
2. Touch a song or playlist to begin playback.

Volume record 5.1 Channel Mode (headphones only) SorgD Shuffle Repeat 00:00 00:09 List Playback Controls

1. During playback, use the sound and playlist controls:

2. V o l u: Touch to activate on-screen volume control, then touch and drag on the scale to set volume. You can also press the Volume Key on the side of the phone to adjust playback volume.

3. Shuffle: When enabled, songs play in random order. When disabled, songs play in the order they appear in List view.
4. RepeTauch to repeat the current song, repeat all songs, or disable repeat mode.
5. List / Now: Polish listlogswitch to a list view of songs. Touch Now Playing to display the current song title and details.
6. 5.1 Channel Mode: When listening with optional headphones, touch to enable 5.1 Channel Mode for stereo sound.

7. Playback controls:

8. Touch to advance to the next song. Touch and hold to scan forward through the current song.

9. Touch 📁 go back to the previous song. Touch and hold to scan backward through the current song.
10. Touch to pause playback. Touch to resume playback.

Tip: When you're playing music in the background, playback controls are available in the Notification Panel. For more information, see "Notification Panel" on page 19.

Disc view

When you rotate the phone, you can choose Disc view to view disc artwork during playback, and control playback.

Colorful abstract circular shapes with gradient lighting against a black background, no text or symbols visible.

1. To switch to Disc view, touch Menu → More → Go to Disc view.

2. In Disc view, you can use these controls:

3. Slide your finger across the screen to scroll through songs.

4. Touch a disc to play the song.
5. Touch to pause playback. Touch to resume playback.
6. Touch the arrow at the top of the screen to switch to Organizer view.
7. Touch ➕ Back to return to the default Music Player screen.

Organizer view

From Disc view, switch to Organizer view to view and select songs alphabetically, sorted by Playlist, Album, Artist, or Genre.

All Y B A B C D W V R E F record unknownpower S H P J O N L 1

1. To go to Organizer view, touch ☐ Menu → More → Go to Disc view, then touch the arrow at the top of the screen.

2. In Organizer view, you can use these controls:

3. By default, Organizer view displays all songs. Touch All at the top left corner to choose songs by Playlists, Albums, Artists, or Genres.

4. Slide your finger around the dial to scroll through songs.
5. Touch a song in the center of the dial to play the song.
6. Touch to pause playback. Touch to resume playback.
7. Touch the double arrow in the dial to switch to Disc view.
8. Touch ➕ Back to return to the default Music Player screen.

Creating a Playlist

1. From the Home screen, select Applications →

Music Player → Playlists.

1. Touch ☐ Menu → Create, then touch the name field to enter a name for the playlist.

2. Touch Save to save the new playlist.

Adding Songs to Playlists

Adding a single song to a playlist

1. From the Home screen, select Applications →

Music Player.

1. Touch and hold on a song, then choose Add to playlist from the pop-up menu.

2. Choose one of these options:

3. Touch a playlist to add the selected song to the playlist.

4. Touch Create playlist to create a new playlist and add the selected song to it.

Adding multiple songs to a playlist

1. From the Home screen, select Applications→

Music Player.

1. Touch ☐ Menu → Add to playlist.
2. Touch songs to select them, or touch Select all. When selected, a checkmark appears in the checkbox.
3. Touch Add, then select a playlist, or touch Create playlist to create a new playlist.

Setting a Song as a Ringtone

You can set a song as a ringtone for all voice calls, for calls from an individual contact, or as an alarm tone.

1. From the Home screen, select Applications→

Music Player.

1. Touch and hold on a song, then touch Set as and choose from these options:

2. Voice call ringtone: Set the song as the default ringtone for all incoming voice calls.

3. Caller ringtone: Choose a contact to set the song as the ringtone for calls from the contact.
4. Alarm: Set the song as the alarm ringtone for a new alarm, or for an existing alarm.

Manage and Transfer Media

The Samsung Fascinate is compatible with V CAST ^TM Media Manager. The desktop application, offered free by Verizon Wireless, allows you to transfer photos, music and videos between your phone and computer. Once the desktop application is installed, simply connect your phone and computer with a USB cable, and V CAST Media Manager makes it easier than ever to transfer, play and manager you media. The application also includes a media player and an array of intuitive features to help you manage and enjoy your media.

To get started, visit www.verizonwireless.com/vmm.

V CAST Music with Rhapsody

(Subscription, Wireless and PC Downloads)

V CAST Music with Rhapsody ^® is a digital music service that lets you listen to millions of songs from thousands of artists. Discover new and old favorites in an extensive music catalog. Download V CAST Music with Rhapsody to your PC to sync tracks, albums, and playlists to your new phone, while managing your existing PC music library, all in one place.

V CAST Music with Rhapsody is compatible with Windows 7, Vista or XP Service Pack 2, with the latest Windows updates and the latest Windows Media Player. MAC OS and Linux are not supported.

For complete system requirements, and to download V CAST Music with Rhapsody for free, visit www.verizonwireless.com/music.

From the Home screen, select 📋 Applications → 🎨 V CAST Music with Rhapsody.

Note: The first time you launch VCAST Music with Rhapsody, you must agree to the Terms and Conditions. Per-song charges apply.

Downloading music to your phone

1. From the Home screen, select

Applications →

V CAST Music with Rhapsody.

1. Browse for songs using the onscreen buttons and prompts.

2. Touch the song you want to download, and use these options:

3. Touch Preview to hear a 20 second preview of the song.

4. Touch Buy to buy the song. At the CONFIRM PURCHASE prompt, touch Buy This Song to accept the terms.
5. Touch Download Now to download the song now, or Download Later to download at a later time.

Tip: If you choose Download Later, you can continue choosing music and download all purchased tracks at one time by touching the Download button on the V CAST Music with Rhapsody home screen.

1. At the prompt, touch Memory Card to save the song and the download starts.

Download Music to your PC

When you purchase music with your wireless device, you can also download a copy to your PC using the V CAST with Rhapsody software.

1. On your PC, launch V CAST Music with Rhapsody.
2. Log in. After logging in, locate and download music files.

- Downloading a PC copy:

– Available tracks will pop up upon log-in.

- Check the boxes of songs to download.

- Select Download Tracks.

• Purchasing music:

– Browse the catalog and select tracks or albums to purchase.
- Re-enter your password.
– Confirm the purchase and the download will begin shortly.
- Adding subscription music (requires V CAST Music with Rhapsody subscription):
– Review subscription offerings.
- Drag and drop tracks to My Library, or click the Add button next to the song.

Sync music from your PC to your phone

Use V CAST Music with Rhapsody on your PC to transfer music to your phone.

1. Plug a USB cable into your phone and connect it to a USB port on your PC.
2. Attach your phone to the PC with a USB cable. Your phone recognizes the connection and displays USB connected in the Annunciator Line and Notifications Panel.
3. Pull down the Notification Panel, then touch USB connected. At the prompt, touch Mount to connect your phone to the PC to copy files.
4. At the prompt on the PC, select Manage the device using Rhapsody.

Import Songs from an Audio CD

Use V CAST Music with Rhapsody on your PC to organize tracks from your CDs. You can then transfer these tracks to your phone.

1. On your PC, launch V CAST Music with Rhapsody
2. Insert an audio CD into the CD-ROM drive.
3. The tracks on the CD display in the window. Select tracks for import by clicking the check boxes.
4. Click on the Import CD button to import your selections.

V CAST Tones

Preview, download and purchase ringtones and ringback tones.

Note: Airtime or download charges may apply for using V CAST Tones.

1. From the Home screen, select

Applications →

V CAST Tones.

1. The first time you start V CAST Tones, you'll be prompted to subscribe to the service. Follow the prompts to install and use V CAST Tones.

Section 9: Pictures and Video

Camera

Use your phone's built-in Camera to take pictures and record video.

▶ From the Home screen, touch 📋 Applications → Camera

1221 Mode Button Camera Image Viewer Options tab

Important!: Do not take take photos of people without their permission. Do not take photos in places where cameras are not allowed. Do not take photos in places where you may interfere with another person's privacy.

Taking Pictures

1. From the Home screen, touch Camera.

Applications →

1. Using the display as a viewfinder, compose your picture by aiming the lens at the subject.

2. Touch the screen to focus on the area you touched.

3. Press the Volume Key to zoom in or out.

4. To configure settings, see "Camera Options" on page 80.

5. To take the picture, touch the Camera button.

6. After taking a picture, touch Image Viewer to view the picture. While viewing the picture, use these options:

7. Touch the zoom icons to zoom incrementally, or double-tap on the picture to zoom all the way in or out.

8. Touch Delete to erase the picture.
9. Touch Share to send the picture via AllShare, Bluetooth, Email, Gmail, Messaging, or Picasa.
10. Touch Set as to assign the picture as a contact icon, or as wallpaper.
11. Touch Back to return to the Camera to take more pictures.

Camera Options

Configure the camera.

▶ While in Camera mode, touch the Options tab to configure:

• Shooting mode: Choose an automatic shooting mode, from:
  — Single shot Take a single photo.
• Smile shot Touch the Camera button to automatically focus on the subject's face and take the picture.
• Panorama shot : Touch the Camera button to take a picture, then use the on-screen guideline to move the viewfinder and take the next 7 shots automatically.
  — Beauty. Adjust the contrast to smooth facial features.
• Continuous Touch and hold the Camera button to take 9 consecutive pictures.
• Vintage : Add a vintage effect to photos.
• Add me: Take one picture, then use the on-screen guideline to compose and take a second picture, to combine into one.
• Cartoon Apply a cartoon effect to pictures.
  — Action shot Detects action to automatically take multiple pictures to create a panorama.
  • Flash: Choose Off, On, or Auto flash.
• Exposure value Choose a value to set the brightness of the picture.

- Settings → Camera

• Outdoor visibility: Enable to enhance screen visibility.
• Focus mode: Choose a type of automatic focus.
• Scene mode Choose a mode to match conditions.
  – Timer. Set a delay before taking a picture.
  – Resolution: Choose a size for the image.
  – White balance: Choose a setting for the light source.
• Effects: Apply an effect to pictures.
• ISO: Choose a setting for imaging sensitivity.
  — Metering: Select a method for measuring light.
• Anti-Shake Enable Anti-Shake to minimize camera.
  – Auto contrast Allow automatic light/dark adjustment.
• Blink detection: Detect a subject's blinks and adjust the timing of the picture capture to avoid closed eyes in the shot.
  – Image quality. Choose a quality setting for photos.
• Adjust Set Contrast, Saturation, and Sharpness.

- Settings → Settings

• Guidelines: Enable or disable an on-screen grid to aid in photo composition.
• Review: Enable or disable the instant review feature, to display images immediately after capture.
• Shutter sound: Select a tone to play when the camera's shutter opens and closes.
• Reset Set all Camera settings to the defaults.

Camcorder

Use your phone's built-in Camcorder to record high-definition video in 720p resolution.

From the Home screen, touch Applications → Camera → Mode.

01:15:58 Mode Button Record Image Viewer Options tab

Important!: Do not take take videos of people without their permission. Do not take videos in places where cameras are not allowed. Do not take videos in places where you may interfere with another person's privacy.

Capturing Video

1. From the Home screen, touch

Applications →

Camera → Camcorder.

1. Using the display as a viewfinder, compose your shot by aiming the lens at the subject.

2. Press the Volume Key to zoom in or out.

3. To configure settings, see "Camcorder Options" on page 82.

4. To start recording, touch the Record button. During recording, the button changes to Pause; touch Pause to temporarily stop recording. To resume recording, touch Record again.

5. To stop recording, touch the Stop button.

6. After recording, touch Image Viewerto view the video. While viewing the video, use these options:

7. Double-tap on the video to zoom all the way in or out.

8. Touch Share to send the video via AllShare, Bluetooth, Email, Gmail, Messaging, or YouTube
9. Touch Play to review the video.
10. Touch Delete to erase the video.
11. Touch Back to return to the Camcorder to record more videos.

Camcorder Options

Configure the camcorder.

▶ While in Camcorder mode, touch the Options tab:

• Recording mode: Choose a recording mode, from:
— Normal: Record a video of any length.
- Limit for MMS Record a video up to 1 minute long, suitable for sending in a Video message.

• Flash: Choose Off or On.

• Exposure value Choose a value to set the brightness.

- Settings → Camcorder:

— Outdoor visibility: Enable to enhance screen visibility.

- Timer. Set a delay before starting recording.

— Resolution : Choose a size for the recording.

– White balance Choose a setting for the light source.

– Effects: Apply an effect to videos.

— Vidoe quality. Choose a quality setting for videos.

- Adjust: Set Contrast, Saturation, and Sharpness.

- Settings → Settings

— Guidelines: Enable to display a grid to aid in video composition.

– Audio recording Enable to record sound along with video.

- Review: Enable or disable the instant review feature, to display videos immediately after recording.

- Reset Set all Camcorder settings to the defaults

V CAST Videos

V CAST Videos™ is your link to video on demand, to view or download video clips that contain breaking news, sports highlights, weather and more.

From the Home screen, select 📄 Applications → V CAST Videos.

Tip: Rotate the phone counterclockwise for optimal viewing.

Browsing, Selecting and Playing Video Clips

1. From the Home screen, select

Applications →

V CAST Videos.

1. Touch the video category of your choice, then tap selections to access video titles.

2. Touch a video title to play the video clip.

3. Touch ☐ Menu for these options:

4. Bac Return to the previous screen.

5. S e a r Enter criteria to search for videos.
6. Manage Subscription : Add or remove premium subscriptions.
7. My Video lessonsh Video Player to view and manage videos downloaded and saved to your device.
8. About : View information about the V CAST Videos application.

Video Player

Your phone's 4-inch 800x400 Super AMOLED screen plays HD videos up to 720p, supporting H.263, H.264, MPEG4, 3GP, 3G2 (v9), and Xvid formats. Your phone is also DivX Certified® to play DivX® video up to HD 720p, including premium content.

Use Video Player to view and manage videos stored on an installed memory card, or shop for new videos.

1. From the Home screen, touch

Video Player.

1. By default, videos display by name. While viewing the list of videos, touch ☐Menu for these options:

2. Rem o Touch videos to select them for deletion, or touch Select all to delete all videos.

3. List: Display the list of videos by Name (default), Date, or Type.

4. Sh o launch V CAST Videos to purchase videos.

5. Touch a video to play it. While playing a video, touch the screen to display or hide on-screen Forward, Pause, Backward playback controls.

6. While playing a video touch ☐ Menu for these options:

7. Share video : Send the video via AllShare, Bluetooth, Messaging, Gmail, Email, or YouTube.

8. Sh o launch V CAST Videos to purchase videos.

9. Add bookmark: Place a marker in the video, to view later.
   • Bookmarks: Display markers from the video.
   • Via Bluetooth: Send the video via Bluetooth.

10. More
    – Details: View information about the video.
11. Settings: Choose Repeat, Brightness, Colour tone, and Outdoor Visibility settings.

Gallery

Your phone's 4-inch 800x400 Super AMOLED screen provides high-resolution display of:

• Pictures, including JPEG, PNG, GIF, A-GIF, WBMP and BMP formats.
• HD videos up to 720p, including H.263, H.264, MPEG4, 3GP, 3G2 (v9), Xvid formats. DivX Certified® to play DivX® video up to HD 720p, including premium content

Use Gallery to view, capture, and manage pictures and videos.

Note: You must have an optional memory card installed in your phone to take pictures or capture video. For more information, see "Memory Card" on page 12.

▶ From the Home screen, select Gallery.

Applications →

Viewing Videos

1. From the Home screen, select Gallery.

Applications →

1. Touch a category, then touch a video to play it.
2. While viewing a video, touch ☐ Menu for these options:

- Sh o launch V CAST Videos to purchase videos.

• Via Bluetooth: Send the video via Bluetooth.

• Details : View information about the video.

Viewing Pictures

1. From the Home screen, select

Applications →

Gallery.

1. Touch a category, then touch a picture to view it.
2. While viewing a picture, tap on the the screen or touch

Menu for options:

• S h a: Share the selected picture via AllShare, Bluetooth, Messaging, Picasa, or Gmail.
• Delete : Erase the picture.
• More

– Details: Display information about the picture.
- Set as Assign the picture as a Contact icon, or as Wallpaper.
- Crop: Drag the edges of the crop tool to select an area of the picture, then touch Save to save just the selected area, removing the rest of the picture.
- Rotate left: Change the orientation of the picture.
- Rotate right Change the orientation of the picture.

Sharing pictures and video

Share pictures and videos via Email, AllShare, Bluetooth, Messaging, Picasa, or Gmail.

1. From the Home screen, select

Applications →

Gallery.

1. Touch a category to display thumbnails, then select items for sharing:

2. To select an entire category, touch ☐ Menu while viewing categories, then touch the category to select all pictures in the category.

3. To select multiple pictures or videos from a category, touch Menu while viewing the thumbnails. Touch thumbnails to mark them for sharing, then touch Share.

4. Touch Allshare, Email, Bluetooth, Messaging, Picasa (for pictures only), Gmail, or YouTube (for videos only) then follow the prompts.

Setting a Picture as a Contact Icon

1. From the Home screen, select

Applications→

Gallery.

1. Touch a category, then touch a picture to select it.

2. Touch

Menu

More

et as

ontac

1. Select a contact, or create a new contact, with the selected picture as the contact's icon.

Setting a Picture as Wallpaper

1. From the Home screen, select

Applications→

Gallery.

1. Touch a category, then touch a picture to select it.

2. Touch

Menu

More

et as

Vallpa

1. Use the crop tool to edit the picture, then touch Save to set the edited picture as the Home screen wallpaper.

Section 10: Connections

Your phone includes features to connect to the internet and to other devices, via Wi-Fi, Bluetooth, VPN and Dial Up Networking.

Wi-Fi

Wi-Fi is a wireless networking technology that provides access to local area networks. Use your phone's Wi-Fi feature to:

• Access the internet for browsing, or to send or receive email.
• Access your corporate network.
• Use hotspots provided by hotels or airports while traveling.

Wi-Fi communication requires access to an existing Wireless Access Point (WAP). WAPs can be Open (unsecured, as with most hotspots), or Secured (requiring you to provide login credentials). Your phone supports the 802.11 b/g/n Wi-Fi protocol.

Configuring Wi-Fi Settings

Configure your phone's Wi-Fi settings. For more information, see "Wi-Fi settings" on page 109.

Turning Wi-Fi On or Off

Turn your phone's Wi-Fi service on or off. When you turn Wi-Fi service on, your phone automatically searches for available, in-range WAPs (Wireless Access Points).

Turning Wi-Fi On

1. From the Home screen, sweep your finger downward to display the Notification Panel.
2. Touch Wi-Fi to turn Wi-Fi On.

Turning Wi-Fi Off

1. From the Home screen, sweep your finger downward to display the Notification Panel.
2. Touch Wi-Fi to turn Wi-Fi Off.

Scanning and Connecting to a Wi-Fi Network

When you turn on Wi-Fi, your phone searches for available Wi-Fi connections, then displays them on screen.

1. From the Home screen, sweep your finger downward to display the Notification Panel.
2. Touch Wi-Fi to turn Wi-Fi On.
3. When your phone completes a scan, touch a Wi-Fi network to connect. If the Wi-Fi network is open, you will be automatically connected. If the Wi-Fi network is secured, enter the password at the prompt to connect.

Adding a Wi-Fi Network Manually

1. From the Home screen, sweep your finger downward to display the Notification Panel.
2. Touch Wi-Fi to turn Wi-Fi On.
3. On the pop-up Wi-Fi settings menu, touch Add Wi-Fi network, then enter these fields:

• Network SSID : Enter the name of the Wi-Fi Wireless Access Point.
- Secu: Select the type of security used by the WAP.
- PasswordKeyIf the WAP is secured, enter the password or hex key.

3G Mobile Hotspot

Use 3G Mobile Hotspot to share your phone's 3G internet connection with a PC or other device through Wi-Fi, using your phone as the mobile hotspot.

Note: 3G Mobile Hotspot consumes battery power and uses data service.

To use 3G Mobile Hotspot, you need the 3G Mobile Hotspot feature from Verizon Wireless. There is a monthly charge for the Mobile Hotspot feature, and all data used by connected devices will apply to the customer's data allowance. Contact Verizon Wireless for more information.

Configuring 3G Mobile Hotspot Settings

Configure your phone's 3G Mobile Hotspot settings, including your phone's name and password, and set the visibility of your phone's Wi-Fi hotspot.

For more information, see “Mobile hotspot settings” on page 112.

Activating 3G Mobile Hotspot

Activate your phone's 3G Mobile Hotspot application to allow other devices to use your phone's 3G internet connection.

1. From the Home screen, select

Applications →

3G Mobile Hotspot

1. Touch 3G Mobile Hotspot to turn the service on. Read the information about 3G Mobile Hotspot, then touch Continue to proceed.

2. 3G Mobile Hotspot consumes battery power. Read the information about battery usage, then touch Turn on Mobile Hotspot to proceed.

3. Your phone establishes a connection to the network for the mobile hotspot service.

4. Activate Wi-Fi on your PC or other device, then follow the prompts on your phone and device to connect.

Tip: Your phone's default password is your phone number. For more information, see "Mobile hotspot settings" on page 112.

1. When you are finished using Mobile hotspot, touch 3G Mobile Hotspot to turn the service off.

Connecting a Device via 3G Mobile Hotspot

Use the other device's Wi-Fi control to connect to your phone's 3G Mobile Hotspot.

1. Activate 3G Mobile Hotspot on your phone. For more information, see “Activating 3G Mobile Hotspot” on page 88.
2. Activate Wi-Fi on the device, using the device's Wi-Fi control.
3. Scan for Wi-Fi hotspots, and select your phone from the list. To find your phone's name, see "Mobile hotspot settings" on page 112.
4. At the prompt, enter your phone's 3G Mobile Hotspot password. By default, the password is your phone's telephone number. For more information, see "Mobile hotspot settings" on page 112.

Bluetooth

Bluetooth is a short-range wireless communications technology for exchanging information over a distance of about 30 feet.

You don't need to line up the devices to send information with Bluetooth. If the devices are in range, you can exchange information between them, even if they are in different rooms.

Configuring Bluetooth Settings

Configure your phone's Bluetooth settings. For more information, see "Bluetooth settings" on page 111.

Note: Bluetooth profiles are specifications for services supported by individual devices. For a list of profiles your phone supports, see "Bluetooth profiles" on page 110.

Turning Bluetooth On or Off

Turning Bluetooth On

1. From the Home screen, sweep your finger downward to display the Notification Panel.
2. Touch Bluetooth to turn Bluetooth on.

Turning Bluetooth Off

1. From the Home screen, sweep your finger downward to display the Notification Panel.
2. Touch Bluetooth to turn Bluetooth off.

Connections

Pairing with a Bluetooth Device

Search for a Bluetooth device and pair with it, to exchange information between your phone and the device.

Note: After pairing, your phone and the target device will recognize each other and exchange information without having to enter a passcode or PIN.

When paired, the 📄 Bluetooth Paired icon displays in the Annunciator Line.

1. From the Home screen, touch ☐ Menu → Settings → Wireless & networks.
2. Touch Bluetooth to turn on Bluetooth.
3. Activate the target device's discoverable mode.
4. Touch Bluetooth settings → Scan devices.
5. From the list of scanned devices, touch the target device, then follow the prompts to complete the pairing:

- If the target device requires a PIN, enter a PIN for the target device and touch OK. When prompted, enter the PIN on the target device.

Tip: Some devices use a default passcode of 0000. Refer to the target device's user manual for more information.

- If the device allows automatic or smart pairing, your phone will attempt to pair with the phone automatically. Follow the prompts on your phone and the target device to complete the pairing.

VPN

You can use your phone's VPN (Virtual Private Network) feature to connect to VPNs.

Configuring VPN Settings

Configure your phone's VPN settings. For more information, see "VPN settings" on page 113.

Adding a VPN

1. From the Home screen, touch ☐ Menu → Settings → Wireless & networks → VPN settings

2. Touch Add VPN to set up a connection to a VPN, using the following settings:

3. Add PPTP VPN: Set up a connection to a VPN with Point-to-Point tunneling protocol.

4. Add L2TP VPN: Set up a connection to a VPN with Layer 2 tunneling protocol.
5. Add L2TP/IPSec PSK VPN : Set up a connection to a VPN with pre-shared key-based Layer 2/IPsec tunneling protocol.
6. Add L2TP/IPSec CRT VPN : Set up a connection to a VPN with Certificate-based Layer 2/IPsec tunneling protocol.

Dial Up Networking

You can use Dial Up Networking to allow your phone to act as a modem to access the internet with other devices.

Enabling Dial Up Networking

1. From the Home screen, touch ☐ Menu → Settings → Wireless & networks.

2. Touch Dial up networking to enable or disable dial-up networking. When enabled, a check appears in the checkbox.

Memory Card

Your phone supports removable microSD ^TM or microSDHC ^TM memory cards of up to 32GB capacity, for storage of music, pictures, videos, and other files.

Installing and Removing a Memory Card

For more information about installing and removing a memory card, see "Memory Card" on page 12.

Important!: To prevent damage to information stored on the memory card, unmount the card before removing it from the phone.

Formatting a Memory Card

Formatting erases all content from the memory card and prepares it for use with your phone.

Formatting a Memory Card using Your Phone

1. From the Home screen, touch card & phone storage
   Menu → Settings → SD
2. Touch Unmount SD card.
3. After unmounting the SD card, touch Format SD card.
4. Follow the prompts to confirm the formatting of the card.

Formatting a Memory Card using Your Computer

For best playback of songs stored on a microSD ^™ or microSDHC ^™ memory card, use the PC file system FAT32. Consult your computer and/or memory card reader documentation for information about formatting memory cards.

Transferring Files to a Memory Card

Transferring files using the Media Sync USB setting

1. From the Home screen, touch
   Menu → Settings → USB
   Settings → USB Mode, then select Media Sync.
2. Attach your phone to the computer with a USB cable. Your phone recognizes the connection and displays Media Sync: connected in the Annunciator Line and Notifications Panel.
3. Transfer files to the memory card. When finished, you can disconnect the USB cable.

Transferring files using the Mass Storage USB setting

1. From the Home screen, touch ☐ Menu → Settings → USB Settings → USB Mode, then select Mass Storage.
2. Attach your phone to the computer with a USB cable. Your phone recognizes the connection and displays USB connected in the Annunciator Line and Notifications Panel.
3. Display the Notifications Panel, then touch USB connected. At the prompt, touch Mount to enable copying of files between your computer and the memory card.

4. At the prompt on the computer, select a transfer method:

5. Open device to view files using Windows Explorer. Drag and drop files from the PC to the memory card installed in your phone.

6. Manage the device using Rhapsody. For more information, see "VCAST Music with Rhapsody" on page 76.

7. Transfer music files to the memory card. When finished, you can disconnect the USB cable.

Section 11: Applications and Widgets

Android Market

Browse for new Android applications, games or downloads for your phone. You'll need to have a Google account set up on your phone to download a new application.

1. From the Home screen, select

Market.

1. The first time you open Market, read the Terms of Service, then touch Accept to continue.

2. Browse for items to install or upgrade downloads:

3. Apps : New applications.
   • G a m: New games.

4. Downloads : Display requested downloads, plus available updates to applications installed on your phone.

3G Mobile Hotspot

Use 3G Mobile Hotspot to share your phone's mobile internet connection with a PC through Wi-Fi, using your phone as the mobile hotspot. For more information, see "3G Mobile Hotspot" on page 88.

▶ From the Home screen, touch

Applications →

3G Mobile Hotspot

AllShare

Use AllShare to synchronize your mobile phone with your TV via Wi-Fi to stream content to your TV.

Note: You must activate Wi-Fi to use this application. For more information, For more information, refer to "Wi-Fi" on page 86.

▶ From the Home screen, touch

Applications →

Bing

Bing Search is a powerful search tool for locating web content via your phone, tailored for your current location. For more information, see "Bing" on page 66.

Note: Bing requires that you enable location services settings to determine your location for searches. For more information, see "My Location" on page 121.

From the Home screen, touch 📋 Applications → Bing.

Blockbuster

Browse and search the entire mobile catalog of Blockbuster On Demand titles, plus access other Blockbuster content.

From the Home screen, touch Applications → Blockbuster.

Browser

Your phone includes a full HTML Browser, to access the internet. For more information about using Browser, see "Browser" on page 66.

From the Home screen, select 📋 Applications→ Browser.

Buddies now

Buddies now is a quick way to create shortcuts to your favorite contacts, to make comments to your social networking sites, message, or call your contacts with one touch.

For more information, see "Buddies now" on page 52.

Tip: The Buddies now widget is available by default on the Home screen, or is available in the Samsung Widgets. For more information about placing widgets on the Home screen, see "Widgets" on page 24.

Calculator

Use your phone's Calculator to perform mathematical calculations.

From the Home screen, select Applications→ Calculator.

Calendar

Record events and appointments to manage your schedule.

1. From the Home screen, select

Applications →

Calendar.

1. Touch a tab to choose a calendar view:

2. M o n: Display the current month and scroll to other months.

3. Week : Display the current week, and scroll to other weeks.
4. Day: Display today's schedule, and scroll to other days.

5. L i sDisplay events in a chronological list.

6. Touch ☐ Menu for these options:

31 Month 7 Week Day List August 2019 W Sun Mon Tue Wed Thu Fri Set 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 06:00 pm Meeting 11:00 am Meeting 04:00 pm Meeting

• Create a new event to the calendar.
  • G o t Display a specific date.
• T o d: Display today's events.
• Delete : Delete an event.
• Settings: Customize the calendar.

Customizing the Calendar

1. From the Home screen, select

Applications →

Calendar.

1. Touch ☐ Menu → Settings to configure these settings:

2. CalendarView all your calendars.

3. Calendar sync: Synchronize calendars from multiple accounts.
4. Default view : Set the default view when Calendar opens.
   • Day vi: Choose a view for a day's events.
5. First day of week : Choose a day to begin each week.
6. Hide declined events: Enable or disable display of events.

Sending Events via Bluetooth

Send events as vCalendar files to other Bluetooth devices.

1. From the Home screen, select

Applications →

Calendar.

1. Touch an event to display its details.

2. Touch ☐ Menu → Send via

3. Follow the prompts to select a paired device, or pair with a new device. For more information, see "Pairing with a Bluetooth Device" on page 90.

Camera

Take pictures and record video with your phone's built in Camera. For more information, see "Camera" on page 79.

▶ From the Home screen, touch 📋 Applications → 📋 Camera.

Car Cradle

The Car Cradle application puts mobility features right at your fingertips, to allow one-touch access to maps, search, and navigation features while connected to an optional car cradle.

▶ From the Home screen, touch 📄 Applications → 🙏 Car Cradle.

City ID

Subscribe to City ID to display city and state for incoming calls, and to look up city and state information for phone numbers.

From the Home screen, select Applications → City ID.

Clock

The Clock application includes these features:

• Alarm clock: Create alarms to go off once, or to repeat on specific days.
• World clock : Display the time and date in any time zone.
• Stopwatch: Record lap times.
• Timer: Measure elapsed time.

From the Home screen, touch 📋 Applications → Clock.

Daily Briefing

Use the Daily Briefing widget to monitor the weather, financial information, news, and your schedule, in one convenient application.

Tip: Daily Briefing appears by default on the Home screen, and is available as a Samsung Widget. For information about displaying widgets on the Home screen, see "Adding Widgets to the Home screen" on page 24.

1. From the Home screen, touch

Applications →

Daily Briefing.

1. The first time you launch Daily Briefing, touch to configure your preferences:

Setup

- AccuWeather.com:

— Select city. Choose cities for weather display on the Home screen.
- Widget auto refresh: Choose a time interval for automatic refreshing of weather information, or choose None. When the setting is None, touch the refresh icon on the widget to update weather information.
- Widget auto scroll: If you have selected more than one city, the widget will alternate display of information from each of your cities.
- Unit Select Celsius or Fahrenheit for temperature displays.

- Yahoo Finance:

— Select stock Choose stock(s) to display on the Home screen.

• Widget auto refresh: Choose a time interval for automatic refreshing of stock information, or choose None. When the setting is None, touch the refresh icon on the widget to update stock information.
• Widget auto scroll: If you have selected more than one stock, the widget will alternate display of information for each stock.

• AP Mobile News:

• Widget auto refresh: Choose a time interval for automatic refreshing of news items, or choose None. When the setting is None, touch the refresh icon on the widget to update news items.
• Widget auto scroll: When enabled, news items will automatically alternate in the display.

Desk Cradle

The Desk Cradle application gives you one-touch access to the Alarms, Voice Search, Gallery, Daily Briefing and Music Player applications while connected to an optional desk cradle.

▶ From the Home screen, touch

Applications →

Desk Cradle.

Email

Send and receive email using popular email services. For more information, see "Email" on page 62.

▶ From the Home screen, select

Applications →

Feeds and Updates

Use the Feeds and Updates widget to monitor the weather, financial information, news, and your schedule, in one convenient application.

Tip: Feeds and Updates appears by default on the Home screen, and is available as a Samsung Widget. For information about displaying widgets on the Home screen, see "Adding Widgets to the Home screen" on page 24.

▶ From the Home screen, touch 📋 Applications → Daily Briefing.

Gallery

Use Gallery to view, capture, and manage pictures and videos. For more information, For more information, refer to “Gallery” on page 84.

▶ From the Home screen, select 📋 Applications → Gallery.

Gmail

Send and receive emails via Gmail, Google's web-based email. For more information, see "Gmail" on page 60.

From the Home screen, select 📋 Applications→ M Gmail.

Kindle

Use the Amazon Kindle ^TM application to download books for reading, right on your phone.

Note: You must be registered with Amazon to use the Kindle application.

▶ From the Home screen, touch 📁 Applications → Kindle.

Memo

Create and manage text memos, and send memos via Bluetooth to paired Bluetooth devices.

▶ From the Home screen, touch Applications → Memo.

Note: You can send a memo via Bluetooth. After saving a memo, touch and hold on the Memo to launch Bluetooth. For more information, see "Bluetooth" on page 89.

Music Player

Play music files from an installed memory card. For more information, see “Music Player” on page 73.

▶ From the Home screen, select 📋 Applications → Music Player.

My Files

Find, view and manage files stored on an installed memory card. If the file is associated with an application on your phone, you can launch the file in the application.

1. From the Home screen, touch

Applications →

My Files.

1. Tap a folder and scroll down or up until you locate a file.
2. Touch a file to launch it in the associated application (if the file is associated with an application).

3. While browsing files, use these controls:

4. Touch Up to go back up to a higher directory.

5. Touch Home to go back to the root directory.

6. Touch ☐ Menu for these options:

7. Share: Upload the file via AllShare, Bluetooth, Messaging, Picasa, Gmail, or YouTube.

8. Create folder. Create a new folder for storing files.
   – Delete: Erase selected file(s).
9. View by: Display files as a List, as a List and details, or as Thumbnails.
10. List by: Sort files by Time, Type, Name, or Size.
11. More: Move, Copy, Rename files, set Bluetooth visibility for file(s), or change settings for My Files.

My Verizon Mobile

View details and manage your Verizon Wireless account.

Note: No airtime or minute charges apply when accessing My Verizon Mobile.

From the Home screen, touch Applications → My Verizon Mobile.

NFS Shift

Play the popular Need For Speed: Shift game, right on your phone.

From the Home screen, touch 📋 Applications → NFS Shift.

Settings

Configure your phone to your preferences. For more information, see "Settings" on page 109.

▶ From the Home screen, touch 📋 Applications → Settings.

Skype Mobile

Use Skype mobile™ on your phone for unlimited Skype-to-Skype calls and IM to anywhere in the world. For more information, please visit www.verizonwireless.com/skype.

From the Home screen, touch 📋 Applications → Skype mobile™ and follow the on-screen instructions.

Task Manager

View and manage active applications on your phone. For more information, see "Task Manager" on page 11.

From the Home screen, touch Applications → Task Manager.

Talk

Use Google Talk to chat with other Google Talk users. For more information, see "Google Talk" on page 62.

From the Home screen, touch Applications → talk Talk.

Tetris

Play the popular Need For Speed: Shift game, right on your phone.

▶ From the Home screen, touch 📋 Applications →

Tetris

ThinkFree Office

ThinkFree Office Mobile for Android ^TM is a Microsoft Office ^® -compatible office suite, that provides a central place for managing your documents on and off line.

▶ From the Home screen, touch 📋 Applications →

ThinkFree Office.

V CAST Music with Rhapsody

(Subscription, Wireless and PC Downloads)

Browse and download songs from the V CAST with Rhapsody catalog. For more information, see "V CAST Music with Rhapsody" on page 76.

▶ From the Home screen, select 📋 Applications →

V CAST Music with Rhapsody.

V CAST Tones

Preview, download and purchase ringtones and ringback tones. For more information, For more information, refer to "V CAST Tones" on page 78.

Note: Airtime or download charges may apply for using V CAST Tones.

From the Home screen, select 📋 Applications → 🐘 V CAST Tones.

V CAST Videos

Browse and download videos from the V CAST library. For more information, see "V CAST Videos" on page 82.

From the Home screen, select 📋 Applications → 🎨 V CAST Videos.

Video Player

View and manage videos stored on an optional installed memory card, or shop for new videos.

▶ From the Home screen, touch 📋 Applications → Video Player.

Voice Recorder

Record your voice or other sounds, and share recordings via Bluetooth, Messaging, or Gmail.

▶ From the Home screen, touch 📋 Applications → 🎨 Voice Recorder.

Voice Search

Voice Search offers voice-activated Google searches.

1. From the Home screen, touch Voice Search..

Applications →

1. Voice Search uses your location to improve search results and offer other services. Touch Agree to allow location-based searches, or Disagree to disallow.

2. At the Speak now prompt, speak your search criteria slowly and clearly. Google searches for the information and displays results.

Voice mail

All unanswered calls to your phone are sent to voice mail, even if your phone is turned off, so you'll want to set up your voice mail and personal greeting as soon as you activate your phone. For more information, see "Voicemail" on page 37.

▶ From the Home screen, touch 📄 Voicemail.

VZ Navigator

Use VZ Navigator ^® to find, share and navigate to millions of locations, avoid traffic and drive or walk with ease.

Note: VZ Navigator requires service activation. Contact Verizon Wireless for more information.

From the Home screen, touch 📋 Applications → VZ Navigator.

The first time you start VZ Navigator, you'll be prompted to subscribe to the service. Download and install the application, and read and agree to the terms of service to use VZ Navigator.

Voice Commands

Voice Commands is advanced speech recognition software that recognizes your spoken commands to dial phone numbers, create messages, and launch phone features such as Contacts, Calendar and My Music.

To use Voice Commands, speak naturally into your phone, at a distance of 3-12 inches. There is no need to “train” Voice Commands, it is designed to recognize natural speech.

From the Home screen, touch Applications → Voice Commands.

Note: At each step, Voice Commands displays a list of available commands. If Voice Commands does not recognize your command, it will prompt you to confirm.

Tip: Touch ☐ Menu → Info at any time to display helpful tips for using Voice Commands.

Help

Display helpful information for using Voice Commands.

1. From the Home screen, touch Voice Commands. Applications →

1. At the audio prompt "Please say a command", say "Help".

Call

Place a call by speaking a contact name or telephone number.

1. From the Home screen, touch

Applications →

Voice Commands.

1. At the audio prompt “Please say a command”, say “Call”, followed by:

2. "< A Contact Name>", to call the default telephone number for a contact. Or, say "Call", followed by the type of number label.

3. “” to dial phone number.
   • "Voicemail" to access voicemail.

4. "Last Number" to redial the last number.

5. Follow the prompts to confirm your selection and place the call.

Redial

Place a call to the last number you dialed.

1. From the Home screen, touch

Applications →

Voice Commands.

1. At the audio prompt " Please say a command", say "Redial".

Send

Create a new message by speaking the type of message and the recipient(s).

1. From the Home screen, touch

Voice Commands.

1. At the audio prompt “ Please say a command”, say “Send”, followed by “Text”, “Picture” or “Voice”.
2. At the prompt, say the contact name, telephone number, or contact group.
3. The new message opens, with the To: field populated with your selection(s). Continue creating the message. For more information, see "Messaging" on page 57.

Go To

Access an application by speaking the application name.

1. From the Home screen, touch

Voice Commands.

1. At the audio prompt “ Please say a command”, say “Go to”, followed by the name of a menu item, for example, “Bing”, “Phone”, “Messaging”, “Calendar”, “Settings”, “Browser”, “My Files” or “Music Player”.

Contacts

Access a contact record by speaking the name of the contact.

1. From the Home screen, touch

Voice Commands.

1. At the audio prompt “ Please say a command”, say “Contacts”, followed by a command:

2. C a: Calls the contact's default number.

3. Create New contact.
4. Mod: Open a contact record for modification.
5. Era: Delete a contact.

Play

Launch My Music and start playback of a saved playlist.

1. From the Home screen, touch

Voice Commands.

1. At the audio prompt “ Please say a command”, say “Play”, followed by the name of a stored playlist.

Check

Access device information by speaking the command.

1. From the Home screen, touch

Applications →

Voice Commands.

1. At the audio prompt “ Please say a command”, say “Check”, followed by a command:

2. S t a t Displays and announces all phone status indicators.

3. Voicemail : Displays and announces the number of new voicemail messages.
4. Messages: Displays and announces the number of new Text, Picture and Voice messages.
5. Missed Calls : Displays the missed call log.
   • Tim Displays and announces the current time.
6. Signal Strength: Displays and announces the current 1x signal strength level.
7. Battery : Displays and announces the current battery level.
   • V o l u: Displays and announces the current volume level.
   • Balance : Calls the service number for account balance information.
8. Minutes : Calls the service number for minute balance information.
9. Pay m: Call the service number for payment information.
10. My Num Displays and announces your phone number.

Search

Launch Bing Search.

1. From the Home screen, touch

Applications →

Voice Commands.

1. At the audio prompt “ Please say a command” say “Search”.

Tip: Bing Search is also available as a Widget, to search right from the Home screen. For information about displaying widgets on the Home screen, see "Adding Widgets to the Home screen" on page 24.

My Verizon

Check your Verizon Wireless account status by voice command.

Note: This features launches the browser to your account page and requires a data plan and is subject to Verizon Wireless data coverage.

1. From the Home screen, touch

Applications →

Voice Commands.

1. At the audio prompt “ Please say a command”, say “ My Verizon ”.

Voice Commands Settings

Configure the Voice Commands feature of your phone.

1. From the Home screen, touch

Voice Commands.

1. touch ☐ Menu → Settings Select a setting for customization:

2. Confirm Cothio when the system asks you to confirm a name or number. Select Automatic, Always Confirm, or Never Confirm.

3. Sensitivity : Control the sensitivity of command recognition. Choose Most Sensitive, Recommended or Least Sensitive.
4. Adaptation: Train Voice Commands to recognize your voice. Choose Adapt Voice, then follow the audio prompts.
5. Prompts
6. Mode: control the level of audio assistance. Choose from Prompts, Readout+Alerts, Readout, or Tones Only.
7. Timeout: Control how long the Voice Commands system listens for a command from you. Choose5 seconds or 10 seconds.
8. About : View information about Voice Commands.

Weather Clock

The Weather Clock widget displays an analog clock on the Home screen, with weather updates from WeatherBug.

Tip: Weather Clock is also available as a Samsung Widget, to display time and weather information right on the Home screen. For information about displaying widgets on the Home screen, see "Adding Widgets to the Home screen" on page 24.

From the Home screen, touch Weather Clock to select a city for weather updates.

Weather Clock Select city

Write & Go

Capture ideas as a text note, then choose a format for sending via Gmail, saving to the Calendar or as a memo, or use it to update your Facebook, MySpace, or Twitter status.

1. From the Home screen, touch

Write & Go.

1. Compose a text note, then use the following options:

2. Send message: Create a new text message containing the note.

3. Update status: Log in to post the note to update your status on Facebook, MySpace, or Twitter.
4. S a v Save the note as an event in Calendar, or as a Memo.

YouTube

View and upload YouTube videos, right from your phone. For more information, see "YouTube" on page 66.

▶ From the Home screen, select

YouTube.

Section 12: Settings

This section explains Settings for customizing your phone.

Accessing Settings

From the Home screen, touch → Menu → Settings. - or - From the Home screen, touch → Applications → Settings.

Wireless & networks

Control your phone's wireless connections.

Wi-Fi

Your phone supports Wi-Fi b/g/n.

Turning Wi-Fi On or Off

Turn your phone's Wi-Fi service on or off. When you turn Wi-Fi service on, your phone automatically searches for available, in-range Wireless Access Points (WAPs).

1. From the Home screen, touch ☐ Menu → Settings → Wireless & networks.
2. Touch Wi-Fi to turn Wi-Fi On or Off. When on, a check appears in the checkbox.

Wi-Fi settings

Set up and manage wireless access points.

1. From the Home screen, touch ☐ Menu → Settings → Wireless & networks → Wi-Fi settings.
2. Touch settings to configure:

- Wi ÷ Touch to turn Wi-Fi On or Off. When on, a check appears in the checkbox.

• Network notification: When enabled, notifies you when an open network is available.

- Add Wi-Fi network: Manually add a new Wi-Fi connection.

Advanced Wi-Fi settings

1. From the Home screen, touch ☐ Menu → Settings → Wireless & networks → Wi-Fi settings.

2. Touch ☐ Menu → Advanced.

3. Wi-Fi sleep policy: Specify when to switch from Wi-Fi to mobile data for data communications. Touch to choose from When screen turns off, Never when plugged in, or Never

4. MAC address : View your phone's MAC address, needed for connecting to some secured networks (not configurable).
5. Pro:Touch to enter a proxy number.

6. P o :rTbuch to enter a port number.
   • IP Settings

7. Use static IP. Touch to use a static IP. When enabled, a check mark appears in the checkbox.

8. IP address: When using a static IP, enter the IP address.
9. Gateway. When using a static IP, enter the Gateway.
10. Netmask: When using a static IP, enter the Netmask.
11. DNS 1: When using a static IP, enter the DNS 1 value.
12. DNS 2: When using a static IP, enter the DNS 2 value.

Bluetooth

Your phone supports Bluetooth ^® 3.0.

Bluetooth profiles

Bluetooth profiles are specifications for services supported by individual devices. Profiles improve the ability of different devices to work together. Your phone supports these Bluetooth profiles:

• Headset: HSP v1.1 profile supports use of a compatible Bluetooth headset for mono voice.
• Handsfree: HFP v1.5 profile supports Bluetooth headsets, and may also support other installed compatible Bluetooth devices with speakerphone capabilities.
• Stereo: A2DP v1.0, AVRCP v1.0, GAVDP and AVDTP profiles support delivery of stereo audio to a compatible Bluetooth device.
• Phonebook Access: PBAP v1.0 profile allows sharing of multiple name card and phonebook entries with a compatible Bluetooth device.
• Object Push: OPP v1.1 profile allows sending and receiving of contact name cards (vCard 2.1) and calendar events (vCalendar) between devices.

Note: This device does not support all Bluetooth profiles.

For vehicle/accessory compatibility, visit www.verizonwireless.com/bluetoothchart.

Turning Bluetooth On or Off

Turn your device's Bluetooth service On or Off. For more information about using Bluetooth to exchange information with other Bluetooth devices, see see "Bluetooth" on page 89.

1. From the Home screen, touch

Menu → Settings →

Wireless & networks.

1. Touch Bluetooth to turn Bluetooth On or Off. When On, a check appears in the checkbox.

Bluetooth settings

Use Bluetooth settings to manage Bluetooth connections, set your device's name, and control your device's visibility to other devices.

Note: Bluetooth must be turned On to access some settings.

1. From the Home screen, touch

Menu → Settings →

Wireless & networks → Bluetooth settings.

1. Touch a setting to configure Bluetooth:

2. Bluetooth: Touch to turn Bluetooth On or Off. When On, a check appears in the checkbox.

3. Device Name: Your device's default name appears on screen. Touch to change the device name. Available when Bluetooth is turned On.
4. Visible: Control your phone's visibility to other devices' Bluetooth searches. Touch to turn On or Off. Available when Bluetooth is turned On.
5. Scan devices: Touch to scan for nearby discoverable devices. After searching, touch a device to pair with it. For more information, see “Pairing with a Bluetooth Device” on page 90.

Mobile hotspot settings

Use Mobile hotspot settings to share your phone's 3G internet connection with a PC or other device through Wi-Fi. For more information about using your phone as a mobile hotspot, see "3G Mobile Hotspot" on page 88.

Note: To use 3G Mobile hotspot, you need the 3G Mobile Hotspot feature from Verizon Wireless. Contact Verizon Wireless for more information.

3G Mobile Hotspot consumes battery power and uses data service. While the 3G Mobile hotspot is active, your phone's applications will use the 3G Mobile hotspot data feature allowance.

1. From the Home screen, touch ☐ Menu → Settings → Wireless & networks → Mobile hotspot settings.

2. Touch ☐ Menu → Settings to configure:

3. 3G Mobile Hotspot: Turn Mobile hotspot On or Off. When On, a check appears in the check box.

4. N a mView and edit your phone's name, used for Mobile hotspot connections.
5. Hide my device : Touch to hide your device from other devices searching for a hotspot. When enabled, a check appears in the check box.
6. Password: Touch to require a password to access your phone as a hotspot, and set a password. When enabled, a checkmark appears in the check box.

Tip: By default, your phone's Mobile hotspot password is your phone number. To change the password, touch Password, then enter a new password.

Turning Mobile hotspot On or Off

Note: Using your phone as a mobile hotspot consumes battery power and increases your data usage. Roaming while using your phone as a mobile hotspot will incur extra data charges.

1. From the Home screen, touch ☐ Menu → Settings → Wireless & networks → Mobile hotspot settings.
2. Touch 3G Mobile Hotspot to turn Mobile hotspot On or Off. When on, a check appears in the checkbox.

Note: For more information about using 3G Mobile Hotspot, see "3G Mobile Hotspot" on page 88.

Airplane mode

When airplane mode is activated, all your phone's wireless connections are disabled, and you cannot make or receive calls or messages or connect to networks. While in airplane mode, you can use other features of your phone, such as playing music, watching videos, or other applications.

1. From the Home screen, touch Wireless & networks.

Menu → Settings →

1. Touch Airplane mode to activate or deactivate airplane mode. When activated, a check appears in the checkbox.

VPN settings

Set up and manage Virtual Private Networks (VPNs). For more information about using VPNs, see see "VPN" on page 90.

Add VPN

1. From the Home screen, touch

Menu → Settings →

Wireless & networks → VPN settings.

1. Touch Add VPN to set up a connection to a VPN, using the following settings:

2. Add PPTP VPN: Set up a connection to a VPN with Point-to-Point tunneling protocol.

3. Add L2TP VPN: Set up a connection to a VPN with Layer 2 tunneling protocol.
4. Add L2TP/IPSec PSK VPN: Set up a connection to a VPN with pre-shared key-based Layer 2/IPsec tunneling protocol.
5. Add L2TP/IPSec CRT VPN: Set up a connection to a VPN with Certificate-based Layer 2/IPsec tunneling protocol.

Mobile networks

Set options for network selection and data services while roaming.

Important!: Depending on your service plan, changes you make to Mobile Networks settings may incur extra charges. Consult Verizon Wireless for more information.

1. From the Home screen, touch ☐ Menu → Settings → Wireless & networks → Mobile networks.

2. Set these options:

3. Data roaming : Enable or disable connections to data services when your device is roaming on another network. For more information about roaming, see “Roaming” on page 10.

4. System select: Change the roaming mode for CDMA networks.

— Home Only Restrict your phone to your home network's coverage area. When outside the coverage area, your phone will not roam, and call functions and other wireless features will not be available.
- Automatic: Allow your phone to automatically acquire service based on default settings, using the Verizon Wireless network and the networks of roaming partners.

Dial up networking

Connect to data services using dial-up networking.

Note: You cannot use other data services while Dial Up Networking is enabled.

1. From the Home screen, touch ☐ Menu → Settings → Wireless & networks.
2. Touch Dial up networking to enable or disable dial-up networking. When enabled, a check appears in the checkbox.

Call settings

Voicemail

Voicemail service

By default, calls you do not answer are sent to your carrier's voicemail system. If you subscribe to other voicemail services, you can set the default service.

From the Home screen, touch ☐ Menu → Settings → Call settings → Voicemail service.

Voicemail

By default, the speed dial number for calling your carrier's voicemail is *86. You can modify this to set a special speed dial number for accessing voicemail.

1. From the Home screen, touch ☐ Menu → Settings → Call settings → Voicemail.

2. Use the touch keypad to modify the default voicemail number.

Other call settings

Ignore with message

Create messages to use when rejecting incoming calls. For more information, see “Ignoring a call with a message” on page 35.

1. From the Home screen, touch ☐Menu → Settings → Call settings → Ignore with message.

2. Touch Create.

3. Enter the message text, then touch Save.

Note: To erase messages, touch ☐ Menu → Delete.

Auto retry

When enabled, your phone will automatically re-attempt a call when it encounters a network busy signal.

1. From the Home screen, touch ☐ Menu → Settings → Call settings

2. Touch Auto retry to enable or disable automatic call retry. When enabled, a check mark appears in the check box.

DTMF Tones

Set the length of DTMF (Dual Tone Multiple Frequency) tones that your phone sends. DTMF tones are used as input by some automated call systems.

1. From the Home screen, touch ☐ Menu → Settings → Call settings → DTMF tones.

2. Touch Normal or Long.

TTY Mode

When enabled, TTY Mode allows your phone to work with a TTY device attached to the Headset Jack. Before using your phone with a TTY device, you'll need to enable TTY Mode.

1. From the Home screen, touch ☐ Menu → Settings → Call settings → TTY mode.

2. Touch TTY Off, TTY Full, TTY HCO, or TTY VCO.

Voice privacy

When enabled, Voice privacy encrypts your voice calls for enhanced privacy.

1. From the Home screen, touch ☐ Menu → Settings → Call settings.

2. Touch Voice privacy to enable or disable voice privacy. When enabled, a check mark appears in the check box.

Sound & display

Sound settings

Phone vibrate

When enabled, your phone vibrates to alert you to incoming calls, as well as playing the call ringtone.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display.

2. Touch Phone vibrate to enable or disable vibrate mode. When enabled, a check mark appears in the check box.

Note: The Phone vibrate setting is independent of other call sounds settings. For example, if you have Silent mode enabled with Phone vibrate, your phone won't play a ringtone, but will vibrate for an incoming call.

Silent mode

Temporarily silence all the sounds your phone makes except for media playback and alarms.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display.

2. Touch Silent mode to enable or disable silent mode. When enabled, a check mark appears in the check box.

Ringer volume

Set the volume level for incoming call and notification ringtones.

Note: You can also set Ringer volume from the Home screen by pressing the Volume Key.

1. From the Home screen, touch
   Menu → Settings →
   Sound & display → Ringer volume.
2. Touch and drag the slider to set
   Incoming call volume
3. Touch and drag the slider to set
   Notification volume.
4. Touch OK to save your setting.

System volume

Choose the master volume level for touch feedback and the power on/off sounds.

1. From the Home screen, touch
   Menu → Settings →
   Sound & display → System volume.
2. Touch and drag the slider to set the volume level.
3. Touch OK to save your setting.

Phone ringtone

Choose a default ringtone for all incoming calls.

Tip: You can also set songs as ringtones for all calls, or for a selected contact. For more information, see "Setting a Song as a Ringtone" on page 75.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display → Phone ringtone.
2. Touch a ringtone to hear a sample and select it.
3. Touch OK to save the setting.

Notification ringtone

Select a default ringtone for message, alarm, and other notifications.

Tip: You can also set songs as alarm ringtones. For more information, see "Setting a Song as a Ringtone" on page 75.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display → Notification ringtone.
2. Touch a ringtone to hear a sample and select it.
3. Touch OK to save the setting.

Audible touch tones

When enabled, tones play for when you dial numbers on the Phone Dialer.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display.

2. Touch Audible touch tones to enable or disable tones. When enabled, a check mark appears in the check box.

Audible selection

When enabled, tones play when you touch the screen for selections (other than the Phone Dialer).

1. From the Home screen, touch ☐ Menu → Settings → Sound & display.

2. Touch Audible selection to enable or disable tones. When enabled, a check mark appears in the check box.

Haptic feedback

When enabled, the phone vibrates to indicate screen touches and other interactions.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display.

2. Touch Haptic feedback to enable or disable vibration. When enabled, a check mark appears in the check box.

SD card notifications

When enabled, the phone plays sounds for memory card-related notifications.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display.

2. Touch SD card notifications to enable or disable sounds. When enabled, a check mark appears in the check box.

Media volume

Set the default volume for playback of music and videos.

Note: You can set Media volume during playback by pressing the Volume Key.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display → Media volume.
2. Touch and drag the slider to set Media volume, then touch OK to save the setting.

Emergency Tone

You can set your phone to play an alert tone or vibrate during an emergency call (for example, calls to 911).

1. From the Home screen, touch ☐ Menu → Settings → Sound & display → Emergency tone.
2. Touch Alert or Vibrate, or touch Off for no emergency tone.

Display settings

Orientation

Enable or disable automatic rotation of the screen when you turn the phone clockwise or counterclockwise.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display.
2. Touch Orientation to enable or disable automatic screen orientation. When enabled, a check appears in the box.

Animation

Set the level of animations for transitions from one window to another.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display → Animation.
2. Touch No animation, Some animations, or All animations

Brightness

Set the default screen brightness.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display → Brightness.
2. Touch and drag the slider to set the brightness, or touch to enable Automatic brightness adjustment.
3. Touch OK to save the setting.

Screen timeout

Set the length of delay between the last key press or screen touch and the automatic screen timeout (dim and lock).

1. From the Home screen, touch ☐ Menu → Settings → Sound & display → Screen timeout.
2. Touch a setting to select it.

Unlock screen

Choose the unlock screen for unlocking your phone.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display → Unlock screen.

2. Touch an option to select it:

3. Glass unlock: Slide your finger across the screen to unlock.

4. Puzzle unlock : Touch and drag a puzzle piece into place to unlock.

Power saving mode

When enabled, your phone will automatically analyze the screen and adjust the brightness to conserve battery power.

1. From the Home screen, touch ☐ Menu → Settings → Sound & display.
2. Touch Power saving mode to enable or disable the mode. When enabled, a check appears in the check box.

Location & security

Verizon Wireless values your privacy. Because of this, your phone is defaulted to only acquire your location when you dial 911. To use Location-Based Services, you must first enable location services on your phone.

My Location

E911

E911 location service is standard on all mobile phones, to allow sharing of your GPS location with emergency personnel when you make a call to emergency services (such as 911). This setting is not configurable.

From the Home screen, touch ☐ Menu → Settings → Location & security → E911.

VZW location services

Enable or disable location service from Verizon Wireless.

Note: VZW location services must be enabled to use some applications.

Important!: By selecting VZW location services, you are enabling Verizon Wireless and third-party authenticated and validated location-enabled services access to certain location information available through this network or device.

1. From the Home screen, touch
   Menu → Settings →
   Location & security.
2. Touch VZW location services to enable or disable Verizon Wireless location services. When enabled, a check mark appears in the check box.

Standalone GPS services

Enable or disable location service from Standalone GPS services.

Note: Standalone location services must be enabled to use some applications.

Important!: By selecting Standalone GPS services, you are allowing access to all location information by any third party through web access or any software or peripheral components you choose to install, download, add or attach to the device or any other means. Enabling this functionality could pose certain risks to users of this device.

1. From the Home screen, touch ☐ Menu → Settings → Location & security.
2. Touch Standalone GPS services to enable or disable Standalone GPS services. When enabled, a check mark appears in the check box.

Google location services

Enable or disable location services from Google location services.

Note: Google location services must be enabled to use some applications.

Important!: By selecting Google location services, you are allowing access to all location information by Google through web access or any software or peripheral components you choose to install, download, add or attach to the device or any other means. Enabling this functionality could pose certain risks to users of this device.

1. From the Home screen, touch ☐ Menu → Settings → Location & security.
2. Touch Google location services to enable or disable Google location services. When enabled, a check mark appears in the check box.

Screen unlock pattern

A screen unlock pattern is a touch gesture you create and use to unlock your phone. For more information about using the lock and unlock features, see “Securing Your Phone” on page 13.

Set unlock pattern/Change unlock pattern

1. From the Home screen, touch Location & security.

Menu → Settings →

1. Touch Set unlock pattern or Change unlock pattern.

2. Follow the prompts to create or change your screen unlock pattern.

Release finger when done. Cancel Custom

Note: After creating your personal screen unlock pattern, you must enable it in the Require pattern setting to have the phone require it for unlocking.

Require pattern

Enable or disable the use of a screen unlock pattern.

1. From the Home screen, touch Location & security.

Menu → Settings →

1. Touch Require pattern to enable or disable the use of your unlock pattern. When enabled, a check mark appears in the check box.

Use visible pattern

When enabled, your screen pattern will display on screen as you draw it. The pattern will display in green (as shown at left) when you draw the correct pattern, or red when you draw the pattern incorrectly.

1. From the Home screen, touch

Menu → Settings →

Location & security.

1. Touch Use visible pattern to enable or disable visible patterns. When enabled, a check mark appears in the check box.

Use tactile feedback

When enabled, the phone will vibrate as you draw your unlock pattern on the screen.

1. From the Home screen, touch ☐ Menu → Settings → Location & security.
2. Touch Use tactile feedback to enable or disable tactile feedback. When enabled, a check mark appears in the check box.

Passwords

Visible passwords

When enabled, password characters will display briefly as you touch them while entering passwords.

1. From the Home screen, touch ☐ Menu → Settings → Location & security.
2. Touch Visible passwords to enable or disable brief displays of password characters. When enabled, a check mark appears in the check box.

Credential storage

Use secure credentials

You can install credentials from an installed memory card, and use the Credential storage settings to allow applications to access the secure certificates and other credentials.

Note: You must have installed encrypted certificates from a memory card to use this feature.

1. From the Home screen, touch ☐ Menu → Settings → Location & security.
2. Touch Use secure credentials to enable or disable. When enabled, a check mark appears in the check box.

Install from SD card

Install encrypted certificates from an installed memory card.

Note: You must have installed a memory card containing encrypted certificates to use this feature.

1. From the Home screen, touch ☐ Menu → Settings → Location & security.
2. Touch Install from SD card, then choose a certificate and follow the prompts to install.

Set password

Set or change a password to protect credentials.

1. From the Home screen, touch Menu → Settings → Location & security.

2. Touch Set password, then follow the prompts.

Clear storage

Clear stored credentials and reset the password.

Note: This setting only appears if you have installed encrypted certificates.

1. From the Home screen, touch ☐ Menu → Settings → Location & security.

2. Touch Clear storage to clear stored credentials and reset the password.

Applications

You can download and install applications from Android Market, or create applications using the Android SDK and install them on your phone. Use Applications settings to manage applications on your phone.

Warning!: Because this device can be configured with system software not provided by or supported by Google or any other company, end-users operate these devices at their own risk.

Unknown sources

When enabled, allows installation of applications from sources other than the Android Market.

1. From the Home screen, touch ☐ Menu → Settings → Applications.

2. Touch Unknown sources to enable or disable the setting. When enabled, a check mark appears in the check box.

Manage applications

Manage and remove applications from your phone.

1. From the Home screen, touch ☐ Menu → Settings → Applications → Manage applications.
2. Touch an application to view and update information about the application, including memory usage, default settings and permissions.
3. Touch ➕ Back to return to Applications settings.

Running services

View and control services running on your phone.

Warning!: Not all services can be stopped, and stopping services may have undesirable consequences on the application or Android System.

1. From the Home screen, touch ☐ Menu → Settings → Applications → Running services.
2. To stop a service, touch the service, then touch Stop at the confirmation prompt.

Development

Set options for application development.

USB debugging

When enabled, allows debugging when the phone is attached to a PC by a USB cable.

Note: This setting is used for development purposes.

1. From the Home screen, touch ☐ Menu → Settings → Applications → Development.
2. Touch USB debugging to enable or disable the setting. When enabled, a check mark appears in the check box.

Stay awake

When enabled, the screen will not go to sleep (lock) while connected to a PC via USB cable. This can be useful when using some applications, such as 3G Mobile Hotspot, because the phone will disconnect a Wi-Fi or data connection when the screen locks.

Note: This setting is used for development purposes.

1. From the Home screen, touch Applications → Development

Menu → Settings →

1. Touch Stay awake to enable or disable the setting. When enabled, a check mark appears in the check box.

Allow mock locations

This setting is used by developers when developing location-based applications.

Note: This setting is used for development purposes.

1. From the Home screen, touch Applications → Development

Menu → Settings →

1. Touch Allow mock locations to enable or disable the setting. When enabled, a check mark appears in the box.

Accounts & sync

Set up and manage accounts, including your Google and Backup Assistant accounts.

General sync settings

Background data

When enabled, all accounts can sync, send, and receive data at any time, in the background.

Important!: Disabling background data can extend battery life and lower data use. Some applications may still use the background data connection, even if this setting is disabled.

1. From the Home screen, touch ☐ Menu → Settings → Accounts & sync.
2. Touch Background data to enable or disable the setting. When enabled, a check mark appears in the check box.

Auto-sync

When enabled, all accounts sync data at any time, automatically.

1. From the Home screen, touch ☐ Menu → Settings → Accounts & sync.
2. Touch Auto-sync to enable or disable the setting. When enabled, a check mark appears in the check box.

Settings

Backup Assistant

Backup Assistant is a free wireless service that saves a copy of your Contacts to a secure web site. If your phone is lost, stolen or damaged, Backup Assistant can restore your saved contacts to a new phone, wirelessly. You can schedule backups to save your information manually or automatically. Log in to your web account for full access to your contacts for viewing, printing, adding, deleting and editing.

Note: Subject to specific terms of use. Results may vary based on backup schedule and other factors.

See www.verizonwireless.com/backupassistant for more details.

1. From the Home screen, touch ☐ Menu → Settings → Accounts & sync → Backup Assistant

2. Configure these settings:

3. Touch Auto-Sync to enable or disable automatic synchronization of contacts with Backup Assistant.

4. Touch Sync Timeto set a time for synchronization of contacts, if Auto-Sync is disabled.

5. To back up contacts now, touch Backup Now.

Tip: You can also launch Backup Assistant from the Home screen: touch Contacts, then touch ☐ Menu → Backup

Manage accounts

Use Manage accounts to set up and configure your accounts.

Note: Available settings depend on the type of account. Not all settings are available for all accounts.

1. From the Home screen, touch ☐ Menu → Settings → Accounts & sync.
2. Under Manage accounts, touch the account to modify its settings.

Tip: For more information about managing accounts, see “Setting Up Your Accounts” on page 38.

Adding an account

1. From the Home screen, touch ☐ Menu → Settings → Accounts & sync.
2. Under Manage accounts, touch Add account and follow the prompts to enter your credentials and set up the account.

Tip: For more information about adding accounts, see "Setting Up Your Accounts" on page 38.

Removing an account

Important!: Removing an account also deletes all of its messages, contacts and other data from the phone.

1. From the Home screen, touch Accounts & sync.
   Menu → Settings →
2. Touch an account to display its settings.
3. Touch Remove account, then touch Remove at the prompt to remove the account and delete all its messages, contacts and other data.

Privacy

Use Privacy settings to manage use of personal information by your phone.

Location

Use my location

When enabled, your phone's GPS location information will be used for Google search results and other Google services.

Note: Some Google applications require this setting to be enabled.

1. From the Home screen, touch ☐ Menu → Settings → Privacy.
2. Touch Use my location to enable or disable the setting. When enabled, a check mark appears in the check box.

Personal Data

Factory data reset

Use Factory data reset to return your phone to its factory defaults. This setting erases all data from your phone, including your Google or other email account settings, system and application data and settings, and downloaded applications. It will not erase current system software and bundled applications, or files stored on an optional installed memory card, such as music or photos.

1. From the Home screen, touch Menu → Settings → Privacy.
2. Touch Factory data reset, then follow the prompts to perform the reset.

SD card & phone storage

Manage the use of memory resources in your phone's internal memory, and on an optional installed memory card.

External SD card

1. From the Home screen, touch ☐ Menu → Settings → SD card & phone storage.
2. View Total space and Available space memory usage on an installed memory card (not user-configurable).
3. Touch Unmount SD card to prepare the memory card for safe removal or formatting. For more information, see "Removing a Memory Card" on page 12.
4. Touch Format SD card to erase the memory card and prepare it for use with your phone. For more information, see "Formatting a Memory Card" on page 92.

Internal phone storage

View memory usage for your phone's internal memory. Your phone contains 2GB internal memory.

Note: This setting cannot be configured.

▶ From the Home screen, touch ☐ Menu → Settings → SD card & phone storage.

USB Settings

Configure how your phone is identified when you attach it to a computer with a USB cable.

USB Mode

1. From the Home screen, touch ☐ Menu → Settings → USB settings.

2. Touch USB mode to choose a setting:

3. Mass Storage: When connected, your phone is treated as a mass storage device for transferring information.

4. Media Sync: When connected, your phone will synchronize with media applications on your computer.

Search

Use Search settings to define searchable areas on your phone for the Quick Search Box, available by touching the Search Key.

Quick Search Box

Searchable items

Choose phone features to be included in Quick Search searches.

1. From the Home screen, touch ☐ Menu → Settings → Search → Searchable items.
2. Touch items to enable or disable searching. When enabled, a check mark appears in the check box.

- ContaNarbes of contacts.

- B row: Bookmarks and web history.

- Apps: Names of applications.

- YouTube: YouTube videos.

• Voicemail : Visual Voice Mails received in your voice mail box.

• Kindle : Titles and authors of your books.

- Music P. Artists, albums and track names from your music library.

1. Touch Back to return to Search settings.

Clear search shortcuts

When you search and choose a search result, the search result is saved as a search shortcut. This setting clears recent searches.

1. From the Home screen, touch Menu → Settings → Search.

2. Touch Clear search shortcuts.

Language & keyboard

Select locale

Set the language used by your phone's screens.

1. From the Home screen, touch ☐ Menu → Settings → Language & keyboard → Select locale.

2. Touch a language/locale from the list.

Text settings

Configure text entry options to your preferences.

Swype

Configure Swype settings. Swype is a new way to enter text by gliding your finger over the characters on the keyboard. For more information, see "Entering Text Using Swype" on page 54.

1. From the Home screen, touch ☐ Menu → Settings → Language & keyboard → Swype.

2. Touch items to configure the setting. Settings include:

- Preferences :

– Language: Choose US English or Español.
- Word Prediction: When enabled, suggests possible matching words as you enter text.
— Audio Feedback When enabled, plays sounds as you enter text.
- Vibrate on keypress: When enabled, the phone vibrates on text entry.
- Enable Tip Indicator: When enabled, displays a flashing indicator for quick help as you enter text.

- Swype Advanced settings :

• Auto-spacing: When enabled, inserts spaces automatically when you pause entering text.
  — Auto-capitalization When enabled, automatically capitalizes the first letter of the first word in a sentence.

• Display Trace: Choose how long the trace of your Swype entries display.

• Word Choice Window: Select how often word predictions display during text entry.
• Speed vs. Accuracy: Set the sensitivity of Swype text recognition.

• Help

• Swype Help: View the Swype User Manual.
• Tutorial : View a tutorial for learning how to Swype.

- About :

- Version: View the current Swype software version.

Android keyboard

Configure Android keyboard settings. For more information about entering text with the Android keyboard, see "Entering Text Using the Android Keyboard" on page 56.

1. From the Home screen, touch ☐ Menu → Settings → Language & keyboard → Android keyboard.

2. Touch items to enable or disable the setting. Settings include:

3. Vibrate on keypress : When enabled, the phone vibrates for each key press.

4. Sound on keypress : When enabled, a sound plays for each key press.

5. Auto-capitalization: When enabled, automatically capitalizes the first letter of the first word in a sentence.

6. Voice input: Voice Input is an experimental feature using Google's networked speed recognition. When enabled, the Voice input key appears on the Android keyboard. To use Voice input, touch the Voice input key, or slide your finger over the keyboard.

- Word suggestion settings :

– Quick fixes: When enabled, corrects common mistakes.
- Show suggestions: When enabled, displays suggested words while entering text.
- Auto-complete: When enabled, touching the spacebar or a punctuation character automatically inserts the highlighted suggested word.

User dictionary

When you enter text, the predictive text features of Swype and Android keyboard suggest words matching your key touches. If you find that predictive text often predicts the wrong word, or if you have special words that you enter often, add them to the User dictionary.

Add and manage words in your user dictionary.

• To add a word, touch → Menu → Add.
• To edit a word, touch the word, then select Edit
• To delete a word, touch the word, then selectDelete.

Accessibility

Accessibility services are special features to make using the phone easier for those with certain physical disabilities. Use the Accessibility settings to activate these services.

1. From the Home screen, touch Menu → Settings → Accessibility.

2. Touch Accessibility to activate or deactivate accessibility services. When activated, a check appears in the box.

Accessibility services

Enable or disable accessibility services.

Note: You must activate the Accessibility services setting before enabling services.

1. From the Home screen, touch Menu → Settings → Accessibility.

2. Touch a service to enable or disable the service. When enabled, a check mark appears in the check box:

3. TalkBack: When enabled, recites menu options, application titles, contacts, and other items when scrolling and making selections.

4. SoundBack: When enabled, plays tones for touch actions.
5. Kick B Wherkenabled, vibrates for touch actions.

Text-to-speech

Text-to-speech provides audible readout of text, for example, the contents of text messages, and the Caller ID for incoming calls.

1. From the Home screen, touch ☐ Menu → Settings → Text-to-speech

2. Touch a setting to configure:

3. Listen to an example: Play a sample of speech synthesis (available if voice data is installed).
   • Install voice data : Download and install the speech synthesis data needed to activate Text-to-speech from Android Market (free).
4. Always use my settings: When enabled, settings you make override the application's default settings.
5. Speak incoming CallerID : When enabled, reads out the CallerID for incoming calls.
6. Default Settings : Configure settings to your preferences. When Always use my settings is enabled, these settings override the application's default settings.

- Speech rate Set the speed at which the text is spoken.

– Language Set the language voice for spoken text.

Date & time

By default, your phone receives date and time information from the wireless network. When you are outside network coverage, you may want to set date and time information manually using the Date & time settings.

1. From the Home screen, touch

Menu → Settings →

Date & time.

1. Touch a setting to configure:

2. Automotiduto enable or disable automatic date and time updates from the wireless network. When enabled, a check appears in the check box.

3. Set d: Enter the current date (only available when the Automatic setting is disabled).
4. Select time zone : Choose your local time zone (only available when the Automatic setting is disabled).
5. Set time the current time (only available when the Automatic setting is disabled).
6. Use 24 - h ou: Set the format for time displays.
7. Select date format : Set the format for date displays.

About phone

View information about your phone, including status, legal information, hardware and software versions, and a tutorial.

1. From the Home screen, touch

Menu → Settings →

About phone.

1. Touch items to view details:

2. System updates: Check availability and install updates to your phone.

3. Status: View Battery status, My phone number, MIN, PRL version, ERI version, MEID, Network, Signal strength, Service state, Roaming, Mobile network state, Wi-Fi MAC address, Bluetooth address, and Up time.
4. Battery use: Display the processes and applications that are currently running. Touch an item to view details.
5. Legal information: Display open source licenses and Google info.
6. System tutorial: View a tutorial to help you learn how to use your phone. Follow the prompts to move through the tutorial topics.
7. Hardware: Display the hardware version of your phone.
8. Model number: Display your phone's model number.
9. Firmware version: Display the firmware version of your phone.
10. Baseband version: Display the baseband version of your phone.
11. Kernel version: Display the kernel version of your phone.
12. Build number: Display your phone's build number.

Section 13: Health and Safety Information

This section outlines the safety precautions associated with using your phone. These safety precautions should be followed to safely use your phone.

Health and Safety Information

Exposure to Radio Frequency (RF) Signals

Certification Information (SAR)

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government.

These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE).

In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.

The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of

absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg).

The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.

SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC.

For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body.

Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

The FCC has granted an Equipment Authorization for this mobile phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. The maximum SAR values for this model phone as reported to the FCC are:

• Head: 0.57 W/Kg.
  • Body-worn: 0.52 W/Kg.

SAR information on this and other model phones can be viewed online at http://www.fcc.gov/oet/ea. To find information that pertains to a particular model phone, this site uses the phone FCC ID number which is usually printed somewhere on the case of the phone.

Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar.

Please Note the Following Information When Using Your Handset

1. WARNING REGARDING DISPLAY

The display on your handset is made of glass or acrylic and could break if your handset is dropped or if it receives significant impact. Do not use if screen is broken or cracked as this could cause injury to you.

2. WARRANTY DISCLAIMER: PROPER USE OF A TOUCH SCREEN HANDSET

If your handset has a touchscreen display, please note that a touchscreen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touchscreen may damage the tempered glass surface and void the warranty. For more information, please refer to the "Standard Limited Warranty" on page 156.

Samsung Mobile Products and Recycling

Samsung cares for the environment and encourages its customers to recycle Samsung mobile phones and genuine Samsung accessories.

Health and Safety Information

Go to: http://mobile.samsungusa.com/recycling/index.jsp or

1-800-822-8837 for more information.

UL Certified Travel Adapter

The Travel Adapter for this phone has met applicable UL safety requirements. Please adhere to the following safety instructions per UL guidelines.

FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY DAMAGE.

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS.

DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.

FOR CONNECTION TO A SUPPLY NOT IN NORTH AMERICA, USE AN ATTACHMENT PLUG ADAPTOR OF THE PROPER CONFIGURATION FOR THE POWER OUTLET. THIS POWER UNIT IS INTENDED TO BE CORRECTLY ORIENTATED IN A VERTICAL OR HORIZONTAL OR FLOOR MOUNT POSITION.

Consumer Information on Wireless Phones

The U.S. Food and Drug Administration (FDA) has published a series of Questions and Answers for consumers relating to radio frequency (RF) exposure from wireless phones. The FDA publication includes the following information:

What kinds of phones are the subject of this update?

The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called "cell," "mobile," or "PCS" phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies.

When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called "cordless phones," which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits.

Do wireless phones pose a health hazard?

The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe.

Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to

low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.

What is FDA's role concerning the safety of wireless phones?

Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.

Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:

- Support needed research into possible biological effects of RF of the type emitted by wireless phones;

- Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and - Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.

FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:

• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration

The National Institutes of Health participates in some interagency working group activities, as well.

FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.

FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones.

Base stations are thus not the primary subject of the safety questions discussed in this document.

What are the results of the research done already?

The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals.

However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.

Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phones RF exposures.

However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.

What research is needed to decide whether RF exposure from wireless phones poses a health risk?

A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years.

However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but ten or more years' follow-up may be needed to provide answers about some health effects, such as cancer.

This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.

What is FDA doing to find out more about the possible health effects of wireless phone RF?

FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF). FDA has been a leading participant in the World Health Organization international Electromagnetic Fields (EMF) Project since its inception in 1996.

An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.

FDA and Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety.

FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations.

CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.

What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?

If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF).

Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.

- If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.

Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.

What about children using wireless phones?

The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.

Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000.

They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.

Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?

Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.

Do wireless phone accessories that claim to shield the head from RF radiation work?

Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone.

Studies have shown that these products generally do not work as advertised. Unlike "hand-free" kits, these so-called "shields" may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims.

According to FTC, these defendants lacked a reasonable basis to substantiate their claim.

What about wireless phone interference with medical equipment?

Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested wireless phones and helped develop a voluntary standard

sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.

FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.

Additional information on the safety of RF exposures from various sources can be obtained from the following organizations (Updated 1/1/2010):

• FCC RF Safety Program: http://www.fcc.gov/oet/rfsafety/
• Environmental Protection Agency (EPA): http://www.epa.gov/radiation/
• Occupational Safety and Health Administration's (OSHA): http://www.osha.gov/SLTC/radiofrequencyradiation/index.html
- National Institute for Occupational Safety and Health (NIOSH): http://www.cdc.gov/niosh/
• World Health Organization (WHO): http://www.who.int/peh-emf/

• International Commission on Non-Ionizing Radiation Protection: http://www.icnirp.de
  • Health Protection Agency: http://www.hpa.org.uk/radiation
• US Food and Drug Administration: http://www.fda.gov/Radiation-EmittingProducts/RadiationEmittingProductsandProcedures/HomeBusinessandEntertainment/CellPhones/default.htm

Road Safety

Your wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.

When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:

1. Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.

2. When available, use a hands-free device. If possible, add an additional layer of convenience and safety to your wireless phone with one of the many hands free accessories available today.

3. Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.

4. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.
5. Do not take notes or look up phone numbers while driving. Jotting down a "to do" list or flipping through your address book takes attention away from your primary responsibility, driving safely.

6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.

7. Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.

8. Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident or medical emergencies.
9. Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you.
10. Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency number.

"The wireless industry reminds you to use your phone safely when driving."

For more information, please call 1-888-901-SAFE, or visit our web-site www.ctia.org.

Important!: If you are using a handset other than a standard numeric keypad, please call 1-888-901-7233.

Provided by the Cellular Telecommunications & Internet Association.

Responsible Listening

Caution!: Avoid potential hearing loss.

Damage to hearing occurs when a person is exposed to loud sounds over time. The risk of hearing loss increases as sound is played louder and for longer durations. Prolonged exposure to loud sounds (including music) is the most common cause of preventable hearing loss. Some scientific research suggests that using portable audio devices, such as portable music players and cellular telephones, at high volume settings for long durations may lead to permanent noise-induced hearing loss. This includes the use of headphones (including headsets, earbuds, and Bluetooth or other wireless devices). Exposure to very loud sound has also been associated in some studies with tinnitus (a ringing in the ear), hypersensitivity to sound and distorted hearing.

Health and Safety Information

Individual susceptibility to noise-induced hearing loss and potential hearing problem varies. Additionally, the amount of sound produced by a portable audio device varies depending on the nature of the sound, the device settings, and the headphones that are used. As a result, there is no single volume setting that is appropriate for everyone or for every combination of sound, settings and equipment.

You should follow some commonsense recommendations when using any portable audio device:

• Set the volume in a quiet environment and select the lowest volume at which you can hear adequately.
• When using headphones, turn the volume down if you cannot hear the people speaking near you or if the person sitting next to you can hear what you are listening to.
• Do not turn the volume up to block out noisy surroundings. If you choose to listen to your portable device in a noisy environment, use noise-cancelling headphones to block out background environmental noise. By blocking background environment noise, noise cancelling headphones should allow you to hear the music at lower volumes than when using earbuds.

• Limit the amount of time you listen. As the volume increases, less time is required before you hearing could be affected.

• Avoid using headphones after exposure to extremely loud noises, such as rock concerts, that might cause temporary hearing loss. Temporary hearing loss might cause unsafe volumes to sound normal.

• Do not listen at any volume that causes you discomfort. If you experience ringing in your ears, hear muffled speech or experience any temporary hearing difficulty after listening to your portable audio device, discontinue use and consult your doctor.

You can obtain additional information on this subject from the following sources:

American Academy of Audiology

11730 Plaza American Drive, Suite 300

Reston, VA 20190

Voice: [phone]

Email: [e-mail]

Internet: http://www.audiology.org

National Institute on Deafness and Other Communication Disorders

National Institutes of Health

31 Center Drive, MSC 2320

Bethesda, MD 20892-2320

Email: [e-mail]

Internet: http://www.nidcd.nih.gov/

National Institute for Occupational Safety and Health (NIOSH)

395 E Street, S.W.

Suite 9200

Patriots Plaza Building

Washington, DC 20201

Voice: 1-800-35-NIOSH (1-800-356-4647)

1-800-CDC-INFO (1-800-232-4636)

Outside the U.S. 513-533-8328

Email: [e-mail]

Internet: http://www.cdc.gov

1-888-232-6348 TTY

Internet: http://www.cdc.gov/niosh/topics/noise/default.html

Operating Environment

Remember to follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger.

When connecting the phone or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.

As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment and for the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder if you are using an external antenna).

Using Your Phone Near Other Electronic Devices

Most modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.

Implantable Medical Devices

A minimum separation of six (6) inches should be maintained between a handheld wireless phone and an implantable medical device, such as a pacemaker or implantable cardioverter defibrillator, to avoid potential interference with the device.

Health and Safety Information

Persons who have such devices:

• Should ALWAYS keep the phone more than six (6) inches from their implantable medical device when the phone is turned ON;
• Should not carry the phone in a breast pocket;
• Should use the ear opposite the implantable medical device to minimize the potential for interference;
• Should turn the phone OFF immediately if there is any reason to suspect that interference is taking place;
• Should read and follow the directions from the manufacturer of your implantable medical device. If you have any questions about using your wireless phone with such a device, consult your health care provider.

For more information see:

http://www.fcc.gov/oet/rfsafety/rf-faqs.html

FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices

On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids.

The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.

While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box.

The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.

T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. T4 is the better/higher of the two ratings.

Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together.

A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use.

M3 + M2 = 5 T3 + T2 = 5

In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This is synonymous for T ratings. This should provide the hearing aid user with "normal usage" while

using their hearing aid with the particular wireless phone.

"Normal usage" in this context is defined as a signal quality that is acceptable for normal operation.

The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules.

The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.

HAC/Wi-Fi Language

This phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider about its return and exchange policies and for information on hearing aid compatibility.

Other Medical Devices

If you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.

Posted Facilities

Switch your phone off in any facility where posted notices require you to do so.

Potentially Explosive Environments

Switch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.

Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.

Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.

Emergency Calls

This phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).

Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.

To make an emergency call:

1. If the phone is not on, switch it on.

2. From a Home screen, touch Phone. Enter the emergency number for your present location (for example, 911 or other official emergency number), then touch

to place the call.

If certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.

When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.

Restricting Children's access to your Phone

Your phone is not a toy. Children should not be allowed to play with it because they could hurt themselves and others, damage the phone or make calls that increase your phone bill.

FCC Notice and Cautions

FCC Notice

The phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.

Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association:

NFPA (National Fire Protection Agency)

1 Batterymarch Park

Quincy, Massachusetts

USA 02169-7471

Internet: http://www.nfpa.org

Cautions

Any changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment, and void your authority to operate this equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the

phone warranty if said accessories cause damage or a defect to the phone.

Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.

Other Important Safety Information

• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.
• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.
• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.
• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.
• Switch your phone off before boarding an aircraft. The use of wireless phone in aircraft is illegal and may be dangerous to the aircraft's operation.
• Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.

Product Performance

Getting the Most Out of Your Signal Reception

The quality of each call you make or receive depends on the signal strength in your area. Your phone informs you of the current signal strength by displaying a number of bars next to the signal strength icon. The more bars displayed, the stronger the signal.

If you're inside a building, being near a window may give you better reception.

Understanding the Power Save Feature

If your phone is unable to find a signal after searching, a Power Save feature is automatically activated. If your phone is active, it periodically rechecks service availability or you can check it yourself by pressing any key.

Anytime the Power Save feature is activated, a message displays on the screen. When a signal is found, your phone returns to standby mode.

Understanding How Your Phone Operates

Your phone is basically a radio transmitter and receiver. When it's turned on, it receives and transmits radio frequency (RF) signals. When you use your phone, the system handling your call controls the power level. This power can range from 0.006 watts to 0.2 watts in digital mode.

Maintaining Your Phone's Peak Performance

For the best care of your phone, only authorized personnel should service your phone and accessories. Faulty service may void the warranty. There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service.

• To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. For more information, refer to "Turning Bluetooth On or Off" on page 111.
• If your phone is equipped with an external antenna, hold the phone with the antenna raised, fully-extended and over your shoulder.
• Do not hold, bend or twist the phone's antenna, if applicable.
• Do not use the phone if the antenna is damaged.
• If your phone is equipped with an internal antenna, obstructing the internal antenna could inhibit call performance.
• Speak directly into the phone's receiver.
• Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. If it is inoperable, call Customer Care for service.

Availability of Various Features/Ring Tones

Many services and features are network dependent and may require additional subscription and/or usage charges. Not all features are available for purchase or use in all areas. Downloadable Ring Tones may be available at an additional cost.

Other conditions and restrictions may apply. See your service provider for additional information.

Battery Standby and Talk Time

Standby and talk times will vary depending on phone usage patterns and conditions. Battery power consumption depends on factors such as network configuration, signal strength, operating temperature, features selected, frequency of calls, and voice, data, and other application usage patterns.

Battery Precautions

• Avoid dropping the cell phone. Dropping it, especially on a hard surface, can potentially cause damage to the phone and battery. If you suspect damage to the phone or battery, take it to a service center for inspection.
• Never use any charger or battery that is damaged in any way.
• Do not modify or remanufacture the battery as this could result in serious safety hazards.
• If you use the phone near the network's base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.

• Follow battery usage, storage and charging guidelines found in the user's guide.

• Battery charging time depends on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

• If left unused, a fully charged battery will discharge itself over time.
• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.
• Do not use incompatible cell phone batteries and chargers. Some Web sites and second-hand dealers, not associated with reputable manufacturers and carriers, might be selling incompatible or even counterfeit batteries and chargers. Consumers should purchase manufacturer or carrier recommended products and accessories. If unsure about whether a replacement battery or charger is compatible, contact the manufacturer of the battery or charger.
• Misuse or use of incompatible phones, batteries, and charging devices could result in damage to the equipment and a possible risk of fire, explosion, leakage, or other serious hazard.

• Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.

• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).

• Do not place the phone in areas that may get very hot, such as on or near a cooking surface, cooking appliance, iron, or radiator.
• Do not get your phone or battery wet. Even though they will dry and appear to operate normally, the circuitry could slowly corrode and pose a safety hazard.
• Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.
• Do not permit a battery out of the phone to come in contact with metal objects, such as coins, keys or jewelry.
• Do not crush, puncture or put a high degree of pressure on the battery as this can cause an internal short-circuit, resulting in overheating.

- Dispose of used batteries in accordance with local regulations. In some areas, the disposal of batteries in household or business trash may be prohibited. For safe disposal options for Li-Ion batteries, contact your nearest Samsung authorized service center. Always recycle. Do not dispose of batteries in a fire.

Care and Maintenance

Your phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years.

• Keep the phone and all its parts and accessories out of the reach of small children.
• Keep the phone dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.
• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone.
• Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.
• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone's electronic circuit boards.

• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.
• Do not paint the phone. Paint can clog the device's moving parts and prevent proper operation.
• Do not put the phone in or on heating devices, such as a microwave oven, a stove or a radiator. The phone may explode when overheated.
• If your phone is equipped with an external antenna, use only the supplied or an approved replacement antenna. Unauthorized antennas or modified accessories may damage the phone and violate regulations governing radio devices.
• If the phone, battery, charger or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.

Standard Limited Warranty

What is Covered and For How Long?

SAMSUNG TELECOMMUNICATIONS AMERICA, LLC ("SAMSUNG") warrants to the original purchaser ("Purchaser") that SAMSUNG's phones and accessories ("Products") are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase and continuing for the following specified period of time after that date:

Phone 1 Year

Batteries 1 Year

Leather Case 90 Days

Holster 90 Days

Other Phone Accessories 1 Year

What is Not Covered? This Limited Warranty is conditioned upon proper use of Product by Purchaser. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, neglect, unusual physical, electrical or electromechanical stress, or defects in appearance, cosmetic, decorative or structural

items, including framing, and any non-operative parts unless caused by SAMSUNG; (b) defects or damage resulting from excessive force or use of a metallic object when pressing on a touch screen; (c) equipment that has the serial number or the enhancement data code removed, defaced, damaged, altered or made illegible; (d) any plastic surfaces or other externally exposed parts that are scratched or damaged due to normal use; (e) malfunctions resulting from the use of Product in conjunction or connection with accessories, products, or ancillary/peripheral equipment not furnished or approved by SAMSUNG; (f) defects or damage from improper testing, operation, maintenance, installation, service, or adjustment not furnished or approved by SAMSUNG; (g) defects or damage from external causes such as collision with an object, or from fire, flooding, sand, dirt, windstorm, lightning, earthquake, or from exposure to weather conditions, or battery leakage, theft, blown fuse, or improper use of any electrical source; (h) defects or damage caused by cellular signal reception or transmission, or viruses or other software problems introduced into the Product; (i) any other acts which are not the fault of SAMSUNG; or (j) Product used or purchased outside the United States. This Limited Warranty covers batteries only if battery capacity falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if (i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging the battery, (ii) any of the seals on the battery are broken or

show evidence of tampering, or (iii) the battery has been used in equipment other than the SAMSUNG phone for which it is specified.

What are SAMSUNG's Obligations? During the applicable warranty period, SAMSUNG will repair or replace, at SAMSUNG's sole option, without charge to Purchaser, any defective component part of Product. To obtain service under this Limited Warranty, Purchaser must return Product to an authorized phone service facility in an adequate container for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the original date of purchase, the serial number of Product and the sellers' name and address. To obtain assistance on where to deliver the Product, call Samsung Customer Care at 1-888-987-4357. Upon receipt, SAMSUNG will promptly repair or replace the defective Product. SAMSUNG may, at SAMSUNG's sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product or replace Product with a rebuilt, reconditioned or new Product. Repaired/replaced cases, pouches and holsters will be warranted for a period of ninety (90) days. All other repaired/replaced Product will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for 90 days, whichever is longer. All replaced parts, components, boards and equipment shall become the property of SAMSUNG. If SAMSUNG determines that any Product is not covered by this Limited Warranty, Purchaser must pay all parts, shipping, and labor charges for the repair or return of such Product.

What Are The Limits On Samsung's Warranty/liability? EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED HEREIN, PURCHASER TAKES THE PRODUCT "AS IS," AND SAMSUNG MAKES NO WARRANTY OR REPRESENTATION AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO:

• THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE;
• WARRANTIES OF TITLE OR NON-INFRINGEMENT;
• DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT;
• THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR
• COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO.

NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION OF LAW, INCLUDING IF APPLICABLE THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF TIME AS THE EXPRESS

WRITTEN WARRANTY STATED HEREIN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE, USE, OR MISUSE OF, OR INABILITY TO USE THE PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM THE USE OR LOSS OF USE OF THE PRODUCT OR FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS, OR FOR DAMAGES ARISING FROM ANY TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT COMMITTED BY SAMSUNG, ITS AGENTS OR EMPLOYEES, OR FOR ANY BREACH OF CONTRACT OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES PURCHASER'S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED WARRANTY

WHICH PURCHASER ACKNOWLEDGES IS AND WILL ALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS THE LAW PERMITS.

THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE THIRD-PARTY SOFTWARE OR EQUIPMENT IN CONJUNCTION WITH THE PRODUCT. SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR EQUIPMENT, WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT. THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT LIE SOLELY WITH THE PURCHASER AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT, AS THE CASE MAY BE.

This Limited Warranty allocates risk of Product failure between Purchaser and SAMSUNG, and SAMSUNG's Product pricing reflects this allocation of risk and the limitations of liability contained in this Limited Warranty. The agents, employees, distributors, and dealers of SAMSUNG are not authorized to make modifications to this Limited Warranty, or make additional warranties binding on SAMSUNG. Accordingly, additional statements such as dealer advertising or presentation,

whether oral or written, do not constitute warranties by SAMSUNG and should not be relied upon.

Samsung Telecommunications America, LLC

1301 E. Lookout Drive

Richardson, Texas 75082

©2010 Samsung Telecommunications America, LLC. All rights reserved.

No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice. [021710]

End User License Agreement for Software

IMPORTANT. READ CAREFULLY: This End User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Samsung Electronics Co., Ltd. for software owned by Samsung Electronics Co., Ltd. and its affiliated companies and its third party suppliers and licensors that accompanies this EULA, which includes computer software and may include associated media, printed materials, "online" or electronic documentation ("Software"). BY CLICKING THE "I ACCEPT" BUTTON (OR IF YOU BYPASS OR OTHERWISE DISABLE THE "I ACCEPT", AND STILL INSTALL, COPY, DOWNLOAD, ACCESS OR OTHERWISE USE THE SOFTWARE), YOU AGREE TO

BE BOUND BY THE TERMS OF THIS EULA. IF YOU DO NOT ACCEPT THE TERMS IN THIS EULA, YOU MUST CLICK THE "DECLINE" BUTTON, DISCONTINUE USE OF THE SOFTWARE.

1. GRANT OF LICENSE. Samsung grants you the following rights provided that you comply with all terms and conditions of this EULA: You may install, use, access, display and run one copy of the Software on the local hard disk(s) or other permanent storage media of one computer and use the Software on a single computer or a mobile device at a time, and you may not make the Software available over a network where it could be used by multiple computers at the same time. You may make one copy of the Software in machine-readable form for backup purposes only; provided that the backup copy must include all copyright or other proprietary notices contained on the original.
2. RESERVATION OF RIGHTS AND OWNERSHIP. Samsung reserves all rights not expressly granted to you in this EULA. The Software is protected by copyright and other intellectual property laws and treaties. Samsung or its suppliers own the title, copyright and other intellectual property rights in the Software. The Software is licensed, not sold.
3. LIMITATIONS ON END USER RIGHTS. You may not reverse engineer, decompile, disassemble, or otherwise attempt to discover the source code or algorithms of, the Software (except and only to the extent that such activity is expressly permitted by

Warranty Information

applicable law notwithstanding this limitation), or modify, or disable any features of, the Software, or create derivative works based on the Software. You may not rent, lease, lend, sublicense or provide commercial hosting services with the Software.

1. CONSENT TO USE OF DATA. You agree that Samsung and its affiliates may collect and use technical information gathered as part of the product support services related to the Software provided to you, if any, related to the Software. Samsung may use this information solely to improve its products or to provide customized services or technologies to you and will not disclose this information in a form that personally identifies you.
2. UPGRADES. This EULA applies to updates, supplements and add-on components (if any) of the Software that Samsung may provide to you or make available to you after the date you obtain your initial copy of the Software, unless we provide other terms along with such upgrade. To use Software identified as an upgrade, you must first be licensed for the Software identified by Samsung as eligible for the upgrade. After upgrading, you may no longer use the Software that formed the basis for your upgrade eligibility.
3. SOFTWARE TRANSFER. You may not transfer this EULA or the rights to the Software granted herein to any third party unless it is in connection with the sale of the mobile device which the Software accompanied. In such event, the transfer must include

all of the Software (including all component parts, the media and printed materials, any upgrades, this EULA) and you may not retain any copies of the Software. The transfer may not be an indirect transfer, such as a consignment. Prior to the transfer, the end user receiving the Software must agree to all the EULA terms.

1. EXPORT RESTRICTIONS. You acknowledge that the Software is subject to export restrictions of various countries. You agree to comply with all applicable international and national laws that apply to the Software, including the U.S. Export Administration Regulations, as well as end user, end use, and destination restrictions issued by U.S. and other governments.
2. TERMINATION. This EULA is effective until terminated. Your rights under this License will terminate automatically without notice from Samsung if you fail to comply with any of the terms and conditions of this EULA. Upon termination of this EULA, you shall cease all use of the Software and destroy all copies, full or partial, of the Software.
3. DISCLAIMER OF WARRANTIES. You expressly acknowledge and agree that use of the Software is at your sole risk and that the entire risk as to satisfactory quality, performance, accuracy and effort is with you. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE SOFTWARE IS PROVIDED "AS IS" AND WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND, AND

SAMSUNG AND ITS LICENSORS (COLLECTIVELY REFERRED TO AS "SAMSUNG" FOR THE PURPOSES OF SECTIONS 9, 10 and 11) HEREBY DISCLAIM ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE SOFTWARE, EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES AND/OR CONDITIONS OF MERCHANTABILITY, OF SATISFACTORY QUALITY OR WORKMANLIKE EFFORT, OF FITNESS FOR A PARTICULAR PURPOSE, OF RELIABILITY OR AVAILABILITY, OF ACCURACY, OF LACK OF VIRUSES, OF QUIET ENJOYMENT, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. SAMSUNG DOES NOT WARRANT AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE, THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE WILL MEET YOUR REQUIREMENTS, THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT DEFECTS IN THE SOFTWARE WILL BE CORRECTED. NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY SAMSUNG OR A SAMSUNG AUTHORIZED REPRESENTATIVE SHALL CREATE A WARRANTY. SHOULD THE SOFTWARE PROVE DEFECTIVE, YOU ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF A CONSUMER, SO THESE EXCLUSIONS AND LIMITATIONS MAY NOT APPLY TO YOU.

1. EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT SHALL SAMSUNG BE LIABLE FOR PERSONAL INJURY, OR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES WHATSOEVER, OR FOR LOSS OF PROFITS, LOSS OF DATA, BUSINESS INTERRUPTION, OR FOR ANY PECUNIARY DAMAGES OR LOSSES, ARISING OUT OF OR RELATED TO YOUR USE OR INABILITY TO USE THE SOFTWARE, THE PROVISION OF OR FAILURE TO PROVIDE SUPPORT OR OTHER SERVICES, INFORMATION, SOFTWARE, AND RELATED CONTENT THROUGH THE SOFTWARE OR OTHERWISE ARISING OUT OF THE USE OF THE SOFTWARE, OR OTHERWISE UNDER OR IN CONNECTION WITH ANY PROVISION OF THIS EULA, HOWEVER CAUSED, REGARDLESS OF THE THEORY OF LIABILITY (CONTRACT, TORT OR OTHERWISE) AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS LIMITATION MAY NOT APPLY TO YOU.

2. LIMITATION OF LIABILITY. Notwithstanding any damages that you might incur for any reason whatsoever (including, without limitation, all damages referenced herein and all direct or general damages in contract or anything else), the entire liability of Samsung under any provision of this EULA and your exclusive remedy hereunder shall be limited to the greater of the actual

damages you incur in reasonable reliance on the Software up to the amount actually paid by you for the Software or US\$5.00. The foregoing limitations, exclusions and disclaimers (including Sections 9, 10 and 11) shall apply to the maximum extent permitted by applicable law, even if any remedy fails its essential purpose.

1. U.S. GOVERNMENT END USERS. The Software is licensed only with "restricted rights" and as "commercial items" consisting of "commercial software" and "commercial software documentation" with only those rights as are granted to all other end users pursuant to the terms and conditions herein.
2. APPLICABLE LAW. This EULA is governed by the laws of TEXAS, without regard to conflicts of laws principles. This EULA shall not be governed by the UN Convention on Contracts for the International Sale of Goods, the application of which is expressly excluded. If a dispute, controversy or difference is not amicably settled, it shall be finally resolved by arbitration in Seoul, Korea in accordance with the Arbitration Rules of the Korean Commercial Arbitration Board. The award of arbitration shall be final and binding upon the parties.
3. ENTIRE AGREEMENT; SEVERABILITY. This EULA is the entire agreement between you and Samsung relating to the Software and supersedes all prior or contemporaneous oral or written communications, proposals and representations with respect to

the Software or any other subject matter covered by this EULA. If any provision of this EULA is held to be void, invalid, unenforceable or illegal, the other provisions shall continue in full force and effect.

Precautions for Transfer and Disposal

If data stored on this device is deleted or reformatted using the standard methods, the data only appears to be removed on a superficial level, and it may be possible for someone to retrieve and reuse the data by means of special software.

To avoid unintended information leaks and other problems of this sort, it is recommended that the device be returned to Samsung's Customer Care Center for an Extended File System (EFS) Clear which will eliminate all user memory and return all settings to default settings. Please contact the Samsung Customer Care Center for details.

Important!: Please provide warranty information (proof of purchase) to Samsung's Customer Care Center in order to provide this service at no charge. If the warranty has expired on the device, charges may apply.

Customer Care Center:

1000 Klein Rd.

Plano, TX 75074

Toll Free Tel: [phone].HELP (4357)

Samsung Telecommunications America, LLC:

1301 East Lookout Drive

Richardson, Texas 75082

Phone: 1-800-SAMSUNG (726-7864)

Important!: If you are using a handset other than a standard numeric keypad, dial the numbers listed in brackets.

Phone: [phone]-HELP (4357)

©2010 Samsung Telecommunications America. All rights reserved.

No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice.

Index

Numerics

3G Mobile Hotspot

settings 112

turning on and off 112

using your phone as a hotspot 88

A

Accessibility settings

services 134

Accounts

adding a Corporate account 39

adding a Google account 38

setting up 38

setting up a Facebook account 41

setting up a MySpace account 41

setting up a Twitter account 41

Activating your phone 6

Airplane mode 113

Android keyboard

configuring 56

entering text 56

Android Market 94

Applications 28

downloading new 94

Applications settings

allow mock locations 127

development 126

managing 126

running services 126

stay awake 127

unknown sources 125

USB debugging 126

B

Back key 18

Backup Assistant 51

Battery

charging 8

cover, removing & installing 7

indicator 6

installing 7

non-supported batteries 8

removing 7

Bluetooth

pairing with a device 90

profiles 110

settings 111

turning on or off 89

Browser 66

settings 70

Buddies Now 95

C

Calculator 95

Calendar 96

Call log

creating/updating contacts 36

managing 36

sending messages 36

Call settings

auto retry 115

DTMF tones 116

ignore with message 115

TTY mode 116

voice privacy 116

Calls

answering 34

call-waiting 35

ending 35

from Call log 33

from Contacts 33

from Favorites 33

in-call options 35

rejecting 35

sending to voicemail 35

silencing a ringer 34

three-way 34

using the Dialer 32

Camcorder

recording video 81

settings 82

Camera

settings 80

taking pictures 79

City ID 97

Clock 97

Contacts

activities 50

backing up 46, 51

Backup Assistant 46

creating 42

creating from Call log 42

creating from the Dialer 43

exporting and importing 46

Get Friends 44

groups 48

history 50

linking 44

My Profile 47

namecards 45

setting a picture as contact icon 85

speed dials 51

starred contacts 47

synchronizing with accounts 44

updating 43

updating from Call log 36, 43

updating from Dialer 43

Corporate email accounts 39

D

Daily Briefing 98

Dial Up Networking 91

settings 114

Display settings

animation 119

automatic orientation 119

brightness 120

screen timeout 120

unlock key 120

E

E911 121

Email

account settings 64

combined Inbox 64

composing and sending 63

configuring accounts 62

Corporate accounts 39

refreshing your accounts 64

Exchange account 39

F

Facebook

setting up an account 41

Feeds and Updates 99

G

Gallery 84

sharing pictures and video 85

viewing pictures and video 84

viewing videos 84

Get Friends 44

Gmail

account settings 61

composing and sending 61

configuring your account 60

managing your account 60

refreshing your account 60

Google

Android Market 94

Gmail 60

location services setting 122

managing an account 39

setting up an account 38

Talk 62

your account 10

YouTube 66, 108

Groups

adding contacts 49

creating 48

sending a message 50

H

HAC 148

Health and Safety Information 136

Home key 18

Home screen 20

adding shortcuts 26

adding widgets 24

customizing 21

folders 27

primary shortcuts 23

wallpaper 27

|

Icons

Annunciator Line 22

L

Location settings

Google location services 122

Standalone GPS services 122

VZW location services 121

Locking and Unlocking

requiring an unlock pattern 123

setting unlock pattern 123

unlock key setting 120

using a visible pattern 123

using tactile feedback 124

M

Maps 71

Market 94

Memory Card

formatting 92

installing 12

notification settings 118

removing 12

Memory settings

external SD card 130

internal phone storage 131

Menu

context-sensitive 18

key 18

Messages

creating and sending 58

email 62

Gmail 60

managing 59

Mobile IM 65

settings 59

Talk 62

threaded view 59

types 57

Mobile Hotspot

settings 112

turning on and off 112

Mobile networks

settings 114

M-Ratings 148

Music

creating a playlist 75

playing 73

setting a song as a ringtone 75

V CAST Music with Rhapsody 76

My Files 100

My Location 121

My Profile 47

sending via Bluetooth or Gmail 47

My Verizon Mobile 101

MySpace

setting up an account 41

N

Namecards

sending 45

Navigation 18

command keys 23

context-sensitive menus 18

touch gestures 18

Notification Panel 19

P

Pairing with Bluetooth 90

Phone Safety 147

Phone settings

Date & time 135

language 132

media volume 119

Picture ID

setting 85

Pictures

Gallery 84

setting as wallpaper 85

sharing 85

taking 79

Playlists

creating 75

Powering On and Off 9

Privacy

voice 116

Privacy settings

personal data 130

use my location 129

R

Reset

factory data 130

Ringback tones

downloading 78

Ringtones

downloading 78

notification 117

setting 117

setting a song as a ringtone 75

V CAST Tones 78

Roaming 10

settings 114

S

SAR values 136

Security

locking and unlocking 13

screen unlock pattern 123

Security settings

credential storage 124

screen unlock pattern 123

unlock with tactile feedback 124

using a visible unlock pattern 123

visible passwords 124

Settings 109

Set-up Wizard 9

Silent mode 116

Skype Mobile 101

Sound settings

audible selection tones 118

audible touch tones 118

haptic feedback 118

notification ringtone 117

phone ringtone 117

phone vibrate 116

ringer volume 117

SD card notifications 118

silent mode 116

system 117

Speed Dials

assigning 51

removing or reassigning 51

Standard Limited Warranty 156

Swype

configuring 54

entering text 54

Synchronization settings

auto-sync 127

background data 127

System Tutorial 10

T

Task Manager 11

Text

changing input method 53

entering 53

input methods 53

using Android keyboard 56

using Swype 54

virtual QWERTY keyboard 53

Text settings

Android keyboard 133

Swype 132

user dictionary 133

Threaded view 59

Touch Screen

audible touch tones 118

haptic feedback 118

orientation setting 119

T-Ratings 149

TTY Mode 10

settings 116

Turning Your Phone On and Off 9

Tutorial, System 10

Twitter

setting up an account 41

U

UL Certification 138

Unlocking your phone

requiring an unlock pattern 123

set an unlock pattern 123

using an unlock pattern 13

USB Power/Accessory Port 17

USB settings

mass storage 131

media sync 131

V

V CAST Media Manager 76

V CAST Music with Rhapsody

downloading music 77

importing from audio CD 78

sync music 78

V CAST Tones 78

V CAST Videos 82

Videos

downloading 82

Gallery 84

recording 81

sharing 85

V CAST Videos 82

Visual Voice Mail 37

Voice Commands 104

accessing contacts 105

calling 104

checking status 106

launching My Verizon 106

opening menus or applications 105

playing music 105

redial 104

search 106

sending messages 105

settings 107

Voice Dialer 37

Voicemail

checking 37

setting up 37

settings 115

Visual Voice Mail 37

Wi-Fi 86

Volume

key 16

media 119

ringer 117

system 117

VPN

adding 90

settings 113

W

Wallpaper

setting 85

Warranty Information 156

Widgets 24

Wi-Fi

adding a connection manually 87

scanning and connecting 87

settings 109

turning on or off 86

using your phone as a hotspot 88

Wireless Networking

3G Mobile Hotspot 88

Bluetooth 89

Dial Up Networking 91

VPN 90
