1. Introduction

This chapter provides information you need to know before using the machine.

• Key benefits 5
- Features by model 7
- Useful to know 9
- About the user's guide 10
• Safety information 11
• Machine overview 16
• Control panel overview 19
• Turning on the machine 21
• Installing the driver locally 22
• Reinstalling the driver 24

Abstract icon of stacked documents with no text or symbols

Key benefits

Environmentally friendly

• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 51).
• To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 209).
• To save paper, you can print on both sides of the paper (double-sided printing) (see "Using advanced print features" on page 209).
• To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.
  • We recommend using recycled paper for saving energy.

Fast high resolution printing

• You can print with a resolution of up to 1200 x 1200 dpi effective output (600 x 600 x 2 bit).
• Fast, on-demand printing.
  For single-side printing, up to 45 ppm (A4) or up to 47 ppm (Letter).

Convenience

• You can print on the go from your smartphone or computer using Samsung Cloud Print apps (see "Samsung Cloud Print" on page 177).
• You can print on the go from your smartphone or computer using Google Cloud Print™ enabled apps (see "Google Cloud Print™" on page 179).
• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard (see "Easy Capture Manager" on page 229).
• Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine's status and allows you to customize the machine's settings (see "Using Samsung Easy Printer Manager" on page 236 or "Using Samsung Printer Status" on page 239).
• Samsung AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily than when you use the ordinary program (see "Samsung AnyWeb Print" on page 230).
• Smart Update allows you to check for the latest software and install the latest version during the installation of the printer driver. This is available only for Windows.
• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.

Key benefits

Wide range of functionality and application support

• Supports various paper sizes (see "Print media specifications" on page 106).
- Print watermark: You can customize your documents with words, such as "CONFIDENTIAL" (see "Using advanced print features" on page 209).
- Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 209).
- You can print in various operating systems (see "System requirements" on page 110).
- Your machine is equipped with a USB interface and/or a network interface.

Supports various wireless net\work setting method

• Using WPS (Wi-Fi Protected Setup™)

- You can easily connect to a wireless network using the WPS feature on the machine and an access point (wireless router).

• Using a USB cable or a network cable
- You can connect to a network and set various wireless network settings using a USB cable or a network cable.
• Using Wi-Fi Direct
- You can conveniently print from your mobile device using the Wi-Fi Direct feature.

See "Introducing wireless set up methods" on page 150.

Support XOA application

XOA WEB SAMSUNG eXtensible Open Architecture

The machine supports XOA custom applications.

- Regarding the XOA custom applications, please contact your XOA custom application provider.

Features by model

Some features and optional goods may not be available depending on model or country.

Operating System

Operating System M453x series
Windows •
Mac •
Linux •
Unix •

(●: Supported, Blank: Not supported)

Software

You can install the printer driver and software when you insert the software CD into your CD-ROM drive.

For Windows, select the printer driver and software in the Select Software to Install window.

Software M453x series
SPL printer driver

Software M453x series
PCL printer driver ●
PS printer driver^a		●
XPS printer driver^a		●
Samsung Easy Printer Manager	Device Settings ●
Samsung Printer Status ●
Direct Printing Utility^a		●
Samsung AnyWeb Print^a		●
SyncThru™ Web Service ●
SyncThru Admin Web Service ●
Easy Eco Driver ●
Easy Capture Manager ●

a. Download the software from the Samsung website and install it: (http://www.samsung.com > find your product > Support or Downloads). Before installing, check whether your computer's OS support the software.
(●: Supported, Blank: Not supported)

Features by model

Variety feature

Features M453x series
Hi-Speed USB 2.0 •
Network Interface Ethernet 10/100/1000 Base TX wired LAN	•
Network Interface 802.11b/g/n wireless LAN ^3	○
Wireless/NFC kit ○
Eco printing •
Duplex (2-sided) printing •
USB memory interface •
Memory module (2GB) ○
Optional tray (Tray2,Tray3,Tray4,Tray5) ○
Mass Storage Device (Hard Disk) ○
Short Stand ○
AirPrint •
Samsung Cloud Print •
Google Cloud Print ^TM •

a. Depending on your country, wireless LAN card may not be available. For some countries, only 802.11 b/g can be applied. Contact your local Samsung dealer or the retailer where you bought your machine.
(●: Supported, ○: Optional, Blank: Not supported)

Useful to know

The machine does not print.

• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 49).
• Remove the driver and install it again (see "Installing the driver locally" on page 22).
• Select your machine as your default machine in your Windows (see "Setting your machine as a default machine" on page 208).

Where can I purchase accessories or supplies?

• Inquire at a Samsung distributor or your retailer.
- Visit www.samsung.com/supplies. Select your country/region to view product service information.

The status LED flashes or remains constantly on.

• Turn the product off and on again.
• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 94).

A paper jam has occurred.

• Open and close the door (see "Front view" on page 17).
• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 82).

Printouts are blurry.

• The toner level might be low or uneven. Shake the toner cartridge (see "Redistributing toner" on page 64).
• Try a different print resolution setting (see "Opening printing preferences" on page 49).
• Replace the toner cartridge (see "Replacing the toner cartridge" on page 66).

Where can I download the machine's driver?

- You can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.

About the user's guide

This user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.

• Do not discard this manual, and keep it for future reference.
• Read the safety information before using the machine.
• If you have a problem using the machine, refer to the troubleshooting chapter.
• Terms used in this user's guide are explained in the glossary chapter.
• All illustrations in this user's guide may differ from your machine depending on its options or model you purchased.
• The screenshots in this user's guide may differ from your machine depending on the machine's firmware/driver version.
• The procedures in this user's guide are mainly based on Windows 7.

Conventions

Some terms in this guide are used interchangeably, as below:

• Document is synonymous with original.
• Paper is synonymous with media, or print media.
  • Machine refers to printer or MFP.

General icons

Icon Text Description
[W3ZZ]	Caution	Gives users information to protect the machine from possible mechanical damage or malfunction.
	Warning	Used to alert users to the possibility of personal injury.
	Note	Provides additional information or detailed specification of the machine function and feature.

Safety information

These warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.

Important safety symbols

Explanation of all icons and signs used in this chapter

	Warning	Hazards or unsafe practices that may result in severe personal injury or death.
	Caution	Hazards or unsafe practices that may result in minor personal injury or property damage.
	Do not attempt.

Operating environment

Warning

	Do not use if the power cord is damaged or if the electrical outlet is not grounded.This could result in electric shock or fire.
	Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).This could result in electric shock or fire.
	• If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.• The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out.This could result in electric shock or fire.
	Do not bend, or place heavy objects on the power cord.Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire.
	Do not remove the plug by pulling on the cord; do not handle the plug with wet hands.This could result in electric shock or fire.

Safety information

Caution

	During an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet.This could result in electric shock or fire.
	Be careful, the paper output area is hot.Burns could occur.
	If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.
	If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.
	If the plug does not easily enter the electrical outlet, do not attempt to force it in.Call an electrician to change the electrical outlet, or this could result in electric shock.
	Do not allow pets to chew on the AC power, telephone or PC interface cords.This could result in electric shock or fire and/or injury to your pet.

Operating method

Caution

	Do not forcefully pull the paper out during printing.It can cause damage to the machine.
	Be careful not to put your hand between the machine and paper tray.You may get injured.
[TO2D]	Be careful when replacing paper or removing jammed paper.New paper has sharp edges and can cause painful cuts.
	When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch.Burns can occur.
	When removing jammed paper, do not use tweezers or sharp metal objects.It can damage the machine.
	Do not allow too many papers to stack up in the paper output tray.It can damage the machine.

Safety information

	Do not block or push objects into the ventilation opening.This could result in elevated component temperatures which can cause damage or fire.
	Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
	This machine's power reception device is the power cord.To switch off the power supply, remove the power cord from the electrical outlet.

Installation / Moving

Warning

Do not place the machine in an area with dust, humidity, or water leaks. This could result in electric shock or fire.

Place the machine in the environment where it meets the operating temperature and humidity specification. Otherwise, quality problems can occur and cause damage to the machine. See "General specifications" on page 104.

Caution

Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.

If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to lift the device safety.

The machine could fall, causing injury or machine damage.

Then lift the machine:

- If the machine weighs under 20 kg (44.09 lbs), lift with 1 person. - If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift with 2 people. - If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or more people.

Choose a flat surface with enough space for ventilation to place the machine. Also consider the space required to open the cover and trays.

The place should be well-ventilated and be far from direct light, heat, and humidity.

When using the machine for a long period of time or printing a large number of pages in a non-ventilated space, it could pollute the air and be harmful to your health. Place the machine in a well-ventilated space or open a window to circulate the air periodically.

Do not place the machine on an unstable surface. The machine could fall, causing injury or machine damage.

Safety information

	Use only No.26 AWGa or larger, telephone line cord, if necessary.Otherwise, it can cause damage to the machine.
	Make sure you plug the power cord into a grounded electrical outlet.Otherwise, this could result in electric shock or fire.
	Use the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110V machine, then the gauge should be 16 AWG or larger.Otherwise, it can cause damage to the machine, and could result in electric shock or fire.
	Do not put a cover over the machine or place it in an airtight location, such as a closet.If the machine is not well-ventilated, this could result in fire.
	Do not overload wall outlets and extension cords.This can diminish performance, and could result in electric shock or fire.
	The machine should be connected tothe power level which is specified on the label.If you are unsure and want to check the power level you are using, contact the electrical utility company.

a. AWG: American Wire Gauge

Maintenance / Checking

! Caution

	Unplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine.This could result in electric shock or fire.
	When you are working inside the machine replacing supplies or cleaning the inside, do not operate the machine.You could get injured.
	Keep cleaning supplies away from children.Children could get hurt.
	Do not disassemble, repair or rebuild the machine by yourself.It can damage the machine. Call a certified technician when the machine needs repairing.
	To clean and operate the machine, strictly follow the user's guide provided with the machine.Otherwise, you could damage the machine.

Safety information

	Keep the power cable and the contact surface of the plug clean from dust or water.Otherwise, this could result in electric shock or fire.
	Do not remove any covers or guards that are fastened with screws.Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.The machine should only be repaired by a Samsung service technician.

Supply usage

Caution

	Do not disassemble the toner cartridge.Toner dust can be dangerous if inhaled or ingested.
	Do not burn any of the supplies such as toner cartridge or fuser unit.This could cause an explosion or uncontrollable fire.

	When storing supplies such as toner cartridges, keep them away from children.Toner dust can be dangerous if inhaled or ingested.
	Using recycled supplies, such as toner, can cause damage to the machine.In case of damage due to the use of recycled supplies, a service fee will be charged.
	For supplies that contain toner dust (toner cartridge, waste toner bottle, imaging unit, etc.) follow the instructions below.When disposing of the supplies, follow the instructions for disposal. Refer to the reseller for disposal instructions.Do not wash the supplies.For a waste toner bottle, do not reuse it after emptying the bottle.If you do not follow the instructions above, it may cause machine malfunction and environmental pollution. The warranty does not cover damages caused by a user's carelessness.
[HASZ]	When toner gets on your clothing, do not use hot water to wash it.Hot water sets toner into fabric. Use cold water.
	When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.Toner dust can be dangerous if inhaled or ingested.

Machine overview

Components

The actual component may differ from the illustration below. Some components may change depending on the circumstances.

Machine Quick installation guide Power cord
Software CDa	Imaging unit	Misc. accessoriesb

a. The software CD contains the print drivers, user's guide, and software applications.
b. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

Machine overview

Front view

• This illustration may differ from your machine depending on your model. There are various types of machine.
• Some features and optional goods may not be available depending on model or country (see "Features by model" on page 7).

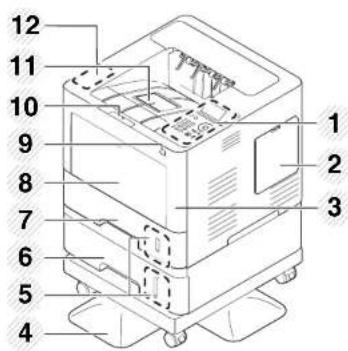

Technical diagram of a device with numbered components for identification

1 Control panel
2 Memory Module(DIMM) cover ^a
3 Front cover

4	Short stand ^a
5 Paper level indicator
6	Optional tray ^a
7	T r a y 1
8 Multi-purpose tray cover
9 USB memory port
10 Front cover button
11 Output tray
12	Wireless/NFC kit area ^a
13 Multi-purpose tray paper width guides
14 Multi-purpose tray paper extension
15	Imaging unit ^b
16 Toner cartridge

a. Optional feature.
b. Remove the Toner cartridge to acess the imaging unit.

Machine overview

Rear view

• This illustration may differ from your machine depending on your model. There are various types of machine.
• Some features and optional goods may not be available depending on model or country (see "Features by model" on page 7).

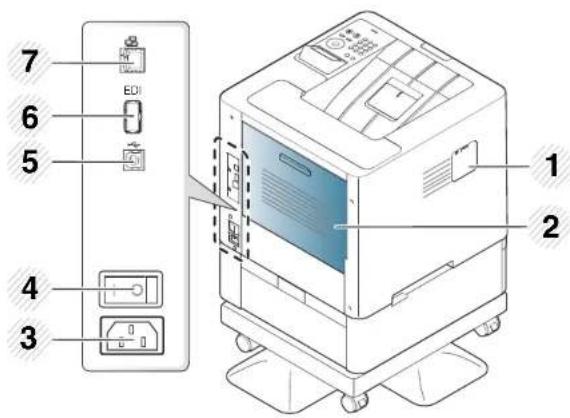

7 6 5 4 3 EDI 1 2

1	Wireless/NFC kit ^3 port cover
2	Rear cover
3	P o w e r r e c e p t a c l e

4 Power-switch
5	U S B p o r t
6 EDI port for card reader
7	N e t w o r k p o r t

a. Optional feature

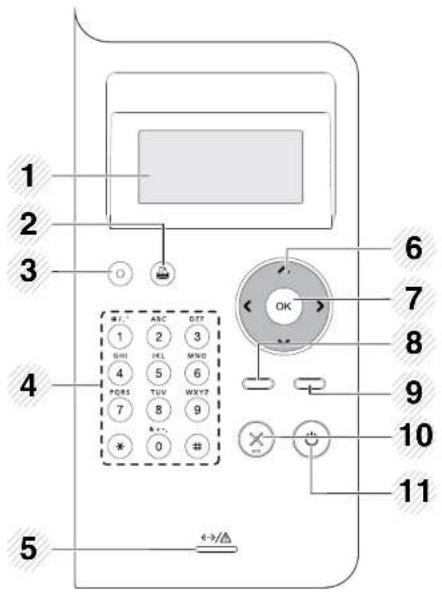

Control panel overview

M453xND series

• This control panel may differ from your machine depending on its model. There are various types of control panels.
• Some features and optional goods may not be available depending on model or country (see "Features by model" on page 7).

1 2 3 4 5 6 7 8 9 10 11

0

1 2 3 SHT ICL MND 4 5 6 PQRS TUV WXY? 7 8 9 * #

1 Display screen			Shows the current status and prompts during an operation.
2	Demo sheet	[30CD]	Prints a demo page by pressing this button.
3 Eco			Turn on the Eco mode to reduce toner consumption and paper usage (see "Eco printing" on page 51).
4	Numeric keypad Use the keypad to enter numbers and characters (see "Keypad letters and numbers" on page 206).
5 Status LED			Indicates the status of your machine (see "Understanding the status LED" on page 94).
6 Arrow			Navigates available values by moving to the next or previous options.
7 OK Confirms the selection on the screen.
8 Menu			Enters menu mode and scrolls through the available menus (see "Accessing the menu" on page 26).
9 Back			Sends you back to the upper menu level.
10 Stop/Clear		[68BX]	Stops current operation.
11	Power/ Wake Up	[A27B]	You can turn the power on and off with this button. Or wake up from the power save mode.

Control panel overview

M453xNX series

• This control panel may differ from your machine depending on its model. There are various types of control panels.
• Some features and optional goods may not be available depending on model or country (see "Features by model" on page 7).
• When using the touch screen, only use your finger. Sharp objects can damage the screen.

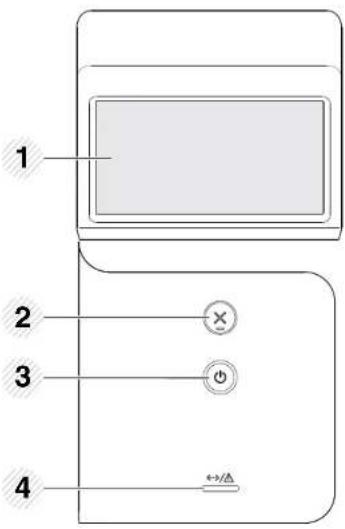

1 2 3 4

1 Touch screen			Displays the current status and allows you to access available menus.
2 Stop/Clear			Stops current operation.
3 Power/Wake Up			You can turn the power on and off with this button. Or wake up from the power save mode.
4 LED	[HKXY]	⚠️	Indicates the status of your machine (see "Understanding the status LED" on page 94).

Turning on the machine

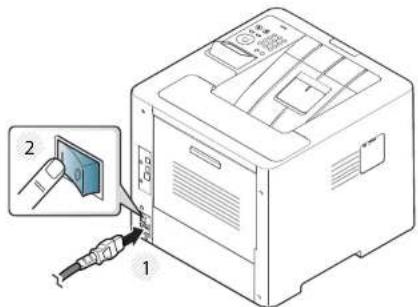

1 Connect the machine to the electricity supply first.

Turn the switch on if the machine has a power switch.

Diagram showing a printer with labeled parts and a magnified view of the device's cable connection.

Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 17).

Power is turned on automatically.

If you want to turn the power off, press the ⏻ (Power/ Wake Up) button.

Installing the driver locally

A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine's driver (see "Installing driver over the network" on page 139).

• If you are a Mac, Linux, or UNIX operating systems user, refer to the "Installation for Mac" on page 130, "Installation for Linux" on page 132, or "Installing the UNIX printer driver package" on page 145.
• The installation window in this User's Guide may differ depending on the machine and interface in use.
• Only use a USB cable no longer than 3 meters (118 inches).

Windows

1 Make sure that the machine is connected to your computer and powered on.
2 Insert the supplied software CD into your CD-ROM drive.

If the installation window does not appear, click Start > All programs > Accessories > Run.

X:\Setup.exe replacing "X" with the letter, which represents your CD-ROM drive and click OK.

- For Windows 8,

If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing "X" with the letter that represents your CD-ROM drive and click OK. If "Tap to choose what happens with this disc." pop-up window appears, click the window and select Run Setup.exe.

3 Review and accept the installation agreements in the installation window. Then, click Next.
4 Select USB on the Printer Connection Type screen. Then, click Next.
5 Follow the instructions in the installation window.

You can select the software applications in the Select Software to Install Window.

Installing the driver locally

From the Windows 8 Start Screen

• The V4 driver is automatically downloaded from the Windows Update if your computer is connected to the Internet. If not, you can manually download the V4 driver from Samsung website, www.samsung.com > find your product > Support or downloads.
• You can download Samsung Printer Experience app from the Windows Store. You need have a Microsoft account to use the Windows Store.

1 From Charms, select Search.
2 Click Store.
3 Search and click Samsung Printer Experience.
4 Click Install.

• If you install the driver using the supplied software CD, V4 driver is not installed. If you want to use the V4 driver in the Desktop screen, you can download from the Samsung website, www.samsung.com > find your product > Support or downloads.
• If you want to install Samsung's printer management tools, you need to install them using the supplied software CD.

1 Make sure that your computer is connected to the Internet and powered on.
2 Make sure that the machine is powered on.
3 Connect the computer and the machine with a USB cable.

The driver is automatically installed from the Windows Update.

Reinstalling the driver

If the printer driver does not work properly, follow the steps below to reinstall the driver.

Windows

1 Make sure that the machine is connected to your computer and powered on.
2 From the Start menu, select Programs or All Programs > Samsung Printers > Uninstall Samsung Printer Software.

- For Windows 8,

1 From Charms, select Search > Apps.
2 Search and click Control Panel.
3 Click Programs and Features.
4 Right-click the driver you want to uninstall and select Uninstall.
5 Follow the instructions in the window.

3 Follow the instructions in the installation window.

4 Insert the software CD into your CD-ROM drive and install the driver again (see "Installing the driver locally" on page 22).

From the Windows 8 Start Screen

1 Make sure that the machine is connected to your computer and powered on.
2 Click on the Uninstall Samsung Printer Software tile in the Start screen.
3 Follow the instructions in the window.

- If you cannot find a Samsung Printer Software tile, uninstall from the desktop screen mode.

- If you want to uninstall Samsung's printer management tools, from the Start screen, right-click the app > Uninstall > right-click the program you want to delete > Uninstall and follow the instruction in the window.

Blue circular icon with a white printer symbol (no text or numbers)

2. Menu Overview and Basic Setup

This chapter provides information about the overall menu structure and the basic setup options.

• Menu overview 26
  • Machine's basic settings 34
  • Media and tray 36
• Basic printing 48
  • Using USB memory device 53

Menu overview

The control panel provides access to various menus to set up the machine or use the machine's functions.

M453xND series

Accessing the menu

• An checked (√) appears next to the currently selected menu.
• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.
  • Some menu names may differ from your machine depending on its options or the models.
• The menus are described in the Advanced Guide (see "Useful Setting Menus" on page 185).

1 Press Menu(1) button on the control panel.
2 Press the arrows until the needed menu item appears and press OK.
3 If the setting item has sub menus, repeat step 2.
4 Press OK to save the selection.
5 Press (Stop/Clear) to return to the ready mode.

Menu overview

Information(see "Information" on page 187)	Layout(see "Layout" on page 188)	Paper(see "Paper" on page 189)	Graphic(see "Graphic" on page 190)
Configuration	Orientation	Copies	Resolution
Demo Page	Portrait	Tray[x]^b	Standard
Network Configuration	Landscape	Paper Size	High Resolution
Supplies Information	Margin	Paper Type	Clear Text
Usage Counter	Common Margin	MP Tray	Off
Account^a	MP Tray	Paper Size	Minimum
Menu Map	Tray[x]^b	Paper Type	Medium
PCL Font	Emulation Margin	Paper Source	Maximum
PS Font	Duplex	Auto	Edge Enhancement
	Off	Tray[x]^b	Off
	Long Edge	MP Tray	Normal
	Short Edge	Tray Confirm	Maximum
		Tray[x]^b	Auto CR
		MP Tray

a. This is used only available when Job Accounting is enabled from the SyncThru™ Web Admin Service. b. [tray type] indicates the tray number.

Menu overview

System Setup(see "System Setup/ Setup" on page 191)		Emulation(see "Emulation" on page 195)	Image Management(see "Image Management" on page 196)
Date & Time	Maintenance	Emulation Type	Custom Color
Date Format	Supplies Life	Setup	Default
Clock Mode	RAM Disk^b		Print Density
MSD Spooling^a	Paper Low Alert
Language	Toner Save
Default Paper	Quiet Mode
Power Save	Eco Settings
Wakeup Event	Auto Power Off
Job Timeout	Filing Policy
Held Job Timeout
Altitude Adjustment
Humidity
Job Rescheduling
Auto Continue
Auto Tray Switch
Paper Substitution
Tray Protection
Tray Mode
Skip Blank Pages

a. This option is available when the optional Mass Storage Device (Hard Disk) installed
b. Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.

Menu overview

Network(see "Network" on page 197)		Direct USB(see "USB" on page 200)	Job Management ^a (see "Job Management (Job Status)"on page 201)	Admin Setup(see "Admin Setup" on page 198)
TCP/IP (IPv4)	Protocol Management	USB Print	Active Job	Stamp
DHCP	NFC	File Manage	Secure Job	Stamp Activate
BOOTP	Network Configuration	Show Space	Stored Job	Item
Static	Clear Setting		Print	Text Size
TCP/IP (IPv6)			Delete	Opacity
IPv6 Protocol				Position
DHCPv6 Config				Change Admin Password
Ethernet				Firmware Upgrade
Ethernet Port				Import Setting
Ethernet Speed				Export Setting
802.1x				Image Overwrite ^c
Wi-Fi ^b				Automatic Image Overwrite
Wi-Fi On/Off				Manual
Wi-Fi Settings				Overwrite Method
WPS				Overwrite Times
Wi-Fi Direct				Secure Print
Wi-Fi Signal				Supplies Management
Clear Wi-fi settings.				Toner Low Alert
				Imaging Unit Low Alert

a. This option is available when the optional memory installed or RAM Disk is checked.
b. This option is available when the optional Wireless/NFC kit installed.
c. Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.

Menu overview

M453xNX series

Introducing the Home Screen

You can set menus easily using the touch screen.

• The home screen is shown on the touch screen on the control panel.
• Some menus are grayed out depending on your options or models.
- The menus are described in the Advanced Guide (see "Useful Setting Menus" on page 185).

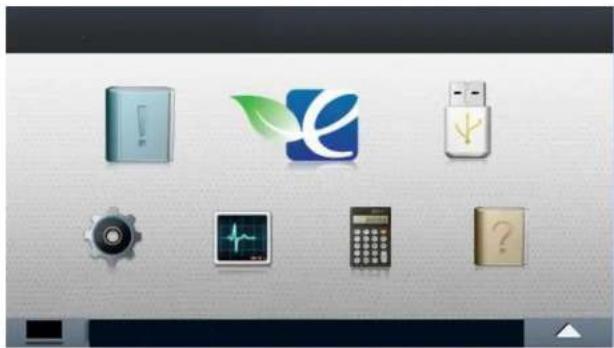

Desktop icons including books, a leaf logo, USB, gear, ECG monitor, calculator, and question mark (no text or symbols on items)

Icon Name Description
	Information	Prints various machine information and reports.
	Eco	Displays Eco settings.
	Direct USB	Enters the USB menu when USB memory is inserted into the USB memory port on your machine.
	Setup	Browse current machine settings or change machine values.
	Job Status	Displays the jobs currently running, completed or in queue.
	Counter	Displays total pages printed.
	Help	View help and troubleshooting information.
	Toner Status You can see the toner status.
	Menu You can select the LCD brightness, language and you can edit home menus.

Menu overview

[8235] Information(see "Information" on page 187)	[50xH] Eco(see "Eco" on page 199)	[084K] USB(see "USB" on page 200)	Setup(see "System Setup/ Setup" on page 191)
Configuration	Eco-On	Print From	System	Power Save
Demo Page	Off	(Options)	Date & Time	Wakeup Event
Help List	On	Copies	Date Format	Auto Power Off
Network Configuration	Settings	Auto Fit	Clock Mode	Altitude Adjustment
Supplies Information	Default Mode	Duplex	MSD Spooling	Humidity
Job Reports	Off	Paper Source	Language	Job Rescheduling
Font List	On	File Manage	Maintenance	Quiet Mode
	On-Forceda	(Options)	Supplies Info.	Job Timeout
	Feature Configuration	Delete	Paper Low Alert	Filing Policy
	Default	Format	Toner Save	Held Job Timeout
	Custom	Show Space	Image Management	Import Setting
			Default Paper Size	Export Setting
			Skip Blank Pages

a. If you set the eco mode on with a passcode from the SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco Settings) or Samsung Easy Printer Manager (Device Settings > Eco), the On-Forced message appears. You have to enter the passcode to change the eco mode status.

Menu overview

Setup

(see "System Setup/ Setup" on page 191)

Admin Setup^a	Application	Protocol Management	Layout	Graphic
User Access Control	Application Management	NFC	Orientation	Resolution
Authentication	Install New Application	Network Configuration	Margin	Clear Text
Stamp	Secure Print	Clear Settings	Duplex	Edge Enhancement
Stamp Activate	Supplies Management		Paper	Auto CR
Item	Toner Low Alert		Copies	Emulation
Text Size	Imaging Unit Low Alert		MP Tray	Emulation Type
Opacity	Network		Tray[x]^d	Setup
Position	TCP/IP (IPv4)		Paper Source
Change Admin Password	TCP/IP (IPv6)		Tray Confirmation
Firmware Upgrade	Ethernet		Tray Behavior
Image Overwrite^b	802.1x		Auto Continue
Automatic Image Overwrite	Wi-Fi ^c		Auto Tray Switch
Manual Image Overwrite	Wi-Fi On/Off		Paper Substitution
Overwrite Method	Wi-Fi Settings		Tray Protection
Overwrite Times	WPS		Tray Mode
	Wi-Fi Direct
	Wi-Fi Signal
	Clear Wi-Fi Settings

a. You need to enter a password to enter this menu. The default password is sec00000.
b. This option is available when the optional Mass Storage Device (Hard Disk) installed.
c. This option is available when the optional Wireless/NFC kit installed.
d. [tray type] indicates the tray number.

Menu overview

Job Status(see "Job Management (Job Status)" on page 201)	Counter(see "Counter" on page 202)	Help(see "Help" on page 203)
Current JobSecure JobStored JobComplete Job	Total Printed Basic Taskflow	InformationEcoDirect USBSetupTroubleshootingPaper jam in MP TrayPaper jam in Tray 1Paper jam in Tray 2Jam inside machineJam in exit areaJam inside of duplexQR Code

Machine's basic settings

You can set the machine's settings from Samsung Easy Printer Manager program or SyncThru™ Web Service.

For Windows and Mac users:

• If you machine is connected to the local, you can set the machine's setting from Samsung Easy Printer Manager > 📋 (Switch to advanced mode) > Device Settings (see "Device Settings" on page 238).
• If your machine is connected to the network, you can set the machine's setting from SyncThru™ Web Service > Settings tab > Machine Settings (see "Using SyncThru™ Web Service" on page 232).

After installation is complete, you may want to set the machine's default settings.

To change the machine's default settings, follow these steps:

1 Select Menu(≡) > OK > System Setup > OK on the control panel. OR

For the model with a touch screen, select (Setup) > System > Next on the touch screen.

2 Select the option you want.

- Language: Change the language that is displayed on the control panel.

- Date & Time: You can set the time and date. They are printed on reports. If, however, they are not correct, you need to change it to the correct time.

Enter the correct time and date using arrows or numeric keypad (see "Understanding the pop-up keyboard" on page 206).

• Month = 01 to 12
• Day = 01 to 31
• Year = requires four digits
• Hour = 01 to 12
• Minute = 00 to 59

• Clock Mode: You can set your machine to display the current time using either a 12 hours or 24 hours format.
• Power Save: When you are not using the machine for a while, use this feature to save power.

• When you press the power button or start printing, the product will wake up from the power save mode.
• When you press any button except power button, the machine wake up

from the power save mode. Select (Setup) > System > Next > Wakeup Event > On on the touch screen.

Machine's basic settings

- Altitude Adjustment: Print quality is affected by atmospheric pressure, which atmospheric pressure is determined by the height of the machine above sea level. Before you set the altitude value, determine the altitude where you are (see "Altitude adjustment" on page 205).

3 Press OK to save the selection.

For the model with a touch screen, press (back) to save the selection.

4 Press ☒ (Stop/Clear) or home(▲) icon to return to ready mode.

Media and tray

This chapter provides information on how to load print media into your machine.

Selecting print media

You can print on a variety of print media, such as plain paper, envelopes, labels, and transparencies. Always use print media that meet the guidelines for use with your machine.

Guidelines for select the print media

Print media that does not meet the guidelines outlined in this user's guide may cause the following problems:

• Poor print quality
• Increased paper jams
  • Premature wear on the machine.

Properties, such as weight, composition, grain, and moisture content, are important factors that affect the machine's performance and the output quality. When you choose print materials, consider the following:

• The type, size, and weight of the print media for your machine are described in print media specifications (see "Print media specifications" on page 106).

• Desired outcome: The print media you choose should be appropriate for your project.

• Brightness: Some print media are whiter than others and produce sharper, more vibrant images.
  • Surface smoothness: The smoothness of the print media affects how crisp the printing looks on the paper.

• Some print media may meet all of the guidelines in this user's guide and still not produce satisfactory results. This may be the result of the sheets characteristics, improper handling, unacceptable temperature and humidity levels, or other variables over which cannot be controlled.
• Before purchasing large quantities of print media, ensure that it meets the requirements specified in this user's guide.

• Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Samsung's warranty or service agreements.
• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine.
  • Using flammable print media can cause a fire.
• Use designated print media (see "Print media specifications" on page 106).
• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine.

Media and tray

The use of flammable media or foreign materials left in the printer may lead to overheating of the unit and, in rare cases may cause a fire.

The amount of paper put into the tray may differ according to media type used (see "Print media specifications" on page 106).

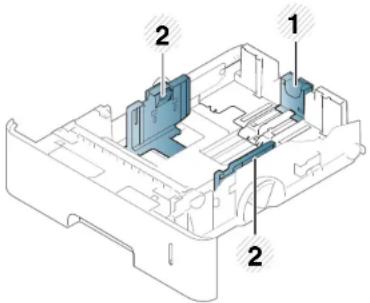

Tray overview

To change the size, you need to adjust the paper guides.

Technical diagram of a device casing with labeled components 1 and 2

1 Paper length guide
2 Paper width guide

If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper.

Loading paper in the tray

Tray 1 / optional tray

Load the print media you use for the majority of your print jobs into the standard tray. The standard tray can hold a maximum of 550 sheets of plain paper (75 g/m ^2 , 20 lb bond).

You can purchase an optional tray (see "Available accessories" on page 60).

Using photographic paper or coated paper may cause problems, that require repairs. Such repairs are not covered by the warranty or service agreements.

Media and tray

1 Slightly lift up, and pull out the tray.

Diagram of a computer printer internal structure showing internal components and a blue plastic cover (no text or symbols)

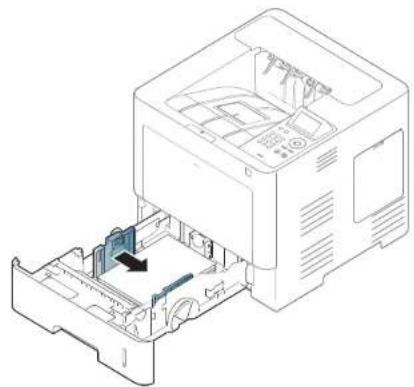

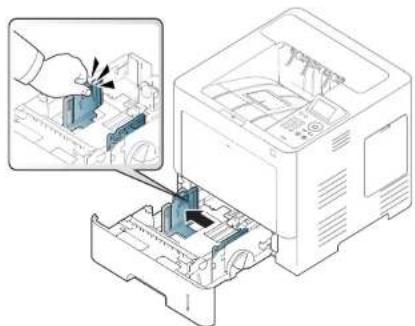

2 Squeeze the paper width guide, and pull it to the end of the tray.

Diagram of a computer printer internal structure with a hand inserting a component (no text or symbols visible)

3 Squeeze the paper length guide, and pull it to the end of the tray.

Diagram of a printer's internal structure showing part being inserted into a base, with no visible text or symbols.

4 Flex and fan the edge of the paper stack to separate the pages before loading papers.

Three-step illustration showing a blue electronic device being handled, with no visible text or symbols.

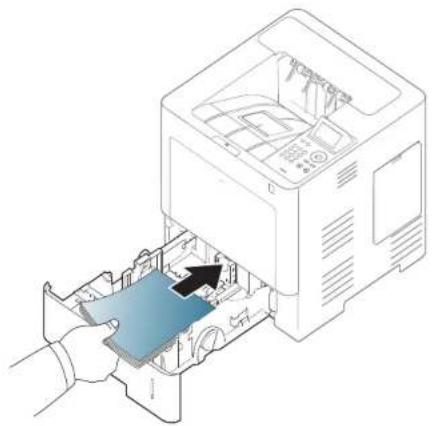

Media and tray

5

Load the paper.

Illustration of a printer's internal structure being inserted into a machine (no text or symbols visible)

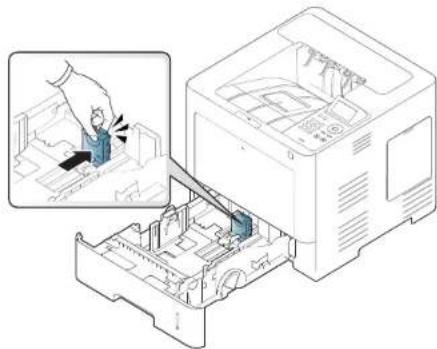

6

After inserting paper into the tray, squeeze the paper width guides and slide them to the desired paper size marked at the bottom of the tray.

Technical line drawing of a printer internal structure showing base, casing, and internal components (no text or symbols)

- Do not push the paper width guide too far causing the media to warp.

- If you do not adjust the paper width guide, it may cause paper jams.

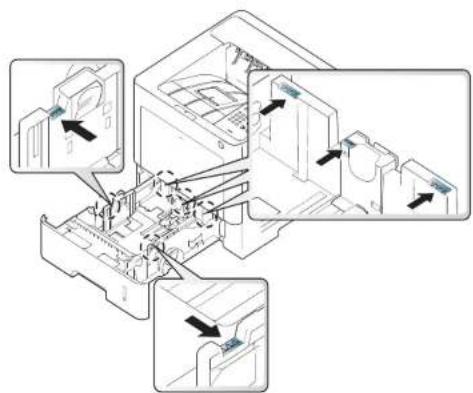

Media and tray

- Do not use a paper with a leading-edge curl, it may cause a paper jam or the paper can be wrinkled.

- Do not overload the tray. Otherwise, it may cause paper jams. Make sure that the paper is below the maximum paper capacity guide inside the tray.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating movement or flow.

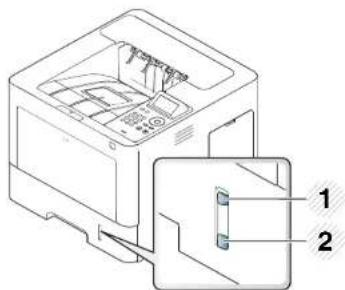

• Paper quantity indicator shows the amount of paper in the tray.

Technical diagram of a device with labeled parts, showing internal components and a close-up view of the internal structure.

1 Full
2 Empty

7

Insert the tray back into the machine.

When you print a document, set the paper type and size for the tray.

• See "Setting the paper size and type" on page 46.

If you experience problems with paper feeding, check whether the paper meets the media specification (see "Print media specifications" on page 106), and then try placing one sheet at a time in the multi-purpose tray (see "Printing on special media" on page 42).

Media and tray

Multi-purpose tray

The multi-purpose tray can hold special sizes and types of print material, such as postcards, note cards, and envelopes.

Tips on using the multi-purpose tray

• Load only one type, size, and weight of print media at a time in the multi-purpose tray.
• To prevent paper jams, do not add paper while printing when there is still paper in the multi-purpose tray. This also applies to other types of print media.
• Print media should be loaded face up with the top edge going into the multi-purpose tray first and be placed in the center of the tray.
• Always load only the specified print media to avoid paper jams and print quality problems (see "Print media specifications" on page 106).
• Flatten any curl on postcards, envelopes, and labels before loading them into the multi-purpose tray.

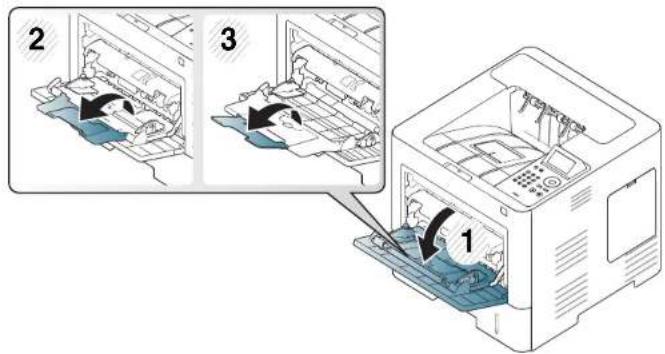

1 Open the multi-purpose tray and open the extension if necessary.

Diagram illustrating a printer operation sequence with labeled steps 1, 2, and 3 showing mechanical assembly and printing process.

2 Flex or fan the edge of the paper stack to separate the pages before loading originals.

Three-step illustration showing a device being handled, with no visible text or symbols.

Media and tray

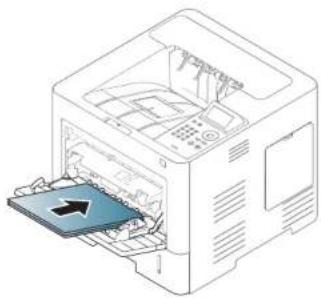

3 Load the paper.

Illustration of a computer printer with an open slot and a blue arrow indicating the paper's front panel (no text or symbols present)

4 Squeeze the multi-purpose tray paper width guides and adjust them to the width of the paper. Do not force too much, otherwise the paper will bend resulting in a paper jam or skew.

Illustration of a printer's internal structure with a hand inserting a component (no text or symbols visible)

5 When you print a document, set the paper type and size for the multi-purpose tray.

• See "Setting the paper size and type" on page 46.

Printing on special media

The table below shows the special media usable in tray.

The paper setting in the machine and driver should match to print without a paper mismatch error.

You change the paper setting set in the machine from Samsung Easy Printer Manager program or SyncThru™ Web Service.

- For Windows and Mac users:

- If you machine is connected to the local, you can set the machine's setting from Samsung Easy Printer Manager > (Switch to advanced mode) > Device Settings (see "Device Settings" on page 238).

- If your machine is connected to the network, you can set the machine's setting from SyncThru™ Web Service > Settings tab > Machine Settings (see "Using SyncThru™ Web Service" on page 232).

Or, you can set it using Menu(≡) > Paper > select a tray > Paper Size or Paper Type button on the control panel. For the model with a touch screen, you can set it using (Setup) > Paper > Next > select a tray > Paper Size or Paper Type on the touch screen.

Media and tray

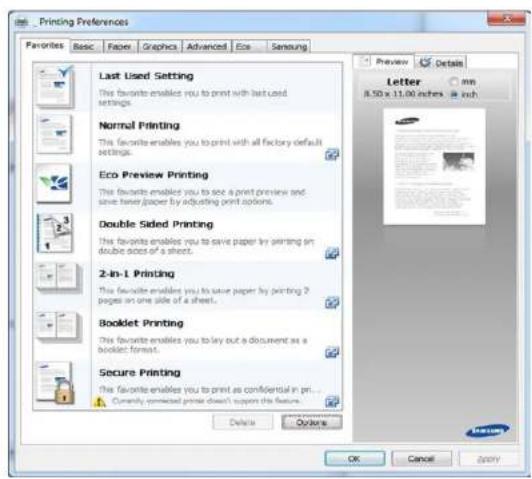

Then, set the paper type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 49).

For example, if you want to print on labels, select Labels for Paper Type.

• When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 106).
• Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 17).

To see for paper weights for each sheet, refer to "Print media specifications" on page 106.

Types	Tray 1	Optional trays	Multi-purpose tray
Plain ●	●		●
Thick ●	●		●
Thicker ●
Thin ●	●		●
Cotton ●	●		●
Color ●	●		●
Preprinted ●	●		●
Recycled ●	●		●

Types	Tray 1	Optional trays	Multi-purpose tray
Envelope •	•		•
Labels •	•		•
CardStock	•	•
Bond	•	•
Archive	•	•
LetterHead	•	•
Punched •	•	•

(●: Supported, Blank: Not supported)

The media types are shown in the Printing Preferences. This paper type option allows you to set the type of paper to be loaded in the tray. This setting appears in the list so that you can select it. This will let you get the best quality printout. If not, the desired print quality may not be achieved.

Media and tray

Envelope

Printing successfully on envelopes depends upon the quality of the envelopes.

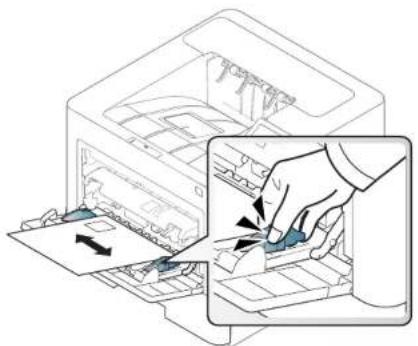

To print an envelope, place it as shown in the following figure.

Illustration of a printer's internal structure being inserted into a paper airplane, with a hand inserting a small object (no text or symbols visible)

- When selecting envelopes, consider the following factors:

- Weight: should not exceed 90 g/m ^2 otherwise; jams may occur.

• Construction: should lie flat with less than 6 mm (0.25 inches) curland should not contain air.
• Condition: should not be wrinkled, nicked, nor damaged.
• Temperature: should resist the heat and pressure of the machine during operation.

• Use only well-constructed envelopes with sharp and well-creased folds.

- Do not use stamped envelopes.

• Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials.
• Do not use damaged or poorly made envelopes.
• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.

1 Acceptable
2 Unacceptable

• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine's fusing temperature for 0.1 second about 170^ (338°F). The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.
• For the best print quality, position margins no closer than 15 mm from the edges of the envelope.
• Avoid printing over the area where the envelope's seams meet.

Media and tray

Labels

To avoid damaging the machine, use only labels designed for use in laser printers.

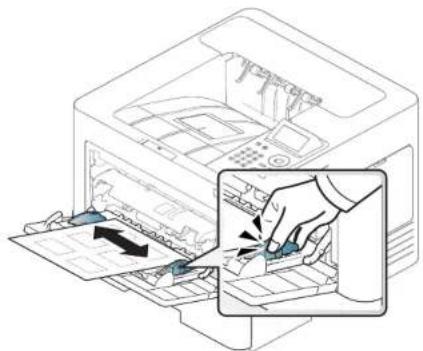

Illustration of a printer's internal structure with a hand inserting a paper into the print (no text or symbols visible)

- When selecting labels, consider the following factors:

• Adhesives: Should be stable at your machine's fusing temperature about 170 °C (338 °F).
• Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.
• Curl: Must lie flat with no more than 13 mm (0.5 inches) of curl in any direction.
• Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.

• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.
- Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine.
- Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.

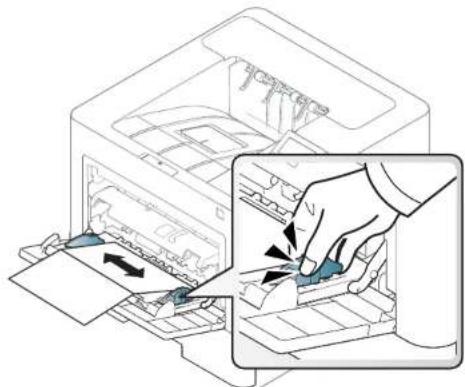

Card stock/ Custom-sized paper

Illustration of a printer's internal structure being inserted, showing paper feeding into a printer (no text or symbols present)

- In the software application, set the margins to at least 6.4 mm (0.25 inches) away from the edges of the material.

Media and tray

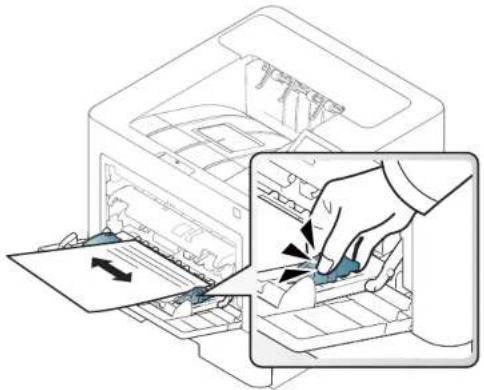

Preprinted paper

When loading preprinted paper, the printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.

Illustration of a printer's internal structure with a hand inserting a paper into the print (no text or symbols visible)

• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine's fusing temperature for 0.1 second about 170^ (338°F).
• Preprinted paper ink must be non-flammable and should not adversely affect machine rollers.
• Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.

Setting the paper size and type

After loading paper in the paper tray, set the paper size and type.

The paper setting in the machine and driver should match to print without a paper mismatch error.

You change the paper setting set in the machine from Samsung Easy Printer Manager program or SyncThru™ Web Service.

- For Windows and Mac users:

• If you machine is connected to the local, you can set the machine's setting from Samsung Easy Printer Manager > 📋 (Switch to advanced mode) > Device Settings (see "Device Settings" on page 238).
• If your machine is connected to the network, you can set the machine's setting from SyncThru™ Web Service > Settings tab > Machine Settings (see "Using SyncThru™ Web Service" on page 232).

Or, you can set it using Menu(≡) > Paper > select a tray > Paper Size or Paper Type button on the control panel. For the model with a touch screen, you can set it using ⬆ (Setup) > Paper > Next > select a tray > Paper Size or Paper Type on the touch screen.

Then, set the paper type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 49).

Media and tray

1 Select Menu(≡) > Paper > Paper Size or Paper Type button on the control panel.

OR

For the model with a touch screen, select (Setup) > Paper > Next > select a tray > Paper Size or Paper Type on the touch screen.

2 Select the tray and the option you want.

For the model with a touch screen, select the option you want and go to step 4.

3 Press OK to save the selection.

4 Press ☒ (Stop/Clear) button or home (↑) icon to return to ready mode.

If you want to use special-sized paper such as billing paper, select the Paper tab > Size > Edit... and set Custom Paper Size Settings in the Printing Preferences (see "Opening printing preferences" on page 49).

Using the output support

The surface of the output tray may become hot if you print a large number of pages at once. Make sure that you do not touch the surface, and do not allow children near it.

The printed pages stack on the output support, and the output support will help the printed pages to align. Unfold the output support.

Line drawing of a printer internal structure with no visible text or symbols

Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 17).

Basic printing

For special printing features, refer to the Advanced Guide (see "Using advanced print features" on page 209).

Printing

If you are a Mac, Linux, or Unix operating systems user, refer to the Advanced Guide (see "Mac printing" on page 221, "Linux printing" on page 223, or "Unix printing" on page 225).

The following Printing Preferences window is for Notepad in Windows 7.

1 Open the document you want to print.
2 Select Print from the File menu.

3 Select your machine from the Select Printer list.

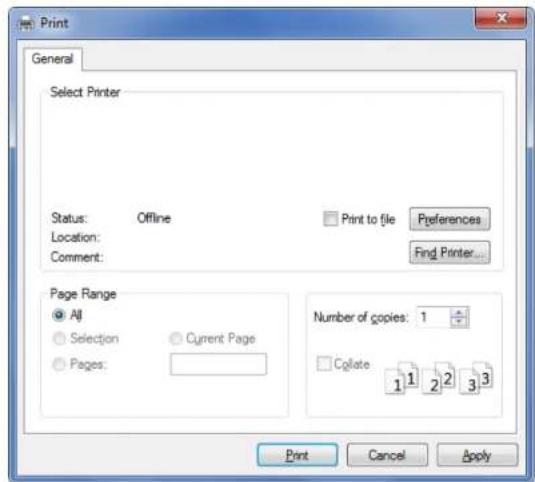

Print General Select Printer Status: Offline Print to file Preferences Location: Comment: Page Range All Selection Current Page Pages: Number of copies: 1 Cplate 1 1 2 3 3 Print Cancel Apply

4 The basic print settings including the number of copies and print range are selected within the Print window.
To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 49).
5 To start the print job, click OK or Print in the Print window.

Basic printing

Canceling a print job

If the print job is waiting in the print queue or print spooler, cancel the job as follows:

- You can access this window by simply double-clicking the machine icon

the Windows task bar.

- You can also cancel the current job by pressing ☒ (Stop/Clear) on the control panel.

Opening printing preferences

• The Printing Preferences window that appears in this user's guide may differ depending on the machine in use.
• When you select an option in Printing Preferences, you may see a warning mark or . An mark means you can select that certain option but it is not recommended, and an mark means you cannot select that option due to the machine's setting or environment.

1 Open the document you want to print.
2 Select Print from the file menu. The Print window appears.

Select your machine from the Select Printer.

Click Properties or Preferences.

The screenshot may differ depending on model.

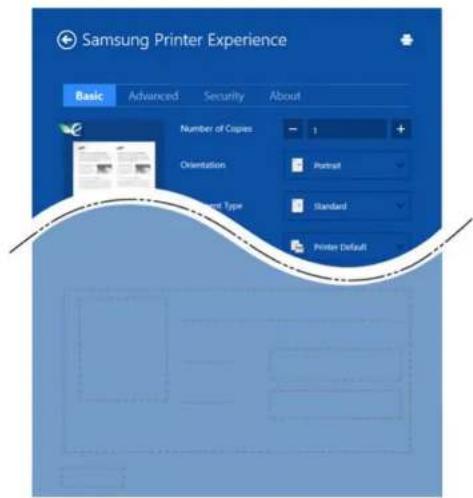

Printing Preferences Favorites Basic Fabric Graphics Advanced Eco Samsung Last Used Setting This favorite enables you to print with last used settings. Normal Printing This favorite enables you to print with all factory default settings. Eco Preview Printing This favorite enables you to see a print preview and save how paper by adjusting print options. Double Sided Printing This favorite enables you to save paper by printing on double sizes of a sheet. 2-in-1 Printing This favorite enables you to save paper by printing 2 pages on one side of a sheet. Booklet Printing This favorite enables you to lay out a document as a booklet format. Secure Printing This favorite enables you to print as confidential in print... Currently connected printer doesn't support this feature. Details Options Preview Details Letter 8.50 x 11.00 inches @ inch OK Cancel Apply

• You can apply Eco features to save paper and toner before printing (see "Easy Eco Driver" on page 231).

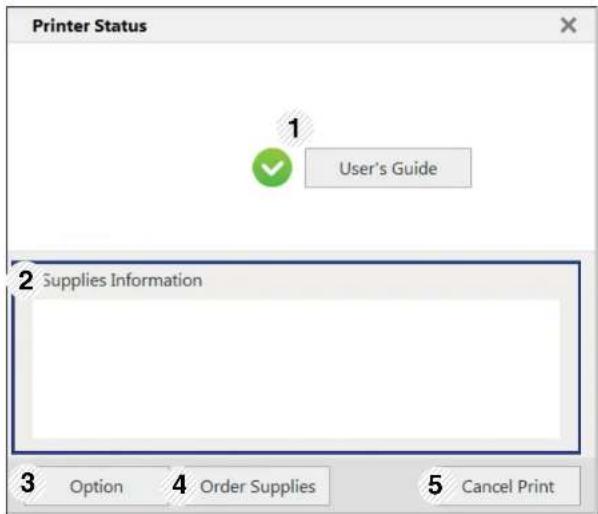

• You can check the machine's current status pressing the Printer Status button (see "Using Samsung Printer Status" on page 239).

Basic printing

Using a favorite setting

The Favorites option, which is visible on each preferences tab except for the Favorites and Samsung tab, allows you to save the current preferences for future use.

To save a Favorites item, follow these steps:

1 Change the settings as needed on each tab.
2 Enter a name for the item in the Favorites input box.

Favorites test Orientation: - Landscape Layout Options: - Layout: Poster Printing, Post... Save

3 Click Save.
4 Enter name and description, and then select the desired icon.
5 Click OK. When you save Favorites, all current driver settings are saved.

To use a saved setting, select it in the Favorites tab. The machine is now set to print according to the settings you have selected.

To delete saved settings, select it in the Favorites tab and click Delete.

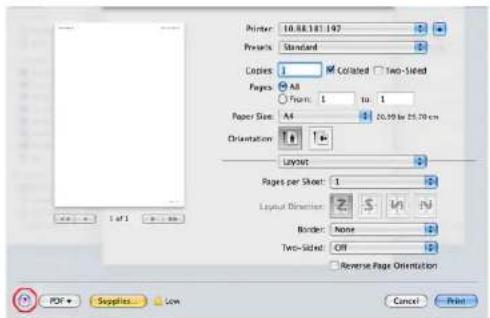

Using help

Click the option you want to know on the Printing Preferences window and press F1 on your keyboard.

Basic printing

Eco printing

The Eco function cuts toner consumption and paper usage. The Eco function allows you to save print resources and lead you to eco-friendly printing.

You can set the machine's settings by using the Device Settings in Samsung Easy Printer Manager program.

- For Windows and Mac users, you set from Samsung Easy Printer

Manager > (Switch to advanced mode) > Device Settings, see

"Device Settings" on page 238.

Setting Eco mode on the control panel

1 Select Menu(≡) > System Setup > Eco Settings on the control panel. OR

For the model with a touch screen, select (Eco) > Settings > Next on the touch screen.

2 Select the option you want and press OK.

For the model with a touch screen, select the option you want and go to step 4.

- Default Mode: Select this to turn on or off the Eco mode.

If you set the Eco mode on with a password from the SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco Settings) or Samsung Easy Printer Manager (Device Settings > Eco), the On force message appears. You have to enter the passcode to change the Eco mode status.

- Select Template: Follow the settings from Syncthru™ Web Service or Samsung Easy Printer Manager. Before you select this item, you must set the Eco function in SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco Settings) or Samsung Easy Printer Manager (Device Settings > Eco).

3 Press OK to save the selection.

4 Press ☒ (Stop/Clear) or home( ) icon to return to ready mode.

Basic printing

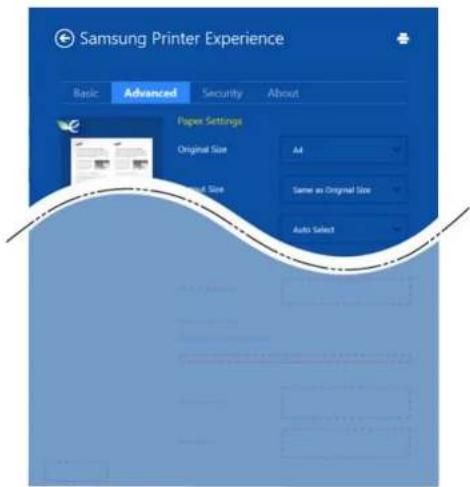

Setting eco mode on the driver

To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 49).

Open the Eco tab to set Eco mode. When you see the eco image (▼), that means the eco mode is currently enabled.

Eco options

• Printer Default: Follows the settings from the machine's control panel.
  • None: Disables Eco mode.
• Eco Printing: Enables eco mode. Activate the various Eco items you want to use.
• Passcode: If the administrator fixed to enable the Eco mode, you have to enter the password to change the status.

Passcode button: You can set from SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco Settings) or Samsung Easy Printer Manager (Device Settings > Eco), the password button is activated. To change the print settings, click on this button, enter the password or need to contact the administrator.

Result simulator

Result Simulator shows the results of reduced emission of carbon dioxide, used electricity, and the amount of saved paper in accordance with the settings you selected.

• The results are calculated on the basis that the total number of printed paper is one hundred without a blank page when the Eco mode is disabled.
• Refers to the calculation coefficient about CO2, energy, and paper from IEA, the index of Ministry of Internal Affairs and Communication of Japan and www.remanufacturing.org.uk. Each model has a different index.
• The power consumption in printing mode refers to the average printing power consumption of this machine.
• The actual amount displayed is only an estimate as the actual amount may differ depending on the operating system used, computing performance, application software, connection method, media type [thickness], media size, job complexity, etc.

Using USB memory device

About USB memory device

USB memory devices are available with a variety of memory capacities to give you more room for storing documents, presentations, music and videos, high resolution photographs, or whatever other files you want to store or move.

Your machine supports USB memory devices with FAT16/FAT32 and sector size of 512 bytes.

Check your USB memory device's file system from your dealer.

You must use only an authorized USB memory device with an A plug type connector.

Use only a USB memory device with metal-shielded connector.

Only use a USB memory device that has obtained compatibility certification, otherwise, the machine might not recognize it.

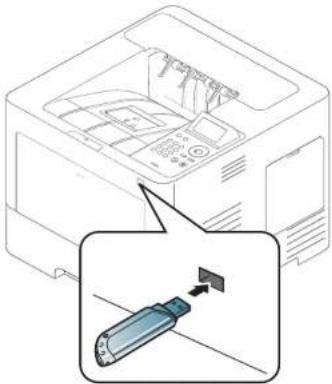

Insert a USB memory device into the USB memory port on your machine.

Diagram showing a printer with internal components and a close-up of a device inside (no text or symbols)

- Do not remove the USB memory device while it is in use. The machine warranty does not cover damage caused by user's misuse.

- If your USB memory device has certain features such as security settings and password settings, your machine may not automatically detect it. For details about these features, see the user's guide of the USB memory device.

Using USB memory device

Printing from a USB memory device

You can directly print files stored on a USB memory device.

Direct Print option supported file types:

- PRN: Only files created by provided driver with your machine are compatible.

If you print PRN files created from other machine, the printout would be different.

• TIFF: TIFF 6.0 Baseline
- JPEG: JPEG Baseline
- PDF: PDF 1.7 or lower

To print a document from a USB memory device:

1 Insert a USB memory device into the USB memory port on your machin
2 Select Menu(≡) > Direct USB > USB Print on the control panel. OR

Select 📋 (USB) > Print From > Next on the touch screen.

3 Select the folder or file you want.

4 Select the number of copies to be printed or enter the number.
5 Touch Print on the touch screen.
6 Press ☒ (Stop/Clear) button or home (Button icon to return to ready mode.

Backing up data

Data in the machine's memory can be accidentally erased due to power failure or storage failure. Backup helps you protect the system settings by storing them as backup files on a USB memory device.

Backing up data

1 Insert the USB memory device into the USB memory port on your machine.
2 Select Menu(≡) > Admin Setup > Export Setting on the control panel.
OR
Select (Setup) > System > Next > Export Setting on the touch screen.
3 Press OK or Yes when the confirmation window appears.

Using USB memory device

4 Press ☒ (Stop/Clear) button or home (▲) icon to return to ready mode.

Restoring data

1 Insert the USB memory device on which the backup data is stored in to the USB memory port.
2 Select Menu(≡) > Admin Setup > Import Setting on the control panel.
OR
Select (Setup) > System > Next > Import Setting on the touch screen.
3 Select Setup Data.
4 Select the file you want to restore.
5 Press OK or Yes when the confirmation window appears.
6 Press ☒ (Stop/Clear) button or home (Button icon to return to ready mode.

Managing USB memory

You can delete image files stored on a USB memory device one by one or all at once by reformatting the device.

After deleting files or reformatting a USB memory device, files cannot be restored. Therefore, confirm that you no longer need the data before deleting it.

Deleting an image file

1 Insert a USB memory device into the USB memory port on your machine.
2 Select Menu(≡) > Direct USB >File Manage > Delete on the control panel.
OR
Select (USB) > File Manage > Next > select the folder or file you want

(Options) > Delete on the touch screen.
3 Press OK or Yes when the confirmation window appears.
4 Press ☒(Stop/Clear) button or home (Button icon to return to ready mode.

Using USB memory device

Formatting a USB memory device

1 Insert a USB memory device into the USB memory port on your machine.
2 Select Menu(≡) > Direct USB > Format on the control panel. OR
Select (Direct USB) > File Manage > Next > select the folder or file you want > (Options) > Format on the touch screen.
3 Press OK or Yes when the confirmation window appears.
4 Press ☒ (Stop/Clear) button or home (Button icon to return to ready mode.

Viewing the USB memory status

You can check the amount of memory space available for scanning and saving documents.

1 Insert a USB memory device into the USB memory port on your machine.
2 Select Menu( := ) > Direct USB >Check Space on the control panel. OR
Select (Direct USB) > Show Space > Next on the touch screen.
3 The available memory space appears on the display.

4 Press ☒(Stop/Clear) button or home (▲) icon to return to ready mode.

Blue circular icon with a white printer symbol (no text or numbers)

3. Maintenance

This chapter provides information about purchasing supplies, accessories and maintenance parts available for your machine.

• Ordering supplies and accessories 58
  • Available consumables 59
  • Available accessories 60
  • Available maintenance parts 61
  • Storing the toner cartridge 62
  • Redistributing toner 64
  • Replacing the toner cartridge 66
• Replacing the imaging unit 68
  • Installing accessories 70
  • Monitoring the supplies life 73
• Setting the toner/imaging unit low alert 74
  • Cleaning the machine 75
  • Tips for moving & storing the machine 79

Ordering supplies and accessories

Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available supplies, and maintenance parts.

To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine. You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.

Available consumables

When supplies reach the end of their life spans, you can order the followings of consumables for your machine:

Type Average yield Part name
Toner cartridge^a	Average continuous cartridge yield : Approx. 7,000 standard pages	MLT-D304S
	Average continuous cartridge yield : Approx. 20,000 standard pages	MLT-D304L
	Average continuous cartridge yield : Approx. 40,000 standard pages	MLT-D304E
Imaging unit^b	Approx. 100,000 pages MLT-R304

a. Declared yield value in accordance with ISO/IEC 19752. The number of pages may be affected by operating environment, printing interval, graphics, media type and media size.
b. Based on simplex 3 average A4/Letter-size pages per job (and above mentioned coverage pattern). The number of pages may be affected by operating environment, printing interval, graphics, media type and media size.

Depending on the options, percentage of image area and job mode used, the toner cartridge's lifespan may differ.

When purchasing new toner cartridges or other supplies, these must be purchased in the same country as the machine you are using. Otherwise, new toner cartridges or other supplies will be incompatible with your machine due to different configurations of toner cartridges and other supplies according to the specific country conditions.

Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot guarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine's warranty.

Available accessories

You can purchase and install accessories to enhance your machine's performance and capacity.

Some features and optional goods may not be available depending on models or countries (see "Features by model" on page 7).

Accessory Function Part name
Memory module	Extends your machine's memory capacity.	SL-MEM001: 2 GB
Optional tray	If you are experiencing frequent paper supply problems, you can attach an additional trays.	SL-SCF4500
Mass Storage Device (Hard Disk) ^a	Allows you to enhance the machine's capability and print in various ways.	SL-HDK4001
Short stand	You can easily move the machine using the stand with its wheels.	SL-DSK001S
Wireless /NFC kit	This kit lets you use your machine as a Wireless and NFC machine.	SL-NWE001X

a. M453xND series only.

Available maintenance parts

You need to replace the maintenance parts at specific intervals to keep the machine in the best condition and avoid print quality and paper feeding problems resulting from the worn-out parts. Maintenance parts are mostly rollers, belts and pads. However, the replacement period and parts may differ depending on the model. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. To purchase maintenance parts, contact the retailer where you bought the machine. The replacement period for the maintenance parts is informed by the "Samsung Printer Status" program. Or if your machine supports display screen, a message is displayed in the display screen. The replacement period varies based on the operating system used, computing performance, application software, connecting method, paper type, paper size, and job complexity.

Storing the toner cartridge

Toner cartridges contain components that are sensitive to light, temperature and humidity. Samsung suggests users follow these recommendations to ensure optimal performance, highest quality, and longest life from your new Samsung toner cartridge.

Store this cartridge in the same environment in which the printer will be used. This should be in controlled temperature and humidity conditions. The toner cartridge should remain in its original and unopened package until installation – if original packaging is not available, cover the top opening of the cartridge with paper and store in a dark cabinet.

Opening the cartridge package prior to use dramatically shortens its useful shelf and operating life. Do not store on the floor. If the toner cartridge is removed from the printer, follow the instructions below to store the toner cartridge properly.

• Store the cartridge inside the protective bag from the original package.
• Store lying flat (not standing on end) with the same side facing up as if it were installed in the machine.

• Do not store consumables in any of the following conditions:

• Temperature greater than 30 °C (86 °F).

• Humidity range less than 20% or greater than 80%.
• An environment with extreme changes in humidity or temperature.
• Direct sunlight or room light.
• Dusty places.
• A car for a long period of time.
• An environment where corrosive gases are present.
• An environment with salty air.

Handling instructions

• Do not touch the surface of the photoconductive drum in the cartridge.
• Do not expose the cartridge to unnecessary vibrations or shock.
• Never manually rotate the drum, especially in the reverse direction; this can cause internal damage and toner spillage.

Toner cartridge usage

Samsung Electronics does not recommend or approve the use of non-Samsung brand toner cartridges in your printer including generic, store brand, refilled, or remanufactured toner cartridges.

Samsung's printer warranty does not cover damage to the machine caused by the use of a refilled, remanufactured, or non-Samsung brand toner cartridges.

Storing the toner cartridge

Estimated cartridge life

Estimated cartridge life (the life of the toner cartridge yield) depends on the amount of toner that print jobs require. The actual print yield may vary depending on the print density of the pages you print on, operating environment, percentage of image area, printing interval, media type and/or media size. For example, if you print a lot of graphics, the consumption of the toner is higher and you may need to change the cartridge more often.

Redistributing toner

When the toner cartridge is near the end of its life:

• White streaks or light printing occurs and/or density variation side to side.
  • The Status LED blinks orange. The toner-related message saying that the toner is low may appear on the display.
• The computer's Samsung Printing Status program window appears on the computer telling you which cartridge is low on toner (see "Using Samsung Printer Status" on page 239).

If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner.

Illustrations in this user's guide may differ from your machine depending on the model and options installed. Check your machine type (see "Front view" on page 17).

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.
- Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area.
- Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.
• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

Redistributing toner

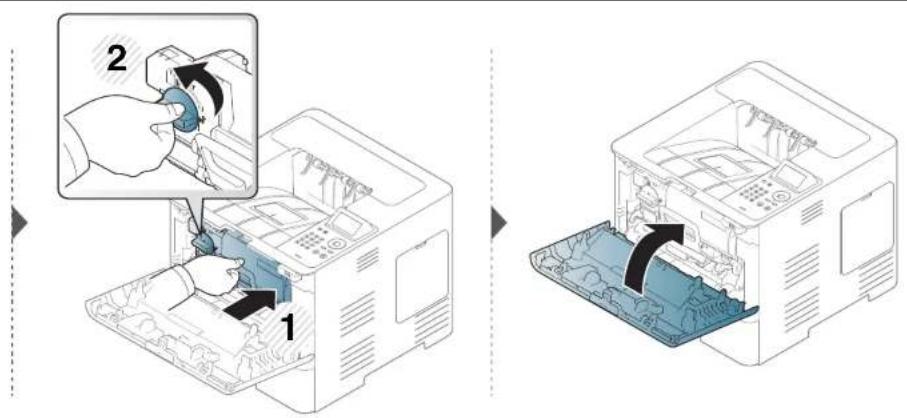

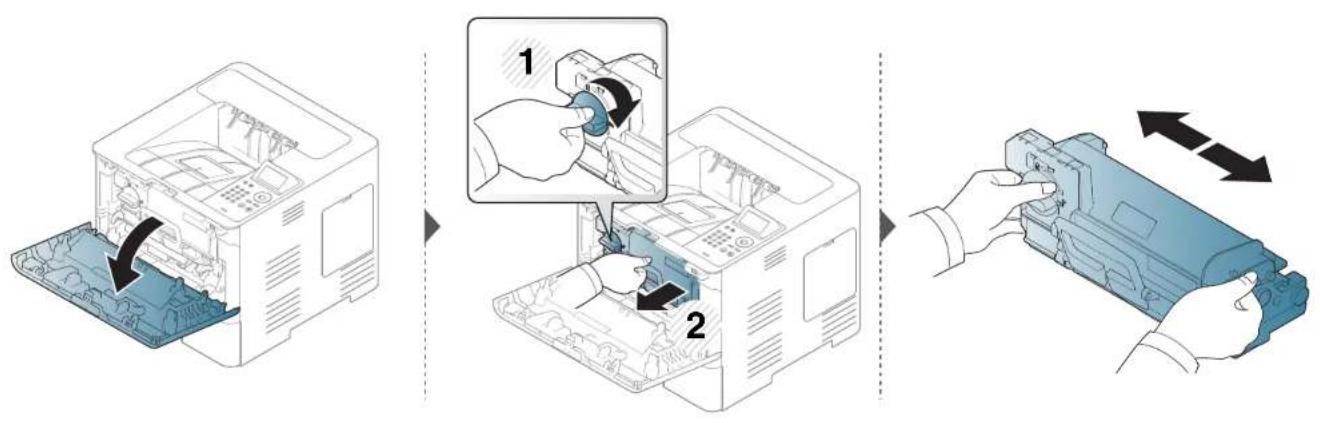

Diagram illustrating the process of a printer's internal structure and assembly, showing steps from opening to closing.

Diagram illustrating a printer operation with labeled steps 1 and 2, showing tool manipulation and packaging steps.

Replacing the toner cartridge

A toner cartridge has almost reached its estimated cartridge life:

• The status LED and the toner-related message on the display indicate when the toner cartridge should be replaced.
- The computer's Samsung Printing Status Program window appears on the computer telling you cartridge is empty on toner (see "Using Samsung Printer Status" on page 239).

Check the Product Code on top of the toner cartridge before ordering and installing to your machine (see "Available consumables" on page 59).

• Shake the toner cartridge thoroughly, it will increase the initial print quality.
• Illustrations in this user's guide may differ from your machine depending on the model and options installed. Check your machine type (see "Front view" on page 17).

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.
- Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area.
- Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.
• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

Replacing the toner cartridge

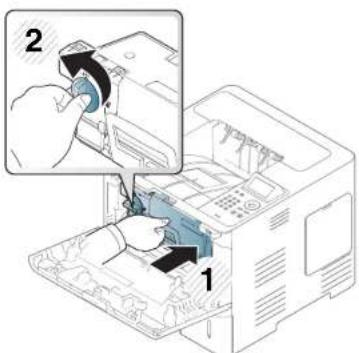

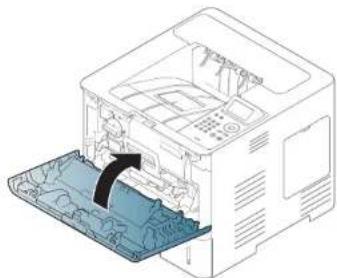

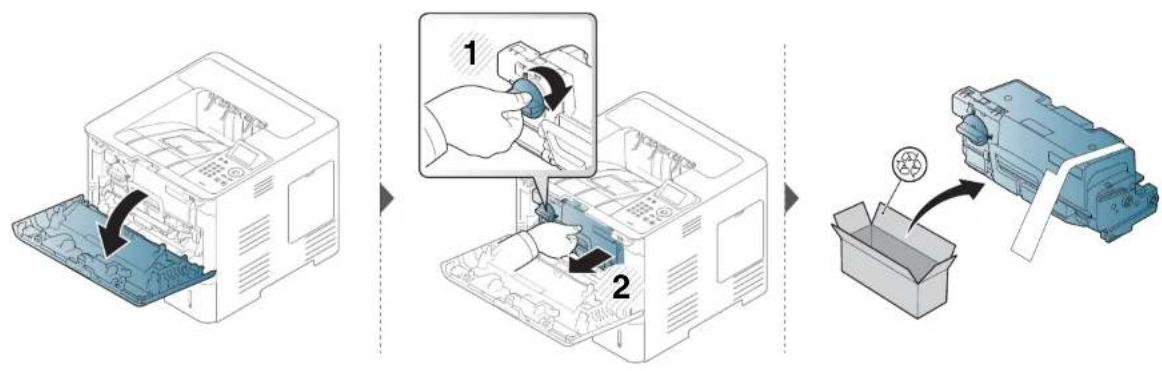

Toner cartridge

Illustration of hands assembling a blue electronic device with an arrow indicating rotation (no text or symbols present)

Diagram showing two steps of a mechanical device operation: step 2 is being turned into a housing component, while step 3 is being inserted into a device with a labeled component.

Diagram showing a printer's internal processing step with labeled parts and directional arrows indicating rotation or movement.

Diagram of a printer's internal structure showing paper feeding into a printer (no text or symbols present)

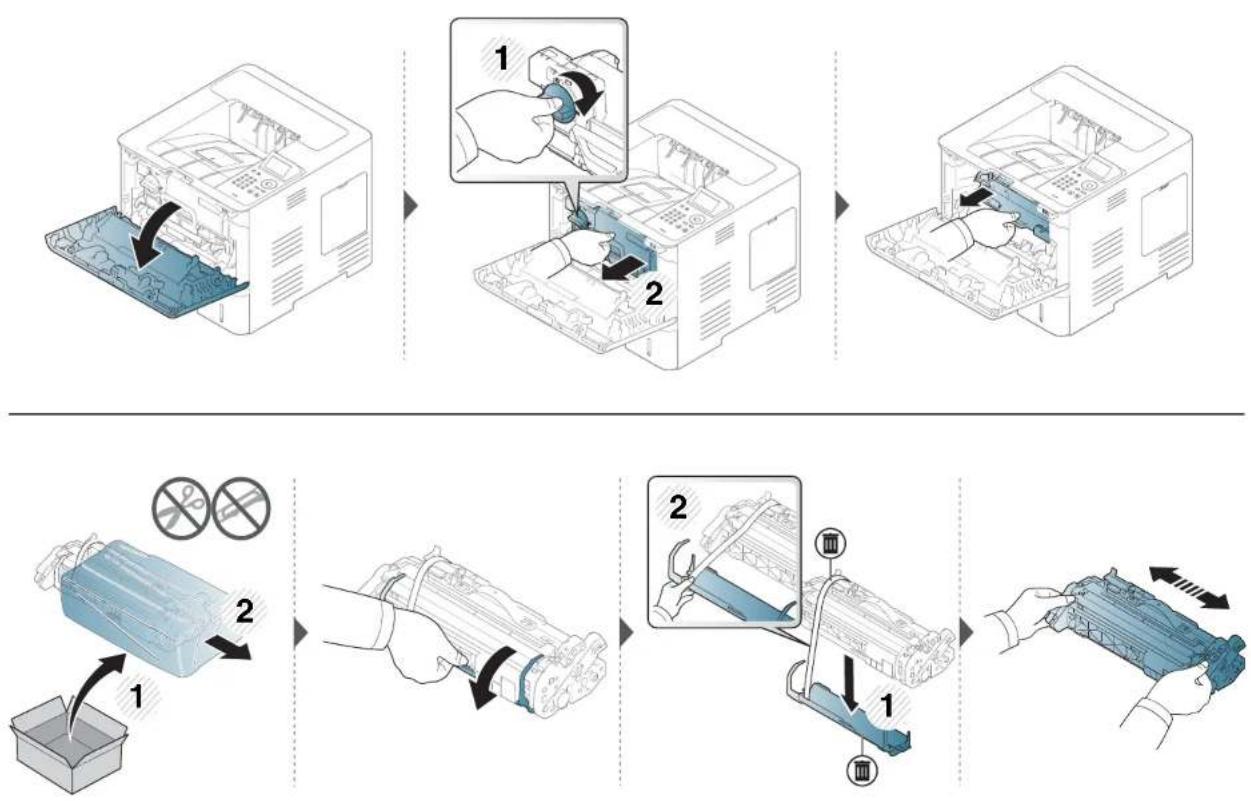

Replacing the imaging unit

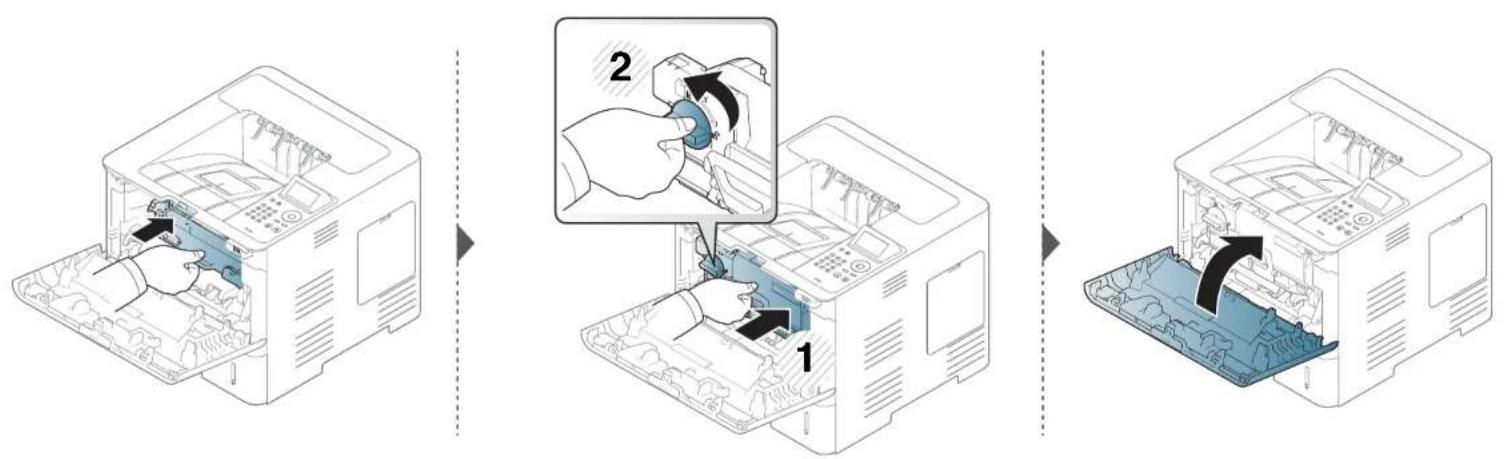

Imaging unit

Replacing the imaging unit

Installing accessories

Precautions

- Disconnect the power cord

Never remove the control board cover while the power is turned on.

To avoid the possibility of an electrical shock, always disconnect the power cord when installing or removing ANY internal or external accessories.

• Discharge static electricity

The control board and internal accessories (memory module) are sensitive to static electricity. Before installing or removing any internal accessories, discharge static electricity from your body by touching something metal, such as the metal back plate on any device plugged into a grounded power source. If you walk around before finishing the installation, repeat this procedure to discharge any static electricity again.

When installing accessories, the battery inside the machine is a service component. Do not change it by yourself. There is a risk of an explosion if battery is replaced by an incorrect type. Your service provider should remove the old battery from your device and dispose of it in accordance with the relevant regulations in your country.

Setting Device Options

When you install the optional devices such as optional tray, memory, etc, this machine automatically detects and sets the optional devices. If you cannot use the optional devices you installed in this driver, you can set the optional devices in Device Options.

1 Click the Windows Start menu.

• For Windows 8, from the Charms, select Search > Settings.

2 For Windows XP/2003, select Printers and Faxes.

- For Windows 2008/Vista, select Control Panel > Hardware and Sound > Printers.

- For Windows 7, select Control Panel > Hardware and Sound > Devices and Printers.

- For Windows 8, search for Devices and Printers.

- For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers.

3 Right-click your machine.

4 For Windows XP/2003/2008/Vista, press Properties.

For Windows 7, Windows 8, and Windows Server 2008 R2, from context menus, select the Printer properties.

Installing accessories

If Printer properties item has ▶ mark, you can select other printer drivers connected with selected printer.

5

Select Device Options.

The Properties window may differ depending on the driver or operating system you are using.

6

Select the appropriate option.

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine.

• Tray Options: Select the optional tray you installed. You can select the tray.
• Storage Options: Select the optional memory you installed. If this feature is checked, you can select the Print Mode.
  • Printer Configuration: Select the printer language for the print job.

• Administrator Settings: You can select the Printer Status and EMF Spooling.

• Admin Job Accounting: Allows you to associate user and account identification information with each document you print.

• User permission: If you check this option, only users with user permission can start a print job.
• Group permission: If you check this option, only groups with group permission can start a print job.

If you want to encrypt job accounting password, check Job Accounting Password Encryption.

- Custom Paper Size Settings: You can specify custom paper size.

7

Click OK until you exit the Properties or Printer properties window.

Installing accessories

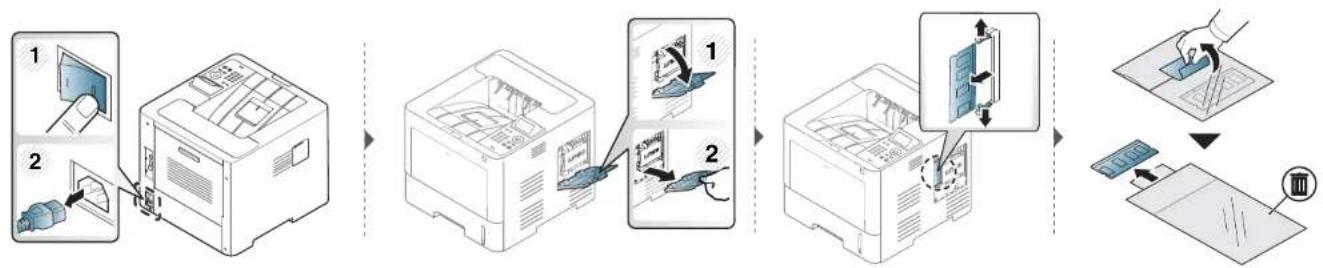

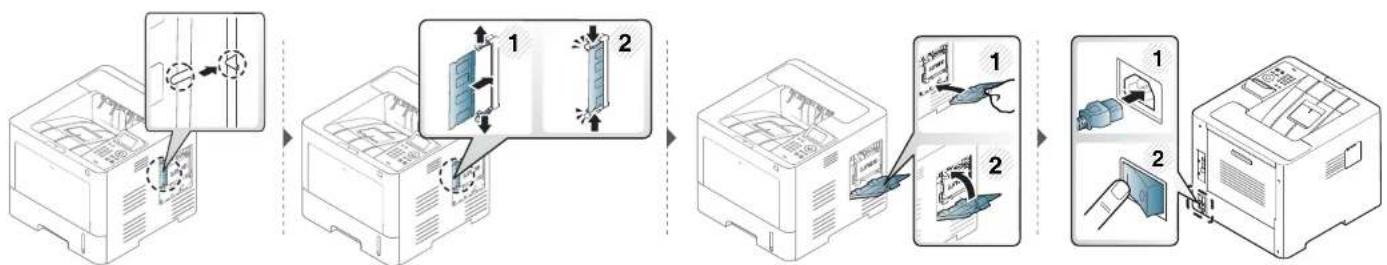

Upgrading a Memory Module(DIMM)

Your machine has a dual in-line memory module (DIMM). Use this memory module slot to install additional memory. We recommend the use of only genuine Samsung DIMM's. You may void your warranty if it is determined that your machine problem is being caused by third party DIMM's.

The order information is provided for optional accessories (see "Available accessories" on page 60).

Monitoring the supplies life

If you experience frequent paper jams or printing problems, check the number of pages the machine has printed or scanned. Replace the corresponding parts, if necessary.

1 Select Menu( :=) > System Setup > Maintenance > Supplies Life on the control panel.

OR

For the model with a touch screen:

Select (Setup) > System > Next > Maintenance > Supplies Info.

OR

Select (Information) > Supplies Information on the touch screen.

2 Select the option you want and press OK.

For the model with a touch screen, select the option you want.

3 Press ☒ (Stop/Clear) or home(▲) icon to return to ready mode.

Setting the toner/imaging unit low alert

If the amount of toner in the cartridge is low, a message or LED informing the user to change the toner cartridge appears. You can set the option for whether or not this message or LED appears.

You can set the machine's settings from Samsung Easy Printer Manager program or SyncThru™ Web Service.

For Windows and Mac users:

• If you machine is connected to the local, you can set the machine's setting from Samsung Easy Printer Manager > (Switch to advanced mode) > Device Settings (see "Device Settings" on page 238).
• If your machine is connected to the network, you can set the machine's setting from SyncThru™ Web Service > Settings tab > Machine Settings (see "Using SyncThru™ Web Service" on page 232).

1

Select Menu( [≡] ) > Admin Setup > Supplies Management > Toner Low Alert or Imaging Unit Low Alert on the control panel.

For the model with a touch screen, select (Setup) > System > Next > Maintenance > TonerLow Alert or Imaging Unit Low Alert on the touch screen.

2

Select the option you want and press OK to save the selection.

For the model with a touch screen, select the option you want.

3

Press ☒ (Stop/Clear) or home(↑) icon to return to ready mode.

Cleaning the machine

If printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer.

• Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the cabinet.
• If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you.

Cleaning the outside

Clean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.

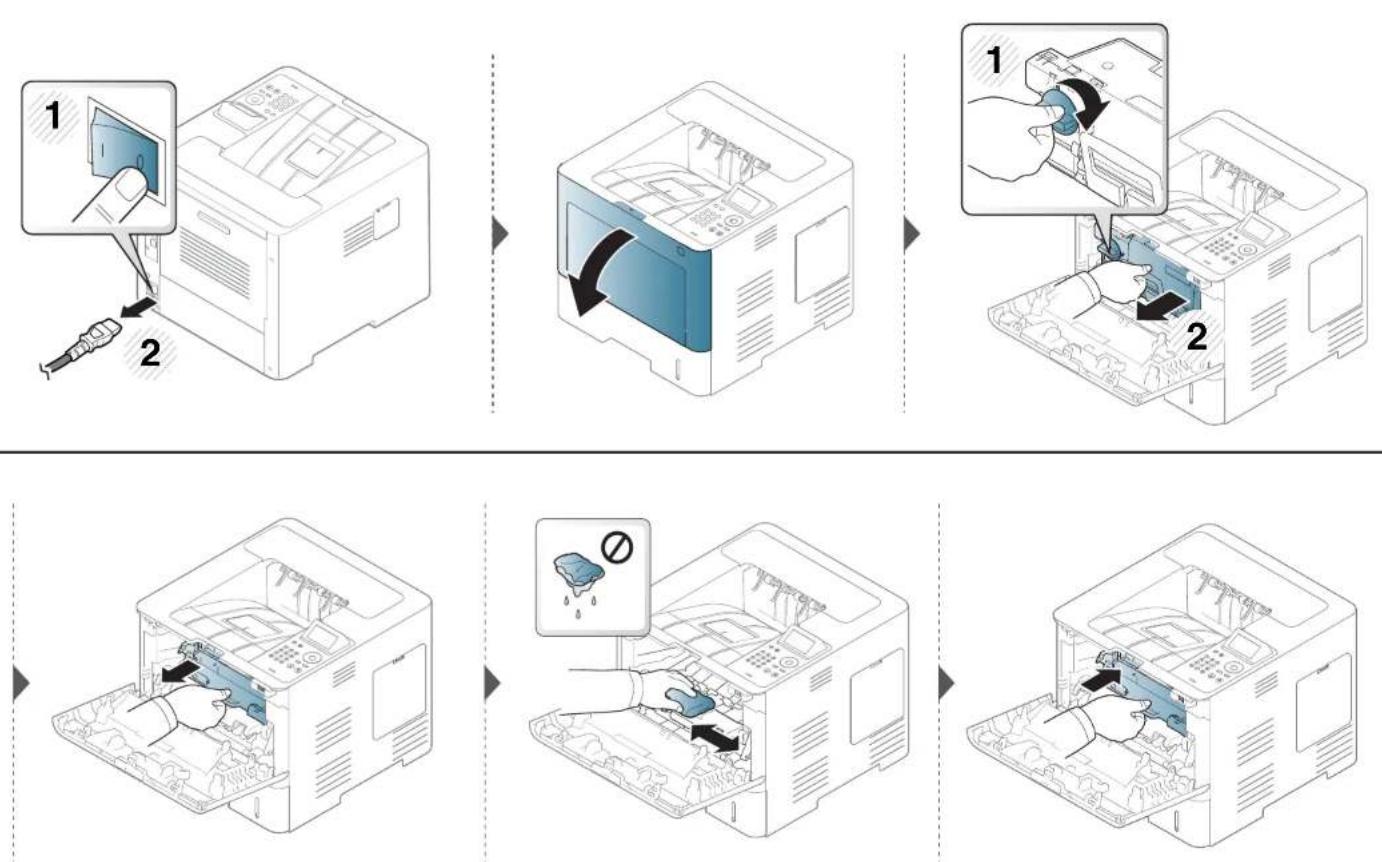

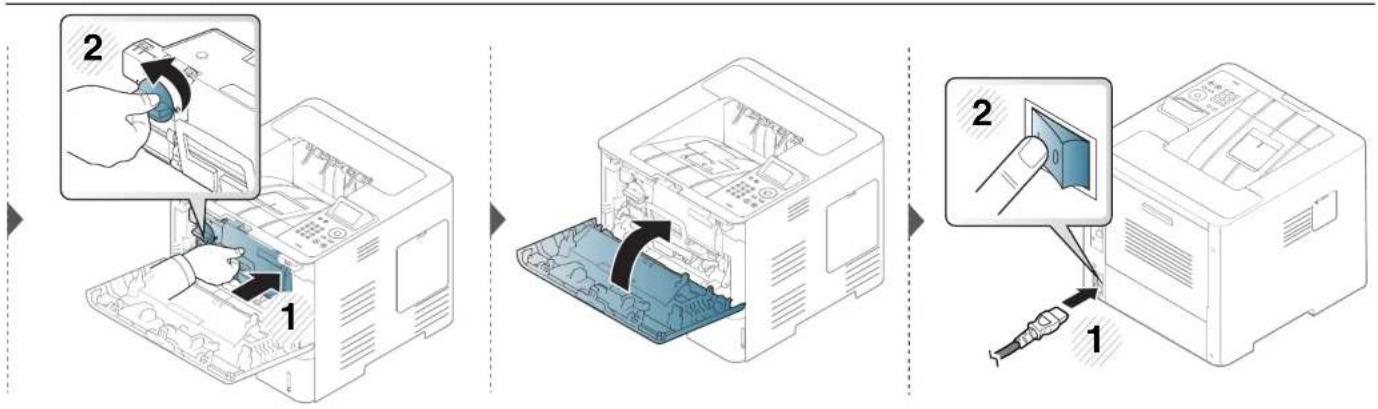

Cleaning the inside

During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems.

Use a dry lint free cloth when cleaning the inside of the machine, be careful not to damage the transfer roller or any other inside parts. Do not use solvents such as benzene or thinner. Printing quality problems can occur and cause damage to the machine.

Cleaning the machine

Cleaning the machine

Diagram illustrating three steps of a computer printer operation: adding a component, opening the internal casing, and inserting a device into a final output.

Cleaning the machine

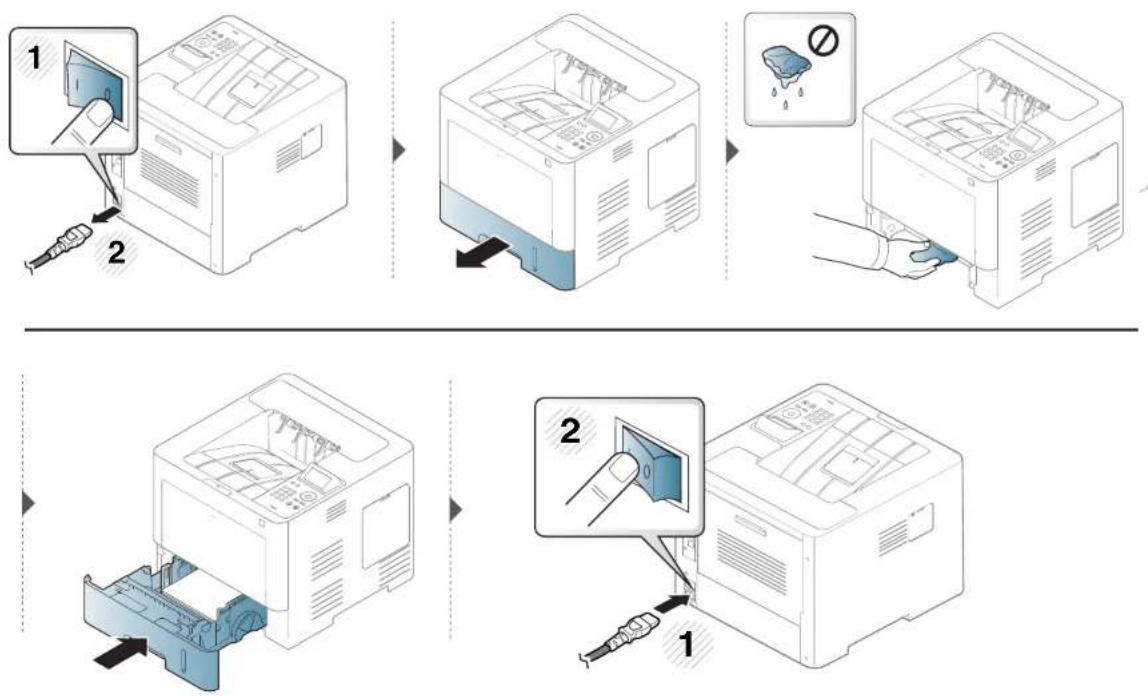

Cleaning the pickup roller

Tips for moving & storing the machine

The warranty does not cover damage from falls or impacts due to the intentional or unintentional actions of the user.

• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to the machine or reduce print quality.
• When moving the machine, make sure at least two people are holding the machine securely.

Blue circular icon with a white printer symbol (no text or numbers)

4. Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

• Tips for avoiding paper jams 81
- Clearing paper jams 82
• Understanding the status LED 94
• Understanding display messages 96

• This chapter gives helpful information about what to do when you encounter an error. If your machine has a display screen, check the message on the display screen first to solve.
• If you cannot find a solution to your problem in this chapter, refer to the Troubleshooting chapter in the Advanced Guide (see "Troubleshooting" on page 247).
• If you cannot find a solution in the User's Guide or the problem persists, call for service.

Tips for avoiding paper jams

By selecting the correct medias, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:

• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 37).
• Do not remove paper from the tray while your machine is printing.
  • Flex, fan, and straighten paper before loading.
• Do not use creased, damp, or highly curled paper.
• Do not mix papers in a tray.
  • Use only recommended print media (see "Print media specifications" on page 106).

Clearing paper jams

To avoid tearing the paper, pull the jammed paper out slowly and gently.

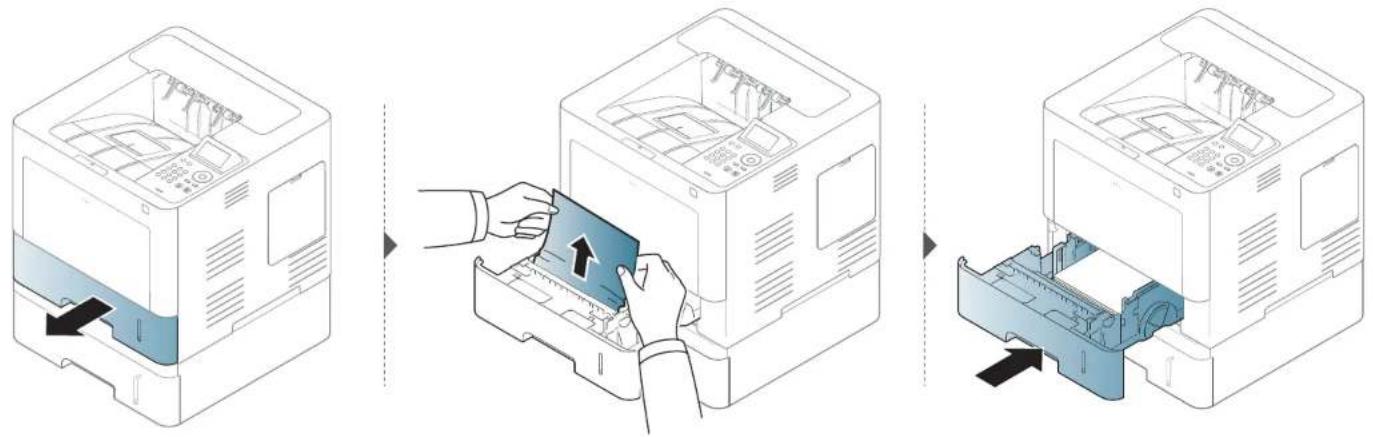

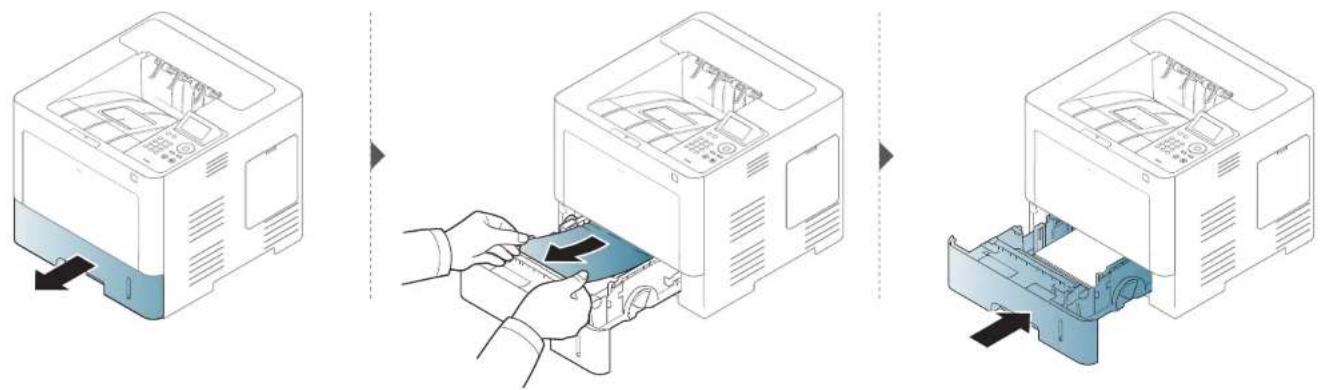

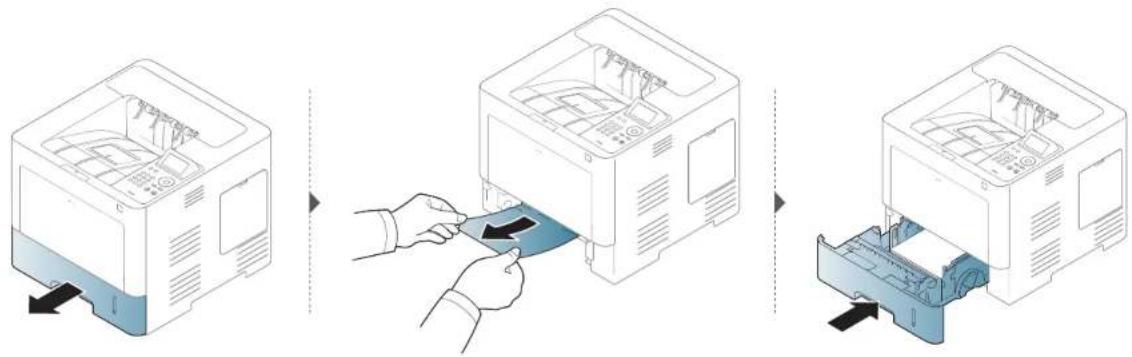

In tray1

Illustrations in this user's guide may differ from your machine depending on the model and options installed. Check your machine type (see "Front view" on page 17).

Clearing paper jams

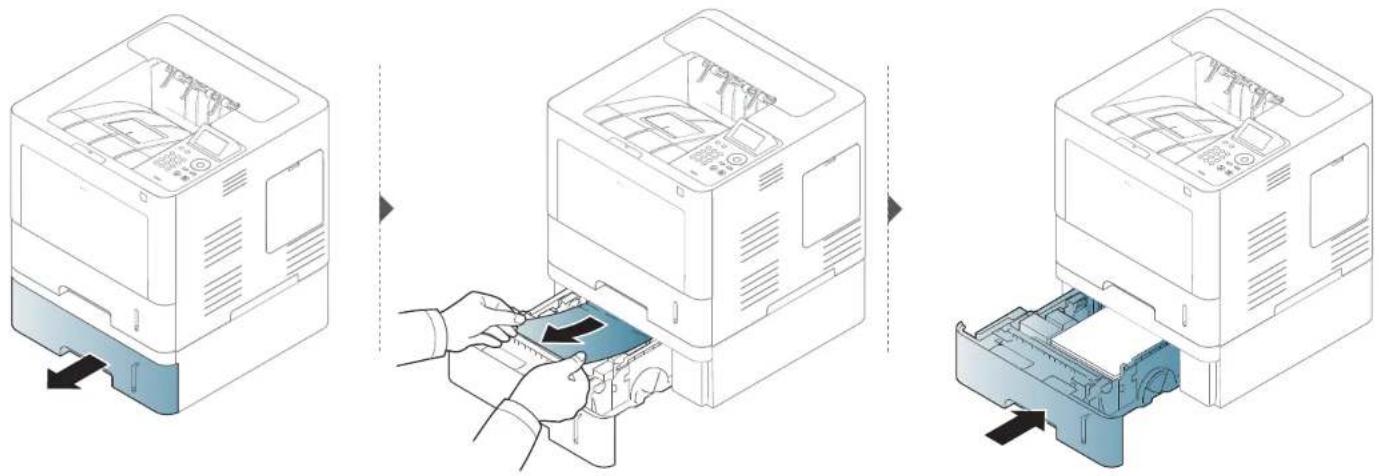

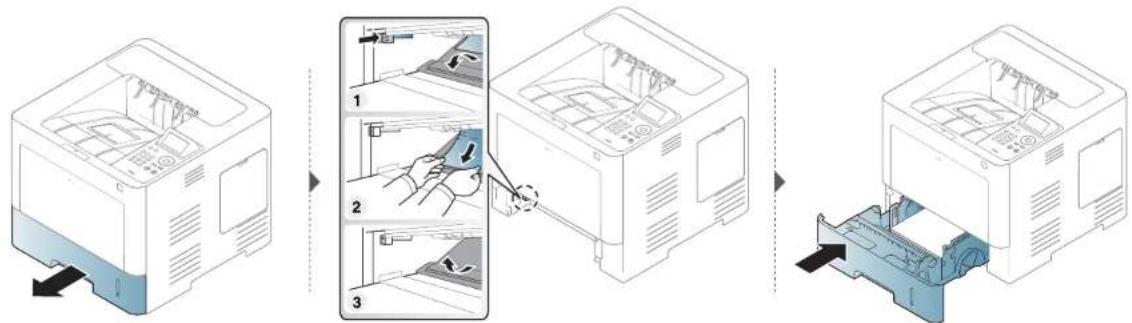

In optional tray

• Illustrations in this user's guide may differ from your machine depending on the model and options installed. Check your machine type (see "Front view" on page 17).
• This troubleshooting may not be available depending on model or optional goods (see "Variety feature" on page 8).

Clearing paper jams

If you do not see the paper in this area, stop and go to next step:

Clearing paper jams

If you do not see the paper in this area, stop and go to next step:

Clearing paper jams

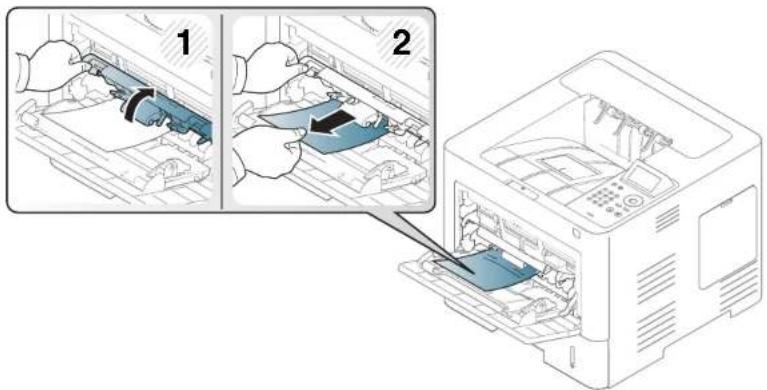

In the multi-purpose tray

Diagram showing two steps of a printer or printer operation: opening and inserting a component, with labeled parts 1 and 2.

Clearing paper jams

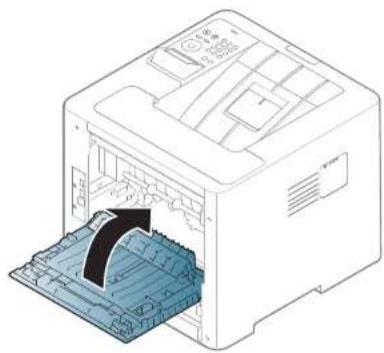

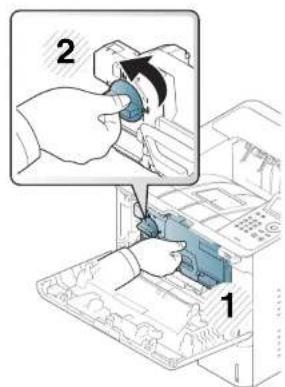

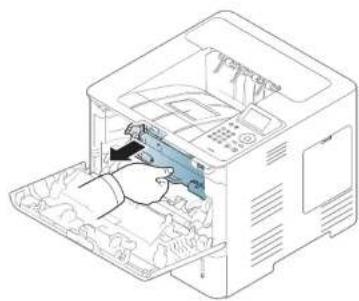

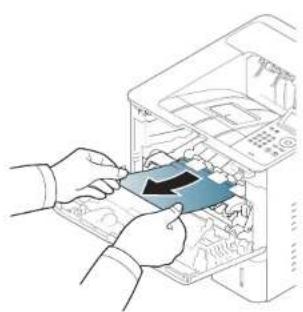

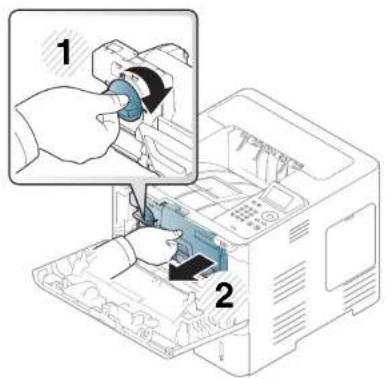

Inside the machine

The Fuser area is HOT, please wait until device cools down before accessing this area. Turn power off to cool the machine down. Take care when removing paper from the machine.

Illustrations in this user's guide may differ from your machine depending on the model and options installed. Check your machine type (see "Front view" on page 17).

Clearing paper jams

Illustration of a microwave oven with a black arrow indicating airflow direction (no text or symbols)

Diagram showing a hand inserting a component into a printer, labeled with parts 1 and 2.

Line drawing of a printer's internal structure with a hand operating the lid (no text or symbols)

Illustration of hands inserting a device into an open printer (no text or symbols visible)

Illustration of a hand inserting a device into a printer (no text or symbols visible)

Diagram showing two steps of a printer or printer operation, labeled 1 and 2, with hands installing components.

Diagram of a printer's internal structure showing a blue cover and paper tray, with no visible text or symbols.

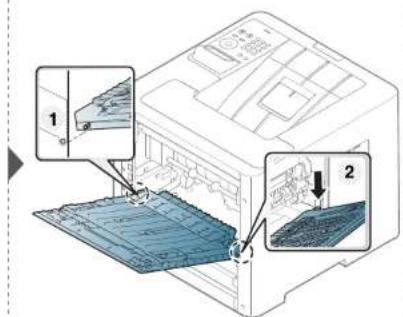

Clearing paper jams

If you do not see the paper in this area, stop and go to next step:

Diagram illustrating the process of printer printing and disassembly, showing steps from printer to printer with labeled components.

If you do not see the paper in this area, stop and go to next step:

Clearing paper jams

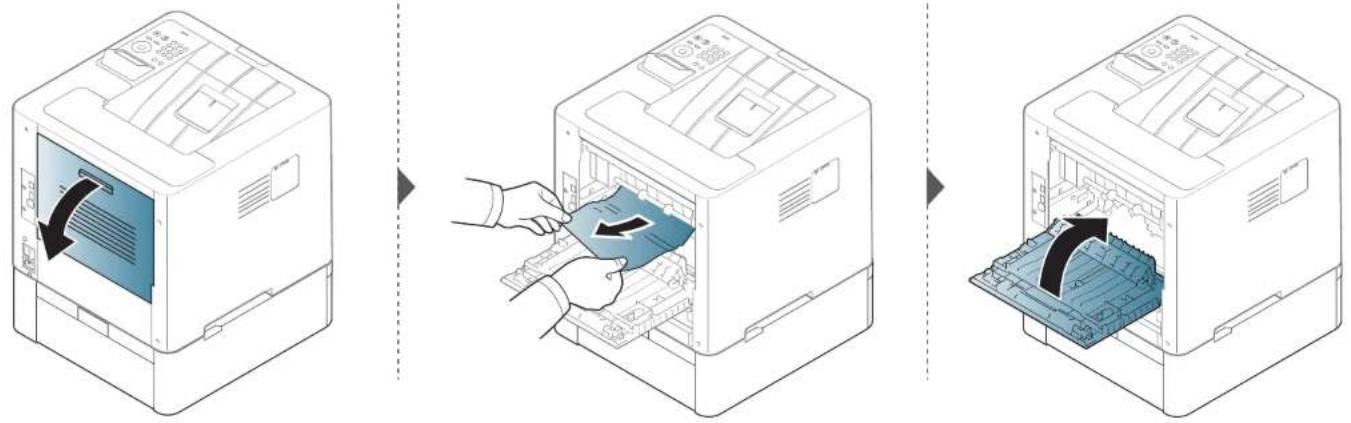

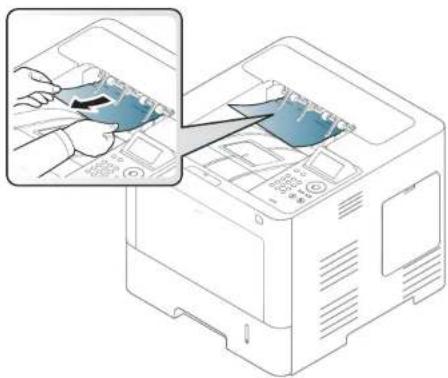

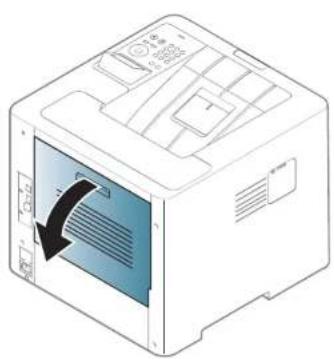

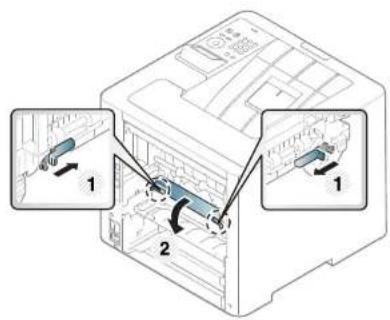

In the exit area

The Fuser area is HOT, please wait until device cools down before accessing this area. Turn power off to cool the machine down. Take care when removing paper from the machine.

Illustration of a printer with a hand inserting a blue object into the cover (no text or symbols visible)

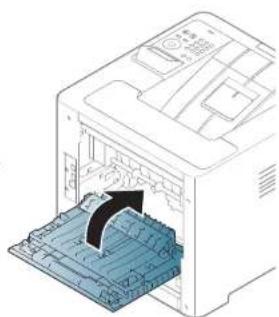

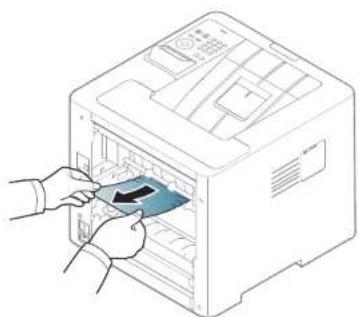

Clearing paper jams

If you do not see the paper in this area, stop and go to next step:

Line drawing of a microwave oven with a black arrow indicating airflow direction (no text or symbols)

Illustration of hands inserting a printer into a machine (no text or symbols visible)

Line drawing of a printer with an open base and internal structure, showing no text or symbols.

Clearing paper jams

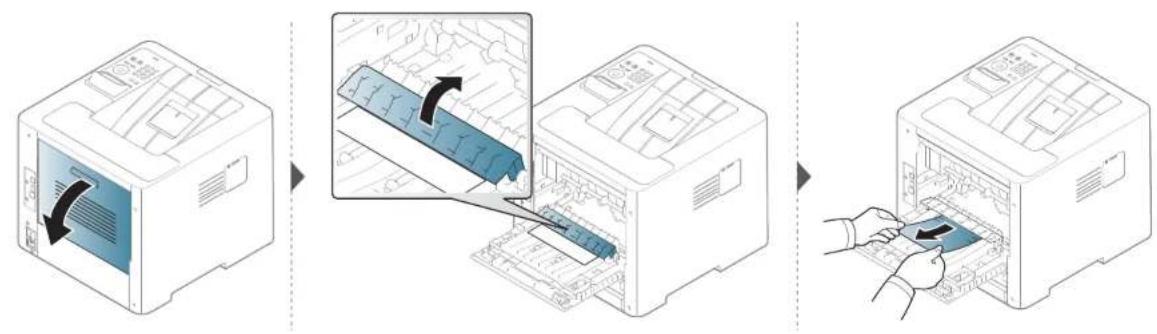

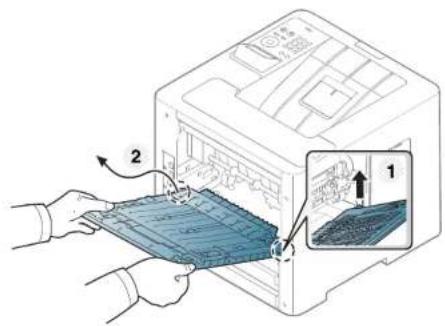

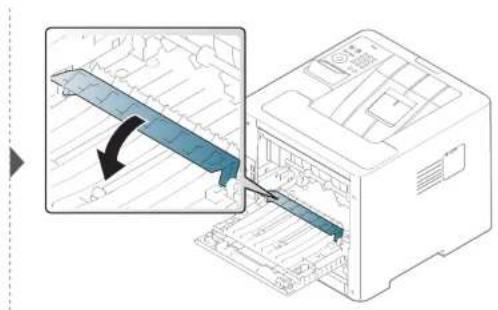

In the duplex unit area

Diagram showing a printer's internal structure being inserted into a paper airplane (no text or symbols present)

Line drawing of a printer with an open lid and internal structure, showing no text or symbols.

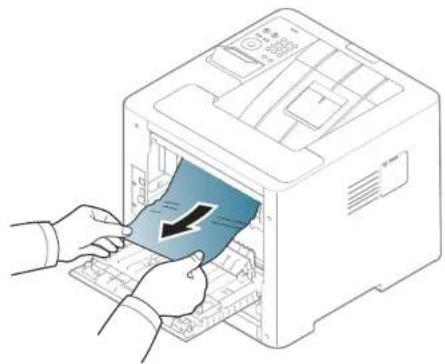

Clearing paper jams

If you do not see the paper in this area, stop and go to next step:

Illustration of a computer printer with a blue screen showing internal text and a black arrow indicating the print direction (no text or symbols present)

Diagram showing a printer's internal structure being placed on a tray, with labeled parts and directional arrows indicating movement.

Diagram showing a device interior with labeled parts and directional arrows indicating movement or assembly.

Illustration of hands inserting a card into a printer (no text or symbols visible)

Line drawing of a computer printer internal structure with no visible text or symbols

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating assembly steps.

Diagram of a printer with a paper feed into the output, showing internal structure and a blue component (no text or symbols)

Understanding the status LED

The color of the LED indicates the machine's current status.

• Some LEDs may not be available depending on model or country (see "Control panel overview" on page 19).
• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Understanding display messages" on page 96).
- You also can resolve the error with the guideline from the computer's Samsung Printing Status program window (see "Using Samsung Printer Status" on page 239).
• If the problem persists, call a service representative.

LED Status Description
(↔/△) S	Off The machine is off-line.
	Blue	Blinking When the backlight blinks, the machine is receiving or printing data.
		On • The machine is on-line and can be used.
	t Orange	Blinking a t	• A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message. When the problem is cleared, the machine resumes.• Small amount of toner is left in the cartridge. The estimated cartridge lifea. of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 64).
		On	• A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 66).• The cover is opened. Close the cover.• There is no paper in the tray when receiving or printing data. Load paper in the tray.• The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 96).• A paper jam has occurred (see "Clearing paper jams" on page 82).

Understanding the status LED

LED Status Description
Power	Blue	On The machine is in power save mode.
		Off The machine is in ready mode or machine's power is off.

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752. The number of pages may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size.

Understanding display messages

Messages appear on the control panel display to indicate the machine's status or errors. Refer to the tables below to understand the messages' and their meaning, and correct the problem, if necessary.

• You can resolve the error with the guideline from the computer's Printing Status program window (see "Using Samsung Printer Status" on page 239).
• If a message is not in the table, reboot the power and try the printing job again. If the problem persists, call a service representative.
• When you call for service, provide the service representative with the contents of display message.
• Some messages may not appear on the display depending on the options or models.
  • [error number] indicates the error number.
  • [tray type] indicates the tray number.
  • [color] indicates the color of toner.

Paper Jam-related messages

Message Meaning Suggested solutions
Jam inside of duplex Paper has jammed during duplex printing. This is applicable only to machines with this feature.		Clear the jam (see "In the duplex unit area" on page 92).
Jam bottom of duplex
· Jam in exit area	Paper has jammed in the exit area.	Clear the jam (see "In the exit area" on page 90).
· Paper jam in exit area
· Jam inside of machine	Paper has jammed in the inside machine.	Clear the jam (see "Inside the machine" on page 87).
· Paper Jam inside of machine
Paper jam in tray Paper has jammed in the tray.		Clear the jam (see "In tray1" on page 82).
· Paper jam in tray 2	Paper has jammed in the optional tray.	Clear the jam (see "In optional tray" on page 83).
· Paper jam in tray 3
· Paper jam in tray 4
· Paper jam in tray 5
Paper jam in MP tray Paper has jammed in the multi-purpose tray.		Clear the jam (see "In the multi-purpose tray" on page 86).

Understanding display messages

Toner-related messages

Message Meaning Suggested solutions
Replace new tonerEnd of life. Replace with new toner cartridge	The indicated toner cartridge has reached its estimated cartridge life^b .	Replace the toner cartridge with a Samsung- genuine toner cartridge^a (see "Replacing the toner cartridge" on page 66).
Replace IMG. unitEnd of life. Replace with new imaging unit	The indicated imaging unit has reached its estimated imaging unit life^b .	Replace the imaging unit with a Samsung-genuine imaging unit (see "Replacing the imaging unit" on page 68).
Error: [error number]Imaging UnitFailure: [error number]. Install imaging unit again	The imaging unit is not installed.	Install the imaging unit. If it is already installed, try to reinstall the imaging unit. If the problem persists, call for service.
Error: [error number]Imaging unitFailure: [error number]. Call for service	There is a problem in the imaging unit.	Turn the machine off and back on again. If the problem persists, call for service.

Message Meaning Suggested solutions
· Prepare new toner· Prepare new toner cartridge	The estimated cartridge life ^b of toner is close.	Prepare a new cartridge for a replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 64).
· Prepare IMG. unit· Prepare new imaging unit	The estimated imaging unit life of toner is close.	Prepare a new imaging unit for a replacement (see "Replacing the imaging unit" on page 68).
· Shake toner cart.· Shake toner cartridge and then install. Replace toner cartridge if the problem persists	Small amount of toner is left in the indicated cartridge.	You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 64).
· Error: [error number]· Toner Cartridge Failure: [error number]. Install toner cartridge again	The toner cartridge is not installed.	Install the toner cartridge. If it is already installed, try to reinstall the toner cartridge. If the problem persists, call for service.
· Toner Not Installed· Toner cartridge is not installed. Install the cartridge	The toner cartridge is not installed.	Reinstall the toner cartridge.

Understanding display messages

Message Meaning Suggested solutions
• IMG. Not Installed• Imaging unit is not installed. Install the unit	The imaging unit is not installed.	Reinstall the imaging unit two or three times. If the problem persists, call for service.
• Error: [error number]• Toner Cartridge Failure: [error number]. Call for service	There is a problem in the toner cartridge.	Turn the machine off and back on again. If the problem persists, call for service.
• Toner Not Compatible• Toner cartridge is not compatible. Check users guide	The toner cartridge you have installed is not for your machine.	Install a Samsung-genuine toner cartridge, designed for your machine (see "Available consumables" on page 59).
• IMG. Not Compatible• Imaging unit is not compatible. Check guide	The imaging unit you have installed is not for your machine.	Install a Samsung-genuine imaging unit, designed for your machine (see "Available consumables" on page 59).

Message Meaning Suggested solutions
Replace new tonerReplace with new toner cartridge	The indicated toner cartridge has almost reached its estimated cartridge lifeb.	Replace the toner cartridge for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the toner cartridge" on page 66).If the machine stops printing, replace the toner cartridge (see "Replacing the toner cartridge" on page 66).
Replace IMG. unitReplace with new imaging unit	The indicated imaging unit has almost reached its estimated imaging unit lifeb.	Replace the imaging unit for the best print quality when this message appears. Using a imaging unit beyond this stage can result in printing quality issues (see "Replacing the imaging unit" on page 68).
Remove seal tapeDid not supply enough toner.Remove seal tape of toner cartridge or shake it. Call for service	The seal tape of the toner cartridge is not removed	Remove the seal tape of the toner cartridge (see "Replacing the toner cartridge" on page 66).

Understanding display messages

a. When the toner cartridge has reached its end of life, the machine will stop printing.

In this case, you can choose to stop or continue printing from the SyncThru™Web Service. (Settings > Machine Settings > System > Setup > Supplies Management > Toner Cartridge Stop) or Samsung Easy Printer Manager (Device Settings > System > Supplies Management > Toner Cartridge Stop). Turning off this option and continuing to print may damage the device's system.

b. Estimated cartridge life means the expected or estimated cartridge, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752. The number of pages may be affected by the percentage of image area, operating environment, printing interval, media type and media size.

Samsung does not recommend using a non-genuine Samsung toner cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty.

Tray-related messages

Message Meaning Suggested solutions
• Output bin is full• Paper in output bin is full. Remove printed paper	The output tray is full.	Remove papers from the output tray, the machine resumes printing. If the problem persists, call for service.

Message Meaning Suggested solutions
· Paper Empty in all trays· Paper is empty in all tray. Load paper	There is no paper in all tray.	Load paper in the tray (see "Loading paper in the tray" on page 37).
· Paper Empty in MP tray· Paper is empty in MP tray. Load paper	There is no paper in the multi-purpose tray.	Load paper in the multi-purpose tray (see "Multi-purpose tray" on page 41).
· Paper mismatch [tray type]· [tray type] paper mismatch	The paper sizespecified in the printerproperties does notmatch the paper you are loading.	You can select the option between Continue or Cancel. If you select Cancel, the printing job will stop. Load the correct paper in the tray. If you select Continue, printing job will continue.
· [tray type] cassette Out· [tray type] cassette is pulled out. Insert it properly	The tray is not securely latched	Close the tray until it locks into place. If the problem persists, call for service.

Understanding display messages

Message Meaning Suggested solutions
·Error: [error number]·Input System Failure [error number]. Check [tray type] connection	There is a problem in the tray.	Check the tray connection. If the problem persists, call for service.
·Error: [error number]·Input System Failure [error number] : Pull [tray type] out and insert it	There is a problem in the tray.	Open and close the tray. If the problem persists, call for service
·Paper Low in [tray type]·Paper is low in [tray type]. Load paper	Running out of paper in the tray.	Load paper in the tray.
·Paper Empty in [tray type]·Paper is empty in [tray type]. Load paper	There is no paper in the tray.	Load paper in the tray.

Network-related messages
Message Meaning Suggested solutions
· IP Conflict· This IP address conflicts with that of other system. Check it	The IP address is used elsewhere.	Check the IP address or obtain a new IP address.
· 802.1x Network Error· 802.1x authentication failed. Please contact the system administrator	Fail to authenticate. Check the network authentication protocol. If the problem persists, contact your network administrator.

Understanding display messages

Misc. messages

Message Meaning	Suggested solutions
• Front door is open. Close it• Rear door is open. Close it	The cover is not securely latched.	Close the cover until it locks into place.
• Error: [error number]• Engine System Failure: [error number]. Call for service if the problem persists	There is a problem in the engine system.	Unplug the power cord and plug it back in. If the problem persists, call for service.
• Error: [error number]• Fuser Failure: [error number]. Turn off then on. Call for service if the problem persists	There is a problem in the fuser unit.	Reboot the power. If the problem persists, please call for service.
• Error: [error number]• Motor Failure: [error number]. Turn off then on. Call for service if the problem persists	There is a problem in the motor system.	Reboot the power. If the problem persists, please call for service.

Message Meaning	Suggested solutions
·Error: [error number]·MSOK System Failure: [error number]. Call for service	There is a problem in the HDD system.	Reboot the power. If the problem persists, please call for service.
·Error: [error number]·HDD System Failure: [error number]. Turn off then on. Call for service if the problem persists	There is a problem in the HDD system.	Reboot the power. If the problem persists, please call for service.
·Error: [error number]·LSU Failure: [error number]. Turn off then on. Call for service if the problem persists	There is a problem in the LSU.	Reboot the power. If the problem persists, please call for service.
·Error: [error number]·Fan Failure: [error number]. Turn off then on. Call for service if the problem persists	There is a problem in the fan system.	Reboot the power. If the problem persists, please call for service.

Understanding display messages

Message Meaning	Suggested solutions
·Error: [error number]·Sensor Failure: [error number]. Turn off then on. Call for service if the problem persists	There is a problem in the sensor.	Reboot the power. If the problem persists, please call for service.
·Error: [error number]·Lamp Failure: [error number]. Turn off then on. Call for service if the problem persists	There is a problem in the lamp.	Reboot the power. If the problem persists, please call for service.
·Not proper Room Temp·The room temperature is not suitable for this set use. Please adjust room temperature	The machine is in a room with improper room temperature.	Move the machine to a room with proper room temperature (see "Specifications" on page 104).
·Replace fuser unit·Replace with new fuser unit	The life of the fuser unit has expired.	Replace the fuser unit with a new one. If the problem persists, please call for service.

Blue circular icon with a white printer symbol (no text or numbers)

5. Appendix

This chapter provides product specifications and information concerning applicable regulations.

• Specifications 104
  • Regulatory information 114
  • Copyright 125

Abstract icon of overlapping document sheets with no text or symbols

Specifications

General specifications

The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information.

Items Description
Dimensiona	Width x Length x Height	M453xND series : 433 x 459.5 x 390.7 mm (17 x 18.1 x 15.4 inches)M453xNX series : 433 x 459.5 x 408.8 mm (17 x 18.1 x 16.1 inches)
Weighta	Machine with consumables M453xND series : 23.1 kg (50.9 lbs)M453xNX series : 23.3 kg (51.4 lbs)
Noise Levelbc	Ready mode Less than 30 dB (A)
	Print mode Less than 54 dB (A)
Temperature Operation	10 to 30°C (50 to 86 °F)
	Storage (packed) -20 to 40°C (-4 to 104 °F)
Humidity Operation 20	to 80% RH
	Storage (packed) 10 to 90% RH
Power ratingd	110 volt models AC 110 - 127 V
	220 volt models AC 220 - 240 V

Specifications

Items Description
Power consumptione	Average operating mode Less than 850 W
	Ready mode Less than 16 W
	Power save mode Less than 1.3 W
	Power off modef	Less than 0.45 W
	Network Standby Mode (All Port Activation)	M453xND/M453xNX: Less than 1.38 W

a. Dimensions and weight are measured without other accessories.
b. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.
c. China only: If the equipment's noise is louder than 63 db (A), the equipment should be placed in region of relatively independent advice.
d. See the rating label on the machine for the correct voltage (V), frequency (hertz) and of current (A) for your machine.
e. The power consumption may be affected by the machine's status, setting conditions, operating environment, and measuring equipment and method the country uses.
f. Power consumption can be completely avoided only when the power cable is not connected.

Specifications

Print media specifications

Type Size		Dimensions	print media weight ^a /Capacity ^b
			Tray1 / Optional tray Multi-purpose tray	Tray1 / Optional tray Multi-purpose tray
Plain paper	Letter 216 x 279 mm (8.5 x 11 inches)		70 to 90 g/m ^2 (19 to 24 lb bond)• 550 sheets of 75 g/m ^2 (20 lb bond)	70 to 90 g/m ^2 (19 to 24 lb bond)• 100 sheets of 75 g/m ^2 (20 lb bond)
	Legal 216 x 356 mm (8.5 x 14 inches)
	US Folio 216 x 330 mm (8.5 x 13 inches)
	A4 210 x 297 mm (8.26 x 11.69 inches)
	Oficio 216 x 343 mm (8.5 x 13.5 inches)
	JIS B5 182 x 257 mm (7.16 x 10.11 inches)
	ISO B5 176 x 250 mm (6.93 x 9.84 inches)
	Executive 184 x 267 mm (7.25 x 10.5 inches)
	A5 148 x 210 mm (5.82 x 8.26 inches)
	Statement 140 x 216 mm (5.5 x 8.5 inches)
	A6 105 x 148 mm (4.13 x 5.82 inches) Not available in optional tray.
	Index Card 76 x 127 mm (3.00 x 5.00 inches) Not available in tray1/optional tray.
	Postcard 4 x 6 102 x 152 mm (4.00 x 6.00 inches) Not available in optional tray.
	Postcard 100 x 148	100 x 148 mm (3.94 x 5.83 inches)	Not available in optional tray.

Specifications

Type Size		Dimensions	print media weighta/Capacityb
			Tray1 / Optional tray Multi-purpose tray
Envelope^c	Envelope Monarch 98 x 191 mm (3.87 x 7.5 inches)		75 to 90 g/m2(20 to 24 lb bond)·50 sheets of 75 g/m2(20 lb bond)	75 to 90 g/m2(20 to 24 lb bond)·10 sheets of 75 g/m2(20 lb bond)
	Envelope No. 9^d	98 x 225 mm (3.87 x 8.87 inches)
	Envelope No. 10 105 x 241 mm (4.12 x 9.5 inches)
	Envelope DL 110 x 220 mm (4.33 x 8.66 inches)
	Envelope C5 162 x 229 mm (6.37 x 9.01 inches)		75 to 90 g/m2(20 to 24 lb bond)·50 sheets of 75 g/m2(20 lb bond)
	Envelope C6 114 x 162 mm (4.48 x 6.38 inches)
Thick paper^ef	Refer to the Plain paper section	Refer to the Plain paper section	91 to 120 g/m2(24 to 32 lb bond) 91 to 120 g/m2(24 to 32 lb bond)
Thicker paper Refer to the Plain paper section		Refer to the Plain paper section Not available in tray1/optional tray.		164 to 220 g/m2(44 to 59 lb bond)
Thin paper Letter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5, Statement		Refer to the Plain paper section	60 to 69 g/m2(16 to 19 lb bond)·550 sheets	60 to 69 g/m2(16 to 19 lb bond)·100 sheets
Labels^gh	Letter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5, A6, Statement	Refer to the Plain paper section	120 to 150 g/m2(32 to 40 lb bond)·50 sheets	120 to 150 g/m2(32 to 40 lb bond)·10 sheets
Card stock^e	Refer to the Plain paper section	Refer to the Plain paper section	121 to 163 g/m2(32 to 43lb bond)·50 sheets	121 to 163 g/m2(32 to 43lb bond)·10 sheets

Specifications

Type Size		Dimensions	print media weighta/Capacityb
			Tray1 / Optional tray Multi-purpose tray
Recycled Letter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5, Statement		Refer to the Plain paper section	60 to 90 g/m2 (16 to 24 lb bond) 60 to 90 g/m	2 (16 to 24 lb bond)
Preprinted Letter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5, Statement		Refer to the Plain paper section	75 to 90 g/m2 (20 to 24 lb bond) 75 to 90 g/m	2 (20 to 24 lb bond)
Bond Letter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5, Statement		Refer to the Plain paper section	105 to 120 g/m2 (28 to 32 lb bond) 105 to 120 g/m	2 (28 to 32 lb bond)
Colored, Cotton, Punched Paper	Letter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5, Statement	Refer to the Plain paper section	75 to 90 g/m2 (20 to 24 lb bond) 75 to 90 g/m	2 (20 to 24 lb bond)
Letterheadh	Letter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5, Statement	Refer to the Plain paper section	75 to 90 g/m2 (20 to 24 lb bond) 75 to 90 g/m	2 (20 to 24 lb bond)

Specifications

Type Size		Dimensions	print media weighta/Capacityb
			Tray1 / Optional tray Multi-purpose tray
Archivef	Letter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5, Statement, PostCard 4 x 6, PostCard 100 x 148	Refer to the Plain paper section	75 to 90 g/m2 (20 to 24 lb bond) 75 to 90 g/m	2 (20 to 24 lb bond)
Minimum size (custom) 76.2 x 127 mm (3 x 5 inches)			60 to 163 g/m2 (16 to 43 lb bond)
Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)

a. If media weight is over 105 g/m ^2 (28 lb bond), load a paper into the tray one by one.
b. Maximum capacity may differ depending on media weight, thickness, and environmental conditions.
c. Envelope Monarch and Envelope C6 are not supported for optional tray.
d. Envelope No.9 is not supported for optional tray(tray3, tray4, tray5).
e. Index Card is supported only multi-purpose tray.
f. A6, PostCard 4 x 6, and PostCard 100 x 148 are not supported for optional tray.
g. Smoothness: 100 to 250 (sheffield)
h. A6 is supported only multi-purpose tray/tray1.

Specifications

System requirements

Microsoft® Windows®

Operating system	Requirement (recommended)
	CPU RAM free HDD space
Windows® XP Intel	® Pentium® III 933 MHz (Pentium IV 1 GHz)	128 MB (256 MB) 1.5 GB
Windows Server® 2003 Intel	® Pentium® III 933 MHz (Pentium IV 1 GHz)	128 MB (512 MB) 1.25 GB to 2 GB
Windows Server® 2008 Intel	® Pentium® IV 1 GHz (Pentium IV 2 GHz)	512 MB (2 GB) 10 GB
Windows Vista®	Intel® Pentium® IV 3 GHz	512 MB (1 GB) 15 GB
Windows® 7 Intel	® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher	1 GB (2 GB) 16 GB
	• Support for DirectX ® 9 graphics with 128 MB memory (to enable the Aero theme). • DVD - R / W D r i v e
Windows Server® 2008 R2 Intel	® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster)	512 MB (2 GB) 10 GB
Windows® 8 Windows® 8.1	Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher	2 GB 20 GB
	• Support for DirectX ® 9 graphics with 128 MB memory (to enable the Aero theme). • DVD - R / W D r i v e
Windows Server® 2012 Windows Server® 2012 R2	Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster)	512 MB (2 GB) 32 GB

Specifications

• Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.
• Users who have administrator rights can install the software.
  • Windows Terminal Services is compatible with your machine.

Mac

Operating system	Requirements (Recommended)
	CPU RAM Free HDD space
Mac OS X 10.5	• I n® processors• 867 MHz or faster Power PC G4/G5	512 MB (1 GB) 1 GB
Mac OS X 10.6	• I n® processors	1 GB (2 GB) 1 GB
Mac OS X 10.7 - 10.9	• I n® processors	2 GB 4 GB

Specifications

Linux

Items Requirements
Operating system	RedHat® Enterprise Linux WS 5, 6 Fedora12, 13, 14, 15, 16, 17, 18, 19, 20 OpenSuSE® 11.2, 11.3, 11.4, 12.1, 12.2, 12.3 Ubuntu 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04 SuSE Linux Enterprise Desktop 10, 11 Debian 6, 7 Mint 13, 14, 15, 16
CPU Pentium IV 2.4GHz (Intel CoreTM2)
RAM 512 MB (1 GB)
Free HDD space 1 GB (2 GB)

Unix

Items Requirements
Operating system	Sun Solaris 9, 10, 11 (x86, SPARC)HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium)IBM AIX 5.1, 5.2, 5.3, 5.4, 6.1 7.1 (PowerPC)
Free HDD space Up to 100 MB

Specifications

Network environment

Network and wireless models only (see "Features by model" on page 7).

You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine.

Items Specifications
Network interface · Ethernet 10/100/1000 Base-TX Wired Lan	· Network Interface 802.11b/g/n wireless LAN & Near Field Communication(NFC)a
Network operating system	·Wi n®dKP,dWindows Server®2003, Windows Vista®, Windows®7, Windows®8, Windows Server®2008 R2·V a r i o u s L i n u x O S·Mac OS X 10.5 -10.9·U N I X O S
Network protocols · T C P /	I P v 4·DHCP, BOOTP·DNS, WINS, Bonjour, SLP, UPnP·Standard TCP/IP Printing (RAW), LPR, IPP, WSD, AirPrint, Google Cloud Print, ThinPrint·SNMPv 1/2/3, HTTP, IPSec·TCP/IPv6 (DHCP, DNS, Standard TCP/IP Printing, LPR, SNMPv 1/2/3, HTTP, IPSec)
Wireless security	·Authentication: Open System, Shared Key, WPA-Enterprise/ Personal, WPA2-Enterprise/Personal·Encryption: WEP64, WEP128, TKIP, AES

a. Optional device.

Regulatory information

This machine is designed for a normal work environment and certified with several regulatory statements.

Laser safety statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1:2007.

Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.

Warning

Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.

When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

CAUTION - CLASS 3B. INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM.

ATTENTION - CLASSE 3B. RADIATION LASER INVISIBLE EN CAS D'OUVERTURE, EVITER L'EXPOSITION AU FAISCEAU

This product's ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.

Regulatory information

Power saver

This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.

When the printer does not receive data for an extended period of time, power consumption is automatically lowered.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

For more information on the ENERGY STAR program see http://www.energystar.gov

For ENERGY STAR certified models, the ENRGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified.

Recycling

Recycle or dispose of the packaging material for this product in an environmentally responsible manner.

China only

回收和再循环

Website: http://www.samsung.com/cn/support/location/

supportServiceLocation.do?page=SERVICE.LOCATION

Regulatory information

Correct disposal of this product (Waste electrical & electronic equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other s of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

(The United States of America only)

Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 0799

State of California Proposition 65 Warning (US Only)

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of chemicals known to the State of California to cause cancer or reproductive toxicity and requires businesses to warn of potential exposure to such chemicals.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. This appliance can cause low-level exposure to the chemicals, which can be minimized by operating the appliance in a well ventilated area.

Radio frequency emissions

FCC information to the user

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.

Regulatory information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or experienced radio TV technician for help.

Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

Canadian radio interference regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus", ICES-003 of the Industry and Science Canada.

United States of America

Federal Communications Commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

Regulatory information

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.

This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

FCC Statement for Wireless LAN use:

While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1 mW/cm^2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20 cm from the antenna at all times. This device cannot be collocated with another transmitter and transmitting antenna.

Russia / Kazakhstan / Belaru only

EAC

Regulatory information

Germany only

This telecommunication equipment conforms to NTC technical requirement.

Replacing the Fitted Plug (for UK Only)

Important

The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover.

Contact the people from you purchased the machine.

The 13 amp plug is the most widely used in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.

If you cut off the moulded plug, get rid of it straight away.

You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.

Regulatory information

Important warning:

You must earth this machine.

The wires in the mains lead have the following color code:

• Green and Yellow: Earth
- Blue: Neutral
- Brown: Live

If the wires in the mains lead do not match the colors marked in your plug, do the following:

You must connect the green and yellow wire to the pin marked by the letter "E" or by the safety 'Earth symbol' or colored green and yellow or green.

You must connect the blue wire to the pin which is marked with the letter "N" or colored black.

You must connect the brown wire to the pin which is marked with the letter "L" or colored red.

You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

Declaration of conformity (European countries)

Approvals and Certifications

Hereby, Samsung Electronics, declares that this [SL-M453x series] is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.

The declaration of conformity may be consulted at www.samsung.com, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC.

January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.

January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.

Regulatory information

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:

In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.

The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.

European radio approval information (for products fitted with EU-approved radio devices)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

CE

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark is on the system label.

The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

European states qualified under wireless approvals:

EU countries

European states with restrictions on use:

EU

EEA/EFTA countries

No limitations at this time

Regulatory information

Regulatory compliance statements

Wireless guidance

Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.

Regulatory information

Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

Regulatory information

China only

产品中有害物质的名称及含量

部件名称	有害物质
	铅(Pb)	汞(Hg)	镉(Cd)	六价铬( Cr^6+ )	多溴联苯(PBB)	多溴二苯醚(PBDE)
塑料	O	O	O	O	O	O
金属(机箱)	X	O	O	O	O	O
印刷电路部件(PCA)	X	O	O	O	O	O
电缆/连接器	X	O	O	O	O	O
电源设备	X	O	O	O	O	O
电源线	X	O	O	O	O	O
机械部件	X	O	O	O	O	O
卡盒部件	X	O	O	O	O	O
定影部件	X	O	O	O	O	O
扫描仪部件-CCD(如果有)	X	X	O	O	O	O
扫描仪部件-其它(如果有)	X	O	O	O	O	O
印刷电路板部件(PBA)	X	O	O	O	O	O
墨粉	O	O	O	O	O	O
滚筒	O	O	O	O	O	O

© 2014 Samsung Electronics Co., Ltd. All rights reserved.

This user's guide is provided for information purposes only. All information included herein is subject to change without notice.

Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user's guide.

• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.

- Microsoft, Windows, Windows Vista, Windows 7, Windows 8, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.

• Google, Picasa, Google Docs, Android and Gmail are either registered trademarks or trademarks of Google Inc.

• Google Cloud Print is a trademark of Google Inc.

- iPad, iPhone, iPod touch, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. AirPrint and the AirPrint logo are trademarks of Apple Inc.

• All other brand or product names are trademarks of their respective companies or organizations.

QR code image containing encoded data, no visible human-readable text

QR code

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail]. It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL https://opensource.samsung.com/opensource/M453x_Series/seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

REV.1.01

User's Guide

Samsung Printer ProXpress

M453x series

ADVANCED

This guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

BASIC

This guide provides information concerning installation, basic operation and troubleshooting on Windows.

ADVANCED

1. Software Installation

Installation for Mac 130

Reinstallation for Mac 131

Installation for Linux 132

Reinstallation for Linux 133

2. Using a Network-Connected Machine

Useful network programs 135

Wired network setup 136

Installing driver over the network 139

IPv6 configuration 147

Wireless network setup(Optional) 150

Using the NFC feature (Optional) 166

Supported Mobile Apps 174

AirPrint 175

Samsung Cloud Print 177

Google Cloud Print™ 179

3. Useful Setting Menus

Before you begin reading a chapter 186

Information 187

Layout 188

Paper 189

Graphic 190

System Setup/ Setup 191

Emulation 195

Image Management 196

Network 197

Admin Setup 198

Eco 199

USB 200

Job Management (Job Status) 201

Counter 202

Help 203

4. Special Features

Altitude adjustment 205

Entering various characters 206

ADVANCED

Printing features 208

Using Direct Printing Utility 219

Mac printing 221

Linux printing 223

Unix printing 225

Operating system problems

262

5. Useful Management Tools

Accessing management tools 228

Easy Capture Manager 229

Samsung AnyWeb Print 230

Easy Eco Driver 231

Using SyncThru™ Web Service 232

Using Samsung Easy Printer Manager 236

Using Samsung Printer Status 239

Using Samsung Printer Experience 241

6. Troubleshooting

Paper feeding problems 248

Power and cable connecting problems 249

Printing problems 250

Printing quality problems 254

Purple circular icon with a white printer symbol (no text or numbers)

1. Software Installation

This chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine's driver (see "Installing driver over the network" on page 139).

• Installation for Mac 130
• Reinstallation for Mac 131
• Installation for Linux 132
• Reinstallation for Linux 133

• If you are a Windows OS user, refer to the Basic Guide for installing the machine's driver (see "Installing the driver locally" on page 22).
• Only use a USB cable no longer than 3 meters (118 inches).

Installation for Mac

1 Make sure that the machine is connected to your computer and powered on.
2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Mac desktop.
• For Mac OS X 10.8, double-click the CD-ROM that appears on Finder.
4 Double-click the MAC_Installer folder > Installer OS X icon.
5 Click Continue.
6 Read the license agreement and click Continue.
7 Click Agree to agree to the license agreement.
8 Click Install. All components necessary for machine operations will be installed.

If you click Customize, you can choose individual components to install.

9 Enter the password and click OK (or Install Software).

10 Select USB Connected Printer on the Printer Connection Type and click Continue.
11 Click Add Printer button to select your printer and add it to your printer list.
12 Click Continue.
13 After the installation is finished, click Close.

Reinstallation for Mac

If the printer driver does not work properly, uninstall the driver and reinstall it.

1 Open the Applications folder > Samsung > Printer Software Uninstaller.
2 To uninstall printer software, click Continue.
3 Check the program you want to delete and click Uninstall.
4 Enter the password and click OK.
5 After the uninstallation is finished, click Close.

If a machine has already been added, delete it from the Print Setup Utility or Print & Fax.

Installation for Linux

You need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).

Installing the Unified Linux Driver

You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator.

1 Make sure that the machine is connected to your computer and powered on.
2 Copy Unified Linux Driver package to your system.
3 Open Terminal program and go to the folder that you copied the package to.
4 Extract the package.
5 Move to uld folder.
6 Execute "./install.sh" command (If you're not logged in as root, execute the command with "sudo" as "sudo ./install.sh")
7 Proceed with installation.

8 When installation finished, launch printing utility (Go to System > Administration > Printing or execute "system-config-printer" command in Terminal program).
9 Click Add button.
10 Select your printer.
11 Click Forward button and add it to your system.

Reinstallation for Linux

If the printer driver does not work properly, uninstall the driver and reinstall it.

1 Open Terminal program.
2 Move to uld folder extracted from Unified Linux Driver package.
3 Execute "./uninstall.sh" command (If you're not logged in as root, execute the command with "sudo" as "sudo ./uninstall.sh")
4 Proceed with uninstallation.

Purple circular icon with a white printer symbol (no text or numbers)

2. Using a Network-Connected Machine

This chapter gives you step-by-step instructions for setting up a network connected machine and software.

• Useful network programs 135
  • Wired network setup 136
  • Installing driver over the network 139
  • IPv6 configuration 147
  • Wireless network setup(Optional) 150
  • Using the NFC feature (Optional) 166
  • Supported Mobile Apps 174
  • AirPrint 175
  • Samsung Cloud Print 177
  • Google Cloud Print™ 179

Useful network programs

There are several programs available to setup the network settings easily in a network environment. For the network administrator especially, managing several machines on the network is possible.

• Before using the programs below, set the IP address first.
• Some features and optional goods may not be available depending on model or country (see "Features by model" on page 7).

SyncThru™ Web Service

The web server embedded on your network machine allows you to do the following tasks (see "Using SyncThru™ Web Service" on page 232).

• Check the supplies information and status.
• Customize machine settings.
• Set the email notification option. When you set this option, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's email automatically.
• Configure the network parameters necessary for the machine to connect to various network environments.

SyncThru™ Web Admin Service

Web-based machine management solution for network administrators.

SyncThru™ Web Admin Service provides you with an efficient way of managing network devices and lets you remotely monitor and troubleshoot network machines from any site with corporate internet access.

- Download this program from Samsung website (http://www.samsung.com > find your product > Support or Downloads).

SetIP wired network setup

This utility program allows you to select a network interface and manually configure the IP addresses for use with the TCP/IP protocol.

• See "IPv4 configuration using SetIP (Windows)" on page 136.
• See "IPv4 configuration using SetIP (Mac)" on page 137.
• See "IPv4 configuration using SetIP (Linux)" on page 138.

• The machine that does not support the network port, it will not be able to use this feature (see "Rear view" on page 18).
• TCP/IPv6 is not supported by this program.

Wired network setup

Printing a network configuration report

You can print Network Configuration Report from the machine's control panel that will show the current machine's network settings. This will help you to set up a network.

Illustration of a printer with an arrow pointing to a document (no text or symbols present)

Touch (Setup) on the touch screen and select Network > Network Configuration.

• The machine has a display screen: Press the Menu(☐) button on the control panel and select Network > Network Configuration.
• The machine has a touch screen: Press the ⚙ (Setup) on the touch screen and select Network > Network Configuration.

Using this Network Configuration Report, you can find your machine's MAC address and IP address.

For example:

• MAC Address: 00:15:99:41:A2:78
• IP Address: 169.254.192.192

Setting IP address

• The machine that does not support the network interface, it will not be able to use this feature (see "Rear view" on page 18).
  • TCP/IPv6 is not supported by this program.

First, you have to set up an IP address for network printing and management. In most cases a new IP address will be automatically assigned by a DHCP (Dynamic Host Configuration Protocol) server located on the network.

IPv4 configuration using SetIP (Windows)

Before using the SetIP program, disable the computer firewall from Control Panel > Security Center > Windows Firewall.

The following instructions may differ for your model.

Wired network setup

1 Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).
2 Follow the instructions in the installation window.
3 Connect your machine to the network with a network cable.
4 Turn on the machine.
5 From the Windows Start menu, select All Programs > Samsung Printers > SetIP > SetIP.
6 Click the icon (third from left) in the SetIP window to open the TCP/IP configuration window.
7 Enter the machine's new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.

Find the machine's MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 136) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8.

8 Click Apply, and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.

IPv4 configuration using SetIP (Mac)

Before using the SetIP program, disable the computer firewall from System Preferences > Security (or Security & Privacy) > Firewall.

The following instructions may vary from your model.

1 Connect your machine to the network with a network cable.
2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Mac desktop. - For Mac OS X 10.8, Double-click the CD-ROM that appears on Finder.
4 Double-click the MAC_Installer folder > Installer OS X icon.
5 Click Continue.
6 Read the license agreement and click Continue.
7 Click Agree to agree to the license agreement.

Wired network setup

8 Click Install. All components necessary for machine operations will be installed.
If you click Customize, you can choose individual components to install.
9 Enter the password and click OK (or Install Software).
10 When the message that warns that all applications will close on your computer appears, click Continue.
11 Select Network Connected Printer (Wired or Wireless) on the Printer Connection Type and click Set IP Address button.
12 Click the icon (third from left) in the SetIP window to open the TCP/IP configuration window.
13 Enter the machine's new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.

Find the machine's MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 136) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8.

14 Click Apply, and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.

IPv4 configuration using SetIP (Linux)

Before using the SetIP program, disable the computer firewall from System Preferences or Administrator.

The following instructions may vary from your model or operating systems.

1 Download SetIP program from Samsung web site and extract it.
2 Double-click the SetIPApplet.html file in cdroot/Linux/noarch/at_opt/share/utils folder.
3 Click to open the TCP/IP configuration window.
4 Enter the machine's new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.

Find the machine's MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 136) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8.

5 The machine will automatically print the Network Configuration Report.

Installing driver over the network

• Some features and optional goods may not be available depending on model or country (see "Features by model" on page 7).
• The machine that does not support the network interface, it will not be able to use this feature (see "Rear view" on page 18).
• You can install the printer driver and software when you insert the software CD into your CD-ROM drive.

For windows, select the printer driver and software in the Select Software to Install window.

Windows

The firewall software might be blocking network communication. Before connecting the device to the network, disable the computer's firewall.

1 Make sure that the machine is connected to the network and powered on. Also, your machine's IP address should have been set (see "Setting IP address" on page 136).

2 Insert the supplied software CD into your CD-ROM drive.

If the installation window does not appear, click Start > All programs > Accessories > Run.

X:\Setup.exe replacing "X" with the letter, which represents your CD-ROM drive and click OK.

- For Windows 8,

If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing "X" with the letter that represents your CD-ROM drive and click OK. If "Tap to choose what happens with this disc." pop-up window appears, click the window and select Run Setup.exe.

3 Review and accept the installation agreements in the installation window. Then, click Next.
4 Select Network on the Printer Connection Type screen. Then, click Next.
5 Follow the instructions in the installation window.

Installing driver over the network

From the Windows 8 Start Screen

• The V4 driver is automatically downloaded from the Windows Update if your computer is connected to the Internet. If not, you can manually download the V4 driver from Samsung website, www.samsung.com > find your product > Support or downloads.
• You can download Samsung Printer Experience app from the Windows Store. You need have a Microsoft account to use the Windows Store.

a From Charms, select Search.
b Click Store.
c Search and click Samsung Printer Experience.
d Click Install.

• If you install the driver using the supplied software CD, V4 driver is not installed. If you want to use the V4 driver in the Desktop screen, you can download from the Samsung website, www.samsung.com > find your product > Support or downloads.
• If you want to install Samsung's printer management tools, you need to install them using the supplied software CD.

1 Make sure that the machine is connected to the network and powered on. Also, your machine's IP address should have been set (see "Setting IP address" on page 136).
2 From Charms, select Settings > Change PC settings > Devices.
3 Click Add a device.

Discovered machines will be shown on the screen.

4 Click the model name or host name you wish to use.
You can print a Network Configuration Report from the machine's control panel that will show the current machine's host name (see "Printing a network configuration report" on page 136).
5 The driver is automatically installed from the Windows Update.

Silent installation Mode

Silent installation mode is an installation method that does not require any user intervention. Once you start the installation, the machine driver and software are automatically installed on your computer. You can start the silent installation by typing /s or /S in the command window.

Command-line Parameters

Following table shows commands that can be used in the command window.

Following command-line are effective and operated when command is used with /s or /S. But /h, /H or /? are exceptional commands that can be operated solely.

Installing driver over the network

Command-line Definition Description
/s or /S	Starts silent installation. Installs machine drivers without prompting any UIs or user intervention.

Command-line Definition Description
/p"" or /P""	Specifies printer port.	Printer port name can be specified as IP address, hostname, USB local port name, IEEE1284 port name or network path.For example:/p"xxx.xxx.xxx.xxx" in where, "xxx.xxx.xxx.xxx" means IP address for network printer. / p"USB001",/P"LPT1:",/ p"hostname"/p"\computer_name\shared_printer" or "\"xxx.xxx.xxx.xxx\shared_printer" in where, "\"computer_name\shared_printer" or "\"xxx.xxx.xxx.xxx\shared_printer" means the network path to the printer by entering two slashes, the computer name or local IP address of the PC sharing the printer, and then the share name of the printer.

Installing driver over the network

Command-line Definition Description
/a""or/A""	Specifies destination path for installation.	Since machine drivers should be installed on the OS specific location, this command applies to only application software.
	The destination path should be a fully qualified path.
/n""or/N""	Specifies printer name. Printer instance shall be created as specified printer name.	With this parameter, you can add printer instances as your wishes.
/nd or/ND	Commands not to set the installed driver as a default machine driver.	It indicates installed machine driver will not be the default machine driver on your system if there are one or more printer drivers installed. If there is no installed machine driver on your system, then this option won't be applied because Windows OS will set installed printer driver as a default machine driver.

Command-line Definition Description
/x or /X	Uses existing machine driver files to create printer instance if it is already installed.	This command provides a way to install a printer instance that uses installed printer driver files without installing an additional driver.
/up""or /UP""	Removes only specified printer instance and not the driver files.	This command provides a way to remove only specified printer instance from your system without effecting other printer drivers. It will not remove printer driver files from your system.
/d or /D	Uninstalls all device drivers and applications from your system.	This command will remove all installed device drivers and application software from your system.
/v""or /V""	Shares installed machine and add other available platform drivers for Point & Print.	It will install all supported Windows OS platform's machine drivers to system and share it with specifiedfor point and print.
/o or /O	Opens Printers and Faxes folder after installation.	This command will open Printers and Faxes folder after the silent installation.

Installing driver over the network

Command-line Definition Description
/h, /H or /? Shows Command-line Usage.

Mac

1 Make sure that the machine is connected to your network and powered on.
2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Mac desktop.
- For Mac OS X 10.8, Double-click the CD-ROM that appears on Finder.
4 Double-click the MAC_Installer folder > Installer OS X icon.
5 Click Continue.
6 Read the license agreement and click Continue.

7 Click Agree to agree to the license agreement.
8 Click Install. All components necessary for machine operations will be installed.

If you click Customize, you can choose individual components to install.

9 Enter the password and click OK (or Install Software).
10 Select Network Connected Printer (Wired or Wireless) on the Printer Connection Type and click Continue.
11 Click Add Printer button to select your printer and add it to your printer list.
12 Click IP and Select HP Jetdirect - Socket in Protocol.
13 Enter the machine's IP address in the Address input field.
14 Enter the queue name in the Queue input field. If you cannot determine the queue name for your machine server, try using the default queue first.
15 If Auto Select does not work properly, choose Select Printer Software and your machine name in Print Using.
16 Click Add.
17 Click Continue.
18 After the installation is finished, click Close.

Installing driver over the network

Linux

You need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).

1 Make sure that the machine is connected to your network and powered on. Also, your machine's IP address should have been set.
2 Copy Unified Linux Driver package to your system.
3 Open Terminal program and go to the folder that you copied the package to.
4 Extract the package.
5 Move to uld folder.
6 Execute "./install.sh" command (If you are not logged in as root, execute the command with "sudo" as "sudo ./install.sh").
7 Proceed with installation.
8 When installation finished, launch Printing utility (Go to System > Administration > Printing or execute "system-config-printer" command in Terminal program).

9 Click Add button.
10 Select AppSocket/HP JetDirect and enter your machine's IP address.
11 Click Forward button and add it to your system.

Add a network printer

1 Double-click the Unified Driver Configurator.
2 Click Add Printer.
3 The Add printer wizard window opens. Click Next.
4 Select Network printer and click the Search button.
5 The printer's IP address and model name appears on list field.
6 Select your machine and click Next.
7 Enter the printer description and click Next.
8 After the machine is added, click Finish.

Installing driver over the network

UNIX

• Make sure your machine supports the UNIX operating system before installing the UNIX printer driver (see "Operating System" on page 7).
• The commands are marked with "", when typing the commands, do not type """.
• Some features and optional goods may not be available depending on model or country (see "Operating System" on page 7).

To use the UNIX printer driver, you have to install the UNIX printer driver package first, then setup the printer. You can download the UNIX printer driver package from the Samsung website (http://www.samsung.com > find your product > Support or Downloads).

Installing the UNIX printer driver package

The installation procedure is common for all variants of UNIX OS mentioned.

1 From the Samsung website, download and unpack the UNIX Printer Driver package to your computer.
2 Acquire root privileges.

"su-"

3 Copy the appropriate driver archive to the target UNIX computer.

See administration guide of your UNIX OS for details.

4 Unpack the UNIX printer driver package.

For example, on IBM AIX, use the following commands.

"gzip -d < enter the package name | tar xf -"

5 the unpacked directory.
6 Run the install script.

"./install -i"

install is the installer script file which is used to install or uninstall the UNIX Printer Driver package.

Use "chmod 755 install" command to give the permission to the installer script.

7 Execute the "./install -c" command to verify installation results.
8 Run "installprinter" from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window referring to the following procedures.

Installing driver over the network

On some UNIX OS, for example on Solaris 10, just added printers may not be enabled and/or may not accept jobs. In this case run the following two commands on the root terminal:

"accept "

"enable "

Uninstalling the printer driver package

The utility should be used to delete the printer installed in the system.

a Run "uninstallprinter" command from the terminal. It will open the Uninstall Printer Wizard.

The installed printers are listed in the drop-down list.

b Select the printer to be deleted.

c Click Delete to delete the printer from the system.
d Execute the "./install -d" command to uninstall the whole package.
e To verify removal results, execute the “./install -c” command.

To re-install it, use the command "./install -i" to reinstall the binaries.

Setting up the printer

To add the printer to your UNIX system, run 'installprinter' from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window according to the following steps:

1 Type the name of the printer.
2 Select the appropriate printer model from the model list.
3 Enter any description corresponding to the type of the printer in the Type field. This is optional.
4 Specify any printer description in the Description field. This is optional.
5 Specify the printer location in the Location field.
6 Type the IP address or DNS name of the printer in the Device textbox for network-connected printers. On IBM AIX with jetdirect Queue type, only the DNS name is possible-numeric IP address is not allowed.
7 Queue type shows the connection as lpd or jetdirect in the corresponding list box. Additionally, usb type is available on Sun Solaris OS.
8 Select Copies to set the number of copies.
9 Check the Collate option to receive copies already sorted.
10 Check the Reverse Order option to receive copies in the reverse order.
11 Check the Make Default option to set this printer as default.
12 Click OK to add the printer.

IPv6 configuration

IPv6 is supported properly only in Windows Vista or higher.

The machine supports the following IPv6 addresses for network printing and managements.

• Link-local Address: Self-configured local IPv6 address (Address starts with FE80).
• Stateless Address: Automatically configured IPv6 address by a network router.
  • Stateful Address: IPv6 address configured by a DHCPv6 server.
  • Manual Address: Manually configured IPv6 address by a user.

In the IPv6 network environment, follow the next procedure to use the IPv6 address.

From the control panel

Activating IPv6

Accessing menus may differ from model to model (see "Menu overview" on page 26).

1 Select Menu(☐) > Network > TCP/IP (IPv6) > IPv6 Protocol on the control panel.

OR

Select (Setup) > Network > Next > TCP/IP (IPv6) > IPv6 Protocol on the touch screen.

2 Select On using arrows on the touch screen.

3 Turn the machine off and turn it on again.

When you install the printer driver, do not configure both IPv4 and IPv6. We recommend to configure either IPv4 or IPv6.

IPv6 configuration

DHCPv6 address configuration

If you have a DHCPv6 server on your network, you can set one of the following options for default dynamic host configuration.

1 Select Menu(≡) > Network > TCP/IP (IPv6) > DHCPv6 Config on the control panel.

Select (Setup) > Network > Next > TCP/IP (IPv6) > DHCPv6 Config on the touch screen.

2 Select the option you want using arrows and touch (back) to save the selection.

• Router: Use DHCPv6 only when requested by a router.
  • Always Use: Always use DHCPv6 regardless of router request.
  • Never Use: Never use DHCPv6 regardless of router request.

From the SyncThru™ Web Service

Activating IPv6

1 Access a web browser, such as Internet Explorer, from Windows. Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.
2 If it's your first time logging into SyncThru™ Web Service you need to log-in as an administrator. Type in the below default ID and password. We recommend you to change the default password for security reasons.

• ID: admin

- Password: sec00000

3 When the SyncThru™ Web Service window opens, move the mouse cursor over the Settings of the top menu bar and then click Network Settings.
4 Click TCP/IPv6 on the left pane of the website.
5 Check the IPv6 Protocol check box to activate IPv6.
6 Click the Apply button.
7 Turn the machine off and turn it on again.

IPv6 configuration

• You can also set the DHCPv6.
  • To manually set the IPv6 address:

Check the Manual Address check box. Then, the Address/Prefix text box is activated. Enter the rest of the address (e.g., 3FFE:10:88:194::AAAA. "A" is the hexadecimal 0 through 9, A through F).

IPv6 address configuration

1 Start a web browser, such as Internet Explorer, that supports IPv6 addressing as a URL.
2 Select one of the IPv6 addresses (Link-local Address, Stateless Address, Stateful Address, Manual Address) from Network Configuration Report (see "Printing a network configuration report" on page 136).

• Link-local Address: Self-configured local IPv6 address (Address starts with FE80).
• Stateless Address: Automatically configured IPv6 address by a network router.
  • Stateful Address: IPv6 address configured by a DHCPv6 server.
  • Manual Address: Manually configured IPv6 address by a user.

3 Enter the IPv6 addresses (e.g.,: http://[FE80::215:99FF:FE66:7701]).

Address must be enclosed in '[]' brackets.

Wireless network setup(Optional)

• If you want to add wireless feature to the machine, check the option lists and contact the purchasing point to order (see "Available accessories" on page 60). When you purchase a Wireless/NFC kit (Wireless LAN Option), install the kit by following the steps described in the Wireless Kit (Wireless LAN Option) Guide which is enclosed in the kit. After installing the Wireless/NFC kit (Wireless LAN Option), set the machine to use this feature.
• Make sure your machine supports wireless networking. Wireless networking may not be available depending on the model (see "Features by model" on page 7).

Wireless network name and network password

Wireless networks require higher security, so when an access point is first set up, a network name (SSID), the type of security used, and a Network Password are created for the network. Ask your network administrator about this information before proceeding with the machine installation.

Introducing wireless set up methods

You can set wireless settings either from the machine or the computer. Choose the setting method from the below table.

• Some wireless network installation types may not be available depending on the model or country.
• If problems occur during wireless set up or driver installation, refer to the troubleshooting chapter (see "Troubleshooting for wireless network" on page 163).
• It is strongly recommended that you set the password on Access Points. If you do not set the password on Access Points, they might be exposed to illegal access from unknown machines including PCs, smart phones and printers. Refer to the Access Point user' guide for password settings.

Connecting Type Description & Reference

With Access Point • See "Setting up on the display / touch screen" on page 151.• For Windows user, see "Setting up via USB cable (recommended)" on page 154.• For Mac user, see "Setting up via USB cable (recommended)" on page 157.• See "Using a network cable" on page 159.
Without Access Point	Using Wi-Fi Direct	See "Setting the Wi-Fi Direct for mobile printing" on page 161.

Wireless network setup(Optional)

Setting up on the display / touch screen

Before starting, you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.

Connecting to a network

After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installing driver over the network" on page 139).

1 Select Menu(≡) > Network > Wi-Fi > Wi-Fi Settings. on the control panel.

OR

For the model with a touch screen, press (Setup) > Network > Next > Wi-Fi > Wi-Fi Settings.

2 Select the setup method you want.

- Search List (recommended): The machine will display a list of available networks from which to choose. After a network is chosen then printer will prompt for the corresponding security key.

- Custom: In this mode, users can give or edit manually their own SSID, or choose the security option in detail.

Re-connecting to the network

When the wireless connection is lost, the machine automatically tries to re-connect to the access point (or wireless router) with the previously used wireless connection settings and address.

In the following cases, the machine automatically re-connects to the wireless network:

• The machine is turned off and on again.
- The access point (or wireless router) is turned off and on again.

Canceling the connection process

To cancel the wireless network connection when the machine is connecting to the wireless network, press and release ☒ (Stop/Clear) on the control panel.

You need to wait 2 minutes to re-connect to the wireless network.

Wireless network setup(Optional)

Using Wi-Fi Protected Setup™ (WPS)

If your machine and an access point (or wireless router) support Wi-Fi Protected Setup™ (WPS), you can easily set up the secured wireless connection.

• If you want to use the wireless network using the infrastructure mode, make sure that the network cable is disconnected from the machine. Using the WPS (PBC) or entering the PIN from the computer to connect to the access point (or wireless router) varies depending on the access point (or wireless router) you are using. Refer to the user's guide of the access point (or wireless router) you are using.
• When using the WPS button to set the wireless network, security settings may change. To prevent this, lock the WPS option for the current wireless security settings. The option name may differ depending on the access point (or wireless router) you are using.

Items to prepare

• Check if the access point (or wireless router) supports Wi-Fi Protected Setup™ (WPS).
• Check if your machine supports Wi-Fi Protected Setup™ (WPS).
  • Networked computer (PIN mode only)

Choosing your type

There are two methods available to connect your machine to a wireless network using WPS.

• The Push Button Configuration (PBC) method allows you to connect your machine to a wireless network by enabling WPS in your machine and pressing the WPS (PBC) button on a WPS-supported access point (or wireless router).
• The Personal Identification Number (PIN) method helps you connect your machine to a wireless network by entering the supplied PIN information on a WPS-supported access point (or wireless router).

Factory default in your machine is PBC mode, which is recommended for a typical wireless network environment.

Connecting in PBC mode

1 Select Menu(≡) > Network > Wi-Fi > WPS on the control panel. OR
For the model with a touch screen, press (Setup) > Network > Next > WI-FI > WPS.

2 Press Connect via PBC.

3 Touch OK when the confirmation window appears. Information window appears showing 2 minutes connection processing time.

Wireless network setup(Optional)

4 Touch the WPS (PBC) button on the access point (or wireless router). The messages are displayed on the display screen in the order below:

a Connecting: The machine is connecting to the access point (or wireless router).
b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.
c AP SSID: After completing the wireless network connection process, the AP's SSID information appears on the display.

5 Insert the supplied software CD into your CD-ROM drive, and follow the instructions in the window to set up the wireless network.

Connecting in PIN mode

1 Select Menu( [≡] ) > Network > Wi-Fi > WPS on the control panel. OR
For the model with a touch screen, press (Setup) > Network > Next > Wi-Fi > WPS.
2 Press Connect via PIN.
3 Touch OK when the confirmation window appears.

4 The eight-digit PIN appears on the display.

You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).

The messages are displayed on the display screen in the order below:

a Connecting: The machine is connecting to the wireless network.
b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.
c AP SSID: After completing the wireless network connection process, the AP's SSID information appears on the display.

5 Insert the supplied software CD into your CD-ROM drive, and follow the instructions in the window to set up the wireless network.

Wireless network setup(Optional)

Setup using Windows

Shortcut to the Samsung Easy Wireless Setup program without the CD: If you have installed the printer driver once, you can access the Samsung Easy Wireless Setup program without the CD (see "Accessing management tools" on page 228).

Setting up via USB cable (recommended)

Items to prepare

• Access point
  • Network-connected computer
• Software CD that was provided with your machine
• A machine installed with a wireless network interface
• USB cable

Creating the infrastructure network

1 Check whether the USB cable is connected to the machine.
2 Turn on your computer, access point, and machine.

3 Insert the supplied software CD into your CD-ROM drive.

If the installation window does not appear, click Start > All programs > Accessories > Run.

X:\Setup.exe replacing "X" with the letter, which represents your CD-ROM drive and click OK.

- For Windows 8,

If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing "X" with the letter that represents your CD-ROM drive and click OK. If "Tap to choose what happens with this disc." pop-up window appears, click the window and select Run Setup.exe.

4 Review and accept the installation agreements in the installation window. Then, click Next.
5 Select Wireless on the Printer Connection Type screen. Then, click Next.

Wireless network setup(Optional)

6 On the Are you setting up your printer for the first time? screen, select Yes, I will set up my printer's wireless network. Then, click Next.

If your printer is already connected on the network, select No, my printer is already connected to my network.

7 After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you want to use and click Next.

If you cannot find the network name you want to choose, or if you want to set the wireless configuration manually, click Advanced Setting.

• Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).
  • Operation Mode: Select Infrastructure.
• Authentication: Select an authentication type.
  Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.
  Shared Key: Authentication is used. A device that has a proper WEP key can access the network.
  WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on a WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase), which is manually configured on the access point and each of its clients.
• Encryption: Select the encryption (None, WEP64, WEP128, TKIP, AES).
  • Network Password: Enter the encryption network password value.
• Confirm Network Password: Confirm the encryption network password value.

- WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.

The wireless network security window appears when the access point has security settings.

Enter the Network Password of the access point (or router).

8 When the network connection window appears, disconnect the network cable. Then, click Next. The network cable connection can interfere with searching for wireless devices.

Wireless network setup(Optional)

9 If your printer supports Wi-Fi Direct and this function is disabled, its corresponding screen will appears.

If you want to enable Wi-Fi Direct, check the checkbox, and click Next. If not, click just Next.

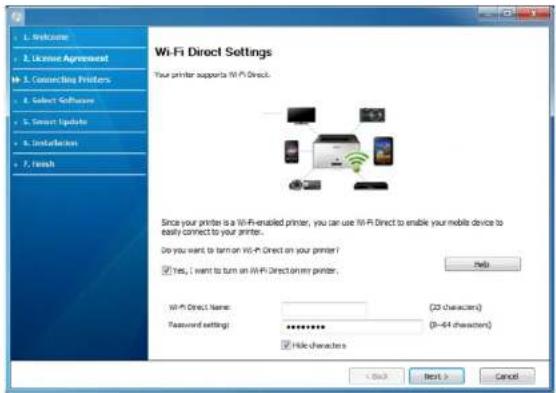

1. Welcome 2. License Agreement 3. Connecting Printers 4. Select Groups 5. Server Update 6. Installation 7. Finish Wi-Fi Direct Settings Your printer supports Wi-Fi Direct. Since your printer is a Wi-Fi-enabled printer, you can use Wi-Fi Direct to enable your mobile device to easily connect to your printer. Do you want to turn on Wi-Fi Direct on your printer? Yes, I want to turn on Wi-Fi Direct on the printer. HiC characters HiC Direct Name: Password setting: (23 characters) (9-64 characters)

• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager (see "Setting up Wi-Fi Direct" on page 161).
• Wi-Fi Direct Name: The default Wi-Fi Direct Name is the model name and the maximum length is 22 characters.
• Password setting is the numeric string, and the size is 8 \~ 64 characters.

10 When the wireless network set up is completed, disconnect the USB cable between the computer and machine. Click Next.

11 Follow the instructions in the installation window.

Setup using Mac

Items to prepare

• Access point
  • Network-connected computer
• Software CD that was provided with your machine
• A machine installed with a wireless network interface
• USB cable

Wireless network setup(Optional)

Setting up via USB cable (recommended)

1 Make sure that the machine is connected to your computer and powered on.
2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Mac desktop.
• For Mac OS X 10.8, double-click the CD-ROM that appears on Finder.
4 Double-click the MAC_Installer folder > Installer OS X icon.
5 Click Continue.
6 Read the license agreement and click Continue.
7 Click Agree to agree to the license agreement.
8 Click Install. All components necessary for machine operations will be installed.

If you click Customize, you can choose individual components to install.

9 Enter the password and click OK (or Install Software).
10 Select Configuration of Wireless network on the Printer Connection Type and click Continue.

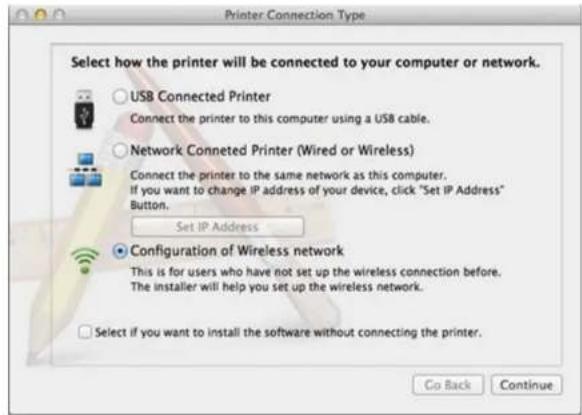

Printer Connection Type Select how the printer will be connected to your computer or network. USB Connected Printer Connect the printer to this computer using a USB cable. Network Connected Printer (Wired or Wireless) Connect the printer to the same network as this computer. If you want to change IP address of your device, click "Set IP Address" Button. Set IP Address Configuration of Wireless network This is for users who have not set up the wireless connection before. The installer will help you set up the wireless network. Select if you want to install the software without connecting the printer. Go Back Continue

Wireless network setup(Optional)

11 After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you want to use and click Next.

When you set the wireless configuration manually, click Advanced Setting.

• Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).
  • Operation Mode: Select Infrastructure.
  • Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on the WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase) that is manually configured on the access point and each of its clients.

• Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES)
• Network Password: Enter the encryption network password value.
- Confirm Network Password: Confirm the encryption network password value.
- WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.

The wireless network security window appears when the access point has security enabled.

Enter the Network Password of the access point (or router).

12 If your printer supports Wi-Fi Direct and this function is disabled, its corresponding screen will appears.

If you want to enable Wi-Fi Direct, check the checkbox, and click Next. If not, click just Next.

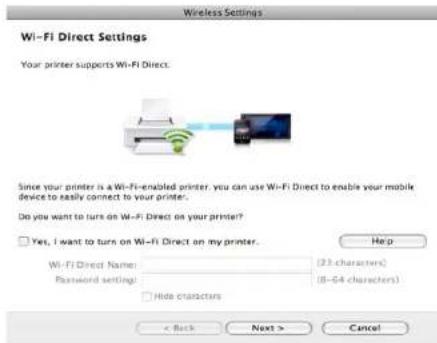

Wireless Settings Wi-Fi Direct Settings Your printer supports Wi-Fi Direct. Since your printer is a Wi-Fi-enabled printer, you can use Wi-Fi Direct to enable your mobile device to easily connect to your printer. Do you want to turn on Wi-Fi Direct on your printer? Yes, I want to turn on Wi-Fi Direct on my printer. Hi Help Wi-Fi Direct Name: (23 characters) Password settings: (8-64 characters) Hide characters < Back Next > Cancel

• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager (see "Setting up Wi-Fi Direct" on page 161).
• Wi-Fi Direct Name: The default Wi-Fi Direct Name is the model name and the maximum length is 22 characters.
• Password setting is the numeric string, and the size is 8 \~ 64 characters.

13 When the wireless network settings are completed, disconnect the USB cable between the computer and machine.
14 Wireless network set up is completed. After the installation is finished, click Quit.

Wireless network setup(Optional)

Using a network cable

Machines that do not support the network port will not be able to use this feature (see "Rear view" on page 18).

Your machine is a network compatible machine. To enable your machine to work with your network, you will need to perform some configuration procedures.

- After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installing driver over the network" on page 139).

- See your network administrator, or the person that set up your wireless network, for information about your network configuration.

Items to prepare

• Access point
  • Network-connected computer
• Software CD that was provided with your machine
• A machine installed with a wireless network interface
• Network cable

Printing a network configuration report

You can identify the network settings of your machine by printing a network configuration report.

See "Printing a network configuration report" on page 136.

IP setting using SetIP Program (Windows)

This program is used to manually set the network IP address of your machine using its MAC address to communicate with the machine. The MAC address is the hardware serial number of the network interface and can be found in the Network Configuration Report.

See "Setting IP address" on page 136.

Configuring the machine's wireless network

Before starting you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.

To configure wireless parameters, you can use SyncThru™ Web Service.

Wireless network setup(Optional)

Using SyncThru™ Web Service

Before starting wireless parameter configuration, check the cable connection status.

1 Check whether or not the network cable is connected to the machine. If not, connect the machine with a standard network cable.
2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine's new IP address in the browser window.
For example,

http://192.168.1.133/

3 Click Login on the upper right of the SyncThru™ Web Service website.

4 Type in the ID and Password then click Login. We recommend you to change the default password for security reasons.

• ID: admin
- Password: sec00000

5 When the SyncThru™ Web Service window opens, click Network Settings.

6 Click Wi-Fi > Wizard.

7 Select the one Network Name(SSID) in the list.

8 Click Next.
If the wireless security setting window appears, enter the registered password (network password) and click Next.
9 The confirmation window appears, please check your wireless setup. If the setup is right, click Apply.

Disconnect the network cable (standard or network). Your machine should then start communicating wirelessly with the network.

Turning the Wi-Fi network on/off

If your machine has a display, you can also turn on/off the Wi-Fi from the machine's control panel using the Network menu.

1 Check whether the network cable is connected to the machine. If not, connect the machine with a standard network cable.
2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine's new IP address in the browser window.
For example,

http://192.168.1.133/

Wireless network setup(Optional)

3 Click Login on the upper right of the SyncThru™ Web Service website.
4 Type in the ID and Password, then click Login. We recommend you to change the default password for security reasons.
• ID: admin
- Password: sec00000
5 When the SyncThru™ Web Service window opens, click Network Settings.
6 Click Wi-Fi.
7 You can turn the Wi-Fi network on/off.

• You cannot connect your mobile device to the internet through the printer's Wi-Fi Direct.
• The supported protocol list may differ from your model, Wi-Fi Direct networks do NOT support IPv6, network filtering, IPSec, WINS, and SLP services.
• The maximum number of devices that can be connected via Wi-Fi Direct is 4.

Setting up Wi-Fi Direct

You can enable Wi-Fi Direct feature by one of the following methods.

From the USB cable-connected computer

After the driver installation is complete, Samsung Easy Printer Manager can be used to change Wi-Fi Direct settings.

Samsung Easy Printer Manager is Available for Windows and Mac OS users only.

Setting the Wi-Fi Direct for mobile printing

Wi-Fi Direct is an easy-to-setup peer-to-peer connection method between the Wi-Fi Direct certified printer and a mobile device that provides a secure connection and better throughput than ad hoc mode.

With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while concurrently connecting to an access point. You can also use a wired network and a Wi-Fi Direct network simultaneously so multiple users can access and print documents both from Wi-Fi Direct and from a wired network.

Wireless network setup(Optional)

From the Start menu, select Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager > Device Settings > Network.

• Wi-Fi Direct On/Off: Select On to enable.
- Device Name: Enter the printer's name for searching for your printer on a wireless network. By default, the device name is the model name.
- IP Address: Enter the IP address of the printer. This IP address is used only for the local network and not for the infrastructure wired or wireless network. We recommend using the default local IP address (the default local IP address of the printer for Wi-Fi Direct is 192.168.3.1)
- Group Owner: Activate this option to assign the printer the Wi-Fi Direct group's owner. The Group Owner acts similar to a wireless access point. We recommend activating this option.
- Network Password: If your printer is a Group Owner, a Network Password is required for other mobile devices to connect to your printer. You can configure a network password yourself, or can remember the given Network Password that is randomly generated by default.

From the machine

1 Select Menu(≡) > Network > Wi-Fi > Wi-Fi Direct on the control panel.

OR

For the model with a touch screen, press (Setup) > Network > Next > Wi-Fi > Wi-Fi Direct.

2 Enable Wi-Fi Direct and set other options.

From the network-connected computer

If your printer is using a network cable or a wireless access point, you can enable and configure Wi-Fi Direct from SyncThru™ Web Service.

1 Access SyncThru™ Web Service and select Settings > Network Settings > Wi-Fi > Wi-Fi Direct™.
2 Enable Wi-Fi Direct™ and set other options.

Setting up the mobile device

• After setting up Wi-Fi Direct from the printer, refer to the user manual of the mobile device you are using to set its Wi-Fi Direct.
• After setting up Wi-Fi Direct, you need to download the mobile printing application (For example: Samsung Mobile print) to print from your smartphone.

• When you have found the printer you want to connect to from your mobile device, select the printer and the printer's LED will blink. Press the WPS button on the printer and it will be connected to your mobile device.
• If your mobile device does not support Wi-Fi Direct, you need to enter the "Network Key" of a printer instead of pushing the WPS button.

Wireless network setup(Optional)

Troubleshooting for wireless network

Problems during setup or driver installation

Printers Not Found

• Your machine may not be turned on. Turn on your computer and the machine.
• USB cable is not connected between your computer and machine. Connect the machine to your computer using the USB cable.
• The machine does not support wireless networking. Check the machine's user's guide included on the software CD supplied with your machine and prepare a wireless network machine.

Connecting Failure - SSID Not Found

• The machine is unable to find the network name (SSID) you have selected or entered. Check the network name (SSID) on your access point and try connecting again.
• Your access point is not turned on. Turn on your access point.

Connecting Failure - Invalid Security

- Security is not configured correctly. Check the configured security on your access point and machine.

Connecting Failure - General Connection Error

- Your computer is not receiving a signal from your machine. Check the USB cable and your machine's power.

Connecting Failure - Connected Wired Network

- Your machine is connected with a wired network cable. Remove the wired network cable from your machine.

Connecting Failure - Assigning the IP address

- Cycle the power for the access point (or wireless router) and machine.

PC Connection Error

- The configured network address is unable to connect between your computer and machine.

- For a DHCP network environment

The machine receives the IP address automatically (DHCP) when computer is configured to DHCP.

If the printing job is not working in DHCP mode, the problem may be caused by the automatically changed IP address. Compare the IP address between the product's IP address and the printer port's IP address.

How to compare:

1 Print the network information report of your printer, and then check the IP address (see "Printing a network configuration report" on page 136).

Wireless network setup(Optional)

2 Check the printer port's IP address from your computer.

a Click the Windows Start menu.

For Windows 8, from the Charms, select Search > Settings.

b For Windows XP/Server 2003, select Printer and Faxes.

• For Windows Server 2008/Vista, select Control Panel > Hardware and Sound > Printers.
• For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers.
• For Windows 7/ Windows 8, select Control Panel > Devices and Printers.

c Right-click your machine.

d For Windows XP/2003/2008/Vista, press Properties.

For Windows 7/Windows 8 or Windows Server 2008 R2, from context menus, select the Printer properties.

If Printer properties item has ▶ mark, you can select other printer drivers connected with selected printer.

e Click Port tab.

f Click Configure Port.. button.
g Check if Printer Name or IP Address: is the IP address on the network configuration Sheet.

3 Change the printer port's IP address if it is different from the network information report's.

If you want to use the software installation CD to change the port IP, connect to a network printer. Then reconnect the IP address.

- For a Static network environment

The machine uses the static address when the computer is configured to static address.

For example,

If the computer's network information is as shown below:

IP address: 169.254.133.42
- Subnet Mask: 255.255.0.0
Then the machine's network information should be as below:
IP address: 169.254.133.43
- Subnet Mask: 255.255.0.0 (Use the computer's subnet mask.)
- Gateway: 169.254.133.1

Wireless network setup(Optional)

Other problems

If problems occur while using the machine on a network, check the following:

For information on the access point (or wireless router), refer to its own user's guide.

• Your computer, access point (or wireless router), or machine may not be turned on.
• Check the wireless reception around the machine. If the router is far from the machine or there is an obstacle, you might have difficulty receiving the signal.
• Cycle the power for the access point (or wireless router), machine, and computer. Sometimes cycling the power can recover network communication.
• Check whether firewall software (V3 or Norton) is blocking the communication. If the computer and the machine are connected on the same network and it cannot be found when searching, firewall software might be blocking the communication. Refer to the user's guide for the software to turn it off and try searching for the machine again.
• Check whether the machine's IP address is allocated correctly. You can check the IP address by printing the network configuration report.

• Check whether the access point (or wireless router) has a configured security (password). If it has a password, refer to the access point (or wireless router) administrator.

• Check the machine's IP address. Reinstall the machine driver and change the settings to connect to the machine on the network. Due to the characteristics of DHCP, the allocated IP address could change if the machine is not used for a long time or if the access point has been reset.
  Register the product's MAC address when you configure the DHCP server on the access point (or wireless router). Then you can always use the IP address that is set with the MAC address. You can identify the Mac address of your machine by printing a network configuration report (see "Printing a network configuration report" on page 136).

• Check the wireless environment. You might not be able to connect to the network in the infrastructure environment where you need to type in a user's information before connecting to the access point (or wireless router).
• This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless communication types (e.g., Bluetooth) are not supported.
• The machine is within the range of the wireless network.
• The machine is located away from obstacles that could block the wireless signal. Remove any large metal objects between the access point (or wireless router) and the machine.

Make sure the machine and wireless access point (or wireless router) are not separated by poles, walls, or support columns containing metal or concrete.

• The machine is located away from other electronic devices that may interfere with the wireless signal.
  Many devices can interfere with the wireless signal, including a microwave oven and some Bluetooth devices.
• Whenever the configuration of your access point (or wireless router) changes, you must do the product's wireless network setup again.
• The maximum number of devices that can be connected via Wi-Fi Direct is 4.

Using the NFC feature (Optional)

If you want to add NFC feature to the machine, check the option lists and contact the purchasing point to order (see "Available accessories" on page 60). When you purchase a Wireless/NFC Kit (Wireless LAN Option), install the kit by following the steps described in the Wireless/NFC Kit (Wireless LAN Option) guide which is enclosed in the kit. After installing the Wireless Kit (Wireless LAN Option), set the machine to use this feature.

The NFC (Near Field Communication) printer allows you to directly print from your mobile device just by holding your mobile device over the NFC tag on Wireless/NFC Kit (Wireless LAN Option). It does not require installing print driver or connecting to an access point. You just need NFC supported mobile device. In order to use this feature, mobile apps needs to be installed on your mobile device. The default in your machine is NFC on.

• Depending on the material of the mobile device cover, NFC recognition may not work properly.
• Depending on the mobile device you are using, the transmission speed may differ.
• This feature is available only for the model with a NFC tag (see "Machine overview" on page 16).
• Using a cover or a battery other than the ones that came with the mobile device, or a metal cover/sticker can block NFC.
• If NFC devices keep failing to communicate,

- Remove the case or cover from the mobile device, then try again.

- Reinstall the battery from the mobile device, then try again.

Requirements

- NFC and Wi-Fi Direct enabled, supported mobile apps installed mobile device with Android OS 4.0 or higher.

Only Android OS 4.1 or higher will automatically enable the Wi-Fi Direct feature on your mobile device when you enable the NFC feature. We recommend you to upgrade your mobile device to Android OS 4.1 or higher to use the NFC feature.

• Wi-Fi Direct feature enabled printer (see "Setting up Wi-Fi Direct" on page 161).

Related Apps

There are some apps that can be used with the NFC feature. The apps can be downloaded from the Google Play Store.

• Samsung Mobile Print: Enables users to print, scan(Only users with multifunctional printers), or fax(Only users with multi-functional printers) photos, documents, and web pages directly from your smartphone or tablet (see "Using the Samsung Mobile Print App" on page 172).
• Samsung Mobile Print Pro: Helps users to get an authentication easily. This app provides one way of getting a user authentication using your mobile device (see "Using the Samsung Mobile Print Pro App" on page 167).
• Samsung Mobile Print Manager: Enables users to use cloning and wireless setup features using your mobile device (see "Using the Samsung Mobile Print Manager App" on page 169).

Using the NFC feature (Optional)

Using the Samsung Mobile Print Pro App

You can use it to get an authentication/registration from the Samsung Mobile Print Pro app.

Authentication from the mobile device

1 Open Samsung Mobile Print Pro app.

If you do not have Samsung Mobile Print Pro installed on your cellphone, go to the application store (Samsung Apps, Play Store) on your mobile device, and just search for download the app and try again.

2 Type in the ID and Password.

If necessary, type in the ID and Password to log in. If it's your first time logging into the printer, type in the below default ID and password. We recommend you to change the default password for security reasons.

• ID: admin

- Password: sec00000

3 Tag your mobile device (usually located on the back of the mobile device) over the NFC tag( NPD your printer. Wait few seconds for the mobile device to connect to the printer.

Illustration of a hand inserting a smartphone into a printer case (no text or symbols visible)

For some mobile devices, NFC tag might not be located at the back of the mobile device. Check the location of the NFC antenna on your mobile device before tagging.

Using the NFC feature (Optional)

Registration from the mobile device

1 Open Samsung Mobile Print Pro app.

If you do not have Samsung Mobile Print Pro installed on your cellphone, go to the application store (Samsung Apps, Play Store) on your mobile device, and just search for download the app and try again.

2 Press the icon on the Samsung Mobile Print Pro screen.
3 Select On from the Phone login set as default menu.
4 Mobile device ID appears on the Samsung Mobile Print Pro screen. Press Registration.
5 Type in the ID, Password, Domain and Passcode, then click OK.

Passcode is for when the administrator chooses Two-Factor Authentication method. You need to enter a passcode for authentication. Password and passcode should be different. You can select Two-Factor Authentication from the SyncThru™ Web Service, select Security > User Access Control > Authentication > Authentication Method > Options button > Login Method > Two-Factor Authentication.

6 Tag your mobile device (usually located on the back of the mobile device) over the NFC tag( ) your printer. Wait few seconds for the mobile device to connect to the printer.

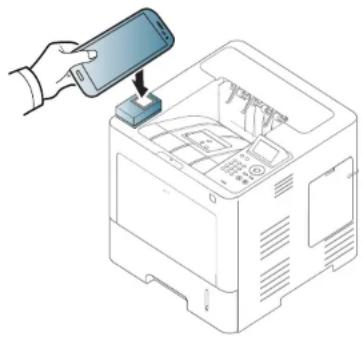

Illustration of a hand inserting a smartphone into a computer case (no text or symbols visible)

For some mobile devices, NFC tag might not be located at the back of the mobile device. Check the location of the NFC antenna on your mobile device before tagging.
7 Registration complete message appears on the printer's touch screen.

Using the NFC feature (Optional)

Using the Samsung Mobile Print Manager App

If you have more than one printer and need to set the same settings on each printer, you can easily do it using the Samsung Mobile Print Manager app. Touch your cellphone on the NFC tag on your printer to copy the settings and tap on the printer you want to set the setting.

Exporting(Copying the setting to your mobile device)

1 Check that NFC and Wi-Fi Direct features are enabled on your mobile device and Wi-Fi Direct feature is enabled on your printer (see "Setting the Wi-Fi Direct for mobile printing" on page 161).
2 Open Samsung Mobile Print Manager from your mobile device.

If you do not have Samsung Mobile Print Manager installed on your cellphone, go to the application store (Samsung Apps, Play Store) on your mobile device, and just search for download the app and try again.

3 Press Export.

4 Type in the ID and Password, then click OK.

If necessary, type in the ID and Password to log in. If it's your first time logging into the printer, type in the below default ID and password. We recommend you to change the default password for security reasons.

• ID: admin

- Password: sec00000

5 Tag your mobile device (usually located on the back of the mobile device) over the NFC tag(□) your printer. Wait few seconds for the mobile device to connect to the printer.

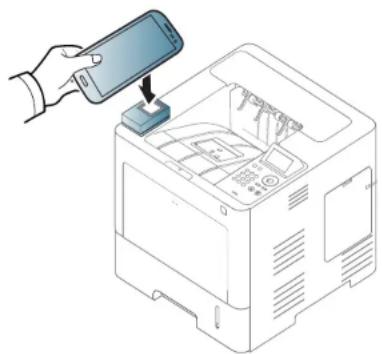

Illustration of a hand inserting a smartphone into a printer case (no text or symbols visible)

Using the NFC feature (Optional)

• For some mobile devices, NFC tag might not be located at the back of the mobile device. Check the location of the NFC tag on your mobile device before tagging.
  • While cloning, the machine is locked.

6 Select the settings you want to apply and press OK.

7 Follow the instruction on the mobile device's screen.

Importing (Applying the settings to the machine)

1 Check that NFC and Wi-Fi Direct features are enabled on your mobile device and Wi-Fi Direct feature is enabled on your printer (see "Setting the Wi-Fi Direct for mobile printing" on page 161).
2 Open Samsung Mobile Print Manager from your mobile device.

If you do not have Samsung Mobile Print Manager installed on your cellphone, go to the application store (Samsung Apps, Play Store) on your mobile device, and just search for download the app and try again.

3 Press Import.

4 Type in the ID and Password, then click OK.

If necessary, type in the ID and Password to log in. If it's your first time logging into the printer, type in the below default ID and password. We recommend you to change the default password for security reasons.

• ID: admin
- Password: sec00000

5 Select the settings you want to copy.
6 Follow the instruction on the mobile device's screen.
7 Tag your mobile device (usually located on the back of the mobile device) over the NFC tag(√) your printer.

Wait few seconds for the mobile device to connect to the printer.

Illustration of a hand inserting a small electronic device into a computer case (no text or symbols visible)

• For some mobile devices, NFC tag might not be located at the back of the mobile device. Check the location of the NFC antenna on your mobile device before tagging.
  • While cloning, the machine is locked.

Using the NFC feature (Optional)

Wireless Setup

You can copy wireless setting from your phone to your printer by touching your mobile device on the NFC tag on your printer.

Wi-Fi setting on your mobile device should be set before using this feature.

1 Open Samsung Mobile Print Manager from your mobile device.

If you do not have Samsung Mobile Print Manager installed on your cellphone, go to the application store (Samsung Apps, Play Store) on your mobile device, and just search for download the app and try again.

2 Mobile device Samsung Mobile Print Manager screen appears.

Press Wi-Fi Setup.

3 Type in the ID and Password, then click OK.

If necessary, type in the ID and Password to log in. If it's your first time logging into the printer, type in the below default ID and password. We recommend you to change the default password for security reasons.

• ID: admin

- Password: sec00000

4 If the access point (or wireless router) is connected to the connection confirmation window appears, then click OK. If the access point (or wireless router) not connection, select the desired access point (or wireless router) and click OK, then click OK.

5 Tag your mobile device (usually located on the back of the mobile device) over the NFC tag( ) your printer. Wait few seconds for the mobile device to connect to the printer.

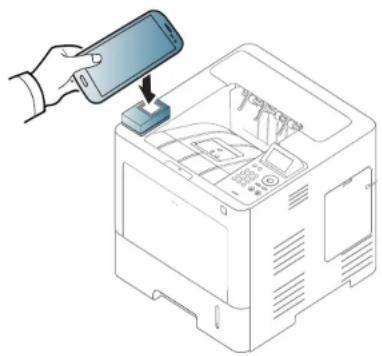

Illustration of a hand inserting a smartphone into a computer case (no text or symbols visible)

For some mobile devices, NFC tag might not be located at the back of the mobile device. Check the location of the NFC antenna on your mobile device before tagging.

6 Follow the instruction on the mobile device's screen.

Using the NFC feature (Optional)

Using the Samsung Mobile Print App

Samsung Mobile Print is a free application that enables users to print, scan(Only users with multi-functional printers), or fax(Only users with multifunctional printers) photos, documents, and web pages directly from your smartphone or tablet.

Printing

1 Check that NFC and Wi-Fi Direct features are enabled on your mobile device and Wi-Fi Direct feature is enabled on your printer.
2 Open Samsung Mobile Print app.

If you do not have Samsung Mobile Print installed on your cellphone, go to the application store (Samsung Apps, Play Store, App Store) on your mobile device, and just search for download the app and try again.

3 Select print mode.
4 Select the content you want to print.

If necessary, change the print option by pressing the icon.

5 Tag your mobile device (usually located on the back of the mobile device) over the NFC tag(□) your printer. Wait a few seconds for the mobile device to send a job to the printer.

Illustration of a hand inserting a smartphone into a computer case (no text or symbols visible)

For some mobile devices, NFC tag might not be located at the back of the mobile device. Check the location of the NFC antenna on your mobile device before tagging.

6 The printer starts printing.

Using the NFC feature (Optional)

Registering Google Cloud Printer

1 Check that NFC and Wi-Fi Direct features are enabled on your mobile device and Wi-Fi Direct feature is enabled on your printer (see "Setting the Wi-Fi Direct for mobile printing" on page 161).
2 Open Samsung Mobile Print app.

If you do not have Samsung Mobile Print installed on your cellphone, go to the application store (Samsung Apps, Play Store, App Store) on your mobile device, and just search for download the app and try again.

3 Select device status icon.
4 Select Google Cloud Print > Register Google Cloud Printer.
5 Tag your mobile device (usually located on the back of the mobile device) over the NFC tag( NPB your printer. Wait a few seconds for the mobile device to connect to the printer.

Illustration of a hand inserting a smartphone into a printer case (no text or symbols visible)

For some mobile devices, NFC tag might not be located at the back of the mobile device. Check the location of the NFC antenna on your mobile device before tagging.

Confirm your printer in pop-up window. Now your printer is registered with Google Cloud Print™ service.

Supported Mobile Apps

Available Apps

• Samsung Mobile Print: Samsung Mobile Print is a free application that enables users to print, scan(Only users with multi-functional printers), or fax(Only users with multi-functional printers) photos, documents, and web pages directly from your smartphone or tablet. Samsung Mobile Print is not only compatible with your Android and iOS smart phones but also with your iPod Touch and tablet PC. It connects your mobile device to a network connected Samsung printer or to a wireless printer through a Wi-Fi access point. Installing a new driver or configuring network settings isn't necessary – just simply install the Samsung Mobile Print application, and it will automatically detect compatible Samsung printers. Besides printing photos, web pages, and PDFs, scanning is also supported. If you have a Samsung multifunction, scan any document into a JPG, PDF, or PNG format for quick and easy viewing on your mobile device (see "Using the Samsung Mobile Print App" on page 172).
• Samsung Mobile Print Pro: Helps users to get an authentication easily. This app provides one way of getting a user authentication using your mobile device (see "Using the Samsung Mobile Print Pro App" on page 167).
• Samusng Mobile Print Manager: Enables users to use cloning and wireless setup features using your mobile device (see "Using the Samsung Mobile Print Manager App" on page 169, "Wireless Setup" on page 171).

Downloading Apps

To download apps, go to the application store (Play Store, App Store) on your mobile device, and just search for "Samsung Mobile Print /Samsung Mobile Print Pro/Samusng Mobile Print Manager." You can also visit iTunes for Apple devices on your computer.

• Samsung Mobile Print

• Android: Search for Samsung Mobile Print from Play Store, and then download the app.
• iOS: Search for Samsung Mobile Print from App Store, and then download the app.

• Samsung Mobile Print Pro/Samusng Mobile Print Manager

- Android: Search for Samsung Mobile Print Pro or Samusng Mobile Print Manager from Play Store, and then download the app.

Supported Mobile OS

• Samsung Mobile Print

• Android OS 2.3 or higher
• iOS 5.0 or higher

• Samsung Mobile Print Pro/Samusng Mobile Print Manager

- NFC and Wi-Fi Direct enabled, supported mobile apps installed mobile device with Android 4.0 or higher

AirPrint

Only AirPrint certified machines can use the AirPrint feature. Check the box your machine came in for the AirPrint certified mark.

AirPrint allows you to wirelessly print directly from iPhone, iPad and iPod touch running the latest version of iOS.

Setting up AirPrint

Bonjour(mDNS) and IPP protocols are required on your machine to use the AirPrint feature. You can enable the AirPrint feature by one of the following methods.

1 Check whether the machine is connected to the network.
2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine's new IP address in the browser window.

For example,

http://192.168.1.133/

3 Click Login in the upper right of the SyncThru™ Web Service website.

4 Type in the ID and Password, then click Login. Type in the below default ID and password. We recommend you to change the default password for security reasons.

• ID: admin
- Password: sec00000

5 When the SyncThru™ Web Service window opens, click Settings > Network Settings.
6 Click Raw TCP/IP, LPR, IPP or mDNS.

You can enable the IPP protocol or mDNS protocol.

AirPrint

Printing via AirPrint

For example, the iPad manual provides these instructions:

1 Open your email, photo, web page, or document you want to print.
2 Touch the action icon (
3 Select your printer driver name and option menu to set up.
4 Touch Print button. Print it out.

Cancelling print job: To cancel the printing job or view the print summary,

click the print center icon (in multitasking area. You can click cancel in the print center.

Samsung Cloud Print

Samsung Cloud Print is a free cloud service that allows you to print or scan from your smartphone or tablet to your Samsung printer or MFP. After installing the Samsung Cloud Print app, you can register with the Samsung Cloud Print service just using your mobile number for authentication. No other account login is required, although you can link the app to your Samsung Account if you wish.

If you press the (Button from Samsung Cloud Print app, Your mobile device and printer or MFP can be paired, QR code, or by manually entering its MAC address. Once paired, you can print or scan from anywhere and everywhere.

Registering your Printer to Samsung Cloud server.

Registering from Web Browser

• Make sure the printer machine is turned on and connected to a wired or wireless network that has access to the Internet.

1 Open Web browser.
2 Enter your printer's IP address in the address field and press the Enter key or click Go.

3 Click Login in the upper right corner of the SyncThru™ Web Service website.
4 If it's your first time logging into SyncThru™ Web Service you need to log-in as an administrator. Type in the below default ID and Password. We recommend you to change the default password for security reasons.
• ID: admin
- Password: sec00000
5 When the SyncThru™ Web Service window opens, click Settings > Network Settings > Samsung Cloud Print.
6 Enable Samsung Cloud Print Protocol.
7 Now your printer is registered with Samsung Cloud Print service.

Printing with Samsung Cloud Print

Make sure the printer is turned on and connected to a wired or wireless network that has access to the Internet.

Samsung Cloud Print

Registering a printer from an application on mobile device

The following steps are an example of using the Samsung Cloud Print app from Android mobile phone.

1 Open Samsung Cloud Print app.

If you do not have Samsung Cloud Print app installed on your cellphone, go to the application store (Samsung Apps, Play Store, App Store) on your mobile device, and just search for download the app and try again.

2 Press the ( ) button from Samsung Cloud Print app.

3 Your mobile device and printer or MFP can be paired NFC tapping, QR code or by manually entering its MAC address.

Printing from an application on mobile device

The following steps are an example of using the Samsung Cloud Print app from Android mobile phone.

1 Open Samsung Cloud Print app.

If you do not have Samsung Cloud Print app installed on your cellphone, go to the application store (Samsung Apps, Play Store, App Store) on your mobile device, and just search for download the app and try again.

2 Tap the option check button of the document that you want to print.

3 Set the printing options if you want.

4 Tap Send Job.

Google Cloud Print™

Google Cloud Print™ is a service that allows you to print to a printer using your smart phone, tablet, or any other web-connected devices. Just register your Google account with the printer, and you are ready to use the Google Cloud Print™ service. You can print your document or email with Chrome OS, Chrome browser, or a Gmail™/ Google Docs™ application on your mobile device, so you don't need to install the printer driver on the mobile device. Refer to the Google website (http://www.google.com/cloudprint/learn/ or http://support.google.com/cloudprint) for more information about Google Cloud Print™.

Registering your Google account to the printer

Registering from Samsung Mobile Print app

In order to use this feature, Samsung Mobile Print app needs to be installed on your cell phone.

1 Open Samsung Mobile Print app from your mobile device.
2 Select device setting.
3 Select Google Cloud Print.
4 Enter your printer's name and description.

If the network environment of your printer is using a proxy server, you need to configure

the proxy's IP and port number from Proxy Setting. Contact your network service provider or network administrator for more information.

5 Click Register.
6 You need to authenticate as an administrator. Type in the below default ID and Password.

• ID: admin

- Password: sec00000

7 Confirm your printer in pop-up window.

Now your printer is registered with Google Cloud Print™ service.

Registering from the Chrome Browser

• Make sure the printer machine is turned on and connected to a wired or wireless network that has access to the Internet.
  • You should create your Google account in the advance.

Google Cloud Print™

1 Open the Chrome browser.
Visit www.google.com.
3 Sign in to the Google website with your Gmail™ address.
4 Enter your printer's IP address in the address field and press the Enter key or click Go.
5 Click Login in the upper right corner of the SyncThru™ Web Service website.
6 If it's your first time logging into SyncThru™ Web Service you need to log-in as an administrator. Type in the below default ID and Password. We recommend you to change the default password for security reasons.

• ID: admin

- Password: sec00000

If the network environment is using a proxy server, you need to configure the proxy's IP and port number from Settings > Network Settings > Google Cloud Print > Proxy Setting. Contact your network service provider or network administrator for more information.

7 When the SyncThru™ Web Service window opens, click Settings > Network Settings > Google Cloud Print.
8 Enter your printer's name and description.

9 Click Register.

The confirmation pop-up window appears.

If you set the browser to block pop-ups, the confirmation window will not appear. Allow the site to show pop-ups.

10 Click Finish printer registration.
11 Click Manage your printers.

Now your printer is registered with Google Cloud Print™ service.

Google Cloud Print™-ready devices will appear in the list.

Google Cloud Print™

Registering your Google account to the printer

Registering from Samsung Mobile Print app

In order to use this feature, Samsung Mobile Print app needs to be installed on your cell phone.

1 Open Samsung Mobile Print app from your mobile device.
2 Select device setting.
3 Select Google Cloud Print.
4 Enter your printer's name and description.

If the network environment is using a proxy server, you need to configure the proxy's IP and port number from Proxy Setting. Contact your network service provider or network administrator for more information.

5 Click Register.

Confirm your printer in pop-up window.

6 Click Finish.

Now your printer is registered with Google Cloud Print™ service.

Registering from the Chrome Browser

• Make sure the printer machine is turned on and connected to a wired or wireless network that has access to the Internet.
  • You should create your Google account in the advance.

1 Open the Chrome browser.
2 Visit www.google.com.
3 Sign in to the Google website with your Gmail™ address.
4 Enter your printer's IP address in the address field and press the Enter key or click Go.
5 Click Login in the upper right corner of the SyncThru™ Web Service website.

Google Cloud Print™

6 If it's your first time logging into SyncThru™ Web Service you need to log-in as an administrator. Type in the below default ID and Password. We recommend you to change the default password for security reasons.

• ID: admin
- Password: sec00000

If the network environment is using a proxy server, you need to configure the proxy's IP and port number from Settings > Network Settings > Google Cloud Print > Proxy Setting. Contact your network service provider or network administrator for more information.

7 When the SyncThru™ Web Service window opens, click Settings > Network Settings > Google Cloud Print.
8 Enter your printer's name and description.
9 Click Register. The confirmation pop-up window appears.

If you set the browser to block pop-ups, the confirmation window will not appear. Allow the site to show pop-ups.

10 Click Finish printer registration.

11 Click Manage your printers.

Now your printer is registered with Google Cloud Print™ service.

Google Cloud Print™-ready devices will appear in the list.

Printing with Google Cloud Print™

The printing procedure varies depending on the application or the device you are using. You can see the application list that supports Google Cloud Print™ service.

Make sure the printer is turned on and connected to a wired or wireless network that has access to the Internet.

Printing from an application on mobile device

The following steps are an example of using the Google Docs™ app from Android mobile phone.

1 Install the Cloud Print application on your mobile device.

If you do not have the application, download it from the application store such as Android Market or App Store.

Google Cloud Print™

2 Access the Google Docs™ application from your mobile device.
3 Tap the option () button of the document that you want to print.
4 Tap the send () button.
5 Tap the Cloud Print ( ) button.
6 Set the printing options if you want.
7 Tap Click here to Print.

Google Cloud Print™

Printing from the Chrome browser

The following steps are an example of using the Chrome browser.

1 Run Chrome.
2 Open the document or email that you want to print.
3 Click the wrench () icon in the browser's top right corner.
4 Click Print. A new tab for printing appears.
5 Select Print with Google Cloud Print.
6 Click the Print button.

Purple circular icon with a white printer symbol (no text or numbers)

3. Useful Setting Menus

This chapter explains how to browse the current status of your machine, and the method of setting for advanced machine setup.

• Before you begin reading a chapter 186
• Information 187
- Layout 188
• Paper 189
- Graphic 190
- System Setup/ Setup 191
- Emulation 195
• Image Management 196
• Network 197
- Admin Setup 198
• Eco 199
• USB 200
• Job Management (Job Status)
- Counter
• Help

86 201 202 203

201

202

203

Before you begin reading a chapter

This chapter explains all the features available for this series' models to help users easily understand the features.

You can check the features available for each model in the Basic Guide (see "Menu overview" on page 26).

The following are tips for using this chapter

• The control panel provides access to various menus to set up the machine or use the machine's functions. These menus can be accessed by pressing Menu( :≡ ) or from the touch screen.
  • Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.
• For models that do not have the Menu( :≡) or the touch, this feature is not applicable (see "Control panel overview" on page 19).
  • Some menu names may differ from your machine depending on its options or the models.

Information

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

• Press Menu( :≡) > Information on the control panel.
• For the model with a touch screen, select (Information) on the touch screen.

Item Description
·Menu Map·Help List	Prints the menu map which shows the layout and current settings of this machine.
Configuration	Prints a report on the machine's overall configuration. If the configuration report includes a QR code, then you can scan the code with your smartphone or tablet to see information about the printer. You can also use the QR code to register the printer in Samsung Cloud Print (see "Samsung Cloud Print" on page 177).
Network Configuration	Prints a report on the machine's current network configuration.

Item Description
Demo Page	Prints the demo page to check whether your machine is printing properly or not.
Supplies Information	Prints supplies' information page.
Usage Counter	Prints a usage page. The usage page contains the total number of pages printed.
Account	Prints a report of printout counts for each user. This is only available when Job Accounting is enabled from the SyncThruTM Web Admin Service.
PCL Font Prints the PCL font list.
PS Font Prints the PS font list.

Layout

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

• Press Menu(☐) > Layout on the control panel.
• For the model with a touch screen, select (Setup) > Layout on the touch screen.

Item Description
Orientation	Selects the direction in which information is printed on a page.
	• Portrait
	• Landscape

Item Description
Margin	Common Margin: Sets the margin for each side of paper.MP Tray: Sets the paper margins in multi-purpose tray.: Sets the paper margins for the paper trays.Emulation Margin: Sets the paper margins for emulation print page.
Duplex	To print on both sides of the paper, choose the binding edge.Off: Disables this option.Long EdgeShort Edge

Paper

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

• Press Menu( [=]) > Paper on the control panel.
• For the model with a touch screen, select (Setup) > Paper on the touch screen.

Item Description
Copies Selects the number of copies.
MP Tray/ Tray[x]a	· Paper Size: Selects the default paper size.· Paper Type: Selects the paper type currently loaded in the tray.
Paper Source	Sets the default paper tray to use. Auto: Automatically locates the tray with the same sized paper as an original.
· Tray Confirm· Tray Confirmation	Activates the tray confirmation message. If you open and close a tray, a window asking you whether to set the paper size and type for the tray just opened appears.

Graphic

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

• Press Menu( :≡ ) > Graphic on the control panel.
• For the model with a touch screen, select (Setup) > Graphic on the touch screen.

Item Description
Resolution	Specifies the number of dots printed per inch (dpi). The higher the setting, the sharper printed characters and graphics.
Clear Text Prints text darker than on a normal document.
Auto CR	Allows you to append the required carriage return to each line feed, which is useful for Unix or DOS users.
Edge Enhancement	Allows user to enhance sharpness of text and graphics for improving readability.

System Setup/ Setup

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

• Press Menu(☐) > System Setup on the control panel.
• For the model with a touch screen, select (Setup) > System or Tray Behavior on the touch screen.

Item Description
Date & Time Sets the date and time.
Date Format Sets the date format.
Clock Mode	Selects the format for displaying time between 12 hours and 24 hours.
MSD Spooling	When enabled, this feature spools print jobs sent from the network on the mass storage device (Hard Disk) of the machine.
Language	Sets the language of the text that appears on the control panel display.
· Default Paper · Default Paper Size	You can set the default paper size to use.

Item Description
Power Save	Sets how long the machine waits before going to power save mode.When the machine does not receive data for an extended period of time, power consumption is automatically lowered.
Wakeup Event	When this option is On, you can wake up the machine from the power saving mode with the following actions:Loading paper in a tray.Opening or closing the front cover.Pulling a tray out or pushing a tray in.
Job Timeout	When there is no input for a certain period of time, the machine cancels the current job. You can set the amount of time the machine will wait before canceling the job.
Held Job Timeout	You can set the time to hold the temporarily stopped job.
Altitude Adjustment	Optimize print quality according to the machine's altitude ("Altitude adjustment" on page 205).
Humidity	Optimizes print quality according to the humidity in the environment.

System Setup/ Setup

Item Description
Job Rescheduling	When a job is paused due to a paper mismatch or paper empty error, theJob Reschedulingfeature switches from the paused job to the next job if the next job can be printed without any paper errors.
Auto Continue	Determine whether or not the machine continues printing when it detects the paper does not match the paper settings.0 Sec:This option allows you to continue printing when the paper size you have set is mismatched with the paper in the tray.30 Sec:If a paper mismatch occurs, an error message will display. The machine waits for about 30 second, then automatically clear the message and continue printing.Off:If a paper mismatch occurs, the machine waits until you insert the correct paper.
Auto Tray Switch	Determine whether or not the machine continues printing when it detects the paper does not match. For example, if both tray 1 and tray 2 are filled with the same size paper, the machine automatically prints from tray 2 after the tray 1 runs out of paper.[43A4] This option does not appear if you selectedAuto for Paper Sourcefrom printer driver.

Item Description
Paper Substitution	Automatically substitutes the printer driver's paper size to prevent the paper mismatch between Letter and A4. For example, if you have A4 paper in the tray but you set the paper size to Letter in the printer driver, the machine prints on A4 paper and vice versa.
Tray Protection	Decides to use or not use the Auto Tray Switch feature for a certain tray. If you set tray 1 to on, for example, then tray 1 is excluded during tray switching.
Tray Mode	·Dynamic:If you open and close the tray when a paper mismatch occurs, the paper settings (size and type) for that tray automatically change to the settings required for the job. (When you open and close the tray in the Dynamic mode, the machine presumes that the paper in the tray was replaced with the size and type required for the job.)·Static:The tray settings do not change when you open and close the tray.
Skip Blank Pages	The printer detects the printing data from computer whether a page is empty or not. You can set to print or skip the blank page.

System Setup/ Setup

Item Description
Maintenance	Supplies Life/Supplies Info.: Allows you to check how many pages are printed and how much toner is left in the cartridge.RAM Disk: Enables/disables RAM disk to manage jobs.Paper Low Alert: Allows you to set the alarm for when the paper is low.Toner Save: Activating this mode extends the life of your toner cartridge and reduces your cost per page beyond what one would experience in the normal mode, but it reduces print quality.Image Management: This menu allows you to adjust contrast.
Image Overwrite	You can set the machine to overwrite data stored in the memory. The machine overwrites the data with different patterns eliminating the possibilities of recovery.
Toner Save	Activating this mode extends the life of your toner cartridge and reduces your cost per page beyond what one would experience in the normal mode, but it reduces print quality.
Quiet Mode	You can reduce the printing noise by turning this menu on. However, the printing speed and quality may be declined.

Item Description
Eco Settings	Allows you to save print resources and enables eco-friendly printing (see "Eco printing" on page 51).Default Mode:Select whether to turn the Eco mode on or off.On Force:Sets the Eco mode on. If a user wants to turn the Eco mode off, the user needs to enter the password.Select Template:Selects the eco template set from the SyncThruTM Web Service.

System Setup/ Setup

Item Description
Auto Power Off	Turns power off automatically when the machine has been in power save mode for the length of time set in Auto Power Off > On > Timeout.
	To turn the machine on again, press the (Power/Wakeup) button on the control panel (make sure the main power switch is on).If you run the printer driver or Samsung Easy Printer Manager, the time automatically extends.While the machine is connected to the network or working on a print job, Auto Power Off feature doesn't work.
Filing Policy	If the memory already has the same name when you entered a new file name, you can rename or overwrite it.

Emulation

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

• Press Menu( :≡ ) > Emulation on the control panel.
• For the model with a touch screen, select (Setup) > Emulation on the touch screen.

Item Description
Emulation Type	The machine language defines how the computer communicates with the machine.
Setup Sets the detailed settings for the selected emulation type.

Image Management

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

• Press Menu(☐) > Image Management on the control panel.
• For the model with a touch screen, select (Setup) > System > Maintenance > Image Management on the touch screen.

Item Description
Custom Color	This menu allows you to adjust contrast, color by color.Default:Optimizes colors automatically.Print Density:Allows you to manually adjust color density for print. Adjust the print density.It is recommended to use the Default setting for best color quality.

Network

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

• Press Menu(□) > Network on the control panel.
• For the model with a touch screen, select (Setup) > Network on the touch screen.

You can also use this feature from the SyncThru™ Web Service. Open the Web browser from your networked computer and type the IP address of your machine. When SyncThru™ Web Service opens, click Settings > Network Settings (see "Using SyncThru™ Web Service" on page 232).

Option Description
TCP/IP (IPv4)	Selects the appropriate protocol and configure parameters to use the network environment (see "Setting IP address" on page 136).
	[0H00] There are lots of parameters to be set. If you are not sure, leave as is, or consult the network administrator.

Option Description
TCP/IP (IPv6)	Selects this option to use the network environment through IPv6 (see "IPv6 configuration" on page 147).
Ethernet	Configure the ethernet port and network transmission speed.
	[SHWV9] Turn the power off and on after you change this option.
802.1x	You can select the user authentication for network communication. For detailed information consult the network administrator.
Wi-Fi	Select this option to use the wireless network (see "Wireless network setup(Optional)" on page 150).
Protocol Management	You can activate or deactivate the protocols.
	[CKX74] Turn the power off and on after you change this option.
Network Configuration	This list shows information on your machine's network connection and configuration (see "Printing a network configuration report" on page 136).
Clear Setting	Reverts the network settings to the default values.
	[CKK0] Turn the power off and on.

Admin Setup

• Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).
• You need to enter a password to enter this menu. The default password is sec00000.

To change the menu options:

• Press Menu( ::= ) > Admin Setup on the control panel.
• For the model with a touch screen, select (Setup) > Admin Setup on the touch screen.

Item Description
User Access Control	You can control user access to a machine.• Authentication: Select the authentication mode.
	[2W/C8] You can also use this feature from the SyncThruTM Web Service. Open the Web browser from your networked computer and type the IP address of your machine. When SyncThruTM Web Service opens, click the Security tab > User Access Control.

Item Description
Stamp	You can apply the stamp feature.· Stamp Activate: You can activate stamp feature.· Item: You can select the items to print on the printout such as time, date, and etc.· Text Size: You can select the text size such as small, normal, large.· Opacity: You can select the stamp transparency.· Position: Sets the stamp position.
Change Admin Password	Changes the machine's password for accessing the Admin Setup.
Firmware Upgrade	To upgrade the latest firmware, turn this option "On" and then download the firmware file.
Application	You can install or uninstall applications.· Application Management: You can uninstall or enable/disable installed applications.· Install New Application: You can install a new application from a USB.
Secure Print You can set the login method of secure print.
Supplies Management	· Toner Low Alert: If toner in the cartridge has run out, a message informing the user to change the toner cartridge appears. You can set the option for this message to appear or not.· Imaging Unit Low Alert: Allows you to set the alarm for when the imaging unit is low.
Import Setting	Imports data stored on a USB memory stick to the machine (see "Backing up data" on page 54).
Export Setting	Exports data stored on the machine stick to a USB memory (see "Restoring data" on page 55).

Eco

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

• For the model with a touch screen, select (Eco) on the touch screen.

Item Description
Eco-On/Eco-Off View	current eco mode and change on/off option.
Settings	Sets eco-related settings and change default settings.Default Mode: Select this to turn on or off the default mode.Feature Configuration: Select the Default mode or Custom mode. If you select the Custom mode, you can set the settings to apply for the Eco mode.

USB

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

- For the model with a touch screen, select 📋 (USB) > on the touch screen.

Item Description

Print From Select a file to print.

File Manage Select a file to delete. You can format the USB device.

Show Space Shows the remaining space.

Job Management (Job Status)

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

- For the model with a touch screen, select (Job Status) > on the touch screen.

Item Description
Current Job Displays the list of jobs in progress and pending.
Secure Job Displays the list of jobs that are secured on the disk
Stored Job Displays the list of jobs that are stored on the disk.
Complete Job^a	Displays the list of completed jobs.

a. This option is available only on the touch screen.

Counter

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

- For the model with a touch screen, select 📄 (Counter) > on the touch screen.

Item Description

Total Printed Displays the number of pages printed.

Help

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 26).

To change the menu options:

- For the model with a touch screen, select (Help) > on the touch screen.

Item Description
Basic Taskflow Displays basic method to start your job.
Troubleshooting Displays troubleshooting information.
QR Code	You can scan the QR code on the screen with your smartphone or tablet to see information about the printer.You can also use the QR code to register the printer in Samsung Cloud Print (see "Samsung Cloud Print" on page 177).

Purple circular icon with a white printer symbol (no text or numbers)

4. Special Features

This chapter explains special printing features.

• Altitude adjustment 205
- Entering various characters 206
- Printing features 208
• Using Direct Printing Utility 219
• Mac printing 221
• Linux printing 223
- Unix printing 225

The procedures in this chapter are mainly based on Windows 7.

Altitude adjustment

Print quality is affected by atmospheric pressure, which is determined by the height of the machine above sea level. The following information will guide you on how to set your machine for the best print quality.

You can choose the altitude of the place where your machine is located. The print quality is affected by atmospheric pressure, which is determined by the height of the machine above sea level. Therefore, it is important to set the right altitude.

• Normal: 0-1,000 m(3,280 ft)
• High1: 1,000 m(3,280 ft)-2,000 m(6,561 ft)
• High2: 2,000 m(6,561 ft)-3,000m(9,842 ft)
• High3: 3,000 m(9,842 ft)-4,000 m(13,123 ft)
• High4: 4,000 m(13,123 ft)-5,000 m(16,404 ft)

You can set the altitude value from Samsung Easy Printer Manager program or SyncThru™ Web Service.

For Windows and Mac users:

• If you machine is connected to the local, you can set the altitude value from
Samsung Easy Printer Manager > 📋 (Switch to advanced mode) > Device Settings (see "Device Settings" on page 238).

- If your machine is connected to the network, you can set the altitude value from SyncThru™ Web Service > Settings tab > Machine Settings (see "Using SyncThru™ Web Service" on page 232).

You can also set the altitude in System Setup or System option on the machine's display (see "System Setup/ Setup" on page 191).

Entering various characters

As you perform various tasks, you may need to enter names and numbers.

Keypad letters and numbers

• M453xND series only.
- Special character sets may differ from your machine depending on its options or the models.
• Some of the follow key values may not appear depending on the job you are doing.

Key Assigned numbers, letters, or characters

1	@	/	.	'1
2	A	B	C	a	b	c	2
3	D	E	F	d	e	f	3
4G	H	l	ghi4
5	J	K	L	j	k	l	5
6M	N	O	mno6
7	P	Q	R	S	p	q	r	s	7
8TU	V	tuv8
9	W	X	Y	Z	w	x	y	z	9

Key Assigned numbers, letters, or characters
0	& + - , 0
**%	^ _ ~ ! # $ ( ) [(These symbols are available when you type for network authentication.)
# # =	| ? " : { } < > ;(These symbols are available when you type for network authentication.)

Understanding the pop-up keyboard

• M453xNX series only.
• This feature is only available for models with a touch screen.
• Some of the following keys may not appear depending on the job you are doing.

You can enter alphabet characters, numbers, diacritical marks, or special symbols using the keyboard on the home screen. This keyboard is specially arranged like a normal keyboard for better usability to the user.

Entering various characters

Touch the input area where you need to enter alphabet characters, numbers, diacritical marks, or special symbols and the keyboard pops up on the screen.

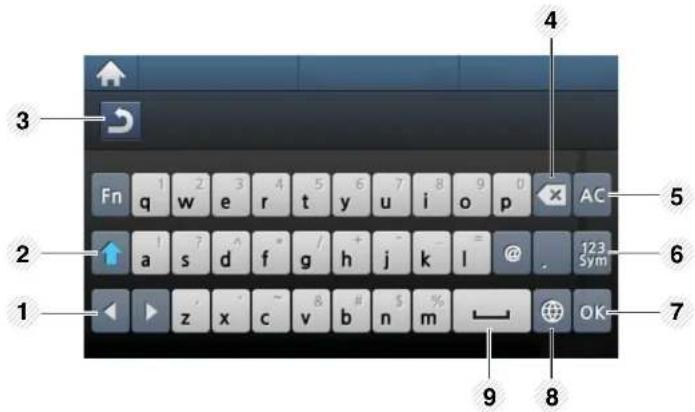

3 Fn q w e r t y u i o p AC 5 2 a s d f g h j k l @ 123 Sym 1 z x c v b n m % OK 7 9 8

No.	Key Description
1		Moves the cursor between characters in the input area.
2		Toggles between lowercase keys and uppercase keys.
3		Returns to the upper menu.
4		Deletes character in the input area.

No.	Key Description
5		Deletes all characters in the input area.
6		Switches from the alphanumeric keyboard to the numbers or special symbols keyboard.
7		Saves and closes input result.
8		Switches diacritical characters.
9		Enters a blank between characters. Also, you can insert a pause.

Printing features

• For basic printing features, refer to the Basic Guide (see "Basic printing" on page 48).
• This feature may not be available depending on model or optional accessories added to the device (see "Features by model" on page 7).

Changing the default print settings

1 Click the Windows Start menu.

• For Windows 8, from the Charms, select Search > Settings.

2 For Windows XP/Server 2003, select Printer and Faxes.

• For Windows Server 2008/Vista, select Control Panel > Hardware and Sound > Printers.
  • For Windows 7/8, select Control Panel > Devices and Printers.
• For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers.

3 Right-click on your machine.

4 For Windows XP/Server 2003/Server 2008/Vista, select Printing Preferences.

For Windows 7/8 or Windows Server 2008 R2, from context menus, select Printing preferences.

If Printing preferences has a ▶, you can select other printer drivers connected to the selected printer.

5

Change the settings on each tab.

6

Click OK.

If you want to change the settings for each print job, change it in Printing Preferences.

Setting your machine as a default machine

1 Click the Windows Start menu.

• For Windows 8, from the Charms, select Search > Settings.

2 For Windows XP/Server 2003, select Printer and Faxes.

• For Windows Server 2008/Vista, select Control Panel > Hardware and Sound > Printers.
  • For Windows 7/8, select Control Panel > Devices and Printers.
• For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers.

Printing features

3 Select your machine.

4 Right-click your machine and select Set as Default Printer.

For Windows 7 or Windows Server 2008 R2, if Set as default printer has a ▶, you can select other printer drivers connected to the selected printer.

Using advanced print features

XPS printer driver: used to print XPS file format.

• See "Features by model" on page 7.
• The XPS printer driver can be installed only on Windows Vista OS or higher.
• Install optional memory when an XPS job does not print because the printer is out of memory.
- For models that provide XPS driver from the Samsung website, http://www.samsung.com > find your product > Support or downloads.

Printing to a file (PRN)

You will sometimes need to save the print data as a file.

1 Check the Print to file box in the Print window.

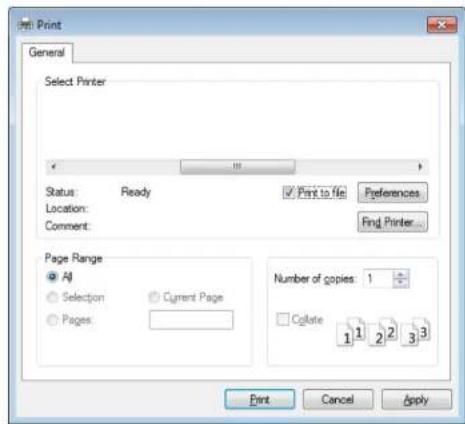

Print General Select Printer Status: Ready Location: Comment: Page Range All Selection: Current Page Pages: Number of copies 1 Cgrate 1 1 2 2 3 3 Print Cancel Apply

2 Click Print.
3 Type in the destination path and the file name, and then click OK. For example, c:\Temp\file name.

If you type in only the file name, the file is automatically saved in My Documents, Documents and Settings, or Users. The saved folder may differ, depending on your operating system or the application you are using.

Printing features

Understanding special printer features

You can use advanced printing features when using your machine.

To take advantage of the printer features provided by your printer driver, click Properties or Preferences in the application's Print window to change the print settings. The machine name, which appears in the printer properties window, may differ depending on the machine in use.

• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.
- Select the Help menu or click the button from the window or press F1 on your keyboard and click on any option you want to know about (see "Using help" on page 50).

Item Description
Multiple Pages per Side	Selects the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages will be reduced in size and arranged in the order you specify. You can print up to 16 pages on one sheet.
Poster Printing	Prints a single-page document onto 4 (Poster 2x2), 9 (Poster 3x3), or 16 (Poster 4x4) sheets of paper, for the purpose of pasting the sheets together to form one poster-size document.Select the Poster Overlap value. Specify Poster Overlap in millimeters or inches by selecting the radio button on the upper right of Basic tab to make it easier to paste the sheets together.[IMAGE]

Printing features

Item Description
Booklet Printing ^a	Prints your document on both sides of a sheet of paper and arranges the pages so that the paper can be folded in half after printing to produce a booklet.
	If you want to make a booklet, you need to print on Letter, Legal, A4, US Folio, or Oficio sized print media.The Booklet Printing option is not available for all paper sizes. Select the available paper Size option under the Paper tab to see what paper sizes are available.If you select an unavailable paper size, this option can be automatically canceled. Select only available paper (paper without or mark).

Printing features

Item Description
Double-sided Printing	Print on both sides of a sheet of paper (duplex). Before printing, decide how you want your document oriented.
	[YOAH]You can use this feature with Letter, Legal, A4, US Folio or Oficio sized paperIf your machine does not have a duplex unit, you should complete the printing job manually. The machine prints every other page of the document first. After that, a message appears on your computer.Skip Blank Pagesfeature does not work when you select the duplex option.We recommend not to print on both sides of the special media, such as labels, envelopes, or thick paper. It may cause a paper jam or damage the machine.
	Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.
	Printer Default:If you select this option, this feature is determined by the settings you have selected on the control panel of the machine.None:Disables this feature.Long Edge:This option is the conventional layout used in bookbinding.Short Edge:This option is the conventional layout used in calendars.Reverse Double-Sided Printing:Check this option to reverse the print order when duplex printing.

Printing features

Item Description
Paper Options	Changes the size of a document to appear larger or smaller on the printed page by entering in a percentage by which to enlarge or decrease the document.
Watermark	The watermark option allows you to print text over an existing document. For example, you use it when you want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all pages of a document.[AGXX]Header:You can add the selected text to the top left, top center, or top right.Footer:You can add the selected text to the bottom left, bottom center, or bottom right.
Watermark(Creating a watermark)	a To change the print settings from your software application, access Printing Preferences (see "Opening printing preferences" on page 49).b From the Advanced tab, select Edit... from the Watermark drop-down list.c Enter a text message in the Watermark Message box. You can enter up to 256 characters.When the First Page Only box is checked, the watermark prints on the first page only.d Select watermark options.You can select the font name, style, size, and shade from the Font Attributes section, as well as set the angle of the watermark from the Watermark Alignment and Angle section.e Click Add to add a new watermark to the Current Watermarks list.f When you finish editing, click OK or Print until you exit the Print window.

Printing features

Item Description
Watermark(Editing a watermark)	a To change the print settings from your software application, access Printing Preferences (see "Opening printing preferences" on page 49).b Click the Advanced tab, select Edit... from the Watermark drop-down list.c Select the watermark you want to edit from the Current Watermarks list and change the watermark message and options.d Click Update to save the changes.e Click OK or Print until you exit the Print window.
Watermark(Deleting a watermark)	a To change the print settings from your software application, access Printing Preferences.b Click the Advanced tab, select Edit... from the Watermark drop-down list.c Select the watermark you want to delete from the Current Watermarks list and click Delete.d Click OK or Print until you exit the Print window.
Overlaya[XXXG]	This option is available only when you use the PCL/SPL printer driver (see "Software" on page 7).An overlay is text and/or images stored in the computer hard disk drive (HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing exactly the same information that is currently on your letterhead. To print a letter with your company's letterhead, you do not need to load preprinted letterhead paper in the machine: just print the letterhead overlay on your document.To use a page overlay, you must create a new page overlay containing your logo or image.[TKSH] The overlay document size must be the same as the document you print with the overlay. Do not create an overlay with a watermark.The resolution of the overlay document must be the same as that of the document you will print with the overlay.

Printing features

Item Description
Overlay^a (Creating a new page overlay)	a Create or open a document containing text or an image for use in a new page overlay. Position the items exactly as you wish them to appear when printed as an overlay.b To save the document as an overlay, access Printing Preferences.c Click the Advanced tab, and select Create from the Overlay drop-down list.d In the Save As window, type a name up to eight characters in the File name box. Select the destination path, if necessary (The default is C:\Formover).e Click Save.f Click OK or Print until you exit the Print window.When a confirming message window appears, click Yes.g The file is not printed. Instead, it is stored on your computer hard disk drive.
Overlay^a (Using a page overlay)	a Create or open the document you want to print.b To change the print settings from your software application, access Printing Preferences.c Click the Advanced tab.d Select the Print Overlay from the Overlay drop-down list.e If the overlay file you want does not appear in the Overlay File 1 or Overlay File 2 drop-down list, select Load from the Overlay List. Select the overlay file you want to use.If you have stored the overlay file you want to use in an external source, you can also load the file when you access the Load window. After you select the file, click Open. The file appears in the Overlay List box and is available for printing. Select the overlay from the Overlay List box.f If necessary, check Confirm Page Overlay When Printing box. If this box is checked, a message window appears each time you submit a document for printing, asking you to confirm your wish to print an overlay on your document.If this box is not checked and an overlay has been selected, the overlay automatically prints with your document.g Click OK or Print until you exit the Print window.The selected overlay prints on your document.

Printing features

Item Description
Overlay^a (Deleting a page overlay)	a In the Printing Preferences window, click the Advanced tab.b Select Edit in the Text drop down list.c Select the overlay you want to delete from the Overlay List box.d Click Delete.e When a confirming message window appears, click Yes.f Click OK or Print until you exit the Print window. You can delete page overlays that you no longer use.

Printing features

Item Description
Print Mode	This feature is available only if you have installed the optional memory or mass storage device (Hard Disk) (see "Variety feature" on page 8).Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.To enable this feature, checkStorage Options(see "Setting Device Options" on page 70).Without installing the mass storage device (Hard Disk) in the machine, the Ram Disk feature provides only 3 options:Normal, Proof, andConfidential.The defaultPrint Modeis Normal, which is for printing without saving the printing file in the memory.Normal:This mode prints without storing your document in the optional memory.Proof:This mode is useful when you print more than one copy. You can print one copy first to check, then print the rest of the copies later.Confidential:This mode is used for printing confidential documents. You need to enter a password to print.Store:Select this setting to save a document in the mass storage device (Hard Disk) without printing.Store and Print:This mode is used when printing and storing document at the same time.Spool:This option can be useful when handling large amounts of data. If you select this setting, the printer spools the document into the mass storage device (Hard Disk) and then prints it from the mass storage device (Hard Disk) queue, decreasing the computer's work load.Print Schedule:Select this setting to print the document at a specified time.
	Job Name:This option is used when you need to find a stored file using the control panel.User ID:This option is used when you need to find a stored file using the control panel. The user name automatically appears as the user name that you use to log on Windows.Enter Password:If the Propertyof the document you selected is secured, you have to enter the password for the document. This option is used for loading a stored file using the control panel.Confirm Password:Re-enter the password to confirm it.

Printing features

Item Description

Job Accounting

This option allows you to print with the given permission.User permission:If you check this option, only users with user permission can start a print job.Group permission:If you check this option, only groups with group permission can start a print job.[7020]Click the question mark(?) from the upper-right corner of the window and click on any option you want to know about.Administrators can enable job accounting and configure permissions in the control panel or SyncThruTM Web Admin Service.

a. This option is not available when you use XPS driver.

Using Direct Printing Utility

- Direct Printing Utility may not be available depending on model or optional accessories added to the device (see "Software" on page 7).

• Available for Windows OS users only.

What is Direct Printing Utility?

Direct Printing Utility is a program that sends the PDF files directly to your machine to print without having to opening the file.

To install this program:

Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).

- Optional memory or mass storage device (Hard Disk) should be installed on your machine, to print files using this program (see "Variety feature" on page 8).

- You cannot print PDF files that are restricted. Deactivate the printing restriction feature and retry printing.

- You cannot print PDF files that are restricted by a password. Deactivate the password feature, and retry printing.

- Whether or not a PDF file can be printed using the Direct Printing Utility program depends on how the PDF file was created.

- The Direct Printing Utility program supports PDF version 1.7 and below. For higher versions, you must open the file to print it.

Printing

There are several ways you can print using the Direct Printing Utility.

1 From the Start menu select Programs or All Programs > Samsung Printers > Direct Printing Utility > Direct Printing Utility. The Direct Printing Utility window appears.

2 Select your machine from the Select Printer drop-down list and click Browse.

3 Select the file you wish to print and click Open. The file is added in the Select Files section.

4 Customize the machine settings for your needs.

5 Click Print. The selected PDF file is sent to the machine.

Using Direct Printing Utility

Using the right-click menu

1 Right-click on the PDF file to print and select Direct Printing.
The Direct Printing Utility window appears with the PDF file is added.
2 Select the machine to use.
3 Customize the machine settings.
4 Click Print. The selected PDF file is sent to the machine.

Mac printing

Some features may not be available depending on models or options. It means that the features are not supported.

Printing a document

When you print with a Mac, you need to check the printer driver settings in each application you use. Follow the steps below to print from a Mac:

1 Open the document to print.
2 Open the File menu and click Page Setup (Document Setup in some applications).
3 Choose your paper size, orientation, scaling, other options, and make sure that your machine is selected. Click OK.
4 Open the File menu and click Print.
5 Choose the number of copies and indicate which pages to print.
6 Click Print.

Changing printer settings

You can use advanced printing features when using your machine.

Open an application and select Print from the File menu. The machine name, which appears in the printer properties window, may differ depending on the machine in use. Except for the name, the composition of the printer properties window is similar to the following.

Printing multiple pages on one sheet

You can print more than one page on a single sheet of paper. This feature provides a cost-effective way to print draft copies.

1 Open an application, and select Print from the File menu.
2 Select Layout from the drop-down list under Orientation. In the Pages per Sheet drop-down list, select the number of pages you want to print on one sheet of paper.
3 Select the other options to use.
4 Click Print.
The machine prints the selected number of pages to print on one sheet of paper.

Mac printing

Printing on both sides of the paper

Some features may not be available depending on models or options. It means that the features are not supported (see "Variety feature" on page 8).

Before printing in the duplex mode, decide on which edge you will be binding your finished document. The binding options are, as follows:

• Long-Edge Binding: This option is the conventional layout used in book binding.
• Short-Edge Binding: This option is the type often used with calendars.

1 From your Mac application, select Print from the File menu.
2 Select Layout from the drop-down list under Orientation.
3 Select a binding orientation from the Two-Sided option.
4 Select the other options to use.
5 Click Print and the machine prints on both sides of the paper.

If you print more than 2 copies, the first copy and the second copy might print on the same sheet of paper. Avoid printing on both sides of paper when you are printing more than 1 copy.

Using help

Click the question mark on the bottom-left corner of the window and click on the topic you want to know about. A pop-up window appears with information about that option's feature, which is provided from the driver.

Printer: 10.88.181.192 Prints: Standard Copies: 1 Colated Two-Sided Pages: All From: 1 to 1 Paper Size: A4 10.39 in 25.70 cm Orientation: Layout Pages per Sheet: 1 Layout Direction: Z S U N Border: None Two-Sided: Off Reverse Page Orientation PDF Supplies Low Cancel Print

Linux printing

Some features may not be available depending on models or options. It means that the features are not supported.

Printing from applications

There are a lot of Linux applications that allow you to print using Common UNIX Printing System (CUPS). You can print on your machine from any such application.

1 Open the document to print.
2 Open the File menu and click Page Setup (Print Setup in some applications).
3 Choose your paper size, orientation, and make sure that your machine is selected. Click Apply.
4 Open the File menu and click Print.
5 Select your machine to print.
6 Choose the number of copies and indicate which pages to print.
7 Change other printing options in each tab, if necessary.
8 Click Print.

Automatic/manual duplex printing may not be available depending on models. You can alternatively use the lp or lpr printing system or other applications for odd-even printing.

Printing files

You can print text, image, pdf files on your machine using the standard CUPS, directly from the command line interface. The CUPS lp or lpr utility allows you to do that. You can print these files by using below command format.

"lp -d -o "

Please refer to Ip or lpr man page on your system for more details.

Linux printing

Configuring Printer Properties

You can change the default printing options or connection type with Printing utility supplied by o/s.

1 Launch Printing utility(Go to System > Administration > Printing menu or execute "system-config-printer" command in Terminal program).
2 Select your printer and double-click it.
3 Change default printing options or connection type.
4 Click Apply button.

Unix printing

Some features may not be available depending on models or options. It means that the features are not supported (see "Variety feature" on page 8).

Proceeding the print job

After installing the printer, choose any of the image, text, or PS files to print.

1 Execute "printui " command.

For example, if you are printing "document1"

printui document1

This will open the UNIX Printer Driver Print Job Manager in which the user can select various print options.

2 Select a printer that has been already added.
3 Select the printing options from the window such as Page Selection.
4 Select how many copies are needed in Number of Copies.

To take advantage of the printer features provided by your printer driver, press Properties.

5 Press OK to start the print job.

Changing the machine settings

The UNIX printer driver Print Job Manager in which the user can select various print options in printer Properties.

The following hot keys may also be used: "H" for Help, "O" for OK, "A" for Apply, and "C" for Cancel.

General tab

• Paper Size: Set the paper size as A4, Letter, or other paper sizes, according to your requirements.
• Paper Type: Choose the type of the paper. Options available in the list box are Printer Default, Plain, and Thick.
• Paper Source: Select from which tray the paper is used. By default, it is Auto Selection.
  • Orientation: Select the direction in which information is printed on a page.
  • Duplex: Print on both sides of paper to save paper.

Automatic/manual duplex printing may not be available depending on models. You can alternatively use the lpr printing system or other applications for odd-even printing.

• Multiple pages: Print several pages on one side of the paper.

Unix printing

- Page Border: Choose any of the border styles (e.g., Single-line hairline, Double-line hairline)

Image tab

In this tab, you can change the brightness, resolution, or image position of your document.

Text tab

Set the character margin, line space, or the columns of the actual print output.

Margins tab

• Use Margins: Set the margins for the document. By default, margins are not enabled. The user can change the margin settings by changing the values in the respective fields. Set by default, these values depend on the page size selected.
  • Unit: Change the units to points, inches, or centimeters.

Printer-Specific Settings tab

Select various options in the JCL and General frames to customize various settings. These options are specific to the printer and depend on the PPD file.

Purple circular icon with a white printer symbol (no text or numbers)

5. Useful Management Tools

This chapter introduces management tools provided to help you make full use of your machine.

• Accessing management tools 228
  • Easy Capture Manager 229
  • Samsung AnyWeb Print 230
• Easy Eco Driver 231
  • Using SyncThru™ Web Service 232
  • Using Samsung Easy Printer Manager 236
  • Using Samsung Printer Status 239
  • Using Samsung Printer Experience 241

Accessing management tools

Samsung provides a variety of management tools for Samsung printers.

1 Make sure that the machine is connected to your computer and powered on.
2 From the Start menu, select Programs or All Programs.

• For Windows 8, from Charms, select Search > Apps.

3 Find Samsung Printers.
4 Under Samsung Printers, you can see installed management tools.
5 Click the management tool you want to use.

• After installing the driver, for some management tools, you can access them directly from the Start screen by clicking on the corresponding tile.
• For Windows 8, after installing the driver, for some management tools, you can access them directly from the Start screen by clicking on the corresponding tile.

Easy Capture Manager

• This feature may not be available depending on model or optional accessories added to the device (see "Software" on page 7).
  • Available for Windows OS users only (see "Software" on page 7).

To capture your screen and launch Easy Capture Manager simultaneously simply press the Print Screen key on the keyboard. Now you can easily print your captured screen as captured or edited.

Samsung AnyWeb Print

• This feature may not be available depending on model or optional accessories added to the device (see "Software" on page 7).
  • Available for Windows and Mac OS users only (see "Software" on page 7).

This tool helps you screen-capture, preview, scrap, and print Windows Internet Explorer pages more easily, than when you use an ordinary program.

Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).

Easy Eco Driver

Available for Windows OS users only (see "Software" on page 7).

With the Easy Eco Driver, you can apply Eco features to save paper and toner before printing.

Easy Eco Driver also allows you simple editing such as removing images and texts, and more. You can save frequently used settings as a preset.

How to use:

1 Open a document to print.
2 Open printing preference window (see "Opening printing preferences" on page 49).
3 From the Favorites tab, select Eco Printing Preview.
4 Click OK > Print in the window. A preview window appears.
5 Select the options you want to apply to the document.
You can see the preview of the applied features.

6 Click Print.

If you want to run Easy Eco Driver every time you print, check Start Easy Eco Driver before printing job checkbox in the Basic tab of the printing preference window.

Using SyncThru™ Web Service

• Internet Explorer 6.0 or higher is the minimum requirement for SyncThru™ Web Service.
• SyncThru™ Web Service explanation in this user's guide may differ from your machine depending on its options or models.
  • Network model only (see "Software" on page 7).

Accessing SyncThru™ Web Service

1 Access a web browser, such as Internet Explorer, from Windows.

Enter the machine IP address of your printer (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.

2 Your machine's embedded website opens.

Logging into SyncThru™ Web Service

Before configuring options in SyncThru™ Web Service, you need to log-in as an administrator. You can still use SyncThru™ Web Service without logging in but you won't have access to Settings tab and Security tab.

1 Click Login on the upper right of the SyncThru™ Web Service website.
2 Type in the ID and Password then click Login. Type in the below default ID and password. We recommend you to change the default password for security reasons.

• ID: admin

- Password: sec00000

SyncThru™ Web Service overview

Information

Settings

Security

Maintenance

Some tabs may not appear depending on your model.

Using SyncThru™ Web Service

Information tab

This tab gives you general information about your machine. You can check things, such as remaining amount of toner. You can also print reports, such as an error report.

• Active Alerts: Shows the alerts that have occurred in the machine and their severity.
- Supplies: Shows how many pages are printed and amount of toner left in the cartridge.
- Usage Counters: Shows the usage count by print types: simplex and duplex.
- Current Settings: Shows the machine's and network's information.
- Print information: Prints reports such as system related reports, e-mail address, and font reports.

Settings tab

This tab allows you to set configurations provided by your machine and network. You need to log-in as an administrator to view this tab.

• Machine Settings tab: Sets options provided by your machine.

- Network Settings tab: Shows options for the network environment. Sets options such as TCP/IP and network protocols.

Security tab

This tab allows you to set system and network security information. You need to log-in as an administrator to view this tab.

• System Security: Sets the system administrator's information and also enables or disables machine features.
  • Network Security: Sets settings for HTTPS, IPSec, IPv4/IPv6 filtering, 802.1x, and Authentication servers.
• User Access Control: Classifies users into several groups according to each user's role. Each user's authorization, authentication and accounting will be controlled by the group's role definition.
• System Log: You can keep logs of events that have happened in the machine. The administrator can record and manage the machine usage information by keeping the system log files. The system log files are stored on the machine's HDD (hard disk drive), and when it is full, it will erase old data. Export and save the important audit data separately using the exporting feature.

Using SyncThru™ Web Service

Maintenance tab

This tab allows you to maintain your machine by upgrading firmware and setting contact information for sending emails. You can also connect to Samsung website or download drivers by selecting the Link menu.

• Firmware Upgrade: Upgrade your machine's firmware.
• Application Management: You can add or delete applications/license. If you add an application, you need to activate the license of the installed application. Some applications may not have a license. This feature is also available from the machine.
• Backup/Restore: You can backup the machine's configurations and restore the configuration when there is a problem with the machine. The saved (backed up) files can also be used to configure other machines.
  • Wi-Fi Interface: You can enable or disable the Wi-Fi menu.
• Contact Information: Shows the contact information.
• Link: Shows links to useful sites where you can download or check information.

E-mail notification setup

You can receive emails about your machine's status by setting this option. By setting information such as IP address, host name, e-mail address and SMTP server information, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's e-mail automatically. This option may be used more frequently by a machine administrator.

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine.

1 Start a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.
2 Your machine's embedded website opens.
3 From the Settings tab, select Machine Settings > E-mail Notification.

If you have not configured outgoing server environment, go to Settings > Network Settings > Outgoing Mail Server(SMTP) to configure network environment before setting e-mail notification.

4 Select Enable check box to use the E-mail Notification.

Using SyncThru™ Web Service

5 Click Add button to add e-mail notification user.

Set the recipient name and e-mail address(es) with notification items you want to receive an alert for.

6 Click Apply.

If the firewall is activated, the e-mail may not be sent successfully. In that case, contact the a network administrator.

4 Enter the name of the administrator, phone number, location, and email address.

5 Click Apply.

Setting the system administrator's information

This setting is necessary for using the e-mail notification option.

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine.

1 Start a web browser, such as Internet Explorer, from Windows.

Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.

2 Your machine's embedded website opens.

3 From the Security tab, select System Security > System Administrator

Using Samsung Easy Printer Manager

• This feature may not be available depending on model or optional accessories added to the device (see "Software" on page 7).
  • Available for Windows and Mac OS users only (see "Software" on page 7).
• For Windows, Internet Explorer 6.0 or higher is the minimum requirement for Samsung Easy Printer Manager.

Samsung Easy Printer Manager is an application that combines Samsung machine settings into one location. Samsung Easy Printer Manager combines device settings as well as printing environments, settings/actions and launching. All of these features provide a gateway to conveniently use your Samsung machine. Samsung Easy Printer Manager provides two different user interfaces for the user to choose from: the basic user interface and the advanced user interface. Switching between the two interfaces is easy: just click a button.

Understanding Samsung Easy Printer Manager

To open the program:

For Windows,

Select Start > Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager.

For Mac,

Open the Applications folder > Samsung folder > Samsung Easy Printer Manager.

The Samsung Easy Printer Manager interface is comprised of various basic sections as described in the table that follows:

The screenshot may differ depending on operating system you are using.

Samsung Easy Printer Manager Samsung Easy Printer Manager 1 2 3 4 5 Supplies Paper Toner Toner ID * % Value is not exact but estimate value. 6 Order Supplies SAMSUNG

Using Samsung Easy Printer Manager

1	Printer list The Printer List displays printers installed on your computer and network printers added by network discovery (Windows only).
2	Printer information	This area gives you general information about your machine. You can check information, such as the machine's model name, IP address (or Port name), and machine status.[7784] You can view the onlineUser's Guide.Troubleshooting button: This button opens theTroubleshooting Guidewhen an error occurs.You can directly open the necessary section in theuser's guide.
3	Application information	Includes links for changing to the advanced settings (switching UI), refresh, preference setting, summary, help, and about. Thebutton is used to changethe user interface to theadvanced settings user interface(see "Advanced settings user interface overview" on page 238).

4	Quick links	DisplaysQuick linksto machine specific functions. This section also includes links to applications in the advanced settings.[5788] If you connect your machine to a network, the SyncThruTM Web Service icon is enabled.
5	Contents area Displays information about the selected machine, remaining toner level, and paper. The information will vary based on the machine selected. Some machines do not have this feature.
6	Order supplies	Click on the Order button from the supply ordering window. You can order replacement toner cartridge(s) from online.

Select the Help menu or click the 📋 button from the window and click on any option you want to know about.

Using Samsung Easy Printer Manager

Advanced settings user interface overview

The advanced user interface is intended to be used by the person responsible for managing the network and machines.

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine.

Device Settings

You can configure various machine settings such as machine setup, paper, layout, emulation, network, and print information.

Alert Settings (Windows only)

This menu includes settings related to error alerting.

• Printer Alert: Provides settings related to when alerts will be received.
- Email Alert: Provides options relating to receiving alerts via email.
- Alert History: Provides a history of device and toner related alerts.

Job Accounting

Provides querying of quota information of the specified job accounting user. This quota information can be created and applied to devices by job accounting software such as SyncThru ^™ or CounThru ^™ admin software.

Using Samsung Printer Status

The Samsung Printer Status is a program that monitors and informs you of the machine status.

• The Samsung Printer Status window and its contents shown in this user's guide may differ depending on the machine or operating system in use.
• Check the operating system(s) that are compatible with your machine (see "Specifications" on page 104).
  • Available for Windows OS users only (see "Software" on page 7).

Samsung Printer Status overview

If an error occurs while operating, you can check the error from the Samsung Printer Status. Samsung Printer Status is installed automatically when you install the machine software.

You can also launch Samsung Printer Status manually. Go to the Printing Preferences, click the Basic tab > Printer Status button.

These icons appear on the Windows task bar:

Icon Mean Description
[SH8]	Normal The machine is in ready mode and experiencing no errors or warnings.
[SCTX]	Warning The machine is in a state where an error might occur in the future. For example, it might be in toner low status, which may lead to toner empty status.
[XATH]	Error The machine has at least one error.

Printer Status 1 User's Guide 2 Supplies Information 3 Option 4 Order Supplies 5 Cancel Print

Using Samsung Printer Status

1	User's Guide You can view the online User's Guide.
		This button opens the Troubleshooting Guide when an error occurs. You can directly open the troubleshooting section in the user's guide.
2	Supplies Information	You can view the percentage of toner remaining in each toner cartridge. The machine and the number of toner cartridge(s) shown in the above window may differ depending on the machine in use. Some machines do not have this feature.
3	Option	You can set printing job alert related settings.
4	Order Supplies You	can order replacement toner cartridge(s) from online.
5	Cancel Print or Close	· Cancel Print: If print job is waiting in the print queue or printer, cancel all user's print jobs in the print queue or the printer.· Close: Depending on the status of the machine or the supported functions, the Close button may appear to close the status window.

Using Samsung Printer Experience

Samsung Printer Experience is a Samsung application that combines Samsung machine settings and machine management into one location. You can set device settings, order supplies, open troubleshooting guides, visit Samsung's website, and check connected machine information. This application will be automatically downloaded from the Windows Store if the machine is connected to a computer with an Internet connection.

Available for Windows 8 users only.

Understanding the Samsung Printer Experience

To open the application,

From the Start screen, select the Samsung Printer Experience

The Samsung Printer Experience interface comprises various useful features as described in the following table:

The screenshot may differ depending on the model you are using.

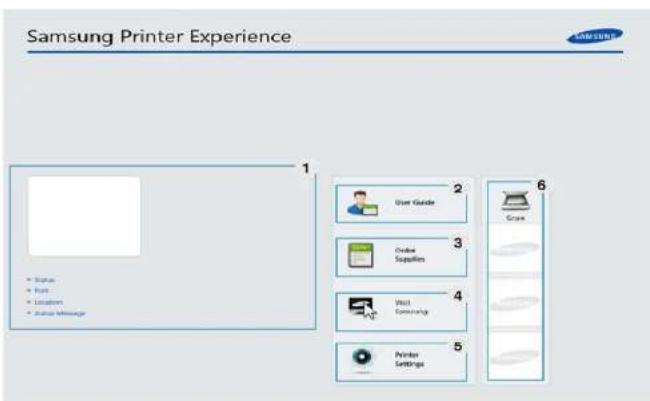

Samsung Printer Experience 1 Status Rest Location Print Message 2 User Guide 3 Online Supplies 4 Web Services 5 Printer Settings 6

1

Printer Information

This area gives you general information about your machine. You can check information, such as the machine's status, location, IP address, and remaining toner level.

Using Samsung Printer Experience

2	User Guide	You can view the online User's Guide. You need to be connected to the Internet to use this feature.
		[YEXT] This button opens the Troubleshooting Guide when an error occurs. You can directly open the troubleshooting section in the user's guide.
3	Order Supplies Click on this button to order replacement toner cartridges online. You need to be connected to the Internet to use this feature.
4	Visit Samsung Links to Samsung printer website. You need to be connected to the Internet to use this feature.
5	Printer Settings You can configure various machine settings such as machine setup, paper, layout, emulation, networking, and print information through SyncThruTM Web Service. Your machine needs to be connected to a network. This button will be disabled if your machine is connected via USB cable.
6	Device List & Latest Scanned Image	The scan list displays devices that supports Samsung Printer Experience. Under the device, you can see the latest scanned images. Your machine needs to be connected to a network to scan from here. This section is for the users with multi-functional printers.

Adding/Deleting Printers

If you do not have any printer added to the Samsung Printer Experience, or if you want to add/delete a printer, follow the instructions below.

You can only add/delete network connected printers.

Adding a printer

1 From the Charms, select Settings.
Or, right-click the Samsung Printer Experience page and select Settings.
2 Select Add Printer
3 Select the printer you want to add.
You can see the added printer.

If you see mark, you can also click mark to add printers.

Using Samsung Printer Experience

Deleting a printer

1 From the Charms, select Settings.
Or, right-click the Samsung Printer Experience page and select Settings.
2 Select Remove Printer.
3 Select the printer you want to delete.
4 Click Yes.
You can see that the selected printer is removed from the screen.

Printing from Windows 8

This section explains common printing tasks from the Start screen.

Basic printing

1 Open the document to print.
2 From the Charms, select Devices.
3 Select your printer from the list
4 Select the printer settings, such as the number of copies and orientation.

Using Samsung Printer Experience

5

Click the Print button to start the print job.

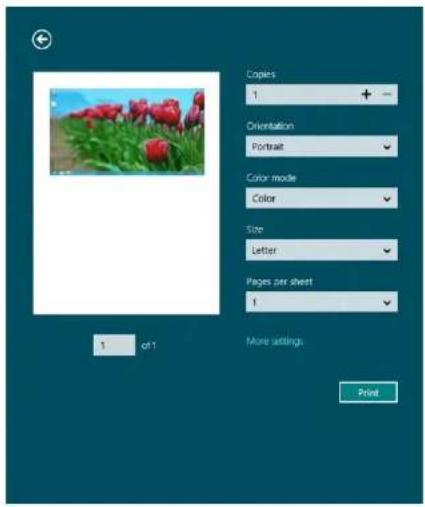

Copies 1 Orientation Portrait Color mode Color Size Letter Pages per sheet 1 of 1 More settings Print

Cancelling a print job

If the printing job is waiting in the print queue or print spooler, cancel the job as follows:

- You can access this window by simply double-clicking the machine icon

he Windows task bar.

- You can also cancel the current job by pressing ☒ (Stop/Clear) button on the control panel.

Opening more settings

The screen may appear somewhat different depending on the model or options.

You can set up more printing parameters.

1 Open the document you want to print.
2 From the Charms, select Devices.
3 Select your printer from the list
4 Click More settings.

Using Samsung Printer Experience

Basic tab

Samsung Printer Experience Basic Advanced Security About Number of Copies 1 + Orientation Portrait Current Type Standard Printer Default

Basic

This option allows you to choose the basic printing settings such as copies, orientation, and document type.

Eco settings

This option allows you to choose multiple pages per side to save media.

Advanced tab

Samsung Printer Experience Basic Advanced Security About Paper Settings Original Size All Same as Original Size Auto Select

Paper settings

This option allows you to set the basic paper handling specifications.

Layout settings

This option allows you to set the various ways to layout your documents.

Using Samsung Printer Experience

Security tab

Some features may not be available depending on the model or options. If this tab is not shown or disabled, it means that this features are not supported.

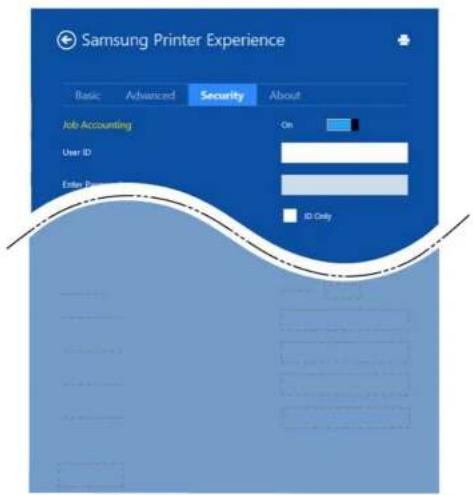

Samsung Printer Experience Basic Advanced Security About Job Accounting On User ID Extra ID ID Only

Job Accounting

This option allows you to print with the given permission.

Confidential Printing

This option is used for printing confidential documents. You need to enter a password to print using it.

Using the sharing feature

Samsung Printer Experience allows you to print from other applications installed on the computer using the sharing feature.

This feature is only available for printing jpeg, bmp, tiff, gif, and png file formats.

1 Select the content you want to print from other application.
2 From the Charms, select Share > Samsung Printer Experience.
3 Select the printer settings, such as the number of copies and orientation.
4 Click the Print button to start the print job.

Purple circular icon with a white printer symbol (no text or numbers)

6. Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

• Paper feeding problems 248
• Power and cable connecting problems 249
- Printing problems 250
• Printing quality problems 254
• Operating system problems 262

For errors that occur during the wireless software installation and settings, refer to the troubleshooting section in the wireless setting chapter (see "Troubleshooting for wireless network" on page 163).

Paper feeding problems

Condition Suggested solutions
Paper jams during printing. Clear the paper jam.
Paper sticks together. · Check the maximum paper capacity of the tray. · Make sure that you are using the correct type of paper. · Remove paper from the tray and flex or fan the paper. · Humid conditions may cause some paper to stick together.
Multiple sheets of paper do not feed.	Different types of paper may be stacked in the tray. Load paper of only one type, size, and weight.
Paper does not feed into the machine.	· Remove any obstructions from inside the machine. · Paper has not been loaded correctly. Remove paper from the tray and reload it correctly. · There is too much paper in the tray. Remove excess paper from the tray. · The paper is too thick. Use only paper that meets the specifications required by the machine.
The paper keeps jamming.	· There is too much paper in the tray. Remove excess paper from the tray. If you are printing on special materials, use the manual feeding in tray. · An incorrect type of paper is being used. Use only paper that meets the specifications required by the machine. · There may be debris inside the machine. Open the front cover and remove any debris.
Envelopes skew or fail to feed correctly.	Ensure that the paper guides are against both sides of the envelopes.

Power and cable connecting problems

Reboot the power. If the problem persists, please call for service.

Condition Suggested solutions
The machine is not receiving power,or the connection cable between thecomputer and the machine is notconnected properly.	1 Connect the machine to the electricity supply first.If the machine has a (Power/Wake Up) button on the control, press it.2 Check the USB cable or network cable in the machine's rear. 3 Disconnect the USB cable or network cable in the machine's rear and then, reconnect it.

Printing problems

Condition Possible cause Suggested solutions
The machine does not print.	The machine is not receiving power.	Connect the machine to the electricity supply first. If the machine has a Power/Wake Up) button on the control, press it.
	The machine is not selected as the default machine.	Select your machine as your default machine in Windows.
	Check the machine for the following:• The cover is not closed. Close the cover.• Paper is jammed. Clear the paper jam (see "Clearing paper jams" on page 82).• No paper is loaded. Load paper (see "Loading paper in the tray" on page 37).• The toner cartridge is not installed. Install the toner cartridge (see "Replacing the toner cartridge" on page 66).• Make sure the protect cover and sheets are removed from the toner cartridge (see "Replacing the toner cartridge" on page 66).If a system error occurs, contact your service representative.
	The connection cable between the computer and the machine is not connected properly.	Disconnect the machine cable and reconnect it (see "Rear view" on page 18).
	The connection cable between the computer and the machine is defective.	If possible, attach the cable to another computer that is working properly and print a job.You can also try using a different machine cable.
	The port setting is incorrect.	Check the Windows printer settings to make sure that the print job is sent to the correct port. If the computer has more than one port, make sure that the machine is attached to the correct one.

Printing problems

Condition Possible	cause Suggested solutions
The machine does not print.	The machine may be configured incorrectly.	Check the Printing Preferences to ensure that all of the print settings are correct.
	The printer driver may be incorrectly installed.	Uninstall and reinstall the machine's driver.
	The machine is malfunctioning.	Check the display message on the control panel to see if the machine is indicating a system error. Contact a service representative.
	The document size is so big that the hard disk space of the computer is insufficient to access the print job.	Get more hard disk space and print the document again.
	The output tray is full.	Once the paper is removed from the output tray, the machine resumes printing.
The machine selects print materials from the wrong paper source.	The paper option that was selected in the Printing Preferences may be incorrect.	For many software applications, the paper source selection is found under the Paper tab within the Printing Preferences (see "Opening printing preferences" on page 49). Select the correct paper source. See the printer driver help screen (see "Using help" on page 50).
A print job is extremely slow.	The job may be very complex.	Reduce the complexity of the page or try adjusting the print quality settings.
Half the page is blank.	The page orientation setting may be incorrect.	Change the page orientation in your application (see "Opening printing preferences" on page 49). See the printer driver help screen (see "Using help" on page 50).
	The paper size and the paper size settings do not match.	Ensure that the paper size in the printer driver settings matches the paper in the tray. Or, ensure that the paper size in the printer driver settings matches the paper selection in the software application settings you use (see "Opening printing preferences" on page 49).
The machine prints, but the text is wrong, garbled, or incomplete.	The machine cable is loose or defective.	Disconnect the machine cable and reconnect. Try a print job that you have already printed successfully. If possible, attach the cable and the machine to another computer that you know works and try a print job. Finally, try a new machine cable.

Printing problems

Condition Possible	cause Suggested solutions
	The wrong printer driver was selected.	Check the application's printer selection menu to ensure that your machine is selected.
	The software application is malfunctioning. Try printing a job from another application.
	The operating system is malfunctioning.	Exit Windows and reboot the computer. Turn the machine off and back on again.
Pages print, but they are blank.	The toner cartridge is defective or out of toner. Redistribute the toner, if necessary.If necessary, replace the toner cartridge.See "Redistributing toner" on page 64.See "Replacing the toner cartridge" on page 66.
	The file may have blank pages.	Check the file to ensure that it does not contain blank pages.
	Some parts, such as the controller or the board, may be defective.	Contact a service representative.
The machine does not print PDF files correctly. Some parts of graphics, text, or illustrations are missing.	Incompatibility between the PDF file and the Acrobat products.	Printing the PDF file as an image may enable the file to print. Turn onPrint As Imagefrom the Acrobat printing options.[SAZD] It will take longer to print when you print a PDF file as an image.
The print quality of photos is not good. Images are not clear.	The resolution of the photo is very low.	Reduce the photo size. If you increase the photo size in the software application, the resolution will be reduced.
Before printing, the machine emits vapor near the output tray.	Using damp paper can cause vapor during printing.	This is not a problem. Just keep printing.

Printing problems

Condition Possible cause Suggested solutions
The machine does not print custom-sized paper, such as billing paper.	Paper size and paper size setting do not match.	Set the correct paper size in the Custom in Paper tab in Printing Preferences (see "Opening printing preferences" on page 49).
The printed billing paper is curled.	The paper type setting does not match.	Change the printer option and try again. Go to Printing Preferences, click Paper tab, and set type to Thin (see "Opening printing preferences" on page 49).

Printing quality problems

If the inside of the machine is dirty or paper has been loaded improperly, there might be a reduction in print quality. See the table below to clear the problem.

Condition Suggested solutions
Light or faded printAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc	If a vertical white streak or faded area appears on the page, the toner supply is low. Install a new toner cartridge (see "Replacing the toner cartridge" on page 66).The paper may not meet paper specifications; for example, the paper may be too moist or rough.If the entire page is light, the print resolution setting is too low or the toner save mode is on. Adjust the print resolution and turn the toner save mode off. See the help screen of the printer driver.A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 75).The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 75). If these steps do not correct the problem, contact a service representative.
The top half of the paper is printed lighter than the rest of the paperAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc	The toner might not adhere properly to this type of paper.Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled (see "Opening printing preferences" on page 49).

Printing quality problems

Condition Suggested solutions
Toner specks	The paper may not meet specifications; for example, the paper may be too moist or rough.The transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 75).The paper path may need cleaning. Contact a service representative (see "Cleaning the machine" on page 75).
Dropouts	If faded areas, generally rounded, occur randomly on the page:A single sheet of paper may be defective. Try reprinting the job.The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper.The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thick (see "Opening printing preferences" on page 49).If these steps do not correct the problem, contact a service representative.
White Spots If white spots appear on the page:	The paper is too rough and a lot of dirt from paper falls to the inner components within the machine, so the transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 75).The paper path may need cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 75).If these steps do not correct the problem, contact a service representative.

Printing quality problems

Condition Suggested solutions
Vertical lines If black vertical streaks appear on the page:
AaBbCcAaBbCcAaBbCcAaBbCcAaBbCc	The surface (drum part) of the toner cartridge inside the machine has probably been scratched. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 66).If white vertical streaks appear on the page:The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 75). If these steps do not correct the problem, contact a service representative.
Black or color background	If the amount of background shading becomes unacceptable:Change to a lighter weight paper.Check the environmental conditions: very dry conditions or a high level of humidity (higher than 80% RH) can increase the amount of background shading.Remove the old toner cartridge and install a new one (see "Replacing the toner cartridge" on page 66).Thoroughly redistribute the toner (see "Redistributing toner" on page 64).
AaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc
Toner smear	Clean the inside of the machine (see "Cleaning the machine" on page 75).Check the paper type and quality.Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 66).
AaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc

Printing quality problems

Condition Suggested solutions
Vertical repetitive defects	If marks repeatedly appear on the printed side of the page at even intervals:The toner cartridge may be damaged. If you still have the same problem, remove the toner cartridge and, install a new one (see "Replacing the toner cartridge" on page 66).Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.The fusing assembly may be damaged. Contact a service representative.
Background scatter	Background scatter results from bits of toner randomly distributed on the printed page.The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.Or selectThickfrom thePrinting Preferenceswindow (see "Opening printing preferences" on page 49).If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or inPrinting Preferences(see "Opening printing preferences" on page 49). Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.If you are using a new toner cartridge, redistribute the toner first (see "Redistributing toner" on page 64).
Toner particles are around bold characters or pictures	The toner might not adhere properly to this type of paper.Change the printer option and try again. Go toPrinting Preferences, click thePapertab, and set the paper type toRecycled(see "Opening printing preferences" on page 49).Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.

Printing quality problems

Condition Suggested solutions
Misformed characters	· If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try different paper.
Page skew · Ensure that the paper is loaded properly.	· Check the paper type and quality.· Ensure that the guides are not too tight or too loose against the paper stack.
Curl or wave · Ensure that the paper is loaded properly.	· Check the paper type and quality. Both high temperature and humidity can cause paper curl.· Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.

Printing quality problems

Condition Suggested solutions
Wrinkles or creases • Ensure that the paper is loaded properly.
	• Check the paper type and quality.• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.
Back of printouts are dirty	• Check for leaking toner. Clean the inside of the machine (see "Cleaning the machine" on page 75).
Solid color or black pages	• The toner cartridge may not be installed properly. Remove the cartridge and reinsert it.• The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 66).• The machine may require repairing. Contact a service representative.

Printing quality problems

Condition Suggested solutions
Loose toner	Clean the inside of the machine (see "Cleaning the machine" on page 75).Check the paper type, thickness, and quality.Remove the toner cartridge and then, install a new one (see "Replacing the toner cartridge" on page 66).If the problem persists, the machine may require repair. Contact a service representative.
Character voids	Character voids are white areas within parts of characters that should be solid black:You may be printing on the wrong surface of the paper. Remove the paper and turn it around.The paper may not meet paper specifications.
Horizontal stripes If horizontally aligned black streaks or smears appear:AaBbCAaBbCAaBbCAaBbCAaBbC	The toner cartridge may be installed improperly. Remove the cartridge and reinsert it.The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 66).If the problem persists, the machine may require repairing. Contact a service representative.

Printing quality problems

Condition Suggested solutions
Curl	If the printed paper is curled or paper does not feed into the machine:Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.Change the printer's paper option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thin (see "Opening printing preferences" on page 49).
An unknown image repetitively appears on a few sheetsLoose tonerLight print or contamination occurs	Your machine is probably being used at an altitude of 1,000 m (3,281 ft) or above.The high altitude may affect the print quality, such as loose toner or light imaging. Change the altitude setting for your machine (see "Altitude adjustment" on page 205).

Operating system problems

Common Windows problems

Condition Suggested solutions
"File in Use" message appears during installation.	Exit all software applications. Remove all software from the startup group, then restart Windows. Reinstall the printer driver.
"General Protection Fault", "Exception OE", "Spool 32", or "Illegal Operation" messages appear.	Close all other applications, reboot Windows and try printing again.
"Fail To Print", "A printer timeout error occurred" message appear.	These messages may appear during printing. Just keep waiting until the machine finishes printing. If the message appears in ready mode or after printing has completed, check the connection and/or whether an error has occurred.
Samsung Printer Experience is not shown when you click more settings.	Samsung Printer Experience is not installed. Download the app from the Windows Store and install it.
Machine information is not displayed when you click the device in the Devices and Printers.	Check the Printer properties. Click the Ports tab.(Control Panel > Devices and Printers > Right-click on your printer icon and select Printer properties)If the port is set to File or LPT, uncheck them and select TCP/IP, USB, or WSD.

Refer to the Microsoft Windows User's Guide that came with your computer for further information on Windows error messages.

Operating system problems

Common Mac problems

Condition Suggested solutions
The machine does not print PDF files correctly. Some parts of graphics, text, or illustrations are missing.	Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options. It will take longer to print when you print a PDF file as an image.
Some letters are not displayed normally during cover page printing.	Mac OS cannot create the font while printing the cover page. The English alphabet and numbers are displayed normally on the cover page.
When printing a document in Mac with Acrobat Reader 6.0 or higher, colors print incorrectly.	Make sure that the resolution setting in your machine driver matches the one in Acrobat Reader.

Refer to the Mac User's Guide that came with your computer for further information on Mac error messages.

Operating system problems

Common Linux problems

Condition Suggested solutions
When printing more than one copy, the second copy does not print.	The problem occurs on Ubuntu 12.04 due to the problem in standard CUPS filter 'pdftops'. Update 'cups-filters' package to version 1.0.18 to fix the problem ('pdftops' is a part of 'cups-filters' package).
Unchecking the collate option in the Print Dialog does not work.	For some distributions, GNOME Print Dialog has an issue handling the collate option. As workaround, set the default value of collate option to False using the system's printing utility(execute "system-config-printer" in the Terminal program).
Printing always works with duplex.	This duplex issue was in Ubuntu 9.10 CUPS package. Update CUPS version to 1.4.1-5ubuntu2.2.
Printer is not added through system's printing utility.	The problem occurs on Debian 7 due to the defect in 'system-config-printer' package of the Debian 7 (http://bugs.debian.org/cgi-bin/bugreport.cgi?bug=662813 in Debian bug tracking system). Please use another way to add printer (CUPS WebUI for example)
Paper size and orientation are disabled in the Print Dialog when opening text files.	The problem occurs on Fedora 19 and it's related to 'leafpad' text editor on Fedora 19. Please use other text editors like 'gedit'.

Refer to the Linux User's Guide that came with your computer for further information on Linux error messages.

Operating system problems

Common PostScript problems

The following situations are PS language specific and may occur when several printer languages are used.

Problem Possible cause Solution
The PostScript file cannot be printed	The PostScript driver may not be installed correctly.	• Install the PostScript driver (see "Software Installation" on page 129). • Print a configuration page and verify that the PS version is available for printing. • If the problem persists, contact a service representative.
Limit Check Error report prints	The print job was too complex.	You might need to reduce the complexity of the page or install more memory.
A PostScript error page prints	The print job may not be PostScript.	Make sure that the print job is a PostScript job. Check to see whether the software application expected a setup or PostScript header file to be sent to the machine.
The optional tray is not selected in the driver	The printer driver has not been configured to recognize the optional tray.	Open the driver properties, select the Device Options tab, and set the tray option (see "Setting Device Options" on page 70).
When printing a document in Mac with Acrobat Reader 6.0 or higher, colors print incorrectly	The resolution setting in the printer driver may not be matched with the one in Acrobat Reader.	Make sure that the resolution setting in your printer driver matches the one in Acrobat Reader.

Contact SAMSUNG worldwide

If you have any comments or questions regarding Samsung products, contact the Samsung customer care center.

Country/Region Customer Care Center WebSite
ALGERIA	021 36 11 00 www.samsung.com/	n_africa/support
ARGENTINE	0800-333-3733 www.samsung.com/ar/support
ARMENIA	0-800-05-555 www.samsung.com/support
AUSTRALIA	1300 362 603 www.samsung.com/	au/support
AUSTRIA	0800 - SAMSUNG (0800 - 7267864)	www.samsung.com/at/support
AZERBAIJAN	0-88-555-55-55 www.samsung.com/support
BAHRAIN	8000-GSAM (8000-4726) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
BELARUS	810-800-500-55-500 www.samsung.com/support
BANGLADESH	09612300300 www.samsung.com/in/support

Country/Region Customer Care Center WebSite
BELGIUM	02-201-24-18 www.samsung.com/	be/support (Dutch)www.samsung.com/be_fr/support (French)
BOLIVIA	800-10-7260[HHP] 4828210	www.samsung.com/cl/support
BOSNIA	051 331 999 www.samsung.com/	support
BOTSWANA	8007260000 www.samsung.com/	support
BRAZIL	0800-124-421 (Demais cidades e regiões)4004-0000 (Capitais e grandes centros)	www.samsung.com/br/support
BULGARIA	800 111 31, Безплатна телефонна линия	www.samsung.com/bg/support
BURUNDI	200 www.samsung.com/	support
CAMEROON	7095- 0077 www.samsung.com/	africa_fr/support

Contact SAMSUNG worldwide

Country/Region Customer Care Center WebSite
CANADA	1-800-SAMSUNG (726-7864) www.samsung.com/ca/support(English)www.samsung.com/ca_fr/support (French)
CHILE	800-SAMSUNG (726-7864)[HHP] 02-24828200	www.samsung.com/cl/support
CHINA	400-810-5858 www.samsung.com/cn/support
COLOMBIA	Bogotá 600 12 72Gratis desde cualquier parte del país 01 8000 112 112 ó desde su celular #SAM(726)	www.samsung.com/co/support
COSTA RICA	0-800-507-726700-800-1-SAMSUNG (726-7864)	www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support(English)
CROATIA	072 726 786 www.samsung.com/	hr/support
Cote D' Ivoire	8000 0077 www.samsung.com/	africa_fr/support

Country/Region Customer Care Center WebSite
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
CZECH	800-SAMSUNG (800-726786) www.samsung.com/cz/support
DENMARK	70 70 19 70 www.samsung.com/	dk/support
DOMINICA	1-800-751-2676 www.samsung.com/	latin/support(Spanish)www.samsung.com/latin_en/support(English)
DRC	499999 www.samsung.com/	support
ECUADOR	1-800-10-726701-800-SAMSUNG (72-6786)	www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support(English)
EGYPT	08000-72678616580	www.samsung.com/eg/support

Contact SAMSUNG worldwide

Country/Region Customer Care Center WebSite
EIRE	0818 717100 www.samsung.com/	ie/support
EL SALVADOR	800-6225 www.samsung.com/	latin/support(Spanish)www.samsung.com/latin_en/support(English)
ESTONIA	800-7267 www.samsung.com/	ee/support
FINLAND	030-6227 515 www.samsung.com/fi/support
FRANCE	01 48 63 00 00 www.samsung.com/fr/support
GERMANY	0180 6 SAMSUNG bzw.0180 6 7267864*[HHP] 0180 6 M SAMSUNG bzw.0180 6 67267864* (*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf)	www.samsung.com/de/support
GEORGIA	0-800-555-555 www.samsung.com/support

Country/Region Customer Care Center WebSite
GHANA	0800-100770302-200077	www.samsung.com/africa_en/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line	www.samsung.com/gr/support
GUATEMALA	1-800-299-00131-800-299-0033	www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support(English)
HONDURAS	800-2791-9267800-2791-9111	www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support(English)
HONG KONG	(852) 3698 4698 www.samsung.com/	hk/support (Chinese)www.samsung.com/hk_en/support(English)

Contact SAMSUNG worldwide

Country/Region Customer Care Center WebSite
HUNGARY	0680SAMSUNG (0680-726-786)0680PREMIUM (0680-773-648)	www.samsung.com/hu/support
INDIA	1800 3000 8282 - Toll Free1800 266 8282 - Toll Free	www.samsung.com/in/support
INDONESIA	021-5699777708001128888	www.samsung.com/id/support
IRAN	021-8255 www.samsung.com/	iran/support
ITALIA	800-SAMSUNG (800.7267864)[HHP] 800.Msamsung(800.67267864)	www.samsung.com/it/support
JAMAICA	1-800-234-72671-800-SAMSUNG (726-7864)	www.samsung.com/latin_en/support(English)
JAPAN	0120-363-905 www.samsung.com/	jp/support
JORDAN	0800-2227306 5777444	www.samsung.com/levant/support(English)
KAZAKHSTAN	8-10-800-500-55-500 (GSM:7799,VIP care 7700)	www.samsung.com/support

Country/Region Customer Care Center WebSite
KENYA	0800 545 545 www.samsung.com/	support
KUWAIT	183-CALL (183-2255) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
KYRGYZSTAN	8-10-800-500-55-500 www.samsung.com/kz_ru/support
LATVIA	8000-7267 www.samsung.com/	lv/support
LITHUANIA	8-800-77777 www.samsung.com/	lt/support
LUXEMBURG	261 03 710 www.samsung.com/	support
MACAU	0800 333 www.samsung.com/	support
MACEDONIA 023 207	777
MALAYSIA	1800-88-9999603-77137477 (Overseas contact)	www.samsung.com/my/support
MEXICO	01-800-SAMSUNG (726-7864) www.samsung.com/mx/support

Contact SAMSUNG worldwide

Country/Region Customer Care Center WebSite
MOLDOVA	0-800-614-40 www.samsung.com/	support
MONGOLIA	7-495-363-17-00 www.samsung.com/	support
MONTENEGRO	020 405 888 www.samsung.com/	support
MOROCCO	080 100 2255 www.samsung.com/	n_africa/support
MOZAMBIQUE	847267864 / 827267864 www.samsung.com/support	support
MYANMAR	01-2399888 www.samsung.com/	support
NAMIBIA	08 197 267 864 www.samsung.com/support	support
NIGERIA	0800-726-7864 www.samsung.com/	africa_en/support
NETHERLANDS	0900-SAMSUNG (0900-7267864) (€ 0,10/Min)	www.samsung.com/nl/support
NEW ZEALAND	0800 726 786 www.samsung.com/	nz/support

Country/Region Customer Care Center WebSite
NICARAGUA	001-800-5077267 www.samsung.com/	latin/support(Spanish)www.samsung.com/latin_en/support(English)
NORWAY	815 56480 www.samsung.com/	no/support
OMAN	800-SAMSUNG (800 - 726 7864) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
PAKISTAN	0800-Samsung (72678) www.samsung.com/pk/support
PANAMA	800-7267800-0101	www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support(English)

Contact SAMSUNG worldwide

Country/Region Customer Care Center WebSite
PARAGUAY	009-800-542-0001 www.samsung.com/	latin/support(Spanish)www.samsung.com/latin_en/support(English)
PERU	0-800-777-08 www.samsung.com/	pe/support
PHILIPPINES	1-800-10-7267864 [PLDT]1-800-8-7267864 [Globe landline and Mobile]02-4222111 [Other landline]	www.samsung.com/ph/support
POLAND	0 801-172-678* lub [phone] *[HHP] 0 801-672-678* lub [phone]** (koszt połączenia według taryfy operatora)	www.samsung.com/pl/support
PORTUGAL	808 20 7267 www.samsung.com/	pt/support

Country/Region Customer Care Center WebSite
PUERTO RICO	1-800-682-3180 www.samsung.com/	latin/support(Spanish)www.samsung.com/latin_en/support(English)
QATAR	800-CALL (800-2255)	www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
RWANDA	9999 www.samsung.com/	support
ROMANIA	08008 726 78 64 (08008SAMSUNG)Apel GRATUIT	www.samsung.com/ro/support
RUSSIA	8-800-555-55-55 www.samsung.com/	ru/support
SAUDI ARABIA	920021230 www.samsung.com/	sa/supportwww.samsung.com/sa_en/support(English)/
SENEGAL	800-00-0077 www.samsung.com/	africa_fr/support

Contact SAMSUNG worldwide

Country/Region Customer Care Center WebSite
SERBIA	011 321 6899 www.samsung.com/	rs/support
SINGAPORE	1800-SAMSUNG (726-7864) www.samsung.com/sg/support
SLOVENIA	080 697 267090 726 786	www.samsung.com/rs/si
SLOVAKIA	0800 - SAMSUNG(0800-726 786) www.samsung.com/sk/support
SOUTH AFRICA	0860 SAMSUNG (726 7864) www.samsung.com/support
SPAIN	0034902172678[HHP] 0034902167267	www.samsung.com/es/support
SRI LANKA	00941175405400094115900000	www.samsung.com/support
SUDAN	1969 www.samsung.com/	support
SWEDEN	0771 726 7864 (SAMSUNG) www.samsung.com/se/support
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG) www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)

Country/Region Customer Care Center WebSite
SYRIA	18252273 www.samsung.com/	levant/support(English)
TADJIKISTAN	8-10-800-500-55-500 www.samsung.com/support
TAIWAN	0800-329999 www.samsung.com/tw/support
TANZANIA	0800 755 755 www.samsung.com/support
THAILAND	0-2689-3232,1800-29-3232	www.samsung.com/th/support
TRINIDAD & TOBAGO	1-800-SAMSUNG (726-7864) www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support(English)
TURKEY	444 77 11 www.samsung.com/	tr/support
TUNISIA	80-1000-12 www.samsung.com/n_africa/support

Contact SAMSUNG worldwide

Country/Region Customer Care Center WebSite
U.A.E	800-SAMSUNG (800-726 7864) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
UK	0330 SAMSUNG (7267864) www.samsung.com/uk/support
U.S.A-ConsumerElectronics	1-800-SAMSUNG (726-7864) www.samsung.com/us/support
U.S.A (Mobile Phones)	1-800-SAMSUNG (72-6786)[HHP] 1-888-987-HELP(4357)	www.samsung.com/us/support
UGANDA	0800 300 300 www.samsung.com/support
UKRAINE	0-800-502-000 www.samsung.com/ua/support (Ukrainian)www.samsung.com/ua_ru/support (Russian)
URUGUAY	000- 405-437-33 www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support(English)

Country/Region Customer Care Center WebSite
UZBEKISTAN	8-10-800-500-55-500 www.samsung.com/support
VENEZUELA	0-800-SAMSUNG (726-7864) www.samsung.com/ve/support
VIETNAM	1800 588 889 www.samsung.com/	vn/support
ZAMBIA	0211 350370 www.samsung.com/support

Glossary

The following glossary helps you get familiar with the product by understanding the terminologies commonly used with printing as well as mentioned in this user's guide.

802.11

802.11 is a set of standards for wireless local area network (WLAN) communication, developed by the IEEE LAN/MAN Standards Committee (IEEE 802).

802.11b/g/n

802.11b/g/n can share same hardware and use the 2.4 GHz band. 802.11b supports bandwidth up to 11 Mbps, 802.11n supports bandwidth up to 150 Mbps. 802.11b/g/n devices may occasionally suffer interference from microwave ovens, cordless telephones, and Bluetooth devices.

Access point

Access Point or Wireless Access Point (AP or WAP) is a device that connects wireless communication devices together on wireless local area networks (WLAN), and acts as a central transmitter and receiver of WLAN radio signals.

AppleTalk

AppleTalk is a proprietary suite of protocols developed by Apple, Inc for computer networking. It was included in the original Mac (1984) and is now deprecated by Apple in favor of TCP/IP networking.

BIT Depth

A computer graphics term describing the number of bits used to represent the color of a single pixel in a bitmapped image. Higher color depth gives a broader range of distinct colors. As the number of bits increases, the number of possible colors becomes impractically large for a color map. 1-bit color is commonly called as monochrome or black and white.

BMP

A bitmapped graphics format used internally by the Microsoft Windows graphics subsystem (GDI), and used commonly as a simple graphics file format on that platform.

BOOTP

Bootstrap Protocol. A network protocol used by a network client to obtain its IP address automatically. This is usually done in the bootstrap process of computers or operating systems running on them. The BOOTP servers assign the IP address from a pool of addresses to each client. BOOTP enables 'diskless workstation' computers to obtain an IP address prior to loading any advanced operating system.

Glossary

Collation

Collation is a process of printing a multiple-copy job in sets. When collation is selected, the device prints an entire set before printing additional copies.

Control Panel

A control panel is a flat, typically vertical, area where control or monitoring instruments are displayed. They are typically found in front of the machine.

Coverage

It is the printing term used for a toner usage measurement on printing. For example, 5% coverage means that an A4 sided paper has about 5% image or text on it. So, if the paper or original has complicated images or lots of text on it, the coverage will be higher and at the same time, a toner usage will be as much as the coverage.

CSV

Comma Separated Values (CSV). A type of file format, CSV is used to exchange data between disparate applications. The file format, as it is used in Microsoft Excel, has become a de facto standard throughout the industry, even among non-Microsoft platforms.

DADF

A Duplex Automatic Document Feeder (DADF) is a scanning unit that will automatically feed and turn over an original sheet of paper so that the machine can scan on both sides of the paper.

Default

The value or setting that is in effect when taking a printer out of its box state, reset, or initialized.

DHCP

A Dynamic Host Configuration Protocol (DHCP) is a client-server networking protocol. A DHCP server provides configuration parameters specific to the DHCP client host requesting, generally, information required by the client host to participate on an IP network. DHCP also provides a mechanism for allocation of IP addresses to client hosts.

DIMM

Dual Inline Memory Module (DIMM), a small circuit board that holds memory. DIMM stores all the data within the machine like printing data, received fax data.

DLNA

The Digital Living Network Alliance (DLNA) is a standard that allows devices on a home network to share information with each other across the network.

Glossary

DNS

The Domain Name Server (DNS) is a system that stores information associated with domain names in a distributed database on networks, such as the Internet.

Dot Matrix Printer

A dot matrix printer refers to a type of computer printer with a print head that runs back and forth on the page and prints by impact, striking an ink-soaked cloth ribbon against the paper, much like a typewriter.

DPI

Dots Per Inch (DPI) is a measurement of resolution that is used for scanning and printing. Generally, higher DPI results in a higher resolution, more visible detail in the image, and a larger file size.

Duplex

A mechanism that will automatically turn over a sheet of paper so that the machine can print (or scan) on both sides of the paper. A printer equipped with a Duplex Unit can print on both sides of paper during one print cycle.

Duty Cycle

Duty cycle is the page quantity which does not affect printer performance for a month. Generally the printer has the lifespan limitation such as pages per year. The lifespan means the average capacity of print-outs, usually within the warranty period. For example, if the duty cycle is 48,000 pages per month assuming 20 working days, a printer limits 2,400 pages a day.

ECM

Error Correction Mode (ECM) is an optional transmission mode built into Class 1 fax machines or fax modems. It automatically detects and corrects errors in the fax transmission process that are sometimes caused by telephone line noise.

Emulation

Emulation is a technique of one machine obtaining the same results as another.

An emulator duplicates the functions of one system with a different system, so that the second system behaves like the first system. Emulation focuses on exact reproduction of external behavior, which is in contrast to simulation, which concerns an abstract model of the system being simulated, often considering its internal state.

Glossary

Ethernet

Ethernet is a frame-based computer networking technology for local area networks (LANs). It defines wiring and signaling for the physical layer, and frame formats and protocols for the media access control (MAC)/data link layer of the OSI model. Ethernet is mostly standardized as IEEE 802.3. It has become the most widespread LAN technology in use during the 1990s to the present.

EtherTalk

A suite of protocols developed by Apple Computer for computer networking. It was included in the original Mac (1984) and is now deprecated by Apple in favor of TCP/IP networking.

FDI

Foreign Device Interface (FDI) is a card installed inside the machine to allow a third party device such as a coin operated device or a card reader. Those devices allow the pay-for-print service on your machine.

FTP

A File Transfer Protocol (FTP) is a commonly used protocol for exchanging files over any network that supports the TCP/IP protocol (such as the Internet or an intranet).

Fuser Unit

The part of a laser printer that fuses the toner onto the print media. It consists of a heat roller and a pressure roller. After toner is transferred onto the paper, the fuser unit applies heat and pressure to ensure that the toner stays on the paper permanently, which is why paper is warm when it comes out of a laser printer.

Gateway

A connection between computer networks, or between a computer network and a telephone line. It is very popular, as it is a computer or a network that allows access to another computer or network.

Grayscale

A shades of gray that represent light and dark portions of an image when color images are converted to grayscale; colors are represented by various shades of gray.

Halftone

An image type that simulates grayscale by varying the number of dots. Highly colored areas consist of a large number of dots, while lighter areas consist of a smaller number of dots.

Glossary

Mass storage device (Hard Disk)

Mass storage device (Hard Disk), commonly referred to as a hard drive or hard disk, is a non-volatile storage device which stores digitally-encoded data on rapidly rotating platters with magnetic surfaces.

IEEE

The Institute of Electrical and Electronics Engineers (IEEE) is an international non-profit, professional organization for the advancement of technology related to electricity.

IEEE 1284

The 1284 parallel port standard was developed by the Institute of Electrical and Electronics Engineers (IEEE). The term "1284-B" refers to a specific connector type on the end of the parallel cable that attaches to the peripheral (for example, a printer).

Intranet

A private network that uses Internet Protocols, network connectivity, and possibly the public telecommunication system to securely share part of an organization's information or operations with its employees. Sometimes the term refers only to the most visible service, the internal website.

IP address

An Internet Protocol (IP) address is a unique number that devices use in order to identify and communicate with each other on a network utilizing the Internet Protocol standard.

IPM

The Images Per Minute (IPM) is a way of measuring the speed of a printer. An IPM rate indicates the number of single-sided sheets a printer can complete within one minute.

IPP

The Internet Printing Protocol (IPP) defines a standard protocol for printing as well as managing print jobs, media size, resolution, and so forth. IPP can be used locally or over the Internet to hundreds of printers, and also supports access control, authentication, and encryption, making it a much more capable and secure printing solution than older ones.

IPX/SPX

IPX/SPX stands for Internet Packet Exchange/Sequenced Packet Exchange. It is a networking protocol used by the Novell NetWare operating systems. IPX and SPX both provide connection services similar to TCP/IP, with the IPX protocol having similarities to IP, and SPX having similarities to TCP. IPX/SPX was primarily designed for local area networks (LANs), and is a very efficient protocol for this purpose (typically its performance exceeds that of TCP/IP on a LAN).

Glossary

ISO

The International Organization for Standardization (ISO) is an international standard-setting body composed of representatives from national standards bodies. It produces world-wide industrial and commercial standards.

ITU-T

The International Telecommunication Union is an international organization established to standardize and regulate international radio and telecommunications. Its main tasks include standardization, allocation of the radio spectrum, and organizing interconnection arrangements between different countries to allow international phone calls. A -T out of ITU-T indicates telecommunication.

ITU-T No. 1 chart

Standardized test chart published by ITU-T for document facsimile transmissions.

JBIG

Joint Bi-level Image Experts Group (JBIG) is an image compression standard with no loss of accuracy or quality, which was designed for compression of binary images, particularly for faxes, but can also be used on other images.

JPEG

Joint Photographic Experts Group (JPEG) is a most commonly used standard method of lossy compression for photographic images. It is the format used for storing and transmitting photographs on the World Wide Web.

LDAP

The Lightweight Directory Access Protocol (LDAP) is a networking protocol for querying and modifying directory services running over TCP/IP.

LED

A Light-Emitting Diode (LED) is a semiconductor device that indicates the status of a machine.

MAC address

Media Access Control (MAC) address is a unique identifier associated with a network adapter. MAC address is a unique 48-bit identifier usually written as 12 hexadecimal characters grouped in pairs (e.g., 00-00-0c-34-11-4e). This address is usually hard-coded into a Network Interface Card (NIC) by its manufacturer, and used as an aid for routers trying to locate machines on large networks.

Glossary

MFP

Multi Function Peripheral (MFP) is an office machine that includes the following functionality in one physical body, so as to have a printer, a copier, a fax, a scanner and etc.

MH

Modified Huffman (MH) is a compression method for decreasing the amount of data that needs to be transmitted between the fax machines to transfer the image recommended by ITU-T T.4. MH is a codebook-based run-length encoding scheme optimized to efficiently compress white space. As most faxes consist mostly of white space, this minimizes the transmission time of most faxes.

MMR

Modified Modified READ (MMR) is a compression method recommended by ITU-T T.6.

Modem

A device that modulates a carrier signal to encode digital information, and also demodulates such a carrier signal to decode transmitted information.

MR

Modified Read (MR) is a compression method recommended by ITU-T T.4. MR encodes the first scanned line using MH. The next line is compared to the first, the differences determined, and then the differences are encoded and transmitted.

NetWare

A network operating system developed by Novell, Inc. It initially used cooperative multitasking to run various services on a PC, and the network protocols were based on the archetypal Xerox XNS stack. Today NetWare supports TCP/IP as well as IPX/SPX.

OPC

Organic Photo Conductor (OPC) is a mechanism that makes a virtual image for print using a laser beam emitted from a laser printer, and it is usually green or rust colored and has a cylinder shape.

An imaging unit containing a drum slowly wears the drum surface by its usage in the printer, and it should be replaced appropriately since it gets worn from contact with the cartridge development brush, cleaning mechanism, and paper.

Glossary

Originals

The first example of something, such as a document, photograph or text, etc, which is copied, reproduced or translated to produce others, but which is not itself copied or derived from something else.

OSI

Open Systems Interconnection (OSI) is a model developed by the International Organization for Standardization (ISO) for communications. OSI offers a standard, modular approach to network design that divides the required set of complex functions into manageable, self-contained, functional layers. The layers are, from top to bottom, Application, Presentation, Session, Transport, Network, Data Link and Physical.

PABX

A private automatic branch exchange (PABX) is an automatic telephone switching system within a private enterprise.

PCL

Printer Command Language (PCL) is a Page Description Language (PDL) developed by HP as a printer protocol and has become an industry standard. Originally developed for early inkjet printers, PCL has been released in varying levels for thermal, dot matrix printer, and laser printers.

PDF

Portable Document Format (PDF) is a proprietary file format developed by Adobe Systems for representing two dimensional documents in a device independent and resolution independent format.

PostScript

PostScript (PS) is a page description language and programming language used primarily in the electronic and desktop publishing areas. - that is run in an interpreter to generate an image.

Printer Driver

A program used to send commands and transfer data from the computer to the printer.

Print Media

The media like paper, envelopes, labels, and transparencies which can be used in a printer, a scanner, a fax or, a copier.

PPM

Pages Per Minute (PPM) is a method of measurement for determining how fast a printer works, meaning the number of pages a printer can produce in one minute.

Glossary

PRN file

An interface for a device driver, this allows software to interact with the device driver using standard input/output system calls, which simplifies many tasks.

Protocol

A convention or standard that controls or enables the connection, communication, and data transfer between two computing endpoints.

PS

See PostScript.

PSTN

The Public-Switched Telephone Network (PSTN) is the network of the world's public circuit-switched telephone networks which, on industrial premises, is usually routed through the switchboard.

RADIUS

Remote Authentication Dial In User Service (RADIUS) is a protocol for remote user authentication and accounting. RADIUS enables centralized management of authentication data such as usernames and passwords using an AAA (authentication, authorization, and accounting) concept to manage network access.

Resolution

The sharpness of an image, measured in Dots Per Inch (DPI). The higher the dpi, the greater the resolution.

SMB

Server Message Block (SMB) is a network protocol mainly applied to share files, printers, serial ports, and miscellaneous communications between nodes on a network. It also provides an authenticated Inter-process communication mechanism.

SMTP

Simple Mail Transfer Protocol (SMTP) is the standard for e-mail transmissions across the Internet. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified, and then the message text is transferred. It is a client-server protocol, where the client transmits an email message to the server.

SSID

Service Set Identifier (SSID) is a name of a wireless local area network (WLAN). All wireless devices in a WLAN use the same SSID in order to communicate with each other. The SSIDs are case-sensitive and have a maximum length of 32 characters.

Glossary

Subnet Mask

The subnet mask is used in conjunction with the network address to determine which part of the address is the network address and which part is the host address.

TCP/IP

The Transmission Control Protocol (TCP) and the Internet Protocol (IP); the set of communications protocols that implement the protocol stack on which the Internet and most commercial networks run.

TCR

Transmission Confirmation Report (TCR) provides details of each transmission such as job status, transmission result and number of pages sent. This report can be set to print after each job or only after failed transmissions.

TIFF

Tagged Image File Format (TIFF) is a variable-resolution bitmapped image format. TIFF describes image data that typically come from scanners. TIFF images make use of tags, keywords defining the characteristics of the image that is included in the file. This flexible and platform-independent format can be used for pictures that have been made by various image processing applications.

Toner Cartridge

A kind of bottle or container used in a machine like a printer which contains toner. Toner is a powder used in laser printers and photocopiers, which forms the text and images on the printed paper. Toner can be fused by a combination of heat/pressure from the fuser, causing it to bind to the fibers in the paper.

TWAIN

An industry standard for scanners and software. By using a TWAIN-compliant scanner with a TWAIN-compliant program, a scan can be initiated from within the program. It is an image capture API for Microsoft Windows and Apple Mac operating systems.

UNC Path

Uniform Naming Convention (UNC) is a standard way to access network shares in Window NT and other Microsoft products. The format of a UNC path is: \\\

URL

Uniform Resource Locator (URL) is the global address of documents and resources on the Internet. The first part of the address indicates what protocol to use, the second part specifies the IP address or the domain name where the resource is located.

Glossary

USB

Universal Serial Bus (USB) is a standard that was developed by the USB Implementers Forum, Inc., to connect computers and peripherals. Unlike the parallel port, USB is designed to concurrently connect a single computer USB port to multiple peripherals.

Watermark

A watermark is a recognizable image or pattern in paper that appears lighter when viewed by transmitted light. Watermarks were first introduced in Bologna, Italy in 1282; they have been used by papermakers to identify their product, and also on postage stamps, currency, and other government documents to discourage counterfeiting.

WEP

Wired Equivalent Privacy (WEP) is a security protocol specified in IEEE 802.11 to provide the same level of security as that of a wired LAN. WEP provides security by encrypting data over radio so that it is protected as it is transmitted from one end point to another.

WIA

Windows Imaging Architecture (WIA) is an imaging architecture that is originally introduced in Windows Me and Windows XP. A scan can be initiated from within these operating systems by using a WIA-compliant scanner.

WPA

Wi-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi) computer networks, which was created to improve upon the security features of WEP.

WPA-PSK

WPA-PSK (WPA Pre-Shared Key) is special mode of WPA for small business or home users. A shared key, or password, is configured in the wireless access point (WAP) and any wireless laptop or desktop devices. WPA-PSK generates a unique key for each session between a wireless client and the associated WAP for more advanced security.

WPS

The Wi-Fi Protected Setup (WPS) is a standard for establishing a wireless home network. If your wireless access point supports WPS, you can configure the wireless network connection easily without a computer.

XPS

XML Paper Specification (XPS) is a specification for a Page Description Language (PDL) and a new document format, which has benefits for portable document and electronic document, developed by Microsoft. It is an XML-based specification, based on a new print path and a vector-based device-independent document format.

A

accessing

management tools 228

accessories

installing 70

ordering 60

AirPrint 175

AnyWeb Print 230

B

buttons

eco 19

print screen 19

C

cleaning

inside 75

outside 75

pickup roller 78

cleaning a machine 75

control panel 19

touch screen 30

convention 10

D

default settings

tray setting 46

device options 70

direct printing utility 219

driver installation

Unix 145

E

eco printing 51

entering character 206

error message 96

F

favorites settings, for printing 50

features 5

machine features 185

print media feature 106

G

general icons 10

general settings 191

glossary 274

google cloud printing 179

J

jam

clearing paper 82

tips for avoiding paper jams 81

L

layout 188

Linux

common Linux problems 264

driver installation for network connected 144

driver installation for USB cable connected 132

driver reinstallation for USB cable connected 133

printer properties 224

printing 223

system requirements 112

using SetIP 138

loading

paper in multi-purpose tray 41

paper in the tray1 37

special media 42

M

Mac

common Mac problems 263

driver installation for network connected 143

driver installation for USB cable connected 130

driver reinstallation for USB cable connected 131

printing 221

system requirements 111

using SetIP 137

machine overview

front view 17

rear view 18

maintenance parts 61

managing

application 234

memory

memory upgrading 72

menu

admin setup 198

counter 202

direct usb 200

eco 199

emulation 195

information 187

job status 201

menu map 187

menu overview 26

multi-purpose (or manual feeder) tray

using special media 42

multi-purpose tray

loading 41

tips on using 41

N

network

driver installation

Linux 144

Mac 143

UNIX 145

Windows 139

general setup 197

installing environment 113

introducing network programs 135

IPv6 configuration 147

SetIP program 136, 137, 138, 159

wired network setup 136

wireless network setup 150

numeric keypad 19

n-up printing

Mac 221

0

optional tray 60

ordering 60

output support 47

overlay printing

create 215

delete 216

print 215

P

paper 189

placing a machine

adjusting the altitude 205

postScript driver

troubleshooting 265

print

mobile OS 174

mobileprint 174

print media

card stock 45

envelope 44

guidelines 36

labels 45

output support 106

preprinted paper 46

setting the paper size 46

setting the paper type 46

special media 42

printer preferences

Linux 224

printer status

general information 239

printing

changing the default print settings 208

Linux 223

Mac 221

multiple pages on one sheet of paper

Mac 221

printing a document

Windows 48

printing on both sides of paper

Mac 222

printing to a file 209

setting as a default machine 208

special printer features 210

UNIX 225

using direct printing utility 219

printing a document

Linux 223

Mac 221

UNIX 225

printing feature 208

problem

operating system problems 262

problems

paper feeding problems 248

power problems 249

printing problems 250

printing quality problems 254

R

regulatory information 114

s

safety

information 11

symbols 11

samsung cloud printing 177

samsung printer experience 241

Samsung Printer Status 239

service contact numbers 266

SetIP program 136, 159

Special features 204

specifications 104

print media 106

status 19,20

supplies

available supplies 59

estimated toner cartridge life 63

monitoring the supplies life 73

ordering 59

replacing toner cartridge 66

SyncThru Web Service

general information 232

SyncThru™ Web Service 232

SyncThruTM Web Service

application management 234

T

toner cartridge

estimated life 63

handling instructions 62

non-Samsung and refilled 62

redistributing toner 64

replacing the cartridge 66

storing 62

touch screen

keyboard 206

tray

adjusting the width and length 37

changing the tray size 37

loading paper in multi-purpose tray 41

ordering an optional tray 60

setting the paper size and type 46

U

understanding the status LED 94

UNIX

driver installation for network connected 145

printing 225

Unix

system requirements 112

USB cable

driver installation 22, 24, 130, 132

driver reinstallation 131, 133

USB flash memory

data backup 54

managing 55

USB memory device

printing 54

using

keyboard 206

using help 50,222

W

watermark

create 213

delete 214

edit 214

Windows

common Windows problems 262

driver installation for network connected 139

driver installation for USB cable connected 22, 24

system requirements 110

using SetIP 136, 159

wireless

WPS

disconnecting 152, 153

wireless network

network cable 159
