SAMSUNG Laser Printer User's Guide

ML-2250 Series

This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any changes, direct or indirect, arising from or related to the use of this manual.

© 2004 Samsung Electronics Co., Ltd. All rights reserved.

• ML-2250, ML-2251N, ML-2252W and Samsung logo are trademarks of Samsung Electronics Co., Ltd.
• PCL and PCL 6 are trademarks of Hewlett-Packard company.
• IBM and IBM PC are trademarks of International Business Machines Corporation.
• Microsoft, Windows, Windows 9x, Windows Me, Windows 2000, Windows NT and Windows XP are registered trademarks of Microsoft Corporation.
• PostScript 3 is a trademark of Adobe System, Inc.
• All other brand or product names are trademarks of their respective companies or organisations.

Contact SAMSUNG WORLD WIDE

If you have any comments or questions regarding Samsung products, contact the SAMSUNG customer care center.

Country Customer Care Center Web Site
CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca
MEXICO 01-800-SAMSUNG(7267864)		www.samsung.com/mx
U.S.A 1-800-SAMSUNG (7267864) www.samsung.com
ARGENTINE 0800-333-3733 www.samsung.com/ar
BRAZIL 0800-124-421 www.samsung.com/br
CHILE 800-726-7864 (SAMSUNG) www.samsung.com/cl
COSTA RICA	0-800-507-7267	www.samsung.com/latin
ECUADOR	1-800-10-7267	www.samsung.com/latin
EL SALVADOR	800-6225	www.samsung.com/latin
GUATEMALA	1-800-299-0013	www.samsung.com/latin
JAMAICA	1-800-234-7267	www.samsung.com/latin
PANAMA	800-7267	www.samsung.com/latin
PUERTO RICO	1-800-682-3180	www.samsung.com/latin
REP.DOMINICA	1-800-751-2676	www.samsung.com/latin
TRINIDAD &TOBAGO	1-800-7267-864	www.samsung.com/latin
VENEZUELA	1-800-100-5303	www.samsung.com/latin
BELGIUM	02 201 2418	www.samsung.com/be
CZECHREPUBLIC	844 000 844	www.samsung.com/cz
DENMARK	38 322 887	www.samsung.com/dk
FINLAND	09 693 79 554	www.samsung.com/fi
FRANCE	08 25 08 65 65(€ 0,15/min)	www.samsung.com/fr
GERMANY	01805 - 121213(€ 0,12/min)	www.samsung.de
Country	Customer Care Center	Web Site
HUNGARY 06 40	985 985 www.samsung.com/hu
ITALIA 199 153	153 www.samsung.com/it
LUXEMBURG 02	261 03 710 www.samsung.lu
NETHERLANDS 0	900 20 200 88(€ 0,10/min)	www.samsung.com/nl
NORWAY 231 62	7 22 www.samsung.com/no
POLAND 0 801 8	01 881 www.samsung.com/pl
PORTUGAL 80 8	200 128 www.samsung.com/pt
SLOVAKIA 0850	123 989 www.samsung.com/sk
SPAIN	902 10 11 30 www.samsung.com/es
SWEDEN 08 585	367 87 www.samsung.com/se
U.K	0870 242 0303	www.samsung.com/uk
RUSSIA	8-800-200-0400	www.samsung.ru
UKRAINE	8-800-502-0000	www.samsung.com/ur
AUSTRALIA	1300 362 603 www.samsung.com/au
CHINA 800-810-	5858010- 6475 1880	www.samsung.com.cn
HONG KONG	2862 6001	www.samsung.com/hk
INDIA	3030 82821600 1100 11	www.samsung.com/in
INDONESIA	0800-112-8888	www.samsung.com/id
JAPAN	0120-327-527	www.samsung.com/jp
MALAYSIA 1800-	88-9999 www.samsung.com/my
PHILIPPINES	1800-10-SAMSUNG(7267864)	www.samsung.com/ph
SINGAPORE	1800-SAMSUNG (7267864)	www.samsung.com/sg
THAILAND	1800-29-323202-689-3232	www.samsung.com/th
TAIWAN	0800-329-999	www.samsung.com/tw
VIETNAM	1 800 588 889 www.samsung.com/vn
SOUTH AFRICA	0860 7267864 (SAMSUNG)	www.samsung.com/za
U.A.E	800SAMSUNG (7267864)	www.samsung.com/mea

CONTENTS

Chapter 1: INTRODUCTION

Special Features 1.2

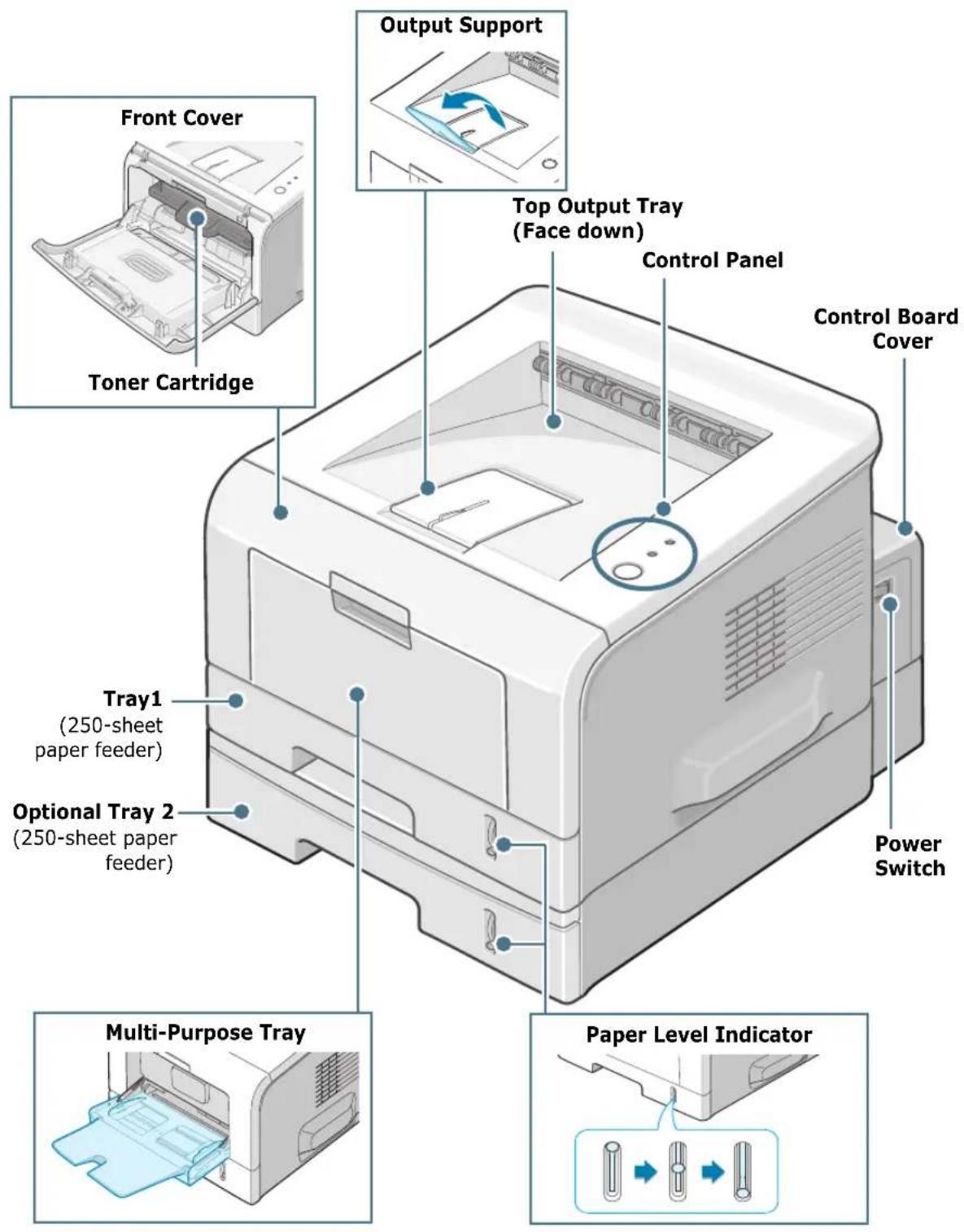

Printer Components 1.5

Front View 1.5

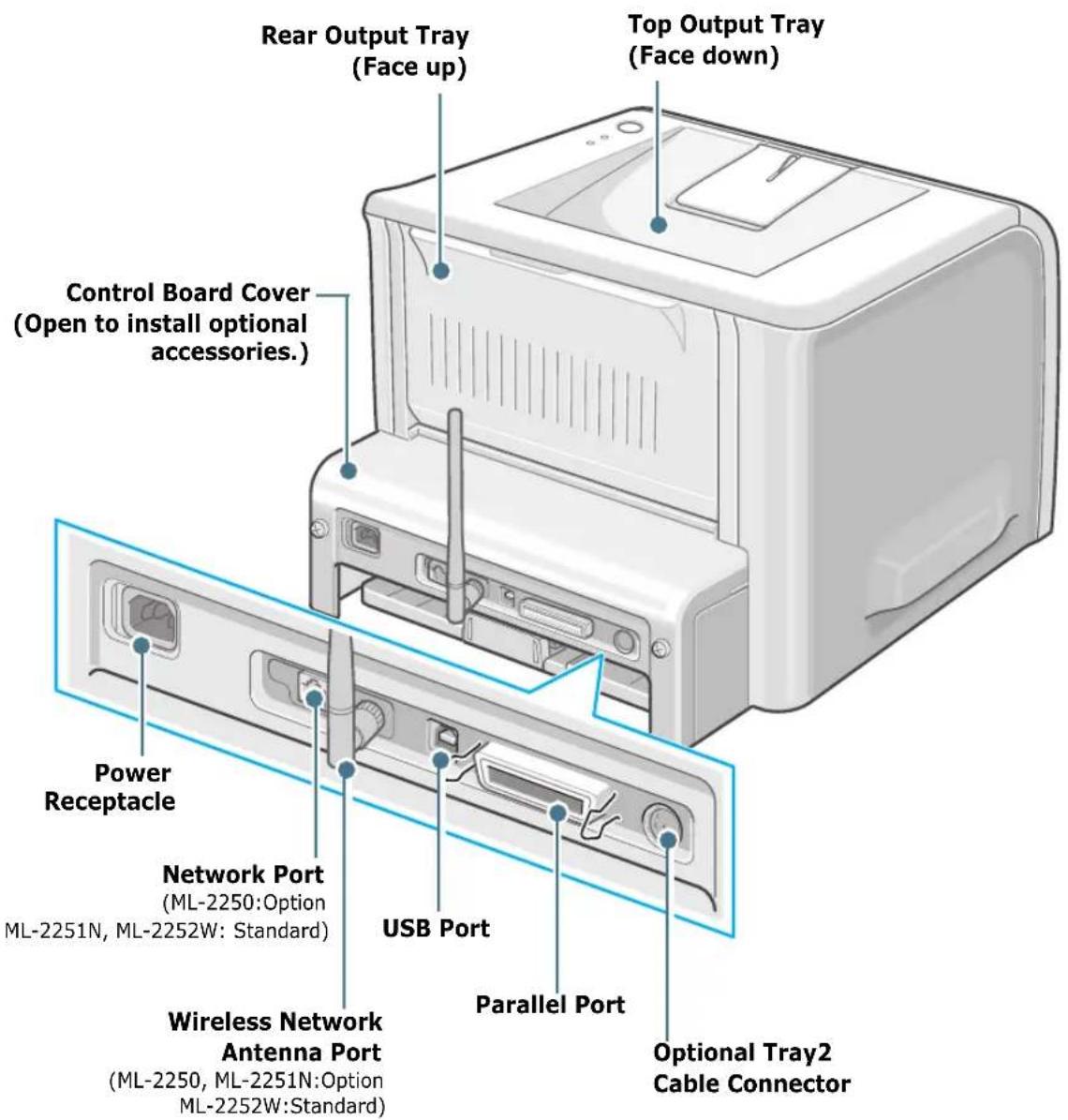

Rear View 1.6

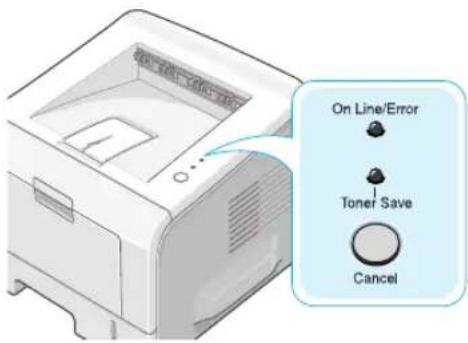

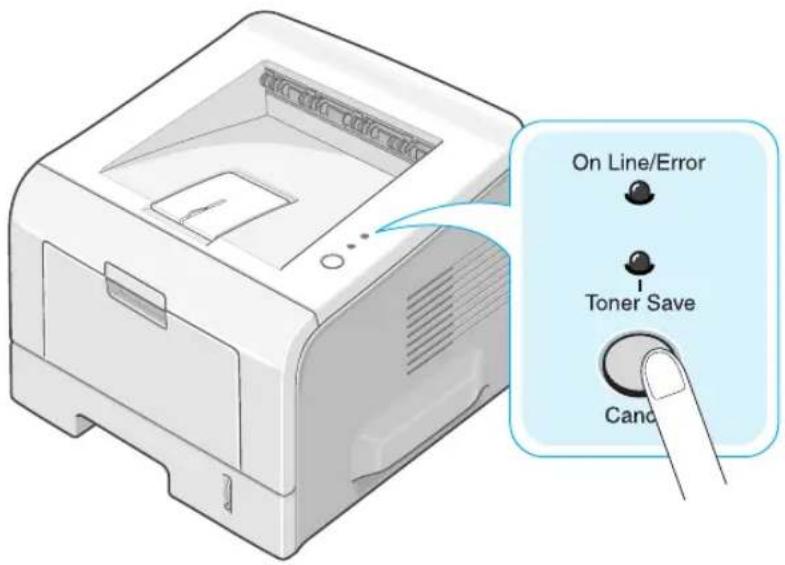

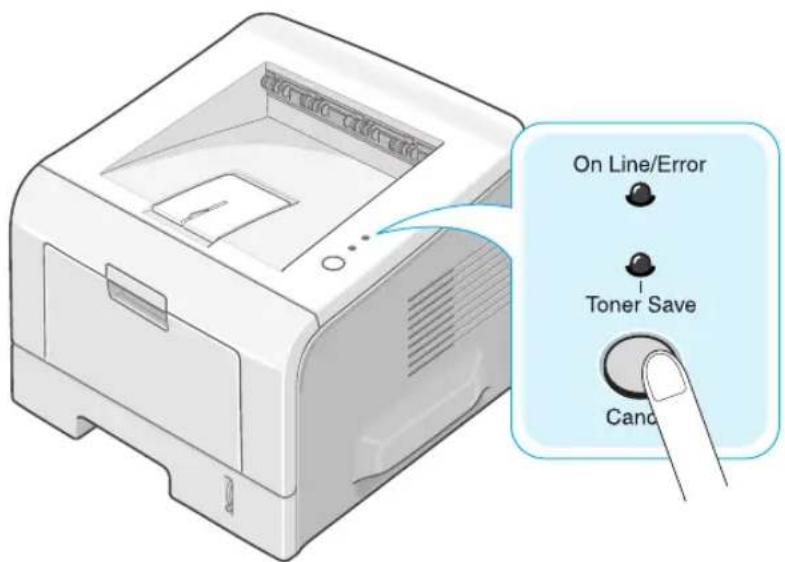

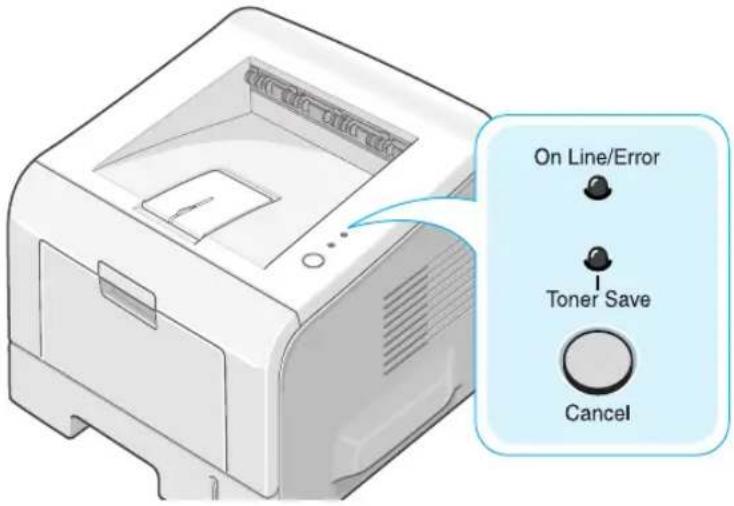

Understanding the Control Panel 1.7

On Line/Error and Toner Save LEDs 1.7

Cancel button 1.8

Chapter 2: SETTING UP YOUR PRINTER

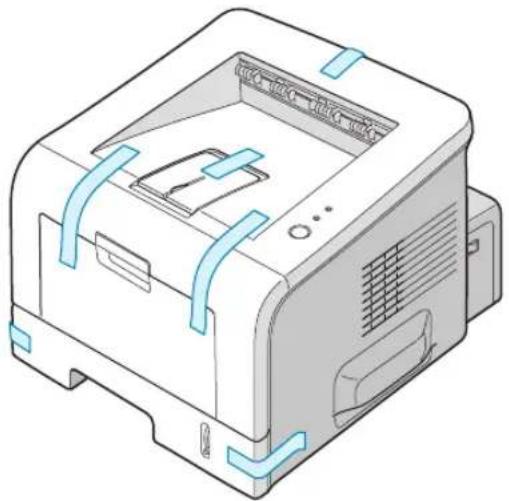

Unpacking 2.2

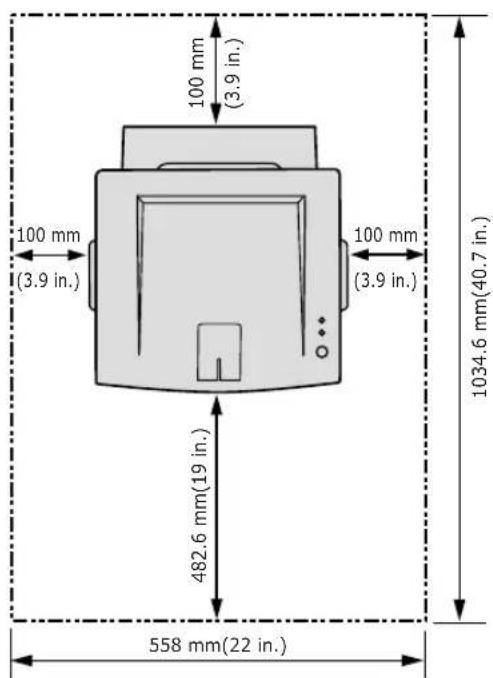

Selecting a Location 2.3

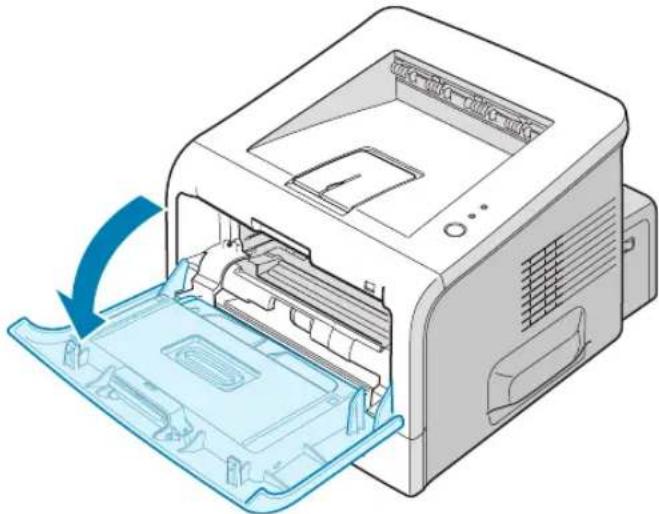

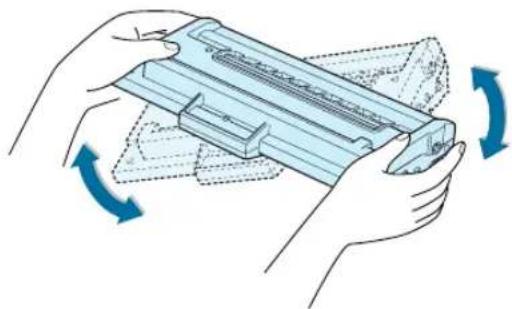

Installing the Toner Cartridge 2.4

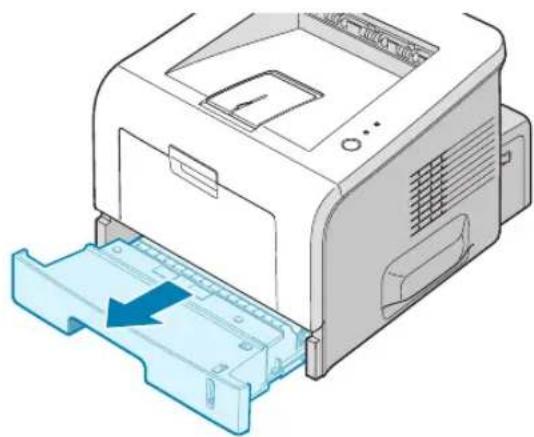

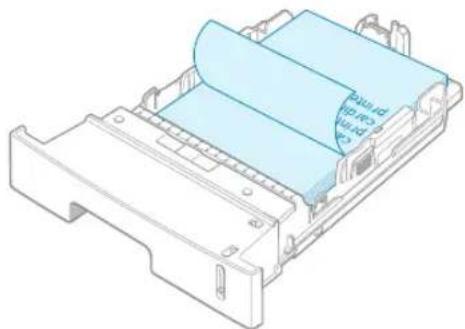

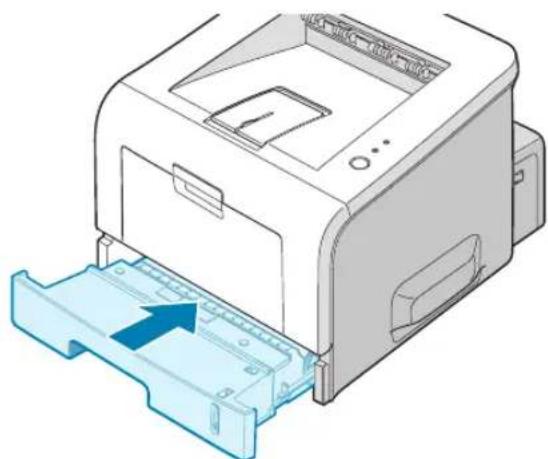

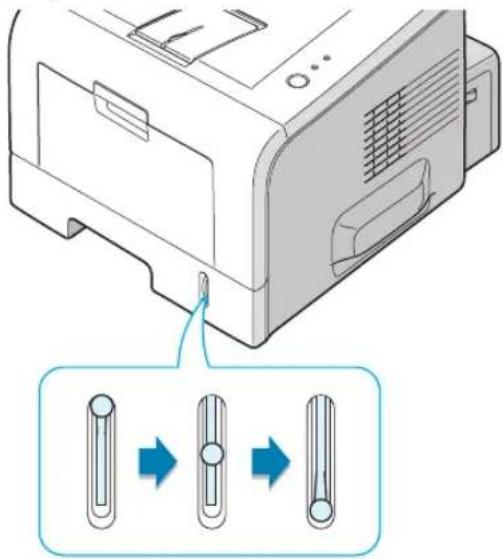

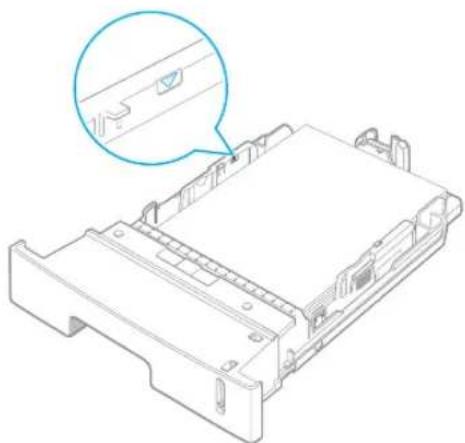

Loading Paper 2.7

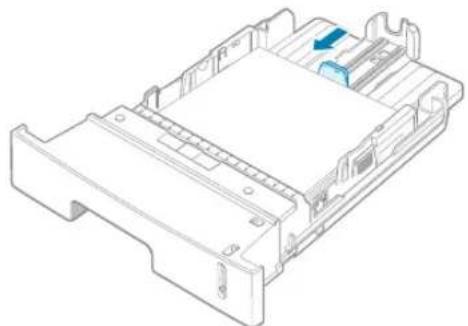

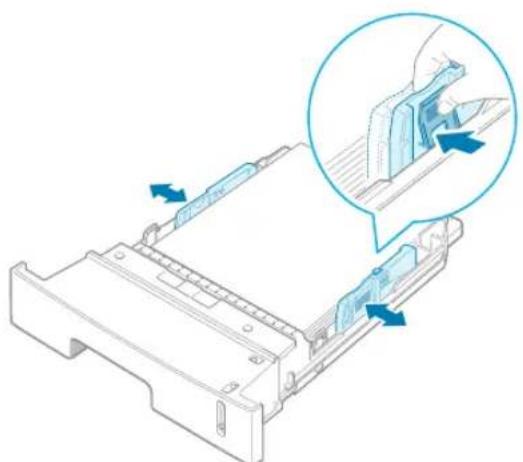

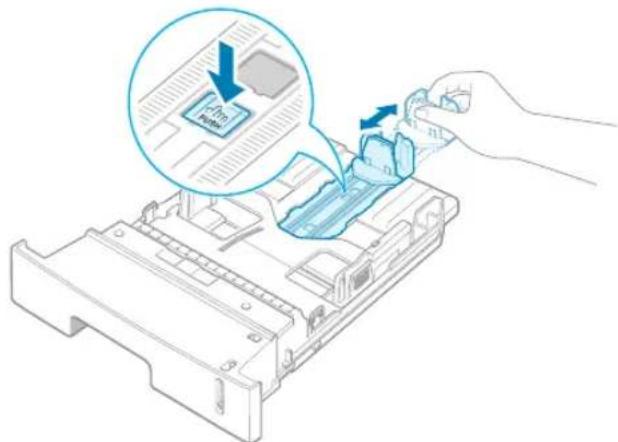

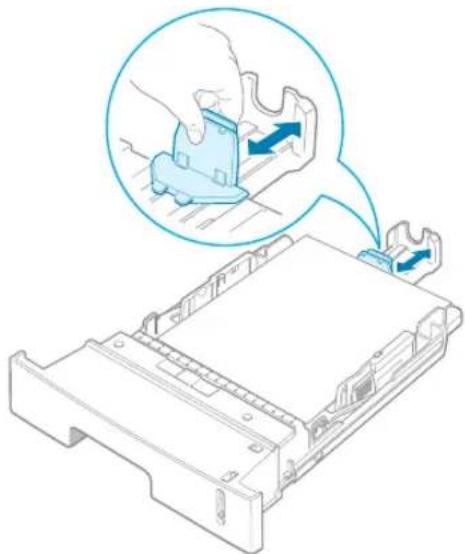

Changing the Paper Size in the Paper Tray 2.9

Connecting a Printer Cable 2.11

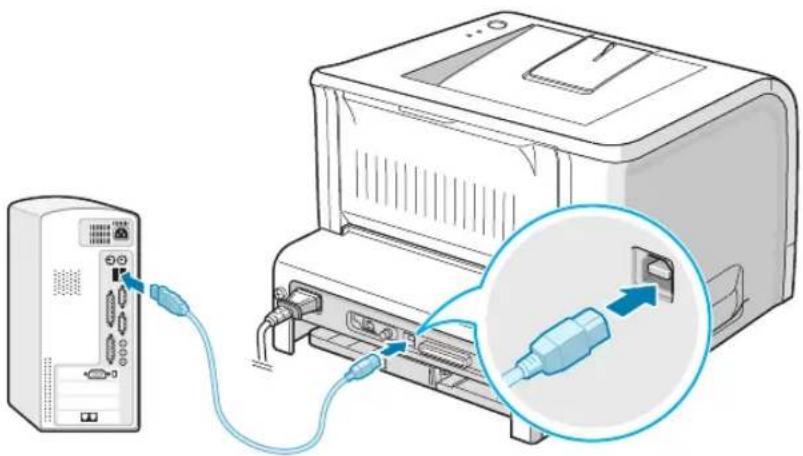

For Local Printing 2.11

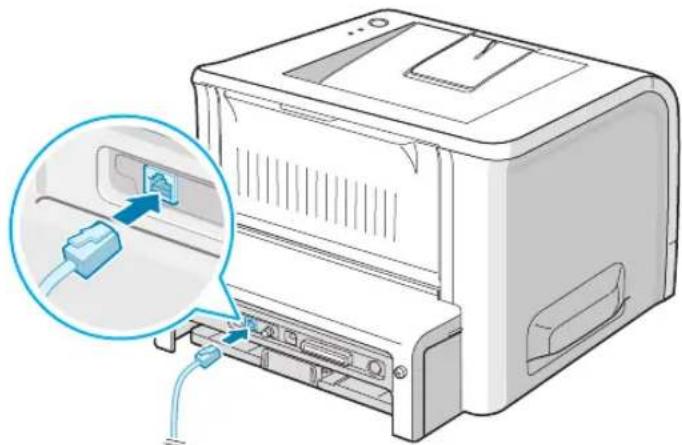

For Network Printing 2.13

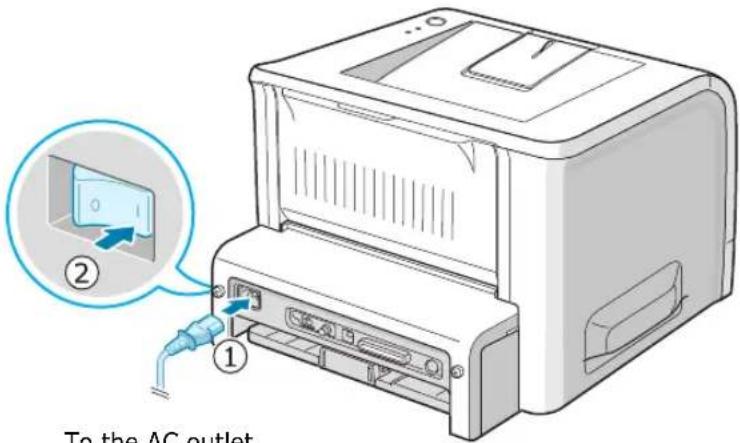

Turning the Printer On 2.15

Printing a Demo Page 2.16

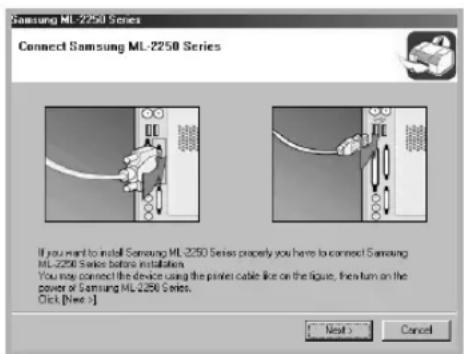

Installing Printer Software 2.17

Printer Driver Features 2.18

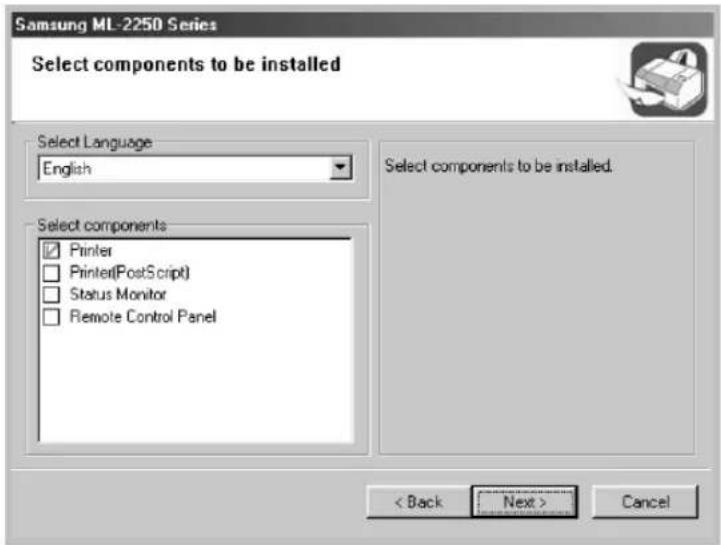

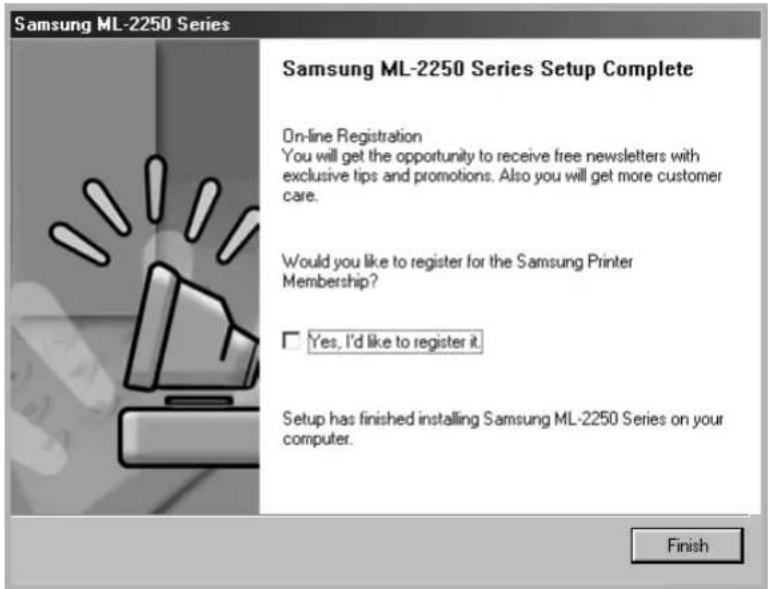

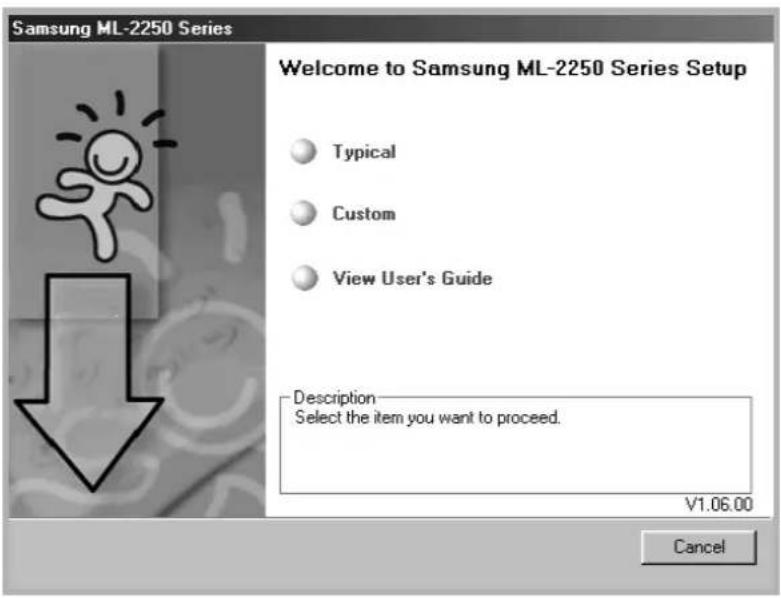

Installing Printer Software in Windows 2.19

Changing the Display Language 2.21

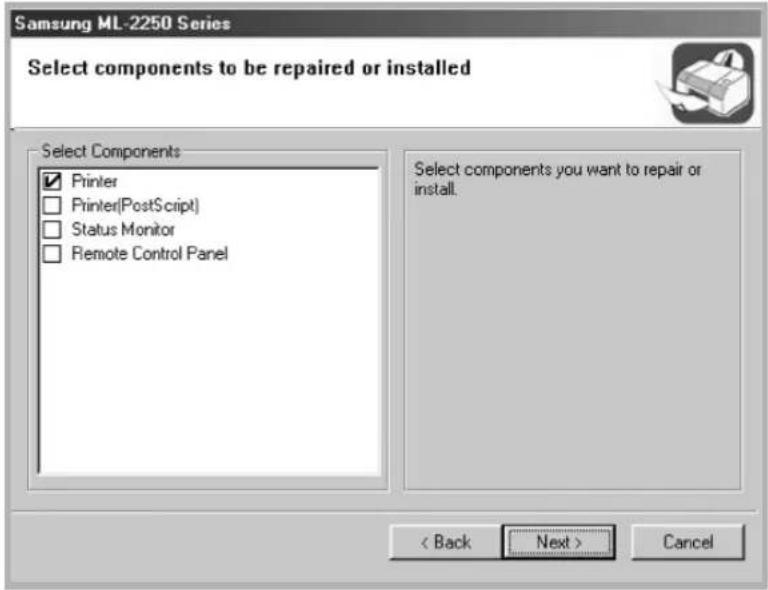

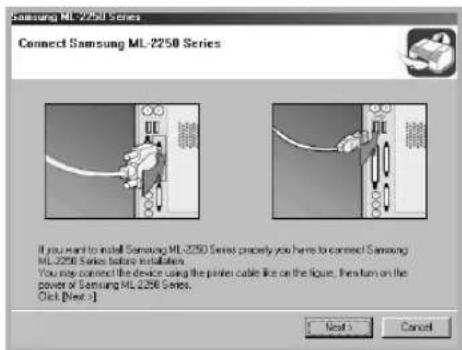

Reinstalling Printer Software 2.22

Removing Printer Software 2.23

Viewing the User's Guide 2.24

Chapter 3: USING PRINT MATERIALS

Choosing Paper and Other Materials 3.2

Sizes and Capacities 3.3

Guidelines for Paper and Special Materials ..... 3.4

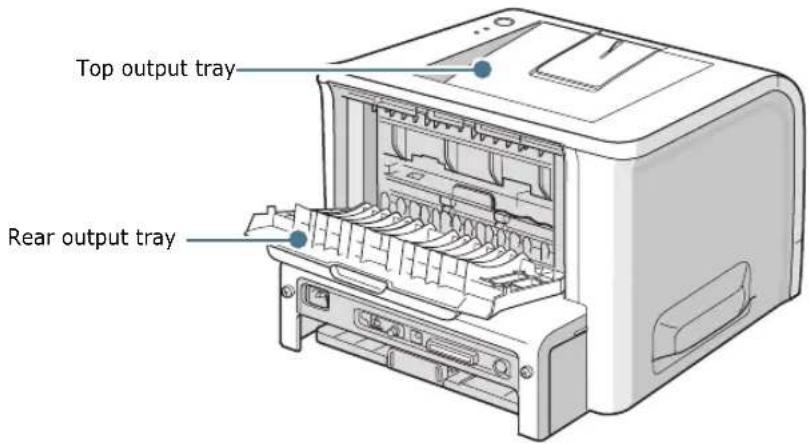

Selecting the Output Location 3.5

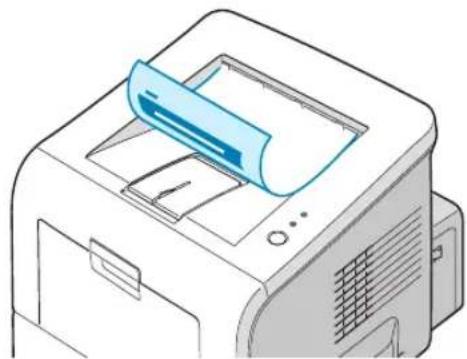

Printing to the Top Output Tray (Face down) ..... 3.5

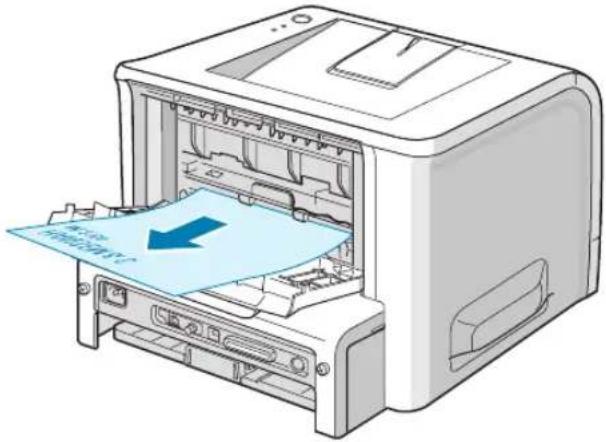

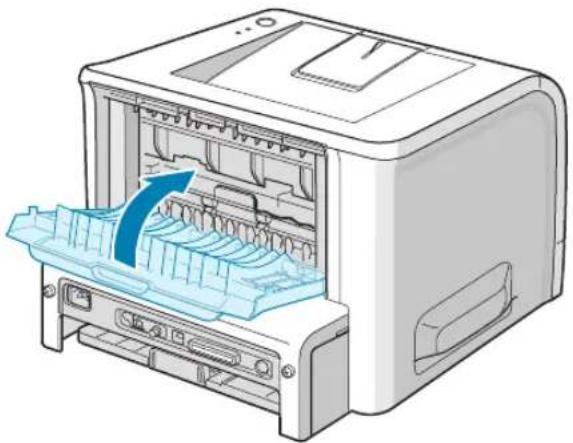

Printing to the Rear Output Tray (Face up) ...... 3.6

Loading Paper 3.7

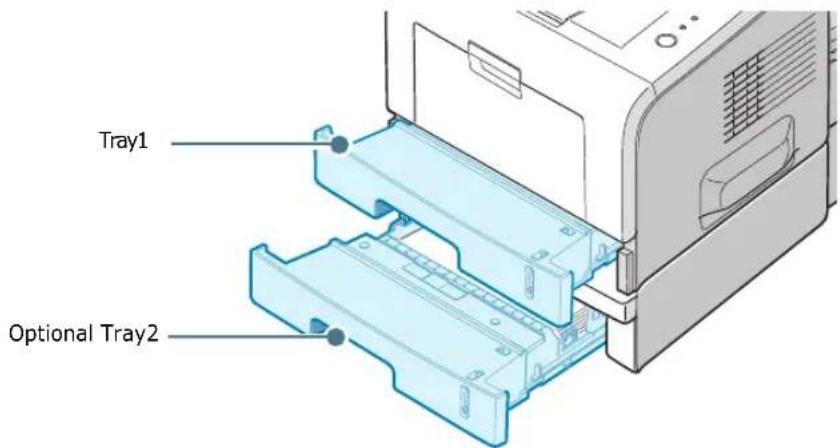

Using Tray1 or the Optional Tray2 3.8

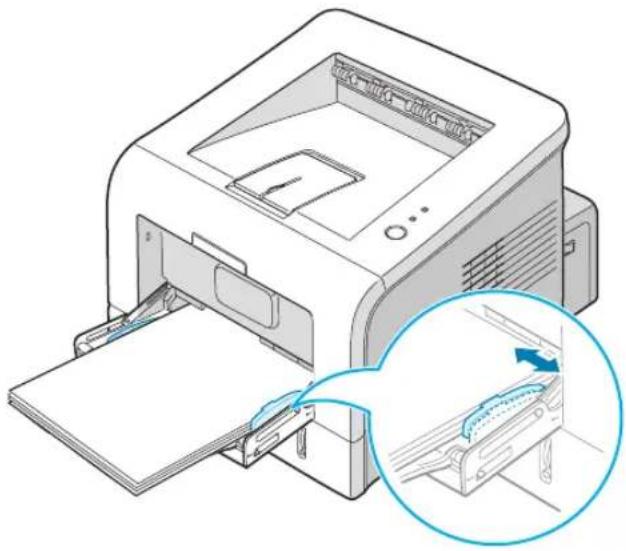

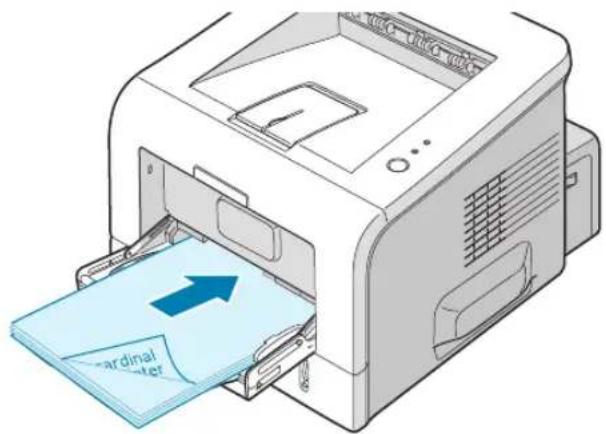

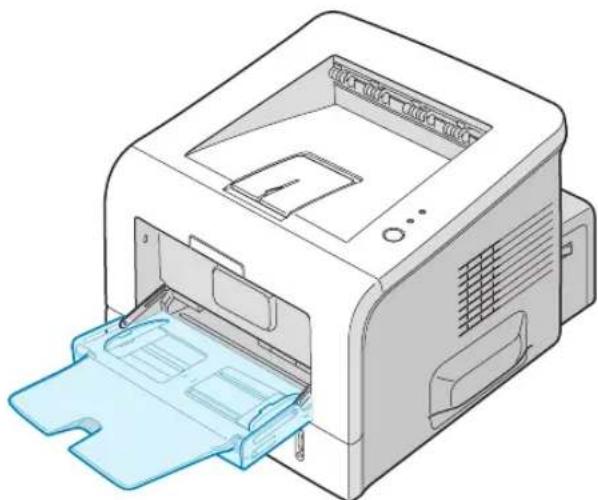

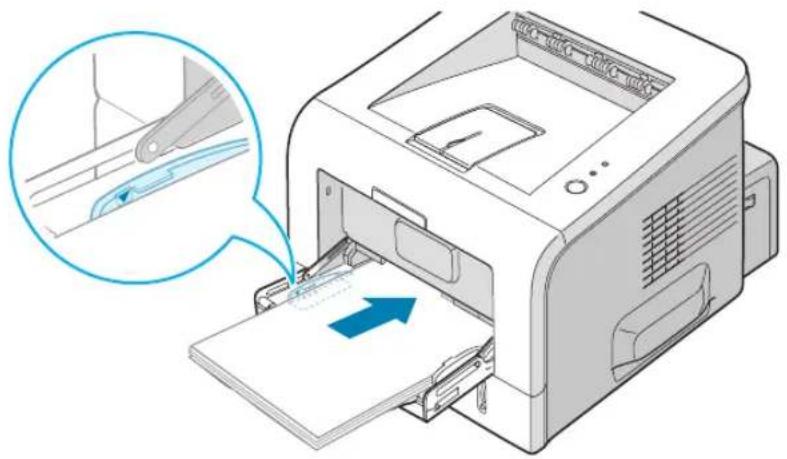

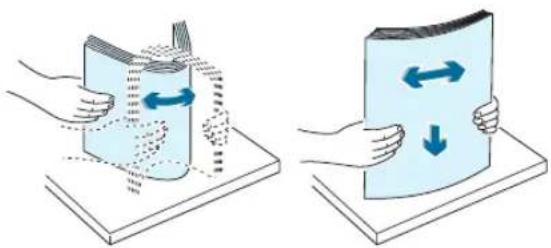

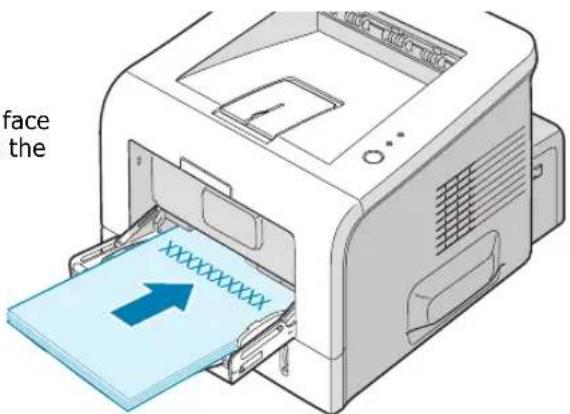

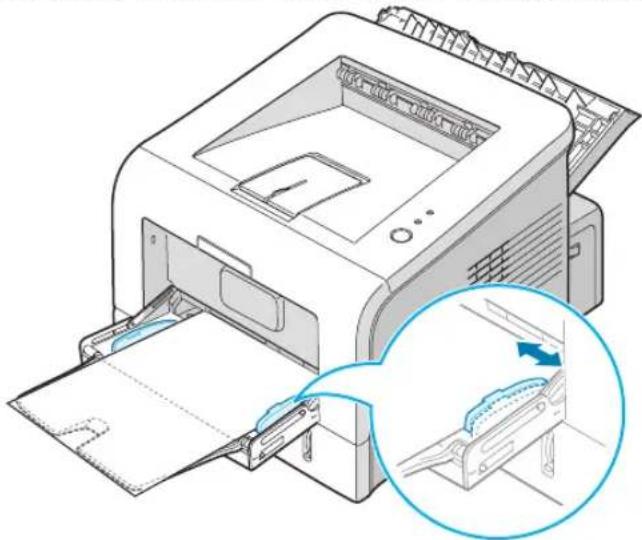

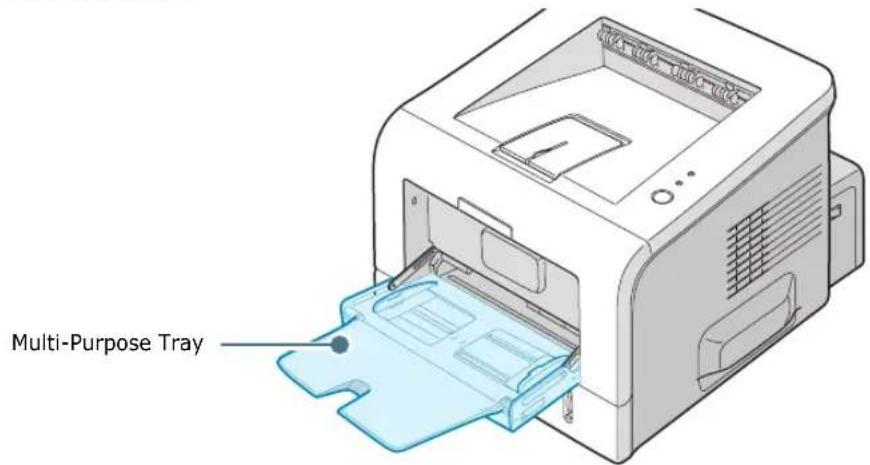

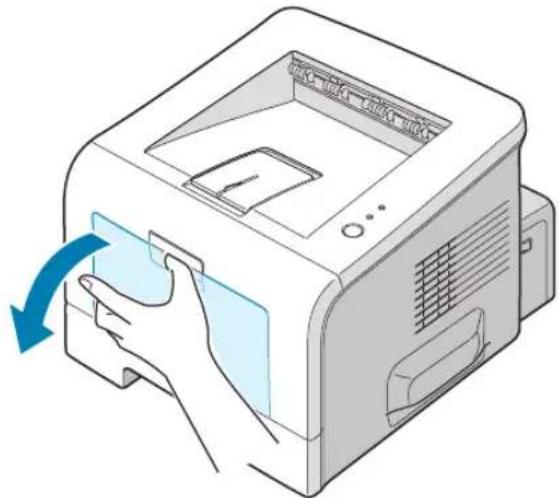

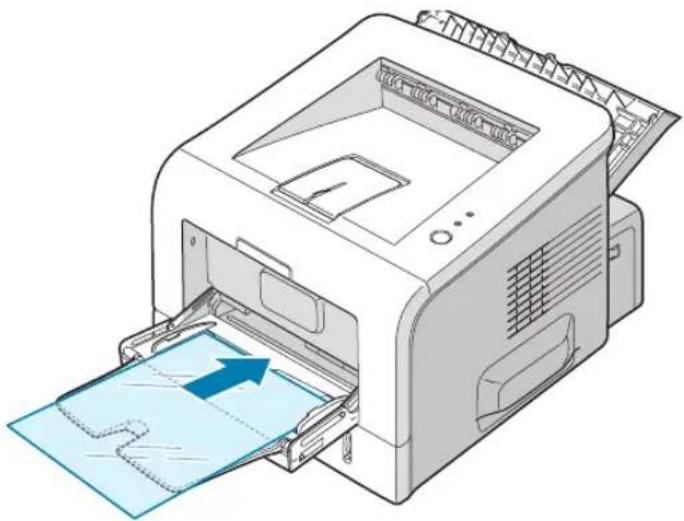

Using the Multi-Purpose Tray 3.8

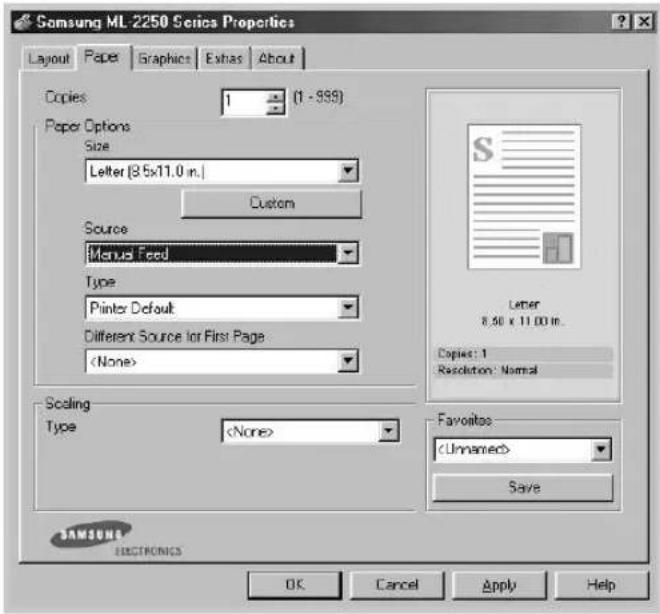

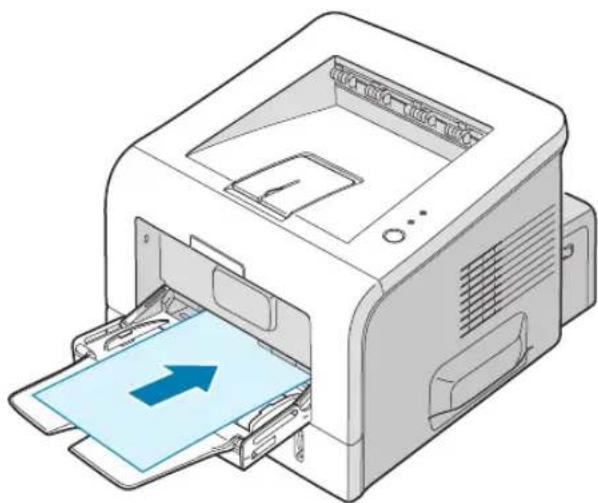

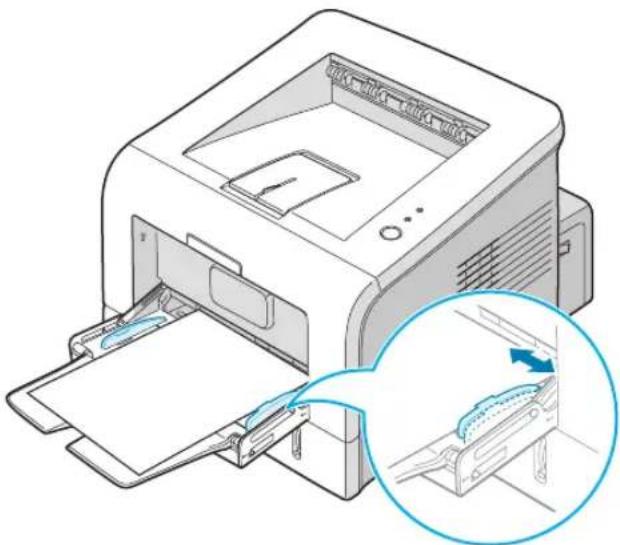

Using the Manual Feed Mode 3.12

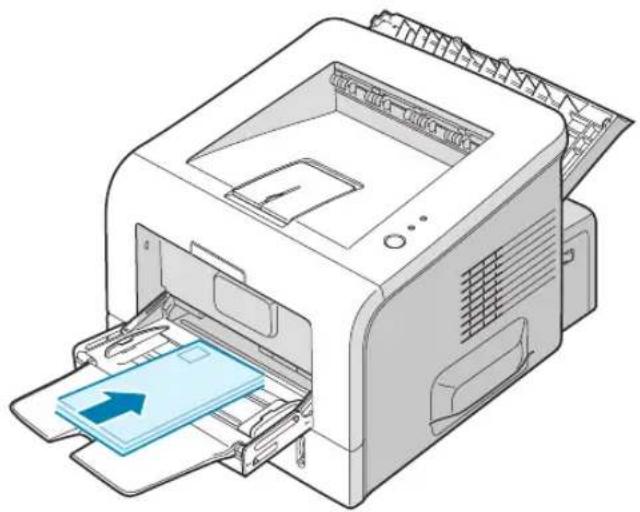

Printing on Envelopes 3.14

Printing on Labels 3.17

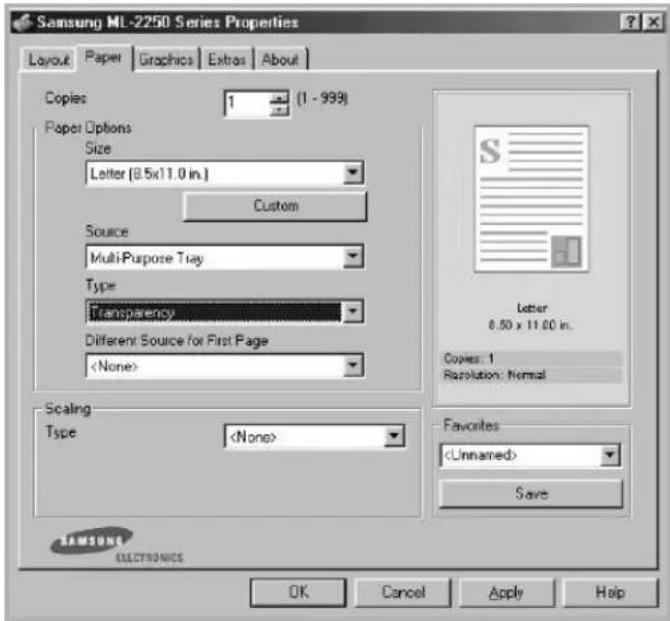

Printing on Transparencies 3.19

Printing on Card Stock or

Custom-sized Materials 3.21

Printing on Preprinted Paper 3.23

Chapter 4: PRINTING TASKS

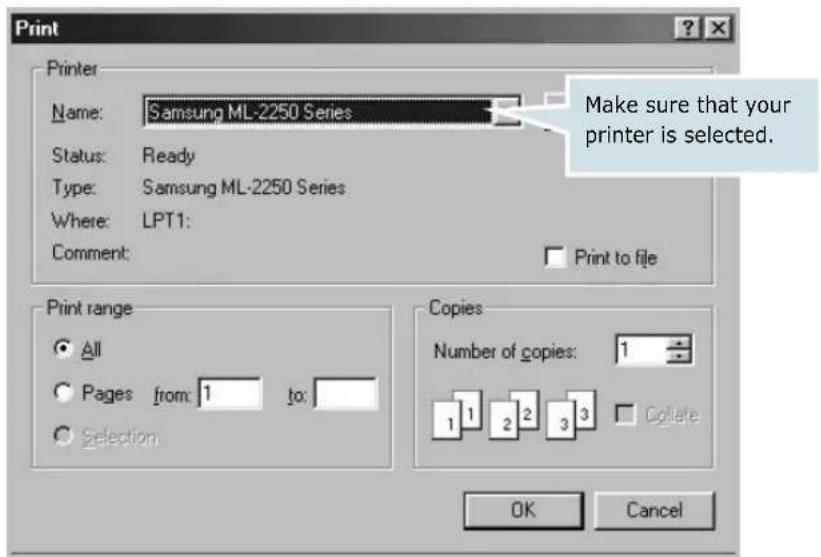

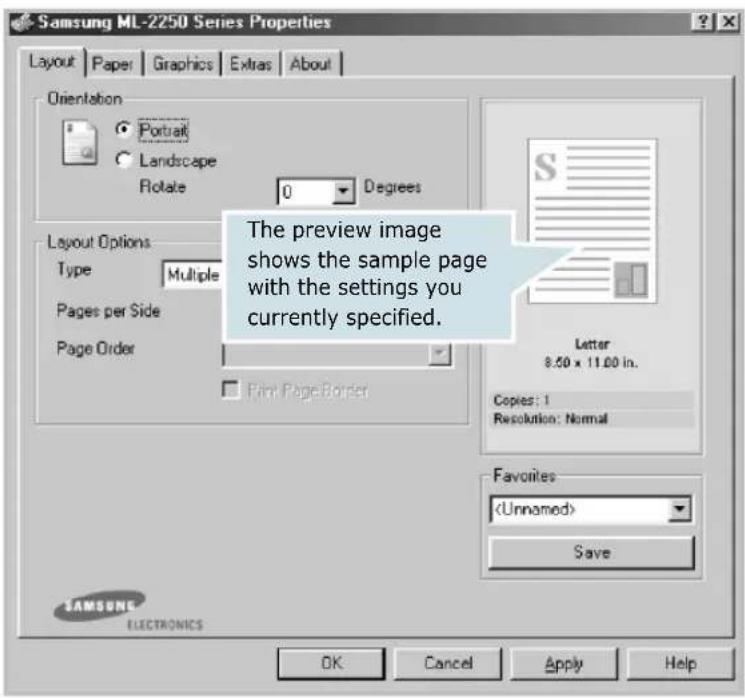

Printing a Document 4.2

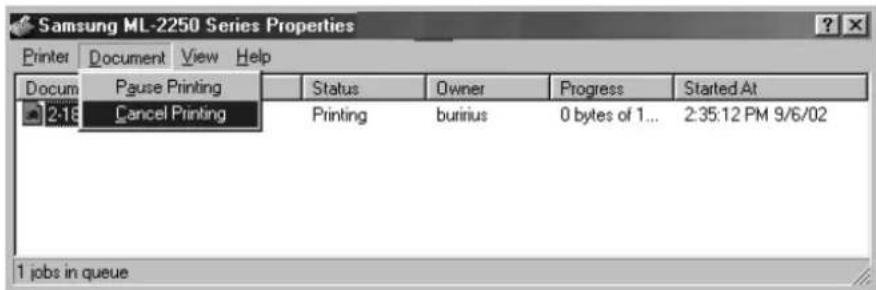

Cancelling a Print Job 4.5

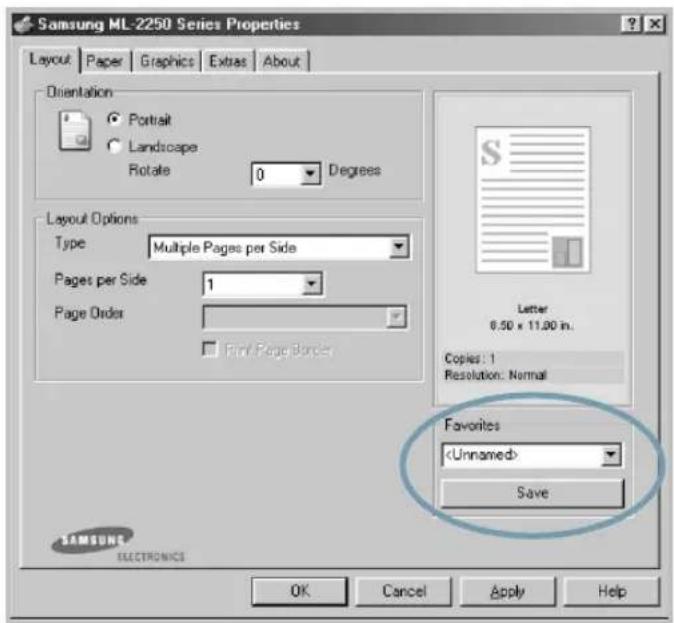

Using a Favorite Setting 4.6

Using Help 4.6

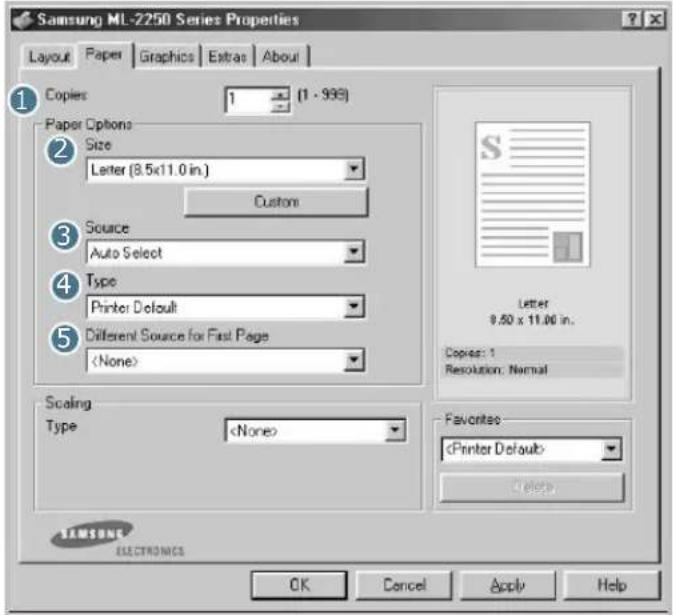

Setting Paper Properties 4.7

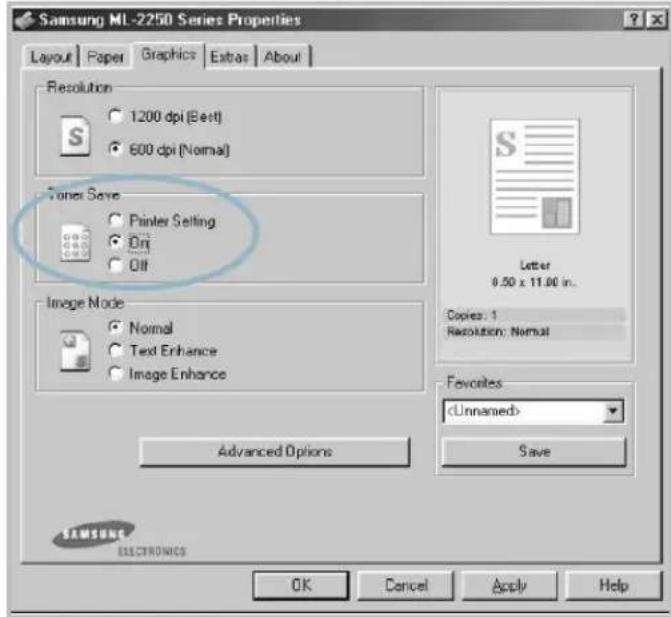

Using the Toner Save Mode 4.9

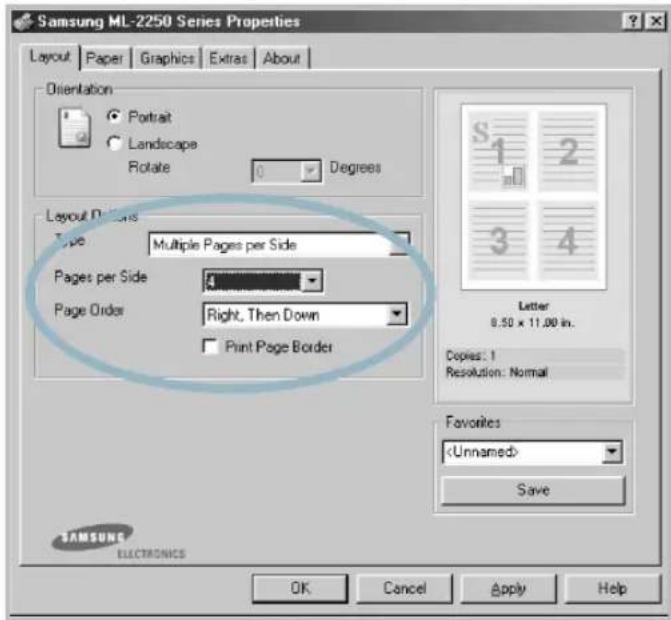

Printing Multiple Pages on One

Sheet of Paper (N-Up Printing) 4.11

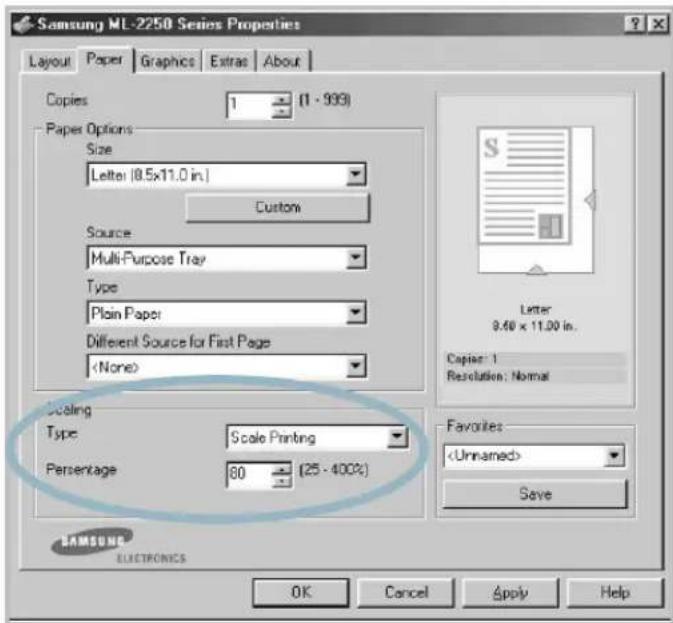

Printing a Reduced or Enlarged Document 4.12

Fitting Your Document to a Selected Paper Size ..... 4.13

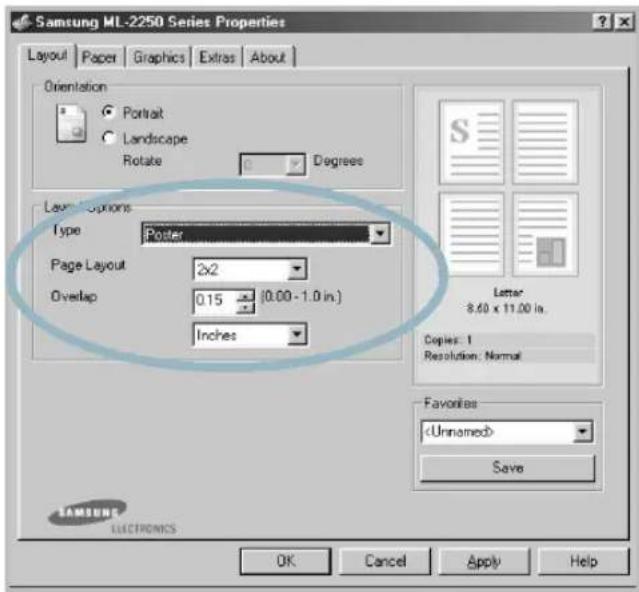

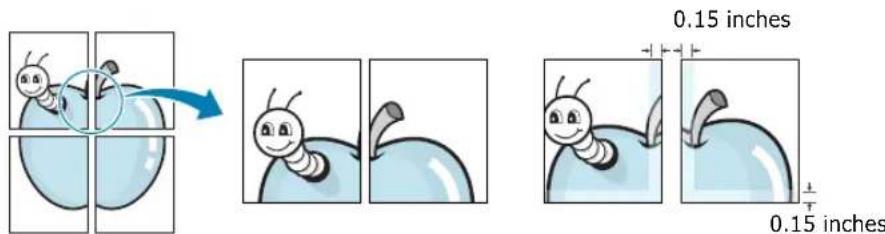

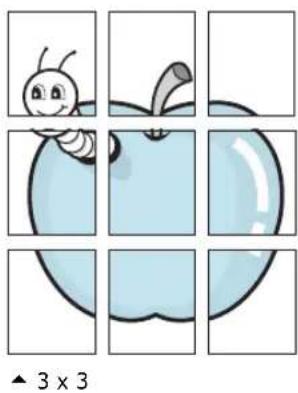

Printing Posters 4.14

Using Watermarks 4.15

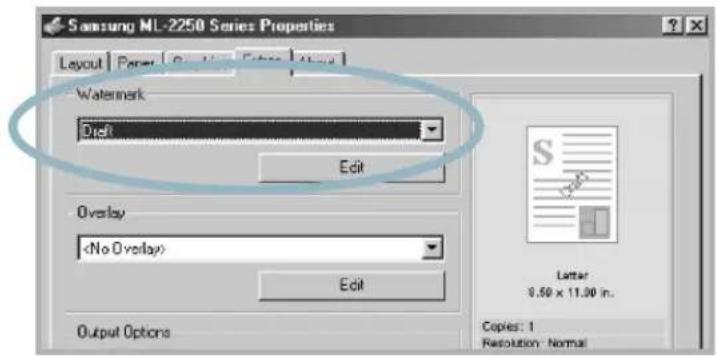

Using an Existing Watermark 4.15

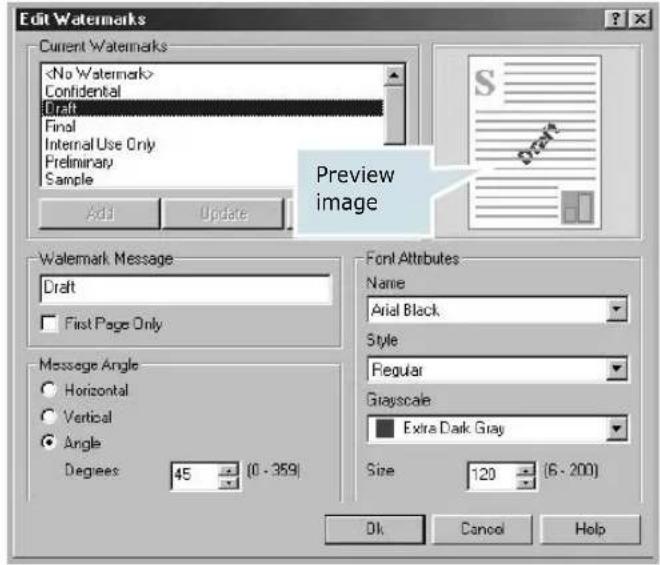

Creating a Watermark 4.16

Editing a Watermark 4.17

Deleting a Watermark 4.17

Using Overlays 4.18

What is an Overlay? 4.18

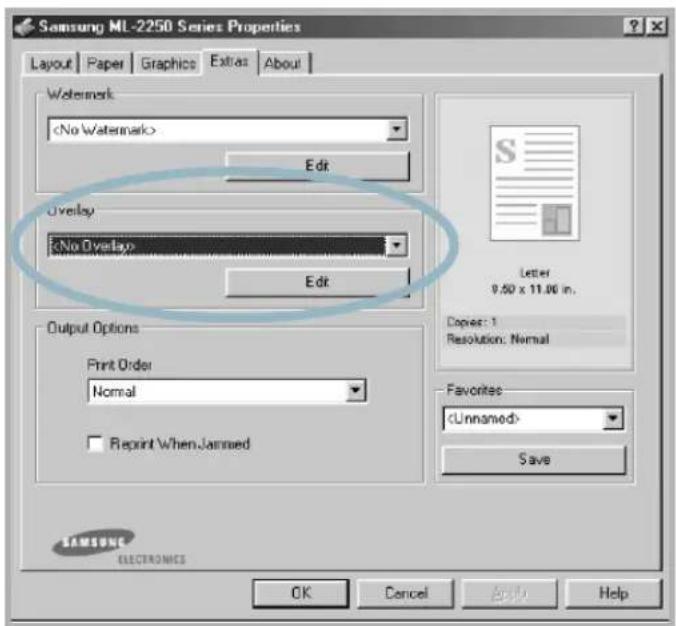

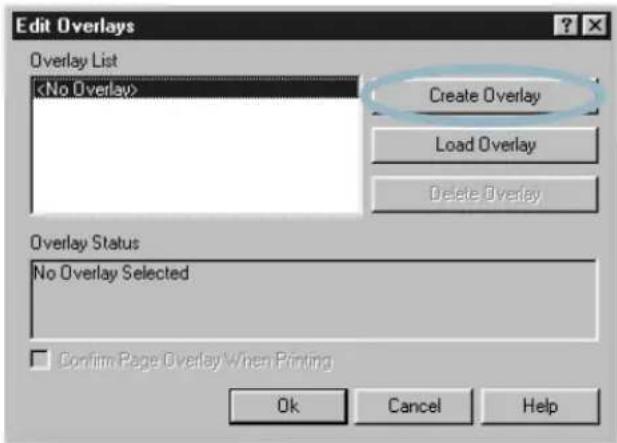

Creating a New Page Overlay 4.18

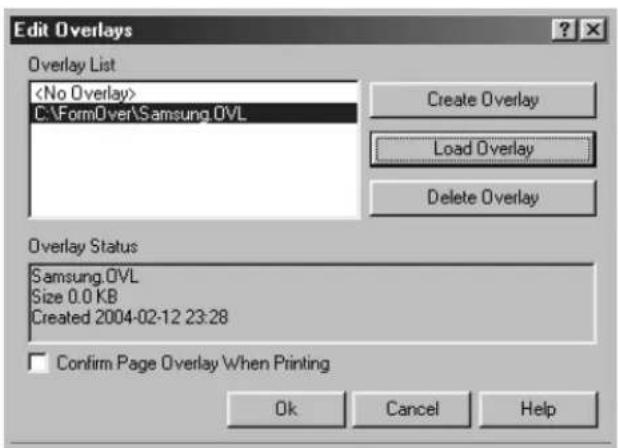

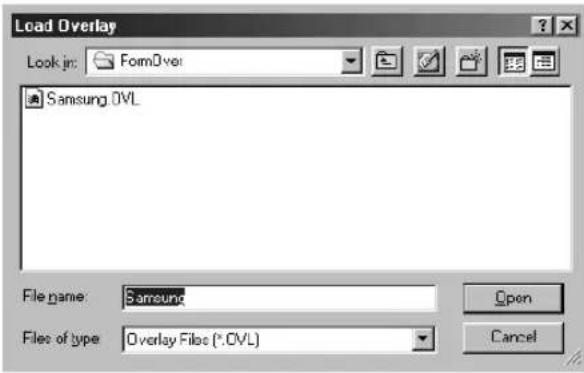

Using a Page Overlay 4.20

Deleting a Page Overlay 4.21

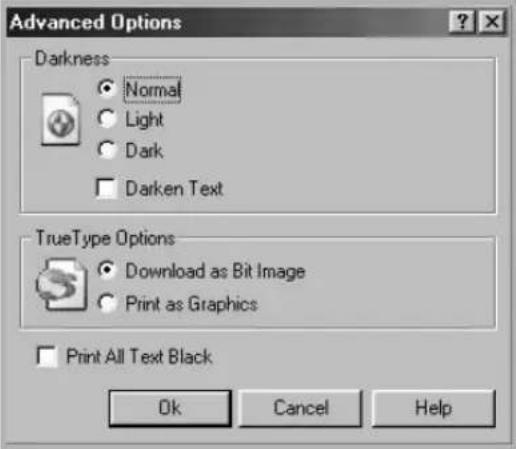

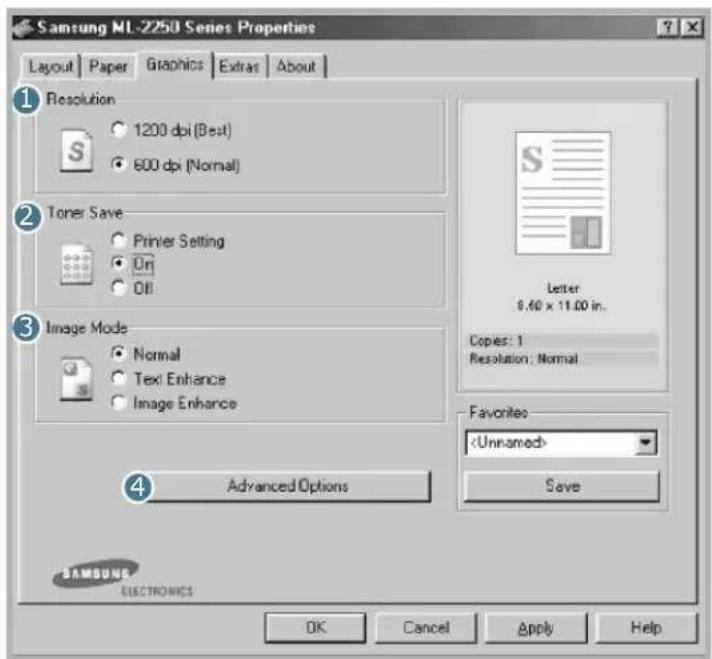

Setting Graphic Properties 4.22

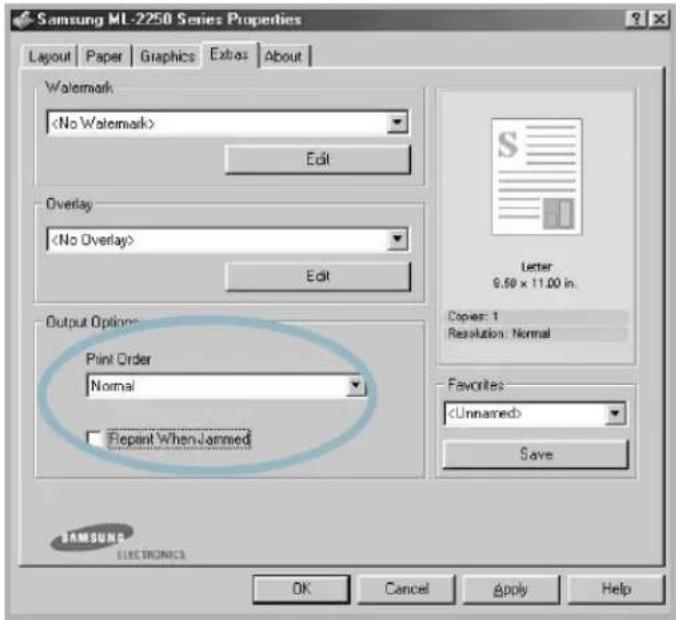

Using Output Options 4.25

Using the Status Monitor 4.26

Installing Status Monitor 4.26

Reinstalling Status Monitor 4.27

Removing Status Monitor 4.27

Opening the Troubleshooting Guide 4.27

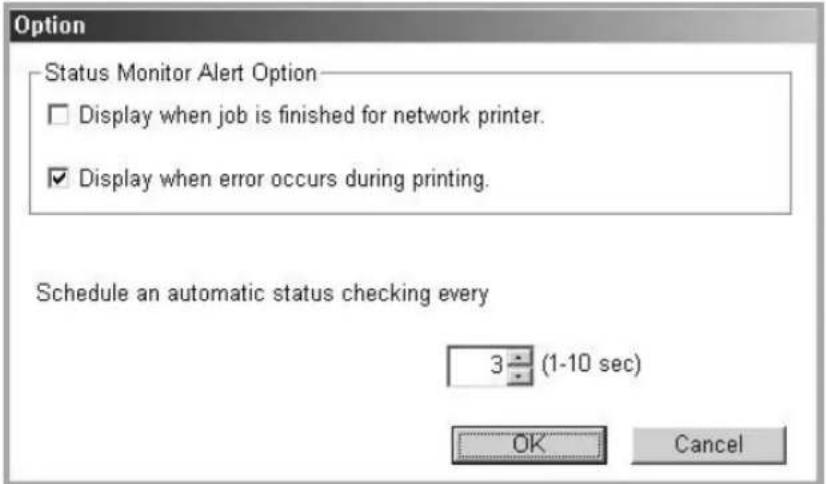

Changing the Status Monitor Program Setting .... 4.28

Setting Up a Locally Shared Printer 4.29

In Windows 9x/Me 4.29

In Windows NT 4.0/2000/XP 4.30

Chapter 5: MAINTAINING YOUR PRINTER

Maintaining the Toner Cartridge 5.2

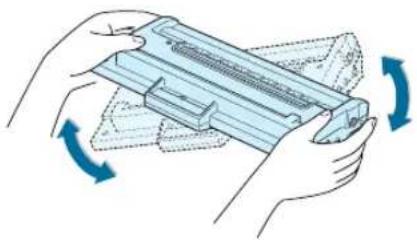

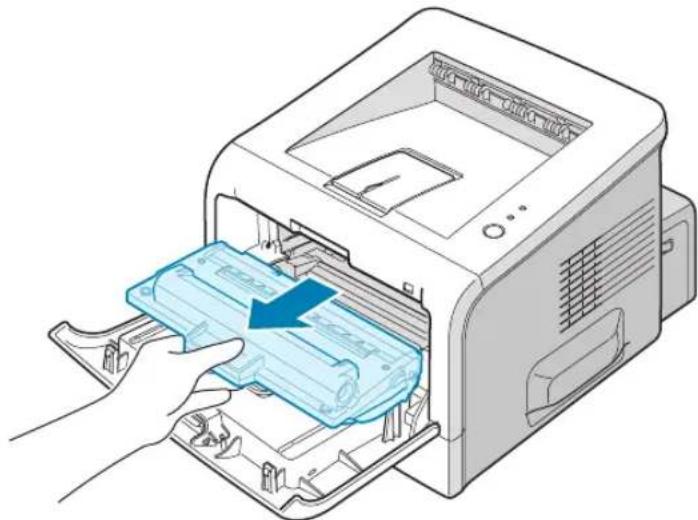

Redistributing Toner 5.3

Replacing the Toner Cartridge 5.5

Cleaning the Printer 5.5

Cleaning the Outside 5.5

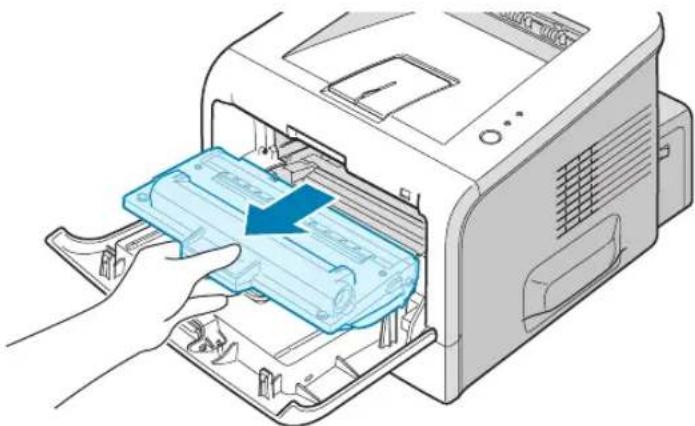

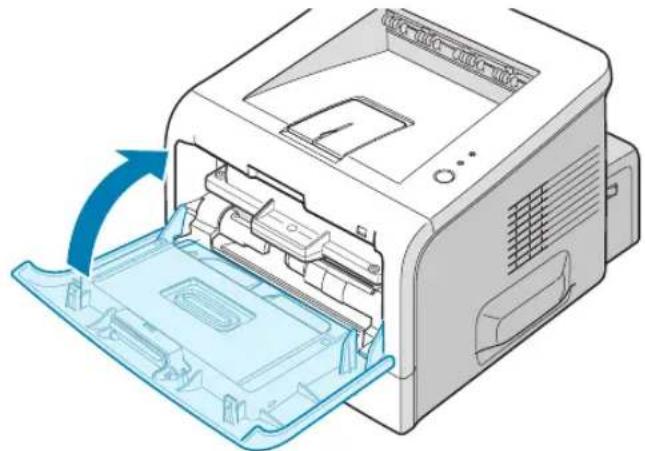

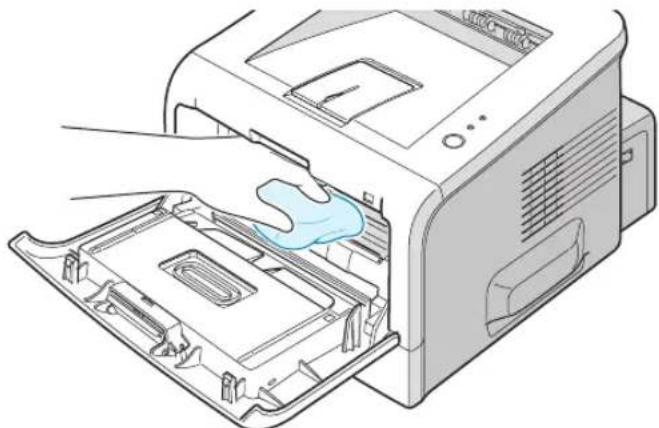

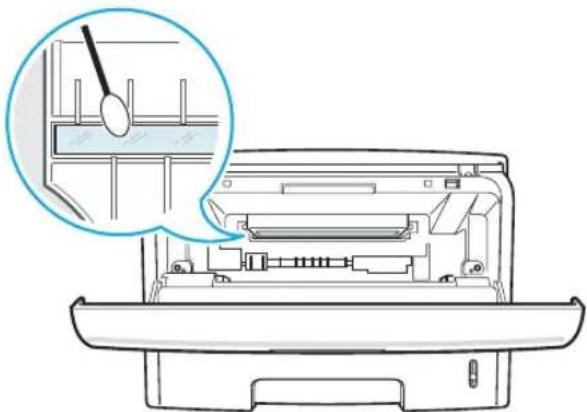

Cleaning the Inside 5.5

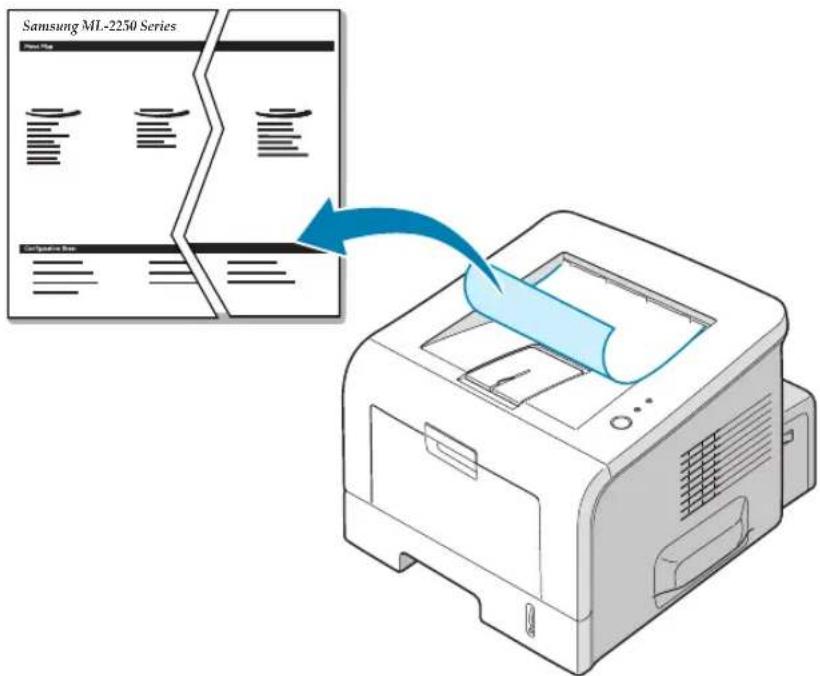

Printing Configuration Pages 5.8

Consumables and Replacement Parts 5.9

Chapter 6: SOLVING PROBLEMS

Troubleshooting Checklist 6.2

Solving General Printing Problems 6.3

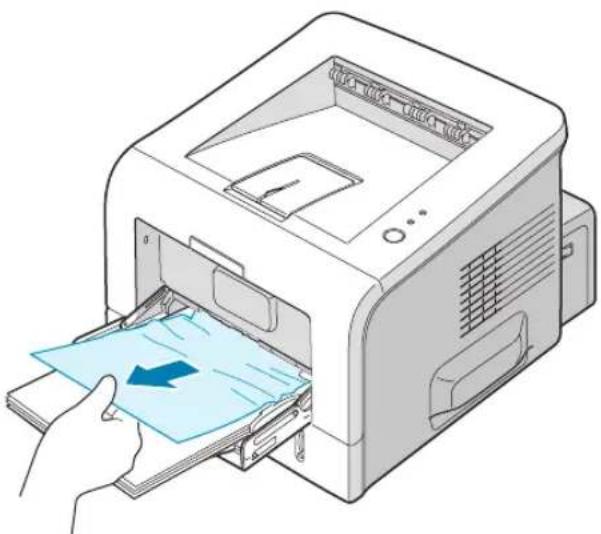

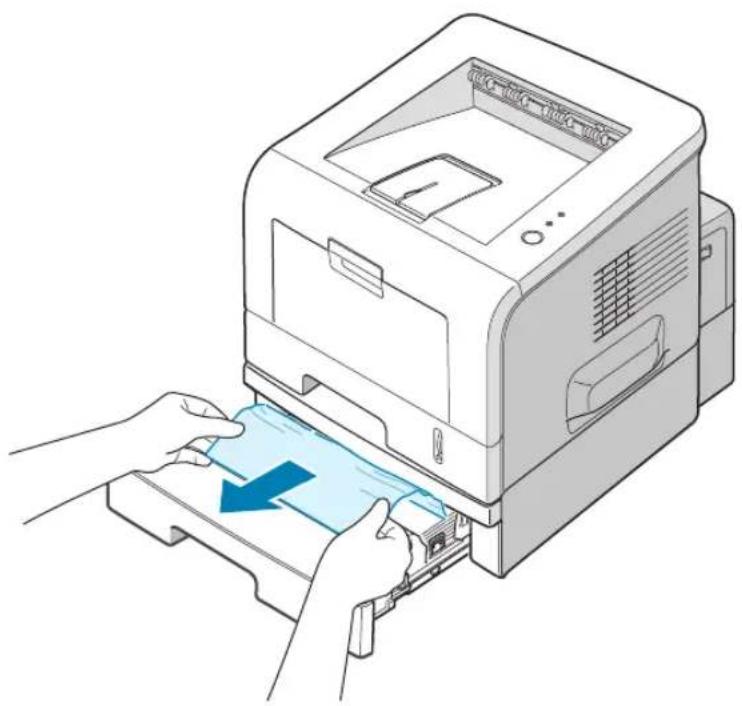

Clearing Paper Jams 6.7

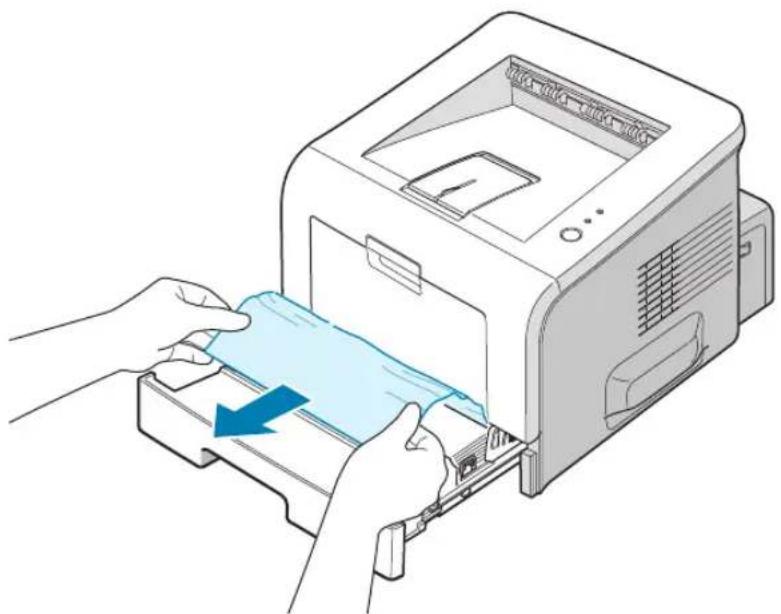

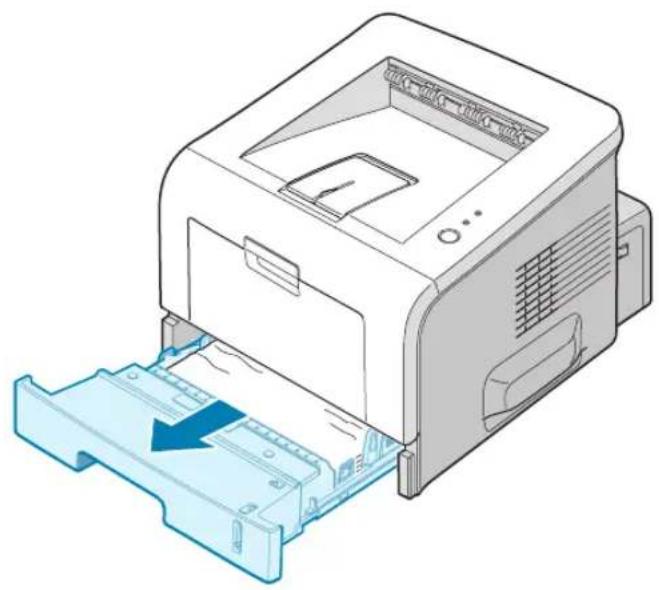

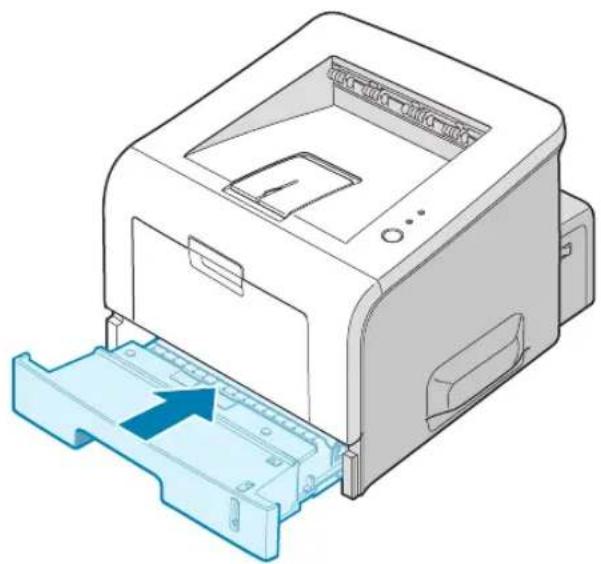

In the Paper Feed Area 6.7

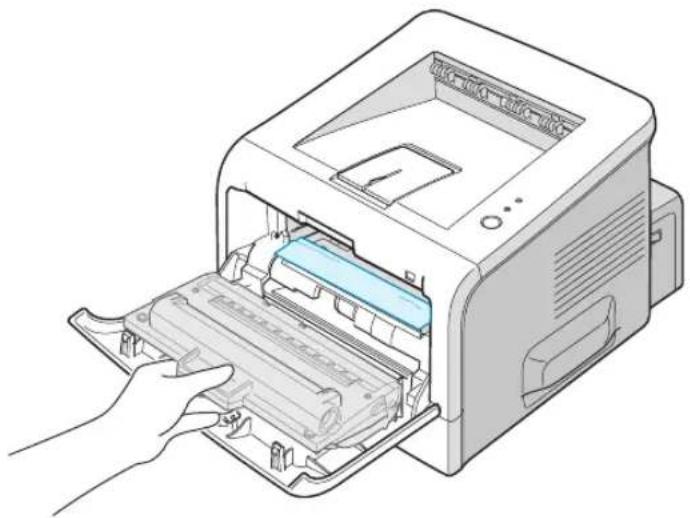

Around the Toner Cartridge 6.11

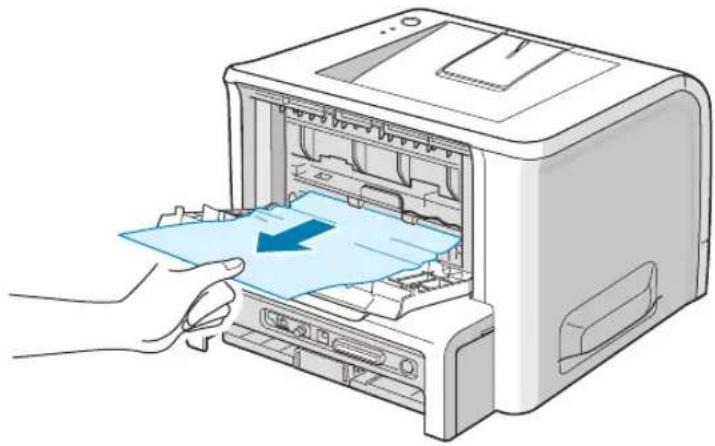

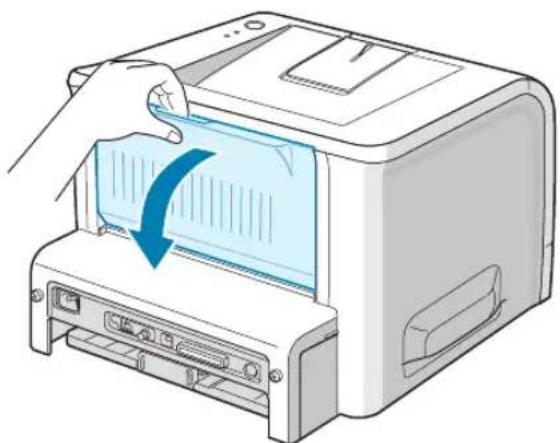

In the Paper Exit Area 6.12

Tips for Avoiding Paper Jams When Printing on the A5-sized Paper 6.13

Tips for Avoiding Paper Jams 6.14

Solving Print Quality Problems 6.15

Troubleshooting Error Messages 6.20

Common Windows Problems 6.21

Troubleshooting PS Errors 6.22

Common Linux Problems 6.23

Appendix A: USING WINDOWS POSTSCRIPT DRIVER

Installing PS Drivers ...... A.2

Installing PS Drivers ...... A.2

Reinstalling PS Drivers ...... A.3

Removing PS Drivers ...... A.3

Using PS Printer Driver Features ...... A.4

Accessing Printer Properties A.4

Appendix B: USING YOUR PRINTER IN LINUX

Installing the Printer Driver ...... B.2

System Requirements B.2

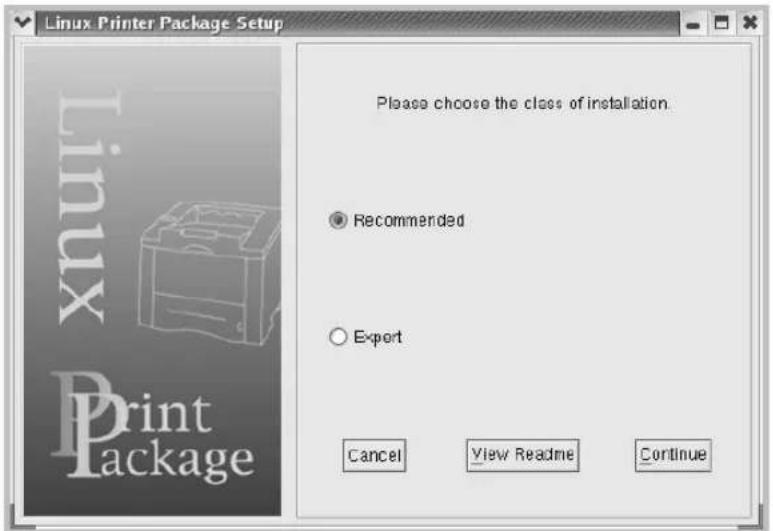

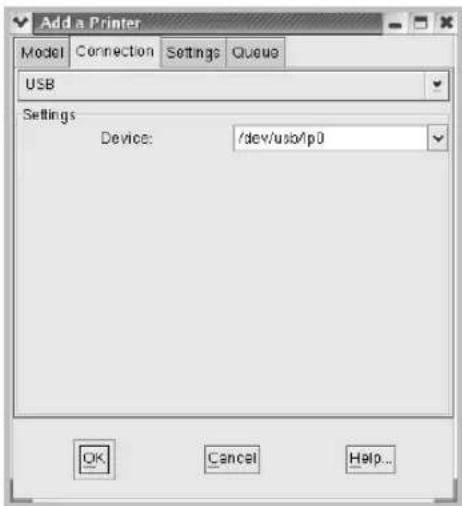

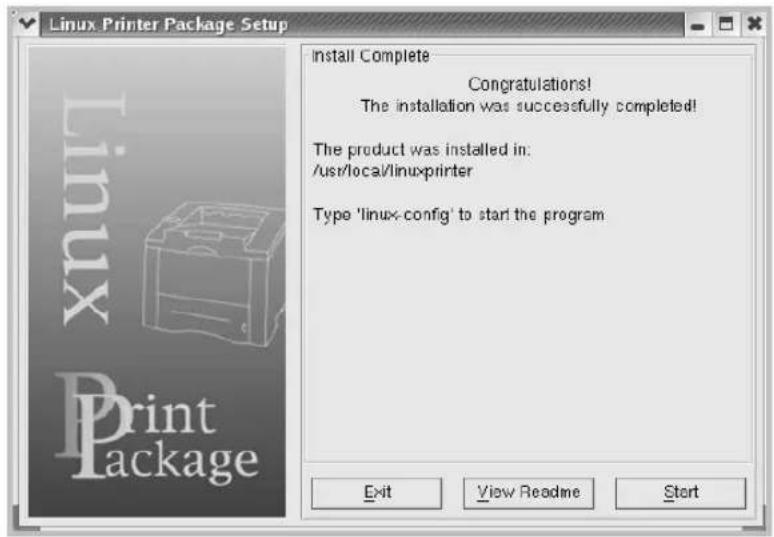

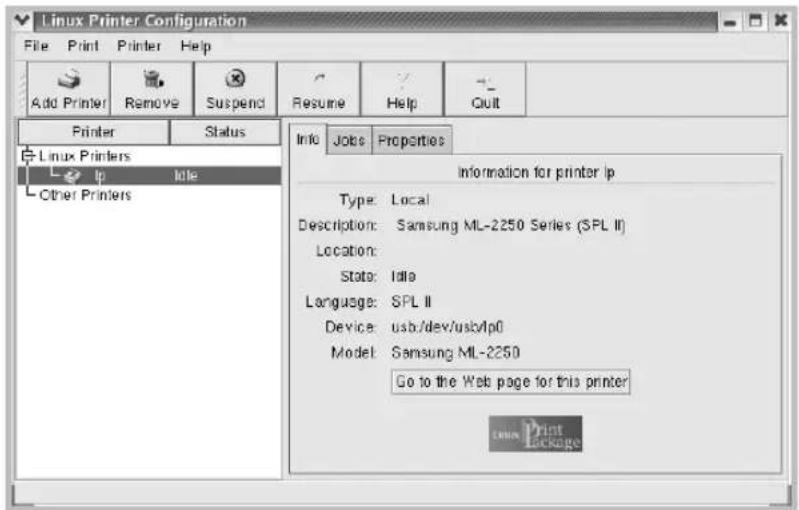

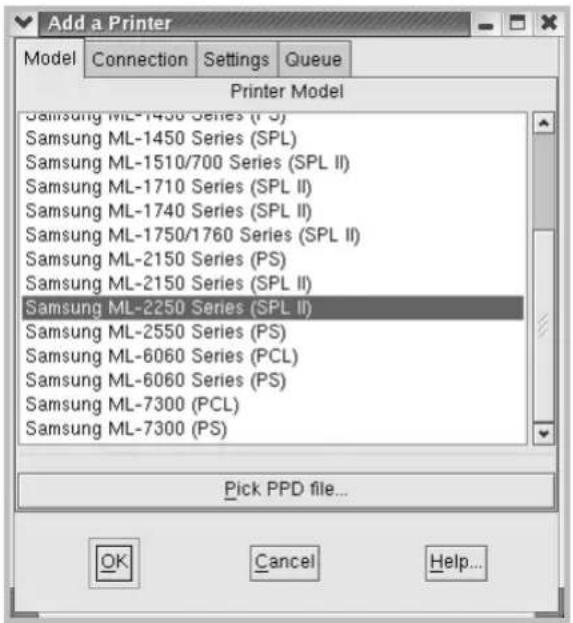

Installing the Printer Driver ...... B.2

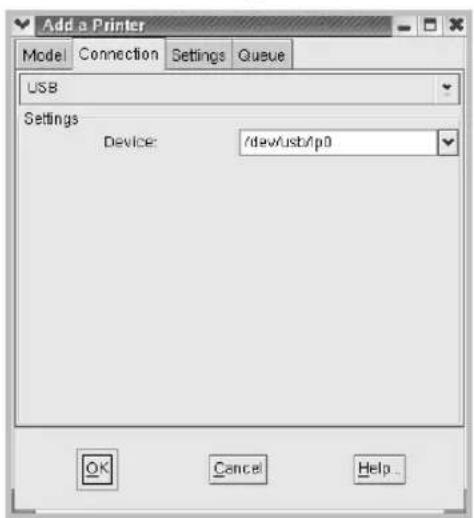

Changing the Printer Connection Method ...... B.6

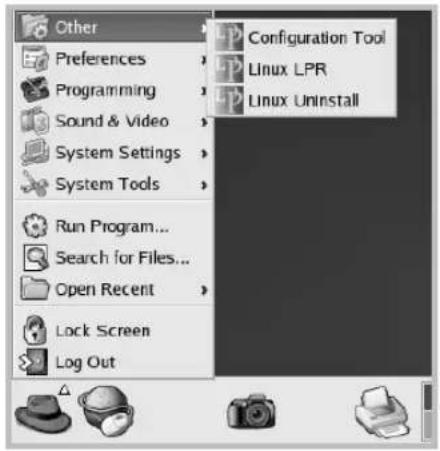

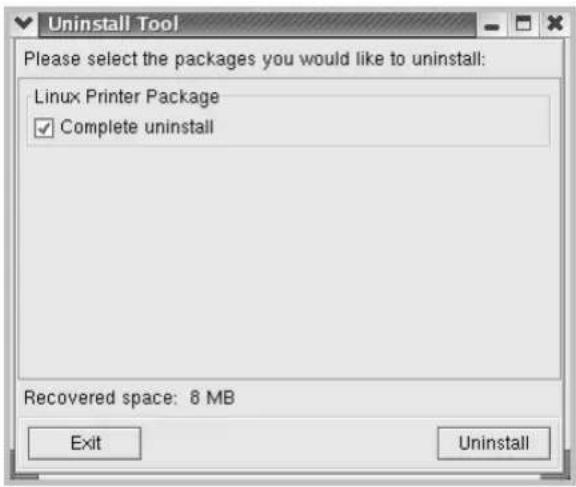

Uninstalling the Printer Driver ...... B.7

Using the Configuration Tool ...... B.8

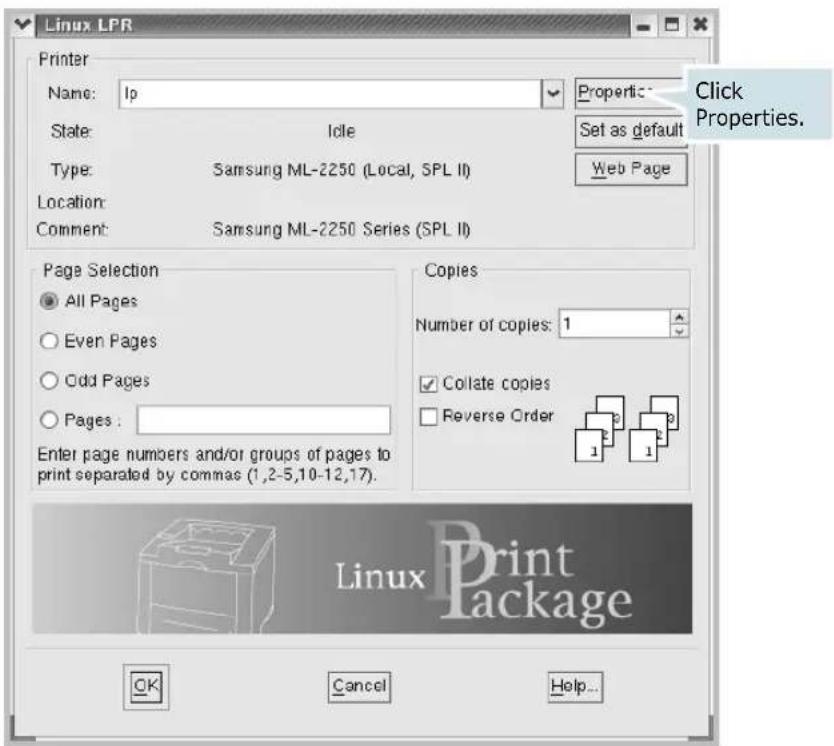

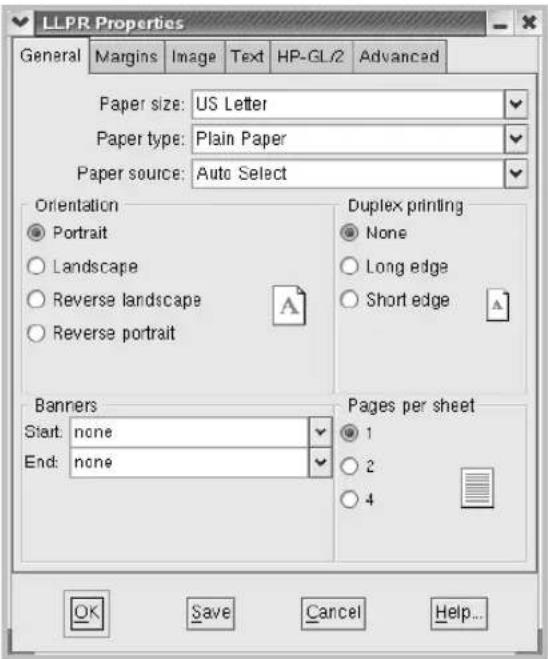

Changing LLPR Properties B.10

Appendix C: PRINTING FROM DOS APPLICATIONS

About the Remote Control Panel C.2

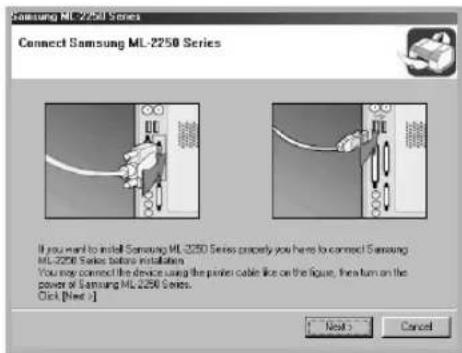

Installing the Remote Control Panel C.2

Reinstalling Remote Control Panel C.3

Removing Remote Control Panel C.3

Selecting Print Settings C.4

Starting the Remote Control Panel C.4

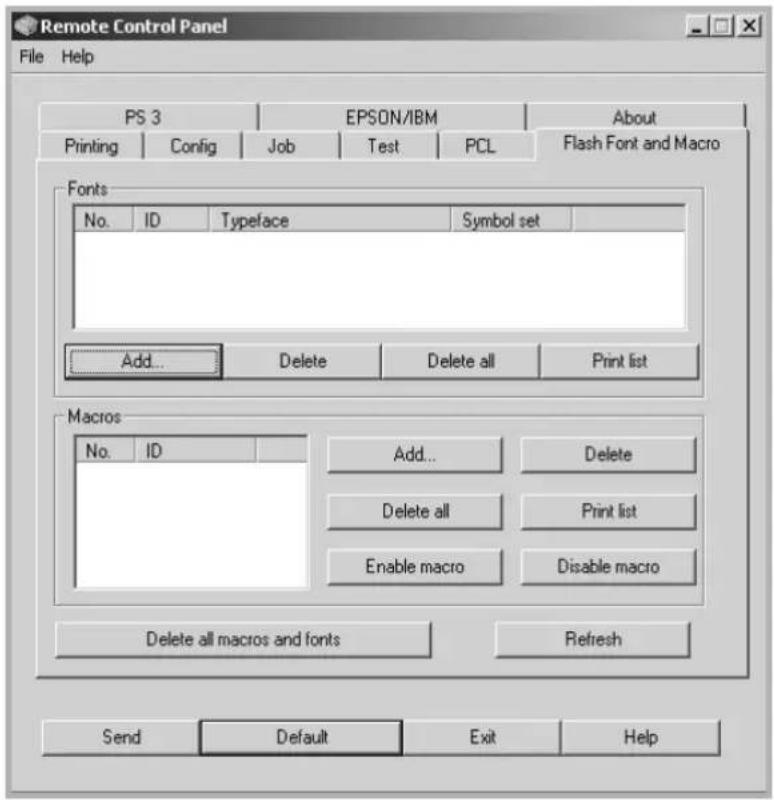

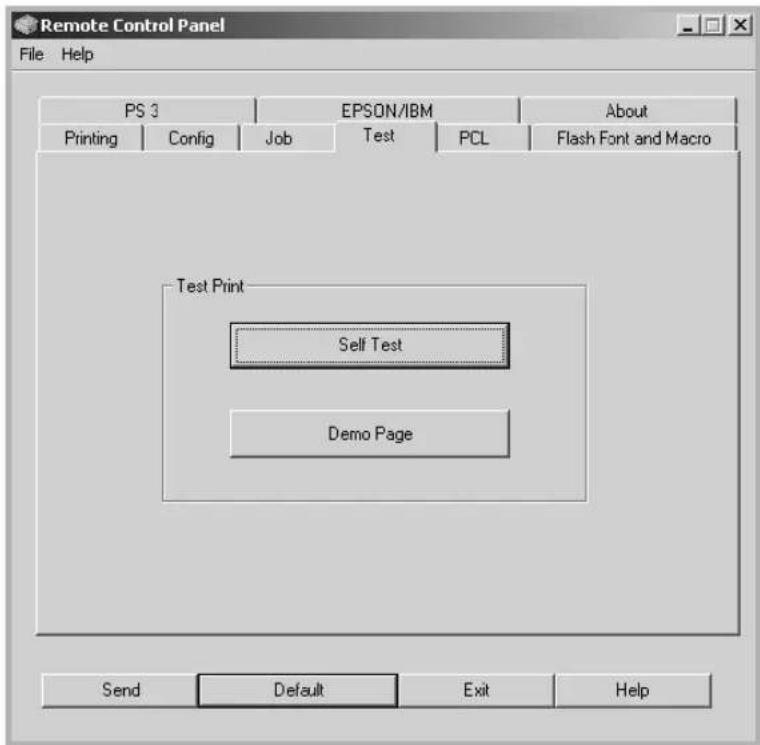

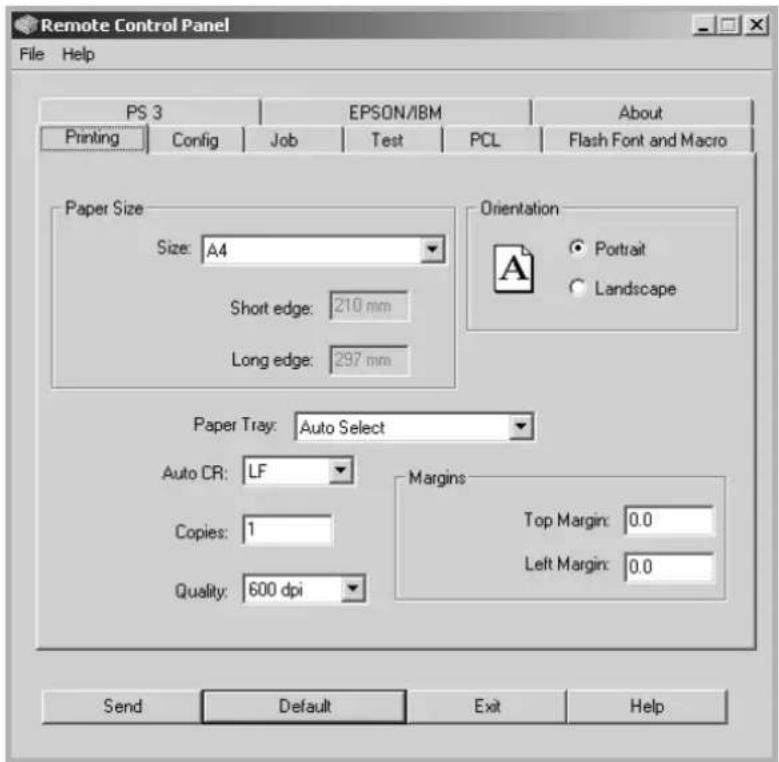

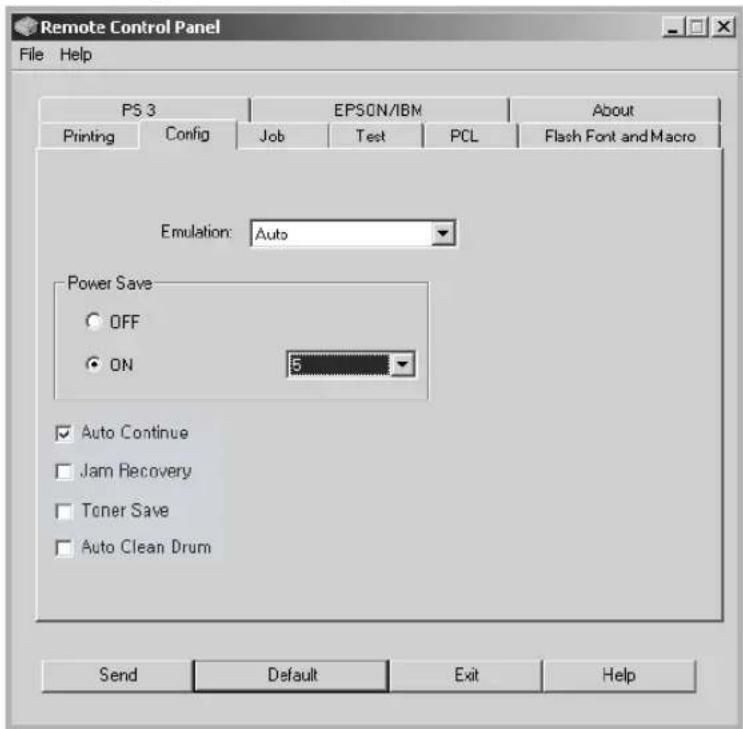

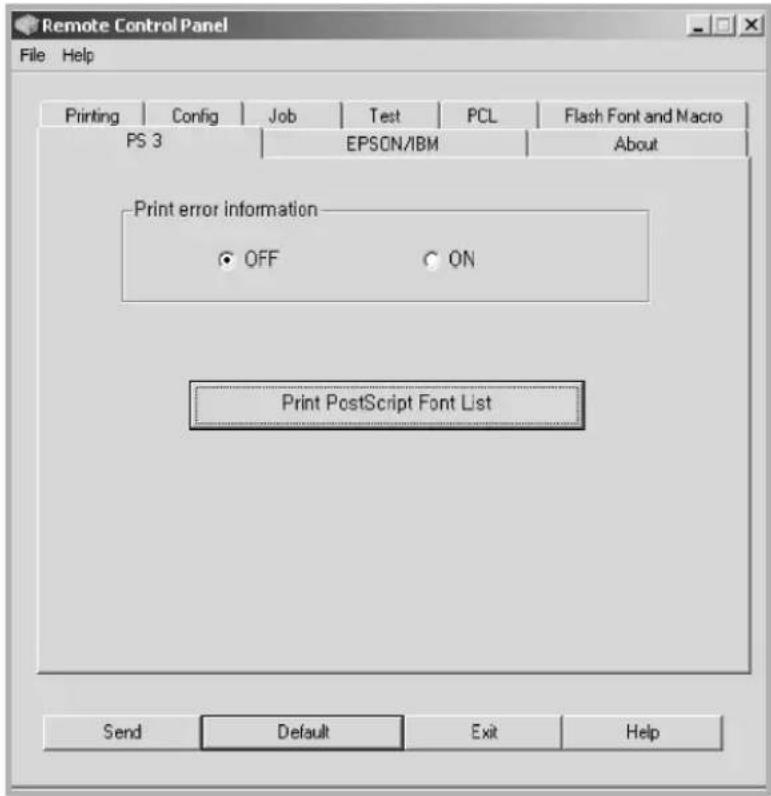

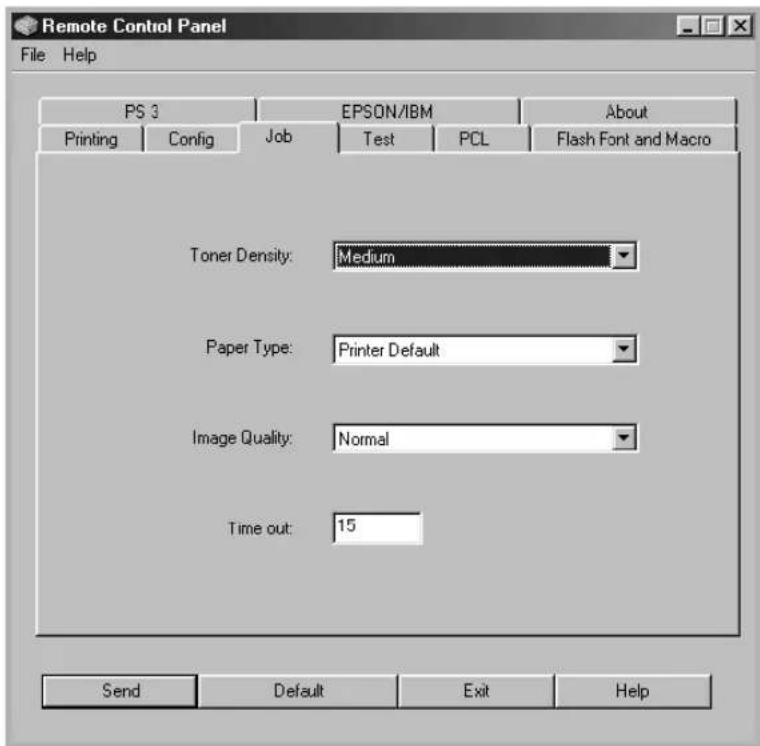

Using the Remote Control Panel Tabs ...... C.5

Appendix D: INSTALLING PRINTER OPTIONS

Precautions When Installing Printer Options ...... D.2

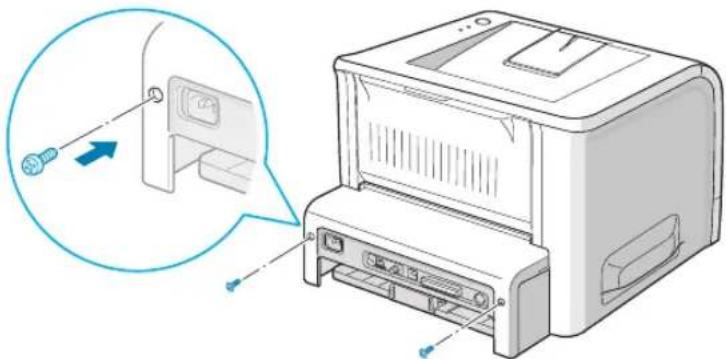

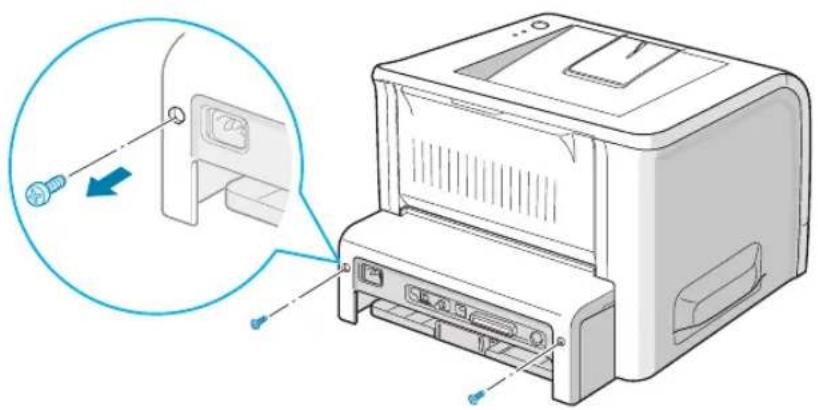

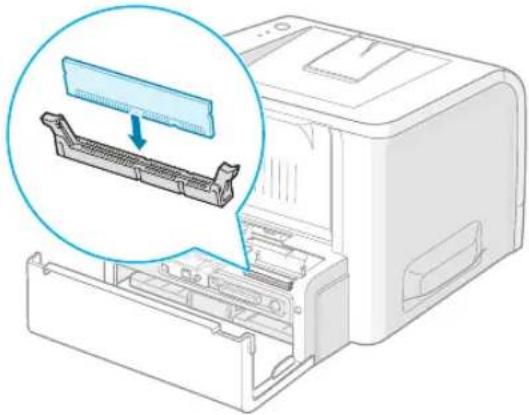

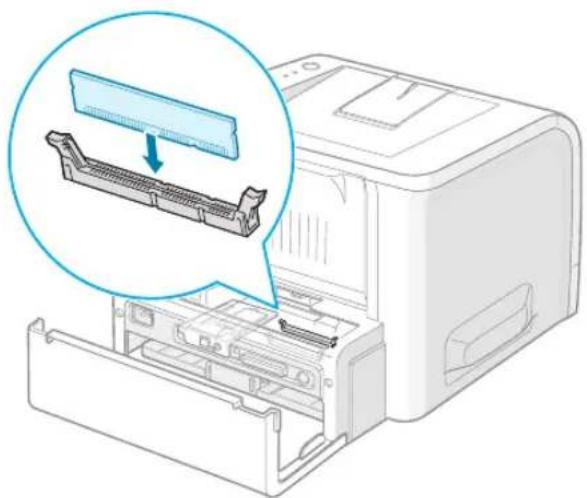

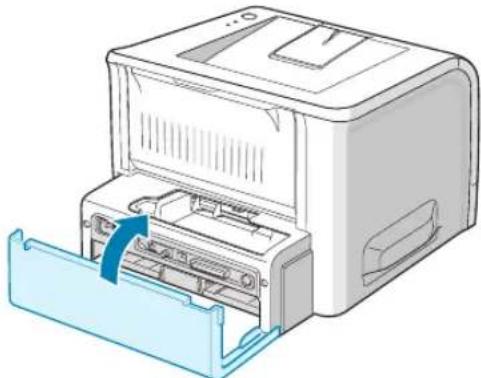

Installing Memory and PostScript DIMMs ...... D.3

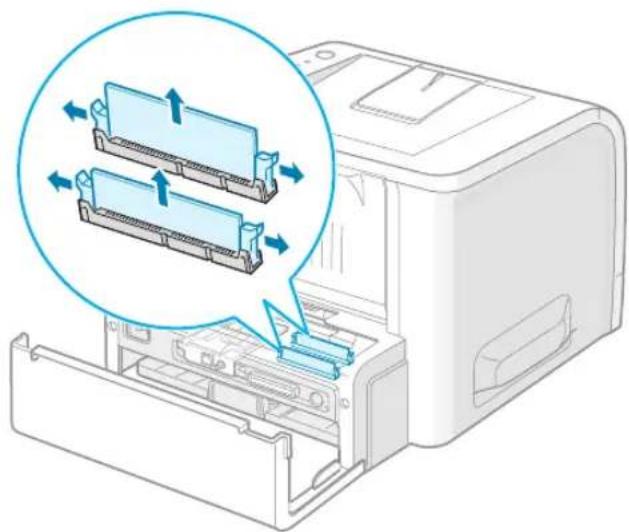

Removing the Memory or PS DIMM ...... D.6

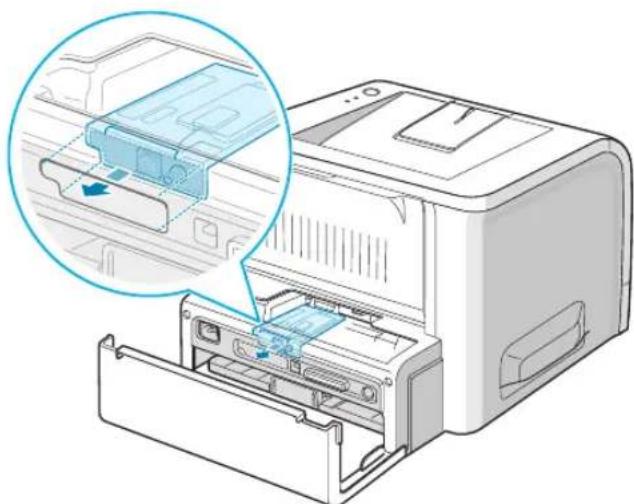

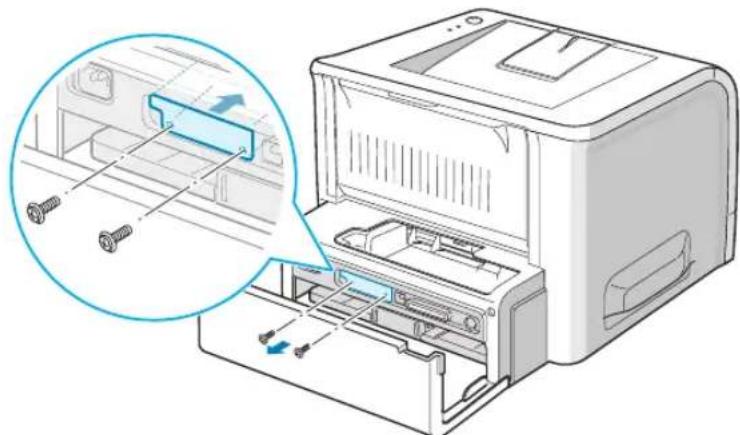

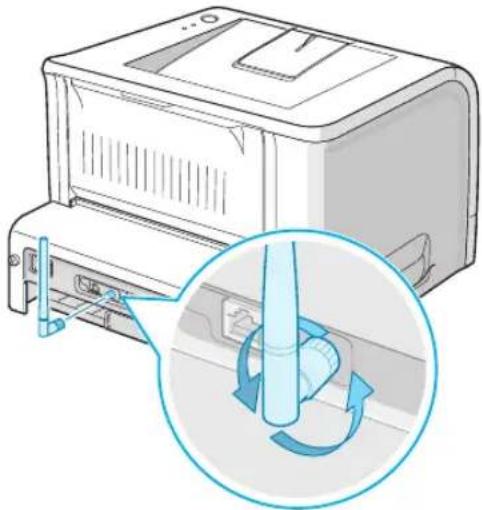

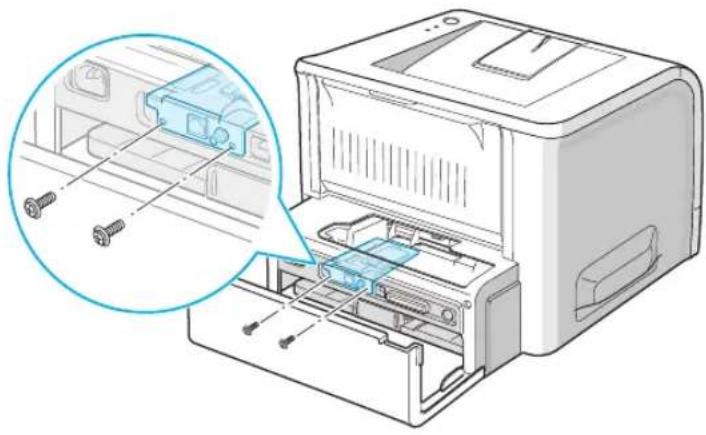

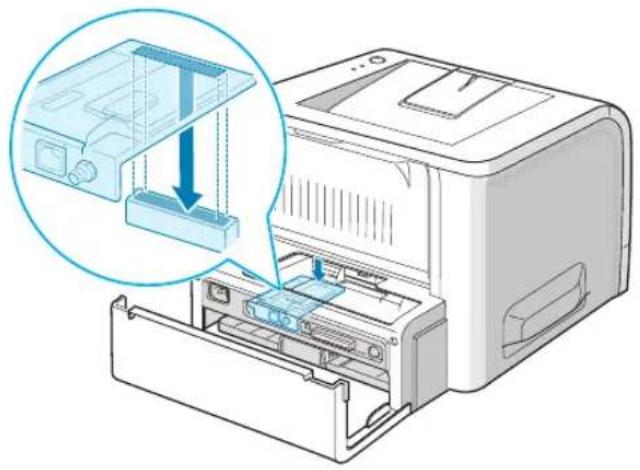

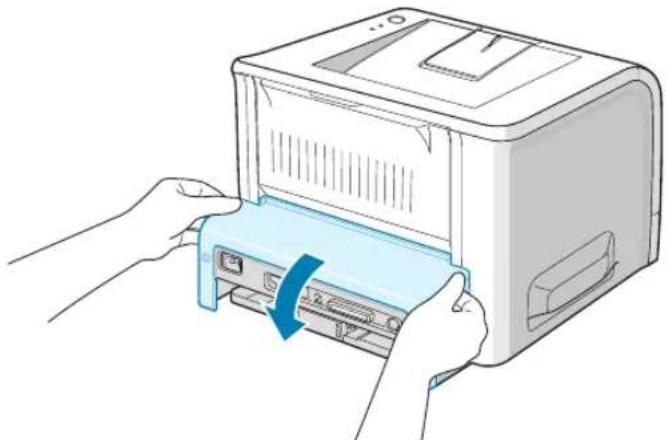

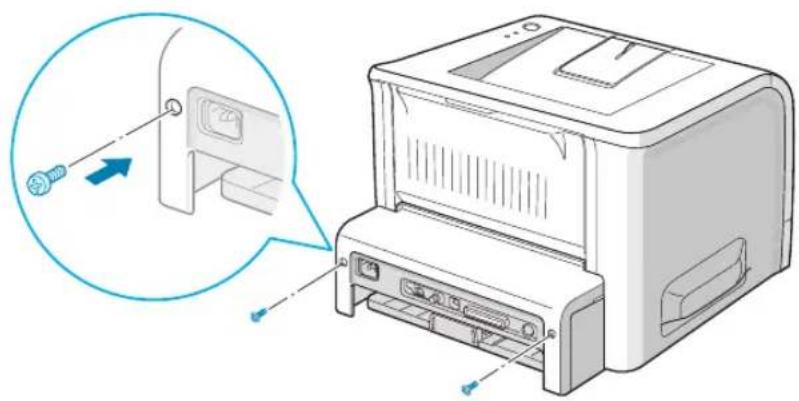

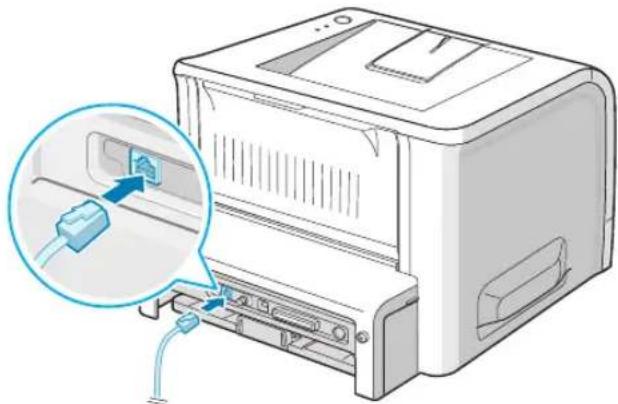

Installing a Network Card D.7

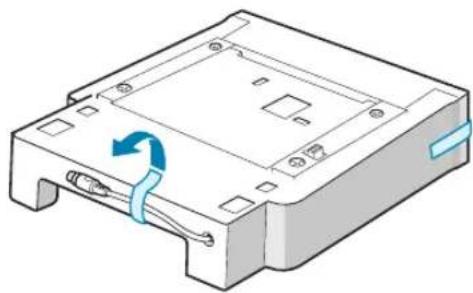

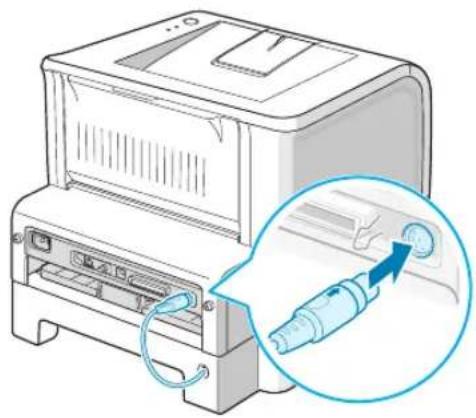

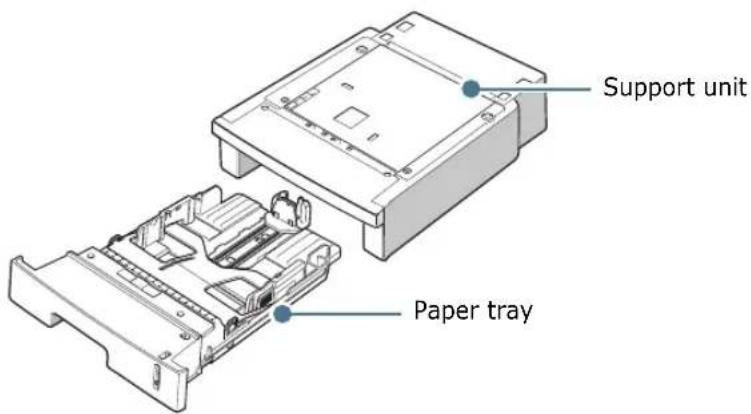

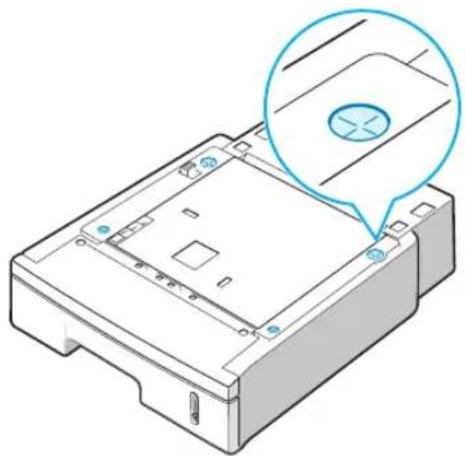

Installing an Optional Paper Tray ...... D.11

Appendix E: SPECIFICATIONS

Printer Specifications ...... E.2

Paper Specifications E.3

Overview ...... E.3

Supported Sizes of Paper ...... E.4

Guidelines for Using Paper E.5

Paper Specifications E.6

Paper Output Capacity E.6

Printer and Paper Storage Environment ...... E.7

Envelopes E.8

Labels E.10

Transparencies ...... E.10

Important Precautions and Safety Information

When using this machine, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to people:

1 Read and understand all instructions.
2 Use common sense whenever operating electrical appliances.
3 Follow all warnings and instructions marked on the machine and in the literature accompanying the machine.
4 If an operating instruction appears to conflict with safety information, heed the safety information. You may have misunderstood the operating instruction. If you cannot resolve the conflict, contact your sales or service representative for assistance.
5 Unplug the machine from the AC wall socket before cleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth for cleaning.
6 Do not place the machine on an unstable cart, stand or table. It may fall, causing serious damage.
7 Your machine should never be placed on, near or over a radiator, heater, air conditioner or ventilation duct.
8 Do not allow anything to rest on the power cable. Do not locate your machine where the cords will be abused by persons walking on them.
9 Do not overload wall outlets and extension cords. This can diminish performance, and may result in the risk of fire or electric shock.

10 Do not allow pets to chew on the AC power or PC interface cords.

11 Never push objects of any kind into the machine through case or cabinet openings. They may touch dangerous voltage points, creating a risk of fire or shock. Never spill liquid of any kind onto or into the machine.

12 To reduce the risk of electric shock, do not disassemble the machine. Take it to a qualified service technician when repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly could cause electric shock when the unit is subsequently used.

13 Unplug the machine from the PC and AC wall outlet, and refer servicing to qualified service personnel under the following conditions:

• When any part of the power cord, plug, or connecting cable is damaged or frayed.
• If liquid has been spilled into the machine.
• If the machine has been exposed to rain or water.
• If the machine does not operate properly after instructions have been followed.
• If the machine has been dropped, or the cabinet appears damaged.
• If the machine exhibits a sudden and distinct change in performance.

14 Adjust only those controls covered by the operating instructions. Improper adjustment of other controls may result in damage, and may require extensive work by a qualified service technician to restore the machine to normal operation.
15 Avoid using this machine during a lightning storm. There may be a remote risk of electric shock from lightning. If possible, unplug the AC power for the duration of the lightning storm.
16 If you continuously print multiple pages, the surface of the output tray may become hot. Be careful not to touch the surface, and keep children away from the surface.
17 SAVE THESE INSTRUCTIONS.

Environmental and Safety Consideration

Laser Safety Statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere, is certified as a Class I laser product conforming to the requirements of IEC 825.

Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance, or prescribed service condition.

WARNING

Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eyes. When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

CAUTION - INVISIBLE LASER RADIATION WHEN THIS COVER OPEN. DO NOT OPEN THIS COVER.

During normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator. However, it is advisable that the machine be operated in a well ventilated area.

If you need additional information about ozone, please contact your nearest Samsung dealer.

Power Saver

This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.

When the printer does not receive data for an extended period of time, power consumption is automatically lowered.

Recycling

Please recycle or dispose of the packaging material for this product in an environmentally responsible manner.

Radio Frequency Emissions

FCC regulations

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reposition the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus", ICES-003 of the Industry and Science Canada.

United States of America

Federal Communications Commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.

This transmitter must not be collocated or operated in conjunction with any other antenna or transmitter.

Operation of this device is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

FCC Statement for Wireless LAN use:

"While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device can not be collocated with another transmitter and transmitting antenna."

Declaration of Conformity (European Countries)

Approvals and Certifications

The CE marking applied to this product symbolises Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable 93/68/EEC Directives of the European Union as of the dates indicated:

January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of the member states related to low voltage equipment.

January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of European countries.

In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.

The product has been tested against TBR21 and/or TBR 38. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.

European Radio Approval Information (for products fitted with EU-approved radio devices)

This Product is a printer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.

The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

European States qualified under wireless approvals:

EU Austria, Belgium, Denmark, Finland, France (with frequency restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and the United Kingdom

Accept EU Iceland, Liechtenstein, Norway, and Switzerland

European States with restrictions on use:

EU In France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wireless

Accept EU No limitations at this time.

Regulatory Compliance Statements

Wireless Guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, the manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operated in conjunction with any other antenna or transmitter.

Some circumstances require restrictions in wireless devices. Examples of common restrictions are listed below:

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. 802.11B (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas-laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.

Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact manufacturer for service.

Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

EU Declaration of Conformity (R&TTE)

We, Samsung Electronics Co., Ltd.

of Samsung Electronics Co., Ltd.

259, Gongdan-Dong, Gumi-City, Kyung-Buk, KOREA 730-030

of Shandong Samsung Telecommunications Co., Ltd.

Sanxing Road, Weihai Hi-Tech, IDZ Shandong Province, China 264209

of Samsung Electronics Slovakia

s.r.o Hviezdoslavova 807, 924 27 Galanta, Slovakia

(factory name, address)

declare under our sole responsibility that the product

Laser Beam Printer

model "ML-2250/ML-2251N/ML-2251NP/ML-2252W

/Phaser 3150/ML-2250M"

to which this declaration relates is in conformity with

R&TTE Directive 1999/5/EC (Annex II)

Low Voltage Directive 73/23/EEC

EMC Directive 89/336/EEC:92/31/EEC

By application of the following standards

R&TTE : EN 300 328, EN 301 489

LVD : EN 60950-1:2001

EMC : EN55022:1998, EN55024:1998+A1:2001, EN61000-3-2:2000,

EN61000-3-3:1995+A1:2001

(Manufacturer)

Samsung Electronics Co., Ltd.

259, Gongdan-Dong, Gumi-City

KyungBuk, Korea 730-030

2005.08.23

......

(place and date of issue)

(Representative in the EU)

Samsung Electronics Euro QA Lab.

Blackbushe Business Park

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

2005.06.24

(place and date of issue)

Whan-Soon Yim / Senior Manager

(name and signature of authorized person)

Yong-Sang Park / Manager

(name and signature of authorized person)

MEMO

1

INTRODUCTION

Congratulations on the purchase of your printer!

This chapter includes:

• Special Features
• Printer Components
  • Understanding the Control Panel

Special Features

Your new printer is equipped with special features that improve the print quality, giving you a competitive edge. You can:

Print with excellent quality and high speed

• You can print at up to 1200 dpi effective output. See page 4.22.
• Your printer prints up to 22 pages-per-minute (Letter size), up to 20 pages-per-minute (A4 size).

Handle paper flexibly

• A 50-sheet Multi-Purpose Tray supports letterhead, envelopes, labels, transparencies, custom-sized materials, postcards, and heavy paper.
• Standard 250-sheet input tray (Tray1) and optional 250-sheet input tray (Tray2) supports all standard sizes of paper.
• Two output tray; select either the top output (face-down) or the rear output tray (face-up) for the most convenient access.
• Straight-through paper path capability from the Multi-Purpose Tray to the rear output tray.

Create professional documents

• You can customise your documents using Watermarks, such as "Confidential". See page 4.15.
• Print Posters. The text and pictures of each page of your document are magnified and printed across the selected sheet of paper. After the document has printed, trim off the white edges of each sheet. Tape the sheets together to form a poster. See page 4.14.

Save time and money

• This printer allows you to use Toner Save mode to save toner. See page 4.9.
• You can print multiple pages on one single sheet of paper to save paper (N-Up printing). See page 4.11.
• Preprinted forms and letterheads can be printed on plain paper. See "Using Overlays" on page 4.18.
• This printer automatically conserves electricity by substantially reducing power consumption when not printing.

Windows®

Print in various environments

• You can print in Windows 95/98/Me/NT 4.0/2000/XP.
• Your printer is compatible with Linux.
• Your printer comes with both Parallel and USB interfaces.
• You can print in a network environment. The ML-2251N and ML-2252W come with a built-in network interface, 10/100 Base TX. The ML-2252W also has a wireless network interface. However, you need to add the optional network interface card to the ML-2250 for network printing.

Expand printer capacity

• This printer has 16 MB of memory which can be expanded to 144 MB.
• An optional PostScript 3 Emulation with 136 fonts (PS) DIMM adds PS printing.
• Network interface enables network printing. You can add the optional network interface card to the ML-2250.

The ML-2251N and ML-2252W come with a built-in network interface, 10/100 Base TX. The ML-2252W also has a wireless network interface.

* PostScript 3 Emulation

ZORAN®

(c) Copyright 1998-2003 Zoran Corporation. All rights reserved. Zoran, the Zoran logo, IPS/PS3 and OneImage are trademarks of Zoran Corporation.

* 136 PS3 fonts

Contains UFST and MicroType from Agfa Monotype Corporation.

Printer Features

The table below lists a general overview of features supported by your printer.

(S: Standard, O: Option)

Features ML-2250 ML-2251N ML-2252W
IEEE 1284 Parallel S S S
USB	2.0		S
Network Interface (Ethernet 10/100 Base TX)	O	S	S
Wireless LAN (802.11b Wireless LAN)	O	O	S
PostScript Emulation O O O

Printer Components

Front View

Output Support Front Cover Toner Cartridge Top Output Tray (Face down) Control Panel Control Board Cover Tray1 (250-sheet paper feeder) Optional Tray 2 (250-sheet paper feeder) Multi-Purpose Tray Power Switch Paper Level Indicator

Rear View

Rear Output Tray (Face up) Top Output Tray (Face down) Control Board Cover (Open to install optional accessories.) Power Receptacle Network Port (ML-2250:Option ML-2251N, ML-2252W: Standard) USB Port Parallel Port Wireless Network Antenna Port (ML-2250, ML-2251N:Option ML-2252W:Standard) Optional Tray2 Cable Connector

*The figure above shows a ML-2252W.

Understanding the Control Panel

1

On Line/Error Toner Save Cancel

On Line/Error and Toner Save LEDs

LED Description
	If the On Line/Error lights green, the printer is ready to print.
	If the On Line/Error lights red, the printer is experiencing an error, such as jammed paper, no paper, open cover, or uninstalled toner cartridge. See “Troubleshooting Error Messages” on page 6.20.
	If you press the Cancel button while the printer is receiving data, the On Line/Error LED blinks red to cancel printing.
	In Manual Feed mode, if there is no paper in the Multi-purpose tray, the On Line/Error LED blinks red. Load paper into the Multi-purpose tray and the LED stops blinking.
	If the printer is receiving data, theOn Line/Error LED slowly blinks green.If the printer is printing the received data, the On Line/Error LED blinks green fast.
	If you press the Cancel button for 0.5 second in Ready mode, this LED lights and the Toner Save mode is enabled.If you press this button once again, this LED turns off and the Toner Save mode is disabled.If the On Line/Error and Toner Save LEDs blink, your system has some problem. To solve the problem, see “Troubleshooting Error Messages” on page 6.20.

Cancel button

Function Description
Printing demo page	In Ready mode, press and hold this button for about 2 seconds until all LEDs blink slowly, and release.
Printing configuration sheets	In Ready mode, press and hold this button for about 6 seconds until all LEDs blink fast, and release. If your printer has a network card, the network configuration sheet prints out with a printer configuration sheet.
Network card Default Setting (When you use the Network card)	In Ready mode, press and hold this button for about 20 seconds until all LEDs blink slowly, and release. This item restores the factory default of the network configuration. This setting will only take effect after you have reset the printer.
Manual Feeding	Press this button each time you load paper in the Multi-purpose tray, when you have selected Manual Feed for Source from your software application. For detailed information, see "Using the Manual Feed Mode" on page 3.12.
Cleaning inside printer	In Ready mode, press and hold this button for about 10 seconds until all LEDs turn on, and release. After cleaning the printer, one "cleaning sheet" (see page 5.7) is printed.
Canceling print job	Press this button during printing. The On Line/Error LED blinks while the print job is cleared from both the printer and the computer, and then the printer returns to Ready mode. This may take some time depending on the size of the print job.
Toner Save mode on/off	In Ready mode, press this button to turn the Toner Save mode on or off.For detailed information, see "Using the Toner Save Mode" on page 4.9.

2

SETTING UP YOUR PRINTER

This chapter provides step by step information on setting up your printer.

This chapter includes:

• Unpacking
  • Installing the Toner Cartridge
• Loading Paper
• Connecting a Printer Cable
• Turning the Printer On
• Printing a Demo Page
  • Installing Printer Software
• Viewing the User's Guide

Unpacking

1 Remove the Printer and all accessories from the packing carton. Make sure that the printer has been packed with the following items:

Toner Cartridge Power Cord
CD-ROM	Quick Install Guide

NOTES:

• If any items are missing or damaged, notify your dealer immediately.
• Components may differ from one country to another.
• The CD-ROM contains the printer driver, the User's Guide, and the Adobe Acrobat Reader programme.

2 Carefully remove all of the packing tape from the printer.

Isometric line drawing of a computer case with ventilation slots and scrollbars (no text or symbols)

Selecting a Location

Select a level, stable place with adequate space for air circulation. Allow extra space for opening covers and tray(s). The area should be well-ventilated and away from direct sunlight or sources of heat, cold, and humidity. See the image below for clearance space. Do not place the printer close to the edge of your desk or table.

Clearance Space

100 mm (3.9 in.) 100 mm (3.9 in.) 100 mm (3.9 in.) 482.6 mm(19 in.) 558 mm(22 in.) 1034.6 mm(40.7 in.)

• Front: 482.6 mm (enough space so that tray(s) can be removed)
• Back: 100 mm (enough space to allow opening of the rear out tray)
  •Right: 100 mm (enough space for ventilation)
• Left: 100 ~mm

Installing the Toner Cartridge

1 Grasp the front cover and pull it toward you to open.

Illustration of a printer with a blue arrow indicating the process, showing internal components and a clear cover (no text or symbols present)

NOTE: Because the printer is very light, it may move when you use it; for example, when opening/closing the tray or installing/removing the toner cartridge. Be careful not to move the printer.

2 Remove the toner cartridge from its bag and remove the paper covering the cartridge.

3D illustration of a folded paper or binder with visible internal structure (no text or symbols)

Don't use a knife or other sharp object as it might scratch the drum of the cartridge.

3 Gently shake the cartridge from side to side to distribute the toner evenly inside the cartridge.

Illustration of hands holding a mechanical device with blue arrows indicating rotation or movement (no text or symbols)

CAUTIONS:

- To prevent damage, do not expose the toner cartridge to light for more than a few minutes. Cover it with a piece of paper if left exposed for more than a few minutes and keep it in a flat and clean place.

- If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

4 Locate the cartridge slots inside the printer, one on each side.

Illustration of a printer being inserted into a plastic sheet, with a magnified inset showing the printer's internal structure (no text or symbols present)

5 Grasp the handle and insert the cartridge into the printer until it snaps into place.

Illustration of a printer being inserted into a plastic case, showing internal components and a hand inserting the paper (no text or symbols present)

6 Close the front cover. Make sure that the cover is securely closed.

Illustration of a printer's internal structure with a blue arrow indicating the process (no text or symbols present)

NOTE: When printing text at 5% coverage, you can expect a toner cartridge life of approximately 5,000 pages.

Loading Paper

You can load approximately 250 sheets of paper in the tray.

1 Pull the tray out of the printer.

Illustration of a printer with a blue arrow indicating a loading or attachment process (no text or symbols present)

2 Prepare a stack of paper for loading by flexing or fanning the paper back and forth. Straighten the edges on a level surface.

Illustration of two hands performing a physical manipulation or movement process on a flat surface, with arrows indicating direction (no text or symbols present)

3 Load paper with the print side facing down.

Illustration of a hand pressing down on a printer's cover with a blue arrow indicating the paper's direction (no text or symbols present)

You can load previously printed paper. The printed side should be facing up with an uncurled edge on top. If you experience problems with paper feed, turn the paper around.

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Make sure that all four corners are flat in the tray.

NOTE: If you want to change the paper size in the tray, see "Changing the Paper Size in the Paper Tray" on page 2.9.

4 Pay attention to the paper limit mark on the left inside wall of the tray. Paper overloading may cause paper jams.

Technical line drawing of a mechanical component with a magnified inset showing a small detail (no text or symbols)

5 Slide the tray back into the printer.

Illustration of a printer with a blue plastic tray inserted, showing internal components and a blue arrow indicating motion (no text or symbols)

Changing the Paper Size in the Paper Tray

To load longer sizes of paper, you need to adjust the paper guides to extend the paper tray.

1 Pressing and unlatching the guide lock, slide the paper length guide out completely to extend the paper tray to its full length.

Diagram showing a hand inserting a component into a device casing, with a magnified inset highlighting the component's internal structure.

2 After inserting paper into the tray, slide in the guide until it lightly touches the end of the paper stack.

Diagram of a mechanical device with a hand operating a workpiece, showing a close-up view of the component (no text or symbols present)

For the paper smaller than Letter, adjust the front paper length guide.

Technical line drawing of a mechanical device casing with internal components and a blue arrow indicating a specific part (no text or symbols present)

3 Pinching the paper width guide as shown, move it toward the stack of paper until it lightly touches the side of the stack.

Technical illustration of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

NOTES:

• Do not push the paper width guide far enough to cause the materials to warp.
• If you do not adjust the paper width guide, it may cause paper jams.

Connecting a Printer Cable

For Local Printing

To print from your computer in a local environment, you need to connect your printer to the computer with either a parallel interface cable or a Universal Serial Bus (USB) cable.

Using a Parallel Cable

NOTE: To connect the printer to the parallel port of the computer requires a certified parallel cable. You will need to buy an IEEE1284 compliant cable.

1 Make sure that both the printer and the computer are turned off.
2 Plug the parallel printer cable into the connector on the back of the printer.

Push the metal clips down to fit inside the notches on the cable plug.

Illustration of a computer setup with a monitor, cable, and printer connected to a hand holding a small object (no text or symbols present)

3 Connect the other end of the cable to the parallel interface port on your computer, and tighten the screws.

See your computer User's Guide, if you need help.

Using a USB Cable

NOTE: Connecting the printer to the USB port of the computer requires a certified USB cable. You will need to buy a USB 2.0 compliant cable that is within 3 m in length.

1 Make sure that both the printer and the computer are turned off.
2 Plug the USB printer cable into the connector on the back of the printer.
3 Connect the other end of the cable to the USB port on your computer.

Illustration of a computer setup with a tower, cable, and USB port connected to an open computer (no text or symbols visible)

See your computer User's Guide, if you need help.

NOTE: For using a USB cable, you must be running Windows 98/Me/2000/XP.

For Network Printing

You can attach your ML-2251N or ML-2252W printer to a network using an Ethernet cable (UTP cable with RJ.45 connector).

The ML-2252W also has a network antenna which allows you to use a wireless LAN interface.

If you are an ML-2250 user, you need to install the optional network interface card. For an ML-2251N printer, you can replace the network interface card with one supporting the wireless LAN interface. For details about installing the card, see page D.7.

1 Make sure that both the printer and the computer are turned off.
2 Plug one end of the Ethernet cable into the Ethernet network port on the Printer.

Illustration of a computer tower with an attached device showing internal components (no text or symbols)

To the network LAN connection

3 Plug the other end of the cable into a network LAN connection.

See your computer User's Guide, if you need help.

Supported Operating Systems

Item Requirements
Network Interface 10/100	Base-TX (standard for ML-2251N and ML-2252W) or 802.11b Wireless LAN (standard for ML-2252W)
Network Operating System	Novell NetWare 4.x, 5.x, 6.xWindows 95/98/Me/NT 4.0/2000/XPUnix AT&T, BSD4.3, HP-UX, SUN OS, SOLARIS, SCOVarious Linux OS
Network Protocols • Netware IPX/SPXTCP/IP, DLC/LLC on WindowsPort9100 on Unix, Linux
Dynamic Addressing Server	DHCP, BOOTP

• IPX/SPX: Internet Packet exchange/Sequenced Packet eXchange
• TCP/IP: Transmission Control Protocol/Internet Protocol
  • DLC/LLC: Data Link Control/Logical Link Control
• DHCP: Dynamic Host Configuration Protocol
• BOOTP: Bootstrap Protocol

NOTE: After connecting the printer, you need to configure the network parameters. For information about configuring and using the printer in a network environment, refer to the User's Guide provided with the network interface card.

Turning the Printer On

1 Plug the power cord into the power receptacle on the back of the printer.

2 Plug the other end into a properly grounded AC outlet and turn on the printer using the power switch.

To the AC outlet

To the AC outlet

CAUTIONS:

• The fusing area at the rear portion of the inside of your printer is hot when powered. Be careful not to be burned when accessing this area.
• Do not disassemble the printer when it is powered. Doing so may give you an electric shock.

Printing a Demo Page

Print a demo page to make sure that the printer is operating correctly.

1 Hold down the Cancel button for about 2 seconds to print a demo page.

On Line/Error Toner Save Cancel

2 A demo page showing the printer's features and capabilities prints out.

Installing Printer Software

The supplied CD-ROM contains Windows printing software, Linux printing software, DOS RCP, an on-line User's Guide and Acrobat Reader to view the User's Guide.

2

If you are printing from Windows:

You can install the following printer software using the CD-ROM.

• Samsung Proprietary printer driver for Windows. Use this driver to take full advantage of your printer's features. See page 2.19.
• PostScript Printer Description (PPD) file for Windows to allow installation of the PostScript driver. For information about installing the PostScript driver, refer to Appendix A in the User's Guide.
• Status Monitor appears when printing error occurs. See page 4.26.
• Remote Control Panel for DOS applications. For information about using the program, refer to Appendix C in the User's Guide.

If you are printing in Linux:

For information about installing the Linux driver, refer to Appendix B in the User's Guide. To view the User's Guide, see page B.2.

Printer Driver Features

Your printer drivers will support the following standard features:

• Paper source selection
• Paper size, orientation and media type
• number of copies

The table below lists a general overview of features supported by your printer drivers.

Driver Feature	Samsung Proprietary printer driver			PostScript
	Win 2000/XP	Win 9x	Win NT4.0	Win 2000/XP	Win 9x	Win NT4.0
Toner Save	Y	Y	Y	Y	Y	Y
Print quality option	Y	Y	Y	Y	Y	Y
Poster printing	Y	Y	Y	N	N	N
Multiple pages per sheet (N-up)	Y	Y	Y	Y	Y	Y
Scale printing	Y	Y	Y	Y	Y	Y
Fit to page printing	Y	Y	Y	Y	Y	Y
Different source for first page	Y	Y	Y	N	N	N
Watermark	Y	Y	Y	N	N	N
Overlay	Y	Y	Y	N	N	N
Print order	Y	Y	Y	Y	Y	Y

Installing Printer Software in Windows

System Requirements

Verify the following:

• At least 32 MB (Windows 9x/Me), 64 MB (Windows 2000/NT), 128 MB (Windows XP) or more of RAM is installed on your PC.
• There is at least 300 MB of free disk space on your PC.
• All applications are closed on your PC before beginning installation.
• You are using Windows 95, Windows 98, Windows Me, Windows NT 4.0, Windows 2000, or Windows XP.
• You are using at least Internet Explorer 5.0.

Installing Printer Software

All applications should be closed on your PC before beginning installation.

NOTE: Cancel the "New Hardware Found" window when your computer boots up.

1 Place the CD-ROM in the CD-ROM drive. Installation will start automatically.

If the CD-ROM driver does not automatically run:

Select Run from the Start menu, type X:\Setup.exe in the Open box (Where X is the drive letter for the CD-ROM drive) and click OK.

NOTE: If your machine is not connected to the computer, the following window will appear.

Samsung ML-2250 Series Connect Samsung ML-2250 Series If you want to install Samsung ML-2250 Series properly you have to connect Samsung ML-2250 Series buttons installation. You may connect the device using the printer cable like on the figure, then turn on the power of Samsung ML-2250 Series. Click [Next 3]

• After connecting the machine, click Next.
- If you want to skip the connection status, click Next, and No to the following screen. Then the installation will start and the test page will not be printed at the end of the installation.

2 Choose the installation type.

Samsung ML-2250 Series Welcome to Samsung ML-2250 Series Setup Typical Custom View User's Guide Description Select the item you want to proceed. V1.06.00 Cancel

- Typical: Installs the common software for your printer, such as printer driver, and User's Guide. This is recommended for most users.

- Custom: Allows you to choose the language of the software and the components you want to install. After selecting the language and the component(s), click Next.

Samsung ML-2250 Series Select components to be installed Select Language English Select components to be installed. Printer Printer(PostScript) Status Monitor Remote Control Panel < Back Next > Cancel

- View User's Guide: Opens Samsung ML-2250 Series User's Guide. If your computer doesn't have Adobe Acrobat, click on this option and it will automatically install Adobe Acrobat Reader for you.

3 After the installation is finished, the window asking you to print a test page appears. If you choose to print a test page, select the check box and click Next.

4 When the test page prints out correctly, click Yes. If not, click No to reprint it.

5 To register yourself as a user of Samsung Printers, select the checkbox and click Finish. You are now accessed to the Samsung web site.

Samsung ML-2250 Series Samsung ML-2250 Series Setup Complete On-line Registration You will get the opportunity to receive free newsletters with exclusive tips and promotions. Also you will get more customer care. Would you like to register for the Samsung Printer Membership? □ Yes, I'd like to register it. Setup has finished installing Samsung ML-2250 Series on your computer. Finish

NOTES:

• When you want to use your machine with the parallel cable, remove the USB cable and connect the parallel cable. Then reinstall the printer driver; select Start → Programs → Samsung ML-2250 Series → Maintenance → Repair → Printer. If you have replaced the parallel cable with the USB cable, do the same to reinstall the driver.
• If your printer doesn't work properly, reinstall the printer driver.

Changing the Display Language

After installation of the software, you can change the display language.

1 From the Start menu, select Programs.
2 Select Samsung ML-2250 Series, and Language Selection.
3 Select the desired language from the language selection window, and click OK.

Reinstalling Printer Software

Repair is required if your installation fails.

1 From the Start menu, select Programs.
2 Select Samsung ML-2250 Series, and then Maintenance.
3 Select Repair.

NOTE: If your machine is not connected to the computer, the following window will appear.

Samsung ML-2250 Series Connect Samsung ML-2250 Series If you want to install Samsung ML-2250 Series properly you have to connect Samsung ML-2250 Series before installation. You may control the device using the printer cable like on the figure. Then turn on the power of Samsung ML-2250 Series. Click [View 1] Next Cancel

• After connecting the machine, click Next.
- If you want to skip the connection status, click Next, and No to the following screen. Then the installation will start and the test page will not be printed at the end of the installation.

4 Select the components you want to reinstall and click Next.

Samsung ML-2250 Series Select components to be repaired or installed Select Components ✓ Printer □ Printer(PostScript) □ Status Monitor □ Remote Control Panel Select components you want to repair or install. < Back Next > Cancel

If you choose to repair the printer software, the window asking you to print a test page appears. do as follows:

a. To print a test page, select the check box and click Next.
b. When the test page prints out correctly, click Yes. If not, click No to reprint it.

5 When the reinstallation is done, click Finish.

Removing Printer Software

1 From the Start menu, select Programs.
2 Select Samsung ML-2250 Series, and then Maintenance.
3 Select Remove.

Then you will see a component list so that you can remove any of them individually.

If you want to uninstall the printer driver, check Printer.

If you want to uninstall the printer (PostScript) driver, check Printer(PostScript).

If you want to uninstall the Status Monitor, check Status Monitor.

If you want to uninstall the Remote Control Panel, check Remote Control Panel.

4 Select the components you want to remove and then click Next.
5 When your computer asks you to confirm your selection. click Yes.

The selected driver and all of its components are removed from your computer.

6 After the software is removed, click Finish.

Viewing the User's Guide

After installing the printer software, you can view User's Guide in PDF format at any time from your Windows desktop.

1 From the Start menu, select Programs.
2 Select Samsung ML-2250 Series and View User's Guide.
Adobe Acrobat automatically runs and then the User's Guide opens.

NOTE: If your computer doesn't have Adobe Acrobat, selecting the View User's Guide option automatically installs Adobe acrobat for you. After installing is complete, repeats step 1 and 2.

3

USING PRINT MATERIALS

This chapter will help you understand types of paper you can use with your printer and how to properly load paper in the different paper trays for the best print quality.

This chapter includes:

• Choosing Paper and Other Materials
• Selecting the Output Location
• Loading Paper
• Printing on Envelopes
• Printing on Labels
• Printing on Transparencies
• Printing on Card Stock or Custom-sized Materials
• Printing on Preprinted Paper

Choosing Paper and Other Materials

You can print on a variety of print materials, such as plain paper, envelopes, labels, transparencies, and so on. See "Paper Specifications" on page E.3. To get the best possible print quality, use only high-quality copier-grade paper.

When you choose print materials, consider the following:

• Desired outcome: The paper you choose should be appropriate for the project.
• Size: You can use any size paper that fits easily within the paper adjusters of the paper tray.
• Weight : Your printer supports paper weight as follows:
  -16\~24 lbs (60\~90 g/m²) bond for the Tray1 or optional Tray2 -16\~43 lbs (60\~163 g/m²) bond for the Multi-Purpose Tray
• Brightness: Some papers are whiter than others and produce sharper, more vibrant images.
• Surface smoothness: The smoothness of the paper affects how crisp the printing looks on the paper.

CAUTION: Using a material that does not conform to the specifications listed in the paper specification can cause problems that may require service. This service is not covered by the warranty or service agreements.

Sizes and Capacities

Size	Input Source/Capacity*a
	Tray1 or optional Tray2	Multi-Purpose Tray
Plain Paper
Letter (216 x 279 mm)	250	50
Legal (216 x 356 mm)	250	50
Executive (184 x 267 mm)	250	50
Oficio (216 x 343 mm)	250	50
Folio (216 x 330 mm)	250	50
A4 (210 x 297 mm)	250	50
JIS B5 (182 x 257 mm)	250	50
ISO B5 (176 x 250 mm)	250	50
A5 (148 x 210 mm)	250	50
A6 (105 x 148 mm)	-	50
Envelopes
No.10 (105 x 241 mm)	-	5
Monarch (98 x 191 mm)	-	5
C5 (162 x 229 mm)	-	5
DL (110 x 220 mm)	-	5
C6 (114 x 162 mm)	-	5
Labels^*b
Letter (216 x 279 mm)	-	5
A4 (210 x 297 mm)	-	5
Transparencies^*b
Letter (216 x 279 mm)	-	5
A4 (210 x 297 mm)	-	5
Card stocks^*b	-	5
Bond^*b	-	5

^* a Depending on paper thickness, the maximum capacity may be reduced.

*b If you are experiencing excessive jamming, feed one sheet at a time through the Multi-Purpose Tray.

Guidelines for Paper and Special Materials

When selecting or loading paper, envelopes, or other special materials, keep these guidelines in mind:

• Attempting to print on damp, curled, wrinkled, or torn paper can cause paper jams and poor print quality.
• Use cut-sheet paper only. You cannot use multi-part paper.
• Use only high-quality, copier grade paper for the best print quality.
• Do not use paper that has already been printed on or that has been fed through a photocopier.

- Do not use paper with irregularities, such as tabs or staples.

- Do not attempt to load any tray during printing and never overfill the tray. This could cause a paper jam.

- Avoid paper with embossed lettering, perforations, or texture that is too smooth or too rough.

- Coloured paper should be of the same high quality as white photocopy paper. The pigments must withstand the printer's fusing temperature of 400^ (205°C) for 0.1 second without deterioration. Do not use paper with a coloured coating that was added after the paper was produced.

- Preprinted forms must be printed with nonflammable, heat-resistant inks that do not melt, vaporize, or release hazardous emissions when subject to the printer's approximately 400°F (205°C) fusing temperature for 0.1 second.

- Store paper in its ream wrapper until ready to use. Place cartons on pallets or shelves, not on the floor.

- Do not place heavy objects on top of the paper, whether it is packaged or unpackaged.

- Keep paper away from moisture, direct sunlight, or other conditions that can cause it to wrinkle or curl.

NOTE: Do not use carbonless paper or tracing paper. They are unstable at the fusing temperature and can give off fumes, or cause damage to the paper.

Selecting the Output Location

The printer has two output locations; the rear output tray and the top output tray.

Top output tray Rear output tray

To use the top output tray, be sure that the rear output tray is closed. To use the rear output tray, open it.

NOTES:

• If paper coming out of the top output tray has problems, such as excessive curl, try printing to the rear output tray.
• To avoid paper jams, do not open or close the rear output tray while the printer is printing.

Printing to the Top Output Tray (Face down)

The top output tray collects paper face-down, in the order in which it was printed. The top output tray should be used for most print jobs.

Illustration of a printer with a blue cover and paper filter (no text or symbols)

NOTE: If you continuously print many pages, the surface of the output tray may become hot. Be careful not to touch the surface, and especially keep children away from the surface.

Printing to the Rear Output Tray (Face up)

The printer always prints to the rear output tray if it is open. Paper comes out of the printer face-up, and each time a sheet of paper comes out, it falls down from the printer.

Illustration of a printer with paper being inserted, showing internal structure and a blue arrow indicating print direction (no text or symbols present)

Printing from the Multi-Purpose Tray to the rear output tray provides a straight paper path. Opening the rear output tray might improve the output quality with the following:

• envelopes
• labels
• transparencies

To open the rear output tray:

1 Open the rear door by pulling it down. The cover functions as the output tray.

Illustration of a hand opening a computer tower with a blue arrow indicating the process (no text or symbols present)

CAUTION: The fusing area at the rear portion of the inside of your printer is hot when powered. Be careful not to be burned when accessing this area.

2 If you do not want to use the rear output tray, close the tray. The pages will stack on the top output tray.

Illustration of a computer printer internal structure showing internal components and a blue arrow indicating a flow or movement (no text or symbols present)

3

Loading Paper

Proper paper loading helps prevent paper jams and ensure trouble-free printing. Do not remove the paper tray while a job is printing. Doing so may cause a paper jam. See "Sizes and Capacities" on page 3.3 for acceptable paper size and capacities for each tray.

The paper level bar on the front of the paper tray(s) shows the amount of paper currently left in the tray. When the tray is empty, the indicator drops to the bottom.

Diagram of a printer with three cylindrical connectors, showing a cable being inserted into a slot (no text or symbols present)

▲ Paper emptyPaper full

Using Tray1 or the Optional Tray2

Tray1 and the optional Tray2 can hold up to 250 sheets of paper. See "Sizes and Capacities" on page 3.3 for acceptable paper size and capacities of each tray.

Tray1 Optional Tray2

Load a stack of paper into the tray and print. For details about loading paper in Tray1 or the optional Tray2, see "Loading Paper" on page 2.7.

Using the Multi-Purpose Tray

The multi-Purpose Tray is located in the front of your printer. It can be closed when you are not using it, making the printer more compact.

Multi-Purpose Tray

The Multi-Purpose Tray can hold several sizes and types of paper, such as transparencies, cards, and envelopes. You may also want to use the Multi-Purpose Tray for single page print jobs on letterhead, coloured paper for use as separator sheets, or other special materials that you do not normally keep in the paper tray. You can load approximately 50 sheets of plain paper, 5 envelopes, 5 transparencies, 5 sheets of card stock or 5 labels at a time.

• Load only one size of print material at a time in the Multi-Purpose Tray.
• To prevent paper jams, do not add paper when there is still paper in the Multi-Purpose Tray. This also applies to other types of print materials.
• Print materials should be loaded face up with the top edge going into the Multi-Purpose Tray first and be placed on the centre of the tray.
• Do not place objects on the Multi-Purpose Tray. Also avoid pressing down or applying excessive force on it. The tray may fall from the printer.

To load paper in the Multi-Purpose Tray:

1 Pull the Multi-Purpose Tray down towards you.

Illustration of a printer with a hand inserting a paper into the front panel, showing a blue arrow indicating the process (no text or symbols present)

2 Unfold the extender to extend the tray to its full-length to hold longer paper.

Illustration of a printer with a blue arrow indicating a paper feed or printer operation (no text or symbols present)

3 Prepare a stack of paper for loading by flexing or fanning the paper back and forth. Straighten the edges on a level surface.

Illustration of two hands holding a curved object on a base, with directional arrows indicating movement (no text or symbols)

4 Place paper on the centre of the tray with the print side face up. Pay attention to the paper limit mark on the left inside wall of the tray. Paper overloading may cause paper jams.

Illustration of a printer with an arrow indicating paper movement, showing internal structure and a magnified inset of the printer handle (no text or symbols present)

If you want to print on previously printed paper from the Multi-Purpose Tray, the printed side should be facing down with an uncurled edge to the printer. If you experience problems with paper feed, turn the paper around.

Illustration of a printer emitting a paper with an arrow indicating the paper's direction (no text or symbols present)

NOTE: Make sure that you have not loaded too much print material. The print material buckles if you load a stack that is too deep or push it in too far.

5 Slide the paper width guide and adjust it against the stack of print material without bending.

Illustration of a printer with paper feed and a magnified inset showing the printer's internal structure (no text or symbols)

NOTE: Your printer cannot automatically detect the size of paper loaded in the Multi-Purpose Tray. Loading the Multi-Purpose Tray with the correct paper size allows you to select paper by size rather than paper source when you print from your software application. You do not have to check which paper is loaded in the Multi-purpose Tray before printing.

6 When you print a document, select the paper source and type in the software application.

Samsung ML-2250 Series Properties Layout Paper Graphics Extras About Copies 1 (1-999) Paper Options Size Letter (8.5x11.0 in.) Custom Source Multi-Purpose Toy Type Printer Default Different Source for First Page Scaling Type Favorites (Unnamed) Save OK Cancel Apply Help

7 After printing, push the extender back to its place and close the Multi-Purpose Tray.

Using the Manual Feed Mode

If you select Manual Feed in the Source option when changing print settings, you can manually load a sheet of print material in the Multi-Purpose Tray. Manually loading paper can be helpful when you want to check the print quality after each page is printed.

This loading procedure is almost the same as the procedure for loading in the Multi-Purpose Tray, except you load paper sheet-by-sheet in the Tray, send print data to print the first page, and press the Cancel button on the control panel to print each following page.

1 Load a sheet of print material on the centre of the Multi-Purpose Tray with the print side up.

Illustration of a printer with an open paper sheet and a blue arrow indicating the paper's direction (no text or symbols present)

2 Slide the paper width guide and adjust it against the material without bending.

Illustration of a printer with paper feed and a magnified inset showing the printer's internal structure (no text or symbols)

3 Open the rear output tray.

Illustration of a hand pressing down on a computer tower with a blue arrow indicating the process (no text or symbols present)

4 When you print a document, you must select Manual Feed for Source from the software application, and then select the correct paper size and type.

Samsung ML-2250 Series Properties Layout Paper Graphics Extras About Copies 1 (1 - 999) Paper Options Size Letter [8.5x11.0 in.] Custom Source Manual Feed Type Printer Default Different Source for First Page Scaling Type Favorites: Save OK Cancel Apply Help

5 Press the Cancel button on the printer to start feeding.

6 Printing is started.

7 If you are printing multiple pages, load the next sheet after the first page prints out, and press the Cancel button.

Repeat this step for every page to be printed.

Printing on Envelopes

Guidelines

- Only use envelopes recommended for laser printers. Before loading envelopes into the Multi-Purpose Tray, make sure that they are undamaged and are not stuck together.

- Do not feed stamped envelopes.

- Never use envelopes with clasps, snaps, windows, coated lining, or self-stick adhesives. These envelopes may severely damage the printer.

1 Open the Multi-Purpose Tray and unfold the extender to its full-length position.

Illustration of a printer with paper feed and paper clip, showing internal structure without any text or symbols

2 Open the rear output tray.

Illustration of a computer tower with a hand inserting a blue arrow into the front panel (no text or symbols)

3 Flex or fan the edge of the envelope stack to separate the pages before loading.

Illustration of hands folding a light blue envelope with a blue arrow indicating the fold (no text or symbols present)

4 Load the envelopes onto the Multi-Purpose Tray with the flap side down.

The stamp area is on the left side and the end of the envelope with the stamp area enters the tray first.

Illustration of a printer with paper feed and paper tray, showing internal structure without any text or symbols

5 Adjust the guide to the edge of the envelope stack.

Illustration of a printer with paper feed being inserted, showing internal structure and a magnified view of the printer's internal mechanism (no text or symbols present)

6 When you print on envelopes, select the appropriate paper source, type, and size in the software application. For details, see page 4.7.

Samsung ML 2250 Series Properties Layout Paper Graphics Extras About Copies 1 (1 - 999) Paper Options Size Letter (8.5x11.0 in.) Custom Source Multi-Purpose Tray Type Envelope Different Source for First Page Scaling Type S Letter 0.60 x 11.00 in. Copies: 1 Resolution: Normal Favorites Save OK Cancel Apply Help

7 After printing, close the Multi-Purpose Tray and the rear output tray.

Illustration of a printer with a blue arrow indicating the paper's edge, shown alongside and after the close-up of its internal structure (no text or symbols present)

Printing on Labels

Guidelines

• Only use labels recommended for laser printers.
• Verify that the labels' adhesive material can tolerate fusing temperature of 205^ (400°F) for 0.1 second.
• Make sure that there is no exposed adhesive material between the labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to printer components.
• Do not feed a sheet of labels through the printer more than once. The adhesive backing is designed for one pass through the printer.
• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.

1 Open the Multi-Purpose Tray and the rear output tray.

Illustration of a printer being inserted into a paper holder, showing internal structure and page layout (no text or symbols)

2 Load labels with the print side up.

Illustration of a printer with paper feed being inserted, showing paper layout and paper tray (no text or symbols)

3 Adjust the guide to fit the width of the sheet of labels.

Illustration of a printer with a magnified inset showing internal components (no text or symbols)

4 When you print on labels, select the appropriate paper source, type, and size in the software application. For details, see page 4.7.

Samsung ML-2250 Series Properties Layout Paper Graphics Extras About Copies 1 (1 - 999) Paper Options Size Letter (8.5x11.0 in.) Custom Source Multi-Purpose Tray Type Label: Different Source for First Page Scaling Type Favorites Save OK Cancel Apply Help

5 After printing, close the Multi-Purpose Tray and the rear output tray.

NOTE: To prevent labels from sticking, do not let the printed label sheets stack up as they are printed out.

Printing on Transparencies

Guidelines

• Only use transparencies recommended for use in laser printers.
• Ensure that transparencies are not wrinkled, curled, or have any torn edges.
• Hold the transparencies by the edges and avoid touching the print side. Oils deposited on the transparency can cause print quality problems.
• Be careful not to scratch or leave fingerprints on the print side.

1 Open the Multi-Purpose Tray and the rear output tray.

Illustration of a printer being inserted into a paper filter, showing the printer's internal structure and the paper holder's internal structure (no text or symbols present)

2 Load transparencies with the print side up, and the top with the adhesive strip entering the printer first.

Illustration of a printer with paper being inserted, showing paper sheet being placed into the machine (no text or symbols)

3 Adjust the guide to fit the width of the transparencies.

Illustration of a printer with paper feed being inserted, showing internal structure and a magnified view of the printer's internal structure (no text or symbols present)

4 When you print on transparencies, select the appropriate paper source, type, and size in the software application. For details, see page 4.7.

Samsung ML-2250 Series Properties Layout Paper Graphics Extras About Copies 1 (1 - 999) Paper Options Size Letter [8.5x11.0 in.] Custom Source Multi-Purpose Tray Type Transparency Different Source for First Page Scaling Type Letter 6.50 x 11.00 in. Copies: 1 Resolution: Normal Favorites Save OK Cancel Apply Help

5 After printing, close the Multi-Purpose Tray and the rear output tray.

NOTES:

- If you print on thin transparencies to the rear output tray, they can curl. In this case, use the top output tray. If the problem persists, check if your transparencies meet the printer's specifications.

- To prevent transparencies from sticking, do not let the printed sheets stack up as they are printed out.

- Place transparencies on a flat surface after removing them from the printer.

Printing on Card Stock or Custom-sized Materials

Postcards, 3.5 by 5.83 in. (index) cards and other custom-sized materials can be printed with your printer. The minimum size is 76 by 127 mm (3 by 5 in.) and the maximum size is 216 by 356 mm (8.5 by 14 in.).

Guidelines

- Always insert the short-edge into the Multi-Purpose Tray first. If you want to print in landscape mode, make this selection through your software. Inserting paper long-edge first may cause a paper jam.

- Do not load more than 5 cards into the Multi-Purpose Tray at a time.

- Do not print on media smaller than 76 mm (3 in.) wide or 127 mm(5 in.) long.

- Set margins at least 6.4 mm (0.25 in.) away from the edges of the material in the software application

1 Open the Multi-Purpose Tray and the rear output tray.
2 Load print material with print side up and short edge first.

Illustration of a printer with paper being inserted, showing paper sheet and paper holder (no text or symbols)

3 Adjust the guide to fit the width of the material stack.

Illustration of a printer with paper feed and a magnified inset showing the printer's internal structure (no text or symbols)

4 When you print, select the appropriate paper source, type, and size in the software application. For details, see page 4.7.

Samsung ML-2250 Series Properties Layout Paper Graphics Extras About Copies 1 (1 - 999) Paper Options Size: Letter (8.5x11.0 in.) Custom Source MultiPurpose Tray Type Card Stock Different Source for First Page Scaling Type Favorities Save OK Cancel Apply Help

NOTE: If the size of your print material is not listed in the Size box in the Paper tab of the printer driver properties, click the Custom button and set the size manually. See page 4.7.

CAUTION: When you use 76 by 127 mm (3 by 5 in.) paper and it is too thin, a paper jam may occur. Use card stock heavier than 105g/m^2

5 After printing, close the Multi-Purpose Tray and the rear output tray.

Printing on Preprinted Paper

Preprinted paper is paper that has some type of printing placed on it before it is sent through the printer (paper that has a preprinted logo at the top of the page, for example).

Guidelines

• Letterheads must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the printer's fusing temperature of 400 °F (205 °C) for 0.1 second.
• Ink on letterheads must be non-flammable and should not adversely affect any printer rollers.
• Forms and letterhead should be sealed in a moisture-proof wrapping to prevent changes during storage.
• Before you load preprinted paper as forms and letterhead, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper.

1 Load letterhead into the tray you want to use, as shown in the figures below. Adjust the guides to fit the width of the paper stack.

Load with the design face down, bottom edge towards the printer.

3D technical illustration of a mechanical housing with a blue plastic cover labeled 'XXXXXXXXXX' (no other text or symbols)

Load with the design face up, top edge towards the printer.

face the XXXXXXXXX

2 When you print, select the appropriate paper source, type, and size in the software application. For details, see page 4.7.

Samsung ML-2250 Series Properties Layout Paper Graphics Extra About Copies 1 (1 - 999) Paper Options Size Letter [8.5x11.0 in.] Custom Source Multi-Purpose Tray Type Reprinted Different Source for First Page Scaling Type Favorites: Save OK Cancel Apply Help

4

PRINTING TASKS

This chapter explains printing options and common printing tasks. This chapter includes:

• Printing a Document
• Setting Paper Properties
  • Using the Toner Save Mode
• Printing Multiple Pages on One Sheet of Paper (N-Up Printing)
• Printing a Reduced or Enlarged Document
  • Fitting Your Document to a Selected Paper Size
• Printing Posters
  • Using Watermarks
• Using Overlays
• Setting Graphic Properties
  • Using Output Options
  • Using the Status Monitor
• Setting Up a Locally Shared Printer

Printing a Document

The following procedure describes the general steps required for printing from various Windows applications. The exact steps for printing a document may vary depending on the application programme you are using. Refer to the User's Guide of your software application for the exact printing procedure.

NOTE: For detailed information about printing from a Linux system, see Appendix B, "Using Your Printer in Linux."

1 Open the document you want to print.

2 Select Print from the File menu. The Print window is displayed (It may look slightly different depending on your application).

The basic print settings are selected within the Print window. These settings include the number of copies and print range.

Print Printer: Name: Samsung ML-2250 Series Status: Ready Type: Samsung ML-2250 Series Where: LPT1: Comment: Make sure that your printer is selected. Print to file Print range All Pages from: 1 to: Selection Copies Number of copies: 1 1 1 2 2 3 3 Colate OK Cancel

▲ Windows 98

3 To take advantage of the printer features provided by your printer, click Properties in the application's print window and go to Step 4.

If you see Setup, Printer, or Options, click that button instead. Then click Properties in the next screen.

4 Now you see the Samsung ML-2250 Series Properties window, which allows you to access all the information you will need when using your printer.

The Layout tab is first displayed.

Samsung ML-2250 Series Properties Layout | Paper | Graphics | Extras | About | Orientation ● Portrait ○ Landscape Rotate 0 Degrees Layout Options Type Multiple Pages per Side Page Order First Page Border Letter 8.50 x 11.00 in. Copies: 1 Resolution: Normal Favorites Save OK Cancel Apply Help

If necessary, select the Orientation option.

The Orientation option allows you to select the direction in which information is printed on a page.

• Portrait prints across the width of the page, letter style.
• Landscape prints across the length of the page, spreadsheet style.
• If you want to turn the page upside down, select 180 from the Rotate drop-down list.

▲ Landscape

▲ Portrait

5 From the Paper tab, select the paper source, size and type. For further details, see page 4.7.
6 Click other tabs on the top of the Samsung ML-2250 Series Properties window to access other features, if needed.

7 When you complete setting the properties, click OK until the Print window is displayed.

8 Click OK to start printing.

NOTES:

• Most Windows applications will override settings you specify in the printer driver. Change all print settings available in the software application first, and change any remaining settings using the printer driver.

• The settings you change remain in effect only while you are using the current programme. To make your changes permanent, make them in the Printers folder. Follows this procedure:

• Click the Windows Start menu.

• For Windows 95/98/Me/NT 4.0/2000, select Settings and then Printers.

For Windows XP, select Printers and Faxes.

1. Select the Samsung ML-2250 Series printer.
2. Click the right mouse button on the printer icon and:

• In Window 95/98/Me, select Properties.
- In Windows 2000/XP, select Printing Preferences.
- In Windows NT 4.0, select Document Default.

1. Change the settings on each tab, and click OK.

Cancelling a Print Job

There are two ways to cancel a print job.

To stop a print job from the control panel:

Press the Cancel button on the control panel.

On Line/Error Toner Save Canc

The printer will finish printing the page that is moving through the printer and delete the rest of the print job. Pressing the button cancels only the current job in the printer. If more than one print job is in the printer memory, the button must be pressed once for each job.

To stop a print job from the Printers folder:

1 From the Windows Start menu, select Settings.
2 Select Printers to open the Printers window, and double-click the Samsung ML-2250 Series icon.
3 From the Document menu, select Cancel Printing (Windows 9x/Me) or Cancel (Windows NT 4.0/2000/XP).

Samsung ML-2250 Series Properties Printer Document View Help Docum Pause Printing Status Owner Progress Started At 2:18 Cancel Printing Printing buririus 0 bytes of 1... 2:35:12 PM 9/6/02 1 jobs in queue

▲ Windows 98

Using a Favorite Setting

The Favorites option, which is visible on each properties tab, allows you to save the current properties settings for future use.

To save a Favorites item:

1 Change the settings as needed on each tab.
2 Enter a name for the item in the Favorites input box.

Samsung ML-2250 Series Properties Layout Paper Graphics Extras About Orientation Portrait Landscape Rotate 0 Degrees Layout Options Type Multiple Pages per Side Pages per Side 1 Page Order First Page Border Letter 6.50 x 11.00 in. Copies: 1 Resolution: Normal Favorites Save OK Cancel Apply Help

3 Click Save.

To use a saved setting, just select the item from the Favorites drop down list.

To delete a Favorites item, select it from the list and click Delete.

You can also restore the printer driver's default settings by selecting from the list.

Using Help

Your printer has a help screen that can be activated by the Help button in the printer's properties window. These help screens give detailed information about the printer features provided by the printer driver.

You can also click ?from the upper right hand corner, and then click on any setting.

Setting Paper Properties

Use the following options to set the basic paper handling needs when you access the printer properties. See page 4.2 for more information about accessing printer properties.

Click the Paper tab to access various paper properties.

Samsung ML-2250 Series Properties Layout Paper Graphics Extras About Copies 1 (1 - 999) Paper Options Size Letter (8.5x11.0 in.) Custom Source Auto Select Type Printer Default Different Source for Fast Page Scaling Type Favorites: Delete SAMSUNG ELECTRONICS OK Cancel Apply Help

Property Description
1 Copies	Copies allows you to choose the number of copies to be printed. You can enter up to 999.
2 Size	The Size option allows you to choose the size of paper loaded in the tray.If the required size is not listed in the Size box, click Custom. When the Custom Page Size window appears, set the paper and click Ok. The size setting appears in the Size list so that you can select it.
3 Source	Make sure thatSourceis set to the corresponding paper tray.TheManual Feedsource is used when printing to special materials. You have to load one sheet at a time into the Multi-Purpose Tray. See page 3.12.If the paper source is set toAuto Select, the printer automatically picks up print materials according to the following order: Multi-Purpose Tray, Tray1, Optional Tray2.
4 Type	Make sure thatTypeis set toPrinter Default. If you load a different type of print materials, select the corresponding paper type. For more information on print materials, refer to Chapter 3, "Using Print Materials."If you use cotton paper, set the paper type toThickfor the best printing.To use recycled paper, which weighs from 20lb to 24lb, or other colored paper, selectColor paper.
5 Different Source for First Page	This property allows you to print the first page using a different paper type from the rest of the document. You can select the paper source for the first page.For example, load thick stock for the first page into the Multi-Purpose Tray, and plain paper into the Tray1. Then, selectTray1in theSourceoption andMulti-Purpose Trayin theDifferent Source for FirstPageoption.

Using the Toner Save Mode

Toner Save mode allows the printer to use less toner on each page. Using this mode will extend the life of your toner cartridge and reduce your cost per page, but will reduce the print quality. This setting is not available with the 1200 dpi setting.

There are two ways to enable the Toner Save mode:

From the Control Panel

Press the Cancel button on the control panel for 0.5 second. The printer must be in Ready mode (On Line/Error green LED is on).

On Line/Error Toner Save Canc

- If the Toner Save LED is on, the mode is enabled and the printer uses less toner to print a page.

- If the Toner Save LED is off, the mode is disabled and the printer prints in the normal mode.

From the software application

1 When you change the print settings from your software application, access the printer properties. See page 4.2.

2 Click the Graphics tab, and select the Toner Save option. You can select from:

• Printer Setting: If you select this option, the Toner Save feature is determined by the setting you've made on the control panel of the printer.
• On: Select this option to allow the printer to use less toner on each page.
• Off: If you don't need to save toner to print a document, select this option.

Samsung ML-2250 Series Properties Layout | Paper | Graphics | Extras | About | Resolution 1200 dpi (Best) 600 dpi (Normal) Tuner Save Printer Setting Off Off Image Mode Normal Text Enhance Image Enhance Letter 9.50 x 11.00 in. Copies: 1 Resolution: Normal Favorites Save Advanced Options OK Cancel Apply Help

3 Click OK.

NOTE: The setting in the software application overrides that on the control panel.

Printing Multiple Pages on One Sheet of Paper (N-Up Printing)

1 2 3 4

You can select the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages will appear decreased in size and arranged on the sheet. You can print up to 16 pages on one sheet.

1 To change the print settings from your software application, access the printer properties. See page 4.2.
2 From the Layout tab, choose Multiple Pages per Side in the Type drop-down list.
3 Select the number of pages you want to print per sheet (1, 2, 4, 9 or 16) in the Pages per Side drop-down list.

Samsung ML-2250 Series Properties Layout | Paper | Graphics | Extras | About | Orientation Portrait Landscape Rotate 0 Degrees Layout Dimensions Type Multiple Pages per Side Pages per Side 4 Page Order Right, Then Down Print Page Border Letter 8.50 x 11.00 in. Copies: 1 Resolution: Normal Favorites (Unnamed) Save OK Cancel Apply Help S 1 2 3 4 JAMSUNG ELECTRONICS

4 Select the page order in the Page Order drop-down list, if necessary.

1 2 3 4 Right, Then Down 1 3 2 4 Down, Then Right 2 1 4 3 Left, Then Down 3 1 4 2 Down, Then Left

Check Print Page Border to print a border around each page on the sheet. Print Page Border is enabled only if the pages per sheet is 2, 4, 9, or 16.

5 Click the Paper tab and select the paper source, size, and type.
6 Click OK and print the document.

Printing a Reduced or Enlarged Document

Two identical panels showing a cartoon carrot with blue topping, one tilted and one with a gray arrow pointing downward (no text or symbols)

You can scale your print job on a page.

1 When you change the print settings from your software application, access the printer properties. See page 4.2.
2 From the Paper tab, select Scale Printing in the Type drop-down list.
3 Enter the desired scaling rate in the Percentage input box. You can also click the ▲ or ▼ button.

Samsung ML-2250 Series Properties Layout Paper Graphics Extras About Copies 1 (1 - 999) Paper Options Size Letter [8.5x11.0 in.] Custom Source Multi-Purpose Tray Type Plain Paper Different Source for First Page (None) Scaling Type Scale Printing Percentage 60 (25 - 400%) Favorites (Unnamed) Save OK Cancel Apply Help

4 Select the paper source, size, and type.
5 Click OK and print the document.

Fitting Your Document to a Selected Paper Size

This printer feature allows you to scale your print job to any selected paper size regardless of the digital document size. This can be useful when you want to check fine details on a small document.

1 To change the print settings from your software application, access the printer properties. See page 4.2.
2 From the Paper tab, select Fit to Page in the Type drop-down list.
3 Select the correct size from the Target Paper drop-down list.

Samsung ML-2250 Series Properties Layout Paper Graphics Extras About Copies 1 (1 - 999) Paper Options Size Letter (8.5x11.0 in.) Custom Source Multi-Purpose Tray Type Plain Paper Different Source for First Page Scoping Type Fit to Page Target Paper Letter Favorites (Unnamed) Save OK Cancel Apply Help

4 Select the paper source, size and type.
5 Click OK and print the document.

Printing Posters

Illustration showing a cartoon caterpillar transforming into an apple, with a magnified inset highlighting the growth.

This feature allows you to print a single-page document onto 4, 9 or 16 sheets of paper, for the purpose of pasting the sheets together to form one poster-size document.

1 To change the print settings from your software application, access the printer properties. See page page 4.2.
2 From the Layout tab, select Poster in the Type drop-down list.

Samsung ML-2250 Series Properties Layout | Paper | Graphics | Extras | About Orientation Portrait Landscape Rotate Degrees Layer Options Type: Poster Page Layout: 2x2 Overlap: 0.15 (0.00 - 1.0 in.) Inches Letter 8.60 x 11.00 in. Copies: 1 Resolution: Normal Favorites: Save OK Cancel Apply Help

3 Configure the poster option:

You can select the page layout from 2x2, 3x3 or 4x4. If you select 2x2, the output will be automatically stretched to cover 4 physical pages.

Illustration of a cartoon ant inside a divided square (no text or symbols)

Illustration of a cartoon insect and apple in a grid, no text or symbols present

Specify an overlap in millimeters or inches to make it easier to reconstruct the resulting poster.

0.15 inches 0.15 inches

4 Click the Paper tab and select the paper source, size and type.
5 Click OK and print the document. You can complete the poster by reconstructing the resulting pages.

Using Watermarks

The Watermark option allows you to print text over an existing document. For example, you may want to have large gray letters reading "DRAFT" or "CONFIDENTIAL" printed diagonally across the first page or all pages of a document.

There are several predefined watermarks that come with your printer, and they can be modified or you can add new ones to the list.

Using an Existing Watermark

1 To change the print settings from your software application, access the printer properties. See page 4.2.

2 Click the Extras tab, and select the desired watermark in the Watermark drop-down list. You will see the selected watermark in the preview image.

Samsung ML-2250 Series Properties Layout Paper Copy About Watermark Draft Edit Overlay Edit Output Options Letter 9.60 x 11.00 in. Copies: 1 Resolution: Normal

3 Click OK and start printing.

Creating a Watermark

1 To change the print settings from your software application, access the printer properties. See page 4.2.
2 Click the Extras tab, and click the Edit button in the Watermark section. The Edit Watermarks window appears.

Edit Watermarks Current Watermarks Confidential Draft Final Internal Use Only Preliminary Sample Add Update Preview image Walermark Message Draft First Page Only Message Angle Horizontal Vertical Angle Degrees 45 (0 - 359) Font Attributes Name Arial Black. Style Regular Grayscale Extra Dark Gray Size 120 (6 - 200) Ok Cancel Help

3 Enter the desired text message in the Watermark Message box.

This will be displayed in the preview window. The preview image is provided so that you can see how the watermark will appear on the printed page.

If the First Page Only box is checked, the watermark will be printed on the first page only.

4 Select the desired watermark options.
You can select the font name, style, and size, and grayscale level from the Font Attributes section and set the angle of the watermark from the Message Angle section.
5 Click Add to add a new watermark to the list.
6 When you finish editing, click Ok and start printing.

To stop printing the watermark, select in the Watermark drop-down list.

Editing a Watermark

1 To change the print settings from your software application, access the printer properties. See page 4.2.
2 Click the Extras tab, and click the Edit button in the Watermark section. The Edit Watermarks window appears.
3 Select the watermark you want to edit in the Current Watermarks list, and change the watermark message and the options. Refer to "Creating a Watermark" on page 4.16.
4 Click Update to save the changes.
5 Click Ok.

Deleting a Watermark

1 To change the print settings from your software application, access the printer properties. See page 4.2.
2 From the Extras tab, click the Edit button in the Watermark section. The Edit Watermarks window appears.
3 Select the watermark you want to delete in the Current Watermarks list and click Delete.
4 Click Ok.

Using Overlays

What is an Overlay?

Dear ABC Rogars WORLD BEST

An overlay is text and/or images stored in the computer hard disk drive (HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of preprinted forms and letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing the exact same information that is currently on your letterhead. To print a letter with your company's letterhead, you do not need to load preprinted letterhead paper in the printer. You need only tell the printer to print the letterhead overlay on your document.

Creating a New Page Overlay

WORLD BEST

To use a page overlay, you must create a new page overlay containing your logo or image.

1 Create or open a document containing text or an image for use in a new page overlay. Position the items exactly as you wish them to appear when printed as an overlay. If needed, save the file for later use.
2 To change the print settings from your software application, access the printer properties. See page 4.2.
3 Click the Extras tab, and click Edit button in the Overlay section.

Samsung ML-2250 Series Properties Layout Paper Graphics Extras About Watermark Edit Overlay Edit Output Options Print Order Normal Reprint When Jammed Letter 9.50 x 11.06 in. Copies: 1 Resolution: Normal Favorites: Save OK Cancel Apply Help

4 In the Edit Overlays window, click Create Overlay.

Edit Overlays Overlay List Create Overlay Load Overlay Delete Overlay Overlay Status No Overlay Selected Confirm Page Overlay When Printing Ok Cancel Help

5 In the Create Overlay window, type a name of up to eight characters in the File name box. Select the destination path, if necessary. (The default is C:\FormOver).

Create Overlay Save jn: FormOver File name: Samsung Save as type: Overlay Files (*.OVL) Save Cancel

6 Click Save. You will see the name in Overlay List.

7 Click OK or Yes until you complete creating.

The file is not printed out. Instead it will be stored on your computer HDD disk.

NOTE: The overlay document size must be the same as documents you will print with the overlay. Do not create an overlay with a watermark.

Using a Page Overlay

After an overlay has been created, it is ready to be printed with your document. To print an overlay with a document:

1 Create or open the document you want to print.
2 To change the print settings from your software application, access the printer properties. See page 4.2.
3 Click the Extras tab.
4 Select the desired overlay from the Overlay drop-down list box.
5 If the desired overlay file does not appear in the Overlay list, click the Edit button and Load Overlay, and select the overlay file.

Load Overlay Look in: FormOver Samsung OVL File name: Samsung Files of type: Overlay Files (*.OVL) Open Cancel

If you have stored the overlay file you want to use into an external source, you can also load the file when you access this Load Overlay window.

After you select the file, click Open. The file is now shown in the Overlay List box and is available for printing. Select the overlay from the Overlay List box.

Edit Overlays Overlay List C:\FormOver\Samsung.OVL Create Overlay Load Overlay Delete Overlay Overlay Status Samsung.OVL Size 0.0 KB Created 2004-02-12 23:28 Confirm Page Overlay When Printing Ok Cancel Help

6 If necessary, click Confirm Page Overlay When Printing. If this box is checked, a message window will appear each time you submit a document for printing, asking you to confirm your wish to print an overlay on your document.

Answering Yes to the window means that the selected overlay will be printed with your document. Answering No to the window cancels overlay printing.

If this box is empty and an overlay has been selected, the overlay will be automatically printed with your document.

7 Click OK or Yes until the printing starts.

The selected overlay will be downloaded with your print job and printed on your document.

NOTE: The resolution of the overlay document must be the same as that of the document you will print with the overlay.

Deleting a Page Overlay

You can delete page overlays that are no longer used.

1 In the printer properties window, click the Extras tab.
2 Click Edit in the Overlay section.
3 Select the overlay you want to delete from the Overlay List box.
4 Click Delete Overlay.
5 Click OK until you exit the Print window.

Setting Graphic Properties

Use the following graphic options to adjust the print quality for your specific printing needs. See page 4.2 for more information about accessing printer properties.

Click the Graphics tab to display the properties shown below.

Samsung ML-2250 Series Properties Layout | Paper | Graphics | Extras | About Resolution 1200 dpi (Best) 600 dpi (Normal) Toner Save Printer Setting Un Off Image Mode Normal Text Enhance Image Enhance Letter 9.40 x 11.00 in. Copies: 1 Resolution: Normal Favorites (Unnamed) Save Advanced Options SAMSUNG ELECTRONICS OK Cancel Apply Help

Property Description
1 Resolution	You can select the printing resolution by choosing from 1200 dpi (Best) or 600 dpi (Normal). The higher the setting, the sharper the clarity of printed characters and graphics. Higher settings may increase the time it takes to print a document.
2 Toner Save	Selecting this option will extend the life of your toner cartridge and reduce your cost per page without a significant reduction in the print quality. For detailed information about this mode, see page 4.9.
3 Image Mode	Some printed characters or images appear to have jagged or uneven edges. Set thisImage Modeoption to improve the print quality of your text and image, and make the characters and images appear smoother.TheImage Modeoption is only available when you select600 dpi (Normal) in theResolutionoption.Normal: This setting prints images in the normal mode.Text Enhance: This setting refines the print quality of characters by smoothing out jagged edges that can occur on the angles and curves of each character.Image Enhance: This setting refines the print quality of photo images.
4 Advanced Options	You can set advanced settings by clicking theAdvanced Optionsbutton.DarknessUse this option to lighten or darken the image appearance in your print.Normal: This setting is for normal documents.Light: This setting is for bolder line widths or darker gray-scale images.Dark: This setting is for finer line width, higher definition in graphics, and lighter gray-scale images.When theDarken Textoption is checked, all text in your document is allowed to print darker than a normal document.
Property Description
4 Advanced Options(continued)	TrueType OptionsThis option determines what the driver tells the printer about how to image the text in your document. Select the appropriate setting according to the status of your document.Download as Bit Image: When this option is selected, the driver will download the font data as bitmap images. Documents with complicated fonts, such as Korean or Chinese, or various other fonts, will print faster in this setting.Print as Graphics: When this option is selected, the driver will download any fonts as graphics. When printing documents with high graphic content and relatively few TrueType fonts, printing performance (speed) may be enhanced in this setting.Print All Text BlackWhen the Print All Text Black option is checked, all text in your document is allowed to print solid black, regardless of the colour it appears on the screen. When it is not checked, coloured text is allowed to print in shades of gray.

Using Output Options

You can select options for output of your document.

See page 4.2 for more information about accessing printer properties.

Click the Extras tab to access the Output Options feature.

Samsung ML-2250 Series Properties Layout | Paper | Graphics | Extras | About | Walemark Edit Overlay Edit Output Options Print Order Normal Preprint When Jammed Letter 9.60 x 11.00 in. Copes: 1 Resolution: Normal Favorites: Save SAMSUNG ELECTRONICS OK Cancel Apply Help

Option Description
Print Order	You can set in what sequence the pages will be printed. Select the required print order from the drop-down list.Normal:Your printer prints in normal order.Reverse All Pages:Your printer prints all pages in reversed order. This setting is helpful when you are using the rear output tray.Print Odd Pages:Your printer prints only the odd pages of the document.Print Even Pages:Your printer prints only the even pages of the document.
Reprint When Jammed	When this option is checked, the printer keeps the image for a printed page until the printer signals that the page has successfully exited the printer. When a paper jam occurs, the printer reprints the last page after you clear the jam.

Using the Status Monitor

If an error occurs while printing, the Status Monitor window appears, showing the error.

NOTES:

• The Status Monitor program can only be used if you connect the printer to your computer with the USB cable, or on the network.
• You can use the Status Monitor in Windows 98/Me/NT 4.0/2000/XP.

Installing Status Monitor

1 Insert the supplied CD-ROM into your CD-ROM drive.

The CD-ROM should automatically run and an maintenance window appears.

If the maintenance window does not appear, click Start and then Run. Type X:\Setup.exe, replacing "X" with the letter of your drive and click OK.

NOTE: If your machine is not connected to the computer, the following window will appear.

Samsung ML-2250 Series Connect Samsung ML-2250 Series If you want to install Samsung ML-2250 Series properly you have to connect Samsung ML-2250 Series before installation. You may connect the device using the panel cable like on the figure, then turn on the power of Samsung ML-2250 Series. Click [Next 1] Next Cancel

• After connecting the machine, click Next.
- If you want to skip the connection status, click Next, and No to the following screen.

2 Click Custom.
If you have been installed the printer driver before, click Repair.
3 Click Status Monitor and then click Next.
4 When the installation is completed, click Finish.

Reinstalling Status Monitor

1 From the Start menu, select Programs.
2 Select Samsung ML-2250 Series, and then Maintenance.
3 Click Repair.
4 Click Status Monitor and then click Next.
5 When reinstallation is done, click Finish.

Removing Status Monitor

1 From the Start menu, select Programs.
2 Select Samsung ML-2250 Series, and then Maintenance.
3 Check Remove.
4 Click Status Monitor and then click Next.
5 When removing is completed, click Finish.

Opening the Troubleshooting Guide

Double click the Status monitor icon on the Windows task bar.

Double click this icon.

11:33 PM

Or, from Programs from Start, Samsung ML-2250 Series, and Troubleshooting guide.

Changing the Status Monitor Program Setting

The following window opens when you click the Status monitor icon on the Windows task bar and select Option.

Option Status Monitor Alert Option □ Display when job is finished for network printer. ☑ Display when error occurs during printing. Schedule an automatic status checking every 3 (1-10 sec) OK Cancel

• Display when job is finished for network printer shows the Status monitor balloon when your job is complete.
• Display when error occurs during printing the Status monitor balloon appears when an error occurs while printing.
• Schedule an automatic status checking every allows the computer to update the printer status regularly. Setting the value close to 1 second causes the computer to check the printer status more frequently, thereby allowing a faster response to any printer error.

NOTE: When the Status monitor balloon appears to indicate an error, you can cancel the current print job or see the corresponding solution. If you select Cancel Printing, turn the printer off and then click OK. It may take several minutes. Note that this will lose data which is being sent to the printer via network.

Setting Up a Locally Shared Printer

Locally-Shared Printer

You can connect the printer directly to a selected computer, which is called the "host computer" on the network. The printer can then be shared by other users on the network through a Windows 9x/Me/XP/NT 4.0/2000 network printer connection.

Printing Across a Network

Whether the printer is locally connected or network-connected, you need to install the ML-2250 series printer software on each computer that will print documents to the printer.

In Windows 9x/Me

Setting Up the Host Computer

1 Start Windows.
2 From the Start menu, select Control Panel, and double-click on the Network icon.
3 Check the File and Print Sharing box, and click OK. Close the window.
4 From the Start menu, select Printers from Settings and double-click your printer name.
5 Select Properties in the Printer menu.
6 Click the Sharing tab and check the Shared As box. Fill in the Shared Name field and click OK.

Setting Up the Client Computer

1 Right-click the Windows Start button and select Explorer.
2 Open your network folder in the left column.
3 Right-click the shared name and select Capture Printer Port.

4 Select the port you want, check the Reconnect at log on box, and click OK.
5 From the Start menu, select Settings and then Printers.
6 Double-click your printer icon.
7 From the Printer menu, select Properties.
8 From the Details tab, select the printer port and click OK.

In Windows NT 4.0/2000/XP

Setting Up the Host Computer

1 Start Windows.
2 For Windows NT 4.0/2000, select Settings, and Printers from the Start menu.
For Windows XP, select Printers and Faxes from the Start menu.
3 Double-click your printer icon.
4 From the Printer menu, select Sharing.
5 For Windows NT 4.0, check the Shared box.
For Windows 2000, check the Shared As box.
For Windows XP, check the Share this printer box.
6 For Windows NT 4.0, fill in the Share Name field and click OK.
For Windows 2000/XP, fill in the Shared Name field and click OK.

Setting Up the Client Computer

1 Right-click the Windows Start button and select Explorer.
2 Open your network folder in the left column.
3 Click the shared name.
4 For Windows NT 4.0/2000, select Settings and Printers from the Start menu.
For Windows XP, select Printers and Faxes from the Start menu.
5 Double-click your printer icon.
6 From the Printer menu, select Properties.
7 From the Ports tab, click Add Port.
8 Select Local port and click New Port.
9 Fill in the Enter a port name field, enter the shared name.
10 Click OK and click Close.
11 For Windows NT 4.0, click OK.
For Windows 2000/XP, click Apply and click OK.

MEMO

5

MAINTAINING YOUR PRINTER

This chapter provides suggestions for high-quality and economical printing and information for maintaining the toner cartridge and the printer.

This chapter includes:

• Maintaining the Toner Cartridge
• Cleaning the Printer
• Printing Configuration Pages
• Consumables and Replacement Parts

Maintaining the Toner Cartridge

Toner cartridge storage

To get the maximum results from the toner cartridge, keep the following guidelines in mind.

• Do not remove the toner cartridge from its package until ready for use.
• Do not refill the toner cartridge. The printer warranty does not cover damage caused by using a refilled cartridge.
• Store toner cartridges in the same environment as the printer.
• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes.

Toner cartridge life expectancy

The life of the toner cartridge depends on the amount of toner that print jobs require. When printing text at 5% coverage, a new toner cartridge lasts an average of 5,000 pages.

Saving toner

To save toner, press the Cancel button on the printer control panel for 0.5 second. The button will be lit. You can also enable the Toner Save in the printer properties. Refer to "Using the Toner Save Mode" on page 4.9. Selecting this option will extend the life of the toner cartridge and reduce your cost per page, but will reduce the print quality.

Redistributing Toner

When toner is low, faded or light areas may appear on a printed page. You may be able to temporarily improve the print quality by redistributing the toner. The following procedures may allow you to finish the current print job before replacing the toner cartridge.

1 Grasp the front cover and pull it toward you to open.

Illustration of a printer with a blue arrow indicating the process, showing internal components and a clear cover (no text or symbols present)

2 Pull the toner cartridge and remove it from the printer.

Illustration of a printer being inserted into a plastic case, showing the paper inside (no text or symbols)

CAUTIONS:

- Avoid reaching too far into the printer. The fusing area may be hot.

- To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if left exposed for more than a few minutes and keep it in a flat and clean place.

3 Gently shake the toner cartridge from side to side five or six times to redistribute the toner.

Illustration of hands holding a mechanical component with blue curved arrows indicating rotation (no text or symbols)

NOTE: If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

4 Reinsert the toner cartridge into the printer. Ensure that the toner cartridge snaps into place.

Illustration of a printer being inserted into a paper holder, with a magnified inset showing the printer's internal structure (no text or symbols present)

5 Close the front cover. Make sure that the cover is securely closed. If it is not firmly closed, printing errors may occur when you print.

Illustration of a printer with a blue arrow indicating the process, showing internal components and a clear cover (no text or symbols present)

Replacing the Toner Cartridge

If the print remains light after redistributing the toner (see page 5.3), replace the toner cartridge.

Remove the old cartridge and install a new toner cartridge. See "Installing the Toner Cartridge" on page 2.4.

Cleaning the Printer

To maintain print quality, follow the cleaning procedures below each time the toner cartridge is replaced or if print quality problems occur.

NOTE: While cleaning the inside of the printer, be careful not to touch the transfer roller (located underneath the toner cartridge). Oil from your fingers can cause print quality problems.

CAUTION: Cleaning the cabinet of the printer with surfactants containing large amounts of alcohol, solvent, or other strong substances can discolor or crack the cabinet.

Cleaning the Outside

Clean the cabinet of the printer with a soft, lint-free cloth. You can dampen the cloth slightly with water, but be careful not to let any water drip onto the printer or inside of it.

Cleaning the Inside

During the printing process, paper, toner, and dust particles can accumulate inside the printer. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the printer will eliminate or reduce these problems.

Cleaning inside the printer

1 Turn the printer off and unplug the power cord, then wait for the printer to cool.

2 Open the front cover. Pull the toner cartridge and remove it from the printer.

Illustration of a printer being inserted into a plastic tray, showing internal components and a blue arrow indicating the process (no text or symbols present)

3 With a dry, lint-free cloth, wipe away any dust and spilled toner from the toner cartridge area and the toner cartridge cavity.

Illustration of a printer's internal structure with a hand inserting a plastic bag into the open casing (no text or symbols visible)

NOTE: To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary and keep it in a flat and clean place. Also, do not touch the black transfer roller inside the printer.

4 Locate the long strip of glass (LSU) inside the top of the cartridge compartment, and gently swab the glass to see if dirt turns the white cotton black.

Line drawing of a printer with an open lid and a magnified inset showing a spoon inserted into the cover (no text or symbols)

5 Reinsert the toner cartridge and close the cover. Make sure that the cover is securely closed. If it is not firmly closed, printing errors may occur when you print.

Illustration of a printer with a blue arrow indicating the process, showing internal components and a clear cover (no text or symbols present)

6 Plug in the power cord, and turn the printer on.

Printing a cleaning sheet

Your printer can be set to print out a cleaning sheet automatically every 500 print pages. you should use this feature if you use inferior quality paper, because such paper may lower print quality. See page C.6. This feature activates as a default depending on the country.

If you are experiencing blurred, faded, or smeared printouts, printing a cleaning sheet will clean the drum inside the toner cartridge. This process will produce a page with toner debris, which should be discarded.

1 Ensure that the printer is turned on and in the Ready mode with paper loaded in the tray.

2 Press and hold down the Cancel button on the control panel for about 10 seconds.

On Line/Error Toner Save Canc

3 Your printer automatically picks up a sheet of paper from the tray and prints out a cleaning sheet with dust or toner particles on it.

NOTE: The cartridge cleaning process takes some time. To stop the process, turn the power off.

Printing Configuration Pages

From the printer's control panel, you can print a Configuration page. Use the configuration page to view current printer settings, to help troubleshoot printer problems, or to verify installation of optional accessories, such as memory, optional tray, and printer languages.

If your printer has a network card, the network configuration sheet prints out with a printer configuration sheet.

To print configuration pages:

1 Ensure that the printer is turned on and in the Ready mode with paper loaded in the tray.

2 Press and hold down the Cancel button on the control panel for about 6 seconds.

Configuration pages print out.

Samsung ML-2250 Series Sonic Ship Operating Ship

Consumables and Replacement Parts

From time to time, you will need to replace the roller and fuser unit to maintain top performance and avoid print quality problems and paper feed problems resulting from worn parts.

The following items should be replaced after you have printed a specified number of pages. See the table below.

Items Yield (Average)

Transfer Roller Approx. 60,000 pages

Fuser Unit Approx. 80,000 pages

To purchase consumables and replacement parts, contact a Samsung dealer or the place where you bought your product. We strongly recommend that items be installed by trained service personnel.

MEMO

6

SOLVING PROBLEMS

This chapter provides helpful information for what to do if you encounter an error while using your printer.

This chapter includes:

• Troubleshooting Checklist
• Solving General Printing Problems
• Clearing Paper Jams
• Solving Print Quality Problems
• Troubleshooting Error Messages
  • Common Windows Problems
• Troubleshooting PS Errors
  • Common Linux Problems

Troubleshooting Checklist

If the printer is not working properly, perform the series of checks in the list below. If the printer fails to adequately pass a checklist item, follow the corresponding troubleshooting suggestions.

Check Solution
Print a demo page to verify that the printer is feeding paper correctly. See page 2.16.	·If a demo page does not print, check the paper supply in the paper tray.·If the paper jams in the printer, go to “Clearing Paper Jams” on page 6.7.
Check the demo page to see if it is printed correctly.	If there is a print quality problem, go to “Solving Print Quality Problems” on page 6.15.
Print a short document from a software application to verify that the computer and printer are connected and are communicating correctly.	·If the page does not print, check the cable connection between the printer and the computer.·Check the print queue or print spooler to see if the printer has been paused.·Check the software application to ensure that you are using the proper printer driver and communication port. If the page is interrupted during printing, go to “Solving General Printing Problems” on page 6.3.
If completing the checklist does not resolve the printer problem, check the following troubleshooting sections.	·“Solving General Printing Problems” on page 6.3.·“Troubleshooting Error Messages” on page 6.20.·“Common Windows Problems” on page 6.21.·“Common Linux Problems” on page 6.23.

Solving General Printing Problems

For problems with the operation of your printer, refer to the following table for suggested solutions.

Problem Possible Cause Solution
The printer does not print.	The printer is not receiving power.	Check the power cord connections. Check the power switch and the power source.
	The printer is not selected as the default printer.	Select Samsung ML-2250 Series or Samsung ML-2250 Series PS as your default printer.
	Check the printer for the following:	The printer cover is not closed.Paper is jammed.No paper is loaded.The toner cartridge is not installed.If a printer system error occurs, contact your service representative.
	The printer may be in manual feed mode and out of paper.	Add paper to the Multi-Purpose Tray, and press the Cancel button on the printer's control panel.
	The connection cable between the computer and the printer is not connected properly.	Disconnect the printer cable and reconnect it.
	The connection cable between the computer and the printer is defective.	If possible test the cable by attaching it to another computer that is working properly and attempt to print a job. You can also try using a different printer cable and attempt to print a job.
	The port setting is incorrect.	Check the Windows printer setting to make sure that the print job is sent to the correct port, for example, LPT1. If the computer has more than one port, make sure that the printer is attached to the correct one.
	The printer may be configured incorrectly.	Check the printer properties to ensure that all of the print settings are correct.
The printer does not print. (continued)	The printer driver may be incorrectly installed.	Reinstall the printer driver; see page 2.22. Try printing a demo page.
	The printer is malfunctioning.	Check the display message on the control panel to determine if the printer is indicating a system error.
Printer selects print materials from the wrong paper source.	The paper source selection in the printer properties may be incorrect.	For many software applications, the paper source selection is found under thePaper tab within the printer properties. Select the correct paper source. See page 4.7.
Paper does not feed into the printer.	Paper has not been loaded correctly.	Remove paper from the tray and reload it correctly.
	There is too much paper in the paper tray.	Remove excess paper from the tray.
	The paper is too thick. Use	only paper that meets the specifications required by the printer. See page E.3.
Print job is extremely slow.	The job may be very complex.	Reduce the complexity of the page or try adjusting the print quality settings.The maximum print speed of your printer is 20 PPM (pages per minute) for A4-sized paper or 22 PPM for Letter-sized paper.
	If using Windows 9x/Me, the Spooling Setting may be set incorrectly.	From the Start menu, choose Settings and Printers. Right-click the Samsung ML-2250 Series printer icon, choose Properties, click the Details tab, and then choose the Spool Settings button. Select the desired spool setting.
	The computer may have insufficient random-access memory (RAM).	Install more memory in your printer. See "Installing Memory and PostScript DIMMs" on page D.3.
Half the page is blank.	The page layout is too complex.	Simplify the page layout and remove any unnecessary graphics from the document. Install more memory in your printer. See "Installing Memory and PostScript DIMMs" on page D.3.
	The page orientation setting may be incorrect.	Change the page orientation in your application. See page 4.3.
	The paper size and the paper size settings do not match.	Ensure that the paper size in the printer driver settings matches the paper in the tray.
The paper keeps jamming.	There is too much paper in the paper tray.	Remove excess paper from the tray.If printing on special materials, use the Multi-Purpose Tray.
	An incorrect type of paper is being used.	Use only paper that meets the specifications required by the printer. See page E.3.
	An incorrect output method is being used.	Special print materials, such as thick paper, should not be printed using the top output tray (face-down). Use the rear output tray (face-up) instead.
	There may be debris inside the machine.	Open the front cover and remove the debris.
The printer prints, but the text is wrong, garbled, or incomplete.	The printer cable is loose or defective.	Disconnect the printer cable and reconnect. Try a print job that you have already printed successfully.If possible test the cable by attaching it to another computer that is working properly and attempt to print a job. You can also try using a different printer cable and attempt to print a job.
	The wrong printer driver was selected.	Check the application's printer selection menu to ensure that your printer is selected.
	The software application is malfunctioning.	Try printing a job from another application.
	The operating system is malfunctioning.	If printing from Windows (any version), exit to a DOS prompt and verify functionality with the following command: At a C:\ prompt, type Dir LPT1, and press Enter. (This assumes you are connected to LPT1.) Exit Windows and reboot the computer. Turn the printer off and then back on again.
Pages print, but are blank.	The toner cartridge is defective or out of toner.	Redistribute the toner. if necessary. See page 5.3.If necessary, replace the toner cartridge.
	The file may have blank pages.	Check the file to ensure that it does not contain blank pages.
	Some parts, such as the controller or the board, may be defective.	Contact a service representative.
Problem Possible Cause Solution
The illustrations print incorrectly in Adobe Illustrator.	The setting in the software application is wrong.	Print the document with selecting Download as Bit Image in the Advanced Options window of the graphic properties.

ATTENTION: If you have any printing problem after your printer prints about 60,000 pages, you must contact the customer service to replace the transfer roller.

Clearing Paper Jams

Occasionally, paper can jam during a print job. Some causes include:

• The tray is loaded improperly or overfilled.
• The tray has been pulled out during a print job.
• The front cover has been opened during a print job.
• Paper that does not meet paper specifications has been used. See "Paper Specifications" on page E.3.
• Paper that is outside of the supported size range has been used. See "Paper Specifications" on page E.3.

If a paper jam occurs, the On Line/Error LED on the control panel lights red. Find and remove the jammed paper. If you can't see it, look inside the printer.

NOTE: Do not use tweezers or metal objects with sharp ends when you remove paper jams. If you do this, it may damage the metal parts inside of your machine and cause a short circuit.

In the Paper Feed Area

1 Slide out Tray1 to expose the jammed paper.

Illustration of a printer with a blue arrow indicating the paper cut or attachment (no text or symbols present)

2 Remove any misfed paper by pulling it out by the visible edge. Make sure that all of the paper is properly aligned in the tray.

Illustration of hands inserting a paper into a printer into a slot (no text or symbols visible)

NOTE: If the jammed paper is not visible or if there is resistance when you pull the paper, remove the tray from the printer and carefully pull the jammed paper free from the printer.

3 Slide the tray back into the printer.

Illustration of a printer with a blue arrow indicating the printer's internal structure (no text or symbols present)

4 Open and close the front cover to resume printing.

In the Optional Tray2

1 Pull the optional Tray2 out of the printer.

Illustration of a printer with a blue arrow indicating compression or disassembly (no text or symbols present)

2 If you see the jammed paper, remove the paper from the tray.

Illustration of hands operating a printer with a blue arrow indicating a download or file transfer (no text or symbols present)

3 If you cannot find the jammed paper in Tray2, pull Tray1 half way out of the printer, and remove the paper.

Illustration of a printer being inserted into a paper holder, with a blue upward arrow indicating the paper's direction (no text or symbols present)

4 Slide the trays back into the printer. Open and close the front cover. Printing can now be resumed.

In the Multi-Purpose Tray

1 Open the Multi-Purpose Tray.
2 Carefully remove the jammed paper from the tray.

Illustration of a printer being inserted into a paper sheet, with a hand holding the paper (no text or symbols visible)

3 Open and close the front cover. Printing can now be resumed.

Around the Toner Cartridge

1 Open and close the front cover, and the jammed paper automatically exits the printer.

If not, continue to Step 2.

2 Open the front cover and remove the toner cartridge.

Illustration of a printer with a hand inserting a plastic sheet into the cover (no text or symbols visible)

CAUTION: To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Place a piece of paper over the top of the toner cartridge to shield it while it is out of the printer and keep it in a flat and clean place.

3 Gently pull the jammed paper toward you to remove it from the printer.

Illustration of hands inserting a blue plastic sheet into a printer (no text or symbols visible)

If the jammed paper is not visible or there is resistance when you pull the paper, go to "In the Paper Exit Area" on page 6.12.

4 Check that there is no other paper in the printer.
5 Reinstall the toner cartridge, and then close the front cover. Printing can now be resumed.

In the Paper Exit Area

1 If a long portion of the paper is visible, pull it straight out. If not, continue to Step 2.

Illustration of a printer with a paper sheet and arrow indicating print direction (no text or symbols)

2 Open the rear output tray.

Illustration of a hand opening a computer tower with a blue arrow indicating the process (no text or symbols present)

3 Loosen the paper if it is caught in the feed rollers. Then gently pull the paper out.

Illustration of a printer being inserted into a paper holder, showing paper sheet being placed (no text or symbols)

4 Close the rear output tray.
5 Open and close the front cover. Printing can now be resumed.

Tips for Avoiding Paper Jams When Printing on the A5-sized Paper

If paper jams frequently occur when you print on the A5-sized paper:

1 Open the input tray and load paper into the tray as shown below.

Diagram of a printer's internal structure with a blue arrow indicating a loading or movement (no text or symbols present)

2 Open the Samsung ML-2250 Series Properties window, set the paper size to A5 (148x210 mm) from the Paper tab.

3 From the Orientation option of the Layout tab, set the Rotate option to 90°.

Samsung ML 2250 Series Properties Layout | Paper | Graphics | Extras | About | Orientation Portrait Landscape Rotate 90 Degrees Select 90 degrees. Layout Options Type Multiple Fugues per side Pages per Side 1 Page Order Print Page Border A5 146 x 210 mm Copies: 1 Resolution: Normal Favorites: Save Click. OK Cancel Apply Help

4 Click OK to start printing.

Tips for Avoiding Paper Jams

By selecting the correct paper types, most paper jams can be avoided. If a paper jam occurs, follow the steps outlined in "Clearing Paper Jams" on page 6.7.

• Follow the procedures in "Loading Paper" on page 2.7. Ensure that the adjustable guides are positioned correctly.
• Do not overload the paper tray. Ensure that the paper is below the paper limit mark on the inside wall of the tray.
• Do not remove the paper from the tray while printing.
  • Flex, fan, and straighten the paper before loading.
• Do not use creased, damp, or highly curled paper.
• Do not mix paper types in the tray.
• Use only recommended print materials. See "Paper Specifications" on page E.3.
• Ensure that the recommended print side is facing down when loading paper in the tray and facing up in the Multi-Purpose Tray.

Solving Print Quality Problems

If the inside of the printer is dirty, or paper is improperly loaded, print quality maybe reduced. See the table below to troubleshoot the problem.

Problem Solution
Light or faded printAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc	If a vertical white streak or faded area appears on the page:The toner supply is low. You may be able to temporarily extend the toner cartridge life. See "Redistributing Toner" on page 5.3. If this does not improve the print quality, install a new toner cartridge.The paper may not meet paper specifications (for example, the paper is too moist or too rough). See "Paper Specifications" on page E.3.If the entire page is light, the print resolution setting is too light or Toner Save Mode is on. Adjust the print resolution and Toner Save Mode in the printer properties. See page 4.22 and page 4.9 respectively.A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. See "Cleaning the Inside" on page 5.5.The surface of the LSU may be dirty. Clean the LSU. See "Cleaning the Inside" on page 5.5.
Toner specsAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc	The paper may not meet specifications (for example, the paper is too moist or too rough). See "Paper Specifications" on page E.3.The transfer roller may be dirty. See "Cleaning the Inside" on page 5.5.The paper path may need cleaning. See "Cleaning the Inside" on page 5.5.
DropoutsAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc	If faded areas, generally rounded, occur randomly on the page:A single sheet of paper may be defective. Try reprinting the job.The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper. See "Paper Specifications" on page E.3.The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.The toner cartridge may be defective. See "Vertical repetitive defects" on the next page.If these steps do not correct the problems, contact a service representative.
Vertical lines	If black vertical streaks appear on the page:The drum inside the toner cartridge has probably been scratched. Install a new toner cartridge.
Gray background	If the amount of background shading becomes unacceptable, the procedures below may fix the problem.Change to a lighter weight pages. See "Paper Specifications" on page E.3.Check the printer's environment; very dry (low humidity) or high humidity (higher than 80% RH) conditions can increase the amount of background shading.Remove the old toner cartridge and install a new one. See "Installing the Toner Cartridge" on page 2.4.
Toner smear	Clean the inside of the printer. See "Cleaning the Inside" on page 5.5.Check the paper type and quality. See "Paper Specifications" on page E.3.Remove the toner cartridge and install a new one. See "Installing the Toner Cartridge" on page 2.4.
Vertical repetitive defects	If marks repeatedly appear on the printed side of the page at even intervals:The toner cartridge may be damaged. If a repetitive mark occurs on the page, print a cleaning sheet several times to clean the cartridge; see page 5.7. After the printout, if you still have the same problems, install a new toner cartridge. See "Installing the Toner Cartridge" on page 2.4.Parts of the printer may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.The fusing assembly may be damaged. Contact a service representative.
Problem Solution
Background scatter	Background scatter results from bits of toner distributed on the printed page.The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or the printer properties.
Misformed characters	If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try a different paper. See "Paper Specifications" on page E.3.If characters are improperly formed and producing a wavy effect, the scanner unit may need service. Verify that it also occurs on a demo page (see page 2.16). For service, contact a service representative.
Page skew	Check the paper type and quality. See "Paper Specifications" on page E.3.Ensure that the paper or other material is loaded correctly and the guides are not too tight or too loose against the paper stack.
Curl or wave	Check the paper type and quality. Both high temperature and humidity can cause paper curl. See "Paper Specifications" on page E.3.Turn over the stack of paper in the tray. Also try rotating the paper 180^ in the tray.Try printing to the face up output slot.
Wrinkles or creases	Ensure that the paper is loaded properly.Check the paper type and quality. See "Paper Specifications" on page E.3.Open the rear cover and try printing to the rear output tray (face-up).Turn over the stack of paper in the paper tray. Also try rotating the paper 180° in the tray.
Back of printouts are dirty	The transfer roller may be dirty. "Cleaning the Inside" on page 5.5.Check for leaking toner. Clean the inside of the printer.
Black pages	The toner cartridge may not be installed properly. Remove the cartridge and reinsert.The toner cartridge may be defective and need replacing.Install a new toner cartridge.The printer may require repair. Contact a service representative.
Loose toner	Clean the inside of the printer.Check the paper type and quality. See "Paper Specifications" on page E.3.Install a new toner cartridge. See "Installing the Toner Cartridge" on page 2.4.If the problem persists, the printer may require repair. Contact a service representative.
Character Voids	Character voids are white areas within the parts of characters that should be solid black:If you are using transparencies, try another type of transparency. Because of the composition of the transparency, some character voids are normal.You may be printing on the wrong side of the paper. Remove the paper and turn it around.The paper may not meet paper specifications. See "Paper Specifications" on page E.3.
Horizontal stripes	If horizontally aligned black streaks or smears appear:The toner cartridge may be installed improperly. Remove the cartridge and reinsert.The toner cartridge may be defective. Install a new toner cartridge. See "Installing the Toner Cartridge" on page 2.4.If the problem persists, the printer may require repair. Contact a service representative.
Curl	If the printed paper is curl or paper does not feed into the printer:Turn over the stack of paper in the input tray. Also try rotating the paper 180^ in the input tray.

Troubleshooting Error Messages

When the printer experiences an error, the control panel will indicate an error message with the indicator lights. Find the light pattern below that matches the printer light pattern and follow the solutions to clear the error.

LED status legend

symbol for "light off"

symbol for "light on"

symbol for "light blinking"

On Line/Error Toner Save Cancel

LED pattern Possible Problems and Solutions
	Your system has some problems. If this problem occurs, contact your service representative.
On Line/Error LED lights red	A paper jam has occurred. To solve the problem, see “Clearing Paper Jams” on page 6.7.Paper Tray is empty. Load the paper in the Tray.The front cover is open. Close the front cover.The toner cartridge is empty. Remove the old toner cartridge and install a new one. See “Installing the Toner Cartridge” on page 2.4.
	You pressed the Cancel button while the printer was receiving data.In Manual Feed mode, there is no paper in the Multi-purpose Tray. Load paper into the Multi-purpose Tray.If the printer is receiving data, the On Line/Error LED slowly blinks green.If the printer is printing the received data, the On Line/Error LED blinks green fast.

Common Windows Problems

Problem Possible	Cause and Solution
"File in Use" message appears during installation.	Exit all software applications. Remove all software from the StartUp Group, then restart Windows. Reinstall the printer driver.
"Error Writing to LPTx" message appears.	· Ensure that the cables are connected correctly, and the printer is on.· If bi-directional communication is not turned on in the driver, it will also cause this message.
"General Protection Fault", "Exception OE", "Spool32", or "Illegal Operation" messages appear.	Close all other applications, reboot Windows, and try printing again.

NOTE: Refer to the Microsoft Windows 9x/Me/NT 4.0/2000/XP User's Guide that came with your PC for further information on Windows error messages.

Troubleshooting PS Errors

The following situations are PS language specific and may occur when several printer languages are being used.

NOTE: To receive a printed or screen displayed message when PS errors occur, open the Print Options window and click the desired selection next to the PostScript errors section.

Problem Possible Cause Solution
PostScript file can not be printed.	The PostScript option may not be installed.	· Print a configuration page and verify that the PS version is available for printing.· If PostScript is not available, install the PostScript option. See "Installing Memory and PostScript DIMMs" on page D.3.
"This job contains binary data..." message appears.	The pure binary data option is not supported by the PostScript driver.	Open the Properties of the PostScript driver, click onPostScript, and click onAdvanced. The pure binary data option is not supported. Choose another.
The optional Tray2 is not selected in the driver.	The printer driver has not been configured to recognise the optional Tray2.	Open the PostScript driver properties and set theTray2item of theDeviceoptiontoInstalled.

Common Linux Problems

Problem Possible Cause and Solution
I can't change settings in the configuration tool.	You need to have administrator privileges to be able to affect global settings.
I am using the KDE desktop but the configuration tool and LLPR won't start.	Maybe you do not have the GTK libraries installed. These usually come with most Linux distributions, but you may have to install them manually. Refer to your distribution's installation manual for more details about installing additional packages.
I just installed this package but can't find entries in the KDE/Gnome menus.	Some versions of the KDE or GNOME desktop environments may require that you restart your session for the changes to take effect.
I get a "Some options are not selected" error message while editing the printer settings.	Some printers have conflicting settings, meaning that some settings for two options can't be selected at the same time. When you change a setting and the Printer Package detects such a conflict, the conflicting option is changed to a "No Choice" value, and you have to choose an option that does not conflict before being able to submit the changes.
I can't make a printer the system default.	In some conditions, it may not be possible to change the default queue. This happens with some variants of LPRng, especially on recent RedHat systems that use the "printconf" database of queues.When using printconf, the /etc/printcap file is automatically refreshed from the database of printers managed by the system (usually through the "printtool" command), and the queues in /etc/printcap.local are appended to the resulting file. Since the default queue in LPRng is defined as the first queue in /etc/printcap, it is not possible for the Linux Printer Package to change the default when some queues have otherwise been defined using printtool.LPD systems identify the default queue as the one named "lp". Thus, if there is already a queue by this name, and if it doesn't have any alias, you won't be able to change the default. To work around this, you can either delete the queue or rename it by manually editing the /etc/printcap file.
The N-up setting does not work correctly for some of my documents.	The N-up feature is achieved through post-processing of the PostScript data that is being sent to the printing system. However, such post-processing can only be adequately achieved if the PostScript data conforms to the Adobe Document Structuring Conventions. Problems may arise when using N-up and other features relying on post-processing if the document being printed isn't compliant.
I am using BSD lpr (Slackware, Debian, older distributions) and some options chosen in LLPR don't seem to take effect.	Legacy BSD lpr systems have a hard limitation on the length of the option string that can be passed to the printing system. As such, if you selected a number of different options, the limitation length of the options may be exceeded and some of your choices won't be passed to the programmes responsible for implementing them. Try to select less options that deviate from the defaults, to save on memory usage.
I am trying to print a document in Landscape mode, but it prints rotated and cropped.	Most Unix applications that offer a Landscape orientation option in their printing options will generate correct PostScript code that should be printed as is. In that case, you need to make sure that you leave the LLPR option to its default Portrait setting, to avoid unwanted rotations of the page that would result in a cropped output.
Some pages come out all white (nothing is printed), and I am using CUPS.	If the data being sent is in Encapsulated PostScript (EPS) format, some earlier versions of CUPS (1.1.10 and before) have a bug preventing them from being processed correctly. When going through LLPR to print, the Printer Package will work around this issue by converting the data to regular PostScript. However, if your application bypasses LLPR and feeds EPS data to CUPS, the document may not print correctly.
I can't print to a SMB (Windows) printer.	To be able to configure and use SMB-shared printers (such as printers shared on a Windows machine), you need to have a correct installation of the SAMBA package that enables that feature. The "smbclient" command should be available and usable on your system.
My application seems to be frozen while LLPR is running.	Most Unix applications will expect a command like the regular "lpr" command to be non-interactive and thus return immediately. Since LLPR is waiting for user input before passing the job on to the print spooler, very often the application will wait for the process to return, and thus will appear to be frozen (its windows won't refresh). This is normal and the application should resume functioning correctly after the user exits LLPR.
How do I specify the IP address of my SMB server?	It can be specified in the "Add Printer" dialogue of the configuration tool, if you don't use the CUPS printing system. Unfortunately, CUPS currently doesn't allow one to specify the IP address of SMB printers, so you will have to be able to browse the resource with Samba in order to be able to print.
Some documents come out as white pages when printing.	Some versions of CUPS, especially those shipped with Mandrake Linux before the 8.1 release, have some known bugs when processing the PostScript output from some applications. Try upgrading to the latest version of CUPS (at least 1.1.14). Some RPM packages for most popular distributions are provided as a convenience with this Linux Printing Package.
I have CUPS and some options (such as N-up) seem to be always enabled even though I don’t pick them in LLPR.	There may be some local options defined in your ~/.Ipoptions file, which is manipulated by the Ipoptions command. These options will always be used if not overridden by LLPR settings. To get rid of all options for a printer, run the following command, replacing “printer” with the name of the queue: Ipoptions -x printer
I configured a printer to print to a file, but I get “Permission denied” errors.	Most printing systems will not run as the super-user but as a special user (usually “lp”). Therefore, make sure that the file you have chosen to print to is accessible to the user owning the spooler daemon.
On my SPL (or PCL) printer, I sometimes get error messages printing instead of my document.	Unfortunately, some Unix applications may generate non-compliant PostScript output that may not be supported by Ghostscript, or even the printer itself in PostScript mode. You can try to capture the output to a file and view the results with Ghostscript (gv or ghostview will allow you to do so interactively) and see if you get error messages. However, since the application is probably at fault, contact your software vendor to inform them of the issue.

MEMO

A

USING WINDOWS POSTSCRIPT DRIVER

If you want to use the PostScript driver provided with your system CD-ROM to print a document, use the information in this Appendix.

This chapter includes:

• Installing PS Drivers
- Using PS Printer Driver Features

NOTE: You need to install an optional PS DIMM for using the PostScript driver. For more information, see Appendix D, "Installing Printer Options."

Installing PS Drivers

PPDs, in combination with the PostScript driver, access the printer features and allow the computer to communicate with the printer. An installation programme for the PPDs is provided on the supplied software CD-ROM.

NOTE: For PostScript printing, an optional PS DIMM should be installed into the printer. For more information, see Appendix D, "Installing Printer Options."

Evaliable PS DIMMs:

- 4 MB : PS 3 Emulation, PS 136 fonts

Before installing, make sure that the printer and the PC are properly connected with parallel, USB, or network interface. For information about:

• connecting with the parallel interface, see page 2.11.
• connecting with the USB interface, see page 2.12. For Windows 98/Me, the USB driver must be installed.
• connecting with a network interface. For a ML-2250, you need to install an optional network interface card; see "Installing a Network Card" on page D.7.

Installing PS Drivers

1 Insert the supplied CD-ROM into your CD-ROM drive.

The CD-ROM should automatically run and an maintenance window appears.

If the maintenance window does not appear, click Start and then Run. Type X:\Setup.exe, replacing "X" with the letter of your drive and click OK.

NOTE: If your machine is not connected to the computer, the following window will appear.

Samsung ML-2250 Series Connect Samsung ML-2250 Series If you want to install Samsung ML-2250 Series properly you have to connect Samsung ML-2250 Series before installation. You may connect the device using the printer cable like on the figure, then turn on the power or Samsung ML-2250 Series. Click [Next 3] Next Cancel

• After connecting the machine, click Next.
- If you want to skip the connection status, click Next, and No to the following screen. Then the installation will start and the test page will not be printed at the end of the installation.

2 Click Custom.

If you have been installed the printer driver before, click Repair.

3 Click Printer(PostScript) and then click Next.
4 When the installation is complete, click Finish.

Reinstalling PS Drivers

1 From the Start menu, select Programs.
2 Select Samsung ML-2250 Series, and then Maintenance.
3 Click Repair.
4 Click Printer(PostScript) and then click Next.
5 When reinstallation is done, click Finish.

Removing PS Drivers

1 From the Start menu, select Programs.
2 Select Samsung ML-2250 Series, and then Maintenance.
3 Check Remove.

4 Click Printer(PostScript) and then click Next.
5 When removal is complete, click Finish.

Using PS Printer Driver Features

Certain printer features are not available in this PS driver. For details about the features, refer to Chapter 4, "Printing Tasks"

The printer automatically switches between PS and SPL printer languages depending on the driver you have selected.

Accessing Printer Properties

The properties window for the Windows PostScript printer driver can be opened from the Printers folder or an application.

To open the properties window from the Printer folder:

1 Click the Windows Start button.
2 Select Settings then Printers to open the Printers window.
3 Select Samsung ML-2250 Series PS.
4 Click the right mouse button on the printer icon and:
•In Windows 95/98/Me, select Properties.
•In Windows 2000/XP, select Printing Preferences.
- In Windows NT 4.0, select Document Default.

To open the properties window from an application:

1 From the File menu, select Print to open the Print window.
2 Make sure that Samsung ML-2250 Series PS is selected in the Name drop-down list.
3 Click Properties to open the properties window.

B

USING YOUR PRINTER IN LINUX

You can use your printer in a Linux environment.

This chapter includes:

• Installing the Printer Driver
• Using the Configuration Tool
- Changing LLPR Properties

Installing the Printer Driver

System Requirements

Supported OS

• Redhat 6.2/7.0/7.1 and above
• Linux Mandrake 7.1/8.0 and above
• SuSE 6.4/7.0/7.1 and above
- Debian 2.2 and above
- Caldera OpenLinux 2.3/2.4 and above
- Turbo Linux 6.0 and above
- Slackware 7.0/7.1 and above

Recommended Requirements

• Pentium IV 1 GHz or higher
  • RAM 256 MB or higher
• HDD 1 GB or higher

Softwares

• Glibc 2.1 or higher
• GTK+ 1.2 or higher
• GhostScript

Installing the Printer Driver

1 Make sure that you connect the printer to your computer. Turn both the computer and the printer on.
2 When the Administrator Login window appears, type in "root" in the Login field and enter the system password.

NOTE: You must log in as a super user (root) to install the printer software. If you are not the super user, ask your system administrator.

3 Insert the printer software CD-ROM. The CD-ROM automatically runs.

NOTE: If the CD-ROM does not automatically run, click the icon at the bottom of the window. When the Terminal screen appears, type in: [root@local /root]# cd /mnt/cdrom (the CD-ROM directory) [root@local cdrom]# ./setup.sh

4 Select the installation type, either Recommended or Expert, and then click Continue.

Linux Printer Package Setup Please choose the class of installation. Recommended Expert Cancel View Readme Continue

Recommended is fully automated and no interaction is required. Expert installation allows you to select the installation path or printing system.

5 If you selected Recommended, go to Step 6.

For Expert, select an option and then click Begin Install.

Linux Printer Package Setup Global Options Install path: /usr/local/linuxprinter Link path: /usr/bin Install Options ✓ Common files □ Install CUPS 1.1 Printing System ● CUPS Printing System ○ LPRng/LPR Printing System Free space: 267 MB Estimated size: 7 MB ✓ Startup menu entries (KDE/Gnome) Ready to install! Cancel View Readme Begin Install

6 The printer driver installation begins. When the installation is completed, click Start.

Linux Printer Package Setup Install Complete Congratulations! The installation was successfully completed! The product was installed in: /usr/local/linuxprinter Type 'linux-config' to start the program Exit View Readme Start

7 The Linux Printer Configuration window opens. Click the Add Printer icon on the tool bar at the top of the window.

NOTE: Depending on the printing system in use, the Administrator Login window may appear. Type in "root" in the Login field and enter the system password.

8 You see the printers currently added to your system. Select the printer you want to use. The function tabs available for the selected printer appear at the top of the Add a Printer window.

Add a Printer Model Connection Settings Queue Printer Model Samsung ML-1450 Series (F 3) Samsung ML-1450 Series (SPL) Samsung ML-1510/700 Series (SPL II) Samsung ML-1710 Series (SPL II) Samsung ML-1740 Series (SPL II) Samsung ML-1750/1760 Series (SPL II) Samsung ML-2150 Series (PS) Samsung ML-2150 Series (SPL II) Samsung ML-2250 Series (SPL II) Samsung ML-2550 Series (PS) Samsung ML-6060 Series (PCL) Samsung ML-6060 Series (PS) Samsung ML-7300 (PCL) Samsung ML-7300 (PS) Pick PPD file... OK Cancel Help...

9 Click the Connection tab and ensure that the printer port is set properly. If not, change the device setting.

Add a Printer Model Connection Settings Queue USB Settings Device: /dev/usb/p0 OK Cancel Help...

10 You can use the Settings tab and the Queue tab to view the printer's current settings. If necessary, you can change the settings.

NOTE: The options may differ depending on the printer in use. The Description and the Location field in the Queue screen may not appear depending on the printing system in use.

11 To exit, click OK.

12 When the window prompts that the new printer is successfully configured, click OK.

13 The Linux Printer Configuration window reappears. You can view the information about your printer from the Info tab. If necessary, you can change the printer's configuration. For details about changing the printer's configuration, see "Using the Configuration Tool" on page B.8.

Linux Printer Configuration File Print Printer Help Add Printer Remove Suspend Resume Help Quit Printer Status Linux Printers lp Idle Other Printers Info Jobs Properties Information for printer lp Type: Local Description: Samsung ML-2250 Series (SPL II) Location: Stato: Idle Language: SPL II Device: usb/dev/usb/lp0 Model: Samsung ML-2250 Go to the Web page for this printer Linux Print Package

Changing the Printer Connection Method

If you change the printer connection method from USB to parallel or vice versa while in use, you must re-configure your Linux printer by adding the printer to your system. Take the following steps:

1 Make sure that you connect the printer to your computer. Turn both the computer and the printer on.

2 When the Administrator Login window appears, type in "root" in the Login field and enter the system password.

NOTE: You must log in as a super user (root) to install a new printer to the printing system. If you are not the super user, ask your system administrator.

3 From the Startup Menu icon at the bottom of the desktop, select Linux Printer and then Configuration Tool.

You can also access the Linux Printer Configuration window by typing "linux-config" in the Terminal screen.

4 When the Linux Printer Configuration window appears, click the Add Printer icon on the tool bar at the top of the window.

5 Click the Connection tab at the top of the Add a Printer window.

Ensure that the printer port is set properly. If not, change the device setting.

Add a Printer Model Connection Settings Queue USB Settings Device: /dev/usb/p0 OK Cancel Help...

6 Click OK.

Uninstalling the Printer Driver

1 From the Startup Menu icon at the bottom of the desktop, select Other and then Configuration Tool.

Other Preferences Programming Sound & Video System Settings System Tools Run Program... Search for Files... Open Recent Lock Screen Log Out Configuration Tool Linux LPR Linux Uninstall

You can also access the Linux Printer Configuration window by typing "linux-config" in the Terminal screen.

2 In the Linux Printer Configuration window, select the Uninstall command from the File menu.
3 The Administrator Login window appears. Type in "root" in the Login field and enter the system password. Click Proceed.

NOTE: You must log in as a super user (root) to uninstall the printer software. If you are not the super user, ask your system administrator.

4 A message window appears asking you to confirm the uninstallation. Click Yes.
5 Select Complete uninstall and then click Uninstall.

Uninstall Tool Please select the packages you would like to uninstall: Linux Printer Package ✓ Complete uninstall Recovered space: 8 MB Exit Uninstall

6 Click OK to begin uninstallation.
7 When the uninstallation is complete, click Finished.

Using the Configuration Tool

The configuration tool accesses administrative tasks, including adding and removing a new printer, and changing their global settings. Regular users can also run it to easily inspect job queues, examine the printer properties and change their local preferences.

To access the Configuration Tool:

1 From the Startup Menu icon at the bottom of the screen, select Linux Printer and then Configuration Tool. The Linux Printer Configuration window appears.

You can also open this window from the Terminal screen by typing in "linux-config."

2 The Linux Printer Configuration window shows a list of installed printers in the left pane. The right pane shows a number of tabs that display information regarding the currently selected printer.

Select your printer, if not currently selected.

Linux Printer Configuration File Print Printer Help Add Printer Remove Suspend Resume Help Quit Printer Status Linux Printers Ip Idle Other Printers Info Jobs Properties Information for printer Ip Type: Local Description: Samsung ML-2250 Series (SPL II) Location: State: Idle Language: SPL II Device: usb/dev/usb/lp0 Model: Samsung ML-2250 Go to the Web page for this printer Linux Print Package

3 The Info tab shows general information about the printer.

If you are an Internet user, you can click Go to the Web page for this printer to access the web page.

Click the Jobs tab to inspect and manage the job queue for the selected printer. You can suspend, resume, or delete a specific job(s) in the queue. If you drag a specific job(s), you can drop it into the print queue of another printer.

The Properties tab allows you to change the default printer settings.

Linux Printer Configuration File Print Printer Help Add Printer Remove Suspend Resume Help Quit Printer Status Linux Printers p Idle Other Printers Info Jobs Properties Extra Resolution 600 DPI General Duplex None Page Size US Letter Paper Source Auto Select Paper Type Plan Paper Reprint When Jam Off Apply Factory Defaults

NOTE: Regular users are able to override the system-wide default settings defined by the administrator. When a regular user clicks Apply, these custom settings are saved in the user's profile and may be later used with LLPR. If the administrator is running the configuration tool, then the settings are saved as the new global defaults.

Changing LLPR Properties

You can fine tune the printer's properties by opening the LLPR Properties window.

To open the LLPR Properties window:

1 From the application you are using, select the Print command.

2 When the Linux LPR window opens, click Properties.

Linux LPR Printer Name: Ip State: Idle Type: Samsung ML-2250 (Local, SPL II) Location: Comment: Samsung ML-2250 Series (SPL II) Click Properties. Set as default Web Page Page Selection All Pages Even Pages Odd Pages Pages : Enter page numbers and/or groups of pages to print separated by commas (1,2-5,10-12,17). Copies Number of copies: 1 Collate copies Reverse Order 1 1 Linux Print Package OK Cancel Help...

You can also open the LLPR window:

• Click the Startup Menu icon at the bottom of the screen and select Linux Printer and then Linux LPR.
• If the Linux Printer Configuration window is currently open, select Test Print from the Print menu.

3 The LLPR Properties window opens.

LLPR Properties General Margins Image Text HP-GL/2 Advanced Paper size: US Letter Paper type: Plain Paper Paper source: Auto Select Orientation ● Portrait ○ Landscape ○ Reverse landscape ○ Reverse portrait Duplex printing ● None ○ Long edge ○ Short edge Banners Start: none End: none Pages per sheet ● 1 ○ 2 ○ 4 OK Save Cancel Help...

The following six tabs are at the top of the window:

• General - allows you to change the paper size, the paper type, the paper source, the orientation of the documents; enables the duplex feature, adds start and end banners, and changes the number of pages per sheet.
• Margins - allows you to specify the page margins. The graphics on the right shows the current settings. These margins do not apply when printing regular PostScript data.
• Image - allows you to set image options that are used when printing image files, i.e. when a non-PostScript document is passed to LLPR on the command line. Color settings will also take effect for postscript documents.
• Text - allows you to select the density of the text and turn the syntax coloring on or off.
• HP-GL/2 - allows you to set default options to print documents in the HP-GL/2 format, which is used by some plotters.
• Advanced - allows you to override the default settings for the printer.

If you click the Save button at the bottom of the window, the options are kept between LLPR sessions.

Use the Help button to view details about the options in the window.

4 To apply the options, click OK in the LLPR Properties window. You are returned to the Linux LPR window. To start printing, click OK.

MEMO

C

PRINTING FROM DOS APPLICATIONS

While your printer is primarily a Windows printer, you can also print from a DOS software Programme using the Remote Control Panel utility provided in the supplied software CD-ROM.

This chapter includes:

• About the Remote Control Panel
  • Installing the Remote Control Panel
• Selecting Print Settings

About the Remote Control Panel

DOS users have access to many printer features through specific DOS printer drivers; however, many software manufactures do not develop printer drivers for their software programmes. Your printer provides the software control panel for improved printer control when DOS printer drivers are not available or when certain print settings are not available through DOS software programmes.

NOTE: The printer's Remote Control Panel is not a printer driver. It should be used to set print settings that are not available through DOS software programmes. Printer drivers are supplied by the manufacturers of your DOS software programmes. If your DOS software Programme does not include a printer driver for your printer, contact the manufacturer of the software or use one of the alternate printer drivers.

Installing the Remote Control Panel

1 Insert the supplied CD-ROM into your CD-ROM drive.

The CD-ROM should automatically run and an maintenance window appears.

1 If the maintenance window does not appear, click Start and then Run. Type X:\Setup.exe, replacing "X" with the letter of your drive and click OK.

NOTE: If your machine is not connected to the computer, the following window will appear.

Samsung ML-2250 Series Connect Samsung ML-2250 Series If you need to install Samsung ML-2250 Series properly you here to connect Samsung ML-2250 Series before installation. You may connect the device using the printer cable like on the figure, then turn on the power of Samsung ML-2250 Series. Click [Next 1] Next Cancel

• After connecting the machine, click Next.

- If you want to skip the connection status, click Next, and No to the following screen.

2 Click Custom.
If you have been installed the printer driver before, click Repair.
3 Click Remote Control Panel and then click Next.
4 When the installation is complete, click Finish.

Reinstalling Remote Control Panel

1 From the Start menu, select Programs.
2 Select Samsung ML-2250 Series, and then Maintenance.
3 Click Repair.
4 Click Remote Control Panel and then click Next.
5 When reinstallation is done, click Finish.

Removing Remote Control Panel

1 From the Start menu, select Programs.
2 Select Samsung ML-2250 Series, and then Maintenance.
3 Check Remove.
4 Click Remote Control Panel and then click Next.
5 When removing is completed, click Finish.

Selecting Print Settings

You can use this Remote Control Panel to select print settings that may not be available on some DOS Programmes. Typically, duplicate print settings that are selected from a DOS software programme override the ones that are selected in the Remote Control Panel.

Starting the Remote Control Panel

1 From the Start menu, select Programs.

2 Select Samsung ML-2250 Series and then Remote Control Panel.

3 The Remote Control Panel window allows you to access all the information you need when using your printer. If necessary, click the other tabs on the top of the window to access other features.

Remote Control Panel File Help PS 3 EPSCN/IBM About Printing Config Job Test PCL Flash Font and Macro Paper Size Size: A4 Short edge: 210 mm Long edge: 297 mm Orientation Portrait Landscape Paper Tray: Auto Select Auto CR: LF Copies: 1 Quality: 600 dpi Margins Top Margin: 0.0 Left Margin: 0.0 Send Default Exit Help

4 When you finish changing the settings, click Send.

Using the Remote Control Panel Tabs

The Remote Control Panel allows you to access the following features:

Printing Tab

In this tab, you can configure general settings for printing.

Remote Control Panel File Help PS 3 EPSON/IBM About Printing Config Job Test PCL Flash Font and Macro Paper Size Size: A4 Short edge: 210 mm Long edge: 297 mm Orientation Portrait Landscape Paper Tray: Auto Select Auto CR: LF Copies: 1 Quality: 600 dpi Margins Top Margin: 0.0 Left Margin: 0.0 Send Default Exit Help

• Paper Size sets the paper size.
- Orientation determines how the output is printed on the page.
• Paper Tray sets the default paper source.
- Auto CR sets how the printer performs a carriage return.
- Copies sets the number of copies printed for each page.
• Quality specifies the print quality.
- Margins sets the top and left margin of the print material.

Config Tab

You can configure various printer features.

Remote Control Panel File Help PS 3 EPSON/IBM About Printing Config Job Test PCL Flash Font and Macro Emulation: Auto Power Save OFF ON 5 Auto Continue Jam Recovery Toner Save Auto Clean Drum Send Default Exit Help

- Emulation selects the emulation for printing a document. The factory default is Auto.

- Power Save determines the length of time the printer waits after a job is printed before it goes to a reduced power state. If the printer is used frequently, select OFF which keeps the printer ready to print with the minimum warm-up time. This uses more power to keep the printer warm and ready to print.

- Auto Continue determines what action the printer should take if the Multi-Purpose Tray is empty when a manual feed print job is sent to the printer. If it is checked, the printer will pick up the paper from the tray 1 after fifteen seconds. Otherwise, the printer will wait for you to load paper in the Multi-Purpose Tray.

- Jam Recovery determines what action the printer should take when a paper jam occurs. If it is unchecked, the printer does not reprint a page that has jammed. If it is checked, the printer keeps the image in memory for a printed page until the printer signals that the page has successfully printed. The printer reprints all jammed pages.

- Toner save determines the toner quantity the printer should use when printing. If it is checked, the printer conserves toner when printing. The default value is unchecked, which provides 100% usage.

- Auto Clean Drum makes the printer print out a cleaning sheet which clean the drum inside the toner cartridge automatically every 500 print pages. This feature activates as a default depending on the country.

Job Tab

You can set options for improving the quality of your print job.

Remote Control Panel File Help PS 3 EPSON/IBM About Printing Config Job Test PCL Flash Font and Macro Toner Density: Medium Paper Type: Printer Default Image Quality: Normal Time out: 15 Send Default Exit Help

• Toner Density determines the toner density of the page. The default value is Medium.
• Paper Type provides the printer with information about the type of paper to be used for a print job. For the best result, set this to the paper type you loaded in the tray of the printer. When using plain paper, set this to Printer Default.
• Image Quality improves the print quality of your text and image and make the characters and images appear smoother. It is preset to Normal at the factory.
• Time out determines the amount of time (in seconds) the printer will wait before printing the last page of a print job that does not end with a command to print the page or a formfeed character. You can set from 0 to 300 seconds.

Test Tab

This tab allows you to print a resident page to test your printer's performance.

Remote Control Panel File Help PS 3 EPSON/IBM About Printing Config Job Test PCL Flash Font and Macro Test Print Self Test Demo Page Send Default Exit Help

- Self Test prints a configuration sheet. A list of the user default settings and the amount of printer memory available prints.

• Demo Page prints a demonstration page. It shows the printer features and specifications.

PCL Tab

In this tab, you can configure various settings for PCL emulation.

Remote Control Panel File Help PS 3 EPSON/IBM About Printing Config Job Test PCL Flash Font and Macro Typeface: Courier SWC Symbol Set: PC-8 Pitch: 10.00 Courier: Regular Point Size: 12.00 Lines Per Page: 64 Font List Send Default Exit Help

• Typeface allows you to select the desired typeface. This setting is ignored when the software application specifies a font.
• Symbol Set determines the symbol set. A symbol set is a set of alphabetic and numeric characters, punctuation, and special symbols used when printing with a selected font.
• Pitch sets the font pitch (only if you have selected a scalable monospaced font). Pitch refers to the number of fixed-space characters in one horizontal inch of type.
• Point Size sets the font point size (only if you have selected a scalable typographic font). Point size refers to the height of the characters in the font. One point equals approximately 1/72 of an inch. You can select point sizes from 4.0 to 999.75 in increments of 0.25 points.
• Lines Per Page sets the number of lines that print on each page. The setting can range from 5 to 128 lines per page.
• Courier determines the courier font type; Regular or Dark.
• Font List prints a font list showing all the fonts available for PCL emulation.

Flash Font and Macro Tab

This tab allows you to add fonts and macros to the Flash memory of the printer.

Remote Control Panel File Help PS 3 EPSON/IBM About Printing Config Job Test PCL Flash Font and Macro Fonts No. ID Typeface Symbol set Add... Delete Delete all Print list Macros No. ID Add... Delete Delete all Print list Enable macro Disable macro Delete all macros and fonts Refresh Send Default Exit Help

• Fonts adds or deletes fonts. You can also print the font sample list.
• Macros adds or deletes macros. You can also activate (Enable macro) or deactivate (Disable macro) them.
• Delete all macros and fonts deletes all macros and fonts in the flash memory.
• Refresh updates information about fonts and macros in the flash memory.

PS 3 Tab

You can configure various settings for PostScript 3 emulation.

Remote Control Panel File Help Printing Config Job Test PCL Flash Font and Macro PS 3 EPSON/IBM About Print error information OFF ON Print PostScript Font List Send Default Exit Help

• Print error information determines whether or not the printer prints the error information page when an error occurs while processing a job. Select ON to print the page, otherwise select OFF.
• Print PostScript Font List allows you to print the PS font sample list.

EPSON/IBM Tab

You can configure various settings for EPSON/IBM emulation.

Remote Control Panel File Help Printing Config Job Test PCL Flash Font and Macro PS 3 EPSON/IBM About Font: San Serif International character set: USA Character Table: PC437(US) Pitch: 10 LPI: 6 Auto Wrap Font List Send Default Exit Help

• Font allows you to select the desired font.
  • International character set allows you to select a character set of the desired language.
  • Character Table selects the character sets.
• Pitch sets the font pitch. Pitch refers to the number of fixed-space characters in a horizontal inch of type.
• LPI sets the number of lines printed per vertical inch. You can select 6 or 8 lines.
• Auto Wrap determines whether or not the printer automatically performs line feed when the data overflows the printable area of the print material.
• Font List prints a font list showing all the fonts available for EPSON emulation.

Blue circular icon with a white letter 'D' in the center (no additional text or symbols)

INSTALLING PRINTER OPTIONS

Your printer is a full-featured laser printer that has been optimised to meet most of your printing needs. Recognizing that each user may have different requirements, however, Samsung makes several options available to enhance the printer's capabilities.

This chapter includes:

• Precautions When Installing Printer Options
  • Installing Memory and PostScript DIMMs
  • Installing a Network Card
  • Installing an Optional Paper Tray

Precautions When Installing Printer Options

Never remove the printer control board while the printer is plugged in.

To avoid the possibility of an electrical shock, always disconnect the power cord when installing or removing ANY internal or external printer option.

DISCHARGE STATIC ELECTRICITY:

The control board and internal printer options (Memory and PS DIMMs, Network cards) are sensitive to static electricity. Before installing or removing an internal option, discharge static electricity from your body by touching something metal, such as the metal back plate on any device plugged into a grounded power source. If you walk round before finishing installation, discharge any static electricity once again.

ORDER THE ITEMS:

Check the order number of the items you want purchase. Refer to the table below.

Item	Order number
Memory DIMM ML-00MA (16 MB)	ML-00MB (32 MB)ML-00MC (64 MB)ML-00MD (128 MB)
PostScript DIMMML-00PD (4 MB)
Ethernet 10/100 Base TX (Internal)	ML-00NB
Ethernet 10/100 Base TX + 802.11b Wireless Lan (Internal)	ML-00LB
250-sheet Paper Cassette Tray ML-2250S3

Installing Memory and PostScript DIMMs

Additional printer memory and the PostScript option are provided on DIMMs (Dual In-line Memory Modules). This procedure is applicable to either option.

1 Turn the printer power off and unplug all cables from the printer.
2 Remove the two screws on the back of the printer.

Diagram of a computer printer with a close-up view showing the front panel and base panel (no text or symbols present)

3 Open the control board cover.

Illustration of hands inserting a device into a microwave oven (no text or symbols)

D

4 Locate the memory DIMM slot (the upper slot) and the PS DIMM slot (the lower slot) on the control board. They are not interchangeable.

Memory DIMM PS DIMM

To install the memory DIMM, continue with Step 5.

To install the PS DIMM, go to Step 6.

5 Hold the memory DIMM so that the notch and the connection point are aligned with the slot as shown, and insert it all the way into the upper slot.

Diagram of a printer's internal structure showing a plastic component being inserted into the base (no text or symbols present)

6 Hold the PS DIMM so that the notch and the connection point are aligned with the slot as shown, and insert it all the way into the lower slot.

Diagram of a printer's internal structure showing a tray and cover, with an inset magnified view highlighting the component (no text or symbols present)

7 Close the control board cover.

Illustration of a computer printer with an open lid and blue arrow indicating the paper's edge (no text or symbols present)

8 Tighten the two screws.

Diagram of a computer printer with an inset showing a close-up of its internal components (no text or symbols present)

9 Reconnect the power cord and printer cable, and turn the printer on.

NOTES:

- If you are using the printer as a PostScript device, you need to change the memory value in the printer properties as you have installed.

- For PS printing on a Windows system, refer to Appendix A, "Using Windows PostScript Driver."

Removing the Memory or PS DIMM

1 Follow steps 1 through 3 on page D.3 to access the control board.
2 Push the clips at each end of the connector slot away from the DIMM.

Diagram of a printer's internal structure showing two rectangular components being inserted, with arrows indicating movement (no text or symbols present)

3 Place the DIMM in its original packaging or wrap it with paper and store it in a box.
4 Close the control board cover.
5 Tighten the two screws.
6 Reconnect the power cord and printer cable, and turn the printer on.

Installing a Network Card

NOTE: When you purchase the wired/wireless network interface card, the antenna connected to the card is not separated from the card depending on your country.

To use your printer on a network, your printer must be equipped with a network interface card.

ML-2251N has a built-in network interface card. If you are an ML-2250 user, you need to install an optional network interface card.

If you want to use the printer in both wired and wireless network environments, you need to install an optional wired/wireless network interface card.

Check if there are missing parts in your optional interface card package.

ML-00NB ML-00LB
Ethernet 10/100 Base TX (Internal)	Ethernet 10/100 Base TX + 802.11b Wireless Lan (Internal)
Network interface Card, CD-ROM and Quick Guide	Wireless Network interface Card, CD-ROM, Quick Guide and Wireless Quick Guide

1 Turn the printer power off and unplug all cables from the printer.

2 Remove the two screws on the back of the printer.

Diagram of a computer tower with an inset showing a close-up of the front panel and a magnified view of the tower's internal structure (no text or symbols present)

3 Open the control board cover.

Illustration of hands inserting a computer into a microwave oven (no text or symbols visible)

4 Remove the two screws and the bracket from the control board. You can discard the old bracket.

Diagram of a printer internal structure with screw fasteners and a magnified view showing internal components (no text or symbols)

5 Insert the front of the network interface card to the corresponding slot of the machine.

Diagram of a printer internal structure showing internal components and a magnified view of the printer's internal structure (no text or symbols present)

NOTE: If you are installing the wireless network interface card, unfasten the antenna.

6 Make sure that the connector on the card is properly placed on the connector of the board. Push the card firmly.

Diagram of a printer internal structure with a magnified view showing the printer's internal components (no text or symbols present)

7 Fasten the two supplied screws.

Diagram of a printer's internal structure showing screw assembly and paper feed (no text or labels)

8 Close the control board cover.

9 Tighten the two screws.

Diagram of a computer tower with an inset showing a device close-up and a magnified view of the tower's front panel (no text or symbols present)

10 If you purchase the network interface card supporting the wireless LAN interface, insert the antenna counterclockwise, as shown.

Illustration of a computer printer with a magnified inset showing the internal mechanism (no text or symbols present)

11 Plug one end of the Ethernet cable into the Ethernet network port on the Printer and the other end of the cable into a network LAN connection.

Illustration of a computer tower with an attached cable and cable connector, showing internal wiring (no text or symbols)

To the network LAN connection

NOTE: For information about configuring and using the printer in a network environment, refer to the User's Guide provided with the network interface card.

Installing an Optional Paper Tray

You can increase the paper handling capacity of your printer by installing an optional Tray2. The optional paper tray consists of two components; the support unit and the paper tray.

Support unit Paper tray

1 Turn off the printer and unplug all cables from the printer.

2 Remove the tape fastening the interface cable from the bottom of the support unit.

3D diagram of a mechanical device with a blue arrow indicating rotation or movement (no text or symbols)

3 Observe the location of the support unit's tabs.

Technical line drawing of a computer case with a highlighted component (no text or symbols)

4 Align the printer with the support unit and lower it into place on the tabs.

Technical illustration of a computer printer with visible internal components and mounting base (no text or symbols)

5 Plug the cable into the connector on the back of the printer.

Illustration of a computer monitor with an attached cable and a magnified inset showing a connector (no text or symbols)

6 Load paper in Tray2. For information about loading paper in the tray, see page 2.7.

7 Reconnect the power cord and cables and then turn the printer on.

NOTE: When you print a document, configure the printer driver from your application. To access the printer driver, see page 4.2.

CAUTION: Do not remove Tray 1 from the printer while you are printing using the optional Tray 2. If you do this, a paper jam may occur. Use the optional Tray 2 with Tray 1 in place.

Blue circular icon with a white letter 'E' in the center (no additional text or symbols)

SPECIFICATIONS

This chapter includes:

• Printer Specifications
  • Paper Specifications

Printer Specifications

Item Specifications and Description
Print Speed *	Up to 20 ppm in A4 (22 ppm in Letter)
Resolution Up to 1200 x	1200 dpi effective output
First Printing Time 10 seconds
Warm-up Time Less than 40 seconds
Power Rating	AC 110 ~ 127 V (USA, Canada) / 220 ~ 240 V (Others)50 / 60 Hz
Power Consumption	400 W average during operationLess than 15 W in sleep mode
Noise Level **	Less than 39 dBA (Standby)Less than 53 dBA (Printing)
Toner Supply Single cartridge
Toner Cartridge Life 5,000 pages at ISO 19752 5% Coverage
Duty Cycle, Monthly Up to 30,000 pages
Weight 10.2 Kg (Including consumable)
Package Weight	Paper: 2.1 KgPlastic: 0.4 Kg
External Dimensions(W x D x H)	358 x 452 x 278 mm(14.1" x 17.8" x 10.9")
Operating Environment	Temperature:10 ~ 32 °C / 50 ~ 90 °FHumidity: 20 ~ 80 % RH
Emulation PCL 6, SPL, IBM ProPrinter, EPSON, PostScript 3 (option)
Random AccessMemory (RAM)	16 MB (Max. 144 MB)Optional memory available:16 MB (ML-00MA), 32 MB (ML-00MB),64 MB (ML-00MC), 128 MB (ML-00MD)
Fonts 1 bitmap, 45 scalable, 136 PS fonts (option)
Interface	ML-2250 : USB 2.0, IEEE 1284 Parallel
	ML-2251N : USB 2.0, IEEE 1284 Parallel, Ethernet 10/100Base TX
	ML-2252W : USB 2.0, IEEE 1284 Parallel, Ethernet 10/100Base TX + 802.11b Wireless LAN
OS Compatibility ***	Windows 95/98/Me/NT 4.0/2000/XP, Various Linux OS including Red Hat, Caldera, Debian, Mandrake, Slackware, SuSE and Turbo Linux
Options	250-sheet Paper Cassette Tray
	ML-2250 : Ethernet 10/100 Base TX (Internal), Ethernet 10/100 Base TX + 802.11b Wireless LAN (Internal)
	ML-2251N : Ethernet 10/100 Base TX + 802.11b Wireless LAN (Internal)

* Print speed will be affected by Operating system used, computing performance, application software, connecting method, media type, media size and job complexity.
** Sound Pressure Level, ISO 7779
*** Please vist www.samsungprinter.com to download the latest software version.

Paper Specifications

Overview

Your printer accepts a variety of print materials, such as cut-sheet paper (including up to 100% recycled fiber content paper), envelopes, labels, transparencies, and custom-size paper. Properties, such as weight, composition, grain, and moisture content, are important factors affecting the printer's performance and the output quality. Paper that does not meet the guidelines outlined in this User's Guide can cause the following problems:

• Poor print quality
• Increased paper jams
  • Premature wear on the printer.

NOTES:

- Some paper may meet all of the guidelines in this guide and still not produce satisfactory results. This may be the result of improper handling, unacceptable temperature and humidity levels, or other variables over which Samsung has no control.

- Before purchasing large quantities of paper, ensure that the paper meets the requirements specified in this User's Guide.

CAUTION: Using paper that does not meet these specifications may cause problems, requiring repairs. These repairs are not covered by the Samsung warranty or service agreements.

Supported Sizes of Paper

Tray1/ Tray2	Dimensionsa	Weight	Capacityb
Letter	216 X 279 mm(8.5 X 11 in.)	60 to 90 g/m2bond (16 to 24 lb)	250 sheets of 75 g/m2bond paper
A4	210 X 297 mm(8.3 X 11.7 in.)
A5	148 x 210 mm(5.8 x 8.2 in.)
Executive	184 X 267 mm(7.25 X 10.5 in.)
Legal	216 X 356 mm(8.5 X 14 in.)
B5 (JIS)	182 X 257 mm(7.2 X 10 in.)
B5 (ISO)	176 x 250 mm(6.7 x 9.9 in.)
Oficio	216 x 343 mm(8.5 x 13.5 in.)
Folio	216 X 330 mm(8.5 X 13 in.)

Multi-Purpose Tray	Dimensionsa	Weight	Capacityb
Minimum Size (custom)	76 X 127 mm (3 X 5 in.)	60 to 163 g/m2bond (16 to 43 lb)	50 sheets of 75 g/m2bond paper
Maximum Size (custom)	216 X 356 mm (8.5 X 14 in.)
Transparency	Same minimum and maximum paper sizes as listed above.	138 to 148 g/m2bond (36.7 to 39.4 lb)	5 typical
Labels^c		120 to 150 g/m2bond (32 to 40 lb)	5 typical
Envelopes		up to 90 g/m2(16 to 24 lb)	up to 5

a The printer supports a wide range of media sizes. See "Printing on Card Stock or Custom-sized Materials" on page 3.21.

b Capacity may vary depending on media weight and thickness, and environmental conditions.

c Smoothness: 100 to 250 (Sheffield)

NOTE: You may experience jams when using print materials with a length of less than 127 mm (5.0 in.). For optimum performance, ensure that you are storing and handling the paper correctly. Please refer to "Printer and Paper Storage Environment" on page E.7.

Guidelines for Using Paper

For the best result, use conventional 75 g/m ^2 (20 lb) paper. Ensure that the paper is of good quality, and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curled or bent edges.

If you are unsure of what type of paper you are loading, such as bond or recycled paper, check the label on the package.

The following problems may cause print quality deviations, jamming, or even damage to the printer.

Symptom	Problem with Paper	Solution
Poor print quality or toner adhesion, problems with feeding	Too moist, too rough, too smooth, or embossed; faulty paper lot	Try another kind of paper, between 100 ~ 250 Sheffield, 4 ~ 5 % moisture content.
Dropout, jamming, curl	Stored improperly	Store paper flat in its moisture-proof wrapping.
Increased gray background shading/printer wear	Too heavy	Use lighter paper, open the rear output tray.
Excessive curl problems with feeding	Too moist, wrong grain direction, or short-grain construction	Open the rear output tray.Use long-grain paper.
Jamming, damage to printer	Cutouts or perforations	Do not use paper with cutouts or perforations.
Problems with feeding	Ragged edges Use good quality paper.

NOTES:

• Do not use letterhead paper printed with low-temperature inks, such as those used in some types of thermography.
• Do not use raised or embossed letterhead.
• The printer uses heat and pressure to fuse toner to the paper. Insure that any coloured paper or preprinted forms use inks that are compatible with this fusing temperature (205 °C or 400 °F for 0.1 second).

Paper Specifications

Category Specifications
Acid Content 5.5 ~ 8.0	pH
Caliper 0.094 ~ 0.18 mm (3.0 ~ 7.0 mils)
Curl in Ream Flat within 5 mm (0.02 in.)
Cut Edge Conditions	Cut with sharp blades with no visible fray.
Fusing Compatibility	Must not scorch, melt, offset, or release hazardous emissions when heated to 205 °C (400 °F) for 0.1 second.
Grain Long Grain
Moisture Content 4 %	~ 6 % by weight
Smoothness 100 ~ 250	Sheffield

Paper Output Capacity

Output Tray Capacity
Face-down top output tray	150 sheets of 75 g/m2bond paper
Face-up rear output tray	a sheet of 75 g/m2bond paper

Printer and Paper Storage Environment

Paper storage environment conditions directly affect the feed operation.

Ideally, the printer and paper storage environment should be at or near room temperature, and not too dry or humid. Remember that paper is hygroscopic; it absorbs and loses moisture rapidly.

Heat works with humidity to damage paper. Heat causes the moisture in paper to evaporate, while cold causes it to condense on the sheets. Heating systems and air conditioners remove most of the humidity from a room. As paper is opened and used, it loses moisture, causing streaks and smudging. Humid weather or water coolers can cause the humidity to increase in a room. As paper is opened and used it absorbs any excess moisture, causing light print and dropouts. Also, as paper loses and gains moisture it can become distorted. This can cause paper jams.

Care should be taken not to purchase more paper than can be used in a short time (about 3 months). Paper stored for long periods may experience heat and moisture extremes, which can cause damage. Planning is important to prevent damage to large supplies of paper.

Unopened paper in sealed reams can remain stable for several months before use. Opened packages of paper have more potential for environment damage, especially if they are not wrapped with a moisture-proof barrier.

The paper storage environment should be properly maintained to ensure optimum printer performance. The optimum condition is 20° to 24°C (68° to 75°F), with a relative humidity of 45% to 55%. The following guidelines should be considered when evaluating the paper's storage environment:

• Paper should be stored at or near room temperature.
• The air should not be too dry or too humid.
• The best way to store an opened ream of paper is to rewrap it tightly in its moisture-proof wrapping. If the printer environment is subject to extremes, unwrap only the amount of paper to be used during the day's operation to prevent unwanted moisture changes.

Envelopes

Envelope construction is critical. Envelope fold lines can vary considerably, not only between manufacturers, but also within a box from the same manufacturer. Successful printing on envelopes depends upon the quality of the envelopes. When selecting envelopes, consider the following components:

• Weight: The weight of the envelope paper should not exceed 90 ~g / m^2 (24 lb) or jamming may occur.
• Construction: Prior to printing, envelopes should lie flat with less than 6 mm (0.25 in.) curl, and should not contain air.
• Condition: Envelopes should not be wrinkled, nicked, or otherwise damaged.
• Temperature: You should use envelopes that are compatible with the heat and pressure of the printer.
• Size: You should only use envelopes within the following size ranges.

	Minimum Maximum
Multi-Purpose Tray	76 X 127 mm(3 X 5 in.)	216 X 356 mm(8.5 X 14 in.)

NOTES:

• Use only the Multi-Purpose Tray to print envelopes.
• You may experience some paper jams when using any media with a length less than 127 mm (5.0 in.). This may be caused by paper that has been affected by environmental conditions. For optimum performance, make sure you are storing and handling the paper correctly. Please refer to "Printer and Paper Storage Environment" on page E.7.

Envelopes with Double Side Seams

Double side-seam construction has vertical seams at both ends of the envelope rather than diagonal seams. This style may be more likely to wrinkle. Be sure the seam extends all the way to the corner of the envelope as illustrated below.

Correct Incorrect

Envelopes with Adhesive Strips or Flaps

Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the heat and pressure in the printer. The extra flaps and strips might cause wrinkling, creasing, or even jams and may even damage the fuser.

Envelope Margins

The following gives typical address margins for a commercial #10 or DL envelope.

Type of Address	Minimum Maximum
Return address 15	mm (0.6 in.) 51 mm (2 in.)
Delivery address 51	mm (2 in.) 89 mm (3.5 in.)

NOTES:

• For best print quality, position margins no closer than 15 mm (0.6 in.) from the edges of the envelope.
• Avoid printing over the area where the envelope's seams meet.

Envelope Storage

Proper storage of envelopes helps contribute to print quality. Envelopes should be stored flat. If air is trapped in an envelope, creating an air bubble, then the envelope may wrinkle during printing. See "Printing on Envelopes" on page 3.14.

Labels

CAUTIONS:

• To avoid damaging the printer, use only labels recommended for laser printers.
• To prevent serious jams, always use the Multi-Purpose Tray to print labels and always use the rear output tray.
• Never print on the same sheet of labels more than once and never print on a partial sheet of labels.

When selecting labels, consider the quality of each component:

• Adhesives: The adhesive material should be stable at 200 °C (392 °F), the printer's fusing temperature.
• Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets with spaces between the labels, causing serious jams.
• Curl: Prior to printing, labels must lie flat with no more than 13 mm (.5 in.) of curl in any direction.
• Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.

See "Printing on Labels" on page 3.17.

Transparencies

Transparencies used in the printer must be able to withstand 170 °C (338 °F), the printer's fusing temperature.

CAUTION: To avoid damaging the printer, use only transparencies recommended for use in laser printers.

See "Printing on Transparencies" on page 3.19.

INDEX

C

cancel, print job 4.5

card stock, print 3.21

cleaning sheet, print 5.7

components 1.5

configuration page, print 5.8

connect

Ethernet D.10

parallel 2.11

power cord 2.15

USB 2.12

control panel, use 1.7

custom-sized materials, prnt 3.21

D

demo page, print 2.16

E

envelopes, print 3.14

error, solve 6.20

Ethernet cable, print D.10

F

face down output tray 3.5

face up output tray 3.6

Favorite setting, use 4.6

features

printer 1.2

printer driver 2.18

G

graphic properties, set 4.22

H

help, use 4.6

I

image mode 4.23

install

printer driver for Linux B.2

printer driver for Windows 2.17

printer options D.1

PS Drivers A.2

Remote Control Panel C.2

software 2.19

toner cartridge 2.4

L

labels, print 3.17

language, change 2.21

Linux

common problems 6.23

configuration tool B.8

driver, install B.2

LLPR properties B.10

load, paper

in the Multi-Purpose Tray 3.8

in the Tray1/optional Tray 2 2.7

M

memory DIMM, install D.3

Multi-Purpose Tray, use 3.8

N

network interface card, install D.7

network printing

cable/antenna, connect 2.13

card, install D.7

locally shared printer, set 4.29

n-up printing 4.11

0

option, install

memory DIMM D.3

paper tray 2 D.11

PS DIMM D.3

optional tray, install D.11

orientation, select 4.3

output location, select 3.5

overlay, use 4.18

P

paper

choose 3.2

load 2.7

sizes and capacities 3.3

specifications E.3

paper jam

around the toner cartridge 6.11

in the paper exit area 6.12

in the paper feed area

Multi-Purpose Tray 6.10

optional Tray 2 6.9

Tray 1 6.7

tips for avoiding 6.14

paper level bar 3.7

paper properties, set 4.7

paper size, set 4.7

paper source, set 4.8

paper type, set4.8

parallel cable, connect 2.11

poster printing 4.14

PostScript driver

access, in Windows A.4

errors 6.22

install, in Windows A.2

preprinted paper, print 3.23

print

cleaning sheet 5.7

configuration page 5.8

demo page 2.16

print order, set 4.25

print quality problems 6.15

print quality problems, solve 6.15

print resolution, set 4.22

printer software

install

in Linux B.2

in Windows 2.19

uninstall

in Linux B.7

printing

configuration page 5.8

demo page 2.16

fitting to a selected paper 4.13

from Windows 4.2

multiple pages on one sheet 4.11

posters 4.14

reduced/enlarged document 4.12

using overlays 4.18

watermarks 4.15

printing problems 6.3

problem, solving

checklist 6.2

general 6.3

Linux 6.23

paper jams 6.7

print quality 6.15

PS errors 6.22

Windows 6.21

PS DIMM, install D.3

Q

quality problems, solve 6.15

R

rear output tray, use 3.6

Remote Control Panel

install C.2

start C.4

tabs C.5

S

software

install 2.19

overview 2.17

reinstall 2.22

system requirements 2.19

uninstall 2.23

specification

paper E.3

printer E.2

status monitor, use 4.26

system requirements

for Linux B.2

for Windows 2.19

T

toner

install 2.4

life 5.2

redistribute 5.3

replace 5.5

Toner Save mode, use 4.9

top output tray, use 3.5

transparencies, print 3.19

Tray 1, use 2.7

turn on, printer 2.15

U

uninstall

Linux B.7

unpack 2.2

USB cable, connect 2.12

W

watermarks, use 4.15
