USER MANUAL Stylus VR-360 OLYMPUS

Line drawing of a digital camera with 'OLYMPUS' branding on the body (no additional text or symbols)

• Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.
• We recommend that you take test shots to get accustomed to your camera before taking important photographs.
• In the interest of continually improving our products, Olympus reserves the right to update or modify information contained in this manual.
• The screen and camera illustrations shown in this manual were produced during the development stages and may differ from the actual product. Unless otherwise specified, the explanation about these illustrations is provided for VR-360/D-760.

Checking the contents of the box

Digital camera

Strap AV call50B Lithium Ion Battery

or

F-2AC USB-AC adapter

USB cable (CB-USB7) (CB-AVC5)

(CB-AVC5)

OLYMPUS Setup CD-ROM

Other accessories not shown: warranty card Contents may vary depending on purchase location.

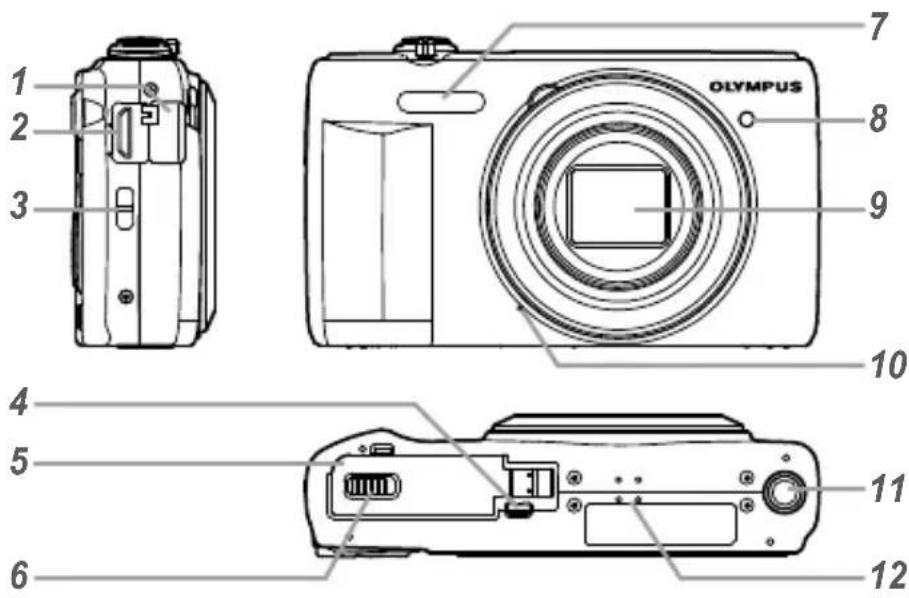

Names of Parts

Camera unit

1 2 3 4 5 6 7 8 9 10 11 12 OLYMPUS

1 Connector cover
2 HDMI mini connector ^4
3 Strap eyelet
4 Multi-connector
5 Battery/card compartment cover
6 Battery/card compartment lock
7 Flash

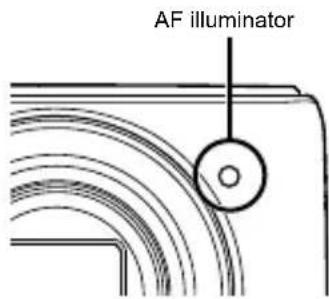

8 Self-timer lamp AF illuminator
9 Lens

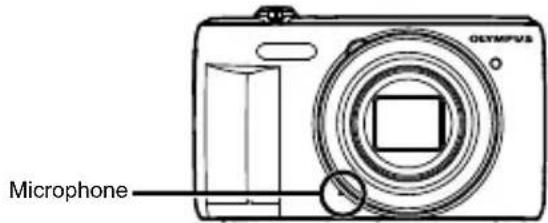

10Microphone
11 Tripod socket
12Speaker
*1 VR-360/D-760 only

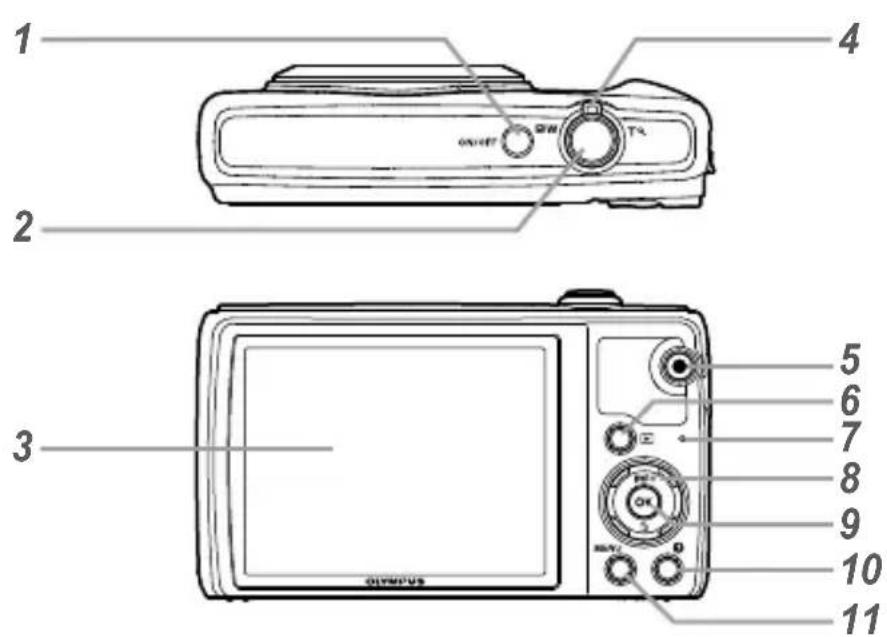

1 2 3 4 5 6 7 8 9 10 11 OX OXY OXY OXY OXY

1 ON/OFF button
2 Shutter button
3 Monitor
4 Zoom lever
5 Ⓞ button (shooting movies)
6 ▶ button (switch between shooting and playback)
7 Indicator lamp

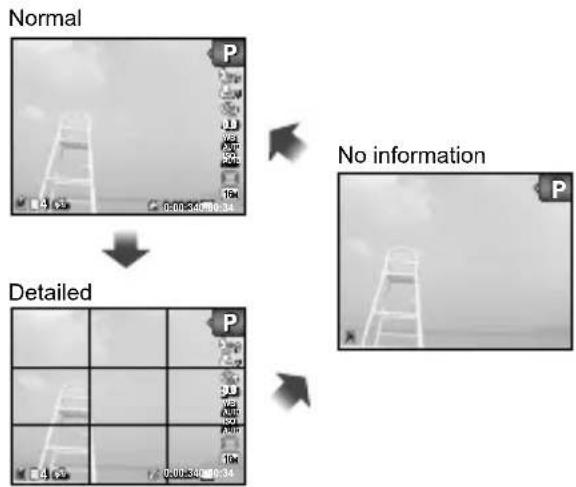

8 Arrow pad INFO button (change information display) button (erase)
9 OK button (OK)
10? button (camera guide)
11 MENU button

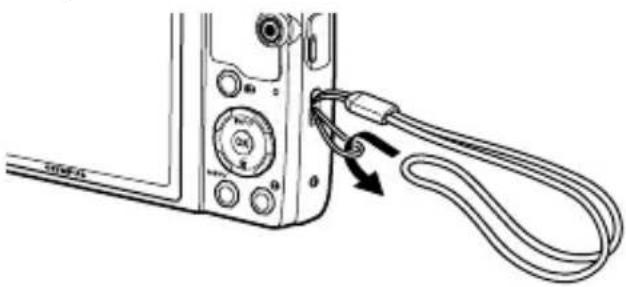

Attaching the camera strap

Line drawing of a camera module with attached cable and connector (no text or symbols)

Pull the strap tight so that it does not come loose.

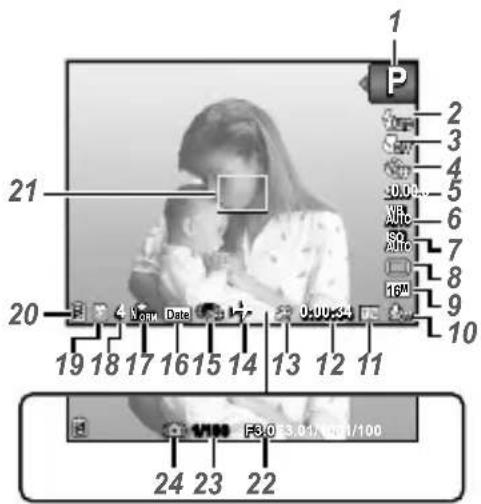

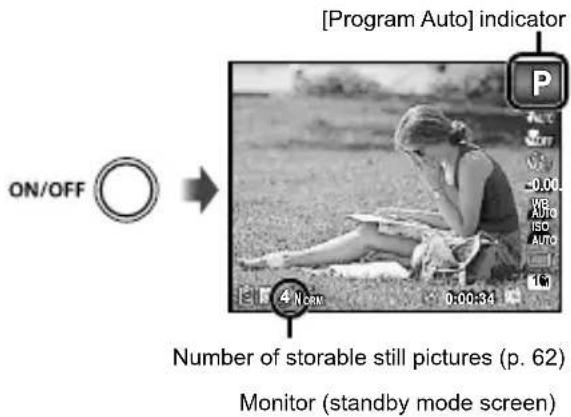

Shooting mode display

1 P 2 3 4 5 6 7 8 9 10 21 20 4 Time Date 0:00:34 19 18 17 16 15 14 13 12 11 V100 F3.0 3.01/100/100 24 23 22

1 Shooting mode ..... p. 16, 24
2 Flash....p.19 Flash standby/flash charge ....p.55
3 Macro ...... p. 30
4 Self-timer......p.30
5 Exposure compensation ...... p.31
6 White balance......p.31
7 ISO p.32
8 Drive....p.32
9 Image size (still images)...... p. 33
10 Recording with sound (movies)...... p. 36
11 Image size (movies) ..... p. 34

12 Recording length (movies)...... p.63
13 Movie recording icon.... p. 17
14 World time ...... p.48
15 Image Stabilizer (still images)...... p. 35
16 Date stamp ...... p. 37
17 Compression (still images)...... p. 34
18 Number of storable pictures (still images)...... p. 16
19 Current memory ...... p. 61
20 Battery check...... p. 12
21 AF target mark......p.17
22 Aperture value ...... p. 17
23 Shutter speed ...... p. 17
24 Camera shake warning

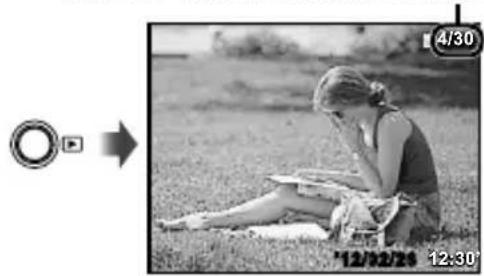

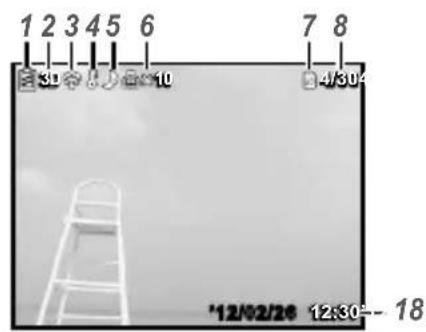

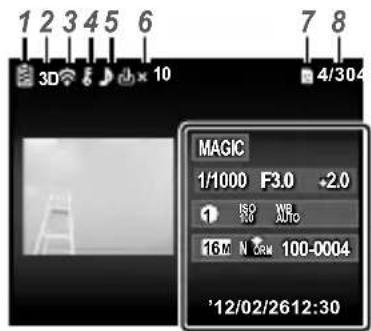

Playback mode display

• Normal display


1 2 3 4 5 6 59 10 7 8 4/304 *12/02/26 12:30 - 18

Still image

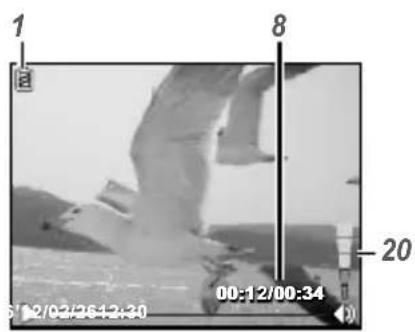

1 8 20 00:12/00:34 6 12/02/26:12:30

Movie

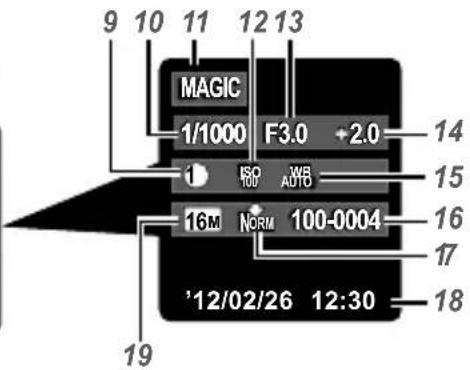

• Detailed display


1 2 3 4 5 6 3D 10 4/304 MAGIC 1/1000 F3.0 +2.0 ISO WR AUTO 16 M N 100-0004 '12/02/2612:30

9 10 11 12 13 MAGIC 1/1000 F3.0 +2.0 14 ISO WD 16M NORM 100-0004 15 '12/02/26 12:30 16 17 18

1 Battery check......p. 12

2 3D image ^*1 p.23

3 Eye-Fi transferred.....p.42

4 Protect......p. 41

5 Adding sound ...... p. 39

6 Print reservation/number of prints....p. 53/p. 52

7 Current memory ...... p. 61

8 Frame number/ total number of images ......p.20

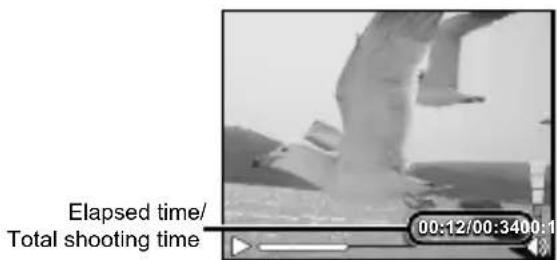

Elapsed time/ total shooting time (movies)......p.21

9 MAGIC ...... p.27

10 Shutter speed ...... p. 17

11 Shooting mode ..... p. 16, 24

12ISO p.32

13 Aperture value ...... p. 17

14 Exposure compensation ......p.31

15 White balance...... p. 31

16 File number

17 Compression (still images)...... p. 34 Frame rate (movies)...... p. 34

18 Date and time ...... p. 15

19 Image size ...... p. 33

20 Volume ...... p. 44

*1 VR-360/D-760 only

Camera Settings

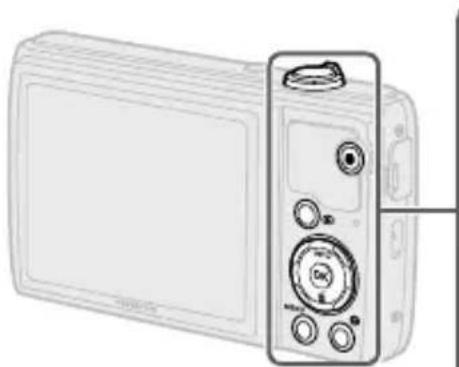

Using the Direct Buttons

Frequently used functions can be accessed using the direct buttons.

Line drawing of a digital camera with front panel and control buttons (no text or symbols)

Zoom lever (p. 18, 22)

Shutter button (p. 17)

◎ button (shooting movies) (p. 17)

▶ button (switch between shooting and playback) (p. 20)

MENU button (p. 9)

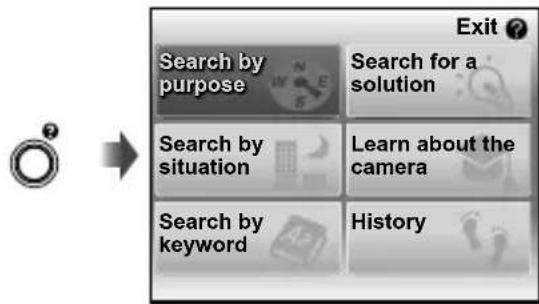

● button (camera guide) (p. 23)

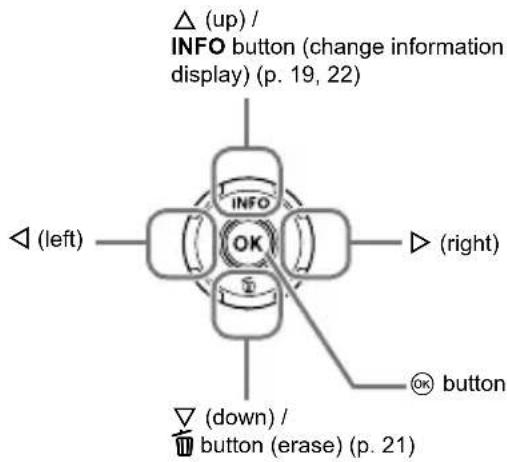

Arrow pad


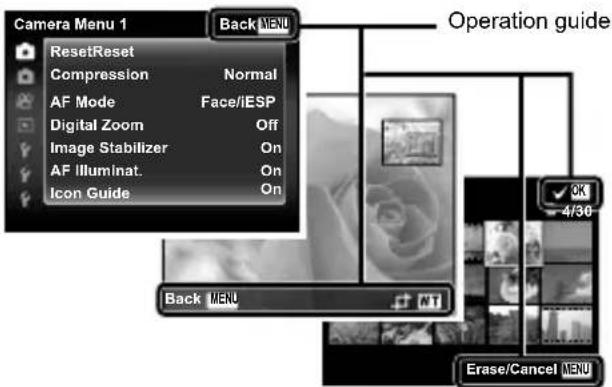

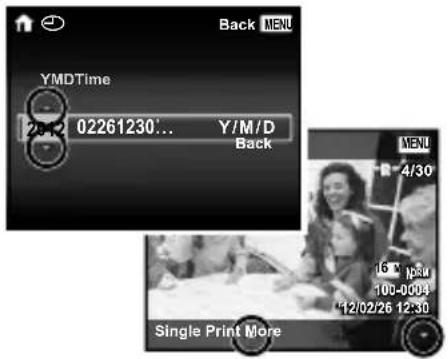

Operation guide

The symbols displayed for image selections and settings indicate that the arrow pad is to be used.

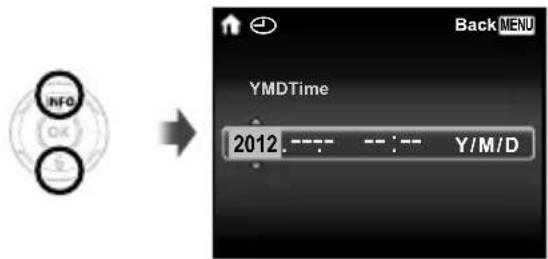

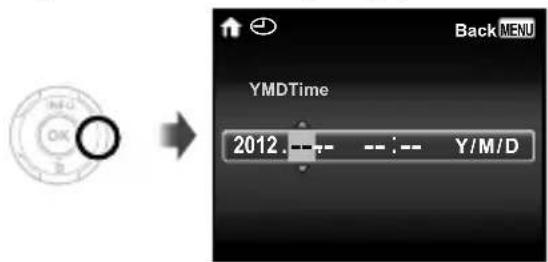

YMDTime 20:12 02261230... Y/M/D Back MENU 4/30 16 M.pku 100-0004 12/02/26 12:30 Single Print More

Operation guides displayed on the screen indicate that the MENU button, Ⓞ button, or zoom lever can be used.

Camera Menu 1 ResetReset Compression Normal AF Mode Face/IESP Digital Zoom Off Image Stabilizer On AF Illuminat. On Icon Guide On Operation guide Back MENU OK 4/30 Back MENU NT Erase/Cancel MENU

Using the Menu

Use the menu to change camera settings such as the shooting mode.

There may be menus that are unavailable depending on other related settings or the SCN mode (p. 26).

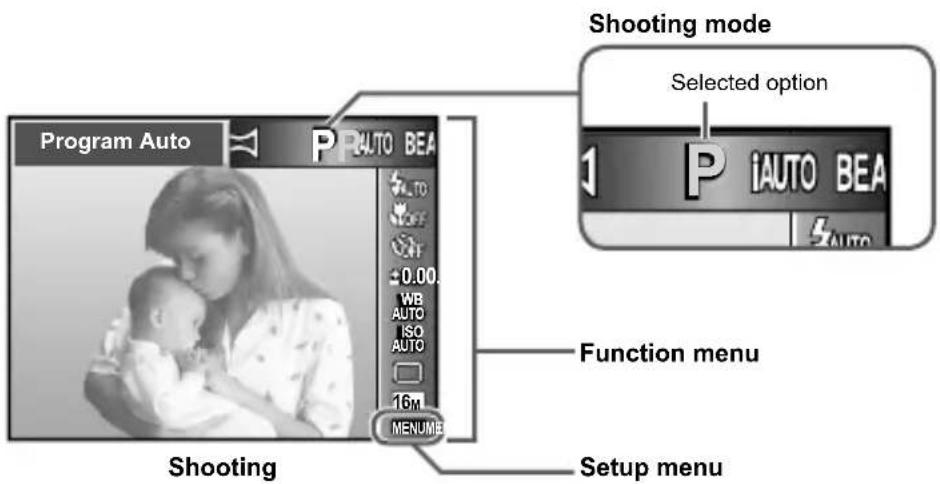

Function menu

Press ◀ during shooting to display the function menu. The function menu is used to choose the shooting mode and provides access to frequently used shooting settings.

Program Auto P AUTO BEA Shooting mode Selected option P iAUTO BEA 16M MENU Function menu Shooting Setup menu

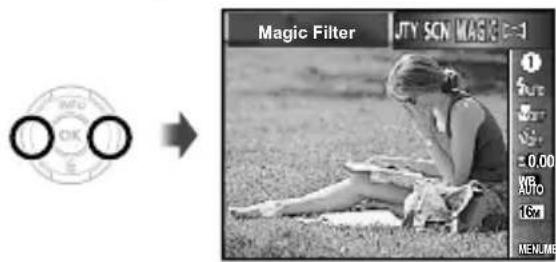

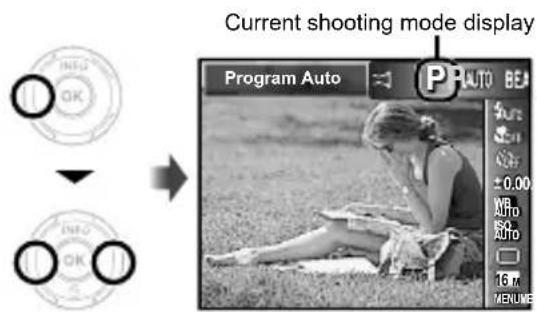

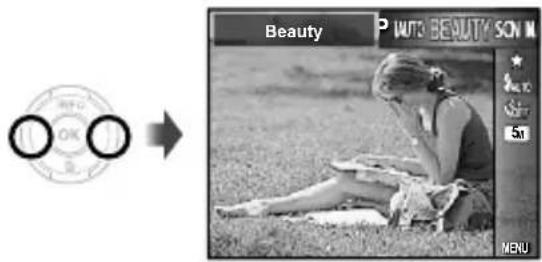

To select the shooting mode

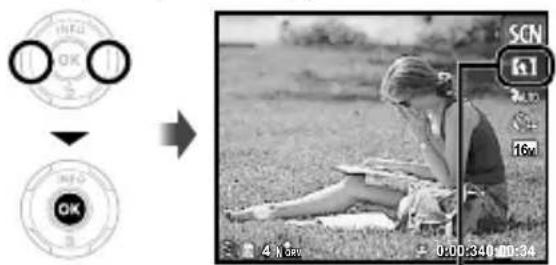

Use ◀▶ to select a shooting mode and press the Ⓞ button.

To select the function menu

Use △▽ to select a menu and use ◀▷ to select a menu option. Press the Ⓞ× button to set the function menu.

Setup menu

Press the MENU button during shooting or playback to display the setup menu. The setup menu provides access to a variety of camera settings, including options not listed in the function menu, display options, and the time and date.

1 Press the MENU button.

• The setup menu is displayed.

Camera Menu 1 Back Reset Reset Compression Normal AF Mode Face/iESP Digital Zoom Off Image Stabilizer On AF Illuminat. On Icon Guide On

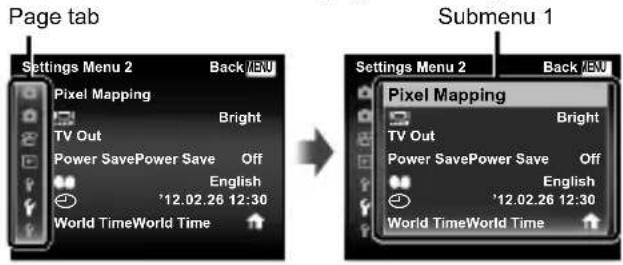

2 Press ◀ to highlight the page tabs. Use △▽ to select the desired page tab and press ▷.

Page tab Settings Menu 2 Back /BW Pixel Mapping Bright TV Out Power SavePower Save Off English '12.02.26 12:30 World TimeWorld Time Submenu 1 Settings Menu 2 Back /BW Pixel Mapping Bright TV Out Power SavePower Save Off English '12.02.26 12:30 World TimeWorld Time

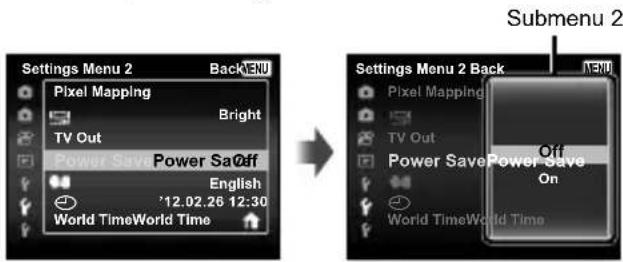

3 Use △▽ to select the desired submenu 1 and then press the ⏻ button.

Settings Menu 2 BackMenu Pixel Mapping Bright TV Out Power Save Power Save Off English '12.02.26 12:30 World TimeWorld Time Submenu 2 Settings Menu 2 Back BackMenu Pixel Mapping Bright TV Out Power Save Power Save Off On World TimeWorld Time

4 Use △▽ to select the desired submenu 2 and then press the ⓄK button.

- Once a setting is selected, the display returns to the previous screen.

There may be additional operations. "Menu Settings" (p. 34 to 49)

Settings Menu 2 Back MENU Pixel Mapping Bright TV Out Power Savon English '12.02.26 12:30 World TimeWorld Time

5 Press the MENU button to complete the setting.

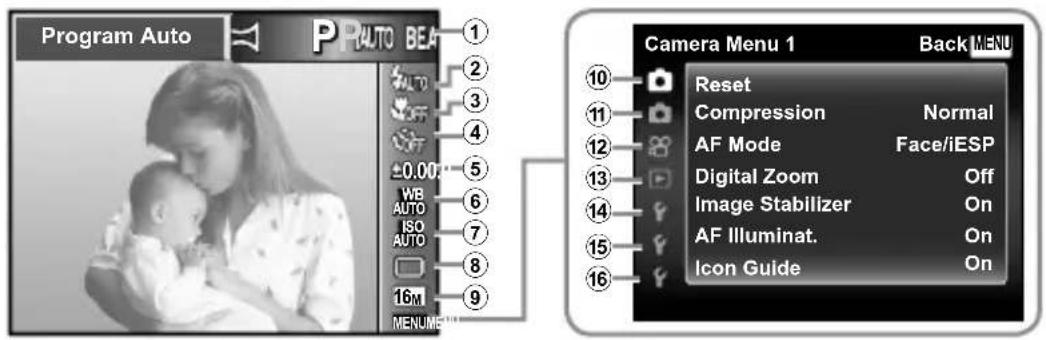

Menu Index

Program Auto PPAUTO BEAT 1 2 3 4 ±0.00 WB AUTO ISO AUTO 16M 9 MENU Camera Menu 1 Back MENU 10 Reset Compression Normal AF Mode Face/iESP 11 Digital Zoom Off Image Stabilizer On 12 AF Illuminat. On 13 Icon Guide On 14 15 16

① Shooting mode .....p. 16, 24

P (Program Auto)

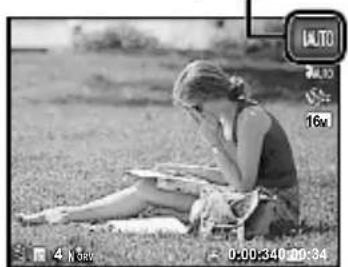

iAUTO (iAUTO)

BEAUTY (Beauty)

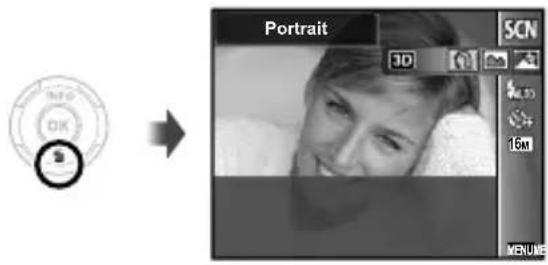

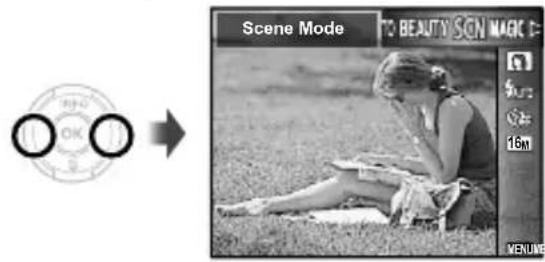

SCN (Scene Mode)

MAGIC (Magic Filter)

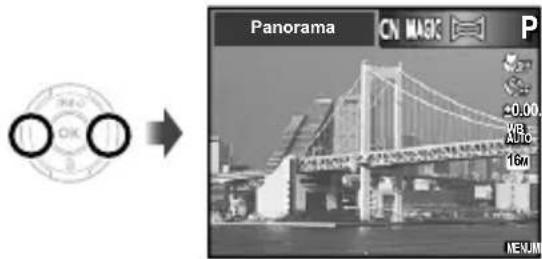

(Panorama)

② Flash p.19

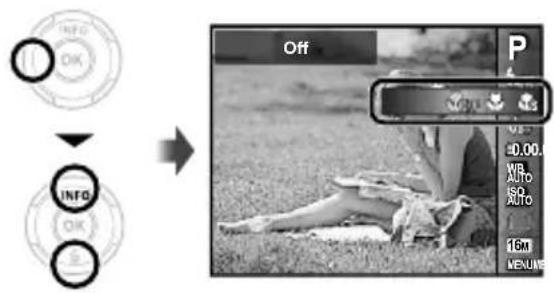

③ Macro ......p. 30
④ Self-timer ......p. 30

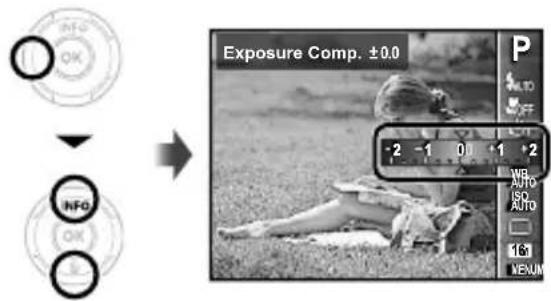

⑤ Exposure compensation ...p. 31
⑥ White balance ......p.31

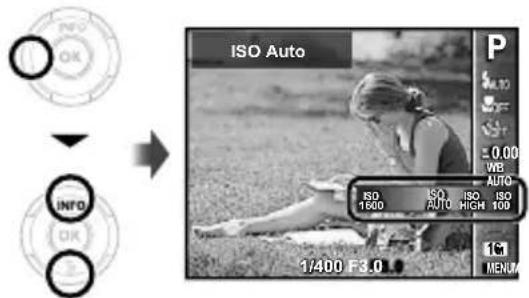

⑦ ISO p. 32
⑧ Drive ......p. 32
⑨ Image Size ......p. 33

⑩ (Camera Menu 1) .....p. 34

Reset

Compression

AF Mode

Digital Zoom

Image Stabilizer

AF Illuminat.

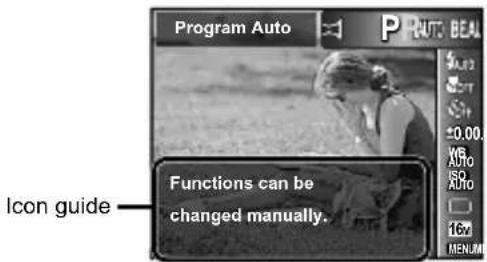

Icon Guide

⑪ (Camera Menu 2) .....p. 37

Date Stamp

⑫ (Movie menu) ......p. 34

Frame Rate

IS Movie Mode

Ψ (Movie sound recording)

⑬ (Playback menu) .....p. 38

Slideshow
Edit

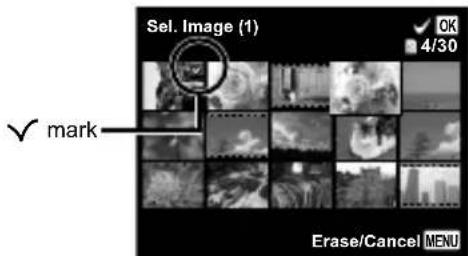

Erase

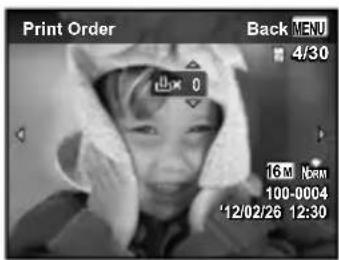

Print Order
δ (Protect)
(Rotate)

⑭ ♂ (Settings Menu 1) ......p. 42

Memory Format/Format

Backup

Eye-Fi

USB Connection

Power On

Keep Settings

Sound Settings

⑮ ♂ (Settings Menu 2) ......p. 44

Pixel Mapping

(Monitor)

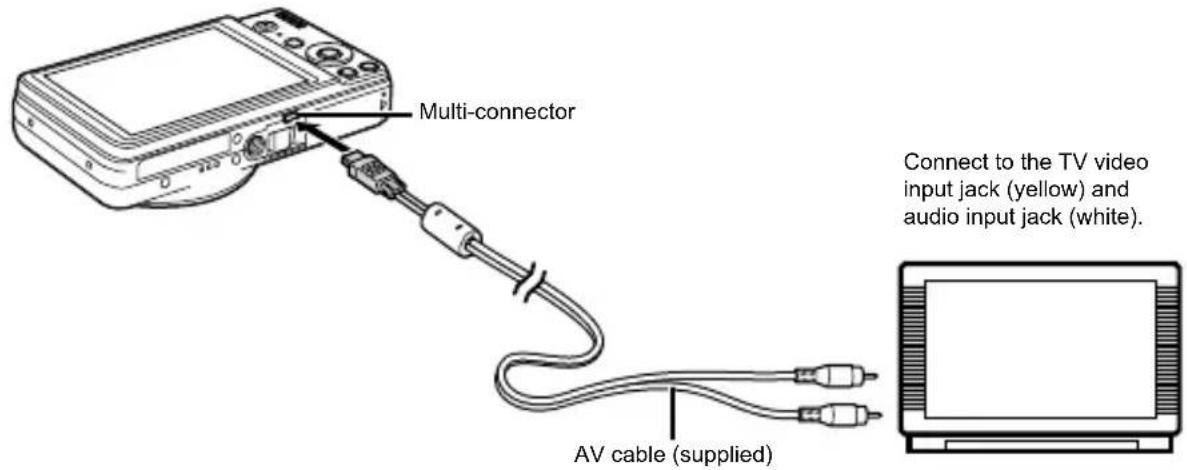

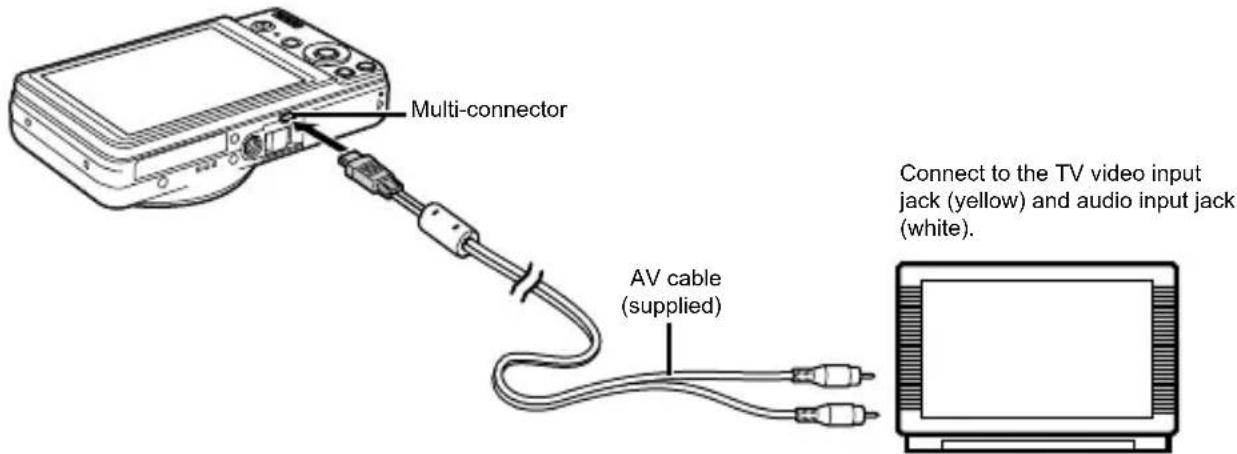

TV Out ^*1

NTSC/PAL ^2

Power Save

Language

Date/time

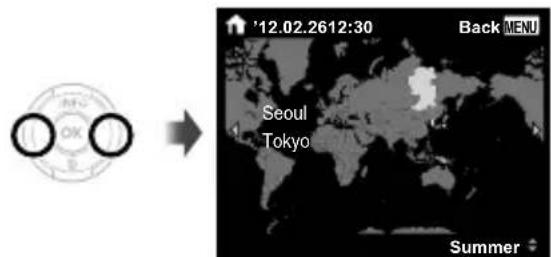

World Time

⑯ (Settings Menu 3) ......p. 49

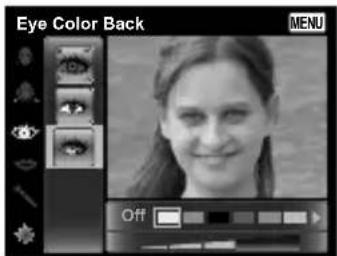

Beauty Settings

*1 VR-360/D-760 only
*2 VR-350/D-755 and VR-340/D-750 only

Preparing the Camera

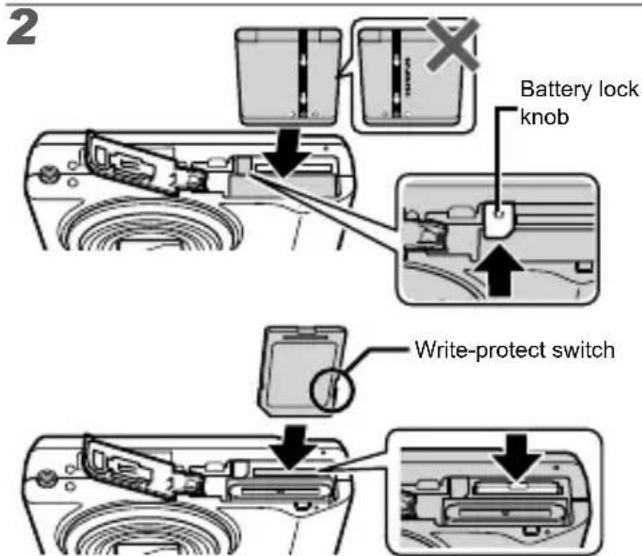

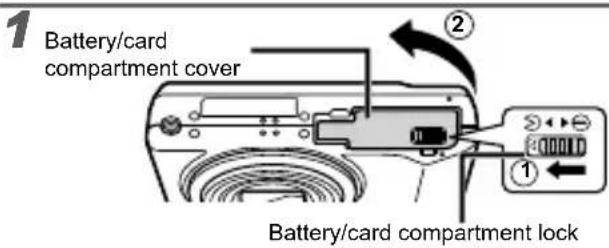

Inserting the battery and card

1 Battery/card compartment cover ② Battery/card compartment lock

2 Battery lock knob Write-protect switch

! Insert the battery as illustrated with the ⬤ mark toward the battery lock knob.
! Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.
! Insert the battery while sliding the battery lock knob in the direction of the arrow.
! Insert the card straight until it clicks into place.
When using the camera, be sure to close the battery/card compartment cover.

! Slide the battery lock knob in the direction of the arrow to unlock, and then remove the battery.
Turn off the camera before opening the battery/card compartment cover.
Always use SD/SDHC/SDXC cards or Eye-Fi card with this camera. Do not insert other types of memory cards. "Using the card" (p. 61)
Do not touch the contact area of the card directly.
This camera can be used without a card by storing images in its internal memory.

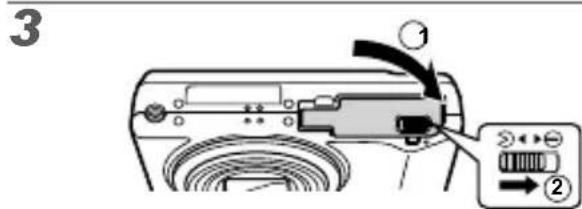

3 ① ②

“Number of storable pictures (still images)/Recording length (movies) in the internal memory and cards” (p. 62)

To remove the card

Diagram showing two steps of a device component or assembly, labeled 1 and 2, with arrows indicating process direction.

! Press the card in until it clicks and comes out slightly, then grab the card and pull it out.

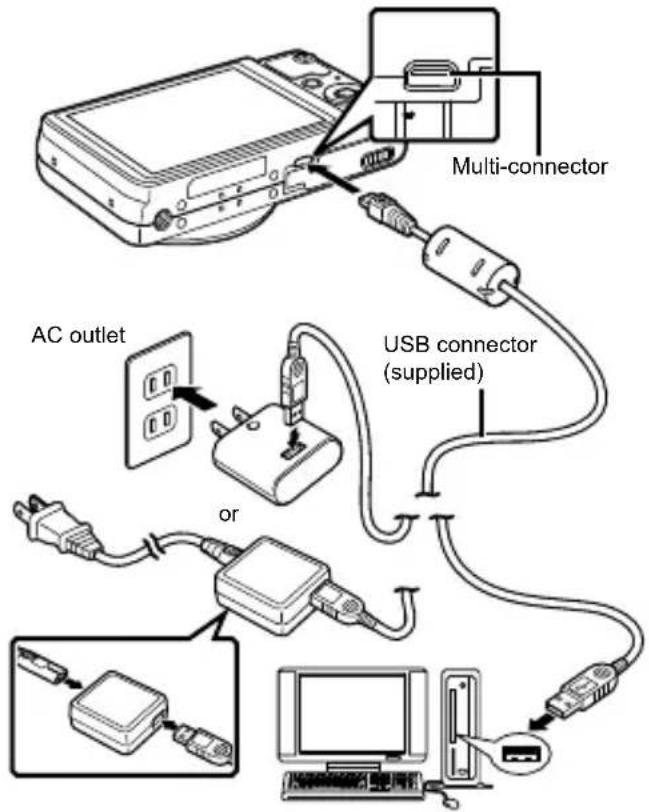

Charging the battery with the included USB-AC adapter

The included F-2AC USB-AC adapter (hereafter referred to as USB-AC adapter) differs depending on the region where you purchased the camera. If you received a plug-in type USB-AC adapter, plug it directly into AC outlet.

EN

The included USB-AC adapter has been designed to be used for charging and playback. Do not take pictures while the AC adapter is connected to the camera.
Be sure to unplug the power plug of the USB-AC adapter from the wall outlet when the charging is complete or the playback ends.
The battery can be charged while the camera is connected to the computer. Charging time varies depending on the performance of a computer. (There may be cases in which it takes approx. 10 hours.)

Connecting the camera

Multi-connector AC outlet or USB connector (supplied)

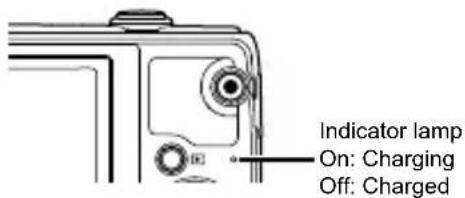

Indicator lamp

Indicator lamp On: Charging Off: Charged

The battery is not fully charged at the time of purchase. Before use, be sure to charge the battery until the indicator lamp turns off (up to 4 hours).
If the indicator lamp does not light, the camera is not correctly connected or the battery, camera, or USB-AC adapter may not be functioning as expected.

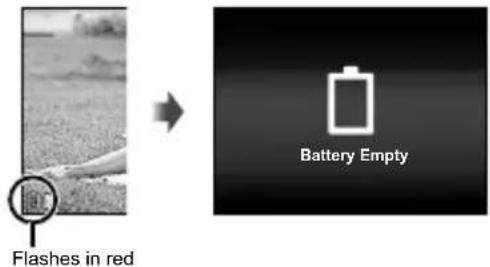

When to charge the batteries

Charge the battery when the error message shown below appears.

Flashes in red Battery Empty

Setting up using the supplied CD

! Installation of [ib] computer software using the supplied CD is available on Windows computers only.

Windows

1 Insert the supplied CD in a CD-ROM drive.

Windows XP

- A "Setup" dialog will be displayed.

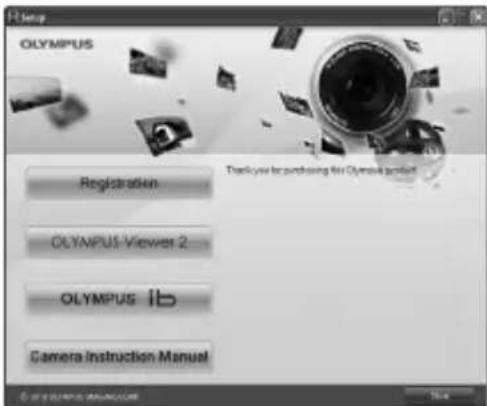

Windows Vista/Windows 7

- An Autorun dialog will be displayed. Click "OLYMPUS Setup" to display the "Setup" dialog.

Olympus Registration OLYMPUS Viewer 2 OLYMPUS Ib Camera Instruction Manual Thank you for purchasing for Olympus product

If the "Setup" dialog is not displayed, select "My Computer" (Windows XP) or "Computer" (Windows Vista/Windows 7) from the start menu. Double-click the CD-ROM (OLYMPUS Setup) icon to open the "OLYMPUS Setup" window and then double-click "Launcher.exe".

If a "User Account Control" dialog is displayed, click "Yes" or "Continue".

2 Register your Olympus product.

- Click the "Registration" button and follow the on-screen instructions.

To register the camera, it must be connected to the computer. "Connecting the camera" (p. 12)

If nothing is displayed on the camera screen even after connecting the camera to the computer, the battery may be exhausted. Leave the camera connected to the computer until the battery has charged, then disconnect and reconnect the camera.

3 Install OLYMPUS Viewer 2 and [ib] computer software.

- Check the system requirements before beginning installation.

- Click the "OLYMPUS Viewer 2" or "OLYMPUS ib" button and follow the on-screen instructions to install the software.

OLYMPUS Viewer 2

Operating System	Windows XP (Service Pack 2 or later) / Windows Vista / Windows 7
Processor Pentium 4 1.3 GHz or better
RAM	1 GB or more (2 GB or more recommended)
Free Hard Drive Space	1 GB or more
Monitor Settings	1024 × 768 pixels or moreMinimum 65,536 colors(16,770,000 colors recommended)

[ib]

Operating System	Windows XP (Service Pack 2 or later) / Windows Vista / Windows 7
Processor	Pentium 4 1.3 GHz or better(Pentium D 3.0 GHz or better required for movies)
RAM	512 MB or more (1 GB or more recommended)(1 GB or more required for movies — 2 GB or more recommended)
Free Hard Drive Space	1 GB or more
Monitor Settings	1024 × 768 pixels or moreMinimum 65,536 colors (16,770,000 colors recommended)
Graphics	A minimum of 64 MB video RAM with DirectX 9 or later.

* See online help for information on using the software.

4 Install the camera manual.

Click the "Camera Instruction Manual" button and follow the on-screen instructions.

EN

Macintosh

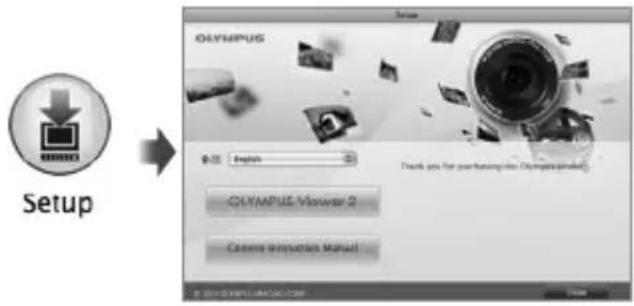

1 Insert the supplied CD in a CD-ROM drive.

Double-click the CD (OLYMPUS Setup) icon on the desktop.

- Double-click the "Setup" icon to display the "Setup" dialog.

Setup Olympus English Thank you for purchasing this Olympus program? Olympus Monitor 2 Create manuscripts Manual

2 Install OLYMPUS Viewer 2.

• Check the system requirements before beginning installation.
• Click the "OLYMPUS Viewer 2" button and follow the on-screen instructions to install the software.

You can register via "Registration" in OLYMPUS Viewer 2 "Help".

OLYMPUS Viewer 2

Operating System	Mac OS X v10.4.11-v10.6
Processor Intel	Core Solo/Duo 1.5 GHz or better
RAM	1 GB or more (2 GB or more recommended)
Free Hard Drive Space	1 GB or more
Monitor Settings	1024 × 768 pixels or moreMinimum 32,000 colors (16,770,000 colors recommended)

* Other languages can be selected from the language combo box. For information on using the software, see online help.

3 Copy the camera manual.

Click the "Camera Instruction Manual" button to open the folder containing the camera manuals. Copy the manual for your language to the computer.

Language, date, time, and time zone

You can choose the language for the menus and messages displayed in the monitor. Also, the date and time set here are saved to image file names, date prints, and other data.

1 Press the ON/OFF button to turn on the camera. Then, use △▽◀▷ to select your language and press the OK button.

The menus can be used to change the selected language. [●] (Language) (p. 48)

2 Use to select the year for [Y] on the date and time setting screen.

HFO OK YMDTime 2012. ---- -- :-- Y/M/D Back MENU

3 Press ▷ to save the setting for [Y].

Back MENU YMDTime 2012.---:--- Y/M/D

4 As in Steps 2 and 3, use △▽ ◀▷ to set [M] (month), [D] (day), [Time] (hours and minutes), and [Y/M/D] (date order), and then press the Ⓞ button.

For a more accurate setting, press the Ⓞ button when the time signal hits 00 seconds while setting the minutes.

The menus can be used to change the selected date and time. [☐] (Date/time) (p. 48)

5 Use ◀ to select your home time zone and press the ⏻ button.

- Use to turn daylight saving time ([Summer]) on or off.

12.02.2612:30 Back MENU Seoul Tokyo Summer

The menus can be used to change the selected time zone. [World Time] (p. 48)

Shooting, Viewing, and Erasing

Shooting with the optimum aperture value and shutter speed [Program Auto]

In this mode, automatic shooting settings are activated while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, etc. as needed.

The default settings of the function are highlighted in

Press the ON/OFF button to turn on the camera.

[Program Auto] indicator ON/OFF 4 Norm Number of storable still pictures (p. 62) Monitor (standby mode screen)

the [Program Auto] indicator is not displayed, press ◀ to display the function menu and then set the shooting mode to P. "Using the Menu" (p. 8)

Current shooting mode display Program Auto P AUTO BEA +0.00 NFO Auto 16 M VOLUME

Press the ON/OFF button again to turn off the camera.

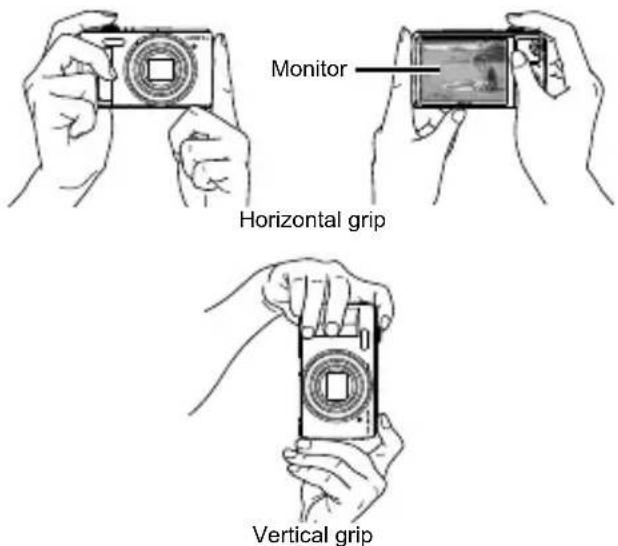

Hold the camera and compose the shot.

Monitor Horizontal grip Vertical grip

When holding the camera, take care not to cover the flash and the microphone with your fingers, etc.

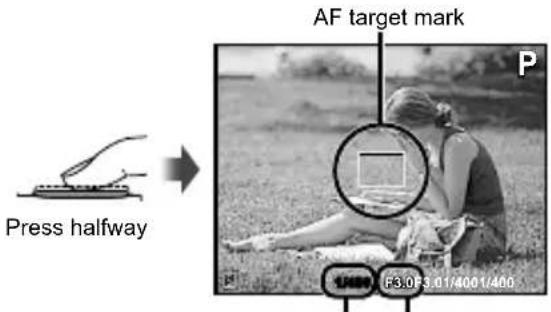

3 Press the shutter button halfway down to focus on the subject.

When the camera focuses on the subject, the exposure is locked (shutter speed and aperture value are displayed), and the AF target mark changes to green.

- The camera was unable to focus if the AF target mark fl ashes red. Try focusing again.

AF target mark Press halfway P F3.0F3.01/4001/400

Shutter speed Aperture value

! "Focusing" (p. 57)

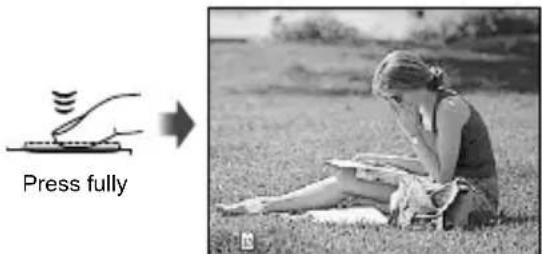

4 To take the picture, gently press the shutter button all the way down while being careful not to shake the camera.

Press fully

Image review screen

To view images during shooting

Pressing the ▶ button enables playback of images. To return to shooting, either press the ▶ button or press the shutter button halfway down.

Shooting movies

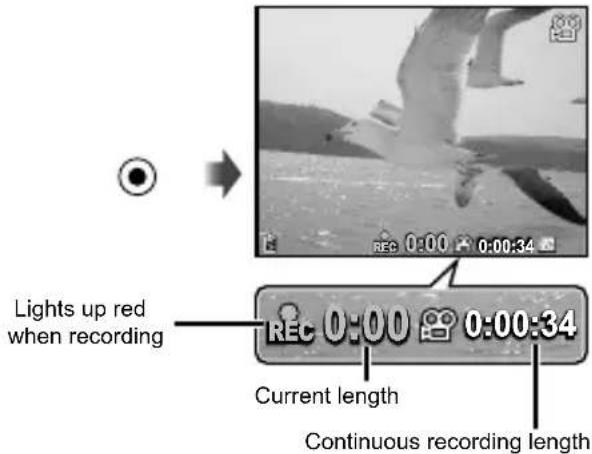

1 Press the Ⓞ button to start recording.

Lights up red when recording REC 0:00 0:00:34 Current length Continuous recording length

! Sound will also be recorded.
The shooting mode selected for still photography applies to movies (some shooting modes have no effect).
2 Press the Ⓞ button again to end recording.

Using the zoom

Turning the zoom lever adjusts the shooting range.

W side T side

Zoom bar

5:05.0 PP 1.0k 2.0k 3.0k 4.0k 5.0k 6.0k 7.0k 8.0k 9.0k 10.0k 11.0k 12.0k 13.0k 14.0k 15.0k 16.0k 17.0k 18.0k 19.0k 20.0k 21.0k 22.0k 23.0k 24.0k 25.0k 26.0k 27.0k 28.0k 29.0k 30.0k 31.0k 32.0k 33.0k 34.0k 35.0k 36.0k 37.0k 38.0k 39.0k 40.0k 41.0k 42.0k 43.0k 44.0k 45.0k 46.0k 47.0k 48.0k 49.0k 50.0k 51.0k 52.0k 53.0k 54.0k 55.0k 56.0k 57.0k 58.0k 59.0k 60.0k 61.0k 62.0k 63.0k 64.0k 65.0k 66.0k 67.0k 68.0k 69.0k 70.0k 71.0k 72.0k 73.0k 74.0k 75.0k 76.0k 77.0k 78.0k 79.0k 80.0k 81.0k 82.0k 83.0k 84.0k 85.0k 86.0k 87.0k 88.0k 89.0k 90.0k 91.0k 92.0k 93.0k 94.0k 95.0k 96.0k 97.0k 98.0k 99.0k 100.0k

Black-and-white photo of two children embracing, no visible text or symbols

Model No. Optical zoom Digital zoom

VR-360/D-760	12.5×4×
VR-350/D-755	10×4×
VR-340/D-750	10×4×

To take larger images [Digital Zoom]

The type and amount of zoom can be identified from the appearance of the zoom bar. The display differs depending on the options selected for [Digital Zoom] (p. 36) and [Image Size] (p. 33).

[Off] selected for [Digital Zoom]:

Image size Zoom bar
16M	Optical zoom range
Other	Image zoomed and cropped.1

[On] selected for [Digital Zoom]:

Image size Zoom bar
16M	Digital zoom range
Other	Image zoomed and cropped.^1Digital zoom range

^*1 If an image size is less than the full resolution after reaching the maximum optical zoom, the camera will automatically resize and crop the image to the selected image size and enter the digital zoom range if [Digital Zoom] is [On].
Photographs taken with the zoom bar displayed in red may appear "grainy."

Using the flash

The flash functions can be selected to best match the shooting conditions.

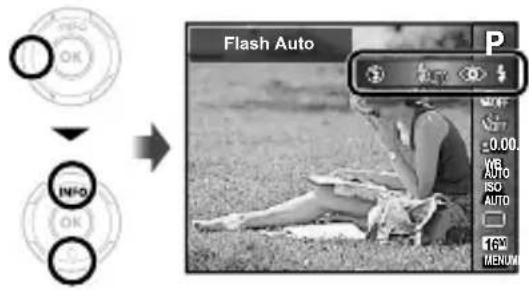

1 Select the flash option in the shooting function menu.

Flash Auto OK INFO OK P -0.00 Auto ISO AUTO 16M MENU

2 Use ◀▶ to select the setting option, and press the ⏻ button to set.

Option Description
Flash Auto	The flash fires automatically in low-light or backlight conditions.
Redeye	Pre-fl ashes are emitted to reduce the occurrence of red eye in your photos.
Fill In	The flash fires regardless of the available light.
Flash Off	The flash does not fire.

Changing the shooting information display

The display of the screen information can be changed to best match the situation, for example, the need for a clear view of the screen or for making a precise composition by using the grid display.

1 Press (INFO).

The displayed shooting information changes in the order shown below each time the button is pressed. "Shooting mode display" (p. 4)

Viewing images

1 Press the ▶ button.

Number of frames/Total number of images

Black-and-white photo of a girl sitting on grass reading a book, with a camera icon and time stamp (no readable text or symbols)

Playback image

Pictures taken using BEAUTY mode are displayed as a group. Turn the zoom lever to the T side to play back the image in the group.

2 Use ◀▶ to select an image.

Hold ▷ to fast forward and hold ◀ to reverse.
The display size of the images can be changed. "Index view and close-up view" (p. 22)

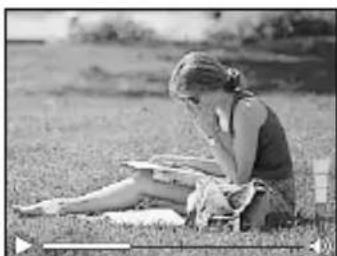

To play sound recordings

To play sound recorded with an image, select the image and press the ⏻ button. A ♪ icon appears on images with which sound has been recorded.

[ ♦] (still images) (p. 39)

Black-and-white photo of a person sitting on grass reading a book (no visible text or symbols)

During audio playback

! Press to adjust volume.

To play back movies

Select a movie, and press the Ⓞ button.

Black-and-white photo of a bird in flight near a water body, framed by a filmstrip (no visible text or symbols)

Movie

Operations during movie playback

Elapsed time/ Total shooting time 00:12/00:340:01

During playback

Pausing and resuming playback	Press the ⏻ button to pause playback. To resume playback during pause, fast forward, or rewind, press the ⏻ button.
Fast forward	Press ▷ to fast forward. Press ▷ again to increase the fast forward speed.
Rewind	Press ◀ to rewind. The rewinding speed increases each time ◀ is pressed.
Adjusting the volume	Use △▽ to adjust the volume.

Operations during pausing playback

Black-and-white photo of a bird perched on a surface, captured in mid-light (no visible text or symbols)

During pause

Cueing	Press △ to display the first frame and press ∇ to display the last frame.
Advancing and rewinding one frame at a time	Press ▷ or ◀ to advance or rewind one frame at a time. Hold ▷ or ◀ pressed for continuous advance or rewind.
Resuming playback	Press the Ⓞ button to resume playback.

To stop movie playback

Press the MENU button.

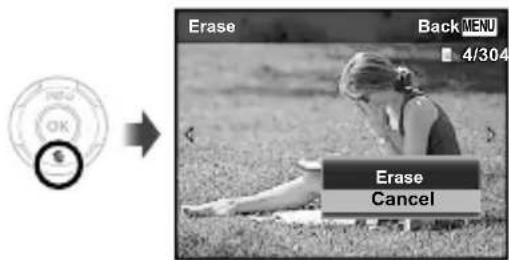

Erasing images during playback (Single image erase)

1 Display the image you want to erase and press ▽ (☐).

Erase Back MENU 4/304 Erase Cancel

2 Press △▽ to select [Erase], and press the OK button.

For erasing multiple images at the same time, see "Erasing images [Erase]" (p. 40).
If a group frame is erased, all images in that group are erased collectively. If the group includes images you want to keep, expand the group and protect them respectively.

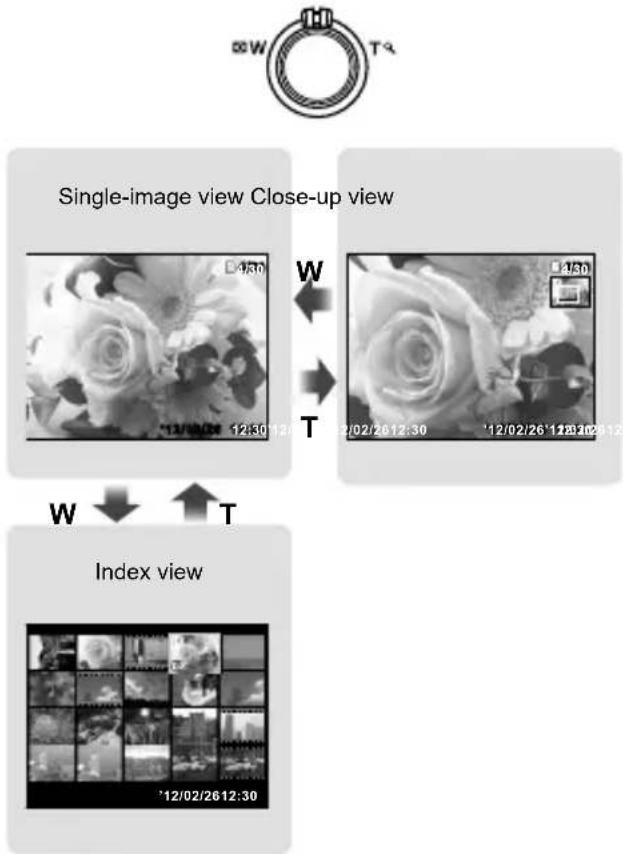

Index view and close-up view

Index view enables quick selection of a desired image. Close-up view (up to 10× magnifi cation) allows checking of image details.

1 Turn the zoom lever.

Single-image view Close-up view W T W T Index view

To select an image in index view

Use △▽◀▷ to select an image, and press the Ⓞ button to display the selected image in single-image view.

To scroll an image in close-up view

Use to move the viewing area.

Changing the image information display

Shooting information settings displayed on the screen can be changed.

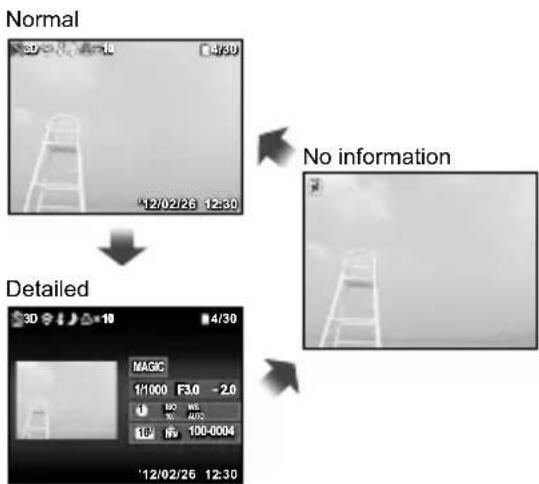

1 Press △ (INFO).

The displayed image information changes in the order shown below each time the button is pressed.


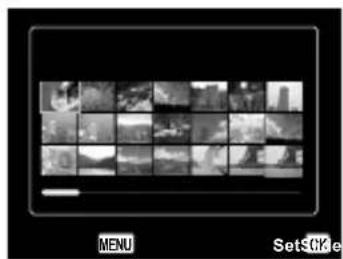

Playing back 3D images (VR-360/D-760)

3D images shot with this camera can be played back on 3D-compatible devices connected to this camera using an HDMI cable (sold separately).

"Shooting 3D images (3D mode)" (p. 27)
When playing back 3D images, read the warnings in the instruction manual for the 3D-compatible devices carefully.

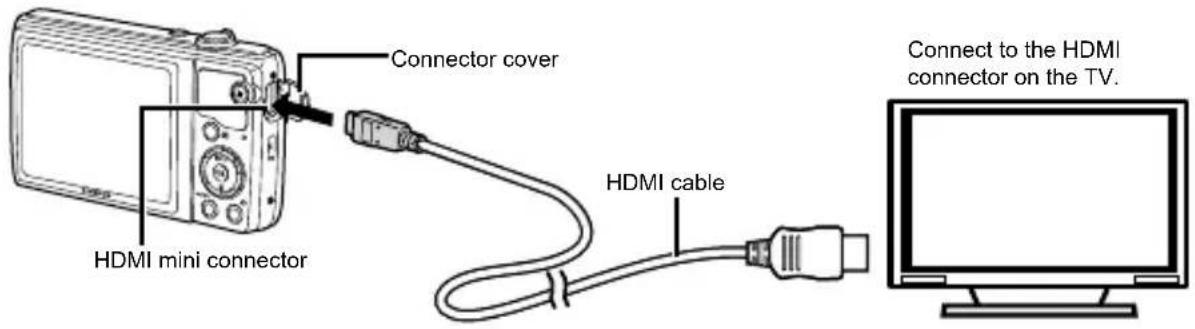

1 Connect the 3D-compatible device and camera using the HDMI cable.
For the connection and setting method, see "Using an HDMI cable" (p. 46).
2 Use △▽ to select [3D Show] and then press the Ⓞ button.
3 Use ◀▶ to select the 3D image to play back and then press the Ⓞ button.

Grid of grayscale images arranged in 4x4 pattern, no visible text or symbols

To start a slideshow, press the MENU button. To stop the slideshow, press the MENU or Ⓞ button.
3D images are composed of JPEG files and MPO files. If any files are deleted on a computer, playback of 3D images may not be possible.

Using the camera guide

Use the camera guide to look up camera operations.

1 Press the ⚙ button in the standby mode screen or the playback screen.

Submenu 2 Application
Search by purpose	Functions or operating methods can be searched.
Search for a solution	A solution can be searched when having problems during operation.
Search by situation	Search from shooting/playback scene.
Search by keyword	Search by the camera keyword.
Learn about the camera	Information is shown about recommended functions and basic operating methods for the camera.
History	Searches can be performed from the search history.

2 Use △▽◀▷ to select the desired item.

- Follow the on-screen instructions to search the desired contents.

Using Shooting Modes

To change the shooting mode

The shooting mode (P, IAUTO, BEAUTY, SCN, MAGIC, 📋) can be changed by using the function menu. "Using the Menu" (p. 8)

The default settings of the function are highlighted in

Shooting with automatic settings (IAUTO mode)

The camera will automatically select the optimal shooting mode for the scene. The shooting condition is decided by the camera and most settings cannot be changed.

1 Set the shooting mode to iAUTO.

The icon changes depending on the scene that the camera automatically selects.

Black-and-white photo of a person sitting on grass reading a book, with no visible text or symbols in the scene.

In some cases, the camera may not select the desired shooting mode.

When the camera cannot identify which is the optimal mode, [Program Auto] will be selected.

Shooting with Beauty Fix effects (BEAUTY mode)

Depending on the picture, the editing may not be effective.

1 Set the shooting mode to BEAUTY.

Beauty P WITH BEAUTY SON M 5x1 MBU

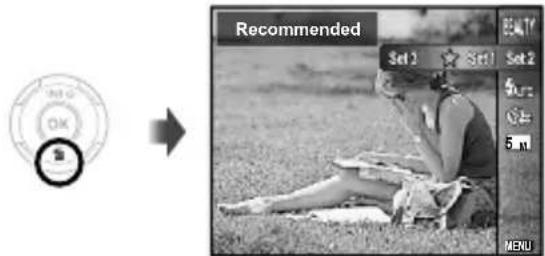

2 Press ▽ to go to the submenu.

Recommended Set 1 Set 2 Set 3 OK 5 5 5 MENU

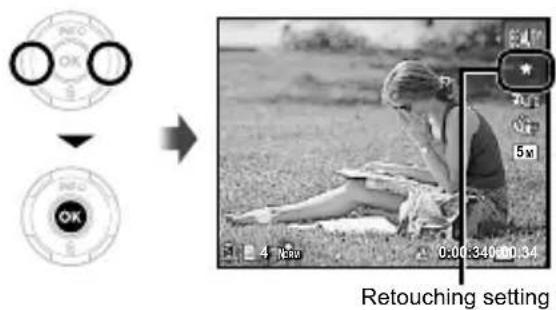

3 Use ◀ to select the retouching setting, and press the ⏻ button to set.

OK OK Retouching setting

- [Set 1], [Set 2] or [Set 3] retouches the image according to the Beauty Settings. [Beauty Settings] (p. 49)

4 Point the camera toward the subject. Check the frame appearing around the face detected by the camera, and then press the shutter button to take the picture.

The unedited image and edited image are both saved.

If the image cannot be retouched, only the unedited image is saved.

The [Image Size] of the retouched image is fixed at [5_M] .

5 To save the image, select [OK] on the review screen and press the Ⓞ button. To retouch the image additionally, select [Beauty Fix].

OK Beauty Fix

- Beauty Fix

① Select a retouching item, and press the Ⓞ button.

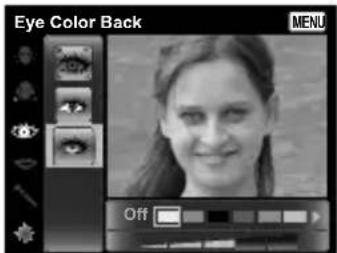

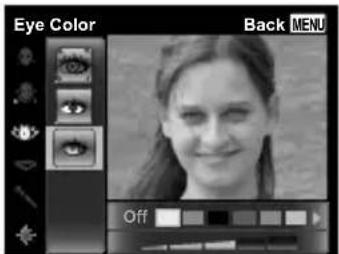

Eye Color Back MENU Off

② Press the Ⓞ button on the review screen.

- Settings for Beauty Fix can be registered.

Using the best mode for the shooting scene (SCN mode)

1 Set the shooting mode to SCN.

Scene Mode TO BEAUTY SON MAGIC 16m VOLUME

2 Press ▽ to go to the submenu.

Portrait 3D SCN 16M MENU

3 Use ◀▶ to select the best shooting mode for the scene, and press the Ⓞ button.

OK OFF SCN 4 h:34 0:00:340 00:34

Icon indicating current SCN mode

In SCN mode, the optimum shooting settings are pre-programmed for specific shooting scenes. For this reason, some settings cannot be changed in some modes.

Option	Application
Portrait/Landscape/Night Scene1/Night+Portrait/Sport/Indoor/Candle1/Self Portrait/Sunset1/Fireworks1/Cuisine/Documents/Beach & Snow/Pet/3D 3D Photo2	The camera takes a picture using the optimum settings for the scene conditions.

* When the subject is dark, noise reduction is automatically activated. This approximately doubles the shooting time during which no other pictures can be taken.

^2 VR-360/D-760 and VR-350/D-755 only

To take pictures of a moving subject like a pet ([ 🍒 Pet])

① Use ◀▶ to select [◀ Pet], and press the Ⓞ button to set.
② Hold the camera to align the AF target mark on the subject and press the Ⓞ button.

- When the camera recognizes the subject, the AF target mark automatically tracks the subject movement to focus on it continuously. "To focus on a moving subject continuously (AF Tracking)" (p. 35).

To shoot 3D images (3D mode)

(VR-360/D-760, VR-350/D-755)

① Use ◀▶ to select [Auto] or [Manual] and then press the ⏻ button to set.

Submenu 1 Description
Auto	The user only composes the shots so that the target marks and pointers overlap, and the camera automatically releases the shutter.

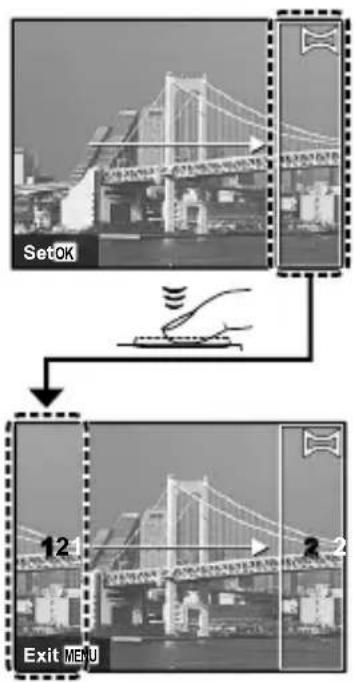

Manual	After shooting the first frame, move the camera to overlap the subject with the image in the screen. Then manually release the shutter.

Depending on the subject or the situation (if the distance between the camera and subject is too short), the image may not look 3D.
The 3D viewing angle varies depending on the subject, etc.
To exit 3D shooting mode without saving an image, press the MENU button.
The [Image Size] (p. 33) is fixed to [16:9S].
! The zoom ratio is fixed.
The focus, exposure and the white balance are fixed when the first image is taken.
The flash is fixed to [⚡Flash Off].
! Images shot in 3D mode cannot be displayed in 3D on this camera's screen. (VR-360/D-760 only)

Shooting with special effects (MAGIC mode)

Add an artistic effect to your photo by selecting the desired magic fi iter.

1 Set the shooting mode to MAGIC.

Magic Filter JTY SCN MAGIC D=1 0.00 XIFo 16m ME-NUM

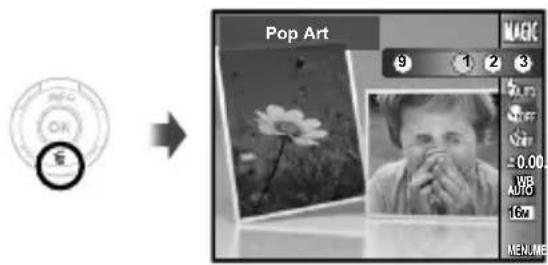

2 Press ▽ to go to the submenu.

Pop Art MAGIC 9 1 2 3 OK - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -0.00 WB Auto 16w MEN.ME

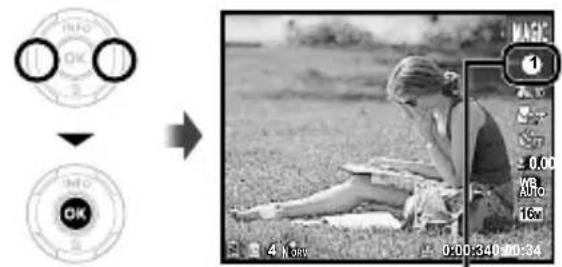

3 Use ◀▶ to select the desired effect and then press the ⓄK button to set.

Black-and-white photo sequence showing camera mode icons and a person reading on grass, with UI panel highlighting 'MAGIC' (1)

Icon indicating current MAGIC mode

Shooting mode	Option
Magic Filter	1 Pop Art2 Pin Hole3 Fish Eye4 Drawing*15 Soft Focus6 Punk7 Sparkle8 Watercolor*29 Reflection*2

^1 Two images are saved, an unmodified image and an image to which the effect has been applied.

^2 VR-360/D-760 and VR-350/D-755 only

In MAGIC mode, the optimum shooting settings are pre-programmed for each effect. For this reason, some settings cannot be changed in some modes.

Creating panoramic images (mode)

Take pictures that can be joined to form a panorama using the supplied software.

The focus, exposure, zoom position (p. 18), and white balance (p. 31) are locked at the first frame.
The flash (p. 19) is fixed to ⚪ (Flash Off) mode.

1 Set the shooting mode to ⏻, and press the Ⓞ button.

Panorama CN MAG P -0.00 VB Auto 1Gm NEJM

2 Use △▽◀▷ to select the pan direction.

3 Press the shutter button to take the first frame, and then compose the second shot.

Before fi rst shot

SetOK 12 Exit MENU

After fi rst shot

- After the first shot, the area shown in the white frame reappears on the side of the display opposite the pan direction. Frame subsequent photographs so that they overlap with the image on the monitor.

4 Repeat Step 3 until the number of desired frames is taken, and then press the MENU button when fi nished.

Panorama shooting is possible for up to 10 frames.
For information on creating panoramas, see the online help for the supplied software.

Using Shooting Functions

! "Using the Menu" (p. 8)

The default settings of the function are highlighted in

Shooting closeups (Macro shooting)

This function enables the camera to focus and shoot subjects at close distances.

1 Select the macro option in the shooting function menu.

OFF P 0.00 VR Auto Auto 16m MENU

2 Use ◀▶ to select the setting option, and press the ⏻ button to set.

Option Description
Off Macro mode is deactivated.
Macro	This enables shooting as close as 20 cm/7.9 in. ^1 (90 cm/35.4 in. ^2 ) to the subject.
Super Macro ^3	This enables shooting as close as 1 cm/0.3 in. to the subject.

^1 When the zoom is at the widest (W) position.
^2 When the zoom is at the most telephoto (T) position.
^3 The zoom is automatically fixed.
The flash (p. 19) and zoom (p. 18) cannot be set during super macro shooting.

Using the self-timer

After the shutter button is pressed all the way down, the picture is taken after a short delay.

1 Select the self-timer option in the shooting function menu.

Off P 12 2 0.00 WB AUTO ISO AUTO 16 M MENUE

2 Use ◀▶ to select the setting option, and press the Ⓞ button to set.

Option Description
Off	The self-timer is deactivated.
12 sec	The self-timer lamp turns on for approx. 10 seconds, then blinks for approx. 2 seconds, and then the picture is taken.
2 sec	The self-timer lamp blinks for approx. 2 seconds, and then the picture is taken.

To cancel the self-timer after it starts Press the MENU button.

Adjusting the brightness (Exposure compensation)

The standard brightness (appropriate exposure) set by the camera based on the shooting mode (IAUTO, BEAUTY, and SCN excluded) can be adjusted brighter or darker to obtain a desired shot.

1 Select the exposure compensation option in the shooting function menu.

Exposure Comp. ±0.0 P AUTO OFF -2 -1 0 +1 +2 WB AUTO ISO AUTO 1&1 VEJUM

2 Use ◀ to select the desired brightness, and press the Ⓞ button.

Adjusting to a natural color scheme (White balance)

For more natural coloring, choose a white balance option suited to the scene.

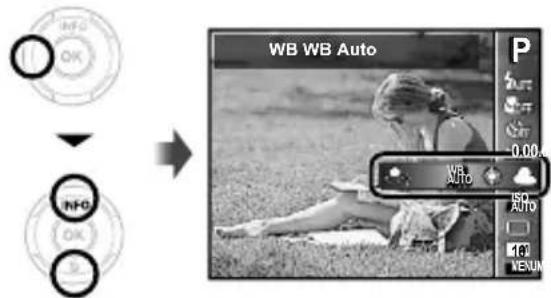

1 Select the white balance option in the shooting function menu.

WB WB Auto P OUT OFF 0.00 Auto Auto MENUM

2 Use ◀▶ to select the setting option, and press the ⏻ button to set.

Option Description
WB Auto	The camera automatically adjusts the white balance according to the shooting scene.
Sunny	For shooting outdoors under a clear sky.
Cloudy	For shooting outdoors under a cloudy sky.
Incandescent	For shooting under tungsten lighting.
Fluorescent	For shooting under white fluorescent lighting (offi ces, etc.).
One Touch 1	For setting the subtle shades of color that cannot be adjusted by Auto, Sunny, Cloudy, Incandescent, or Fluorescent.
One Touch 2

Using the one touch white balance

① Select the white balance option in the function menu.
② Use ◀▶ to select [◀1] or [◀2], and face the camera toward white paper.

• Set the paper to fill the entire screen, and make sure that there is no shadow area.
• Setting the zoom to telephoto (T) is recommended.
• Perform this procedure under the light where the pictures are actually taken.

③ Press the MENU button.

• The camera releases the shutter and the white balance is registered.
• The registered white balance is stored in the camera. The data will not be cleared by turning off the power.

- When the [1] or [2] whose white balance has already been registered is selected in Step ②, new white balance will be registered.

EN

When the white area is not large enough or when the color is too bright, too dark, or loud, the white balance cannot be registered. Return to Step ②. Or, set the other white balance.

Selecting the ISO sensitivity

1 Select the ISO setting option in the shooting function menu.

ISO Auto P 1.00 WB AUTO ISO 1600 ISO AUTO ISO HIGH 160 17400 F3.0 MENU

2 Use ◀▶ to select the setting option, and press the ⏻ button to set.

Option Description
ISO Auto	The camera automatically adjusts the sensitivity according to the shooting scene.
High ISO Auto	The camera uses a higher sensitivity compared to [ISO Auto] to minimize blur caused by a moving subject or by camera shake.
Value	The ISO sensitivity is fixed to the selected value.

In the ISO setting, although smaller values result in less sensitivity, sharp images can be taken under fully lit conditions. Larger values result in higher sensitivity, and images can be taken at fast shutter speeds even under low light conditions. However, high sensitivity introduces noise into the resulting picture, which may give it a grainy appearance.

Sequential shooting (Drive)

Pictures are taken sequentially while the shutter button is held down.

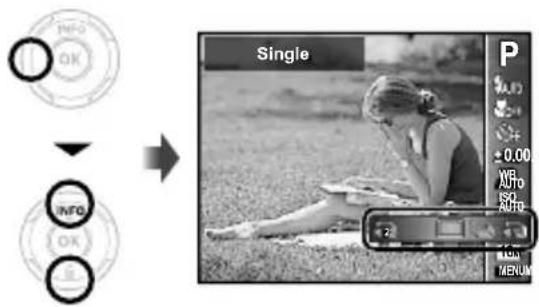

1 Select the drive option in the shooting function menu.

Single P ±0.00 X/Y Y/Y 21 MENU

Option		Description
	Single	One frame is shot each time the shutter button is pressed.
	Sequential	Take sequential shots using the focus, brightness (exposure) and white balance set in the first frame.
	High-Speed1	The camera takes sequential shots at a faster speed than in [☐].
	High-Speed2	The camera takes sequential shots at a faster speed than in [☐].

^1 The shooting speed varies depending on the settings for [Image Size/Compression] (p. 33/p. 34).

When set to [☐], the flash (p. 19) cannot be set to [Redeye]. In addition, when set to [Hi 1] or [Hi 2], the flash is fixed to [Flash Off].
When set to [Hi1] or [Hi2] , [Image Size] is limited to [_3M] or lower, and the ISO sensitivity is fixed to [ISO Auto].
Vertical lines may appear on the still image shot with [Hi 2] when the camera is pointed at an extremely bright subject under a clear sky and so on.

Selecting the image size for still images (Image Size)

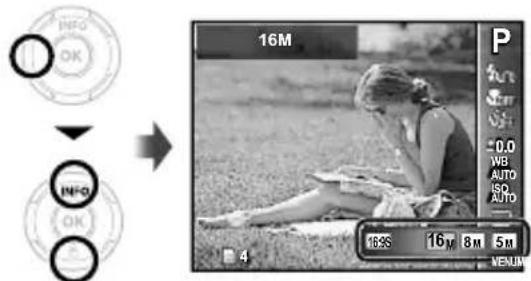

1 Select the image size option in the shooting function menu.

16M P -0.0 WB AUTO ISO AUTO 162S 16Y 8M 5M VENU

2 Use ◀▶ to select the desired image size, and press the ⏻ button.

Option Description
16M (4608×3456)	Suitable for printing pictures at A3 (11×17 in.).
8M (3264×2448)	Suitable for printing pictures up to A3 (11×17 in.).
5M (2560×1920)	Suitable for printing pictures at A4 (8.5×11 in.).
3M (2048×1536)	Suitable for printing pictures up to A4 (8.5×11 in.).
2M (1600×1200)	Suitable for printing pictures at A5 (5×7 in.).
1M (1280×960)	Suitable for printing pictures at postcard size.
VGA (640×480)	Suitable for viewing pictures on a TV or using pictures on emails and web sites.
16:9L (4608×2592)*1	Suitable for playing pictures on a widescreen TV and for printing on A3 or 11"×17".
16:9S (1920×1080)	Suitable for playing pictures on a widescreen TV and for printing on A5 or 5"×7".

^1 VR-360/D-760 only

Menus for Shooting Functions

The default settings of the function are highlighted in .
For information on using the menus, see "Using the Menu" (p. 8).

Restoring the shooting functions to the default settings [Reset]

(Camera Menu 1) ▶ Reset

Submenu 2 Application
Yes	Restores the following menu functions to the default settings.
	• Shooting mode (p. 24)• Flash (p. 19)• Macro (p. 30)• Self-timer (p. 30)	• Exposure compensation (p. 31)• White balance (p. 31)• ISO (p. 32)• Drive (p. 32)	• Image size (still images) (p. 33)• Menu functions in ☐(Shooting menu)/☐(Movie menu) (p. 34 to 37)

No The current settings will not be changed.

Selecting the compression for still images [Compression]

(Camera Menu 1) ▶ Compression

Submenu 2 Application

Fine Shooting at high quality.

Normal Shooting at normal quality.

“Number of storable pictures (still images)/Recording length (movies) in the internal memory and cards” (p. 62)

Selecting the image quality for movies [Image Size/Frame Rate]

(Movie menu) ▶ Image Size/Frame Rate

Submenu 1	Submenu 2 Application
Image Size	720P (1280×720)/ VGA (640×480)/ QVGA (320×240)	Select the image quality based on the image size and frame rate. Higher frame rates provide smoother movie images.
Frame Rate	30fps^-1 / 15fps^-1

*1 frames per second
“Number of storable pictures (still images)/Recording length (movies) in the internal memory and cards” (p. 63)

Reducing the blur caused by thecamera shake when shooting [Image Stabilizer] (still images)/ [IS Movie Mode] (movies)

(Camera Menu 1) ▶ Image Stabilizer (still images)/

(Movie menu) ▶ IS Movie Mode (movies)

Submenu 2 Application
Off	The image stabilizer is deactivated. This is recommended for shooting when the camera is fixed in place on a tripod or other stable surface.
On The image stabilizer is activated.

The camera's default settings are [Image Stabilizer] (still images) to [On] and [IS Movie Mode] (movies) to [Off].

There may be a noise coming from inside the camera when the shutter button is pressed with [Image Stabilizer] (still images) set to [On].

! Images may not be stabilized if camera shake is too severe.

When the shutter speed is extremely slow, such as when taking pictures at night, [Image Stabilizer] (still images) may not be as effective.

When shooting while the [IS Movie Mode] (movies) is set to [On], the image will be enlarged somewhat before saving.

Selecting the focusing area [AF Mode]

(Camera Menu 1) ▶ AF Mode

Submenu 2 Application
Face/iESP	The camera focuses automatically. (If a face is detected, it is shown by a white frame ^1 ; when the shutter button is pressed halfway and the camera is able to focus, the frame color is changed to green ^2 if the camera is able to focus. If no face is detected, the camera chooses a subject in the frame and focuses automatically.)
Spot	The camera focuses on the subject located within the AF target mark.
AF Tracking	The camera tracks the subject movement automatically to focus on it continuously.

^1 For some subjects, the frame may not appear or may take some time to appear.

^2 If the frame blinks in red, the camera is unable to focus. Try again to press the shutter button halfway.

To focus on a moving subject continuously (AF Tracking)

① Hold the camera to align the AF target mark on the subject and press the Ⓞ button.

② When the camera recognizes the subject, the AF target mark automatically tracks the subject movement to focus on it continuously.

③ To cancel the tracking, press the OK button.

Depending on the subjects or the shooting conditions, the camera may be unable to lock the focus or fail to track the subject movement.

When the camera fails to track the subject movement, the AF target mark changes to red.

Shooting at higher magnifi cations than optical zoom [Digital Zoom]

(Camera Menu 1) ▶ Digital Zoom

Submenu 2 Application

Off Disable digital zoom.

On Enable digital zoom.

! [Digital Zoom] is not available when [s] Super Macro] (p. 30) is selected.
The option selected for [Digital Zoom] affects the appearance of the zoom bar. "To take larger images [Digital Zoom]" (p. 18)

Recording sound when shooting movies [¶]

(Movie menu) ▶

Submenu 2 Application

Off No sound is recorded.

On Sound is recorded.

Using the AF illuminator to focus on a shadowed subject [AF Illuminat.]

(Camera Menu 1) ▶ AF Illuminat.

Submenu 2 Application

Off The AF illuminator is not used.
On	When the shutter button is pressed halfway down, the AF illuminator turns on to aid focusing.

AF illuminator

Displaying icon guides [Icon Guide]

(Camera Menu 1) ▶ Icon Guide

Submenu 2 Application
Off No icon guide is displayed.
On	The explanation of the selected icon will be displayed when a shooting mode or shooting function menu icon is selected (position the cursor on the icon for a while to display the explanation).

Program Auto Functions can be changed manually. Icon guide

Imprinting the date of recording [Date Stamp]

(Camera Menu 2) ▶ Date Stamp

Submenu 2 Application
Off Do not imprint the date.
On	Stamp new photographs with the date of recording.

! [Date Stamp] is not available if the clock has not been set. "Language, date, time, and time zone" (p. 15)
! The date stamp can not be deleted.
! [Date Stamp] is not available in ⚠ or 3D mode or during sequential shooting.

Menus for Playback, Editing, and Printing Functions

The default settings of the function are highlighted in .

Playing back pictures automatically [Slideshow]

▶ (Playback menu) ▶ Slideshow

To start a slideshow

Submenu 2 Submenu 3 Application
BGM Off/On		Selects the background music options.
Type	Normal/Fader/Zoom	Selects the type of transition effect used between slides.
Start —		Starts the slideshow.

① Select the desired [BGM] and [Type].

② Select [Start] and press the Ⓞ button.

Single-frame advance/rewind

During a slideshow, press ▷ to skip ahead one frame or press ◀ to go back one frame.

To stop the slideshow

Press the Ⓞ button or the MENU button.

Changing the image size [ ]

(Playback menu) ▶ Edit ▶

Submenu 2 Application
VGA 640 × 480	This saves a high-resolution image as a separate image with a smaller size for use in e-mail attachments and other applications.
QVGA 320 × 240

① Use ◀▶ to select an image.

② Use to select the size, and press the OK button.

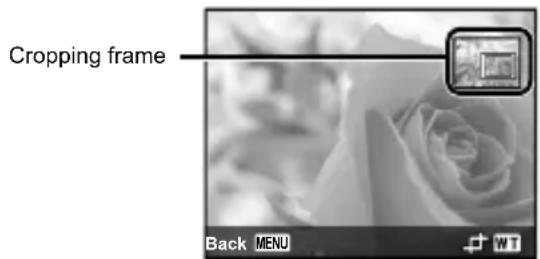

Cropping images [☐]

(Playback menu) ▶ Edit ▶

① Use ◀▶ to select an image, and press the Ⓞ button.

② Use the zoom lever to choose the crop size and △▽◀▷ to move the crop position.

Close-up of a rose flower with blurred background (no text or symbols visible)

③ Press the Ⓞ button.

- The edited image will be saved as a separate image.

Adding sound to still images [¶]

(Playback menu) ▶ Edit ▶ ⏰

① Use ◀▶ to select an image.
② Aim the microphone toward the sound source.

Olympus Microphone

③ Press the OK button.

• Recording starts.
  • The camera adds (records) sound for approx.

4 seconds while playing back the image.

Retouching faces on still images [Beauty Fix]

(Playback menu) ▶ Edit ▶ Beauty Fix

Depending on the picture, the editing may not be effective.

① Use ◀▶ to select an image, and press the Ⓞ button.
② Use to select a retouching item, and press the OK button.

③ Select [OK] or [Beauty Fix] on the review screen, and press the Ⓞ button to save or retouch the image additionally.

- The retouched image is saved as a separate image.

OK Beauty Fix

The [Image Size] of the retouched image is fixed at [5_M] .

Beauty Fix

① Select a retouching item, and press the Ⓞ button.

Eye Color Back MENU Off

② Press the Ⓞ button on the review screen.

Brightening areas that are dark due to backlight, insufficient light or other reasons [Lighting Fix]

(Playback menu) ▶ Edit ▶ Lighting Fix

Depending on the picture, the editing may not be effective.
The retouching process may lower the image resolution.
① Use ◀▶ to select an image, and press the Ⓞ button. • The edited image is saved as a separate image.

EN

Retouching red eyes in fl ash shooting [Redeye Fix]

(Playback menu) ▶ Edit ▶ Redeye Fix

Depending on the picture, the editing may not be effective.

The retouching process may lower the image resolution.

① Use ◀▶ to select an image, and press the Ⓞ button. • The edited image is saved as a separate image.

Erasing images [Erase]

Submenu 1 Application
All Erase	All images in the internal memory or card will be erased.
Sel. Image	Images are individually selected and erased.
Erase Deletes the image displayed.

When erasing pictures in a internal memory, do not insert the card into the camera.

To erase all images [All Erase]

① Use to select [All Erase], and press the ☑ button.
② Use to select [Yes], and press the OK button.

To individually select and erase images [Sel. Image]

① Use to select [Sel. Image], and press the OK button.
② Use ◀▶ to select the image to be erased, and press the ⏻ button to add a √ mark to the image.
- Turn the zoom lever to the W end to display an index view. Images can be quickly selected using the buttons. Turn to the T end to return to the single frame display.

Sel. Image (1) OK 4/30 mark Erase/Cancel MENU

③ Repeat Step ② to select the images to be erased, and then press the MENU button to erase the selected images.
④ Use △▽ to select [Yes], and press the Ⓞ button. • The images with a √ mark are erased.

Saving print settings to the image data [Print Order]

(Playback menu) ▶ Print Order

"Print Reservations (DPOF)" (p. 53)

Protecting images [5]

(Playback menu) ▶

Protected images cannot be erased by [Erase] (p. 21, 40), [Sel. Image], or [All Erase] (p. 40), but all images are erased by [Memory Format]/[Format] (p. 42).

① Use ◀▶ to select an image.
② Press the Ⓞ button.

- Press the Ⓞ button again to cancel the settings.

③ If necessary, repeat Steps ① and ② to protect other images, and press the MENU button.

Rotating images [☐]

(Playback menu) ▶

① Use ◀▶ to select an image.
② Press the Ⓞ button to rotate the image.
③ If necessary, repeat Steps ① and ② to make settings for other images, and press the MENU button.
The new picture orientations will be saved even after the power is turned off.

Menus for Other Camera Settings

The default settings of the function are highlighted in .

Erasing data completely [Memory Format]/[Format]

f (Settings Menu 1) ▶ Memory Format/Format

Before formatting, check that no important data is left in the internal memory or card.
! Cards must be formatted with this camera before first use or after being used with other cameras or computers.

Submenu 2 Application
Yes	Completely erases the image data in the internal memory'1 or card (including protected images).
No Cancels formatting.

^*1 Be sure to remove the card before formatting the internal memory.

Copying images in the internal memory to the card [Backup]

f (Settings Menu 1) ▶ Backup

Submenu 2 Application
Yes	Backs up image data in the internal memory to the card.
No Cancels the backup.

Using an Eye-Fi card [Eye-Fi]

f (Settings Menu 1) ▶ Eye-Fi

Submenu 2 Application
All Automatically sends all the image.
Sel. Image	Automatically sends the selected images.
Off Disable Eye-Fi	communication.

When using an Eye-Fi card, read the Eye-Fi card instruction manual carefully, and comply with the instructions.
Use the Eye-Fi card in compliance with the laws and regulations of the country where the camera is used.
In locations such as on an airplane, where the Eye-Fi communication is prohibited, remove the Eye-Fi card from the camera, or set [Eye-fi] to [Off].
This camera does not support the Eye-Fi card's Endless mode.

Selecting a method for connecting the camera to other devices [USB Connection]

(Y (Settings Menu 1) ▶ USB Connection

Submenu 2 Application
Auto	When the camera is connected to another device, the settings selection screen is displayed.
Storage	Select when transferring images to a computer or when using the supplied software with the camera connected to a computer.
MTP	Select when transferring images to a computer running Windows Vista or Windows 7 without using the supplied software.
Print	Select when connecting to a PictBridge-compatible printer.

System requirements

Windows	Windows XP (Service Pack 1 or later) / Windows Vista/Windows 7
Macintosh Mac	OS X v10.3 or later

Even if a computer has USB ports, proper operation is not guaranteed in the following cases.

• computers with USB ports installed using an expansion card, etc.
• computers without a factory-installed OS and home-built computers

Turning on the camera with the ▶ button [▶ Power On]

(Y (Settings Menu 1) ▶ Power On

Submenu 2 Application
No	The camera is not turned on. To turn on the camera, press the ON/OFF button.
Yes	Press and hold the ▶ button to turn the camera on in the playback mode.

Saving the mode when the camera is turned off [Keep 📷 Settings]

(Y (Settings Menu 1) ▶ Keep 📄 Settings

Submenu 2 Application
Yes	The shooting mode is saved when the camera is turned off and is reactivated the next time the camera is turned on.
No	The shooting mode is set to P mode when the camera is turned on.

Selecting the camera sound and its volume [Sound Settings]

f (Settings Menu 1) ▶ Sound Settings

Submenu 2 Submenu 3 Application
Sound Type	1/2/3	Choose the sound made by camera controls.
Volume	OFF (No Sound) or 5 levels of volume	Choose the volume of the sound made by camera controls.
Volume	OFF (No Sound) or 5 levels of volume	Adjusts the image playback volume.

Adjusting the CCD and the image processing function [Pixel Mapping]

f (Settings Menu 2) ▶ Pixel Mapping

This function has already been adjusted at factory shipping, and no adjustment is needed right after purchase. Approximately once a year is recommended.
For best results, wait at least one minute after taking or viewing pictures before performing pixel mapping. If the camera is turned off during pixel mapping, be sure to perform it again.

To adjust the CCD and the image processing function

Press the Ⓞ button when [Start] (Submenu 2) is displayed.

- The camera checks and adjusts the CCD and the image processing function at the same time.

Adjusting the brightness of the monitor [10]

(Y (Settings Menu 2) ▶

Submenu 2 Application
Bright/Normal	Selects the monitor brightness depending on the surrounding brightness.

Viewing images on a TV [TV Out] (VR-360/D-760)

(Y (Settings Menu 2) ▶ TV Out

Submenu 2 Submenu 3 Application
NTSC/PAL	NTSC	Choose when connecting the camera to TVs in countries or regions where NTSC is used (e.g., North America, Taiwan, Korea, and Japan).
	PAL	Choose when connecting the camera to TVs in countries or regions where PAL is used (e.g., Europe and China).
HDMI Out	480p/576p/720p/1080i Choose an HDMI output format.
HDMI Control	Off	Playback operations are performed using camera controls.
	On Playback operations are performed using the TV remote control.

! Camera factory defaults vary with the country or region of sale.

Viewing images on a TV

Using an AV cable

① Match the camera video signal format ([NTSC]/[PAL]) to that used by the TV.
② Connect the camera to the TV.

Multi-connector Connect to the TV video input jack (yellow) and audio input jack (white). AV cable (supplied)

EN

Using an HDMI cable

① Match the camera digital signal format ([480p/576p]/[720p]/[1080i]) to that used by the TV.
② Connect the camera to the TV.
③ Turn the TV on and select the HDMI input to which the camera is connected.
④ Turn the camera on and use △▽◀◀ to view images.
Different countries and regions use different video signal standards. Before connecting the camera, choose a video signal standard that matches that used by the TV.
Do not connect the HDMI cable when the camera is connected to a computer or other device using the USB cable.

Connector cover HDMI mini connector HDMI cable Connect to the HDMI connector on the TV.

! See the instruction manual provided with your TV for more information.
When the camera and TV are connected by both an AV cable and an HDMI cable, the HDMI cable will take priority.
! Images and other information may be cropped for display on the TV.

Using a remote control

① Select [On] for [HDMI Control] and turn the camera off.
② Connect the camera to the TV using an HDMI cable. "Using an HDMI cable" (p. 46)
③ First turn on the TV, and then turn on the camera.

- Follow the on-screen guide displayed by the TV to operate the camera.

! With some TVs, operations cannot be performed with the TV remote control even though the operation guide is displayed on the screen.

If operations cannot be performed with the TV remote control, set [HDMI Control] to [Off] and use the controls on the camera.

Selecting a video signal system to match your TV [NTSC/PAL] (VR-350/D-755, VR-340/D-750)

f (Settings Menu 2) ▶ NTSC/PAL

Submenu 2 Application

NTSC Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and so on.

PAL Connecting the camera to a TV in European countries, China, and so on.

The factory default settings differ according to the region where the camera is sold.

To play back camera images on a TV

① Use the camera to select the same video signal system as the one of connected TV ([NTSC]/[PAL]).
② Connect the TV and camera.

Multi-connector AV cable (supplied) Connect to the TV video input jack (yellow) and audio input jack (white).

③ Turn on the TV, and change "INPUT" to "VIDEO (an input jack connected to the camera)."
④ Press the ▶ button, and use ◀ to select the image for playback.
The TV video signal system varies depending on the countries and regions. Before viewing camera images on your TV, select the video output according to your TV's video signal type.
For details on changing the input source of the TV, refer to the TV's instruction manual.
Depending on the TV's settings, the displayed images and information may become cropped.

Saving battery power between shots [Power Save]

f (Settings Menu 2) ▶ Power Save

Submenu 2 Application
Off Cancels [Power]	Save].
On	When the camera is not being used for approx. 10 seconds, the monitor automatically turns off to save battery power.

To resume standby mode

Press any button.

Changing the display language [CQ]

f (Settings Menu 2) ▶

Submenu 2 Application
Languages	The language for the menus and error messages displayed on the monitor is selected.

① Use △▽◀▷ to select your language and press the Ⓞ button.

Setting the date and time [∅]

(Y (Settings Menu 2) ▶ 📋

! "Language, date, time, and time zone" (p. 15)

Switching between home and travel destination time zones [World Time]

f (Settings Menu 2) ▶ World Time

You will not be able to select a time zone using [World Time] if the camera clock has not first been set using [◀].

Submenu 2 Sub menu 3 Application
Home/Alternate		The time in the home time zone (the time zone selected for in submenu 2).
		The time in the travel destination time zone (the time selected for in submenu 2).
^1	— Select the	home time zone ( ).
^1,2	—	Select the travel destination time zone ( ).

^*1 In areas where daylight saving time is in effect, use to turn daylight saving time ([Summer]) on.

^2 When you select a time zone, the camera automatically calculates the time difference between the selected zone and the home time zone ( ) to display the time in the travel destination time zone ( ).

Registering the settings for Beauty Fix [Beauty Settings]

f (Settings Menu 3) ▶ Beauty Settings

Depending on the picture, the editing may not be effective.

① Use to select a retouching setting, and press the ☑ button.

② Press the shutter button to take a portrait picture.

Take a portrait picture.

! The image is not saved.

③ Select a retouching item, and press the Ⓞ button.

Eye Color Back MENU Off

④ Press the Ⓞ button on the review screen to save the image.

- Registration is complete.

Printing

Direct printing (PictBridge ^*1 )

By connecting the camera to a PictBridge-compatible printer, you can print images directly without using a computer.

Tofi nd out if your printer supports PictBridge, refer to the printer's instruction manual.

*1 PictBridge is a standard for connecting digital cameras and printers of different makers and printing out pictures directly.
The printing modes, paper sizes, and other parameters that can be set with the camera vary depending on the printer that is used. For details, refer to the printer's instruction manual.
For details on the available paper types, loading paper, and installing ink cassettes, refer to the printer's instruction manual.

Printing images at the printer's standard settings [Easy Print]

In the setup menu, set [USB Connection] (p. 43) to [Print].
1 Display the image to be printed on the monitor.
! "Viewing images" (p. 20)

2 Turn on the printer, and then connect the printer and camera.

Multi-connector USB cable (supplied) button Easy Print Back VEU Easy Print Start Custom Print OK

3 Press ▷ to start printing.
4 To print another image, use ◀▶ to select an image, and press the ⓄK button.

To exit printing

After a selected image is displayed on the screen, disconnect the USB cable from the camera and printer.

Changing the printer's settings for printing [Custom Print]

1 Follow Steps 1 and 2 for [Easy Print] (p. 50), and press the Ⓞ button.
2 Use △▽ to select the print mode, and press the Ⓞ button.

Submenu 2 Application
Print	This prints the image selected in Step 5.
All Print	This prints all images stored in the internal memory or card.
Multi Print	This prints one image in a multiple layout format.
All Index	This prints an index of all images stored in the internal memory or card.
Print Order ^1	This prints images based on the print reservation data on the card.

^1 [Print Order] is available only when print reservations have been made. “Print Reservations (DPOF)” (p. 53)

3 Use to select [Size] (Submenu 3), and press .
If the [Printpaper] screen is not displayed, the [Size], [Borderless], and [Pics/Sheet] are set to the printer's standard.

Printpaper SizeBorderless Standard Standard Back MENU

4 Use △▽ to select the [Borderless] or [Pics/ Sheet] settings, and press the Ⓞ button.

Submenu 4 Application
Off/On*1	The image is printed with a border around it ([Off]).The image is printed to fill the entire paper ([On]).
(The number of images per sheet varies depending on the printer.)	The number of images per sheet ([Pics/Sheet]) is selectable only when [Multi Print] is selected in Step 2.

^*1 The available settings for [Borderless] vary depending on the printer.
If [Standard] is selected in Steps 3 and 4, the image is printed at the printer's standard settings.

5 Use ◀▷ to select an image.
6 Press △ to make a print reservation for the current image. Press ▽ to make the detailed printer settings for the current image.

To make the detailed printer settings

① Use to select the setting, and press the Q button.

Submenu 5	Submenu 6 A	Application
	0 to 10	This selects the number of prints.
Date	With/Without	Selecting [With] prints the images with the date.Selecting [Without] prints the images without the date.
File Name	With/Without	Selecting [With] prints the fi le name on the image.Selecting [Without] does not print any fi le name on the image.
	(Proceeds to the setting screen.)	This selects a portion of the image for printing.

To crop an image [☐]

① Use the zoom lever to select the size of the cropping frame, use to move the frame, and then press the Q button.

Cropping frame Back MENU WT

② Use to select [OK], and press the Q button.

7 If necessary, repeat Steps 5 and 6 to select the image to be printed, make the detailed settings, and set [Single Print].

8 Press the Q button.

PrintBack Print Cancel MENU

9 Use to select [Print], and press the Q button.

Printing starts.

• When [Option Set] is selected in [All Print] mode, [Print Info] screen is displayed.
• When printing is finished, the [Print Mode Select] screen is displayed.

Print Mode Select Back Print Print All Print Multi Print All Index Print Order

To cancel printing

① When [Do Not Remove USB Cable] is displayed, press the MENU button, use to select [Cancel], and then press the Q button.

10 Press the MENU button.

11 When the message [Remove USB Cable] is displayed, disconnect the USB cable from the camera and printer.

Print Reservations (DPOF ^1 )

In print reservations, the number of prints and date imprint option are saved in the image on the card. This enables easy printing at a printer or print shop supporting DPOF by using only the print reservations on the card without a computer or a camera.

^1 DPOF is a standard for storing automatic printout information from digital cameras.

Print reservations can be set only for the images stored on the card. Insert a card with recorded images before making print reservations.
DPOF reservations set by another DPOF device cannot be changed by this camera. Make changes using the original device. Making new DPOF reservations with this camera will erase the reservations made by the other device.
! DPOF print reservations can be made for up to 999 images per card.

Single-frame print reservations [☐]

1 Display the setup menu.
! "Using the Menu" (p. 8)
2 From the playback menu ▶, select [Print Order] and then press the OK button.
3 Use △▽ to select [☐], and press the Ⓞ button.

Print Order Back MENU 4/30 0 16 M NORM 100-0004 '12/02/26 12:30

4 Use ◀ to select the image for print reservation. Use △▽ to select the quantity. Press the OK button.
5 Use △▽ to select the [⊖] (date print) screen option, and press the Ⓞ button.

Submenu 2 Application
No This prints the image only.
Date	This prints the image with the shooting date.
Time	This prints the image with the shooting time.

6 Use to select [Set], and press the OK button.

Reserving one print each of all images on the card [ALL]

1 Follow Steps 1 and 2 in [☐] (p. 53).
2 Use △▽ to select [ALL], and press the ⓄK button.
3 Follow Steps 5 and 6 in [☐].

Resetting all print reservation data

1 Follow Steps 1 and 2 in [☐] (p. 53).
2 Use △▽ to select either [☐] or [[ALL], and press the Ⓞ button.
3 Use △▽ to select [Reset], and press the Ⓞ button.

Resetting the print reservation data for selected images

1 Follow Steps 1 and 2 in [☐] (p. 53).
2 Use △▽ to select [☐], and press the OK button.
3 Use △▽ to select [Keep] and press the OK button.
4 Use ◀▷ to select the image with the print reservation you want to cancel. Use △▽ to set the print quantity to "0".
5 If necessary, repeat Step 4, and then press the Ⓞ button when fi nished.
6 Use △▽ to select the [💡] (date print) screen option, and press the Ⓞ button. - The settings are applied to the remaining images with the print reservation data.
7 Use △▽ to select [Set], and press the OK button.

Usage Tips

If the camera does not work as intended, or if an error message is displayed on the screen, and you are unsure of what to do, refer to the information below to fix the problem(s).

Troubleshooting

Battery

"The camera does not work even when batteries are installed".

• Insert recharged batteries in the correct direction. "Inserting the battery and card" (p. 11), "Charging the battery with the included USB-AC adapter" (p. 11)
• Battery performance may have been reduced temporarily due to low temperature. Take the batteries out of the camera, and warm them by putting them in your pocket for a while.

Card/Internal memory

"An error message is displayed".

"Error message" (p. 56)

Shutter button

"No picture is taken when the shutter button is pressed".

• Cancel sleep mode.
  To save battery power, the camera automatically goes into sleep mode and the monitor turns off if there is no operation for 3 minutes when the camera is turned on. No picture is taken even if the shutter button is fully pressed in this mode. Operate the zoom lever or other buttons to restore the camera from sleep mode before taking a picture. If the camera is left for another 12 minutes, it automatically turns off. Press the ON/OFF button to turn the camera on.

- Press the ▶ button to switch to the shooting mode.

- Wait until ⬆ (flash charge) stops blinking before taking pictures.

Monitor

"Diffi cult to see".

- Condensation may have occurred. Turn off the power, and wait for the camera body to become acclimated to the surrounding temperature and dry out before taking pictures.

"Vertical lines appear on the monitor".

- This condition may occur when the camera is pointed at an extremely bright subject under a clear sky and so on. The lines may appear on the recorded movie.

"The light is caught in the picture".

- Shooting with flash in dark situations results in an image with many flash reflections on dust in the air.

Date and time function

"Date and time settings return to the default setting".

• If the batteries are removed and left out of the camera for about a day ^4 , the date and time settings return to the default setting, and must be reset.
  ^*1 The time until the date and time settings return to the default setting varies depending on how long the batteries have been loaded.
  "Language, date, time, and time zone" (p. 15)

Miscellaneous

"The camera makes a noise when taking pictures".

- The camera may activate the lens and make a noise even if no operation is performed. This is because the camera automatically performs actions of auto focus as far as it is ready to shoot.

Error message

When one of the messages below is displayed on the monitor, check the corrective action.

Error message Corrective action
Card Error	Card problemInsert a new card.
Write Protect	Card problemThe card write-protect switch is set to the “LOCK” side. Release the switch.
Memory Full	Internal memory problem• Insert a card.• Erase unwanted images.*1
[2HZ6]Card Full	Card problem• Replace the card.• Erase unwanted images.*1
	Card problemUse △▽ to select [Format], and press the Ⓞk button. Next, use △▽ to select [Yes], and press the Ⓞk button.*2
	Internal memory problemUse △▽ to select [Memory Format], and press the Ⓞk button. Next, use △▽ to select [Yes], and press the Ⓞk button.*2
No Picture	Internal memory/Card problemTake pictures before viewing them.
Picture Error	Problem with selected imageUse photo retouch software, etc. to view the image on a computer. If the image still cannot be viewed, the image fi le is corrupted.

Error message Corrective action
The	Problem with selected imageUse photo retouch software, etc. to edit the image on a computer.
[ZW3A]Battery Empty	Battery problemCharge the battery.
[X8X0]No Connection	Connection problemConnect the camera and computer or printer correctly.
No Paper	Printer problemLoad paper into the printer.
[A34S]No Ink	Printer problemRefi ll the ink in the printer.
[SZ5W]Jammed	Printer problemRemove the jammed paper.
[S C86Y]Cl-	Printer problemReturn to the status where the printer can be used.
[S4YZ]Print Error	Printer problemTurn off the camera and printer, check the printer for any problems, and then turn the power on again.
[HK4H]Cannot Print*4	Problem with selected imageUse a computer to print.

^1 Before erasing important images, download them to a computer.
^2 All data will be erased.
^3 This is displayed, for instance, when the printer's paper tray has been removed. Do not operate the printer while making the print settings on the camera.
^*4 This camera may be unable to print images taken by other cameras.

Shooting tips

When you are unsure of how to take a picture that you envision, refer to the information below.

Focusing

"Focusing on the subject"

• Taking a picture of a subject not in the center of the monitor

After focusing on an object at the same distance as the subject, compose the shot, and take the picture.

Pressing the shutter button halfway (p. 17)

• Set [AF Mode] (p. 35) to [Face/iESP]
  • Taking a picture in [AF Tracking] mode (p. 35)

The camera tracks the subject movement automatically to focus on it continuously.

• Taking a picture of a shadowy subject

Using the AF illuminator makes focusing easier. [AF Illuminat.] (p. 36)
- Taking a picture of subjects where autofocus is diffi cult

In the following cases, after focusing on an object (by pressing the shutter button halfway down) with high contrast at the same distance as the subject, compose the shot, and take the picture.

Subjects with low contrast

When extremely bright objects appear in the center of the monitor

Object with no vertical lines ^1

^1 It is also effective to compose the shot by holding the camera vertically to focus, and then returning to the horizontal position to take the picture.

When objects are at different distances

Fast-moving object

The subject is not in the center of the frame

Camera shake

"Taking pictures without camera shake"

• Taking pictures using [Image Stabilizer] (p. 35)

- Select (Sport) in SCN mode (p. 26)

The 🎨 (Sport) mode uses a fast shutter speed and can reduce the blur incurred by a moving subject.

• Taking pictures at a high ISO sensitivity

If a high ISO sensitivity is selected, pictures can be taken at a high shutter speed even at locations where a flash cannot be used.

"Selecting the ISO sensitivity" (p. 32)

Exposure (brightness)

"Taking pictures with the right brightness"

• Taking pictures using [Fill In] (p. 19) flash

A subject against backlight is brightened.

• Taking pictures using exposure compensation (p. 31)

Adjust the brightness while viewing the screen for taking the picture. Normally, taking pictures of white subjects (such as snow) results in images that are darker than the actual subject. Use the exposure compensation to adjust in the positive (+) direction to express whites as they appear. When taking pictures of black subjects, on the other hand, it is effective to adjust in the negative (-) direction.

Color hue

"Taking pictures with colors at the same shade as they appear"

- Taking pictures by selecting white balance (p. 31) Best results in most environments can normally be obtained with the [WB Auto] setting, but for some subjects, you should try experimenting with different settings. (This is especially true for sunshade under a clear sky, mixed natural and artificial light settings, and so on.)

Image quality

"Taking sharper pictures"

• Taking pictures with the optical zoom Avoid using digital zoom (p. 18) to take pictures.
• Taking pictures at a low ISO sensitivity If the picture is taken with a high ISO sensitivity, noise (small colored spots and color unevenness that were not in the original image) can occur, and the image can appear grainy. The resulting image is grainier than with low ISO sensitivity as well. "Selecting the ISO sensitivity" (p. 32)

Batteries

"Making batteries last longer"

• Set [Power Save] (p. 48) to [On]

Playback/Editing tips

Playback

"Playing images in the internal memory and card"

- Remove the card when playing pictures in the internal memory

"To remove the card" (p. 11)

Editing

"Erasing the sound recorded to a still image"

- Record over the sound with silence when playing back the image

"Adding sound to still images [ψ]" (p. 39)

Appendix

Camera care

Exterior

- Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and wrung well.

Monitor

- Wipe gently with a soft cloth.

Lens

- Blow dust off the lens with a commercial blower, then wipe gently with a lens cleaner.

Do not use strong solvents such as benzene or alcohol, or chemically treated cloth.

! Mold may form on the lens surface if the lens is left dirty.

Battery/USB-AC adapter

- Wipe gently with a soft, dry cloth.

Storage

- When storing the camera for extended periods, remove the battery, USB-AC adapter and card, and keep in a cool, dry place that is well ventilated. - Periodically insert the battery and test the camera functions.

Avoid leaving the camera in places where chemical products are handled since this may result in corrosion.

Using a separately sold USB-AC adapter

The USB-AC adapter F-3AC (sold separately) can be used with this camera. Do not use any USB-AC adapter other than the dedicated one. When using F-3AC, be sure to use the USB cable included with this camera. Do not use any other USB-AC adapter with this camera. Shooting is not available when using the F-3AC.

Using a separately sold charger

A charger (UC-50: sold separately) can be used to charge the battery.

Using your charger and USB-AC adapter abroad

• The charger and USB-AC adapter can be used in most home electrical sources within the range of 100 V to 240 V AC (50/60Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the charger and USB-AC adapter may require a plug adapter to match the wall outlet. For details, ask at your local electrical shop or travel agent.
• Do not use travel voltage converters as they could damage your charger and USB-AC adapter.

Using the card

Cards compatible with this camera

SD/SDHC/SDXC/Eye-Fi card (commercially available) (for compatibility card details, visit the Olympus website.)

SD™ SD™ HC XC

• The Eye-Fi card may become hot during use.
• When using an Eye-Fi card, the battery may run out faster.
• When using an Eye-Fi card, the camera may function more slowly.

SD/SDHC/SDXC card write-protect switch

The SD/SDHC/SDXC card body has a write-protect switch.

If you set the switch to the "LOCK" side, you will not be able to write to the card, delete data or format. Return the switch to enable writing.

SD LOCK

Checking the image saving location

The memory indicator shows whether the internal memory or card is being used during shooting and playback.

Current memory indicator

IN: Internal memory is being used
SD: Card is being used

Even if [Memory Format]/[Format], [Erase], [Sel. Image], or [All Erase] is performed, the data in the card is not completely erased. When disposing of the card, damage the card to prevent the disclosure of personal data.

Readout/recording process of the card

During shooting, the current memory indicator lights up in red while the camera is writing data. Never open the battery/card compartment cover or unplug the USB cable. This can not only damage the image data but also render the internal memory or card unusable.

Number of storable pictures (still images)/Recording length (movies) in the internal memory and cards

The figures for the number of storable still pictures and recording length are approximate. The actual capacity varies with shooting conditions and the card used.

Still images

Image Size Compression		Number of storable still pictures
		Internal memory SD/SDHC/SDXC card (4 GB)
16M 4608×3456	FINE	3 438
	NORM	7 867
8M 3264×2448	FINE	7 867
	NORM	15 1,700
5M 2560×1920	FINE	12 1,394
	NORM	24 2,697
3M 2048×1536	FINE	20 2,216
	NORM	39 4,432
2M 1600×1200	FINE	32 3,650
	NORM	65 7,299
1M 1280×960	FINE	50 5,640
	NORM	101 11,280
VGA 640×480	FINE	202 20,677
	NORM	371 41,341
16:9L 4608×2592*1	FINE	5 590
	NORM	10 1,181
16:9S 1920×1080	FINE	30 3,354
	NORM	60 6,531

*1 VR-360/D-760 only

Movies

Image Size Frame	Rate	Recording length
		Internal memory SD/SDHC/		SDXC card (4 GB)
		With sound Without sound With sound Without sound
720 1280×720	30fps 10	sec. 10 sec. 18 min.	53 sec. 19 min. 22 sec.
	15fps 19	sec. 20 sec. 36 min.	52 sec. 38 min. 44 sec.
VGA 640×480	30fps 18	sec. 18 sec. 33 min.	40 sec. 35 min. 13 sec.
	15fps 34	sec. 37 sec. 64 min.	30 sec. 70 min. 26 sec.
QVGA 320×240	30fps 47	sec. 53 sec. 87 min.	21 sec. 98 min. 37 sec.
	15fps 1 min.	24 sec. 1 min. 46 sec.	156 min. 48 sec.	197 min. 14 sec.

The maximum file size of a single movie is 2 GB, regardless of the capacity of the card.

Increasing the number of pictures that can be taken

Either erase unwanted images, or connect the camera to a computer or other device to save the images, and then erase the images in the internal memory or card.

[Erase] (p. 21, 40), [Sel. Image] (p. 40), [All Erase] (p. 40), [Memory Format]/[Format] (p. 42)

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.

DANGER If the product is used without observing the information given under this symbol, serious injury or death may result.

WARNING If the product is used without observing the information given under this symbol, injury or death may result.

CAUTION If the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

WARNING!

TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofing sections.

Location — To avoid damage to the product, mount the product securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the power source described on the product label.

Lightning — If a lightning storm occurs while using a USB-AC adapter, remove it from the wall outlet immediately.

Foreign Objects — To avoid personal injury, never insert a metal object into the product.

Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers.

Handling the Camera

WARNING

• Do not use the camera near flammable or explosive gases.
• Do not use the flash and LED (including AF illuminator) on people (infants, small children, etc.) at close range.

- You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash too close to the subject's eyes could cause a momentary loss of vision.

- Keep young children and infants away from the camera.

• Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.
• Accidentally swallowing the battery, cards or other small parts.

- Accidentally firing the flash into their own eyes or those of another child.

- Accidentally being injured by the moving parts of the camera.

• Do not look at the sun or strong lights with the camera.
• Do not use or store the camera in dusty or humid places.

- Do not cover the flash with a hand while firing.

- Use SD/SDHC/SDXC memory cards or Eye-Fi cards only. Never use other types of cards.

If you accidentally insert another type of card into the camera, contact an authorized distributor or service center. Do not try to remove the card by force.

- If you find that the USB-AC adapter is extremely hot or notice any unusual odors, noise, or smoke around it, unplug the power plug from wall outlet immediately and stop using it. Then, contact an authorized distributor or service center.

CAUTION

- Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

- Never remove the batteries with bare hands, which may cause a fi re or burn your hands.

- Never hold or operate the camera with wet hands.

- Do not leave the camera in places where it may be subject to extremely high temperatures.

- Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fi re. Do not use the charger or USB-AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in fi re.

- Handle the camera with care to avoid getting a low-temperature burn.

- When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following:

- When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.

- In places subject to extremely cold temperatures, the temperature of the camera's body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

- Be careful with the strap.

- Be careful with the strap when you carry the camera. It could easily catch on stray objects and cause serious damage.

- To protect the high-precision technology contained in this product, never leave the camera in the places listed below, no matter if in use or storage:

- Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidifiers. - In sandy or dusty environments.

- Near flammable items or explosives.

- In wet places, such as bathrooms or in the rain. When using products with weatherproof designs, read their manuals as well.

• In places prone to strong vibrations.

- Never drop the camera or subject it to severe shocks or vibrations.

- When attaching the camera to or removing it from a tripod, rotate the tripod screw, not the camera.

- Before transporting the camera, remove a tripod and all other non-OLYMPUS accessories.

- Do not touch electric contacts on cameras.

- Do not leave the camera pointed directly at the sun. This may cause lens or shutter curtain damage, color failure, ghosting on the image pickup device, or may possibly cause fi res.

- Do not push or pull severely on the lens.

- Before storing the camera for a long period, remove the batteries. Select a cool, dry location for storage to prevent condensation or mold from forming inside the camera. After storage, test the camera by turning it on and pressing the shutter button to make sure that it is operating normally.

- The camera may malfunction if it is used in a location where it is subject to a magnetic/electromagnetic fi eld, radio waves, or high voltage, such as near a TV set, microwave, video game, loud speakers, large screen unit, TV/radio tower, or transmission towers. In such cases, turn the camera off and on again before further operation.

- Always observe the operating environment restrictions described in the camera's manual.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

- The camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified USB-AC adapter or charger. Do not use any other USB-AC adapters or chargers.

- Never heat or incinerate batteries.

• Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.

- Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.

- To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc.

- If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.

• Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.

- If you cannot remove the battery from the camera, contact an authorized distributor or service center. Do not try to remove the battery by force.

Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.

WARNING

• Keep batteries dry at all times.
• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.
• Insert the battery carefully as described in the operating instructions.
• If rechargeable batteries have not been recharged within the specified time, stop charging them and do not use them.
• Do not use a battery if it is cracked or broken.
• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera.
• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.
• Never subject batteries to strong shocks or continuous vibration.

CAUTION

• Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.
• The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.
  • Always unload the battery from the camera before storing the camera for a long period.

- This camera uses one Olympus lithium ion battery (LI-50B). No other type of batteries can be used.

There is a risk of explosion if the battery is replaced with the incorrect battery type.

• Power consumption by the camera varies depending on which functions are used.
• During the conditions described below, power is consumed continuously and the battery becomes exhausted quickly.

• The zoom is used repeatedly.
- The shutter button is pressed halfway repeatedly in shooting mode, activating the auto focus.
- A picture is displayed on the screen for an extended period of time.
• The camera is connected to a printer.
- Using an exhausted battery may cause the camera to turn off without displaying the battery level warning.
- The Olympus lithium ion battery is designed to be used only for the Olympus digital camera. Do not use the battery to other devices.
- If the battery's terminals get wet or greasy, camera contact failure may result. Wipe the battery well with a dry cloth before use.

• Always charge a battery when using it for the first time, or if it has not been used for a long period.

• When operating the camera with battery power at low temperatures, try to keep the camera and spare battery as warm as possible. A battery that has run down at low temperatures may be restored after it is warmed at room temperature.
• Before going on a long trip, and especially before traveling abroad, purchase extra batteries. A recommended battery may be difficult to obtain while traveling.
• When storing the battery for a long period, select a cool location for storage.
• Please recycle batteries to help save our planet's resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

USB-AC adapter

• The included USB-AC adapter F-2AC is designed to be used only with this camera. Other cameras cannot be charged with this USB-AC adapter.
• Do not connect the included USB-AC adapter F-2AC to equipment other than this camera.
• For plug-in type USB-AC adapter:

The included USB-AC adapter F-2AC is intended to be correctly orientated in a vertical or floor mount position.

Use Only Dedicated Rechargeable Battery, Battery Charger and USB-AC adapter

We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery, battery charger and USB-AC adapter with this camera. Using a non-genuine rechargeable battery, battery charger and/or USB-AC adapter may result in fire or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liability for accidents or damage that may result from the use of a battery, battery charger and/or USB-AC adapter that are not genuine Olympus accessories.

Monitor

• Do not push the monitor forcibly; otherwise the image may become vague, resulting in a playback mode failure or damage to the monitor.

• A strip of light may appear on the top/bottom of the monitor, but this is not a malfunction.

• When a subject is viewed diagonally in the camera, the edges may appear zigzagged on the monitor. This is not a malfunction; it will be less noticeable in playback mode.

• In places subject to low temperatures, the monitor may take a long time to turn on or its color may change temporarily. When using the camera in extremely cold places, it is a good idea to occasionally place it in a warm place. The monitor exhibiting poor performance due to low temperatures will recover in normal temperatures.
• The monitor of this product is manufactured with high-quality accuracy, however, there may be a stuck or dead pixel on the monitor. These pixels do not have any influence on the image to be saved. Because of the characteristics, the unevenness of the color or brightness may also be found depending on the angle, but this is due to the structure of the monitor. This is not a malfunction.

Legal and Other Notices

• Olympus makes no representations or warranties regarding any damages, or benefit expected by using this unit lawfully, or any request from a third person, which are caused by the inappropriate use of this product.
• Olympus makes no representations or warranties regarding any damages or any benefit expected by using this unit lawfully which are caused by erasing picture data.

Disclaimer of Warranty

• Olympus makes no representations or warranties, either expressed or implied, by or concerning any content of these written materials or software, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use or inability to use these written materials or software or equipment. Some countries do not allow the exclusion or limitation of liability for consequential or incidental damages or of the implied warranty, so the above limitations may not apply to you.
  Olympus reserves all rights to this manual.

Warning

Unauthorized photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorized photographing, use or other acts that infringe upon the rights of copyright owners.

Copyright Notice

All rights reserved. No part of these written materials or this software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liability is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice.

FCC Notice

• Radio and Television Interference
- Changes or modifications not expressly approved by the manufacturer may void the user's authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Adjust or relocate the receiving antenna.
- Increase the distance between the camera and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult your dealer or an experienced radio/TV technician for help. Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers (PC).

Any unauthorized changes or modifications to this equipment would void the user's authority to operate it.

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number: VR-360/D-760

VR-350/D-755

VR-340/D-750

Trade Name: OLYMPUS

Responsible Party:

OLYMPUS IMAGING AMERICA INC.

Address: 3500 Corporate Parkway, P.O. Box 610,

Center Valley, PA 18034-0610, U.S.A.

Telephone Number: 484-896-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

For customers in CANADA

This Class B digital apparatus complies with Canadian ICES-003.

OLYMPUS WORLDWIDE LIMITED WARRANTY - IMAGING PRODUCTS

Olympus warrants that the enclosed Olympus® imaging product(s) and related Olympus® accessories (individually a "Product" and collectively the "Products") will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase. If any Product proves to be defective within the one-year warranty period, the customer must return the defective Product to any of Olympus Service Centers, following the procedure set forth below (See "WHAT TO DO WHEN SERVICE IS NEEDED").

Olympus, at its sole discretion, will repair, replace, or adjust the defective Product, provided that Olympus investigation and factory inspection disclose that (a) such defect developed under normal and proper use and (b) the Product is covered under this limited warranty.

Repair, replacement, or adjustment of defective Products shall be Olympus's sole obligation and the customer's sole remedy hereunder.

The customer is liable and shall pay for shipment of the Products to the Olympus Service Center.

Olympus shall not be obligated to perform preventive maintenance, installation, deinstallation, or maintenance.

Olympus reserves the right to (i) use reconditioned, refurbished, and/or serviceable used parts (that meet Olympus's quality assurance standards) for warranty or any other repairs and (ii) make any internal or external design and/or feature changes on or to its products without any liability to incorporate such changes on or to the Products.

WHAT IS NOT COVERED BY THIS LIMITED WARRANTY

Excluded from this limited warranty and not warranted by Olympus in any fashion, either express, implied, or by statute, are:

(a) products and accessories not manufactured by Olympus and/or not bearing the "OLYMPUS" brand label (the warranty coverage for products and accessories of other manufacturers, which may be distributed by Olympus, is the responsibility of the manufacturers of such products and accessories in accordance with the terms and duration of such manufacturers' warranties);
(b) any Product which has been disassembled, repaired, tampered with, altered, changed, or modified by persons other than Olympus's own authorized service personnel unless repair by others is made with the written consent of Olympus;
(c) defects or damage to the Products resulting from wear, tear, misuse, abuse, negligence, sand, liquids, impact, improper storage, nonperformance of scheduled operator and maintenance items, battery leakage, use of non-“OLYMPUS” brand accessories, consumables, or supplies, or use of the Products in combination with non-compatible devices;
(d) software programs;
(e) supplies and consumables (including but not limited to lamps, ink, paper, fi lm, prints, negatives, cables and batteries); and/or
(f) Products which do not contain a validly placed and recorded Olympus serial number, unless they are a model on which Olympus does not place and record serial numbers.

EXCEPT FOR THE LIMITED WARRANTY SET FORTH ABOVE, OLYMPUS MAKES NO AND DISCLAIMS ALL OTHER REPRESENTATIONS, GUARANTIES, CONDITIONS, AND WARRANTIES CONCERNING THE PRODUCTS, WHETHER DIRECT OR INDIRECT, EXPRESS OR IMPLIED, OR ARISING UNDER ANY STATUTE, ORDINANCE, COMMERCIAL USAGE OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OR REPRESENTATION AS TO THE SUITABILITY, DURABILITY, DESIGN, OPERATION, OR CONDITION OF THE PRODUCTS (OR ANY PART THEREOF) OR THE MERCHANTABILITY OF THE PRODUCTS OR THEIR FITNESS FOR A PARTICULAR PURPOSE, OR RELATING TO THE INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER PROPRIETARY RIGHT USED OR INCLUDED THEREIN.

IF ANY IMPLIED WARRANTIES APPLY AS A MATTER OF LAW, THEY ARE LIMITED IN DURATION TO THE LENGTH OF THIS LIMITED WARRANTY.

SOME STATES MAY NOT RECOGNIZE A DISCLAIMER OR LIMITATION OF WARRANTIES AND/OR LIMITATION OF LIABILITY SO THE ABOVE DISCLAIMERS AND EXCLUSIONS MAY NOT APPLY.

THE CUSTOMER MAY ALSO HAVE DIFFERENT AND/OR ADDITIONAL RIGHTS AND REMEDIES THAT VARY FROM STATE TO STATE.

THE CUSTOMER ACKNOWLEDGES AND AGREES THAT OLYMPUS SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES THAT THE CUSTOMER MAY INCUR FROM DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE, WHETHER LIABILITY IS ASSERTED IN CONTRACT, TORT (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY) OR OTHERWISE. IN NO EVENT SHALL OLYMPUS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND (INCLUDING WITHOUT LIMITATION LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR DAMAGE.

Representations and warranties made by any person, including but not limited to dealers, representatives, salespersons, or agents of Olympus, which are inconsistent or in conflict with or in addition to the terms of this limited warranty, shall not be binding upon Olympus unless reduced to writing and approved by an expressly authorized offi cer of Olympus.

This limited warranty is the complete and exclusive statement of warranty which Olympus agrees to provide with respect to the Products and it shall supersede all prior and contemporaneous oral or written agreements, understandings, proposals, and communications pertaining to the subject matter hereof.

This limited warranty is exclusively for the benefit of the original customer and cannot be transferred or assigned.

WHAT TO DO WHEN SERVICE IS NEEDED

The customer must transfer any image or other data saved on a Product to another image or data storage medium and/or remove any film from the Product prior to sending the Product to Olympus for service.

IN NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR SAVING, KEEPING OR MAINTAINING ANY IMAGE OR DATA SAVED ON A PRODUCT RECEIVED BY IT FOR SERVICE, OR ON ANY FILM CONTAINED WITHIN A PRODUCT RECEIVED BY IT FOR SERVICE, NOR SHALL OLYMPUS BE RESPONSIBLE FOR ANY DAMAGES IN THE EVENT ANY IMAGE OR DATA IS LOST OR IMPAIRED WHILE SERVICE IS BEING PERFORMED (INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT.

Package the Product carefully using ample padding material to prevent damage in transit and either deliver it to the Authorized Olympus Dealer that sold you the Product or ship it postage prepaid and insured to any of our Olympus Service Centers. When returning Products for service, your package should include the following:

1 Sales receipt showing date and place of purchase.
2 Copy of this limited warranty bearing the Product serial number corresponding to the serial number on the Product (unless it is a model on which Olympus does not place and record serial numbers).
3 A detailed description of the problem.
4 Sample prints, negatives, digital prints (or files on disk) if available and related to the problem.

When service is completed, the Product will be returned to you postage prepaid.

WHERE TO SEND PRODUCT FOR SERVICE

See "WORLDWIDE WARRANTY" for the nearest service center.

INTERNATIONAL WARRANTY SERVICE

International warranty service is available under this warranty.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex II] indicates separate collection of waste batteries in the EU countries.

Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries.

Provisions of warranty

1 If this product proves to be defective, although it has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during the applicable national warranty period and has been purchased from an authorized Olympus distributor within the business area of Olympus Europa Holding GmbH as stipulated on the website: http://www.olympus.com this product will be repaired, or at Olympus's option replaced, free of charge. To claim under this warranty the customer must take the product before the end of the applicable national warranty period to the dealer where the product was purchased or any other Olympus service station within the business area of Olympus Europa Holding GmbH as stipulated on the website: http://www.olympus.com. During the one year period of the World Wide Guarantee the customer may turn the product in at any Olympus service station. Please notice that not in all countries such Olympus service station exists.

2 The customer shall transport the product to the dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.

Provisions of Guarantee

1 "OLYMPUS IMAGING CORP., Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan grants a one year World Wide Guarantee. This worldwide Guarantee must be presented at an Olympus authorized repair service station before any repair can be made under conditions of this Guarantee. This Guarantee is valid only if the Guarantee Certifi cate and proof of purchase are presented at the Olympus repair service station. Please note that this Guarantee is in addition to and does not affect the customer's legal warranty rights under the applicable national legislation governing the sale of consumer goods mentioned above.

2 This Guarantee does not cover the following and the customer will be required to pay repair charge, even for defects occurring within the Guarantee period referred to above.

a. Any defect that occurs due to mishandling (such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.)
b. Any defect that occurs due to repair, modification, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station.
c. Any defect or damage that occurs due to transport, a fall, shock, etc. after purchase of the product.
d. Any defect or damage that occurs due to fire, earthquake, flood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources.

e. Any defect that occurs due to careless or improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc.
f. Any defect that occurs due to exhausted batteries, etc.
g. Any defect that occurs due to sand, mud, etc. entering the inside of the product casing.
h. When the Guarantee Certifi cate is not returned with the product.
i. When any alterations whatsoever are made to the Guarantee Certifi cate regarding the year, month and date of purchase, the customer's name, the dealer's name, and the serial number.
j. When proof of purchase is not presented with this Guarantee Certifi cate.

3 This Guarantee applies to the product only; the Guarantee does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.
4 Olympus's sole liability under this Guarantee shall be limited to repairing or replacing the product. Any liability under the Guarantee for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect of the product, and in particular any loss or damage caused to any lenses, films, other equipment or accessories used with the product or for any loss resulting from a delay in repair or loss of data, is excluded. Compelling regulations by law remain unaffected by this.

Notes regarding Guarantee maintenance

1 This Guarantee will only be valid if the Guarantee Certificate is duly completed by Olympus or an authorized dealer or other documents contain sufficient proof. Therefore, please make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed or the original invoice or the sales receipt (indicating the dealer's name, the date of purchase and product type) is attached to this Guarantee Certifi cate. Olympus reserves the right to refuse free-of-charge service if neither Guarantee Certifi cate is completed nor the above document is attached or if the information contained in it is incomplete or illegible.
2 Since this Guarantee Certificate will not be re-issued, keep it in a safe place.
* Please refer to the list on the web site: http://www.olympus.com for the authorized international Olympus service network.

For customers in Asia

Provisions of warranty

1 If this product proves to be defective, although it has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during a period of up to one year from the date of purchase this product will be repaired, or at Olympus's option replaced, free of charge. To claim under warranty the customer must take the product and this Warranty certificate before the end of the one year warranty period to the dealer where the product was purchased or any Olympus authorized service station listed in the instructions and request the necessary repairs.
2 The customer shall transport the product to the dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.
3 This warranty does not cover the following and the customer will be required to pay repair charge, even for defects occurring within the one year period referred to above.

a. Any defect that occurs due to mishandling (such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.)
b. Any defect that occurs due to repair, modification, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station.
c. Any defect or damage that occurs due to transport, a fall, shock, etc. after purchase of the product.
d. Any defect or damage that occurs due to fire, earthquake, flood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources.
e. Any defect that occurs due to careless or improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc.
f. Any defect that occurs due to exhausted batteries, etc.
g. Any defect that occurs due to sand, mud, etc. entering the inside of the product casing.
h. When this Warranty Certifi cate is not returned with the product.
i. When any alterations whatsoever are made to the Warranty Certifi cate regarding the year, month and date of purchase, the customer's name, the dealer's name, and the serial number.
j. When proof of purchase is not presented with this Warranty Certifi cate.

4 This Warranty applies to the product only; the Warranty does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.
5 Olympus' sole liability under this warranty shall be limited to repairing or replacing the product and any liability for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect in the product, and in particular any loss or damage caused to any film or lenses or other equipment or accessories used with the product or for any loss resulting from delay in repair, is excluded.

Notes;

1 This Warranty is in addition to and does not affect the customer's statutory right.
2 If you have any queries regarding this Warranty, call any of the Olympus authorized service stations listed in the instructions.

Notes regarding warranty maintenance

1 This Warranty will only be valid if the Warranty Certificate is duly completed by Olympus or the dealer. Make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed.
2 Since this Warranty Certificate will not be re-issued, keep it in a safe place.
3 Any request for repair by a customer in same country where the product was purchased shall be subject to the terms of the warranty issued by the Olympus distributor in that country. Where the local Olympus distributor does not issue a separate warranty or where the customer is not in the country where the product was purchased the terms of this worldwide warranty shall apply.
4 Where applicable, this Warranty is valid worldwide. The Olympus authorized service stations listed in this Warranty will gladly honor it.
* Please refer to the appended list for the authorized international Olympus service network.

Disclaimer of Warranty

Olympus makes no representations or warranties, either expressed or implied, by or concerning any content if these written materials or software, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use of inability to use these written materials or software. Some states do not allow the exclusion or limitation of liability for consequential or incidental damages, so the above limitations may not apply to you.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
  • Macintosh is a trademark of Apple Inc.
  • The SDHC/SDXC logo is a trademark.
• Eye-Fi is a registered trademark of Eye-Fi, Inc.
• All other company and product names are registered trademarks and/or trademarks of their respective owners.
• The standards for camera file systems referred to in this manual are the “Design rule for Camera File system/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

The software in this camera may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored within the accompanying CD-ROM or at http://www.olympus.co.jp/en/support/img/digicamera/download/notice/notice.cfm

Powered by ARCSOFT.

SPECIFICATIONS

Camera

VR-360/D-760 VR-350/D-755 VR-340/D-750
Product type : Digital camera (for shooting and displaying)
Recording system
Still pictures	: Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))
Applicable standards	: Exif 2.3, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge
3D still image : MP-format compliant Anaglyph -
Sound with still pictures : Wave format
Movie : AVI Motion JPEG
Memory : Internal memory, SD/SDHC/SDXC/Eye-Fi card
No. of effective pixels : 16,000,000 pixels
Image pickup device	: 1/2.3" CCD (primary color filter)
Lens : Olympus lens 4.2 to 52.5 mm, f3.0 to 5.9		Olympus lens 4.2 to 42.0 mm, f3.0 to 5.7
35 mm format equivalent : Equivalent to 24 – 300 mm		Equivalent to 24 – 240 mm
Photometric system : Digital ESP metering system
Shutter speed	: 4 to 1/2000 sec.
Shooting range	: 0.6 m (2.0 ft.) to∞(W), 1.0 m (3.3 ft.) to∞(T) (normal)0.2 m (0.7 ft.) to∞(W), 0.9 m (3.0 ft.) to∞(T) (macro mode)0.01 m (0.03 ft.) to∞(super macro mode)
Monitor	: 3.0" TFT color LCD display, 460,800 dots
Connector	: Multi-connector (USB connector, A/V OUT jack), HDMI mini connector (type C)	Multi-connector (USB connector, A/V OUT jack)
Automatic calendar system	: 2000 up to 2099
Operating environment
Temperature :	0 °C to 40 °C (32 °F to 104 °F) (operation)/-20 °C to 60 °C (-4 °F to 140 °F) (storage)
Humidity	: 30 % to 90 % (operation)/10 % to 90 % (storage)
Power supply : One Olympus lithium ion battery (LI-50B)
Dimensions : 104.3 mm (W) × 60.2 mm (H) × 28.3 mm (D)(4.1 × 2.3 × 1.1 in.) (excluding protrusions)
Weight : 172 g (6.0 oz) (includingbattery and card)	170 g (5.9 oz) (including battery and card)

Lithium ion battery (LI-50B)

Product type : Lithium ion rechargeable battery

Model No. : LI-50BA/LI-50BB

Standard voltage : DC 3.7 V

Standard capacity : 925 mAh

Battery life : Approx. 300 full charges (varies on usage)

Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (charging)

USB-AC adapter (F-2AC)

Model No. : F-2AC-2B/F-2AC-1C/F-2AC-3C/F-2AC-4C/F-2AC-5C/F-2AC-1D/F-2AC-3D/F-2AC-4D/F-2AC-5D/F-2AC-6D

Power requirements : AC 100 to 240 V (50/60 Hz)

Output : F-2AC-2B: DC 5 V, 500 mA

F-2AC-1C/F-2AC-3C/F-2AC-4C/F-2AC-5C/F-2AC-1D/F-2AC-3D/F-2AC-4D/F-2AC-5D/F-2AC-6D: DC 5 V, 550 mA

Operating environment

Temperature : 0 °C to 40 °C (32 °F to 104 °F) (operation)/-20 °C to 60 °C (-4 °F to 140 °F) (storage)

Design and specifications subject to change without notice.

HDMI, the HDMI Logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

EN

Suite 3A-6, Level 3A, Wisma Great Eastern

No.25, Lebuh Light, 10200 Penang

Tel:[phone]/ Fax:[phone]

KUCHING OFFICE

Level 6-5A, 6th Floor Menara MAA,

Lot 86, Section 53,

Jalan Central Timur,

93300 Kuching, Sarawak

Tel:[phone]/ Fax:[phone]

http://www.olympus.com.my

OLYMPUS

http://www.olympus.com/

OLYMPUS IMAGING CORP.

Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS IMAGING AMERICA INC.

3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help:

http://www.olympusamerica.com/support

Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 9 am to 9 pm

(Monday to Friday) ET

http://olympusamerica.com/contactus

Olympus software updates can be obtained at:

http://www.olympusamerica.com/digital

OLYMPUS EUROPA HOLDING GMBH

Premises: Wendenstrasse 14-18, 20097 Hamburg, Germany

Tel: [phone] / Fax: [phone]

Goods delivery: Bredowstrasse 20, 22113 Hamburg, Germany

Letters: Postfach 10 49 08, 20034 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

* Please note some (mobile) phone services providers do not permit access or request an additional prefix to +800 numbers.

For all European Countries not listed and in case that you can't get connected to the above mentioned number, please make use of the following

CHARGED NUMBERS: +49 180 5 - 67 10 83 or +49 40 - 237 73 4899

Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday)

Customer Service Center:

A8F, Ping An International Financial Center, No. 1-3,

Xinyuan South Road, Chaoyang District, Beijing

Tel: [phone] Fax: [phone] Zip: 100027

A,32F Shanghai Industrial Investment Building 18

Cao Xi Road(N), Xuhui District, Shanghai

Tel: [phone] Fax: [phone] Zip: 200030

Rm.1605-1608, Guangzhou International Electronic tower, No403,

Huan Shi East Road, Guang Zhou

Tel: [phone] Fax: [phone] Zip: 510095

16F Huamin Hanzun Internation Plaza, No.1, Fuxing Street,

Chengdu

Tel: [phone] Fax: [phone] Zip: 610016

OLYMPUS HONG KONG AND CHINA LIMITED

Digital Camera Repair Centre

L4207, Office Tower, Langham Place, 8 Argyle Street, Mongkok, Kowloon, Hong Kong

Customer Hotline: [phone] Fax: [phone]

http://www.olympus.com.hk
