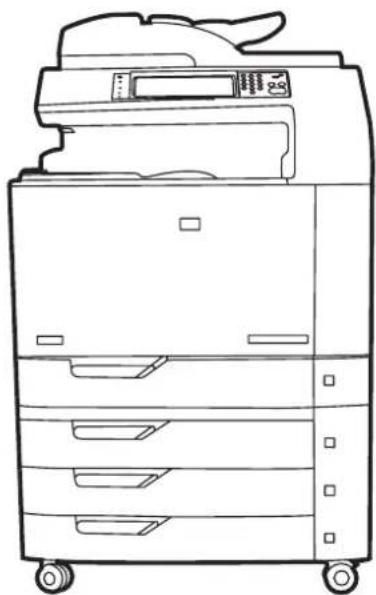

Line drawing of a multi-tiered printer or scanner device with wheels and control panel (no text or symbols)

Line drawing of a multi-tiered printer or scanner device with wheels and control panel (no text or symbols)

HP Color LaserJet CM6030 and CM6040 MFP Series User Guide

Copyright and License

© 2008 Copyright Hewlett-Packard Development Company, L.P.

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Part number: Q3938-90967

Edition 1, 04/2008

Trademark Credits

Adobe ^® , Acrobat ^® , and PostScript ^® are trademarks of Adobe Systems Incorporated.

Corel® is a trademark or registered trademark of Corel Corporation or Corel Corporation Limited.

Microsoft ^® , Windows ^® , and Windows NT ^® are U.S. registered trademarks of Microsoft Corporation.

Windows Vista™ is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

PANTONE® is Pantone, Inc's check-standard trademark for color.

UNIX ^® is a registered trademark of The Open Group.

ENERGY STAR® and the ENERGY STAR logo® are U.S. registered marks of the United States Environmental Protection Agency.

Table of contents

1 Product basics

Product comparison 2

Product features .... 4

Quick Reference Job Aids 7

Product walkaround 8

Front view 8

HP Color LaserJet CM6030 and CM6040 MFP Series 8

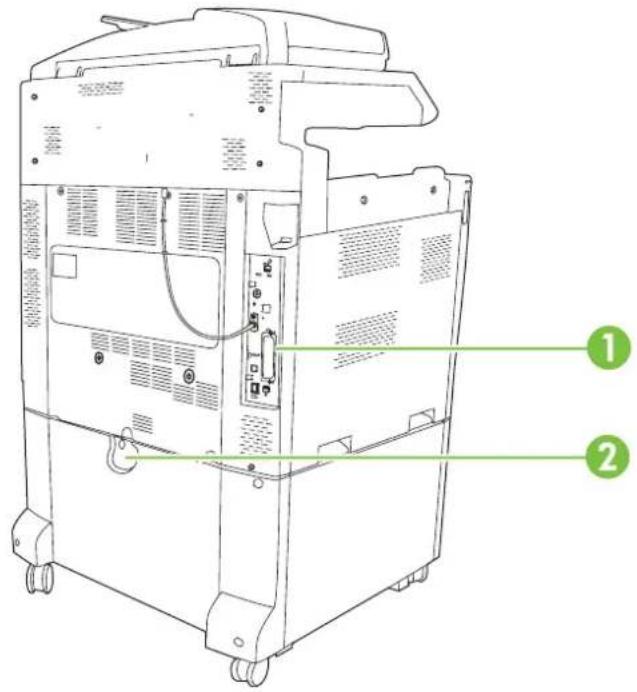

Back view 9

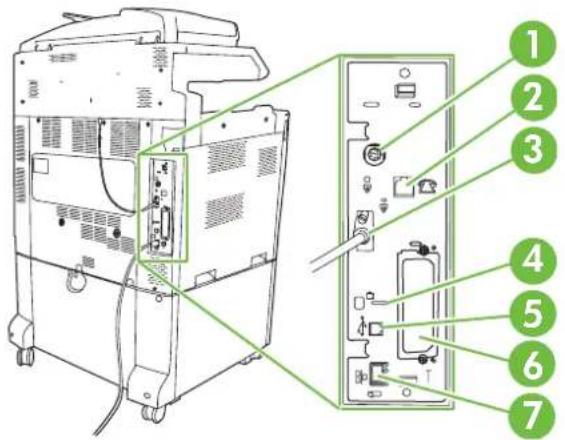

Interface ports 10

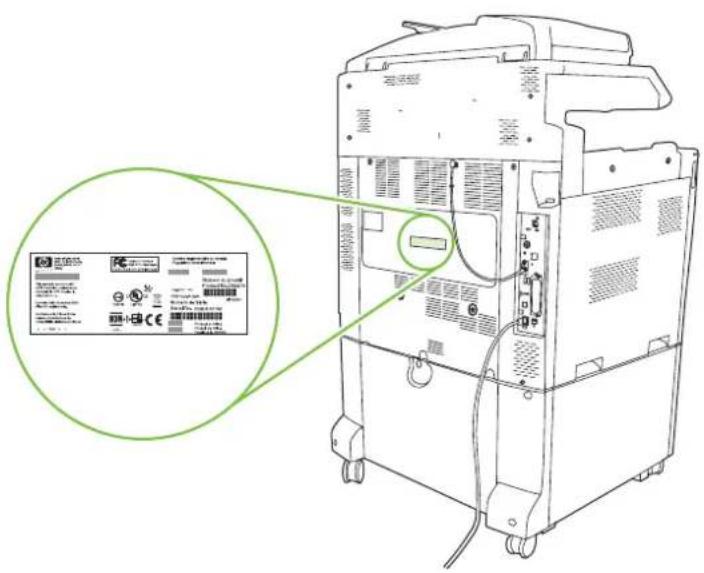

Serial number and model number location 10

2 Control panel

Use the control panel 14

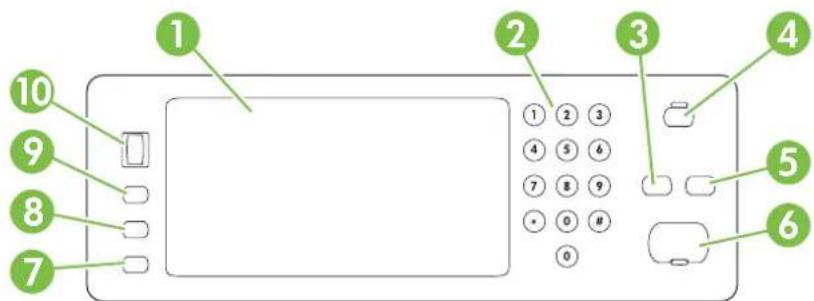

Control-panel layout 14

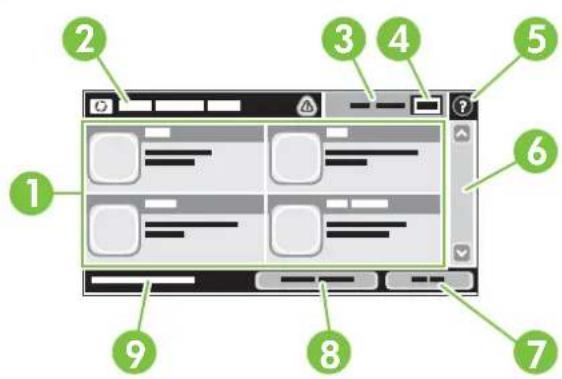

Home screen 15

Buttons on the touchscreen 16

Control-panel help system 16

Navigate the Administration menu 17

Information menu 18

Default Job Options menu 20

Default Options for Originals 20

Image adjustment 21

Default Copy Options 22

Default Fax Options 23

Default E-mail Options 24

Default Send to Folder Options 25

Default Print Options 26

Time/Scheduling menu 27

Management menu 29

Initial Setup menu 31

Networking and I/O 31

Fax Setup 38

E-mail Setup 41

Send Setup menu 41

Device Behavior menu 42

Print Quality menu 49

Troubleshooting menu 53

Resets menu 59

Service menu 60

3 Software for Windows

Supported operating systems for Windows 62

Supported printer drivers for Windows 63

HP Universal Print Driver (UPD) 64

UPD installation modes 64

Select the correct printer driver for Windows 65

Priority for print settings 66

Change printer-driver settings for Windows 67

Remove software for Windows 68

Supported utilities for Windows 69

HP Web Jetadmin 69

Embedded Web server 69

HP Easy Printer Care 69

Software for other operating systems 71

4 Use the product with Macintosh

Software for Macintosh 74

Supported operating systems for Macintosh 74

Supported printer drivers for Macintosh 74

Remove software from Macintosh operating systems 74

Priority for print settings for Macintosh 74

Change printer-driver settings for Macintosh 74

Software for Macintosh computers 75

HP Printer Utility 75

Open the HP Printer Utility 75

HP Printer Utility features 76

Supported utilities for Macintosh 76

Embedded Web server 76

Use features in the Macintosh printer driver 77

Print 77

Create and use printing presets in Macintosh 77

Resize documents or print on a custom paper size 77

Print a cover page 77

Use watermarks 78

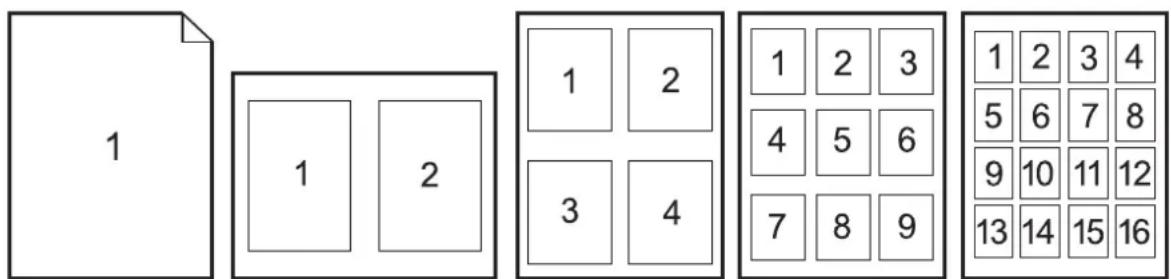

Print multiple pages on one sheet of paper in Macintosh 78

Print on both sides of the page (duplex printing) 79

Set the stapling options 79

Store jobs 80

Set the color options 80

Use the Services menu 80

5 Connect the product

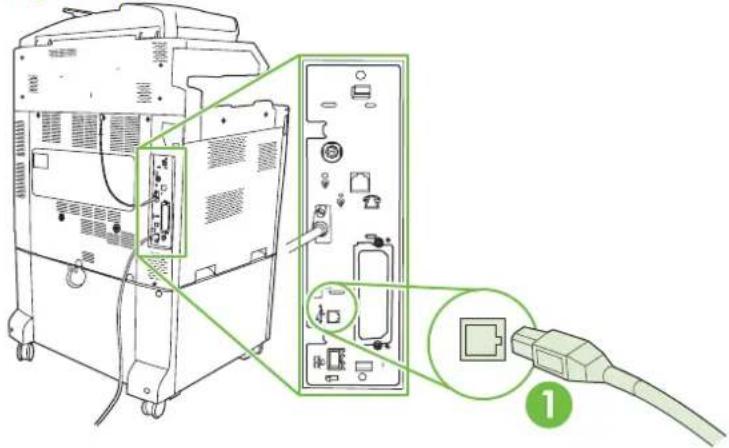

USB connection 84

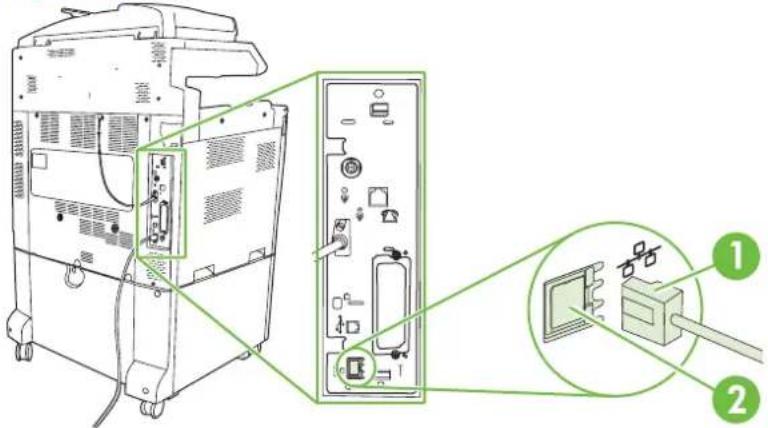

Network connection 85

6 Network configuration

Benefits of a network connection 88

Supported network protocols 89

Configuring network settings 90

TCP/IP 90

Internet Protocol (IP) 90

Transmission Control Protocol (TCP) 90

IP address 90

Configure IP parameters 90

Dynamic Host Configuration Protocol (DHCP) 91

BOOTP 91

Subnets 91

Subnet mask 91

Gateways 91

Default gateway 91

Configure TCP/IPv4 parameters 92

Input or change the IP address 92

Set the subnet mask 92

Set the default gateway 93

Configure TCP/IPv6 parameters 93

Network utilities 94

Other components and utilities 94

7 Paper and print media

Understand paper and print media use 96

Supported paper and print media sizes 97

Supported paper types 100

Special paper or print media guidelines 102

Load paper and print media 103

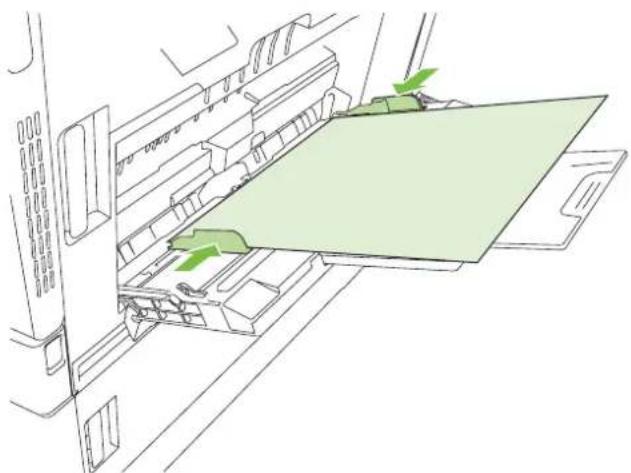

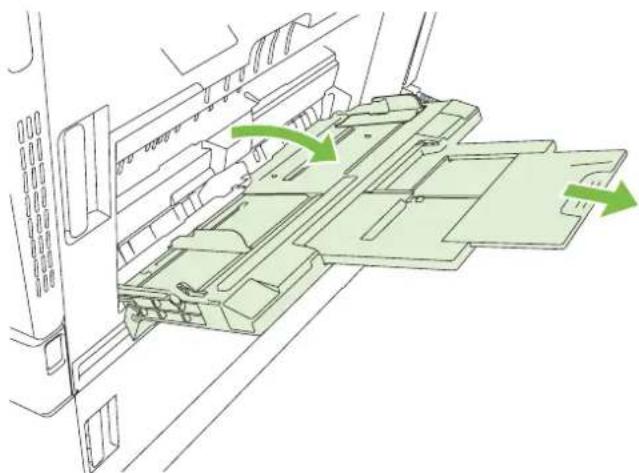

Load Tray 1 103

Print envelopes 104

Load trays 2, 3, 4, or 5 104

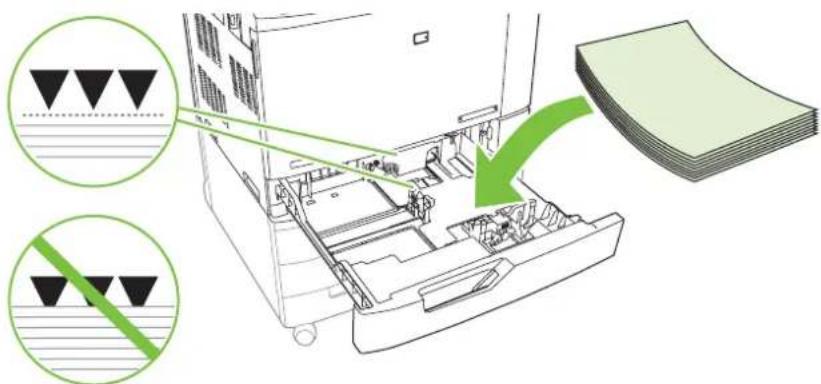

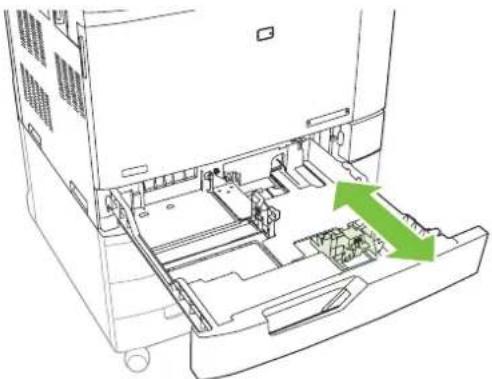

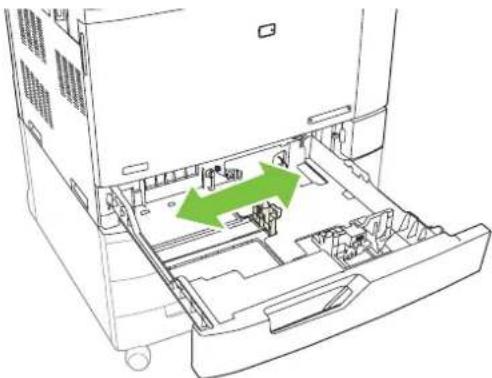

Load standard-sized media into trays 2, 3, 4, or 5 104

Load undetectable standard-sized media into Tray 2, 3, 4, and 5 ...... 106

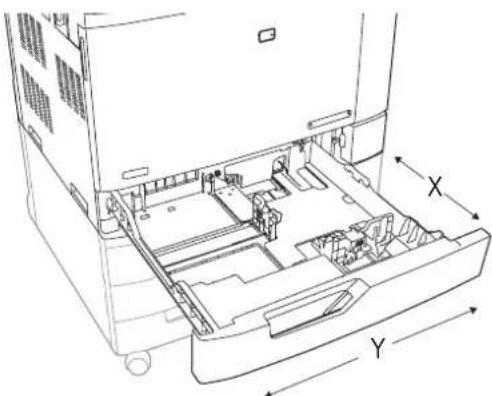

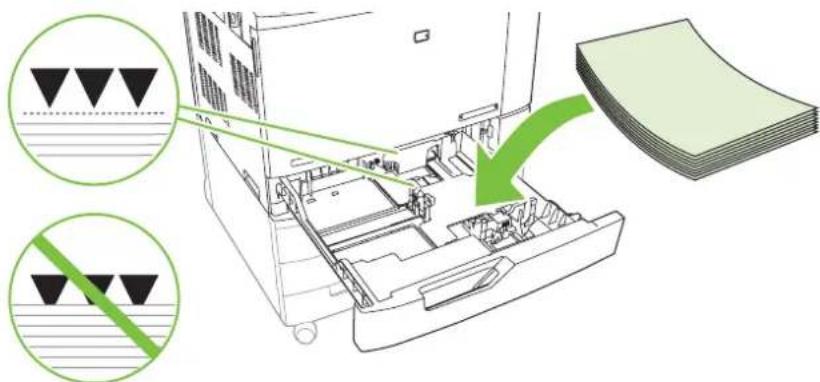

Load custom-size media into tray 2, 3, 4, or 5 107

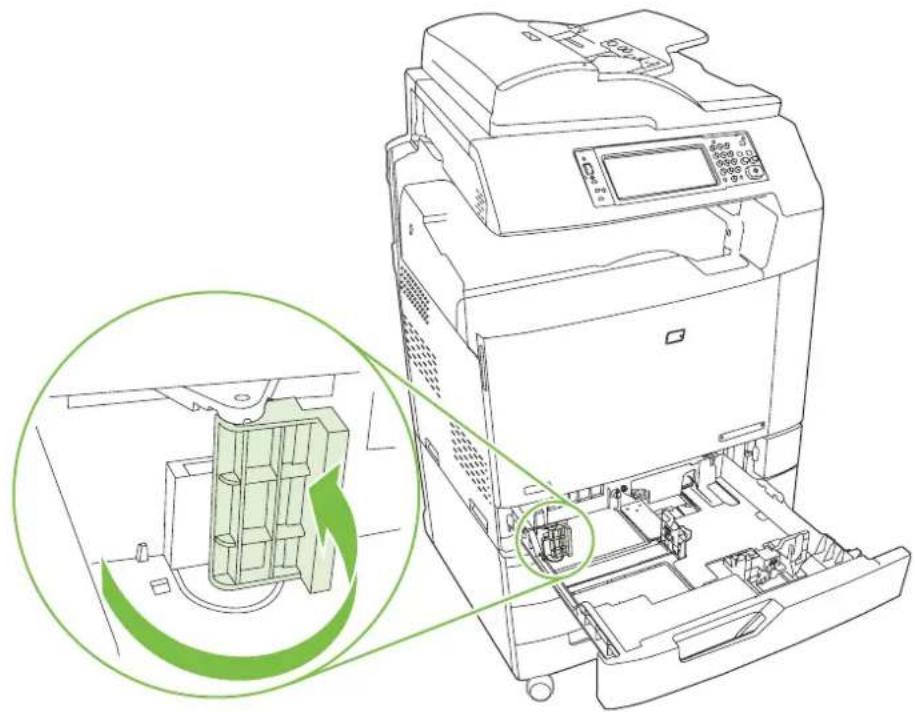

Load large size paper into Tray 3, 4, or 5 .... 108

Load letterhead, pre-printed, or pre-punched paper 108

Change the Image Rotation setting 109

Choose the correct orientation for loading letterhead, pre-printed, or pre-punched paper 109

Configure trays 114

Configure a tray when loading paper 114

Configure a tray to match print job settings 114

Automatic media type sensing (auto sense mode) 114

Auto sense settings 115

Select the paper by source, type, or size 115

Source 115

Type and Size 116

Choose an output location 117

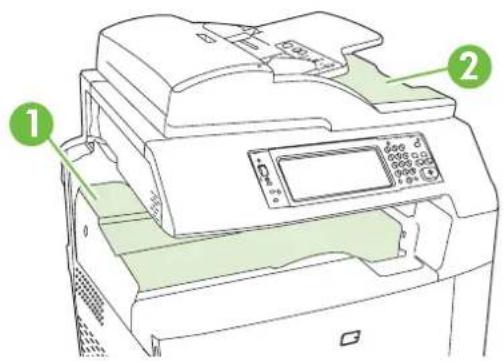

Standard output bins 117

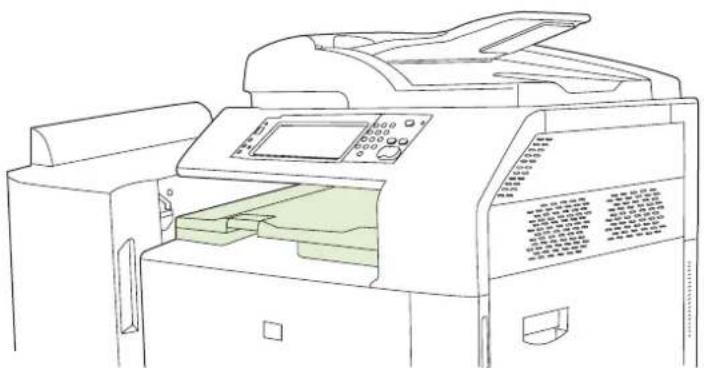

Optional output accessories 117

3-bin stapler/stacker features 118

Booklet maker finisher features 118

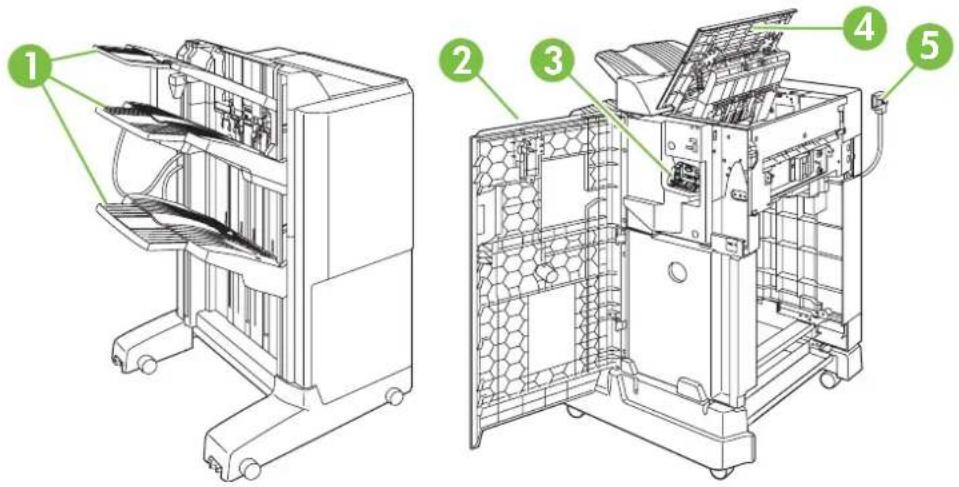

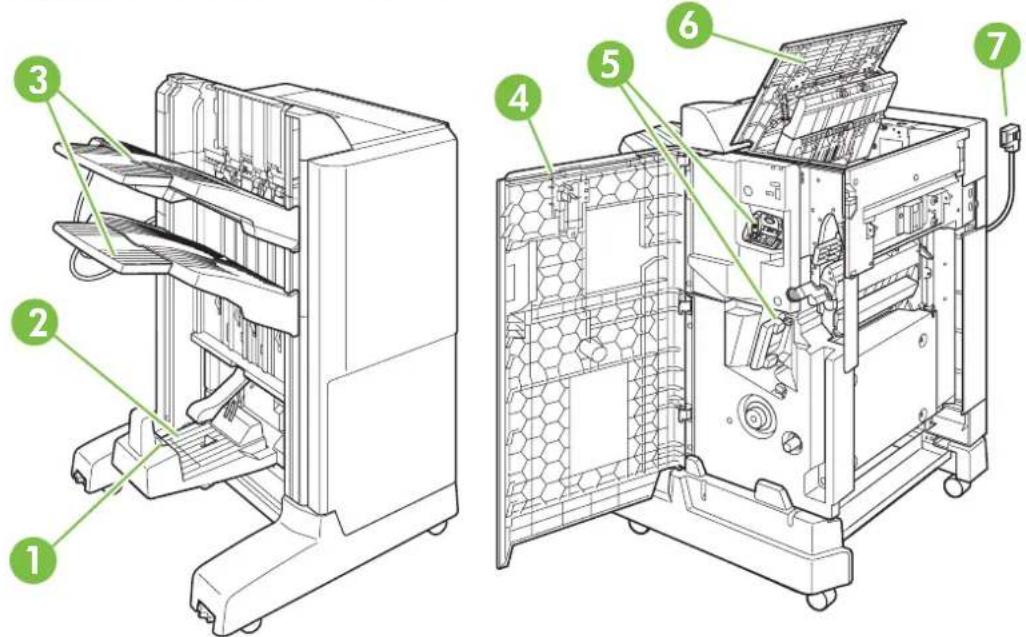

Accessory walkaround 118

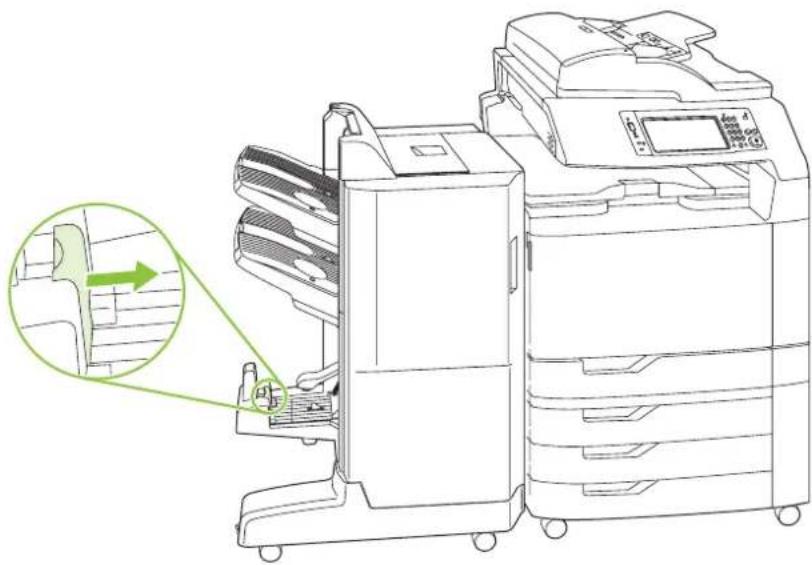

Use the booklet-making feature 119

Create a booklet from the print driver 120

Create a booklet from a copy 120

Configure the accessory operation mode 121

Select the operating mode at the control panel 121

Select the operating mode in the printer driver 121

Select the operating mode in the printer driver (Mac OS X) 121

8 Use product features

Economy settings 124

Sleep and wake 124

Set economy modes from the EWS 125

Use the stapler 126

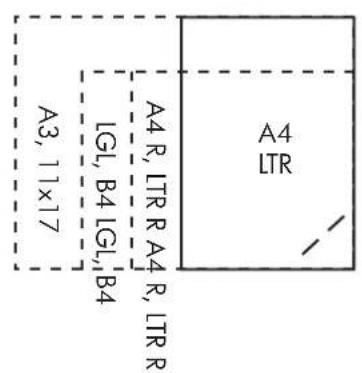

Supported paper sizes for stapling 126

Staple print jobs 128

Job storage features for print jobs 129

Gain access to the job storage features 129

Use the proof and hold feature 129

Create a proof and hold job 129

Print the remaining copies of a proof and hold job 130

Delete a proof and hold job 130

Use the personal job feature .... 131

Print a personal job 131

Delete a personal job 131

Use the QuickCopy feature .... 132

Create a QuickCopy job 132

Print additional copies of a QuickCopy job 132

Delete a QuickCopy job 132

Use the stored job feature for copy jobs 133

Create a stored copy job 133

Print a stored job 133

Delete a stored job 133

Print photos or marketing material 135

Supported glossy paper 135

Configure the paper tray 135

Configure the driver settings 136

Print weatherproof maps and outdoor signs 137

Supported tough paper 137

Configure the paper tray 137

Configure the driver settings 137

Set the duplex alignment 138

9 Print tasks

Cancel a print job 140

Stop the current print job from the control panel 140

Stop the current print job from the software program 140

Use features in the Windows printer driver 141

Open the printer driver 141

Use printing shortcuts 141

Set paper and quality options 141

Set document effects 142

Set document finishing options 142

Set product output options 142

Set job storage options 142

Set color options 143

Obtain support and product-status information 143

Set advanced printing options 144

10 Use color

Manage color 146

Automatic or manual color adjustment 146

Manual color options 146

Print in grayscale 147

Restrict color use 147

Restrict color printing and copying from the control panel 147

RGB Color (Color Themes) 147

Match colors 149

Sample book color matching 149

Printing color samples 149

PANTONE® color matching 150

Advanced color use 151

HP ImageREt 4800 151

Paper selection 151

sRGB 151

Print in four colors — CMYK 151

CMYK ink set emulation (HP postscript level 3 emulation) 151

11 Copy

Use the Copy screen 154

Set the default copy options 154

Copy from the scanner glass 154

Copy from the document feeder 154

Adjust the copy settings 155

Copy two-sided documents 156

Copying two-sided documents manually 156

Copy two-sided documents automatically 156

Copy mixed-size originals 158

Change the copy-collation setting 159

Copy photos and books 160

Combine copy jobs by using Job Build 161

Cancel a copy job 162

12 Scan and send to e-mail

Configure e-mail settings 164

Supported protocols 164

Configure e-mail server settings 164

Use the Send E-mail screen 166

Perform basic e-mail functions 167

Load documents 167

Send documents 167

Send a document 167

Use the auto-complete function 168

Use the address book 168

Create a recipient list 168

Use the local address book 169

Add e-mail addresses to the local address book 169

Delete e-mail addresses from the local address book 169

Change e-mail settings for the current job 170

Scan to a folder 171

Scan to a workflow destination 172

13 Fax

Analog fax 174

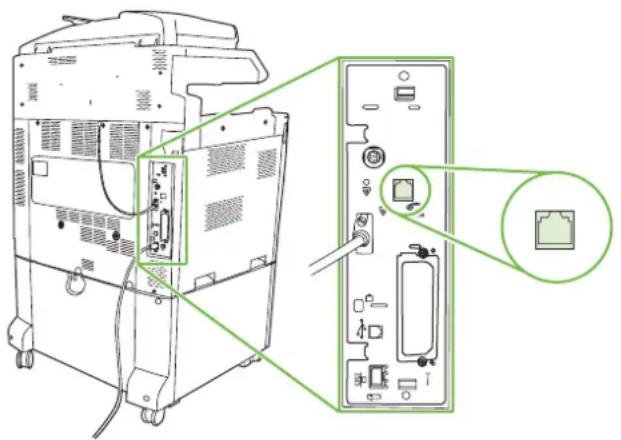

Connect the fax accessory to a phone line 174

Configure and use the fax features 174

Digital fax 176

14 Manage and maintain the product

Information pages 178

HP Easy Printer Care 180

Open the HP Easy Printer Care software 180

HP Easy Printer Care software sections 180

Embedded Web server 183

Open the embedded Web server by using a network connection 183

Embedded Web server sections 184

Use HP Web Jetadmin software 187

Security features 188

Secure the embedded Web server 188

Foreign Interface Harness (FIH) 188

Requirements 188

Use the FIH 188

Enable the FIH portal 188

Disable the FIH portal 189

Secure Disk Erase 189

Data affected 189

Gain access to Secure Disk Erase 190

Additional Information 190

DSS authentication 190

Lock the control-panel menus 190

Set the real-time clock 191

Set the date format 191

Set the date 191

Set the time format 191

Set the time 191

Manage supplies 193

Print-cartridge storage 193

HP policy on non-HP print cartridges 193

HP fraud hotline and Web site 193

Replace supplies 194

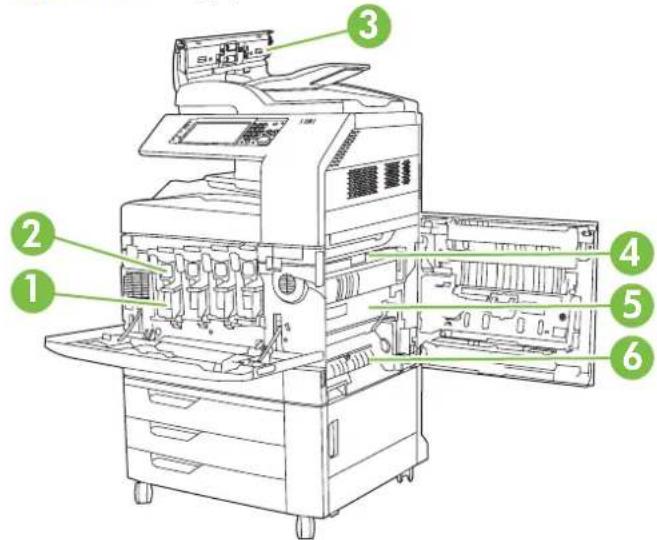

Locate supplies 194

Supply replacement guidelines 194

Approximate replacement intervals for supplies 195

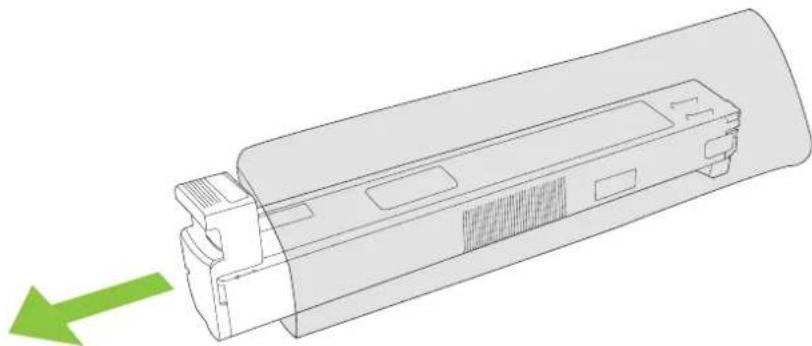

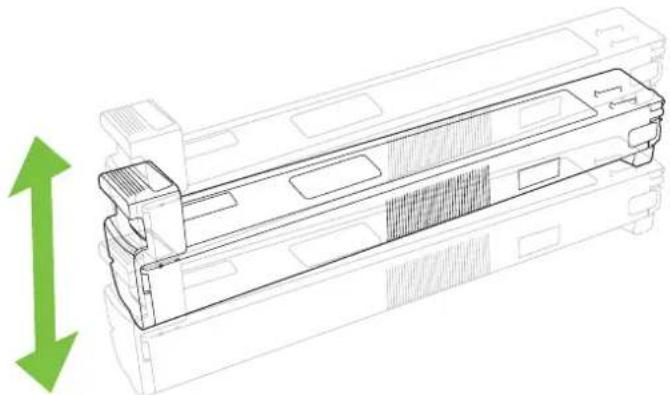

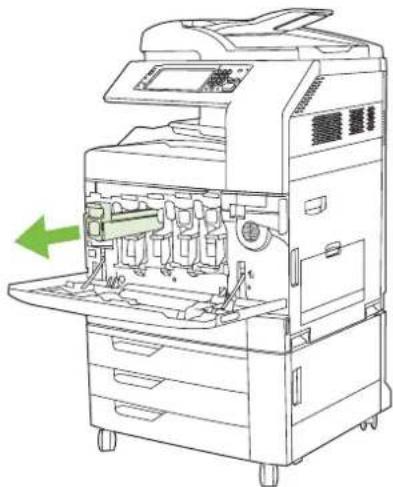

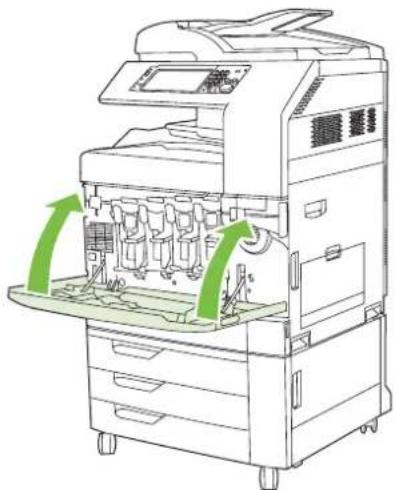

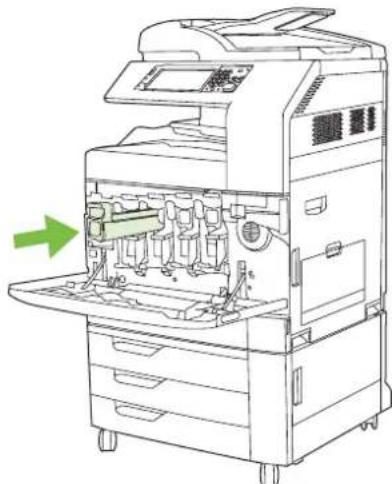

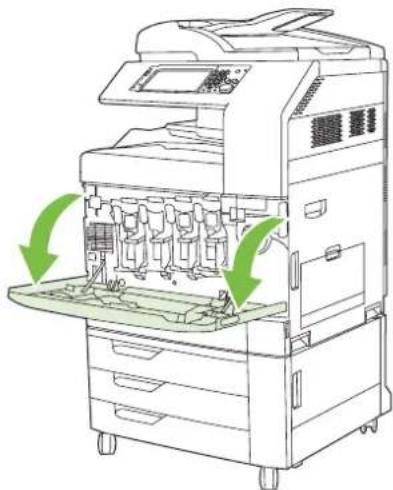

Change print cartridges 195

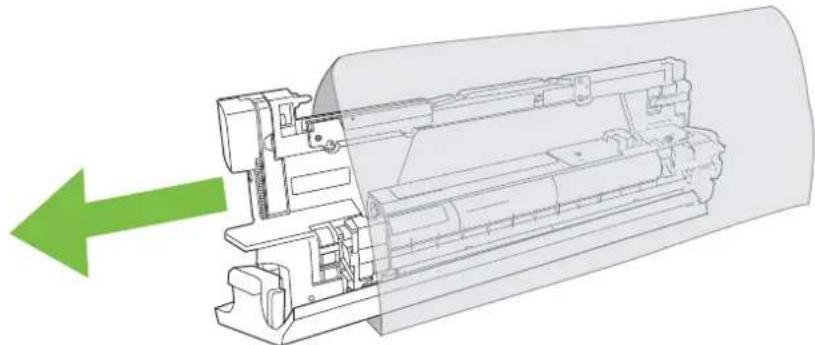

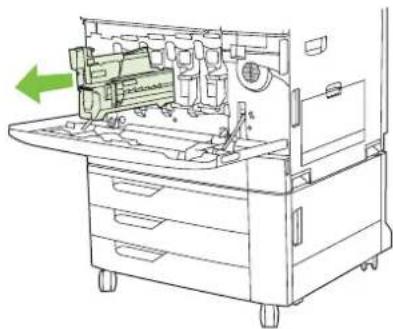

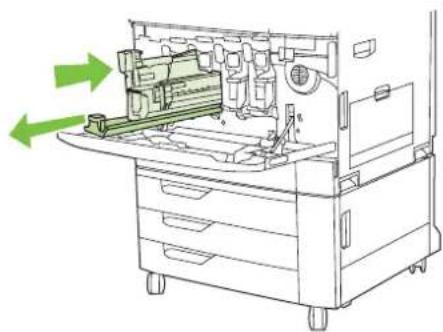

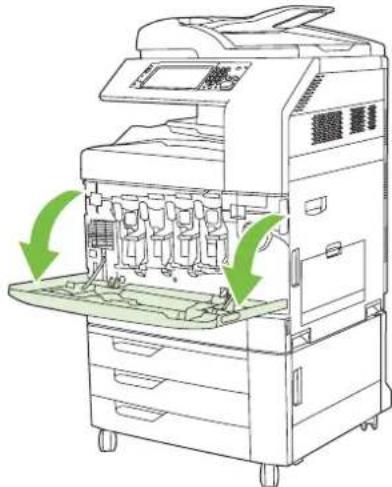

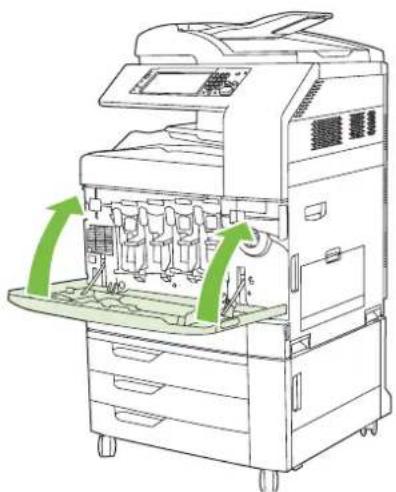

Change image drums 198

Install memory 201

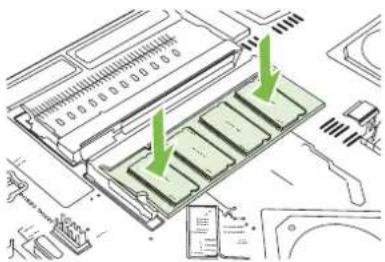

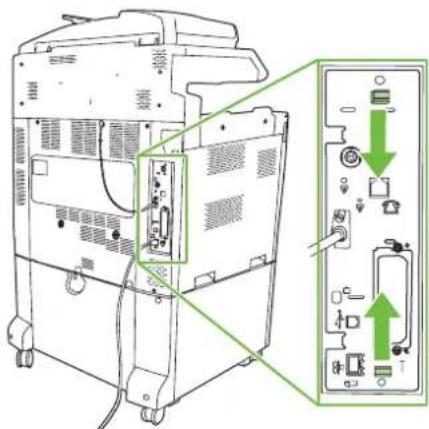

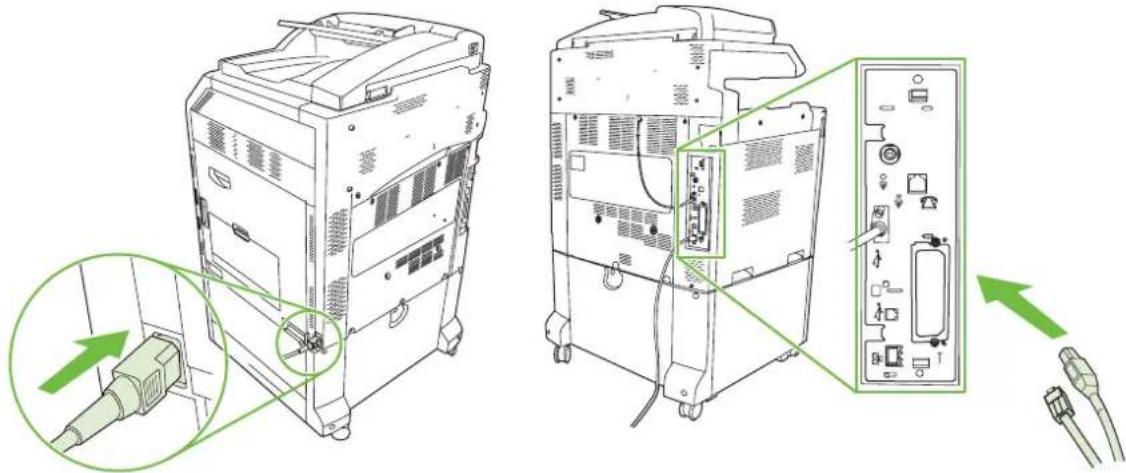

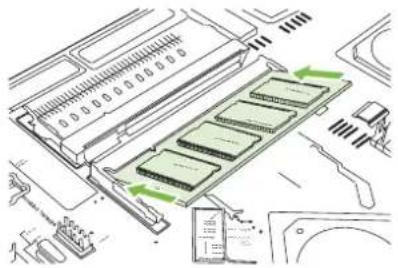

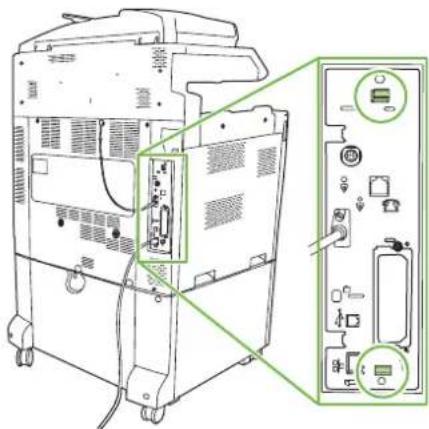

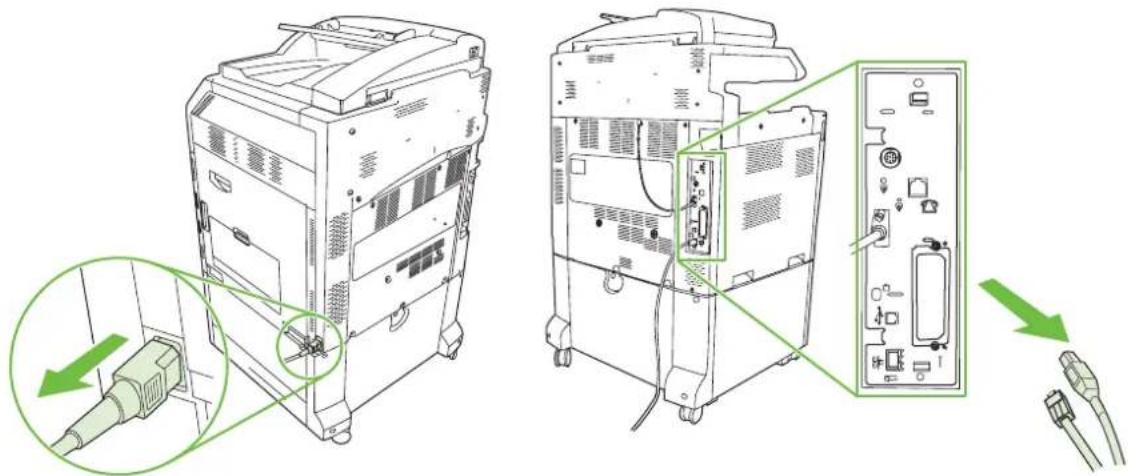

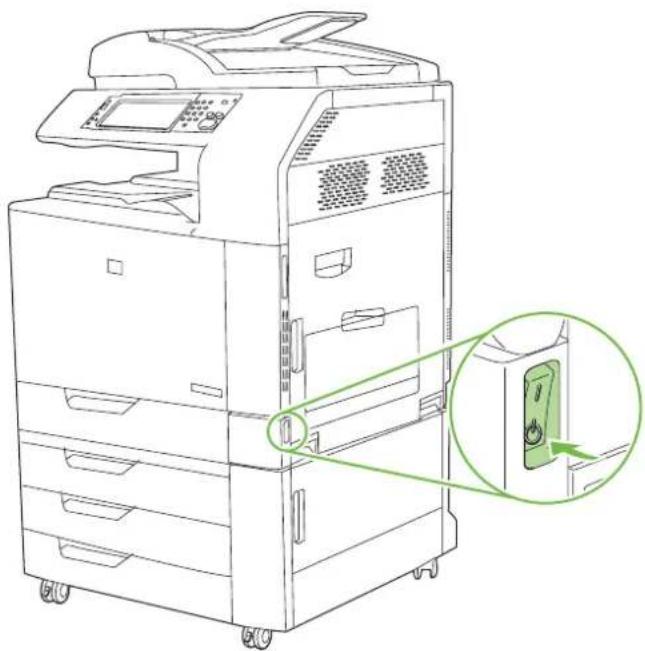

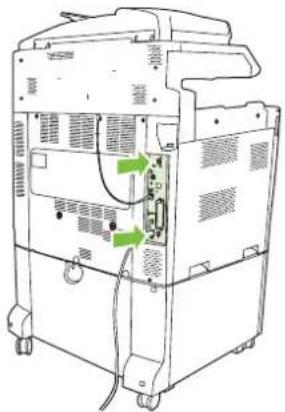

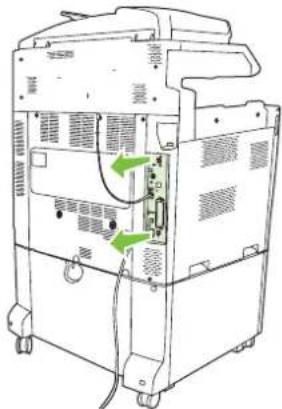

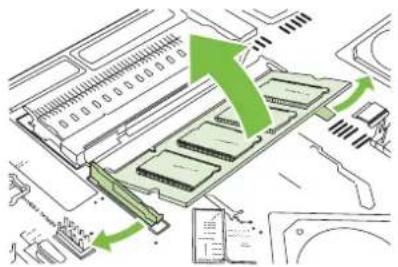

Install DDR memory DIMMs 201

Enable memory 204

Enable memory for Windows 2000 and XP 204

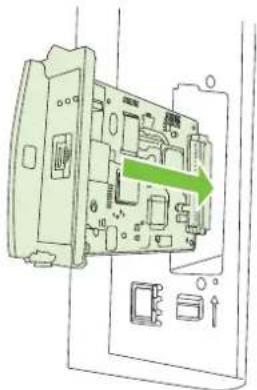

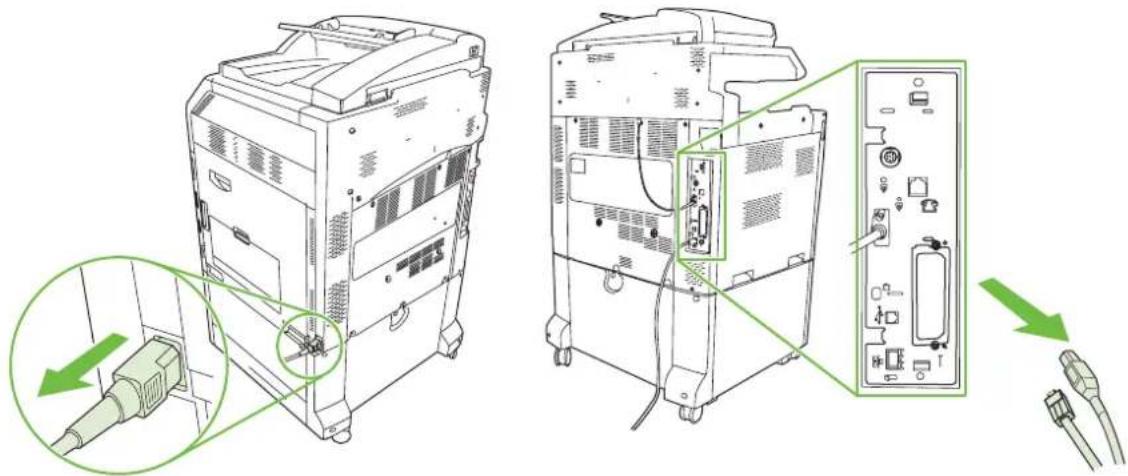

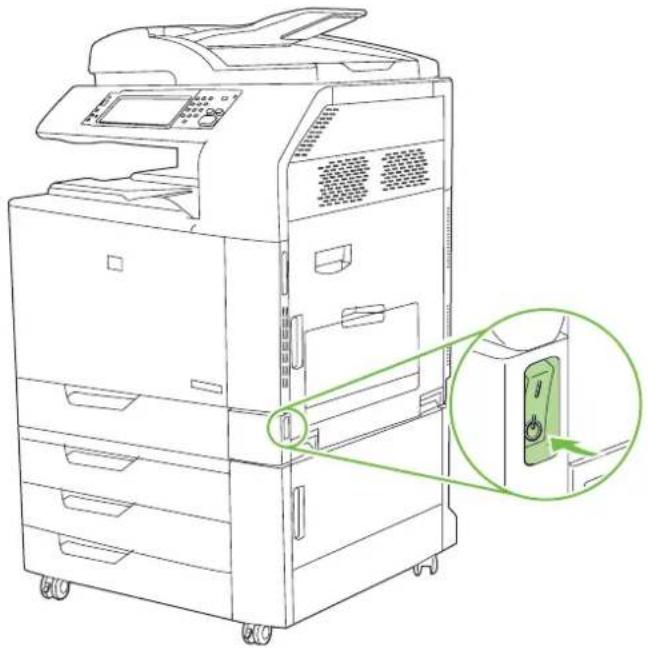

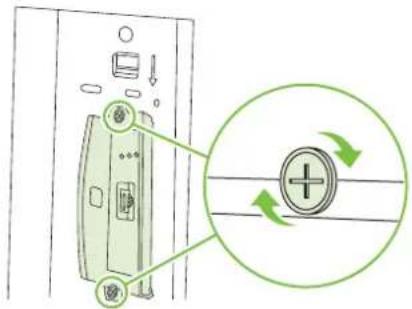

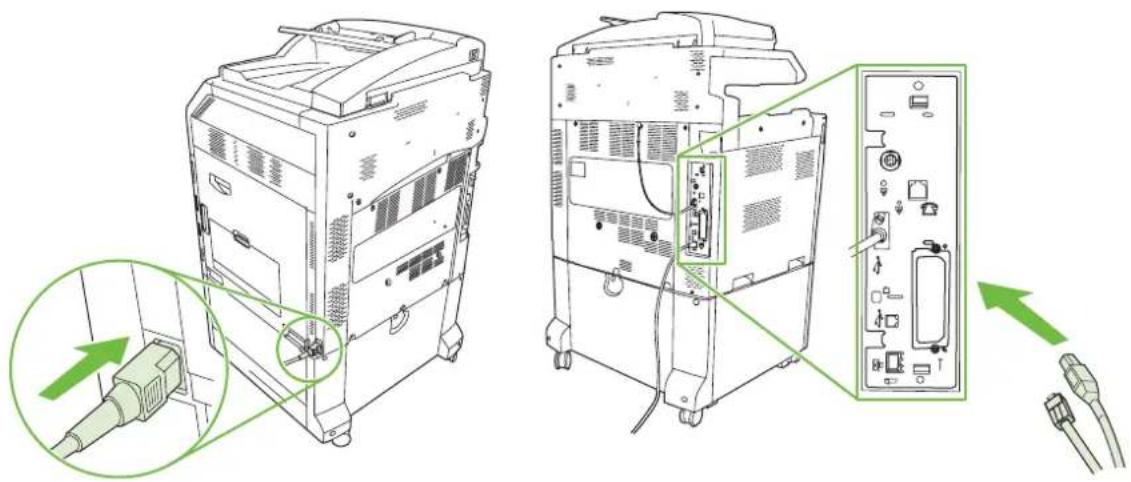

Install an HP Jetdirect or EIO print server card or EIO hard disk 205

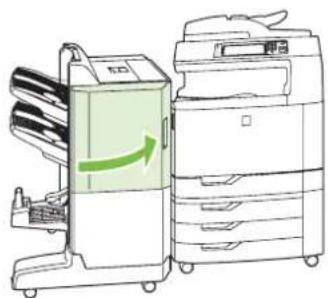

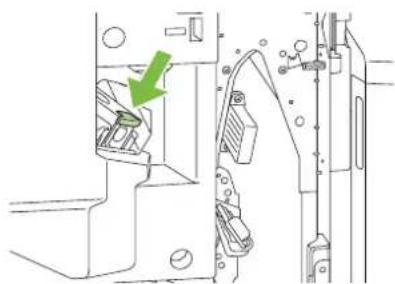

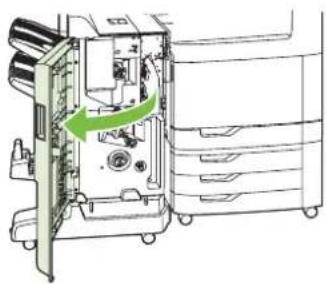

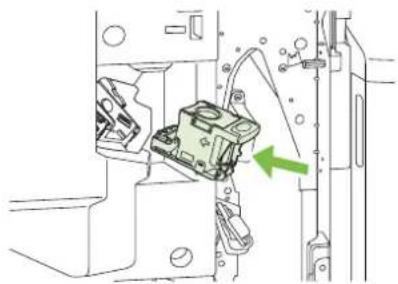

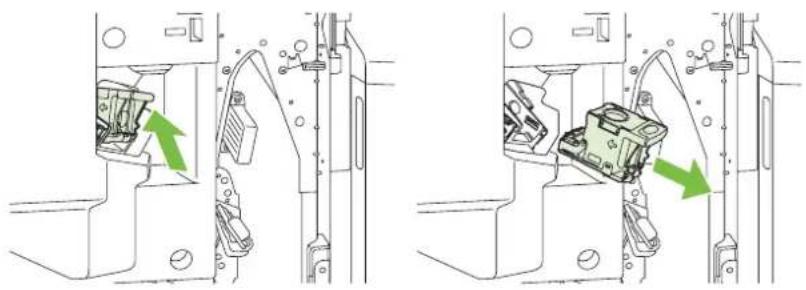

Replace the staple cartridge 207

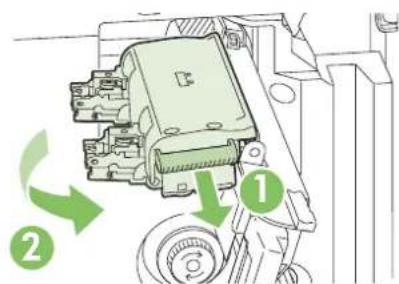

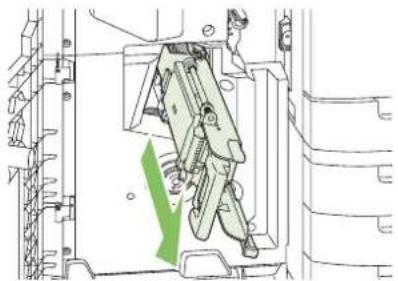

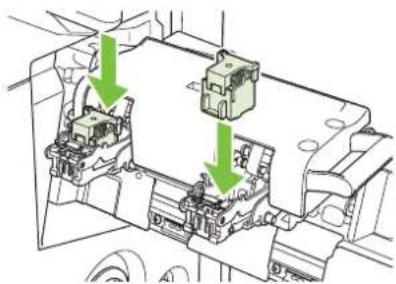

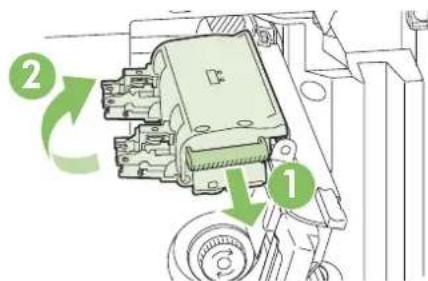

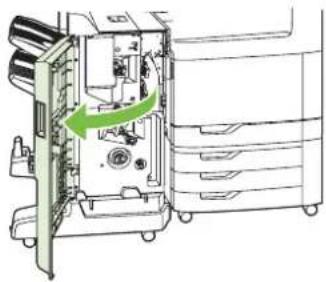

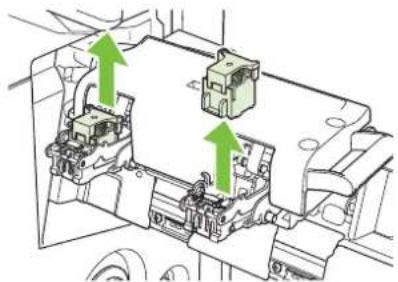

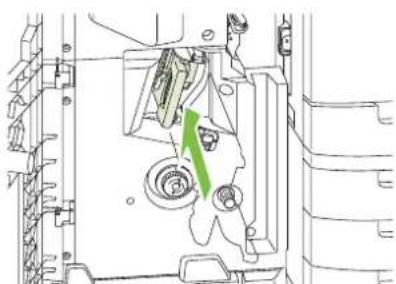

Replace saddle stitch staple cartridges in the booklet maker 209

Clean the product 212

Clean the outside of the product 212

Clean the touchscreen 212

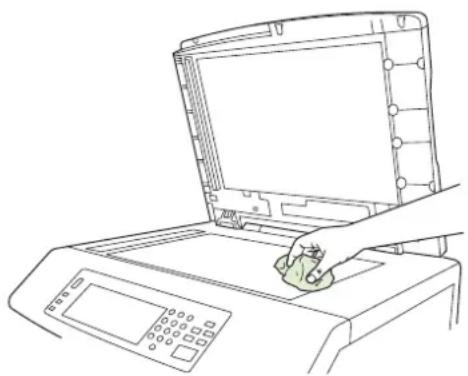

Clean the scanner glass 212

Cleaning the ADF delivery system 212

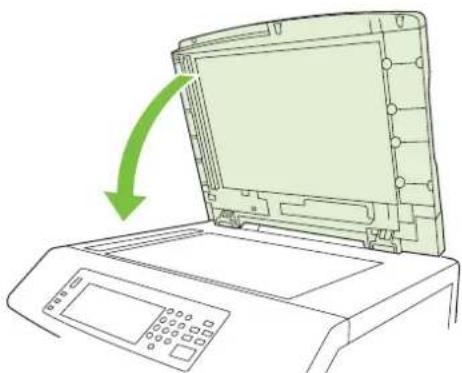

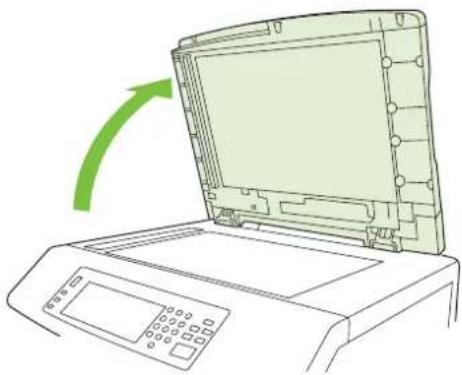

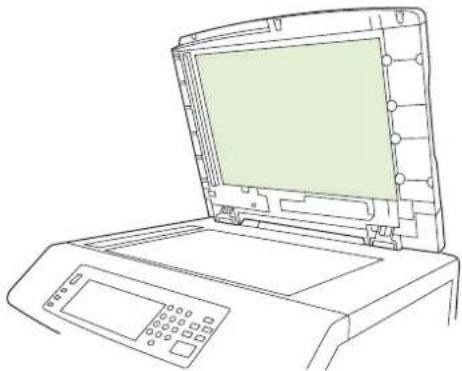

Clean the ADF delivery system 213

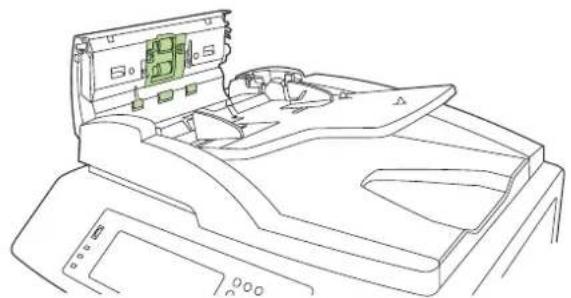

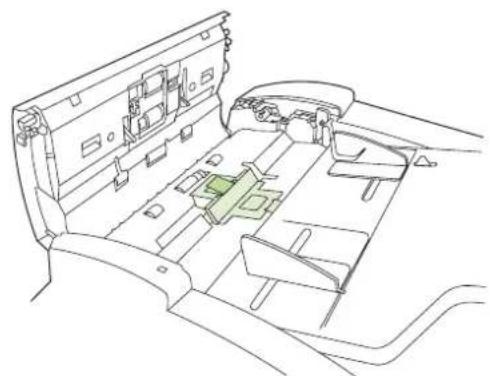

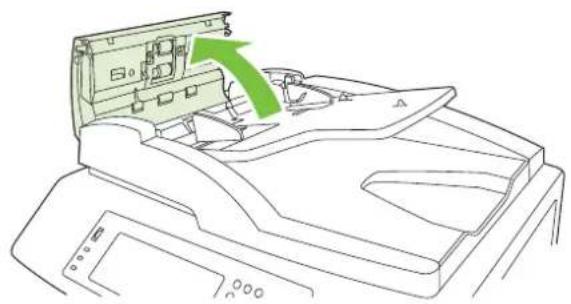

Clean the ADF rollers 214

ADF maintenance kit 216

Calibrate the scanner 217

Upgrade the firmware 218

Determine the current firmware version 218

Download new firmware from the HP Web site 218

Transfer the new firmware to the product 218

Use FTP to upload the firmware through a browser 218

Use FTP to upgrade the firmware on a network connection 219

Use HP Web Jetadmin to upgrade the firmware 220

Use MS-DOS commands to upgrade the firmware 220

Use the HP Jetdirect firmware 221

15 Solve problems

Solving general problems 224

Troubleshooting checklist 224

Restore factory settings 225

Factors that affect product performance 225

Control-panel message types 226

Control-panel messages 227

Jams 228

Common causes of jams 228

Jam locations 229

Clear jams 229

AREA 1: Clear jams in the output bin 230

AREA 2: Clear jams in the fuser 232

Clear jams in the duplex area 236

AREA 5: Clear jams in Tray 2 and the internal paper path .... 239

AREA 6: Clear jams in Tray 1 242

AREA 7: Clear jams in optional Trays 3, 4, and 5 245

AREA 8: Clear jams in the optional finishing devices 248

Clear jams in the output-accessory bridge 248

Clear jams in the sorter area 249

Clear jams in the booklet maker 250

AREA 9: Clear jams in the ADF 252

Clear staple jams 253

Clear staple jams in the main stapler 253

Clear staple jams in the booklet maker 254

Jam recovery 257

Paper-handling problems 258

Product feeds multiple sheets 258

Product feeds incorrect page size 258

Product pulls from incorrect tray 258

Paper does not feed automatically 259

Paper does not feed from Tray 2, 3, 4, or 5 259

Transparencies or glossy paper will not feed 260

Envelopes jam or will not feed in the product 261

Output is curled or wrinkled 261

Product will not duplex or duplexes incorrectly 262

Understand lights on the formatter 263

HP Jetdirect LEDs 263

Heartbeat LED 263

Correct print quality and copy quality problems 264

Example print quality problems 264

Repetitive defects ruler 264

Print quality problems associated with the environment 266

Print quality problems associated with jams 266

Optimize and improve image quality 266

Use supported paper 266

Calibrate the product 266

Specify the correct paper type 267

Clean the fuser 267

Respond to control panel error messages 267

Clean the registration second transfer assembly 268

Use manual print modes 270

Print-quality-troubleshooting pages 271

Performance problems 272

Solve fax problems 273

Solve e-mail problems 273

Validate the SMTP gateway address 273

Validate the LDAP gateway address 273

Solve network connectivity problems 274

Solve network printing problems 274

Verify communication over the network 275

Solve common Macintosh problems 276

Appendix A Supplies and accessories

Order parts, accessories, and supplies 280

Order directly from HP 280

Order through service or support providers 280

Order directly through the embedded Web server (for printers that are connected to a network) 280

Order directly through the HP Easy Printer Care software 280

Part numbers 281

Accessories 281

Print cartridges 281

Image drums 281

Maintenance kits 281

Memory 282

Cables and interfaces 282

Appendix B Service and support

Hewlett-Packard limited warranty statement 284

Print cartridge limited warranty statement 286

Color LaserJet Fuser Kit, Transfer Kit, and Roller Kit Limited Warranty Statement 287

Customer self repair warranty service 288

Customer support 289

Availability of support and service 290

HP maintenance agreements 291

On-site service agreements 291

Priority onsite service 291

Next-day onsite service 291

Weekly (volume) on-site service 291

Appendix C Product specifications

Physical specifications 294

Electrical specifications 295

Acoustic specifications 296

Environmental specifications 297

Appendix D Regulatory information

Compliance with FCC regulations 300

Declaration of Conformity 301

Declaration of Conformity 302

Environmental product stewardship program 303

Protecting the environment 303

Power consumption 303

Toner consumption 303

Paper use 303

Plastics 303

HP LaserJet print supplies 303

Return and recycling instructions .... 304

United States and Puerto Rico 304

Multiple returns (more than one cartridge) 304

Single returns ...... 304

Shipping 304

Non-U.S. returns 304

Paper 304

Material restrictions 304

Disposal of waste equipment by users in private households in the European

Union 305

Material Safety Data Sheet (MSDS) 305

For more information 306

Certificate of volatility 307

Types of memory 307

Volatile memory 307

Non-volatile memory 307

Hard-disk-drive memory 307

Safety statements 308

Laser safety 308

Canadian DOC regulations 308

VCCI statement (Japan) 308

Power cord statement (Japan) 308

EMI statement (Korea) 308

EMI statement (Taiwan) 309

General telecom statement 309

Laser statement for Finland 309

Substances Table (China) 310

Index 311

1 Product basics

Product comparison
Product features
• Quick Reference Job Aids
Product walkaround

Product comparison

Table 1-1 Product models

Model Features
HP Color LaserJet CM6040 MFP	100-sheet multipurpose input tray (Tray 1)40 pages per minute (ppm)Two 500-sheet input traysAutomatic document feeder (ADF) that holds up to 50 pagesHP Jetdirect embedded print server for connecting to a 10/100Base-TX network512 megabytes (MB) of random access memory (RAM)DuplexerHard drive
HP Color LaserJet CM6040f MFP	100-sheet multipurpose input tray (Tray 1)40 ppmFour 500-sheet input traysAutomatic document feeder (ADF) that holds up to 50 pagesHP Jetdirect embedded print server for connecting to a 10/100Base-TX network512 megabytes (MB) of random access memory (RAM)DuplexerHard driveAnalog fax
HP Color LaserJet CM6030 MFP	100-sheet multipurpose input tray (Tray 1)30 ppmTwo 500-sheet input traysAutomatic document feeder (ADF) that holds up to 50 pagesHP Jetdirect embedded print server for connecting to a 10/100Base-TX network512 megabytes (MB) of random access memory (RAM)DuplexerHard drive
HP Color LaserJet CM6030f MFP	100-sheet multipurpose input tray (Tray 1)30 ppmFour 500-sheet input traysAutomatic document feeder (ADF) that holds up to 50 pagesHP Jetdirect embedded print server for connecting to a 10/100Base-TX network512 megabytes (MB) of random access memory (RAM)DuplexerHard driveAnalog fax

Product features

Table 1-2 Features

Speed and throughput	Print up to 40 ppm (HP Color LaserJet CM6040) or 30 ppm (HP Color LaserJet CM6030) on letter-size paper.Less than 11 seconds to print the first pageRecommended maximum monthly print volume of 15,000 pages (HP Color LaserJet CM6040) or 10,000 pages (HP Color LaserJet CM6030)An 835 megahertz (MHz) microprocessorDuplex at speed
Resolution	600 dots per inch (dpi) with Image Resolution Enhancement technology 4800 for optimum overall imaging1200 x 600 dpi for detailed line work and small text
Memory	512 MB of random-access memory (RAM), expandable to 768 MB by using 200-pin small outline dual inline memory modules (SODIMM) that support 128 or 256 MB of RAM.Memory Enhancement technology (MEt) automatically compresses data to use RAM more efficiently.
User interface	HP Easy Select Control PanelAn embedded Web server to gain access to support and order supplies (for network-connected products)HP Easy Printer Care software (a Web-based status and troubleshooting tool)Internet-enabled supply-ordering capabilities through HP Easy Printer Care software and embedded Web server
Languages and fonts	HP Printer Control Language (PCL) 6HP Universal Printer Driver (UPD) PCL 5HP UPD postscript (PS)Printer Management Language80 scalable TrueType PS typefaces
Print cartridges/image drums (4 of each)	Two-part toner/imaging systemBlack print cartridges print up to 19,500 pages at 5% coverageColor print cartridges print up to 21,000 pages at 5% coverageImage drums print up to 35,000 pages at 5% coverageAuthentic HP print cartridge detectionAutomatic toner strip remover
Paper-handling	InputTray 1 (multipurpose tray): A multipurpose tray for paper, transparencies, labels, envelopes and other paper types. See Supported paper types on page 100 for a list of paper types. The tray holds up to 100 sheets of paper, 50 transparencies, or 10 envelopes. See Supported paper and print media sizes on page 97.Tray 2, 3, 4, and 5: 500-sheet trays. These trays automatically detect common paper sizes and allow printing on custom-size paper. Tray 2 supports up to 279 x 432 mm (11 x 17 inches) and A3 paper sizes, and Trays 3,4, and 5 support sizes up to 305 x 457 mm (12 x 18 inches), and SRA3. See Supported paper and print media sizes on page 97 for a list of supported paper sizes. For a list of supported paper types, see Supported paper types on page 100.Automatic document feeder (ADF): Holds up to 50 sheets of paper.ADF duplex scanning: The ADF has an automatic duplexer for scanning two-sided documents.Duplex printing: Provides automatic two-sided printing (printing on both sides of the paper).The paper size range for automatic duplex printing is 175 mm to 320 mm (6.9 to 12.6 inches) x 210 mm to 457 mm (8.3 to 18 inches). The media weight range is 60–220 g/m2 (16-58 lb).OutputStandard output bin: The standard output bin is located underneath the scanner on the top of the product. This bin can hold up to 500 sheets of paper. The product provides a sensor that indicates when the bin is full.Optional 3-bin stapler/stacker: Provides job separation in multiple output bins, convenient stapling (up to 50-sheet jobs), job offset capability, and additional output capacity. The stacker has three bins: a 100-sheet bin, a 500-sheet bin, and a 1000-sheet bin.Optional booklet maker finisher: Provides convenient stapling (up to 50-sheet jobs), saddle-stitching (up to 15-sheet booklets), single-sheet v-folding, job separation and offset capability, as well as additional output capacity. The booklet maker finisher has three bins: two 1000-sheet bins and one bin that can hold up to 25 saddle-stitched booklets.ADF output bin: The ADF output bin is underneath the ADF input tray. The bin holds up to 50 sheets of paper, and the product automatically stops when this bin is full.
Supported operating systems	Windows 2000®Windows XP®Windows Server 2003®Windows VistaTMMacintosh OS
Connectivity	Local area network (LAN) connector (RJ-45) for the embedded HP Jetdirect print serverOne enhanced input/output (EIO) slotUSB 2.0 connectionOptional analog fax cardA Foreign Interface Harness (FIH) connection (AUX) for connecting other devicesOptional HP Digital Sending Software (DSS)
Environmental features	Sleep setting saves energy.High content of recyclable components and materials.
Security features	Secure Disk EraseSecurity lock (optional)Job retentionUser PIN authentication for stored jobsDSS authenticationIPv6 security
Copying and sending	Modes for text, graphics, and mixed text and graphics formatsJob-interrupt featureMultiple pages per sheetControl panel animations (for example, jam recovery)Scan and send to e-mailLocal address book for e-mail and faxLDAP addressingSend to folderAutomatic duplex (two-sided) scanning

Quick Reference Job Aids

Quick Reference Job Aids provide additional step-by-step procedures for using this product. Access the Quick Reference Job Aids from the product CD or at www.hp.com/support/cljcm6030mfp or www.hp.com/support/cljcm6040mfp.

HP Color LaserJet MFP Series Replace staples

Hepriad

Raphthoris stipidus

Step said yesterday

Ocasp-the-girpaxitihyabopcoofthuacollal maderor stadiobudianenibroptiaceps. (1)

Diplasapita andha etaglifopistis gelesarempore ididensio bevddet, mefesorotoglerstecken. (2)

(1) The application created the prototype circuit (2) into the prototype run. (3)

Propyl, 5-ethylphthalate group is part of the propyl-naphthyl chloride and phosphatase (4)

Chasevthes, frengtadeer. (5)

Diagram showing two scenarios with green arrows and numbered annotations, depicting a person in a room with equipment or tools.

©2008 Copyright Hewlett-Packard Development Company, L.P.

1 www.hp.com

Product walkaround

Front view

HP Color LaserJet CM6030 and CM6040 MFP Series

Diagram of a printer with numbered parts labeled for identification

1 Control panel

2 Automatic Document Feeder (ADF) top cover

3 ADF input tray for copy/scan/fax originals

4 ADF output bin

5 Right-door (provides access to the transfer unit, transfer roller, and fuser unit)

6 On/Off switch

7 Lower right door

8 HP Color LaserJet CM6030 MFP and HP Color LaserJet CM6040 MFP: Trays 2 and 3HP Color LaserJet CM6030f MFP and HP Color LaserJet CM6040f MFP: Trays 2, 3, 4 and 5

9 Front cover (provides access to print cartridges and image drums)

10 Output bin

Back view

Technical diagram of a server rack with labeled components, showing front and rear views with numbered annotations.

1 Interface ports and formatter

2 Lock lever for additional input bins

Interface ports

The product has five ports for connecting to a computer or a network. The ports are at the left, rear corner of the product.

Diagram of a computer rack with labeled components, showing front and side views with numbered annotations.

1 Foreign interface harness (FIH)

2 Fax connection (when installed)

3 Scanner cable

4 Access port for Kensington lock

5 USB 2.0 port

6 EIO expansion slot

7 Network port

Serial number and model number location

The model number and serial number are listed on identification labels located on the rear of the printer. The serial number contains information about the country/region of origin, the printer version, production code, and the production number of the printer.

Technical diagram of an electronic device with labeled components and a magnified inset showing a green circle highlighting a specific component.

Model name Model number

HP Color LaserJet CM6030 MFP CE664A

HP Color LaserJet CM6030f MFP CE665A

HP Color LaserJet CM6040 MFP Q3938A

HP Color LaserJet CM6040f MFP Q3939A

2 Control panel

• Use the control panel
- Navigate the Administration menu
• Information menu
• Default Job Options menu
• Time/Scheduling menu
• Management menu
- Initial Setup menu
• Device Behavior menu
• Print Quality menu
- Troubleshooting menu
- Resets menu
Service menu

Use the control panel

The control panel has a VGA touchscreen that provides access to all device functions. Use the buttons and numeric keypad to control jobs and the device status. The LEDs indicate overall device status.

Control-panel layout

The control panel includes a touchscreen graphical display, job-control buttons, a numeric keypad, and three light-emitting diode (LED) status lights.

1 2 3 4 5 6 7 8 9 10 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ • ⑩ # ⑪

1	Touchscreen graphical display	Use the touchscreen to open and set up all device functions.
2	Numeric keypad	Allows you to type numeric values for number of copies required and other numeric values.
3	Reset button	Resets the job settings to factory or user-defined default values.
4	Sleep button	If the device is inactive for a long period of time, it automatically enters a sleep mode. To place the device into sleep mode or to reactivate the device, press the Sleep button.
5	Stop button	Stops the active job and opens the Job Status screen.
6	Start button	Begins a copy job, starts digital sending, or continues a job that has been interrupted.
7	Attention light	The Attention light indicates that the device has a condition that requires intervention. Examples include an empty paper tray or an error message on the touchscreen.
8	Ready light	The Ready light indicates that the device is ready to begin processing any job.
9	Data light	The Data light indicates that the device is receiving data.
10	Contrast-adjustment dial	Turn the dial to adjust the contrast of the touchscreen display for your viewing angle.

Home screen

The home screen provides access to the device features, and it indicates the current status of the device.

NOTE: Depending on how the device has been configured, the features that appear on the home screen can vary.

Diagram of a device interface with numbered labels pointing to various UI components

1	Features	Depending on how the system administrator has configured the device, the features that appear in this area can include any of the following items:CopyFaxE-mailSecondary E-mailJob StatusNetwork FolderJob StorageWorkflowSupplies StatusAdministration
2	Device status line	The status line provides information about the overall device status. Various buttons appear in this area, depending on the current status. For a description of each button that can appear in the status line, see Buttons on the touchscreen on page 16.
3 Copy type Shows whether copies are color.
4	Copy count	The copy count box indicates the number of copies that the device is set to make.
5	Help button	Touch the Help button to open the embedded help system.
6	Scroll bar	Touch the up or down arrows on the scroll bar to see the complete list of available features.
7	Sign Out	Touch Sign Out to sign out of the device if you have signed in for access to restricted features. After you sign out, the device restores all options to the default settings.
8	Network Address	Touch Network Address to find information about the network connection.
9	Date and time	The current date and time appear here. The system administrator can select the format that the device uses to show the date and time, for example 12-hour format or 24-hour format.

Buttons on the touchscreen

The status line on the touchscreen provides information about the status of the device. Various buttons can appear in this area. The following table describes each button.

	Home button. Touch the home button to go to the Home screen from any other screen.
	Start button. Touch the Start button to begin the action for the feature that you are using.NOTE: The name of this button changes for each feature. For example, in the Copy feature, the button is named Start Copy.
	Stop button. If the device is processing a print or fax job, the Stop button appears instead of the Start button. Touch the Stop button to halt the current job. The device prompts you to cancel the job or to resume it.
	Error button. The error button appears whenever the device has an error that requires attention before it can continue. Touch the error button to see a message that describes the error. The message also has instructions for solving the problem.
	Warning button. The warning button appears when the device has a problem but can continue functioning. Touch the warning button to see a message that describes the problem. The message also has instructions for solving the problem.
	Help button. Touch the help button to open the built-in online Help system. For more information, see Control-panel help system on page 16.

Control-panel help system

The device has a built-in Help system that explains how to use each screen. To open the Help system, touch the Help button in the upper-right corner of the screen.

For some screens, the Help opens to a global menu where you can search for specific topics. You can browse through the menu structure by touching the buttons in the menu.

For screens that contain settings for individual jobs, the Help opens to a topic that explains the options for that screen.

If the device alerts you of an error or warning, touch the error 1 or warning 4 button to open a message that describes the problem. The message also contains instructions to help solve the problem.

Navigate the Administration menu

From the Home screen, touch Administration to open the menu structure. You might need to scroll to the bottom of the Home screen to see this feature.

The Administration menu has several sub-menus, which are listed on the left side of the screen. Touch the name of a menu to expand the structure. A plus sign (+) next to a menu name means that it contains sub-menus. Continue opening the structure until you reach the option that you want to configure. To return to the previous level, touch Back.

To exit the Administration menu, touch the Home button 🔍 in the upper-left corner of the screen.

The device has built-in Help that explains each of the features that are available through the menus. Help is available for many menus on the right-hand side of the touchscreen. Or, to open the global Help system, touch the Help button in the upper-right corner of the screen.

The tables in the sections that follow indicate the overall structure of each menu under the Administration menu.

Information menu

Administration > Information

Use this menu to print information pages and reports that are stored internally on the device.

Table 2-1 Information menu

Menu item	Sub-menu item	Sub-menu item	Values	Description
Configuration/Status Pages	Administration Menu Map	Print Shows the basic structure of the		Administration menu and current administration settings.
	Configuration/status Pages	Print A set of configuration pages that show the current device settings.
	Supplies Status Page	Print Shows the status of supplies such as cartridges, maintenance kits, and staples.
	Usage Page		Print	Shows information about the number of pages that have been printed on each paper type and size.
	Color Usage Job Log		Print	A directory page that contains job-by-job color usage information. Page content includes the user name, application name, and number of black-only pages and color pages.
	File Directory		Print	A directory page that contains information for any mass-storage devices, such as flash drives, memory cards, or hard disks, that are installed in this device.
Fax Reports	Fax Activity Log		Print	Contains a list of the faxes that have been sent from or received by this device.
	Fax Call Report	Fax Call Report	Print	A detailed report of the last fax operation, either sent or received.
	Thumbnail on Report Yes		No (default)	Choose whether or not to include a thumbnail of the first page of the fax on the call report.
	When to Print Report Never auto print		Print after any fax job
			Print after fax send jobs
			Print after any fax error (default)
			Print after send errors only
			Print after receive errors only
	Billing Codes Report	Print A list of billing codes that have been used for outgoing faxes. This report shows how many sent faxes were billed to each code.
	Blocked Fax List		Print	A list of phone numbers that are blocked from sending faxes to this device.
	Speed Dial List		Print	Shows the speed dials that have been set up for this device.
Sample Pages/Fonts	Demonstration Page		Print	Printout of a page highlighting the print capabilities of the product.
	RGB Samples		Print	Printout of color samples for different RGB values. The samples act as a guide for color matching.
	CMYK Samples		Print	Printout of color samples for different CMYK values. The samples act as a guide for color matching.
	PCL Font List		Print	A list of printer control language (PCL) fonts that are currently available on the device.
	PS Font List		Print	A list of PostScript (PS) fonts that are currently available on the device.

Default Job Options menu

Administration > Default Job Options

Use this menu to define the default job options for each function. These are used if the user does not specify other options when creating the job.

Default Options for Originals

Administration > Default Job Options > Default Options For Originals

Table 2-2 Default Options for Originals menu

Menu item Values Description
Paper Size	Select a paper size from the list.	Select the paper size that is most often used for copy or scan originals.
Number of Sides	1	Select whether copy or scan originals are most often single-sided or double-sided.
	2
Orientation Portrait Select the orientation that is most often used for copy or scan
	Landscape	originals. Select Portrait if the short edge is at the top or select Landscape if the long edge is at the top.
Optimize Text/Picture	Manually Adjust	Optimize the output for a particular type of original: text, pictures, or a mixture of both.
	Text
	Printed Picture	If you select Manually Adjust, specify the mix of text and pictures that is used most often.
	Photograph

Image adjustment

Administration > Default Job Options > Image Adjustment

Table 2-3 Image Adjustment menu

Menu item Values Description
Darkness	Select a value.	Select the level of density (darkness) for the output.
Background Cleanup	Adjust the value within the range.	Increase the Background Removal setting to remove faint images from the background or to remove a light background color.
Sharpness	Adjust the value within the range.	Adjust the Sharpness setting to clarify or soften the image.

Default Copy Options

Administration > Default Job Options > Default Copy Options

Table 2-4 Default Copy Options menu

Menu item Sub-menu item Values Description
Number of Copies Type the number of copies. The factory default setting is 1.			Set the default number of copies for a copy job.
Number of Sides 1			Set the default number of sides for copies.
		2
Color/Black Auto detect			Choose whether the default copy mode is color or black.
		Color
		Black (default)
Staple/Collate	Staple	None (default)	Set up options for stapling and collating sets of copies.
		One left angled	If Collate is selected, the device prints a complete copy before starting on the next copy. Otherwise, the device prints the first page of all copies before printing the second page, and so on.
		Two left	The staple and collate feature may not be present in your product. These features depend on the optional output accessory installed.
		Two top
		One right angled
		Two right
	Collate Off	On (default)
Output Bin			Select the default output bin for copies.
			This option is available only if an optional output accessory is installed.
Edge-To-Edge Normal (recommended)		(default)	If the original document is printed close to the edges, use the Edge-To-Edge feature to avoid shadows along the edges. Combine this feature with the Reduce/Enlarge feature to ensure that the entire page appears on the copies.
		Edge-To-Edge Output
Auto Include Margins		Off (default)	This feature automatically reduces the image size during scanning so the margins are included.
		On

Default Fax Options

Administration > Default Job Options > Default Fax Options

Table 2-5 Fax Send menu

Menu item Sub-menu item Values Description
Resolution	Standard (100x200dpi)	(default)	Set the resolution for sent documents. Higher resolution images have more dots per inch (dpi), so they show more detail. Lower resolution images have fewer dots per inch and show less detail, but the file size is smaller.
		Fine (200x200dpi)
		Superfine (300x300dpi)
Fax Header		Prepend (default)	Select the position of the fax header on the page.
		Overlay	Select Prepend to print the fax header above the fax content and move the fax content down on the page.Select Overlay to print the fax header over the top of the fax contents without moving the contents down. Using this option could prevent a single-page fax from flowing onto another page.

Table 2-6 Fax Receive menu

Menu item Sub-menu item Values Description
Fax Forwarding	Fax Forwarding	Off (default)Custom	To forward received faxes to another fax device, select Fax Forwarding and Custom. Then type the number of the other fax device into the Fax Forwarding Number field. When you select this menu item for the first time, you are prompted to set up a PIN. Type that PIN every time you use this menu. This is the same PIN that is used to access the Fax Printing menu.
Create PIN
Stamp Received Faxes Enabled		Add the date, time, senders phone number, and page number to each page of the faxes that this device receives.
	Disabled (default)
Fit to Page Enabled (default)		Shrink faxes that are larger than Letter-size or A4-size so that they can fit onto a Letter-size or A4-size page. If it this feature set to Disabled, faxes larger than Letter or A4 will flow across multiple pages.
	Disabled
Fax Paper Tray	Select from the list of trays. The default setting is Automatic.	Select the tray that holds the size and type of paper that you want to use for incoming faxes.
Output Bin			Select the default output bin, if applicable, to use for faxes.

Default E-mail Options

Administration > Default Job Options > Default E-mail Options

Menu item Values Description
Document File Type PDF (default)	Select the file format for the e-mail.
JPEG
TIFF
M-TIFF
Output Quality High (large file)	Selecting higher quality for output increases the size of the output file.
Medium (default)
Low (small file)
Resolution 300 DPI	Select the resolution. Use a lower setting to create smaller files.
200 DPI
150 DPI (default)
75 DPI
Color/Black Color scan (default)	Specify whether the e-mail will be in black or in color.
Black/white scan
TIFF Version TIFF 6.0 (default)	Specify the TIFF version to use when saving scanned files.
TIFF (Post 6.0)

Default Send to Folder Options

Administration > Default Job Options > Default Send To Folder Options

Menu item Values Description
Color/Black Color scan	Specify whether the file will be in black or in color.
Black/white scan (default)
Document File Type PDF (default)	Select the file format for the file.
M-TIFF
TIFF
JPEG
TIFF version TIFF 6.0 (default)	Specify the TIFF version to use when saving scanned files.
TIFF (post 6.0)
Output Quality High (large file)	Selecting higher quality for output increases the size of the output file.
Medium (default)
Low (small file)
Resolution 75 DPI	Select the resolution. Use a lower setting to create smaller files.
150 DPI (default)
200 DPI
300 DPI
400 DPI
600 DPI

Default Print Options

Administration > Default Job Options > Default Print Options

Table 2-7 Default Print Options menu

Menu item Sub-menu Item Values Description
Copies Per Job		Type a value.	Set the default number of copies for print jobs.
Default Paper Size		(List of supported sizes)	Select a paper size.
Default Custom Paper Size	Unit of measure Millimeters	Inches	Configure the default paper size that is used when the user selectsCustomas the paper size for a print job.
	X Dimension		Configure the width measurement for theDefault Custom Paper Size.
	Y Dimension		Configure the height measurement for theDefault Custom Paper Size.
Output Bin			Select the default output bin for print jobs. If optional trays are installed, output bin options vary.
Print Sides 1-sided		2-sided	Select whether print jobs are single-sided or double-sided by default.

Time/Scheduling menu

Administration > Time/Scheduling

Use this menu to set options for setting the time and for setting the device to enter and exit sleep mode.

NOTE: Values shown with "(default)" are the factory-default values. Some menu items have no default.

Table 2-8 Time/Scheduling menu

Menu item	Sub-menu item	Sub-menu item	Values	Description
Date/Time	Date Format		YYYY/MM/DD (default)	Use this feature to set the current date and time, and to set the date format and time format that are used to time-stamp outgoing faxes.
			MMM/DD/YYYY
			DD/MM/YYYY
	Date Month
		Day
		Year
	Time Format 12 hour (AM/PM)		(default)
			24 hour
	Time Hour
		Minute
		AM
		PM
Sleep Delay 1 Minute				Use this feature to select the time interval that the device should remain inactive before entering Sleep Mode.
			20 minutes
			30 minutes (default)
			45 minutes
			1 hour (60 minutes)
			90 minutes
			2 hours
			4 hours
Wake Time Monday		Off (default)		Select Custom to set a wake time for each day of the week. The device exits sleep mode according to this schedule. Using a sleep schedule helps conserve energy and prepares the device for use so that users do not have to wait for it to warm up.
		Tuesday	Custom
		Wednesday
		Thursday
		Friday
		Saturday
		Sunday
Sleep Time Monday		Off (default)		Use this feature to set a sleep time for each day of the week for periods when the device will not likely be in use (for example, at a certain time each evening). Setting a sleep time makes the device automatically go into a low-power mode. Select a day and then select Custom to set up a custom sleep time schedule.
	Tuesday		Custom
	Wednesday
	Thursday
	Friday
	Saturday
	Sunday
FAX Printing		Create PIN		If you have concerns about the security of private faxes, use this feature to store faxes rather than having them automatically print by creating a printing schedule. When you select this menu item for the first time, you are prompted to set up a PIN. Type that PIN every time you use this menu.

Management menu

Administration > Management

Use this menu to set up global device-management options.

NOTE: Values shown with "(default)" are the factory-default values. Some menu items have no default.

Table 2-9 Management menu

Menu item Sub-menu item Values Description
Network Address Button Display		Use this feature to display the Network Address button on the Home screen.
	Hide (default)
Stored Job Management Quick Copy Job Storage Limit		Select the maximum number of jobs to store	Use this menu to view and manage any jobs that are stored on the device.
Sleep mode Disable		Use Sleep Delay (default)	Use this feature to customize the sleep mode settings for this device.Select Use Sleep Delay to set the device to enter sleep mode after the delay that is specified in the Time/Scheduling menu.
Manage Supplies Replace Supplies Stop at low		Stop at out (default)	This menu sets the product behavior for when a print cartridge, fuser kit, or transfer kit is low. Choose Stop at low to stop printing when a supply reaches a low condition. Choose Stop at out to allow the product to continue printing until a color print cartridge is empty.
		Override at out 1
		Override at out 2	Choose Override at out 1 to allow the product to continue printing when the cartridges are empty or when the other supplies are worn out. The product stops printing when the toner collection units are full. Using this option could reduce print quality.Choose Override at out 2 to allow the product to keep printing when the cartridges are empty; when other supplies are worn out; and when the waste toner collection units are full. Using this option can damage the device.
		Supply Low/Order Threshold	Select a value in the range. The default is 5%.	Use this menu to carry out administrative supply management tasks such as changing the threshold when supplies should be ordered.
		Color Supply Out Stop (default)	Auto-continue black	This menu sets the product behavior when a color supply is empty. When Auto-continue black is selected, the product will continue printing using black toner only.
Restrict Color Use	Color printing access	Enable Color (default)	This item allows the administrator to disable or restrict color printing. To use the Color If Allowed setting, set up user permissions and/or application permissions in the embedded Web server, HP Easy Printer Care software, or Web Jetadmin.
		Color If Allowed
		Disable Color
	Color copying access Enable Color (default)		This item allows the administrator to disable or restrict color copying.
Color/Black Mix		Automatic (default)	This item controls how the engine switches from color mode to monochrome mode for maximum performance and print cartridge life.
		Mostly color pages
		Mostly black pages	Choose Automatic to reset the product to the factory default setting.
			Choose Mostly color pages if nearly all of your print jobs are color with high page coverage.
			Choose Mostly black pages if you print mostly monochrome jobs or a combination of color and monochrome jobs.

Initial Setup menu

Administration > Initial Setup

NOTE: Values shown with "(default)" are the factory-default values. Some menu items have no default.

Networking and I/O

Administration > Initial Setup > Networking and I/O

Table 2-10 Networking and I/O

Menu item Sub-menu item Values Description
I/O Timeout	Select a value in the range. The factory default setting is 15 seconds.	I/O timeout refers to the elapsed time before a print job fails. If the stream of data that the device receives for a print job gets interrupted, this setting indicates how long the device will wait before it reports that the job has failed.
Embedded Jetdirect	See Table 2-11 Jetdirect menus on page 31 for the list of options.

Table 2-11 Jetdirect menus

Menu item	Sub-menu item	Sub-menu item	Values and Description
TCP/IP	Enable		Off: Disable the TCP/IP protocol.On (default): Enable the TCP/IP protocol.
	Host Name		An alphanumeric string, up to 32 characters, used to identify the device. This name is listed on the HP Jetdirect configuration page. The default host name is NPIxxxxxx, where xxxxxx is the last six digits of the LAN hardware (MAC) address.
	IPV4 Settings	Config Method	Specifies the method that TCP/IPv4 parameters will be configured on the HP Jetdirect print server.Bootp: Use BootP (Bootstrap Protocol) for automatic configuration from a BootP server.DHCP: Use DHCP (Dynamic Host Configuration Protocol) for automatic configuration from a DHCPv4 server. If selected and a DHCP lease exists, DHCP Release and DHCP Renew menus are available to set DHCP lease options.Auto IP: Use automatic link-local IPv4 addressing. An address in the form 169.254.x.x is assigned automatically.Manual: Use the Manual Settings menu to configure TCP/IPv4 parameters.
		Default IP	Specify the IP address to default to when the print server is unable to obtain an IP address from the network during a forced TCP/IP reconfiguration (for example, when manually configured to use BootP or DHCP).Auto IP: A link-local IP address 169.254.x.x is set.
			Legacy: The address 192.0.0.192 is set, consistent with older HP Jetdirect devices.
		DHCP Release	This menu appears if Config Method was set to DHCP and a DHCP lease for the print server exists.No (default): The current DHCP lease is saved.Yes: The current DHCP lease and the leased IP address are released.
		DHCP Renew	This menu appears if Config Method was set to DHCP and a DHCP lease for the print server exists.No (default): The print server does not request to renew the DHCP lease.Yes: The print server requests to renew the current DHCP lease.
		Primary DNS	Specify the IP address (n.n.n.n) of a Primary DNS Server.
		Secondary DNS	Specify the IP address (n.n.n.n) of a Secondary Domain Name System (DNS) Server.
	IPV6 Settings	Enable	Use this item to enable or disable IPv6 operation on the print server.Off: IPv6 is disabled.On (default): IPv6 is enabled.
		Address	Manual Settings: Use this item to manually set IPv6 addresses on the print server.Enable: Select this item and choose On to enable manual configuration, or Off to disable manual configuration.Address: Use this item to type a 32 hexadecimal digit IPv6 node address that uses the colon hexadecimal syntax.
		DHCPV6 Policy	Router Specified: The stateful auto-configuration method to be used by the print server is determined by a router. The router specifies whether the print server obtains its address, its configuration information, or both from a DHCPv6 server.Router Unavailable: If a router is not available, the print server should attempt to obtain its stateful configuration from a DHCPv6 server.Always: Whether or not a router is available, the print server always attempts to obtain its stateful configuration from a DHCPv6 server.
		Primary DNS	Use this item to specify an IPv6 address for a primary DNS server that the print server should use.
		Secondary DNS	Use this item to specify an IPv6 address for a secondary DNS server that the print server should use.
	Proxy Server		Specifies the proxy server to be used by embedded applications in the device. A proxy server is typically used by network clients for Internet access. It caches Web pages, and provides a degree of Internet security, for those clients.To specify a proxy server, enter its IPv4 address or fully-qualified domain name. The name can be up to 255 octets.For some networks, you may need to contact your Independent Service Provider (ISP) for the proxy server address.
	Proxy Port		Type the port number used by the proxy server for client support. The port number identifies the port reserved for proxy activity on your network, and can be a value from 0 to 65535.
IPX/SPX	Enable		Off: Disable the IPX/SPX protocol.On (default): Enable the IPX/SPX protocol.
	Frame Type		Selects the frame-type setting for your network.Auto: Automatically sets and limits the frame type to the first one detected.EN_8023, EN_II, EN_8022, and EN_SNAP: Frame-type selections for Ethernet networks.
AppleTalk	Enable		Off: Disable the AppleTalk protocol.On (default): Enable the AppleTalk protocol.
DLC/LLC	Enable		Off: Disable the DLC/LLC protocol.On (default): Enable the DLC/LLC protocol.
Security	Print Sec Page		Yes (default): Prints a page that contains the current security settings on the HP Jetdirect print server.No: A security settings page is not printed.
	Secure Web		For configuration management, specify whether the embedded Web server will accept communications using HTTPS (Secure HTTP) only, or both HTTP and HTTPS.HTTPS Required (default): For secure, encrypted communications, only HTTPS access is accepted. The print server will appear as a secure site.HTTP/HTTPS optional: Access using either HTTP or HTTPS is permitted.
	IPSEC Specify the Firewall status on the print server.		Keep: Firewall status remains the same as currently configured.Disable: Firewall operation on the print server is disabled.
	Reset Security		Specify whether the current security settings on the print server will be saved or reset to factory defaults.No: The current security settings are maintained.Yes: Security settings are reset to factory defaults.
Diagnostics	Embedded Tests		This menu provides tests to help diagnose network hardware or TCP/IP network connection problems.Embedded tests help to identify whether a network fault is internal or external to the device. Use an embedded test to check hardware and communication paths on the print server. After you select and enable a test and set the execution time, you must select Execute to initiate the test.Depending on the execution time, a selected test runs continuously until either the device is turned off, or an error occurs and a diagnostic page is printed.
		LAN HW Test	CAUTION: Running this embedded test will erase your TCP/IP configuration.This test performs an internal loopback test. An internal loopback test will send and receive packets only on the internal network hardware. There are no external transmissions on your network.Select Yes to choose this test, or No to not choose it.
		HTTP Test	This test checks operation of HTTP by retrieving predefined pages from the device, and tests the embedded Web server.Select Yes to choose this test, or No to not choose it.
		SNMP Test	This test checks operation of SNMP communications by accessing predefined SNMP objects on the device.
			Select Yes to choose this test, or No to not choose it.
		Data Path Test	This test helps to identify data path and corruption problems on an HP postscript level 3 emulation device. It sends a predefined PS file to the device, However, the test is paperless; the file will not print.Select Yes to choose this test, or No to not choose it.
		Select All Tests	Use this item to select all available embedded tests.Select Yes to choose all tests. Select No to select individual tests.
		Execution Time [H]	Use this item to specify the length of time (in hours) that an embedded test will be run. You can select a value from 1 to 60 hours. If you select zero (0), the test runs indefinitely until an error occurs or device is turned off.Data gathered from the HTTP, SNMP, and Data Path tests is printed after the tests have completed.
Execute No: Do not initiate the selected tests.
			Yes: Initiate the selected tests.
	Ping Test		This test is used to check network communications. This test sends link-level packets to a remote network host, then waits for an appropriate response. To run a ping test, set the following items:
		Dest Type Specify whether the target device is an IPv4 or IPv6 node.
		Dest IPv4 Type the IPv4 address.
		Dest IPv6 Type the IPv6 address.
		Packet Size Specify the size of each packet, in bytes, to be sent to the remote host. The minimum is 64 (default) and the maximum is 2048.
		Timeout Specify the length of time, in seconds, to wait for a response from the remote host. The default is 1 and the maximum is 100.
		Count Specify the number of ping test packets to send for this test. Select a value from 1 to 100. To configure the test to run continuously, select 0.
		Print Results If the ping test was not set for continuous operation, you can choose to print the test results. Select Yes to print results. If you select No (default), results are not printed.
		Execute	Specify whether to initiate the ping test. Select Yes to initiate the test, or No to not run the test.
	Ping Results		Use this item to view the ping test status and results using the control panel display. You can select the following items:
		Packets Sent Shows the number of packets (0 - 65535) sent to the remote host since the most recent test was initiated or completed.
		Packets Received Shows the number of packets (0 - 65535) received from the remote host since the most recent test was initiated or completed.
		Percent Lost Shows the percent of ping test packets that were sent with no response from the remote host since the most recent test was initiated or completed.
		RTT Min Shows the minimum detected roundtrip- time (RTT), from 0 to 4096 milliseconds, for packet transmission and response.
		RTT Max Shows the maximum detected roundtrip- time (RTT), from 0 to 4096 milliseconds, for packet transmission and response.
		RTT Average Shows the average round-trip-time (RTT), from 0 to 4096 milliseconds, for packet transmission and response.
		Ping In Progress	Shows whether a ping test is in progress. Yes indicates a test in progress, and No indicates that a test completed or was not run.
		Refresh When viewing the ping test results, this item updates the ping test data with current results. Select Yes to update the data, or No to maintain the existing data. However, a refresh automatically occurs when the menu times out or you manually return to the main menu.
Link Speed	The link speed and communication mode of the print		server must match the network. The available settings depend on the device and installed print server. Select one of the following link configuration settings:CAUTION: If you change the link setting, network communications with the print server and network device might be lost.Auto (default): The print server uses auto-negotiation to configure itself with the highest link speed and communication mode allowed. If auto-negotiation fails, either 100TX HALF or 10TX HALF is set depending on the detected link speed of the hub/switch port. (A 1000T half-duplex selection is not supported.)10T Half: 10 Mbps, half-duplex operation.10T Full: 10 Mbps, Full-duplex operation.100TX Half: 100 Mbps, half-duplex operation.100TX Full: 100 Mbps, full-duplex operation.100TX Auto: Limits auto-negotiation to a maximum link speed of 100 Mbps.1000TX Full: 1000 Mbps, full-duplex operation.
Print Protocols	Use this item to print a page that lists the configuration		of the following protocols: IPX/SPX, Novell NetWare, AppleTalk, DLC/LLC.

Fax Setup

Administration > Initial Setup > Fax Setup

Table 2-12 Fax Setup menu

Menu item	Sub-menu item	Sub-menu item	Values	Description
Required Settings	Country/Region		(Countries/regions listed)	Configure the settings that are legally required for outgoing faxes.
	Date/Time Date Format
		Date
		Time Format
		Time
	Fax Header Information	Phone Number
		Company Name
PC Fax Send		Disabled		Use this feature to enable or disable PC Fax Send. PC Fax Send enables users to send faxes through the device from their computers if they have the Send Fax driver installed on their PC.
			Enabled (default)
Fax Send Settings Fax Dial Volume Off				Use this feature to set the volume of the tones that you hear while the device dials the fax number.
			Low (default)
			High
	Error Correction Mode	Enabled (default)	Disabled	When Error Correction Mode is enabled and an error occurs during fax transmission, the device sends or receives the error portion again.
	JBIG Compression		Enabled (default)	JBIG compression reduces fax-transmission time, which can result in lower phone charges. However, using JBIG compression sometimes causes compatibility problems with older fax machines. If this occurs, turn off JBIG compression.
			Disabled
	Maximum Baud Rate	Select a value from	the list. The default is 33.6K.	Use this feature to set the maximum baud rate for receiving faxes. This can be used as a diagnostic tool for troubleshooting fax problems.
	TCF T.30 Delay Timer	Default (default)	Custom	This setting should be left at the default value and only changed when directed by an HP technical support agent. Adjustment procedures associated with this setting are beyond the scope of this guide.
	TCF Extend	Default (default)	Custom	This setting should be left at the default value and only changed when directed by an HP technical support agent. Adjustment procedures associated with this setting are beyond the scope of this guide.
	Dialing Mode	Tone (default)	Pulse	Select whether the device should use tone or pulse dialing.
	Redial On Busy	The range is between	0 and 9. The factory default is 3 times.	Type the number of times the device should attempt to redial if the line is busy.
	Redial On No Answer		Never (default)	Use this feature to specify the number of times the device should attempt to dial if the recipient fax number does not answer.
			Once
			Twice	NOTE: Twice is available in locations other than the United States and Canada.
Redial Interval The range is between			1 and 5 minutes. The factory default is 5 minutes.	Use this feature to specify the number of minutes between dialing attempts if the recipient number is busy or not answering.
			Disabled (default)	Use this feature to specify whether the device should check for a dial tone before sending a fax.
			Custom	Use this feature to specify a prefix number that must be dialed when sending faxes from the device.
			Custom	When billing codes are enabled, a prompt appears that asks the user to enter the billing code for an outgoing fax.The range is between 1 and 16 digits. The default is 1 digit.
Fax Receive Settings Rings To Answer The range varies by			location. The factory default is 2 rings.	Use this feature to specify the number of rings that must occur before the fax modem answers.
			Custom	This setting is used to adjust for some PBX ring signals. Change this setting only when directed by an HP technical support agent.
			Default (default)	This setting should be left at the default value and only changed when directed by an HP technical support agent. Adjustment procedures associated with this setting are beyond the scope of this guide.
			Custom
			Low (default)
			High
			Add Blocked Numbers	Type the fax number to add.
			Remove Blocked Numbers	Select a fax number to remove.
			Clear All Blocked Numbers	No (default)
				Yes

E-mail Setup

Administration > Initial Setup > E-mail Setup

Use this menu to enable the e-mail feature and to configure basic e-mail settings.

NOTE: To configure advanced e-mail settings, use the embedded Web server. For more information, see Embedded Web server on page 183.

Table 2-13 E-mail Setup menu

Menu item Values Description
Address Validation On (default)	Off	This option enables the device to check e-mail syntax when you type an e-mail address. Valid e-mail addresses require the "@" sign and a ".".
Find Send Gateways		Search the network for SMTP gateways that the device can use to send e-mail.
SMTP Gateway	Enter a value.	Specify the IP address of the SMTP gateway that is used to send e-mail from the device.
Test Send Gateway	Test the configured SMTP gateway to see if it is functional.

Send Setup menu

Administration > Initial Setup > Send Setup

Table 2-14 Send Setup menu

Menu item Values Description
Fax Number Confirmation Disable (default)	When fax number confirmation is enabled, you are prompted to enter the fax number twice to verify that it has been typed correctly.
Enable

Device Behavior menu

Administration > Device Behavior

Table 2-15 Device Behavior menu

Menu item	Sub-menu item	Sub-menu item	Values	Description
Language Select the language			from the list.	Select a different language for control-panel messages. When you select a new language, the keyboard layout might also change.
Key Press Sound			On (default)Off	Use this feature to specify whether you hear a sound when you touch the screen or press buttons on the control panel.
Inactivity Timeout	Type a value		between 10 and 300 seconds. The factory default is 60 seconds.	Specify the amount of time that elapses between any activity on the control panel and the device resetting to the default settings.
Warning/Error Behavior	Clearable Warnings On		Job (default)	Set the amount of time that a clearable warning appears on the control panel.
	Continuable Events Auto continue (10		seconds) (default)Touch OK to continue	Configure the device behavior when the device encounters certain errors.
	Jam Recovery Auto (default)		OffOn	Configure how the device handles pages that are lost during a jam.
Menu item Sub-menu item Sub-menu item Values Description
Tray Behavior	Use Requested Tray		Exclusively (default)First	Control how the device handles jobs that have specified a specific input tray.
	Manually Feed Prompt	Always (default)	Unless Loaded	Specify how a prompt should appear when the type or size for a job does not match the specified tray and the device pulls from the multipurpose tray instead.
	PS Defer Media		Enabled (default)Disabled	Select either the PostScript (PS) or HP paper-handling model.
	Use Another Tray		Enabled (default)Disabled	Turn on or off the control-panel prompt to select another tray when the specified tray is empty.
	Size/Type Prompt		Display (default)Do not display	Control whether the tray configuration message appears whenever a tray is opened or closed.
	Duplex Blank Pages		Auto (default)Yes	Control how the device handles two-sided jobs (duplexing).
	Image Rotation	Left to Right	Right to LeftAlternate	Image rotation allows users to put paper in the input tray using the same orientation regardless of whether there is a finisher installed.NOTE: The image rotation set in this menu will be applied any time a job does not request stapling or when the requested stapling could not be applied because of unsupported media or when the stapler is unavailable.Select Left to Right to rotate the image as if it were going to be bound on the left. This setting is appropriate for print jobs where reading from left to right is the cultural norm. This is the default setting.Select Right to Left to rotate the image as if it were going to be bound on the right. This setting is usually appropriate for print jobs where reading from right to left is the cultural norm.Select Alternate to use a different loading orientation that might work better with preprinted forms that are used on legacy products.
Multifunc FinisherorMBM-3 Bin Stapler	Operation Mode	Mailbox	StackerFunction Separator	This menu appears when the HP 3-bin Stapler/Stacker Accessory or the HP Booklet Maker/Finisher Accessory is attached.Allows you to set the default operation mode.Mailbox assigns a user or group of users to each output bin. Stacker treats all of the output bins as a single large bin. When one bin gets full, jobs are automatically routed to the next bin. Function Separator specifies a
Menu item	Sub-menu item	Sub-menu item	Values	Description
				default bin for specific types of jobs such as faxes or copies (stapler/stacker only).
Staples None			One Left Angled	Sets the default staple selection for documents sent to the device when no staple value is specified.
			One Right Angled
			Two Left
			Two Right
			Two Top
Staples Out Stop			Continue	Sets the default behavior when a job specifies stapling and the stapler is out of staples. Stop stops printing if the stapler runs out of staples. Continue allows a job to continue printing even when the device is out of staples.
Offset Off			On	Turns the job offset feature on or off. When job offset is on, each copy of a job is shifted to one side in the output bin in order to keep each copy separate from the others.
A4/Letter Staple Normal			Alternate 1	Controls the speed of the print engine to prevent paper jams by using the stapler buffer.
			Alternate 2	NOTE: The stapler buffer may or may not be used depending on the selected media type or on the sensed media type, if Autosense Mode is enabled.If the Normal setting is enabled, the engine speed will be normal by using the stapler buffer whenever possible.If the Alternate 1 setting is enabled, and the engine is in Autosense Mode, the engine slows down to prevent jams. If the product is NOT in Autosense Mode, the engine performs at normal speed, using the stapler buffer whenever possible.If the Alternate 2 setting is enabled, the engine always slows down to prevent jams, never using the stapler buffer.
Fold LTR-R & A4 - R -4.0 mm			-3.5 mm	Adjusts the fold line for Letter and A4 size paper (booklet maker only).
			-3.0 mm
			-2.5 mm
			-2.0 mm
			-1.5 mm
			-1.0 mm

Table 2-15 Device Behavior menu (continued)

Menu item Sub-menu item Sub-menu item Values Description
	-0.5 mm
	0.0 mm
	0.5 mm
	1.0 mm
	1.5 mm
	2.0 mm
	2.5 mm
	3.0 mm
	3.5 mm
	4.0 mm
Fold Legal & JISB4 -4.0 mm		Adjusts the fold line for Legal and JIS B4 size paper (booklet maker only).
	-3.5 mm
	-3.0 mm
	-2.5 mm
	-2.0 mm
	-1.5 mm
	-1.0 mm
	-0.5 mm
	0.0 mm
	0.5 mm
	1.0 mm
	1.5 mm
	2.0 mm
	2.5 mm
	3.0 mm
	3.5 mm
	4.0 mm
Fold 11X17 & A3 -4.0 mm		Adjusts the fold line for Legal and 11x17 and A3 size paper (booklet maker only).
	-3.5 mm
	-3.0 mm
	-2.5 mm
	-2.0 mm
	-1.5 mm

Table 2-15 Device Behavior menu (continued)

Menu item	Sub-menu item	Sub-menu item	Values	Description
			-1.0 mm
			-0.5 mm
			0.0 mm
			0.5 mm
			1.0 mm
			1.5 mm
			2.0 mm
			2.5 mm
			3.0 mm
			3.5 mm
			4.0 mm
General Copy Behavior
	Scan Ahead		Enabled (default)	Turn on no-wait scanning. With Scan Ahead enabled, the pages in the original document are scanned to disk and held until the device becomes available.
			Disabled
	Auto Print Interrupt Enabled		Disabled (default)	When this feature is enabled, copy jobs can interrupt print jobs that are set to print multiple copies.The copy job is inserted into the print queue at the end of one copy of the print job. After the copy job is complete, the device continues printing the remaining copies of the print job.
	Copy Interrupt Enabled		Disabled (default)	When this feature is enabled, a copy job that is currently printing can be interrupted when a new copy job is started. You are prompted to confirm that you want to interrupt the current job.
Alternative	Letterhead Mode	Off (default)	On	This option allows loading of letterhead or preprinted paper the same way for all copy jobs, whether copying to one side of the paper or to both sides of the paper.

Table 2-15 Device Behavior menu (continued)

Menu item Sub-menu item Sub-menu item Values Description
General Printing Behavior	Override A4/Letter No	Yes (default)	When this feature is enabled, the job prints on letter-size paper when an A4 job is sent but no A4-size paper is loaded in the device (or prints on A4 paper when a letter-size job is sent but no letter-size paper is loaded). This option also overrides A3 with ledger-size paper and ledger with A3-size paper.
	Manual Feed Enabled	Disabled (default)	When this feature is enabled, the user can select manual feed from the control panel as the paper source for a job.
	Courier Font Regular (default)	Dark	Select which version of the Courier font you want to use.
	Wide A4 Enabled	Disabled (default)	Change the printable area of A4-size paper. If you enable this option, eighty 10-pitch characters can be printed on a single line of A4 paper.
	Print PS Errors Enabled	Disabled (default)	Select whether a PostScript (PS) error page is printed when the device encounters a PS error.
	Print PDF Errors Enabled	Disabled (default)	Select whether a PDF error page is printed when the device encounters a PDF error.
	Personality Auto (default)	PCL	Select the printer language that the device should use.
		PDF	Normally, you should not change the language. If you change the setting to a specific language, the device does not automatically switch from one language to another unless specific software commands are sent to the device.
		PS

Table 2-15 Device Behavior menu (continued)

Menu item	Sub-menu item	Sub-menu item	Values	Description
PCL Form Length Type a value			between 5 and 128 lines. The factory default is 60 lines.	PCL is a set of printer commands that Hewlett-Packard developed to provide access to printer features.
		Orientation Portrait (default)	Landscape	Select the orientation that is most often used for print jobs. Select Portrait if the short edge is at the top or Landscape if the long edge is at the top.
		Font Source Select the source from the list.		Select the font source for the user-soft default font.
		Font Number Type the font number. The range is between 0 and 999. The factory default is 0.		Specify the font number for the user soft default font by using the source that is specified in the Font Source menu item. The device assigns a number to each font and lists it on the PCL font list (available from the Administration menu).
		Font Pitch Type a value between 0.44 and 99.99. The factory default is 10.00.		If Font Source and Font Number indicate a contour font, use this feature to select a default pitch (for a fixed-spaced font).
		Symbol Set PC-8 (default) (50 additional symbol sets from which to choose)		Select any one of several available symbol sets from the control panel. A symbol set is a unique grouping of all the characters in a font.
		Append CR to LF No (default) Yes		Configure whether a carriage return (CR) is appended to each line feed (LF) encountered in backwards-compatible PCL jobs (pure text, no job control).
		Suppress Blank Pages	No (default) Yes	This option is for users who are generating their own PCL, which could include extra form feeds that cause blank pages to be printed. When Yes is selected, form feeds are ignored if the page is blank.
		Media Source Mapping	Standard (default) Classic	Select and maintain input trays by number when you are not using the device driver, or when the software program has no option for tray selection.

Print Quality menu

Administration > Print Quality

Table 2-16 Print Quality menu

Menu item Sub-menu item Values Description
Adjust Color	Highlights	Cyan Density. MagentaDensity. Yellow Density.Black Density+5 to -5. Default is 0.	Adjust the darkness or lightness of highlights on a printed page. Lower values represent lighter highlights on a printed page, and higher values represent darker highlights on a printed page.
	Midtones Cyan Density. MagentaDensity. Yellow Density.Black Density+5 to -5. Default is 0.		Adjust the darkness or lightness of midtones on a printed page. Lower values represent lighter midtones on a printed page, and higher values represent darker midtones on a printed page.
	Shadows Cyan Density. MagentaDensity. Yellow Density.Black Density+5 to -5. Default is 0.		Adjust the darkness or lightness of shadows on a printed page. Lower values represent lighter shadows on a printed page, and higher values represent darker shadows on a printed page.
	Restore Color Values		Sets all the density values back to the factory default settings.
Set Registration	Test Page	Print	Shift the margin alignment to center the image on the page from top to bottom and from left to right. You can also align the image on the front with the image printed on the back.Print a test page for setting the registration.
	Source All trays	Tray: (choose a tray)	Select the source input tray for printing the Set Registration page.
	Adjust TrayShift from -20 to 20 along the X or Y axes. 0 is the default.X1 ShiftX2 ShiftY Shift		Perform the alignment procedure for each tray.When it creates an image, the device scans across the page from side to side as the sheet feeds from top to bottom into the device.The scan direction is referred to as X. X1 is the scan direction for the first side of a 2-sided page. X2 is the scan direction for the second side of a 2-sided page. The feed direction is referred to as Y.
Print Modes			Configure which mode is associated with which paper type.
Auto Sense Mode	Tray 1 sensing	Full Sensing (default for Tray 1)Expanded Sensing (default for Trays 2-5)Transparency Only	When Full Sensing is selected, the product recognizes light, plain, heavy, glossy, and tough paper and overhead transparencies. When Expanded Sensing is selected, the device recognizes normal paper, overhead transparencies, glossy paper, and tough paper. When Transparency Only is selected, the device recognizes only overhead transparency and non-overhead transparency types.
	Tray 2-5 Sensing Expanded SensingTransparency Only (default)		When Expanded Sensing is selected, the device recognizes normal paper, overhead transparencies, glossy paper, and tough paper. When Transparency Only is selected, the device recognizes only overhead transparency and non-overhead transparency types.
Optimize Paper Curl Normal		Reduced	To help reduce paper curl, set this option to Reduced. This decreases full speed to 10 PPM (instead of 40 ppm) and 3/4 speed to 7.5 ppm (instead of 30 ppm).
	Pre-rotation Off (default)On		Turn this feature On if horizontal streaks appear on pages. Using this feature increases the warm-up time for the device.
	Fuser Temp Normal (default)Alternate 1Alternate 2Alternate 3		If you are seeing a faint image of the page repeated at the bottom of the page or on the following page, you should first make sure the Paper Type and Print Mode settings are correct for the type of paper you are using. If you continue to see ghost images on your print jobs, set the Fuser Temp feature to one of the Alternate settings . Try the Alternate 1 setting first and see if it solves the problem. If you continue to see the problem, try Alternate 2 and then Alternate 3. With the Alternate 2 and Alternate 3 settings you may see an extra delay between jobs.
	Tray 1 Normal (default)Alternate		If you are seeing marks on the back side of the paper when printing from Tray 1, set the mode to Alternate. This increases the frequency of the cleaning cycle.
	Gloss Mode Normal (default)High		Chosen when stable high gloss is required. Set this feature to High for glossy print jobs, such as photos, if you notice the gloss finish decreasing after the first page is printed. This setting reduces the performance for all paper types.
Light Media Auto (default)	On	Prevents the fuser from wrapping with light paper. Set this feature to On if you are frequently seeing Fuser Delay Jam or Fuser Wrap Jam messages, especially when printing on lightweight paper or on jobs with heavy toner coverage.
	Environment Normal (default)	Optimizes performance in extreme low temperature environments. Set this feature to Low Temp if the product is operating in a low-temperature environment and you are having problems with print quality such as blisters in the printed image.
	Low Temp
	Line Voltage Normal (default)	Optimizes performance in low-voltage conditions. Set this feature to 100V if the product is operating in a low-voltage environment and you are having problems with print quality such as blisters in the printed image.
	100V
	Cleaning frequency Normal (default)	Set this feature to Alternate if you are seeing defects in the printed output that repeat at 38 mm (1.5 inch) intervals. This feature increases the frequency at which the C roller is cleaned. Setting this feature to Alternate might also reduce printing speed and increase the frequency of consumable replacement.
	Alternate
	D-Blade bias Normal (default)	Set this feature to Alternate if you are seeing short white vertical lines in the printed output. The Alternate setting might also cause dark spots in the printed output, so be sure to test this setting on a few print jobs.
	Alternate
	Waste Bin	Try setting this feature to Alternate if you are seeing lengthwise toner streaks in your printed output, especially in jobs with low toner coverage.
	Alternate
	Discharge Brush Off (default)	Enable this feature in low temperature and low humidity environments if you are seeing specks of toner scattered on double-sided jobs using light-weight paper and longer than ten pages.
	On
	Background Off (default)	Turn this feature On if pages are printing with a shaded background. Using this feature might reduce gloss levels.
	On
	Heavy Mode 30 PPM (default)	The default setting is 30 PPM. Select the 24 PPM option to reduce the speed and improve fusing on heavy paper.
	24 PPM
	Tracking Control Off (default)	Improves color stability by adjusting the bias voltage. This setting should remain On.
	On
	Restore Optimize	Select this setting to return all the settings in the Optimize menu to the factory default settings.
Resolution	Image REt 4800	Select Image REt 4800 to produces fast, high-quality printing that is appropriate for most print jobs
	1200X600dpi	Select 1200X600dpi to produce the highest-quality printing available, but it may slow print speed. This setting may be useful for jobs that contain very thin lines or fine graphics.
Color REt	Enabled (default)	Enable or disable Resolution Enhancement technology (REt), which produces print output with smooth angles, curves, and edges.
	Disabled

Table 2-16 Print Quality menu (continued)

Menu item Sub-menu item Values Description
Calibration/Cleaning
	Process Cleaning Page	Process	Use this feature to create and process a cleaning page for cleaning excess toner off the pressure roller in the fuser. The process takes up to 2.5 minutes.
	Quick Calibration	Calibrate	Performs partial product calibrations.
	Full Calibration	Calibrate	Performs all product calibrations.
	Delay Calibration At Wake/Power On	NoYes (default)	This menu controls the timing of the calibration when the printer wakes up or is turned on.Select No to have the printer calibrate immediately when it wakes up or is turned on. The device will not print any jobs until it finishes calibrating.Select Yes to enable a device that is asleep to accept print jobs before it calibrates. The device only accepts new jobs for a short time. It may start calibrating before it has printed all the jobs it has received.NOTE: For the best results, allow the device to calibrate before printing. Print jobs performed before calibration may not be of the highest quality.

Troubleshooting menu

Administration > Troubleshooting

NOTE: Many of the menu items under the Troubleshooting menu are for advanced troubleshooting purposes.

Table 2-17 Troubleshooting menu

Menu item	Sub-menu item	Sub-menu item	Values	Description
Event Log			Print	This shows the event codes and their corresponding engine cycles on the control-panel display.
Calibrate Scanner			Calibrate	Use this feature to compensate for offsets in the scanner imaging system (carriage head) for ADF and flatbed scans.You might need to calibrate the scanner if it is not capturing the correct sections of scanned documents.
PQ Troubleshooting			Print	Print various diagnostic pages that help solve print-quality problems.
Fax T.30 Trace	Print T.30 Report			Print or configure the fax T.30 trace report. T. 30 is the standard that specifies handshaking, protocols, and error correction between fax machines.
	When to Print Report	Never auto print	(default)
			Print after any fax job
			Print after fax send jobs
			Print after any fax error
			Print after send errors only
			Print after receive errors only
Fax Transmit Signal Loss	A value between 0		and 30. The default is 0.	Set loss levels to compensate for phone-line signal loss. Do not modify this setting unless requested to do so by an HP service representative because it could cause the fax to stop functioning.
Fax V.34			Normal (default)Off	Disable V.34 mode if several fax failures have occurred or if phone line conditions require it.
Fax Speaker Mode			Normal (default)Diagnostic	A technician can use this feature technician to evaluate and diagnose fax issues by listening to the sounds of fax modulations.
Diagnostic Page			Print	Print a diagnostic page that includes color swatches and the EP parameters table.
Disable Cartridge Check	Use this item to enter a mode where a			cartridge (or color pair of cartridge and drum) can be removed to determine which particular
				color is the source of a problem. In this mode, all consumable-related errors are ignored.
Paper Path Sensors				Initiate a test of the paper-path sensors.
Paper Path Test	Test Page		Print	Generate a test page for testing the paper-handling features. Define the path for the test in order to test specific paper paths.
	Source All trays		Tray 1	Specify whether the test page is printed from all trays or from a specific tray.
			Tray 2
			(Additional trays are shown, if applicable.)
	Destination		All bins	Select the output option for the test page. Send the test page to all output bins or only to a specific bin.
	Duplex Off (default)		On	Select whether the duplexer should be included in the test.
	Copies Range: 1-500,		Default is 1.	Select how many pages should be sent from the specified source as part of the test.
Finishing Paper Path Test	Staples Finishing Options Choose from a list of available options.			Test the paper-handling features on the finisher.Select the option that you want to test.
		Destination Bin
		Media Size Letter		Select the paper size for the test.
			A4
		Media Type Select from a list of types.		Select the paper type for the test.
		Copies Range: 2-30, Default=2		Select the number of copies to include in the test.
		Duplex Off		Select whether to use the duplexer in the test.
			On
		Test Page Print Print a test page to use for the test.
	Stack Destination Bin Select from a list of bins.			Select the options that you want to use to test the stacker.
	Media Size Letter
			Legal
			A4
			Executive (JIS)
			8.5 x 13
	Media Type Select from a list of bins.			Select the type of media to use for the Finishing Paper Path Test.
	Copies 1			Select the number of copies to include in the Finishing Paper Path Test.
			10
			50
			100
			500
	Duplex Off			Select whether to use the duplexer in the Finishing Paper Path Test.
			On
	Test Page Print Print a test page to use for the test.
Booklet Maker Media Size Letter				Select the options that you want to use to test the booklet maker.
			Legal
			A4
			Executive (JIS)
			8.5 x 13
		Media Type Select from a list of bins.		Select the type of media to use for the Finishing Paper Path Test.
		Copies 1		Select the number of copies to include in the Finishing Paper Path Test.
			10
			50
			100
			500
		Duplex Off		Select whether to use the duplexer in the Finishing Paper Path Test.
			On
		Test Page Print Print a test page to use for the test.
Manual Sensor Test				This item performs tests to determine whether the paper-path sensors are operating correctly.
Component Test			Transfer Motors	Exercise individual parts independently to isolate noise, leaking, or other issues. To start the test, select one of the components. The test runs the number of times specified in the Repeat option. You might be prompted to remove parts from the device during the test. Press the Stop button to abort the test.
			Belt Only
			Image Drum Motors
			Black Laser Scanner
			Cyan Laser Scanner
			Magenta Laser Scanner
			Yellow Laser Scanner
			Fuser Motor
			Fuser Pressure Release Motor
			Black Alienation Motor
			Cyan Alienation Motor
			Magenta Alienation Motor
			Yellow Alienation Motor
			ITB Contact/ Alienation
			Tray 2 Pickup Motor
			Tray 2 Pickup Solenoid
			Tray 3 Pickup Motor
			Tray 3 Pickup Solenoid
			Tray 4 Pickup Motor
			Tray 4 Pickup Solenoid
			Tray 5 Pickup Motor
			Tray 5 Pickup Solenoid
			Duplexer Reverse Motor
			Duplexer Feed Motor
			Duplexer ReFeed Motor
			Paper Transport Motor
Repeat Once (Default)				Determines the number of times the test runs.
			Continuous
Print/Stop Test	Continuous value		from 0 to 60,000 milliseconds. Default: 0	Isolate faults by stopping the device during the print cycle and observing where in the process the image degrades. To run the test, specify a stop time. The next job that is sent to the device stops at the specified time in the process.
Color Band Test	Test Page		Print	Prints a page that helps identify arcing in the high-voltage power supplies.
	Copies Continuous value		from 1 to 30. Default: 1	Specify the number of copies to print for the Color Band test
Scanner Tests Lower Lamp		A service technician can use this menu item
	Sensors			to diagnose potential problems with the device scanner.
	ADF Input Motor
	ADF Input Reverse
	Flatbed Motor
	ADF Read Motor
	ADF Read MotorReverse
	ADF DuplexSolenoid
	ADF LED Indicator
Control Panel	LEDs			Verify that the components of the control panel are functioning correctly.
	Display
	Buttons
	Touchscreen
Finisher Tests Manual Sensor Test
	Component Test

Resets menu

Administration > Resets

Table 2-18 Resets menu

Menu item Values Description
Clear Local Address Book	Clear	Use this feature to clear all addresses from the address books that are stored on the device.
Clear Fax Activity Log Yes		Use this feature to clear all events from the Fax Activity Log.
	No (default)
Restore Factory Telecom Setting	Restore	Use this option to restore the following settings to their factory default settings: Transmit Signal Loss, V34, Maximum Baud Rate, Speaker Mode.
Restore Factory Settings	Restore	Use this feature to restore all device settings to their factory defaults.
Reset Supplies New Document Feeder Kit (Yes/ No)		Notify the device that a new document-feeder kit has been installed.

Service menu

Administration > Service

The Service menu is locked and requires a PIN for access. This menu is intended for use by authorized service personnel.

3 Software for Windows

• Supported operating systems for Windows
• Supported printer drivers for Windows
• HP Universal Print Driver (UPD)
- Select the correct printer driver for Windows
• Priority for print settings
• Change printer-driver settings for Windows
- Remove software for Windows
• Supported utilities for Windows
• Software for other operating systems

Supported operating systems for Windows

The product supports the following Windows operating systems:

• Windows XP (32-bit and 64-bit)
• Windows Server 2003 (32-bit and 64-bit)
Windows 2000
• Windows Vista (32-bit and 64-bit)

Supported printer drivers for Windows

HP PCL 6
• HP postscript emulation Universal Print Driver (HP UPD PS)
HP PCL 5 UPD Universal Print Driver (HP UPD PCL 5)

The printer drivers include online Help that has instructions for common printing tasks and also describes the buttons, checkboxes, and drop-down lists that are in the printer driver.

NOTE: For more information about the UPD, see www.hp.com/go/upd.

HP Universal Print Driver (UPD)

The HP Universal Print Driver (UPD) for Windows is a single driver that gives you instant access to virtually any HP LaserJet product, from any location, without downloading separate drivers. It is built on proven HP print driver technology and has been tested thoroughly and used with many software programs. It is a powerful solution that performs consistently over time.

The HP UPD communicates directly with each HP product, gathers configuration information, and then customizes the user interface to show the product's unique, available features. It automatically enables features that are available for the product, such as two-sided printing and stapling, so you do not need to enable them manually.

NOTE: For more information about the UPD, see www.hp.com/go/upd.

UPD installation modes

Traditional mode	Use this mode if you are installing the driver from a CD for a single computer.When installed with this mode, UPD operates like traditional printer drivers.If you use this mode, you must install UPD separately for each computer.
Dynamic mode	Use this mode if you are installing the driver for a mobile computer, so you can discover and print to HP products in any location.Use this mode if you are installing UPD for a workgroup.To use this mode, download UPD from the Internet. See www.hp.com/go/upd.

Select the correct printer driver for Windows

Printer drivers provide access to the product features and allow the computer to communicate with the product (using a printer language). Check the installation notes and readme files on the device CD for additional software and languages.

HP PCL 6 driver description

• Recommended for printing in all Windows environments
- Provides the overall best speed, print quality, and product-feature support for most users
• Developed to align with the Windows Graphic Device Interface (GDI) for the best speed in Windows environments
- Might not be fully compatible with third-party and custom software programs that are based on PCL 5

HP postscript level 3 emulation driver description

• Recommended for printing with Adobe® software programs or with other highly graphics-intensive software programs
• Provides support for printing from postscript level 3 emulation needs, or for postscript flash font support
  • Performs slightly faster than the PCL 6 driver when using Adobe software programs

HP PCL 5 Universal Print Driver description

• Recommended for general office printing in Windows environments
• Compatible with previous PCL versions and older HP LaserJet products
• The best choice for printing from third-party or custom software programs
- The best choice when operating with mixed environments, which require the product to be set to PCL 5 (UNIX, Linux, mainframe)
- Designed for use in corporate Windows environments to provide a single driver for use with multiple printer models
• Preferred when printing to multiple printer models from a mobile Windows computer

Priority for print settings

Changes to print settings are prioritized depending on where the changes are made:

NOTE: The names of commands and dialog boxes might vary depending on your software program.

• Page Setup dialog box: Click Page Setup or a similar command on the File menu of the program you are working in to open this dialog box. Settings changed here override settings changed anywhere else.
• Print dialog box: Click Print, Print Setup, or a similar command on the File menu of the program you are working in to open this dialog box. Settings changed in the Print dialog box have a lower priority and do not override changes made in the Page Setup dialog box.
• Printer Properties dialog box (printer driver): Click Properties in the Print dialog box to open the printer driver. Settings changed in the Printer Properties dialog box do not override settings anywhere else in the printing software.
• Default printer driver settings: The default printer driver settings determine the settings used in all print jobs, unless settings are changed in the Page Setup, Print, or Printer Properties dialog boxes.
• Printer control panel settings: Settings changed at the printer control panel have a lower priority than changes made anywhere else.

Change printer-driver settings for Windows

Change the settings for all print jobs until the software program is closed	Change the default settings for all print jobs	Change the product configuration settings
1. On the File menu in the software program, click Print.2. Select the driver, and then click Properties or Preferences.The steps can vary; this procedure is most common.	1. Windows XP and Windows Server 2003 (using the default Start menu view): Click Start, and then click Printers and Faxes.-or-Windows 2000, Windows XP, and Windows Server 2003 (using the Classic Start menu view): Click Start, click Settings, and then click Printers.-or-Windows Vista: Click Start, click Control Panel, and then in the category for Hardware and Sound click Printer.2. Right-click the driver icon, and then select Printing Preferences.	1. Windows XP and Windows Server 2003 (using the default Start menu view): Click Start, and then click Printers and Faxes.-or-Windows 2000, Windows XP, and Windows Server 2003 (using the Classic Start menu view): Click Start, click Settings, and then click Printers.-or-Windows Vista: Click Start, click Control Panel, and then in the category for Hardware and Sound click Printer.2.Right-click the driver icon, and then select Properties.3. Click the Device Settings tab.

Remove software for Windows

1. Click Start, and then click All Programs.
2. Click HP, and then click HP Color LaserJet CM6030 or HP Color LaserJet CM6040 MFP.
3. Click Uninstall HP Color LaserJet CM6030 or HP Color LaserJet CM6040 MFP, and then follow the onscreen instructions to remove the software.

Supported utilities for Windows

HP Web Jetadmin

HP Web Jetadmin is a browser-based management tool for HP Jetdirect-connected printers within your intranet, and it should be installed only on the network administrator's computer.

To download a current version of HP Web Jetadmin and for the latest list of supported host systems, visit www.hp.com/go/webjetadmin.

When installed on a host server, a Windows client can gain access to HP Web Jetadmin by using a supported Web browser (such as Microsoft® Internet Explorer 4.x or Netscape Navigator 4.x or later) by navigating to the HP Web Jetadmin host.

Embedded Web server

The device is equipped with an embedded Web server, which provides access to information about device and network activities. This information appears in a Web browser, such as Microsoft Internet Explorer, Netscape Navigator, Apple Safari, or Firefox.

The embedded Web server resides on the device. It is not loaded on a network server.

The embedded Web server provides an interface to the device that anyone who has a network-connected computer and a standard Web browser can use. No special software is installed or configured, but you must have a supported Web browser on your computer. To gain access to the embedded Web server, type the IP address for the device in the address line of the browser. (To find the IP address, print a configuration page. For more information about printing a configuration page, see Information pages on page 178.)

For a complete explanation of the features and functionality of the embedded Web server, see Embedded Web server on page 183.

HP Easy Printer Care

HP Easy Printer Care software is a program that you can use for the following tasks:

• Check the product status
- Check the supplies status and use HP SureSupply to shop online for supplies
- Set up alerts
• View product usage reports
• View product documentation
• Gain access to troubleshooting and maintenance tools
- Use HP Proactive Support to routinely scan your printing system and to prevent potential problems. HP Proactive Support can update software, firmware, and HP printer drivers.

You can view HP Easy Printer Care software when the product is directly connected to your computer or when it is connected to a network.

Supported operating systems	Microsoft® Windows 2000Microsoft Windows XP, Service Pack 2 (Home and Professional editions)Microsoft Windows Server 2003Microsoft Windows VistaTM
Supported browsers	Microsoft Internet Explorer 6.0 or 7.0

To download HP Easy Printer Care software, go to www.hp.com/go/easyprintercare. This Web site also provides updated information about supported browsers and a list of HP products that support HP Easy Printer Care software.

For more information about using HP Easy Printer Care software, see HP Easy Printer Care on page 180.

Software for other operating systems

OS Software
UNIX	For HP-UX and Solaris networks, go to www.hp.com/support/go/jetdirectunix_software to install model scripts using the HP Jetdirect printer installer (HPPI) for UNIX.
	For the latest model scripts, go to www.hp.com/go/unixmodelscripts.
Linux	For information, go to www.hp.com/go/linuxprinting.

4 Use the product with Macintosh

• Software for Macintosh
• Use features in the Macintosh printer driver

Software for Macintosh

Supported operating systems for Macintosh

The device supports the following Macintosh operating systems:

• Mac OS X V10.2.8, V10.3, V10.4, V10.5 and later

NOTE: For Mac OS X V10.4 and later, PPC and Intel Core Processor Macs are supported.

Supported printer drivers for Macintosh

The HP installer provides PostScript ^® Printer Description (PPD) files, Printer Dialog Extensions (PDEs), and the HP Printer Utility for use with Macintosh computers.

The PPDs, in combination with the Apple PostScript printer drivers, provide access to device features. Use the Apple PostScript printer driver that comes with the computer.

Remove software from Macintosh operating systems

To remove the software from a Macintosh computer, drag the PPD files to the trash can.

Priority for print settings for Macintosh

Changes to print settings are prioritized depending on where the changes are made:

NOTE: The names of commands and dialog boxes might vary depending on your software program.

• Page Setup dialog box: Click Page Setup or a similar command on the File menu of the program you are working in to open this dialog box. Settings changed here might override settings changed anywhere else.
• Print dialog box: Click Print, Print Setup, or a similar command on the File menu of the program you are working in to open this dialog box. Settings changed in the Print dialog box have a lower priority and do not override changes made in the Page Setup dialog box.
• Default printer driver settings: The default printer driver settings determine the settings used in all print jobs, unless settings are changed in the Page Setup, Print, or Printer Properties dialog boxes.
• Printer control panel settings: Settings changed at the printer control panel have a lower priority than changes made anywhere else.

Change printer-driver settings for Macintosh

Change the settings for all print jobs until the software program is closed	Change the default settings for all print jobs	Change the product configuration settings
1. On the File menu, click Print.	1. On the File menu, click Print.	Mac OS X V10.2.8
2. Change the settings that you want on the various menus.	2. Change the settings that you want on the various menus.	1. In the Finder, on the Go menu, click Applications.
	3. On the Presets menu, click Save as and type a name for the preset.	2. Open Utilities, and then open Print Center.
		3. Click on the print queue.
	These settings are saved in the Presets menu. To use the new settings, you must select the saved preset option every time you open a program and print.	4. On the Printers menu, click Configure.5. Click the Installable Options menu.NOTE:Configuration settings might not be available in Classic mode.Mac OS X V10.3 or Mac OS X V10.41. From the Apple menu, click System Preferences and then Print & Fax.2. Click Printer Setup.3. Click the Installable Options menu.Mac OS X V10.51. From the Apple menu, click System Preferences and then Print & Fax.2. Click Options & Supplies.3. Click the Driver menu.4. Select the driver from the list, and configure the installed options.

Software for Macintosh computers

HP Printer Utility

Use the HP Printer Utility to set up product features that are not available in the printer driver.

You can use the HP Printer Utility when the product uses a universal serial bus (USB) cable or is connected to a TCP/IP-based network.

Open the HP Printer Utility

Open the HP Printer Utility in Mac OS X V10.2.8

1. Open the Finder, and then click Applications.
2. Click Library, and then click Printers.
3. Click hp, and then click Utilities.
4. Double-click HP Printer Selector to open the HP Printer Selector.
5. Select the product that you want to configure, and then click Utility.

Open the HP Printer Utility in Mac OS X V10.3 and V10.4

1. Open the Finder, click Applications, click Utilities, and then double-click Printer Setup Utility.
2. Select the product that you want to configure, and then click Utility.

Open the HP Printer Utility in Mac OS X V10.5

▲ From the Printer menu, click Printer Utility.

-or-

From the Print Queue, click the Utility icon.

HP Printer Utility features

The HP Printer Utility consists of pages that you open by clicking in the Configuration Settings list. The following table describes the tasks that you can perform from these pages.

Item Description
Configuration Page Prints a configuration page.
Supplies Status	Shows the device supplies status and provides links for online supplies-ordering.
HP Support	Provides access to technical assistance, online supplies ordering, online registration, and recycling and return information.
File Upload Transfers files from the computer to the device.
Upload Fonts Transfers font files from the computer to the device.
Firmware Update Transfers updated firmware files from the computer to the device.
Duplex Mode Turns on the automatic two-sided printing mode.
Economode & Toner Density	Turns on the Economode setting to conserve toner, or adjusts toner density.
Resolution Changes the resolution settings, including the REt setting.
Lock Resources Locks or unlocks storage products, such as a hard disk.
Stored Jobs Manages print jobs that are stored on the device hard disk.
Trays Configuration Changes the default tray settings.
IP Settings	Changes the device network settings and provides access to the embedded Web server.
Bonjour Settings	Provides the ability to turn on or off Bonjour support or change the device service name that is listed on a network.
Additional Settings	Provides access to the embedded Web server.
E-mail Alerts	Configures the device to send e-mail notices for certain events.

Supported utilities for Macintosh

Embedded Web server

The device is equipped with an embedded Web server, which provides access to information about device and network activities. For more information, see Embedded Web server sections on page 184.

Use features in the Macintosh printer driver

Print

Create and use printing presets in Macintosh

Use printing presets to save the current printer driver settings for reuse.

Create a printing preset

1. On the File menu, click Print.
2. Select the driver.
3. Select the print settings.
4. In the Presets box, click Save As..., and type a name for the preset.
5. Click OK.

Use printing presets

1. On the File menu, click Print.
2. Select the driver.
3. In the Presets box, select the printing preset that you want to use.

NOTE: To use printer-driver default settings, select Standard.

Resize documents or print on a custom paper size

You can scale a document to fit on a different size of paper.

1. On the File menu, click Print.
2. Open the Paper Handling menu.
3. In the area for Destination Paper Size, select Scale to fit paper size, and then select the size from the drop-down list.
4. If you want to use only paper that is smaller than the document, select Scale down only.

Print a cover page

You can print a separate cover page for your document that includes a message (such as "Confidential").

1. On the File menu, click Print.
2. Select the driver.
3. Open the Cover Page menu, and then select whether to print the cover page Before Document or After Document.
4. In the Cover Page Type menu, select the message that you want to print on the cover page.

NOTE: To print a blank cover page, select Standard as the Cover Page Type.

Use watermarks

A watermark is a notice, such as “Confidential,” that is printed in the background of each page of a document.

1. On the File menu, click Print.
2. Open the Watermarks menu.
3. Next to Mode, select the type of watermark to use. Select Watermark to print a semi-transparent message. Select Overlay to print a message that is not transparent.
4. Next to Pages, select whether to print the watermark on all pages or on the first page only.
5. Next to Text, select one of the standard messages, or select Custom and type a new message in the box.
6. Select options for the remaining settings.

Print multiple pages on one sheet of paper in Macintosh

You can print more than one page on a single sheet of paper. This feature provides a cost-effective way to print draft pages.

1 1 2 1 2 3 4 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

1. On the File menu, click Print.
2. Select the driver.
3. Open the Layout menu.
4. Next to Pages per Sheet, select the number of pages that you want to print on each sheet (1, 2, 4, 6, 9, or 16).
5. Next to Layout Direction, select the order and placement of the pages on the sheet.
6. Next to Borders, select the type of border to print around each page on the sheet.

Print on both sides of the page (duplex printing)

Use automatic duplex printing

1. Insert enough paper into one of the trays to accommodate the print job. If you are loading special paper such as letterhead, load it in one of the following ways:
2. For tray 1, load the letterhead paper face-up with the bottom edge feeding into the printer first.

3. For all other trays, load the letterhead paper face-down with the top edge at the back of the tray.

4. On the File menu, click Print.

5. Open the Layout menu.

6. Next to Two-Sided, select either Long-Edge Binding or Short-Edge Binding.

7. Click Print.

Print on both sides manually

1. Insert enough paper into one of the trays to accommodate the print job. If you are loading special paper such as letterhead, load it in one of the following ways:
2. For tray 1, load the letterhead paper face-up with the bottom edge feeding into the printer first.
3. For all other trays, load the letterhead paper face-down with the top edge at the back of the tray.

△ CAUTION: To avoid jams, do not load paper that is heavier than 105 g/m^2 (28-lb bond).

1. On the File menu, click Print.

2. On the Finishing menu, select Manually Print on 2nd Side.

3. Click Print. Follow the instructions in the pop-up window that appears on the computer screen before replacing the output stack in tray 1 for printing the second half.

4. Go to the printer, and remove any blank paper that is in tray 1.

5. Insert the printed stack face-up with the bottom edge feeding into the printer first in tray 1. You must print the second side from tray 1.

6. If prompted, press the appropriate control-panel button to continue.

Set the stapling options

If a finishing device that has a stapler is installed, you can staple documents.

1. On the File menu, click Print.
2. Open the Finishing menu.
3. In the Stapling Options drop-down list, select the stapling option that you want to use.

Store jobs

You can store jobs on the product so you can print them at any time. You can share stored jobs with other users, or you can make them private.

1. On the File menu, click Print.
2. Open the Job Storage menu.
3. In the Job Storage: drop-down list, select the type of stored job.
4. For the Stored Job, Private Job, and Private Stored Job types of stored jobs, enter a name for the stored job in the box next to Job Name:.

Select which option to use if another stored job already has that name.

• Use Job Name + (1 - 99) appends a unique number to the end of the job name.
- Replace Existing File overwrites the existing stored job with the new one.

1. If you selected Stored Job or Private Job in step 3, type a 4-digit number in the box next to PIN To Print (0000 - 9999). When other people attempt to print this job, the product prompts them to enter this PIN number.

Set the color options

Use the Color Options pop-up menu to control how colors are interpreted and printed from software programs.

1. On the File menu in the software program, click Print.
2. Select the driver.
3. Open the Color Options pop-up menu.
4. Click Show Advanced Options.
5. Adjust the individual settings for text, graphics, and photographs.

Use the Services menu

If the product is connected to a network, use the Services menu to obtain product and supply-status information.

1. On the File menu, click Print.

2. Open the Services menu.

3. To open the embedded Web server and perform a maintenance task, do the following:

a. Select Device Maintenance.
b. Select a task from the drop-down list.
c. Click Launch.

1. To go to various support Web sites for this device, do the following:

a. Select Services on the Web.
b. Select Internet Services, and select an option from the drop-down list.
c. Click Go!.

5 Connect the product

USB connection
• Network connection

USB connection

This product supports one USB 2.0 device connection. The USB port is located on the back of the product. You must use an A-to-B type USB cable that is no longer than 2 meters (6.56 feet). The USB 2.0 port can be used to connect directly to the product and to upgrade firmware.

Figure 5-1 USB connection

Diagram showing connection between a computer tower and an Ethernet cable, with labeled components and a numbered annotation.

1 USB 2.0 port

Network connection

All product models include an embedded HP Jetdirect print server, which supports connection to a network using the local area network (LAN) connector (RJ-45) on the back of the product. For more information about configuring the product on a network see Network configuration on page 87

Figure 5-2 Network connection

Diagram showing computer setup with labeled components and connection to a device, including a zoomed-in view of the internal component.

1 Network cable

2 Network port

6 Network configuration

• Benefits of a network connection
• Supported network protocols
- Configuring network settings
• Network utilities

Benefits of a network connection

Connecting the product to a network provides a number of benefits:

• All network users can share the same product.
- You can manage the product remotely, from any computer on the network, by using the embedded Web server (EWS).
- You can use the HP Easy Printer Care software to view supply usage on all HP products connected to the network. This makes it easy to centrally manage ordering replacement cartridges and other supplies.
- For large enterprise businesses, you can also manage the product remotely by using HP Web Jetadmin.

Supported network protocols

The product supports the TCP/IP network protocol, the most widely used and accepted networking protocol. Many networking services utilize this protocol. For more information, see TCP/IP on page 90. The following table lists the supported networking services and protocols.

Table 6-1 Printing

Service name Description

port9100 (Direct Mode) Printing service

Line printer daemon (LPD) Printing service

Table 6-2 Network device discovery

Service name Description
SLP (Service Location Protocol)	Device-discovery protocol, used to help find and configure network devices. Used primarily by Microsoft-based programs.
Bonjour Device-discovery protocol, used to help find and configure network devices. Used primarily by Apple Macintosh-based programs.

Table 6-3 Messaging and management

Service name Description
HTTP (Hyper Text Transfer Protocol) Allows Web browsers to communicate with embedded Web server.
EWS (embedded Web server) Allows a user to manage the product through a Web browser.
SNMP (Simple Network Management Protocol)	Used by network applications for product management. SNMP v1 and standard MIB-II (Management Information Base) objects are supported.

Table 6-4 IP addressing

Service name Description
DHCP (Dynamic Host Configuration Protocol)	For automatic IP address assignment. The DHCP server provides the product with an IP address. Generally, no user intervention is required for the product to obtain an IP address from a DHCP server.
BOOTP (Bootstrap Protocol) For automatic IP address assignment. The BOOTP server provides the product with an IP address. Requires the administrator to input a product's MAC hardware address on the BOOTP server for the product to obtain an IP address from that server.
Auto IP For automatic IP address assignment. If neither a DHCP server nor a BOOTP server is present, the product uses this service to generate a unique IP address.

Configuring network settings

You might need to configure certain network parameters on the product. You can configure these parameters from the installation software, the product control panel, the embedded Web server, or management software, such as HP Web Jetadmin.

For more information about supported networks and network configuration tools, see the HP Jetdirect Print Servers Administrator's Guide. The guide comes with printers in which an HP Jetdirect print server is installed.

TCP/IP

Similar to a common language that people use to communicate with each other, TCP/IP (Transmission Control Protocol/Internet Protocol) is a suite of protocols designed to define the way computers and other devices communicate with each other over a network.

Internet Protocol (IP)

When information is sent across the network, the data is broken down into small packets. Each packet is sent independently. Each packet is encoded with IP information, such as the IP address of the sender and receiver. IP packets can be routed over routers and gateways: devices that connect a network with other networks.

IP communications require no connection. When IP packets are sent, they might not arrive at their destination in the correct sequence. However, higher-level protocols and programs place the packets in the correct sequence, so IP communications are efficient.

Each node or device that communicates on the network requires an IP address.

Transmission Control Protocol (TCP)

TCP breaks the data into packets and recombines them on the receiving end by providing a connection-oriented, reliable, and guaranteed delivery service to another node on the network. When data packets are received at their destination, TCP calculates a checksum for each packet to verify that the data is not corrupt. If the data in the packet has been corrupted during transmission, TCP discards the packet and requests that the packet be resent.

IP address

Every host (workstation or node) on an IP network requires a unique IP address for each network interface. This address is used to identify both the network and specific hosts that are located on that network. It is possible for a host to query a server for a dynamic IP address each time the product boots up (for example, using DHCP and BOOTP).

An IP address contains four bytes of information, divided into sections that each contain one byte. The IP address has the following format:

XXX.XXX.XXX.XXX

△ CAUTION: When assigning IP addresses, always consult the IP address administrator. Setting the wrong address can disable other equipment operating on the network or interfere with communications.

Configure IP parameters

TCP/IP configuration parameters can be configured manually, or they can be automatically downloaded by using DHCP or BOOTP each time the product is turned on.

When turned on, a new product that is unable to retrieve a valid IP address from the network automatically assigns itself a default IP address. The IP address for the product is listed on the product Configuration page and the Network report. See Information pages on page 178.

Dynamic Host Configuration Protocol (DHCP)

DHCP allows a group of devices to use a set of IP addresses that are maintained by a DHCP server. The product sends a request to the server, and if an IP address is available, the server assigns it to that product.

BOOTP

BOOTP is a bootstrap protocol used to download configuration parameters and host information from a network server.

The client broadcasts a boot request packet that contains the product hardware address. The server answers with a boot reply packet that contains the information that the product needs for configuration.

Subnets

When an IP network address for a particular network class is assigned to an organization, no provision is made for more than one network being present at that location. Local network administrators use subnets to partition a network into several different subnetworks. Splitting a network into subnets can result in better performance and improved use of limited network address space.

Subnet mask

The subnet mask is a mechanism used to divide a single IP network into several different subnetworks. For a given network class, a portion of an IP address that would normally be used to identify a node is used, instead, to identify a subnetwork. A subnet mask is applied to each IP address to specify the portion used for subnetworks, and the portion used to identify the node.

Gateways

Gateways (routers) are used to connect networks together. Gateways are devices that act as translators between systems that do not use the same communication protocols, data formatting, structures, languages, or architectures. Gateways repackage the data packets and change the syntax to match that of the destination system. When networks are divided into subnets, gateways are required to connect one subnet to another.

Default gateway

The default gateway is the IP address of the gateway or router that moves packets between networks.

If multiple gateways or routers exist, then the default gateway is typically the address of the first, or nearest, gateway or router. If no gateways or routers exist, then the default gateway will typically assume the IP address of the network node (such as the workstation or product).

Configure TCP/IPv4 parameters

If your network doesn't provide automatic IP addressing through DHCP, BOOTP, RARP, or another method, you might need to enter the following parameters manually before you can print over the network:

• IP address (4 bytes)
- Subnet mask (4 bytes)
Default gateway (4 bytes)

Input or change the IP address

You can view the current IP address of the device from the control-panel Home screen by touching Network Address.

Use the following procedure to change the IP address manually.

1. Scroll to and touch Administration.
2. Scroll to and touch Initial Setup.
3. Touch Networking and I/O.
4. Touch Embedded Jetdirect.
5. Touch TCP/IP.
6. Touch IPV4 Settings.
7. Touch Config Method.
8. Touch Manual.
9. Touch Save.
10. Touch Manual Settings.
11. Touch IP Address.
12. Touch the IP Address text box.
13. Use the touchscreen keypad to type the IP address.
14. Touch OK.
15. Touch Save.

Set the subnet mask

1. Scroll to and touch Administration.
2. Scroll to and touch Initial Setup.
3. Touch Networking and I/O.
4. Touch Embedded Jetdirect.

5. Touch TCP/IP.

6. Touch IPV4 Settings.

7. Touch Config Method.
8. Touch Manual.
9. Touch Save.
10. Touch Manual Settings.
11. Touch Subnet Mask.
12. Touch the Subnet Mask text box.
13. Use the touchscreen keypad to type the subnet mask.
14. Touch OK.
15. Touch Save.

Set the default gateway

1. Scroll to and touch Administration.
2. Scroll to and touch Initial Setup.
3. Touch Networking and I/O.
4. Touch Embedded Jetdirect.
5. Touch TCP/IP.
6. Touch IPV4 Settings.
7. Touch Config Method.
8. Touch Manual.
9. Touch Save.
10. Touch Manual Settings.
11. Touch Default Gateway.
12. Touch the Default Gateway text box.
13. Touch OK.

14. Touch Save.

15. Use the touchscreen keyboard to type the default gateway.

Configure TCP/IPv6 parameters

For information about configuring the device for a TCP/IPv6 network, see the HP Jetdirect Print Servers Administrator's Guide.

Network utilities

The product can be used with several utilities that make it easy to monitor and manage the product on a network.

• HP Web Jetadmin: See HP Web Jetadmin on page 69.
• Embedded Web server: See Embedded Web server on page 69.
HP Easy Printer Care software: See HP Easy Printer Care on page 69.

Other components and utilities

Windows Macintosh OS

• Software installer — automates the printing system installation
  • Online Web registration

- The HP Printer Utility — change device settings, view status, and set up printer-event notification from a Mac. This utility is supported for Mac OS X V10.2 and later.

7 Paper and print media

• Understand paper and print media use
• Supported paper and print media sizes
• Supported paper types
• Special paper or print media guidelines
- Load paper and print media
- Configure trays
- Choose an output location

Understand paper and print media use

This product supports a variety of paper and other print media in accordance with the guidelines in this user guide. Paper or print media that does not meet these guidelines might cause the following problems:

• Poor print quality
• Increased jams

• Premature wear on the product, requiring repair

For best results, use only HP-brand paper and print media designed for laserjets or multiuse. Do not use paper or print media made for inkjet printers. Hewlett-Packard Company cannot recommend the use of other brands of media because HP cannot control their quality.

It is possible for paper to meet all of the guidelines in this user guide and still not produce satisfactory results. This might be the result of improper handling, unacceptable temperature and/or humidity levels, or other variables over which Hewlett-Packard has no control.

△ CAUTION: Using paper or print media that does not meet Hewlett-Packard's specifications might cause problems for the product, requiring repair. This repair is not covered by the Hewlett-Packard warranty or service agreements.

Supported paper and print media sizes

NOTE: To obtain best print results, select the appropriate paper size and type in your print driver before printing.

Table 7-1 Supported paper and print media sizes

Size	Dimensions	Tray 1	Tray 2	Trays 3, 4, 5
Letter 216 x 279 mm (8.5 x 11 in)		√	√1	√1
Letter Rotated 279 x 216 mm (11 x 8.5 in)		√	√1	√1
Legal 216 x 356 mm (8.5 x 14 in)		√	√1	√1
A4 210 x 297 mm (8.27 x 11.69 in)		√	√1	√1
A4 Rotated 297 x 210 mm (11.69 x 8.27 in)		√	√1	√1
Executive 184 x 267 mm (7.24 x 10.51 in)		√	√1	√1
Statement 139.7 x 215.9 mm (5.5 x 8.5 in)		√
8.5 x 13 216 x 330 mm (8.5 x 13 in)		√	√	√
A3 297 x 420 mm (11.69 x 16.54 in)		√	√1	√1
A5 148 x 210 mm (5.83 x 8.27 in)		√	√1	√1
A6 105 x 148 mm (4.13 x 5.83 in)		√
11 x 17 279 x 432 mm (11 x 17 in)		√	√1	√1
12 x 18 305 x 457 mm (12 x 18 in)		√		√
B4 (JIS) 257 x 364 mm (10.12 x 14.33 in)		√	√1	√1
RA3	305 x 430 mm (12 x 16.93 in)	√		√
SRA3	320 x 450 mm (12.6 x 17.7 in)	√		√
B5 (JIS) 182 x 257 mm (7.17 x 10.12 in)		√	√1	√1
8k	270 x 390 mm (10.63 x 15.35 in)	√	√	√
16k	195 x 270 mm (7.68 x 10.63 in)	√	√	√
Custom	98.55 x 139.70 mm to 320 x 457.2 mm(3.9 x 5.5 to 12.6 x 18 in)3	√
Custom	148 x 210 mm to 297 x 432 mm (5.8 x 8.2 to11.7 x 17 in)2		√
Custom	148 x 210 mm to 320 x 457.2 mm (5.8 x 8.2 to12.6 x 18 in)			√

1 Tray automatically detects paper size.
2 Standard sizes within the custom range for Tray 2 are: 8.5 x 13, RA4, SRA4, 8K (270 x 390), 16K (195 x 270)
3 Standard sizes within the custom range for Trays 3, 4, and 5 are: 8.5 x 13, RA4, SRA4, 8K (270 x 390), 16K (195 x 270), RA3, SRA3, and 12 x 18

Table 7-2 Supported envelopes and postcards

Size	Dimensions	Tray 1	Trays 2, 3, 4, 5
Envelope #9	98 x 225 mm (3.88 x 8.88 in)	√
Envelope #10	105 x 241 mm (4.13 x 9.49 in)	√
Envelope DL	110 x 220 mm (4.33 x 8.66 in)	√
Envelope C5	162 x 229 mm (6.93 x 9.84 in)	√
Envelope B5	176 x 250 mm (6.7 x 9.8 in)	√
Envelope C6	162 x 114 mm (6.4 x 4.5 in)	√
Envelope Monarch	98 x 191 mm (3.9 x 7.5 in)	√
Double Post Card		√
US Index Cards		102 x 152 mm (4 x 6 in) and 127 x 203 mm (5 x 8 in)	√

^1 Weights greater than 160 g/m^2 may not perform well, but will not harm the product.

The following paper sizes are supported with the optional HP 3-bin Stapler/Stacker and HP Booklet Maker/Finisher accessories.

Table 7-3 Supported paper and print media sizes for the optional HP 3-bin Stapler/Stacker and HP Booklet Maker/Finisher accessories

Size Dimensions Stacking		^2	Angled staple (left-angled)	Angled staple (right-angled)	Two staples (top or side)	Folding	Saddle stitch
Letter	216 x 279 mm(8.5 x 11 in)	√	√	√	√
Letter Rotated	279 x 216 mm(11 x 8.5 in)	√	√	√		^1	^1
Legal 216 x 356 mm(8.5 x 14 in)		√	√	√		^1	^1
A4	210 x 297 mm(8.27 x 11.69 in)	√	√	√	√
A4 Rotated	297 x 210 mm(11.69 x 8.27 in)	√	√	√		^1	^1
Executive	184 x 267 mm(7.24 x 10.51 in)	√
8.5 x 13	216 x 330 mm(8.5 x 13 in)	√
A3	297 x 420 mm(11.69 x 16.54 in)	√	√	√	√	^1	^1
A5	148 x 210 mm(5.83 x 8.27 in)	√
A6	105 x 148 mm(4.13 x 5.83 in)	√
Statement	140 x 216 mm(5.5 x 8.5 in)	√
11 x 17(Ledger)	279 x 432 mm(11 x 17 in)	√	√	√	√	^1	^1

Table 7-3 Supported paper and print media sizes for the optional HP 3-bin Stapler/Stacker and HP Booklet Maker/Finisher accessories (continued)

Size Dimensions Stacking		2	Angled staple (left-angled)	Angled staple (right-angled)	Two staples (top or side)	Folding Saddle stitch
12 x 18 305 x 457 mm(12 x 18 in)		√
B4 (JIS) 257 x 364 mm(10.12 x 14.33 in)		√	√	√	√	√1
RA3 305 x 430 mm(12 x 16.93 in)		√
SRA3 320 x 450 mm(12.6 x 17.7 in)		√
B5 (JIS) 257 x 182 mm(10.12 x 7.17 in)		√
B6 (JIS) 128 x 182 mm(5.04 x 7.2 in)		√
8K 270 x 390 mm(10.63 x 15.35 in)		√
16K 195 x 270 mm(7.68 x 10.63 in)		√
Envelope 9# 98.4 x 225.4 mm(3.88 x 8.88 in)		√
Envelope 10# 104.77 x 241.3 mm(4.12 x 9.5 in)		√
Envelope DL 110 x 220 mm(4.33 x 8.66 in)		√
Envelope C5 162 x 229 mm(6.38 x 9.02 in)		√
Envelope B5 176 x 250 mm(6.93 x 9.84 in)		√
Envelope C6 114 x 162 mm(4.49 x 6.38 in)		√
Envelope Monarch	98.42 x 190.5 mm(3.88 x 7.5 in)	√
Double Post Card	148 x 200 mm(5.83 x 7.87 in)	√
4 x 6 Index Card	102 x 152 mm (4 x 6 in)	√
5 x 8 Index Card	127 x 203 mm (5 x 8 in)	√
Custom Size 98.55 x 139.70 mm to320 x 457.2 mm(3.9 x 5.5 to12.6 x 18 in)

1 Booklet maker only
2 Stacking uses bins 1, 2, and 3 in the stapler/stacker, or bins 1 and 2 in the booklet maker.

Supported paper types

Table 7-4 Tray 1 paper information

Type	Specifications	Quantity	Driver settings	Paper orientation
Paper and cardstock, standard sizes	Range:60 g/m2(16 lb) bond to 220 g/m2(58 lb) bond	Maximum stack height:10 mm (0.6 in)Equivalent to 100 sheets of 75 g/m2(20 lb) bond.	Plain or unspecified Load	preprinted or prepunched paper facing down, with the top edge leading into the tray, or toward the back of the product
Envelopes	Less than 60 g/m2(16 lb) bond to 90 g/m2(24 lb) bond	Up to 10 envelopes Envelope Short edge leading,		flap toward the front of the product, facing up
Labels Maximum 0.23 mm(0.009 in) thick		Maximum stack height:10 mm (0.6 in)	Labels Side to be printed onfacing down
Transparencies Minimum 0.13 mm(0.005 in) thick		Maximum stack height:10 mm (0.6 in)	Transparencies Side to be printed onfacing down
Heavy 0.13 mm (0.005 in) thick		Maximum stack height:10 mm (0.6 in)	Light glossy, glossy, or heavy glossy	Side to be printed on facing down
Glossy Range:75 g/m2(20 lb) bond to 220 g/m2(58 lb) bond		Maximum stack height:10 mm (0.6 in)	Light glossy, glossy, or heavy glossy	Side to be printed on facing down
Photo media	60 g/m2(16 lb) bond to 220 g/m2(58 lb) bond	Maximum stack height:10 mm (0.6 in)	Side to be printed onfacing down
Cut sheet paper	60 g/m2(16 lb) bond to 220 g/m2(58 lb) bond	Maximum stack height:10 mm (0.6 in)	Side to be printed onfacing down
Tough paper	60 g/m2(16 lb) bond to 220 g/m2(58 lb) bond	Maximum stack height:10 mm (0.6 in)	Side to be printed onfacing down

Table 7-5 Trays 2, 3, 4, and 5 paper information

Type	Specifications	Quantity	Settings	Paper orientation
Paper and cardstock, standard sizes	Range:60 g/m2(16 lb) bond to 220 g/m2(58 lb) bond	500 sheets of 75 g/m2(20 lb) bond.	Plain or unspecified	Load preprinted or prepunched paper facing up, with the top toward the back of the tray or toward the right-hand side of the tray.
Labels Maximum 0.13 mm(0.005 in) thick		Maximum stack height:54 mm (2.1 in)	Labels Side to be printed onfacing up
Transparencies Minimum 0.13 mm(0.005 in) thick		Maximum stack height:54 mm (2.1 in)	Transparencies	Side to be printed onfacing up
Heavy	0.13 mm (0.005 in) thick	Maximum stack height:54 mm (2.1 in)	Light glossy, glossy, or heavy glossy	Side to be printed onfacing up
Glossy	75 g/m2(20 lb) bond to 220 g/m2(58 lb) bond	Maximum stack height:54 mm (2.1 in)	Light glossy, glossy, or heavy glossy	Side to be printed onfacing up
Photo media	60 g/m2(16 lb) bond to 220 g/m2(58 lb) bond	Maximum stack height: 54 mm (2.1 in)	Light glossy, glossy, or heavy glossy	Side to be printed on facing up
Cut sheet paper	60 g/m2(16 lb) bond to 220 g/m2(58 lb) bond	Maximum stack height: 54 mm (2.1 in)	Plain or unspecified Side to be printed on facing up
Tough paper	60 g/m2(16 lb) bond to 220 g/m2(58 lb) bond	Maximum stack height: 54 mm (2.1 in)	HP Tough Paper Side to be printed on facing up

Trays 2, 3, 4, and 5 capacity: 54 mm (2.126 in) height or 500 sheets of paper, whichever is less. Supported media types include: Cut sheet paper, labels, OHT, glossy paper, glossy film, photo media, and tough paper. Basis Weight: 60-220 g/m² (16-58 lb).

Duplex printing: Provides automatic two-sided printing (printing on both sides of the paper). The paper size range for automatic duplex printing is 175 to 320 mm (6.9 to 12.6 in) x 210 to 457 mm (8.3 to 18 in). The media weight range is 60 to 220 g/m² (16 to 58 lb)

NOTE: HP Color Laser Presentation Paper, Glossy (Q2546A) is not supported with this product. Using this type of paper can cause a fuser jam that might require the replacement of the fuser. Two recommended alternatives are HP Color LaserJet Presentation Paper, Soft Gloss (Q6541A) and HP Color LaserJet Brochure Paper, Glossy (Q6611A, Q6610A).

NOTE: For a complete list of specific HP-brand paper that this product supports, go to www.hp.com/sbso/product/supplies.

Special paper or print media guidelines

This product supports printing on special media. Use the following guidelines to obtain satisfactory results. When using special paper or print media, be sure to set the type and size in your print driver to obtain the best print results.

△ CAUTION: HP LaserJet printers use fusers to bond dry toner particles to the paper in very precise dots. HP laser paper is designed to withstand this extreme heat. Using inkjet paper not designed for this technology could damage your printer.

Media type Do Do not
Envelopes	Store envelopes flat.Use envelopes where the seam extends all the way to the corner of the envelope.Use peel-off adhesive strips that are approved for use in laser printers.	Do not use envelopes that are wrinkled, nicked, stuck together, or otherwise damaged.Do not use envelopes that have clasps, snaps, windows, or coated linings.Do not use self-stick adhesives or other synthetic materials.
Labels	Use only labels that have no exposed backing between them.Use Labels that lie flat.Use only full sheets of labels.	Do not use labels that have wrinkles or bubbles, or are damaged.Do not print partial sheets of labels.
Transparencies	Use only transparencies that are approved for use in laser printers.Place transparencies on a flat surface after removing them from the product.	Do not use transparent print media not approved for laser printers.
Letterhead or preprinted forms	Use only letterhead or forms approved for use in laser printers.	Do not use raised or metallic letterhead.
Heavy paper	Use only heavy paper that is approved for use in laser printers and meets the weight specifications for this product.	Do not use paper that is heavier than the recommended media specification for this product unless it is HP paper that has been approved for use in this product.
Glossy or coated paper	Use only glossy or coated paper that is approved for use in laser printers.	Do not use glossy or coated paper designed for use in inkjet products.

Load paper and print media

You can load different media in the trays and then request media by type or size by using the control panel.

Load Tray 1

△ CAUTION: To avoid jams, never add or remove paper from Tray 1 during printing.

1. Open Tray 1.

Technical line drawing of a mechanical assembly with green arrows indicating motion or force (no text or symbols)

1. Set the side guides to the correct width, and pull out the tray extensions to support paper.

2. Load paper in the tray with the side to be printed on face down and the top of the paper or non-postage end facing the back of the printer.

NOTE: For Letter Rotated and A4 Rotated sizes, place the side to be printed on face down, with the bottom of the page facing into the printer.

1. Make sure the stack fits under the tabs on the guides and does not exceed the load-level indicators.

2. Adjust the side guides so that they lightly touch the paper stack but do not bend it.

Technical line drawing of a mechanical assembly with green arrows indicating directional components (no text or symbols)

Print envelopes

If your software does not automatically format an envelope, specify Landscape for page orientation in your software program or printer driver. Use the following guidelines to set margins for return and destination addresses on Commercial #10 or DL envelopes:

Address type Left margin Top margin

Return 15 mm (0.6 in) 15 mm (0.6 in)

Destination 102 mm (4 in) 51 mm (2 in)

For envelopes of other sizes, adjust the margin settings accordingly.

Load trays 2, 3, 4, or 5

Trays 2, 3, 4, and 5 each hold up to 500 sheets of standard paper or a 54 mm (2.13-inch) stack of labels or other thick paper.

Load standard-sized media into trays 2, 3, 4, or 5

The product automatically detects the following standard sizes of media in these 500-sheet trays: Letter, Letter rotated, Legal, Executive, 11x17, A3, A4, A4 rotated, A5, B4 (JIS), and B5 (JIS).

△ CAUTION: Do not print envelopes or unsupported sizes of paper from the 500-trays. Print on these types of paper only from Tray 1.

1. Slide the tray from the product.

Diagram of a server rack with internal components and a green directional arrow indicating loading (no text or symbols present)

NOTE: Do not open the input tray while it is in use. Doing so can cause jams in the product.

1. Adjust the paper width guide by squeezing the adjustment latch and sliding the guide to the size of the paper being used.

Line drawing of a device interior showing internal components and green arrows indicating movement or flow (no text or symbols)

1. Adjust the paper length guide by squeezing the adjustment latch and sliding the guide to the size of the paper being used.

Technical line drawing of a device interior showing internal components and a green directional arrow indicating movement or force (no text or symbols present)

1. Load paper into the tray face up. Check the paper to verify the guides lightly touch the stack, but do not bend it.

NOTE: To prevent jams, do not overfill the input tray. Be sure the top of the stack is below the tray full indicator.

Diagram illustrating a printer's internal structure with two green circular insets showing triangular patterns and a green arrow indicating process flow.

NOTE: For best performance, fill the tray completely without splitting the ream of paper. Splitting the ream can cause a multifeed problem. The capacity of the paper tray can vary. For example, if you are using 75 g/m^2 (20 lb) paper, the tray holds a full ream of 500 sheets. If the media is heavier, the tray will not hold a full ream. Do not overfill the tray.

NOTE: If the tray is not adjusted correctly, an error message might appear or the media might jam.

1. Slide the tray into the product. The control panel shows the tray's paper type and size. If the configuration is not correct, touch Modify on the control panel and select the correct configuration. If the configuration is correct, touch OK.

Technical line drawing of a mechanical device with an open lid and green arrow indicating direction (no text or symbols)

Load undetectable standard-sized media into Tray 2, 3, 4, and 5

The following undetectable standard-sized media is supported in the 500-sheet trays:

• Executive (JIS) (8.5 x 13)
• 12 x 18 (Trays 3, 4, or 5 only)
B4 (ISO)
RA3 (Trays 3, 4, or 5 only)

• SRA3 (Trays 3, 4, or 5 only)

B5 (ISO)

△ CAUTION: Do not print envelopes or unsupported sizes of paper from the 500-sheet trays. Print on these types of paper only from Tray 1. Do not overfill the input tray or open it while it is in use. Doing so can cause paper jams.

Load custom-size media into tray 2, 3, 4, or 5

To use custom media, change the size setting on the control panel to Custom and set the unit of measure, X dimension, and Y dimension. See Configure a tray to match print job settings on page 114 for more information.

1. Slide open the tray from the product.

2. Load the print media as described in steps 2 through 4 of the "Load detectable (standard-size) media into Tray 2, 3, 4, or 5" section. Then proceed to step 3 in this procedure.

Diagram illustrating a printer's internal structure with two magnified views showing different printer orientations and a green arrow indicating the process.

1. Slide the tray into the product. The control panel shows the tray type and size configuration. To specify specific custom dimensions, or if the type is not correct, touch Modify when the control panel prompts to change the size or type.

Technical line drawing of a mechanical device with labeled dimensions X and Y (no text or symbols beyond labels)

1. Select Custom, and then select the Unit of measure, X dimension and Y dimension for the custom paper size.

2. Select the paper type and then touch Save.

3. If the configuration is correct, touch Save.

Load large size paper into Tray 3, 4, or 5

Use the following instructions if you are loading 11x17, RA3, SRA3, or 12 x 18-sized paper into Tray 3, 4, or 5.

1. Slide open Tray 3, 4, or 5.
2. Adjust the paper width guide by squeezing the adjustment latch and sliding the guide to the size of the paper being used.
3. Load the paper into the tray.
4. Move the paper stop lever to the correct position for the paper being used.

Line drawing of a printer internal structure with a magnified inset showing internal components (no text or symbols)

• For SRA3-sized paper, rotate the lever all the way to the left.
• For A3- or 11x17-sized paper, rotate the lever down into the center position.

• For RA3- or 12x18-sized paper, rotate the lever all the way to the right.

• Slide the tray into the product. The control panel shows the tray's media type and size. If the configuration is not correct, touch Modify and configure the tray to the correct type and size. If the configuration is correct, touch OK.

Load letterhead, pre-printed, or pre-punched paper

To correctly print or copy on letterhead, pre-printed, or pre-punched paper, you need to make sure you load the paper correctly into the tray. You might also need to adjust the Image Rotation setting on the product control panel. The Image Rotation setting is used to adjust for languages that read from left to right (the default) or from right to left.

For more information regarding this subject see the Quick Reference Job Aids on the User CD that came with the product, or visit www.hp.com/support/cljcm6030mfp/manuals or www.hp.com/support/cljcm6040mfp/manuals

Change the Image Rotation setting

1. At the control panel home screen, scroll down and touch Administration.
2. Scroll down and touch Device Behavior.
3. Scroll down and touch Tray Behavior.
4. Scroll down and touch Image Rotation.
5. Touch the correct Image Rotation option. The default setting is Left to right.
6. Touch OK.

Choose the correct orientation for loading letterhead, pre-printed, or pre-punched paper

The tables below should be used as a guide for loading letterhead, pre-printed, or pre-punched paper. The first table shows the tray-loading orientation when Image Rotation is set to Left to right, which indicates that the language reads left to right. The second table shows the tray-loading orientation when Image Rotation is set to Right to left, which indicates that the language reads right to left. The tables also contain the following information:

• The paper type: letterhead, pre-printed or pre-punched.
• The paper tray: Tray 1 or Trays 2 through 5.
• Image orientation: Portrait (1) or Landscape (2).

1

2

• One-sided or two-sided (duplex) printing.

- Stapling: The optional stapler/stacker or booklet maker output accessory must be attached in order to staple print or copy jobs. The staple location can be one left, one angled staple located in upper left corner; or two left, two staples located on left long edge. For more information about stapling, see Use the stapler on page 126

Blank white square with a thin diagonal line in the top-left corner (no text or symbols)

Empty white rectangle with a small diagonal line in the bottom-left corner (no text or symbols)

Blank white rectangle with two thin vertical lines on the left side (no text or symbols)

Empty white rectangle with two thin horizontal lines at the bottom (no text or symbols)

The arrow in the paper graphic indicates the direction the paper will feed into the printer. The paper graphic indicates the direction the paper should be placed in the paper tray. The default is to load the paper so that the long edge feeds first. This results in the most efficient printing and copying.

Table 7-6 Load letterhead, pre-printed, or pre-punched paper — Image Rotation = Left to right

Paper type and tray	Image orientation Duplex mode Staple location options	How to load for long-edge feed	How to load for short-edge feed
Letterhead or Pre-printed – Tray 1	Portrait 1-sided One left, two left
Letterhead or Pre-printed – Tray 1	Portrait 2-sided One left, two left
Letterhead or Pre-printed – Tray 1	Landscape 1-sided One left, two left
Letterhead or Pre-printed – Tray 1	Landscape 2-sided One left, two left
Letterhead or Pre-printed – Trays 2-5	Portrait 1-sided One left, two left
Letterhead or Pre-printed – Trays 2-5	Portrait 2-sided One left, two left
Letterhead or Pre-printed – Trays 2-5	Landscape 1-sided One left, two left
Letterhead or Pre-printed – Trays 2-5	Landscape 2-sided One left, two left
Pre-punched – Tray 1	Portrait 1-sided or 2-sided One left, two left
Pre-punched – Tray 1	Landscape 1-sided or 2-sided One left, two left
Pre-punched – Trays 2-5	Portrait 1-sided or 2-sided One left, two left
Pre-punched – Trays 2-5	Landscape 1-sided or 2-sided One left, two left

Table 7-7 Load letterhead, pre-printed, or pre-punched paper — Image Rotation = Right to left

Paper type and tray	Image orientation Duplex mode Staple location options	How to load for long-edge feed	How to load for short-edge feed
Letterhead or Pre-printed – Tray 1	Portrait 1-sided One right, two right
Letterhead or Pre-printed – Tray 1	Landscape 2-sided One right, two right
Letterhead or Pre-printed – Trays 2-5	Portrait 2-sided One right, two right
Letterhead or Pre-printed – Trays 2-5	Landscape 1-sided One right, two right
Pre-punched – Tray 1	Portrait 1-sided or 2-sided One right, two right
Pre-punched – Tray 1	Landscape 1-sided or 2-sided One right, two right
Pre-punched – Trays 2-5	Portrait 1-sided or 2-sided One right, two right
Pre-punched – Trays 2-5	Landscape 1-sided or 2-sided One right, two right

NOTE: For more information regarding this subject see the Job Aids on the User CD that came with the product, or visit www.hp.com/support/cljcm6030mfp/manuals or www.hp.com/support/cljcm6040mfp/manuals

Configure trays

The product automatically prompts you to configure a tray for type and size in the following situations:

• When you load paper into the tray
• When you specify a particular tray or media type for a print job through the printer driver or a software program and the tray is not configured to match the print-job's settings

The following message appears on the control panel: Tray [type] [size] To change size or type, touch "Modify". To accept, touch "OK".

NOTE: The prompt does not appear if you are printing from Tray 1 and Tray 1 is configured for Any Custom and Any Type.

NOTE: If you have used other HP LaserJet product models, you might be accustomed to configuring Tray 1 to First mode or Cassette mode. On HP Color LaserJet CM6040 Series, setting Tray 1 size to Any Custom is equivalent to First mode. Setting size for Tray 1 to a setting other than Any Custom is equivalent to Cassette mode.

Configure a tray when loading paper

1. Load paper in the tray. Close the tray if you are using Tray 2, 3, 4, or 5.
2. The tray configuration message appears.
3. Touch OK to accept the detected size and type, or touch Modify to choose a different paper size or type.
4. Select the correct size and type and then touch OK.

NOTE: The product automatically detects most paper sizes in Trays 2, 3, 4, and 5.

Configure a tray to match print job settings

1. In the software program, specify the source tray, the paper size, and the paper type.
2. Send the job to the product.

If the tray needs to be configured, the Load Tray x message appears.

1. Load the tray with the specified type and size of paper, and then close the tray.
   To specify a custom size, Modify.
2. When the Tray Size= message appears, touch OK to confirm the size.
3. When the Tray Type= message appears, touch OK to confirm the type and continue with the job.

Automatic media type sensing (auto sense mode)

The automatic media type sensor functions only when that tray is configured to Any Type or Plain type. Configuring a tray to any other type, such as Bond or Glossy, deactivates the media sensor in that tray.

The HP Color LaserJet CM6030 and CM6040 MFP Series can automatically classify many paper types into one of the following categories:

• Plain
• Transparency
  Glossy
  • Extra-heavy glossy
  Glossy film
• Heavy

For more control, a specific type must be selected in the job or configured in a tray.

Auto sense settings

Full sensing (default for Tray 1)

• The product recognizes light, plain, heavy, glossy, and tough paper and overhead transparencies.
• Each time the product begins a print job, it stops the first page to sense the type.
• This is the slowest mode.

Expanded sensing (default for Trays 2, 3, 4, and 5)

• Each time the product begins a print job, it stops the first page to sense the type.
- The product assumes that the second and all subsequent pages are of the same media type as the first page.
• This is the second-fastest mode, and is useful for using stacks of the same media type.

Transparency only

• The product does not stop any pages for sensing but distinguishes between transparencies (Transparency mode) and paper (Normal mode).
  • This is the fastest mode and is useful for high-volume printing in Normal mode.

For more information about setting these options, see Print Quality menu on page 49

Select the paper by source, type, or size

In the Microsoft Windows operating system, three settings affect how the printer driver tries to pull media when you send a print job. Source, Type, and Size settings appear in the Page Setup, Print, or Print Properties dialog boxes in most software programs. Unless you change these settings, the product automatically selects a tray using the default settings.

Source

To print by Source select a specific tray for the product to pull from. If you select a tray that is configured for a type or size that does not match your print job, the product prompts you to load the tray with the type or size of print media for your print job before printing it. When you load the tray, the product begins printing.

Type and Size

Printing by Type or Size means that you want the product to pull from the tray that is loaded with the correct type and size of media. Selecting media by type rather than source is similar to locking out trays and helps protect special media from accidental use. For example, if a tray is configured for letterhead and you select plain paper, the product will not pull the letterhead from that tray. Instead, it will pull from a tray that has plain paper loaded and is configured for plain paper on the product control panel. Selecting media by Type and Size results in significantly better print quality for heavy paper, glossy paper, and transparencies. Using the wrong setting might result in unsatisfactory print quality. Always print by Type for special print media, such as labels or transparencies. Print by Size for envelopes, if possible.

• To print by Type or Size, select the Type or Size from the Page Setup dialog box, the Print dialog box, or the Print Properties dialog box, depending on the software program.
• If you often print on a certain type or size of media, configure a tray for that type or size. Then, when you select that type or size as you print a job, the product automatically pulls media from the tray that is configured for that type or size.

Choose an output location

Standard output bins

The product has an ADF output bin and the standard output bin for printed pages.

Diagram of a printer with labeled parts, showing front panel and control panel with Chinese text labels.

1 Standard output bin

2 ADF output bin (for copy originals)

When you scan or copy documents by using the ADF, the originals are automatically delivered to the ADF output bin. Copies made from the scanner glass are delivered to the standard output bin or the output bin(s) on the stapler/stacker or the 3-bin mailbox.

When you send print jobs to the product from a computer, the output is to the standard output bin or the output bin(s) on the stapler/stacker or the 3-bin mailbox.

Optional output accessories

An optional 3 bin stapler/stacker or booklet-maker finisher accessory can be installed with the product. When an accessory is installed, an output accessory bridge is also added on top of the product in order to route the print jobs to the accessory output bins.

Line drawing of a printer with control panel and paper feed (no text or symbols)

3-bin stapler/stacker features

Table 7-8 3-bin stapler/stacker features

Job offset	Each copy of a job is shifted to one side in the output bin in order to keep each copy separate from the others. (Supported paper sizes: A3, A4, A4 rotated, A5, B4, B5, Ledger, Legal, Letter, Letter rotated, Statement.)
Three operation modes	Mailbox Mode assigns each bin to a user or group of users. Stacker Mode uses all three output bins for all print jobs — when one bin is full, jobs are routed to the next bin. Function Separator Mode sends copies to bin 1, faxes to bin 2, and print jobs to bin 3.
Stapler	Built-in stapler staples jobs up to 50 sheets in size or 30 stapled jobs. Pages can be stapled in one position at the front, in one position at the back, or at two positions at the side or top.
Large-capacity output bins	The stacker has three bins: a 100-sheet bin, a 500-sheet bin, and a 1000-sheet bin.

Booklet maker finisher features

Table 7-9 Booklet-maker finisher features

Booklet-making	The booklet-making feature staples and folds print jobs of 2 to 15 pages into a booklet.
Folding Single-sheet print jobs can be automatically folded in the center.
Job offset	Each copy of a job is shifted to one side in the output bin in order to keep each copy separate from the others. (Supported paper sizes: A3, A4, A4 rotated, A5, B4, B5, Ledger, Legal, Letter, Letter rotated, Statement.)
Two operation modes	Mailbox Mode assigns each bin to a user or group of users, and Stacker Mode uses both output bins for all print jobs — when the top bin is full, jobs are routed to the next bin.
Stapler	Built-in stapler staples jobs up to 50 sheets in size or 30 stapled jobs. Pages can be stapled in one position at the front, in one position at the back, or at two positions at the side or top.
Large-capacity output bins	The stacker has three bins: two 1000-sheet bins and one bin that can hold up to 25 saddle-stitched booklets.

Accessory walkaround

Figure 7-1 3-bin stapler/stacker accessory

Technical diagram of an electronic device with five labeled components, showing internal structure and assembly views.

1 Output bins

2 Front door
3 Stapler unit
4 Top cover
5 Connection cable

Figure 7-2 Booklet-maker finisher accessory

Technical diagram of an open industrial machine with numbered components for identification

1 Booklet bin guide

2 Booklet output bin

3 Stacking output bins

4 Front door

5 Stapler units

6 Top cover

7 Connection cable

Use the booklet-making feature

You can create booklets from the print driver or by copying an original document.

Before creating a booklet, set the booklet bin guide for the size of paper being used:

• Closed: 11x17, Legal, A3, or B4
Open: Letter Rotated, A4 Rotated

Line drawing of an open office machine with a green arrow pointing to a component, no text or symbols present.

Create a booklet from the print driver

1. On the File menu of your software program, click Print.
2. Select HP Color LaserJet CM6030 or CM6040 MFP.
3. Click Properties, and then click Booklet Printing.
4. Set the Paper source, Paper sizes, Paper type, Orientation, Booklet Layout, Print document on, and Staple settings, and then click OK.
5. Click OK to print.

Create a booklet from a copy

Documents can be copied from the automatic document feeder (ADF) or by placing the document on the scanner glass.

1. From the control panel, touch Copy.
2. Scroll to and touch Booklet Format.
3. Touch Booklet on.
4. For Original Sides touch 1-sided or 2-sided.
5. Touch OK and then touch Start.

Configure the accessory operation mode

Select the operating mode at the control panel

You can set the operating mode for the stapler/stacker or the booklet maker at the product control panel.

1. At the control panel, touch Administration, and then touch Device behavior.
2. Touch MBM-3 bin stapler or Multifunction finisher.

3. Touch Operation mode, and then select the operation mode that you want to use.

4. When Mailbox Mode is used, each bin is assigned to a user or group of users. Every time a user sends a print job, the job is routed to the assigned bin.

5. When Stacker Mode is used and the optional 3-bin stapler/stacker is installed, the three bins act as a single bigger bin. When one bin gets full, jobs are automatically routed to the next bin. When Stacker Mode is used and the booklet maker finisher is installed, the two upper bins act as a single bin, and the third bin is reserved for booklets.
6. When Function Separator (3-bin stapler/stacker only) mode is used, each bin is assigned to a specific kind of job. Usually this designation is bin 1 for copies, bin 2 for fax, and bin 3 for printing. These values can be modified in the Default Job Options menus for copy, fax, and print.

NOTE: Use the product embedded Web server to assign output bins to users or groups of users. For more information see Embedded Web server on page 183.

Select the operating mode in the printer driver

1. Click the Start button, point to Settings, and then click Printers (for Windows 2000) or Printers and Faxes (for Windows XP).
   From your Vista computer click Start, click Control Panel, and then in the category for Hardware and Sound click Printer.
2. Right-click the HP product icon, and then click Properties or Printing Preferences.
3. Click the Device Settings tab.
4. Perform one of the following actions:

For automatic configuration: under Installable Options, click Update Now in the Automatic Configuration list.

-or-

For manual configuration: under Installable Options, select the appropriate operation mode in the Accessory Output Bin list.

1. Click Apply to save the settings.

Select the operating mode in the printer driver (Mac OS X)

1. In the Apple menu, click System Preferences.
2. In the System Preferences box, click Print and Fax.

3. Click Set Up Printers. A Printer List displays.

4. Select the HP product, and then click Show Info on the Printers menu.

5. Select the Installable Options panel.
6. In the Accessory Output Bins list, select correct accessory.
7. In the Mailbox Mode list, select the appropriate operational mode, and then click Apply Changes.

8 Use product features

• Economy settings
• Use the stapler
• Job storage features for print jobs
• Print photos or marketing material
• Print weatherproof maps and outdoor signs
- Set the duplex alignment

Economy settings

Sleep and wake

Set the sleep delay

Use the sleep-delay feature to select the time interval the product remains inactive before entering sleep mode. The default is one hour.

1. Scroll to and touch Administration.
2. Touch Time/Scheduling.
3. Touch Sleep Delay.
4. Touch the sleep-delay setting that you want and then touch Save.

Set the wake time

Use the wake time feature to wake the product at a set time each day.

1. Scroll to and touch Administration.
2. Touch Time/Scheduling.
3. Touch Wake Time.
4. Touch the day of the week for the wake time.
5. Touch Custom.
6. Touch Save.
7. Touch the appropriate options to set the correct hour, minute, and AM/PM setting.
8. If you want to wake the product at the same time each day, on the Apply to all days screen, touch Yes. If you want to set the time for individual days, touch No, and repeat the procedure for each day.

Set the sleep time

Use the sleep time feature to program the product to enter sleep mode at a set time each day.

1. Scroll to and touch Administration.
2. Touch Time/Scheduling.
3. Touch Sleep Time.
4. Touch the day of the week for the sleep time setting.
5. Touch Custom.

6. Touch Save.

7. Touch the appropriate options to set the correct hour, minute, and AM/PM setting.

8. If you want the product to enter sleep mode at the same time each day, on the Apply to all days screen, touch Yes. If you want to set the time for individual days, touch No, and repeat the procedure for each day.

Set economy modes from the EWS

1. From a Web browser, open the EWS. See Embedded Web server on page 183.
2. Click Settings and then Wake Time.
3. Set the wake time for each day of the week.
4. Set the sleep delay for the product.
5. Click Apply.

Use the stapler

The automatic stapler is only available with the optional HP 3-bin Stapler/Stacker (CC517A) or HP booklet Maker/Finisher Accessory (CC516A).

Print jobs can be stapled with a diagonal staple in either top corner, with two horizontal staples at the top of the page, or with two vertical staples at either side of the page.

• Paper weight can range from 60 to 220g / m^2 (16 to 148 lbs.). Heavier paper might have a stapling limit of fewer than 50 sheets.
• The optional stapler/stacker can staple jobs of up to 50 sheets of 75g / m^2 (20 lb) paper. It can stack up to 1,000 sheets of paper, or 30 stapled jobs, whichever is less.
• The optional booklet maker can also staple jobs of up to 50 sheets of 75g / m^2 (20 lb) paper. It can staple and fold up to 15 pages into a booklet. It can stack up to 1,000 sheets of paper, (or 30 stapled jobs) or up to 25 saddle-stitched booklets.
• If the job consists of only one sheet, or if it consists of more than 50 sheets, the product delivers the job to the bin, but does not staple the job.
• The stapler supports paper only. Do not try to staple other types of print media, such as envelopes, transparencies, or labels.

NOTE: For information on loading letterhead, pre-printed, and pre-punched paper, see Load letterhead, pre-printed, or pre-punched paper on page 108.

When you want the product to staple or fold a document, select the correct option in the software. You can usually select the stapler in your program or printer driver, although some options might be available only in the printer driver. Where and how you make selections depends on your program or printer driver.

If you cannot select the stapler or booklet maker finisher in the program or printer driver, select it at the product control panel.

The stapler accepts print jobs if it is out of staples, but it does not staple the pages. The product can be configured to stop printing if the staple cartridge is empty.

Supported paper sizes for stapling

In order to staple a print job, you must be a supported paper size and orientation.

Corner, angled staples are supported with the following paper sizes: A4, A4 Rotated, Letter, Letter Rotated, Legal, A3, 11 x 17, and B4 (JIS).

Two staples at the top or side of the print job are supported with the following paper sizes: A4, Letter, A3, 11 x 17, and B4 (JIS).

Saddle-stitch stapling with the booklet maker can be carried out with these sizes: A4 Rotated, Letter Rotated, Legal, A3, 11 x 17, and B4 (JIS).

As shown in the graphic below, the paper must also be loaded into the paper trays with the correct orientation.

A4 LTR A4 R, LTR R A4 R, LTR R LGI, B4 LGI, B4 A3, 11×17

A3, 11×17 B4 A4 LTR

A3, 11×17 A4 LTR

If the correct paper size or orientation is not used, the print job will print, but it will not be stapled.

NOTE: For information about loading and stapling print or copy jobs on letterhead, pre-printed, or pre-punched paper, see 3-bin stapler/stacker features on page 118

Staple print jobs

NOTE: For staple job capacity see 3-bin stapler/stacker features on page 118

Select the stapler at the control panel for printed jobs

1. Touch Administration and then touch Device Behavior.
2. Touch MBM-3 Bin Stapler or Multifunc Finisher.
3. Touch Staples.
4. Touch the option that you want to use: One Left Angled, One Right Angled, Two Left, Two Right, and Two Top.

NOTE: Selecting the stapler at the printer control panel changes the default setting. It is possible that all print jobs will be stapled. However, settings that are changed in the printer driver override settings that are changed at the control panel.

Select the stapler in the printer driver for printed jobs (Windows)

NOTE: The following procedure changes the default setting to staple all print jobs.

1. Open the printer driver. See Change printer-driver settings for Windows on page 67.
2. On the Output tab, click the drop-down list under Staple, and select a staple option.

Select the stapler in the printer driver for printed jobs (Mac)

Select the stapler by creating a new preset in the printer driver.

1. Open the printer driver. See Change printer-driver settings for Macintosh on page 74.
2. Create the new preset.

Configure the device to stop or continue when the staple cartridge is empty

You can specify whether the product stops printing when the staple cartridge is empty or if it continues printing but does not staple the jobs.

1. Touch Administration and then touch Device Behavior.
2. Touch MBM-3 Bin Stapler or Multifunc Finisher.
3. Touch Staples Out.

4. Touch the option that you want to use:

5. Select Stop to stop all printing until the staple cartridge is replaced.

6. Select Continue to continue printing jobs without stapling them.

Job storage features for print jobs

You can save a print job to the product hard disk without printing it. You can then print the job at any time at the control panel. The following job-storage features are available for print jobs:

Proof and hold jobs: This feature provides a quick and easy way to print and proof one copy of a job and then print the additional copies.
- Personal jobs: When you send a private job to the device, the job does not print until you provide the required personal identification number (PIN) at the control panel.
- QuickCopy jobs: You can print the requested number of copies of a job and then store a copy of the job on the device hard disk. Storing the job allows you to print additional copies of the job later.
- Stored jobs: You can store a job such as a personnel form, time sheet, or calendar on the device and allow other users to print the job at any time. Stored jobs also can be protected by a PIN.

Follow the instructions in this section to gain access to the job storage features at the computer. See the specific section for the type of job that you want to create.

△ CAUTION: If you turn off the device, all QuickCopy, proof and hold, and personal jobs are deleted.

Gain access to the job storage features

For Windows

1. On the File menu, click Print.
2. Click Properties, and then click the Job Storage tab.
3. Select the job storage mode that you want.

For Macintosh

In newer drivers: Select Job Storage in the pull-down menu in the Print dialog box. In older drivers, select Printer Specific Options.

Use the proof and hold feature

The proof and hold feature provides a quick and easy way to print and proof one copy of a job and then to print the additional copies.

To permanently store the job and prevent the device from deleting it when space is needed for something else, select the Stored Job option in the driver.

Create a proof and hold job

△ CAUTION: If the device needs additional space to store newer proof and hold jobs, the device deletes other stored proof and hold jobs, starting with the oldest job. To permanently store a job and prevent the device from deleting it when space is needed, select the Stored Job option in the driver instead of the Proof and Hold option.

In the driver, select the Proof and Hold option and type a user name and job name.

The device prints one copy of the job for you to proof.

Print the remaining copies of a proof and hold job

At the device control panel, use the following procedure to print the remaining copies of a job held on the hard disk.

1. From the Home screen, touch Job Storage.
2. Touch the Retrieve tab.
3. Scroll to and touch the job storage folder that holds the job.
4. Scroll to and touch the job that you want to print.
5. Select the number of copies on the numeric keypad.
6. Touch Retrieve Stored Job to print the document.

Delete a proof and hold job

When you send a proof and hold job, the device automatically deletes your previous proof and hold job.

1. From the Home screen, touch Job Storage.
2. Touch the Retrieve tab.
3. Scroll to and touch the job storage folder that holds the job.
4. Scroll to and touch the job that you want to delete.
5. Touch Delete.
6. Touch Yes.

Use the personal job feature

Use the personal job feature to specify that a job is not printed until you release it. Your job will be stored on the product and nothing will be printed until you request the job from the product's control panel. Once the job is printed, it will be automatically removed from the product's job storage. Personal jobs can be stored with or without a 4-digit personal identification number (PIN). To make the job private, a PIN must be used.

Print a personal job

You can print a personal job at the control panel after the job has been sent to the product.

1. From the Home screen, touch Job Storage.
2. Touch the Retrieve tab.
3. Scroll to and touch the job storage folder that holds the personal job.
4. Scroll to and touch the personal job that you want to print.
5. If a PIN is required, touch the PIN field.
6. Use the numeric keypad to type the PIN, and then touch OK.

7. Touch Retrieve Stored Job to print the document.

8. Select the number of copies on the numeric keypad to change the number of copies to print.

Delete a personal job

A personal job is automatically deleted from the device hard disk after you release it for printing. If you want to delete the job without printing it, use this procedure.

1. From the Home screen, touch Job Storage.
2. Touch the Retrieve tab.
3. Scroll to and touch the job storage folder that holds the personal job.
4. Scroll to and touch the personal job that you want to delete.

NOTE: A personal job will have a lock symbol 🔒 next to it.

1. Touch the PIN field.
2. Use the numeric keypad to type the PIN, and then touch OK.
3. Touch Delete.
4. Touch Yes.

Use the QuickCopy feature

The QuickCopy feature prints the requested number of copies of a job and stores a copy on the device hard disk. Additional copies of the job can be printed later. This feature can be turned off in the printer driver.

The default number of different QuickCopy jobs that can be stored on the device is 32. At the control panel, you can set a different default number. See Navigate the Administration menu on page 17.

Create a QuickCopy job

△ CAUTION: If the device needs additional space to store newer QuickCopy jobs, the device deletes other stored QuickCopy jobs, starting with the oldest job. To permanently store a job and prevent the device from deleting it when space is needed, select the Job Storage option in the driver instead of the QuickCopy option.

In the driver, select the QuickCopy option, and then type a user name and a job name.

When you send the job to print, the device prints the number of copies that you set in the driver. To print more quick copies at the device control panel, see Print additional copies of a QuickCopy job on page 132.

Print additional copies of a QuickCopy job

This procedure describes how to print additional copies of a job stored on the device hard disk at the control panel.

1. From the Home screen, touch Job Storage.
2. Touch the Retrieve tab.
3. Scroll to and touch the job storage folder that holds the job.
4. Scroll to and touch the job that you want to print.
5. Select the number of copies on the numeric keypad to change the number of copies to print.
6. Touch Retrieve Stored Job ◇ to print the document.

Delete a QuickCopy job

Delete a QuickCopy job at the device control panel when you no longer need it. If the device requires additional space to store new QuickCopy jobs, the device automatically deletes other stored QuickCopy jobs, starting with the oldest job.

NOTE: Stored QuickCopy jobs can be deleted at the control panel or in HP Web Jetadmin.

1. From the Home screen, touch Job Storage.
2. Touch the Retrieve tab.
3. Scroll to and touch the job storage folder that holds the job.
4. Scroll to and touch the job that you want to delete.
5. Touch Delete.
6. Touch Yes.

Use the stored job feature for copy jobs

You also can create a stored copy job at the control panel that can be printed at a later time.

Create a stored copy job

1. Place the original document face-down on the glass or face-up in the ADF.
2. From the Home screen, touch Job Storage.
3. Touch Create.
4. To create a Job Name, touch the New Job button to open the keyboard.
5. Type the name of the folder on the touch screen keyboard.
6. Select Job Name from the drop-down menu.
7. Type the job name on the touch screen keyboard.
8. If it is a private job, select PIN to print. Enter the PIN in the popup box.
9. Touch OK.
10. After all the options are set, touch Start to scan the document and save the file.

For information about printing the job, see Print a stored job on page 133

Print a stored job

At the control panel, you can print a job that is stored on the device hard disk.

1. From the Home screen, touch Job Storage.
2. Touch the Retrieve tab.
3. Scroll to and touch the job storage folder that holds the stored job.
4. Scroll to and touch the stored job that you want to print.
5. Touch Retrieve Stored Job to print the document.

6. Touch Retrieve Stored Job to print the document.

7. Select the number of copies on the numeric keypad to change the number of copies to print.

If the file has lock symbol 📁 next to it, the job is a private job and requires a PIN. See Use the personal job feature on page 131.

Delete a stored job

Jobs stored on the device hard disk can be deleted at the control panel.

1. From the Home screen, touch Job Storage.
2. Touch the Retrieve tab.
3. Scroll to and touch the job storage folder that holds the stored job.

4. Scroll to and touch the stored job that you want to delete.

5. Touch Delete.

6. Touch Yes.

If the file has lock symbol 🔒 next to it, the job requires a PIN to delete it. See Use the personal job feature on page 131.

Print photos or marketing material

You can use the HP Color LaserJet CM6030 or HP Color LaserJet CM6040 to print high-quality color photos, marketing and sales material, or other color documents on glossy paper. To maximize the quality of this output you must do the following:

• Choose the appropriate paper
• Configure the paper tray correctly
• Choose the correct settings in the print driver

Supported glossy paper

HP glossy paper product	Product code	Product size	Control panel and print driver settings
HP Color Laser Presentation Paper, Soft Gloss	Q6541A Letter HP soft gloss 120 g
HP Color Laser Professional Paper, Soft Gloss	Q6542A A4 HP soft gloss 120 g
HP Color Laser Brochure Paper, Glossy	Q6611A, Q6610A Letter HP glossy 160 g
HP Color Laser Superior Paper, Glossy	Q6616A A4 HP glossy 160 g
HP Color Laser Photo Paper, Glossy	Q6607A, Q6608A Letter HP glossy 220 g
HP Color Laser Photo Paper, Glossy	Q6614A A4 HP glossy 220 g
HP Color Laser Photo Paper, Glossy 4x6	Q8842A 101.6 x 152.4 mm (4 x 6 in) HP glossy 220 g
HP Color Laser Photo Paper, Glossy 10 cm x 15 cm	Q8843A 101.6 x 152.4 mm (4 x 6 in) HP glossy 220 g

△ CAUTION: HP Color Laser Presentation Paper, Glossy (Q2546A) is not supported with this product. Using this type of paper can cause a fuser jam that might require the replacement of the fuser. Two recommended alternatives are HP Color LaserJet Presentation Paper, Soft Gloss (Q6541A) and HP Color LaserJet Brochure Paper, Glossy (Q6611A, Q6610A).

Configure the paper tray

Configure the paper tray for the correct paper type.

1. Load the paper into Tray 2, 3, 4, or 5.
2. After you close the tray, the control panel prompts you to configure the paper size and type.

3. If the correct size and type is displayed, touch OK to accept the detected size and type, or Modify to choose a different paper size and type.

4. When the paper size prompt appears, touch the correct size, and then touch Save.

5. When the paper type prompt appears, touch the correct type. See the table above to determine the correct paper type.

Configure the driver settings

Carry out the following steps to print to glossy paper from your graphics software program.

1. Select Print from the File menu of your software program.
2. Select the HP Color LaserJet CM6030 or HP Color LaserJet CM6040, and then click Properties or Printing Preferences.
3. From the Paper type drop-down list, select the same paper type that you configured on the product control panel.
4. Click OK to save the settings and OK to print. The print job will automatically be printed from the tray that has been configured for glossy paper, optimizing print quality for that type.

Print weatherproof maps and outdoor signs

You can use the HP Color LaserJet CM6030 or HP Color LaserJet CM6040 to print durable, waterproof maps, signs, or menus by using HP Tough Paper. HP Tough Paper is a waterproof, tear-proof, satin finish paper that retains rich, vibrant print color and clarity even when exposed to heavy usage or weather. This avoids the expensive and time-consuming laminating that is required with plain papers. To maximize the quality of this output you must do the following:

• Choose the appropriate paper
• Configure the paper tray correctly
• Choose the correct settings in the print driver

Supported tough paper

HP paper name	Product code	Product size	Control panel and print driver settings
HP LaserJet Tough Paper	Q1298A	Letter	HP Tough Paper
HP LaserJet Tough Paper Q1298B A4 HP Tough Paper

Configure the paper tray

Configure the paper tray for the correct paper type.

1. Load the paper into Tray 2, 3, 4, or 5.
2. After you close the tray, the control panel prompts you to configure the paper size and type.
3. If the correct size is displayed, touch OK to accept the detected size, or Modify to choose a different paper size and type.
4. When the paper size prompt appears, touch the correct size, and then touch Save. When the paper type prompt appears, touch the correct type. See the table above to determine the correct paper type.

Configure the driver settings

Carry out the following steps to print to tough paper from your graphics software program.

1. Select Print from the File menu of your software program.
2. Select the HP Color LaserJet CM6030 and CM6040 MFP Series, and then click Properties or Printing Preferences.
3. From the Paper type drop-down list, select the same paper type that you configured on the product control panel.
4. Click OK to save the settings and OK to print. The print job will automatically be printed from the tray that has been configured for tough paper.

Set the duplex alignment

For duplexed documents such as brochures, set the registration for the tray before printing to ensure the pages align.

1. From the control panel, touch Administration and then touch Print Quality.
2. Touch Set Registration, and then touch the tray you are adjusting.
3. Touch Test Page and then touch Print.
4. Follow the steps on the page that prints.

9 Print tasks

• Cancel a print job
  • Use features in the Windows printer driver

Cancel a print job

You can stop a print request by using the control panel or by using the software program. For instructions about how to stop a print request from a computer on a network, see the online Help for the specific network software.

NOTE: It can take some time for all printing to clear after you have canceled a print job.

Stop the current print job from the control panel

▲ Press Stop on the control panel.

Stop the current print job from the software program

A dialog box will appear briefly on the screen, giving you the option to cancel the print job.

If several requests have been sent to the device through your software, they might be waiting in a print queue (for example, in Windows Print Manager). See the software documentation for specific instructions about canceling a print request from the computer.

If a print job is waiting in a print queue (computer memory) or print spooler (Windows), delete the print job there.

Click Start, click Settings, and then click Printers or Printers and Faxes. Double-click the device icon to open the print spooler. Select the print job that you want to cancel, and then press Delete. If the print job is not cancelled, you might need to shut down and restart the computer. If the job is not in the print spooler, use the Job Status menu from control panel to cancel the job.

Use features in the Windows printer driver

Open the printer driver

How do I Steps to perform
Open the printer driver	On the File menu in the software program, click Print. Select the printer, and then click Properties or Preferences.
Get help for any printing option	Click the ? symbol in the upper-right corner of the printer driver, and then click any item in the printer driver. A pop-up message displays that provides information about the item. Or, click Help to open the online Help.

Use printing shortcuts

To perform the following tasks, open the printer driver and click the Printing Shortcuts tab.

NOTE: In previous HP printer drivers, this feature was called Quick Sets.

How do I Steps to perform
Use a printing shortcut	Select one of the shortcuts, and then click OK to print the job with the predefined settings.
Create a custom printing shortcut	a) Select an existing shortcut as a base. b) Select the print options for the new shortcut. c) Click Save As, type a name for the shortcut, and click OK.

Set paper and quality options

To perform the following tasks, open the printer driver and click the Paper/Quality tab.

How do I Steps to perform
Select a page size	Select a size from the Paper size drop-down list.
Select a custom page size	a) Click Custom. The Custom Paper Size dialog box opens.b) Type a name for the custom size, specify the dimensions,and click OK.
Select a paper source	Select a tray from the Paper source drop-down list.
Select a paper type	Select a type from the Paper type drop-down list.
Print covers on different paper	a) In the Special pages area, click Covers or Print pages on different paper, and then click Settings. b) Select an option to print a blank or preprinted front cover, back cover, or both.Or, select an option to print the first or last page on different paper. c) Select options from the Paper source and Papertype drop-down lists, and then click Add. d) Click OK.
Print the first or last page on different paper
Adjust the resolution of printed images	In the Print Quality area, select an option from the first drop-down list. See the printer-driver online Help for information about each of the available options.

Set document effects

To perform the following tasks, open the printer driver and click the Effects tab.

How do I Steps to perform
Scale a page to fit on a selected paper size	Click Print document on, and then select a size from the drop-down list.
Scale a page to be a percent of the actual size	Click % of actual size, and then type the percent or adjust the slider bar.
Print a watermark	a) Select a watermark from the Watermarks drop-down list.b) To print the watermark on the first page only, click First page only. Otherwise, the watermark is printed on each page.
Add or edit watermarksNOTE: The printer driver must be stored on your computer for this to work.	a) In the Watermarks area, click Edit. The Watermark Details dialog box opens. b) Specify the settings for the watermark, and then click OK.

Set document finishing options

To perform the following tasks, open the printer driver and click the Finishing tab.

How do I Steps to perform
Print on both sides (Duplex)	Click Print on both sides. If you will bind the document along the top edge, click Flip pages up.
Print a booklet	a) Click Print on both sides. b) In the Booklet layout drop-down list, click Left binding or Right binding. The Pages per sheet option automatically changes to 2 pages per sheet.
Print multiple pages per sheet	a) Select the number of pages per sheet from the Pages per sheet drop-down list. b) Select the correct options for Print page borders, Page order, and Orientation.
Select page orientation	a) In the Orientation area, click Portrait or Landscape. b) To print the page image upside down, click Rotate by 180 degrees.

Set product output options

To perform the following tasks, open the printer driver and click the Output tab.

NOTE: The options that are available on this tab depend on the finishing device that you are using.

How do I Steps to perform
Select staple options	Select a stapling option from the Staple drop-down list.
Select an output bin	Select an output bin from the Bin drop-down list.

Set job storage options

To perform the following tasks, open the printer driver and click the Job Storage tab.

How do I Steps to perform
Print one copy for proof before printing all the copies	In the Job Storage Mode area, click Proof and Hold. The product prints the first copy only. A message appears on the product control panel that prompts you to print the rest of the copies.
Temporarily store a private job on the product and print it later	a) In the Job Storage Mode area, click Personal Job. b) In the Make Job Private area, enter a 4-digit personal identification number (PIN) (optional).
Temporarily store a job on the productNOTE: These jobs are deleted if the product is turned off.	In the Job Storage Mode area, click Quick Copy. One copy of the job is printed immediately, but you can print more copies from the product control panel.
Permanently store a job on the product	In the Job Storage Mode area, click Stored Job.
Make a permanently stored job private so that anyone who tries to print it must provide a PIN	a) In the Job Storage Mode area, click Stored Job. b) In the Make Job Private area, click PIN to print, and then enter a 4-digit personal identification number (PIN).
Receive notification when someone prints a stored job	In the Job Notification Options area, click Display Job ID when printing.
Set the user name for a stored job	In the User Name area, click User name to use the Windows default user name. To provide a different user name, click Custom and type the name.
Specify a name for the stored job	a) In the Job Name area, click Automatic to use the default job name. To specify a job name, click Custom and type the name. b) Select an option from the If job name exists drop-down list. Select Use Job Name + (1-99) to add a number to the end of the existing name, or select Replace Existing File to overwrite a job that already has that name.

Set color options

To perform the following tasks, open the printer driver and click the Color tab.

How do I Steps to perform
Manually adjust color settings	a) In theColor Optionsarea, clickManual, and then click Settings. b) You can adjust the general settings for Edge Control, and settings for text, graphics, and photographs. See the online Help in the driver for information about each option.
Turn off color printing and use only shades of gray.	In theColor Optionsarea, clickGrayscale.
Change the way that colors are rendered	In theColor Themesarea, select an option from the drop-down list. See the online Help in the driver for information about each option.

Obtain support and product-status information

To perform the following tasks, open the printer driver and click the Services tab.

How do I Steps to perform
Obtain support information for the product and order supplies online	In the Internet Services drop-down list, select a support option, and click Go!
Check the status of the product, including the level of supplies	Click the Device and Supplies Status icon. The Device Status page of the HP embedded Web server opens.

Set advanced printing options

To perform the following tasks, open the printer driver and click the Advanced tab.

How do I Steps to perform
Select advanced printing options	In any of the sections, click a current setting to activate a drop-down list so you can change the setting.
Change the number of copies that are printedNOTE: If the software program that you are using does not provide a way to print a particular number of copies, you can change the number of copies in the driver.Changing this setting affects the number of copies for all print jobs. After your job has printed, restore this setting to the original value.	Open the Paper/Output section, and then enter the number of copies to print. If you select 2 or more copies, you can select the option to collate the pages.
Print colored text as black rather than as shades of gray	a) Open the Document Options section, and then open the Printer Features section. b) In the Print All Text as Black drop-down list, select Enabled.
Load letterhead or preprinted paper the same way for every job, whether printing on one or both sides of the page	a) Open the Document Options section, and then open the Printer Features section. b) In the Alternative Letterhead Mode drop-down list, select On. c) At the product, load the paper the same way you would for printing on both sides.
Change the order in which pages are printed	a) Open the Document Options section, and then open the Layout Options section. b) In the Page Order drop-down list, select Front to Back to print the pages in the same order as they are in the document, or select Back to Front to print the pages in the reverse order.

10 Use color

• Manage color
• Match colors
• Advanced color use

Manage color

Setting color options to Automatic typically produces the best possible print quality for the most common printing requirements. However, for some documents, setting the color options manually can enhance the way the document appears. Examples of these documents include marketing brochures that contain many images or documents that are printed on a paper type that is not listed in the printer driver.

Use the printer driver to adjust color settings. For more information, see Set color options on page 143 for Windows and Set the color options on page 80 for Macintosh.

Automatic or manual color adjustment

The Automatic color adjustment option optimizes the neutral gray color treatment, halftones, and edge enhancements that are used for each element in a document.

NOTE: Automatic is the default setting and is recommended for printing most color documents.

The Manual color adjustment option allows you to adjust the neutral gray color treatment, halftones, and edge enhancements for text, graphics, and photographs.

Manual color options

You can manually adjust color options for Edge Control, Halftones, and Neutral Grays.

Edge Control

The Edge Control setting determines how edges are rendered. Edge control has three components: adaptive halftoning, Resolution Enhancement technology (REt), and trapping. Adaptive halftoning increases the edge sharpness. Trapping reduces the effect of incorrect color alignment by slightly overlapping the edges of adjacent objects. The color REt option smooths the edges.

NOTE: If you notice white gaps between objects, or if you notice areas that have a slight shadow of cyan, magenta, or yellow at the edge, choose an edge-control setting that increases the trapping level.

Four levels of edge control are available:

• Maximum is the most aggressive trapping setting. Adaptive halftoning and color REt settings are on.
- Normal is the default trapping setting. Trapping is at a medium level. Adaptive halftoning and color REt settings are on.
• Light sets trapping at a minimal level. Adaptive halftoning and color REt settings are on.
• Off turns off trapping, adaptive halftoning, and color REt.

Halftone options

Halftone options affect the resolution and clarity of your color output. You can select halftone settings for text, graphics, and photographs independently. The two halftone options are Smooth and Detail.

• The Smooth option provides better results for large, solid-filled print areas. It also enhances photographs by smoothing out fine color gradations. Choose this option when uniform and smooth area fills are top priority.
• The Detail option is useful for text and graphics that require sharp distinctions among lines or colors, or for images that contain a pattern or a high level of detail. Choose this option when sharp edges and details are top priority.

NOTE: Some software programs convert text or graphics to bitmap images. In these cases, setting the color options for photographs also affects how text and graphics appear.

Neutral Grays

The Neutral Grays setting determines the method used for creating gray colors that are used in text, graphics, and photographs.

Two values are available for the Neutral Grays setting:

• Black Only generates neutral colors (grays and black) using only black toner. This guarantees neutral colors without a color cast.
• 4-Color generates neutral colors (grays and black) by combining all four toner colors. This method produces smoother gradients and transitions to non-neutral colors, and it produces the darkest black.

Print in grayscale

Select the Print in Grayscale or Print Color as Gray option from the printer driver to print a document in black and white.

Restrict color use

This product includes a Restrict Color setting. A network administrator can use the setting to restrict user access to the color printing in order to conserve color toner. If you are unable to print in color, see your network administrator.

Restrict color printing and copying from the control panel

1. Scroll to and touch Administration and then touch Management.
2. Touch Restrict Color Use.
3. Touch Color printing access or Color copying access.

4. Select one of the following options:

5. Enable Color (default). This setting allows color-printing capabilities for all users.

6. Color If Allowed. The setting allows the network administrator to allow color use for select users and/or applications. Use the embedded Web server to designate which users and/or applications can print in color (Color printing access only).
7. Disable Color. This setting denies color-printing capabilities to all users.

5. Touch Save.

For more information about restricting and reporting color usage, go to www.hp.com/go/coloraccess.

RGB Color (Color Themes)

You can change RGB Color settings from the printer-driver. For more information on accessing the printer driver, see Set color options on page 143 for Windows and Set the color options on page 80 for Macintosh.

Five values are available for the RGB Color setting:

• Select Default (sRGB) for most printing needs. This setting instructs the product to interpret RGB color as sRGB, which is the accepted standard of Microsoft and the World Wide Web Consortium (W3C).
• Select Image optimization (sRGB) to enhance documents in which the content is mainly bitmap images, such as .GIF or .JPEG files. This setting instructs the product to use the best color matching for rendering sRGB, bitmap images. This setting has no effect on text or vector-based graphics. Using glossy paper in combination with this setting provides the maximum enhancement.
• Select AdobeRGB for documents that use the AdobeRGB color space rather than sRGB. For example, some digital cameras capture images in AdobeRBG, and documents that are produced with Adobe PhotoShop use the AdobeRGB color space. When printing from a professional software program that uses AdobeRGB, it is important that you turn off the color management in the software program and allow the product software to manage the color space.
• Select Custom Profile when you want to increase the color saturation in the midtones. Less colorful objects are rendered more colorfully. You can download custom profiles from www.hp.com/go/cljcm6030mfp_software or www.hp.com/go/cljcm6040mfp_software.

Match colors

The process of matching product output color to your computer screen is quite complex because printers and computer monitors use different methods of producing color. Monitors display colors by light pixels using an RGB (red, green, blue) color process, but printers print colors using a CMYK (cyan, magenta, yellow, and black) process.

Several factors can influence your ability to match printed colors to those on your monitor. These factors include:

Paper
• Printer colorants (inks or toners for example)
• Printing process (inkjet, press, or laser technology for example)
• Overhead lighting
• Personal differences in perception of color
- Software programs
Printer drivers
• Computer operating system
• Monitors and monitor settings
• Video cards and drivers
• Operating environment (humidity for example)

Keep the above factors in mind when colors on your screen do not perfectly match your printed colors.

For most users, the best method for matching colors on your screen to your product is to print sRGB colors.

Sample book color matching

The process for matching product output to preprinted sample books and standard color references is complex. In general, you can obtain a reasonably good match to a sample book if the inks used to create the sample book are cyan, magenta, yellow, and black. These are usually referred to as process color sample books.

Some sample books are created from spot colors. Spot colors are specially created colorants. Many of these spot colors are outside of the range of the product. Most spot color sample books have companion process sample books that provide CMYK approximations to the spot color.

Most process sample books will state which process standards were used to print the sample book. In most cases they will be SWOP, EURO, or DIC. To get optimal color matching to the process sample book, select the corresponding ink emulation from the product menu. If you cannot identify the process standard, use SWOP ink emulation.

Printing color samples

To use the color samples, select the color sample that is the closest match to the desired color. Use the sample's color value in your software program to describe the object you wish to match. Colors may

vary depending on paper type and the software program used. For more details on how to use the color samples, go to www.hp.com/go/cljcm6030mfp_software or www.hp.com/go/cljcm6040mfp_software.

Use the following procedure to print color samples at the product using the control panel:

1. Touch Administration and then touch Information.
2. Touch Sample pages/fonts and then touch CMYK samples or RGB samples to print the samples.

PANTONE® color matching

PANTONE has multiple color matching systems. PANTONE MATCHING SYSTEM® is very popular and uses solid inks to generate a wide range of color hues and tints. See www.hp.com/go/cljcm6030mfp_software or www.hp.com/go/cljcm6040mfp_software for details on how to use PANTONE Colors with this product.

NOTE: PANTONE Colors generated might not match PANTONE-identified standards. Consult current PANTONE Publications for accurate color.

Advanced color use

HP ImageREt 4800

HP ImageREt 4800 print technology is a system of innovative technologies developed exclusively by HP to deliver superior print quality. The HP ImageREt system sets itself apart from the industry by integrating technology advancements and optimizing each element of the print system. Several categories of HP ImageREt have been developed for a variety of user needs.

The system uses key color-laser technologies, including image enhancements, smart supplies, and high-resolution imaging, to provide superior images for general office documents and marketing collateral. Optimized for printing on HP color laser high-gloss papers, HP Image REt 4800 provides superior results on all supported paper, and under a variety of environmental conditions.

Paper selection

For the best color and image quality, it is important to select the appropriate paper type from the product menu or from the front panel.

sRGB

Standard red-green-blue (sRGB) is a worldwide color standard originally developed by HP and Microsoft as a common color language for monitors, input devices (scanners, digital cameras), and output devices (products, printers, plotters). It is the default color space used for HP products, Microsoft operating systems, the Web, and most office software sold today. sRGB is representative of the typical Windows computer monitor today and the convergence standard for high-definition television.

NOTE: Factors such as the type of monitor you use and the room's lighting can affect the appearance of colors on your screen.

The latest versions of Adobe PhotoShop, CorelDRAW™, Microsoft Office, and many other software programs use sRGB to communicate color. Most importantly, as the default color space in Microsoft operating systems, sRGB has gained broad adoption as a means to exchange color information between software programs and devices using a common definition that assures typical users will experience greatly improved color matching. sRGB improves your ability to match colors between the product, the computer monitor, and other input devices (scanner, digital camera) automatically, without the need to become a color expert.

Print in four colors — CMYK

Cyan, magenta, yellow, and black (CMYK) are the inks used by a printing press. The process is often called four-color printing. CMYK data files are typically used by and originate from graphic arts (printing and publishing) environments. The product will accept CMYK colors through the PS printer driver. The product color-rendering of CMYK is designed to provide rich, saturated colors for text and graphics.

CMYK ink set emulation (HP postscript level 3 emulation)

The product color rendering of CMYK can be made to emulate several standard offset press ink sets. In some situations, the CMYK color values in an image or document might not be suited to the product. For example, a document might be optimized for another product. For best results, the CMYK values

should be adapted to the HP Color LaserJet CM6030 or HP Color LaserJet CM6040. Select the appropriate color input profile from the printer driver.

Default CMYK+. HP CMYK+ technology produces optimal printing results for most printing jobs.
- Specification for Web Offset Publications (SWOP). Common ink standard in the United States and other countries/regions.
• Euroscale. Common ink standard in Europe and other countries/regions.
• Dainippon Ink and Chemical (DIC). Common ink standard in Japan and other countries/regions.
- Custom profile. Select this option to use a custom input profile to accurately control color output, for example, to emulate another HP color LaserJet product. To download color profiles, go to www.hp.com and search for "CM6030 mfp color profile" or "CM6040 mfp color profile".

11 Copy

• Use the Copy screen
- Set the default copy options
• Copy from the scanner glass
• Copy from the document feeder
- Adjust the copy settings
• Copy two-sided documents
• Copy mixed-size originals
• Change the copy-collation setting
• Copy photos and books
• Combine copy jobs by using Job Build
- Cancel a copy job

Use the Copy screen

From the Home screen, touch Copy to view the Copy screen. Only the first six copy features are immediately visible. In order to view additional copy features, touch More Options.

Set the default copy options

You can use the administration menu to establish default settings that apply to all copy jobs. If necessary, you can override most settings for an individual job. After that job is complete, the product returns to the default settings.

1. From the Home screen, scroll to and touch Administration.
2. Touch Default Job Options, and then touch Default Copy Options.
3. Several options are available. You can configure defaults for all options, or for only some options.
   For information about each option, see Adjust the copy settings on page 155. The built-in Help system also provides an explanation of each option. Touch the Help button in the upper-right corner of the screen.
4. To exit the administration menu, touch the Home button in the upper-left corner of the screen.

Copy from the scanner glass

Use the scanner glass to make as many as 999 copies of small, lightweight media (less than 60 g/m^2 or 16 lb) or heavy media (more than 105 g/m^2 or 28 lb). This includes media such as receipts, newspaper clippings, photographs, old documents, worn documents, and books.

Place original documents face-down on the glass. Align the corner of the original with the upper-left corner of the glass.

To make copies by using the default copy options, use the numeric keypad on the control panel to select the number of copies, and press Start. To use customized settings, touch Copy. Specify the settings, and then press Start. For more information about using customized settings, see Adjust the copy settings on page 155.

Copy from the document feeder

Use the document feeder to make as many as 999 copies of a document that has up to 50 pages (depending on the thickness of the pages). Place the document into the document feeder with the pages facing up.

To make copies by using the default copy options, use the numeric keypad on the control panel to select the number of copies, and press Start. To use customized settings, touch Copy. Specify the settings, and then press Start. For more information about using customized settings, see Adjust the copy settings on page 155.

Before starting another copy job, retrieve the original document from the document-feeder output bin that is under the document feeder input tray, and retrieve the copies from the appropriate output bin.

Adjust the copy settings

The product offers several features so you can optimize copied output. These features are all available on the Copy screen.

The Copy screen consists of several pages. From the first page, touch More Options to go to the next page. Then touch the up or down arrow buttons to scroll to other pages.

For details about how to use an option, touch the option, and then touch the help 🔒 button in the upper-right corner of the screen. The following table provides an overview of the copy options.

NOTE: Depending on how the system administrator has configured the product, some of these options might not appear. The options in the table are listed in the order in which they can appear.

Option name Description
Sides	Use this feature to indicate whether the original document is printed on one or both sides, and whether the copies should be printed on one or both sides.
Reduce/Enlarge Use this feature to reduce or enlarge the copied image on the page.
Color/Black Use this feature to choose black printing or color printing.
Staple/Collate or Collate	If the optional HP Stapler/Stacker/Separator is attached, the Staple/Collate option is available. Use this feature to set up options for stapling and assembling the pages in sets of copies.If the optional HP Stapler/Stacker/Separator is not attached, the Collate option is available. Use this feature to assemble each set of copied pages in the same order as the original document.
Paper Selection	Use this feature to select the tray that holds the size and type of paper that you want to use.
Image Adjustment	Use this feature to improve the overall quality of the copy. For example, you can adjust the darkness and sharpness, and you can use the Background Cleanup setting to remove faint images from the background or to remove a light background color.
Content Orientation	Use this feature to specify the way the content of the original page is placed on the page: portrait or landscape.
Output Bin Use this feature to select an output bin for the copies.
Optimize Text/Picture	Use this feature to optimize the output for a particular type of content. You can optimize the output for text or printed pictures, or you can manually adjust the values.
Pages per Sheet Use this feature to copy multiple pages onto one sheet of paper.
Original Size Use this feature to describe the page size of the original document.
Book Copy Use this feature to scan and print pages from a book.
Booklet Format	Use this feature to copy two or more pages onto one sheet of paper so you can fold the sheets in the center to form a booklet.
Edge-To-Edge	Use this feature to avoid shadows that can appear along the edges of copies when the original document is printed close to the edges. Combine this feature with the Reduce/Enlarge feature to ensure that the entire page is printed on the copies.
Job Build	Use this feature to combine several sets of original documents into one copy job. Also use this feature to copy an original document that has more pages than the document feeder can accommodate at one time.

Copy two-sided documents

Two-sided documents can be copied manually or automatically.

Copying two-sided documents manually

Copies resulting from this procedure are printed on one side, and need to be hand-collated.

1. Load the documents to be copied into the document feeder input tray with the first page facing up, and with the top of the page leading into the document feeder.
2. Touch Start Copy. The odd-numbered pages are copied and printed.
3. Remove the stack from the document feeder output tray and reload the stack with the last page facing up, and with the top of the page leading into the document feeder.
4. Touch Start Copy. The even-numbered pages are copied and printed.
5. Collate the odd- and even-numbered printed copies.

Copy two-sided documents automatically

The default copy setting is one-sided to one-sided. Use the following procedures to change the setting so you can copy from or to documents that are two-sided.

Make two-sided copies from one-sided documents

1. Load the documents to be copied into the document feeder with the first page facing up, and with the top of the page leading.
2. On the control panel, touch Copy.
3. Touch Sides.
4. Touch 1-sided original, 2-sided output.
5. Touch OK.
6. Touch Start Copy.

Make two-sided copies from two-sided documents

1. Load the documents to be copied into the document feeder with the first page facing up, and with the top of the page leading.
2. On the control panel, touch Copy.

3. Touch Sides.

4. Touch 2-sided original, 2-sided output.

5. Touch OK.
6. Touch Start Copy.

Make one-sided copies from two-sided documents

1. Load the documents to be copied into the document feeder with the first page facing up, and with the top of the page leading.
2. On the control panel, touch Copy.
3. Touch Sides.
4. Touch 2-sided original, 1-sided output.
5. Touch OK.
6. Touch Start Copy.

Copy mixed-size originals

You can copy original documents that are printed on different sizes of paper as long as the sheets of paper have one common dimension. For example, you could combine letter and legal sizes, or you could combine A4 and A5 sizes.

1. Arrange the sheets in the original document so they all have the same width.
2. Place the sheets face-up into the document feeder, and adjust both paper guides against the document.
3. From the Home screen, touch Copy.
4. Touch Original Size.

NOTE: If this option is not on the first screen, touch More Options until the option appears.

1. Select Mixed Ltr/Lgl, and then touch OK.

2. Touch Start Copy.

Change the copy-collation setting

You can set the device to automatically collate multiple copies into sets. For example, if you are making two copies of three pages and the automatic collation is on, the pages print in this order: 1,2,3,1,2,3. If automatic collation is off, the pages print in this order: 1,1,2,2,3,3.

To use the automatic collation, the original document size must fit into the memory. If it does not, the device makes only one copy and a message appears notifying you of the change. If that happens, use one of the following methods to finish the job:

• Split the job into smaller jobs that contain fewer pages.
• Make only one copy of the document at a time.
• Turn off the automatic collation.

The collation setting you select is in effect for all copies until you change the setting. The default setting for automatic copy collation is On.

1. On the control panel, touch Copy.
2. Touch Staple/Collate or Collate.
3. Touch Off.
4. Touch OK.

Copy photos and books

Copy a photo

NOTE: Photos should be copied from the flatbed scanner, not from the document feeder.

1. Lift the lid and place the photo on the flatbed scanner with the picture-side down and the upper-left corner of the photo in the upper-left corner of the glass.
2. Gently close the lid.
3. Touch Copy.
4. Touch Optimize Text/Picture and select Photograph.
5. Touch Start Copy.

Copy a book

1. Place the book face down on the glass with the top edge toward the rear of the glass. Align the book spine with the book icon 📋 along the top edge of the glass.
2. Touch Copy.
3. Scroll to and touch Book Copy.
4. Touch Book Copy On and then touch OK.

5. Select the number of copies to make and adjust other settings as needed.

6. Touch Start Copy, or press the Start button on the control panel.

7. The following 3 options are available when Start Copy is touched:

8. Copy both pages copies the images on both the left and right side of the spine

9. Skip left page copies the image on the right side of the spine only

10. Skip right page copies the image on the left side of the spine only

11. Touch Scan.

12. After the last page is scanned, touch Finish.

Combine copy jobs by using Job Build

Use this feature to combine several sets of original documents into one copy job. Also use this feature to copy an original document that has more pages than the document feeder can accommodate at one time.

1. Touch Copy.
2. Scroll to and touch Job Build.
3. Touch Job Build On.
4. Touch OK.
5. If necessary, select the desired copy options.
6. Touch Start Copy. After each page is scanned, the control panel prompts you for more pages.
7. If the job contains more pages, load the next page, and then touch Scan.

The product temporarily saves all the scanned images. The product will begin printing copies when it has enough information to begin. Touch Finish to finish printing the copies.

NOTE: In Job Build, if you scan the first page of a document by using the document feeder, then you must scan all of the pages in that document by using the document feeder. If you scan the first page of a document by using the scanner glass, then you must scan all of the pages in that document by using the scanner glass.

Cancel a copy job

1. Touch the Stop button on the control panel and then touch the job from the list.
2. Touch Cancel Job and then touch OK.

NOTE: If you cancel a copy job, clear the document from the flatbed scanner or from the automatic document feeder.

12 Scan and send to e-mail

• Configure e-mail settings
  • Use the Send E-mail screen
  • Perform basic e-mail functions
  • Use the address book
  • Change e-mail settings for the current job
• Scan to a folder
• Scan to a workflow destination

Configure e-mail settings

The product offers color-scanning and digital-sending capabilities. By using the control panel, you can scan black-and-white or color documents and send them to an e-mail address as an e-mail attachment. To use digital sending, the product must be connected to a local area network (LAN).

NOTE: The e-mail icon is not shown on the control panel if e-mail is not configured.

Before you can send a document to e-mail, you must configure the product.

NOTE: The instructions that follow are for configuring the product at the control panel. You can also perform these procedures by using the embedded Web server. For more information, see Embedded Web server on page 183.

Supported protocols

The HP Color LaserJet CM6030 and HP Color LaserJet CM6040 MFP models support Simple Mail Transfer Protocol (SMTP) and Lightweight Directory Access Protocol (LDAP).

SMTP

• SMTP is a set of rules that define the interaction between programs that send and receive e-mail. In order for the device to send documents to e-mail, it must be connected to a LAN that has access to an e-mail server that supports SMTP. The SMTP server must also have Internet access.
• If you are using a LAN connection, contact your system administrator to obtain the IP address or host name for your SMTP server. If you are connecting through a DSL or cable connection, contact the internet service provider to obtain the SMTP server IP address.

LDAP

• LDAP is used to gain access to a database of information. When the device uses LDAP, it searches a global list of e-mail addresses. As you begin to type the e-mail address, LDAP uses an auto-complete feature that supplies a list of e-mail addresses that match the characters you type. As you type additional characters, the list of matching e-mail addresses becomes smaller.
• The device supports LDAP, but a connection to an LDAP server is not required in order for the device to be able to send to e-mail.

NOTE: If you need to change the LDAP settings, you must change them by using the embedded Web server. For more information, see Embedded Web server on page 183, or see the Embedded Web Server User Guide on the product Administrator CD.

Configure e-mail server settings

Find the SMTP gateway

1. From the Home screen, touch Administration
2. Touch Initial Setup.
3. Touch E-mail Setup, and then touch Find Send Gateways.
4. Touch Find.

Configure the SMTP gateway address

1. From the Home screen, touch Administration.
2. Touch Initial Setup.
3. Touch E-mail Setup, and then touch SMTP Gateway.

4. Touch Save.

5. Type the SMTP gateway address, either as an IP address or as a fully qualified domain name. If you do not know the IP address or domain name, contact the network administrator.

Test the SMTP settings

1. From the Home screen, touch Administration.
2. Touch Initial Setup.
3. Touch E-mail Setup, and then touch Test.

If the configuration is correct, Gateways OK appears on the control-panel display.

If the first test was successful, send an e-mail to yourself by using the digital-send feature. If you receive the e-mail, you have successfully configured the digital-sending feature.

If you do not receive the e-mail, use these actions to resolve issues with the digital-sending software:

• Check the SMTP and address to make sure that you typed them correctly.
• Print a configuration page. Verify that the SMTP gateway address is correct.
• Make sure that the network is operating correctly. Send an e-mail to yourself from a computer. If you receive the e-mail, the network is operating correctly. If you do not receive the e-mail, contact your network administrator or Internet service provider (ISP).

Use the Send E-mail screen

Use the touchscreen to navigate through the options on the Send E-mail screen.

Diagram of a remote control unit with numbered labels pointing to internal components

1	Send E-mail button	Touching this button scans the document and sends an e-mail file to the provided e-mail addresses.
2	Home button Touching this button opens the Home screen.
3	From: field	Touch this field to open the keyboard, and then type your e-mail address. If the system administrator has configured the device to do so, this field might automatically insert a default address.
4	To: field	Touch this field to open the keyboard, and then type the e-mail addresses of those whom you want to receive the scanned document.
5	Subject: field	Touch this field to open the keyboard, and then type a subject title.
6	More Options button	Touch this button to change certain e-mail settings for the current scan job.
7	Scroll bar	Use the scroll bar to view and set up the CC:, BCC:, Message, and File Name fields. Touch any of those fields to open the keyboard and add the necessary information.
8	Address book buttons	Touch these buttons to use the address book to populate the To:, CC:, or BCC: fields. For more information, see Use the local address book on page 169.
9	Help button	Touch this button for control-panel help. For more information, see Use the control panel on page 14.
10	Error/warning button	This button appears only when there is an error or warning in the status line area. Touch it to open a pop-up screen that will help you resolve the error or warning.

Perform basic e-mail functions

The product e-mail feature offers the following benefits:

• Sends documents to multiple e-mail addresses, saving time and delivery costs.
• Delivers files in black-and-white or in color. Files can be sent in different file formats that the recipient can manipulate.

With e-mail, documents are scanned into the product memory and sent to an e-mail address or multiple addresses as an e-mail attachment. Digital documents can be sent in several graphics formats, such as .TFF and .JPG, which allows recipients to manipulate the document file in various programs to meet their specific needs. Documents arrive in near-original quality, and then can be printed, stored, or forwarded.

In order to use the e-mail feature, the product needs to be connected to a valid SMTP local area network that includes Internet access.

Load documents

You can scan a document by using either the glass or the ADF. The glass and ADF can accommodate Letter-, Executive-, A4-, and A5-size originals. The ADF can also accommodate Legal-size originals. Smaller originals, receipts, irregular and worn documents, stapled documents, previously folded documents, and photographs should be scanned by using the glass. Multiple-page documents can be scanned easily by using the ADF.

Send documents

The product scans both black-and-white and color originals. You can use default settings or change the scanning preferences and file formats. The following are the default settings:

Color
• PDF (requires the recipient to have an Adobe Acrobat viewer to view the e-mail attachment)

For information about changing the settings for the current job, see Change e-mail settings for the current job on page 170.

Send a document

1. Place the document face-down on the scanner glass or face-up in the ADF.
2. From the Home screen, touch E-mail.
3. If prompted, type your user name and password.
4. Complete the From:, To:, and Subject: fields. Scroll down and complete the CC:, and BCC: fields if appropriate. Your user name or other default information might appear in the From: field. If so, you might not be able to change it.
5. (Optional) Touch More Options to change the settings for the document that you are sending (for example, the document's original size). If you are sending a two-sided document, you should select Sides and an option with a two-sided original.
6. Press Start to begin sending.
7. When you are finished, remove the original document from the scanner glass or ADF.

Use the auto-complete function

When you type characters into the To:, CC:, or From: fields on the Send E-mail screen, the auto-complete function is activated. As you type the required address or name by using the keyboard screen, the device automatically searches the address book list and completes the address or name by using the first match. You can then select that name by touching Enter, or continue typing the name until auto-complete finds the correct entry. If you type a character that does not match any entry in the list, the auto-complete text is removed from the display to indicate that you are typing an address that is not in the address book.

Use the address book

You can send e-mail to a list of recipients by using the address book feature of the product. See your system administrator for information about configuring address lists.

NOTE: You can also use the embedded Web server (EWS) to create and manage the e-mail address book. The EWS e-mail address book can be used to add, edit, or delete single e-mail addresses or e-mail distribution lists. For more information, see Embedded Web server on page 183.

Create a recipient list

1. From the Home screen, touch E-mail.

2. Complete one of the following steps:

3. Touch To: to open the keyboard screen, and then type the recipients' e-mail addresses. Separate multiple e-mail addresses with a semicolon or by touching Enter on the touchscreen.
   • Use the address book.

a. On the Send E-mail screen, touch the address book button 📋 to open the address book.
b. Navigate the entries in the address book by using the scroll bar. Hold down the arrow to scroll quickly through the list.
c. Highlight the name to select a recipient, and then touch the arrow button →.

You can also select a distribution list by touching the drop-down list at the top of the screen and then touching All, or add a recipient from a local list by touching Local in the drop-down list. Highlight the appropriate names, and then touch the arrow button to add the name to your list of recipients.

You can remove a recipient from your list by scrolling to highlight the recipient, and then touching the remove button ✗ in the middle of the screen.

1. The names in the recipient list are placed in the text line of the keyboard screen. If you want, you can add a recipient that is not found in the address book by typing the e-mail address on the keyboard. After you are satisfied with your recipient list, touch OK.
2. Touch OK.
3. Finish typing information in the CC: and Subject: fields on the Send E-mail screen, if necessary. You can check the list of recipients by touching the down arrow in the To: text line.
4. Press Start.

Use the local address book

Use the local address book to store frequently-used e-mail addresses. The local address book can be shared between devices that use the same server to gain access to the HP Digital Sending software.

You can use the address book when you type e-mail addresses in the From:, To:, CC:, or BCC: fields. You can also add or delete addresses in the address book.

To open the address book, touch the address book button 📄.

Add e-mail addresses to the local address book

1. Touch Local.
2. Touch the add button +.
3. (Optional) Touch the Name field, and in the keyboard that appears type a name for the new entry. Touch OK.

The name is the alias for the e-mail address. If you do not type an alias name, the alias will be the e-mail address itself.

1. Touch the Address field, and in the keyboard that appears type the e-mail address for the new entry. Touch OK.

Delete e-mail addresses from the local address book

You can delete e-mail addresses that you no longer use.

NOTE: To change an e-mail address, you must first delete the address and then add the corrected address as a new address in the local address book.

1. Touch Local.
2. Touch the e-mail address that you want to delete.
3. Touch the remove button ✗ in the lower right corner.

The following confirmation message appears: Do you want to delete the selected address(es)?

1. Touch Yes to delete the e-mail address(es) or touch No to return to the Address Book screen.

Change e-mail settings for the current job

Use the More Options button to change the following e-mail settings for the current print job:

Button Description
Document File Type	Touch this button to change the type of file the device creates after scanning the document.
Output Quality	Touch this button to increase or decrease the print quality of the file being scanned. A higher quality setting produces a larger file size.
Resolution	Touch this button to change the scan resolution. A higher resolution setting produces a larger file size.
Color/Black	Touch this button to determine whether you will scan the document in color or in black-and-white.
Original Sides	Touch this button to indicate if the original document is one-sided or two-sided.
Content Orientation	Touch this button to select either the portrait or landscape orientation for the original.
Original Size	Touch this button to select the size of the document: letter, A4, legal, or mixed letter/legal.
Optimize Text/Picture	Touch this button to change the scanning procedure based on the type of document that you are scanning.
Job Build	Touch this button to activate or deactivate the Job Build mode, which enables you to scan several small scan jobs and send them as one file.
Image Adjustment	Touch this button to change the darkness and sharpness settings, or to clean up background clutter on the original.

Scan to a folder

If the system administrator has made the feature available, the device can scan a file and send it to a folder on the network. Supported operating systems for folder destinations include Windows 2000, Windows XP, and Windows Server 2003.

NOTE: You might be required to supply a user name and password in order to use this option, or to send to certain folders. See your system administrator for more information.

1. Place the document face-down on the scanner glass or face-up in the ADF.
2. From the Home screen, touch Network Folder.
3. In the Quick Access Folders list, select the folder in which you want to save the document.
4. Touch the File Name field to open the keyboard pop-up screen, and then type the file name.
5. Touch Send to Network Folder.

Scan to a workflow destination

NOTE: This device feature is provided by the optional Digital Sending Software.

If the system administrator has enabled the workflow functionality, you can scan a document and send it to a custom workflow destination. A workflow destination gives you the ability to send additional information, along with the scanned document, to a specified network or file transfer protocol (FTP) location. Prompts for specific information appear on the control-panel display. The system administrator can also designate a printer as a workflow destination, which allows you to scan a document and then send it directly to a network printer for printing.

1. Place the document face-down on the scanner glass or face-up in the ADF.
2. From the Home screen, touch Workflow.
3. Select the destination to which you want to scan.
4. In the Text Field field, type the data that you want to accompany the file, and then touch Send Workflow.

13 Fax

Analog fax
Digital fax

Analog fax

When the analog fax accessory is installed, the product can function as a standalone fax machine.

The HP Color LaserJet CM6030f MFP or HP Color LaserJet CM6040f MFP models come with a fax accessory already installed. For the HP Color LaserJet CM6030 MFP or HP Color LaserJet CM6040 MFP (base models), you can order this accessory as an option. See Part numbers on page 281 for information about ordering the analog fax accessory. Specifications for the Analog Fax Accessory are available in the HP LaserJet Analog Fax Accessory 300 User Guide. An electronic version of this guide is located on the User CD that comes with the product. The Analog Fax Accessory 300 Fax Guide and the Analog Fax Accessory 300 Send Fax Driver Guide are also located on the product User CD or at www.hp.com/go/mfpfaxaccessory300.

Connect the fax accessory to a phone line

When connecting the fax accessory to a phone line, ensure that the phone line being used for the fax accessory is a dedicated line that is not used by any other devices. Also, this line should be an analog line because the fax will not function correctly if it is connected to some digital PBX systems. If you are not sure whether you have an analog or digital phone line, contact your telecom provider.

NOTE: HP recommends using the phone cord that comes with the fax accessory to ensure that the accessory functions correctly.

Follow these instructions to connect the fax accessory to a phone jack.

1. Locate the phone cord that is included with the fax accessory kit. Connect one end of the phone cord into the fax accessory phone jack that is on the formatter. Push the connector until it clicks.

Diagram showing computer setup with labeled components and a magnified view of the internal device.

△ CAUTION: Be sure to connect the phone line to the fax accessory port, which is located in the center of the formatter. Do not connect the phone line to the HP Jetdirect port, which is nearer the bottom of the formatter.

1. Connect the other end of the phone cord into the phone jack on the wall. Push the connector until it clicks or until it is securely seated. Because different types of connectors are used in different countries/regions, the connector might not make an audible click.

Configure and use the fax features

Before you can use the fax features, you must configure them in the control-panel menus. For complete information about configuring and using the fax accessory, and for information about troubleshooting

problems with the fax accessory, see the HP LaserJet Analog Fax Accessory 300 User Guide. This guide is provided with the fax accessory, and it is also available on the product User CD.

Use the Send Fax driver to send a fax from a computer without going to the product control panel. See the HP LaserJet MFP Analog Fax Accessory 300 Send Fax Driver Guide for more information.

The HP LaserJet Analog Fax Accessory 300 User Guide and HP LaserJet MFP Analog Fax Accessory 300 Send Fax Driver Guide are both available on the product User CD.

Digital fax

Digital faxing is available when you install the optional HP Digital Sending Software. For information about ordering this software, go to www.hp.com/go/digitalsending

With digital faxing, the product does not need to be connected directly to a phone line. Instead, the product can send a fax in one of three ways:

• LAN fax sends faxes through a third-party fax provider.
- Microsoft Windows 2000 fax is a fax modem and Digital Sender Module on a computer that allows the computer to operate as a turnkey gateway fax.
- Internet fax uses an Internet fax provider to process faxes, and the fax is delivered on a traditional fax machine or sent to the user's e-mail.

For complete information about using digital faxing, see the documentation that is provided with the HP Digital Sending Software.

14 Manage and maintain the product

• Information pages
HP Easy Printer Care
- Embedded Web server
• Use HP Web Jetadmin software
• Security features
- Set the real-time clock
- Manage supplies
- Replace supplies
Clean the product
• ADF maintenance kit
• Calibrate the scanner
• Upgrade the firmware

Information pages

Information pages provide details about the device and its current configuration. The following table provides the instructions for printing the information pages.

Page description How to print the page from the product control panel
Menu map	1. From the Home screen, touch Administration.
Shows the control-panel menus and available settings.	2. Touch Information.
	3. Touch Configuration/status Pages.
	4. Touch Administration Menu Map.
	5. Touch Print.
	The content of the menu map varies, depending on the options currently installed in the device.
	For a complete list of control panel menus and possible values, see Use the control panel on page 14.
Configuration page	1. From the Home screen, touch Administration.
Shows device settings and installed accessories.	2. Touch Information.
	3. Touch Configuration/Status Pages.
	4. Touch Configuration Page.
	5. Touch Print.
	NOTE: If the device contains an HP Jetdirect print server or an optional hard disk drive, additional configuration pages print that provide information about those devices.
Supplies status page	1. From the Home screen, touch Administration.
Shows print-cartridge toner levels.	2. Touch Information.
	3. Touch Configuration/status Pages.
	4. Touch Supplies Status Page.
	5. Touch Print.
	NOTE: If you are using non-HP supplies, the supplies status page might not show the remaining life for those supplies.
Usage page	1. From the Home screen, touch Administration.
Shows a page count for each size of paper printed, the number of one-sided (simplexed) or two-sided (duplexed) pages, and the average percentage of coverage.	2. Touch Information.
	3. Touch Configuration/status Pages.
	4. Touch Usage Page.
	5. Touch Print.
Color usage job log	1. From the Home screen, touch Administration
	2. Touch Information
	3. Touch Configuration/status Pages
	4. Touch Color Usage Job Log5. Touch Print
File directoryContains information for any mass storage devices, such as flash drives, memory cards, or hard disks, that are installed in the device.	1. From the Home screen, touch Administration.2. Touch Information.3. Touch Configuration/status Pages.4. Touch File Directory.5. Touch Print.
Fax reportsFive reports show fax activity, fax calls, billing codes, blocked fax numbers, and speed-dial numbers.NOTE: Fax reports are available only on device models that have fax capabilities.	1. From the Home screen, touch Administration.2. Touch Information.3. Touch Fax Reports.4. Touch one of the following buttons to print the corresponding report:Fax Activity LogFax Call ReportBilling Codes ReportBlocked Fax ListSpeed Dial List5. Touch Print.For more information, see the fax guide that came with the device.
Font listsShows which fonts are currently installed in the device.	1. From the Home screen, touch Administration.2. Touch Information.3. Touch Sample Pages/Fonts.4. Touch one of the following buttons to print the corresponding report:Demonstration PageRGB SamplesCMYK SamplesPCL Font ListPS Font List5. Touch Print.NOTE: The font lists also show which fonts reside on a hard disk accessory or DIMM.

HP Easy Printer Care

Open the HP Easy Printer Care software

Use one of the following methods to open the HP Easy Printer Care software:

• On the Start menu, select Programs, select Hewlett-Packard, select HP Easy Printer Care, and then click Start HP Easy Printer Care.
• In the Windows system tray (in the lower-right corner of the desktop), double-click the HP Easy Printer Care icon.
  • Double-click the desktop icon.

HP Easy Printer Care software sections

HP Easy Printer Care software can provide information about multiple HP products that are on your network as well as any products that are directly connected to your computer. Some of the items that are in the following table might not be available for every product.

The Help button (?) in the upper-right corner of each page provides more detailed information about the options on that page.

Section Options
Device List tabWhen you open the software, this is the first page that appears.NOTE:To return to this page from any tab, clickMy HP Printersin the left side of the window.	Deviceslist: Shows the products that you can select.NOTE:The product information appears either in list form or as icons, depending on the setting for theView asoption.The information on this tab includes current alerts for the product.If you click a product in the list, the HP Easy Printer Care opens theOverviewtab for that product.
Compatible Printers	Provides a list of all the HP products that support HP Easy Printer Care software.
Find Other PrinterswindowAdd more products to theMy HP Printerslist	Click theFind Other Printerslink in theDeviceslist to open theFind Other Printerswindow. TheFind Other Printerswindow provides a utility that detects other network printers so that you can add them to theMy HP Printerslist and then monitor those products from your computer.
OverviewtabContains basic status information for the device	Device Statussection: This section shows product-identification information and the product status. It indicates product-alert conditions, such as an empty print cartridge. After you correct a problem with the product, click therefresh buttonin the upper-right corner of the window to update the status.Supplies Statussection: Shows detailed supplies status, such as the percentage of toner remaining in the print cartridge and the status of the paper that is loaded in each tray.Supplies Detailslink: Opens the supplies status page to view more detailed information about product supplies, ordering information, and recycling information.
Support tabProvides links to support information	Device Statussection: This section shows product-identification information and the product status. It indicates product-alert conditions, such as an empty print cartridge. After you correct a problem with the product, click the refresh buttonin the upper-right corner of the window to update the status.Device Managementsection: Provides links to information about HP Easy Printer Care, to advanced product settings, and to product usage reports.Troubleshooting and Help: Provides links to tools that you can use to resolve problems, to online product support information, and to online HP experts.
Settings tabConfigure product settings, adjust print-quality settings, and find information about specific product featuresNOTE: This tab is not available for some products.	About: Provides general information about this tab.General: Provides information about the product, such as the model number, serial number, and the settings for date and time, if they are available.Information Pages: Provides links to print the information pages that are available for the product.Capabilities: Provides information about product features, such as duplexing, the available memory, and the available printing personalities. Click Changeto adjust the settings.Print Quality: Provides information about print-quality settings. Click Changeto adjust the settings.Trays / Paper: Provides information about the trays and how they are configured. Click Changeto adjust the settings.Restore Defaults: Provides a way to restore the product settings to the factory defaults. Click Restoreto restore the settings to the defaults.
HP Proactive SupportNOTE: This item is available from the Overview and Support tabs.	When enabled, HP Proactive Support routinely scans your printing system to identify potential problems. Click themore info link to configure how frequently the scans occur. This page also provides information about available updates for product software, firmware, and HP printer drivers. You can accept or decline each recommended update.
Supplies Ordering buttonClick the Supplies Ordering button on any tab to open the Supplies Ordering window, which provides access to online supplies ordering.NOTE: This item is available from the Overview and Support tabs.	Ordering list: Shows the supplies that you can order for each product. To order a certain item, click the Order check box for that item in the supplies list. You can sort the list by product, or by the supplies that need to be ordered the soonest. The list contains supplies information for every product that is in the My HP Printers list.Shop Online for Supplies button: Opens the HP SureSupply Web site in a new browser window. If you have checked the Order check box for any items, the information about those items can be transferred to the Web site, where you will receive information on options for purchasing your selected supplies.Print Shopping List button: Prints the information for the supplies that have the Order check box selected.
Alert Settings linkNOTE: This item is available from the Overview and Support tabs.	Click Alert Settings to open the Alert Settings window, in which you can configure alerts for each product.Alerting is on or off: Activates or deactivates the alerts feature.Printer Alerts: Select the option to receive alerts for critical errors only, or for any error.Job Alerts: For products that support it, you can receive alerts for specific print jobs.
Color Access Control Use this feature to permit or restrict color printing.

Section Options

NOTE: This item is available only for HP color products that support Color Access Control.

NOTE: This item is available from the Overview and Support tabs.

Embedded Web server

Use the embedded Web server to view product and network status and to manage printing functions from your computer instead of from the product control panel. The following are examples of what you can do using the embedded Web server:

NOTE: When the printer is directly connected to a computer, use the HP Easy Printer Care to view the printer status.

• View product status information.
- Set the type of media that is loaded in each tray.
• Determine the remaining life for all supplies and order new ones.
• View and change tray configurations.
• View and change the product control-panel menu configuration.
• View and print internal pages.
- Receive notification of product and supplies events.
• View and change network configuration.

To use the embedded Web server, you must have Microsoft Internet Explorer 5.01 or later or Netscape 6.2 or later for Windows, Mac OS, and Linux (Netscape only). Netscape Navigator 4.7 is required for HP-UX 10 and HP-UX 11. The embedded Web server works when the product is connected to an IP-based network. The embedded Web server does not support IPX-based product connections. You do not have to have Internet access to open and use the embedded Web server.

When the product is connected to the network, the embedded Web server is automatically available.

NOTE: For complete information about using the embedded Web server, see the Embedded Web Server User Guide, which is on the product Administrator CD.

Open the embedded Web server by using a network connection

1. In a supported Web browser on your computer, type the device IP address or host name in the address/URL field. To find the IP address or host name, print a configuration page. See Information pages on page 178.

NOTE: After you open the URL, you can bookmark it so that you can return to it quickly in the future.

1. The embedded Web server has four tabs that contain settings and information about the device: the Information tab, the Settings tab, the Networking tab, and the Digital Sending tab. Click the tab that you want to view.

See Embedded Web server sections on page 184 for more information about each tab.

Embedded Web server sections

Tab or section Options
Information tabProvides device, status, and configuration information	Device Status: Shows the device status and shows the life remaining of HP supplies, with 0% indicating that a supply is empty. The page also shows the type and size of print paper set for each tray. To change the default settings, click Change Settings.Configuration Page: Shows the information found on the configuration page.Supplies Status: Shows the life remaining of HP supplies, with 0 percent indicating that a supply is empty. This page also provides supplies part numbers. To order new supplies, click Shop for Supplies in the Other Links area on the left side of the window.Event log: Shows a list of all device events and errors.Usage page: Shows a summary of the number of pages the device has printed, grouped by size and type.Device Information: Shows the device network name, address, and model information. To change these entries, click Device Information on the Settings tab.Control Panel: Shows messages from the device control panel, such as Ready or Sleep mode on.Print: Allows you to send print jobs to the device.
Settings tabProvides the ability to configure the device from your computer	Configure Device: Allows you to configure device settings. This page contains the traditional menus found on devices using a control-panel display.E-mail Server: Network only. Used in conjunction with the Alerts page to set up incoming and outgoing e-mail, as well as to set e-mail alerts.Alerts: Network only. Allows you to set up to receive e-mail alerts for various device and supplies events.AutoSend: Allows you to configure the device to send automated e-mails regarding device configuration and supplies to specific e-mail addresses.Security: Allows you to set a password that must be entered to gain access to the Settings and Networking tabs. Enable and disable certain features of the embedded Web server.Authentication Manager: Allows you to determine which device functions will require a user to provide log-in information in order to use those functions.LDAP Authentication: Allows you to configure a Lightweight Directory Access Protocol (LDAP) server to limit device access to certain users. The LDAP server will require a user to provide log-in information in order to gain access to the device.Edit Other Links: Allows you to add or customize a link to another Web site. This link is displayed in the Other Links area on all embedded Web server pages.Device Information: Allows you to name the device and assign an asset number to it. Enter the name and e-mail address for the primary contact who will receive information about the device.Language: Allows you to determine the language in which to display the embedded Web server information.Date & Time: Allows time synchronization with a network time server.Wake Time: Allows you to set or edit a wake time for the device.NOTE: The Settings tab can be password-protected. If this device is on a network, always consult with the system administrator before changing settings on this tab.
Digital Sending tab	Use the pages on the Digital Sending tab to configure the digital-sending features.NOTE: If the product is configured to use the optional HP Digital Sending Software, the options on these tabs are not available. Instead, all digital-sending configuration is performed by using the HP Digital Sending Software.General. Set up contact information for the system administrator.Send to E-mail. Configure the e-mail settings for digital sending. You can specify the SMTP server, the default "From" address, and the default subject. You can also set the maximum file size that is allowed for attachments.E-mail Address Book. The E-mail Address Book page enables you to add e-mail addresses into the product one at a time, and to edit e-mail addresses that have already been saved in the product. You can also use the Import/Export tab to load a large list of frequently-used e-mail addresses on to the product all at once, rather than adding them one at a time.Import/Export. Use this tab to import or export .CSV files containing e-mail addresses, fax numbers, or user records, so that they can be accessed on this product. You can also export e-mail, fax, or user records from the device into a file on your computer. You can then use this file as a data backup, or you can use it to import the records onto another HP device.Log. View the digital-sending activity log for the product. The log contains digital-sending job information, including any errors that occur.Preferencences. Configure digital-sending defaults such as the default page-size and the default settings-reset delay. You can also configure these settings by using the product control-panel menus.
Fax tab	The Fax tab contains options to configure and use the fax capabilities of the product. For additional information about fax functions, see the Fax User Guide.Use the Fax Settings screen to configure the send-to-fax features for the product.The Fax Address Book page enables you to add fax numbers into the product one at a time, and to edit fax numbers that have already been saved in the product. You can also use the Import/Export feature on the Digital Sending tab to load a large list of frequently-used fax numbers on to the device all at once, rather than adding them one at a time.Use the Fax Speed Dials screen to add, edit, or delete fax speed dial entries to and from the product. You can use fax speed dials to store frequently used fax numbers or lists of up to 100 fax numbers. Up to 100 speed dial entries can be configured.

Tab or section Options

Networking tabProvides the ability to change network settings from your computer

Network administrators can use this tab to control network-related settings for the device when it is connected to an IP-based network. This tab does not appear if the device is directly connected to a computer, or if the device is connected to a network using anything other than an HP Jetdirect print server.NOTE:The Networkingtab can be password-protected.

Other linksContains links that connect you to the Internet

HP Instant SupportTM: Connects you to the HP Web site to help you find solutions. This service analyzes your device error log and configuration information to provide diagnostic and support information specific to your device.Shop for Supplies: Connects to the HP SureSupply Web site, where you will receive information on options for purchasing original HP supplies, such as print cartridges and paper.Product Support: Connects to the support site for the device, from which you can search for help regarding general topics.NOTE:You must have Internet access in order to use any of these links. If you use a dial-up connection and did not connect when you first opened the embedded Web server, you must connect before you can visit these Web sites. Connecting might require that you close the embedded Web server and reopen it.

Use HP Web Jetadmin software

HP Web Jetadmin is a Web-based software solution for remotely installing, monitoring, and troubleshooting network-connected peripherals. The intuitive browser interface simplifies cross-platform management of a wide range of devices, including HP and non-HP devices. Management is proactive, allowing network administrators the ability to resolve issues before users are affected. Download this free, enhanced-management software at www.hp.com/go/webjetadmin_software.

To obtain plug-ins to HP Web Jetadmin, click plug-ins, and then click the download link that is next to the name of the plug-in that you want. The HP Web Jetadmin software can automatically notify you when new plug-ins are available. On the Product Update page, follow the directions to automatically connect to the HP Web site.

If installed on a host server, HP Web Jetadmin is available to any client through a supported Web browser, such as Microsoft Internet Explorer 6.0 for Windows or Netscape Navigator 7.1 for Linux. Browse to the HP Web Jetadmin host.

NOTE: Browsers must be Java-enabled. Browsing from an Apple PC is not supported.

Security features

Secure the embedded Web server

Assign a password for access to the embedded Web server so that unauthorized users cannot change the product settings.

1. Open the embedded Web server. See Embedded Web server on page 183.
2. Click the Settings tab.
3. On the left side of the window, click Security.
4. Type the password next to New Password, and type it again next to Verify Password.
5. Click Apply. Make note of the password and store it in a safe place.

Foreign Interface Harness (FIH)

The Foreign Interface Harness (FIH) provides a portal on the product. By using the FIH and third-party equipment, you can track information about copies that are made on the product.

Requirements

• Windows 2000 or Windows XP
• Access to third-party accounting hardware solutions, such as Equitrac or Copitrak devices

Use the FIH

To use the FIH, you must download and install the FIH software. The software is available from www.hp.com/go/cljcm6030mfp_software and www.hp.com/go/cljcm6040mfp_software. The software is used to enable or disable the FIH portal. Use the software to set and change the administrator personal identification number (PIN).

Administrators can use the PIN option to configure the FIH to prevent any unauthorized changes. Changes can be made only with the correct PIN authentication.

NOTE: It is important to remember the PIN that is assigned to the FIH administration software. The PIN is required to make any changes to the FIH.

Enable the FIH portal

1. Double-click the FIH.EXE file. The Foreign Interface Harness dialog box appears.
2. Click OK.
3. Click Enable.
4. If you have not entered a PIN before, click No. If you have entered a PIN before, click Yes. If you click No, type and confirm the PIN, and then click OK. If you click Yes, type the PIN and click OK.

NOTE: The PIN must be numeric.

1. Click the appropriate button for the type of connection: Direct or Network. If Direct is selected, type the product port. If Network is selected, type the IP address and port for the product.

NOTE: The IP address for the product can be found on the Configuration page.

If you typed an incorrect IP address, you will receive an error message. Otherwise, the portal is enabled.

Disable the FIH portal

1. Double-click the FIH.EXE file. The Foreign Interface Harness dialog box appears.
2. Click OK.
3. Click Disable.
4. Type the PIN and click OK.
5. Click the appropriate button for the type of connection: Direct or Network. If Direct is selected, type the product port and click OK. If Network is selected, type the IP address and port for the product, and then click OK. The portal is disabled.

NOTE: If you lose the PIN number and the portal needs to be disabled, try using the default PIN that is listed to disable it. For assistance, use the HP Instant Support service, which is available through the embedded Web server or at www.hp.com/go/instantsupport. See Embedded Web server on page 183.

Secure Disk Erase

To protect deleted data from unauthorized access on the product hard drive, use the Secure Disk Erase feature. This feature can securely erase print and copy jobs from the hard drive.

Secure Disk Erase offers the following levels of disk security:

• Non-Secure Fast Erase. This is a simple file-table erase function. Access to the file is removed, but actual data is retained on the disk until it is overwritten by subsequent data-storage operations. This is the fastest mode. Non-Secure Fast Erase is the default erase mode.
• Secure Fast Erase. Access to the file is removed, and the data is overwritten with a fixed identical character pattern. This is slower than Non-Secure Fast Erase, but all data is overwritten. Secure Fast Erase meets the U.S. Department of Defense 5220-22.M requirements for the clearing of disk media.
• Secure Sanitizing Erase. This level is similar to the Secure Fast Erase mode. In addition, data is repetitively overwritten by using an algorithm that prevents any residual data persistence. This mode will impact performance. Secure Sanitizing Erase meets the U.S. Department of Defense 5220-22.M requirements for the sanitization of disk media.

Data affected

Data affected (covered) by the Secure Disk Erase feature includes temporary files that are created during the print and copying process, stored jobs, proof and hold jobs, disk-based fonts, disk-based macros (forms), stored fax files, address books, and HP and third-party applications.

NOTE: Stored jobs will be securely overwritten only when they have been deleted through the Retrieve Job menu on the product after the appropriate erase mode has been set.

This feature will not impact data that is stored on flash-based product non-volatile RAM (NVRAM) that is used to store default settings, page counts, and similar data. This feature does not affect data that is stored on a system RAM disk (if one is used). This feature does not impact data that is stored on the flash-based system boot RAM.

Changing the Secure Disk Erase mode does not overwrite previous data on the disk, nor does it immediately perform a full-disk sanitization. Changing the Secure Disk Erase mode changes how the product cleans up temporary data for jobs after the erase mode has been changed.

Gain access to Secure Disk Erase

Use HP Web Jetadmin to gain access to and set the Secure Disk Erase feature.

Additional Information

For additional information about the HP Secure Disk Erase feature, see the HP support flyer or go to www.hp.com/go/webjetadmin/.

DSS authentication

Optional Digital Sending Software (DSS) for the product is available for purchase separately. The software provides an advanced sending program that contains an authentication process. This process requires users to type a user identification and a password before they can use any of the DSS features that require authentication.

Lock the control-panel menus

To prevent someone from changing the product configuration, you can lock the control-panel menus. This prevents unauthorized users from changing the configuration settings such as the SMTP server. The following procedure describes how to restrict access to the control-panel menus by using the HP Web Jetadmin software. (See Use HP Web Jetadmin software on page 187.)

1. Open the HP Web Jetadmin program.
2. Open the DEVICE MANAGEMENT folder in the drop-down list in the Navigation panel. Navigate to the DEVICE LISTS folder.
3. Select the product.
4. In the Device Tools drop-down list, select Configure.
5. Select Security from the Configuration Categories list.
6. Type a Device Password.
7. In the Control Panel Access section, select Maximum Lock. This prevents unauthorized users from gaining access to configuration settings.

Set the real-time clock

Use the real-time clock feature to set the date and time settings. The date and time information is attached to stored print, fax, and digital-send jobs, so you can identify the most recent versions of stored print jobs.

Set the date format

1. On the control panel, scroll to and touch Administration.
2. Touch Time/Scheduling.
3. Touch Date/Time.
4. Touch Date Format.
5. Touch the desired format.
6. Touch Save.

Set the date

1. On the control panel, scroll to and touch Administration.
2. Touch Time/Scheduling.
3. Touch Date/Time.
4. Touch Date.
5. Touch the appropriate options to set the correct month, date of the month, and the year.
6. Touch Save.

Set the time format

1. On the control panel, scroll to and touch Administration.
2. Touch Time/Scheduling.
3. Touch Date/Time.
4. Touch Time Format.
5. Touch the appropriate format.
6. Touch Save.

Set the time

1. On the control panel, scroll to and touch Administration.
2. Touch Time/Scheduling.
3. Touch Date/Time.

4. Touch Time.

5. Touch the appropriate options to set the correct hour, minute, and AM/PM setting.

6. Touch Save.

Manage supplies

Use genuine HP print cartridges for the best printing results.

Print-cartridge storage

Do not remove the print cartridge from its package until you are ready to use it.

△ CAUTION: To prevent damage to the print cartridge, do not expose it to light for more than a few minutes.

HP policy on non-HP print cartridges

Hewlett-Packard Company cannot recommend the use of non-HP print cartridges, either new or remanufactured.

△ CAUTION: Any damage caused by a non-HP print cartridge is not covered under the HP warranty and service agreements.

To install a new HP print cartridge, see Change print cartridges on page 195. To recycle the used cartridge, follow the instructions included with the new cartridge.

HP fraud hotline and Web site

Call the HP fraud hotline [phone], toll-free in North America) or go to www.hp.com/go/anticounterfeit when you install an HP print cartridge and the control-panel message says the cartridge is non-HP. HP will help determine if the cartridge is genuine and take steps to resolve the problem.

Your print cartridge might not be a genuine HP print cartridge if you notice the following:

• You are experiencing a high number of problems with the print cartridge.
- The cartridge does not look like it usually does (for example, the orange pull tab is missing, or the packaging differs from HP packaging).

Replace supplies

When you use genuine HP supplies, the product automatically notifies you when supplies are nearly depleted. The notification to order supplies allows ample time to order new supplies before they need to be replaced. For more information about ordering supplies, see Supplies and accessories on page 279

Locate supplies

Supplies are identified by their labeling and their blue plastic handles.

The following figure illustrates the location of each supply item.

Figure 14-1 Supply item locations

Technical diagram of a printer with numbered parts labeled 1 through 6 for identification.

1 Image drums

2 Print cartridges

3 Document feeder kit

4 Fuser

5 Transfer unit

6 Transfer roller

Supply replacement guidelines

To facilitate the replacement of supplies, keep the following guidelines in mind when setting up the product.

• Allow sufficient space in the front and on the right side of the product for removing supplies.
  • The product should be located on a flat, sturdy surface.

For instructions on installing supplies, see the installation guides provided with each supply item or see more information at www.hp.com/go/cljcm6030mfp_software or www.hp.com/go/cljcm6040mfp_software. When you connect, select Solve a Problem.

△ CAUTION: Hewlett-Packard recommends the use of genuine HP products in this product. Use of non-HP products may cause problems requiring service that is not covered by the Hewlett-Packard extended warranty or service agreements.

Approximate replacement intervals for supplies

The following table lists the estimated replacement intervals for supplies and the control panel messages that prompt when to replace each item. Usage conditions and print patterns may cause results to vary.

Item	Printer message	Page count	Approximate time period
Print cartridges	Replace<color> Cartridge	17,000 pages ^1 for color	4 months for color
		20,000 pages for black	5 months for black
Image drums Replace<color> Drum 35,000 pages		^1
Image transfer kit Replace Transfer Kit 150,000 pages		^2	37 months
Image fuser kit	Replace Fuser Kit	100,000 pages	25 months
Roller kit	Replace Roller Kit	100,000 pages	25 months
Stapler cartridge	Replace Stapler Cartridge	5000 staples
Booklet maker staple cartridges	Replace Staple Cartridges 2 and 3	2,000 booklets
Document feeder kit	Replace Document Feeder Kit	60,000 pages	50 months

1 Approximate average A4-/letter-size page count based on 2-page jobs printed from Tray 2, with 5% coverage of individual colors.
2 Approximate life is based on 4,000 pages per month.

Change print cartridges

When a print cartridge approaches the end of its useful life, the control panel displays a message recommending that you order a replacement. The product can continue to print using the current print cartridge until the control panel displays a message instructing you to replace the cartridge.

The product uses four colors and has a different print cartridge for each color: black (K), magenta (M), cyan (C), and yellow (Y).

Replace a print cartridge when the control panel displays a Replace Cartridge message. The control panel display will also indicate the color that should be replaced (if a genuine HP cartridge is currently installed). Replacement instructions are included in the print-cartridge box.

△ CAUTION: If toner gets on clothing, wipe it off with a dry cloth and wash the clothes in cold water. Hot water sets toner into fabric.
NOTE: Information about recycling used print cartridges is on the print-cartridge box.

Replace print cartridges

1. Grasp the grips on the sides of the front door and pull down to open.

Line drawing of an open industrial machine with internal components and green arrows indicating flow or movement (no text or symbols)

1. Grasp the handle of the used print cartridge and pull out to remove.

Line drawing of an open industrial machine with internal components and a green arrow indicating left motion (no text or symbols)

1. Store the used print cartridge in a protective bag. Information about recycling used print cartridges is on the print-cartridge box.

2. Remove additional print cartridges in the same manner.

3. Remove the new print cartridge from its protective bag.

3D technical illustration of a mechanical component with a green arrow indicating direction (no text or symbols)

NOTE: Store the protective bag in a secure place for future use.

1. Hold both sides of the cartridge and shake up and down 5-6 times.

Technical line drawing of a mechanical component with green directional arrows indicating upward motion (no text or symbols)

1. Align the print cartridge with its slot and insert the print cartridge until it clicks into place.

Line drawing of an open industrial machine with internal components and a green arrow indicating direction (no text or symbols)

1. Insert additional print cartridges in the same manner.

2. Grasp the grips on the sides of the front door and lift up to close.

Line drawing of a printer with internal components and green arrows indicating motion (no text or symbols)

To recycle the used print cartridge, follow the instructions included with the new print cartridge.

Change image drums

When an image drum approaches the end of its useful life, the control panel displays a message recommending that you order a replacement. The product can continue to print using the current image drum until the control panel displays a message instructing you to replace the image drum.

The product uses four colors and has a different image drums for each color: black (K), magenta (M), cyan (C), and yellow (Y).

Replace an image drum when the control panel displays Replace Drum message. The control-panel display also indicates the color that should be replaced (if a genuine HP cartridge is currently installed). Replacement instructions are included in the image drum box.

△ CAUTION: If toner gets on clothing, wipe it off with a dry cloth and wash the clothes in cold water. Hot water sets toner into fabric.

NOTE: Information about recycling used image drums is on the image drum box.

Replace image drums

1. Grasp the grips on the sides of the front door and pull down to open.

Line drawing of an open industrial machine with green arrows indicating internal components (no text or symbols)

1. With one hand, lift and slowly pull the used image drum out of the product, while supporting the image drum with your other hand.

Line drawing of a mechanical device with internal components and a green arrow indicating direction (no text or symbols)

△ CAUTION: If reusing the same image drum, do not touch the green cylinder on the bottom of the drum because it can damage the drum.

1. Store the used image drum in a protective bag. Information about recycling used image drums is on the image drum box.

2. Remove additional image drums in the same manner.

3. Remove the new image drum from its protective bag.

Technical diagram of a mechanical assembly with a green arrow indicating direction (no text or symbols present)

NOTE: Store protective bag in a secure place for future use.

NOTE: Do not shake the image drum.

CAUTION: Do not touch the green cylinder on the bottom of the image drum because it can damage the drum.

1. Align the image drum with the correct slot and insert the image drum until it clicks into place. The gray protective cover on the bottom of the drum automatically slides off as the image drum is inserted. You can discard this cover.

Technical line drawing of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

1. Insert additional image drums in the same manner.

2. Grasp the grips on the sides of the front door and lift up to close.

Line drawing of a multi-level machine with green arrows indicating internal components (no text or symbols)

To recycle the used image drum, follow the instructions included with the new image drum.

Install memory

You can install more memory for the product.

△ CAUTION: Static electricity can damage DIMMs. When handling DIMMs, either wear an antistatic wrist strap, or frequently touch the surface of the DIMM antistatic package and then touch bare metal on the product.

Install DDR memory DIMMs

1. Turn the product off.

Line drawing of a printer with a close-up inset showing the internal component (no text or symbols present)

1. Disconnect all power and interface cables.

Diagram showing installation of a server rack with labeled components and connection arrows

1. Locate the black formatter pressure release tabs on the formatter board in the rear of the product.

Technical diagram showing a computer rack with labeled ports and a zoomed-in view highlighting internal components.

1. Gently press the black tabs toward each other.

Diagram showing a computer setup with labeled components and directional arrows indicating connection or movement.

1. Gently pull on the black tabs to pull the formatter board from the product. Place the formatter board on a clean, flat, grounded surface.

Line drawing of an electronic device chassis with visible ports and wiring (no text or symbols)

1. To replace a DIMM that is currently installed, spread the latches apart on each side of the DIMM slot, lift the DIMM up at an angle, and pull it out.

Diagram of a computer RAM module with green directional arrows indicating movement or flow (no text or symbols present)

1. Remove the new DIMM from the antistatic package. Locate the alignment notch on the bottom edge of the DIMM.

Diagram of a computer RAM module with a highlighted slot (no text or symbols)

1. Holding the DIMM by the edges, align the notch on the DIMM with the bar in the DIMM slot at an angle and firmly press the DIMM into the slot until it is fully seated. When installed correctly, the metal contacts are not visible.

Diagram of a computer RAM module with green directional arrows indicating movement or data flow (no text or symbols present)

1. Push down on the DIMM until both latches engage the DIMM.

Technical diagram showing a device with labeled components and green arrows indicating features or connections.

NOTE: If you have difficulty inserting the DIMM, make sure the notch on the bottom of the DIMM is aligned with the bar in the slot. If the DIMM still does not go in, make sure you are using the correct type of DIMM.

1. Align the formatter board in the tracks at the bottom of the slot, and then slide the board back into the product.

△ CAUTION: To prevent damage to the formatter board, ensure the formatter board is aligned in the tracks.

Line drawing of an electronic device chassis with ports and wiring (no text or symbols)

1. Reconnect the power cable and interface cables, and turn the product on.

Technical diagram showing installation of a server rack with labeled components and connection arrows

1. To enable the new memory, go to Enable memory on page 204.

Enable memory

If you installed a memory DIMM, set the product driver to recognize the newly added memory.

Enable memory for Windows 2000 and XP

1. On the Start menu, point to Settings, and click Printers or Printers and Faxes.
2. Right-click the product and select Properties.
3. On the Device Settings tab, click Printer Memory (in the Installable Options section).
4. Select the total amount of memory that is now installed.
5. Click OK.

Install an HP Jetdirect or EIO print server card or EIO hard disk

The HP Color LaserJet CM6030 and CM6040 MFP Series are equipped with an embedded print server port. If desired, you can install an additional I/O card in the available EIO slot.

1. Turn the product off.

Line drawing of a printer with a green circular inset showing a device's internal structure (no text or symbols)

1. Disconnect all power and interface cables.

Technical diagram showing installation of a server rack with labeled components and connection arrows

1. Locate an open EIO slot. Loosen and remove the two retaining screws holding the cover for the EIO slot, and then remove the cover. You will not need these screws and the cover again. They can be discarded.

Diagram showing a device panel with labeled ports and a circular diagram illustrating rotation or signal flow around a central plus symbol.

1. Firmly insert the HP Jetdirect print server card into the EIO slot.

Diagram of a device interior showing internal components and a green arrow indicating a specific area (no text or symbols present)

1. Insert and tighten the retaining screws that came with the print server card.

Diagram showing a door panel with buttons and a circular diagram illustrating clockwise rotation around a plus sign.

1. Reconnect the power cable and remaining interface cables, and turn the product on.

Technical diagram showing installation of a server rack with labeled components and connection arrows

1. Print a configuration page. In addition to a product configuration page and a Supplies Status page, an HP Jetdirect configuration page that contains network configuration and status information should also print.

If it does not print, turn the power to the device off and uninstall and reinstall the print server card to ensure that it is completely seated in the slot.

1. Perform one of these steps:

- Choose the correct port. See the computer or operating system documentation for instructions.

• Reinstall the software, choosing the network installation this time.

Replace the staple cartridge

If the optional HP 3-bin Stapler/Stacker Accessory or HP Booklet Maker/Finisher Accessory runs out of staples while it is stapling a print job, the product automatically stops, if set to stop when out. If the product is set to continue when out, the product will continue to print without stapling.

NOTE: Only replace the staple cartridge unit when the stapler/stacker or booklet maker has run out of staples. Removing the staple cartridge at other times can cause an error to occur.

NOTE: When the stapler/stacker or booklet maker runs out of staples, the stapler unit will return to its default position automatically.

Replace the staple cartridge

1. Open the front door of the booklet maker or stapler/stacker.

Diagram of an open computer interface showing internal components and a green curved arrow indicating rotation (no text or symbols present)

1. Push up to on the staple cartridge to remove it from the booklet maker or stapler/stacker.

Technical line drawing showing two views of a mechanical assembly with green arrows indicating directional components (no text or symbols present)

1. Insert the replacement staple cartridge unit into the stapler unit.

Technical line drawing of a mechanical assembly with a green arrow indicating a specific component (no text or symbols present)

1. Push the staple cartridge unit into the stapler unit until it clicks into position.

Technical line drawing of a mechanical assembly with a green arrow indicating a component (no text or symbols present)

1. Close the front door.

Illustration of two overlapping office machines with one showing a green arrow indicating rotation (no text or symbols present)

Replace saddle stitch staple cartridges in the booklet maker

1. Open the front door of the booklet maker.

Technical line drawing of a mechanical device with internal components and a green curved arrow indicating motion (no text or symbols)

1. Grasp the blue handle and pull the staple carriage out of the booklet maker.

Technical line drawing of a mechanical assembly with a green arrow indicating direction (no text or symbols)

1. Grasp the small blue handle on the staple cartridge unit and pull it toward you, then swing the staple cartridge unit into an upright position.

Diagram of a mechanical device with labeled parts and green arrows indicating rotation or assembly steps

1. Grasp the edges of each staple cartridge and pull up firmly to remove the staple cartridges from the staple cartridge unit.

Technical diagram of a mechanical assembly with green arrows indicating directional components (no text or labels)

1. Unpack the new cartridges and remove the plastic packing lock from each one.

Diagram showing a green mechanical component being processed into a green housing (no text or symbols)

1. Hold the new cartridges so that the arrows on the cartridges align with the arrows on the staple cartridge unit and insert them into the unit.

Technical diagram of an electrical contactor assembly with two components and directional arrows indicating movement (no text or labels)

1. Pull the handle of the staple cartridge unit toward you and rotate it downward to its original position. Lock it into position by pushing in the handle.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating rotation or movement.

1. Push the staple carriage back into the booklet maker finisher.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Close the front door of the booklet maker.

Diagram of a printer internal structure showing internal components and a green arrow indicating rotation (no text or symbols present)

Clean the product

To maintain print quality, clean the product thoroughly every time you replace the print cartridge and whenever print-quality problems occur.

⚠ WARNING! Avoid touching the fusing area when cleaning the product. It can be hot.
△ CAUTION: To avoid permanent damage to the print cartridge, do not use ammonia-based cleaners on or around the product except as directed.

Clean the outside of the product

• Clean the outside of the product if it is visibly marked.
  • Use a soft, lint-free cloth dampened with water, or water and a mild detergent.

Clean the touchscreen

Clean the touchscreen whenever it is necessary to remove fingerprints or dust. Wipe the touchscreen gently with a clean, water-dampened, lint-free cloth.

△ CAUTION: Use water only. Solvents or cleaners can damage the touchscreen. Do not pour or spray water directly onto the touchscreen.

Clean the scanner glass

• Clean the scanner glass only if dirt is visible, or if you are experiencing a decrease in copy quality, such as streaking.
• Clean the scanner glass by wiping it gently with a clean, slightly damp, lint-free cloth. Use an ammonia-based surface cleaner only when a water-dampened cloth does not clean the scanner glass.

Line drawing of a laptop with a hand inserting a button to its screen (no text or symbols)

△ CAUTION: Do not pour or spray liquids directly onto the scanner glass. Do not press hard on the glass surface. (You could break the glass).

Cleaning the ADF delivery system

Clean the ADF only if it is visibly marked or dirty, or if you are experiencing a decrease in copy quality (such as streaking).

Clean the ADF delivery system

1. Open the scanner lid.

Line drawing of a laptop with an open screen and a green arrow indicating the right-hand side (no text or symbols present)

1. Locate the white, vinyl ADF backing.

Line drawing of a laptop computer with open lid and control panel (no text or symbols)

1. Clean the ADF backing by wiping them with a clean, damp, lint-free cloth. Use an ammonia-based surface cleaner only when a water-dampened cloth does not clean the ADF components.

2. Clean the scanner glass by wiping it gently with a clean, slightly damp, lint-free cloth. Use an ammonia-based surface cleaner only when a water-dampened cloth does not clean the scanner glass.

3. Close the scanner lid.

Line drawing of a printer with a green arrow indicating the open lid (no text or symbols present)

Clean the ADF rollers

You should clean the rollers in the ADF if you are experiencing misfeeds or if your originals show marks as they exit the ADF.

△ CAUTION: Clean the rollers only if you experience misfeeds or marks on the originals, and you notice dust on the rollers. Cleaning the rollers frequently could introduce dust into the device.

1. Pull the release lever to open the ADF cover.

Line drawing of a car interior frame with a green arrow indicating a component or motion (no text or symbols present)

1. Locate the rollers.

Line drawing of a car interior frame with no text or symbols

1. Wipe the rollers with a clean, water-dampened, lint-free cloth.

△ CAUTION: Do not pour water directly onto the rollers. Doing so might damage the device.

1. Locate the separation pad.

Technical line drawing of a car interior showing internal compartments and structural elements (no text or symbols)

1. Wipe the pad with a clean, water-dampened, lint-free cloth.

2. Close the ADF cover.

Line drawing of a mechanical component with a green arrow indicating a specific part (no text or symbols present)

ADF maintenance kit

After feeding 60,000 pages through the ADF, a Replace Document Feeder Kit message appears on the control-panel display. This message appears approximately one month before the kit needs to be replaced. Order a new kit when this message appears. See Part numbers on page 281 for information about ordering a new ADF maintenance kit.

The ADF maintenance kit includes the following items:

• One pick-up roller assembly
• One separation pad
• An instruction sheet

Follow the instructions that come with the kit to install it.

After replacing the kit, reset the ADF maintenance-kit count.

Reset the ADF maintenance-kit count

1. On the control panel, scroll to and touch Administration.
2. Touch Resets.
3. Touch Reset Supplies.
4. Touch ADF Maintenance Kit.
5. Touch Yes.
6. Touch Save.

Calibrate the scanner

Calibrate the scanner to compensate for offsets in the scanner imaging system (carriage head) for ADF and flatbed scans. Because of mechanical tolerances, the scanner's carriage head might not read the position of the image accurately. During the calibration procedure, scanner offset values are calculated and stored. The offset values are then used when producing scans so that the correct portion of the document is captured.

Scanner calibration should be carried out only if you notice offset problems with the scanned images. The scanner is calibrated before it leaves the factory. It needs to be calibrated again only rarely.

Before calibrating the scanner, print the calibration target.

1. Place letter- or A4-size paper in tray 1, and adjust the side guides.
2. On the control-panel Home screen, scroll to and touch Administration.
3. Touch Troubleshooting.
4. Touch Calibrate Scanner.
5. Touch Calibrate to print the first pass of the calibration target.
6. Place the first pass of the calibration target face-down in tray 1 so that the arrows are facing into the product.
7. Touch Start to print the second pass. The final calibration target must look like the following figure.

△ CAUTION: If the calibration target does not look like the figure shown here, the calibration process will fail and the quality of scans will be degraded. The black areas must extend completely to the short edges of the page. If they do not, use a black marker to extend the black areas to the edge of the page. Ensure that the paper is loaded properly.

1. Place the calibration target face-up into the ADF, and adjust the side guides.
2. After the calibration target has passed through the ADF once, reposition it face down in the ADF and touch Start.
3. Place the calibration target face-down on the scanner glass, touch Start, and scan the page. After this pass, the calibration is complete.

Upgrade the firmware

The product has remote firmware update (RFU) capability. Use the information in this section to upgrade the product firmware.

Determine the current firmware version

1. From the control panel Home screen, scroll to and touch Administration.
2. Touch Information.
3. Touch Configuration/status Pages.
4. Touch Configuration Page.
5. Touch Print.

The firmware datecode is listed on the Configuration page in the section called Device Information. The firmware datecode has this format: YYYYMMDD XX.XXX.X. The first string of numbers is the date, where YYYY represents the year, MM represents the month, and DD represents the date. For example, a firmware datecode of that begins with 20061125

represents November 25, 2006.

Download new firmware from the HP Web site

To find the most recent firmware upgrade for the product, go to www.hp.com/go/cljcm6030mfp_firmware or www.hp.com/go/cljcm6040mfp_firmware. This page provides instructions for downloading the new firmware version.

Transfer the new firmware to the product

NOTE: The product can receive an .RFU file update when it is in a "ready" state.

The elapsed time for an update depends on the I/O transfer time, as well as the time that it takes for the product to re-initialize. The I/O transfer time depends on a number of things, including the speed of the host computer that is sending the update. If the remote firmware update process is interrupted before the firmware is downloaded (while Receiving Upgrade appears on the control-panel display), the firmware file must be sent again. If power is lost during the flash DIMM update (while the Performing Upgrade message appears on the control-panel display), the update is interrupted and the message Resend Upgrade appears (in English only) on the control-panel display. In this case, you must send the upgrade by using the parallel port. Finally, any jobs that are ahead of the RFU job in the queue are completed before the update is processed.

Use FTP to upload the firmware through a browser

NOTE: The firmware update involves a change in the format of nonvolatile random-access memory (NVRAM). Any menu settings that are changed from the default settings might return to default settings and must be changed again if you want settings that are different from the defaults.

1. Print a configuration page and note the TCP/IP address shown on the EIO Jetdirect page.
2. Open a browser window.
3. In the address line of the browser, type

ftp://

, where

is the address of the product. For example, if the TCP/IP address is 192.168.0.90, type

ftp://192.168.0.90

1. Locate the downloaded .RFU file for the product.

2. Drag and drop the .RFU file onto the PORT1 icon in the browser window.

NOTE: The product turns off and then on automatically to activate the update. When the update process is complete, a Ready message displays on the product control panel.

Use FTP to upgrade the firmware on a network connection

NOTE: The firmware update involves a change in the format of nonvolatile random-access memory (NVRAM). Any menu settings that are changed from the default settings might return to default settings and must be changed again if you want settings that are different from the defaults.

1. Take note of the IP address on the HP Jetdirect page. The HP Jetdirect page is the second page that prints when you print the configuration page.

NOTE: Before upgrading the firmware, make sure that the product is not in Sleep mode. Also make sure that any error messages are cleared from the control-panel display.

1. Open an MS-DOS command prompt on your computer.

2. Type: ftp TCP/IP ADDRESS>. For example, if the TCP/IP address is 192.168.0.90, type ftp 192.168.0.90.

3. Go to the folder where the firmware file is stored.

4. Press Enter on the keyboard.

5. When prompted for the user name, press Enter.

6. When prompted for the password, press Enter.

7. Type bin at the command prompt.

8. Press Enter. The message 200 Types set to I, Using binary mode to transfer files appears in the command window.

9. Type put and then the file name (for example, if the file name is CM6040mfp.efn, type put CM6040mfp.efn).

10. The download process begins and the firmware is updated on the product. This can take approximately five minutes. Let the process finish without further interaction with the product or computer.

NOTE: The product automatically turns off and then on again after processing the upgrade.

1. At the command prompt, type: bye to exit the ftp command.

2. At the command prompt, type: exit to return to the Windows interface.

Use HP Web Jetadmin to upgrade the firmware

This procedure requires that you install HP Web Jetadmin Version 7.0 or later on your computer. See Use HP Web Jetadmin software on page 187. Complete the following steps to update a single device through HP Web Jetadmin after downloading the .RFU file from the HP Web site.

1. Start HP Web Jetadmin.
2. Open the Device Management folder in the drop-down list in the Navigation panel. Navigate to the Device Lists folder.
3. Expand the Device Lists folder and select All Devices. Locate the product in the list of devices, and then click to select it.
   If you need to upgrade the firmware for multiple HP Color LaserJet CM6030 and CM6040 MFP Series products, select all of them by pressing the Ctrl key as you click the name of each product.
4. Locate the drop-down box for Device Tools in the upper-right corner of the window. Select Update Printer Firmware from the action list.
5. If the name of the .RFU file is not listed in the All Available Images box, click Browse in the Upload New Firmware Image dialog box and navigate to the location of the .RFU file that you downloaded from the Web at the start of this procedure. If the filename is listed, select it.
6. Click Upload to move the .RFU file from your hard drive to the HP Web Jetadmin server. After the upload is complete, the browser window refreshes.
7. Select the .RFU file from the Printer Firmware Update drop-down menu.
8. Click Update Firmware. HP Web Jetadmin sends the selected .RFU file to the product. The control panel shows messages that indicate the progress of the upgrade. At the end of the upgrade process, the control panel shows the Ready message.

Use MS-DOS commands to upgrade the firmware

To update the firmware by using a network connection, follow these instructions.

1. From a command prompt or in an MS-DOS window, type the following:

copy /B FILENAME> \COMPUTERNAME>\SHARENAME>

, where is the name of the .RFU file (including the path), is the name of the computer from which the product is being shared, and is the product share name. For example:

C:>copy /b C:\9200fW.RFU \YOUR_SERVER\YOUR_COMPUTER

NOTE: If the file name or path includes a space, you must enclose the file name or path in quotation marks. For example, type:

C:>copy /b "C:\MY DOCUMENTS\3500FW.RFU" \YOUR_SERVER\YOUR_COMPUTER

1. Press Enter on the keyboard. The control panel shows a message that indicates the progress of the firmware upgrade. At the end of the upgrade process, the control panel shows the Ready message. The message One File Copied appears on the computer screen.

Use the HP Jetdirect firmware

The HP Jetdirect network interface in the product has firmware that can be upgraded separately from the product firmware. This procedure requires that you install HP Web Jetadmin Version 7.0 or later on your computer. See Use HP Web Jetadmin software on page 187. Complete the following steps to update the HP Jetdirect firmware by using HP Web Jetadmin.

1. Open the HP Web Jetadmin program.
2. Open the Device Management folder in the drop-down list in the Navigation panel. Navigate to the Device Lists folder.
3. Select the device that you want to update.
4. In the Device Tools drop-down list, select Jetdirect Firmware Update.

5. Under Jetdirect firmware version the HP Jetdirect model number and current firmware version are listed. Make a note of these.

6. Go to www.hp.com/go/wja_firmware.

7. Scroll down to the list of HP Jetdirect model numbers and find the model number you wrote down.

8. Look at the current firmware version for the model, and see if it is later than the version you wrote down. If it is, right-click on the firmware link, and follow the instructions on the Web page to download the new firmware file. The file must be saved into the :PROGRAM FILES\HP WEB JETADMIN\DOC\PLUGINS\HPWJA\FIRMWARE\JETDIRECT folder on the computer that is running the HP Web Jetadmin software.

9. In HP Web Jetadmin, return to the main device list and select the digital sender again.

10. In the Device Tools drop-down list, select Jetdirect Firmware Update again.

11. On the HP Jetdirect firmware page, the new firmware version is listed under Jetdirect Firmware Available on HP Web Jetadmin. Click the Update Firmware Now button to update the Jetdirect firmware.

15 Solve problems

• Solving general problems
• Control-panel message types
• Control-panel messages
Jams
• Paper-handling problems
• Understand lights on the formatter
• Correct print quality and copy quality problems
• Performance problems
- Solve fax problems
- Solve e-mail problems
- Solve network connectivity problems
- Solve common Macintosh problems

Solving general problems

If the product is not responding properly, complete the steps in the following checklist, in order. If the product does not pass a step, follow the corresponding troubleshooting suggestions. If a step resolves the problem, you can stop without performing the other steps on the checklist.

Troubleshooting checklist

1. Make sure the product Ready light is on. If no lights are on, complete these steps:

a. Check the power-cable connections.
b. Check that the power switch is on.
c. Make sure that the line voltage is correct for the product power configuration. (See the label that is on the back of the product for voltage requirements.) If you are using a power strip and its voltage is not within specifications, plug the product directly into the wall. If it is already plugged into the wall, try a different outlet.
d. Remove any other products plugged into the same circuit.
e. If none of these measures restores power, contact HP Customer Care.

1. Check the cabling.

a. Check the cable connection between the product and the computer or network port. Make sure that the connection is secure.
b. Make sure that the cable itself is not faulty by using a different cable, if possible.
c. Check the network connection. See Solve network printing problems on page 274.

1. If the product is in the READY state, check to see if any message appear on the control-panel display. If any error messages appear, see Control-panel messages on page 227.
2. Ensure that the print paper that you are using meets specifications.
3. Print a configuration page (see Information pages on page 178. An HP Jetdirect page also prints.)

a. If the pages do not print, check that at least one tray contains print paper.
b. If the page jams in the product, see Jams on page 228.

1. If the configuration page prints, check the following items.

a. If the page prints correctly, then the product hardware is working. The problem is with the computer you are using, with the printer driver, or with the program.
b. If the page does not print correctly, the problem is with the product hardware. Contact HP Customer Care.

1. Select one of the following options:

Windows: Click Start, click Settings, and then click Printers, or Printers and Faxes. Double click HP Color LaserJet CM6030 or HP Color LaserJet CM6040.

-or-

Mac OS X: Open Print Center, (or Printer Setup Utility for Mac OS X v. 10.3), and double-click the line for the HP Color LaserJet CM6030 or HP Color LaserJet CM6040.

1. Verify that you have installed the HP Color LaserJet CM6030 or HP Color LaserJet CM6040 series printer driver. Check the program to make sure that you are using an HP Color LaserJet CM6030 or HP Color LaserJet CM6040 series printer driver.
2. Print a short document from a different program that has worked in the past. If this solution works, then the problem is with the program you are using. If this solution does not work (the document does not print) complete these steps:

a. Try printing the job from another computer that has the product software installed.

b. If you connected the product to the network, connect the product directly to a computer with a USB cable. Redirect the product to the correct port, or reinstall the software, selecting the new connection type that you are using.

Restore factory settings

Use the Resets menu to restore factory settings.

1. Scroll to and touch Administration and then touch Resets.
2. Touch Restore Factory Settings and then touch Restore.

For more information, see Resets menu on page 59.

Factors that affect product performance

Several factors affect the time it takes to print a job:

• Maximum printer speed, measured in pages per minute (ppm)
• The use of special paper (such as transparencies, heavy paper, and custom-size paper)
• Printer processing and download time
• The complexity and size of graphics
• The speed of the computer you are using
The USB connection
• The printer I/O configuration
• The amount of printer memory installed
• The network operating system and configuration (if applicable)
• Printer personality (HP JetReady, PCL, or PS)

NOTE: Although additional printer memory can resolve memory problems, improve how the printer handles complex graphics, and improve download times, it will not increase maximum printer speed (ppm).

Control-panel message types

Four types of control-panel messages can indicate the status of or problems with the device.

Message type Description
Status messages	Status messages reflect the current state of the device. They inform you of normal device operation and require no interaction to clear them. They change as the state of the device changes. Whenever the device is ready, not busy, and has no pending warning messages, the status message Ready appears if the device is online.
Warning messages	Warning messages inform you of data and print errors. These messages typically alternate with the Ready or status messages and remain until you touch OK. Some warning messages are clearable. If Clearable Warnings is set to Job on the device Device Behavior menu, the next print job clears these messages.
Error messages	Error messages communicate that some action must be performed, such as adding paper or clearing a jam.Some error messages are auto-continuable. If Auto-Continue is set on the menus, the device will continue normal operation after an auto-continuable error message appears for 10 seconds.NOTE:Pressing any button during the 10-second auto-continuable error message overrides the auto-continue feature, and the button function takes precedence. For example, pressing the Stop button pauses printing and offers the option to cancel the print job.
Critical-error messages	Critical error messages inform you of a device failure. Some of these messages can be cleared by turning the device off and then on. These messages are not affected by the Auto-Continue setting. If a critical error persists, service is required.

Control-panel messages

The product provides robust control panel messaging. When a message appears on the control panel, follow the on-screen instructions to resolve the issue. If the product displays an “Error” or “Attention” message, and no steps are shown to resolve the issue, turn the product off then on. Contact HP support if you continue to experience issues with the product.

To get additional information for warnings that appear in the status line, touch the Warning button

For additional information on a variety of topics, touch the Help button in the upper-right corner of the home screen.

Jams

Common causes of jams

The product is jammed.

Cause	Solution
The paper does not meet specifications.	Use only paper that meets HP specifications. See Supported paper and print media sizes on page 97.
A component is installed incorrectly.	Verify that the transfer belt and transfer roller are correctly installed.
You are using paper that has already passed through a product or copier.	Do not use paper that has been previously printed on or copied.
An input tray is loaded incorrectly.	Remove any excess paper from the input tray. Make sure that the stack is below the maximum stack height mark in the tray. See Load paper and print media on page 103.
The paper is skewed.	The input-tray guides are not adjusted correctly. Adjust them so they hold the stack firmly in place without bending it.
The paper is binding or sticking together.	Remove the paper, flex it, rotate it 180°, or flip it over. Reload the paper into the input tray.
When printing on lightweight paper or on jobs with heavy toner coverage, paper is wrapping on the fuser causing Fuser Delay Jam or Fuser Wrap Jam messages.	Set the LIGHT MEDIA optimize mode on the Print Quality menu to ON.
The paper is removed before it settles into the output bin.	Reset the product. Wait until the page completely settles in the output bin before removing it.
During two-sided printing, you removed the paper before the second side of the document was printed.	Reset the product and print the document again. Wait until the page completely settles in the output bin before removing it.
The paper is in poor condition. Replace the paper.
The internal tray rollers are not picking up the paper.	If the paper is heavier than 220 g/m2 (58 lb), it might not be picked from the tray.The rollers are worn. Replace the rollers.
The paper has rough or jagged edges. Replace the paper.
The paper is perforated or embossed.	Perforated or embossed paper does not separate easily. Feed single sheets from Tray 1.
Device supply items have reached the end of their useful life.	Check the product control panel for messages prompting you to replace supplies, or print a supplies status page to verify the remaining life of the supplies. See Information pages on page 178.
Paper was not stored correctly. Replace the paper in the trays.	Paper should be stored in the original packaging in a controlled environment.
Not all product packing material was removed.	Verify that the packing tape, cardboard, and plastic shipping locks have been removed from the product.

If the product still continues to jam, contact HP Customer Support or your authorized HP service provider.

Jam locations

Use this illustration to identify locations of jams. In addition, this product provides instructions on the control panel to direct you to the location of jammed paper and how to clear it.

NOTE: All areas of the product that might need to be opened to clear jams are equipped with green handles.

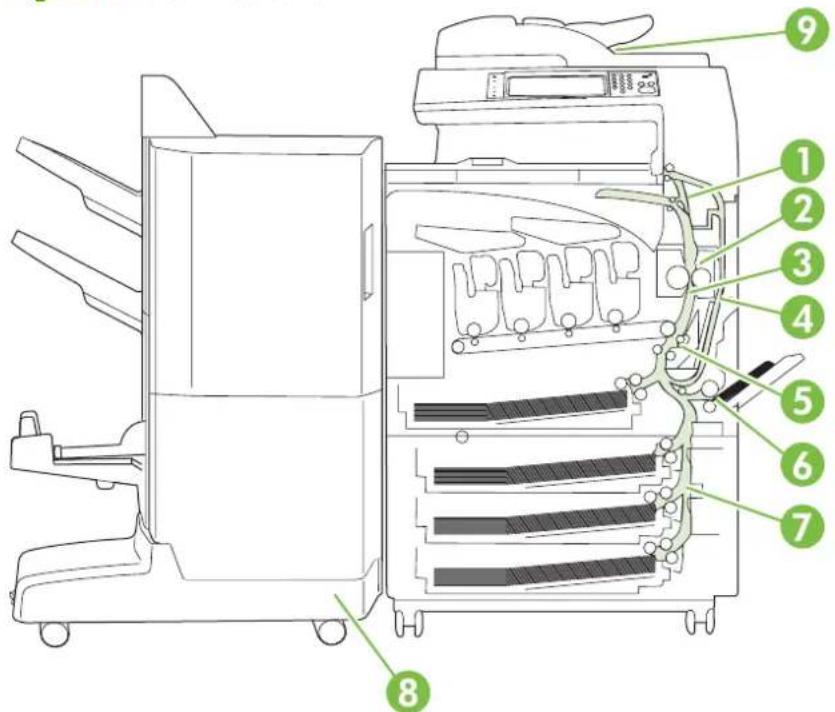

Figure 15-1 Jam locations

Technical diagram of an open file printer with numbered parts labeled for identification.

1 AREA 1: Output bin

2 AREA 2: Fuser area

3 AREA 3: Transfer area

4 AREA 4: Duplexing area

5 AREA 5: Tray 2 pickup area

6 AREA 6: Tray 1 area

7 AREA 7: Optional Trays 3, 4, and 5

8 AREA 8: Optional finishing device

9 AREA 9: ADF area

Clear jams

When a jam occurs, a message appears on the control-panel display that describes the location of the jam. The following table lists the messages that can appear and provides links to the procedures for clearing the jam.

⚠ WARNING! To avoid electrical shock, remove any necklaces, bracelets, or other metal items before reaching into the inside of the product.

Type of jam Procedure
13.JJ.NT Jam below control panel	See AREA 1: Clear jams in the output bin on page 230.
13.JJ.NT Fuser Area Jam	See AREA 2: Clear jams in the fuser on page 232.
13.JJ.NT Fuser Wrap Jam
13.JJ.NT Transfer And Fuser Jam
13.JJ.NT Jam Inside Right Door	See Clear jams in the duplex area on page 236.
13.JJ.NT Jam In Tray 2	See AREA 5: Clear jams in Tray 2 and the internal paper path on page 239.
13.JJ.NT Transfer Area Jam
13.JJ.NT Jam In Tray 1	See AREA 6: Clear jams in Tray 1 on page 242.
13.JJ.NT Jam In Tray 3	See AREA 7: Clear jams in optional Trays 3, 4, and 5 on page 245
13.JJ.NT Jam In Tray 4
13.JJ.NT Jam In Tray 5
13.JJ.NT Jam Inside Lower Right Door
13.JJ.NT Jam In Input Accessory
13.JJ.NT Jam In Left Accessory	See AREA 8: Clear jams in the optional finishing devices on page 248.
Jam in document feeder	See AREA 9: Clear jams in the ADF on page 252.

AREA 1: Clear jams in the output bin

1. If jammed paper is visible in the output bin, gently pull the paper to remove it.

Line drawing of a printer with a green arrow indicating a directional change (no text or symbols present)

1. Open the right door.

Line drawing of a printer with an open door and green arrow indicating a process or operation (no text or symbols present)

1. If paper has jammed as it enters the output bin, gently pull the paper to remove it.

Diagram of a mechanical device interior showing internal components and a green arrow indicating a specific area (no text or symbols present)

1. Close the right door.

Line drawing of a printer with a green paper airplane being inserted (no text or symbols)

AREA 2: Clear jams in the fuser

⚠ WARNING! The fuser can be hot while the product is in use. Wait for the fuser to cool before handling it.

1. Open the right door.

Line drawing of a printer with a green arrow indicating a process or operation, no text or symbols present.

1. Lift the green handle on the transfer-access panel and open the panel.

Technical diagram of a printer internal structure with labeled parts and directional arrows indicating assembly or movement.

1. If paper is visible entering the bottom of the fuser, gently pull downward to remove it.

Diagram of a printer internal structure showing internal components and a green arrow indicating a specific area (no text or symbols present)

1. Close the transfer-access panel.

Technical line drawing of a mechanical assembly with internal components and a green arrow indicating a motion or flow direction (no text or symbols present)

1. Open the fuser jam access door above the fuser and remove any paper that is visible. Then close the fuser jam access door.

Diagram of a computer motherboard showing labeled components and directional arrows indicating assembly or movement.

1. Paper could also be jammed inside the fuser where it would not be visible. Remove the fuser to check for jammed paper inside.

⚠ WARNING! The fuser can be hot while the product is in use. Wait for the fuser to cool before handling it.

a. Pull the two blue fuser handles forward.

Diagram of a printer internal structure showing internal components and green arrows indicating flow or movement (no text or symbols present)

b. Rotate the fuser-release levers down to open them.

Diagram of a computer motherboard showing internal components and directional arrows indicating rotation or movement (no text or symbols present)

c. Grasp the fuser handles and pull straight out to remove the fuser.

△ CAUTION: The fuser weighs 5 kg (11 lbs). Be careful not to drop it.

Diagram of a computer motherboard showing internal components and green arrows indicating directional movement (no text or symbols present)

d. Open the two fuser jam access doors by pushing and rotating the rear door backward, and pulling and rotating the front door forward. If paper is jammed inside the fuser, gently pull it straight up to remove it. If the paper tears, remove all paper fragments.

⚠ WARNING! Even if the body of the fuser has cooled, the rollers that are inside could still be hot. Do not touch the fuser rollers until they have cooled.

Diagram of a battery pack with labeled components and green arrows indicating rotation or flow direction

e. Close both fuser jam-access doors and align the fuser with the arrows on the product. Push the fuser completely into the printer.

Diagram of a computer chassis showing internal components and green arrows indicating directional movement (no text or symbols present)

f. Rotate the fuser-release levers up to lock the fuser into place.

Diagram of a computer motherboard showing internal components and directional arrows (no text or symbols)

g. Push the fuser handles back to close them.

Diagram of a printer internal structure with green arrows indicating motion or assembly (no text or symbols present)

1. Close the right door.

Line drawing of a printer with a green door and internal panel, no text or symbols present

Clear jams in the duplex area

1. Check for jammed paper inside the product. Open the right door.

Line drawing of a printer with a green arrow indicating a process or operation (no text or symbols present)

1. If paper is jammed below the duplexing unit, gently pull the paper downward to remove it.

Diagram of a printer internal structure showing internal components and a green arrow indicating a specific area (no text or symbols present)

Diagram of a printer internal structure showing internal components and a green arrow indicating a specific area (no text or symbols present)

1. If paper is jammed inside the right door, gently pull the paper to remove it.

Diagram of a computer motherboard with green arrows indicating upward and downward movement (no text or symbols)

Technical diagram of an internal electronic device with a green arrow indicating a component or connection (no text or symbols present)

1. Lift the paper-feed cover on the inside of the right door. If jammed paper is present, gently pull the paper straight out to remove it.

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing component 1

1. Lift the green handle on the transfer-assembly and open the panel.

Technical diagram of a printer internal structure with labeled parts and directional arrows indicating assembly or movement.

1. Gently pull the paper out of the paper path.

Diagram of a printer internal structure with no visible text or symbols

1. Close the transfer-access panel.

Cross-sectional diagram of a computer interface showing internal components and a green arrow indicating a specific area (no text or symbols present)

1. Close the right door.

Line drawing of a printer with green door and control panel (no text or symbols)

AREA 5: Clear jams in Tray 2 and the internal paper path

1. Open the right door.

Line drawing of a printer with an open door and green arrow indicating a process or operation (no text or symbols present)

1. Lift the green handle on the transfer-access panel and open the panel.

Technical diagram of a printer internal structure with labeled parts and directional arrows indicating assembly or movement.

1. Gently pull the paper out of the paper path.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Close the transfer-access panel.

Technical diagram of a mechanical assembly showing internal components and a green directional arrow (no text or labels)

1. Open Tray 2 and make sure that the paper is stacked correctly.

Technical line drawing of a mechanical device with internal components and a green directional arrow (no text or symbols)

1. Pull the tray completely out of the product by pulling and lifting it up slightly.

Technical line drawing of a mechanical device with internal compartments and a green arrow indicating motion (no text or symbols)

1. Remove any paper from the feeder rollers inside the product.
2. Reinsert Tray 2 by aligning the side rollers and pushing it back into the product.

Technical line drawing of a computer chassis with green arrows indicating internal components (no text or symbols)

1. Close the tray.

Technical line drawing of a mechanical device with an open lid and green arrow indicating direction (no text or symbols)

1. Close the right door.

Line drawing of a printer with a green door and control panel, showing no text or symbols.

AREA 6: Clear jams in Tray 1

NOTE: Even if jammed paper is visible in Tray 1, clear the jam from the inside of the product by opening the right door.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

1. Open the right door.

NOTE: When clearing jams of long paper (11 x 17, 12 x 18, and A3), it may be necessary to cut or tear the jammed paper before opening the right door.

Line drawing of a printer with a green arrow indicating a process or operation, no text or symbols present.

1. If paper is visible inside the right door, gently pull the paper downward to remove it.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. If paper has entered the internal paper path, lift the green handle on the transfer-access panel and open the panel.

Technical diagram of a printer internal structure with labeled parts and directional arrows indicating assembly or movement.

1. Gently pull the paper out of the paper path.

Technical line drawing of an internal machine or printer with a green arrow indicating a component (no text or symbols present)

1. Close the transfer-access panel.

Technical diagram of a mechanical assembly with internal components and a green arrow indicating a motion or flow direction (no text or symbols present)

1. Close the right door.

Line drawing of a printer with a green door and control panel, showing no text or symbols.

AREA 7: Clear jams in optional Trays 3, 4, and 5

1. Open the right door.

Line drawing of a printer with a green arrow indicating a process or operation, no text or symbols present.

1. If paper is visible in the paper-input area, gently pull the jammed paper up to remove it.

Diagram of a printer internal structure with a green arrow indicating a component (no text or symbols present)

1. Close the right door.

Line drawing of a printer with a green door and control panel, no text or symbols present

1. Open the lower right door.

Line drawing of a multi-level storage cabinet with one cabinet open, showing internal compartments and a green arrow indicating rotation (no text or symbols)

1. Gently pull the jammed paper to remove it.

Three-step diagram showing a printer or printer being compressed, with green arrows indicating upward and downward motion (no text or symbols present)

1. Open the tray that is indicated in the control-panel message, and make sure that the paper is stacked correctly.

Technical line drawing of a mechanical device with internal components and a green directional arrow (no text or symbols)

1. Close the tray.

Diagram of a printer drawer with internal compartments and a green arrow indicating the location (no text or symbols present)

1. Close the lower right door.

Line drawing of a multi-tiered storage cabinet with one cabinet open, showing internal compartments and wheels (no text or symbols)

AREA 8: Clear jams in the optional finishing devices

Clear jams in the output-accessory bridge

1. Lift the latch on the top cover of the output-accessory bridge and open the top cover.

Line drawing of a printer with an open door and green arrow indicating a process (no text or symbols present)

1. Gently pull the jammed paper to remove it.

Line drawing of a printer with green arrows indicating internal processing or movement (no text or symbols)

1. Close the top cover of the output-accessory bridge.

Line drawing of a printer with a green arrow indicating a process or operation, no text or symbols present.

Clear jams in the sorter area

1. Lift the latch on the top cover of the finishing device, and open the top cover.

NOTE: Opening the top cover releases pressure on the output-bin rollers.

Line drawing of a printer with a green arrow indicating the process (no text or symbols present)

1. Remove jammed paper from the output bin or from the inside of the finishing device.

Technical diagram showing three steps of a printer or printer operation with labeled parts and directional arrows indicating process flow.

1. Close the top cover of the finishing device.

Line drawing of a printer's front panel with a green arrow indicating the paper roll (no text or symbols present)

1. Lift the swing guide panel in the output bin. If you can see any jammed paper, gently pull it out.

Technical line drawing of a computer tower with an internal green arrow indicating a component (no text or symbols present)

Technical line drawing of an open refrigerator internal compartments with a green arrow indicating a component (no text or symbols present)

Clear jams in the booklet maker

1. If the paper is visible in the booklet output bin, gently pull the paper to remove it.

Diagram of a printer or printer mechanism with a green arrow indicating the process (no text or symbols present)

1. Open the front door of the booklet maker.

Technical line drawing of an open industrial machine with internal components and a green arrow indicating rotation (no text or symbols)

1. Push the upper delivery guide to the right, and remove any jammed paper.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow

1. Push the lower delivery guide to the right, and remove any jammed paper.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow.

1. The positioning knob is the smaller, green dial on the right. Turn the positioning knob counterclockwise.

Technical line drawing of a mechanical component with a circular component and a green circular indicator (no text or symbols)

1. The jam-release knob is the larger, green dial on the left. Push in the jam-release knob, and then turn it clockwise to move any jammed paper into the output bin.

Diagram showing a green circular component with arrows indicating rotation or motion, surrounded by mechanical parts (no text or symbols)

1. Close the front door of the booklet maker.

Diagram of an open industrial machine with internal components and a green arrow indicating motion (no text or symbols)

AREA 9: Clear jams in the ADF

1. Open the ADF cover.

Line drawing of a device interior with a green arrow indicating a component or feature (no text or symbols present)

1. Remove any jammed media.

Line drawing of a mechanical device with a green arrow indicating a component or feature (no text or symbols present)

1. Close the ADF cover.

Line drawing of a car interior frame with a green arrow indicating a component or motion (no text or symbols present)

Clear staple jams

Clear staple jams in the main stapler

The HP 3-bin Stapler/Stacker and the HP Booklet maker/Finisher Accessory each have a main stapler, which is located near the top of the finishing device.

1. Open the front door of the finishing device.

Diagram of an open computer interface showing internal components and a green arrow indicating rotation (no text or symbols present)

1. To remove the staple cartridge, pull up on the green handle and pull out the staple cartridge.

Technical line drawing of a mechanical device with a green arrow indicating a component (no text or symbols present)

1. Lift up on the small lever at the back of the staple cartridge.

Technical line drawing of a mechanical component with no visible text or symbols

1. Remove the damaged staples that protrude from the staple cartridge. Remove the entire sheet of staples that the damaged staples were attached to.

Technical illustration of a mechanical component with directional arrows indicating movement (no text or symbols)

1. Close the lever at the back of the staple cartridge. Be sure that it snaps into place.

Technical line drawing of a mechanical component with no visible text or symbols

1. Reinsert the staple cartridge into the finishing device, and push down on the green handle until it snaps into place.

Technical line drawing showing two views of a mechanical assembly with green arrows indicating components (no text or symbols present)

1. Close the front cover of the finishing device.

Diagram of a printer internal structure with a green arrow indicating a component (no text or symbols present)

Clear staple jams in the booklet maker

The booklet maker has an additional saddle stitch stapler that is below the main stapler. The saddle stitch stapler has two staple cartridges.

1. Open the front door of the booklet maker.

Technical line drawing of a printer internal structure showing internal components and a green arrow indicating rotation (no text or symbols present)

1. Push the upper delivery guide to the right, and remove any jammed paper.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow

1. Grasp the blue handle for the stapler carriage and pull it straight out.

Technical line drawing of a mechanical assembly with a green arrow indicating motion direction (no text or symbols)

1. Grasp the handle of the blue staple cartridge unit and pull it toward you, then swing the staple cartridge unit into an upright position.

Diagram of a mechanical device with labeled parts and directional arrows indicating rotation or movement.

1. Check each staple cartridge for jammed staples.

a. On each staple cartridge, press down on the green plastic tabs while lifting the jam clearance plate.

⚠ WARNING! Do not place your fingers or hands underneath the staple cartridge during this procedure.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps

b. Remove any jammed staples. Remove any damaged staples and the entire sheet of staples that the damaged staples were attached to.

c. Press down on the jam clearance plate to close it.

⚠ WARNING! Do not place your fingers or hands underneath the staple cartridge during this procedure.

Mechanical assembly diagram showing a component with a green arrow indicating a specific part (no text or symbols present)

1. Pull the staple cartridge unit forward, and swing it downward to the original position. Push in on the handle to lock it into position.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating rotation or movement.

1. Push the staple carriage back into the booklet maker.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Close the front door of the booklet maker.

Diagram of a printer internal structure showing internal components and a green arrow indicating rotation (no text or symbols present)

Jam recovery

This product provides jam recovery, a feature that reprints jammed pages. The following options are available:

• Auto — The product attempts to reprint jammed pages when sufficient memory is available.

- Off — The product does not attempt to reprint jammed pages. Because no memory is used to store the most recent pages, performance is optimal.

NOTE: When using this option, if the product runs out of paper and the job is being printed on both sides, some pages can be lost.

- On — The product always reprints jammed pages. Additional memory is allocated to store the last few pages printed. This might cause overall performance to suffer.

Set the jam recovery feature

1. Touch Administration and then touch Device Behavior.

2. Touch Warning/Error Behavior and then touch Jam Recovery.

3. Touch an option and then touch Save.

Paper-handling problems

Use only paper that meets the specifications outlined in the HP LaserJet Printer Family Print Media Guide. This guide is available at www.hp.com/support/ljpaperguide.

Product feeds multiple sheets

Product feeds multiple sheets

Cause	Solution
The input tray is overfilled. Open the tray and verify that the paper stack is below the maximum stack height mark.	Remove excess paper from the input tray.
Print paper is sticking together.	Remove paper, flex it, rotate it 180 degrees or flip it over, and then reload it into the tray.NOTE: Do not fan paper. Fanning can cause static electricity, which can cause paper to stick together.
Paper does not meet the specifications for this product.	Use only paper that meets HP paper specifications for this product.
Trays are not properly adjusted.	Make sure that the paper guides match the size of paper being used.

Product feeds incorrect page size

Product feeds incorrect page size

Cause	Solution
The correct size paper is not loaded in the input tray.	Load the correct size paper in the input tray.
The correct size paper is not selected in the software program or printer driver.	Confirm that the settings in the software program and printer driver are appropriate, since the software program settings override the printer driver and control panel settings, and the printer driver settings override the control panel settings. For more information, see Change printer-driver settings for Windows on page 67 or Change printer-driver settings for Macintosh on page 74.
The correct size paper for the tray is not selected in the product control panel.	From the control panel, select the correct size paper for the tray.
The paper size is not configured correctly for the input tray.	Print a configuration page or use the control panel to determine the paper size for which the tray is configured.
The guides in the tray are not against the paper.	Verify that the paper guides are touching the paper.

Product pulls from incorrect tray

Product pulls from incorrect tray

Cause	Solution
You are using a driver for a different product. Use a driver for this product.
The specified tray is empty. Load paper in the specified tray.

Product pulls from incorrect tray

Cause	Solution
The paper size is not configured correctly for the input tray.	Print a configuration page or use the control panel to determine the paper size for which the tray is configured.
The guides in the tray are not against the paper.	Verify that the guides are touching the paper.

Paper does not feed automatically

Paper does not feed automatically

Cause	Solution
Manual feed is selected in the software program.	Load Tray 1 with paper, or, if the paper is loaded, press the Start button.
The correct size paper is not loaded. Load the correct size paper.
The input tray is empty. Load paper into the input tray.
Paper from a previous jam has not been completely removed.	Open the product and remove any paper in the paper path.
The paper size is not configured correctly for the input tray.	Print a configuration page or use the control panel to determine the paper size for which the tray is configured.
The guides in the tray are not against the paper.	Verify that the rear and width paper guides are touching the paper.
The manual-feed prompt is set to ALWAYS. The product always prompts for manual feed, even if the tray is loaded.	Open the tray, reload the media, and then close the tray.Or, change the manual-feed prompt setting to UNLESS LOADED, so that the product prompts for manual feed only when the tray is empty.
The USE REQUESTED TRAY setting on the product is set to EXCLUSIVELY, and the requested tray is empty. The product will not use another tray.	Load the requested tray.Or, change the setting from EXCLUSIVELY to FIRST on the CONFIGURE DEVICE menu. The product can use other trays if no media is loaded in the specified tray.

Paper does not feed from Tray 2, 3, 4, or 5

Paper does not feed from Tray 2, 3, 4, or 5

Cause	Solution
The correct size paper is not loaded. Load the correct size paper.
The input tray is empty. Load paper in the input tray.
The correct paper type for the input tray is not selected in the product control panel.	From the product control panel, select the correct paper type for the input tray.
Paper from a previous jam has not been completely removed.	Open the product and remove any paper in the paper path.Closely inspect the fuser area for jams.
None of the optional trays appear as input tray options.	The optional trays only display as available if they are installed.Verify that any optional trays are correctly installed. Verify that

Paper does not feed from Tray 2, 3, 4, or 5

Cause	Solution
	the printer driver has been configured to recognize the optional trays.
An optional tray is incorrectly installed.	Print a configuration page to confirm that the optional tray is installed. If not, verify that the tray is correctly attached to the product.
The paper size is not configured correctly for the input tray.	Print a configuration page or use the control panel to determine the paper size for which the tray is configured.
The guides in the tray are not against the paper.	Verify that the guides are touching the paper.

Transparencies or glossy paper will not feed

Transparencies or glossy paper will not feed

Cause	Solution
The correct paper type is not specified in the software or printer driver.	Verify that the correct paper type is selected in the software or printer driver.
The input tray is overfilled. Remove excess paper from the input tray. Do not load more than 200 sheets of glossy paper or glossy film, or more than 100 transparencies in Tray 2, 3, 4, or 5. Do not exceed the maximum stack height marks for Tray 1.
Paper in another input tray is the same size as the transparencies, and the product is defaulting to the other tray.	Make sure that the input tray containing the transparencies or glossy paper is selected in the software program or printer driver. Use the product control panel to configure the tray to the paper type loaded.
The tray containing the transparencies or glossy paper is not configured correctly for type.	Make sure that the input tray containing the transparencies or glossy paper is selected in the software program or printer driver. Use the product control panel to configure the tray to the paper type loaded.
Transparencies or glossy paper might not meet supported paper specifications.	Use only paper that meets the HP paper specifications for this product.
High-humidity environments may cause glossy paper not to feed, or to feed too many sheets.	Print glossy paper from Tray 2, 3, 4, or 5 for best results.Avoid printing glossy paper in high humidity conditions. When printing glossy paper, removing the paper from the wrapper and letting it rest for a few hours can improve feeding into the product. However, letting paper rest in humid environments may also cause blisters.

△ CAUTION: HP Color Laser Presentation Paper, Glossy (Q2546A) is not supported with this product. Using this type of paper can cause a fuser jam that might require the replacement of the fuser. Two recommended alternatives are HP Color LaserJet Presentation Paper, Soft Gloss (Q6541A) and HP Color LaserJet Brochure Paper, Glossy (Q6611A, Q6610A). For a list of supported paper types, see Supported paper types on page 100.

Envelopes jam or will not feed in the product

Envelopes jam or will not feed in the product

Cause	Solution
Envelopes are loaded in an unsupported tray. Only Tray 1 can feed envelopes.	Load envelopes into Tray 1.
Envelopes are curled or damaged.	Try using different envelopes. Store envelopes in a controlled environment.
Envelopes are sealing because the moisture content is too high.	Try using different envelopes. Store envelopes in a controlled environment.
Envelope orientation is incorrect. Verify that the envelope is loaded correctly.
This product does not support the envelopes being used.	Refer to the HP LaserJet Printer Family Print Media Guide.
Tray 1 is configured for a size other than envelopes.	Configure Tray 1 size for envelopes.

Output is curled or wrinkled

Output is curled or wrinkled

Cause	Solution
Paper does not meet the specifications for this product.	Use only paper that meets the HP paper specifications for this product.
Paper is damaged or in poor condition.	Remove paper from the input tray and load paper that is in good condition.
Product speed needs to be reduced.	Set the PAPER CURL option in the Print Quality menu to REDUCED to decrease full speed to 10 ppm (instead of 40 ppm) and 3/4 speed to 7.5 ppm (instead of 30 ppm).
Product is operating in an excessively humid environment.	Verify that the printing environment is within humidity specifications.
You are printing large, solid-filled areas.	Large, solid-filled areas can cause excessive curl. Try using a different pattern.
Paper used was not stored correctly and might have absorbed moisture.	Remove paper and replace it with paper from a fresh, unopened package.
Paper has poorly cut edges.	Remove paper, flex it, rotate it 180 degrees or turn it over, and then reload it into the input tray. Do not fan paper. If the problem persists, replace the paper.
The specific paper type was not configured for the tray or selected in the software.	Configure the software for the paper (see the software documentation). Configure the tray for the paper, see Load paper and print media on page 103.
The paper has previously been used for a print job. Do not re-use paper.

Product will not duplex or duplexes incorrectly

Product will not duplex (print 2-sided jobs) or duplexes incorrectly

Cause	Solution
You are trying to duplex on unsupported paper.	Verify that the paper is supported for duplex printing.
The printer driver is not set up for duplex printing.	Set up the printer driver to enable duplex printing.
The first page is printing on the back of preprinted forms or letterhead.	Load preprinted forms and letterhead in Tray 1 with the letterhead or printed side down, with the top of the page toward the back of the product. For Tray 2, 3, 4 and 5, load the paper printed side up with the top of the page toward the back of the product.
The product model does not support automatic 2-sided printing.	The HP Color LaserJet CM6040 MFP does not support automatic 2-sided printing.
The product configuration is not set for duplexing.	In Windows, run the automatic configuration feature:1. Click the Start button, point to Settings, and then click Printers (for Windows 2000) or Printers and Faxes (for Windows XP).2. Right-click the HP product icon, and then click Properties or Printing Preferences.3. Click the Device Settings tab.4. Under Installable Options, click Update Now in the Automatic Configuration list.

Understand lights on the formatter

Three LEDs on the formatter indicate that the product is functioning correctly.

Technical diagram of an electronic device showing internal components with numbered labels pointing to specific parts.

1 Heartbeat LED

2 HP Jetdirect LEDs (This LED exists only if HP Jetdirect is installed.)

HP Jetdirect LEDs

The embedded HP Jetdirect print server has two LEDs. The yellow LED indicates network activity, and the green LED indicates the link status. A blinking yellow LED indicates network traffic. If the green LED is off, a link has failed.

For link failures, check all of the network cable connections. In addition, you can try to manually configure the link settings on the embedded print server by using the product control-panel menus.

1. Scroll to and touch Administration.
2. Touch Initial Setup.
3. Touch Networking and I/O.
4. Touch Embedded Jetdirect or EIO Jetdirect.
5. Touch Link Speed.
6. Select the appropriate link speed.
7. Touch Save.

Heartbeat LED

The heartbeat LED indicates that the formatter is functioning correctly. While the product is initializing after you turn it on, the LED blinks rapidly, and then turns off. When the product has finished the initialization sequence, the heartbeat LED pulses on and off.

If the heartbeat LED is off, the formatter might have a problem. Contact an HP-authorized service or support provider. See the HP support flyer, or go to www.hp.com/go/cljcm6030mfp_software or www.hp.com/go/cljcm6040mfp_software.

Correct print quality and copy quality problems

The following procedures help you define print quality problems and what to do to correct them. Often print quality problems can be handled easily by making sure that the product is properly maintained, using print media that meets HP specifications, or running a cleaning page.

Example print quality problems

Some print quality problems arise from use of inappropriate paper.

• Use paper that meets HP paper specifications.
• The surface of the paper is too rough. Use paper that meets HP paper specifications.
- The printer driver setting or paper tray setting might be incorrect. Be sure that you have configured the paper tray at the product control panel and have also selected the correct driver setting for the paper that you are using.
The print mode might be set incorrectly, or the paper might not meet recommended specifications.
- The transparencies you are using are not designed for proper toner adhesion. Use only transparencies designed for HP Color LaserJet products.
- The moisture content of the paper is uneven, too high, or too low. Use paper from a different source or from an unopened ream of paper.
- Some areas of the paper reject toner. Use paper from a different source or from an unopened ream of paper.
- The letterhead you are using is printed on rough paper. Use a smoother, xerographic paper. If this solves your problem, consult with the printer of your letterhead to verify that the paper used meets the specifications for this product.
- Several optimize print modes can be used to address print quality issues. See Print Quality menu on page 49.

Repetitive defects ruler

If defects repeat at regular intervals on the page, use this ruler to identify the cause of the defect. Place the top of the ruler at the first defect. The marking that is beside the next occurrence of the defect indicates which component needs to be replaced.

(0) (36mm) → (40mm) → (50mm) → (71mm) → (82mm) → (94mm) → (144mm) → (148mm)

36 mm Developer roller in an image drum.

The print quality defect will be in one of the four image drums (image drum).

40 mm Charge roller in an image drum.

The print quality defect will be spots or dots sometimes caused when feeding labels and will be in one of the four image drums (image drum).

50 mm Transfer 1 roller in the transfer unit (transfer kit).

71 mm Transfer 2 roller in the roller kit (transfer kit).

82 mm Tension in the transfer unit (transfer kit).

94 mm Image drum.

The print quality defect will be in one of the four image drums (image drum).

144 mm Pressure roller in the fuser (fuser kit).

148 mm Fusing roller in the fuser (fuser kit).

To identify if the image drum is the problem, insert an image drum from another HP Color LaserJet CM6040 series, if one is available, before ordering a new image drum.

If the defect repeats at 94.0 mm (3.75 inch) intervals, try replacing the image drum before replacing the fuser.

Print quality problems associated with the environment

If the product is operating in excessively humid or dry conditions, verify that the printing environment is within specifications. See Environmental specifications on page 297. Several optimization modes can also help with environmental conditions. See Use manual print modes on page 270.

Print quality problems associated with jams

• Make sure that all paper is cleared from the paper path.
If the product recently jammed, print two to three pages to clean the product.
The paper does not pass through the fuser, causing image defects to appear on subsequent documents. Print two to three pages to clean the product.

Optimize and improve image quality

The following procedures can be used to solve most image quality problems.

If following the procedures does not improve print quality, go to www.hp.com/go/cljcm6030mfp_software or www.hp.com/go/cljcm6040mfp_software.

Use supported paper

Using unsupported paper or other media in the product can cause a wide variety of image quality problems.

Calibrate the product

Calibration is a product function that optimizes print quality. If you experience any image-quality problems, calibrate the product.

At the control panel;

1. Touch Administration.
2. Scroll and touch Print Quality.
3. Scroll and touch Calibration/Cleaning.
4. Touch Quick Calibration or Full Calibration.
5. Touch Calibrate.

Specify the correct paper type

When you send a print job to the product, specify the type of paper you are using.

1. On the File menu in the software program, click Print.
2. Select the product, and then click Properties or Preferences.

NOTE: The steps can vary; this procedure is most common.

1. Select the Paper/Quality tab.

2. In the Paper Type drop-down box, select More... and then select the paper type that best matches the paper that is loaded in the product.

Clean the fuser

Run the device cleaning page to keep the fuser free of toner and paper particles that can sometimes accumulate. Accumulation of toner and particles can cause specks to appear on the front or back side of your print jobs.

HP recommends that you use the cleaning page when there is a print quality issue.

A Cleaning message appears on the product control panel display while the cleaning is taking place.

In order for the cleaning page to work correctly, print the page on copier-grade paper (not bond, heavy, or rough paper).

Create and use the cleaning page

1. Scroll to and touch Administration.
2. Scroll to and touch Print Quality
3. Touch Calibration/cleaning.
4. Touch Process cleaning page.

Respond to control panel error messages

If you see a 54.Error message in the event log, you might need to perform some maintenance on the product in order to avoid more errors and solve print quality problems.

1. Open and then close the right door of the product to log a 54.Error as the latest event in the event log.
2. Scroll to and touch Administration.
3. Scroll to and touch Troubleshooting.

4. Scroll to and touch Event Log.

5. Touch Print.

6. Find the most recent event in the log.

- If the event is a 54.OE.01 Media Sensor event, you need to replace the registration second transfer assembly. Contact HP Support at www.hp.com/go/cljcm6030mfp_software or www.hp.com/go/cljcm6040mfp_software and provide them with this error code.

- If the event is a 54.OE.02 Media Sensor event, you need to replace the product transfer kit. Contact HP Support at www.hp.com/support/cljcm6040mfp or www.hp.com/support/cljcm6030mfp and provide them with this error code.

- If the event is a 54.OE.03 Media Sensor event, you need to clean the registration second transfer assembly and the media sensor using the following procedure.

Clean the registration second transfer assembly

1. Open the right door.

Line drawing of a printer with a green arrow indicating a process or operation inside the door (no text or symbols present)

1. Locate and remove the cleaning brush.

Diagram of a computer motherboard showing internal components and a magnified view of a key inserted into the main panel (no text or symbols present)

1. Lift the green handle on the transfer-access panel and open the panel.

Technical diagram of a printer internal structure with labeled parts and an inset showing a component with green arrows indicating direction.

1. Clean the media sensor with the cleaning brush.

Diagram of a computer RAM module being inserted into a rack, with a magnified inset showing the insertion process (no text or symbols present)

1. Close the transfer access panel, and replace the cleaning brush in its holder.

Technical diagram of a mechanical assembly showing internal components and a green arrow indicating a motion or flow direction (no text or labels present)

1. Close the right door.

Line drawing of a printer with a green door and control panel, no text or symbols present

Use manual print modes

Try the following manual print modes to see if they solve the image quality problems. These options can be found in the Optimize sub-menu under the control panel Print Quality menu. See Print Quality menu on page 49.

- Fuser Temp: If you are seeing a faint image of the page repeated at the bottom of the page or on the following page, you should first make sure the Paper Type and Print Mode settings are correct for the type of paper you are using. If you continue to see ghost images on your print jobs, set the Fuser Temp feature to one of the Alternate settings . Try the Alternate 1 setting first and see if it solves the problem. If you continue to see the problem, try Alternate 2 and then Alternate 3. With the Alternate 2 and Alternate 3 settings you may see an extra delay between jobs.

Light Media: Set this feature to On if you are frequently seeing Fuser Delay Jam or Fuser Wrap Jam messages, especially when printing on light-weight paper or on jobs with heavy toner coverage.

• Media Temp: Set this feature to Reduced if you are having problems with paper sticking together in the output bin.

• Environment: Enable this feature if the product is operating in a low temperature environment and you are having problems with print quality such as blisters in the printed image.

• Line Voltage: Enable this feature if the product is operating in a low voltage environment and you are having problems with print quality such as blisters in the printed image.

Background: Turn this feature on if pages are printing with a shaded background. Using this feature can reduce gloss levels.

Paper Curl: Set this feature to Reduced if excessive curling of paper in the output bin occurs. This setting will reduce printing speed and increase the frequency of consumable replacement.

• Pre-rotation: Turn this feature on if horizontal streaks appear on pages. Using this feature increases the warm-up time for the device.

Tray 1: If you are seeing marks on the back side of the paper or extra toner on pages when printing from Tray 1, set the mode to Alternate. When the mode is set to Alternate a cleaning cycle will be

performed after each job that is printed from Tray 1. Using Alternate mode increase wear on all the print cartridges.

• Tracking Control: This setting should always be set to On.
• Cleaning Frequency = Normal/Alternate: Set this feature to Alternate if you are seeing defects in the printed output that repeat at 38 mm (1.5 inch) intervals. This feature increases the frequency at which the C roller is cleaned. Setting this feature to Alternate might also reduce printing speed and increase the frequency of consumable replacement.
  D-Blade Bias = Normal/Alternate: Set this feature to Alternate if you are seeing short, white, vertical lines in the printed output. The Alternate setting might also cause dark spots in the printed output, so be sure to test this setting on a few print jobs.
• Waste Bin = Normal/Alternate: Try setting this feature to Alternate if you are seeing lengthwise toner streaks in your printed output, especially in jobs with low toner coverage.
• Discharge Brush = Off/On: Enable this feature in low temperature and low humidity environments if you are seeing specks of toner scattered on double-sided jobs using lightweight paper and longer than ten pages.

Print-quality-troubleshooting pages

Use the built-in print-quality-troubleshooting pages to help diagnose and solve print-quality problems.

1. Scroll to and touch Administration
2. Scroll to and touch Troubleshooting.
3. Touch PQ Troubleshooting.
4. Touch Print.

The product returns to the Ready state after printing the print-quality-troubleshooting pages. Follow the instructions on the pages that print out.

Performance problems

Problem Cause Solution

Pages print but are totally blank. The sealing tape might still be in the print cartridges.	Verify that the sealing tape has been completely removed from the print cartridges.
The document might contain blank pages.	Check the document that you are printing to see if content appears on all of the pages.
The product might be malfunctioning. To check the product, print a Configuration page.
Pages print very slowly. Heavier media types can slow the print job.	Print on a different type of media.
Complex pages can print slowly. Proper fusing may require a slower print speed to ensure the best print quality.
The RLT photo fix options under HP real life technologies on the Paper/Quality tab of the print driver can cause slow printing.	De-select these options to improve print speed.
Pages did not print. The product might not be pulling media correctly.	Make sure paper is loaded in the tray correctly.If the problem persists, you might need to replace the pickup rollers and the separation pad. See Customer support on page 289.
The media is jamming in the device.	Clear the jam. See Jams on page 228.
The USB cable might be defective or incorrectly connected.	Disconnect the USB cable at both ends and reconnect it.Try printing a job that has printed in the past.Try using a different USB cable.
Other devices are running on your computer.	The product might not share a USB port. If you have an external hard drive or network switchbox that is connected to the same port as the product, the other device might be interfering. To connect and use the product, you must disconnect the other device or you must use two USB ports on the computer.

Solve fax problems

For help solving fax problems, go to www.hp.com/go/mfpfaxaccessory300.

You can also refer to the Analog Fax Accessory 300 Fax Guide and the Analog Fax Accessory 300 Send Fax Driver Guide, which are included on the product User CD.

Solve e-mail problems

If you are unable to send e-mails by using the digital-send feature, you might need to reconfigure the SMTP gateway address or the LDAP gateway address. Print a configuration page to find the current SMTP and LDAP gateway addresses. See Information pages on page 178. Use the following procedures to check if the SMTP and LDAP gateway addresses are valid.

Validate the SMTP gateway address

NOTE: This procedure is for Windows operating systems.

1. Open an MS-DOS command prompt: click Start, click Run, and then type cmd .
2. Type telnet

followed by the SMTP gateway address and then the number 25, which is the port over which the product is communicating. For example, type telnet 123.123.123.123 25

where "123.123.123.123" represents the SMTP gateway address.

1. Press Enter. If the SMTP gateway address is not valid, the response contains the message Could not open connection to the host on port 25: Connect Failed.
2. If the SMTP gateway address is not valid, contact the network administrator.

Validate the LDAP gateway address

NOTE: This procedure is for Windows operating systems.

1. Open Windows Explorer. In the address bar, type LDAP: // immediately followed by the LDAP gateway address. For example, type LDAP: //12.12.12.12 where "12.12.12.12" represents the LDAP gateway address.

2. Press Enter. If the LDAP gateway address is valid, the Find People dialog box opens.

3. If the LDAP gateway address is not valid, contact the network administrator.

Solve network connectivity problems

If the product is having problems communicating with the network, use the information in this section to resolve the problem.

Solve network printing problems

NOTE: HP recommends that you use the product CD to install and set up the product on a network.

• Make sure that the network cable is securely seated into the product's RJ45 connector.
- Make sure that the Link LED on the formatter is lit. See Understand lights on the formatter on page 263.
- Make sure that the I/O card is ready. Print a configuration page (see Information pages on page 178). If an HP Jetdirect print server is installed, printing a configuration page also prints a second page that shows the network settings and status.

NOTE: The HP Jetdirect print server supports various network protocols (TCP/IP, IPX/SPX, Novell NetWare, AppleTalk, and DCL/LLC). Make sure that the correct protocols and network parameters are set correctly.

On the HP Jetdirect configuration page, verify the following items for your protocol:

Under HP Jetdirect Configuration, the status is "I/O Card Ready."
- Protocol status is "Ready."
- An IP address is listed.
The configuration method (Config by:) is listed correctly. See the network administrator if you are not sure which method is correct.

• Try printing the job from another computer.
- To verify that a product works with a computer, use a USB cable to connect it directly to a computer. You will have to reinstall the printing software. Print a document from a program that has printed correctly in the past. If this works, a problem with the network might exist.
- Contact your network administrator for assistance.

Verify communication over the network

If the HP Jetdirect configuration page shows an IP address for the product, use this procedure to verify that you can communicate with the product over the network.

1. Windows: Click Start, click Run, and then type cmd

. An MS-DOS command prompt opens.

-or-

Mac: Click Applications, click Utilities, and then open the Terminal application. The terminal window opens.

1. Type

ping

followed by the IP address. For example, type ping XXX.XXX.XXX.XXX

where "XXX.XXX.XXX.XXX" is the IPv4 address that is shown on the HP Jetdirect configuration page. If the product is communicating over the network, the response is a list of replies from the product.

1. Verify that the IP address is not a duplicate address on the network by using the address resolution protocol (arp -a) command. At the prompt, type arp -a

. Find the IP address in the list and compare its physical address to the hardware address that is listed on the HP Jetdirect configuration page in the section called HP Jetdirect Configuration. If the addresses match, all network communications are valid.

1. If you cannot verify that the product is communicating over the network, contact the network administrator.

Solve common Macintosh problems

This section lists problems that can occur when using Mac OS X.

Table 15-1 Problems with Mac OS X
The printer driver is not listed in the Print Center or Printer Setup Utility.

Cause	Solution
The product software might not have been installed or was installed incorrectly.	Make sure that the product PPD is in the following hard-drive folder: Library/Printers/PPDs/Contents/Resources/.lproj, whereis the two-letter language code for the language that you are using. If necessary, reinstall the software. See the getting started guide for instructions.
The Postscript Printer Description (PPD) file is corrupt.	Delete the PPD file from the following hard-drive folder: Library/Printers/PPDs/Contents/Resources/.lproj, whereis the two-letter language code for the language that you are using. Reinstall the software. See the getting started guide for instructions.

The product name, IP address, or Rendezvous/Bonjour host name does not appear in the product list in the Print Center or Printer Setup Utility.

Cause	Solution
The product might not be ready.	Make sure that the cables are connected correctly, the product is on, and the ready light is on. If you are connecting through a USB or Ethernet hub, try connecting directly to the computer or use a different port.
The wrong connection type might be selected.	Make sure that USB, IP Printing, or Rendezvous/Bonjour is selected, depending on the type of connection that exists between the product and the computer.
The wrong product name, IP address, or Rendezvous/Bonjour host name is being used.	Print a configuration page in order to check the product name, IP address, or Rendezvous host name. Verify that the name, IP address, or Rendezvous host name on the configuration page matches the product name, IP address, or Rendezvous host name in the Print Center or Printer Setup Utility.
The interface cable might be defective or of poor quality.	Replace the interface cable. Make sure to use a high-quality cable.

The printer driver does not automatically set up your selected product in the Print Center or Printer Setup Utility.

Cause	Solution
The product might not be ready.	Make sure that the cables are connected correctly, the product is on, and the ready light is on. If you are connecting through a USB or Ethernet hub, try connecting directly to the computer or use a different port.
The product software might not have been installed or was installed incorrectly.	Make sure that the product PPD is in the following hard-drive folder: Library/Printers/PPDs/Contents/Resources/.lproj, whereis the two-letter language code for the language that you are using. If necessary, reinstall the software. See the getting started guide for instructions.
The Postscript Printer Description (PPD) file is corrupt.	Delete the PPD file from the following hard-drive folder:Library/Printers/PPDs/Contents/Resources/.lproj, whereis the two-letter language code for the language that you are using. Reinstall the software. See the getting started guide for instructions.
The interface cable might be defective or of poor quality.	Replace the interface cable. Make sure to use a high-quality cable.

A print job was not sent to the product that you wanted.

Cause	Solution
The print queue might be stopped.	Restart the print queue. Openprint monitorand selectStart Jobs.
The wrong product name or IP address is being used. Another product with the same or similar name, IP address, or Rendezvous host name might have received your print job.	Print a configuration page in order to check the product name, IP address, or Rendezvous host name. Verify that the name, IP address, or Rendezvous host name on the configuration page matches the product name, IP address, or Rendezvous host name in the Print Center or Printer Setup Utility.

An encapsulated PostScript (EPS) file does not print with the correct fonts.

Cause	Solution
This problem occurs with some programs.	Try downloading the fonts that are contained in the EPS file to the product before printing.Send the file in ASCII format instead of binary encoding.

You are unable to print from a third-party USB card.

Cause	Solution
This error occurs when the software for USB products is not installed.	When adding a third-party USB card, you might need the Apple USB Adapter Card Support software. The most current version of this software is available from the Apple Web site.
This problem is caused by either a software or a hardware component.	Software troubleshootingCheck that your Macintosh supports USB.Verify that your Macintosh operating system is Mac OS X v10.1 or later.Ensure that your Macintosh has the appropriate USB software from Apple.Hardware troubleshootingCheck that the product is turned on.Verify that the USB cable is connected correctly.Check that you are using the appropriate high-speed USB cable.Ensure that you do not have too many USB devices drawing power from the chain. Disconnect all of the devices from the chain, and connect the cable directly to the USB port on the host computer.Check to see if more than two nonpowered USB hubs are connected in a row on the chain. Disconnect all of the devices from the chain and connect the cable directly to the USB port on the host computer.NOTE: The iMac keyboard is a nonpowered USB hub.

A Supplies and accessories

• Order parts, accessories, and supplies
Part numbers

Order parts, accessories, and supplies

Several methods are available for ordering parts, supplies, and accessories.

• Order directly from HP
• Order through service or support providers
• Order directly through the embedded Web server (for printers that are connected to a network)
• Order directly through the HP Easy Printer Care software

Order directly from HP

You can obtain the following items directly from HP:

• Replacement parts: To order replacement parts in the U.S., go to www.hp.com/go/hpparts/. Outside the United States, order parts by contacting your local authorized HP service center.
  • Supplies and accessories: To order supplies in the U.S., go to www.hp.com/go/ljsupplies. To order supplies and accessories worldwide, go to www.hp.com/ghp/buyonline.html.

Order through service or support providers

To order a part or accessory, contact an HP-authorized service or support provider.

Order directly through the embedded Web server (for printers that are connected to a network)

Use the following steps to order printing supplies directly through the embedded Web server.

1. In the Web browser on the computer, type the IP address or host name of the device. The status window opens.
2. In the Other links area, double-click Order Supplies. This provides a URL for a site from which you can purchase consumables.
3. Select the part numbers that you want to order, and follow the instructions on the screen.

Order directly through the HP Easy Printer Care software

HP Easy Printer Care software is a printer management tool designed to make printer configuration, monitoring, supplies ordering, troubleshooting, and updating as simple and efficient as possible. For more information about HP Easy Printer Care software, go to www.hp.com/easyprintercare.

Part numbers

Ordering information and availability might change during the life of the product.

Accessories

Item Description Part number
HP 3-bin Stapler/Stacker Accessory 3-bin stapler/stacker with output accessory bridge unit	CC517A
HP 3-bin Stapler/Stacker or HP Booklet Maker/Finisher staple cartridge (upper cartridge on HP Booklet Maker/Finisher)	5000-staple replacement cartridge C8091A
HP Booklet Maker/Finisher Accessory Booklet maker finisher with output accessory bridge unit	CC516A
HP Booklet Maker/Finisher saddle-stitch staple cartridge (lower cartridge)	2000-staple replacement cartridge (quantity of 2)	CC383A
HP LaserJet analog fax accessory 300 Provides fax capability for the product. This is included with the HP Color LaserJet CM6040f MFP model.	Q3701A

Print cartridges

Item Description Part number
HP Color LaserJet black print cartridge	19,500-page black cartridge	CB390A
HP Color LaserJet cyan print cartridge	21,000-page cyan cartridge	CB381A
HP Color LaserJet yellow print cartridge	21,000-page yellow cartridge	CB382A
HP Color LaserJet magenta print cartridge	21,000-page magenta cartridge CB383A

Image drums

Item Description Part number
HP Color LaserJet black image drum	35,000-page black image drum	CB384A
HP Color LaserJet cyan image drum	35,000-page cyan image drum	CB385A
HP Color LaserJet yellow image drum	35,000-page yellow image drum	CB386A
HP Color LaserJet magenta image drum	35,000-page magenta image drum	CB387A

Maintenance kits

Item Description Part number
Image fuser kit	110 volt	CB457A

Item Description Part number

Image fuser kit 220 volt CB458A

Roller kit CB459A

Transfer kit CB463A

ADF roller kit CE487A

Memory

Item Description Part number
200-pin DDR memory DIMM (dual inline memory module)	128 MB	Q7557A
	256 MB Q7558A
Boosts the ability of the product to handle large or complex print jobs.

Cables and interfaces

Item Description Part number
Enhanced I/O (EIO) card HP Jetdirect 635n IPv6/IPsec Print Server	J7961G
USB cable 2-meter standard USB-compatible device connector	C6518A

B Service and support

• Hewlett-Packard limited warranty statement
• Print cartridge limited warranty statement
• Color LaserJet Fuser Kit, Transfer Kit, and Roller Kit Limited Warranty Statement
- Customer self repair warranty service
- Customer support
• Availability of support and service
• HP maintenance agreements

Hewlett-Packard limited warranty statement

HP PRODUCT DURATION OF LIMITED WARRANTY

HP Color LaserJet CM6030 Series MFP One-year limited warranty

HP Color LaserJet CM6040 Series MFP One-year limited warranty

HP warrants to you, the end-user customer, that HP hardware and accessories will be free from defects in materials and workmanship after the date of purchase, for the period specified above. If HP receives notice of such defects during the warranty period, HP will, at its option, either repair or replace products which prove to be defective. Replacement products may be either new or equivalent in performance to new.

HP warrants to you that HP software will not fail to execute its programming instructions after the date of purchase, for the period specified above, due to defects in material and workmanship when properly installed and used. If HP receives notice of such defects during the warranty period, HP will replace software which does not execute its programming instructions due to such defects.

HP does not warrant that the operation of HP products will be uninterrupted or error free. If HP is unable, within a reasonable time, to repair or replace any product to a condition as warranted, you will be entitled to a refund of the purchase price upon prompt return of the product.

HP products may contain remanufactured parts equivalent to new in performance or may have been subject to incidental use.

Warranty does not apply to defects resulting from (a) improper or inadequate maintenance or calibration, (b) software, interfacing, parts or supplies not supplied by HP, (c) unauthorized modification or misuse, (d) operation outside of the published environmental specifications for the product, or (e) improper site preparation or maintenance.

TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE. Some countries/regions, states or provinces do not allow limitations on the duration of an implied warranty, so the above limitation or exclusion might not apply to you. This warranty gives you specific legal rights and you might also have other rights that vary from country/region to country/region, state to state, or province to province.

HP's limited warranty is valid in any country/region or locality where HP has a support presence for this product and where HP has marketed this product. The level of warranty service you receive may vary according to local standards. HP will not alter form, fit or function of the product to make it operate in a country/region for which it was never intended to function for legal or regulatory reasons.

TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. EXCEPT AS INDICATED ABOVE, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR LOSS OF DATA OR FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some countries/regions, states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

Print cartridge limited warranty statement

This HP product is warranted to be free from defects in materials and workmanship.

This warranty does not apply to products that (a) have been refilled, refurbished, remanufactured or tampered with in any way, (b) experience problems resulting from misuse, improper storage, or operation outside of the published environmental specifications for the printer product or (c) exhibit wear from ordinary use.

To obtain warranty service, please return the product to place of purchase (with a written description of the problem and print samples) or contact HP customer support. At HP's option, HP will either replace products that prove to be defective or refund your purchase price.

TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTY IS EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT ALLOWED BY LOCAL LAW, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

Color LaserJet Fuser Kit, Transfer Kit, and Roller Kit Limited Warranty Statement

This HP product is warranted to be free from defects in materials and workmanship until the printer provides a low-life indicator on the control panel.

This warranty does not apply to products that (a) have been refurbished, remanufactured or tampered with in any way, (b) experience problems resulting from misuse, improper storage, or operation outside of the published environmental specifications for the printer product or (c) exhibit wear from ordinary use.

To obtain warranty service, please return the product to place of purchase (with a written description of the problem) or contact HP customer support. At HP's option, HP will either replace products that prove to be defective or refund your purchase price.

TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTY IS EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE EXTENT ALLOWED BY LOCAL LAW, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

Customer self repair warranty service

HP products are designed with many Customer Self Repair (CSR) parts to minimize repair time and allow for greater flexibility in performing defective parts replacement. If during the diagnosis period, HP identifies that the repair can be accomplished by the use of a CSR part, HP will ship that part directly to you for replacement. There are two categories of CSR parts: 1) Parts for which customer self repair is mandatory. If you request HP to replace these parts, you will be charged for the travel and labor costs of this service. 2) Parts for which customer self repair is optional. These parts are also designed for Customer Self Repair. If, however, you require that HP replace them for you, this may be done at no additional charge under the type of warranty service designated for your product.

Based on availability and where geography permits, CSR parts will be shipped for next business day delivery. Same-day or four-hour delivery may be offered at an additional charge where geography permits. If assistance is required, you can call the HP Technical Support Center and a technician will help you over the phone. HP specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to HP. In cases where it is required to return the defective part to HP, you must ship the defective part back to HP within a defined period of time, normally five (5) business days. The defective part must be returned with the associated documentation in the provided shipping material. Failure to return the defective part may result in HP billing you for the replacement. With a customer self repair, HP will pay all shipping and part return costs and determine the courier/carrier to be used.

Customer support

Get telephone support, free during your warranty period, for your country/region	Country/region phone numbers are on the flyer that was in the box with your product or atwww.hp.com/support/.
Have the product name, serial number, date of purchase, and problem description ready.
Get 24-hour Internet support	www.hp.com/support/cljcm6030mfp or www.hp.com/support/cljcm6040mfp
Get support for products used with a Macintosh computer	www.hp.com/go/macosx
Download software utilities, drivers, and electronic information	www.hp.com/go/cljcm6030mfp_software or www.hp.com/go/cljcm6040mfp_software
Order supplies and paperwww.hp.com/go/suresupply	____
Order genuine HP parts or accessorieswww.hp.com/buy/parts	____
Order additional HP service or maintenance agreements	www.hp.com/go/carepack

Availability of support and service

Around the world, HP provides a variety of service and support options for purchase. Availability of these programs will vary depending upon your location.

HP maintenance agreements

HP has several types of maintenance agreements that meet a wide range of support needs. Maintenance agreements are not part of the standard warranty. Support services may vary by area. Check with your local HP dealer to determine the services available to you.

On-site service agreements

To provide you with the level of support best suited to your needs, HP has on-site service agreements with three response times:

Priority onsite service

This agreement provides 4-hour service response to your site for calls made during normal HP business hours.

Next-day onsite service

This agreement provides support by the next working day following a service request. Extended coverage hours and extended travel beyond HP's designated service zones are available on most on-site agreements (for additional charges).

Weekly (volume) on-site service

This agreement provides scheduled weekly on-site visits for organizations with many HP products. This agreement is designated for sites using 25 or more workstation products, including printers, plotters, computers, and disk drives.

C Product specifications

• Physical specifications
• Electrical specifications
• Acoustic specifications
• Environmental specifications

Physical specifications

Table C-1 Product dimensions

Product Height Depth Width Weight
HP Color LaserJet CM6030 MFP	1194 mm (47 in)	635 mm (25 in)	704 mm (27.7 in)	140 kg (308 lb)
HP Color LaserJet CM6030f MFP	1194 mm (47 in)	635 mm (25 in)	704 mm (27.7 in)	145 kg (319 lb)
HP Color LaserJet CM6040 MFP	1194 mm (47 in)	635 mm (25 in)	704 mm (27.7 in)	140 kg (308 lb)
HP Color LaserJet CM6040f MFP 1194 mm (47 in) 635 mm (25 in) 704 mm (27.7 in) 145 kg (319 lb)

^1 Without print cartridge

Table C-2 Product dimensions, with all doors and trays fully opened

Product Height Depth Width
HP Color LaserJet CM6030 MFP	1524 mm (60 in)	1079.5 mm (42.5 in)	983 mm (38.7 in)
HP Color LaserJet CM6030f MFP	1524 mm (60 in)	1079.5 mm (42.5 in)	983 mm (38.7 in)
HP Color LaserJet CM6040 MFP	1524 mm (60 in)	1079.5 mm (42.5 in)	983 mm (38.7 in)
HP Color LaserJet CM6040f MFP	1524 mm (60 in)	1079.5 mm (42.5 in)	983 mm (38.7 in)

Electrical specifications

⚠ WARNING! Power requirements are based on the country/region where the product is sold. Do not convert operating voltages. This can damage the product and void the product warranty.

Table C-3 Power requirements (HP Color LaserJet CM6030 and CM6040 MFP Series)

Specification 110-volt models 220-volt models
Power requirements 100 to 127 volts (± 10%)	220 to 240 volts (± 10%)
50/60 Hz (± 2 Hz)	50/60 Hz (± 2 Hz)
Rated current 10.5 A 5.5 A

Table C-4 Power consumption HP Color LaserJet CM6030 and CM6040 MFP Series (average, in watts)

Product model	Printing	Ready	Sleep	Off
HP Color LaserJet CM6030 MFP	1265 W 251.7 W 26.3 W 0.72 W
HP Color LaserJet CM6030f MFP	1265 W 251.7 W 26.5 W 0.72 W
HP Color LaserJet CM6040 MFP	1265 W 251.7 W 26.3 W 0.72 W
HP Color LaserJet CM6040f MFP	1265 W 251.7 W 26.5 W 0.72 W

Values subject to change. See www.hp.com/support/cljcm6030mfp or www.hp.com/support/cljcm6040mfp for current information.

HP Color LaserJet CM6030 and CM6040 MFP Series printing and copying speeds are 40 ppm for Letter and A4 sizes.

Default time from Ready mode to Sleep mode = 60 minutes.

Recovery time from Sleep mode = less than 20 seconds

Acoustic specifications

Table C-5 Sound power and pressure level ^1 (HP Color LaserJet CM6030 and CM6040 MFP Series)

Sound power level Declared per ISO 9296
Printing^1	L_WAd = 7.1 Bels (A) [71 dB(A)]
Copying^2	L_WAd = 7.1 Bels (A) [71 dB(A)]
Ready L	_WAd = 4.7 Bels (A) [47 dB(A)]
Sound pressure level Declared per ISO 9296
Printing^1	L_pAm = 50 dB (A)
Copying^2	L_pAm = 52 dB (A)
Ready L	_pAm = 37 dB (A)

1 Values subject to change. See www.hp.com/support/cljcm6030mfp or www.hp.com/support/cljcm6040mfp for current information.

2 Configuration tested (HP Color LaserJet CM6030 and CM6040 MFP Series) Base model, simplex copying from ADF with A4 paper size.)

Environmental specifications

Environmental condition	Recommended	Allowed	Storage/standby
Temperature (product and print cartridge)	17° to 25°C (62.6° to 77°F)	10° to 30°C (50° to 86°F)	0° to 35°C (32° to 95°F)
Relative humidity 30% to 70% relative humidity (RH)		10% to 80% RH	5% to 95%
Altitude N/A 0 meters (0 feet) to 2500		meters (8000 feet)	N/A

D Regulatory information

Compliance with FCC regulations

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Declaration of Conformity

Declaration of Conformity

according to ISO/IEC 17050-1 and EN 17050-1

Manufacturer's Name: Hewlett-Packard Company

DoC#: BOISB-0601-01-rel.2.0

Manufacturer's Address: 11311 Chinden Boulevard,

Boise, Idaho 83714-1021, USA

declares that the product

Product Name: HP Color LaserJet CM6030, CM6040 MFP series

Accessories CB473A - 1x500-sheet input tray/stand

CB474A - 3x500-sheet input tray/stand

CC516A – Booklet Maker

CC517A - 3-Bin Stapler/Stacker

Regulatory Model Number: ^2)

BOISB-0601-01

Product Options: ALL

Toner Cartridges/Drums: CB390A, CB381A, CB382A, CB383A, CB384A, CB385A, CB386A, CB387A

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN60950-1: 2001 + A11

IEC 60825-1:1993 +A1 +A2 / EN 60825-1:1994 A1 +A2 (Class 1 Laser/LED Product) GB4943-2001

EMC: CISPR 22:2005 / EN 55022:2006 – Class A ^1)

EN 61000-3-2:2000 +A2

EN 61000-3-3:1995 + A1

EN 55024:1998+A1 + A2

FCC Title 47 CFR, Part 15 Class A / ICES-003, Issue 4

GB9254-1998, GB17625.1-2003

Supplementary Information:

The product herewith complies with the requirements of the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC, and carries the CE-Marking accordingly.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1) The product was tested in a typical configuration with Hewlett-Packard Personal Computer Systems.

2) For regulatory purposes, this product is assigned a Regulatory model number. This number should not be confused with the product name or the product number(s).

Boise, Idaho, USA

February 1, 2008

For regulatory topics only:

European Contact: Your Local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Department HQ-TRE / Standards Europe, Herrenberger Straße 140, D-71034 Böblingen, Germany, (FAX: [phone]) www.hp.com/go/certificates

USA Contact: Product Regulations Manager, Hewlett-Packard Company, PO Box 15, Mail Stop 160, Boise, Idaho 83707-0015, USA, (Phone: [phone])

Declaration of Conformity

Declaration of Conformity

according to ISO/IEC 17050-1 and EN 17050-1

Manufacturer's Name: Hewlett-Packard Company

DoC#: BOISB-0601-02-rel.2.0

Manufacturer's Address: 11311 Chinden Boulevard,

Boise, Idaho 83714-1021, USA

declares that the product

Product Name: HP Color LaserJet CM6030f, CM6040f MFP series

Accessories CB473A - 1x500-sheet input tray/stand

CB474A - 3x500-sheet input tray/stand

CC516A – Booklet Maker

CC517A - 3-Bin Stapler/Stacker

BOISB-0308-00 – Fax Module

Regulatory Model Number: ^2)

Product Options: ALL

Toner Cartridges/Drums: CB390A, CB381A, CB382A, CB383A, CB384A, CB385A, CB386A, CB387A

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN60950-1: 2001 + A11

IEC 60825-1:1993 +A1 +A2 / EN 60825-1:1994 A1 +A2 (Class 1 Laser/LED Product) GB4943-2001

EMC: CISPR 22:2005 / EN 55022:2006 – Class A ^1)

EN 61000-3-2:2000 +A2

EN 61000-3-3:1995 + A1

EN 55024:1998+A1 + A2

FCC Title 47 CFR, Part 15 Class A / ICES-003, Issue 4

GB9254-1998, GB17625.1-2003

Telecom ES 203 021; FCC Title 47 CFR, Part 68 ^4

Supplementary Information:

The product herewith complies with the requirements of the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC, and the R&TTE Directive 1999/5/EC (Annex II), and carries the CE-Marking accordingly.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1) The product was tested in a typical configuration with Hewlett-Packard Personal Computer Systems.
2) For regulatory purposes, this product is assigned a Regulatory model number. This number should not be confused with the product name or the product number(s).
3) All worldwide modular approvals for analog fax accessory obtained by Hewlett-Packard under the regulatory model number BOISB-0601-02 incorporate the Multi-Tech Systems MT5634SMI Socket Modem Module.
4) Telecom approvals and standards appropriate for the target countries/regions have been applied to this product, in addition to those listed above.

Boise, Idaho, USA

February 1, 2008

For regulatory topics only:

European Contact: Your Local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Department HQ-TRE / Standards Europe, Herrenberger Straße 140, D-71034 Böblingen, Germany, (FAX: [phone]) www.hp.com/go/certificates

USA Contact: Product Regulations Manager, Hewlett-Packard Company, PO Box 15, Mail Stop 160, Boise, Idaho 83707-0015, USA, (Phone: [phone])

Environmental product stewardship program

Protecting the environment

Hewlett-Packard Company is committed to providing quality products in an environmentally sound manner. This product has been designed with several attributes to minimize impacts on our environment.

Ozone production

This product generates no appreciable ozone gas ( O_3 ).

Power consumption

Power usage drops significantly while in Ready and Sleep mode, which saves natural resources and saves money without affecting the high performance of this product. To determine the ENERGY STAR® qualification status for this product, see the Product Data Sheet or Specifications Sheet. Qualified products are also listed at:

www.hp.com/go/energystar

Toner consumption

EconoMode uses less toner, which might extend the life of the print cartridge.

Paper use

This product's optional automatic duplex feature (two-sided printing) and N-up printing (multiple pages printed on one page) capability can reduce paper usage and the resulting demands on natural resources.

Plastics

Plastic parts over 25 grams are marked according to international standards that enhance the ability to identify plastics for recycling purposes at the end of the product's life.

HP LaserJet print supplies

It's easy to return and recycle your empty HP LaserJet print cartridges—free of charge—with HP Planet Partners. Multilingual program information and instructions are included in every new HP LaserJet print cartridge and supplies package. You help reduce the toll on the environment further when you return multiple cartridges together rather than separately.

HP is committed to providing inventive, high-quality products and services that are environmentally sound, from product design and manufacturing to distribution, customer use, and recycling. When you participate in the HP Planet Partners program, we ensure your HP LaserJet print cartridges are recycled properly, processing them to recover plastics and metals for new products and diverting millions of tons of waste from landfills. Please note that the cartridge will not be returned to you. Thank you for being environmentally responsible!

NOTE: Use the return label to return original HP LaserJet print cartridges only. Please do not use this label for HP inkjet cartridges, non-HP cartridges, refilled or remanufactured cartridges, or warranty returns. For information about recycling your HP inkjet cartridges, please go to www.hp.com/recycle.

Return and recycling instructions

United States and Puerto Rico

The enclosed label in the HP LaserJet toner cartridge box is for the return and recycling of one or more HP LaserJet print cartridges after use. Please follow the applicable instructions below.

Multiple returns (more than one cartridge)

1. Package each HP LaserJet print cartridge in its original box and bag.
2. Tape the boxes together using strapping or packaging tape. The package can weigh up to 31 kg (70 lb).
3. Use a single pre-paid shipping label.

OR

1. Use your own suitable box, or request a free bulk collection box from www.hp.com/recycle or 1-800-340-2445 (holds up to 31 kg (70 lb) of HP LaserJet print cartridges).
2. Use a single pre-paid shipping label.

Single returns

1. Package the HP LaserJet print cartridge in its original bag and box.
2. Place the shipping label on the front of the box.

Shipping

For all HP LaserJet print cartridge recycling returns, give the package to UPS during your next delivery or pickup, or take it to an authorized UPS drop-off center. For the location of your local UPS drop-off center, call 1-800-PICKUPS or visit www.ups.com. If you are returning via USPS label, give the package to a U.S. Postal Service carrier or drop off at a U.S. Postal Service Office. For more information, or to order additional labels or boxes for bulk returns, visit www.hp.com/recycle or call 1-800-340-2445. Requested UPS pickup will be charged normal pickup rates. Information subject to change without notice.

Non-U.S. returns

To participate in HP Planet Partners return and recycling program, just follow the simple directions in the recycling guide (found inside the packaging of your new product supply item) or visit www.hp.com/recycle. Select your country/region for information on how to return your HP LaserJet printing supplies.

Paper

This product is capable of using recycled papers when the paper meets the guidelines outlined in the HP LaserJet Printer Family Print Media Guide. This product is suitable for the use of recycled paper according to EN12281:2002.

Material restrictions

This HP product contains a battery that may require special handling at end-of-life.

The battery contained in this product includes:

Type Carbon monofluoride lithium battery

Weight 0.8 grams

Location Formatter board

User removable No

廢電池請回收

This product contains mercury in the fluorescent lamp of the control panel liquid crystal display that might require special handling at end-of-life.

For recycling information you can visit www.hp.com/go/recycle or contact your local authorities or the Electronics Industry Alliance (www.eiae.org).

Disposal of waste equipment by users in private households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Material Safety Data Sheet (MSDS)

Material Safety Data Sheets (MSDS) for supplies containing chemical substances (for example, toner) can be obtained by accessing the HP Web site at www.hp.com/go/msds or www.hp.com/hpinfo/community/environment/productinfo/safety.

For more information

To obtain information about these environmental topics:

• Product environmental profile sheet for this and many related HP products
HP's commitment to the environment
HP's environmental management system
HP's end-of-life product return and recycling program
• Material Safety Data Sheets

Visit www.hp.com/go/environment or www.hp.com/hpinfo/globalcitizenship/environment.

Certificate of volatility

This is a statement regarding the volatility of customer data stored in memory. It also outlines how to erase secure data from the device.

Types of memory

Volatile memory

The MFP utilizes volatile memory (64MB on the board and 256MB installed, for a total of 320MB) to store customer data during the printing and copying process. When the MFP is powered off, this volatile memory is erased.

Non-volatile memory

The MFP utilizes non-volatile memory (EEPROM) to store system control data and user preference settings. No customer print or copy data is stored in non-volatile memory. This non-volatile memory can be cleared and restored to factory defaults by performing a Cold Reset or Restore Factory Defaults from the control panel.

Hard-disk-drive memory

The MFP contains an internal hard disk drive (40GB or larger) that may retain data after the MFP is powered off. The MFP also may contain additional optional compact flash storage, or an external EIO hard disk. Data stored in these devices may be from incoming/outgoing fax or email files, stored copy or print jobs, fax or email address books, or third-party solutions. Some of this data can be erased from the control panel of the MFP, but most must be erased using the Secure Storage Erase features available within HP Web Jetadmin. Secure Storage Erase features comply with U.S. Department of Defense (DOD) specification 5220–22.M.

Safety statements

Laser safety

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration has implemented regulations for laser products manufactured since August 1, 1976. Compliance is mandatory for products marketed in the United States. The device is certified as a "Class 1" laser product under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. Since radiation emitted inside the device is completely confined within protective housings and external covers, the laser beam cannot escape during any phase of normal user operation.

⚠ WARNING! Using controls, making adjustments, or performing procedures other than those specified in this user guide may result in exposure to hazardous radiation.

Canadian DOC regulations

Complies with Canadian EMC Class A requirements.

VCCI statement (Japan)

Power cord statement (Japan)

EMI statement (Korea)

시용시 안내문 (A급 기기)

EMI statement (Taiwan)

警告使用者：

General telecom statement

The HP Color LaserJet CM6030f MFP and CM6040f MFP models have the HP LaserJet Analog Fax Accessory 300 already installed to provide communication to the public switch telephone network (PSTN) for fax functionality. See the HP LaserJet Analog Fax Accessory 300 User Guide for all regulatory approval information and regulatory notices associated with the fax functionality and that device.

Laser statement for Finland

Luokan 1 laserlaite

Klass 1 Laser Apparat

Substances Table (China)

有毒有害物质表

specifications, physical 293

3-bin stapler/stacker

features 117

500-sheet trays

models including 2

specifications, physical 293

A

accessories

3-bin stapler/stacker 117

booklet-maker finisher 117

optional output 117

ordering 280

part numbers 281

accounting hardware 188

acoustic specifications 296

activity log, fax 179

address books, e-mail

adding addresses 169

auto-complete function 168

clearing 59

deleting addresses 169

importing 185

LDAP support 164

recipient lists 168

recipient lists, creating 168

address, printer

Macintosh,

troubleshooting 276

ADF

capacity 5

clean delivery system 212

maintenance kit 216

make copies from 154

sizes supported 167

ADF output bin

capacity 5

selecting 117

Administration menu, control panel 17

advanced printing options Windows 144

agreements, maintenance 291

alerts, e-mail 76

alternative letterhead mode 144

anticounterfeit supplies 193

AppleTalk settings 33

Attention light locating 14

automatic media sensing 114

automatic two-sided printing path copying documents 156

B

billing codes report, fax 179

bins

capacities 5

locating 8

selecting 117

blank pages, troubleshooting 272

blocked fax list, printing 179

Bonjour Settings 76

booklet maker

configuring 121

features 117

use 119

walkaround 119

books

copying 160

BOOTP 91

both sides, copying 156

both sides, printing on

Macintosh settings 76

browser requirements

embedded Web server 183

buttons, control panel

locating 14

touchscreen 16

C

cabinet/stand

specifications, physical 293

cable, USB

part number 282

cables

USB, troubleshooting 272

calibrate scanner 217

calibrating scanner 53

call report, fax 179

Canadian DOC regulations 308

cancel

copy jobs 162

print 140

cancel a print request 140

capacity

3-bin mailbox 5

ADF 5

output bins 5

stapler/stacker 5

cartridges

management menu 29

non-HP 193

ordering through embedded

Web server 186

recycling 303

replace 194

storage 193

warranty 286

cartridges, print

Macintosh status 80

part numbers 281

clean

about 212, 214

ADF delivery system 212

ADF rollers 214

fuser 267

glass 212

outside of product 212

touchscreen 212

clean page, printing 267

clock

set 191

collating copies 159

color

adjusting 146

advanced use 151

CMYK ink set emulation 151

edge control 146

four-color printing 151

halftone options 146

HP ImageREt 4800 151

manage 145

match 149

neutral grays 147

Pantone® matching 150

print color samples 149

print in grayscale 147

printed vs. monitor 149

restrict use 147

sample book matching 149

sRGB 151

using 145

color options 143

Color tab settings 80

colored text

print as black 144

configuration page

Information menu 18

Macintosh 76

printing 178

configurations, models 2

configure

trays 114

connect product 84

connectivity

network utilities 94

USB 84

connectivity features 5

contracts, maintenance 291

control panel

Administration menu 17

buttons 14

clean touchscreen 212

copy-screen 154

e-mail screen 166

E-mail Setup menu 41

Fax Setup menu 38

help 16

Home screen 15

Information menu 18

Initial Setup menu 31

layout 14

lights 14

locating 8

locking menus 190

Management menu 29

messages, types of 226

Resets menu 59

Send Setup menu 41

Service menu 60

settings 66, 74

Time/Scheduling menu 27

touchscreen buttons 16

controlling print jobs 115

copies, number of

Windows 144

Copitrak devices 188

copy

cancel 162

control-panel navigation 154

copy screen 154

from document feeder 154

from glass 154

Job Mode 161

multiple originals 161

photos and books 160

set options 154

settings 155

two-sided documents 156

copying

books 160

collating 159

features 6

quality, troubleshooting 264

speed specifications 4

counterfeit supplies 193

cover pages 77, 141

covers, locating 8

custom-size paper settings

Macintosh 77

customer support

embedded Web server

links 186

HP Printer Utility pages 76

maintenance agreements 291

online 289

D

Data light

locating 14

date, set 191

date, setting 27

Declaration of Conformity 301, 302

default job options menu 20

default settings

Resets menu 59

defects, repeating 264

delay, sleep 124

density

settings 76

Device Behavior menu 42

device discovery 89

device status

Macintosh Services tab 80

DHCP 91

diagnostics

networks 34

digital faxing 176

digital sending

about 164, 167

address books 168, 169

configure e-mail 164

control-panel settings 166

embedded Web server

settings 185

folders 171

job settings 170

LDAP support 164

loading documents 167

recipient lists 168

sending documents 167

Setup menu 41

SMTP support 164

validating gateway

addresses 273

workflow 172

Digital Sending tab, embedded

Web server 185

DIMMs (dual inline memory

modules)

installing 201

part numbers 282

Disk Erase feature 189

DLC/LLC settings 33

document feeder copying two-sided documents 156

document feeder kit, replacing 216

double-sided copying 156

double-sided printing Macintosh settings 76

dpi, settings 76

drivers Macintosh settings 77

Macintosh, troubleshooting 276

presets (Macintosh) 77

settings 66, 67, 74

shortcuts (Windows) 141

supported 63

universal 64

Windows, opening 141

duplex copying documents 156

duplex printing Windows 142

duplex printing accessory locating 8 specifications, physical 293

duplexer Macintosh settings 76

duty cycle 4

E

e-mail alerts 76

Easy Printer Care 180

economy settings sleep and wake 124

EIO cards installing 205 part number 282

electrical specifications 295

embedded Web server assigning a password 188 Digital Sending tab 185 features 183

energy specifications 295

Enhanced I/O card part number 282

envelope feeder specifications, physical 293

envelopes

jams 261

loading in tray 1 103

environment, specifications 297

Environmental Product Stewardship Program 303

EPS files, troubleshooting 277

Equitrac devices 188

erasing hard disk 189

Error button, control panel touchscreen 16

error messages control panel 227

e-mail alerts 76

types of 226

Ethernet cards 5

European Union, waste disposal 305

EWS features 183

Explorer, versions supported embedded Web server 183

extended warranty 291

e-mail about 164, 167

address books 168, 169

auto-complete function 168

configure 164

control-panel settings 166

embedded Web server settings 185

job settings 170

LDAP support 164

loading documents 167

problem solving 273

recipient lists 168

scan 164

sending documents 167

SMTP support 164

validating gateway addresses 273

E-mail Setup menu 41

F

fax accessory analog fax 174 configure features 174 connecting phone line 174 digital fax 176

printing schedule 28 solve problems 273

Fax Activity Log clearing 59

fax reports, printing 18, 179

Fax Setup menu 38

faxing analog 174

faxing, digital 176

features 2, 4

file directory, printing 179

File Upload, Macintosh 76

Finnish laser safety statement 309

Firmware Update, Macintosh 76

firmware, upgrading 218

first page use different paper 77

folders sending to 171

fonts EPS files, troubleshooting 277 included 4 list, printing 19, 179 Upload Macintosh 76

Foreign Interface Harness (FIH) 10, 188

formatter cover, locating 8

formatter lights 263

fraud hotline 193

FTP, sending to 172

fuser clean 267

G

gateways configure 164 configuring 165 testing 165 validating addresses 273

glass clean 212 sizes supported 167

graphical display, control panel 14

grayscale printing 147

H

hard disk erasing 189

heartbeat LED 263

held jobs 129

Help button, control panel touchscreen 16

help, control panel 16

Home button, control panel touchscreen 16

Home screen, control panel 15

HP Customer Care 289

HP Easy Printer Care description 69 downloading 69 opening 180 options 180 supported browser supported operatin systems 69 using 180

HP fraud hotline 193

HP Jetdirect print server firmware updates 221 installing 205 lights 263 models including 2 settings 31

HP Jetdirect print servers installing 205

HP Printer Utility 75, 76

HP Printer Utility, Macintosh 75

HP Universal Print Driver 64

HP Web Jetadmin firmware updates 220

HP-UX software 71

humidity requirements 297

|

I/O configuration network configuration 90 settings 31

image drums part numbers 281 replace 198

image fuser kit, 110 volt part number 281

image fuser kit, 220 volt part number 282

Information menu 18

information pages 178

Information tab, embedded Web server 184

Initial Setup menu 31

installers, Windows 94

installing EIO cards 205

interface ports included 5 locating 10

Internet Explorer, versions supported embedded Web server 183

Internet fax 176

Internet protocol (IP) 90

IP address BOOTP 91 changing 92 input 92 Macintosh, troubleshooting 276 overview 90

IP addressing 89

IPX/SPX setting 33

J

jam-access lever, locating 8

jams clearing 229 common causes of 228 envelopes 261 recovery 257

Japanese VCCI statement 308

Jetadmin firmware updates 220

Jetadmin, HP Web 69, 187

Jetdirect print server firmware updates 221 installing 205 lights 263 models including 2 settings 31

Job Aids 7

Job Mode, copying 161

job storage accessing 129 features 129

Macintosh settings 80 personal 131 proof and hold 129 QuickCopy 132 settings 29

jobs Macintosh settings 76

K

keys, control panel locating 14 touchscreen 16

Korean EMI statement 308

L

LAN fax 176

LAN-connector 5

landscape orientation setting, Windows 142

languages, printer 4

laser safety statements 308, 309

LDAP servers connect to 164 embedded Web server settings 185 validating gateway addresses 273

letterhead load 108

letterhead paper, loading 144

lights control panel 14 formatter 263

link speed settings 36

Linux software 71

load media configuring 103

loading documents, sizes supported 167 scanner glass 167 sizes supported 1 tray 1 103 trays 2, 3, 4 104

Lock Resources, Macintosh 76 locking control panel menus 190

M

Macintosh AppleTalk settings 33 driver settings 74, 77 drivers, troubleshooting 276 HP Printer Utility 75 problems, troubleshooting 276

removing software 74

resize documents 77

software 75

software components 94

staple options 79

support 289

supported operating systems 74

USB card,

troubleshooting 277

Macintosh driver settings

custom-size paper 77

Job Storage 80

Services tab 80

watermarks 78

mailbox, 3-bin

capacity 5

selecting 117

specifications, physical 293

maintenance agreements 291

maintenance kit 281

manage

EPC 180

EWS 183

information pages 178

supplies 193

Management menu 29

Material Safety Data Sheet

(MSDS) 305

Media 95

media

custom-size, Macintosh settings 77

first page 77

loading tray 2 107

loading tray 2, 3, and 4 106

loading tray 2, 3, or 4 104

pages per sheet 78

stapler support 126

supported sizes 97

memory

enabling 204

features 4

included 2, 75

part numbers 282

Menu button 14

menu map

Information menu 18

printing 178

menus, control panel

Administration 17

E-mail Setup 41

Fax Setup 38

Information 18

Initial Setup 31

locking 190

Management 29

Resets 59

Send Setup 41

Service 60

Time/Scheduling 27

messages

e-mail alerts 76

types of 226

models 2

monthly duty cycle 4

multiple pages per sheet

Windows 142

N

n-up printing

Windows 142

Netscape Navigator, versions supported

embedded Web server 183

network

connection 85

Network Folder, scan to 171

Networking tab, embedded Web server 186

networks

AppleTalk settings 33

configuring 90

configuring gateway

addresses 165

connectivity features 5

default gateway 93

device discovery 89

DHCP 91

diagnostics 34

DLC/LLC settings 33

gateways 91

HP Web Jetadmin 187

installing EIO cards 205

Internet Protocol (IP) 90

IP address 89, 90, 92

IPX/SPX settings 33

link speed settings 36

Macintosh settings 76

print servers included 2

protocol configuration page, printing 37

protocols supported 89

security 34

SMTP servers 164

subnet mask 92

subnets 91

TCP/IP 90

TCP/IP parameters 92

TCP/IP settings 31

testing SMTP settings 165

Transmission Control Protocol (TCP) 90

troubleshooting printing 274

validating gateway

addresses 273

noise specifications 296

non-HP supplies 193

0

on/off switch, locating 8

online help, control panel 16

online support 289

operating environment

specifications 297

operating systems supported 62, 74

optional output accessories 117

ordering

part numbers for 281

supplies and accessories 280

supplies through embedded

Web server 186

orientation

setting, Windows 142

outdoor signs

printing 137

output bins

accessories 117

capacities 5

locating 8

selecting 117

selecting, Windows 142

standard 117

output quality

troubleshooting 264

P

page order, changing 144

pages

blank 272

not printing 272

printing slowly 272

pages per minute 4

pages per sheet

Windows 142

paper

covers, using different

paper 141

custom size, selecting 141

custom-size, Macintosh

settings 77

first and last pages, using

different paper 141

first page 77

load 103

pages per sheet 78

selecting 116

source 115

stapler support 126

supported sizes 97

type 100, 116

type and size 116

type, selecting 141

paper jams

ADF 252

parallel port

locating 10

part numbers

accessories 281

image drums 281

memory 282

print cartridges 281

parts

order 281

pausing a print request 140

PCL drivers

universal 64

personal jobs 131

phone line, connecting fax

accessory 174

photos

copying 160

improving print quality 141

loading 167

printing 135

removing red eye 141

physical specifications 293

PINs, personal jobs 131

portrait orientation

setting, Windows 142

ports

included 5

locating 10

troubleshooting

Macintosh 277

PostScript Printer Description

(PPD) files

included 75

power

specifications 295

troubleshooting 224

power switch, locating 8

PPDs

included 75

pre-printed paper

load 108

pre-punched paper

load 108

presets (Macintosh) 77

print cartridge

managing 193

print cartridges

Macintosh status 80

management menu 29

non-HP 193

ordering through embedded

Web server 186

part numbers 281

recycling 303

replacing 195

storage 193

warranty 286

print drivers

Windows 141

print features

paper quality options 141

print media

loading in tray 1 103

supported sizes 97

print on both sides

Windows 142

print paper

for color printing 151

types 100

print quality

menu 49

troubleshooting 264

print server card

installing 205

print tasks 139

printer languages 4

printing

outdoor signs 137

output bin, selecting 117

speed specifications 4

troubleshooting 272

weatherproof maps 137

printing from tray 2, 3, or 4 104

priority onsite service 291

priority, settings 66, 74

private jobs

cancel 140

Windows 142

problem-solving

e-mail alerts 76

Error button, control panel

touchscreen 16

e-mail 273

jams 228

messages, types of 226

networks 34

paper handling 258

processor speed 4

product info 1

product status

HP Easy Printer Care 180

proof and hold

Windows 142

proof and hold jobs 129

protocol configuration page,

printing 37

protocols, network 89

PS Emulation drivers 63

Q

quality

troubleshooting 264

Quick Reference Job Aids 7

Quick Sets 141

R

Ready light

locating 14

real-time clock 191

recipient lists 168

recycling

HP printing supplies returns and environmental program 304

red eye, removing 141

regulatory statements

Declaration of

Conformity 301, 302

environmental product stewardship program 303

remote firmware update (RFU) 218

removing Macintosh software 74

repeating defects, troubleshooting 264

replace

image drums 198

memory 201

supplies 194

reset button 14

Resets menu, control panel 59

resize documents

Macintosh 77

Windows 142

resolution

settings 76

specifications 4

troubleshooting quality 264

Resolution Enhancement technology (REt) 76

resolution, adjusting 141

restore factory settings 225

REt (Resolution Enhancement technology) 76

retention, job

accessing 129

features 129

personal 131

proof and hold 129

QuickCopy 132

rollers

clean ADF 214

ruler, repetitive defect 264

S

safety statements 308, 309

scale documents

Macintosh 77

Windows 142

scanner calibration 53, 217

scanner glass

clean 212

scanning

speed specifications 4

scanning to e-mail

about 164, 167

address books 168, 169

configure 164

control-panel settings 166

embedded Web server settings 185

job settings 170

LDAP support 164

loading documents 167

recipient lists 168

sending documents 167

settings 164

SMTP support 164

validating addresses 273

scanning to folder 171

scanning to workflow 172

Secure Disk Erase 189

security

EWS 188

Foreign Interface Harness (FIH) 188

locking control panel menus 190

secure disk erase 189

settings 34

security features 6

Send Setup menu 41

Send to Folder 171

Send to Workflow 172

sending to e-mail

about 164, 167

address books 168, 169

embedded Web server settings 185

job settings 170

LDAP support 164

loading documents 167

recipient lists 168

sending documents 167

settings 166

SMTP support 164

validating gateway addresses 273

separator page

Windows 142

serial number

locate 10

service

agreements 291

Service menu, control panel 60

Services tab

Macintosh 80

settings

driver presets (Macintosh) 77

drivers 67, 74

priority 66, 74

restore factory 225

Settings tab, embedded Web server 184

shortcuts 141

Sleep button 14

Sleep mode

settings 27, 29

sleep settings

delay 124

power specifications 295

wake time 124

SMTP servers

configuring gateway address 165

connect to 164

testing 165

validating gateway addresses 273

software

embedded Web server 69

HP Easy Printer Care 69, 180

HP Printer Utility 75

HP Web Jetadmin 69

Macintosh 75, 94

settings 66, 74

supported operating systems 62, 74

uninstalling Macintosh 74

Windows 62, 94

Solaris software 71

space requirements 293

special media

guidelines 102

special paper

guidelines 102

specifications

acoustic 296

electrical 295

features 4

operating environment 297

physical 293

speed dial list, printing 179

speed specifications 4

standard output bin

capacity 5

locating 8

selecting 117

staple cartridges

empty, stop or continue

settings 128

staple options

Macintosh 79

Windows 142

stapler

empty, stop or continue

settings 128

jams, clearing 253

paper sizes supported 126

using 128

stapler options

stapler/stacker 118

stapler/stacker

capacity 5

configuring 121

selecting 117

specifications, physical 293

staples

loading 207, 209

stapling jobs 128

Start button 14

Start button, control panel

touchscreen 16

status

embedded Web server 184

Home screen, control

panel 15

HP Easy Printer Care 180

HP Printer Utility,

Macintosh 76

Macintosh services tab 80

messages, types of 226

Status button 14

Stop button 14

Stop button, control panel

touchscreen 16

stopping a print request 140

storage cabinet

specifications, physical 293

storage, job

accessing 129

features 129

Macintosh settings 76, 80

personal 131

proof and hold 129

QuickCopy 132

settings 29

store jobs

Windows 142

storing

print cartridges 193

subnet mask 91, 92

subnets 91

supplies

counterfeit 193

locating 194

management menu 29

non-HP 193

ordering 280

ordering through embedded

Web server 186

part numbers 281

recycling 303

replace 194

replacement intervals 195

replacing 194

Resets menu 59

status page, printing 178

status, viewing with embedded

Web server 184

status, viewing with HP Printer Utility 76

supplies 193

supplies, status

HP Easy Printer Care 180

supply-status, Services tab

Macintosh 80

Windows 143

support

embedded Web server

links 186

HP Printer Utility pages 76

maintenance agreements 291

online 143, 289

supported media 97

supported utilities

for Macintosh 76

system requirements

embedded Web server 183

T

Taiwan EMI statement 309

TCP/IP

configuring 90

TCP/IP settings 31

TCP/IPv4 92

TCP/IPv6 93

technical support

maintenance agreements 291

online 289

temperature requirements 297

tests

networks 34

time, set 191

time, setting 27

Time/Scheduling menu, control

panel 27

timeout settings 31

toner

density setting 76

toner cartridges. See print

cartridges

top cover

locating 8

touchscreen, clean 212

Transmission Control Protocol

(TCP) 90

tray 1

locating 8

tray 2, 3, 4, 5

load 104

trays

automatic media sensing 114

configure 114

double-sided printing 79

included 2

load 103

Macintosh settings 76

select paper 115

specifications, physical 293

trays, status

HP Easy Printer Care 180

troubleshooting

blank pages 272

checklist 224

control panel messages 227

duplexing 262

EPS files 277

gateway addresses 273

jams 228

Macintosh problems 276 menu 53

network printing 274

pages not printing 272

pages printing slowly 272

paper handling problems 258

quality 264

repeating defects 264

transparencies 260

USB cables 272

TrueType fonts included 4

two-sided copying 156

two-sided printing

Macintosh settings 76

Windows 142

typefaces

included 4

U

uninstalling Macintosh software 74

universal print driver 64

UNIX software 71

upgrading firmware 218

usage page, printing 178

USB configuration 84

USB connection 84

USB port

troubleshooting 272

troubleshooting

Macintosh 277

V

validating gateway

addresses 273

voltage specifications 295

W

wake time, setting 27, 124

Warning button, control panel touchscreen 16

warranty

Customer self repair 288

extended 291

print cartridges 286

product 284

watermarks

Windows 142

weatherproof maps

printing 137

Web browser requirements

embedded Web server 183

Web Jetadmin

firmware updates 220

Web sites

customer support 289

fraud reports 193

HP Web Jetadmin, downloading 187

Macintosh customer support 289

Material Safety Data Sheet (MSDS) 305

ordering supplies 280

universal print driver 64

Windows

driver settings 67

drivers supported 63

software components 94

supported operating systems 62

universal print driver 64

Windows 2000 fax 176

workflow, send to 172
