HardwareInstallationGuidefortheCisco1000SeriesIntegrated ServicesRouter

AmericasHeadquarters

CiscoSystems, Inc.

170WestTasmanDrive

SanJose, CA95134-1706

USA

http://www.cisco.com

Tel:[phone]

800553-NETS(6387)

Fax:[phone]

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment causes interference to radio or television reception, which can be determined by turning the equipment off and on, users are encouraged to try to correct the interference by using one or more of the following measures:

• Rcorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of the UNIX operating system. All rights reserved. Copyright 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED "AS IS" WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for the latest version.

Cisco has more than 200 offices worldwide. Addresses and phone numbers are listed on the Cisco website at www.cisco.com/go/offices.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: https://www.cisco.com/e/cn/us/about/legal/trademarks.html. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1721R)

© 2017–2019 Cisco Systems, Inc. All rights reserved.

City skyline with modern skyscrapers and solar panels in foreground under bright sunlight (no visible text or symbols)

CONTENTS

CHAPTER 1

OverviewofCisco1000SeriesIntegratedServicesRouters1

About Cisco 1000 Series Integrated Service Routers 1

Chassis Views 4

LED Indicators 13

Reset Button 20

Power Supply 20

Slots and Interfaces 21

About Slots, Subslots, and Port Numbering 21

Specifications of Cisco 1100 Series Integrated Services Routers 21

Periodic Inspection and Cleaning 21

CHAPTER 2

PrepareforRouterInstallation23

Safety Recommendations 23

Safety With Electricity 24

Prevent Electrostatic Discharge Damage 24

General Site Requirements 24

Site Selection Guidelines 25

Rack Requirements 25

Safety Recommendations 26

Power Guidelines and Requirements 26

Network Cabling Specifications 27

Console Port Considerations 27

EIA/TIA-232 27

USB Serial Console 27

Console Port Considerations 28

Prepare for Router Installation 29

Ethernet Connections 29

Required Tools and Equipment for Installation and Maintenance 29

CHAPTER 3

InstallandConnecttheRouter31

Unpack the Router 31

Set up Router on Desktop, Rack, or Wall 31

Rack Mount 32

Attach the Brackets for C111x 32

Attach the Rack Mounting Brackets for C112x 33

Mount the Router 34

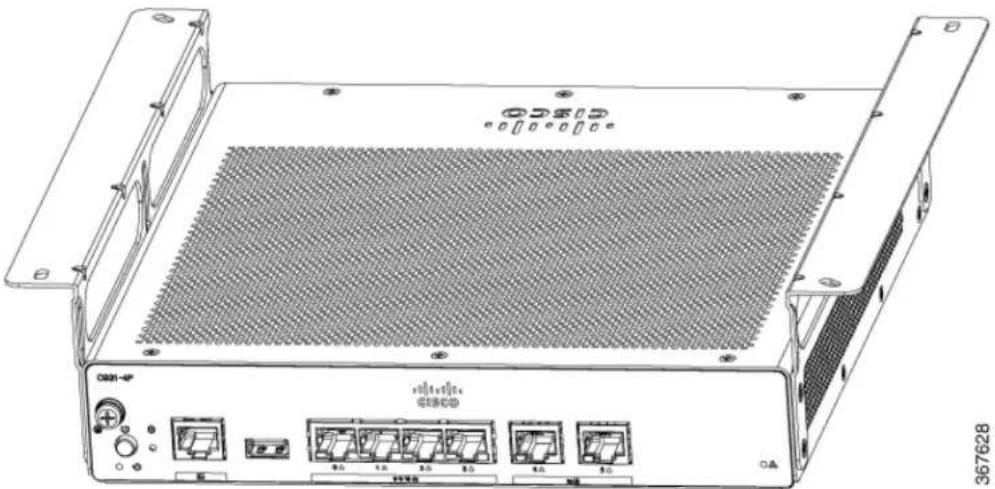

Mount the Router under a Desk or a Shelf 35

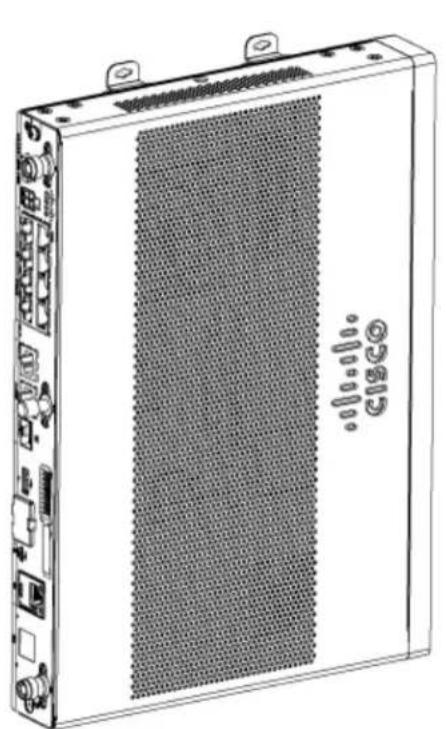

Mount Router using DIN Rail Brackets 36

Attach Din-Rail Brackets on C112x 37

Wall Mount the Router 38

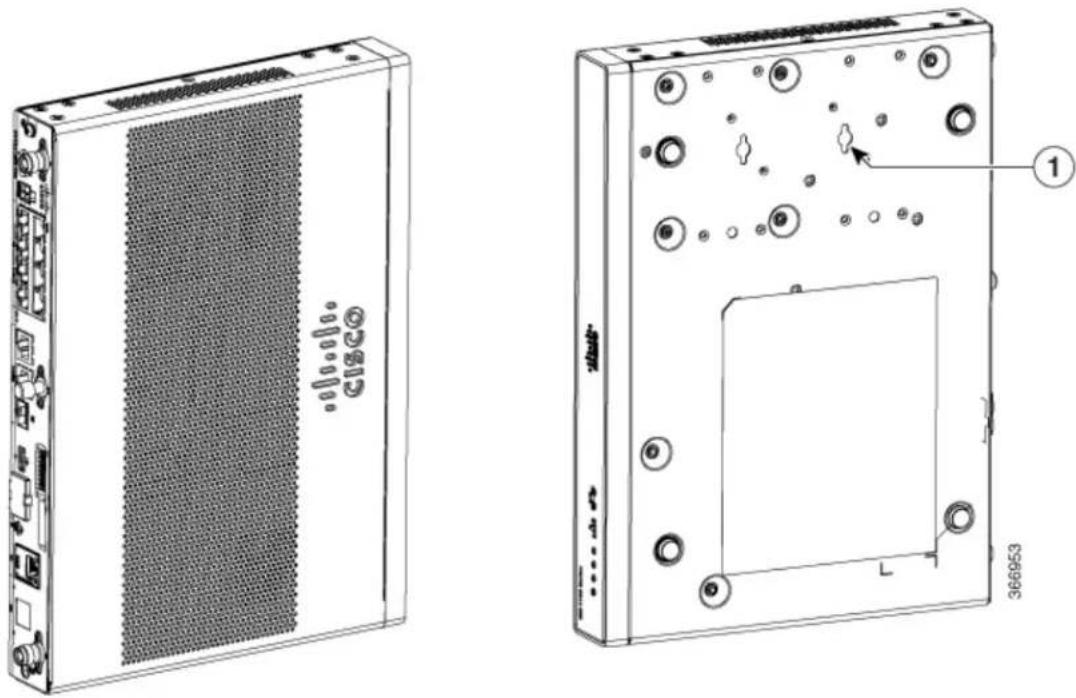

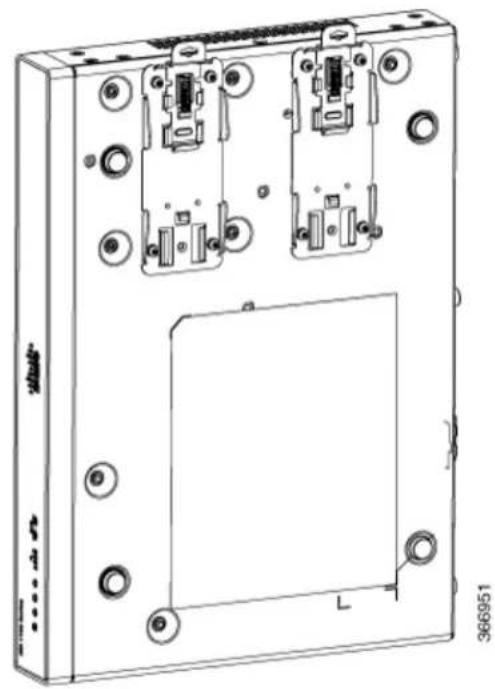

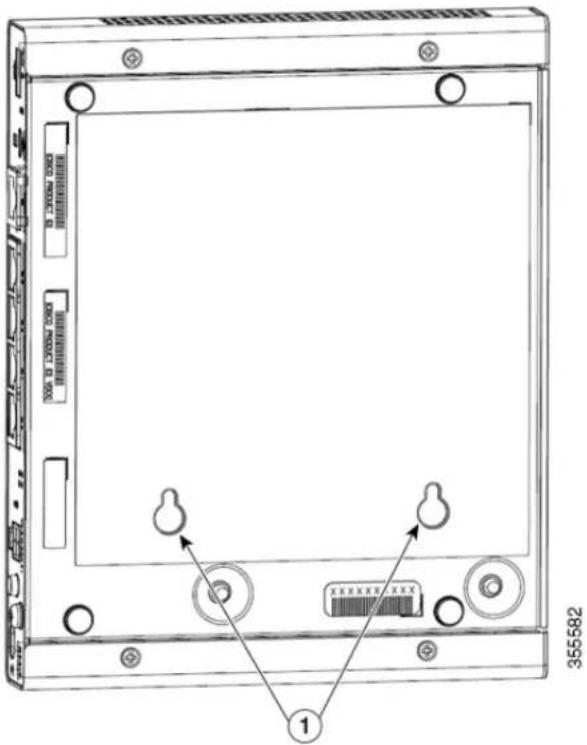

Wall Mount Using Key-hole Slots 38

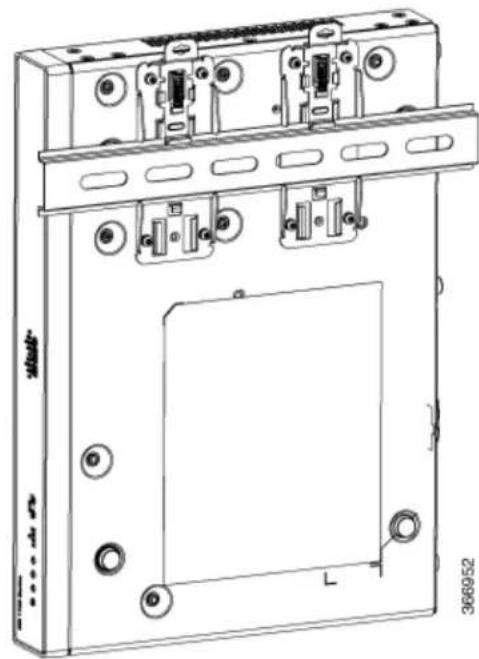

Wall Mount using DIN Rail Brackets 45

Chassis Grounding 48

Connect Power Cable 50

Connect the Router to a Console 52

Connect to the Serial Port with Microsoft Windows 54

Connect to the Console Port with Mac OS X 55

Connect to the Console Port with Linux 55

Connect WAN and LAN Interfaces 56

Ports and Cabling 56

Connection Procedures and Precautions 57

Configure the Router at Startup 57

CHAPTER 4

InstallandUpgradeInternalModulesandFieldReplaceableUnits59

Replace the Chassis Covers for C111X and C1111x 59

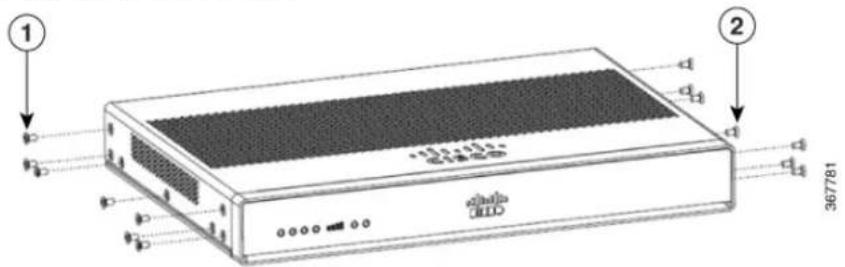

Remove the Cover 60

Replace the Cover 61

External Modules 62

Locate External Slots for Modules 62

Install and Remove Small Form Pluggable Modules 63

Install Small Form Pluggable Module 63

Remove Small Factor Pluggable Module 63

Install an LTE Pluggable Module 64

Install an LTE Pluggable Module on a C1101-4P 65

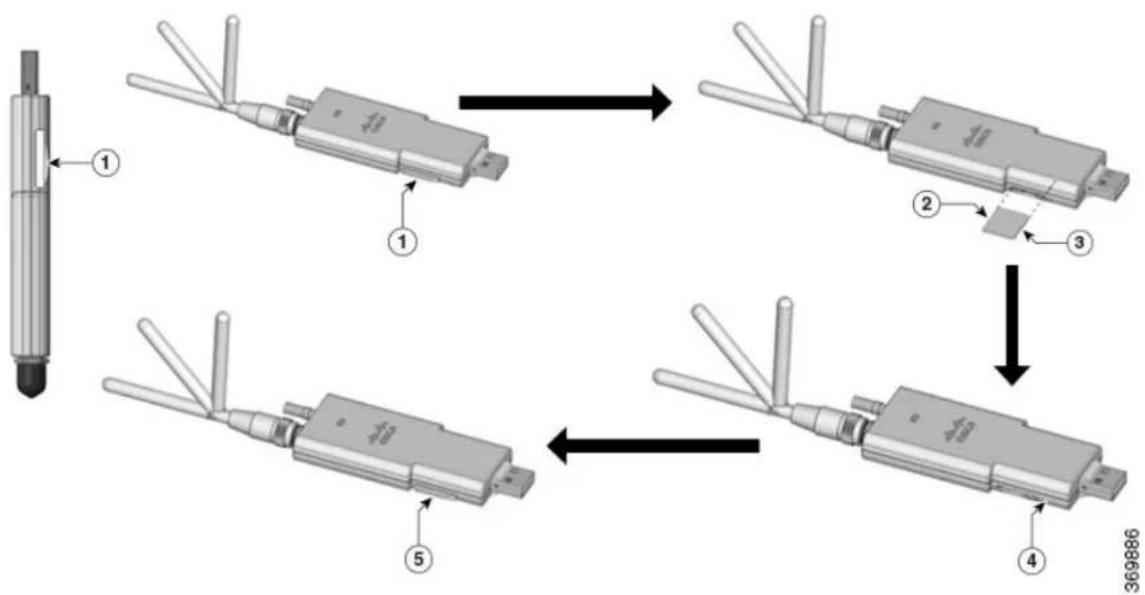

Install a Micro-SIM Card into a USB LTE Dongle 69

Antenna Mounting Instructions 72

Rack Mount of the Antenna 72

Wall Mount of the Antenna 74

Ceiling Mount of the Antenna 76

CHAPTER 5

ROMMONitorOverview79

ROM Monitor Overview 79

CHAPTER 6

SupplierDeclarationofConformity81

Contents

CHAPTER 1

OverviewofCisco1000SeriesIntegrated ServicesRouters

Cisco 1000 Series Integrated Services Routers (ISRs) with Cisco IOS XE Software are high-performance devices that are easy to deploy and manage. The routers combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0, Wireless WAN and Wireless LAN).

• About Cisco 1000 Series Integrated Service Routers, on page 1
  • Periodic Inspection and Cleaning, on page 21

AboutCisco1000SeriesIntegratedServiceRouters

The Cisco 1000 series Integrated Services Routers are the next generation, IOS XE based, multi core, br routers. They are available in both fixed and modular form factors. The Cisco 1000 series is best suited small and midsize businesses, enterprise branches and as customer premises equipment in managed service environments.

Table1:BaseModelsoftheCisco1000SeriesISR

Base Models	Panel Switch Ports		ConsolePortW/ANR04aFront(Optional) POE	WLAN	(Optional)LTE	(Optional) DSL
	8C111x-8P (1 Combo RJ-45/SFP + 1 RJ-45)		Micro USB		None4PoE/2P	4E+Serial RJ LTE-Advanced (CAT6) with carrier aggregation
	8C111X28P1 Combo RJ-45/SFP + 1 RJ-45)		Micro USB			NoneNoneNone4PoE/
Base Models	Panel Switch Ports		ConsolePortWAP PortsFront POE	(Optional) WLAN	(Optional) LTE	(Optional) DSL
	4C111x-4P (1 Combo RJ-45/SFP + 1 RJ-45)	Serial RJ-45, Micro USB	2 POE/1 POE+	802.11ac WAVE 2	4G LTE-Advanced (CAT6) with carrier aggregcation	VDSL2 and ADSL2/2+
			NoneMicro	USB11 RJ-454 WAVE 2 (C104PLIPWx)	C104PLIPWx pluggable LTE (CAT 4) and pluggable LTE Advanced (CAT 6) with carrier aggregcation	None4G
						NoneNoneNoneNoneMic
				NoneNoneMicro USB1 R (CAT 4)		N4624C109-2LTE
			NoneMicro USB11 RJ-454 WAVE 2 (C104PLIPWx)	C110-4LTE2P pluggable modcms - 4G pluggable LTE (CAT 4) and pluggable LTE Advanced (CAT 6) with carrier aggregcation		NoneDual
				NoneNoneNoneNoneNoneLTE CAT4: B1, B3, B8, B11, B18, B19, B21 3G UMTS HSPA+		NoneEWN7605-G
Base Models	Panel Switch Ports		ConsolePortW/ATMPortalFront POE	(Optional) WLAN	(Optional) LTE	(Optional) DSL
					NoneNoneNoneNoneNoneLTE CAT4: B1, B3, B5, B8, B40, B41*3G UMTS DC-HSPA+ * B41 supported frequency range:(2535-2655 MHz)	NOTEWR7608-G
					NoneNoneNoneNoneNoneLTE CAT4: B2, B4, B5, B12, B13, B14, B17, B663G UMTS DC-HSPA+, HSPA+, HSPA, WCDMA	NOTE-MRNA10-G
	4C1121-4PRJ45/SFP+1 RJ45		Micro USB2(1 Combo POE+)			NoneNoneNone2 PO
	4C1121-4PLTEPRJ45/SFP+1 RJ45		Micro USB2(1 Combo POE+)	None2 POE/1 Pluggable LTE (CAT 4) and pluggable LTE Advanced (CAT 6) with carrier aggregation	None4G
*	8C11x1(X)-8PRJ45/SFP+1 RJ45		Micro USB2(1 Combo POE+)			NoneNoneNone4 PO
Base Models	Panel Switch Ports		ConsolePortW(AM)PortsFrontPOE	(Optional)WLAN	(Optional)LTE	(Optional)DSL
8PLTEP *	8C11x1(X)-RJ45/SFP+1RJ45		Micro USB2(1 Combo POE+)	None4 POE/	2G Pluggable LTE (CAT 4) and pluggable LTE Advanced (CAT 6) with carrier aggregation	VDSL2, ADSL2/2+, G.SHDSL
	8C12XSLHWxRJ45/SFP+1RJ45		Micro USB2(4 ROE/Bo POE+)	802.11 AC WAVE 2	Pluggable LTE (CAT 4) and pluggable LTE Advanced (CAT 6) with carrier aggregation	None4G

Note

Base Models with an 'X' has 8GB of DRAM and Flash memory. Example: C1111X-8P

Base Models without an 'X' have 4GB of DRAM and Flash Memory. Example: C1111-8P

For base model-C11x1X-8PLTEP, 'x' represents the CPU performance level.

For more information on the features and specifications of Cisco 1100 Series Integrated Services Routers (ISRs), refer to the Cisco 1000 Series Integrated Services Routers Solution Overview document and Cisco 1000 Series Integrated Services Routers datasheet.

ChassisViews

This section contains front and back panel views of the C1100 Series ISR-showing locations of the power and signal interfaces, interface slots, status indicators, and chassis identification labels.

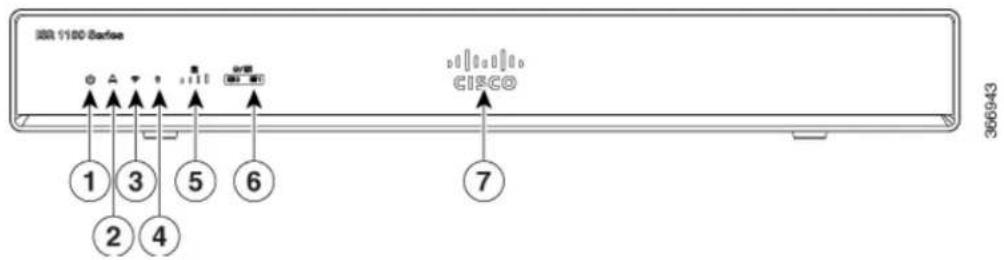

Figure1:C111xSeries-BezelView

IBM 1180 Ethernet ① ③ ⑤ ⑥ ② ④ ⑦ CISCO 366943

			VPN2Status1
			GPS4WiFi3
			LTE Data/SIM6LTE Signal Intensity5
	Illuminated Cisco Logo7

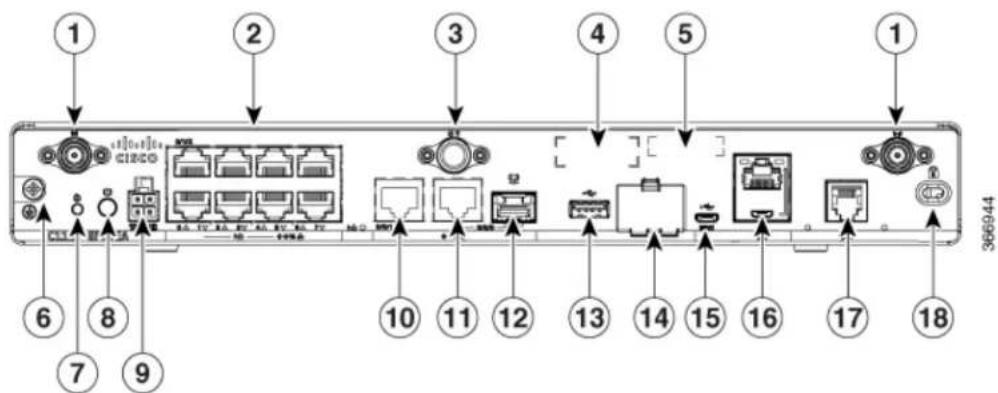

Figure2:C111x-8P-I/OView

1 2 3 4 5 1 6 7 8 9 366944

			Ethernet Switch2LTE Antennas - Main and Diver
			CLEI Label4GPS Connection3
			Grounding6Serial Number
	7	8Reset	ButtonSwitch
9	4-pin Power Connector	10	GE 0/0/1
11	GE 0/0/0 - RJ45	12	GE 0/0/0 - SFP
13	USB3.0	14	Lower slot0Upper slot1
15	LTE Provisioning Port	16	RJ45 / Micro USB Console
17	DSL	18	Kensington Lock Slot

Product Identification Number (PID)19

Note

For more information on the Reset Button, refer to the Reset Overview section in the ISR 1000 Series Integrated Services Routers.

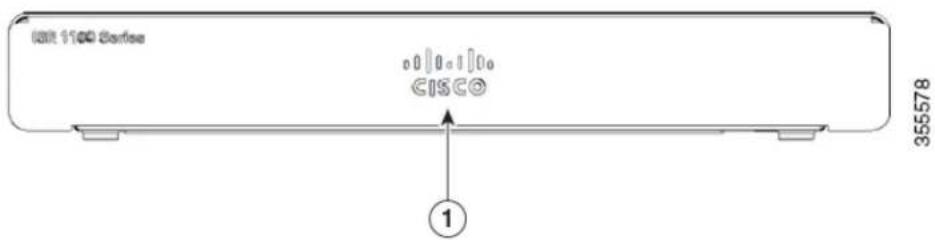

Figure3:C1101-4PISR-FrontView

IOUT 1100 Series CISCO 1 355578

Non-illuminated Cisco Logol

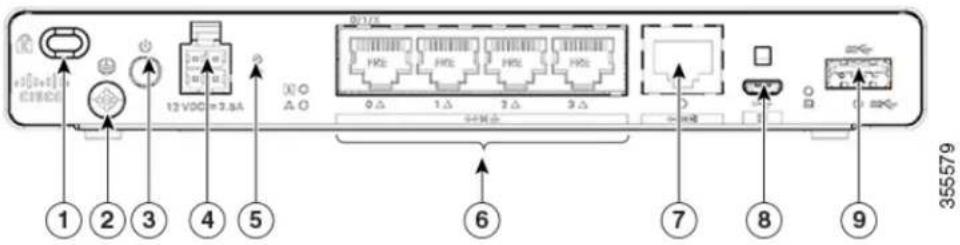

Figure4:C1101-4PISR-I/OView

1 2 3 4 5 12 VDD 3.8A 6 7 8 9 355579

			Grounding2Kensington Lock Slot1
			4-pin Power Connector4Power Switch3
			LAN: 0-46Reset Button5
			Micro USB Console8GE WAN7
	USB3.09

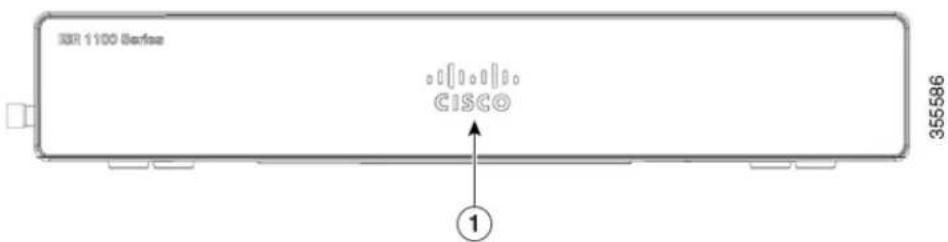

Figure5:C1101-4PLTEP-BezelView

XR 1100 Server CISCO ① 355586

Non-illuminated Cisco logol

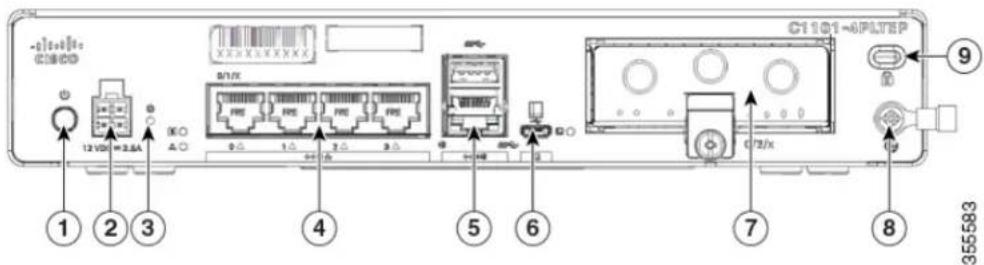

Figure6:C1101-4PLTEP-I/OView

C1101-6PLTEP ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ 12 VD = 2.6A A: 0.5 1.5 2.5 3.5 C1101-6PLTEP 355583

			4-pin Power Connector2Power Switch1
			LAN:0-44Reset Button3
			Micro-USB console Port6GE WAN5
			Grounding8Pluggable7
	Kensington Lock Slot9

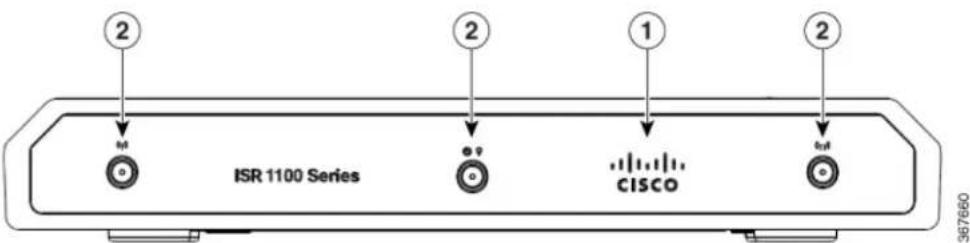

Figure7:C1109-2PLTE-BezelView

2 ISR 1100 Series 2 CISCO 1 2 367660

	Non-illuminated Cisco logol
	Main and Diversity Antenna2

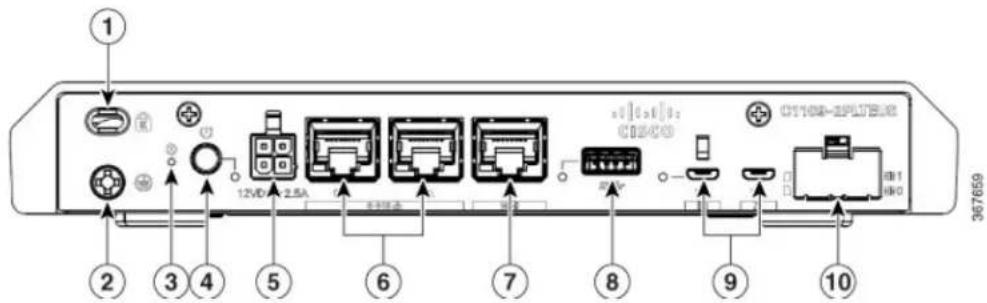

Figure8:C1109-2PLTE-I/OView

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ I/O: I/O1 I/O2 367659

			Grounding2Kensington Lock Slot1
			Power Switch4Reset Button3
			LAN: 0 & 164-pin Power Connector5
			Micro-USB console Port8GE WAN7
			Micro-SIM slots 0 and 110USB 3.09

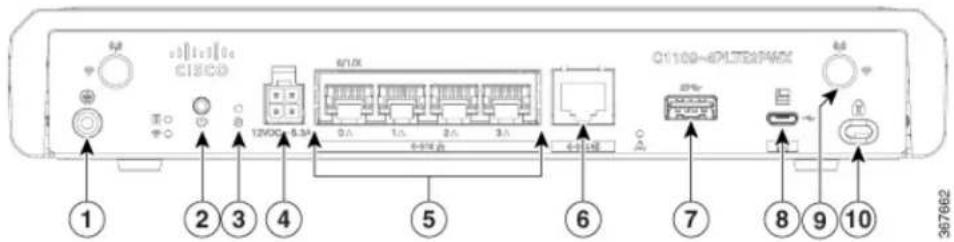

Figure9:C1109-4PLTE2PWX-I/OView

I2VDC C18CO 6/10X Q1100-4EPLTD2P46X 1 2 3 4 5 6 7 8 9 10 2676662

			Power Switch2Grounding1
			4-pin Power Connector4Reset Button3
			GE SWAN6LAN:0-4
			Micro-USB console Port8USB 3.07
			Kensington Lock Slot10LTE Antenna

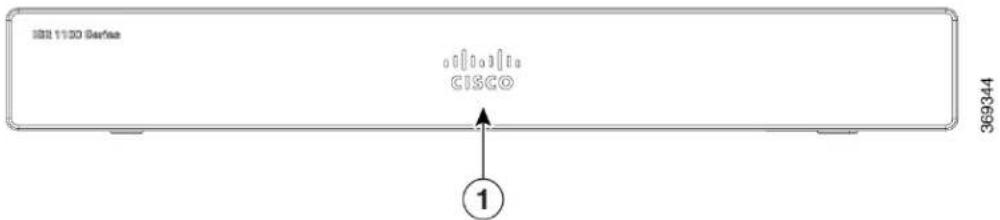

Figure10:C1121-4Px-BezelView

1100 Series CISCO ① 369344

Non-illuminated Cisco logo1

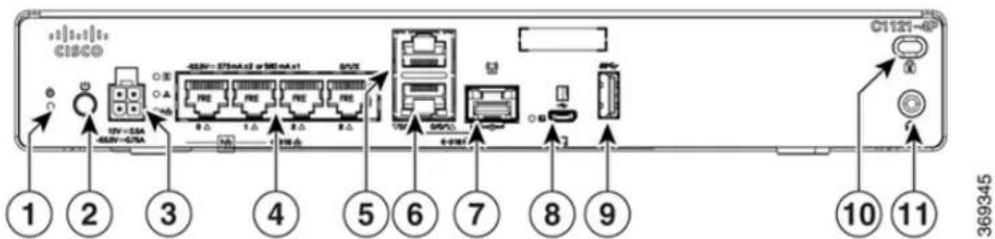

Figure11:C1121-4PI/OView

CISCO 1 2 3 4 5 6 7 8 9 10 11 369345

			Power Switch2Reset Button1
			Ethernet Switch44-pin Power Connector3
			GE WAN 0/0/0 -RJ456RJ-45 Stacked Co
			Micro-USB console8GE WAN 0/0/0 -SFP
			Kensington Lock Slot10USB 3.09
11	Grounding

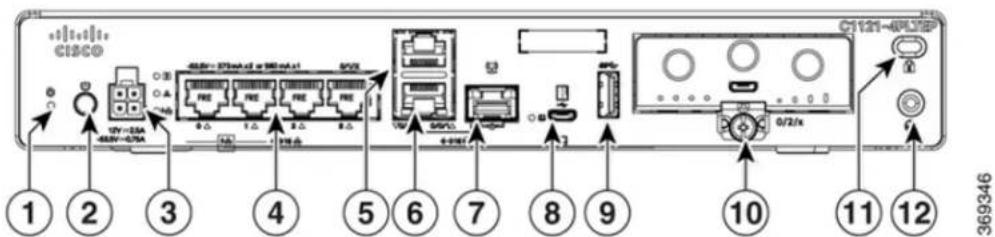

Figure12:C1121-4PLTEPI/OView

CISCO 1 2 3 4 5 6 7 8 9 10 11 12 369346

			Power Switch2Reset Button1
			Ethernet Switch44-pin Power Connector3
			GE WAN 0/0/0 -RJ456GE 0/0/1
			Micro-USB console8GE WAN 0/0/0 -SFP
		10USB	Plugable
		12Kens	Groundingck Slot11

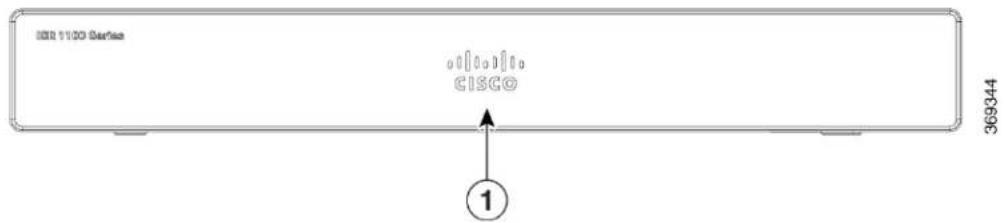

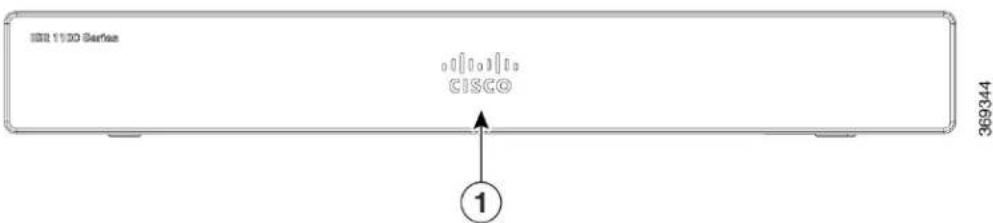

Figure13:C1121(X)-8P-BezelView

IBB 1100 Server CISCO ① 369344

Non-illuminated Cisco logo1

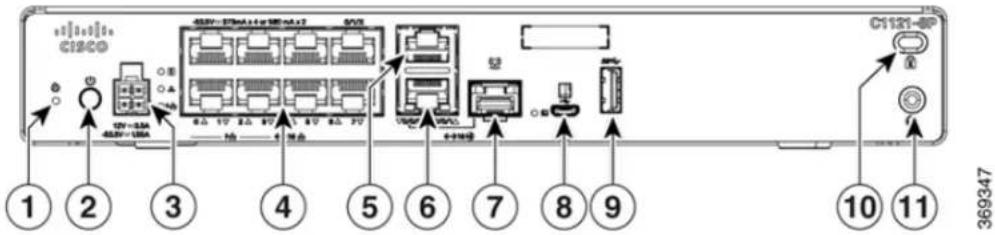

Figure14:C1121(X)-8PI/OView

C12CD ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ 369347

			Power Switch2Reset Button1
			Ethernet Switch44-pin Power Connector3
			GE WAN 0/0/0 -RJ456RJ-455
			Micro-USB console8GE WAN 0/0/0 -SFP
			Kensington Lock Slot10USB 3.09
11	Grounding

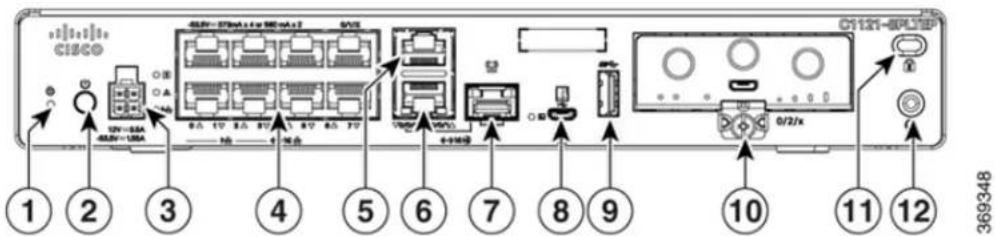

Figure15:C1121-8PLTEPI/OView

CISCO 1 2 3 4 5 6 7 8 9 10 11 12 369348

			Power Switch2Reset Button1
			Ethernet Switch44-pin Power Connector3
			GE WAN 0/0/0 -RJ456GE 0/0/1
			Micro-USB console8GE WAN 0/0/0 -SFP
		10USB	Pable
			Grounding12Kensington Lock Slot11

Figure16:C1121-8PLTEPWxBezelView

I2B 1100 Ethernet CISCO ① 369344

Non-illuminated Cisco logol

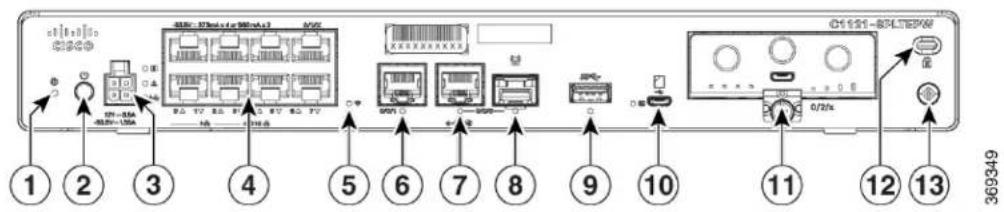

Figure17:C1121(X)-8PLTEPWI/OView

1 2 3 4 5 6 7 8 9 10 11 12 13 369349

			Power Switch2Reset Button1
			Ethernet Switch44-pin Power Connector3
			GE 0/0/16Wi-Fi Status5
			GE WAN 0/0/0 -SFP8GE WAN 0/0/0 -R
	9	10Mic	16SUSB.0console
			Kensington Lock1$lot12Pluggable
	Grounding13

Non-illuminated Cisco logol

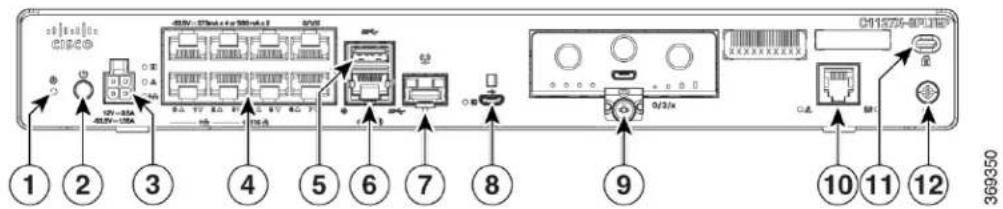

Figure19:C1127X-8PLTEPIOPanelView

1 2 3 4 5 6 7 8 9 10 11 12 369350

			Power Switch2Reset Button1
			Ethernet Switch44-pin Power Connector3
			GE WAN 0/0/0 -RJ456RJ-455
			Micro-USB console8GE WAN 0/0/0 -SFP
			DSL10Pluggable9
	11	12Kensfingtundingck Slot

Figure20:C1128-8PLTEPBezelView

302 1100 Server CISCO ① 369344

1

Non-illuminated Cisco logo

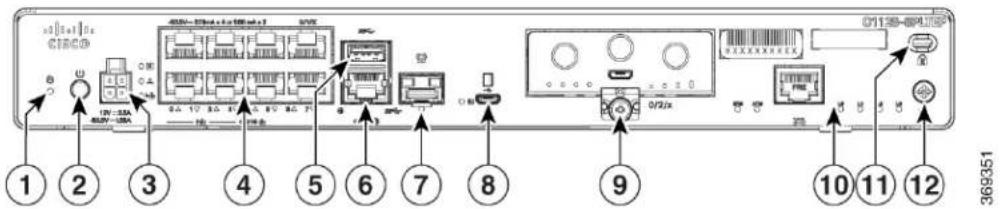

Figure21:C1128-8PLTEPI/OPanelView

CISCO 1 2 3 4 5 6 7 8 9 10 11 12 369351

			Power Switch2Reset Button1
			Ethernet Switch44-pin Power Connector3
			GE WAN 0/0/0 -RJ456USB 3.0
			Micro-USB console8GE WAN 0/0/0 -SFP
		10PluggSHOSL
	11	12KensignandLock Slot

LEDIndicators

The following figures and table summarizes the LED indicators that are located in the bezel or chassis of C111x series.

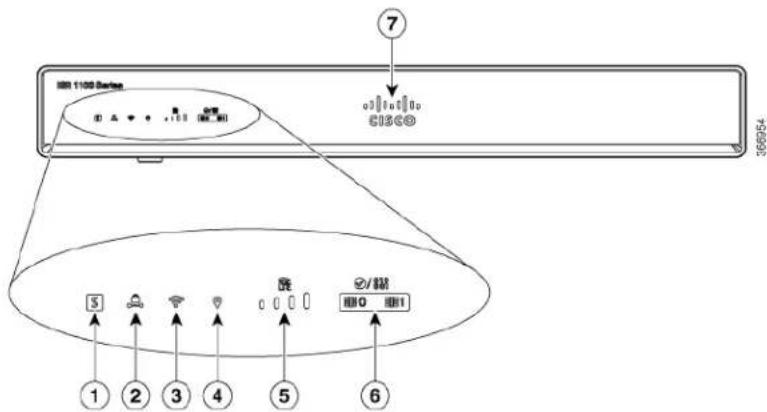

Figure22:LEDIndicators-BezelSide

7 I/O 1100 Series C1308 45692 5 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧/磁 I/O I/O

			VPN2Status1
			GPS4WLAN3
			LTE DATA/SIM6LTE RSSI/Mode5
	Cisco Logo7

Figure23:LEDIndicators-I/OSide

Diagram of a network device rear panel with labeled ports and connectors, showing numbered components from 1 to 11.

1	1,3,5,7 at the bottom)		PoE LED2GE WAN Ports: 0-7 (0,2,4,6 at the to
			GE0 LED4GE1 LED3
	5	6USBLED Console LED
	7	8USBMiconoUSB Console LED
9	CD LED	10	DATA LED

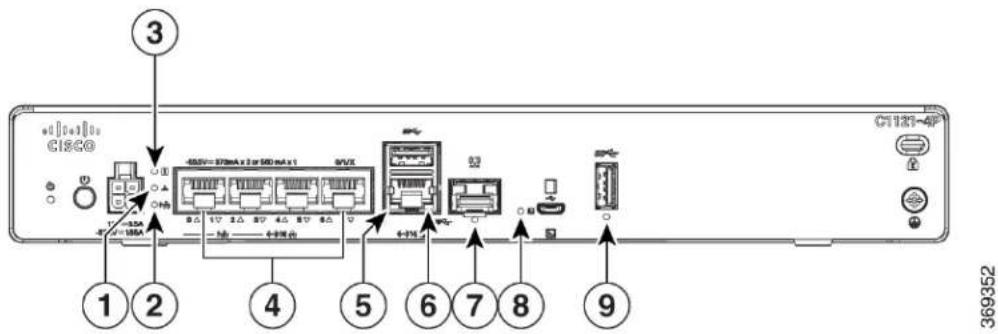

Figure24:Cisco1121-4PxLEDIndicators

C160 3 45.5V=370mA x 2 or 500 mA x 1 +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA +1mA 369352

			PoE LED2VPN1
			Ethernet Switch Ports 0-34Status3
			GE 0/0/1 LED6GE 0/0/0 RJ45 LED5
			Micro USB Console LED8GE 0/0/0 RJ45
	USB LED9

LED7

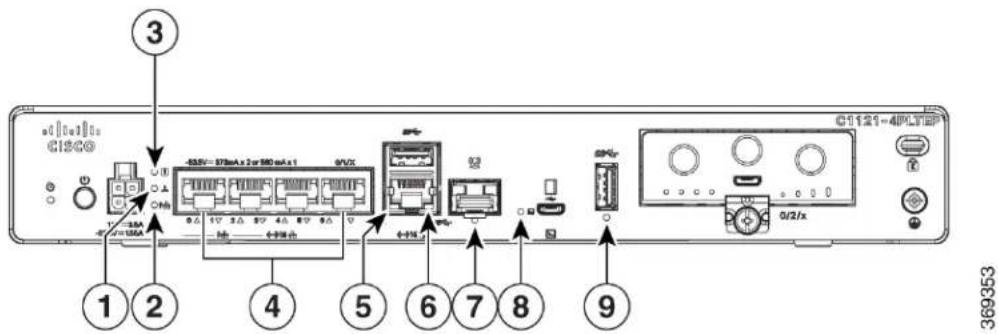

Figure25:Cisco1121-4PLTEPLEDIndicators

C160 Cisco 3 1 2 45.5V=870mA x 2 or 580 mA x 1 0/UX 4+1% 6+1% 8+1% 9 0/2/x C1121-4PLTEP 369353

			PoE LED2VPN1
			Ethernet Switch Ports 0-34Status3
			GE 0/0/1 LED6GE 0/0/0 RJ45 LED5
			Micro USB Console LED8GE 0/0/0 RJ45
	USB LED9

LED7

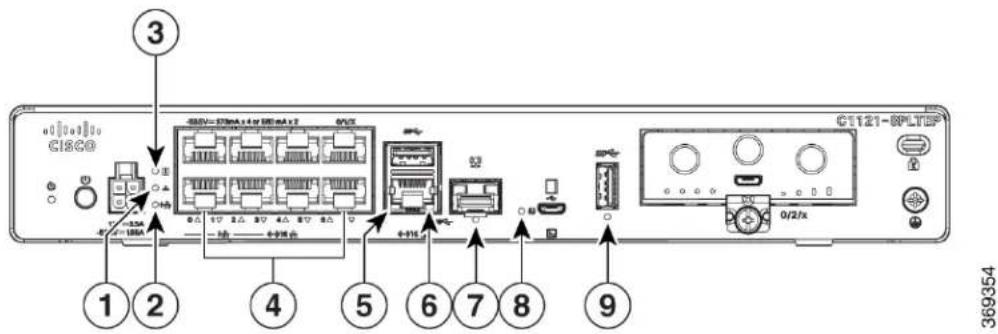

Figure26:Cisco11x1(X)-8P/C11x1(X)-8PLTEPLEDIndicators

C1121-8PLTF 0/2/x 3 ③ ① ② ④ ⑤ ⑥ ⑦ ⑧ ⑨ +12mA +16A +11A +15A +10A +14A +18A 369354

			PoE LED2VPN1
		4Status	Ethernet Switch Ports 0-7 (0,2,4,6 at the and 1,3,5,7 at the bottom)
			GE 0/0/1 LED6GE 0/0/0 RJ45 LED5
			Micro USB Console LED8GE 0/0/0 RJ45
	USB LED9

top LED7

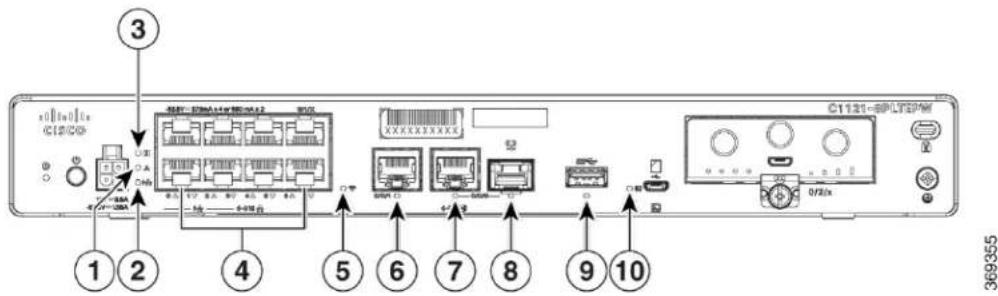

Figure27:Cisco11x1(X)-8PLTEPWxLEDIndicators

③ ① ② ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ C1121-BPLTSPW 369355

			PoE LED2VPN1
		4Status	Ethernet Switch Ports 0-7 (0,2,4,6 at the and 1,3,5,7 at the bottom)
			GE 0/0/0 RJ45 LED6Wi-Fi5
			GE 0/0/0 SFP LED8GE 0/0/1 LED7
			Micro USB Console LED10USB LED9

top

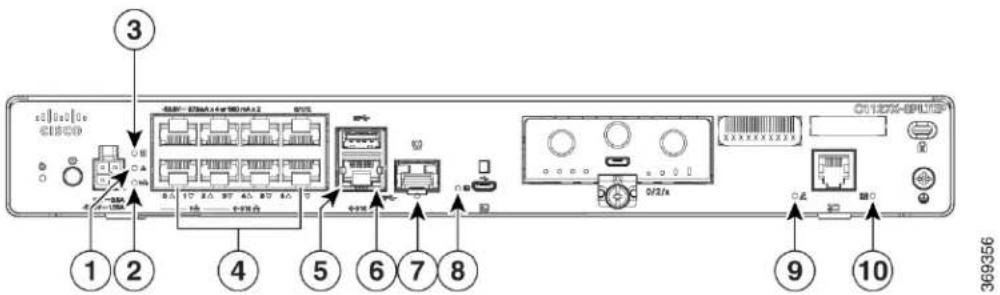

Figure28:Cisco1126(X)-8PLTEP/C1127(X)-8PxLTEPLEDIndicators

③ ① ② ④ ⑤ ⑥ ⑦ ⑧ 369356

			PoE LED2VPN1
		4Status	Ethernet Switch Ports 0-7 (0,2,4,6 at the and 1,3,5,7 at the bottom)
			USB5 LED6GE 0/0/0 RJ45 LED5
			Micro USB Console LED8GE 0/0/0 SFP
	CD LED9

top

LED7

The following table summarizes the LED indicators that are located in the bezel or chassis of the C111x sc

Table2:LEDIndicatorsforC111x

			ControlSourceDescription
Cisco Logo	Blue	Illuminated Cisco logo. Indicates router power is good.	Bezel side
STATUS (System Status)	Green and Amber	Steady Green - System operates normally.	Bezel side. All models. of not
		Off—System is not out reset or BIOS image is loadable.
		Blinking Amber — BIOS/Rommon is booting.
		Steady Amber — BIOS/Rommon has completed booting, and the system is at the Rommon prompt or booting the platform software.

LEDColorPoI

			ControlSourceDescriptionLEDColor
VPN OK			Bezel sideOff-No tunnel.Green
		Steady On- At least one tunnel is up.
LTE RSSI/Mode	Green and Amber	Service	Bezel SideNo LEDs On-No
		1 LED On- RSSI is under -100dBm.
		2 LEDs On- Low RSSI, -99dbm <> -90dBm.
		3 LEDs On- Medium RSSI -89dBm <> -70dBm.
		4 LEDs On- High RSSI, > -69dBm.
		Green- LTE
		Amber- 3G
GPS			Bezel SideOff: GPS not configu
		On: GPS configured
		Blink: GPS Acquiring
WLAN	Green, Red, and Amber	operating condition with at least one wireless client association.	Bezel sideGreen- Normal
		Red-Ethernet link is not operational or Ethernet failure.
		Amber-Software upgrade is in progress.
Ethernet Switch GE LAN Ports, Non-PoE			I/O sideOff- No linkGreen
		Steady On- link
		Blink- TXD/RXD data
			ControlSourceDescriptionLEDColorP
Ethernet Switch GE LAN Ports, with PoE	Green and Amber	powered, PD denied power, power delivery fault PoE administratively disabled.Green Steady On— link; if PoE device, power is enabled.Green Blink— TXD/RXD dataAmber - PoE Fault	I/O sideOff— No link,no device
	GreenPoE OK	-53.5V PoE power supply connected and all powered port operating normally.	I/O sideGreen Steady On—
		Off — No -53.5V PoE power supply connected to router.
GE WAN Ports			I/O sideOff— No linkGreen
		Steady On— link
		Blink— TXD/RXD data
DSL CD			I/O SideOff— ShutGreen
		Green Blink— Training, or no shut and cable disconnected.
		Green Steady On— Trained
DSL Data			I/O SideOff— No DataActivityGre
		Green Blink— TX/RX Data
Console	Green	enabled.	I/O sideGreen On— Console
	GreenUSB Console	discovered.	I/O sideOff— No USB device
		On— USB device discovered.
			ControlSourceDescriptionLEDCol
USB	Green	discovered.	I/O SideOff: No USB device
		On: USB device discovered.

Table3:LEDIndicatorsforC1101andC1109

			ControlSourceDescriptionColorLEC
	Green+AmberPower	Off: No PowerGreenSteadyOn: Normal operationGreenBlink: Boot up phase or in ROM Monitor modeAmberSteadyonOr Blink: Some issues with the system.	I/OSystem Power Status
	GreenVPN OK	Off: No tunnelSteadyon:At least one tunnel is up	I/OVPN Status
Ports	GreenEthernet Switch GE LANOff: No linkSteadyon: LinkBlink: TXD/RXD Data		I/OLink Activity
	GreenGE WAN Ports	Off: No linkSteadyon: LinkBlink: TXD/RXD Data	I/OLink ActivityControlSourceDescriptionColorLED
(C1101-4PLTEPWzC1101-4PLTEPC1101-4PLTEPw)	Green and AmberLTE	DATA/SIMmodem with SIM switch-over capability)Off: Modem not up or modem up and no SIMAmberSteadyOn:Modem up, SIM installed but not active.GreenBlink: LTE data activity.	Bezel SideSingle LTE Modem (one
WLAN(C1101-4PLTEPWx)	& Amber;		I/OWLAN Functions3-color LED: C
	GreenUSB Console	OFF: USB console not activeON: USB console active	I/OUSB Console Status
	GreenUSB 3.0	OFF: No USB device discoveredON: USB device discoveredUSB activity	I/OUSB 3.0 Status

ResetButton

The actuation of the Reset button is only recognized during ROMMON boot, that is, as the router comes to the ROMMON prompt.

The Reset button does not require much force to be actuated. The Reset button should be actuated only with a small implement such as the tip of a pen or a paper clip. When the Reset button is pressed at startup, the system LED turns green.

For more information, see the "Reset Overview" section of the Cisco 1100 Software Configuration Guide.

PowerSupply

C111x Series ISRs support PoE and PoE + power to endpoints. The product power specifications are as follow

• AC input voltage: Universal 100 to 240 VAC
• Frequency: 50 to 60 Hz
• Maximum output power: Up to 66W for non-PoE supply and upto 150W for PoE supply

• Optional PoE and PoE+
• Output voltage: +12VDC for system power and -53.5VDC for PoE power

SlotsandInterfaces

AboutSlots, Subslots, and Port Numbering

The Cisco 1100 series designates its interfaces using a 3-tuple notation that lists the slot, sub slot and p the format slot/sub-slot/port. The slot number is reserved for the mother board, which is "0". Each interf: type is allocated a sub slot and the port number is a unique port on the interface.

Table4: Slot, Bay, and Port Numbering

	InterfaceTypeSubslot
	Ethernet LAN0
	Ethernet WAN1
2	LTE
3	DSL
	WIFI4

SpecificationsofCisco1100SeriesIntegratedServicesRouters

For specifications on the Cisco 1100 Series ISRs, refer to the Cisco 1100 Series ISR Specifications document.

PeriodicInspectionandCleaning

We recommend that you periodically inspect and clean the external surface of the router is recommended to minimize the negative impact of environmental dust or debris. The frequency of inspection and cleaning dependent upon the severity of the environmental conditions, but we recommend a minimum once every months. Cleaning involves vacuuming router air intake and exhaust vents.

Note

Sites with ambient temperatures consistently above 25^ C or 77^ F and with potentially high levels of dust debris might require periodic preventative maintenance cleaning.

PeriodicInspectionandCleaning

CHAPTER 2

PrepareforRouterInstallation

Before you install the Cisco 1100 Series Integrated Services Routers, you must prepare your site for the installation. This chapter provides pre-installation information, such as recommendations and requirements that should be considered before installing your router.

See the following sections to prepare for installation:

• Safety Recommendations, on page 23
• General Site Requirements, on page 24
- Rack Requirements, on page 25
• Safety Recommendations, on page 26
• Power Guidelines and Requirements, on page 26
• Network Cabling Specifications, on page 27
- Required Tools and Equipment for Installation and Maintenance, on page 29

SafetyRecommendations

Warning

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you won any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071

SAVE THESE INSTRUCTIONS

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations. Staten 1040.

SafetyWithElectricity

Warning

Only trained and qualified personnel should be allowed to install or replace this equipment Statement 1030

Warning

Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54). Statement 1052

PreventElectrostaticDischargeDamage

Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. It can occur if electronic printed circuit cards are improperly handled and can cause complete or intermittent failures. Always follow ESD prevention procedures when removing and replacing modules:

• Ensure that the router chassis is electrically connected to ground.
• Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the clip to an unpainted surface of the chassis frame to channel unwanted ESD voltages safely to ground. To guard against ESD damage and shocks, the wrist strap and cord must operate effectively.
• If no wrist strap is available, ground yourself by touching a metal part of the chassis.

Caution

For the safety of your equipment, periodically check the resistance value of the anti-static strap. It should b between 1 and 10 megohms (Mohm).

GeneralSiteRequirements

This section describes the requirements your site must meet for the safe installation and operation of your router. Ensure that the site is properly prepared before beginning installation. If you are experiencing shutdown or unusually high errors with your existing equipment, the guidelines provided in this section can also help you isolate the cause of failures and prevent future problems.

Warning

Installation of the equipment must comply with local and national electrical codes. Statement 1074

Warning

Connect the Chassis to Earth Ground—To reduce the risk of electric shock, the chassis of this equipment needs to be connected to permanent earth ground during normal use. Statement 445

Warning

This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 20A. Statement 1005

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precaution ensure that the system remains stable. The following guidelines are provided to ensure your safety:

- This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

- When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.

- If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack. Statement 1006.

Warning

To prevent the system from overheating, do not operate the devices in an area that exceeds the maximum recommended ambient temperature:

Statement 1047

Warning

For connections outside the building where the equipment is installed, the following ports must be connected through an approved network termination unit with integral circuit protection, LAN, PoE. Statement 1044.

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 1.75 in. (4.4 cm). Statement 1076.

SiteSelectionGuidelines

The Cisco 1100 Series ISRs require specific environmental operating conditions. Temperature, humidity, altitude, and vibration can affect the performance and reliability of the router. The following sections pro specific information to help you plan for the proper operating environment.

The Cisco 1100 Series ISRs are designed to meet the industry EMC, safety, and environmental standards described in the Regulatory Compliance and Safety Information for the Cisco 1100 Series ISR document.

RackRequirements

For the Cisco , use brackets with a 19-inch rack.

Note

Rack requirements is applicable only for routers.

The following information can help you plan your equipment rack configuration:

• Allow clearance around the rack for maintenance.
• Allow at least one rack unit of vertical space between routers; more clearance is required when stackin multiple Cisco . Provide adequate heat removal mechanism to keep the surrounding air temperature well within the specified operating temperature condition.

Note More spacing may be required depending on the installation environment.

• Enclosed racks must have adequate ventilation. Ensure that the rack is not congested because each rout generates heat. An enclosed rack should have louvered sides and a fan to provide cooling air. Heat generated by the equipment near the bottom of the rack can be drawn upward into the intake ports of equipment above it.
• When mounting a chassis in an open rack, ensure that the rack frame does not block the intake or exports. If the chassis is installed on slides, check the position of the chassis when it is seated in the rack

SafetyRecommendations

Warning

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071

SAVE THESE INSTRUCTIONS

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040.

PowerGuidelinesandRequirements

Check the power at your site to ensure that you are receiving power that is free of spikes and noise. Insta power conditioner, if necessary.

This section lists the power requirements for the Cisco .

Table5:PowerRequirementsfor

		OutputRatedInputRatedPowerSource
(PWR-66W-AC-V2)		12 VDC, 5.5A100-240V, 2A66W AC P
(PWR-115W-AC)		12V, 4.6A, -53.5V 1.12A100-240VAC, 2
(PWR-30W-AC)		12V , 2.5A100-240 VAC, 1A30W AC
(PWR-150W-AC)		12V 5.5A, -53.5 1.5A100-240 VAC, 2A
66W DC Power Adapter(PWR-66W-I-DC)	30 V DC input range)	12 VDC, 5.5A24 V DC Nominal (19.7V

NetworkCablingSpecifications

The following sections describe the cables and thee specifications required to install Cisco 1100 Series IS

ConsolePortConsiderations

The router includes an asynchronous serial console port. The console ports provide access to the router u a console terminal connected to the console port. This section discusses important cabling information to consider before connecting the router to a console terminal or modem.

Console terminals send data at speeds slower than modems do; therefore, the console port is ideally suited for use with console terminals.

EIA/TIA-232

Depending on the cable and the adapter used, this port appears as a DTE or DCE device at the end of cable. Only one port can be used at the same time.

The default parameters for the console port are 9600 baud, 8 data bits, 1 stop bit, and no parity. The c port does not support hardware flow control. For detailed information about installing a console terminal, the Connecting to a Console Terminal or Modem section.

For cable and port pinouts, see the Cisco Modular Access Router Cable Specifications document located Cisco.com.

USB Serial Console

The USB serial console port connects directly to the USB connector of a PC using a USB Type A to micro USB Type-B cable. The USB Console supports full speed (12Mb/s) operation. The console port does not support hardware flow control.

Note

Always use shielded USB cables with a properly terminated shield.

The default parameters for the console port are 9600 baud, 8 data bits, no parity, and 1 stop bit. For detail information about installing a console terminal, see the Connecting to a Console Terminal or Modem section on page 3-19.

For operation with a Microsoft Windows OS version older than Windows 7, the Cisco Windows USB Cons Driver must be installed on any PC connected to the console port. If the driver is not installed, prompts go you through a simple installation process.

The Cisco Windows USB Console Driver allows plugging and unplugging the USB cable from the console port without affecting Windows HyperTerminal operations. No special drivers are needed for Mac OS X or Linux.

Only one console port can be active at a time. When a cable is plugged into the USB console port, the R port becomes inactive. Conversely, when the USB cable is removed from the USB port, the RJ-45 port becor active.

Baud rates for the USB console port are 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps.

Note

4-pin micro USB Type-B connectors are easily confused with 5-pin micro USB Type-B connectors. Only the 5-pin micro USB Type-B is supported.

USBConsoleOSCompatibility

• Windows 10, Windows 8, Windows 7, Windows 2000, Window XP 32 bit, Windows Vista 32 bit
  • Mac OS X version 10.5.4
  • Redhat / Fedora Core 10 with kernel 2.6.27.5-117
• Ubuntu 8.10 with kernel 2.6.27-11
• Debian 5.0 with kernel 2.6
  • Suse 11.1 with kernel 2.6.27.7-9

ConsolePortConsiderations

The router includes an asynchronous serial console port. The console ports provide access to the router using a console terminal connected to the console port. This section discusses important cabling information to consider before connecting the router to a console terminal or modem.

Console terminals send data at speeds slower than modems do; therefore, the console port is ideally suited for use with console terminals.

PrepareforRouterInstallation

Before you install the Cisco 1100 Series Integrated Services Routers, you must prepare your site for the installation. This chapter provides pre-installation information, such as recommendations and requirements that should be considered before installing your router.

See the following sections to prepare for installation:

EthernetConnections

The IEEE has established Ethernet as standard IEEE 802.3. The routers support the following Ethernet implementations:

• 1000BASE-T—1000 Mb/s full-duplex transmission over a Category 5 or better unshielded twisted-pai (UTP) cable. Supports the Ethernet maximum length of 328 feet (100 meters).
• 100BASE-T—100 Mb/s full-duplex transmission over a Category 5 or better unshielded twisted-pair (UTP) cable. Supports the Ethernet maximum length of 328 feet (100 meters).
• 10BASE-T—10 Mb/s full-duplex transmission over a Category 5 or better unshielded twisted-pair (UTP) cable. Supports the Ethernet maximum length of 328 feet (100 meters).

See the Cisco Modular Access Router Cable Specifications document at Cisco.com for information about Ethernet cables, connectors, and pinouts.

RequiredToolsandEquipmentforInstallationandMaintenance

You need the following tools and equipment to install and upgrade the router and its components:

• An ESD-preventive cord and a wrist strap
  • A number 2 Phillips screwdriver
• Phillips screwdrivers: small, 3/16-in. (4 to 5 mm) and medium 1/4-in. (6 to 7 mm). You might need when you install or remove modules, and when you remove the cover (when you upgrade the memory or other components)
• Screws that fit your rack
• A wire crimper
• A wire for connecting the chassis to an earth ground: AWG 14 (2 mm ^2 ) or larger wire
• An appropriate user-supplied UL or a CSA-certified ring terminal with an inner diameter of 1/4 in. 7 mm)

CHAPTER 3

InstallandConnecttheRouter

This chapter describes how to install and connect Cisco 1000 Series Integrated Services Router (ISR) to and WAN networks.

Warning

Read the installation instructions before using, installing or connecting the system to the power source. Statement 1004

Installing the Cisco 1000 Series Integrated Services Routers involve these tasks:

• Unpack the Router, on page 31
• Set up Router on Desktop, Rack, or Wall, on page 31
• Connect Power Cable, on page 50
• Connect the Router to a Console, on page 52
• Connect WAN and LAN Interfaces, on page 56
• Configure the Router at Startup, on page 57

UnpacktheRouter

Unpack the router only when you are ready to install it. If the installation site is not ready, to prevent a damage, keep the chassis in its shipping container until you are ready to install.

The router, accessory kit, publications, and any optional equipment you order may be shipped in more than one container. When you unpack the containers, check the packing list to ensure that you have received listed items.

SetupRouteronDesktop,Rack,orWall

After unpacking, based on your requirements, you can set up a Cisco 1100 Series Integrated Services Rc (ISRs) on a desktop, a rack, or the wall.

Note

You can install external modules before or after mounting a router. However, if you choose to install the external modules after mounting the router on the rack or wall, ensure that you have optimal access to the back/front panel of the router.

For information on modules and Field Replaceable Units (FRUs), see the Install and Upgrade Modules and FRUs section.

Depending on the model, the available options for mounting a Cisco 1100 ISR are:

Table6:ModelsandMountingOptions

	MountingOptionsModel
C111x and C1111X	Dscktop, Rack Mount, Wall Mount using Key-hole Slots, Wall Mount using-Din-Rail
	Desktop, Wall Mount using Key-hole SlotsC1101-4P
	Desktop, Wall Mount using Key-Hole SlotsC1101-4PLTEPWx
	Desktop, Wall Mount using Key-Hole Slots,C1109-2PLTExx
	Desktop, Rack Mounting using Din-Rail Brackets, Under DeskC1121-4Px
C1126(X)-8PLTEP	Desktop, Rack Mounting using Din-Rail Brackets, Under Desk
C1128(X)-8PLTEP	Desktop, Rack Mounting using Din-Rail Brackets, Under Desk

If you choose to setup the router on a desktop, you can place the router on a desktop, bench top or on a

RackMount

Secure the rack mounting brackets on the sides of the chassis. You must first secure rack mounting bracket on the chassis before you set up the chassis on the rack.

Caution

Do not stack multiple Cisco 1000 ISRs when mounting the routers on a table top.

Note

When mounting Cisco 1000 ISRs on a rack, ensure that there is ample surrounding space. This ensures more heat removal, which in turn will enable the surrounding air temperature to stay within the specified operatin conditions.

AttachtheBracketsforC111x

This procedure describes how to attach the brackets on the router chassis:

Step1 Secure the brackets to the router chassis (on the left) as shown in figure below:

Example:

Figure29:BracketInstallationforLeft-SideMounting-C111x

Technical diagram of a network device showing internal components and labeled ports, including a CISCO-branded base and external connectors.

Step2 Similarly, secure the brackets on the right-side of the chassis for mounting the router.

AttachtheRackMountingBracketsforC112x

This procedure describes how to attach the brackets on the router chassis:

Step1Remove the 6 screws from the bottom of the chassis.

Step2Place the platform into the bottom tray.

Step3Secure the original screws from the bottom side of the tray.

Example:

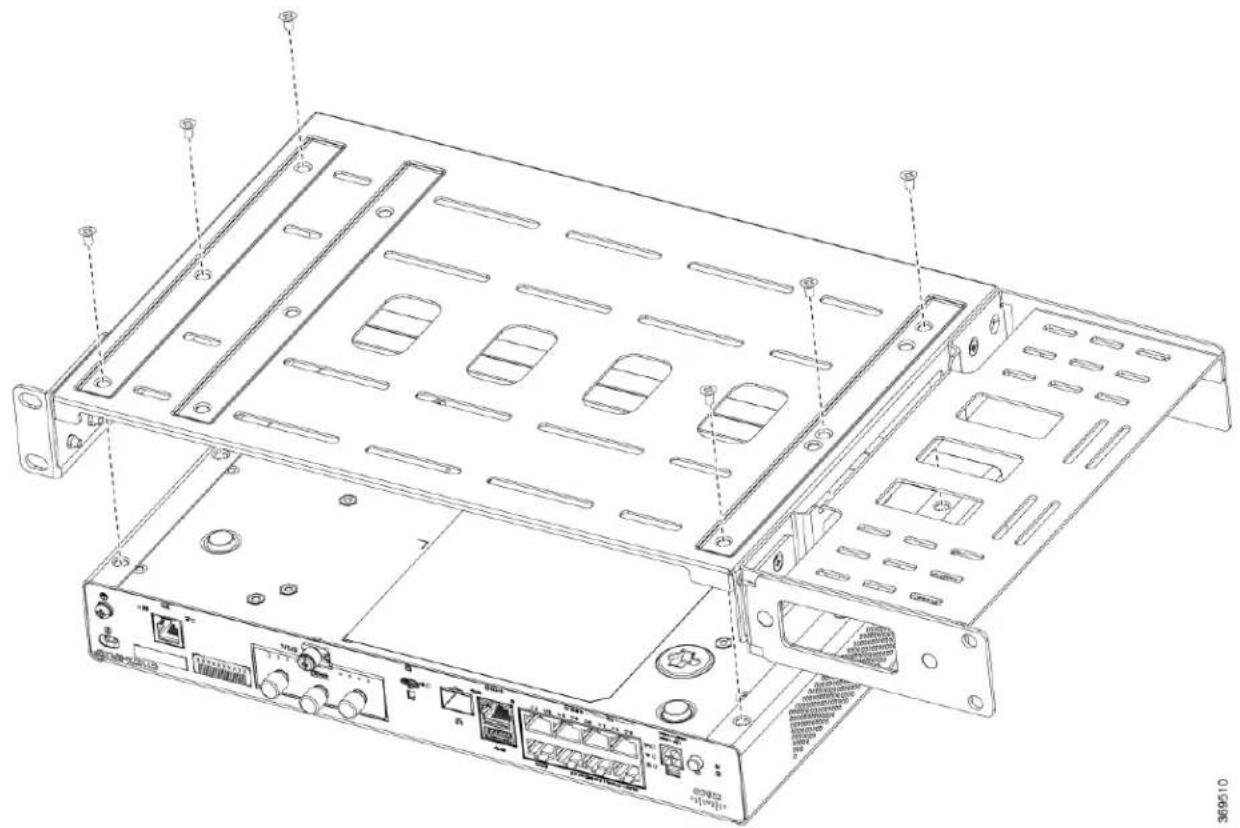

Figure30:BracketInstallationforC1121-4Px,C1126-8PLTEPandC1128-8PLTEP

Technical diagram of a server rack with labeled ports and connectors, showing internal components and mounting points.

MounttheRouter

Before mounting the router on to the rack, refer to the following safety warning statements:

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 1.75 in. (4.4 cm). Statement 1076.

Warning

• To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
- This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
- When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
- If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack. Statement 1006.

Procedure

		PurposeCommandorAction
Step1	To install the router, use the screws provided with the accessory kit to secure the router when you mount it on the rack.

MounttheRouterunderaDeskoraShelf

Installing the router under a desk requires an optional bracket kit that is not included with the router. It contains the rack-mount brackets and screws to secure the brackets to the router and the underside of the You can order these kits from your Cisco representative. This procedure describes how to mount router to a desk or a shelf.

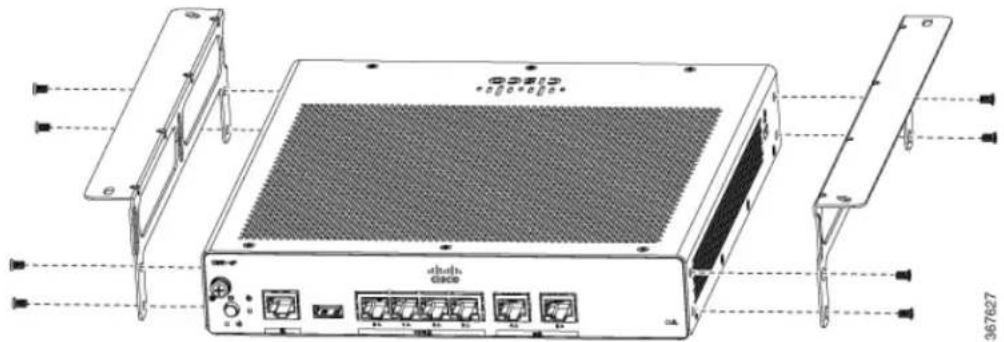

Step 1 Attach a bracket to one side of the router using the flat-head screws. Follow the same steps to attach the second bracket to the opposite side.

Figure31: Attaching BracketstotheRouter

CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8132 CD8167627

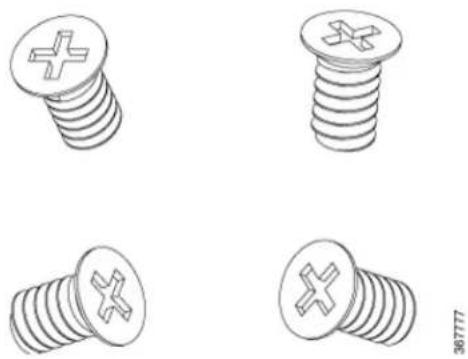

Figure32: Flat-headMachineScrews

Four technical illustrations of screw head designs with cross marks, shown from different angles (no text or symbols)

Figure33:RouterwithBracketsAttached

Technical line drawing of an industrial rack-mounted server unit with ventilation grilles and ports (no text or symbols)

Step 2 After the brackets are attached, drill a 2 mm hole under the desk and insert the wooden screws provided. Mount the router under the desk or shelf using the pan-head wood screws).

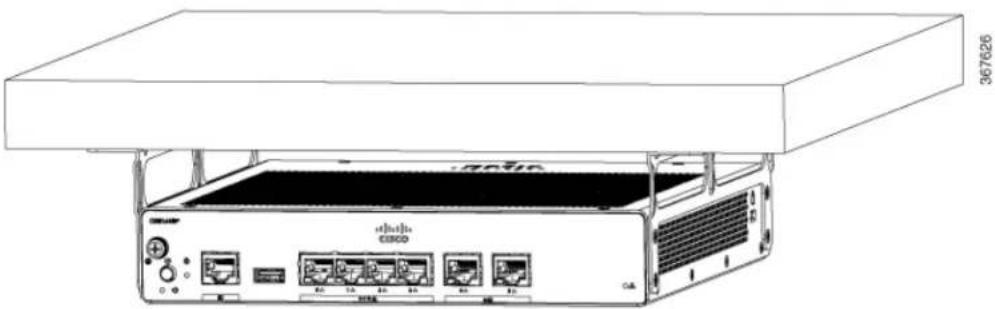

Figure34:MountingtheRouterunderaDeskorShelf

Line drawing of a beige rack-mounted network equipment unit with ports and connectors (no text or symbols visible)

Figure35:Pan-headWoodScrews

Four different types of screw or nut packages shown in line drawings (no text or symbols)

MountRouterusingDINRailBrackets

The router is shipped with DIN Rail brackets that are to be secured on the bottom side of the chassis. You chassis installation must allow unrestricted airflow for chassis cooling.

To attach the DIN Rail brackets to the router chassis, use the PHMS screws and the plastic spacers provided for a bracket.

AttachDin-RailBracketsonC112x

This procedure describes how to attach the brackets on the router chassis:

Step1Remove the 3 bottom screws from the chassis.

Step2Place the din-rail tray assy on the bottom side of the chassis.

Step 3 Secure the original screw from bottom side of tray, leverage the existing chassis screws to secure the din rail mounting bracket from the bottom of the chassis.

Step4Take the other two screws to secure the din-rail trail assy

Example:

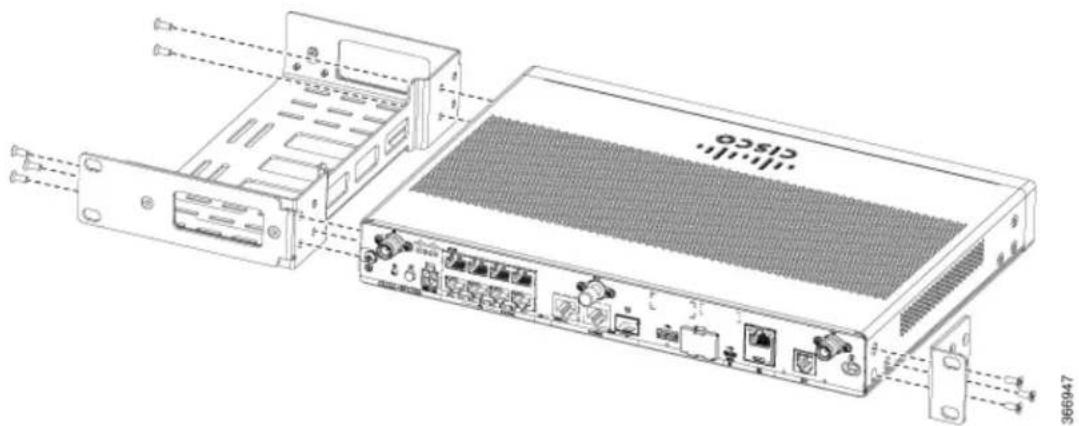

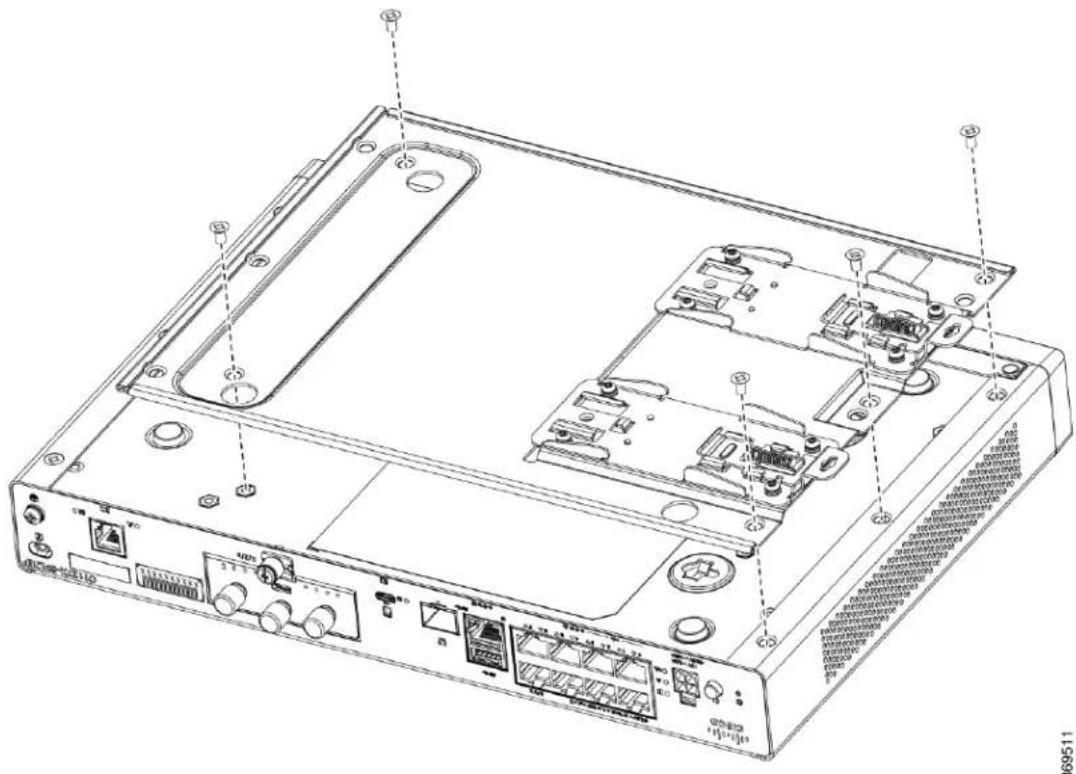

Figure36: Attaching Din Rail Brackets for C1121-4Px, C1126-8 PLTEP and C1128-8 PLTEP

Technical diagram of a device rear panel with labeled ports and connectors

WallMounttheRouter

Depending on the models of the Cisco 1100 Series Integrated Services Routers (ISRs), the tasks for mountir the router chassis on the wall may vary.

Warning

Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system Statement 378.

Note

The recommended clearance when a router is horizontally mounted is 1.5 inches on both sides for clearance and 1.75 inches on top. I/O side clearance is needed as it is required to access the cable connections. Clear is not required on the backside (opposite side from I/O face) unless mounting on a DIN Rail. Clearance is required to attach and mount the DIN rail bracket.

There are two ways to mount a router on the wall, using Key-hole Slots and DIN Rail Brackets.

WallMountUsingKey-holeSlots

The Cisco 1100 Series Integrated Services Routers (ISRs) have key-hole slots at the bottom of the chassis f mounting on a wall or any vertical surface.

Note

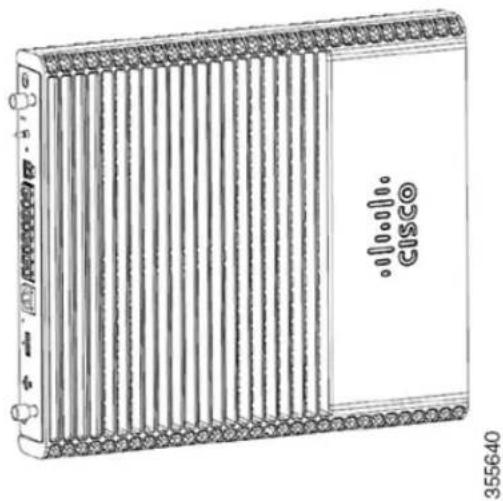

Do not mount the router with the output ports facing downwards. For the C111x series, ensure that the cab are placed on the sides.

Note

When choosing a location for wall mounting the router, consider cable limitations and wall structure.

Note

To attach a router to the wall stud, each bracket should have one number10 wood screw (pan-head) with number10 washers, or two number10 washer-head screws. The screws must be long enough to penetrate at least 1.5 inches (38.1 mm) into the supporting wood or metal wall stud.

Note

For hollow-wall mounting, each bracket requires two wall anchors with washers. Wall anchors and washers must be size number 6 (pan-head). Route the cables so that they do not put a strain on the connectors or mounting hardware.

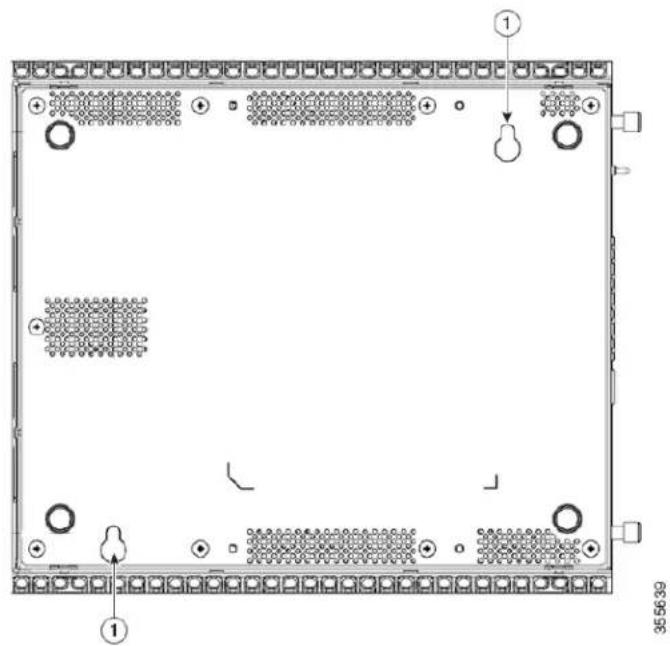

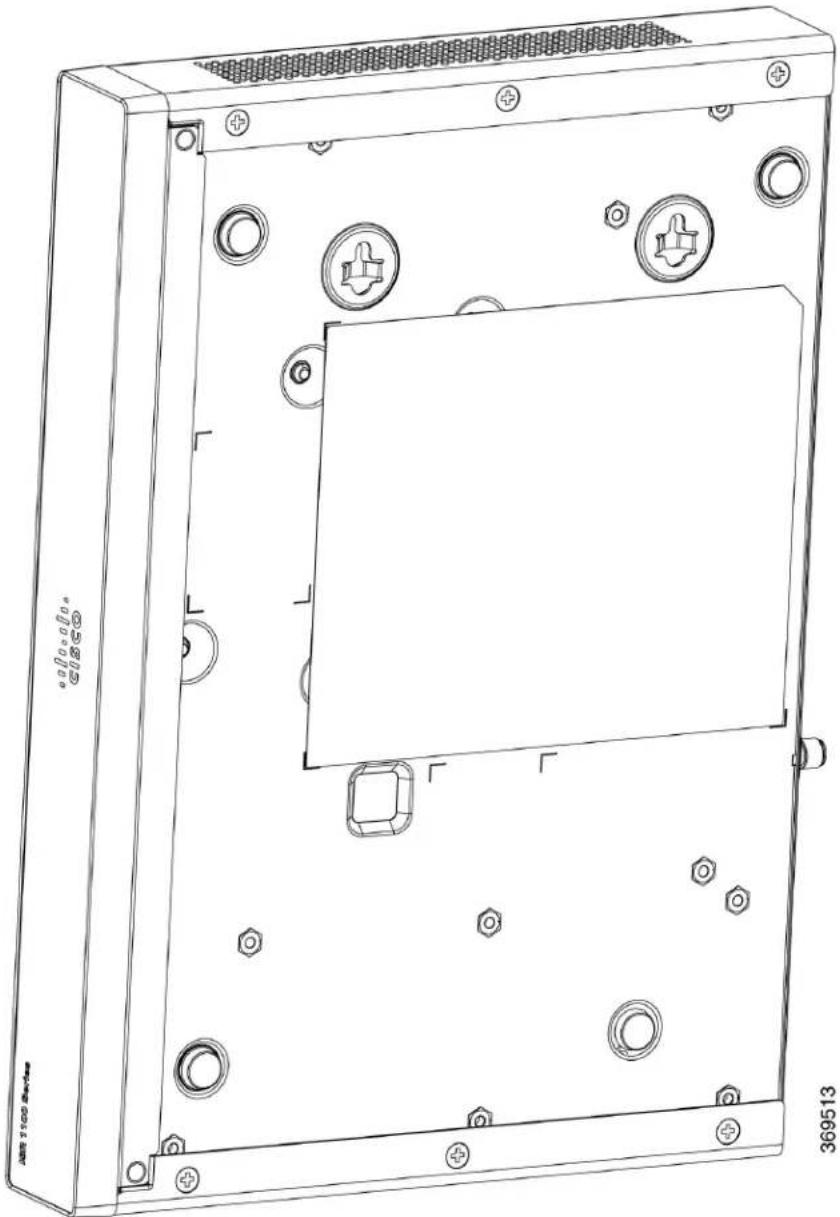

Figure37: WallMountUsingKey-holeSlots-C111x

1 CISCO 100 1:100 GB/MB

Key-hole slots1

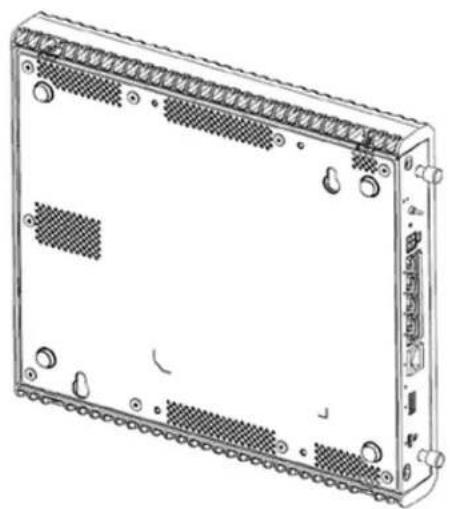

Figure38: WallMountOrientation-C111x

Technical line drawings of a server rack and its internal components, showing front and side views with no readable text or symbols.

Key-hole slots1

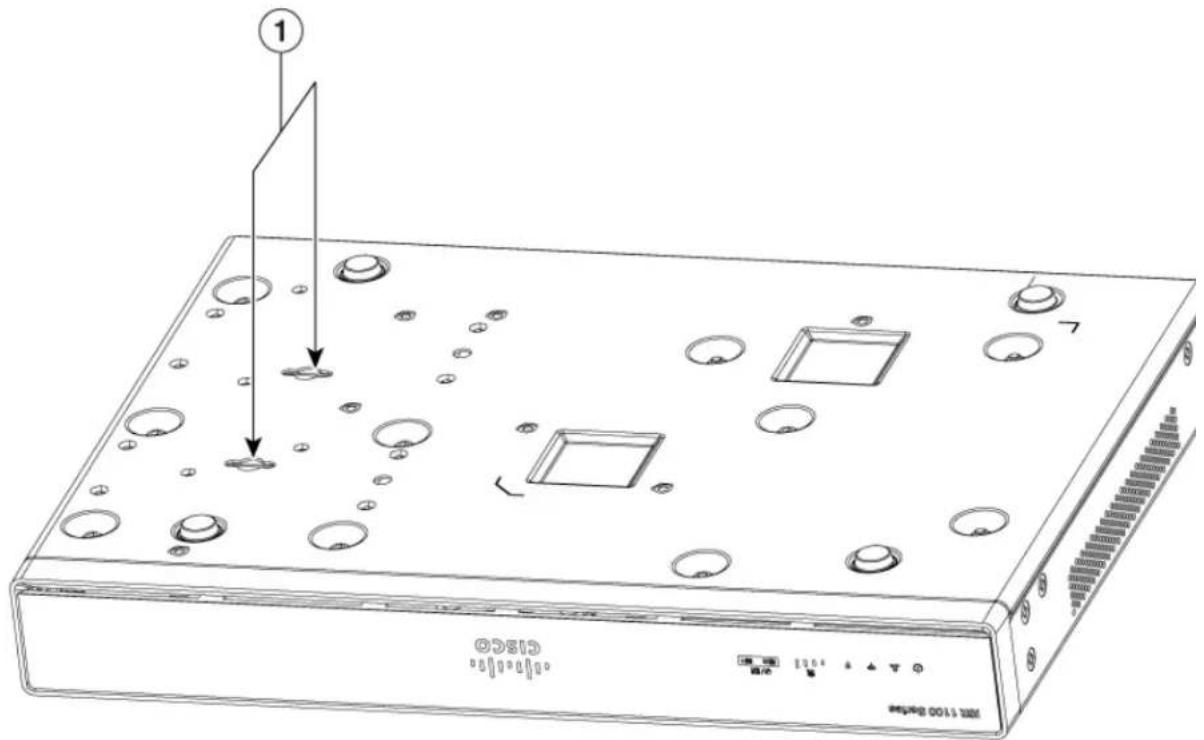

Figure39: Wallmountusingkey-holeslots-C1101-4P

355582 1

1	Key-hole slotsKey-hole slots-spacing: 3.024in (76.81mm)

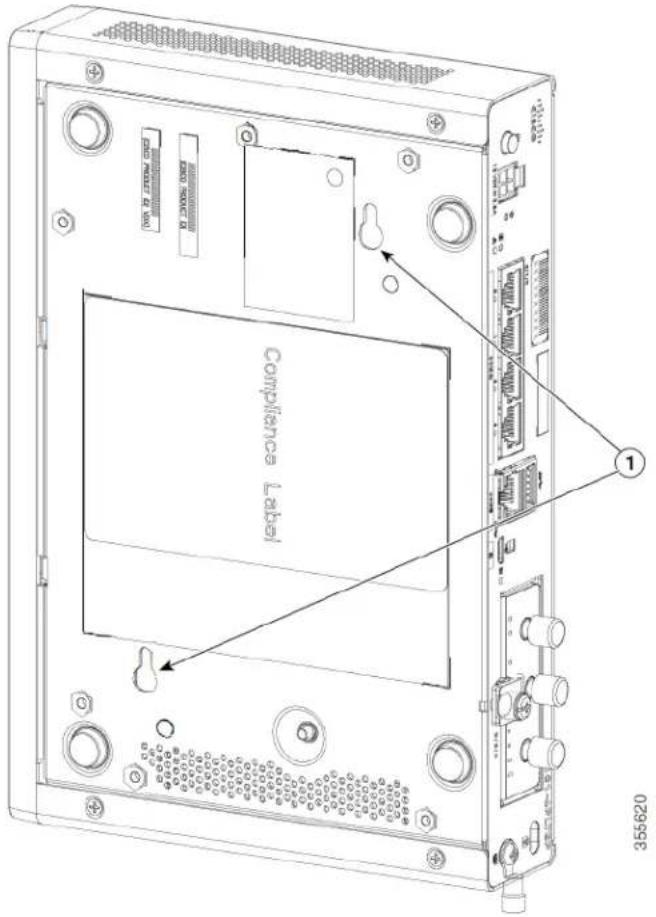

Figure40: Wallmountusingkey-holeslots-C1101-4PLTEP

File POWER R1.00 COMPLIANCE Label 355620

1	Key-hole slotsHorizontal spacing: 3.100in (78.74mm)Vertical spacing: 5.758inin (146.25mm)

Figure41: Wallmountusingkey-holeslots-C1109-2P

Technical diagram of a server rack with labeled components and status indicators

1Key-hole slots

Horizontal spacing: 7.302in (185.47mm)Vertical spacing: 7.430in (188.72mm)

Figure42: Wallmountusingkey-holeslots-C1109-4PLTEP

Technical line drawing of a rectangular electronic device with multiple ports and mounting holes (no text or symbols)

Technical line drawing of a rectangular electronic device with vertical fins and a labeled 'CISCO' logo (no readable text or symbols beyond branding)

1	Key-hole slotsHorizontal spacing: 3.100in (78.74mm)Vertical spacing: 5.758inin (146.25mm)

Figure43: Wallmountusingkey-holeslots-C1126-8PLTEP

Technical line drawing of a device casing with mounting holes and circular components (no text or symbols)

1	Key-hole slotsHorizontal spacing: <>Vertical spacing: <>

WallMountusingDINRailBrackets

The router is shipped with DIN Rail brackets that are to be secured on the bottom side of the chassis. chassis installation must allow unrestricted airflow for chassis cooling.

Note

Wall mount using DIN Rail brackets is applicable only for C111x.

To attach the DIN Rail brackets to the router chassis, use the PHMS screws and the plastic spacers provided for a bracket.

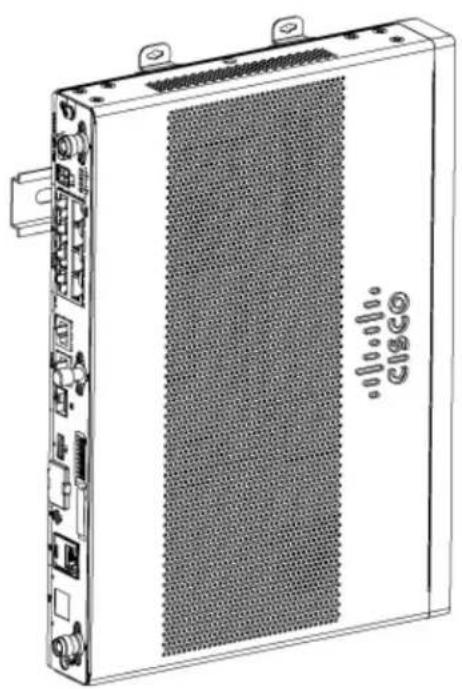

Figure44:DINRailBracketInstallation-C111xandC111X

Abstract red pixelated geometric shape on white background, framed by gray border (no text or symbols)

	Screws1
	DIN Rail Brackets2

Figure45: Orientation of DIN Rail Brackets

Line drawing of a rectangular electronic device with a mesh panel and mounting tabs (no text or symbols)

Technical line drawing of a device rear panel with mounting holes and internal components (no text or symbols)

Figure46:DINRailBracketsandMount

Line drawing of a server rack unit with ventilation grating and ports (no text or symbols visible)

Technical line drawing of a mechanical or electronic device with mounting holes and a central panel (no text or symbols)

Note Do not over-torque the screws. The recommended torque is 8 to 10 inch-lbf (0.9 to 1.1 N-m).

ChassisGrounding

Warning

Connect the Chassis to Earth Ground—To reduce the risk of electric shock, the chassis of this equipment needs to be connected to permanent earth ground during normal use. Statement 445

Warning

Only trained and qualified personnel should be allowed to install or replace this equipment Statement 1030

After you set up the router, connect the chassis to a reliable earth ground; the ground wire must be installed in accordance with local electrical safety standards. For safety information on grounding the chassis, refer to the chassis ground connection procedures.

1. For grounding the chassis, use a copper wire of size of 14 AWG (2 mm ^2 ) and the ground lug. These are not a part of the accessory kit.
2. Use the UNC 6-32 screws, which have a length of about 0.25 inches.

To install the ground connection for your router, perform these steps:

1.Strip one end of the ground wire to the length required for the ground lug or terminal.

• For the ground lug—approximately 0.75 inch (20 mm)

• For user-provided ring terminal—as required

• Crimp the ground wire to the ground lug or ring terminal, using a crimp tool of the appropriate size.

• Attach the ground lug or ring terminal to the chassis as shown in the below figures. The screw for the ground lug is provided. Tighten the screw; the recommended torque is 8 to 10 inch-lbf (0.9 to 1.1 N-m

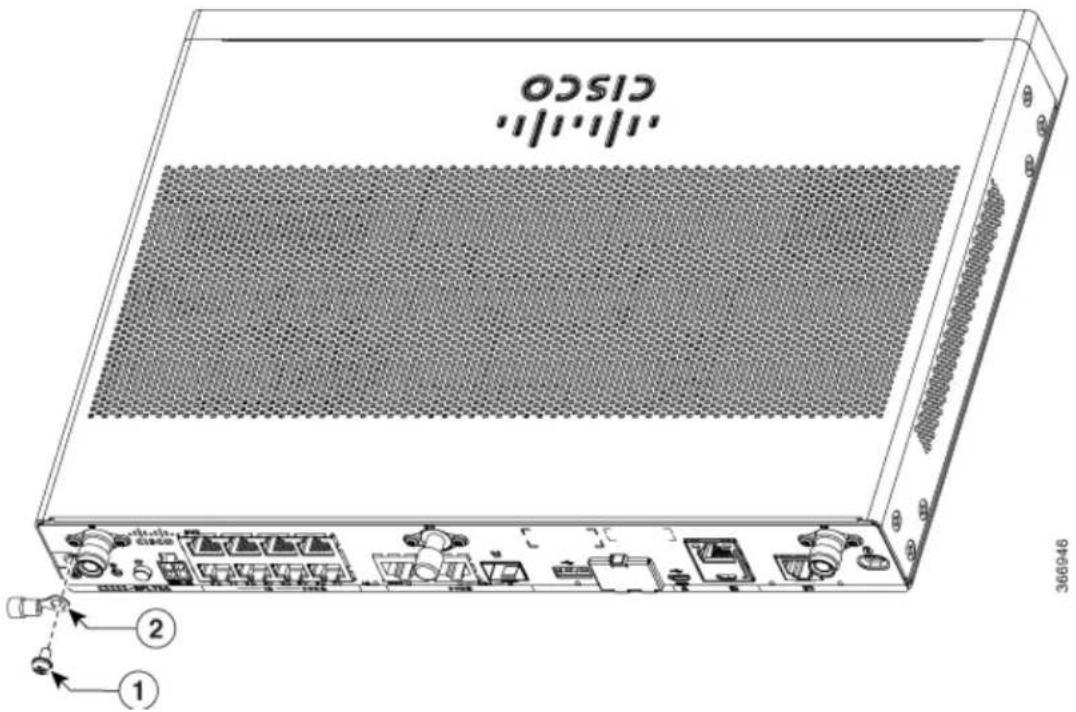

Figure47: ChassisGroundConnection-Cisco111x

CISCO 366946

	Screw (UNC 6-32)1
	Ground Lug2

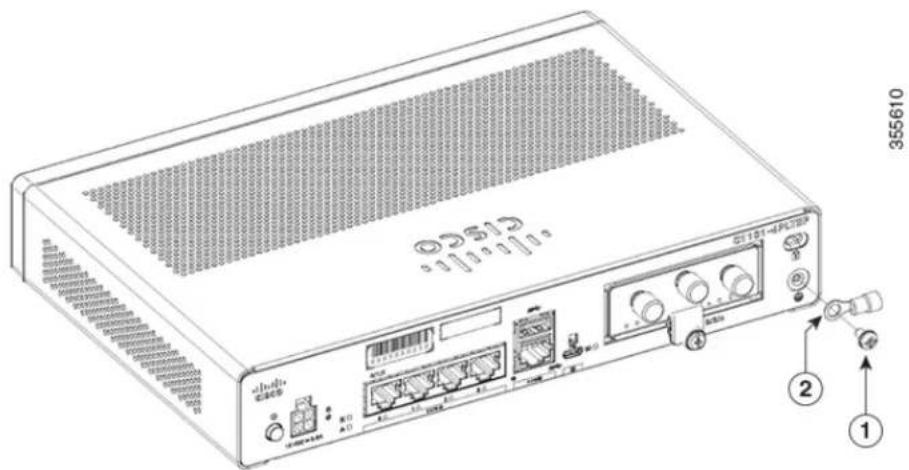

Figure48: ChassisGroundConnection-Cisco1101-4PLTEP

355610 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟a ㉟b ㉟c ㉟d ㉟e ㉟f ㉟g ㉟h ㉟i ㉟j ㉟k ㉟l ㉟m ㉟n ㉟o ㉟p ㉟q ㉟r ㉟s ㉟t ㉟u ㉟v ㉟w ㉟x ㉟y ㉟z ㉟c ㉟d ㉟e ㉟f ㉟g ㉟h ㉟i ㉟j ㉟k ㉟l ㉟m ㉟n ㉟o ㉟p ㉟q ㉟r ㉟s

	Screw (UNC 6-32)1
	Ground Lug2

Figure49: ChassisGroundConnection-Cisco1121X-8PLTEP

GISCO 08/06/2013

	Screw (UNC 6-32)1
	Ground Lug2

ConnectPowerCable

Power supply of the Cisco 1000 Series ISRs is an external AC to DC power adapter. The external DC power connector plugs into the router's 4 points power connector.

Figure50:PowerCableforC111x

Abstract geometric pattern with red pixelated X shape inside a gray square frame (no text or symbols)

Power Cable1.

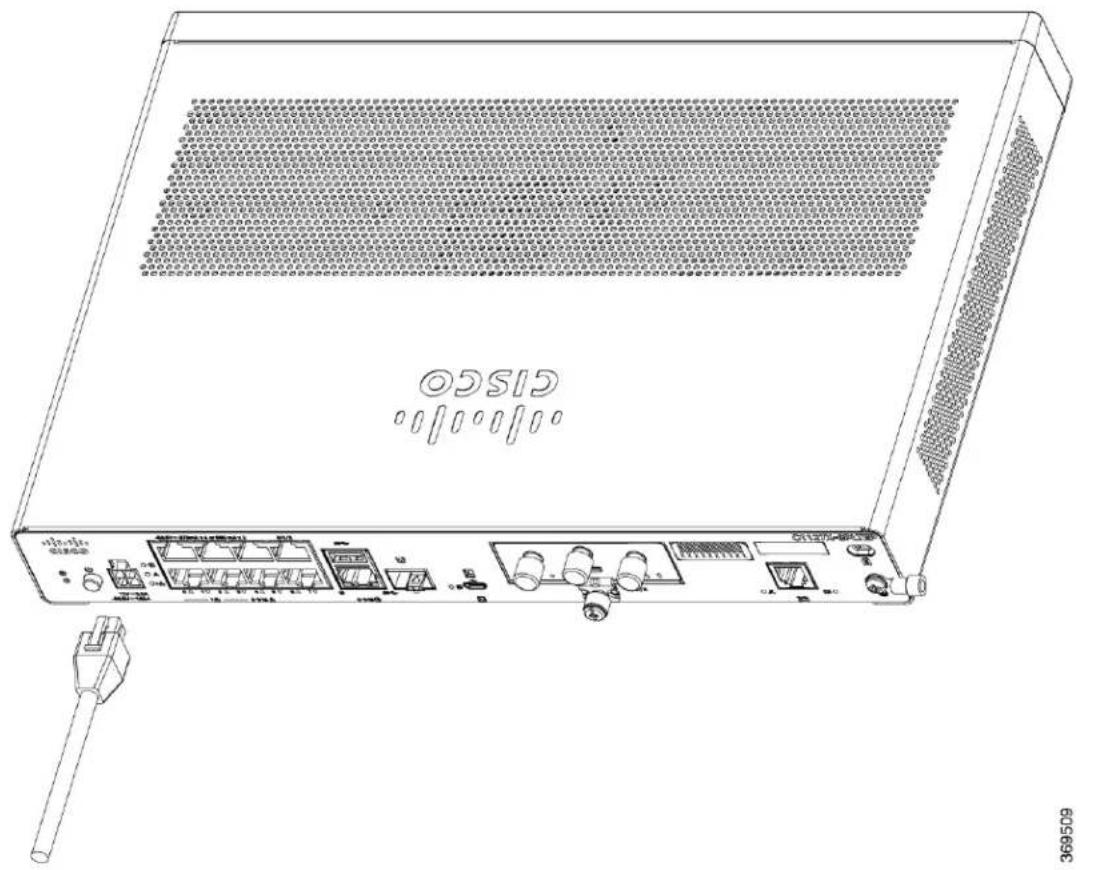

Figure51:PowerCableforC1127-8PLTEP

CISCO 369509

Power Cable1.

ConnecttheRoutertoaConsole

The C111x Series ISR has an asynchronous serial port. This port provides administrative access to the route through a console terminal or a PC.

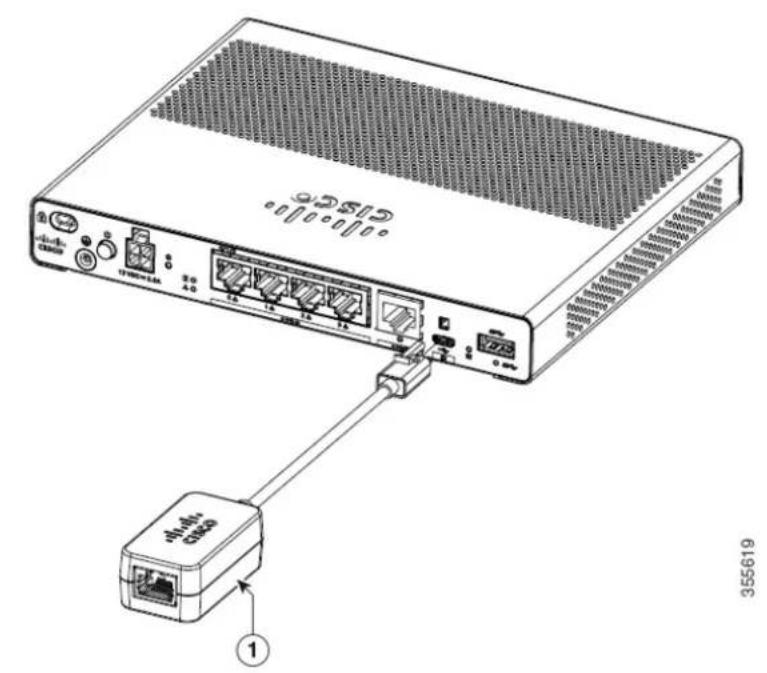

Figure52:ConsoleAdapterforC1101-4PLTEP

355619 355619

Micro USB to RJ45 console adapter1.

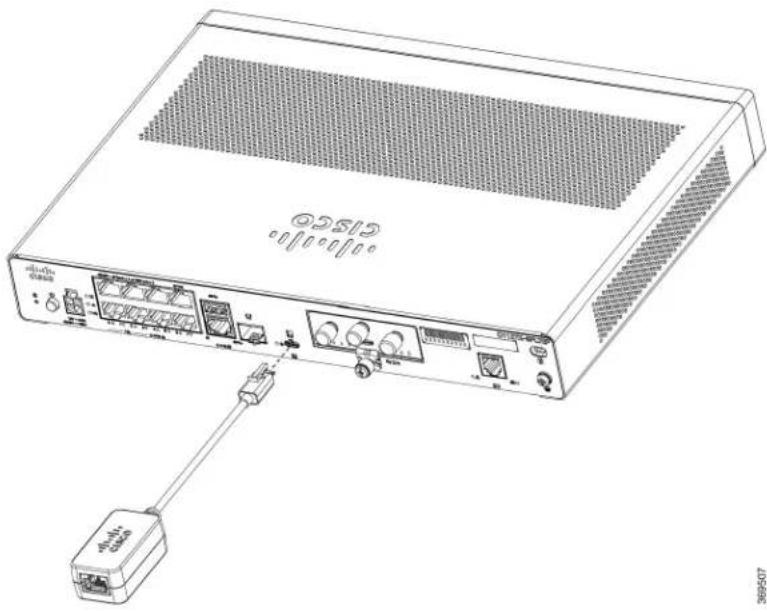

Figure53: ConsoleAdapterforC1127X-8PLTEP

Line drawing of a network switch device with ports and connectors, no text or symbols present

Micro USB to RJ45 console adapter1.

Use the USB or RJ-45 console port on the router to access the Cisco Internet Operating System (IOS-XE) command line interface (CLI) on the router and perform configuration tasks. A terminal emulation program is required to establish communication between the router and a PC.

To configure the router through the Cisco IOS CLI, you must establish a connection between the router cons port and either a PC or a terminal.

Use the following cables and adapters to establish a local or remote connection.

Table7: LocalandRemoteConnections

		ActionCablePortType
Serial (RJ-45)	C111x,C1111X: RJ-45 Serial console cableCAB-CON-USB (Serial USB to RJ-45 serial cable)	Connecting to the Serial Port w Microsoft Windows
	C110x: CAB-CON-USBRJ45Serial (USB)

ConnecttotheSerialPortwithMicrosoftWindows

To establish a physical connectivity between the router and a PC, you need to install a Microsoft Windows USB.

Use the USB Console cable plugged into the USB serial port to establish this connection.

1. Connect the end of the console cable with the RJ-45 connector to the light blue console port on the router.

2.OR

Connect a USB 5-pin micro USB Type-B to the USB console port. If you are using the USB serial port for the first time on a Windows-based PC, install the USB driver.

Note

You cannot use the USB port and the EIA port concurrently. When the USB port is used it takes priority the RJ-45 EIA port.

1. Connect the end of the cable with the DB-9 connector (or USB Type-A) to the terminal or PC. If your terminal or PC has a console port that does not accommodate a DB-9 connector, you must provide an appropriate adapter for that port.
2. Start a terminal emulator application to communicate with the router. Configure the software with the following parameters:

• 9600 baud
- 8 data bits
- no parity
- 1 stop bit
- no flow control

ConnecttotheConsolePortwithMacOSX

This procedure describes how to connect a Mac OS X system USB port to the console using the built X Terminal utility.

Step1 Use the Finder to go to Applications > Utilities > Terminal.

Step2Connect the OS X USB port to the router.

Step3Enter the following commands to find the OS X USB port number

Example:

macbook:user$ cd /dev
macbook:user$ ls -ltr /dev/*usb*
crw-rw-rw- 1 root wheel 9, 66 Apr 1 16:46 tty.usbmodem1a21 DT-macbook:dev user$

Step4Connect to the USB port with the following command followed by the router USB port speed

Example:

macbook:user$ screen /dev/tty.usbmodem1a21 9600

TodisconnecttheOSXUSBconsolefromtheTerminalwindow

Enter Ctrl-a followed by Ctrl-\

ConnecttotheConsolePortwithLinux

This procedure shows how to connect a Linux system USB port to the console using the built in Linux utility.

Step1 Open the Linux Terminal window.

Step2Connect the Linux USB port to the router.

Step3Enter the following commands to find the Linux USB port number

Example:

root@usb-suse# cd /dev
root@usb-suse /dev# ls -ltr *ACM*
crw-r--r-- 1 root root 188, 0 Jan 14 18:02 ttyACMO
root@usb-suse /dev#

Step4Connect to the USB port with the following command followed by the router USB port speed

Example:

root@usb-suse /dev# screen /dev/ttyACM0 9600

TodisconnecttheLinuxUSBconsolefromtheTerminalwindow

Enter Ctrl-a followed by : then quit

ConnectWANandLANInterfaces

This section describes how to connect WAN and LAN interface cables. Before you connect the interface cables, refer to the following warning statements:

Warning

Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Statement 1036.

Warning

Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Statement 1037.

Warning

For connections outside the building where the equipment is installed, the following ports must be connected through an approved network termination unit with integral circuit protection, LAN, PoE. Statement 1044.

Warning

Avoid using or servicing any equipment that has outdoor connections during an electrical storm. There may be a risk of electric shock from lightning. Statement 1088.

PortsandCabling

This section summarizes typical WAN and LAN connections for Cisco 1100 Series ISRs. The connections summarized here are described in detail in the Cisco Modular Access Router Cable Specifications document on cisco.com.

Table8: WANandLANConnections

PortorConnection	1		CableConnectionPortType,Color
	RJ-45, yellowEthernet switch	Ethernet hub or Ethernet switch	Category 5 or higher Ethernet
Gigabit Ethernet SFP, optical	LC, color according optical wavelength	t000BASE-SX, -LX, -LH-ZX, -CWDM	Optical fiber as specified applicable data sheet
copper			Category 5, 5c, 6 UTP1000BASE-TR
(VDSL2 / ADSL2/2+)			RJ-11 telephone kDSPOTS or ISDN

^1 Cable color codes are specific to Cisco cables.

ConnectionProceduresandPrecautions

After you have installed the router chassis, perform these steps to connect the WAN and LAN interfaces

• Connect each WAN and LAN to the appropriate connector on the chassis.
• Position the cables carefully so that you do not strain the connectors.
• Organize cables in bundles so that cables do not intertwine.
• Inspect the cables to make sure that the routing and bend radius is satisfactory. If necessary, reposi the cables.
  • Install cable ties in accordance with site requirements.

ConfiguretheRouteratStartup

After installing the router and connecting the cables, you can configure the router with basic configuratio For more information on how to configure the router, see the Cisco 1100 Series Software Configuration Guide.

CHAPTER 4

InstallandUpgradeInternalModulesandField ReplaceableUnits

The Cisco 1100 Series Integrated Services Routers have internal modules and field-replaceable units (FRU that can be quickly and easily removed and replaced without having to send the entire router for repair.

This section describes how to install the internal modules and FRUs in the Cisco 1100 Series ISRs. The information is contained in the following sections:

• Replace the Chassis Covers for C111X and C1111x, on page 59
  • External Modules, on page 62
  • Install and Remove Small Form Pluggable Modules, on page 63
  • Install an LTE Pluggable Module, on page 64

ReplacetheChassisCoversforC111XandC1111x

To access the internal modules on the router, you must first remove the chassis cover. See the instruction below on how to remove and later replace the chassis cover on the routers.

Warning

Only trained and qualified personnel should be allowed to install, replace or service this equipment. State 1030

Cisco 1100 Series ISRs have removable covers. Do not run the routers with the cover off. Doing so car the router to overheat very quickly.

Use a number-2 Phillips screwdriver to perform the following tasks.

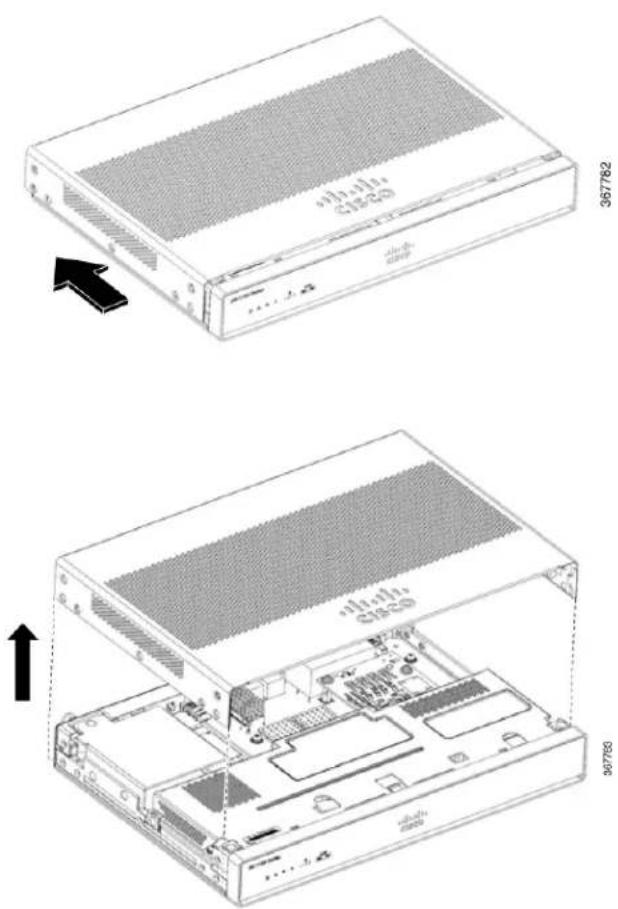

RemovetheCover

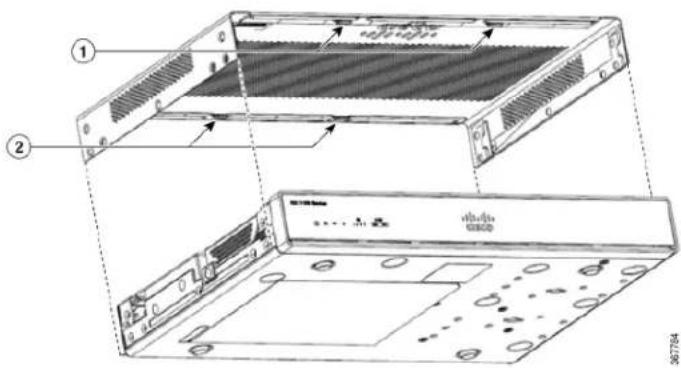

To remove the cover, do these

1 2 367781

steps:

Remove the 14 screws from either side of the cover.1 and 2

367782 367780

Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.

Step2 Confirm the router is turned off and disconnected from the power supply.

Step 3 Disconnect all port cables connected to the router. Ensure that you do not work on the router with cables still attached to the router in the event of lightning or surges.

Step4 Installer to disconnect all cables connected to the system.

Step5Place the chassis on a flat surface.

Step6Remove the 14x cover screws on the two sides of the router cover. See figure.

Step7Slide the cover from bezel side to I/O side until it stops.

Step8Pull the cover vertically to disengage from the chassis.

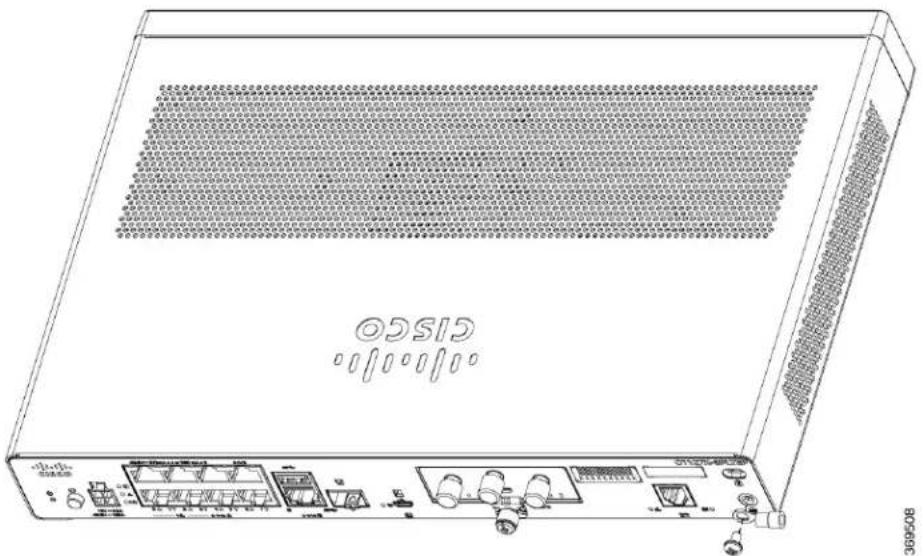

ReplacetheCover

To replace the cover, do these steps:

Warning

The covers are an integral part of the safety design of the product. Do not operate the unit without the installed. Statement 1077.

Technical diagram of an electronic device showing front and back views with labeled components and connectors

Replace the 14 screws on either side of the cover.1 and 2

Technical diagram of an open computer chassis showing internal components and a ventilation grille (no text or symbols)

Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.

Step2 Confirm the router is turned off and disconnected from the power supply.

Step 3 Disconnect all port cables connected to the router. Ensure that you do not work on the router with cables still attached to the router in the event of lightning or surges.

Step4Place the chassis on a flat surface.

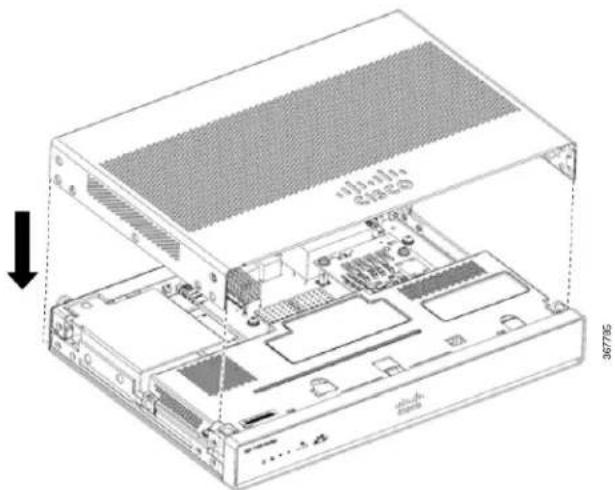

Step 5 Align hooks on the cover to slots on the chassis base and lower the cover onto chassis base.

Step6Slide the cover from the I/O side to the bezel side

Step7 Install the fourteen screws on both sides of the chassis. Torque to 6-8 in-lbs.

ExternalModules

The Cisco 1100 Series Integrated Services Routers have external modules and field-replaceable units (FRUs) that can be quickly and easily removed and replaced without having to send the entire router for repair.

This section describes how to install external modules and FRUs in the Cisco 1100 Series ISRs. The informat is contained in the following sections:

Warning

Only trained and qualified personnel should be allowed to install, replace or service this equipment. Statement 1030.

LocateExternalSlotsforModules

This section describes the locations of external modules on the router motherboard.

InstallandRemoveSmallFormPluggableModules

This section describes how to install and remove Small Form Pluggable (SFP) modules in the Cisco 110 Series ISRs. The information is contained in the following sections:

Warning

Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or w exception for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, dated May 8,

InstallSmallFormPluggableModule

This section describes how to install optional small-form-factor pluggable (SFP) modules in the Cisco ISR1 series Integrated Services routers to provide optical Gigabit Ethernet connectivity.

Only SFP modules certified by Cisco and complies with IEC 60825-1:2014 are supported on these router. For more information, refer to SFPs Supported on Cisco 1100 ISRs.

Note

The SFP module-GLC-GE-100FX V01 is not supported on the Cisco111x Series.

Warning

Class 1 laser product. Statement 1008.

Warning

Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or w exception for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, dated May 8,

RemoveSmallFactorPluggableModule

To remove a small factor pluggable (SFP) module from the chassis:

Step1 Disconnect all cables from the SFP.

Step2 Disconnect the SFP latch.

Note SFP modules use various latch designs to secure the module in the SFP port. For information on the SFP technology type and model, see the label on the side of the SFP module.

Tip Use a pen, screwdriver, or other small straight tool to gently release a bale-clasp handle if you cannot rea with your fingers.

Step3 Grasp the SFP on both sides and remove it from the chassis.

InstallanLTEPluggableModule

Warning

To reduce the risk of electric shock, the chassis of this equipment needs to be connected to permanent cart ground during normal use Statement 445

Warning

Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029.

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statemer 1030.

Warning

Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or without exception for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, dated May 8, 201 Statement 1255.

	LTEPluggableTechnologyLTEPluggables
	3.0 LTEEA (CAT6)P-LTEA-EA
	3.0 LTEL A (CAT6)P-LTEA-LA
Complies withIMDA StandardsDB101992	Pro (CAT18)P-LTEAP18-G
	System and spare CAT4 LTE PluggableP-LTE-VZ
	System and spare CAT4 LTE PluggableP-LTE-US
	System and spare CAT4 LTE PluggableP-LTE-GB
	WP7605-GP-LTE-JNLTE CAT4
	WP7608-GP-LTE-INLTE CAT4
	WP7610-GP-LTE-MNA
	LTE CAT4

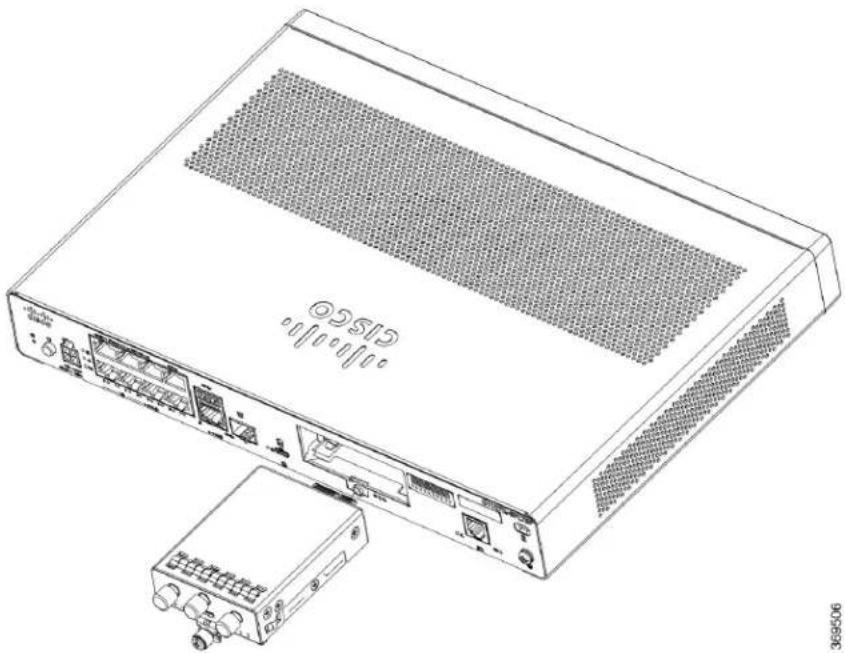

InstallanLTEPluggableModuleonaC1101-4P

To insert the LTE pluggable module into the router, do these steps:

Step 1 Insert and then gently push the LTE pluggable into the pluggable slot of C1101-4P until firmly fixed.

Step2 Tighten the screw, the recommended torque is 10-12 in-lb.

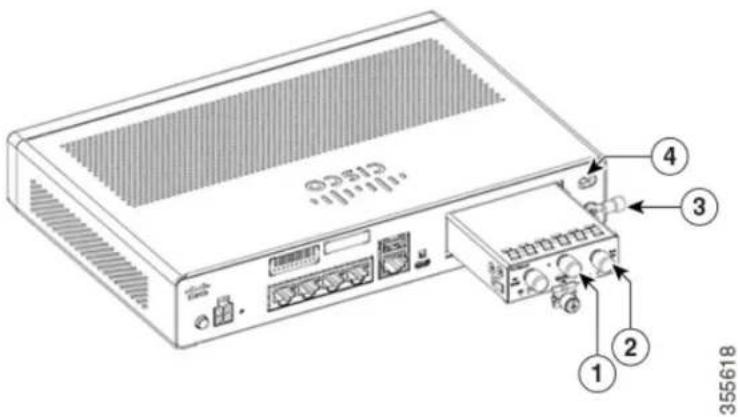

Figure54:LTEPluggable-C1101-4P

355618

	DescriptionItem
	GPS Antenna1
	LTE Antenna2
	Ground Lug3
	Kensington Lock Slot4

Figure55:LTEPluggable-C1127X-8PLTEP

Line drawing of a network switch device with ports and ventilation grilles (no text or symbols)

	DescriptionItem
	GPS Antenna1
	LTE Antenna2
	Ground Lug3
	Kensington Lock Slot4

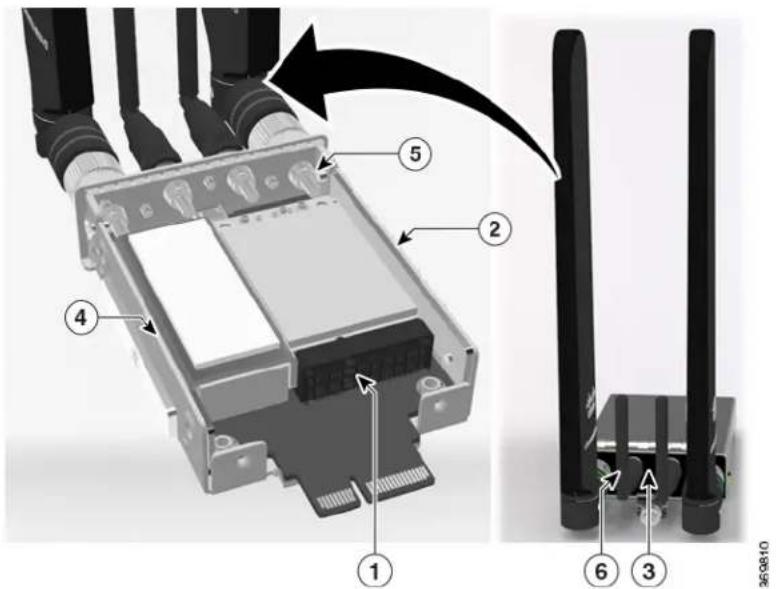

Figure56:LTEPluggable-C1118-8PLTEAP

Technical diagram of a wireless device showing labeled components including cable, connector, and network ports

	DescriptionItem
	Mini-PCIE1
	Common heat spreader + thermal interface2
3	I/O
	Enclosure base to support 4-antenna4
	4-1 SMA-MHF4 cable assembly5
	SMA Diversity Antenna for usability and Micro-USB port access6

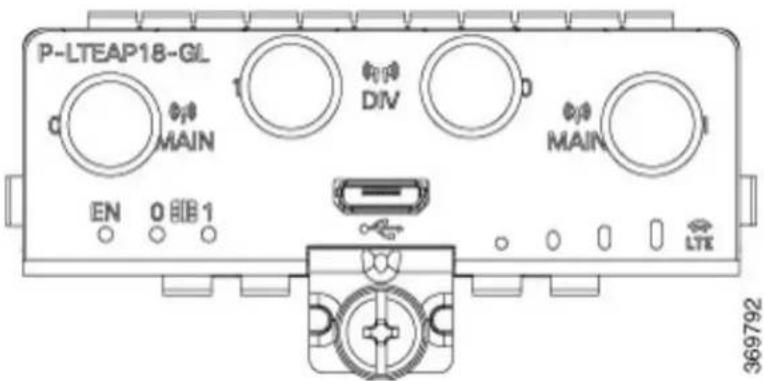

Figure57:LTEPluggable-C1118-8PLTEAPBackPanel

P-LTEAP18-GL MAIN DIV MAIN EN 0 1 LTE 369792

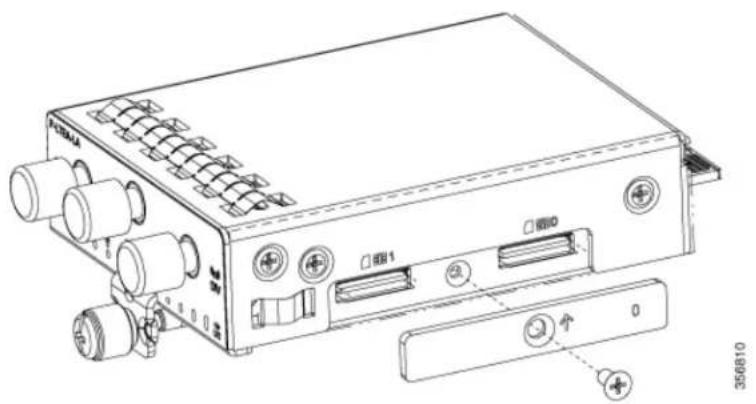

Figure58:C1118-8PLTEAPwithMicroSIMSlots

FATEA FATE1 FATE0 ↑ 0 356810

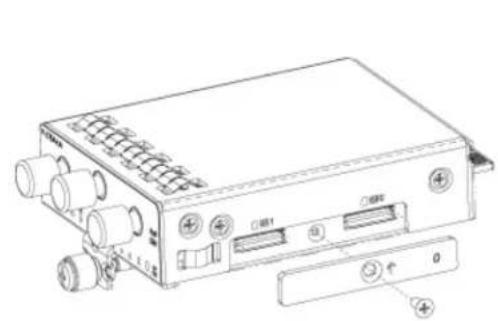

This section describes how to insert a Micro-SIM card into an LTE pluggable module.

To insert the Micro-SIM cards into an LTE Pluggable module:

Note

Ensure to use the correct tool for removing the Micro-SIM door.

1. Place the pluggable module on its bottom side, remove the SIM door screw, use a #1 Philips screw driver for removing the screws, and then carefully remove the Micro-SIM cover from the pluggable module.

Caution

Do not touch any part of the exposed PCB circuit area when the Micro-SIM cover is removed.

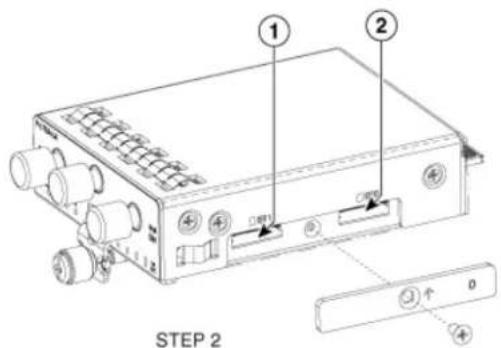

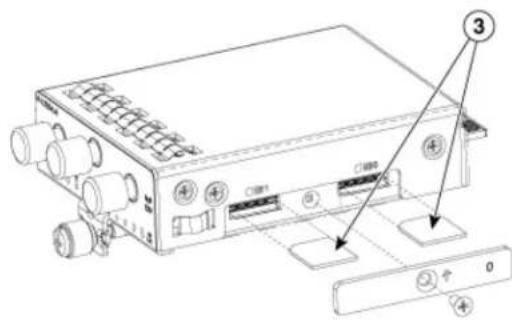

1. In the figure, step 2 below shows the Micro-SIM slot 1 (label 1) and Micro-SIM slot 0 (label 2).
2. Push in each Micro-SIM card (label 3) into the slot until it clicks. Secure the Micro-SIM cover with a screw, use a number 1 Philips screw driver to secure the screw on the Micro-SIM cover. The recommen torque is 2.8 - 3.8 inch LBF.
3. You have now successfully inserted the Micro-SIM cards into the LTE pluggable module. The marking on the Mirco-SIM door should align with Micro-SIM0 on the pluggable module with the arrow pointing upward.

Figure59:InserttheMicro-SIMcards

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

STEP 1

STEP 2

Technical diagram of an electronic device with labeled ports and buttons, showing internal components and a control panel.

STEP 3

Line drawing of an electronic device with ports and connectors (no text or symbols)

STEP 4

InstallaMicro-SIMCardintoaUSBLTEDongle

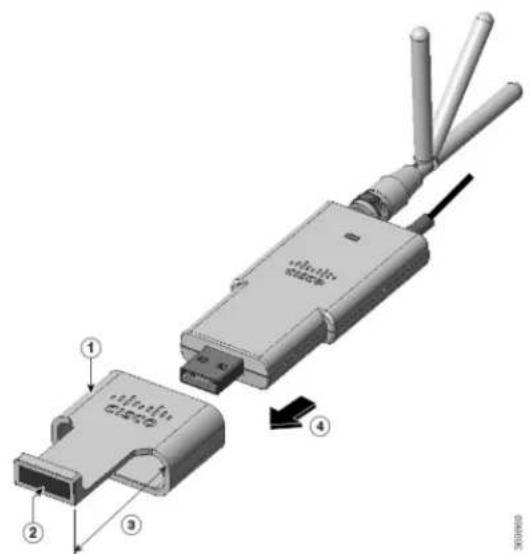

This section describes how to insert a micro-SIM card into a USB LTE dongle in a C1101-4P router.

Figure60: Micro-SIMCardSlotwithDustCover

Step1To insert a micro-SIM card into a USB LTE dongle, do these steps:

a. Tap open the micro-SIM protective cap on the USB dongle, gently insert the micro-SIM card with its edge oriented as shown in the figure until the SIM is seated in the socket.

b.Tap close the micro-SIM protective cap on the USB to close the slot.

Step2To remove a micro-SIM card into a USB LTE dongle, do these steps:

a. Tap open the dust cover, and then gently push the micro-SIM card to eject the card from the SIM slot.

b.Tap close the micro-SIM protective cap on the USB to close the slot.

Note

The antenna orientation may need to be adjusted for optimal performance.

Perform the following steps to insert the USB LTE dongle with the SIM card into a horizontal slot on the panel of a C110x series router:

1. Ensure the micro-SIM is installed in the LTE USB dongle.

2. Plug the LTE USB dongle into the magnet holder.

3. Attach the magnet holder into the USB port on the metal front panel of C1101-4P.

Figure61: LTEUSB2.0DongleforC1101-4P

Technical diagram of a device with labeled components and directional arrows indicating assembly or disassembly.

	DescriptionNumber
	Supporting ring1
	Magnct2
	Extend outward 30mm3
	Plug-in direction4

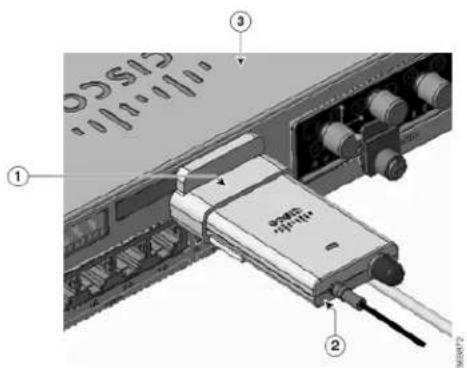

Diagram of an electronic device showing labeled components including a USB drive and ports, with numbered annotations.

	DescriptionNumber
	Supporting ring1
	Donglc holder with magnet2
	Router-C1101-4PLTEPW3

Follow the same procedure to install the USB LTE dongle onto routers with a vertical USB slot.

AntennaMountingInstructions

This section describes how to mount the antenna on Cisco 1000 Series ISRs. The information is contained in the following sections:

RackMountoftheAntenna

To install the antenna on a rack, do these steps:

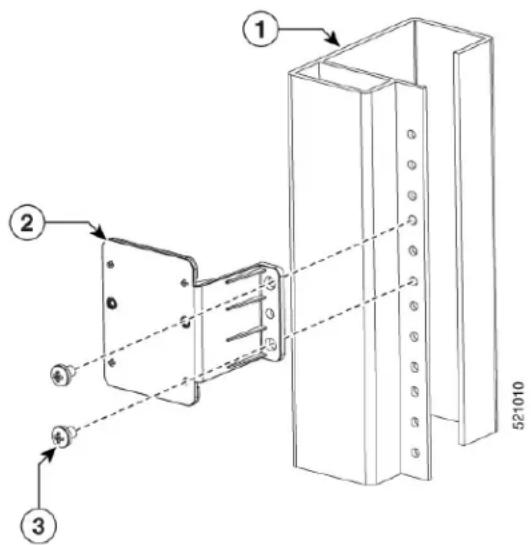

OptionA-RackMountataDifferentHeightwiththePlatform

Step1Pick up the R-Brackets (700-121611-01)

Step2Place and fix the bracket at an appropriate location on the rack using two screws.

Step3 Tighten the screw, the recommended torque is 10-12 in-lb.

Technical diagram showing assembly steps of a mechanical component with numbered parts and dimension label 52/1010

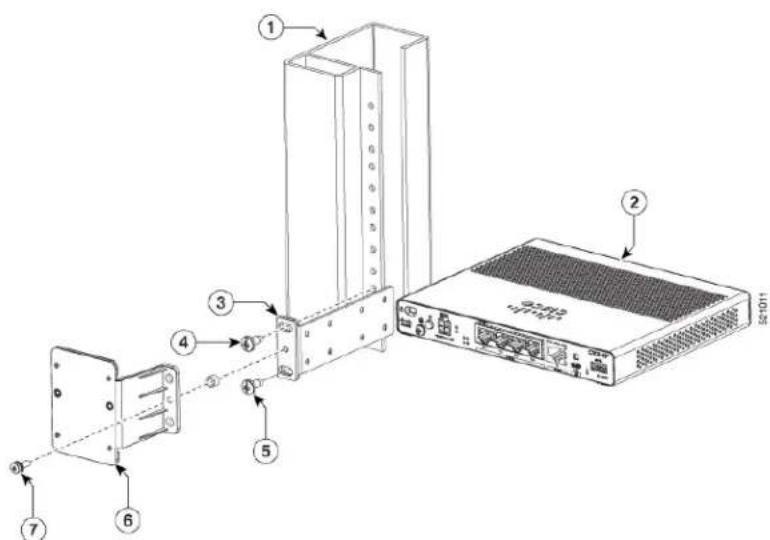

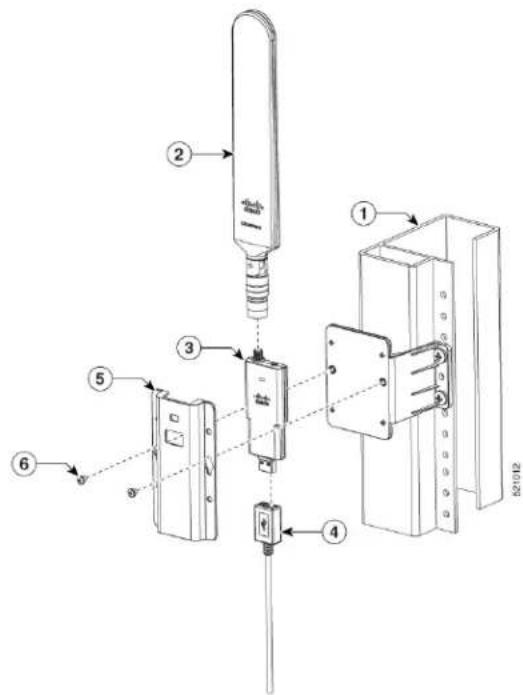

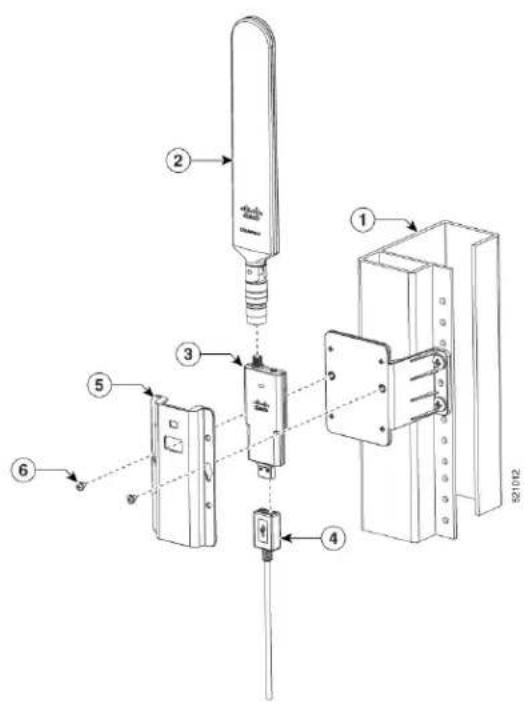

OptionA-RackMountattheSameHeightwiththePlatform

Step 1 Pick up the R-Brackets (700-121611-01) Place and fix the bracket at an appropriate location on the rack using two screws.

Step2 Tighten the screw, the recommended torque is 10-12 in-lb.

Diagram of an electronic device showing labeled components including a switch, ports, and a server unit.

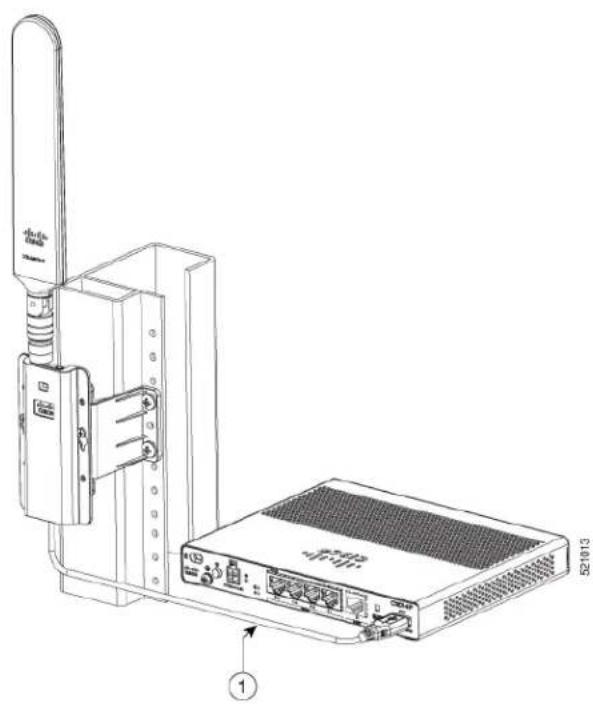

Both options - A and B should follow these remaining steps to complete the mounting procedure:

1. Assemble dongle, USB, cable and antenna together in advance.
2. Pick up the wall-mounting bracket (700-121609-01) and 2 SCREWS (48-0580-01).
3. Align and fasten the screws.
4. Plug the USB cable to the USB port on the chassis to complete the mounting procedure.

Technical diagram of a mechanical device with numbered components and labeled parts in Chinese

Technical line drawing of a wireless device with an Ethernet port and network equipment (no text or symbols)

WallMountoftheAntenna

To install the antenna on a wall, do these steps:

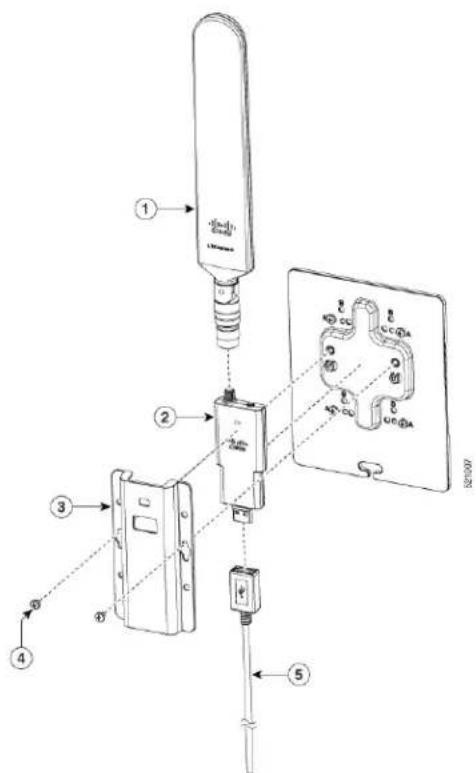

Step 1 Pick up the C-Bracket (700-121628-01), place the bracket and then fix it on the wall using four screws.

Step 2 Assemble the USB cable (74-122795-01), dongle and antenna (07-100470-01) together. Pick up the wall-mount bracket (700-121609-01), two SCREWS (48-0580-01). Align and fasten the screws (recommended torque is 10-12 in-lb), the wall-mount is complete.

Technical diagram of a device assembly with numbered components and labeled parts

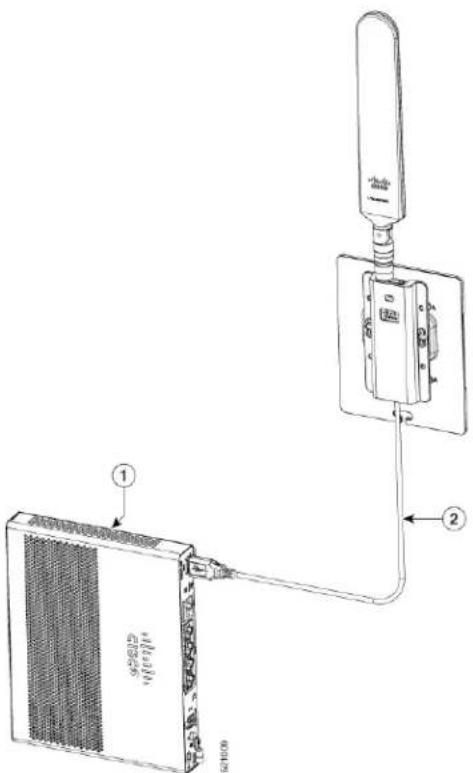

ConnecttheAntennatotheDevice

Step1 Ensure the reserved USB cable length is sufficient to reach the device.

Step 2 Ensure the use the cable clip within USB cable kit (74-122795-01) to manage cable routing and to hold the cable weight.
Step3 Ensure there are no sharp radius within the USB cable routing.

Diagram showing a device connection with labeled parts including a 1-chip connector and a battery pack, connected by wires.

CeilingMountoftheAntenna

To install the antenna on a rack, do these steps:

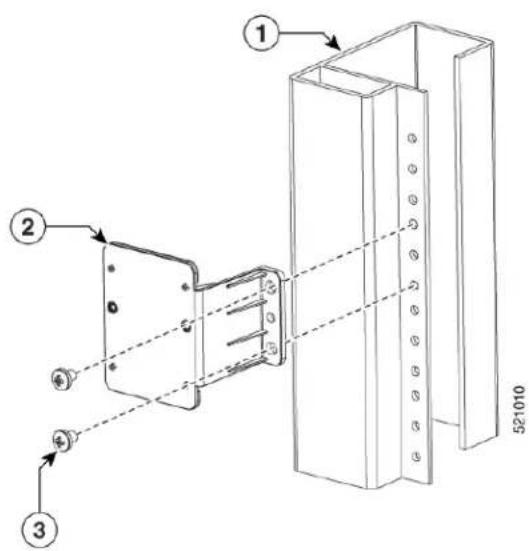

OptionA-RackMountataDifferentHeightwiththePlatform

Step1Pick up the R-Brackets (700-121611-01)

Step2Place and fix the bracket at an appropriate location on the rack using two screws.

Step3 Tighten the screw, the recommended torque is 10-12 in-lb.

① ② ③ 521010

OptionA-RackMountattheSameHeightwiththePlatform

Step 1 Pick up the R-Brackets (700-121611-01) Place and fix the bracket at an appropriate location on the rack using two screws. Step2 Tighten the screw, the recommended torque is 10-12 in-lb.

Diagram of an electronic device showing labeled components including a switch, ports, and a device with ports 1-7.

Both options - A and B should follow these remaining steps to complete the mounting procedure:

1. Assemble donglc, USB, cable and antenna together in advance.

2. Pick up the wall-mounting bracket (700-121609-01) and 2 SCREWS (48-0580-01).

3. Align and fasten the screws.

4. Plug the USB cable to the USB port on the chassis to complete the mounting procedure.

Technical diagram of a mechanical assembly with numbered components, likely for industrial or laboratory testing.

Technical line drawing of a wireless device with an attached network switch and ports (no text or symbols)

City skyline with modern skyscrapers under bright sunlight, foreground shows rooftop solar panels (no visible text or symbols)

CHAPTER 5

ROMMonitorOverview

The ROMMON is the bootloader that initializes the hardware when the platform is powered on or reset. the ROMMON prompt, a Cisco IOS XE image can be manually booted. There is also an autoboot option boot a specified IOS XE image for every power-on or reset. When new features or significant defects are resolved, a newer ROMMON release is available on CCO. To determine the current ROMMON version; the location of the latest ROMMON release, these details are available in the following sections:

• ROM Monitor Overview, on page 79

ROMMonitorOverview

The ROM Monitor software is also known as ROMMON, boot software, boot image, or boot helper. Although it is distributed with routers that use the Cisco IOS XE software, the ROMMON is a separate program the Cisco IOS XE software. During normal startup, ROMMON initializes the router, and then, the contro passes to the Cisco IOS XE software.

When you connect a terminal to the router that is in ROMMON mode, the ROMMON command-line int (CLI) prompt is displayed.

Access the ROMMON mode to perform these tasks:

• Specify config-register value to use for the next boot up
• Boot a valid IOS XE image
• Bypass NVRAM settings and config-register value for password recovery

Note

After the Cisco IOS XE software boots up, ROMMON is no longer in use.

EnvironmentalVariablesandtheConfigurationRegister

Two primary connections exist between ROMMON and the Cisco IOS XE software: the ROMMON environment variables and the configuration register.

The ROMMON environment variables define the location of the Cisco IOS XE software and describe how to load it. After ROMMON has initialized the router, it uses the environment variables to locate and load t Cisco IOS XE software.

The configuration register is a software setting that controls how a router starts up. One of the primary uses of the configuration register setting is to control whether the router starts in ROMMON mode or Administration EXEC mode. The configuration register is set in either ROMMON mode or Administration EXEC mode as needed. You can set the configuration register using the Cisco IOS XE software prompt when you need to use ROMMON mode. When maintenance in ROMMODE mode is complete, change the configuration register back so that the router reboots with the Cisco IOS XE software.

AccessROMMONModewithaTerminalConnection

When the router is in ROMMODE mode, you can access the ROMMODE software only from a terminal connected directly to the console port of the card. Because the Cisco IOS XE software (EXEC mode) is in operation, the nonmanagement interfaces are not accessible. Therefore, all Cisco IOS XE software resources are unavailable.

NetworkManagementAccessandROMMONMode

ROMMON mode is a router mode, not a mode within the Cisco IOS XE software. The ROMMON softwar and the Cisco IOS XE software are two separate programs that run on the same router. At any given time, router is running one of these programs, but it never runs both at the same time.

One area that can be confusing when using ROMMON and the Cisco IOS XE software is the area that defines the IP configuration for the Management Ethernet interface. Most users are comfortable with configuring the Management Ethernet interface in the Cisco IOS XE software. When the router is in ROMMON mode, however, the router is not running the Cisco IOS XE software, therefore, Management Ethernet interface configuration is not available.

When you want to access other devices, such as a TFTP server, while in ROMMON mode on the router, must configure the ROMMON variables with IP access information.

For more information on ROMMON and Basic Procedures, refer to the Upgrading Field-Programmable Hardware Devices for Cisco 1000 Series ISRs

CHAPTER 6

SupplierDeclarationofConformity

This equipment has been tested and found to comply with the limits for a Class A digital device, pursu: Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against any harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if it is not installed and used in accordance with the instruction manual, it may may cause harmful interference to radio communications.

• This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause an undesire operation.

The operation of this equipment in a residential area is likely to cause harmful interference, in which ca users are required to correct the interference at their own expense.

RadioCompliance

This system uses both licensed and licensed exempt radio frequencies. The radios are evaluated to the follo regulations:

The Wi-Fi Radio is evaluated to 47 Code of Federal Regulations Part 15.247 and Part 15.407.

Part 15 Radio Systems operating outdoors in the 5150-5250 MHz band must comply with the antenna installation requirements as set forth in the FCC Part 15.407 rules.

The LTE radio is evaluated to 47 Code of Federal Regulation Part 24 and 27.

The LTE radio operates on licensed frequency bands and requires a radio license to operate. It must be under the control of a Licensed Service Provider or Wireless Carrier.

ModificationsbyUserorInstaller

Modifying the equipment without Cisco's authorization may result in the equipment being no longer compl with FCC requirements for Class A digital devices. In that event, your right to use the equipment may I limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCCRFExposureCompliance

This product has been found to be compliant to the requirements set forth in CFR 47 Section 1.1307 add RF Exposure from radio frequency devices, as defined in Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.

To maintain compliance, the minimum separation distance from the antenna to general bystander is 20 cm (8.7 inches) or more.

CANADA

This Class [*] digital apparatus complices with Canadian ICES-003.

This product complies with RSS-247 of the Industry Canada Rules. Its operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause an undesired operation.

The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for hair interference to co-channel mobile satellite system.

For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-535 MHz and 5470-5725 MHz must be such that the equipment still complies with the e.i.r.p. limit.

For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-585 MHz must be such that the equipment still complies with the e.i.r.p. limits as appropriate.

For systems that are capable of operating outdoors or with antennas mounted outdoors (where applicable antenna type(s), antenna models(s), and worst-case tilt angle(s)) are necessary to remain compliant with the e.i.r.p, therefore, the elevation mask requirement set forth in section 6.2.2.3 should be clearly indicated.

Radio(WiFi)

This product complies with the RSS of the Industry Canada rules.

RadiationExposureStatement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm (7.87 in.) between the radia and yourself.

Note

C1109-4PLTE2P = 27 cm

This telecommunication equipment conforms to NTC/NBTC technical requirement (optional)

Radiocommunication equipment has electromagnetic field strength in compliance with the Safety Standard for the Use of Radiocommunication Equipment on Human Health announced by the National Telecommunication Commission.
