Product Type	LED LCD TV
Model	55LW7700
Screen Size	55 inches (139.7 cm)
Resolution	1920 x 1080 (Full HD)
3D Compatibility	Active Shutter 3D (AG-S230, AG-S250, AG-S270 glasses)
Smart TV	Yes (LG Apps, Premium, Web Browser)
Wi-Fi	Built-in (LW9500 series) or via optional AN-WF100 adapter
HDMI Inputs	4
USB Ports	2
Component/Composite Inputs	1 each
RGB PC Input	Yes (D-sub 15 pin)
Digital Audio Output	1 (Optical)
LAN (Ethernet)	1 (10/100 Base-T)
Supported Video Formats	DivX, DivX HD, H.264, MPEG, etc.
Supported Audio Formats	Dolby Digital, Dolby Digital Plus, MP3, etc.
Remote Control	Standard IR remote; optional Magic Motion Remote (AN-MR200)
Power Supply	AC 100-240V, 50/60Hz
Power Consumption (Typical)	150 W
Standby Power Consumption	<1 W
Dimensions (with stand)	Approx. 1240 x 770 x 260 mm (W x H x D)
Weight (with stand)	Approx. 25 kg
VESA Mounting	400 x 400 mm (M6 screws)

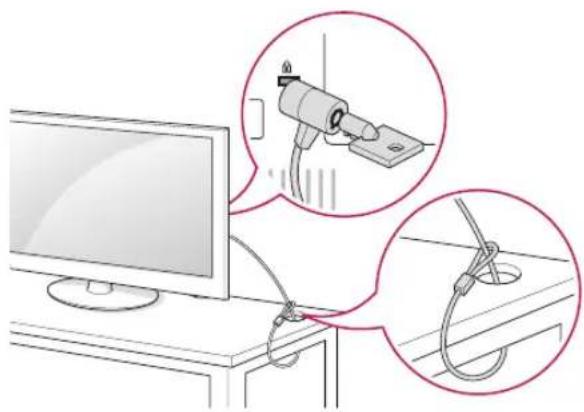

Kensington Lock	Yes
Safety Features	Anti-tip strap, ventilation requirements, grounded plug
Cleaning Instructions	Unplug, wipe with soft dry cloth; avoid liquids and chemicals

Frequently Asked Questions - 55LW7700 LG

How do I set up the TV for the first time?

Connect the power cord, press the power button on the remote, and follow the on-screen Initial Setting wizard to select language, mode (Home Use), time zone, network, and auto-tune channels.

Can I connect the TV to the internet wirelessly?

Yes, if your TV model includes built-in Wi-Fi (e.g., LW9500 series) or you purchase the optional LG Wireless LAN Adaptor (AN-WF100). Go to SETUP > NETWORK > Network Setting to select a wireless AP and enter the security key.

What type of 3D glasses work with this TV?

This TV supports active shutter 3D glasses such as LG models AG-S230, AG-S250, and AG-S270. Glasses must be purchased separately and paired with the TV via IR or Bluetooth.

How do I use the Magic Motion Remote Control?

First, register the remote by pressing ENTER while pointing it at the TV. To display the pointer, press ENTER if it disappears. Move the remote to control the on-screen cursor. For re-registration, hold ENTER and MUTE for 5 seconds.

How do I clean the TV screen safely?

Unplug the TV and use a soft, dry microfiber cloth to gently wipe the screen. Do not spray water or liquids directly. Avoid harsh chemicals like alcohol or ammonia. For stubborn spots, slightly dampen the cloth with distilled water.

What is the VESA mount size for wall mounting?

The VESA pattern is 400 x 400 mm with M6 screws (length depends on bracket). Use an LG-approved wall mount and ensure proper ventilation: at least 10 cm (4 inches) from the wall.

How do I connect external devices like a Blu-ray player?

Use an HDMI cable for best quality. Connect to one of the HDMI ports on the back. Press INPUT to select the corresponding input. For older devices, use Component or Composite cables with the provided gender cables.

The TV makes a cracking noise when turned off. Is this normal?

Yes, this is normal. The sound is caused by thermal contraction of plastic parts due to temperature changes. It does not affect performance or reliability.

How do I update the TV firmware?

Go to SETUP > SUPPORT > Software Update. You can update via network (internet) or USB. If using USB, download the firmware file from LG’s website, save to a FAT32 USB drive, and follow on-screen instructions.

What should I do if the remote control stops working?

First, replace the batteries (AAA for standard remote, AA for Magic Remote) ensuring correct polarity. If still not working, re-pair the Magic Remote by pressing ENTER while pointing at the TV, or reset it by holding ENTER and MUTE for 5 seconds.

USER MANUAL 55LW7700 LG

LED LCD TV / LCD TV / PLASMA TV

Please read this manual carefully before operating the set and retain it for future reference.

LED LCD TV MODELS

42LV3700	42LV5500	32LW5700	47LW6500
47LV3700	47LV5500	42LW5700	55LW6500
55LV3700	55LV5500	47LW5700	65LW6500
42LV5400	42LW5600	55LW5700	47LW7700
47LV5400	47LW5600	72LZ9700	55LW7700
55LV5400	55LW5600		47LW9500

P/NO : SAC34134220 (1101-REV00)

LCD TV
MODELS

42LK530

47LK530

55LK530

42LK550

47LK550

55LW9500

60LW9500

PLASMA TV
MODELS

50PZ750

60PZ750

50PZ950

60PZ950

50PZ950U

60PZ950U

www.lg.com

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® and DivX Plus ™ HD (H.264/MKV) video up to 1080p HD including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

NOTE

• Plasma : Plasma TV
  LCD : LED LCD TV, LCD TV
  • Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

IMPORTANT SAFETY INSTRUCTIONS

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.

- Do not use this apparatus near water.

- Clean only with a dry cloth.

- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet (Can differ by country).

- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- Never touch this apparatus or antenna during a thunder or lightning storm.

- When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.

- Do not allow an impact shock or any objects to fall into the product, and do not drop anything onto the screen.

• CAUTION concerning the Power Cord (Can differ by country):

It is recommended that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV.

- Warning - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning.

- Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).

- Grounding

Ensure that you connect the earth ground wire to prevent possible electric shock (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

Power Supply Short-circuit Breaker

• DISCONNECTING DEVICE FROM THE MAIN POWER

The power outlet must remain readily accessed in the event the device needs to be unplugged.

- As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

- Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user's authority to operate this product.

• ANTENNAS Outdoor antenna grounding

(Can differ by country): If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of

the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

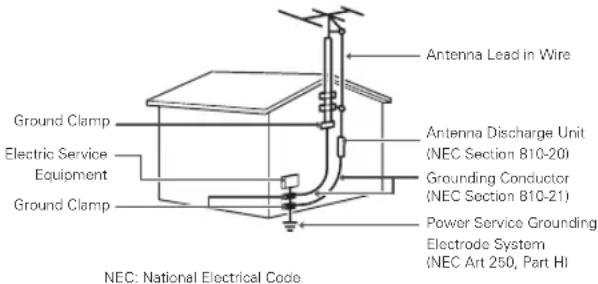

Antenna grounding according to the National Electrical Code, ANSI/NFPA 70

Antenna Lead in Wire Ground Clamp Electrical Service Equipment Ground Clamp Antenna Discharge Unit (NEC Section 810-20) Grounding Conductor (NEC Section 810-21) Power Service Grounding Electrode System (NEC Art 250, Part HI) NEC: National Electrical Code

- Cleaning

When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzine.

- Moving

Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV.

- Ventilation

Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places.

• If you smell smoke or other odours coming from the TV, unplug the power cord contact an authorized service center.
• Do not press strongly upon the panel with hand or sharp object such as nail, pencil or pen, or make a scratch on it.
• Keep the product away from direct sunlight.

- Dot Defect

The Plasma or LCD panel is a high technology product with resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you're viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV.

- Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required.

Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

• Take care not to touch the ventilation openings. When watching the TV for a long period, the ventilation openings may become hot. This does not affect the performance of the product or cause defects in the product.

• Viewing 3D Imaging (For 3D TV)

• If you watch the 3D imaging too closely or for a long period of time, it may harm your eyesight.
• Watching the TV or playing video games that incorporate 3D imaging with the 3D glasses for a long period of time can cause drowsiness, headaches or fatigue to you and/or your eyes. If you have a headache, or otherwise feel fatigued or drowsy, stop watching the TV and have a rest.
• Pregnant woman, seniors, persons with heart problems or persons who experience frequent drowsiness should refrain from watching 3D TV.
• Some 3D imaging may cause you to duck or dodge the image displayed in the video. Therefore, it is best if you do not watch 3D TV near fragile objects or near any objects that can be knocked over easily.
• Please prevent children under the age of 5 from watching 3D TV. It may affect their vision development.
• Warning for photosensitization seizure: Some

viewers may experience a seizure or epilepsy when exposed to certain factors, including flashing lights or images in TV or video games. If you or anybody from your family has a history of epilepsy or seizure, please consult with your doctor before watching 3D TV.

Also certain symptoms can occur in unspecified conditions without any previous history. If you experience any of the following symptoms, immediately stop watching the 3D imaging and consult a doctor: dizziness or light-headedness, visual transition or altered vision, visual or facial instability, such as eye or muscle twitching, unconscious action, convulsion, loss of conscience, confusion or disorientation, loss of directional sense, cramps, or nausea. Parents should monitor their children, including teenagers, for these symptoms as they may be more sensitive to the effects of watching 3D TV.

Risk of photosensitization seizure can be reduced with the following actions.

• Take frequent breaks from watching 3D TV.
• For those who have vision that is different in each eye, they should watch the TV after taking vision correction measures.
• Watch the TV so that your eyes are on the same level as the 3D screen and refrain from sitting too closely to the TV.
• Do not watch the 3D imaging when tired or sick, and avoid watching the 3D imaging for a long period of time.
• Do not wear the 3D glasses for any other purpose than viewing 3D imaging on a 3D TV.
• Some viewers may feel disoriented after watching 3D TV. Therefore, after you watch 3D TV, take a moment to regain awareness of your situation before moving.

LCD

If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

DISPOSAL (Hg lamp only used in LCD TVs)

The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority.

For USA

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

TABLE OF CONTENTS

2 LICENSES

3 IMPORTANT SAFETY IN-STRUCTIONS

8 TABLE OF CONTENTS

10 ASSEMBLING AND PREPARING

10 Unpacking
13 Optional Extras

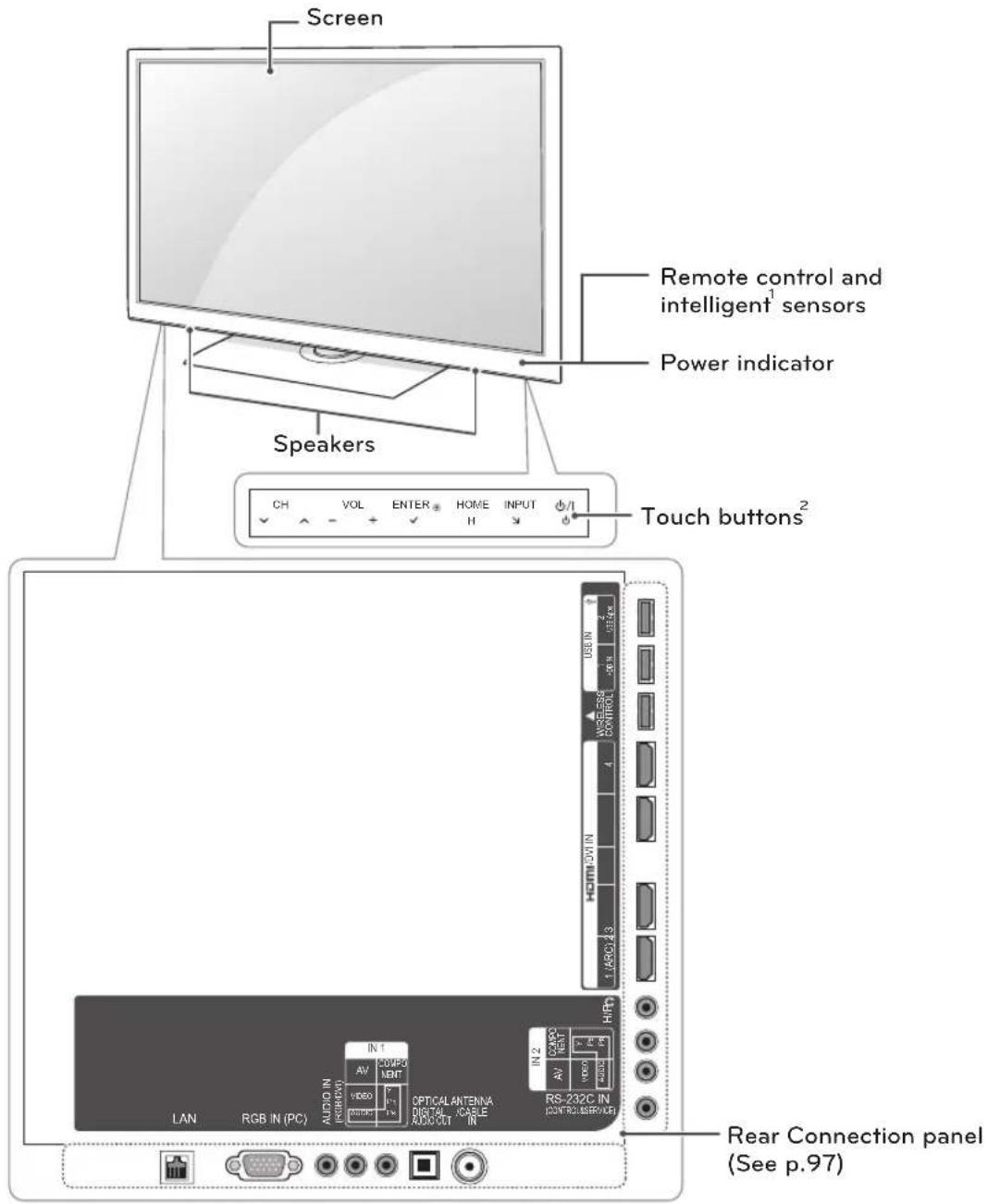

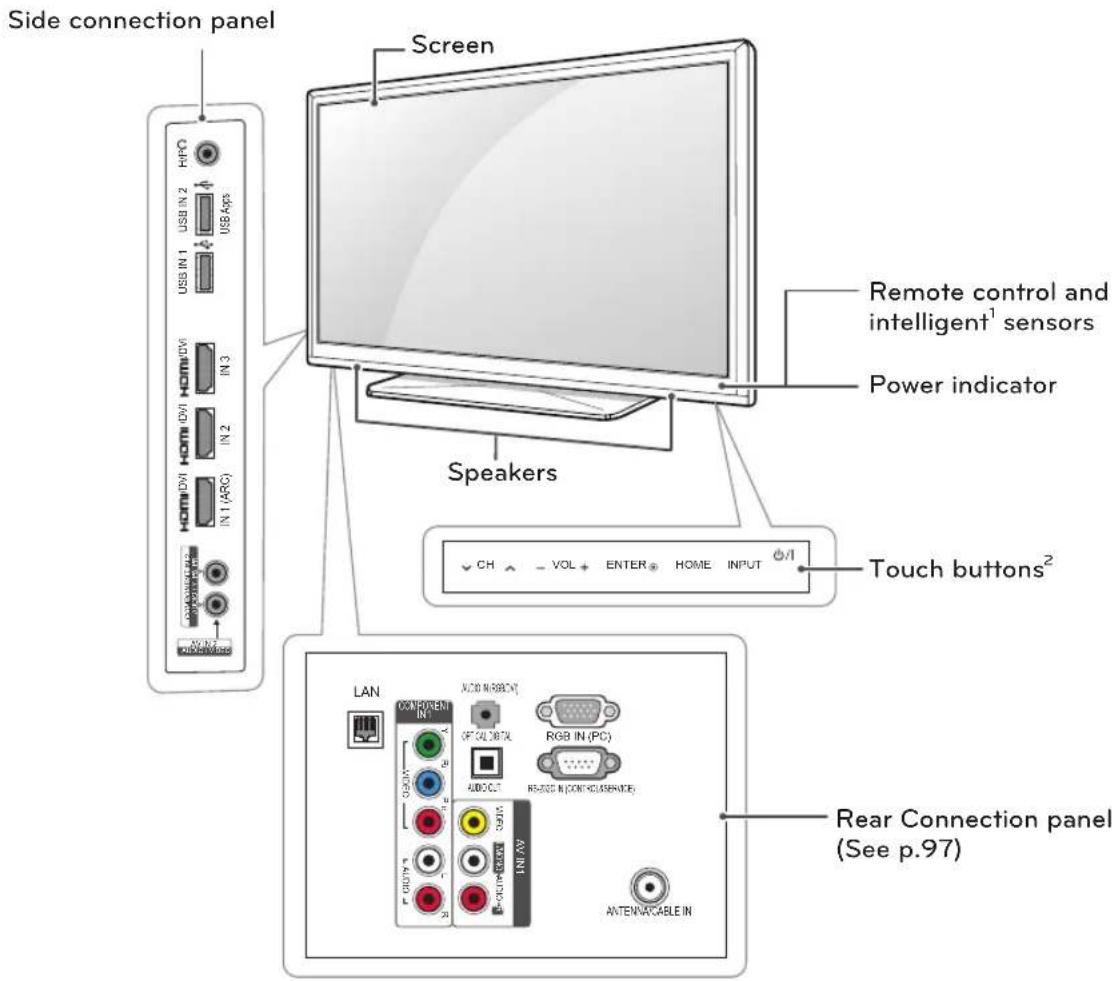

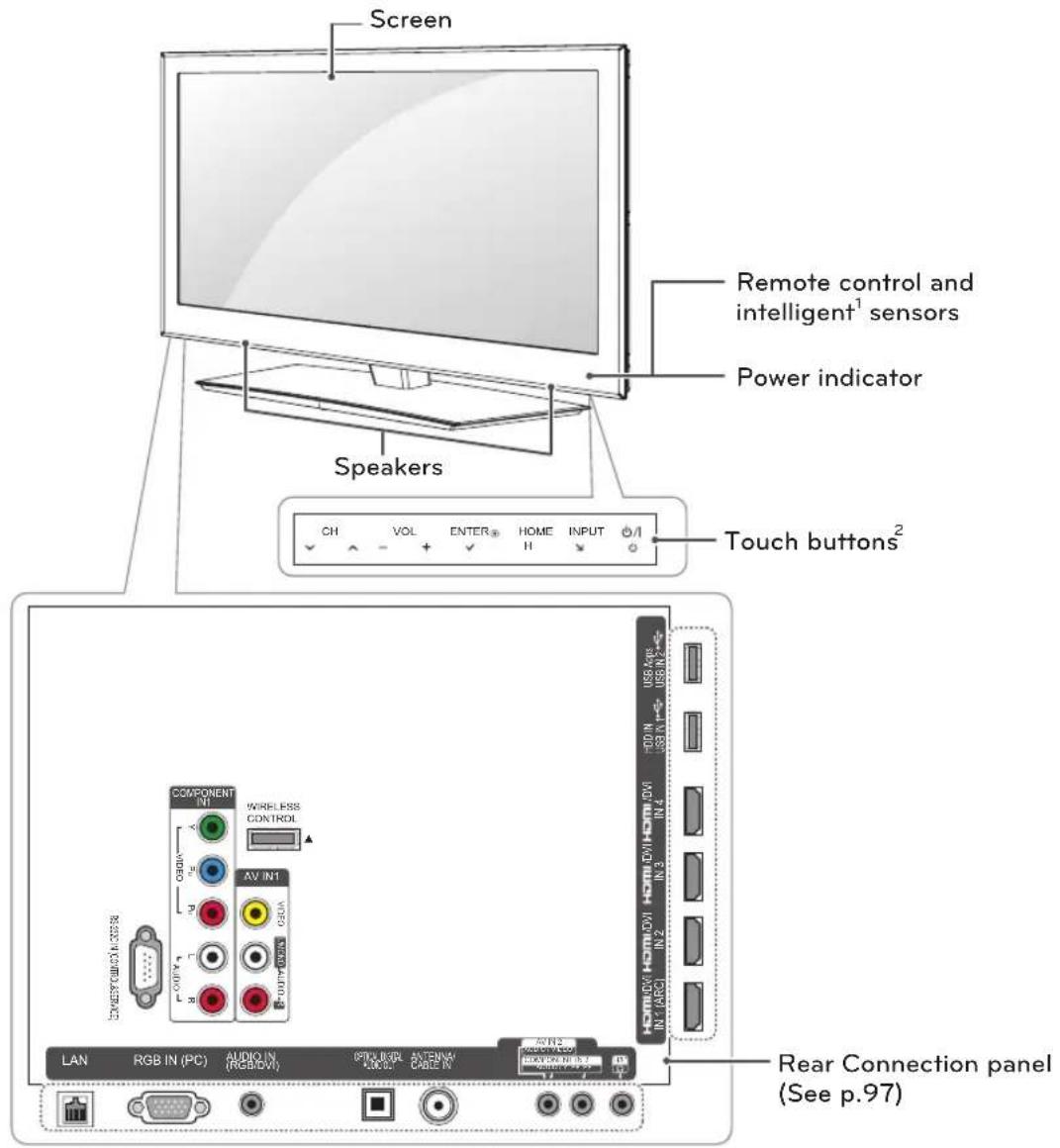

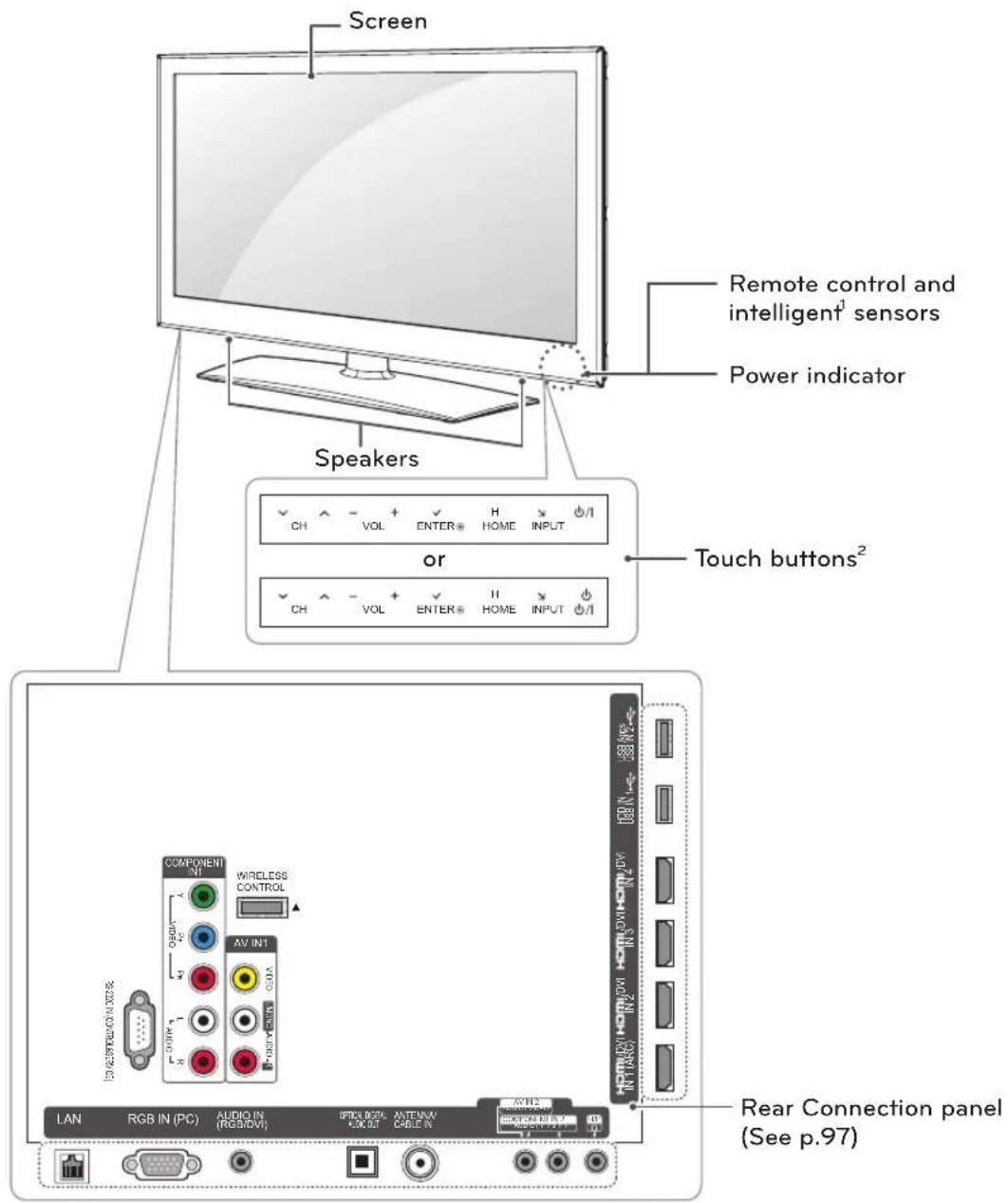

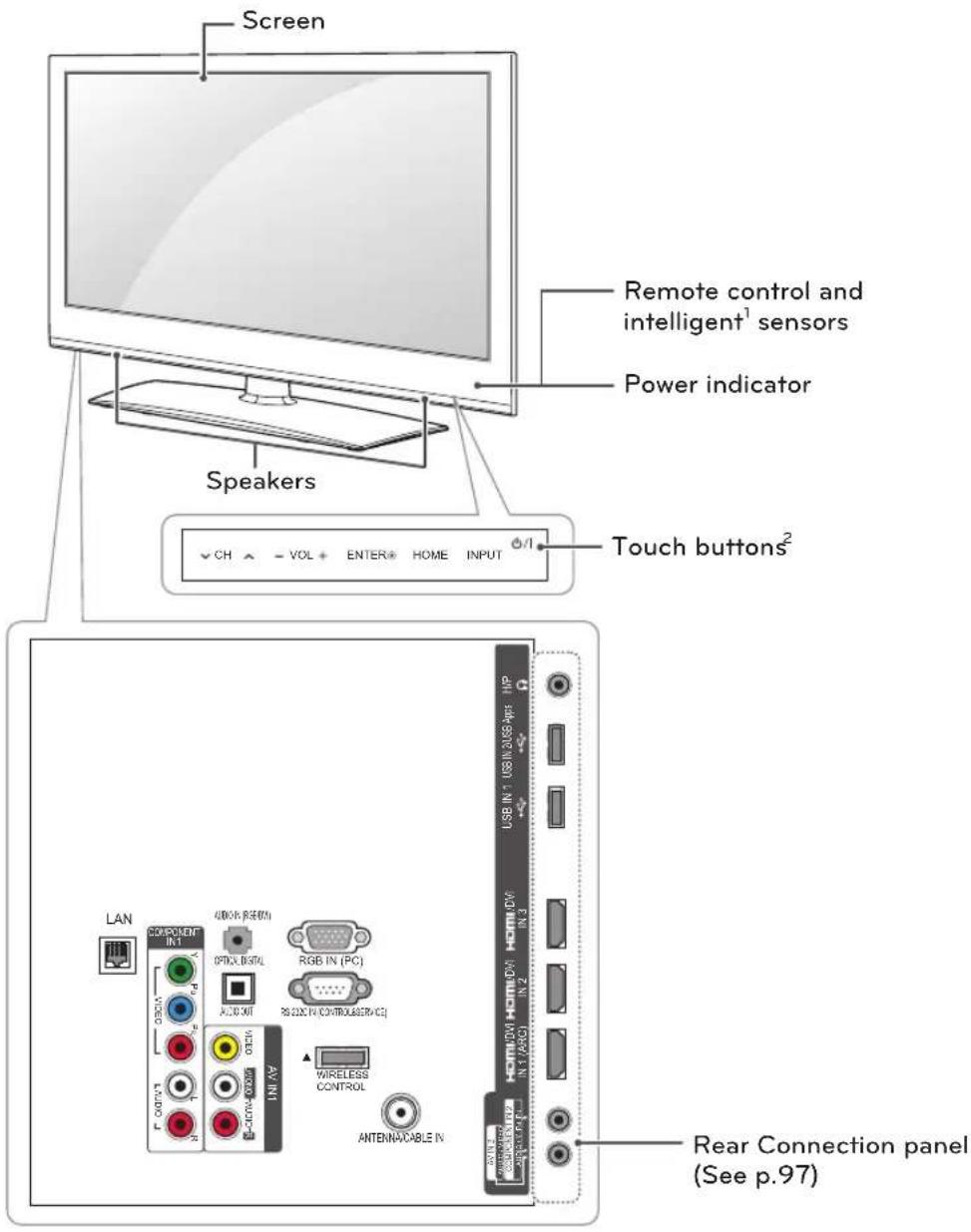

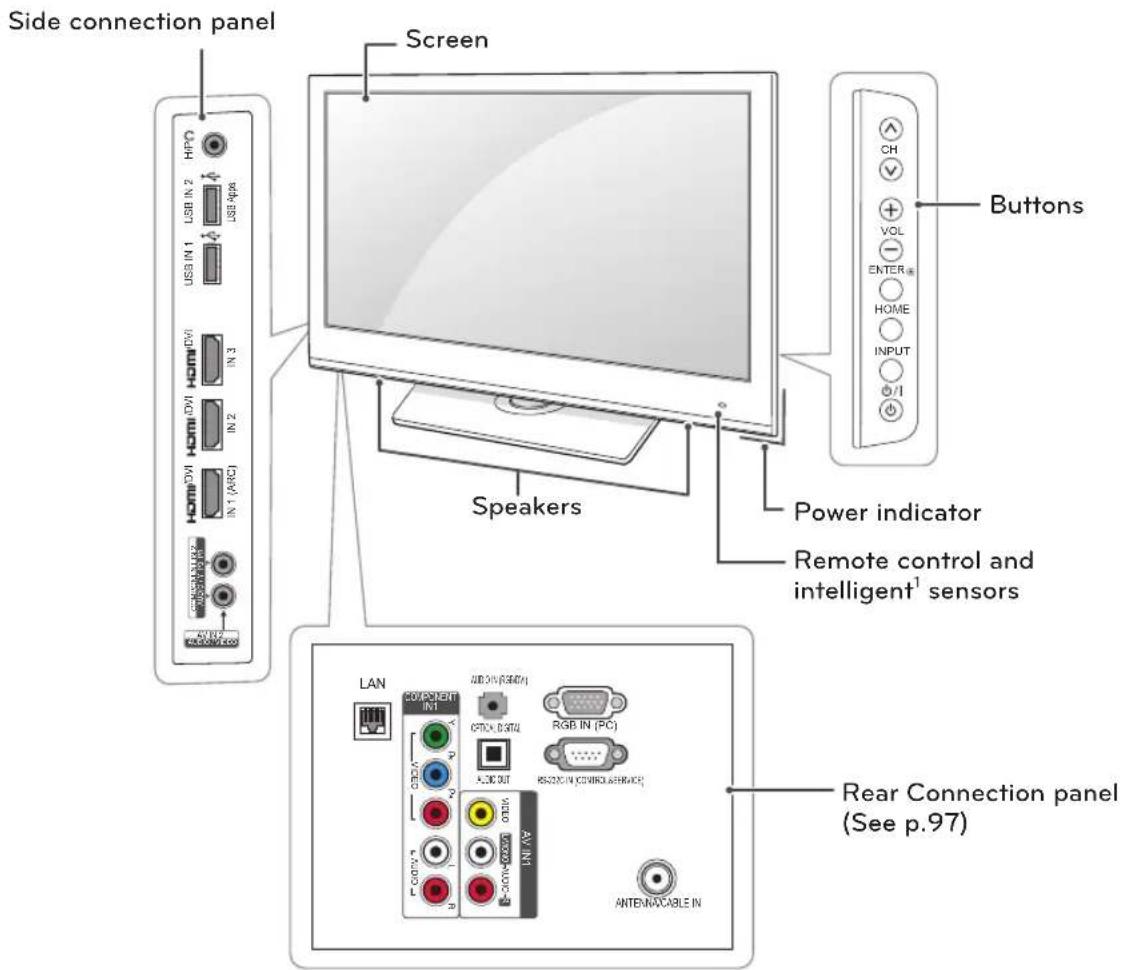

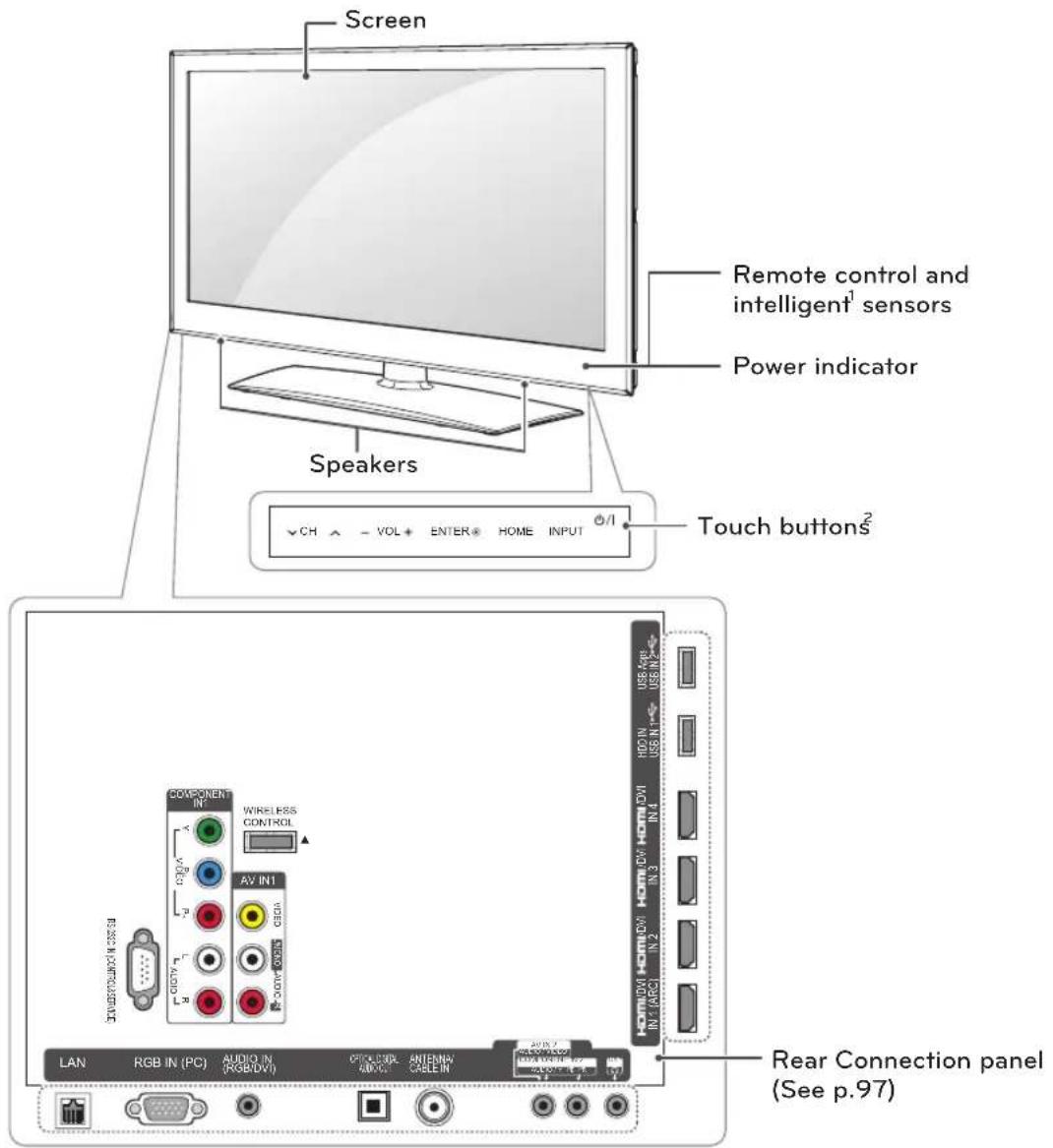

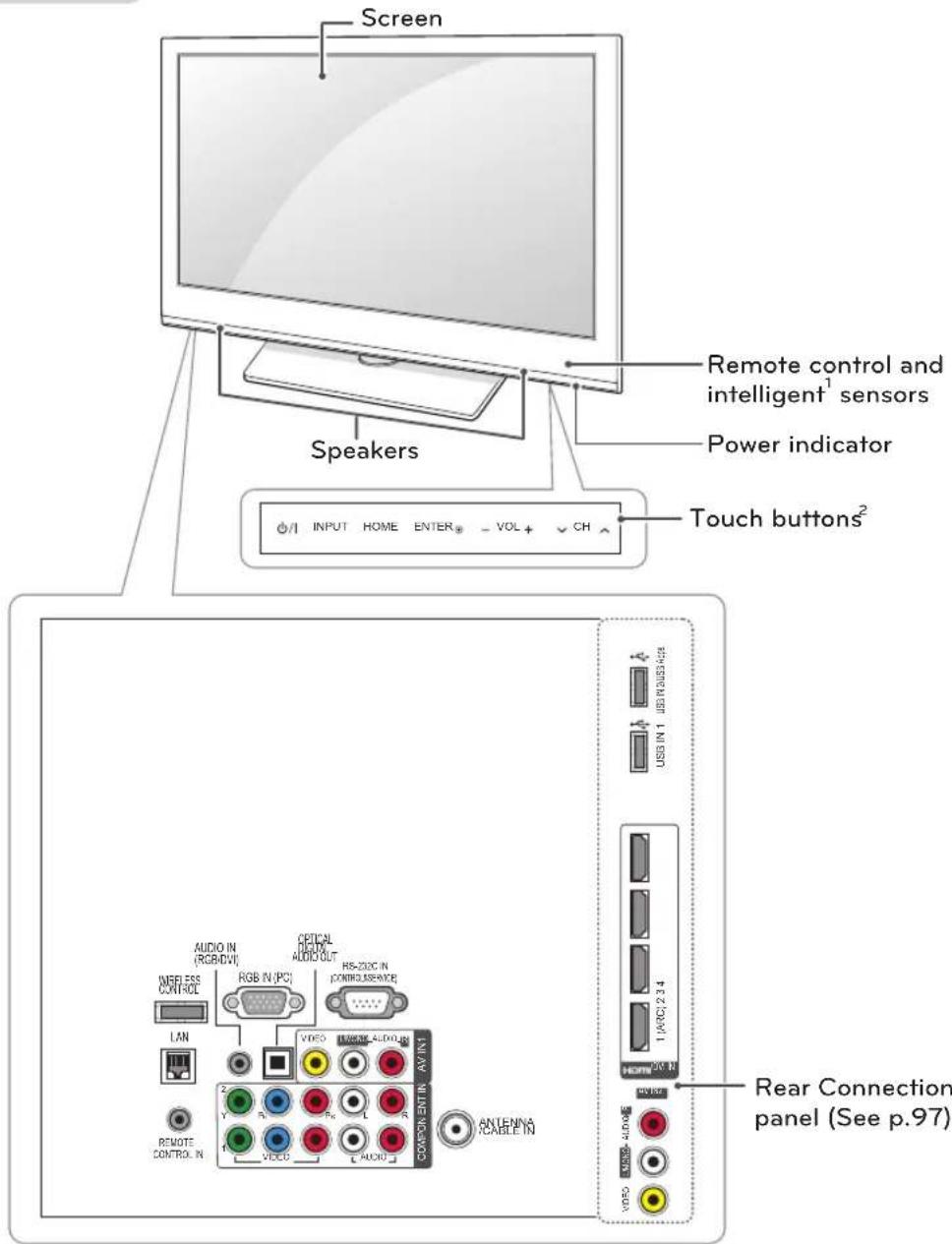

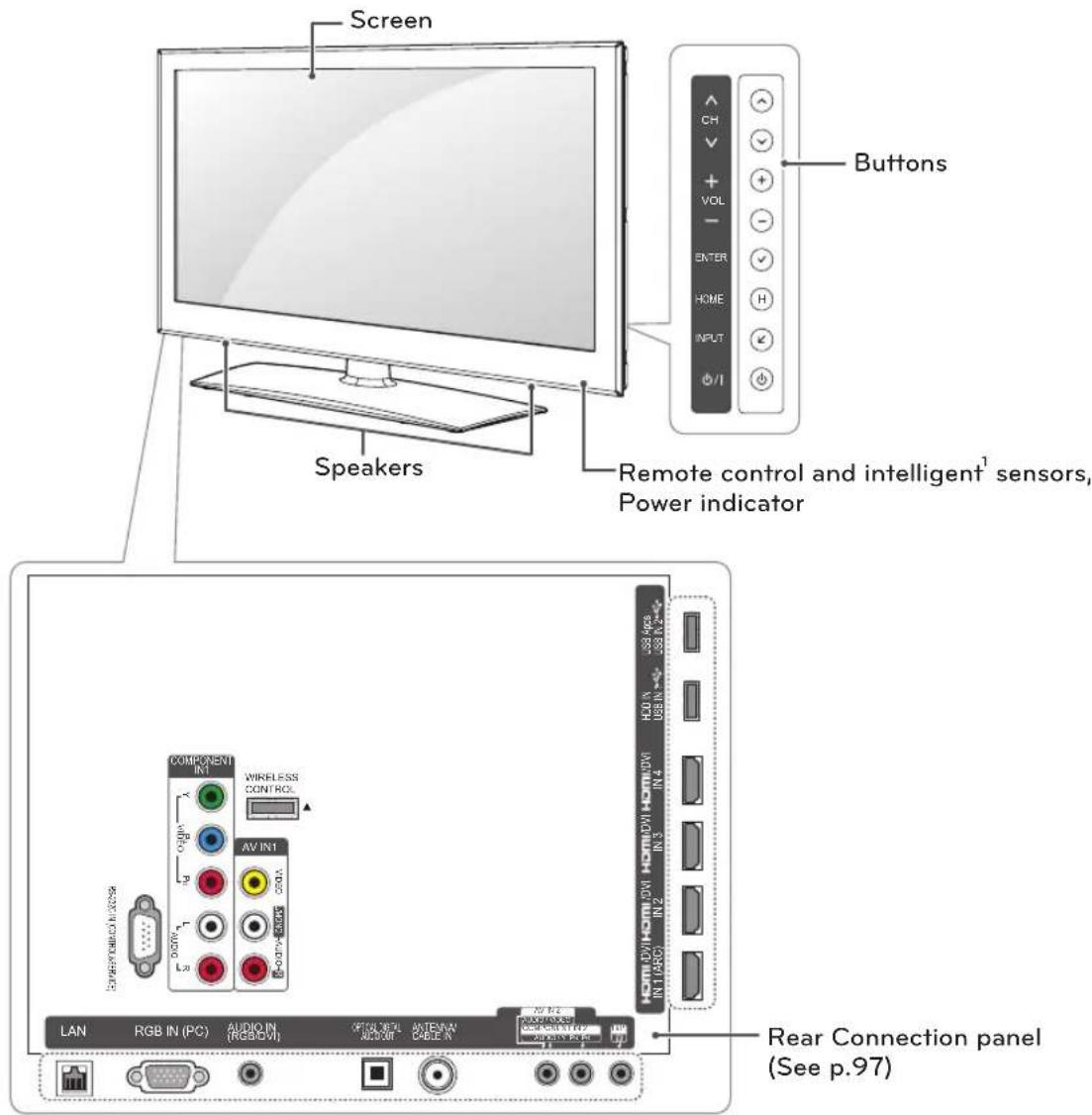

14 Parts and buttons
23 Lifting and moving the TV
23 Setting up the TV

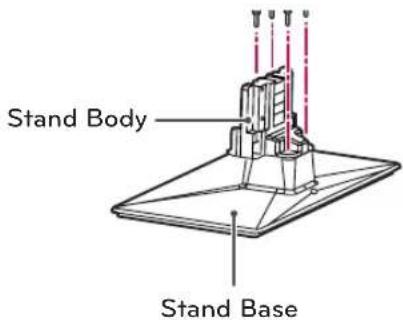

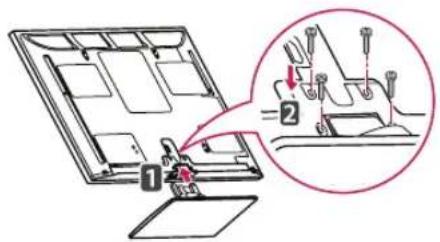

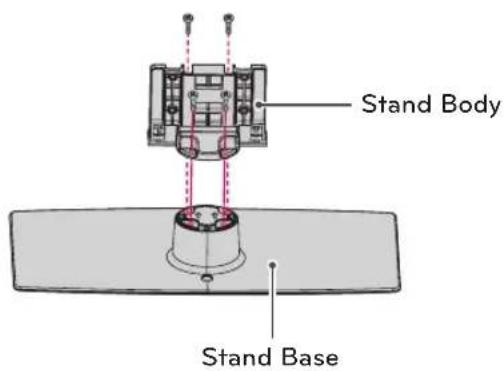

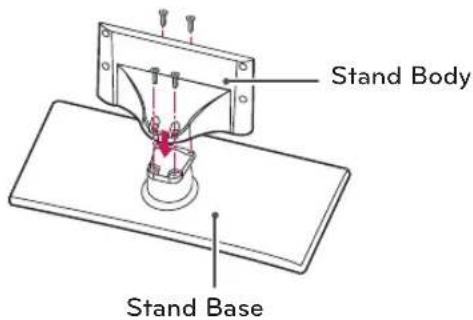

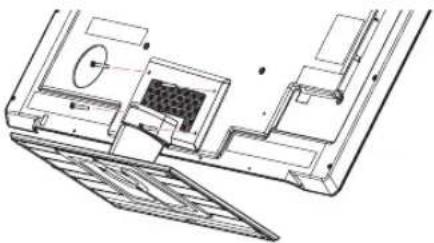

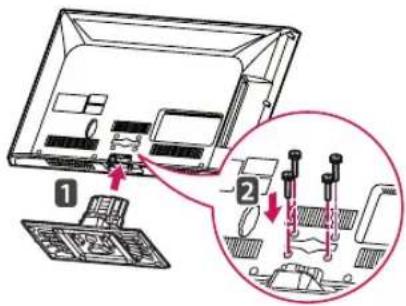

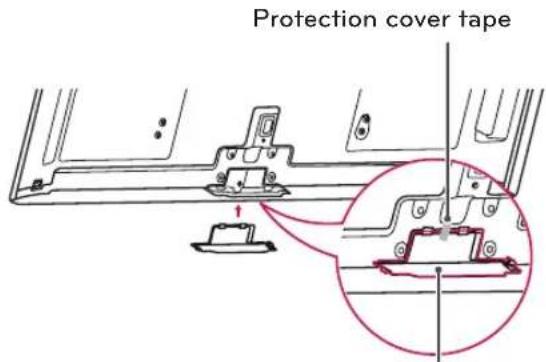

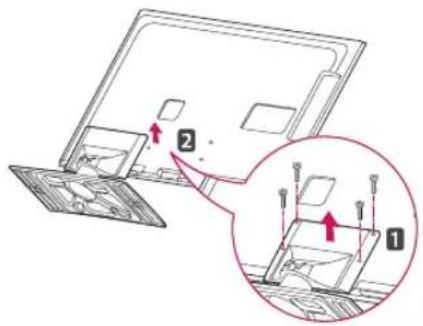

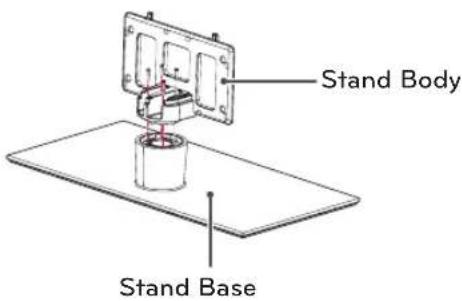

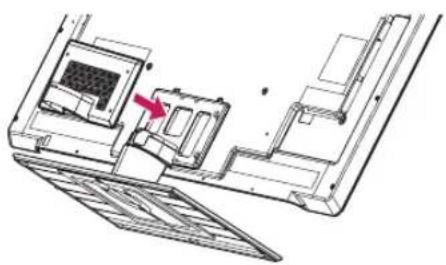

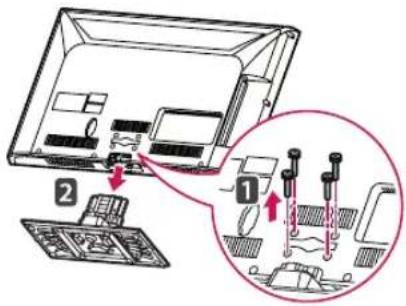

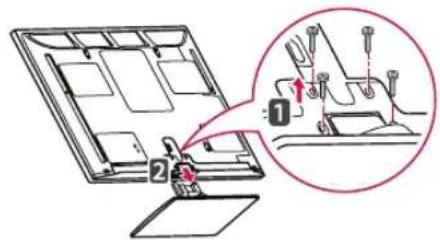

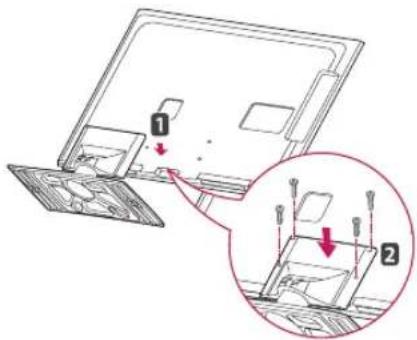

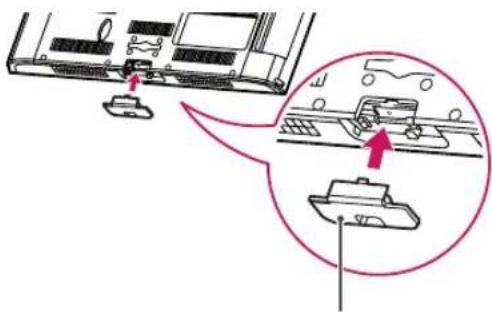

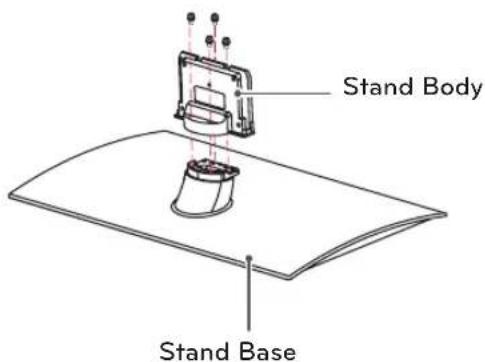

23 - Attaching the stand

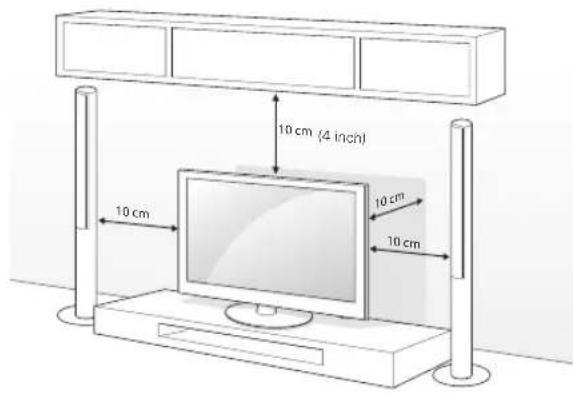

30 - Mounting on a table

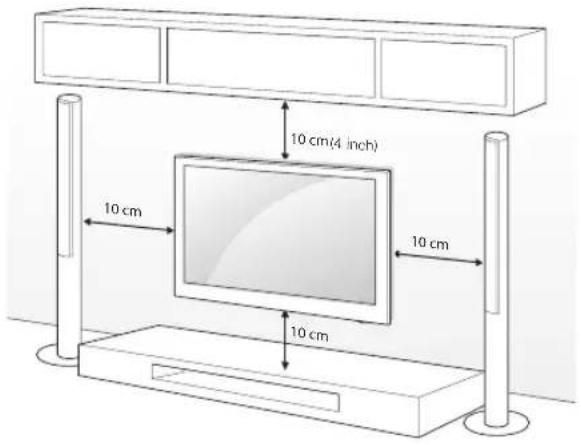

32 - Mounting on a wall

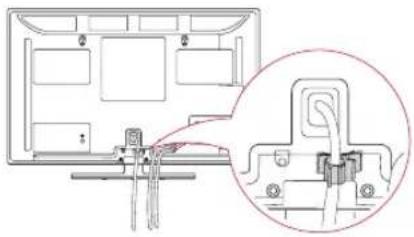

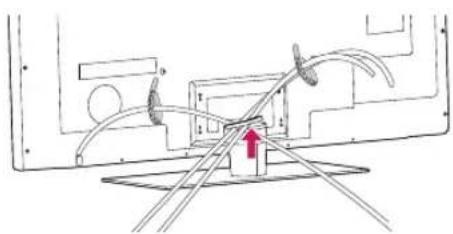

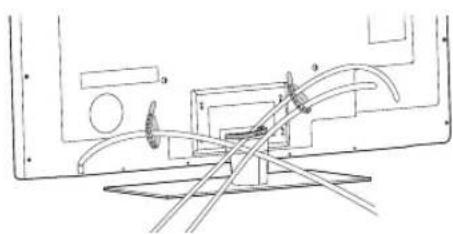

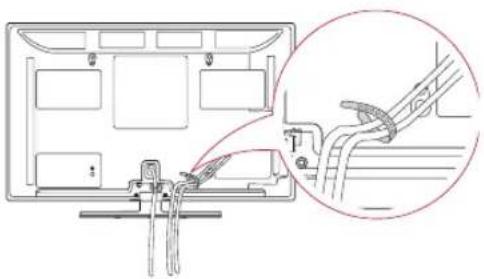

33 - Tidying cables

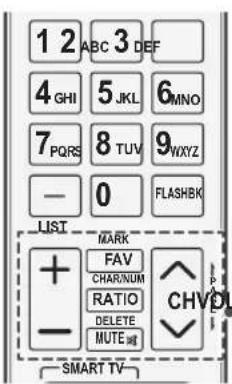

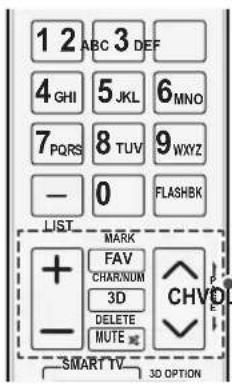

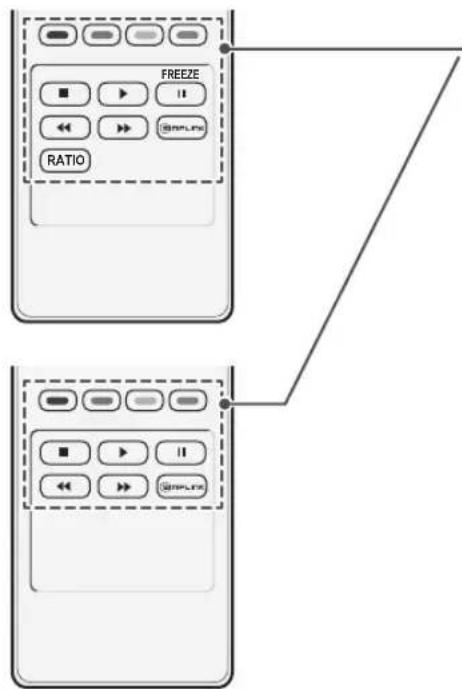

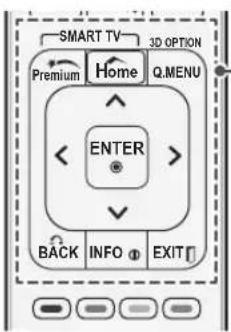

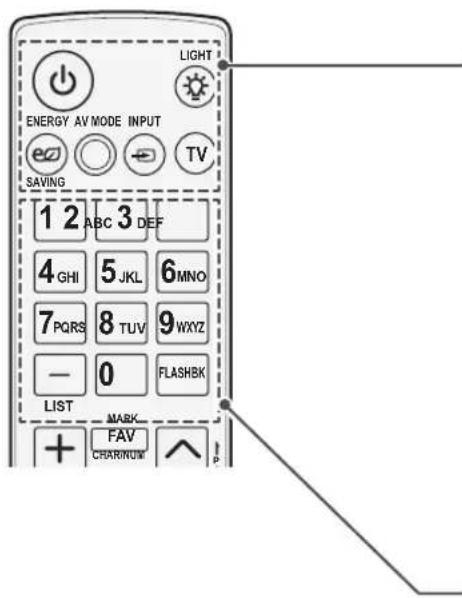

34 REMOTE CONTROL

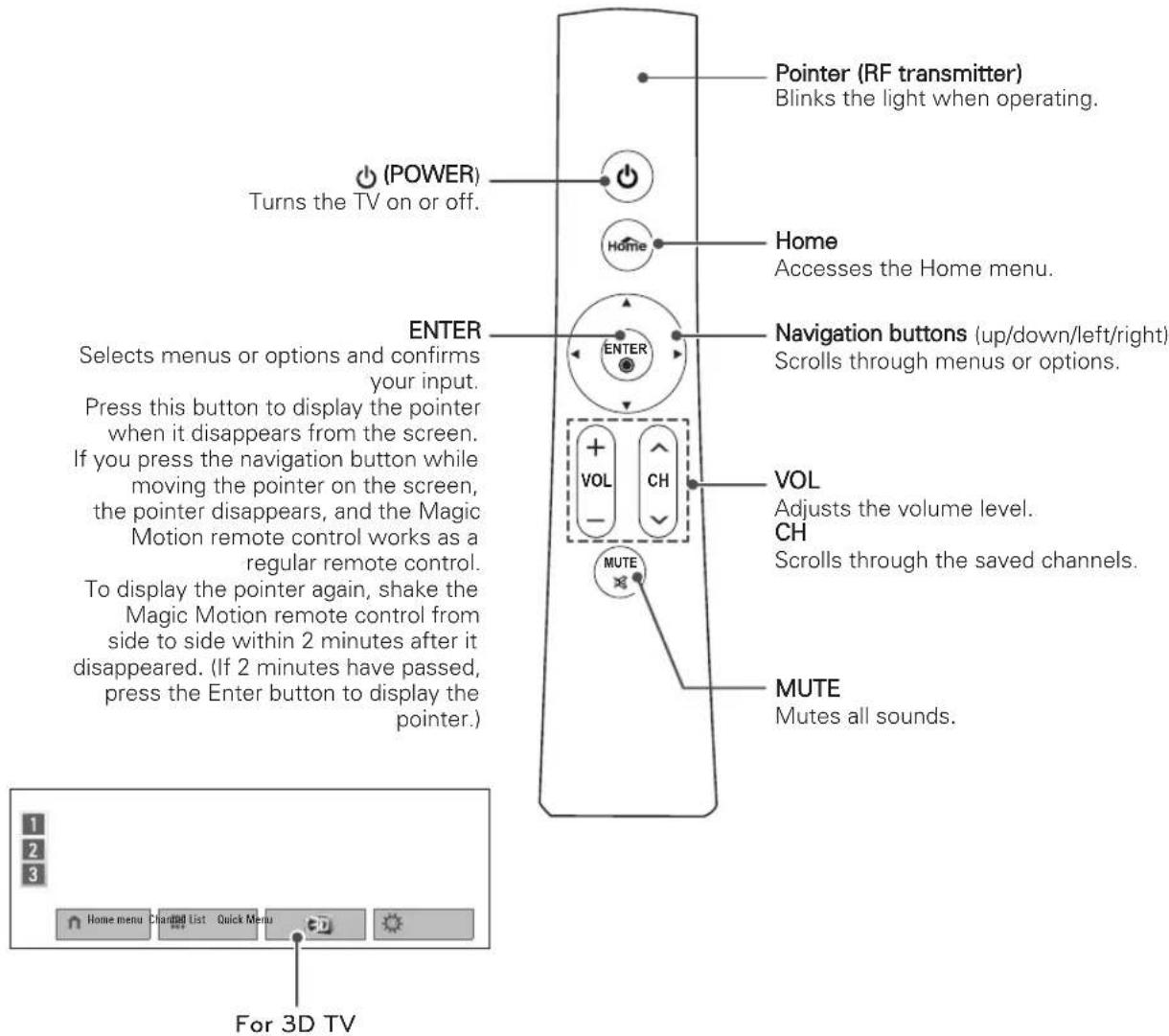

38 Magic Motion Remote Control Functions
39 - Registering Magic Motion Remote Control
39 - How to use Magic Motion Remote Control
39 - Precautions to Take when Using the Magic Motion Remote Control

40 WATCHING TV

40 Connecting to an antenna or cable

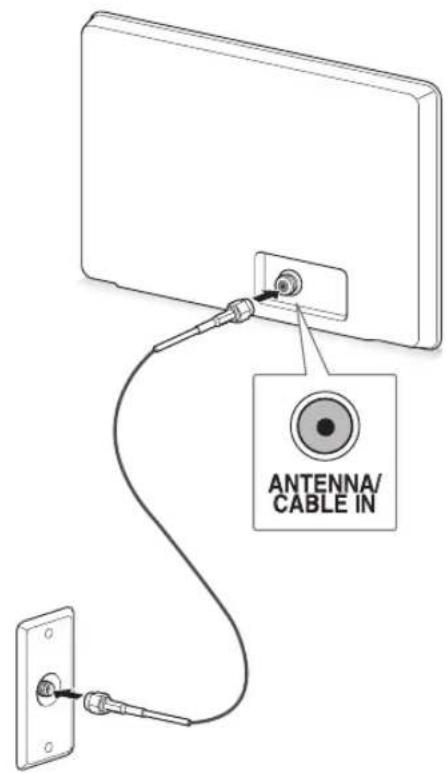

40 - Connecting an antenna or basic cable

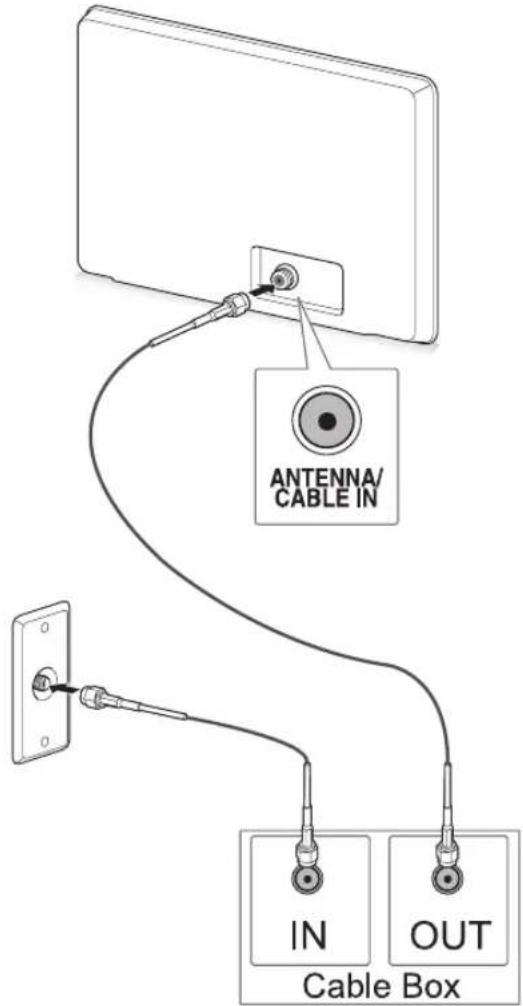

40 - Connecting a cable box

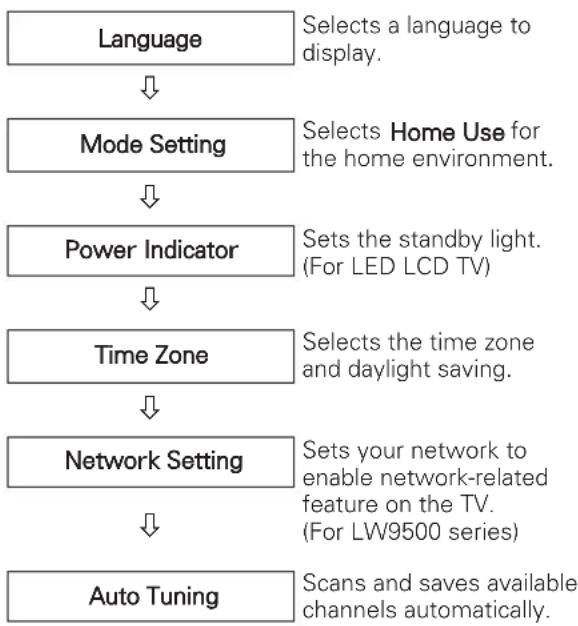

41 Turning the TV on for the first time
42 Watching TV

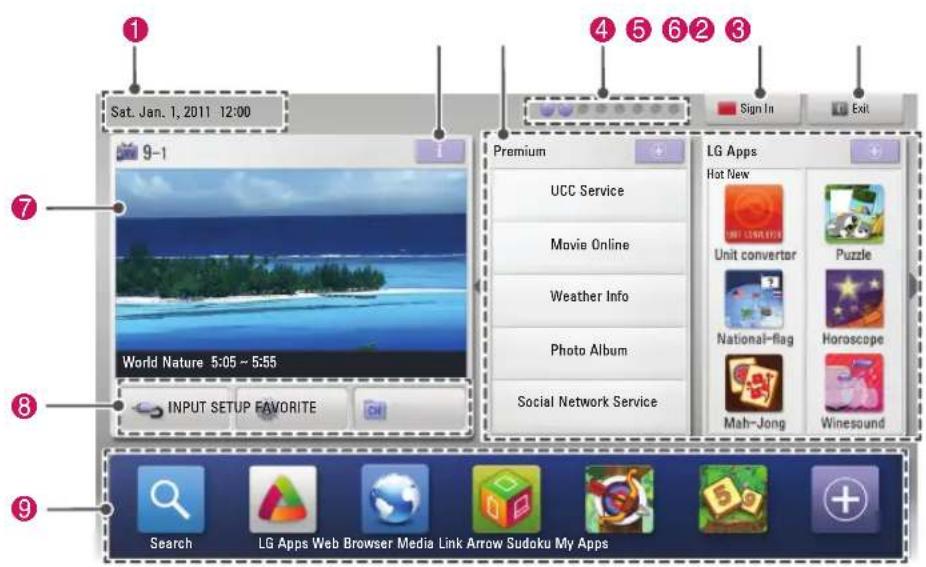

43 Accessing Home Menu
44 Managing channels
44 - Setting up channels

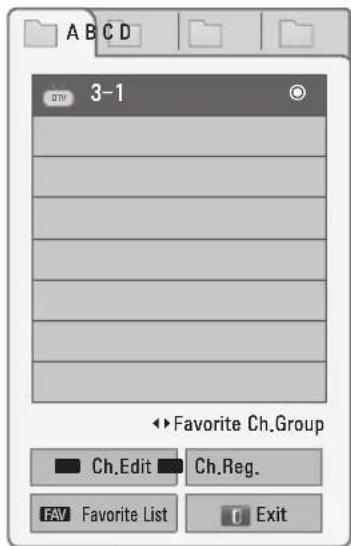

45 - Using favorite channels

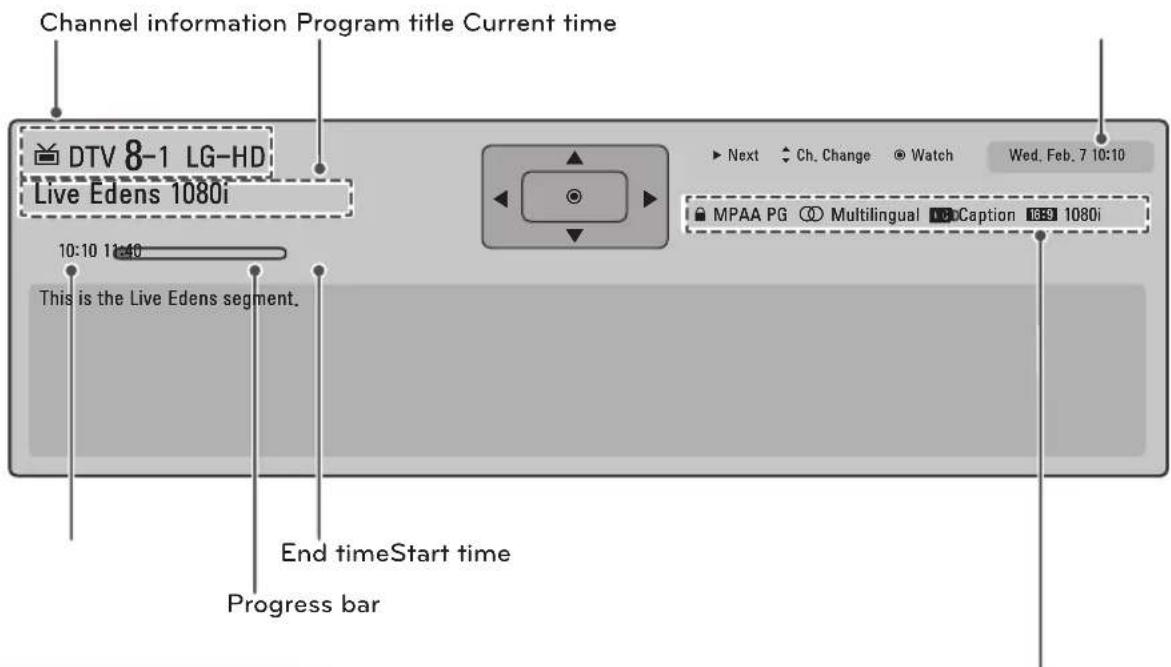

46 - Checking current program info
47 Using additional options
47 - Adjusting aspect ratio
48 - Changing AV modes

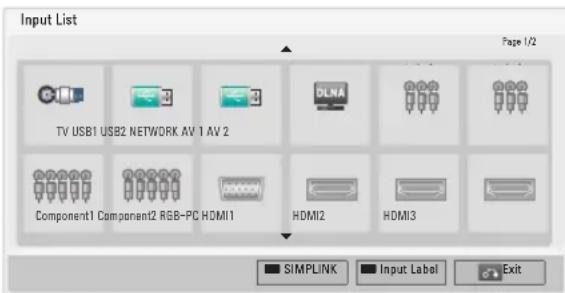

48 - Using the input list
49 Using the quick menu

50 ENTERTAINMENT

50 Network Connection

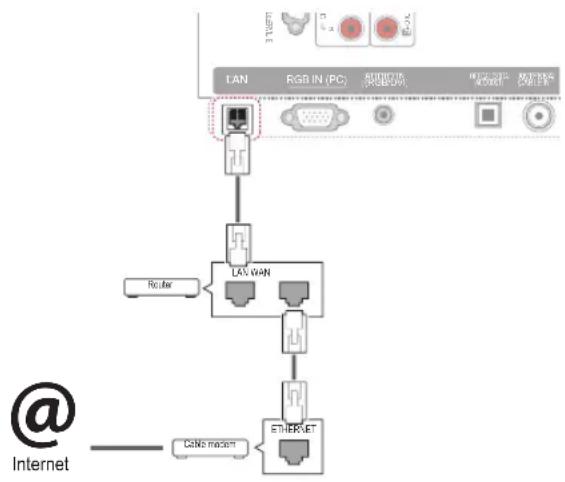

50 - Connecting to a wired network

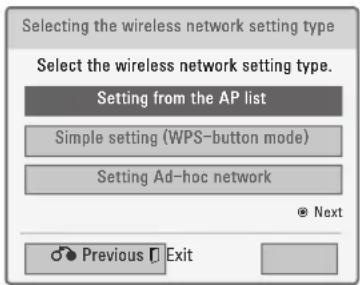

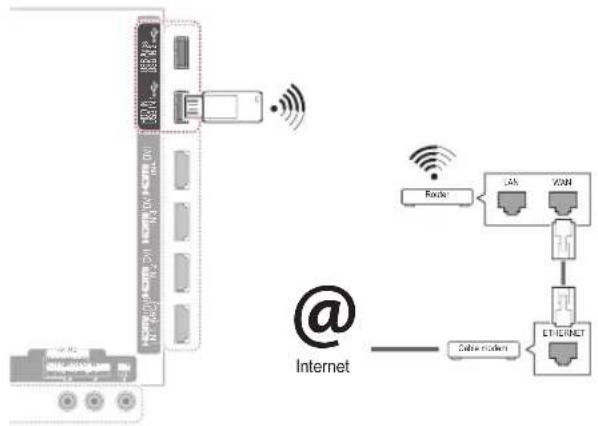

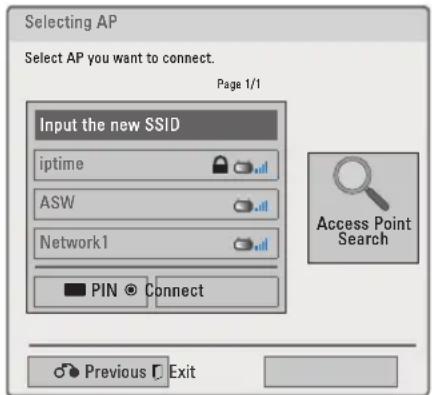

51 - Connecting to a wireless network

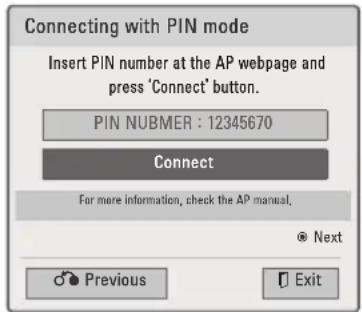

52 - When a security code is already set
55 - Network Status

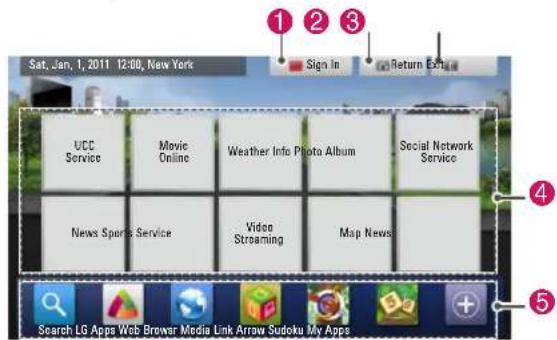

56 Premium Account Function
56 - Notice

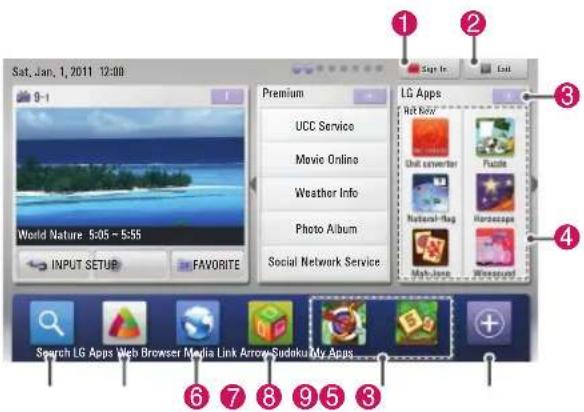

58 LG Apps function
58 - Registration LG Apps
59 - Sign in with LG Apps account

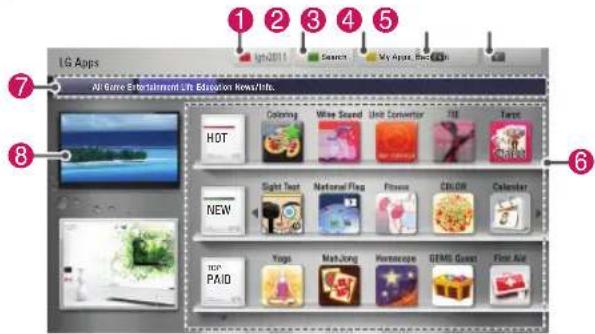

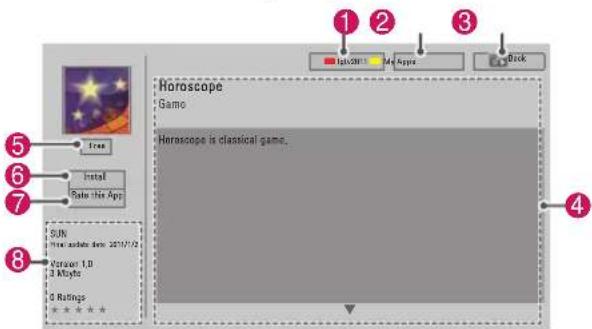

60 - Using LG Apps

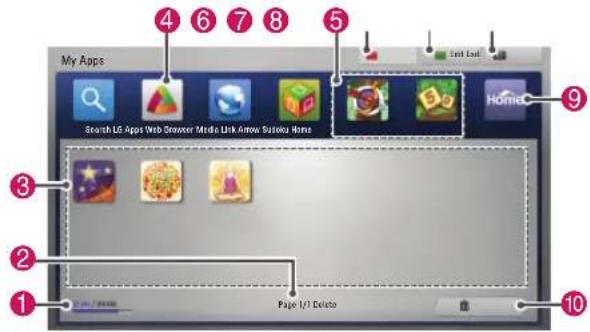

61 - Using My Apps
62 Smart Share Function
62 - Connecting USB storage devices
63 - Connecting DLNA DMP (Digital Living Network Alliance, Digital Media Player)
66 - Connecting DLNA DMR (Digital Living Network Alliance, Digital Media Render)

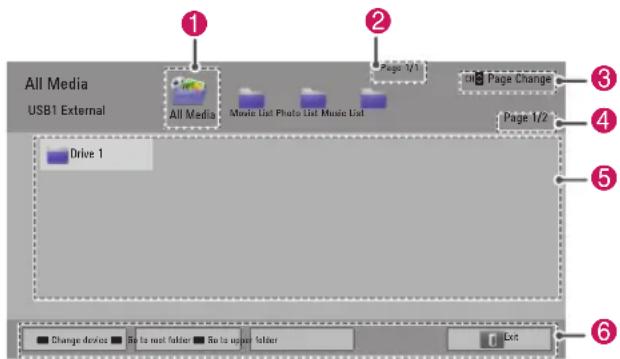

67 - Browsing files

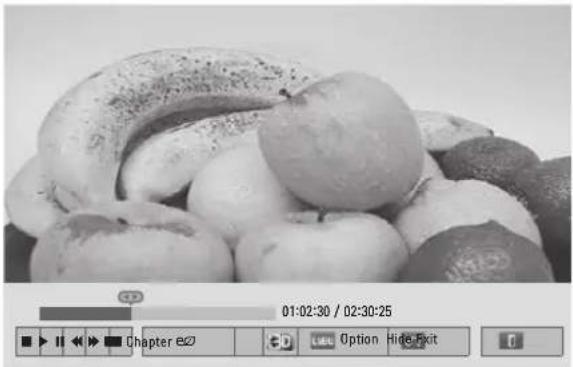

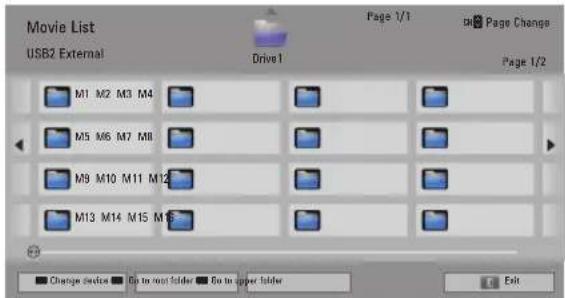

68 - Viewing Videos
71 - DivX registration code

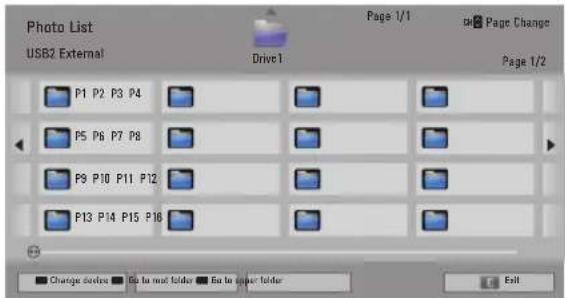

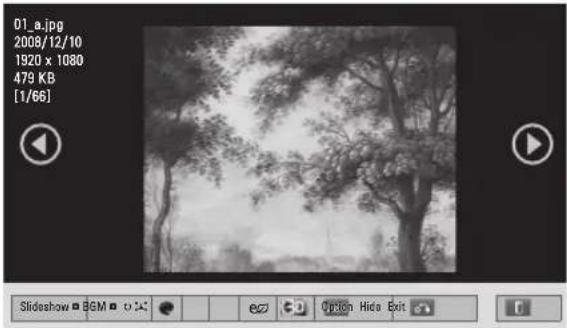

72 - Viewing Photos

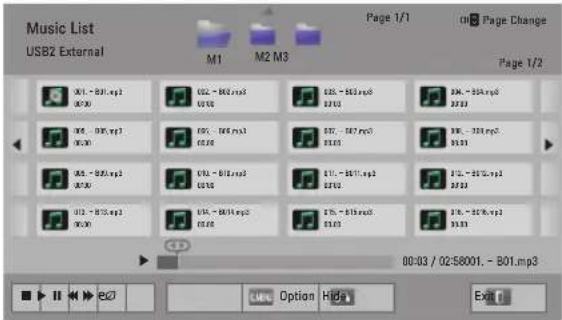

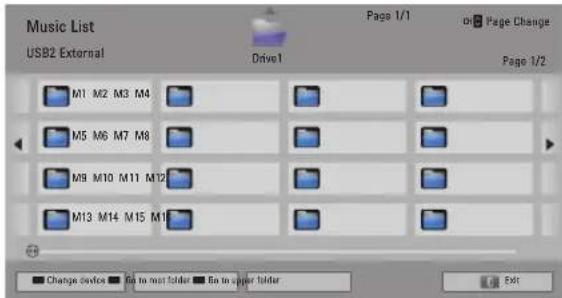

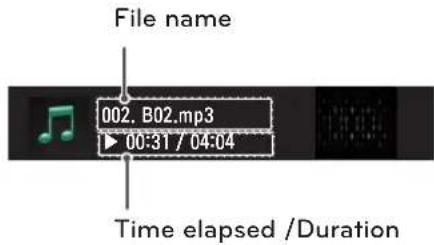

74 - Listening to music

76 3D IMAGING (FOR 3D TV)

76 3D Technology
76 - When watching 3D imaging
77 - When using 3D Glasses
77 - 3D Imaging Viewing Range
78 Viewing 3D Imaging

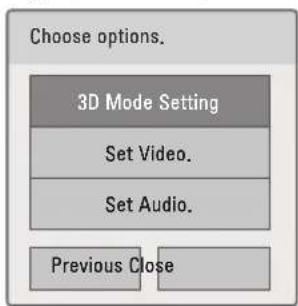

78 - Setting 3D Imaging

80 CUSTOMIZING TV SETTINGS

80 The SETUP Menu

81 Customizing Settings

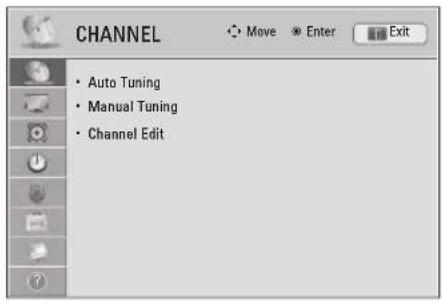

81 - CHANNEL Settings

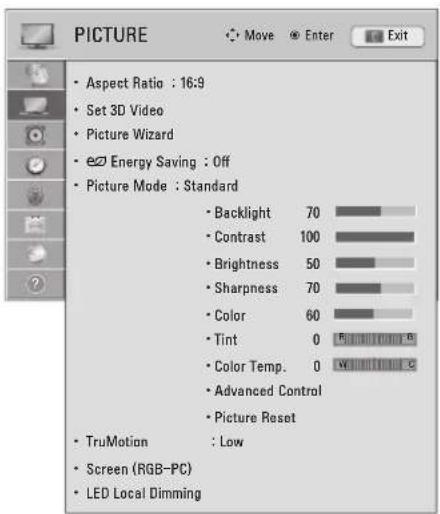

82 - PICTURE Settings

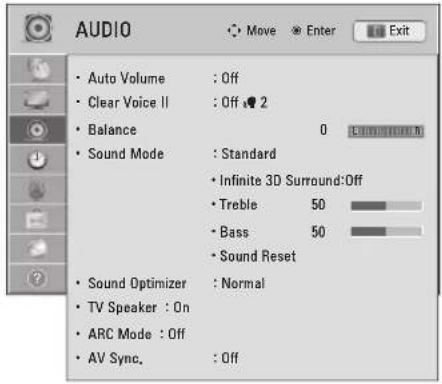

87 - AUDIO Settings

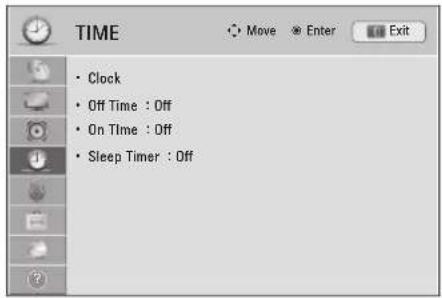

89 - TIME Settings

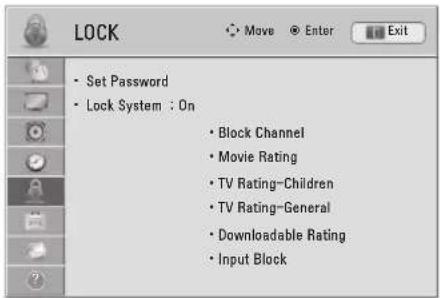

90 - LOCK Settings

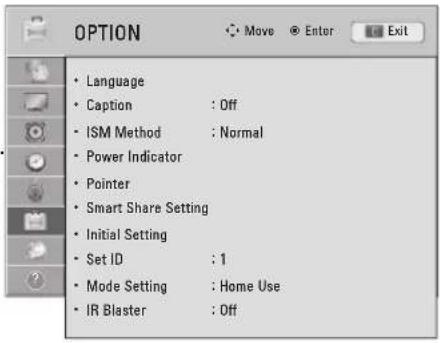

92 - OPTION Settings

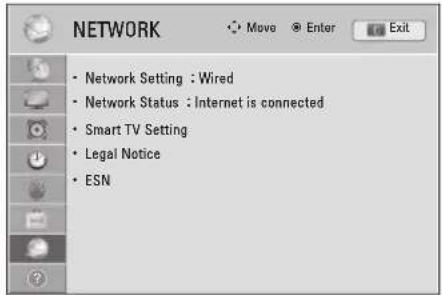

95 - NETWORK Settings

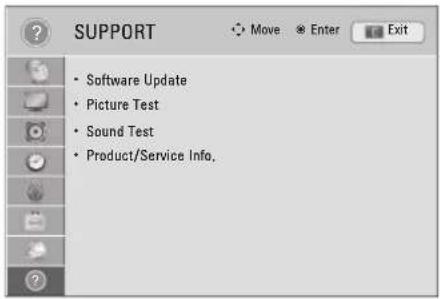

96 - SUPPORT Settings

97 MAKING CONNECTIONS

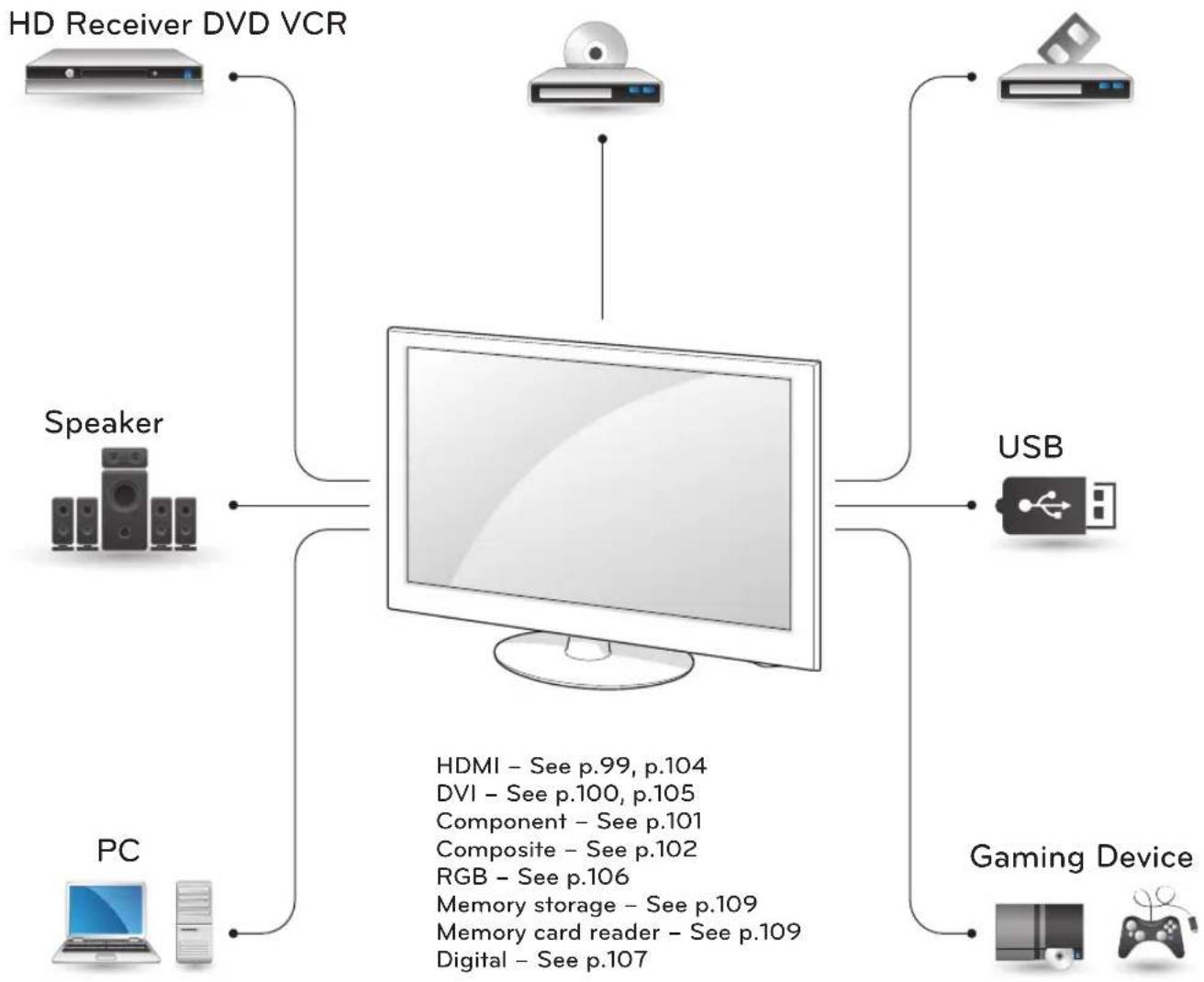

98 Connection Overview

99 Connecting to a HD receiver, DVD, or VCR player

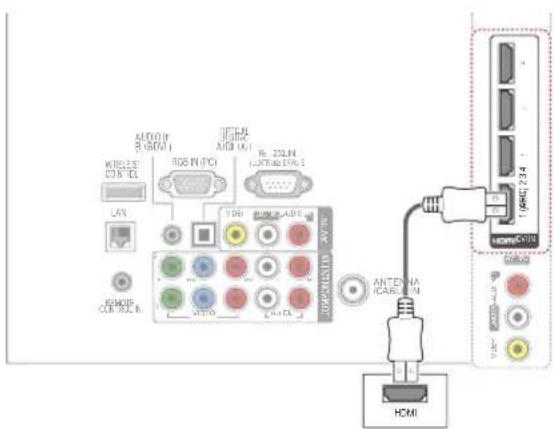

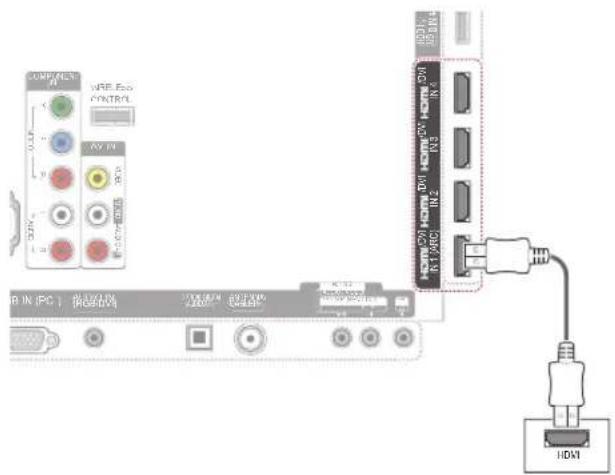

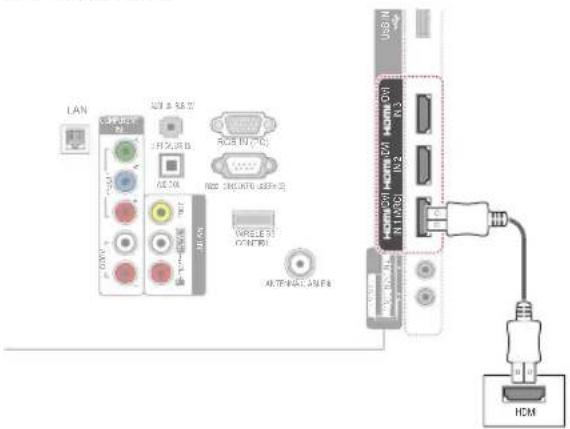

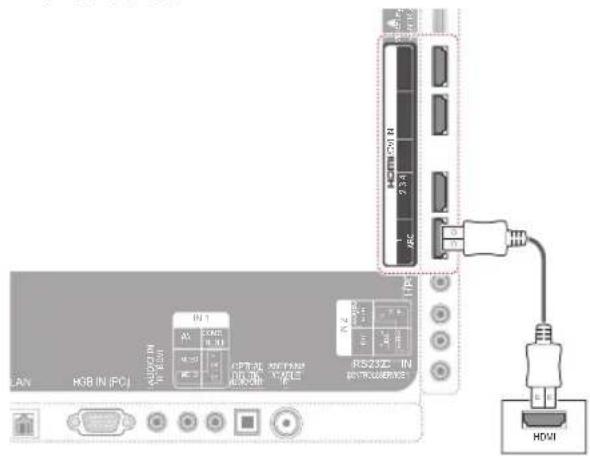

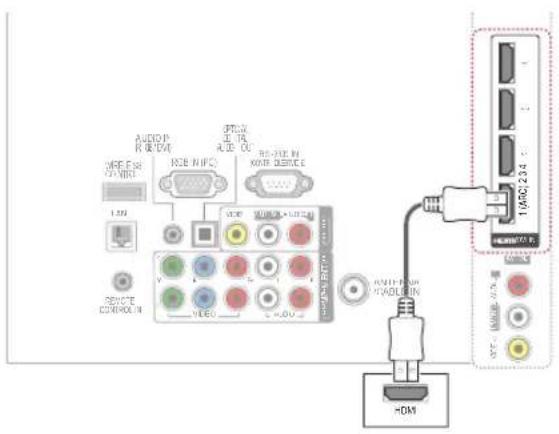

99 - HDMI Connection

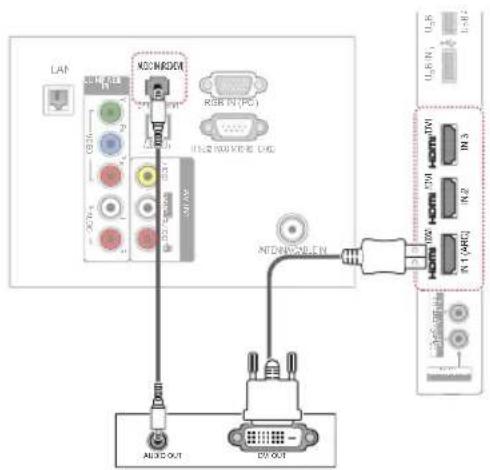

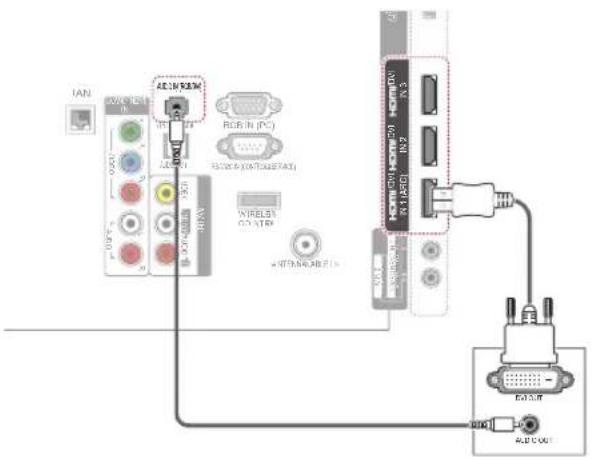

100 - DVI to HDMI Connection

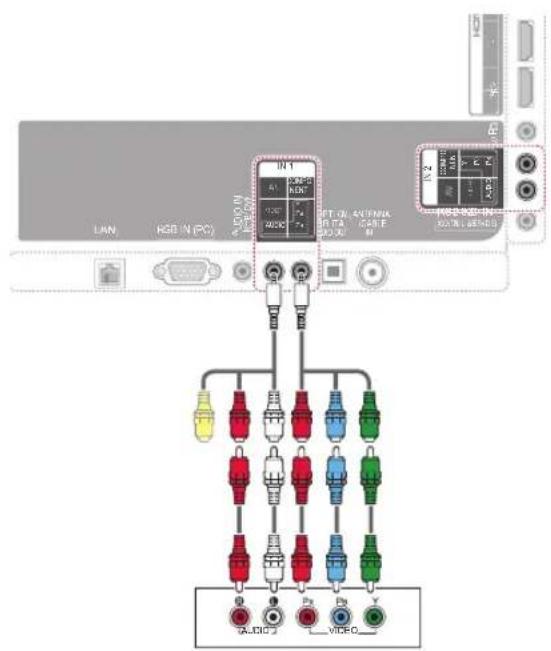

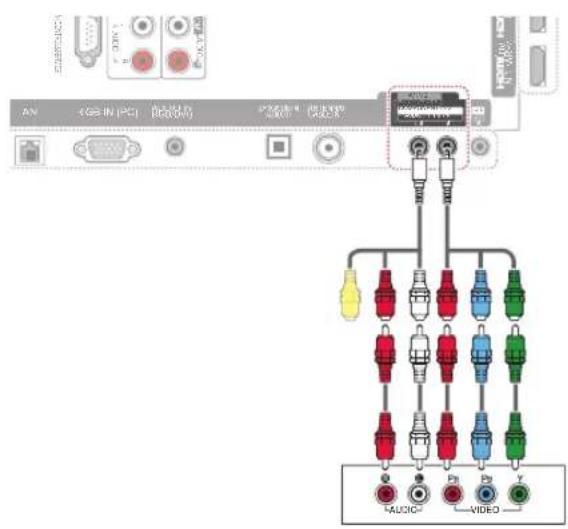

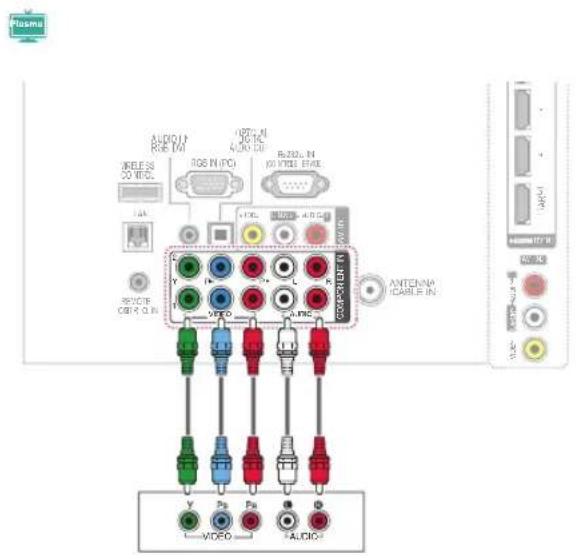

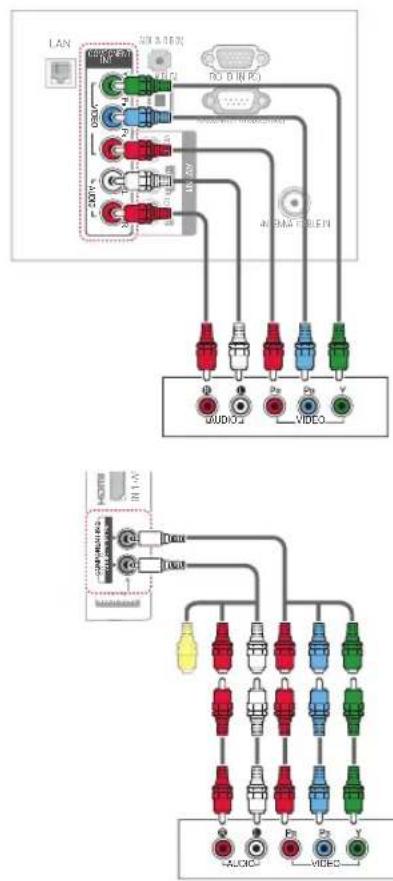

101 - Component Connection

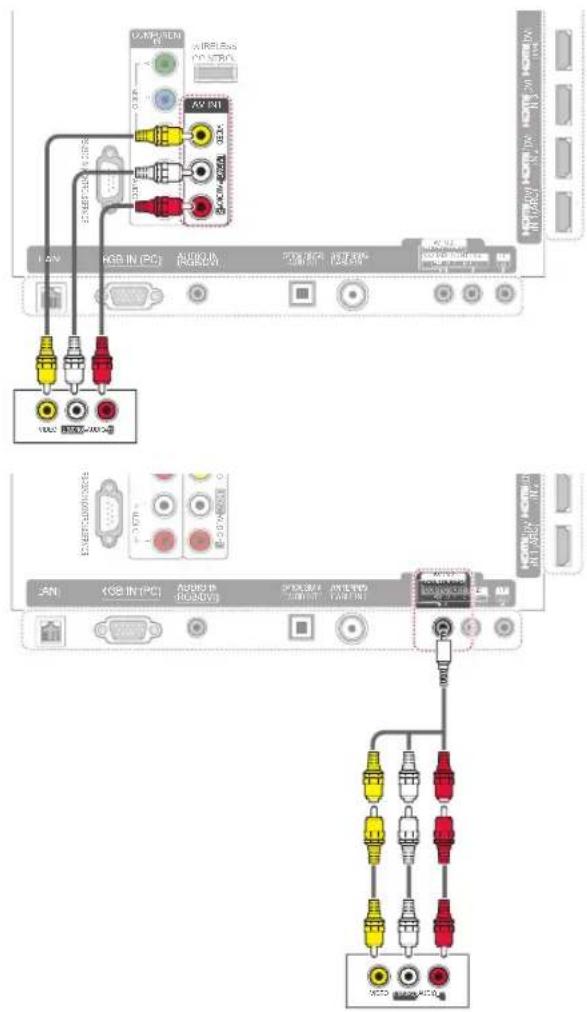

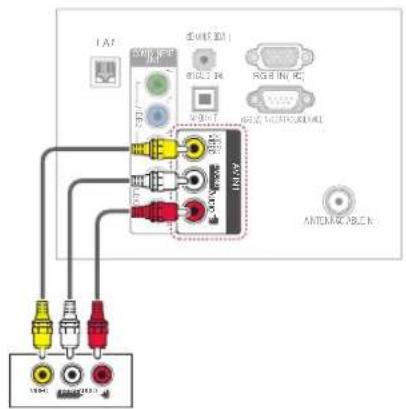

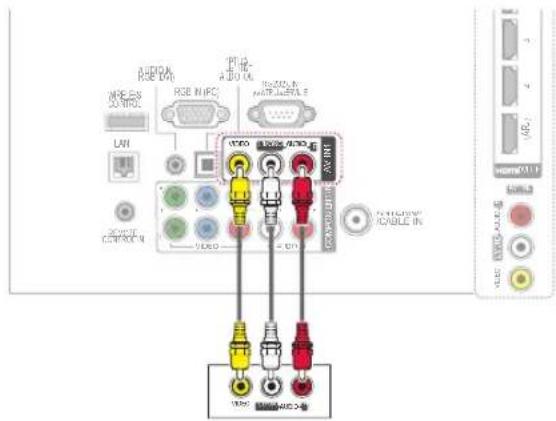

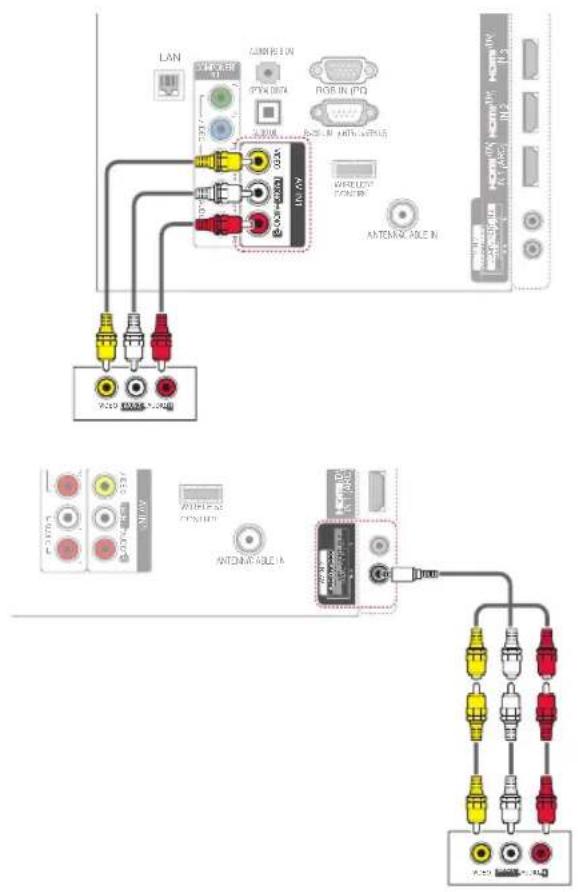

102 - Composite Connection

104 Connecting to a PC

104 - HDMI Connection

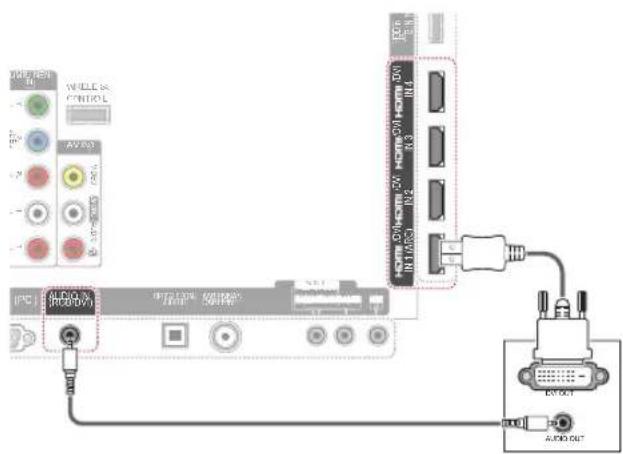

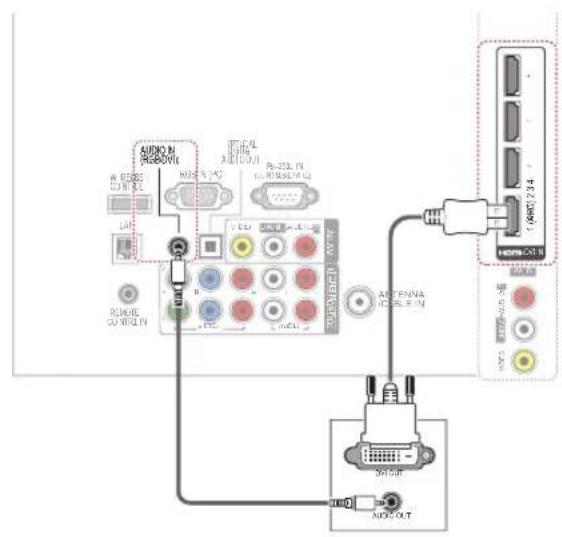

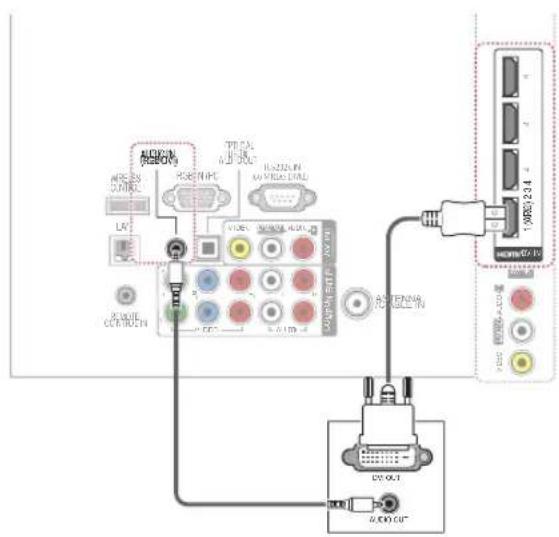

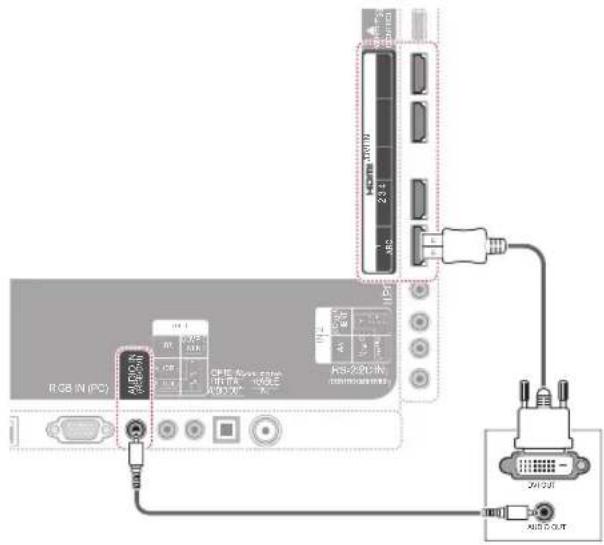

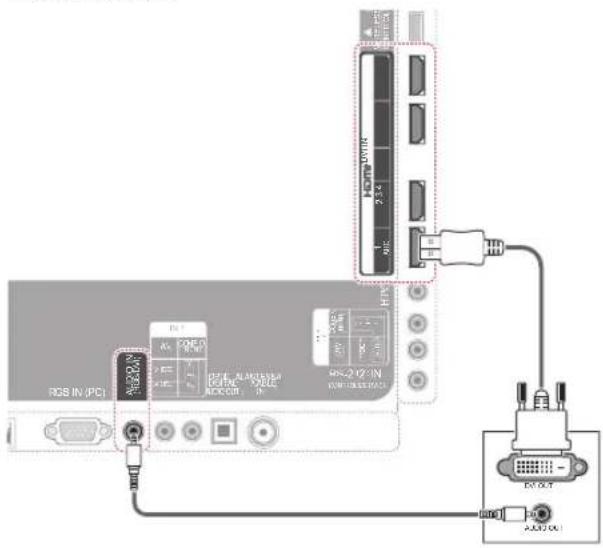

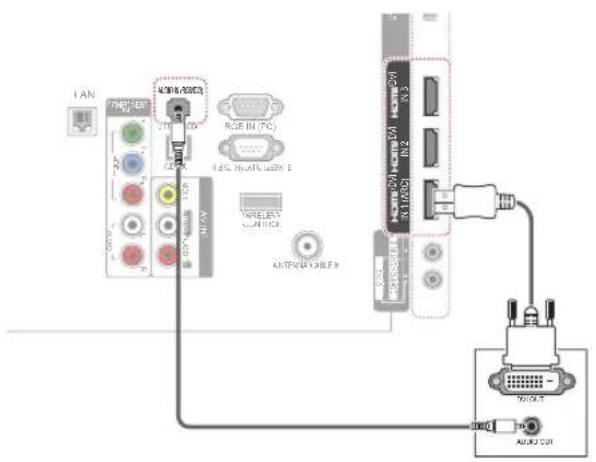

105 - DVI to HDMI Connection

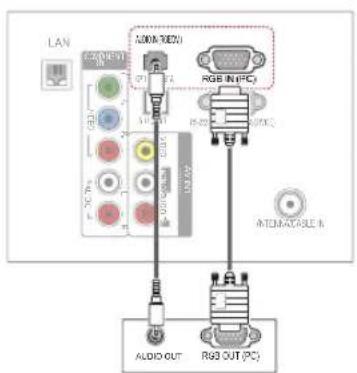

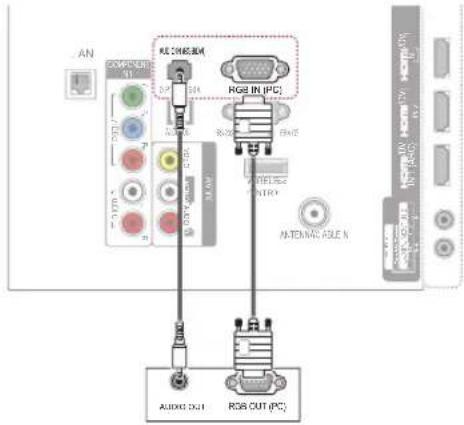

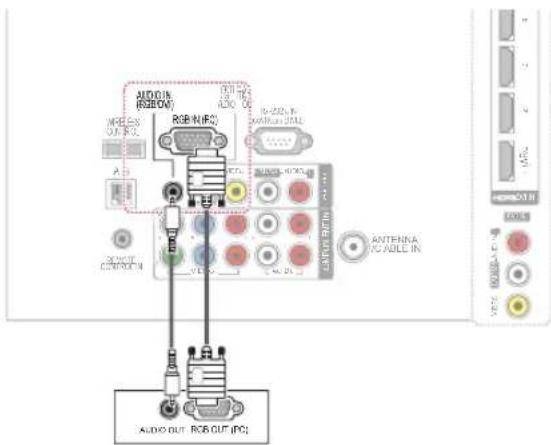

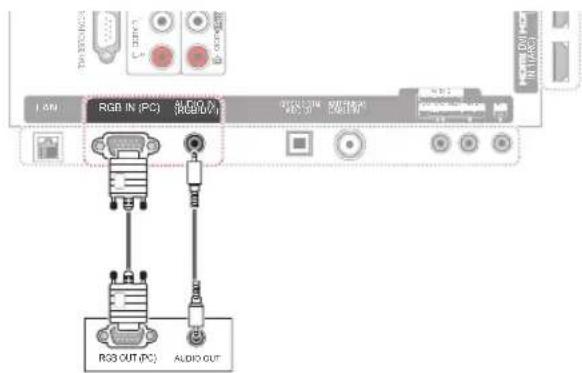

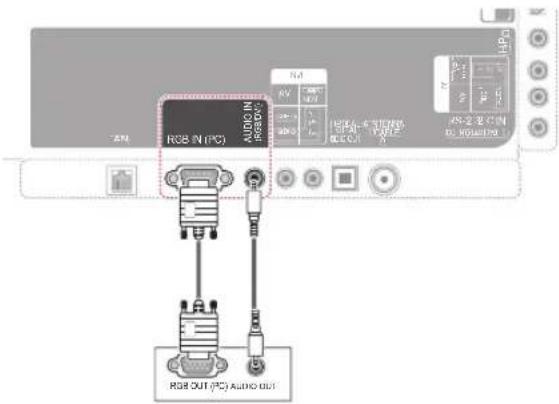

106 - RGB Connection

107 Connecting to an Audio System

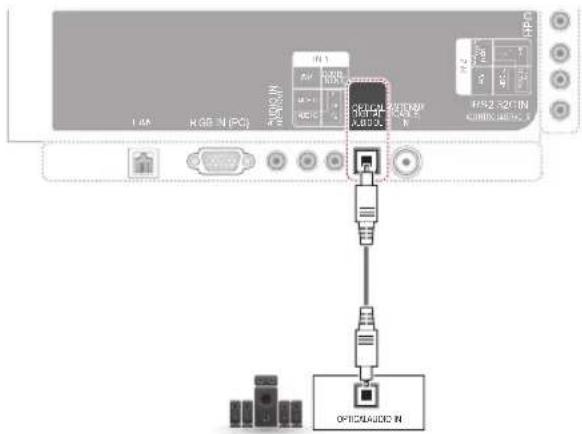

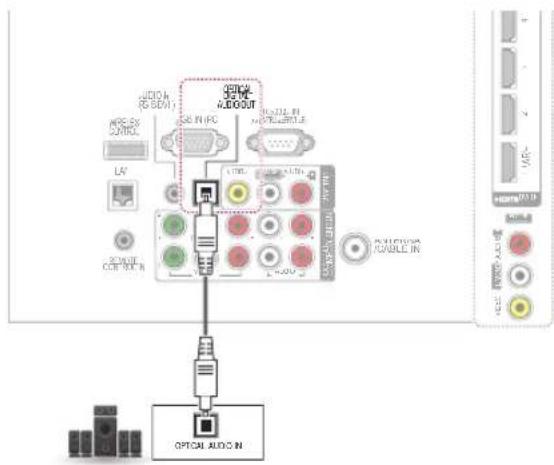

107 - Digital Optical Audio Connection

109 Connecting to a USB

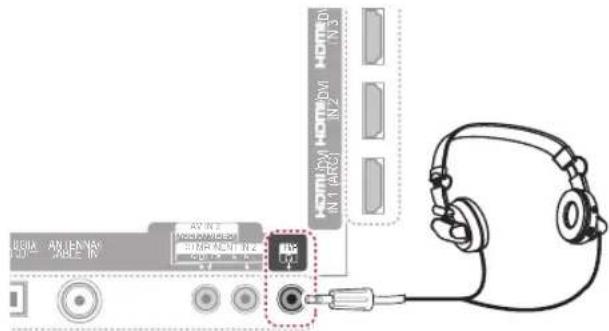

109 Connecting to a Headphone ( LCD)

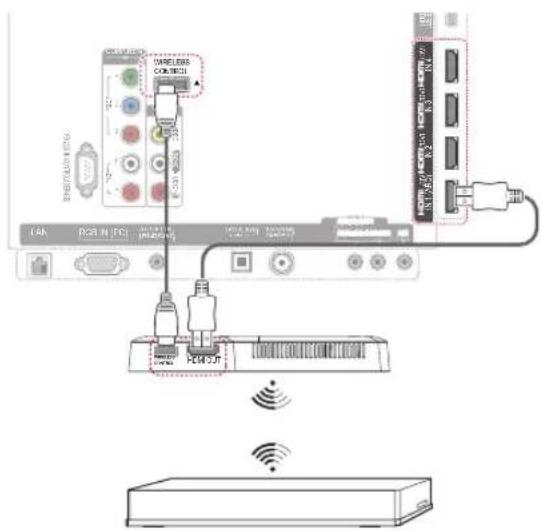

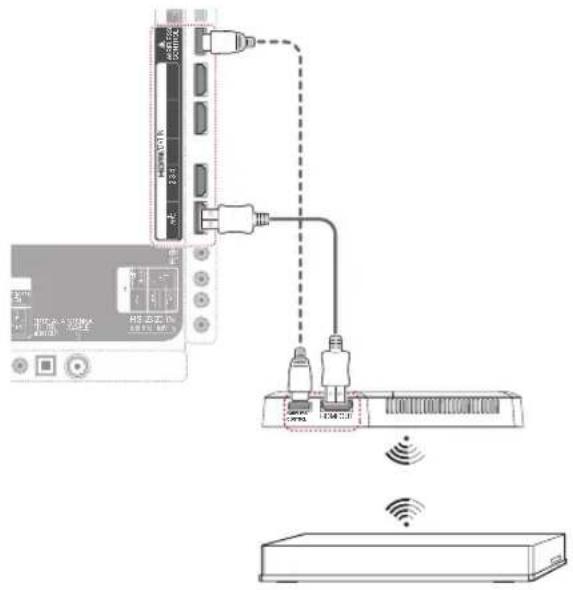

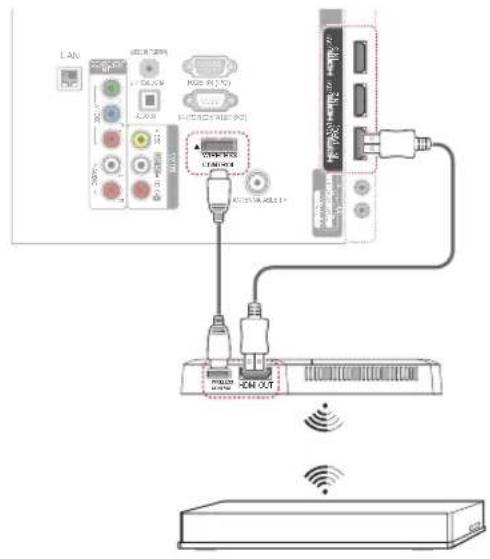

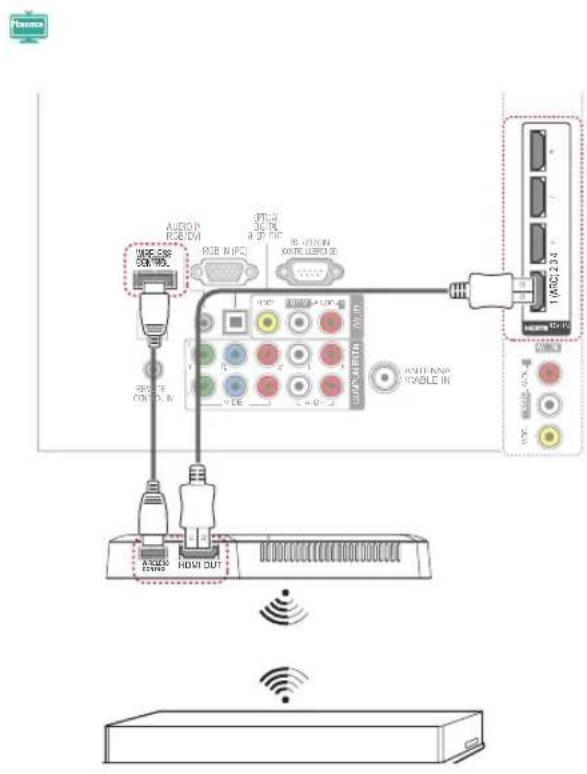

110 Connecting the Wireless Media Box

111 SIMPLINK Connection

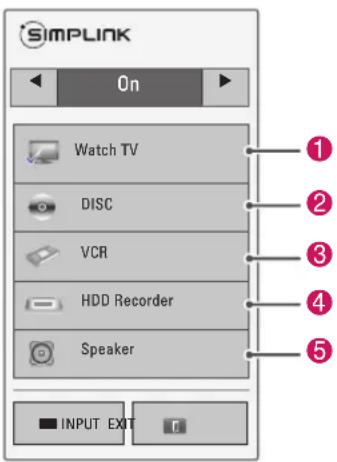

111 - Activating and Using the SIMPLINK menus

112 MAINTENANCE

112 Updating the TV Firmware

113 Cleaning Your TV

113 - Screen and frame

113 - Cabinet and stand

113 - Power cord

113 Preventing "Image burn" or "Burn-in" on your TV screen

114 TROUBLESHOOTING

116 SPECIFICATIONS

124 IR CODES

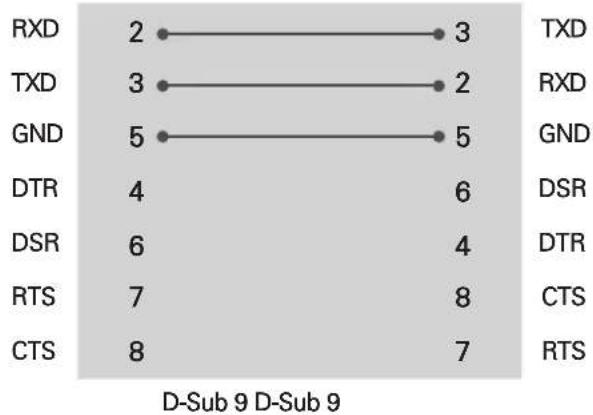

126 EXTERNAL CONTROL DEVICE SETUP

134 OPEN SOURCE LICENSE

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

Remote control, Batteries (AAA)

Owner's manual CD manual

Polishing cloth ^1 (Depending on model)

Cleansing Cloths (Mitt) ^2 (Depending on model)

Nero MediaHome 4 Essentials CD

Illustration of a remote control with two batteries and a cable, no text or symbols present

Magic Motion Remote Control ^3 , Strap,
Batteries (AA)
(Except LV3700, LV5400, LW5700, LK530, LK550 series

1 Gently wipe the spots on the cabinet with the polishing cloth.
2 Wipe spots on the exterior only with the cleansing cloths.

Do not wipe roughly when removing stains. Excessive pressure may cause scratches or discoloration.

For cleaning front frame, please slowly wipe in one direction after spraying water 1-2 times on cleansing cloths. Please remove excessive moisture after cleaning. Excessive moisture may cause water stains on the frame.

3 Sold separately for LV3700, LV5400, LW5700, LK530, LK550 series.

Simple line drawing of a directional arrow with three arrows pointing outward, no text or symbols present

PZ750, PZ950, PZ950U series

M4 × 26

M5 × 14.5

Screw for assembly (50PZ750/950/950U)

M4 × 28

M5 × 14.5

Screw for assembly (60PZ750/950/950U)

Cable holder Power cord holder

Power cord Wireless LAN for

Broadband/DLNA Adaptor (AN-WF100)

(PZ950, PZ950U series)

Ferrite Core Protection cover,

Tape

3D Glasses (AG-S250) (PZ950U series)

LV3700, LV5400, LV5500, LW5600, LW5700, LW6500, LW7700, LW9500, LZ9700 series

M4 × 12

M4 × 16

M5 × 35

M4 × 26

Power cord (LZ9700 series)

Screw for assembly (LV3700, LV5400, LV5500, LW5600, LW5700, LW7700 series, 47/55LW6500)

Screw for assembly (LW9500 series, 65LW6500)

Screw for assembly (LZ9700 series)

Composite gender cable Component gender cable Cable holder Screw for fixing

(32LW5700)

3D Glasses (AG-P110, AG-F110) (LW5600, LW5700, LW6500 series)

Wireless LAN for Broadband/DLNA Adaptor (AN-WF100) (Except LW9500 series)

LK530, LK550 series

Screw for assembly Protection cover Power cord Screw for fixing

(42LK530, 42LK550)

Composite gender cable Component gender cable Wireless LAN for

Broadband/DLNA Adaptor (AN-WF100)

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damages or injuries by using unapproved items are not covered by the warranty.

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
  • (Plasma) How to use the ferrite core
• Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the LAN cable on the ferrite core once. Place the ferrite core close to the TV.

[to the TV]

[to an External device]

- LCD For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inch) thick and 18 mm (0.7 inch) width.

Technical diagram showing two types of electrical connectors with labeled dimensions A and B

*A 10 mm (0.39 inch)

*B≤18 mm (0.7 inch)

Optional Extras

Optional extras can be changed or modified for quality improvement without any notification.

Contact your dealer for buying these items.

These device only works with compatible LG LED LCD TV, LCD TV, or Plasma TV.

Wireless Media Box ^1 (AN-WL100W)

3D Glasses ^2 (AG-S230, AG-S250, AG-S270)

Wireless LAN for Broadband/DLNA Adaptor ^3 (AN-WF100)

Magic Motion Remote (AN-MR200)

D-sub 15 pin signal cable ^4

3D Glasses ^5 (AG-P110, AG-F110)

1 Supports for LV3700, LV5400, LV5500, LW5600, LW5700, LW6500, LW7700, LW9500, PZ750, PZ950, PZ950U series
2 Supports for LW7700, LW9500, LZ9700, PZ750, PZ950, PZ950U series
3 Unnecessary for LW9500 series
4 When using the VGA (D-sub 15 pin signal cable) PC connection, use the shielded signal interface cable with a ferrite core to maintain standards compliance for the product.
5 Supports for LW5600, LW5700, LW6500 series

Parts and buttons

PZ750, PZ950, PZ950U series

Screen Remote control and intelligent¹ sensors Power indicator Speakers I / I INPUT HOME ENTER + VOL + CH Touch buttons² A USB IN 1 USB IN 2.5GHz USB IN 1 1/ACR 2.34 VOL 10 VOUT VOUT Antenna Cable IN Rear Connection panel (See p.97) CAMPOSALDANCE VOC VOC VOC AV/IN VOC AV/IN CAMPOSALDANCE VOC AV/IN ANTENNA CABLE IN RGB IN (PC) RGB IN (PC) AUDIO IN (RGB/DW) AUDIO IN (RGB/DW) AUDIO OUT AUDIO OUT RS-2DC IN CONTROL SERVICE LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN LAN

Touch button ^2	Description
∅/I	Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ⊙	Selects the highlighted menu option or confirms an input
- VOL + Adjusts the volume level.
∨ CH ∧	Scrolls through the saved channels.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

LV5400, LV5500, LW6500 series

Screen Remote control and intelligent¹ sensors Power indicator Speakers or Touch buttons² COMPONENT NI WIRELESS CONTROL AV IN1 LAN RGB IN (PC) AUDIO IN (RESIDIN) IPTK DRPL COLD OUT ANTENIX CABLE IN HRTM(DY) HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX HDTVX Rear Connection panel (See p.97)

Touch button ^2	Description
∅/I	Turns the power on or off.
INPUT	Changes the input source.
HOME	Accesses the Home menu, or saves your input and exits the menus.
ENTER ⊙	Selects the highlighted menu option or confirms an input
- VOL +	Adjusts the volume level.
v CH ∧	Scrolls through the saved channels.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

- You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.

LW5700, LW7700 series

Screen Speakers Buttons Remote control and intelligent¹ sensors, Power indicator COMPONENT INT1 WIRELESS CONTROL AV IN1 LAN RGB IN (PC) AUDIO IN (RGBIN) X®/GUSB/V AUDIO OUT BLOOD/CABLE IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLI HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD/HOLD INT1/ARDO IN HOLD/HOLD/HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HOLD /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND /HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND HIND I N 97

Button Description
∅/I	Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ⊙	Selects the highlighted menu option or confirms an input
- VOL + Adjusts the volume level.
v CH ∧	Scrolls through the saved channels.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

NOTE

- You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.

LW5600 series

Screen Remote control and intelligent¹ sensors Power indicator Speakers ✓ CH ▲ - VOL + ENTER • HOME INPUT ○/I Touch buttons² COMPONENT IN WIRE FSS CONTROL AV IN1 VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN VIN Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin Vin VOUTING PC10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Touch button ^2	Description
∅/I	Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ⊙	Selects the highlighted menu option or confirms an input
- VOL + Adjusts the volume level.
v CH ^	Scrolls through the saved channels.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

- You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.

LW9500 series

Screen Remote control and intelligent¹ sensors Power indicator Speakers CH VOL ENTER H HOME INPUT /I Touch buttons² COMPONENT INT WIRELESS CONTROL AV INT LAN RGB IN (PC) AUDIO IN (RGB/IN) PTR IQR RADIO CABLE IN Rear Connection panel (See p.97)

Touch button ^2	Description
⚡/ I	Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ●	Selects the highlighted menu option or confirms an input
- VOL + Adjusts the volume level.
v CH ^	Scrolls through the saved channels.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

- You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.

LZ9700 series

Screen Remote control and intelligent¹ sensors Power indicator Speakers CH VOL ENTER HOME INPUT /I Touch buttons² LAN RGB IN (PC) AUDIO IN (RGB/IN) IN 1 AV COMPO MINT VIDEO OUTPUT T4 OPTICAL ANTENNA DIGITAL CABLE AD/OCT IN RS-232C IN CONTROL HOLD IN 2 AV CHN VCCY PULLC Rear Connection panel (See p.97)

Touch button ^2	Description
∅/I	Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ⊙	Selects the highlighted menu option or confirms an input
- VOL + Adjusts the volume level.
v CH ^	Scrolls through the saved channels.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

- You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.

LV3700 series

Screen Remote control and intelligent¹ sensors Power indicator Speakers Touch buttons² CH VOL ENTER HOME INPUT LAN COMPONENT IN1 AUDIO RESET SPICK BISTAL RGB IN (PC) AUTO XII RGB IN (CONTROLS/RIC) WIRELESS CONTROL ANTENINABLE IN HOTOM/DW HOTOM/DVI IN 1 (ASC) IN 2 HOTOM/DW HOTOM/DVI IN 1 (ASC) IN 2 HOTOM/DW HOTOM/DVI IN 1 (ASC) IN 2 Rear Connection panel (See p.97)

Touch button ^2	Description
∅/I	Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ⊙	Selects the highlighted menu option or confirms an input
- VOL + Adjusts the volume level.
v CH ∧	Scrolls through the saved channels.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

- You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.

LK550 series

Side connection panel Screen Remote control and intelligent¹ sensors Power indicator Speakers Touch buttons² LAN COMPONENT IN NCDIN M-RGBDIN OF CALIBITAL RGB IN (PC) AUDIO CT RS-800 IN (CONTROL SERVICE) INTU AV ANTENVASCABLE IN Rear Connection panel (See p.97)

Touch button ^2	Description
∅/I	Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ⊙	Selects the highlighted menu option or confirms an input
- VOL + Adjusts the volume level.
v CH ∧	Scrolls through the saved channels.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

- You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.

LK530 series

Side connection panel Screen Buttons Speakers Power indicator Remote control and intelligent¹ sensors LAN COMPONENT INT LED ON (RGB) STOCK B3701 RGB IN (PC) ACDC OUT RESIGN ON (CONTROL) SERVICE ANTEN-INV-CABLE IN Rear Connection panel (See p.97)

Button Description
∅/I	Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ⊙	Selects the highlighted menu option or confirms an input
- VOL + Adjusts the volume level.
v CH ^	Scrolls through the saved channels.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

- Avoid touching the screen at all times, as this may result in damage to the screen.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating a device with hand positioning and corresponding X marks indicating correct or incorrect states.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.

Setting up the TV

Put your TV on a pedestal stand and mount the TV on a table or wall.

Attaching the stand

If you are not mounting the TV to a wall, use the following instructions to attach the stand.

PZ750, PZ950, PZ950U series

1 Lay the TV with the screen side down on a flat surface.

CAUTION

- Lay a foam mat or soft protective cloth on the surface to protect the screen from damage. Make sure no objects press against the screen.

2 Assemble the parts of the stand body with the stand base of the TV.

Model Screw for	assembly	Number of screws
50PZ750, 50PZ950, 50PZ950U	M5 x 14.5 3
60PZ750, 60PZ950, 60PZ950U	M5 x 14.5 4

Stand Body Stand Base

Stand Body Stand Base

3 Secure the TV and the stand with the 4 screws.

Model Screw for	assembly	Number of screws
50PZ750, 50PZ950, 50PZ950U	M4 x 26 4
60PZ750, 60PZ950, 60PZ950U	M4 x 28 4

Diagram showing a mechanical assembly with labeled parts and a magnified inset highlighting a disassembled component.

CAUTION

- Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

To detach the stand,

1 Lay the TV with the screen side down on a flat surface.

2 Remove the 4 screws and pull the stand away from the TV.

Model Screw for	assembly	Number of screws
50PZ750, 50PZ950, 50PZ950U	M4 x 26 4
60PZ750, 60PZ950, 60PZ950U	M4 x 28 4

Diagram showing mechanical assembly with labeled parts and a magnified inset highlighting a specific component.

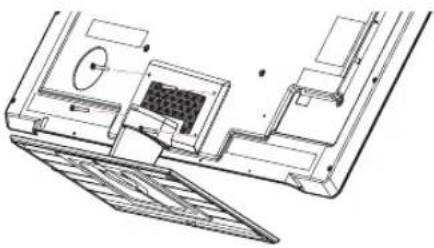

3 Push the supplied protection cover into the opening at the bottom of the TV until it locks in place.

Attach the protection cover tape.

• This will protect the opening from accumulating dust and dirt.
• When installing the wall mounting bracket, use the protection cover.

Protection cover tape

Protection cover

LV3700, LV5400, LV5500, LW5600, LW5700, LW6500, LW7700 series

1 Lay the TV with the screen side down on a flat surface.

CAUTION

- Lay a foam mat or soft protective cloth on the surface to protect the screen from damage. Make sure no objects press against the screen.

2 Assemble the parts of the stand body with the stand base of the TV.

Model Screw for	assembly	Number of screws
LV3700, LV5400, LV5500, LW5600, LW5700, LW7700 series, 47/55LW6500	M4 x 12 4
65LW6500 M4 x	16 4

Stand Body Stand Base

3 Secure the TV and the stand with the 4 screws.

Model Screw for	assembly	Number of screws
LV3700, LV5400, LV5500, LW5600, LW5700, LW7700 series, 47/55LW6500	M4 x 12 4
65LW6500 M4 x	16 4

Diagram showing a device with labeled parts and a magnified inset highlighting a component detail.

CAUTION

- Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

To detach the stand,

1 Lay the TV with the screen side down on a flat surface.

2 Remove the 4 screws and pull the stand away from the TV.

Screw for assembly Number of screws
M4 x 12 4

Diagram showing a laptop screen with two labeled parts (1 and 2) and an inset magnified view of the component.

LW9500 series

1 Lay the TV with the screen side down on a flat surface.

CAUTION

- Lay a foam mat or soft protective cloth on the surface to protect the screen from damage. Make sure no objects press against the screen.

2 Assemble the parts of the stand body with the stand base of the TV.

Screw for assembly Number of screws
M4 x 16 4

Stand Body Stand Base

3 Assemble the parts of the stand rear cover with the TV.

Stand Rear Cover

4 Secure the TV and the stand with the 4 screws.

Screw for assembly Number of screws
M4 x 16 4

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

CAUTION

- Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

To detach the stand,

1 Lay the TV with the screen side down on a flat surface.

2 Remove the 4 screws and pull the stand away from the TV.

Screw for assembly Number of screws
M4 x 16 4

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

LZ9700 series

1 Lay the TV with the screen side down on a flat surface.

CAUTION

- Lay a foam mat or soft protective cloth on the surface to protect the screen from damage. Make sure no objects press against the screen.

2 Assemble the parts of the stand body with the stand base of the TV.

Screw for assembly Number of screws
M5 x 35 4

Stand Body Stand Base

3 Assemble the TV.

Technical line drawing of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

4 Assemble the parts of the stand rear cover with the TV.

Technical line drawing of a mechanical assembly with a red arrow indicating a component (no text or symbols present)

5 Secure the TV and the stand with the 4 screws.

Screw for assembly Number of screws

M4 x 26 4

Technical line drawing of a mechanical assembly with no visible text or symbols

CAUTION

- Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

To detach the stand,

1 Lay the TV with the screen side down on a flat surface.

2 Remove the 4 screws and pull the stand away from the TV.

Screw for assembly Number of screws
M4 x 26 4

Technical line drawing of a mechanical assembly with no visible text or symbols

LK530, LK550 series

1 Lay the TV with the screen side down on a flat surface.

CAUTION

- Lay a foam mat or soft protective cloth on the surface to protect the screen from damage. Make sure no objects press against the screen.

2 Assemble the parts of the stand body with the stand base of the TV.

Screw for assembly Number of screws
M4 x 20 4

Stand Body Stand Base

Stand Body Stand Base

3 Secure the TV and the stand with the 4 screws.

Screw for assembly Number of screws
M4 x 20 4

Diagram showing a device with labeled parts and a magnified inset highlighting internal components, likely illustrating a hardware or installation procedure.

CAUTION

- Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

To detach the stand,

1 Lay the TV with the screen side down on a flat surface.
2 Remove the 4 screws and pull the stand away from the TV.

Screw for assembly Number of screws
M4 x 20 4

Diagram showing a device with labeled parts and a magnified inset highlighting component details.

3 Push the supplied protection cover into the opening at the bottom of the TV until it locks in place.

This will protect the opening from accumulating dust and dirt.

When installing the wall mounting bracket, use the Protection cover.

Diagram showing a device with labeled components and an inset close-up of the component's internal structure, likely illustrating a mechanical or electronic assembly.

Protection cover

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (4 inch) (minimum) space from the wall for proper ventilation.

10 cm (4 inch) 10 cm 10 cm 10 cm

2 Connect the power cord to a wall outlet.

CAUTION

- Do not place the TV near or on sources of heat, as this may result in fire or other damage.

NOTE

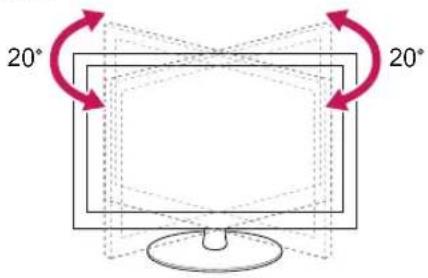

- Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

20° 20°

Securing the TV to a table

(For 32LW5700, 42LK530, 42LK550)

Fix the TV to a table to prevent from tilting forward, damage, and potential injury.

Mount the TV on a table, and then insert and tighten the supplied screw on the rear of the stand.

Line drawing of a monitor mounted on a stand with a circular base and pointer, no text or symbols present

WARNING

- To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

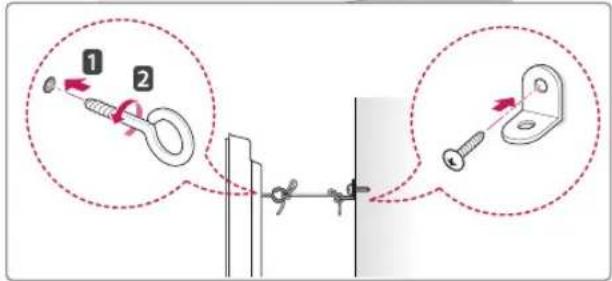

Securing the TV to a wall (optional)

Line drawing of a computer monitor with a red dotted oval highlight on the screen (no text or symbols)

Diagram illustrating two methods for hanging chains, showing step 1 with a spring and step 2 with a ring, both depicted with magnified insets.

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

- Use a platform or cabinet that is strong and large enough to support the TV securely.

- Brackets, bolts and ropes are optional. You can obtain additional accessories from your local dealer.

Using the Kensington security system (optional)

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

NOTE

- The Kensington security system is optional. You can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer.

10 cm(4 inch) 10 cm 10 cm 10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Model 50PZ750	50PZ95050PZ950U	60PZ75060PZ95060PZ950U
VESA 400 x 400 600 x 400
Standard screw M6	M8
Number of screws 4		4
Wall mount bracket (optional)	PSW400B, PSW400BG, DSW400BG	PSW600B, PSW600BG

Model 32LW5700	42/47LK550	42/47LK530
VESA 200 x 100 200 x 200
Standard screw M4	M6
Number of screws 4		4
Wall mount bracket (optional)	LSW100B, LSW100BG	LSW200B, LSW200BG

Model 42/47/55	LV370042/47/55LV540042/47/55LV550042/47/55LW560042/47/55LW570047/55LW650047/55LW770047/55LW950060LW950055LK530	65LW650072LZ9700
VESA 400 x 400	600 x 400
Standard screw	M6 M8
Number of screws	4	4
Wall mount bracket (optional)	LSW400B,LSW400BG,DSW400BG	LSW600B

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount bracket and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mount bracket that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is optional. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount bracket.

Tidying cables

PZ750, PZ950, PZ950U series

1 Install the power cord holder and power cord. - It will help prevent the power cable from being removed by accident.

Technical line drawing of a device with an inset close-up showing internal components (no text or symbols)

2 Gather and bind the cables with the cable holder. Install the LAN cable as shown to reduce the electromagnetic wave.

Diagram of a cable or cable connector assembly with a magnified inset showing the connection detail (no text or symbols present)

CAUTION

- Do not move the TV by holding the cable holder and power cord holder, as the cable holders may break, and injuries and damage to the TV may occur.

LV3700, LV5400, LV5500, LW5600, LW5700 LW6500, LW7700 series

1 Gather and bind the cables with the cable holder.

Pure mechanical diagram showing a rope tied to a block, with no text or symbols present

LW9500 series

1 Gather and bind the cables with the cable holder.

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

LK530, LK550 series

1 Gather and bind the cables with the cable management clip.

2 Fix the cable management clip firmly to the TV.

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

LZ9700 series

1 Gather and bind the cables with the cable holder.

Technical line drawing of a mechanical assembly with no visible text or symbols

2 Pull the cable management on the stand cover and organize cables. Then, put it back.

Technical line drawing of a mechanical assembly with no visible text or symbols

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control.

Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

Line drawing of a rectangular electronic device with a handle and internal components (no text or symbols)

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

ENERGY AV MODE INPUT SAVING 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9 WXYZ — 0 FLASHBK LIST MARK FAV CHARNUM Light

(POWER)

Turns the TV on or off.

LIGHT (Depending on model)

Illuminates the remote control buttons.

ENERGY SAVING (See p.82)

Adjusts the brightness of the screen to reduce energy consumption.

AV MODE (See p.48)

Selects an AV mode.

INPUT (See p.48)

Changes the input source;

Turns the TV on.

TV

Returns to the last TV channel.

Alphanumeric buttons

Enters letters and numbers.

LIST (See p.45)

Accesses the saved channel list.

- (Dash)

Inserts a dash between numbers such as 2-1 and 2-2.

FLASHBK

Alternates between the two last channels selected (pressing repeatedly).

1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9 WXYZ - 0 FLASHBK LIST + MARK FAV CHAR/NUM RATIO DELETE MUTE CHVOL - SMART TV

VOL

Adjusts the volume level.

MARK

Selects a menu or option.

FAV (See p.45)

Accesses your favorite channel list.

CHAR/NUM

Switches between Letter and Number input modes.

RATIO (See p.47)

Resizes an image

MUTE

Mutes all sounds

DELETE

Deletes letters and numbers.

CH

Scrolls through the saved channels.

PAGE

Moves to the previous or next screen.

1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9 WXYZ - 0 FLASHBK LIST MARK + FAV CHARNUM 3D DELETE MUTE CHVD - SMART TV 3D OPTION

VOL

Adjusts the volume level.

MARK

Selects a menu or option.

FAV (See p.45)

Accesses your favorite channel list.

CHAR/NUM

Switches between Letter and Number input modes.

3D (for 3D TV) (See p.78)

Uses for viewing 3D video.

MUTE

Mutes all sounds.

DELETE

Deletes letters and numbers.

CH

Scrolls through the saved channels.

PAGE

Moves to the previous or next screen.

SMART TV 3D OPTION Premium Home Q.MENU ENTER BACK INFO EXIT

Premium

Accesses the Premium menus.

Home (See p.43)

Accesses the Home menu.

Q. MENU (See p.49)

Accesses the quick menu.

3D OPTION (for 3D TV)

Used for viewing 3D video.

Navigation buttons (up/down/left/right)

Scrolls through menus or options.

ENTER

Selects menus or options and confirms your input.

BACK

Returns to the previous level.

INFO

Views the information of the current program and screen.

EXIT

Clears all on-screen displays and returns to TV viewing.

FREEZE RATIO

Color buttons

These access special functions in some menus.

Control buttons

Controls the Premium contents, Smart Share menus, or the SIMPLINK compatible devices (USB,SIMPLINK).

FREEZE (Plasma)

Freezes the current frame (Not supported when using USB Mode and Simplink).

SIMPLINK (See p.111)

Accesses the AV devices connected to the TV; Opens the SIMPLINK menu.

RATIO (See p.47)

Resizes an image.

Magic Motion Remote Control Functions

LV3700, LV5400, LW5700, LK530, LK550 series: Supports the Magic Motion remote control, which is sold separately. Refer to the Magic Motion Remote Control manual for operating instructions.

Please read this manual carefully and use the TV correctly.

When the message "Magic motion remote control battery is low. Change the battery." is displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching + and Ⓤ ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control at the remote control sensor on the TV.

To remove the batteries, perform the installation actions in reverse.

Diagram of a curved object with labeled parts 1 and 2, showing directional arrows indicating rotation or movement.

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control at the remote control sensor on the TV.

Pointer (RF transmitter) Blinks the light when operating. Turns the TV on or off. Home Accesses the Home menu. ENTER Navigation buttons (up/down/left/right) Scrolls through menus or options. Selects menus or options and confirms your input. Press this button to display the pointer when it disappears from the screen. If you press the navigation button while moving the pointer on the screen, the pointer disappears, and the Magic Motion remote control works as a regular remote control. To display the pointer again, shake the Magic Motion remote control from side to side within 2 minutes after it disappeared. (If 2 minutes have passed, press the Enter button to display the pointer.) MUTE Adjusts the volume level. CH Scrolls through the saved channels. Mutes all sounds. For 3D TV

Registering Magic Motion Remote Control

The Magic Motion Remote Control operates by pairing with your TV.

Register the Magic Motion Remote Control to use it.

How to register the Magic Motion Remote Control

To register the remote control, press the ENTER button on the remote control while aiming it at your TV.

How to Re-register the Magic Motion Remote Control after Registration Failure

Reset the remote control by pressing and holding both the ENTER and MUTE buttons for 5 seconds. (Once the reset is complete, the light on the Pointer blinks.) Then repeat the above procedure to register the remote control.

How to use Magic Motion Remote Control

1 Press ENTER button if there is no pointer on your TV screen. The pointer will then appear on the screen.

If the pointer has not been used for a certain period of time, it will disappear.

2 You can move the pointer by aiming the Pointer Receiver of the remote control at your TV then move it left, right, up or down.

If the pointer does not work properly after clicking the ENTER button, leave the remote control for 10 seconds then use it again.

Precautions to Take when Using the Magic Motion Remote Control

• Use the remote control within the maximum communication distance (10 m, 32.8ft). Using the remote control beyond this distance, or with an object obstructing it, may cause a communication failure.
• A communication failure may occur due to nearby devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as this will use the same bandwidth (2.4 GHz) as the Magic Motion Remote Control.
• The Magic Motion Remote Control may be damaged or may malfunction if it is dropped or receives a heavy impact.
• When playing a game using the Magic Motion Remote Control, hold it securely by wrapping its strap around your wrist and adjusting the length with the adjustable ring.
  • Take care not to bump into nearby furniture or other people when using the Magic Motion Remote Control.
• Manufacturer and installer cannot provide service related to human safety as the applicable wireless device has possibility of electric wave interference.
• It is recommended that an Access Point (AP) be located more than 1 m (3.28 ft) away from the TV. If the AP is installed closer than 1 m, the magic motion remote control may not perform as expected due to frequency interference.

Line drawing of a hand holding a pointer tool with a starburst effect (no text or symbols)

WATCHING TV

Connecting to an antenna or cable

Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items and a RF cable is optional.

Connecting an antenna or basic cable

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

ANTENNA/ CABLE IN

NOTE

• Use a signal splitter to use more than 2 TVs.
• Visit http://lgknowledgebase.com for more information about the antenna and cable connection. Search for antenna.

Connecting a cable box

Connect the TV to a cable box and the cable box to a wall antenna socket with 2 RF cables (75 Ω).

ANTENNA/ CABLE IN IN OUT Cable Box

CAUTION

- Make sure not to bend the copper wire of the RF cable.

Copper wire

- Complete all connections between devices, and then connect the power cord to the power outlet to prevent damage to your TV.

Turning the TV on for the first time

When you turn the TV on for the first time, the Initial setting screen appears. Select a language and customize the basic settings.

1 Connect the power cord to a power outlet.
2 In Standby mode, press the power button on the remote control to turn the TV on.

The Initial setting screen appears if you turn the TV on for the first time.

NOTE

- You can also access Initial Setting by accessing OPTION in the Home menu - SETUP.

3 Follow the on-screen instructions to customize your TV settings according to your preferences.

    A -->|Selects a language to display.| G
    B -->|Selects Home Use for the home environment.| H
    C -->|Sets the standby light. (For LED LCD TV)| I
    D -->|Selects the time zone and daylight saving.| J
    E -->|Sets your network to enable network-related feature on the TV. (For LW9500 series)| K
    F -->|Scans and saves available channels automatically.| L

NOTE

• To display images in the best quality for your home environment, select Home Use.
• Store Demo is suitable for the retail environment.
• If you select Store Demo, the any customized settings will switch back to the default settings of Store Demo in 5 minutes.
• Power Indicator feature is disabled in Store Demo mode.

4 When the basic settings are complete, press ENTER.

NOTE

• If you do not complete the Initial setting, it will appear whenever the TV turns on.
• Disconnect the power cord from the power outlet when you do not use the TV for a long period of time.

5 To turn the TV off, press the power button on the remote control.

Watching TV

1 In Standby mode, press the power button on the remote control to turn the TV on.
2 Press INPUT and select TV.
3 Control the TV using the following buttons while you are watching TV.

Button Description
CH (^, v)	Scrolls through saved channels.
LIST	Selects a channel on the saved or recent watched channel list.
0 - 9	Selects a channel by entering numbers.
VOL (+, -)	Adjusts the volume level.
MUTE	Mutes all sounds.
AV MODE ^1	Selects an AV mode (See p.48).
Q.MENU	Accesses the quick menus (See p.49
FLASHBK	Alternates between the last two channels selected.
RATIO	Resizes an image (See p.47).
FREEZE( [IMAGE])	Freezes the current frame while you are watching TV

1 Each AV mode has the optimized image and sound settings. If you select Off, the image and sound settings will be restored to the previously customized settings.

4 To turn the TV off, press the power button on the remote control.

The TV switches to Standby mode.

Accessing Home Menu

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to one of the following menus and press ENTER.
3 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.
4 When you are finished, press EXIT.

Sat. Jan. 1, 2011 12:00 9-1 World Nature 5:05 ~ 5:55 INPUT SETUP FAVORITE Premium UCC Service Movie Online Weather Info Photo Album Social Network Service 4 5 6 2 3 Sign In Exit LG Apps Hot New Unit converter Puzzle National-flag Horoscope Mah-Jong Winesound Search LG Apps Web Browser Media Link Arrow Sudoku My Apps

Option Description
1	Current Date, Time
2	Channel program info
3	Function card: You can enjoy various content files by selecting each card.
4	Function card position
5	Sign In
6	Exit
7	Current watching channel screen
8	INPUT, SETUP, FAVORITE menu.
9	Launcher bar

Managing channels

Setting up channels

Storing channels

To store channels automatically,

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to CHANNEL and press ENTER.
4 Press the Navigation buttons to scroll to Auto Tuning and press ENTER.
5 Select Start to start automatic tuning. The TV scans and saves available channels automatically.
6 When you are finished, press EXIT. When you return to the previous menu, press BACK.

To store channels manually,

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll CHANNEL and press ENTER.
4 Press the Navigation buttons to scroll to Manual Tuning and press ENTER.
5 Scroll through the channel types, and then add or delete channels.
6 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

• If the TV scans a blocked channel, you will be prompted to enter your password to keep the channel scanned.
• You can store up to 1000 channels. The number of channels that you can store differs depending on the broadcasting signal environment.
• The channels are stored in the order of DTV, TV, Cable DTV and Cable TV.

Editing your channel list

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to CHANNEL and press ENTER.
4 Press the Navigation buttons to scroll to Channel Edit and press ENTER.
5 Edit channels using the following buttons.

Button Description
^	Highlight the channel type (DTV, TV, Cable DTV, Cable TV).
^, v, <, >	Scrolls through channel types or channels.
ENTER	Edits channels.
	Watch Selects the highlighted channel to view.
	Set as Favorite Registers or cancels the current channel in favorite channel list.
	Add/Delete Adds or deletes a channel.The deleted channel displays in blue.
	Block Blocks or unblocks a channel.
CH (^, v)	Moves to the previous or next page.
Red button	Selects your desired favorite channel group.

6 When you are finished, press EXIT. When you return to the previous menu, press BACK

Selecting a channel on the channel list

1 Press LIST to access the channel list.

Channel List Recent Ch. List 3-1 4-1 Change List Ch.Edit FAV Favorite List Exit

Button Description
<, >	Selects Channel list or Recent channel list.
,	Scrolls through channel.
ENTER	Selects the highlighted channel to view.
CH (, )	Moves to the previous or next page.
Red button	Edits Channel.
FAV	Moves to the favorite channel list.

2 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

NOTE

- If you select the blocked channel, you will be prompted to enter your password.

Using favorite channels

Add the channels that you watch frequently to the favorite list.

1 Select a channel to add to the favorite list.

2 Press FAV.

A B C D 3-1 Favorite Ch.Group Ch.Edit Ch.Reg. FAV Favorite List Exit

Button Description
<, >	Selects a desired favorite channel group.
CH (^, v)	Moves to the previous or next page
Red button	Moves to the Channel Edit.
Green button	Registers or cancels the current channel.
FAV	Moves to the Channel List.

3 When you are finished, press EXIT.

Checking current program info

Press INFO to view the information of the currently program while you are watching. The following information appears at the bottom of the screen.

Channel information Program title Current time DTV 8-1 LG-HD Live Edens 1080i 10:10 11:40 This is the Live Edens segment. End timeStart time Progress bar Next Ch. Change Watch Wed. Feb. 7 10:10 MPAA PG Multilingual LcCaption 13:9 1080i

Icon Description
Multilingual	∅	The program contains two or more audio language services. You can change the audio language using the quick menu.
Dolby Digital	☒D	The program contains a Dolby Digital audio signal in TV and HDMI input sources.
Dolby Digital Plus	☒D+	The program contains a Dolby Digital Plus audio signal in TV and HDMI input sources.
Caption	CC	The program contains one or more language caption services. You can select a closed caption you want by using the quick menu.
Aspect ratio	4:316:9	The original aspect ratio of the video is 4:3.The original aspect ratio of the video is 16:9 (wide).
Resolution	480i480p720p1080i1080p	The video resolution is 720 x 480i.The video resolution is 720 x 480p.The video resolution is 1280 x 720p.The video resolution is 1920 x 1080i.The video resolution is 1920 x 1080p.
V-Chip	∅	The program contains Lock information.Refer to the “TV Rating-General” (See p.91)

Using additional options

Adjusting aspect ratio

Resize an image to view at its optimal size by pressing RATIO while you are watching TV.

NOTE

• You can also change the image size by pressing Q. MENU or accessing Aspect Ratio in the PICTURE menu.

• The available ratio varies depending on the input source.

• The input sources: HDMI-PC and RGB-PC support 4:3 and 16:9.

• The input sources: HDMI-PC 1920 X 1080 supports all of the aspect ratios.

- 16:9: Resizes images to fit the screen width.

Black and white photo of a ball on a surface (no text or symbols visible)

- Just Scan: Displays video images in the original size without cutting off the edges.

Black and white photo of several round balls on a textured surface (no text or symbols visible)

NOTE

• If you select Just Scan, you may see image noises at the edge or edges of the screen.
  • The input sources: DTV, CADTV, Component, HDMI-DTV, and DVI-DTV (720p/1080i/1080p) support Just Scan.

- Set By Program: Displays images in the same aspect ratio as the original image.

- 4:3: Resizes images to the previous standard.

Close-up of a small round stone ball resting on a textured surface (no text or symbols visible)

- Cinema Zoom: Formats an image to the cinemascope ratio, 2.35:1.

• To change the ratio of the cinema zoom, press < or > and its range is from 1 to 16.
  • To move the zoom focus up or down, press ∧ or √.

Black and white photo of three balls on a surface, no text or symbols visible

NOTE

- If you enlarge or reduce an image, the image may be distorted.

Changing AV modes

Each AV mode has optimized image and sound settings.

Press AV MODE repeatedly to select an appropriate mode.

Mode Description
Off Changes to	the previously customized settings
Cinema or THX Cinema	Use the optimized image and sound settings for the cinematic look
Sport ( [IMAGE] )	Use the optimized image and sound settings for dynamic action sports.
Game Use the	optimized image and sound settings for fast gaming.When playing a video game using PlayStation or Xbox, it is recommended to use the Game mode.When in Game mode, functions related to picture quality will be optimized for playing games.

Using the input list

Selecting an input source

1 Press INPUT to access the input sources.

- The connected device displays on each input source.

NOTE

- You can also access the input source list by selecting INPUT in the Home menu.

2 Press the Navigation buttons to scroll to one of the input sources and press ENTER.

Input List TV USB1 USB2 NETWORK AV 1 AV 2 Component1 Component2 RGB-PC HDMI1 Page 1/2 HDMI2 HDMI3 SIMPLINK Input Label Exit

Input source	Description
TV	Watch TV over the air, cable, and digital cable broadcast.
USB	Play media files from a thumb drive.
NETWORK	Play media files from your home network.

Input source	Description
AV	Watch video from a VCR or other external devices.
Component	Watch video from a DVD or other external devices, or through a digital set-top box.
RGB-PC	Use the TV as a computer monitor.
HDMI	Watch video from a HTS or other high definition devices.

The disconnected input sources will be gray.

• To add an input label, press the Green button. You can easily identify a device connected to each input source.
• If you connect a new external device to the TV, a pop-up window appears. Select Yes on the pop-up window to select an input source.
• To access the SIMPLINK, press the Red button. If you select "SIMPLINK and On", the pop-up window for the HDMI input will not display.

Adding an Input label

Add a label to an input source so that you can easily identify a device connected to each input source.

Input Label AV1 VCR AV2 Component1 Component2 RGB-PC Close Page 1/2

1 Press INPUT to access the input sources.
2 Press the Green button.
3 Press the Navigation buttons to scroll to one of the input sources.
4 Press the Navigation buttons to scroll to one of the input labels.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Using the quick menu

Customize frequently used menus.

1 Press Q. MENU to access the quick menus.

2 Press the Navigation buttons to scroll through the following menus and press ENTER.

Menu Description
Aspect Ratio	Changes the image size.
Picture Mode	Changes the image mode.
Sound Mode	Changes the sound mode.
Sleep Timer	Sets the length of time until the TV to turns off.
Caption	Activates or deactivate the subtitles
Multi Audio	Changes the audio language (Digital signal)
SAP	Changes the MTS sound (Analog signal)
Energy Saving	Reduces the power consumption by adjusting the screen brightness.
AV Mode	Sets the optimized image and sound settings.
Del/Add	Edits the channels to add or delete the channel.
USB Device	Eject a USB device.The menu is displayed only when the USB device is connected.

NOTE

- The available menus and options may differ from the input source that you are using.

3 Press the Navigation buttons to scroll to the option you want.
4 When you are finished, press Q. MENU.

ENTERTAINMENT

Network Connection

Connecting to a wired network

Connect the TV to a local area network (LAN) via the LAN port as shown in the following illustration and set up the network settings.

If wired and wireless networks are both available, wired is the preferred method.

After making a physical connection, a small number of home networks may require the TV network settings to be adjusted. For most home networks, the TV will connect to automatically without any adjustments.

For detail information, contact your internet provider or router manual.

CAUTION

• Do not connect a modular phone cable to the LAN port.
• Since there are various connection methods, please follow the specifications of your telecommunication carrier or internet service provider.
  • After connecting the LAN port, use the Premium or LG Apps menu.

To set up the network settings: (Even if your TV has already connected automatically, running setup again will not harm anything)

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to NETWORK and press ENTER.
4 Press the Navigation buttons to select Network Setting and press ENTER.
5 If wired and wireless are simultaneously connected, press the Navigation buttons to select Wired and press ENTER.
6 If you have already set the Network Setting, select Resetting. The new connection settings will reset the current network settings.
7 Select IP Auto Setting or IP Manual Setting.

- If selecting IP Manual Setting, press the Navigation and Number buttons. IP addresses will need to be input manually.

- IP Auto Setting: Select this if there is a DHCP server (Router) on the local area network (LAN) via wired connection, the TV will automatically be allocated an IP address. If you're using a broadband router or broadband modem that has a DHCP (Dynamic Host Configuration Protocol) server function. The IP address will automatically be determined.

- IP Manual Setting: Select if there is no DHCP server on the network or you want to set the IP address manually.

8 When you are finished, press EXIT.

NOTE

• If you want to access the Internet directly on your TV, the broadband internet connection should always be on.
• If you cannot access the Internet, check the network conditions from a PC on your network.
• When you use Network Setting, check the LAN cable or check if DHCP in the router is turned on.
• If you do not complete the network settings, the network may not work properly.

Connecting to a wireless network

The LG Wireless LAN for Broadband/DLNA Adaptor, which is sold separately, allows the TV to connect to a wireless LAN network.

The network configuration and connection method may vary depending on the equipment in use and the network environment. Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.

Setting up the AP (Access Point) or the wireless router is required before connecting the TV to the network. The easiest method is the WPS button method (Third method in this section).

(LW9500 series: Built-in the Wi-Fi Module, Unnecessary Wireless LAN for Broadband/DLNA adaptor setup)

NOTE

• For enjoying pictures, music, or video stored on a PC using the router, a wired connection is recommended.
• When the wireless port of the router is used, there may be restrictions on some functions.
• It is recommended that an Access Point (AP) be located more than 1 m (3.28 ft) away from the TV. If the AP is installed closer than 1 m, the magic motion remote control may not perform as expected due to frequency interference.

To set up the network settings,

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to NETWORK and press ENTER.
4 Press the Navigation buttons to select Network Setting and press ENTER.
5 Press the Navigation buttons to select Wireless and press ENTER.
6 If you already set Network Setting, select Resetting and press ENTER.

The new connection settings resets the current network settings.

7 Press the Navigation buttons to select Setting from the AP list and press ENTER

- Scan the all available AP (Access Point) or wireless routers within range and display them as a list.

Selecting the wireless network setting type Select the wireless network setting type. Setting from the AP list Simple setting (WPS-button mode) Setting Ad-hoc network ● Next Previous Exit

8 Press the Navigation buttons to select an AP (Access Point) or wireless router on the list. (If your AP is secured, you will prompted for the key. and press ENTER.

Selecting AP Select AP you want to connect. Page 1/1 Input the new SSID iptime ASW Network1 PIN Connect Access Point Search Previous Exit

9 Press the Number buttons to Input the security key of AP and press ENTER.

When a security code is already set

PIN (Personal Identification Number)

If your router is set to use a PIN, use the following instructions.

1 Repeat step 1-7 on "Connecting to a wireless network".
2 Press the Red button to connect the access point with PIN mode.
3 You can see the Network ID and Security Key on your TV screen. Enter the PIN number to your device. PIN number is the unique 8 digit number of the dongle.

4 Press ENTER to select Connect.

Connecting with PIN mode Insert PIN number at the AP webpage and press 'Connect' button. PIN NUBMER : 12345670 Connect For more information, check the AP manual. © Next Previous Exit

5 Repeat step 6-7 on "Connecting to a wired network".

WPS (Wi-Fi Protected Setup)

If your router or AP has a WPS button, it is the easiest connection method. You simply press the button on the router and then select the WPS on the TV within 120 seconds.

1 Repeat step 1-7 on "Connecting to a wireless network".
2 Press the Navigation buttons to select the Simple setting (WPS-button mode).
3 Press the WPS button on your router.
4 Go back to the TV and select Connect.
5 Repeat step 6-7 on "Connecting to a wired network".

Ad-hoc Mode

Ad-hoc mode allows the TV to use a wireless to connect to a computer without using a router or access point.

1 Repeat step 1-5 on "Connecting to a wireless network".
2 Press the Navigation buttons to select Setting Ad-hoc network and press ENTER.
3 Press the Navigation buttons to select Enter and press ENTER.

4 Press ENTER to select Connect to connect Ad-hoc network.

• You can see the Network ID and Security Key on your TV screen.
• Enter this Network ID and Security Key to your device.
• When needed, you can change the setting information using the Red button.

NOTE

When searching for wireless networks on your PC using ad-hoc, the TV is named LGTV10.

- LGTV10 that appears in the list. (Select the same name as the network ID that appears on your TV screen.)

5 Press the Navigation buttons to type in an IP address and press ENTER.

Option Description
PC Setting	· Internet Protocol(TCP/IP) of PC needs to be set manually. IP address, Subnet Mask, and default Gateway can be set with your own discretion.» e.g.) IP address:192.168.0.1 / Subnet Mask:255.255.255.0 / defaultGateway: 192.168.0.10
TV Setting	· Verify IP address and gateway of PC. Input Gateway address of PC to IP Address, and IP Address of PC to Gateway, and select Enter.» e.g.) IP address:192.168.0.10 / Subnet Mask:255.255.255.0 / defaultGateway: 192.168.0.1

6 Press the Navigation buttons to select Close after Network setting is completed.
7 Press the ENTER.

Tips for Network setting

• Use a standard LAN cable with this TV. Cat5 or better with a RJ45 connector.
• Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.
• Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.
• LG is not responsible for any malfunction of the TV and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.
• LG is not responsible for problems within your internet connection.
• Some content available through the network connection may not be compatible with the TV. If you have questions about such content, please contact the producer of the content.
• You may experience undesired results if the network connection speed does not meet the requirements of the content being accessed.
• Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.
• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.
• A 10 Base-T or 100 Base-TX LAN port is required when using a wired connection to this TV. If your internet service does not allow for such a connection, you will not be able to connect the TV.

• A DSL modem is required to use DSL service and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this TV or you may be limited to the number of devices you can connect at the same time. (If your ISP limits sub-scription to one device, this TV may not be allowed to connect when a PC is already connected.)

• The use of a "Router" may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.

• The wireless network operates at 2.4 GHz radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be affected by interference from them. It can be interrupted by the device using 5 Ghz radio frequencies. It is same device with LG wireless media box, cordless telephone, other Wi-Fi device.
• It may decrease the service speed using Wireless network by surrounding wireless condition.
• Turn off all unused network equipment in your local home network. Some devices may generate network traffic.
• In some instances, placing the access point or wireless router higher up away from the floor may improve the reception.
• The reception quality over wireless depends on many factors such as type of the access point, distance between the TV and access point, and the location of the TV.
• To connect wireless AP, an AP that supports the wireless connection is necessary, and the wireless connection function of the AP needs to be activated. Please enquire to the AP supplier for the possibility of AP wireless connections.
• Please verify the security settings of AP SSID for wireless AP connection, and enquire to the AP supplier for the AP SSID security settings.
• The TV can become slower or malfunction with wrong settings of network equipments (wired/wireless router, hub, etc). Please install correctly by referring to the manual of the equipment, and set the network.
• When AP is set to include 802.11 n, and if Encryption is designated as WEP(64/128bit) or WPA(TKIP/AES), the connection may not be possible. There may be different connection methods according to the AP manufacturers.

Network Status

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to NETWORK and press ENTER.
4 Press the Navigation buttons to select Network Status.
5 Press ENTER to check the network status.

Option Description
Setting	Return to the network setting menu or wireless network setting type menu.
Test	Test the current network status after setting the network.
Close	Return to the previous menu.

Premium Account Function

LG's Premium technology allows you to access a variety of online services or content directly on your TV. Your TV offers instant streaming of movies, weather, videos, and photo album services with a Premium account and an Internet connection.

Enjoy entertainment including not only entertainment content, but also up-to-the minute news, weather updates, photo management, and more by simply using the TV's remote control without a separate PC.

1 Press Premium to access the Premium option.

2 Press the Navigation buttons to scroll to the content you want and press ENTER.

Sat, Jan. 1, 2011 12:00, New York UCC Service Movie Online Weather Info Photo Album Social Network Service News Sports Service Video Streaming Map News Search LG Apps Web Browser Media Link Arrow Sudoku My Apps

Option	Description
1	Sign into the premium service.
2	Moves to the previous menu screen.
3	Returns to TV viewing.
4	Selects your desired online service.If a service requires you to log in, you must first sign up for the service on your computer and then log into the service on the TV.
5	Launcher bar

3 Enjoy the premium features.

Notice

• These services are provided by separate content providers.
- Please visit the content providers web site for specific information on their service.
• Premium menu can differ by country.

- Note that content may be updated automatically depending on the service provider, so the content layout or operation method may change without notice. Please refer to the help menu on the screen.

- All information, data, documents, communications, downloads, files, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content ("Content") and all services and offerings ("Services") provided or made available by or through any third party (each a "Service Provider") is the sole responsibility of the Service Provider from whom it originated.

- The availability of and access to Content and Services furnished by the Service Provider through the LGE Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services.

- Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider's website for the most up-to-date information. LGE is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers.

- Please note that LGE is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the availability of or access to such Content or Services.

• Some content may be harmful to minors depending on the service provider. Parental guidance is necessary.
• The service may be interrupted if the Internet connection is unstable. Please check the connection status if you experience this problem.
• The videos list searched from the TV may different with the list searched from a web browser on PC.
• The playback of videos may pause, stop, or buffer depending on your broadband speed.
• For service that requires log in, join the applicable service on the website using a PC and log in through the TV to enjoy various additional functions.
• For Plasma TV: If there is no user action 2 minutes following freezing image or video on screen, the screensaver will activate itself preventing a fixed image remaining on screen.

Legal Notice

IMPORTANT NOTICE RELATING TO NETWORK SERVICE

All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorized by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the applicable content owner or service provider, you may not copy, upload, post, transmit, translate, sell, modify, create derivative works, or distribute in any manner or medium any content or services displayed through this device.

YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT THE DEVICE AND ALL THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED. LG ELECTRONICS EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO ANY CONTENT AND SERVICES, EITHER EXPRESS OR, IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR

PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. LG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND DOES NOT WARRANT THAT THE DEVICE OR SERVICES WILL MEET YOUR REQUIREMENTS, OR THAT OPERATION OF THE DEVICE OR SERVICES WILL BE UNINTERRUPTED OR ERROR-FREE. UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL LG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR ANY OTHER DAMAGES ARISING OUT OF, ANY INFORMATION CONTAINED IN, OR ANY CONTENT OR SERVICE ACCESSED BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Third party services may be changed, suspended, removed, terminated or interrupted, or access may be disabled at any time, without notice, and LG makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which LG has no control. LG may impose limits on the use of or access to certain services or content, in any case and without notice or liability. LG expressly disclaims any responsibility or liability for any change, interruption, disabling, removal of or suspension of any content or service made available through this device.

LG is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.

LG Apps function

Additional applications can be downloaded from the LG App Store.

Sat, Jan, 1, 2011 12:00 9-1 World Nature 5:05 - 5:55 INPUT SETUP FAVORITE Premium UCC Service Movie Online Weather Info Photo Album Social Network Service Step In Exit LG Apps Hot Ret Chat converter F Puzzle Natural-Reg Handbags Mikkoos Waspware Search LG Apps Web Browser Media Link Arrow-Sudoku My Apps Search LG Apps Web Browser Media Link Arrow-Sudoku My Apps

Option Description
1	Sign In, Sign out	Sign in or sign out to the premium service.
2	Exit	Returns to TV viewing.
3	LG Apps	Moves to the LG Apps.
4		Moves to the LG Apps you want directly.
5	Search	These functions may be not available for a certain period of time depending on country or product model. In such cases, the buttons may be disabled. They are enabled when the services are available.
6	Web Browser
7	Media Link
8	Quick Apps.	Stores the most frequently used apps among all downloads. To change the list of Quick Apps, see “Using My Apps.” on page 61.
9	My Apps.	Moves to My Apps.You can browse all apps installed, change the list of Quick Apps, and select and play the app you want.

Registration LG Apps

1 Press Home to access the Home menu.
2 Press Red button to register.
- You can only register as a free member from your TV.
3 Create your ID and password.
Press the Navigation buttons to select alphabet and number and select OK.
4 The registration is completed.

NOTE

- If you wish to become a paid member or change your information, please use your PC and visit http://www.lgtvapp.com.

Sign in with LG Apps account

To enjoy the LG Apps with your account, you need sign in with the LG Apps account.

1 Press Home to access the Home menu.
2 Press Red button to sign in.

It displays the keyboard menu for entering ID and password.

- If you are not a member, press Red button again. You can only register as a free member from your TV.

3 Press the Navigation buttons to scroll to the alphabet or number and press ENTER.

- If you check "Auto Sign In", you are automatically logged in whenever you turn on TV.

4 Enjoy the LG Apps.

You can enjoy Premium service, LG Apps, My Apps and much more.

NOTE

- You can download a paid app on up to five TVs.

ID Management

1 After sign in, press Red button again. A pop-up window will appear.
2 Press the Navigation buttons to scroll to the desired menu option and press ENTER.

3 Manage the ID by using following menu.

Option Description
Account Setting	Checks basic information, apps you purchased and apps installed on your TV.
Change User	Changes your account.
Sign Out	Sign out the premium service.

Using LG Apps

1 Press Home to access the Home menu.
2 Sign in on your TV.
3 Press the Navigation buttons to scroll to the LG Apps and press ENTER.
4 Edit the Apps by using following menu.

LG Apps 1 2 3 4 5 AI Game Entertainment & Education New York's. HOT Coloring White Sound Unit Converter TM Target Sight Text National Flag Pitouse CD.08 Calendar NEW Vlogs MashJong Horoscope GEMS Guest Flor Air

Option Description
1	Sign in/out Sign	in or out to use the LG Apps.
2	Search Search the LG Apps.
3	My Apps.	Move to My Apps.
4	Back	Move to the previous screen.
5	Exit	Exit the LG Apps.
6	Apps Sorting	Hot: Most downloaded apps in the past 7 daysNew: Most recently released appsTop Paid: Most downloaded paid appsTop Free: Most downloaded free appsAll: Alphabetical orderMoves to the previous or next page using CH (^, v) button.
7	Apps Category	Shows the LG Apps category (All, Game, Entertainment, Life, Education, News/Info.)
8	Live TV	Watches the current channel.

Purchasing and Installing Apps.

Log in first to purchase apps.

1 Press the Navigation buttons to select Apps you want and press ENTER. You can see the information of the App.

2 Press Purchase to buy a App.

Horoscope Game Horoscope is classical game. File Edit View Help Tools Help Book 1 2 3 5 6 7 Free Install Save this App SUN How applicable data: 2010/1/2 Version: 1.0 3 Myths 5 Ratings 4

Option Description
1	Sign in/out Sign	in or out to use the LG Apps.
2	My Apps.	Move to My Apps.
3	Back	Move to the previous screen.
4	App description	Shows the description of the current Apps.
5	Fee	Shows the fee of the current app.
6	Install	Install or purchase the App.You can purchase an app oneither your PC or TV, but itcan be installed and playedonly on the TV.If you want to purchase apaid app, you need to signup as a paid member onwww.lgtvapp.com.If the available space ofyour TV is not enough, youcan download apps in theUSB storage device byconnecting it to the USB IN2 port.You can play, delete ormove the apps stored inthe USB storage device onthe My Apps screen.
7	Rate this App	Rate the app you purchasedwith stars.
8	App info.	Shows the information of thecurrent Apps.

NOTE

• To store apps in the USB storage device, make sure that it is connected to the USB IN 2/USB Apps port.
• Up to 1000 apps can be stored as USB apps.
• The USB storage device containing apps cannot be used for storing other types of data.

Using My Apps

1 Enter the LG Apps after sign in.
2 Press the Navigation buttons to scroll to My Apps. and press ENTER.

My Apps Search LG Apps Web Browser Mode Link Arrow Suiteau Home Page 1/1 Delete

Option Description
1	Shows the amount of used and available memories.
2	Current page number/total number of pages of My Apps.
3	Shows the downloaded apps.Moves to the previous or next page using CH (^, v) button.
4	Moves the LG Apps.
5	Quick Apps.
6	Sign In the LG Apps.After sign in, manage the ID option (Account Setting, Change User, Sign Out).
7	Edit the My Apps.
8	Exit the My Apps.
9	Move to the Home menu.
10	Delete the Apps.

Smart Share Function

Connecting USB storage devices

Connect USB storage devices such as a USB flash drive or external hard drive to the TV and use multimedia features (See “Browsing files” on page 67).

Connect a USB flash drive or USB memory card reader to the TV as shown in the following illustration.

USB Apcs USB N2 HDD N USB N1 HDMI N4 or

To disconnect a USB storage device, make sure to end the connection properly to prevent damages to the TV or files.

1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to USB Device and press ENTER.
3 Disconnect the USB storage device only when the message says that it is safe to remove.

CAUTION

• Do not turn the TV off or remove a USB storage device while the USB storage device is connected to the TV, as this could result in loss of files or damage to the USB storage device.
• Back up your files saved on a USB storage device frequently, as you may lose or damage the files and this may be not covered by the warranty.

Tips for using USB storage devices

• The TV recognizes only a USB storage device.
• If you connect a USB storage device to the TV through a USB hub, your TV may not recognize the USB storage device.
• The TV may not recognize a USB storage device that requires a special driver.
• The recognition speed of a USB storage device may differ depending on the device.
• Only use a USB storage device which has normal music or image files.

- Use only USB storage devices that are formatted as a FAT 32 or NTFS file system.

- You may need to connect a USB storage device to an external power supply with a power adapter.

- If the TV does not recognize a connected USB storage device, replace the cable and try again. Do not use an excessively long cable.

- The TV does not support some USB storage devices properly.

- You can use a multi-partition (up to 4) USB storage device.

- You can use up to 4 USB storage devices at a time by using a USB multi-card reader.

- The file alignment method of a USB storage device is similar to the one of Window XP.

- You cannot create or delete a folder saved in a USB storage device directly on the TV.

- The number of characters for a file name is up to 100 English characters.

- Up to 1000 including folders and files can be recognized.

- If there are too many folders and files in one folder, it may not operate properly.

- The recommended capacity for a USB external hard disk is 1 TB or less and for a USB storage device is 32 GB or less.

- If a USB external hard disk with the Energy Saving feature does not work, turn the USB external hard disk off and on again to make it work properly. For more information, refer to the user manual of the USB external hard disk.

- USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.

- The electrostatic can cause USB device's malfunction. In this case, USB Device has to be plugged again.

Connecting DLNA DMP (Digital Living Network Alliance, Digital Media Player)

This TV can display and play many types of movie, photo and music files from your DLNA server and has been certified by DLNA.

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through a wired or wireless network in the home.

The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA server software or other DLNA compatible device is connected to this TV, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

Please refer to "Smart Share Function" for additional information on supported file types and other instructions.

NOTE

• The supplied Nero MediaHome 4 Essentials CD-ROM is a customized software edition only for sharing files and folders to this TV.
• The supplied Nero MediaHome 4 Essentials software does not support following functions: Transcoding, Remote UI, TV control, Internet services and Apple iTunes
• This manual explains operations with the English version of Nero MediaHome 4 Essentials as examples. Follow the explanation referring to the actual operations of your language version.
• If there are too many folders and files in one folder, it may not operate properly.
• For the DLNA option, use the Nero MediaHome program that is provided with the TV. However, we cannot guarantee that third party program will work perfectly.
• You can select a channel while viewing the small preview channel list on your TV screen.
• Check your network settings when the DLNA option does not work properly.
• If there is an abnormal operation or an error occurs in Nero Media Home, the DLNA option may not work properly. In this case, exit Nero Media Home and restart the program. You can download the latest version of Nero Media Home by clicking the question mark at the bottom-left of the program.
• When the network is unstable, the device may be slower or may need to load during playback.
• When playing a video in DLNA mode, the Multi Audio and Closed Caption features are not supported.
• When selecting Full Screen in DLNA mode, the ratio of the outputted screen may differ from the original.
• When more than one TV is connected to a single server in DLNA mode, a file may not play properly, depending on the server performance.
• If the play time information is not provided by the server, it is displayed as "--."

Installing Nero MediaHome 4 Essentials

Nero MediaHome 4 Essentials is an easy to use DLNA server software for Windows.

Computer requirements for Nero MediaHome 4 Essentials

• Windows® XP (Service Pack 2 or higher), Windows Vista® (no Service Pack required), Windows® XP Media Center Edition 2005 (Service Pack 2 or higher), Windows Server® 2003 (Service Pack 1 or higher)
• Windows® 7 Home Premium, Professional, Enterprise or Ultimate (32 and 64-bit)
• Windows Vista® 64-bit edition (application runs in 32-bit mode)
• Windows® 7 64-bit edition (application runs in 32-bit mode)
• Hard drive space: 200 MB hard drive space for a typical installation of Nero MediaHome stand-alone
• 1.2 GHz Intel® Pentium® III or AMD Sempron™ 2200+ processors
  • Memory: 256 MB RAM
• Graphics card with at least 32 MB video memory, minimum resolution of 800 x 600 pixels, and 16-bit color settings
• Windows® Internet Explorer® 6.0 or higher
• DirectX® 9.0c revision 30 (August 2006) or higher
  • Network environment: 100 Mb Ethernet, WLAN (IEEE 802.11g), or faster

1 Start up your computer.
2 Close all Microsoft Windows programs and exit any anti-virus software that may be running.
3 Insert the Nero MediaHome 4 Essentials CD-ROM into your computer's CD-ROM drive.
4 Click Nero MediaHome 4 Essentials. The installation wizard will appear.
5 Click the Next button to display the serial number input screen. Click Next to go to the next step.
6 If you accept all conditions, click I accept the License Conditions check box and click Next. Installation is not possible without this agreement.

7 Click Typical and click Next. The installation process is started.
8 If you want to take part in the anonymous collection of data, select the check box and click the Next button.
9 Click the Exit button to complete the installation.

Sharing files and folders

After installing Nero MediaHome, you must add folders you wish to share.

1 Double-click the Nero MediaHome 4 Essentials icon on the desktop.
2 Click Network icon on the left and define your network name in the Network name field. The Network name you enter will be recognized by your TV.
3 Click Shares icon on the left.
4 Click Local Folders tab on the Shared screen.
5 Click Add icon to open the Browse Folder window.
6 Select the folder containing the files you want to share. The selected folder is added to the list of shared folders.
7 Click Start Server icon to start the server.

NOTE

• If the shared folders or files are not displayed on the TV, click the folder on the Local Folders tab and click Rescan Folder at the More button.
• Visit http://www.nero.com for more information and software tools.

Playing Shared Media

You can display and play movie, photo and music content stored on your computer or other DLNA media servers.

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to Smart Share and press ENTER.
3 Press the Navigation buttons to scroll to the device you want and press ENTER.
4 Press the Navigation buttons to select DLNA. Depending on the media server, this TV may need to get the permission from the server.

Tips for using DLNA DMP

• To play the file on the media server, the TV and the media server must be connected to the same access point.
• File requirements and playback functions on the Smart Share may differ depending on the media server used.
• There may be some restrictions by file features and the media server that restrict playback.
• Movie thumbnail is only supported when DLNA server supports a Movie thumbnail.
• If there is an unplayable music file in the Smart Share menu, the TV will skip the file and play next file.
• Files in a folder can be played only when they are of the same type.
• The file information indicated on the screen may not always correct for music and movie files in Smart Share menu
• This TV only supports movie subtitle files supplied by Nero MediaHome 4.
• The subtitle file name and movie file name have to be the same and located in the same folder.
• If subtitle files have been added after a directory has been indexed already, the user has to remove and re-add the folder to the list of shares.
• The DRM/*.tp/*.trp file in DLNA server is not played while Movie List is in operation.

• MPO files are not played when Photo List is in operation.

• The playback and operating quality of the Smart Share function may be affected by your home network condition.

• The files from removable media such as USB drive, DVD-drive etc. on your media server may not share properly.
• When playing the Media through DLNA connection, it does not support files protected by DRM.
• Up to 1000 including folders and files can be recognized.
• If there are too many folders and files in one folder, it may not operate properly.

Connecting DLNA DMR (Digital Living Network Alliance, Digital Media Render)

This supports remote playing of media files. Media from a compatible device (Windows 7, Mobile Phone with PlayTo, or other compatible DLNA-DMC device) can be "pushed" to the TV.

The DMR function only works properly when the TV and PC are on the same local network.

1 To play a file, select the file by using the "Remote Play" feature in Windows 7. To do this, right-click on the file you want to play.

2 You can play a file only on a single TV set or device even though multiple devices are connected. The playback speed depends on the network status.

File Name sun Server Name MYPC1

Picture display request from an external device.

NOTE

• Subtitle is supported only on some DMC devices.
• The DMR function may not work properly in a wireless network.
• The seek function of the DMC only works on video files.
• The DMR is not available when another function is operating (recording, playback or Smart Share work etc.).
• Refer to the owner's manual of the mobile phone or other device to find out how to use it to play a file.
• You can change the name of a connected TV by double-clicking the item you want to change in Control Panel > Network and Internet > View network computers and devices (For Windows 7).
• You cannot change the name of a TV while DMR media is playing. Change it when playback is stopped.

Browsing files

Access the photo, music, or movie lists and browse files.

1 Connect a USB storage device.
2 Press Home to access the Home menu.
3 Press the Navigation buttons to scroll to Smart Share and press ENTER.
4 Press the Navigation buttons to scroll to the device you want and press ENTER.

5 Press Navigation buttons to scroll to All Media, Movie List, Photo List, or Music List and press ENTER.

• All Media: Shows all files in the file list.
• Movie List Photo List or Music List: Shows only one type of file in the file list.

6 Press Navigation buttons to select a folder or file you want.

All Media USB1 External Drive 1 Page 1/1 Page Change Page 1/2 Change devices So to next folder So to upper folder Exit

No.	Description
1	Shows all media folders.
2	Current page number/total number of pages.
3	Moves to the previous or next page.
4	Current page number/total number of pages.
5	Files info or thumbnail.
6	Available buttons on the remote control.

Thumbnail information

Type Abnormal files Non-supported files
Video
Music

Tips for using USB storage devices

Type Supported File Formats
Video	·MPG, MPEG, DAT, TS, TRP, TP, VOB , MP4, MOV, MKV, DivX, AVI, ASF, WMV·Max bitrate of playable movie file: 20 Mbps (Mega bit per second)·Bit rate of audio format: within 32 kbps to 320 kbps (MP3)·Supported external subtitle format: *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX)·Supported Internal subtitle format: only XSUB (It is the subtitle format made in DivX files), Text UTF-8, SRT, ASS, SSA (It is the subtitle format used in DivX-Plus HD files)
Photo	·Do not use the progressive option when saving JPG files on your PC.·It may take some time to open high-resolution images in full screen.
		File Extensions	Item Profile
	2D jpeg	jpg jpe	Supported file format	·SOF0: baseline·SOF1: Extend Sequential·SOF2: Progressive
			Photo size	·Min: 64 x 64·Max - Normal Type: 15360 (W) x 8640 (H)·Progressive Type: 1920 (W) x 1440 (H)
	3D (For 3D TV)	mpo Supported	file format	·mpo
			Photo size	·4:3 size: 3,648 x 2,736, 2,592 x 1,944, 2,048 x 1,536·3:2 size: 3,648 x 2,432
Music	·MP3·Bit rate range: 32 Kbps - 320 Kbps·Sampling rate (Sampling Frequency) MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHz MPEG2 layer 3: 16 kHz, 22.05 kHz, 24 kHz * A copy-protected file will not play.

Viewing Videos

Play video files on the TV. Your TV can display video files from a USB storage device.

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to Smart Share and press ENTER.
3 Press the Navigation buttons to scroll to the device you want and press ENTER.
4 Press the Navigation buttons to scroll to Movie List and press ENTER.
5 Press Navigation buttons to select a folder or file you want and press ENTER.
6 Play a movie by using the following menus/ buttons.

Movie List USB2 External Drive1 Page 1/1 Page Change Page 1/2 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12 M13 M14 M15 M16 Change device Go to next folder Go to upper folder Exit

Button Description
Navigation button	Scrolls through the files.
ENTER	Plays the highlighted file.
CH ( , v)	Moves to the previous or next page.
Red button	Change device: Changes to a different input.
Green button	Go to root folder.
Yellow button	Go to upper folder.

7 Control playback by using the following buttons.

Black-and-white photo of assorted fruits and vegetables with no visible text or symbols

Button Description
■	Stops the playback.
▶	Plays a video.
II	Pauses or resumes the playback
◀	Scans backward in a file
▶	Scans forward in a file
II and ▶	Plays videos in slow motion
Red buttonand < or >	Selects the frame directly.The entire file is divided into 10frames.Frames may not be displayeddepending on the file.
ENERGYSAVING	Increases or decreases thebrightness of your screen.
Q.MENU	Shows the Option menu (See p.70).
3D(For 3D TV)	Views the 3D imaging.
AV MODE	Select the desired source
BACK	Hides the menu on screen.To see the menu again, pressENTER button to display.
EXIT	Moves to the previous menuscreen.

Tips for playing video files

• The TV does not support the files encoded in Motion JPEG.
• Some user-created subtitles may not work properly.
• Subtitles may not display some special characters or HTML tags.
• Changing font and color in subtitles is not supported.
• Subtitles in non-supported languages are unavailable.
  • Video files with subtitle files of 1 MB or larger may not be played properly.
• The screen may suffer from temporary interruptions such as image stoppage or faster playback when you change the audio language.
• If you play a damaged video file, the video file may not be played correctly or some player functions may not be unavailable.
• The TV may not properly play the video files produced with certain encoders.
• If the recorded file does not have video or audio, either video or audio is not outputted.
• If the TV plays the recorded file without video or audio, either video or audio is not outputted.
• The TV may not smoothly play the video files with a resolution higher than the supported resolution for each frame.
• The TV may not properly play the video files not included on the specified type and format.
• The TV may not play the files encoded with GMC (Global Motion Compensation) or quarter-pel motion estimation.
• The TV supports the only 10,000 sync blocks within the subtitle file.
• The TV supports the H.264/AVC codec up to the profile level 4.1.
  • The TV does not support DTS audio codec.
• The TV cannot play a video file whose size is larger than 30 GB.
• If you play a video file through the USB connection that does not support the high speed, the video player may not work properly.
• The video file and its subtitle should be in the same folder and the name of the video file and subtitle should be identical.
  • The TV may not play the video files in the

supported file format depending on the encoded condition.

- Trick Mode does not support other functions than ▶ if video files do not have index information.

• Video file names that contain special characters may not be playable.

- For 3D WMV files encoded in dualstream, 3D mode is not supported. (For 3D TV)

Q.MENU options for movie list

1 Press Q. MENU.

A pop-up window will appear.

2 Press the Navigation buttons to scroll to the option and press ENTER.
3 Press the Navigation buttons to scroll to one of the following options and press ENTER.

Set Video Play.

Option Description
Picture Size	Selects your desired picture format for videos.Full Mode: Files are played in full screen mode according to the aspect ratio of video.Original Mode: Files are played in their native size.
Audio Language	Changes the Language Group of the audio for video files. Files with a single audio track cannot be selected.
Subtitle Language	The subtitles can be turned on or off.
Language	Activated for SMI subtitles and can select the language within the subtitle.
Code Page	Subtitle font selection. When set to default, contents are displayed in the language set in "Option - Language - Menu Language."
	Option Description
	Subtitle Language Group	Latin1: English, Spanish, French Korean: English, Korean
	Sync	If the video is not synchronized with the captions, it can be adjusted by 0.5 second.
	Position	Move the location of the subtitles.
	Size	Changes the subtitle font size.
Repeat	Turn on/off repeat function of movie playback. When turned on, the file within the folder will be played back repeatedly. When turned off, if the next file name is similar to the previous file, it can be played sequentially.

NOTE

• Option values changed in Movie List does not affect Photo List and Music List.
• Option value changed in Photo List and Music List are changed likewise in Photo List and Music List excluding Movie List.
• When replaying a video file after stopping, select "Yes" to restart where it previously stopped.
• If continuous series files exist within the folder, the next file will automatically be played. But, this excludes cases when the Repeat function of Movie List Option is turned "On".

Set Video.

Allows you to change Video presets (Refer to "PICTURE Settings" on page 82).

Set Audio.

Allows you to change Audio presets (Refer to "AUDIO Settings" on page 87).

Set DivX PLUS HD

These options are enabled only when the movie file being played has the title, edition and authored chapter information.

Option Description
Title	For files with more than one title, select the title you want to play.
Edition	For files with more than one edition, select the edition you want to play.An edition refers to the playback order set based on the chapters.
Authored Chapter	Select and play the chapter you want.

DivX registration code

Registering the DivX code

The DivX registration code allows you to rent or purchase the latest movies at www.divx.com/vod. To play a rented or purchased DivX file, the file's registration code should be same as your TV's DivX registration code.

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to OPTION and press ENTER.
4 Press the Navigation buttons to scroll to Smart Share Setting and press ENTER.
5 Press the Navigation buttons to scroll to DivX VOD Registration and press ENTER.
6 View the registration code of your TV.

You must register your device to play DivX protected videos. Registration code : xxxxxxxxxxxx Register at http://vod.divx.com Close

7 When you are finished, press EXIT.

NOTE

• While you are checking the registration code, some buttons may not work.
• If you use the DivX registration code of another device, you cannot play the rented or purchased DivX file. Make sure to use the DivX registration code assigned to your TV.
• The video or audio files that are not converted by the standard DivX codec may be corrupted or not be played.
• The DivX VOD code allows you to activate up to 6 devices under one account.

Deactivating the DivX feature

You can deactivate all of the devices through the web server and block devices from activating. Delete the existing authentication information to receive a new DivX user authentication for the TV. Once this function is executed, a DivX user authentication is required again to see DivX DRM files.

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to OPTION and press ENTER.
4 Press the Navigation buttons to scroll to Smart Share Setting and press ENTER.
5 Press the Navigation buttons to scroll to DivX Deregistration and press ENTER.

6 Select Yes to confirm.

Deregistration code: ****** Deregister at http://vod.divx.com Continue with registration? Yes No

7 When you are finished, press EXIT.

Viewing Photos

You can view image files saved on a USB storage device. The displays on the screen may based on the from the model.

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to Smart Share and press ENTER.
3 Press the Navigation buttons to scroll to the device you want and press ENTER.

4 Press the Navigation buttons to scroll to Photo List and press ENTER.

5 Press Navigation buttons to select a folder or file you want and press ENTER.

6 View a photo by using the following menus/ buttons.

Photo List USB2 External Drive1 Page 1/1 cn Page Change Page 1/2 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 Change drives Go to not folder Go to other folder Exit

Button Description
Navigation button	Scrolls the file.
ENTER	Views the highlighted file.
CH ( , v)	Moves to the previous or next page.
Red button	Change device: Changes to a different input.
Green button	Go to root folder.
Yellow button	Go to upper folder.

7 The following options are available while viewing photos.

01_a.jpg 2008/12/10 1920 x 1080 479 KB [1/66] Slideshow □ BGM □ 14 Option Hide Exit

Option Description
Slideshow	Starts or stops a slideshow.All photos saved in the current folder display during a slideshow.To set a slideshow speed, select Option.
BGM(Background Music)	Turns the background music on or off. To set the background music folder, select Option.
	Displays the current photo in Original, Monotone, Sepia, Oil Painting and Vignetting.
○ (Rotate)	Rotates photos clockwise (90°, 180°, 270°, 360°).NOTEThe supported photo size is limited. You cannot rotate a photo if the resolution of the rotated width is larger than the supported resolution size.
	Views the photo in full mode or original mode.
e∅(ENERGY SAVING)	Increases or decreases the brightness of your screen.
3D(For 3D TV)	Views the 3D images.
Option	Shows the Option menu (See p.73).
Hide	Hides the option window.To display the options, press ENTER.
Exit	Moves to the previous menu screen.

Q.MENU options for photo list

1 Press Q. MENU.
A pop-up window will appear.
2 Press the Navigation buttons to scroll to the option and press ENTER.
3 Press the Navigation buttons to scroll to one of the following options and press ENTER.

Set Photo View.

Option Description
Slide Speed	Selects a slideshow speed (Fast, Medium, Slow).
BGM	Selects a music folder for the background music.Select Repeat or Random option.NOTEYou cannot change the music folder while the background music is playing.

NOTE

• Option values changed in Photo List do not affect Movie List and Music List.
• Option values changed in Photo List or Music List are changed likewise in Photo List and Music List, but not Movie List

Set Video.

Allows you to change Video settings. (Refer to "PICTURE Settings" on page 82).

Set Audio.

Allows you to change Audio settings. (Refer to "AUDIO Settings" on page 87).

Listening to music

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to Smart Share and press ENTER.
3 Press the Navigation buttons to scroll to the device you want and press ENTER.
4 Press the Navigation buttons to scroll to Music List and press ENTER.
5 Press Navigation buttons to select a folder or file you want and press ENTER.
6 Play music by using the following menus/ buttons.

Music List USB2 External Drive1 Page 1/1 Page Change Page 1/2 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12 M13 M14 M15 M1 Change devices Go to not folder Go to upper folder Exit

Button Description
Navigation button	Scrolls through the files.
ENTER	Plays the highlighted file.
CH (^, v)	Moves to the previous or next page.
Red button	Change device: Changes to a different input.
Green button	Go to root folder.
Yellow button	Go to upper folder.
Blue button	Open music player.It is enabled during palying music.

7 Control playback by using the following buttons.

Music List USB2 External M1 M2 M3 Page 1/1 Page Change Page 1/2 00:03 / 02:58001. - B01.mp3 E2O OK Option Help Exit

Button Description
■	Stops playback.
▶	Plays a music file.
II	Pauses or resumes playback.
◀	Skips to the previous file.
▶	Skips to the next file.
< or >	Indicates a cursor.
e∅(ENERGY SAVING)	Increases or decreases the brightness of your screen.
Q.MENU	Shows the Option menu (See p.74).
BACK	Hides the option window.To display the options, press ENTER.
EXIT	Moves to the previous menu screen.

Tips for playing music files

- The TV cannot support the ID3 Tag embedded MP3 files.

Q.MENU options for music list

1 Press Q. MENU.
A pop-up window will appear.
2 Press the Navigation buttons to scroll to the option and press ENTER.
3 Press the Navigation buttons to scroll to one of the following options and press ENTER.

NOTE

• Option values changed in Movie List does not affect the Photo List and Music List.
• Option value changed in Photo List and Music List are changed likewise in Photo List and Music List.

Set Audio Play.

Select Repeat or Random option.

Set Audio.

Allows you to change Audio settings. (Refer to "AUDIO Settings" on page 87).

NOTE

• The TV will not play copy protected files.
- If the TV is not in use for some time during playback, the information box as a screensaver will appear to prevent image burn.

To return to the Music list screen, press ENTER.

File name 002. B02.mp3 00:31 / 04:04 Time elapsed /Duration

3D IMAGING (FOR 3D TV)

3D Technology

This TV can display in 3D via 3D broadcasting or when the TV is connected to a compatible device, such as a Blu-ray 3D Player. The viewer must wear compatible 3D glasses in order to see these images in 3D format.

When watching 3D imaging

• The 3D imaging may not display if it is viewed while you are lying down.
• It may take a moment for you to see the 3D imaging if you look away from the TV and then revert your eyes back to the 3D program.
• To watch the TV in 3D, you must put on your 3D glasses. For best results, you should wear LG Brand 3D glasses. The 3D imaging may not display properly when using another brand of 3D glasses. Please see the 3D glasses manual for instructions on how to use the 3D glasses.
• When watching 2D images, it is recommended to take off the 3D glasses. If you watch 2D images with the 3D glasses on, you may see distorted images.

(For LW7700, LW9500, LZ9700, PZ750, PZ950, PZ950U series)

• After powering on the TV, a few seconds may be needed for your TV to calibrate.
- The TV may flicker slightly if the 3D imaging is displayed under 3 wavelength fluorescent light (50 Hz - 60 Hz) or magnetic fluorescent lamp (50Hz - 60 Hz). In such instances, it is recommended to turn the lights off.
- If there is an obstacle between the TV and the 3D glasses, the 3D imaging may not display properly.
- Do not use the TV in close proximity to other electronic equipments and RF equipments.

When using 3D Glasses

• Do not use the 3D glasses to replace your corrective glasses, sunglasses or protective goggles.
• Do not store the 3D glasses in hot or cold locations.
• Do not drop objects onto the 3D glasses. Do not drop or bend the glasses.
• Since the lenses of the 3D glasses are easily scratched, make sure to clean only with a soft cloth. Shake off any dust before using the cloth since the glasses are easily scratched.
• A communication failure may occur if the glasses are near electronic devices that use the same bandwidth (2.4 GHz), such as a microwave oven or wireless LAN product.

3D Imaging Viewing Range

(For LW7700, LW9500, LZ9700, PZ750, PZ950, PZ950U series)

TV size, viewing angle & other circumstances may change the viewing distance and the angle of view.

Viewing Distance Maximum Viewing Distance
2 m - 7 m(6.5 ft - 22.9 ft)	10 m(32.8 ft)

Viewing 3D Imaging

1 Play the video produced in 3D.
2 Press 3D to watch 3D imaging.
3 Wear the 3D glasses.
4 Press the Navigation buttons to scroll the OK and press ENTER.
5 Press the Navigation buttons to select the shape and press ENTER.

Mode Description
2D » 3D	Changed from 2D imaging to 3D imaging.
Side by Side
Top & Bottom
Checker Board
Frame Sequential

6 Press 3D button to 2D Off or 3D Off.

Option Description
3D -> 2D	Displays images in 2D without any 3D effects.
3D Off	Displays images in original format.
2D -> 3D	Displays images in 3D.
Cancel	Close the pop-up window.

Setting 3D Imaging

1 Press the 3D OPTION while viewing 3D imaging.

A pop-up window will appear.

2 Press the Navigation buttons to scroll to one of the following options and press ENTER.

Choose options. 3D Mode Setting Set Video. Set Audio. Previous Close

3D Mode Setting

Option (Depending on model)	Description
Image View Mode	Selects "2D->3D" or "3D->2D".
3D Picture Size	Cuts off the outer edges of the picture and stretch it to fit the full screen in 3D mode.
3D Picture Correction	Select Left/Right or Right/Left. Select the screen with 3D video with better visibility.
3D Depth	Adjusts the stereoscopic effect of the 3D image converted from 2D image.
3D Viewpoint	Moves the 3D image to front and back to adjust the 3D perspective view.
3D Picture Balance	Adjusts the color and brightness difference between the right and left sides of the picture in 3D mode.
3D Optimization	Optimizes the 3D image screen for the viewing environment.

Set Video.

Allows you to change Video settings (Refer to "PICTURE Settings" on page 82).

Set Audio.

Allows you to change Audio settings (Refer to "AUDIO Settings" on page 87).

CAUTION

• Some menus may not work while viewing 3D imaging.
• The 3D imaging is disabled automatically when switching input source or DTV channel.
• The screen may not be displayed properly if you view 2D images in 3D imaging mode.
• 3D effect can be seen when 3D Mode is selected appropriately for the 3D input signal supplied to the TV.
• For *mpo files (3D camera files), the 3D imaging mode is enabled automatically.

NOTE

( LCD )

• If viewing 3D imaging, "Power indicator" is turned off automatically.
• You can only choose "Off or Cinema" with the AV MODE button on the remote control.
• Energy Saving is disabled while playing in 3D.
• Home menu is not available while playing in 3D.
• You cannot enter the Home menu while watching 3D imaging.

CUSTOMIZING TV SETTINGS

The SETUP Menu

1 Press Home to access the Home menu.
2 Press the Navigation buttons to select the SETUP menu and press ENTER.
3 Press the Navigation buttons to scroll to one of the following menus and press ENTER.
4 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.
5 When you are finished, press EXIT.

Menu Description
	CHANNEL Sets up and edit channels.
	PICTURE Adjusts the image size, quality, or effect.
	AUDIO Adjusts the sound quality, effect, or volume level.
	TIME Sets the time, date, or Timer feature.
	LOCK Locks or unlocks channels and programs.
	OPTION Customizes the general settings.
	NETWORK Sets up the network setting.
	SUPPORT Checks the customer information.

Customizing Settings

CHANNEL Settings

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to CHANNEL and press ENTER.
4 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.

- To return to the previous level, press BACK.

5 When you are finished, press EXIT.

CHANNEL • Auto Tuning • Manual Tuning • Channel Edit

The available channel settings are described in the following.

Setting Description
Auto Tuning	Tunes and stores all available channels through antennas or cable inputs (See p.44).
Manual Tuning Tunes and stores the channels you want manually (See p.44).
Channel Edit Adds or deletes channels (See p.44).

PICTURE Settings

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to PICTURE and press ENTER.
4 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.

- To return to the previous level, press BACK.

5 When you are finished, press EXIT.

PICTURE • Aspect Ratio : 16:9 • Set 3D Video • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight 70 • Contrast 100 • Brightness 50 • Sharpness 70 • Color 60 • Tint 0 • Color Temp. 0 • Advanced Control • Picture Reset • TruMotion : Low • Screen (RGB-PC) • LED Local Dimming

The available picture settings are described in the following.

Setting Description
Aspect Ratio Changes the image size to view images at its optimal size (See p.47).
Set 3D Video(For 3D TV)	Sets the 3D imaging option (See p.78).
Picture Wizard Adjusts the image quality and calibrates the screen.The customized options will be saved as Expert1 in the Picture ModeNOTEIf you use Picture Wizard, the Energy Saving feature will turn off automatically.To reset changes made by Picture Wizard, operate Picture Reset when Picture Mode is on Expert1.
Energy Saving Reduces the power consumption by adjusting the screen brightness.NOTEWhen selecting Auto or Maximum, Backlight will not work ( LCD).
Option
Auto ( LCD )	The backlight is adjusted automatically corresponding to the surroundings when selecting Auto using the Intelligent sensor feature.
Intelligent sensor ( LCD )	The most suitable picture is automatically adjusted corresponding to the surroundings.
Off Select if this feature is not necessary.
Minimum/Medium/Maximum	Selects the brightness level.
Screen off The screen turns off in 3 seconds.Pressing any button of the remote control will turn on the screen again.
Picture Mode	Selects one of the preset image or customizes options in each mode for the best TV screen performance. You are also able to customize advanced options of each mode.The available preset picture modes vary depending on the TV.
	Mode (Depending on model)
	Intelligent Sensor Sets the TV to adjust the image settings, such as contrast, brightness, sharpness, color, or tint, automatically corresponding to the surrounding environments.
	Vivid Adjusts the video image for the retail environment by enhancing the contrast, brightness, color, and sharpness.
	Standard Adjusts the image for the normal environment.
	APS Maximizes video images reducing power consumption without hurting picture quality.
	Cinema Optimizes video image for a cinematic look to enjoy movies as if you are in a movie theater.
	THX Cinema, THX Bright RoomProvides a cinema experience while watching a movie at home. The user will be able enjoy the best level of screen quality without any separate adjustments.» THX Cinema express the optimal screen quality when the room is dark.» THX Bright Room express the optimal screen quality when the room is bright.
	NOTE·THX: THX (Thomlinson Holman's Experiment) is an audio and video certification standard established by George Lucas and Thomlinson. A THX certified display guarantees screen quality that exceeds the display standard specification in both hardware and software.
	Sport Optimizes the video image for high and dynamic actions by emphasizing primary colors such as white, grass, or sky blue.
	Game Optimizes the video image for a fast gaming screen for PCs or games.
	Photo Optimizes the still image like a photo file in HDMI, USB mode (ie, when connecting the external device like a DSLR)
	Expert 1, 2 or ISFccc Expert 1, 2Adjusts the detailed video image settings for video experts as well as general viewers.
	NOTE·ISFccc (ISFccc: Imaging Science Foundation Certified Calibration Control) (Except LW5700, LV5400, LK550 series): This TV contains the detailed calibrations necessary for professional certification by the Imaging Science Foundation. The resulting ISF "day" and "night" modes will then be accessible by the user to experience the best their LG HDTV has to offer.Sophisticated and detailed calibrations can be made through the ISFccc mode.Detailed calibration requires a licensed technician. Please contact your local dealer to inquire about an ISF certified technician.
	NOTE·( ) If you select Intelligent Sensor, the Energy saving feature will switch to Auto automatically .·If you selectTHX Cinema or THX Bright Room, the Aspect ratio feature will switch to Just scan automatically.
TruMotion (LED)	Advance video technology that provides clearer, smoother images, even during fast action scenes creating a more stable structure for a crisper picture. TruMotion works with all inputs except PC mode. If you enable "TruMotion", noise may appear on the screen. If this occurs, set "TruMotion" to "Off". If you select "Picture Mode-Game", set "TruMotion" to "Off".
	Mode
	High Provides smoother picture movement.
	Low Provides smooth picture movement. Use this setting for standard use.
	Off Turn off TruMotion operation.
	User De-Judder: Adjusts noise of the screen. De-Blur: Adjusts after-image of the screen.
SCREEN (RGB-PC)	Customizes the PC display options.
	Option
	Resolution Selects a proper resolution when your PC uses 1024 X 768, 1280 X 768, or 1360 X 768 resolution.
	Auto Configure Sets the TV to optimize the options automatically for the TV display.
	Position Locates the image at the proper position.
	Size Adjusts the image size.
	Phase Eliminates horizontal streaking.
	Reset Restores the options to the default setting.
LED Local Dimming (Depending on model)	After analysing the signal of the input video by areas of the screen, it adjusts the backlight to improve the contrast ratio.
	Mode
	Off Turn off LED Local Dimming operation.
	Low Brightens the picture and deepens black levels using the soft local dimming.
	Medium Deepens black levels using the strong local dimming.
	High Clears the picture and deepens black levels using the strong local dimming.

Basic Image Options

Setting Description
Backlight ( [LCD] )	Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the brightness level, the screen becomes darker and the power consumption will be reduced without any video signal loss.NOTEIf you use the “Energy saving - Off, Minimum, Medium”, Backlight will be available.
Contrast	Increases or decreases the gradient of the video signal. You may use Contrast when the bright part of the picture is saturated.
Brightness Adjusts the base level of the signal in the picture.
Sharpness	Adjusts the level of sharpness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.
Color	Adjusts intensity of all colors.
Tint	Adjusts the balance between red and green levels.
Color Temp.	Set to warm to enhance hotter colors such as red, or set to cool to enhance cooler colors such as blue.
Advanced Control or Expert Control	Customizes the advanced options.
Picture Reset Restores	the options of each mode to the factory default.

Advanced Image Options (Depending on model)

Setting Description
Dynamic Contrast	Adjusts the contrast to keep it at the best level according to the brightness of the screen. The picture is improved by making bright parts brighter and dark parts darker.
Dynamic Color	Adjusts screen colors so that they look livelier, richer and clearer. This feature enhances hue, saturation and luminance so that red, blue and green white look more vivid.
Skin Color It detects the skin area of video and adjusts it to express a natural skin color.
Noise Reduction Reduces screen noise without compromising video quality.
MPEG Noise Reduction	Removes noise caused by compressing video.
Super Resolution	Provides a crystal-clear picture by improving the details in an area that has a blurry or unclear picture.
Gamma You can adjust brightness of dark area and middle gray level area of the picture.» Low: Make the dark and middle gray level areas brighter.» Medium: Express the original picture level.» High: Make the dark and middle gray level area darker.
Black Level	Sets black level of the screen to proper level. This function is available in the following modes: TV(NTSC-M/J, PAL-M, PAL-N), AV (NTSC-M/J, PAL-M, PAL-N), HDMI or Component.» Auto: Realizing the black level of the screen and set it to High or Low automatically.» Low: The reflection of the screen gets darker.» High: The reflection of the screen gets brighter.
Clear White Make the white area of screen brighter and more white.
Eye Care	Adjusts the brightness of the screen to prevent the screen from being too bright. Dims extremely bright pictures.This feature is enabled in “Picture Mode-Standard, Game”.
Real Cinema or Film Mode	Makes video clips recorded in film look more natural by eliminating judder effect.DVD and Blu-ray movies are filmed at 24 frames per second (fps). With LG Real Cinema, every frame is consistently processed 5 times in 1/24 of a second producing 120 fps with TruMotion or 2 times in 1/24 of a second producing 48 fps without TruMotion, thus totally eliminating the judder effect.This function can also work when TruMotion is off.
Color Gamut
	Advanced Control, Expert Control» Maximizes the utilization of color to increase color quality.» Standard: Displays standard set of colors.» Wide: Increases number of colors used.Photo mode» Wide: Increases number of colors used.» sRGB: Mode to display sRGB standard color gamut”
	Advanced Control» Maximizes the utilization of color to increase color quality.» Standard: Displays standard set of colors.» Wide: Increase number of colors used.Expert ControlDisplays color domain of the signal.» Standard: Displays standard set of colors.» Wide: Increase number of colors used.» EBU: Mode to display EBU standard color area.» SMPTE: Mode to display SMPTE standard color area.» BT709: Mode to display BT709 standard color area.
Edge Enhancer Shows clearer and distinctive yet natural edges of the video.This function works well over Sharpness UI 60 value.
xvYCC This is produces richer colors.This feature represents rich colors as much as a conventional video signal.This function is enabled in 'Picture mode - Cinema, Expert" when xvYCC signal is inputted through HDMI.
Color Filter This is the function to filter the specific colors of the video.You can use the RGB filter to set color saturation and hue accurately.
Expert Pattern This is the pattern used for expert adjustmentThis function is enabled in "Picture Mode - Expert" when you watch DTV.
Color Temperature Adjusts the overall color of the screen by changing the white baseline.
[6cc4]	a. Method: 2 PointsPattern: Inner, OuterRed/Green/Blue Contrast, Red/Green/Blue Brightness: The adjustment range is -50 to +50.b. Method: 20 Point IREIRE (Institute of Radio Engineers) is the unit to display the size of the video signal and can be set among 0, 5, 10, 15 - 100 Plasma TV. You can adjust Red, Green or Blue according to each setting.Red/Green/Blue: The adjustment range is -50 - +50.c. Apply to all inputs
[24WK]	a. Gamma: Select 1.9, 2.2, 2.4b. Method: 2 PointsPattern: Inner, OuterRed/Green/Blue Contrast, Red/Green/Blue Brightnessc. Method: 10 Point IREPattern: Inner, OuterIRE (Institute of Radio Engineers) is the unit to display the size of the video signal and can be set among 10, 20, 30 - 100. You can adjust Red, Green or Blue according to each setting.Luminance: This function displays calculated luminance value for 2.2 gamma. You can input luminance value you want at 100 IRE, than the target luminance value for 2.2 gamma is displayed at every 10 steps from 10 IRE to 90 IRE.Red/Green/Blue: The adjustment range is -50 - +50.d. Apply to all inputs
Color Management System	As the tool used by the experts to make adjustments by using the test patterns, this does not affect other colors but can be used to selectively adjust the 6 color areas (Red/Green/Blue/Cyan/Magenta/Yellow).Color difference may not be distinctive even when you make the adjustments for the general video.Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.» Red/Green/Blue/Yellow/Cyan/Magenta Color: The adjustment range is -30 - +30.» Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range is -30 - +30.» This feature is disable in RGB-PC and HDMI-PC mode.

AUDIO Settings

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to AUDIO and press ENTER.
4 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.

- To return to the previous level, press BACK.

5 When you are finished, press EXIT.

AUDIO • Auto Volume : Off • Clear Voice II : Off 2 • Balance 0 • Sound Mode : Standard • Infinite 3D Surround:Off • Treble 50 • Bass 50 • Sound Reset • Sound Optimizer : Normal • TV Speaker : On • ARC Mode : Off • AV Sync. : Off

The available audio settings are described in the following.

Setting Description
Auto Volume	Activates the Auto Volume feature to keep the volume level consistent whenever you change channels. The volume level may not be consistent due to different signal conditions of broadcasting stations.
Clear Voice II	Sets whether to enhance human voice clarity. You can adjust the level of clarity when you set this feature on.
Balance Adjust balance between the left and right speakers according to your room environment.
Sound Mode Selects one of the preset sound modes or customizes options in each mode.
Mode
Standard Select when you want standard-quality sound.
Music Select when you listen to music.
Cinema Select when you watch movies.
Sport Select when you watch sports events.
Game Select when you play games.
NOTEIf sound quality or volume is not at the level you want, it is recommended to use a separate home theater system or amplifier to cope with different user environments.If the Clear Voice II feature is on, Infinite 3D Surround will not be activated.
Option
Infinite 3D Surround	Patents LG proprietary sound processing technology that strives immersive 5.1 surround sound with just two front speakers.
Treble	Controls the dominant sounds in the output. When you turn up the treble, it will increase the output to the higher frequency range.
Bass	Controls the softer sounds in the output. When you turn up the bass, it will increase the output to the lower frequency range.
Sound Reset	Resets the sound mode to the default setting.
Sound Optimizer	Optimizes the sound depending on the environment in which the TV is installed.
	Option
	Normal Normal sound mode.
	Wall Mount Type Optimized sound mode for a wall-mounted TV.
	Stand type Optimized sound mode for a stand-type TV.
TV Speaker	Turns on the internal speaker of the TV when using an external Hi-Fi system. You can use the TV speaker as an audio output device even if there is no video input.
ARC Mode (Audio Return Channel)	When using an external audio device with the ARC (Audio Return Channel) feature, SPDIF can be output using only a High Speed HDMI cable without an additional optical cable.
	NOTE Some HDMI cables may not support this mode (A High Speed HDMI cable is recommended). The ARC mode only works on the HDMI 1 input on the TV. Activates the SIMPLINK feature to use this feature.
	Option
	On If the device with the ARC feature is turned on, the device speaker is automatically used when SIMPLINK is enabled.
	Off Even if the device with the ARC feature is turned on and SIMPLINK is enabled, the device speaker is not automatically used.
AV Sync. If the video and sound are not synced, you can adjust it manually.» (-) setting : Make audio output faster than the default.» (+) setting : Make audio output slower than the default.

TIME Settings

1 Press Home to access the Home menu.

2 Press the Navigation buttons to scroll to SETUP and press ENTER.

3 Press the Navigation buttons to scroll to TIME and press ENTER.

4 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.

- To return to the previous level, press BACK.

5 When you are finished, press EXIT.

TIME Clock Off Time : Off On Time : Off Sleep Timer : Off

The available time settings are described in the following.

Setting Description
Clock Sets the time, date, time zone, and daylight-saving time feature.The time will be set automatically according to a digital channel signal which includes time information provided by the broadcasting station. If not, set the time and date manually.
Off Time/On Time	Sets the time to turn on or off the TV automatically. To use this function, you should set the current time and date in advance.
	NOTEIf you do not press any button within 2 hours after the TV turns on by the On Time feature, the TV enters the Standby mode automatically.If you set both Off time and On time features to the same time, the Off time feature overrides the On time feature.
Sleep Timer	Sets the length of time until the TV to turns off. When you turn the TV off and turn it on again, the Sleep timer feature will be set to off.

LOCK Settings

1 Press Home to access the Home menu.

2 Press the Navigation buttons to scroll to SETUP and press ENTER.

3 Press the Navigation buttons to scroll to LOCK and press ENTER.

4 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.

- To return to the previous level, press BACK.

5 When you are finished, press EXIT.

LOCK - Set Password - Lock System : On - Block Channel - Movie Rating - TV Rating-Children - TV Rating-General - Downloadable Rating - Input Block

The available lock settings are described in the following.

Setting Description
Set Password Changes the 4-digit password. The default PIN is “0 0 0 0”.If you forget your password, press “0-3-2-5” on the remote control.
Lock System Activates or deactivates the lock system.
Block Channel	Blocks the channels that contain inappropriate contents for children. The channels can be selected but the screen is blank and the audio is muted.To watch a locked channel, enter the password.
Movie Rating	Blocks the movies that are only broadcasted on the TV and contain inappropriate contents, based on the Motion Picture Association of America (MPAA) rating.
	Rating
	G General audiences – All ages admitted
	PG Parental guidance suggested – Some material may not be suitable for children
	PG-13 Patents strongly cautioned – Some material may be inappropriate for children under 13
	R Restricted – Under 17 requires accompanying parent or adult guardian
	NC-17 No one 17 and under admitted.
	X Adults only
TV Rating-Children(Depending on model)	Blocks the children’s TV programs that parents do not want their children to watch. To block other TV programs, you should set the TV Rating-General feature.
	Rating
	Age TV-Y (All children, including children from ages 2-6)TV-Y7 (Directed to older children, suitable for children age 6 and above)
	Fantasy Violence TY-Y7 (Directed to older children – Fantasy violence, suitable for children age 6 and above, containing more intense or combative fantasy violence)
TV Rating-General (Depending on model)	Blocks the TV programs that you want based on the ratings by using the Parental Control Function (V-Chip).NOTEThe V-Chip electronically reads TV program ratings and allows parents to block program that are unsuitable for children.
	Rating
	Age TV-G (General audience, suitable for all ages)TV-PG (Parental guidance suggested, containing material that are unsuitable for younger children)TV-14 (Parents strongly cautioned, containing material that are unsuitable for children age 14 and under)TV-MA (Mature audience only, unsuitable for children age under 17)
	Dialog(suggestive dialogue)TV-PG or TV-14
	Language (coarse language)TV-PG, TV-14, or TV-MA
	Sex (sexual situation)TV-PG, TV-14, or TV-MA
	Violence TV-PG, TV-14, or TV-MA
TV Rating-English (Depending on model)	Selecting Canadian English rating system.
	Rating
	E Exempt
	C Children
	C8+ Children eight years and older
	G General programming, suitable for all audiences
	PG Parental Guidance
	14+ Viewers 14 years and older
	18+ Adult programming
	Blocking Off Permits all programs
TV Rating-French (Depending on model)	Selecting Canadian French rating system.
	Rating
	E Exempt
	G General
	8ans+ General-Not convenient for little children
	13ans+ Not convenient for children of 13 years and younger
	16ans+ Not convenient for children of 16 years and younger
	18ans+ This programs is only for adults
	Blocking Off Permits all programs
Downloadable Rating	This function operates only when TV has received Region5 Rating data.The name of the rating option may differ.NOTEThis feature is available only for digital channels.
Input Block Block	the input sources.

OPTION Settings

1 Press Home to access the Home menu.

2 Press the Navigation buttons to scroll to SETUP and press ENTER.

3 Press the Navigation buttons to scroll to OPTION and press ENTER.

4 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.

- To return to the previous level, press BACK.

5 When you are finished, press EXIT.

OPTION Language Caption : Off ISM Method : Normal Power Indicator Pointer Smart Share Setting Initial Setting Set ID : 1 Mode Setting : Home Use IR Blaster : Off

The available general settings are described in the following.

Setting Description
Language Selects	a desired language.
	Option
	Menu Language Selects a language for the display text.
	Audio Language Selects an audio language for your program. This feature operates only in the DTV or CADTV mode.
Caption Sets whether to display captions and customize your option in each mode.
ISM Method( [IMAGE] )	Prevents image sticking or removes a ghost image.A frozen still picture displayed on the screen for prolonged periods can result in a ghost image.
	Mode
	Normal Sets it if image sticking is never a problem.
	Orbiter Avoids a ghost image on the screen.The image will move every 2 minutes to help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen.
	Color Wash Removes a ghost image on the screen.The color block with the screen moved a little and the white pattern are alternately displayed. It is difficult to see the after image on all colors.Once it has been corrected it will not be visible in any color.
	White Wash Removes a ghost image on the screen.Use sparingly. Watch the TV normally for a while before using this feature to see if the ghost image disappears on its own.[IMAGE]NOTEAn excessive ghosted image may be impossible to clear entirely with White Wash. To return to normal viewing, press the any button.
Pointer(Depending on model)	Sets the pointer option of the magic motion remote control.
	Option
	Speed Changes the pointer speed.
	Shape Selects the pointer shape.
	Size Changes the pointer size.
	Alignment Align the remote control's direction with the pointer on your TV screen by shaking the remote control left and right. Then, the pointer automatically moves to the center of the screen.
Smart Share Setting	Sets the DivX and DLNA option.
	Option
	DivX VOD RegistrationRegisters your TV to play DivX protected videos (See p.71).
	DivXDeregistrationDeregisters your TV (See p.71).
	DMR Activates or deactivates the DMR (Digital Media Render) connection.
Initial Setting Resets the TV to factory default and erases all stored channels. Customizes the TV settings to suit your preference. The initial setup screen will appear when you turn on the TV for the first time.
Setting
Language Selects a desired language.
Mode Setting Selects Home Use for the home environment.Selects Store Demo for the retail environment.Selects Demo Mode to set to show special features of the TV. You can cancel the demo mode by pressing any buttons except the Volume and Mute buttons.
NOTEWhen selecting Store Demo, Demo Mode will be activated.
Power Indicator Turns the power indicator light on or off.(LED LCD TV)
Time Zone Sets the time zone and daylight saving.
Auto Tuning Scans and saves available channels automatically.
Set ID Adds an ID to the connected devices.
Mode Setting	Default selection is “Home Use”. We recommend setting the TV to “Home Use” mode for the best picture in your home environment.
	Option
	Home Use Selects it for the home environment.
	Store Demo Selects it for the retail environment.
	Demo Mode Sets to show special features of the TV. You can cancel the demo mode by pressing any buttons except the Volume and Mute buttons.
IR Blaster(Depending on model)	Adjusts when connecting Wireless media box (sold seperate).For further information, refer to the optional "Wireless media box" manual for operating instructions.

NETWORK Settings

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to NETWORK and press ENTER.
4 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.

- To return to the previous level, press BACK.

5 When you are finished, press EXIT.

NETWORK • Network Setting : Wired • Network Status : Internet is connected • Smart TV Setting • Legal Notice • ESN

The available network settings are described in the following.

Setting Description
Network Setting	Configure the network settings (See p.50).
Network Status	Display the network status (See p.55).
Smart TV Setting	Set the region for which weather forecast is provided and manage the IDs added to the TV.
	Setting
	Country Setting Set the country for premium services. Different premium services are provided depending on the country you set.
	Weather Effect Sets the region for the weather to be displayed on the background of the premium service.Select your region.
	Premium Version Display the version of the premium service.
	ID Management Manage the login history of the IDs added to the TV.
	Reset Delete all IDs added and applications installed on the TV. Please be aware that all your paid applications may be deleted.
Legal Notice Display the Legal notice (See p.57).
ESN (Depending on model)	View the supplied Netflix Electronic Serial Number (ESN)

SUPPORT Settings

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to SUPPORT and press ENTER.
4 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.
- To return to the previous level, press BACK.

5 When you are finished, press EXIT.

SUPPORT • Software Update • Picture Test • Sound Test • Product/Service Info.

The available support settings are described in the following.

Setting Description
Software Update	Update the TV with the latest firmware.
Picture Test Executes picture or built-in melody sound tests.» If this test has an error, select Yes. You will see product or service information.» If this test has no errors, check the connection status of external devices and refer to the manual of external devices.
Sound Test
Product/Service Info.	Shows the product or service information.Customer Service Center can differ by country.

MAKING CONNECTIONS

Connect various external devices to the TV and switch input modes to select an external device. For more information on external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information on recording, refer to the manual provided with the connected device.
• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.

Connection Overview

Connect various external devices to the ports on the TV back panel.

1 Find an external device you want to connect to your TV as shown on the following illustration.
2 Check the connection type of the external device.
3 Go to the appropriate illustration and check the connection details.

NOTE

• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• Refer to the external equipment's manual for operating instructions.

Connecting to a HD receiver, DVD, or VCR player

Connect a HD receiver, DVD, or VCR player to the TV and select an appropriate input mode.

HDMI Connection

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown in the following illustration.

NOTE

• Use the latest High Speed HDMITM Cable with CEC (Customer Electronics Control) function.
• High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.

LV3700 series

LAN USB USB 5.6.01 USB 2.0.01 USB 7.0.01 USB 1.0.01 USB 3.0.01 USB 4.0.01 USB 5.0.01 USB 6.0.01 USB 7.0.01 USB 8.0.01 USB 9.0.01 USB 10.0.01 USB 11.0.01 USB 12.0.01 USB 13.0.01 USB 14.0.01 USB 15.0.01 USB 16.0.01 USB 17.0.01 USB 18.0.01 USB 19.0.01 USB 20.0.01 USB 21.0.01 USB 22.0.01 USB 23.0.01 USB 24.0.01 USB 25.0.01 USB 26.0.01 USB 27.0.01 USB 28.0.01 USB 29.0.01 USB 30.0.01 USB 31.0.01 USB 32.0.01 USB 33.0.01 USB 34.0.01 USB 35.0.01 USB 36.0.01 USB 37.0.01 USB 38.0.01 USB 39.0.01 USB 40.0.01 USB 41.0.01 USB 42.0.01 USB 43.0.01 USB 44.0.01 USB 45.0.01 USB 46.0.01 USB 47.0.01 USB 48.0.01 USB 49.0.01 USB 50.0.01 USB 51.0.01 USB 52.0.01 USB 53.0.01 USB 54.0.01 USB 55.0.01 USB 56.0.01 USB 57.0.01 USB 58.0.01 USB 59.0.01 USB 60.0.01 USB 61.0.01 USB 62.0.01 USB 63.0.01 USB 64.0.01 USB 65.0.01 USB 66.0.01 USB 67.0.01 USB 68.0.01 USB 69.0.01 USB 70.0.01 USB 71.0.01 USB 72.0.01 USB 73.0.01 USB 74.0.01 USB 75.0.01 USB 76.0.01 USB 77.0.01 USB 78.0.01 USB 79.0.01 USB 80.0.01 USB 81.0.01 USB 82.0.01 USB 83.0.01 USB 84.0.01 USB 85.0.01 USB 86.0.01 USB 87.0.01 USB 88.0.01 USB 89.0.01 USB 90.0.01 USB 91.0.01 USB 92.0.01 USB 93.0.01 USB 94.0.01 USB 95.0.01 USB 96.0.01 USB 97.0.01 USB 98.0.01 USB 99.0.01 USB 1C:\ HCM

A10.0V R: 600Ω RGB IN (PC) I/O N/A R: 252.0V L: 340.0V USB COM/IC LAN ROM COM/IC AUTO INTC I/O ANTENA /CAS... HDMI 1/8KRC 23.4 HDMI

LZ9700 series

LAN HGB IN (PC) I/O 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

LK530, LK550 series

IN5 IN6 IN7 IN8 IN9 IN10 IN11 IN12 IN13 IN14 IN15 IN16 IN17 IN18 IN19 IN20 IN21 IN22 IN23 IN24 IN25 IN26 IN27 IN28 IN29 IN30 IN31 IN32 IN33 IN34 IN35 IN36 IN37 IN38 IN39 IN40 IN41 IN42 IN43 IN44 IN45 IN46 IN47 IN48 IN49 IN50 IN51 IN52 IN53 IN54 IN55 IN56 IN57 IN58 IN59 IN60 IN61 IN62 IN63 IN64 IN65 IN66 IN67 IN68 IN69 IN70 IN71 IN72 IN73 IN74 IN75 IN76 IN77 IN78 IN79 IN80 IN81 IN82 IN83 IN84 IN85 IN86 IN87 IN88 IN89 IN90 IN91 IN92 IN93 IN94 IN95 IN96 IN97 IN98 IN99 IN100

Other models

COMPENS WIRE Box CONTROL AV I/O RIN (PC) 防音驱动 120 MHz 120 MHz HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI

DVI to HDMI Connection

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.

AVOCU AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU1 AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOCU AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC AVOC

LK530, LK550 series

LAN USB R10 20 30 40 50 60 70 80 90 100 LCD/AMD RBB (PC) USB R10/RB10 (LED) AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD AMD

LV3700 series

I AN USB VDD USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB AUXO CUT

LZ9700 series

RGS IN (PCI) A2012 A2012 A2012 A2012 A2012 A2012 A2012 A2012 A2012 A2012 A2012 A2012 A2012 A2012 A2012 A2012 A2012 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A20 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A20 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X4 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A20 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3 A2O 4X3

Other models

I/O VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC

Component Connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the component cable as shown in the following illustration.

Plasma AUDIO RGB IN RGS IN (PCI) AUDIO AUDIO RGB IN RGS IN (PCI) AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO

LK530, LK550 series

LAN C:\COMPANY\INT VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD VDD

LV3700 series

AN COMPONENT INT RGB IN/PCI 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 AUDIO 1 VICO 2 V 3 V 4 V 5 V 6 V 7 V 8 V 9 V 10 V 11 V 12 V 13 V 14 V 15 V 16 V 17 V 18 V 19 V 20 V 21 V 22 V 23 V 24 V 25 V 26 V 27 V 28 V 29 V 30 V 31 V 32 V 33 V 34 V 35 V 36 V 37 V 38 V 39 V 40 V 41 V 42 V 43 V 44 V 45 V 46 V 47 V 48 V 49 V 50 V 51 V 52 V 53 V 54 V 55 V 56 V 57 V 58 V 59 V 60 V 61 V 62 V 63 V 64 V 65 V 66 V 67 V 68 V 69 V 70 V 71 V 72 V 73 V 74 V 75 V 76 V 77 V 78 V 79 V 80 V 81 V 82 V 83 V 84 V 85 V 86 V 87 V 88 V 89 V 90 V 91 V 92 V 93 V 94 V 95 V 96 V 97 V 98 V 99 V100

LZ9700 series

IN 1 LAN RGB IN (PC) AUDIO VIDEO

Other models

COMPONENT USB Enc USB USB USB IAS HGB UN (PCI) HGB UN HGB UN AUDIO VIDEO

AN 4/25 IN (PG) (RGB/IN) VCC 100% (RGB/IN) RCA AUDIO VIDEO

NOTE

- If cables are installed incorrectly, it could case the image to display in black and white or with distorted color. Check to ensure the cable are matched with the corresponding color connection.

Composite Connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown in the following illustration.

NOTE

- If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.

AUDIO RGB DNA RGB IN MFC AUDIO AUDIO IN MATERIALS LAN CONTROL VIDEO MAX MAX MAX HOLDEN CABLE IN 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 100

LK530, LK550 series

LAT SYN RSP MT GOLD IN RGB IN/RC WINT RISC-100V/200V/200V ANTICAC/ABCIN 100V 100V 100V

MINT RVWR AVR AVR AVR

LAN POWER CPU GPIO RGB IN (PQ) USB IN (INTS VINTLE) WIREUOY ZONE IN ANTENIX AOLE IN RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO RIO

LZ9700 series

GS IN (PC) IN 1 AV VOUT VOUT PFDAL RPTAL RPTAL IN 48.0 PG 2 W W W PG 3 PG 4 PG 5 PG 6 PG 7 PG 8 PG 9 PG 10 PG 11 PG 12 PG 13 PG 14 PG 15 PG 16 PG 17 PG 18 PG 19 PG 20 PG 21 PG 22 PG 23 PG 24 PG 25 PG 26 PG 27 PG 28 PG 29 PG 30 PG 31 PG 32 PG 33 PG 34 PG 35 PG 36 PG 37 PG 38 PG 39 PG 40 PG 41 PG 42 PG 43 PG 44 PG 45 PG 46 PG 47 PG 48 PG 49 PG 50 PG 51 PG 52 PG 53 PG 54 PG 55 PG 56 PG 57 PG 58 PG 59 PG 60 PG 61 PG 62 PG 63 PG 64 PG 65 PG 66 PG 67 PG 68 PG 69 PG 70 PG 71 PG 72 PG 73 PG 74 PG 75 PG 76 PG 77 PG 78 PG 79 PG 80

Other modelsLV3700 series

UAVEN AIRB IN (PC) AVIN USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC) USB IN (PC)

Connecting to a PC

This TV supports the Plug & Play. A PC will automatically recognize the TV and requires no driver to be installed.

NOTE

- It is recommended to use the TV set with the HDMI connection for the best image quality.

HDMI Connection

Transmits the digital video and audio signals from your PC to the TV. Connect the PC and the TV with the HDMI cable as shown in the following illustrations.

AUDIO R: 25/24 USB: 1900 AUDIO R: 25/24 USB: 1900 AUDIO R: 25/24 USB: 1900 AUDIO R: 25/24 +DM

LK530, LK550 series

HDMI IN 3 HDMI IN 2 HDMI IN 1 (ARC) HDMI IN 1 (ARC)

LV3700 series

DVI to HDMI Connection

Transmits the digital video signal from your PC to the TV. Connect the PC and the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.

AUDIO REDAVIL MOS R-232. IN I/O POWER 1600/734 HOMO 501OUT AUDIO OUT

LK530, LK550 series

I / A A B C N / R E G N RGB IN (PCI) RGB IN (R ADC) IN U D U L U S U T U U U V U W U X U Y U Z U AA U AB U AC U AD U AE U AF U AG U AH U AI U AJ U AK U AL U AM U AN U AO U AP U AQ U AR U AS U AT U AU U AV U AW U AX U AXB U AXC U AXD U AXE U AXF U AXG U AXH U AXI U AXJ U AXK U AXL U AXM U AXN U AXO U AXP U AXQ U AXR U AXS U AXT U AXU U AXV U AXW U AXX U AXY U AXZ U AXA U AXB U AXC U AXD U AXE U AXF U AXG U AXH U AXI U AXJ U AXK U AXL U AXM U AXN U AXO U AXP U AXQ U AXR U AXS U AXT U AXV U AXW U AXX U AXY U AXZ

LV3700 series

IAN A2C10 1000 R2C10 (PC) T2C05 (KAT/RESET) WIRELESS CO-TER +HDMI/RESET R2C10 1000 N 3 N 2 N 1 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 0 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 1 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 2 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 3 N 4

LZ9700 series

RGB IN (PC) USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O USB I/O

Other models

INR/INT 30 WHOLE IN CONTROL AV 50 2 1 -1 -1 IPC AUDIO OUT AUDIO OUT AUDIO OUT INR 50 INR 40 INR 30 INR 20 INR 10 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 4 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 5 INR 3 INR 2 INR 1 INR 6 INR OUT

RGB Connection

Transmits the analog video signal from your PC to the TV. Connect the PC and the TV with the D-sub 15 pin signal cable as shown in the following illustrations. To transmit an audio signal, connect an audio cable.

AUDIO (RGB) 100 RGB (RFC) I/O 200 IN MASCIN STALL A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

LK530, LK550 series

LAN AUDIO-TECH RGB (RTC) RIS3 RIS3 RIS3 RIS3 AUDIO OUT RIS3 OUT (PC)

LV3700 series

AN COMP OUT 1 RGB CIRCUA RGB IN (PC) ALONG OUT RGB CUT (PC) ANTENAC ASLEN

LZ9700 series

RGB IN (PC) AUDIO IN RGB OUT (PC) AUDIO OUT

Other models

RGB IN (PC) AUDIO USB RGB OUT (PC) AUDIO OUT

NOTE

• 1920 x 1080 is the recommended PC resolution. If you use the TV in other video modes, afterimages or distorted images may appear on the screen.
• Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• The synchronization input form for Horizontal and Vertical frequencies is separate.
• Depending on the graphics card, some resolution settings may not allow the image to be positioned on the screen properly.
• If you experience overscan issues when using HDMI-PC 1920x1080, change aspect ratio to Just scan.
• When selecting HDMI-PC, set the "Input Label - PC" in the INPUT menu.

Connecting to an Audio System

Use an optional external audio system instead of the built-in speaker.

NOTE

- If you use an optional external audio device instead of the built-in speaker, set the TV speaker feature to off (See p.88).

Digital Optical Audio Connection

Transmits the digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown in the following illustration.

NOTE

• Do not look into the optical output port. Looking at the laser beam may damage your vision.
  • Audio with ACP (Audio Copy Protection) function may block digital audio output.

A100A USB USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN

LK530, LK550 series

LAN USB RUB USB USB OPTICALLOG IN USB USB INTERTAIN ALENTIN OPTICALLOG IN

LZ9700 series

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the Smart Share menu to use various multimedia files. See “Connecting USB storage devices” on page 62 and see “Browsing files” on page 67.

ie)

USB https USB I/O HDD IN USB I/O HDD IN USB I/O HDD IN IN 3 IN 4 IN 5

Connecting to a Headphone (LCD)

Listen to the sound through a headphone.

ie)

CD-ROM AN LEN/NAV RARE IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN IN In

NOTE

• AUDIO menu options are disabled when connecting a headphone.
- When changing AV MODE with a headphone connected, the change is applied to video but not to audio.
• Optical Digital Audio Out is not available when connecting a headphone.
• Headphone impedance: 16 Ω
• Max audio output: 10 mW to 15 mW
• Headphone jack size: 0.35 cm (0.13 inch)

Connecting the Wireless Media Box

(Not support for LK530 and LK550 series)

LG TVs with a Wireless Control port support the LG Wireless Media Box, which is sold separately. When you connect the wireless ready dongle (included with the media box) to the TV, external devices can be connected to the LG Wireless Media Box and video and audio will be sent to the TV wirelessly.

Refer to the Wireless Media Box manual for operating instructions.

NOTE

- When using the external device connected to the Wireless Media Box, some functions of the TV menu may not work.

Hemma AUDIO IN RGB/UV RGB IN (PG) AUDIO R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2.17 R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. R2. A/R/C 356 0/0 A/R/C 356 0/0 A/R/C 356 0/0 A/R/C 356 0/0 A/R/C 356 0/0 A/R/C 356 0/0 A/R/C 356 0/0 A/R/C 356 0/0 A/R/C 356 0/0 A/R/C C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/D V C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DV C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DVI C/DV

LV3700 series

LAN USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet Internet

LZ9700 series

Diagram showing wireless network connection between a device and a router, with signal waves and power labels visible.

Other models

TIRELESS COMBOLI USB SET/ALU 10768 USB SET/ALU 10769 USB SET/ALU 10770 USB SET/ALU 10771 USB SET/ALU 10772 USB SET/ALU 10773 USB SET/ALU 10774 USB SET/ALU 10775 USB SET/ALU 10776 USB SET/ALU 10777 USB SET/ALU 10778 USB SET/ALU 10779 USB SET/ALU 10780 USB SET/ALU 10781 USB SET/ALU 10782 USB SET/ALU 10783 USB SET/ALU 10784 USB SET/ALU 10785 USB SET/ALU 10786 USB SET/ALU 10787 USB SET/ALU 10788 USB SET/ALU 10789 USB SET/ALU 10790 USB SET/ALU 10791 USB SET/ALU 10792 USB SET/ALU 10793 USB SET/ALU 10794 USB SET/ALU 10795 USB SET/ALU 10796 USB SET/ALU 10797 USB SET/ALU 10798 USB SET/ALU 10799 USB SET/ALU 10800 USB SET/ALU 10801 USB SET/ALU 10802 USB SET/ALU 10803 USB SET/ALU 10804 USB SET/ALU 10805 USB SET/ALU 10806 USB SET/ALU 10807 USB SET/ALU 10808 USB SET/ALU 10809 USB SET/ALU 10810 USB SET/ALU 10811 USB SET/ALU 10812 USB SET/ALU 10813 USB SET/ALU 10814 USB SET/ALU 10815 USB SET/ALU 10816 USB SET/ALU 10817 USB SET/ALU 10818 USB SET/ALU 10819 USB SET/ALU 10820 USB SET/ALU 10821 USB SET/ALU 10822 USB SET/ALU 10823 USB SET/ALU 10824 USB SET/ALU 10825 USB SET/ALU 10826 USB SET/ALU 10827 USB SET/ALU 10828 USB SET/ALU 10829 USB SET/ALU 10830 USB SET/ALU 10831 USB SET/ALU 10832 USB SET/ALU 10833 USB SET/ALU 10834 USB SET/ALU 10835 USB SET/ALU 10836 USB SET/ALU 10837 USB SET/ALU 10838 USB SET/ALU 10839 USB SET/ALU 10840 USB SET/ALU 10841 USB SET/ALU 10842 USB SET/ALU 10843 USB SET/ALU 10844 USB SET/ALU 10845 USB SET/ALU 10846 USB SET/ALU 10847 USB SET/ALU 10848 USB SET/ALU 10849 USB SET/ALU 10850 USB SET/ALU 10851 USB SET/ALU 10852 USB SET/ALU 10853 USB SET/ALU 10854 USB SET/ALU 10855 USB SET/ALU 10856 USB SET/ALU 10857 USB SET/ALU 10858 USB SET/ALU 10859 USB SET/ALU 10860

SIMPLINK Connection

Use the TV remote control to play and control the AV device connected with the HDMI cable through HDMI-CEC. This TV may work with the devices that support HDMI-CEC, but only devices with the SIMPLINK logo are fully supported.

Connect one end of the HDMI cable to the HDMI/DVI IN or HDMI IN terminal on the rear of the TV and the other end to the SIMPLINK device.

NOTE

• If the connected device does not support HDMI-CEC, the SIMPLINK feature is unavailable.
• To operate SIMPLINK, you should use an High Speed HDMI cable with the CEC (Consumer Electronics Control) function.
• SIMPLINK may not work properly if you a third-party device that has an HDMI-CEC function.

Activating and Using the SIMPLINK menus

1 Press SIMPINK to access the SIMPLINK menus.
2 Press the Navigation buttons to select to On.
3 Press the Navigation buttons to scroll to one of the devices and press ENTER.

SIMPLINK On Watch TV DISC VCR HDD Recorder Speaker INPUT EXIT

No.	Description
1	Displays the previously viewed TV channel.
2	Plays discs. When multiple discs are available, the title of the disc appears at the bottom of the screen.
3	Controls the connected VCR.
4	HDD recordings playback: Controls the recording stored in HDD.
5	Audio out to home theater speaker or Audio out to TV: Changes the audio output between Home theater speaker and TV speaker.

• A check mark appears in front of the selected device.
• Available devices display in a bright color.
• Unavailable devices display in grey.

3 Control the selected AV device.

Function Description
Direct Play	After connecting AV devices to the TV, you can directly control the devices and play media without additional settings.
Select AV device	Enables you to select one of the AV devices connected to the TV.
Disc playback	Control connected AV devices by pressing the Navigation buttons, ENTER, ▶, ■, II, ◀ and ▶.
Power off all devices	When you power off the TV, all connected devices are turned off.
Sync Power on	When the equipment with SIMPLINK function connected HDMI terminal starts to play, the TV will automatically turn on.
Switch audio-out	Offers an easy way to switch audio-out.

NOTE

• If you change the input source by pressing INPUT, the progressing function of the SIMPLINK device will stop.
• If you select a device that has the home theater feature, the sound output automatically switches to the home theater speaker and the TV speaker turns off.
• If a connected SIMPLINK home theater system does not play the audio from the TV, connect the DIGITAL AUDIO OUT terminal on the rear of the TV to the DIGITAL AUDIO IN terminal on the back of the SIMPLINK device with an optical cable.

MAINTENANCE

Update and clean your TV regularly to keep the best performance and to extend the product lifespan.

Updating the TV Firmware

Download and install the latest firmware by connecting to the firmware update server to enhance or change the product function, or add new features.

The firmware update may not work properly depending on the Internet environment. If so, you may obtain the latest firmware update from the authorized LG Electronics service center.

To check the current firmware version or update the firmware,

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to SUPPORT and press ENTER.
4 Press the Navigation buttons to scroll to Software Update and press ENTER. The current firmware version displays.
5 Select Check Update Version to check a new firmware version manually.

Software Update On • Current Version 01.00.09 Check Update Version Close

NSU (Network Software Update):

When software update is on, the TV will automatically check for software updates. A pop-up window will appear on the screen when an update is available.

NOTE

• While updating the firmware, do not disconnect the LAN cable, turn the TV off, or unplug the power cord.
• Premium service is disabled while the software is being updated through NSU.

6 When the update is complete, the TV will automatically restart in 5 seconds.

You may need to reset some CHANNEL, PICTURE, or AUDIO menus.

NOTE

• You cannot downgrade back to an older firmware version.
• The period of time for the firmware update may be different depending on the firmware size or network condition.
• If the firmware update download fails when using wireless, temporarily connect a cable directly to your router. If it still does not download, contact customer service.

Cleaning Your TV

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen and frame

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions.
• Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as these may as these may damage the screen's finish and cause discoloration.

Cabinet and stand

To remove dust or light dirt, wipe the cabinet with a dry, clean, and soft cloth.

To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a small amount of mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
• Do not use any chemicals as this may deteriorate the surface.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

Preventing "Image burn" or "Burn-in" on your TV screen

• If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is "image burn" or "burn-in" and not covered by the warranty.
• If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen.
• Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD, 1 or more hours for the Plasma TV) to prevent image burn.

TROUBLESHOOTING

General

Problem Resolution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed (To , to).Check if the appropriate input mode such as TV or VCR is set for using the remote control.
No image display and no sound is produced.	Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products.
Image appears slowly when the TV turns on.	The image is muted during the product startup process. This is normal. If the image does not appear in a few minutes, unplug the TV for 30 seconds and try again. If the image still does not appear, contact the authorized service center in your local area.
Cannot connect external devices.	Refer to the “Connection overview” and connect an external device.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted.Check if the Auto sleep feature is activated in the Time settings.Refer to the “Sleep Timer”.If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

Audio

Problem Resolution
No sound is produced while images are displaying.	Press VOL + or - button.Check if the sound is muted by pressing MUTE.Scroll to other channels. There may a problem with the broadcast.Check if the audio cables are connected properly.Check if the TV Speaker feature is activated in the menu option.
No output from one of the speakers	Adjust Balance in the menu option.
Unusual sound from inside the TV is produced.	A change in ambient humidity or temperature may result in an unusual noise when the product turns on or off. There is no problem with your product.

Video

Problem Resolution
An image displays in black and white or the color quality is poor.	Adjust the color setting in the menu option.Keep a sufficient distance between this product and other electronic products.Scroll to other channels. There may a problem with the broadcast.
Horizontal or vertical bars appears or images blur	Check if there are local interferences such as an electrical appliance or power tool.
Lines or streaks appear on images	Check the antenna or aim the antenna to the proper direction.
Afterimages (ghosts) appear when the product turns off	Pixels may have been damaged from a fixed image displayed for a long time (image burn). Use a screen saver to prevent the pixel damage on the screen.
The power is on but the screen appears extremely dark.	Adjust the brightness and contrast in the menu option.
“No Signal” appears on the screen.	Check if the signal cable is connected between the TV and products properly.Check the selected input source by pressing INPUT.
Black spots appear on the screen.	Several pixels in red, green, white, or black may appear on the screen that can attribute to the characteristics of the LCD panel.This is normal.
The display offset is wrong.	Adjust the position setting in the Picture menu.Check if the video card resolution and frequency are supported by the product.If the frequency is out of range, set to the recommended resolution using the display settings on the external device.
Thin lines appear in the background of the screen.	Check the video cable connections.
Horizontal noises appear or characters blur.	Adjust the Phase setting in the menu option.Refer to the “SCREEN (RGB-PC)”.
The reception on some channels is poor	Scroll to other channels. There may a problem with the broadcast.The station signal may be weak. Aim the antenna to the proper direction.Check if there is local interference such as an electrical appliance or power tool.

Movie

Problem Resolution
The file does not appear on the Movie List.	Check whether the extension is supported.
Message is displayed saying “This file is invalid” or the audio is working normally but the video is not working normally.	Check whether the file is playing normally on a PC. (Check whether the file is damaged.)Check whether the resolution is supported.Check whether the video/audio codec is supported.Check whether the frame rate is supported.
Message is displayed saying “Unsupported Audio” or the video is working normally but the audio is not working normally.	Check whether the file is playing normally on a PC. (Check whether the file is damaged.)Check whether the audio codec is supported.Check whether the bit rate is supported.Check whether the sample rate is supported.
Subtitle is not working.	Check whether the file is playing normally on a PC. (Check whether the file is damaged.)Check whether the video file and subtitle file name are the same.Check whether the video file and subtitle file are located in the same folder.Check whether the subtitle file is supported.Check whether the language is supported. (When you open the subtitle file in Memo Pad, you can check the language of the subtitle file.)

SPECIFICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions.

Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV		1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75		Ω
Environment condition	Operating Temperature	0 - 40°C
	Operating Humidity Less than 80%
	Storage Temperature -20 - 60°C
	Storage Humidity Less than 85%

MODELS		50PZ750(50PZ750-UG)	60PZ750(60PZ750-UG)
Dimensions(W x H x D)	With stand 1185	2 mm x 782.6 mm x 317.2 mm(46.6 inch x 30.8 inch x 12.4 inch)	1404.0 mm x 911.4 mm x 364.4 mm(55.2 inch x 35.8 inch x 14.3 inch)
	Without stand 11	85.2 mm x 714.0 mm x 49.6 mm(46.6 inch x 28.1 inch x 1.9 inch)	1404.0 mm x 837.8 mm x 49.6 mm(55.2 inch x 32.9 inch x 1.9 inch)
Weight With stand 31.5 kg (69.4 lb) 46.3 kg (102.0 lb)
Current Value / Power consumption 3.7 A / 370 W 5.3 A / 530 W
Power requirement AC 100 - 240 V ~ 50 / 60 Hz

MODELS		50PZ950(50PZ950-UA)	60PZ950(60PZ950-UA)
		50PZ950U(50PZ950U-UA)	60PZ950U(60PZ950U-UA)
Dimensions(W x H x D)	With stand 1175	2 mm x 787.6 mm x 317.2 mm(46.2 inch x 31.0 inch x 12.4 inch)	1393.4 mm x 916.4 mm x 364.4 mm(54.8 inch x 36.0 inch x 14.3 inch)
	Without stand 11	75.2 mm x 720.6 mm x 49.6 mm(46.2 inch x 28.3 inch x 1.9 inch)	1393.4 mm x 843.8 mm x 49.6 mm(54.8 inch x 33.2 inch x 1.9 inch)
Weight With stand 32.5 kg (71.6 lb) 46.3kg (102.0 lb)
Current Value / Power consumption 3.7 A / 370 W 5.3 A / 530 W
Power requirement AC 100 - 240 V ~ 50 / 60 Hz

MODELS		42LV3700(42LV3700-UD)	47LV3700(47LV3700-UD)	55LV3700(55LV3700-UD)
Dimensions(W x H x D)	With stand 998.0	mm x 684.0 mmx 256.0 mm(39.2 inch x 26.9 inch x10.0 inch)	1108.0 mm x 746.0 mmx 256.0 mm(43.6 inch x 29.3 inch x10.0 inch)	1286.0 mm x 847.0 mmx 338.0 mm(50.6 inch x 33.3 inch x13.3 inch)
	Without stand 99	8.0 mm x 615.0 mmx 30.4 mm(39.2 inch x 24.2 inch x1.1 inch)	1108.0 mm x 677.0 mmx 30.4 mm(43.6 inch x 26.6 inch x1.1 inch)	1286.0 mm x 778.0 mmx 30.4 mm(50.6 inch x 30.6 inch x1.1 inch)
Weight With stand 15.5	kg (34.1 lb) 20.9	kg (46.0 lb) 25.5 kg (56.2 lb)
	Without stand 13	3 kg (29.3 lb) 18.7 kg (41.2 lb)	21.4 kg (47.1 lb)
Current Value / Power consumption 1.1 A		/ 110 W 1.4 A / 140 W 1.6 A / 160 W
Power requirement USA, Canada, Mexico		AC 120 V ~ 50 / 60 HzOther Country: AC 100 - 240 V ~ 50 / 60 Hz

MODELS		42LV5400(42LV5400-UB)	47LV5400(47LV5400-UB)	55LV5400(55LV5400-UB)
		42LV5500(42LV5500-UA)	47LV5500(47LV5500-UA)	55LV5500(55LV5500-UA)
Dimensions(W x H x D)	With stand 1012	0 mm x 683.0 mmx 256.0 mm(39.8 inch x 26.8 inch x10.0 inch)	1121.0 mm x 746.0 mmx 256.0 mm(44.1 inch x 29.3 inch x10.0 inch)	1298.0 mm x 849.0 mmx 338.0 mm(51.1 inch x 33.4 inch x13.3 inch)
	Without stand 10	12.0 mm x 617.0 mmx 29.9 mm(39.8 inch x 24.2 inch x1.1 inch)	1121.0 mm x 678.0 mmx 29.9 mm(44.1 inch x 26.6 inch x1.1 inch)	1298.0 mm x 778.0 mmx 29.9 mm(51.1 inch x 30.6 inch x1.1 inch)
Weight With stand 15.5 kg (34.1 lb) 20.7		kg (45.6 lb) 25.8 kg (56.8 lb)
		Without stand 13	2 kg (29.1 lb) 18.4 kg (40.5 lb) 21.7 kg (47.8 lb)
Current Value / Power consumption 1.4 A / 140 W 1.5 A / 150 W 1.7 A / 170 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 HzOther Country: AC 100 - 240 V ~ 50 / 60 Hz

MODELS		42LW5600(42LW5600-UA)	47LW5600(47LW5600-UA)	55LW5600(55LW5600-UA)
Dimensions(W x H x D)	With stand 1005	0 mm x 688.0 mmx 256.0 mm(39.5 inch x 27.0 inch x10.0 inch)	1115.0 mm x 750.0 mmx 256.0 mm(43.8 inch x 29.5 inch x10.0 inch)	1293.0 mm x 851.0 mmx 338.0 mm(50.9 inch x 33.5 inch x13.3 inch)
	Without stand 10	05.0 mm x 621.0 mmx 29.9 mm(39.5 inch x 24.4 inch x1.1 inch)	1115.0 mm x 683.0 mmx 29.9 mm(43.8 inch x 26.8 inch x1.1 inch)	1293.0 mm x 785.0 mmx 29.9 mm(50.9 inch x 30.9 inch x1.1 inch)
Weight With stand 15.2	kg (33.5 lb) 20.7	kg (45.6 lb) 26.2 kg (57.7 lb)
	Without stand 13	0 kg (28.6 lb) 18.5 kg (40.7 lb)	22.0 kg (48.5 lb)
Current Value / Power consumption 1.4 A / 140 W 1.5 A / 150 W 1.7 A / 170 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 HzOther Country: AC 100 - 240 V ~ 50 / 60 Hz

MODELS		32LW5700(32LW5700-UE)	42LW5700(42LW5700-UE)
Dimensions(W x H x D)	With stand 766.0	mm x 545.0 mm x 240.0 mm(30.1 inch x 21.4 inch x 9.4 inch)	999.0 mm x 681.0 mm x 255.0 mm(39.3 inch x 26.8 inch x 10.0 inch)
	Without stand 76	6.0 mm x 491.0 mm x 41.0 mm(30.1 inch x 19.3 inch x 1.6 inch)	999.0 mm x 623.0 mm x 30.9 mm(39.3 inch x 24.5 inch x 1.2 inch)
Weight With stand 10.7	kg (23.5 lb) 15.7	kg (34.6 lb)
	Without stand 8.9	kg (19.6 lb) 13.4 kg (29.5 lb)
Current Value / Power consumption 1.2A		/ 120 W 1.4 A / 140 W
Power requirement USA, Canada, Mexico		: AC 120 V ~ 50 / 60 HzOther Country: AC 100 - 240 V ~ 50 / 60 Hz

MODELS		47LW5700(47LW5700-UE)	55LW5700(55LW5700-UE)
Dimensions(W x H x D)	With stand 1109	0 mm x 744.0 mm x 255.0 mm(43.6 inch x 29.2 inch x 10.0 inch)	1286.0 mm x 848.0 mm x 338.0 mm(50.6 inch x 33.3 inch x 13.3 inch)
	Without stand 11	09.0 mm x 684.0 mm x 30.9 mm(43.6 inch x 26.9 inch x 1.2 inch)	1286.0 mm x 784.0 mm x 30.9 mm(50.6 inch x 30.8 inch x 1.2 inch)
Weight With stand 20.2 kg (44.5 lb) 26.2kg (57.7 lb)
Current Value / Power consumption 1.5 A / 150 W 1.7 A / 170 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 HzOther Country: AC 100 - 240 V ~ 50 / 60 Hz

MODELS		47LW6500(47LW6500-UA)	55LW6500(55LW6500-UA)	65LW6500(65LW6500-UA)
Dimensions(W x H x D)	With stand 1119	0 mm x 749.0 mmx 255.0 mm(44.0 inch x 29.4 inch x10.0 inch)	1297.0 mm x 851.0 mmx 341.0 mm(51.0 inch x 33.5 inch x13.4 inch)	1555.0 mm x 1012.0 x341.0 mm(61.2 inch x 39.8 inch x13.4 inch)
	Without stand 11	19.0 mm x 684.0 mmx 29.9 mm(44.0 inch x 26.9 inch x1.1 inch)	1297.0 mm x 785.0 mmx 29.9 mm(51.0 inch x 30.9 inch x1.1 inch)	1555.0 mm x 940.0 mmx 38.1 mm(61.2 inch x 37.0 inch x1.5 inch)
Weight With stand 21.0 kg (46.2 lb) 27.0		kg (59.5 lb) 48.5 kg (106.9lb)
		Without stand 18.2 kg (40.1 lb) 22.0 kg (48.5 lb) 42.0 kg (92.5 lb)
Current Value / Power consumption 1.5 A / 150 W 1.7 A / 170W 2.4 A / 240 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 HzOther Country: AC 100 - 240 V ~ 50 / 60 Hz

MODELS		47LW9500(47LW9500-UA)	55LW9500(55LW9500-UA)	60LW9500(60LW9500-UA)
Dimensions(W x H x D)	With stand 1095	2 mm x 734.9 mmx 235.0 mm(43.1 inch x 28.9 inch x 9.2 inch)	1265.0 mm x 831.0 mmx 284.5 mm(49.8 inch x 32.7 inch x 11.2 inch)	1422.8 mm x 943.7 mmx 330.0 mm(56.0 inch x 37.1 inch x 12.9 inch)
	Without stand 10	95.2 mm x 664.7 mmx 27.5 mm(43.1 inch x 26.1 inch x 1.0 inch)	1265.0 mm x 760.3 mmx 27.5 mm(49.8 inch x 29.9 inch x 1.0 inch)	1422.8 mm x 880.5 mmx 41.5 mm(56.0 inch x 34.6 inch x 1.6 inch)
Weight With stand 22.5 kg (49.6 lb) 29.0		kg (63.9 lb) 43.0 kg (94.8 lb)
		Without stand 18.2 kg (40.1 lb) 23.8 kg (52.4 lb) 36.0 kg (79.3 lb)
Current Value / Power consumption 2.1 A / 210 W 2.5 A / 250 W 2.9 A / 290 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 HzOther Country: AC 100 - 240 V ~ 50 / 60 Hz

MODELS		47LW7700(47LW7700-UA)	55LW7700(55LW7700-UA)
Dimensions(W x H x D)	With stand 1114	0 mm x 747.0 mm x 263.0 mm(43.8 inch x 29.4 inch x 10.3 inch)	1291.0 mm x 860.0 mm x 347.0 mm(50.8 inch x 33.8 inch x 13.6 inch)
	Without stand 11	14.0mm x 680.0 mm x 31.1 mm(43.8 inch x 26.7 inch x 1.2 inch)	1291.0 mm x 780.0 mm x 31.1 mm(50.8 inch x 30.7 mm x 1.2 inch)
Weight With stand 23.7	kg (52.2 lb) 33.4	kg (73.6 lb)
	Without stand 20	0.9 kg (46.0 lb) 28.2 kg (62.1 lb)
Current Value / Power consumption 1.8 A / 180 W 2.0 A / 200 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 HzOther Country: AC 100 - 240 V ~ 50 / 60 Hz

MODELS		42LK530(42LK530-UC)	47LK530(47LK530-UC)	55LK530(55LK530-UC)
Dimensions(W x H x D)	With stand 1024	0 mm x 685.0 mmx 261.0 mm(40.3 inch x 26.9 x 10.2inch)	1137.0 mm x 758.0 mmx 270.0 mm(44.7 inch x 29.8 inch x10.6 inch)	1329.0 mm x 872.0 mmx 330.0 mm(52.3 inch x 34.3 inch x12.9 inch)
	Without stand 10	24.0 mm x 621.0 mmx 76.8 mm(40.3 inch x 24.4 inch x3.0 inch)	1137.0 mm x 685.0 mmx 76.8 mm(44.7 inch x 26.9 inch x3.0 inch)	1329.0 mm x 796.0 mmx 96.5 mm(52.3 inch x 31.3 inch x3.7 inch)
Weight With stand 15.5	kg (34.1 lb) 20.3	kg (44.7 lb) 33.0 kg (72.7 lb)
	Without stand 13	9 kg (30.6 lb) 18.3 kg (40.3 lb) 29.8 kg (65.6 lb)
Current Value / Power consumption 2.0 A / 200 W 2.5 A / 250 W 3.2 A / 320 W
Power requirement AC 100 - 240V ~ 50 / 60 Hz

MODELS		42LK550(42LK550-UA)	47LK550(47LK550-UA)
Dimensions(W x H x D)	With stand 1019.0 mm x 698.0 mm x 265.0 mm(40.1 inch x 27.4 inch x 10.4 inch)		1132.0 mm x 762.0 mm x 265.0 mm(44.5 inch x 30.0 inch x 10.4 inch)
	Without stand 1019.0 mm x 631.0 mm x 76.5 mm(40.1 inch x 24.8 inch x 3.0 inch)		1132.0 mm x 695.0 mm x 76.5 mm(44.5 inch x 27.3 inch x 3.0 inch)
Weight With stand 16.2 kg (35.7 lb) 19.0 kg (41.8 lb)
Current Value / Power consumption 1.9 A / 190 W 2.5 A / 250 W
Power requirement AC 100 - 240V ~ 50 / 60 Hz

MODELS		72LZ9700(72LZ9700-UA)
Dimensions(W x H x D)	With stand 1721.0 mm x 1126.0 mm x 410.0 mm(67.7 inch x 44.3 inch x 16.1 inch)
	Without stand 1721.0 mm x 1045.0 mm x 69.9 mm(67.7 inch x 41.1 inch x 2.7 inch)
Weight With stand 79.1 kg (174.3 lb)
Current Value / Power consumption 4.8 A / 480 W
Power requirement AC 100 - 240V ~ 50 / 60 Hz

RGB (PC), HDMI (PC) supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640x350 31.468 70	0.09
720x400 31.469 70	0.08
640x480 31.469 59	9.94
800x600 37.879 60	0.31
1024x768 48.363	60.00
1360x768 47.712	60.015
1280x1024 (HDMI-PC)	63.981 60.02
1920x1080 (RGB-PC)	66.587 59.934
1920x1080 (HDMI-PC)	67.50 60.00

HDMI (DTV) supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x480p	31.47 59.9431.50 60.00
1280x720p	44.96 59.9445.00 60.00
1920x1080i	33.72 59.9433.75 60.00
1920x1080p	26.97 23.97627.00 24.0033.71 29.9733.75 30.0067.432 59.9467.50 60.00

Component supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x480i	15.73 59.9415.73 60.00
720x480p	31.47 59.9431.50 60.00
1280x720p	44.96 59.9445.00 60.00
1920x1080i	33.72 59.9433.75 60.00
1920x1080p	26.97 23.97627.00 24.0033.71 29.9733.75 30.0067.432 59.9467.500 60.00

Component port connecting information

Component ports on the TV

Y

P_B

P_R

Video output ports on DVD player	Y	P_B	P_R
	Y B-Y	R-Y
	Y Cb	Cr
	Y Pb	Pr

DivX supported mode

File Extensions	Audio/Video	Codec Profile/L	Level Support Explanation
.asf.wmv	Video	VC-1 Advanced Profile	Advanced Profile@Level 3 (e.g. 720p60, 1080i60, 1080p30)	Only streams compliant to SMPTE 421M VC-1 standard are supported.
		VC-1 Simple and Main Profiles	Simple Profile@Medium Level (e.g. CIF, QVGA)Main Profile@High Level (e.g. 1080p30)
	Audio	WMA Standard
		WMA 9 Professional
.divx.avi	Video	DivX3.11		Global motion compensation or quarterpel motion estimation does not supported. Streams using this syntax are not supported.
		DivX4DivX5DivX6	Advanced Simple Profile (e.g. 720p/1080i)
		XViD
		H.264 / AVC	Main Profile@ Level 4.1High Profile@ Level 4.1(e.g. 720p60, 1080i60, 1080p30)
	Audio	MPEG-1 Layer I, II MPEG-1 Layer III (MP3)Dolby Digital
.mp4.m4v.mov	Video	H.264 / AVC	Main Profile@ Level 4.1High Profile@ Level 4.1(e.g. 720p60, 1080i60, 1080p30)	Global motion compensation or quarterpel motion estimation does not supported. Streams using this syntax are not supported.
		MPEG-4 Part 2	Advanced Simple Profile (e.g. 720p/1080i)
	Audio A	AC AAC-LC and HE-AAC
.mkv	Video H	.264 / AVC	Main Profile@ Level 4.1High Profile@ Level 4.1(e.g. 720p60, 1080i60, 1080p30)	Most of the MKV content available is encoded by the open source x264 codec.
	Audio	HE-AAC HE-AAC-LC and HE-AAC
		Dolby Digital
.ts.trp.tp	Video	H.264 / AVC	Main Profile@ Level 4.1High Profile@ Level 4.1(e.g. 720p60, 1080i60, 1080p30)
		MPEG-2	Main Profile@High Level (e.g. 720p60, 1080i60)
		VC-1	Simple Profile@Medium Level (e.g. CIF, QVGA)Main Profile@High Level (e.g. 1080p30)Advanced Profile@Level3 (e.g. 720p60, 1080i60, 1080p30)	Only streams compliant to SMPTE 421M VC-1 standard are supported.
	Audio	MPEG-1 Layer I, II MPEG-1 Layer III (MP3)Dolby DigitalDolby Digital Plus
		AAC AAC-LC and HE-AAC
.vob	Video	MPEG-1
		MPEG-2	Main Profile@High Level (e.g. 720p60, 1080i60)
	Audio	Dolby DigitalMPEG-1 Layer I, IIDVD-LPCM
.mpg	Video M	MPEG-1	Main Profile@High Level (e.g. 720p60, 1080i60)	Only streams compliant configured properly for TS, PS or ES
	Audio M	MPEG-1 Layer I, II

3D supported formats

Input Signal Resolution			Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Playable 3D video format
HDMI	720p 1280x720		45.00 60		» Side by Side» Top & Bottom» HDMI 3D Top & Bottom
			90.00 60		» HDMI 3D Frame Packing
	1080i 1920x1080 33.75 60				» Side by Side» Top & Bottom» HDMI 3D Side by Side (Half)
	1080p 1920x1080		67.50 60		» Side by Side» Top & Bottom» Checker Board» Single Frame Sequential
			27.00 24		» Side by Side» Top & Bottom» Checker Board» HDMI 3D Top & Bottom
			54.00 24		» HDMI 3D Frame Packing
			67.50 (LCD)	30	» HDMI 3D Frame Packing
			33.75 30		» Side by Side» Top & Bottom» Checker Board
Component (LED)	720p 1280x720		44.96 59.94		» Side by Side» Top & Bottom
			45.00 60.00
	1080i 1920x1080		33.72 59.94		» Side by Side» Top & Bottom
			33.75 60.00
RGB-PC	1080p 1920x1080 66.587 59.934				» Side by Side» Top & Bottom
USB	1080p 1920x1080 33.75 30				» Side by Side» Top & Bottom» Checker Board» MPO (Photo)
DLNA	1080p 1920x1080 33.75 30				» Side by Side» Top & Bottom» Checker Board
	Signal Playable 3D video format
DTV	720p, 1080i				» Side by Side» Top & Bottom

• Media contents and a player need to support HDMI 3D Frame Packing, HDMI 3D Side by Side, HDMI 3D Top & Bottom to play in 3D.
- Video, which is input as HDMI 3D Frame Packing, HDMI 3D Side by Side, HDMI 3D Top & Bottom format, is switched into the 3D screen automatically.

Wireless LAN for Broadband/DLNA Adaptor SPEC (For LW9500 series)

This device only works with compatible LG TV.

Standard	IEEE802.11a/b/g/n
Frequency Range	2402 to 2483 MHz5150 to 5250 MHz5725 to 5850 MHz
Modulation	CCK / OFDM / MIMO
Output Power (Typical)	802.11a: 14 dBm802.11b: 17 dBm802.11g: 14 dBm802.11n: 13 dBm
Data rate	802.11a/g: 54 Mbps802.11b: 11 Mbps802.11n: 300 Mbps
Antenna Gain (Typical)	2402 to 2483 MHz: 1.17 dBi5150 to 5250 MHz: 4.67 dBi5725 to 5850 MHz: 3.30 dBi
Occupied bandwidth	802.11a/b/g: HT20802.11n: HT20/40

Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.

• FCC ID of Wi-Fi module inside TV

FCC ID: BEJWN8522D1

RF module (BM-LDS201) specification

(For LW7700, LW9500, LZ9700, PZ750, PZ950, PZ950U series)

For TV By using a 2.4 GHz bandwidth radio frequency(RF).

• Output: 1 dBm or lower
• Maximum Communication Distance: 10 m (30 ft) in an open space
• Bandwidth: 2.4 GHz (2.4035 GHz - 2.4783 GHz)
• Transfer Rate: 250 kbps
• FCC ID of RF module inside TV
FCC ID: BEJLDS201

IR CODES

(Depending on model)

How to Connect

Connect your wired remote control to the Remote Control port on the TV.

Remote Control IR Codes

Output waveform

Single pulse, modulated with 37.917kHz signal at 455kHz

Tc T1

Frame configuration

1st frame

Lead code Low custom code High custom code Data code Data code C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat frame

Repeat code Tf

Lead code

9 ms 4.5 ms

Repeat code

0.55 ms 9 ms 2.25 ms

Bit description

Bit "0" Bit "1" 0.56 ms 1.12 ms

0.56 ms 2.24 ms

Frame interval: Tf

The waveform is transmitted as long as a key is depressed.

Tf Tf Tf=108ms @455KHz

Code (Hexa)	Function Note		Code (Hexa)	Function Note
08 POWER	Remote control Button(Power On/Off)		0F TV Remote control Button
			DC 3D Remote control Button
45	Q.MENU	Remote control Button 5B EXIT Remote control Button
43 Home	Remote control Button D6 TV Discrete IR Code				(TV Input Selection)
0B INPUT	Remote control Button
10 - 19 Number Key 0-9 Remote control Button C4 POWER			ON Discrete IR Code		(Only Power Off)
4C - (Dash)/LIST Remote control Button
1A FLASH	BK Remote control Button C5 POWER		OFF	Discrete IR Code	(Only Power Off)
09 MUTE/DELETE Remote control Button
02 VOL +	Remote control Button 5A AV1 Discrete IR Code				(AV1 Input Selection)
03 VOL -	Remote control Button
00	CH ∧	Remote control Button D0 AV2		Discrete IR Code(AV2 Input Selection)
01	CH √	Remote control Button
1E	FAV/MARK	Remote control Button	BF	COMPONENT1	Discrete IR Code(Component1 Input Selection)
40	∧	Remote control Button
41	√	Remote control Button D4 COMPONENT2 Discrete IR Code(Component2 Input Selection)
07	<	Remote control Button
06	>	Remote control Button D5 RGB-PC		Discrete IR Code(RGB-PC Input Selection)
44 ENTER	Remote control Button
28 BACK	Remote control Button CE HDMI1			Discrete IR Code	(HDMI1 Input Selection)
79 RATIO	Remote control Button
BA ( [IMAGE])	FREEZE	Remote control Button	CC	HDMI2	Discrete IR Code(HDMI2 Input Selection)
95	ENERGY SAVING	Remote control Button
7E	SIMPLINK	Remote control Button	E9	HDMI3	Discrete IR Code(HDMI3 Input Selection)
AA	INFO	Remote control Button
30 AV MODE	Remote control Button DA HDMI4			Discrete IR Code	(HDMI4 Input Selection)
72 RED	Remote control Button
71 GREEN	Remote control Button 76 Ratio 4:3			Discrete IR Code	(Only 4:3 Mode)
63 YELLOW	Remote control Button
61 BLUE	Remote control Button 77 Ratio 16:9			Discrete IR Code	(Only 16:9 Mode)
B1	■	Remote control Button
B0	▶	Remote control Button AF Ratio Cinema		Zoom	Discrete IR Code(Only Cinema Zoom Mode)
BA	II	Remote control Button
8E	▶▶	Remote control Button
8F	◀◀	Remote control Button

• Use the feature depending on your model.

EXTERNAL CONTROL DEVICE SETUP

RS-232C Setup

Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product's functions externally.

Connect the serial port of the control device to the RS-232C jack on the product back panel.

NOTE

- RS-232C on this TV is intended to be used with third party RS-232C control hardware and software. The instructions below are provided to help with programming software or to test functionality using telenet software. RS-232C connection cables are not supplied with the product.

Type of connector; D-Sub 9-Pin Male

Diagram of a V12 connector with numbered pins labeled ① through ⑨

RS-232C IN (CONTROL & SERVICE)

No. Pin name

1 No connection

2 RXD (Receive data)

3 TXD (Transmit data)

4 DTR (DTE side ready)

5 GND

6 DSR (DCE side ready)

7 RTS (Ready to send)

8 CTS (Clear to send)

9 No Connection

RS-232C configurations

7-Wire Configuration

(Serial female-female NULL modem cable)

PC TV

3-Wire Configurations(Not standard)

PC TV

Set ID

Set ID number.

OPTION Language Caption : Off ISM Method : Normal Power Indicator Pointer Smart Share Setting Initial Setting Set ID : 1 Mode Setting : Home Use

1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to OPTION and press ENTER.
4 Press the Navigation buttons to scroll to Set ID and press ENTER.
5 Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
6 When you are finished, press EXIT.

*Real data mapping

0:Step 0

:

A : Step 10 (SET ID 10)

:

F : Step 15 (SET ID 15)

10: Step 16 (SET ID 16)

:

63 : Step 99 (SET ID 99)

64:Step 100

Communication Parameters

• Baud rate: 9600 bps (UART)
• Data length: 8 bits
- Parity : None

• Stop bit: 1 bit
• Communication code: ASCII code
• Use a crossed (reverse) cable.

Command reference list

	COMMAND1	COMMAND2	DATA (Hexadecimal)		COMMAND1	COMMAND2	DATA (Hexadecimal)
01. Power k a 00	- 01 14. Treble	k r 00 - 64
02. Input Select	x b (See p.130)	15. Bass k s	00 - 64
03. Aspect Ratio	k c (See p.130)	16. Balance	k t 00 - 64
04. Screen Mute	k d 00 - 01			17. 3D (For 3D TV)	x t (See p.131)
05. Volume Mute	k e 00 - 01			18. Color Temperature	x u 00 - 64
06. Volume Control	k f 00 - 64			19. Extended 3D (For 3D TV)	x v (See p.131)
07. Contrast k g	00 - 64			20. ISM Method (Plasmu)	j p (See p.132)
08. Brightness k	h 00 - 64			21. Energy Saving	j q (See p.132)
09. Color	k i 00 - 64			22. Auto Configuration	j u (See p.132)
10. Tint	k j 00 - 64			24. Channel Add/Del	m	b 00 - 01
11. Sharpness	k	k	00 - 64	25. Key	m	c	(See p.132)
12. OSD Select	k l 00 - 01			26. Backlight (LCD)	m	g 00 - 64
13. Remote Control Lock Mode	k m	00 - 01

	COMMAND1	COMMAND2	DATA00 (Hexadecimal)	DATA01 (Hexadecimal)	DATA02 (Hexadecimal)	DATA03 (Hexadecimal)	DATA04 (Hexadecimal)	DATA05 (Hexadecimal)
23. Channel Tuning	m	a	physical program high	major program low	major low	minor high	minor low	attribute

Transmission / Receiving protocol

Transmission

[Command1][Command2][Set ID][Data][Cr]

[Command 1] : First command to control the set.(j, k, m or x)

[Command 2]: Second command to control the set.

[Set ID] : You can adjust the set ID to choose desired set ID number in Option menu. Adjustment range is 1\~99. When selecting Set ID '0', every connected the set is controlled. Set ID is indicated as decimal (1\~99) on menu and as Hexa decimal (0x0\~0x63) on transmission /receiving protocol.

[DATA] : To transmit the command data.

Transmit the 'FF' data to read status of command.

[Cr] : Carriage Return

ASCII code '0x0D'

[ ] : ASCII code 'space (0x20)'

* In this model, set will not send the status during the standby mode.

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

* In this model, set will not send the status during the standby mode.

* Data Format

[Command 2]: Use as command.

[Set ID] : Use the small character, if set ID is 10, it will send the '0', 'a'.

[DATA] : Use the small character, if data is 0 x ab, it will send the 'a', 'b'.

[OK]: Use the large character.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.

Data1: Illegal Code

Data2: Not supported function

Data3: Wait more time

* In this model, set will not send the status during the standby mode.

* Data Format

[Command 2] : Use as command.

[Set ID] : Use the small character, if set ID is 10, it will send the '0', 'a'.

[DATA] : Use the small character, if data is 0 x ab, it will send the 'a', 'b'.

[NG] : Use the large character

01. Power (Command: k a)

To control Power On/Off of the set.

Transmission [k][a][ ][Set ID][ ][Data][Cr]

Data 00: Power Off Data 01: Power On

Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]

* In a like manner, if other functions transmit 'FF' data based on this format, Acknowledgement data feedback presents status about each function.

* Note: In this model, set will send the Acknowledge after power on processing completion.

There might be a time delay between command and acknowledge.

02. Input Select (Command: x b)

To select input source for set.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data 00: DTV (Antenna) Data 01: DTV (Cable)

Data 10: Analog (Antenna) Data 11: Analog (Cable)

Data 20: AV or AV1 Data 21: AV2

Data 40: Component1 Data 41: Component2

Data 42: Component3 Data 60: RGB-PC

Data 90: HDMI1 Data 91: HDMI2

Data 92: HDMI3 Data 93: HDMI4

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

* Use the feature depending on your model.

03. Aspect Ratio (Command: k c)

To adjust the screen format.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01: 4:3 Data 09: Just scan

Data 02: 16:9 Data 10: Cinema Zoom 1

Data 06: Set by program :

Data 1F: Cinema Zoom16

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

04. Screen Mute (Command: k d)

To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00: Screen mute off (Picture on), Video-out Mute off

Data 01: Screen mute on (Picture off)

Data 10: Video-out Mute on

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]

* In case of Video-out Mute on only, TV will display On Screen Display (OSD). But, in case of screen mute on, TV will not display On Screen Display (OSD).

05. Volume Mute (Command: k e)

To control volume mute on/off.

You can also adjust mute using the MUTE button on remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00: Volume mute on (Volume off)

Data 01: Volume mute off (Volume on)

Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]

06. Volume Control (Command: k f)

To adjust volume.

You can also adjust volume with the volume buttons on remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min: 00 \~ Max: 64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]

07. Contrast (Command: k g)

To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min: 00 \~ Max: 64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

08. Brightness (Command: k h)

To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min: 00 \~ Max: 64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]

09. Color (Command: k i)

To adjust screen color.

You can also adjust color in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min: 00 \~ Max: 64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

10. Tint (Command: k j)

To adjust screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red: 00 \~ Green: 64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [j][ ][Set ID][ ][OK/NG][Data][x]

11. Sharpness (Command: k k)

To adjust screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min: 00 \~ Max: 64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]

12. OSD Select (Command: k l)

To select OSD (On Screen Display) on/off.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00: OSD off Data 01: OSD on

Acknowledgement [I][ ][Set ID][ ][OK/NG][Data][x]

13. Remote Control Lock Mode (Command: k m)

To lock the remote control and the front panel controls on the set.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00: Lock off Data 01: Lock on

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

If you're not using the remote control and front panel controls on the Monitor set, use this mode. When main power is on/off, remote control lock is released. If Key Lock is on in the standby mode, TV will not turn on by POWER button of remote control and on the TV.

14. Treble (Command: k r)

To adjust treble.

You can also adjust treble in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min: 00 \~ Max: 64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

You can also adjust bass in the AUDIO menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min: 00 \~ Max: 64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]

16. Balance (Command: k t)

To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min: 00 \~ Max: 64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]

17. 3D (Command: x t) (For 3D TV)

To change 3D mode for TV.

Transmission [x][t][ ][Set ID][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][Cr]

Data1

00: 3D On 01: 3D Off

02: 3D to 2D 03: 2D to 3D

Data2

00: Top and Bottom 01: Side by Side

02: Check Board 03: Frame Sequential

Data3

00: Right to Left 01: Left to Right

Data4

(*transmit by Hexadecimal code)

* If data1 is 00 (3D On), data4 has no meaning.

* If data1 is 01 (3D off) or 02 (3D to 2D), data2, data3 and data4 have no meaning.

* If data1 is 03 (2D to 3D), data2 and data3 have no meaning.

Data 1 Data 2 Data 3 Data	4
00 o o x
01 x x x
02 x x x
03 x x o

x : Don't care

Acknowledgement [t][OK][Data01][Data02]

[Data03][Data04][x][t][ ][NG][Data01][x]

18. Color Temperature (Command: x u)

To adjust color temperature.

You can also adjust color temperature in the PICTURE menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min: 00 \~ Max: 64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

19. Extended 3D (Command: x v) (For 3D TV)

To change 3D option for TV.

Transmission [x][v][ ][Set ID][ ][Data01][ ][Data02][Cr]

Data1: 3D option

00: 3D Picture Correction

01: 3D Depth (2D to 3D Only)

02: 3D Viewpoint

03: 3D Picture Size

04: 3D Picture Balance

05: 3D Optimization

Data2: It has own range for each 3D option determined by Data1.

1) When Data1 is 00

00: Right to Left 01: Left to Right

2) When Data1 is 01

Data Min: 00 \~ Max: 14 (*transmit by Hexadecimal code)

3) When Data1 is 02

- LZ9700 series

Data Min: 00 \~ Max: 06 (*transmit by Hexadecimal code)

- Other models

Data Min: 00 \~ Max: 14 (*transmit by Hexadecimal code)

4) When Data1 is 03

00: Just Scan 01: 16:9

5) When Data1 is 04

00: Off 01: On

6) When Data1 is 05

Data Min: 00 \~ Max: 02 (*transmit by Hexadecimal code)

Acknowledgement [v][ ][OK][Data01][Data02][x][v][ ][NG][Data01][x]

* Use the feature depending on your model.

20. ISM Method (Command: j p) (Plasma)

To avoid having a fixed image remain on screen.

Transmission [j][p][ ][Set ID][ ][Data][Cr]

Data 02: Orbiter

04: White Wash

08: Normal

20: Color Wash

Acknowledgement [p][ ][Set ID][ ][OK/NG][Data][x]

21. Energy Saving (Command: j q)

To control the energy saving function.

Transmission [j][q][ ][Set ID][ ][Data][Cr]

Data 00: off

01: Minimum

02: Medium

03: Maximum

04: Auto (Depending on model)

05: Screen off

Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]

22. Auto Configuration (Command: j u)

To adjust picture position and minimize image shaking automatically. Auto configuration only works in RGB-PC mode.

Transmission [j][u][ ][Set ID][ ][Data][Cr]

Data 01: To set

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

23. Channel Tuning (Command: m a)

To tune channel to following physical/major/minor number.

Transmission [m][a][ ][Set ID][ ][Data00][ ][Data01][ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel to the Major number, the Physical number is not required when sending a command.

Data 00: Physical Channel Number

NTSC air: 02\~45, NTSC cable: 01, 0E\~7D

ATSC air: 01\~45, ATSC cable: 01\~87

Data 01 & 02: Major Channel Number

Data 01: High byte Data 02: Low byte

Two bytes are available for the Major and Minor, normally only the second byte is used.

Data 03 & 04: Minor Channel Number

Not needed for NTSC.

The table lists the binary code which must be converted to Hexadecimal before sending. For example:

The binary code to tune the sub source to an NTSC cable channel is "1000 0001", which translates to "81" in Hex.

* 7th bit : For which source do you want to change the channel.

* 6th bit: Use a two part or one part channel. Most

cases just use 0 since it's ignored when using NTSC.

* 5th bit: Use 0 with NTSC since it can only use the physical channel number. Normally use 1 for ATSC since most times it doesn't matter what the physical number is.

* 4th bit: Set to 0.

* 3-0 bits: Choose signal type.

* Tune Command Examples:

1. Tune to the analog (NTSC) cable channel 35.

Data 00 = Physical of 35 = 23

Data 01 & 02 = No Major = 00 00

Data 03 & 04 = No Minor = 00 00

Data 05 = 0000 0001 in binary = 01

Total = ma 00 23 00 00 00 00 01

1. Tune to the digital (ATSC) local channel 30-3.

Data 00 = Don't know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Minor is 3 = 00 03

Data 05 = 0010 0010 in binary = 22

Total = ma 00 00 00 1E 00 03 22

24. Channel Add/Del (Command: m b)

To add and delete the channels.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00: Channel Delete Data 01: Channel Add

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

When TV is in the standby mode, TV will turn on by POWER button of remote control only.

26. Backlight (Command: m g) (LCD)

To adjust screen backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min:00 \~ Max:64 (*transmit by Hexadecimal code)

*Refer to "Real data mapping".

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

* Table List (Channel Tuning)

7	Main/Sub Picture	6	Two/One Part Channel	5	Using Physical Channel	4 Reserved	3 2	1 0 Step
0 Main 0 Two 0 Use x			0 0 0 0 NTSC Air
1 Sub 1 One 1 No Use			x 0 0 0 1 NTSC Cable
						x 0 0 1 0 ATSC Air
						x 0 0 1 1 ATSC Cable_std
						x 0 1 0 0 ATSC Cable_hrc
						x 0 1 0 1 ATSC Cable_irc
						x 0 1 1 0 ATSC cable_auto
						x 0 1 1 1 Reserved
						xxxx...
						x 1 1 1 1 Reserved

OPEN SOURCE LICENSE

Please be informed that LG Electronics products may contain open source software listed in the tables below.

License Component
Apache license bonjour
MIT license cares	fontconfiglibcurllibxml2libxsltlua interpreter
expat license expat
Freetype license	freetype
JPEG license libjpeg
OpenSSL license	openssl
Zlib/libpng license	libmnglibpngzlib
portmap license portmap
pixman license pixman
X.net license libicu
BSD license netBSDSimple XML ParserxySSL
RSA Data security license	MD5
JSON license JSON
MS92 license snacc

LG Electronics products may also contain open source software listed as Components in the table below, and you may download the complete source code thereof free of charge, from LG Electronics website (http://opensource.lge.com) for a period of three (3) years from our last shipment of this product. Please be informed that the open source software is subject to the terms and conditions of the applicable open source licenses, which are provided to you herein below.

License Component
GNU GPL v2.0 Linux kernel 2.6 busybox e2fsprogs gdbserver jfsutils lzo msdl 1.1 mtd-utils ntpclient procps
GNU LGPL v2.1 atk directFB ffmpeg glibgnuTLS gail GTK+iconv libintl libgcrypt libgpg-error libgphoto2 libsoup pango pyenchant qt uClibc webkit
MPL 1.1 cairo	nanox mozilla firefox zziplib

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software

Foundation, Inc.

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and

can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial

distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

1. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

GNU Lesser General Public License

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers. Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed

under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.

b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.

c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.

d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole,

and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the

requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided

that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.

d) If distribution of the work is made by offering access to copy from a designated place,

offer equivalent access to copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

1. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.

b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

1. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link

with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

1. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

2. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

3. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is

intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found.

Copyright (C)

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for

tweaking knobs) written by James Random Hacker.

signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice

That's all there is to it!

Mozilla Public License 1.1 (MPL 1.1)

1. Definitions.

1.0.1. "Commercial Use"

means distribution or otherwise making the Covered Code available to a third party.

1.1. "Contributor"

means each entity that creates or contributes to the creation of Modifications.

1.2. "Contributor Version"

means the combination of the Original Code, prior Modifications used by a Contributor, and the Modifications made by that particular Contributor.

1.3. "Covered Code"

means the Original Code or Modifications or the combination of the Original Code and Modifications, in each case including portions thereof.

1.4. "Electronic Distribution Mechanism"

means a mechanism generally accepted in the software development community for the electronic transfer of data.

1.5. "Executable"

means Covered Code in any form other than Source Code.

1.6. "Initial Developer"

means the individual or entity identified as the Initial Developer in the Source Code notice required by Exhibit A.

1.7. "Larger Work"

means a work which combines Covered Code or portions thereof with code not governed by the terms of this License.

1.8. "License"

means this document.

1.8.1. "Licensable"

means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or subsequently acquired, any and all of the rights conveyed herein.

1.9. "Modifications"

means any addition to or deletion from the substance or structure of either the Original Code or any previous Modifications. When Covered Code is released as a series of files, a Modification is:

(a) Any addition to or deletion from the contents of a file containing Original Code or previous Modifications.

(b) Any new file that contains any part of the Original Code or previous Modifications.

1.10. "Original Code"

means Source Code of computer software code which is described in the Source Code notice required by Exhibit A as Original Code, and which, at the time of its release under this License is not already Covered Code governed by this License.

1.10.1. "Patent Claims"

means any patent claim(s), now owned or hereafter acquired, including without limitation, method, process, and apparatus claims, in any patent Licensable by grantor.

1.11. "Source Code"

means the preferred form of the Covered Code for making modifications to it, including all modules it contains, plus any associated interface definition files, scripts used to control compilation and installation of an Executable, or source code differential comparisons against either the Original Code or another well known, available Covered Code of the Contributor's choice. The Source Code can be in a compressed or archival form, provided the appropriate decompression or de-archiving software is widely available for no charge.

1.12. "You" (or "Your")

means an individual or a legal entity exercising rights under, and complying with all of the terms of, this License or a future version of this License issued under Section 6.1. For legal entities, "You" includes any entity which controls, is controlled by, or is under common control with You. For

purposes of this definition, "control" means (a) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (b) ownership of more than fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The Initial Developer Grant.

The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party intellectual property claims:

(a) under intellectual property rights (other than patent or trademark) Licensable by Initial Developer to use, reproduce, modify, display, perform, sublicense and distribute the Original Code (or portions thereof) with or without Modifications, and/or as part of a Larger Work; and

(b) under Patents Claims infringed by the making, using or selling of Original Code, to make, have made, use, practice, sell, and offer for sale, and/or otherwise dispose of the Original Code (or portions thereof).

(c) the licenses granted in this Section 2.1(a) and (b) are effective on the date Initial Developer first distributes Original Code under the terms of this License.

(d) Notwithstanding Section 2.1(b) above, no patent license is granted: 1) for code that You delete from the Original Code; 2) separate from the Original Code; or 3) for infringements caused by: i) the modification of the Original Code or ii) the combination of the Original Code with other software or devices.

2.2. Contributor Grant.

Subject to third party intellectual property claims, each Contributor hereby grants You a world-wide, royalty-free, non-exclusive license

(a) under intellectual property rights (other than patent or trademark) Licensable by Contributor, to use, reproduce,

modify, display, perform, sublicense and distribute the Modifications created by such Contributor (or portions thereof) either on an unmodified basis, with other Modifications, as Covered Code and/or as part of a Larger Work; and

(b) under Patent Claims infringed by the making, using, or selling of Modifications made by that Contributor either alone and/or in combination with its Contributor Version (or portions of such combination), to make, use, sell, offer for sale, have made, and/or otherwise dispose of: 1) Modifications made by that Contributor (or portions thereof); and 2) the combination of Modifications made by that Contributor with its Contributor Version (or portions of such combination).

(c) the licenses granted in Sections 2.2(a) and 2.2(b) are effective on the date Contributor first makes Commercial Use of the Covered Code.

(d) Notwithstanding Section 2.2(b) above, no patent license is granted: 1) for any code that Contributor has deleted from the Contributor Version; 2) separate from the Contributor Version; 3) for infringements caused by: i) third party modifications of Contributor Version or ii) the combination of Modifications made by that Contributor with other software (except as part of the Contributor Version) or other devices; or 4) under Patent Claims infringed by Covered Code in the absence of Modifications made by that Contributor.

3. Distribution Obligations.

3.1. Application of License.

The Modifications which You create or to which You contribute are governed by the terms of this License, including without limitation Section 2.2. The Source Code version of Covered Code may be distributed only under the terms of this License or a future version of this License released under Section 6.1, and You must include a copy of this License with every copy of the Source Code You distribute. You may not offer or impose any terms on any Source Code

version that alters or restricts the applicable version of this License or the recipients' rights hereunder. However, You may include an additional document offering the additional rights described in Section 3.5.

3.2. Availability of Source Code.

Any Modification which You create or to which You contribute must be made available in Source Code form under the terms of this License either on the same media as an Executable version or via an accepted Electronic Distribution Mechanism to anyone to whom you made an Executable version available; and if made available via Electronic Distribution Mechanism, must remain available for at least twelve (12) months after the date it initially became available, or at least six (6) months after a subsequent version of that particular Modification has been made available to such recipients. You are responsible for ensuring that the Source Code version remains available even if the Electronic Distribution Mechanism is maintained by a third party.

3.3. Description of Modifications.

You must cause all Covered Code to which You contribute to contain a file documenting the changes You made to create that Covered Code and the date of any change. You must include a prominent statement that the Modification is derived, directly or indirectly, from Original Code provided by the Initial Developer and including the name of the Initial Developer in (a) the Source Code, and (b) in any notice in an Executable version or related documentation in which You describe the origin or ownership of the Covered Code.

3.4. Intellectual Property Matters

(a) Third Party Claims.

If Contributor has knowledge that a license under a third party's intellectual property rights is required to exercise the rights granted by such Contributor under Sections 2.1 or 2.2, Contributor must include a text file with the Source Code distribution titled "LEGAL" which describes the claim and the party making the claim in sufficient detail that a recipient will know whom to contact. If Contributor

obtains such knowledge after the Modification is made available as described in Section 3.2, Contributor shall promptly modify the LEGAL file in all copies Contributor makes available thereafter and shall take other steps (such as notifying appropriate mailing lists or newsgroups) reasonably calculated to inform those who received the Covered Code that new knowledge has been obtained.

(b) Contributor APIs.

If Contributor's Modifications include an application programming interface and Contributor has knowledge of patent licenses which are reasonably necessary to implement that API, Contributor must also include this information in the LEGAL file.

(c) Representations.

Contributor represents that, except as disclosed pursuant to Section 3.4(a) above, Contributor believes that Contributor's Modifications are Contributor's original creation(s) and/or Contributor has sufficient rights to grant the rights conveyed by this License.

3.5. Required Notices.

You must duplicate the notice in Exhibit A in each file of the Source Code. If it is not possible to put such notice in a particular Source Code file due to its structure, then You must include such notice in a location (such as a relevant directory) where a user would be likely to look for such a notice. If You created one or more Modification(s) You may add your name as a Contributor to the notice described in Exhibit A. You must also duplicate this License in any documentation for the Source Code where You describe recipients' rights or ownership rights relating to Covered Code. You may choose to offer, and to charge a fee for, warranty, support, indemnity or liability obligations to one or more recipients of Covered Code. However, You may do so only on Your own behalf, and not on behalf of the Initial Developer or any Contributor You must make it absolutely clear than any such warranty, support, indemnity or liability obligation is offered by You alone, and You hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor

as a result of warranty, support, indemnity or liability terms You offer.

3.6. Distribution of Executable Versions.

You may distribute Covered Code in Executable form only if the requirements of Section 3.1-3.5 have been met for that Covered Code, and if You include a notice stating that the Source Code version of the Covered Code is available under the terms of this License, including a description of how and where You have fulfilled the obligations of Section 3.2. The notice must be conspicuously included in any notice in an Executable version, related documentation or collateral in which You describe recipients' rights relating to the Covered Code. You may distribute the Executable version of Covered Code or ownership rights under a license of Your choice, which may contain terms different from this License, provided that You are in compliance with the terms of this License and that the license for the Executable version does not attempt to limit or alter the recipient's rights in the Source Code version from the rights set forth in this License. If You distribute the Executable version under a different license You must make it absolutely clear that any terms which differ from this License are offered by You alone, not by the Initial Developer or any Contributor. You hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor as a result of any such terms You offer.

3.7. Larger Works.

You may create a Larger Work by combining Covered Code with other code not governed by the terms of this License and distribute the Larger Work as a single product. In such a case, You must make sure the requirements of this License are fulfilled for the Covered Code.

4. Inability to Comply Due to Statute or Regulation.

If it is impossible for You to comply with any of the terms of this License with respect to some or all of the Covered Code due to statute, judicial order, or regulation then You must: (a) comply with the terms of this License to the

maximum extent possible; and (b) describe the limitations and the code they affect. Such description must be included in the LEGAL file described in Section 3.4 and must be included with all distributions of the Source Code. Except to the extent prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary skill to be able to understand it.

5. Application of this License.

This License applies to code to which the Initial Developer has attached the notice in Exhibit A and to related Covered Code.

6. Versions of the License.

6.1. New Versions.

Netscape Communications Corporation ("Netscape") may publish revised and/or new versions of the License from time to time. Each version will be given a distinguishing version number.

6.2. Effect of New Versions.

Once Covered Code has been published under a particular version of the License, You may always continue to use it under the terms of that version. You may also choose to use such Covered Code under the terms of any subsequent version of the License published by Netscape. No one other than Netscape has the right to modify the terms applicable to Covered Code created under this License.

6.3. Derivative Works.

If You create or use a modified version of this License (which you may only do in order to apply it to code which is not already Covered Code governed by this License), You must (a) rename Your license so that the phrases "Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL", "NPL" or any confusingly similar phrase do not appear in your license (except to note that your license differs from this License) and (b) otherwise make it clear that Your version of the license contains terms which differ from the Mozilla Public License and Netscape Public License. (Filling in the name of the Initial Developer, Original Code or Contributor in the notice described in Exhibit A shall not of

themselves be deemed to be modifications of this License.)

1. DISCLAIMER OF WARRANTY. COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COVERED CODE IS FREE OF DEFECTS, MERCHANTABILITY, FIT FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE COVERED CODE IS WITH YOU. SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR ANY OTHER CONTRIBUTOR) ASSUME THE COST OF ANY NECESSARY SERVICING, REPAIR OR CORRECTION. THIS DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This License and the rights granted hereunder will terminate automatically if You fail to comply with terms herein and fail to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the Covered Code which are properly granted shall survive any termination of this License. Provisions which, by their nature, must remain in effect beyond the termination of this License shall survive.

8.2. If You initiate litigation by asserting a patent infringement claim (excluding declaratory judgment actions) against Initial Developer or a Contributor (the Initial Developer or Contributor against whom You file such action is referred to as "Participant") alleging that:

(a) such Participant's Contributor Version directly or indirectly infringes any patent, then any and all rights granted by such Participant to You under Sections 2.1 and/or 2.2 of this License shall, upon 60 days notice from Participant terminate prospectively, unless if within 60 days after receipt of notice You

either: (i) agree in writing to pay Participant a mutually agreeable reasonable royalty for Your past and future use of Modifications made by such Participant, or (ii) withdraw Your litigation claim with respect to the Contributor Version against such Participant. If within 60 days of notice, a reasonable royalty and payment arrangement are not mutually agreed upon in writing by the parties or the litigation claim is not withdrawn, the rights granted by Participant to You under Sections 2.1 and/or 2.2 automatically terminate at the expiration of the 60 day notice period specified above.

(b) any software, hardware, or device, other than such Participant's Contributor Version, directly or indirectly infringes any patent, then any rights granted to You by such Participant under Sections 2.1(b) and 2.2(b) are revoked effective as of the date You first made, used, sold, distributed, or had made, Modifications made by that Participant.

8.3. If You assert a patent infringement claim against Participant alleging that such Participant's Contributor Version directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the initiation of patent infringement litigation, then the reasonable value of the licenses granted by such Participant under Sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license. 8.4. In the event of termination under Sections 8.1 or 8.2 above, all end user license agreements (excluding distributors and resellers) which have been validly granted by You or any distributor hereunder prior to termination shall survive termination.

1. LIMITATION OF LIABILITY. UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLIGENCE), CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY DISTRIBUTOR OF COVERED CODE, OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY PERSON FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER INCLUDING,

WITHOUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS EXCLUSION AND LIMITATION MAY NOT APPLY TO YOU.

10. U.S. GOVERNMENT END USERS.

The Covered Code is a “commercial item,” as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of “commercial computer software” and “commercial computer software documentation,” as such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June 1995), all U.S. Government End Users acquire Covered Code with only those rights set forth herein.

11. MISCELLANEOUS.

This License represents the complete agreement concerning subject matter hereof. If any provision of this License is held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This License shall be governed by California law provisions (except to the extent applicable law, if any, provides otherwise), excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity chartered or registered to do business in the United States of America, any litigation relating to this License shall be subject to the jurisdiction of the Federal Courts of the Northern District of California, with venue lying in Santa Clara County, California, with the losing party responsible for costs, including without limitation, court costs and reasonable attorneys' fees and expenses. The application

of the United Nations Convention on Contracts for the International Sale of Goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed against the drafter shall not apply to this License.

12. RESPONSIBILITY FOR CLAIMS.

As between Initial Developer and the Contributors, each party is responsible for claims and damages arising, directly or indirectly, out of its utilization of rights under this License and You agree to work with Initial Developer and Contributors to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to constitute any admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial Developer may designate portions of the Covered Code as Multiple-Licensed. Multiple-Licensed means that the Initial Developer permits you to utilize portions of the Covered Code under Your choice of the MPL or the alternative licenses, if any, specified by the Initial Developer in the file described in Exhibit A.

EXHIBIT A -Mozilla Public License.

"The contents of this file are subject to the Mozilla Public License Version 1.1 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.mozilla.org/MPL/

Software distributed under the License is distributed on an "AS IS" basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the License for the specific language governing rights and limitations under the License.

The Original Code is ____. The Initial Developer of the Original Code is ____.

Portions created by ____ are Copyright (C) ____. All Rights Reserved. Contributor(s): ____.

Alternatively, the contents of this file may be used under the terms of the ____ license (the [____] License), in which case the provisions of [____]

License are applicable instead of those above. If you wish to allow use of your version of this file only under the terms of the [____] License and not to allow others to use your version of this file under the MPL, indicate your decision by deleting the provisions above and replace them with the notice and other provisions required by the [____] License. If you do not delete the provisions above, a recipient may use your version of this file under either the MPL or the [____] License."

[NOTE: The text of this Exhibit A may differ slightly from the text of the notices in the Source Code files of the Original Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for Your Modifications.]

Apache License Version 2.0

Apache License

Version 2.0, January 2004

http://www.apache.org/licenses/

TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

1. Definitions.

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.

"Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License.

"Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity.

"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License.

"Source" form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files.

"Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types.

"Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below).

"Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an

original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof.

“Contribution” shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, “submitted” means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as “Not a Contribution.”

“Contributor” shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work.

1. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
2. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which

such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed.

1. Redistribution. You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:

(a) You must give any other recipients of the Work or Derivative Works a copy of this License; and
(b) You must cause any modified files to carry prominent notices stating that You changed the files; and
(c) You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and
(d) If the Work includes a “NOTICE” text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License.

You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License.

1. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions.
2. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.
3. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License.
4. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of

any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.

1. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.

END OF TERMS AND CONDITIONS

MIT license

- cares

Copyright 1998 by the Massachusetts Institute of Technology.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of M.I.T. not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. M.I.T. makes no representations about the suitability of this software for any purpose.

It is provided "as is" without express or implied warranty.

- fontconfig

Copyright (c) 2000 Keith Packard Copyright (c) 2005 Patrick Lam Permission to use, copy, modify, distribute, and sell this software and its documentation for any purpose is hereby granted without fee, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of Keith Packard not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. Keith Packard makes no representations about the suitability of this software for any purpose.

It is provided "as is" without express or implied warranty.

KEITH PACKARD DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS, IN NO EVENT SHALL KEITH PACKARD BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

- libcurl

Copyright (c) 1996 - 2010, Daniel Stenberg, [e-mail].

All rights reserved.

Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder.

- libxml2

Copyright (C) 1998-2003 Daniel Veillard. All Rights Reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE DANIEL VEILLARD BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Except as contained in this notice, the name of Daniel Veillard shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization from him

- libxslt

Copyright (C) 2001-2002 Daniel Veillard. Copyright (C) 2001-2002 Thomas Broyer, Charlie Bozeman and Daniel Veillard.

All Rights Reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION

WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Except as contained in this notice, the name of Daniel Veillard shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization from him.

- lua interpreter

Copyright © 1994–2010 Lua.org, PUC-Rio. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Expat license

The source package was downloaded from .

The original packager is Adam Di Carlo [e-mail].

The current maintainer is Ardo van Rangelrooij [e-mail].

Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

The FreeType Project LICENSE

Copyright 1996-2002, 2006 by David Turner, Robert Wilhelm, and Werner Lemberg

Introduction

The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project.

This license applies to all files found in such packages, and which do not fall under their own explicit license. The license affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least. This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion and use of free software in commercial and freeware products alike. As a consequence, its main points are that:

• We don't promise that this software works. However, we will be interested in any kind of bug reports. ('as is' distribution)
• You can use this software for whatever you want, in parts or full form, without having to pay us. ('royalty-free' usage)
• You may not pretend that you wrote this software. If you use it, or only parts of it, in a program, you must acknowledge somewhere in your documentation that you have used the FreeType code. ('credits')

We specifically permit and encourage the inclusion of this software, with or without modifications, in commercial products. We disclaim all warranties covering The FreeType Project and assume no liability related to The FreeType Project.

Finally, many people asked us for a preferred form for a credit/disclaimer to use in compliance with this license. We thus encourage you to use the following text:

Portions of this software are copyright The FreeType Project (www.freetype.org). All rights reserved.

Please replace with the value from the FreeType version you actually use.

Legal Terms

0. Definitions

Throughout this license, the terms `package', `FreeType Project' and `FreeType archive' refer to the set of files originally distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the `FreeType Project', be they named as alpha, beta or final release.

'You' refers to the licensee, or person using the project, where 'using' is a generic term including compiling the project's source code as well as linking it to form a 'program' or 'executable'. This program is referred to as 'a program using the FreeType engine'. This license applies to all files distributed in the original FreeType Project, including all source code, binaries and documentation, unless otherwise stated in the file in its original, unmodified form as distributed in the original archive. If you are unsure whether or not a particular file is covered by this license, you must contact us to verify this.

The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights reserved except as specified below.

1. No Warranty

THE FREETYPE PROJECT IS PROVIDED 'AS IS' WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT.

2. Redistribution

This license grants a worldwide, royalty-free, perpetual and irrevocable right and license to use, execute, perform, compile, display, copy, create derivative works of, distribute and sublicense the FreeType Project (in both source and object code forms) and derivative works thereof for any purpose; and to authorize others to exercise some or all of the rights granted herein, subject to the following conditions:

- Redistribution of source code must retain this license file ('FTL.TXT') unaltered; any additions, deletions or changes to the original files must be clearly indicated in accompanying documentation. The copyright notices of the unaltered, original files must be preserved in all copies of source files.

- Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the FreeType Team, in the distribution documentation. We also encourage you to put an URL to the FreeType web page in your documentation, though this isn't mandatory.

These conditions apply to any software derived from or based on the FreeType Project, not just the unmodified files. If you use our work, you must acknowledge us. However, no fee need be paid to us.

3. Advertising

Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or promotional purposes without specific prior written permission. We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or advertising materials: 'FreeType Project', 'FreeType Engine', 'FreeType library', or 'FreeType Distribution'.

As you have not signed this license, you are not required to accept it. However, as the FreeType Project is copyrighted material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify it. Therefore, by using, distributing, or modifying the FreeType Project, you indicate that you understand and accept all the terms of this license.

4. Contacts

There are two mailing lists related to FreeType: [e-mail] Discusses general use and applications of FreeType, as well as future and wanted additions to the library and distribution. If you are looking for support, start in this list if you haven't found anything to help you in the

documentation.

[e-mail]

Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc.

Our home page can be found at http://www.

freetype.org

JPEG license

This software is copyright (C) 1991-1998, Thomas G. Lane.

All Rights Reserved except as specified below.

Permission is hereby granted to use, copy, modify, and distribute this software (or portions thereof) for any purpose, without fee, subject to these conditions:

(1) If any part of the source code for this software is distributed, then this README file must be included, with this copyright and no-warranty notice unaltered; and any additions, deletions, or changes to the original files must be clearly indicated in accompanying documentation.
(2) If only executable code is distributed, then the accompanying documentation must state that "this software is based in part on the work of the Independent JPEG Group".
(3) Permission for use of this software is granted only if the user accepts full responsibility for any undesirable consequences; the authors accept NO LIABILITY for damages of any kind.

OpenSSL License

Copyright (c) 1998-2008 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;

OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young ([e-mail]). This product includes software written by Tim Hudson ([e-mail]).

Original SSLeay License Copyright (C) 1995-1998 Eric Young ([e-mail]) All rights reserved.

This package is an SSL implementation written by Eric Young ([e-mail]). The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the

documentation and/or other materials provided with the distribution.

1. All advertising materials mentioning features or use of this software must display the following acknowledgement:

"This product includes cryptographic software written by Eric Young ([e-mail])" The word 'cryptographic' can be left out if the rouines from the library being used are not cryptographic related :-).

1. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson ([e-mail])"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

zlib/libpng License

This product may contain open source software licensed under zlib/libpng License.

Libmng : Copyright © 2000-2008 Gerard Juyn ([e-mail])

Libpng : Copyright (c) 1998-2008 Glenn Randers-Pehrson

(Version 0.96 Copyright (c) 1996, 1997 Andreas Dilger)

(Version 0.88 Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc.)

Zlib : Copyright (C) 1995-2010 Jean-loup Gailly and Mark Adler

This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.

3. This notice may not be removed or altered from any source distribution.

Jean-loup Gailly Mark Adler

Portmap license

Most of the files, fall under the following copyright, and are distributable under the terms of the BSD license.

Copyright (c) 1983,1991 The Regents of the University of California. II rights reserved.

Some of the RPC code, is copyrighted by Sun Microsystems, and is provided under the following terms:

Sun RPC is a product of Sun Microsystems, Inc. and is provided for unrestricted use provided that this legend is included on all tape media and as a part of the software program in whole or part. Users may copy or modify Sun RPC without charge, but are not authorized to license or distribute it to anyone else except as part of a product or program developed by the user or with the express written consent of Sun Microsystems, Inc.

SUN RPC IS PROVIDED AS IS WITH NO WARRANTIES OF ANY KIND INCLUDING THE WARRANTIES OF DESIGN, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, USAGE OR TRADE PRACTICE.

Sun RPC is provided with no support and without any obligation on the part of Sun Microsystems, Inc. to assist in its use, correction, modification or enhancement.

SUN MICROSYSTEMS, INC. SHALL HAVE NO LIABILITY WITH RESPECT TO THE INFRINGEMENT OF COPYRIGHTS, TRADE SECRETS OR ANY PATENTS BY SUN RPC OR ANY PART THEREOF.

In no event will Sun Microsystems, Inc. be liable for any lost revenue or profits or other special, indirect and consequential damages, even if Sun has been advised of the possibility of such damages.

Sun Microsystems, Inc.

2550 Garcia Avenue

Pixman license

Copyright 1987, 1988, 1989, 1998 The Open Group Copyright 1987, 1988, 1989 Digital Equipment Corporation Copyright 1999, 2004, 2008 Keith Packard Copyright 2000 SuSE, Inc. Copyright 2000 Keith Packard, member of The XFree86 Project, Inc. Copyright 2004, 2005, 2007, 2008 Red Hat, Inc. Copyright 2004 Nicholas Miell Copyright 2005 Lars Knoll & Zack Rusin, Trolltech Copyright 2005 Trolltech AS Copyright 2007 Luca Barbato Copyright 2008 Aaron Plattner, NVIDIA Corporation Copyright 2008 Rodrigo Kumpera Copyright 2008 André Tupinambá Copyright 2008 Mozilla Corporation Copyright 2008 Frederic Plourde Copyright 2009 Sun Microsystems, Inc.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice (including the next paragraph) shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

X.net license

Copyright (c) 1995-2001 International Business Machines Corporation and others All rights reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, provided that the above copyright notice(s) and this permission notice appear in all copies of the Software and that both the above copyright notice(s) and this permission notice appear in supporting documentation.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder.

BSD license

- netBSD

Copyright (c) 1998 The NetBSD Foundation, Inc. All rights reserved.

This code is derived from software contributed to The NetBSD Foundation by Lennart Augustsson ([e-mail]) at Carlstedt Research & Technology.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:
   This product includes software developed by the NetBSD Foundation, Inc. and its contributors.
4. Neither the name of The NetBSD Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE NETBSD FOUNDATION, INC. AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS

INTERRUPTION) OWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- Simple XML Parser

Copyright (c) 2001-2002 Bruno Essmann [e-mail] All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- xyssl

Copyright (C) 2006-2008 Christophe Devine Copyright (C) 2009 Paul Bakker All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the names of PolarSSL or XySSL nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

RSA Data Security license

Copyright (C) 1991-2, RSA Data Security, Inc. Created 1991. All rights reserved.

License to copy and use this software is granted provided that it is identified as the "RSA Data Security, Inc. MD5 Message-Digest Algorithm" in all material mentioning or referencing this software or this function.

License is also granted to make and use derivative works provided that such works are identified as "derived from the RSA Data Security, Inc. MD5 Message-Digest Algorithm" in all material mentioning or referencing the derived work.

RSA Data Security, Inc. makes no representations concerning either the merchantability of this software or the suitability of this software for any particular purpose. It is provided "as is" without express or implied warranty of any kind. These notices must be retained in any copies of any part of this documentation and/or software.

JSON license

Copyright (c) 2005 JSON.org

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

The Software shall be used for Good, not Evil.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

MS92 license

Copyright (C) 1992 Michael Sample and the University of British Columbia

This library is free software; you can redistribute it and/or modify it provided that this copyright/license information is retained in original form.

If you modify this file, you must clearly indicate your changes.

This source code is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

LG

Life's Good

The model and serial numbers of the TV is located on the back of the TV

Record it below should you ever need service.

MODEL

SERIAL
