| Product Type | LED TV (LCD screen with LED backlights) |
| Model | 42LP620H |
| Dimensions (with stand) | 968 x 629 x 236 mm |
| Dimensions (without stand) | 968 x 579 x 79 mm |
| Weight (with stand) | 10.7 kg |
| Weight (without stand) | 9.6 kg |
| Power Requirement | AC 100-240 V~ 50 / 60 Hz |
| Screen Size (diagonal) | 42 inches |
| Display Resolution | 1920 x 1080 (Full HD) |
| TV System | DVB-T, PAL/SECAM-B/G/D/K, PAL-I, NTSC-M |
| Video Inputs | HDMI (2), Component, Composite, RGB-PC (D-Sub), DVI via HDMI |
| Audio Inputs/Outputs | Optical digital audio out, headphone out, external speaker out (stereo), volume control port |
| Network Connectivity | Wired LAN (Ethernet) - only LP62** models |
| USB Ports | 2 (USB 2.0) for media playback |
| Remote Control | Includes ENERGY SAVING, AV MODE, SIMPLINK, and colored buttons |
| Stand Features | Swivel 90 degrees left/right (for 42" model) |
| Wall Mount VESA | 200 x 200 mm, screw M6 |
| Power Saving | ENERGY STAR qualified in Home Use mode, energy saving levels adjustable |
| Cleaning | Use dry soft cloth; for tough dirt, dampen with water or mild detergent, then dry |
| Safety | Anti-tip strap recommended; secure to wall or table; keep away from heat sources |
| Accessories Included | Remote control with batteries, power cord, stand parts, cable holder, screws, isolator (depending on model) |
| Separate Purchase Items | Wall mount bracket, wireless dongle (AN-WF100), EzSign Editor CD (for LN549E) |
| Warranty | Refer to product label and dealer |
Frequently Asked Questions - 42LP620H LG
User questions about 42LP620H LG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your TV in PDF format for free! Find your manual 42LP620H - LG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 42LP620H by LG.
USER MANUAL 42LP620H LG
OWNER'S MANUAL LED TV\*
* Disclaimer
LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
LN54**
LP36**
LP62**
TABLE OF CONTENTS
3 INSTALLATION PROCEDURE
3 ASSEMBLING AND PREPARING
3 Unpacking
6 Separate purchase
7 Parts and buttons
8 Lifting and moving the TV
9 Setting up the TV
9 - Attaching the stand
9 Mounting on a table
12 Mounting on a wall

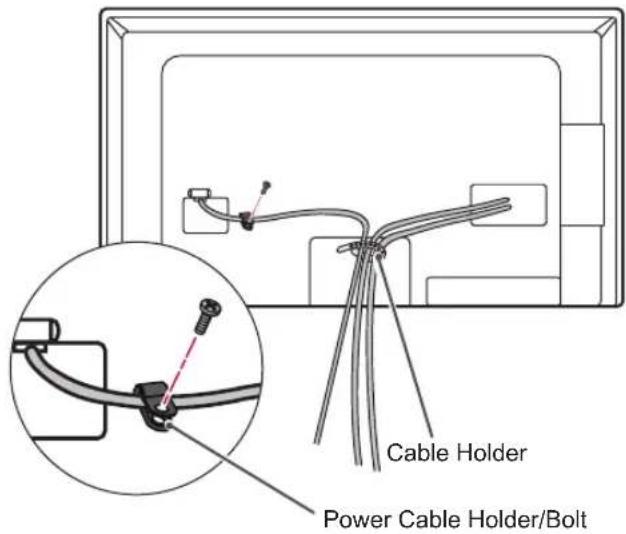

13 Tidying cables
13 MAKING CONNECTIONS

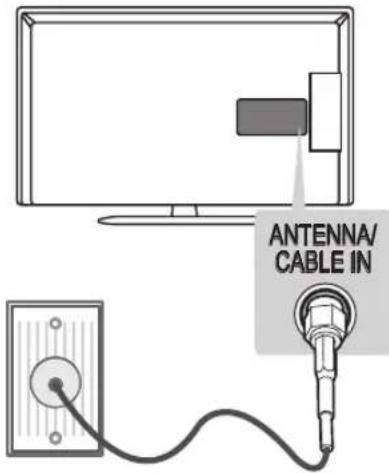

14 Antenna connection

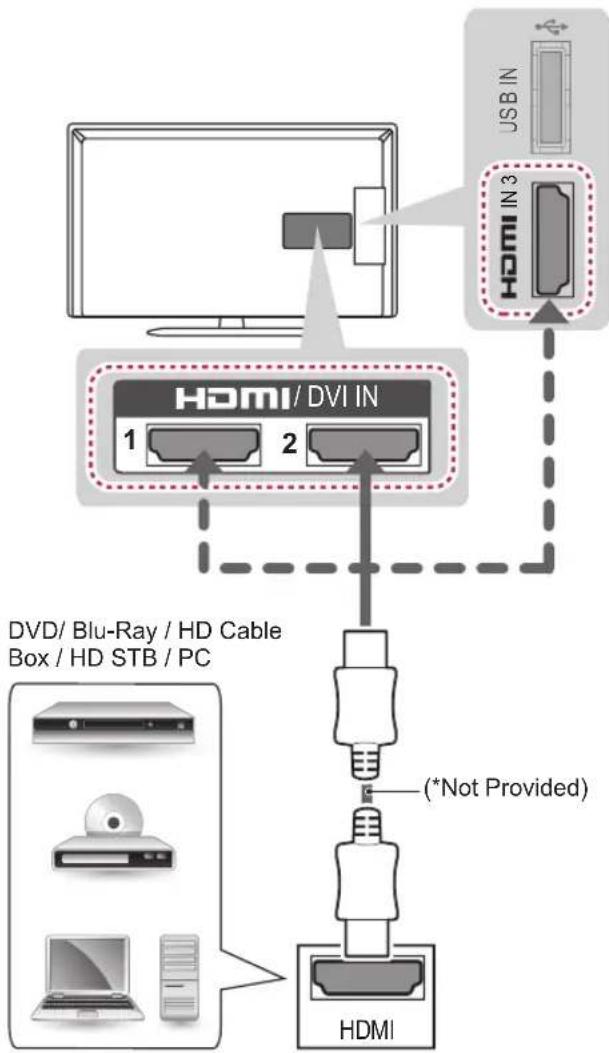

14 HDMI connection

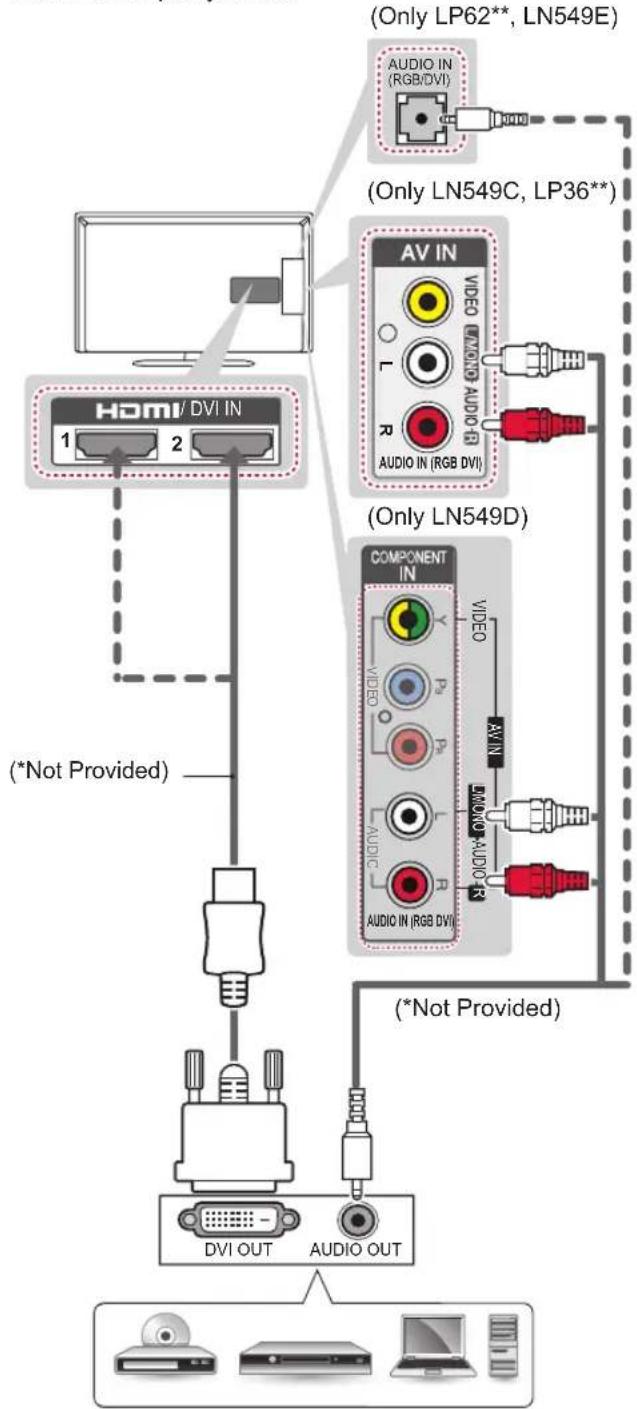

15 DVI to HDMI connection

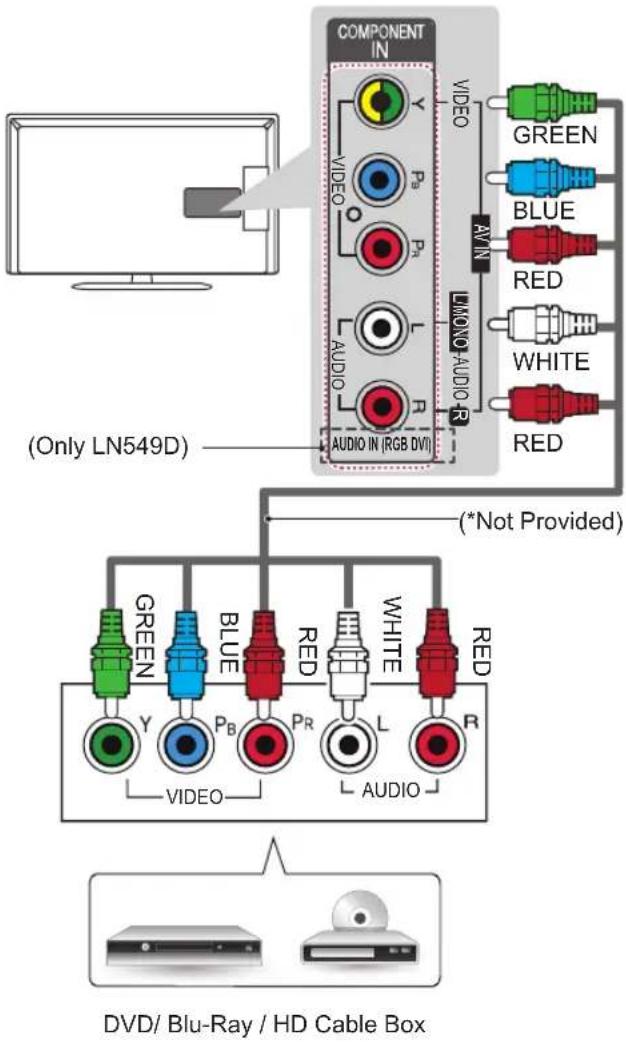

15 Component connection

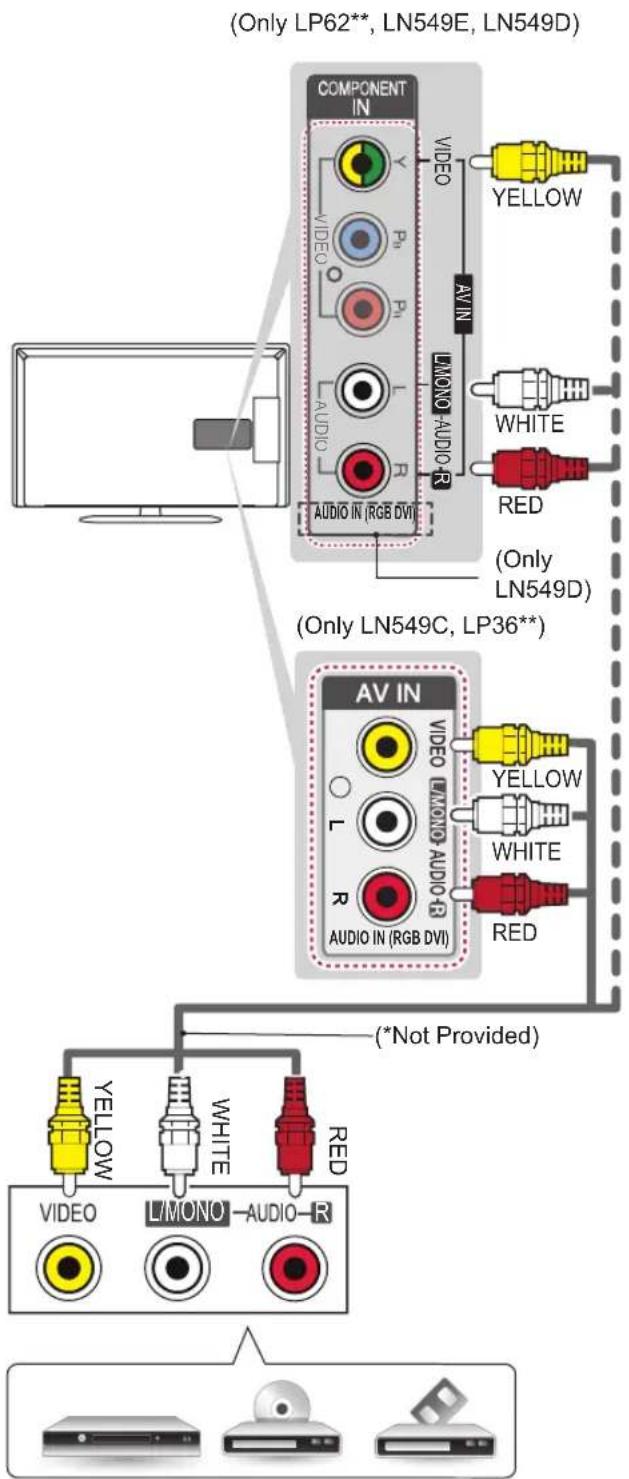

16 Composite connection

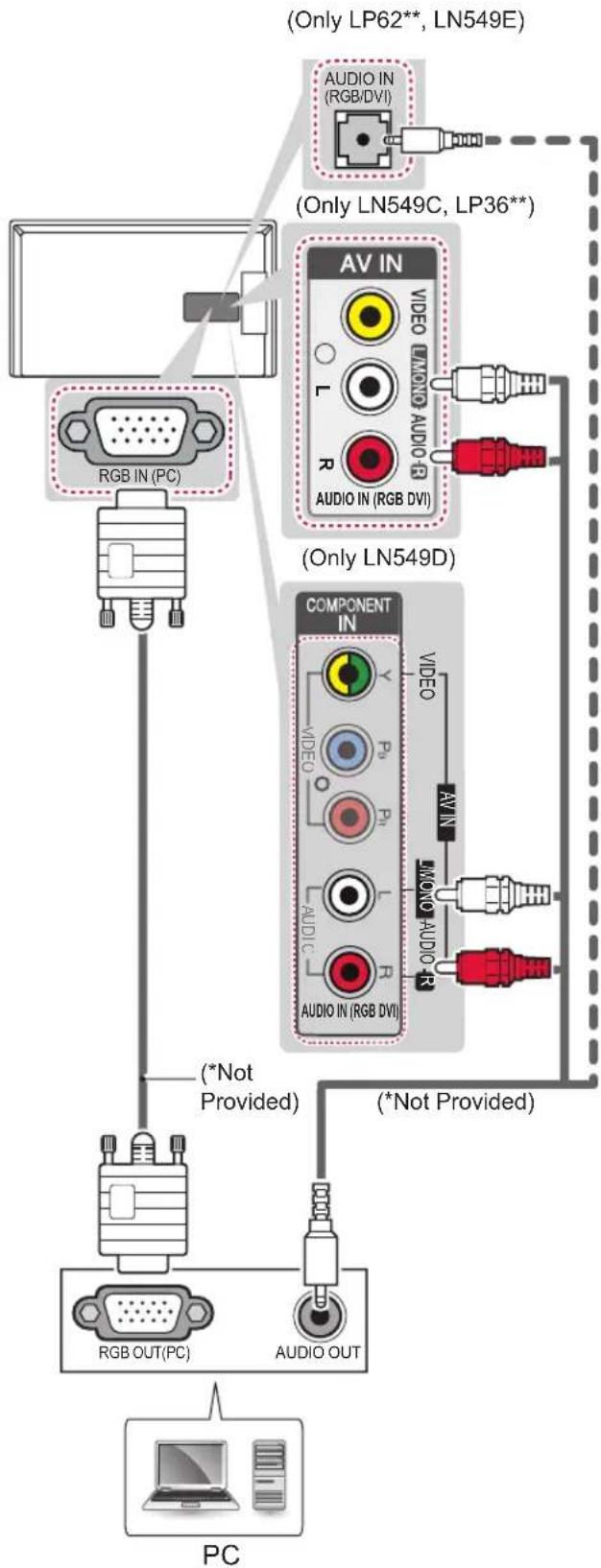

16 RGB-PC connection
17 Audio connection

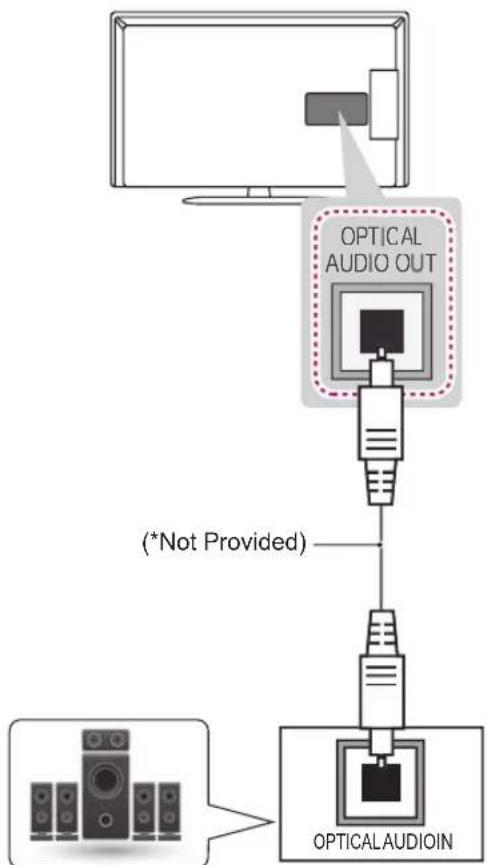

17 - Digital optical audio connection

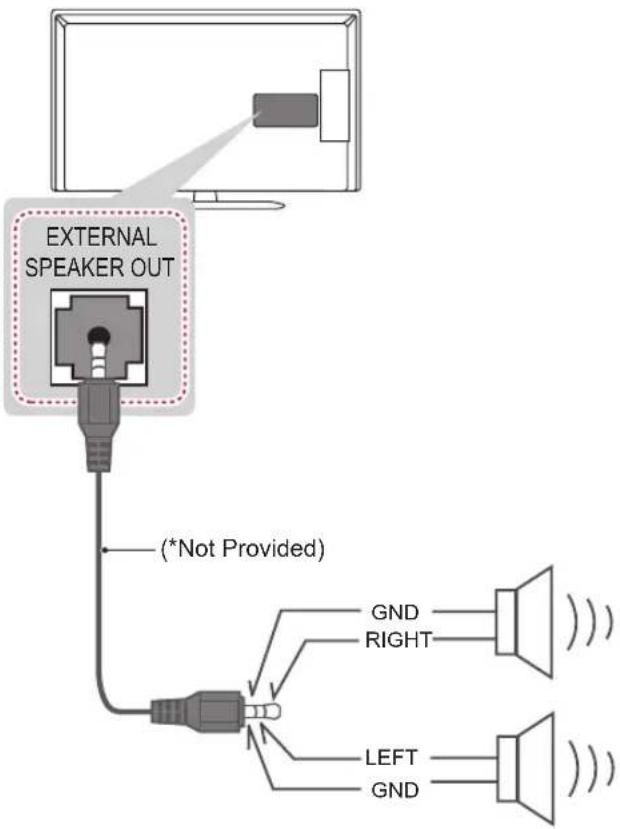

17 External speaker out

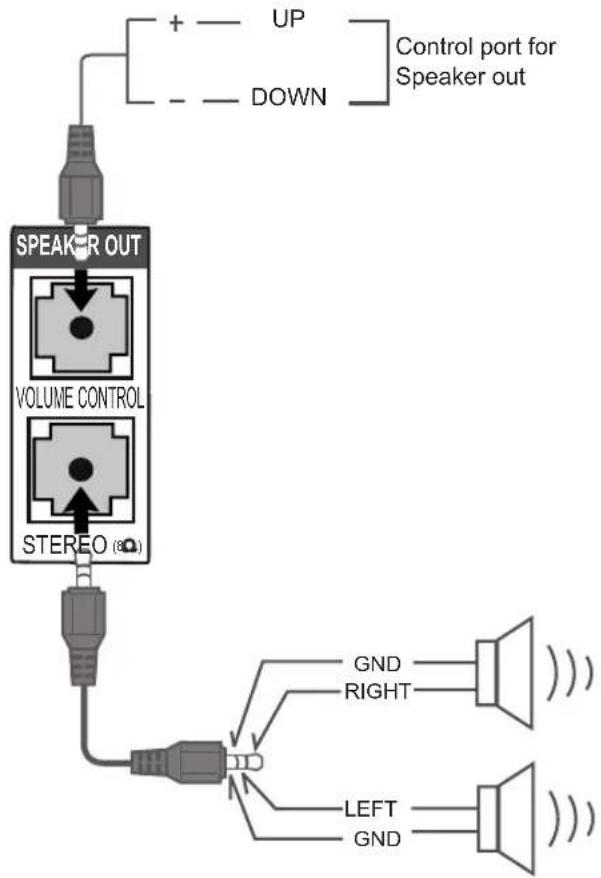

18 Speaker output setup

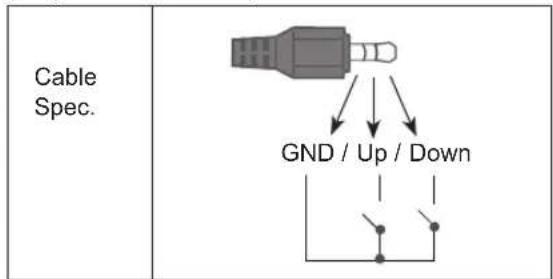

18 - Volume control port
18 Network Connection

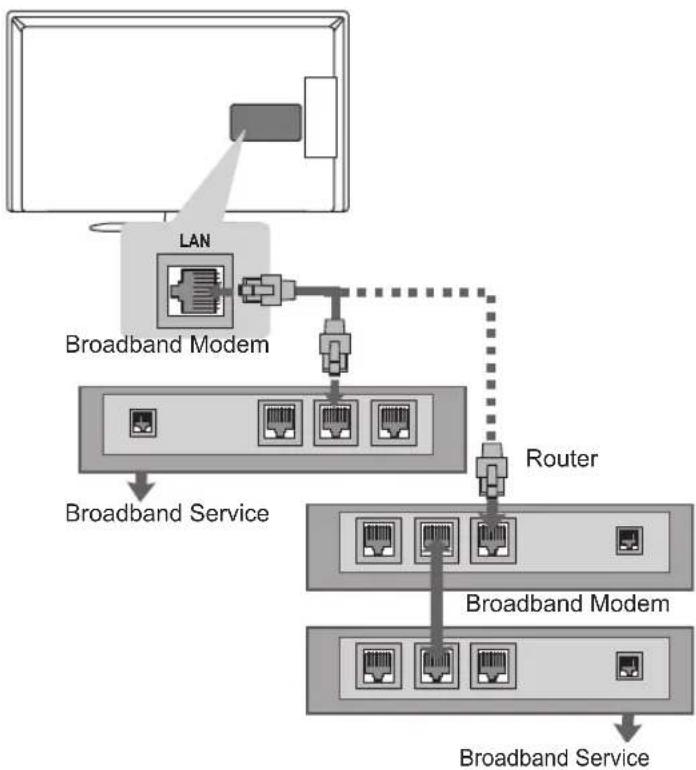

18 - Connecting to a Wired Network

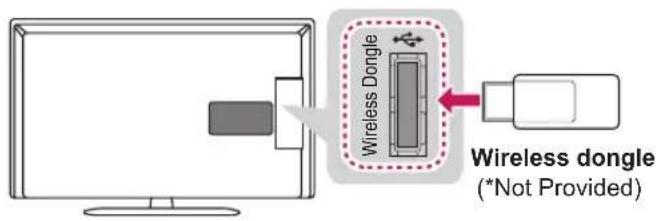

19 - Wireless network connection

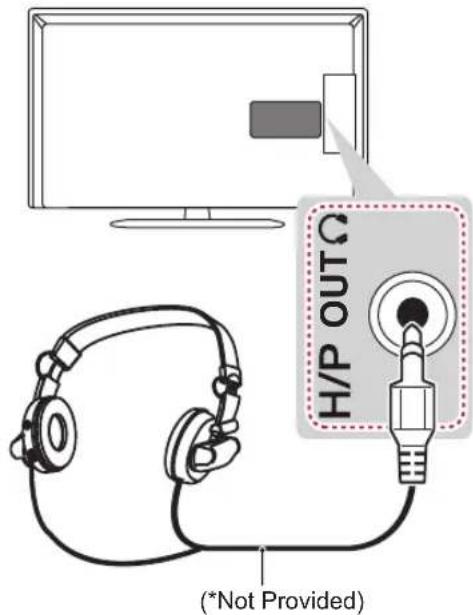

19 Headphone connection

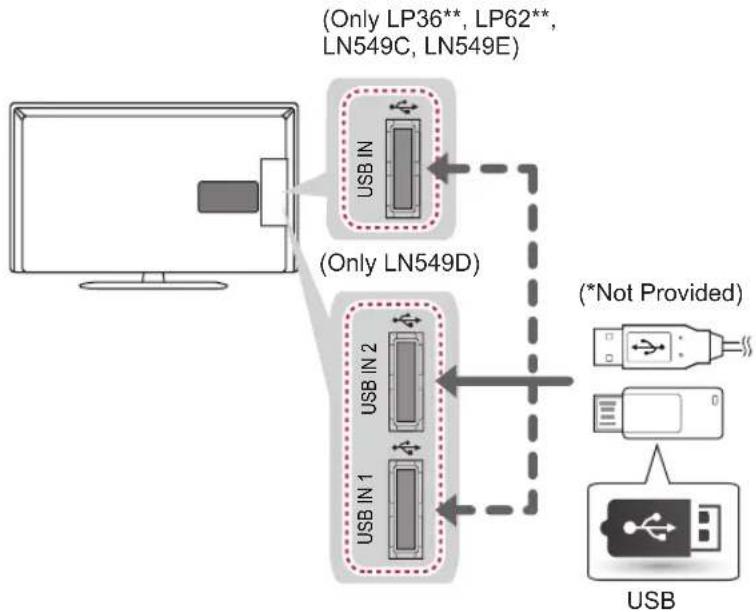

20 USB connection

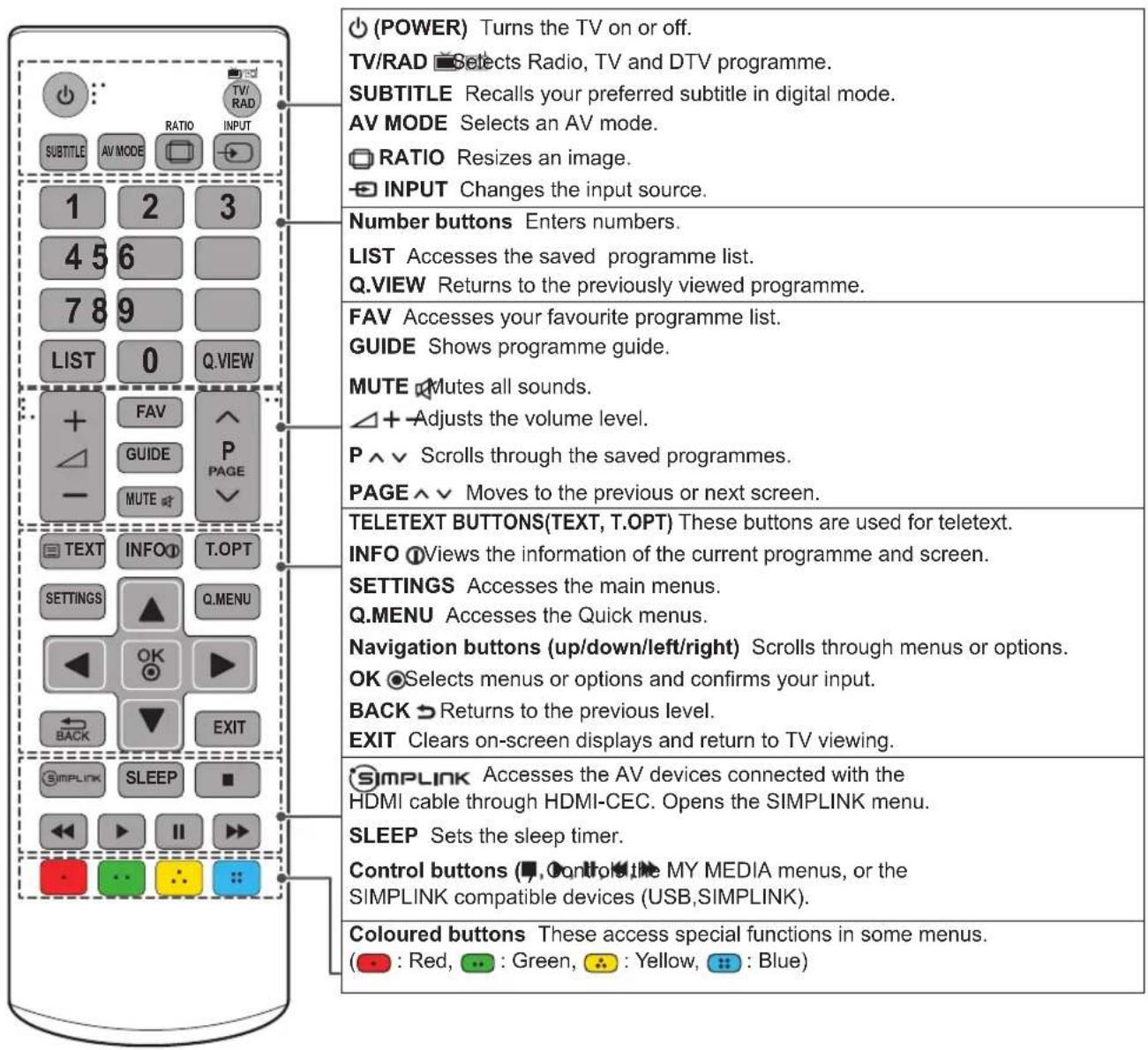

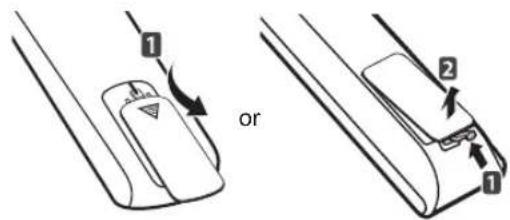

21 REMOTE CONTROL
23 MAINTENANCE
23 Cleaning your TV
23 - Screen, frame, cabinet and stand
23 - Power cord
23 TROUBLESHOOTING
24 CAUTION FOR USING EZSIGN
25 SPECIFICATIONS
28 LICENSES
28 OPEN SOURCE SOFTWARE NOTICE
29 IR CODES
30 EXTERNAL CONTROL DEVICE SETUP

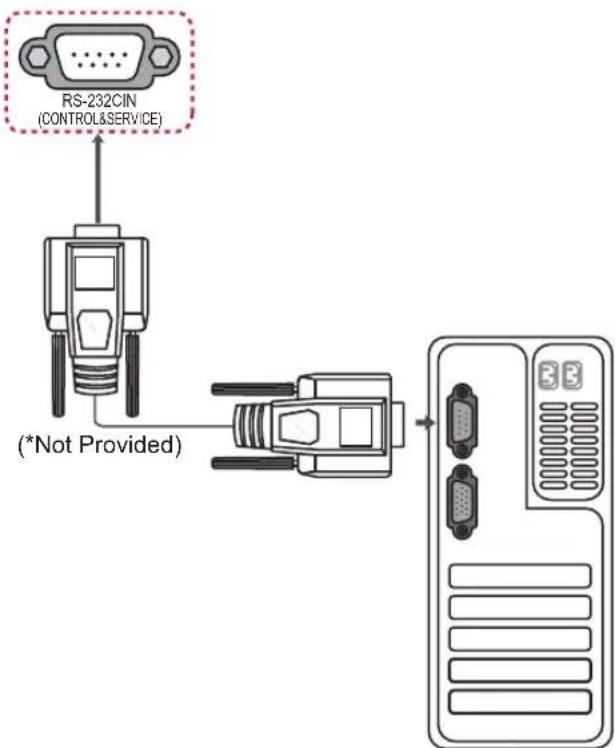

30 RS-232C Setup
30 Type of connector; D-Sub 9-Pin Male
30 RS-232C Configurations
31 Communication Parameters
31 Command reference list
32 Transmission / Receiving Protocol
WARNING
- If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
- If you ignore the caution message, you may be slightly injured or the product may be damaged.
NOTE
- The note helps you understand and use the product safely. Please read the note carefully before using the product.
NOTE
• Image shown may differ from your TV.
- Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
- The available menus and options may differ from the input source or product model that you are using.
- New features may be added to this TV in the future.
- The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
- The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available. You can use the TV network functions only when the network connection is made. (Only LP62**)
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
- Do not use any unapproved items to ensure the safety and product life span.
- Any damages or injuries by using unapproved items are not covered by the manufacturer's warranty.
• Some models have a thin film attached on to the screen and this must not be removed.
WARNING
- You need to enable easy access for connecting and disconnecting electric cables fed from the mains.
NOTE
• The items supplied with your product may vary depending on the model.
- Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
- For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.
$$ ^ {*} A \leq 1 0 \mathrm{mm} $$
$$ ^ {*} \mathrm{B} \leq 1 8 \mathrm{mm} $$
 |  |  |  |
| Remote control and batteries (AAA)(See p.21, 22) | Owner's manual Cable holder | Power Cord(Depending on model) | |
| (Depending on model)(See p.13) | |||
| [KG6H] | [AYZY] |  |  |
| Stand Screws3EA, M5 x 254EA, M4 x 14(Only 60LN54**,42LN549D)(See p.9) | Stand Screws7EA, M4 x 14(Only32/42/47/55LN549C,32/42/47/55LN549E,LP36**, LP62**)(See p.9) | Desk-mount Screw(See p.10) | Power cable holder/bolt(See p.13) |
 |  |  | |
| Stand Body / Stand Base(See p.9) | Isolator(Depending on model)(See p.5) | EzSign Editor CD(Only LN549E) | |
NOTE

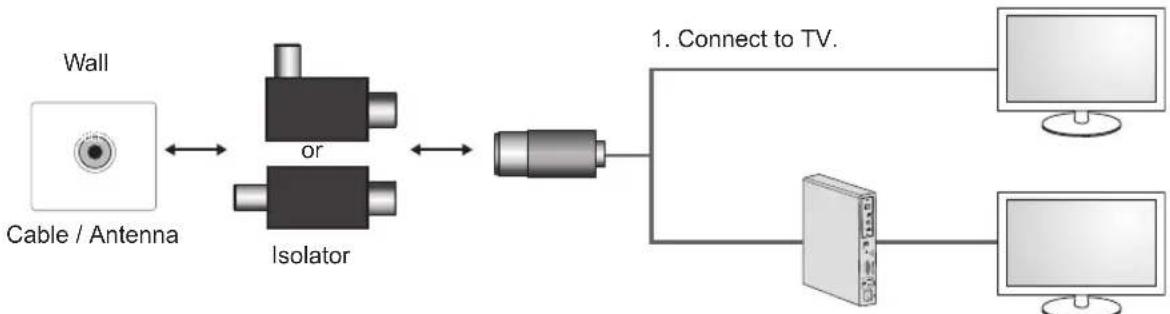

• Antenna Isolator Installation Guide
- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.
» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident. - You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
- Before starting, be sure that the TV antenna is connected.
- Connect to Set-Top box.
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
"Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
AN-WF100
| Compatibility | LN549C, LN549D, LP36**, LP62** | LN549E |
| LG Audio device | • | • |
| Wireless Dongle AN-WF100 | • |
The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.
Parts and buttons
| ^ √ | Scrolls through the saved programmes. |
| + - | Adjusts the volume level. |
| √ | Selects the highlighted menu option or confirms an input. |
| S | Accesses the main menu, or saves your input and exits the menus. |
| ← | Changes the input source. |
| ⏻ | Turns the power on or off. |
Lifting and moving the TV
Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.
CAUTION
- Avoid touching the screen at all times, as this may result in damage to the screen.
- It is recommended to move the TV in the box or packing material that the TV originally came in.
- Before moving or lifting the TV, disconnect the power cord and all cables.

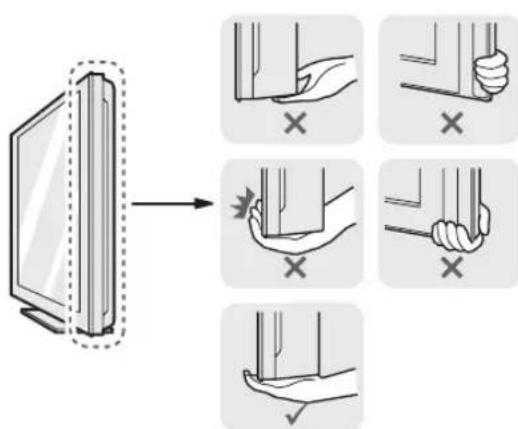

- When holding the TV, the screen should face away from you to avoid damage.
- When transporting the TV by hand, hold the TV as shown in the following illustration.
- When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
- Do not apply excessive pressure to cause flexing /bending of frame chassis as it may damage screen.
Setting up the TV
Image shown may differ from your TV.

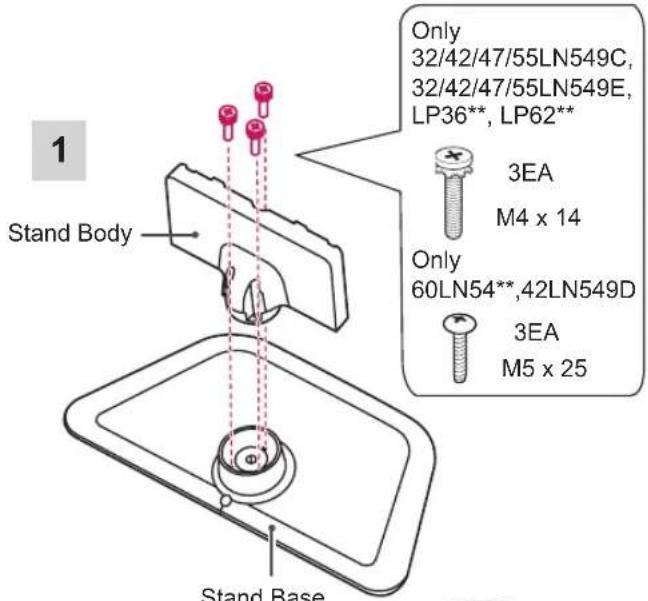

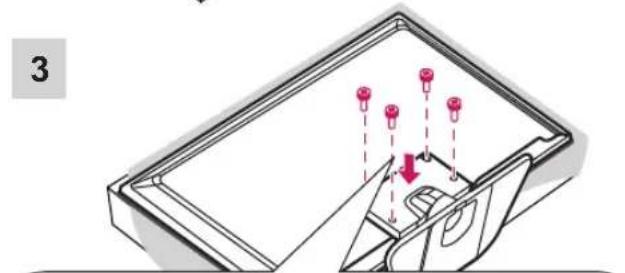

Attaching the stand


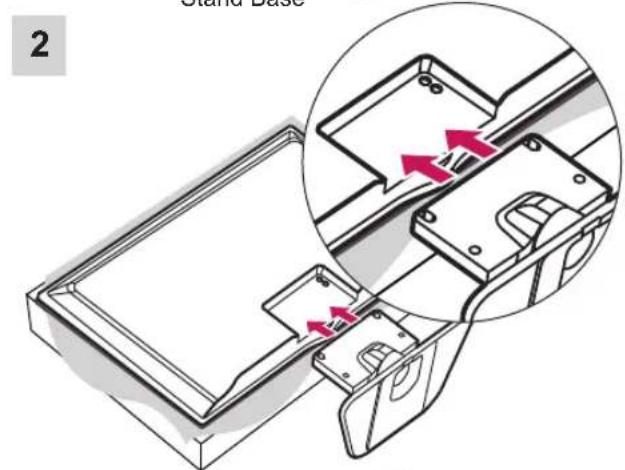

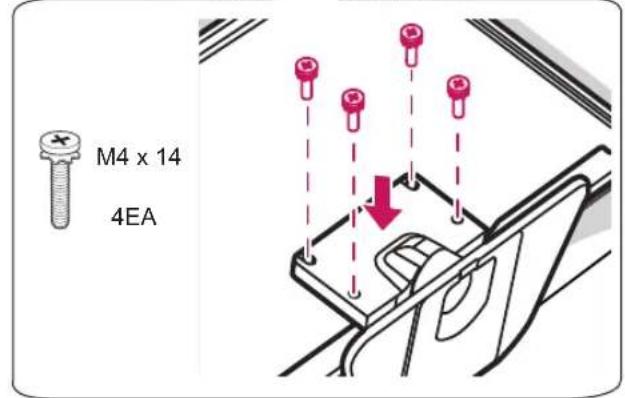

M4 x 14 4EACAUTION
- When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
- Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.)
Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.
NOTE
- Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

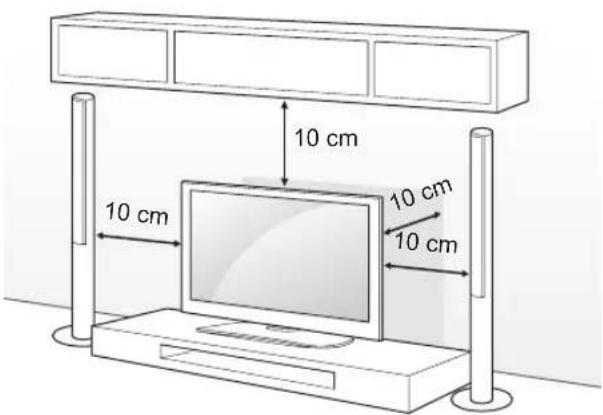

Mounting on a table
1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (minimum) space from the wall for proper ventilation.
CAUTION
- Do not place the TV near or on sources of heat, as this may result in fire or other damage.
Attaching the TV to a table
(Only 39/42/47LN549C, 39/42/47LN549E, 42/47LP36**, 42/47/55LP62**)
Image shown may differ from your TV.
The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product.

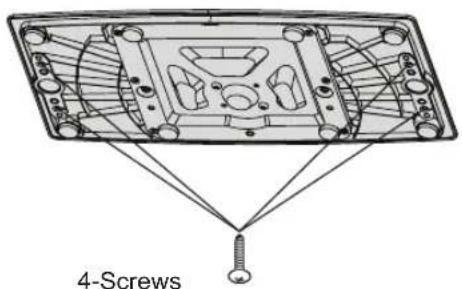

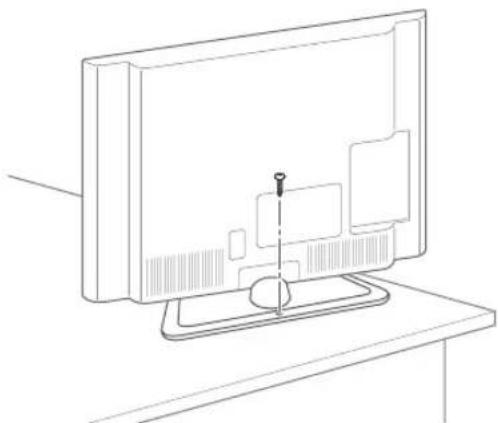

Securing the TV to a table
Fix the TV to a table to prevent from tilting forward, damage, and potential injury.
To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand.
WARNING
- To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

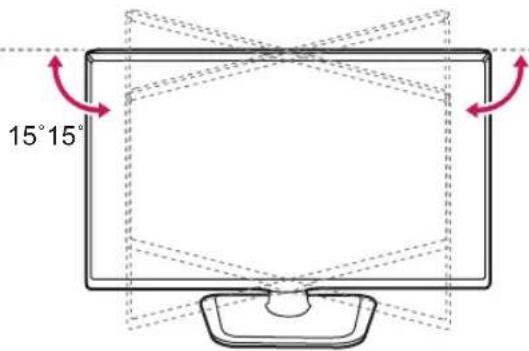

Adjusting the angle of the TV to suit view
(Only 32LN54**, 32LP36**, 32LP62**)
Swivel 15 degrees to the left or right and adjust the angle of the TV to suit your view.


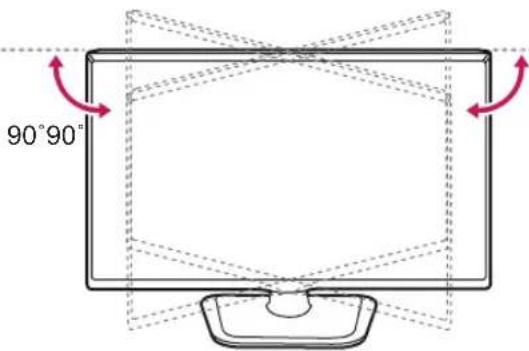

Swivel 90 degrees to the left or right and adjust the angle of the TV to suit your view.
AUTION
- When adjusting the angle of the product, watch out for your fingers.
» Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

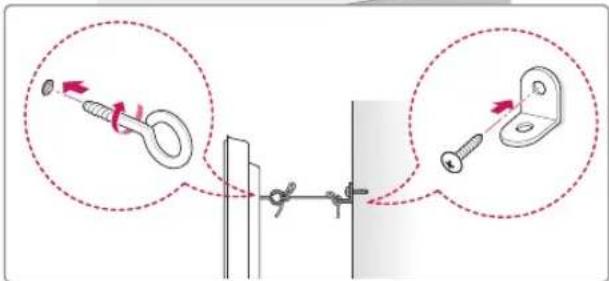

Securing the TV to a wall
(This feature is not available for all models.)
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.
Make sure to keep the rope horizontal with the flat surface.
CAUTION
• Make sure that children do not climb on or hang on the TV.
NOTE
- Use a platform or cabinet that is strong and large enough to support the TV securely.
- Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.
WARNING
- If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
» Using cabinets or stands recommended by the manufacturer of the television.
» Only using furniture that can safely support the television.
» Ensuring the television is not overhanging the edge of the supporting furniture.
» Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.
» Not standing the televisions on cloth or other materials placed between the television and supporting furniture.
» Educating children about the dangers of climbing on furniture to reach the television or its controls.

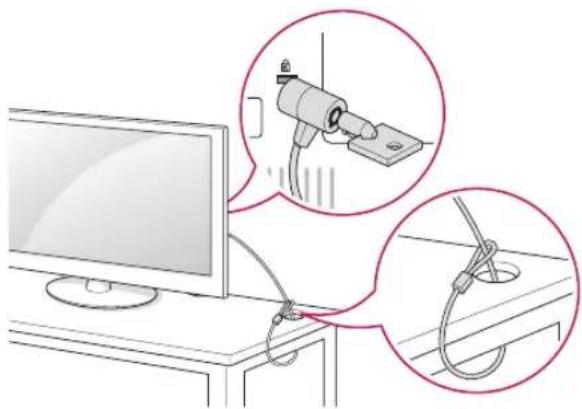

Using the Kensington security system
(This feature is not available for all models.)
The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.
Connect the Kensington security system cable between the TV and a table.
Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel.
LG recommends that wall mounting be performed by a qualified professional installer.

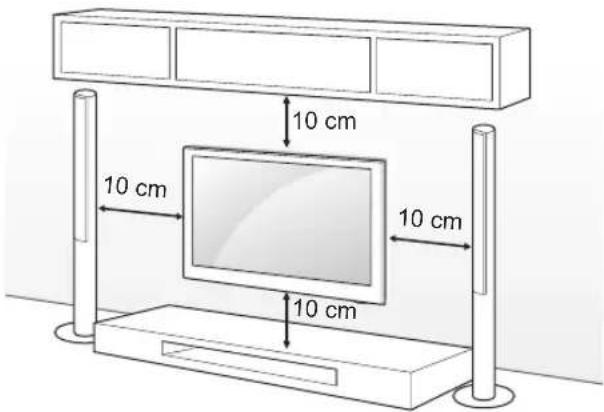

Separate purchase(Wall Mounting Bracket)
| Model 32LN54** | 32LP36**32LP62** | 39/42LN54**42LP36**42LP62** |
| VESA (A x B) 200 x 1 | 100 200 x 200 | |
| Standard screw M4 | M6 | |
| Number of screws 4 | 4 | |
| Wall mount bracket | LSW130B LSW230B |  |
| Model | 47/55/60LN54**47LP36**47/55LP62** | |
| VESA (A x B) | 400 x 400 | |
| Standard screw | M6 | |
| Number of screws | 4 | |
| Wall mount bracket | LSW430B | |
CAUTION
- Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
- If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury.
Use an authorized LG wall mount and contact the local dealer or qualified personnel.
- Do not over tighten the screws as this may cause damage to the TV and void your warranty.
- Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the manufacturer's warranty.
NOTE
- Use the screws that are listed on the VESA standard screw specifications.
- The wall mount kit includes an installation manual and necessary parts.
- The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
- The length of screws may differ depending on the wall mount. Make sure to use the proper length.
- For more information, refer to the manual supplied with the wall mount.
Tidying cables
1 Secure the power cord with the Power Cable Holder/Bolt.
2 Gather and bind the cables with the Cable Holder.
CAUTION
- Do not move the TV by holding the cable holder, as the cable holders may break, and injuries and damage to the TV may occur.
MAKING CONNECTIONS
This section on MAKING CONNECTIONS
mainly uses diagrams for the LN54** models.
Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
NOTE
- The external device connection may differ from the model.
- Connect external devices to the TV regardless of the order of the TV port.
- If you record a TV programme on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment's manual for operating instructions. - If you connect a gaming device to the TV, use the cable supplied with the gaming device.
- In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
- In PC mode, some resolution settings may not work properly depending on the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
NOTE
• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
- If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
HDMI connection
Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. It does not matter which port you use.
NOTE
- It is recommended to use the TV with the HDMI connection for the best image quality.
- Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
- High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
- Supported HDMI Audio format : Dolby Digital, PCM (Up to 192 kHz, 32kHz/44.1kHz/48kHz/88kHz/96kHz/176kHz/192kHz) *DTS Not supported.
DVI to HDMI connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does not matter which port you use.
DVD/ Blu-Ray / HD Cable Box / PC
NOTE
- Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.
- When using the HDMI/DVI cable, Single link is only supported.
Component connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.
(Only LP62**, LN549E, LN549D)
NOTE
- If cables are not installed correctly, it could cause this image to display in black and white or with distorted colours.
Composite connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.
RGB-PC connection
Transmits the video signal from PC to the TV. To transmit an audio signal, connect an audio cable.
Audio connection
You may use an optional external audio system instead of the built-in speaker.
NOTE
- If you use an optional external audio device instead of the built-in speaker, set the TV speaker feature to off.
Digital optical audio connection
Transmits the digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.
Digital Audio System
NOTE
- Do not look into the optical output port. Looking at the laser beam may damage your vision.
- Audio with ACP (Audio Copy Protection) function may block digital audio output.
External speaker out
Connecting External Speaker.
(Only LP36**, LN549C, LN549D)
TE
• Make sure when connecting External Speaker that TV is Power OFF.
Speaker output setup
Connect the external speaker to the Speaker output(STEREO) jack on the TV.
(Only LP62**, LN549E)
Volume control port
(Only LP62**, LN549E)
• CPU detects that vol. crtl. Port is shorted to GND for volume control.
• CPU detects transition from 3.3V to GND level for volume control.
NOTE
- External speaker must be used four plug(BTL: Bridge Tied Load, Stereo) as shown in the drawings and external speaker fully inserted with external Speaker Jack.
• Otherwise it will cause defect.
Network Connection
Connecting to a Wired Network
(Only LP62**)
This TV can be connected to a local area network (LAN) via the LAN port. After making the physical
connection, the TV needs to be set up for network communication.
(Image shown may differ from your TV.)
Connect the LAN port of the Modem or Router to the LAN port on the TV.
CAUTION
- Do not connect a modular phone cable to the LAN port.
- Since there are various connection methods, please follow the specifications of your telecommunication carrier or internet service provider.
Wireless network connection
(Only LN549E)
This TV can be connected to wireless network via the Wireless Dongle port. After making the physical connection, the TV needs to be set up for network communication.
Connect the wireless dongle to the Wireless Dongle port on the TV.
(Image shown may differ from your TV.)
CAUTION
- Do not remove the wireless dongle while the wireless network is working.
Headphone connection
Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone.
(Only LP62**, LN549E)
NOTE
• AUDIO menu items are disabled when connecting a headphone.
- When changing AV MODE with a headphone connected, the change is applied to video but not to audio.
• Optical Digital Audio Out is not available when connecting a headphone.
• Headphone impedance: 16 Ω
• Max audio output of headphone: 10 mW to 15 mW
• Headphone jack size: 0.35 cm
USB connection
Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the My media menu to use various multimedia files.
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V
AAA) matching the and ends to the label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
CAUTION
- Do not mix old and new batteries, as this may damage the remote control.
• In Analogue TV and some countries, some remote control buttons may not work.
Make sure to point the remote control toward the remote control sensor on the TV.
(Only LN549C, LN549D, LP36**)
Cleaning your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
CAUTION
• Make sure to turn the power off and disconnect the power cord and all other cables first.
- When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.
Screen, frame, cabinet and stand
• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
- To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.
CAUTION
- Avoid touching the screen at all times, as this may result in damage to the screen.
- Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
- Do not use any chemicals as this may damage the product.
- Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
The software version can be updated to improve performance of product. Customer needs to ensure that LGE software is compatible with Customer Product Model. If needed please consult with LGE Customer Service for guidance on procedure.
| Problem Solution | |
| Cannot control the TV with the remote control. | Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed ( ⏻, ⏻) ⏻ |
| No image display and no sound is produced. | Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products. |
| The TV turns off suddenly. | Check the power control settings. The power supply may be interrupted.Check if the Auto sleep feature is activated in the Time settings.If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity. |
| When connecting to the PC (HDMI/DVI/RGB), ‘No signal’ or ‘Invalid Format’ is displayed. | Turn the TV off/on using the remote control.Reconnect the HDMI/DVI/RGB cable.Restart the PC with the TV on. |
CAUTION FOR USING EZSIGN
Only LN549E
- Do not remove a USB drive while data is being copied. It can corrupt the data and EzSign may not work properly.
• While loading a USB device or dongle, your TV may function slower than normal.
• Some user-created subtitles may not work properly.
• Some special characters are not supported in subtitles.
• HTML tags are not supported in subtitles. - Subtitles in languages other than the supported languages are not available.
- EzSign TV function does not work before completing the initial setup Wizard. Make sure to complete the initial setup Wizard by turning on the TV after installation.
- If the time is set according to the TV signal, it may not appear exactly for some region. In that case, set the time manually.
- It is recommended that you copy files to the TV memory before playing them, as playing directly from the USB memory for an extended period of time may cause the device to overheat.
• In EzSign TV mode, some remote control keys may not work. - EzSign TV dose not support the USB HUB. It is recommended that you connect a USB device directly to the TV without using a USB extension cable as it may not work properly.
- It is recommended that you use EzSign TV within 8 hours per day as it is standard.
• Refer to the EzSign Editor user guide for details.
• EzSign TV does not support Store Demo. - Supported external subtitles format: *.smi/*.srt/*.sub(MicroDVD, Subviewer 1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.psb(PowerDivX)
- Do not update the EzSign content via wireless networking and a USB drive at the same time. And do not play content from a USB drive while updating EzSign content via wireless networking.
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
| MODELS | 32LP36** 42LP36** 47LP36** | |||
| 32LP360H-TA 42LP360H-TA 47LP360H-TA | ||||
| Dimensions(W x H x D) | With stand (mm) | 738.0 x 497.0 x 207.0 968.0 x 629.0 x 236.0 1080.0 x 694.0 x 264.0 | ||
| Without stand(mm) | 738.0 x 449.0 x 79.0 968.0 x 579.0 x 79.0 1080.0 x 642.0 x 80.5 | |||
| Weight With stand (kg) | 7.0 10.7 14.7 | |||
| 6.4 9.6 13.4 | ||||
| Power requirement | AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz | |||
| MODELS | 32LN54** 39LN54** 42LN54** | |||
| 32LN549C-TA32LN549E-TA | 39LN549C-TA39LN549E-TA | 42LN549C-TA42LN549D-TA42LN549E-TA | ||
| Dimensions(W x H x D) | With stand (mm) | 738.0 x 497.0 x 207.0 894.0 x 587.0 x 236.0 968.0 x 629.0 x 236.0 | ||
| Without stand(mm) | 738.0 x 449.0 x 79.0 894.0 x 537.0 x 79.0 968.0 x 579.0 x 79.0 | |||
| Weight With stand (kg) | 7.0 9.7 10.7 | |||
| 6.4 8.6 9.6 | ||||
| Power requirement | AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz | |||
| MODELS | 47LN54** 55LN54** 60LN54** | |||
| 47LN549C-TA47LN549E-TA | 55LN549C-TA55LN549E-TA | 60LN549E-TA | ||
| Dimensions(W x H x D) | With stand (mm) | 1080.0 x 694.0 x 264.0 1250.0 x 790.0 x 297.0 1359.0 x 852.0 x 297.0 | ||
| Without stand(mm) | 1080.0 x 642.0 x 80.5 1250.0 x 737.0 x 79.1 1359.0 x 799.0 x 67.2 | |||
| Weight With stand (kg) | 14.7 21.2 26.3 | |||
| 13.4 19.1 24.2 | ||||
| Power requirement | AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz | |||
| MODELS | 32LP62** 42LP62** 47LP62** | |||
| 32LP620H-TA 42LP620H-TA 47LP620H-TA | ||||
| Dimensions(W x H x D) | With stand (mm) | 738.0 x 497.0 x 207.0 968.0 x 629.0 x 236.0 1080.0 x 694.0 x 264.0 | ||
| Without stand(mm) | 738.0 × 449.0 × 79.0 968.0 × 579.0 × 79.0 1080.0 × 642.0 × 80.5 | |||
| Weight With stand (kg) | 7.0 10.7 14.7 | |||
| 6.4 9.6 13.4 | ||||
| Power requirement | AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 240 V~ 50 / 60 Hz | |||
| MODELS | 55LP62** | |||
| 55LP620H-TA | ||||
| Dimensions(W x H x D) | With stand (mm) | 1250.0 x 790.0 x 297.0 | ||
| Without stand(mm) | 1250.0 x 737.0 x 79.1 | |||
| Weight With stand (kg) | 21.2 | |||
| 19.1 | ||||
| Power requirement | AC 100-240 V~ 50 / 60 Hz | |||
| Environment condition | Operating Temperature 0 °C to 40 °C | |
| Operating Humidity Less than 80 % | ||
| Storage Temperature -20 °C to 60 °C | ||
| Storage Humidity Less than 85 % | ||
| Digital TV Analogue TV | |||
| New Zealand, Singapore | Television System DVB-T PAL/SECAM-B/G/D/K, Programme Coverage UHF 21 to 69 | PAL-IBG: VHF/UHF 1 to 69, CATV 01 to 47I: VHF/UHF 1 to 69, CATV 01 to 47DK: VHF/UHF 1 to 69, CATV 01 to 47 | |
| Australia Television S | System DVB-T PAL B/B | ||
| Programme Coverage | VHF 06 to 12,UHF 27 to 69 | B/B: VHF/UHF 0 to 75, CATV: 2 to 44 | |
| Indonesia, Israel, Myanmar, Sri Lanka | Television System DVB-T PAL/SECAM-B/G/D/K, Programme Coverage UHF 21 to 69 | PAL-I, NTSC-MBG: VHF/UHF 1 to 69, CATV 01 to 47I: VHF/UHF 1 to 69, CATV 01 to 47DK: VHF/UHF 1 to 69, CATV 01 to 47M: VHF/UHF 2 to 78, CATV 01 to 71 | |
| Vietnam, Malaysia Te | Television System DVB-T PAL/SECAM-B/G/D/K, Programme Coverage | VHF 6 to 12,UHF 21 to 69 | PAL-I, NTSC-MBG: VHF/UHF 1 to 69, CATV 01 to 47I: VHF/UHF 1 to 69, CATV 01 to 47DK: VHF/UHF 1 to 69, CATV 01 to 47M: VHF/UHF 2 to 78, CATV 01 to 71 |
| Iran, Algeria, Tunisia, Digital model | Television System DVB-T PAL/SECAM-B/G/D/K, Programme Coverage | VHF 5 to 12,UHF 21 to 69 | PAL-I, NTSC-MBG: VHF/UHF 1 to 69, CATV 01 to 47I: VHF/UHF 1 to 69, CATV 01 to 47DK: VHF/UHF 1 to 69, CATV 01 to 47M: VHF/UHF 2 to 78,CATV 01 to 71 |
| Analogue model, India, Thailand, South Africa, -- | Television System - Programme Coverage | PAL/SECAM-B/G/D/K, PAL-I, NTSC-M | |
| - | BG: VHF/UHF 1 to 69, CATV 01 to 47I: VHF/UHF 1 to 69, CATV 01 to 47DK: VHF/UHF 1 to 69, CATV 01 to 47M: VHF/UHF 2 to 78, CATV 01 to 71 | ||
| External Antenna Impedance | 75 Ω | 75 Ω | |
In country that Digital broadcasting regulation isn't fixed, some DTV function may not work depending on digital broadcasting circumstances. (Only DTV)
Only LN549C, LN549D, LP36**
HDMI/DVI-DTV supported mode
| Resolution | Horizontal Frequency (kHz) | Vertical Frequency (Hz) |
| 720x480 31.4 | 69 | 59.94 |
| 31.5 | 60 | |
| 720x576 31.25 | 50 | |
| 1280x720 37.5 | 50 | |
| 44.96 | 59.94 | |
| 45 | 60 | |
| 1920x1080 33.72 | 59.94 | |
| 33.75 | 60 | |
| 28.125 | 50 | |
| 26.97 | 23.97 | |
| 27 | 24 | |
| 33.716 | 29.976 | |
| 33.75 | 30.00 | |
| 56.25 | 50 | |
| 67.43 | 59.94 | |
| 67.5 | 60 |
RGB-PC, HDMI/DVI-PC supported mode
| Resolution | Horizontal Frequency (kHz) | Vertical Frequency (Hz) |
| 640x350 31.4 | 68 70.09 | |
| 720x400 31.4 | 69 70.08 | |
| 640x480 31.4 | 69 59.94 | |
| 800x600 37.8 | 79 60.31 | |
| 1024x768 48.3 | 63 60.00 | |
| 1280x768 47.7 | 76 59.87 | |
| 1152x864 54.3 | 48 60.053 | |
| 1360x768 47.7 | 12 60.015 | |
| 1280x1024 (HDMI-PC) | 63.981 60.02 | |
| 1920x1080 (HDMI-PC) | 67.5 60.00 |
(Except for 32LN549C, 32LP36**)
Only LP62**, LN549E
HDMI/DVI-DTV supported mode
| Resolution | Horizontal Frequency (kHz) | Vertical Frequency (Hz) |
| 720x480 31.47 | 31.5 | 59.9460 |
| 1280x720 44.96 | 45 | 59.9460 |
| 1920x1080 33.75 | 33.72 | 6059.94 |
| 26.97 | 23.976 | |
| 27 | 24 | |
| 33.75 | 30.00 | |
| 67.432 | 59.94 | |
| 67.5 | 60 |
RGB-PC, HDMI/DVI-PC supported mode
| Resolution | Horizontal Frequency (kHz) | Vertical Frequency (Hz) |
| 640x350 31.4 | 68 70.09 | |
| 720x400 31.4 | 69 70.08 | |
| 640x480 31.4 | 69 59.94 | |
| 800x600 37.8 | 79 60.31 | |
| 1024x768 48.3 | 63 60.00 | |
| 1280x768 47.7 | 76 59.87 | |
| 1152x864 54.3 | 48 60.053 | |
| 1360x768 47.7 | 12 60.015 | |
| 1280x1024 (HDMI-PC) | 63.981 60.02 | |
| 1920x1080 (HDMI-PC) | 67.5 60.00 |
(Except for 32LP62**, 32LN549E)
Component port connecting information
| Component ports on the TV Y P | B | PR | |
| Video output ports on DVD player | Y | P_B | P_R |
| Y B-Y | R-Y | ||
| Y Cb | Cr | ||
| Y Pb | Pr |
| Signal | Component |
| 480i/576i | O |
| 480p/576p | O |
| 720p/1080i | O |
| 1080p | O(50 Hz / 60 Hz only) |
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
DOLBY. DIGITAL PLUS
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
"DivX Certified® to play DivX® video up to HD 1080p, including premium content."
"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."
"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
IR CODES
• This feature is not available for all models.
| Code (Hexa) | Function Note | |
| 08 | (POWER) | Remote control Button (Power On/Off) |
| F0 TV/RAD | Remote control Button | |
| 39 SUBTITLE | Remote control Button | |
| 30 AV MODE | Remote control Button | |
| 79 RATIO | Remote control Button | |
| 0B INPUT | Remote control Button | |
| 10-19 Number Key 0-9 Remote control Button | ||
| 53 LIST Remote control Button | ||
| 1A Q.VIEW | Remote control Button | |
| 02 Remote control Button | ||
| 03 Remote control Button | ||
| 1E FAV Remote control Button | ||
| AB GUIDE | Remote control Button | |
| 09 MUTE | Remote control Button | |
| 00 | P ^ | Remote control Button |
| 01 | P v | Remote control Button |
| 20 TEXT (Teletext) | Remote control Button | |
| AA INFO | Remote control Button | |
| 21 | T. OPT (Teletext Option) | Remote control Button |
| 43 SETTINGS | Remote control Button | |
| 45 Q.MENU | Remote control Button | |
| 44 OK | Remote control Button | |
| 40 | ^ | Remote control Button |
| 41 | v | Remote control Button |
| 07 | < | Remote control Button |
| 06 | > | Remote control Button |
| 28 | BACK | Remote control Button |
| 5B EXIT | Remote control Button | |
| 7E SIMPLNK | Remote control Button | |
| 0E SLEEP | Remote control Button | |
| B1 | ■ | Remote control Button |
| B0 | ▶ | Remote control Button |
| BA | || | Remote control Button |
| 8E | ▶▶ | Remote control Button |
| 8F | ◀◀ | Remote control Button |
| 72 RED Remote control Button | ||
| 71 GREEN | Remote control Button | |
| 63 YELLOW | Remote control Button | |
| 61 BLUE | Remote control Button | |
| 0C | PORTAL | Remote control Button |
EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup
Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product's functions externally.
Connect the serial port of the control device to the RS-232C jack on the product back panel.
Note: RS-232C connection cables are not supplied with the product.
| 1 3.5V | |
| 2 RXD (Receive data) | |
| 3 TXD (Transmit data) | |
| 4 IR OUT from TV | |
| 5 GND | |
| 6 No Connection | |
| 7 No Connection | |
| 8 No Connection | |
| 9 No Connection (12V available in some models) |
RS-232C Configurations
7-Wire Configurations (Standard RS-232C cable)
PC TV
RXD 2
TXD
GND
DTR
DSR
RTS
CTS
D-Sub 9
3-Wire Configurations(Not standard)
PC TV
RXD 2
TXD
GND
DTR
DSR
RTS
CTS
D-Sub 9
Set ID
Set ID number. "Real Data Mapping".
1 Press SETTINGS / Home to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press OK.
3 Press the Navigation buttons to scroll to SET ID and press OK.
4 Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5 When you are finished, press EXIT.
Communication Parameters
• Baud rate: 9600 bps (UART)
• Data length: 8 bits
- Parity : None
- Stop bit: 1 bit
• Communication code: ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
| COMMAND1 | COMMAND2 | DATA (Hexadecimal) | COMMAND1 | COMMAND2 | DATA (Hexadecimal) | ||
| 01. Power k a 00 to 01 13. Treble k r 00 to 64 | |||||||
| 02. Aspect Ratio k c (See p.33) | 14. Bass k s | 00 to 64 | |||||
| 03. Screen Mute | k | d | (See p.33) | 15. Balance | k | t | 00 to 64 |
| 04. Volume Mute | k e 00 to 01 | 16. Colour Temperature | x u 00 to 64 | ||||
| 05. Volume Control | k f | 00 to 64 | 17. Energy Saving | j | q 00 to 05 | ||
| 06. Contrast | k g 00 to 64 | 18. Auto Configuration | j | u 01 | |||
| 07. Brightness | k h 00 to 64 | 19. Tune Command | m | a | (See p.35) | ||
| 08. Colour | k i | 00 to 64 | 20. Programme Add/Skip | m b 00 to 01 | |||
| 09. Tint | k | j | 00 to 64 | 21. Key | m | c | Key Code |
| 10. Sharpness | k k 00 to 64 | 22. Control Back Light | m g 00 to 64 | ||||
| 11. OSD Select | k l | 00 to 01 | 23. Input select (Main Picture Input) | x b (See p.35) | |||
| 12. Remote Control Lock Mode | k m | 00 to 01 | |||||
* Note : During USB operations such as DivX or EMF, all commands except Power(ka) and Key(mc) are not executed and treated as NG.
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV.(j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99. When selecting Set ID '0', every connected set is controlled. Set ID is indicated as decimal (1 to 99) on menu and as Hexa decimal (0x0 to 0x63) on transmission/receiving protocol.
[DATA] : To transmit command data. Transmit 'FF' data to read status of command.
[Cr] : Carriage Return ASCII code '0x0D'
[ ] : ASCII code 'space (0x20)'
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.
Data 00: Illegal Code
01. Power (Command: k a)
▶ To control Power On/Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00: Power Off 01: Power On
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
▶ To show Power On/Off.
Transmission [k][a][ ][Set ID][ ][FF][Cr] Ack [a][ ][Set ID][ ][OK/NG][Data][x]
* Similarly, if other functions transmit '0xFF' data based on this format, Acknowledgement data feed back presents status about each function.
* OK Ack., Error Ack. and other message may display on the screen when TV is power On.
02. Aspect Ratio (Command: k c) (Main Picture Size)
▶ To adjust the screen format. (Main picture format) You can also adjust the screen format using the Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
| Data 01 : Normal screen(4:3) | 07 : 14:909 : Just Scan |
| 02 : Wide screen(16:9) | 0B : Full Wide10 to 1F : Cinema Zoom 1 to 16 |
04 : Zoom
06 : Original
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3 screen aspect ratio.
* In DTV/HDMI (1080i 50 Hz / 60 Hz, 720p 50Hz / 60 Hz, 1080p 24 Hz / 30 Hz / 50 Hz / 60 Hz), Component( 720p, 1080i, 1080p 50 Hz / 60 Hz) mode, Just Scan is available.
* Full Wide is supported only for DTV.
03. Screen Mute (Command: k d)
▶ To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00: Screen mute off (Picture on) Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.
04. Volume Mute (Command: k e)
▶ To control volume mute on/off.
You can also adjust mute using the MUTE button on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
▶ To adjust volume.
You can also adjust volume with the volume buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min: 00 to Max: 64
* Refer to 'Real data mapping'. See p.35.
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
▶ To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to 'Real data mapping'. See p.35.
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
▶ To adjust screen brightness.
You can also adjust brightness in the PICTURE menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to 'Real data mapping'. See p.35.
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
08. Colour (Command: k i)
▶ To adjust the screen colour.
You can also adjust colour in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to 'Real data mapping'. See p.35.
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
09. Tint (Command: k j)
▶ To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
* Refer to 'Real data mapping'. See p.35.
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness (Command: k k)
▶ To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to 'Real data mapping'. See p.35.
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
▶ To select OSD (On Screen Display) on/off when controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00: OSD off 01: OSD on
Ack [I][ ][Set ID][ ][OK/NG][Data][x]
12. Remote control lock mode (Command: k m)
▶ To lock the front panel controls on the monitor and remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00: Lock off 01: Lock on
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this mode.
When main power is on/off, external control lock is released.
* In the standby mode, if key lock is on, TV will not turn on by power on key of IR & Local Key.
13. Treble (Command: k r)
▶ To adjust treble.
You can also adjust treble in the AUDIO menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to 'Real data mapping'. See p.35.
Ack [r][ ][Set ID][ ][OK/NG][Data][x]
You can also adjust bass in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to 'Real data mapping'. See p.35.
Ack [s][ ][Set ID][ ][OK/NG][Data][x]
15. Balance (Command: k t)
▶ To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to 'Real data mapping'. See p.35.
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
16. Colour Temperature (Command: x u)
▶ To adjust colour temperature. You can also adjust Colour Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to 'Real data mapping'. See p.35.
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
17. Energy Saving (Command: j q)
▶ To reduce the power consumption of the TV. You can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
| Power Saving Function | Level | Description | ||||||||
| 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 | |||
| 0 | 0 | 0 | 0 | Low Power | 0 | 0 | 0 | Off | ||
| 0 | 0 | 0 | 0 | Low Power | 0 | 0 | 0 | Minimum | ||
| 0 | 0 | 0 | 0 | Low Power | 0 | 0 | 1 | Medium | ||
| 0 | 0 | 0 | 0 | Low Power | 0 | 0 | 1 | Maximum | ||
| 0 | 0 | 0 | 0 | Low Power | 0 | 0 | 1 | Screen | ||
| 0 | 0 | 0 | 0 | Low Power | 0 | 1 | 0 | Auto | ||
| 0 | 0 | 0 | 0 | Low Power | 0 | 1 | 0 | Auto | ||
▶ 'Auto' is available in TV that supports 'Intelligent Sensor'
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
18. Auto Configure(Command: j u)
▶ To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode.
Transmission [j][u][ ][Set ID][ ][Data][Cr]
Data 01: To set
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
19. Tune Command (Command: m a)
▶ Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][Cr]
Data00 : High channel data
Data01: Low channel data
ex. No. 47 -> 00 2F (2FH)
No. 394 -> 01 8A (18AH),
DTV No. 0 -> Don't care
Data02 : [Anttena]
0x00 : Analog Main
0x10 : DTV Main
0x20 : Radio
[Cable]
0x80 : Analog Main
0x90 : DTV Main
0xA0 : Radio
Channel data range
Analog - Min: 00 to Max: 63 (0 to 99)
Digital - Min: 00 to Max: 3E7 (0 to 999)
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
Data Min: 00 to Max: 7DH
20. Programme Add/Skip(Command: m b)
▶ To set skip status for the current Programme.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00:Skip 01:Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
21. Key(Command: m c)
▶ To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code - See p.29
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
22. Control Back Light(Command: m g)
▶ To control the back light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
23. Input select (Command: x b)
(Main Picture Input)
▶ To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data Structure
MSB
LSB
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
External Input Input Number
| External Input | Data | |||
| 0 | 0 | 0 | 0 | DTV |
| 0 | 0 | 0 | 1 | Analogue |
| 0 | 0 | 1 | 0 | AV |
| 0 | 1 | 0 | 0 | Component |
| 0 | 1 | 1 | 0 | RGB |
| 0 | 1 | 1 | 1 | HDMI |
| 1 | 0 | 0 | 0 | |
| 1 | 0 | 0 | 1 | |
| 1 | 0 | 1 | 0 | |
| Input Number | Data | |||
| 0 | 0 | 0 | 0 | Input1 |
| 0 | 0 | 0 | 1 | Input2 |
| 0 | 0 | 1 | 0 | Input3 |
| 0 | 0 | 1 | 1 | Input4 |
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
\* Real data mapping
00: Step 0
:
A: Step 10 (Set ID 10)
:
F : Step 15 (Set ID 15)
10: Step 16 (Set ID 16)
•
64: Step 100
:
6E:Step 110
:
73: Step 115
74: Step 116
+
CF: Step 199
+
FE:Step254
FF:Step 255
LG
Life's Good
(Only 42LN549D for India)
ENERGY STAR
This product qualifies for ENERGY STAR in the "factory default (Home Use)" setting.
Changing the factory default settings or enabling other features may increase power consumption that could exceed the limits necessary to quality for ENERGY STAR.
Record the model number and serial number of the TV.
Refer to the label on the back cover and quote this information to your dealer when requiring any service.
MODEL
SERIAL
(Only DTV)
Digital Video Broadcasting
