USER MANUAL 47LD450C LG

Please read this manual carefully before operating your set and retain it for future reference.

LED LCD TV MODELS

19LE5300	32LE5300	42LE7300
22LE5300	37LE5300	47LE7300
26LE5300	42LE5300	55LE7300
22LE5500	47LE5300
26LE5500	55LE5300

LCD TV MODELS

32LD420	32LD450	32LD520	42LD630
42LD420	37LD450	42LD520	47LD630
47LD420	42LD450	47LD520	55LD630
	47LD450	55LD520
	37LD450C	55LD520C
	42LD450C
	47LD450C

WARNING / CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

WARNING / CAUTION

To prevent fire or shock hazards, do not expose this product to rain or moisture.

FCC Notice

Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause (harmful) interference, and (2) this device must accept any interference received, including interference that may cause undesired operation (of the device).

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CAUTION

Do not attempt to modify this product in any way without written authorization from LG Electronics.

Unauthorized modification could void the user's authority to operate this product.

SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.

1 Do not use this apparatus near water.

2 Clean only with dry cloth.

3 Do not block any ventilation openings. Install in accordance with the ma nufacturer's instructions.

4 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

6 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

7 Only use attachments/accessories specified by the manufacturer.

8 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

9 Unplug this apparatus during lighting storms or when unused for long periods of time.

10 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

SAFETY INSTRUCTIONS

11 Never touch this apparatus or antenna during a thunder or lighting storm.
12 When mounting a TV on the wall, make sure not to install the TV by the hanging power and signal cables on the back of the TV.
13 Do not allow an impact shock or any objects to fall into the product, and do not drop onto the screen with something.
14 CAUTION concerning the Power Cord:

It is recommend that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not use a damaged or loose power cord. Do not pull on the power cord to unplug the TV. Grasp the plug when unplugging the power cord.

15 WARNING - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles or expose the TV to direct air conditioning.

16 Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).

17 GROUNDING

Ensure that you connect the earth ground wire to prevent possible electric shock (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker.

Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

Short-circuit Breaker Power Supply

18 DISCONNECTING DEVICE FROM MAINS

Mains plug is the disconnecting device. The plug must remain readily operable.

19 As long as this unit is connected to the AC wall outlet, it is not disconnected from AC power even if you turn off the power switch on the unit.

ANTENNAS

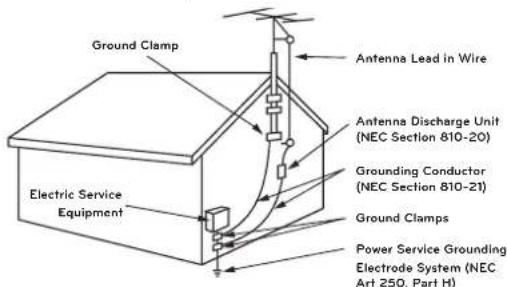

Outdoor antenna grounding

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Antenna grounding according to the National Electrical Code, ANSI/NFPA 70

Ground Clamp Electrical Service Equipment Antenna Lead in Wire Antenna Discharge Unit (NEC Section 810-20) Grounding Conductor (NEC Section 810-21) Ground Clamps Power Service Grounding Electrode System (NEC Art 250, Part H)

NEC: National Electrical Code

Cleaning

When cleaning, unplug the power cord and rub gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzene.

Moving

Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press against or put stress on the front panel of the TV.

Ventilation

Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials (e.g.) plastic while plugged in. Do not install in excessively dusty places.

Take care not to touch the ventilation openings. When watching the TV for a long period, the ventilation openings may become hot.

If you smell smoke or other odors coming from the TV or hear strange sounds, unplug the power cord contact an authorized service center.

Do not press strongly upon the panel with hand or sharp object such as nail, pencil or pen, or make a scratch on it.

Keep the product away from direct sunlight.

If the TV feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with TV.

Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.

Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

ON DISPOSAL

(Only Hg lamp used LCD TV)

The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority.

CONTENTS

WARNING / CAUTION 2

SAFETY INSTRUCTIONS

Important Safety Instructions 3

FEATURE OF THIS TV 8

PREPARATION

Accessories 9

Front Panel Information.... 11

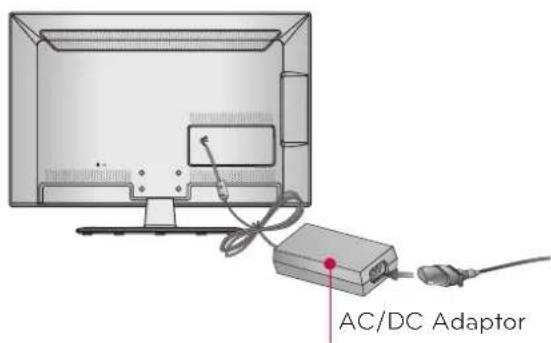

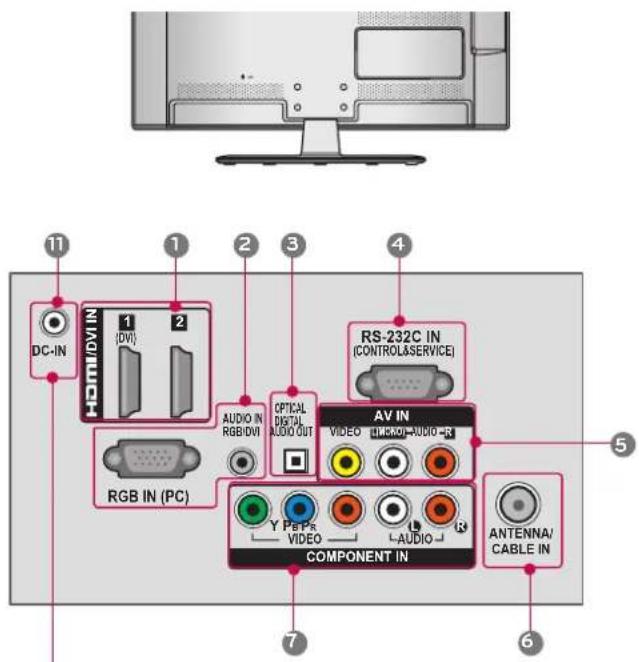

Back Panel Information ....16

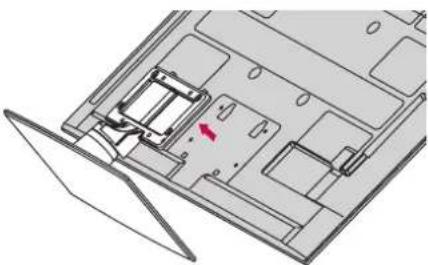

Stand Instructions 20

VESA wall mounting 28

Cable Management 30

Desktop Pedestal Installation 32

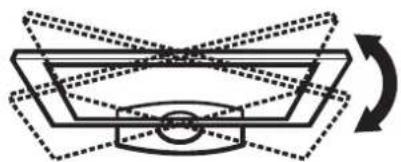

Swivel Stand 32

Kensington Security System ....32

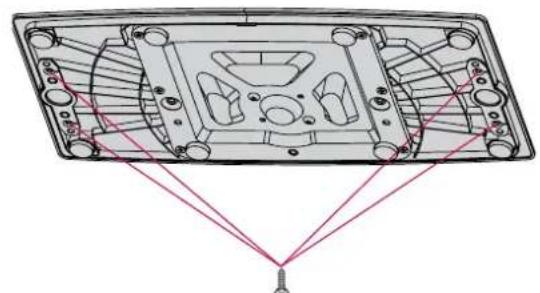

Attaching the TV to a Desk 33

Securing the TV to the Wall to Prevent Falling when the TV is used on a stand ....34

Antenna or Cable Connection ....35

EXTERNAL EQUIPMENT SETUP

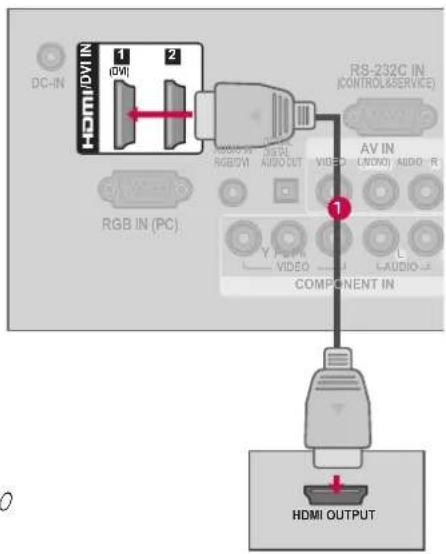

HD Receiver setup 36

DVD setup 39

VCR SETUP 41

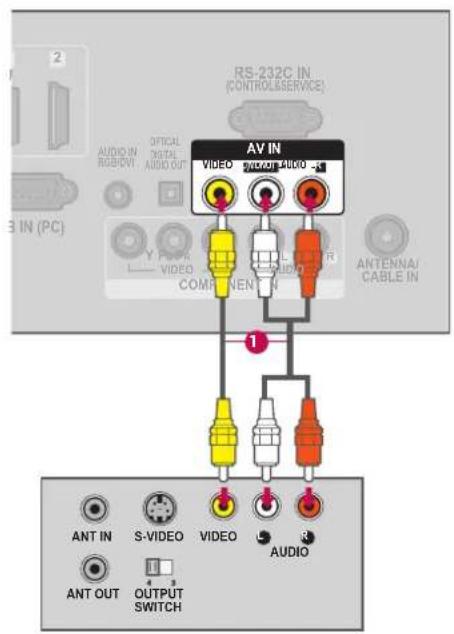

Other A/V Source Setup 42

USB Connection 43

Headphone Setup 43

Audio out Connection ....44

PC Setup 45

WATCHING TV / CHANNEL CONTROL

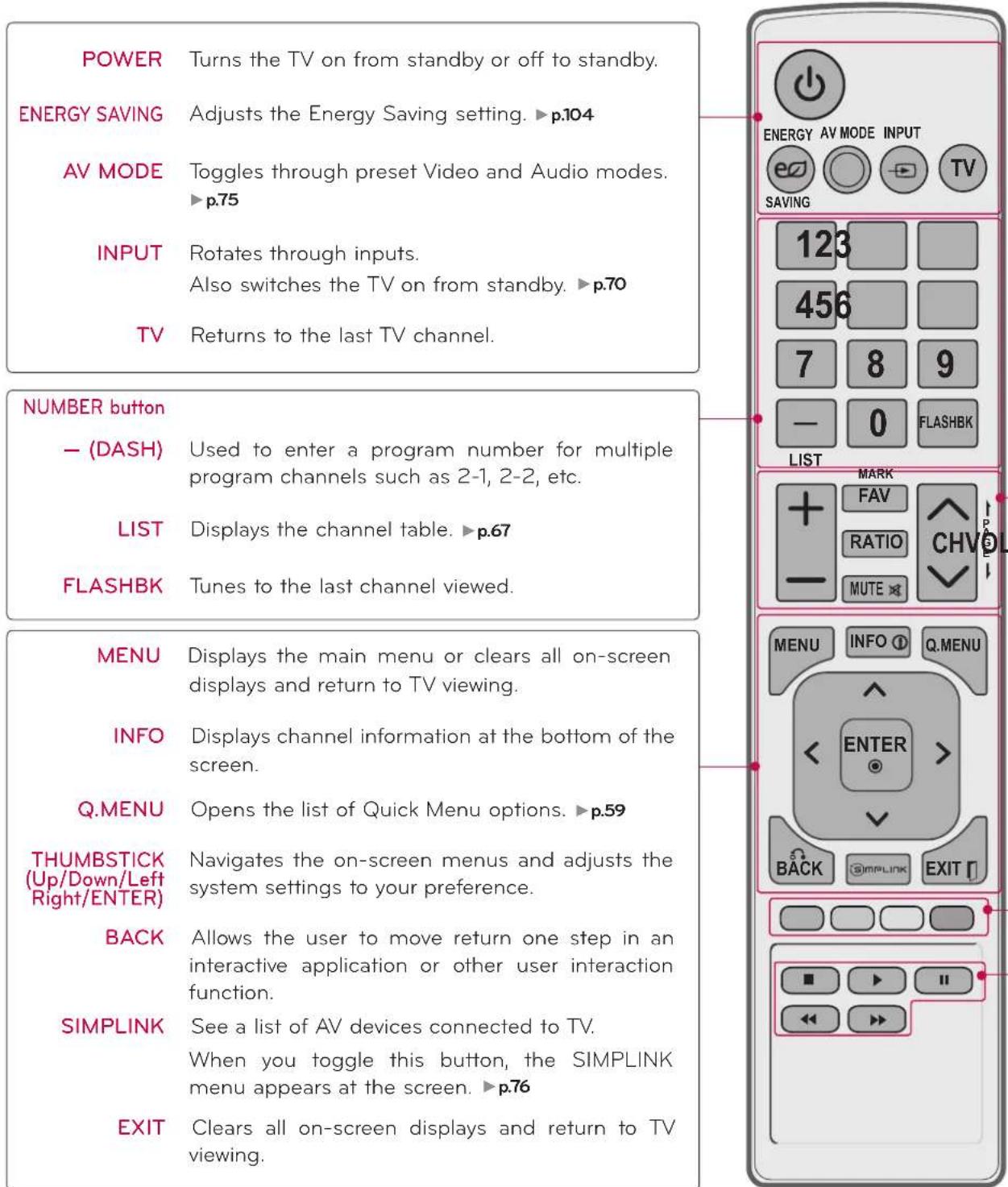

Remote Control Functions ....52

Turning on the TV 54

Channel Selection....54

Volume Adjustment....54

Initial Setting 55

On-Screen Menus Selection 57

Quick menu 59

Customer Support

- Picture Test / Sound Test....60

- Product/Service Info....61

Simple Manual 62

Channel Setup

- Auto Scan (Auto Tuning)......63

- Add/Delete Channel (Manual Tuning).....64

- Channel Editing 65

Favorite Channel Setup 66

Favorite Channel List....66

Channel List 67

Channel Information 68

Channel Brief Information 69

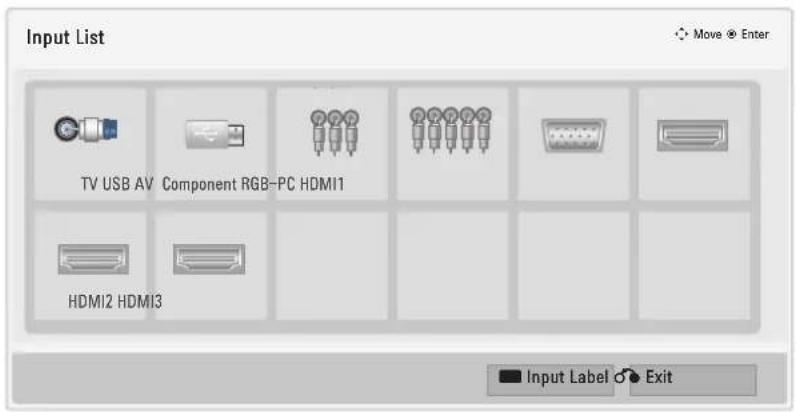

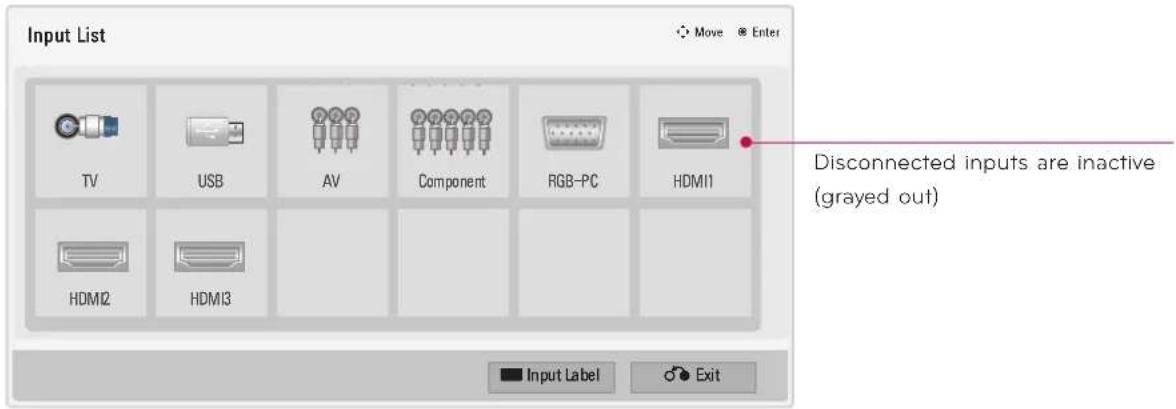

Input List 70

Input Label 71

Reset to factory default (Initial Setting) ..... 72

Mode Setting 73

Demo Mode 74

AV Mode 75

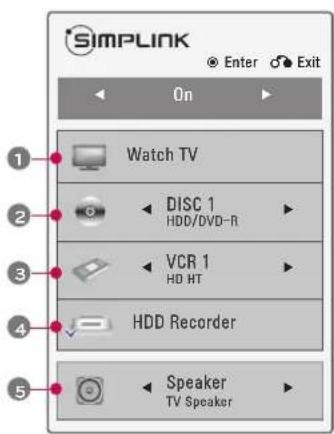

SIMPLINK 76

MY MEDIA

Connection Method 78

Entry Mode 79

Movie List 80

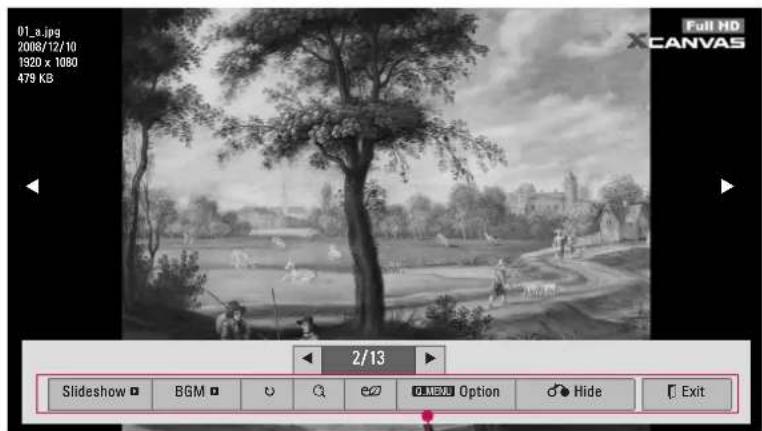

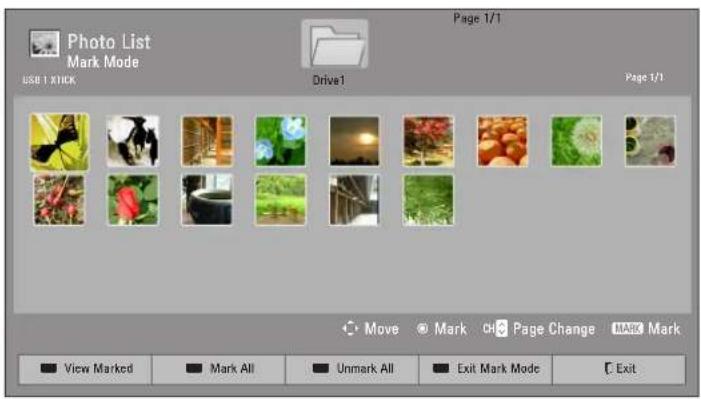

Photo List 87

Music List 93

DivX Registration Code 98

Deactivation 99

PICTURE CONTROL

Picture Size (Aspect Ratio) Control .....100

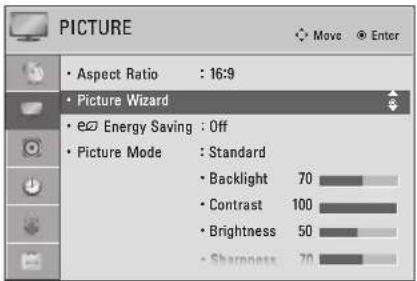

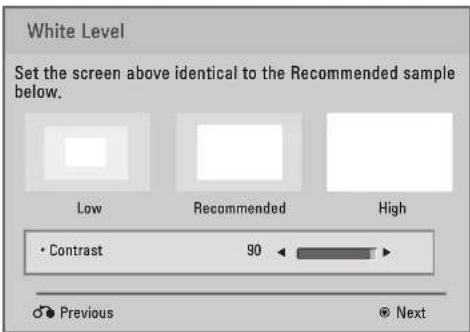

Picture Wizard 102

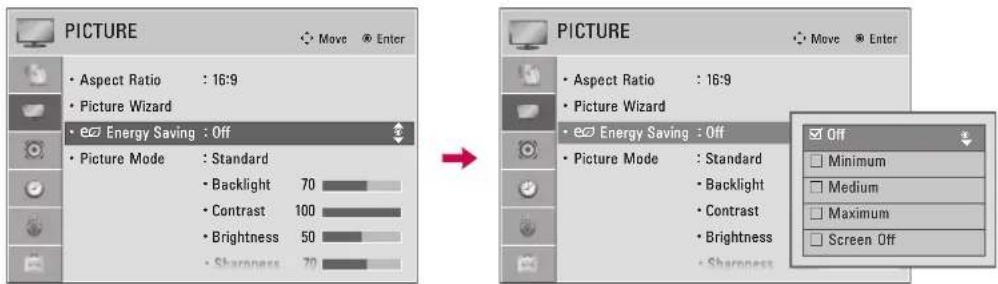

eEnergy Saving 104

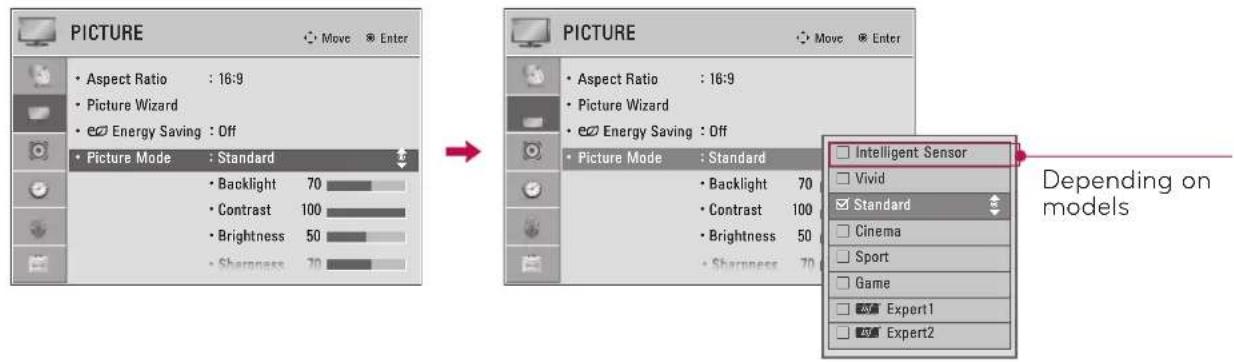

Preset Picture Settings (Picture mode).....105

Manual Picture Adjustment - User Mode106

Picture Improvement Technology (Advanced Control) 107

Expert Picture Control ....108

Picture Reset 111

Power Indicator 111

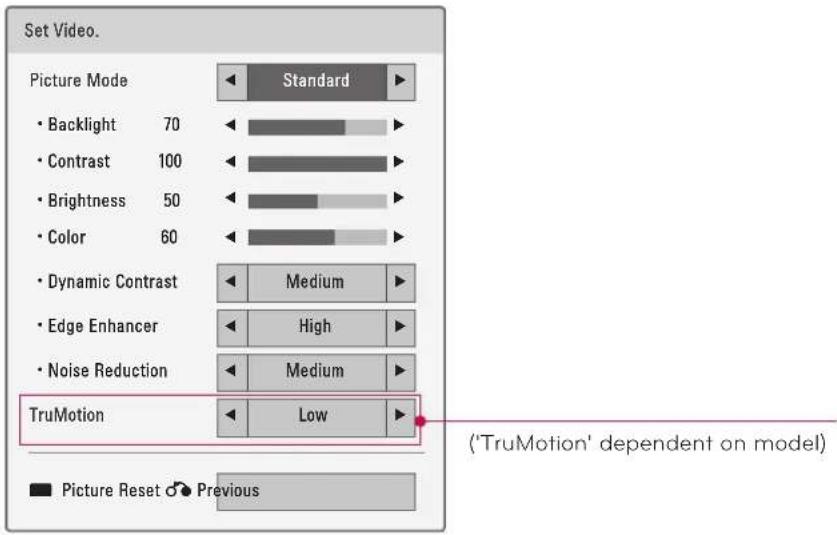

TruMotion 112

SOUND & LANGUAGE CONTROL

Auto Volume 113

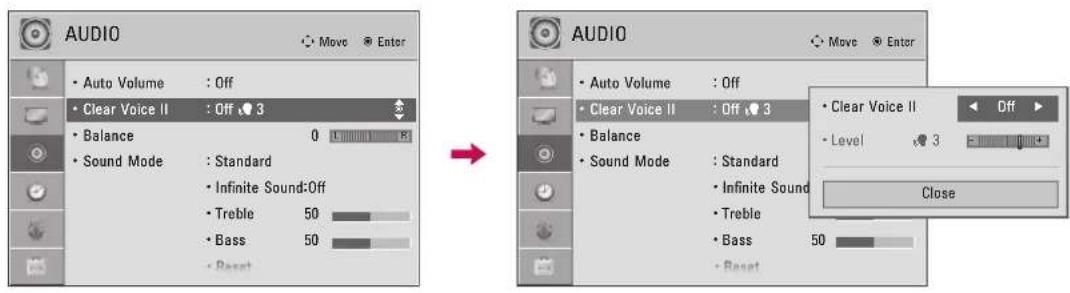

Clear Voice II 114

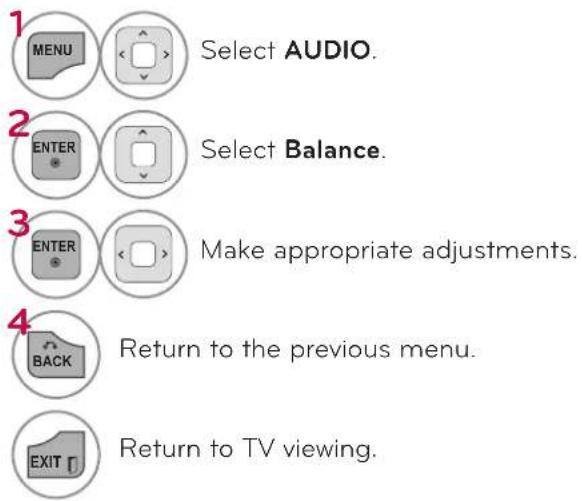

Balance 115

Preset Sound Settings (Sound Mode) ..... 116

Sound Setting Adjustment - User Mode ...117

Audio Reset 118

TV Speakers On/Off Setup 119

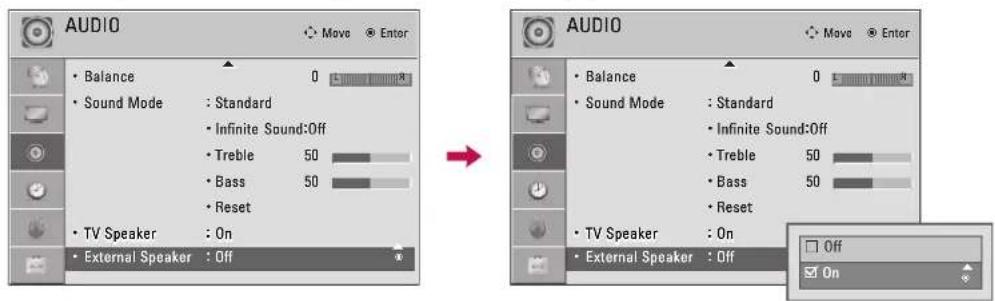

External Speakers On/Off Setup 119

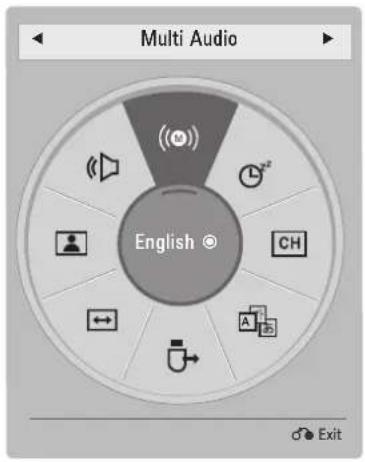

Stereo/SAP Broadcast Setup....120

Audio Language 121

On-screen Menus Language Selection .... 122

Caption Mode

- Analog Broadcasting System Captions . 123

- Digital Broadcasting System Captions ... 124

- Caption Option 125

TIME SETTING

Clock Setting

- Auto Clock Setup 126

- Manual Clock Setup ....127

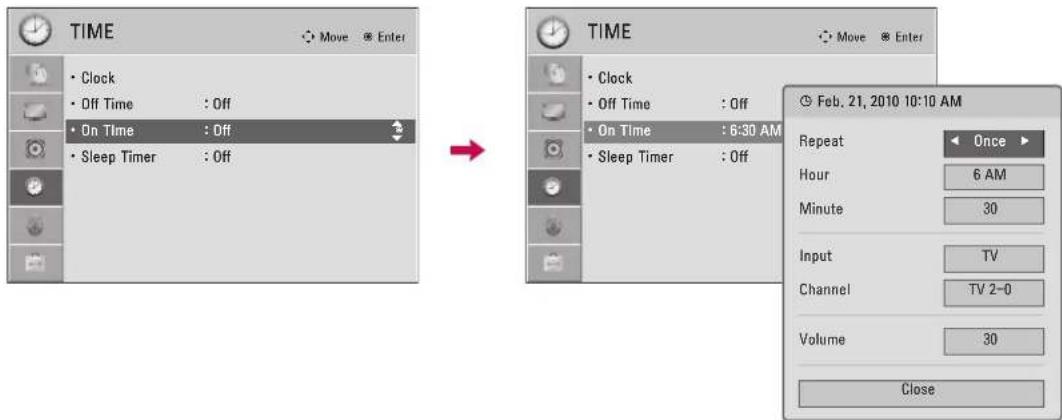

Auto On/Off Time Setting 128

Sleep Timer Setting 129

PARENTAL CONTROL / RATINGS

Set Password & Lock System

- Setting up Your Password....130

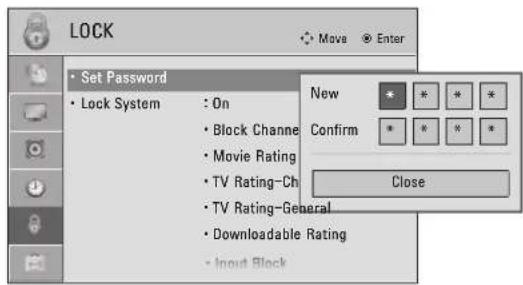

- Set Password 131

- Lock System 132

Channel Blocking 133

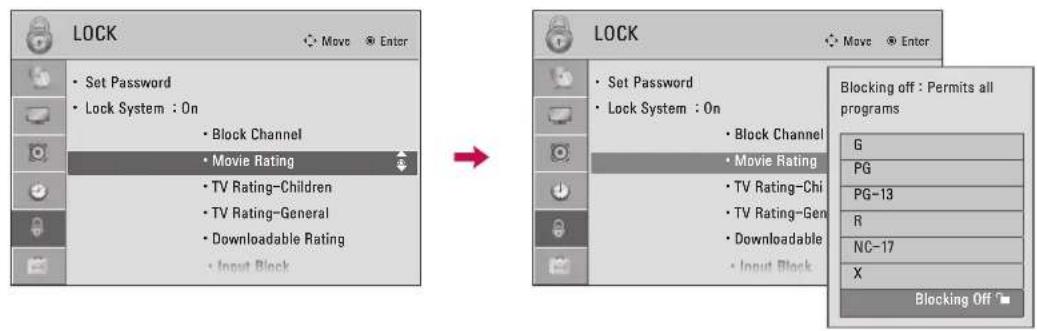

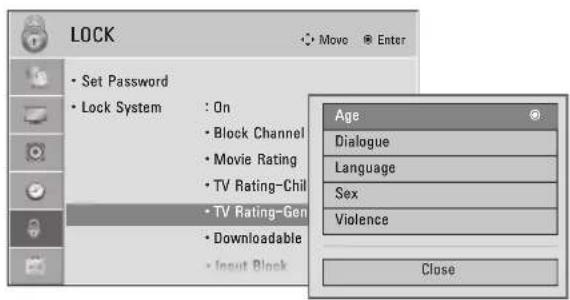

Movie & TV Rating 134

Downloadable Rating 139

External Input Blocking ....140

Key Lock 141

APPENDIX

Troubleshooting 142

Maintenance 145

Product Specifications 146

IR Code 151

External Control through RS-232C 152

Open Source License 158

FEATURE OF THIS TV

■ Some of these features are not available on all models.

High-definition television. High-resolution digital television broadcast and playback system composed of roughly a million or more pixels, 16:9 aspect-ratio screens, and AC3 digital audio. A subset of digital television, HDTV formats include 1080i and 720p resolutions.

AV Mode is three preset picture and audio settings. It allows the viewer to quickly switch between common settings. It includes Cinema, Sports, and Game Modes.

A unique invisible speaker system tuned by renowned audio expert, Mr. Mark Levinson. Speakers are embedded in strategic spots behind the front cabinet and use minute vibrations to turn the entire front bezel into the speaker system. The result is a clean, polished look, and enhanced audio by increasing the "sweet spot", giving a wider and richer sound field.

Automatically enhances and amplifies the sound of human voice frequency range to help keep dialogue audible when background noise swells.

Unlike other sensors which can only sense brightness of ambient light, LG's "Intelligent Sensor" uses 4,096 sensing steps to evaluate its surroundings. Using a sophisticated algorithm, the LG processes picture quality elements including brightness, contrast, color, sharpness and white balance. The result is a picture optimized for it's surroundings, more pleasing to watch and which can also save up to 50% in power consumption.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Displays HDTV programs in full 1920 x 1080p resolution for a more detailed picture.

View videos and photos and listen to music on your TV through USB 2.0 ('videos' dependent on model).

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. "DivX Certified to play DivX video up to HD 1080p, including premium content" "Pat. 7,295,673; 7,460,688;7,519,274"

IMPORTANT INFORMATION TO PREVENT "IMAGE BURN / BURN-IN" ON YOUR TV SCREEN

• When a fixed image (e.g. logos, screen menus, video game, and computer display) is displayed on the TV for an extended period, it can become permanently imprinted on the screen. This phenomenon is known as "image burn" or "burn-in." Image burn is not covered under the manufacturer's warranty.
  In order to prevent image burn, avoid displaying a fixed image on your TV screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma).
  ■ Image burn can also occur on the letter-boxed areas of your TV if you use the 4:3 aspect ratio setting for an extended period.

PREPARATION

ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV.

The accessories included may differ from the images below.

Owner's Manual CD Manual

Illustration of a remote control with two batteries (1.5V and 2V) shown below, no text or symbols present.

Remote Control, Batteries (AAA)

Not included with all models

Polishing Cloth

* Wipe spots on the exterior only with the polishing cloth.
* Do not wipe roughly when removing stains. Excessive pressure may cause scratches or discoloration.

Option Extras

D-sub 15 pin Cable

When using the VGA (D-sub 15 pin cable) PC connection, the user must use shielded signal interface cables with ferrite cores to maintain standards compliance.

19/22/26LE5300, 22/26LE5500

(For 26LE5300, 26LE5500)

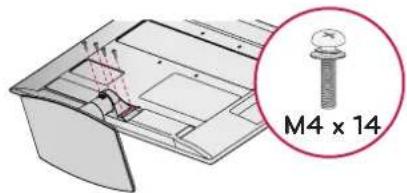

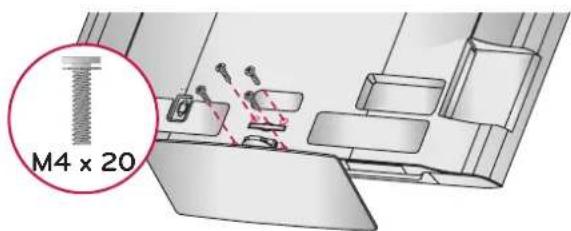

(M4 × 14) (M4 × 20)

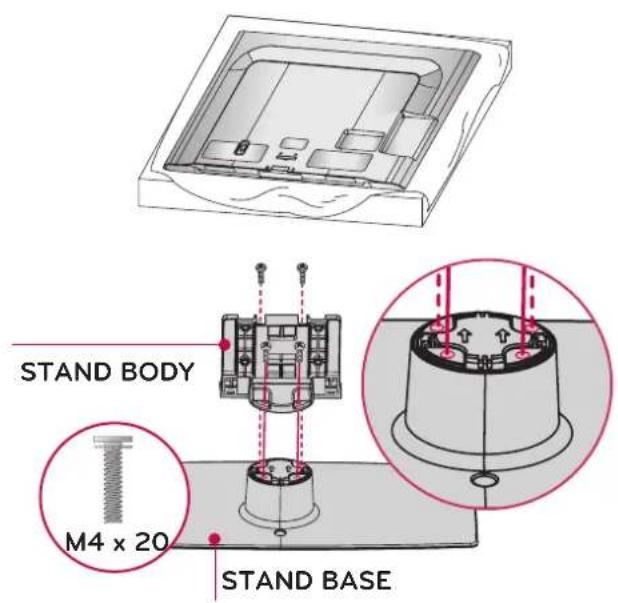

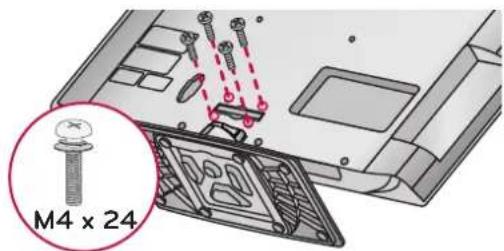

Screws for stand assembly (Refer to P.20, 22)

Cable Holder (Refer to p.31)

(For 26LE5300, 26LE5500)

(Refer to p.29)

AC/DC AdapterRing PowersCord

32/37/42/47LD450, 37/42/47LD450C, 42/47/55LD630

Screws for stand assembly (Refer to P.24)

(For 32/37/42LD450, 37/42/LD450C, 42LD630)

Screws for stand fixing (Refer to P.33)

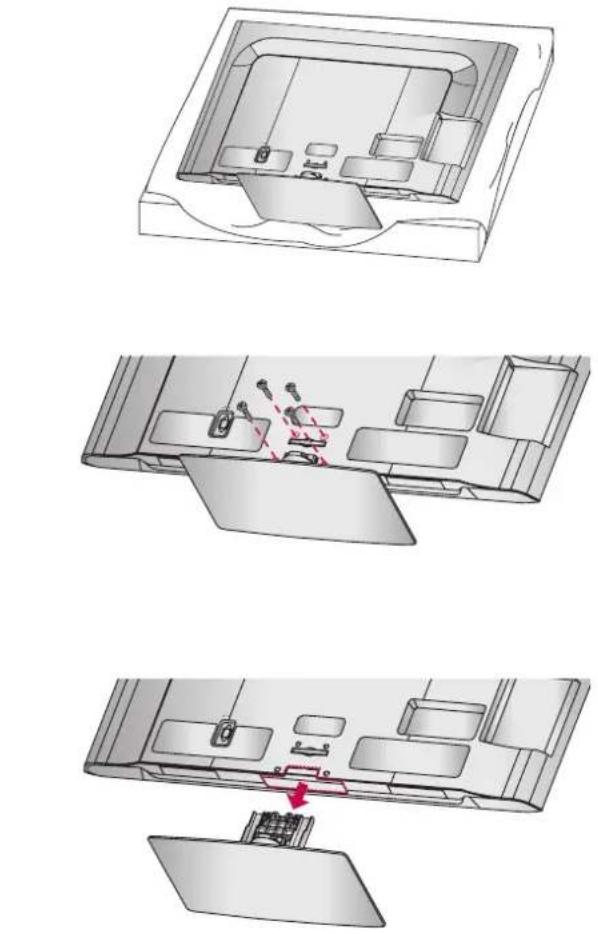

Protection Cover (Refer to P.25)

Power Cord

(For 37/42/47LD450C)

Protective Bracket and Screw for Power Cord (Refer to P.30)

32/42/47LD420, 32/42/47/55LD520, 55LD520C

Screws for stand assembly (Refer to P.26)

(For 55LD520C)

Torx plus Star head screw (Refer to P.26)

(Except 47LD420, 47/55LD520, 55LD520C)

Screw for stand fixing (Refer to P.33)

Protection Cover (Refer to P.27)

(For 55LD520C)

Power Cord

Protective Bracket
and Screw for Power Cord (Refer to P.30)

32/37/42/47/55LE5300, 42/47/55LE7300

(32/37/42/47/55LE5300)
(32LE5300) (47/55LE5300)(37/42LE5300)

(M4 × 22)

(M4 × 26)

16)(M4 × 24)

× 4× 4× 4 × 4

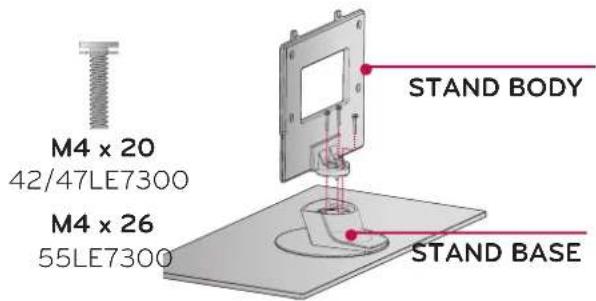

Screws for stand assembly (Refer to P.22)

(42/47LE7300)

(M4 × 20)

(M4 × 12)

(M4 × 26)

(M4 × 16)

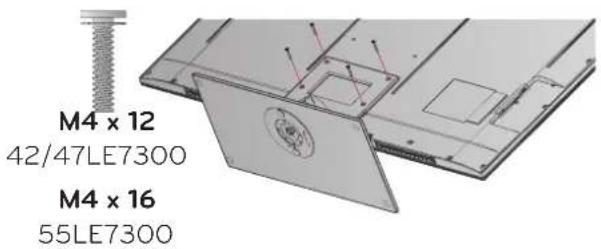

Screws for stand assembly (Refer to P.21)

Cable Holder (Refer to p.31)

Component gender cable, AV gender cable

(For 42/47/55LE7300)

Cable Management Clip (Refer to p.31)

(For 32LE5300)

Screw for stand fixing (Refer to P.33)

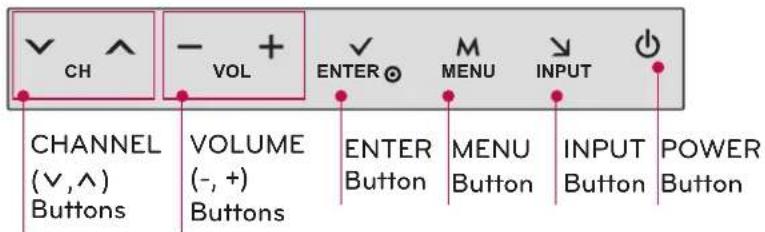

FRONT PANEL INFORMATION

■ Image shown may differ from your TV.

19/22/26/32/37/42/47/55LE5300, 22/26LE5500

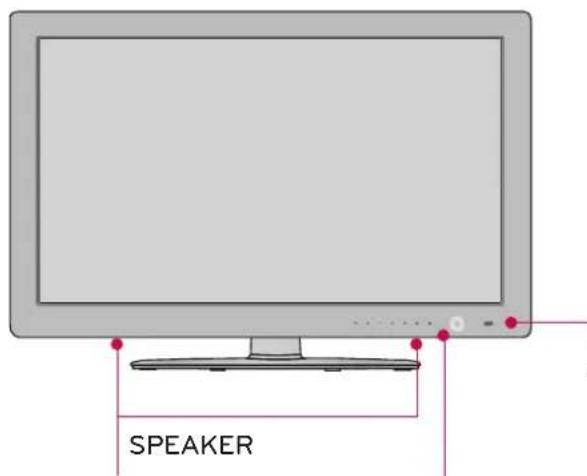

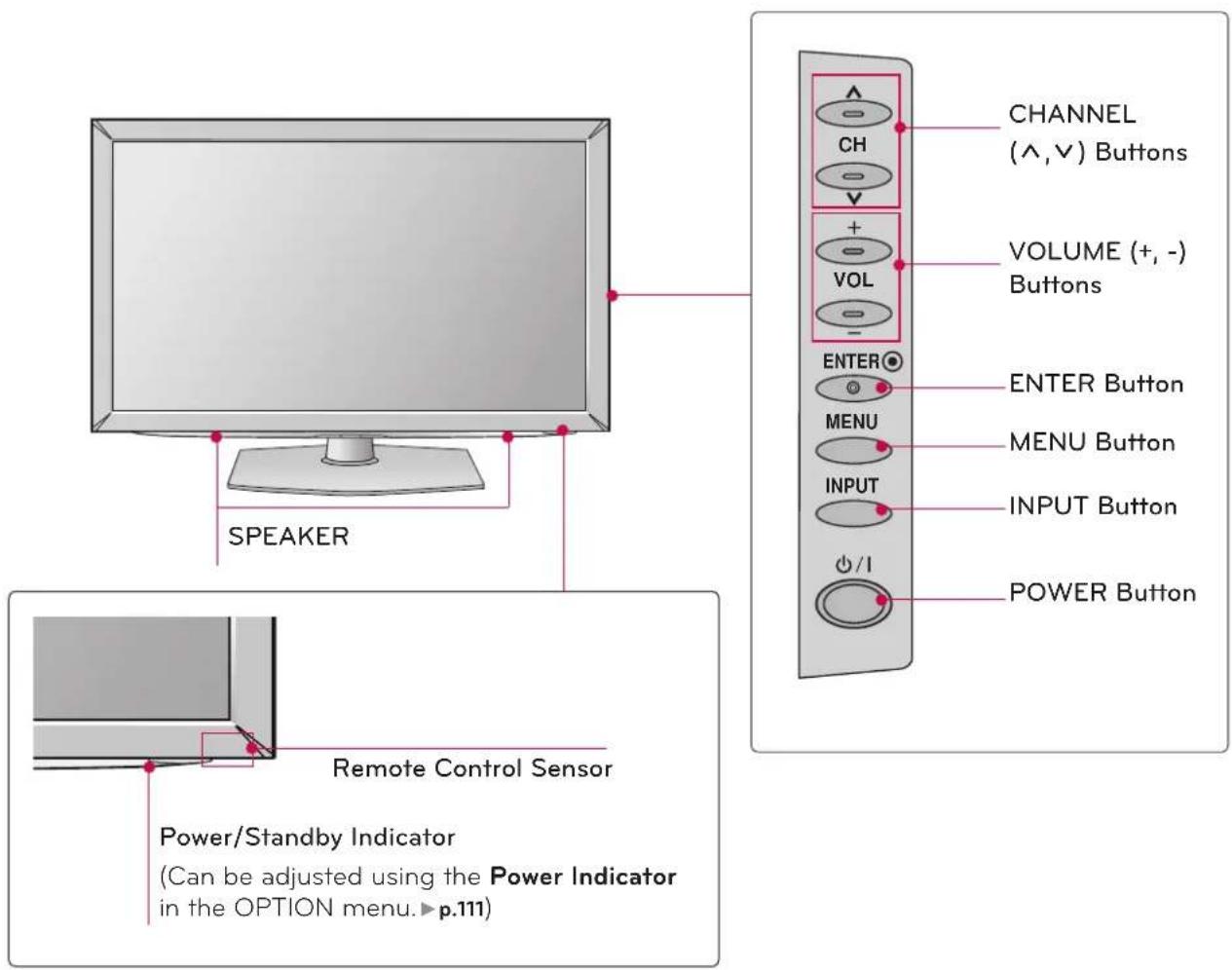

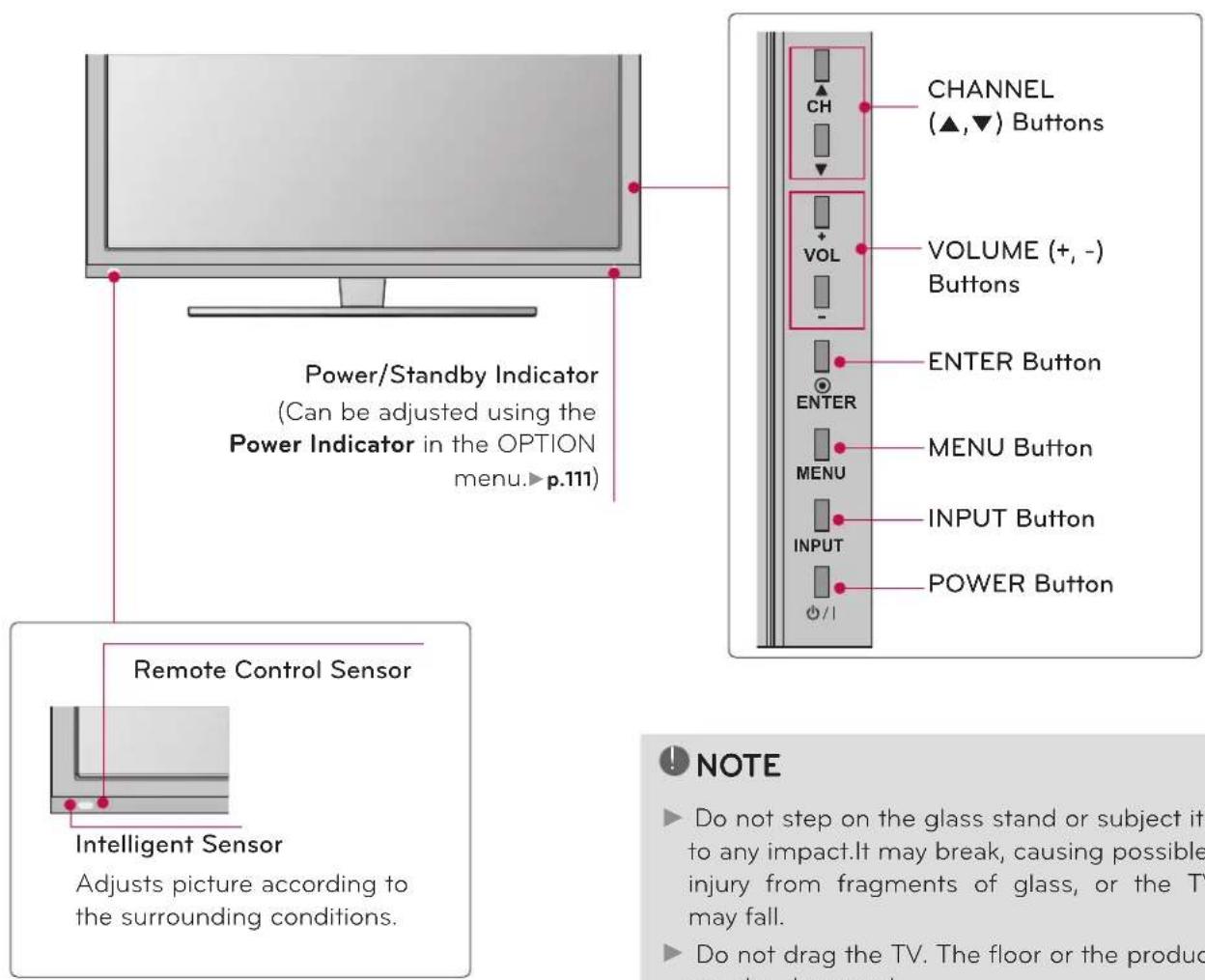

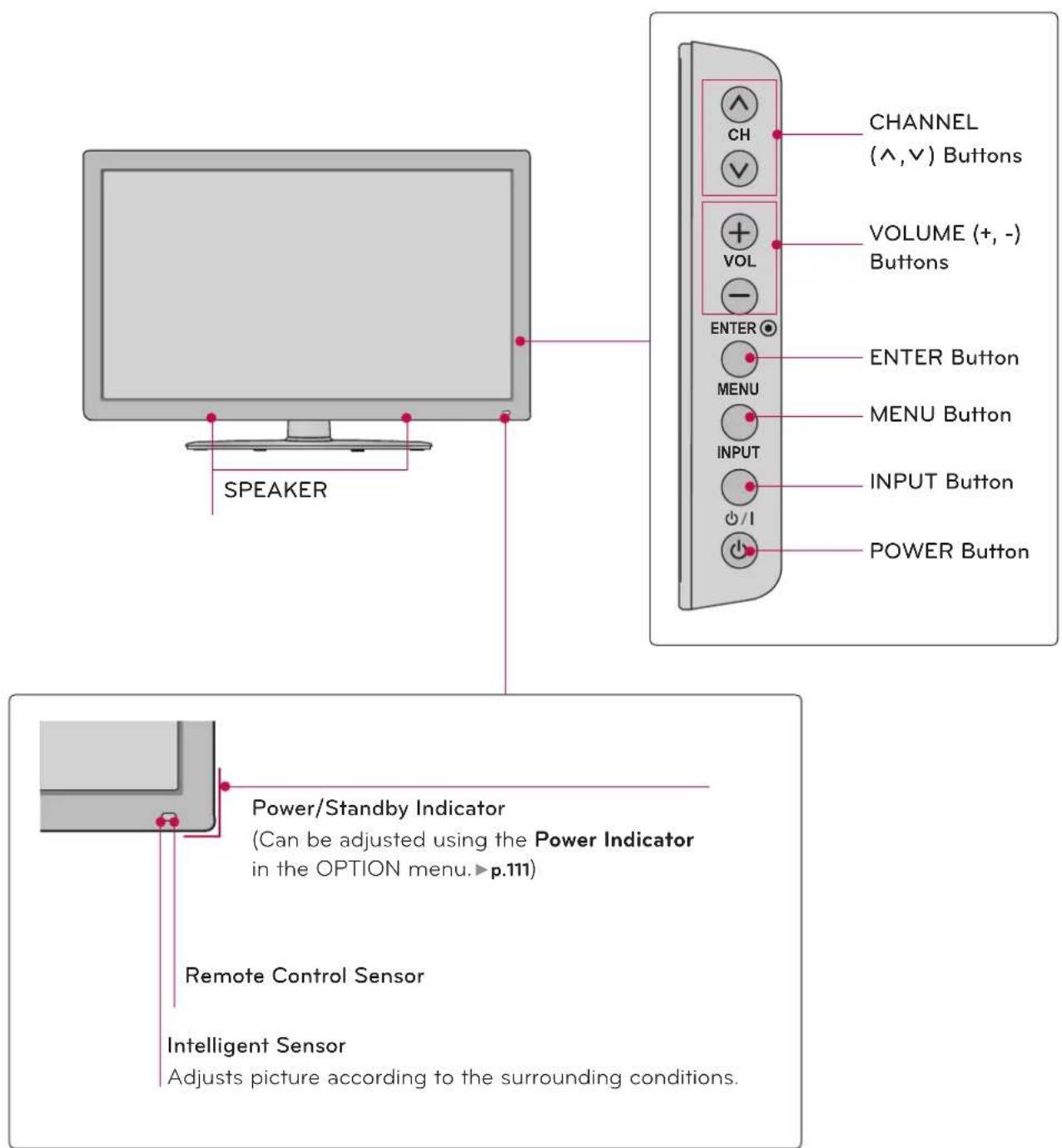

SPEAKER

19/22/26LE5300, 22/26LE5500

Remote Control Sensor

Power/Standby Indicator

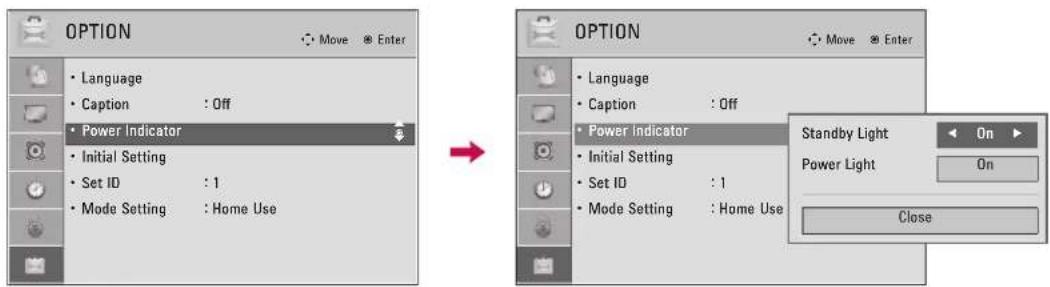

(Can be adjusted using the Power Indicator in the OPTION menu.▶p.111)

32/37/42/47/55LE5300

Remote Control Sensor Intelligent Sensor

Adjusts picture according to the surrounding conditions

Power/Standby Indicator

(Can be adjusted using the Power Indicator in the OPTION menu.▶p.111)

19/22/26LE5300, 22/26LE5500

CHANNEL (∨,∧) Buttons VOLUME (-, +) Buttons ENTER M MENU INPUT Button POWER Button

32/37/42/47/55LE5300

CH VOL ENTER ⏻ MENU INPUT ⏻/ CHANNEL (∨,∧) Buttons VOLUME (-, +) Buttons ENTER Button MENU Button INPUT Button POWER Button

PREPARATION

■ Image shown may differ from your TV.

32/37/42/47LD450, 37/42/47LD450C

SPEAKER CHANNEL (∧,∨) Buttons VOLUME (+,-) Buttons VOL ENTER ENTER Button MENU MENU Button INPUT INPUT Button POWER Button Remote Control Sensor Power/Standby Indicator (Can be adjusted using the Power Indicator in the OPTION menu.► p.111)

42/47/55LD630

SPEAKER CHANNEL (∧,∨) Buttons VOLUME (+,-) Buttons VOL - ENTER ENTER Button MENU MENU Button INPUT INPUT Button POWER Button Power/Standby Indicator (Can be adjusted using the Power Indicator in the OPTION menu.►p.111) Remote Control Sensor Intelligent Sensor Adjusts picture according to the surrounding conditions.

PREPARATION

■ Image shown may differ from your TV.

32/42/47LD420

SPEAKER

Remote Control Sensor

Power/Standby Indicator

(Can be adjusted using the Power Indicator in the OPTION menu. ▶ p.111)

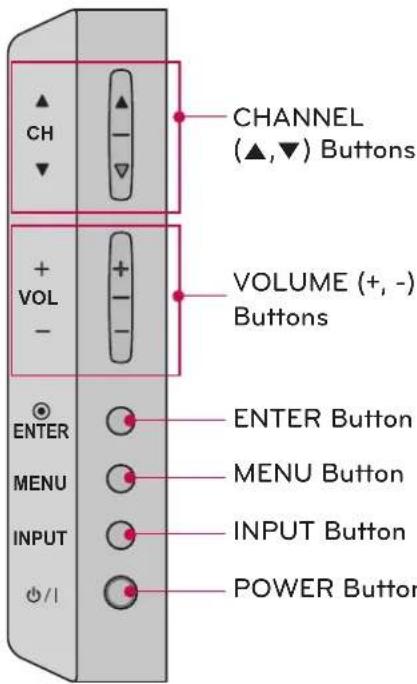

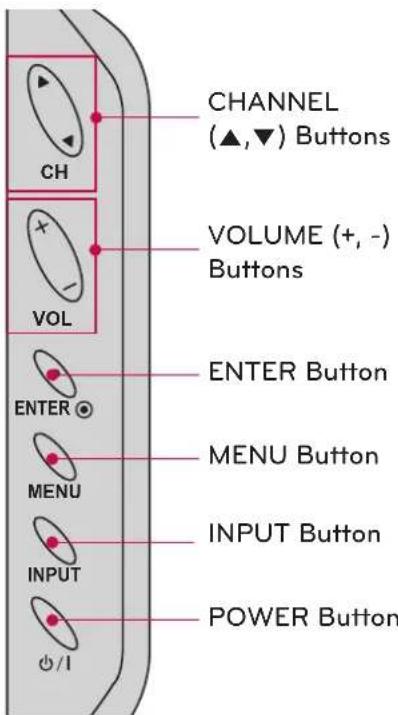

CHANNEL (▲,▼) Buttons VOLUME (+, -) Buttons ENTER MENU INPUT POWER Button

32/42/47/55LD520, 55LD520C

SPEAKER

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Remote Control Sensor, Intelligent Sensor

Adjusts picture according to the surrounding conditions

Power/Standby Indicator

(Can be adjusted using the Power Indicator in the OPTION menu.▶ p.111)

CHANNEL (▲,▼) Buttons CH VOLUME (+,-) Buttons VOL ENTER Button ENTER MENU Button MENU INPUT Button INPUT POWER Button #/1

42/47/55LE7300

Power/Standby Indicator (Can be adjusted using the Power Indicator in the OPTION menu.► p.111) Remote Control Sensor Intelligent Sensor Adjusts picture according to the surrounding conditions. CHANNEL (▲,▼) Buttons VOLUME (+, -) Buttons ENTER Button ENTER MENU Button INPUT Button POWER Button NOTE ► Do not step on the glass stand or subject it to any impact. It may break, causing possible injury from fragments of glass, or the TV may fall. ► Do not drag the TV. The floor or the produc

NOTE

Do not step on the glass stand or subject it to any impact. It may break, causing possible injury from fragments of glass, or the TV may fall.
Do not drag the TV. The floor or the product may be damaged.

PREPARATION

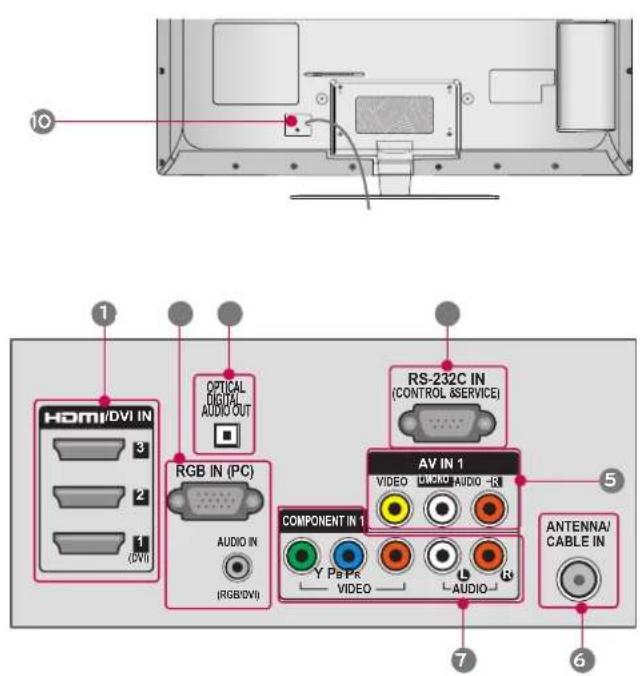

BACK PANEL INFORMATION

■ Image shown may differ from your TV.

19/22/26LE5300, 22/26LE5500

DC-IN HDMI/DVI IN 1 (DVI) 2 RGB IN (PC) AUDIO IN RGB DVI OPTICAL DIGITAL AUDIO OUT AV IN VIDEO LIM/ROI/AUDIO-R COMPONENT IN Y PS PR VIDEO AUDIO ANTENNA/ CABLE IN RS-232C IN (CONTROLSERVICE) 5 6 7 11 1 2 3 4 5

19/22LE5300, 22LE5500

USB IN HIP 8 9

26LE5300, 26LE5500

USB IN H2403/163 HIP 8 1 9

Power Connection

AC/DC Adaptor

1 Connect the AC/DC adapter plug to the power input jack on the TV.
2 Connect the power cord to the AC/DC adapter first, then plug the power cord into the wall power outlet.

CAUTION

▶ Please be sure to connect the TV to the AC/DC power adapter before connecting the TV's power plug to a wall power outlet.

32/37/42/47/55LE5300

42/47/55LE7300

1 2 3 4 HDMI/DVI IN 3 2 1(DVI) RGB IN (PC) AUDIO IN (RGB/DVI) RS-232C IN (CONTROL & SERVICE) AV IN 1 VIDEO AUDIO COMPONENT IN 1 Y PS Ps VIDEO AUDIO ANTENNA/CABLE IN 5 7 6

USB IN IN4 HIP COMPONENT IN2 Y FB PR/ AUDIO AV IN2 VIDEO/ AUDIO

CAUTION

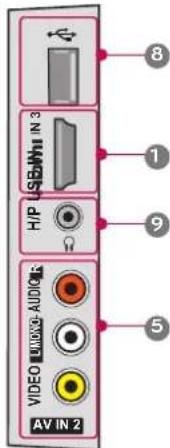

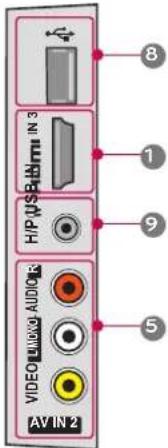

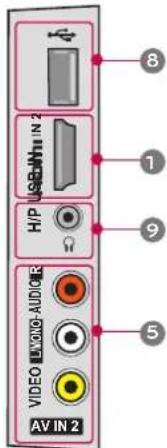

For HDMI IN 4 and USB IN

For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches) thick.

Technical illustration of two types of USB connectors with labeled dimensions (A), no text or symbols present.

^* A ≤ 10 mm (0.39 inches)

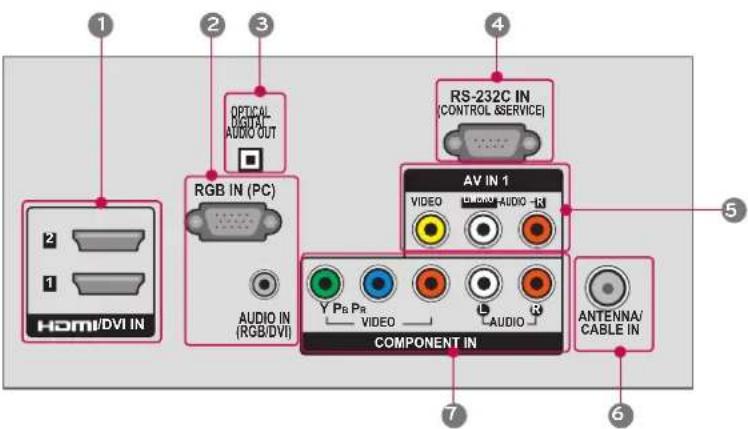

32/42/47LD420, 32/37/42/47LD450

Top-down view of a computer monitor with a red indicator light and numbered label (10), showing no text or symbols on the device itself.

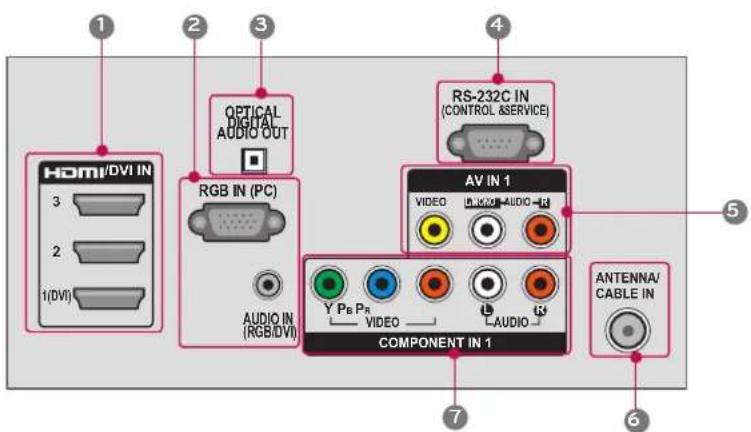

1 HOM/DVI IN 2 OPTICAL AUDIO OUT 3 RGB IN (PC) AUDIO IN (RGB/DVI) 4 RS-232C IN (CONTROL & SERVICE) AV IN 1 VIDEO LINK/AUDIO -R COMPONENT IN 5 Y P6 P8 VIDEO AUDIO 7 ANTENNA/ CABLE IN 6

8 1 9 5 VIDEO LVING-AUDICER AV IN 2

32/42/47/55LD520, 55LD520C, 42/47/55LD630

Top-down view of a computer monitor with visible grille and base (no text or symbols)

32/42/47/55LD520, 55LD520C

42/47/55LD630

1 2 3 OPTICAL DIGITAL AUDIO OUT RGB IN (PC) AUDIO IN (RGB/DVI) COMPONENT IN RS-232C IN (CONTROL & SERVICE) AV IN 1 VIDEO AUDIO L AUDIO ANTENNA/ CABLE IN 5 6 7 1 2 1 HOMI/DVI IN

8 1 9 5 VIDEO IN 2 AV IN 2

8 1 9 5 VIDEO AUDIO AUDIO AV IN 2

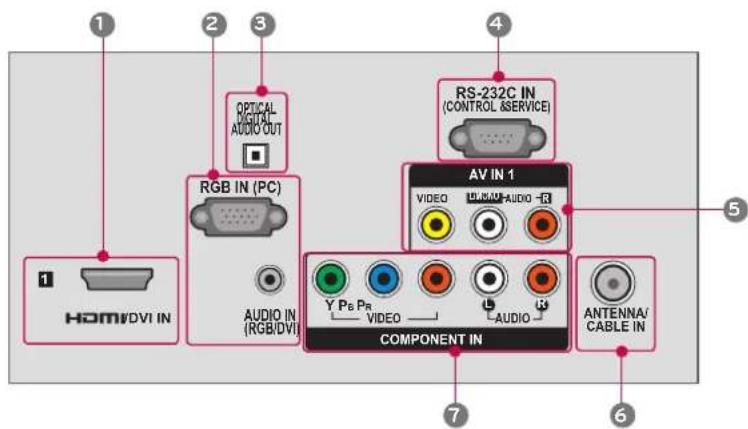

37/42/47LD450C

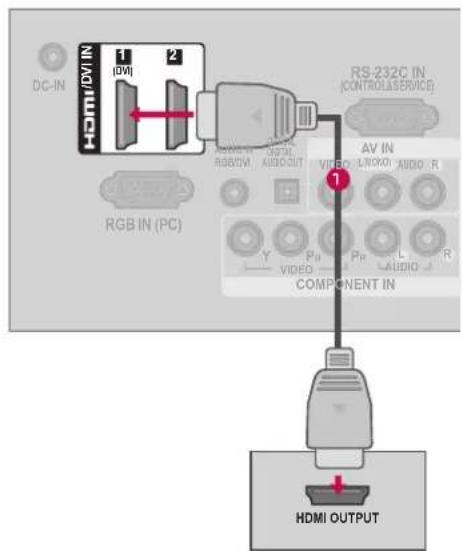

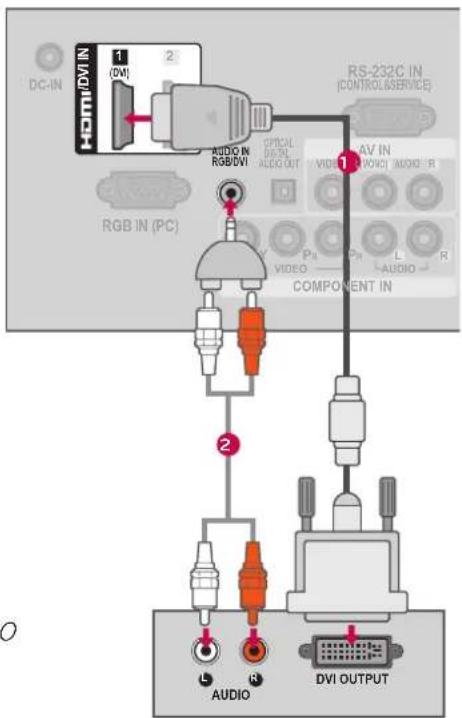

① HDMI/DVI IN, HDMI IN

Digital Connection.

Supports HD video and Digital audio. Doesn't support 480i.

Accepts DVI video using an adapter or HDMI to DVI cable (not included).

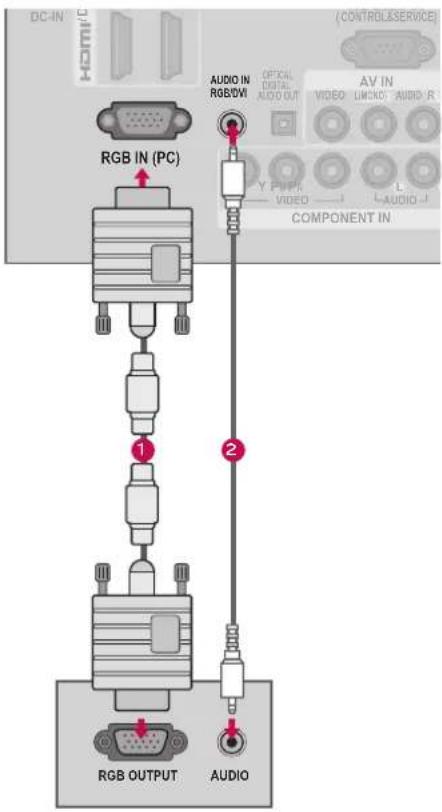

② RGB IN (PC)

Analog PC Connection. Uses a D-sub 15 pin cable (VGA cable).

AUDIO IN (RGB/DVI)

0.32 cm (1/8 inch) headphone jack for analog PC audio input.

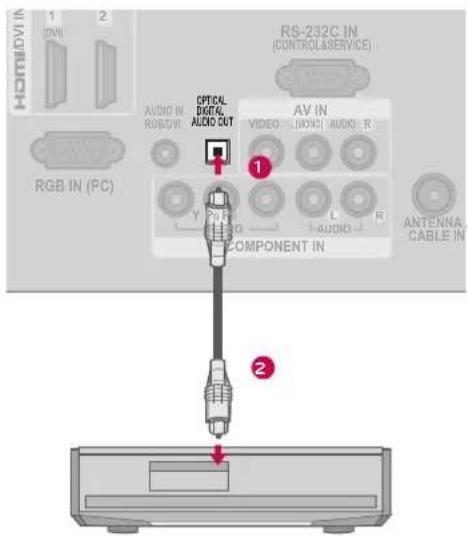

3 OPTICAL DIGITAL AUDIO OUT

Digital optical audio output for use with amps and home theater systems.

Note: In standby mode, this port doesn't work.

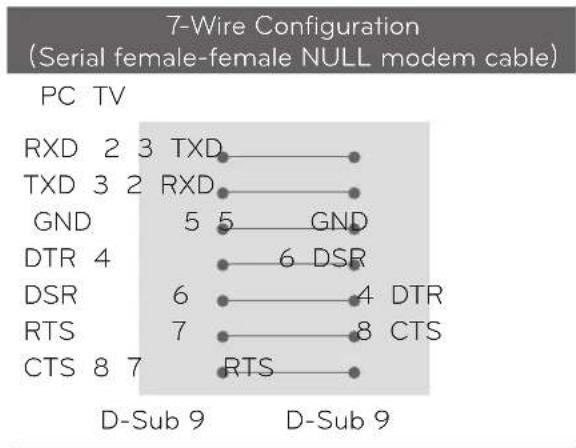

4 RS-232C IN (CONTROL & SERVICE)

Used by third party devices.

This port is used for service or Hotel mode.

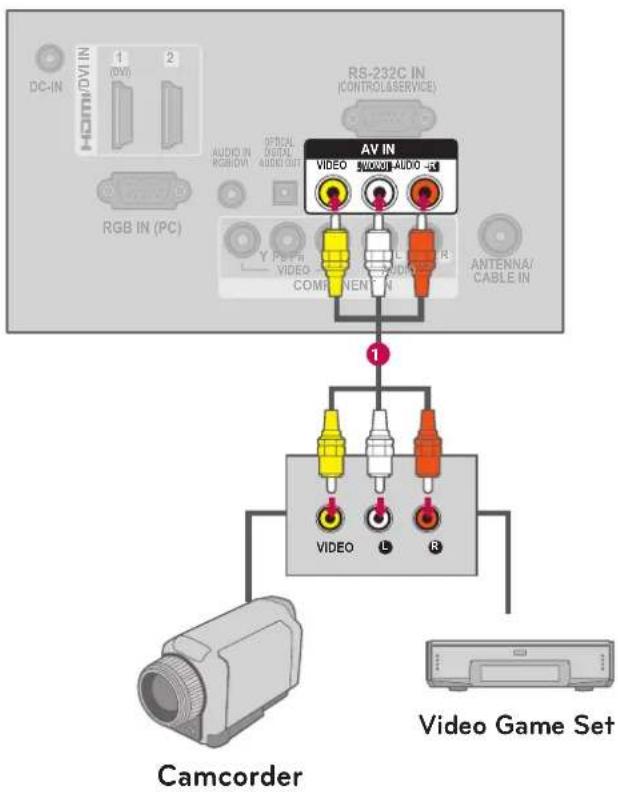

5 AV (Audio/Video) IN

Analog composite connection. Supports standard definition video only (480i).

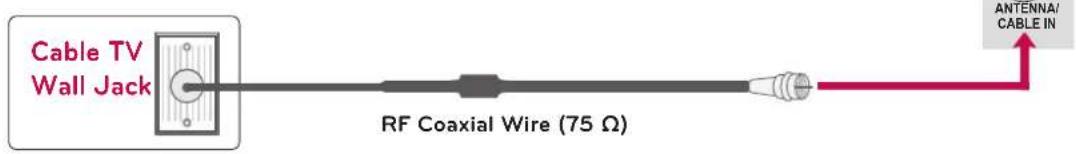

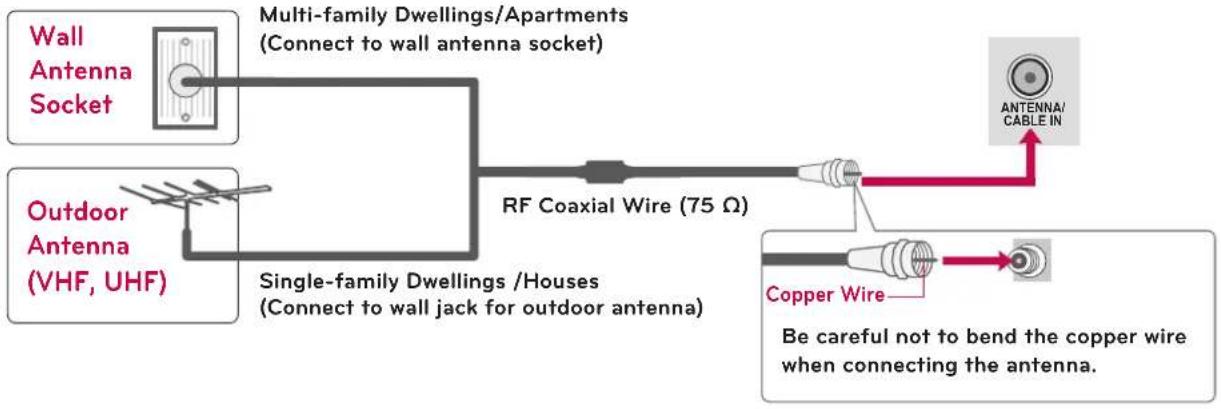

6 ANTENNA/CABLE IN

Connect over-the-air or cable signals to this jack.

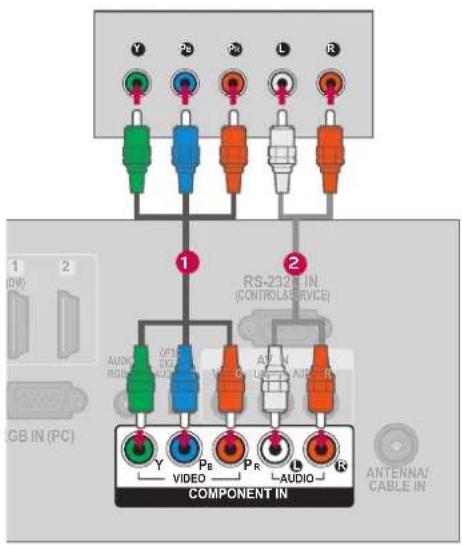

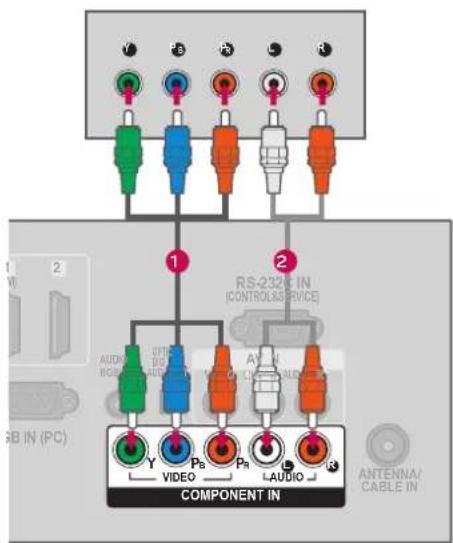

⑦ COMPONENT IN

Analog Connection.

Supports HD.

Uses a red, green, and blue cable for video & red and white for audio.

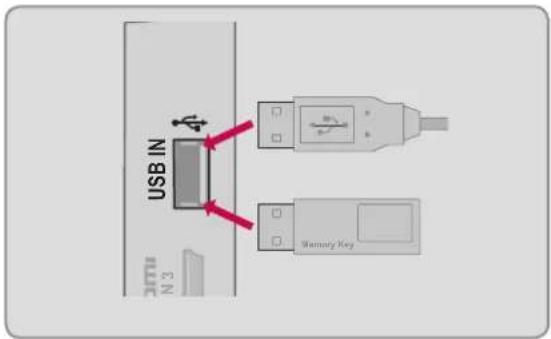

8 USB INPUT

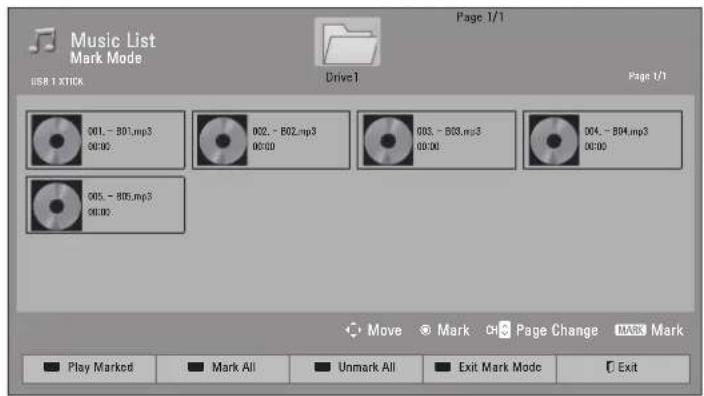

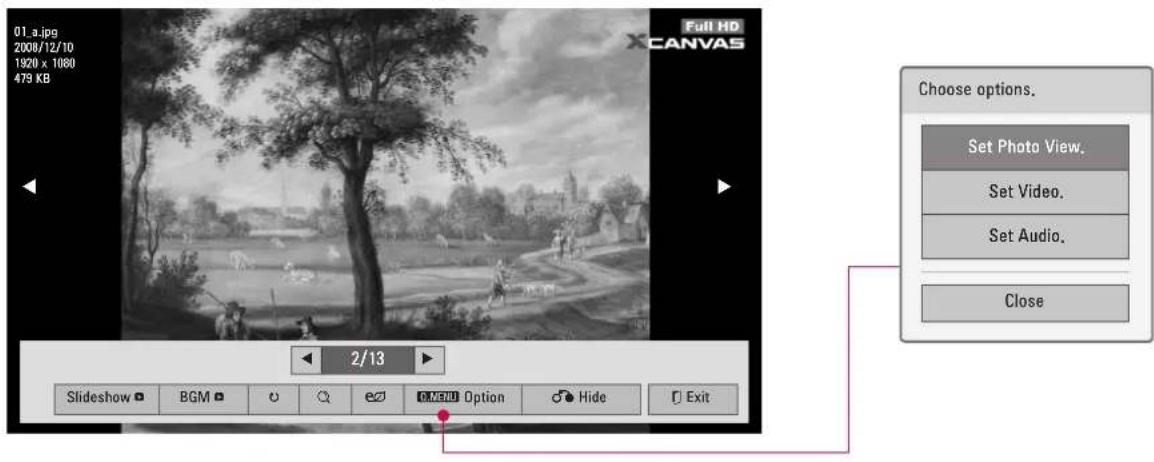

Used for viewing videos, photos and listening to MP3s.

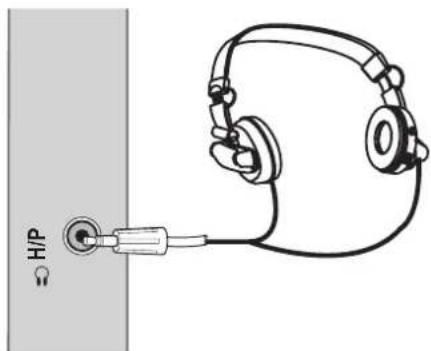

9 HEADPHONE

0.32 cm (1/8 inch) headphone jack Impedance 16 Ω, Maximum audio out 15 mW

Power Cord Socket

For operation with AC power.

Caution: Never attempt to operate the TV on DC pwer.

11 REMOTE CONTROL IN

For a wired remote control.

12 EXTERNARL SPEAKER OUT

For use with external speakers.

13 RJP

Connect this to an LG remote jack pack system.

PREPARATION

STAND INSTRUCTIONS (For 19/22LE5300, 22LE5500)

■ Image shown may differ from your TV.

INSTALLATION

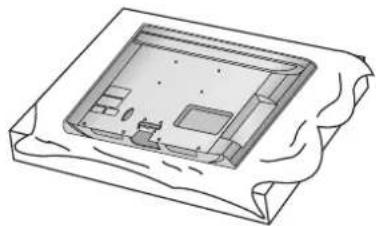

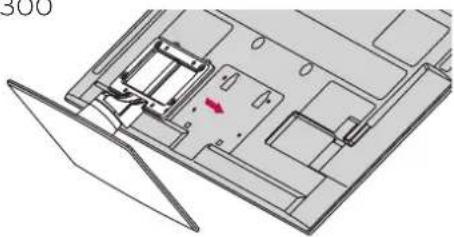

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Technical line drawing of a 3D mechanical component with internal compartments (no text or symbols)

2 Assemble the parts of the STAND BODY with the STAND BASE of the TV.

STAND BODY STAND BASE

3 Assemble the TV as shown.

3D technical drawing of a mechanical assembly with no visible text or symbols

4 Install the 4 screws into the holes shown.

M4 x 14

NOTE

When assembling the desk type stand, make sure the screws are fully tightened (If not tightened fully, the TV can tilt forward after the product installation). Do not over tighten.

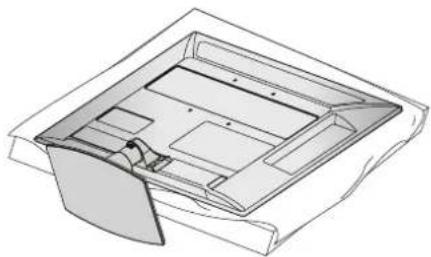

DETACHMENT

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

2 Remove the screws from the TV.

Technical line drawing of a mechanical assembly with no visible text or symbols

3 Detach the stand from TV.

3D diagram of a computer monitor with an open lid and internal compartments, showing no text or symbols.

STAND INSTRUCTIONS (For 42/47/55LE7300)

■ Image shown may differ from your TV.

INSTALLATION DETACHMENT

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Isometric line drawing of a layered electronic component or package (no text or symbols)

2 Assemble the parts of the STAND BODY with the STAND BASE of the TV.

M4 x 20 42/47LE7300 M4 x 26 55LE7300 STAND BODY STAND BASE

3 Assemble the TV as shown.

Diagram of a laptop case with red arrows indicating parts, showing internal components (no text or symbols)

4 Install the 4 screws into the holes shown.

M4 x 12 42/47LE7300 M4 x 16 55LE7300

NOTE

When assembling the desk type stand, make sure the screws are fully tightened (If not tightened fully, the TV can tilt forward after the product installation). Do not over tighten.

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Isometric technical drawing of a mechanical housing or enclosure with internal compartments and mounting bracket (no text or symbols)

2 Remove the screws from the TV.

3D CAD model of a laptop chassis showing front panel, rear panel, and internal components (no text or symbols)

3 Detach the stand from TV.

3D diagram of a device with a lid and two red arrows pointing to internal components (no text or symbols)

PREPARATION

STAND INSTRUCTIONS (For 26/32/37/42/47/55LE5300, 26LE5500)

■ Image shown may differ from your TV.

INSTALLATION

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

2 Assemble the parts of the STAND BODY with the STAND BASE of the TV.

M4 x 20 26LE5300, 26LE5500 M4 x 22 M4 x 24 M4 x 26 32LE5300 37/42LE5300 ③ Assemble the TV as shown.

STAND BODY STAND BASE

Technical diagram of a mechanical assembly with internal components and a red arrow indicating a specific feature (no text or symbols present)

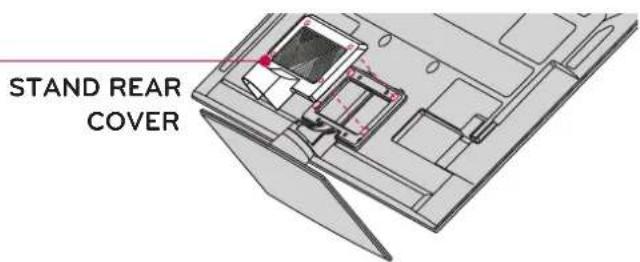

4 Assemble the part of the STAND REAR COVER with the TV.

STAND REAR COVER

5 Install the 4 screws into the holes shown.

NOTE

When assembling the desk type stand, make sure the screws are fully tightened (If not tightened fully, the TV can tilt forward after the product installation). Do not over tighten.

26LE5300, 26LE5500

M4 x 16 Other models

DETACHMENT

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.
2 Remove the screws from the TV.
3 Detach the STAND REAR COVER from TV.
4 Detach the stand from TV.

Isometric technical drawing of a mechanical or architectural component with no visible text or symbols

Technical diagram of a device interior with labeled components and a highlighted square (no text or symbols present)

3D technical diagram of a device interior with internal components and no visible text or symbols

Technical diagram of a mechanical assembly with internal components and a red arrow indicating a specific feature (no text or symbols present)

PREPARATION

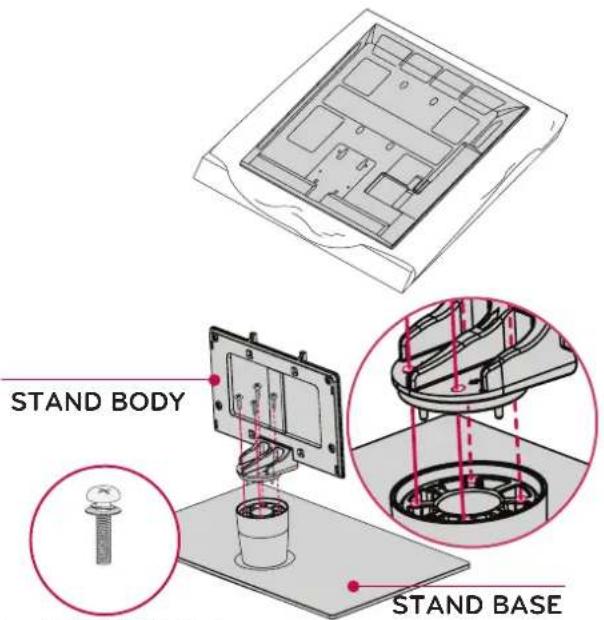

STAND INSTRUCTIONS (For 32/37/42/47LD450, 37/42/47LD450C, 42/47/55LD630)

■ Image shown may differ from your TV.

INSTALLATION

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

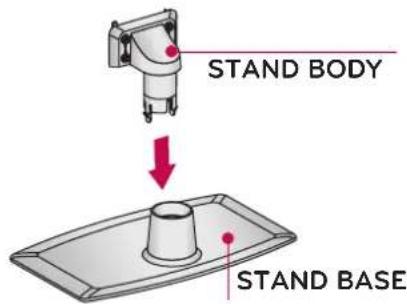

2 Assemble the parts of the STAND BODY with the STAND BASE of the TV.

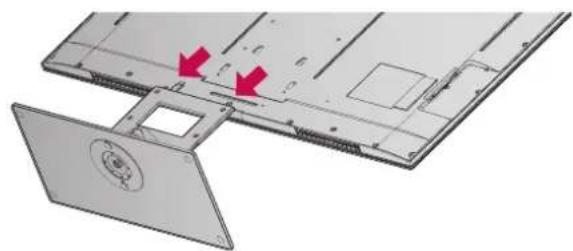

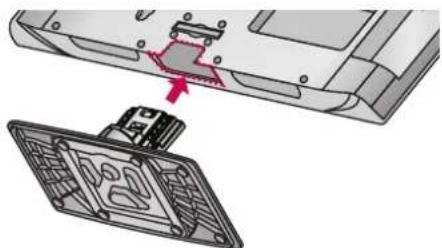

3 Assemble the TV as shown.

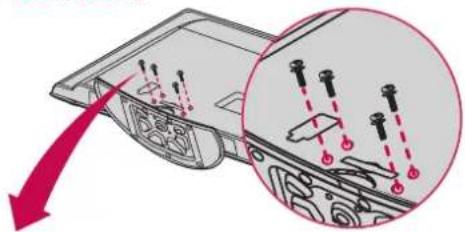

4 Install the 4 screws into the holes shown.

NOTE

When assembling the desk type stand, make sure the screws are fully tightened (If not tightened fully, the TV can tilt forward after the product installation). Do not over tighten.

STAND BODY M4 x 20 STAND BASE

Diagram of a vehicle interior showing dashboard, seats, and a highlighted mechanical component (no text or symbols)

M4 x 20

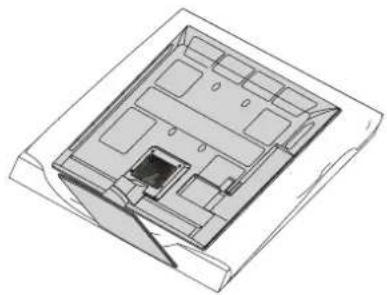

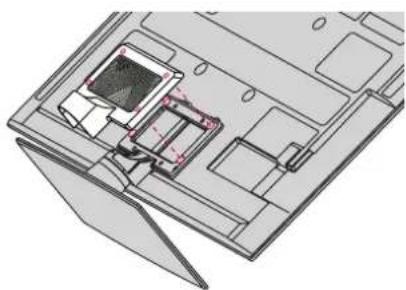

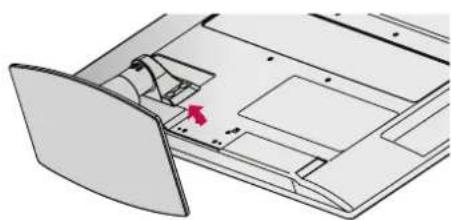

DETACHMENT

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

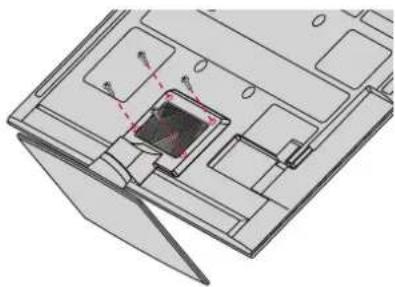

2 Remove the screws from the TV.
3 Detach the stand from TV.

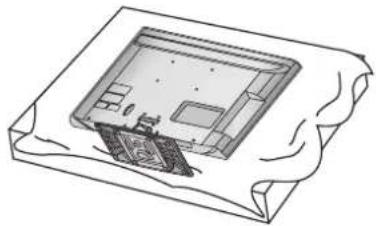

PROTECTION COVER

After removing the stand, install the included PROTECTION COVER over the hole for the stand.

Press the PROTECTION COVER into the TV until you hear it click.

When installing the wall mounting bracket, use the PROTECTION COVER.

Diagram of a mechanical assembly with a highlighted component and directional arrow (no text or symbols)

PREPARATION

STAND INSTRUCTIONS

(For 32/42/47LD420, 32/42/47/55LD520, 55LD520C)

■ Image shown may differ from your TV.

INSTALLATION

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.
2 Assemble the TV as shown.
3 Install the 4 screws into the holes shown.

Architectural diagram of a rectangular room with furniture and a curved base (no text or symbols)

Diagram showing a device's internal structure with a red arrow indicating a component (no text or symbols present)

M4 x 24

For 55LD520C

Diagram showing mechanical assembly with labeled components and a magnified inset highlighting internal features

Tighten the stand with the four screws (provided as parts of the TV).

or

NOTE

When assembling the desk type stand, make sure the screws are fully tightened (If not tightened fully, the TV can tilt forward after the product installation). Do not over tighten.

Tighten the two of these four screws and the two Torx plus star head screws (provided as

parts of the TV) to secure the TV. Tighten the two Torx plus star head screws with a star head driver bit (not provided as parts of the TV).

■ Image shown may differ from your TV.

DETACHMENT

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.
2 Remove the screws from the TV.
3 Detach the stand from TV.

PROTECTION COVER

After removing the stand, install the included PROTECTION COVER over the hole for the stand.

Press the PROTECTION COVER into the TV until you hear it click.

When installing the wall mounting bracket, use the PROTECTION COVER.

Diagram of a rectangular device with internal components and a folded base, no text or symbols present

Technical diagram of a laptop rear panel with screw holes and mounting hardware (no text or symbols)

Diagram showing a device with a highlighted internal component and its exploded view of the internal structure (no text or symbols present)

Diagram of a mechanical component with three red arrows indicating upward motion (no text or symbols)

PREPARATION

VESA WALL MOUNTING

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest installer.

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

We recommend that you use an LG brand wall mount when mounting the TV to a wall.

LG recommends that wall mounting be performed by a qualified professional installer.

Model	VESA (A * B)			Wall Mounting Bracket(sold separately)
		Standard Screw	Quantity
19LE5300,22LE5300,22LE5500,26LE5300,26LE5500	100 * 100 M4 4			LSW100B, LSW100BG
32LE5300,32LD420,32LD450,32LD520	200 * 100 M4 4			LSW100B, LSW100BG
37LE5300, 42LE5300,47LE5300,37LD450, 37LD450C,42LE7300, 47LE7300,42LD450, 42LD450C,47LD450, 47LD450C,42LD420, 47LD420,42LD520, 47LD520,42LD630, 47LD630	200 * 200 M6 4			LSW200B, LSW200BG
55LE5300,55LE7300,55LD520, 55LD520C55LD630	400 * 400 M6 4			LSW400B, LSW400BG,DSW400BG

NOTE

▶ Screw length needed depends on the wall mount used. For further information, refer to the instructions included with the mount.
▶ Standard dimensions for wall mount kits are shown in the table.
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
Do not use screws longer than the standard dimension, as they may cause damage to the inside to the TV.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications.

Do not use screws that do not comply with the VESA standard screw specifications.

Do not use fasten the screws too strongly, this may damage the TV or cause the TV to a fall, leading to personal injury. LG is not liable for these kinds of accidents.

LG is not liable for TV damage or personal injury when a non-VESA or non specified wall mount is used or the consumer fails to follow the TV installation instructions.

CAUTION

Do not install your wall mount kit while your TV is turned on. It may result in personal injury due to electric shock.

For 26LE5300, 26LE5500

Technical diagram of a computer monitor with internal components and red laser lines indicating light paths (no text or symbols)

4-RING SPACERS

Place the ring spacers on the set before installing the wall mounting bracket so that the inclination of the backside of the set can be adjusted perpendicularly.

PREPARATION

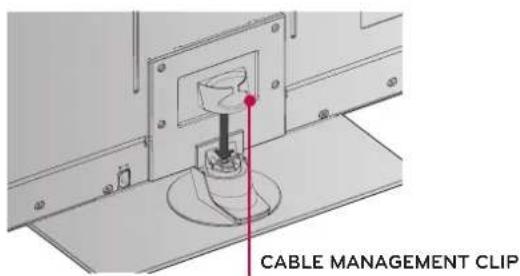

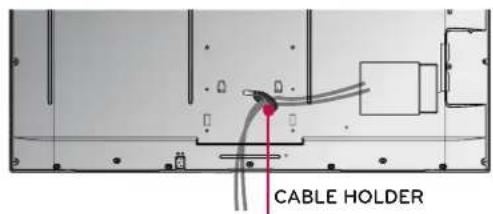

CABLE MANAGEMENT

■ Image shown may differ from your TV.

32/37/42/47LD450, 37/42/47LD450C, 32/42/47LD420, 32/42/47/55LD520, 55LD520C, 42/47/55LD630

1 Connect the cables as necessary.

To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

For 37/42/47LD450C, 55LD520C: Secure the power cord with the PROTECTIVE BRACKET/SCREW on the TV back cover. It will help prevent the power cable from being removed by accident.

Back view of a computer monitor with visible ports and cables (no text or symbols)

Illustration of a person standing on a platform with equipment, no visible text or symbols

Diagram of a computer monitor with cable routing and ventilation slots (no text or symbols)

PROTECTIVE BRACKET/SCREW

2 Open the CABLE MANAGEMENT CLIP as shown.

Back view of a computer monitor with ventilation slots and cable connectors (no text or symbols visible)

CABLE MANAGEMENT CLIP

Illustration of a person standing on a platform with arms raised, no visible text or symbols

Illustration of a computer monitor with cables and a red arrow pointing to the screen (no text or symbols)

3 Put the cables inside the CABLE MANAGEMENT CLIP and snap it closed.

Diagram of a device with labeled components and wiring, no readable text or symbols present

Diagram of a device with a person standing on a platform, no visible text or symbols

Illustration of a computer monitor with cable routing and ventilation slots (no text or symbols)

19/22/26LE5300, 22/26LE5500

1 After connecting the cables as necessary, install the CABLE HOLDER as shown and bundle the cables.

CABLE HOLDER

32/37/42/47/55LE5300

1 Secure the power cord with the CABLE HOLDER on the TV back cover.

It will help prevent the power cable from being removed by accident.

CABLE HOLDER

2 After connecting the cables as necessary, install the CABLE HOLDER as shown and bundle the cables.

CABLE HOLDER

42/47/55LE7300

FOR DESK-TYPE STAND

1 Install the CABLE MANAGEMENT CLIP as shown.

CABLE MANAGEMENT CLIP

2 Connect the cables as necessary. To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

Pure technical diagram showing a mechanical assembly with no visible text, numbers, or symbols

FOR WALL MOUNT

Connect the cables as necessary. To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section. Install CABLE HOLDER as shown and bundle the cables.

CABLE HOLDER

PREPARATION

DESKTOP PEDESTAL INSTALLATION

■ Image shown may differ from your TV.

For proper ventilation, allow a clearance of 10.1 cm (4 inch) on all four sides from the wall.

10.1 cm (4 inch) 10.1 cm (4 inch) 10.1 cm (4 inch)

10.1 cm (4 inch)

CAUTION

▶ Ensure adequate ventilation by following the clearance recommendations.
Do not mount near or above any type of heat source.

SWIVEL STAND (Except 19/22LE5300, 22LE5500)

After installing the TV, you can adjust the TV set manually to the left or right direction by 20° to suit your viewing position.

Pure diagram of a mechanical or optical component with curved arrows indicating rotation (no text or symbols)

KENSINGTON SECURITY SYSTEM

■ This feature is not available for all models.

• The TV is equipped with a Kensington Security System connector on the back panel. Connect the Kensington Security System cable as shown below.
• For the detailed installation and use of the Kensington Security System, refer to the user's guide provided with the Kensington Security System.

For further information, contact http://www.kensington.com, the internet homepage of the Kensington company. Kensington sells security systems for expensive electronic equipment such as notebook PCs and LCD projectors.

NOTE: The Kensington Security System is an optional accessory.

Illustration of a computer monitor mounted on a desk with a cable, no text or symbols present

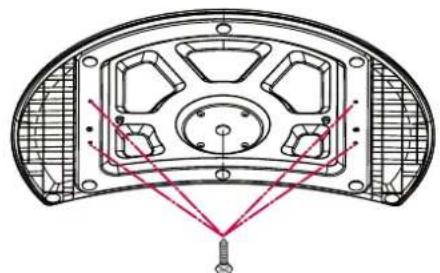

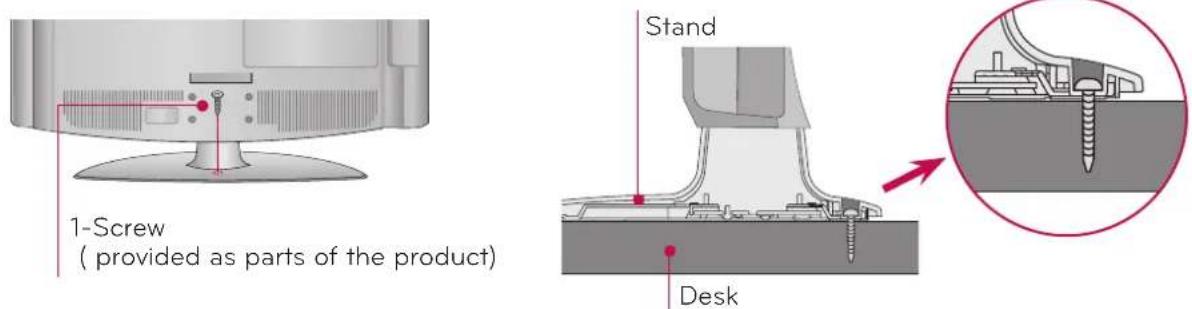

ATTACHING THE TV TO A DESK

(For 32/42LD420, 32/37/42LD450, 37/42LD450C, 32/42LD520, 42LD630, 32LE5300)

■ Image shown may differ from your TV.

The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product.

1-Screw (provided as parts of the product) Stand Desk

For 37/42/47LD450C

Technical diagram of a device casing with internal compartments and red laser lines indicating light paths (no text or symbols)

4-Screws
(not provided as parts of the product)

For 55LD520C

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

4-Screws
(not provided as parts of the product)

Stand Desk

▶ Recommended screw size: M5 x L (*L: Table depth + 8\~10 mm)

ex) Table depth: 15mm, Screw: M5 x 25

WARNING

To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the machine may cause injury.

PREPARATION

SECURING THE TV TO THE WALL TO PREVENT FALLING WHEN THE TV IS USED ON A STAND

• You should purchase necessary components to prevent the TV from tipping over (when not using a wall mount).
  ■ Image shown may differ from your TV.

We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.

Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction, potentially causing injury or damaging the product.

Caution: Please make sure that children don't climb on or hang from the TV.

Simple line drawing of a computer monitor with curved arrows indicating flow or movement (no text or symbols)

- Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture.

* If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

Secure the wall brackets with the bolts (sold separately) to the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

Side view of a modern vertical monitor or screen with a flat top and side panel (no text or symbols visible)

■ Use a sturdy rope (sold separately) to tie the product. It is safer to tie the rope so it becomes horizontal between the wall and the product.

NOTE

▶ Use a platform or cabinet strong enough and large enough to support the size and weight of the TV.
To use the TV safely make sure that the height of the bracket on the wall and the one on the TV are the same.

• To prevent damage do not connect to the power outlet until all connections are made between the devices.
  ■ Image shown may differ from your TV.

ANTENNA OR CABLE CONNECTION

1. Antenna (Analog or Digital)

Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.

For optimum picture quality, adjust antenna direction if needed.

2. Cable

Cable TV Wall Jack RF Coaxial Wire (75 Ω) ANTENA/ CABLE IN

■ If the antenna needs to be split for two TV's, install a 2-Way Signal Splitter.
For much more information about antennas visit our Knowledgebase at http://lgknowledgebase.com. Search for antenna.

EXTERNAL EQUIPMENT SETUP

■ To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■ IThis part of EXTERNAL EQUIPMENT SETUP mainly use picture of for 26LE5300/26LE5500.

HD RECEIVER SETUP

This TV can receive digital over-the-air/digital cable signals without an external digital set-top box. However, if you do receive digital signals from a digital set-top box or other digital external device.

Component Connection

1. How to connect

1 Connect the video outputs (Y, PB, PR) of the digital set-top box to the COMPONENT IN VIDEO or 1/2* jacks on the TV. Match the jack colors (Y = green, PB = blue, and PR = red).
2 Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO or 1/2* jacks on the TV.

2. How to use

■ Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box operation.)
■ Select the Component or Component1/2* input source on the TV using the INPUT button on the remote control.

* Component2: For 32/37/42/47/55LE5300, 42/47/55LE7300

1 2 RS-232C IN (CONTROLS SERVICE) AUDIO VIDEO PB PR AUDIO COMPONENT IN Y VIDEO PB PR AUDIO ANTENNA/ CABLE IN

Y, CB/PB, CR/PR

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480i	15.73 59.94
	15.73 60.00
720x480p	31.47 59.94
	31.50 60.00
1280x720p	44.96 59.94
	45.00 60.00
1920x1080i	33.72 59.94
	33.75 60.00
1920x1080p	26.97	23.976
	27.00 24.00
	33.71	29.97
	33.75 30.00
	67.432	59.94
	67.50 60.00

For 32/37/42/47/55LE5300, 42/47/55LE7300 COMPONENT IN Y Pi Pa AUDIO

HDMI Connection

1. How to connect

1 Connect the digital set-top box to HDMI/DVI IN 1, 2, 3*, or 4** jack on the TV.
2 No separate audio connection is necessary. HDMI supports both audio and video.

2. How to use

■ Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box.)
■ Select the HDMI1, HDMI2, HDMI3*, or HDMI4** input source on the TV using the INPUT button on the remote control.

* HDMI3: For 26LE5300, 26LE5500, 32/42/47/55LD520, 55LD520C, 42/47/55LD630

** HDMI4: For 32/37/42/47/55LE5300, 42/47/55LE7300

NOTE

If an HDMI cable doesn't support High Speed HDMI, it can cause flickers or no screen display. In this case use the latest cables that support High Speed HDMI.
HDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1 KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)

DC-IN 1 (DVI) 2 RGB IN (PC) RS-232C IN (CONTROLSERVICE) AV IN VIDEO (L(NOXI) AUDIO R COMPONENT IN HDMI OUTPUT

HDMI-DTV

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480p	31.47 59.94
	31.50 60.00
1280x720p	44.96 59.94
	45.00 60.00
1920x1080i	33.72 59.94
	33.75 60.00
1920x1080p	26.97 23.976
	27.00 24.00
	33.71 29.97
	33.75 30.00
	67.432 59.94
	67.50 60.00

EXTERNAL EQUIPMENT SETUP

DVI to HDMI Connection

1. How to connect

1 Connect the DVI output of the digital set-top box to the HDMI/DVI IN 1 or 2* jack on the TV.
2 Connect the digital set-top box audio output to the AUDIO IN (RGB/DVI) jack on the TV.

2. How to use

■ Turn on the digital set-top box.
(Refer to the owner's manual for the digital set-top box.)
■ Select the HDMI1 or HDMI2* input source on the TV using the INPUT button on the remote control.

* HDMI2: For 32/42/47/55LD520, 55LD520C, 42/47/55LD630

NOTE

A DVI to HDMI cable or adapter is required for this connection. DVI doesn't support audio, so a separate audio connection is necessary.

DC-IN 1 (DW) 2 RS-232C IN (CONTROLSERVICE) RGB IN (PC) AUDIO IN RGB/DVI OFFCAL DEVI AUDIO OUT AV IN VIDEO R COMPONENT IN P1 P2 L AUDIO R AUDIO DVI OUTPUT

DVD SETUP

Component Connection

1. How to connect

1 Connect the video outputs(Y, PB, PR) of the DVD to the COMPONENT IN VIDEO or 1/2* jacks on the TV. Match the jack colors(Y = green, PB = blue, and PR = red).
2 Connect the audio outputs of the DVD to the COMPONENT IN AUDIO or 1/2* jacks on the TV.

2. How to use

■ Turn on the DVD player, insert a DVD.
■ Select the Component or Component1/2* input source on the TV using the INPUT button on the remote control.
■ Refer to the DVD player's manual for operating instructions.

Y Pb Rx L R 1 2 RS-232 IN (CONTROLSERVICE) AUDIO RUB AVG LUX AUDIO COMPONENT IN Y P B P R L R VIDEO AUDIO ANTENNA/ CABLE IN

* Component2: For 32/37/42/47/55LE5300, 42/47/55LE7300

Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV	Y_P_B	P_R
Video output ports on DVD player	Y_P_B	P_R	R-Y
	Y	B-Y
	Y	Cb Cr
	Y	Pb Pr

For 32/37/42/47/55LE5300, 42/47/55LE7300 COMPONENT IN2 Y P R/T AUDIO 1 2

EXTERNAL EQUIPMENT SETUP

Composite (RCA) Connection

1. How to connect

1 Connect the AUDIO/VIDEO jacks between TV and DVD. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red)

2. How to use

■ Turn on the DVD player, insert a DVD.
■ Select the AV or AV1/2* input source on the TV using the INPUT button on the remote control.
■ Refer to the DVD player's manual for operating instructions.

* AV2: Except 19/22/26LE5300, 22/26LE5500

HDMI Connection

1. How to connect

1 Connect the HDMI output of the DVD to the HDMI/DVI IN 1, 2, 3*, or 4** jack on the TV.
2 No separate audio connection is necessary. HDMI supports both audio and video.

2. How to use

■ Select the HDMI1, HDMI2, HDMI3*, or HDMI4** input source on the TV using the INPUT button on the remote control.
■ Refer to the DVD player's manual for operating instructions.

* HDMI3: For 26LE5300, 26LE5500, 32/42/47/55LD520, 55LD520C, 42/47/55LD630

**HDMI4: For 32/37/42/47/55LE5300, 42/47/55LE7300

NOTE

If an HDMI cable doesn't support High Speed HDMI, it can cause flickers or no screen display. In this case use the latest cables that support High Speed HDMI.
HDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1 KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)

RS-232C IN (CONTROLSERVICE) AV IN VIDEO VOUT-4000 VIDEO AUDIO COMPONENT ANTENNA/ CABLE IN VIDEO L AUDIO

DC-IN 1 (0V) 2 RGB IN (PC) RS-232C IN (CONTOL&SERVICE) AV IN (LOVO) AUDIO R COMPONENT IN HDMI OUTPUT

VCR SETUP

Antenna Connection

1. How to connect

1 Connect the RF antenna out socket of the VCR to the ANTENNA/CABLE IN socket on the TV.
2 Connect the antenna cable to the RF antenna in socket of the VCR.

2. How to use

■ Set VCR output switch to 3 or 4 and then tune TV to the same channel number.
- Insert a video tape into the VCR and press PLAY on the VCR (Refer to the VCR owner's manual).

IN S AUDIO IN L R AUDIO IN ANTENNA/ CABLE IN 1 ANT OUT S-VIDEO VIDEO L R AUDIO ANT IN OUTPUT SWITCH 2 Wall Jack Antenna

Composite (RCA) Connection

1. How to connect

1 Connect the AUDIO/VIDEO jacks between TV and VCR. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red)

2. How to use

• Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual.)
  ■ Select the AV or AV1/2* input source on the TV using the INPUT button on the remote control.

* AV2: Except 19/22/26LE5300, 22/26LE5500

NOTE

If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L(MONO) jack of the TV.

RS-232C IN (CONTROLSERVICE) AV IN VIDEO 5V/4000 -1 COMPONENT ANTENNAI CABLE IN ANT IN S-VIDEO VIDEO AUDIO ANT OUT OUTPUT SWITCH

EXTERNAL EQUIPMENT SETUP

OTHER A/V SOURCE SETUP

1. How to connect

Connect the AUDIO/VIDEO jacks between TV and external equipment. Match the jack colors.

(Video = yellow, Audio Left = white, and Audio Right = red)

2. How to use

■ Select the AV or AV1/2* input source on the TV using the INPUT button on the remote control.
■ Operate the corresponding external equipment.

* AV2: Except 19/22/26LE5300, 22/26LE5500

DC-IN HDMI/DVI IN 1 (DVI) 2 RS-232C IN (CONTROLSERVICE) AUDIO IN RGB IN (PC) SPECIAL DIGITAL AUDIO OUT AV IN VIDEO AUDIO AUDIO Y PEER VIDEO COMPONENT L R ANTENNA/ CABLE IN 1 VIDEO L R Camcorder Video Game Set

USB CONNECTION

1. How to connect

1 Connect the USB device to the USB IN jack on the side of TV.

2. How to use

■ After connecting the USB IN jack, you use the USB function. (▶ p.78)

USB IN or Memory Key HDMI IN 3 HIP

HEADPHONE SETUP (Except 37/42/47LD450C)

You can listen to the sound through the headphone.

1. How to connect

1 Plug the headphone into the head-phone socket.
2 To adjust the headphone volume, press the VOL +/- button. If you press the MUTE button, the sound from the headphone is switched off.

NOTE

▶ AUDIO menu options are disabled when connecting a headphone.
When changing AV MODE with a headphone connected, the change is applied to video but not to audio.
▶ Optical Digital Audio Out is not available when connecting a headphone.

Line drawing of a headset connected to a vertical panel labeled 'HP' (no text or symbols on the diagram itself)

EXTERNAL EQUIPMENT SETUP

AUDIO OUT CONNECTION

Send the TV's audio to external audio equipment via the Audio Output port.

If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL

AUDIO OUT terminal on the back of TV to a Home Theater (or amp).

1. How to connect

1 Connect one end of the optical cable to the TV port of OPTICAL DIGITAL AUDIO OUT.
2 Connect the other end of the optical cable to the digital audio input on the audio equipment.
3 Set the "TV Speaker option - Off" in the AUDIO menu. (▶ p.119). See the external audio equipment instruction manual for operation.

NOTE

▶ When connecting with external audio equipment, such as amplifiers or speakers, you can turn the TV speakers off in the menu. (▶ p.119)

CAUTION

Do not look into the optical output port. Looking at the laser beam may damage your vision.
▶ Audio with ACP (Audio Copy Protection) function may block digital audio output.

HOTMIDVIN 1 DVN 2 RGB IN (PC) RS-232C IN (CONTROLSERVICE) AUDIO IN RGB/DVI OPTICAL DIGITAL AUDIO OUT AV IN VIDEO LIVI/VOI AUDIO R COMPONENT IN Y P R L R ANTENNA CABLE IN

PC SETUP

This TV provides Plug and Play capability, meaning that a PC adjusts automatically to the TV's settings.

VGA (D-Sub 15 Pin) Connection

1. How to connect

Connect the VGA output of the PC to the RGB IN (PC) jack on the TV.

Connect PC audio output to the AUDIO IN (RGB/DVI) jack on the TV.

2. How to use

■ Turn on the PC and the TV.
■ Select the RGB-PC input source on the TV using the INPUT button on the remote control.

DC-IN HDMI/IC RGB IN (PC) AUDIO IN RGB/DVI OPTICAL DETAIL AUDIO OUT AV IN VIDEO UNIKO AUDIO R Y PWR VIDEO L AUDIO - COMPONENT IN RGB OUTPUT AUDIO

EXTERNAL EQUIPMENT SETUP

DVI to HDMI Connection

1. How to connect

1 Connect the DVI output of the PC to the HDMI/DVI IN 1 or 2* jack on the TV.
2 Connect the PC audio output to the AUDIO IN (RGB/DVI) jack on the TV.

2. How to use

■ Turn on the PC and the TV.
■ Select the HDMI1 or HDMI2* input source on the TV using the INPUTbutton on the remote control.

* HDMI2: For 32/42/47/55LD520, 55LD520C, 42/47/55LD630

DC-IN 1 (DVI) 2 RGB IN (PC) AUDIO IN RGB/DVI OPTICAL DIGITAL AUDIO OUT Y Pb PA L R VIDEO COMPONENT IN RS-232C.IN (CONTROLSERVICE) AV IN LICHTON AUDIO-R AUDIO DVI OUTPUT

NOTE

To get the best picture quality, adjust the PC graphics card to 1360 x 768 (19/22/26LE5300, 22/26LE5500) or 1920 x 1080 (Other models).
▶ Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.
In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
Avoid keeping a fixed image on the screen for a long period of time. The fixed image may become permanently imprinted on the screen.
The synchronization input form for Horizontal and Vertical frequencies is separate.
▶ Depending on the graphics card, some resolution settings may not allow the image to be positioned on the screen properly.
When selecting HDMI-PC, set the "Input Label - PC" in the OPTION menu.

Supported Display Specifications (RGB-PC, HDMI-PC)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
640x350	31.468 70.09
720x400	31.469 70.08
640x480	31.469 59.94
800x600	37.879 60.31
1024x768	48.363 60.00
1280x768	47.776	59.87
1360x768	47.712	60.015
1280x1024	63.981	60.02
1600x1200	75.00 60.00
1920x1080 RGB-PC	66.587	59.934
1920x1080 HDMI-PC	67.50	60.00

EXTERNAL EQUIPMENT SETUP

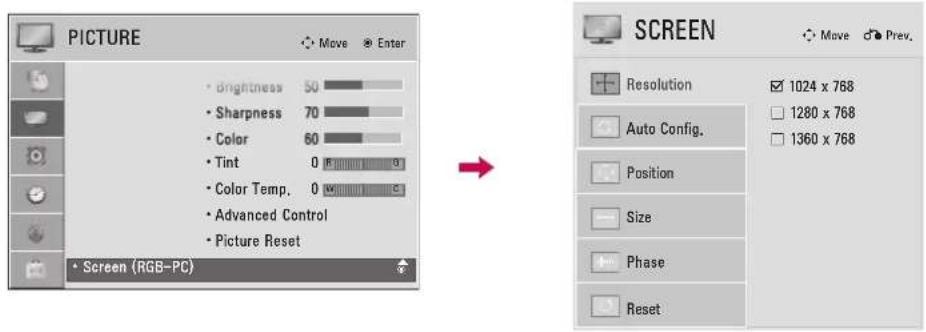

Screen Setup for PC mode

Selecting Resolution

You can choose the resolution in RGB-PC mode.

The Position, Phase, and Size can also be adjusted.

You can choose this option only when the PC resolution is set to 1024X768, 1280X768 or 1360X768.

PICTURE • brightness 50 • Sharpness 70 • Color 60 • Tint 0 F 0 • Color Temp. 0 W 0 • Advanced Control • Picture Reset • Screen (RGB-PC) → SCREEN • Move • Prev. Resolution 1024 x 768 Auto Config. 1280 x 768 Position 1360 x 768 Size Phase Reset

Select PICTURE.

Select Screen (RGB-PC).

Select Resolution.

Select the desired resolution.

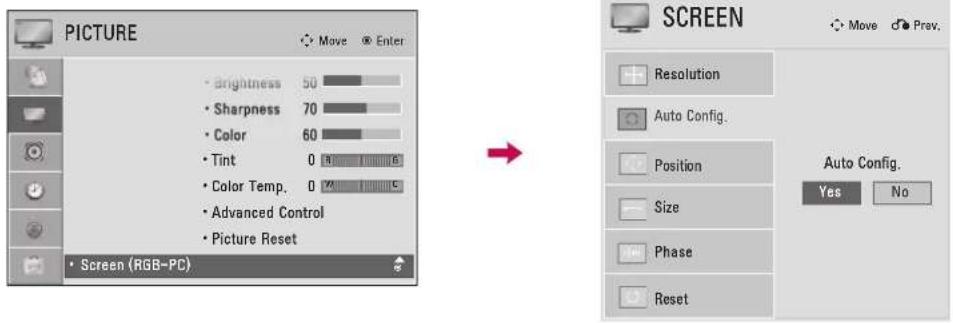

Auto Configure

Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still not correct, try using the manual settings or a different resolution or refresh rate on the PC.

PICTURE • Brightness 50 • Sharpness 70 • Color 60 • Tint 0 • Color Temp. 0 • Advanced Control • Picture Reset • Screen (RGB-PC) → SCREEN • Move c? Prev. Resolution Auto Config. Position Size Phase Reset Auto Config. Yes No

Select PICTURE.

Select Screen (RGB-PC).

Select Auto Config..

Select Yes.

Start Auto Configuration.

■ If the position of the image is still not correct, try Auto adjustment again.
If picture needs to be adjusted again after Auto adjustment in RGB-PC, you can adjust the Position, Size or Phase.

EXTERNAL EQUIPMENT SETUP

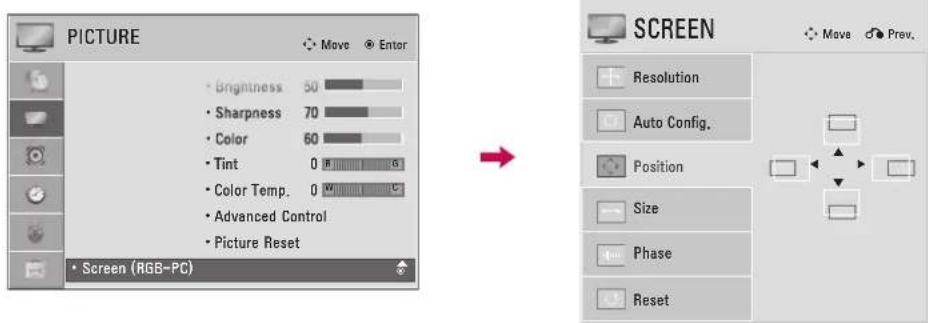

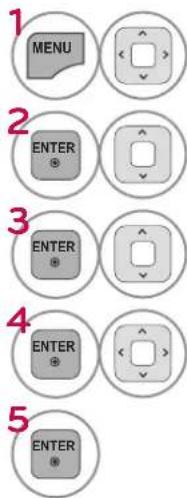

Adjustment for screen Position, Size, and Phase

If the picture is not clear after auto adjustment or if text is shaking, adjust the picture phase manually. This feature operates only in RGB-PC mode.

PICTURE • Brightness 50 • Sharpness 70 • Color 60 • Tint 0 • Color Temp. 0 • Advanced Control • Picture Reset • Screen (RGB-PC) SCREEN • Move • Prev. Resolution Auto Config. Position Size Phase Reset

1 MENU 2 ENTER 3 ENTER 4 ENTER 5 ENTER

Select PICTURE.

Select Screen (RGB-PC).

Select Position, Size, or Phase.

Make appropriate adjustments.

■ Position: This function is to adjust picture to left/right and up/down as you prefer.
■ Size: This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen size will also change.
■ Phase: This function allows you to remove any horizontal noise and clear or sharpen the image of characters.

Screen Reset (Reset to original initial values)

Returns Position, Size, and Phase to the default initial settings. This feature operates only in RGB-PC mode.

PICTURE • Brightness 50 • Sharpness 70 • Color 60 • Tint 0 • Color Temp. 0 • Advanced Control • Picture Reset • Screen (RGB-PC) SCREEN • Resolution • Auto Config. • Position • Size • Phase • Reset To Set Yes No

Select PICTURE.

Select Screen (RGB-PC).

Select Reset.

Select Yes.

Start Reset.

WATCHING TV / CHANNEL CONTROL

REMOTE CONTROL FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

The remote control may differ from the images below.

POWER Turns the TV on from standby or off to standby. ENERGY SAVING Adjusts the Energy Saving setting. ▶p.104 AV MODE Toggles through preset Video and Audio modes. ▶p.75 INPUT Rotates through inputs. Also switches the TV on from standby. ▶p.70 TV Returns to the last TV channel. NUMBER button — (DASH) Used to enter a program number for multiple program channels such as 2-1, 2-2, etc. LIST Displays the channel table. ▶p.67 FLASHBK Tunes to the last channel viewed. MENU Displays the main menu or clears all on-screen displays and return to TV viewing. INFO Displays channel information at the bottom of the screen. Q.MENU Opens the list of Quick Menu options. ▶p.59 THUMBSTICK (Up/Down/Left Right/ENTER) Navigates the on-screen menus and adjusts the system settings to your preference. BACK Allows the user to move return one step in an interactive application or other user interaction function. SIMPLINK See a list of AV devices connected to TV. When you toggle this button, the SIMPLINK menu appears at the screen. ▶p.76 EXIT Clears all on-screen displays and return to TV viewing.

VOLUME UP/DOWN

Adjusts the volume.

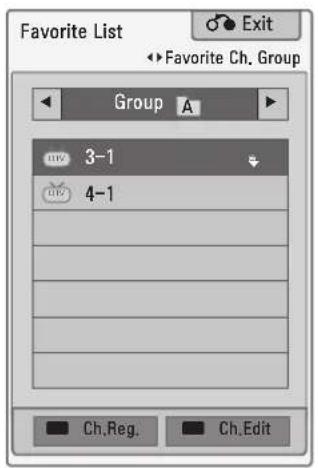

FAV Scroll through the programmed Favorite channels. ▶p.66

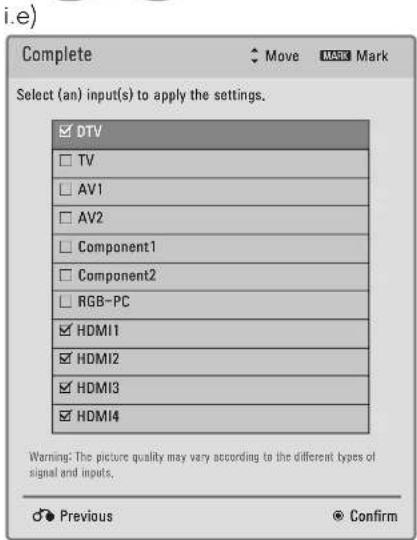

MARK Select the input to apply the Picture Wizard settings. ▶p.103

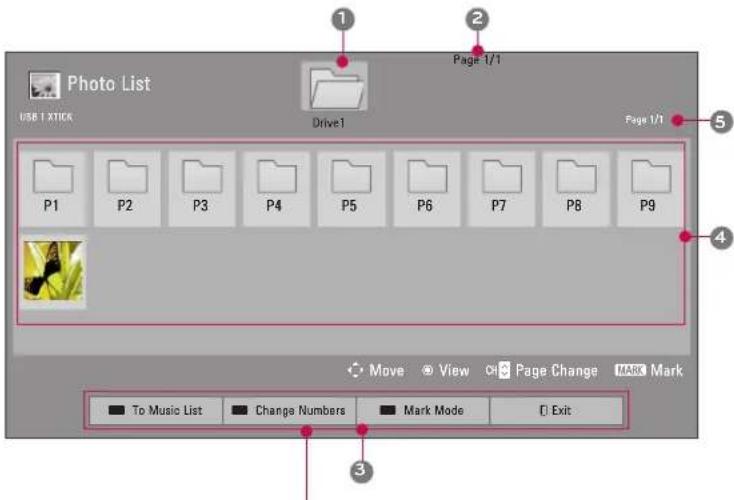

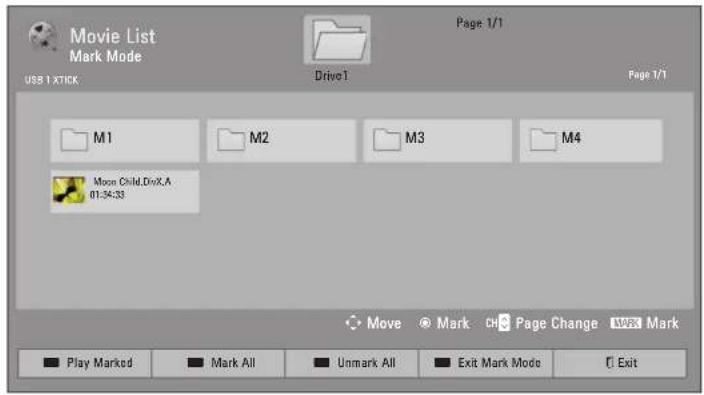

Use to mark or unmark a photo/music/movie. ▶p.83, 88, 94

RATIO Changes the aspect ratio. ▶ p.100

MUTE Switches the sound on or off. ▶p.54

CHANNEL UP/DOWN

Changes the channel.

PAGE UP/DOWN

Moves from one full set of screen information to the next one.

COLOR BUTTON

Access special functions in some menus.

USB, SIMPLINK Control buttons

- Controls MY MEDIA menu (Movie List, Photo List, Music List)

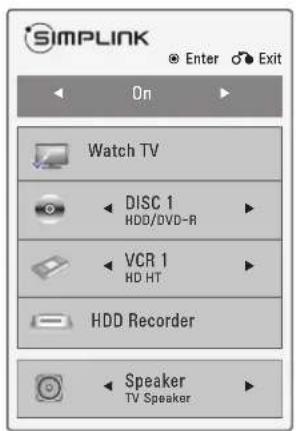

- Controls the SIMPLINK compatible devices.

Installing Batteries

Two 3D mechanical component diagrams showing a bent bracket and a slot, with no visible text or symbols.

- Open the battery compartment cover on the back side and install the batteries matching correct polarity.

- Install two 1.5V AAA batteries. Don't mix old or used batteries with new ones.

- Close cover.

WATCHING TV / CHANNEL CONTROL

TURNING ON THE TV

1 First, connect power cord correctly. At this moment, the TV switches to standby mode. ■ In standby mode to turn TV on, press the ⏻/ I, INPUT, CH (∧ or ∨) button on the TV or press the ⏻, INPUT, CH (∧ or ∨), Number (0-9) button on the remote control.
Select the viewing source by using the INPUT button on the remote control.
3 When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode.

NOTE

▶ If you intend to be away on vacation, disconnect the power plug from the wall power outlet.
If you do not complete the Initial setting, it will appear whenever the TV is switched on until the Initial setting procedure is completed.

CHANNEL SELECTION

1 Press the CH (∧ or ∨) or NUMBER buttons to select a channel number.

VOLUME ADJUSTMENT

Adjust the volume to suit your personal preference.

1 Press the VQ(± or -) button to adjust the volume.
If you want to switch the sound off, press the MUTE button.
3 You can cancel the Mute function by pressing the MUTE or VOL (+ or -) button.

INITIAL SETTING

This Function guides the user to easily set the essential items for viewing the TV for the first time when purchasing the TV. It will be displayed on the screen when turning the TV on for the first time. It can also be activated from the user menus.

■ Default selection is "Home Use". We recommend setting the TV to "Home Use" mode for the best picture in your home environment.
- "Store Demo" Mode is only intended for use in retail environments. Customers can adjust the "Picture menu - Picture mode" manually while inspecting the TV, but the TV will automatically return to preset in-store mode after 5 minutes.
■ "Store Demo" Mode is an optimal setting for displaying at stores. "Store Demo" mode initializes the TV to set the image quality.-

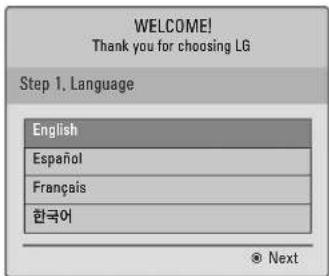

Step 1. Selecting Language

WELCOME! Thank you for choosing LG Step 1. Language English Español Français 한국어 © Next

Select Menu Language.

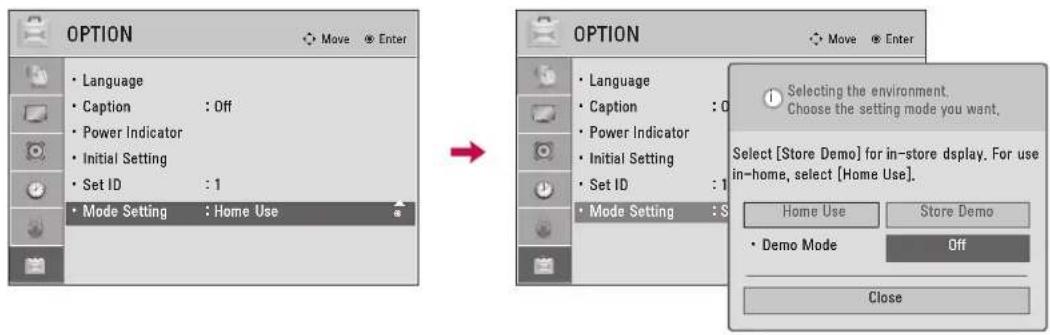

Step 2. Mode setting

Step 2. Mode Setting Select the environment. Choose the setting mode you want. Select [Home Use] when setting TV up in-home. You can adjust picture quality accordingly through Picture Mode menu option. Home Use Demo • Demo Mode Off Previous Next

For 19/22/26/37/42/47/55LE5300, 22/26LE5500, 42/47/55LE7300, 37/42/47LD450C, 55LD520C

Select Home Use.

WATCHING TV / CHANNEL CONTROL

Step 3. Power Indicator (For LED LCD TV)

Step 3. Power Indicator Standby Light Off Previous Next

1 Select On or Off. 2 ENTER

This function is disable in "Step2. Mode Setting - Store Demo".

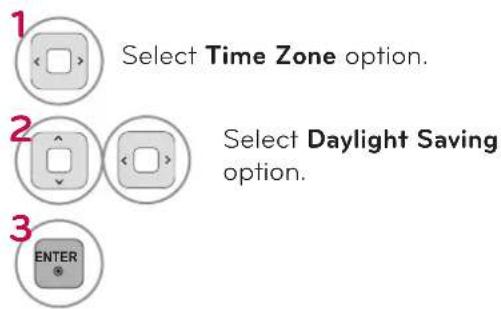

Step 4. Time Zone

Step 4. Time Zone Time Zone ← Eastern → Daylight Saving Auto Previous Next

1 Select Time Zone option. 2 Select Daylight Saving option. 3 ENTER

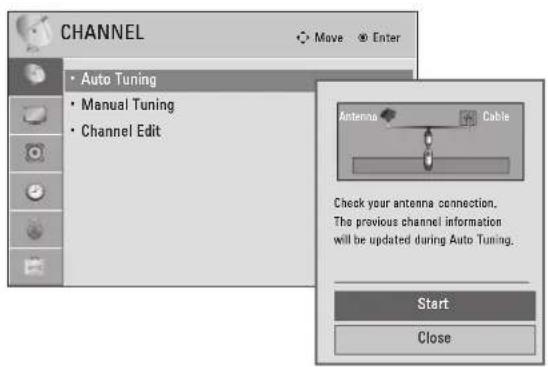

Step 5. Auto Tuning

Step 5. Auto Tuning Before starting, be sure that the TV antenna is connected. Previous Next

1 ENTER Check your antenna connection and start Auto Tuning.

ON-SCREEN MENUS SELECTION

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

Display each menu.

Select a menu item.

Accept the current selection.

Return to TV viewing.

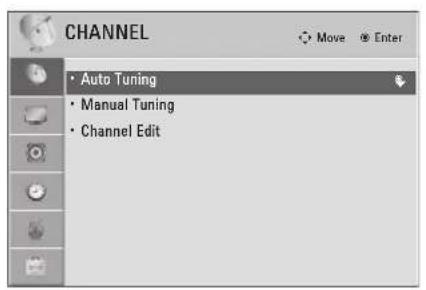

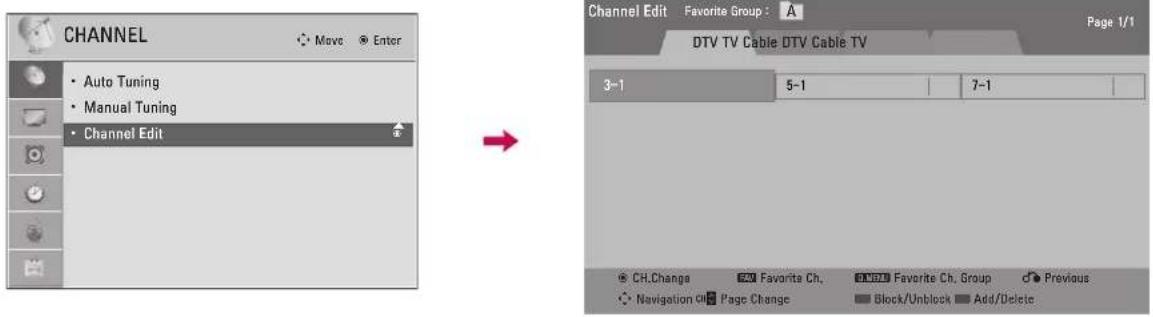

CHANNEL • Auto Tuning • Manual Tuning • Channel Edit

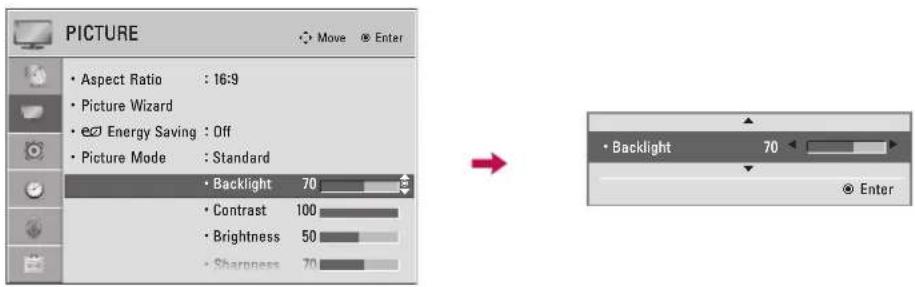

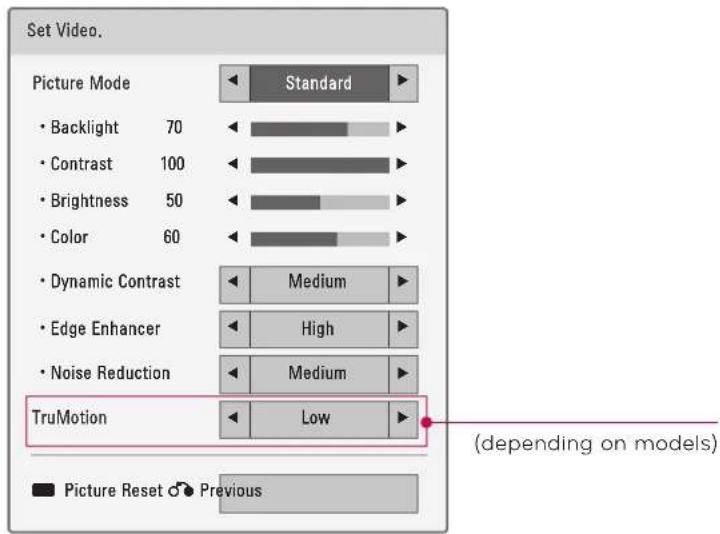

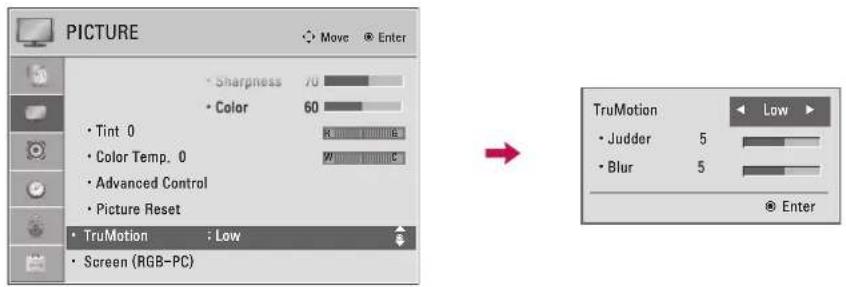

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight 70 • Contrast 100 • Brightness 50 • Sharpness 70

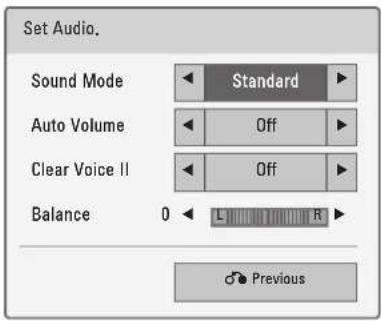

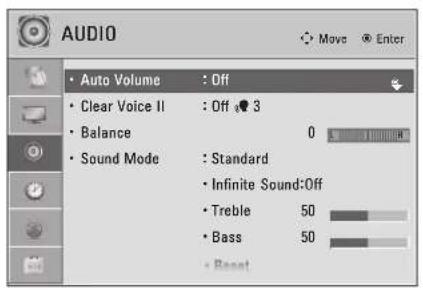

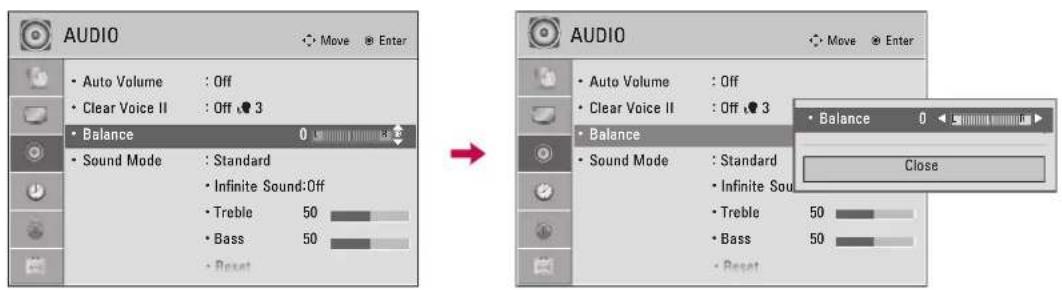

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound: Off • Treble 50 • Bass 50 • Reset

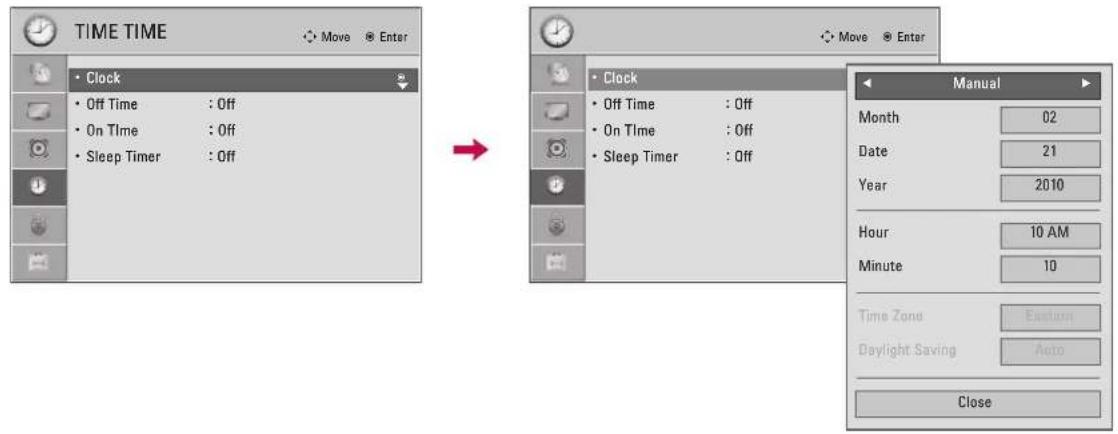

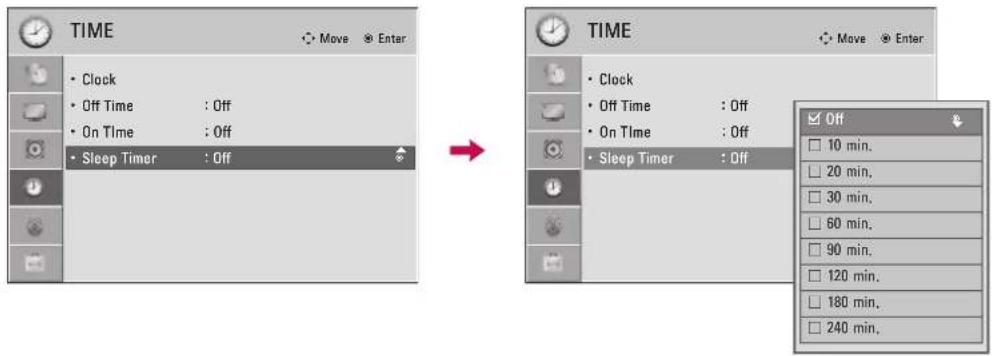

TIME Clock Off Time : Off On Time : Off Sleep Timer : Off

For USA

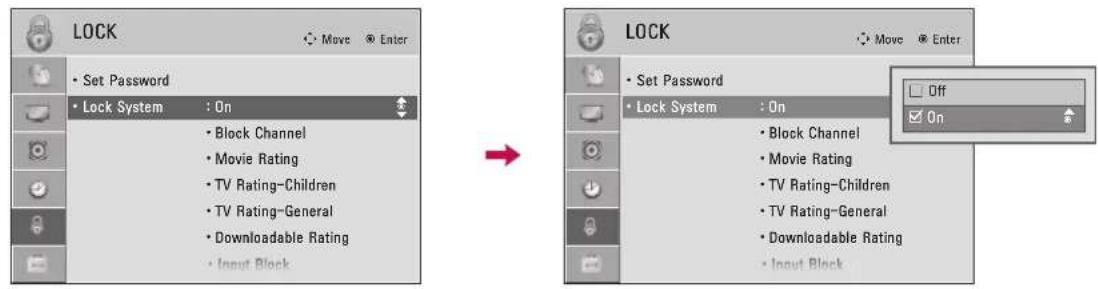

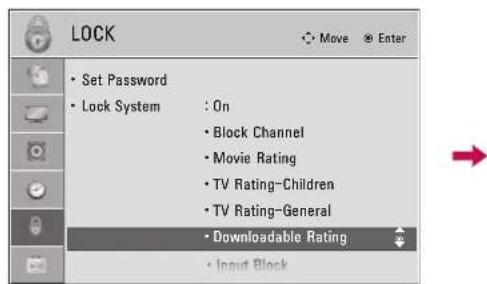

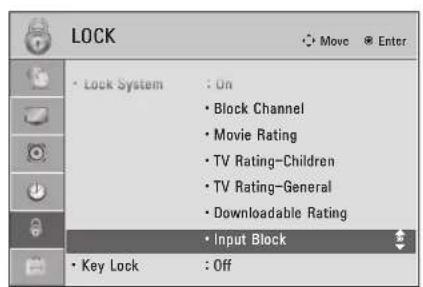

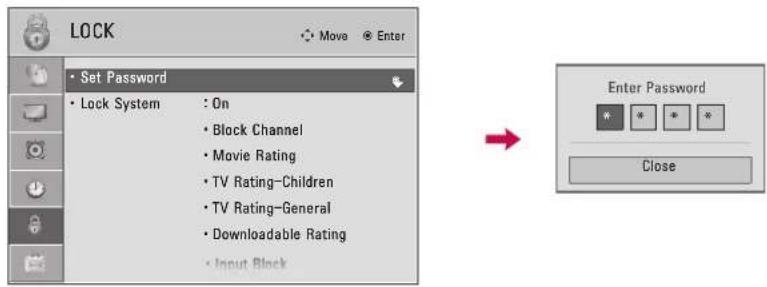

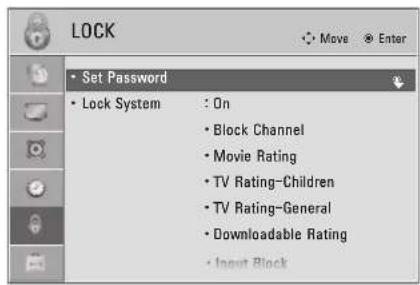

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block

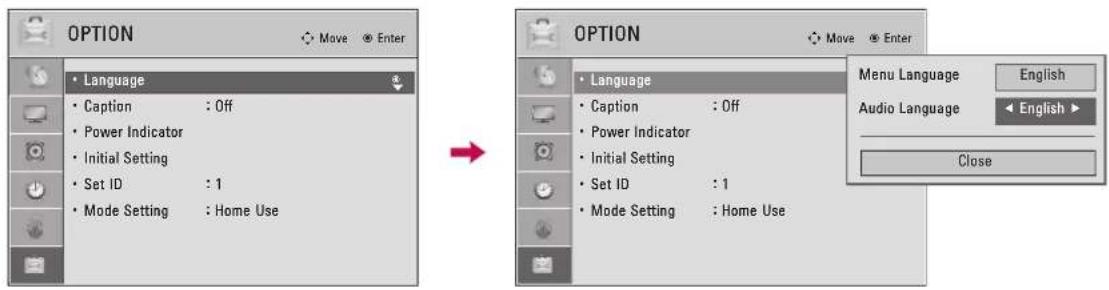

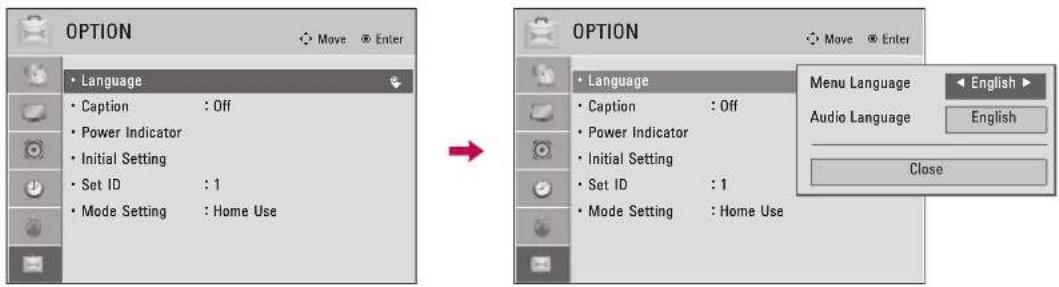

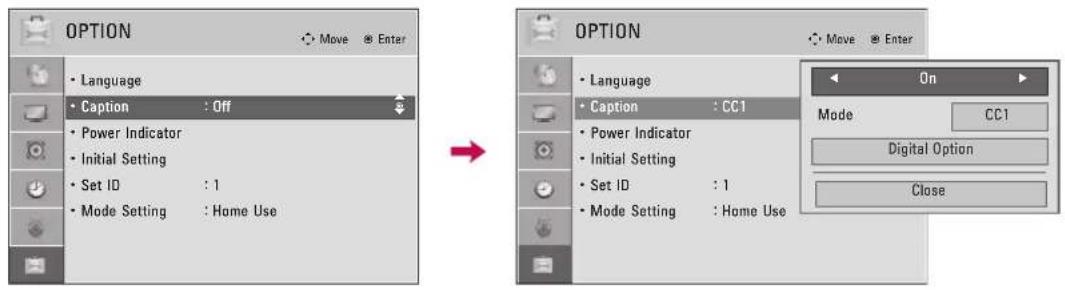

OPTION Language Caption : Off Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use

For Canada

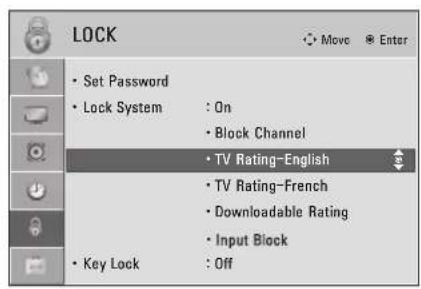

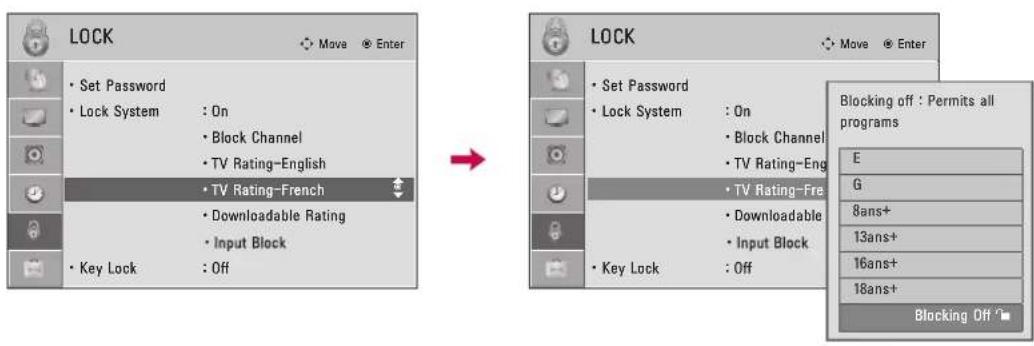

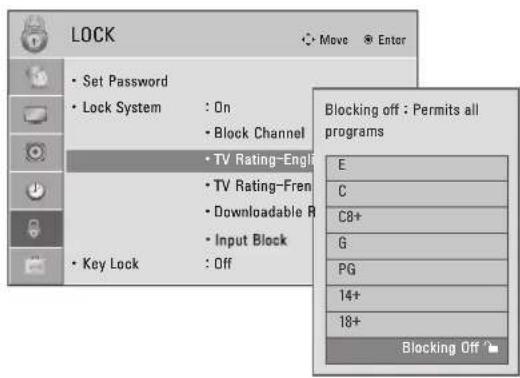

• Set Password • Lock System : On • Block Channel • TV Rating-English • TV Rating-French • Downloadable Rating • Input Block • Key Lock : Off

WATCHING TV / CHANNEL CONTROL

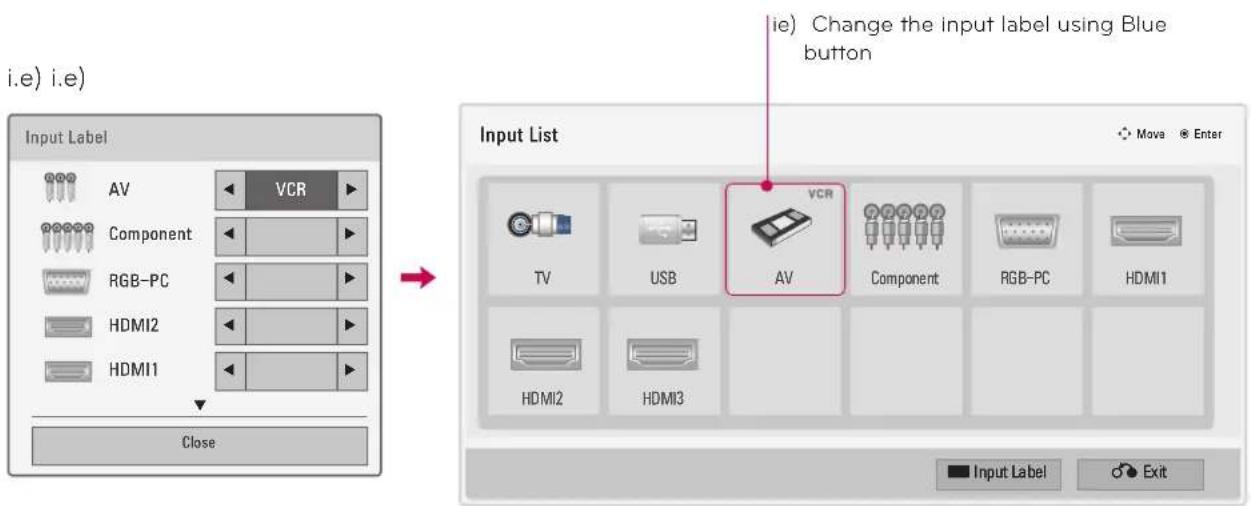

i.e)

Input List Move Enter TV USB AV Component RGB-PC HDMI1 HDMI2 HDMI3 Input Label Exit

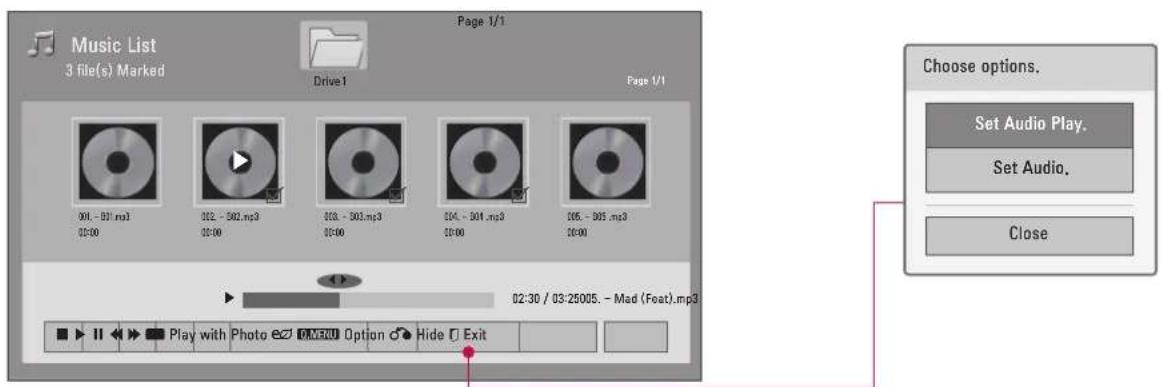

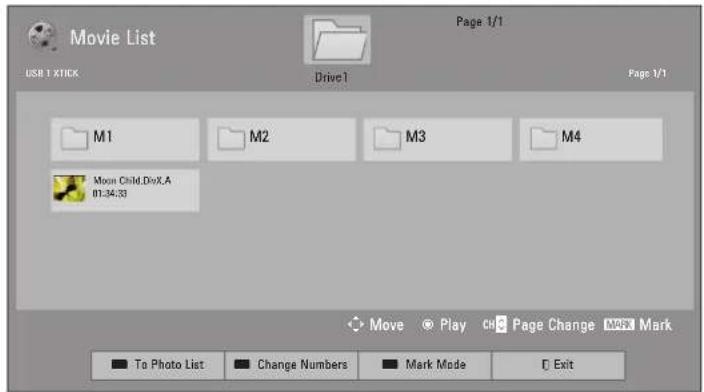

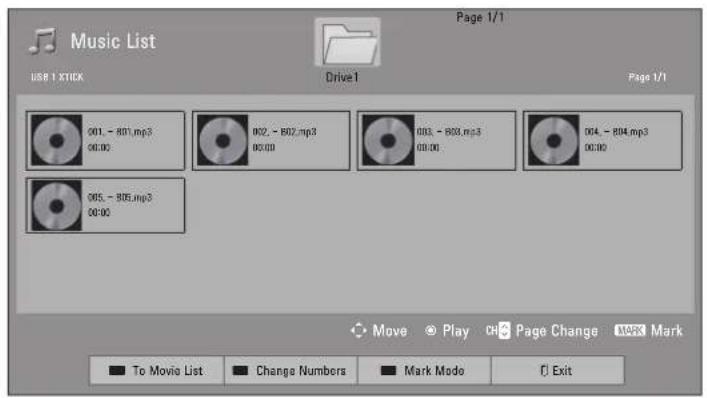

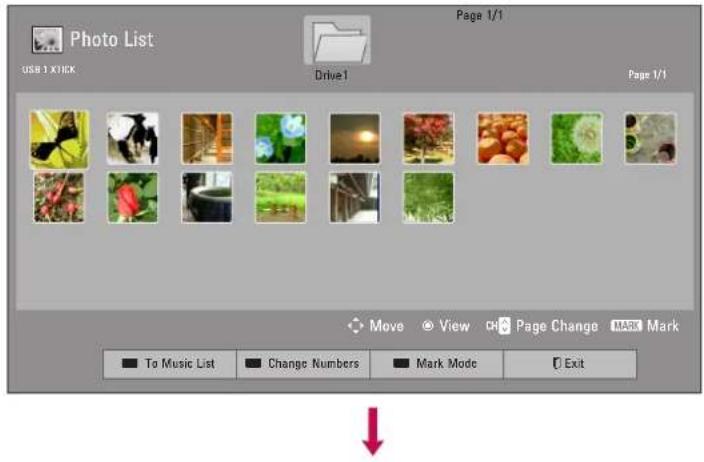

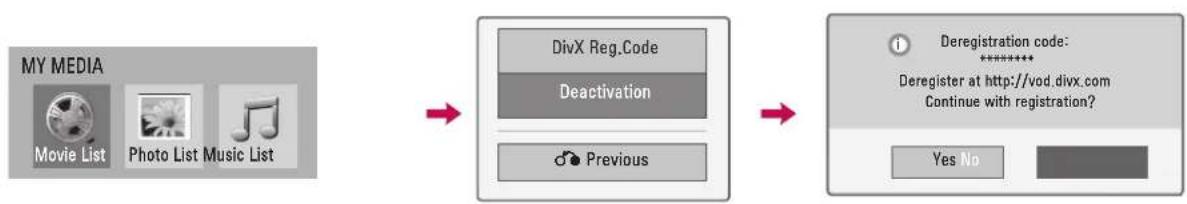

MY MEDIA Movie List Photo List Music List

Except 32/42/47LD420, 32/37/42/47LD450, 37/42/47LD450C, 32/42/47/55LD520, 55LD520C

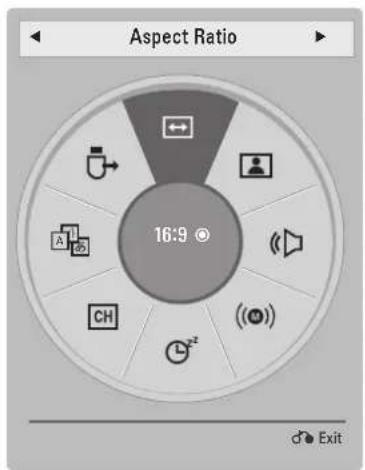

QUICK MENU

Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual. Q.Menu (Quick Menu) is a menu of features which users might use frequently.

Aspect Ratio 16:9 © <

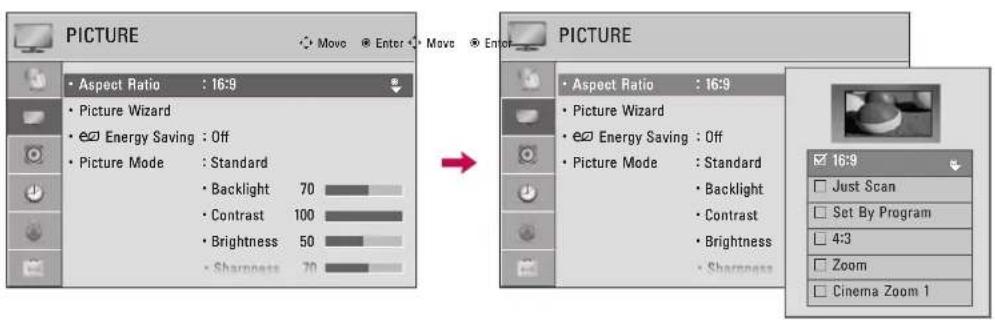

Aspect Ratio: Selects your desired picture format.

Picture Mode: Selects the desired preset picture setting.

Sound Mode: Selects the desired preset sound setting.

(①) Multi Audio: Changes the audio language (Digital signal).

(1) SAP: Selects MTS sound (Analog signal).

^2 Sleep Timer: Select the amount of time before your TV turns off automatically.

CH Del/Add: Select channel you want to add or delete.

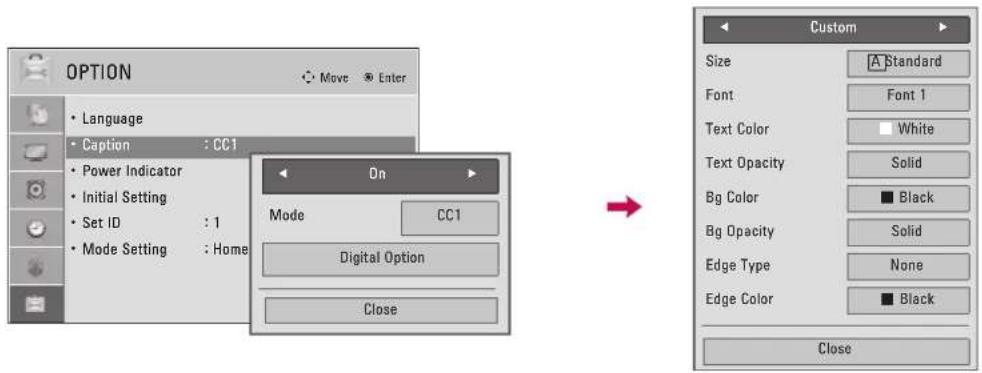

Caption: Select on or off.

USB Device: Select "Eject" in order to eject a USB device.

Display each menu.

Make appropriate adjustments.

WATCHING TV / CHANNEL CONTROL

CUSTOMER SUPPORT

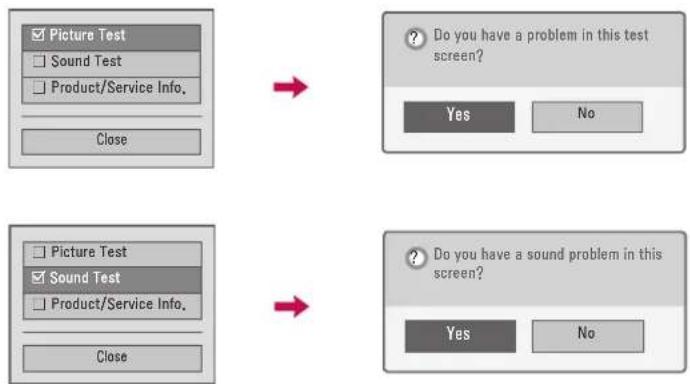

Picture Test / Sound Test

This function is a customer support function that can execute picture and sound tests.

Select Customer Support.

Select Picture Test or Sound Test.

Select Yes.

to the previous menu.

to TV viewing.

Product/Service Info.

This function shows support and product information. Customer Service Center can differ by country.

Select Customer Support.

Select Product/Service Info.. You can check the various product/Service information based on your model.

Return to the previous menu.

Return to TV viewing.

WATCHING TV / CHANNEL CONTROL

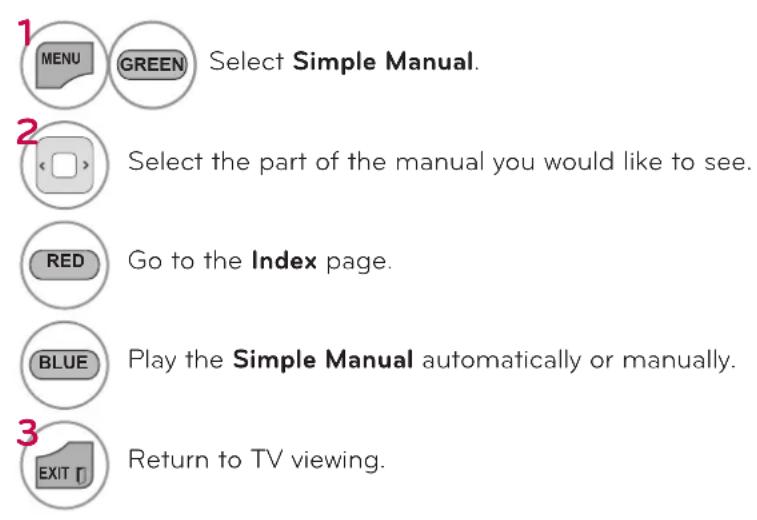

SIMPLE MANUAL

You can easily and effectively access the TV information by viewing a simple manual on the TV. During the Simple Manual operation, audio will be muted.

MENU

GREEN

Select Simple Manual.

Select the part of the manual you would like to see.

RED

Go to the Index page.

BLUE

Play the Simple Manual automatically or manually.

EXIT

Return to TV viewing.

CHANNEL SETUP

Auto Scan (Auto Tuning)

Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.

Run this function if you change your residence or move the TV.

Auto Tuning memorizes only the channels available at the time.

CHANNEL • Auto Tuning • Manual Tuning • Channel Edit

CHANNEL • Auto Tuning • Manual Tuning • Channel Edit Move Enter Antenna Cable Check your antenna connection. The previous channel information will be updated during Auto Tuning. Start Close

Select CHANNEL.

Select Auto Tuning.

Select Start.

Run Auto tuning.

Return to the previous menu.

Return to TV viewing.

■ The TV will ask for a password if parental control has been activated (LOCK Menu). Use the password you set up in the LOCK Menu to allow a channel search.
■ The maximum number of channels the TV can store is 1000.
■ Found channels are grouped in the order of DTV, TV, Cable DTV and Cable TV.

WATCHING TV / CHANNEL CONTROL

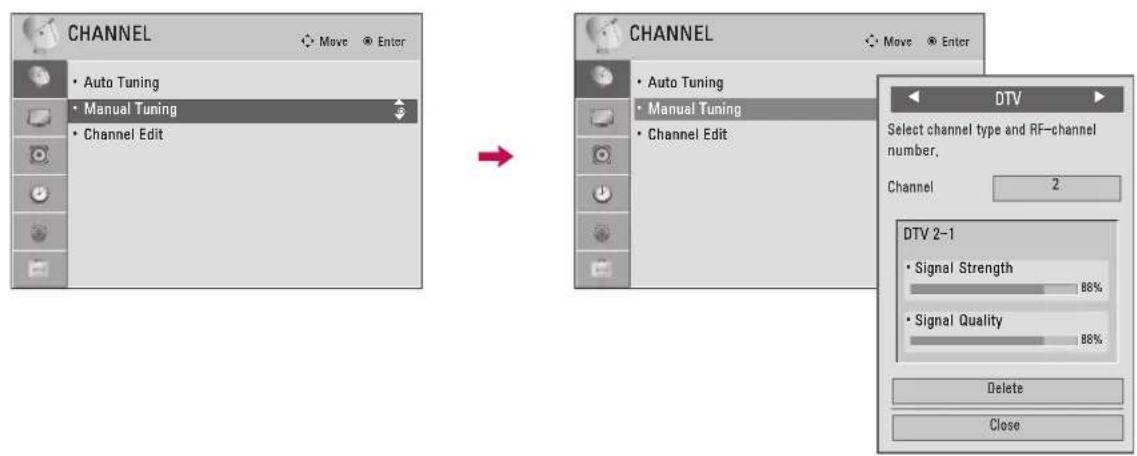

Add/Delete Channel (Manual Tuning)

When selecting DTV or Cable DTV input signal in Manual Tuning, you can view the on-screen signal strength monitor to see the quality of the signal being received.

Select CHANNEL.

Select Manual Tuning

Select DTV, TV, Cable DTV, or Cable TV.

Select channel you want to add or delete.

Select Add or Delete.

Return to the previous menu.

Return to TV viewing.

■ The TV will ask for a password if parental control has been activated (LOCK Menu). Use the password you set up in the LOCK Menu to allow a channel search.
■ The maximum number of channels the TV can store is 1000.

Channel Editing

The channels in the Channel Edit List are displayed in black and the channels deleted from the Channel Edit List are displayed in blue.

When a channel number is deleted, it means that you will be unable to select it using CH ∧ V button during TV viewing. If you wish to select the deleted channel, directly enter the channel number with the NUMBER buttons or select it in the Channel Edit menu.

CHANNEL • Auto Tuning • Manual Tuning • Channel Edit Channel Edit Favorite Group: A DTV TV Cable DTV Cable TV 3-1 5-1 7-1 CH.Change Favorite Ch, DOWNLOAD Favorite Ch, Group Previous Navigation CH Page Change Block/Unblock Add/Delete

Select CHANNEL.

Select Channel Edit.

Select a channel.

Add or delete a channel.

Block or unblock the channel.

You can block/unblock channels even if you select "Lock system-Off" in the LOCK menu.

Switch to the chosen channel number.

Move the pages when the channel list is too long.

Return to the previous menu.

Return to TV viewing.

- Keep pressing the ^ button and use the < or > buttons to move between DTV, TV, Cable DTV and Cable TV.

WATCHING TV / CHANNEL CONTROL

FAVORITE CHANNEL SETUP

Favorite Channels are a convenient feature that lets you quickly select channels of your choice without waiting for the TV to select all the in-between channels.

Favorite List Exit Favorite Ch. Group Group A 3-1 4-1 Ch.Reg. Ch.Edit

1 CH or 123 4 5 6 709 0 Select your desired channel. 2 MARK FAV Select your desired favorite channel group from A to D. 3 YELLOW Register or cancel the current channel in favorite channel list. 4 BLUE Go to the "CHANNEL menu - Channel Edit". 5 EXIT Return to TV viewing.

■ You can also setup Favorite List in the CHANNEL menu - Channel Edit.

FAVORITE CHANNEL LIST

Favorite List Exit Favorite Ch. Group Group A 3-1 4-1 Ch.Reg. Ch.Edit

Displaying the favorite channel list

1 MARK FAV Display the Favorite channel list.

Selecting a channel in the favorite channel list

1 Select a channel. 2 ENTER Switch to the chosen channel number.

Paging through a favorite channel list

1 CH 2 Turn the pages. 2 EXIT Return to TV viewing.

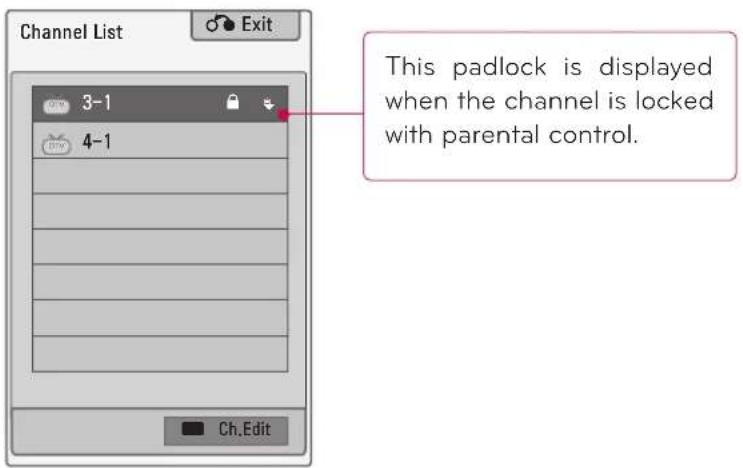

CHANNEL LIST

You can check which channels are stored in the memory by displaying the channel list.

Channel List Exit 3-1 4-1 This padlock is displayed when the channel is locked with parental control. Ch.Edit

Displaying Channel List

Display the Channel List.

Tune to the "CHANNEL menu - Channel Edit".

Selecting a channel in the channel list

Select a channel.

Switch to the chosen channel number.

Paging through a channel list

Turn the pages.

Return to TV viewing.

WATCHING TV / CHANNEL CONTROL

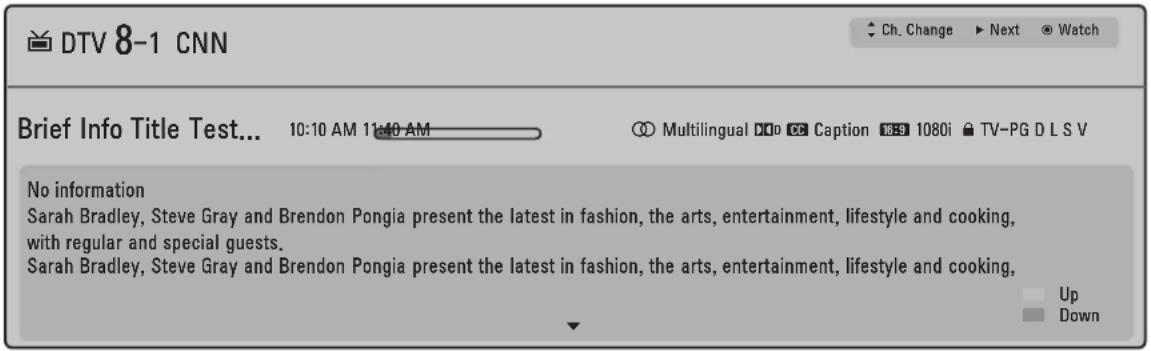

CHANNEL INFORMATION

DTV 8-1 CNN Ch. Change ▶ Next ◎ Watch Brief Info Title Test... 10:10 AM 11:40 AM Multilingual No CC Caption 1639 1080i TV-PG D L S V No information Sarah Bradley, Steve Gray and Brendon Pongia present the latest in fashion, the arts, entertainment, lifestyle and cooking, with regular and special guests. Sarah Bradley, Steve Gray and Brendon Pongia present the latest in fashion, the arts, entertainment, lifestyle and cooking, Up Down

Displaying Channel Information

Show the current channel program Information on the screen.

Show a previous or next channel's program information

Return to TV viewing.

CHANNEL BRIEF INFORMATION

Brief Info shows the present screen information.

Shows the current channel's brief info screen.

Return to TV viewing.

6 DTV 8-1 DOLBY DIGITAL HD CNN Brief Info Title Test... 10:10 AM 11:40 AM Next - 11:40 AM News Sun, Feb 21, 2010 10:40 AM Multilingual DVID CC Caption 1639 1080i TV-PG D L S V

CC

4:316:9

480i480p720p1080i1080p

Multilingual : The program contains two or more audio services. Use the Q.MENU menu to select wanted Audio.

Caption : The program contains one or more caption services. Use the Q.MENU menu to select wanted Closed caption.

Dolby Digital: The program contains a Dolby Digital audio signal in TV and HDMI input source.

The original aspect ratio of the video is 4:3 The original aspect ratio of the video is 16:9 (wide)

The video resolution is 720x480i The video resolution is 720x480p The video resolution is 1280x720p The video resolution is 1920x1080i The video resolution is 1920x1080p

V-Chip: The program contains V-Chip information. Refer to the LOCK menu: A (Age), D (Dialogue), L (Language), S (Sex), V (Violence), FV (Fantasy Violence)

1 Program title
2 Day, Month, Year, Present time
3 Program start time
4 Program progress bar
5 Program finish time
6 Banner information

WATCHING TV / CHANNEL CONTROL

INPUT LIST

Only these input signals which are connected to a TV can be activated and selected.

ie)

Input List Move Enter TV USB AV Component RGB-PC HDMI1 HDMI2 HDMI3 Disconnected inputs are inactive (grayed out) ■ Input Label ○ Exit

Select the desired input source.

■ When new external device is connected, this popup menu is displayed automatically.
If selecting Yes, you can select input source that you want to appreciate.
- But, when selecting "SIMPLINK - On", popup menu for HDMI input will not be displayed.

New external input is connected. Do you want to use this? AV Yes No

■ TV: Select it to watch over-the-air, cable and digital cable broadcasts.
■ AV: Select them to watch a VCR or other external equipment.
■ Component: Select them to watch DVD or a Digital set-top box.
■ RGB-PC: Select it to view PC input.
■ HDMI: Select them to watch high definition devices.

INPUT LABEL

This indicates which device is connected to which input port.

i.e) i.e) Input Label AV VCR Component RGB-PC HDMI2 HDMI1 Close Input List Move Enter TV USB AV Component RGB-PC HDMI1 HDMI2 HDMI3 Input Label Exit ie) Change the input label using Blue button

Select the desired input source.

Select the label.

Return to the previous menu.

Return to TV viewing.

WATCHING TV / CHANNEL CONTROL

RESET TO FACTORY DEFAULT (INITIAL SETTING)

This function resets the TV to factory default and erases all stored channels.

OPTION • Language • Caption : Off • Power Indicator • Initial Setting • Set ID : 1 • Mode Setting : Home Use OPTION • Language • Caption : Off • Power Indicator • Initial Setting • Set ID : 1 • Mode Setting : Home U All user settings and channel settings will be reset, Still continue? Yes No

Select OPTION.

Select Initial Setting.

Select Yes.

TV turns off automatically and starts factory reset.

• When selecting "Lock System - On" in the LOCK menu, the message to enter the password appears.
  If you forget your password, press "0-3-2-5" on the remote control.

MODE SETTING

Default selection is "Home Use". We recommend setting the TV to "Home Use" mode for the best picture in your home environment.

OPTION • Language • Caption : Off • Power Indicator • Initial Setting • Set ID : 1 • Mode Setting : Home Use OPTION • Language • Caption : Off • Power Indicator • Initial Setting • Set ID : 1 • Mode Setting : Home Use • Select the environment. Choose the setting mode you want. Select [Home Use] when setting TV up in-home. You can adjust picture quality accordingly through Picture Mode menu option. Home Use • Demo Mode Store Demo Off Close

For 19/22/26/37/42/47/55LE5300, 22/26LE5500, 42/47/55LE7300, 37/42/47LD450C, 55LD520C

Select OPTION.

Select Mode Setting.

Select Home Use.

Return to the previous menu.

Return to TV viewing.

■ "Store Demo" Mode is only intended for use in retail environments. Customers can adjust the "Picture menu - Picture mode" manually while inspecting the TV, but the TV will automatically return to preset in-store mode after 5 minutes.

■ "Store Demo" Mode is an optimal setting for displaying at stores. "Store Demo" mode initializes the TV to set the image quality:

WATCHING TV / CHANNEL CONTROL

DEMO MODE

Displays a slide show to explain the various feature of this TV.

OPTION • Language • Caption : Off • Power Indicator • Initial Setting • Set ID : 1 • Mode Setting : Home Use OPTION • Language • Caption : 0 • Power Indicator • Initial Setting • Set ID : 1 • Mode Setting : S SELECTing the environment. Choose the setting mode you want. Select [Store Demo] for in-store display. For use in-home, select [Home Use]. Home Use Store Demo • Demo Mode Off Close

1 MENU Select OPTION.
2 ENTER Select Mode Setting.
3 ENTER < Store Demo.
4 ENTER Select On.
5 Return to TV viewing. After a while, Demo Mode. starts. If you want to stop the demo, press any button (Except VOL +, - and MUTE button).

AV MODE

AV Mode toggles through preset Video and Audio settings.

Press the AV MODE button repeatedly to select the desired source.

If you select "Cinema" in AV mode, Cinema will be selected both for "PICTURE menu - Picture Mode" and "AUDIO menu - Sound Mode" respectively.
If you select "Off" in AV mode, the "Picture Mode" and "Sound Mode" return to previous selected value.
■ Off: Disables the AV MODE.
■ Cinema: Optimizes video and audio for watching movies.
■ Sport: Optimizes video and audio for watching sports events.
■ Game: Optimizes video and audio for playing games.

WATCHING TV / CHANNEL CONTROL

SIMPLINK

SIMPLINK allows you to control and play other AV devices connected with HDMI cable without additional cables and settings. This TV may work with devices with HDMI-CEC support, but only devices with the SIMPLINK logo are fully supported.

SIMPLINK can be turned on and off in the user menus.

SIMPLINK Enter Exit On Watch TV DISC 1 HDD/DVD-R VCR 1 HD HT HDD Recorder Speaker TV Speaker

Display SIMPLINK menu.

Select On.

Select the desired device.

Control connected AV devices.

1 TV viewing: Switch to the previous TV channel regardless of the current mode.
② DISC playback: Select and play discs. When multiple discs are available, the disc devices are conveniently displayed at the bottom of the screen.
3 VCR playback: Control the connected VCR.
4 HDD Recordings playback: Control recordings stored in HDD.
5 Audio Out to Home Theater speaker/ Audio Out to TV: Select Home Theater speaker or TV speaker for Audio Out.

SimplINK Enter Exit On Watch TV DISC 1 HDD/DVD-R VCR 1 HD HT HDD Recorder Speaker TV Speaker

▶ When no device is connected (displayed in gray)
▶ Selected Device
▶ When a device is connected (displayed in bright color)

SIMPLINK Functions

• Direct Play: After connecting AV devices to the TV, you can directly control the devices and play media without additional settings.
• Select AV device: Enables you to select one of the AV devices connected to the TV.
  Disc playback: Control connected AV devices by pressing the ^ <>, ENTER, ▶, ■, ||, ◀ and ▶ buttons.
  ■ Power off all devices: When you power off the TV, all connected devices are turned off.
  ■ Switch audio-out: Offers an easy way to switch audio-out.
  ■ Sync Power on: When the equipment with Simplink function connected HDMI terminal starts to play, The TV will automatically turn on.

Note: To operate SIMPLINK, an HDMI cable over Version 1.3 with *CEC function should be used. (*CEC: Consumer Electronics Control).

(A device, which is connected to the TV through a HDMI cable but does not support SIMPLINK, does not provide this function)

NOTE

Connect the HDMI/DVI IN or HDMI IN terminal of the TV to the rear terminal (HDMI terminal) of the SIMPLINK device with the HDMI cable
When you switch the Input source with the INPUT button on the remote control, the SIMPLINK device will stop.
When you select a device with home theater functionality, the sound output automatically switches to the home theater speakers and the TV speakers are turned off.
If a connected SIMPLINK home theater system doesn't play the audio from the TV, connect the DIGITAL AUDIO OUT terminal on the back of the TV to the DIGITAL AUDIO IN terminal on the back of the SIMPLINK device with an OPTICAL cable.

MY MEDIA

CONNECTION METHOD

USB Connection

1 Connect the USB device to the USB IN jack on the side of TV.

USB IN N 3 Memory Key

Precautions when using the USB device

▶ Only a USB storage device is recognizable.
Connecting a USB storage device through a USB hub is not supported.
▶ A USB storage device which uses its own driver may not be recognized.
The recognition speed of a USB storage device may depend on each device.
Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
▶ Only use a USB storage device which has normal music files, image files, or movie files.
▶ Please use only a USB storage device which was formatted as a FAT 32 or NTFS file system provided with the Windows operating system. Others may not be recognized.
Some USB storage devices require a power adapter. The power adapter must be connected in order to be seen by the TV.
If a device is not recognized by the TV, try a different cable. Excessively long cables are not supported.
▶ Some USB storage devices may not be supported or operate properly.
▶ Please backup important files because data on USB device could be damaged. Data management is consumer's responsibility and as a result, the manufacturer does not cover data damage.
If your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can use up to 4 partitions or USB memory devices.
In case of USB storage devices formatted as NTFS, deletion is not supported.
▶ File alignment method of USB storage device is similar to Window XP and file names can be up to 100 English characters.
The recommended capacity is 1TB or less for a USB external hard disk and 32 GB or less for USB memory.
If a USB external hard disk with a "Energy Saving" function doesn't work, turn the hard disk off and on again to make it work properly. Refer to the user manual of the USB external hard disk.
▶ USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.

ENTRY MODE

The My Media menu will open automatically when you insert a USB drive. My Media can also be accessed by choosing My Media in the user menu.

On USB device, you can not add a new folder or delete the existing folder.

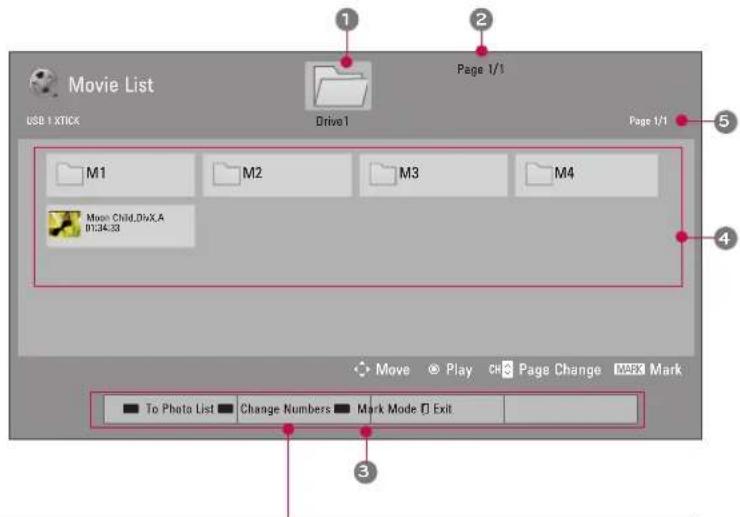

MY MEDIA Movie List Photo List Music List

Except 32/42/47LD420,

32/37/42/47LD450,

37/42/47LD450C,

32/42/47/55LD520,

55LD520C

Select MY MEDIA.

Select Movie List, Photo List or Music List.

■ This TV can view JPG image files, HD DivX files or play MP3 audio files.

When removing the USB device

Select the USB Device menu before removing the USB device.

Select USB Device.

Select Eject.

MOVIE LIST

(Except 32/42/47LD420, 32/37/42/47LD450, 37/42/47LD450C, 32/42/47/55LD520, 55LD520C)

The movie list is activated once a USB drive is detected. It is used when playing movie files on the TV. It displays all of the video files it recognizes.

The On-Screen Display on your model may be slightly different.

Supported movie file

■ Resolution: under 1920 pixel (width) x 1080 pixel (height)
■ Frame Rate: under 30 frame/sec (1920x1080), under 60 frame/sec (1280x720)
■ Max bitrate of playable video file: 20 Mbps (Mega bit per second)
■ Bit rate : within 32 kbps to 320 kbps (MP3)
■ Supported external subtitle format: *.smi/*.srt/*.sub (MicroDVD, Subviewer1.0/2.0)/*.ass/*.ssa/*.txt (TMPlayer)/*.psb (PowerDivX)
■ Supported Internal subtitle format: only, XSUB (It is the subtitle format used in DivX6 files)

Precautions when playing the video files

▶ Some user-created subtitles may not work properly.
▶ Some special characters are not supported in subtitles.
▶ HTML tags are not supported in subtitles.
▶ Time information in an external subtitle file should be arranged in ascending order to be played.
The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio language is changed.
▶ A damaged video file may not be played correctly, or some functions may not be usable.
▶ Video files produced with some encoders may not be played correctly.
If the video and audio structure of recorded file is not interleaved, the file not playback properly.
▶ Video with resolution higher than maximum resolution supported for each frame, cannot be guaranteed for smooth playback.
▶ Video files other than the specified types and formats may not work properly.
The movie file encoded by the GMC (Global Motion Compensation) is not supported.
Only 250 Korean characters, 500 letters and 500 numbers are supported for each line of the subtitle.
▶ Only 10000 sync blocks are supported within the subtitle file.
We do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264/AVC.
▶ DTS Audio codec is not supported.
▶ A video file more than 30GB in file size is not supported for playback.
Playing a video via a USB connection that doesn't support high speed may not work properly.
▶ USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.
The video file and its subtitle file must be located in the same folder.
At this time, a video file name and its subtitle file name must be identical for it to be displayed.
When you are watching a movie via the Movie List function, you can adjust the picture with the ENERGY SAVING and AV MODE button on the remote control. User setup for each picture mode is not supported.

Supported Video Formats

File Extension name	Video Decoder Audio Codec Max Resolution
mpg, mpeg MPEG1, MPEG2 MP2, MP3, Dolby Digital, LPCM		1920 x 1080 @ 30p(Only Motion JPEG640x480@30p)
dat MPEG1 MP2
ts, trp, tp MPEG2, H.264, AVS, VC1
vob	MPEG1, 2 MP2, MP3, Dolby Digital, LPCM
mp4, mov	MPEG4,DivX 3.11, DivX 4.12, DivX 5.x, DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2H.264	MP3
mkv H.264, MPEG-1,2,4
divx, avi	MPEG2, MPEG4, DivX 3.11, DivX 4, DivX 5, DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2H.264	MP2, MP3, Dolby Digital, LPCM, ADPCM
Motion JPEG (avi, mp4, mkv)	JPEG LPCM, ADPCM
asf, wmv	VC1	WMA
flv	Sorenson H.263, H264	MP3

Screen Components

Select MY MEDIA.

Select Movie List.

1 Moves to upper level folder
2 Current page/Total pages
3 Corresponding buttons on the remote control
4 Contents under the folder focused on 1
5 Current page/total pages of contents

Movie List USB 1 XTICK Drive 1 Page 1/1 M1 M2 M3 M4 Move Child.DivX.A B1:34:32 Page 1/1 Move Play Change Page Change MAX Mark To Photo List Change Numbers Mark Mode Exit

GREEN	Move to Photo List or Music List.
YELLOW	Change Numbers: Changes the number or thumbnails displayed at a time.
BLUE	Allows you to mark certain files.
EXIT	Return to TV viewing.

Movie Selection

Movie List USB 1 XHICK Drive1 Page 1/1 Page 1/1 M1 M2 M3 M4 Mount Child.Dox.A 01:34:33 Move Play Change Page Change MARK Mark To Photo List Change Numbers Mark Mode Exit

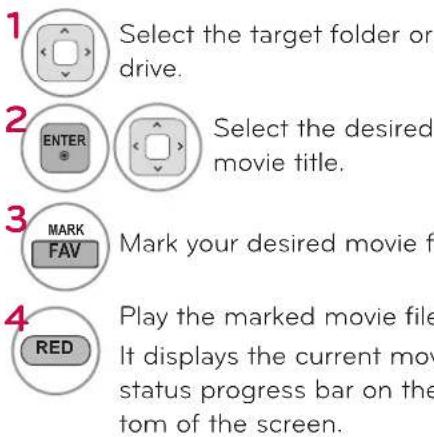

Mark Mode

Movie List Mark Mode USB 1 XTICK Drive1 Page 1/1 Page 1/1 M1 M2 M3 M4 Moon Child.DivX.A 01:34:33 Move Mark Page Change Mark Mark Play Marked Mark All Unmark All Exit Mark Mode Exit

RED	Play Marked: Play the first selected file. Once a movie finishes playing, the next selected one will be played automatically.
GREEN	Mark All: Mark all files in the folder.
YELLOW	Unmark All: Deselect all marked files.
BLUE	Exit the Mark Mode.

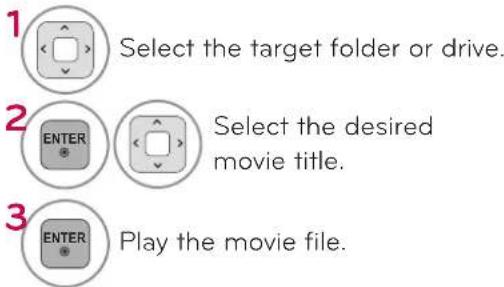

1 Select the target folder or drive. 2 Select the desired movie title. 3 Play the movie file.

■ Use the CH (∧∨) button to navigate in the movie page.

1 Select the target folder or drive. 2 Select the desired movie title. 3 MARK FAV Mark your desired movie fi 4 Play the marked movie file It displays the current mov status progress bar on the tom of the screen.

- When one or more movie files are marked, the marked movies will be played in sequence.

MY MEDIA

Using the Movie List Function

Black-and-white photo of assorted fruit items including banana slices and apples, with a media player interface showing playback controls (no readable text on objects)

Choose options. Set Video Play. Set Video. Set Audio. Close

Show the Option menu.

Select Set Video Play., Set Video., or Set Audio.

NOTE

▶ Option values changed in the Movie List does not affect Photo List and Music List.
▶ Option values changed in Photo List and Music List are changed likewise in Photo List and Music List, but not in the Movie List.
When replaying a video file after stopping, you can play from where it stopped automatically.
If you select "Yes" when playing the same file after the video file has been stopped, it will restart where it stopped previously.
If continuous series files exist within the folder, the next file will automatically be played. But, this excludes cases when the Repeat function of Movie List Option is turned "On" (Refer to page 85) or when set as Marked Play.

Using the remote control

	Return to TV viewing.
	Select the required speed: x2, x4, x8, x16, x32 (backward/forward).
	Pauses the media player.If no buttons are pressed on the remote control for 10 minutes after pausing, the TV returns to the playback state.
	Displays a slow motion.
	Move to a specific frame forward or backward while playing a video. A cursor indicating the position can be viewed on the screen. It may not work properly for some movie files.
	Return to normal playback.
	Hide the menu on screen. To see the menu again, press ENTER button to display.
	Press the ENERGY SAVING button repeatedly to increase the brightness of your screen (Refer to p. 104).
	Press the AV MODE button repeatedly to select the desired source (Refer to p. 75).

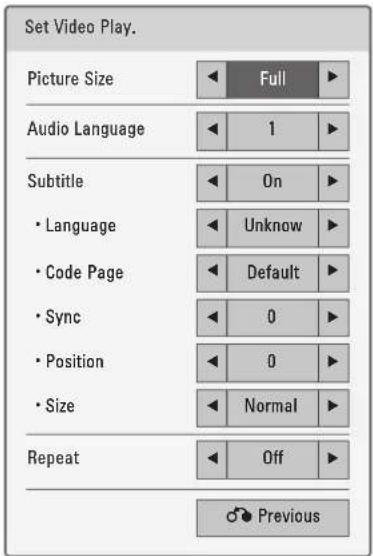

Set Video Play Menu Options

Set Video Play. Picture Size Full Audio Language 1 Subtitle On • Language Unknown • Code Page Default • Sync 0 • Position 0 • Size Normal Repeat Off Previous

Select Picture Size, Audio Language, Subtitle, or Repeat.

Make appropriate adjustments.

Code Page

Subtitle Language Group Supported Language

Latin1 English, Spanish, French

Korean English, Korean

■ Picture Size: Selects your desired picture format for videos.
■ Audio Language: Changes the Language Group of the audio for video files.
■ Subtitle Language: The subtitles can be turned on or off. If there are two or more subtitles, you can select one of them.
■ Language: Activated for SMI subtitles and can select the language within the subtitle.
■ Code Page: Subtitle font selection. When set to default, same font as general menu will be used.
■ Sync: When the video is not synchronized with the captions, it can be adjusted by 0.5 second.
■ Position: Move the location of the subtitles.
■ Size: Changes the subtitle font size.
■ Repeat: Turn on/off repeat function of movie playback. When turned on, the file within the folder will be played back repeatedly.

MY MEDIA

* Image shown may differ from your TV.

Set Video Menu Options

Set Video. Picture Mode Standard • Backlight 70 • Contrast 100 • Brightness 50 • Color 60 • Dynamic Contrast • Edge Enhancer • Noise Reduction TruMotion Low (‘TruMotion’ dependent on model) ■ Picture Reset ▼ Previous

Select Picture Mode or TruMotion.

Make appropriate adjustments.

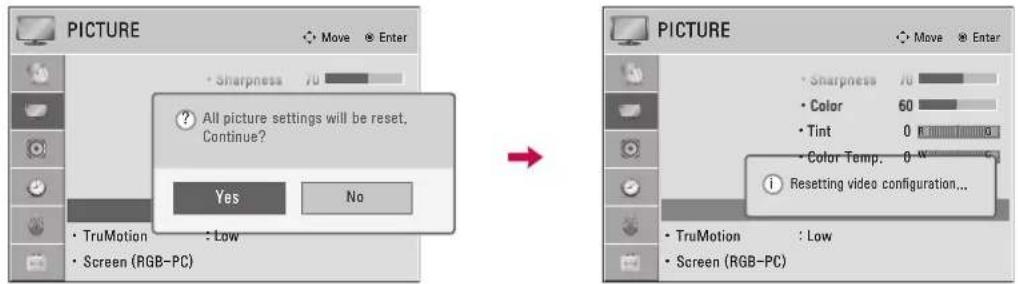

Reset picture settings to default.

Set Audio Menu Options

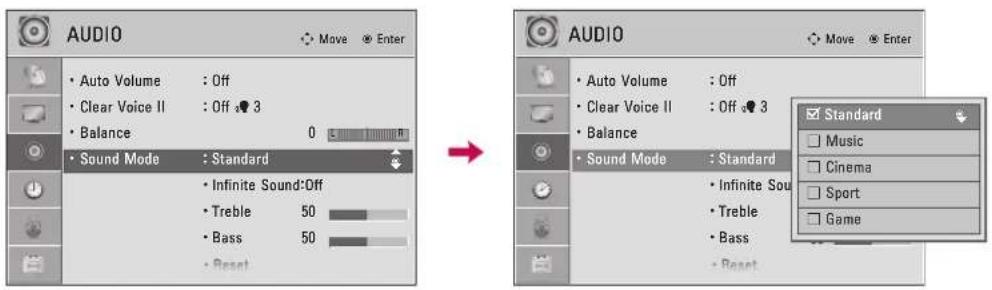

Set Audio. Sound Mode Standard Auto Volume Off Clear Voice II Off Balance 0 L R Previous

Select Sound Mode, Auto Volume, Clear Voice II or Balance.

Make appropriate adjustments.

PHOTO LIST

The On-Screen Display on your model may be slightly different.

Supported photo file: \*.JPG

■ Baseline: 64 pixel (width) x 64 pixel (height) to 15360 pixel (width) x 8640 pixel (height)
■ Progressive: 64 pixel (width) x 64 pixel (height) to 1920 pixel (width) x 1440 pixel (height)
■ You can play JPEG files only.
■ Non-supported files are displayed in the form of predefined icon.

Screen Components

(No text)

MENU

Select MY MEDIA.

Select Photo List.

1 Moves to upper level folder
2 Current page/total pages
③ Corresponding buttons on the remote control
4 Contents under the folder focused on 1
5 Current page/total pages of contents

Photo List USB 1 X1ICK Drive1 Page 1/1 P1 P2 P3 P4 P5 P6 P7 P8 P9 Page 1/1 Move View Change Page Change MARK Mark To Music List Change Numbers Mark Mode Exit

GREEN

Move to Music List or Movie List.

YELLOW

Change Numbers: Changes the number or thumbnails displayed at a time.

BLUE

Allows you to mark certain files.

EXIT

Return to TV viewing.

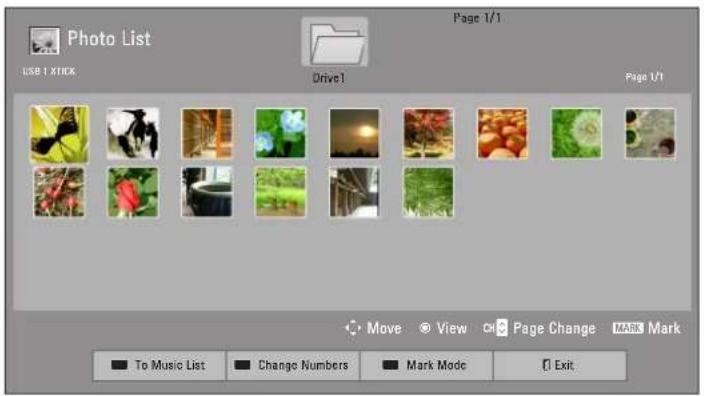

Photo Selection

Photo List USB 1 XSTICK Drive1 Page 1/1 Page 1/1 Move View Page Change MARK Mark To Music List Change Numbers Mark Mode Exit

1 Select the target folder or drive.
2 ENTER Select the desired photos.
3 ENTER Photo file is displayed.

■ Use the CH (∧∨) button to navigate in the photo page.

Mark Mode

Photo List Mark Mode Page 1/1 USB 1 TICK Drive1 Page 1/1 Move Mark Change MARK Mark View Marked Mark All Unmark All Exit Mark Mode Exit

1 Select the target folder or drive.
2 ENTER Select the desired photo files.
3 MARK FAV Mark your desired photo files.
4 RED View the marked photo files.

RED	View Marked: Display the selected photo.
GREEN	Mark All: Mark all photos on the screen.
YELLOW	Unmark All: Deselect all marked photos.
BLUE	Exit the Mark Mode.

■ When one or more photos are marked, you can view individual photos or a slide show of the marked photos. If no photos are marked, you can view all photos individually or all photos in the folder in a slide show.

Full Screen Menu

More operations are available in full screen mode.

Photo List USB 1 XHCK Drive1 Page 1/1 Page 1/1 Move View Page Change MARK Mark To Music List Change Numbers Mark Mode Exit

01.a.jpg 2008/12/10 1920 x 1080 479 KB Full HD X CANVAS 2/13 Slideshow ▶ BGM ▶ ○ Q ☑ O MENU Option ⬆ Hide ⏻ Exit

The aspect ratio of a photo may change the size of the photo displayed on the screen in full size.

Select the target folder or drive.

Select the desired photos.

The selected photo is displayed in full size.

■ Use the CH (∧∨) button to navigate in the photo page.

01.a.jpg 2008/12/10 1920 x 1080 479 KB Full HD X CANVAS 2/13 Slideshow □ BGM □ ○ e/o D:\ELE Option Hide Exit

Select the Slideshow,

BGM, Ⓧ (Rotate),

Q (Zoom In), e∅ (Energy Saving), Option, or Hide.

■ Use <> button to select the previous or next photo.

▶ Slideshow: Selected photos are displayed during the slide show. If no photo is selected, all photos in the current folder are displayed during slide show.

■ Set the time interval of the slide show in Option-Set Photo View. menu (Refer to p. 91).

- You can adjust Option by using the Q.MENU button on the remote control.

▶ BGM (Background Music): Listen to music while viewing photos in full size.

■ Set the BGM device and album in Option-Set Photo View. menu (Refer to p. 91).

- You can adjust Option by using the Q.MENU button on the remote control.

▶ (Rotate): Rotate photos.

■ Rotates the photo 90°, 180°, 270°, 360° clockwise.

■ Photos cannot be rotated if its width is greater than the available supported resolution height.

▶ Q (Zoom In): View the photo by zoom in 2, 4 times by using Blue button.

▶ e∅ (Energy Saving): Increase the brightness of your screen by using ENERGY SAVING button.

▶ Option: Set values for Slide Speed and Music Album (Refer to p. 91).

■ You cannot change Music Album while BGM is playing.

■ You can only select the MP3 folder saved on the device that currently displays the photo.

▶ Hide: Hide the menu on the full-sized screen.

■ To see the menu again on the full-sized screen, press ENTER button to display.

Exit: Move to the previous menu screen.

Using the Photo List Function

01.a.jpg 2008/12/10 1920 x 1080 479 KB Full HD XCANVAS Choose options. Set Photo View. Set Video. Set Audio. Close 2/13 Slideshow □ BGM □ ○ Q e□ CMEM Option ⬤ Hide □ Exit

Show the Option menu.

Select Set Photo View., Set Video., or Set Audio.

NOTE

▶ Option values changed in Photo List do not affect Movie List and Music List.
▶ Option values changed in Photo List or Music List are changed likewise in Photo List and Music List, but not Movie List.

Set Photo View Menu Options

Set Photo View. Slide Speed Fast Music Album Drive1 • Repeat On • Random Off Previous

Select Slide Speed or Music Album.

Make appropriate adjustments.

MY MEDIA

* Image shown may differ from your TV.

Set Video Menu Options

Set Video. Picture Mode Standard • Backlight 70 • Contrast 100 • Brightness 50 • Color 60 • Dynamic Contrast • Edge Enhancer • Noise Reduction TruMotion Low (depending on models) ■ Picture Reset ⚫ Previous

Select Picture Mode or TruMotion.

Make appropriate adjustments.

Initialize the adjusted picture value.

Set Audio Menu Options

Set Audio. Sound Mode Standard Auto Volume Off Clear Voice II Off Balance 0 L R Previous

Select Sound Mode, Auto Volume, Clear Voice II or Balance.

Make appropriate adjustments.

MUSIC LIST

This TV cannot play back copy-protected files.

The On-Screen Display on your model may be slightly different.

MUSIC (*.MP3) supporting file

Bit rate 32 Kbps - 320 Kbps

• Sampling rate MPEG1 Layer3: 32 kHz, 44.1 kHz, 48 kHz
• Sampling rate MPEG2 Layer3: 16 kHz, 22.05 kHz, 24 kHz
• Sampling rate MPEG2.5 Layer3: 8 kHz, 11.025 kHz, 12 kHz

Screen Components

Select MY MEDIA.

1 Preview: If any album jacket for the file (Album Art Image) exists, this picture is displayed.
2 Moves to upper level folder
3 Current page/Total pages
4 Corresponding buttons on the remote control
⑤ Contents under the folder focused on ①
6 Current page/total pages of contents

2

Select Music List.

Music List USB 1 XICK Drive1 Page 1/1 001 - BB1.mp3 00:00 002 - B02.mp3 00:00 003 - B03.mp3 00:00 004 - BB4.mp3 00:00 005 - BB5.mp3 00:00 Page 1/1 Move Play Page Change MARK Mark To Movie List Change Numbers Mark Mode Exit

GREEN	Move to Movie List or Photo List.
YELLOW	Change Numbers: Changes the number or thumbnails displayed at a time.
BLUE	Allows you to mark certain files.
EXIT	Return to TV viewing.
ENERGY	Press the ENERGY SAVING button repeatedly to increase the brightness of your screen (Refer to p. 104).
SAVING	(It's available "ENERGY SAVING - Off, Screen Off" only.)

Music Selection

Music List Page 1/1 USB 1 X1ICK Drive1 Page 1/1 001 - 801.mp3 00:00 002 - 802.mp3 00:00 003 - 803.mp3 00:00 004 - 804.mp3 00:00 005 - 805.mp3 00:00 Move Play Change Page Change MARK Mark To Movie List Change Numbers Mark Mode Exit

1 Select the target folder or drive. 2 Select the desired music file. 3 Music files are played.

■ Use the CH (∧∨) button to navigate in the music page.

Mark Mode

Music List Mark Mode Page 1/1 USB 1 XTICK Drive1 Page 1/1 001 - B01.mp3 00:00 002 - B02.mp3 00:00 003 - B03.mp3 00:00 004 - B04.mp3 00:00 005 - B05.mp3 00:00 Move Mark Page Change MARK Mark Play Marked Mark All Unmark All Exit Mark Mode Exit

1 Select the target folder or drive. 2 ENTER Select the desired music file. 3 MARK Mark your desired music file. 4 RED Play the marked music file.

RED	Play Marked: Play the selected songs. Once a song finishes playing, the next selected one will be played automatically.
GREEN	Mark All: Mark all songs in the folder.
YELLOW	Unmark All: Deselect all marked song.
BLUE	Exit the Mark Mode.

■ When one or more music files are marked, the marked music files will be played in sequence.

Using the Music List Function

Music List 3 file(s) Marked Drive1 Page 1/1 001 - 001.mp3 00:00 002 - 502.mp3 00:00 003 - 503.mp3 00:00 004 - 504.mp3 00:00 005 - 505.mp3 00:00 Choose options. Set Audio Play. Set Audio. Close Play with Photo e-mail Option Hide Exit

Show the Option menu.

Select Set Audio Play. or Set Audio..

NOTE

▶ Option values changed in Movie List does not affect Photo List and Music List.
▶ Option value changed in Photo List and Music List are changed likewise in Photo List and Music List excluding Movie List.
▶ You can listen to the music only within the device currently played.

Using the remote control

	Stop playback.
	Return to normal playback.
	Paused playback.
	Select the previous or next song.
	Play with Photo: Start playing the selected songs and then move to the Photo List.
	Press the ENERGY SAVING button repeatedly to increase the brightness of your screen (Refer to p. 104). (It's available "ENERGY SAVING - Off, Screen Off" only.)
	A cursor indicating the position can be played on the screen.
	Move to the previous menu screen.

Set Audio Play Menu Options

Set Audio Play. Repeat On Random Off Previous

Select Repeat or Random.

Make appropriate adjustments.

Set Audio Menu Options

Set Audio. Sound Mode Standard Auto Volume Off Clear Voice II Off Balance 0 L R Previous

Select Sound Mode, Auto Volume, Clear Voice II or Balance.

Make appropriate adjustments.

If you don't press any buttons for a while, the play information box will float across the screen. This prevents screen pixel damage due to a fixed image remaining on the screen for a extended period of time.

NOTE

▶ Music files with copy-protection will not play.
▶ Press ENTER or ■ button to stop the screen saver.

MY MEDIA

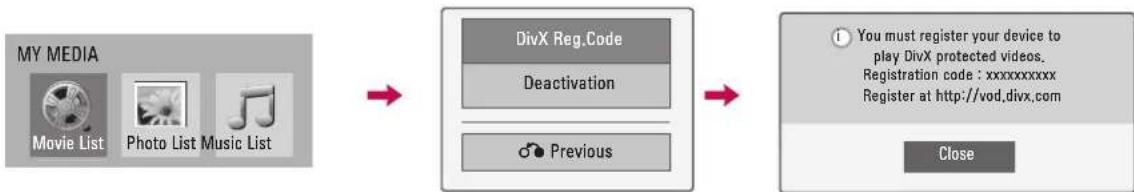

DIVX REGISTRATION CODE

(Except 32/42/47LD420, 32/37/42/47LD450, 37/42/47LD450C, 32/42/47/55LD520, 55LD520C)

Using the registration number, movies can be rented or purchased at www.divx.com/vod.

Only DivX files matched with the registration code of the purchased TV are playable.

Select MY MEDIA.

Select DivX Option.

Select DivX Reg. Code.

Display Divx Reg. Code.

NOTE

When loading, some buttons may not work.
If you use the DivX registration code of another device, the rented or purchased DivX file cannot be played. Therefore always use the DivX registration code assigned to this product.
The video or audio of a file converted based on a standard other than the DivX codec standard may be corrupted or unable to be played.

DEACTIVATION

(Except 32/42/47LD420, 32/37/42/47LD450, 37/42/47LD450C, 32/42/47/55LD520, 55LD520C)

The purpose of deactivation is to allow deactivation of devices for users who have activated all the available devices through the web server and are blocked from activating more devices. DivX VOD allows the consumer to activate up to 6 devices under one account.

Delete the existing authentication information to receive a new DivX user authentication for TV. Once this function is executed, a DivX user authentication is required again to see DivX DRM files.

1 MENU Select MY MEDIA.
2 ENTER BLUE Select DivX Option.
3 Select Deactivation.
4 ENTER < > Select Yes.
5 ENTER Display Deactivation.

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV. You can select a different aspect ratio depending on input source (analog broadcasting, digital broadcasting, aux).

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight 70 • Contrast 100 • Brightness 50 • Sharpness 20 PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight • Contrast • Brightness • Sharpness 16:9 Just Scan Set By Program 4:3 Zoom Cinema Zoom 1

1 MENU Select PICTURE.
2 ENTER Select Aspect Ratio.
3 ENTER Select the desired picture format.
4 Return to the previous menu.
Return to TV viewing.

■ You can also adjust Aspect Ratio in the Q.MENU.
■ Press the RATIO button repeatedly to select the desired picture format.

When adjusting Zoom or Cinema Zoom in Q.MENU

1 Q MENU < □> Select Aspect Ratio.
2 ENTER Select Zoom or Cinema Zoom.
3 ENTER Adjust proportion of Zoom or Cinema Zoom. The Cinema Zoom adjustment range is 1-16.
4 ENTER Move the image on the screen.

Zoom Move ←→ Zoom Enter

Cinema Zoom 1 Move ↔ Zoom Enter

16:9

Adjust the picture horizontally, in a linear proportion to fill the entire screen.

Close-up of a ball with white and red stripes, resting on a surface (no text or symbols visible)

Just Scan

Normally the edges of video signals are cropped 1-2%. Just Scan turns off this cropping and shows the complete video.

Notes: If there is noise on the edges of the original signal, it will be visible when Just Scan is activated.

Just Scan operates only in DTV/Cable DTV/Component/HDMI-DTV/DVI-DTV (720p/1080i/1080p) input source.

Just Scan

Set By Program

Selects the proper picture proportion to match the source's image.

$$ (4: 3 \rightarrow 4: 3) $$

Set By Program

$$ (1 6: 9 \rightarrow 1 6: 9) $$

Set By Program

4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio.

Close-up of a table with several round and white objects, possibly a pool or ball (no visible text or symbols)

Zoom

Choose Zoom when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

Close-up of a ball with a white and gray cap, resting on a surface (no text or symbols visible)

Cinema Zoom

Choose Cinema Zoom when you want to enlarge the picture in correct proportion.

This enlarges an image with cinemascope aspect ratio (2.35:1) without distortion.

Note: When enlarging or reducing the picture, the image may become distorted.

Close-up of a round stone ball resting on a textured surface (no text or symbols visible)

PICTURE CONTROL

PICTURE WIZARD

This feature lets you adjust the picture quality of the original image. Use this to calibrate the screen quality by adjusting the Black and White Level etc. You can calibrate the screen quality by easily following each step. When you adjust the image to Low, Recommended or High, you can see the example of the changes you made.

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight 70 • Contrast 100 • Brightness 50 • Sharpness 70

Select PICTURE.

2 ENTER ENTER Select Picture Wizard.

Picture Wizard

With Picture Wizard, you can adjust the picture quality of the original image.

Two side-by-side photos of a woman in 19th-century attire, one holding a book and the other holding a plant (no visible text or symbols)

Previous

◎ Next

Adjust Picture Wizard.

Picture Wizard

Standard

Preferred

• Standard/Preferred

Previous

Next

Adjust Standard/Preferred.

■ If you select Preferred, OSD (On Screen Display) differ from that shown in this manual.

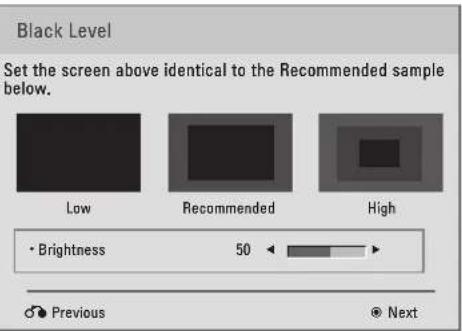

Black Level Set the screen above identical to the Recommended sample below. Low Recommended High • Brightness 50 ● Previous ● Next

Adjust Black Level.

White Level Set the screen above identical to the Recommended sample below. Low Recommended High • Contrast 90 Previous Next

Adjust White Level.

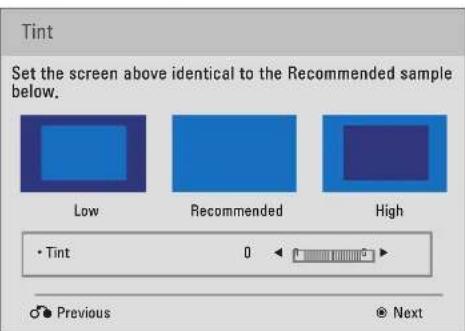

Tint Set the screen above identical to the Recommended sample below. Low Recommended High • Tint 0 Previous Next

Adjust Tint.

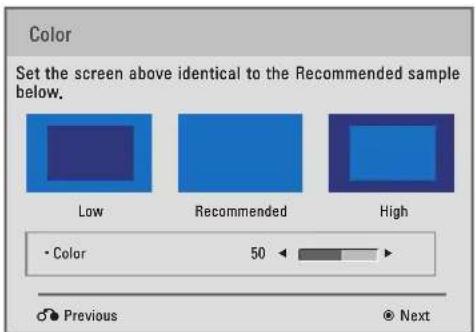

Color Set the screen above identical to the Recommended sample below. Low Recommended High • Color 50 • Previous • Next

Adjust Color.

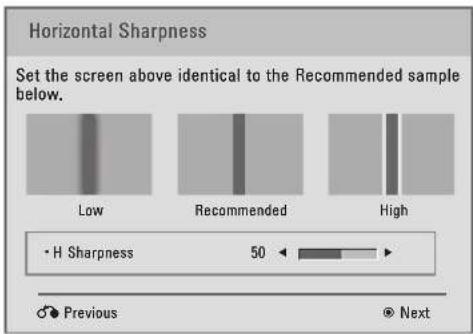

Horizontal Sharpness Set the screen above identical to the Recommended sample below. Low Recommended High • H Sharpness 50 • Previous • Next

Adjust Horizontal Sharpness.

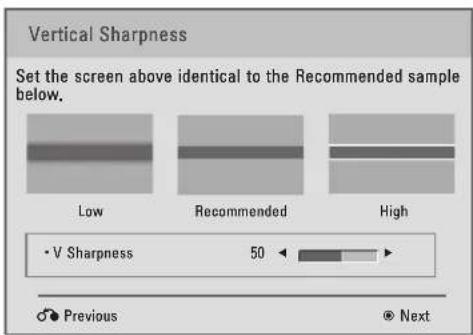

Vertical Sharpness Set the screen above identical to the Recommended sample below. Low Recommended High • V Sharpness 50 Previous Next

10 ← ENTER Adjust Vertical Sharpness.

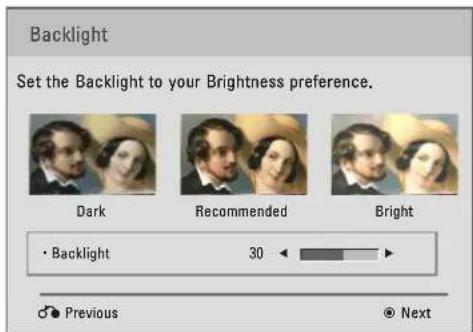

Backlight Set the Backlight to your Brightness preference. Dark Recommended Bright • Backlight 30 Previous Next

Adjust Backlight.

i.e) Complete Move Mark Select (an) input(s) to apply the settings. ☑ DTV ☐ TV ☐ AV1 ☐ AV2 ☐ Component1 ☐ Component2 ☐ RGB-PC ☑ HDMI1 ☑ HDMI2 ☑ HDMI3 ☑ HDMI4 Warning: The picture quality may vary according to the different types of signal and inputs. © Previous © Confirm

Select input source to apply the settings.

The current adjustment value is saved to Expert1. Close

14 ENTER Finish the Picture Wizard.

If you stop the Picture Wizard before the final step, the changes will not be saved to the TV.
■ Once the Picture Wizard sets the picture quality, Energy Saving is changed to Off automatically.
To reset changes made by Picture Wizard, operate Picture Reset when Picture Mode is on Expert1.

PICTURE CONTROL

e ENERGY SAVING

It reduces the TV's power consumption by lowering the backlight level.

You can increase the brightness of your screen by adjusting the Energy Saving level or by adjusting the Picture Mode.

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight 70 • Contrast 100 • Brightness 50 • Sharpeness 70 PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight • Contrast • Brightness • Sharpeness Off Minimum Medium Maximum Screen Off

Select PICTURE.

Select e∅ Energy Saving.

Select Off, Minimum, Medium, Maximum, or Screen Off.

Return to the previous menu.

Return to TV viewing.

■ When selecting Screen off, the screen will turn off after 3 seconds.
If you adjust "Energy Saving-Maximum", Backlight feature will not work.
■ Press the ENERGY SAVING button repeatedly to select the appropriate Energy Saving setup.

PRESET PICTURE SETTINGS (PICTURE MODE)

There are factory presets for picture settings available in the user menus. You can use a preset, change each setting manually.

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight 70 • Contrast 100 • Brightness 50 • Sharpness 70 PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight 70 • Contrast 100 • Brightness 50 • Sharpness 70 Intelligent Sensor Vivid Standard Cinema Sport Game Expert1 Expert2 Depending on models

Select PICTURE.

Select Picture Mode.

Select Vivid, Standard, Cinema, Sport, or Game.

Return to the previous menu.

Return to TV viewing.

■ Vivid, Standard, Cinema, Sport, and Game Settings are preset for the optimum picture quality at the factory.
■ Vivid: This is the mode to maximize the effect of the video in the retail store. Strengthen the contrast, brightness, color and sharpness for vivid picture.
Standard: This is the mode to realize optimum viewing condition for the general user.
■ Cinema: This mode optimizes video for watching movies.
■ Sport: This is the video mode to emphasize dynamic video and primary color (e.g, white, uniform, grass, sky blue etc.) by realizing the optimal screen for sports.
■ Game: This is the mode to realize fast response speed in a fast gaming screen.
■ Expert: This is the mode to adjust the video in detail for video quality expert and general user.
■ You can also adjust Picture Mode in the Q.MENU.
■ When selecting Intelligent Sensor, Energy Saving is changed to Auto automatically.
■ When selecting Intelligent Sensor, it changes Backlight, contrast, brightness, sharpness, color and tint automatically.
■ Intelligent Sensor: The most suitable picture is automatically adjusted according to the surrounding conditions.

PICTURE CONTROL

MANUAL PICTURE ADJUSTMENT - USER MODE

Adjust the picture appearance to suit your preference and viewing situations.

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight 70 • Contrast 100 • Brightness 50 • Sharpness 70 Backlight 70 Enter

Select PICTURE.

Select Picture Mode.

Select Vivid, Standard, Cinema, Sport, or Game.

Select Backlight, Contrast, Brightness, Sharpness, Color, Tint, Color Temp., or Advanced Control.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

■ Backlight: This function adjusts the brightness of the backlight behind the LCD screen. Adjusting the backlight is recommended when setting the brightness of the TV. When decreasing the backlight, the brightness of the black becomes darker without any loss in video signal and the power consumption is reduced.
■ Contrast: Increase or decrease the gradient of the video signal. You may use Contrast when the bright part of the picture is saturated.
■ Brightness: Adjusts the base level of the signal in the picture. You may use Brightness when the dark part of the picture is saturated.
■ Sharpness: Adjusts the level of crispness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.
■ Color: Adjusts intensity of all colors.
■ Tint: Adjusts the balance between red and green levels.
■ Color Temp.: Set to warm to enhance hotter colors such as red, or set to cool to enhance cooler colors such as blue.

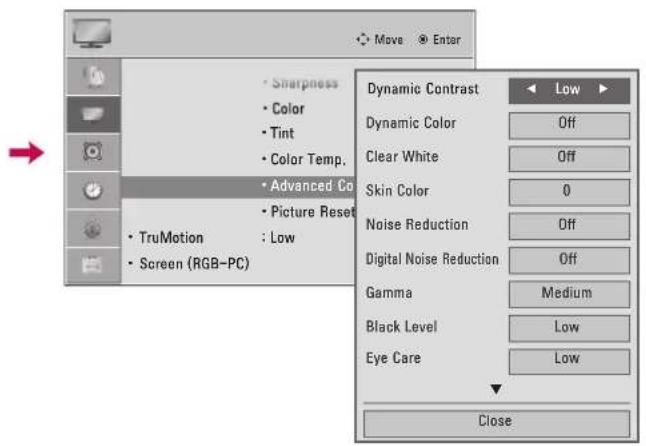

PICTURE IMPROVEMENT TECHNOLOGY (ADVANCED CONTROL)

Advanced Control allows you to adjust some of the advanced features of your LG display.

To reset to the factory default after making adjustments to each input source, execute the Picture Reset function for each Picture Mode.

PICTURE PICTURE • Sharpness 70 • Color 60 • Tint 0 • Color Temp. 0 • Advanced Control • Picture Reset • TruMotion : Low • Screen (RGB-PC)

Move Enter Sharpness Color Tint Color Temp. Advanced Co Picture Reset TruMotion : Low Screen (RGB-PC) Dynamic Contrast Low Dynamic Color Off Clear White Off Skin Color 0 Noise Reduction Off Digital Noise Reduction Off Gamma Medium Black Level Low Eye Care Low Close

Select PICTURE.

Select Advanced Control.

Select your desired menu option.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

PICTURE CONTROL

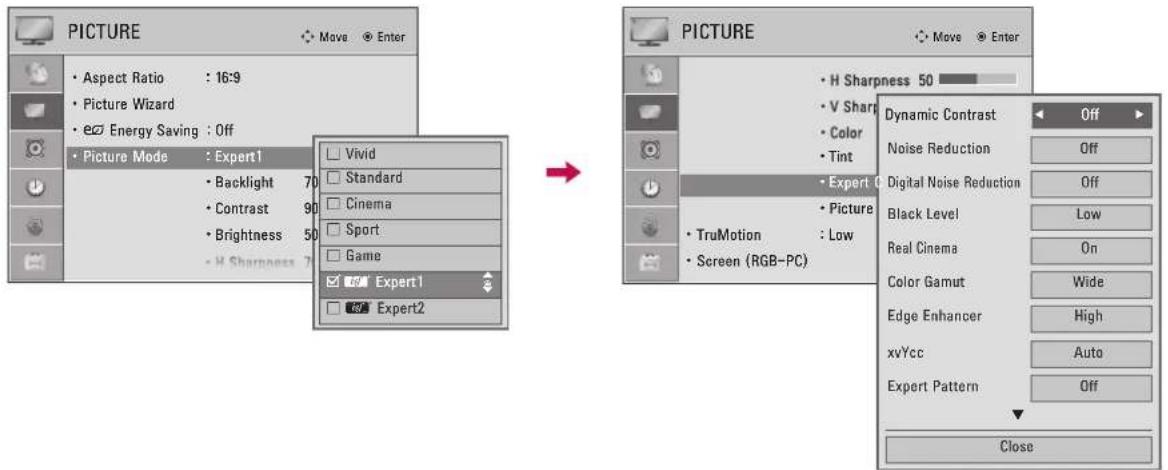

EXPERT PICTURE CONTROL

^isf Expert1 and ^isf Expert2 provide even more advanced picture settings for users. Typical used by professionals for calibrating the TV.

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Expert1 • Backlight 70 • Contrast 90 • Brightness 50 • H Sharpness 70 □ Vivid □ Standard □ Cinema □ Sport □ Game ☑ Expert1 □ Expert2 → PICTURE • H Sharpness 50 • V Sharp • Color • Tint • Expert1 • Picture • TruMotion : Low • Screen (RGB-PC) Dynamic Contrast Off Noise Reduction Off Digital Noise Reduction Off Black Level Low Real Cinema On Color Gamut Wide Edge Enhancer High xvYcc Auto Expert Pattern Off Close

Select PICTURE.

Select Picture Mode.

Select Isf Expert1 or Isf Expert2.

Select Expert Control.

Select your desired menu option.

appropriate adjustments.

to the previous menu.

Return to TV viewing.

*This feature is not available for all models.

Dynamic Contrast	■ Adjusts the contrast to keep it at the best level according to the brightness of the screen. The picture is improved by making bright parts brighter and dark parts darker.
Dynamic Color	■ Adjusts screen colors so that they look livelier, richer and clearer. This feature enhances hue, saturation and luminance so that red, blue and green white look more vivid.
Skin Color	■ It detects the skin area of video and adjusts it to express a natural skin color.
Noise Reduction	■ Reduces screen noise without compromising video quality.
Digital Noise Reduction	■ Removes noise caused by compressing video.
Gamma	■ You can adjust brightness of dark areas and middle gray level areas of the picture.Low: Make brighter and middle gray level areas of the picture brighter.Medium: Express original picture levels.High: Make dark and middle gray level areas of the picture darker.
Black Level	Low: The reflection of the screen gets darker.High: The reflection of the screen gets brighter.■ Set black level of the screen to proper level.■ This function is available in the following modes: AV (NTSC-M), HDMI or Component.
Clear White	■ Make the white area of screen brighter and more white.
Eye Care	■ Adjust the brightness of the screen to prevent the screen from being too bright. Dims extremely bright pictures.■ This feature is enabled in "Picture Mode-Standard, Sports, Game".
Real Cinema	■ Makes video clips recorded in film look more natural by eliminating judder effect.■ DVD and Blu-ray movies are filmed at 24 frames per second (fps). With LG Real Cinema, every frame is consistently processed 5 times in 1/24 of a second producing 120 fps with TruMotion or 2 times in 1/24 of a second producing 48 fps without TruMotion, thus totally eliminating the judde effect.■ This function can also work when TruMotion is off.
Color Gamut	Advanced Control■ Maximize the utilization of colors to increase color quality.Standard: Displays standard set of colors.Wide: Increase number of colors used.
	LED LCD TV/LCD TV: Expert Control■ Displays color domain of the signal.Standard: Displays standard set of colors.Wide: Increase number of colors used.EBU: Mode to display EBU standard color area.SMPTE: Mode to display SMPTE standard color area.BT709: Mode to display BT709 standard color area.

PICTURE CONTROL

Edge Enhancer	■ Show clearer and distinctive yet natural edges in of the video.■ This function is enabled in "Picture Mode - Expert".
xvYCC	■ This is produces richer colors.■ This feature represents rich color as much as conventional video signal.■ This function is enabled in "Picture Mode - Cinema, Expert" when a xvYCC signal is inputted through HDMI.
Color Filter	■ This function filters specific colors in the video.You can use the RGB filter to set color saturation and hue accurately.
Expert Pattern	■ This is a pattern used for expert adjustment.■ This function is enabled in "Picture Mode - Expert" when you watch DTV.
Color Temperature	■ Adjusts the overall color of the screen by changing the white baseline.a. Gamma : Select 1.9, 2.2, 2.4b. Method : 2 Points- Pattern: Inner, Outer- Red/Green/Blue Contrast, Red/Green/Blue Brightness:The adjustment range is -50 - +50.c. Method : 10 Point IRE- Pattern: Inner, Outer- IRE (Institute of Radio Engineers) is the unit to display the size of the video signal and can be set among 10, 20, 30 - 100. You can adjust Red, Green or Blue according to each setting.- Luminance: This function displays calculated luminance value for 2.2 gamma. You can input luminance value you want at 100 IRE, then the target luminance value for 2.2 gamma is displayed at every 10 steps from 10 IRE to 90 IRE.- Red/Green/Blue: The adjustment range is -50 - +50.d. Apply to all inputs
Color Management System	■ A tool used by the experts to make adjustments by using the test patterns, this does not affect other colors but can be used to selectively adjust the 6 color areas (Red/Green/Blue/Cyan/Mgt/Yellow).Color difference may not be distinctive even when you make the adjustments for the general video.Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.- Red/Green/Blue/Yellow/Cyan/Magenta Color: The adjustment range is -30 - +30.- Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range is -30 - +30.- This feature is disabled in RGB-PC and HDMI-PC mode.

PICTURE RESET

Settings of the selected picture modes return to the default factory settings.

Select PICTURE.

Select Picture Reset.

Select Yes.

Initialize the adjusted value.

Return to TV viewing.

POWER INDICATOR

Adjust the power/standby indicator light on the front of the TV.

OPTION Language Caption : Off Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use OPTION Language Caption : Off Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use Standby Light On Power Light On Close

Select OPTION.

Select Power Indicator.

Select Standby Light or Power Light.

Select your desired options.

Return to the previous menu.

Return to TV viewing.

■ Standby Light: Determines whether to set the indicator light on the front of the TV to On or Off in standby mode.

■ Power Light: Determines whether to set the indicator light on the front of the TV to On or Off when the power turns on.

PICTURE CONTROL

TRUMOTION

- For 32/37/42/47/55LE5300, 42/47/55LE7300, 32/42/47/55LD520, 55LD520C, 42/47/55LD630

Advance video technology that provides clearer, smoother images, even during fast action scenes creating a more stable structure for a crisper picture.

PICTURE Sharpness 70 Color 60 Tint 0 Color Temp. 0 Advanced Control Picture Reset TruMotion : Low Screen (RGB-PC) TruMotion Low Judder 5 Blur 5 Enter

Select PICTURE.

Select TruMotion.

Select Low, High, User, or Off.

Adjustment for TruMotion (Judder and Blur) with selecting User

Select Judder or Blur.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

■ Off: Turn off TruMotion operation.
■ Low: Provides smooth picture movement. Use this setting for standard use.
■ High: Provides smoother picture movement.
■ Judder: Adjusts noise of the screen.
■ Blur: Adjusts after-image of the screen.
■ TruMotion works with all inputs except PC mode.
■ If you enable "TruMotion", noise may appear on the screen. If this occurs, set "TruMotion" to "Off".
■ If you select "Picture Mode-Game" set "TruMotion" to "Off".

SOUND & LANGUAGE CONTROL

AUTO VOLUME

Auto Volume makes sure that the volume level remains consistent whether you are watching a commercial or a regular TV program.

Because each broadcasting station has its own signal conditions, volume adjustment may be needed every time the channel is changed. This feature allows users to enjoy stable volume levels by making automatic adjustments for each program.

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound:Off • Treble 50 • Bass 50 • Reset

AUDIO • Auto Volume : On • Clear Voice II : Off 3 • Balance • Sound Mode : Standard • Infinite Sound:Off • Treble 50 • Bass 50 • Reset

Select AUDIO.

Select Auto Volume.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

SOUND & LANGUAGE CONTROL

CLEAR VOICE II

By differentiating the human sound range from others, it improves the sound quality of voices.

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound:Off • Treble 50 • Bass 50 • Reset → AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance • Sound Mode : Standard • Infinite Sound • Treble • Bass 50 • Reset • Clear Voice II • Level 3 Close

1 MENU Select AUDIO.
2 ENTER Select Clear Voice II.
3 ENTER < Off Select On or Off.

Adjustment for Clear Voice Level with selecting On

4 Select Level.
5 Make appropriate adjustments.
6 Return to the previous menu.
Return to TV viewing.

BALANCE

Adjust the left/right sound of speaker to suit your taste and room situations.

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound:Off • Treble 50 • Bass 50 • Reset → AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound • Treble 50 • Bass 50 • Reset Close

1 MENU Select AUDIO. 2 ENTER Select Balance. 3 ENTER Make appropriate adjustments. 4 BACK Return to the previous menu. EXIT Return to TV viewing.

SOUND & LANGUAGE CONTROL

PRESET SOUND SETTINGS (SOUND MODE)

Sound Mode lets you enjoy the best sound without any special adjustment using factory presets.

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound:Off • Treble 50 • Bass 50 • Reset → AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance • Sound Mode : Standard • Infinite Sound • Treble • Bass • Reset Standard Music Cinema Sport Game

Select AUDIO.

Select Sound Mode.

Select Standard, Music, Cinema, Sport, or Game.

Return to the previous menu.

Return to TV viewing.

■ Standard, Music, Cinema, Sport, and Game are preset for optimum sound quality at the factory.
■ You can also adjust Sound Mode in the Q.MENU.
■ Standard: Offers standard-quality sound.
■ Music: Optimizes sound for listening to music.
■ Cinema: Optimizes sound for watching movies.
■ Sport: Optimizes sound for watching sports events.
■ Game: Optimizes sound for playing games.

SOUND SETTING ADJUSTMENT - USER MODE

Adjust the sound to suit your taste and room situations.

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 L 1.1mm H • Sound Mode : Standard • Infinite Sound-Off • Treble 50 • Bass 50 • Reset

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound: • Treble 50 • Bass 50 • Reset • Infinite Sound Off • Treble 50 • Bass 50 Close

Select AUDIO.

Select Sound Mode.

Select Standard, Music, Cinema, Sport, or Game.

Select Infinite Sound, Treble, or Bass.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

If sound quality or volume is not at the level you want, it is recommended to use a separate home theater system or amp to cope with different user environments.
If you select "Clear Voice II-On", the Infinite Sound feature will not operate.
■ Infinite Sound: Infinite Sound is a patented LG proprietary sound processing technology that strives immersive 5.1 surround sound with just two front speakers.

SOUND & LANGUAGE CONTROL

AUDIO RESET

Settings of the selected Sound Mode return to the default factory settings.

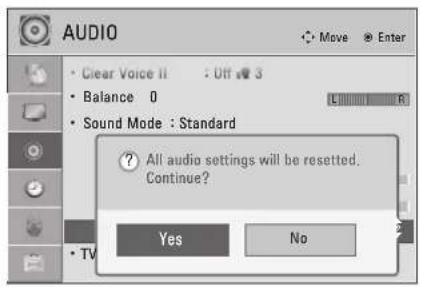

AUDIO Clear Voice II : Off 3 Balance 0 Sound Mode : Standard ? All audio settings will be resetted. Continue? Yes No

→

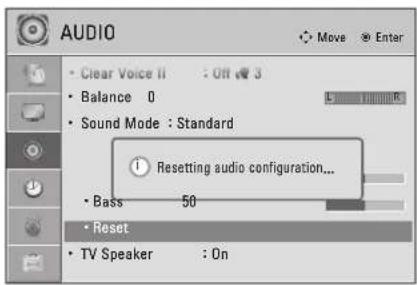

AUDIO Clear Voice II : Off 3 Balance 0 Sound Mode : Standard Resetting audio configuration... Bass 50 Reset TV Speaker : On

1 MENU Select AUDIO.
2 ENTER Select Reset.
3 ENTER <> Select Yes.
4. Initialize the adjusted value.
Return to TV viewing.

TV SPEAKERS ON/OFF SETUP

If you wish to use an external Hi-Fi system, turn off the TV's internal speakers.

AUDIO • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound:Off • Treble 50 • Bass 50 • Reset • TV Speaker : On → AUDIO • Clear Voice II : Off 3 • Balance 0 • Sound Mode : Standard • Infinite Sound:Off • Treble 50 • Bass 50 • Reset • TV Speaker : On Off On

Select AUDIO.

Select TV Speaker.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

EXTERNAL SPEAKERS ON/OFF SETUP (For 32/37/42/47LD450C)

Turn the external speakers on if using external audio equipment.

AUDIO • Balance 0 • Sound Mode : Standard • Infinite Sound:Off • Treble 50 • Bass 50 • Reset • TV Speaker : On • External Speaker : Off → AUDIO • Balance 0 • Sound Mode : Standard • Infinite Sound:Off • Treble 50 • Bass 50 • Reset • TV Speaker : On • External Speaker : Off □ Off ✓ On

Select AUDIO.

Select Exrernal Speaker.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

SOUND & LANGUAGE CONTROL

STEREO/SAP BROADCAST SETUP

On analog signals, this TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program if the station transmits an additional sound signal. Mono sound is automatically used if the broadcast is only in Mono.

Multi Audio English © Exit

Analog TV Digital TV

Select SAP.

Select Mono, Stereo, or SAP.

Return to TV viewing.

Select Multi Audio.

Select other languages.

Return to TV viewing.

AUDIO LANGUAGE

This feature operates only in DTV/Cable DTV mode.

OPTION Language Caption : Off Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use OPTION Language Caption : Off Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use Menu Language Audio Language English English Close

Select OPTION.

Select Language.

Select Audio Language.

Select your desired language.

Return to the previous menu.

Return to TV viewing.

SOUND & LANGUAGE CONTROL

ON-SCREEN MENUS LANGUAGE SELECTION

The menus can be shown on the screen in the selected language.

OPTION Language Caption : Off Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use OPTION Language Caption : Off Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use Menu Language Audio Language English Close

Select OPTION.

Select Language.

Select Menu Language.

Select your desired language.

From this point on, the on-screen menus will be shown in the selected language.

Return to the previous menu.

Return to TV viewing.

CAPTION MODE

Analog Broadcasting System Captions

Captions are provided to help the hearing impaired watch TV. Select a caption mode for displaying captioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program's dialog. Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable. This TV is programmed to memorize the caption/text mode which was last set when you turned the power off. This function is only available when Caption Mode is set On.

OPTION Language Caption : Off Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use OPTION Language Caption : CC1 Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use Move Enter Move Enter On Mode CC1 Digital Option Close

1 MENU Select OPTION.
2 ENTER Select Caption.
3 ENTER <> Select On.
4 Select CC1-4 or Text1-4.
5 Return to the previous menu.
Return to TV viewing.

■ When selecting Off, Sub-menus for Analog, DTV, and Digital Option become disabled.
Caption

The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the hearing impaired.

Text

The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the broadcaster.

SOUND & LANGUAGE CONTROL

Digital Broadcasting System Captions

Choose the language you want the DTV/Cable DTV Captions to appear in.

Other Languages can be chosen for digital sources only if they are included on the program.

This function in only available when Caption Mode is set On.

OPTION Language Caption : Off Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use OPTION Language Caption : CC1 Power Indicator Initial Setting Set ID : 1 Mode Setting : Home Use Move Enter Move Enter On Mode CC1 Digital Option Close

1 MENU Select OPTION.
2 ENTER Select Caption.
3 ENTER <> Select On.
4 Select CC1-4, Text1-4, or Service1 - 6.
5 Return to the previous menu.
Return to TV viewing.

Caption Option

Customize the DTV/Cable DTV captions that appear on your screen. This function in only available when Caption Mode is set On.

OPTION Language Caption : CC1 Power Indicator Initial Setting Set ID : 1 Mode Setting : Home On Mode CC1 Digital Option Close Custom Size A Standard Font Font 1 Text Color White Text Opacity Solid Bg Color Black Bg Opacity Solid Edge Type None Edge Color Black Close

Select OPTION.

Select Caption.

Select On.

Select Digital Option.

Select Custom.

Customize the Size, Font, etc., to your preference. A preview icon is provided at the bottom of the screen, use it to see the caption language.

Return to the previous menu.

Return to TV viewing.

■ Size: Set the word size.
■ Font: Select a typeface for the text.
■ Text Color: Choose a color for the text.
■ Text Opacity: Specify the opacity for the text color.
■ Bg (Background) Color: Select a background color.
■ Bg (Background) Opacity: Select the opacity for the background color.
■ Edge Type: Select an edge type.
■ Edge Color: Select a color for the edges.

TIME SETTING

CLOCK SETTING

Auto Clock Setup

The time is set automatically from a digital channel signal.

The digital channel signal includes information for the current time provided by the broadcasting station.

Set the clock manually if the current time is set incorrectly by the auto clock function.

TIME Clock Off Time : Off On Time : Off Sleep Timer : Off TIME Clock Off Time : Off On Time : Off Sleep Timer : Off Auto Month 02 Date 21 Year 2010 Hour 10 AM Minute 10 Time Zone Eastern Daylight Saving Auto Close

1 MENU Select TIME.
2 ENTER Select Clock.
3 ENTER <> Select Auto.
4 Select your viewing area time zone. USA: Eastern, Central, Mountain, Pacific, Alaska, or Hawaii.

Canada: Eastern, Central, Mountain, Pacific, New Foundland, or Atlantic.

5 Select Auto, Off, or On (depending on whether or not your viewing area observes Daylight Saving time).
6 Return to the previous menu.
Return to TV viewing.

Manual Clock Setup

If the current time setting is wrong, reset the clock manually.

TIME TIME Clock Off Time : Off On Time : Off Sleep Timer : Off Clock Off Time : Off On Time : Off Sleep Timer : Off Manual Month 02 Date 21 Year 2010 Hour 10 AM Minute 10 Time Zone Eastern Daylight Saving Auto Close

1 MENU Select TIME.
2 ENTER Select Clock.
3 ENTER <□> Select Manual.
4 Select the Year, Month, Date, Hour, or Minute option.
5 Set the Year, Month, Date, Hour, or Minute option.
6 Return to the previous menu.
Return to TV viewing.

TIME SETTING

AUTO ON/OFF TIME SETTING

This function operates only if the current time has been set.

The Off Time function overrides the On Time function if they are both set to the same time.

The TV must be in standby mode for the On Time to work.

If you do not press any button within 2 hours after the TV turns on with the On Time function, the TV will automatically revert to standby mode.

TIME Clock Off Time : Off On Time : Off Sleep Timer : Off TIME Clock Off Time : Off On Time : 6:30 AM Sleep Timer : Off Feb. 21, 2010 10:10 AM Repeat Once Hour 6 AM Minute 30 Input TV Channel TV 2-0 Volume 30 Close

Select TIME.

Select Off Time or On Time.

Select Repeat.

Select Off, Once, Daily, Mon.\~Fri., Mon.\~Sat., Sat.\~ Sun., or Sun..

Select and set Hour or Minute.

Return to the previous menu.

Return to TV viewing.

■ To cancel On/Off Time function, select Off.
■ Only for On Time function

Select Input.

Select the desired input source.

When Selecting TV: set the channel at turn-on.

SLEEP TIMER SETTING

The Sleep Timer turns the TV off at the preset time.

Note that this setting is cleared when the TV is turned off.

TIME • Clock • Off Time : Off • On Time : Off • Sleep Timer : Off TIME • Clock • Off Time : Off • On Time : Off • Sleep Timer : Off 10 min. 20 min. 30 min. 60 min. 90 min. 120 min. 180 min. 240 min.

Select TIME.

Select Sleep Timer.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

■ To cancel the Sleep Timer, select Off.
■ You can also adjust Sleep Timer in the Q.MENU.
■ To cancel the Sleep Timer, select Off.
■ You can also adjust Sleep Timer in the Q.MENU.

PARENTAL CONTROL / RATINGS

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories. It is also possible to block all program viewing for a time period. To use this function, the following must be done:

1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating System (MPAA) only.

Ratings for Television programs including made-for-TV movies:

■ TV-G (General audience)
■ TV-PG (Parental guidance suggested)
■ TV-14 (Parents strongly cautioned)
■ TV-MA (Mature audience only)
■ TV-Y (All children)
■ TV-Y7 (Children 7 years older)

SET PASSWORD & LOCK SYSTEM

Setting up Your Password

Set up blocking schemes to block specific channels, ratings, and external viewing sources. A password is required to gain access to this menu.

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Black Enter Password * * * * Close

1 MENU ENTER Select LOCK.

■ Enter the password as requested.
■ The TV is set up with the initial password "O-O-O-O".
■ If you forget your password, press "0-3-2-5" on the remote control.

Set Password

Change the password by inputting a new password twice.

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block

LOCK Set Password Lock System : On Block Channe Movie Rating TV Rating-Ch TV Rating-General Downloadable Rating Input Block New Confirm Close

Select LOCK.

Input the password.

Select Set Password.

Choose any 4 digits for your new password.

As soon as the 4 digits are entered, re-enter the same 4 digits on the Confirm.

Return to the previous menu.

Return to TV viewing.

PARENTAL CONTROL / RATINGS

Lock System

Enables or disables the blocking scheme you set up previously.

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block → LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block Off On

1 MENU ENTER Select LOCK.
2 123 4 5 6 799 0 Input the password.
3 Select Lock System.
4 ENTER Select On or Off.
5 Return to the previous menu.
Return to TV viewing.

■ When you select On, the Lock System is enable.

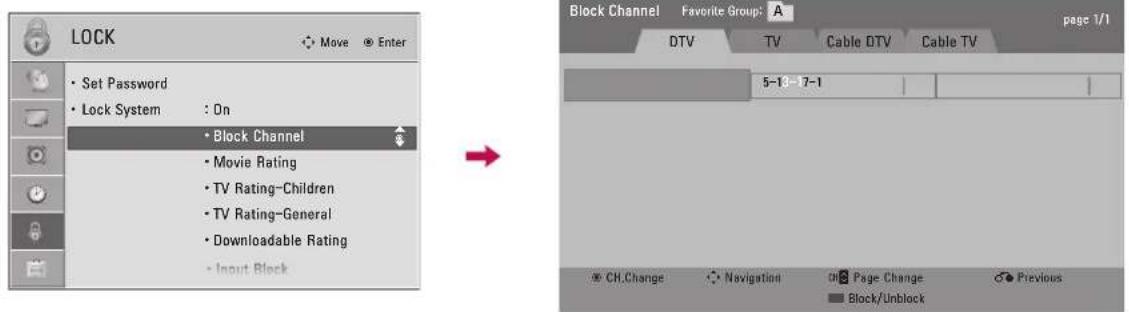

CHANNEL BLOCKING

Blocks any channels that you do not want to watch or that you do not want your children to watch.

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block Block Channel Favorite Group: A DTV TV Cable DTV Cable TV 5-14=7-1 CH.Change Navigation Page Change Previous Block/Unblock

Select LOCK.

If a channel is locked, enter the password to unlock it temporarily.

Input the password.

Select Block Channel.

Select a channel to block or unblock.

Block or unblock a channel.

Return to the previous menu.

Return to TV viewing.

PARENTAL CONTROL / RATINGS

MOVIE & TV RATING

Movie Rating (MPAA)- For USA

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Chi • TV Rating-Gen • Downloadable • Input Block. Blocking off : Permits all programs G PG PG-13 R NC-17 X Blocking Off ▼

1 MENU ENTER Select LOCK.

2 1 2 3 4 5 6 7 8 9 0 Input the password.

3 Select Movie Rating.

4 Select G, PG, PG-13, R, NC-17, X, or Blocking Off.

5 Return to the previous menu.

Return to TV viewing.

■ If Movie Rating, TV Rating-Children or TV Rating-General is locked, enter the password to unlock it temporarily.
■ G (General audience)
■ PG (Parental guidance suggested)
■ PG-13 (Parents strongly cautioned)
■ R (Restricted)
■ NC-17 (No one 17 and under admitted)
■ X (Adult only)
■ Blocking Off (Permits all programs)
If you set PG-13: G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.

TV Rating Children - For USA

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-Genera • Downloadable Rat • Input Block Move Enter Age Fantasy Violence Close

Select LOCK.

Input the password.

Select TV Rating-Children.

Select Age or Fantasy Violence.

Select block options.

Return to the previous menu.

Return to TV viewing.

■ Age (applies to TV-Y, TV-Y7)
■ Fantasy Violence (applies to TV-Y7)

PARENTAL CONTROL / RATINGS

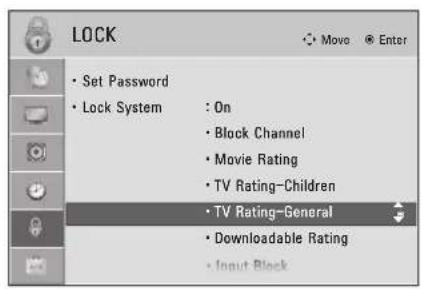

TV Rating General - For USA

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Chil • TV Rating-Gen • Downloadable • Input Block Age Dialogue Language Sex Violence Close

1 MENU ENTER Select LOCK.

2 Input the password.

3 Select TV Rating-General.

4 ENTER Select Age, Dialogue, Language, Sex or Violence.

5 ENTER ↑ Select block options.

6 Return to the previous menu.

Return to TV viewing.

■ Age (applies to TV-G, TV-PG, TV-14, TV-MA).
■ Dialogue-sexual dialogue (applies to TV-PG, TV-14).
■ Language-adult language (applies to TV-PG, TV-14, TV-MA).
■ Sex-sexual situations (applies to TV-PG, TV-14, TV-MA).
■ Violence (applies to TV-PG, TV-14, TV-MA).

TV Rating English - For CANADA

Selecting Canadian English rating system.

LOCK • Set Password • Lock System : On • Block Channel • TV Rating-English • TV Rating-French • Downloadable Rating • Input Block • Key Lock : Off

LOCK • Set Password • Lock System : On • Block Channel • TV Rating-English • TV Rating-Fren • Downloadable R • Input Block • Key Lock : Off Blocking off : Permits all programs E C C8+ G PG 14+ 18+ Blocking Off

1 MENU ENTER Select LOCK.

2 Input the password.

3 Select TV Rating-English.

4 Select E, C, C8+, G, PG, 14+, 18+, or Blocking Off.

5 Return to the previous menu.

EXIT Return to TV viewing.

■ If TV Rating-English or TV Rating-French is locked, enter the password to unlocked it temporarily.
■ E (Exempt)
■ C (Children)
■ C8+ (Children eight years and older)
■ G (General programming, suitable for all audiences)
■ PG (Parental Guidance)
■ 14+ (Viewers 14 years and older)
■ 18+ (Adult programming)
■ Blocking Off (Permits all programs)

PARENTAL CONTROL / RATINGS

TV Rating French - For CANADA

Selecting Canadian French rating system.

LOCK • Set Password • Lock System : On • Block Channel • TV Rating-English • TV Rating-French • Downloadable Rating • Input Block • Key Lock : Off → LOCK • Set Password • Lock System : On • Block Channel • TV Rating-English • TV Rating-Fre • Downloadable • Input Block • Key Lock : Off Blocking off : Permits all programs E G 8ans+ 13ans+ 16ans+ 18ans+ Blocking Off

1 MENU ENTER Select LOCK.
2 Input the password.
3 Select TV Rating-French.
4 ENTER Select E, G, 8ans+, 13ans+, 16ans+, 18ans+, or Blocking Off.
5 Return to the previous menu.
Return to TV viewing.

■ E (Exempt)
■ G (General)
■ 8ans+ (General-Not convenient for little children)
■ 13ans+ (Not convenient for children of 13 years and younger)
■ 16ans+ (Not convenient for children of 16 years and younger)
■ 18ans+ (This programs is only for adults)
■ Blocking Off (Permits all programs)

DOWNLOADABLE RATING

This function is available only for digital channels.

This function operates only when TV has received Region5 Rating data.

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block

LOCK • Set Password • Lock System : On • Block Channel • Movie Rating • TV Rating-C • TV Rating-G • Downloadab • Input Block Humor Sport Cruelty Language Sadness Genre Age Close

- Based on rating table, your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.

1 MENU ENTER Select LOCK.

2 Input the password.

3 Select Downloadable Rating.

4 Select desired Downloadable Rating option.

5 ENTER Select desired option and block it.

6 Return to the previous menu.

Return to TV viewing.

If a Downloadable rating is locked, enter the password to unlock it temporarily.

PARENTAL CONTROL / RATINGS

EXTERNAL INPUT BLOCKING

Enables you to block an input.

LOCK • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block • Key Lock : Off

LOCK • Lock System • B • M • T • T • D • In • Key Lock : 0 • AV • Component • RGB-PC • HDMI1 • HDMI2 • HDMI3 Off Off Off Off Off Close

i.e)

1 MENU ENTER Select LOCK.
2 123 4 5 6 789 0 Input the password.
3 Select Input Block.
4 ENTER Select input source.
5 Select On or Off.
6 Return to the previous menu.
Return to TV viewing.

KEY LOCK

This feature can be used to prevent unauthorized viewing by locking out the front panel controls, so that it can only be used with the remote control.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

LOCK • Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block • Key Lock : Off

LOCK Lock System : On • Block Channel • Movie Rating • TV Rating-Children • TV Rating-General • Downloadable Rating • Input Block • Key Lock : Off • Off ✓ On

1 MENU ENTER Select LOCK.

2 123 4 5 6 789 0 Input the password.

3 Select LOCK.

4 ENTER Select On or Off.

4 Return to the previous menu.

EXIT Return to TV viewing.

In Key Lock 'On', if the TV is turned off, press the ⏻/ I, INPUT, CH(▲▼ or ∧∨) button on the TV or POWER, INPUT, CH (∧∨) or NUMBER buttons on the remote control.
■ With the Key Lock On, the display '▲Key Lock' appears on the screen if any button on the front panel is pressed while viewing the TV.

APPENDIX

TROUBLESHOOTING

Abnormal Operation
The remote control doesn't work	Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV.Ensure that the batteries are installed with correct polarity (+ to +, - to -).Ensure that the correct remote operating mode is set: TV, VCR etc.Install new batteries.*This feature is not available for all models.
TV turns off suddenly	Is the sleep timer set?Check the power control settings. Power interrupted.If there is no signal, the TV turns off automatically in 15 minutes.

Video Problems
No picture &No sound	Check whether the product is turned on.Try another channel. The problem may be with the broadcast.Is the power cord inserted into wall power outlet?Check your antenna direction and/or location.Test the wall power outlet, plug another product's power cord into the outlet where the product's power cord was plugged in.
Picture appears slowly after switching on	This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.
No or poor color or poor picture	Adjust Color in menu option.Keep a sufficient distance between the product and the VCR.Try another channel. The problem may be with the broadcast.Are the video cables installed properly?Activate any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	Station or cable product experiencing problems, tune to another station.Station signal is weak, reorient antenna to receive weaker station.Check for sources of possible interference.
Lines or streaks in pictures	Check antenna (Change the direction of the antenna).
No picture when connecting HDMI	If an HDMI cable doesn't support High Speed HDMI, it can cause flickers or no screen display. In this case use the latest cables that support High Speed HDMI.
Audio Problems
No output from one of the speakers	■ Adjust Balance in menu option.
Unusual sound from inside the product	■ A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product.
No sound when connecting HDMI/USB	■ Check High Speed HDMI cable.■ Check USB cable over version 2.0.■ Use normal MP3 file.*This feature is not available for all models.

PC Mode Problems
The signal is out of range	■ Adjust resolution, horizontal frequency, or vertical frequency on the PC.■ Check the input source.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	■ Activate the Auto configure feature or adjust size, phase, or H/V position. (Option)
Screen color is unstable or single color	■ Check the signal cable.■ Reinstall the PC video card.
When connecting the HDMI cable to the PC, there is no audio.	■ Check the manual for the video card in the PC to see if it supports HDMI audio and how to set it up properly.

APPENDIX

Movie List Problems
The file does not appear on the Movie List.	Check whether the file extension is supported.
Message is displayed saying "This file is invalid" or the audio is working normally but the video is not working normally.	Check whether the file is playing normally on a PC. (Check whether the file is damaged.)Check whether the resolution is supported.Check whether the video/audio codec is supported.Check whether the frame rate is supported.
Message is displayed saying "Unsupported Audio" or the video is working normally but the audio is not working normally.	Check whether the file is playing normally on a PC. (Check whether the file is damaged.)Check whether the audio codec is supported.Check whether the bit rate is supported.Check whether the sample rate is supported.
Subtitle is not working.	Check whether the file is playing normally on a PC. (Check whether the file is damaged.)Check whether the video file and subtitle file name are the same.Check whether the video file and subtitle file are located in the same folder.Check whether the subtitle file is supported.Check whether the language is supported. (When you open the subtitle file on a PC, you can check the language of the subtitle file.)

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the screen.
2 Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

■ To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
■ Please be sure not to use a wet cloth.

Extended Absence

CAUTION

If you expect to leave your TV dormant for a long time (such as a vacation), it's a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

APPENDIX

PRODUCT SPECIFICATIONS

MODELS 19LE5300 (19LE5300-UE)			22LE5300 (22LE5300-UE)22LE5500 (22LE5500-UA)
Dimensions(Width x Heightx Depth)	With stand	471.2 mm x 365.9 mm x 155.4 mm(18.5 inch x 14.4 inch x 6.1 inch)	542.9 mm x 407.1 mm x 155.4 mm(21.3 inch x 16.0 inch x 6.1 inch)
	Without stand	471.2 mm x 315.5 mm x 34.4 mm(18.5 inch x 12.4 inch x 1.3 inch)	542.9 mm x 357.6 mm x 34.4 mm(21.3 inch x 14.0 inch x 1.3 inch)
Weight With stand		3.4 kg (7.4 lbs)	4.2 kg (9.2 lbs)
	Without stand	3.2 kg (7.0 lbs)	3.9 kg (8.5 lbs)

MODELS		26LE5300 (26LE5300-UE)26LE5500 (26LE5500-UA)
Dimensions(Width x Heightx Depth)	With stand	652.0 mm x 480.8 mm x 191.4 mm(25.6 inch x 18.9 inch x 7.5 inch)
	Without stand	652.0 mm x 420.3 mm x 34.4 mm(25.6 inch x 16.5 inch x 1.3 inch)
Weight With stand		6.1 kg (13.4 lbs)
		Without stand

Power Requirement 19LE5300: 24V , 1.6A		---
		22LE5300: 24V ---, 1.7 A
		22LE5500: 24V ---, 1.7 A
		26LE5300: 24V ---, 1.8 A
		26LE5500: 24V ---, 1.8 A
Adapter (DC Power) In: AC100-240 V ~ 50/60 Hz		Out: DC 24 V, 3.42 A
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment condition	Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
	Storage Humidity	Less than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

MODELS		32LE5300(32LE5300-UC)	37LE5300(37LE5300-UC)
Dimensions(Width x Height x Depth)	With stand	784.6 mm x 558.1 mm x 221.0 mm(30.8 inch x 21.9 inch x 8.7 inch)	905.0 mm x 630.0 mm x 270.0 mm(35.6 inch x 24.8 inch x 10.6 inch)
	Without stand	784.6 mm x 499.5 mm x 39.9 mm(30.8 inch x 19.6 inch x 1.5 inch)	905.0 mm x 568.0 mm x 39.9 mm(35.6 inch x 22.3 inch x 1.5 inch)
Weight With stand		12.4 kg (27.3 lbs)	15.3 kg (33.7 lbs)
		Without stand	10.5 kg (23.1 lbs)

MODELS		42LE5300(42LE5300-UC)	47LE5300(47LE5300-UC)
Dimensions (Width x Height x Depth)	With stand	1016.0 mm x 692.0 mm x 270.0 mm (40.0 inch x 27.2 inch x 10.6 inch)	1126.6 mm x 757.9 mm x 284.4 mm (44.3 inch x 29.8 inch x 11.1 inch)
	Without stand	1016.0 mm x 630.0 mm x 29.3 mm (40.0 inch x 24.8 inch x 1.1 inch)	1126.6 mm x 692.0 mm x 29.3 mm (44.3 inch x 27.2 inch x 1.1 inch)
Weight With stand		19.2 kg (42.3 lbs)	22.6 kg (49.8 lbs)
		Without stand	16.7 kg (36.8 lbs)

MODELS		55LE5300(55LE5300-UC)
Dimensions(Width x Heightx Depth)	With stand	1306.0 mm x 867.0 mm x 345.0 mm(51.4 inch x 34.1 inch x 13.5 inch)
	Without stand	1306.0 mm x 797.0 mm x 30.7 mm(51.4 inch x 31.3inch x 1.2 inch)
Weight With stand		34.05 kg (75.0 lbs)
		Without stand

Power Requirement AC 120 V ~ 50 / 60 Hz
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment condition	Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
	Storage Humidity Less than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

APPENDIX

MODELS		42LE7300(42LE7300-UA)	47LE7300(47LE7300-UA)
Dimensions (Width x Height x Depth)	With stand	1009.2 mm x 694.5 mm x 286.5 mm (39.7 inch x 27.3 inch x 11.2 inch)	1119.6 mm x 757.1 mm x 286.5 mm (44.0 inch x 29.8 inch x 11.2 inch)
	Without stand	1009.2 mm x 629.7 mm x 29.3 mm (39.7 inch x 24.7 inch x 1.1 inch)	1119.6 mm x 691.3 mm x 29.3 mm (44.0 inch x 27.2 inch x 1.1 inch)
Weight With stand		25.5 kg (56.2 lbs) 29.7 kg (65.4 lbs)
		Without stand	21.0 kg (46.2 lbs) 25.2 kg (55.5 lbs)

MODELS		55LE7300(55LE7300-UA)
Dimensions (Width x Height x Depth)	With stand	1305.2 mm x 874.9 mm x 320.2 mm(51.3 inch x 34.4 inch x 12.6 inch)
	Without stand	1305.2 mm x 799.4 mm x 32.4 mm(51.3 inch x 31.4 inch x 1.2 inch)
Weight With stand		44.5 kg (98.1 lbs)
	Without stand	37.1 kg (81.7 lbs)

Power requirement AC 120 V ~ 50 / 60 Hz
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment condition	Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
	Storage Humidity Less than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

MODEL		32LD420(32LD420-UA)
Dimensions (Width x Height x Depth)	With stand	805.0 mm x 583.0 mm x 224.0 mm(31.6 inch x 22.9 inch x 8.8 inch)
	Without stand	805.0 mm x 531.0 mm x 79.9 mm(31.6 inch x 20.9 inch x 3.1 inch)
Weight With stand		10.8 kg (23.8 lbs)
		Without stand

MODELS		42LD420(42LD420-UA)	47LD420(47LD420-UA)
Dimensions(Width x Height x Depth)	With stand	1028.0 mm x 715.4 mm x 297.0 mm(40.4 inch x 28.1 inch x 11.6 inch)	1140.6 mm x 784.8 mm x 337.4 mm(44.9 inch x 30.8 inch x 13.2 inch)
	Without stand	1028.0 mm x 658.6 mm x 87.8 mm(40.4 inch x 25.9 inch x 3.4 inch)	1140.6 mm x 722.9 mm x 99.0 mm(44.9 inch x 28.4 inch x 3.8 inch)
Weight With stand		16.6 kg (36.5 lbs) 21.6 kg (47.6 lbs)
		Without stand	14.8 kg (32.6 lbs) 19.0 kg (41.8 lbs)

MODELS		32LD450 (32LD450-UA)	37LD450 (37LD450-UA), 37LD450C (37LD450C-UA)
Dimensions (Width x Height x Depth)	With stand	799.0 mm x 555.0 mm x 207.0 mm (31.4 inch x 21.8 inch x 8.1 inch)	916.0 mm x 625.0 mm x 261.0 mm (36.0 inch x 24.6 inch x 10.2 inch)
	Without stand	799.0 mm x 506.0 mm x 73.5 mm (31.4 inch x 19.9 inch x 2.8 inch)	916.0 mm x 575.0 mm x 77.4 mm (36.0 inch x 22.6 inch x 3.0 inch)
Weight With stand		9.1 kg (20.0 lbs)	12.5 kg (27.5 lbs)
		Without stand	8.1 kg (17.8 lbs)

MODELS		42LD450 (42LD450-UA), 42LD450C (42LD450C-UA)	47LD450 (47LD450-UA), 47LD450C (47LD450C-UA)
Dimensions (Width x Height x Depth)	With stand	1023.0 mm x 685.0 mm x 261.0 mm (40.2 inch x 26.9 inch x 10.2 inch)	1136.0 mm x 757.0 mm x 270.0 mm (44.7 inch x 29.8 inch x 10.6 inch)
	Without stand	1023.0 mm x 635.0 mm x 76.6 mm (40.2 inch x 25.0 inch x 3.0 inch)	1136.0 mm x 698.0 mm x 76.5 mm (44.7 inch x 27.4 inch x 3.0 inch)
Weight With stand		15.1 kg (33.2 lbs)	19.5 kg (42.9 lbs)
		Without stand	13.5 kg (29.7 lbs) 17.5 kg (38.5 lbs)

Power requirement AC 100-240 V ~ 50 / 60 Hz
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment condition	Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
	Storage Humidity Less than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

APPENDIX

MODELS		32LD520(32LD520-UA)	42LD520(42LD520-UA)
Dimensions (Width x Height x Depth)	With stand	815.0 mm x 585.6 mm x 210.9 mm(32.0 inch x 23.0 inch x 8.3 inch)	1052.2 mm x 720.1 mm x 270.6 mm(41.4 inch x 28.3 inch x 10.6 inch)
	Without stand	815.0 mm x 529.6 mm x 82.0 mm(32.0 inch x 20.8 inch x 3.2 inch)	1052.2 mm x 657.3 mm x 90.8 mm(41.4 inch x 25.8 inch x 3.5 inch)
Weight With stand		12.6 kg (27.7 lbs) 19.0 kg (41.8 lbs)
		Without stand	11.4 kg (25.1 lbs)

MODELS		47LD520(47LD520-UA)	55LD520 (55LD520-UA),55LD520C (55LD520C-UA)
Dimensions(Width x Heightx Depth)	With stand	1173.4 mm x 791.4 mm x 319.0 mm(46.1 inch x 31.1 inch x 12.5 inch)	1357.0 mm x 901.0 mm x 423.0 mm(53.4 inch x 35.4 inch x 16.6 inch)
	Without stand	1173.4 mm x 723.4 mm x 100.8 mm(46.1 inch x 28.4 inch x 3.9 inch)	1357.0 mm x 835.4 mm x 109.6 mm(53.4 inch x 32.8 inch x 4.3 inch)
Weight With stand		23.6 kg (52.0 lbs)	36.4 kg (80.2 lbs)
		Without stand	20.8 kg (45.8 lbs)

MODELS		42LD630(42LD630-UC)	47LD630(47LD630-UC)
Dimensions (Width x Height x Depth)	With stand	1024.0 mm x 685.0 mm x 261.0 mm (40.3 inch x 26.9 inch x 10.2 inch)	1137.0 mm x 758.0 mm x 270.0 mm (44.7 inch x 29.8 inch x 10.6 inch)
	Without stand	1024.0 mm x 621.0 mm x 76.8 mm (40.3 inch x 24.4 inch x 3.0 inch)	1137.0 mm x 685.0 mm x 76.8 mm (44.7 inch x 26.9 inch x 3.0 inch)
Weight With stand		15.5 kg (34.1 lbs)	20.3 kg (44.7 lbs)
		Without stand	13.9 kg (30.6 lbs)

MODELS		55LD630(55LD630-UC)
Dimensions(Width x Heightx Depth)	With stand	1329.0 mm x 872.0 mm x 330.0 mm(52.3 inch x 34.3 inch x 12.9 inch)
	Without stand	1329.0 mm x 796.0 mm x 96.5 mm(52.3 inch x 31.3 inch x 3.7 inch)
Weight With stand		33.0 kg (72.7 lbs)
		Without stand

Power requirement AC 100-240 V ~ 50 / 60 Hz
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment condition	Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
	Storage Humidity Less than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

IR CODE

Code (Hexa)	Function Note	Code	(Hexa)	Function Note
00	CH ^	Remote Control Button B0		▶	Remote Control Button
01	CH √	Remote Control Button B1		■	Remote Control Button
02 VOL	+ Remote Control Button BA			||	Remote Control Button
03 VOL	- Remote Control Button D6 TV Discrete IR Code
06	>	Remote Control Button (TV Input Selection)
07	<	Remote Control Button C4 POWER ON		Discrete IR Code
08	◎	Remote Control Button (Only Power On)
		(Power On/Off)	C5 POWER OFF	Discrete IR Code
09 MUTE	Remote Control Button (Only Power Off)
OB INPUT	Remote Control Button 5A AV or AV1 Discrete IR Code
OF	TV	Remote Control Button (AV1 Input Selection)
10-19	Number 0-9	Remote Control Button	D0	AV2	Discrete IR Code
1A	FLASHBK	Remote Control Button (AV2 Input Selection)
1E	FAV/MARK	Remote Control Button	BF	COMPONENT	Discrete IR Code
28	BACK Remote Control Button (Component Input Selection)
30 AV MODE	Remote Control Button D5 RGB-PC		Discrete IR Code
40	^	Remote Control Button (RGB-PC Input Selection)
41	√	Remote Control Button CE HDMI1		Discrete IR Code
43	MENU	Remote Control Button (HDMI1 Input Selection)
44	ENTER	Remote Control Button	CC	HDMI2	Discrete IR Code
45	Q.MENU	Remote Control Button (HDMI2 Input Selection)
4C	-(Dash)/LIST	Remote Control Button	E9	HDMI3	Discrete IR Code
5B	EXIT	Remote Control Button (HDMI3 Input Selection)
61	BLUE	Remote Control Button	DA	HDMI4	Discrete IR Code
63	YELLOW	Remote Control Button (HDMI4 Input Selection)
71	GREEN	Remote Control Button	76	Ratio 4:3	Discrete IR Code
72	RED	Remote Control Button (Only 4:3 Mode)
79	RATIO	Remote Control Button	77	Ratio 16:9	Discrete IR Code
7E	SIMPLINK Remote Control Button (Only 16:9 Mode)
8E	▶	Remote Control Button AF Ratio Zoom		Discrete IR Code
8F	◀	Remote Control Button (Only Zoom Mode)
95	ENERGY SAVING	Remote Control Button
AA	INFO	Remote Control Button

■ Use this feature depending on your models.

APPENDIX

EXTERNAL CONTROL THROUGH RS-232C

The RS-232C port allows you connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) to control the TV's functions externally.

Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and software.

The instructions below are provided to help with programming software or to test functionality using telenet software.

RS-232C Setup

i.e)

DC-IN HOTIO/IN 1 DW 2 RGB IN (PC) RS-232C IN (CONTROLSERVICE) AUDIO IN RGB/0/VI OFFCAL AUDIO OUT VIDEO AV Y P VIDEO COMPONER R ANTENNA/ CABLE IN

PC

Type of Connector; D-Sub 9-Pin Male Communication Parameters

No. Pin Name

1	No connection
2	RXD (Receive data)
3	TXD (Transmit data)
4	DTR (DTE side ready)
5	GND
6	DSR (DCE side ready)
7	RTS (Ready to send)
8	CTS (Clear to send)
9	No Connection

Diagram of a V124 D-sub connector with numbered pins labeled 1 through 9

■ Baud rate : 9600 bps (UART)
■ Data length : 8 bits
■ Parity : None
■ Stop bit : 1 bit
■ Communication code : ASCII code
■ Use a crossed (reverse) cable.

NOTE

This product has command echo back in the RS-232C Command.

RS-232C Configurations

Set ID

Use this function to specify a TV ID number.

Choose the desired TV ID number.

The adjustment range of Set ID is 1\~99.

■ Real data mapping O Step 0 ⋮ A Step 10 (Set ID 10) ⋮ F Step 15 (Set ID 15) 10 Step 16 (Set ID 16) ⋮ 63 Step 99 (Set ID 99) 64 Step 100

Return to TV viewing.

Command Reference List

	COMMAND1	COMMAND2	DATA(Hexadecimal)
01. Power k a 00 - 01
02. Input Select x b ▶ P.155
03. Aspect Ratio k c ▶ P.155
04. Screen Mute k d 00 - 01
05. Volume Mute k e 00 - 01
06. Volume Control	k f 00 - 64
07. Contrast	k g 00 - 64
08. Brightness	k h 00 - 64
09. Color	k i	00 - 64
10. Tint	k j	00 - 64
11. Sharpness	k k 00 - 64
12. OSD Select	k l	00 - 01
13. Remote Control Lock Mode	k m	00 - 01
14. Treble	k r 00 - 64
15. Bass	k s 00 - 64
16. Balance	k t 00 - 64
17. Color Temperature	x u 00 - 64
18. Energy Saving	j	q	▶ P.156
19. Auto Configuration	j	u ▶ P.156
21. Channel Add/ Del	m	b 00 - 01
22. Key	m	c	▶ P.157
23. Backlight	m	g 00 - 64

	COMMAND1	COMMAND2	DATA00 (Hexadecimal)	DATA01 (Hexadecimal)
20. Channel Tuning	m	a	physical program high	major program low
	DATA02 (Hexadecimal)	DATA03 (Hexadecimal)	DATA04 (Hexadecimal)	DATA05 (Hexadecimal)
	major low	minor high	minor low	attribute

Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1]: First command to control the set. (j, k, m or x)

[Command 2] : Second command to control the set.

[Set ID]: You can adjust the set ID to choose desired TV ID number in Setup menu. Adjustment range is 1-99. When selecting Set ID '0', every connected the TV is controlled. Set ID is indicated as decimal (1-99) on menu and as Hexa decimal(0x0 - 0x63) on transmission /receiving protocol.

[DATA] : To transmit the command data.

Transmit the 'FF' data to read status of command.

[Cr] : Carriage ReturnASCII code 'OxOD'

[ ] : ASCII code 'space (0x20)'

* In this model, TV will not send the status during the standby mode.

OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]

The TV transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

* In this model, TV will not send the status during the standby mode.
* Data Format
[Command 2]: Use as command.
[Set ID]: Use the small character, if set ID is 10, it will send the 'O', 'a'.
[DATA]: Use the small character, if data is O x ab, it will send the 'a', 'b'.
[OK]: Use the large character.

Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]

The TV transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.

Data1: Illegal Code
Data2: Not supported function
Data3: Wait more time
* In this model, TV will not send the status during the standby mode.
* Data Format
[Command 2]: Use as command.
[Set ID]: Use the small character, if set ID is 10, it will send the 'O', 'a'.
[DATA]: Use the small character, if data is O x ab, it will send the 'a', 'b'.
[NG]: Use the large character

01. Power (Command: k a)

To control Power On/Off of the TV.

Transmission [k][a][ ][Set ID][ ][Data][Cr]

Data 00: Power Off Data 01: Power On

Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]

* In a like manner, if other functions transmit 'FF' data based on this format, Acknowledgement data feedback presents status about each function.
* Note: In this model, TV will send the Acknowledge after power on processing completion.
There might be a time delay between command and acknowledge.

02. Input Select (Command: x b)

To select input source for TV.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data OO: DTV (Antenna)

Data 10: Analog (Antenna) Data 11: Analog (Cable)

Data 20: AV or AV1 Data 21: AV 2

Data 40: Component

Data 60: RGB-PC Data 90: HDMI1

Data 91: HDMI2 Data 92: HDMI3

Data 93: HDMI4

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

* Use the feature depending on your model.

03. Aspect Ratio (Command: k c)

To adjust the screen format.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01: 4:3 Data 09: Just scan

Data 02: 16:9 Data 10: Cinema Zoom1

Data 04: Zoom

Data 05: Zoom2 Data 1F: Cinema Zoom16

Data 06: Set by program

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

04. Screen Mute (Command: k d)

To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00: Screen mute off (Picture on), Video-out Mute off

Data 01: Screen mute on (Picture off)

Data 10: Video-out Mute on

Acknowledgement [d][Set ID][OK/NG][Data][x]

* In case of Video-out Mute on only, TV will display On Screen Display (OSD). But, in case of screen mute on, TV will not display On Screen Display (OSD).

05. Volume Mute (Command: k e)

To control volume mute on/off.

You can also adjust mute using the MUTE button on remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data OO: Volume mute on (Volume off)

Data 01: Volume mute off (Volume on)

Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]

06. Volume Control (Command: k f)

To adjust volume.

You can also adjust volume with the volume buttons on remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]

07. Contrast (Command: k g)

To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

08. Brightness (Command: k h)

To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]

09. Color (Command: k i)

To adjust screen color.

You can also adjust color in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

10. Tint (Command: k j)

To adjust screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red: 00 - Green: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [j][ ][Set ID][ ][OK/NG][Data][x]

APPENDIX

11. Sharpness (Command: k k)

To adjust screen sharpness.

You can also adjust sharpness in the Picture menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]

12. OSD Select (Command: k I)

To select OSD (On Screen Display) on/off.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00: OSD off Data 01: OSD on

Acknowledgement [I][ ][Set ID][ ][OK/NG][Data][x]

13. Remote Control Lock Mode (Command: k m)

To lock the remote control and the front panel controls on the set.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00: Lock off Data 01: Lock on

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

If you're not using the remote control and front panel controls on the TV, use this mode. When main power is on/off, remote control lock is released.

If Key Lock is on in the standby mode, TV will not turn on by POWER button of remote control and on the TV.

14. Treble (Command: k r)

To adjust treble.

You can also adjust treble in the Audio menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

You can also adjust bass in the Audio menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]

16. Balance (Command: k t)

To adjust balance.

You can also adjust balance in the Audio menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]

17. Color Temperature (Command: x u)

To adjust color temperature.

You can also adjust color temperature in the Picture menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

18. Energy Saving (Command: j q)

To control the energy saving function.

Transmission [j][q][ ][Set ID][ ][Data][Cr]

Data 00: Energy saving - off

01: Energy saving - Minimum

02: Energy saving - Medium

03: Energy saving - Maximum

04: Energy saving - Auto (depending on model)

05: Energy saving - Screen off

Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]

19. Auto Configuration (Command: j u)

To adjust picture position and minimize image shaking automatically. Auto configuration only works in RGB-PC mode.

Transmission [j][u][ ][Set ID][ ][Data][Cr]

Data 01: To set

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

20. Channel Tuning (Command: m a)

To tune channel to following physical/major/minor number.

Transmission [m][a][ ][Set ID][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel to the Major number, the Physical number is not required when sending a command.

Data 00: Physical Channel Number

NTSC air: 02 - 45, NTSC cable: 01, OE - 7D

ATSC air: 01 - 45, ATSC cable: 01 - 87

Data 01 & 02: Major Channel Number

Data 01: High byte

Data 02: Low byte

Two bytes are available for the Major and Minor, normally only the second byte is used.

Data 03 & 04: Minor Channel Number

Not needed for NTSC.

Data5:	7Main/SubPicture	6Two/One PartChannel	5Using Physical Channel	4Reserved	3	2	1	0	Step
	0 Main	0 Two	0 Use	x	0	0	0	0	NTSC Air
	1 Sub	1 One	1 No Use	x	0	0	0	1	NTSC Cable
				x	0	0	1	0	ATSC Air
				x	0	0	1	1	ATSC Cable_std
				x	0	1	0	0	ATSC Cable_hrc
				x	0	1	0	1	ATSC Cable_irc
				x	0	1	1	0	ATSC cable_auto
				x	0	1	1	1	Reserved
				x	x	x	x	x	...
				x	1	1	1	1	Reserved

The table above lists the binary code which must be converted to Hexadecimal before sending. For example: The binary code to tune the sub source to an NTSC cable channel is "1000 0001", which translates to "81" in Hex.

* 7th bit : For which source do you want to change the channel.
* 6th bit: Use a two part or one part channel. Most cases just use 0 since it's ignored when using NTSC.
* 5th bit: Use 0 with NTSC since it can only use the physical channel number. Normally use 1 for ATSC since most times it doesn't matter what the physical number is.
* 4th bit: Set to O.
* 3-0 bits: Choose signal type.

* Tune Command Examples:

1. Tune to the analog (NTSC) cable channel 35.

Data 00 = Physical of 35 = 23

Data 01 & 02 = No Major = 00 00

Data 03 & 04 = No Minor = 00 00

Data 05 = 0000 0001 in binary = 01

Total = ma 00 23 00 00 00 00 01

1. Tune to the digital (ATSC) local channel 30-3.

Data OO = Don't know Physical = OO

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Minor is 3 = 00 03

Data 05 = 0010 0010 in binary = 22

Total = ma 00 00 00 1E 00 03 22

1. Channel Add/Del (Command: m b)

To add and delete the channels.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00: Channel Delete Data 01: Channel Add

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

1. Key (Command: m c)

To send IR remote control code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

See page 151.

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

When TV is in the standby mode, TV will turn on by POWER button of remote control only.

1. Backlight (Command: m g)

To adjust screen backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min:00 \~ Max:64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'.

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other free software foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be

licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

O. This license applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this license; they are outside its scope. The act of running the Program is not restricted, and the output from the program is covered only if its contents constitute a work based on the program (independent of having been made by running the program). Whether that is true depends on what the program does.

1. You may copy and distribute verbatim copies of the program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this license and to the absence of any warranty; and give any other recipients of the program a copy of this license along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part there of, to be licensed as a whole at no charge to all third parties under the terms of this license.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this license. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this license, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this license, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the program.

In addition, mere aggregation of another work not based on the program with the Program (or with a work based on the program) on a volume of a storage or distribution medium does not bring the other work under the scope of this license.

1. You may copy and distribute the program (or a work based on it, under section 2) in object code or executable form under the terms of sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this license. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this license. However, parties who have received copies, or rights, from you under this license will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this license, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this license. Therefore, by modifying or distributing the program (or any work based on the program), you indicate your acceptance of this license to do so, and all its terms and conditions for copying, distributing or modifying the program or works based on it.

3. Each time you redistribute the program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this license.

4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this license, they do not excuse you from the conditions of this license. If you cannot distribute so as to satisfy simultaneously your obligations under this license and any other pertinent obligations, then as a consequence you may not distribute the program at all. For example, if a patent license would not permit royalty-free redistribution of the program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this license would be to refrain entirely from distribution of the program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this license.

1. If the distribution and/or use of the program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the program under this license may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this license incorporates the limitation as if written in the body of this license.
2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If

the program specifies a version number of this license which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the program does not specify a version number of this license, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

aNO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to apply these terms to your new programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

one line to give the program's name and a brief idea of what it does.

Copyright (C)

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the license, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type 'show w'. This is free software, and you are welcome to redistribute it under certain conditions; type 'show c' for details.

The hypothetical commands 'show w' and 'show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than 'show w' and 'show c'; they could even be mouse-clicks or menu items-whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program 'Gnomovision' (which makes passes at compilers) written by James Hacker.

signature of Ty Coon, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this license.

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages - typically libraries - of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear

that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This license agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this license"). Each license is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this license; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the library does and what the program that uses the library does.

1. You may copy and distribute verbatim copies of the library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the

notices that refer to this license and to the absence of any warranty; and distribute a copy of this license along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this license.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the library, and can be reasonably considered independent and separate works in themselves, then this license, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the library, the distribution of the whole must be on the terms of this license, whose permissions for other licenses extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the library.

In addition, mere aggregation of another work not based on the library with the library (or with a work based on the library) on a volume of a storage or distribution medium does not bring the other work under the scope of this license.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the library into a program that is not a library.

1. You may copy and distribute the library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this license.

However, linking a "work that uses the library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the library), rather than a "work that uses the library". The executable is therefore covered by this license. Section 6 states terms for distribution of such executable.

When a "work that uses the library" uses material from a header file that is part of the library, the object code for the work may be a derivative work of the library even though the source code is not.

Whether this is true is especially significant if the work can be linked without the library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessories, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executable containing this object code plus portions of

the library will still fall under Section 6.)

Otherwise, if the work is a derivative of the library, you may distribute the object code for the work under the terms of Section 6. Any executable containing that work also fall under Section 6, whether or not they are linked directly with the library itself.

1. As an exception to the sections above, you may also combine or link a "work that uses the library" with the library to produce a work containing portions of the library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the library is used in it and that the Library and its use are covered by this license. You must supply a copy of this license. If the work during execution displays copyright notices, you must include the copyright notice for the library among them, as well as a reference directing the user to the copy of this license. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the library and then relink to produce a modified executable containing the modified library. (It is understood that the user who changes the contents of definitions files in the library will not necessarily be able to recompile the application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6, above, for a charge no more than the cost of performing this distribution.

d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the library together in an executable that you distribute.

1. You may place library facilities that are a work based on the library side-by-side in a single library together with other library facilities not covered by this license, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the library, and explaining where to find the accompanying uncombined form of the same work.

1. You may not copy, modify, sublicense, link with, or distribute the library except as expressly provided under this license. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the library is void, and will automatically terminate your rights under this license. However, parties who have received copies, or rights, from you under this license will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this license, since you have not signed it. However, nothing else grants you permission to modify or distribute the library or its derivative works. These actions are prohibited by law if you do not accept this license. Therefore, by modifying or distributing the library (or any work based on the library), you indicate your acceptance of this license to do so, and all its terms and conditions for copying, distributing or modifying the library or works based on it.

3. Each time you redistribute the library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein.

You are not responsible for enforcing compliance by third parties with this license.

1. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this license, they do not excuse you from the conditions of this license. If you cannot distribute so as to satisfy simultaneously your obligations under this license and any other pertinent obligations, then as a consequence you may not distribute the library at all. For example, if a patent license would not permit royalty-free redistribution of the library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this license would be to refrain entirely from distribution of the library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a license cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this license.

1. If the distribution and/or use of the library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the library under this license may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this license incorporates the limitation as if written in the body of this license.

2. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the library specifies a version number of this license which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation.

APPENDIX

If the library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to apply these terms to your new libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making

it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

one line to give the library's name and a brief idea of what it does.

Copyright (C)

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the license, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking knobs) written by James Random Hacker.

signature of Ty Coon, 1 April 1990

Ty Coon, President of Vice

MOZILLA PUBLIC LICENSE

Version 1.1

1. Definitions.

1.0.1. "Commercial use" means distribution or otherwise making the covered code available to a third party.

1.1. "Contributor" means each entity that creates or contributes to the creation of modifications.

1.2. "Contributor version" means the combination of the original code, prior modifications used by a contributor, and the modifications made by that particular contributor.

1.3. "Covered code" means the original code or modifications or the combination of the original code and modifications, in each case including portions thereof.

1.4. "Electronic distribution mechanism" means a mechanism generally accepted in the software development community for the electronic transfer of data.

1.5. "Executable" means covered code in any form other than source code.

1.6. "Initial developer" means the individual or entity identified as the initial Developer in the Source Code notice required by exhibit A.

1.7. "Larger work" means a work which combines covered code or portions thereof with code not governed by the terms of this License.

1.8. "License" means this document.

1.8.1. "Licensable" means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or subsequently acquired, any and all of the rights conveyed herein.

1.9. "Modifications" means any addition to or deletion from the substance or structure of either the original code or any previous modifications. When covered code is released as a series of files, a modification is:

A. Any addition to or deletion from the contents of a file containing original code or previous modifications.

B. Any new file that contains any part of the original code or previous modifications.

1.10. "Original code" means source code of computer software code which is described in the source code notice required by exhibit as original code, and

which, at the time of its release under this license is not already covered code governed by this license.

1.10.1. "Patent claims" means any patent claim(s), now owned or hereafter acquired, including without limitation, method, process, and apparatus claims, in any patent licensable by grantor.

1.11. "Source code" means the preferred form of the covered code for making modifications to it, including all modules it contains, plus any associated interface definition files, scripts used to control compilation and installation of an executable, or source code differential comparisons against either the original code or another well known, available covered code of the contributor's choice. The source code can be in a compressed or archival form, provided the appropriate decompression or de-archiving software is widely available for no charge.

1.12. "You" (or "Your") means an individual or a legal entity exercising rights under, and complying with all of the terms of, this license or a future version of this license issued under section 6.1.

For legal entities, "You" includes any entity which controls, is controlled by, or is under common control with You. For purposes of this definition, "control" means (a) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (b) ownership of more than fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.

1. Source Code License.

2.1. The initial developer grant.

The initial developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party intellectual property claims:

a) under intellectual property rights (other than patent or trademark) licensable by initial developer to use, reproduce, modify, display, perform, sublicense and distribute the original code (or portions thereof) with or without modifications, and/or as part of a larger work; and

(b) under patents claims infringed by the making, using or selling of original code, to make, have made, use, practice, sell, and offer for sale, and/or otherwise dispose of the original code (or portions there of).

(c) the licenses granted in this section 2.1(a) and (b) are effective on the date Initial developer first distributes original code under the terms of this license.
(d) Notwithstanding section 2.1(b) above, no patent license is granted: 1) for code that You delete from the original Code; 2) separate from the original code; or 3) for infringements caused by: i) the modification of the original code or ii) the combination of the original code with other software or devices.

2.2. Contributor Grant.

Subject to third party intellectual property claims, each contributor hereby grants You a world-wide, royalty-free, non-exclusive license

(a) under intellectual property rights (other than patent or trademark) licensable by contributor, to use, reproduce, modify, display, perform, sublicense and distribute the modifications created by such contributor (or portions thereof) either on an unmodified basis, with other modifications, as covered code and/or as part of a larger work; and

(b) under patent claims infringed by the making, using, or selling of modifications made by that contributor either alone and/or in combination with its contributor version (or portions of such combination), to make, use, sell, offer for sale, have made, and/or otherwise dispose of: 1) modifications made by that contributor (or portions thereof); and 2) the combination of modifications made by that contributor with its contributor version (or portions of such combination).

(c) the licenses granted in sections 2.2(a) and 2.2(b) are effective on the date contributor first makes commercial use of the covered code.

(d) Notwithstanding section 2.2(b) above, no patent license is granted: 1) for any code that contributor has deleted from the contributor version; 2) separate from the contributor version; 3) for infringements caused by: i) third party modifications of contributor version or ii) the combination of modifications made by that contributor with other software (except as part of the contributor version) or other devices; or 4) under patent claims infringed by covered code in the absence of modifications made by that contributor.

3. Distribution Obligations.

3.1. Application of license.

The modifications which You create or to which you contribute are governed by the terms of this license, including without limitation section 2.2. The source code version of covered code may be distributed only under the terms of this license or a future version of this license released under section 6.1, and you must include a copy of this license with every copy of the source code you distribute. You may not

offer or impose any terms on any source code version that alters or restricts the applicable version of this license or the recipients' rights hereunder. However, you may include an additional document offering the additional rights described in section 3.5.

3.2. Availability of source code.

Any modification which you create or to which you contribute must be made available in source code form under the terms of this license either on the same media as an executable version or via an accepted electronic distribution mechanism to anyone to whom you made an executable version available; and if made available via electronic distribution mechanism, must remain available for at least twelve (12) months after the date it initially became available, or at least six (6) months after a subsequent version of that particular modification has been made available to such recipients. You are responsible for ensuring that the source code version remains available even if the electronic distribution mechanism is maintained by a third party.

3.3. Description of modifications.

You must cause all covered code to which you contribute to contain a file documenting the changes You made to create that covered code and the date of any change. You must include a prominent statement that the modification is derived, directly or indirectly, from original code provided by the initial developer and including the name of the initial developer in (a) the source code, and (b) in any notice in an executable version or related documentation in which you describe the origin or ownership of the covered code.

3.4. Intellectual property matters

(a) Third party claims.

If contributor has knowledge that a license under a third party's intellectual property rights is required to exercise the rights granted by such contributor under sections 2.1 or 2.2, contributor must include a text file with the source code distribution titled "LEGAL" which describes the claim and the party making the claim in sufficient detail that a recipient will know whom to contact. If contributor obtains such knowledge after the modification is made available as described in section 3.2, contributor shall promptly modify the LEGAL file in all copies contributor makes available thereafter and shall take other steps (such as notifying appropriate mailing lists or newsgroups) reasonably calculated to inform those who received the covered code that new knowledge has been obtained.

(b) Contributor APIs.

If contributor's modifications include an application programming interface and contributor has knowledge of patent licenses which are reasonably necessary to implement that API, contributor must also include this information in the LEGAL file.

(c) Representations.

contributor represents that, except as disclosed pursuant to section 3.4(a) above, contributor believes that contributor's modifications are contributor's original creation(s) and/or contributor has sufficient rights to grant the rights conveyed by this license.

3.5. Required notices.

You must duplicate the notice in exhibit A in each file of the source code. If it is not possible to put such notice in a particular source code file due to its structure, then You must include such notice in a location (such as a relevant directory) where a user would be likely to look for such a notice. If You created one or more modification(s), you may add your name as a contributor to the notice described in exhibit A. you must also duplicate this license in any documentation for the source code where You describe recipients' rights or ownership rights relating to covered code. You may choose to offer, and to charge a fee for, warranty, support, indemnity or liability obligations to one or more recipients of covered code. However, you may do so only on your own behalf, and not on behalf of the Initial developer or any contributor. You must make it absolutely clear than any such warranty, support, indemnity or liability obligation is offered by you alone, and You hereby agree to indemnify the Initial developer and every contributor for any liability incurred by the Initial developer or such contributor as a result of warranty, support, indemnity or liability terms you offer.

3.6. Distribution of executable versions.

You may distribute covered code in executable form only if the requirements of section 3.1-3.5 have been met for that covered code, and if you include a notice stating that the source code version of the covered code is available under the terms of this license, including a description of how and where you have fulfilled the obligations of section 3.2. The notice must be conspicuously included in any notice in an executable version, related documentation or collateral in which you describe recipients' rights relating to the covered code. You may distribute the executable version of covered code or ownership rights under a license of your choice, which may contain terms different from this license, provided that you are in compliance with the terms of this license and that the license for the executable version does not attempt to limit or alter the recipient's rights in the source code version from the rights set forth in this license. If you distribute the executable version under a different license you must make it absolutely clear that any terms which differ from this license are offered by you alone, not by the Initial developer or any contributor. You hereby agree to indemnify the initial developer and every contributor for any liability incurred by the initial developer or such contributor as a result of any such terms You offer.

3.7. Larger works.

You may create a larger work by combining covered

code with other code not governed by the terms of this license and distribute the larger work as a single product. In such a case, you must make sure the requirements of this license are fulfilled for the covered code.

4. Inability to comply due to statute or regulation.

If it is impossible for you to comply with any of the terms of this license with respect to some or all of the covered code due to statute, judicial order, or regulation then you must: (a) comply with the terms of this license to the maximum extent possible; and (b) describe the limitations and the code they affect. Such description must be included in the LEGAL file described in section 3.4 and must be included with all distributions of the source code. Except to the extent prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary skill to be able to understand it.

5. Application of this license.

This license applies to code to which the initial developer has attached the notice in exhibit A and to related covered code.

6. Versions of the license.

6.1. New versions.

Netscape communications corporation ("Netscape") may publish revised and/or new versions of the license from time to time. Each version will be given a distinguishing version number.

6.2. Effect of new versions.

Once covered code has been published under a particular version of the license, you may always continue to use it under the terms of that version. You may also choose to use such covered code under the terms of any subsequent version of the license published by netscape. No one other than netscape has the right to modify the terms applicable to covered code created under this license.

6.3. Derivative works.

If You create or use a modified version of this license (which you may only do in order to apply it to code which is not already covered code governed by this license), You must (a) rename Your license so that the phrases "Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL", "NPL" or any confusingly similar phrase do not appear in your license (except to note that your license differs from this license) and (b) otherwise make it clear that Your version of the license contains terms which differ from the Mozilla Public license and netscape Public License. (Filling in the name of the initial developer, original code or contributor in the notice described in exhibit A shall not of themselves be deemed to be modifications of this license.)

7. DISCLAIMER OF WARRANTY.

COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COVERED CODE IS FREE OF DEFECTS, MERCHANTABILITY, FIT FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE COVERED CODE IS WITH YOU. SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR ANY OTHER CONTRIBUTOR) ASSUME THE COST OF ANY NECESSARY SERVICING, REPAIR OR CORRECTION. THIS DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This license and the rights granted hereunder will terminate automatically if you fail to comply with terms herein and fail to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the covered code which are properly granted shall survive any termination of this license. Provisions which, by their nature, must remain in effect beyond the termination of this license shall survive. 8.2. If you initiate litigation by asserting a patent infringement claim (excluding declaratory judgment actions) against initial developer or a contributor (the initial developer or contributor against whom you file such action is referred to as "Participant") alleging that:

(a) such participant's contributor version directly or indirectly infringes any patent, then any and all rights granted by such participant to you under sections 2.1 and/or 2.2 of this license shall, upon 60 days notice from Participant terminate prospectively, unless if within 60 days after receipt of notice you either: (i) agree in writing to pay participant a mutually agreeable reasonable royalty for your past and future use of modifications made by such participant, or (ii) withdraw your litigation claim with respect to the contributor version against such participant. If within 60 days of notice, a reasonable royalty and payment arrangement are not mutually agreed upon in writing by the parties or the litigation claim is not withdrawn, the rights granted by participant to you under sections 2.1 and/or 2.2 automatically terminate at the expiration of the 60 day notice period specified above.

(b) any software, hardware, or device, other than such participant's contributor Version, directly or indirectly infringes any patent, then any rights grant-

ed to You by such participant under sections 2.1(b) and 2.2(b) are revoked effective as of the date you first made, used, sold, distributed, or had made, modifications made by that participant.

8.3. If you assert a patent infringement claim against participant alleging that such participant's contributor version directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the initiation of patent infringement litigation, then the reasonable value of the licenses granted by such participant under sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license.

8.4. In the event of termination under sections 8.1 or 8.2 above, all end user license agreements (excluding distributors and resellers) which have been validly granted by you or any distributor hereunder prior to termination shall survive termination.

9. LIMITATION OF LIABILITY.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLIGENCE), CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY DISTRIBUTOR OF COVERED CODE, OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY PERSON FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS EXCLUSION AND LIMITATION MAY NOT APPLY TO YOU.

10. U.S. GOVERNMENT END USERS.

The covered code is a "commercial item," as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of "commercial computer software" and "commercial computer software documentation," as such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June 1995), all U.S. Government end users acquire covered code with only those rights set forth herein.

11. MISCELLANEOUS.

This license represents the complete agreement concerning subject matter hereof. If any provision of this license is held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This License shall be governed by California law provisions (except to the extent applicable law, if any, provides otherwise), excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity chartered or registered to do business in the united states of america, any litigation relating to this License shall be subject to the jurisdiction of the federal courts of the northern district of california, with venue lying in santa clara county, california, with the losing party responsible for costs, including without limitation, court costs and reasonable attorneys' fees and expenses. The application of the united nations convention on contracts for the International sale of goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed against the drafter shall not apply to this license.

12. RESPONSIBILITY FOR CLAIMS.

As between initial developer and the contributors, each party is responsible for claims and damages arising, directly or indirectly, out of its utilization of rights under this license and you agree to work with initial developer and contributors to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to constitute any admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial developer may designate portions of the covered code as "Multiple-Licensed". "Multiple-Licensed" means that the initial developer permits you to utilize portions of the covered code under your choice of the NPL or the alternative licenses, if any, specified by the initial developer in the file described in exhibit A.

EXHIBIT A -Mozilla Public License.

The contents of this file are subject to the Mozilla Public License Version 1.1 (the "license"); you may not use this file except in compliance with the License. You may obtain a copy of the license at http://www.mozilla.org/MPL/

Software distributed under the license is distributed on an "AS IS" basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the license for the specific language governing rights and limitations under the License.

The Original Code is

The Initial Developer of the Original Code is ____. Portions created by ____ are Copyright (C) ____. All Rights Reserved.

Contributor(s): ____.

Alternatively, the contents of this file may be used under the terms of the ____ license (the "[____] License"), in which case the provisions of [____] license are applicable instead of those above. If you wish to allow use of your version of this file only under the terms of the [____] license and not to allow others to use your version of this file under the MPL, indicate your decision by deleting the provisions above and replace them with the notice and other provisions required by the [____] license. If you do not delete the provisions above, a recipient may use your version of this file under either the MPL or the [____] license."

NOTE: The text of this exhibit A may differ slightly from the text of the notices in the source code files of the original code. You should use the text of this exhibit A rather than the text found in the original code/source code for Your modifications.

LG

Life's Good

The model and serial number of the TV is located on the back and one side of the TV.

Record it below should you ever need service.

MODEL ____

SERIAL ____
