Product Type	Chest Freezer
Brand	Commercial Cool
Model	CCF69W
Power Requirements	115V AC, 60Hz, 15A
Refrigerant Type	Flammable (R600a likely)
Temperature Control	Dial with settings 0-7 (0 = off)
Defrosting Method	Manual defrost when frost reaches 1/8 inch
Interior Accessories	Removable basket
Drain System	Internal drain plug with external dial
Installation Type	Freestanding only (not built-in)
Minimum Clearances	Sides: 3/4 inch, Back: 2 inches
Door Gasket Maintenance	Clean every 3 months; apply petroleum jelly
Cleaning Solution	3-4 tbsp baking soda in warm water
Safety Features	Grounded plug, child entrapment warning, flammable refrigerant caution
Warranty	1 year parts and labor, 2 years compressor
Energy Saving Tips	Avoid overloading, allow hot foods to cool, minimize door openings

Frequently Asked Questions - CCF69W Commercial Cool

How do I set the temperature on my Commercial Cool CCF69W freezer?

The temperature is controlled by a dial inside the freezer. Turn the dial to a setting between 1 and 7, where 7 is the coldest. The '0' position turns off the cooling cycle but does not disconnect power. Adjust gradually and allow several hours for temperature to stabilize.

How often should I defrost the freezer?

Defrost the freezer when the frost buildup reaches about 1/8 inch thick. To defrost, turn the dial to '0', unplug the unit, remove food, and leave the lid open. You can place a bowl of warm water (around 122°F) inside to speed up the process. Never use sharp or metallic tools.

What should I do if the freezer stops working?

First, check if the unit is plugged in securely and the outlet has power (test with another device). Ensure the circuit breaker isn't tripped. If the temperature dial is at '0', turn it to a colder setting. If the problem persists, contact W Appliance Co. at 1-855-855-0294. Do not attempt internal repairs.

Can I use an extension cord with this freezer?

It is recommended to avoid extension cords due to safety hazards. If absolutely necessary, use a grounding type 3-wire extension cord with a 3-blade plug and a rating equal to or greater than the appliance (15A). Ensure the cord does not drape where it can be pulled or tripped over.

How do I clean the freezer?

Unplug the freezer first. Mix 3-4 tablespoons of baking soda with warm water. Use a soft sponge or cloth dampened with the solution to wipe the interior and exterior. Rinse with clean warm water and dry with a soft cloth. Do not use harsh chemicals, abrasives, or metal scouring pads.

What type of refrigerant does this freezer use?

The Commercial Cool CCF69W uses a flammable refrigerant (likely R600a). Do not use mechanical devices to defrost, do not puncture refrigerant tubing, and ensure service is done by trained personnel. Dispose of the unit in accordance with local regulations.

How do I level the freezer?

The freezer has adjustable leveling legs. Place the freezer on a flat, hard, and solid floor. Turn the legs to adjust until the unit is stable and level. Proper leveling ensures the door seals correctly and the compressor operates efficiently.

What is the capacity of this freezer?

The exact capacity is not specified in the manual, but chest freezers of this size typically have a capacity between 5 and 7 cubic feet. For precise details, refer to the product specifications on the manufacturer's website.

What should I do after a power outage?

Unplug the freezer during the outage. When power is restored, plug it back in. Check the food: if it still contains ice crystals or is below 40°F, it can be refrozen. Discard any thawed foods with off-odor or off-color. Clean the freezer thoroughly before reuse.

Is the freezer safe for outdoor use?

No, this freezer is designed for indoor household use only. It should not be exposed to rain, extreme temperatures, or high humidity. Install it in a cool, dry location away from direct sunlight and heat sources.

USER MANUAL CCF69W Commercial Cool

1. READ these instructions carefully before installing and operating the freezer. Keep them for further reference.
2. Record in the space below the "SERIAL NO." found on the nameplate on your freezer and retain this information for future reference.

SERIAL NO.:

Please save sales receipt for warranty.

CONTENTS

SAFETY INFORMATION

Important Safety Instructions....3-4

Refrigerant....4

Grounding Instructions....5

SET UP & USE

Installation Guide 6

Starting your New Freezer....7

Parts & Features 8

Operation Instructions....8-9

CLEANING & CARE 10-11

TROUBLE SHOOTING & WARRANTY

Before You Call For Service ....12

Customer Service 12

Troubleshooting....12-13

Limited Warranty....14

PRODUCT REGISTRATION

Thank you for purchasing our

W Appliance product. This easy-to-use manual will guide you in getting the best use of your freezer.

Remember to record the model and serial numbers. They are on a label on the back of the product.

Model number

Serial number

Date of purchase

Staple your receipt to your manual.

You will need it to obtain warranty service.

SAFETY INFORMATION

DANGER

DANGER - Immediate hazards which WILL result in severe personal injury or death

WARNING

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death

CAUTION

CAUTION - Hazards or unsafe practices which COULD result in minor personal injury

IMPORTANT SAFETY INSTRUCTIONS

WARNING

When using electrical appliances, basic safety precautions should be followed, including the following

NOTE: If the freezer has been placed in a horizontal or tilted position for any period of time, wait 24 hours before plugging the unit in.

1. Use this appliance only for its intended purpose as described in this use and care guide.
2. This freezer must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.
3. Never unplug your freezer by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
4. Do not operate any appliance with a damaged cord or plug. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
5. Unplug your freezer before cleaning or before making any repairs. Note: If for any reason this product requires service, we strongly recommend that a certified technician performs the service. Component parts shall be replaced with like components and servicing shall be done by factory authorized service personell, so as to minimize the risk of possible ignition due to incorrect parts or improper service.
6. Do not use any electrical device or any sharp instrument in defrosting your freezer.
7. DANGER - Risk of child entrapment. Before you throw away your old freezer or freezer, take off the doors and leave the shelves in place to that children may not easily climb inside.

SAFETY INFORMATION

1. After your freezer is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.

2. Do not refreeze foods that have been thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 reads: “...You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold-below 40°F.

“...Thawed ground meats, poultry, or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, discard it. The food may be dangerous to eat ... Even partial thawing and re-freezing reduce the eating quality of foods, particularly fruits, vegetables, and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible, to save as much of its eating quality as you can.”

1. This freezer should not be recessed or built-in in an enclosed cabinet. It is designed for freestanding installation only.
2. Do not operate your freezer in the presence of explosive fumes.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

! DANGER

Risk of child entrapment. Before you throw away your old freezer or freezer, take off the doors. Leave the shelves in place so that children may not easily climb inside.

REFRIGERANT

GAS WARNINGS

• DANGER - Risk of fire or explosion. Flammable refrigerant used. DO NOT use mechanical devices to defrost freezer. DO NOT puncture refrigerant tubing.
• DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. DO NOT puncture refrigerant tubing.
• CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual/owner's guide before attempting to service this product. All safety precautions must be followed.
• CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local regulations. Flammable refrigerant used.
• CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing; Follow handling instructions carefully. Flammable refrigerant used.

SAFETY INFORMATION

GROUNDING INSTRUCTIONS

ELECTRICAL REQUIREMENTS

The electrical requirements are a 115 volt 60 Hz, AC only, 15 amp. It is recommended that a separate circuit serving only the product be provided. The product is equipped with a 3-wire cord having a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. The cord provided with this appliance is equipped with a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Avoid the use of three prong adapters or cutting off the third grounding prong in order to accommodate a two prong outlet. This is a dangerous practice since it provides no effective grounding for the freezer and may result in shock hazard.

WARNING

Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualified electrician or serviceman if:

1) The grounding instructions are not completely understood.
2) You are unsure that the appliance is properly grounded.
3) You have any questions about the grounding or electrical instructions.

POWER SUPPLY CORD

1. Avoid the use of an extension cord because of potential safety hazards under certain conditions. Have a qualified electrician or serviceman to install an outlet near the appliance.
2. If it is absolutely necessary to use longer cord sets or an extension cord, extreme care must be exercised.

a) Use only a grounding type 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance.
b) The marked electrical rating of the cord set or extension cord must equal to or greater than the electrical rating of the appliance. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

NOTE: Neither W Appliance nor the dealer can accept any liability for damage to the product or personal injury resulting from failure to observe the electrical connection procedures.

SET UP & USE

INSTALLATION GUIDE

1. Unpack your freezer by removing all packaging materials like carton, base, foams, adhesive tape, etc.
2. Remove all accessories, internal packaging material used to hold shelves, ice tray, etc. in place.
3. Clean the remains of all adhesive tap used and remove all printed material supplied.
4. Install the freezer in a convenient location away from extreme heat and cold. Allow sufficient clearance between the freezer and side wall so the door(s) will open without obstruction. Freezer is not designed for recessed installation.
5. The floor on which the freezer should be placed must be flat, hard, solid, and even. The freezer should not be placed on any soft material such as foam, plastic, etc.
6. The following are recommended minimum clearances around the freezer for proper air circulation:
   Sides: 3/4" (19mm)
   Back: 2" (50mm)
   Proper air circulation will help your freezer work at maximum efficiency.

NOTE: · The appliance must be correctly connected to the power supply.

CAUTION

Care should be taken during the handling moving and use of the freezer to avoid damaging the refrigerant tubing or increasing the risk of a leak.

WARNING

It is important to keep the power cord away from the compressor at the back of the freezer as during operation, the compressor can reach a high temperature and could cause serious damage to the power cord.

SET UP & USE

PROTECTION FROM HEAT AND MOISTURE

• Do not install your freezer in any location where heavy moisture is present or if the location is not properly insulated. This freezer is not designed to operate in temperature setting below 55° Fahrenheit.
• Location for the freezer should be on a hard surface and away from direct sunlight and heat source, e.g., radiators, baseboard heaters, cooking appliances, etc.

1. After cleaning your freezer thoroughly. Wipe the outside with a soft dry cloth, the interior with a clean moist cloth.
2. Insert the power supply cord into the electrical outlet.
3. Turn the thermostat dial to an initial setting of "7" for 24 hours and then set the freezer to your desired setting.

NOTE: As the door gets pressed in during shipping, the gasket may have to be reset. This is done to prevent the cool refrigerated air from escaping. If there is a gap between the door gasket and the cabinet, set the gasket by gently pulling it out of the seal gap.

SET UP & USE

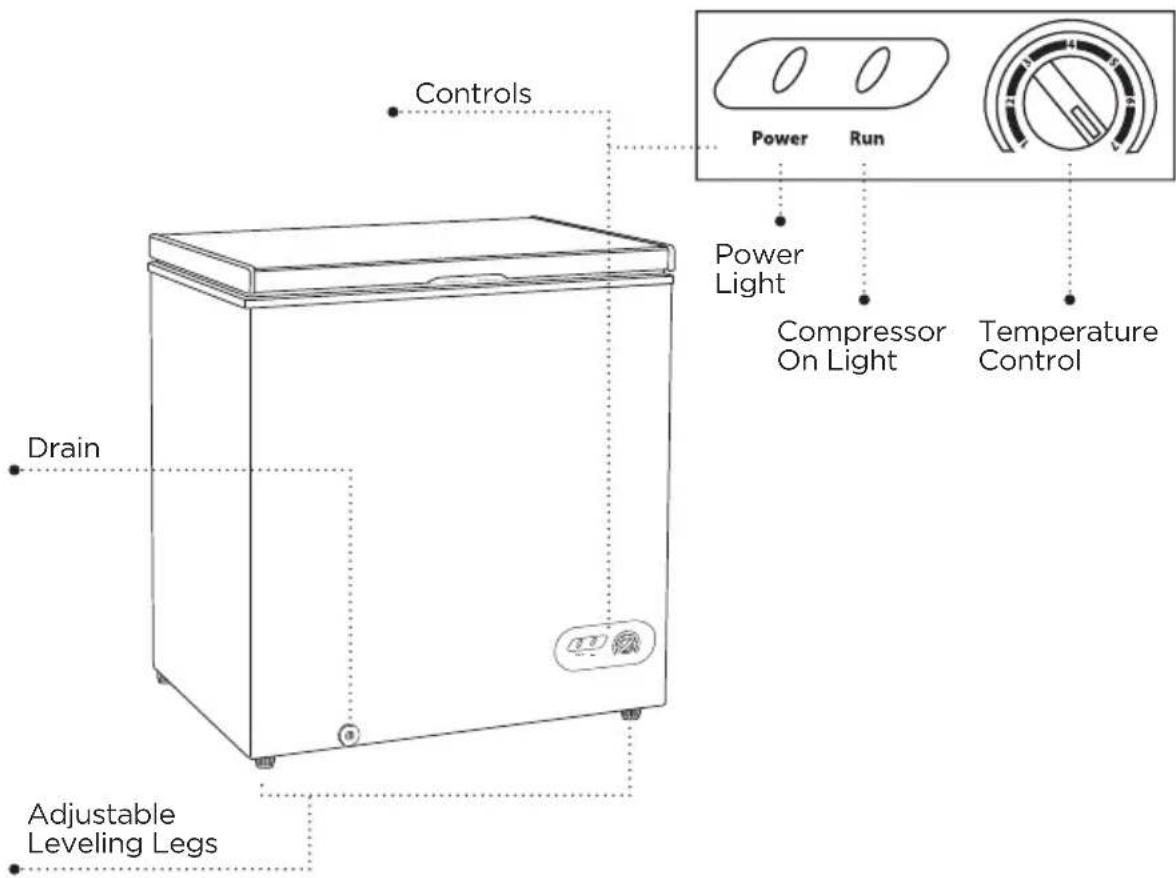

PARTS & FEATURES

OPERATION INSTRUCTIONS

TEMPERATURE CONTROL

NOTE: · If the freezer/freezer has been placed in a horizontal or tilted position for any period of time wait 24 hours before plugging the unit in.

• The settings of the temperature control are "0, 1, 2, 3, 4, 5, 6, 7." Adjust the temperature control to the setting that best suits your needs.
• Turning the temperature to "O" position will shut off the cooling cycle, but does not turn off the electrical power to the unit.

NOTE: · Wait 3-5 minutes before restarting if you unplug the freezer. The unit may fail to operate properly if restarted too quickly.

• If the ambient temperature is too high, the freezer may not reach the desired target temperature.
  · Large amounts of foods will lower the cooling efficiency of the appliance.
  · Do not place the foods on the air outlet and leave spaces for airflow.
  · If you choose to change the thermostat setting, adjust thermostat control one increment at a time. Allow several hours for temperature to stabilize between adjustments.

SET UP & USE

FOOD STORAGE

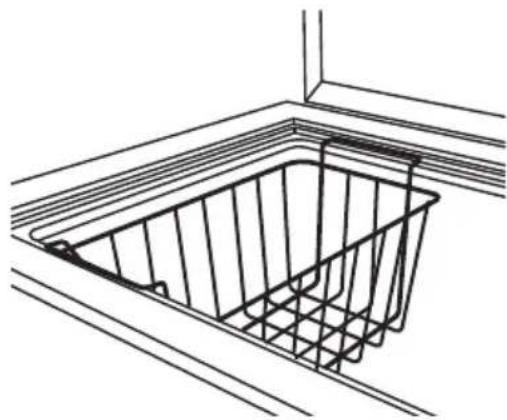

- Your freezer has a basket. Removable baskets allow you to store food more accessibly or you can them if not needed.

Line drawing of a shopping basket inside a corner frame (no text or symbols)

DEFROSTING & DRAINING

• Defrost whenever the frost becomes 1/8" thick. Never use a sharp or metallic instrument to remove the frost, as it may damage the cooling coils. (A punctured coil will void the warranty).
• Turn the temperature control to OFF position and unplug the unit. Remove the drain plug from the inside of the freezer. Defrosting usually takes a few hours. To defrost faster keep the door open.
• For draining place a tray beneath the outer drain dial. Turn the drain dial in a counter-clockwise direction to remove (see fig. #3). This will let the water flow out into the tray. When finished, replace the drain dial and turn in a clockwise direction to close. Note: Monitor the container under the drain to avoid overflow.
• Wipe the interior of the freezer and replace the electrical plug in the electrical outlet.
• Reset the temperature control to the desired setting.

Simple circular diagram with concentric rings and evenly spaced segments (no text or symbols)

CLEANING AND CARE

CLEANING AND MAINTAINING

The freezer should be cleaned and maintained once a month. Before doing so, you must unplug the freezer.

CAUTION

To avoid personal injury or product damage always read and follow manufacturer's instructions and warnings before using any cleaning products.

WARNING

Always unplug your freezer before cleaning to avoid electric shock. Ignoring this warning may result in death or injury

POWER INTERRUPTION

In case of a power interruption/outage, unplug the power cord from the wall outlet. Replug the power cord to the wall outlet once the power has been restored. For long period of power outage, inspect and discard the spoiled or thawed foods from the freezer and freezer compartments. Clean the freezer thoroughly before using again.

CLEANING METHOD

Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution to wipe down your freezer.

• Rinse with clean warm water and dry with a soft cloth,
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your freezer.

DOOR GASKET

Clean door gaskets every three months according to general instructions.

Gasket must be kept clean and pliable to assure a proper seal.

- Petroleum jelly applied lightly on the hinge sides of gaskets will keep the gasket pliable and ensure a good seal.

CLEANING AND CARE

VACATION AND MOVING CARE

- When going on vacation, it is best that you empty all the food from your freezer and freezer. Set the temperature dial to "O" and unplug the freezer. Clean the unit as per "Cleaning Method" and leave the door open to remove any odors.

When travelling or moving the freezer, always transport the unit vertically. Moving the unit on its sides may damage the freezer and/or its compressor. TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE Freezer YOURSELF.

ENERGY SAVING TIPS

• The freezer should be located in the coolest area of the room, away from heat-producing appliances or heating ducts, and out of direct sunlight.
• Let hot foods cool to room temperature before placing in the freezer. Overloading the freezer forces the compressor to run longer and thus increase energy consumption. Foods that refrigerate too slowly may lose quality or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing in the freezer.
• The shelves should not be lined with aluminium foil, wax paper, or paper towels. This will interfere with cold air circulation, making the freezer less efficient.
• Organize food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

HOW TO DEFROST

• Defrost the freezer compartment when the frost accumulated is about 1/8" thick.
• Set the temperature control dial to “0” before defrosting. Remove all contents from the freezer compartment and leave the top lid open until ice and frost dissolve thoroughly. Make sure the drip tray is in place and unplug the unit. After defrosting, empty water from drip tray and wipe the compartment dry with a soft cloth and then adjust the temperature control dial to the desired position.

NOTE: In case you want to speed up the defrosting, you may put a bowl of warm water (about 122°F) into the freezer.

• Do not heat the evaporator directly with hot water or hair dryer while defrosting. Doing so will damage the freezer compartment.
• Never use a sharp or metallic instrument to remove frost as it may damage the freezer and puncture the cooling coils. It will also void the warranty. We recommend using a plastic scraper.

TROUBLESHOOTING & WARRANTY

BEFORE YOU CALL FOR SERVICE

A) Check to make sure that the freezer is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
B) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

IF NONE OF THE ABOVE SOLVES THE PROBLEM, CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE FREEZER YOURSELF.

CUSTOMER SERVICE

IMPORTANT

DO NOT RETURN THIS PRODUCT TO THE STORE

If you have a problem with this product, please contact the W Appliance Co. Customer Satisfaction Center at 1-855-855-0294.

DATED PROOF OF PURCHASE, MODEL # AND SERIAL # REQUIRED FOR WARRANTY SERVICE

TROUBLESHOOTING & WARRANTY

TROUBLESHOOTING

Troubleshoot your problem by using the chart below. If the freezer still does not work properly, contact W Appliance Co. customer service center or the nearest authorized service center. Customers must never troubleshoot internal components.

TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Freezer does not work	A. Freezer is not switched onB. Unit is not plugged in or is looseC. Fuse has blown or is defectiveD. Wall power socket is defective	A. Turn on the temperature control dial. It may be in the OFF, “O” positionB. Plug in the freezerC. Check fuse, replace if necessaryD. To be corrected by a qualified electrician
The food is too warm A.	Temperature is not properly adjustedB. Top lid was open for an extended periodC. A large quantity of warm food was placed in the freezer within the last 24 hoursD. The freezer is near a heat source	A. Set the temperature control dial to a cooler settingB. Open the top lid only as long as necessary. Check door gasket for proper sealC. Set the temperature control dial to a colder setting temporarilyD. Please look in the “Protection From Heat and Moisture” section
Heavy build-up of frost, possibly also on the top lid sealNOTE: This is normal during high humidity periods. Frequent door openings will also cause heavy frost buildup	A. Top lid seal is not air-tight A.	Carefully warm the leaking sections of the top lid gasket with a hair dryer (on a cool setting). At the same time, shape the warmed top lid seal by hand such that it sits correctly
Popping or cracking sounds	A. When compressor comes on	A. This is a normal sound of coolant flowing through condenser coils
Freezer door does not shut properly	A. Possible blockage from food containers or baskets.	A. Ensure nothing is blocking the door
Freezer has an odor A. Foods not properly sealedB. Interior needs cleaning	A. Removed any contaminated foodsB. Please refer to “Cleaning and Care” section

TROUBLESHOOTING & WARRANTY

LIMITED WARRANTY

Any repair, replacement, or warranty service, and all questions about this product should be directed to W Appliance Co. at 1 [phone] from the USA or Puerto Rico.

W Appliance Co. warrants to the original purchaser that the product will be free from defects in material, parts and workmanship for the period designated for this product. The warranty commences the day the product is purchased and covers up to a period of 1 year (12 months) for labor/1 year (12 months) for parts (manufacturing defects only)/carry in service/ and a total of 2 years (24 months) for compressor part only. W Appliance Co. agrees that it will, at its option, replace the defective product with either a new or remanufactured unit equivalent to your original purchase during the warranty period.

Exclusions: This warranty does not apply to the below:

1. If the appearance or exterior of the product has been damaged or defaced, altered or modified in design or construction.

2. If the product original serial number has been altered or removed or cannot be readily determined.

3. If there is damaged due to power line surge, user damage to the AC power cord or connection to improper voltage source.

4. If damage is due to general misuse, accidents or acts of God.

5. If repair attempts are done by unauthorized service agents, use of parts other than genuine parts or parts obtained from persons other than authorized service companies.

6. On units that have been transferred from the original owner.

7. On products that have been purchased as refurbished, like new, second-hand, in a "As-Is" or "Final Sale" terms.

8. To products used in a commercial or rental setting.

9. To products used in settings other than ordinary household use or used other than in accordance with the provided instructions.

10. To damages for service calls for improper installations.

11. To glass parts and other accessory items that are included with the unit.

12. Transportation and shipping costs associated with the replacement of the unit.

13. Food loss for loss due to product failure or delay in service, repair or replacement.

14. Service calls to instruct you how to use your product.

15. Service calls to repair or replace the house fuse, reset the circuit breaker or correct the wiring in the house.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CUSTOMER; W Appliance Co. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE DURATION OF THE WARRANTY.

Some states do not allow the exclusion or limitations of incidental or consequential damages, or limitations on how long the warranty lasts. In these cases the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Obtaining Service: To obtain service, product literature, supplies or accessories please call 1 [phone] to create a ticket for exchange/repair. Please make sure to provide the date of purchase, model number and a brief description of the problem. Our customer service representative will contact you or send detailed return instructions.

W Appliance Co. does not warrant that the appliance will work properly in all environmental conditions, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose other than the purpose identified within this user's manual. W Appliance Co. has made every effort to ensure that this user's manual is accurate and disclaims liability for any inaccuracies or omissions that may have occurred. Information in this user's manual is subject to change without notice and does not represent a commitment on the part of W Appliance Co.. W Appliance Co. reserves the right to make improvements to this user's manual and/or to the products described in this user's manual at any time without notice. If you find information in this manual that is incorrect, misleading, or incomplete, please contact us at 1-855-855-0294.

W Appliance Company LLC, New York, NY 10018

MEMO

© 2014 W Appliance Company. All Rights Reserved.
