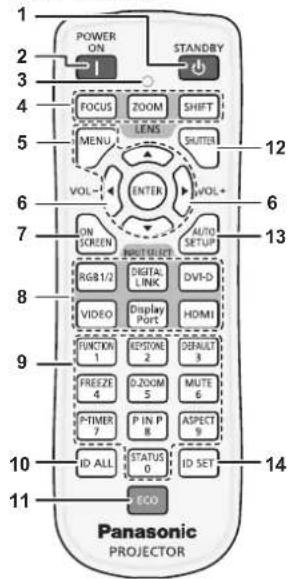

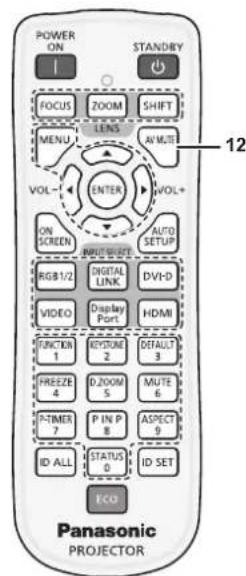

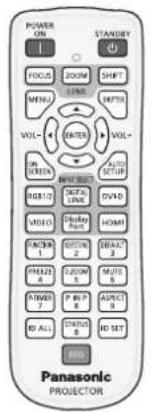

button/▲▼◀▶ button
Used to navigate through the menu screen. (→ page 57)
6 button/ button
Adjusts the volume of the built-in speaker or audio output.
(→ page 52)
7 button
Switches on (display)/off (hide) the on-screen display function. (→ page 53)
8 Input selection (, *1, , , *1, ) buttons
Switches the input signal to project. (→ page 51) (*1 Only for PT-EZ580, PT-EW640 and PT-EX610)
9 Number (<0> - <9>) buttons
Used when the system uses multiple projectors. Used to input ID numbers or passwords.
10 button
Used to simultaneously control all the projectors with a single remote control when using multiple projectors. (→ page 27)
11 button
Displays the setting screen relating to ECO management. (→ pages 55, 87)
12 / button
( button for PT-EZ580, PT-EW640 and PT-EX610; button for PT-EW540 and PT-EX510)
Used when temporarily turning off the image and audio.
(→ page 51)
Top
16
17
18
19
FUNCTION 1
FREEZE 4
P-TIMER 7
ID ALL
STATUS 3
NEystone 2
OZOM 5
P IN P 8
STATUS 3
DEFAULT 3
MUTE 6
ASPECT 9
ID SET
20
21
22
23
24
Panasonic
PROJECTOR
■ Bottom
13 button
Automatically adjusts the image display position while the image is projected.
[PROGRESS] is displayed on the screen while adjusting automatically. (→ page 53)
14 button
Sets the ID number of the remote control to use for a system using multiple projectors. (→ page 27)
15 button
Displays the [KEYSTONE] menu. (→ pages 54, 70)
16 button
Assigns a frequently used operation as a shortcut button.
(→ page 55)
17 button
Used when pausing the image and turning off the audio.
(→ page 52)
18 button
Operates the presentation timer function. (→ page 53)
19 button

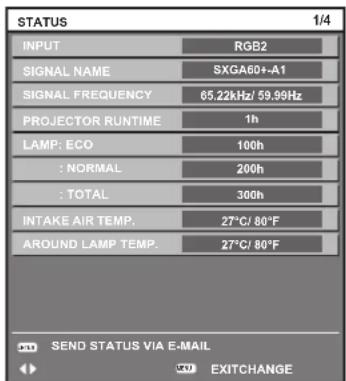

Displays the status of the projector. (→ pages 55, 94)
20 button
Resets the content of the sub-menu to the factory default.
(→ page 58)
21 button

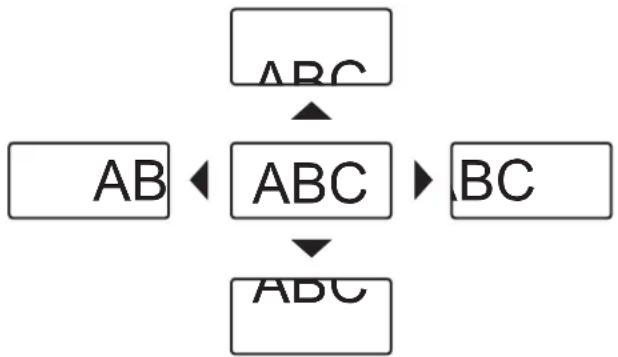

Displays the [DIGITAL ZOOM] menu. (→ pages 54, 84)
22 button
Used when temporarily turning off the audio. (→ page 52)
23 button
Switches the aspect ratio of the image. (→ page 54)
24
button
Switches the [P IN P] setting. (→ page 55)
25 Remote control signal transmitter
26 Remote control wired terminal
This is the terminal to connect to the projector by a cable when used as a wired remote control. (→ page 28)
Attention
Do not drop the remote control.
Avoid contact with liquids or moisture.
Do not attempt to modify or disassemble the remote control.
Please observe the following contents that are described on the back of the remote control unit (see the right picture).
Do not use a new battery together with an old battery.
Do not use unspecified batteries.
Make sure the polarities (+ and -) are correct when inserting the batteries.
In addition, please read the contents that are related to batteries in the "Read this first!".
1.Do not use old battery with new one.
2.Do not use batteries other than the
type specified.
3.Be sure the batteries are inserted properly.
Note
When operating the remote control by directly pointing the remote control signal receiver of the projector, operate the remote control at a distance approx. 30 m (98'5") or shorter from the remote control signal receiver. The remote control can control at angles of up to ±30° vertically and horizontally, but the effective control range may be reduced.
If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate properly.
The signal will be reflected off the screen. However, the operating range may be limited from light reflection loss due to the screen material.
If the remote control signal receiver directly receives strong light, such as fluorescent light, the remote control may not operate properly. Use it in a place distant from the light source.
The power indicator will flash if the projector receives a remote control signal.
Projector body
■ Front Side
6
7 8 6

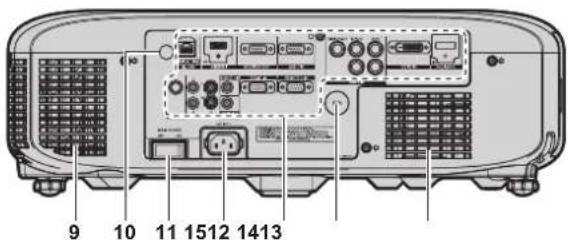

Rear
9
WARNING
Keep your hands and other objects away from the air exhaust port.
Keep your hands and face away.
Do not insert your fingers.
Keep heat-sensitive objects away.
Heated air from the air exhaust port can cause burns, injury, or deformations.

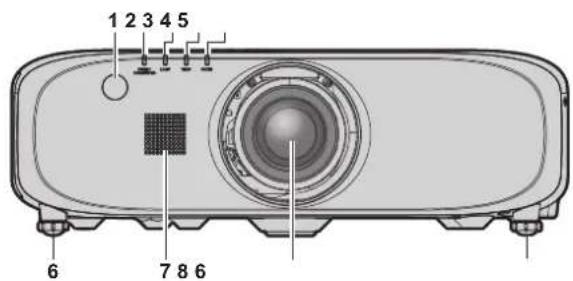

1 Remote control signal receiver (front)

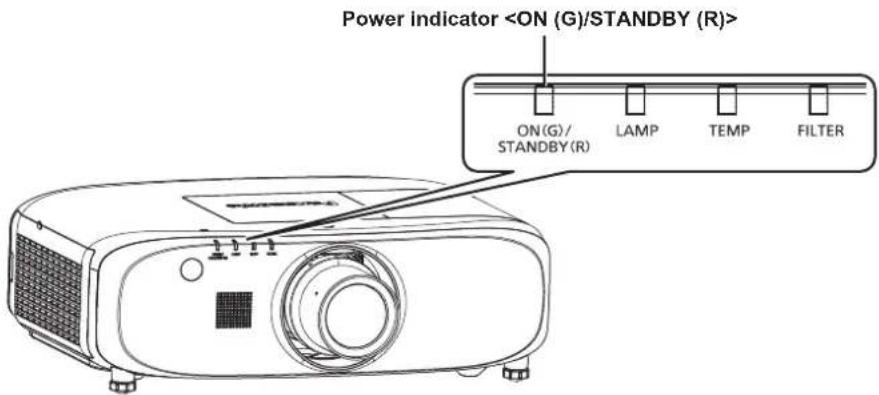

Displays the status of the power. You can display the status of the lamp.

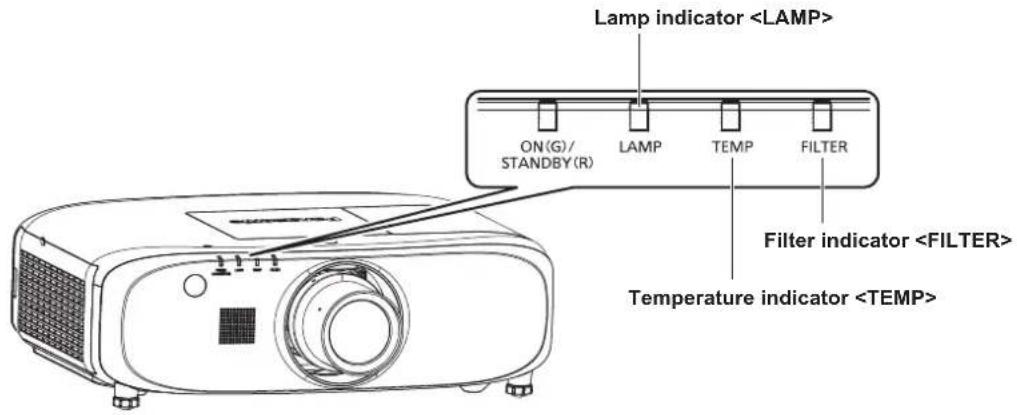

4 Temperature indicator Displays the status of the internal temperature.
Displays the status of the air filter unit. switch
Turns off/on the main power. terminal
Connect the supplied power cord.
13 Connecting terminals (→ page 26)
14 Security slot
This security slot is compatible with the Kensington security cables.

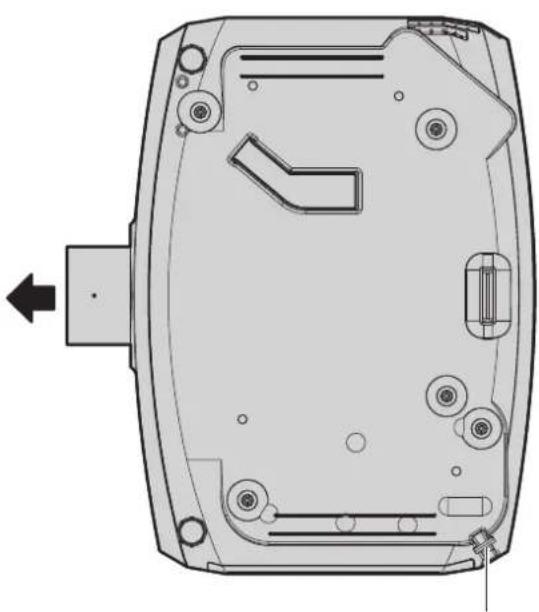

■ Bottom Top
Projection direction
18 Burglar hook port
Attaches a burglar prevention cable, etc.
19 Luminance sensor (→ page 66)

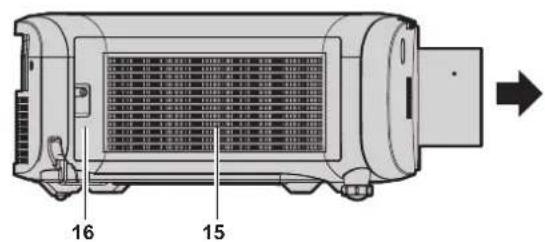

15 Air intake port
16 Air filter cover
The air filter unit is inside.

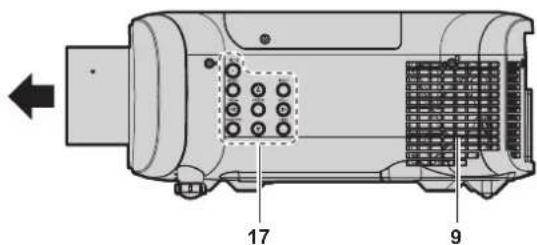

17 Control panel (→ page 25)
Panasonic
20 2118

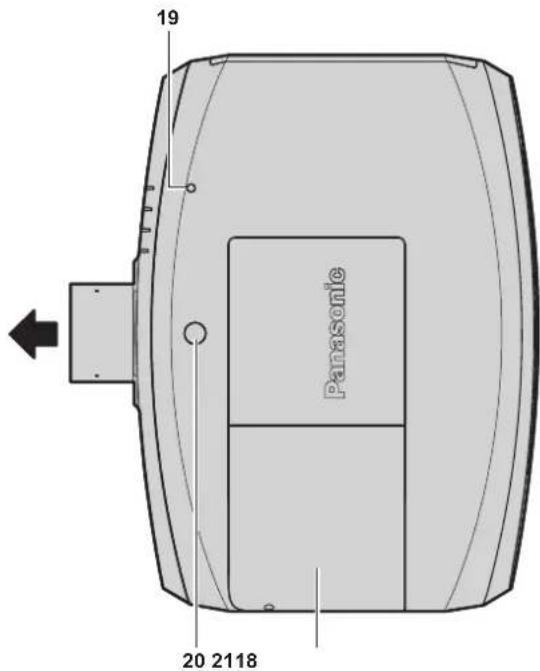

20 Lens release button (→ page 38)

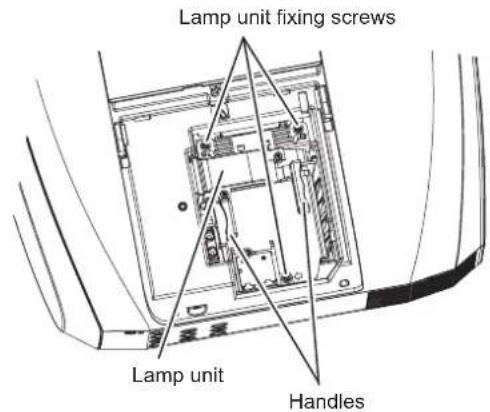

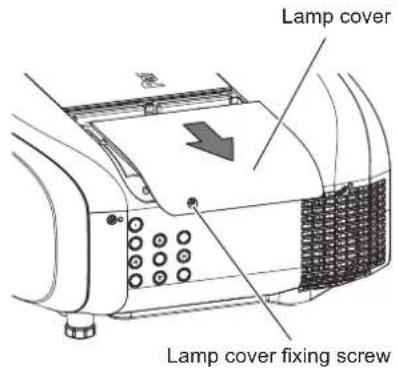

21 Lamp cover
The lamp unit is inside.
Attention
- Do not block the ventilation ports (intake and exhaust) of the projector.
■ Control panel

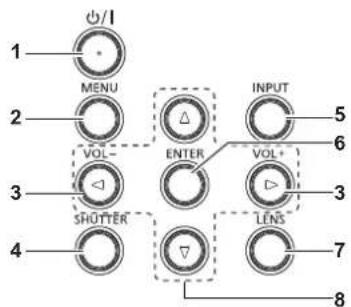

MENU
2
VOL-
3
SHUTTER
4
ENTER
5
INPUT
6
VOL+
7
LENS
8
1 Power standby <|>|> button
Sets the projector to the state where the projector is switched off (standby mode) when the switch on the projector is set to and in the projection mode. Also starts projection when the power is switched off (standby mode).
2
button
Displays or hides the main menu. (→ page 57)
Returns to the previous menu when a sub-menu is displayed. If you press the
button on the control panel for at least three seconds while the on-screen display is off (hidden), the on-screen display is turned on.
3 button/ button
Adjusts the volume of audio output. (→ page 52)
4 button/ button
( button for PT-EZ580, PT-EW640 and PT-EX610; button for PT-EW540 and PT-EX510.)
Used when temporarily turning off the image and audio.
(→ page 51)
5
Switches the input signal to project. (→ page 51)
6 button
Determines and executes an item in the menu screen.
7 button
Adjusts the focus, zoom, and shift (position) of the lens.
8 ▲▼◀▶ buttons
Used to select items in the menu screen, change settings, and adjust levels.
Also used to enter a password in [SECURITY] or enter characters.

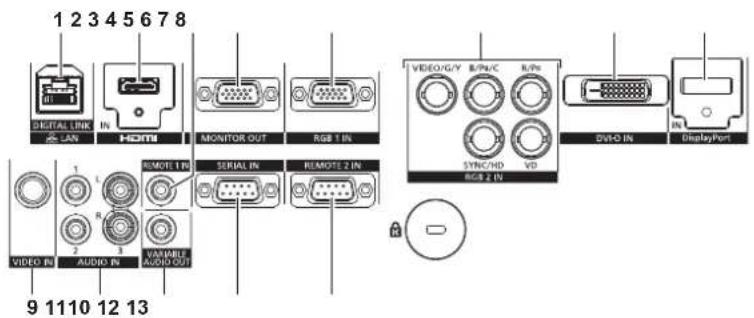

■ Connecting terminals
DIGITAL LINK IN HOMI MONITOR OUT RGB 1 IN VIDEO/G/Y B/Pu/C B/Ps D/V-D IN DisplayPort
VIDEO IN AUDIO IN VARIABLE AUDIO OUT
9 1110 12 13
1 terminal/ terminal
(For PT-EZ580, PT-EW640 and PT-EX610)
This is the LAN terminal to connect to the network. This is also used when connecting a device for transmitting video and audio signals via the LAN terminal.
(For PT-EW540 and PT-EX510)
This is the LAN terminal to connect to the network. The direction of LAN terminal is opposite with the illustration above.
2 terminal
This is the terminal to input HDMI signals.
3 terminal
This is the terminal to connect to the remote control by cable when controlling the projector by wired remote control.
4 terminal
This is the terminal to output analog RGB signals and YC_BC_R/YP_BP_R signals that were input to the or terminal to an external device. When the input is switched to RGB1 or RGB2, the corresponding signals are output.
5 terminal
This is the terminal to input RGB signals or YC_BC_R/YP_BP_R signals.
6 (, , , , ) terminal
This is the terminal to input RGB signals or YC_BC_R/YP_BP_R signals, Y/C signals, and video signals.
7 terminal
This is the terminal to input DVI-D signals.
8 terminal
(Only for PT-EZ580, PT-EW640 and PT-EX610)
This is the terminal to input DisplayPort signals.
9 terminal
This is the terminal to input video signals.
10 terminal/ terminal/ terminal
This is the terminal to input audio. Left input and right input are provided for the terminal.
11 terminal
This is the terminal to output the input audio signal to the projector.
12 terminal
This is the RS-232C compatible terminal to externally control the projector by connecting a computer.
13 terminal
This is the terminal to remotely control the projector using the external control circuit.
Attention
Using the remote control
Inserting and removing the batteries
(ii)
Fig. 1 Fig. 2
1) Open the cover. (Fig. 1)
- When removing the batteries, perform the steps in reverse order.
Setting the ID number of the remote control
When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually using single remote control, if a unique ID number is assigned to each projector.
After setting the ID number of the projector, set same ID number on the remote control.
The factory default ID number of the projector is set to [ALL]. When using a single projector, press the button on the remote control. Also, you can control a projector by pressing the button on the remote control even if you do not know the projector ID.
How to set
1) Press the button on the remote control.
- If you press the button, you can control the projectors regardless of the ID number setting of the projector.
Attention
Since the ID number of the remote control can be set without the projector, do not press the button on the remote control carelessly. If the button is pressed and no number (<0> - <9>) buttons are pressed within five seconds, the ID number returns to its original value before the button was pressed.
The ID number set on the remote control will be stored unless it is set again. However, it will be erased if the remote control is left with dead batteries. Set the same ID number again when the batteries are replaced.
Note
- Set the ID number of the projector from the [PROJECTOR SETUP] menu → [PROJECTOR ID].
Connecting to the projector with a cable
When controlling the projector by wired remote control, connect the terminal on the projector to the remote control wired terminal on the remote control by a commercial M3 stereo mini plug cable.
The remote control is effective even in places where an obstacle stands in the light path or where devices are susceptible to outside light.


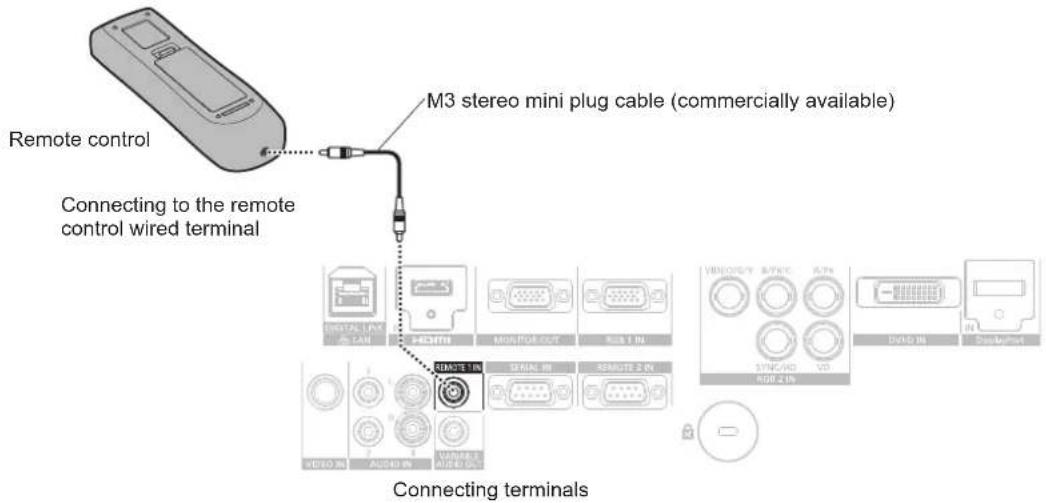

M3 stereo mini plug cable (commercially available)
Connecting to the remote control wired terminal
Connecting terminals
Attention
- Use a cable that is 15 m (49'3") or shorter, with dual core shielded. The remote control may not operate when the length of the cable exceeds 15 m (49'3") or when the shielding of the cable is inadequate.
Chapter 2 Getting Started
This chapter describes things you need to do before using the projector such as the setup and connections.
Setting up
Installation mode
There are four ways to set up the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (→ page 86) depending on the installation method.
Mounting on the ceiling and projecting forward Setting on a desk/floor and projecting from rear
(Using the translucent screen)
Menu item Method Menu item Method
[PROJECTION METHOD] [FRONT/CEILING] [PROJECTION METHOD] [REAR/FLOOR]
Mounting on the ceiling and projecting from rear (Using the translucent screen)
Setting on a desk/floor and projecting forward
Menu item Method Menu item Method
[PROJECTION METHOD] [REAR/CEILING] [PROJECTION METHOD] [FRONT/FLOOR]
Parts for ceiling mount (optional)

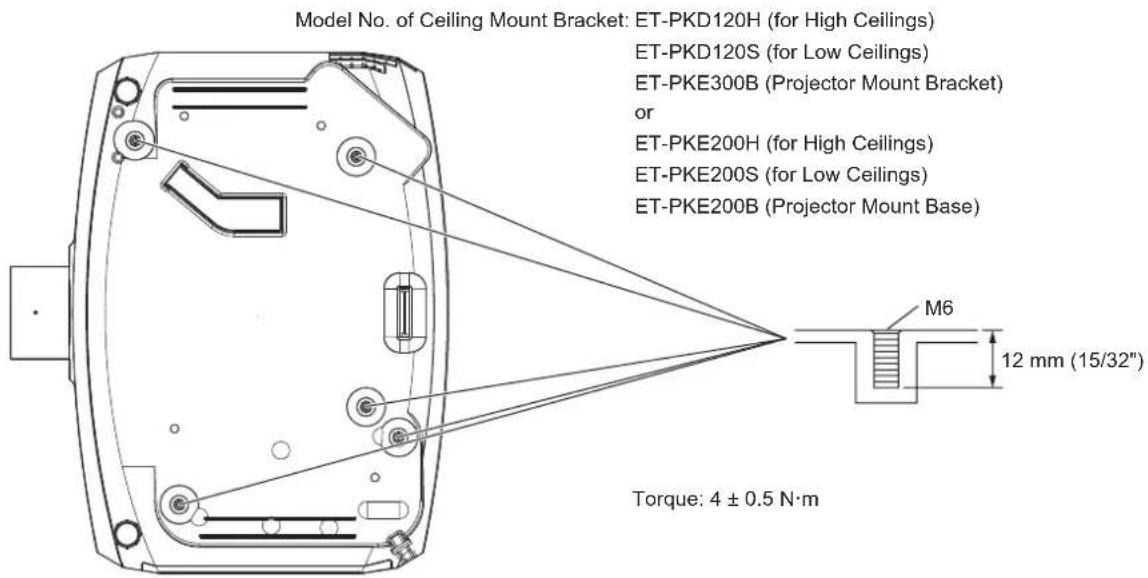

You can install the projector on the ceiling using the optional Ceiling Mount Bracket (Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings), ET-PKE300B (Projector Mount Bracket) or ET-PKE200H (for High Ceilings), ET-PKE200S (for Low Ceilings), ET-PKE200B (Projector Mount Base). ^1
Be sure to use the Ceiling Mount Bracket specified for this projector.
Attention
- To ensure projector performance and security, installation of the Ceiling Mount Bracket must be carried out by your dealer or a qualified technician.

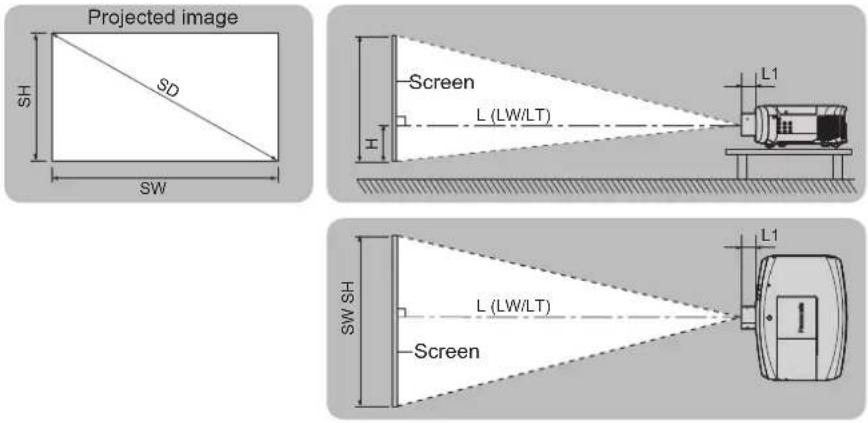

Projected image size and throw distance
Refer to the projected image size and projection distance shown below to install the projector. The image size and image position can be adjusted in accordance with the screen size and screen position.
Note
- This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full inside the screen.
(Unit: m)
L (LW/LT)1 Projection distance L1 Lens protrusion dimension SH Image height SW Image width H Distance from the lens center to the lower edge of the projected image SD Projected image size
*1 LW: Minimum projection distance when the Zoom Lens is used LT: Maximum projection distance when the Zoom Lens is used
(Unit: m)
Projection Lens Model No. L1 dimension (approximate value) Standard zoom lens 0.059 ET-ELW21 0.050 ET-ELW20 0.080 ET-ELT20 0.081 ET-ELT21 0.080
Attention
- Before setting up, read "Precautions for use" (→ page 17).
Projection distance by Projection Lens
A ±5 % error in listed projection distances may occur.
In addition, when [KEYSTONE] is used, distance is corrected to become smaller than the specified screen size.
For PT-EZ580
■ When the screen aspect ratio is 16:10
(Unit: m)
Lens type Standard zoom lens Optional lens Height position (H)*2 Fixed-focus lens Short focus zoom lens Long focus zoom lens Ultra long focus zoom lens Projection Lens Model No. — ET-ELW21 ET-ELW20 ET-ELT20 ET-ELT21 Standard zoom lens/ET-ELW20/ET-ELT20/ET-ELT21 ET-ELW21 Throw ratio*1 1.7-2.8:1 0.8:1 1.3-1.7:1 2.8-4.6:1 4.6-7 2:1 Projected image size Projection distance (L) Diagonal (SD) Height (SH) Width (SW) Min. (LW) Max. (LT) Fixed Min. (LW) Max. (LT) Min. (LW) Max. (LT) Min. (LW) Max. (LT) 1.02 (40") 0.538 0.862 1.36 2.35 0.63 1.02 1.41 2.29 3.81 3.72 6.03 -0.05 - 0.59 0.27 1.27 (50") 0.673 1.077 1.71 2.95 0.80 1.29 1.77 2.89 4.79 4.70 7.59 -0.07 - 0.74 0.34 1.52 (60") 0.808 1.292 2.06 3.55 0.97 1.55 2.14 3.49 5.77 5.68 9.15 -0.08 - 0.89 0.40 1.78 (70") 0.942 1.506 2.42 4.15 1.14 1.82 2.50 4.09 6.75 6.66 10.71 -0.09 - 1.04 0.47 2.03 (80") 1.077 1.723 2.77 4.76 1.32 2.09 2.87 4.69 7.73 7.64 12.27 -0.11 - 1.18 0.54 2.29 (90") 1.212 1.939 3.12 5.36 1.49 2.36 3.23 5.30 8.71 8.63 13.83 -0.12 - 1.33 0.61 2.54 (100") 1.346 2.154 3.48 5.96 1.66 2.63 3.60 5.90 9.69 9.61 15.39 -0.13 - 1.48 0.67 3.05 (120") 1.615 2.585 4.18 7.16 2.00 3.16 4.32 7.10 11.65 11.57 18.51 -0.16 - 1.78 0.81 3.81 (150") 2.019 3.231 5.24 8.96 2.52 3.96 5.42 8.90 14.59 14.52 23.19 -0.20 - 2.22 1.01 5.08 (200") 2.692 4.308 7.01 11.96 3.38 5.31 7.25 11.91 19.49 19.43 30.99 -0.27 - 2.96 1.35 6.35 (250") 3.365 5.385 8.77 14.96 4.24 6.65 9.07 14.91 24.39 24.34 38.79 -0.34 - 3.70 1.68 7.62 (300") 4.039 6.462 10.54 17.97 5.10 7.99 10.9 17.92 29.29 29.25 46.59 -0.40 - 4.44 2.02 8.89 (350") 4.712 7.539 12.30 20.97 5.95 9.33 12.73 20.92 34.19 34.16 54.39 -0.47 - 5.18 2.36 10.16 (400") 5.385 8.616 14.07 23.97 6.81 10.67 14.55 23.93 39.09 39.07 62.19 -0.54 - 5.92 2.69
*1 The throw ratio is based on the value during projection with the projected image size of 2.03 m (80").
■ When the screen aspect ratio is 16:9
(Unit: m)
Lens type Standard zoom lens Optional lens Height position (H)*2 Fixed-focus lens Short focus zoom lens Long focus zoom lens Ultra long focus zoom lens Projection Lens Model No. — ET-ELW21 ET-ELW20 ET-ELT20 ET-ELT21 Standard zoom lens/ET-ELW20/ET-ELT20/ET-ELT21 ET-ELW21 Throw ratio*1 1.7-2.8:1 0.8:1 1.3-1.7:1 2.8-4.6:1 4.6-7 2:1 Projected image size Projection distance (L) Diagonal (SD) Height (SH) Width (SW) Min. (LW) Max. (LT) Fixed Min. (LW) Max. (LT) Min. (LW) Max. (LT) Min. (LW) Max. (LT) 1.02 (40") 0.498 0.886 1.40 2.42 0.65 1.05 1.45 2.36 3.92 3.83 6.20 -0.05 - 0.55 0.25 1.27 (50") 0.62 3 1.107 1.76 3.04 0.83 1.32 1.82 2.97 4.92 4 83 7.81 -0.06 - 0.68 0.31 1.52 (60") 0.74 7 1.328 2.12 3.65 1.00 1.60 2.20 3.59 5.93 5 84 9.41 -0.07 - 0.82 0.37 1.78 (70") 0.872 1.550 2.49 4.27 1.18 1.87 2.57 4.21 6.94 6.85 11.01 -0.09 - 0.96 0.44 2.03 (80") 0.996 1.771 2.85 4.89 1.35 2.15 2.95 4.83 7.95 7.86 12.62 -0.10 - 1.10 0.50 2.29 (90") 1.121 1.992 3.21 5.51 1.53 2.43 3.32 5.45 8.95 8.87 14.22 -0.11 - 1.23 0.56 2.54 (100") 1.24 45 2.214 3.57 6.12 1.71 2.70 3.70 6.06 9.96 9.88 15.82 -0.12 - 1.37 0.62 3.05 (120") 1.494 2.657 4.30 7.36 2.06 3.25 4.45 7.30 11.97 11.90 19.03 -0.15 - 1.64 0.75 3.81 (150") 1.868 3.321 5.39 9.21 2.59 4.08 5.58 9.15 15.00 14.93 23.84 -0.19 - 2.05 0.93 5.08 (200") 2.491 4.428 7.20 12.29 3.47 5.46 7.45 12.24 20.03 19.98 31.86 -0.25 - 2.74 1.25 6.35 (250") 3.113 5.535 9.02 15.38 4.36 6.83 9.33 15.33 25.07 25.02 39.87 -0.31 - 3.42 1.56 7.62 (300") 3.736 6.641 10.83 18.47 5.24 8.21 11.20 18.42 30.10 30.07 47.89 -0.37 - 4.11 1.87 8.89 (350") 4.358 7.748 12.65 21.55 6.12 9.59 13.08 21.51 35.14 35.12 55.91 -0.44 - 4.79 2.18 10.16 (400") 4.981 8.855 14.46 24.64 7.00 10.97 14.96 24.60 40.18 40.17 63.92 -0.50 - 5.48 2.49
*1 The throw ratio is based on the value during projection with the projected image size of 2.03 m (80").
■ When the screen aspect ratio is 4:3
(Unit: m)
Lens type Standard zoom lens Optional lens Height position (H) ^-2 Fixed-focus lens Short focus zoom lens Long focus zoom lens Ultra long focus zoom lens Projection Lens Model No. — ET-ELW21 ET-ELW20 ET-ELT20 ET-ELT21 Standard zoom lens/ET-ELW20/ET-ELT20/ET-ELT21 ET-ELW21 Throw ratio ^1 1.9-3.3:1 0.9:1 1.5-2.0:1 3.3-5.4:1 5.4-8 6:1 Projected image size Projection distance (L) Diagonal (SD) Height (SH) Width (SW) Min. (LW) Max. (LT) Fixed Min. (LW) Max. (LT) Min. (LW) Max. (LT) Min. (LW) Max. (LT) 1.02 (40") 0.610 0.813 1.54 2.67 0.72 1.16 1.60 2.61 4.33 4.24 6.85 -0.06 - 0.67 0.30 1.27 (50") 0.762 1.016 1.94 3.35 0.91 1.46 2.01 3.29 5.43 5.35 8.62 -0.08 - 0.84 0.38 1.52 (60") 0.914 1.219 2.34 4.03 1.11 1.77 2.43 3.97 6.54 6.46 10.39 -0.09 - 1.01 0.46 1.78 (70") 1.06 1.422 2.74 4.71 1.30 2.07 2.84 4.65 7.65 7.57 12.15 -0.11 - 1.17 0.53 2.03 (80") 1.219 1.626 3.14 5.39 1.50 2.37 3.25 5.33 8.76 8.68 13.92 -0.12 - 1.34 0.61 2.29 (90") 1.372 1.829 3.54 6.07 1.69 2.68 3.67 6.01 9.87 9.79 15.68 -0.14 - 1.51 0.69 2.54 (100") 1.524 2.032 3.94 6.75 1.89 2.98 4.08 6.69 10.98 10.91 17.45 -0.15 - 1.68 0.76 3.05 (120") 1.829 2.438 4.74 8.11 2.28 3.59 4.91 8.05 13.20 13.13 20.98 -0.18 - 2.01 0.91 3.81 (150") 2.286 3.048 5.94 10.15 2.86 4.50 6.15 10.09 16.53 16.47 26.28 -0.23 - 2.51 1.14 5.08 (200") 3.048 4.064 7.94 13.55 3.83 6.02 8.21 13.49 22.08 22.03 35.11 -0.30 - 3.35 1.52 6.35 (250") 3.810 5.080 9.94 16.95 4.81 7.53 10.28 16.90 27.62 27.58 43.94 -0.38 - 4.19 1.91 7.62 (300") 4.572 6.096 11.94 20.34 5.78 9.05 12.35 20.30 33.17 33.14 52.77 -0.46 - 5.03 2.29 8.89 (350") 5.334 7.112 13.93 23.74 6.75 10.57 14.41 23.70 38.72 38.70 61.60 -0.53 - 5.87 2.67 10.16 (400") 6.096 8.128 15.93 27.14 7.72 12.09 16.48 27.10 44.27 44.26 70.43 -0.61 - 6.71 3.05
*1 The throw ratio is based on the value during projection with the projected image size of 2.03 m (80").
For PT-EW640 and PT-EW540
■ When the screen aspect ratio is 16:10
(Unit: m)
Lens type Standard zoom lens Optional lens Height position (H) ^-2 Fixed-focus lens Short focus zoom lens Long focus zoom lens Ultra long focus zoom lens Projection Lens Model No. — ET-ELW21 ET-ELW20 ET-ELT20 ET-ELT21 Standard zoom lens/ET-ELW20/ET-ELT20/ET-ELT21 ET-ELW21 Throw ratio ^-1 1.7-2.8:1 0.8:1 1.3-1.7:1 2.8-4.6:1 4.6-7 2:1 Projected image size Projection distance (L) Diagonal (SD) Height (SH) Width (SW) Min. (LW) Max. (LT) Fixed Min. (LW) Max. (LT) Min. (LW) Max. (LT) Min. (LW) Max. (LT) 1.02 (40") 0.538 0.862 1.38 2.38 0.64 1.03 1.42 2.32 3.85 3.76 6.10 -0.05 - 0.59 0.27 1.27 (50") 0.673 1.077 1.74 2.99 0.81 1.30 1.79 2.93 4.85 4.76 7.68 -0.07 - 0.74 0.34 1.52 (60") 0.808 1.292 2.09 3.60 0.99 1.57 2.16 3.54 5.84 5.75 9.26 -0.08 - 0.89 0.40 1.78 (70") 0.942 1.506 2.45 4.21 1.16 1.85 2.53 4.15 6.83 6.75 10.84 -0.09 - 1.04 0.47 2.03 (80") 1.07 1.723 2.81 4.82 1.33 2.1 2.90 4.75 7.82 7 74 12.42 -0.11 - 1.18 0.54 2.29 (90") 1.212 1.939 3.16 5.42 1.51 2.39 3.27 5.36 8.81 8.73 14.00 -0.12 - 1.33 0.61 2.54 (100") 1.346 2.154 3.52 6.03 1.68 2.66 3.64 5.97 9.80 9.73 15.58 -0.13 - 1.48 0.67 3.05 (120") 1.615 2.585 4.24 7.25 2.03 3.21 4.38 7.19 11.79 11.72 18.73 -0.16 - 1.78 0.81 3.81 (150") 2.019 3.231 5.31 9.07 2.55 4.02 5.48 9.01 14.76 14.70 23.47 -0.20 - 2.22 1.01 5.08 (200") 2.692 4.308 7.09 12.11 3.42 5.38 7.33 12.05 19.72 19.67 31.36 -0.27 - 2.96 1.35 6.35 (250") 3.365 5.385 8.88 15.16 4.29 6.74 9.17 15.10 24.68 24.64 39.26 -0.34 - 3.70 1.68 7.62 (300") 4.039 6.462 10.67 18.20 5.16 8.10 11.02 18.14 29.64 29.61 47.15 -0.40 - 4.44 2.02 8.89 (350") 4.712 7.539 12.45 21.24 6.03 9.46 12.86 21.18 34.59 34.58 55.04 -0.47 - 5.18 2.36 10.16 (400") 5.385 8.616 14.24 24.28 6.89 10.82 14.71 24.22 39.55 39.55 62.94 -0.54 - 5.92 2.69
*1 The throw ratio is based on the value during projection with the projected image size of 2.03 m (80").
■ When the screen aspect ratio is 16:9
(Unit: m)
Lens type Standard zoom lens Optional lens Height position (H) ^2 Fixed-focus lens Short focus zoom lens Long focus zoom lens Ultra long focus zoom lens Projection Lens Model No. — ET-ELW21 ET-ELW20 ET-ELT20 ET-ELT21 Standard zoom lens/ET-ELW20/ET-ELT20/ET-ELT21 ET-ELW21 Throw ratio ^1 1.7-2.8:1 0.8:1 1.3-1.7:1 2.8-4.6:1 4.6-7 2:1 Projected image size Projection distance (L) Diagonal (SD) Height (SH) Width (SW) Min. (LW) Max. (LT) Fixed Min. (LW) Max. (LT) Min. (LW) Max. (LT) Min. (LW) Max. (LT) 1.02 (40") 0.498 0.886 1.42 2.45 0.66 1.06 1.46 2.39 3.96 3.87 6.28 -0.05 - 0.55 0.25 1.27 (50") 0.62 3 1.107 1.79 3.08 0.84 1.34 1.84 3.01 4.98 4.90 7.90 -0.06 - 0.68 0.31 1.52 (60") 0.74 7 1.328 2.15 3.70 1.01 1.62 2.22 3.64 6.00 5.92 9.52 -0.07 - 0.82 0.37 1.78 (70") 0.872 1.550 2.52 4.33 1.19 1.90 2.60 4.26 7.02 6.94 11.15 -0.09 - 0.96 0.44 2.03 (80") 0.996 1.771 2.89 4.95 1.37 2.18 2.98 4.89 8.04 7.96 12.77 -0.10 - 1.10 0.50 2.29 (90") 1.12 1 1.992 3.25 5.58 1.55 2.46 3.36 5.51 9.06 8.98 14.39 -0.11 - 1.23 0.56 2.54 (100") 1.245 2.214 3.62 6.20 1.73 2.74 3.74 6.14 10.08 10.00 16.01 -0.12 - 1.37 0.62 3.05 (120") 1.494 2.657 4.35 7.45 2.09 3.30 4.50 7.39 12.12 12.05 19.26 -0.15 - 1.64 0.75 3.81 (150") 1.868 3.321 5.46 9.33 2.62 4.14 5.64 9.27 15.18 15.11 24.13 -0.19 - 2.05 0.93 5.08 (200") 2.491 4.428 7.29 12.45 3.52 5.53 7.53 12.39 20.27 20.22 32.24 -0.25 - 2.74 1.25 6.35 (250") 3.113 5.535 9.13 15.58 4.41 6.93 9.43 15.52 25.37 25.33 40.35 -0.31 - 3.42 1.56 7.62 (300") 3.736 6.641 10.96 18.70 5.30 8.33 11.33 18.64 30.46 30.44 48.47 -0.37 - 4.11 1.87 8.89 (350") 4.358 7.748 12.80 21.83 6.19 9.72 13.22 21.77 35.56 35.55 56.58 -0.44 - 4.79 2.18 10.16 (400") 4.981 8.855 14.63 24.95 7.09 11.12 15.12 24.90 40.66 40.66 64.69 -0.50 - 5.48 2.49
*1 The throw ratio is based on the value during projection with the projected image size of 2.03 m (80").
■ When the screen aspect ratio is 4:3
(Unit: m)
Lens type Standard zoom lens Optional lens Height position (H) ^2 Fixed-focus lens Short focus zoom lens Long focus zoom lens Ultra long focus zoom lens Projection Lens Model No. — ET-ELW21 ET-ELW20 ET-ELT20 ET-ELT21 Standard zoom lens/ET-ELW20/ET-ELT20/ET-ELT21 ET-ELW21 Throw ratio ^1 2.0-3.4:1 0.9:1 1.5-2.0:1 3.3-5.5:1 5.4-8 7:1 Projected image size Projection distance (L) Diagonal (SD) Height (SH) Width (SW) Min. (LW) Max. (LT) Fixed Min. (LW) Max. (LT) Min. (LW) Max. (LT) Min. (LW) Max. (LT) 1.02 (40") 0.610 0.813 1.57 2.70 0.73 1.18 1.62 2.64 4.38 4.29 6.94 0.06 - 0.67 0.30 1.27 (50") 0.762 1.016 1.97 3.39 0.93 1.48 2.04 3.33 5.50 5.41 8.73 0.08 - 0.84 0.38 1.52 (60") 0.914 1.219 2.38 4.08 1.12 1.79 2.45 4.02 6.62 6.54 10.51 0.09 - 1.01 0.46 1.78 (70") 1.067 1.422 2.78 4.77 1.32 2.10 2.87 4.71 7.75 7.67 12.30 0.11 - 1.17 0.53 2.03 (80") 1.219 1.626 3.18 5.46 1.52 2.41 3.29 5.40 8.87 8.79 14.09 0.12 - 1.34 0.61 2.29 (90") 1.372 1.829 3.59 6.15 1.71 2.71 3.71 6.08 9.99 9.92 15.87 0.14 - 1.51 0.69 2.54 (100") 1.524 2.032 3.99 6.84 1.91 3.02 4.12 6.77 11.11 11.04 17.66 0.15 - 1.68 0.76 3.05 (120") 1.829 2.438 4.80 8.21 2.30 3.64 4.96 8.15 13.36 13.29 21.24 0.18 - 2.01 0.91 3.81 (150") 2.286 3.048 6.01 10.28 2.89 4.56 6.21 10.22 16.73 16.67 26.60 0.23 - 2.51 1.14 5.08 (200") 3.048 4.064 8.04 13.72 3.88 6.10 8.30 13.66 22.34 22.30 35.53 0.30 - 3.35 1.52 6.35 (250") 3.810 5.080 10.06 17.16 4.86 7.64 10.39 17.10 27.95 27.92 44.47 0.38 - 4.19 1.91 7.62 (300") 4.572 6.096 12.08 20.61 5.85 9.18 12.48 20.55 33.57 33.55 53.40 0.46 - 5.03 2.29 8.89 (350") 5.334 7.112 14.10 24.05 6.83 10.72 14.57 23.99 39.18 39.18 62.34 0.53 - 5.87 2.67 10.16 (400") 6.096 8.128 16.12 27.49 7.81 12.25 16.66 27.43 44.79 44.80 71.28 0.61 - 6.71 3.05
*1 The throw ratio is based on the value during projection with the projected image size of 2.03 m (80").
■ When the screen aspect ratio is 4:3
(Unit: m)
Lens type Standard zoom lens Optional lens Height position (H)*2 Fixed-focus lens Short focus zoom lens Long focus zoom lens Ultra long focus zoom lens Projection Lens Model No. — ET-ELW21 ET-ELW20 ET-ELT20 ET-ELT21 Standard zoom lens/ET-ELW20/ET-ELT20/ET-ELT21 ET-ELW21 Throw ratio*1 1.7-2.8:1 0.8:1 1.3-1.7:1 2.8-4.6:1 4.6-7 Projected image size Projection distance (L) Diagonal (SD) Height (SH) Width (SW) Min. (LW) Max. (LT) Fixed Min. (LW) Max. (LT) Min. (LW) Max. (LT) Min. (LW) Max. (LT) 1.02 (40") 0.61 0 0.813 1.30 2.26 0.60 0.97 1.35 2.19 3.65 3 56 5.78 0.00 - 0.61 0.30 1.27 (50") 0.762 1.016 1.64 2.83 0.77 1.23 1.70 2.77 4.59 4.50 7.27 0.00 - 0.76 0.38 1.52 (60") 0.914 1.219 1.98 3.41 0.93 1.49 2.05 3.34 5.53 5.44 8.77 0.00 - 0.91 0.46 1.78 (70") 1.067 1.422 2.32 3.98 1.10 1.74 2.40 3.92 6.47 6.38 10.27 0.00 - 1.07 0.53 2.03 (80") 1.219 1.626 2.66 4.56 1.26 2.00 2.75 4.50 7.41 7.32 11.77 0.00 - 1.22 0.61 2.29 (90") 1.372 1.829 3.00 5.14 1.43 2.26 3.10 5.07 8.35 8.27 13.26 0.00 - 1.37 0.69 2.54 (100") 1.524 2.032 3.33 5.71 1.59 2.51 3.45 5.65 9.29 9.21 14.76 0.00 - 1.52 0.76 3.05 (120") 1.829 2.438 4.01 6.86 1.92 3.03 4.15 6.80 11.17 11.09 17.75 0.00 - 1.83 0.91 3.81 (150") 2.286 3.048 5.03 8.59 2.42 3.80 5.20 8.53 14.00 13.92 22.24 0.00 - 2.29 1.14 5.08 (200") 3.048 4.064 6.72 11.47 3.24 5.08 6.95 11.41 18.70 18.63 29.73 0.00 - 3.05 1.52 6.35 (250") 3.810 5.080 8.42 14.35 4.07 6.37 8.70 14.30 23.40 23.34 37.21 0.00 - 3.81 1.91 7.62 (300") 4.572 6.096 10.11 17.23 4.89 7.65 10.45 17.18 28.11 28.05 44.70 0.00 - 4.57 2.29 8.89 (350") 5.334 7.112 11.81 20.11 5.72 8.94 12.20 20.06 32.81 32.76 52.18 0.00 - 5.33 2.67 10.16 (400") 6.096 8.128 13.50 22.99 6.54 10.22 13.95 22.94 37.51 37.47 59.67 0.00 - 6.10 3.05
*1 The throw ratio is based on the value during projection with the projected image size of 2.03 m (80").
■ When the screen aspect ratio is 16:9
(Unit: m)
Lens type Standard zoom lens Optional lens Height position (H)*2 Fixed-focus lens Short focus zoom lens Long focus zoom lens Ultra long focus zoom lens Projection Lens Model No. — ET-ELW21 ET-ELW20 ET-ELT20 ET-ELT21 Standard zoom lens/ET-ELW20/ET-ELT20/ET-ELT21 ET-ELW21 Throw ratio*1 1.7-2.8:1 0.8:1 1.3-1.7:1 2.8-4.6:1 4.6-7 2:1 Projected image size Projection distance (L) Diagonal (SD) Height (SH) Width (SW) Min. (LW) Max. (LT) Fixed Min. (LW) Max. (LT) Min. (LW) Max. (LT) Min. (LW) Max. (LT) 1.02 (40") 0.498 0.886 1.42 2.46 0.66 1.06 1.47 2.40 3.99 3.89 6.31 -0.08 - 0.58 0.25 1.27 (50") 0.623 1.107 1.79 3.09 0.84 1.40 1.85 3.03 5.01 4.92 7.94 -0.10 - 0.73 0.31 1.52 (60") 0.74 1.328 2.16 3.72 1.02 1.68 2.23 3.65 6.04 5.95 9.57 -0.12 - 0.87 0.37 1.78 (70") 0.872 1.550 2.53 4.34 1.20 1.96 2.62 4.28 7.06 6.97 11.21 -0.15 - 1.02 0.44 2.03 (80") 0.996 1.771 2.90 4.97 1.38 2.24 3.00 4.91 8.09 8.00 12.84 -0.17 - 1.16 0.50 2.29 (90") 1.121 1.992 3.27 5.60 1.56 2.52 3.38 5.54 9.11 9.02 14.47 -0.19 - 1.31 0.56 2.54 (100") 1.245 2.214 3.64 6.23 1.74 2.80 3.76 6.17 10.13 10.05 16.10 -0.21 - 1.45 0.62 3.05 (120") 1.494 2.657 4.38 7.48 2.10 3.36 4.52 7.42 12.18 12.1 19.36 -0.25 - 1.74 0.75 3.81 (150") 1.868 3.321 5.48 9.37 2.64 4.20 5.67 9.31 15.26 15.18 24.25 -0.31 - 2.18 0.93 5.08 (200") 2.491 4.428 7.33 12.5 3.54 5.60 7.57 12.45 20.38 20.32 32.41 -0.41 - 2.91 1.25 6.35 (250") 3.113 5.535 9.18 15.64 4.44 7.00 9.48 15.59 25.51 25.45 40.56 -0.52 - 3.63 1.56 7.62 (300") 3.736 6.641 11.02 18.78 5.33 8.40 11.39 18.73 30.63 30.58 48.72 -0.62 - 4.36 1.87 8.89 (350") 4.358 7.748 12.87 21.92 6.23 9.80 13.29 21.87 35.75 35.71 56.87 -0.73 - 5.08 2.18 10.16 (400") 4.981 8.855 14.72 25.05 7.13 11.20 15.20 25.01 40.88 40.84 65.03 -0.83 - 5.81 2.49
*1 The throw ratio is based on the value during projection with the projected image size of 2.03 m (80").
To use a screen size not listed in this manual, check the screen size SD (m) and use the respective formula to calculate projection distance. The unit of all the formulae is m. (Values obtained by the following calculation formulae contain a slight error.)
If you want to calculate the projection distance with projected image size SD (unit: inch) by substituting, please assign 0.0254 times to the SD value.
For PT-EZ580
Lens type Projection Lens Model No. Aspect ratio P Projection distance (L) formula Standard zoom lens — 16:10 Min. (LW) L = 1.3 900 x SD - 0.0549 Max. (LT) L = 2.3 640 x SD - 0.0482 16:9 Min. (LW) L = 1.4 286 x SD - 0.0549 Max. (LT) L = 2.4 297 x SD - 0.0482 4:3 Min. (LW) L = 1.5 736 x SD - 0.0549 Max. (LT) L = 2.6 763 x SD - 0.0482 Fixed-focus lens ET-ELW21 16:10 — L = 0.6763 x SD - 0.0577 16:9 — L = 0.6951 x SD - 0.0577 4:3 — L = 0.7656 x SD - 0.0577 Short focus zoom lens ET-ELW20 16:10 Min. (LW) L = 1.0 557 x SD - 0.0555 Max. (LT) L = 1.4 374 x SD - 0.0534 16:9 Min. (LW) L = 1.0 851 x SD - 0.0555 Max. (LT) L = 1.4 774 x SD - 0.0534 4:3 Min. (LW) L = 1.1 952 x SD - 0.0555 Max. (LT) L = 1.6 273 x SD - 0.0534 Long focus zoom lens ET-ELT20 16:10 Min. (LW) L = 2.3 662 x SD - 0.1140 Max. (LT) L = 3.8 583 x SD - 0.1129 16:9 Min. (LW) L = 2.4 320 x SD - 0.1140 Max. (LT) L = 3.9 656 x SD - 0.1129 4:3 Min. (LW) L = 2.6 788 x SD - 0.1140 Max. (LT) L = 4.3 680 x SD - 0.1129 Ultra long focus zoom lens ET-ELT21 16:10 Min. (LW) L = 3.8 667 x SD - 0.2123 Max. (LT) L = 6.1 416 x SD - 0.2108 16:9 Min. (LW) L = 3.9 742 x SD - 0.2123 Max. (LT) L = 6.3 123 x SD - 0.2108 4:3 Min. (LW) L = 4.3 775 x SD - 0.2123 Max. (LT) L = 6.9 529 x SD - 0.2108
For PT-EW640 and PT-EW540
Lens type Projection Lens Model No. Aspect ratio P Projection distance (L) formula Standard zoom lens — 16:10 Min. (LW) L = 1.4 062 x SD - 0.0504 Max. (LT) L = 2.3 944 x SD - 0.0497 16:9 Min. (LW) L = 1.4 452 x SD - 0.0504 Max. (LT) L = 2.4 609 x SD - 0.0497 4:3 Min. (LW) L = 1.5 919 x SD - 0.0504 Max. (LT) L = 2.7 106 x SD - 0.0497 Fixed-focus lens ET-ELW21 16:10 — L = 0.6842 x SD - 0.0572 16:9 — L = 0.7032 x SD - 0.0572 4:3 — L = 0.7746 x SD - 0.0572 Short focus zoom lens ET-ELW20 16:10 Min. (LW) L = 1.0 702 x SD - 0.0554 Max. (LT) L = 1.4 530 x SD - 0.0534 16:9 Min. (LW) L = 1.1 000 x SD - 0.0554 Max. (LT) L = 1.4 934 x SD - 0.0534 4:3 Min. (LW) L = 1.2 116 x SD - 0.0554 Max. (LT) L = 1.6 449 x SD - 0.0534 Long focus zoom lens ET-ELT20 LT20 16:10 Min. (LW) L = 2.3 952 x SD -0.1139 Max. (LT) L = 3.9 041 x SD -0.1128 16:9 Min. (LW) L = 2.4 617 x SD -0.1139 Max. (LT) L = 4.0 126 x SD -0.1128 4:3 Min. (LW) L = 2.7 115 x SD -0.1139 Max. (LT) L = 4.4 197 x SD -0.1128 Ultra long focus zoom lens ET-ELT21 ELT21 16:10 Min. (LW) L = 3.9 138 x SD -0.2127 Max. (LT) L = 6.2 152 x SD -0.2107 16:9 Min. (LW) L = 4.0 226 x SD -0.2127 Max. (LT) L = 6.3 880 x SD -0.2107 4:3 Min. (LW) L = 4.4 307 x SD -0.2127 Max. (LT) L = 7.0 361 x SD -0.2107
For PT-EX610 and PT-EX510
Lens type Projection Lens Model No. Aspect ratio P Projection distance (L) formula Standard zoom lens — 4:3 Min. (LW) L = 1.3 346 x SD -0.0553 Max. (LT) L = 2.2 677 x SD -0.0480 16:9 Min. (LW) L = 1.4 541 x SD -0.0553 Max. (LT) L = 2.4 707 x SD -0.0480 Fixed-focus lens ET-ELW21 4:3 — L = 0.6496 x SD -0.0585 16:9 — L = 0.7078 x SD -0.0585 Short focus zoom lens ET-ELW20 4:3 Min. (LW) L = 1.0 118 x SD -0.0558 Max. (LT) L = 1.3 780 x SD -0.0540 16:9 Min. (LW) L = 1.1 024 x SD -0.0558 Max. (LT) L = 1.5 013 x SD -0.0540 Long focus zoom lens ET-ELT20 4:3 Min. (LW) L = 2.2 693 x SD -0.1142 Max. (LT) L = 3.7 031 x SD -0.1129 16:9 Min. (LW) L = 2.4 724 x SD -0.1142 Max. (LT) L = 4.0 346 x SD -0.1129 Ultra long focus zoom lens ET-ELT21 4:3 Min. (LW) L = 3.7 091 x SD -0.2132 Max. (LT) L = 5.8 937 x SD -0.2109 16:9 Min. (LW) L = 4.0 339 x SD -0.2132 Max. (LT) L = 6.4 212 x SD -0.2109

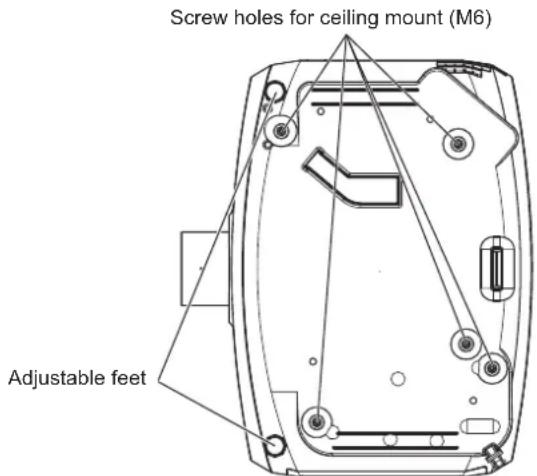

Adjusting adjustable feet
Install the projector on a flat surface so that the front of the projector is parallel to the screen surface and the projected image is rectangular. If the screen is tilted downward, the projected image can be adjusted to be rectangular by adjusting the front adjustable feet. The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.
Extend the adjustable feet by rotating in the direction shown in the figure and retract by rotating in the opposite direction.


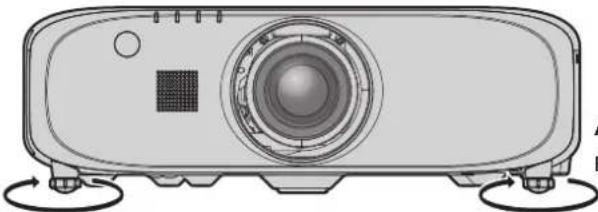

Illustration of a projector with a central lens and two side legs, showing no text or symbols.
Adjustable amount
Front adjustable feet: Approx. 25 mm (31/32")
Attention
- Heated air is expelled from the air exhaust port while the lamp is lit. Do not touch the air exhaust port directly when adjusting the adjustable feet. (→ page 24)
Removing/attaching the Projection Lens
Removing and attaching procedures of the Projection Lens are same for both standard zoom lens and optional lens. Move the lens to the home position before replacing or removing the Projection Lens. (→ page 50)
Attention
Replace the Projection Lens after turning off the power of the projector.
Do not touch the electrical contact of the Projection Lens. Dust or dirt may cause defective contact.
Do not touch the surface of the Projection Lens with your bare hands.
Before attaching the Projection Lens, remove the lens hole cover (only lens options models) and lens cover attached to the Projection Lens.

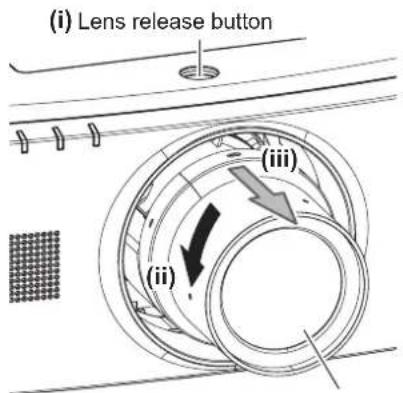

Removing the Projection Lens
Remove the Projection Lens with the following procedure.
(iii)
(ii)
Projection Lens
1) With the lens release button held down, turn the Projection Lens counterclockwise to the end and remove the Projection Lens.
Attention
- Store the removed Projection Lens where it will be free from vibration and impact.
Attaching the Projection Lens
Attach the Projection Lens with the following procedure.
Fig. 1 Fig. 2
1) Align the red mark on the Projection Lens with the red mark on the projector, and insert the Projection Lens as far as possible. (Fig. 1)
Attention
- Turn the Projection Lens counterclockwise to confirm that it does not come out.
Connecting
Before connecting
Before connecting, carefully read the operating instructions for the external device to be connected.
Turn off the power of all devices before connecting cables.
Take note of the following points before connecting the cables. Failure to do so may result in malfunctions.
When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Do not use unnecessarily long cables to connect to a device connected to the projector or to the projector body. The longer the cable, the more it is susceptible to noise. Since using a cable while it is wound makes it act like an antenna, it is more susceptible to noise.
When connecting cables, connect GND first, then insert the connecting terminal of the connecting device in a straight manner.
Acquire any connection cable necessary to connect the external device to the system that is neither supplied with the device nor available as an option.
If video signals from video equipment contain too much jitter, the images on the screen may wobble. In this case, a time base corrector (TBC) must be connected.
The projector accepts video signals, Y/C signals, YC_BC_R/YP_BP_R signals, analog RGB signals (synchronization signals are TTL level), and digital signals.
Some computer models or graphics cards are not compatible with the projector.
Use a cable compensator when you connect devices to the projector using long cables. Otherwise the image may not display properly.
Refer to "List of compatible signals" (→ page 146) for the types of video signals that can be used with the projector.
terminal pin assignments and signal names
Outside view Pin No. Signal name Pin No. Signal name (1) R/P_R (9) — (11) (15) (2) G/Y (10) GND (3) B/P_B (11) GND (4) — (12) DDC data (6) (10) (5) GND (13) SYNC/HD (6) GND (14) VD (1) (5) (7) GND (15) DDC clock (8) GND
terminal pin assignments and signal names
Outside view Pin No. Signal name Pin No. Signal name (1) R/P_R (9) — (11) (15) (2) G/Y (10) GND (3) B/P_B (11) GND (4) — (12) — (6) (5) GND (13) SYNC/HD (6) GND (14) VD (1) (5) (7) GND (15) — (8) GND
terminal pin assignments and signal names
Outside view Pin No. Signal name Pin No. Signal name (1) T.M.D.S data 2+ (11) T.M.D.S clock shield (2) T.M.D.S data 2 shield (12) T.M.D.S clock- Even-numbered pins of (2) to (18) (3) T.M.D.S data 2- (13) CEC (2) (18) (4) T.M.D.S data 1+ (14) — (5) T.M.D.S data 1 shield (15) SCL (6) T.M.D.S data 1- (16) SDA (1) (19) (7) T.M.D.S data 0+ (17) DDC/CECGND Odd-numbered pins of (1) to (19) (8) T.M.D.S data 0 shield (18) +5 V (9) T.M.D.S data 0- (19) Hot plug detection (10) T.M.D.S clock+
terminal pin assignments and signal names (Only for PT-EZ580, PT-EW640 and PT-EX610)
Outside view Pin No. Signal name Pin No. Signal name Even-numbered pins of (2) to (20) (1) MainLane-3 (11) GND (2) GND (12) MainLane+0 (3) MainLane+3 (13) GND (4) MainLane-2 (14) GND (5) GND (15) Aux+ (6) MainLane+2 (16) GND (7) MainLane-1 (17) Aux- (8) GND (18) Hot plug detection (9) MainLane+1 (19) GND (10) MainLane-0 (20) DP_PWR *1
*1 Supplies power of +3.3 V/0.5 A Max. Use at the rated power or less.
terminal pin assignments and signal names Outside view Pin No. Signal name Pin No. Signal name (1) T.M.D.S data 2- (13) (2) T.M.D.S data 2+ (14) (3) T.M.D.S data 2/4 shield (15) (4) — (16) (5) — (17) (6) DDC clock (18) (7) DDC data (19) (8) — (20) (9) T.M.D.S data 1- (21) (10) T.M.D.S clock1+ (22) (11) T.M.D.S data 1/3 shield (23) (12) — (24)
Connecting example: AV equipment
Attention
• Always use one of the following when connecting a VCR.
Note
When entering DVI-D, some external devices to be connected may require switching the setting using the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID].
The terminal can be connected to HDMI- or DVI-D-compliant devices. However, images may not appear or may not be displayed properly on some devices.
For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI standards. If a cable that does not conform to HDMI standards is used, images may be interrupted or may not be displayed.
The terminal of the projector can be connected to an external device with a DVI-D terminal by using an HDMI/DVI conversion cable, but some devices may not project the image properly or function properly.

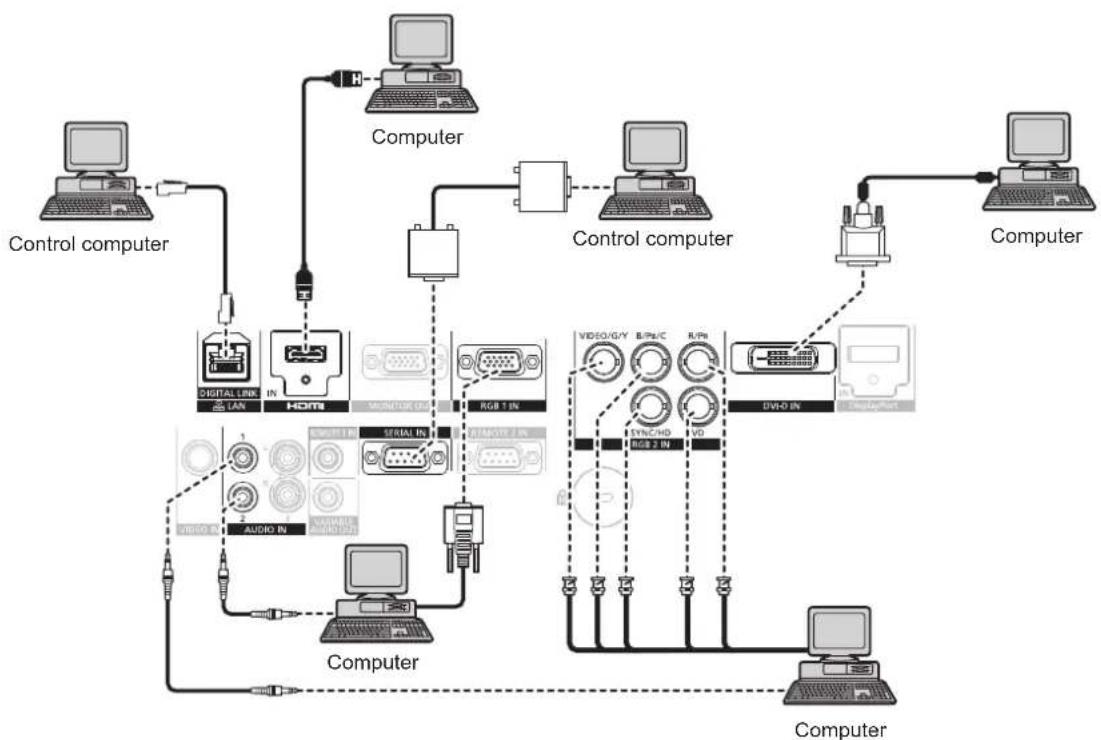

Connecting example: Computers
Attention
- When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially available shielded cables.
Note
When entering DVI-D, some external devices to be connected may require switching the setting using the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID].
For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI standards. If a cable that does not conform to HDMI standards is used, images may be interrupted or may not be displayed.
The terminal of the projector can be connected to an external device with a DVI-D terminal by using an HDMI/DVI conversion cable, but some devices may not project the image properly or function properly.
The terminal supports single links only.
For the DisplayPort cable, use a DisplayPort cable that conforms to DisplayPort standards. If a cable that does not conform to DisplayPort standards is used, the image may be interrupted or may not be displayed (Only for PT-EZ580, PT-EW640 and PT-EX610).
When entering the SYNC ON GREEN signal, do not enter sync signals to the terminal or the terminal.
If you operate the projector using the computer with the resume feature (last memory), you may have to reset the resume feature to operate the projector.

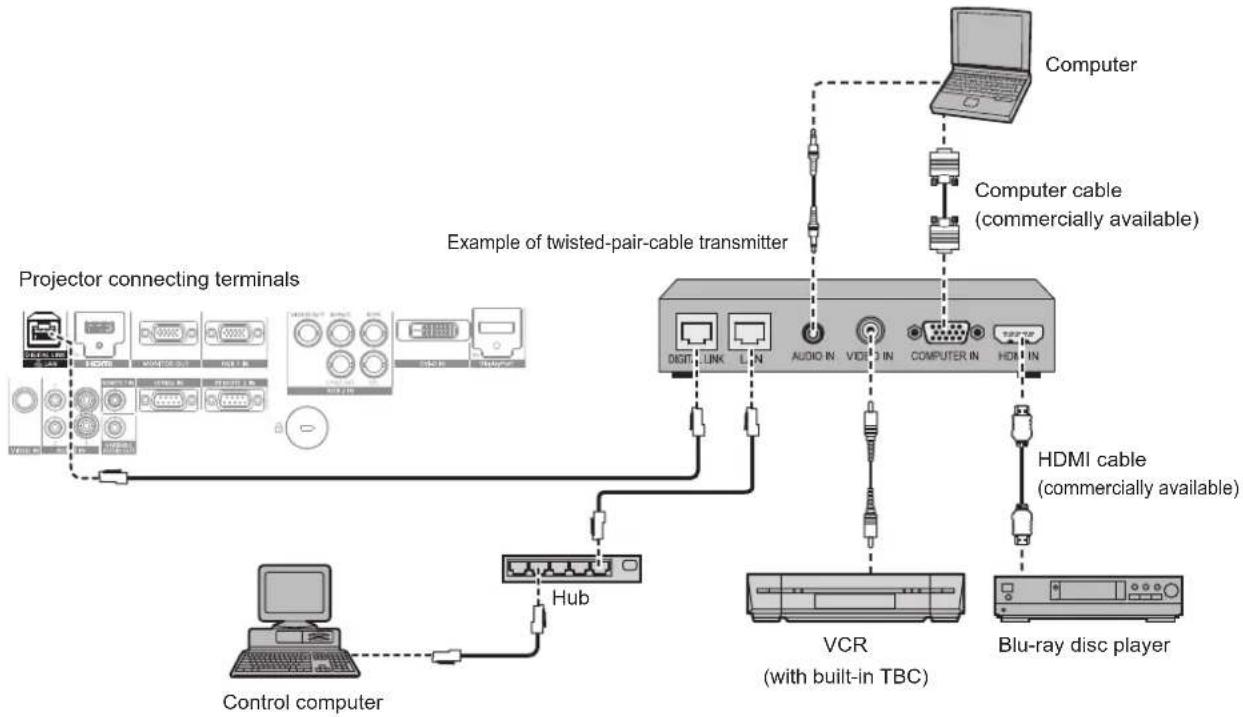

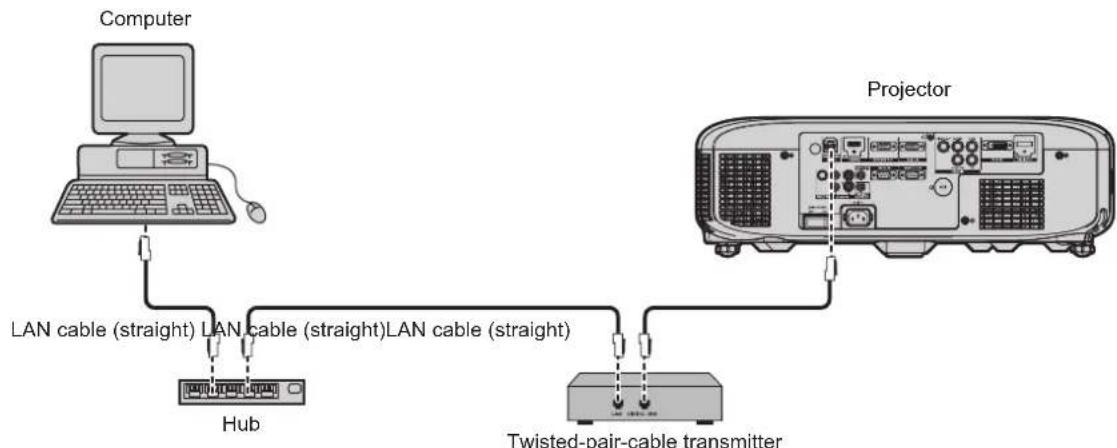

Connecting example: Twisted-pair-cable transmitter
(Only for PT-EZ580, PT-EW640 and PT-EX610)
Twisted-pair-cable transmitters such as the optional Digital Interface Box (Model No.: ET-YFB100G) use twisted-pair-cables to transmit input images, audio, Ethernet, and serial control signals, and the projector can input those digital signals to the terminal.
Attention
• Always use one of the following when connecting a VCR.
A VCR with built-in time base corrector (TBC)
A time base corrector (TBC) between the projector and the VCR
If nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector (TBC) between the projector and the external devices.
Ask a qualified technician or your dealer to install the cable wiring for a twisted-pair-cable transmitter and the projector. Image and sound may be disrupted if cable transmission characteristics cannot be obtained due to inadequate installation.
For the LAN cable between a twisted-pair-cable transmitter and the projector, use a cable that meets the following criteria:
Compatible with CAT5e or higher
Shielded type (including connectors)
Straight-through
Single wire
- When laying cables between a twisted-pair-cable transmitter and the projector, check that cable characteristics are compatible with CAT5e or higher using tools such as a cable tester or cable analyzer.
When using a relay connector midway, include it in the measurement.
Do not use a hub between a twisted-pair-cable transmitter and the projector.
When connecting to the projector using a twisted-pair-cable transmitter (receiver) of other manufacturer, do not place another twisted-pair-cable transmitter between the twisted-pair-cable transmitter of other manufacturer and the projector. This may cause image and sound to be disrupted.
Do not pull cables forcefully. Also, do not bend or fold cables unnecessarily.
To reduce the effects of noise as much as possible, stretch out the cables between the twisted-pair-cable transmitter and the projector without any loops.
Lay the cables between a twisted-pair-cable transmitter and the projector away from other cables, particularly power cables.
When installing multiple cables, run them side by side along the shortest distance possible without bundling them together.
After laying the cables, confirm that the value of [SIGNAL QUALITY] in the [NETWORK] menu → [DIGITAL LINK STATUS] is displayed in green (indicates normal quality). (→ page 108)
Note
For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI standards. If a cable that does not conform to HDMI standards is used, images may be interrupted or may not be displayed.
The maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100 m (328'1"). If this distance is exceeded, image and sound may be disrupted and may cause a malfunction in LAN communication. Please note that we do not support the use of the projector outside the maximum transmission distance.
For twisted-pair-cable transmitter of other manufacturers of which the operation has been verified with the DIGITAL LINK compatible projector, refer to Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
42 - ENGLISH
Chapter 3 Basic Operations
This chapter describes basic operations to start with.
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily.
Confirm that the switch is on the side before connecting the power cord.
For details of power cord handling, refer to "Read this first!" (→ page 2).
Attaching the power cord
1) Check the shapes of the terminal on the rear of the projector body and the power cord connector, and insert the plug completely in the correct direction (until you hear the side tabs click in place).
Removing the power cord
1) Confirm that the switch on the rear of the projector body is on the side, and remove the power plug from the outlet. terminal of the projector body while pressing the side tabs.
Power indicator
Displays the status of the power. Check the status of the power indicator before operating the projector.
ON(G)/
STANDBY(R)
LAMP
TEMP
FILTER
Indicator status Projector status Off The main power is switched off. Red Lit The power is switched off (in standby mode).Projection will start when the power on <|> button is pressed.The projector may not operate when the lamp indicator <LAMP> or temperature indicator <TEMP> is flashing. (→ page 127) Green Lit Projecting. Orange Lit The projector is preparing to switch off the projector.The power is switched off after a while. (Changes to the standby mode.)
Note
While the power indicator is lit in orange, the fan is running to cool the projector.
For about 75 seconds after the projector is switched off and the luminous lamp cooling is started, the lamp indicators do not light up even if the power is switched on. After the power indicator lights in red, turn on the power again.
The projector consumes power even in standby mode (power indicator lit in red). Refer to "Power consumption" (→ page 149) for the power consumption.
The power indicator will flash if the projector receives a remote control signal.
The power indicator will flash slowly in green while the shutter is closed or AV mute function is used.
If the power indicator is flashing in red, consult your dealer.

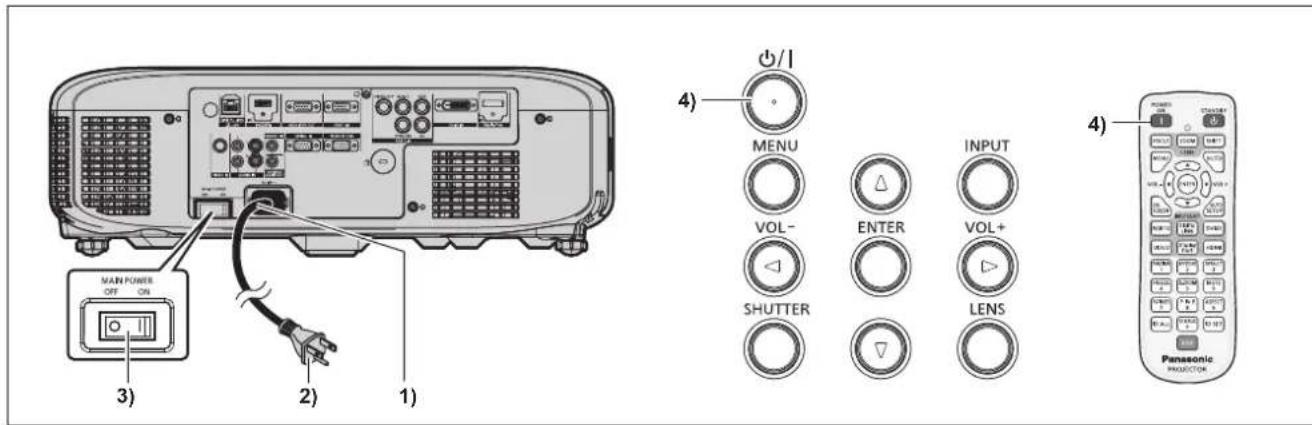

Switching on the projector
When using the optional Projection Lens, attach the Projection Lens before switching on the projector. Remove the lens cover first.
OFF ON
3)
2)
1)
4)
MENU
VOL-
SHUTTER
ENTER
LENS
INPUT
VOL+
4)
Panasonic
PROXICATOR
1) Connect the power cord to the projector body.
• (AC 100 V - 240 V, 50 Hz/60 Hz)
3) Press the side of the switch to turn on the power.
- After a short while, the power indicator will light in red, and the projector will enter the standby mode.
4) Press the power <|}/|> button on the control panel or the power on <|> button on the remote control.
- The power indicator lights in green and the image is soon projected on the screen.
Note
If the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO], it may take approx. 10 seconds longer before the projector starts projecting after the power is turned on, compared with when [NORMAL] is set.
If the switch was set to during projection to end the projection using the direct power off function last time, and the switch is set to with the power plug connected to the outlet, the power indicator will light in green and the image will soon be projected on the screen.
When the initial setting screen is displayed
When the projector is switched on for the first time after purchase as well as when [ALL USER DATA] in the [PROJECTOR SETUP] menu → [INITIALIZE] is executed, the focus adjustment screen is displayed after projection starts, then the initial setting screen is displayed. Set them in accordance with circumstances.
In other occasions, you can change the settings by menu operations.

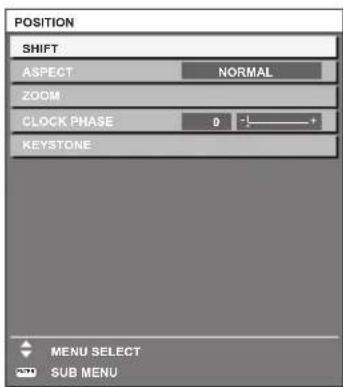

Focus adjustment
Adjust the focus to display the menu screen clearly.
You may also need to adjust the zoom and shift.
Refer to "Adjusting the focus, zoom, and shift" (→ page 49) for details.
1) Press ▲▼◀▶ to adjust the focus.
2) Press the
button to proceed to the initial setting.

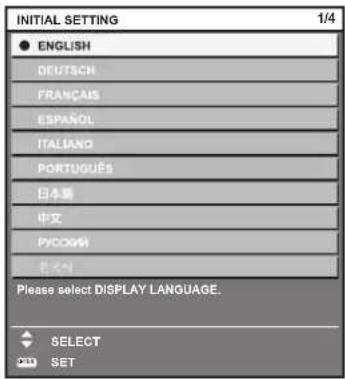

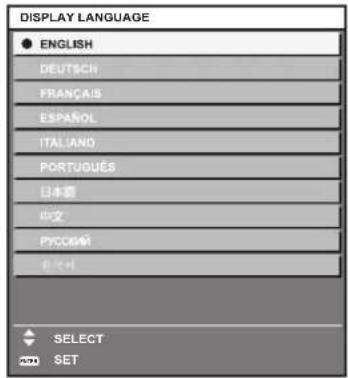

Initial setting (display language)
Select the language to show on the screen.
After completed the initial setting, you can change the display language from the [DISPLAY LANGUAGE] menu.
1) Press ▲▼ to select the display language.
1/4
● ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
PORTUGUES
日本語
中文
PVCOMI
bilingual
Please select DISPLAY LANGUAGE.
◆ SELECT
SET
2) Press the button to proceed to the initial setting.
Initial setting (installation setting)
Set [PROJECTION METHOD] depending on the installation mode. Refer to "Installation mode" ( page 30) for details.
After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
1) Press ◀▶ to switch the setting.


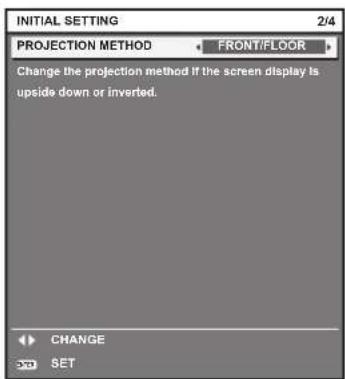

INITIAL SETTING
2/4
PROJECTION METHOD FRONT/FLOOR
Change the projection method if the screen display is
upside down or inverted.
CHANGE
SET
2) Press the button to proceed to the initial setting.

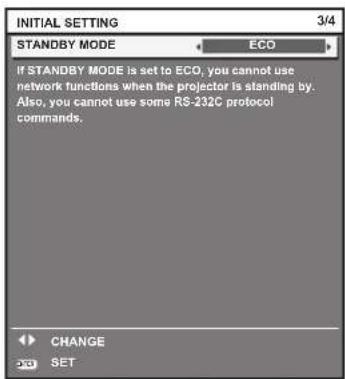

Initial setting (standby mode)
Set the operation mode during standby. The default setting is [ECO] that keeps power consumption low during standby. When the network function is used during standby, set to [NORMAL]. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE].
1) Press ◀▶ to switch the setting.
3/4
STANDBY MODE ECO
If STANDBY MODE is set to ECO, you cannot use network functions when the projector is standing by. Also, you cannot use some RS-232C protocol commands.
CHANGE
SET
2) Press the button to proceed to the initial setting.
46 - ENGLISH
Note
- The above initial setting screen is the one displayed when the projector is switched on for the first time after purchase. When [ALL USER DATA] in the [PROJECTOR SETUP] menu → [INITIALIZE] is executed, the setting of [STANDBY MODE] before execution is displayed.

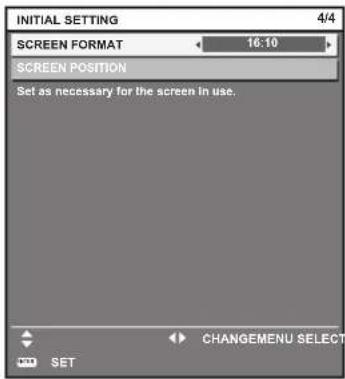

Initial setting (screen setting)
Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
1) Press ▲▼ to select an item.
4/4
SCREEN FORMAT 16:10
SCREEN POSITION
Set as necessary for the screen in use.
SET CHANGEMENU SELECT
3) Press the button.
- Confirm the setting value and complete the initial setting.
Note
If you press the button while the initial setting screen is displayed, you can go back to the previous screen.
By default, the time zone of the projector is set to +09:00 (Japan and Korean Standard Time). Change the setting in the [PROJECTOR SETUP] menu → [DATE AND TIME] → [TIME ZONE] to the time zone of the region where you use the projector.

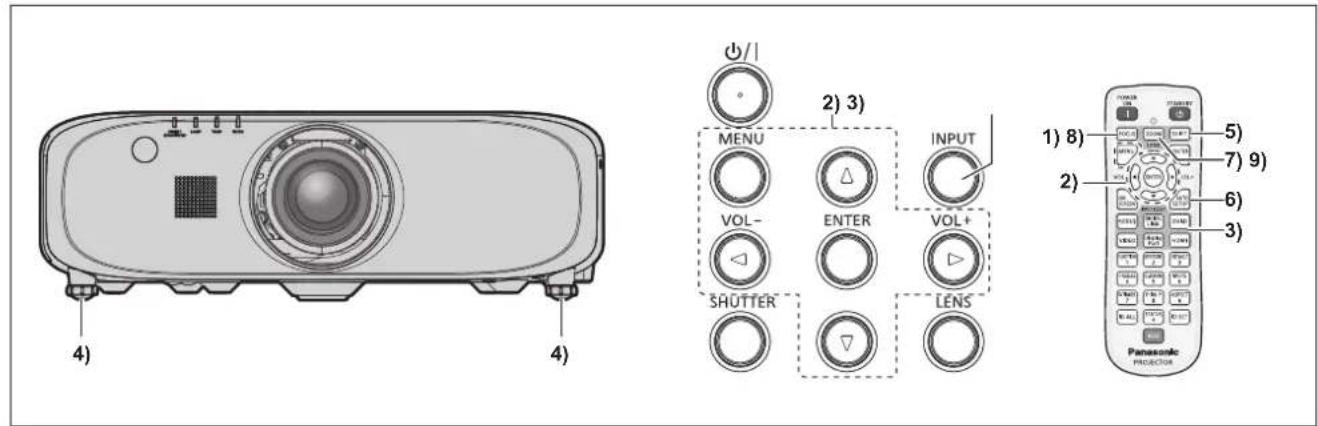

Making adjustments and selections
It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted.
4)
2) 3)
MENU
VOL-
SHUTTER
ENTER
LENS
INPUT
VOL+
1) 8)
2)
5)
7) 9)
6)
3)
Panasonic
PROECTOR
1) Press the button to roughly adjust the focus of the image. (→ page 49)
- Refer to "Navigating through the menu" (→ page 57) for the operation of the menu screen.
3) Press the , *1, , , *1, ) buttons on the remote control to select the input. button to adjust the position of the image.
6) If the input signal is an RGB signal, press the button. button to adjust the size of the image to match the screen. button again to adjust the focus. button again to adjust the zoom and the size of the image to match the screen.
Note
- When the projector is switched on for the first time after purchase as well as when [ALL USER DATA] in the [PROJECTOR SETUP] menu → [INITIALIZE] is executed, the focus adjustment screen is displayed after projection starts, then the initial setting screen is displayed. Refer to "When the initial setting screen is displayed" (→ page 45).

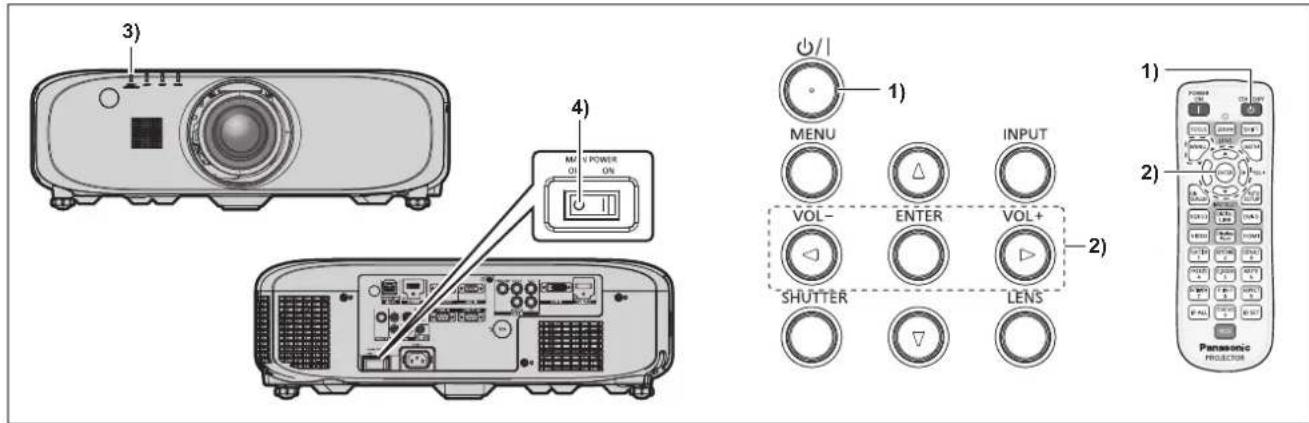

Switching off the projector
4)
M2V POWER
ON
1)
MENU
INPUT
VOL-
ENTER
VOL+
2)
SHUTTER
LENS
1)
POWER
ON
DATA
2)
Panasonic
PROECTOR
1) Press the power <∅/|> button on the control panel or the power standby <∅> button on the remote control. button. on the projector body lights in orange. (The fan keeps running.) on the projector body lights in red. side of the switch to turn off the power.
Note
Do not switch on the projector and project images immediately after switching off the projector. Turning on the power while the lamp is still hot may shorten the lamp life.
For about 75 seconds after the projector is switched off and the luminous lamp cooling is started, the lamp indicators will not light up even if the power is switched on. Even after 75 seconds, the lamp may not light up if the projector is switched on. In such a case, after the power indicator lights in red, switch on the projector again.
The projector consumes power even when the power <∅/|> button on the control panel or the power standby <∅> button on the remote control is pressed and the projector is switched off if the main power of the projector is on.
When the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO], use of some functions is restricted, but the power consumption during standby can be conserved.
Direct power off function
The projector can be turned off during projection or immediately after the luminous lamp is turned off by setting the switch to . Also, when the projector is mounted on the ceiling or installed in an environment where the switch of the projector cannot be easily turned , the power can be turned off directly using the circuit breaker. It is also safe in case a power outage occurs or the power cord is pulled out immediately after the projector is switched off.
Note
If the projector was turned off by turning off the circuit breaker directly during projection last time, then the power indicator will light in green a while after the circuit breaker is turned on, and then projection of the image will start.
If the power was turned off directly by turning the switch to , or the power was turned off by turning off the circuit breaker directly, projection may take a longer time than usual to start when the projector is switched on the next time.
Projecting
Check the attachment of the Projection Lens ( page 38), external device connection ( page 39), power cord connection
(→ page 44), and switch on the projector (→ page 45) to start projecting. Select the image for projection, and adjust appearance of the projected image.
Select an input signal.
1) Press the , *1, , , *1, ) buttons on the remote control.
- The image of the signal being input in the selected terminal is projected.
*1 Only for PT-EZ580, PT-EW640 and PT-EX610
Attention
Images may not be projected properly depending on the external device, or the Blu-ray disc or DVD disc, to be played back. Set the [PICTURE] menu → [SYSTEM SELECTOR].
Confirm the aspect ratio of the projection screen and the image, and switch to an optimum aspect ratio from the [POSITION] menu → [ASPECT].
Adjusting the focus, zoom, and shift
If the projected image or the position is not correct when the positioning of the projector and the screen is correctly installed, adjust the focus, zoom, and shift.
Using the control panel
1) Press the button on the control panel.
- Pressing the button changes the adjustment screen in the order of [FOCUS], [ZOOM], and [SHIFT].
2) Select each item and press ▲▼◀▶ to adjust it.
Using the remote control
1) Press the lens (, , ) buttons on the remote control.
button: Adjusts focus. button: Adjusts zoom. button: Adjusts shift.
2) Select each item and press ▲▼◀▶ to adjust it.
Caution
During the lens shift operation, do not insert your hand in any opening around the lens. Your hand may be caught and result in injuries.
Note
When the fixed-focus lens (Model No.: ET-ELW21) is attached, the zoom adjustment screen will be displayed. However, operation is not possible.
Use the fixed-focus lens (Model No.: ET-ELW21) with the lens position set to the home position. (→ page 50)
The adjustment can be performed quickly by pressing and holding ▲▼◀▶ for at least three seconds.
It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted.
Only [FOCUS] is shown in yellow so that the displayed menu item can be recognized by color, even when the projector is not focused and displayed characters are unreadable. (Factory default)
Moving the lens to the home position
To move the lens to the home position, perform the following procedure.
1) While the [SHIFT] adjustment screen is displayed, press the button on the remote control.
• The [HOME POSITION] screen is displayed.
HOME POSITION
••• EXECUTE
••• CANCEL
2) While the [HOME POSITION] screen is displayed (for approximately five seconds), press the button.
- [PROGRESS] is displayed in the [HOME POSITION] screen, and the lens returns to the home position.
Note
The home position of the lens is the lens position when the lens is being replaced or when the projector is being stored, and it is not the optical center of the screen.
You can also display the [HOME POSITION] screen by pressing the button on the control panel or the button on the remote control for at least three seconds.

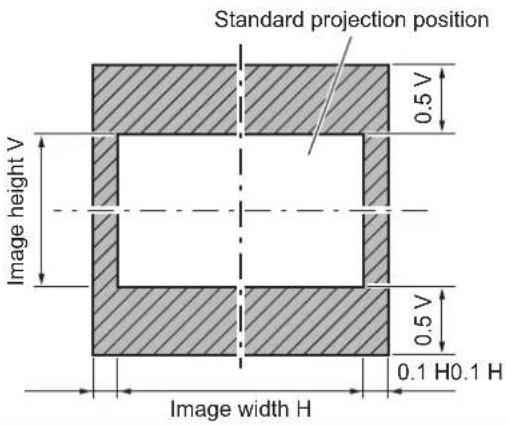

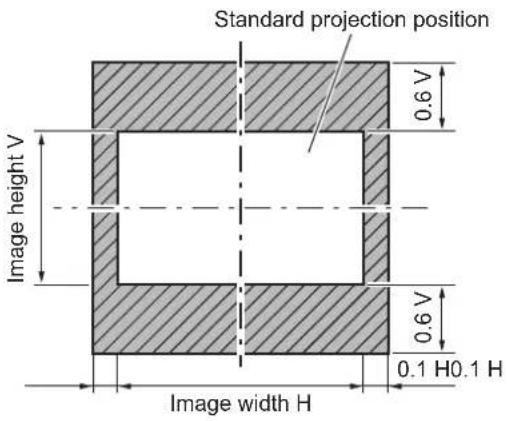

Adjustment range by the lens position shift (optical axis shift)
Perform the lens position shift within the adjustment range.
The focus may change when the lens position is shifted out of the adjustment range. This is because the movement of the lens is restricted to protect the optical parts. Projection position can be adjusted with the optical axis shift based on the standard projection position in the respective range.
Lens type Zoom lens Standard zoom lens, ET-ELW20, ET-ELT20, ET-ELT21 PT-EZ580PT-EW640PT-EW540 PT-EX610PT-EX510
Note
- When the optional fixed-focus lens (Model No.: ET-ELW21) is attached, shift adjustment is not available.

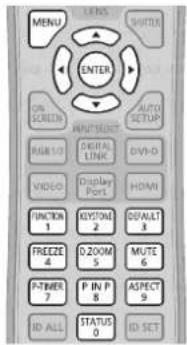

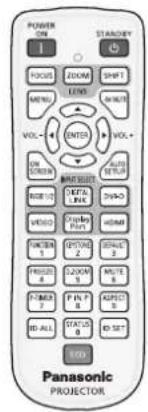

Operating with the remote control
For PT-EZ580, PT-EW640 and PT-EX610
For PT-EW540 and PT-EX510
I
FOCUS
JUMO
SHIFT
MENIX
LIME
METHI
VOL-
ENTER
VOL-
IN SCREEN
AUTO SETTLE
RGB1/2
SOYA LINE
DV45
MELLO
Display Bus
HDMI
SINJA 1
SINJA 2
REAL 3
PHIL2 6
JULY 6
MUTE 6
MINER 7
P P 8
ASPEC 8
RE ALL
STATUS 9
HD SET
BPG
Panasonic PROJECTION
I
STANDARD
FOCUS ZOOM SHIFT
MENU LENO INLET
VOL - ENTER VOL +
ON DOWN RESET
OFF/FLINK DVO
MODE Study Plan Home
ONION QTYO23
PRESS 200V MATE
ORDER P FIN P GEDD
R-D ALL STATUS B SET
SDD
Panasonic
PROJECTOR
The input for projection can be switched.
INPUT SELECT
RGB 1/2
DIGITAL LINK
DVI-D
VIDEO
Display Port
HDMI
1) Press the input selection (, , , , , ) buttons.
- This operation can be also performed using the
Switches the input to RGB1 or RGB2. Switches to another input when one input has already been chosen. *1 Switches the input to DIGITAL LINK. Switches the input to DVI-D. Switches the input to VIDEO. *1 Switches the input to DisplayPort. Switches the input to HDMI.
*1 Only for PT-EZ580, PT-EW640 and PT-EX610
Note
- When the optional Digital Interface Box (Model No.: ET-YFB100G) is connected to the terminal, the ET-YFB100G input changes with each press of the button. The input can also be changed using the control command of RS-232C. For twisted-pair-cable transmitters of other manufacturers, switch the input on the projector to DIGITAL LINK, and then switch the input on the twisted-pair-cable transmitter.
If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image and audio temporarily.
* button
(Only for PT-EZ580, PT-EW640 and PT-EX610)
1) Press the button.
• The image and audio disappear.
- This operation can be also performed using the button on the control panel.
• The image and audio reappear.
* button
(Only for PT-EW540 and PT-EX510)
• The image and audio disappear. button on the control panel.
• The image and audio reappear.
Attention
- When the [PROJECTOR SETUP] menu [ECO MANAGEMENT] [SHUTTER DETECTION] or [AV MUTE DETECTION] is set to [ON], do not switch on /off in a short time.
Note
- The power indicator will flash slowly in green while the shutter function or AV mute function is in use.
Using the mute function
Audio can be temporarily turned off.
• The audio disappears.
• The audio reappears.
Adjusting the volume
The volume of the built-in speaker or audio output can be adjusted.
- This operation can be also performed using the button/ button on the control panel.
Increases the volume. Decreases the volume.
Using the freeze function
The projected image can be paused and audio turned off regardless of the playback of the external device.
- The image freezes and audio disappears.
- Freezing of the image is canceled and audio reappears.
Note
- [FREEZE] is displayed on the screen when video is paused.
Using the on-screen display function
Turn off the on-screen display function (no display) when you do not wish the viewers to see the on-screen display, such as the menu or the input terminal name.
• The on-screen display disappears.
• The on-screen display appears.
Note
- If you press the
button on the control panel for at least three seconds while the on-screen display is off (hidden), the on-screen display is turned on.
Using the presentation timer function
The presentation timer function can be operated.
Presentations, etc. can be performed while checking the elapsed time or time remaining in the preset time.
• The count is started.
- The count is stopped.
• The count is resumed.
Note
The presentation timer is ended by holding the button down for at least three seconds.
For details such as presentation timer function settings, refer to [DISPLAY OPTION] menu → [P-TIMER] (→ page 83).
Using the automatic setup function
The automatic setup function can be used to automatically adjust the resolution, clock phase, and image position when analog RGB signals consisting of bitmap images such as computer signals are being input, or to automatically adjust the image position when DVI-D/HDMI signals are input. Supplying images with bright white borders at the edges and high-contrast black and white characters is recommended when the system is in automatic adjustment mode. Avoid supplying images that include halftones or gradation, such as photographs and computer graphics.
- [COMPLETE] is displayed when it has completed without any problem.
Note
The clock phase may shift even if it has completed without any incident. In such cases, adjust the [POSITION] menu [CLOCK PHASE] (→ page 70).
If an image with blurred edges or a dark image is input, [INCOMPLETE] may appear or adjustment may not be performed properly even when [COMPLETE] appears. In this case, adjust the settings in the [ADVANCED MENU] menu → [INPUT RESOLUTION] (→ page 73), [POSITION] → [CLOCK PHASE] (→ page 70), and [SHIFT] (→ page 68).
Adjust special signals according to the [DISPLAY OPTION] menu [AUTO SETUP] (→ page 76).
Images may be disrupted for a few seconds during automatic adjustment, but it is not a malfunction.
Adjustment is required for each input signal.
Automatic adjustment can be canceled by pressing the button during the automatic adjustment operation.
If the automatic setup function is used while moving images are being input, the adjustment may not be performed properly even for an RGB signal that can use automatic setup. [INCOMPLETE] may appear, or adjustment may not be finished properly even if [COMPLETE] appears.
Using the keystone distortion correction function
The [KEYSTONE] menu can be displayed.
You can correct the keystone distortion that occurs when the projector is installed tilted or when the screen is tilted.
- The individual adjustment screen of [KEYSTONE] or [CORNER CORRECTION] ([UPPER LEFT]) is displayed.
- The other individual adjustment screen is displayed.
When the [KEYSTONE] individual adjustment screen is displayed in Step 1), the [CORNER CORRECTION] individual adjustment screen ([UPPER LEFT]) is displayed.
Note
After the individual adjustment screen of [KEYSTONE] or [CORNER CORRECTION] is displayed, press ▲▼◀▶ to adjust the keystone distortion.
Either setting of [KEYSTONE] or [CORNER CORRECTION] is enabled. If the other item is adjusted after [KEYSTONE] or [CORNER CORRECTION] was adjusted, the previous setting value will be reset.
If the button is pressed while the [CORNER CORRECTION] individual adjustment screen is displayed, the individual adjustment screen for the next corner is displayed.
Refer to the [POSITION] menu → [KEYSTONE] (→ page 70) for details.
Using the digital zoom function
The [DIGITAL ZOOM] menu can be displayed.
You can enlarge images.
• The [DIGITAL ZOOM] screen is displayed.
2) Press ◀▶ to adjust the magnification.
4) Press ▲▼◀▶ to move the zoom position.
Note
- Refer to the [DISPLAY OPTION] menu → [DIGITAL ZOOM] (→ page 84) for details.
Switching the aspect ratio of the image
You can switch aspect ratios according to the input signal.
- The setting will change each time you press the button.
Note
- Refer to the [POSITION] menu → [ASPECT] (→ page 68) for details.
Using the P IN P function
Locate a separate, small sub screen in the main screen to project two images simultaneously.
button.
- The setting will change each time you press the button.
Note
- Refer to the menu [P IN P] menu (→ page 98) for details.
[SUB MEMORY], [SYSTEM SELECTOR], [DAYLIGHT VIEW], or [TEST PATTERN] operations can be assigned to the button on the remote control so that it can be used as an easy shortcut button.
Note
- Assignment of the function is performed from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON] (→ page 92).
Using the status function
You can display the status of the projector.
• The [STATUS] screen is displayed.
1/4
INPUT
RGB2
SIGNAL NAME
SXGA60+-A1
SIGNAL FREQUENCY
65.22kHz/ 59.99Hz
PROJECTOR RUNTIME
1h
LAMP: ECO
100h
: NORMAL
200h
: TOTAL
300h
INTAKE AIR TEMP.
27°C/ 80°F
AROUND LAMP TEMP.
27°C/ 80°F
SEND STATUS VIA E-MAIL
EXITCHANGE
Note
- This can be displayed from the [PROJECTOR SETUP] menu [STATUS] (→ page 94).
Using the ECO management function

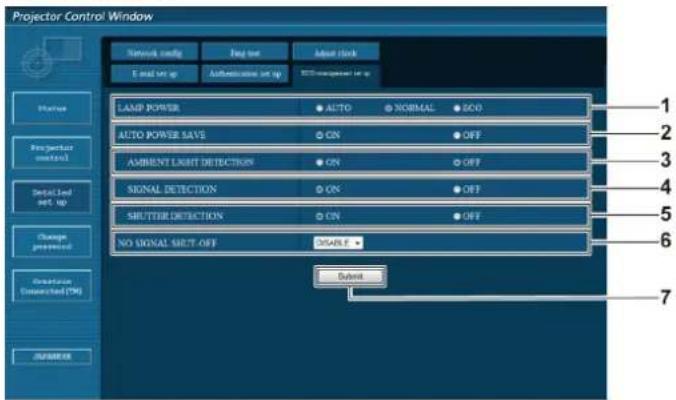

You can display the setting screen relating to ECO management.
Note
- Refer to the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] (→ page 87) for details.
Chapter 4 Settings
This chapter describes the settings and adjustments you can make using the on-screen menu.
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Operating procedure
MENU
1) Press the

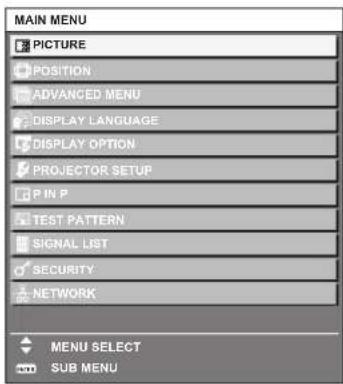

button on the remote control or control panel.
• The [MAIN MENU] screen is displayed.
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
P IN P
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU

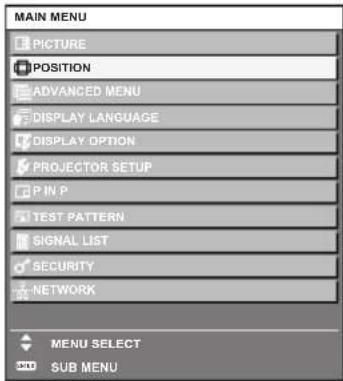

2) Press ▲▼ to select an item from the main menu.
- The selected item is highlighted in yellow.
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
P IN P
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU
3) Press the button.
- The sub-menu items of the selected main menu are displayed.
SHIFT
ASPECT NORMAL
ZOOM
CLOCK PHASE 0 -1
KEYSTONE
MENU SELECT
SUB MENU
- Some items will switch in order as follows each time you press ◀.
- For some items, press ◀▶ to display an individual adjustment screen with a bar scale as shown below.
Note
Pressing the button while the menu screen is displayed returns to the previous menu.
Some items may not be adjusted or used for certain signal formats to be input to the projector. The menu items that cannot be adjusted or used are shown in black characters, and they cannot be selected. [DIGITAL CINEMA REALITY] may not be displayed depending on the input signal.
Some items can be adjusted even if signals are not input.
Individual adjustment screen is cleared automatically if no operation is performed for approximately five seconds.
For menu items, refer to "Main menu" (→ page 58) and "Sub-menu" (→ page 59).
The cursor color depends on the settings of the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN]. The selected item is displayed with the yellow cursor by the factory default.
Resetting adjustment values to the factory defaults
If the button on the remote control is pressed, the values adjusted in the menu items are restored to the factory default settings.
Note
You cannot reset all the settings to the factory default at a time.
To reset all the settings adjusted in the sub-menu item to the factory default one at a time, execute [PROJECTOR SETUP] menu → [INITIALIZE] (→ page 96).
Some items cannot be reset to the factory defaults by pressing the button on the remote control. Adjust each item manually.
The triangular mark under the bar scale in the individual adjustment screen indicates the factory default setting. The position of the triangular mark varies according to the selected input signals.
Current adjustment value
Factory default setting
Main menu
The following items are in the main menu.
When a main menu item is selected, the screen changes to a sub-menu selection screen.
Main menu item Page [PICTURE] 62 [POSITION] 68 [ADVANCED MENU] 72 [DISPLAY LANGUAGE] 74 [DISPLAY OPTION] 75 [PROJECTOR SETUP] 86 [P IN P] 98 [TEST PATTERN] 100 [W3XV] [SIGNAL LIST] 101 [C3K0] [SECURITY] 104 [K20Z] [NETWORK] 107
The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu.
[PICTURE]
Sub-menu item Factory default Page [PICTURE MODE] [STANDARD] ^1 62 [CONTRAST] [0] 62 [BRIGHTNESS] [0] 63 [COLOR] [0] 63 [TINT] [0] 63 [COLOR TEMPERATURE] [DEFAULT] 63 [GAMMA] [0] 65 [SHARPNESS] [+6]^1 65 [NOISE REDUCTION] [OFF] 65 [IRIS] ^2 [OFF] ^1 65 [DAYLIGHT VIEW] [AUTO] 66 [SYSTEM SELECTOR] [YP_BP_R]^1 66
*1 Depends on the signal input.
Note
- The factory default settings may vary depending on the picture mode.
[POSITION]
Sub-menu item Factory default Page [SHIFT] — 68 [ASPECT] [NORMAL]*1 68 [ZOOM] — 69 [CLOCK PHASE] [0]*1 70 [KEYSTONE] — 70
*1 Depends on the signal input.
Sub-menu item Factory default Page [ DIGITAL CINEMA REALITY] [AUTO] ^1 72 [BLANKING] — 72 [INPUT RESOLUTION] — 73 [CLAMP POSITION] [24]^1 73 [RASTER POSITION] — 73
*1 Depends on the signal input.
Note
- Sub-menu items and factory default settings vary depending on the selected input terminal.
[DISPLAY OPTION]
Sub-menu item Factory default Page [COLOR ADJUSTMENT] [OFF] 75 [COLOR CORRECTION] [OFF] 75 [SCREEN SETTING] — 76 [AUTO SIGNAL] [OFF] 76 [AUTO SETUP] — 76 [RGB IN] — 77 [DVI-D IN] — 78 [HDMI IN] — 78 [DIGITAL LINK IN]^1 — 79 [DisplayPort IN]^1 — 79 [ON-SCREEN DISPLAY] — 79 [CLOSED CAPTION SETTING] — 81 [BACK COLOR] [BLUE] 82 [STARTUP LOGO] [DEFAULT LOGO] 82 [SHUTTER SETTING]^1 — 82 [P-TIMER] — 83 [FREEZE] — 84 [DIGITAL ZOOM] [1.5] 84
*1 Only for PT-EZ580, PT-EW640 and PT-EX610
[PROJECTOR SETUP]
Sub-menu item Factory default Page [PROJECTOR ID] [ALL] 86 [PROJECTION METHOD] [FRONT/FLOOR] 86 [ECO MANAGEMENT] — 87 [SCHEDULE] [OFF] 88 [STARTUP INPUT SELECT] [LAST USED] 90 [RS-232C] — 90 [REMOTE2 MODE] [DEFAULT] 92 [FUNCTION BUTTON] — 92 [AUDIO SETTING] — 92 [STATUS] — 94 [DATE AND TIME] — 95 [SAVE ALL USER DATA] — 96 [LOAD ALL USER DATA] — 96 [INITIALIZE] — 96 [SERVICE PASSWORD] — 97
[P IN P]
Details ( page 98)
[TEST PATTERN]
Details ( page 100)
[SIGNAL LIST]
Details ( page 101)
[SECURITY]
Sub-menu item Factory default Page [SECURITY PASSWORD] [OFF] 104 [SECURITY PASSWORD CHANGE] — 104 [DISPLAY SETTING] [OFF] 105 [TEXT CHANGE] — 105 [MENU LOCK] [OFF] 105 [MENU LOCK PASSWORD] — 105 [CONTROL DEVICE SETUP] — 106
[NETWORK]
Sub-menu item Factory default Page [DIGITAL LINK MODE]^1 [AUTO] 107 [DIGITAL LINK SETUP]^1 — 107 [DIGITAL LINK STATUS]^1 — 108 [NETWORK SETUP] — 108 [NETWORK CONTROL] — 109 [NETWORK STATUS] — 109 [DIGITAL INTERFACE BOX]^1 — 109
*1 Only for PT-EZ580, PT-EW640 and PT-EX610
Note
Some items may not be adjusted or used for certain signal formats to be input to the projector.
Sub-menu items and factory default settings vary depending on the selected input terminal.
On the menu screen, select [PICTURE] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (→ page 57) for the operation of the menu screen.
• After selecting the item, press ▲▼◀▶ to adjust.
LENS
SHUTTER
ENTER
ON SCREEN
INPUT TEST
AUTO STRIP
RGB 1/2
DIGITAL LINK
DVI-D
VIDEO
Display Port
HDMI
FUNCTION 1
OPTION 2
OFFSET 3
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
1) Press ▲▼ to select [PICTURE MODE].
2) Press ◀▶ or the button.
- The [PICTURE MODE] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
• The items will switch each time you press the button.
[STANDARD] The image becomes suitable for moving images in general. [DYNAMIC] The light output is maximized for use in bright areas. [DICOM SIM.] The image becomes similar to that of DICOM Part 14 Grayscale Standard. [CINEMA] ^1 The image becomes suitable for movie contents. [NATURAL] ^2 The image is sRGB compliant.
*1 Only for movie-based input signals
*2 Only for still image input signals
Note
The factory default picture mode is [DYNAMIC] for still image input signals and [STANDARD] for movie-based input signals.
When [PICTURE MODE] is set to [DICOM SIM.], [LAMP POWER] (→ page 87) is fixed to [NORMAL].
DICOM is an abbreviation of "Digital Imaging and COmmunication in Medicine" and is a standard for medical imaging devices. Although the DICOM name is used, the projector is not a medical device, and should not be used for purposes such as diagnosis of display images.
[CONTRAST]
You can adjust the contrast of the colors.
1) Press ▲▼ to select [CONTRAST].
2) Press ◀▶ or the button.
• The [CONTRAST] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press the ▶ button. The screen becomes brighter. -31 - +31 Press the ◀ button. The screen becomes darker.
Attention
- Adjust [BRIGHTNESS] first when you need to adjust the black level.
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1) Press ▲▼ to select [BRIGHTNESS]. button.
- The [BRIGHTNESS] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press the ▶ button. Increases the brightness of the dark (black) parts of the screen. -31 - +31 Press the ◀ button. Reduces the brightness of the dark (black) parts of the screen.
[COLOR]
You can adjust the color saturation of the projected image.
1) Press ▲▼ to select [COLOR]. button.
- The [COLOR] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press the ▶ button. Deepens colors. -31 - +31 Press the ◀ button. Weakens colors.
[TINT]
You can adjust the skin tone in the projected image.
1) Press ▲▼ to select [TINT]. button.
- The [TINT] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press the ▶ button. Adjusts skin tone toward greenish color. -31 - +31 Press the ◀ button. Adjusts skin tone toward reddish purple.
[COLOR TEMPERATURE]
You can switch the color temperature if the white areas of the projected image are bluish or reddish.
Adjusting with color temperature
1) Press ▲▼ to select [COLOR TEMPERATURE]. button.
- The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT] Factory default setting. [USER] Adjusts white balance as desired. Refer to “Adjusting desired white balance” (→ page 64) for details. [LOW] Becomes a reddish image. Select this when the white areas of the projected image are bluish. [HIGH] Becomes a bluish image. Select this when the white areas of the projected image are reddish.
Note
- When [COLOR ADJUSTMENT] (→ page 75) is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER].
Adjusting desired white balance
1) Press ▲▼ to select [COLOR TEMPERATURE]. button.
- The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press ◀▶ button to select [USER]. button.
• The [COLOR TEMPERATURE] screen is displayed.
5) Press ▲▼ to select [WHITE BALANCE]. button.
• The [WHITE BALANCE] screen is displayed.
7) Press ▲▼ to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW]. button.
- The [WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed.
9) Press ▲▼ to select [RED], [GREEN], or [BLUE].
Item Operation Adjustment Range of adjustment [RED] Press the ▶ button. Deepens red. [WHITE BALANCE HIGH]: 0 - +255 (factory default is +255)[WHITE BALANCE LOW]: -127 - +127 (factory default is 0) Press the ◀ button. Weakens red. [GREEN] Press the ▶ button. Deepens green. Press the ◀ button. Weakens green. [BLUE] Press the ▶ button. Deepens blue. Press the ◀ button. Weakens blue.
Note
Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment does not look suitable, you can press the button on the remote control to return the setting for the selected item only to the factory default setting.
When [COLOR ADJUSTMENT] (→ page 75) is set to other than [OFF], [WHITE BALANCE HIGH] cannot be adjusted.
Changing the [USER] name
1) Press ▲▼ to select [COLOR TEMPERATURE]. button.
- The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press ◀▶ to select [USER]. button.
- The [COLOR TEMPERATURE] screen is displayed.
5) Press ▲▼ to select [COLOR TEMPERATURE NAME CHANGE]. button.
- The [COLOR TEMPERATURE NAME CHANGE] screen is displayed.
7) Press ▲▼◀▶ to select the text, and press the button to enter the text. button.
- The name set to color temperature is changed.
Note
- When a name is changed, display of [USER] is also changed.
[GAMMA]
You can adjust contrast balance.
1) Press ▲▼ to select [GAMMA]. button.
- The [GAMMA] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press ▶. The midtones become brighter. -8 - +7 Press ◀. The midtones become darker.
[SHARPNESS]
You can adjust the sharpness of the projected image.
1) Press ▲▼ to select [SHARPNESS]. button.
- The [SHARPNESS] individual adjustment screen is displayed.
3) Press ◀▶ to adjust the level.
Operation Adjustment Range of adjustment Press the ▶ button. Contours become sharper. 0 - +15 Press the ◀ button. Contours become softer.
Note
- If you press ▶ while the adjustment value is [+15], the value will become [0]. If you press ◀ while the adjustment value is [0], the value will become [+15].
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occurring in the image signal.
1) Press ▲▼ to select [NOISE REDUCTION]. button.
- The [NOISE REDUCTION] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] No correction. [1] Slightly corrects the noise. [2] Moderately corrects the noise. [3] Strongly corrects the noise.
Attention
- When this is set for an input signal with less noise, the image may look different from what it originally was. In such a case, set it to [OFF].
[IRIS]
(Only for PT-EZ580, PT-EW640 and PT-EX610)
Aperture correction is performed automatically based on the image to result in an image of optimum contrast.
1) Press ▲▼ to select [IRIS]. button.
• The [IRIS] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] No correction. [ON] Automatically corrects the aperture.
[DAYLIGHT VIEW]
You can correct the image to the optimal vividness even if it is projected under a bright light.
1) Press ▲▼ to select [DAYLIGHT VIEW].
- The [DAYLIGHT VIEW] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[AUTO] The brightness of the room is detected by the luminance sensor, and the vividness of the image is automatically corrected. [OFF] No correction. [1] Corrects the image to weaken vividness. [2] Corrects the image to medium vividness. [3] Corrects the image to high vividness.
Note
When [PROJECTION METHOD] (→ page 86) is set to [REAR/FLOOR] or [REAR/CEILING], [AUTO] cannot be selected.
When objects, etc. are placed on the top of the projector, the [AUTO] mode may not function properly.
[SYSTEM SELECTOR]
The projector will automatically detect the input signal, but you can set the system method manually when an unstable signal is input. Set the system method matching the input signal.
1) Press ▲▼ to select [SYSTEM SELECTOR].
• Available system formats vary depending on the input signal.
Terminal System format terminal,// terminals Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL-M], [PAL-N], [SECAM], or [PAL60].Set it to [AUTO] normally. (Setting [AUTO] will automatically select [NTSC], [NTSC4.43], [PAL], [PAL-M], [PAL-N], [SECAM], or [PAL60].)Switch the setting to the signal method for the TV used. terminal, terminal 480i, 576i, or 576p signal Select [RGB] or [YC_B C_R] . VGA60 or 480p signal Select from [VGA60], [480p YC_B C_R], or [480p RGB]. Other movie-based signals Select [RGB] or [YP_B P_R] . terminal 480i, 576i, 480p, or 576p signal Select [RGB] or [YC_B C_R] . Other movie-based signals Select [RGB] or [YP_B P_R] . terminal,*1 terminal,/*2 terminal 480i, 576i, 480p, or 576p signal Select [AUTO], [RGB], or [YC_B C_R] . Other movie-based signals Select [AUTO], [RGB], or [YP_B P_R] .
*1 For PT-EZ580, PT-EW640 and PT-EX610; terminal for PT-EW540 and PT-EX510
Note
Refer to "List of compatible signals" (→ page 146) for the types of video signals that can be used with the projector.
This may not function properly for some connected external devices.
sRGB-compliant video
sRGB is an international standard (IEC61966-2-1) for color reproduction defined by IEC (International Electrotechnical Commission). Set according to the following steps to reproduce more faithful, sRGB compliant colors.
1) Set [COLOR ADJUSTMENT] to [OFF].
2) Set [COLOR CORRECTION] to [OFF].
• Refer to [COLOR CORRECTION] (→ page 75).
3) Display the [PICTURE] menu.
- Refer to “[PICTURE] menu” (→ page 62).
4) Press ▲▼ to select [PICTURE MODE].
5) Press ◀▶ to set [NATURAL].
6) Press ▲▼ to select [COLOR].
7) Press the button on the remote control to set the factory default setting.
8) Follow Steps 6) - 7) to set [TINT], [COLOR TEMPERATURE], and [GAMMA] to the factory default settings.
9) Display the [PICTURE] menu.
10) Press ▲▼ to select [DAYLIGHT VIEW].
11) Press ◀▶ button to set [OFF].
Note
- sRGB is available for RGB signal input only.
On the menu screen, select [POSITION] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" ( page 57) for the operation of the menu screen.
• After selecting the item, press ▲▼◀▶ to adjust.
LENS
SHUTTER
ENTER
ON SCREEN
INPUT SELECT
AUTO SETUP
RGB 1/2
DIGITAL LINK
DVI-D
VIDEO
Display Port
HDMI
FUNCTION 1
KYSTONI 2
OFFSET 3
[SHIFT]
Move the image position vertically or horizontally if the image position projected on the screen is shifted even when the relative position of the projector and the screen is installed correctly.
1) Press ▲▼ to select [SHIFT]. button.
• The [SHIFT] screen is displayed.
3) Press ▲▼◀▶ to adjust the position.
Orientation Operation Adjustment Vertical (up and down) adjustment Press the ▲ button. The image position moves up. Press the ▼ button. The image position moves down. Horizontal (right and left) adjustment Press the ▶ button. The image position moves to the right. Press the ◀ button. The image position moves to the left.
[ASPECT]
You can switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (→ page 76)
1) Press ▲▼ to select [ASPECT]. button.
- The [ASPECT] individual adjustment screen is displayed.
3) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[NORMAL]
Displays images without changing the aspect ratio of the input signals.
[VID AUTO]*1 The projector identifies the video ID (VID) embedded in the video signals and displays the image by automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC signals. [AUTO]*2 The projector identifies the video ID (VID) embedded in the video signals and displays the image by automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480i/480p signals. [NATIVE] Displays images without changing the resolution of the input signals. [WIDE] Displays images with the aspect ratio converted to 16:9 when standard signals are input*3. Display images without changing the aspect ratio when wide-screen signals are input*4. [4:3] Displays images without changing the aspect ratio when standard signals are input*3. Displays images without changing the aspect ratio so that the images will fit in the 4:3 screen when wide-screen signals are input*2. [H FIT] Displays images using the entire width of the screen. When signals have the aspect ratio vertically longer than the aspect ratio of the screen selected in [SCREEN FORMAT], the images are displayed with the top and bottom parts cut off. [V FIT] Displays images using the entire height of the screen range selected in [SCREEN FORMAT]. When signals have the aspect ratio horizontally longer than the aspect ratio of the screen selected in [SCREEN FORMAT], the images are displayed with the right and left parts cut off. [FULL] Displays images in the entire screen range selected in [SCREEN FORMAT]. When the aspect ratio of the input signals differs from that of the screen range, the images are displayed with the aspect ratio converted to that of the screen selected in [SCREEN FORMAT].
*1 For video signals (NTSC) and Y/C signals (NTSC) only
Note
Some size modes are not available for certain types of input signals. [NORMAL] cannot be selected for video signal (NTSC), Y/C signal (NTSC), and RGB signal (480i, 480p).
If an aspect ratio which is different from the aspect ratio for the input signals is selected, the images will appear differently from the originals. Be careful of this when selecting the aspect ratio.
If using the projector in places such as cafes or hotels to display programs for a commercial purpose or for public presentation, note that adjusting the aspect ratio or using the zoom function to change the screen images may be an infringement of the rights of the original copyright owner for that program under copyright protection laws. Take care when using a function of the projector such as the aspect ratio adjustment and zoom function.
If conventional (normal) 4:3 images which are not wide-screen images are displayed on a wide screen, the edges of the images may not be visible or they may become distorted. Such images should be viewed as with an aspect ratio of 4:3 in the original format intended by the creator of the images.
[ZOOM]
You can adjust the image size.
When [ASPECT] is set to other than [NORMAL] and [NATIVE]
1) Press ▲▼ to select [ZOOM]. button.
• The [ZOOM] screen is displayed.
3) Press ▲▼ to select [INTERLOCKED].
[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio. [ON] Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the same magnification.
5) Press ▲▼ to select [VERTICAL] or [HORIZONTAL].
- If [ON] is selected, select [BOTH].
6) Press ◀▶ to adjust.
Note
- When [ASPECT] is set to [NATIVE], [ZOOM] cannot be adjusted.
When [ASPECT] is set to [NORMAL]
1) Press ▲▼ to select [ZOOM]. button.
• The [ZOOM] screen is displayed.
3) Press ▲▼ to select [MODE].
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT].
5) Press ▲▼ to select [INTERLOCKED].
[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio. [ON] Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the same magnification.
7) Press ▲▼ to select [VERTICAL] or [HORIZONTAL].
- If [ON] is selected, select [BOTH].
8) Press ◀▶ to adjust.
Note
- When [ASPECT] is not set to [NORMAL], [MODE] is not displayed.
[CLOCK PHASE]
You can adjust to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press ▲▼ to select [CLOCK PHASE]. button.
- The [CLOCK PHASE] individual adjustment screen is displayed.
3) Press ◀▶ to adjust.
- Adjustment value will change between [0] and [+31] . Adjust so that the amount of interference is at a minimum.
Note
Certain signals may not be adjustable.
Optimal value may not be achieved if the output from the input computer is unstable.
Optimal value may not be achieved when there is a shift in the total dot numbers.
[CLOCK PHASE] can be adjusted only when a signal is input to the terminal or the terminal.
[CLOCK PHASE] cannot be adjusted when a digital signal is input.
If you press while the adjustment value is [+31] , the value will become [0]. If you press while the adjustment value is [0], the value will become [+31] .
[KEYSTONE]
You can correct the keystone distortion that occurs when the projector is installed tilted or when the screen is tilted.
Setting [KEYSTONE]
1) Press ▲▼ to select [KEYSTONE]. button. button.
70 - ENGLISH
[KEYSTONE] [VERTICAL] [HORIZONTAL]
Setting [CORNER CORRECTION]
1) Press ▲▼ to select [KEYSTONE]. button. button.
• The [CORNER CORRECTION] screen is displayed.
5) Press ▲▼ to select the item to adjust, and press the button.
- The [CORNER CORRECTION] individual adjustment screen ([UPPER LEFT], [UPPER RIGHT], [LOWER LEFT] or [LOWER RIGHT]) is displayed.
6) Press ▲▼◀▶ to adjust.
[CORNER CORRECTION] [UPPER LEFT] [UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT]
Note
Either setting of [KEYSTONE] or [CORNER CORRECTION] is enabled. If the other item is adjusted after [KEYSTONE] or [CORNER CORRECTION] was adjusted, the previous setting value will be reset.
If the button is pressed on the remote control while the [KEYSTONE] or [CORNER CORRECTION] screen is displayed, the screen will be switched to the other adjustment screen.
Pressing the button while the [CORNER CORRECTION] individual adjustment screen is displayed will also display the individual adjustment screen for the next corner.
Correcting up to ± 40^ for the tilt in the vertical direction (maximum value when adjusting only [VERTICAL]), and up to ± 30^ for the tilt in the horizontal direction (maximum value when adjusting only [HORIZONTAL]) are available for adjustments with [KEYSTONE]. (Maximum correction amount may be reduced depending on the Projection Lens in use or lens position by shift adjustment.) However, the image quality will degrade and it will get harder to focus with more correction. Install the projector so that the correction will be as small as possible.
Screen size will also change when [KEYSTONE] is used to perform various adjustments.
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-menu.
Refer to "Navigating through the menu" (→ page 57) for the operation of the menu screen.
• After selecting the item, press ▲▼◀▶ to adjust.
LENS
WUTTER
ENTER
ON SCREAM
HDMI SHIFT
AUTO SETUP
RGB1/2
RBITAL LINK
DVD
VIDEO
Display Port
HDMI
VINCER 1
RYY/1/2
OFFALT 3
[DIGITAL CINEMA REALITY]
You can increase the vertical resolution and enhance the image quality by performing cinema processing when the PAL (or SECAM) 576i signal, the NTSC 480i signal, and 1080/50i, 1080/60i are input.
1) Press ▲▼ to select [DIGITAL CINEMA REALITY].
2) Press ◀▶ to switch the item.
• The items will switch each time you press the button.
[AUTO] Performs automatic detection and cinema processing. (Factory default) [OFF] Does not perform cinema processing. [30p FIXED] Only during 480i or 1080/60i signal input Performs forced cinema processing (2:2 pulldown). [25p FIXED] Only during 576i or 1080/50i signal input
Note
- In [DIGITAL CINEMA REALITY], the picture quality will degrade when a signal other than the 2:2 pulldown is set as [25p FIXED] or [30p FIXED]. (Vertical resolution will degrade.)
[BLANKING]
You can adjust the blanking width if there are noises at the edge of the screen or the image is slightly running out from the screen while an image from the VCR or other devices are projected.
1) Press ▲▼ to select [BLANKING].
2) Press the button.
• The [BLANKING] adjustment screen is displayed.
3) Press ▲▼ to select [UPPER], [LOWER], [LEFT], or [RIGHT].
4) Press ◀▶ to adjust the blanking width.
Blanking correction Item Operation Adjustment Range of adjustment Top of the screen [UPPER] Press the ◀ button. The blanking zone moves upward. PT-EZ580: Top to bottom 0 - 599 PT-EW640 PT-EW540: Top to bottom 0 - 399 PT-EX610 PT-EX510: Top to bottom 0 - 383 Press the ▶ button. The blanking zone moves downward. Bottom of the screen [LOWER] Press the ▶ button. The blanking zone moves upward. Press the ◀ button. The blanking zone moves downward.
72 - ENGLISH
Blanking correction Item Operation Adjustment Range of adjustment Left side of the screen [LEFT] Press the ▶ button. The blanking zone moves to the right. PT-EZ580: Left to right 0 - 959PT-EW640PT-EW540: Left to right 0 - 639PT-EX610PT-EX510: Left to right 0 - 511 Press the ◀ button. The blanking zone moves to the left. Right side of the screen [RIGHT] Press the ◀ button. The blanking zone moves to the right. Press the ▶ button. The blanking zone moves to the left.
You can adjust to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press ▲▼ to select [INPUT RESOLUTION]. button.
- The [INPUT RESOLUTION] screen is displayed.
3) Press ▲▼ to select [TOTAL DOTS], [DISPLAY DOTS], [TOTAL LINES], or [DISPLAY LINES], and press ◀▶ to adjust each item.
Note
Previously mentioned vertical banding will not occur with all white signal input.
[INPUT RESOLUTION] can be adjusted only when an RGB signal is input to the terminal or the terminal.
Certain signals may not be adjustable.
[CLAMP POSITION]
You can adjust the optimal point when the black part of the image is blunt or it has turned green.
1) Press ▲▼ to select [CLAMP POSITION].
Status Rough guide for optimal value Range of adjustment The black part is blunt. The point where bluntness of the black part improves the most is the optimal value. 1 - 255 The black part is green. The point where the green part becomes black, and the bluntness has improved is the optimal value.
Note
[CLAMP POSITION] can be adjusted only when a signal is input to the terminal or the terminal.
Certain signals may not be adjustable.
[RASTER POSITION]
This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area.
1) Press ▲▼ to select [RASTER POSITION]. button.
- The [RASTER POSITION] screen is displayed.
3) Press ▲▼◀▶ to adjust the position.
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the submenu.
Refer to "Navigating through the menu" (→ page 57) for the operation of the menu screen.
- Press ▲▼ to select a language, and press the button to set.
Changing the display language
You can select the language of the on-screen display.
● ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALAND
PORTUGUES
日本語
中文
PYCOKOM
BENI
SELECT
200 SET
Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected language.
Note
- The on-screen display language of the projector is set to English by default and when [ALL USER DATA] (→ page 96) in [INITIALIZE] is executed.
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-menu.
Refer to "Navigating through the menu" (→ page 57) for the operation of the menu screen.
• After selecting the item, press ▲▼◀▶ to set.
LENS
UINTA
ENTER
ON SCREEN
INPUT SELECT
AUTO SETUP
RGB 1/2
DISTRAL LINK
DVD
VIDEO
DISPLAY
HDMI
FUNCTION 1
RITCH 2
DEFAULT 3
[COLOR ADJUSTMENT]
Correct the color difference between projectors when using multiple projectors simultaneously.
1) Press ▲▼ to select [COLOR ADJUSTMENT].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Color adjustment is not carried out. [3COLORS] Adjusts the three colors [RED], [GREEN], or [BLUE]. [7COLORS] Adjusts the seven colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE].
3) Select [3COLORS] or [7COLORS], and press the button.
• The [3COLORS] or [7COLORS] screen is displayed.
4) Press ▲▼ to select [RED], [GREEN], or [BLUE] ([RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE] for [7COLORS]).
5) Press the button.
The [3COLORS:RED], [3COLORS:GREEN], or [3COLORS:BLUE] screen is displayed.
Set [AUTO TESTPATTERN] to [ON] to display a test pattern of selected colors.
6) Press ▲▼ to select [RED], [GREEN], or [BLUE].
7) Press ◀▶ to adjust.
- The adjustment value changes between 0 and 2 048.
*1 The lower limit varies depending on the adjusting color.
Note
• Operation when correcting the adjustment color
When the correction color same as the adjustment color is changed: The luminance of the adjustment color changes.
When correction color red is changed: Red is added to or subtracted from the adjustment color.
When correction color green is changed: Green is added to or subtracted from the adjustment color.
When correction color blue is changed: Blue is added to or subtracted from the adjustment color.
This adjustment should be carried out by a person who is familiar with the projector or by a service person because a high level of skill is required to make a successful adjustment.
Set the [AUTO TESTPATTERN] to [ON] to automatically display a test pattern for use in adjusting the selected adjustment colors.
Pressing the button on the remote control will restore the factory default settings for all items.
If [COLOR ADJUSTMENT] is set to other than [OFF], [COLOR CORRECTION] is fixed to [OFF], and [COLOR TEMPERATURE] is fixed to [USER]. (However, [WHITE BALANCE HIGH] cannot be adjusted.)
[COLOR CORRECTION]
Colors can be adjusted and registered for each input signal format.
1) Press ▲▼ to select [COLOR CORRECTION].
2) Press ◀▶ to switch the item.
• The items will switch each time you press the button.
[OFF] Standard setting [USER] For each of the following four signal formats: VIDEO, Y/C, RGB, and YP_BP_R/YC_BC_R , six colors of red, green, blue, cyan, magenta, and yellow can be adjusted and registered. Press thebutton to set the details. Adjustment is possible within the range of -31 - +31.
[SCREEN SETTING]
Set the screen size.
Correct to the optimum image position for the set screen when changing the aspect ratio of a projected image. Set as necessary for the screen in use.
1) Press ▲▼ to select [SCREEN SETTING].
2) Press the button.
- The [SCREEN SETTING] screen is displayed.
3) Press ◀▶ to switch the [SCREEN FORMAT] item.
- The items will switch each time you press the button.
Model No. [SCREEN FORMAT] Range when [SCREEN POSITION] is selected PT-EZ580 [16:10] Cannot be adjusted. [4:3] Adjusts the horizontal position between -160 and 160. [16:9] Adjusts the vertical position between -60 and 60. PT-EW640, PT-EW540 [16:10] Cannot be adjusted. [16:9] Adjusts the vertical position between -40 and 40. PT-EX610, PT-EX510 [4:3] Cannot be adjusted. [16:9] Adjusts the vertical position between -96 and 96.
4) Press ▲▼ to select [SCREEN POSITION].
- If [SCREEN FORMAT] is set to [16:10] on PT-EZ580, PT-EW640, PT-EW540, or [SCREEN FORMAT] is set to [4:3] on PT-EX610, PT-EX510, then selection and adjustment of [SCREEN POSITION] are not available.
5) Press ◀▶ to adjust [SCREEN POSITION].
[AUTO SIGNAL]
Set whether to execute automatic setup of signals automatically.
The screen display position or signal level can be adjusted automatically without pressing the button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc.
1) Press ▲▼ to select [AUTO SIGNAL].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Sets the auto signal function to off. [ON] Executes automatic setup automatically when images are changed to unregistered signals during projection.
[AUTO SETUP]
Set this when adjusting a special signal or horizontally long (such as 16:9) signal.
Setting with [MODE]
1) Press ▲▼ to select [AUTO SETUP].
2) Press the button.
- The [AUTO SETUP] screen is displayed.
3) Press ▲▼ to select [MODE].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT]
Standard setting.
[WIDE] Select when an image aspect ratio is a wide-screen signal, which does not meet the [DEFAULT] settings. [USER] Select when receiving a signal with a special horizontal resolution (number of display dots).
When [DEFAULT] or [WIDE] is selected, proceed to Step 7).
When [USER] is selected, proceed to Step 5).
5) Press ▲▼ to select [DISPLAY DOTS], and press ◀▶ to adjust [DISPLAY DOTS] to the horizontal resolution of the signal source.
6) Press ▲▼ to select [MODE]. button.
- Automatic adjustment is executed. [PROGRESS] is displayed while automatically adjusting. When complete, the system returns to the [AUTO SETUP] screen.
Adjusting position automatically
1) Press ▲▼ to select [AUTO SETUP]. button.
• The [AUTO SETUP] screen is displayed.
3) Press ▲▼ to select [POSITION ADJUST].
[ON] Adjust the screen position and size when automatic setup is executed. [OFF] Does not perform automatic adjustment.
Adjusting signal level automatically
1) Press ▲▼ to select [AUTO SETUP]. button.
- The [AUTO SETUP] screen is displayed.
3) Press ▲▼ to select [SIGNAL LEVEL ADJUST].
[OFF] Does not perform automatic adjustment. [ON] Adjusts black level (on-screen menu [BRIGHTNESS]) and white level (on-screen menu [CONTRAST]) when automatic setup is executed.
Note
- [SIGNAL LEVEL ADJUST] may not function properly unless a still image containing clear blacks and whites is input.
[RGB IN]
Set to match the signal to input to the terminal and terminal.
1) Press ▲▼ to select [RGB IN]. button.
- The [RGB IN] screen is displayed.
3) Press ▲▼ to select [RGB1 SYNC SLICE LEVEL] or [RGB2 SYNC SLICE LEVEL].
[LOW] Sets the slice level to [LOW]. [HIGH] Sets the slice level to [HIGH].
1) Press ▲▼ to select [RGB IN]. button.
• The [RGB IN] screen is displayed.
3) Press ▲▼ to select [RGB2 INPUT SETTING].
- The items will switch each time you press the button.
[RGB/YP _B P _R ] Select when inputting RGB signals or Y _C_B C _R /YP _B P _R signals to theterminal. [Y/C] Select when inputting luminance signals and color signals to theterminal. [VIDEO] Select when inputting video signals to theterminal.
[DVI-D IN]
Switch the setting when the external device is connected to the terminal of the projector and the image is not projected correctly.
1) Press ▲▼ to select [DVI-D IN]. button.
• The [DVI-D IN] screen is displayed.
3) Press ▲▼ to select [EDID].
- The items will switch each time you press the button.
[EDID3] Recognizes movie-based video signals and still image signals automatically. [EDID1] Select mainly when an external device that outputs movie-based video signals (such as a Blu-ray disc player) is connected to theterminal. [EDID2:PC] Select mainly when an external device that outputs still image video signals (such as a computer) is connected to theterminal.
5) Press ▲▼ to select [SIGNAL LEVEL].
- The items will switch each time you press the button.
[AUTO] Automatically sets the signal level. [0-255:PC] Select when the DVI-D terminal output of an external device (such as a computer) is connected to theterminal. [16-235] Select when the HDMI terminal output of an external device (such as a Blu-ray disc player) is connected to theterminal via a conversion cable or similar cable.
Note
The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device.
The data for Plug and play will change when the setting is changed. Refer to “List of compatible signals” ( page 146) for a resolution that supports plug and play.
[HDMI IN]
Set the signal level when HDMI input is selected.
1) Press ▲▼ to select [HDMI IN]. button.
• The [HDMI IN] screen is displayed.
3) Press ◀▶ to switch the [SIGNAL LEVEL] item.
- The items will switch each time you press the button.
[AUTO] Automatically sets the signal level. [64-940] Select when the HDMI terminal output of an external device (such as a Blu-ray disc player) is connected to theterminal. [0-1023] Select when the DVI-D terminal output of an external device (such as a computer) is connected to theterminal via a conversion cable or similar cable.Select also when the HDMI terminal output of a computer or other device is connected to theterminal.
Note
The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device.
The displayed signal level is assumed when the input is 30 bits.
[DIGITAL LINK IN]
(Only for PT-EZ580, PT-EW640 and PT-EX610)
Set the signal level when DIGITAL LINK input is selected.
1) Press ▲▼ to select [DIGITAL LINK IN].
2) Press the button.
• The [DIGITAL LINK IN] screen is displayed.
3) Press ◀▶ to switch [SIGNAL LEVEL].
- The items will switch each time you press the button.
[AUTO] Automatically sets the signal level. [64-940] Select when the HDMI terminal output of an external device (such as a Blu-ray disc player) is connected to theterminal via a twisted-pair-cable transmitter. [0-1023] Select when the DVI-D terminal output or HDMI terminal output of an external device (such as a computer) is connected to theterminal via a twisted-pair-cable transmitter.
Note
The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device.
The displayed signal level is assumed when the input is 30 bits.
[DisplayPort IN]
(Only for PT-EZ580, PT-EW640 and PT-EX610)
Set the signal level when DisplayPort input is selected.
1) Press ▲▼ to select [DisplayPort IN].
2) Press the button.
- The [DisplayPort IN] screen is displayed.
3) Press ◀▶ to switch [SIGNAL LEVEL].
- The items will switch each time you press the button.
[AUTO] Automatically sets the signal level. [64-940] Select when the dark parts of the screen rise up as black. [0-1023] Select when bright parts of the screen are dropped out white and dark parts are filled in as solid black.
Note
The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device.
The displayed signal level is assumed when the input is 30 bits.
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [OSD POSITION]
Set the position of the menu screen (OSD).
1) Press ▲▼ to select [ON-SCREEN DISPLAY].
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD POSITION].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[2] Sets to the center left of the screen. [3] Sets to the bottom left of the screen. [4] Sets to the top center of the screen. [5] Sets to the center of the screen. [6] Sets to the bottom center of the screen. [7] Sets to the upper right of the screen. [8] Sets to the center right of the screen. [9] Sets to the bottom right of the screen. [1] Sets to the upper left of the screen.
Setting [OSD DESIGN]
Set the color of the menu screen (OSD).
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD DESIGN].
- The items will switch each time you press the button.
[1] Sets to yellow. [2] Sets to blue. [3] Sets to white. [4] Sets to green. [5] Sets to peach. [6] Sets to brown.
Setting [OSD MEMORY]
Set hold for the position of the menu screen (OSD) cursor.
1) Press ▲▼ to select [ON-SCREEN DISPLAY]. button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [OSD MEMORY].
- The items will switch each time you press the button.
[ON] Holds the cursor position. [OFF] Does not hold the cursor position.
Note
- Even if [OSD MEMORY] is set to [ON], the cursor position will not be held when the switch of the projector body is turned .
Set whether to display the input guide (input terminal name, signal name, and memory number currently selected) in the position set in the [OSD POSITION].
1) Press ▲▼ to select [ON-SCREEN DISPLAY].
2) Press the button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [INPUT GUIDE].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ON] Displays the input guide. [OFF] Hides the input guide.
Setting [WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press ▲▼ to select [ON-SCREEN DISPLAY].
2) Press the button.
- The [ON-SCREEN DISPLAY] screen is displayed.
3) Press ▲▼ to select [WARNING MESSAGE].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ON] Displays the warning message. [OFF] Hides the warning message.
Set closed captions.
Selecting the closed caption display
1) Press ▲▼ to select [CLOSED CAPTION SETTING].
2) Press the button.
- The [CLOSED CAPTION SETTING] screen is displayed.
3) Press ▲▼ to select [CLOSED CAPTION].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] Hides closed captions. [ON] Displays closed captions.
- When [ON] is selected, proceed to Step 5).
5) When the confirmation screen is displayed, press ◀▶ to select [OK], and press the button.
Setting the closed caption display
1) Press ▲▼ to select [CLOSED CAPTION SETTING].
2) Press the button.
- The [CLOSED CAPTION SETTING] screen is displayed.
3) Press ▲▼ to select [MODE].
4) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[CC1] Displays CC1 data. [CC2] Displays CC2 data. [CC3] Displays CC3 data. [CC4] Displays CC4 data.
Note
Closed caption is a function that displays text information of video signals mainly used in North America. Captions may not be displayed depending on the connected devices or contents being played back.
[CLOSED CAPTION SETTING] can be selected only if NTSC or 480i YC B C R signal is input.
If [CLOSED CAPTION] is set to [ON], brightness of images may change depending on the external devices compatible with closed caption function to be connected or contents to be used.
If a closed caption signal of the selected mode is input, the security message set in the [SECURITY] menu → [DISPLAY SETTING] (→ page 105) is not displayed.
Closed captions are not displayed when the menu screen is displayed.
[BACK COLOR]
Set the display of the projected screen when there is no signal input.
1) Press ▲▼ to select [BACK COLOR].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[BLUE] Displays the entire projection area in blue. [BLACK] Displays the entire projection area in black. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user.
Note
- To create/register the [USER LOGO] image, use "Logo Transfer Software" included in the supplied CD-ROM.
[STARTUP LOGO]
Set the logo display when the power is turned on.
1) Press ▲▼ to select [STARTUP LOGO].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. [NONE] Disables the startup logo display.
Note
The startup logo will disappear in approximately 15 seconds.
To create/register the [USER LOGO] image, use "Logo Transfer Software" included in the supplied CD-ROM.
[SHUTTER SETTING]
(Only for PT-EZ580, PT-EW640 and PT-EX610)
Set automatic opening and closing of the shutter when the power is turned off/on.
Setting [STARTUP]
1) Press ▲▼ to select [SHUTTER SETTING]. button.
- The [SHUTTER SETTING] screen is displayed.
3) Press ▲▼ to select [STARTUP].
[OPEN] Projection begins with the shutter open when the power is turned on. [CLOSE] Projection begins with the shutter close when the power is turned on.
Setting [SHUT-OFF]
1) Press ▲▼ to select [SHUTTER SETTING].
82 - ENGLISH
2) Press the button.
- The [SHUTTER SETTING] screen is displayed.
3) Press ▲▼ to select [SHUT-OFF].
4) Press ◀▶ to switch the item.
[KEEP CURRENT STATE] When the projector is switched off, the projector turns into standby with the shutter status as is. [OPEN] When the projector is switched off, the projector turns into standby with the shutter left opened. [CLOSE] When the projector is switched off, the projector turns into standby with the shutter left closed.
[P-TIMER]
Set and operate the presentation timer function.
Setting the mode
1) Press ▲▼ to select [P-TIMER].
2) Press the button.
• The [P-TIMER] screen is displayed.
3) Press ▲▼ to select [MODE].
4) Press ◀▶ to switch the item.
[COUNT UP] Displays the elapsed time since the count was started. [COUNT DOWN] Displays the remaining time of the time set by [TIMER].
Setting the timer
1) Press ▲▼ to select [P-TIMER].
2) Press the button.
• The [P-TIMER] screen is displayed.
3) Press ▲▼ to select [TIMER].
4) Press ◀▶ to set the time.
The time can be set in 1-minute increments from 1 to 180 minutes.
The factory default value is 10 minutes.
Note
- [TIMER] is enabled when [MODE] is set to [COUNT DOWN].
Using the presentation timer
1) Press ▲▼ to select [P-TIMER].
2) Press the button.
- The [P-TIMER] screen is displayed.
3) Press ▲▼ to select the item, and press the button.
[START] The count is started. [STOP] The count is stopped. [RESTART] The count is resumed. [RESET] The count is reset.
When [START] or [RESTART] is selected, the elapsed time or the remaining time is displayed at the bottom right of the projected image.
When [STOP] is selected, the elapsed time or the remaining time when the count was stopped is displayed at the bottom right of the projected image.
When [RESET] is selected, proceed to Step 4).
- The start time is displayed at the bottom right of the projected image.
Note
Presentation timer operations are also possible by the button on the remote control. (→ page 53)
The security message set in the [SECURITY] menu → [DISPLAY SETTING] (→ page 105) is not displayed when the elapsed time or remaining time is displayed.
The elapsed time or remaining time are not displayed when the menu screen is displayed.
The start time becomes "000:00" when [MODE] is set to [COUNT UP].
When [MODE] is set to [COUNT DOWN], the start time becomes the value set at [TIMER].
The time gauge turns clockwise when [COUNT UP] is set, and turns counterclockwise when [COUNT DOWN] is set.
Ending the presentation timer
1) Press ▲▼ to select [P-TIMER]. button. button.
[FREEZE]
The projected image is paused and audio turned off regardless of the playback of the external device.
1) Press ▲▼ to select [FREEZE].
2) Press the button.
- Press the
button to release.
Note
- [FREEZE] is displayed on the screen when video is paused.
[DIGITAL ZOOM]
Enlarge images and move the image zoom position.
Fig. 1
2) Press the button.
Operation Adjustment Range of adjustment Press ▶. Raises the magnification. +1.0 - +2.0 Press ◀. Lowers the magnification.
4) Press the button.
5) Press ▲▼◀▶ to move the zoom position. (Fig. 1)
84 - ENGLISH
Note
The magnification can be adjusted in increments of 0.1 between 1.0x and 2.0x. For some computer signals, the magnification can be adjusted up to 3.0x.
The digital zoom function is canceled if the button is pressed during a digital zoom.
The digital zoom function is canceled if the input signal changes during a digital zoom.
During a digital zoom, the freeze function is disabled.
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-menu.
Refer to "Navigating through the menu" (→ page 57) for the operation of the menu screen.
• After selecting the item, press ▲▼◀▶ to set.
KEystone 2
DEFAULT 3
FREEZE 4
0.200M 5
MUTE 6
P-TIMER 7
P IN P 8
ASPECT 9
ID-ALL
STATUS 0
ID SET
Panasonic
[PROJECTOR ID]
The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
1) Press ▲▼ to select [PROJECTOR ID].
2) Press ◀▶ to switch the item.
• The items will switch each time you press the button.
[ALL] Select when controlling projectors without specifying an ID number. [1] - [64] Select when specifying an ID number to control individual projector.
Note
To specify an ID number for individual control, the ID number of a remote control must match the ID number of the projector.
When the ID number is set to [ALL], the projector will operate regardless of the ID number specified during remote control or computer control.
Refer to "Setting the ID number of the remote control" (→ page 27) for how to set the ID number on the remote control.
[PROJECTION METHOD]
Set the projection method in accordance with the installation status of the projector.
Change the projection method if the screen display is upside down or inverted.
1) Press ▲▼ to select [PROJECTION METHOD].
2) Press the button.
• The [PROJECTION METHOD] screen is displayed.
3) Press ▲▼ to select the projection method.
[FRONT/FLOOR] When installing the projector on the desk, etc., in front of the screen [FRONT/CEILING] When installing the projector in front of the screen using the Ceiling Mount Bracket (optional) [REAR/FLOOR] When installing the projector on the desk, etc., behind the screen (with a translucent screen) [REAR/CEILING] When installing the projector behind the screen (with a translucent screen) using the Ceiling Mount Bracket (optional)
4) Press the button.
Note
- When [FRONT/CEILING] or [REAR/CEILING] is set, the operation direction using ▲▼ on the control panel is reversed.
[ECO MANAGEMENT]
This function optimizes lamp power according to the operating status to reduce power consumption.
Setting [LAMP POWER]
Switch the brightness of the lamp according to the operating environment of the projector or the purpose.
1) Press ▲▼ to select [ECO MANAGEMENT].
2) Press the button.
• The [ECO MANAGEMENT] screen is displayed.
3) Press ▲▼ to select [LAMP POWER].
4) Press ◀▶ to switch the item.
[AUTO] Power is automatically adjusted so that optimum luminance is obtained according to the brightness of input signals. [NORMAL] Select when high luminance is required. [ECO] Power is lowered by about 15 % on average.
Note
When [ECO] is set, you can reduce power consumption and operation noise, and extend the life of the lamp.
When [LAMP POWER] is set to [ECO], [AMBIENT LIGHT DETECTION] cannot be set.
When [PICTURE MODE] (→ page 62) is set to [DICOM SIM.], [LAMP POWER] cannot be set. [LAMP POWER] is fixed to [NORMAL].
Setting [AUTO POWER SAVE]
Set whether or not to enable the three functions, [AMBIENT LIGHT DETECTION], [SIGNAL DETECTION] and [SHUTTER DETECTION] ^1 , [AV MUTE DETECTION] ^2 .
1) Press ▲▼ to select [ECO MANAGEMENT]. button.
- The [ECO MANAGEMENT] screen is displayed.
3) Press ▲▼ to select [AUTO POWER SAVE].
- The items will switch each time you press the button.
[ON] Enables the energy conservation setting. [OFF] Disables the energy conservation setting.
5) Press ▲▼ to select [AMBIENT LIGHT DETECTION], [SIGNAL DETECTION], [SHUTTER DETECTION] 1, [AV MUTE DETECTION] 2.
[AMBIENT LIGHT DETECTION] Adjusts the power of the lamp according to the brightness of the installation location. [SIGNAL DETECTION] Lowers the power of the lamp when there is no signal. [SHUTTER DETECTION]*1 Lowers the power of the lamp when the shutter is closed. [AV MUTE DETECTION]*2 Lowers the power of the lamp when the AV mute function is activated.
*1 For PT-EZ580, PT-EW640 and PT-EX610
6) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[ON] Enables the setting. [OFF] Disables the setting.
Note
When [AUTO POWER SAVE] is set to [OFF], settings of [AMBIENT LIGHT DETECTION], [SIGNAL DETECTION], [SHUTTER DETECTION] ^1 are unavailable.
When objects, etc. are placed around the luminance sensor on the top of the projector, [AMBIENT LIGHT DETECTION] may not function properly.
Setting [NO SIGNAL SHUT-OFF]
A function that automatically switches the power of the projector to standby if there is no input signal for a certain period of time. The time before switching to standby can be set.
1) Press ▲▼ to select [ECO MANAGEMENT]. button.
- The [ECO MANAGEMENT] screen is displayed.
3) Press ▲▼ to select [NO SIGNAL SHUT-OFF].
- The items will switch each time you press the button.
[DISABLE] Disables the No signal shut-off function. [10MIN.] - [90MIN.] Allows you to set in ten minutes intervals.
Setting [STANDBY MODE]
Set the power consumption during the standby.
1) Press ▲▼ to select [ECO MANAGEMENT]. button.
- The [ECO MANAGEMENT] screen is displayed.
3) Press ▲▼ to select [STANDBY MODE].
- The items will switch each time you press the button.
[ECO] Use this setting to reduce power consumption during standby. [NORMAL] Use this setting to use the network function during standby.
Note
When [ECO] is set, the network function and some RS-232C commands become inoperable during standby. When [NORMAL] is set, the network function becomes operable during standby.
When set to [ECO], it may take approx. 10 seconds longer before the projector starts projecting after the power is turned on, compared with when [NORMAL] is set.
The [STANDBY MODE] settings are not reset to their factory defaults when [ALL USER DATA] in [PROJECTOR SETUP] menu → [INITIALIZE] (→ page 96) is executed.
[SCHEDULE]
Set the command execution schedule for each day of the week.
Enabling/disabling the schedule function
1) Press ▲▼ to select [SCHEDULE].
- The items will switch each time you press the button.
[OFF] Disables the schedule function. [ON] Enables the schedule function. Refer to “How to assign a program” (→ page 88) or “How to set a program” (→ page 89) for how to set the schedule.
Note
- When [SCHEDULE] is set to [ON], the [STANDBY MODE] setting is forcibly switched to [NORMAL], and the setting cannot be changed. Even if [SCHEDULE] is then set to [OFF] when in this state, the setting of [STANDBY MODE] remains at [NORMAL].
How to assign a program
1) Press ▲▼ to select [SCHEDULE].
2) Press ◀▶ to select [ON], and press the button.
- The [SCHEDULE] screen is displayed.
3) Select and assign program to each day of week.
- Press ▲▼ to select the day of week, and press ◀▶ to select a program number.
- You can set the program from No.1 to No.7. “--” indicates that the program number has not been set.
How to set a program
Set up to 16 commands to each program.
1) Press ▲▼ to select [SCHEDULE].
2) Press ◀▶ to select [ON], and press the button.
- The [SCHEDULE] screen is displayed.
3) Press ▲▼ to select [PROGRAM EDIT].
4) Press ◀▶ to select a program number, and press the button.
5) Press ▲▼ to select a command number, and press the button.
- You can change the page using ◀.
6) Press ▲▼◀▶ to select [TIME], and press the button.
7) Press ◀▶ to select "hour" or "minute", and press ▲▼ or the number (<0> - <9>) buttons to set a time, and then press the button.
8) Press ▲▼◀▶ to select [COMMAND].
9) Press the button.
- The [COMMAND] detailed screen is displayed.
10) Press ▲▼ to select a [COMMAND].
For [COMMAND] which requires detailed settings, the items of the detailed settings will switch each time you press ◀.
When [INPUT] is selected, press the button, and then press ▲▼◀▶ to select the input to set.
[COMMAND] Detailed settings of [COMMAND] Description [POWER ON] — Switches on the projector. [STANDBY] — Enters standby. [SHUTTER] *1 [OPEN] Opens the shutter. [CLOSE] Closes the shutter. [INPUT] [VIDEO] Switches the input to VIDEO. [RGB1] Switches the input to RGB1. [RGB2] Switches the input to RGB2. [DVI-D] Switches the input to DVI-D. [HDMI] Switches the input to HDMI. [DIGITAL LINK] *2 Switches the input to DIGITAL LINK. [DisplayPort] *2 Switches the input to DisplayPort. [INPUT1] - [INPUT10] *2*3 Switches the input to DIGITAL LINK, and switch the input of the Panasonic twisted-pair-cable transmitter to the specified input. [LAMP POWER] [AUTO] Sets [LAMP POWER] to [AUTO]. [NORMAL] Sets [LAMP POWER] to [NORMAL]. [ECO] Sets [LAMP POWER] to [ECO]. [P IN P] [OFF] P IN P function is not used. [USER1] Lays out the sub-screen with the settings of [USER1]. [USER2] Lays out the sub-screen with the settings of [USER2]. [USER3] Lays out the sub-screen with the settings of [USER3]. [IN STANDBY MODE(AUDIO)] [OFF] Audio output is stopped during standby. [ON] Audio is output during standby. [VOLUME] [0] - [63] Sets the volume.
*1 For PT-EZ580, PT-EW640 and PT-EX610
*3 When the Panasonic twisted-pair-cable transmitter (such as the optional Digital Interface Box (Model No.: ET-YFB100G)) is connected to the projector, its input name is reflected from [INPUT1] to [INPUT10] automatically. If an item where the input name is not reflected is selected, it is disabled.
The command is fixed and is displayed at the left of the selected command.
After the command is fixed, press the button to close the detailed setting screen.
Note
If you attempt to register the setting that would make the lamp turn on for a short time during the same day, an error message will be displayed on the screen. Set the time and command again. If you set a schedule that would make the lamp turn on for a short time across two or more days, an error message will not be displayed. When executing a command for turning the projector on, provide an interval of at least four minutes between the [STANDBY] and the [POWER ON] command. When executing a command for setting the projector to standby, provide an interval of at least 31 minutes between the [POWER ON] command and the [STANDBY] command.
To delete a command already set, press the button on the remote control at the screen in Step 5), or select [DELETE] at the screen in Step 6) and press the button.
If multiple commands have been set for the same time, they are executed in chronological order starting from the smallest command number.
The operating time will be the local time. (→ page 95)
If an operation is executed with the remote control or control panel of the projector or with a control command before the command set in [SCHEDULE] is executed, the command set with this function may not be executed.
Set the input when the projector is switched on to start projection.
- The [STARTUP INPUT SELECT] screen is displayed.
- The items will switch each time you press the button.
[LAST USED] Keeps the input selected last. [VIDEO] Sets the input to VIDEO. [RGB1] Sets the input to RGB1. [RGB2] Sets the input to RGB2. [DVI-D] Sets the input to DVI-D. [HDMI] Sets the input to HDMI. [DIGITAL LINK]*1 Sets the input to DIGITAL LINK. [DisplayPort]*1 Sets the input to DisplayPort. [INPUT1] - [INPUT10]*1*2 Sets the input to DIGITAL LINK, and switch the input of Panasonic twisted-pair-cable transmitter to the specified input.
*1 Only for PT-EZ580, PT-EW640 and PT-EX610
[RS-232C]
Set the communication conditions of the terminal.
Setting the communication condition of the terminal
1) Press ▲▼ to select [RS-232C].
• The [RS-232C] screen is displayed.
- Only for PT-EZ580, PT-EW640 and PT-EX610. PT-EW540 and PT-EX510 are from step 5).
4) Press ◀▶ to switch the item.
90 - ENGLISH
[PROJECTOR] Use theterminal of the projector to execute RS-232C communication. [DIGITAL INTERFACE BOX] Executes RS-232C communication via the optional Digital Interface Box (Model No.: ET-YFB100G) and theterminal.
5) Press ▲▼ to select [BAUDRATE].
6) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[9600] Select the proper speed. [19200] [38400]
7) Press ▲▼ to select [PARITY].
8) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[NONE] Select the parity condition. [ EVEN ] [ ODD ]
Setting the control commands of an existing projector
When controlling the projector on a computer, set use of control commands on a previously purchased Panasonic projector. This allows the control software for an existing Panasonic projector to be inherited and used.
1) Press ▲▼ to select [RS-232C]. button. button.
[DEFAULT] EZ580 series, EW640 series, EX610 series, EW540 series, EX510 series, VW345N series, VX415N series, VW340Z, VX410Z, VX42Z, VX406EA, VX46EA, EZ770 series, EW730 series, EX800 series, RZ475 series, RZ470 series, RW430 series, RZ370 series, RW330 series [D3500] D3500 series [D4000] D4000 series [D/W5k SERIES] D5700 series, DW5100 series, D5600 series, DW5000 series, D5500 series [D/W/Z6k SERIES] DZ770 series, DW740 series, DX810 series, DZ680 series, DW640 series, DX610 series, DW730 series, DX800 series, DZ6710 series, DZ6700 series, DW6300 series, D6000 series, D5000 series, DZ570 series, DW530 series, DX500 series [L730 SERIES] L730 series, L720 series, L520 series [L780 SERIES] L780 series, L750 series [L735 SERIES] L735 series [L785 SERIES] L785 series [F/W SERIES] FW430 series, FX400 series, FW300 series, F300 series, F200 series, FW100 series, F100 series [LZ370] LZ370 series [LB/W SERIES] LB3 series, LB2 series, LB1 series, ST10 series, LB90 series, LW80NT series, LB80 series, LB78 series, LB75 series [VX500 SERIES] VW435N series, VW440 series, VW430 series, VX505N series, VX510 series, VX501U, VX405KEA, VX45KEA, VX500 series, VW330 series, VX400NT series, VX400 series, VX41 series [EZ570 SERIES] EZ570 series, EW630 series, EW530 series, EX600 series, EX500 series [VW431D] VW431D series
6) Press the button. button.
Note
(Only for PT-EZ580, PT-EW640 and PT-EX610)
When [INPUT SELECT] is set to [DIGITAL INTERFACE BOX], communication using that serial terminal is available only when the corresponding device (such as the optional Digital Interface Box (Model No.: ET-YFB100G)) is connected to the terminal.
When transferring logos via the optional Digital Interface Box (Model No.: ET-YFB100G), "NO SIGNAL SLEEP" of ET-YFB100G must be set to "OFF" to avoid cutting off communication.
When [INPUT SELECT] is set to [DIGITAL INTERFACE BOX], communication speed is fixed to 9 600 bps.
[REMOTE2 MODE]
Set the terminal.
1) Press ▲▼ to select [REMOTE2 MODE].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[DEFAULT] The pin assignment of theterminal is used by the factory default setting of the projector. [USER] Used to change the setting of theterminal. [F/W SERIES] The setting of theterminal is used for the F/W series compatibility.
- When [USER] is selected, proceed to Step 3).
3) Press the button.
Set the functions of the button on the remote control.
1) Press ▲▼ to select [FUNCTION BUTTON]. button.
- The [FUNCTION BUTTON] screen is displayed.
3) Press ▲▼ to select a function.
[DISABLE] Disables thebutton. [SUB MEMORY] Displays the sub memory list. (⇨ page 103) [SYSTEM SELECTOR] Switches the [SYSTEM SELECTOR] setting. (⇨ page 66) [DAYLIGHT VIEW] Switches the [DAYLIGHT VIEW] setting. (⇨ page 66) [TEST PATTERN] Displays the test pattern built-in to the projector. (⇨ page 100)
4) Press the button.
[AUDIO SETTING]
Set audio functions in detail.
Adjusting the volume
1) Press ▲▼ to select [AUDIO SETTING]. button.
- The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select [VOLUME].
Operation Adjustment Range of adjustment Press ▶. Increases the volume. 0 - 63 Press ◀. Decreases the volume.
Adjusting the left to right audio balance
1) Press ▲▼ to select [AUDIO SETTING]. button.
• The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select [BALANCE].
Operation Adjustment Range of adjustment Press ▶. Increases the volume on the right. L16 - R16 Press ◀. Increases the volume on the left.
Setting audio output of the built-in speaker
1) Press ▲▼ to select [AUDIO SETTING]. button.
• The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select [BUILT-IN SP].
- The items will switch each time you press the button.
[ON] Audio is output from the built-in speaker. [OFF] Audio is not output from the built-in speaker.
Note
- Audio is output from the built-in speaker even if the cable is connected to the terminal. To output audio from external audio devices connected to the terminal and not from the built-in speaker, set [BUILT-IN SP] to [OFF].
Setting audio output in the standby mode
1) Press ▲▼ to select [AUDIO SETTING]. button.
• The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select [IN STANDBY MODE].
- The items will switch each time you press the button.
[OFF] Audio is not output during standby. [ON] Audio is output during standby.
Note
- When [STANDBY MODE] (→ page 88) in [PROJECTOR SETUP] menu → [ECO MANAGEMENT] is set to [ECO], audio cannot be output during standby.
Setting to mute mode
1) Press ▲▼ to select [AUDIO SETTING]. button.
• The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select [MUTE].
- The items will switch each time you press the button.
[OFF] Audio is not output. [ON] Audio is output.
1) Press ▲▼ to select [AUDIO SETTING]. button.
• The [AUDIO SETTING] screen is displayed.
3) Press ▲▼ to select the audio input.
- The items will switch each time you press the button.
[AUDIO IN 1] Audio connected to theterminal is output at projection of images from a preset input terminal. [AUDIO IN 2] Audio connected to theterminal is output at projection of images from a preset input terminal. [AUDIO IN 3] Audio connected to theterminal is output at projection of images from a preset input terminal. [HDMI AUDIO IN]*1 HDMI audio is output. [DIGITAL LINK AUDIO IN]*2 DIGITAL LINK audio is output. [DisplayPort AUDIO IN]*3 DisplayPort audio is output.
*1 Only when the input is HDMI
[STATUS]
Display the status of the projector.
1) Press ▲▼ to select [STATUS]. button.
• The [STATUS] screen is displayed.
[INPUT] Displays the input terminal currently selected. [SIGNAL NAME] Displays the input signal name. [SIGNAL FREQUENCY] Displays the frequency of the input signal. [PROJECTOR RUNTIME] Displays the operation times of the projector. [LAMP : ECO] Displays the lamp runtime when [LAMP POWER] is set to [ECO] by actual time. [LAMP : NORMAL] Displays the lamp runtime when [LAMP POWER] is set to [AUTO] and [NORMAL] by actual time. [LAMP : TOTAL] *1 Converts the cumulative lamp runtime into the runtime when set to [NORMAL], and displays the converted runtime. [INTAKE AIR TEMP.] Displays the status of the air intake temperature of the projector. [AROUND LAMP TEMP.] Displays the status of the temperature around the lamp of the projector. [PROJECTOR TYPE] Displays the type of the projector. [SERIAL NUMBER] Displays the serial number of the projector. [LAMP UNIT MODEL NO.] Displays the model no. of the lamp unit. [LAMP SERIAL NUMBER] Displays the serial number of the lamp. [MAIN VERSION] Displays the main version of the firmware of the projector. [SUB VERSION] Displays the sub version of the firmware of the projector. [NETWORK VERSION] Displays the network version of the projector. [EMULATE] Displays the [EMULATE] settings. [ON COUNT] [POWER ON TIMES] Displays the number of times the power is turned on. [LAMP ON] Displays the number of times the lamp is turned on. [SHUTTER] *2 Displays the number of times the shutter is closed. [NUMBER OF REGISTERED SIGNAL] Displays the number of registered signals. [REMOTE2 STATUS] Displays the control status of the REMOTE2. [SIGNAL INFORMATION] [MEMORY NO.] Displays the memory number of the input signal. [INPUT] Displays the input terminal currently selected. [SIGNAL NAME] Displays the input signal name. [SIGNAL FREQUENCY] Displays the frequency of the input signal. [SYNC.STATE] Displays the synch polarity of the input signal. [V.SYNC WIDTH] Displays the vertical sync signal pulse width of the input signal. [SCAN TYPE] Displays the scan type of the input signal. [TOTAL DOTS] Displays the total dot count of the input signal. [DISPLAY DOTS] Displays the number of input signal display dots. [TOTAL LINES] Displays the total line count of the input signal. [DISPLAY LINES] Displays the number of input signal display lines. [SAMPLING] Displays the sampling information of the input signal. [SIGNAL LEVEL] Displays the signal level of the input signal.
*1 The lamp runtime displayed is calculated internally by the following conversions.
Formula for lamp replacement time (rough estimate) Lamp runtime displayed in[LAMP : TOTAL] (A × 9 + B × 8) ÷ 9 A: Runtime when [LAMP POWER] is set to [AUTO] and [NORMAL] B: Runtime when [LAMP POWER] is set to [ECO]
*2 Only for PT-EZ580, PT-EW640 and PT-EX610
Note
The content of status can be sent via E-mail by pressing the button while displaying the [STATUS] screen.
Some items in [SIGNAL INFORMATION] may be displayed and others not displayed, depending on the signal being input.
[DATE AND TIME]
Set the time zone, date, and time of the built-in clock of the projector.
Setting the time zone
1) Press ▲▼ to select [DATE AND TIME]. button.
Setting the date and time manually
1) Press ▲▼ to select [DATE AND TIME]. button.
3) Press ▲▼ to select [ADJUST CLOCK].
4) Press the button.
- The [ADJUST CLOCK] screen is displayed.
5) Press ▲▼ to select an item, and press ◀▶ to set the local date and time.
6) Press ▲▼ to select [APPLY], and press the button.
- The setting of the date and time will be completed.
Setting the date and time automatically
1) Press ▲▼ to select [DATE AND TIME].
2) Press the button.
- The [DATE AND TIME] screen is displayed.
3) Press ▲▼ to select [ADJUST CLOCK].
4) Press the button.
- The [ADJUST CLOCK] screen is displayed.
5) Press ▲▼ to select [NTP SYNCHRONIZATION], and press ◀▶ to change the setting to [ON].
6) Press ▲▼ to select [APPLY], and press the button.
- The setting of the date and time will be completed.
Note
To set the date and time automatically, the projector must be connected to the network.
If synchronization with the NTP server fails just after [NTP SYNCHRONIZATION] is turned [ON], or if [NTP SYNCHRONIZATION] is turned [ON] while the NTP server is not set, [NTP SYNCHRONIZATION] will return to [OFF].
Access the projector via a web browser to set the NTP server. Refer to “[Adjust clock] page” (→ page 117) for details.
[SAVE ALL USER DATA]
Save the various setting values as a backup in the built-in memory of the projector.
1) Press ▲▼ to select [SAVE ALL USER DATA]. button.
- The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the button. button.
• [PROGRESS] is displayed while saving data.
Note
- Data set from the computer application is not included in [ALL USER DATA].
[LOAD ALL USER DATA]
Load the various setting values saved as a backup in the built-in memory of the projector.
1) Press ▲▼ to select [LOAD ALL USER DATA]. button.
- The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the button. button.
Note
The projector will go into the standby mode to reflect the setting values when [LOAD ALL USER DATA] is executed.
Data registered from a computer is not included in [ALL USER DATA].
[INITIALIZE]
Return various setting values to their factory default settings.
1) Press ▲▼ to select [INITIALIZE]. button.
- The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the button.
- The [INITIALIZE] screen is displayed.
4) Press ▲▼ to select an item to initialize.
[ALL USER DATA] Returns all setting items including [REGISTERED SIGNAL], [NETWORK SETUP], [E-mail set up], and [USER LOGO] to the factory default settings.The projector will go into the standby status to reflect the setting values. [REGISTERED SIGNAL] Deletes all the setting values saved for each input signal.To delete only a part of a registered signal, perform the procedure described in “Deleting the registered signal” (→ page 102). [NETWORK/E-MAIL] Returns [NETWORK SETUP] and [E-mail set up] to factory default settings. [LOGO IMAGE] Deletes the image registered in [USER LOGO].
5) Press the button. button.
[SERVICE PASSWORD]
This function is used by a service person.
On the menu screen, select [P IN P] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (→ page 57) for the operation of the menu screen.
• After selecting the item, press ▲▼◀▶ to set.
Using P IN P function
Locate a separate, small sub screen in the main screen to project two images simultaneously.
1) Press ▲▼ to select [P IN P MODE].
2) Press the button.
• The [P IN P MODE] screen is displayed.
3) Press ▲▼ to select a function.
[OFF] P IN P function is not used. [USER1] The items set in “Setting P IN P function” (→ page 98) are used in P IN P function. [USER2] [USER3]
4) Press the button.
Setting P IN P function
P IN P function settings can be saved to [USER1], [USER2], and [USER3].
1) Press ▲▼ to select [P IN P MODE].
2) Press the button.
• The [P IN P MODE] screen is displayed.
3) Press ▲▼ to select the desired mode from [USER1], [USER2], and [USER3], and press the button.
4) Press the
button.
5) Press ▲▼ to select [MAIN WINDOW] or [SUB WINDOW], and press the button.
6) Press ▲▼ to select the input terminal to be displayed in the window, and press the button.
7) Press the
button.
8) Press ▲▼ to select an item.
[SIZE] Set the window display size between 10 % and 100 %. [POSITION] Set the display position of the window within the screen. [CLOCK PHASE] When the sub window is input from theterminal or theterminal and a flickering image or smeared outline appears, set between 0 and +31.
9) If [SIZE] is selected in Step 8), press the button.
• The sub-menu is displayed.
10) Press ▲▼ to select an item.
button. button. button.
14) If [CLOCK PHASE] is selected in Step 8), press ◀▶ to make adjustment.
[MAIN WINDOW] Set frame lock to the input signal set in the main window. [SUB WINDOW] Set frame lock to the input signal set in the sub window.
17) Press ▲▼ to select [TYPE].
[MAIN WINDOW] The main window has display priority. [SUB WINDOW] The sub window has display priority.
Note
The P IN P function may not be available for some signals being input or terminals being selected. Refer to "Two-window display combination list" ( page 144) for details.
The main window setting values are applied to image adjustment values such as [PICTURE MODE], [GAMMA], and [COLOR TEMPERATURE].
On the normal screen (when no menu is displayed), press ▲▼ to switch the size and position of the main window and sub window while P IN P is operating.
If the signals from the or terminal are input to either the main window or the sub window, and those input signals are analog RGB or YC_B C_R / YP_B P_R signals, the signals are output from the terminal. If input combination of the main window and sub window is RGB1 and RGB2, the signals of the main window take priority for output.
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to "Navigating through the menu" (→ page 57) for the operation of the menu screen.
- Press ◀▶ to switch.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input signal before performing various adjustments.
1) Press ◀▶ to switch the [TEST PATTERN] item.
- The items will switch each time you press the button.
Menu screen + Color bar(vertical) Displays test patterns with the menu screen. Select a test pattern so that it is easy to make various adjustments. Menu screen + Color bar(horizontal) Menu screen + 16 gradations(vertical 1) Menu screen + 16 gradations(vertical 2) Menu screen + 16 gradations(horizontal 1) Menu screen + 16 gradations(horizontal 2) Menu screen + Cross hatch Menu screen + Aspect frame Menu screen + All white Menu screen + All black Menu screen + Entry screen Displays the menu screen and input signal.Built-in test patterns are not displayed.
Note
- Press the button on the remote control while the test pattern is displayed to hide the menu screen.
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to "Navigating through the menu" ( page 57) for the operation of the menu screen.
LENS
SHUTTER
ENTER
ON
SCREEN
WAIT SELECT
AUTO
SETUP
RGB 1/2
DIGITAL
LINK
DVI-D
VIDEO
Display
Port
HDMI
FUNCTION
1
SYSTEM
2
DEFAULT
3
■ Registered signal details
↑
Sub memory number
When the address number (A1, A2, ... L7, L8) signal is registered
- A name can be set for each sub memory (→ page 103).
Registering new signals
After a new signal is input and the
button on the remote control or the control panel is pressed, the registration is completed and the [MAIN MENU] screen is displayed.
Note
Up to 96 signals, including sub memories, can be registered to the projector.
There are 12 pages (eight memories of A through L, with eight memories possible on each page) for memory numbers, and the signal is registered to the lowest number that is available. If there is no available memory number it will be overwritten from the oldest signal.
The names to be registered are automatically determined by the input signals and memory numbers.
If a menu is being displayed, the new signals will be registered at the instant they are input.
Renaming the registered signal
Registered signals can be renamed.
1) Press ▲▼◀▶ to select the signal of which name is to be changed. button.
- The [REGISTERED SIGNAL STATUS] screen is displayed.
- The memory number, input terminal, input signal name, frequency, synch polarity, etc., are displayed.
- Press the
button to return to the [SIGNAL LIST] screen.
3) Press the button. button.
• The [SIGNAL NAME CHANGE] screen is displayed.
6) Press ▲▼◀▶ to select the text, and press the button to enter the text. button.
- The registration is completed and the [REGISTERED SIGNAL SETUP] screen returns.
- When pressing ▲▼◀▶ to select [CANCEL] and pressing the button, the changed signal name will not be registered and an automatically registered signal name will be used.
Expanding signal lock-in range
1) Press ▲▼◀▶ to select the signal to set. button.
- The [REGISTERED SIGNAL STATUS] screen is displayed.
- The [REGISTERED SIGNAL SETUP] screen is displayed.
4) Press ▲▼ to select [LOCK-IN RANGE].
5) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[NARROW] Select in most cases. [WIDE] Widens the lock-in range.
Note
Switch the range that determines that a signal to be input is the same signal that is already registered.
To prioritize the determination that it is the same signal that is already registered, set to the [WIDE] setting.
Use in cases such as when the synchronizing frequency of a signal to be input has changed slightly, or multiple signal lists are registered.
Can only be used when a signal is input from the terminal, terminal, terminal, terminal, terminal, and terminal ( and terminals are only for PT-EZ580, PT-EW640 and PT-EX610).
When [WIDE] is set, the image may appear distorted because a signal is determined to be the same signal even if a synchronizing frequency changes slightly.
When a signal to be input corresponds to multiple signals set in [WIDE], a registered signal with a high memory number receives priority. Example: a signal to be input that corresponds to memory numbers A2, A4, and B1 will be determined to be B1.
When a registration signal is deleted, the settings are also deleted.
In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE].
Protecting the registered signal
1) Press ▲▼◀▶ to select the signal to protect. button.
- The [REGISTERED SIGNAL STATUS] screen is displayed.
3) Press the button.
- The [REGISTERED SIGNAL SETUP] screen is displayed.
4) Press ▲▼ to select [LOCK].
5) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] The signal is not protected. [ON] The signal is protected.
Note
When [LOCK] is set to [ON], signal deletion, image adjustment, and automatic setup are not available. To perform these operations, set [LOCK] to [OFF].
A signal can be registered to the sub memory even if it is protected.
Even a protected signal will be deleted if [INITIALIZE] is executed.
Deleting the registered signal
Registered signals can be deleted.
1) Press ▲▼◀▶ to select the signal to delete. button on the remote control.
- The [REGISTERED SIGNAL DELETE] screen is displayed.
- To cancel the deletion, press the
button to return to the [REGISTERED SIGNAL LIST] screen.
3) Press the button.
- The selected signal will be deleted.
Note
- A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen.
Sub memory
The projector has a sub memory function that can register the multiple image adjustment data, even if it is recognized as the same signal by the frequency or format of the synchronization signal source.
Use this function when you need to adjust the picture quality such as switching of the aspect ratio or white balance by the same synchronization signal source. The sub memory includes all the data that can be adjusted for each signal, such as the screen aspect ratio and data adjusted in the [PICTURE] item ([CONTRAST], [BRIGHTNESS], etc.).
Registering to the sub memory
1) Press ▲▼ on the normal screen (when the menu is not displayed).
The sub memory registration screen is displayed if the sub memory is not registered. Proceed to Step 3).
A list of sub memories registered to the signal currently input is displayed.
By selecting [SUB MEMORY] in the [PROJECTOR SETUP] menu → [FUNCTION BUTTON], the button on the remote control can be used instead of ◀.
2) Press ▲▼◀▶ to select the sub memory number to register in [SUB MEMORY LIST].
3) Press the button.
- The [SIGNAL NAME CHANGE] screen is displayed.
4) Press ▲▼◀▶ to select [OK], and press the button.
- To rename the registered signal, follow the procedure in Steps 6) and 7) in "Renaming the registered signal" (→ page 101).
Switching to the sub memory
1) Press ▲▼ on the normal screen (when the menu is not displayed).
- A list of sub memories registered to the signal currently input is displayed.
2) Press ▲▼◀▶ to select the signal to switch in [SUB MEMORY LIST].
3) Press the button.
• This switches to the signal selected in Step 2).
Deleting the sub memory
1) Press ▲▼ on the normal screen (when the menu is not displayed).
- The [SUB MEMORY LIST] screen is displayed.
2) Press ▲▼◀▶ to select the sub memory to delete, and press the button on the remote control.
The [REGISTERED SIGNAL DELETE] screen is displayed.
To cancel the deletion, press the button to return to the [SUB MEMORY LIST] screen.
3) Press the button.
- The selected sub memory will be deleted.
On the menu screen, select [SECURITY] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (→ page 57) for the operation of the menu screen.
When the projector is used for the first time button.
LINK
MUTTER
ENTER
ON SCREEN
AUTO SETUP
RGB 1/2
GIRAL LINK
DVD
VIDEO
Display Port
HDMI
FUNCTION 1
Krypton 2
DEFAULT 3
FREEZ 4
0.200M 5
MUTE 6
P-TIMER 7
P IN P 8
ASPECT 9
ID ALL STATUS 0 ID SET
Attention
When you select the [SECURITY] menu and press the button, entering a password is required. Enter the preset password and then continue operations of the [SECURITY] menu.
When the password has been changed previously, enter the changed password, and press the button.
Note
The entered password is displayed with*marks on the screen.
An error message is displayed on the screen when the entered password is incorrect. Re-enter the correct password.
[SECURITY PASSWORD]
The [SECURITY PASSWORD] screen is displayed when turning the switch to and turning on the power. When the entered password is incorrect, the operation will be restricted to the power <∅/I> button on the control panel and the power standby <∅> button, button *1, and (, , and ) buttons on the remote control.
*1 For PT-EZ580, PT-EW640 and PT-EX610 button for PT-EW540 and PT-EX510
1) Press ▲▼ to select [SECURITY PASSWORD].
2) Press ◀▶ to switch the item.
• The items will switch each time you press the button.
[OFF] Disables the security password entry. [ON] Enables the security password entry.
Note
In the factory default setting of after [ALL USER DATA] in [INITIALIZE] (→ page 96) is executed, the [SECURITY PASSWORD] setting is set to [OFF].
Change the password periodically that is hard to guess.
The security password is enabled after setting [SECURITY PASSWORD] to [ON] and turning the switch to .
[SECURITY PASSWORD CHANGE]
Change the security password.
1) Press ▲▼ to select [SECURITY PASSWORD CHANGE]. button.
• The [SECURITY PASSWORD CHANGE] screen is displayed.
3) Press ▲▼◀▶ and the number (<0> - <9>) buttons to set the password. button.
Note
The entered password is displayed with*marks on the screen.
If numbers have been used for the security password, the security password will need to be initialized again if the remote control is lost. Consult your dealer for the initialization method.
[DISPLAY SETTING]
Overlap the security message (text or image) over the projecting image.
1) Press ▲▼ to select [DISPLAY SETTING].
2) Press ◀▶ to switch the item.
- The items will switch each time you press the button.
[OFF] The text display is disabled. [TEXT] The text display is enabled. [USER LOGO] Displays the image registered by the user.
Note
- To create/register the [USER LOGO] image, use "Logo Transfer Software" included in the supplied CD-ROM.
[TEXT CHANGE]
Change the text displayed when the text display is enabled by selecting [TEXT] in [DISPLAY SETTING].
1) Press ▲▼ to select [TEXT CHANGE]. button.
- The [TEXT CHANGE] screen is displayed.
3) Press ▲▼◀▶ to select the text, and press the button to enter the text. button.
- The text is changed.
Display the menu by the
button and set whether or not to enable menu operations.
1) Press ▲▼ to select [MENU LOCK].
- The items will switch each time you press the button.
[OFF] Unlocks menu operations. [ON] Locks menu operations.
Note
When the entered password is incorrect after setting [MENU LOCK] to [ON], the button cannot be operated.
[MENU LOCK] is set to [OFF] at the time of purchase or when [ALL USER DATA] in [INITIALIZE] (→ page 96) is executed.
When [MENU LOCK] is set to [ON], after entering the password to release the lock, the unlock state is held until the projector enters the standby mode.
The menu lock password can be changed.
1) Press ▲▼ to select [MENU LOCK PASSWORD]. button.
- The [MENU LOCK PASSWORD] screen is displayed.
3) Press ▲▼◀▶ to select the text, and press the button to enter the text. button.
- To cancel, select [CANCEL].
Attention
The initial password is "AAAA" by the factory default or when [ALL USER DATA] in [INITIALIZE] (→ page 96) is executed.
Change the password periodically that is hard to guess.
[CONTROL DEVICE SETUP]
Enable/disable the button operations on the control panel and the remote control.
1) Press ▲▼ to select [CONTROL DEVICE SETUP].
2) Press the button.
- The [CONTROL DEVICE SETUP] screen is displayed.
3) Press ▲▼ to select [CONTROL PANEL] or [REMOTE CONTROL].
[CONTROL PANEL] You can set the limitation on the control from the control panel. [REMOTE CONTROL] You can set the limitation on the control from the remote control.
4) Press the button.
- The [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed.
5) Press ▲▼ to select [ENABLE] or [DISABLE].
- You can set the operation restriction from the control panel or the remote control.
[ENABLE] Enables all button operations. [DISABLE] Disables all button operations.
6) Press the button.
• The confirmation screen is displayed.
7) Press ◀▶ to select [OK], and press the button.
Note
When a button operation is performed on the device set to [DISABLE], the [MENU LOCK PASSWORD] screen is displayed. Enter the menu lock password.
The [MENU LOCK PASSWORD] screen will disappear when there is no operation for approx. 10 seconds.
If the operations of both [CONTROL PANEL] and [REMOTE CONTROL] are set to [DISABLE], the projector cannot be turned off (cannot enter standby).
When the setting has completed, the menu screen will disappear. To operate continuously, press the button to display the main menu.
Even when you set button operations on the remote control to be disabled, operations of the and buttons on the remote control are enabled.
On the menu screen, select [NETWORK] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (→ page 57) for the operation of the menu screen.
• After selecting the item, press ▲▼◀▶ to set.
LENS
VUTTER
ENTER
ON Scream
INPUT TEST
AUTO SETUP
RGB1/2
Differential
LINK
DVD
VIDEO
Display
Port
HDMI
FUNCTION 1
OPTION 2
OFFSET 3
[DIGITAL LINK MODE]
(Only for PT-EZ580, PT-EW640 and PT-EX610)
Switch the communication method of the terminal of the projector.
1) Press ▲▼ to select [DIGITAL LINK MODE].
2) Press ◀▶ to switch the item.
• The items will switch each time you press the button.
[AUTO] Switches the communication method automatically to DIGITAL LINK or Ethernet. [DIGITAL LINK] Fixes the communication method to DIGITAL LINK. [ETHERNET] Fixes the communication method to Ethernet.
Possible communication modes
Setting Communication possible Image transmission Ethernet RS-232C [AUTO] For DIGITAL LINK √ √ √ For Ethernet — √ — [DIGITAL LINK] √ √ √ [ETHERNET] — √ —
√: Communication possible
—: Communication not possible
[DIGITAL LINK SETUP]
(Only for PT-EZ580, PT-EW640 and PT-EX610)
Set the communication method of DIGITAL LINK or Ethernet.
When the projector is connected directly via Ethernet
1) Press ▲▼ to select [DIGITAL LINK SETUP].
2) Press the button.
• The [DIGITAL LINK SETUP] screen is displayed.
3) Press ▲▼ to select [DUPLEX(ETHERNET)].
4) Press ◀▶ to switch the communication method.
- The items will switch each time you press the button.
[AUTONEGOTIATION] The communication method is set automatically. [100BaseTX-Full] Full-duplex communication method is set. [100BaseTX-Half] Half-duplex communication method is set.
5) Press ▲▼ to select [STORE].
6) Press the button. button.
Note
- The projector does not support 10BaseT Full/Half.
When the projector is connected to a twisted-pair-cable transmitter
1) Press ▲▼ to select [DIGITAL LINK SETUP]. button.
- The [DIGITAL LINK SETUP] screen is displayed.
3) Press ▲▼ to select [DUPLEX(DIGITAL LINK)].
- The items will switch each time you press the button.
[100BaseTX-Full] Full-duplex communication method is set. [100BaseTX-Half] Half-duplex communication method is set. [AUTONEGOTIATION] The communication method is set automatically.
5) Press ▲▼ to select [STORE]. button. button.
[DIGITAL LINK STATUS]
(Only for PT-EZ580, PT-EW640 and PT-EX610)
Display DIGITAL LINK connection environment.
1) Press ▲▼ to select [DIGITAL LINK STATUS]. button.
- The [DIGITAL LINK STATUS] screen is displayed.
[LINK STATUS] Either [NO LINK], [DIGITAL LINK], or [ETHERNET] is displayed. [HDCP STATUS] Either [NO SIGNAL], [OFF], or [ON] is displayed. [SIGNAL QUALITY] [SIGNAL QUALITY] is a numerical value of the amount of error, and the display color changes to green, yellow, or red depending on that value.Check the signal quality level while receiving a signal from the twisted-pair-cable transmitter.MAX/MIN: Maximum/minimum value of the amount of error.Green-(12 dB or lower) → Normal signal quality level.Yellow-(1 to -8 dB) → Warning level where there is the possibility of noise introduced on the screen.Red-(7 dB or higher) → Abnormal level where synchronization may be interrupted or a signal may not be received.
[NETWORK SETUP]
Perform the initial setting of the network before using the network function.
1) Press ▲▼ to select [NETWORK SETUP]. button.
- The [NETWORK SETUP] screen is displayed.
3) Press ▲▼ to select an item, and change the settings according to the operation instructions of the menu.
[PROJECTOR NAME] Change the setting when using a DHCP server. [DHCP] Set to [ON] when obtaining an IP address automatically using a DHCP server. Set to [OFF] when not using a DHCP server. [IP ADDRESS] Enter the IP address when not using a DHCP server. [SUBNET MASK] Enter the subnet mask when not using a DHCP server. [DEFAULT GATEWAY] Enter the default gateway address when not using a DHCP server. [STORE] Save the current network settings.
4) Press ▲▼ to select [STORE], and press the button. button.
Note
When using a DHCP server, confirm that the DHCP server is running.
Consult your network administrator regarding the IP address, subnet mask, and default gateway.
[NETWORK CONTROL]
Set up the control method of the network.
1) Press ▲▼ to select [NETWORK CONTROL]. button.
- The [NETWORK CONTROL] screen is displayed.
3) Press ▲▼ to select an item, and press ◀▶ to change the setting.
[WEB CONTROL] Set to [ON] to control with the web browser. [PJLink CONTROL] Set to [ON] to control with the PJLink protocol. [COMMAND CONTROL] Set to [ON] to control with theterminal control command format (→ page 142). Refer to “Control commands via LAN” (→ page 138). [COMMAND PORT] Set the port number used for command control. [Crestron Connected(TM)] Set to [ON] to control with Crestron ConnectedTM of Crestron Electronics, Inc. [AMX D.D.] Set to [ON] to control with the controller of AMX Corporation.Setting this function to [ON] enables detection through “AMX Device Discovery”. For details, refer to the website of AMX Corporation.URL http://www.amx.com/ [EXTRON XTP]*1 Set to [ON] when connecting the “XTP transmitter” of Extron Electronics to theterminal.The [EXTRON XTP] setting must be set to [OFF] when connecting the optional Digital Interface Box (Model No.: ET-YFB100G).For details of the “XTP transmitter”, refer to the website of Extron Electronics.URL http://www.extron.com/ [STORE] Save the current network control settings.
*1 Only for PT-EZ580, PT-EW640 and PT-EX610
4) Press ▲▼ to select [STORE], and press the button. button.
[NETWORK STATUS]
Display the status of the projector network.
1) Press ▲▼ to select [NETWORK STATUS]. button.
- The [NETWORK STATUS] screen is displayed.
[DIGITAL INTERFACE BOX]
(Only for PT-EZ580, PT-EW640 and PT-EX610)
When the optional Digital Interface Box (Model No.: ET-YFB100G) is connected to the terminal, the main menu of ET-YFB100G is displayed. Refer to the Operating Instructions of ET-YFB100G for details.
Note
When [EXTRON XTP] is set to [ON], [DIGITAL INTERFACE BOX] cannot be selected.
The operation guidance for the "RETURN" button is displayed on the menu screen of the Digital Interface Box. The projector does not have the "RETURN" button, but same operation is available with the button.
Network connections
The projector has a network function, and the following operations are available from the computer using the web control.
Setting and adjustment of the projector
Sending of E-mail messages when there is a problem with the projector
The projector supports "Crestron Connected™", and the following application software of Crestron Electronics, Inc. can be used.
RoomView Express
Fusion RV
Attention
- When a LAN cable is directly connected to the projector, the network connection must be made indoors.
Note
- "Crestron Connected" is a system of Crestron Electronics, Inc. that collectively manages and controls devices on multiple systems connected to a network using a computer.
- For details of "Crestron Connected", refer to the website of Crestron Electronics, Inc. (English only)
URL http://www.crestron.com
To download "RoomView Express", go to the following website of Crestron Electronics, Inc. (English only)
URL http://www.crestron.com/getroomview
- A LAN cable is required to use the network function.

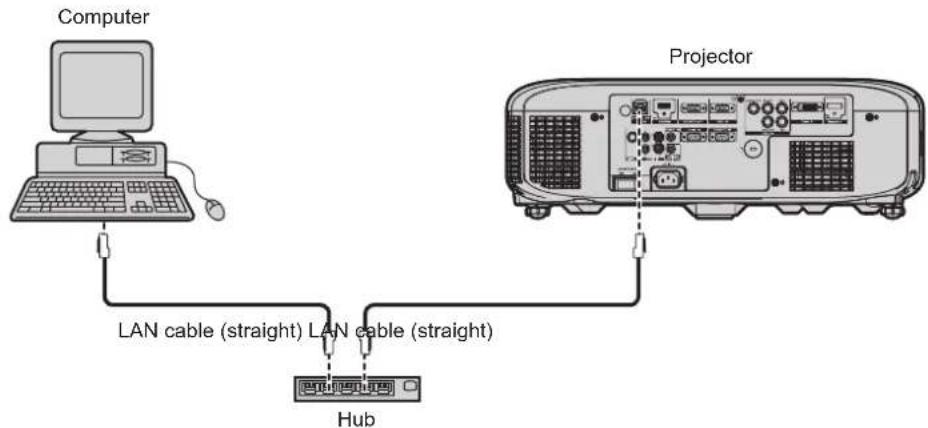

■ Example of a normal network connection
A web browser is required to use this function. Confirm that the web browser can be used beforehand.
Communication with an E-mail server is required to use the E-mail function. Confirm that the E-mail can be used beforehand.
Use a LAN cable that is compatible with category 5 or higher.
Use a LAN cable of 100 m (328'1") or shorter.
Connecting to a twisted-pair-cable transmitter
(Only for PT-EZ580, PT-EW640 and PT-EX610)
The projector has a function that can receive Ethernet signals from a twisted-pair-cable transmitter together with video and audio signals via a LAN cable. Connect a LAN cable to the terminal of the projector. (→ pages 19, 26)
■ Example of network connections via a twisted-pair-cable transmitter
For the LAN cable between a twisted-pair-cable transmitter and the projector, use a cable that meets the following criteria:
Compatible with CAT5e or higher
Shielded type (including connectors)
Straight-through
Single wire
The maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100 m (328'1"). If this distance is exceeded, image and sound may be disrupted and may cause a malfunction in LAN communication.
When laying cables between a twisted-pair-cable transmitter and the projector, check that cable characteristics are compatible with CAT5e or higher using tools such as a cable tester or cable analyzer.
Do not use a hub between a twisted-pair-cable transmitter and the projector.
Do not pull cables forcefully. Also, do not bend or fold cables unnecessarily.
To reduce the effects of noise as much as possible, stretch out the cables between the twisted-pair-cable transmitter and the projector without any loops.
Lay the cables between a twisted-pair-cable transmitter and the projector away from other cables, particularly power cables.
When installing multiple cables, run them side by side along the shortest distance possible without bundling them together.
After laying the cables, confirm that the value of [SIGNAL QUALITY] in the [NETWORK] menu → [DIGITAL LINK STATUS] is displayed in green (indicates normal quality). (→ page 108)
For twisted-pair-cable transmitter of other manufacturers of which the operation has been verified with the DIGITAL LINK compatible projector, refer to Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Accessing from the web browser
1) Start up the web browser on the computer.
- The factory default setting of the user name is user1 (user rights)/admin1 (administrator rights) and the password is panasonic (lower case).

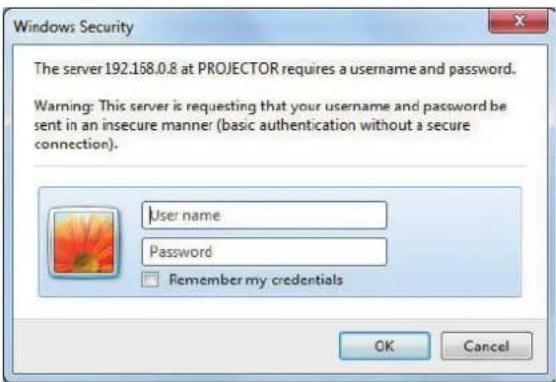

The server 192.158.0.8 at PROJECTOR requires a username and password.
Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection).
User name
Password
Remember my credentials
OK Cancel
4) Click OK.
• The [Projector status] page is displayed.

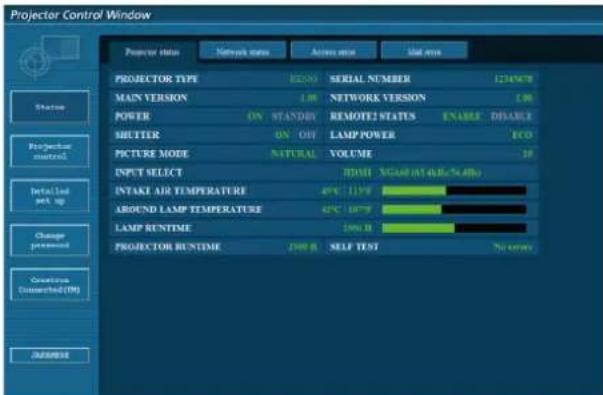

Projector status Network state Active mode Mail mode
PROJECTOR TYPE RED SERIAL NUMBER 123408
MAIN VERSION LRF NETWORK VERSION LRF
POWER ON STANDER REMOVED STATES ENABLE DISABLE
SHUTTER ON OFF LAMP POWER ICO
PICTURE MODE NATURAL VOLUME 3F
INPUT SELECT WMH SCARP (AT 4x5x6x6x)
INTAKE AIR TEMPERATURE 40°C - 11.5V
AROUND LAMP TEMPERATURE 42°C - 10.7V
LAMP RUNTIME 1900 H
PROJECTOR RUNTIME DHP R SELF TEST The entry
Status
Projector mode
Installed port up
Change password
Connection Connected (IN)
NUMBER
Note
- If you use a web browser to control the projector, set [WEB CONTROL] to [ON] in [NETWORK CONTROL] (→ page 109).
Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers.
Change the password first. (→ page 121)
The administrator rights allow use of all functions. The user rights allow use of only the following functions: [Projector status] (→ page 112), viewing of the error information page (→ page 113), [Network status] (→ page 114), [Access error] (→ page 114), [Mail error] (→ page 114), [Basic control] (→ page 115), [Advanced control] (→ page 115), [Change password] (→ page 121)
Access will be locked for few minutes when an incorrect password is entered three times consecutively.
Some items on the projector setting page use the Javascript function of the web browser. The projector may not be able to be controlled properly if it is set with a browser that does not have this function enabled.
If the screen for the web control is not displayed, consult your network administrator.
While updating the screen for the web control, the screen may become white for a moment, but it is not a malfunction.
The subsequent web control screens show examples for PT-EZ580. Screen content may differ from that for the model you are using.

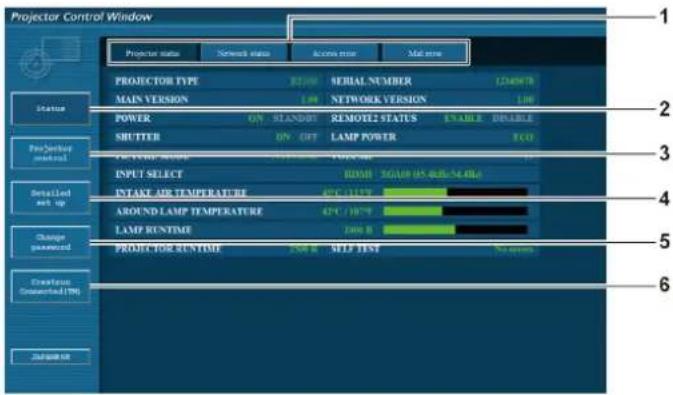

Descriptions of items
Projector status Network status Access status Mid status
PROJECTOR TYPE RED SERIAL NUMBER 12349WR
MAIN VERSION I ON NETWORK VERSION I IN
POWER ON STANDOT REMOTE2 STATUS ENABLE DOUBLE
SHUTTER ON OFF LAMP POWER EQU
OUTPUT SELECT TIME
INPUT SELECT BUSH 3GAM 05.4GB-54.8Pa
INTAKE AIR TEMPERATURE 400 V 100V
AROUND LAMP TEMPERATURE 400 V 100V
LAMP RUNTIME 100 V
PROJECTOR RUNTIME FOR SELF TEST No errors
Status
Pre-Service manual
Detailed set up
Change password
Create Connection(196)
Unknown
1 Page tab
Pages are switched by clicking this item.
2 [Status]
The status of the projector is displayed by clicking this item.
3 [Projector control]
The [Projector control] page is displayed by clicking this item.
4 [Detailed set up]
The [Detailed set up] page is displayed by clicking this item.
5 [Change password]
The [Change password] page is displayed by clicking this item.
6 [Crestron Connected(TM)]
The control page of Crestron Connected ^TM is displayed by clicking this item.

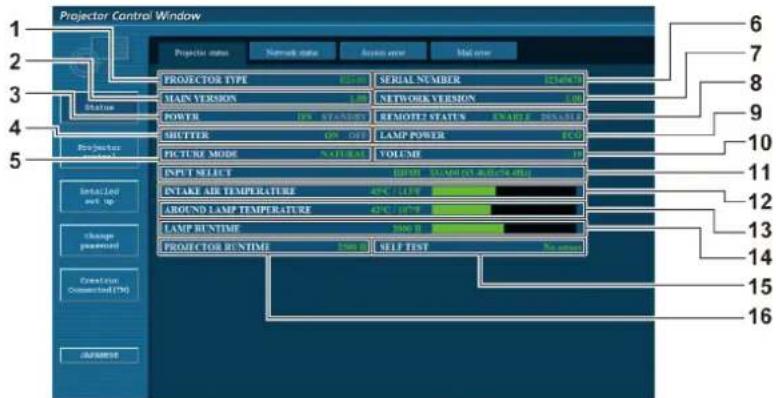

[Projector status] page
Click [Status] → [Projector status].
Display the status of the projector for the following items.
Projector status Network status Array error Mal error
PROJECTOR TYPE SERIAL NUMBER
MAIN VERSION NETWORK VERSION
POWER DATA STANDARD REMOTE STATUS ENABLE ORDER
SMUTTER OS OFF LAMP POWER TO
PICTURE MODE NATURE VOLUME
INPUT SELECT BLOOD SAMPLE (A/R) 0.01
INTAKE ARE TEMPERATURE 45°C / 1200
AROUND LAMP TEMPERATURE 45°C / 1200
LAMP RUNTIME 3000 B
PROJECTOR RUNTIME SELF TEST To start
6
7
8
9
10
11
12
13
14
15
16
Status
Projector
Installed
set up
change
password
Connection
Connected (TM)
JAPPROVE
1 [PROJECTOR TYPE]
Displays the type of the projector.
2 [MAIN VERSION]
Displays the firmware version of the projector.
3 [POWER]
Displays the status of the power.
4 [SHUTTER] \*1
Displays the status of the shutter (ON: closed, OFF: open).
5 [PICTURE MODE]
Displays the setting status of [PICTURE MODE].
6 [SERIAL NUMBER]
Displays the serial number of the projector.
\*1 For PT-EZ580, PT-EW640 and PT-EX610
[AV MUTE] for PT-EW540 and PT-EX510
Displays the status of AV mute function.
7 [NETWORK VERSION]
Displays the version of the firmware of the network.
8 [REMOTE2 STATUS]
Displays the control status of the terminal.
9 [LAMP POWER]
Displays the setting status of [LAMP POWER] (→ page 87).
10 [VOLUME]
Display the volume status.
Displays the status of the selected input.
12 [INTAKE AIR TEMPERATURE]
Displays the status of the air intake temperature of the projector.
13 [AROUND LAMP TEMPERATURE]
Displays the status of the temperature around the lamp of the projector.
14 [LAMP RUNTIME]
Displays the runtime of the lamps (converted value).
15 [SELF TEST]
Displays the self-diagnosis information.
16 [PROJECTOR RUNTIME]
Displays the runtime of the projector.

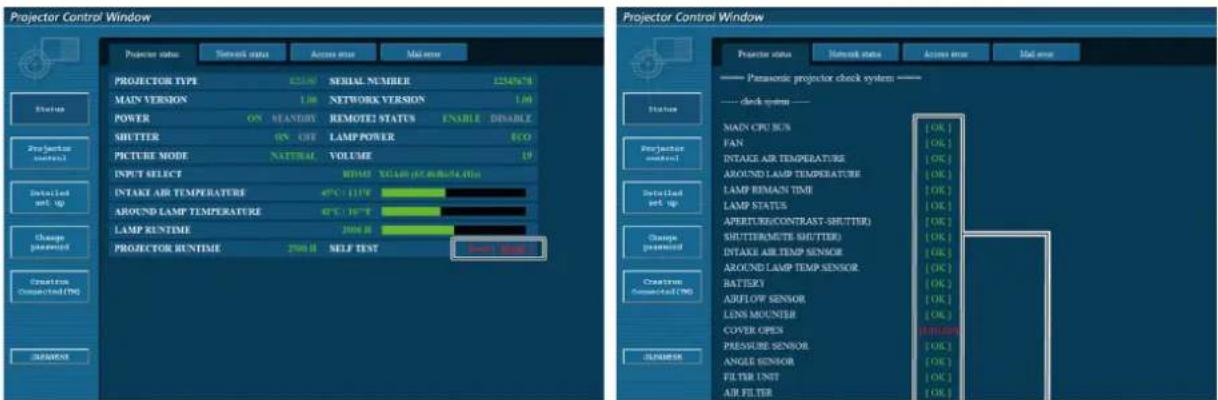

Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the self-diagnosis display of the [Projector status] screen, click it to display the error/warning details.
- The projector may go into the standby status to protect the projector depending on the contents of the error.
Projector status
Network status
Access error
Mail error
Projector type
82.0k
SERIAL NUMBER
124kW
MAIN VERSION
1.0k
NETWORK VERSION
1.0k
POWER
ON
RECOVERY
REMOTE STATUS
ENABLE
DISABLE
SHUTTER
ON
OFF
LAMP POWER
ECO
PICTURE MODE
NATURAL
VOLUME
19
INPUT SELECT
RIME
YEAR (6x 10x10x10x)
INTAKE AIR TEMPERATURE
47°C: 117°F
AROUND LAMP TEMPERATURE
47°C: 16°F
LAMP RUNTIME
200 H
PROJECTOR RUNTIME
200 H
SELF TEST
BAR Chart
Projector Control Window
Projector status
Network status
Access error
Mail error
Panasonic projector check system ——
clock system ——
Status
Projector model
MAIN CPU I/Os
FAN
INTAKE AIR TEMPERATURE
[OK]
AROUND LAMP TEMPERATURE
[OK]
LAMP REMAIN TIME
[OK]
LAMP STATUS
[OK]
APERTURE(CONTRAST-SHUTTER)
[OK]
SHUTTER(MUTE SHUTTER)
[OK]
INTAKE AIR TEMP SENSOR
[OK]
AROUND LAMP TEMP SENSOR
[OK]
BATTERY
[OK]
AIRFLOW SENSOR
[OK]
LENS MOUNTER
[OK]
COVER OPES
[BLUROS]
PRESSURE SENSOR
[OK]
ANGLE SENSOR
[OK]
FILTER UNIT
[OK]
AIR FILTER
[OK]
RUNMER
1
1 Self-diagnosis result display
Displays the item check results.
[OK]:
Indicates that operation is normal.
[FAILED]:
Indicates that there is a problem.
■ [FAILED] items
Item Description [MAIN CPU BUS] There is a problem with the micro computer circuitry. Consult your dealer. [FAN] There is a problem with the fan or the fan drive circuit. Consult your dealer. [INTAKE AIR TEMPERATURE] The air intake temperature is too high. The projector may be used in an environment where the temperature is high, such as near a heating appliance. [AROUND LAMP TEMPERATURE] The temperature around the lamp is high. The air exhaust port may be blocked. [LAMP REMAIN TIME] The runtime of the lamp has exceeded the specified time, and it is time to replace the lamp. [LAMP STATUS] The lamp has failed to turn on. Wait a while until the luminous lamp cools off, and then turn on the power. [APERTURE(CONTRAST-SHUTTER)]1 There is a problem in the contrast shutter circuit for iris. Consult your dealer. [SHUTTER(MUTE-SHUTTER)]1 There is a problem with the shutter circuitry. Consult your dealer. [INTAKE AIR TEMP.SENSOR] There is a problem with the sensor used to detect intake temperature. Consult your dealer. [AROUND LAMP TEMP.SENSOR] There is a problem with the sensor used to detect exhaust air temperature. Consult your dealer. [BATTERY] Battery replacement is required. Consult your dealer. [AIRFLOW SENSOR] There is a problem with the airflow sensor. Consult your dealer. [LENS MOUNTER] There is a problem in the lens mounter. Consult your dealer. [COVER OPEN] Installation of the lamp cover is incomplete. Check the installation of the lamp cover.(⇨ page 131) [PRESSURE SENSOR] There is a problem with the sensor that detects air pressure. Consult your dealer. [ANGLE SENSOR] There is a problem with the sensor that detects angle. Consult your dealer. [FILTER UNIT] The air filter unit is not attached. Check the installation of the air filter unit. (⇨ page 130) [AIR FILTER] There is too much dust accumulated in the air filter unit. Turn theswitch to(⇨ page 48), and clean the air filter. (⇨ page 130)
*1 Only for PT-EZ580, PT-EW640 and PT-EX610

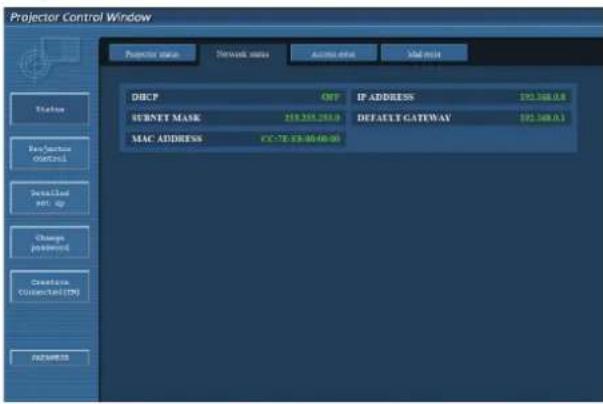

[Network status] page
Click [Status] → [Network status].
The current network setting status is displayed.
Projector status
Network status
ACDOS INPUT
Xial input
DBCP
OFF
IF ADDRESS
291.368.0.6
SUBNET MASK
218.268.253.0
DEFAULT GATEWAY
292.368.0.3
MAC ADDRESS
CC-TE-ER-00-00-00
Play Section
COMMENTS
Detailed
SET UP
Change
powered
Creates
Connected (TM)
F224M25

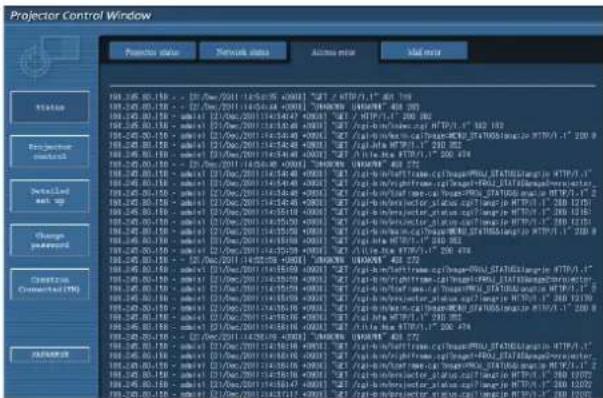

[Access error] page
Click [Status] → [Access error].
The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or passwords.
Status
100.240.00.158 - 12/06/2011 11:45:05 20001 "GT" / HTTP/1.1" 401 719
100.240.00.158 - 12/06/2011 11:45:05 20001 "WRKMW" / WMKMW" 408 393
100.240.00.158 - 12/06/2011 11:45:05 20001 "GT" / HTTP/1.1" 202 396
100.240.00.158 - 12/06/2011 11:45:05 20001 "GT" / HTTP/1.1" 382 199
100.240.00.158 - 12/06/2011 11:45:05 20001 "GT" / http://www.cathnet-MSR-3FJ456666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666
Detailed set up
100.240.00.158 - 12/07/2011 11:45:05 20001 "GT" / http://www.cathnet-MSR-3FJ45666666666666666666666666666666666666666666666
100.240.00.158 - 12/07/2011 11:45:05 20001 "GT" / http://www.cathnet-MSR-3FJ456666666666666666
100.240.00.158 - 12/07/2011 11:45:05 20001 "GT" / http://www.cathnet-MSR-3FJ45659999999999999999999999999999999999999999999999999999999999999999999999
Change password
100.240.00.158 - 12/07/2011 11:45:05 20001 "GT" / http://www.cathnet-MSR-3FJ45733333333333333333333333333333333333333333333333333333333333333333333333333333333333
Cluster Connected (TM)
100.240.00.158 - 12/07/2011 11:45:05 20001 "GT" / http://www.cathnet-MSR-3FJ45747777777777777777777777777777777777777777777777
NUMBER
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control window
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control room
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control office
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control business
Projector control businesses
[Mail error] page
Click [Status] → [Mail error].
Display E-mail error information if failed to send periodic E-mails.
Projector name Network name Active miss Mid miss
[Tox Pro 4 22:36:58 2013][testMail:server.com]Failed Condition: NoB Terrier
Status
Ver/Service
Outstand
Detailed
Set up
Change
Preview
Creation
Connected(TM)
REMARKS
Note
[Access error] and [Mail error] display the recent few hundred accesses/requests. All information may not be displayed when many accesses/requests are made at a time.
When information in [Access error] and [Mail error] exceeds a certain amount, older information is erased.
Check [Access error] and [Mail error] periodically.

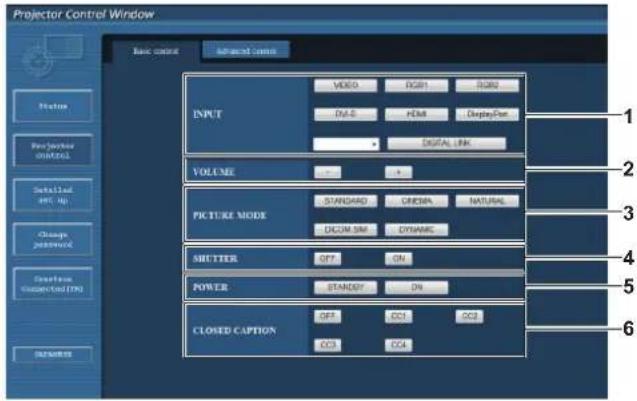

[Basic control] page
Click [Projector control] → [Basic control].
Basic control Advanced control
INPUT
VIDEO RGB1 RGB2
DAS HDMI DisplayFor
VOLUME
PICTURE MODE STANDARD CREAM NATURAL
DCUM SIM DYNAMIC
SHUTTER OFF ON
POWER STANDY ON
CLOSED CAPTION OFF CC1 CC2
CC3 CC4
Status
Base Hierarchy SWITCH
Sub-Load
OUT UP
Change password
Cancer from
Connected I/O
RETURNERS
1
2
3
4
5
6
1 [INPUT] *1
Switches the input signal.
2 [VOLUME]
Adjusts the volume.
3 [PICTURE MODE]
Switches the picture mode.
4 [SHUTTER] *2
Switches the setting whether to use the shutter function (closing/opening of the shutter).
5 [POWER]
Turns on/off the power.
6 [CLOSED CAPTION]
Switches the closed caption setting.
*1 [DisplayPort] and [DIGITAL LINK] are only for PT-EZ580, PT-EW640 and PT-EX610)
*2 For PT-EZ580, PT-EW640 and PT-EX610
[AV MUTE] for PT-EW540 and PT-EX510
Switches the AV mute function on/off.
[Advanced control] page
Click [Projector control] → [Advanced control].

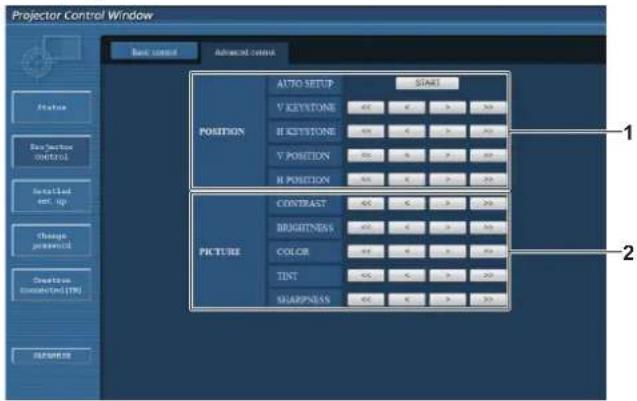

Best control Advanced control
POSITION AUTO SETUP S/ART
V KEYSTONE 400 € 3 30
H KEYSTONE 400 € 3 30
V POSITION 300 € 2 20
H POSITION 300 € 2 20
PICTURE CONTRAST 400 € 3 30
BRIGHTNESS 400 € 3 30
COLOR 400 € 3 30
TINT 500 € 3 30
SMARNESS 400 € 3 30
1 [POSITION]
Operates field angle-related settings.
2 [PICTURE]
Operates picture quality settings.

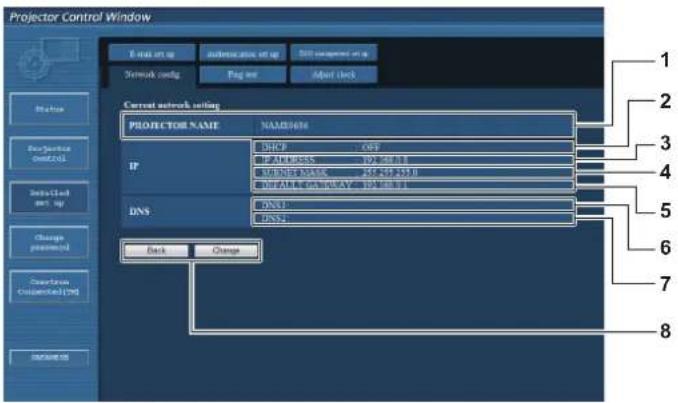

[Network config] page
Click [Detailed set up] → [Network config].
Click [Network config] to display the [CAUTION!] screen.
Click the [Next] button to display the current settings.
Click the [Change] button to display the setting change screen.
E-mail at up
audematics at up
SOS management at up
Network config
Play up
Next check
Status
Resource Control
Detailed set up
Change password
Connection Connection(TD)
CONTENTS
Current network setting
PROJECTOR NAME
NOMBRE
IP
DNS
DNS1
DNS2
Back
Change
1
2
3
4
5
6
7
8
1 [PROJECTOR NAME]
Enter the name of the projector. Enter the host name if it is required when using a DHCP server etc.
2 [DHCP ON], [DHCP OFF]
To enable the DHCP client function, set to [DHCP ON].
3 [IP ADDRESS]
Enter the IP address when not using a DHCP server.
4 [SUBNET MASK]
Enter the subnet mask when not using a DHCP server.
5 [DEFAULT GATEWAY]
Enter the default gateway address when not using a DHCP server.
6 [DNS1]
Enter the DNS1 server address.
Permissible characters for the entry of DNS1 server address (primary):
Numbers (0 - 9), period (.)
(Example: 192.168.0.253)
7 [DNS2]
Enter the DNS2 server address.
Available characters for the entry of DNS2 server address (secondary):
Numbers (0 - 9), period (.)
(Example: 192.168.0.254)
8 [Back], [Change]
Click the [Back] button to return to the original screen. The screen for confirming the current settings is displayed by clicking the [Change] button. Click the [Submit] button to update the settings.
Note
When you use the "Forward" and "Back" functions of your browser, a warning message "Page has Expired" may appear. In that case, click [Network config] again since the following operation will not be guaranteed.
Changing LAN settings while connected to the LAN may cause the connection to cut out.
[Ping test] page
Check whether the network is connected to the E-mail server, POP server, DNS server, etc.
Click [Detailed set up] → [Ping test].

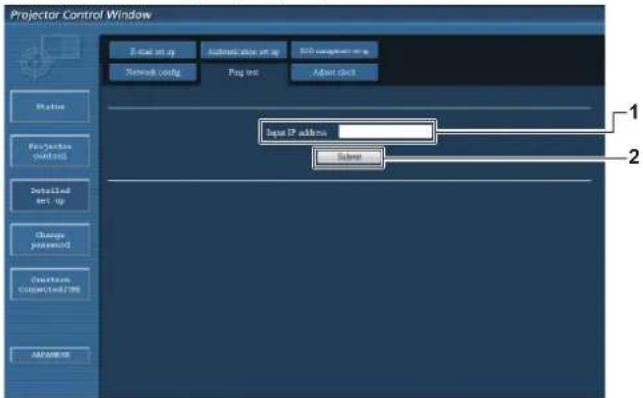

E-mail at up
Authentication at up
SDD component at up
Network config
Play text
About click
Status
Package control
Details
set-up
Change password
Onset from Connected to US
APPROVED
Input IP address
Subnet
1
2
1 [Input IP address]
Enter the IP address of the server to be tested.
2 [Submit]
Executes the connection test.

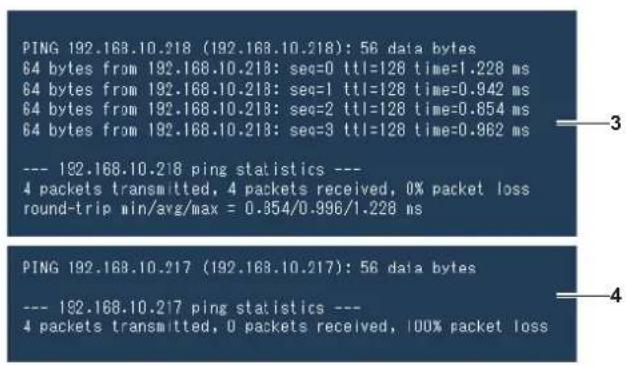

64 bytes from 192.168.10.218: seq=0 ttl=128 time=1.228 ms
64 bytes from 192.168.10.218: seq=1 ttl=128 time=0.942 ms
64 bytes from 192.168.10.218: seq=2 ttl=128 time=0.854 ms
64 bytes from 192.168.10.218: seq=3 ttl=128 time=0.862 ms
--- 192.168.10.218 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 0.354/0.996/1.228 ms
PING 192.168.10.217 (192.168.10.217): 56 data bytes
--- 192.168.10.217 ping statistics ---
4 packets transmitted, 0 packets received, 100% packet loss
3 Example of display when the connection has succeeded

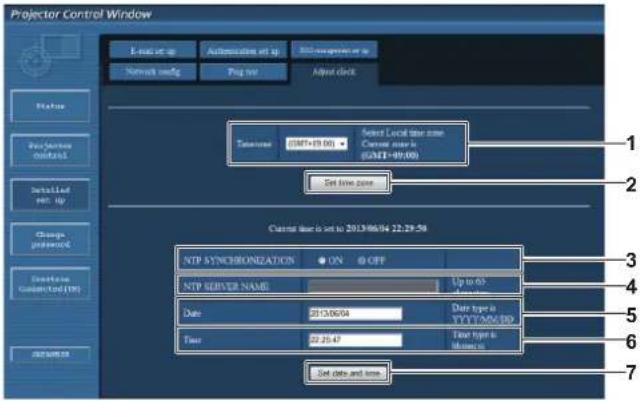

[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
E-mail at up
Automaticat at up
S21-wwg@w21
Network mask
Prog via
Adjust clock
Status
Description output
Details not up
Change preferred
Settings Connection (OR)
SET TIME zone
Select Local time zone
Current zone in
(53/INT=49/00)
Set time zone
Current zone is set to 2013/06/04 22:29:58
NTP SYNCHORIZATION ● ON □ OFF
NTP SERVER NAME Up to 65
Date 2013/06/04 Date type is
TYTT/MYDR
Time 22:25:47 Time type is
minutes
Set data and time
1 [Timezone]
Selects the time zone.
2 [Set time zone]
Updates the time zone setting.
3 [NTP SYNCHRONIZATION]
Sets to [ON] to adjust the date and time automatically.
4 [NTP SERVER NAME]
Enter the IP address or server name of the NTP server when you set to adjust the date and time manually.
(To enter the server name, the DNS server needs to be set up.)
5 [Date]
Enter the date to be changed.
6 [Time]
Enter the time to be changed.
7 [Set date and time]
Updates the date and time settings.
Note
- The replacement of the battery inside the projector is required when the time goes out of alignment right after correcting the time. Consult your dealer.
[E-mail set up] page
When there is a problem or the runtime of a lamp reaches a set value, an E-mail can be sent to preset E-mail addresses (up to two addresses).
Click [Detailed set up] → [E-mail set up].

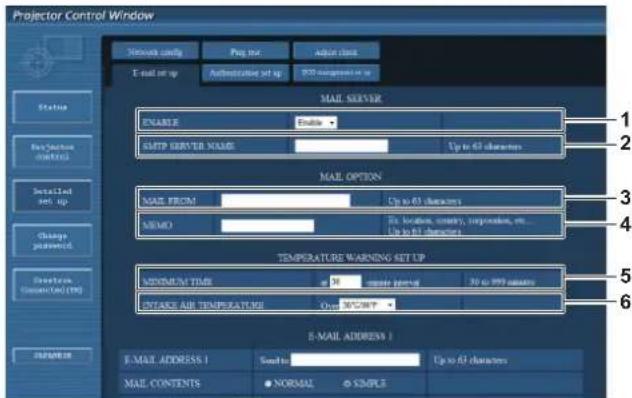

Network valid
Pre exp
Adjust class
E-mail or up
Authentication at up
200 components or up
Status
Play Channel
Details
Installed
Set up
Change
passwords
Description
Custom Code (196)
MAIL SERVER
COMPLETE Enable
SMTP SERVER NAME
Up to 63 characters
MAIL OPTION
MAIL FROM
Up to 63 characters
MEMO
Ex location, county, correspondence, etc.
Up to 63 characters
TEMPERATURE WARNING SET UP
MINIMUM TIME
DE
control setting
30 to 999 characters
INTAKE ALL TEMPERATURE
Over MOUNT
E-MAIL ADDRESS |
E-MAIL ADDRESS 1
Send to:
Up to 63 characters
MAIL CONTENTS
NORMAL SIMPLE
1 [ENABLE]
Select [Enable] to use the E-mail function.
2 [SMTP SERVER NAME]
Enter the IP address or the server name of the E-mail server (SMTP). To enter the server name, the DNS server needs to be set up.
3 [MAIL FROM]
Enter the E-mail address of the projector. (Up to 63 characters in single byte)
4 [MEMO]
Enter information such as the location of the projector that notifies the sender of the E-mail. (Up to 63 characters in single byte)

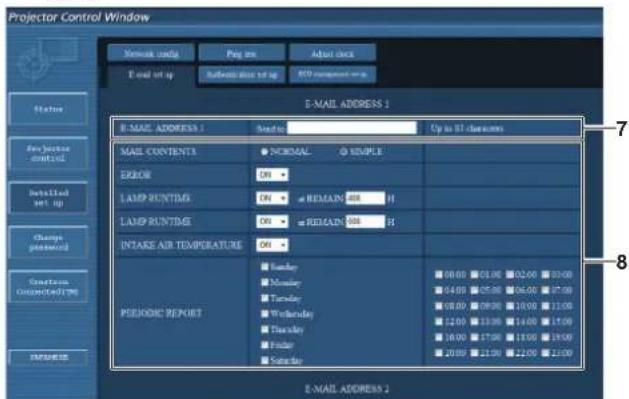

Network code
Pay mn
Adjust check
E mail set up
Autobox click set up
FTP comment on
Status
Rejection
Startups
Installed
Set up
Change
powered
Conditions
CONDUCTORS
IMPORTS
E-MAIL ADDRESS 1
Mail CONTENTS
NORMAL
0 SAMPLE
ERROR
ON
LAMP RUNTIME
ON
REMAIN: 400 H
LAMP RUNTIME
ON
REMAIN: 600 H
INTAKE AIR TEMPERATURE
ON
PSEKOC REPORT
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
80.00 81.00 82.00 83.00
54.00 55.00 56.00 57.00
58.00 59.00 60.00 61.00
52.00 53.00 54.00 55.00
56.00 57.00 58.00 59.00
20.00 21.00 22.00 23.00
E-MAIL ADDRESS 2
7 [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2]
Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS 2] blank when two E-mail addresses are not to be used.
5 [MINIMUM TIME]
Change the minimum interval for the temperature warning E-mail. The default value is 60 minutes. In this case, another E-mail will not be sent for 60 minutes after sending the temperature warning E-mail even if it reaches the warning temperature.
6 [INTAKE AIR TEMPERATURE]
Change the temperature setting for the temperature warning mail. A temperature warning E-mail is sent when the temperature exceeds this value.

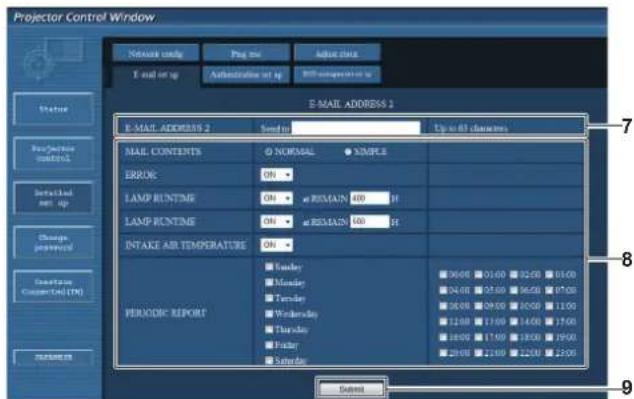

Release ready
Prog mix
Adjust size
E end set up
Authentication set up
BIF/EXPRESS 2
E-MAIL ADDRESS 2
Send to
Up to 65 characters
MAIL CONTENTS
NORMAL
SIMPLE
ERROR:
ON
LAMP RUNTIME
ON → REMAIN 400 ft
LAMP RUNTIME
ON → REMAIN 400 ft
INTAKE AIR TEMPERATURE
ON
TUESDAY
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
PERIODIC REPORT
30:00 31:00 32:00 33:00
34:00 35:00 36:00 37:00
36:00 39:00 42:00 44:00
42:00 43:00 44:00 45:00
48:00 51:00 53:00 55:00
59:00 62:00 64:00 66:00
65:00 71:00 73:00 75:00
72:00 73:00 75:00 77:00
81:00 82:00 83:00 85:00
89:00 91:00 92:00 93:00
98:00 101:00 112:00
113:00 124:00 135:00
129:00 139:00 151:00
146:00 156:00 168:00
163:00 173:00 185:00
179:00 191:00 203:00
216:00 227:00 241:00
233:00 244:00 257:00
Absent
8 Settings of the conditions to send E-mail
Selects the conditions to send E-mail.
[MAIL CONTENTS]:
Selects either [NORMAL] or [SIMPLE].
[ERROR]:
Sends an E-mail when an error occurred in the self-diagnosis.
[LAMP RUNTIME]:
Sends an E-mail when the remaining time for the lamp has reached the value set at the right field.
[INTAKE AIR TEMPERATURE]:
Sends an E-mail when the air intake temperature has reached the value set at the above field.
[PERIODIC REPORT]:
Places a check mark on this to send an E-mail periodically. It will be sent on the days and time with the check mark.
9 [Submit]
Updates the settings.
[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up].

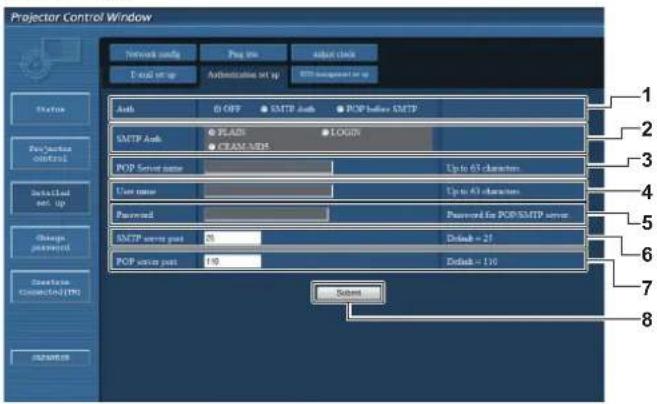

Network setup
Play key
Adjust clock
E-mail set up
Authentication set up
FTP socket up
Auto
0 OFF
SMTP Auth
POP server SMTP
SMTP Auth
FLASH
CREAM MPI
LOGIN
POP Server name
Up to 63 characters
Use name
Up to 63 characters
Password
Password for POSTSMTP server
SMTP server post
25
Default = 25
POP server post
100
Default = 110
Subsea
Status
1
2
3
4
5
6
7
8
1 [Auth]
Selects the authentication method specified by your Internet service provider.
2 [SMTP Auth]
Set when the SMTP authentication is selected.
3 [POP Server name]
Enter the POP server name.
Allowed characters:
Alphanumerics (A - Z, a - z, 0 - 9)
Minus sign (-) and period (.)
4 [User name]
Enter the user name for the POP server or the SMTP server.
5 [Password]
Enter the password for the POP server or the SMTP server.
6 [SMTP server port]
Enter the port number of the SMTP server.
(Normally 25)
7 [POP server port]
Enter the port number of the POP server.
(Normally 110)
8 [Submit]
Updates the settings.
[ECO management set up] page
Settings related to the ECO management function of the projector can be made. Click [Detailed set up] → [ECO management set up].
Network config
Play bus
About clock
E-mail up
Authentication up
BID-complex up
LAMP POWER
AUTO
NORMAL
SOO
AUTO POWER SAVE
ON
OFF
AMBIENT LIGHT DETECTION
ON
OFF
SKINAL DETECTION
ON
OFF
SHUTTER DETECTION
ON
OFF
NO SIGNAL SHIFT-OFF
ENABLE
Submit
Projector control
Detailed 9pt. Up
Change pressed
Generation Connected (TM)
NUMBER
1
2
3
4
5
6
7
1 [LAMP POWER]
Selects the [LAMP POWER] setting.
2 [AUTO POWER SAVE]
Set to [ON] when setting [AMBIENT LIGHT DETECTION], [SIGNAL DETECTION] and [SHUTTER DETECTION] *1
3 [AMBIENT LIGHT DETECTION]
Selects enable ([ON])/disable ([OFF]) of the environmental luminance interlock function.
4 [SIGNAL DETECTION]
Selects enable ([ON])/disable ([OFF]) of the no signal interlock function.
\*1 For PT-EZ580, PT-EW640 and PT-EX610
[AV MUTE DETECTION] for PT-EW540 and PT-EX510
5 [SHUTTER DETECTION] \*1
Selects enable ([ON])/disable ([OFF]) of the shutter interlock function.
6 [NO SIGNAL SHUT-OFF]
When the No signal shut-off function is used, select the time until the standby mode is entered.
7 [Submit]
Updates the settings.
Note
- For details of each setting item, refer to the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] (→ page 87) on the projector.

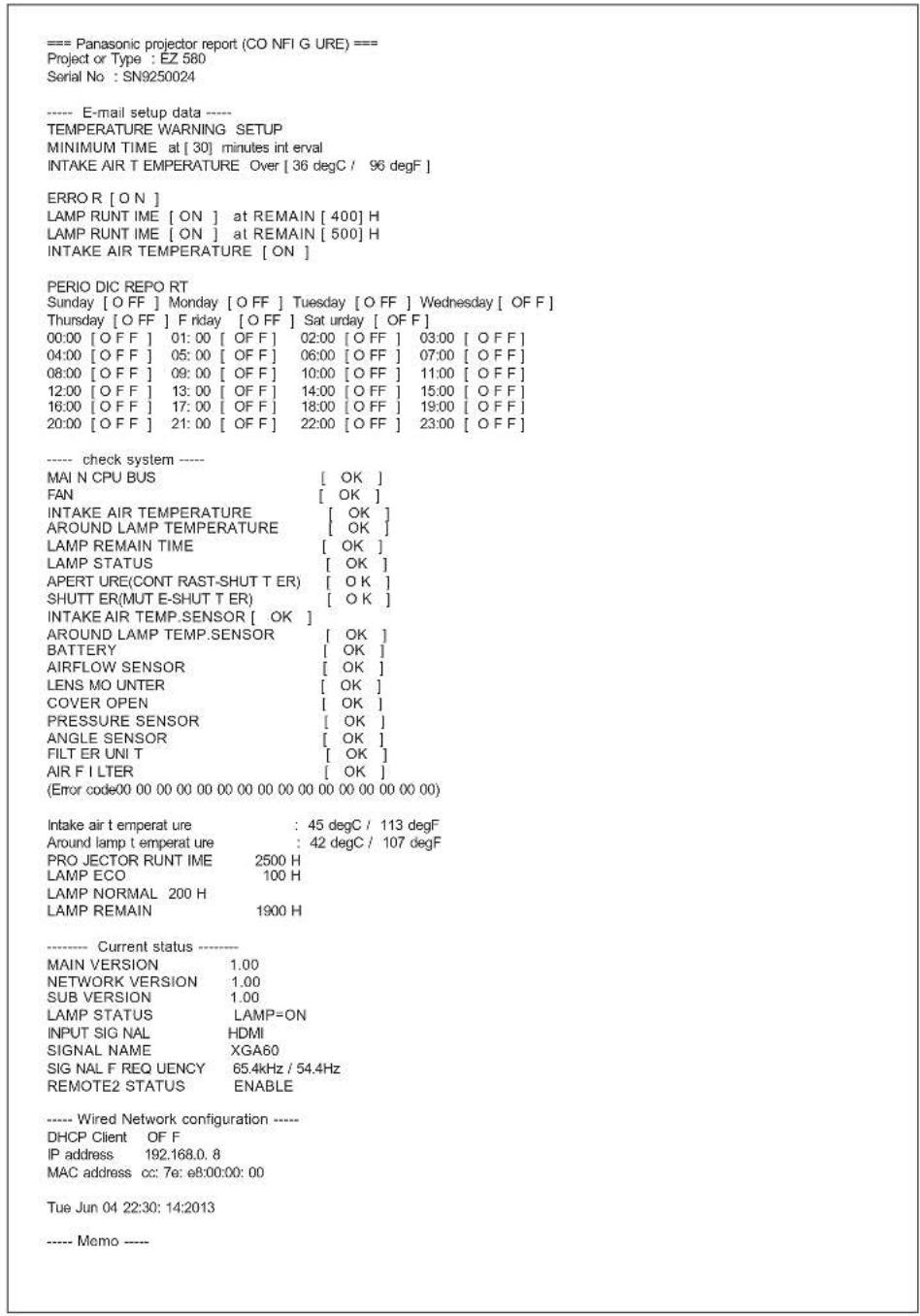

Example of E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
Project or Type : EZ 580
Serial No : SN9250024
----- E-mail setup data ----
TEMPERATURE WARNING SETUP
MINIMUM TIME at [30] minutes int erval
INTAKE AIR TEMPERATURE Over [36 degC / 96 degF]
ERROR [O N]
LAMP RUNT IME [ON] at REMAIN [400] H
LAMP RUNT IME [ON] at REMAIN [500] H
INTAKE AIR TEMPERATURE [ON ]
PERIO DIC REPO RT
Sunday [O FF] Monday [O FF] Tuesday [O FF] Wednesday [O FF]
Thursday [O FF] Friday [O FF] Saturday [O FF]
00:00 [O FF] 01:00 [O FF] 02:00 [O FF] 03:00 [O FF]
04:00 [O FF] 05:00 [O FF] 06:00 [O FF] 07:00 [O FF]
08:00 [O FF] 09:00 [O FF] 10:00 [O FF] 11:00 [O FF]
12:00 [O FF] 13:00 [O FF] 14:00 [O FF] 15:00 [O FF]
16:00 [O FF] 17:00 [O FF] 18:00 [O FF] 19:00 [O FF]
20:00 [O FF] 21:00 [O FF] 22:00 [O FF] 23:00 [O FF]
----- check system ----
MAI N CPU BUS [OK]
FAN [OK]
INTAKE AIR TEMPERATURE [OK]
AROUND LAMP TEMPERATURE [OK]
LAMP REMAIN TIME [OK]
LAMP STATUS [OK]
APERT URE(CONT RAST-SHUT T ER) [OK]
SHUTT ER(MUT E-SHUT T ER) [OK]
INTAKE AIR TEMP.SENSOR [OK]
AROUND LAMP TEMP.SENSOR [OK]
BATTERY [OK]
AIRFLOW SENSOR [OK]
LENS MO UNTER [OK]
COVER OPEN [OK]
PRESSURE SENSOR [OK]
ANGLE SENSOR [OK]
FILTER UNI T [OK]
AIR FILTER [OK]
(Error code 00 00 00 00 00 00 00 00 00 00 00 00 00)
Intake air t emperat ure : 45 degC / 113 degF
Around lamp t emperat ure : 42 degC / 107 degF
PRO JECTOR RUNT IME 2500 H
LAMP ECO 100 H
LAMP NORMAL 200 H
LAMP REMAIN 1900 H
----- Current status ----
MAIN VERSION 1.00
NETWORK VERSION 1.00
SUB VERSION 1.00
LAMP STATUS LAMP=ON
INPUT SIG NAL HDMI
SIGNAL NAME XGA60
SIG NAL F REQ UENCY 65.4kHz / 54.4Hz
REMOTE2 STATUS ENABLE
----- Wired Network configuration ----
DHCP Client OF F
IP address 192.168.0.8
MAC address cc: 7e: e8:00:00: 00
Tue Jun 04 22:30: 14:2013
----- Momo ----
Note
- APERTURE(CONTRAST-SHUTTER) and SHUTTER(MUTE-SHUTTER) are only for PT-EZ580, PT-EW640 and PT-EX610.

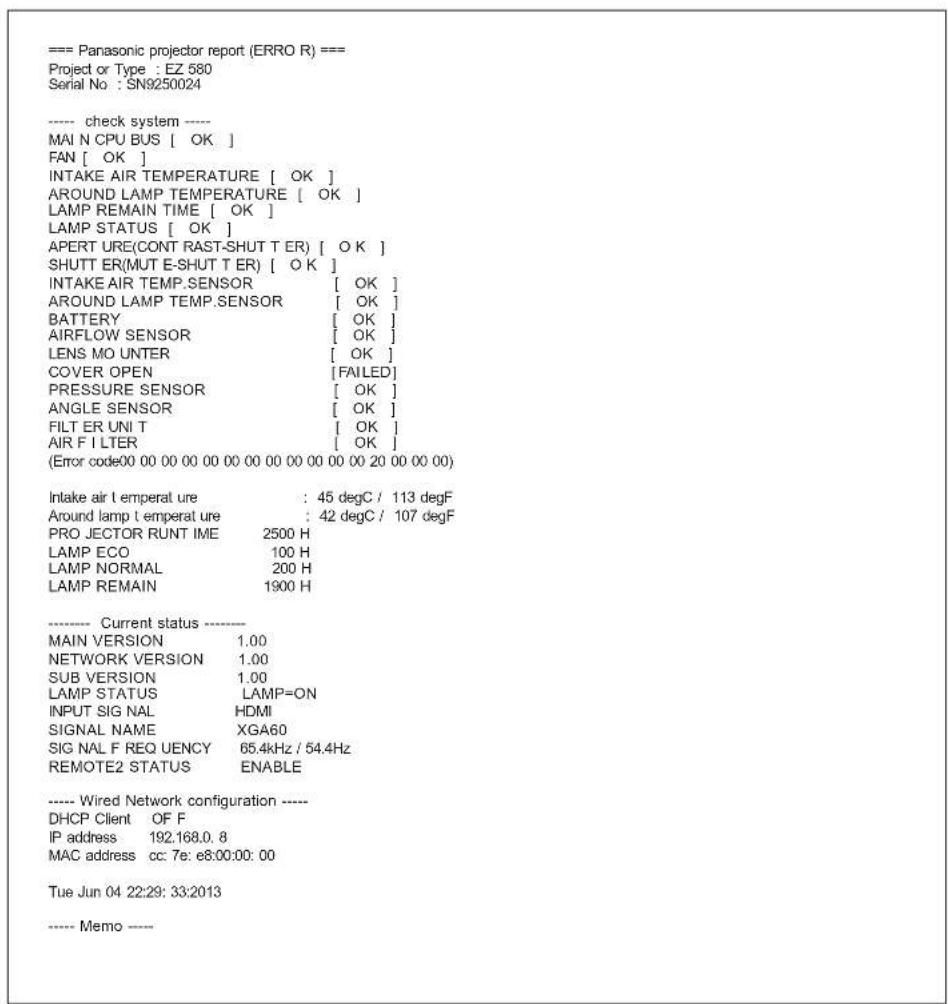

Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
Project or Type : EZ 580
Serial No : SN9250024
----- check system ----
MAI N CPU BUS [ OK ]
FAN [ OK ]
INTAKE AIR TEMPERATURE [ OK ]
AROUND LAMP TEMPERATURE [ OK ]
LAMP REMAIN TIME [ OK ]
LAMP STATUS [ OK ]
APERT URE(CONT RAST-SHUT T ER) [ OK ]
SHUTT ER(MUT E-SHUT T ER) [ OK ]
INTAKE AIR TEMP.SENSOR [ OK ]
AROUND LAMP TEMP.SENSOR [ OK ]
BATTERY [ OK ]
AIRFLOW SENSOR [ OK ]
LENS MO UNTER [ OK ]
COVER OPEN [FAILED]
PRESSURE SENSOR [ OK ]
ANGLE SENSOR [ OK ]
FILT ER UNI T [ OK ]
AIR FILTER [ OK ]
(Error code00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 00)
Intake air t emperat ure : 45 degC / 113 degF
Around lamp t emperat ure : 42 degC / 107 degF
PRO JECTOR RUNT IME 2500 H
LAMP ECO 100 H
LAMP NORMAL 200 H
LAMP REMAIN 1900 H
----- Current status ----
MAIN VERSION 1.00
NETWORK VERSION 1.00
SUB VERSION 1.00
LAMP STATUS LAMP=ON
INPUT SIG NAL HDMI
SIGNAL NAME XGA60
SIG NAL F REQ UENCY 65.4kHz / 54.4Hz
REMOTE2 STATUS ENABLE
----- Wired Network configuration ----
DHCP Client OF F
IP address 192.168.0.8
MAC address cc: 7e: e8:00:00:00
Tue Jun 04 22:29: 33:2013
----- Memo ----
Note
- APERTURE(CONTRAST-SHUTTER) and SHUTTER(MUTE-SHUTTER) are only for PT-EZ580, PT-EW640 and PT-EX610.

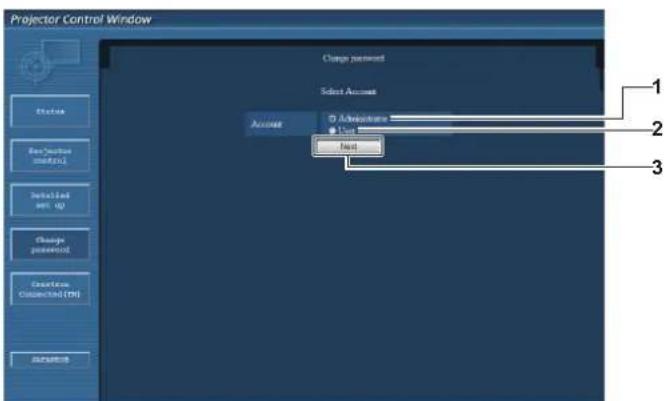

[Change password] page
Click [Change password].
Change packet
Select Account
Account
Add Account
Use Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Account
Add Accounts
1 [Administrator]
Used to change the setting of the [Administrator].
3 [Next]
Used to display the screen for changing the password.
2 [User]
Used to change the setting of the [User].

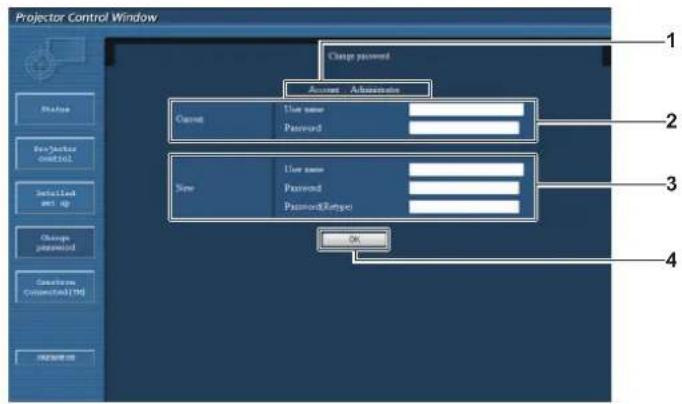

[Administrator] account
Close password
Access - Accessnote
Caspal
Use name
Password
Size
Use name
Password
Password/Retype
OK
1
2
3
4
1 [Account]
Displays the account to change.
2 [Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password.
3 [New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single byte)
[Password(Retype)]:
Enter the desired new password again.
4 [OK]
Determines the change of password.
[User] account

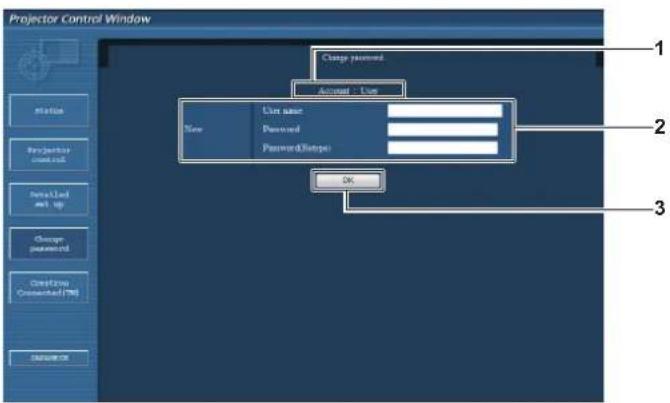

Change password
Active User
New
User name:
Password:
Password(https):
OK
Status
Properties
Start up
Added
Set up
Change password
Create from Connected (TM)
Unknown OK
1
2
3
1 [Account]
Displays the account to change.
3 [OK]
Determines the change of password.
2 [New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single byte)
[Password(Retype)]:
Enter the desired new password again.

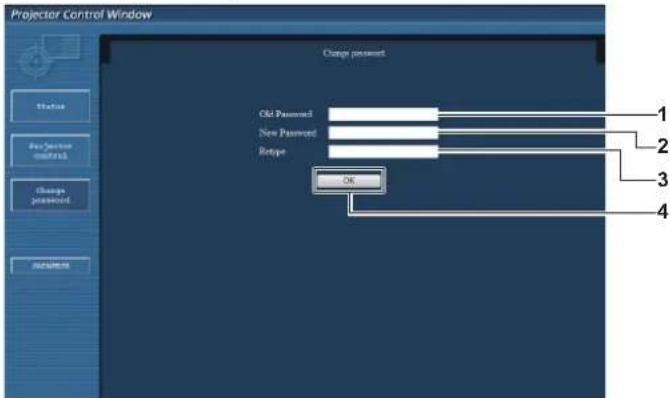

[Change password] (For user rights)
Only the change of password is enabled under the user rights.
Change password
Old Password
New Password
Retape
OK
1
2
3
4
1 [Old Password]
Enter the current password.
2 [New Password]
Enter the desired new password. (Up to 16 characters in single byte)
3 [Retype]
Enter the desired new password again.
4 [OK]
Determines the change of password.
Note
- To change the account of the administrator, you must enter the [User name] and [Password] in [Current].
[Crestron Connected(TM)] page
The projector can be monitored/controlled with Crestron Connected™.
To start the control page of Crestron Connected™ from the web control screen, you need to access with the administrator rights. (For user rights, the [Crestron Connected(TM)] button is not displayed on the web control screen.)
The control page of Crestron ConnectedTM is displayed by clicking [Crestron Connected(TM)].
It is not displayed if Adobe® Flash® Player is not installed on the computer used, or the browser used does not support Flash. In that case, click [Back] on the control page to go back to the previous page.

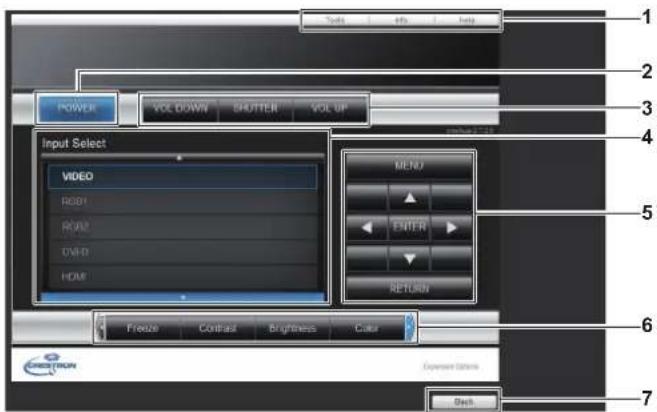

Control page
Info
Help
POWER
VOL DOWN
SHUTTER
VOL UP
Input Select
VIDEO
RGB1
RUN2
OVID
HOM
MENU
ENTER
RETURN
Freeze
Contrast
Brightness
Color
ESPN RUN
Express Options
Check
1 [Tools], [Info], [Help]
Tabs for selecting the setting, information, or help page of the projector.
2 [POWER]
Turns off/on the power.
3 [VOL DOWN], [VOL UP]
Adjusts the volume.
[SHUTTER] ^1
Switches the setting whether to use the shutter function (closing/opening of the shutter).
*1 For PT-EZ580, PT-EW640 and PT-EX610
[AV MUTE] for PT-EW540 and PT-EX510
Switches the AV mute function on/off.
4 [Input Select]
Controls input selection.
Not available when the power of the projector is turned off.
5 Menu screen control buttons
Navigates the menu screen.
6 Freeze/image quality adjustment
Controls items related to freeze/image quality.
7 [Back]
Performs return to the previous page.

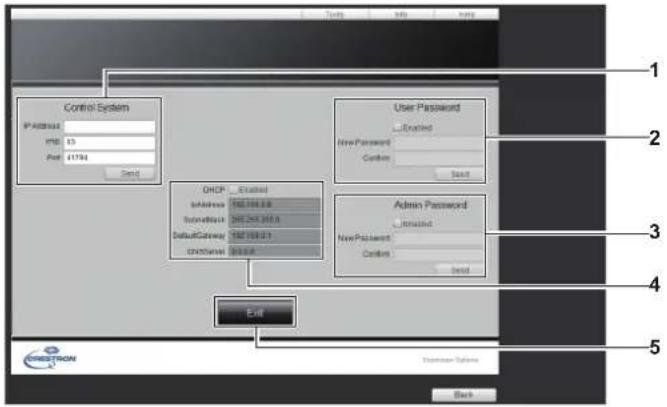

[Tools] page
Click [Tools] on the control page.
IP Address
PME 15
Post 21794
Send
OHCP Enacted
Address: 182.768.28
SendMail: 305.263.261.6
Default Gateway: 182.768.21
ENSTChannel: 833.6.8
User Password
Enacted
New Password
Customs
Send
Admin Password
Enacted
New Password
Customs
Send
Exit
ONESTROM
Back
1 [Control System]
Set the information required for communicating with the controller to be connected with the projector.
2 [User Password]
Set the user rights password for the Crestron Connected™ control page.
3 [Admin Password]
Set the administrator rights password for the Crestron Connected™ control page.
4 Network status
Displays the settings of wired LAN.
[DHCP]
Displays the current setting.
[lpAddress]
Displays the current setting.
[SubnetMask]
Displays the current setting.
[DefaultGateway]
Displays the current setting.
[DNSServer]
Displays the current setting.
5 [Exit]
Returns to the control page.

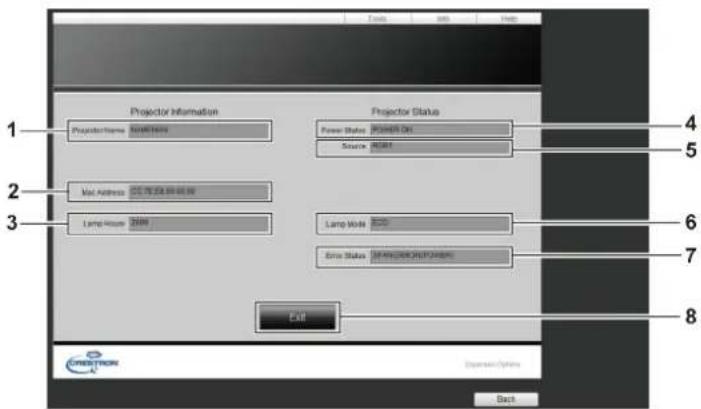

[Info] page
Click [Info] on the control page.
Projector Name: NAMKIN
Projector Status
Power Status: POWER On
Source: USB1
Mac Address: CS 78 23.00-06.00
Lamp Mode: 2000
Lamp Mode: 2000
Error Status: SPANDERON/OPEEN
Exit
CREATION
Operation Options
Back
1 [Projector Name]
Displays the projector name.
2 [Mac Address]
Displays the MAC address.
3 [Lamp Hours]
Displays the runtime of the lamps (converted value).
4 [Power Status]
Displays the status of the power.
5 [Source]
Displays the selected input.
6 [Lamp Mode]
Displays the setting status of [LAMP POWER] (→ page 87).
7 [Error Status]
Displays the error status.
8 [Exit]
Returns to the control page.

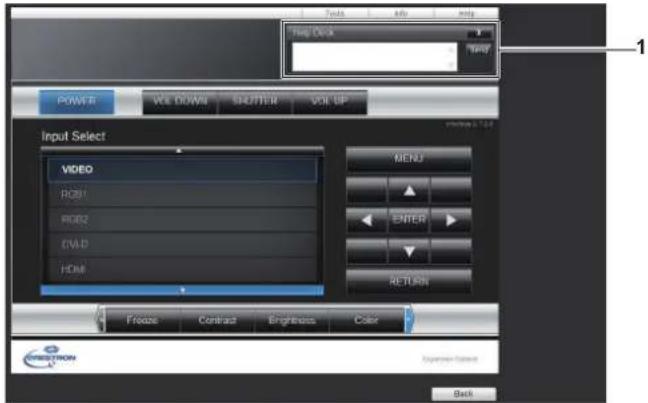

[Help] page
Click [Help] on the control page.
The [Help Desk] window is displayed.
TWPY
POWER
VOL DOWN
SLUTTER
VOL UP
Input Select
VIDEO
RGB1
RGB2
GND
HOM
MENU
ENTER
RETURN
Freeze
Contrast
Brightness
Color
Experient Options
Back
1 [Help Desk]
Send/receive messages to/from an administrator who uses
Crestron Connected™.
Chapter 5 Maintenance
This chapter describes methods of inspection when there are problems, maintenance, and replacement of the units.
Lamp/temperature/filter indicators
When an indicator lights up
If a problem should occur inside the projector, the lamp indicator , the temperature indicator , and the filter indicator will inform you by lighting or flashing. Check the status of the indicators and remedy the indicated problems as follows.
Attention
- When switching off the projector to deal with problems, make sure to follow the procedure in "Switching off the projector" (→ page 48).
ON(G)/
STANDBY(R)
LAMP
TEMP
FILTER
Filter indicator
Temperature indicator
Lamp indicator
Indicator status Lighting in red Flashing in red(1 time) Flashing in red(3 times) Status Time to replace the lamp unit. (⇨ page 131) The lamp unit is not installed. A problem is detected in the lamp or the power supply for the lamp. Cause Was [REPLACE LAMP] displayed when you turned on the power?The indicator lights up when the runtime of the lamp unit reaches 3 800 hours (when [LAMP POWER] is set to [NORMAL]). Is the lamp unit attached? Have you turned on the power again immediately after turning it off? Some error has occurred in the lamp circuit. Check for fluctuation (or drop) in the source voltage. Solution Replace the lamp unit. Install the lamp unit if it is not installed.If the indicator is still flashing in red even when having installed the lamp unit, consult your dealer. Wait a while until the luminous lamp cools off, and then turn on the power. Turn theswitch to⇨ page 48), and consult your dealer.
Note
- If the lamp indicator is still lit or flashing after taking the preceding measures, ask your dealer for repair.
Temperature indicator
Indicator status Lighting in red Flashing in red(2 times) Flashing in red(3 times) Status Internal temperature is high (warning). Internal temperature is high (standby status). The cooling fan has stopped. Cause Is the air intake/exhaust port blocked?Is the room temperature high?Is the filter indicatorlit? — Solution Remove any objects that are blocking the air intake/exhaust port.Install the projector in a location with the operating environment temperature between 0 °C (32 °F) and 45 °C (113 °F)*1.Do not install the projector at high altitudes of 2 700 m (8 858') or higher above sea level.Clean or replace the air filter unit. (→ page 129) Turn theswitch to(→ page 48), and consult your dealer.
*1 When using the projector at high altitudes (between 1 400 m (4 593') and 2 700 m (8 858') above sea level), the operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F).
Note
If the temperature indicator is still lit or flashing after taking the preceding measures, ask your dealer for repair.
If you use the projector with the following function set, [LAMP POWER] may be set to [ECO] forcibly to protect the projector when the operating environment temperature becomes 40 °C (104 °F) or higher (35 °C (95 °F) or higher when using the projector at high altitudes).
When [LAMP POWER] is set to [AUTO] or [NORMAL] from the menu
Filter indicator
Indicator status Lighting in red Flashing in red Status The filter is clogged.The temperature inside or outside the projector is abnormally high. The air filter unit is not attached. Cause • Is the air filter unit dirty? • Is the air intake/exhaust port blocked? • Is the air filter unit attached? Solution • Clean or replace the air filter unit.(⇨ page 129) • Remove any objects that are blocking the air intake/exhaust port. • Attach the air filter unit.
Note
- If the filter indicator is still lit or flashing after taking the preceding measures, ask your dealer for repair.
Maintenance/replacement
Before performing maintenance/replacement
Make sure to turn off the power before maintaining the projector or replacing the unit. (→ pages 44, 48)
When switching off the projector, make sure to follow the procedures in "Switching off the projector" (→ page 48).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
If the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry off the projector with a dry cloth.
Do not use benzene, thinner, or rubbing alcohol, other solvents, or household cleaners. Doing so may deteriorate the outer case.
When using chemically treated dust cloths, follow the instructions written on its packaging.
Lens front surface
Wipe off dirt and dust from the front surface of the lens with a soft clean cloth.
Do not use a cloth that is fluffy, dusty, or soaked with oil/water.
Since the lens is fragile, do not use excessive force when wiping the lens.
Attention
- The lens is made of glass. Impacts or excessive force when wiping may scratch its surface. Handle with care.
Air filter unit
Perform maintenance of the air filter in the following case.
- The air filter is clogged with dust, causing the filter replacement message to appear on the screen and the filter indicator to light in red.
Attention
Make sure to turn off the power before performing maintenance on the air filter unit.
Make sure that the projector is stable, and perform the maintenance in a safe place where the unit will not be damaged even if you drop the air filter unit.

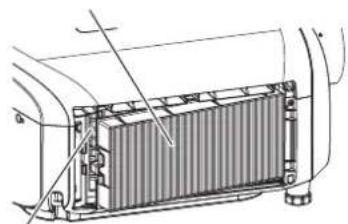

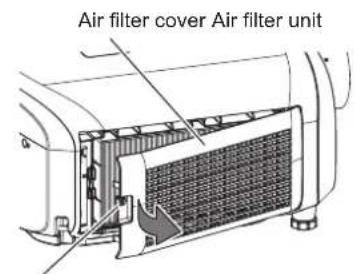

Removing the air filter unit
Air filter cover fixing screw
Fig. 1 Fig. 2 Fig. 3
Air filter unit compartment and the projector's air intake port
1) Remove the air filter cover. (Fig. 1)
Use a Phillips screwdriver to turn the air filter cover fixing screw (x1) counterclockwise until it turns freely, and gently pull open in the direction of the arrow with your finger placed on the indent of the air filter cover and remove the cover.
When pulling open the air filter cover, be sure to firmly hold the air filter cover with your hand. Opening the air filter cover quickly may result in the cover falling.

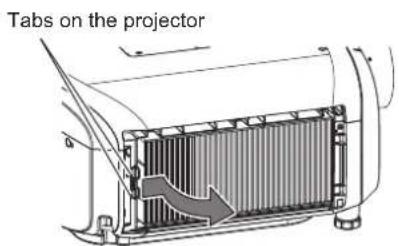

2) Remove the air filter unit.
Pull out the air filter unit from the tabs of the projector while slightly pressing the tab at the center of the frame at the connecting terminal side (rear side) inward as shown by the arrow, and remove the air filter unit. (Fig. 2)
After pulling out the air filter unit, remove foreign objects and dust from the air filter unit compartment and the projector's air intake port if there are any. (Fig. 3)
Cleaning the air filter unit
Remove the air filter unit beforehand according to the previously described procedure in "Removing the air filter unit".

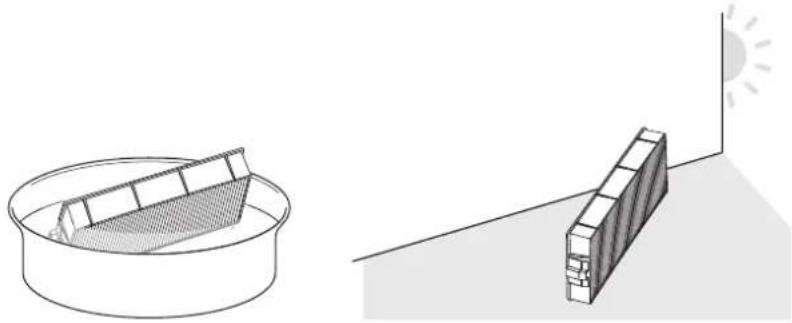

Fig. 1 Fig. 2
1) Wash the air filter unit. (Fig. 1)
i) Soak the air filter unit in cold or warm water and then lightly rinse it.
Do not use cleaning tools such as brushes.
When rinsing, hold the frame of the air filter unit without putting strong pressure on the filter.
ii) Rinse the air filter unit two to three times using fresh water each time.
• Insufficient rinsing may result in odors.
2) Dry the air filter unit. (Fig. 2)
Let the air filter unit naturally dry off in a well-ventilated place where there is little dust and is not exposed to direct sunlight.
Do not dry using drying devices such as dryers.
After the air filter unit is dried, proceed to "Attaching the air filter unit" (→ page 130).
Attaching the air filter unit
1) Attach the air filter unit to the projector.
Perform Step 2) in "Removing the air filter unit" in the reverse order.
Push in the air filter unit securely until it clicks into place.
2) Attach the air filter cover.
Perform Step 1) in "Removing the air filter unit" in the reverse order to close the air filter cover, and push in the air filter cover securely until it clicks into place.
Use a Phillips screwdriver to firmly tighten the air filter cover fixing screw (x1).
Attention
After washing the air filter unit, dry it thoroughly before attaching it back to the projector. Attaching a wet unit will cause an electric shock or malfunction.
Do not disassemble the air filter unit.
Make sure that the air filter unit is properly attached before using the projector. If it is not attached, the projector will suck in dirt and dust causing a malfunction.
Note
If you use the projector without attaching the air filter unit, the filter indicator flashes in red and the message appears on the projected image for approximately 30 seconds.
Replace the air filter unit with the new optional Replacement Filter Unit (Model No.: ET-RFE300) if it is damaged or if the dirt does not come off even after washing.
The dust-proof properties may be reduced after each cleaning.
Replacing the unit
Lamp unit
The lamp unit is a consumable component. Refer to "When to replace the lamp unit" ( page 131) for details about the replacement cycle. When purchasing the optional Replacement Lamp Unit (Model No.: ET-LAE300), consult your dealer.
It is recommended that you request a qualified technician to replace the lamp unit. Consult your dealer.
Warning
Replace the lamp unit after the lamp has cooled (after waiting at least one hour). The high temperature inside the cover will cause burns.
Notes on the replacement of the lamp unit
A Phillips screwdriver is necessary when replacing the lamp unit.
Since the luminous lamp is made of glass, it may burst if dropped or hit with a hard object. Handle with care.
Do not disassemble or modify the lamp unit.
When replacing the lamp unit, be sure to hold it by the handle because its surface is pointed and its shape is protruded.
The lamp may rapture. Replace the lamp unit carefully so the glass fragments of the lamp do not scatter. While attaching the projector to the ceiling, do not work right under the lamp unit or do not conduct work while your face is near the lamp unit.
The lamp contains mercury. When disposing of used lamp units, contact your local authorities or dealer for correct methods of disposal.
Attention
- Panasonic takes no responsibility for any damage or malfunction of the product resulting from use of lamp units which are not manufactured by Panasonic. Use only specified lamp units.
Note
- The model numbers of accessories and optional accessories are subject to change without prior notice.
When to replace the lamp unit
The lamp unit is a consumable component. Since its brightness gradually decreases over time, it is necessary to replace the lamp unit regularly. The estimated duration before replacement is 4 000 hours, but the lamp may go off before reaching to 4 000 hours, depending on the characteristics of the individual lamp, usage conditions, and the installation environment. It is recommended that the Replacement Lamp Unit be prepared earlier.
If you continue to use the lamp unit after 4 000 hours has elapsed, the lamp turns off automatically after approximately 10 minutes, as it may cause malfunction of the projector.
On-screen displayREPLACE LAMP Lamp indicator Over 3 800 hours The message is displayed for 30 seconds. Pressing any button on the control panel or remote control within 30 seconds will clear the message. The indicator lights in red even during the standby mode. Over 4 000 hours The message remains displayed until you press any button.
Note
To predict when to replace the lamp, check the lamp runtime displayed at [LAMP : TOTAL] in [STATUS] (→ page 94).
4 000 hours is only the target for replacement and not the warranty time.
How to replace the lamp unit
Attention
While attaching the projector to the ceiling, do not work right under the lamp unit or do not conduct work while your face is near the lamp unit.
Do not remove or loosen the screws other than specified ones when replacing the lamp unit.
Make sure to attach the lamp unit and the lamp cover securely.
- If the lamp unit is not installed properly, remove it and then push it in slowly. Pushing it in quickly or forcibly may break the connector.
Lamp cover fixing screw
Fig. 1
Lamp unit
Handles
Fig. 2
1) Set the switch to and disconnect the power plug from the power outlet.
- Wait at least one hour and check if the lamp unit has cooled down.
2) Remove the lamp cover. (Fig. 1)
Use a Phillips screwdriver to turn the lamp cover fixing screw (x1) counterclockwise until it turns freely, and slide the lamp cover slowly in the direction of the arrow to remove it.
Opening the lamp cover quickly may result in falling.
3) Remove the lamp unit. (Fig. 2)
Use a Phillips screwdriver to turn the lamp unit fixing screws (x3) counterclockwise until they turn freely, and remove the lamp unit.
Hold the handles of the lamp unit and remove it straight.
4) Push in the new lamp unit while paying attention to the insertion position.
- If the lamp unit is not installed properly, remove it and then push it in slowly. Pushing it in quickly or forcibly may break the connector.
5) Use a Phillips screwdriver to firmly tighten the lamp unit fixing screws (x3).
• Make sure to attach the lamp unit securely.
6) Attach the lamp cover.
i) Perform Step 2) in the reverse order to attach the lamp cover.
ii) Use a Phillips screwdriver to firmly tighten the lamp cover fixing screw (x1).
- Make sure to attach the lamp cover slowly and securely.
Note
- When you replace the lamp unit with new one, the projector resets the runtime of the lamp unit automatically.
Air filter unit
When the dust remains after cleaning, the filter replacement timing has come.
The Replacement Filter Unit (Model No.: ET-RFE300) is an optional accessory. To purchase the product, consult your dealer.
How to replace the air filter unit
Attention
Make sure to turn off the power before replacing the air filter unit.
Make sure that the projector is stable, and perform the replacement in a safe place where the unit will not be damaged even if you drop the air filter unit.
1) Remove the air filter unit.
- Refer to "Removing the air filter unit" (→ page 129).
2) Attach the optional Replacement Filter Unit (Model No.: ET-RFE300) to the projector.
- Refer to "Attaching the air filter unit" (→ page 130).
Attention
- When using the projector, be sure to attach the air filter unit. If it is not attached, the projector will suck in dirt and dust causing a malfunction.
Note
- If you use the projector without attaching the air filter unit, the filter indicator flashes in red and the message appears on the projected image for approximately 30 seconds.
Review the following points. For details, see the corresponding pages.
Problems Points to be checked Page Power does not turn on. Is the power plug firmly inserted into the outlet?Is theswitch set to?Is the wall outlet supplying electricity? —Have the circuit breakers tripped? —Is the lamp indicatoror the temperature indicatorlit or flashing?Is the lamp cover attached securely? —48127131 No image appears. Are connections to external devices correctly performed?Is the input selection setting correct? 51Is the [BRIGHTNESS] adjustment setting at a minimum?Is the external device that is connected to the projector working properly?Is the shutter function in use? 51If the power indicatoris flashing in red, consult your dealer.Is the lens cover still attached to the lens? 3963————45 Image is fuzzy. Is the lens focus set correctly?Is the projection distance appropriate?Is the lens dirty?Is the projector installed perpendicular to the screen? 493119— Color is pale or grayish. Is [COLOR] or [TINT] adjusted correctly?Is the external device connected to the projector adjusted correctly?Is the RGB cable damaged? 6339— Audio is not output. Is the external device connected correctly to the audio input terminal?Is [MUTE] in [AUDIO SETTING] set to [ON]?Is the audio input selection in [AUDIO SETTING] set correctly? 269394 Audio is not output from the built-in speaker. Is [BUILT-IN SP] in [AUDIO SETTING] set to [OFF]?Is the audio input selection in [AUDIO SETTING] set correctly? 9394 Remote control does not respond. Are the batteries depleted?Is the polarity of the batteries set correctly?Are there any obstructions between the remote control and the remote control signal receiver of the projector?Is the remote control being used beyond its effective operation range?Are other forms of light, such as fluorescent light, affecting the projection?Is the [REMOTE CONTROL] setting in [CONTROL DEVICE SETUP] set to [DISABLE]?Is theterminal used for contact control?Is the ID number setting operation correct?Is the cable that is connected to theterminal connected to the remote control wired terminal? —272424241061432728 Menu screen does not appear. Is the on-screen display function turned off (hidden)? 53 Buttons on the control panel do not operate. Is the [CONTROL PANEL] setting in [CONTROL DEVICE SETUP] set to [DISABLE]?Is theterminal used for contact control? 106143 Image does not display correctly. Is the [SYSTEM SELECTOR] selection set correctly?Is there a problem with the video tape or other image sources?Is a signal which is not compatible with the projector being input? 66—146 Image from a computer does not appear. Is the cable too long? (For D-Sub cables, the cable length should be 10 m (32'10") or shorter.)Is the external video output on the laptop computer set correctly? (Ex.: The external output settings may be switched by pressing "Fn" + "F3" or "Fn" + "F10" simultaneously. Since the method varies depending on the computer type, refer to the user manual provided with your computer.) —— Image output from DVI-D of the computer does not appear. Is the [DVI-D IN] setting [EDID3] or [EDID2:PC]?The graphics accelerator driver of the computer may need to be updated to the latest version.The computer may need to be restarted after performing the [DVI-D IN] setting. 78—78 Video from HDMI compatible device does not appear or it appears jumbled. Is the HDMI cable connected securely? 39Turn off and on the power of the projector and the external device.Is a signal which is not compatible with the projector being input? —146 Image output from DisplayPort of the computer does not appear. *1 If connecting the projector to a computer that uses an early-type chipset or graphics card compatible with DisplayPort, the projector or computer may not be operated properly.The graphics accelerator driver of the computer may need to be updated to the latest version.Turn off and on the power of the projector and the external device.Is a signal which is not compatible with the projector being input? 148——146 The DIGITAL LINK input image or sound is not output. *1 Are the connections between the twisted-pair-cable transmitter and the projector or an external device correctly done?Is [DIGITAL LINK MODE] set to [AUTO] or [DIGITAL LINK]? Is it set to [ETHERNET]?Is a signal which is not compatible with a twisted-pair-cable transmitter being input? —107—
*1 Only for PT-EZ580, PT-EW640 and PT-EX610
Attention
- If problems persist even after checking the preceding points, consult your dealer.
Chapter 6 Appendix
This chapter describes specifications for the projector.
PJLink protocol
The network function of this projector supports the PJLink class 1, and the PJLink protocol can be used to perform projector setting and projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used to control the projector.
- x characters in tables are non-specific characters.
Command Control details Parameter return string Remark POWR Power supply control 0 Standby1 Power on POWR? Power supply status query 0 Standby1 Power on2 Preparing for switching off the 3 Warm-up projector INPT Input selection 11 RGB112 RGB221 VIDEO31 DVI-D32 HDMI3334 DIGITAL LINK*1DisplayPort *1 INPT? Input selection query AVMT Shutter control *2*4 /AV mute control *3*4 30 Shutter function off (shutter open) / AV mute function off31 Shutter function on (shutter closed) / AV mute function on AVMT? Shutter status query *2 /AV mute status query *3 ERST? Error status query xxxxxx 1st byte Indicates fan errors, and returns 0 - 2. 0 = No error is detected1 = Warning2 = Error 2nd byte Indicates lamp errors, and returns 0 - 2. 3rd byte Indicates temperature errors, and returns 0 - 2. 4th byte Indicates cover open errors, and returns 0 or 2. 5th byte Indicates filter errors, and returns 0 - 2. 6th byte Indicates other errors, and returns 0 - 2. LAMP? Lamp status query xxxxxx 1st digit (1 - 5 digits): Lamp runtime2nd digit: 0 = Lamp off, 1 = Lamp on INST? Input selection list query (EZ580/EW640/EX610)11 12 21 31 32 33 34(EW540/EX510)11 12 21 31 32 NAME? Projector name query xxxxx Returns the name set in [PROJECTOR NAME] of [NETWORK SETUP]. INF1? Manufacturer name query Panasonic Returns manufacturer name. INF2? Model name query EZ580EW640, EW540EX610, EX510 Returns model name. INF0? Other information queries xxxxx Returns information such as version number. CLSS? Class information query 1 Returns class for PJLink.
*1 Only for PT-EZ580, PT-EW640 and PT-EX610
PJLink security authentication
The password used for PJLink is the same as that of the password set for web control.
When using the projector without security authentication, do not set a password for web control.
- For specifications related to PJLink, refer to the website of Japan Business Machine and Information System Industries Association.
URL http://pjlink.jbmia.or.jp/english/
Control commands via LAN
When web control administrator rights password is set (Protect mode)
Connecting
1) Obtain the IP address and port number (Initial set value = 1024) of the projector and request for a connection to the projector.
- You can obtain both the IP address and the port number from the menu screen of the projector.
IP address Obtain from the main menu → [NETWORK] → [NETWORK STATUS] Port number Obtain from the main menu → [NETWORK] → [NETWORK CONTROL] → [COMMAND PORT]
2) Check the response from the projector.
Data section Blank Mode Blank Random number section Termination symbol Command example “NTCONTROL” (ASCII string) ‘’ 0x20 ‘1’ 0x31 ‘’ 0x20 “zzzzzzzz” (ASCII code hex number) (CR) 0x0d Data length 9 bytes 1 byte 1 byte 1 byte 8 bytes 1 byte
• Mode: 1 = Protect mode
3) Generate a 32-byte hash value from the following data using MD5 algorithm.
- "xxxxxx:yyyyMMddy:zzzzzzzzz"
xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzzz 8-byte random number obtained in Step 2)
Command transmission method
Transmit using the following command formats.
■ Transmitted data
Header Data section Termination symbol Command example Hash value(Refer to “Connecting” above) ‘0’0x30 ‘0’0x30 Control command(ASCII string) (CR)0x0d Data length 32 bytes 1 byte 1 byte Undefined length 1 byte
■ Received data
Header Data section Termination symbol Command example ‘0’0x30 ‘0’0x30 Control command (ASCII string) (CR)0x0d Data length 1 byte 1 byte Undefined length 1 byte
■ Error response
String Details Termination symbol Message “ERR1” Undefined control command (CR)0x0d “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes — 1 byte
When web control administrator rights password is not set (Non-protect mode)
Connecting
1) Obtain the IP address and port number (Initial set value = 1024) of the projector and request for a connection to the projector.
- You can obtain both the IP address and the port number from the menu screen of the projector.
IP address Obtain from the main menu → [NETWORK] → [NETWORK STATUS] Port number Obtain from the main menu → [NETWORK] → [NETWORK CONTROL] → [COMMAND PORT]
2) Check the response from the projector.
Data section Blank Mode Termination symbol Command example “NTCONTROL” (ASCII string) ‘’ 0x20 ‘0’ 0x30 (CR) 0x0d Data length 9 bytes 1 byte 1 byte 1 byte
• Mode: 0 = Non-protect mode
Command transmission method
Transmit using the following command formats.
■ Transmitted data
Header Data section Termination symbol Command example ‘0’0x30 ‘0’0x30 Control command (ASCII string) (CR)0x0d Data length 1 byte 1 byte Undefined length 1 byte
■ Received data
Header Data section Termination symbol Command example ‘0’0x30 ‘0’0x30 Control command (ASCII string) (CR)0x0d Data length 1 byte 1 byte Undefined length 1 byte
■ Error response
String Details Termination symbol Message “ERR1” Undefined control command (CR)0x0d “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period “ERR4” Timeout or no-acceptable period “ERR5” Wrong data length “ERRA” Password mismatch Data length 4 bytes — 1 byte
terminal The terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer.
Connection

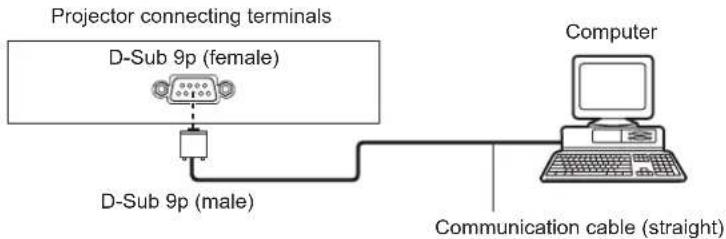

● When connecting directly

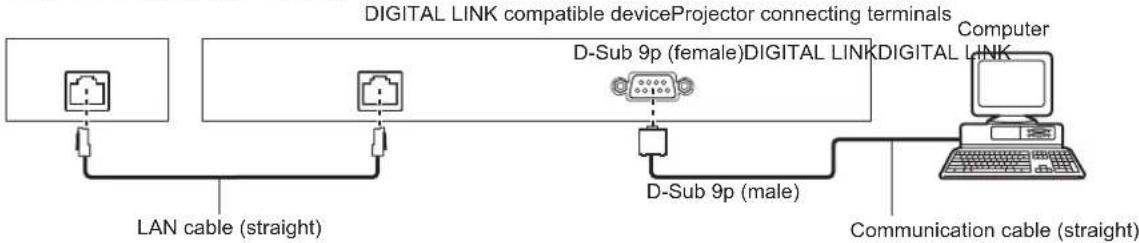

● When connecting with DIGITAL LINK compatible devices
(Only for PT-EZ580, PT-EW640 and PT-EX610)
Note
- The destination of [RS-232C] (→ page 90) must be set according to the connection method.
- When connecting by a DIGITAL LINK compatible device, set the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] (→ page 88) to [NORMAL] to control the projector in standby mode.
When [STANDBY MODE] is set to [ECO], the projector cannot be control during standby.
Pin assignments and signal names
D-Sub 9-pin (female) Outside view Pin No. Signal name Details (1) — NC (2) TXD Transmitted data (3) RXD Received data (4) — NC (5) GND Earth (6) — NC (7) CTS Connected internally (8) RTS (9) — NC
Communication conditions (Factory default)
Signal level RS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length 8 bits Stop bit 1 bit X parameter None S parameter None
Transmission from the computer starts with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according to the details of control.

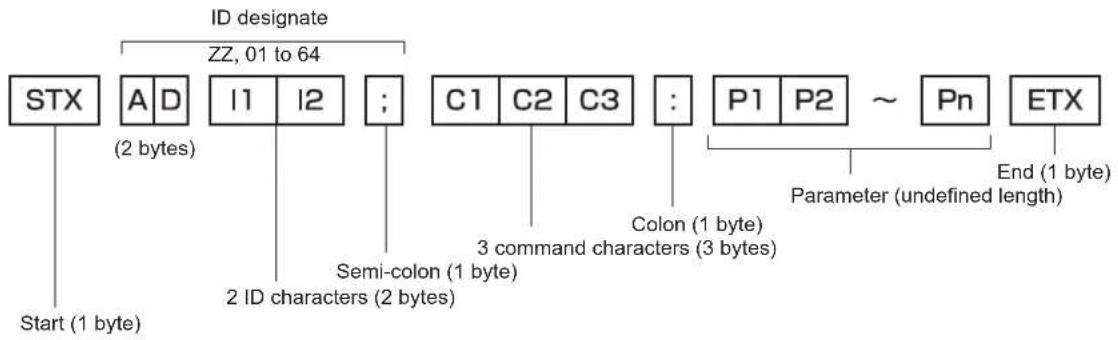

ZZ, 01 to 64
STX A D I1 I2 ; C1 C2 C3 : P1 P2 ~ Pn ETX
(2 bytes) (2 bytes) Semi-colon (1 byte) 3 command characters (3 bytes)
2 ID characters (2 bytes) 2 ID characters (2 bytes) End (1 byte)
Start (1 byte) Parameter (undefined length)
L["“=” (Set the value specified using parameter)"]

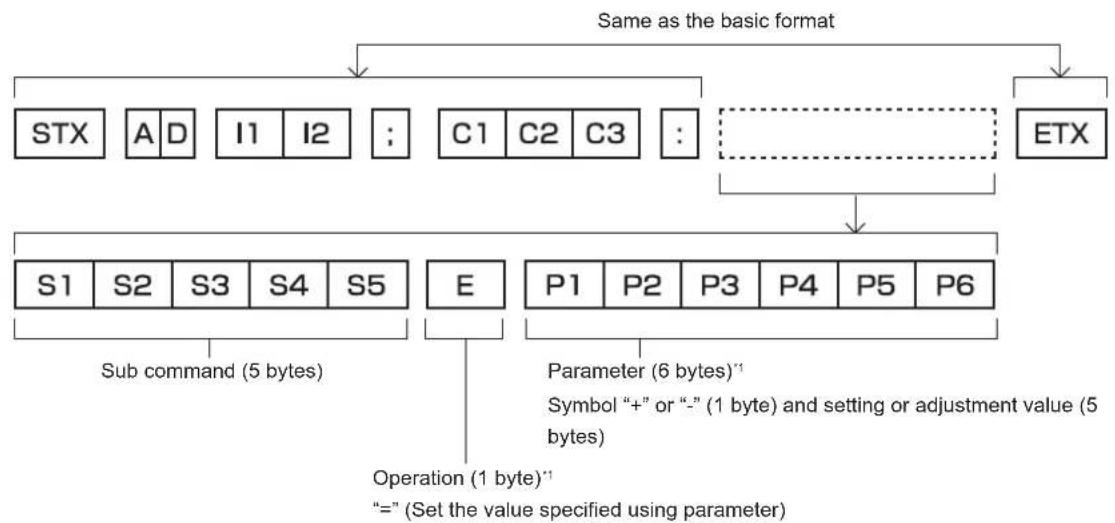

*1 When transmitting a command which does not need a parameter, an operation (E) and parameter are not necessary.
Attention
If a command is transmitted after the lamp starts illuminating, there may be a delay in response or the command may not be executed. Try sending or receiving any command after 60 seconds.
When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before sending the next command. When transmitting a command which does not need a parameter, a colon (:) is not necessary.
Note
If a command cannot be executed, the "ER401" response is sent from the projector to the computer.
If an invalid parameter is sent, the "ER402" response is sent from the projector to the computer.
If a command is sent with a specified ID, a response will be sent to the computer only in the following cases.
It matches the projector ID
When [PROJECTOR ID] (→ page 86) on the projector is [ALL]
STX and ETX are character codes. STX shown in hexadecimal is 02, and ETX shown in hexadecimal is 03.

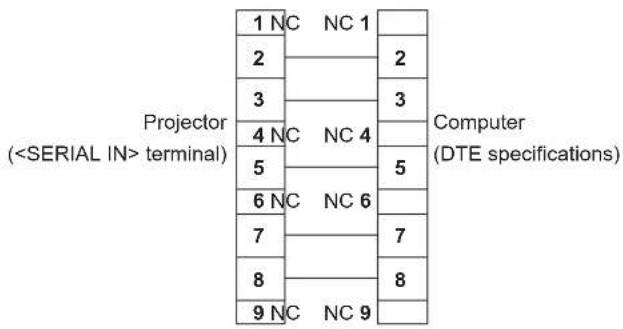

Cable specification
When connected to a computer
( terminal)
1 NC NC 1
2
3
4 NC NC 4
5
6 NC NC 6
7
8
9 NC NC 9
Computer
(DTE specifications)
Control command
The following table lists the commands that can be used to control the projector using a computer.
■ Projector control command
Command Details Parameter/return string Remark (parameter) PON Power on — To check if the power is on, use the “Power query” command. POF Power standby QPW Power query 000001 STANDBYPower on IIS Switching the input signal VID VIDEORG1RG2DVI DVI-DHD1DL1DP1 RGB1RGB2HDMIDIGITAL LINK*1DisplayPort *1 QSL Lamp cumulative runtime query 1 Returned with 0000 to 9999 OSH Shutter control *2*4 /AV mute control *3*4 0 Shutter function off (shutter open) / AV mute function off QSH Shutter status query *2/AV mute status query *3 1 Shutter function on (shutter closed) / AV mute function on VSE Aspect ratio switch 0 NORMAL/VID AUTO/AUTO1 4:32 WIDE5 NATIVE6 FULL9 H FIT10 V FIT QSE Aspect ratio settings query OPP P IN P execution 0 OFF1 USER12 USER23 USER3 QPP P IN P setting query OCS Sub memory switch 01 - 96 Sub memory number
*1 Only for PT-EZ580, PT-EW640 and PT-EX610
*2 For PT-EZ580, PT-EW640 and PT-EX610
*3 For PT-EW540 and PT-EX510
*4 When the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [SHUTTER DETECTION] or [AV MUTE DETECTION] is set to [ON], do not switch on/off in a short time.
■ Projector control command (with sub command)
Command Sub command Details Remark VXX LPWI1 Lamp power selection +00001=NORMAL,+00000=ECO, +00030=AUTO VXX RYCI2 RGB2 input setting +00000=RGB/YP _BP_R , +00001=Y/C, +00002=VIDEO
■ Lens control command
Command Sub command Details Remark VXX LNS I2 Lens H shift VXX LNS I3 Lens V shift VXX LNS I4 Lens focus VXX LNS I5 Lens zoom
terminal It is possible to control the projector remotely (by external contact) from a control panel located away from the projector where remote control signals cannot reach.
Use the terminal on the connecting terminals of the projector to connect to the control panel.

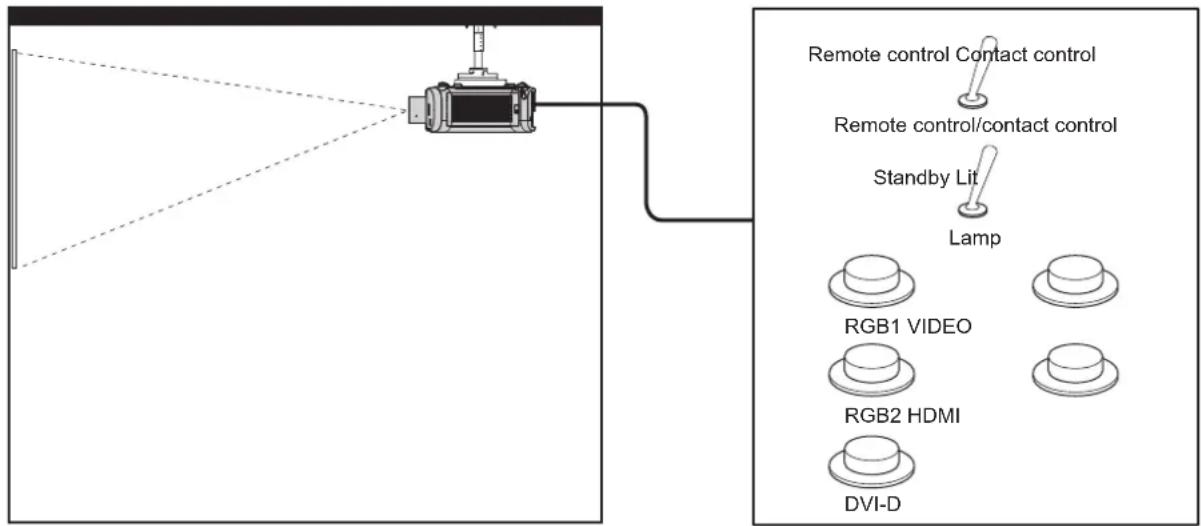

Installation locations in meeting rooms, etc.
Pin assignments and signal names
D-Sub 9-pinOutside view Pin No. Signal name Open (H) Short (L) (1) GND — GND (2) POWER OFF ON (3) RGB1 Other RGB1 (4) RGB2 Other RGB2 (5) VIDEO Other VIDEO (6) HDMI Other HDMI (7) DVI-D Other DVI-D (8) SHUTTER *1 OFF ON (9) RST/SET Controlled by remote control Controlled by external contact
*1 For PT-EZ580, PT-EW640 and PT-EX610
Attention
When controlling, make sure to short-circuit pins (1) and (9).
When pins (1) and (9) are short-circuited, the following buttons on the control panel and the remote control are disabled. Commands for RS-232C and network functions corresponding to these functions are also disabled.
Power <∅/|> button on the control panel or the power on <|> button, power standby <∅> button, and button and button on the remote control
When pins (1) and (9) are short-circuited, and then any pins from (3) to (7) and the pin (1) are short-circuited, the following buttons on the control panel and the remote control are disabled. Commands for RS-232C and network functions corresponding to these functions are also disabled.
- Power <∅/|> button on the control panel or the power on <|> button, power standby <∅> button, button, button, button, button, button, button, button and button on the remote control.
Note
- For pin (2) to pin (8) settings, you can make changes if you set [REMOTE2 MODE] to [USER]. (→ page 92)
Two-window display combination list
Sub window RGB1 RGB2 VIDEO Main window Still image Movie*1 Still image Movie*1 Y/C Video RGB1 input Still image signal — — √ √ √ √ √ Movie-based signal*1 — — √ ▲ ▲ ▲ ▲ RGB2 input Still image signal √ √ — — — — √ Movie-based signal*1 √ ▲ — — — — ▲ Y/C signal √ — — — — — — Video signal √ — — — — — — VIDEO input √ ▲ √ ▲ — — — DVI-D input Still image signal*2 √ √ √ √ √ √ √ Movie-based signal*3 √ ▲ √ ▲ ▲ ▲ HDMI input Still image signal*2 √ √ √ √ √ √ √ Movie-based signal*3 √ ▲ √ ▲ ▲ ▲ DIGITAL LINK input *4 Still image signal*2 √ √ √ √ √ √ √ Movie-based signal*3 √ ▲ √ ▲ ▲ ▲ DisplayPort input *4 Still image signal*2 √ √ √ √ √ √ √ Movie-based signal*3 √ ▲ √ ▲ ▲ ▲
Sub window DVI-D HDMI DIGITAL LINK *4 DisplayPort *4 Main window Still image*2 Movie*3 Still image*2 Movie*3 Still image*2 Movie*3 Still image*2 Movie*3 RGB1 input Still image signal √ √ √ √ √ √ √ √ Movie-based signal*1 √ ▲ √ ▲ √ ▲ √ ▲ RGB2 input Still image signal √ √ √ √ √ √ √ √ Movie-based signal*1 √ ▲ √ ▲ √ ▲ √ ▲ Y/C signal √ ▲ √ ▲ √ ▲ √ ▲ Video signal √ ▲ √ ▲ √ ▲ √ ▲ VIDEO input √ ▲ √ ▲ √ ▲ √ ▲ DVI-D input Still image signal*2 — — √ √ √ √ — — Movie-based signal*3 — — √ ▲ √ ▲ — — HDMI input Still image signal*2 √ √ ——— — √ √ Movie-based signal*3 √ ▲ ——— — √ ▲ DIGITAL LINK input *4 Still image signal*2 √ √ ——— — √ √ Movie-based signal*3 √ ▲ ——— — √ ▲ DisplayPort input *4 Still image signal*2 — — √ √ √ √ — — Movie-based signal*3 — — √ ▲ √ ▲ — —
√: P IN P (picture in picture) combination is possible
▲: P IN P combination is possible on the following conditions. (Image on a sub window may be disrupted.)
The P IN P signals have the same vertical scanning frequency.
P IN P combination has signals other than the combination of Interlace signals by Interlace signals.
—: P IN P (picture in picture) combination is not possible
*1 480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24sF, 1080/24p, 1080/25p, 1080/30p, 1080/50p, 1080/60p
To initialize your password, consult your distributor.
List of compatible signals
The following table specifies the video signals compatible with the projector.
- Symbols that indicate formats are as follows.
- V: VIDEO, Y/C
- R: RGB
- Y: Y_BC_R/YP_BP_R
- D: DVI-D
- H: HDMI
- DP: DisplayPort (Only for PT-EZ580, PT-EW640 and PT-EX610)
Mode Resolution(Dots) Scanning freq. Dot clockfreq.(MHz) Format Plug and play*1 Horizontal(kHz) Vertical(Hz) RGB2 DVI-D HDMI DP EDID1 EDID2 EDID3 NTSC/NTSC4.43/PAL-M/PAL60 720 x 480i 15.7 59.9 — V — — — — — PAL/PAL-N/SECAM 720 x 576i 15.6 50.0 — V — — — — — — 525i (480i) 720 x 480i 15.7 59.9 13.5 R Y — — — — — — 625i (576i) 720 x 576i 15.6 50.0 13.5 R Y — — — — — — 525i (480i) 720 (1440) x 480i *2 15.7 59.9 27.0 D /H — — — — — — 625i (576i) 720 (1440) x 576i *2 15.6 50.0 27.0 D /H — — — — — — 525p (480p) 720 x 483 31.5 59.9 27.0 R/Y/D/H/DP — √ — √√ √ 625p (576p) 720 x 576 31.3 50.0 27.0 R/Y/D/H/DP — √ — √√ √ 750 (720)/60p 1 280 x 720 45.0 60.0 74.3 R/Y/D/H/DP — √ — √√ √ 750 (720)/50p 1 280 x 720 37.5 50.0 74.3 R/Y/D/H/DP — √ — √√ √ 1125 (1080)/60i*3 1 920 x 1 080i 33.8 60.0 74.3 R/Y/D/H/DP — √ — √√ √ 1125 (1080)/50i 1 920 x 1 080i 28.1 50.0 74.3 R/Y/D/H/DP — √ — √√ √ 1125 (1080)/24p 1 920 x 1 080 27.0 24.0 74.3 R/Y/D/H/DP — √ — √√ √ 1125 (1080)/24sF 1 920 x 1 080i 27.0 48.0 74.3 R/Y/D/H/DP — — — — — — 1125 (1080)/25p 1 920 x 1 080 28.1 25.0 74.3 R/Y/D/H/DP — √ — √ — — 1125 (1080)/30p 1 920 x 1 080 33.8 30.0 74.3 R/Y/D/H/DP — — — — — — 1125 (1080)/60p 1 920 x 1 080 67.5 60.0 148.5 R/Y/D/H/DP — √ — √√ √ 1125 (1080)/50p 1 920 x 1 080 56.3 50.0 148.5 R/Y/D/H/DP — √ — √√ √ VESA400 640 x 400 37.9 85.1 31.5 R/D/H/DP — — — — — — VGA 640 x 400 31.5 70.1 25.2 R/D/H/DP — — — — — — 640 x 480 31.5 59.9 25.2 R/D/H/DP √√ √ √ √√ 640 x 480 35.0 66.7 30.2 R/D/H/DP — — — — — — 640 x 480 37.9 72.8 31.5 R/D/H/DP √ — √√ √ √ 640 x 480 37.5 75.0 31.5 R/D/H/DP √ — √√ √ √ 640 x 480 43.3 85.0 36.0 R/D/H/DP — — — — — — SVGA 800 x 600 35.2 56.3 36.0 R/D/H/DP √ — √√ √ √ 800 x 600 37.9 60.3 40.0 R/D/H/DP √ — √√ √ √ 800 x 600 48.1 72.2 50.0 R/D/H/DP √ — √√ √ √ 800 x 600 46.9 75.0 49.5 R/D/H/DP √ — √√ √ √ 800 x 600 53.7 85.1 56.3 R/D/H/DP — — — — — MAC16 832 x 624 49.7 74.6 57.3 R/D/H/DP √ — √√ √ √ XGA 1 024 x 768 39.6 50.0 51.9 R/D/H/DP — — — — — — 1 024 x 768 48.4 60.0 65.0 R/D/H/DP √ — √√ √ √ 1 024 x 768 56.5 70.1 75.0 R/D/H/DP √ — √√ √ √ 1 024 x 768 60.0 75.0 78.8 R/D/H/DP √ — √√ √ √ 1 024 x 768 65.5 81.6 86.0 R/D/H/DP — — — — — — 1 024 x 768 68.7 85.0 94.5 R/D/H/DP — — — — — — 1 024 x 768 81.4 100.0 113.3 R/D/H/DP — — — — — — 1 024 x 768 98.8 120.0 139.1 R/D/H/DP √ — √√ √ √ MXGA 1 152 x 864 53.7 60.0 81.6 R/D/H/DP — — — — — — 1 152 x 864 64.0 70.0 94.2 R/D/H/DP — — — — — — 1 152 x 864 67.5 74.9 108.0 R/D/H/DP — — — — — — 1 152 x 864 77.1 85.0 119.7 R/D/H/DP — — — — — — MAC21 1 152 x 870 68.7 75.1 100.0 R/D/H/DP √ — √√ √ √ Mode Resolution(Dots) Scanning freq. Dot clockfreq.(MHz) Format Plug and play*1 Horizontal(kHz) Vertical(Hz) RGB2 DVI-D HDMI DP EDID1 EDID2 EDID3 1280 x 720 1 280 x 720 37.1 49.8 60.5 R/D/H/DP — — — — — — 1 280 x 720 44.8 59.9 74.5 R/D/H/DP — — — — — — 1 280 x 720 76.3 100.0 13 1.8 R/D/H /DP — — — — — — 1 280 x 720 92.6 120.0 16 1.6 R/D/H /DP — — — — — — 1280 x 768 1 280 x 768 39.6 49.9 65.3 R/D/H/DP — — — — — — 1 280 x 768 47.8 59.9 79.5 R/D/H/DP — — — — — — 1 280 x 768*4 47.4 60 0.68.3 R D/H/DP — — — — — 1 280 x 768 60.3 74.9 102 3 R/D/H DP — — — — — — 1 280 x 768 68.6 84.8 117 5 R/D/H DP — — — — — — 1280 x 800 1 280 x 800 41.3 50.0 68.0 R/D/H/DP — — — — — — 1 280 x 800 49.7 59.8 83.5 R/D/H/DP √*5 — √*5 √*5 √*5 √*5 1 280 x 800*4 49.3 59 9.71.0 R D/H/DP — — — — — 1 280 x 800 62.8 74.9 106 5 R/D/H DP — — — — — — 1 280 x 800 71.6 84.9 122 5 R/D/H DP — — — — — — MSXGA 1 280 x 960 60.0 60.0 108.0 R/D/H/DP — — — — — SXGA 1 280 x 1 024 52.4 50 0.88.0 R D/H/DP — — — — — 1 280 x 1 024 64.0 60 0.108.0 R/D/H/DP — — — — 1 280 x 1 024 72.3 66 3.125.0 R/D/H/DP — — — — 1 280 x 1 024 78.2 72 0.135.1 R/D/H/DP — — — — 1 280 x 1 024 80.0 75 0.135.0 R/D/H/DP √ — √√ √ √ 1 280 x 1 024 91.1 85 0.157.5 R/D/H/DP — — — — 1366 x 768 1 366 x 768 39.6 49.9 69.0 R/D/H/DP — — — — — — 1 366 x 768 47.7 59.8 85.5 R/D/H/DP — — — — — — SXGA+ 1 400 x 1 050 54.1 50 0.99.9 R D/H/DP — — — — 1 400 x 1 050 64.0 60 0.108.0 R/D/H/DP — — — — 1 400 x 1 050 65.2 60 0.122.6 R/D/H/DP √ — √√ √ √ 1 400 x 1 050 65.3 60 0.121.8 R/D/H/DP — — — — 1 400 x 1 050 78.8 72 0.149.3 R/D/H/DP — — — — 1 400 x 1 050 82.2 75 0.155.9 R/D/H/DP — — — — WXGA+ 1 440 x 900 55.9 60.0 106.5 R/D/H/DP — — — — — 1600 x 900 1 600 x 900 46.3 50.0 97.0 R/D/H/DP — — — — — — 1 600 x 900 55.9 60.0 119 0 R/D/H/DP √ — √√ √ √ UXGA60 1 600 x 1 200 75.0 60.0 162.0 R/D/H/DP √ — √√ √ √ WSXGA+ 1 680 x 1 050 54.1 50 0.119.5 R/D/H/DP — — — — 1 680 x 1 050 65.3 60 0.146.3 R/D/H/DP — — — — 1920 x 1080 1 920 x 1 080 55.6 49 9.141.5 R/D/H/DP — — — — 1 920 x 1 080*4 66.6 59 9.138.5 R/D/H/DP — — — — 1 920 x 1 080*6 67.2 60 0.173.0 R — — — — — WUXGA 1 920 x 1 200 61.8 49 9.158.3 R/D/H/DP — — — — 1 920 x 1 200*4 74.0 60 0.154.0 R/D/H/DP √ — √ √*7 √*7 √*7 1 920 x 1 200*6 74.6 59 9.193.3 R — — — — —
*1 Signals with √ in the Plug and play columns are signals described in EDID (extended display identification data) of the projector. A signal, which has no √ in the Plug and play columns but has an entry in the Format column, can be input. For signals without √ in the Plug and play columns, resolution may not be selected in the computer even though the projector supports them.
Note
The number of display dots for PT-EZ580 is 1920 x 1200. The number of display dots for PT-EW640 and PT-EW540 is 1280 x 800. The number of display dots for PT-EX610 and PT-EX510 is 1024 x 768. A signal with a different resolution is converted to the number of display dots.
The "i" at the end of the resolution indicates an interlaced signal.
When interlaced signals are connected, flickering may occur on the projected image.
DIGITAL LINK input compatible signal is the same as HDMI input compatible signal. (Only for PT-EZ580, PT-EW640 and PT-EX610)
If connecting the projector to a computer that uses an early-type chipset or graphics card compatible with DisplayPort, the projector or computer may not be operated properly when the signal output from DisplayPort on the computer is input to the projector. In such a case, switch off the projector or computer and then switch it on.
The specifications of the projector are as follows.
Power supply AC 100 V - 240 V, 50 Hz/60 Hz Power consumption PT-EZ580 510 W (5.9 A - 2.3 A) or less PT-EW640, PT-EX610 495 W (5.7 A - 2.2 A) or less PT-EW540, PT-EX510 485 W (5.6 A - 2.1 A) or less PT-EZ580, PT-EW640, PT-EX610 0.3 W when [STANDBY MODE] is set to [ECO]10 W when [STANDBY MODE] is set to [NORMAL]37 W when [IN STANDBY MODE] in [AUDIO SETTING] is set to [ON] PT-EW540, PT-EX510 0.3 W when [STANDBY MODE] is set to [ECO]4 W when [STANDBY MODE] is set to [NORMAL]34 W when [IN STANDBY MODE] in [AUDIO SETTING] is set to [ON] LCD panel Size PT-EZ580 1.9 cm (0.76") (aspect ratio 16:10) PT-EW640, PT-EW540 1.9 cm (0.76") (aspect ratio 16:10) PT-EX610, PT-EX510 2.0 cm (0.79") (aspect ratio 4:3) Display system Translucent screen LCD panel 3 panels, 3 primary color system Drive system Active matrix Number of pixels PT-EZ580 2 304 000 pixels (1 920 x 1 200 dots) x 3 panels PT-EW640, PT-EW540 1 024 000 pixels (1 280 x 800 dots) x 3 panels PT-EX610, PT-EX510 786 432 pixels (1 024 x 768 dots) x 3 panels Lens*1 Electric zoom 1.7 - 2.8:1 Electric focus F = 1.7 - 2.3f = 26.9 mm - 45.4 mm Luminous lamp 335 W, UHM lamp Light output*2*3 PT-EZ580 5 400 lm PT-EW640 5 800 lm PT-EX610 6 200 lm PT-EW540 5 000 lm PT-EX510 5 300 lm Contrast ratio*3 PT-EZ580, PT-EW640PT-EX610 5 000:1 (when [IRIS] is set to [ON], [LAMP POWER] is set to [AUTO] and [PICTURE MODE] is set to [DYNAMIC]) PT-EW540, PT-EX510 2 000:1 ([LAMP POWER] is set to [AUTO] and [PICTURE MODE] is set to [DYNAMIC]) Color system 7 standards (NTSC/NTSC4.43/PAL/PAL-N/PAL-M/SECAM/PAL60) Projected image size 1.02 m (40") - 10.16 m (400") Screen aspect ratio PT-EZ580 16:10 PT-EW640, PT-EW540 PT-EX610, PT-EX510 4:3 Projection method [FRONT/CEILING], [FRONT/FLOOR], [REAR/CEILING], [REAR/FLOOR] Speaker 3.7 cm, round, x 1 Max. effective audio output 10 W (monaural) Power cord length 3.0 m (118-1/8") Outer case Molded plastic Dimensions Width 530 mm (20-7/8") Height 177 mm (6-31/32") (with legs at shortest position) Depth PT-EZ580PT-EW640, PT-EW540PT-EX610, PT-EX510 445 mm (17-17/32") (including standard zoom lens) PT-EZ580LPT-EW640L, PT-EW540LPT-EX610L, PT-EX510L 385 mm (15-5/32") (excluding optional lens) Weight Approx. 10.6 kg (23.4 lbs.)*4 (including standard zoom lens) Approx. 9.8 kg (21.6 lbs.)*4 (excluding optional lens) Noise level*3 35 dB when [LAMP POWER] is set to [NORMAL]29 dB when [LAMP POWER] is set to [ECO]
*1 For PT-EZ580L, PT-EW640L, PT-EX610L, PT-EW540L, PT-EX510L, the lens is sold separately.
Operating environment Operating environment temperature*1 0 °C (32 °F) - 45 °C (113 °F) Operating environment humidity 10 % - 80 % (No condensation) Remote control Power supply DC 3 V (AAA/R03/LR03 battery x 2) Operating range Within approx. 30 m (98'5") (when operated directly in front of signal receiver) Weight 102 g (3.6 ozs.) (including batteries) Dimensions Width: 48 mm (1-7/8"), Height: 145 mm (5-23/32"), Depth: 27 mm (1-1/16")
*1 When using the projector at high altitudes (between 1 400 m (4 593') and 2 700 m (8 858') above sea level), the operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F). If the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [LAMP POWER] is set to [AUTO] or [NORMAL], [LAMP POWER] may be set to [ECO] forcibly to protect the projector when the operating environment temperature becomes 40 °C (104 °F) or higher (35 °C (95 °F) or higher when using the projector at high altitudes).
■ Applicable scanning frequency
Refer to "List of compatible signals" ( page 146) for the types of video signals that can be used with the projector.
For video signal Horizontal: 15.75 kHz/15.63 kHz, Vertical: 50 Hz/60 Hz For Y/C signal Horizontal: 15.75 kHz/15.63 kHz, Vertical: 50 Hz/60 Hz For RGB signal Horizontal: 15 kHz - 100 kHz, Vertical: 24 Hz - 120 HzPIAS (Panasonic Intelligent Auto Scanning) system Dot clock frequency: 162 MHz or less For YC_BC_R/YP_BP_R signal 525i (480i)Horizontal: 15.75 kHz, Vertical: 60 Hz525p (480p)Horizontal: 31.5 kHz, Vertical: 60 Hz750 (720)/60pHorizontal: 45 kHz, Vertical: 60 Hz1125 (1080)/50iHorizontal: 28.13 kHz, Vertical: 50 Hz1125 (1080)/24sFHorizontal: 27 kHz, Vertical: 48 Hz1125 (1080)/30pHorizontal: 33.75 kHz, Vertical: 30 Hz1125 (1080)/50pHorizontal: 56.25 kHz, Vertical: 50 Hz 625i (576i)Horizontal: 15.63 kHz, Vertical: 50 Hz625p (576p)Horizontal: 31.25 kHz, Vertical: 50 Hz750 (720)/50pHorizontal: 37.5 kHz, Vertical: 50 Hz1125 (1080)/60iHorizontal: 33.75 kHz, Vertical: 60 Hz1125 (1080)/24pHorizontal: 27 kHz, Vertical: 24 Hz1125 (1080)/25pHorizontal: 28.13 kHz, Vertical: 25 Hz1125 (1080)/60pHorizontal: 67.5 kHz, Vertical: 60 Hz The SYNC/HD and VD terminals do not support 3 value SYNC. For DVI-D signal 525i (480i)*1, 625i (576i)*1, 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p Displayable resolution: VGA - WUXGA (non-interlaced)Dot clock frequency: 25 MHz - 162 MHz For HDMI signal 525i (480i)*1, 625i (576i)*1, 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i, 1125 (108O)/50i, 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p For DisplayPort signal *2 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/24p, 1125 (1O80)/24sF, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p Displayable resolution: VGA - WUXGA (non-interlaced)Dot clock frequency: 25 MHz - 163 MHz
*1 Pixel-Repetition signal (dot clock frequency 27.0 MHz) only
Note
- DIGITAL LINK input compatible signal is the same as HDMI input compatible signal. (Only for PT-EZ580, PT-EW640 and PT-EX610)
Terminal
1 set, high-density D-Sub 15 p (female) RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω) SYNC/HD TTL high impedance, automatic positive/negative polarity compatible VD TTL high impedance, automatic positive/negative polarity compatible YP _B P _R signal Y: 1.0 V [p-p] including synchronization signal, P_B P_R : 0.7 V [p-p] 75 Ω 1 set (BNC x 5 (RGB/YP _B P _R /YC _B C _R /YC/VIDEO x 1)) RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω) SYNC/HD TTL high impedance, automatic positive/negative polarity compatible VD TTL high impedance, automatic positive/negative polarity compatible YP _B P _R signal Y: 1.0V [p-p] including synchronization signal, P_B P_R : 0.7 V [p-p] 75 Ω Y/C signal Y: 1.0 V [p-p], C: 0.286 V [p-p] 75 Ω Video signal Y: 1.0 V [p-p] 75 Ω 1 set, high-density D-Sub 15 p (female) RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω) SYNC/HD TTL high impedance, positive/negative polarity VD TTL high impedance, positive/negative polarity YP _B P _R signal Y: 1.0 V [p-p] including synchronization signal, P_B P_R : 0.7 V [p-p] 75 Ω 1 set, DVI-D 24 p, single link, DVI 1.0 compliant, HDCP compatible 1 set, HDMI 19 pin, HDCP compatible, Deep Color compatible Audio signal Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) 1 set, pin jack 1.0 V [p-p] 75 Ω 1 set, DisplayPort 20 pin, HDCP compatible Audio signal Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) 1 set each, M3 stereo mini jack 0.5 V [rms], input impedance 22 kΩ or more 1 set, pin jack x 2 (L-R) 0.5 V [rms], input impedance 22 kΩ or more 1 set, M3 stereo mini jack (monitor output, stereo compatible) 0 V [rms] to 2.0 V [rms] (variable), output impedance 2.2 kΩ or less D-Sub 9 p, 1 set, RS-232C compliant, for computer control M3 stereo mini jack cable, 1 set, for remote control (wired) 1 set, D-Sub 9 p, for external control 1 set, RJ-45, for network, DIGITAL LINK connection, PJLink compatible, 100Base-TX 1 set, RJ-45, for network connection, PJLink compatible, 10Base-T/100Base-TX
*1 Only for PT-EZ580, PT-EW640 and PT-EX610
Note
- The model numbers of accessories and optional accessories are subject to change without prior notice.

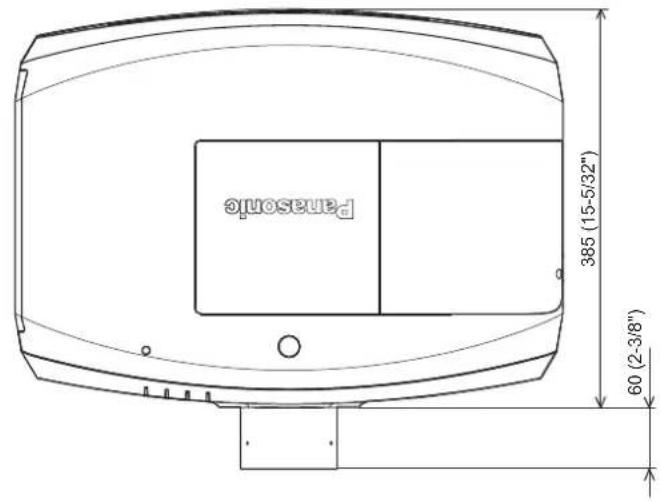

Dimensions

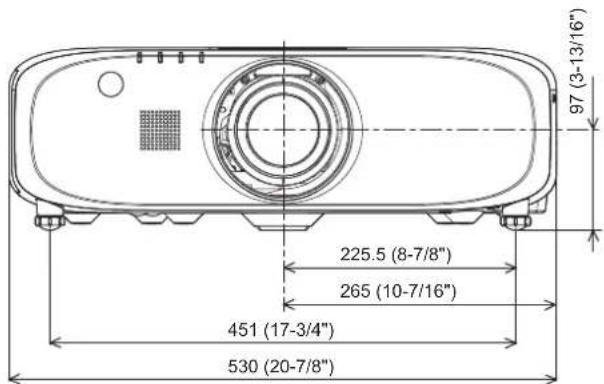

Unit: mm
385 (15-5/32")
60 (2-3/8")
225.5 (8-7/8")
265 (10-7/16")
451 (17-3/4")
530 (20-7/8)

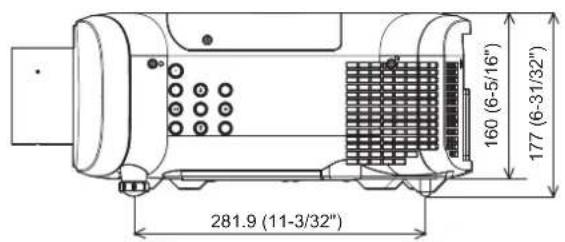

160 (6-5/16")
177 (6-31/32)
* The above dimensions are obtained when the standard zoom lens is attached.
Precautions for Ceiling Mount Bracket
When installing the projector to a ceiling, be sure to use the specified optional Ceiling Mount Bracket as the following combinations:
When installing the projector, attach the drop-prevention wire supplied with the Ceiling Mount Bracket.
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling.
Panasonic takes no responsibility for any accident, damage, damages to the projector resulting from use of a ceiling mount bracket not manufactured by Panasonic, optional Ceiling Mount Bracket combinations not specified, installation method not described in installation manual, optional accessories not specified or the inappropriate choice of location for installation, even if the warranty period of the projector has not expired.
Unused products must be removed promptly by a qualified technician.
Use a torque screwdriver or Allen torque wrench to tighten bolts to their specified tightening torques. Do not use electric screwdrivers or impact screwdrivers.
Read the Installation Instructions for the Ceiling Mount Bracket for details.
The model numbers of accessories and optional accessories are subject to change without prior notice.
Bottom view
ET-PKD120S (for Low Ceilings)
ET-PKE300B (Projector Mount Bracket)
or
ET-PKE200H (for High Ceilings)
ET-PKE200S (for Low Ceilings)
ET-PKE200B (Projector Mount Base)
Torque: 4 ± 0.5 N·m
M6
12 mm (15/32")
*
Index
A
terminal 24,44
Accessories
Adjusting adjustable feet
Adjusting the volume
[ADVANCED MENU] 59,72
Air filter unit
Air filter unit compartment
[ASPECT]
button
Remote control
[AUDIO SETTING]
[AUTO SETUP]
button
Remote control
[AUTO SIGNAL]
Automatic setup function
B
[BACK COLOR] 82
[BLANKING]
[BRIGHTNESS]
C
Cautions on use 19
Cautions when installing 17
Cautions when transporting
Ceiling Mount Bracket 153
[CLAMP POSITION] 73
[CLOCK PHASE]
[CLOSED CAPTION SETTING] 81
[COLOR]
[COLOR ADJUSTMENT]
[COLOR CORRECTION]
[COLOR TEMPERATURE] 63
Connecting the power cord
Connecting to the projector with a cable 28
Connection 39
[CONTRAST]
[CONTROL DEVICE SETUP] 106
Crestron Connected 123
Crestron RoomView 110
D
button
Remote control 23
[DATE AND TIME] 95
[DAYLIGHT VIEW] 66
button
Remote control
Deleting the registered signal 102
[DIGITAL CINEMA REALITY] 72
[DIGITAL INTERFACE BOX] 109
DIGITAL LINK 19
button
Remote control
[DIGITAL LINK IN] 79
[DIGITAL LINK MODE] 107
[ DIGITAL LINK SETUP ] 107
[ DIGITAL LINK STATUS] 108
[ DIGITAL ZOOM] 84
Dimensions 152
Display language 60,74
[DISPLAY OPTION] 60,75
[DISPLAY SETTING] 105
button
Remote control
[DisplayPort IN] 79
Disposal 20
button
Remote control
[DVI-D IN]
E
button
Remote control 23,55
[ECO MANAGEMENT] 87
button
Projector body 25
Remote control
Expanding signal lock-in range 101
F
Filter indicator 127
button
Remote control
[FREEZE] 84
button
Remote control
Freeze function
Function button 55
button
Remote control 21
[FUNCTION BUTTON] 92
52
[GAMMA] 129 65
132
H
68
button
-
Remote control 23 23,51
[HDMI IN] 92 78
(二)
|
button 23.53
Remote control 76
经营范围及期限
button
Remote control
Initial setting 23
[INITIALIZE] 96
Projector body 63
*****
[INPUT RESOLUTION] 73
Installation mode 30
[IRIS] 65
K
[KEYSTONE] 70
button
Remote control
L
Lamp cover 25
Lamp indicator 127
[LAMP POWER] 87
button
Projector body
• • • • • •
List of compatible signals 146
[LOAD ALL USER DATA] 96
M
Main menu 58
Main power switch 24,45
Maintenance 129
button
Projector body
......
Remote control
Menu item 59
[MENU LOCK]
[MENU LOCK PASSWORD] 105
button
Remote control
N
Navigating through the menu 57
[NETWORK] 23-51 61,107
Network connections 110
[NETWORK CONTROL] 109
[NETWORK SETUP] 108
[NETWORK STATUS] 109
[NO SIGNAL SHUT-OFF] 88
[NOISE REDUCTION] 65
0
button
Remote control
......
[ON-SCREEN DISPLAY]
On-screen menu 57
tional accessories
P
[P IN P] 23,51 70 60,98
button
Remote control
P IN P function 98
[P-TIMER] 83
button
Remote control
[PICTURE] 59,62
[PICTURE MODE] 62
[POSITION] 59,68
Power cord 44
Power indicator 44
Power on button
Remote control
Power standby button
Projector body
Remote control
Precautions for Ceiling Mount Bracket 153
Precautions for use 52 17
Projecting 49
[PROJECTION METHOD] 86
Projector body 23, 55 24
[PROJECTOR ID]
[PROJECTOR SETUP]
Protecting the registered signal 102
R
[RASTER POSITION]
Read this first!
Registering new signals 101
terminal 26
terminal
Remote control 23
Remote control operations 51
[REMOTE2 MODE] 92
Removing/attaching the Projection Lens 38
Renaming the registered signal 101
Replacing the air filter unit 132
Replacing the lamp unit 131
Replacing the unit 131
Resetting values to factory defaults 58
[RGB IN] 77
button
Remote control
S-232C] 90,140
s
[SAVE ALL USER DATA]
[SCHEDULE] 23 88
[SCREEN SETTING] 76
Security
[SECURITY] 61, 104
[SECURITY PASSWORD] 104
[SECURITY PASSWORD CHANGE] 104
Selecting the input signal 49
terminal 140
[SERVICE PASSWORD]
Setting the ID number of the remote control .....27
Setting up 30
[SHARPNESS] 65
[SHIFT] 68
button
Remote control
button
Projector body 51
Remote control 23, 25, 51
[SHUTTER SETTING] 82
[SIGNAL LIST] 105 61, 101
Specifications 149
sRGB-compliant video 67
[STANDBY MODE] 23 88
[STARTUP INPUT SELECT] 90
[STARTUP LOGO] 82
[STATUS] 94
button
Remote control
Sub memory 103
Switching off the projector 48
Switching on the projector 45
Switching the input signal 51
[SYSTEM SELECTOR] 66
T
Temperature indicator 127
[TEST PATTERN] 60, 100
[TEXT CHANGE] 105
[TINT] 63
Troubleshooting 22 134
Two window 144
V
button
Remote control 23
button
Projector body 25
Remote control
/ button
Remote control 52
button
Projector body 25
Remote control
W
When the initial setting screen is displayed .....45
Z
[ZOOM] 23 69
button
Remote control 23,49
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
