USER MANUAL PT-VX505NU PANASONIC

Operating Instructions

Functional Manual

LCD Projector

Commercial Use

Model No. PT-VW435NU

PT-VX505NU

PANASONIC PT-VX505NU - Functional Manual - 1

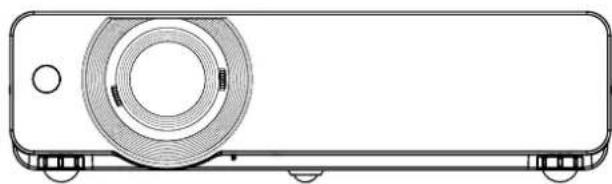

natural_image Line drawing of a rectangular electronic device with a circular lens and mounting feet (no text or symbols)

PANASONIC PT-VX505NU - Functional Manual - 2

Thank you for purchasing this Panasonic Product.

Before operating this product, please read the instructions carefully, and save this manual for future use.
Before using your projector, be sure to read "Read this first!" (→ pages 2 to 10).

Read this first!

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Power Supply: This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only.

CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V, 10 A. If you need to use higher voltages or currents than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire may result.

WARNING: RISK OF ELECTRIC SHOCK, DO NOT OPEN.

PANASONIC PT-VX505NU - Read this first! - 1

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

PANASONIC PT-VX505NU - Read this first! - 2

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

PANASONIC PT-VX505NU - Read this first! - 3

text_image Do not remove

PANASONIC PT-VX505NU - Read this first! - 4

WARNING:

TURN OFF THE UV LAMP BEFORE OPENING THE LAMP COVER.

FCC NOTICE (USA)

Declaration of Conformity

Model Number: PT-VW435NU/PT-VX505NU

Trade Name: Panasonic

Responsible Party: Panasonic Corporation of North America

Address: One Panasonic Way, Secaucus, NJ 07094

Telephone number: (877)803-8492

E-mail: projectorsupport@us.panasonic.com

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

To assure continued compliance, follow the attached installation instructions and do not make any unauthorized modifications.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

The user may find the booklet “Something About Interference” available from FCC local regional offices helpful.

FCC Warning:

To assure continued FCC emission limit compliance, follow the attached installation instructions and the user must use only shielded interface cables when connecting to host computer or peripheral devices. Also, any unauthorized changes or modifications to this equipment could void the user's authority to operate this device.

NOTIFICATION (Canada)

This class B digital apparatus complies with Canadian ICES-003.

WARNING:

  • Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
  • For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the building installation wiring.
  • For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.

NOTICE U.S.A. only:

- This product has a High Intensity Discharge (HID) lamp that contains mercury. Dispose may be regulated in your community due to environmental considerations. For disposal or recycling information, please visit Panasonic website: http://www.panasonic.com/environmental or call 1-888-769-0149.

WARNING:

POWER

The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately.

Continued use of the projector in these conditions will result in fire or electric shock.

  • If foreign objects or water get inside the projector, cut off the power supply.
  • If the projector is dropped or the cabinet is broken, cut off the power supply.
  • If you notice smoke, strange smells or noise coming from the projector, cut off the power supply.
    Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself.

During a thunderstorm, do not touch the projector or the cable.

Electric shocks can result.

Do not do anything that might damage the power cord or the power plug.

If the power cord is used while damaged, electric shocks, short-circuits or fire will result.

- Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.

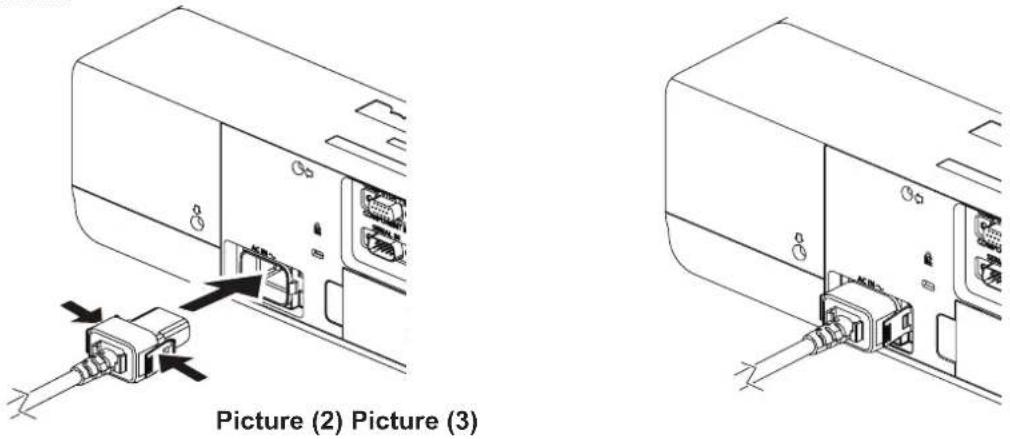

Insert the power plug securely into the wall outlet.

If the plug is not inserted correctly, electric shocks or overheating will result.

  • Do not use anything other than the provided power cord.
  • Do not use the provided power cord for other electrical equipment.
  • Do not use plugs which are damaged or wall outlets which are coming loose from the wall.

Clean the power plug regularly to prevent it from becoming covered in dust.

Failure to observe this will cause a fire.

  • If dust builds up on the power plug, the resulting humidity can damage the insulation.
  • If not using the projector for an extended period of time, pull the power plug out from the wall outlet.
    Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly.

Do not handle the power plug with wet hands.

Failure to observe this will result in electric shocks.

Do not overload the wall outlet.

If the power supply is overloaded (ex., by using too many adapters), overheating may occur and fire will result.

■ ON USE/INSTALLATION

Do not place liquid containers on top of the projector.

If water spills onto the projector or gets inside it, fire or electric shocks will result.

If any water gets inside the projector, contact an Authorized Service Center.

Do not place the projector on soft materials such as carpets or sponge mats.

Doing so will cause the projector to overheat, which can cause burns, fire or damage to the projector.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam, ex. a bathroom.

Using the projector under such conditions will result in fire, electric shocks or components deterioration. Components deterioration (such as ceiling mount brackets) may cause the projector which is mounted on the ceiling to fall down.

Do not install this projector in a place which is not strong enough to take the full weight of the projector or on top of a surface which is sloped or unstable.

Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage could result.

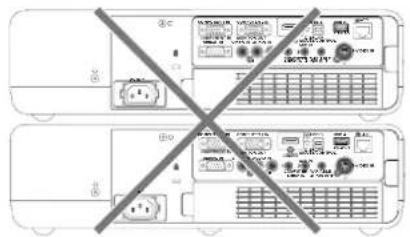

Do not place another projector or other heavy objects on top of the projector.

Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or injury. The projector will be damaged or deformed.

WARNING:

Installation work (such as ceiling mount bracket) should only be carried out by a qualified technician.

If installation is not carried out and secured correctly it can cause injury or accidents, such as electric shocks.

  • Do not use anything other than an authorized ceiling mount bracket.
  • Be sure to use the wire provided with the projector mount base for ceiling mount as an extra safety measure to prevent the projector from falling down. (Install in a different location to the ceiling mount bracket.)

Do not cover the air inlet port or the air outlet port.

Doing so will cause the projector to overheat, which can cause fire or damage to the projector.

  • Do not place the projector in narrow, badly ventilated places.
  • Do not place the projector on cloth or papers, as these materials could be drawn into the air inlet port.

Do not place your hands or other objects close to the air outlet port.

Doing so will cause burns or damage your hands or other objects.

- Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot withstand heat close to this port.

Do not look and place your skin into the lights emitted from the lens while the projector is being used.

Doing so can cause burns or loss of sight.

  • Strong light is emitted from the projector's lens. Do not look or place your hands directly into this light.
  • Be especially careful not to let young children look into the lens. In addition, turn off the power and disconnect the power plug when you are away from the projector.

Do not insert any foreign objects into the projector.

Doing so will cause fire or electric shocks.

- Do not insert any metal objects or flammable objects into the projector or drop them onto the projector.

Never attempt to remodel or disassemble the projector.

High voltages can cause fire or electric shocks.

- For any inspection, adjustment and repair work, please contact an Authorized Service Center.

Do not project an image with the lens cover attached.

Doing so can cause fire.

Do not allow metal objects, flammable objects, or liquids to enter inside of the projector. Do not allow the projector to get wet.

Doing so may cause short circuits or overheating, and result in fire, electric shock, or malfunction of the projector.

  • Do not place containers of liquid or metal objects near the projector.
  • If liquid enters inside of the projector, consult your dealer.
    ● Particular attention must be paid to children.

Use the ceiling mount bracket specified by Panasonic.

Defects in the ceiling mount bracket will result in falling accidents.

- Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.

WARNING:

ACCESSORIES

Do not use or handle the batteries improperly, and refer to the following.

Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire.

  • Use AAA/R03 batteries.
  • Do not use unspecified batteries.
  • Do not disassemble dry cell batteries.
  • Do not heat the batteries or place them into water or fire.
  • Do not allow the + and – terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.
  • Do not store batteries together with metallic objects.
    ● Store the batteries in a plastic bag and keep them away from metallic objects.
  • Make sure the polarities (+ and -) are correct when inserting the batteries.
  • Do not use a new battery together with an old battery or mix different types of batteries.
  • Do not use batteries with the outer cover peeling away or removed.
  • Remove the empty batteries from the remote control at once.
    ● Insulate the battery using tape or something similar before disposal.

Do not allow children to reach the batteries (AAA/R03 type).

● The battery can cause personal injury if swallowed.
- If swallowed, seek medical advice immediately.

If the battery fluid leaks, do not touch it with bare hands, and take the following measures if necessary.

● Battery fluid on your skin or clothing could result in skin inflammation or injury.
Rinse with clean water and seek medical advice immediately.
● Battery fluid coming in contact with your eyes could result in loss of sight.
In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately.

Do not disassemble the lamp unit.

If the lamp breaks, it could cause injury.

Lamp replacement

The lamp has high internal pressure. If improperly handled, an explosion and severe injury or accidents will result.

● The lamp can easily explode if struck against hard objects or dropped.
● Before replacing the lamp, be sure to disconnect the power plug from the wall outlet.

Electric shocks or explosions can result if this is not done.

- When replacing the lamp, turn the power off and allow the lamp it to cool for at least 1 hour before handling it otherwise it can cause burns.

Do not allow infants or pets to touch the remote control unit.

- Keep the remote control unit out of the reach of infants and pets after using it.

Do not use the supplied power cord with devices other than this projector.

- Using the supplied power cord with devices other than this projector may cause short circuits or overheating, and result in electric shock or fire.

Remove the depleted batteries from the remote control promptly.

● Leaving them in the unit may result in fluid leakage, overheating, or explosion of the batteries.

CAUTION:

POWER

When disconnecting the power cord, be sure to hold the power plug and power connector.

If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.

When not using the projector for an extended period of time, disconnect the power plug from the wall outlet and remove the batteries from the remote control.

Disconnect the power plug from the wall outlet before carrying out any cleaning and replacing the unit.

Electric shocks can result if this is not done.

■ ON USE/INSTALLATION

Do not put your weight on this projector.

You could fall or the projector could break, and injury will result.

- Be especially careful not to let young children stand or sit on the projector.

Do not place the projector in extremely hot locations.

Doing so will cause the outer casing or internal components to deteriorate, or result in fire.

● Take particular care in locations exposed to direct sunlight or near stoves.

Always disconnect all cables before moving the projector.

Moving the projector with cables still attached can damage the cables, which will cause fire or electric shocks to occur.

Never plug headphones and earphones into VARIABLE AUDIO OUT jack.

Excessive sound pressure from earphones and headphones can cause hearing loss.

ACCESSORIES

Do not use the old lamp unit.

If used it could cause lamp explosion.

If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the broken pieces.

Failure to observe this will cause the user to absorb the gas which was released when the lamp broke and which contains nearly the same amount of mercury as fluorescent lamps, and the broken pieces will cause injury.

- If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical advice immediately.

- Ask your dealer about replacing the lamp unit and check the inside of the projector.

Brazil Only Brasil Apenas

natural_image Silhouette of a person using a binocular device to generate trash (no text or symbols)

BRASIL

  • Microsoft® and its logos, Windows®, Windows® XP, Windows Vista®, Windows® 7, and Internet Explorer® are the registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
    • Macintosh, Mac OS and Safari are the trademarks of Apple Inc. registered in the United States and other countries.
  • HDMI, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI

Licensing LLC.

PANASONIC PT-VX505NU - BRASIL - 1

  • PJLink™ is a trademark or pending trademark in Japan, the United States, and other countries and regions.
  • RoomView, Crestron RoomView are registered trademarks of Crestron Electronics, Inc. Crestron Connected and Fusion RV are the trademarks of Crestron Electronics, Inc.
  • iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Other names, company names or product names used in these operating instructions are the trademarks or registered trademarks of their respective holders.

Please note that the operating instructions do not include the ^® and ^TM symbols.

Illustrations in these operating instructions

- Note that illustrations of the projector and screens may differ from the ones you actually see.

Page references

- In these instructions, references to pages are indicated as: (→ page 00).

Term

- In these instructions, the “Wireless remote control unit” accessory is referred to as the “Remote control”.

Declaration of Conformity

PANASONIC PT-VX505NU - Declaration of Conformity - 1

Declaration of Conformity (DoC)

This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Customers can download a copy of the original DoC for this product from our DoC server: http://www.doc.panasonic.de

Contact in the EU: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, F.R. Germany

This product is intended to be used in the following countries.

Austria, Belgium, Bulgaria, Czech, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovenia, Slovak, Spain, Sweden, Switzerland & UK

PANASONIC PT-VX505NU - Declaration of Conformity (DoC) - 1

Contatto nella EU: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, F.R. Germany

Features of the Projector

Auto Setup Function

This function enables Input search, Auto Keystone correction and Auto PC adjustment by pressing the button.

Direct Power Off Function

▶ With the Direct Power Off function, you can disconnect the power cord from the wall outlet or turn off the breaker even during projection.

Wired and Wireless LAN Function

This function allows you to project an image on a computer as well as operate and manage the projector via network.

Useful Functions for Presentations

- The digital zoom function allows you to focus on the crucial information during a presentation. - The MIC function and 10W audio output allows you to make a presentation without any external audio equipment.

Quick steps

For details, see the corresponding pages.

  1. Set up your projector. (→page 27)

PANASONIC PT-VX505NU - Quick steps - 1

  1. Connect with other devices. (→page 31)

PANASONIC PT-VX505NU - Quick steps - 2

  1. Connect the power cord. (→page 32)

PANASONIC PT-VX505NU - Quick steps - 3

  1. Power on. (→page 34)

PANASONIC PT-VX505NU - Quick steps - 4

  1. Select the input signal. (→page 37)

PANASONIC PT-VX505NU - Quick steps - 5

  1. Adjust the image. (→page 37)

Important Information

Read this first! 2

Declaration of Conformity 9

Contents 12

Precautions for Use.... 14

Cautions when transporting 14

Cautions when installing 14

Disposal 15

Cautions on use 16

Notes on Using Wireless Connection 17

Security 18

Accessories 19

Optional accessories 20

Preparation

About Your Projector 21

Remote control 21

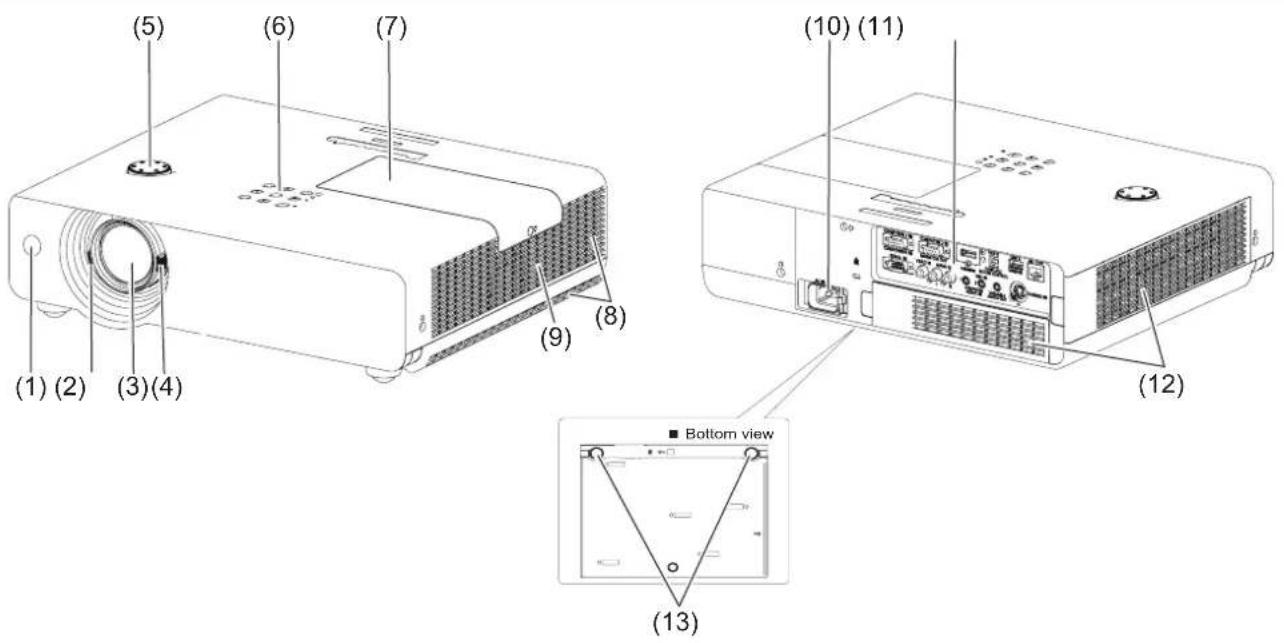

Projector body 23

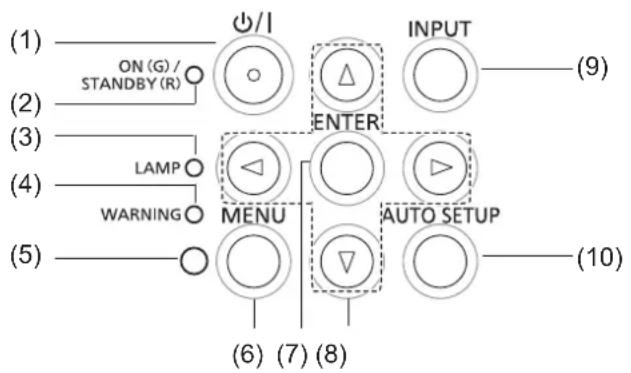

Control panel 24

Rear terminals 25

Using Remote control 26

Installing and Removing batteries 26

Setting Remote control ID numbers 26

Getting Started

Setting up 27

Projection method 27

Parts for ceiling mount (Optional) 27

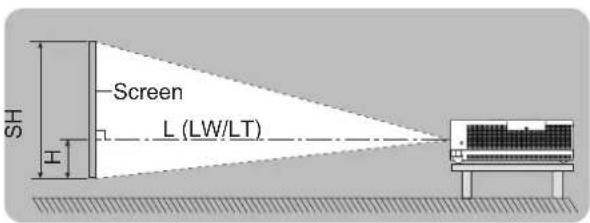

Screen size and throw distance 28

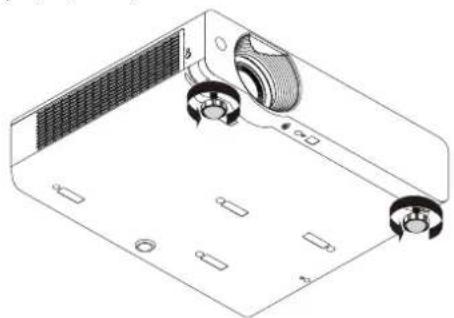

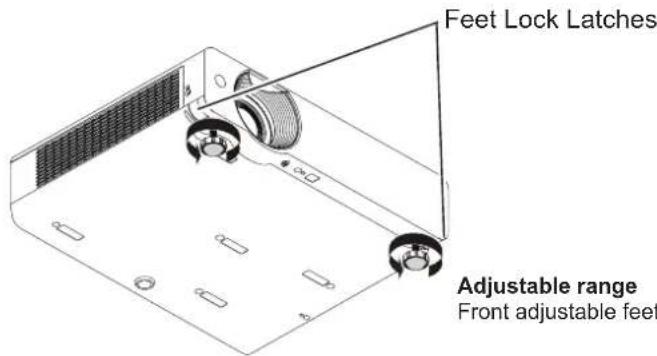

Adjusting front adjustable feet 30

Adjusting the position using the vertical lens shift function 30

Connections 31

Before connecting to the projector 31

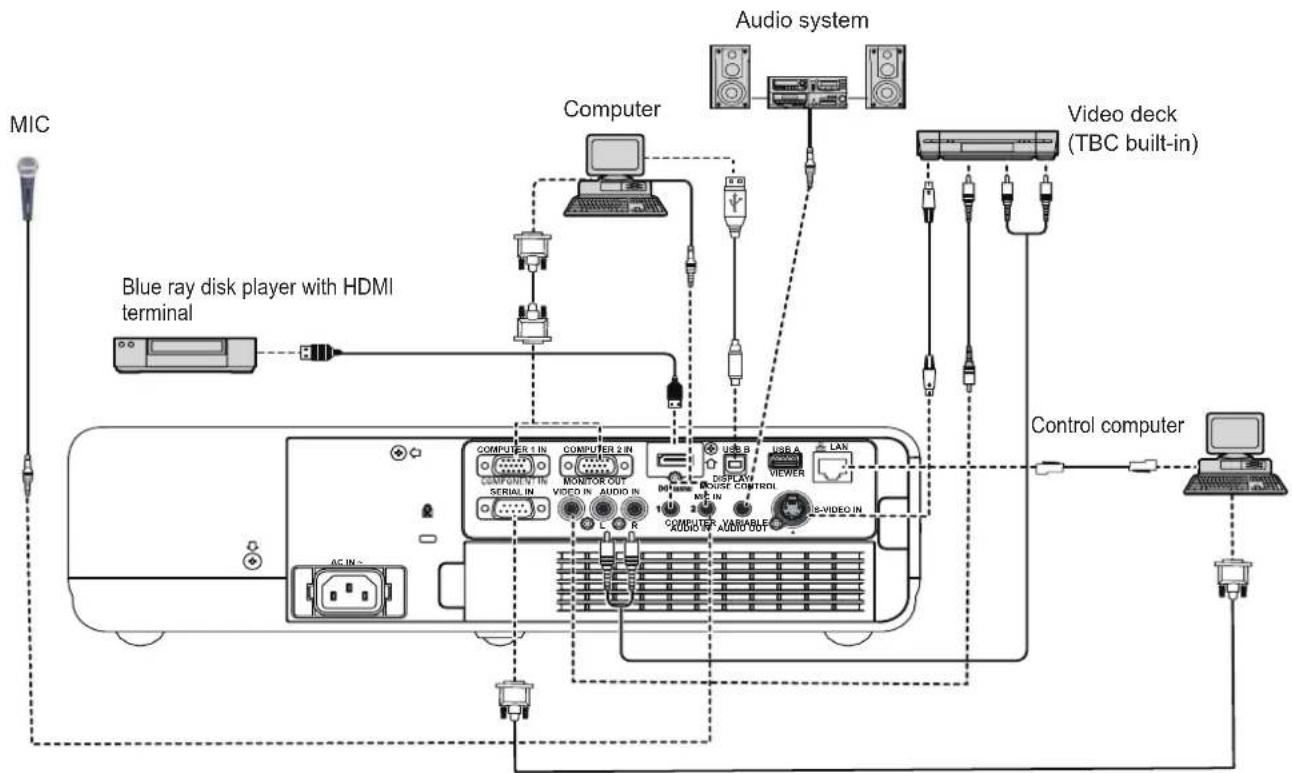

Connecting example 31

Basic Operation

Powering ON/OFF 32

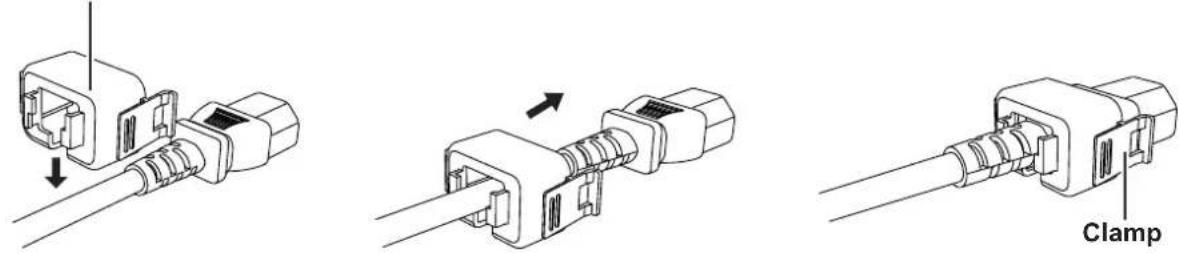

Connecting the power cord 32

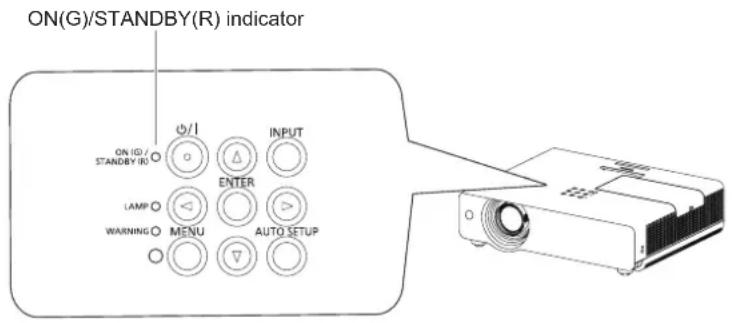

ON(G)/STANDBY(R) indicator.... 33

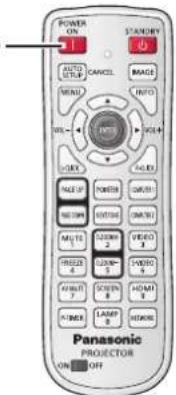

Turning On the Projector 34

Enter a PIN code 35

Turning Off the Projector 36

Projecting 37

Selecting the image 37

How to adjust the state of the image 37

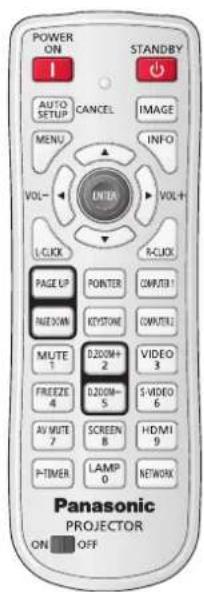

Basic operations by using the remote control.... 38

Using the AUTO SETUP function 38

Using the IMAGE button 38

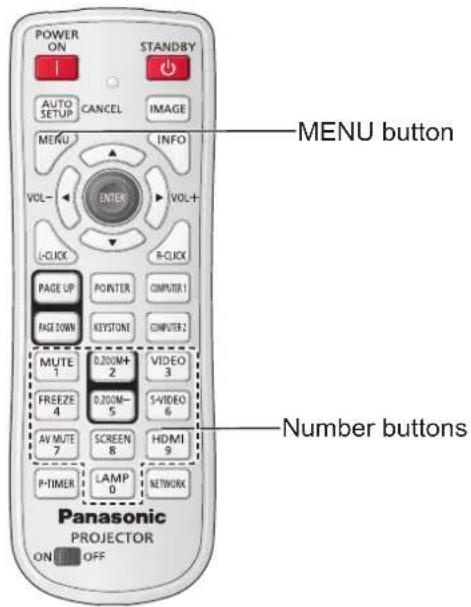

Using the MENU button 38

Using the INFO button 38

Controlling the volume of the speaker 38

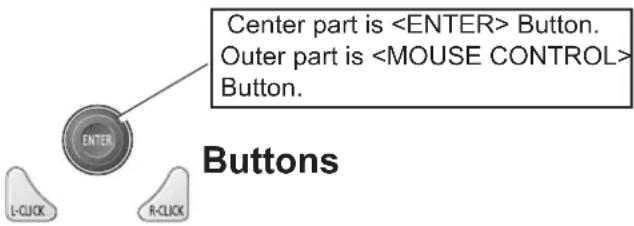

Using the wireless mouse function 39

Using the PAGE UP/DOWN buttons 39

Using the POINTER button 39

Using the KEYSTONE button 39

Switching the input signal 40

Using the MUTE button 40

Using the D.ZOOM +/- buttons.... 40

Using the FREEZE function 40

Using the AV MUTE function 41

Using the SCREEN button 41

Using the P-TIMER button 41

Using the LAMP button 41

Settings

Navigating through the menu 42

Main menu 43

Sub menu 43

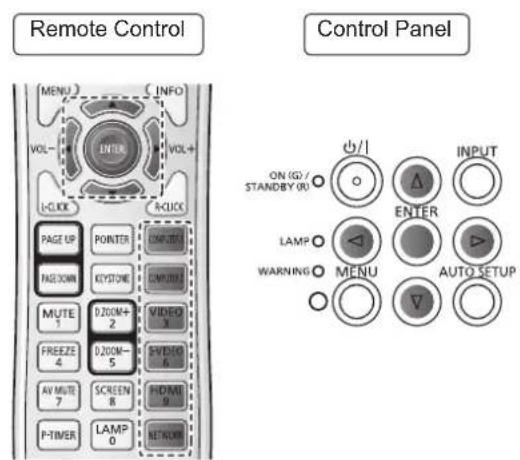

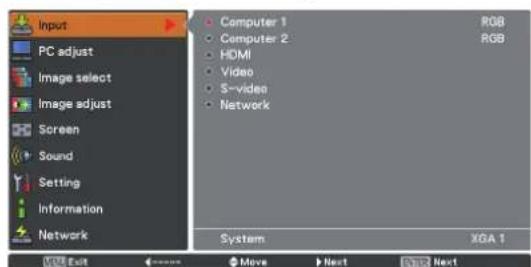

Input menu 45

Computer 1: RGB/Component /RGB (Scart) ...... 45

Computer 2: RGB 45

HDMI 45

Video 45

S-video 45

Network 46

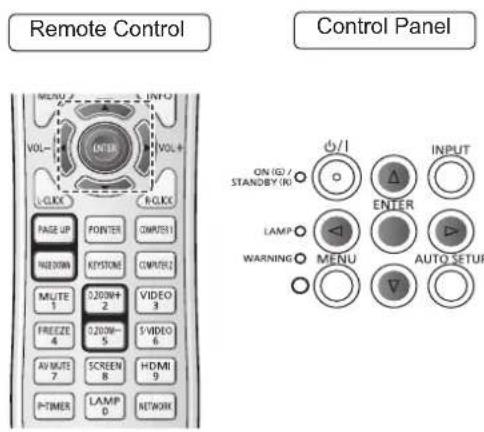

AUTO PC adjust 47

Auto PC adj. 47

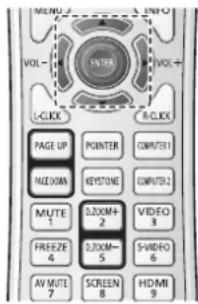

Manual PC adjust.... 48

Fine sync 48

Total dots 48

Horizontal 48

Vertical 48

Current mode 49

Clamp 49

Display area H 49

Display area V 49

Reset 49

Mode free 49

Store 49

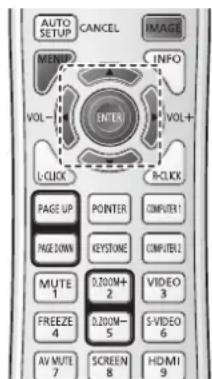

Image select 50

Dynamic 50

Standard 50

Real 50

Cinema 50

Blackboard(Green) 50

Colorboard 50

Image 1-4 .... 50

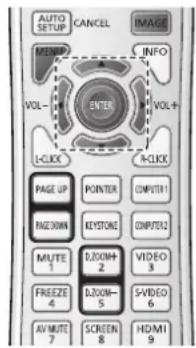

Image adjust.... 51

Contrast 51

Brightness 51

Color 51

Tint 51

Iris 51

Color temp. 52

Red 52

Green 52

Blue 52

Daylight View 52

Sharpness 53

Gamma 53

Noise reduction 53

Progressive 53

Reset 53

Store 53

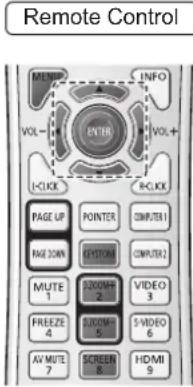

Screen 54

Normal 54

Full 54

Wide(16:9) 54

Zoom 54

True 54

Natural wide (PT-VW435NU Only) 54

Custom 54

Custom adj. 55

Digital zoom +.... 55

Digital zoom - 55

Keystone 55

Ceiling 56

Rear 56

Screen aspect (PT-VW435NU Only) 56

Reset 56

Sound 57

Volume 57

Mute 57

MIC 57

MIC gain 57

Standby MIC out 57

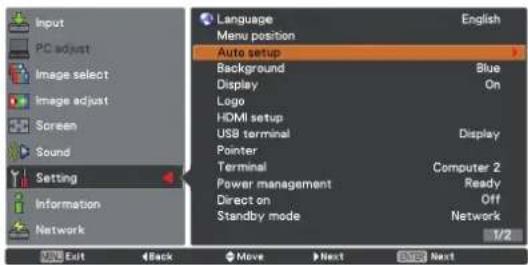

Setting 58

Language 58

Menu position 58

Auto setup 58

Background 59

Display 59

Logo 59

HDMI setup 60

USB terminal 60

Pointer 60

Terminal 60

Power management 61

Direct on 61

Standby mode 61

P-timer 61

Closed caption 62

Lamp power 62

Remote control 62

Security 63

Fan 63

Fan control 63

Video delay control 64

Filter counter 64

Emulate 64

Warning log 65

Factory default 65

Information 66

Input Source Information Display 66

Network 67

Wired LAN 67

Wireless LAN 67

Wireless detailed setup 68

Projector name 71

Password 71

Network control 71

Live mode cut in 72

Multi-live 72

Network status 72

AMX D.D. 72

RoomView 72

Memory viewer 73

Network factory default 73

Network connections 74

Connecting with Wired LAN 75

Connecting with Wireless LAN 75

Accessing from the Web browser 77

Memory Viewer function 90

Maintenance

LAMP and WARNING Indicators ..... 94

Managing the indicated problems 94

Replacement 95

Before replacing the unit 95

Maintenance 95

Replacing the unit 95

Attaching the Lens Cap 99

Troubleshooting 100

Appendix

Technical Information 102

PJLink protocol 102

Control commands via LAN 103

Serial terminal 105

Other terminals 108

List of compatible signals ....110

Specifications....114

Dimensions....116

Ceiling mount bracket safeguards......116

Glossary ....117

Index 119

Precautions for Use

Cautions when transporting

  • When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may damage the internal parts and result in malfunctions.
  • Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.

Cautions when installing

■ Do not set up the projector outdoors.

● The projector is designed for indoor use only.

■ Do not use under the following conditions.

  • Places where vibration and impacts occur such as in a car or vehicle: Doing so may damage the internal parts and result in malfunctions.
  • Near the exhaust of an air conditioner or near lights (studio lamps, etc.) where temperature changes greatly (Operating environment ➤ page 115): Doing so may shorten the life of the lamp or result in deformation of the outer case and malfunctions.
    ● Near high-voltage power lines or near motors: Doing so may interfere with the operation of the projector.

- Be sure to ask a specialized technician when installing the product to a ceiling.

This requires an optional ceiling mount bracket.

Model No.: ET-PKV100H (for high ceilings), ET-PKV100S (for low ceilings), ET-PKV200B (Projector Mount Base).

When using the projector in the elevation of below 1 200 m, make sure [Fan control] is set to [Off].

Failure to do so may shorten the life of the internal parts and result in malfunctions.

When using the projector in the elevation of above 1 200 m and below 2 000m, make sure [Fan control] is set to [On 1].

Failure to do so may shorten the life of the internal parts and result in malfunctions.

When using the projector in the elevation of above 2 000 m and below 2 700m, make sure [Fan control] is set to [On 2].

Failure to do so may shorten the life of the internal parts and result in malfunctions.

- Do not install the projector at elevations of 2 700 m (8 858 ft) or higher above sea level.

Failure to do so may shorten the life of the internal parts and result in malfunctions.

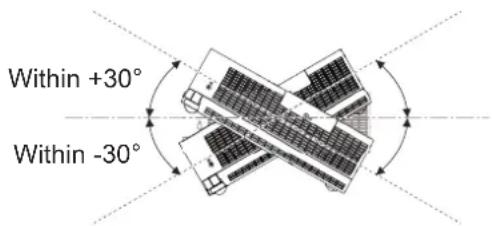

■ Do not tilt the projector or place it on its side.

Do not tilt the projector body more than approximately ±30 degrees vertically or ±15 degrees horizontally. Over tilting may result in shortening the life of the components.

PANASONIC PT-VX505NU - ■ Do not tilt the projector or place it on its side. - 1

text_image Within +30° Within -30°

PANASONIC PT-VX505NU - ■ Do not tilt the projector or place it on its side. - 2

text_image Within +15° Within -15°

Cautions when setting the projectors

  • Do not stack the projectors.
  • Do not block the ventilation ports (intake and exhaust) of the projector.
  • Avoid heating and cooling air from the air conditioning system directly blow to the ventilation ports (intake and exhaust) of the projector.

PANASONIC PT-VX505NU - Cautions when setting the projectors - 1

text_image Diagram showing two computer ports with a crossed-out device, indicating no readable function or status.

PANASONIC PT-VX505NU - Cautions when setting the projectors - 2

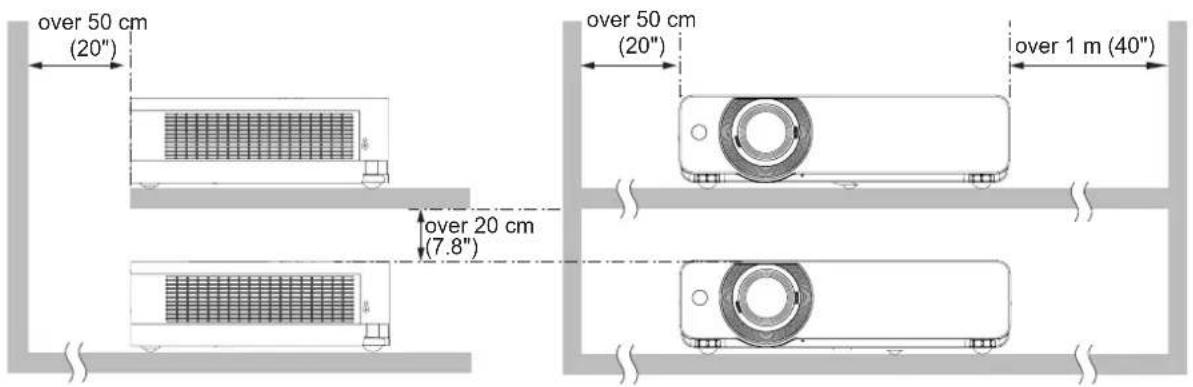

text_image over 50 cm (20") over 20 cm (7.8") over 50 cm (20") over 1 m (40")

- Do not place the projector in an enclosed space. If you need to place the projector in an enclosed space, additional air conditioning and ventilation system must be equipped. When ventilation is insufficient, remaining heat may trigger the protection circuit of the projector.

Disposal

When disposing of the product, ask your local authority or dealer about the correct methods of disposal. The lamp contains mercury. When disposing of the used lamp unit, ask your nearest local authorities or dealer about proper disposal of the unit. Dispose of used batteries according to the instructions or your local disposal rule or guidelines.

Cautions on use

In order to get the picture quality

  • Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.
  • Depending on where the projector is used, heated air from an exhaust port or warm or cold air from an air conditioner can cause a shimmering effect on screen.
    Avoid use in locations where exhaust or streams of air from projector, other devices and air conditioners flow between the projector and the screen.
  • The lens of projector is affected by the heat from the luminous source. Because of this, the focusing may not be stable right after the power is turned on. Focusing is stabled after projecting image for 30 minutes and longer.

- Do not touch the surface of the projector lens with your bare hand.

If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen.

LCD Panel

The display unit of this projector comprises three LCD panels. Although an LCD panel is a product of high-precision technology, some of the pixels on the projected image may be missing or constantly lit. Please note that this is not a malfunction.

Displaying a still image for a longer time may result in an after-image on the LCD panels. If this happens, display the all white screen in the test pattern for an hour or more.

■ Optical components

Operating the projector in an environment with high temperature or heavy exposure to dust or tobacco smoke will reduce the service life of the optical components, such as the LCD panel and polarizing plate, and may necessitate their replacement within less than one year of use. For details, consult your dealer.

Lamp

The luminous source of the projector is a mercury lamp with high internal pressure.

A high pressure mercury lamp has following characteristics.

● The brightness of the lamp will decrease by duration of usage.
● The lamp may burst with sound or shorten life by shock or chipping.
- The life of the lamp varies greatly depending on individual specificities and usage conditions. In particular, continuous use over 12 hours and frequent on/off switching of the power greatly deteriorate the lamp and affect the lamp life.
- In rare cases, the lamp burst shortly after the projection.
- The risk of bursting increases when the lamp is used beyond its replacement cycle. Make sure to replace the lamp unit consistently. ("When to replace the lamp unit" (→ page 97))
- If the lamp bursts, gas contained inside of the lamp is released in a form of smoke.
- It is recommended to store replacement lamps for contingency.
- It is recommended to have authorized engineer or your dealer replace the lamp unit.

© Panasonic Corporation 2012

This product incorporates the following software:

(1) the software which is developed independently by or for Panasonic Corporation

(2) the software which is licensed under the GNU GENERAL PUBLIC LICENSE,

and

(3) the software which is licensed under the GNU LESSERGENERAL PUBLIC LICENSE.

For the software categorized as (2) and (3), the license is available in accordance with GNU GENERAL PUBLIC LICENSE and GNU LESSER GENERAL PUBLIC LICENSE respectively. As for the terms and conditions, please refer to the software licence of the supplied CD-ROM.

If you wish to ask any questions as to the software, please contact (sav.pj.gpl.pavc@ml.jp.panasonic.com) by email.

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

Notes on Using Wireless Connection

Wireless connection function of the projector uses radio waves in the 2.4 GHz band.

A radio station license is not required, but be sure to read and fully understand the following items before use.

Do not use near other wireless equipment. ■

The following equipment may use radio waves in the same band as the projector.

When the projector is used near these devices, radio wave interference may make communication impossible, or the communication speed may become slower.

Microwave ovens, etc.

Industrial, chemical and medical equipment, etc.

• In-plant radio stations for identifying moving objects such as those used in factory manufacturing lines, etc.

Designated low-power radio stations•

If at all possible, avoid the use of cellular phones, TV sets or radios near the projector.

Cellular phones, TV sets, radios and similar devices use different radio bands from the projector, so there is no effect on wireless communication or the transmission and reception of these devices. However, radio waves from the projector may produce audio or video noise.

Wireless communication radio waves cannot penetrate steel reinforcements, metal, ■ concrete, etc.

Communication is possible through walls and floors made from materials such as wood and glass (except glass containing wire mesh), but not through walls and floors made from steel reinforcements, metal, concrete, etc.

■ Avoid using the projector in locations prone to static electricity.

If the projector is used in a location prone to static electricity, such as on a carpet, the wireless LAN * or wired LAN connection may be lost.

If this happens, eliminate the source of static electricity or electromagnetic noise and reconnect to the wireless LAN or wired LAN.

In rare cases static electricity or electromagnetic noise may make it impossible to establish a connection to the LAN.

If this happens, press the power button on the remote control or on the projector to power off the projector temporarily.

After the cooling fan stops operating (after indicator on the projector changes from blinking in orange to lighting in red), power on the projector and reconnect to the LAN.

■Using the projector outside the country

It is forbidden to take the projector outside the country or region where you purchased it, so use it only in the said country or region. Also, note that depending on countries or regions there are restrictions on the channels and frequencies at which you can use the wireless LAN.

Available wireless LAN channels

The channels (frequency range) that can be used differ according to the country or region. Refer to the table below.

Country or regionStandardChannels usedFrequency band (Center frequency)
England, Germany, France, Spain, Italy, Belgium, Austria, Sweden, Norway, Denmark, Switzerland, Holland, Finland, Portugal, Greece, Thailand, South KoreaETSI 300.3281 – 132,412 MHz - 2,472 MHz
SingaporeIDA
Australia, New ZealandC-Tick
MalaysiaSIRIM
United StatesFCC part 151 – 112,412 MHz - 2,462 MHz
TaiwanDGT

Security

■ Take safety measures against following incidents.

● Personal information being leaked via this product.
● Unauthorized operation of this product by a malicious third party.
- Interfering or stopping of this product by a malicious third party.

■ Security instruction (→page 63, 87)

● Make your password as difficult to guess as possible.
- Change your password periodically.
- Panasonic or its affiliate company never inquires a password directly to a customer. Do not tell your password in case you receive such an inquiry.
● The connecting network must be secured by firewall or others.
- Set a password for web control and restrict the users who can log in.

About Wireless LANs

The advantage of a wireless LAN is that information can be exchanged between a PC or other such equipment and an access point using radio waves as long as you are within range for radio transmissions.

On the other hand, because the radio waves can travel through obstacles (such as walls) and are available everywhere within a given range, problems of the type listed below may occur if security-related settings are not made.

  • A malicious third-part may intentionally intercept and monitor transmitted data including the content of e-mail and personal information such as your ID, password, and/or credit card numbers.
  • A malicious third-party may access your personal or corporate network without authorization and engage in the following types of behavior.

Retrieve personal and/or secret information (information leak)

Spread false information by impersonating a particular person (spoofing)

Overwrite intercepted communications and issue false data (tampering)

Spread harmful software such as a computer virus and crash your data and/or system (system crash)

Since most wireless LAN adapters or access points are equipped with security features to take care of these problems, you can reduce the possibility of these problems occurring when using this product by making the appropriate security settings for the wireless LAN device.

Some wireless LAN devices may not be set for security immediately after purchase. To decrease the possibility of occurrence of security problems, before using any wireless LAN devices, be absolutely sure to make all security-related settings according to the instructions given in the operation manuals supplied with them.

Depending on the specifications of the wireless LAN, a malicious third-party may be able to break security settings by special means.

Please contact Panasonic if you need help taking care of security settings or other such.

If you cannot perform security settings for your wireless LAN by yourself, please contact the Panasonic Support Center.

Panasonic asks customers to thoroughly understand the risk of using this product without making security settings, and recommends that the customer make security settings at their own discretion and responsibility.

Accessories

Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the number of accessories.

Remote control unit (x1) (6451056016)Power cord (x1) (6103581217)CD-ROM (x1) (6103589404)Batteries (AAA/R03 type) (x2)
PANASONIC PT-VX505NU - Accessories - 1PANASONIC PT-VX505NU - Accessories - 2PANASONIC PT-VX505NU - Accessories - 3PANASONIC PT-VX505NU - Accessories - 4(for remote control unit)
RGB signal cable (x1) (6103580425)AC power cord holder (x1) (6451052124)Lens cap (x1) (6103594279)String (x1) (6103430249)
PANASONIC PT-VX505NU - Accessories - 5PANASONIC PT-VX505NU - Accessories - 6PANASONIC PT-VX505NU - Accessories - 7(Attached to the projector at the time of purchase.)PANASONIC PT-VX505NU - Accessories - 8

Soft Carrying Case (x1) (6103601861)

PANASONIC PT-VX505NU - Accessories - 9

natural_image Line drawing of a rectangular box with handles and a handle, no text or symbols present

Attention

● After unpacking the projector, discard the power cord cap and packaging material properly.
- For lost accessories, consult your dealer.
● The part numbers of accessories and separately sold components are subject to change without notice.
- Store small parts in an appropriate manner, and keep them away from young children.

Precautions for Use

Contents of the supplied CD-ROM

The contents of the supplied CD-ROM are as follow.

Manual/list (PDF) Software
●Operating Instructions – Functional Manual●Operation Manual Multi Projector Monitoring & Control Software 2.7●Operation Manual Logo Transfer Software 2.0●Operation Manual Wireless Manager ME6.0●List of compatible projector models• This is a list of projectors that are compatible with the software (refer to the right column), and their restrictions.●Software license(GNU GENERAL PUBLIC LICENSE and GNU LESSER GENERAL PUBLIC LICENSE)●Multi Projector Monitoring & Control Software 2.7(Windows)• This software allows you to monitor and control multiple projectors connected to the LAN.●Logo Transfer Software 2.0(Windows)• This software allows you to create original images, such as company logos to be displayed when projection starts, and transfer them to the projector.●Wireless Manager ME6.0 (Windows/Mac)• This software allows you to send computer screen displays over wireless/wired LAN.

Optional accessories

Options Model No.
Ceiling Mount Bracket ET-PKV100H (for high ceilings), ET-PKV100S (for low ceilings)
Projector Mount Base ET-PKVV200B
Replacement Lamp Unit ET-LAVV200
Replacement Filter UnitET-RFV200
Easy Wireless Stick*1ET-UW100

*1 This product can be purchased in the U.S., Canada, Japan and the European Communities.

About Your Projector

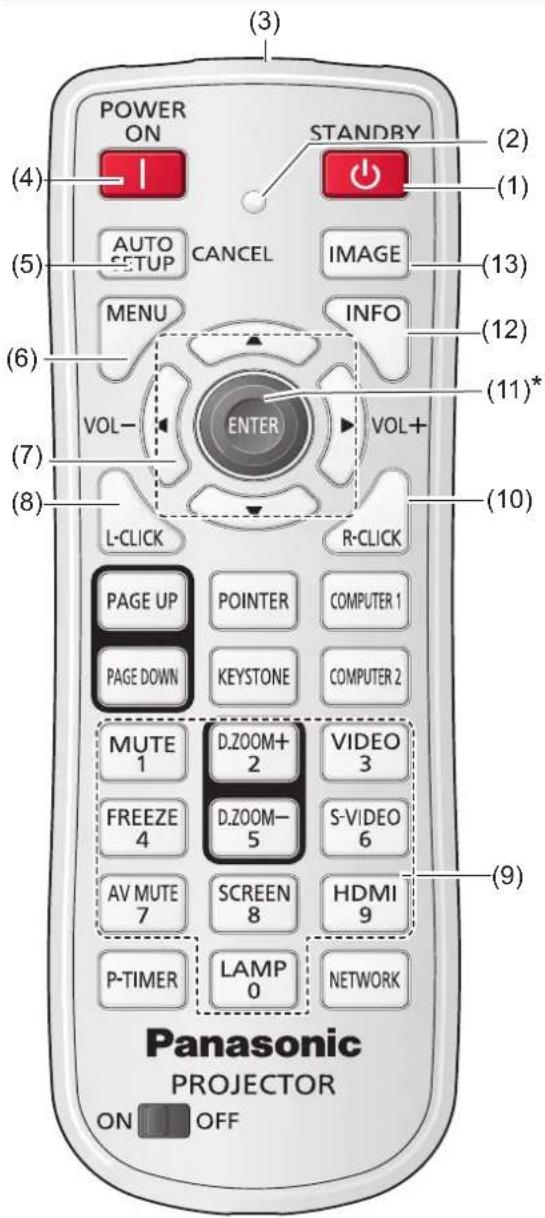

Remote control

PANASONIC PT-VX505NU - Remote control - 1

text_image (3) POWER ON STANDBY (2) (1) (4) AUTO SETUP CANCEL IMAGE (13) (5) MENU INFO (12) (6) VOL- ENTER (11)* (7) VOL+ (10) (8) L-CLICK R-CLICK PAGE UP POINTER COMPUTER 1 PAGE DOWN KEYSTONE COMPUTER 2 MUTE 1 D.ZOOM+ 2 VIDEO 3 FREEZE 4 D.ZOOM- 5 S-VIDEO 6 AV MUTE 7 SCREEN 8 HDMI 9 P-TIMER LAMP 0 NETWORK (9) Panasonic PROJECTOR ON OFF

* Center part is Button. Outer part is Button.

(1) Button

Turn the projector off ( page 36).

(2) Signal Emission indicator

Light red while a signal is being sent from the remote control to the projector.

(3) Remote control signal emitter

(4) Button

Turn the projector on (→page 34).

(5) Button

Execute the setting of Auto setup in the setting menu (→page 58).

Cancel the playing of the memory viewer function (→page 91).

(6)

Button

Open or close the On-Screen Menu (→page 42).

(7) ▲▼◀▶ (VOL-/+ ) Buttons, Button

- Navigate the MENU display (→page 42).

- Adjust the volume level or mute the sound.

(8) Button

Act as the left mouse button for wireless mouse operation (→page 39).

(9) Number Buttons

Act as number buttons. Use these buttons when setting the remote control codes (→page 26) or entering the PIN code numbers (→page 35).

(10) Button

Act as the right mouse button for wireless mouse operation (→page 39).

(11) Button

Move a pointer of the projector or a pointer for wireless mouse operation (→page 39).

(12) Button

Operate the information function ( page 38).

(13) Button

Select the image mode (→page 38).

Note

● The remote control can be used as a wireless mouse for your computer.

- Before operating the wireless mouse, connect your computer and the projector with a USB cable (→ page 39).

- When a USB cable is connected to the computer and the projector, turn on the projector first, then the computer.

● (8), (10), (11), (15) are available when a USB cable is connected to the computer and the projector.

PANASONIC PT-VX505NU - Note - 1

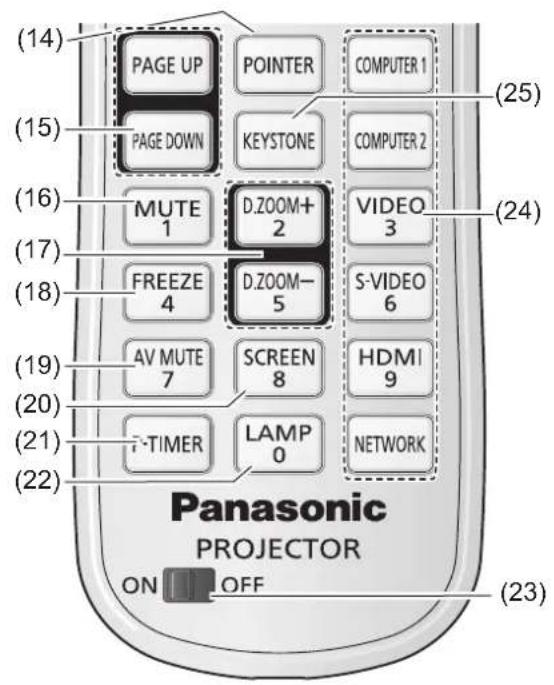

text_image (14) PAGE UP POINTER COMPUTER 1 (15) PAGE DOWN KEYSTONE COMPUTER 2 (16) MUTE 1 D.ZOOM+ 2 VIDEO 3 (17) FREEZE 4 D.ZOOM- 5 S-VIDEO 6 (18) AV MUTE 7 SCREEN 8 HDMI 9 (19) i-TIMER LAMP 0 NETWORK (20) (21) Panasonic PROJECTOR ON OFF (22) (23)

(14) Button

Act as the On-Off switch for the Pointer.

(→page 39)

(15) Buttons

Scroll back and forth the pages on the screen when giving a presentation. To use these buttons, connect the projector and your computer with a USB cable.(→page 39)

(16) Button

Mute the sound. (→page 40)

(17) Buttons

Zoom in and out the images. (→ page 40)

(18) Button

Pause the projected image and sound tentatively. (→page 40)

(19) Button

Temporarily turn off the image on the screen. (→page 41)

(20) Button

Select a screen mode. (→page 54)

(21) Button

Operate the P-timer function. (→page 41)

(22) Button

Select a lamp mode. (→page 41)

(23) ON/OFF switch

When using the remote control, set this switch to "ON". Set it to "OFF" for power saving when it is not in use.

(24) Input Selection buttons: , ,

These buttons are used to select the input signal. (→page 40)

(25) Button

Correct keystone distortion. (→ page 39)

Attention

  • Do not drop the remote control.
  • Avoid contact with liquids.
  • Do not attempt to modify or disassemble the remote control.

Note

  • The remote control can be used within a distance of about 7 m (22.97 ft) if pointed directly at the remote control signal receiver. The remote control can control at angles of up to ±30° vertically and ±30° horizontally, but the effective control range may be reduced.
  • If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate correctly.
  • You can operate the projector by reflecting the remote control signal on the screen. The operating range may differ due to the loss of light caused by the properties of the screen.
  • When the remote control signal receiver is lit with a fluorescent light or other strong light source, the projector may become inoperative. Set the projector as far from the luminous source as possible.

Projector body
PANASONIC PT-VX505NU - Note - 1

text_image (5) (6) (7) (1) (2) (3) (4) (9) (8) (10) (11) (12) Bottom view (13)

(1) Remote control signal receiver

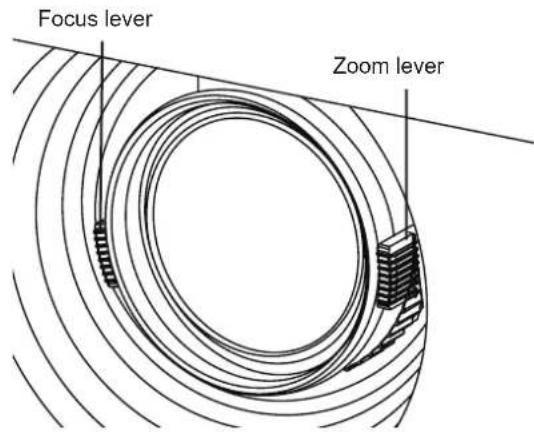

(2) Focus Lever (→page 37)

Adjust the focus.

(3) Projection Lens
(4) Zoom Lever (→page 37)

Adjust the zoom.

(5) Vertical lens shift ring ( page 30)
Adjust the vertical position of the projected image.
(6) Control Panel and Indicators (→page 24)
(7) Lamp cover ( page 98)

The lamp unit is located inside.

(8) Air outlet port

• Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

(9) Speaker
(10) AC IN
(11) Terminals ( page 25)
(12) Air intake port / Air filter covers (→page 95)
(13) Adjustable feet

Adjust the projection angle.

WARNING:

  • Keep your hands and other objects away from the air exhaust port.
  • Keep your hand and face away.
  • Do not insert your finger.
  • Keep heat-sensitive articles away.

Heated air from the air exhaust port can cause burns or external damage.

Control panel

PANASONIC PT-VX505NU - Control panel - 1

(1) <@/ |> button

Turn the projector on/off.

(2) indicator Indicate the power status.
(3) indicator

Light yellow when the projection lamp reaches its end of life.

(4) indicator

Indicate the abnormal conditions of the projector.

(5) Daylight view sensor

Detect room's light, select proper image quality.

(6)

button

Display the MENU screen. (→page 42)

(7) button

Execute the selected item.

(8) ▲▼◀▶ (VOL -/+ ) buttons

Navigate the MENU screen.

Adjust the volume level or mute the sound.

(9) button

Select the input signal. (→page 40)

(10) button

Execute the setting of Auto setup in the setting menu.

Rear terminals

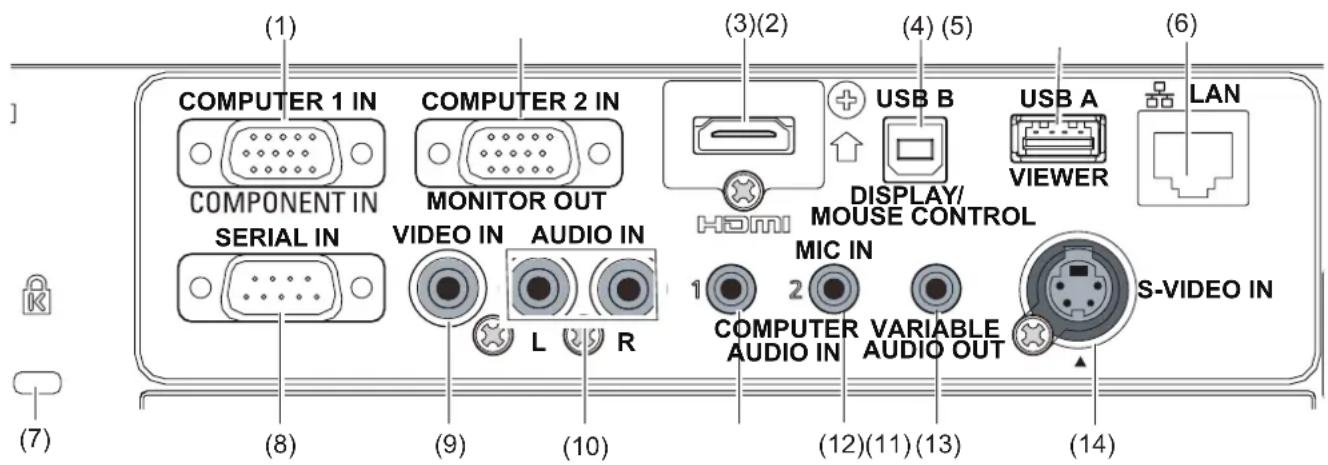

PANASONIC PT-VX505NU - Rear terminals - 1

text_image (1) COMPUTER 1 IN COMPONENT IN SERIAL IN (7) (8) (9) (10) (11) (12) (13) (14) (1) (2) MONITOR OUT VIDEO IN AUDIO IN L R (3)(2) USB B HDMI USB A DISPLAY/ MOUSE CONTROL MIC IN COMPUTER AUDIO IN VARIABLE AUDIO OUT S-VIDEO IN VIEWER LAN

(1) COMPUTER 1 IN/ COMPONENT IN

Connect to COMPUTER 1 IN/ COMPONENT IN input signals.

(2) COMPUTER 2 IN/ MONITOR OUT

Connect to COMPUTER 2 IN/MONITOR OUT input signals or outputs the analog RGB signals input to the projector.

(3) HDMI

Connect to HDMI input signals.

(4) USB Connector (Series B)

  • In order to operate the computer with the remote control and use the buttons on the remote control during a presentation, connect the USB port of the computer to the USB terminal with a USB cable (not supplied).
  • The projector provides the "USB display" function that the image and sound are sent to the projector by connecting the computer to the projector with a USB cable. For details, please refer to the "Operation Manual Wireless Manager ME6.0" in CD-ROM.

(5) USB Connector (Series A)

Insert the USB thumb drive directly ( page 90).

(6) LAN

Connect to a LAN cable for network connection.

(7) Security slot

Attach the commercial shackle lock, manufactured by Kensington, to protect your projector. Compatible with the Kensington MicroSaver Security System.

(8) SERIAL IN

Connect to a computer via an RS-232C cable.

(9) VIDEO IN

Connect to VIDEO input signals.

(10) AUDIO IN

Connect to the audio input signals. AUDIO IN has left and right (L and R) terminals.

(11) COMPUTER AUDIO IN 1

Connect to the audio input signals.

(12) COMPUTER AUDIO IN 2 (MIC IN)

Connect to the audio input signals. Or connect the MIC to this jack.

(13) VARIABLE AUDIO OUT

Output the audio signals input to the projector.

(14) S-VIDEO IN

Connect to S-VIDEO input signals.

Attention

- When a LAN cable is directly connected to the projector, the network connection must be made indoors.

Using Remote control

Installing and Removing batteries

Open the cover1) Install batteries and close the cover2)

(Insert the - side first.)

PANASONIC PT-VX505NU - Installing and Removing batteries - 1

PANASONIC PT-VX505NU - Installing and Removing batteries - 2

- Remove the batteries in the reverse order of installation.

Setting Remote control ID numbers

When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually using single remote control, if unique ID number is assigned to each projector.

After setting the ID number of the projector, set the same ID number to the remote control.

There are 7 different ID codes (ALL, Code 1\~Code 6), the initial ID number is [ALL].

Setting the ID number

1) While holding down the

button, press the Number Buttons, the number you press the Number buttons corresponds to the desired ID code number.
2) The number you press the number buttons is as follows: Code 1= <1 MUTE>, Code 2= <2 D.ZOOM +>, Code 3= <3 VIDEO>, Code 4= <4 FREEZE>, Code 5= <5 D.ZOOM ->, Code 6= <6 S-VIDEO>.

■ Resetting the ID number

1) The ID code is reset to [ALL] (default) by pressing the

button and <0 LAMP> button at the same time for 5 seconds or more.

Note

- For details, please refer to the [Remote control] of the [Setting] menu. (→ page 62)

PANASONIC PT-VX505NU - Note - 1

text_image POWER ON I STANDBY AUTO SETUP CANCEL IMAGE MENU INFO VOL- ENTER VOL+ -CLICK R-CLICK PAGE UP POINTER COMPUTER1 PAGE DOWN KEYSTONE COMPUTER2 MUTE 1 0.200M+ 2 VIDEO 3 FREEZE 4 0.200M- 5 S+VIDEO 6 AV MUTE 7 SCREEN 8 HDMI 9 P-TIMER LAMP 0 NETWORK Panasonic PROJECTOR ON OFF

Setting up

Projection method

You can use the projector with any of the following 4 projection methods. To set the desired method in the projector.

■ Setting on a desk/floor and projecting forward
PANASONIC PT-VX505NU - Projection method - 1

natural_image Simple line drawing of a person sitting at a desk viewing a projector screen (no text or symbols)

Menu setting ^*1

Ceiling Off
Rear Off

■ Mounting on the ceiling and projecting forward
PANASONIC PT-VX505NU - Projection method - 2

natural_image Simple line drawing of a person sitting on a chair facing a projector and a blank screen (no text or symbols)

Menu setting ^*1

Ceiling On
Rear Off

■ Mounting on the ceiling and projecting from rear
(Using translucent screen)
PANASONIC PT-VX505NU - Projection method - 3

natural_image Simple line drawing of a rectangular box with a small window and a person sitting on a chair beside it (no text or symbols)

Menu setting ^*1

Ceiling On
Rear On

Setting on a desk/floor and projecting from rear
(Using translucent screen)
PANASONIC PT-VX505NU - Projection method - 4

natural_image Simple line drawing of a person sitting on a chair next to a transparent display case with a small object inside (no text or symbols)

Menu setting ^*1

Ceiling Off
Rear On

*1: For details about the menu setting, please refer to the [Screen] menu → [Ceiling] and [Rear]. (→page 56)

Parts for ceiling mount (Optional)

You can install the projector on the ceiling by using the optional ceiling mount bracket (ET-PKV100H: for high ceiling, ET-PKV100S: for low ceiling), and the optional projector mount base ET-PKV200B.

  • Use only the ceiling mount brackets specified for this projector.
  • Refer to the installation manual for the ceiling mount bracket when you install the bracket and the projector.

Attention

- To ensure projector performance and security, installation of the ceiling mount bracket must be carried by your dealer or a qualified technician.

Setting up

Screen size and throw distance

Place the projector referring to the diagram on the right and the figures of throwing distance. You can adjust the display size.

PANASONIC PT-VX505NU - Screen size and throw distance - 1

text_image Projected image SH SD SW

PANASONIC PT-VX505NU - Screen size and throw distance - 2

text_image Screen L (LW/LT)
L (LW/LT) *1Projection distance (m)
SH Height of the projection area (m)
SW Width of the projection area (m)
HDistance from the center of lens to the image lower end (m)
SD Diagonal length of the projection area (m)
text_image SW L (LW/LT) Screen

Attention

- Before installing, please read "Precautions for Use" (→ pages 14 to 20).

■ Projection distance for PT-VW435NU

All measurements below are approximate and may differ slightly from the actual measurements. (Unit: m)

Projection sizeFor 4:3 aspect ratio For 16:9aspect ratio For 16:10 aspect ratio
Screen diagonal (SD)Minimum distance (LW)Maximum distance (LT)Height position (H)Minimum distance (LW)Maximum distance (LT)Height position (H)Minimum distance (LW)Maximum distance (LT)Height position (H)
30"0.81.40.009~0.2290.81.30.007~0.1870.71.20.008~0.202
40"1.11.80.012~0.3051.01.70.010~0.2491.01.60.011~0.269
50"1.42.30.015~0.3811.32.10.012~0.3111.32.00.013~0.337
60"1.72.80.018~0.4571.62.50.015~0.3741.52.50.016~0.404
70"2.03.30.021~0.5331.83.00.017~0.4361.82.90.019~0.471
80"2.33.70.024~0.6102.13.40.020~0.4982.03.30.022~0.538
90"2.64.20.027~0.6862.33.80.022~0.5602.33.70.024~0.606
100"2.94.70.030~0.7622.64.20.025~0.6232.54.10.027~0.673
120"3.55.60.037~0.9143.15.10.030~0.7473.14.90.032~0.808
150"4.37.00.046~1.1433.96.40.037~0.9343.86.20.040~1.010
200"5.89.40.061~1.5245.38.50.050~1.2455.18.30.054~1.346
250"7.311.70.076~1.9056.610.60.062~1.5576.410.30.067~1.683
300"8.714.00.091~2.2867.912.70.075~1.8687.712.40.081~2.019

Any other projection distance can be obtained according to the screen dimensions (m) using the following calculations.

The calculated distance may contain a certain error.

If the screen dimensions are written as "SD",

For 4:3 aspect ratio For 16:9 aspect ratio For 16:10 aspect ratio
Screen height (SH) = SD(m) ×0.6 = SD(m) × 0.490 = SD(m) × 0.530
Screen width (SW) = SD(m) ×0.8 = SD(m) × 0.872 = SD(m) × 0.848
Minimum distance (LW) = 0.11461 × SD(m) - 0.02936 = 0.10402 × SD(m) - 0.02936 = 0.10122 × SD(m) - 0.02936
Maximum distance (LT) = 0.18465 × SD(m) - 0.03190 = 0.16764 × SD(m) - 0.03190 = 0.16311 × SD(m) - 0.03190

Projection distance for PT-VX505NU

All measurements below are approximate and may differ slightly from the actual measurements. (Unit: m)

Projection size For 4:3 aspect ratio For 16:9 aspect ratio
Screen diagonal (SD)Minimum distance (LW)Maximum distance (LT)Height position (H)Minimum distance (LW)Maximum distance (LT)Height position (H)
30"0.71.10.046~0.2290.81.30.037~0.187
40"0.91.50.061~0.3051.01.70.050~0.249
50"1.21.90.076~0.3811.32.10.062~0.311
60"1.42.30.091~0.4571.62.50.075~0.374
70"1.72.70.107~0.5331.83.00.087~0.436
80"1.93.10.122~0.6102.13.40.100~0.498
90"2.23.50.137~0.6862.43.80.112~0.560
100"2.43.90.152~0.7622.64.20.125~0.623
120"2.94.70.183~0.9143.15.10.149~0.747
150"3.65.80.229~1.1433.96.40.187~0.934
200"4.87.80.305~1.5245.38.50.249~1.245
250"6.09.70.381~1.9056.610.60.311~1.557
300"7.311.70.457~2.2867.912.70.374~1.868

Any other projection distance can be obtained according to the screen dimensions (m) using the following calculations.

The calculated distance may contain a certain error.

If the screen dimensions are written as "SD",

For 4:3 aspect ratioFor 16:9 aspect ratio
Screen height (SH)= SD(m) × 0.6= SD(m) × 0.490
Screen width (SW)= SD(m) × 0.8= SD(m) × 0.872
Minimum distance (LW)= 0.09547 × SD(m) - 0.02937 = 0.10402 × SD(m) - 0.02937
Maximum distance (LT)= 0.15390 × SD(m) - 0.03189 = 0.16768 × SD(m) - 0.03189

Setting up

Adjusting front adjustable feet

Lift the front of the projector and press the feet lock latches on both side of the projector.

Release the feet lock latches to lock the adjustable feet and rotate the adjustable feet to a proper height and tilt. You can turn the front adjustable feet to extend them. You can turn them in the opposite direction to contract them.

(You can adjust the projection angle vertically.)

PANASONIC PT-VX505NU - Adjusting front adjustable feet - 1

text_image Feet Lock Latches Adjustable range Front adjustable feet

Front adjustable feet : 48.5 mm(1.909")

Attention

  • Heated air comes out of the air exhaust port while the lamp is lit. Do not touch the air exhaust port directly when you adjust the front adjustable feet.
  • If keystone distortion occurs on the projected image, perform "KEYSTONE" from the "Screen" menu. (→ page 55)

Note

● Screw up the adjustable feet, and an audible click will be heard as the limit.

Adjusting the position using the vertical lens shift function

If the projector is not positioned right in front of the center of the screen, you can adjust the vertical position of projected image by moving the vertical lens shift ring within the shift range of the lens.

Lens shift adjustment for PT-VX505NU1)

The display position can be shifted upward up to 40% elevation of the display. (When turn the vertical lens shift ring to the right (left), the display moves up (down)).

PANASONIC PT-VX505NU - Lens shift adjustment for PT-VX505NU1) - 1

natural_image Diagram showing a beam passing through a lens system with a rectangular object nearby (no text or symbols)

Lens shift adjustment for PT-VW435NU2)

The display position can be shifted upward up to 48% elevation of the display. (When turn the vertical lens shift ring to the right (left), the display moves up (down)).

PANASONIC PT-VX505NU - Lens shift adjustment for PT-VW435NU2) - 1

natural_image Diagram showing a device emitting a beam through a lens system with an optical path (no text or symbols)

Lens shift adjustable range
PANASONIC PT-VX505NU - Lens shift adjustment for PT-VW435NU2) - 2

text_image 40% Lens shift center position Shift range

Lens shift adjustable range
PANASONIC PT-VX505NU - Lens shift adjustment for PT-VW435NU2) - 3

text_image 48% Lens shift center position Shift range

Attention

Please note the followings when using the projector.

  • Do not touch the lens while it is moving as this could cause injury to the fingers.
    ● Never allow children to touch the lens.

Connections

Before connecting to the projector

  • Read carefully the instruction manual for the device to be connected.
  • Turn off the power switch of the devices before connecting cables.
  • If any connection cable is not supplied with the device, or if no optional cable is available for connection of the device, prepare a necessary system connection cable to suit the device.
  • Video signals containing too much jitter may cause the images on the screen to randomly wobble or wafture. In this case, a time base corrector (TBC) must be connected.
  • The projector accepts the following signals: VIDEO, S-VIDEO, analogue-RGB (with TTL sync. Level) and digital signal.
  • Some computer models are not compatible with the projector.
  • When using long cables to connect with each of equipment to the projector, there is a possibility that the image will not be output correctly unless a compensator is used.
  • For details on what video signals the projector supports, see "List of compatible signals". (→page 110-113)

Connecting example

PANASONIC PT-VX505NU - Connecting example - 1

Attention

  • When connecting with a video deck, be sure to use the one with a built-in time base corrector (TBC) or use a TBC between the projector and the video deck.
  • If nonstandard burst signals are connected, the image may be distorted. If this is the case, connect a TBC between the projector and the video deck.

Note

- When using an HDMI cable, check that it is compliant with the HDMI standard. Using a cable that is not compliant with the HDMI standard may result in problems such as the image cutting out or not appearing. When connecting the 1 080p signal using HDMI, use a cable compliant with 1 080p signal.

● This projector does not support the Viera link (HDMI).

- For the specifications of the RGB signals that can be applied from the PC, refer to "List of compatible signals". (→ page 110-113)

- The details of wired LAN and wireless communication between the projector and computer, please see "Network". (→ page 67-93)

Powering ON/OFF

Connecting the power cord

Be sure to insert the attached power cord securely to its base to prevent it from coming off.

Power cord holder

A power cord holder is designed to prevent the AC power cord from coming off the projector.

Please insert the power cord into the power cord holder correctly as Picture (1) shown:

AC Power cord holder
PANASONIC PT-VX505NU - Power cord holder - 1

text_image Technical diagram showing three stages of USB cable installation: connector, connector with clamp, and clamping device.

Picture (1)

Attaching

Attach the AC power cord with the power cord clamp to the projector as follows:

Press the clamp on its sides, and then insert the AC power cord with the power cord clamp securely to the projector as Picture (2) shown. It is correctly attached until you hear the "CLICK" sound. See Picture (3) for correct attachment.

PANASONIC PT-VX505NU - Attaching - 1

Removal

Remove the AC power cord from the electrical outlet while pressing the clamp on its sides.

PANASONIC PT-VX505NU - Removal - 1

text_image Diagram showing cable port connection with labeled ports and directional arrows indicating cable movement

ON(G)/STANDBY(R) indicator

The power indicator informs you the status of the power. Confirm the status of the indicator before operating the projector.

PANASONIC PT-VX505NU - ON(G)/STANDBY(R) indicator - 1

text_image ON(G)/STANDBY(R) indicator ON ID/ STANDBY(R) ON INPUT ENTER LAMP WARNING MENU AUTO SETUP
Indicator status Status
No illumination or flashing The power cord is unplugged.
RED LitThe power cord is plugged.
The projector is in stand-by mode, after the cooling is completed.
ORANGE FlashingThe projector is cooling down. The projector cannot be turned on until cooling is completed and theindicator stops blinking.
The temperature inside the projector is abnormally high. And theindicator also blinks in red (→page 94). The projector cannot be turned on until cooling is completed and theindicator stops blinking.
GREENLit Projecting.
FlashingThe projector is in stand-by status with [Power management] function.The projection lamp will be turned on if the input signal is reconnected or any button on the control panel or remote control is pressed. (→page 61)

Powering ON/OFF

Turning On the Projector

PANASONIC PT-VX505NU - Turning On the Projector - 1

natural_image Diagram of a device rear panel with ports and connectors (no text or labels)

(2)

(3)
PANASONIC PT-VX505NU - Turning On the Projector - 2

text_image ON (G) / STANDBY (R) ON O ENTER LAMP WARNING MENU AUTO SETUP INPUT

(3)

PANASONIC PT-VX505NU - Turning On the Projector - 3

text_image POWER ON AUTO SETUP CANCEL MAKE MAKE AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU

Complete peripheral connections (with a 1 computer, VCR, etc.) before turning on the projector.

Connect the projector's AC power cord into an 2) AC outlet. The indicator lights red. Open the lens cap.

Press the <8>/I> button on the control panel or the button on the remote control. The indicator lights green and the cooling fans start to operate. The preparation display appears on the screen and the count down starts.

After the countdown, the Input guide (include 4) the latest input source, lamp power status and network information) appears on the screen.

If there is no signal input when start on the 5 ) projector, or the current signal is missed while operating the projector, the Video/Computer selection window will be displayed on the screen, please move the pointer to input source desired by pressing the ▲▼ and the button. And then follow the input signal guidance window to correct the signal and connection.

If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed on the next page.

Preparation Screen

06

Panasonic

The preparation display will disappear after 30 seconds.

Input Guide

PANASONIC PT-VX505NU - Input Guide - 1

text_image Input source Lamp power status Network information *1 WIRELESS M-DIRECT Name0081 Puj0081

*1 Please refer to [Verifying the network information] (→page 67).

Video/Computer selection

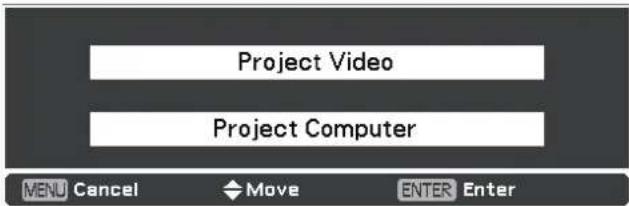

PANASONIC PT-VX505NU - Video/Computer selection - 1

text_image Project Video Project Computer MENU Cancel Move ENTER Enter

Note

  • When the [Logo select] function is set to [Off], the logo will not be shown on the screen (→page 59).
  • When [Countdown off] or [Off] is selected in the [Display] function, the preparation display will not be shown on the screen (→page 59).
  • When the [Input search] function is set to [On 2], the input signal will be searched automatically (→ page 58).
  • When the [Direct on] function is set to [On], the projector will be turned on automatically by connecting the AC power cord to an AC outlet.

Enter a PIN code

When using the top control

Press ▲▼ to enter a number. Press ▶ to fix the number and move the red frame pointer to the next box. The number changes to *. If you fixed an incorrect number, use the ◀ button to move the pointer to the number you want to correct, and then enter the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to "Set". Press the button so that you can start to operate the projector.

When using the remote control

Press the Number buttons on the remote control to enter a number (→ page 21). When you complete entering a four-digit number, the pointer moves to "Set". Press the button so that you can start to operate the projector.

If you fix an incorrect number, use the ◀ button to move the pointer to the number you want to correct, and then enter the correct number.

If you entered an incorrect PIN code, PIN code and the number (****) will turn red for a moment. Enter the correct PIN code all over again.

Note

  • If the PIN code number is not entered or wrong PIN code number is entered within three minutes after the PIN code dialog box appeared, the projector will be turned off automatically.
    ● The "1234" is set as the initial PIN code at the factory.

PIN Code Input Dialog Box

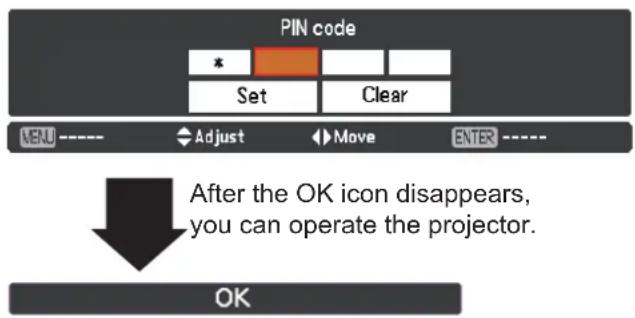

PANASONIC PT-VX505NU - Note - 1

text_image PIN code Set Clear MENU ---- Adjust Move ENTER ---- After the OK icon disappears, you can operate the projector. OK

Turning Off the Projector

Press the <@/► button on the control panel or the button on the remote control, and Power off? appears on the screen.

Press the <2>/1> button on the control panel or the button on the remote control again to turn off the projector. The indicator starts to blink orange, and the cooling fans keep running. At this time, you can unplug the AC power cord even if the fans are still running.

When the projector has cooled down enough, the 3 ) indicator stops blinking and you can turn on the projector.

Note

  • Do not put the projector in a case before the projector is cooled enough.
  • While the indicator is blinking, the lamp is being cooled down and the projector cannot be turned on. Wait until the indicator stops blinking to turn on the projector again.
  • The projector can be turned on after the indicator turns red. The waiting time to restart will be shortened when the normal power-off processing for fan cooling is completed, compared with the time the AC power cord is immediately unplugged after the power-off.

Direct Power Off function

You can disconnect the power cord from the wall outlet or turn off the breaker even during projection without pressing the <↓/|> button on the control panel or the button on the remote control.

Note

- When using the Direct power Off function, you can not restart the projector immediately after the power is disconnected. The lamp remains high temperature and needs to be cooled, so it sometimes takes longer time than usual for the lamp to light up again.

Power off?

Power off? disappears after 4 seconds.

Projecting

Check the connections of the peripheral devices and connection of the power cord (→page 32) and switch on the power (→page 34) to start the projector. Select the image and adjust the state of the image.

Selecting the image

Select an input signal.

The image selected with the , ,

Attention

  • Images may not be projected properly depending on the connected device and DVD, video tape, etc. to be played. Select a system format that is suitable for the input signal in [Component] or [RGB] in the [Input] menu (→page 45).
  • Check the aspect ratio of the screen and the image and select the optimum aspect ratio under the [Screen] menu (→ page 54).

How to adjust the state of the image

Adjust the projection angle.1)

  • Place the projector parallel to the screen, and then install it on a flat surface so that the screen becomes rectangle.
  • If the screen is tilted lower than the screen, extend the adjustable feet to make a rectangle screen.
  • For details, see "Adjusting front adjustable feet" (→page 30).

PANASONIC PT-VX505NU - Adjust the projection angle.1) - 1

natural_image Technical line drawing of a mechanical device with ventilation slots and a projector (no text or symbols)

Adjust the lens shift.2)

  • Adjust the projection position with the vertical lens shift ring.
  • For details, see "Adjusting the position using the vertical lens shift function" (→page 30).

Adjust the zoom and the focus.3)

Turn [Zoom lever] and [Focus lever] to adjust the image.

PANASONIC PT-VX505NU - Adjust the zoom and the focus.3) - 1

text_image Focus lever Zoom lever

Note

  • It is recommended that the images are projected continuously for at least 30 minutes before the focus is adjusted.
  • If you adjust the focus, you may need to adjust the size of the image by moving the zoom lever again.
  • If keystone distortion occurs, see "KEYSTONE" (→ page 55).

Basic operations by using the remote control

PANASONIC PT-VX505NU - Basic operations by using the remote control - 1

text_image POWER ON AUTO SETUP CANCEL MENU VOL- L-LOCK PAGE UP PONTER COMPUTER1 FROZEN KEYSTONE COMPUTER2 MUTE 1 0.200M+ 2 VIDEO 3 FREEZE 4 0.200M- 5 S-VIDEO 6 AV MUTE 7 SCREEN 8 HDMI 9 P-TIMER LAMP 0 NETWORK STANDBY ON OFF Panasonic PROJECTOR

Using the AUTO SETUP function

This function allows you to automatically adjust Input search, Auto Keystone correction and Auto PC adjustment during signal input from a computer.

PANASONIC PT-VX505NU - Using the AUTO SETUP function - 1

Button

Press the button on the remote control.

Note

- For details, see "Setting" of Main menu. (→page 58)

Using the IMAGE button

This function allows you to select a desired image mode of the screen.

PANASONIC PT-VX505NU - Using the IMAGE button - 1

Button

Press button on the remote control to select the desired image mode among [Dynamic], [Standard], [Real], [Cinema], [Blackboard (Green)], [Colorboard], [Image 1], [Image 2], [Image 3] and [Image 4].

Note

- For details, see "Image select" of Main menu. (→page 50)

Using the MENU button

This function allows you to open or close the On-Screen Menu.

PANASONIC PT-VX505NU - Using the MENU button - 1

Button

Press the

button on the remote control.

Note

- For details, see "Menu Navigation". (→page 42)

Using the INFO button

This function allows you to display the information menu.

PANASONIC PT-VX505NU - Using the INFO button - 1

Button

Press button on the remote control.

Note

- For details, see "Input Source Information Display" in "Information" under Main menu. (→ page 66)

Controlling the volume of the speaker

You can control the volume of the projector's speaker or audio output.

PANASONIC PT-VX505NU - Controlling the volume of the speaker - 1

PANASONIC PT-VX505NU - Controlling the volume of the speaker - 2

Buttons

Press the buttons on the control panel or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds.

Note

- For details, see "Volume" of "Sound" under Main menu. (→page 57)

Using the wireless mouse function

buttons act as left/right mouse button while the projector and a computer are connected with a USB cable, and move the pointer on the screen with button.

PANASONIC PT-VX505NU - Using the wireless mouse function - 1

text_image Center part is Button. Outer part is Button. L-CLICK R-CLICK Buttons

Press or buttons on the remote control.

Note

  • When using wireless mouse function, please select [Mouse control] in the [USB terminal] first. (→page 60)
  • When a USB cable is connected to the computer and the projector, turn on the projector first, then the computer. If you turn on the computer first, the wireless mouse function may not operate properly.
  • When the pointer displays on the screen, you can use the button on the remote control to move the pointer, but can not use it to move the mouse cursor at the same time.

Using the PAGE UP/DOWN buttons

Scroll back and forth the pages on the screen when giving a presentation.

PANASONIC PT-VX505NU - Using the PAGE UP/DOWN buttons - 1

Buttons

Press the buttons on the remote control.

Note

- To use these buttons, connect the projector and your computer with a USB cable.

Using the POINTER button

Act as the On-Off switch for the Pointer. When the pointer displays on the screen, you can use the button on the remote control to move the pointer.

PANASONIC PT-VX505NU - Using the POINTER button - 1

Button

Press the button on the remote control.

Note

- For details, see "Setting" of Main menu. (→ page 60)

Using the KEYSTONE button

This function allows you to correct keystone distortion.

PANASONIC PT-VX505NU - Using the KEYSTONE button - 1

Button

If a projected picture still has keystone distortion after pressing the button, correct the image manually as follows:

Press the button on the remote control. The Keystone dialog box appears. Press

▲▼ to correct keystone distortion. The keystone adjustment can be stored (→page 55).

Operation Screen image
Reduce the upper width with press▲.
Reduce the lower width with press▼.

Note

● The white arrows indicate that there is no correction.
● A red arrow indicates the direction of correction.
● An arrow disappears at the maximum correction.
- If you press the button on the remote control once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled (→ page 55).
- The adjustable range is limited depending on the input signal.

Basic operations by using the remote control

Switching the input signal

You can switch the input signals to project.

COMPUTER 1

COMPUTER 2

VIDEO 3

S-VIDEO 6

HDMI 9

NETWORK

Buttons

Press (, , ,

COMPUTER 1Switch to Computer 1(RGB)/Computer 1(Component)/Computer 1(Scart) input.
COMPUTER 2Switches to Computer 2(RGB) input.
HDMI Switches to HDMI input.
VIDEO Switches to Video input.
S-VIDEO Switches to S-video input.
NETWORK Switches to Network input.

Note

  • Each press of the button on the Control Panel of the main unit switches the settings as shown below. (→ page 24)

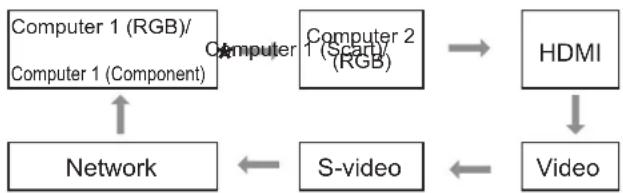

PANASONIC PT-VX505NU - Note - 1

* It depends on the item you selected in the [Computer 1] submenu of the [Input] menu.

Using the MUTE button

Press this button on the remote control to select [On] to temporarily turn off the sound.

PANASONIC PT-VX505NU - Using the MUTE button - 1

Button

Press button on the remote control.

Note

- To turn the sound back on, press this button again or press the buttons. (→ page 57)

Using the D.ZOOM +/- buttons

This function allows you to enter to the Digital zoom +/- mode.

PANASONIC PT-VX505NU - Using the D.ZOOM +/- buttons - 1

Buttons

Press buttons on the remote control.

Note

- For details, see "Screen" of Main menu. (→page 55)

Using the FREEZE function

You can freeze the projected image and stop the sound temporarily, regardless of the playing condition of the connected device.

PANASONIC PT-VX505NU - Using the FREEZE function - 1

Button

Press the button on the remote control to freeze the picture on the screen, meanwhile, volume is muted. To cancel the Freeze function, press the button again or press any other button.

Fig.1 will appear on the screen while the Freeze function is working.

Fig.1

PANASONIC PT-VX505NU - Button - 1

Note

- When no signal inputs, ⚠ mark will appear.

Using the AV MUTE function

PANASONIC PT-VX505NU - Using the AV MUTE function - 1

Button

Press the button on the remote control to black out the image. To restore to normal, press the button again or press any button.

- When the Logo is not set, the screen changes each time you press the button as follows.

PANASONIC PT-VX505NU - Button - 1

- The projected Logo (the logo can be set according to users' favorite) is transferred from computer to the projector by "Logo Transfer Software" on the supplied CD-ROM and is set as [User] in the Logo selection (→page 59), the screen changes each time you press the button as follows.

PANASONIC PT-VX505NU - Button - 2

Note

- When use the button to release the [AV mute] function, the mute function can not be operated at the same time.

Using the SCREEN button

This function allows you to select screen mode or change the screen size.

PANASONIC PT-VX505NU - Using the SCREEN button - 1

Button

Press the button on the remote control.

Note

- For details, see "Screen" of Main menu. (→page 54)

Using the P-TIMER button

Press the button on the remote control to operate the [Count up]/[Count down] function.

P-TIMER

Button

Press button on the remote control.

Note

- To stop the count time, press the button. To cancel the [P-timer] function, press and hold the button. (→page 61)

Using the LAMP button

This function allows you to select the lamp mode for changing the brightness on the screen.

LAMP 0

Button

Press button on the remote control.

Note

- For details, see "Lamp Power" of "Setting" under Main menu. (→ page 62)

Operating procedure

Press the button.1)

The Main Menu screen appears.

PANASONIC PT-VX505NU - Press the  button.1) - 1

text_image Input PC adjust Image select Image adjust Screen Sound Setting Information Network Computer 1 Computer 2 HDMI Video S-video Network System XGA 1 VGA Exit Move Next Next

Press ▲▼ to select the Main Menu 2 ) item.

Select the desired item from the 9 items: [Input], [PC adjust], [Image select], [Image adjust], [Screen], [Sound], [Setting], [Information] and [Network]. The selected item is highlighted with an orange cursor and the submenu of the selected item appears on the right.

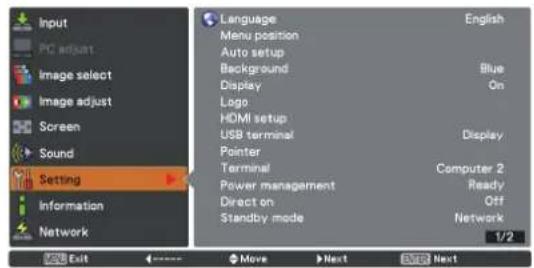

PANASONIC PT-VX505NU - Press ▲▼ to select the Main Menu 2 ) item. - 1

text_image Input PC adjust Image select Image adjust Screen Sound Setting Information Network Language Menu position Auto setup Background Display Logo HDMI setup USB terminal Pointer Terminal Power management Direct on Standby mode English Blue On Display Computer 2 Ready Off Network 1/2 Exit Move Next Next

Press ▶ or the button.3 )

The submenu appears so that you can select the sub-menu item.

PANASONIC PT-VX505NU - Press ▶ or the  button.3 ) - 1

text_image Input PC adjust Image select Image adjust Screen Sound Setting Information Network Language Menu position Auto setup Background Display Logo HDMI setup USB terminal Pointer Terminal Power management Direct on Standby mode English Blue On Display Computer 2 Ready Off Network 1/2 Exit Back Move Next Back Next

Press ▲▼ to select the desired sub-4) menu item.

Press the button or press ▶ 5) to enter the desired item.

Press ▲▼ ◀▶ to set or adjust the 6 ) parameter values.

Press ◀ to return the previous menu. 7) Press the

button to exit the menu display.

Note

  • Some items may not be adjusted or used for certain signal formats input to the projector. The MENU items that cannot be adjusted or used are shown in gray characters, and they cannot be selected.
  • Some items can be adjusted even if signals are not input.
  • See pages 43 and 44 for details on the items of submenu.

The main menu consists of the following 9 menu items.

When a main menu item is selected, the screen changes to a submenu selection screen.

PANASONIC PT-VX505NU - Main menu - 1Input
PANASONIC PT-VX505NU - Main menu - 2PC adjust
PANASONIC PT-VX505NU - Main menu - 3Image select
PANASONIC PT-VX505NU - Main menu - 4Image adjust
PANASONIC PT-VX505NU - Main menu - 5Screen
PANASONIC PT-VX505NU - Main menu - 6Sound
PANASONIC PT-VX505NU - Main menu - 7Setting
PANASONIC PT-VX505NU - Main menu - 8Information
PANASONIC PT-VX505NU - Main menu - 9Network

The sub-menu screen of the selected main menu appears, and you can set and adjust the various items in the submenu.

Input [ ]

Sub-menu item Factory default Page
Computer 1 RGB 45
Computer 2 RGB 45
HDMI - 45
Video - 45
S-video - 45
Network - 46

PC adjust [ ]

Sub-menu item Factory default Page
AUTO PC adj. - 47
Fine sync. - 48
Total dots - 48
Horizontal - 48
Sub-menu item Factory default Page
Vertical- 48
Current mode- 49
Clamp- 49
Display area H- 49
Display area V- 49
Reset- 49
Mode free - 49
Store- 49

Note

- This function will be available when the input source come from computer.

Image select [ ]

Sub-menu itemFactory defaultPage
Dynamic-50
Standard-50
Real-50
Cinema-50
Blackboard(Green)-50
ColorboardRed 50
Image 1-4-50

Image adjust [ ]

Sub-menu itemFactory defaultPage
Contrast32 51
Brightness32 51
Color*132 51
Tint*132 51
Iris-51
Color temp.-52
Red32 52
Green32 52
Blue32 52
Daylight View-52
Sharpness853
Gamma853
Noise reduction*1L 153
Progressive*1L 153
Reset - 53
Store-53

*1: When input video signal to the projector, these functions will be available.

Screen

PANASONIC PT-VX505NU - Screen - 1

Sub-menu item Factory default Page
Normal - 54
Full - 54
Wide (16:9) - 54
Zoom - 54
True*1- 54
Natural wide*2-54
Custom - 54
Custom adj. - 55
Digital zoom +*1- 55
Digital zoom -*1- 55
Keystone Store 55
Ceiling Off 56
RearOff 56
Screen aspect*2Default(16:10)56
Reset- 56

*1: When input computer signal to the projector, these functions will be available.
*2 : PT-VW435NU Only.

Sound [ ]

Sub-menu itemFactory DefaultPage
Volume3257
MuteOff57
MICOff57
MIC gain3257
Standby MIC outOff57

Setting [ ]

Sub-menu itemFactory Default Page
LanguageEnglish58
Menu positionCenter58
Auto setup-58
BackgroundBlue59
DisplayOn59
Logo-59
HDMI setup-60
USB terminalDisplay60
Pointer Spotlight L60
TerminalComputer 260
Power management Shutdown61
Direct onOff61
Standby modeEco61
P-timerCount up61
Closed captionOff62
Lamp powerNormal62
Remote controlALL62
Sub-menu itemFactory Default Page
Security-63
FanL 263
Fan controlOff63
Video delay controlOff64
Filter counter-64
EmulateDefault64
Warning log-65
Factory default-65

Information [i]

Sub-menu item Factory default Page
Input- 66
System- 66
H-sync freq.- 66
V-sync freq.- 66
Screen- 66
Language- 66
Lamp power- 66
Lamp runtime- 66
Power management- 66
Key lock- 66
PIN code lock- 66
Remote control- 66
Serial number- 66

Network [ ]

Sub-menu item Factory default Page
Wired LAN- 67
Wireless LAN- 68
Wireless detailed setup- 68
Projector name- 71
PasswordOff72
Network controlOn72
Live mode cut in- 72
Multi-live- 72
Network status- 72
AMX D.D.Off73
Room ViewOff73
Memory viewer- 73
Network factory default- 73

Input menu

Select [Input] from the Main Menu (see "Navigating through the menu" on page 42), then select the item from the sub-menu.

PANASONIC PT-VX505NU - Input menu - 1

text_image Remote Control MENU 3 INFO VOL- VOL+ I-CLICK R-CLICK PAGE UP POINTER ON/OFF PAGE/DOOR KEYSTONE ENGLISH MUTE DZOOM+ VIDEO 1 2 3 FREEZE DZOOM- 4 5 E-VIDEO AV MUTE SCREEN P/PMR 7 8 9 0 P-TIMER LAMP RETROOM Control Panel ON KG/ STANDBY (R) ON/OFF ENTER LAMP WARNING MENU AUTO SETUP OUTPUT

Computer 1: RGB/Component /RGB (Scart)

Press ▲▼ to select [Computer 1]. 1 )

Press ▶ to access the submenu.2)

Press ▲▼ to select RGB, Component 3) or RGB(Scart) and then press the button.

Computer 2: RGB

Press ▲▼ to select [Computer 2 (RGB)] and then press the button.

■ Computer System Selection

This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on pages 110-113.)

AUTO When the projector can not recognize the connected signal conforming to the provided PC Systems, [Auto] is displayed on the System Menu box and the Auto PC adjustment function works to display proper images. If the image is not projected properly, a manual adjustment is required.

- - - - There is no signal input from the computer. Check the connection between your computer and the projector.

Mode 1 The preset system is manually adjusted in the PC adjust Menu. The adjusted data can be stored in Mode 1-10.

SVGA 1 PC Systems provided in this projector is chosen. The projector chooses a proper system provided in the projector and displays it.

* Mode 1 and SVGA 1 are examples.

Press ▲▼ to select [System].1)

Press ▶ or the button to 2) access the submenu.

Press ▲▼ to select the desired system.3)

HDMI

Press ▲▼to select [HDMI] and then press the button.

Video

Press ▲▼ to select [Video] and then press the button.

S-video

Press ▲▼ to select [S-video] and then press the button.

■ Video System Selection

Video or S-video

Auto

The projector automatically detects an incoming video system, and adjusts itself to optimize its performance.

When Video System is [PAL-M] or [PAL-N], select the system manually.

PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N

If the projector cannot reproduce proper video image, select a specific broadcast signal format from among [PAL], [SECAM], [NTSC], [NTSC 4.43], [PAL-M] and [PAL-N].

Input menu

Component

Auto

The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance.

COMPONENT VIDEO SIGNAL FORMAT

If the projector cannot reproduce proper video image, select a specific component video signal format among [480i], [576i], [480p], [576p], [720p], [1 035i] and [1 080i].

Press ▲▼ to select [System].1)

Press ▶ or the button to 2) access the submenu.

Press ▲▼ to select the desired system.3)

Note

  • When the [Input Search] function is set to [On 1] or [On 2] in the [Auto setup] function, the input signal will be searched automatically.
  • The AV System Menu cannot be selected when selecting [RGB (Scart)].

Network

Press ▲▼ to select [Network] and then press the button.

Note

- For details please refer to Network operations on page 67-93.

AUTO PC adjust

Select [PC adjust] from the Main Menu (see "Navigating through the menu" on page 42), then select the item from the sub-menu.

PANASONIC PT-VX505NU - AUTO PC adjust - 1

text_image Remote Control Control Panel ON (G) / STANDBY (R) INPUT ENTER LAMP WARNING MENU AUTO SETUP P/TIMER LAMP 0 NETWORK VOL- L-CLK R-CLK PAGE UP PONTER COMPET1 NEEROW KEYSTONE COMPET2 MUTE 1 2.200W+ 2 VIDEO 3 FREEZE 4 0.200W- 5 SVIDEO 6 AV MUTE 7 SCREEN 8 HDMI 9

Auto PC adj.

Auto PC adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer.

Press ▲▼ to select [Auto PC adj.] and then press the button.

- Please wait... appears while the Auto PC adjustment is in process.

To store adjustment parameters

The adjusted parameters from the Auto PC adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a Mode (1–10) in the PC System Menu (see page 45). See also [Store] on page 49.

Attention

  • [Fine sync], [Total dots], [Horizontal] and [Vertical] position of some computers cannot be fully adjusted with the Auto PC adjustment function. When the image is not provided properly with this operation, manual adjustments are required (→ pages 48-49).
  • The Auto PC adjustment cannot be operated when [480i], [576i], [480p], [576p], [720p], [1 035i] or [1 080i] is selected in the PC System Menu (→ page 45), or when the signal is coming from the HDMI terminal.

Manual PC adjust

Select [PC adjust] from the Main Menu (see "Navigating through the menu" on page 42), then select the item from the sub-menu.

Remote Control

Control Panel

PANASONIC PT-VX505NU - Manual PC adjust - 1

text_image MENU VOL- ENTER VOL+ L-CLK R-CLK PAGE UP POINTER COMPUT1 MEOON KEYSTONE COMPUT2 MUTE 1 0.20XOM+ 2 VIDEO 3 FREEZE 4 0.20XOM- 5 SWAVEO 6 AV MUTE 7 SCREEN 8 HDMI 9

PANASONIC PT-VX505NU - Manual PC adjust - 2

text_image ON (G) / STANDEY (R) ON O I Δ INPUT LAMP ENTER WARNING MENU AUTO SETUP

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.

Fine sync

Press ▲▼ to select [Fine sync].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the value.3)

● The value can be adjusted from 0 to 31.

Total dots

Press ▲▼ to select [Total dots].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the value.3)

Horizontal

Press ▲▼ to select [Horizontal].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the horizontal 3 ) picture position.

■ For horizontal (right and left) adjustment

Operation Adjustment
Press ◀.The picture position moves to the right.PANASONIC PT-VX505NU - ■ For horizontal (right and left) adjustment - 1
Press ▶.The picture position moves to the left.PANASONIC PT-VX505NU - ■ For horizontal (right and left) adjustment - 2

Vertical

Press ▲▼ to select [Vertical].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the vertical picture 3 ) position.

■ For vertical (up and down) adjustment

Operation Adjustment
Press ▶.The picture position moves up.PANASONIC PT-VX505NU - ■ For vertical (up and down) adjustment - 1
Press ◀.The picture position moves down.PANASONIC PT-VX505NU - ■ For vertical (up and down) adjustment - 2

Current mode

Press ▲▼ to select [Current mode].1)

Press ▶ or the button to 2) enter the next submenu to show H-sync freq. and V-sync freq. of the connected computer.

Clamp

Press ▲▼ to select [Clamp].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the clamp level.3)

- When the image has dark bars, try this adjustment.

Display area H

Press ▲▼ to select [Display area H].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the horizontal area 3) displayed by this projector.

Display area V

Press ▲▼ to select [Display area V].1)

Press the button to display 2) the dialog box.

Press ◀▶ to adjust the vertical area 3) displayed by this projector.

Reset

To reset the adjusted data, all adjustments will return to their previous figures.

Press ▲▼ to select [Reset].1)

Press the button.2)

- A confirmation box appears and then select [Yes].

Mode free

Press ▲▼ to select [Mode free].1)

Press ▶ or the button to 2) enter the next submenu.

- Move the highlight to the mode that you want to clear and then press the button.

● A confirmation box appears and then select [Yes].

Store

1 ) Press ▲▼ to select [Store].

Press ▶ or the button to 2 ) enter the next submenu.

- Move the highlight to one of the Modes 1 to 10 in which you want to store, and then press the button.

- A confirmation box appears and then select [Yes].

Image select

Select [Image select] from the Main Menu (see "Navigating through the menu" on page 42), then select the item from the sub-menu.

Remote Control
PANASONIC PT-VX505NU - Image select - 1

text_image AUTO SETUP CANCEL MEMS INFO VOL- ENTER VOL+ L-CLICK R-CLKX PAGE UP PONTER COMPUTER1 PAGE DOWN KEYSTONE COMPUTER2 MUTE 1 0.200M+ VIDEO 3 FREEZE 4 0.200M- 5 S-VIDEO 6 AV MUTE 7 SCREEN 8 HDMI 9

Control Panel
PANASONIC PT-VX505NU - Image select - 2

text_image ON (G) / STANDBY (R) ON / / Δ INPUT LAMP ENTER WARNING MENU AUTO SETUP

Dynamic

For viewing pictures in a bright room.

Press ▲▼ to select [Dynamic] and then press the button.

Standard

Normal picture mode preset on the projector.

Press ▲▼ to select [Standard] and then press the button.

Real

Picture mode with improved halftone for graphics.

Press ▲▼ to select [Real] and then press the button.

Cinema

Picture mode adjusted with fine tone.

Press ▲▼ to select [Cinema] and then press the button.

Blackboard(Green)

For the image projected on a blackboard.

Press ▲▼ to select [Blackboard(Green)] and then press the button.

- This mode helps enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Colorboard

For the image projected on a colorboard.

Press ▲▼ to select [Colorboard].1)

Press ▶ or the button to 2) display the submenu.

Press ▲▼ to select a color, and press 3) the button.

- At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors (Red, Blue, Yellow and Green).

Image 1-4

For viewing with the user preset image mode in the Image adjust Menu. This Image memory is provided in each computer, component and video input source.

Press ▲▼ to select [Image 1-4] and then press the button.

Image adjust

Select [Image adjust] from the Main Menu (see "Navigating through the menu" on page 42), then select the item from the sub-menu.

Remote Control
PANASONIC PT-VX505NU - Image adjust - 1

text_image AUTO SETUP CANCEL IMAGE MENU INFO VOL- VOL+ VOL- 1-CLICK 4-CLICK PAGE UP PONTER COMPUT1 READOWN KEystone COMPUT2 MUTE 1 D200+ 2 VIDEO 3 FREEZE 4 D200- 5 SVIDEO 6 AV MUTE 7 SCREEN 8 HDMI 9

Control Panel
PANASONIC PT-VX505NU - Image adjust - 2

text_image ON (IG / STANDBY (R) ON LAMP WARNING ENTER AUTO SETUP INPUT

Note

- Make sure you selected [Store] after adjusting settings. Some settings can not be stored if not registered with [Store] function

Contrast

Press ▲▼ to select [Contrast].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the setting value.3)

Operation AdjustmentAdjustment range
Press ▶. increase the contrastMaximum value 63
Press ◀.decrease the contrastMinimum value 0

Brightness

Press ▲▼ to select [Brightness].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the setting value.3)

Operation AdjustmentAdjustment range
Press ▶.increase the brightnessMaximum value 63
Press ◀.decrease the brightnessMinimum value 0

Color

Press ▲▼ to select [Color].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the setting value.3)

Operation AdjustmentAdjustment range
Press ▶.increase the intensity of the colorMaximum value 63
Press ◀.decrease the intensity of the colorMinimum value 0

Note

- When input video signal to the projector, [Color] will be available.

Tint

Press ▲▼ to select [Tint].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the tint value to 3) get a proper color balance.

- Adjustments can be made between 0 and 63.

Note

- When you select [NTSC] or [NTSC4.43] in System menu under Video input signal, [Tint] will be available.

Iris

Press ▲▼ to select [Iris].1 )

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to select [Off] or [On].3)

Off Disabled
OnContrast is prioritized over brightness

Image adjust

Color temp.

Press ▲▼ to select [Color temp.].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to select the desired Color 3) temp. level.

- You can select the desired [Color temp.] from [XLow], [Low], [Mid] or [High].

Note

- [Color temp.] level displays [Blackbord] or [Colorboard] when the [Blackboard(Green)] or [Colorboard] is selected in the [Image select] menu.

Red

Press ▲▼ to select [Red].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the setting value.3)

Operation AdjustmentAdjustment range
Press ▶. deepen red toneMaximum value 63
Press ◀. lighten red toneMinimum value 0

Green

Press ▲▼ to select [Green].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the setting value.3)

Operation AdjustmentAdjustment range
Press ▶.deepen green toneMaximum value 63
Press ◀.lighten green toneMinimum value 0

Blue

Press ▲▼ to select [Blue].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the setting value.3)

Operation AdjustmentAdjustment range
Press ▶. deepen blue toneMaximum value 63
Press ◀. lighten blue toneMinimum value 0

Daylight View

This function uses an ambient light sensor to detect the room's light intensity and automatically adjust the projector output to ensure a bright presentation.

Press ▲▼ to select [Daylight View].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to select the desired item.3)

AutoAlways works and improve image performance in brightly lit places.
On Enabled
OffDisabled

Note

  • When [Rear] is set to [On], [Auto] is disabled.
  • When this function is set to [On] or [Auto], the [Sharpness] is disabled.

Sharpness

Press ▲▼ to select [Sharpness].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the setting value.3)

Operation AdjustmentAdjustment range
Press ▶.increase the sharpness of the imageMaximum value 15
Press ◀.decrease the sharpness of the imageMinimum value 0

- When [Daylight View] is set to [On] or [Auto], the [Sharpness] is disabled.

Gamma

Press ▲▼ to select [Gamma].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to adjust the gamma value 3) to obtain a better balance of contrast.

- Adjustments can be made between 0 and 15.

Noise reduction

Press ▲▼ to select [Noise reduction].1)

Press the button to display 2) the adjustment dialog box.

Press ◀▶ to select the desired item.3)

Off Disabled
L 1 Lower reduction
L 2 Higher reduction
  • Noise interference on the screen can be reduced. Select one of the above options to get smoother images.
  • [Noise reduction] cannot be selected when [480p], [576p], [720p], [1 035i] or [1 080i] is selected.

Note

- When input video signal to the projector, [Noise reduction] will become available.

Progressive

Press ▲▼ to select [Progressive].1)

Press the button to display 2) the dialog box.

Press ◀▶ to select the desired item.3)

  • An interlaced video signal can be displayed in progressive mode. Select one of the following options.
  • [Progressive] cannot be selected when [480p], [576p], [720p], [1 035i] or [1 080i] is selected.
Off Disabled
L 1 For an active picture
L 2 For a still picture
Film For watching a film

Note

- When input video signal to the projector, [Progressive] will become available.

Reset

To reset the adjusted data, all adjustments will return to their previous figures.

1 ) Press ▲▼ to select [Reset].
2) Press the button.

- A confirmation box appears and then select [Yes].

Note

● To reset the adjusted data except [Daylight View].

Store

1 ) Press ▲▼ to select [Store].
2) Press ▶ or the button.
3) Press ▲▼ to select one from Image 1 to 4 and press the button.

- A confirmation box appears and then select [Yes].

Note

  • To store the adjusted data except [Daylight View].
  • Make sure you selected [Store] after adjusting settings. Some settings can not be stored if not registered with [Store] function.

Screen

Select [Screen] from the Main Menu (see "Navigating through the menu" on page 42), then select the item from the sub-menu.

PANASONIC PT-VX505NU - Screen - 1

text_image Remote Control MENI INFO VOL- ENTER VOL+ ![](images/37866ed342b6cb0f6408e0986ea9514504867b3ae15e509a0d4f65d72eac2b26.jpg)
text_image Control Panel ON (G) / STANDBY (R) ON ENTER INPUT LAMP WARNING MENU AUTO SETUP

Normal

Provide the image to fit the screen size while maintaining the aspect ratio of the input signal. Press ▲▼ to select [Normal] and then press the button.

Full

Provide the full screen image. Press ▲▼ to select [Full] and then press the button.

Wide(16:9)

Provide the image at the 16:9 wide screen ratio. Press ▲▼ to select [Wide(16:9)] and then press the button.

Zoom

Scale the image proportionally to fit the entire screen. Either side of image may go over the screen. Press ▲▼ to select [Zoom] and then press the button.

True

Provide the image in its original size. When the original image size is larger than the panel size\*, the projector enters to the panning mode automatically. Press ▲▼ to select [True] and then 1) press the button. Press ▲▼◀▶ to pan the image.2) \- When adjusted, the arrows will turn red. When reached to the correction limits, the arrows will disappear. \* Panel size (1 280 x 800) is only for PT-VW435NU. Panel size (1 024 x 768) is for PT-VX505NU.

Note

- When input computer signal to the projector, [True] will be available. - [True] is disabled and cannot be displayed when [480i], [576i], [480p], [576p], [720p], [1 035i] or [1 080i] is selected in the PC System Menu. - When [True] is selected in the Screen menu, [Digital zoom +/-] can not be selected.

Natural wide (PT-VW435NU Only)

Modify the 4:3 aspect ratio image to fit the screen size by stretching the image to make it look natural. Press ▲▼ to select [Natural wide] and then press the button.

Note

- When input video signal to the projector, [Natural wide] will be available. ● [Natural wide] is not available when [720p], [1 035i] or [1 080i] is selected in the PC System Menu.

Custom

Provide the last stored aspect screen image. Press ▲▼ to select [Custom] and press the button.

Custom adj.

Adjust the screen scale and position manually with this function. Press ▲▼ to select [Custom adj.].1) Press ▶ or the button to 2) enter the next submenu. Press ▲▼ to choose the item you 3 ) want to adjust. \- You can choose one from the items as below:
Scale H/VAdjust the Horizontal/Vertical screen scale.
H&VWhen set to [On], the aspect ratio is fixed.
Position H/VAdjust the Horizontal/Vertical screen position.
CommonSave the adjusted scale or position to all the inputs.
Reset Resetset the all adjusted values.

Digital zoom +

Zoom in the images. Press ▲▼ to select [Digital zoom +] 1) and then press the button. \- The On-Screen Menu disappears and [D. zoom + ] appears. Press the button to zoom in 2) the image size and press ▲▼ ◀▶ to move the image to the top/bottom/left/right of the screen. \- The Panning function can work only when the image is larger than the screen size. A projected image can be also expanded by pressing the or the button.

Digital zoom -

Zoom out the images. Press ▲▼ to select [Digital zoom -] 1) and then press the button. \- The On-Screen Menu disappears and [D.zoom –] appears. Press the button to zoom 2) out image size. \- The projected image can be also compressed by pressing the or the button. To exit the Digital zoom +/- mode, press any button except the , and ▲▼◀▶ buttons. To return to the previous screen size, select a screen size from the Screen Size Adjustment Menu or select an input source from the Input Source Selection Menu (→ page 45) again, or adjust the screen size with the buttons.

Note

- When input computer signal to the projector, [D.ZOOM +/-] will be available. - [Digital zoom +/-] cannot be selected when [True] is selected in the Screen menu. - [Digital zoom -] cannot be selected when [Custom] is selected in the Screen menu. - [Digital zoom +/-] are disabled and cannot be displayed when [480i], [576i], [480p], [576p], [720p], [1 035i] or [1 080i] is selected in the PC System Menu (→page 46). - When [Digital zoom +/-] functions are disabled, ! mark will appear.

Keystone

This function is used to adjust keystone distortion of the projected image. 1 ) Press ▲▼ to select [Keystone]. 2) Press ▶ or the button. Press ▲▼ to choose the item you 3 ) want to adjust.
KeystoneTo correct keystone distortion
StoreTo store or reset the keystone correction
![](images/dfea153e540451ad9a716bffcfab436c2fc7d4184df70ef07c7422ecdca06485.jpg)
StoreKeep the keystone correction ever when the AC power cord is plugged out or turned off the projector.
ResetRelease the keystone correction when the AC power cord is plugged out.

Note

\- For more details about the keystone correction, refer to "Using the KEYSTONE button" (page 39).

Screen

Ceiling

This function is used to project the image from a ceiling-mounted projector. Press ▲▼ to select [Ceiling] and then 1 ) press the button. Press ▲▼ to change the image.2) \- When this function is set to [On], the picture will be top/bottom and left/right reversed.

Reset

To reset the adjusted data, all adjustments will return to their previous figures. Press ▲▼ to select [Reset] and then press the button. \- A confirmation box appears and then select [Yes].

Rear

This function is used to project the image from rear of the screen. Press ▲▼ to select [Rear] and then 1 ) press the button. Press ▲▼ to change the image.2) \- When this function is set to [On], the picture will be left/right reversed.

Screen aspect (PT-VW435NU Only)

This function is used to project the image to a 4:3 or 16:9 projection screen. Press ▲▼ to select [Screen aspect] 1) and then press the button. Press ▲▼ to choose one from the 2 ) items as below.
Default(16:10)16:10 is the aspect of the LCD panel.
16:9 Set toa 16:9 projection screen.
4:3 Set toa 4:3 projection screen.

Attention

- When the [4:3] function is selected, [Natural wide] is not available in the AV screen. - When the [16:9] function is selected, [Wide (16:9)] is not available in the AV screen.

Sound

Select [Sound] from the Main Menu (see "Navigating through the menu" on page 42), then select the item from the sub-menu. Remote Control ![](images/87fd50655d821ea6f346aec2979b5d23c6ab143fca6abb7054d6024f4f07d660.jpg)
text_image VOL- ENTER VOL+ -CLK +CLK PAGE UP PONTER COMPUTER1 PAGE DOWN KEYSTONE COMPUTER2 MUTE 1 0.200M+ 2 VIDEO 3 FREEZE 4 0.200M- 5 SVIDEO 6 AV MUTE 7 SCREEN 8 HDMI 9 P-TIMER LAMP 0 NETWORK
Control Panel ![](images/12c2d2c8bc8daa1c335db8aad1beff0dca278aede255ed9264460f2ec1684f66.jpg)
text_image ON (G) / STANDBY (R) ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Volume

Press ▲▼ to select [Volume] and then 1 ) press the button. Press ◀▶ to adjust the volume.2) \- Press button to set the volume.
Operation AdjustmentAdjustment range
Press ▶.turn up the volumeMaximum value 63
Press ◀.turn down the volumeMinimum value 0
\- You can also press buttons on the remote control or control panel to adjust the volume.

Mute

Press ▲▼ to select [Mute].1) Press the button to switch 2) the mute function On/Off. \- Press the button on the remote control to temporarily turn off the sound. To turn the sound back on, press the button again or press the buttons.

MIC

Press ▲▼ to select [MIC] and then 1 ) press the button. Press ▲▼ to switch the MIC function 2) [On]/[Off]. - When [Off] is selected in [MIC] function, the [MIC gain] and [Standby MIC out] functions are not available. - Connect the computer 2 audio input signals to COMPUTER AUDIO IN 1 terminal as the MIC function is turned on. - If the [MIC] function is turned on when connecting PC audio to the AUDIO IN (a mini jack), loud sound may be output suddenly depending on the setting value of [MIC gain].

MIC gain

Press ▲▼ to select [MIC gain] and 1) then Press the button. Press ◀▶ to adjust the MIC mixing 2) gain. \- Press button to set the MIC gain.
Operation AdjustmentAdjustment range
Press ▶.turn up the MIC mixing gainMaximum value 63
Press ◀.turn down the MIC mixing gainMinimum value 0

Standby MIC out

Press ▲▼ to select [Standby MIC out]1) and then press the button. Press ▲▼ to switch the [Standy MIC 2) out] function [On]/[Off]. \- When setting the [Standby MIC out] function to [On] and in Standby mode status, only MIC input volume can be output. Press the buttons on the control panel or on the remote control to adjust the MIC input volume. \- Only the Standby mode (→ page 61) is set to [Network], [Standby MIC out] can be selected.

Setting

Select [Setting] from the Main Menu (see "Navigating through the menu" on page 42), then select the item from the sub-menu. Remote Control ![](images/5b5a9c58c4e6f5cff6db95c5a72b23ffc996e38b98b5ff38ecff987f7d92c5d3.jpg)
text_image VOL CANCEL IMAGE INFO VOL+ VOL- PAGE UP POTTER COMPUT RINION ECONOM COMPUT MUTE 1.200Hz VIDEO 2 FROZEN 1.200Hz VIDEO 6 AV MUTE SCREEN HDMI 5 PUNDED LAMPS 0 NEUTRAL
Control Panel ![](images/2076d5047b59e80f8698b22eb97cd0a68de47f28d08b41acd7892e41e3c312a8.jpg)

Language

Press ▲▼ to select [Language].1) Press ▶ or the button.2 ) Press ▲▼ to select the desired 3) language. ![](images/556421221509dbdab2da1b5f18098d8a13a8beaceee327a2ff700eaa8902c308.jpg)
text_image Input PC adjust Image select Image adjust Screen Sound Setting Information Network Language Menu position Auto setup Background Display Logo HDMI setup USB terminal Pointer Terminal Power management Direct on Standby mode English Blue On Display Computer 2 Ready Off Network 1/2 Exit Back Move Next Next
![](images/705e1a5b1e68bd784ad5feb72db55763c36e3df183642e16d6c50bf2f5e8e883.jpg)
text_image Input PC adjust Image select Image adjust Screen Sound Setting Information Network Language English Deutsch Français Italiano Español Portugues Nederlands Svenska Suomi Norsk Dansk Polski 1/2 Exit Back Move Enter
● The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Norwegian, Danish, Polish, Hungarian, Romanian, Czech, Russian, Turkish, Arabic, Kazak, Vietnamese, Chinese, Korean, Japanese and Thai. This function is used to change the position of the On-Screen Menu. Press ▲▼ to select [Menu position].1) Press the button to change 2) the position. \- The Menu position changes each time you press button as follows: the center → the bottom left → the bottom right → the top left → the top right → the center.....

Auto setup

Press ▲▼ to select [Auto setup].1) Press ▶ or the button.2 ) Press ▲▼ to select these functions as 3) follows: This function detects the input signal automatically. When a signal is found, the search will stop.
Off Input search will not work
On 1 Input search works*1
On 2 Input search works*2
\*1 : • When pressing the button on the remote control or the control panel. \*2 : • When turning on the projector by pressing the <⏻/|> button on the control panel or the button on the remote control. - When pressing the button on the remote control or the control panel. - When the current input signal is cut off.\* \* If the [AV mute] or [Freeze] function is active, cancel it to activate the Input search. It is also unavailable when On-Screen menu is displayed.

Note

\- This function detects the input signal automatically except [Network].

Auto PC adj.

OnEnables Auto PC adjustment *1
Off Disables Auto PC adjustment
\*1: When pressing the button on the remote control or the control panel.

Auto keystone

Auto Always works and corrects keystone distortion according to the projector's tilt.
Manual Works only when pressing thebutton on the remote control or the control panel.
Off Disables Auto Keystone.

Note

- [Input search], [Auto PC adj.] and [Auto Keystone] cannot be set [Off] at the same time. - The [Auto Keystone] function cannot work when the [Ceiling] feature is set [On] in the [Screen] menu.

Background

Select the background screen for when no input signal is detected. Press ▲▼ to select [Background].1) Press the button.2) Press ▲▼ to switch3 between each option as below.
Blue Blue colored background.
User The logo transferred by "Logo Transfer Software *1" is projected.
Black Black colored background.
"Logo Transfer Software" is included on the \*1 : supplied CD-ROM.

Display

This function decides whether to display On-Screen Displays. Press ▲▼ to select [Display].1) Press the button.2) Press ▲▼ to switch between each option as below.
OnShow all the On-Screen displays *1
Countdown offShow the input image instead of the countdown when turning on the projector *2
OffHide the On-Screen Displays *3
\*1 : Use this function when you want to project images after the lamp becomes bright enough. The factory default setting is in this option. \*2 : Use this function when you want to project the image as early as possible even when the lamp is not bright enough. \*3 : Hide the On-Screen Displays except; - On-Screen Menu. • [Power off?] • [P-timer] display. - No signal for [Power management] - [Please wait ...] - Arrows for the True function in the [Screen] Menu. - [Service] This function allows you to customize the screen logo with [Logo select], [Logo PIN code lock] and [Logo PIN code change] functions. Press ▲▼ to select [Logo].1) 2) Press ▶ or the button. 3) Press ▲▼ to choose the desired item.

Logo select

This function decides on the starting-up display from among following options.
Off Show the countdown display only.
DefaultShow the factory-set logo.
User The logo transferred by "Logo Transfer Software *1" is projected.
\*1 : "Logo Transfer Software" is included on the supplied CD-ROM.

■ Logo PIN code lock

This function prevents an unauthorized person from changing the screen logo.
Off Thescreen logo can be changed freely from the Logo Menu.
OnThe screen logo cannot be changed without a Logo PIN code.

Note

- If you want to change the Logo PIN code lock setting, press the button and the Logo PIN code dialog box appears. Enter a Logo PIN code by following the steps below. The initial Logo PIN code is set to "4321" at the factory. - You can enter a Logo PIN code through the control panel or the remote control. For details, please refer to "Enter a PIN code" (→ page 35).

Setting

Logo PIN code change

Logo PIN code can be changed to your desired four-digit number. Press ▲ ▼ to select [Logo PIN code 1) change] and press the button. \- Current logo PIN code dialog box appears. Press ▲▼ to enter the current code, 2) press the ▶ button to fix the number and move the red frame pointer to the next box. \- The New Logo PIN code input dialog box appears. Repeat this step to set the new Logo 3) PIN code.

Attention

\- Be sure to note the new Logo PIN code and keep it on hand. If you lost the number, you could no longer change the Logo PIN code setting.

HDMI setup

This function is only used for HDMI input source. Press ▲▼ to select [HDMI setup].1) Press ▶ or the button.2 ) \- The names for the output setting of Digital R/G/B vary from equipment to equipment.


Normal WWhen the output of Digital R/G/B equipment is set to Standard.
EnhancedWhen the output of Digital R/G/B equipment is set to Enhanced.

Sound

HDMIWhen Digital input source is input, Sound is set to HDMI.
Computer 2When DVI input source is changed to HDMI input source, Sound is set to Computer 2.

Attention

- For details, refer to the operating instructions of your Digital R/G/B equipment. - Connect the computer 2 audio input signals to COMPUTER AUDIO IN 1 terminal as Sound function is set to Computer 2 and MIC function is turned on.

USB terminal

Press ▲▼ to select [USB terminal] and 1) then press the button. Press ▲▼ to choose the desired item.2)
DisplayTo display the image when the input source comes from the USB terminal.
Mouse controlTo use the remote control as a mouse control.

Pointer

You can emphasize a part of the projected image with this function. 1 ) Press ▲▼ to select [Pointer]. 2) Press ▶ or the button to access the submenu. Press ▲▼ to choose one item among 3) the items such as the size of Spotlight (Large/Middle/Small) and the pattern of Pointer (Arrow/Fingertip/Dot).

Note

\- When the pointer displays on the screen, you can use the button on the remote control to move the pointer.

Terminal

The COMPUTER 2 IN/MONITOR OUT terminal on the back of the projector is switchable for computer 2 input or monitor output. 1) Press ▲▼ to select [Terminal] and then press the button. 2) Press ▲▼ to switch the item.
Computer 2Computer input
Monitor outMonitor out

Note

\- Terminal function is not available when selecting [Computer 2] to the input source. Change the input source to the others (HDMI, Computer 1, Video, S-Video) so that the Terminal function will be available.

Power management

For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period. Press ▲▼ to select [Power 1) management]. Press ▶ or the button to 2) access the submenu.

Mode

Press ▲▼ and then press the 1) button to select one mode among the items as below.
Ready WWhen the lamp has been fully cooled down, theindicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the control panel or remote control is pressed.
Shut downWhen the lamp has been fully cooled down, the power will be turned off.
Off [Power management] function is off.

Timer

Press ▲▼ to select [Timer] and then 1 ) press the button. Press ▲▼ to set the Timer(1\~30min).2)

Note

\- The [Power management] function is not available when the input signal is [Network].

Direct on

Press ▲▼ to select [Direct on] and 1) then press the button. Press ▲▼ to switch between [On] and 2) [Off]. - When this function is set to [On], the projector will be automatically turned on just by connecting the AC power cord to a wall outlet. - Be sure to turn off the projector properly. If the projector is turned off in the incorrect sequence, the [Direct On] function does not work properly.

Standby mode

This function can set the electric power when the projector is standing by. Press ▲▼ to select [Standby mode] 1) and then press the button. Press ▲▼ to switch between the items 2) as below.
EcoRestricts some functions in standby mode to reduce power consumption.
NetworkDoes not restrict functionality even in standby mode.

Note

- When selecting [Network], the cooling fans may be running depending on the temperature inside the projector even if the projector is turned off. - If Standby mode is set to [Eco], you cannot use network functions when the projector is standing by. Also, you cannot use some RS-232C protocol commands. - If set to [Network], you can use network functions when the projector is standing by. - If [Standby mode] is set to [Eco], the signal come from MONITOR OUT and AUDIO OUT terminals are unavailable.

P-timer

This function allows you to change the setting of the P-timer and execute it. 1 ) Press ▲▼ to select [P-timer]. 2) Press ▶ or button to access the submenu.

Mode

1) Press ▲▼ to select one mode among the items as below.
Count upThe P-timer display 000:00 appears on the screen and the count up starts (000:00-180:00).
Count downThe time set in the Timer setting appears on the screen and the countdown starts.

Timer

Press ▲▼ to select [Timer] and then 1) press the button. Press ▲ ▼ to set the [Timer](1-180 Min).2) \- Timer is available in [Count down] only. Factory default value is 10 Min.

Setting

Execute

Press ▲▼ to select one among the 1) items as below and then press the button.
Start It executes the count up or count down function.* ^1
Reset Reset set the P-timer values.* ^2
Exit To exit the P-timer operation.
Press the button at Start and the \*1 : indication changes into Stop. To stop Count up or Count down, press the button at Stop on the screen menu, then the indication changes into Restart. Press the button at Restart to resume Count up or Count down. Press the button at Reset to return to \*2 : the following value:
Count up "000:00"
Count down Timer that you set

Attention

- To stop the [P-timer] function, press the button. - To cancel the [P-timer], press and hold the button for a few seconds.

Closed caption

[Only for NTSC, 480i input] Press ▲▼ to select [Closed caption].1) Press ▶ or the button to 2) enter the submenu.

■ Closed caption

Press ▲▼ to select [Closed caption] 1) and then press the button. Press ▲▼ to select [Off], [CC1], [CC2], 2) [CC3] or [CC4].

Color

Press ▲▼ to select [Color] and then 1 ) press the button. 2) Press ▲▼ to select [Color] or [White].

Attention

\- The closed caption is mainly used in the north America. This function shows the text information contained in the image signal. Captions may not be displayed on some devices or software. - You can select [Closed caption] when [NTSC] or [480i] signals are input. ● Part of characters may not displayed when high compensation values are set in [Keystone]. - Closed captions are not displayed while the menu screen appears.

Lamp power

This function allows you to change brightness of the screen. 1) Press ▲▼ to select [Lamp power] and then press the button. Press ▲▼ to select one among the 2) modes as below. \- You can also press the button to display [Lamp power].
NormalNormal brightness.
EcoLower brightness reduces the lamp power consumption and extends the lamp life.

Note

\- If [Lamp power] is set to [Normal] and the operating environment temperature exceeds 35^(95^) , [Lamp power] may be changed to [Eco] automatically.

Remote control

This switching function prevents remote control interference when operating several projectors or video equipment at the same time. 1) Press ▲▼ to select [Remote control]. 2) Press ▶ or the button. Press ▲▼ to select one among the 3) seven codes. \- This projector provides 7 different remote control codes: [ALL], [Code 1]\~[Code 6].

Attention

- When operating the projector under [ALL] code, you can operate several projectors at the same time. If you want to operate the projector independently, you must switch to other code. - When different codes are set on the projector and on the remote control, any operation cannot be made. In that case, switch the code on the remote control to fit the code on the projector. - If the batteries are removed from the remote control for a long period of time, the remote control code will be reset.

Security

This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation. Press ▲▼ to select [Security].1) Press ▶ or the button to 2) access the submenu.

Key lock

This function locks the control panel and remote control buttons to prevent operation by unauthorized persons. Press ▲▼ to select the desired items 1) as below.
PANASONIC PT-VX505NU - Key lock - 1Unlocked.
PANASONIC PT-VX505NU - Key lock - 2Lock the operation of the control panel. To unlock, use the remote control.
PANASONIC PT-VX505NU - Key lock - 3Lock the operation of the remote control. To unlock, use the control panel.

PIN code lock

This function prevents the projector from being operated by unauthorized persons and provides the following setting options for security. Press ▲▼ to select the desired items 1) as below.
Off Unlocked.
On 1Enter the PIN code every time turning on the projector.
On 2Enter the PIN code to operate the projector once the power cord is disconnected; as long as the AC power cord is connected, the projector can be operated without a PIN code.

Attention

- Whenever you change the PIN code lock setting or the PIN code (the four-digit number), you are required to enter the PIN code. The "1234" is set as the initial PIN code at the factory. - You can enter a PIN code through the control panel or the remote control. For details, please refer to "Enter a PIN code" (→ page 35).

PIN code change

The PIN code can be changed to your desired four-digit number. Press ▲▼ to select [PIN code change] 1) and then Press button. \- Current Pin code dialog box appears. Press ▲▼ to enter the current code. 2) Press ▶ button to fix the number and move the red frame pointer to the next box. \- The New PIN code input dialog box appears. Repeat these steps to set a new PIN 3) code.

Attention

\- Be sure to note the new PIN code and keep it on hand. If you lost the number, you could no longer change the PIN code setting.

Fan

Press ▲▼ to select [Fan] and then 1) Press button. Press ▲▼ to select one option .2 ) \- This function provides the following options in the cooling fans' operation when the projector is turned off.
L 1It takes less time to cool the projector down than L 2 mode.
L 2Slower and lower-sound than L 1 mode, but it takes more time to cool the projector down.

Fan control

Press ▲▼ to select [Fan control] and 1) then Press button. 2) Press ▲▼ to select one among options as below. \- Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector.
OffNormal speed.*1
On 1Faster than [Off] mode.*2
On 2Faster than [On 1] mode.*3
\*1 : Set this function to [Off] when using the projector in non-high altitude environment. \*2: When using the projector in the elevation of above 1 200 m and below 2 000 m, make sure [Fan control] is set to [On 1].

Setting

When using the projector in the elevation of \*3 : above 2 000 m and below 2 700 m, make sure [Fan control] is set to [On 2].

Note

● Failure to set the running speed of cooling fans properly may affect the projector life. ● The fan noise becomes louder in [On 1] and [On 2].

Video delay control

This function allows you to make a digital processing of a projected image faster. Press ▲▼ to select [Video delay 1) control] and then Press the button. Press ▲▼ to select one item between 2) [On] and [Off].

Note

\- [Noise reduction] and [Progressive] can not be selected when [Video delay control] function is set to [On].

Filter counter

This function is used to set a frequency for the filter replacement. Press ▲▼ to select [Filter counter].1) Press ▶ or the button to 2) access the submenu items.

Filter counter

Show the total accumulated time of the filter use timer setting.

Timer

To set a timer. When the projector reaches the selected time the filter warning icon appears on the screen. Press ▲▼ to select [Timer] and then 1) press the button. Press ▲▼ to set the Timer.2) \- Select from [Off/1000H/2000H/3000H/4000H/5000H/6000H] depending on the use environment.

■ Filter counter reset

After replacing the filter, be sure to reset the timer. Press ▲▼ to select [Filter counter 1) reset].

Press the button. 2 )

\- [Filter counter Reset?] appears. Select [Yes] to continue. Another confirmation dialog box appears, select [Yes] to reset the [Filter counter].

Emulate

When using the control commands for one of our projectors that you have previously purchased to control this projector using a computer via its serial input terminal, set up the [Emulate] function as follows. This will allow you to use the control software etc. designed for our existing projectors. 1) Press ▲▼ to select [Emulate]. 2) Press the button or the ▶ button. \- The [Emulate] screen appears. 3) Press ▲▼ to select the required item. 4) Press the button.

Note

● Refer to "Serial terminal" (→page 105)
DefaultVW430 series, VX500 series,VW435N series, VX505N series
D3500D3500 series
D4000D4000 series
D/W5k seriesD5500 series,DW5000 series, D5600 series,DW5100 series, D5700 series
D/W/Z6k seriesD5000 series, D6000 series,DW6300 series,DZ6700 series,DZ6710 series,DZ570 series,DW530 series,.DX500 series
L730L520 series,L720 series, L730 series
L780L750 series, L780 series
L735L735 series
L785 L785series
LB/W seriesLB2 series, LB1 series,LB75 series, LB80 series,LB90 series, ST10 series
F/W seriesFX400series, FW430 series,F100 series, FW100 series,F200 series, F300 series,FW300 series
LZ370 LZ370 series

Warning log

This function records anomalous operations while the projector is in operation and use it when diagnosing faults. Press ▲▼ to select [Warning log].1) Press ▶ or the button to 2) display the latest warning message. \- Up to 10 warning logs are displayed with the latest warning message at the top of the list, followed by previous warning messages in chronological order.

Attention

\- When the [Factory default] function is executed, all the warning log records will be deleted.

Factory default

This function returns all setting values except for [PIN code lock], [Logo PIN code lock], [Lamp runtime], [Filter counter], the logo transferred by "Logo Transfer Software" and all of the network settings to the factory default settings. Press ▲▼ to select [Factory default].1)

Press the button.2)

\- [Return to Factory default?] appears. Select [Yes] to continue. Another confirmation dialog box appears, select [Yes] to return to [Factory default].

Information

Select [Information] from the Main Menu (see "Navigating through the menu" on page 42), then select the item from the sub-menu. Remote Control Control Panel ![](images/f93882a9dbcd020ba7a7ae4fbea45de48c94ccc303fd081a50355b24835b742e.jpg)
text_image AUTO SETUP CANCEL IMAGE MISPR GARCO VOL- ENTER VOL+ CLOCK PAGE UP PONTER ORDER1 PAGE DOWN EYSTONE ORDER2 MUTE 1 0.200M- 2 VIDEO 3 FREEZE 4 0.200M- 5 S-VIDEO 6
![](images/a5eda1dff4f41192033a1db153fb1480a2725c593488a1baac6b97ef37400f39.jpg)

Input Source Information Display

The Information Menu is used for checking the status of the image signal being projected and the operation of the projector. You can also Press the button on the remote control to display the Information menu.

Input

The selected input source is displayed.

System

The selected system is displayed.

H-sync freq.

The selected H-sync freq. is displayed. The horizontal frequency of the input signal is displayed in kHz, or - - - - kHz when no signal.

V-sync freq.

The selected V-sync freq. is displayed. The vertical frequency of the input signal is displayed in Hz, or - - - - Hz when no signal. Numbers of Hz doubles when during Interlace.

Screen

The selected Screen size is displayed.

Language

The selected language is displayed.

Lamp power

The selected lamp mode is displayed.

Lamp runtime

The cumulative lamp operating time is displayed.

Power management

[Off], [Ready] or [Shut down], and [Timer] are displayed.

Key lock

The selected Key lock icon is displayed.

PIN code lock

[Off], [On 1] or [On 2] is displayed.

Remote control

The selected remote control code is displayed.

Serial number

The serial number of the projector is displayed. The serial number is used to service the projector.

Network

Select [Setting] from the Main Menu (see "Navigating through the menu" on page 42), then select the item from the sub-menu. Remote Control ![](images/1eb70c694161e02ad23aad4966c45fa311bb52eae04f88625d4809eaa83aba68.jpg)
text_image AUTO SETUP CANCEL IMAGE INFO VOL- ENTER VOL+ PAGE UP POTTER COMTR NO DOWN KEYTONE COMTR MUTE 1 0.200N+ 2 VIDEO 3 FREEZ 4 1.200N- 5 1VIDEO 6
Control Panel ![](images/ec8f77706d4fafedc83b24d3463ecff90174a724eec88a98ceb0b1257793b391.jpg)

Verifying the network information

When connecting the projector via the dedicated applications of "Wireless Manager mobile edition 6.0" or iPad / iPhone / iPod touch, the network number, the project name and ID of Wireless LAN are required. You can check these information by entering [Input Guide] or [Network Status]. (→ page 72) Input Guide ![](images/1657fb454408600182941f609b1176c1fa57c874c1a7055fdfc8557410d3f48a.jpg)
text_image Video WIRELESS M-DIRECT Name0081 Proj0081 Network number of wireless LAN (Left) Projector name (Right) Projector ID
To display the input guide, please press the [INPUT] button on the control panel or any one of the input selection buttons on the remote control.

Wired LAN

You can make detailed wired LAN settings. Press ▲▼ to select [Wired LAN], and 1) press button. Press ▲▼ to select an item, and 2) change the setting according to the instructions.
DHCP*(DHCP client function)On: If a DHCP server exists in the network to which the projector is connected, the IP address will automatically be acquired.Off: If a DHCP server does not exist in the network to which the projector is connected, additionally set [IP address], [Subnet mask] and [ Default gateway ].
IP address *(Display of IP address and setting)Enter the IP address if DHCP server is not used.
Subnet mask *(Displaying and setting the subnet mask)If not using a DHCP server, enter the subnet mask.
Default gateway *(Display of gateway address and setting)Enter the gateway address if DHCP server is not used.
DNS1*(Display of Preferred DNS server address and setting)Enter the DNS server address if DHCP server is not used.
DNS2* (Display of Alternate DNS server address and setting)Enter the alternate DNS server address if DHCP server is not used.
"Glossary" ( page 117- 118) Press ▲▼◀▶ to select [Set], and press 3) button. \- Default wired LAN settings The following settings are set before the projector leaves the factory.
DHCP Off
IP address192.168.10.100
Subnet mask255.255.255.0
Default gateway192.168.10.1
DNS 1 / DNS 2NONE

Network

Note

- Before using the DHCP server, make sure the DHCP server is already functioning. - For details of IP address, subnet mask, gateway and DNS, ask the network administrator. - A wired LAN and wireless LAN can not be used in the same segment.

Wireless LAN

You can set the network number. Press ▲▼ to select [Wireless LAN], 1) and press or ▶ button. Select the number to be connected 2) with the ▲▼ buttons. \- Network number [Off], [S-DIRECT], [M-DIRECT], [S-MAP], [1]-[4], [User 1]-[User 3]

Note

- Selecting [Off] disables the wireless LAN. - Network number: [S-DIRECT], [S-MAP] and [1]-[4] are available only when connecting via wireless LAN with the application software the "Wireless Manager mobile edition 6.0". For details, refer to the operation manual of the "Wireless Manager mobile edition 6.0". - Network number: [USER 1]-[USER 3] can be changed in [Wireless detailed setup] menu. (→ page 68-71)

Wireless detailed setup

You can configure more precise network settings, if you select [M-DIRECT] or [USER1]\~[USER3] (user) for [Wireless LAN] in the network menu. For network settings, contact your network administrator.

Configuration of Wireless LAN ■ [M-DIRECT]

Even if there is no access point, you can still connect the projector to computer via the infrastructure. In addition, the connection with the iPad / iPhone / iPod touch is much easier. For details, please refer to [Sending image from iPad / iPhone / iPod touch]. (→page 71) 1) Press ▲▼ to select [Wireless detailed setup], and press button. 2) Press ▲▼ to select an item, and change the setting according to the instructions.
IP Address * (Displaying and setting the IP address)Enter the IP address.
Subnet Mask * (Displaying and setting the subnet mask)Enter the subnet mask.
SSID * (Displaying and setting the SSID)Select M-DERECT in Wireless LAN, then the SSID can be set.
ChannelSelect M-DERECT in Wireless LAN, then the Channel can be set.Select a channel for the access point (→ page 21).
KeySelect M-DERECT in Wireless LAN, then the KEY can be set. Setting a key for the access point.Input either 8 to 63 alphanumerics or a 64 digit string in the hexadecimal format.
\* "Glossary" (→page 117 – 118) 3) Press ▲▼◀▶ to select [SET], and press button. The current setting of network will be saved.

Note

\- After the configuration is completed, you must select [SET] and press the button. At this time, if you select [Cancel], You will cancel the setting change. ■ Default settings of [M-DIRECT] The following settings as [M-DIRECT] in the wireless LAN are set before the projector leaves the factory.
IP Address *192.168.12.100
Subnet Mask *255.255.255.0
SSID *M-DIRECT + The last 4 digits of the projector ID
Channel1
KeyThe same string as the SSID

Note

● The authentication method is WPA2-PSK, and the encryption method is AES. Both methods are fixed. - When you need to change initial configuration of [M-DIRECT], please contact your network administrator. ● Make sure the initial Key is changed for safety. - As the DHCP server is already functioning, select [ON] before connecting a computer.

Configuration of Wireless LAN ■ [USER1]\~[USER3]

1) Press ▲▼ to select [Wireless detailed setup], and press button. Press ▲▼ to select an item, and 2) change the setting according to the instructions.
Name changeYou can change the user name.
DHCP *(DHCP client function)ON: If a DHCP server exists in the network to which the projector is connected, the IP address will automatically be acquired.OFF: If a DHCP server does not exist in the network to which the projector is connected, additionally set [IP address *], [Subnet mask *] and [Default gateway *].
IP address *(Display of IP address and setting)Enter the IP address if DHCP server is not used.
Subnet mask *(Displaying and setting the subnet mask)If not using a DHCP server, enter the subnet mask.
Default gateway *(Display of gateway address and setting)Enter the gateway address if DHCP server is not used.
DNS1(Display of Preferred DNS server address and setting)Enter the DNS server address if DHCP server is not used.
DNS2(Display of Alternate DNS server address and setting)Enter the alternate DNS server address if DHCP server is not used.
"Glossary" (→page 117–118)

Note

● Before using the DHCP server, make sure the DHCP server is already functioning. - For details of IP address, subnet mask, gateway and DNS server, ask the network administrator. ● A wired LAN and wireless LAN cannot be used in the same segment. Press ▲▼◀▶ to select [Next], and 3) press button. [Wired detailed setup] screen (2/3) setting screen is displayed. Make the settings related to the wireless connection between the projector and the network. Select [Cancel] instead of [Next] to cancel the configuration change.
● SSID *If the mode is [AD HOC], enter the same character string as that of SSID set on the computer to be connected. If the mode is [Infrastructure *], enter the SSID registered at the access point *.
"Glossary" (→page 117 – 118)

Note

- SSID has to be entered in alphanumeric letters. - You cannot set "any" or "ANY" for SSID.
● ModeSelect [AD HOC] or [Infrastructure].
AD HOC *Connect projector and computer directly without access point.
Infrastructure *Connect through access point.
"Glossary" (→page 117–118)
● AuthenticationSet the user authentication method used by the network to be connected.
OPENSelect when making a connection using [AD HOC], or when the access point authentication method is OpenSystem *1.
SHAREDSelect when making a connection using [AD HOC], or when the access point authentication method is Shared Key *1.
WPA-PSK *2Select when the access point authentication method is WPA-PSK *1.
WPA2-PSK *2Select when the access point authentication method is WPA2-PSK *1.
WPA-EAP/WPA2-EAP *2Select when the access point authentication method is WPA-EAP *1/WPA2-EAP *1.
WPA-EAP *2Select when the access point authentication method is WPA-EAP *1.

Network

WPA2-EAP *2Select when the access point authentication method is WPA2-EAP *1.
EncryptionSelect the encryption method to be used for communication between the projector and the network.
NONESelect when transmit without encryption. It is selectable only when [Authentication] is [OPEN] or [SHARED].
WEP *1Select when Encryption is WEP.
TKIP *1Select when Encryption is TKIP.Selectable when [Authentication] is either [WPA-PSK], [WPA2-PSK], [WPA-EAP], [WPA2-EAP].
AES *1Select when Encryption is AES.Selectable when [Authentication] is either [WPA-PSK], [WPA2-PSK], [WPA-EAP], [WPA2-EAP].
Channel *3Select the channel to use. Refer to page 6 for usable channels.
1: "Glossary" (→page 117–118) 2: Available when the mode is set to \* [Infrastructure]. 3: Available when the mode is set to [AD HOC]. \*

Note

\- Important video/audio data is protected because AES encryption processing takes place in advance for all network numbers, even if [Encryption] is set to [NONE].

Press ▲▼◀▶ to select [Next], and 4) press button.

At this point, select [Back] to go back to the previous screen (1/3), or select [Cancel] to cancel the configuration change. In addition, further perform the following setting depending on [Authentication] and [Encryption] settings.

Note

\- The setting menu is different depending on the setting of [Authentication] and [Encryption]. The above menu is an example when [Authentication] is set to [OPEN] or [SHARED] and [Encryption] is set to [WEP].
When setting [OPEN] or [SHARED] as authentication and setting [WEP] as the encryption method:
Default keySet 1 – 4 numerals for the default key.
KEY1 – 4Set a WEP key to the key number selected with [Default key].Either the 64-bit or 128-bit WEP key can be set. For the 64-bit key, input five alphanumerics (or a 10-digit string for the hexadecimal format) for the 128-bit key, input 13 alphanumerics (or a 26-digit string for the hexadecimal format).
When using [WPA-PSK] or [WPA2-PSK] :
Set a key.Input either 8 to 63 alphanumerics or a 64 digit string in the hexadecimal format.
When the authentication method is [WPA-EAP/WPA2-EAP], [WPA-EAP], [WPA2-EAP]:
Set [EAP], [USER NAME], and [PASSWORD].
EAP *1: Sselect the EAP setup in the RADIUS server *1. Types of EAP that can be selected are as follows. PEAP *1(MS-CHAPv2 *1), PEAP *1(GTC *1), EAP-TTLS *1(MD5 *1), EAP-TTLS *1(MS-CHAPv2 *1), EAP-FAST *1(MS-CHAPv2 *1), EAP-FAST *1(GTC *1)
USER NAME:Input a user name used for authentication (excluding spaces) (maximum 64 characters).
PASS WORD:Input a password used for authentication (maximum 64 characters).
1: "Glossary" (→page 117–118)

Note

- If you are unable to connect to the wireless LAN through the access point even after performing the steps in "Projector settings (→page 76)", contact the manufacturer of the access point. - When using EAP, the projector needs to be set according to the setting of the RADIUS server. Check with the network administrator for the setting of the RADIUS server. - When using an EAP together with an access point with invalid SSID broadcast, select WAP-EAP or WAP2-EAP for the authentication method even if the authentication method of the access point is WPA-EAP/WPA2-EAP.

Default settings of [USER 1] - [USER 3]

The following settings as [USER1] - [USER3] in the wireless LAN are set before the projector leaves the factory.
SSID Panasonic Projector
DHCP Off
IP address192.168.11.100
Subnet mask255.255.255.0
Default gateway192.168.11.1
ModeAD HOC
AuthenticationOPEN
EncryptionNONE
Channel11
DNS 1/DNS 2NONE

5) Press ▲▼◀▶ to select [Set], and press button.

Save the current network settings

Note

\- When configuration is completed, you need to select [Set] and press the button. At this point, select [Back] to go back to the previous screen (2/3), or select [Cancel] to cancel the configuration change.

■ Sending image from iPad / iPhone / iPod touch

By using the dedicated application, you can send the PDF file or the JPEG image which stored on your iPad / iPhone / iPod touch to the projector for projecting. For details, please enter the following URL. http://panasonic.net/avc/projector/

Projector name

You can change the projector name to be displayed on the network. 1) Press ▲▼ to select [Projector name], and press button. 2) Select characters with the ▲▼◀▶ buttons and press the button to enter the projector name. Select [BS] to delete one character selected with the cursor in the input box and press the button. 3) Select [Set] with the ▲▼◀▶ buttons and press the button. Select [Cancel] to undo the changes and then press the button. 4) Select [YES] or [No] with the ▲▼ buttons and press the button.

Note

\- [Name □□□□] (□□□□ is four-digit number) is set before the projector leaves the factory.

Network

Password

- By controlling connection with password setting, it is possible to prevent an external device from accidentally connecting and interrupting projection images, etc. - Set to [On] to perform password check when connecting with the projector using "Wireless Manager mobile edition 6.0". (Default : [Off]) - When using the deliver image to all function or the delivered image deletion function of the "Multi Projector Monitoring & Control Software", image cannot be delivered to the projector with password setting set to [On]. To use these image delivery functions, set it to [Off]. Press ▲▼ to select [Password]. Press 1) button or the ▶ button to access to the submenu. Press ▲▼ to select [Password] and 2 ) press the button. Select [On] or [Off] with ▲▼ buttons. Press ▲▼ to select [Password change], 3) and press button. Select characters with the ▲▼◀▶ buttons and press the button to enter the password. Select [BS] to delete one character selected with the cursor in the input box and press the button. After inputting the password, select 4) [OK] using the ▲▼◀▶ buttons and then press button. Select [Cancel] to undo the changes and then press the button.

Network control

Set when you want to control the projector from a computer connected to the network. 1) Press ▲▼ to select [Network control]. 2) Press button to select [On] or [Off] with the ▲▼ buttons.

Live mode cut in

Set this [On] to allow interrupt of the Live mode by other users, or to allow delivery of images by the "Multi Projector Monitoring & Control Software", while the Live mode is active (sending image) by the "Wireless Manager mobile edition 6.0". For details, refer to "Wireless Manager mobile edition 6.0" operating manual. 1) Press ▲▼ to select [Live mode cut in]. 2) Press button to select [On] or [Off] with the ▲▼ buttons.

Note

\- If you use the "Wireless Manager mobile edition 6.0" and the "Multi Projector Monitoring & Control Software" on the same computer at the same time, the function of delivering image to all may not be available. If you want to use them at the same time, please use another computer with respective software.

Multi-live

Switch to the Multi-live mode when using the "Wireless Manager mobile edition 6.0". See the "Wireless Manager mobile edition 6.0" operation manual for details. 1) Press ▲▼ to select [Multi-live]. 2) Press button.

Network status

Displays the current network status. 1) Press ▲▼ to select [Network status]. Press button or the ▶ button 2) to access to the submenu. 3) Each press of the ▶ button switches wired LAN and wireless LAN.

Note

\- When the network number is set to [Off], [Network status] is not display.

AMX D.D.

This function allows the projector to be detected by AMX Device Discovery. For more details, visit http://www.amx.com/. Press ▲▼ to select 1) [AMX D.D.]. Press 2 ) button or the ▶ button to select [On] or [Off] to allow the projector to be detected by AMX Device Discovery.

RoomView

This function allows the projector to monitor and control the projector through network with Crestron RoomView ^® . Press ▲▼ to select 1 ) [RoomView]. Press 2 ) button to select [On] or [Off] with the ▲▼ buttons. This projector supports the following application software from Crestron company. - RoomView ® Express - Fusion RV ^TM - RoomView ® Server Edition "Crestron RoomView" is a system developed by Crestron Electronics, Inc. which collectively manage and control multiple system devices connected via the network, from a computer. This projector supports "Crestron RoomView". \- For details of "Crestron RoomView", refer to the Crestron Electronics, Inc. website. (Provided only in English.). http://www.crestron.com/. For the download of "RoomView Express", refer to the Crestron Electronics, Inc. website. (Provided only in English.). http://www.crestron.com/getroomview.

Memory viewer

Select [Network] in the main-menu and 1) then press ▶ or button. Select [Memory viewer] with Point ▲▼ 2) buttons and press button. Select [Start] and press 3 ) button. \* The image file stored in the root directory of the USB thumb drive is displayed on the screen. \* If the image file is not available in the root directory of the USB thumb drive, the memory viewer browser window appears.

Note

● The Memory Viewer function is available only when the USB thumb drive is inserted, otherwise, it will grayout. - For details, see the "Memory Viewer function" of the Network menu. (→page 90-93)

Network factory default

You can reset the network setting to the factory default of the projector. 1) Press ▲▼ to select [Network factory default], and press button. 2) A confirmation box appears and select [Yes] and then press button. Another confirmation box appears and select [Yes] and then press button.

Network

Network connections

The projector has a network function, and the following operations are available from the computer using the web browser control. - Setting and adjustment of the projector. - Display of the projector status. ● Transmission of an E-mail message when there is a problem with the projector.

Note

● A LAN cable is required to use the network function. ![](images/08143230c978e4a850b7cb751ccc5fd60d66a584eff4511474bdd5a949a076bf.jpg)
- A Web browser is required to use this function. Confirm that the Web browser can be used beforehand. Compatible OS : Windows XP/Windows Vista/Windows 7, Mac OS X v10.4/v10.5/v10.6/v10.7 Compatible Web Browser : Internet Explorer 7.0/8.0/9.0, Safari 4.0/5.0 (Mac OS) - Communication with an E-mail server is required to use the E-mail function. Confirm that the E-mail can be used beforehand. - Use shielded LAN cable (STP cable) that is compatible with category 5 or above. - Use a LAN cable with length of 100m or shorter.

Name and function of network function parts

![](images/2164868b48cf163cc816a3d1af99114b6356ab6685bb08409c4d9bdae7458a50.jpg)
text_image (1) (2) (3) COMPUTER 1 IN COMPUTER 2 IN USB S USB A COMPACTIN IN WORK OR OUT WORK CONTROL SERIALIN VIDEO IN AUDIO IN WE IN L R 10 2 MOSKON IN AUDIO IN AUDIO ON AC IN-
(1) LAN LINK/ACT lamp (yellow) Lights on when connected. Flashes when transmitting/receiving data. (2) LAN terminal (10BASE-T/100BASE-TX) Used to connect the LAN cable here. (3) LAN 10/100 lamp (green) Lights on when connected to the 100BASE-TX.

Attention

\- Connect the LAN to the indoor equipment.

Connecting with Wired LAN

■ Projector settings

Use the LAN cable (Straight) to connect the projector with computer.1) Turn on the projector and press the button on the remote control.2) Press the menu button to open the [Network] menu, and then select [Wired LAN], 3) and press button. Set the detailed setup of [Wired LAN].4) For details, see "Wired LAN" (→page 67).

Note

- Please confirm with your network administrator before you connect to an existing network. ● The following settings are set before the projector leaves the factory.
DHCPOFF
IP Address192.168.10.100
Subnet Mask255.255.255.0
Default gateway192.168.10.1
DNS 1/DNS 2NONE

■ Computer operation

Connection can be made with wired LAN. However, confirm to your system administrator on network settings before changing any settings.

Turn on the computer.1)

Make the network setting according to your system administrator.2) If the projector settings are the default settings ( page 67), the computer can be used with the following network settings.
IP address 192.168.10.101
Subnet mask255.255.255.0
Default gateway192.168.10.1

Connecting with Wireless LAN

■ Projector settings

1) Turn on the projector and press the button on the remote control. 2) Press the menu button to open the [Network] menu, and then select [M-DIRECT], or [USER 1] \~ [USER 3] for [WIRELESS LAN] and press button. 3) According to the network number selected in step 2, set the detailed setup of [Wireless detailed setup]. For details, see "Wireless detailed setup" (→page 68-71).

Network

Note

● Wireless LAN and wired LAN cannot be used in the same segment. - When multiple devices are connected, a unique IP address must be allocated to each device. - SSID has to be entered in alphanumeric letters. - You cannot set "any" or "ANY" for SSID. ● The following settings are set before the projector leaves the factory. [M-DIRECT]
IP Address192.168.12.100
Subnet Mask255.255.255.0
SSIDM-DIRECT + The last 4 digits of the projector ID
Channel1
KeyThe same string as the SSID
[USER1] \~ [USER3]
DHCPOFF
IP address192.168.11.100
Subnet mask255.255.255.0
Default gateway192.168.11.1
SSIDPanasonic Projector
ModeAD HOC
AuthenticationOPEN
EncryptionNONE
Channel11

Computer operation

Make the network setting according to your system administrator.1)

- If you select [M-DIRECT] for [Wireless LAN] in the network menu, the IP address will automatically be acquired. - If you select default settings of [USER 1] \~ [USER 3] for [Wireless LAN] in the network menu (→page 71), then the computer can be used with the following network settings.
IP address 192.168.11.101
Subnet mask 255.255.255.0
Default gateway 192.168.11.1

2) Click [Start]→[Connect To \*]→[Wireless Network Connection \*], select the wireless network of [SSID] set with the projector, and then click [Connect \*].

When you select default settings of [M-DIRECT] for [Wireless LAN] in the network menu, the SSID is [M-DIRECT + The last 4 digits]. When you select default settings of [USER 1] \~[USER 3] for [Wireless LAN] in the network menu, the SSID is [Panasonic Projector]. \* The names are for Windows XP. In Windows Vista/Windows 7, the procedure will be [Start]→[Connect To]. The names may differ depending on the Operation System. Please connect the network according to the displayed names on your computer.

Note

- If you use any wireless utility other than Windows [Wireless Network Connection], follow its operation procedure for connection. - If you use the access point, configure the computer and each network setting of the projector following the instruction of the network administrator.

Accessing from the Web browser

Activate the Web browser in the personal computer.1) Enter the IP address set by the projector into the URL input field of the Web browser.2) Enter your3) "User name" and "Password". \- The factory default settings are user1 (user privileges) or admin1 (administrator privileges) for the use name and panasonic (lowercase letters) for the password. Click [OK] to display the Projector 4) status page. \- "Projector status" page is displayed. ![](images/6ebcc44a2fe98a6dd5664d3959099a5aa252671152c9cf34ba18d2113d28cfe6.jpg)
text_image Connect to 192.168.10.100 The server 192.168.10.100 at NAME1234 requires a username and password. Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection). User name: Password: Remember my password OK Cancel
![](images/13e15883aed3dc9b5f0daa4d67354bf04bb7d36ec7197208217391f9b42ecced.jpg)
text_image Projector Control Window Projector status Network status PROJECTOR TYPE PVT/VEE SERIAL NUMBER MINIMUM MAIN VERSION OGB NETWORK VERSION MAX POWER ON AT/VEE AV MUTE 20% OFF IMAGE MODE STABULAR VOLUME 0 INPUT NETWORK MAX/MAX INTAKE AIR TEMPERATURE 2PC / 1kV EXHAUST AIR TEMPERATURE 2PC / 1kV OPTICS MODULE TEMPERATURE 2PC / 1kV LAMP RUNTIME 0.8 PROJECTOR RUNTIME 0% SELF TEST No errors Status Projector control Detailed set up Change password CRESTROM Platform USB

Note

- Avoid activating two or more Web browser simultaneously to work out setting or control actions. - Change the password first of all. - Administrator privileges enable the use of all functions. User privileges enable the use of only "Projector status", "Network status", "Basic control", "Advanced control", and "Change password". - If you want to control the projector using a Web browser, set [Network control] in the network menu to [On]. - There are some control items used with the JavaScript function in the setting pages. If the web browser is set not to use this JavaScript function, it may not control the projector properly.

Description of each item

![](images/ec2d476ebe0592512f27b601a0684f862bbc521215fdb3ea8c87e093e58776ca.jpg)
text_image Projector Control Window Projector status Network status PROJECTOR TYPE PT VENUE SERIAL NUMBER INSMAN MAIN VERSION FLAM NETWORK VERSION 9.2 POWER ON STANDARD AV MUTE 10% OFF IMAGE MODE STANDARD VOLUME INPUT NETWORK PUMA MAX EVAKE AIR TEMPERATURE DTC-14V EXHAUST AIR TEMPERATURE DTC-14V OPTICS MODULE TEMPERATURE DTC-14V LAMP RUNTIME 100 PROJECTOR RUNTIME 100 SELF TEST No. 500 Status Projector control Detailed set up Change password CRESTRON ReviewView OK
1 Page selection tabs Click these to switch pages. 2 Monitor information button Click this item, and the status of the projector is displayed. 3 Projector control button Click this item to display the projector control page. 4 Detailed set up button Click this item to display the advanced settings page. 5 Change password button Click this button to display the password change page. 6 CRESTRON RoomView button Click this button to monitor and control the projector through the CRESTRON RoomView®. 7 Language switch button Click this button to switch language between English and Japanese.

Projector status page

Click [Status], then [Projector status] to display the Status information page. This page displays the projector statuses established for the items shown below. ![](images/e9b9e75ed5167446f768c64f5a885807e3671d2ca3c7e336738d057112a10128.jpg)
text_image Projector Control Window Projector status Network status PROJECTOR TYPE FSTAGE REFLECT NUMBER MAIN VERSION 0.125 NETWIDE TERSION 3.9 POSTS 0.015 AV METR 0.015 IMAGE MODE TRACKER VOLUME 0 INPUT NETWORK GROUNDING INTAKE AIR TEMPERATURE SPT. OFF EXHAUST AIR TEMPERATURE 1.75.00 OPEN AIR Temperature 0.015 LAMP RENTURE 0.015 PROJECTOR RENTURE SELF TEXT To listen Projector control Detailed set up Change password CRESTRON RoomView 日報 5 6 7 8 9 10 11 12 13 14 15
1 Displays the type of projector. 2 Displays the firmware version of the projector main unit. 3 Displays the power source status. 4 Displays the video mode status. 5 Displays the serial number of the projector. 6 Displays the firmware version of the network. 7 Displays the AV mute status. 8 Displays the volume status. 9 Displays the status of input switch. 10 Displays the intake temperature status of the projector. 11 Displays the exhaust temperature status of the projector. 12 Displays the optics module temperature status of the projector. 13 Displays the use time of the lamp. 14 Displays the self diagnostics information. (See page 79) 15 Displays the runtime of the projector.

Error information page

If [Error (Detail)] is displayed in the self-diagnosis information display column on the [Projector status] screen, click the part to display the details of the error. \- Depending on the nature of the error, the projector may be placed in the standby mode for its own protection. ![](images/3ec0133bdef14b927a07c9963507e1f3ae707955be5a203365bea0c2a3308e19.jpg)
text_image Projector Control Window Projector status Network status Panasonic projector check system ---- check system ---- FAN [OK] INTAKE AIR TEMPERATURE [FAILED] EXHAUST AIR TEMPERATURE [OK] OPTICS MODULE TEMPERATURE [OK] LAMP REMAIN TIME [OK] LAMP STATUS [OK] APERTURE(CONTRAST-SHUTTER) [OK] (Error code 10 00 00 00 00 00 00 00) 日本語 OK: Normal operation FAILED: Occurrence of trouble WARNING: Abnormal condition
When [FAILED] has appeared for an item
Parameter Description
FAN Trouble has occurred in the fan or its drive circuit. Consult your dealer.
INTAKE AIR TEMPERATUREIntake air temperature is high. It could be because it is used in an environment of high temperature such as close to a heating device, etc., the air intake is blocked, or the air filter is clogged.
EXHAUST AIR TEMPERATUREExhaust air temperature is high. Exhaust may be blocked, or [Fan control] mode may be set wrong. (Refer to [Fan control] ( ➔page 63-64))
OPTICS MODULE TEMPERATURE Opticsmodule temperature is high.
LAMP REMAIN TIMEThe lamp runtime has exceeded the prescribed cumulative time, and it is now time to replace the lamp.
LAMP STATUSThe lamp has failed to light.Wait a short while for the lamp to cool off, and then turn on the power.
APERTURE (CONTRAST-SHUTTER)Trouble has occurred in the contrast shutter circuitry. Consult your dealer.

Network status page

Displays the current configuration information of the network. ![](images/6cfe886daf2f648488d21c7a08fc4218078002eb0a42594360367e35b41cc5db.jpg)
text_image Projector Control Window Projector status Network status WORLD LAN 1 2 INTENNA LEVEL NETWORK M-DIRECT MODE INFRASTRUCTURE CHANNEL 1 MHD M DIRECTION AUTHENTICATION WPSX PNK ENSCRIPTION AES DBCP OFF IP ADDRESS 308.2541.110 SCNET MASK 276.254.80 DEFAULT GATEWAY MAC ADDRESS 7046.7646.97.21 BOX Padsets info Detail WISDLAN DBP OFF IP ADDRESS 172.16.361.500 SCNET MASK 276.254.80 DEFAULT GATEWAY 172.16.360.25 MAC ADDRESS 5426.5646.97.21 BOX Padsets info Detail
1 Displays the configuration details of wireless LAN. 2 Displays the configuration details of wired LAN.

Network

Basic control page

To move from another page, click [Projector control], then [Basic control]. ![](images/b91dc0b4cbfaf4da84c3020e20cf784f9ddf34f89b948afc2ebdac97fa21cd35.jpg)
text_image Projector Control Window Basic control Advanced control Status Projector control Detailed set up Change password CRESTRON RoomView 日本語 POWER ON INPUT RIGHT SCALE COMPANY FREE HOME VIDEO S-VIDEO NETWORK VOLUME + IMAGE MODE STANDARD DYNAMIC BLACKBOARD REAL CHEMA COLORING IMAGE IMAGE IMAGE IMAGE IMAGE AT MUTE OFF ON 1 2 3 4 5
1 Power standby/on control 2 Use these to select the input signals 3 Volume adjust 4 Switches image mode 5 Operation of AV mute

■Detail control page

Click [Projector control], then [Advanced control] to display the Detail control page. ![](images/7affb1fd66bd67cc23ab8e152b0194449dfee16603d086f77aaa76c69b8971ce.jpg)
text_image Projector Control Window Basic control Advanced control Status Projector control Detailed set up Change password CRESTRON RoomView 日本語 AUTO SETUP START SCREEN NORMAL FILL WIDTH IN ZOOM TRUE CUSTOM KEYTUNG REAR COLORING NEAR OR TILLING ON NEAR ON ZOUNG ON NEAR OR ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG ON NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ON ZOUNG N NEAR ONZLENT CONTRAST < < < > >> BRIGHTNESS < < < > >> COLOR < < < > >> TINT < < < > >> SHARPNESS < < < > >>
1 Execute Auto setup function 2 Operations on Screen mode 3 Operations on Keystone function 4 Operations on Rear/Ceiling 5 Operations on Image adjust

■ Network config page

You can change network settings on projector when connecting with the administrator authority.

- LAN settings

Click [Detailed set up] in the menu.1) Click [Change] to change the LAN settings.2 \- To return to the previous window, click [Back]. Complete the detailed settings and 3) click [Next]. \- When [Next] is clicked, the next page appears, enabling you to complete the detailed settings as desired. Settings performed here are the same as the settings performed with the [Network] menu of the projector. Click [Submit].4) ● The settings will be registered. ![](images/b7ca015a53ee5691acc4dba43c206cfefe13c88904123fd7bc8dcd9652fed0ce.jpg)
text_image Projection Control Window E-mail set up Authentication set up Cancel port set up Network config Ping test Status Projection control Detailed set up Change password EXCEPTION Exception OK Change NETWABB WIRLENE (LAN) CODE IF 100.9 100 IP: 267895 103 108 (1.10) SUBSET MASK 201 205 245 ENGLT DATA/KEY 102 108 (1.1) SMA 100.9 100.9 MHD Passive Projection MIME AD-ADC EXPOSIS H AT PRECISION DATA 0000 EXCEPTION Sailing Back Change
![](images/9b717ee0a1dca50c6b7b02f4f5d894463c17e31a633bcc0a1ee30c47358bf9ac.jpg)
text_image Project Control Window File set up Authentication set up Command per set up Network config Progress Status Project control Detailed set up Change settings CRETP TARGET PROFESSION ● 2017 (N) ● DUTY OFF ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUTY DUTY ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUS ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● DUs ● D Us
![](images/035872dab1e5cf16e1ffc2a043192410777fca2f958c7f38fef904fee7458310.jpg)
text_image Projector Control Window Email set up Authentication set up Command port set up Network config Projector KEY SET UP AD PROTESTATION OK Next Status Projector control Projector set up Change password CRESTATION Reconstruction Start
![](images/a1bedd98033059c47e82162cbc11815fbd29dfdd0fc50df014297c1fe149d3f6.jpg)
text_image Proyector Control Window E-mail at up Authentication at up Commandport at up Network config Prog net Value Projector control Detailed set-up Change password CRESTORS Abandoners Back Next
![](images/75a15f6793c9b84574f4ad91b43aff5c47317ee6313b74a94f73634283d89d68.jpg)
text_image Project Control Window E-mail set up Authentication set up Command port set up Network specify Project Status Project Control Deleted Net-up Change (optional) CRESTOCK ROUTTURE IDEX KEYLOGIE S1002 IF DBCP DBF IF ADDRESS 163.085.11.04 RUBSET NAME: 197.075.297.6 DEFAULT COASTERY: 163.085.11.1 DATA DATA DATA SOLD Password Name: SOLD ADPKC CREATING A1 ATRENDICATION CHECKED BACK SELL

Note

● Changing the setting of LAN while connected with LAN might disconnect the connection.

Network

Ping test page

This page makes it possible to check whether the network is connected to the e-mail server, POP server, DNS server, etc. Click [Detailed set up], then [Ping test] to display the Ping test page. ![](images/aaa62899044fc800258be1c4b5290c3ea732890e2d5ca01cb2f4a7a3327ed2de.jpg)
text_image Protector Control Wizard Location up Authentication up Commandset default Networks config Prop text Source Edit Text Edit Subtotal 1 2
Display which appears when the connection was successful. ![](images/745d01f11a12933a07d13a7eaeaf37fd2f00bdbcd80b9d460880ad7ca8eda729.jpg)
text_image PING 198.245.80.20 (198.245.80.20): 66 data bytes 4 bytes from 198.245.80.20: sec=0 ttl=64 time=0.887 ms 4 bytes from 198.245.80.20: sec=1 ttl=64 time=0.489 ms 4 bytes from 198.245.80.20: sec=2 ttl=64 time=0.479 ms 4 bytes from 198.245.80.20: sec=3 ttl=64 time=0.495 ms --- 198.245.80.20 ping statistic --- 4 packets transmitted, 4 packets received, 0% packet loss round-trip min/avg/max = 0.473/0.571/0.887 ms
Display which appears when the connection failed. 1 Enter the IP address of the server to be tested. 2 Button for conducting the test. ![](images/805d69d3f3f6858fbebdd6cf8e1b1148a2f76301353c0fdd784fd75e736e4169.jpg)
text_image PING 198.245.00.15 (198.245.00.15): 56 data bytes Request timed out Request timed out Request timed out Request timed out --- 198.245.00.15 ping statistics --- $ packets transmitted, 0 packets received, 100% packet loss

E-mail set up page

With this projector, if a problem occurs or if the lamp usage time reaches a set value, an e-mail message can be sent to one or more preset e-mail addresses (maximum two addresses). Click [Detailed set up], then [E-mail set up] to display the E-mail setup page. ![](images/72ffdda9720f8ebd4f9236a28c7079500476efc0541cd0cd3afc899c686f5215.jpg)
text_image Provider Control Window Network setting Peng text E-mail setup Authentication set up Command part set up Status Parameters Control Stated Set up Change powered Description to Information 0.0000 1 2 3 4 5 6 SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETERS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETORS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETONS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS SAMS NETALNS
1 Select Enable to use the e-mail function. 2 Enter the IP address or server name of the e-mail server (SMTP). The DNS server must be set if the server name is entered. 3 Enter the e-mail address of the projector. (maximum 63 characters) 4 The user can enter the location of, for example, the installed projector so that the recipient may easily identify the originator of the e-mail. (maximum 63 characters) 5 The user can modify the minimum time interval of temperature warning mail. The default value is 60 minutes. In this case, the user cannot send another mail for 60 minutes after sending previous temperature warning mail even the set warning temperature is reached again. 6 Select the temperature of the intake sensor at which to send a warning message. ![](images/bca59ca57d036e0f1fe40c73beb5882ccf02d8d85bd47a314425f185d99b0cfb.jpg)
text_image Projector Control Window Network setting Autoreset set up Command port setup Type 01 dimensions MASCIALS: MAX/01 setting MAX: AIR SWITCHING A MAX ADDRESS: MAX: AIR SWITCHING MAX: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: AIR SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHNING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING LAMP: Air SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR SWITCHING TYPICALS: AIR Switching TYPICALS: AIR Switching TYPICALS: AIR Switching TYPICALS: AIR Switching TYPICALS: AIR Switching TYPICALS: AIR Switching TYPICALS: AIR Switching TYPICALS: AIR Switching TYPICALS: AIR Switching TYPICALS: AIR Switching TYPICALS: AIR Switching TYPICALS: AIR Switching
7 Enter the E-mail Address1 of your desired recipient. 8 Select the conditions for sending e-mail. MAIL CONTENTS: Select [NORMAL] or [SIMPLE]. ERROR: An error is detected by self-diagnosis. LAMP RUNTIME: Remaining lamp service time has reached the value set in the field. INTAKE AIR TEMPERATURE: Intake air temperature has reached the value set in the field.

Network

■ E-mail set up page (continued)

![](images/d98765864c7ce7dbfb5c3f3c8ab515e5fc2444e112b508c0e93a0e8899118e3a.jpg)
text_image Provider Control Window Network setup Program External setup Authentication setup Command path setup Type 0: Default WARNING NAME: NAME OF WARNING CODE: 123456789 STORAGE OF SUPERACTIVE STORAGE ADDRESS: E-LOAD CURRENT: LOAD CURRENT: START CURRENT: E-OUT CURRENT: LOAD CURRENT: START CURRENT: E-OUT CURRENT: LOAD CURRENT: START CURRENT: E-OUT CURRENT: LOAD CURRENT: START CURRENT: E-OUT CURRENT: LOAD CURRENT: START CURRENT: E-OUT CURRENT: LOAD CURRENT: START CURRENT: E-OUT CURRENT: LOAD CURRENT: START CURRENT: E-OUT CURRENT: LOAD CURRENT: START CURRENT: E-OUT CURRENT: LOAD CURRENT: START CURRENT: E-OUT CURRENT: LOAD CURRENT: START CURRENT: E-OUT Current LOAD Current START Current E-OUT Current LOAD Current START Current E-OUT Current LOAD Current START Current E-OUT Current LOAD Current START Current E-OUT Current LOAD Current START Current E-OUT Current LOAD Current START Current E-OUT Current LOAD Current START Current E-OUT Current LOAD Current START Current E-OUT Current LOAD Current START Current E-OUT Current LOAD Current START Current F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT: F-OUT CURRENT:
9 Enter the E-mail Address2 of your desired recipient. 10 Select the conditions for sending e-mail. MAIL CONTENTS: Select [NORMAL] or [SIMPLE]. ERROR: An error is detected by self-diagnosis. LAMP RUNTIME: Remaining lamp service time has reached the value set in the field. INTAKE AIR TEMPERATURE: Intake air temperature has reached the value set in the field.

■Authentication set up page

The POP/SMTP server is set on this page when POP/SMTP authentication is required for mail transmissions. Click [Detailed set up], then [Authentication set up] to display the Authentication server setup page. ![](images/ce25b3868753148a1660e76b3e1749187b55652debad7bbfde70b1fa0366702e.jpg)
text_image Proactive Control Window Network config Program E-mail set up Authentication set up Compuency/contract up Sub GND GND sub GND value: 100% GND sub GND value: 100% GND sub GND value: 100% GND sub GND value: 100% GND sub GND value: 100% GND sub GND value: 100% GND sub GND value: 100% GND sub GND value: 100% GND sub GND value: GND sub GND value: GND sub GND value: GND sub GND value: GND sub GND value: GND sub GND value: GND sub GND value: GND sub GND value: GND sub GND value: GND sub GND value: GND sub GND value: GND sub GND value: Bndglt 1 2 3 4 5 6 7 8
1 Select the authentication method specified by your Internet service provider. 2 Set this if SMTP authentication has been selected. 3 POP server name field Available input characters: Alphanumeric characters (A - Z, a - z, 0 - 9), hyphen (-), period (.) 4 POP/SMTP server user name field 5 POP/SMTP server password field 6 Enter the port number for the SMTP server (normally "25"). 7 Enter the port number for the POP server (normally "110"). 8 Button to update settings

■ Contents of mail sent

\- Mail with the contents shown below is sent when the e-mail settings have been established.
--- Panasonic projector report(CONFIGURE) ---
Projector Type : PT-VX505N
Serial No : 000000000
---- E-mail setup data ----
TEMPERATURE WARNING SETUP
MINIMUM TIME at [ 60] minutes interval
INTAKE AIR TEMPERATURE Over [ 32degC / 89degF ]

ERROR [ OFF ]
LAMP RUNTIME [ OFF ] at REMAIN [ 400] H
LAMP RUNTIME [ OFF ] at REMAIN [ 200] H
INTAKE AIR TEMPERATURE [ OFF ]

---- check system ----
FAN [ OK ]
INTAKE AIR TEMPERATURE [ OK ]
EXHAUST AIR TEMPERATURE [ OK ]
OPTICS MODULE TEMPERATURE [ OK ]
LAMP REMAIN TIME [ OK ]
LAMP STATUS [ OK ]
APERTURE (CONTRAST-SHUTTER) [ OK ]

(Error code 00 00 00 00 00 00 00 00)

Intake air temperature :[ 31 degC / 87 degF ]
Exhaust air temperature :[ 37 degC / 98 degF ]
Optics module temperature :[ 39 degC / 102 degF ]

PROJECTOR RUNTIME 1 H

LAMP ECO 500 H
LAMP NORMAL 300 H
LAMP REMAIN 2400 H

---- Current status ----
MAIN VERSION 1.00
NETWORK VERSION 1.00
LAMP STATUS LAMP=ON
INPUT RGB
SIGNAL NAME XGA6
SIGNAL FREQUENCY 0.00kHz / 0.00Hz

---- Wired Network configuration ----
DHCP Client OFF
IP address 192.168.10.100
MAC address 04:20:9A:00:00:00

---- Memo ----
\- Mail with the contents shown below is sent when an error has occurred.
--- Panasonic projector report(ERROR) ---
Projector Type : PT-VX505N
Serial No : 000000000

---- check system ----
FAN    [ OK ]
INTAKE AIR TEMPERATURE   [ OK ]
EXHAUST AIR TEMPERATURE   [ OK ]
OPTICS MODULE TEMPERATURE   [ OK ]
LAMP REMAIN TIME   [ OK ]
LAMP STATUS    [ FAILED ]
APERTURE (CONTRAST-SHUTTER)   [ OK ]

(Error code 00 40 00 00 00 00 00 08)

Intake air temperature : [ 31 degC / 87 degF ]
Exhaust air temperature : [ 37 degC / 98 degF ]
Optics module temperature : [ 39 degC / 102 degF ]

PROJECTOR RUNTIME    1 H

LAMP ECO    500 H
LAMP NORMAL    300 H
LAMP REMAIN    2400 H

---- Current status ----
MAIN VERSION    1.00
NETWORK VERSION    1.00
LAMP STATUS    LAMP=OFF
INPUT    NETWORK

---- Wired Network configuration ----
DHCP Client OFF
IP address    192.168.10.100
MAC address    04:20:9A:00:00:00

---- Memo ----

■ Command port set up page

Set the port number to be used with command control. Click [Detailed set up] → [Command port set up]. ![](images/df3f60ce2a157382968b435c8fc55a2080eeaee86b9b55845fbf6f66f3af878e.jpg)
text_image Projector Control Window Network setting Ping text E-mail set up Authentication set up Command port set up COMMAND PORT 100 Default = 100 Set command port Status Projector control Detailed set up Change password CRESTROM RoomView 日志 1 2
1 Input the port number to be used with command control 2 Setting update button

Change Password page

Click [Change password]. ![](images/d0c2557ab48a30dff442867c00aea30caa7084b7b0ab9244adc46e3749ce03a3.jpg)
text_image Property Control Window Change password Enter User Add Remove Delete Add Remove Delete Add Remove Add 1 2
1 Administrator 2 User ■ Administrator mode ![](images/01ed5bce67d97dbb784d9684e34e7464ba29bcf41100cf15b9f0c10eb4a3593c.jpg)
text_image Data Entry Window 1 2 3 4 5 6 7
1 Account 2 Current user name input field 3 Current password input field 4 New user name input field 5 New password input field 6 New password input field (re-enter for confirmation) 7 Button for executing password change ■ User account ![](images/18808e359d2ac3b5f36ef29f7d5759113073dfe5298675ca9592876365e7c928.jpg)
text_image 1 2 3 4 5
1 Account 2 New user name input field 3 New password input field 4 New password input field (re-enter for confirmation) 5 Button for executing password change ■ User mode A user can change password only. ![](images/fb0d9b4026945e71b5e39572e10d797c5fea5392c49be4645a0c9396ba4c5809.jpg)
text_image Project Control Window Component 1 2 3 4
1 Current password input field 2 New password input field 3 New password input field (re-enter for confirmation) 4 Button for executing password change

Note

- When changing the administrator account, both "Current user name" and "Current password" are required. - No account is not available. - Administrator account and user account should be differed.

Network

CRSTRON RoomView page

You can monitor or control the projector using RoomView. To display the operation page of RoomView from Web Control screen, access with the administrator rights is required. (The [CRESTRON RoomView] button is not displayed on the Web Control screen for user rights.) When you click [CRESTRON RoomView], the RoomView operation page is displayed. If Adobe Flash Player is not installed in your computer, or if the browser does not support Flash, this page does not appear. In this case, return to the previous page by clicking [Back] in the operation page.

Operation page

![](images/5798da1042d6775fed4f44220ef343783192907f9ecc1ba5f3985843838954cd.jpg)
text_image 1 2 3 4 5 6 7 POWER VOL DOWN AV MUTE VOL UP Input Select COMPUTER (RGB) COMPUTER (VOCANT) COMPUTER (COMPONENT) COMPUTER (RGB) HOME MENU ENTER RETURN Freeze Compact Brightness Color ELECTRON System Options

Tools page

Click Tools on the operation page. ![](images/c5a2d5d10604928f989cf8753f55153e2bb8ce6d0b5a52ee868129eaabe45467.jpg)
text_image PTVx5084U Control System IP Address: 0.0.0 PSB: 0 Port: 41794 Send User Password User Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Add Password Send Edit CREDITROOM Common System Back
1 Tools, Info, Help Exit the page when the password has changed and switches the pages for tools, information, help using the tab. 2 POWER Switches between on and off of the power. 3 VOL DOWN, AV MUTE, VOL UP Sets the volume, AV mute. When the power of the projector is turned off, VOL DOWN, AV MUTE and VOL UP are not available. 4 Input Select Sets the input selection. When the power of the projector is turned off, this operation is not available. 5 Operation buttons on the menu screen Operates on the menu screen. 6 Freeze, image quality adjustment Sets freeze, image quality details. 7 Back Returns to the previous page. 1 Control system Sets the information required for the communication with the controller that is connected to the projector. 2 User Password Sets the password for the user rights in the operation page of RoomView. 3 Admin Password Sets the password for the administrator rights in the operation page of RoomView. 4 Network status Displays the setting of wired LAN. DHCP: Displays the value in the current setting. IpAddres: Displays the value in the current setting. SubnetMask: Displays the value in the current setting. DefaultGateway: Displays the value in the current setting. DNSServer: Displays the value in the current setting. 5 Exit Return to the operation page.

Info page

Click Info on the operation page. ![](images/258958162f3da7932c116edf0fcb50d0ff4a3fc18dfed3400153be12b49e06bf.jpg)
text_image PT.VXG0NU Projector Information Projector Name Name/OK Mac Address MAC/OK Resolution DNA/OK Lamp Status 1 Projector Status Power Status POWER On Source Computer Tools Projector Position Ceiling Off/Ree Off Lamp Status Normal Error Status ISO/EXPLOS End 10 Back
1 Projector name Displays the name of the projector. 2 Mac Address Displays the MAC address\*. \* "Glossary" (→page 117 – 118) 3 Resolution Displays the resolution of the projector. 4 Lamp Hours Displays the lamp usage time (converted value). 5 Power Status Displays the status of the power. 6 Source Displays the selected video input. 7 Projector Position Displays the projection method of the projector. 8 Lamp Mode Displays the lamp mode. 9 Error Status Displays the error status. 10 Exit Return the operation page.

User mode

A user can change password only. ![](images/b0c6493f4fdac529de45f54f7c85e9220d360a283ee15ae2967b93700eb299dc.jpg)
text_image PANASON Help Desk Power VOL DOWN AV MUTE VOL UP Input Select COMPUTER 1(RGB) COMPUTER 2(RGB) COMPUTER 3(RGB) COMPUTER 4(RGB) COMPUTER 5(RGB) COMPUTER 6(RGB) COMPUTER 7(RGB) COMPUTER 8(RGB) COMPUTER 9(RGB) COMPUTER 10(RGB) COMPUTER 11(RGB) COMPUTER 12(RGB) COMPUTER 13(RGB) COMPUTER 14(RGB) COMPUTER 15(RGB) COMPUTER 16(RGB) COMPUTER 17(RGB) COMPUTER 18(RGB) COMPUTER 19(RGB) COMPUTER 20(RGB) COMPUTER 21(RGB) COMPUTER 22(RGB) COMPUTER 23(RGB) COMPUTER 24(RGB) COMPUTER 25(RGB) COMPUTER 26(RGB) COMPUTER 27(RGB) COMPUTER 28(RGB) COMPUTER 29(RGB) COMPUTER 30(RGB) COMPUTER 31(RGB) COMPUTER 32(RGB) COMPUTER 33(RGB) COMPUTER 34(RGB) COMPUTER 35(RGB) COMPUTER 36(RGB) COMPUTER 37(RGB) COMPUTER 38(RGB) COMPUTER 39(RGB) COMPUTER 40(RGB) COMPUTER 41(RGB) COMPUTER 42(RGB) COMPUTER 43(RGB) COMPUTER 44(RGB) COMPUTER 45(RGB) COMPUTER 46(RGB) COMPUTER 47(RGB) COMPUTER 48(RGB) COMPUTER 49(RGB) COMPUTER 50(RGB) COMPUTER 51(RGB) COMPUTER 52(RGB) COMPUTER 53(RGB) COMPUTER 54(RGB) COMPUTER 55(RGB) COMPUTER 56(RGB) COMPUTER 57(RGB) COMPUTER 58(RGB) COMPUTER 59(RGB) COMPUTER 60(RGB) COMPUTER 61(RGB) COMPUTER 62(RGB) COMPUTER 63(RGB) COMPUTER 64(RGB) COMPUTER 65(RGB) COMPUTER 66(RGB) COMPUTER 67(RGB) COMPUTER 68(RGB) COMPUTER 69(RGB) COMPUTER 70(RGB) COMPUTER 71(RGB) COMPUTER 72(RGB) COMPUTER 73(RGB) COMPUTER 74(RGB) COMPUTER 75(RGB) COMPUTER 76(RGB) COMPUTER 77(RGB) COMPUTER 78(RGB) COMPUTER 79(RGB) COMPUTER 80(RGB) COMPUTER 81(RGB) COMPUTER 82(RGB) COMPUTER 83(RGB) COMPUTER 84(RGB) COMPUTER 85(RGB) COMPUTER 86(RGB) COMPUTER 87(RGB) COMPUTER 88(RGB) COMPUTER 89(RGB) COMPUTER 90(RGB) COMPUTER 91(RGB) COMPUTER 92(RGB) COMPUTER 93(RGB) COMPUTER 94(RGB) COMPUTER 95(RGB) COMPUTER 96(RGB) COMPUTER 97(RGB) COMPUTER 98(RGB) COMPUTER 99(RGB)
1 Help Desk Sends or receive messages to the administrator who uses Crestron RoomView.

Memory Viewer function

The Memory Viewer function is to make a presentation or project an image without using computers or some other external equipment. You do not have to carry a computer or other equipment to project images. Store images on a dedicated USB (Universal Serial Bus) thumb drive and insert it into the USB port (Series A) of the projector, then you can project those images.

Which images can be projected with the Memory Viewer function?

With the Memory Viewer function, you can project images in these formats below. - Bitmap data - JPEG data - Text data

JPEG data used with Memory Viewer

Memory viewer does not support the resolution of image greater than 8191 x 8191 pixels.

Text data used with Memory Viewer

Memory viewer supports the text file with the ASCII format for single byte. Other text formats cannot be supported.

Back up the data

It is recommended that important data to edit with Network Viewer (See Wireless Manager mobile edition 6.0) and store in USB thumb drive should be stored in other media in advance. We are not responsible for any data losses or damages resulting from use of the Memory Viewer function.

USB thumb drive for the Memory Viewer function

Commercially available USB thumb drives can be used for this Memory Viewer function. The USB port is compatible with USB thumb drive formatted with FAT16 or FAT32. It is not compatible with other formats. Please note that when you format the USB thumb drive.

■ Inserting the USB thumb drive

Insert the USB thumb drive directly into the USB port on the rear terminal of the projector as shown in the figure below. ![](images/378ef13baf1bf86087d10fa703a32da1f46cf5744f70a081ad9ab71410386f6d.jpg)
text_image USB port (Series A) R 1 IN COMPUTER 2 IN USB B USB A LAN NT IN MONITOR OUT HOSPUS DISPLAY/ VIEWER IN VIDEO IN AUDIO IN MIC IN S-VIDEO IN L R 1 2 AUDIO OUT Note: When inserting, confirm the direction of the plug not to damage the terminal. USB thumb drive

CAUTION on insertion and removal of the USB thumb drive

Please note following points to insert and remove the USB thumb drive. - The indicator of the USB thumb drive will be blinking when it is inserted to the projector or while the projector is reading out the data. Do not remove the USB thumb drive while it is blinking. - When using a USB thumb drive without indicator, you cannot recognize when the projector reading out the data. Please remove it from the projector after closing the memory viewer function or turning off the projector. - Do not install and remove the USB thumb drive frequently. Remove the USB thumb drive at least 5 seconds after installation. And install at least 5 seconds after removal. While installing or removing the USB thumb drive, the projector is in switching period for those operation. ![](images/455f86fbb0553c9c1269aab74ab19f81c4d7106cee35638ba48379bcdd0e7689.jpg)

CAUTION on Handling and Storing the USB thumb drive

- Do not put USB thumb drive or its cap within close reach of children. Swallowing them may cause suffocation. - If the smoke or questionable odor rise, turn off the peripheral equipment and contact yourdealer. - Do not put water, chemical or oil to the USB thumb drive. It may cause short out or fire. - Do not put foreign objects or put metal objects to the USB terminal. Static electricity may cause data loss or data corruption. - Do not remove the USB thumb drive from the computer or the projector while the USB thumb drive is reading out or writing the data. It may cause data loss or data corruption. - Do not store the USB thumb drive where high temperature, humid or dusty place or magnetized items are around.

Direct start-up into the memory viewer mode

"Network", and then an image stored in the root directory of the USB thumb drive is displayed on the screen. \* If the image file is not available in the root directory of the USB thumb drive, the memory viewer browser window appears. \* When the projector is turned off and on while the USB thumb drive is left inside in the memory viewer mode, the projector starts into the memory viewer mode and an image stored in the USB thumb drive is displayed on the screen. When you press button in the memory viewer mode, the memory viewer browser window as shown on page 92 appears on the screen. When you remove the USB thumb drive during operating the projector in the memory viewer mode, the input source returns to the previous one selected just before inserting the USB thumb drive. ![](images/79db913292abecc3c03f2993aa2c8158fc52628682b23bb987c7a9e16c239038.jpg)
text_image Remote Control POWER ON STANDBY AUTO SETUP/CANCEL button AUTO Setup CANCEL IMAGE MENU INFO VOL- ENTER VOL+ L-QUIX R-QUIX PAGE UP POINTER COMPUTER1

Note

- During accessing to the USB thumb drive, do not turn off the power or eject the USB thumb drive because the data in the USB thumb drive might get damaged. During accessing, the USB thumb drive is blinking. - The USB thumb drive allows you to insert or remove regardless of the power status of the projector. - The direct start-up into the memory viewer mode may not operate when the USB thumb drive is inserted immediately after being removed. - During in [Multi live] mode of "Wireless Manager ME6.0", the direct start-up into the memory viewer mode is not available. After terminating [Multi live], insert the USB thumb drive, or operate "Memory viewer" ( page 73).

Network

Displaying the memory viewer browser window

When you press button in the memory viewer mode, following browser window "Thumbnail" or "Filename list" appears on the screen. ![](images/9c21d8d73a36890a03e19f0c33c951b5167fc1d93f525e93b7ee25ba098358e4.jpg)
text_image Filename list display Displays current directory path Menu Moves to upper directory Memory viewer View Set Exit Name Size File type Data modified n_capture File folder 2003/05/05 18:20 PDP009 File folder 2004/11/19 18:20 New Folder File folder 2005/11/16 18:00 movie_icons.bmp 312 KB Bitmaps file 2006/12/12 12:20 Network.jpg 350 KB JPEG Image 2007/03/11 18:20 movie_1024.txt 222 KB(Text file 2008/01/25 15:24 movie1008.bmp 450 KB Bitmaps file 2009/03/23 01:20 Network_350.jpg 1 KB JPEG Image 2011/09/12 00:35 MRA3*02A.txt 250 KB(Text file 2012/06/12 13:41
![](images/2b6b7d4e5f17fd584f398aa21996adc3c1b7a609f739c3dbe8962a4b9d556ad5.jpg)
text_image Thumbnail display Displays current directory path Menu Moves to upper directory Memory viewer View Set Exit 1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 7.jpg 8.jpg 9.jpg 10.jpg
- Even before the completion of thumbnail images drawing, the image selection is available by pressing point ▲▼◀▶ buttons. (Though thumbnail images drawing cannot be interrupted by pressing any of point ▲▼◀▶ buttons, the operation is valid.) - A file more than 10MB is not displayed as thumbnails. Icons are displayed in substitution for thumbnails. - Only JPEG, Bitmap and Text icons can be supported in the browser screen.

Icon indication

![](images/c68312501b245dcb81216c8923efd5179b4456e72f3de0feb5941d4606a1e5c5.jpg) ![](images/f8c280de0a5d4310503a5b07701bd6effb5422982dd9c3d7efaf1d55ba0e2d8b.jpg) ![](images/820331aa4cf38ad669ef8545479f4cfe6b405dad76e5d89d04f084de3f35e110.jpg) ![](images/27be64e4b5d8a186e1fc0087aa227ee81d874b442d1b7dcbad30717537398a5a.jpg) ![](images/61f4a0fb19bfef9a965ec51c940d72c818219e63c8b2435f034afa37c956ee27.jpg) Folder icon. Displays the contents of the selected folder with button Top directory icon. Moves to upper directory with button JPEG file icon Bitmap file icon Text file icon

■ Termination of memory viewer

To terminate the memory viewer function, take one of methods described below. \- Terminate with projector's on-screen menu. 1. Select "Wired" or "Wireless" from the input menu of the projector. Press button. 2. Select "Memory Viewer" with the point ▲▼ buttons and press button. The "Enter/Exit" pallet of the memory viewer appears. 3. Select "Exit" and press button. \- Terminate with memory viewer mode 1. During the image displaying, press button. The browser window appears on the screen. 2. Press button again. The cursor moves to menu item. 3. Select "Exit" on the browser window with the point ◀▶ buttons and press button. \- Terminate with plugged out the USB thumb directly.

■ Formatting the USB thumb drive

A new USB thumb drive or a USB thumb drive formatted by computer or camera must be formatted by this product. Memory Viewer function may not operate properly with a USB thumb drive formatted by other equipment. 1. In the memory viewer mode, press button. The browser window appears on the screen. 2. Press button again. The cursor moves to menu item. 3. Select "Format" from "Set" with the point buttons and press button. The format confirmation window appears. 4. Select "OK" with the ◀▶ buttons and press button to start formatting. It takes about 1-2 seconds to complete the formatting. ![](images/cb7ec94638e3e9184168f9d4bd76fb534cf6ab01bf87ffc9963b48bcba559907.jpg)
text_image Format USB flash drive? OK Cancel

Note

- Formatting the USB thumb drive may delete all the stored data, please backup the data you need before formatting. - During formatting the USB thumb drive, do not turn off the power or eject the USB thumb drive because the data in the USB thumb drive might get damaged. During formatting, the USB thumb drive is blinking.

LAMP and WARNING Indicators

Managing the indicated problems

If a problem should occur inside the projector, the , and/or indicators will inform you. Manage the indicated problems as follow.

CAUTION

- Before you take a remedial measure, follow the procedure of switching the power off indicated in "Turning off the projector". (→ page 36) - If multiple indicators light or blink, verify the status of the projector by looking at each indicator.

Note

\- Confirm the status of the power indicated on the indicator.

LAMP indicator

Indicator Lighting in yellow
Status Theprojection lamp reaches its end of life.
Check Is there a Lamp replacement icon appears on the screen?
RemedyReplace the lamp unit.(→page 98)

Note

\- Contact your dealer for repair services when indicator persists to light after taking these measurements.

WARNING indicator

Indicator Lights in red. Blinks in red.
StatusThe projector detects an abnormal condition and cannot be turned on.
CheckUnplug the AC power cord and plug it again to turn on the projector.
RemedyIf the projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup.

Note

- If indicator persists to light or blink after taking these measurements, please contact your dealer for repair services. Do not leave the projector on. It may cause an electric shock or a fire hazard. - The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause an electric shock or a fire hazard.

Replacement

Before replacing the unit

- When you perform maintenance or replacement of the parts, make sure to turn off the power and disconnect the power plug from the wall outlet. (→page 32, 36) - Be sure to observe the procedure “Turing off the projector” (→page 36) when performing power supply operation.

Maintenance

Outer Case

Wipe off dirt and dust using a soft dry cloth. - If the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry off the projector with a dry cloth. - Do not use benzene, thinner, or rubbing alcohol, other solvents, household cleaners. Using them may cause deterioration of the outer case. - When using chemical treated dusters, follow its instruction.

■ Front glass surface of the lens

Wipe off the dirt and dust off the front surface of the lens with soft clean cloth. - Do not use a cloth that has an abrasive surface or a cloth that is moist, oily, or covered with dust. - Do not use excessive force when wiping the lens as it is fragile.

Attention

\- The lens is made of glass. Impacts or excessive force when wiping may scratch its surface. Please handle with care.

Replacing the unit

The air filter units are provided in side and back of the projector.

■ Replacement of the air filter unit (side)

Remove the air filter cover.1)

\- Open the air filter cover in the direction of the arrow in the figure and remove it.

Remove the air filter unit.2)

i) Hold the knob of the air filter unit and pull out in the direction of the arrow, the top of the air filter unit will pop up. ii) Take out the air filter unit upwards. \- After removing the air filter unit, remove large foreign objects and dust from the air filter compartment and the projector's air intake port if there are any.

Insert the new air filter unit.3)

- Hold the air filter unit that the knob is outside of the projector, perform Step 2) in the reverse order. - Do not press the filter part when push into the projector at last.

Install the air filter cover.4)

● Make sure that the air filter cover is closed tightly. ![](images/c984237b8310647b8d777a5756391c4a162cdba0829f429a4e59866d4d450db8.jpg)
text_image Air filter cover (side)
![](images/8d9502b13ce580a5bb24631b0b29b718fa174fcc1a885f69c23dbe48a4717704.jpg)
text_image Knob Air filter unit (side)

Replacement

■ Replacement of the air filter unit (back)

Remove the air filter cover.1)

\- Open the air filter cover in the direction of the arrow in the figure and remove it.

Remove the air filter unit.2)

- Hold the knob of the air filter unit and pull out in the direction of the arrow. - After removing the air filter unit, remove large foreign objects and dust from the air filter compartment and the projector's air intake port if there are any.

Insert the new air filter unit.3)

- Hold the air filter unit that the knob is outside of the projector, perform Step 2) in the reverse order. - Do not press the filter part when push into the projector at last.

Install the air filter cover.4)

\- Make sure that the air filter cover is closed tightly. ![](images/4c8d05bb2144fbb59605a6faa69cf307b06333ead2649bb51e97f38dbff00587.jpg)
natural_image Isometric line drawing of a computer or electronic device with ports and a scroll (no text or symbols visible)
Air filter cover (back) ![](images/b5ccb01dddea0dd4930169a1c478fc6061f196ecef900168c66ecc6c705f8394.jpg)
text_image Knob
Air filter unit (back)

■ Resetting the Filter Counter

Be sure to reset the Filter counter after replacing the filter. (→ page 64 "Filter counter reset")

Attention

- Turn off the power before you replace the air filter units. - When attaching the air filter unit, make sure that the projector is stable, and work in an environment that is safe, even in the event of the air filter unit dropping. - Do not operate the projector with the air filter units removed. Dust may accumulate on the optical elements degrading picture quality. - Do not put anything into the air vents. Doing so may result in malfunction of the projector. - The air filter unit to be replaced should be an unused product. - After replacing the air filter, reset the filter counter. Otherwise, the power of the projector may be turned off for safety.

Lamp unit

The lamp unit is a consumable component. You can check the total usage time using Lamp runtime in the Information menu (→ page 66). It is recommended to ask an authorized engineer to replace the lamp unit. Contact your dealer. Consult your dealer to purchase a replacement lamp unit (ET-LAV200).

CAUTION:

■ Do not replace the lamp unit when it is hot. (Wait at least 1 hour after use.) The inside of the cover can become very hot, take care to avoid burn injuries.

Notes on the replacement of the lamp unit

\- The luminous source of the lamp is made of glass and may burst if you hit it against a hard surface or drop it. Please handle with care. \- A Phillips screwdriver is required for replacement of the lamp unit. \- When replacing the lamp unit, be sure to hold it by the handle. \- When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken. If replacing the lamp of a projector which has been installed on the ceiling, you should always assume that the lamp is broken, and you should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when the lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical \- The lamp contains mercury. Consult your local municipality or your dealer about correct disposal of used lamp units. ![](images/2eb74889395526481b1f22a55db50723d6283debb4948f19e256ff47d4147a15.jpg)
natural_image Technical line drawing of a mechanical assembly (no text or symbols visible)

Attention

- Do not use other than designated lamp units. ● The part numbers of accessories and separately sold components are subject to change without notice.

■ When to replace the lamp unit

The lamp unit is a consumable component. Brightness decreases according to duration of usage, so periodical replacement of the lamp unit is necessary. When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and indicator lights yellow. Replace the lamp with a new one promptly.
Lamp runtimeOn screenLamp replacement iconPANASONIC PT-VX505NU - ■ When to replace the lamp unit - 1LAMP indicator
Over 2 500 hours *The message is displayed for 4 seconds. If you press any button within the 4 seconds, the message disappears.Lights in yellow (even in stand-by mode).
Over 2 700 hours *If the power is turned on without replacing the lamp, the power automatically turns off after approximately ten minutes to prevent the malfunction of the projector.
\*2 700 hours of use is a rough guideline, but is not a guarantee. The lamp runtime differs depending on the setting of "Lamp power" menu.

Note

\- The Lamp replacement icon will not appear when the [Display] function is set to [Off] (→page 59), or during "Freeze" (→page 40), or "AV mute" (→page 41).

Replacement

■ Replacing the Lamp unit

CAUTION:

- When the projector is mounted on a ceiling, do not work with your face close to the projector. - Attach the lamp unit and the lamp cover securely. - When you experience difficulty in installing the lamp, remove it and try again. If you use force to install the lamp, the connector may be damaged. Turn off the Power by following the 1 ) procedure in “Turning off the projector” (→page 36). Unplug the AC power cord. Wait at least 1 hour and make sure the lamp unit and surroundings are cool. Use a Phillips screwdriver to loosen the 2 ) lamp cover fixing screw and remove the lamp cover. \- Remove the lamp cover by pulling it slowly toward the direction of the arrow. Use a Phillips screwdriver to loosen the 3) three lamp unit fixing screws until the screws turn freely. Hold the used lamp unit by its handles, and pull it gently from the projector. Insert the new lamp unit in correct 4) direction. Tighten the three lamp unit fixing screws securely with a Phillips screwdriver Attach the lamp cover, and tighten the 5 ) lamp cover fixing screw securely with a Phillips screwdriver. \- Attach the lamp cover by pushing it slowly opposite the direction of the arrow. ![](images/75014b965159ce6f16c8c9402b2fee59419ce0b431ad1c9ff750b40e493dbbe2.jpg)
text_image Lamp cover Lamp cover fixing screw
![](images/6618d8ca96b70f7008ae2216040ac144dad231638961c6108da485fe341ba75a.jpg)
text_image Lamp unit fixing screws Lamp unit
![](images/f3f2b298851d131c17dbcf656a537acff7c735e9677c403d93533e5209311d54.jpg)
text_image Handles Lamp unit

Note

\- When you replace the new lamp unit (ET-LAV200), the projector resets the total usage time of the lamp unit automatically.

Attaching the Lens Cap

When moving this projector or while not using it over an extended period of time, attach the lens cap. To prevent loss for the lens cap, please according to the following procedures, attach the lens cap with the string of accessories. Thread the thinner end of the string through 1) the hole on the lens cap. ![](images/69e8ae1bca9471e692c3e1e934fc586647a12a42515c3c2d3c3f0ecb0a85573c.jpg)
text_image Lens cap String
Thread the other end of the string through 2) the hole on the bottom of the projector. ![](images/aa3874a5d66826d60ee68159f26fe13385ab4fdf5ef872e9c7800f807b2b9a5d.jpg)
natural_image Technical illustration of a mechanical device with a magnified inset showing internal components (no text or symbols)

Troubleshooting

Please check following points. For details, see the corresponding pages.
Problem CauseReference page
Power does not turn on.The power cord may not be connected.No electric supply is at the wall outlet.The circuit breakers have tripped.Is theindicator,indicator, or indicator lit or blinking?The lamp cover has not been securely installed.——33, 9498
No picture appears.The video signal input source may not be connected to a terminal properly.The input selection setting may not be correct.The [Brightness] adjustment setting may be at the minimum setting.The input source which is connected to the projector may have a problem.The [AV Mute] function may be in use.314051—41
The picture is fuzzy.The lens cap is still attached to the lens.The lens focus may not have been set correctly.The projector may not be at the correct distance from the screen.The lens may be dirty.The projector may be tilted too much.193728-2916—
The color is pale or grayish.[Color] or [Tint] adjustment may be incorrect.The input source which is connected to the projector may not be adjusted correctly.RGB cable is damaged.51——
No sound from the internal speakerThe input terminals may not have been correctly connected.The volume may have been set to the minimum level.The [AV Mute] function may have been turned on.When the VARIABLE AUDIO OUT is plugged-in, the projector's built-in speaker is not available.The [Mute] function may have been turned on.3138, 57412540, 57
The remote control does not operate.The batteries may be weak.The batteries may not have been inserted correctly.The remote control signal receptor on the projector may be obstructed.The remote control unit may be out of the operation range.Strong light such as fluorescent shine onto the signal receptor.When different codes are set on the projector and on the remote control.——2622222262
The control buttons of the projector do not operate.The control panel is not available if the control panel is locked at [Key lock] under [Security] of [Setting] section.63
The picture does not display correctly.There may be a problem with the VCR or other signal source.A signal which is not compatible with the projector is being input.——110-113
Picture from a computer does not appear.The cable may be longer than the optional cable.The external video output from a laptop computer may not be correct.——
Picture from a HDMI device does not appear or picture is not stable.Is the HDMI cable securely connected?Turn off the power of the projector and the connected devices. Then turn the power of the projector and the connected devices back on.Isn't unsupported signal cable connected?31—110-113
No sound is output from a HDMI device.Set the sound channel of the attached device to Linear PCM.If no audio signal is output during HDMI cable connection, connect the audio cable to COMPUTER AUDIO IN 2 terminal and set to "Computer 2" in "Sound" of "Setting" menu.—60
The image is distorted or runs off.Check [PC adj.] or [Screen] and adjust them.48, 54
The exclamation mark! appears on the screen.Your operation is invalid. Operate correctly.

Note

\- If the problem persists, after confirming the contents of the table, please consult your dealer.

Technical Information

The network function of the projector supports PJLink class 1, and the PJLink protocol can be used to perform projector setting and projector status query operations from a computer.

Control commands

The following table lists the PJLink protocol commands that can be used to control the projector.
Command Control details Notes
POWR Powersupply controlParameters0 = Standby1 = Power ON
POWR ? Powersupply status queryParameters0 = Standby 1 = Power ON2 = Cool-down in progress 3 =Warm-up in progress
INPT Input selection Parameters11 = RGB 1 12 = RGB 2 13 = SCART21 = VIDEO 22 = S-VIDEO 23 = COMPONENT31 = HDMI 51 = Network
INPT ? Input selection query
AVMT AV MUTE control Parameters30 = AV MUTE mode off31 = AV MUTE mode on
AVMT ?AV MUTE status query
ERST ?Error status queryParameters1st byte : Indicates fan errors, range 0 - 22nd byte : Indicates lamp errors, range 0 - 23rd byte : Indicates temperature errors, range 0 - 24th byte : Fixed at 05th byte : Indicates filter errors, range 0 - 26th byte : Indicates other errors, range 0 - 2Definitions for each value from 0 to 2 are as follows.0 = No error known 1 = Warning 2 = Error
LAMP ?Lamp status queryParameters1st digits (1 - 5 digits) : Lamp cumulative operating time2nd digit : 0 = Lamp off, 1 = Lamp on
INST ?Input selection list queryThe followings are returned as parameters.“11, 12, 13, 21, 22, 23, 31, 51”
NAME ?Projector name queryThe name set for [Projector name] in [Network] is returned.
INF1 ?Manufacturer name query“Panasonic” is returned.
INF2 ?Model name queryAnswer the model name with “VX505N” or "VW435N".
INF0 ?Other information queryInformation such as version number is returned.
CLSS ?Class information query“1” is returned.
When using PJLink with security authorization, either of the password set for administrator privileges and the password set for user privileges with Web browser control can be used as the password for PJLink ( page 87). When using PJLink without security authorization, set use without the password for administrator privileges and the password for user privileges of Web browser control. For specifications regarding PJLink, refer to the Japan Business Machine and Information System Industries Association website. http://pjlink.jbmia.or.jp/

Control commands via LAN

■ When WEB Control administrator rights password is set (Protect mode)

- Connection method

Obtain the IP address and port number (Initial set value = 1024) of the projector and 1) make a request for connection to the projector. Acquire the IP address from the menu screen of the projector, and the port number from the WEB control page. IP address : Obtain from MAIN MENU → [Network] → [Network status] Port No.: Acquire from the WEB control "Detailed set up" → "Command port set up" page

There is a response from the projector.2)

Response data
Data section Blank Mode BlankRandom number sectionTermination symbol
“NTCONTROL” (ASCII string)‘’ 0x20‘1’ 0x31‘’ 0x20“zzzzzzzzz” (ASCII code hexadecimal number)(CR) 0x0d
9 bytes 1 byte1 byte 1 byte 8bytes 1 byte
Mode : 1 = Protect mode

Generate a 32-byte hash value from the following data using MD5 algorithm.3)

"xxxxxx:yyyy:zzzzzzzzz" xxxxxx : Administrator rights user name for WEB CONTROL (Default user name is "admin1") yyyy : Password of above administrator rights user (Default password is "panasonic") zzzzzzzz : 8-byte random number obtained in Step 2

●Command transmission method

Transmit using the following command format. Transmitted data
HeaderData sectionTermination symbol
Hash value(See above)‘0’0x30‘0’0x30Control command(ASCII string)(CR)0x0d
32 bytes1 byte1 byteUndefined length1 byte
Receive data
HeaderData section Termination symbol
‘0’0x30‘0’0x30Control command(ASCII string)(CR)0x0d
1 byte1 byteUndefined length1 byte
Error response
Error messageTermination symbol
“ERR1”Undefined control command
“ERR2”Out of parameter range
“ERR3”Busy state or no-acceptable period(CR)
“ERR4”Timeout or no-acceptable period0x0d
“ERR5”Wrong data length
“ERRA”Password mismatch
4 bytes1 byte

Technical Information

■ When WEB Control administrator rights password is not set (Non-protect mode)

- Connection method

Obtain the IP address and port number (Initial set value = 1024) of the projector and 1) make a request for connection to the projector. Acquire the IP address from the menu screen of the projector, and the port number from the WEB control page. IP address : Obtain from MAIN MENU → [Network] → [Network status] Port No.: Acquire from the WEB control "Detailed set up" → "Command port set up" page

There is a response from the projector.2)

Response data
Data section Blank Mode Termination symbol
“NTCONTROL”(ASCII string)‘’0x20‘0’0x30(CR)0x0d
9 bytes 1 byte 1 byte 1 byte
Mode : 0 = Non-protect mode

●Command transmission method

Transmit by the following command format. Transmitted data
Header Data sectionTermination symbol
‘0’0x30‘0’0x30Control command(ASCII string)(CR)0x0d
1 byte1 byteUndefined length1 byte
Receive data
Header Data sectionTermination symbol
‘0’0x30‘0’0x30Control command(ASCII string)(CR)0x0d
1 byte1 byteUndefined length1 byte
Receive data
Error messageTermination symbol
“ERR1”Undefined control command
“ERR2”Out of parameter range
“ERR3”Busy state or no-acceptable period(CR)
“ERR4”Timeout or no-acceptable period0x0d
“ERR5”Wrong data length
“ERRA”Password mismatch
4 bytes1 byte

Serial terminal

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector.

Connection

![](images/b66b53208e65f361effb5a6fdf34125d520b113b300fde6120169615f3e42802.jpg)
text_image Connecting terminals on projector D-Sub 9-pin (female) D-Sub 9-pin (male) Communication cable Computer

Pin assignments and signal names

D-Sub 9-pin (female) Outside view ![](images/f92457b78caeb711378a7656f3b4bc084ae897cff49e8f84cc58318fcb611a30.jpg)
text_image ⑥ → ⑨ ① → ⑤
Pin No. Signal name Contents
1NC
2TXD Transmitted data
3RXD Received data
4NC
5GND Earth
6NC
7RTSConnected internally
8CTS
9NC

Communication conditions

Signal level RS-232C-compliant Character length 8 bits
Sync. method Asynchronous Stop bit 1 bit
Baud rate 19 200 bps X parameterNone
ParityNone
S parameterNone

Note

\- When [AMX D. D.] function is set to [On] under the [Network] menu, the Baud rate will change to 9 600 bps automatically.

Technical Information

Basic format

Transmission from the computer begins with STX, then the command, parameter, and ETX are sent in this order. Add parameters according to the details of control. ![](images/fb3c45e8eeb284fd33b34cd51c1cb50a5eea5c790ef29b8bafb942b1c7c27af5.jpg)
\* When sending commands without parameters, a colon (:) is not necessary.:

■ Basic format (with sub command)

![](images/9c6d2aa53249b6b748fde17af9012b9d0ecde9d07c21f6a963b2626cf5143461.jpg)
\*: When transmitting a command which does not need a parameter, the operation (E) and parameter are not necessary.

Cable specifications

[When connected to a computer] Projector
1 NC NC 1
22
33
4 NC NC 4
55
6 NC NC 6
77
88
9 NC NC 9
Computer (DTE specifications)

Control commands

When controlling the projector from a computer, the following commands are available: [Projector control command]
Command Control contents Remarks
PON Power [ON]
POF Power [OFF]
IIS INPUT selection(Parameter)VID = VideoSVD = S-videoRG1 = Computer 1(RGB)RG2 = Computer 2(RGB)HD1 = HDMISCT = Computer 1(Scart)NWP = Network
OSH AV mute functionTurn off the projection and sound temporarily.Do not send the command consecutively.(Parameter)0 = AV MUTE mode off1 = AV MUTE mode on
OFZ Freeze(Parameters)0 = Freeze mode off1 = Freeze mode on
AUU Volume up
AUD Volume down
DZU D. ZOOM up
DZD D. ZOOM down
QPW Power query000 = Standby001 = Power on
Q$SLamp condition query(Call back)0 = Stand-by1 = Lamp ON control active2 = Lamp ON3 = Lamp OFF control active

Other terminals

Pin assignments and signal names of terminal
Outside viewPANASONIC PT-VX505NU - Other terminals - 1Pin No. Signal names
1GND (luminance signal)
2GND (color signal)
3Luminance signal
4Color signal
■ Pin assignments and signal names of terminal
Outside viewPin No. Signal names
1 R/P_R
2G/G ·SYNC/Y
3 B/P_B
9+ 5 V
12DDC data
13HD/SYNC
14VD
15DDC clock
④: Not assigned ⑤ - ⑧, ⑩ GND terminals ■ Pin assignments and signal names of terminal
Outside viewPANASONIC PT-VX505NU - Other terminals - 2Pin No. Signal names
1 R/P_R
2G/G ·SYNC/Y
3 B/P_B
13HD/SYNC
14VD
④, ⑨, ⑪ ⑫ Not assigned ⑤ - ⑧ :⑩ GND terminals Pin assignments and signal names of terminal
Outside viewEven-numbered pins 20 18PANASONIC PT-VX505NU - Other terminals - 3Odd-numbered pins 10 19Pin No. Signal names Pin No. Signal names
1T.M.D.S data 2+ T.M.D.S clock shield
2T.M.D.S data 2 shield T.M.D.S clock-
3T.M.D.S data 2-13 CEC
4T.M.D.S data 1+ —14
5T.M.D.S data 1 shield SCL15
6T.M.D.S data 1-16 SDA
7T.M.D.S data 0+ DDC/CEC GN17
8T.M.D.S data 0 shield +5V18
9T.M.D.S data 0-19 Hot plug detection
10T.M.D.S clock +

USB CONNECTOR (Type A)

Outside view ![](images/df0de87e07a3628ce28a0b9b57c0da16781d007e579b8d8ad280b6b84f059b1c.jpg) Pin No. Signal names
1+5V
2- Data
3+Data
4GND

USB CONNECTOR (Type B)

Outside view ![](images/0b0276d2812a7f91e5549347f84fc8d96c475768512a4698ab3705a037044b4b.jpg)
text_image Diagram of a mechanical or electrical component with numbered parts labeled 1 to 4
Pin No. Signal names
1+5V
2- Data
3+Data
4GND

List of compatible signals

The following table specifies the types of signals compatible with the projectors. Format: V = VIDEO, S = S-VIDEO, C = COMPUTER, Y = YBPR, H = HDMI
ModeDisplay resolution *1 (dots)Scanning frequencyDot clock frequency (MHz)Picture quality *2PnP *3Format
H (kHz)V (Hz)PT-VW435NUPT-VX505NU
NTSC/NTSC 4.43/PAL-M/PAL 60720 x 480 15.759.9 -- AA V/S
PAL/PAL-N/SECAM 720 x 576 15.6 60.0-- A A V/S
480p640 x 48031.4759.8825.2AAC/Y
480i640 x 480i15.73460.0012.2727AA
576p 768 x 57631.25 50.0029.5A A
576i768 x 576i15.62550.0014.75AA
720p1 280 x 72037.50 50.00 74.25AAA
45.00 60.00 74.25AAA
1 035i1 920 x 1 035i33.7560.0074.25AA
1 080i1 920 x 1 080i28.12550.00 74.25A A
33.75 60.00 74.25A A
VGA640 x 48031.4759.8825.149AAC
37.86 74.38 31.50A A
37.86 72.81 31.50A A
37.50 75.00 31.50A A
43.26985.00 36.00A A
640 x 400 31.47 70.0925.175A A
720 x 400 31.47 70.0928.322A A
SVGA800 x 60035.15656.2536.00AA
37.88 60.32 40.00A A
46.87575.0049.50AA
53.67485.06 56.25A A
48.08 72.19 50.00A A
37.90 61.03 40.02A A
34.50 55.38 36.432A A
38.0060.5140.128AA
38.60 60.31 38.60A A
32.70 51.09 32.70A A
38.0060.5140.128AA
MAC1 280 x 96075.0075.08126.00AA
1 280 x 1 02480.0075.08135.20AA
MAC 13640 x 48035.00 66.67 30.24A A
MAC LC1334.97 66.60 31.33A A
MAC 16832 x 62449.7274.5557.283AA
MAC 191 024 x 76860.2475.0880.01AA
MAC 211 152 x 87068.6875.06100.00AA
\*1 : “i” added to the resolution value indicates an interlaced signal. \*2 : Picture quality is indicated by the following symbols. AA: Maximum picture quality can be obtained. A: Signals are converted by the image processing circuit.
ModeDisplay resolution *1 (dots)Scanning frequencyDot clock frequency (MHz)Picture quality *2PnP *3Format
H (kHz)V (Hz)PT-VW435NUPT-VX505NU
SXGA+ 1 400 x1 05063.97060.190 107990 A AC
65.35060.120 122850 A A
65.12059.900 122430 A A
XGA1 024 x 76848.3660.00 65.00A AA o
68.67784.977 94.504 A AA
60.02375.03 78.75A AA o
56.47670.07 75.00A AA o
60.3174.92 79.252A AA
48.5060.02 65.179A AA
44.0054.58 59.129A AA
63.4879.35 83.41A AA
62.0477.07 84.375A AA
61.0075.70 81.00A AA
46.9058.20 63.03A AA
47.0058.30 61.664A AA
58.0372.00 74.745A AA
1 024 x 768i36.0087.17 47.30A AA
35.52286.96 44.90A AA
SXGA1 152 x 864 64.2070.4094.560 A A
1 152 x 90061.2065.20 92.00A A
71.4075.60 105.10A A
61.8566.00 94.50A A
1 280 x 960 60.0060.00108.00 A A
1 280 x 1 02462.5058.60 108.00A A
63.9060.00 107.35A A
63.3459.98 108.18A A
63.7460.01 109.497A A
71.6967.19 117.004A A
81.1376.107 135.008A A
63.9860.02 108.00A A
79.97675.025 13500 A A
63.3760.01111.520AA
76.9772.00 130.08A A
63.7960.18 108.19A A
91.14685.024 1575 A A
1 280 x 1 024i50.0086.00 80.00A A
50.0094.00 80.00A A
46.4386.70 78.745A A
UXGA1 600 x 1 20075.0060.00 162.00A A
81.2565.00 175.50A A
87.570.00 189.00A A
93.7575.00 202.50A A
\*1 : “i” added to the resolution value indicates an interlaced signal. \*2 : Picture quality is indicated by the following symbols. AA: Maximum picture quality can be obtained. A: Signals are converted by the image processing circuit. Technical Information
ModeDisplay resolution *1 (dots)Scanning frequencyDot clock frequency (MHz)Picture quality *2PnP *3Format
H (kHz) V (Hz)PT-VW435NUPT-VX505NU
WXGA1 280 x 76847.776 59.870 79.5500 AA AC
60.289 74.893 102250 AA A
68.633 84.837 117500 AA A
55.993 69.991 94.964 AA A
57.675 72.004 97.817 AA A
1 280 x 80049.600 60.050 79.360 AA A
41.200 50.000 68.557 AA A
49.702 59.810 83.5500 AA A
63.980 60.020 108000 AA A
58.289 69.975 98.858 AA A
60.044 71.995 102795 AA A
62.790 74.928 106492 AA A
71.553 84.879 122498 AA A
1 366 x 76848.3660.0086.67AA
1 360 x 76847.70 60.00 86.67AA
56.16 72.00 1100.19AA
1 376 x 76848.3660.0086.67AA
WSXGA+1 680 x 1 05065.29059.954146.250AA
WXGA+1 440 x 90055.935 59.887 106500 AA
74.91860.000161.850AA
WUXGA1 920 x 1 20074.556 59.885 193250 AA
74.038 59.950 154000 AA
D-VGA640 x 48031.4759.9425.175AAH
D-480p31.4759.8825.2AA
D-576p768 x 57631.2550.0029.5AA
D-720p1 280 x 72037.50 50.00 74.25AA A
45.00 60.00 74.25AA A
D-SVGA800 x 60037.87960.3240AA
D-XGA1 024 x 76843.36360.0065AAA
D-SXGA+ 1 400x 1 05063.97 60.19 1107.99AA
65.350 60.120 122850 AA
65.120 59.900 122430 AA
\*1: "i" added to the resolution value indicates an interlaced signal. \*2 : Picture quality is indicated by the following symbols. AA: Maximum picture quality can be obtained. A: Signals are converted by the image processing circuit.
ModeDisplay resolution *1 (dots)Scanning frequencyDot clock frequency (MHz)Picture quality *2PnP *3Format
H (kHz) V (Hz)PT-VW435NUPT-VX505NU
D-WXGA1 360 x 76847.700 60.00 86.670 A AH
56.160 72.000 100190 A A
1 366 x 76846.500 50.000 67.400 A A
48.360 60.00 86.670 A A
1 376 x 768 48.360 60.00 86.670 A A
1 280 x 76847.776 59.870 79.500 AA A
60.289 74.893 102250 AA A
68.633 84.837 117.5500 AA A
55.993 69.991 94.964 AA A
57.675 72.004 97.817 AA A
1 280 x 80049.572 59.870 83.282 AA A
41.200 50.000 68.557 AA A
49.702 59.810 83.500 AA A
63.980 60.020 108000 AA A
58.289 69.975 98.858 AA A
60.044 71.995 102795 AA A
62.790 74.928 106492 AA A
71.553 84.879 122498 AA A
D-SXGA1 280 x 1 02463.9860.02108AA
60.276 58.069 93.067 A A
31.6529.853.48AA
D-1035i1 920 x 1 035i33.7560.0074.25AA
D-1080i1 920 x 1 080i28.12550.0074.25AA
33.7560.0074.25AA
D-1080p1 920 x 1 08067.560.00148.5AA
56.2550.00148.5AA
D-WXGA+1 440 x 900 55.935 59.887106.500 A A
D-WSXGA+1 680 x 1 05065.29059.954146.250AA
D-WUXGA1 920 x 1 20074.03859.950154.000AA
\*1 : “i” added to the resolution value indicates an interlaced signal. \*2 : Picture quality is indicated by the following symbols. AA: Maximum picture quality can be obtained. A: Signals are converted by the image processing circuit. \*3 : Where marked "o" signals indicates in Plug and Play is compatible with EDID of projector. Unmarked signals in Plug and Play may also be compliant if input terminals are written in the format list. Where Plug and Play is unmarked and nothing is written in the format list, difficulties in projecting image may occur even when computer and projector appear to have same resolution.

Note

- The number of display dots is 1 280 x 800 for the PT-VW435NU and 1 024 x 768 for the PT-VX505NU. A signal with a different resolution will be projected after converting the resolution to match the projector display. - When interlaced signals are connected, flicker may occur on the projected image.

Specifications

Model No. PT-VW435NUPT-VX505NU
Power supply AC100 V - 240 V 50Hz/60 Hz
Power consumption100 V - 240 V 4.0 A-1.6 A 365 W
When [Standby mode] of [Setting] is set to [ECO]: 0.3W
When [Standby mode] of [Setting] is set to [Network]: 12.9W or less
When [Standby MIC out] of [Sound] is set to [On]: Max.26 W
LCD panelPanel size1.5 cm(0.59") (aspect ratio 16 : 10)1.6 cm(0.63") (aspect ratio 4 : 3)
Display method 3 transparent LCD panels (RGB)
Drive method Active matrix method
Pixels1 024 000 (1 280 x 800) x 3 panels786 432 (1 024 x 768) x 3 panels
LensManual zoom (1.6x) / Manual focus / Lens shift F 1.6 to 2.12, f 15.28 mm to 24.62 mm
Luminous lamp 280 W UHM lamp
Light output *14 3000 lm 5 000 lm
Applicable scanning frequency *3for RGB signalHorizontal 15 kHz to 100 kHz, Vertical 50 Hz to 100 Hz
Dot clock frequency: 140 MHz or less
for YPBPR signal[525i(480i)] Horizontal 15.75 kHz, Vertical 60 Hz [525p(480p)] Horizontal 31.5 kHz, Vertical 60 Hz [750(720)/60p] Horizontal 45 kHz, Vertical 60 Hz [1125(1080)/60i] Horizontal 33.75 kHz, Vertical 60 Hz [625i(576i)] Horizontal 15.63 kHz, Vertical 50 Hz [625p(576p)] Horizontal 31.25 kHz, Vertical 50 Hz [750(720)/50p] Horizontal 37.5 kHz, Vertical 50 Hz [1125(1080)50i] Horizontal 28.13 kHz, Vertical 50 Hz HD/SYNC and V terminals are not compliant with 3 value composite SYNC
for Video signal (including S-video)Horizontal 15.75 kHz / 15.63 kHz, Vertical 50 Hz / 60 Hz
for HDMI signal525p(480p), 625p(576p), 750(720)/60p, 750(720)/50p, 1 125(1 080)/60p, 1 125(1 080)/50p, 1 125(1 080)/60i, 1 125(1 080)/50i Displayable resolution: VGA to WUXGA (non-interlace) Dot clock frequency: up to 162 MHz
Color system 7 (NTSC, NTSC4.43, PAL, PAL-N, PAL-M, SECAM, PAL60)
Projection size0.76 m -7.62 m (30"-300")
Screen aspect ratio16 : 104 : 3
Projection schemeFront / Rear / Mount on Ceiling / Floor (Menu setting system)
Speaker1 (4.0 cm round-type)
Maximum usable volume output10W
Contrast ratio *23 500 : 1 (all white / all black)4 000 : 1 (all white / all black)
\*1: These values of light output are measured under the condition that [Lamp power] is set to [Normal], [Image select] is set to [Dynamic] and [Lens Shift] is adjusted to the lowest level. Measurement, measuring conditions and method of notation all comply with ISO21118 international standards. \*2: The value of contrast ratio is measured under the condition that [Lamp power] is set to [Normal], [Image select] is set to [Dynamic], [Lens Shift] is adjusted to the lowest level and [Iris] is set to [ON]. Measurement, measuring conditions and method of notation all comply with ISO21118 international standards. \*3: For details of video signals that can be projected using this projector, refer to "List of compatible signals". (→page 110-113)
Model No. PT-VW435NUPT-VX505NU
TerminalsCOMPUTER 1 IN/COMPONENT IN1 (D-sub 15 pin female)[RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 ΩHD/SYNC TTL high impedance, automatic positive/negative polarity compatibleVD TTL high impedance, automatic positive/negative polarity compatible[YPBPR signal] Y: 1.0 V [p-p] including synchronization signal, PBPR: 0.7 V [p-p] 75 Ω
COMPUTER 2 IN/MONITOR OUT[RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 ΩHD/SYNC TTL high impedance, automatic positive/negative polarity compatibleVD TTL high impedance, automatic positive/negative polarity compatible
VIDEO IN 1 (RCA pin jack 1.0 V [p-p] 75 Ω)
S-VIDEO IN 1 (Mini DIN 4 pin, Y 1.0 V [p-p], C 0.286 V [p-p] 75 Ω, S1 signal compatible)
HDMI 1 (HDMI 19 pin, HDCP and Deep color compatible)
AUDIO IN2 (M3 stereo mini jack, 0.5 V [rms], input impedance 22 kΩ and more)1 (RCA pin jack x 2 (L-R), 0.5 V [rms], input impedance 22 kΩ and more)
VARIABLE AUDIO OUT1 (M3 stereo mini jack, stereo monitor output compatible,0 V [rms] to 2.0 V [rms] valuable, output impedance 2.2 kΩ and less)
SERIAL IN 1 (D-sub 9 pin, RS-232C compliant, for computer control use
LAN 1 (for RJ-45 network connection, PJLink compatible,)
Power cable length 2.0 m(78 3/4")
Cabinet Molded plastic
DimensionsWidth: 379mm (14.92")Height: 107 mm (4.21") (when front adjustable feet shortened)Depth: 305 mm (12.01") (excluding protractions)
Weight Approx.4.8kg(10.58 lbs.) *4
Operating environmentOperating environment temperature*5:0 °C (32 °F) to 40 °C (104 °F) (Elevation: below 1 200 m; [Fan control]: [Off])0 °C (32 °F) to 30 °C (86 °F) (Elevation: 1 200 m ~ 2 000m; [Fan control]: [On 1])0 °C (32 °F) to 30 °C (86 °F) (Elevation: 2 000 m ~ 2 700m; [Fan control]: [On 2])Operating environment humidity: 20 % to 80 % (no condensation)
Remote controlPower supply DC 3 V (battery (AAA/R03 Type) x 2)
Operating rangeApprox. 7 m (275.6") (when operated directly in front of receptor)
Weight102 g (3.60 ozs.) (including batteries)
DimensionsWidth: 48 mm (1.89"), Length: 145 mm (5.71"), Height: 27 mm (1.06")
\*4: This is an average value. It may differ depending on individual product. \*5: If [Lamp power] is set to [Normal] and the operating environment temperature exceeds 35^(95^) , [Lamp power] may be changed to [Eco] automatically. - The part numbers of accessories and separately sold components are subject to change without notice.

Specifications

Dimensions

(Unit : mm> ![](images/de0abc2be2e120e4752a241b6680702235d2527790989a4d77965f137b040a06.jpg)
text_image 305.0(12.00°)
![](images/20fb157e2fb648dd9f0ad46381003be8a714550c67ed303beae9aee3a2656e75.jpg)
text_image 379.0(14.92") 64.4(2.54"
![](images/1cb9c6477188a9eb773263b06d2d0191ce7d1aac92f22ed2962fd339d9601162.jpg)
text_image 100.0(3.94") 107.0(4.21") 7.0(0.27")
\* Actual dimension may differ by product.:

Ceiling mount bracket safeguards

- Installation work of the ceiling mount bracket should only be carried by a qualified technician. - Even if it is during guaranteed period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental conditions. - Remove an unused ceiling mount bracket promptly. - Ensure to use a torque driver and do not use an electrical screwdriver or an impact screwdriver. - For details, see the work instruction manual packed together with the ceiling mount bracket. - The model Nos. of the accessories and the parts sold separately are subject to change without notice. - Make sure the screws on the ceiling mount kit cannot touch the metal parts materials (metallic lath, wire or board) in the ceiling board. Otherwise it may result in fire hazard. Bottom view ![](images/e4d903dee0080b4c304840aac1dd81a790622228f39088f4bbf378ae2b69ed28.jpg)
text_image Model No. of ceiling mount bracket: ET-PKV100H (for high ceilings) ET-PKV100S (for low ceilings) Model No. of projector mount base: ET-PKV200B M4 x 0.7 10 mm(0.39") Torque:1.2 ± 0.1N·m

Glossary

Item DescriptionsSee page
Access point These are stations for relaying electromagnetic signals between computers in a wireless LAN. When a computer is connected to an access point, it can communicate through the network connected to the access point.69
AD HOC This is the mode in which computers communicate with each other directly, rather than via access points.69
AES Next generation standard cryptography standardized by the National Institute of Standards and Technology (NIST). AES: Advanced Encryption Standard69
Default Gateway The devices that are used for different network standards from yours. Default Gateway enables a connection with other network, by adjusting bilateral differences such as communication protocols. If no gateway is specified for the IP address of access destination, data will be sent to the host set as the default gateway.676875
DHCP Abbreviation for Dynamic Host Configuration Protocol. This function automatically assigns IP addresses to the connected equipment. If a device with the DHCP server function is present within a LAN, it automatically assigns IP addresses to the connected equipment.676875
EAP Abbreviation of PPP Extensible Authentication Protocol. An authentication protocol extended from PPP, which is used for user authentication for remote access. MD5, TLS, S/Key, etc. are supported as authentication methods. This protocol is adopted by the wireless LAN authentication standard IEEE 802.1X, and available methods include EAP-TLS/EAP-TTLS/EAP-LEAP/EAP-PEAP/EAP-MD5.70
EAP-FAST Abbreviation of EAP-Flexible Authentication via Secure Tunneling. It is one of the wireless authentication methods compatible with IEEE 802.1X. It does not require digital authentication, but establishes a tunnel for the authentication process using a secret key cryptosystem, and authenticates the tunnel mutually to improve security. Cisco's proprietary method.70
EAP-TTLS Abbreviation of EAP-Tunneled Transport Layer Security. It is one of the wireless authentication methods compatible with IEEE 802.1X. It performs mutual authentication with a digital certificate by the authentication server, and ID/password by the client. A tunnel is established for the authentication process. Developed by Func Software in the U.S.70
GTC (EAP-GTC)Abbreviation of EAP-Generic Token Card. It is one of the wireless authentication methods compatible with IEEE 802.1X. Authentication is performed with ID and password. Password is acquired from a security token.70
INFRASTRUCTURE (infrastructure mode)This is the mode in which communications are performed via the access point. 68
IP address Internet Protocol (IP) is a protocol for distributing data, and the address corresponding to the data distribution destination is called the IP address. The same IP address cannot be used within the same LAN.676875
LAN Abbreviation for Local Area Network. This is a network with a relatively narrow range such as inside a company.17
MAC addressEach network adapter has its own ID No.A discrete ID No. is assigned to each and every network adapter around the world. These IDs are used to exchange data between adapters. These IDs are a combination of a discrete number managed and assigned by the IEEE to each individual manufacturer and a unique number assigned to each individual adapter by the manufacturer.89

Glossary

Item DescriptionsSee page
MD5(EAP-MD5)Abbreviation of EAP-Message digest algorithm 5. It is one of the wireless authentication methods compatible with IEEE 802.1X. Authentication is performed with ID and password. Password is sent encrypted with challenge & response method.70
MS-CHAPv2(EAP-MS-CHAPv2)Abbreviation of EAP-Microsoft Challenge Handshake Authentication Protocol v2. It is one of the wireless authentication methods compatible with IEEE 802.1X. It performs mutual authentication using a one-way encrypted password.70
Open System/OPENThis is an authentication of wireless signals employing a public key encryptosystem.69
PEAP Abbreviation forEAP-Protected EAP. It is one of the wireless authentication methods compatible with IEEE 802.1X. It performs mutual authentication with a digital certificate by the authentication server, and ID/password by the client.70
RADIUS server RADIUSUS is an abbreviation of Remote Access Dial In User authentication Service, and it is a protocol used for authentication in various networks such as wireless LAN. An authentication server compatible with the protocol is called a RADIUS server.The RADIUS server eliminates the need of registering user information separately in each device even when there are multiple network devices, and enables integrated management of multiple network devices and users.70
Shared Key/SHAREDThis is a secret key encryptosystem for wireless signals in which authentication is performed with a key pre-set in the WEP.Other terms for this method, in which the same key is used for both encryption and decryption, are “shared key encryptosystem” and “common key encryptosystem”.69
SSID Abbreviation forService Set ID. The SSID identification code must be set to distinguish equipment included in a wireless LAN that uses access points from equipment not included in that LAN.This may appear as the “ESSID” or the “network name” for wireless LAN adapters made by some manufacturers.686975
Subnet mask This limits the range of the IP addresses assigned to computers in order to divide the network into a number of sections during TCP/IP connection. The value used to divide the network at this time is called the subnetmask.676875
TKIP Abbreviation forTemporal Key Integrity Protocol.This encryption protocol provides even greater security than WEP because it changes the encryption key at fixed intervals.69
WEP Abbreviation forWired Equivalent Privacy. This is a method for encrypting communication data. The encryption key is created and notified only to the communicating user, so the communication data cannot be decrypted by a third party.69
WPA-EAPWPA2-EAPStandard for the encryption method for wireless LAN. This is an encryption method for corporations, and encryption is performed using the external server.69
WPA-PSKWPA2-PSKThis is a standard covering encryption methods used in wireless LAN.It provides greater security than WEP, and has functions such as a user authentication function and also TKIP (encryption protocol) which automatically changes the encryption key at fixed intervals.And this authentication requires no authentication server.69

Index

A

About Your Projector......21 Accessories ......19 Adjusting front adjustable feet .....30 Adjusting the position using the vertical lens shift function .....30 Attaching the Lens Cap .....99 AUTO PC adjust 47 Auto setup ....58 AV MUTE 41

B

Background 59 Basic operations by using the remote control ....38 Blackboard(Green) 50 Brightness....51

C

Cautions on use....16 Cautions when installing .....14 Cautions when transporting .....9, 14 CD-ROM 20 Ceiling....56 Cinema 50 Closed caption 62 Color 51 Colorboard 50 Color temp. 52 Computer System Selection .....45 Connecting 31 Connecting the power cord....32 Control panel 24 Custom 54 Custom adj. 55

D

Daylight View 52 Digital zoom 55 Direct on 61 Direct Power Off function .....36 Display 59 Disposal 15 Dynamic....50

E

Emulate 64

F

Factory default 65 Fan 63 Fan control....63 Filter counter....64 FREEZE 40 Full 54

G

Gamma 53 Glossary 117

H

HDMI setup....60 How to adjust the state of the image ....37

|

ID numbers ......26 Image adjust ....51 Image select ....50 Information......66 Input menu....45 Input search ....58 Installing and Removing batteries ..26 Iris 51

K

Keystone....39, 55

L

LAMP indicator 94 Lamp power 62 Lamp unit 97 Language....58 List of compatible signals .....110 Logo....59

M

Main menu 43 Maintenance 95 Managing the indicated problems...94 Manual PC adjust ....48 Menu Navigation....42 Menu position ....58 MIC 57 Mute....40, 57

N

Network 67 Network connections .....74 Noise reduction....53 Normal 54

0

ON(G)/STANDBY(R) indicator .....33 Other terminals ....108

P

PIN code 35 Pointer 60 Power management ....61 Precautions for Use ....14 Progressive....53 Projecting....37 Projection distance .....28, 29 Projection method......27 Projector body 23 P-timer 61

R

Read this first!......2 Real 50 Rear 56 Rear terminals ......25 Remote control ......21, 62 Replacing the Lamp unit .....98 Replacing the unit .....95

S

Screen 54 Screen aspect....54, 56 Screen size and throw distance.....28 Security......15, 18, 63 Selecting the image ....37 Serial terminal....105 Setting 58 Setting the ID number......26 Setting up 27 Sharpness ....53 Sound 57 Specifications ......114 Standard 50 Standby mode 61 Sub menu 43 Switching the input signal .....40

T

Terminal 60 Tint 51 Troubleshooting 100 True 54 Turning Off the Projector ....36 Turning On the Projector ....34

U

USB terminal 60

V

Video delay control 64 Video System Selection ....45 Volume....57

W

WARNING indicator 94 Warning log 65 Wide(16:9) 54 Wireless mouse 39

Z

Zoom 54

Information on Disposal in other Countries outside the European Union

![](images/03e2ec6c6652ba4984f855dcd6588373ff37910ea4a0b59c297d62c44fb2555d.jpg) These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. ![](images/1c15c840a1046fd3cf17432ffc4cfa6afb446bd312d386b572630b00725083bd.jpg)

Panasonic Corporation

Web Site : http://panasonic.net/avc/projector/ Panasonic Systems Communications Company of North America One Panasonic Way 2F-13, Secaucus, NJ 07094 TEL: (877) 803 - 8492 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 TEL: (905) 624 - 5010
Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PANASONIC

Model : PT-VX505NU

Category : Video projector
