Product Type	Portable Reflection Filter
Brand	SE Electronics
Model	The Reflexion Filter
Category	Microphone Accessory
Dimensions	12 x 12 x 2 inches (30 x 30 x 5 cm)
Weight	3.3 lbs (1.5 kg)
Power Supply	None (passive acoustic device)
Main Function	Reduces room reflections and background noise for cleaner vocal recordings
Material	Multi-layer acoustic foam with metal frame and mounting bracket
Mounting	Attaches to standard microphone stand via included bracket
Compatibility	Works with most condenser and dynamic microphones
Maintenance	Wipe with a dry or slightly damp cloth; do not use solvents
Safety	No electrical components; safe for studio use
Spare Parts	Not user-serviceable; contact SE Electronics for replacement
Reparability	Disassembly not recommended; professional repair only
Additional Features	Portable design, easy setup, collapsible for storage

Frequently Asked Questions - The Reflexion Filter SE Electronics

How do I mount The Reflexion Filter on my microphone stand?

Attach the included mounting bracket to the stand, then slide the filter onto the bracket until it clicks into place. Adjust the angle by loosening the thumb screw.

Is The Reflexion Filter compatible with all microphones?

It works with most condenser and dynamic microphones. The open design accommodates large-diaphragm mics; smaller mics may need repositioning.

How do I clean the filter?

Gently wipe the foam surface with a dry or slightly damp cloth. Avoid harsh chemicals, as they may damage the acoustic properties.

Can I use this outdoors?

While portable, it is designed for indoor studio use. Outdoor use may be affected by wind and humidity.

Does The Reflexion Filter eliminate all room reflections?

It significantly reduces early reflections and background noise, but does not replace full acoustic treatment. It is ideal for untreated rooms.

How should I position the filter for best results?

Place the filter directly behind the microphone, with the concave side facing the microphone. The microphone should be centered about 6-8 inches from the filter.

Can I use two filters together?

Yes, you can use two filters side by side for wider coverage, but proper placement is key to avoid comb filtering.

What is the warranty period?

SE Electronics typically offers a 2-year warranty. Check your local distributor for exact terms.

Is the filter fire-resistant?

The foam is treated to be self-extinguishing, meeting standard studio safety requirements.

Can I store the filter flat?

Yes, it can be collapsed for storage. Keep it in a dry place away from direct sunlight to preserve the foam.

USER MANUAL The Reflexion Filter SE Electronics

Technical line drawing of a cylindrical electronic device with a grid-patterned panel and a central logo (no text or symbols)

Thank you for purchasing the Reflexion Filter 'portable vocal booth'.

The main idea behind this product is to facilitate 'dry' vocal recordings, in other words to achieve a vocal recording which has greatly reduced room ambience. Of course, the same Reflexion Filter can be used to achieve similar results whilst recording various live instruments, for isolating vocals in rehearsal studios and probably a host of things we haven't thought of yet too! We'd be very interested to hear about novel applications from you, so please do contact us with your ideas, we are always glad to listen as it helps us improve and develop the product, and the information we can supply to other sE users.

Your Reflexion Filter carries a 2 year manufacturing warranty, with free replacement of parts in case of mechanical failure due to faulty components. This warranty does not cover failures deemed to be as a result of misuse or abuse of the Reflexion Filter. If properly used and looked after, it should last a lifetime of recording use.

You can extend your free 2 year warranty to three years by registering your product at www.seelectronics.com, so please visit the site and leave your details. You can also subscribe to the sE newsletter which we email out once every few months (don't worry, we won't pass your details on to anyone else, and we won't bombard you with SPAM!)

One last thing... please read this assembly manual to get the best results from your Reflexion Filter... mic positioning, and the stand clamp assembly are critical to getting best results.

Thank you again, and we look forward to hearing from you,

Siwei Zou

CEO

sE Electronics International

What is the Reflexion Filter?

The Reflexion Filter is basically a portable device for recording live sound sources with reduced room ambience. It is an advanced composite wall which is positioned behind any microphone by means of a variable position stand clamp assembly which ships with the product. The main function is to help obtain a 'dry' vocal or instrument recording. This is especially useful in studios without proper acoustic treatment, but can also be used to help record takes in control rooms, where the performer also has to operate the recording device, or in rehearsal studios to reduce ambient noise.

The Technical Bit:

The Reflexion Filter has 6 main layers. Firstly, a strong layer of punched Aluminium which allows sound waves to pass through it, diffused, to a layer of absorptive wool. The sound waves then hit a layer of Aluminium foil which helps dissipate energy and break up the lower frequency wave-forms, and from here they hit an air space kept open by rods passing through the various layers. The air gap acts as an acoustic barrier. The sound waves then pass to a further layer of wool and then through an outer, punched, Aluminium wall which further serve to absorb then diffuse the remaining acoustic energy.

The main absorber has 4 formed pieces of state-of-the-art specialist acoustic absorptive material attached to its face via the extended separation rods, which further serve to absorb and then diffuse the sound waves as they pass to the main filter.

The stand assembly comprises a mic stand clamp fitting, which attaches by means of a vertical joint to the horizontal bar assembly onto which both the Reflexion Filter, and any standard fitting shock mount can be fixed. The microphone (in its shock mount) can then be moved both vertically and horizontally along the bar, and the Reflexion Filter itself can be moved vertically to obtain the optimum working position.

How does it work?

The various layers both absorb and diffuse the sound waves hitting them, so progressively less of the original source acoustic energy passes through each layer. This reduces the amount of energy hitting un-treated walls and other surfaces so there is less of the original source reflected back as unwanted room ambience to the mic. The Reflexion Filter also helps prevent any reflected sound reaching the back and sides of the mic. Its shape and size have been carefully tested to maximize absorption while keeping 'coloration' down to only around 1dB, and leaving the microphone's polar pattern unaffected.

In summary:

All in all, it's a very clever and desirable piece of kit. It allows you to record vocals, guitars etc with a 'drier' sound without having to have an acoustically treated room. It's portable. It uses state of the art materials. It works... and it's a fraction of the price of acoustically treating your studio environment!

1. Remove the Reflexion Filter and stand assembly unit from the packaging. Please keep the packaging safe to store the Reflexion Filter when not in use, or for transportation. It is robust, but parts may get damaged or lost in transit if not packaged properly.

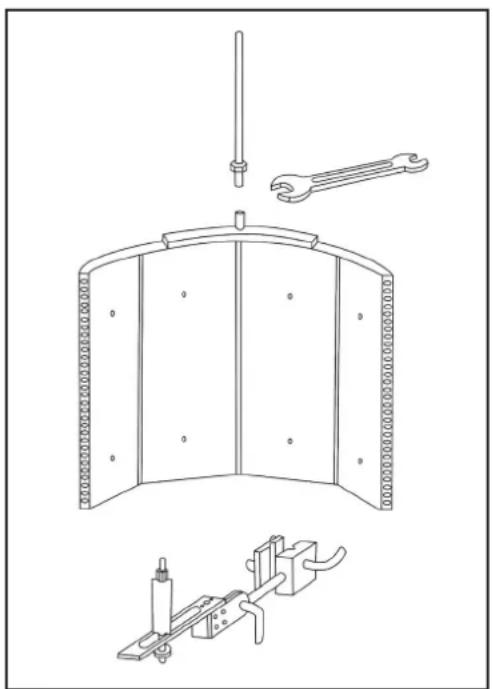

You should have the following parts – Reflexion Filter (curved wall), stand assembly, support rod and spanner to fit support rod.

Technical line drawing of a mechanical assembly with three views: a cylindrical rod, a wrench, and a clamp (no text or symbols)

Line drawing of a tripod-mounted surveying instrument with adjustable arms and legs (no text or symbols)

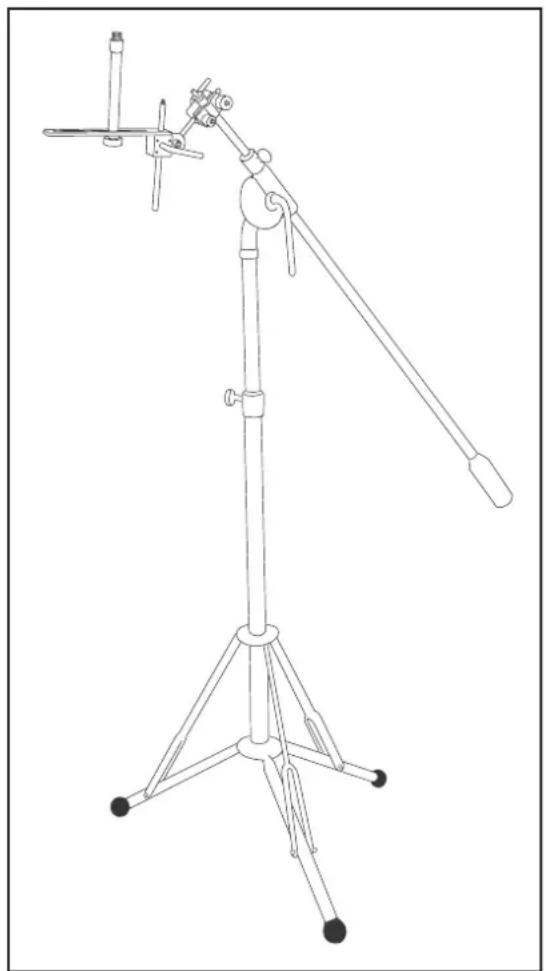

1. Fix the stand clamp assembly in place on the neck of your microphone stand a few inches below the point where the shock mount is usually fixed, or on the main vertical support strut of the stand.

You'll see the assembly has a metal block with two large screws and a handle on it (one of the screws has a spring to help lock the assembly firmly onto the mic stand.

Mic stand booms vary in diameter so you'll need to experiment to get the clamp just right, but basically you need to set the screw with the spring so the two parts of the clamp sit parallel to each other, and then tighten the clamp using the larger screw.

Diagram of a mechanical device with a lever and rotating arm, showing structural components (no text or symbols)

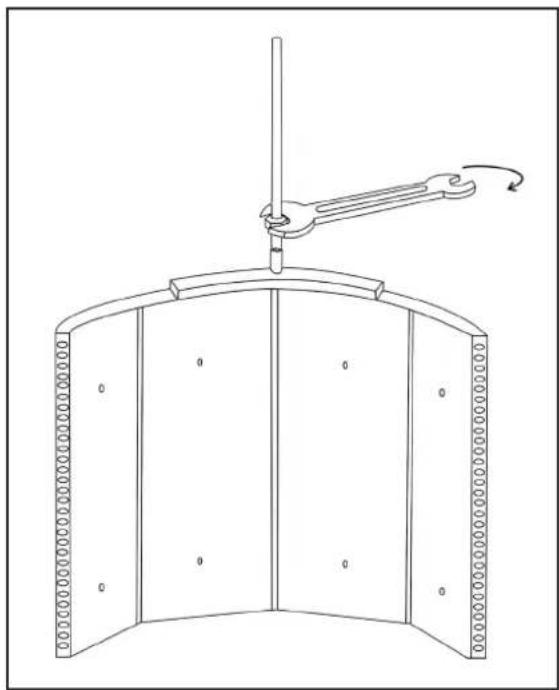

1. Fix the support rod to the Reflexion Filter by screwing it into the socket on the bottom edge. Tighten the nut using the spanner supplied in the box.

Technical line drawing of a mechanical testing setup with a clamp and clamping device (no text or symbols)

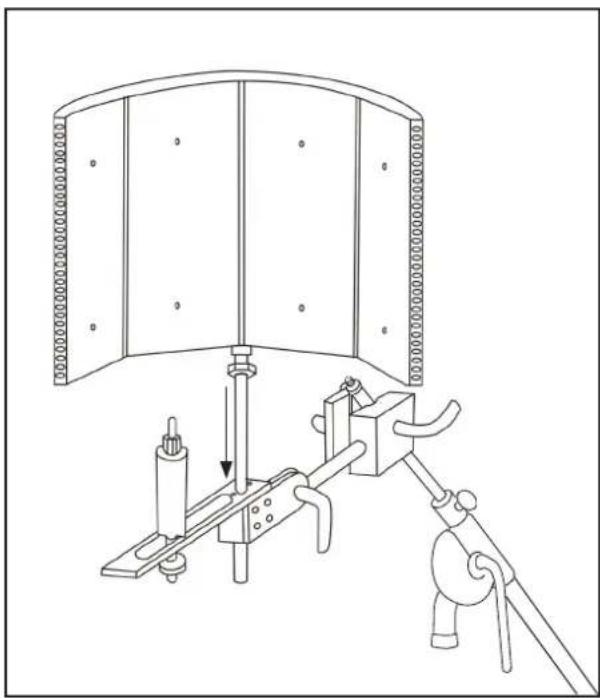

1. Fix the support rod, with the attached Reflexion Filter, by pushing the support rod down into the socket on the stand clamp and tighten it in place with the metal handle on the block.

2. You can now play with the positioning of the mic (both vertically and horizontally), and the height of the Reflexion Filter to get the optimum position for recording.

The Perfect Position

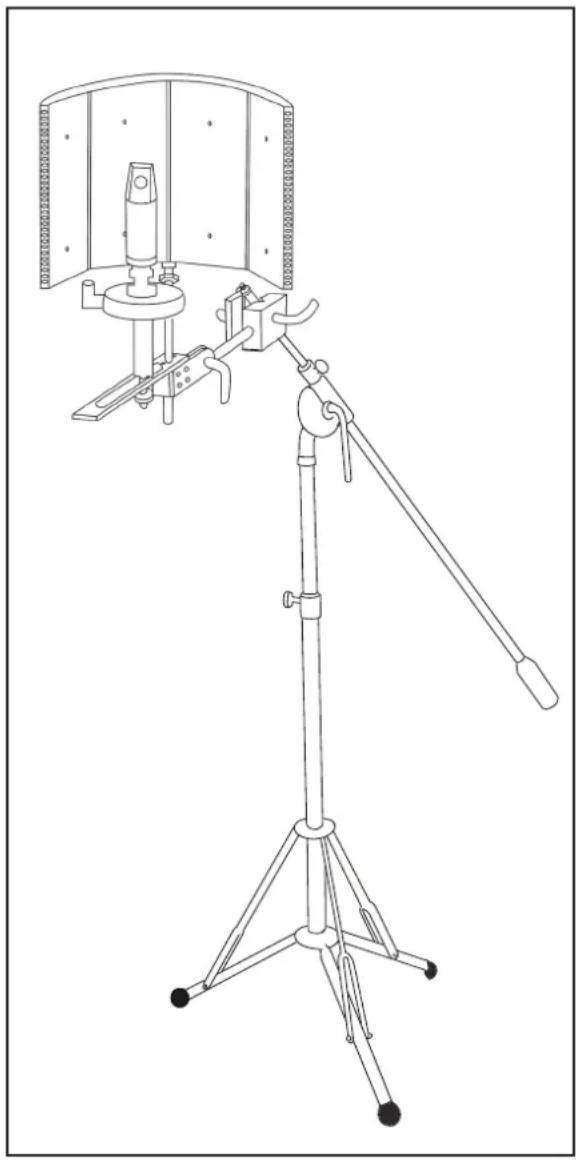

The ‘perfect position’ to achieve a ‘dry’ recording is to place of the microphone so that the mic capsule sits centrally (both vertically and horizontally) in relation to the face of the Reflexion Filter (the face is the convex side with coloured panels). It is also important to have the mic capsule of the correct distance from the face of the Reflexion Filter. The mic capsule should sit roughly level with the front edges of the filter where the curved wall ends.

Having said all that, you CAN use the Reflexion Filter to achieve different effects by experimenting with positioning. Moving the mic into the face of the Reflexion Filter will give a 'darker' and more 'dead' sounding recording, but it will also affect the polar pattern response of the mic, so the mic will perform slightly differently. Again, in most cases this would be undesirable, but this method of use can create some cool results... try micing an electric guitar cab this way, it can sound great!

Moving the mic further away will mean there is more room ambience recorded with the dry source. Again, this is not usually desirable but can be used to get a specific 'room sound' without the room taking over completely!

The Reflexion Filter can be used not only for recording vocals and acoustic guitars etc, but as outlined above, you can experiment to find new applications like the guitar cab mic'ing we suggested above. We'd love to hear from you with your own novel applications, so please contact us via the main web site, www.seelectronics.com, to let us know what you think of the product, and how you are using it.

Thanks again, and we hope you enjoy the results of your new toy!
