USER MANUAL Weight Bench B970 TAURUS

Assembly and Operating Instructions

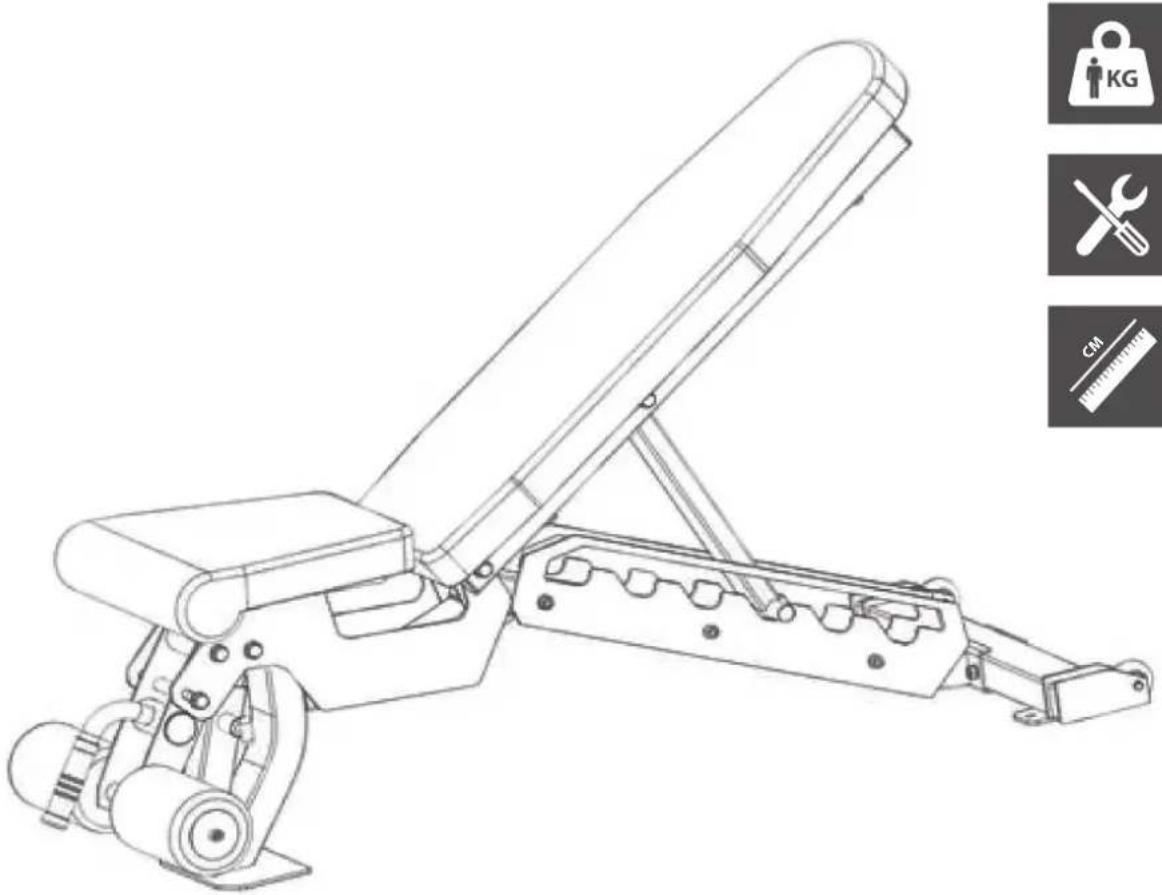

Technical line drawing of a mechanical device with no visible text or symbols

max. 400 kg ~ 60 Min. CM 43 kg L 145 | B 66 | H 125

TFB970.01.01

Art. No. TF-B970

TF-

Taurus Weight Bench B970

Content

1 GENERAL INFORMATION 7

1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9

2 ASSEMBLY 10

2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Assembly 12

3 STORAGE AND TRANSPORT 22

3.1 General Instructions 22
3.2 Transportation Wheels 22

4 TROUBLESHOOTING, CARE AND MAINTENANCE 22

4.1 General Instructions 22
4.2 Faults and Fault Diagnosis 23
4.3 Maintenance and Inspection Calendar 23

5 DISPOSAL 23

6 RECOMMENDED ACCESSORIES 24
7 ORDERING SPARE PARTS 25

7.1 Serial Number and Model Name 25
7.2 Parts List 26
7.3 Exploded Drawing 27

8 WARRANTY 28

9 CONTACT 30

Dear customer,

Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® offers sports and fitness equipment for the sophisticated home sport and the equipment of fitness studios and business customers. With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists. Because athletes know best what makes perfect fitness equipment.

Further information can be found at www.sport-tiedje.com.

Intended Use

The equipment may only be used for its intended purpose.

This fitness equipment is suitable for home use, semi-professional use and commercial or professional use. The semi-professional sector includes, for example, institutional facilities such as hospitals, schools, hotels and associations. Professional use refers to commercial use, e.g. in a fitness studio.

Legal Notice

Sport-Tiedje GmbH

Europe's No. 1 for home fitness

International Headquarters

Flensburger Straße 55

24837 Schleswig

Germany

Management:

Christian Grau

Sebastian Campmann

Dr. Bernhard Schenkel

No. HRB 1000 SL

Local Court Flensburg

European VAT Number: DE813211547

Disclaimer

©2008 Taurus® is a registered brand of the company Sport Tiedje GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited.

Product and manual are subject to change. Technical data can be changed without advance notice.

ABOUT THIS MANUAL

Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance. In case of doubt, responsible persons must supervise the use of the equipment.

This equipment has been manufactured according to the latest safety knowledge. As far as possible, potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow the instructions and that all parts are securely in place. If required, read through the instructions again to correct any mistakes.

Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions.

The following safety instructions may appear in this manual:

ATTENTION

This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.

CAUTION

This notice indicates potentially hazardous situations which, if not avoided, may result in slight or minor injuries!

WARNING

This notice indicates potentially hazardous situations which, if not avoided, may result in death or serious injuries!

DANGER

This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries!

i NOTICE

This notice indicates further useful information.

Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts.

1.1 Technical Data

Weight and Dimensions

Article weight (gross, incl. packaging): 46 kg

Article weight (net, excl. packaging): 43 kg

Package dimensions (L x W x H): approx. 134 cm x 42 cm x 24.5 cm

Set-up dimensions (L x W x H): approx. 145 cm x 66 cm x 125 cm

Maximum load: 400 kg

1.2 Personal Safety

DANGER

+ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. If you are under medical treatment that affects your heart rate, medical advice is absolutely essential.

+ Note that excessive training can seriously endanger your health. Please also note that heart rate monitoring systems can be inaccurate. If you notice any signs of weakness, nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising immediately and seek advice from your doctor if necessary.

WARNING

• This equipment may not be used by children under the age of 14.
• Children should not be allowed unsupervised access to the equipment.

+ Persons with disabilities must have a medical license and must be under strict observation when using the equipment.

+ The equipment is strictly for use by one person at a time.

• If your equipment provides a safety key, the clip of the safety key must be attached to your clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the equipment can be initiated.
• Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well clear of moving parts.
• During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing sports shoes, make sure they have suitable soles, preferably made of rubber or other non-slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise barefoot.

CAUTION

• If your equipment needs to be connected to the power supply with a mains cable, make sure that the cable is not a potential tripping hazard.
• Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons.

ATTENTION

+ Do not insert any objects of any kind into the openings of the device.

1.3 Set-Up Place

WARNING

+ Do not place the equipment in main corridors or escape routes.

CAUTION

• Choose a location in which to place the equipment such that there is enough free space/clearance to the front, the rear and to the sides of the equipment.
• The training room should be well ventilated during training and not be exposed to any draughts.
• Choose the place in which to set up the equipment such that there is enough free space/clearance to the front, the rear and to the sides of the equipment.
• The set-up and mounting surface of the equipment should be flat, loadable and solid.

ATTENTION

• The device may only be used in one building, in sufficiently tempered and dry rooms (ambient temperatures between 10°C and 35°C). The equipment should not be used outdoors or in rooms with high humidity (over 70%) like swimming pools.
• A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness.

2.1 General Instructions

DANGER

+ Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly.

WARNING

+ Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.

CAUTION

+ Ensure to have sufficient room for movement in each direction during assembly.

+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek the help of another technically skilled person.

ATTENTION

+ To prevent damage to the equipment and the floor, assemble the equipment on a mat or packaging board.

i NOTICE

+ In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled.

+ Ideally, assemble the equipment at its later set-up place.

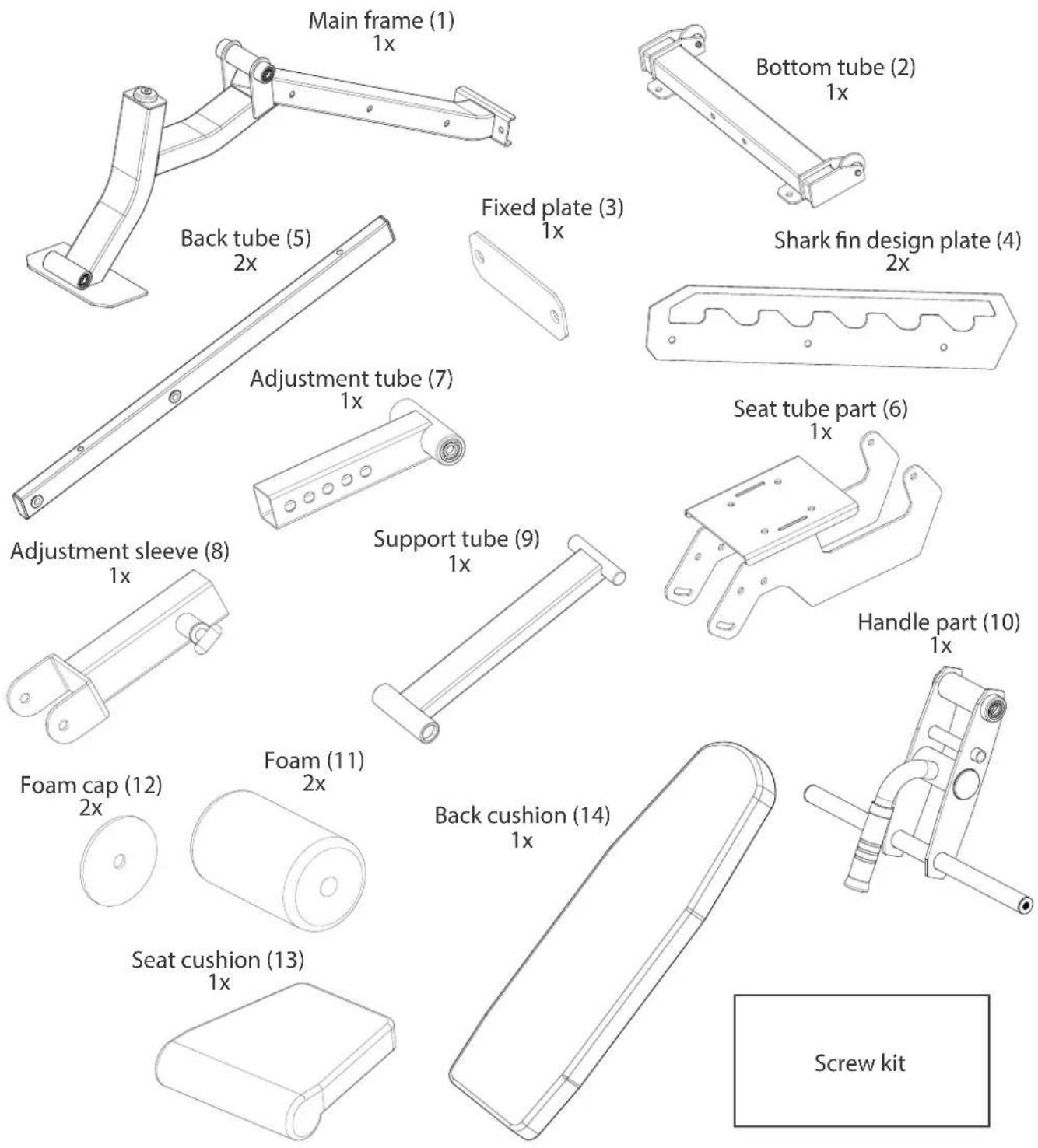

2.2 Scope of Delivery

The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly.

CAUTION

If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

Main frame (1) 1x Bottom tube (2) 1x Back tube (5) 2x Fixed plate (3) 1x Shark fin design plate (4) 2x Adjustment tube (7) 1x Seat tube part (6) 1x Adjustment sleeve (8) 1x Support tube (9) 1x Handle part (10) 1x Foam cap (12) 2x Foam (11) 2x Back cushion (14) 1x Seat cushion (13) 1x Screw kit

2.3 Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given.

i NOTICE

First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so.

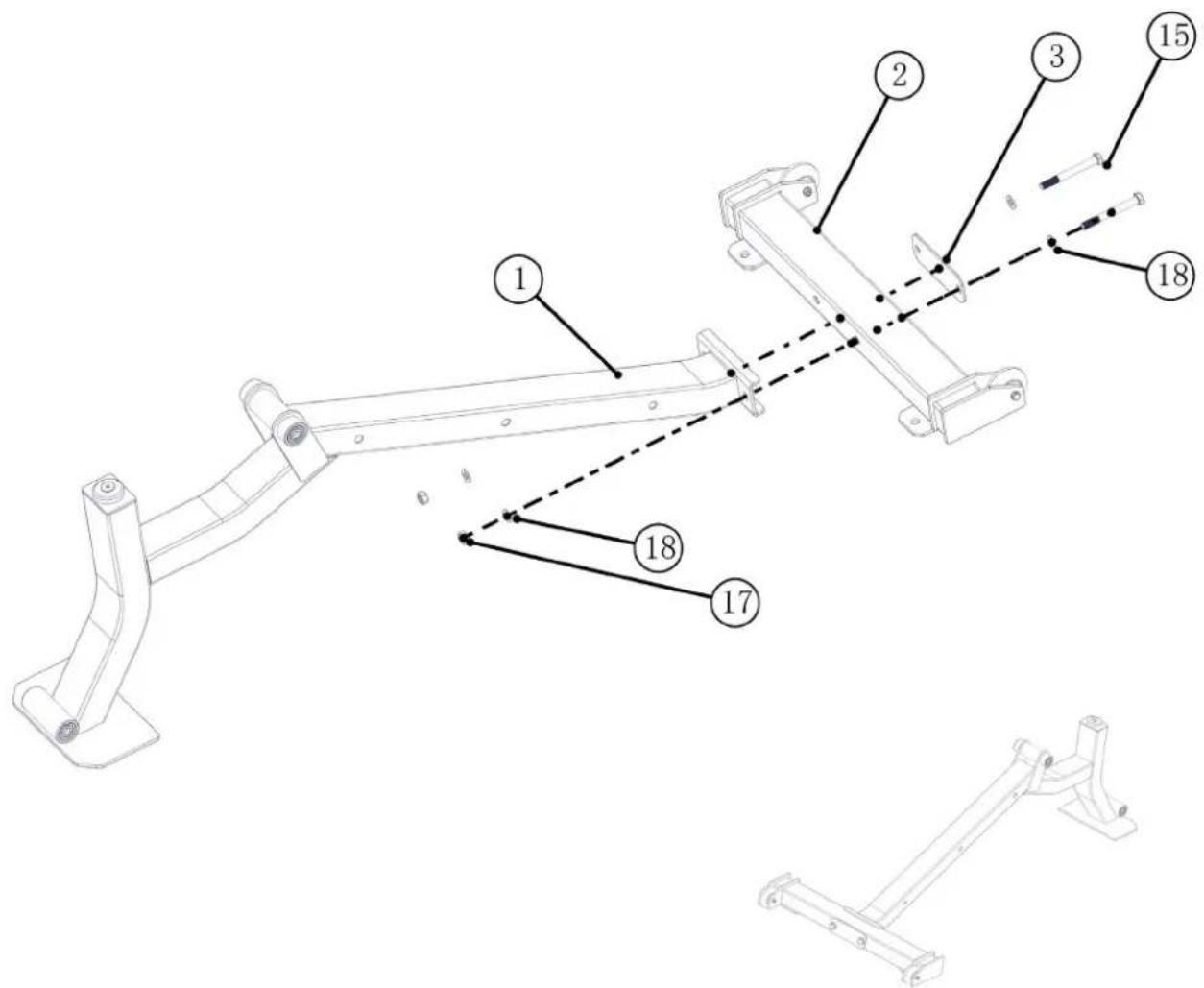

Step 1: Assembly of the buttom tube

1. Fasten the buttom tube (2) together with the fixed plate (3) to the main frame (1) with two bolts (15), four washers (18) and two nuts (17).
2. Tighten the bolts and nuts.

Technical diagram of a mechanical linkage system with numbered components and dashed alignment lines

Step 2: Assembly of the shark fin design plates

1. Fasten the two shark fin design plates (4) to the two sides of the main frame (1) with three bolts (15), six washers (18) and three nuts (17).

2. Tighten the bolts and nuts.

Technical diagram of a mechanical assembly with numbered components and alignment lines

Technical line drawing of a mechanical support structure (no text or symbols)

Step 3: Assembly of the seat tube and back tube

1. Fix the seat tube part (6) and the two parts of the back tube (5) to the main frame (1) with a bolt (19), two washers (23) and a nut (22).

2. Tighten the bolt and nut.

Technical diagram of a mechanical assembly with numbered components and dashed alignment lines

Technical line drawing of a mechanical bracket assembly (no text or symbols)

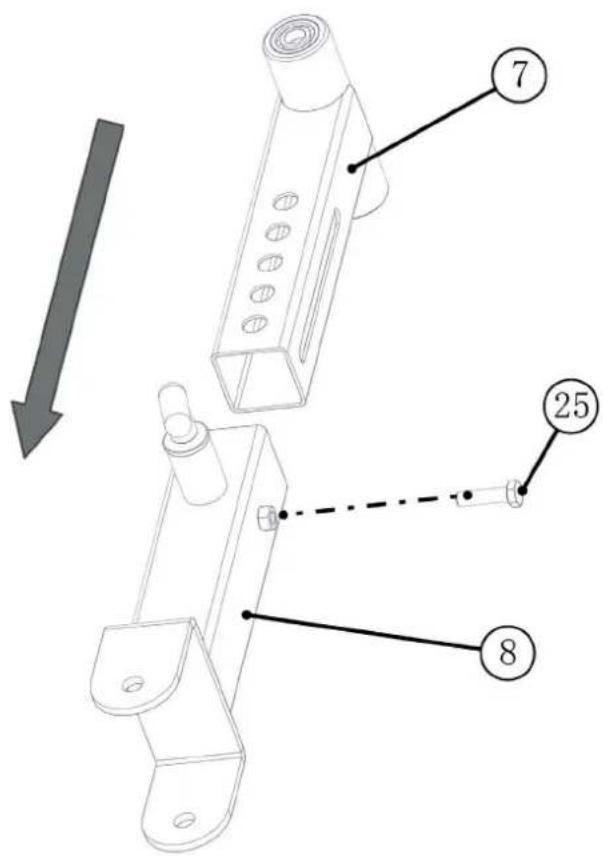

Step 4: Assembly of the leg press part 1

1. Connect the adjustment tube and the adjustment sleeve (7 & 8) with a bolt (25).
2. Tighten the bolt.

Technical diagram of a mechanical device with numbered parts and an arrow indicating direction, likely illustrating assembly or assembly steps.

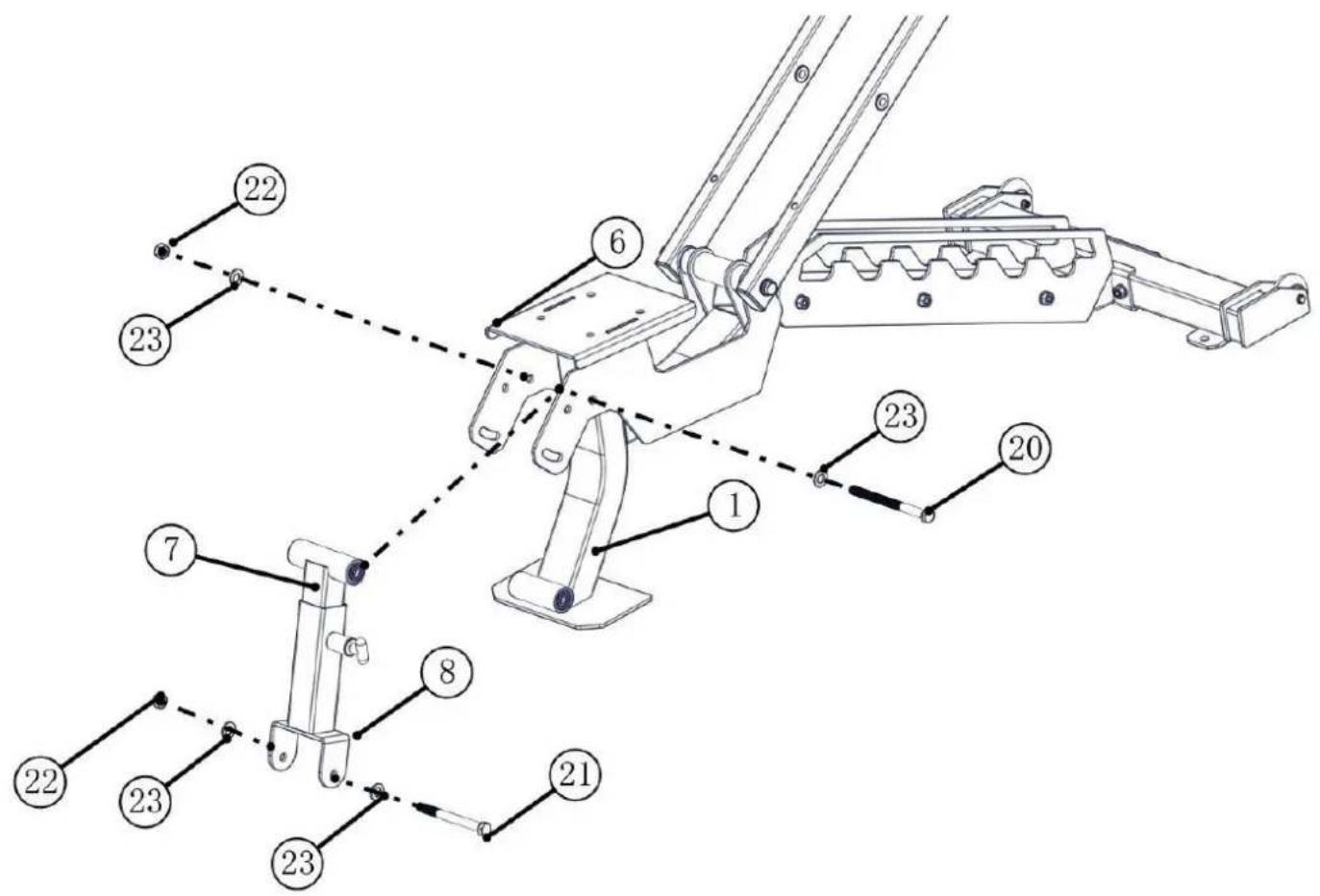

Step 5: Assembly of the leg press part 2

1. Fix the adjustment tube (7) to the seat tube part (6) with a bolt (20), two washers (23) and a nut (22).
2. Fix the adjustment sleeve (8) to the main frame (1) with a bolt (21), two washers (23) and a nut (22).
3. Tighten the bolts and nuts.

Technical diagram of a mechanical assembly with numbered components and dashed lines indicating connections or assembly paths.

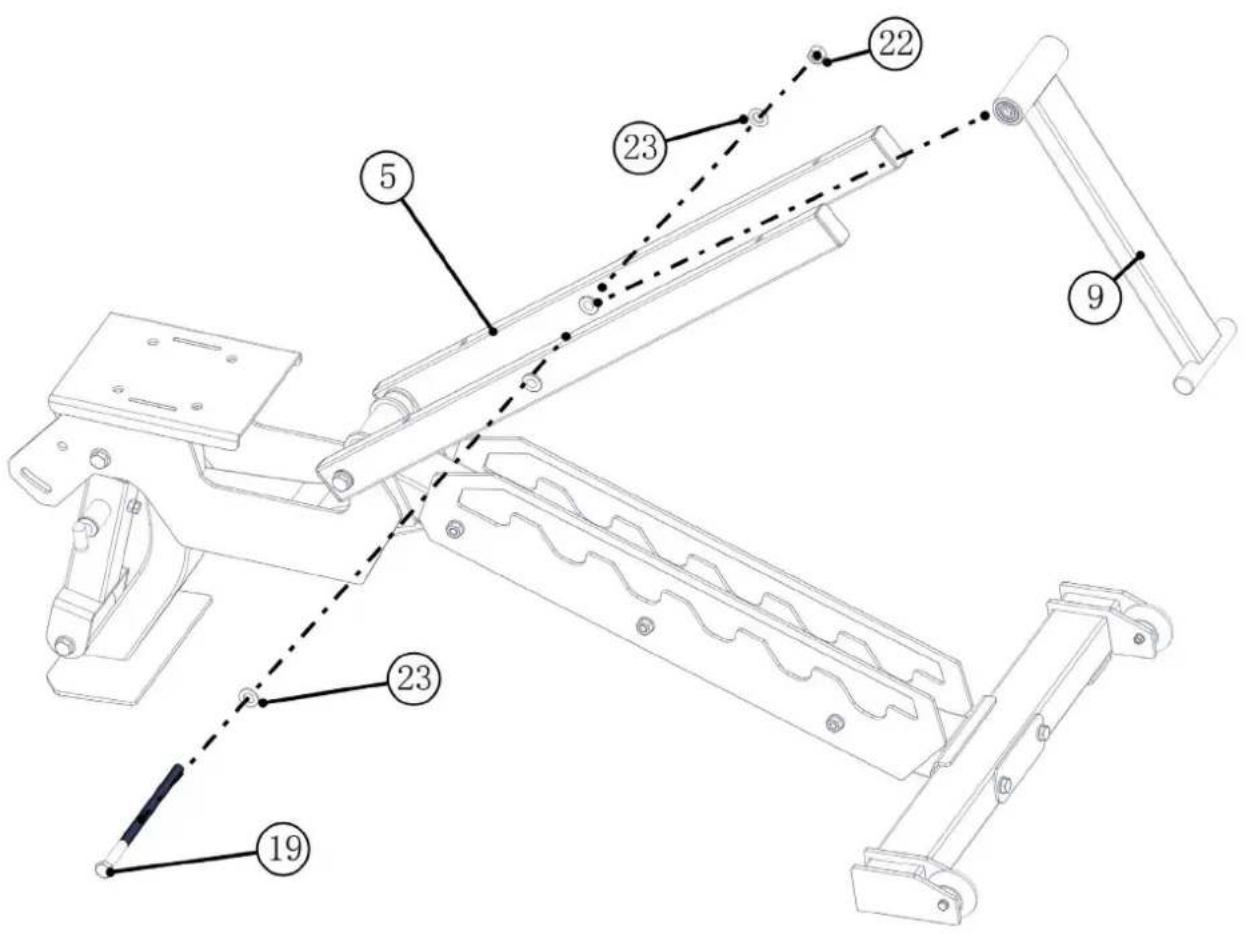

Step 6: Assembly of the support tube

1. Secure the support tube (9) between the two back tubes (5) with a bolt (19), two washers (23) and a nut (22).
2. Tighten the bolt and nut.

Technical diagram of a mechanical device with numbered components and dashed lines indicating assembly or connection points.

Technical line drawing of a mechanical lever assembly (no text or symbols)

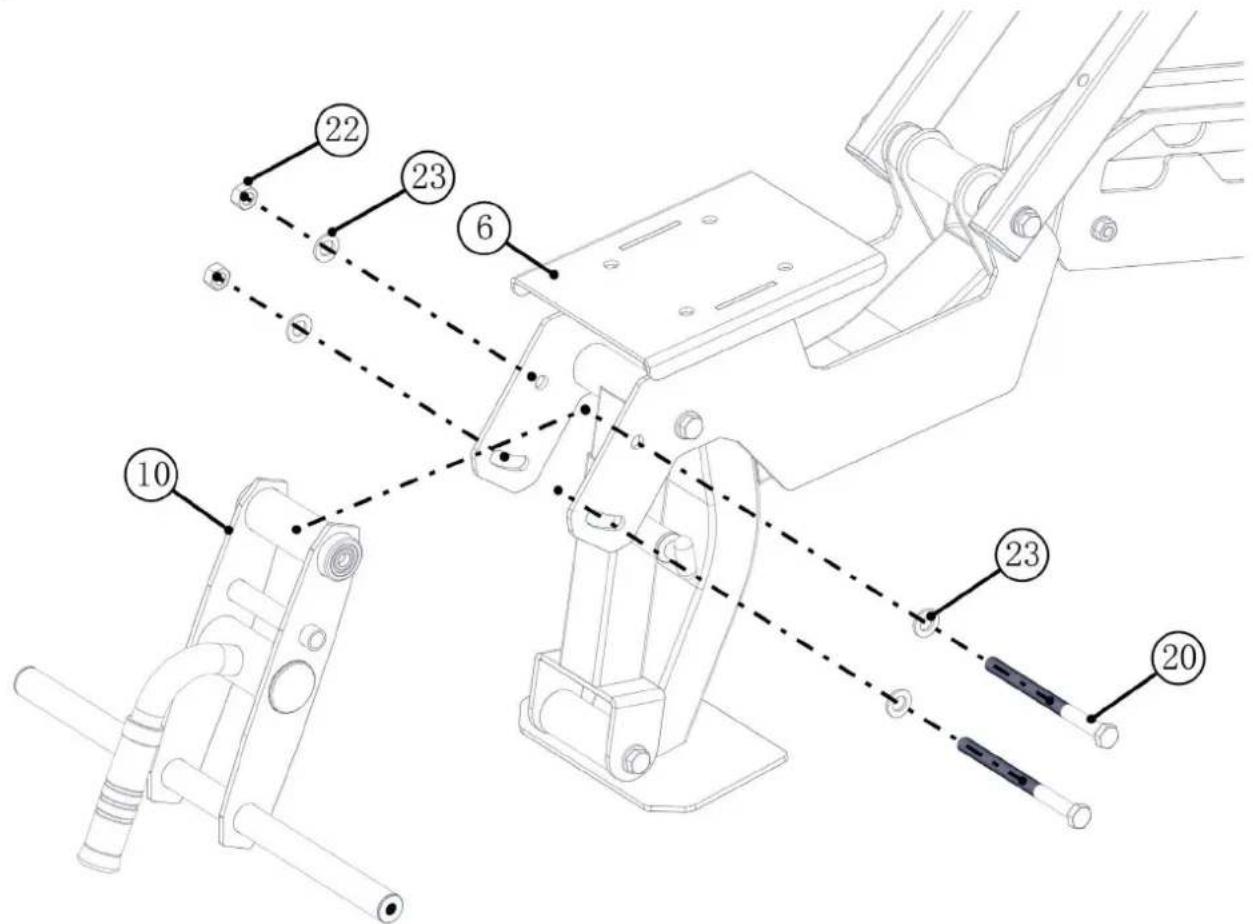

Step 7: Assembly of the leg press Part 3

1. Attach the handle part (10) to the seat tube part (6) with two bolts (20), four washers (23) and two nuts (22).
2. Tighten the bolts and nuts.

Technical diagram of a mechanical assembly with numbered components and dashed alignment lines

Technical line drawing of a mechanical assembly (no text or symbols)

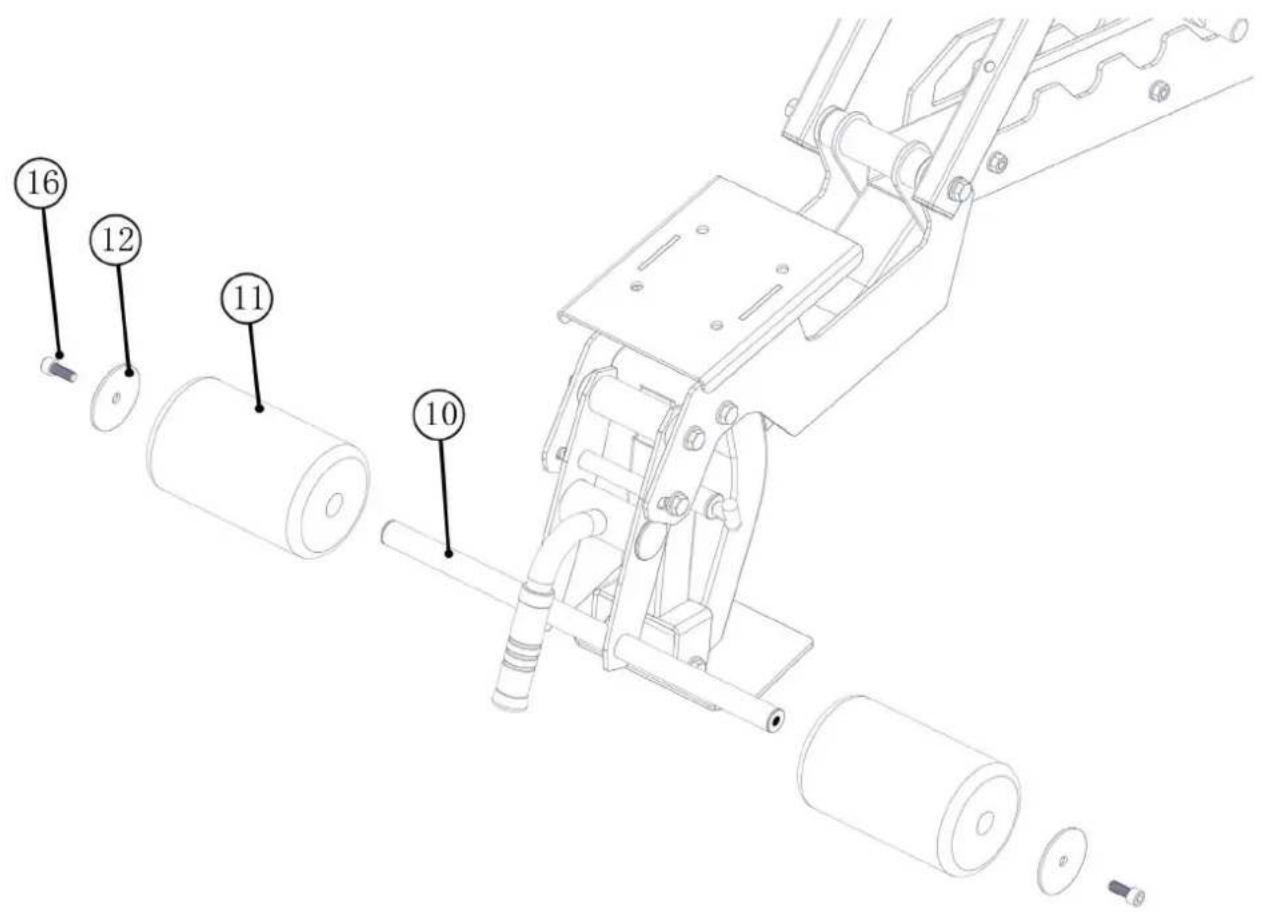

Step 8: Assembly of the leg press Part 4

1. Place one foam (11) on each side of the handle part (10) and secure it with one foam cap (12) and one screw (16).
2. Tighten the screws.

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

Technical line drawing of a mechanical linkage or support system (no text or symbols)

Step 9: Assembly of the seat cushion

1. Secure the seat cushion (13) to the seat tube part (6) with four bolts (25) and four washers (26).
2. Tighten the bolts.

Technical diagram of a mechanical assembly with numbered components and dashed alignment lines

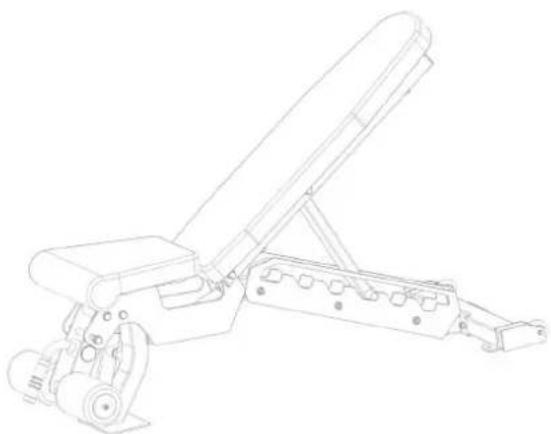

Step 10: Assembly of the back cushion

1. Secure the back cushion (14) to the two back tubes (5) with four bolts (24) and four washers (26).
2. Tighten the bolts.

Technical diagram of a mechanical device with numbered components and dashed line indicating assembly or connection points.

Line drawing of a mechanical lifting device with wheels and lever (no text or symbols)

3.1 General Instructions

WARNING

+ The storage location should be chosen so that improper use by third parties or children can be prevented.

+ If your equipment does not have transportation wheels, the equipment must be disassembled before transportation.

ATTENTION

+ Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 10^ C and 35^ C.

3.2 Transportation Wheels

ATTENTION

If you want to transport your equipment over particularly sensitive and soft floor coverings, such as parquet, planks or laminate, lay out the transport route with cardboard or similar to avoid possible floor damage.

1. Stand behind the equipment and lift it until the weight is transferred to the transportation wheels. After that, you easily can move the equipment to a new position. For long transport distances the equipment should be disassembled and safely packed.

2. Select the new location by following the instructions in the section 1.3 of this manual.

4 TROUBLESHOOTING, CARE AND MAINTENANCE

4.1 General Instructions

WARNING

+ Do not make any improper changes to the equipment.

CAUTION

+ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. The equipment must not be used until it has been repaired. If necessary, use only original spare parts.

ATTENTION

+ In addition to the instructions and recommendations for maintenance and care given here, additional service and/or repair work may be necessary; this must only be carried out by authorised service technicians.

4.2 Faults and Fault Diagnosis

The equipment undergoes regular quality controls during production. Nevertheless, faults or malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an exchange is usually sufficient. Please refer to the following overview for the most common errors and how to correct them. If the equipment still does not function properly, contact your contract partner.

Fault Cause Solution
Squeaking & cracking noises	Screw connections loosened or too tight	Check screw connections

4.3 Maintenance and Inspection Calendar

To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session.

The following routine tasks must be performed at the specified intervals:

Part Weekly Monthly Quarterly
Screw connections I
Cushions C I
Legend: C = clean; I = inspect

5 DISPOSAL

At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an recycling centre. Further information can be obtained from your local authority's recycling service.

The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment.

6 RECOMMENDED ACCESSORIES

To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape.

If you have purchased a fitness machine with pulse training and want to train your heart rate, we strongly recommend that you use a compatible chest strap, as this ensures optimum transmission of the heart rate. You may want to buy additional grips or weights for multi gyms.

Our range of accessories offers the highest quality and makes training even better. If you would like to find out more about compatible accessories, please go to the detail page of the product in our webshop (the easiest way is to enter the article number in the search field above) and go to the recommended accessories on this page. Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you!

Fitztop - Sport-Tendje - T-Fitness floor mat

Sport-Tledge chest strap

Sport-part-Kontschutz Sport Tiedje Sport support contact gel C€ chest strap contact gel

Two blue and black fitness bandaged items, one with 'cardiostrong' branding, placed side by side (no additional text or symbols visible)

LOBOSIL SILIKON Trematmal Ostruktur Sport-Tiedje Dot Petriose Packments chest strap Sport-Tiedje Silicone spray

towels

7.1 Serial Number and Model Name

In order to provide you with the best possible service, please have the model name, article number, serial number, exploded drawing and parts list ready. The corresponding contact options can be found in chapter 9 of this operating manual.

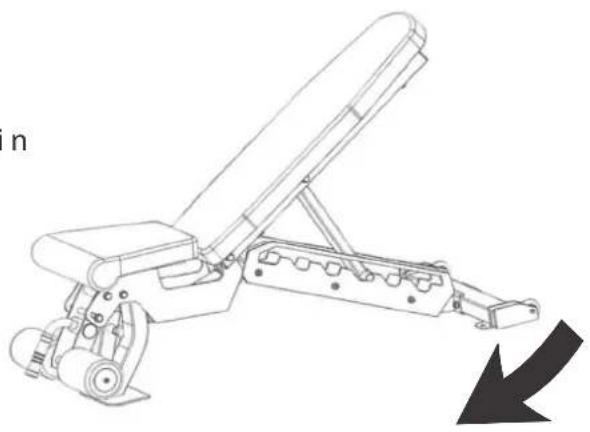

i NOTICE

The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration.

Technical line drawing of a mechanical support device with a directional arrow indicating motion (no text or symbols present)

Enter the serial number in the appropriate field.

Serial number:

Brand / Category:

Taurus / weight bench

Model Name:

Weight Bench B970

Article Number:

TF-B970

7.2 Parts List

No.	Name	Specification	Qty.
1 Main frame 1
2 Bottom tube 1
3 Fixed plate 1
4 Shark fin design plate 2
5 Back tube 2
6 Seat tube part 1
7 Adjustment tube 1
8 Adjustment sleeve 1
9 Support tube 1
10 Handle part 1
11 Foam 2
12 Foam cap 2
13 Seat cushion 1
14 Back cushion		1
15 Hexagon bolt	M10*90	5
16 Button head socket screw	M10*10	2
17 Lock nut	M10	5
18 Washer	Φ10	10
19 Hexagon bolt	M12*210	2
20 Hexagon bolt	M12*150	3
21 Hexagon bolt	M12*120	1
22 Lock nut	M12	6
23 Washer	Φ12	12
24 Hexagon bolt	M8*70	4
25 Hexagon bolt	M8*30	5
26 Washer	Φ8	8

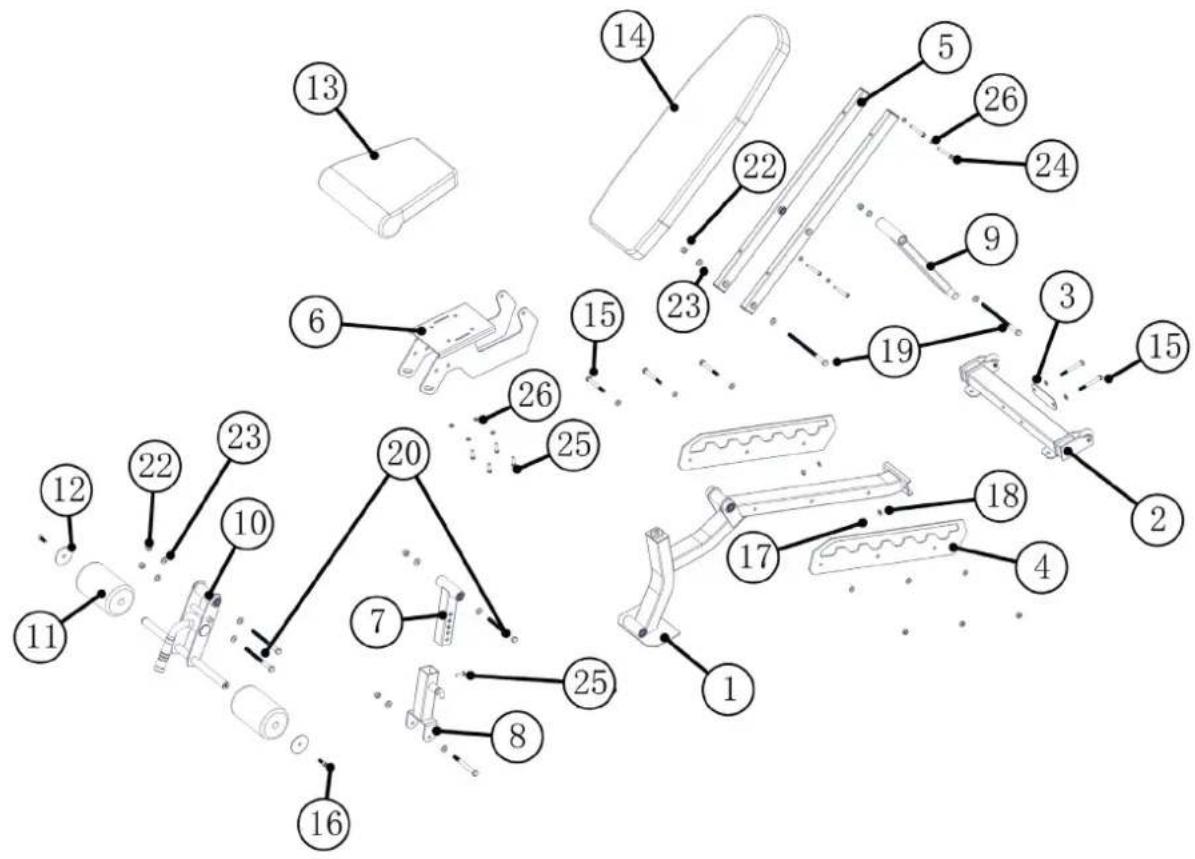

7.3 Exploded Drawing

Exploded view diagram of a mechanical assembly with numbered components for identification

Training equipment from Taurus ^® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.

Error Descriptions

Your fitness equipment is developed for long-term, high-quality training. However, should a problem arise, please first read the operating instructions. For further assistance, please contact your contract partner or call our service hotline. To ensure your problem is solved as quickly as possible, please describe the defect as exactly as possible.

In addition to the statutory warranty, we provide a warranty for every fitness equipment purchased from us according to the following provisions.

Your statutory rights are not affected.

Warrantee

The warrantee is the first/original buyer and/or any person who received a newly purchased product as a gift from the original buyer.

Warranty period

The warranty periods, shown on our web shop, begin on delivery of the fitness equipment. The respective warranty periods for your equipment can be found on its product website.

Repair Costs

According to our choice, there will either be a repair, a replacement of individual damaged parts or a complete replacement. Spare parts, that have to be mounted while assembling the equipment, have to be replaced by the warrantee personally and are not a part of repair. After the expiration of the warranty period for repair costs, a pure parts warranty applies, which does not include the repair, installation and delivery costs.

The terms of use are defined as follows:

• Home use: solely for private use in private households up to 3 hours per day
• Semi-professional use: up to 6 hours per day (e. g. rehabilitation centres, hotels, clubs, company gyms)
• Professional use: more than 6 hours per day (e. g. commercial gyms)

Warranty Service

Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.

Warranty Conditions

For the warranty to be valid, the following steps must be taken:

Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance. If the fault is covered by our warranty, you will receive a new or repaired equipment in return.

Warranty claims are invalid in case of damage resulting from:

• misuse or improper handling
• environmental influences (moisture, heat, electrical surge, dust, etc.)
• failure to follow the current safety measures for the equipment
• failure to follow the operating instructions
• use of force (e. g. hitting, kicking, falling)
• interventions which were not carried out by one of our authorized service centres
• unauthorised repair attempts

Proof of Purchase and Serial Number

Please make sure that you are able to provide the appropriate receipt when claiming on your warranty. So that we can clearly identify the model of your equipment, and for the purposes of our quality control, you will need to give the serial number of your equipment, when contacting the service team. Where possible please have your serial number and your customer number ready when you call our service hotline. It will help us to deal with your request swiftly.

If you cannot find the serial number on your fitness equipment, our service team is at your disposal to offer further information.

Service outside of the Warranty Period

We are also happy to issue an individual cost estimate if there is a problem with your fitness equipment after the warranty has expired, or in cases which do not fall under the terms of the warranty, e. g. normal wear and tear. Please contact our customer service team to find a quick and cost-effective solution to your problem. In such a case you will be responsible for the delivery costs.

Communication

Many problems can be solved just by speaking to us as your specialist supplier. We know how important it is to you as a user of the fitness equipment to have problems solved quickly and simply, so you can enjoy working out with minimal interruption. For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy.

DE DK FR

TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE
	80 90 16 50+49 4621 [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00	[phone]+49 4621 [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00
SERVICE	PL	BE
(Freecall)[e-mail] - Fr 08:00 - 21:00Sa 09:00 - 21:00So 10:00 - 18:00	TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE22 307 43 21+49 4621 42 [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00	02 732 46 77+49 4621 42 [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00

UK	NL	INT
TECHNICAL SUPPORT+44 141 876 [e-mail][phone]Mo - Fr 9am - 5pm	TECHNICAL SUPPORT & SERVICE+31 172 [e-mail] - Do 09:00 - 17:00Vr 09:00 - 21:00Za 10:00 - 17:00	TECHNICAL SUPPORT & SERVICE+49 4621 4210-944service-int@sport-tiedjeMo - Fr 8am - 6pmSat 9am - 6pm
	AT	CH
	TECHNICAL SUPPORT & SERVICE0800 20 20277(Freecall)[phone] [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00	TECHNICAL SUPPORT & SERVICE0800 202 027+49 4621 42 [e-mail] - Fr 08:00 - 18:00Sa 09:00 - 18:00

Please find a detailed overview including address and opening hours for all stores of the Sport-Tiedje Group in Germany and abroad on the following website:

www.sport-tiedje.com/en/stores

WE LIVE FITNESS

WEBSHOP AND SOCIAL MEDIA

Sport-Tiedje is Europe's largest specialist store for home fitness equipment with currently over 70 stores and one of the world's most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops in the respective national language or have their desired equipment assembled on site. In addition, the company supplies fitness studios, hotels, sports clubs, companies and physio practices with professional equipment for endurance and strength training.

Sport-Tiedje offers a wide range of fitness equipment from renowned manufacturers, high-quality in-house developments and comprehensive services, such as a build-up service and sports scientific advice before and after the purchase. The company employs numerous sports scientists, fitness trainers and competitive athletes.

Visit us also on our social media platforms or our blog!

TAURUS®
