USER MANUAL C830N OKI

White industrial paper printer with control panel and display screen (no visible text or symbols)

PREFACE

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer.

While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or completeness of the information contained herein.

The most up-to-date drivers and manuals are available from:

http://www.okiprintingsolutions.com

Copyright © 2008 Oki Europe Ltd. All rights reserved.

Oki, Oki Printing Solutions and Microline are registered trademarks of Oki Electric Industry Company, Ltd.

Energy Star is a trademark of the United States Environmental Protection Agency.

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corporation.

Apple, Macintosh, Mac and Mac OS are registered trademarks of Apple Computer.

Other product names and brand names are registered trademarks or trademarks of their proprietors.

As an Energy Star Program Participant, the manufacturer has determined that this product meets the Energy Star guidelines for energy efficiency.

This product complies with the requirements of the Council Directives 2004/108/EC (EMC) and 2006/95/EC (LVD) and 1999/5/ EC (R&TTE), as amended where applicable on the approximation of the laws of the member states relating to Electromagnetic Compatibility, and Low Voltage and Radio and Telecommunications Terminal Equipment.

Please note that Microsoft Windows XP was used to produce all screenshots in this manual. These screenshots may vary if you are using any other operating system, but the principle is the same.

EMERGENCY FIRST AID

Take care with toner powder:

If swallowed, give small amounts of cold water and seek medical attention. DO NOT attempt to induce vomiting.

If inhaled, move the person to an open area for fresh air. Seek medical attention.

If it gets into the eyes, flush with large amounts of water for at least 15 minutes keeping eyelids open. Seek medical attention.

Spillages should be treated with cold water and soap to help reduce risk of staining skin or clothing.

MANUFACTURER

Oki Data Corporation,

4-11-22 Shibaura, Minato-ku,

Tokyo 108-8551,

Japan

IMPORTER TO THE EU/AUTHORISED REPRESENTATIVE

Oki Europe Limited (trading as Oki Printing Solutions)

Oki Europe Limited

Blays House

Wick Road

Egham

Surrey TW20 0HJ

United Kingdom

For all sales, support and general enquiries contact your local distributor.

ENVIRONMENTAL INFORMATION

www.okiprintingsolutions.com OKI

CONTENTS

Preface 2

Emergency first aid ....3

Manufacturer....3

Importer to the EU/authorised representative. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Environmental Information....3

Contents 4

Notes, cautions and warnings....6

Introduction 7

Printer overview 8

Front view 8

Rear view 9

Changing the display language 9

Paper recommendations....10

Cassette trays. 10

Multi purpose tray 11

Face down stacker....11

Face up stacker....11

Duplex unit. 11

Loading paper....12

Cassette trays. 12

Multi purpose tray .....14

Operation 16

Using the machine. 16

Security (C830 only)....17

Secure printing 17

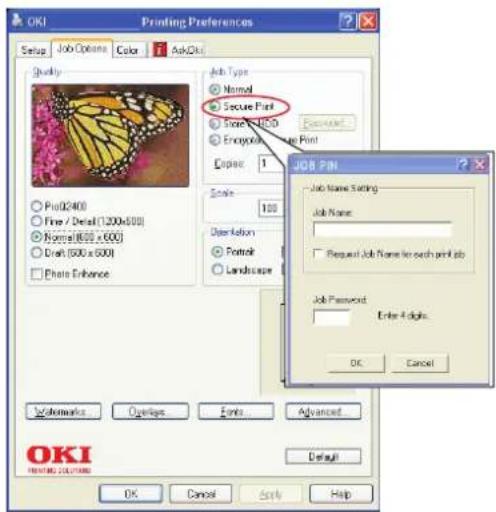

Sending the document .....17

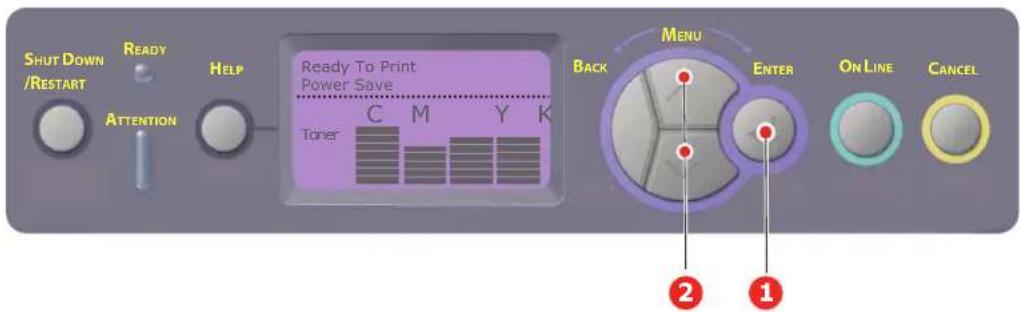

Printing the document .....18

Deleting a secure print document .....18

Store to hard disk....19

Sending the document 19

Printing the document .....19

Deleting a stored document .....20

Encrypted secure printing....20

Sending the document 21

Printing the document .....21

Menu functions - C810 22

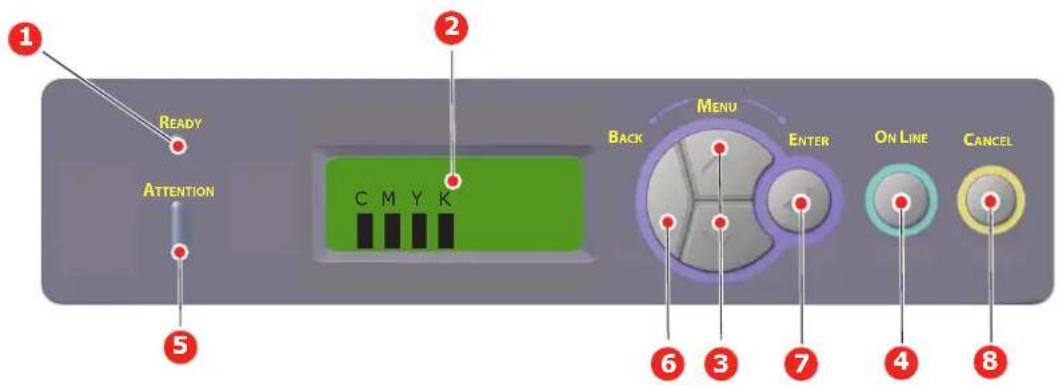

Operator Panel: 22

How to change the settings - User. 22

How to change the settings - Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Menus 24

Information menu 24

Shutdown Menu 24

Print menu 24

Media menu 25

Colour menu. 27

System configuration menu 27

Network menu 28

Maintenance menu 29

Usage menu 29

Administrator (Boot) Menu 30

Print Statistics Menu 32

Menu functions - C830 34

Operator Panel: 34

How to change the settings - User. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

How to change the settings - Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Configuration Menu 36

Print information menu 37

Print secure Job 38

Menus 39

Shutdown menu 42

Admin Setup. 43

Calibration 53

Administrator (Boot) Menu 54

Print Statistics Menu ....57

Overlays and Macros (C830 - Windows only) .....58

What are overlays and macros? 58

Creating PostScript overlays .....58

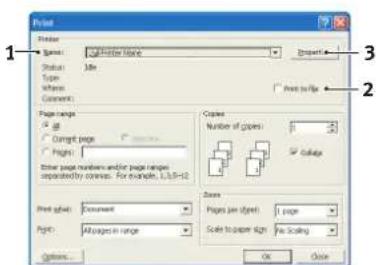

Creating the overlay image. 58

Create and download the project. 59

Test printing the overlay 59

Defining overlays 59

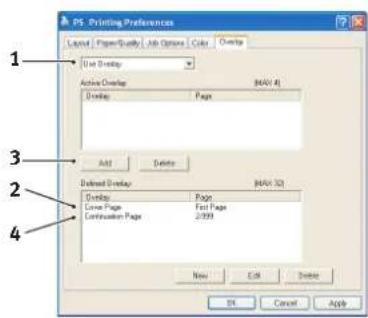

Printing with PostScript overlays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Creating PCL Overlays 61

Creating the overlay image. 61

Create and download macros 61

Test printing the macro 62

Defining overlays 62

Printing with PCL overlays 63

Replacing consumable items. 64

Consumable order details 64

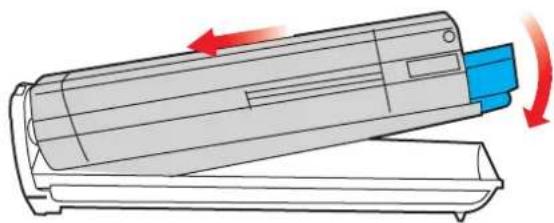

Toner cartridge replacement. 65

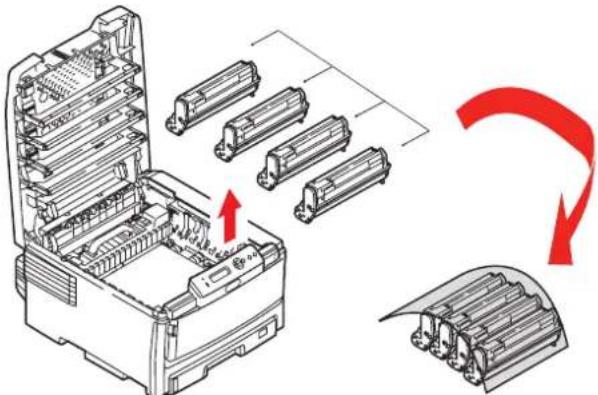

Image drum replacement 68

Transfer belt replacement 71

Fuser replacement....73

Cleaning the LED head. 74

Installing upgrades....75

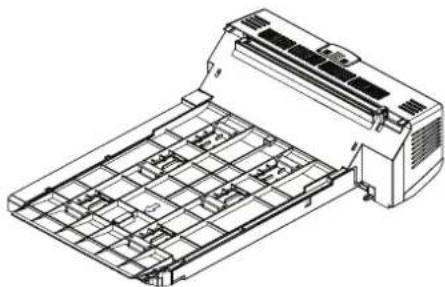

Duplex unit. 76

Memory upgrade (C830) 77

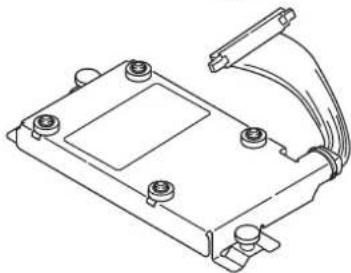

Hard disk drive (C830)....80

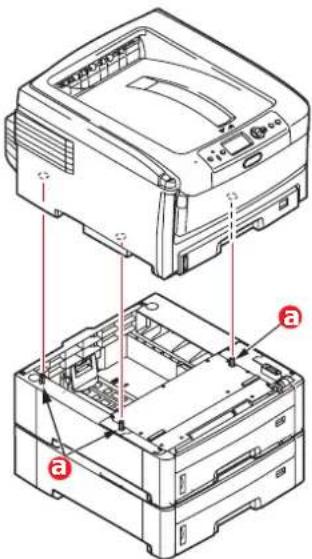

Additional paper tray(s) 82

Adjusting printer drivers. 83

Windows: 83

Macintosh....83

Storage Cabinet 84

Clearing paper jams .85

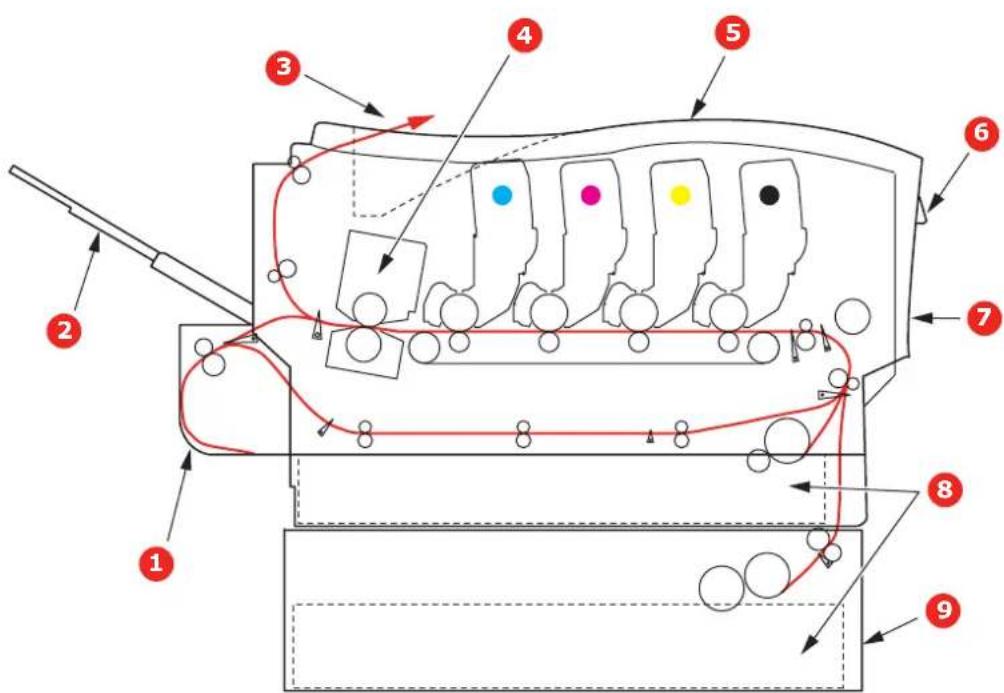

Major Printer components and paper path 85

Paper sensor error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Specifications 92

Index 94

Oki contact details. .95

NOTES, CAUTIONS AND WARNINGS

NOTE

A note provides additional information to supplement the main text.

CAUTION!

A caution provides additional information which, if ignored, may result in equipment malfunction or damage.

WARNING!

A warning provides additional information which, if ignored, may result in a risk of personal injury.

For the protection of your product, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine original toner cartridges. Any other toner cartridge may not operate at all, even if it is described as "compatible", and if it does work, your product's performance and print quality may be degraded.

Non-genuine original products may invalidate your warranty.

Specifications subject to change without notice. All trademarks acknowledged.

INTRODUCTION

Congratulations on buying this Oki Printing Solutions colour printer. Your new printer is designed with advanced features to give you clear, vibrant colour prints and crisp black and white pages at high speed on a range of print media for the office.

Your printer includes these features:

Compact A3 desktop footprint;
ProQ2400 multi-level technology produces subtler tones and smoother graduations of colour to lend photographic quality to your documents;
Up to 30 pages per minute in full colour for fast printing of high impact colour presentations and other documents;
Up to 32 pages per minute in black and white for fast and efficient printing of all general purpose documents not requiring colour;
600 x 600, 1200 x 600 dpi (dots per inch) and ProQ2400 print resolution for high quality image production showing the finest detail;
Single Pass colour Digital LED technology for high speed processing of your printed pages;
Profile Assistant utility allows you to download ICC profiles to the hard disc (Hard Disc Drive required) (C830);
PostScript 3, PCL 5C, PCL 6 and Epson FX emulations for industry standard operation and wide compatibility with most computer software (C830);
Secure encrypted printing (C830) - allows you to print confidential documents on printers that are shared with other users in a network environment;
10Base-T and 100Base-TX network connection lets you share this valuable resource among users on your office network;
Photo Enhance mode allows printing of sharp, photo-like images on ordinary office quality paper;
"Ask Oki" – a user-friendly function for Windows that gives a direct link from your printer driver screen to a dedicated web site specific to the exact model you are using. This is where you'll find all the advice, assistance and support you could need to help you get the best possible results from your Oki printer;
"WebPrint Internet Explorer 6.0 plugin" - a Windows function that enables you to print web pages properly;
Template Manager utility for Windows enables the design and print of Business cards, banners, labels with ease;
Support for Windows Vista operating system.

Additionally, the following optional features are also available:

Automatic two-sided (duplex) printing for economical use of paper and compact printing of larger documents (standard on dn models);

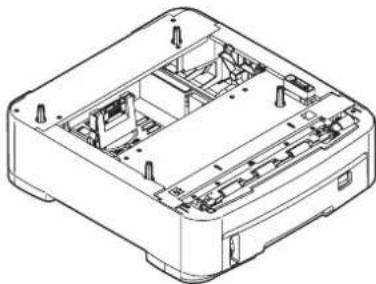

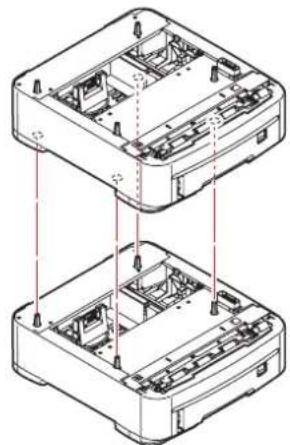

Additional paper trays for loading a further 530/1060 sheets to minimise operator intervention, or different paper stocks for letterhead stationery, alternative paper sizes or other print media;

Additional memory allows printing of more complex pages. For example, high resolution banner printing (C830);

Internal hard disk drive for Secure printing, storage of overlays, macros and downloadable fonts, and automatic collation of multiple copies of multipage documents and the download of ICC Profiles (C830);

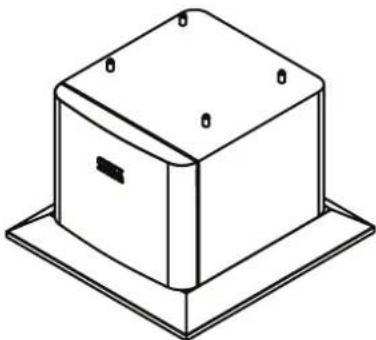

Storage Cabinet.

PRINTER OVERVIEW

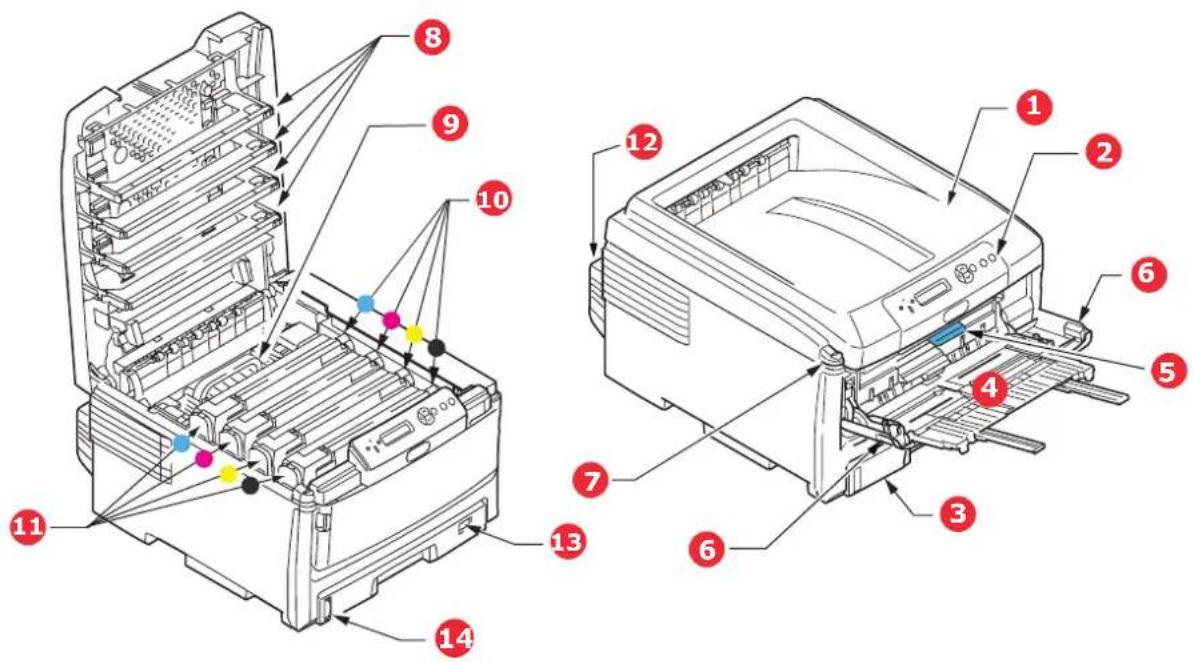

FRONT VIEW

Technical diagram of a printer internal structure with numbered components and colored markers indicating parts.

1. Output stacker (face down).

Standard printed copy delivery point. Holds up to 250 sheets at 80g/m².

1. Operator panel.

Menu driven operator controls and LCD display panel.

1. Paper tray.

Standard blank paper tray. Holds up to 300 sheets of 80g/m² paper.

1. Multi purpose tray.

Used for feeding heavier paper stocks, envelopes and other special media. Also for manual feeding of single sheets when required.

1. Front cover release lever.

2. Multi-purpose tray release lever

3. Top cover release button.

4. LED heads

5. Fuser

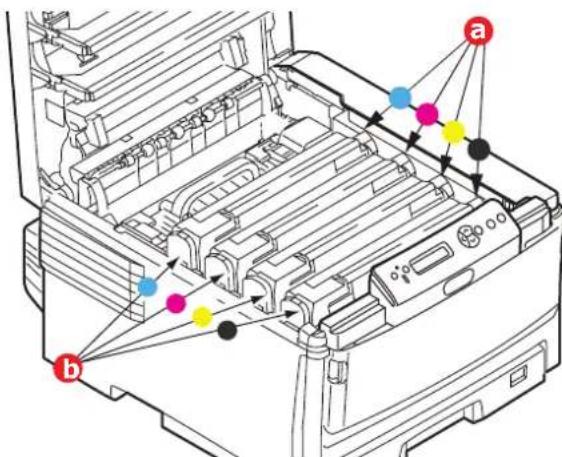

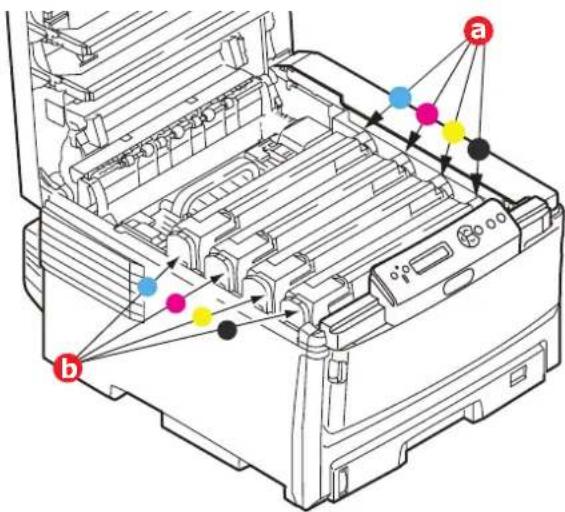

10.Toner cartridges (C,M,Y,K).

11.ID units (C,M,Y,Y).

1. Duplex Unit (optional).

13.Paper size dial.

1. Paper level guage.

The LCD display language can be changed to show different languages. (See "Changing the display language" on page 9.)

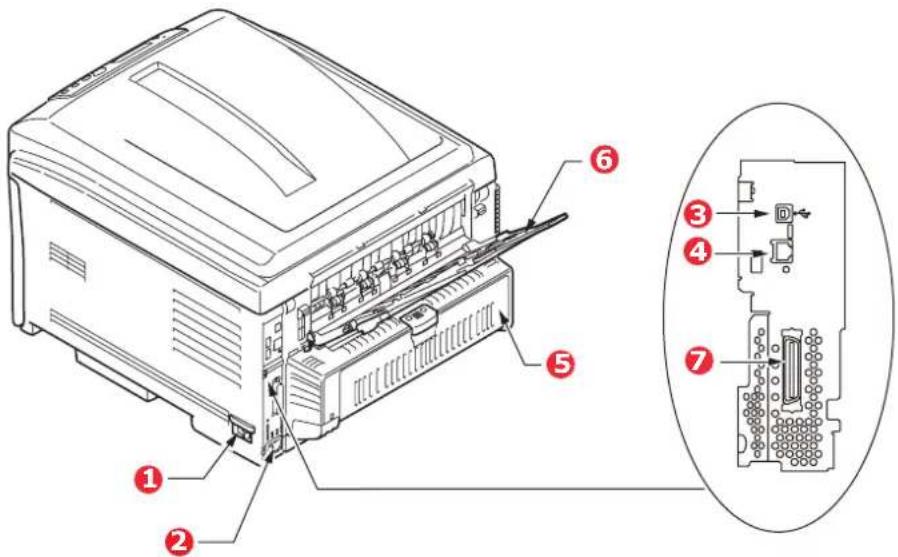

REAR VIEW

This view shows the connection panel, the rear output stacker and the location of the optional duplex (two-sided printing) unit.

Technical diagram of a printer internal structure with numbered components and an exploded view of the internal component.

1. ON/OFF switch.
2. AC power socket.
3. USB interface.

4. Network interface.*

5. Duplex unit (when fitted).

6. Rear, face up, 100 sheet stacker.
7. Parallel Port.

* The Network Interface may have a protective "plug" which must be removed before connection can be made.

When the rear paper stacker is folded down paper exits the printer through the rear of the printer and is stacked here face up. This is mainly used for heavy print media. When used in conjunction with the multi purpose feed tray, the paper path through the printer is essentially straight. This avoids bending the paper around curves in the paper path and enables feeding of up to 200g/m^2 media.

CHANGING THE DISPLAY LANGUAGE

The default language used by your printer for display messages and for report printing is English. If required, this can be changed to:

German Danish

French Dutch

Italian Turkish

Spanish Portuguese

Swedish Polish

Russian Greek

Finnish Czech

Hungarian Norwegian

NOTE:

1. The list above is neither conclusive nor exhaustive.
2. See the information enclosed with the product (Operator Panel Language Set-up utility) on the procedure for changing the language setting.

PAPER RECOMMENDATIONS

Your printer will handle a variety of print media, including a range of paper weights and sizes, transparencies and envelopes. This section provides general advice on choice of media, and explains how to use each type.

The best performance will be obtained when using standard 75\~90g/m ^2 paper designed for use in copiers and laser printers. Suitable types are:

Arjo Wiggins Conqueror Colour Solutions 90g/m²;
Colour Copy by Mondi Business paper.

Use of heavily embossed or very rough textured paper is not recommended.

Pre-printed stationery can be used, but the ink must not offset when exposed to the high fuser temperatures used in the printing process.

Envelopes should be free from twist, curl or other deformations. They should also be of the rectangular flap type, with glue that remains intact when subjected to hot roll pressure fusing used in this type of printer. Window envelopes are not suitable. Envelopes should be handled by the Multi Purpose tray.

Transparencies should be of the type designed for use in copiers and laser printers. In particular, avoid office transparencies designed for use by hand with marker pens. These will melt in the fuser and cause damage. Transparencies should be handled by the Multi Purpose tray.

Labels should also be of the type recommended for use in copiers and laser printers, in which the base carrier page is entirely covered by labels. Other types of label stock may damage the printer due to the labels peeling off during the printing process.

Use the MPT for printing labels.

CASSETTE TRAYS

SIZE DIMENSIONS WEIGHT (G/M2)
A6 (Tray 1 only)	105 x 148mm	Light 64-82g/m2Medium light 83- 90g/m2Medium 91-105g/m2Heavy 106-128g/m2Ultra heavy1 129-203g/m2Ultra heavy2 204-220g/m2(>176g/m2 - MP Tray only)
A5 148 x 210mm
B5 182 x 257mm
Executive 184.2 x 266.7mm
A4 210 x 297mm
B4 250 x 353mm
A3 420 x 297mm
Letter 215.9 x	279.4mm
Legal 13in.	216 x 330mm
Legal 13.5in.	216 x 343mm
Legal 14in.	216 x 356mm

If you have identical paper stock loaded in another tray (2nd/3rd tray if you have one, or multi purpose tray) you can have the printer automatically switch to the other tray when the current tray runs out of paper. When printing from Windows applications, this function is enabled in the driver settings. When printing from other systems, this function is enabled in the Print Menu.

If fitted, tray 2/3 may be removed and replenished while the machine is being fed from tray 1. Tray 1 cannot be removed while the machine is being fed from tray 2/3, because parts of tray 1 are used to guide paper fed from tray 2. This also applies to tray 2 when paper is being fed from tray 3.

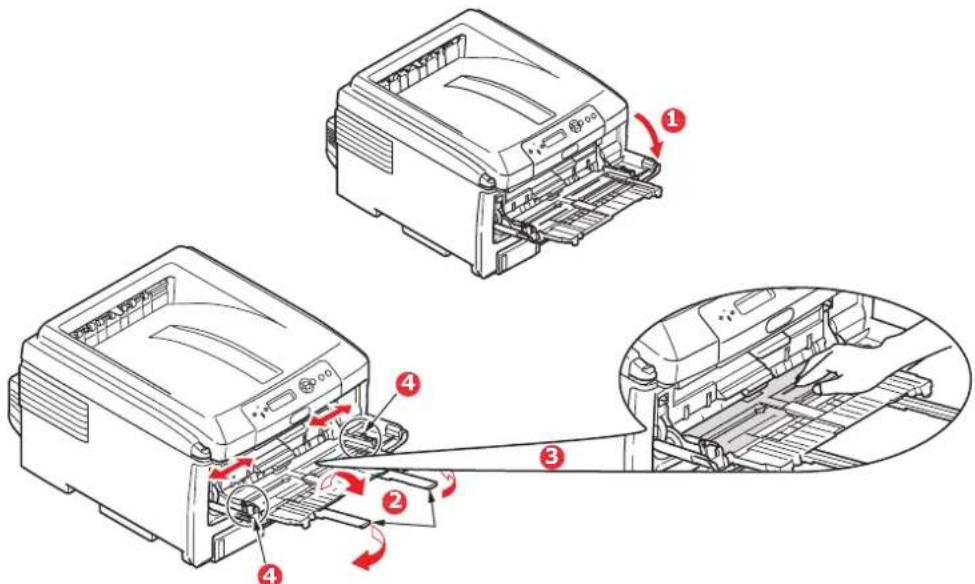

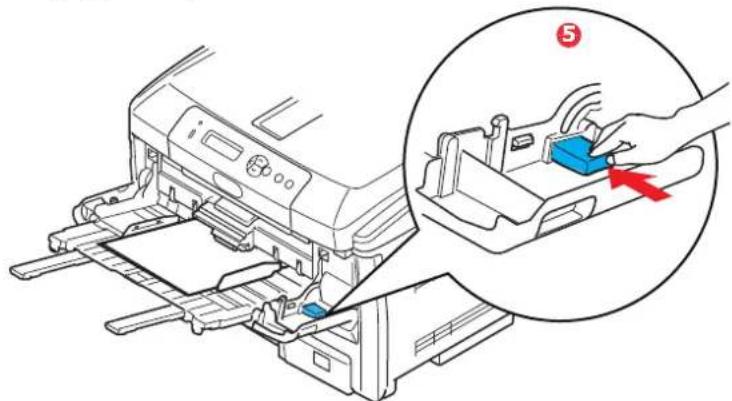

MULTI PURPOSE TRAY

The multi purpose tray can handle the same sizes as the cassette trays but in weights up to 220g/m^2 . For very heavy paper stock use the face up (rear) paper stacker. This ensures that the paper path through the printer is almost straight.

The multi purpose tray can feed paper widths as small as 64mm and lengths up to 1320mm (banner printing).

For paper lengths exceeding 431.8mm use paper stock up to 128g/m^2 and the face up (rear) paper stacker.

Use the multi purpose tray for printing on envelopes and transparencies. Up to 50 sheets of transparencies or 10 envelopes can be loaded at one time, subject to a maximum stacking depth of 10mm.

Paper or transparencies should be loaded print side up and top edge into the printer. Do not use the duplex (two-sided printing) function.

FACE DOWN STACKER

The face down stacker on the top of the printer can hold up to 250 sheets of 80g/m^2 standard paper, and can handle paper stocks up to 176g/m^2 . Pages printed in reading order (page 1 first) will be sorted in reading order (last page on top, facing down).

FACE UP STACKER

The face up stacker at the rear of the printer should be opened and the tray extension pulled out when required for use. In this condition paper will exit via this path, regardless of driver settings.

The face up stacker can hold up to 100 sheets of 80g/m^2 standard paper, and can handle stocks up to 220g/m^2 .

Always use this stacker and the multi purpose feeder for paper stocks heavier than 176g/m^2 .

DUPLEX UNIT

This option provides automatic two-sided printing on the same range of paper sizes as tray 2/3 (i.e. all cassette sizes except A6), using paper stocks from 64-128g/m ^2 .

NOTE:

The duplex unit comes as standard with dn & cdtn models.

LOADING PAPER

CASSETTE TRAYS

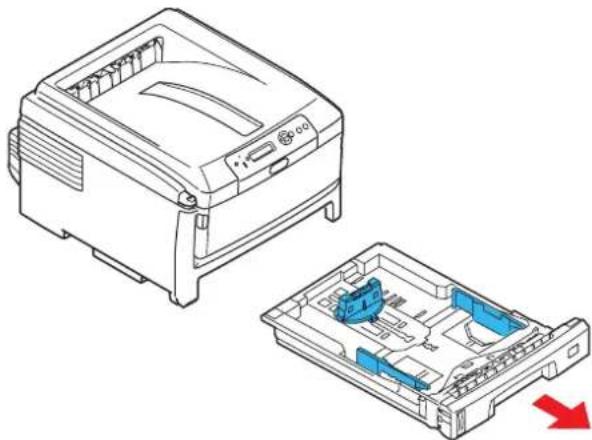

1. Remove the paper tray from the printer.

Technical line drawing of a printer case with internal components and a red arrow indicating a downward motion (no text or symbols present)

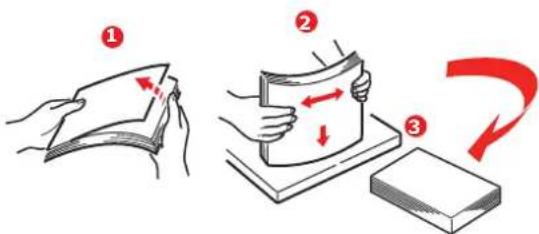

1. Fan the paper to be loaded at the edges (1) and in the middle (2) to ensure that all sheets are properly separated, then tap the edges of the stack on a flat surface to make it flush again (3).

Illustration showing three-step folding process: folding paper, folding paper with red arrows indicating direction, and folding paper with red arrows indicating rotation.

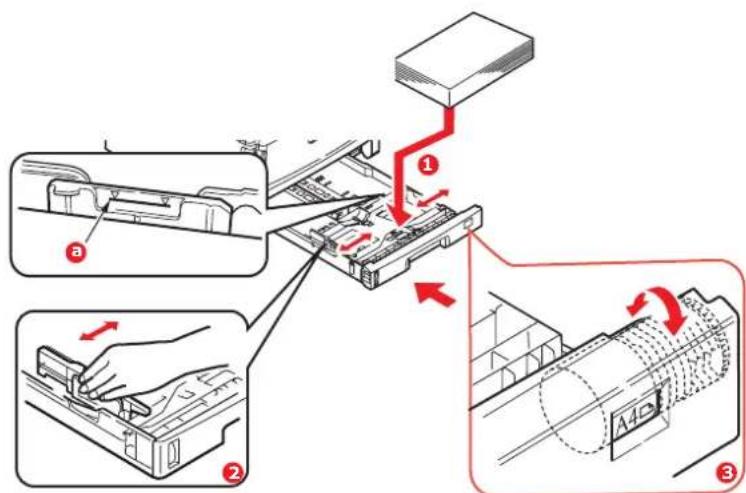

1. Load paper long edge feed (LEF) (letter headed paper - face down and top edge towards the right of the printer) (1) up to mark (a).

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating motion or movement.

1. Adjust the rear stopper, paper guides (2) and cassette tray roller (3) to the size and orientation of paper being used. For A6 paper, remove and re-install in the A6 position.

CAUTION!

IMPORTANT: Set paper size dial (3) to the size and orientation of paper being used (A4 LEF in the above example).
C810 only: GDI printers use the printer settings defined by the host (PC).

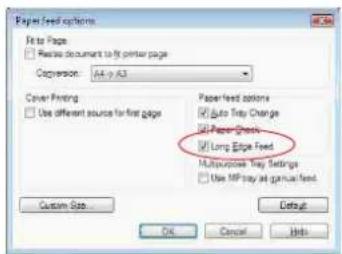

If the paper is oriented long-edge, the Long Edge Feed (LEF) checkbox must be enabled in the printer driver.

If the paper is oriented short-edge, the Long Edge Feed checkbox must be disabled in the printer driver.

Paper Feed Options Fit to Page □ Realise document to fit printer page Copy: A4-y A3 Cover Printing □ Use different source for first page Paper feed options □ Auto Tray Change □ Full Paper Drink □ Long Edge Feed Multipurpose Tray Settings □ Use MP tray at general feed Custom Size... OK Cancel Help

If the driver setting doesn't match the paper orientation, the printer will display an error message indicating that a mismatch has occurred.

1. If you have two trays and you are printing from the 1st (upper) tray, you can pull out the 2nd (lower) tray during printing to reload it. However, if printing from the 2nd (lower) tray, do not pull out the 1st (upper) tray. This will cause a paper jam.

If 3 trays are fitted this applies to trays 1 & 2 if printing from the 3rd (lower) tray.

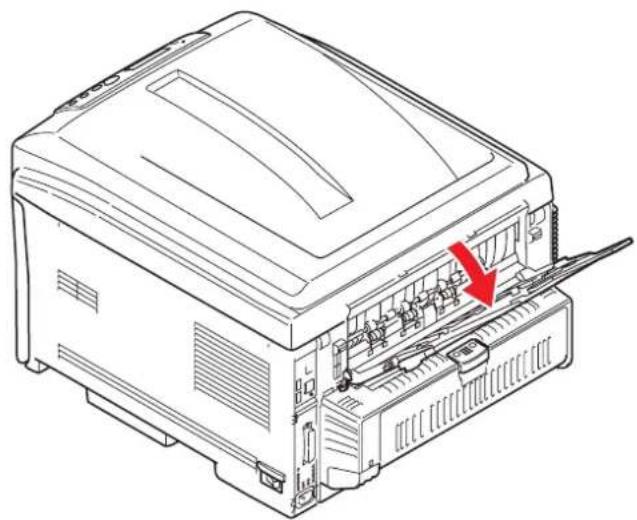

1. For face down printing, make sure the face up (rear) stacker (3) is closed (the paper exits from the top of the printer). Stacking capacity is approximately 250 sheets, depending on paper weight.
2. For face up printing, make sure the face up (rear) stacker (3) is open and the paper support (4) is extended. Paper is stacked in reverse order and tray capacity is approximately 100 sheets, depending on paper weight.

Line drawing of a printer internal structure with a red arrow indicating a component (no text or symbols present)

1. Always use the face up (rear) stacker for heavy paper (card stock etc.).

CAUTION!

Do not open or close the rear paper exit while printing as it may result in a paper jam.

To prevent paper jams:

Do not leave space between the paper and the guides and rear stopper.
Do not overfill the paper tray. Capacity depends on the type of paper stock.
Do not load damaged paper.
Do not load paper of different sizes or types at the same time.
Do not pull the paper tray out during printing (except as described above for the 2nd tray).

Close the paper tray gently.

MULTI PURPOSE TRAY

1. Open the multi purpose tray (1).
2. Fold out the paper supports (2).

Technical diagram showing two printer units with numbered parts and directional arrows indicating assembly or connection.

1. Press gently down on the paper platform (3) to ensure it is latched down.
2. Load the paper and adjust the paper guides (4) to the size of paper being used.

For single-sided printing on A4 headed paper load the paper into the multi purpose tray with pre-printed side up and left hand edge (LEF), top edge (SEF) into the printer.
For two-sided (duplex) printing on A4 headed paper load the paper with preprinted side down and left hand edge (LEF), top edge (SEF) away from the printer. (Optional duplex unit must be installed for this function.)
Envelopes should be loaded face up with top edge to the left and short edge into the printer. Do not select duplex printing on envelopes.
Do not exceed the paper capacity of about 100 sheets or 10 envelopes. Maximum stacking depth is 10mm.

1. Press the tray latch button (5) inwards to release the paper platform, so that the paper is lifted and gripped in place.

Diagram showing printer press application with a hand inserting a blue component labeled '5' to a device, highlighting the process.

Set the correct paper size for the multi purpose tray in the Media Menu (see "Menu Functions").

OPERATION

USING THE MACHINE

C830 - For full details of how to use the machine and any optional accessories to print jobs efficiently and effectively, please refer to the Printing Guide and the Barcode Guide.
C830 - For full details of how to access and use the printer security features, please refer to the Security Guide.
C810 and C830 - For full details of how to connect and use the network feature, please refer to the Network Guide.

SECURITY (C830 ONLY)

SECURE PRINTING

Secure printing allows you to print confidential documents on machines that are shared with other users in a network environment.

The document does not print until a PIN (Personal Identification Number) is entered through the Printer Control Panel. You must go to the machine and enter the PIN.

This feature requires the hard disk drive option to be fitted to your machine and enabled in the printer driver.

If there is not enough hard disk space for the spooled data, a "Disk Full" message displays, and only one copy prints.

The secure printing feature may not be available from within some PC applications.

If your application software has a collate print option, turn it off. Otherwise secure printing will not work.

Secure printing is not supported in the Mac environment.

There are three parts in secure printing:

Sending the document to the machine (page 17);
Printing the document (page 18);
Deleting the document when it is not required (page 18).

SENDING THE DOCUMENT

1. If using the PCL driver, in the [Setup] tab choose any saved driver settings you wish to use.
2. In the driver's [Job Options] tab, click [Secure Print].
3. The Job PIN (Personal Identification Number) window opens.

OKI Printing Preferences Setup Job Options Color AskOKI Quality Normal Secure Print Secure PDF Encyclopedia Print Copies 1 Scale 100 Operation Potash Landscape Job PIN Job Name Setting Job Name: Request Job Name for each print job Job Password: Enter All rights... OK Cancel Watermarks Opening Entry Advanced OK Cancel Apply Help OK Cancel Apply Help OK Cancel Apply Help

1. If the PIN window does not open, click the [PIN] button.
2. In the Job PIN window, enter a [name] for this print job.
3. The name may be up to 16 alpha-numeric characters.
4. If you would like a prompt at the machine for the job name, click the [Request...] checkbox below the name entry.

5. Enter a number from 0000 to 9999 in the [PIN] box.

6. Your PIN must be unique on this machine. Each user should be allocated a PIN by the system administrator.

7. Click [OK] to accept your changes.

8. Click [OK] to close the Printer Properties window.

9. Print your document.

10. The print job will be sent to the machine, but will not print at this time.

PRINTING THE DOCUMENT

Your secure print job is printed using the Printer Control Panel on the front of the machine.

SHUT DOWN /RESTART READY HELP ATTENTION Ready To Print Power Save Toner C M Y K MENU BACK ENTER ON LINE CANCEL ② ①

1. When the machine is idle use the UP or DOWN arrow buttons (2) to select the PRINT JOB menu, then press [ENTER] (1).

2. Select "ENCRYPTED/STORED JOB".

3. Use the UP or DOWN arrow buttons to enter the first digit of your PIN, then press [ENTER].

4. Repeat step 3 to enter the remaining three digits.

5. Press [ENTER] to confirm you wish to print the document.

6. Use the UP or DOWN arrow buttons to select the number of collated copies you require.

7. Press [ENTER] to print your document.

When all required copies have been printed your document is automatically deleted from the machines hard disk.

It is also possible to print and delete secure documents remotely from your PC using the Storage Device Manager utility.

DELETING A SECURE PRINT DOCUMENT

If you change your mind about printing a secure document, you can delete it from the machine's hard disk without printing it first.

1. Follow steps 1 to 4 in the above procedure for printing the document.

2. Use the UP or DOWN arrow buttons to highlight the DELETE option and press [ENTER].

3. If necessary, use the UP or DOWN arrow buttons to highlight the YES choice, and press [ENTER] to confirm the deletion.

4. Your document is deleted from the machine's hard disk without printing.

STORE TO HARD DISK

This feature allows print jobs to be created on the PC and stored on the machine's hard disk for printing on demand. This is good for forms, generic memos, letterhead, stationery, etc.

If you use this feature for standard forms, for example, you can walk up to the machine at any time and print off your forms without having to re-send them from the PC.

This feature works in exactly the same way as the secure printing feature described earlier in this Chapter, and is available only in the Windows PostScript and PCL drivers. The difference with job spooling is that the document is not automatically deleted from the machine's hard disk after printing. It remains there for future use until you delete it from the Printer Control Panel or from your PC with the Storage Device Manager utility.

NOTE:

If this choice does not appear in the driver screens, or if it is greyed out, check to ensure that the hard disk is enabled in the printer driver.

Like the secure printing feature, there are three parts in job spooling:

1. Sending the document
2. Printing the document
3. Deleting a stored document

SENDING THE DOCUMENT

Follow the same procedures as described in the section "Sending the document" on page 17 for sending a secure document, except that on the [Job Options] tab in step 2, click [Store to HDD].

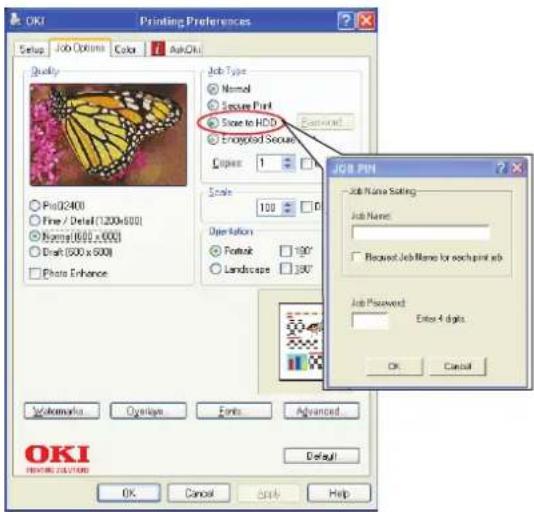

OKI Printing Preferences Setup Job Options Color AutOKI Quality Job Type Normal Secure Print Close to HDD Enopted Secure Open: 1 Scale: 100 Operation: Forward: Landrace: JGP PIN Job Name Setting Job Name: Request Job Name for each print job Job Password: Enter 4 digits OK Cancel OKI OKI Cancel Help

PRINTING THE DOCUMENT

Follow the same procedures as described in "Printing the document" on page 19 for printing a secure document. In this case the document will not be deleted from the hard disk after it has been printed.

DELETING A STORED DOCUMENT

Follow the procedure as described in "Deleting a secure print document" on page 18 for deleting a secure print document.

Like secure print documents, any other documents stored on the machine's hard disk can also be deleted remotely from the PC using the Storage Device Manager utility.

ENCRYPTED SECURE PRINTING

Security over the network is an increasing concern for some organisations. Encrypted secure printing allows you to send, store and print confidential documents on machines that are shared with other users in a network environment.

Encrypting your documents before sending them to your machine will prevent unauthorised personnel accessing confidential or sensitive information.

Print jobs are encrypted immediately before transmission to the machine, where they are stored in an encrypted format on the hard disk drive. The documents will remain stored and unprinted until an authorised user authenticates the print job; decryption only happens when the job is actually printing.

This feature requires the hard disk drive in your machine, this device must be enabled in the printer driver.

The encrypted secure printing feature may not be available from within some PC applications.

If your application software has a collate print option, turn it off. Otherwise secure printing may not work.

NOTE:

Encrypted secure printing is not available with either 32 bit or 64 bit versions of Windows Vista.

There are two parts in encrypted secure printing:

Sending the document

Printing the document

SENDING THE DOCUMENT

1. If using the PCL driver, in the [Setup] tab choose any saved driver settings you wish to use.

2. In the driver's [Job Options] tab, click [Encrypted Secure Print].

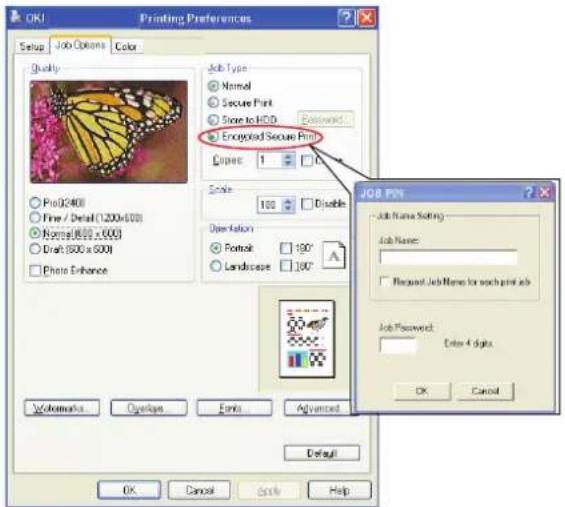

3. The Encrypted Secure Print window opens.

OK! Printing Preferences Setup Job Options Color Quality Pre02400 Fine / Detail (1200x600) Name(800 x 500) Draft (500 x 500) Photo Enhance Job Type Normal Secure Print Store to HDD Password Encrypted Secure Print Lines: 1 Scale: 100 Disable Operation: Portfolio 190° Landrace 180° JOB PIN Job Name Setting Job Name: Request Job Names for each print job Job Password: Enter 4 digits OK Cancel 万平方米 Overlaps Fonts Advanced Default OK Cancel Tools Help

1. In the Encrypted Secure Print window, enter a [Password] for this print job:

The password must be between 4 and 12 alpha-numeric characters. Numbers 1 to 9 and letters a to z are all valid.

If you would like a prompt at the machine for the job password, click the [Always ask for password] checkbox below the password entry.

1. Select the required erase option for your print job:

No overwrite: simply erases a print job without over writing the job with data. This erase method poses a risk of the print job being reconstructed.

Zero out once: erases a print job after over writing it with data once. This erase method is safer than the "No overwrite" option however it still poses a risk of the print job being reconstructed.

Multiple Random Overwrites: erases a print job after over writing it with data three times. This is the safest method of erasing a print job however it takes longer to complete the job.

1. Select the Auto Erase Time-out period.

Specify a period of time (hours:minutes) during which the print job is stored in the machine's HDD. When this period expires, the print job is automatically erased from the HDD.

1. Click [OK] to accept your changes.

2. Click [OK] to close the Printer Properties window.

3. Print your document.

PRINTING THE DOCUMENT

Follow the same procedures as described in the section "Printing the document" on page 19 for printing a secure document. In this case you will enter your password, and the document will be erased from the hard disk depending on the options you specified when sending the document to print.

MENU FUNCTIONS - C810

This section lists the menus accessed via the controls on the printer's operator panel and displayed in the LCD window.

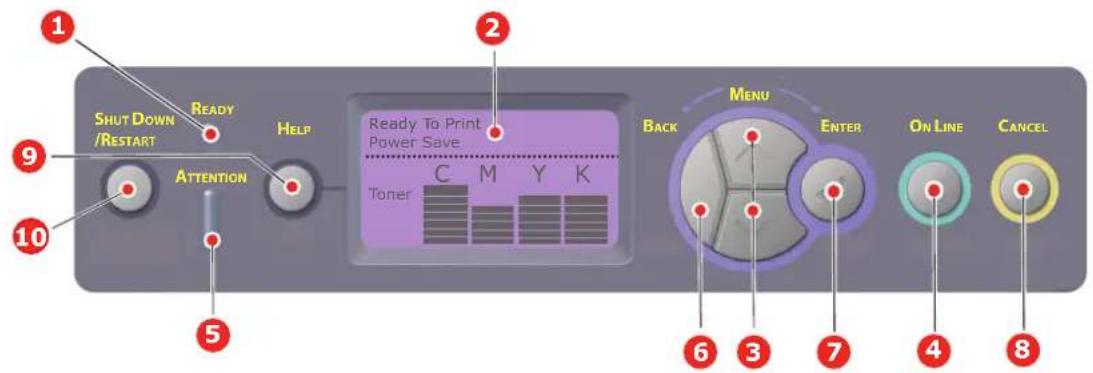

OPERATOR PANEL:

1 READY ATTENTION 2 C M Y K Back MENU ENTER ON LINE CANCEL 5 6 3 7 4 8

1. Ready LED	ON:Ready to receive data.Blinking:Processing data.OFF: Offline.	2. Display	Displays the printer status and any error messages.
3. Menu Button	Enters the Menu mode. In Menu mode, forwards or reverses the menu item displayed.Press for 2 secs. or longer to fast forward or reverse.	4. On Line Button	Switches between ONLINE and OFFLINE.Exits the menu and goes ONLINE when pressed in the Menu mode.Scrolls the HELP screen.Forces printing on the paper currently loaded when pressed with "WRONG PAPER" or "WRONG PAPER SIZE" displayed.
5. Attention LED	ON: A warning occurs.Printing is possible.Blinking: An error occurs.Printing not possible.OFF: Normal condition.	6. Back Button	Returns to the previous higher level menu item.
7. Enter Button	In the ONLINE or OFFLINE mode: enters the Menu mode.In the Menu mode:determines the setting selected.	8. Cancel Button	Deletes the data being printed or received when pressed for two seconds or longer.Deletes the data when pressed for two seconds or longer with WRONG PAPER SIZE, RUN OUT OF PAPER, TRAY 1 IS OPEN, or TRAY 1 IS NOT FOUND is displayed.

HOW TO CHANGE THE SETTINGS - USER

It should be noted that many of these settings can be, and often are, overridden by settings in the Windows printer drivers. However, several of the driver settings can be left at "Printer Setting", which will then default to the settings entered in these printer menus.

Where applicable, factory default settings are shown in bold type in the following tables.

In the normal operating condition, known as "standby," the printer's LCD window will show "ONLINE." In this condition, to enter the menu system, press the +/- buttons on the operator panel to move up and down through the list of menus until the menu you wish to view is displayed. Then proceed as follows:

1. Press ENTER to enter the menu.

2. Use the up or down Menu buttons to move up and down through the items in the menu. When the item you want to change is displayed, press Enter to edit that item. An asterisk (*) appears next to the setting currently in effect.

3. Use the up or down Menu buttons to move up and down through the available settings for this item, and press Enter when the setting you want is displayed. An asterisk (*) will appear next to the setting, indicating that this setting is now in effect.

4. Press BACK to move back to the list of menu items.

5. Do one of the following:

Press BACK again to move up to the list of menus;

or...

Press ON LINE to exit from the menu system and return to standby.

NOTE:

When you have changed any settings in the USB MENU, turn the printer OFF, then ON again.

HOW TO CHANGE THE SETTINGS - ADMINISTRATOR

You can set whether to ENABLE or DISABLE each category in the user menu.

Disabled categories are not displayed in the User's menu.

Only a system administrator can change these settings.

1. Turn OFF the printer.

2. Turn ON the printer while pressing the Enter button.

When the Admin Menu appears, take your finger off the button.

1. Press the Enter button.

2. When Enter Password appears, press the up or down Menu button several times to display the 1st line of the password and then press the Enter button.

Enter your 4- to 9-digit password.

(The default password is "aaaaaa").

1. Press the Enter button.

2. Press the up or down Menu button until the "category" you want to change is displayed.

3. When it is, press the Enter button.

4. Press the up or down Menu button until the "item" you want to change is displayed.

5. When it is, press the Enter button..

6. Initialization of the flash memory prompts with the message ARE YOU SURE?.

Confirm whether the change may be executed or not.

1. To execute it, press the up or down Menu button to display YES and then press the Enter button. The printer automatically reboots.

2. When PLEASE POW OFF/SHUTDOWN COMP is displayed, turn the printer OFF/ON

3. Press the up or down MENU button until the settingyou want is displayed.

4. Press the Enter button to enter [*] on the right side of the setting selected.

5. Press the On Line button to switch the printer online.

MENUS

INFORMATION MENU

This menu provides a quick method of listing various items stored within the printer.

ITEM ACTION EXPLANATION
PRINT MENU MAP EXECUTE	Prints complete menu	listing with current settings shown.
NETWORK EXECUTE Prints	Network configuration	information.
DEMO1 EXECUTE Prints de	monstration page containing graphics and text in colour and monochrome.
USAGE REPORT EXECUTE	Prints a report of total impressions and supply replacements.

SHUTDOWN MENU

ITEM ACTION EXPLANATION
SHUTDOWN START EXECUTE	TE Starts the power off sequence (this protects the filing system).

PRINT MENU

This menu provides adjustment of various print job related functions.

ITEM SETTINGS EXPLANATION
COPIES	1-999	Enter the number of copies of a document to be printed from 1 to 999.
PAPER FEED TRAY1	TRAY2MP TRAY	Selects the default tray for paper feed, Tray 1 (upper), Tray 2 (lower, if installed) or MP Tray (multi purpose tray).
AUTO TRAY SWITCH	ONOFF	If two trays contain identical paper, the printer can switch to an alternative source when the current tray runs out in the middle of a print job.
TRAY SEQUENCE	DOWNUPPAPER FEED TRAY	Determines tray sequence order when automatically switching.
MP TRAY USAGE	DO NOT USEWHEN MISMATCH	If a document to be printed demands a paper size not installed in the selected tray, the printer can automatically feed from the multi purpose tray instead. If this function is not enabled, the printer will stop and request the correct size of paper to be loaded.
MEDIA CHECK	ENABLEDISABLE	Determines whether the printer check the size of paper loaded matches that required for the document sent to print.
ITEM SETTINGS EXPLANATION
MONO-PRINT SPEED AUTO SPEED		If the first page of a print job is black and white, the printer runs at 32ppm (pages per minute). When a colour page is detected the printer slows down to 30ppm for the rest of that job.
	MONO 32PPM	This setting operates in the same way as AUTO SPEED, except that the printer runs at 32ppm until a colour page is detected. To achieve this speed the printer requires an additional time to warm up and cool down when switching to 30ppm for colour pages. This setting is therefore most appropriate when the majority of print jobs are entirely black and white.
	COLOR SPEED	The printer runs at 30ppm for all print jobs. This setting is most appropriate when the majority of print jobs are in colour.
	MIXED SPEED	The printer runs at 26 ppm for colour pages and 30 ppm for mono pages.

MEDIA MENU

This menu provides adjustment to suit a wide range of print media.

ITEM SETTINGS EXPLANATION
TRAY1 PAPERSIZE CASSETTE SIZECUSTOM		Selects the size of paper loaded in Tray 1 (upper tray if both trays installed). For CUSTOM setting see X-DIMENSION and Y-DIMENSION later in this table.
TRAY1 MEDIATYPE PLAIN	LETTERHEAD BONDRECYCLEDCARD STOKGLOSSYROUGH	Selects the type of media loaded in this tray. This will help the printer to adjust its internal operating parameters, such as engine speed and fusing temperature, to better accommodate the media to be fed. For example, letterhead may benefit from a slightly lower fusing temperature to ensure that its ink does not offset.
TRAY1 MEDIAWEIGHT LIGHTMEDIUM LIGHTMEDIUMHEAVY		Adjusts the printer for the weight of paper stock loaded in this tray.
TRAY2 PAPERSIZE CASSETTE SIZECUSTOM		Selects the size of paper loaded in Tray 2 (lower) if installed. For CUSTOM setting see X-DIMENSION and Y-DIMENSION in this table.
TRAY2 MEDIATYPE PLAIN	LETTERHEADBONDRECYCLEDCARD STOKGLOSSYROUGH	Selects the type of media loaded in this tray (if installed). (see notes above for tray 1).
TRAY2 MEDIAWEIGHT LIGHTMEDIUM LIGHTMEDIUMHEAVY		Adjusts the printer for the weight of paper stock loaded in this tray (if installed).
TRAY3 PAPERSIZE CASSETTE SIZECUSTOM		Selects the size of paper loaded in Tray 3 (lower) if installed.
TRAY3 MEDIATYPE PLAIN	LETTERHEADTRANSPARENCYBONDRECYCLEDCARD STOKGLOSSYROUGH	Selects the type of media loaded in this tray (if installed). (see notes above for tray 1).
TRAY3 MEDIAWEIGHT LIGHT	MEDIUM LIGHTMEDIUMHEAVY-	Adjusts the printer for the weight of paper stock loaded in this tray (if installed).
MPT PAPERSIZE A3	A4 SEFA4 LEFA5 SEFA6B4B5 SEFB5 LEFLEGAL 14LEGAL 13.5LEGAL 13TABLOIDLETTER SEFLETTER LEFEXECUTIVECUSTOMCOM-10ENVELOPEDL ENVELOPEC5 ENVELOPEC4 ENVELOPE	Selects the size of paper to be fed from the multi purpose tray. For CUSTOM setting see X-DIMENSION and Y-DIMENSION later in this table.
MPT MEDIATYPE PLAIN	LETTERHEADTRANSPARENCYLABELSCARD STOCKGLOSSYBONDRECYCLEDROUGH	Selects the type of media to be fed from the multi purpose tray so that the printer can adjust its internal parameters to better accommodate the selected type of media.
MPT MEDIAWEIGHT LIGHT	MEDIUM LIGHTMEDIUMHEAVYULTRA HEAVY1ULTRA HEAVY2	Selects the media weight to be fed from the multi purpose tray.
UNIT OF MEASURE MILLIMETREINCH		Selects the unit of measure for the next two items.

COLOUR MENU

The printer automatically adjusts colour balance and density at appropriate intervals, optimising the printed output for bright white paper viewed in natural daylight conditions. The items on this menu provide a means of changing the default settings for special or particularly difficult print jobs. Settings revert to their default values when the next print job is complete.

ITEM SETTINGS EXPLANATION
DENSITY CONTROL AUTO	MANUAL	Selecting this will permit automatic adjustment of the colour density.
ADJUST DENSITY EXECUTE	Image density will be	automatically adjusted at power on, when a new image drum or toner cartridge is installed, and at intervals of 100, 300 and 500 drum counts. If a 500 drum count interval occurs during a print job it will occur at the end of that job, and will take up to 55 seconds.
AJST REGISTRATION EXECUTE	Performs automatic	colour registration adjustment.Normally this is done on power on and when the top cover is opened and then closed. This process accurately aligns the cyan, magenta and yellow images to the black image.
C REG FINE ADJ	-3~0~+3	Performs fine adjustment of image timing in relation to the black image component.
M REG FINE ADJ	-3~0~+3
Y REG FINE ADJ	-3~0~+3

This menu adjusts general printer settings to suit the way you prefer to work.

ITEMS SETTINGS EXPLANATION
POW SAVE DELAY 5	153060240	Adjusts the idling time before the printer automatically switches into power saving mode. In this mode power consumption is reduced to a low level required to just keep the printer operating and ready to receive data. When a job is sent the printer will require a warm-up time of up to 1 minute before printing can begin.
CLRABLE WARNING ONLINE	JOB	When ONLINE, non-critical warnings, such as requests for a different paper size, can be cleared by pressing the ON LINE button. When set to JOB, they are cleared when the print job resumes.
MANUAL TIMEOUT OFF	3060	Specifies how many seconds the printer will wait for paper to be fed before cancelling the job.
WAIT TIMEOUT	OFF~90~300	Specifies how many seconds the printer will wait when received data pauses before forcing a page eject. In PostScript Emulation mode the job will be cancelled if timeout occurs.
TONER LOW CONTINUE	CONTINUE STOP	Specifies whether the printer should continue printing even after a low toner condition is detected.
JAM RECOVERY ON	OFF	Specifies whether the printer should perform jam recovery after a paper jam has occurred. If ON, the printer will attempt to print again any pages lost due to a paper jam once the jam has been cleared.
ERROR REPORT	ONOFF	Sets whether an error report is printed when an internal fault occurs.

USB MENU

This menu controls the operation of the printer's USB data interface.

ITEM SETTINGS EXPLANATION
SOFT RESET ENABLE / DISABLE		Enables or disables the SOFT RESET command.
SPEED 12 / 480 Mps	Selects the interface speed.
SERIAL NUMBER ENABLE / DISABLE Specifies		whether to ENABLE or DISABLE a USB serial number.The USB serial number is used to identify the USB device connected to your PC.

NOTE:

When you have changed any settings in the USB MENU, turn the printer OFF, then ON again.

NETWORK MENU

This menu controls the operation of the printer's 10Base-T/100Base-TX network interface.

ITEM SETTINGS EXPLANATION
TCP/IP ENABLE /	DISABLE	Enables or disables this network protocol.
NETBEUI ENABLE /	DISABLE	Enables or disables this network protocol.
IP ADDRESS SET	AUTO / MANUAL	Specifies whether IP address allocation is automatic (DHCP) or manually assigned.
IP ADDRESS	xxx.xxx.xxx.xxx	Current assigned IP address. To change, press ENTER and use up or down buttons to increment 1st octet, then press ENTER again to move on to next octet. When 4th octet has been set, press ENTER again to register new address.
SUBNET MASK	xxx.xxx.xxx.xxx	Current assigned subnet mask. To change, proceed as above.
GATEWAY ADDRESS	xxx.xxx.xxx.xxx	Current assigned gateway address. To change, proceed as above.
WEB	ENABLE / DISABLE	Enables or disables Web config. facility.
TELNET	ENABLE / DISABLE	Enables or disables Telnet config. facility.
FTP	ENABLE / DISABLE	Enables or disables communication via FTP.
SNMP	ENABLE / DISABLE	Enables or disables SNMP protocol.
NETWORK SCALE	NORMAL / SMALL	Selects network size.
HUB LINK SETTING	AUTO NEGOTIATE100BASE-TX FULL100BASE-TX HALF10BASE-T FULL10BASE-T HALF	Sets full or half duplex for communication via a network hub.
ITEM	SETTINGS	EXPLANATION
FACTORY DEFAULTS ENABLE	EXECUTE Reloads the	settings present when the unit was setup by the manufacturer.

MAINTENANCE MENU

This menu provides access to various printer maintenance functions.

ITEM SETTINGS EXPLANATION
MENU RESET EXECUTE	Resets menus to default settings.
SAVE MENU EXECUTE S	Saves the current menu	settings. The last menu executed is saved and the menu previously saved is overwritten and erased.When you press the ENTER button, the following confirmation message is displayed."DO YOU WANT TO EXECUTE THIS FUNCTION?" YES/NOIf you select NO, the display returns to the previous menu.If you select YES, the current menu settings are stored and the menu is exited.
POWER SAVE	ENABLE / DISABLE	Enables or disables automatic power save mode.Delay before entering this mode is set in the SYSTEM CONFIGURATION menu.
PAPER BLACK SET	-2~0~+2	Used for small adjustment when you experience faded print or light specks / streaking in monochrome printing on white paper. Select a higher value to reduce fading, or a lower value to reduce specks or streaking in high density print areas.
PAPER COLOR SET	-2~0~+2	As above, but for colour printing.
TRNSPR BLACK SET	-2~0~+2	As above but for mono printing on transparencies.
TRNSPR COLOR SET	-2~0~+2	As above but for colour printing on transparencies.
SMR SETTING	-3~0~+3	Compensates for print variations caused by differences in temperature, humidity, and printing density/frequency.Change the value when the image quality is uneven.
BG SETTING	-3~0~+3	Compensates for print variations caused by differences in temperature, humidity and printing density/frequency.Change the value when the background density is high.

USAGE MENU

This menu is for information only, and provides an indication of total usage of the printer and the expected life left in its consumable items. This is particularly useful if you do not have a full set of replacement consumables to hand and you need to know how soon you will need them.

ITEM	DISPLAY	EXPLANATION
TRAY1 COUNT	nnnnnn	The total number of pages fed from tray 1.
TRAY2 COUNT	nnnnnn	The total number of pages fed from tray 2 (if fitted).
TRAY3 COUNT	nnnnnn	The total number of pages fed from tray 3 (if fitted).
MPT COUNT	nnnnnn	The total number of pages fed from the multi purpose tray.
ITEM DISPLAY EXPLANATION
K DRUM LIFE C DRUM LIFE M DRUM LIFE Y DRUM LIFE	REMAINING nnnnnn	Percentage of life remaining in these consumable items.
BELT LIFE REMAINING	nnnnnn	Percentage of belt life remaining.
FUSER LIFE REMAINING	nnnnnn	Percentage of fuser life remaining.
K TONER C TONER M TONER Y TONER	REMAINING nnnnnn	Cartridge size and current toner level.

ADMINISTRATOR (BOOT) MENU

This menu is only accessible to System Administrators. In order to gain access to this menu, follow the instructions in.

This menu is in ENGLISH only (default settings in bold type).

ITEM SUB-MENU SETTINGS EXPLANATION
Enter Password xxxxxxxxxxxx Enter a password to gain entry to the Admin menu.Password should be from 6 to 12 digits of alpha/numeric characters (or mix)The default value is "aaaaaa"The printer will restart after the Boot Menu.
	Custom Process FULL COLORMONOCHROMECUSTOM COLOR		FULL COLOR - does not use a limited-color-print function.MONOCHROME - uses a limited-color-print function, and deals with every job as a monochrome job.CUSTOM COLOR - uses a limited-color-print function.After the setting change, exit from the menu, and mode change to ONLINE, the printer will restart.* C810 standard printers do not display this menu.
			C DRUM CHECK Switches ENABLE/DISABLE of installation check for a CYAN/MAGENTA or YELLOW image drum.
			M DRUM CHECK If DISABLE is set, an uninstallation error does not occur when an image drum is removed.
			Y DRUM CHECK After the setting change, exit from the menu, and mode change to ONLINE, the printer restarts.Conditions for display:CUSTOM COLOR is selected in ADMIN MENU -CUSTOM PROCESS set.
	OP Menu
	ALL CATEGORY ENABLE/DISABLE		Enables/Disables all categories in the USERS MENU.If DISABLE is selected, only the PRINT JOB MENU will appear.
	INFORMATION MENU	ENABLE/DISABLE	Enables/disables the information menu. If DISABLE is selected, the information menu will not appear.
	SHUTDOWN MENU	ENABLE/DISABLE	Enables/disables the shutdown menu. If DISABLE is selected, this menu will not appear.
	PRINT MENU ENABLE/ DISABLE		Enables/disables the print menu. If DISABLE is selected, this menu will not appear.
	MEDIA MENU ENABLE/ DISABLE		Enables/disables the media menu. If DISABLE is selected, this menu will not appear.
	COLOR MENU ENABLE/ DISABLE		Enables/disables the color menu. If DISABLE is selected, this menu will not appear.
	SYS CONFIG MENU	ENABLE/ DISABLE	Enables/disables the system configuration menu. If DISABLE is selected, this menu will not appear.
	USB MENU ENABLE/ DISABLE		Enables/disables the USB menu. If DISABLE is selected, this menu will not appear.
	NETWORK MENU	ENABLE/ DISABLE	Enables/disables the network menu. If DISABLE is selected, this menu will not appear.
	MEMORY MENU ENABLE/ DISABLE		Enables/disables the memory menu. If DISABLE is selected, this menu will not appear.
	SYS ADJUST MENU	ENABLE/ DISABLE	Enables/disables the system adjust menu. If DISABLE is selected, this menu will not appear.
	MAINTENANCE MENU	ENABLE/ DISABLE	Enables/disables the maintenance menu. If DISABLE is selected, this menu will not appear.
	USAGE MENU ENABLE/ DISABLE		Enables/disables the usage menu. If DISABLE is selected, this menu will not appear.
	Config Menu
	NEARLIFE STATUS	ENABLE/ DISABLE	Enables/disables the LED control when NearLife warning of a toner, drum, fuser, or belt occurs.Attention LED is lighted when enabled, not lighted when disabled. (Displays LCD message).The status (Life warning) of temporary recovery by opening and closing of the cover is not included.
	NEARLIFE LED ENABLE/ DISABLE
	PEAK POW CONTROL	NORMAL/LOW Sets level of peak power control.
	FILE SYS MAINT1
	FLASH INITIALIZE	EXECUTE Initializes the resident flash memory.The following message appears when pressing the enter button.ARE YOU SURE?YES/NOf NO is selected, the printer will go back to the source menu. If YES is selected, the printer will be automatically rebooted and initialize the flash memory.
	FILE SYS MAINT2
	INITIAL LOCK	YES/NO	If YES is selected ADMIN MENU will not appear - FILE SYS MAINT !
ITEM	SUB-MENU	SETTINGS	EXPLANATION
	LANGUAGE MENU
	LANG INITIALIZE	EXECUTE Initializes	the message file loaded in flash memory.The following message for confirmation will appear by pressing the enter button.ARE YOU SURE?YES/NOIf NO is selected, the printer will go back to the source menu. The procedure for clearing disk will start immediately after the menu is rebooted
	CHANGE PASSWORD
	NEW PASSWORD	********** Set a	new password for entering administrator's menu.From 4 to 12 alpha/numerical digits can be entered.
	VERIFY PASSWORD	********** Verifies the new password set above.

PRINT STATISTICS MENU

This menu is only accessible to System Administrators. In order to gain access to this menu, follow the instructions in "How to change the settings - Administrator" on page 23 but hold down the MENU UP button instead of the Enter button.

This menu is in ENGLISH only (default settings in bold type).

ITEM SETTINGS EXPLANATION
Enter Password	XXXX	Enters a password to enter Print Statistics menu.The default value is "0000".The password for entry to Print Statistics is different from the password for entry to Functions-Admin Setup."Print Statistics" category is not shown when Print Statistics function is not supported.
Usage Report	Enable/Disable	Enables/Disables the printing of the Usage Report.When changing a setting value, the printer is rebooted.
Group Counter	Enable/Disable	Specifies if the Group counter is displayed in the Usage Report Print.Enable: Displayed,Disable: Not displayed.Conditions for display:Enable must be selected in Functions/Print Statistics/Usage Report.
Supplies Report	Enable/Disable	Enebles/disables the Supplies Report.Enable must be selected in Functions/Print Statistics/Usage Report.
Reset Main Counter	Execute Resets the main counter	to zero.When executing this menu, resets the main counter to zero and exits from the menu.Enable must be selected in Functions/Print Statistics/Usage Report.
Reset Supplies Counter	Execute Resets the Supplies Counter	counter to zero.
Change Password		Changes the password. Enable must be selected in Functions/Print Statistics/Usage Report
New Password	xxxx Sets a new password	to enter Print Statistics menu.
Verify Password	xxxx Re-enter new password	set to enter Print Statistics set in New Password for confirmation.

MENU FUNCTIONS - C830

This section lists the menus accessed via the controls on the printer's operator panel and displayed in the LCD window.

OPERATOR PANEL:

1 SHUT DOWN /RESTART READY HELP ATTENTION 2 Ready To Print Power Save Toner C M Y K Back MENU ENTER ON LINE CANCEL 6 3 7 4 8

1. Ready LED	ON: Ready to receive data.BLINKING: Processing data.OFF: Offline.	2. Display	Displays the printer status and any error messages.
3. Menu Buttons	Enters the Menu mode. In Menu mode, forwards or reverses the menu item displayed.Press for 2 secs. or longer to fast forward or reverse.	4. On Line Button	Switches between ONLINE and OFFLINE.Exits the menu and goes ONLINE when pressed in the Menu mode.Forces printing on the paper currently loaded when pressed with "WRONG PAPER" or "WRONG PAPER SIZE" displayed.
5. Attention LED	ON: A warning occurs.Printing not possible (e.g empty toner).BLINKING: An error occurs.Printing may be possible (e.g. toner low).OFF: Normal condition.	6. Back Button	Returns to the previous higher level menu item or exits menu & returns printer to "Ready to Print".
7. Enter Button	In the ONLINE or OFFLINEmode: enters the Menu mode.In the Menu mode:determines the setting selected. Advances through the menu structure.	8. Cancel Button	Deletes the data being printed or received when pressed for two seconds or longer.Deletes the data when pressed for two seconds or longer with, e.g., WRONG PAPER SIZE displayed.Exits the menu and goes ONLINE when pressed in the Menu mode.
9. Help Button	Provides advice when an error such as incorrect paper size occurs	10. Shut Down/Restart Button	When held for a few seconds carries out the correct shutdown/restart procedure to prevent possible machine damage

HOW TO CHANGE THE SETTINGS - USER

It should be noted that many of these settings can be, and often are, overridden by settings in the Windows printer drivers. However, several of the driver settings can be left at "Printer Setting", which will then default to the settings entered in these printer menus.

Where applicable, factory default settings are shown in bold type in the following tables.

In the normal operating condition, known as "standby," the printer's LCD window will show "Ready to Print". In this condition, to enter the menu system, press the up and down Menu buttons on the operator panel to move up and down through the list of menus until the menu you wish to view is displayed. Then proceed as follows:

1. Press Enter to enter the menu.
2. Use the up or down Menu buttons on the control panel to scroll through the menus. When the item you want to change is displayed, press Enter to view the sub-menus for that item.
3. Use the up or down Menu buttons to move up and down through the sub-menu items. When the item you want to change is displayed press Enter to display the setting.

4. Use the up or down Menu buttons to move up and down through the available settings for the sub-menu item. When the item you want to change is displayed press Enter to display the setting. An asterisk (*) will appear next to the setting, indicating that this setting is currently in effect.

5. Do one of the following:

Press Back again to move up to the list of menus;

or...

Press On Line or Cancel to exit from the menu system and return to standby.

NOTE:

When you have changed any settings in the USB menu, turn the printer OFF, then ON again.

HOW TO CHANGE THE SETTINGS - ADMINISTRATOR

You can set whether to ENABLE or DISABLE each category in the user menu.

Disabled categories are not displayed in the User's menu. Only a system administrator can change these settings.

1. Tum OFF the printer.

2. Turn ON the printer while pressing the Enter button. When Boot Menu appears, take your finger off the button.

3. Press the Enter button.

4. When Enter Password appears, press the up or down MENU button, each time followed by Enter, then Enter several times to input the 1st line of the your password, and then press the Enter button.

Enter your 4 to 9 digit password.

(The default password is aaaaaa).

1. Press the Enter button.

2. Press the up or down Menu button until the "category" you want to change is displayed.

3. When it is, press the Enter button.

4. Press the up or down Menu button until the "item" you want to change is displayed.

5. When it is displayed, press the Enter button.

6. Using the MENU up button or MENU down button, identify the parameter as required.

7. Press the Enter button to enter an asterisk (*) on the right side of the setting selected.
8. Press the On Line button to switch to online. The machine will automatically re-boot.

CONFIGURATION MENU

ITEM ACTION EXPLANATION
Tray Count Tray1	Tray 2*Tray 3*MPT Tray*Note: Only available when optional trays are present	Select an item to display the total number of pages printed from the relevant tray.
Supplies Life Cyan Drum	Magenta DrumYellow DrumBlack DrumBeltFuserCyan TonerMagenta TonerYellow TonerBlack Toner	Select item to display the percentage of a consumable remaining.
Network Printer Name	Short Printer NameIP AddressSubnet MaskGateway AddressMAC AddressNetwork FW VersionWeb Remote version	Displays the full printer name.Displays an abbreviated version.Displays the IP Address Subnet of the network.Displays the Subnet Mask.Displays the Gateway of the network.Displays the Mac Address of the printer.Displays the Network firmware revision.Displays the Web remote version.
System Serial Number	Asset NumberCU VersionPU VersionTotal MemoryFlash MemoryHDD	Displays information for these items.

PRINT INFORMATION MENU

This menu provides a quick method of listing various items stored within the printer.

ITEM ACTION EXPLANATION
Configuration Execute Select execute to print out a configuration report.
Network Execute Scroll down to this parameter and select execute to print out Network information.
Demo Page Demo 1 Execute Scroll down to this parameter and select execute to print out a demonstration page.
File List Execute Scroll down to this parameter and select execute to print out a list of job files. (displayed only if FileSystem is installed).
PS font List Execute Scroll down to this parameter and select execute to print out a Postscript emulation typeface list.
PCL font List Execute Scroll down to this parameter and select execute to print out a PCL font list.
IBM PPR Font List Execute Scroll down to this parameter and select execute to print out an IBM PPR font list (must be enabled in System Maintenance).
EPSON FX Font List Execute Scroll down to this parameter and select execute to print out an Epson FX emulation font list (must be enabled in System Maintenance).
Usage Report Execute Scroll down to this parameter and select execute to print out a list of colour and mono pages printed.
Error Log Execute Scroll down to this parameter and select execute to print out the error log.
Color Profile List Execute Scroll down to this parameter and select execute to print out a list of colour profiles.

NOTE:

Only present if an optional Hard disk Drive (HDD) is fitted.

ITEM ACTION EXPLANATION
Encrypted Job Not Found	PrintDelete	Used for printing an encrypted authentication print job (Encrypted Job) stored in HDD.After inputting a password, "Searching Job" is displayed until a job appropriate for the password is found.(Searching time increases in proportion to the number of jobs stored in HDD, and the printer may take up to 20 sec.)The search can be cancelled by holding down the Cancel button.Not Found will be displayed where a file, which could be printed is not available.The following message will appear if a printable file is available.Encrypted JobPrintDeleteA set of all jobs will be printed if Print is selected and the Enter button is pressed.The following message will appear if Delete is selected:Are You Sure?YesNoThe display will return to the source menu if No is selected.All jobs will be deleted if Yes is selected.Print jobs with encrypted authentication stored in HDD are deleted by a delete method specified by the driver after printing or a delete instruction from the menu.
Stored Job Not Found	PrintDelete	Used to print out a stored job in a HDD.Not Found will be displayed where a file, which could be printed is not available.The following message will appear if a printable file is available.Stored JobPrintDeleteWhen Print is selected, Set Collating Amount is displayed and the number of pages to print can be specified.Specify the number of pages to print and press the Enter button.The following message will appear if Delete is selected:Are You Sure?YesNoIf No is selected, the display will return to the previous menu.If Yes is selected, all jobs will be deleted.

MENUS

ITEM ACTION EXPLANATION
Tray Configuration Paper feedTray 1/MPT		Select tray (default condition indicated by *)Select by scroll and Enter button.Note: Optional additional trays shown if fitted.
ITEM ACTION EXPLANATION
Tray Configuration (cont.)	MPT Tray ConfigurationPaper size: A3/A4 SEF/A4 LEFA5/A6/B4/B5 SEF/B5 LEF/Legal14/Legal 13.5/Legal13/Tabloid/Letter SEF/LetterLEF/ExecutiveCustom/Com-10 EnvelopedL Envelope/C5/C4Media Type:Plain/Letterhead/Transparency/Labels/Bond/Recycled/CardStock/Rough/Glossy/*Usertype 1-5MediaWeight:Light/MediumLight/Medium/Heavy/Ultra Heavy 1/Ultra Heavy 2Tray us ag e:Do Not Use/WhenMismatching	Configure Paper Size/Media Type/Media Weight/Tray Usage.Defines default condition (indicated by *) Select by scroll and Enter button.*User type 1 to 5 are displayed only if registered in the host PC.Paper weight 189 220g/m^2 Sets MPTray usage.When Mismatching:if paper mismatch occurs, paper is requested from the MPTray instead of the specified tray.Do Not Use:sets MPTray unavailable both in Auto Tray Select and Auto Tray Switch.
ITEM ACTION EXPLANATION
System Adjust Power	Save TimeDefault: 15	Select from 5/10/15/30/60/240 Minutes (default condition indicated by *). Select by scroll and Enter button.
	Clearable WarningDefault: ONLINE	Select from: ONLINE/Job (default condition indicated by *). Select by scroll and Enter button. PS job only.
	Auto ContinueDefault: Off	Select from On/Off (default condition indicated by *). Select by scroll and Enter button.
	Manual TimeoutDefault: 60	Select from Off/30 seconds/60 seconds (default condition indicated by *). Select by scroll and Enter button.
	Wait TimeoutDefault: 40	Select from Off/5/10/20/30/40/50/60/90/120/150/180/210/240/270/300 seconds (default condition indicated by *). Select by scroll and Enter button.
	Low TonerDefault: Continue	Select action to take when toner sensor indicates low toner. Select from Continue/Stop (default condition indicated by *). Select by scroll and Enter button.
	Jam RecoveryDefault: On	Select from On/Off (default condition indicated by *). Select by scroll and Enter button.
	Error ReportDefault: Off	Select from On/Off (default condition indicated by *). Select by scroll and Enter button.
	Print Position AdjustDefault: 0.00	Select from X Adjust/Y Adjust/ (default condition indicated by *). Select by scroll and Enter button. Define measurement.
	Paper BlackSettings -2/-1/0/+1/+2Default: 0	Used for fine adjustment of the black print on paper.
	Paper colorSettings -2/-1/0/+1/+2Default: 0	Used for fine adjustment of the colour print on paper.
	Trans. BlackSettings -2/-1/0/+1/+2Default: 0	Used for fine adjustment of the black print on transparencies.
	Trans. colorSettings -2/-1/0/+1/+2Default: 0	Used for fine adjustment of the colour print on transparencies.
	SMR Setting +3/+2/+1/-1/-2/-3/Default: 0	To correct variations in print results caused by temperature/humidity conditions and difference in print density/frequency.Change the setting when print quality is uneven.
	BG Setting +3/+2/+1/-1/-2/-3/Default: 0	To correct variations in print results caused by temperature/humidity conditions and difference in print density/frequency.Change the setting when background is dark.
ITEM ACTION EXPLANATION
System Adjust (cont.)	Drum CleaningDefault: Off	Sets whether to rotate the drum in idle prior to printing in order to reduce horizontal white lines.Be warned that this will shorten the ID life by as much as this rotation (default condition indicated by *). Select by scroll and Enter button.
	Hex Dump Execute	Prints out data received from the host PC in the hexadecimal Dump. Turning off the power supply switch restores Normal Mode.

SHUTDOWN MENU

This menu only appears if the hard disk drive is installed.

This item should always be selected before switching the printer off, to ensure that no hard disk data is lost.

If using the Operator panel button instead, keep pressed for approximately 5 seconds

ITEM SETTINGS EXPLANATION
Shutdown Start Execute	Performs controlled shutdown of the printer, ensuring that all files on the internal hard disk are closed before power is turned off. Only power the printer off when the display indicates that shutdown is complete.

ADMIN SETUP

ITEM SETTINGS EXPLANATION
Enter Password		xxxxxxxxxxxx Enter a password to gain entry to the Admin Setup menu.Password should be from 6 to 12 digits of alpha/numeric characters (or mix)The default value is "aaaaaa"
Network Setup	TCP/IP Enable	Disable	Sets TCP/IP Protocol.Enable: TCP/IP Protocol is available.Disable: TCP/IP Protocol is not available.
	IP Version IP v4IP v4+v6		Set up the IP version.Operates with IPv4 for IPv4 (not valid with IPv6).Operates with both IPv4 and IPv6
	NetBEUI EnableDisable		Sets Enable/Disable of NETBEUI Protocol.
	NetWare EnableDisable		Sets Enable/Disable of NetWare Protocol.
	EtherTalk EnableDisable		Sets Enable/Disable of EtherTalk Protocol.
	Frame Type Auto802.2802.3Ethernet IISNAP		Sets the frame type.Netware should be enabled.
	TypeIP Address Set	AutoManual	Sets the IP Address setting method.TCP/IP should be enabled.
	IP Address xxx.xxx.xxx.xxx Sets the IP Address.TCP/IP should be enabled.
	Subnet Mask xxx.xxx.xxx.xxx Sets the Subnet Mask.TCP/IP should be enabled.
	Gateway Address	xxx.xxx.xxx.xxx Sets the Gateway (default router) address.0.0.0 means that there is no router.TCP/IP should be enabled.
	Web Enable	Disable	Sets Enable/Disable of Web.Enable: Web/IPP is available.Disable: Web/IPP is not available.TCP/IP should be enabled.
	Telnet	EnableDisable	Sets Enable/Disable of Telnet.Enable: Telnet is available.Disable: Telnet is not available.TCP/IP should be enabled.
	FTP	EnableDisable	Sets Enable/Disable of FTP.Enable: FTP is available.Disable: FTP is not available.TCP/IP should be enabled.
ITEM		SETTINGS	EXPLANATION
Network Setup (cont.)	SNMP Enable	Disable	Sets Enable/Disable of SNMP. Enable: SNMP is available. Disable: SNMP is not available. TCP/IP or NetWare should be enabled.
	Network Scale	Normal Small	When Normal is selected, the network can work effectively even when it is connected to a HUB that has a spanning tree feature. However, printer start up time gets longer when computers are connected with two or three small LANs. When Small is selected, computers can cover from two or three small LANs to a large LAN, but may not work effectively when the network is connected to a HUB with a spanning tree feature.
	Hub Link Setting	Auto Negotiate 100Base-TX Full 100Base-TX Half 10Base-T Full 10Base-T Half	Sets a method to link to a HUB. When Auto is set, a connection method to a HUB is selected automatically.
	Factory Defaults?	Execute Specifies	whether to initialize the network factory default settings for the Network.
Print Setup Personality	Auto	PostScript PCL IBM PPR EPSON FX	Selects a printer language.
	Copies 1-999	Selects the default number of copies.
	Duplex	On/Off	Specifies Duplex print (option) if a Duplex unit is installed and enabled
	Binding Long	Edge Short Edge	Specifies Binding in duplex printing (if a Duplex unit is installed and enabled)
	Media Check	Enable Disable	Sets whether the printer checks the matching of printed data size and that of the tray. Only standard sizes are checked.
	Resolution 600dpi 600x1200dpi 600dpi multi-level.		Sets default resolution.
	Toner Save Mode	On/Off	This function works effectively only if the data input is color RGB data. This setting is valid in PS and PCL, but does not take effect in the following cases.(1) PS: If Color Matching is set OFF.(2) PS: If any setting other than ASIC Color Matching is set.(3) PS: CMYK data when Ink Simulation Mode is used (valid in any other cases except Case (1) and Case (2) above as long as data is RGB).(4) PCL binary data (Color/Monochrome).

ITEM SETTINGS EXPLANATION
Print Setup (cont.)	Mono-Print Speed	AutoMono 32ppmColor SpeedMixed Speed	Sets the monochrome print speed. Prints at the most appropriate speed for page process if Auto is set.Prints always at the color print speed if Color is set.Prints always at the monochrome print speed if Normal is set.Prints always at 26ppm of the gradation print speed for both color and monochrome print if High Quality is set.
	Default Orientation	PortraitLandscape	Specifies print orientation.Not valid for PS (valid only for PCL/ IBMPPR/EPSONFX/HP-GL2).
	Form Length 5	lines~64 lines~128 lines	Sets the number of lines that can be printed on a pageNot valid for PS (valid only for PCL/HP-GL2).Default values listed to the left are for Letter/A4. In practice, however, they change according to the size of paper loaded in the tray.
	Edit Size Cassette Size/A3/A4 ShortEdge/A4 LongEdge/A5/A6/B4/B5 Short Edge/B5 Longt Edge/Legal14/Legal13.5/Legal13/Tabloid/Letter ShortEdge/LetterLong Edge/Executive/Custom/Com-10Envelope/DLEnvelope/C5/C4/		Sets the size of an area to draw when the host PC does not specify the size via the paper edit size designating command (Not valid for PS - only for PCL).
	X Dimension 64 mm~210 mm~297 mm		Specifies paper width of Custom paper as a default value.Sets a paper size at right angles to the paper run direction.
	Y Dimension 105 mm~297 mm~1321 mm		Specifies paper length of Custom paper as a default value.Sets a paper size in the same direction as the paper run direction.
PS Setup Network Protocol		ASCII/RAW	Specifies PS communication protocol mode of data from NIC port.(In RAW mode, Ctrl-T is invalid). PS models only.
		Parallel Protocol	ASCII/RAW Specifies PS communication protocol mode of data from Centronics port.(In RAW mode, Ctrl-T is invalid). PS models only.
		USB Protocol	ASCII/RAW	Specifies PS communication protocol mode of data from USB port.(In RAW mode, Ctrl-T is invalid). PS models only.

ITEM SETTINGS	EXPLANATION
PCL Setup	Font Source	Resident	Specifies the location of PCL default font.
	Font Number	IO ~ I90 Sets the	PCL font number.The valid range of this variable changes depending on the FONT SOURCE setting at the time. If the default font is set for FONT SOURCE, the number starts at 0. If it is not, the number starts at 1. The maximum value is equal to the number of fonts installed in FONT SOURCE.
	Font Pitch 99.9	CPI~10.00 CPI~0.44 CPI	Width of the PCL default font in characters per inch (CPI).Default font is fixed-pitch, scalable font.The value of pitch is displayed down to the second decimal place.Displayed only when the font selected in Font No. is a fixed-spacing, scalable font.
	Symbol Set	PC-8	Sets the symbol set of PCL (see machine operator panel for complete list).
	A4 Print Width	78 column80 column	Sets the number of characters for A4 paper.Auto LF.This is for 10-CPI characters when Auto CR/LF Mode is set to OFF.This menu is enabled only when A4 paper is selected in the menu that sets the print width of A4 paper in portrait orientation.Usually, such A4 paper print width is set slightly narrower than 8 inches (about 7.93 inches).This setting cannot print 80 10-cpi characters (only prints up to 78 10-cpi characters). 80 characters set at A4 Print Width widen the right and left margins.A PCL command selects or selects/deselects Auto CR/LF mode.
	White Page skip	On/Off	Sets whether to eject a page without any data to print (blank page) upon reception of FF command (OCH) in PCL Mode. OFF: Ejecting.
	CR Function	CR/CR+LF	Sets action when CR code is received in PCL.CR: Carriage ReturnCR+LF: Carriage Return and Line Feed
	LF Function	LF/LF+CR	Sets action when LF code is received in PCL.LF: Line FeedLF+CR: Line Feed and Carriage Return
	Print Margin Normal1/5 inch1/6 inch		Sets a non-printable area of paper.The width of the area along the right and left sides of paper (left and right sides depend on paper orientation).NORMAL: PCL emulation compatible, approximately 1/4~1/4.3INCH (depending on paper) is outside the printable area.
ITEM SETTINGS EXPLANATION
PCL Setup (cont.)	True Black	On/Off Sets whether to use Composite Black (cmyk mixed) or Pure Black (K only) for the black (100%) in image data.OFF: Mode using Composite BlackON: Mode using Pure Black(PCL only)
	Pen Width Adjust	On/Off When minimum width is specified in PCL, sometimes a 1-dot line, looks broken.With PEN WIDTH Adjust set to ON, when the minimum width is specified, the line width will be emphasized so as to look wider than a 1-dot line.With PEN WIDTH Adjust set to OFF, the line will appear as before.
	Tray 2 ID#	1 ~ 5 ~ 59	Sets the # to specify Tray 2 for the paper feed destination command (ESC&I#H) in PCL5e emulation.(Displayed only if Tray 2 is installed).
	Tray 3 ID#	1 ~ 20 ~ 59	Sets the # to specify Tray 3 for the paper feed destination command (ESC&I#H) in PCL5e emulation.(Displayed only if Tray 3 is installed).
	MPTray ID#	1 ~ 4 ~ 59	Sets the # to specify the MP tray for the paper feed destination command (ESC&I#H) in PCL5e emulation.
ITEM		SETTINGS	EXPLANATION
IBM PPR Setup	Character Pitch	10 CPI12 CPI17 CPI20 CPIProportional	Specifies character pitch in IBM PPR emulation.
	Font Condense	12CPI to 20CPI12CPI to 12CPI	Specifies 12CPI pitch for Condense Mode.
	Character Set	SET-2SET-1	Sets a character set.
	Symbol Set	IBM 437	Sets the Symbol Set for IBM PPR (see machine operator panel for complete list).
	Letter O Style	Enable/Disable	Specifies the style that replaces ø (9B) and ¥ (9D) with ø (ou) and ∅ (zero).
	Zero Character	Normal/Slashed	Specifies the style of 0(zero). SLASHED: SLASH ZERO
	Line Pitch 6/8	LPI Sets line space.
	White Page Skip	On/Off	Sets whether to eject a blank sheet. Available only when simplex is set.
	CR Function	CR/CR+LF	Sets action when CR code is received.
	LF Function	LF/LF+CR	Sets action when LF code is received.
	Line Length	80/136 Column	Specifies the number of characters per line.
	Form Length 1	1/11.7/12 inch	Specifies the length of paper.
	TOF Position	0.0/0.1/~1.0 inch	Sets the position from the top edge of paper.
	Left Margin	0.0/0.1/~1.0 inch	Sets the amount to shift the horizontal print start position to the right.
	Fit to Letter	Enable/Disable	Sets the printing mode that can fit print data, equivalent to 11 inches (66 lines), in the LETTER-size printable area.
	Text Height	Same/Diff Sets height of a character.SAME: Regardless of CPI, same heightDIFF: According to CPI, character heights vary.
	Continuous Paper Mode	On/Off	Sets printer for using continuous feed stationary.
EPSON FX Setup	Character Pitch	10 CPI/12 CPI/17 CPI20 CPI/Proportional	Specifies character pitch in Epson FX emulation.
	Character Set	SET-2SET-1	Sets a character set.
	Symbol Set	IBM 437	Sets the Symbol Set for Epson FX Emulation.(see machine operator panel for complete list).
	Letter O Style	Enable/Disable	Specifies the style that replaces ø (9B) and ¥ (9D) with ø(ou) and ∅ (zero).
	Zero Character	Normal/Slashed	Specifies the style of 0(zero). SLASHED: SLASH ZERO
	Line Pitch 6/8	LPI Sets line space.
	White Page Skip	On/Off	Sets whether to eject a blank sheet. Available only when simplex is set.
	CR Function	CR/CR+LF	Sets action when CR code is received.
	Line Length	80/136 Column	Specifies the number of characters per line.
	Form Length 1	1/11.7/12 inch	Specifies the length of paper.
	TOF Position	0.0/0.1/~1.0 inch	Sets the position from the top edge of paper.
	Left Margin	0.0/0.1/~1.0 inch	Sets the amount to shift the horizontal print start position to the right.
	Fit to Letter	Enable/Disable	Sets the printing mode that can fit print data, equivalent to 11 inches (66 lines), in the LETTER-size printable area.
	Text Height	Same/Diff	Sets height of a character.SAME: Regardless of CPI, same heightDIFF: According to CPI, character heights vary.
	Continuous Paper Mode	On/Off	Sets printer for using continuous feed stationary.
ITEM SETTINGS EXPLANATION
Color Setup Ink Simulation		Off SWOP Euroscale Japan	The machine has its own process simulation engine which simulates standard colors in the printer.This function is available only with PS language jobs.
		UCR Low	Medium High	Selects limitation to the toner layer thickness.If paper curl occurs in dark printing, selecting MEDIUM or LIGHT sometimes helps reduce this curl. UCR = Under Color Removal.
		CMY 100% Density	Enable/Disable	Enable/Disable 100% output against the CMY100% TRC compensation. Ordinarily, the TRC compensation function holds control for the appropriate print density; thus 100% output is not always possible.Selecting ENABLE will enable 100% output in any individual color. The actual print, including the TRC compensation function is limited to an appropriate area. This function is for special purposes such as specification in CMYK color reduction in PS.
		CMYK Conversion	On/Off Setting to	“OFF” will simplify the conversion process of CMYK data, which will reduce the processing time.This setting is ignored when Ink Simulation function is used.PS only
Memory Setup	Receive Buffer Size	Auto0.5 megabyte1 megabyte2 megabyte4 megabyte8 megabyte16 megabyte	Sets the size of receive buffer
	Resource Save	AutoOff0.5 megabyte1 megabyte2 megabyte4 megabyte8 megabyte16 megabyte	Sets the size of resource saving area.
HDD Setup This item is displayed only if a HDD (option) is installed.
					Initialize Execute Initializes the HDD to the factory default setting. Machine performs partition-division, and initializes each partition.When this menu is executed, the following confirmation message appears.Are You Sure? Yes/NoIf No is selected, you will return to the previous menu.If Yes is selected, the following confirmation message appears.Execute Now? Yes/NoIf No is selected, you will return to the previous menu.The request to execute HDD initialization is put into the memory and initialization will be executed at the next power cycle.If Yes is selected, shutdown takes place, and the HDD is initialized at power Off/On cycle.
HDD Setup (cont.)	Resize Partition	PCL nn%/ Common mm%/ PSII%/<Apply>	Specifies the size of partition. Specifies a size by ratio to the whole HDD in % (1% unit).nn,mm,ll: 1 - 98 and nn+mm+ll=100The sizes are displayed in the partition list and can be changed by selecting the partition size to be changed. If Apply is selected, the following confirmation message appears.Are You Sure? Yes/NoIf No is selected, you will return to the previous menu.If Yes is selected, the following confirmation message appears.Execute Now? Yes/NoIf No is selected, you will return to the previous menu.The request to execute the partition size change request is put into the memory and the hard disk initialization and partition size change will be executed at next power cycle.If Yes is selected, shutdown takes place. Hard disk initialization and partition size change will be executed at Power Off/On cycle. (If one partition size is modified, the others are also modified.) If any partition size is modified, Initialization of HDD needs to be executed as well.If a previously used HDD is installed, HDD initialization also takes place. If a HDD, which has been used before, is installed, the layout of this menu may be different from that of each partition. (The previously used layout will be displayed.)In Non-PS machines, PS is replaced by COMMON, so the message is displayed as "PCL/COMMON/COMMON".
	Format Partition	PCLCommonPS	Formats a specified partition.When the Enter button is pressed, the following confirmation message appears.Are You Sure? Yes/NoIf No is selected, you will return to the previous menu.If Yes is selected, the following confirmation message appears.Execute Now? Yes/NoIf No is selected, you will return to the previous menu.The request to execute partition formatting is put into the memory and formatting will be executed at next power cycle.If Yes is selected, shutdown takes place and the partition is formatted at power Off/On cycle.In Non-PS machines, PS is replaced by Common, so the message is displayed as "PCL/Common/Common".
System Setup	Near Life Status	Enable/Disable	Sets the LCD display control whennear life warning of a drum, fuser or transfer belt occurs.ATTENTION LED is lit if ENABLED
	Near Life LED	Enable/Disable	Controls the settings of the Attention LED when near end of life warning of toner, drum, fuser, or belt occurs.Attention LED is lit when enabled, not lit if disabled.(Displays LCD message.)The temporary recovery by opening and closing of the cover in Life error is not included.
Change Password	New Password	xxxxxxxxxxxxxx Sets a new password to enter Admin Setup menuFrom 6 to 12 alpha/numeric digits can be entered.
	Verify password	xxxxxxxxxxxxxx Forces the User to input the new password to enter Admin Setup.From 6 to 12 alpha/numeric digits can be entered.
Settings Reset	Settings	Execute Resets EE PROM of CU. Resets User menu to the factory default.If Execute is selected, exits from the menu.
	Save Settings	Execute Saves men us currently set. With this function, the menus with which operation was last performed are saved, and overwrites with them menus that were previously saved.When the Enter button is pressed, the following confirmation message appears.Are You Sure? Yes/NoWhen No is selected, the preceding menus are restored.When Yes is selected, the current menu settings are saved and this menu is exited.

CALIBRATION

ITEM SETTINGS EXPLANATION
Auto Density Mode		On/Off Enables/disables automatic density adjustment.
Adjust Density Execute If Execute is selected, the printer will immediately adjust density and reflect it in TRC compensation.This adjustment must be executed when the printer is idling. It can become invalid if executed in any other state.
Adjust Registration		Execute When this menu is selected, the printer performs AutoAdjust Registration.This adjustment must be executed when the printer is idling.
Print Tuning Pattern		Execute Prints the pattern for the user to adjust TRC.Ordinarily, this function is not needed because TRC is automatically adjusted to the recommended levels through density adjustment and TRC compensation.Adjustment results will be reflected as offset values (addition) to the corrections through the Adjust Density/TRC Compensation function.
Cyan/Magenta/Yellow/Black Tuning	Highlight -3,-2,-1, 0,+1,+2,+3 ,		Adjusts HIGHLIGHT (light area) of the TRC.+ = Darker- = Lighter
	Mid-Tone -3,-2,-1, 0,+1,+2,+3 ,		Adjusts MID-TONE area of the TRC.+ = Darker- = Lighter
	Dark -3,-2,-1, 0,+1,+2,+3 ,		Adjusts DARK area of the TRC.+ = Darker- = Lighter
Cyan/Magenta/Yellow/Black Darkness		-3,-2,-1, 0,+1,+2,+3 ,	Adjusts the engine density.The Darkness settings for each of CMYK will be reflected as offset values (addition) to the corrections through the Adjust Density/TRC Compensation function.

ADMINISTRATOR (BOOT) MENU

This menu is only accessible to System Administrators. In order to gain access to this menu, follow the instructions in

This menu is in ENGLISH only (default settings in bold type).

Parallel Setup

This menu controls the operation of the printer's Parallel data interface.

ITEM SETTINGS EXPLANATION
Enter Password xxxxxx	xxxxxx Enter a password to	gain entry to the Admin menu.Password should be from 6 to 12 digits of alpha/numeric characters (or mix)The default value is "aaaaaa"The printer will restart after the Boot Menu.
Parallel	Enable / Disable	Enables or disables the parallel port.
Bi-direction	Enable / Disable	ENABLE/DISABLE the bi-directional capability of the parallel interface.
ECP	Enable / Disable	Extended Capabilities Port, enables/disables this function.
ACK Width	Narrow/Medium/Wide	Sets ACK width for compatible reception.= 0.5μs= 1.0μs= 3.0μs
ACK / Busy Timing Ack	In Busy / Ack While Busy	Sets the order to output the BUSY and ACK signal for compatible reception.
I-prime Disable/	3μsec/50μsec	Sets time to enable/disable I-prime signal
Offline Receive	Enable / Disable	To Enable/disable of this function. When set to Enable, the interface retains a receive possible state even when switching to Offline. Interface sends the BUSY signal only when the receive buffer is full or a service call occurs.

USB Setup

This menu controls the operation of the printer's USB data interface.

ITEM	SETTINGS EXPLANATION
USB	Enable / Disable	ENABLES / DISABLES the USB port.
Speed	12 / 480 Mbps	Selects the interface speed. After setting change the menu, the printer restarts on exit.
Soft Reset	Enable / Disable	Enables or disables the SOFT RESET command.
Offline Receive	Enable / Disable	OFFLINE RECEIVE.
Serial Number	Enable / Disable	Specifies whether to ENABLE or DISABLE a USB serial number.The USB serial number is used to identify the USB device connected to your PC.

When you have changed any settings in the USB MENU, turn the printer OFF, then ON again.

Security Setup

Only available when a Hard Disk (option) is fitted.

ITEM SETTINGS EXPLANATION
Job Limitations Off	EncryptedJob	Job limitation mode control.Jobs other than specified ones are rejected.
Reset Cipher Key Execute Resets a cipher key to be		used on an encrypted hard disk.When this processing is done, all data stored on the hard disk cannot be restored.After execution, the following confirmation messages will appear.Are You Sure?YesNoIf No is selected, the display will return to the previous menu.If Yes is selected, the printer will be automatically rebooted and the resetting of the cipher key will be executed.

Storage System

Only available when a Hard Disk (option) is fitted.

ITEM SETTINGS EXPLANATION
Check File System Execute Resolves mismatch between actual memory anddisplayed memory available in a file system. Performsadministration data (FAT information) recovery. Performsrecovery only for an HDD.
Check All Sectors Execute Performs recovery of defective HDD sector informationand a file system mismatch mentioned above. The targetdevice is only a HDD and it takes 30 to 40 minutes tocomplete this function for an HDD of 10GB.
Enable HDD Yes	No	Even if a machine is inoperable at installation because ofa faulty HDD, the machine can be made operable bysetting this parameter to No (ignores the existence ofthe HDD).When No is set, access to a HDD results in FAIL becausethe HDD is regarded as not attached.After setting change and exit from the menu, the printerwill restart.
Erase HDD Execute De	etion of all data stored in the	hard disk. DoD5220.22-M sanitizing formula is used for clearing the disk. The machine will restart after changing setup. The following message appears after pressing the Enter switch.Are You Sure?YesNoIfNOis selected, you will be returned to the source menuIfYesis selected the procedure for clearing disk will start immediately after the machine reboots.If theCancelbutton is held down during erasing, the following confirmation messages will appear to discontinue processing.Do You Wish to Cancel?YesNoIfNOis selected, the procedure will continue. IfYESis selected, the procedure will discontinue.
Enable initialization No	Yes	Prevents a setting change accompanying initialization of Block Device (HDD,FLASH).

Storage Setup

ITEM SETTINGS EXPLANATION
Enable initialisation Yes/No

Power Setup

ITEM SETTINGS EXPLANATION
Peak Power Control Normal/low
Power Save Enable	Disable	Sets Enable/Disable of Power Save Mode.
USB Host Power Off/On

Language Setup

ITEM SETTINGS EXPLANATION
Language initialize Execute Initialises the message	file loaded in FLASH.When you press theEnterbutton, the following message, requesting confirmation, will appear,Are You Sure?YesNoIfNOis selected, you will be returned to the source menu.The procedure for clearing the disk will start immediately after the menu and rebooting.

PRINT STATISTICS MENU

This menu is only accessible to System Administrators. In order to gain access to this menu, follow the instructions in "How to change the settings - Administrator" on page 35, but hold down the Menu button instead of the Enter button.

This menu is in ENGLISH only (default settings in bold type).

ITEM SETTINGS EXPLANATION
Enter Password	XXXX	Enters a password to enter Print Statistics menu.The default value is "0000".The password for entry to Print Statistics is different from the password for entry to Functions-Admin Setup."Print Statistics" category is not shown when Print Statistics function is not supported.
Usage Report	Enable/Disable	Enables/Disables the printing of the Usage Report.When changing a setting value, the printer is rebooted.
Group Counter	Enable/Disable	Specifies if the Group counter is displayed in the Usage Report Print.Enable: Displayed,Disable: Not displayed.Conditions for display:Enable must be selected in Functions/Print Statistics/Usage Report.
Supplies Report	Enable/Disable	Enables/disables the Supplies Report.Enable must be selected in Functions/Print Statistics/Usage Report.
Reset Main Counter	Execute Resets the main counter to zero.	When executing this menu, resets the main counter to zero and exits from the menu. Enable must be selected in Functions/Print Statistics/Usage Report.
Reset Supplies Counter	Execute Resets the Supplies counter to zero.
Change PasswordNewPasswordVerifyPassword		Changes the password.Enable must be selected in Functions/Print Statistics/Usage Report
	xxxx Sets a new password to enter Print Statistics menu.
	xxxx Re-enter new password set to enter Print Statistics set in New Password for confirmation.

OVERLAYS AND MACROS (C830 - WINDOWS ONLY)

WHAT ARE OVERLAYS AND MACROS?

If you would like to print on special stationery, such as forms and letterhead, but do not want to use pre-printed stationery, you can create your own using these advanced features.

You can use PostScript overlays to generate all your special stationery and store it in the printer for use whenever you need it. If you have chosen to install the PCL driver, macros perform a similar function.

You can create several overlays or macros, and combine them in any way you like to produce a variety of forms and other special stationery. Each image can be printed on just the first page of a document, on all pages, on alternate pages, or just the pages that you specify.

CREATING POSTSCRIPT OVERLAYS

Three steps are required to create an overlay:

1. Create the form data using your own application software and print it to a printer (.PRN) file.
2. Use the Storage Device Manager utility software supplied on CD with your printer to create a "project file," import the .PRN file(s), and download the generated filter (.HST) file to the printer. The project file will contain one or more overlay images which are functionally related, such as the cover page and the continuation page images for business letters.
3. Use downloaded files to define your overlays ready for use when printing your documents.

When printing overlay files to disk, do not select any special features, such as two-sided printing or multiple copies. These are not appropriate to overlays, they apply only to your final documents.

CREATING THE OVERLAY IMAGE

1. Use your preferred application, perhaps a graphics program, to create the required overlay image and save it.
2. Open your application's Print... dialogue.
3. Make sure that the selected printer name (1) is that of your PostScript printer driver.
4. Select the Print To File (2) option.
5. Click the Properties button (3) to open the Document Properties window.
6. On the Overlay tab, choose Create Form from the drop-down list (4).
7. Click OK to close the Document Properties window.
8. Click OK again to close the Print dialogue.
9. When prompted for a print file name, enter a meaningful name with the extension.PRN.
10. Close your application.

Print Format: Splice: Page Range Status: 10x Type Name: Comment: Print to Page Page range: ✓ ✓ Correct page ✓ Page ✓ Error page numbers and for page ranges reported by comments. For this page, L33-12 Page number of pages: 1 Copy Page size (object): 1 page Page count in range Scale to paper size: No Scaling Options: OK Close

PS Document Properties Layout Paper/Quality Add Options Color Window Create Form Active Overlay (MAX 4) Overlay Page Defined Overlay (MAX 32) Overlay Page OK Cancel

CREATE AND DOWNLOAD THE PROJECT

1. From the Windows Start menu, start Storage Device Manager (SDM) and allow SDM to discover the printer.
2. Choose Printers→New Project.
3. Choose Printers→Add File to Project.
4. Set the Files of Type drop-down list to PRN Files(*.prn).
5. Navigate to the folder where the.PRN files are stored and select one or more of these to include in your overlay set.
   You can have more than one printer (.PRN) file in a project. For example, one for top pages and another for continuation pages. Use standard Windows techniques (Shift or Ctrl keys) to select multiple files simultaneously if you need to.
6. Click Open to add these files to the current project.
7. When a message box appears confirming that a filter file has been created, click OK to clear the message.
8. The project window will display one.HST file for each printer file added. Make a careful note of each of these names. Ensure that you note them exactly as they appear, they are case sensitive, and you will need them later.
9. Choose Projects→Save Project and enter a meaningful name (e.g. "Letter Stationery") so that you can recognise it later if you want to modify it.
10. Choose Projects→Send Project Files to Printer to download the project to the printer.
    If you have a hard disk in the printer, SDM will automatically download files to it. If not, SDM will download files to flash memory. If you have a hard disk but still prefer to download to flash memory, double-click the file name in the Project window and under Volume, type in %Flash0% and then click OK.
11. When the message "Command Issued" appears confirming that the download is complete, click OK to clear the message.

TEST PRINTING THE OVERLAY

1. Click on the printer icon for the relevant printer and choose Printers→Test Form.
2. In the Test PostScript Form window, to test each overlay select it and click OK. There will be a short pause while the printer processes the form, and then it will print.
3. When each overlay has been tested, click Exit.
4. Click the standard Windows Close (X) button, or choose Projects→Exit to close Storage Device Manager.

DEFINING OVERLAYS

This is the final step before the new overlays are ready for use.

1. Open the Printers (called "Printers and Faxes" in Windows XP) window via the Start menu or the Windows Control Panel.
2. Right-click on the Relevant PostScript printer icon and choose Printing Preferences from the pop-up menu.

3. On the Overlay tab, click the New button.

4. In the Define Overlays window, enter a suitable name (2) for this overlay and choose which page(s) (3) of your documents will use this overlay.

5. Enter the name of the overlay file (4) exactly as it appeared in the Storage Device Manager project window. Remember that this name is case sensitive.

If you forgot to note the overlay names when you created them, you can find them using Storage Device Manager to view the project file, or the printer's Information Menu to print a file list and identify them from there.

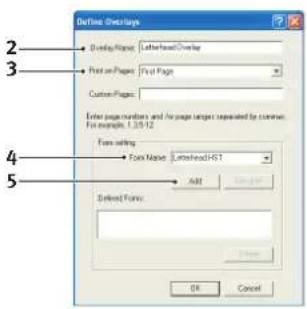

Define Displays 2 3 4 5 Browse Name: Litterhead Overlay Print on Pages: First Page Custom Pages: Enter page number and for page number separated by common for example. 1.351.12 Form setting: Form Name: Litterhead/AST Add Remove Extend Form: OK Cancel

1. Click Add (5) to add this overlay into the defined overlays list.

2. Click OK to close the Define Overlay window.

The new overlay now appears in the Defined Overlays list in the printer properties window.

1. Repeat the above procedure if you wish to define more overlays.

2. When done, click OK to close the printer properties window.

Your new overlays are now ready and available to be used for any future documents you wish.

PRINTING WITH POSTSCRIPT OVERLAYS

Once you have defined your overlays you are ready to use them for any documents you wish. The example illustrated here uses two overlays for business letters. The first prints on just the top page, and the second prints on any or all subsequent pages.

1. Prepare your document in the normal way using your own application software. Remember, if necessary, to format the document so that it will fit within the appropriate space.

2. Open your application's Print... dialogue and choose any options you will require, ensuring that the target printer is your PostScript printer driver in which the overlays have been defined.

3. Click the Properties button to open the Printing Preferences window.

4. On the Overlays tab, choose Use Overlay from the drop-down list (1).

5. Click on the first overlay (2) you wish to use. In this example it is the Cover Page overlay. Then click the Add button (3).

6. If you want to use another overlay, in this case it is the Continuation page, click the second overlay (4) and then click the Add button (3) again.

7. When you have selected all the overlays you want to use for this document, click OK.

PS Printing Preferences Layout | Paper/Quality | Job Options | Color | Overlay 1 Use Overlay Active Overlay (MAX 4) Display: Page Add Delete Default Overlay (MAX 5) Display: Page Create Page: First Page Conversion Page: 2/333 New Edit Delete OK Cancel Apply

1. Finally, in your application's print dialogue, click OK to begin printing.

CREATING PCL OVERLAYS

Three steps are required to create an overlay:

1. Create the form data using your own application software and print it to a printer (.PRN) file.
2. Use the Storage Device Manager utility software supplied on CD with your printer to create a "project file," import the .PRN file, and download the generated filter (.BIN) files to the printer.
3. Use downloaded files to define your overlay ready for use with any future document.

When printing files to disk, do not select any special features, such as two-sided printing or multiple copies. These are not appropriate to macros, they apply only to your final documents.

CREATING THE OVERLAY IMAGE

1. Use your preferred application, perhaps a graphics program, to create the required image and save it.
2. Open your application's Print... dialogue.
3. Make sure that the selected printer name (1) is that of your PCL printer driver.
4. Select the Print To File (2) option.
5. When prompted for a print file name, enter a meaningful name with the extension .PRN .
6. Close your application.

Print Printer Spaper: Print name Status: Idle Type: Where: Comment: Print to page Page range 0 Current page Selection Pages: Enter page numbers and/or page range separated by commas. For example, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 Print size: Document Print: All pages in range Copies Number of copies: 1 Cabbage Pages per digit: 1 page Scale to paper size: No Scaling Options... OK Close

CREATE AND DOWNLOAD MACROS

1. From the Windows Start menu, start Storage Device Manager (SDM) and allow SDM to discover the printer.

2. Choose Printers→New Project to start a new project.

3. Choose Printers→Filter Macro File. The Filter Printer Patterns dialogue box appears. Make any adjustments in the settings that you need and then click OK.

Example: If you create a black oval in MS Paint and leave all the colour command filters checked, the black oval will print as a black rectangle when the overlay is used. To maintain the oval shape, turn off (deselect) the "Configure Image Data," "Palette ID" and "Palette Control" filters.

1. Set the Files of Type drop-down list to PRN Files(*.prn).

2. Navigate to the folder where the overlay .PRN files are stored and select one or more of these to include in your overlay set.

You can have more than one macro file in a project. For example, one for top pages and another for continuation pages. Use standard Windows techniques (Shift or Ctrl keys) to select multiple files simultaneously if you need to.

1. Click Open to add these files to the current project. (You can also drag and drop files from Windows Explorer directly into the project window if you prefer.) When a message box appears confirming that a filter file has been created, click OK to clear the message.

2. The project window will display one .BIN file for each printer file added. Make a careful note of the name and ID number for each of the files. You will need them later.

If you wish to edit the names or ID numbers, double-click the file entry and edit the details. Volume details are as follows:

0 = printer's disk drive PCL partition;
1 = printer's disk drive Common partition;
%disk0% = printer's disk drive PostScript partition;
2 = flash memory PCL
%Flash0% = flash memory PostScript

Note that the names are case sensitive, and will be needed later exactly as they appear in this list.

1. Choose Projects→Save Project and enter a meaningful name (e.g. "Letter Stationery") so that you can recognise it.
2. Choose Projects→Send Project Files to Printer to download the project to the printer.
3. When the message "Command Issued" appears confirming that the download is complete, click OK to clear the message.

TEST PRINTING THE MACRO

1. Choose Printers→Test Macro.
2. In the Test Macro window, enter its ID number and click OK. After a short pause the printer will print the macro.
3. When each macro has been tested, click Exit.
4. Click the standard Windows Close (X) button, or choose Projects→Exit to close Storage Device Manager.

DEFINING OVERLAYS

This is the final step before the new overlays are ready for use.

1. Open the Printers (called "Printers and Faxes" in Windows XP) window via the Start menu or the Windows Control Panel.
2. Right-click on the Relevant PostScript printer icon and choose Printing Preferences from the pop-up menu.
3. On the Job Options tab, click the Overlay button.
4. In the Overlay window, Click the Define Overlays button (1).

Options Print Using Active Documents Active Documents Name Pages Browse Defined Documents Name Pages 1 Define Documents... OK Cancel Help Default

1. In the Define Overlays window, enter the name (a) and ID (b) of the required overlay, and define which page(s) (c) of your documents will use this overlay. Then click the Add button (3) to add this overlay to the list of defined overlays. Repeat for any other related overlays. When done, click the Close button (4) to close the window.

The example illustrated shows two overlays defined, one for a cover page and one for continuation pages.

Define Over/Says Defined Over/Says Name Pages Cover/Page Fire Pages Construction Pages 2.096 ADD Display/Name ID Values Print on Paper All Pages Custom/Pages Extra page number which pages target reported by convex. For example, 7.3512 Close Help

Remember that names and IDs of overlay files must be entered exactly as they appeared in the Storage Device Manager project window. Remember also that names are case sensitive.

If you forgot to note the overlay name or ID when you created them, you can find them using Storage Device Manager to view the project file, or the printer's Information Menu to print a file list and identify them from there.

The new overlays will now appear in the Defined Overlays list in the printer properties window.

1. When done, click OK to close the printing preferences window.

Your new overlays are now ready and available to be used for any future documents you wish.

PRINTING WITH PCL OVERLAYS

Once you have defined your overlays you are ready to use them for any documents you wish. The example illustrated here uses two overlays for business letters. The first prints on just the top page, and the second prints on any or all subsequent pages.

1. Prepare your document in the normal way using your own application software.

Remember, if necessary, to format the document so that it will fit nicely within the plain areas on your letterhead overlay.

1. Open your application's Print... dialogue and choose any options you will require, ensuring that the target printer is your PCL printer driver in which the overlays have been defined.

2. Click the Properties button to open the Printing Preferences window.

3. On the Overlay tab, check the Use active overlays checkbox (1).

4. In the Defined Overlays list, click on the first overlay (2) you wish to use, and click the Add button (3) to add it to the Active Overlays list. (If you want a reminder of how this overlay looks, click the Test Print button.)

5. If you want to use another overlay with this document, in this example it is the "Continuation Page" overlay, click this overlay (4) in the list of defined overlays, and then

Display Print Using Active Overlages Active Overlages: Name Pages Add Renovo Defined Overlages: Name Pages Cover Page Final Page Continuation Page 2.000 Before Overlages...也有 Print OK Cancel Help Default

click the Add button (3) again to add the second overlay to the list of active overlays.

1. When the list of active overlays contains all the items you want to use, click OK.

2. Finally, click the Print button in your application's Print dialogue to begin printing your document.

REPLACING CONSUMABLE ITEMS

This section explains how to replace consumable items when due.

NOTE:

When the LCD display indicates TONER LOW, or if print appears faded, first open the top cover and try tapping the cartridge a few times to evenly distribute the toner powder. This will enable you to obtain the best "yield" from your toner cartridge.

As a guide, the life expectancy of these items is:

> Toner:

Starter Cartridge:

The printer is shipped with sufficient Cyan, Magenta, Yellow & Black toner for 2,000 images (ISO/IEC19798), of which 750 images are used to charge the image drum (1,250 images remaining at 5% coverage).

Replacement Cartridge:

Replacement cartridges (C, M, Y & K) have a capacity of approximately 7,000 images (calculated on typical office usage where 20% of printing is 1 page only, 30% is 3 page documents and 50% is print runs of 15 pages or more).

> Image drum:

As the lifetime of the cartridge is proportional to the number of drum rotations, simplex printing on A4 or Letter paper yields:

20,000 pages (approx.) for 3 pages per job

11,000 pages (approx.) for 1 page per job

27,000 pages (approx.) for continuous print job

Transfer belt: Approximately 80,000 A4 pages.

Fuser: Approximately 100,000 A4 pages.

CONSUMABLE ORDER DETAILS

ITEM LIFE ORDER NO.
Toner, black 8,000 images @ 5%* 44059108
Toner, cyan 8,000 images @ 5%* 44059107
Toner, magenta 8,000 images @ 5%* 44059106
Toner, yellow 8,000 images @ 5%* 44059105
Toner Rainbow pack (1 ea. C,M,Y,K) N/A
Image drum, black 20,000 A4 pages* 44064012
Image drum, cyan 20,000 A4 pages* 44064011
Image drum, magenta 20,000 A4 pages* 44064010
Image drum, yellow 20,000 A4 pages* 44064009
Fuser 100,000 A4 pages* 43529405
Transport belt 80,000 A4 @ 3/job 43449705

* Average life: 20% pages at continuous print, 50% pages at 3 pages per job and 30% pages at 1 page per job.

TONER CARTRIDGE REPLACEMENT

CAUTION!

To avoid toner wastage and possible toner sensor errors, do not change the toner cartridge(s) until "TONER EMPTY" is displayed.

For the protection of your product, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine original toner cartridges. Any other toner cartridge may not operate at all, even if it is described as "compatible", and if it does work, your product's performance and print quality may be degraded.

Non-genuine original products may invalidate your warranty.

The toner used in this printer is a very fine dry powder. It is contained in four cartridges: one each for cyan, magenta, yellow and black.

Have a sheet of paper handy so that you have somewhere to place the used cartridge while you install the new one.

Dispose of the old cartridge responsibly, inside the pack that the new one came in. Follow any regulations, recommendations, etc., which may be in force concerning waste recycling.

If you do spill any toner powder, lightly brush it off. If this is not enough, use a cool, damp cloth to remove any residue.

Do not use hot water, and never use solvents of any kind. They will make stains permanent.

WARNING!

If you inhale any toner or get it in your eyes, drink a little water or bathe your eyes liberally in cold water. Seek medical attention immediately.

1. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on, the fuser may be hot. This area is clearly labelled. Do not touch.

1. Note the positions of the four toner cartridges (a) and image drums (b). It is essential that they go back in the same order.

Diagram of a printer with labeled components and colored markers indicating parts of each device

1. Pull the coloured toner release lever (a) on the cartridge to be replaced fully towards the front of the printer.

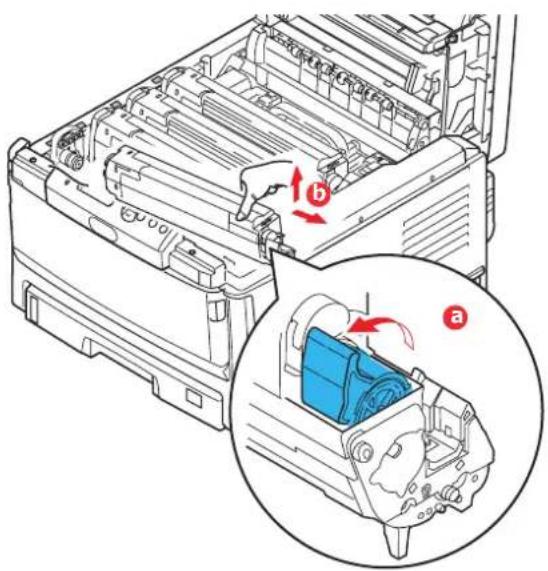

Technical diagram showing a printer internal structure with labeled parts and directional arrows, including section (a) highlighting the component.

1. Lift the right-hand end of the cartridge and then draw the cartridge to the right to release the left-hand end as shown, and withdraw the toner cartridge (b).

2. Put the assembly down gently onto a piece of paper to prevent toner from marking your furniture.

3. Remove the new cartridge from its box but leave its wrapping material in place for the moment.

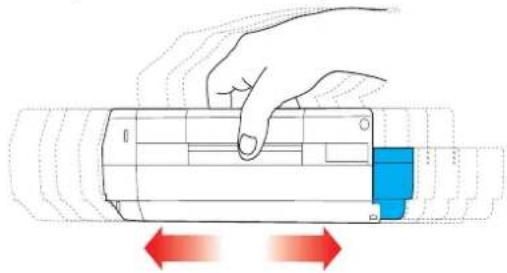

4. Gently shake the new cartridge from end to end several times to loosen and distribute the toner evenly inside the cartridge.

Illustration of a hand pressing down on a cylindrical device with red directional arrows indicating motion (no text or symbols)

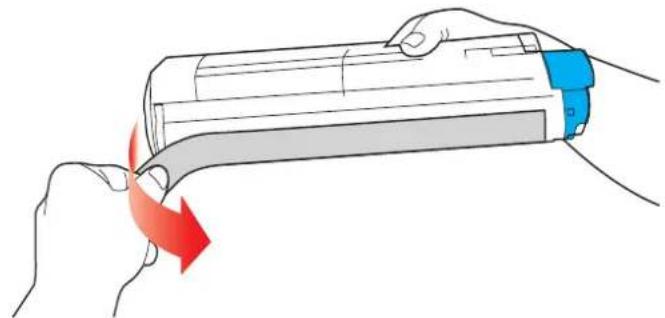

1. Remove the wrapping material and peel off the adhesive tape from the underside of the cartridge.

Illustration of hands holding a cylindrical device with a red arrow indicating rotation (no text or symbols)

1. Holding the cartridge by its top centre with the coloured lever to the right, lower it into the printer over the image drum unit from which the old cartridge was removed.

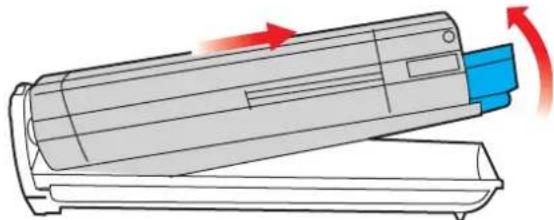

2. Insert the left end of the cartridge into the top of the image drum unit first (a), pushing it against the spring on the drum unit, then lower the right end of the cartridge down onto the image drum unit (b).

Technical diagram showing mechanical assembly with labeled components (a, b, c) and directional arrows indicating motion or flow.

1. Pressing gently down on the cartridge to ensure that it is firmly seated, push the coloured lever (c) towards the rear of the printer. This will lock the cartridge into place and release toner into the image drum unit.

2. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

IMAGE DRUM REPLACEMENT

CAUTION!

Static sensitive devices, handle with care.

The printer contains four image drums: cyan, magenta, yellow and black.

1. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

1. Note the positions of the four cartridges (a) and image drums (b). It is essential that they go back in the same order.

Diagram of a printer internal structure with labeled parts (a, b) and colored markers indicating components.

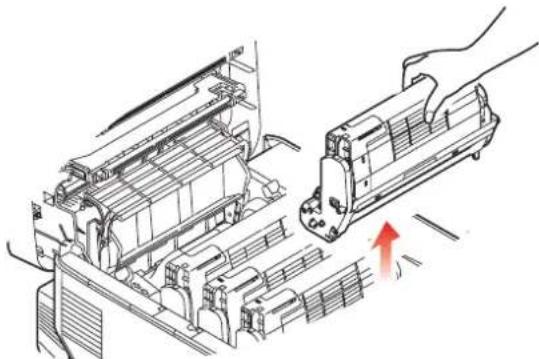

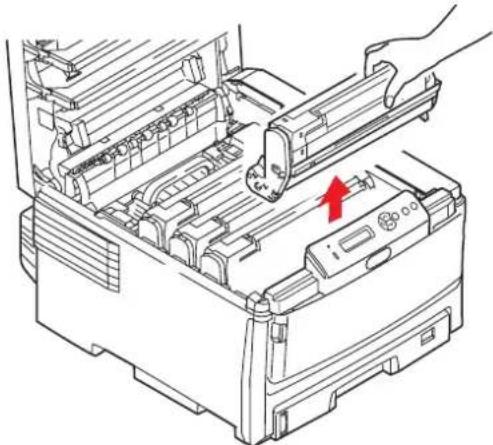

1. Holding it by its top centre, lift the image drum, complete with its toner cartridge, up and out of the printer.

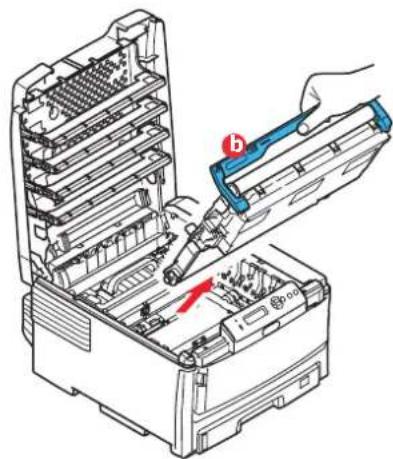

Line drawing of a printer's internal structure with a hand operating the top panel (no text or symbols visible)

1. Put the assembly down gently onto a piece of paper to prevent toner from marking your furniture and to avoid damaging the green drum surface.

CAUTION!

The green image drum surface at the base of the cartridge is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

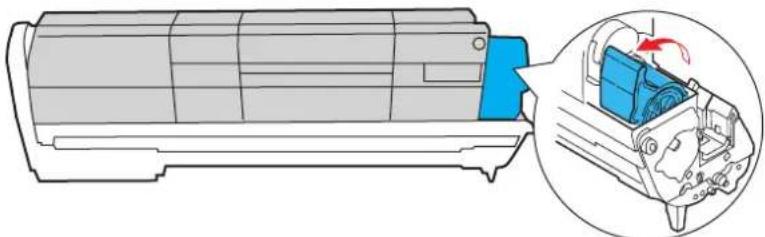

1. With the coloured toner release lever to the right, pull the lever towards you. This will release the bond between the toner cartridge and the image drum cartridge.

Diagram of a car air conditioner unit with a magnified inset showing internal components (no text or labels)

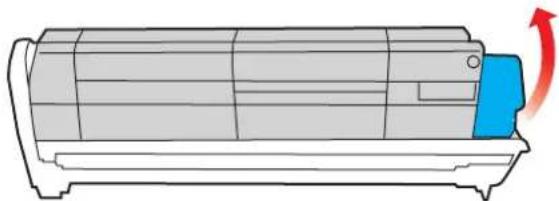

1. Lift the right-hand end of the cartridge and then draw the cartridge to the right to release the left-hand end as shown, and withdraw the toner cartridge out of the image drum cartridge. Place the cartridge on a piece of paper to avoid marking your furniture.

Diagram of a printer or scanner with a blue cover and red arrow indicating motion (no text or symbols)

1. Take the new image drum cartridge out of its packaging and place it on the piece of paper where the old cartridge was placed. Keep it the same way round as the old unit. Pack the old cartridge inside the packaging material for disposal.

2. Place the toner cartridge onto the new image drum cartridge as shown. Push the left end in first, and then lower the right end in. (It is not necessary to fit a new toner cartridge at this time unless the remaining toner level is very low.)

Diagram of a cylindrical device with blue internal components and red arrows indicating rotation or flow (no text or symbols)

1. Push the coloured release lever away from you to lock the toner cartridge onto the new image drum unit and release toner into it.

Diagram of a cylindrical device with internal compartments and a blue component, showing a red curved arrow indicating rotation (no text or symbols)

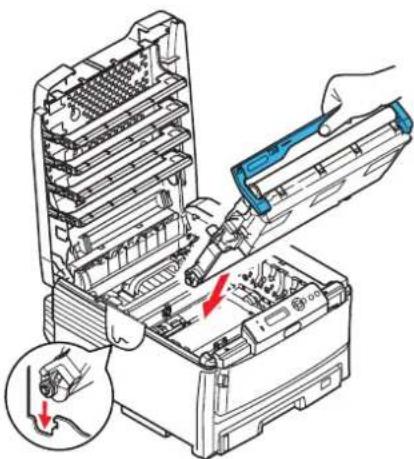

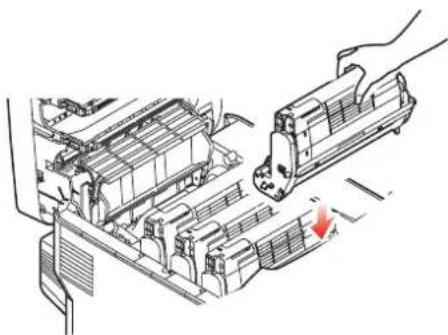

1. Holding the complete assembly by its top centre, lower it into place in the printer, locating the pegs at each end into their slots in the sides of the printer cavity.

Line drawing of a printer's internal structure with a hand operating the top panel and a red arrow indicating a downward motion (no text or symbols present)

1. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

NOTE:

If you need to return or transport your printer for any reason, please make sure you remove the image drum unit beforehand and place in the bag provided. This is to avoid toner spillage.

TRANSFER BELT REPLACEMENT

The belt unit is located under the four image drums. This unit requires replacement approximately every 80,000 pages.

Switch off the printer and allow the fuser to cool for about 10 minutes before opening the cover.

1. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

1. Note the positions of the four toner cartridges (a) and image drums (b). It is essential that they go back in the same order.

Diagram of a printer internal structure with labeled components and colored markers indicating parts of each part.

1. Lift each of the image drum units out of the printer and place them in a safe place away from direct sources of heat and light.

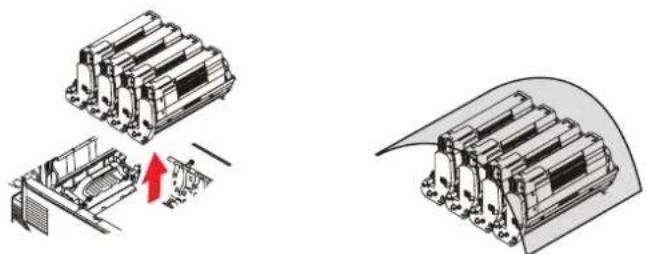

Technical illustration of a mechanical assembly with exploded view and red arrow indicating process (no text or symbols)

CAUTION!

The green image drum surface at the base of each cartridge is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

1. Locate the two fasteners (a) at each side of the belt and the lifting bar (b) at the front end.

Technical diagram of a device with labeled parts and directional arrows indicating movement or assembly.

Illustration of a hand using a tool to adjust internal components in a mechanical device (no text or symbols visible)

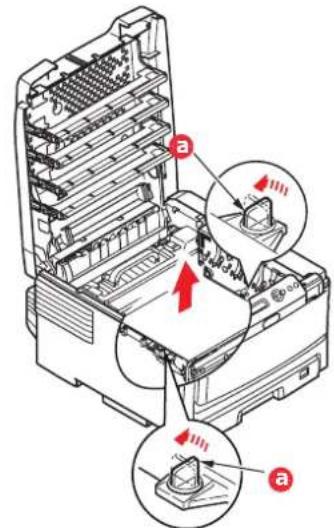

1. Turn the two fasteners 90^ to the left. This will release the belt from the printer chassis.

2. Pull the lifting bar (b) upwards so that belt tilts up towards the front, and withdraw the belt unit from the printer.

3. Lower the new belt unit into place, with the lifting bar at the front and the drive gear towards the rear of the printer. Locate the drive gear into the gear inside the printer by the rear left corner of the unit, and lower the belt unit flat inside the printer.

Illustration of a hand using a tool to adjust or install electronic components in a multi-compartment tool case (no text or symbols visible)

1. Turn the two fasteners (a) 90^ to the right until they lock. This will secure the belt unit in place.

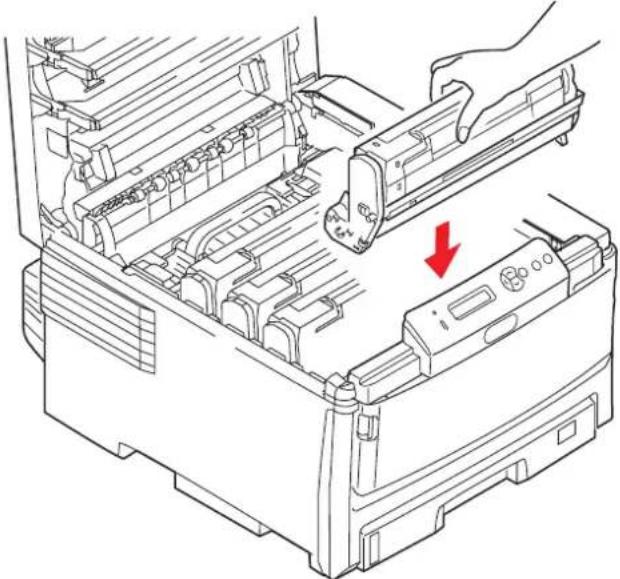

2. Replace the four image drums, complete with their toner cartridges, into the printer in the same sequence as they came out: cyan (nearest the rear), magenta, yellow and black (nearest the front).

3. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

FUSER REPLACEMENT

The fuser is located inside the printer just behind the four image drum units.

WARNING!

If the printer has recently been powered on, some fuser components will be very hot. Handle the fuser with extreme care, holding it only by its handle, which will only be mildly warm to the touch. A warning label clearly indicates the area. If in doubt, switch the printer off and wait at least 10 minutes for the fuser to cool before opening the printer cover.

Switch off the printer.

1. Press the cover release and open the printer's top cover fully.
2. Identify the fuser handle (a) on the top of the fuser unit.

Technical diagram of a printer internal structure with labeled parts (a, b) and directional arrows indicating movement or flow.

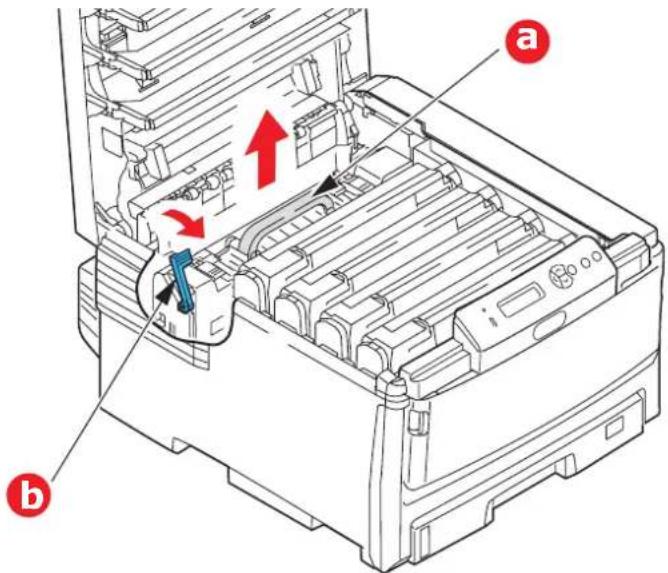

1. Pull the fuser retaining lever (b) towards the front of the printer so that it is fully upright.
2. Holding the fuser by its handle (a), lift the fuser straight up and out of the printer. If the fuser is still warm, place it on a flat surface which will not be damaged by heat.
3. Remove the new fuser from its packaging and remove the transit material.
4. Holding the new fuser by its handle, make sure that it is the correct way round. The retaining lever (b) should be fully upright.

5. Lower the fuser into the printer.

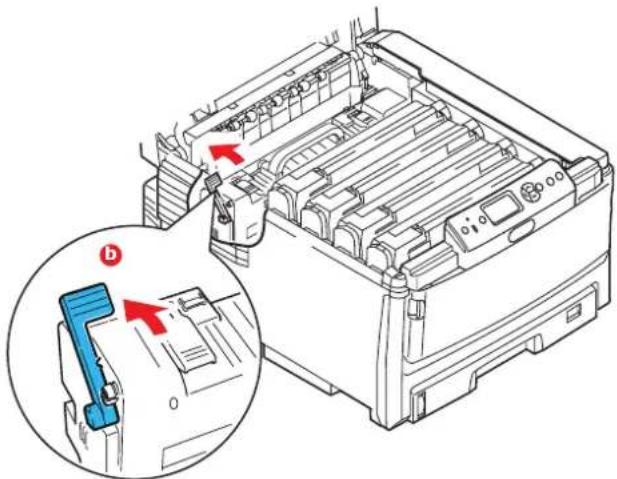

6. Push the retaining lever (b) towards the rear of the printer to lock the fuser in place.

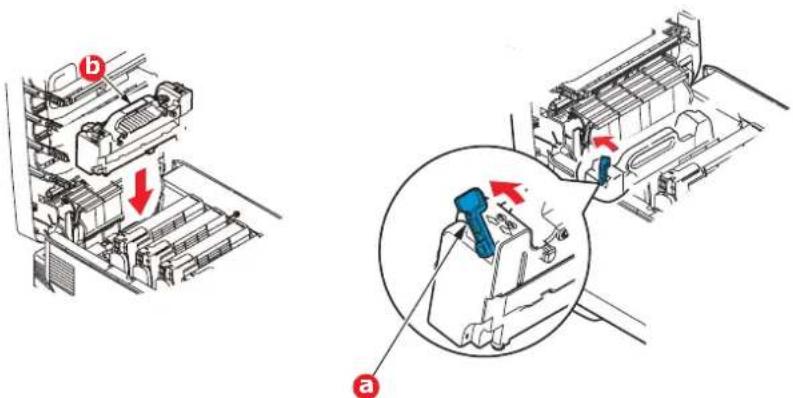

Technical diagram of a printer with labeled parts and a magnified inset showing a blue mechanical component with red arrows indicating motion.

Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

1. Switch the printer ON.

CLEANING THE LED HEAD

Clean the LED head when printing does not come out clearly, has white lines or when text is blurred.

1. Switch off the printer and open the top cover.

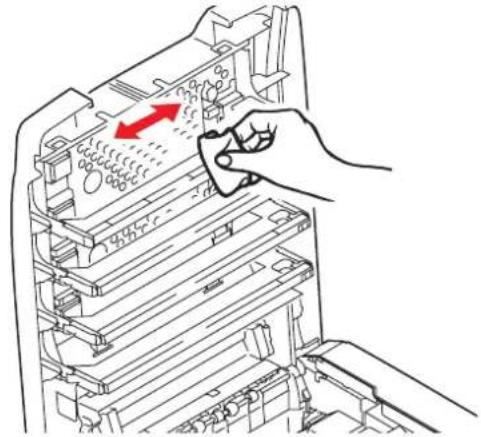

2. Gently wipe the LED head surface with a soft tissue.

Hand inserting a component into a device chassis, showing red arrows indicating direction (no text or symbols present)

CAUTION!

Do not use methyl alcohol or other solvents on the LED head as damage to the lens surface will occur.

1. Close the top cover.

INSTALLING UPGRADES

This section explains how to install optional equipment into your printer. This includes:

duplex (two-sided printing) unit; page 76:
additional RAM memory page 77
hard disk drive. page 80
additional paper tray(s) page 82
cabinet page 84

Technical line drawing of an air conditioner unit with internal grid layout (no text or symbols)

Isometric line drawing of a RAM module with multiple slots and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component with mounting holes and a curved cable (no text or symbols)

Isometric line drawing of a device casing with internal components and mounting holes (no text or symbols)

Isometric line drawing of a rectangular box with mounting base (no text or symbols)

DUPLEX UNIT

The duplex unit adds the function of two-sided printing, using less paper and making large documents easier to handle. It also enables booklet printing, which uses even less paper and makes large documents even easier to handle.

The duplex unit slides straight into the rear of the printer and requires no tools to install.

1. Unpack the new unit and remove any transit material from it.
2. Switch the printer off. It is not necessary to disconnect the AC power cable.
3. Ensure that the unit is the right way up, as shown, and push it into the slot behind the rear panel. The panel will swing inwards as you push the unit into it. Push the unit all the way in until it stops and latches home.

Diagram of a computer monitor with a red arrow indicating the handle (no text or symbols present)

1. Switch the printer on and wait for it to warm up (about 1 minute).
2. Print a menu map as follows:

(a) Press the Enter button.
(b) Press the Menu up button, then the Enter button to select the Print Information menu.
(c) Select Configuration with the Enter button.
(d) Press the Enter button once more to execute the Configuration menu.
(e) When the Configuration map is printed, press Online to exit the menu system.

1. Examine the first page of the menu map.

2. Near the top of the page, between the two horizontal lines, you will see the current printer configuration. This list should indicate that the duplex unit is now installed.

All that remains is to adjust the printer driver to make full use of the new features ("Adjusting printer drivers" on page 83).

MEMORY UPGRADE (C830)

The basic printer model comes equipped with 256MB of main memory. This can be upgraded with an additional memory board of 256MB or 512MB, giving a maximum total memory capacity of 768MB.

Installation takes a few minutes, and requires a medium size cross-head (philips type) screwdriver.

1. Switch the printer off and disconnect the AC power cable.
2. Press the cover release (a) and open the printer's top cover fully.

WARNING!

If the printer has been powered on recently, the fuser will be hot. This area is clearly labelled. Do not touch.

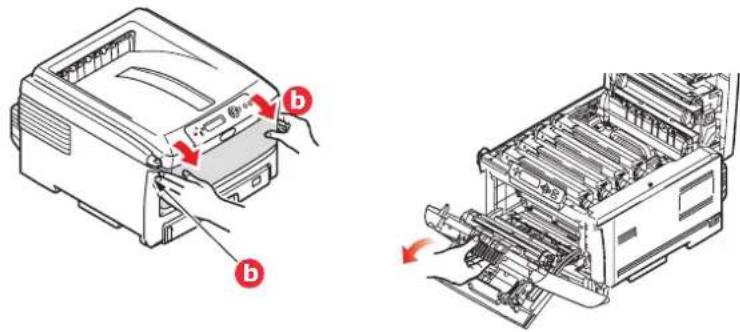

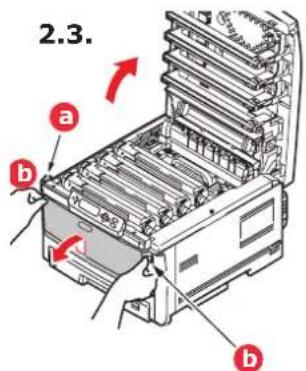

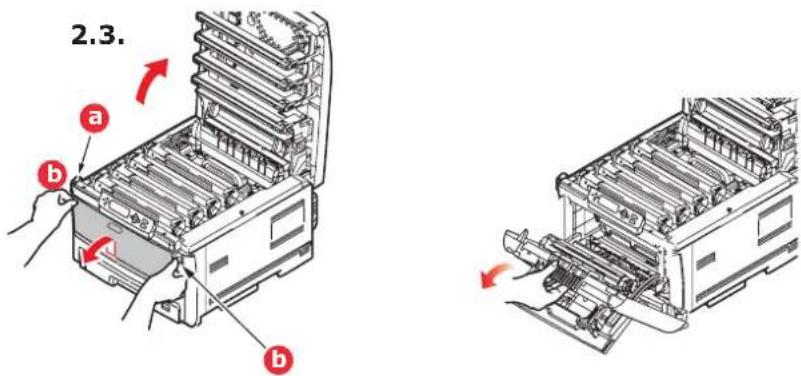

1. Pull down the MP Tray using the depressions (b). Lift the front cover release lever and lower the front cover.

2.3. a b c b

Technical line drawing of a mechanical device with internal components and a red arrow indicating motion (no text or symbols)

1. Remove the screw (a) securing the right-hand side cover.

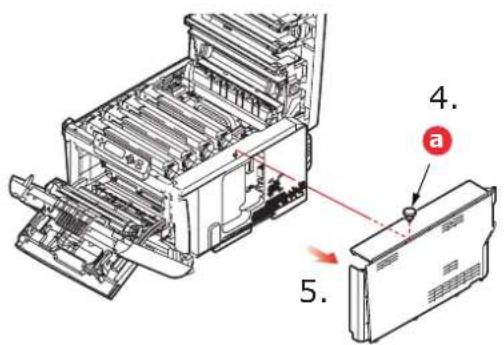

Technical diagram of a printer assembly with labeled parts and directional arrows indicating process flow

1. Lift the edge of the side cover slightly and pull the cover away from the printer at the top. Lift the cover slightly to detach it from the printer. Place it safely to one side.

2. Carefully remove the new memory board from its wrapping. Try to handle the board only by its short edges, avoiding contact with any metal parts as far as possible. In particular, avoid touching the edge connector.

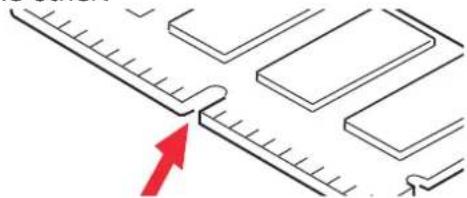

3. Notice that the memory board has a small cutout in the edge connector, which is closer to one end than the other.

Pure technical diagram showing mechanical components with a red arrow indicating direction (no text or symbols)

1. Identify the RAM expansion slot in the printer.

2. If the RAM expansion slot already contains a memory upgrade board, that board will have to be removed before you can install the new one. To remove it, proceed as follows, otherwise skip to step 10.

(a) Grip the board firmly by its short edges and pull it out of the slot.
(b) Place the removed memory board in the antistatic bag which originally contained the new memory board.

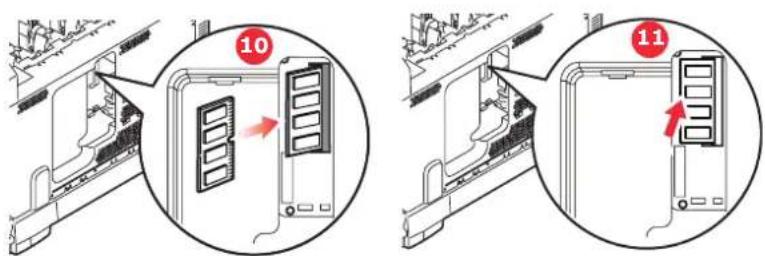

1. Hold the new memory board by its short edges, so that the edge connector faces in towards the RAM expansion slot, and the small cutout is closer to the rear of the printer.

Technical diagram showing two views of a server rack with labeled components and directional arrows indicating movement or assembly.

1. Gently push the board into the RAM expansion slot until it latches in and will not go any further.

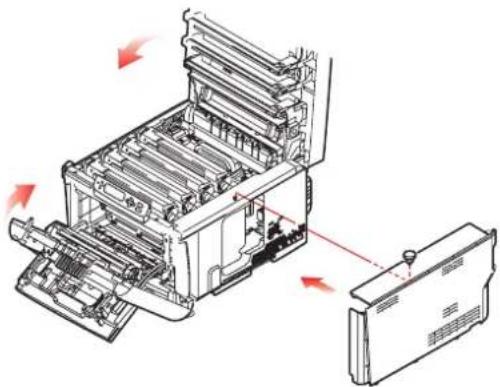

2. Locate the three retaining clips at the bottom of the side cover into their rectangular holes near the bottom of the printer.
3. Close the top of the side cover up to the printer and refit the securing screw removed in step 4.

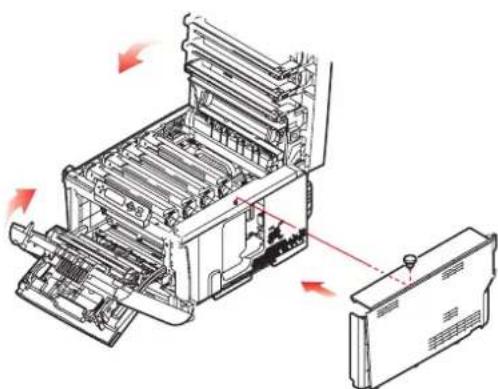

Technical illustration of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

1. Close the front cover, and close the top cover, pressing down firmly at each side to latch it closed.

2. Reconnect the AC power cable and switch the printer on.

3. When the printer is ready, print a menu map as follows:

(a) Press the Enter button.
(b) Press the Menu up button then the Enter button to select the Print Information menu.
(c) Select Configuration with the Enter button.
(d) Press the Enter button once more to execute the Configuration menu.
(e) When the Configuration map is printed, press On Line to exit the menu system.

1. Examine the first page of the menu map.

Near the top of the page, between the two horizontal lines, you will see the current printer configuration. This list contains the figure for total memory size.

This should indicate the total memory now installed.

HARD DISK DRIVE (C830)

The optional internal hard disk drive (HDD) enables collating of printed pages and can be used to store overlays and macros, fonts, and secure or proof documents waiting to be printed.

Installation takes a few minutes, and requires a medium size cross-head (philips type) screwdriver.

1. Switch the printer off and disconnect the AC power cable.
2. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on recently, the fuser will be hot. This area is clearly labelled. Do not touch.

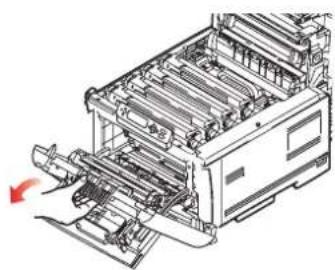

1. Pull down the MP Tray using the depressions (b). Lift the front cover release lever and lower the front cover.

2.3. a b c b

1. Remove the screw (a) securing the right-hand side cover.

Technical diagram of a printer assembly with labeled parts and directional arrows indicating process flow

1. Lift the edge of the side cover slightly and pull the cover away from the printer at the top. Lift the cover slightly to detach it from the printer. Place it safely to one side.

2. Plug the end of the connecting cable (a) into the disk unit connector (b) in the printer.

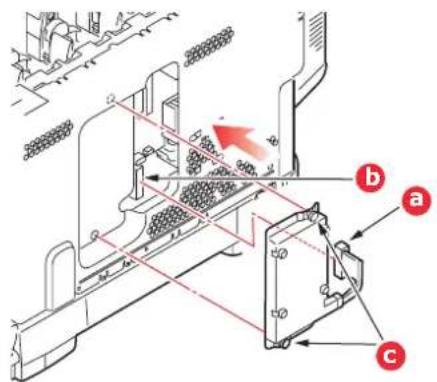

Technical diagram of a mechanical assembly with labeled components (a, b, c) and directional arrows indicating motion or force.

1. Tighten the two thumbscrews (c).

2. Close the top of the side cover up to the printer and refit the securing screw removed in step 4.

Technical illustration of a mechanical device with red arrows indicating motion or assembly (no text or symbols present)

1. Close the front cover and the top cover, pressing down firmly at each side to latch it closed.

2. All that remains is to adjust the printer driver to make full use of the new features ("Adjusting printer drivers" on page 83).

3. Reconnect the AC power cable and switch the printer on.

4. When the printer is ready, print a menu map as follows:

(a) Press the Enter button.
(b) Press the Menu up button then the Enter button to select the Print Information menu.
(c) Select Configuration with the Enter button.
(d) Press the Enter button once more to execute the Configuration menu.
(e) When the Configuration map is printed, press On Line to exit the menu system.

1. Examine the first page of the menu map.

Near the top of the page, between the two horizontal lines, you will see the current printer configuration. This should now indicate that the hard disk unit is installed.

ADDITIONAL PAPER TRAY(S)

1. Switch the printer off and disconnect the AC power cable.
2. Place additional paper tray(s) on desired location.

Technical line drawing of two stacked electronic devices with internal components and mounting holes (no text or symbols)

1. Observing safety rules for lifting and, using locating guides (a), place printer on top of the additional paper tray(s).

Technical diagram of a printer with labeled parts, showing internal structure and mounting points

1. Re-connect the AC power cable and switch the printer ON.

All that remains is to adjust the printer driver to make full use of the new features ("Adjusting printer drivers" on page 83).

ADJUSTING PRINTER DRIVERS

Once your new upgrade has been installed, you may need to update the Windows printer driver so that the additional features are available to your Windows applications.

Remember that if your printer is shared between users on different computers, the driver must be adjusted on each user's machine.

The illustrations shown here are for Windows XP. Other Windows versions may appear slightly different, but the principles are the same.

If you have installed a memory upgrade it is not necessary to change the printer driver, and you can ignore this section.

If you have installed a duplex unit, hard disk or paper tray(s), proceed as follows:

WINDOWS:

1. Open the Printers window (called "Printers and Faxes" in Windows XP) via the Start Menu or from the Windows Control Panel.

2. Right-click the printer icon for this printer, and choose Properties from the pop-up menu.

3. On the Device Options tab, check the box for the upgrade you have just installed.

4. Click OK to close the properties window, and then close the Printers window.

Properties Available Options Available Trap □ Display SystemLine □ Please Find Set About OK Cancel Apply

MACINTOSH

If you have added additional hardware to your printer, these must be enabled in the printer driver. Additional hardware may include extra paper trays, a printer hard disk or a duplex unit.

NOTE

This is required for IP and Bonjour connections only; USB and AppleTalk connections are normally configured automatically.

Leopard (Mac OS X 10.5)

1. Open the Mac OS X Print & Fax Preferences.

2. Ensure your machine is selected.

3. Select Options & Supplies.

4. Select Driver.

5. Select any options appropriate to your hardware and click OK.

Tiger (Mac OS X 10.4)

1. Open the Mac OS X Print & Fax Preferences.

2. Ensure your machine is selected.

3. Select Printer Setup...

4. Select the menu and choose Installable Options...

5. Select any options appropriate to your hardware and click Apply Changes...

Panther (Mac OS X 10.3)

1. Open the Mac OS X Print & Fax Preferences.
2. Select Printing.
3. Select Set Up Printers...
4. Ensure your machine is selected and select Show Info...
5. Select the menu and choose Installable Options...
6. Select any options appropriate to your hardware and click Apply Changes.

STORAGE CABINET

Instructions for installing the Storage Cabinet are supplied with the Cabinet.

CLEARING PAPER JAMS

Provided that you follow the recommendations in this guide on the use of print media, and you keep the media in good condition prior to use, your printer should give years of reliable service. However, paper jams occasionally do occur, and this section explains how to clear them quickly and simply.

Jams can occur due to paper misfeeding from a paper tray or at any point on the paper path through the printer. When a jam occurs, the printer immediately stops, and the Alert LED on the Status Panel (together with the Status Monitor) informs you of the event. If printing multiple pages (or copies), do not assume that, having cleared an obvious sheet, others will not also be stopped somewhere along the path. These must also be removed in order to clear the jam fully and restore normal operation. Major printer components and paper path

MAJOR PRINTER COMPONENTS AND PAPER PATH

Technical diagram of a mechanical device with numbered components and colored indicators, likely illustrating assembly or inspection steps.

1. Duplex unit (if fitted). 6. Operator panel.

2. Face-up stacker. 7. Front cover.

3. Paper exit. 8. Paper tray.

4. Fuser unit 9. Additional paper

5. Top cover.

tray (if fitted)

PAPER SENSOR ERROR CODES

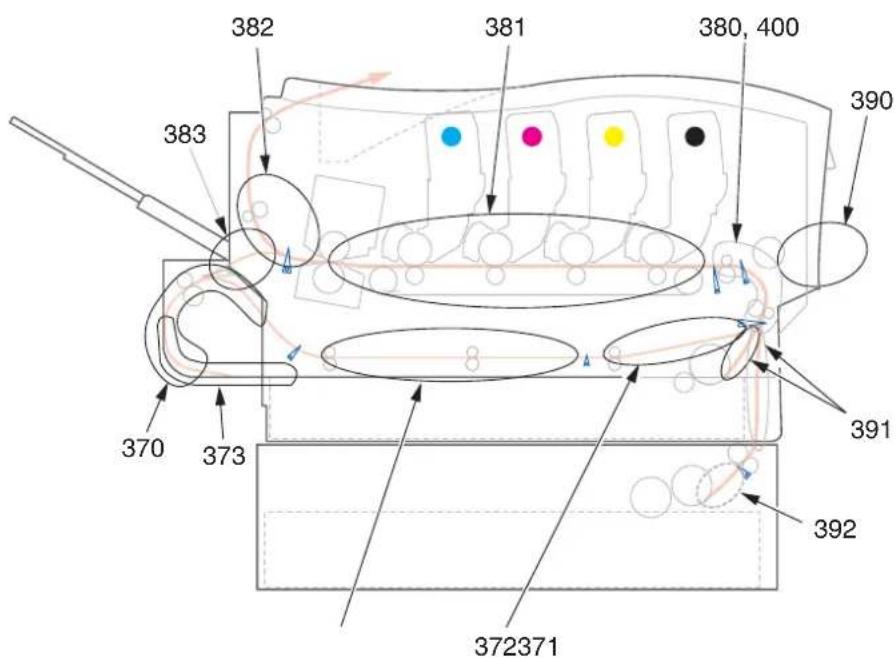

382 381 380, 400 390 383 370 373 391 392 372371

CODE # LOCATION CODE # LOCATION
370 Duplex	unit * 382 Paper exit
371 Duplex	unit * 383 Duplex unit *
372 Duplex	unit * 390 MP Tray
373 Duplex	unit * 391 Paper Tray
380 Paper feed 392			2^nd Paper tray *
381 Paper path 400 Paper size

* (if fitted).

1. If a sheet is well advanced out of the top of the printer, simply grip it and pull gently to draw it fully out. If it does not remove easily, do not use excessive force. It can be removed from the rear later.
2. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

1. Note the positions of the four toner cartridges (a) and image drums (b). It is essential that they go back in the same order.

Diagram of a printer internal structure with labeled components (a, b) and colored markers indicating parts.

It will be necessary to remove the four image drums (b) to gain access to the paper path.

1. Holding it by its top centre, lift the cyan image drum, complete with its toner cartridge, up and out of the printer.

Technical illustration of a printer internal structure being processed with a hand holding a tray (no text or symbols visible)

1. Put the assembly down gently onto a piece of paper to prevent toner from marking your furniture and to avoid damaging the green drum surface, and cover.

Technical illustration of mechanical components with no visible text or symbols

CAUTION!

The green image drum surface at the base of the Image Drum is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes.

1. Repeat this removal procedure for each of the remaining image drum units.

2. Look into the printer to check whether any sheets of paper are visible on any part of the belt unit.

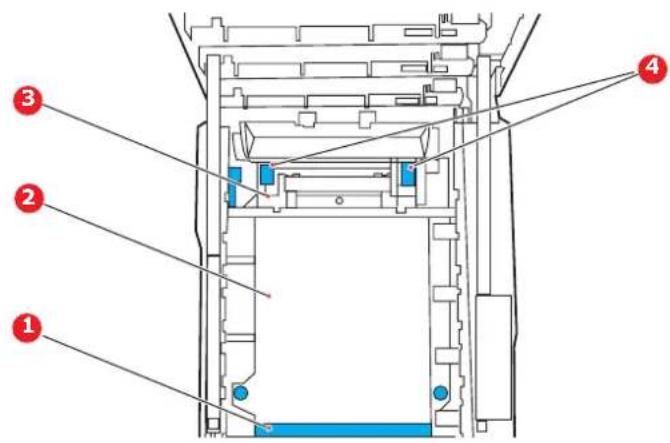

Technical diagram of a device interior with numbered components and labeled parts

CAUTION!

Do not use any sharp or abrasive objects to separate sheets from the belt. This may damage the belt surface.

(a) To remove a sheet with its leading edge at the front of the belt (1), carefully lift the sheet from the belt and pull it forwards into the internal drum cavity and withdraw the sheet.

Illustration of a hand operating a computer with a red arrow indicating the right-hand rule (no text or symbols present)

(b) To remove a sheet from the central area of the belt (2), carefully separate the sheet from the belt surface and withdraw the sheet.

(c) To remove a sheet just entering the fuser (3), separate the trailing edge of the sheet from the belt, lift the fuser pressure release levers (4) up and press toward the rear to release the fuser's grip on the sheet, and withdraw the sheet through the drum cavity area.

Illustration of a hand inserting a component into a rack device (no text or symbols visible)

NOTE:

If the sheet is well advanced into the fuser (only a short length is still visible), do not attempt to pull it back. Follow the next steps.

(d) To remove a sheet in the fuser; pull the retaining lever (a) towards the front of the printer to release the fuser. Withdraw the fuser unit using the handle (b). Lift the fuser pressure release levers (c) up and press toward the rear to release the fuser's grip on the sheet. Pull the trapped paper from the fuser.

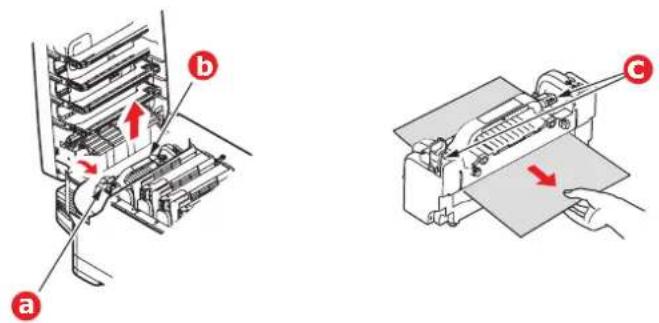

Technical diagram showing mechanical assembly with labeled parts a, b, and c, including directional arrows indicating movement or force.

(e) Replace fuser unit into the machine and move locking lever (a) toward the rear of the machine.

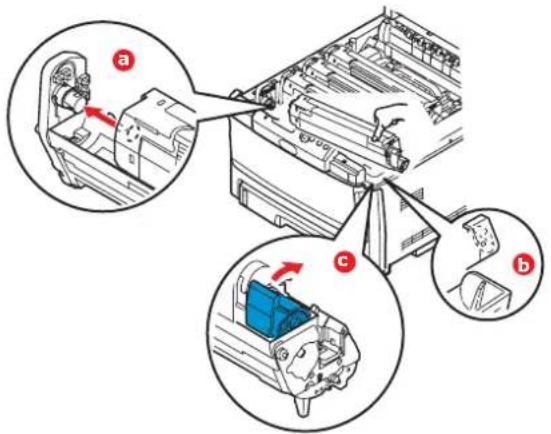

Technical diagram showing mechanical assembly with labeled components and directional arrows, including a magnified inset of a tool interacting with a component.

1. Starting with the cyan image drum unit nearest the fuser, replace the four image drums into the drum cavity, making sure to locate them in the correct order.

Technical illustration of a mechanical assembly with colored components and a red downward arrow indicating a process (no text or symbols present)

Holding the complete assembly by its top centre, lower it into place in the printer, locating the pegs at each end into their slots in the sides of the printer cavity.

Technical illustration of a mechanical assembly with a hand operating a component (no text or symbols visible)

1. Lower the top cover but do not press down to latch it closed yet. This will protect the drums from excessive exposure to room lighting while you check the remaining areas for jammed sheets.

2. Open the rear exit tray (a) and check for a sheet of paper in the rear path area (b).

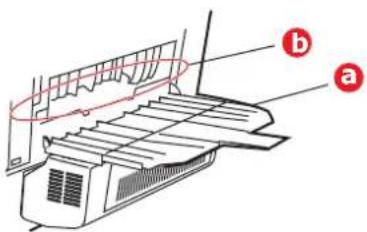

Diagram of an air conditioner unit with labeled parts a and b, showing internal structure and airflow path.

Pull out any sheets found in this area.

If the sheet is low down in this area and difficult to remove, it is probably still gripped by the fuser. In this case raise the top cover, reach around and press down on the fuser pressure release lever.

1. If you are not using the rear exit tray, close it once any paper has been removed from this area.

2. If a duplex unit is fitted, lift lever (a) and lower the duplex unit cover and pull out any sheets found in this area. Close the duplex unit cover

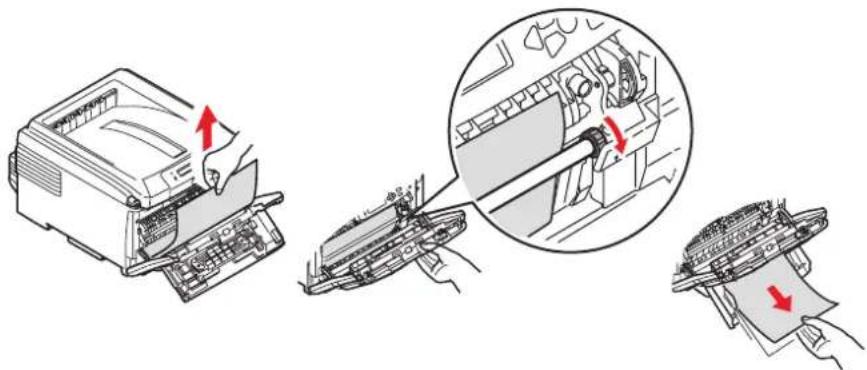

Diagram showing three steps of printer printing process with red arrows indicating motion and a labeled component 'a'

1. Pull down the MP Tray using the depressions (b). Lift the front cover release lever and lower the front cover.

Technical diagram showing printer internal structure with labeled parts and directional arrows indicating assembly or processing steps.

1. Check inside the cover for sheets in this area and remove any that you find, then close the cover.

Technical diagram illustrating a printer press operation with labeled parts and directional arrows indicating process flow.

1. Pull out the paper tray(s) and ensure that all paper is stacked properly, is undamaged, and that the paper guides are properly positioned against the edges of the paper stack. When satisfied, replace the tray.

2. Finally, close the top cover and press down firmly so that the cover latches closed. When the jam has been cleared, if Jam Recovery is set to ON in the System Configuration Menu, the printer will attempt to reprint any pages lost due to paper jams.

SPECIFICATIONS

C810 - N34240B

C830 - N34241B

ITEM SPECIFICATION

Dimensions 485 x 556 x 345mm (W x D x H) without Duplex unit

Weight 36Kg approx. (without Duplex unit)

Print method LED exposed light source electronic photographic

Print speeds 30 pages per minute colour / 32 pages per minute monochrome

Resolution 600 x 600, 1200 x 600dpi or 600 x 600dpi x 2bit (ProQ2400)

Emulations (C830 only)

C810 C830

GDI PostScript 3

XPS (Vista & Server 2008 only PCL 5c, HP-GL, PCL XL, PCL 6

Epson FX

IBM Pro Printer III XL

Auto Features Auto registration

Auto density adjustment

Auto consumable counter reset

Memory

C810 C830

Resident:

128MB 256MB

Optional:

N/A 256MB & 512MB

HDD (option - C830 only)

40 Gb

Operating platform Windows

2000/XP/XP Pro x64 bit Edition*/Server 2003/Server 2003 x64 bit Edition*, Server 2008/Server 2008 x64 bit Edition*, Vista

* x86-64 processors only. Itanium is not supported.

Macintosh

OS X (10.3 or higher)

Paper capacity at 80g/m²

300 sheets in main tray

530 sheets in optional 2nd tray

530 sheets in optional 3rd tray

100 sheets in multi purpose tray

Paper weight 64 \~176g/m² in main tray

64 \~176g/m² in 2nd tray

64 \~176g/m² in 3rd tray

64 \~ 220g/m² in multi purpose tray

Duplex:

64 \~ 128g/m²

Paper output

250 sheets in face down (top) stacker @ 80g / m^2

100 sheets in face up (rear) stacker @ 80g/m ^4

Paper feed a

Paper tray, manual feed, optional additional paper trays

Media size - any tray

A3, Tabloid, A4 (LEF/SEF), A5, A6 (tray 1 only), B4, B5, Legal 13/13.5/14 inch, Letter (LEF).

Media size - MP tray

A3, A4 (LEF/SEF), A5, A6, B4, B5 (LEF/SEF), Legal 13/13.5/14 inch, Letter, Executive, Banner (up to 1321mm length), com-10 envelope, DL envelope, C4/C5 envelope.

Duplex Legal13/13.5/14

, Letter (LEF/SEF), Executive, A4 (LEF/SEF), B5 (LEF/SEF), A5, B4,

A3, Tabloid, Custom Size (within width 148.5-297mm and length 182-420mm / weight 64g/m2-105g/m2 limits)

Media type

Plain, Letterhead, Transparency, Bond, Recycled, Card stock, Rough, Labels and Glossy

Paper capacity

Paper tray: 300 sheets approx.

(depending on paper weight)

Manual feed: 100 sheets approx.

Optional additional paper trays: 530

Exit capacity

Face up: 100 sheets approx.

(depending on paper weight)

Face down: 250 sheets approx.

ITEM	SPECIFICATION
Print accuracy Start: ±2 mm
	Paper skew: ±1 mm/100 mmImage expansion/compression: ±1 mm/100 mm
Interfaces
Universal Serial Bus (USB)	USB specification Version 2.0Connection: USB type BCable: USB specification version2.0 (shielded)Transmission mode: High speed (480Mbps + 0.25% maximum)
Network	10 Base T, 100 Base TX
Parallel Interface	36 pin Centronics type, receptacle - IEEE 1284-1994
Duty cycle 50,000 pages per month max., 10,000 pages per month average
MTBF 100.000 pages
MTTR 20 minutes
Toner lifeb	Starter:CMYK:2,000 images(750 images used to initially charge image drum)Replacement:CMYK: 8,000 images
Image drum life 20,000 A4 pages average
Belt life 80,000 A4 pages at 3 pages per job-Fuser life 100,000 A4 pages at 3 pages per job-Power supply 220 to 240VAC @ 50/60 Hz ± 2%
Power consumption Operating: 1350W peak; 570 W av. (25°C)Idle: 200 W typical (25°C)Power savingc: <15W (C810)<17W (C830)
Operating environment Operating 10 to 32 °C/20 to 80% RH(optimum 25 °C wet, 2 °C dry)Off: 0 to 43 °C/10 to 90% RH(optimum 26.8 °C wet, 2 °C dry)
Print environment 30 to 73% RH @ 10 °C; 30 to 54% RH @ 32 °C10 to 32 °C @ 30% RH; 10 to 27 °C @ 80% RHColour 17 to 27 °C @ 50 to 0% RH
Noise Levels Operating: Mono/Colour - less than 54dBaStandby Mode: less than 37dBaPower Saving Mode: Background level
a. Exit method is limited by paper size, media weight and paper feed.b. As defined by ISO/IEC 19798c. To comply with the requirements of Energy Star, when no data is present for a set period of time, the printer goes into a power-saving mode. The printer has a "wake-up" feature which, when initiated from a host device or the operator panel, will revert the printer to its "running" mode.

Specifications subject to change without notice. All trademarks acknowledged.

INDEX

B

Belt

how to replace.... 71

life expectancy.... 64

life remaining.... 30

C

Cleaning the LED head...... 74

Colour

adjusting 27

D

Duplex

how to install.... 76

paper size and weight limits. 11

E

Envelopes

loading 14

F

Fuser

how to replace.... 73

life expectancy.... 64

life remaining.... 30

H

Hard disk drive

how to install.... 80

How to change the settings -

administrator.... 23

I

Image drum

how to replace.... 68

life expectancy.... 64

Image drums

current usage state ...... 30

L

Labels

recommended types...... 10

M

Major printer components and

aper path 85

Menu functions - C810 ...... 22

Administrator (Boot)

Menu 30

Changing the settings -

Administrator 23

Changing the settings -

User 22

Colour menu 27

Information menu...... 24

Maintenance menu 29

Media menu 25

Network menu 28

Operator Panel.... 22

Print menu 24

Print Statistics Menu...... 32

Shutdown Menu.... 24

System configuration

menu 27

Usage menu.... 29

USB Menu 28

Menu functions - C830...... 34

Admin Setup.... 43

Administrator (Boot)

Menu 54

Language Setup ...... 56

Parallel Setup 54

Power Setup .... 56 Print Statistics Menu .... 57

Print Statistics Menu ... 57 Security Setup 55

Security Setup.... 55 Storage Setup.... 56

Storage System ...... 55

USB Setup.... 54

Calibration 53

Changing the settings -

Administrator 35

Changing the settings -

User 35

Configuration Menu ...... 36

Menu 39

Menus.... 39

Operator Panel 34

Print information menu .... 37

Print secure Job...... 38

Shutdown menu 42

Menus

Colour menu 27

how to use....22, 34

Information menu 24

Maintenance menu 29

Media menu.... 25

menu map 24

Network menu.... 28

Print menu.... 24

resetting 29

System configuration

menu 27

Usage menu 29

USB menu 28

Multi purpose tray

how to use.... 14

paper metrics 11

N

Network addresses

setting 28

Network protocols

enabling or disabling ..... 28

0

Overlays and macros

general 58

Overlays, PCL

how to create 61

printing with overlays..62, 63

Overlays, PostScript

defining in the Windows

driver.... 59

how to create 58

printing with overlays..... 60

P

Paper

jam clearing 85

jam, error codes.... 86

loading cassette trays ..... 12

loading letterhead 12

recommended types...... 10

supported sheet sizes..... 10

weights and sizes ...... 25

Power saving

delay time 27

enabling or disabling ...... 29

Print order

face down stacker ...... 13

face up stacker.... 13

Print quality

adjusting 29

Printer overview...... 8

S

Secure documents

printing 18

Secure printing 17

Store to hard disk.... 19

Switching off correctly ..... 42

T

Toner

current usage state ...... 30

how to replace.... 65

life expectancy 64

Transparencies

recommended types...... 10

U

Upgrades

memory 77

OKI CONTACT DETAILS

Oki Systems (UK) Limited

550 Dundee Road

Slough Trading Estate

Slough, SL1 4LE

Tel: [phone]

Fax: [phone]

http://www.oki.co.uk

Oki Systems Ireland Limited

The Square Industrial Complex

Tallaght, Dublin 24, Ireland

Tel: [phone]

Fax: [phone]

http://www.oki.ie

Technical Support:

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

OKI Systems (Ireland) Ltd.

(Northern Ireland)

40 Sydenham Park

Belfast, BT4 1PW

Tel: [phone]

http://www.oki.ie

Technical Support:

Tel: [phone]

E-mail: [e-mail]

Oki Data Corporation

4-11-22 Shibaura, Minato-ku, Tokyo

108-8551, Japan

Tel: [phone]

Fax: [phone]

http://www.okidata.co.jp

Oki Data (Singapore) Pte. Ltd.

78 Shenton Way, #09-01,

Singapore 079120

Tel: [phone]

Fax: [phone]

http://www.oki.com.sg

Oki Systems (Thailand) Ltd.

1168/81-82 Lumpini Tower,

27th Floor, Rama IV Road,

Bangkok 10120, Thailand

Tel: [phone]

Fax: [phone]

http://www.okisysthai.com

Oki Data(S) P Ltd. Malaysia Rep

Office

Suite 21.03, 21st Floor Menara IGB,

Mid Valley City

Lingkaran Syed Pura 59200,

Kuala Lumpur, Malaysia

Tel: [phone]

Fax: [phone]

Oki Systems (Hong Kong) Ltd.

Unit 607, 6/F, Island Place Tower,

510 Kings Road, North Point,

Hong Kong

Tel [phone]

Fax [phone]

http://www.okiprintingsolutions.com.hk

The IPL Group

146 O'Riordan Street, Mascot,

NSW 2020, Australia

Tel: [phone]

Fax: [phone]

http://www.oki.com.au

Comworth Systems Ltd.

10 Constellation Drive Mairangi Bay,

PO Box 100-120, NSMC,

Auckland, New Zealand

Tel: [phone]

Fax: [phone]

http://www.comworth.co.nz

OKI EUROPE LIMITED

Blays House

Wick Road

Egham

Surrey TW20 0HJ

United Kingdom

Tel: [phone]

Fax: [phone]

WWW.OKIPRINTINGSOLUTIONS.COM
