Product Type	55-inch 1080p 60Hz LED TV
Model Number	NS-55D420NA18 (also NS-55D420MX18)
Screen Size (Diagonal)	54.6 in (138.7 cm)
Display Resolution	1920 x 1080 (1080p)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Dimensions (without stand)	28.4 x 49 x 3.3 in (72.1 x 124.4 x 8.3 cm)
Dimensions (with stand)	30.7 x 49 x 10.6 in (78.1 x 124.4 x 26.8 cm)
Weight (without stand)	35.2 lbs (16 kg)
Weight (with stand)	36.8 lbs (16.7 kg)
Power Consumption (On)	90 W
Power Consumption (Standby)	< 0.5 W
Audio Enhancement	DTS Sound
Speakers	2 x 10 W
HDMI Inputs	3 (one with ARC)
USB Port	1 (supports JPEG photos)
Composite Video Input	1
Digital Audio Output	1 optical
Analog Audio/Headphone Output	1 (3.5 mm)
VESA Mount	200 x 200 mm (M6 screws)
Tuner	ATSC, Clear-QAM, NTSC
HDMI CEC (INlink)	Yes
Game Mode	Yes (dedicated button)
Parental Controls (V-Chip)	Yes (version 2.0)
Closed Captioning	Yes (analog and digital)
Sleep Timer	Yes (up to 240 minutes)

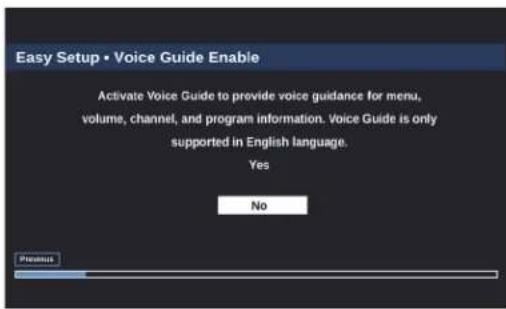

Text-to-Speech (Voice Guide)	Yes
OSD Languages	English, French, Spanish
Warranty	1 year limited
Country of Origin	China
Cleaning Instructions	Clean with a dry cloth; do not use liquid cleaners or aerosols.
Safety Features	Polarized plug, ventilation requirements, anti-tip stability

Frequently Asked Questions - NS-55D420NA18 INSIGNIA

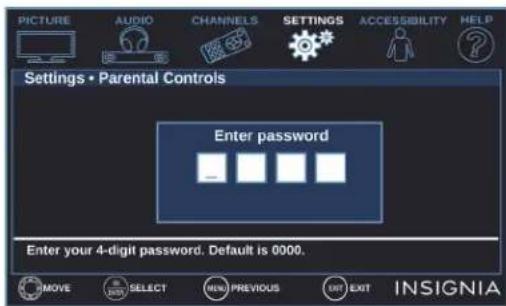

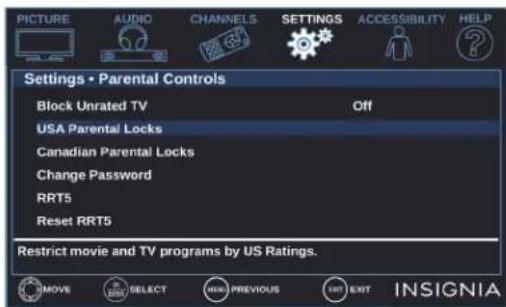

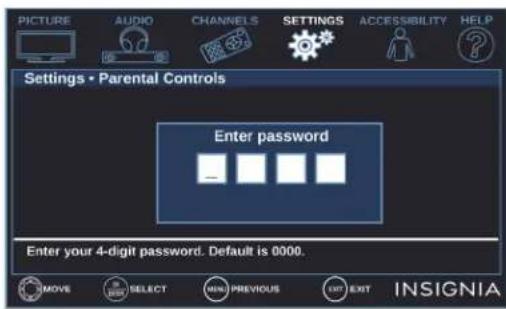

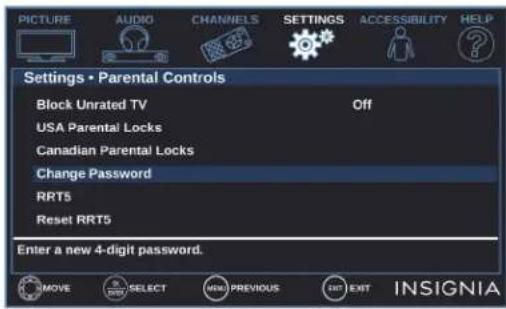

How do I set up parental controls on my Insignia NS-55D420NA18?

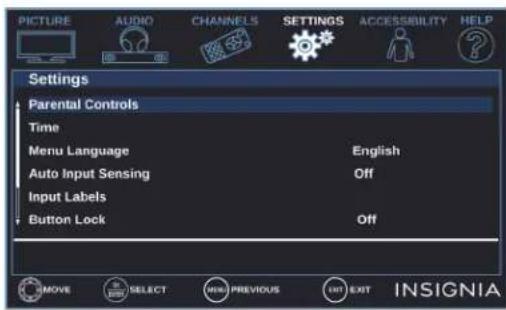

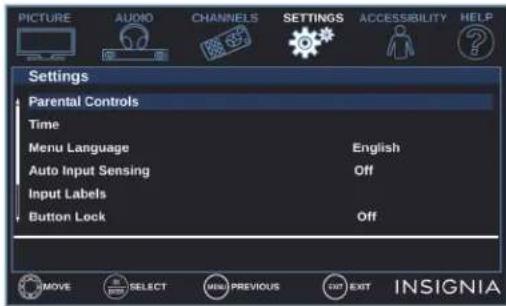

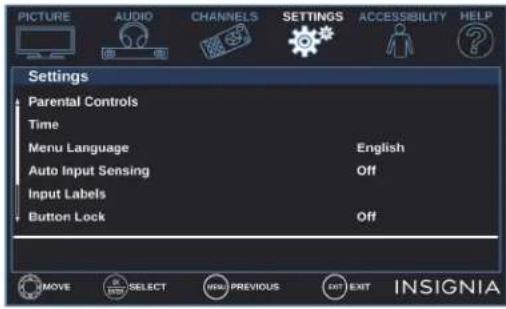

Press MENU, go to SETTINGS > Parental Controls, enter the default password (0000), then set your desired ratings for USA or Canada. You can also block unrated TV and change the password. For details, see the parental controls section in the manual.

Can I use my TV remote to control other HDMI CEC devices?

Yes, the TV supports INlink (HDMI CEC). Connect an HDMI CEC-compatible device, ensure INlink Control is On in SETTINGS > INlink, and you can use the TV remote's media buttons to control playback. Some functions like Device Auto Power Off and TV Auto Power On are also configurable.

How do I enable Game Mode for a better gaming experience?

Simply press the GAME button on your remote control. The TV automatically adjusts picture settings for gaming. Game Mode is available when the input source is HDMI or AV. You can also select Game picture mode manually in the Picture menu.

What should I do if my TV won't turn on?

First, check that the power cord is securely connected to both the TV and a working outlet. Make sure the power outlet is not controlled by a switch. If the power indicator is red, try pressing the power button on the TV or remote. If the issue persists, unplug the TV for a few seconds and plug it back in. See the troubleshooting section for more steps.

How do I connect a soundbar or external speakers?

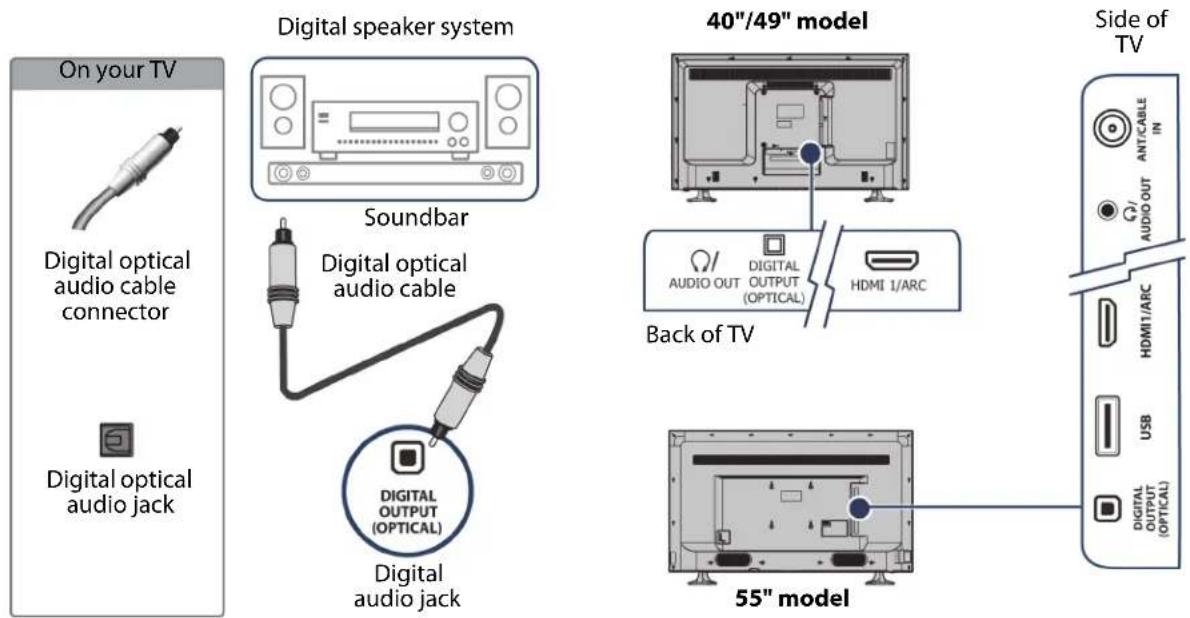

You can connect via the digital optical audio output (DIGITAL OUTPUT) or the analog audio/headphone jack. For digital: connect an optical cable, then set Digital Audio Format to PCM in AUDIO menu. For analog: connect to the AUDIO OUT jack, and choose Headphones/Audio Out Variable or Audio Out Fixed in the Audio menu. The TV speakers can be set to auto-mute when an external device is connected.

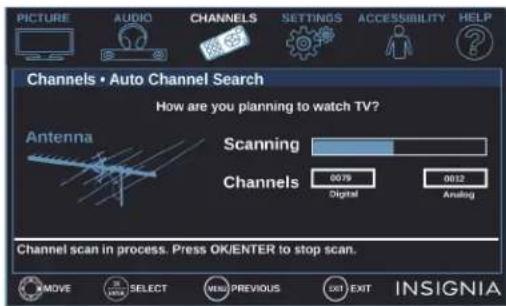

How do I perform a channel scan?

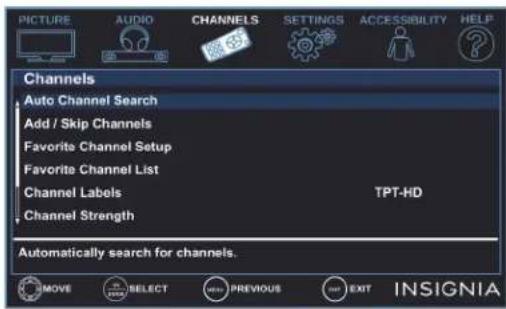

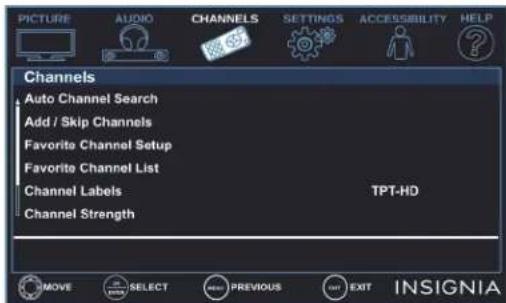

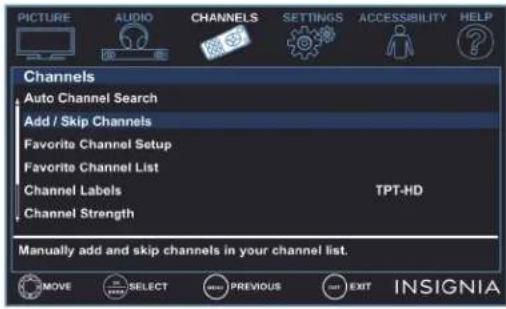

Press MENU, go to CHANNELS > Auto Channel Search, select your signal source (Antenna, Cable from the wall, or Cable/Satellite Box), then press ENTER. The TV will scan for available channels. You can stop the scan by pressing EXIT, but you'll need to run it again to build a channel list.

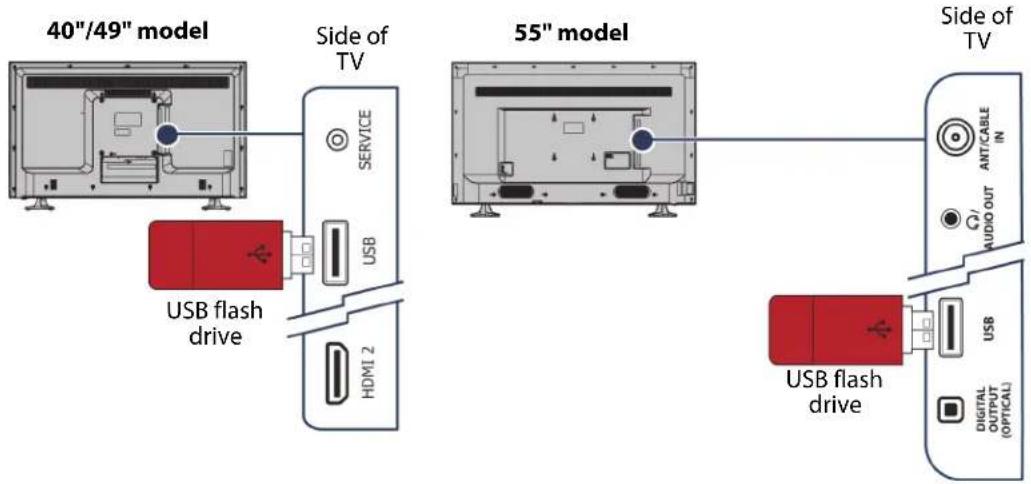

Can I view photos from a USB drive?

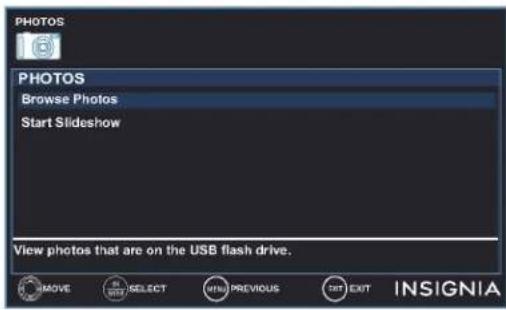

Yes, insert a USB flash drive with JPEG photos into the USB port. A message will appear; select Yes to open the Photos menu. Use the remote to browse, view full-screen, or start a slideshow. Only JPEG files with .jpg extension are supported. Do not remove the drive while viewing.

How do I adjust the closed captioning settings?

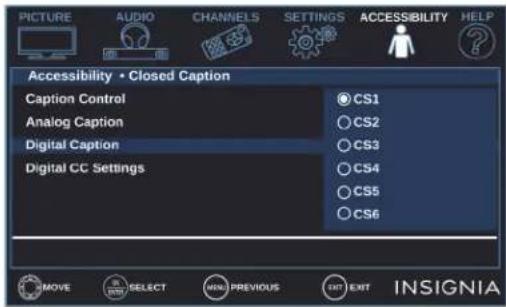

Press the CC button on the remote to toggle captions on/off. For more options, press MENU, go to SETTINGS > Closed Caption. You can select analog or digital captioning mode, customize font, size, and color for digital captions. See the closed captioning section in the manual for details.

What is the VESA mount size and what screws are needed?

The VESA mount pattern is 200 x 200 mm. Use M6 screws. The screw length depends on your wall-mount bracket; ensure the threaded part is between 9.5 mm and 11.5 mm. Always use all four mounting holes and follow the bracket's instructions. See the installing a wall-mount bracket section.

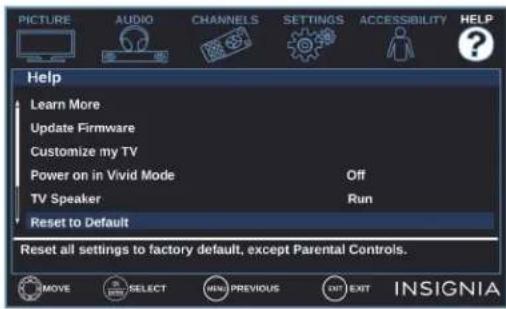

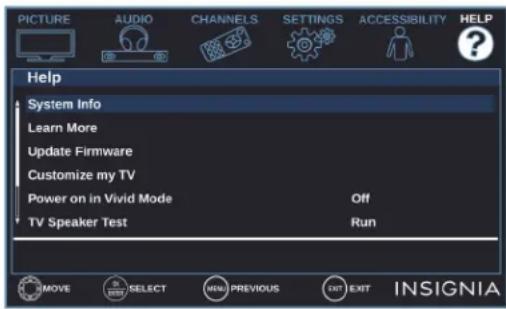

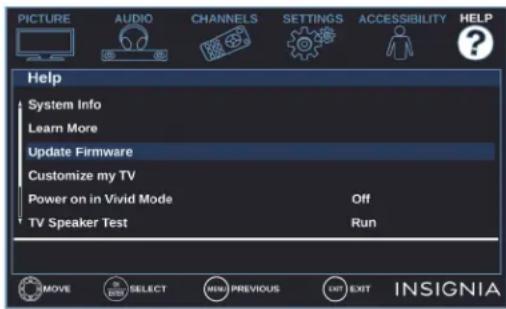

How do I update the TV firmware?

Press MENU, go to HELP > System Update. If an update is available, follow the on-screen instructions. Alternatively, you can download the latest firmware from the Insignia support website onto a USB drive, insert it, and select Update from the menu. Ensure the TV is not turned off during the update. See the updating the TV firmware section.

USER MANUAL NS-55D420NA18 INSIGNIA

40"/ 49"/55" 1080p 60Hz LED TV

NS-40D420NA18/NS-49D420NA18/NS-55D420NA18

NS-40D420MX18/NS-55D420MX18

INSIGNIA™

Contents

CHILD SAFETY 5

Important Safety Instructions 6

WARNING 6

CAUTION 7

Introduction....8

INlink 8

DTS Sound™ 8

Game mode 8

Audio accessibility 8

Installing the stands or wall-mount bracket 9

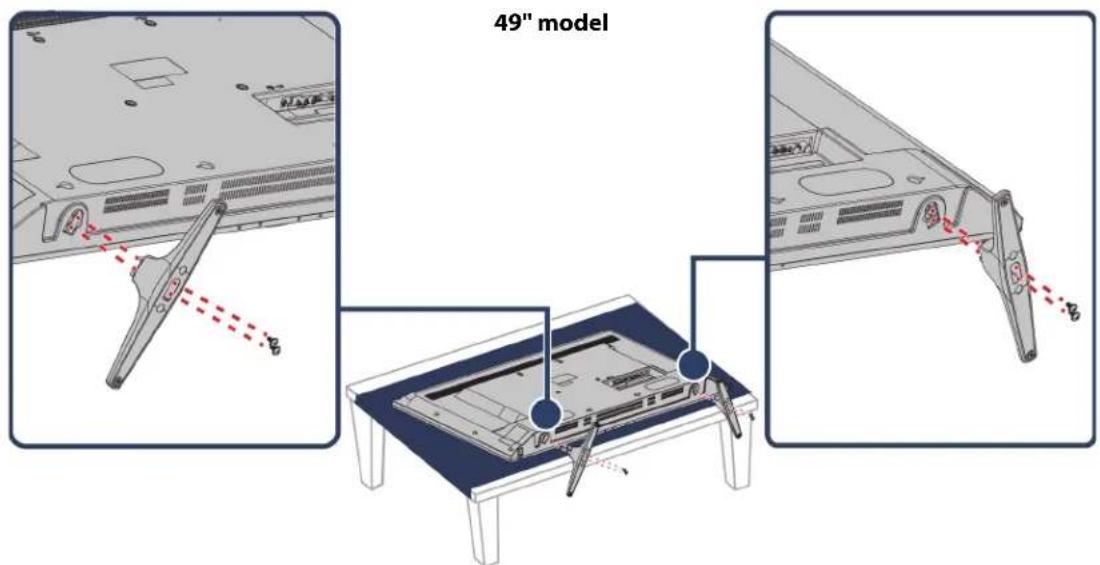

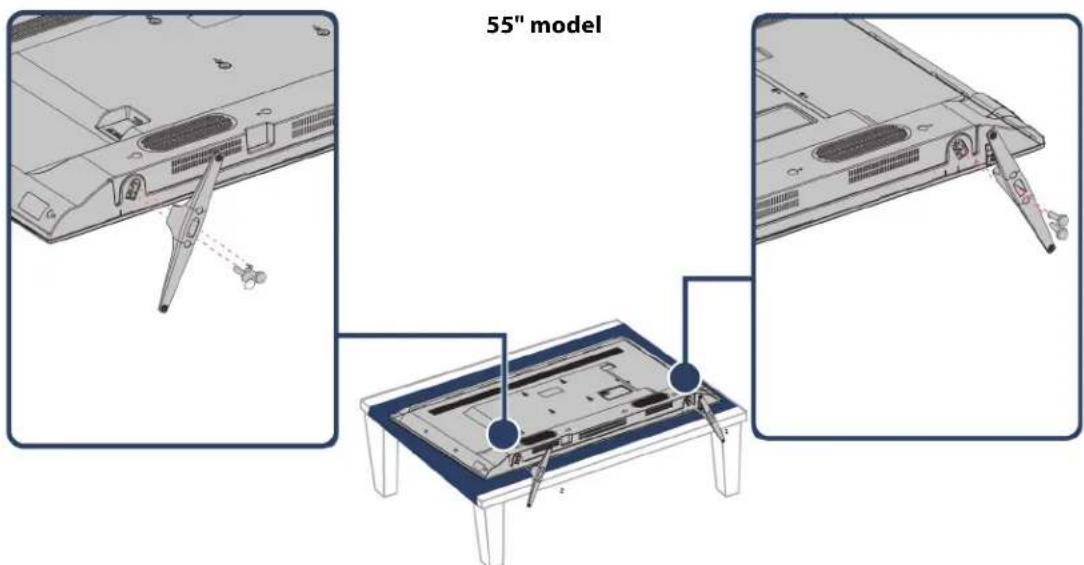

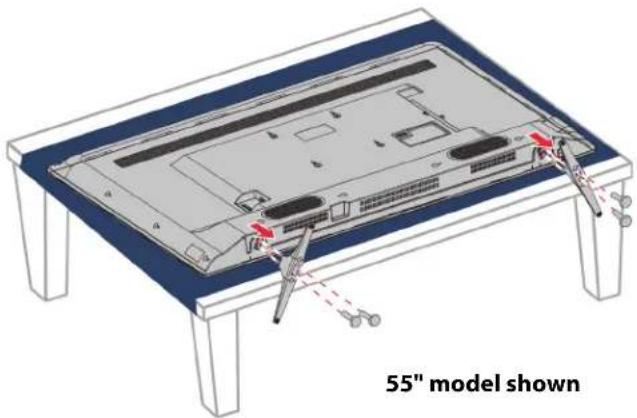

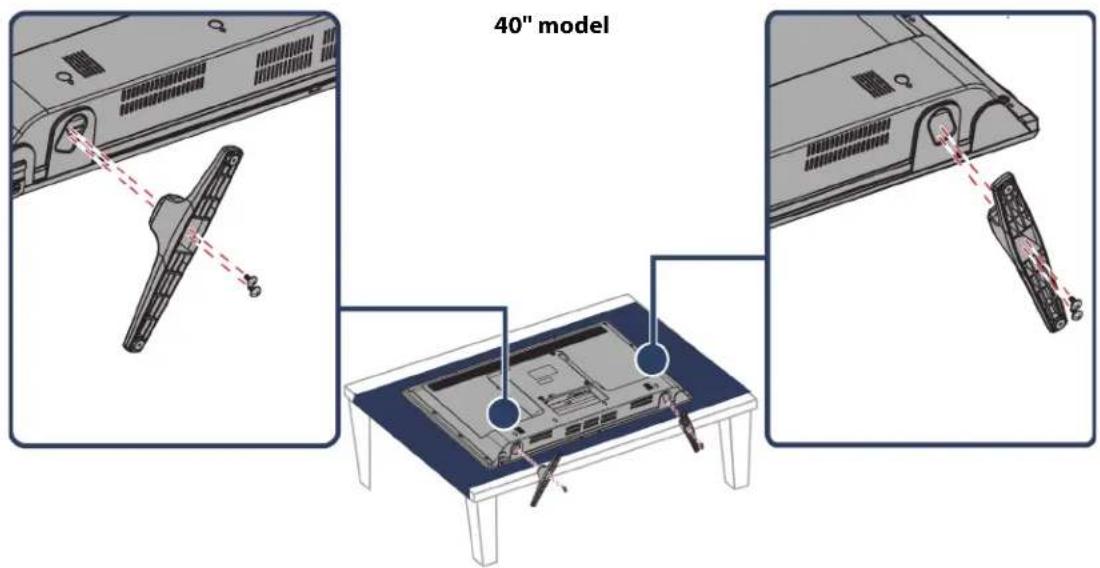

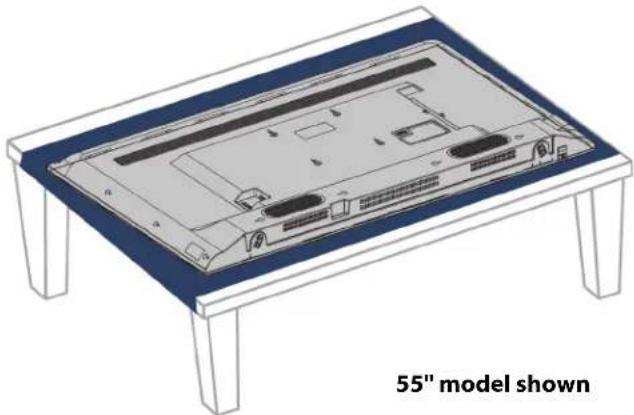

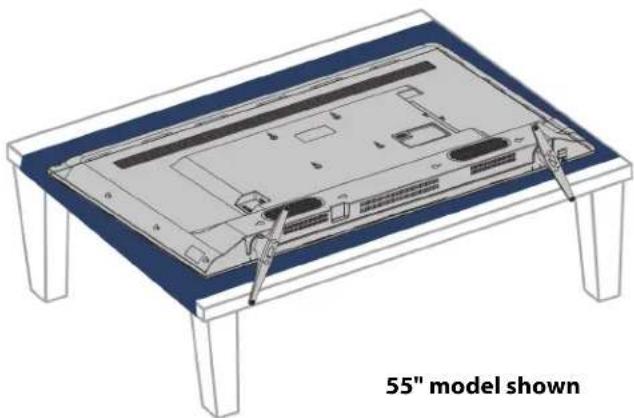

Installing the stands....9

Installing a wall-mount bracket 11

TV components 13

Package contents 13

Front 13

40"/49" model jacks 14

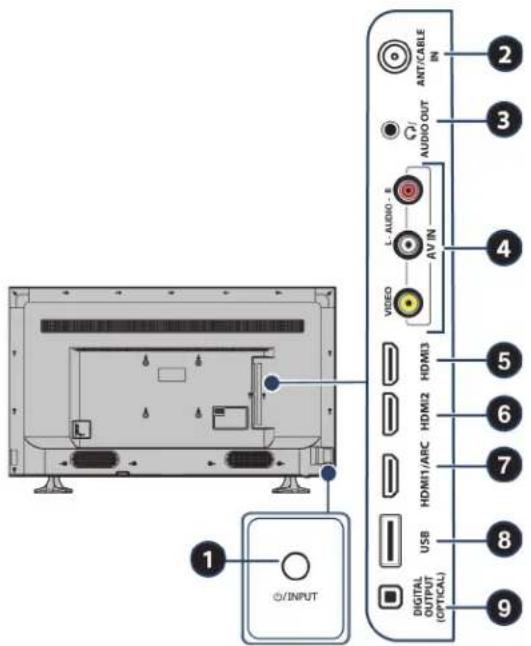

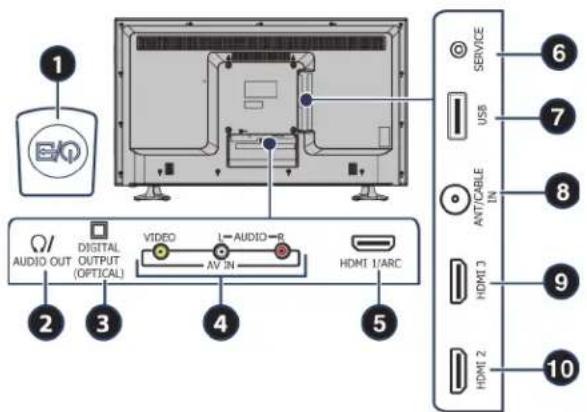

55" model jacks 15

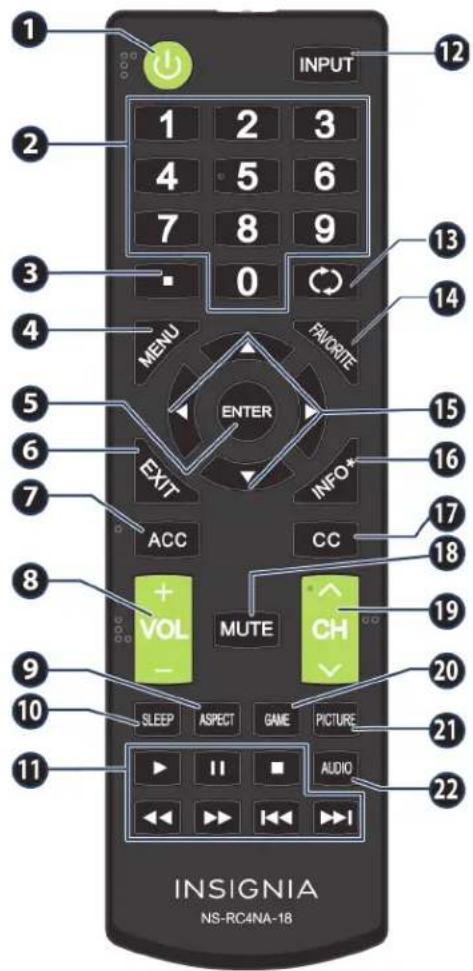

Remote control 16

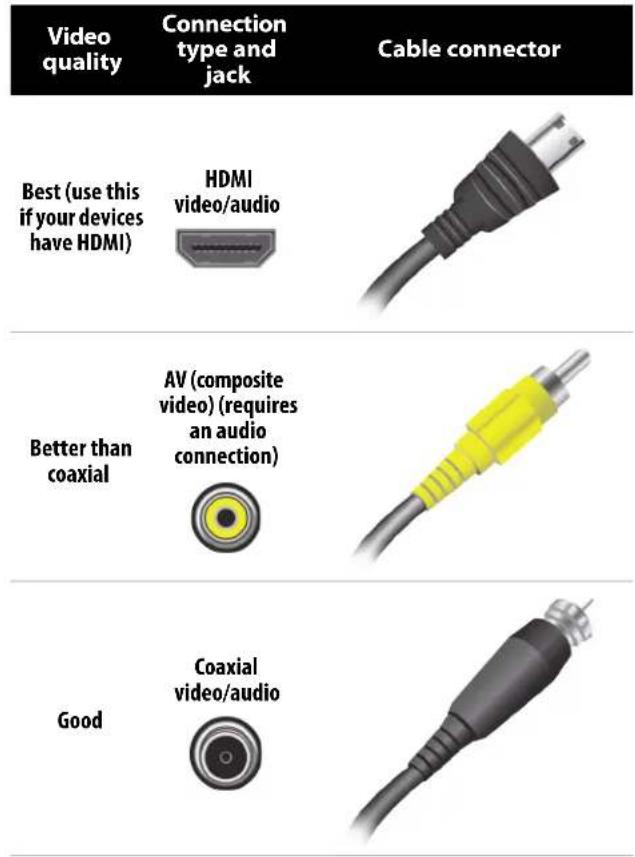

What connection should I use? 17

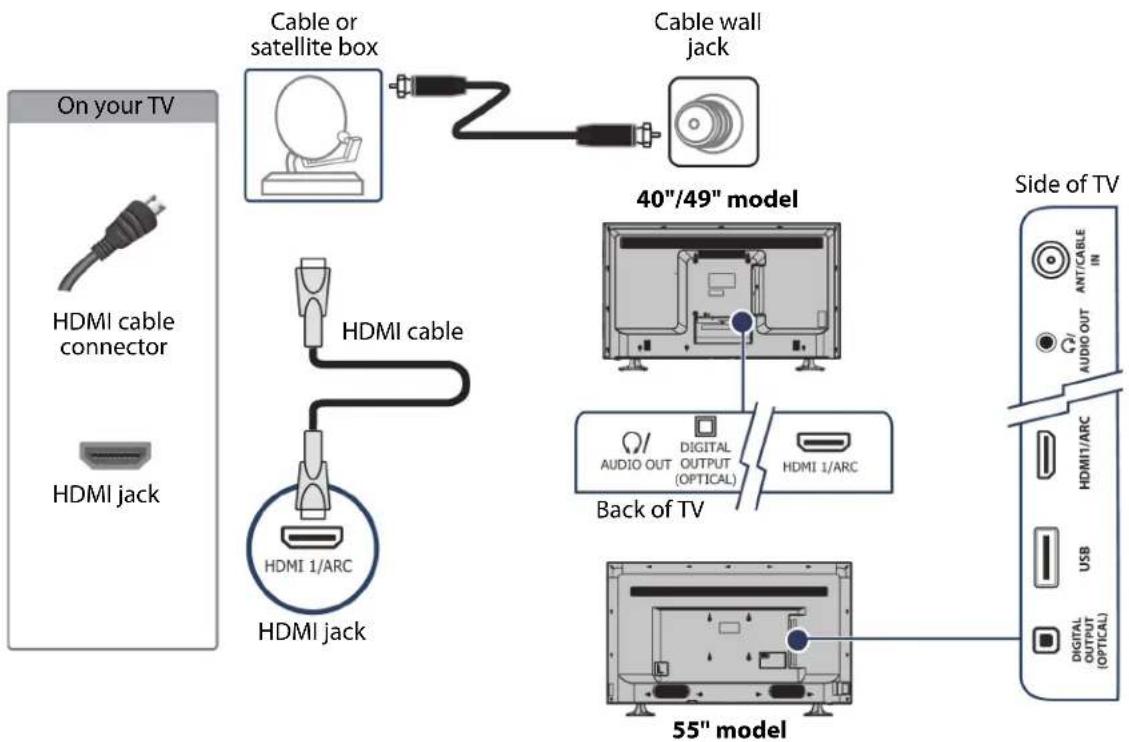

Connecting a cable or satellite box 18

HDMI (best) 18

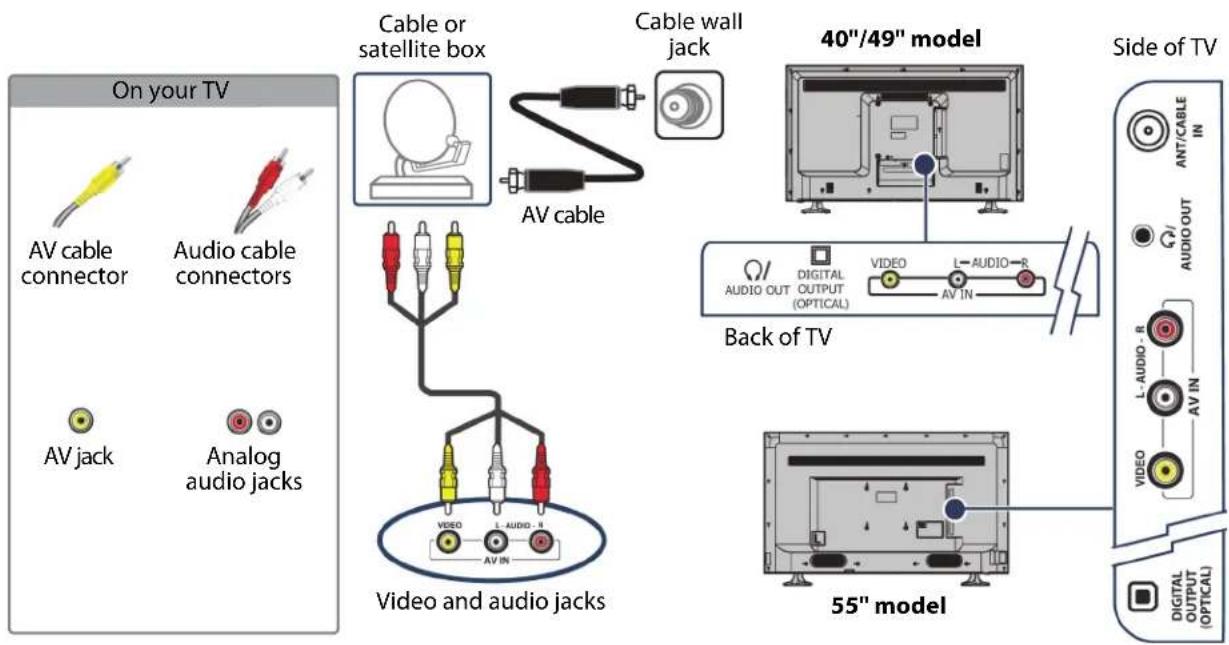

AV (good)....19

Coaxial (good) 20

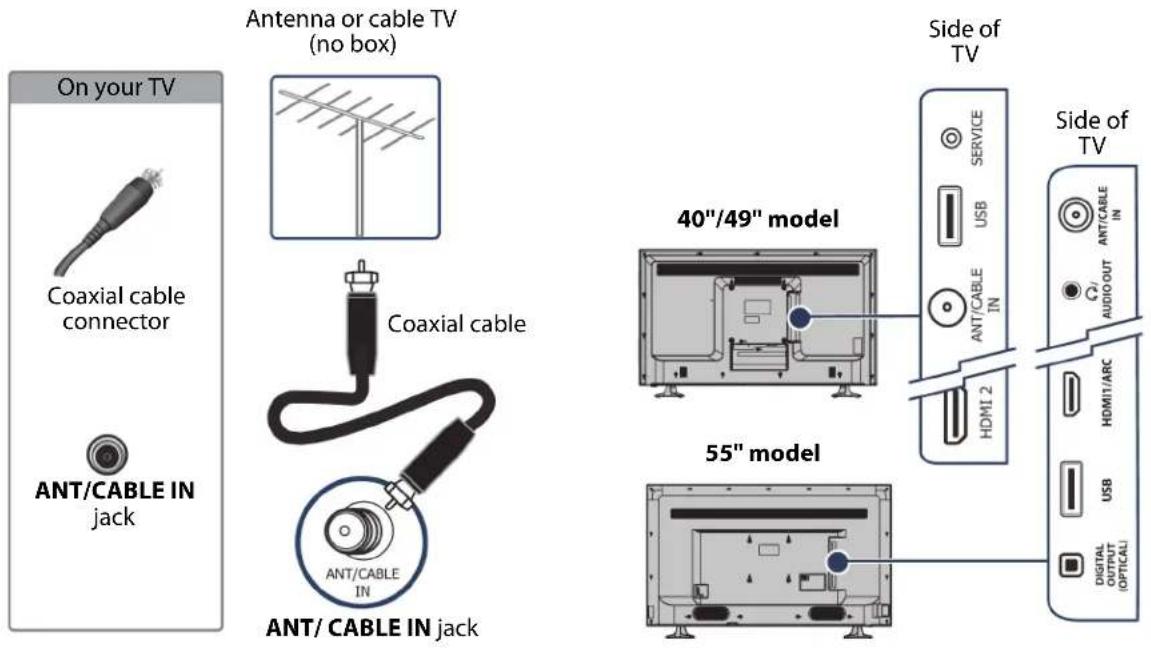

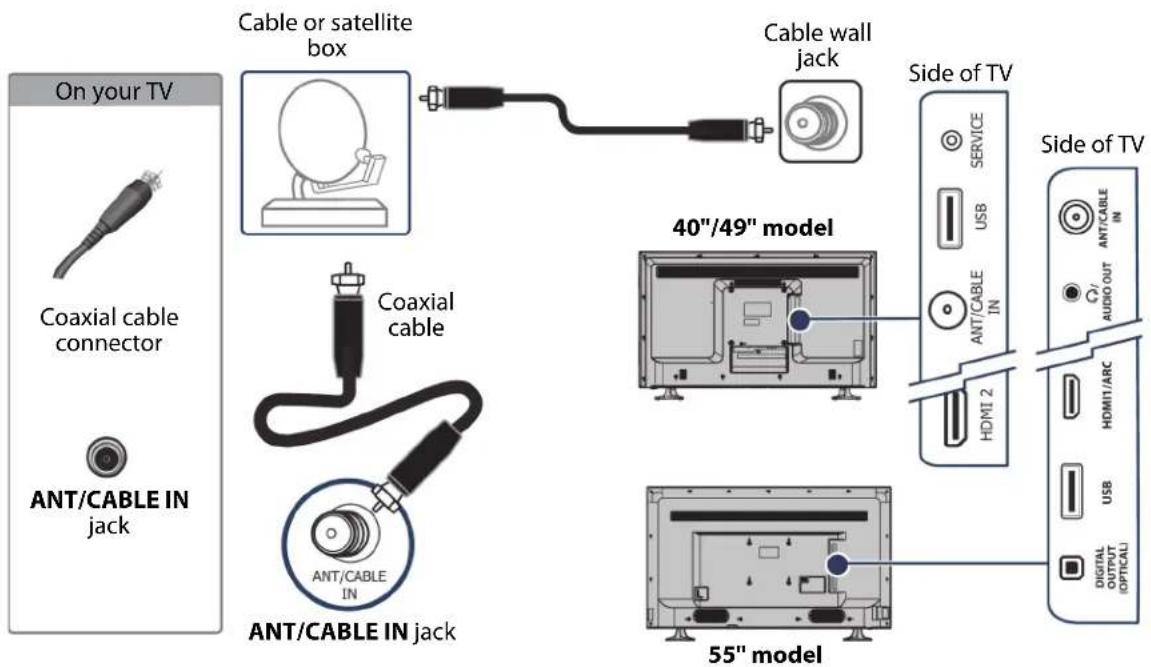

Connecting an antenna or cable TV (no box) 21

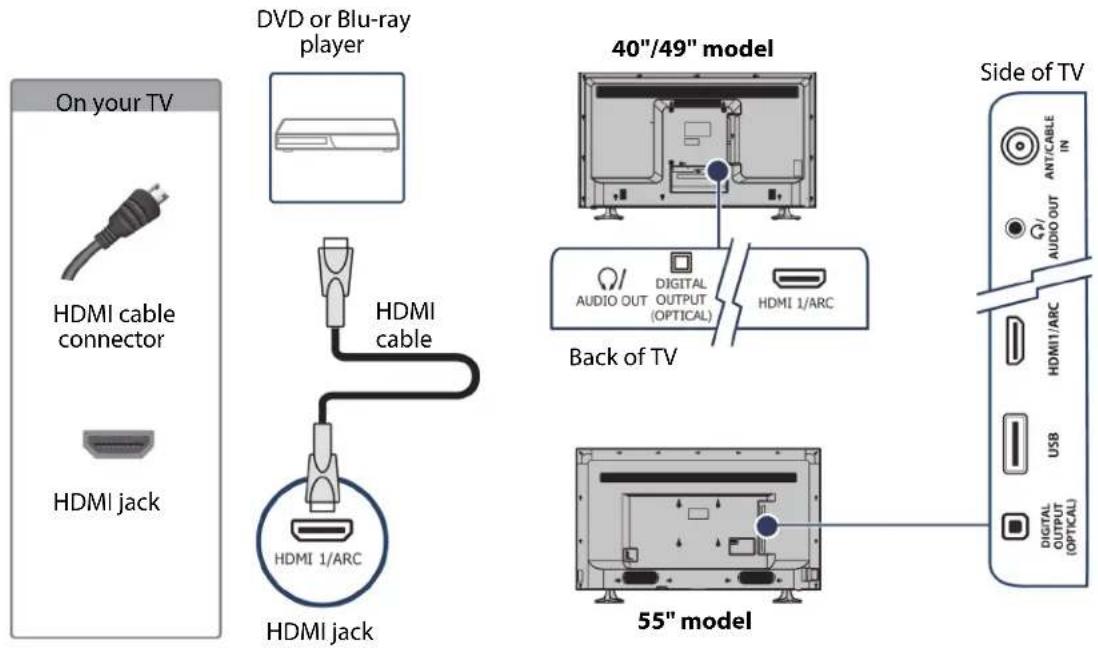

Connecting a DVD or Blu-ray player 22

HDMI (best) 22

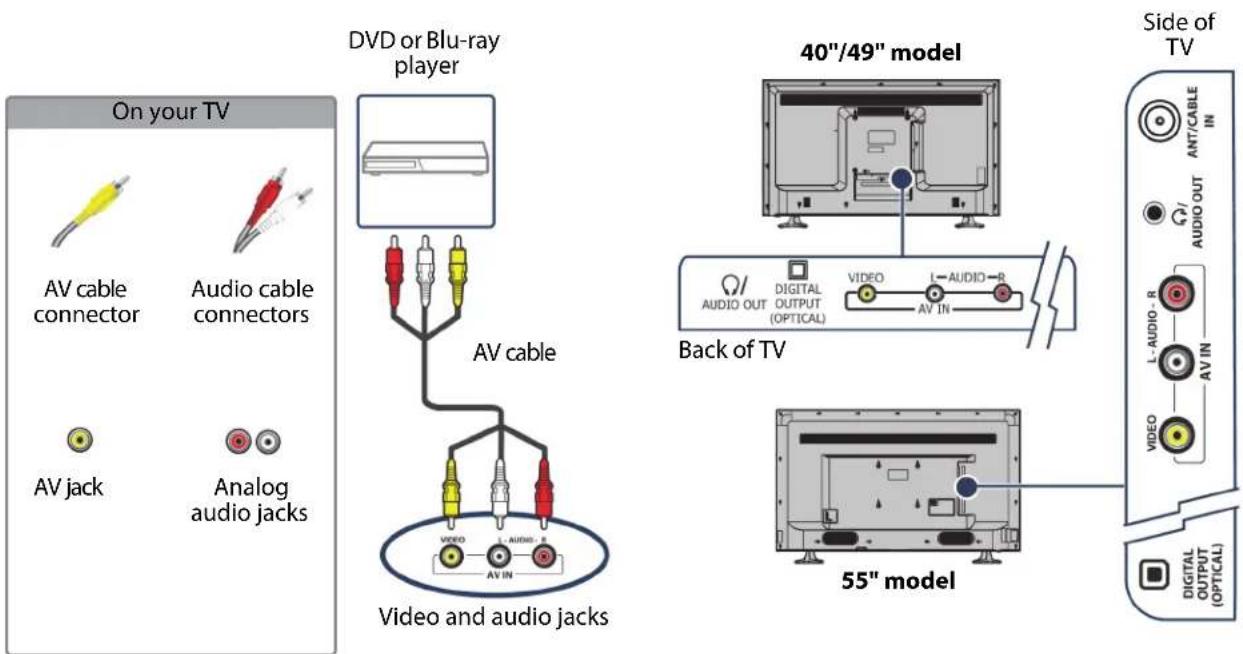

AV (good) 23

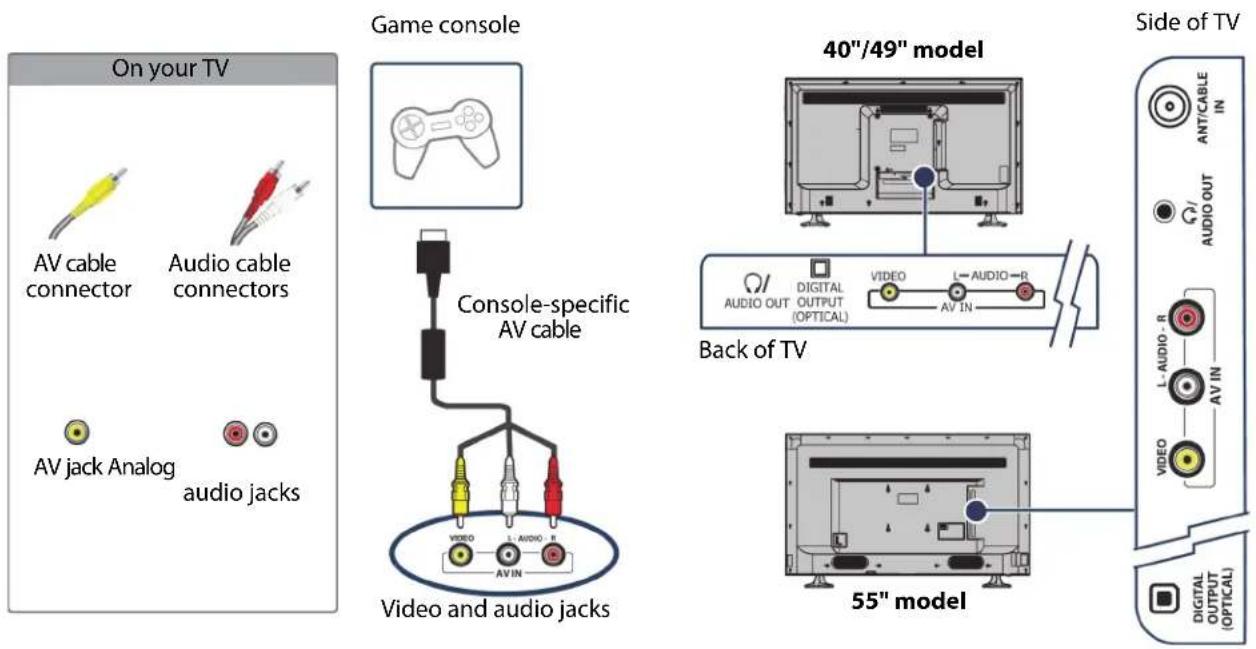

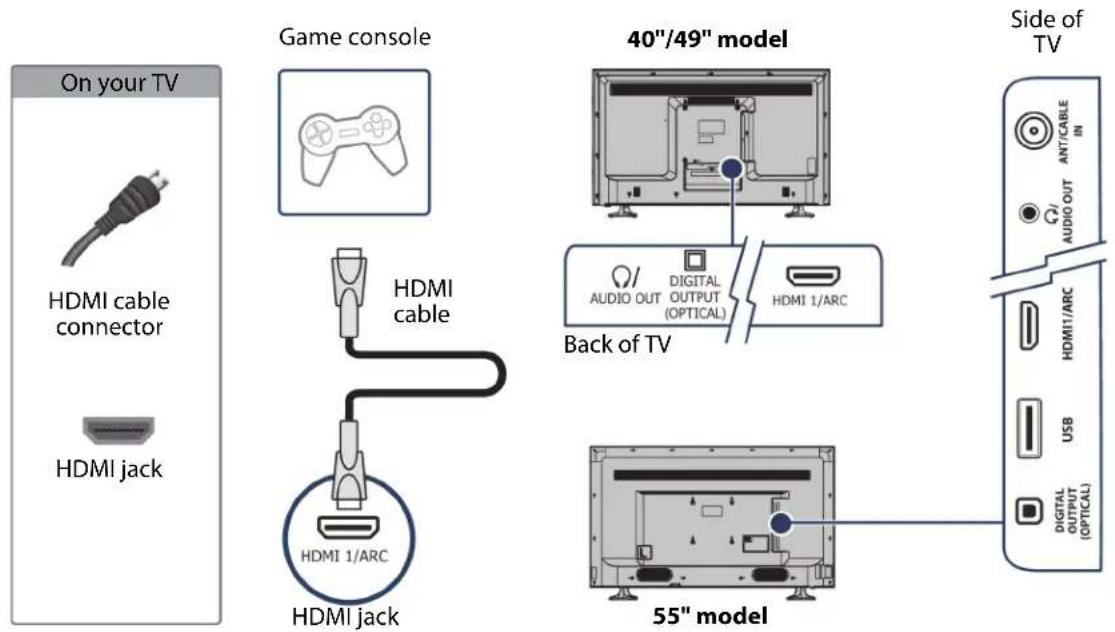

Connecting a game console 24

HDMI (best) 24

AV (good) 25

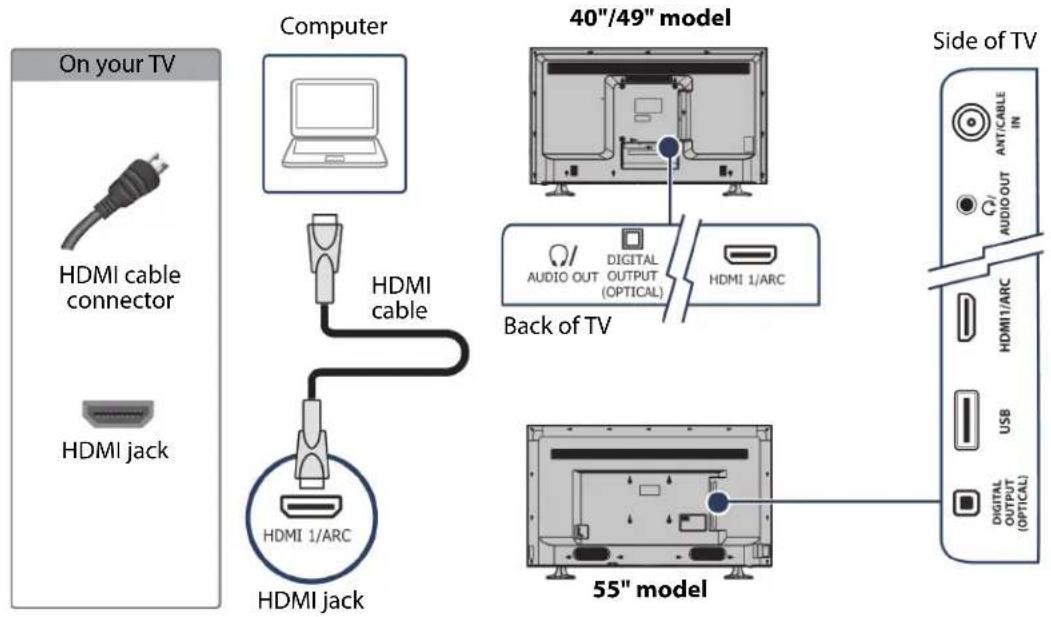

Connecting a computer 26

Connecting a USB flash drive 27

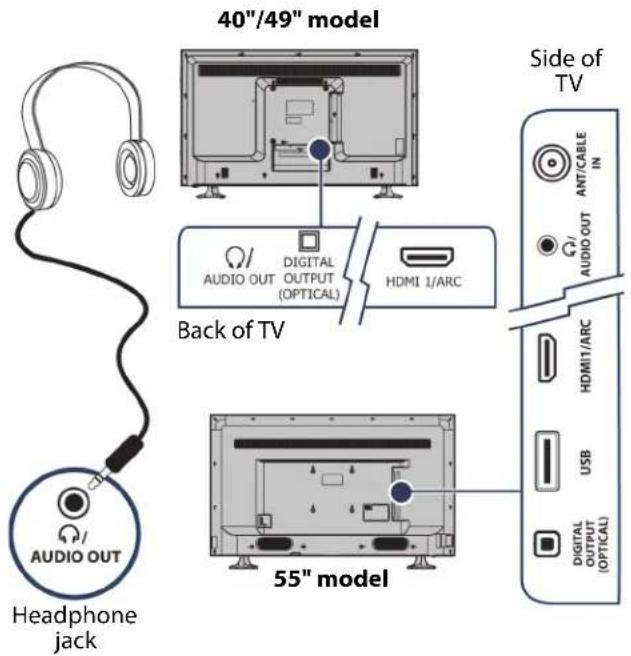

Connecting headphones 28

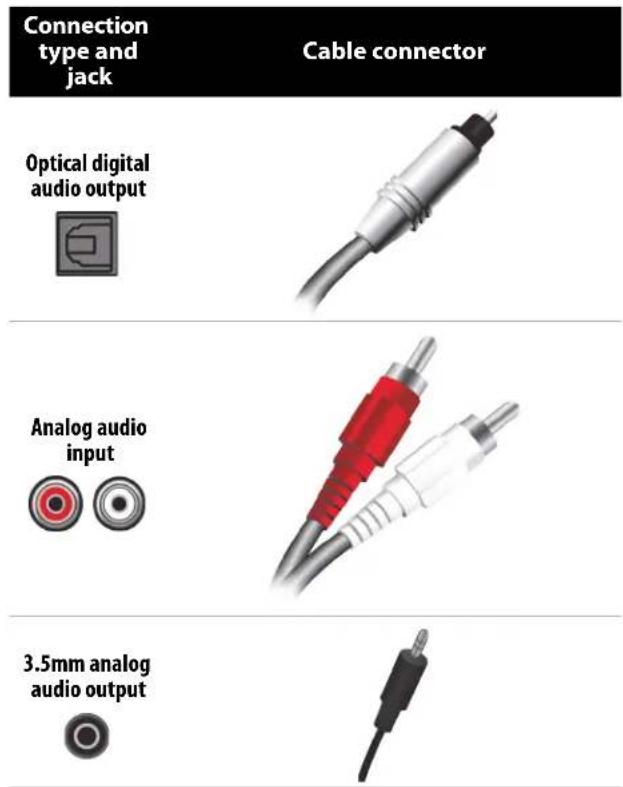

Connecting external speakers or a soundbar 29

Digital audio 29

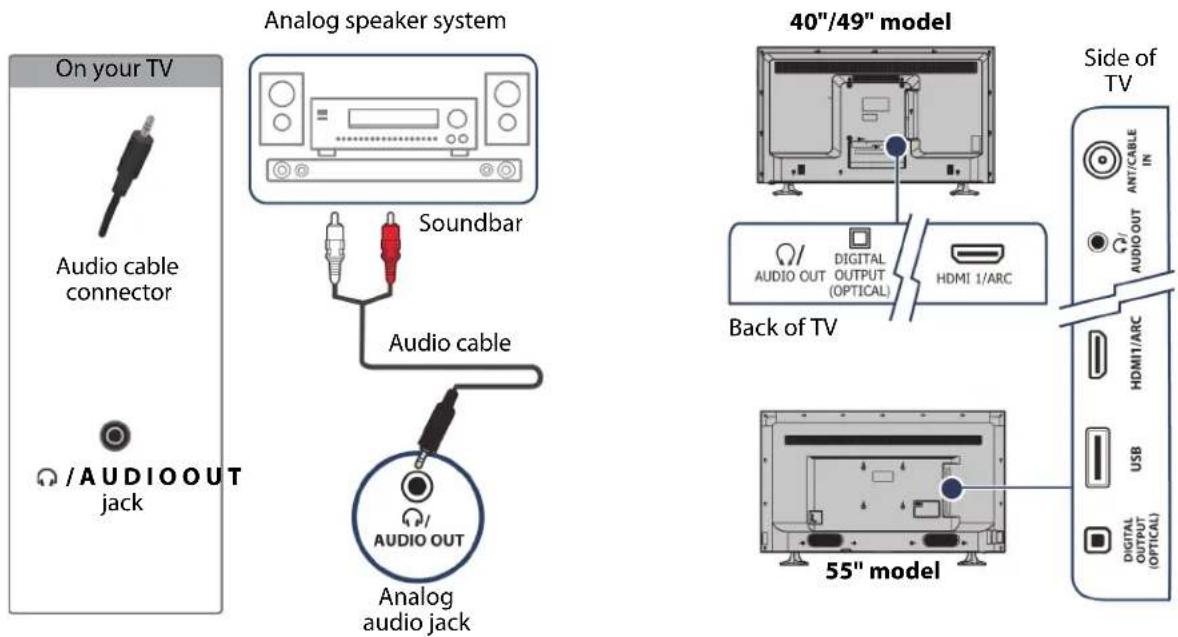

Analog audio 30

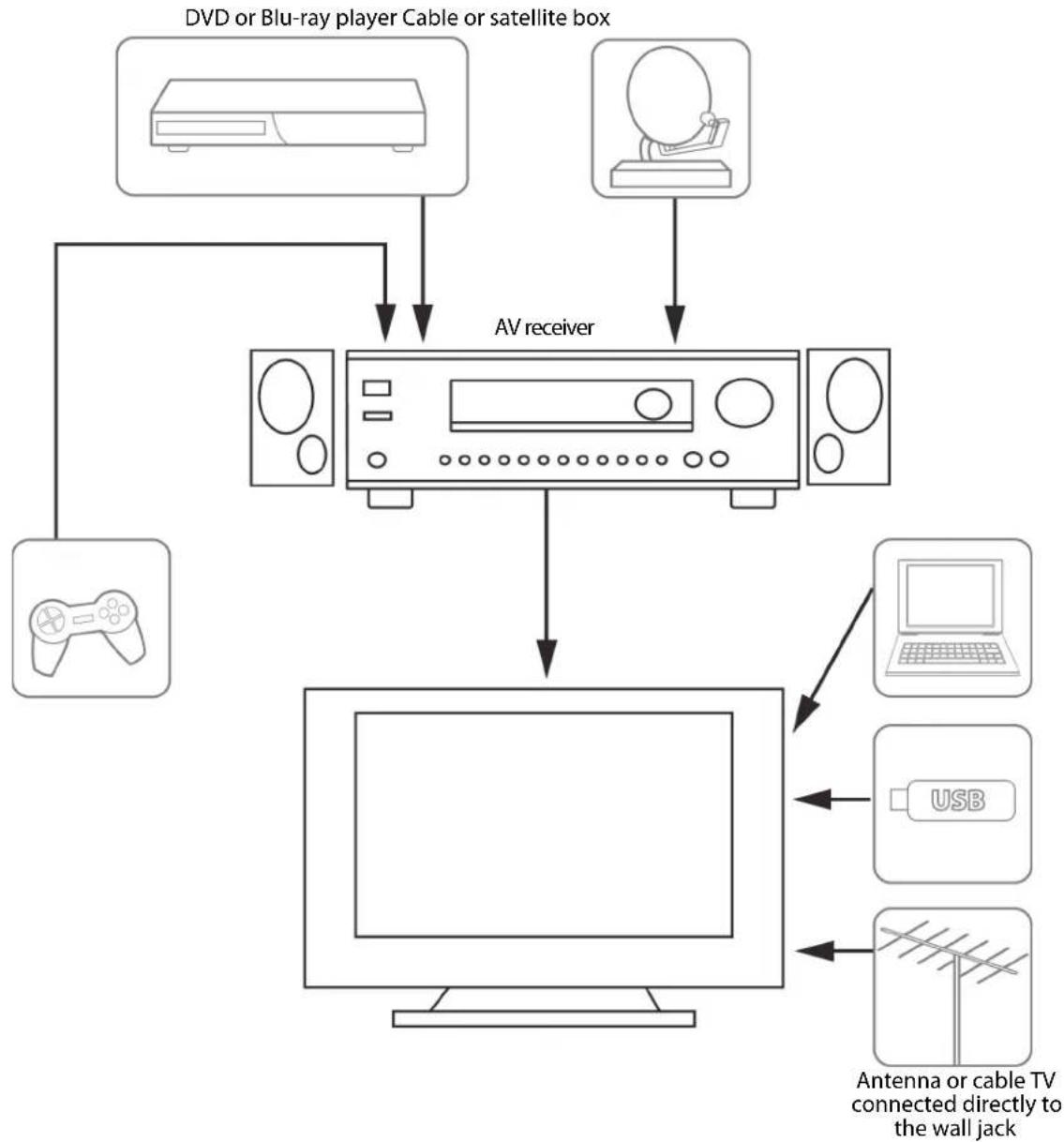

Connecting a home theater system with multiple devices 31

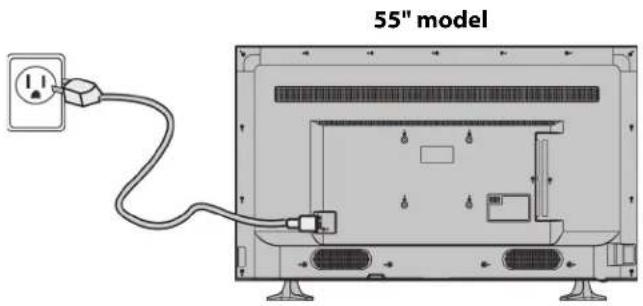

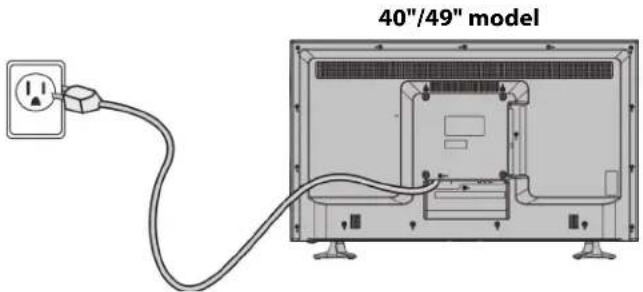

Connecting power 32

Using the remote control 33

Installing remote control batteries 33

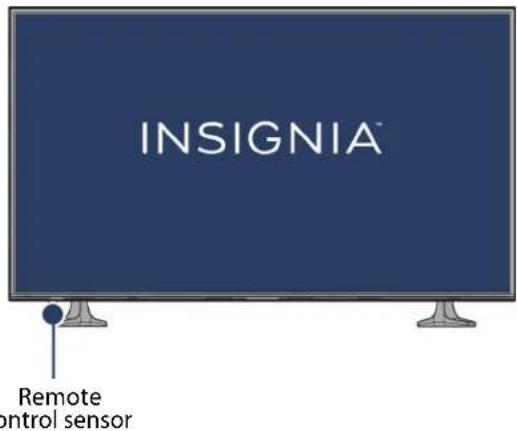

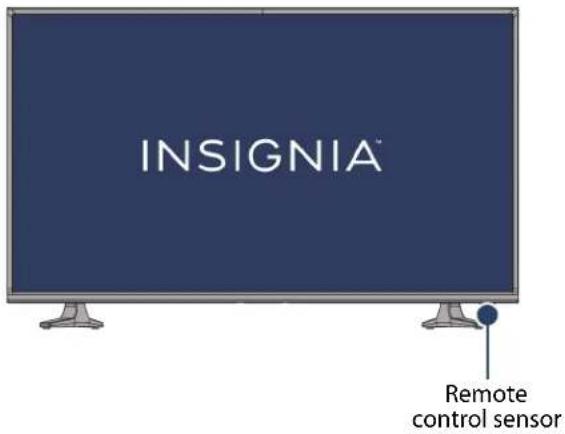

Aiming the remote control 33

Programming universal remote controls 34

Viewing universal remote control codes 34

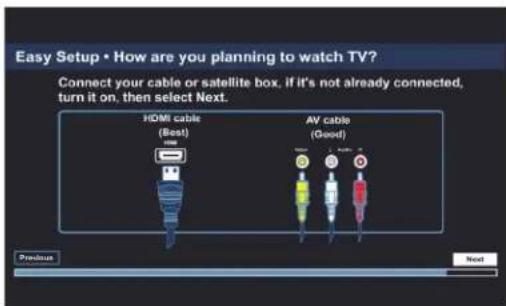

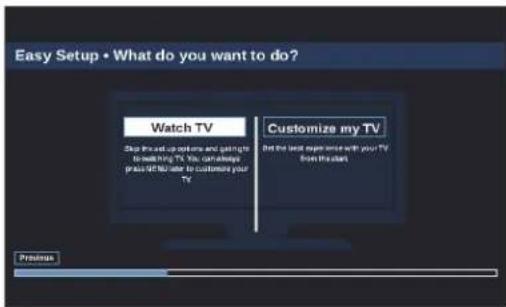

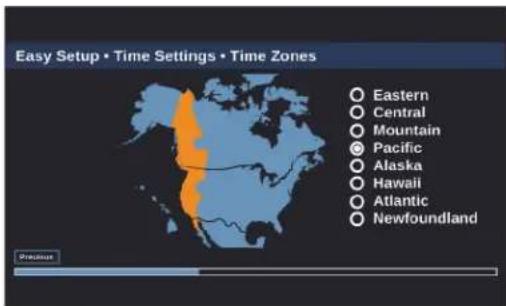

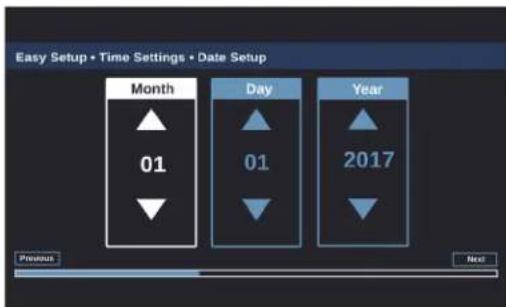

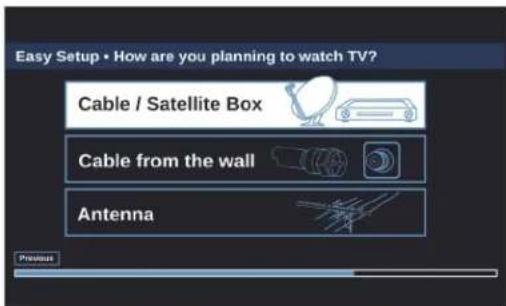

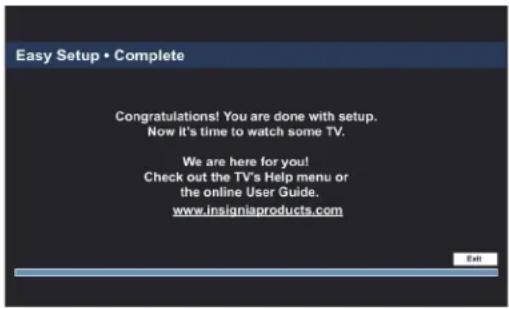

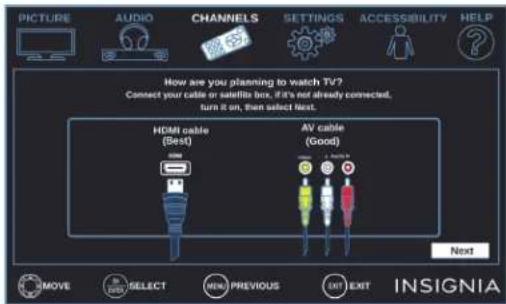

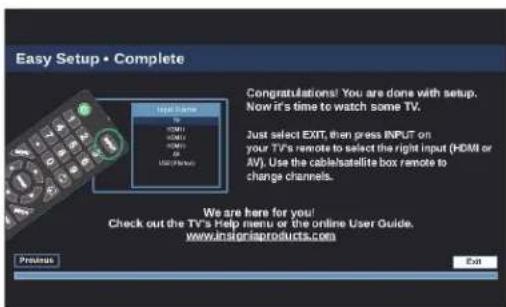

Turning on your TV for the first time 35

Understanding the basics ....37

Turning your TV on or off 37

Selecting the video input source 37

On-screen menu overview 38

Navigating the menus 39

Selecting a channel 39

Adjusting the volume 39

Viewing channel information 39

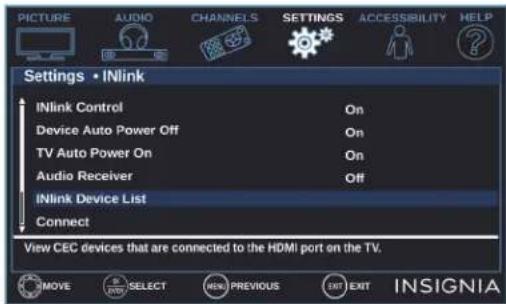

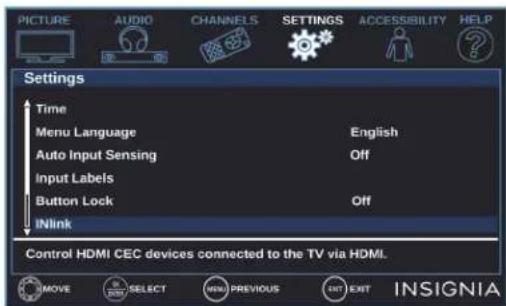

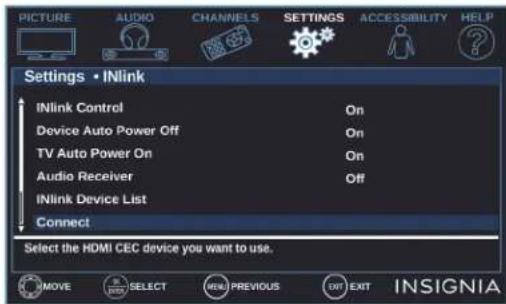

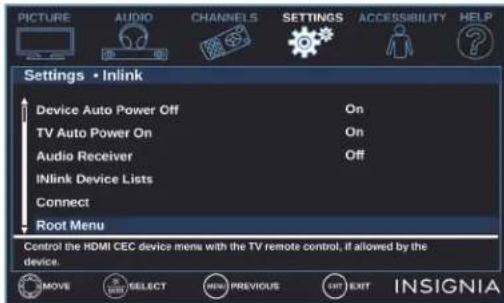

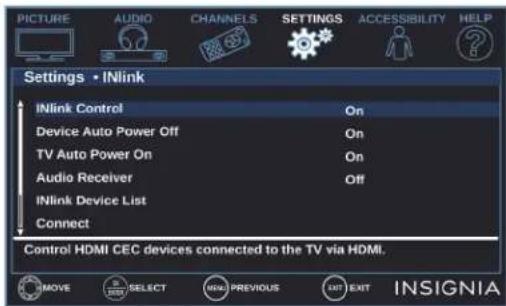

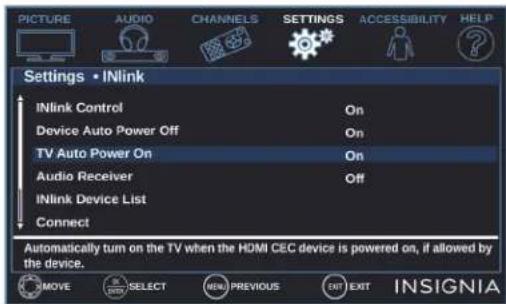

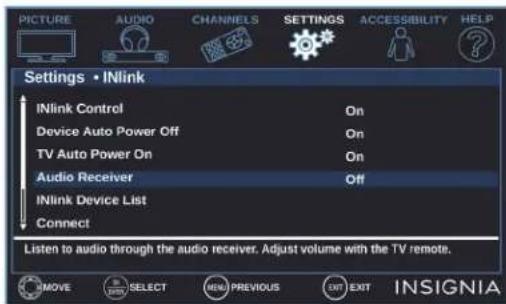

Using INlink 40

Turning INlink on or off 40

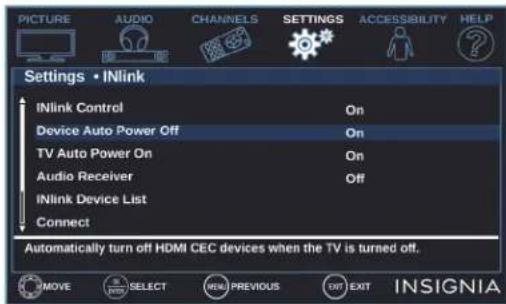

Turning Device Auto Power Off on or off 41

Turning TV Auto Power On on or off 41

Turning Audio Receiver on or off 42

Displaying a list of INlink-compatible devices 42

Selecting an INlink-compatible device 43

Opening an INlink-compatible device's root menu 43

Using a USB flash drive 44

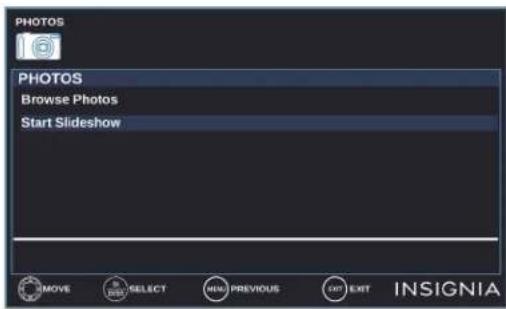

Switching to USB mode 44

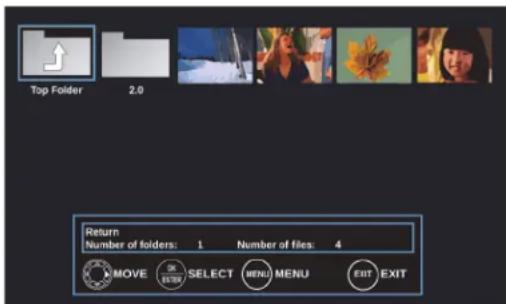

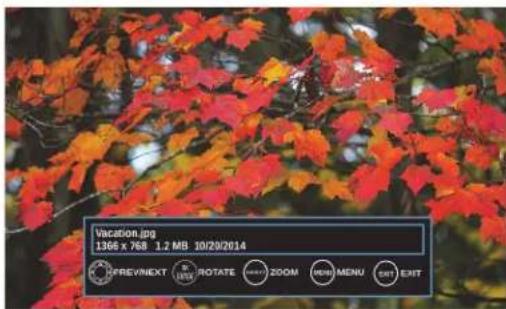

Browsing photos 44

Viewing photos in a slideshow 45

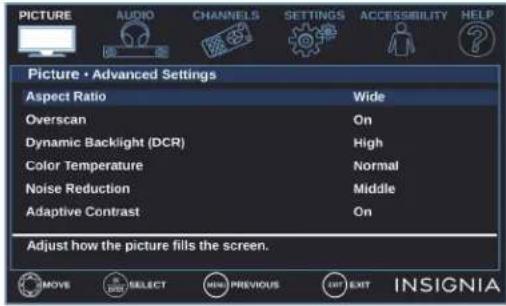

Adjusting the picture 46

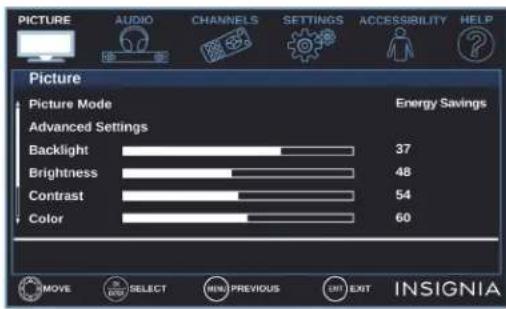

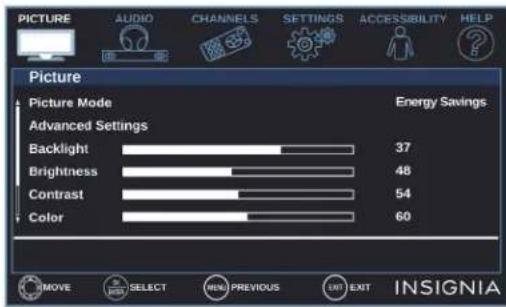

Adjusting the TV picture 46

Automatically adjusting the aspect ratio 48

Setting the power on picture mode 48

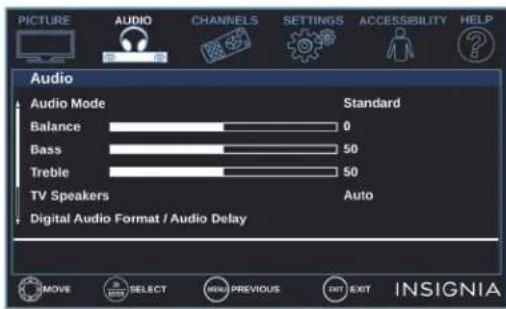

Adjusting the sound 48

Adjusting sound settings 48

Selecting the audio out mode 49

Playing TV audio only 50

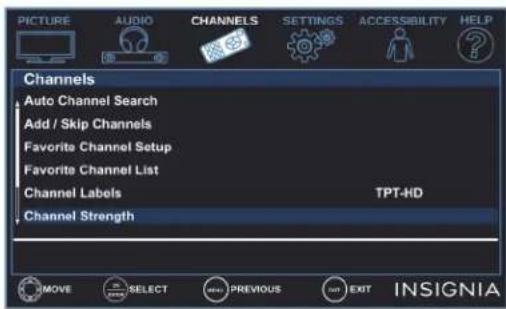

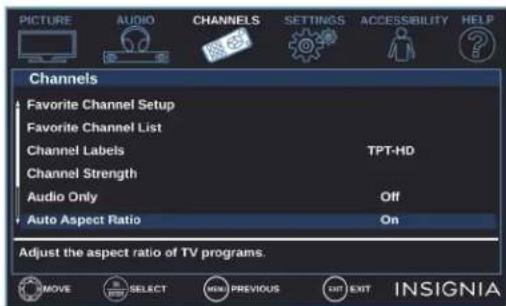

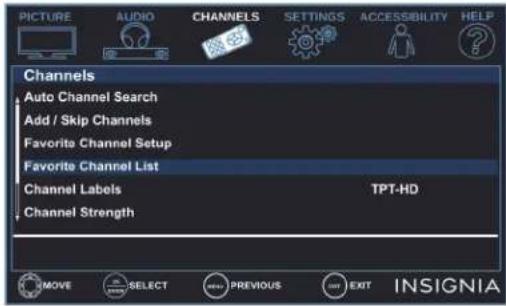

Changing channel settings 50

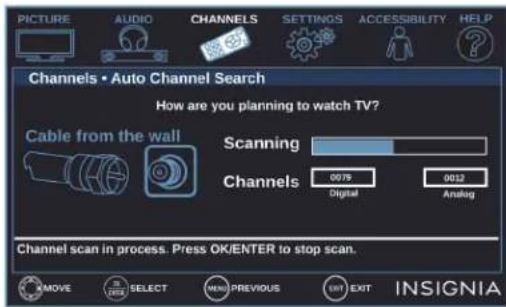

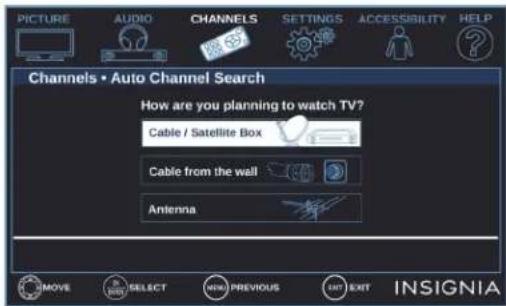

Automatically scanning for channels 50

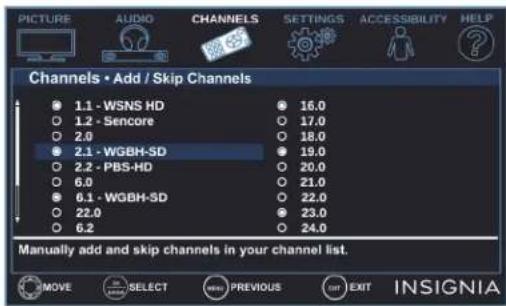

Hiding channels 51

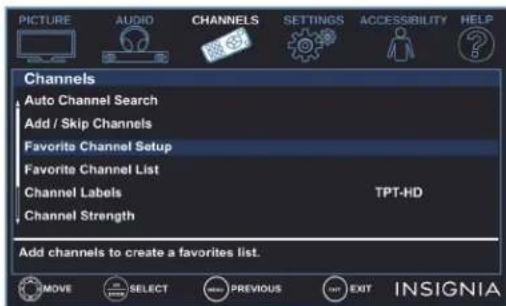

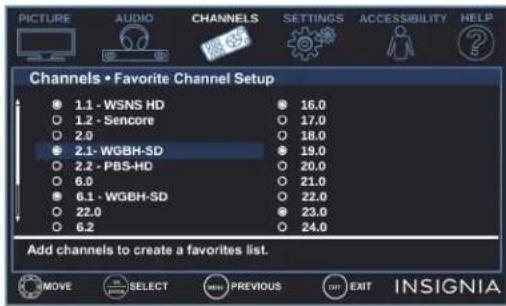

Setting up a favorite channel list 52

Viewing a favorite channel 52

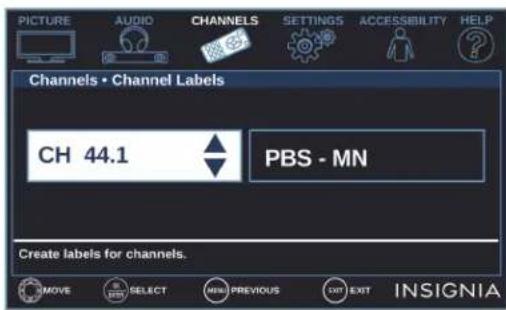

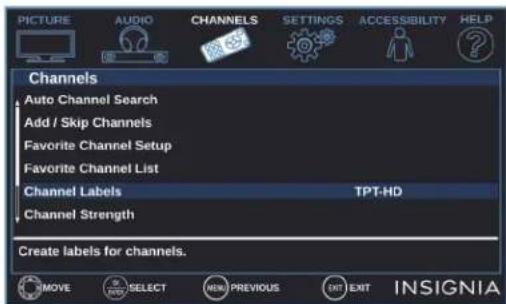

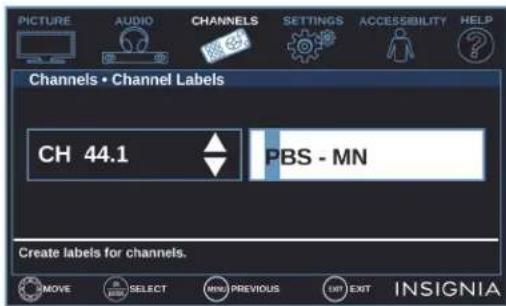

Adding or changing a channel label 52

Checking the digital signal strength 53

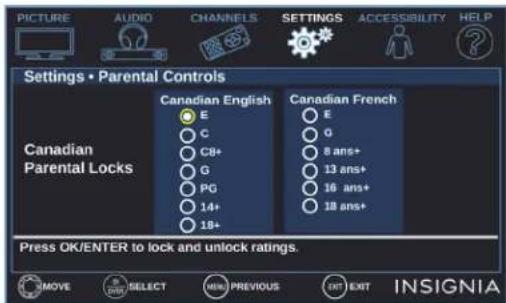

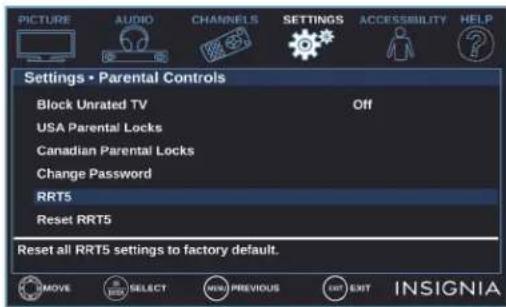

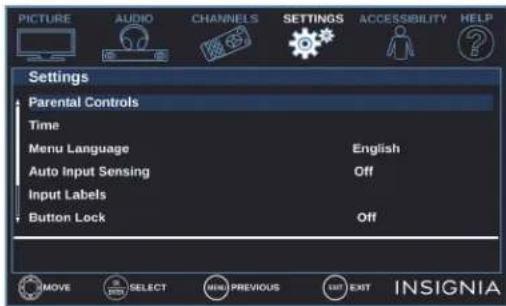

Setting parental controls 54

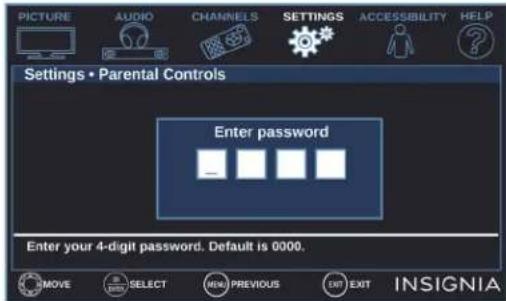

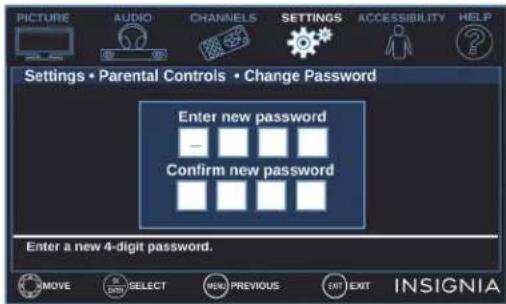

Setting or changing the password 54

Blocking unrated TV 55

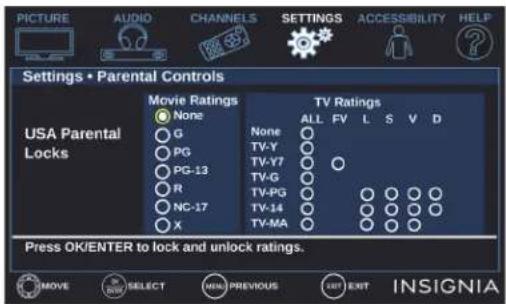

Setting parental control levels 55

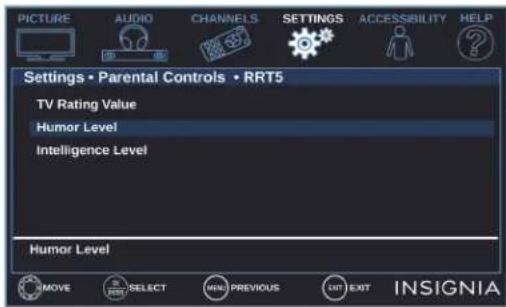

Downloading rating information 57

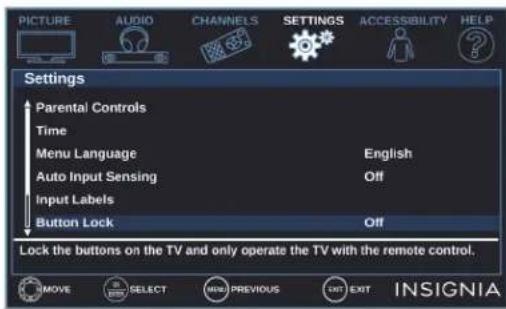

Locking the power button on your TV 58

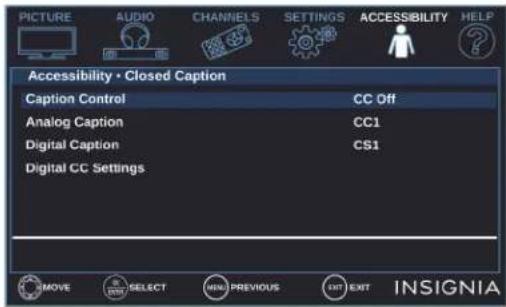

Using closed captioning 58

Turning closed captioning on or off 58

Selecting the analog closed captioning mode 58

Selecting the digital closed captioning mode 59

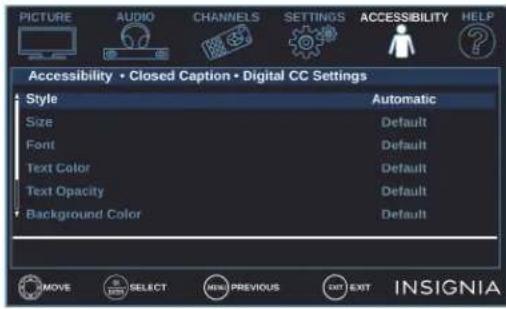

Customizing digital closed captioning settings 59

Adjusting time settings 60

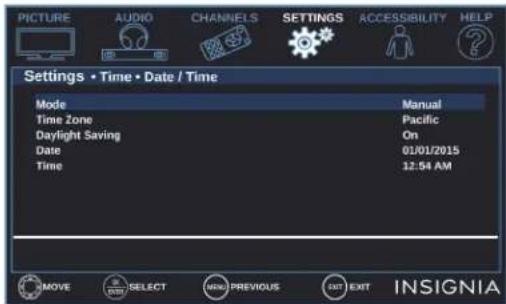

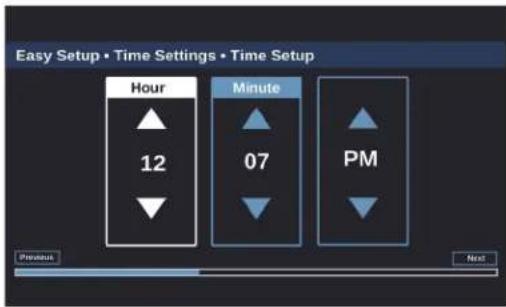

Setting the clock 60

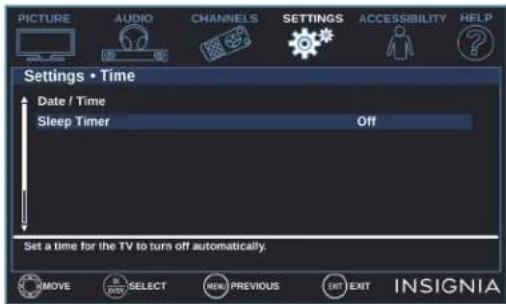

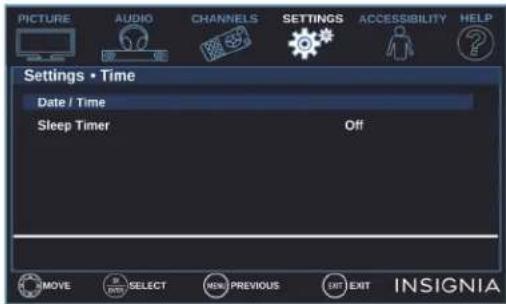

Setting the sleep timer 61

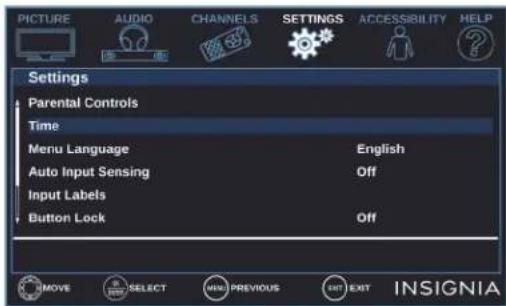

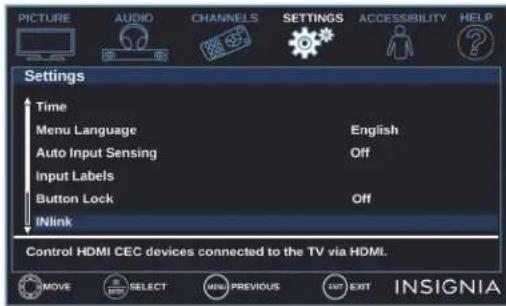

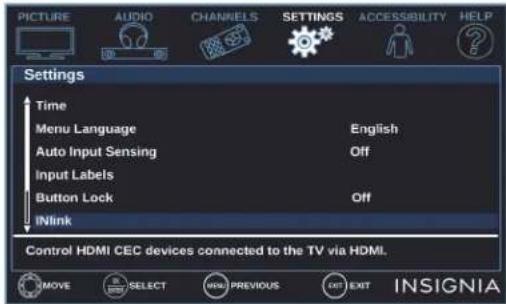

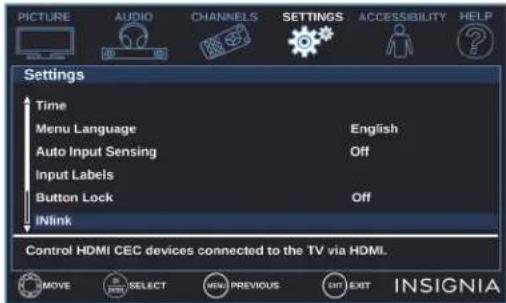

Adjusting menu settings 62

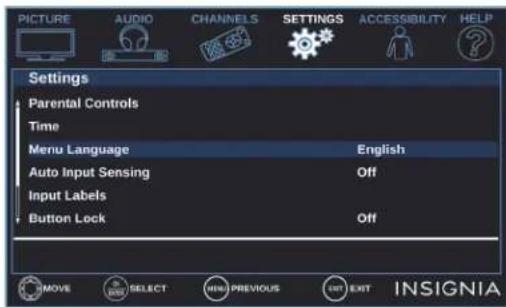

Selecting the menu language 62

Turning Input Sensor on or off 62

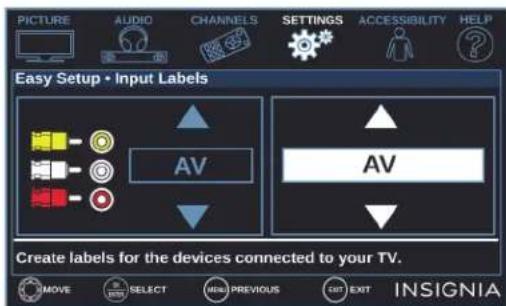

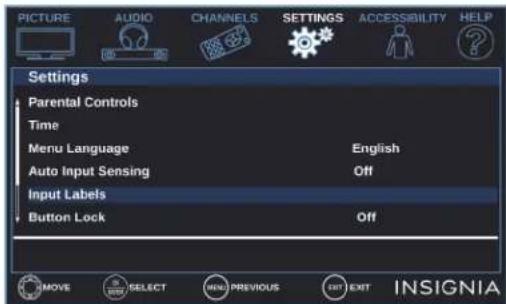

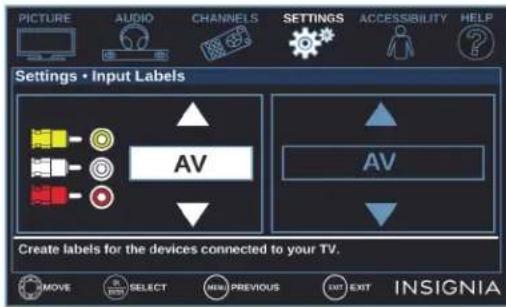

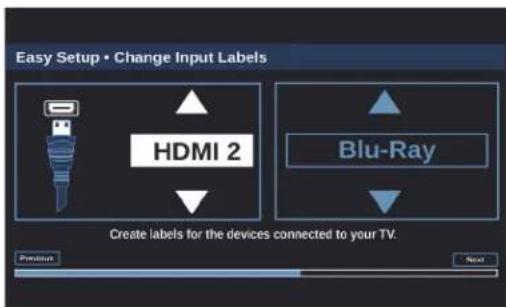

Labeling an input source 62

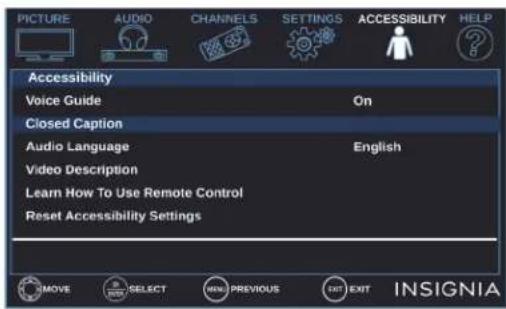

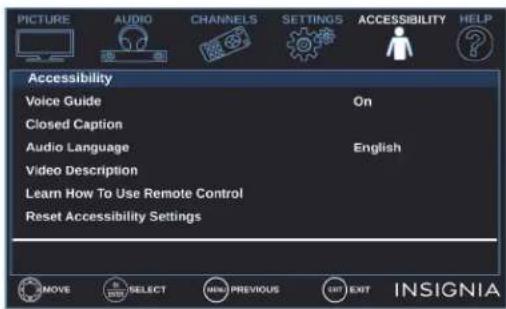

Adjusting accessibility settings 63

Maintaining 64

Cleaning the TV cabinet 64

Cleaning the TV screen 64

Troubleshooting 64

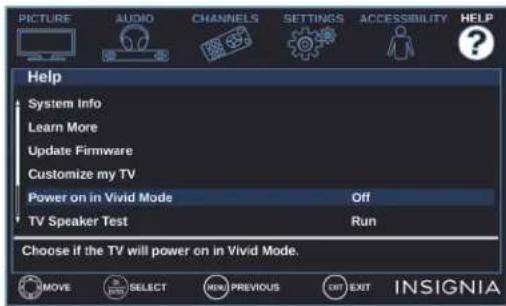

Viewing system information 64

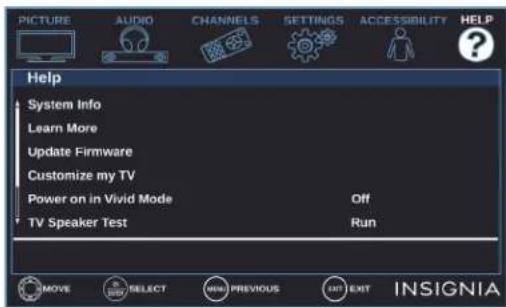

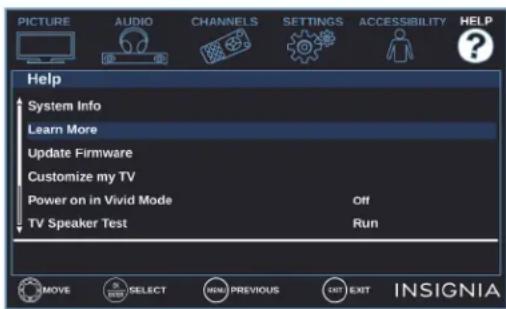

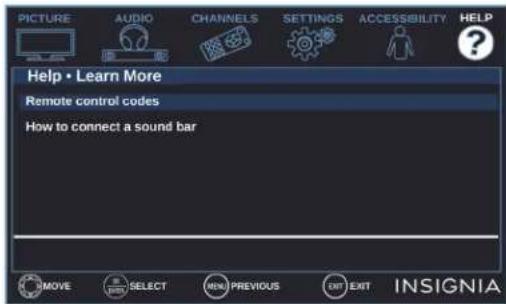

Learning more about your TV 65

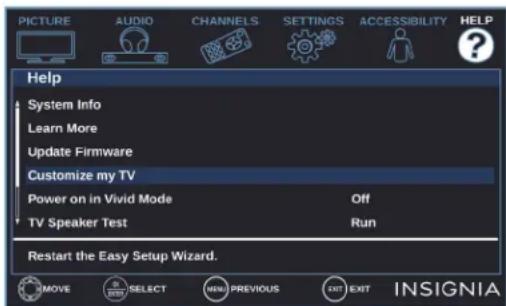

Updating the TV firmware 65

Customizing TV settings 66

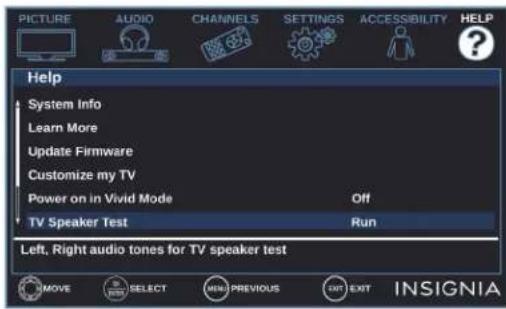

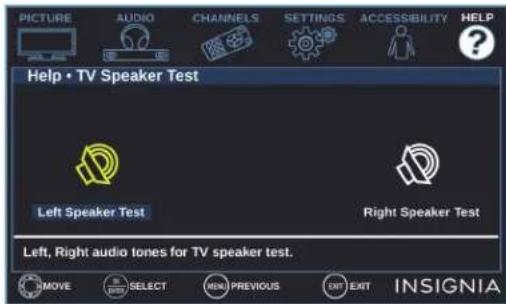

Testing the TV speakers 67

Restoring settings to the defaults 67

Video and audio 68

Remote control 71

General 71

INlink (CEC-compatible) device 72

Specifications 75

40" model (NS-40D420NA18/NS-40D420MX18) 75

49" model (NS-49D420NA18) 76

55" model (NS-55D420NA18/NS-55D420MX18) 77

Legal notices 78

ONE-YEAR LIMITED WARRANTY 79

One-year limited warranty - Insignia Televisions—Mexico 80

CHILD SAFETY

PROPER TELEVISION PLACEMENT MATTERS

Two people interacting with a touchscreen kiosk in an indoor setting (no visible text or symbols)

Family of three sitting together in a living room, watching TV (no visible text or symbols)

Two people standing beside a large flat-screen TV on a wall (no visible text or symbols)

A smiling child in a striped shirt sitting at a desk with a radio and TV, in front of a large screen (no visible text or symbols)

THE CONSUMER ELECTRONICS INDUSTRY CARES

•Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable.

- As you enjoy your television, please note that all televisions - new and old- must be supported on proper stands or installed according to the manufacturer's recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.

TUNE IN TO SAFETY

• ALWAYS follow the manufacturer's recommendations for the safe installation of your television.
• ALWAYS read and follow all instructions for proper use of your television.
• NEVER allow children to climb on or play on the television or the furniture on which the television is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of drawers.
• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

• ALWAYS contact your retailer about professional installation if you have any doubts about your ability to safely mount your television.
• ALWAYS use a mount that has been recommended by the television manufacturer and has a safety certification by an independent laboratory (such as UL, CSA, ETL).
  • ALWAYS follow all instructions supplied by the television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate. Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder block construction. If you are unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a flat-panel television. Special care should be made in the placement of older CRT televisions.
• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size and weight.
• NEVER place your older CRT television on a dresser where children may be tempted to use the drawers to climb.
• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.

Consumer

Technology

Association

Important Safety Instructions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15 The wall plug is the disconnecting device. The plug must remain readily operable.

16 Remote control batteries should not be exposed to excessive heat such as sunshine, fire, or the like.

17 The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, should be placed on the apparatus.

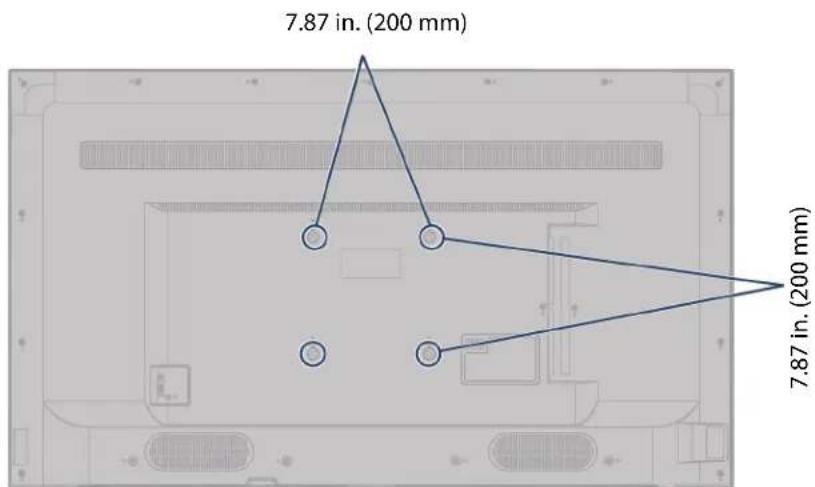

18 Your TV has four VESA mounting holes on the back. If you attach a wall-mount bracket or TV stand to the back of your TV, the bracket or stand must be securely attached using all four holes. If you do not use all four mounting holes, your TV may fall and cause property damage or personal injury. See the documentation that came with your wall mount or TV stand for complete mounting instructions.

WARNING

Electric shock hazard

To reduce the risk of fire or electric shock, do not remove any cover or expose the device to rain or moisture. No user-serviceable parts are inside. Refer servicing to qualified service technicians.

Lightning

For added protection for your device receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect any antenna or cable system. This helps prevent property damage and personal injury from lightning and power line surges.

Power lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, take extreme care to keep from touching such power lines or circuits as contact with them might be fatal.

Handling the LCD panel

- Your TV's screen is made of glass. Do not drop your TV or hit, jolt, or press hard against the LCD panel. If the screen breaks, be careful of broken glass.

- If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.

- If the liquid gets in your mouth, immediately gargle, rinse, and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Safety check

After completing any service or repair to this device, ask the service technician to perform routine safety checks to determine that your TV is in correct operating condition.

Power source

Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult an electrician or your local power company.

Servicing

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

CAUTION

Damage requiring service

Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged or frayed.
• If liquid has been spilled or objects have fallen into your TV.
• If your TV has been exposed to rain or water.
• If your TV does not operate normally by following the operating instructions. Adjust only those controls covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.
• If your TV has been dropped or damaged in any way.
• When your TV exhibits a distinct change in performance.

Outdoor antenna grounding

If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

1 Antenna lead-in wire

2 Grounding clamp

3 Antenna discharge unit

4 Grounding conductors

5 Ground clamps Power service

6 grounding electrode system

7 Electric service equipment

Note to CATV system installer

Article 820 of the National Electrical Code, ANSI/NFPA No. 40 provides guidance for correct grounding. Specifically, it states that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.

Condensation

Moisture will form on the TV if the TV is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, the TV's performance may be impaired. To prevent this, let the TV stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.

Condensation may also form during the summer if the TV is exposed to the breeze from an air conditioner. In such cases, change the location of the TV.

Mobile telephone warning

To avoid interference with your TV picture and sound, operating problems, or even damage, keep your cordless and cellular telephones away from the TV.

End of life directives

Your TV may contain materials that are regulated for environmental reasons. Your TV also contains materials that can be recycled and reused. To help protect the environment, contact your local authorities for information about disposal or recycling and about finding a recycler in your area before you dispose of your TV.

Non-active pixels

The LCD panel contains almost 3 million thin film transistors, which provide exceptionally sharp video quality. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green, or red point. These non-active pixels do not adversely affect the performance of your TV, and are not considered defects.

40" / 49" / 55" 1080p 60Hz LED TV

Introduction

Congratulations on your purchase of a high-quality Insignia product. Your NS-40D420NA18, NS-40D420MX18, NS-49D420NA18, NS-55D420NA18, or NS-55D420MX18 represents the state of the art in LED TV design and is designed for reliable and trouble-free performance.

INlink

Enjoy the benefit of having HDMI CEC compatible products plug and play! No setup is needed! CEC technology lets different devices discover and communicate with each other. (See page 40 for instructions on how to use INlink.)

DTS Sound™

DTS Sound delivers clear, crisp, and natural sound while providing deep enveloping bass.

Game mode

Video games generally require adjustments to the TV picture settings to get the maximum experience. By simply pressing the GAME button on your remote control, your TV settings will automatically adjust for video games. It couldn't be easier.

Audio accessibility

Your TV provides audio descriptions of menus and some remote control functions. Depending on the broadcaster, audio narration of key elements in programs may also be available. (See page 63 for instructions on how to turn on audio narration.)

Installing the stands or wall-mount bracket

• If you want to place your TV on a table or in an entertainment center, go to Installing the stands.
• If you want to mount your TV on a wall, go to Installing a wall-mount bracket.

Notes

• If you plan to wall-mount your TV, do not install the stands.
• Store the stands and stand screws in case you decide to use the stands in the future.

Installing the stands

1 Carefully place your TV face-down on a cushioned, clean surface to protect the screen.

Isometric line drawing of a 55-inch model display panel on a table, showing internal components and mounting holes (no text or symbols)

2 Align the screw holes on the TV stands with the holes on the bottom of your TV, then secure each stand to your TV with two of the provided screws.

Model	Screw type	Screw length	# of screws
40" ST4 14 mm 4

Model	Screw type	Screw length	# of screws
49" ST4 25 mm 4

Model

Screw type

Screw length

# of screws

55" M4 20 mm 4

Installing a wall-mount bracket

Warnings

• Your TV has four VESA mounting holes on the back. If you attach a wall-mount bracket to the back of your TV, the bracket must be securely attached, using all four holes. If you do not use all four mounting holes, your TV may fall and cause property damage or personal injury. See the documentation that came with your wall mount for complete mounting instructions.
• This TV is intended to be supported by a UL Listed wall mount bracket with suitable weight/load. (See Miscellaneous on page 75, 76, and page 77)

1 Carefully place your TV face-down on a cushioned, clean surface to protect the screen.

Isometric line drawing of a 55-inch model display panel on a table, showing internal components and mounting hardware (no text or symbols)

2 If the TV stands are installed, remove the four screws that secure the stands to your TV.

3D diagram of a laptop chassis with labeled components and a 55-inch model shown (no text or symbols on the diagram itself)

3 Attach the wall-mount bracket to your TV using the mounting holes on the back of your TV. See the instructions that came with the wall-mount bracket for information about which screws to use and how to correctly hang your TV.

Notes

- The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. We recommend that you use the wall-mount screws and spacers that came with your TV. They fit most wall-mount brackets.

- Make sure that the screws you use are the correct length. The threaded parts of the screws that are inserted into the back of your TV must be at least 9.5mm in length and not more than 11.5mm in length. If the screws are too short, your TV may fall off the wall-mount bracket. If the screws are too long, they may damage components inside your TV. For more information, see the instructions that came with the wall-mount bracket.

• The mounting holes on the back of your TV take type M6 screws.

55" model shown

TV components

Your TV has several sets of jacks for connecting devices to your TV.

This section contains information about:

• Package contents
• Front
  • 40"/49" model jacks
• 55" model jacks
• Remote control

Package contents

• 40", 49", or 55" LED TV
- Remote control and batteries (2 AAA)
• TV stands (2) and screws (4 pcs)
• Power cord (55" model)
- User Guide (for the NS-40D420MX18 or NS-55D420MX18 model)
- Quick Setup Guide
• Important Information

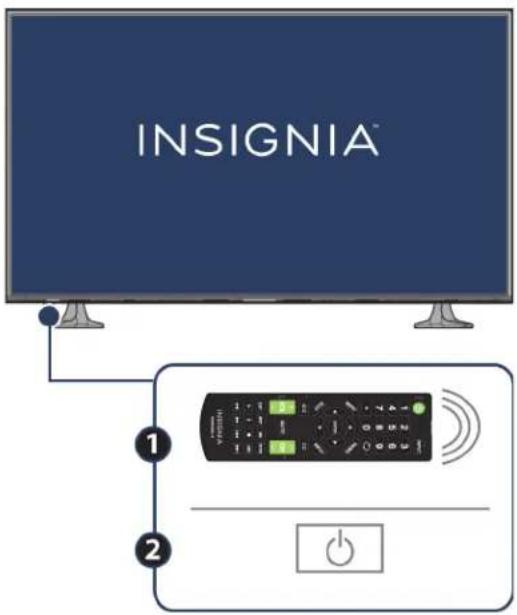

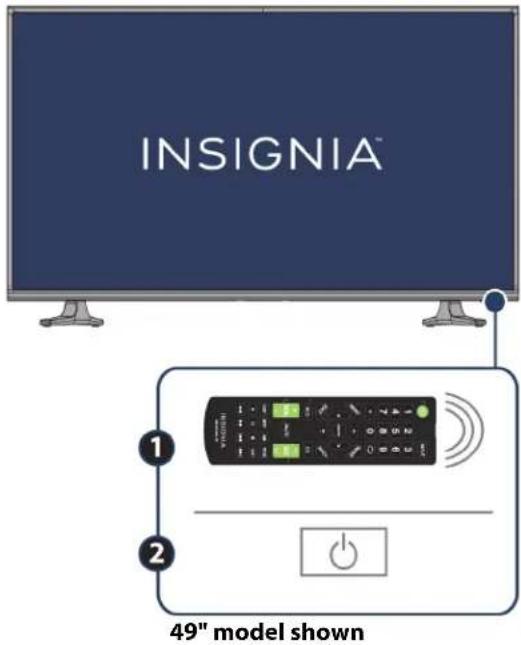

Front

40"/49" model

55" model

# Item Description
1	Remote control sensor	Receives signals from the remote control. Do not block.
2	Power indicator	Turns off when your TV is on.Lights red when your TV is off (standby mode).

40"/49" model jacks

49" model shown

# Item Description
1	(Input/Power)	Input—Quickly press and release to open the INPUT SOURCE list, press one or more times to select a video input source, then wait a few seconds. Your TV switches to the source you selected. For more information, see Selecting the video input source on page 37.Power—Press to turn on your TV when your TV is off (in standby mode). Press and hold to turn off your TV when your TV is on.Warning:When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.
2	/AUDIO OUT	Connect headphones, a soundbar, analog speaker system, or a home theater system to this jack to listen to TV audio through external speakers. For more information, see Connecting headphones on page 28 or Analog audio on page 30.
3	DIGITAL OUTPUT (OPTICAL)	Connect a soundbar, digital speaker system, or home theater system to this jack to listen to TV audio through external speakers. For more information, see Digital audio on page 29.
4	VIDEO and L and R AUDIO	Connect the video and audio for an AV device to these jacks. For more information, see AV (good) on page 19, 23, or 25.

# Item Description
5 HDMI 1 (ARC)		Connect an HDMI device to this jack. For more information, see HDMI (best) on pages 18, 22, or 24 or Connecting a computer on page 26.ORConnect an ARC-enabled home theater receiver to this jack.
6	SERVICE	Do not connect a device to this jack.
7 USB		Connect a USB flash drive to this jack to view compatible JPEG picture files. For more information, see Connecting a USB flash drive on page 27 and Using a USB flash drive on page 44.
8	ANT/CABLE IN	Connect an antenna or cable TV to this jack. For more information, see Coaxial (good) on page 20 or Connecting an antenna or cable TV (no box) on page 21.
9 HDMI 3		Connect an HDMI device to this jack. For more information, see HDMI (best) on pages 18, 22, or 24 or Connecting a computer on page 26.
10	HDMI 2	Connect an HDMI device to this jack. For more information, see HDMI (best) on pages 18, 22, or 24 or Connecting a computer on page 26.

55" model jacks

Item Description

1 /INPUT		Press to turn on your TV when your TV is off (in standby mode). Press and hold to turn off your TV when your TV is on.Warning:When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.INPUT—Quickly press and release to open the INPUT SOURCE list, press one or more times to select a video input source, then wait a few seconds. Your TV switches to the source you selected. For more information, see Selecting the video input source on page 37.
2	ANT/CABLE IN	Connect an antenna or cable TV to this jack. For more information, see Coaxial (good) on page 20 or Connecting an antenna or cable TV (no box) on page 21.
3 / AUDIO OUT		Connect headphones, a soundbar, analog speaker system, or a home theater system to this jack to listen to TV audio through external speakers. For more information, see Connecting headphones on page 28 or Analog audio on page 30.
4	VIDEO and L and R AUDIO	Connect the video and audio for an AV device to these jacks. For more information, see AV (good) on page 19, 23, or 25.

Item Description

5 HDMI3		Connect an HDMI device to this jack. For more information, see HDMI (best) on pages 18, 22, or 24 or Connecting a computer on page 26.
6	HDMI2	Connect an HDMI device to this jack. For more information, see HDMI (best) on pages 18, 22, or 24 or Connecting a computer on page 26.
7	HDMI1 (ARC)	Connect an HDMI device to this jack. For more information, see HDMI (best) on pages 18, 22, or 24 or Connecting a computer on page 26.ORConnect an ARC-enabled home theater receiver to this jack.
8	USB	Connect a USB flash drive to this jack to view compatible JPEG picture files. For more information, see Connecting a USB flash drive on page 27 and Using a USB flash drive on page 44.
9	DIGITAL OUTPUT (OPTICAL)	Connect a soundbar, digital speaker system, or home theater system to this jack to listen to TV audio through external speakers. For more information, see Digital audio on page 29.

Remote control

Button Press to...

1	(power)	Turn your TV on or off (standby mode).Warning: When your TV is off, power still flows through it. To disconnect power, unplug the power cord.
2	Numbers Enter channel numbers and the parental control password.
3	■	Enter a digital sub-channel number. See Selecting a channel on page 39.
4	MENU Open the on-screen menu.
5	ENTER Confirm selections or changes in TV menus.
6	EXIT Close the on-screen TV menu.
7	ACC	Open the Accessibility menu. See Adjusting accessibility settings on page 63.
8	VOL+/VOL- Adjusts the volume.
9	ASPECT Change how the TV picture appears on the screen.
10	SLEEP	Set the sleep timer. You can select Off, 5, 10, 15, 30, 60, 90, 120, 180, or 240 minutes. See Setting the sleep timer on page 61.

Button Press to...

11	Media controls	Control INlink-compatible (HDMI CEC) devices. See Using INlink on page 40.
12	INPUT	Open the INPUT SOURCE list. Press ▲ or ▼ to select the video input source, then press ENTER. See Selecting the video input source on page 37.
13	(return) Return to the previous channel.
14	FAVORITE	Open the Favorite channel list. See Setting up a favorite channel list on page 52 and Viewing a favorite channel on page 52.
15	▲▼◀▶	Navigate in on-screen TV menus and to adjust settings.
16	INFO*	Display TV status information, such as the channel number, channel name (if available), or signal source. See Viewing channel information on page 39.
17	CC	TV: Turn closed captioning on or off. You can select CC Off, CC On, or CC On when mute. See Turning closed captioning on or off on page 58.USB: Zoom when displaying a photo.
18	MUTE Mute or un-mute the sound.
19	CH/CH √	Change to the next higher or lower channel in the channel list.
20	GAME	Change the picture mode to Game mode.
21	PICTURE	Select the picture mode. You can select Vivid, Standard, Energy Savings, Movie, Game, or Custom. See the Picture Mode option in Adjusting the TV picture on page 46.
22	AUDIO	Select the audio mode. You can select Standard, Theater, Music, News, or Custom. See the Audio Mode option in Adjusting sound settings on page 48.

What connection should I use?

Your TV has several connection types for connecting devices to your TV.

For the best video quality, you should connect a device to the best available connection.

Use the following tables to identify cables:

Cautions

• Check the jacks for position and type before making any connections.
• Loose connections can cause poor audio or video quality. Make sure that all connections are tight and secure.
  • The external audio/video devices shown may be different from your devices. If you have questions, refer to the documentation that came with your devices.
  • Always unplug the power cord when connecting devices.

Connecting a cable or satellite box

Many cable or satellite TV boxes have more than one connection type. To get the best video, you should use the best connection type available. For more information, see What connection should I use? on page 17.

You can connect your cable or satellite box using:

• HDMI (best)
• A V (good)
• Coaxial (good)

HDMI (best)

1 Make sure that your TV's power cord is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an HDMI cable (not provided) to an HDMI jack on your TV and to the HDMI OUT jack on the cable or satellite box.
4 Plug your TV's power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to highlight HDMI1, HDMI2, or HDMI3, then press ENTER.

Note

An HDMI cable carries both audio and video. You do not need to use any audio cables.

AV (good)

Note

Cables are often color-coded to match color-coded jacks.

1 Make sure that your TV's power cord is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the VIDEO jack and L and R AUDIO jacks on your TV and to the AV and audio out jacks on the cable or satellite box.

Important

When you connect the audio using the L and R AUDIO jacks, the audio output is analog.

4 Plug your TV's power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to highlight AV, then press ENTER.

Coaxial (good)

1 Make sure that your TV's power cord is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect a coaxial cable (not provided) to the ANT/CABLE IN jack on your TV and to the coaxial out jack on the cable or satellite box.
4 Plug your TV's power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to highlight TV, then press ENTER.
7 If you cannot tune to channels you know exist, scan for channels. See Automatically scanning for channels on page 50.

Notes

• Use a coaxial cable to eliminate interference and noise from radio waves.
• Do not bundle the coaxial cable with the power cord or other cables.

Connecting an antenna or cable TV (no box)

1 Make sure that your TV's power cord is unplugged and all connected devices are turned off.
2 Connect a coaxial cable (not provided) to the ANT/CABLE IN jack on your TV and to the antenna or cable TV wall jack.
3 Plug your TV's power cord into a power outlet, then turn on your TV.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight TV, then press ENTER.
6 If you cannot tune to channels you know exist, scan for channels. See Automatically scanning for channels on page 50.

Notes

• Use a coaxial cable to eliminate interference and noise from radio waves.
• Do not bundle the coaxial cable with the power cord or other cables.
• If the antenna is not installed correctly, contact qualified service personnel to correct the problem.
• If the signal level for a channel is weak, the picture may be distorted. Adjust the antenna or use a highly directional outdoor or set-top antenna with a built-in amplifier.
• If the picture quality is good on some channels and poor on others, the problem may be caused by a poor or weak signal from the broadcaster or cable TV provider.
• If you connect to cable TV without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable TV provider about upgrading to a set-top box.
• Many high-definition (HD) channels upscale standard-definition (SD) content. The picture displayed on your TV is still displayed as SD, thus the picture quality will not be as clear or crisp as it would be if the content was originally recorded in HD.

Connecting a DVD or Blu-ray player

Many DVD or Blu-ray players have more than one connection type. To get the best video, you should use the best connection type available. For more information, see What connection should I use? on page 17.

You can connect a DVD or Blu-ray player using:

• HDMI (best)
• A V (g o o d)

HDMI (best)

1 Make sure that your TV's power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an HDMI cable (not provided) to an HDMI jack on your TV and to the HDMI OUT jack on the DVD or Blu-ray player.
3 Plug your TV's power cord into a power outlet, then turn on your TV and DVD or Blu-ray player.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight HDMI1, HDMI2, or HDMI3, then press ENTER.

Note

An HDMI cable carries both audio and video. You do not need to use any audio cables.

AV (good)

Notes

Cables are often color-coded to match color-coded jacks.

1 Make sure that your TV's power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an AV cable (not provided) to the VIDEO jack and L and R AUDIO jacks on your TV and to the AV OUT jacks on the DVD or Blu-ray player.

Important

When you connect the audio using the L and R AUDIO jacks, the audio output is analog.

3 Plug your TV's power cord into a power outlet, then turn on your TV and DVD or Blu-ray player.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to select AV, then press ENTER.

Connecting a game console

You can connect a game console using:

• HDMI (best)
• A V (good)

HDMI (best)

1 Make sure that your TV's power cord is unplugged and the game console is turned off.
2 Connect an HDMI cable (not provided) to an HDMI jack on your TV and to the HDMI OUT jack on the game console.
3 Plug your TV's power cord into a power outlet, then turn on your TV and the game console.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight HDMI1, HDMI2, or HDMI3, then press ENTER.

Note

An HDMI cable carries both audio and video. You do not need to use any audio cables.

AV (good)

Notes

Cables are often color-coded to match color-coded jacks.

1 Make sure that your TV's power cord is unplugged and the game console is turned off.
2 Connect the video and audio connectors on the game console's AV cable (not provided) to the VIDEO jack and L and R AUDIO jacks on your TV and to the composite jack(s) on the game console.

Important

• Some older game consoles come with a special AV cable. See the documentation that came with your game console or check the manufacturer's website.
• When you connect the audio using the L and R AUDIO jacks, the audio output is analog.

3 Plug your TV's power cord into a power outlet, then turn on your TV and the game console.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to select AV, then press ENTER.

Connecting a computer

1 Make sure that your TV's power cord is unplugged and the computer is turned off.
2 Connect an HDMI cable (not provided) to an HDMI jack on your TV and to the HDMI OUT jack on the computer.
3 Plug your TV's power cord into a power outlet, then turn on your TV and the computer.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight HDMI1, HDMI2, or HDMI3, then press ENTER.
6 Adjust the display properties on the computer, if necessary.

Connecting a USB flash drive

1 Plug a USB flash drive into the USB port on your TV.

Caution

Do not remove the USB flash drive or turn off the TV while using the USB flash drive. You may lose data or damage the USB flash drive.

2 Press ▲ or ▼ to select Yes in the message that appears. The PHOTOS menu opens.

OR

If you switch to a different video input source after you connect the USB flash drive and want to switch back to the drive, press INPUT to open the INPUT SOURCE list, press ▲ or ▼ to select USB(Photos), then press ENTER. The PHOTOS menu opens.

Note

The Photos viewer only supports JPEG format images (with "jpg" file extensions) and not all JPEG files are compatible with your TV. For more information, see Using a USB flash drive on page 44.

Connecting headphones

When you connect headphones, the TV speakers are muted.

Warning

Loud noise can damage your hearing. When using headphones, use the lowest volume setting on your headphones that still lets you hear the sound.

1 Connect the headphones to the 📞 / AUDIO OUT jack on your TV.

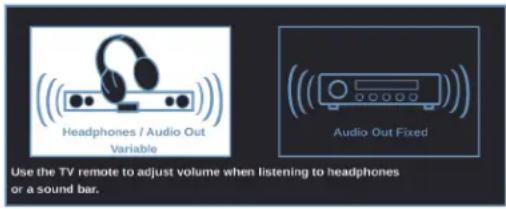

2 In the screen that opens, press ◀ or ▶ to highlight Headphones / Audio Out Variable, then press ENTER. For more information, see Selecting the audio out mode on page 49.

Notes

• If you connect headphones when your TV is turned off, then you turn on your TV, the TV speakers are muted and the audio plays through the headphones.
• You can also connect a home theater system, soundbar, or external speaker system to the AUDIO OUT jack.

Connecting external speakers or a soundbar

You can connect external speakers using:

• Digital audio
• Analog audio

Digital audio

1 Make sure that your TV's power cord is unplugged and the digital speaker system or soundbar is turned off.
2 Connect a digital optical audio cable (not provided) to the DIGITAL OUTPUT (OPTICAL) jack on your TV and to the optical AUDIO IN jack on the digital speaker system or soundbar.
3 Plug your TV's power cord into a power outlet, then turn on your TV.
4 Turn on the digital speaker system or soundbar, then set it to the correct source. For more information, see the documentation that came with the digital speaker system or soundbar.
5 On your TV's Audio menu, highlight Digital Audio Format/Audio Delay, then press ENTER or ▶. Set the Audio Format option to PCM. See the Digital Audio Format/Audio Delay option in Adjusting sound settings on page 48.

Analog audio

Note

When you connect an analog system or soundbar to the 📞 / AUDIO OUT jack, the TV speakers are muted.

1 Make sure that your TV's power cord is unplugged and the analog speaker system or soundbar is turned off.
2 Connect an audio cable (not provided) to the ☉ / AUDIO OUT jack on your TV and to the AUDIO IN jacks on the analog speaker system or soundbar.
3 Plug your TV's power cord into a power outlet, then turn on your TV.
4 Turn on the analog speaker system or soundbar, then set it to the correct source. For more information, see the documentation that came with the analog speaker system or soundbar.
5 On your TV, set the Headphone / Audio Out option on the Audio menu to Headphones / Audio Out Variable or Audio Out Fixed. See the Headphone / Audio Out option in Adjusting sound settings on page 48.

Connecting a home theater system with multiple devices

The connections you make depend on the video and audio jacks available on your devices. Refer to the documentation that came with your devices for connection information.

Just remember to use the best connection types available for the best picture and sound. For information about connection types, see What connection should I use? on page 17.

Connecting power

- Connect the power cord to a power outlet.

Cautions

• Your TV should only be operated from the power source indicated on the label.
  • Always unplug the power cord from the power outlet when you will not be using your TV for an extended period of time.
• The power cord is permanently attached to your TV. Do not try to unplug it from the back of your TV.

1 Connect the AC power cord to the power connector on the back of your TV.
2 Connect the other end of the cord to a power outlet.

Caution

• Your TV should only be operated from the power source indicated on the label.
  • Always unplug the power cord from the power outlet when you will not be using your TV for an extended period of time.

Using the remote control

This section covers:

• Installing remote control batteries
• Aiming the remote control
- Programming universal remote controls
• Viewing universal remote control codes

Installing remote control batteries

1 While pressing the release latch on the back of the remote control, lift the battery compartment cover off of the remote control.

2 Insert two AAA batteries into the battery compartment. Make sure that you match the + and - symbols on the batteries with the + and - symbols in the battery compartment.
3 Replace the battery compartment cover.

Cautions

• Batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire.
• Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.
• Make sure that batteries are disposed of correctly. Do not burn or incinerate.

Notes

• Do not mix batteries of different types.
• Do not mix old and new batteries.
• Remove batteries when the charge is depleted.
• If the remote control is not going to be used for an extended period of time, remove the batteries.

Aiming the remote control

- Point the remote control towards the remote sensor on the front of your TV.

40"/49" model

55" model

Programming universal remote controls

You can operate your Insignia TV with a new or existing universal remote control.

1 See Viewing universal remote control codes on page 34 for common codes. If you have problems programming your remote or need a different remote control code:

- Contact the universal remote control or cable/satellite company of the remote control you are trying to program.

- Visit www.insigniaproducts.com/remotecodes for the latest remote control code information.

- Call the Insignia Customer Care Center at 1-877-467-4289.

2 Follow your universal remote control's instructions to enter the TV code you found in Step 1.

Tips

- If your universal remote control has a code search feature, run a code search to identify a code that matches your TV. See your universal remote control's instructions for details.

- If your universal remote control has a "Learn" feature, you can manually program it using the Insignia TV remote to "teach" the commands one at a time. See your universal remote control's instructions for details.

Viewing universal remote control codes

You can view a list of universal remote control codes in the on-screen menu.

Tips

• The brand name is often visible on the front of the universal remote control, and the model number is often visible on the back.

- If your universal remote control isn't listed on the chart, refer to your universal remote control's instructions and try codes for the brands Orion, Emerson, Memorex, Sansui, Sylvania, or Zenith. You may need to try several codes before finding a match.

1 Press MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Learn More, then press ENTER.

4 Press ▲ or ▼ to highlight Remote control codes, then press ENTER. Your TV displays information about the universal remote codes that you can use to make your TV work with a universal remote.

5 Press ENTER or ▶. Your TV displays a list of remote control codes for various brands of universal remote controls.

6 Press MENU to return to the previous menu, or press EXIT to close the menu.

Note:

You can also find codes for other remote controls at: http://www.insigniaproducts.com/remotecodes Or, check with your cable or satellite TV provider for the remote control code.

Turning on your TV for the first time

The first time you turn on your TV, the Easy Setup wizard opens. The wizard guides you through setting up basic settings including the menu language, time setting, picture mode, TV signal source, and the channel list.

1 Make sure that you have:

• Installed the remote control batteries. (See page 33.)
• Connected an antenna, cable TV, or satellite TV. (See page 18 through page 21.)
  • Connected the power cord. (See page 32.)

2 Press ⏻ (power) to turn on your TV. The Easy Setup wizard opens.

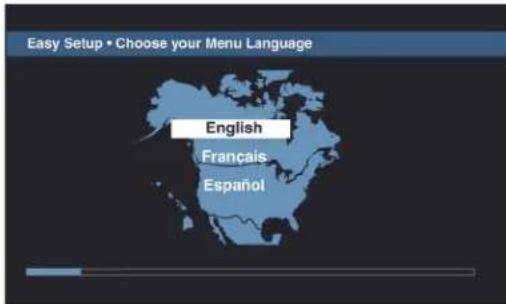

3 Press ▲ or ▼ to highlight a language, then press ENTER.

4 Press ▲ or ▼ to select Yes (to turn on the Voice Guide) or No (to turn off the Voice Guide), then press ENTER.

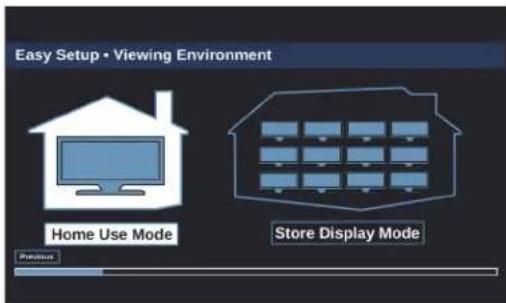

5 Press ◀ or ▶ to highlight Home Use Mode or Store Display Mode, then press ENTER.

If you selected Store Display Mode, a message asks if you are sure you want this mode. Select OK to continue using Store Display Mode, or select Cancel to change to Home Use Mode. Store Display Mode is not an energy savings mode.

6 Press ◀ or ▶ to highlight an option, then press ENTER. You can select:

• Watch TV to skip the customization options. You can press MENU later to customize settings. Go to Finish the wizard on page 36.
• Customize my TV to set options to maximize your experience. Go to Customize my TV on page 35.

Customize my TV

7 Press ▲ or ▼ to highlight a time zone, then press ENTER.

8 Press ▲ or ▼ to select On to turn on Daylight Saving or Off to turn off Daylight Saving, then press ENTER.

9 Press ◀ or ▶ to highlight Month, Day, or Year, press ▲ or ▼ to adjust the setting, then press ENTER one or more times to highlight Next. When Next is highlighted, press ENTER again.

10 Press ◀ or ▶ to highlight Hour, Minute, or the AM/PM field, press ▲ or ▼ adjust the option, then press ENTER one or more time to highlight Next. When Next is highlighted, press ENTER again.

11 Press ▲ or ▼ to highlight a video input source, then press ▶ to move to the label area.

12 Press ▲ or ▼ to highlight a preset label or Custom.

13 If you select a preset label, press ▶ to select Next, then ENTER. OR

If you select Custom, press ENTER, then press ▲ or ▼ to enter the first character in your custom label. Press ◀ or ▶ to move to the previous or next character position. Use the arrow buttons to enter additional characters. You can enter 12 characters (letters or numbers). When you have finished creating your label, press ENTER, press ▶ twice to select Next, then press ENTER again.

Finish the wizard

14 Press ▲ or ▼ to highlight Cable/Satellite Box, Cable from the wall, or Antenna, then press ENTER.

- If you select Cable/Satellite Box, the screen that opens shows you the ways you can connect the box.

Press ENTER.

- If you select Cable from the wall or Antenna your TV starts scanning for channels and displays a progress screen.

Note

You can press EXIT to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.

15 Press ENTER to close the wizard. If you selected:

• Cable from the wall, or Antenna, your TV tunes to the first channel it found in the scan.
• Cable/Satellite box, press INPUT to open the INPUT SOURCE list, press ▲ or ▼ to select the video input (HDMI or AV) you connected the box to, then press ENTER. Your TV switches to the input you selected.

Understanding the basics

This section covers basic information for:

• Turning your TV on or off
- Selecting the video input source
- On-screen menu overview
- Navigating the menus
- Selecting a channel
- Adjusting the volume
• Viewing channel information

Turning your TV on or off

1 Make sure that the power adapter is connected to a power outlet.
2 Press (power) to turn on your TV. The power indicator turns off.
3 Press (power) again to turn off your TV. Your TV enters standby mode, and the power indicator turns red.

Warning

When your TV is in standby mode, it is still receiving power. To completely disconnect power, unplug the power adapter.

Note

If your TV does not receive an input signal for several minutes, it automatically goes into standby mode.

Selecting the video input source

Note

Your TV automatically detects and displays which video jacks have devices connected to them when the devices are turned on. You can turn this feature off to always display all inputs. For more information, see Turning Input Sensor on or off on page 62.

1 Turn on your TV.
2 If you want to use a device connected to a video input (such as a DVD or Blu-ray player), turn on the device.

3 Press INPUT.

INPUT SOURCE

TV

HDMI1

HDMI2

HDMI3

AV

USB(Photos)

4 Press ▲ or ▼ to select a video input source, then press ENTER.

On-screen menu overview

Notes

• Depending on the signal source selected, you may see different options on your screen.
- Menu items that are not selectable are grayed out.

Picture menu (TV mode)

Audio menu (TV mode)

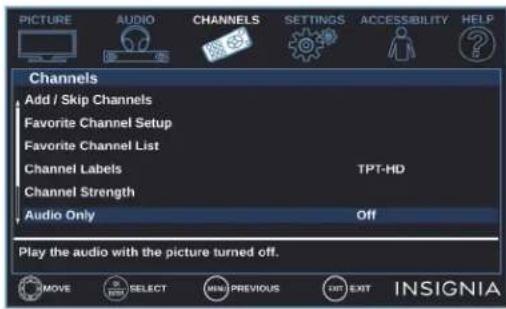

Channels menu (TV mode)

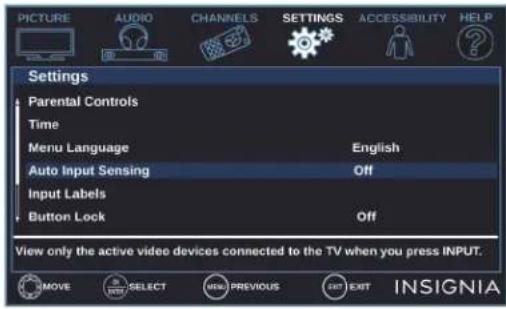

Settings menu (TV mode)

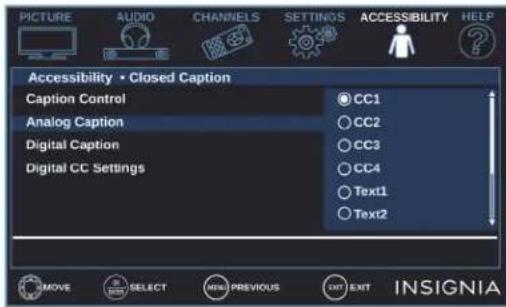

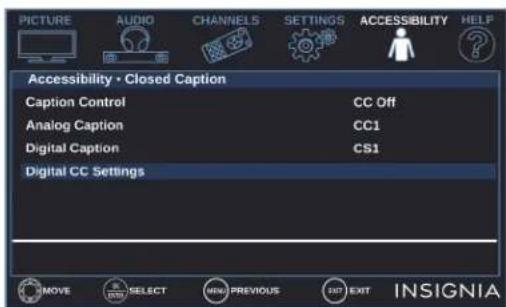

Accessibility menu

Help menu

PHOTOS menu (USB mode)

Navigating the menus Selecting a channel

Press MENU to open the on-screen menu.

Press the right or left arrow to move the cursor on the screen or to adjust a selected item.

Press the up or down arrow to select menu options.

Press ENTER to confirm a selection or enter a sub-menu.

Press MENU to return to the previous menu.
Press EXIT to close the menu.

• Press the CH up or CH down button to go to the next or previous channel on the memorized channel list.
• Press the number buttons to enter the channel number you want, then wait for the channel to change or press ENTER to immediately change the channel.
• To select a digital sub-channel, press the number buttons to select the main digital channel, press ■ (sub-channel), then press the number button for the sub-channel. Wait for the channel to change, or press ENTER to immediately change the channel. For example, to tune to channel 5.1, press 5, ■ (sub-channel), then 1.

Note

Button presses must be within three seconds of each other.

- Press (return) to go to the last viewed channel.

Adjusting the volume

• Press VOL+ or VOL− to increase or decrease the volume.
• Press MUTE to turn off the sound. Press MUTE again to turn the sound back on.

Viewing channel information

- Press INFO* to view an information banner. The information banner shows the current program information such as channel number, video input source, and resolution.

• Digital channel information—Displays the channel number, station name, channel label, broadcast program name, TV rating, signal type, audio information, resolution, current time, signal strength, day of the week, date and current program start and end times, if provided by the broadcaster.
• Analog channel information—Displays channel number, channel label (if present), signal type, audio information, day of the week, date, and resolution, if provided by the broadcaster.

Using INlink

INlink lets you control HDMI CEC-compatible devices connected to the HDMI jacks on your TV using the remote control that came with your TV.

Note

You can use the media buttons on your remote control to control playback.

To use INlink, you must set the INlink Control setting on the INlink menu to On.

Notes

• HDMI cables must be used to connect HDMI CEC-compatible devices to your TV.
- The connected device's HDMI CEC feature must be turned on.
- If you connect an HDMI device that is not HDMI CEC-compatible, none of the INlink Control features work.
- Depending on the connected HDMI device, some INlink Control features may not work.

This section covers:

• Turning INlink on or off
  • Turning Device Auto Power Off on or off
  • Turning TV Auto Power On on or off
  • Turning Audio Receiver on or off
• Displaying a list of INlink-compatible devices
• Selecting an INlink-compatible device
• Opening an INlink-compatible device's root menu

Turning INlink on or off

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight INlink, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight INlink Control, then press ENTER or ▶.
5 Press ▲ or ▼ to highlight On or Off, then press ENTER.
6 Press MENU to return to the previous menu, or press EXIT to close the menu.

Turning Device Auto Power Off on or off

When INlink is set to On, Device Auto Power Off automatically turns off HDMI CEC devices when you turn off your TV.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight INlink, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight Device Auto Power Off, then press ENTER or ▶.

5 Press ▲ or ▼ to highlight On (turns off the connected devices when you turn off your TV) or Off (does not turn off the connected devices when you turn off your TV), then press ENTER.

6 Press MENU to return to the previous menu, or press EXIT to close the menu.

Turning TV Auto Power On on or off

TV Auto Power On automatically turns on your TV when an HDMI CEC device is turned on, if the device has this feature.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight INlink, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight TV Auto Power On, then press ENTER or ▶.

5 Press ▲ or ▼ to highlight On (turns on your TV when you turn on the connected device) or Off (does not turn on your TV when you turn on the connected device), then press ENTER.

6 Press MENU to return to the previous menu, or press EXIT to close the menu.

Turning Audio Receiver on or off

When INlink is turned on and you have connected an HDMI CEC-compatible audio receiver to your TV, turning on Audio Receiver lets you use your TV's remote control to control the volume on the audio receiver.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight INlink, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight Audio Receiver, then press ENTER or ▶.

5 Press ▲ or ▼ to highlight On (your TV's remote control controls the connected audio receiver's volume) or Off (your TV's remote control does not control the connected audio receiver's volume), then press ENTER.

6 Press MENU to return to the previous menu, or press EXIT to close the menu.

Displaying a list of INlink-compatible devices

You can display a list of HDMI CEC devices that are connected to your TV.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight INlink, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight INlink Device List, then press ENTER or ▶. A list of the HDMI CEC-compatible devices you have connected opens.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Selecting an INlink-compatible device

When you have more than one INlink-compatible device connected, you can select the device you want to use.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight INlink, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight Connect, then press ENTER or ▶. A list of HDMI CEC-compatible devices you have connected opens.

5 Press ▲ or ▼ to highlight the device you want to connect to, then press ENTER.

6 Press MENU to return to the previous menu, or press EXIT to close the menu.

Opening an INlink-compatible device's root menu

You can open an INlink-compatible device's root menu, then use your TV's remote control to control the device, if the device has this feature.

1 Press INPUT, press ▲ or ▼ to highlight the INlink-compatible device you want, then press ENTER.

2 Press MENU.

3 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

4 Press ▲ or ▼ to highlight INlink, then press ENTER or ▶.

5 Press ▲ or ▼ to highlight Root Menu, then press ENTER. The device's root menu opens, and you can use your TV's remote control to control the device.

6 Press MENU to return to the previous menu, or press EXIT to close the menu.

Using a USB flash drive

You can connect a USB flash drive to your TV to view compatible JPEG pictures.

Notes

• Never remove the USB flash drive or turn off your TV while viewing JPEG pictures.
• The JPEG picture viewer only supports JPEG format images (with ".jpg" file extensions) and not all JPEG files are compatible with your TV.

This section covers:

• Switching to USB mode
  • Browsing photos
• Viewing photos in a slideshow

Switching to USB mode

1 Make sure that you have connected the USB flash drive to the USB port on your TV.

2 Press ▲ or ▼ to highlight Yes in the message that appears, then press ENTER. OR

If you connected the USB flash drive, then changed to a different video input source, press INPUT to open the INPUT SOURCE list, press ▲ or ▼ to highlight USB(Photos), then press ENTER.

Note

To exit USB mode, press INPUT to open the INPUT SOURCE list, then select another input source.

Browsing photos

1 Switch to USB mode. See Switching to USB mode on page 44.

2 Press ▲ or ▼ to highlight Browse Photos, then press ENTER or ▶. The screen displays folder names and photo files stored on the USB flash drive in a thumbnail index with the first folder or file highlighted. A control bar appears at the bottom of the screen.

Note

Photos are shown in the order they appear on the USB flash drive. They may not be listed in file name order.

3 To navigate the thumbnail index screen, press:

• ▲▼◀ or ▶ to browse through the files and folders.
• ENTER to view a highlighted photo full-screen or open a highlighted folder.
• MENU or EXIT to open the PHOTOS menu.

When a photo is displayed full-screen, a control bar appears at the bottom of the photo. The file name, picture resolution, size, and date are displayed on the bottom of the control bar. If you do not press a button within eight seconds, the control bar closes. Press INFO* to open the control bar again.

4 To navigate on the photo screen, press:

• ◀ to go to the previous photo.
• ▶ to go to the next photo.
- ENTER to rotate the photo clockwise.
- ASPECT one or more times to enlarge the image by 2×, or 4× or to select Fill (to fill the screen). You can press ▲▼◀ or ▶ to pan the photo.
- EXIT to return to the thumbnail index.
- MENU to return to the PHOTOS menu.

Viewing photos in a slideshow

You can view your photos in a slideshow.

1 Switch to USB mode. See Switching to USB mode on page 44.
2 If the photos you want to view are in a folder on the USB flash drive, select the folder. For information about selecting a folder, see Browsing photos on page 44.

3 Press MENU.

4 Press ▲ or ▼ to highlight Start Slideshow, then press ENTER or ▶. A slideshow starts with the first photo in the current folder.

5 To control the slideshow:

Press... To...
MENU Open the PHOTOS menu.
ENTER	Pause the slideshow. Press again to resume the slideshow.
EXIT	Stop the slideshow and return to the thumbnail index.

Adjusting the picture

This section covers:

• Adjusting the TV picture
  • Automatically adjusting the aspect ratio
• Setting the power on picture mode

Adjusting the TV picture

You can adjust various settings to improve the quality of the TV picture. Also, you can reset all picture settings to the factory default.

1 Press MENU.

2 Press ▼ or ENTER to access the menu.
3 Press ▲ or ▼ to highlight an option, then press ENTER or ▶ to access the option. You can select:

- Picture Mode—Selects the picture mode. You can select:

• Vivid—(a bright and vivid picture). Significantly increases the contrast, brightness, and sharpness. This selection is good for video games, animation, and in bright light environments.
- Standard—(a standard picture). Moderately increases the contrast, brightness, and sharpness. This selection is good for standard TV broadcasts.
- Energy Savings—(the backlight brightness is decreased). Your TV has a backlight that provides light for displaying a picture. By reducing the amount of light, your TV uses less energy.

• Movie—(a finely detailed picture). Adjusts the brightness and contrast and lowers the sharpness for a more realistic picture. This selection is good for watching the highest quality video such as Blu-ray Discs, DVDs, and HDTV.
  • Game—Adjusts the picture for the ultimate gaming experience.

Note

• You can also press GAME to select game mode.
• Game is only available when the video input is set to HDMI or AV.

- Custom—(customized picture). Lets you manually adjust picture settings such as brightness, contrast, and sharpness.

Note

You can also press PICTURE to select the picture mode.

- Advanced Settings—Opens the Advanced Settings menu where you can adjust additional video options.

- Aspect Ratio—Adjusts how the picture fills the screen. You can select:

Aspect ratio options

Example

Normal:

Displays the image in the original aspect ratio. You may see black bars if the original content is not widescreen (16:9).

Zoom:

Expands the image to fill the screen. The top and bottom of the image may be cropped.

Wide:

Use this option to view content recorded in a widescreen (16:9) aspect ratio.

Cinema:

Stretches the image at the edges, but keeps a clear image in the center.

Auto:

Automatically adjusts the image based on the screen size and the TV program. Select this option if you do not know which aspect ratio to choose.

Note: Auto is only available when Auto Aspect Ratio in the Channels menu is set to On.

• Overscan—Extends text and images past the screen edges to hide edge artifacts. You can select On or Off.
• Dynamic Backlight (DCR)—Enhances the contrast ratio between light and dark areas of the picture. You can select Off, Low, or High.
  • Color Temperature—Selects the color temperature. You can select Cool (to enhance the blues), Normal, or Warm (to enhance the reds).
• Noise Reduction—Selects the noise reduction mode to reduce picture noise (snow). You can select Off, Low, Middle, or High.

• Adaptive Contrast—Automatically adjusts picture detail and brightness. You can select On or Off.

• Backlight—Sets the overall brilliance of the screen.

• Brightness—Adjusts the brightness of the dark areas of the picture.
• Contrast—Adjusts the brightness of the light areas of the picture.
  • Color—Adjusts the color intensity of the picture. A low setting may make the color look faded. A high setting may make the color look artificial.
• Tint—Adjusts the color balance of the picture. Use this control to make skin tones look more natural.
• Sharpness—Adjusts the color detail of images. If you set this control too high, dark images may appear with light or white edges.
• Reset Picture Settings—Resets all picture settings to factory mode.

4 Press ◀ or ▶ to adjust the option, or press ▲ or ▼ to select a setting.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Automatically adjusting the aspect ratio

Auto Aspect Ratio automatically changes how the picture looks on the screen (aspect ratio) based on the TV program you are viewing.

1 Press MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Auto Aspect Ratio, then press ENTER or ▶.

4 Press ▲ or ▼ to select On (automatically adjust the aspect ratio) or Off (does not automatically adjust the aspect ratio), then press ENTER.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting the power on picture mode

You can set the picture mode your TV uses when you turn it on.

1 Press MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Power on in Vivid Mode, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight On (when you turn on your TV, it will be in Vivid picture mode) or Off (when you turn on your TV, it will be in the picture mode it was in before you turned it off), then press ENTER.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting the sound

This section covers:

• Adjusting sound settings
• Selecting the audio out mode
• Playing TV audio only

Adjusting sound settings

You can adjust sound settings to improve the sound quality. You also can reset all sound settings to the factory default.

1 Press MENU.

2 Press ◀ or ▶ to highlight AUDIO, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight an option, then press ENTER or ▶ to access the option. You can select:

• Audio Mode—Selects the sound mode. You can select:

• Standard—Balances treble and bass. This setting is good for watching standard TV broadcasts.
  • Theater—Enhances treble and bass for a rich sound experience. This setting is good for watching DVDs, Blu-ray discs, and HDTV.
• Music—Preserves the original sound. This setting is good for listening to music.
• News—Enhances vocals for TV audio. This setting is good for watching news broadcasts.
• Custom—Lets you manually adjust sound settings.

Note

You can also press AUDIO to select the audio mode.

• Balance—Adjusts the balance between the left and right audio channels.
• Bass—Adjusts the low sounds.
- Treble—Adjusts the high sounds.

• TV Speakers—Selects where to play TV audio. When you connect headphones to your TV, audio plays through both the headphones and the TV speakers. You can select:

• Auto (default setting)—Automatically turns off the TV speakers when you connect a device to the 📂AUDIO OUT jack. When you disconnect the device, the TV speakers turn on automatically.
• On—Always plays the audio through the TV speakers. If a device is connected to the 📞/ AUDIO OUT jack, the audio is played through both the TV speakers and the device.
• Off—Turns off the TV speakers and plays the audio only through the device connected to the A/DIO OUT jack. If you disconnect the device, the TV speakers remain turned off.

- Digital Audio Format/Audio Delay—Adjusts the digital audio sent to an external audio system. You can select:

- Audio Format—Selects the digital audio format sent to an external audio system. You can select:

• Pass Thru (to pass through the original digital audio sound).
• PCM (to output audio in 2-channel stereo).
• Audio Delay—Fine tunes the audio when it is not in sync with the video.

- MTS/SAP—(Analog channels only) Selects the audio mode. You can select:

• Mono—Select this option if there is noise or static on weak stereo broadcasts.
• Stereo—Select this option for programs broadcast in stereo.
• SAP—Select this option to listen to a secondary audio program, if available.

- Audio Language—(Digital channels only) Selects an alternate audio language, if available.

- Headphones / Audio Out—You can use the 📄/AUDIO OUT jack on your TV to connect headphones, a home theater system, soundbar, or external speaker system. When a device is connected to the ⒽAUDIO OUT jack, the TV speakers are muted. You can select:

- Headphones/Audio Out Variable—Select this option to use the remote control that came with your TV to control the audio from headphones, a home theater system, a soundbar, or an external speaker system you connected to the AUDIO OUT jack.

- Audio Out Fixed—Select this option to use the remote control that came with the home theater system, soundbar, or external speaker system you connected to the 📄/AUDIO OUT jack to control the audio.

- Reset Audio Settings —Reset all audio settings to factory defaults.

4 Press ◀▶ ▲ or ▼ to adjust the option or select a setting.
5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Selecting the audio out mode

If your TV is on when you connect a device to the 📄/AUDIOOUT jack on your TV, a screen opens where you select which audio out mode you want to use.

1 Connect headphones, a home theater system, soundbar, or external speaker system to the 📄/AUDIOOUT jack on your TV.

2 Press ◀ or ▶ to highlight the audio out mode you want to use, then press ENTER. You can select:

• Headphones / Audio Out Variable—Select this option to use the remote control that came with your TV to control the audio from headphones, a home theater system, or a soundbar you connected to the AUDIO OUT jack.
• Audio Out Fixed—Select this option to use the remote control that came with the home theater system, soundbar, or external speaker system you connected to the AUDIO OUT jack to control the audio.

Playing TV audio only

You can turn off the picture on your TV and listen to the program audio only.

1 Press MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Audio Only, then press ENTER or ▶.

4 Press ▲ or ▼ to select On.

5 Press MENU, ENTER, or ◀ to return to the previous menu, or press EXIT to close the menu.

Notes

• The picture turns off in about five seconds.

• Audio Only works only when the input source is TV, and your TV is receiving a broadcast signal.

• To exit audio only mode, press any button. When you exit audio only mode, the Audio Only option is automatically reset to Off.

Changing channel settings

This section covers:

• Automatically scanning for channels
- Hiding channels
- Setting up a favorite channel list
• Viewing a favorite channel
- Adding or changing a channel label
- Checking the digital signal strength

Automatically scanning for channels

When you scan for channels, your TV searches for channels with signals and stores the channel information in the channel list. When you press the CH up or CH down button, your TV goes to the next or previous channel in the channel list.

If the TV signal source changes, for example you change from an outdoor antenna to cable TV (no box), you need to scan for channels.

1 Press MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Auto Channel Search, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight Cable / Satellite Box, Cable from the wall, or Antenna, then press ENTER.

A If you select Cable / Satellite Box, a screen opens that shows you all the ways you can connect a box to your TV.

Press ENTER. When a message tells you setup is complete, press EXIT to close the menu.

Press INPUT to open the INPUT SOURCE list, then press ▲ or ▼ to select the video input source you connected your TV to and press ENTER. Your TV switches to the input source you selected.

B If you select Cable from the wall your TV scans for available channels. The scan may take several minutes.

When the scan is complete, the first channel your TV found plays in the background.

Note

You can press EXIT to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.

C If you select Antenna, your TV scans for available channels. The scan may take several minutes.

When the scan is complete, press EXIT to close the menu. The first channel your TV found plays in the background.

Note

You can press EXIT to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.

Hiding channels

You can hide channels in the channel list. When you press the CH up or CH down button, your TV skips the hidden channels. You can still tune to a hidden channel by pressing the number buttons for the channel.

1 Press MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Add / Skip Channels, then press ENTER or ▶.

4 Press ▲▼◀ or ▶ to highlight the channel you want to hide, then press ENTER. Each channel has a circle to the left. When you hide a channel the circle is empty.

Notes

• If you highlight a channel in the list, your TV displays the channel in the background.
• A channel with a filled circle to the left is not hidden. A channel with an empty circle to the left is hidden.
• If the list has more than one page, press ▲ or ▼ to scroll through the pages.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting up a favorite channel list

You can create a favorite channel list so you can quickly browse through your favorite channels, then selecting a channel from the favorite channel list.

1 Press MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Favorite Channel Setup, then press ENTER or ▶.

4 Press ▲▼◀ or ▶ to highlight the channel you want to add to the favorites list, then press ENTER. Each channel has a circle to the left. When you add a channel to the Favorite List, the circle is filled.

Notes

• If you highlight a channel in the list, your TV displays the channel in the background.
  • To remove a channel from the favorites list, highlight the channel, then press ENTER. The filled circle is replaced with an empty circle and the channel is removed from the list.
• If the list has more than one page, press ▲ or ▼ to scroll through the pages.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Viewing a favorite channel

1 Press MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Favorite Channel List, then press ENTER or ▶. The Favorite List opens.

4 Press ▲ or ▼ to highlight a channel, then press ENTER.

Note

You can also press FAVORITE to open the Favorite List, then press ▲ or ▼ to highlight a channel and press ENTER.

Adding or changing a channel label

If a channel is not already labeled, you can label the channel to make it easier to identify. You can also relabel a channel that is already labeled.

1 Press MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Channel Labels, then press ENTER or ▶.

4 Press ▲ or ▼ to select the channel you want to label, then press ▶ to move to the channel label field.

5 Press ▲ or ▼ to select a character, then press ◀ or ▶ to move to the previous or next character position. Repeat this step to enter additional characters. You can enter as many as 11 characters (letters, numbers, or symbols).
6 When you have completed the label, press ENTER or MENU to save your label and return to the Channels menu.
7 Press EXIT to close the menu.

Checking the digital signal strength

You can check the digital signal strength to determine if you need to adjust your antenna or digital cable input. The higher the signal strength, the less likely you are to experience picture degradation.

1 Press MENU.
2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Channel Strength, then press ENTER or ▶.

4 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting parental controls

Parental controls let you prevent your children from watching inappropriate material on TV. When set, parental controls read the rating of the program (with some exceptions, such as news and sports) and deny access to programs that exceed the ratings level you select. To watch programs that exceed the selected rating, you must enter a password.

Parental controls include:

• Setting or changing the password
  • Blocking unrated TV
• Setting parental control levels
  • Downloading rating information
• Locking the power button on your TV

Setting or changing the password

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Parental Controls, then press ENTER or ▶.

4 Press the number buttons to enter the four-digit password. The default password is 0000. You should change the password to a number you can remember.

5 Press ▲ or ▼ to highlight Change Password, then press ENTER or ▶.

6 Press the number buttons to enter a password, then enter the password again. A message tells you that the password has been changed.

7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Blocking unrated TV

Some TV programs, such as news and sports shows are not rated. When Block Unrated TV is turned on, TV programs that do not have ratings are blocked. When you try to watch a blocked program, you are prompted to enter the parental controls password.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Parental Controls, then press ENTER or ▶.

4 Press the number buttons to enter the four-digit password.

5 Press ▲ or ▼ to highlight Block Unrated TV, then press ENTER or ▶.

6 Press ▲ or ▼ to select On (to block unrated TV) or Off (to unblock unrated TV).

7 Press ENTER, MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Setting parental control levels

You can set parental controls for the U.S. and Canada.

U.S. rating levels

U.S. TV ratings

NONE Not rated

TV-Y All children

TV-Y7 Suitable for children 7 and older

TV-G General audiences

TV-PG Parental guidance suggested

TV-14 Parental guidance strongly suggested

TV-MA Mature audiences only

Some of the age-based TV Parental Guidelines ratings also have content-based ratings.

U.S. TV content ratings

All All ratings are blocked
FV Fantasy violence
L Strong language
S Sexual situations
V	V	i	ole
D	Suggestive dialog

U.S. movie (MPAA) ratings

None	Movie not rated
G	General audiences
PG Parental guidance suggested
PG-13 Suitable for children 13 and older
R	Parental guidance suggested for children under 17
NC-17 Not suitable for children under 17
X	Adults only

Canadian rating levels

Canadian English ratings

E Exempt programming
C	Suitable for all children
C8+	Suitable for children 8 and older
G	General audiences
PG Parental guidance suggested
14+	Suitable for children 14 and older
18+	Adult only

Canadian French ratings

E Exempt programming

G General audiences

8 ans+ Suitable for children 8 and older

13 ans+ Suitable for children 13 and older

16 ans+ Suitable for children 16 and older

18 ans+ Adult only

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Parental Controls, then press ENTER or ▶.

4 Press the number buttons to enter the four-digit password.

5 Press ▲ or ▼ to highlight USA Parental Locks, then press ENTER. (To set Canadian ratings, select Canadian Parental Locks.)

USA Parental Locks

Canadian Parental Locks

6 Press ◀ or ▶ to highlight:

• Movie Ratings or TV Ratings for USA ratings.
• Canadian English or Canadian French for Canadian ratings.

7 Press ▲ or ▼ to select the rating. If a rating has sub-ratings, press ◀ or ▶ to highlight a sub-rating.

Note

When you block a rating, that rating and all higher ratings are blocked.

8 Press ENTER to confirm. The circle next to the rating changes to a lock symbol.
9 Press MENU to return to the previous menu, or press EXIT to close the menu.

Downloading rating information

If the program you are viewing has downloadable rating information, you can download the information to use when setting parental controls.

Note

If the program you are viewing does not have RRT5 rating information, RRT5 is grayed on the Settings · Parental Controls menu and cannot be selected.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Parental Controls, then press ENTER or ▶.

4 Press the number buttons to enter the four-digit password.

5 Press ▲ or ▼ to highlight RRT5, then press ENTER. The screen that opens may vary depending on the broadcaster.

6 Press ▲▼◀ or ▶ to select the program and content types you want to block, then press ENTER.

7 To reset the RRT5 information to the factory default, press ▲ or ▼ to highlight Reset RRT5.

8 Press ENTER.

9 Press ▲ or ▼ to highlight OK or Cancel, then press ENTER.

10 Press MENU to return to the previous menu, or press EXIT to close the menu.

Locking the power button on your TV

When the button lock is turned On, the ⏻/INPUT button on your TV is locked, and you can only turn your TV on or off or change the video input source using the remote control.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Button Lock, then press ENTER or ▶.

4 Press ▲ or ▼ to select On (locks the ⏻/INPUT button) or Off (unlocks the ⏻/INPUT button).

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Using closed captioning

Closed captioning displays a text version of the TV program audio or displays information provided by the broadcaster.

Closed caption controls include:

• Turning closed captioning on or off
• Selecting the analog closed captioning mode
• Selecting the digital closed captioning mode
• Customizing digital closed captioning settings

Turning closed captioning on or off

1 Press MENU.
2 Press ◀ or ▶ to highlight ACCESSIBILITY, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Closed Caption, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight Caption Control, then press ENTER or ▶.
5 Press ▲ or ▼ to select CC Off (turns off closed captioning), CC On (turns on closed captioning), or CC on when mute (turns on closed captioning when the sound is muted).
6 Press ENTER, MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Note

You can also press CC to turn closed captioning on, off, or on when mute.

Selecting the analog closed captioning mode

Analog channels usually have one or more closed captioning modes. The CC1 mode usually displays a text version of the TV program audio in a small banner. The other CC modes display information provided by the broadcaster. The Text modes display information in a box that covers half of the screen.

1 Press MENU.

2 Press ◀ or ▶ to highlight ACCESSIBILITY, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Closed Caption, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight Analog Caption, then press ENTER or ▶.
5 Press ▲ or ▼ to select an analog caption setting. You can select:

- CC1 through CC4—Closed captioning appears in a small banner across the bottom of the screen. CC1 is usually the "printed" version of the audio. CC2 through CC4 display content provided by the broadcaster.

- Text1 through Text4—Closed captioning covers half or all of the screen. Text1 through Text4 display content provided by the broadcaster.

6 Press ENTER, MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Selecting the digital closed captioning mode

Digital channels usually have one or more closed captioning modes. The CS1 mode usually displays a text version of the TV program audio in a small banner. The other CS modes display information provided by the broadcaster.

1 Press MENU.
2 Press ◀ or ▶ to highlight ACCESSIBILITY, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Closed Caption, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight Digital Caption, then press ENTER or ▶.
5 Press ▲ or ▼ to select a digital caption setting. You can select:

- CS1 through CS6—CS1 is usually the "printed" version of the audio. CS2 through CS6 display content provided by the broadcaster. You can change the way digital closed captioning is displayed on the screen. For more information, see Customizing digital closed captioning settings on page 59.

6 Press ENTER, MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Customizing digital closed captioning settings

1 Press MENU.

2 Press ◀ or ▶ to highlight ACCESSIBILITY, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Closed Caption, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight Digital CC Settings, then press ENTER or ▶.

5 Press ENTER, press ▲ or ▼ to select Custom, then press ENTER.
6 Press ▲ or ▼ to highlight an option, then press ENTER or ▶. You can select:

• Size—Selects the font size.
• Font—Selects the font style.
• Text Color—Selects the color for the words.
• Text Opacity—Selects the opacity level for the words.
• Background Color—Selects the color for the background.
• Background Opacity—Selects the opacity level for the background.
• Edge Effect—Selects the style of the letter edge.
• Edge Color—Selects the color of the letter edge.

7 Press ▲ or ▼ to adjust the setting, then press ENTER.

8 Press MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting time settings

This section includes:

• Setting the clock
• Setting the sleep timer

Setting the clock

If you skipped the steps in the Easy Setup wizard for setting the date and time or if you move your TV to a different time zone, you need to reset the clock to the correct time.

1 Press MENU.
2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Time, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight Date / Time, then press ENTER.

5 Press ▲ or ▼ to highlight Mode, then press ENTER or ▶.
6 Press ▲ or ▼ to highlight Manual (to set the options manually) or Auto (the options are automatically set by the TV signal source), then press ENTER.
7 Press ▲ or ▼ to highlight Time Zone, then press ENTER or ▶.
8 Press ▲ or ▼ to select your time zone, then press MENU. You can select Eastern, Central, Mountain, Pacific, Alaska, Hawaii, Atlantic, or Newfoundland.
9 If your viewing area observes Daylight Saving Time, press ▲ or ▼ to highlight Daylight Saving, then press ENTER.
10 Press ▲ or ▼ to select On or Off, then press MENU to close the menu.
11 If you selected Manual for Mode, press ▲ or ▼ to highlight Date, then press ENTER. Press ◀ or ▶ to highlight Month, Day, or Year. Press ▲ or ▼ to adjust the setting, then press MENU.
12 If you selected Manual for Mode, press ▲ or ▼ to highlight Time, then press ENTER. Press ◀ or ▶ to highlight the Hour, Minute, or the AM/PM field. Press ▲ or ▼ to adjust the setting. When you are finished, press MENU.
13 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting the sleep timer

You can specify the amount of time before your TV automatically turns off.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Time, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight Sleep Timer, then press ENTER or ▶.
5 Press ▲ or ▼ to select the amount of time before your TV turns off automatically. You can select Off, 5, 10, 15, 30, 60, 90, 120, 180, or 240 minutes. To turn off the sleep timer, select Off.
6 Press ENTER, MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Note

You can also press SLEEP to set the sleep timer.

Adjusting menu settings

You can adjust how the TV menus look by:

• Selecting the menu language
  • Turning Input Sensor on or off
• Labeling an input source

Selecting the menu language

Your TV can display the on-screen menu in English, French, or Spanish. When you set up your TV for the first time, you selected the language. You can change the menu language to a different language.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Menu Language, then press ENTER or ▶.
4 Press ▲ or ▼ to highlight a language, then press ENTER. You can select English, Français, or Español.
5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Turning Input Sensor on or off

When the Input Sensor feature is turned on, your TV automatically detects which video jacks have devices connected to them and turned on. Your TV uses this information to determine what options you can select on the INPUT SOURCE list when you press INPUT.

1 Press MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Auto Input Sensing, then press ENTER or ▶.
4 Press ▲ or ▼ to select On (turns on the input sensor) or Off (turns off the input sensor).
5 Press ENTER, MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Labeling an input source

You can add a label to an input source to make it easier to identify.

1 Press MENU.
2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Input Labels, then press ENTER or ▶.

4 Press ▲ or ▼ to select the input source you want to label, then press ▶ to move to the label field.

5 Press ▲ or ▼ to select a preset label or select Custom to create your own label.
6 If you select Custom, press ENTER, then ▲ or ▼ to select characters (letters or numbers) and ◀ or ▶ to move character to character.
7 When you have completed the label, press ENTER to save your label. The next time you press INPUT, your label appears in the INPUT SOURCE list.
8 Press MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting accessibility settings

Your TV provides audio descriptions of menus and some remote control functions. Depending on the broadcaster, audio narration of key elements in programs may also be available.

1 Press MENU.
2 Press ◀ or ▶ to highlight ACCESSIBILITY, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight an option, then press ENTER or ▶ to access the option. You can select:

• Voice Guide—Audibly narrates menu selections and some remote control functions. You can select On or Off.

Note

The Voice Guide option is only available in the English language.

• Closed Caption—Displays a text version of the TV program audio or displays information provided by the broadcaster. See Using closed captioning on page 58 for instructions about using closed captioning features.
  • Audio Language—(Digital channels only) Selects an alternate audio language, if available.
• Video Description—Audibly narrates key visual elements in TV programs (not available on all broadcasts). You can select On or Off.
• Learn How To Use Remote Control—Provides information about using the remote control.
• Reset Accessibility Settings—Resets all accessibility settings to factory mode. When you select this option, a message asks if you are sure you want to reset. Select OK to continue the reset operation or select Cancel to stop the reset operation.

4 Press ◀ or ▶ to adjust the option, or press ▲ or ▼ to select a setting.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Note

You can also press ACC to open the Accessibility menu.

Note

For more information about accessibility, call Customer Care at 877-467-4289 (U.S. and Canada) or 01800-926-3000 (Mexico).

Maintaining

• Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.
• Storage temperatures are 32^ to 122^ (0° to 50°C).
• Working temperatures are 41^ to 104^ ( 5^ to 40^ ).
• Do not place your TV in direct sunlight or near a heat source.

Cleaning the TV cabinet

Clean the cabinet with a soft, lint-free cloth. If the cabinet is especially dirty, moisten a soft, lint-free cloth in a weak detergent solution, squeeze the excess moisture from the cloth, then wipe the cabinet with the cloth. Use a clean cloth to dry the cabinet.

Cleaning the TV screen

Clean the screen with a soft, lint-free cloth.

Troubleshooting

Warning

Do not try to repair your TV yourself. Contact authorized service personnel.

Use the following troubleshooting information to solve common problems.

Troubleshooting topics include:

• Viewing system information
- Learning more about your TV
- Updating the TV firmware
- Customizing TV settings
- Testing the TV speakers
- Restoring settings to the defaults
• Video and audio problems
- Remote control problems
- General problems
• INlink (CEC-compatible) device problems

Viewing system information

You may need to view system information during troubleshooting.

1 Press MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight System Info, then press ENTER or ▶.
4 If your TV uses open source code, press ENTER to display the open source code information.
5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Learning more about your TV

You can learn more about remote control codes and connecting a soundbar.

1 Press MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Learn More, then press ENTER or ▶.

4 Press ▲ or ▼ to highlight a topic, then press ENTER. Your TV displays information about the topic you selected.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Updating the TV firmware

If your TV is behaving oddly and you have tried all the solutions in the troubleshooting pages, you may need to update the TV firmware.

Cautions

• Make sure that you have tried all other solutions before you upgrade the firmware.
- While the firmware is updating, do not turn off your TV.

Note

To update the TV firmware, you need a:

• Computer with an available USB port
• High-speed Internet connection
• USB flash drive

1 On the Help menu, select System Info, then write down your model, revision, and firmware information. See Viewing system information on page 64.
2 On a computer, go to www.insigniaproducts.com, then under Support & Service, click Product Support.
3 Under Product Information, enter your model number, then press ENTER.
4 Click the picture of your model, then next to Features, click Support & Downloads. The support page for your TV opens.
5 Follow the instructions in the Firmware Installation Guide on the Insignia website to download the firmware update and copy it to a USB flash drive.
6 Plug the USB flash drive into the USB port on your TV.

7 Press MENU.

8 Press ◀ or ▶ to highlight HELP, then press ▼ or ENTER.

9 On the Help menu, press ▲ or ▼ to highlight Update Firmware, then press ENTER or ▶. A message asks if you want to update the TV firmware.
10 Highlight OK, then press ENTER.

While your TV installs the firmware update, your TV displays a status screen. Do not turn off your TV until the update is complete.

11 When the update is complete, unplug the USB flash drive, then press ENTER. Your TV turns off then on to complete the update.
12 If the channel list has been deleted, you need to scan for channels. For more information, see Automatically scanning for channels on page 50.

Note

• If you see a message that says the firmware file is incorrect, make sure that you have downloaded the correct file for your model.
• If you see a message that says the update failed or the TV screen is blank and the power LED is blinking red then blue, turn off your TV, turn it back on, then run the upgrade again.

Customizing TV settings

If you did not complete the customization part of the Easy Setup wizard the first time you turned on your TV, you can run the wizard again to customize settings.

1 Press MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Customize my TV, then press ENTER or ▶. A message asks if you want to run the Easy Setup wizard.
4 Press ▲ or ▼ to select OK (to reset) or Cancel (to not reset), then press ENTER.

If you select OK, your TV turns off, then turns on again. Go through the Easy Setup wizard. For more information, see Turning on your TV for the first time on page 35.

OR

If you select Cancel or press MENU, your TV returns to the Help menu without making any changes.

OR

If you press EXIT, the on-screen menu closes without making any changes.

Testing the TV speakers

You can test your TV's speakers to make sure that they are working correctly.

1 Press MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight TV Speaker Test, then press ENTER or ▶.

4 Press ENTER. Your TV tests the left speaker, then the right speaker. You hear a tone, and as each speaker is tested, its icon turns yellow.

If one or both of the speakers fail the test, see Video and audio on page 68.

Restoring settings to the defaults

When you restore default settings, all the settings you have customized (except parental controls) are reset.

1 Press MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or ENTER.

3 Press ▲ or ▼ to highlight Reset to Default, then press ENTER or ▶.

4 Press ▲ or ▼ to select OK (to reset) or Cancel (to not reset), then press ENTER.

If you select OK, your TV turns off, then turns on again. Go through the Easy Setup wizard. For more information, see Turning on your TV for the first time on page 35.

OR

If you select Cancel or press MENU, your TV returns to the Help menu without making any changes.

OR

If you press EXIT, the on-screen menu closes without making any changes.

Video and audio

Problem Solution
Picture does not fill the screen. There are black bars around the picture.	· Change the aspect ratio. See the Aspect Ratio option in Adjusting the TV picture on page 46.
No picture (screen is not lit) and no sound.	· Press on the TV or the remote control. · Make sure that the Audio Only option is set to Off. See Playing TV audio only on page 50. · Make sure that the video cables are connected correctly and securely to your TV. · Adjust the contrast and brightness. See Adjusting the TV picture on page 46. · Make sure that the power cord is plugged into a working outlet. · Press INPUT and make sure that the correct video input source is selected. See Selecting the video input source on page 37. · Try another channel. The station may be experiencing problems. · Make sure that the incoming signal is compatible. · Make sure that the antenna or cable TV is connected correctly and securely. See Connecting a cable or satellite box on page 18 or Connecting an antenna or cable TV (no box) on page 21. · Check the closed caption settings. Some TEXT modes can block the screen. See Using closed captioning on page 58.

Problem Solution
Dark, poor, or no picture (screen is lit), but sound is good.	Try another channel. The station may be experiencing problems.Make sure that the antenna or cable TV is connected correctly and securely. See Connecting a cable or satellite box on page 18 or Connecting an antenna or cable TV (no box) on page 21.Adjust the brightness. See Adjusting the TV picture on page 46.Press PICTURE to change to a different picture mode. See Adjusting the TV picture on page 46.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see Checking the digital signal strength on page 53.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.Make sure that the video cables are connected correctly and securely to your TV.The video cable(s) you are using may be bad. Try a new set.
No color, dark picture, or color is not correct.	Try another channel. The station may be experiencing problems.Adjust the color settings. See Adjusting the TV picture on page 46.Make sure that the video cables are connected correctly and securely to your TV.Make sure that the antenna or cable TV is connected correctly and securely. See Connecting a cable or satellite box on page 18 or Connecting an antenna or cable TV (no box) on page 21.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see Checking the digital signal strength on page 53.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.

Problem Solution

Only snow (noise) appears on the screen.

Try another channel. The station may be experiencing problems.Make sure that the antenna or cable TV is connected correctly and securely. See Connecting a cable or satellite box on page 18 or Connecting an antenna or cable TV (no box) on page 21.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see Checking the digital signal strength on page 53.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.

Picture quality is good on some channels and poor on others. Sound is good.

The problem may be caused by a poor or weak signal from the broadcaster or cable TV provider.If you connect to cable TV without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable TV provider about upgrading to a set-top box.

Problem Solution

Dotted lines or stripes appear on the screen.	Make sure that the antenna or cable TV is connected correctly and securely. See Connecting a cable or satellite box on page 18 or Connecting an antenna or cable TV (no box) on page 21.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see Checking the digital signal strength on page 53.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.Make sure that the video cables are connected correctly and securely to your TV.The video cable(s) you are using may be bad. Try a new set.Other devices (for example, a surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
Double images.	Use a highly directional outdoor antenna or use a cable or satellite box.
The picture has a few bright or dark spots.	A few bright or dark spots on an LCD screen is normal. It does not affect the operation of your TV.
Video description or voice guide does not work.	Make sure that your TV is not muted and the volume is turned up.Make sure that the options listed under the Accessibility menu are turned on. See Adjusting accessibility settings on page 63.Video descriptions are not available on all broadcasts.Some remote functions are not narrated.

Problem Solution

Good picture, but no sound.

• Increase theMake sure that the sound is not muted.• Make sure that you do not have headphones connected. When headphones are connected, no sound comes from the TV speakers.• Change to a different audio mode. See the Audio Mode option in Adjusting sound settings on page 48.• If you are using a home theater system, soundbar, or external speaker system, make sure that it is turned on and is not muted.• If you are using a home theater system, soundbar, or external speaker system, make sure that you have selected the correct output mode.• If you are using a home theater system, soundbar, or external speaker system and have connected it with a digital audio cable, select Digital Audio Format/Audio Delay on the Audio menu, then set Audio Format to PCM. See the Digital Audio Format/Audio Delay option in Adjusting sound settings on page 48.• Make sure that the audio cables are connected correctly and securely to your TV.• Make sure that the antenna or cable TV is connected correctly and securely. See Connecting a cable or satellite box on page 18 or Connecting an antenna or cable TV (no box) on page 21.• If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see Checking the digital signal strength on page 53.• If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.• The audio cables you are using may be bad. Try a new set.

Problem Solution

Poor picture.	Make sure that the room is not too bright. Light reflecting off the screen can make the picture difficult to see.If an S-VHS camera or a camcorder is connected while another connected device is turned on, the picture may be poor. Turn off one or more devices.
Good sound, but poor color.	Adjust the contrast, color, and brightness settings. SeeAdjusting the TV picture on page 46.
Audio noise.	Other devices (for example, a surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
No output from one of the speakers.	Adjust the audio balance. SeeAdjusting sound settings on page 48.Test the TV's speakers. SeeTesting the TV speakers on page 67. If one or both of the speakers fails, try one of the following solutions:Make sure that the audio cables are connected correctly and securely to your TV.Make sure that the audio cables are connected to theAUDIO OUTjacks on the connected device.Try a different set of audio cables.Make sure that the sound on the connected device is not muted.Try connecting the device to a different TV. If you do not hear sound, the problem is with the device.
After images appear.	Do not display a still image, such as a logo, game, or computer image, for an extended period of time. This can cause a permanent after-image to be burned into the screen. This type of damage is not covered by your warranty.

Remote control

Problem Solution
Remote control does not work.	Make sure that the power cord is plugged into a working outlet.Make sure that there are no obstructions between the remote control and the remote control sensor on the front of the TV.Point the remote control directly at the remote control sensor on your TV.SeeAiming the remote control on page 33.The supplied batteries are wrapped tightly in clear plastic. Make sure that you have removed this plastic from the batteries.Make sure that the batteries are installed correctly. SeeInstalling remote control batterieson page 33.Replace dead batteries with new batteries. SeeInstalling remote control batteries on page 33.
Trouble programming your existing universal remote control.	See instructions inProgramming universal remote controls on page 34.Codes are subject to change. For up-to-date codes, go toViewing universal remote control codes on page 34 or visitwww.insigniaproducts.com/remotecodesReplace dead batteries with new batteries.Refer to the User Guide that accompanied your universal remote control and contact the manufacturer if problems persist.

General

Problem Solution
No power.	Make sure that the power cord is plugged into a working outlet.Unplug the power cord, wait 60 seconds, then plug the cord back in and turn on your TV.Other devices (for example, a surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
"No signal" error message is displayed.	Press INPUT and make sure that you have selected the correct input for the device or service you are trying to use.If you are using a cable or satellite box, use the remote that came with that box to change channels.

Problem Solution
After Auto Channel Search, there are no channels.	• Reception can vary by channel depending on the broadcast power level of a given station. Contact your cable or satellite TV provider.• Make sure that the antenna or cable/satellite TV is connected securely to your TV.• Try replacing the cable between the antenna/cable or cable/satellite box and your TV.
When I press INPUT, I cannot select my device (it is grayed out).	• Turn on the device. Your TV automatically detects and displays which video jacks have devices connected to them when the devices are turned on.• Turn off Auto Input Sensing. See Turning Input Sensor on or off on page 62.
One or more channels do not display.	• Make sure that the channels are not blocked. See Setting parental control levels on page 55.• Make sure that the channels are not hidden. The channel may have been deleted from the channel list. You can tune to the channel by pressing the number buttons or you can add the channel back to the channel list. See Hiding channels on page 51.• If you are using a cable or satellite box, use the remote that came with that box to change channels.• Press INPUT and make sure that you have selected the correct input for the device or service you are trying to use.• If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see Checking the digital signal strength on page 53.
Password is lost.	• Enter 9999 to access parental controls, then set a new password. See Setting or changing the password on page 54.
Some settings cannot be accessed.	• If a setting is grayed, the setting is not available in the current video input mode (for example TV mode). Change to a different video input source. See Selecting the video input source on page 37.
TV cabinet creaks.	• When the TV is in use, the temperature rises naturally and may cause the cabinet to expand or contract which can cause a creaking noise. This is not a malfunction.

Problem Solution

button does not work.	Make sure that the Button Lock option is set to Off. See Locking the power button on your TV on page 58.Unplug the power cord, wait a few seconds, then plug the cord back in and turn on your TV.
TV keeps turning off.	Make sure that the sleep timer is not turned on. See Setting the sleep timer on page 61.
A retail banner is displayed.	You selected Stor when you ran the Easy Setup wizard. Run the Easy Setup wizard and select Home User Mode on the Viewing Environment screen. See Customizing TV settings on page 66.

INlink (CEC-compatible) device

Problem Solution

My TV is not displaying the video from the connected CEC device.

Make sure that the HDMI cable is connected securely to your TV and the device.Make sure that the device is connected to your TV with an HDMI cable.Make sure that the device is a CEC device. See the documentation that came with the device for more information.Press INPUT and make sure that the correct video input source is selected. See Selecting the video input source on page 37.Make sure that the INlink feature is turned on. See Turning INlink on or off on page 40.Try adjusting the TV picture. See Adjusting the TV picture on page 46.

Problem Solution

My TV is not playing the audio from the connected CEC device.	Make sure that the HDMI cable is connected securely to your TV and the device.Make sure that the device is connected to your TV with an HDMI cable.Make sure that the device is a CEC device. See the documentation that came with the device.Make sure that turned up and not muted.Try adjusting the TV sound. SeeAdjusting sound settingson page 48.Make sure that the TV speakers are turned on and not muted. SeeAdjusting sound settingson page 48.Make sure that the INlink feature is turned on. SeeTurning INlink on or off on page 40.If you have connected an HDMI CEC audio receiver, adjust the volume on the receiver. When your TV detects an audio receiver, the TV speakers turn off and sound plays through receiver speakers only.If you are using a home theater system, soundbar, or external speaker system, make sure that it is turned on and is not muted.If you are using a home theater system, soundbar, or external speaker system, make sure that you have selected the correct output mode.If you are using a home theater system, soundbar, or external speaker system and have connected it with a digital audio cable, selectDigital Audio Format/Audio Delayon the Audio menu, then setAudio Format toPCM. See theDigital Audio Format/Audio Delayoption inAdjusting sound settingson page 48.
splay Mode
Problem Solution
My TV's remote control does not control the device.	Make sure that there are no obstructions between the remote control and the remote control sensors on your TV and the device.Depending on the device, all the buttons may not work.After you switch to an INlink device, use the remote control that came with the device to control playback.Make sure that the INlink feature is turned on. See Turning INlink on or off on page 40.If you are trying to control the volume on an HDMI CEC audio receiver using your TV remote control, make sure that the TV Speakers option on the Audio menu is set to On. See Adjusting sound settings on page 48.If you are trying to control the volume on an HDMI CEC audio receiver using your TV remote control, make sure that the Audio Receiver option on the INlink menu is set to On. See Turning Audio Receiver on or off on page 42.The device may not support this feature. See the documentation that came with the device for more information.
The device does not show up in the INlink Device list.	Make sure that the device is turned on.Make sure that the HDMI cable is connected securely to your TV and the device.Make sure that the device is connected to your TV with an HDMI cable.Make sure that the INlink feature is turned on. See Turning INlink on or off on page 40.Make sure that the device is a CEC device. See the documentation that came with the device.
My device does not turn off when I turn off my TV.	Make sure that the INlink feature is turned on. See Turning INlink on or off on page 40.Make sure that Device Auto Power Off is set to On on the INlink menu. See Turning Device Auto Power Off on or off on page 41.The device may not support this feature. See the documentation that came with the device for more information.

Problem Solution
My TV does not turn on when I turn on my device.	Make sure that the INlink feature is turned on. See Turning INlink on or off on page 40.Make sure that set toOnon the INlinkmenu. See Turning TV Auto Power On on or off on page 41.The device may not support this feature. See the documentation that came with the device for more information.
The Audio Receiver setting on the INlink menu keeps turning back on after it is turned off.	When Audio Receiveris set to Off and INlink Controlis set toOnand you make an adjustment to the audio receiver (for example, turn the volume knob or press a button),Audio Receiveris automatically set toOn. To prevent this from happening, turn off the INlink feature. See Turning INlink on or off on page 40.

Problem Solution

Two volume bars appear when adjusting the volume.	·When you adjust the volume on the audio receiver or with the TV remote control, a double volume bar appears, one for the TV volume and one for the audio receiver volume.
I cannot select the Root Menu option on the INlink menu.ORThe device's root menu does not open when I select Root Menu on the INlink menu.	·The device may not support this feature. See the documentation that came with the device for more information.

Note

If the problem is not solved by using these troubleshooting instructions, turn off your TV, then turn it on again.

Specifications

Specifications are subject to change without notice.

40" model (NS-40D420NA18/NS-40D420MX18)

Dimensions and weight

Without stand(H × W × D)	20.6 × 35.6 × 3.4 in. (52.3 × 90.3 × 8.6 cm)17.6 lbs (8 kg)
With stand(H × W × D)	22.2 × 35.6 × 8.2 in. (56.3 × 90.3 × 20.8 cm)17.9 lbs (8.1 kg)

Screen

Screen size (diagonal) 39.6 (100.6 cm) in.
Panel LCD
Panel backlight type LED
Panel refresh rate 60Hz
Display resolution 1080p
Panel resolution H × V 1920 × 1080
Aspect ratio 16:9
Contrast ratio (typical)-panel	5,000:1
Comb filter 3d y/c digital
Response time 9.5 ms
Horizontal viewing angle 178°
Vertical viewing angle 178°

Tuner

Analog NTSC
Digital ATSC, Clear-QAM

Inputs

HDMI	3
Composite video	1
USB	1Supports JPEG
Antenna/Cable	1

Outputs

Analog audio/Headphone	1
Digital audio	1 (optical)

Audio

Audio Enhancement	DTS Sound
Speakers	Number: 2Watts per channel: 5W

Power

Power consumption on	On: 75W
Power consumption in standby	Standby: <0.5W

Miscellaneous

OSD languages	English, French, Spanish
HDMI CEC	Yes
Game Mode	Yes
V-Chip (version 2.0) Yes
Sleep timer	Yes
Channel labeling	Yes
Text-to-Speech	Yes
VESA mount (mm)(horizontal × vertical)	200 × 200
VESA mount screws	M6 type

Note

The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.

49" model (NS-49D420NA18)

Dimensions and weight

Without stand(H × W × D)	25.4 × 43.5 × 3.4 in. (64.6 × 110.6 × 8.7 cm)27.1 lbs (12.3 kg)
With stand(H × W × D)	27.7 × 43.5 × 10.7 in. (70.4 × 110.6 × 27.3 cm)28.7 lbs (13 kg)

Screen

Screen size (diagonal) 48.5 in. (123.2 cm)
Panel LCD
Panel backlight type LED
Panel refresh rate 60Hz
Display resolution 1080p
Panel resolution H × V 1920 × 1080
Aspect ratio 16:9
Contrast ratio (typical)-panel	4,000:1
Comb filter 3d y/c digital
Response time 6.5 ms
Horizontal viewing angle 178°
Vertical viewing angle 178°

Tuner

Analog NTSC
Digital ATSC, Clear-QAM

Inputs

HDMI	3
Composite video	1
USB	1Supports JPEG
Antenna/Cable	1

Outputs

Analog audio/Headphone	1
Digital audio	1 (optical)

Audio

Audio Enhancement	DTS Sound
Speakers	Number: 2Watts per channel: 7.5W

Power

Power consumption on	On: 108W
Power consumption in standby	Standby: <0.5W

Miscellaneous

OSD languages	English, French, Spanish
HDMI CEC	Yes
Game Mode	Yes
V-Chip (version 2.0) Yes
Sleep timer	Yes
Channel labeling	Yes
Text-to-Speech	Yes
VESA mount (mm)(horizontal × vertical)	200 × 200
VESA mount screws	M6 type

Note

The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.

55" model (NS-55D420NA18/NS-55D420MX18)

Dimensions and weight

Without stand(H × W × D)	28.4 × 49 × 3.3 in. (72.1× 124.4 × 8.3 cm)35.2 lbs (16 kg)
With stand(H × W × D)	30.7 × 49 × 10.6 in. (78.1× 124.4× 26.8 cm)36.8 lbs (16.7 kg)

Screen

Screen size (diagonal) 54.6 in. (138.7 cm)
Panel LCD
Panel backlight type LED
Panel refresh rate 60Hz
Display resolution 1080p
Panel resolution H × V 1920 × 1080
Aspect ratio 16:9
Contrast ratio (typical)-panel	4,000:1
Comb filter 3d y/c digital
Response time 8 ms
Horizontal viewing angle 178°
Vertical viewing angle 178°

Tuner

Analog NTSC
Digital ATSC, Clear-QAM

Inputs

HDMI	3
Composite video	1
USB	1Supports JPEG
Antenna/Cable	1

Outputs

Analog audio/Headphone	1
Digital audio	1 (optical)

Audio

Audio Enhancement	DTS Sound
Speakers	Number: 2Watts per channel: 10W

Power

Power consumption on	On: 90W
Power consumption in standby	Standby: <0.5W

Miscellaneous

OSD languages	English, French, Spanish
HDMI CEC	Yes
Game Mode	Yes
V-Chip (version 2.0) Yes
Sleep timer	Yes
Channel labeling	Yes
Text-to-Speech	Yes
VESA mount (mm)(horizontal × vertical)	200 × 200
VESA mount screws	M6 type

Note

The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.

Legal notices

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian Notice

This device complies with Industry Canada licence—exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

Dolby License Notice and Trademark Acknowledgement

DOLBY AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DTS Sound™

For DTS Patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks and DTS Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Open Source

Font name: Arimo

Version 1.23

Copyright 2013 Steve Matteson

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

If you require additional information please call the Insignia support line at 1-877-467-4289.

ONE-YEAR LIMITED WARRANTY

Definitions:

The Distributor* of Insignia branded products warrants to you, the original purchaser of this new Insignia-branded product ("Product"), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period").

For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca and is packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

To obtain warranty service, in the United States call 1-888-BESTBUY or in Canada call 1-866-BESTBUY. Call agents may diagnose and correct the issue over the phone.

Where is the warranty valid?

This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the county where the original purchase was made.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction/education
• Installation
• Setup adjustment

- Cosmetic damage

- Damage due to weather, lightning, and other acts of God, such as power surges

- Accidental damage

- Misuse

- A b u s e

- Negligence

- Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.

- Modification of any part of the Product, including the antenna

- Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

- Damage due to incorrect operation or maintenance

- Connection to an incorrect voltage or power supply

- Attempted repair by any person not authorized by Insignia to service the Product

- Products sold "as is" or "with all faults"

- Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)

- Products where the factory applied serial number has been altered or removed

- Loss or Theft of this product or any part of the product

- Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not function normally.)

- Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Insignia:

1-877-467-4289

www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its affiliated companies.

* Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2017 Best Buy. All rights reserved.

Made in China

One-year limited warranty - Insignia Televisions—Mexico

- BEST BUY ANDARES: Blvd. Puerta de Hierro no. 4965 Fracc. Plaza Andares, C.P. 45116, Zapopan, Jalisco

If the power cord is damaged, it must be replaced by the manufacturer or its service agent or qualified personnel to avoid risk.

For product inquiries or accessibility assistance, please contact us with the information below:

www.insigniaproducts.com

U.S. and Canada:

1-877-467-4289

INSIGNIA is a trademark of Best Buy and its affiliated companies.

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2017 Best Buy. All rights reserved.

Made in China

Mexico:

01800-926-3000

Best Buy Imports S. DE R.L. DE C.V.

Avenida Santa Fe No. 440 Piso 2 Ofna 202 Y 203 P3 Y P4

©2017 Best Buy. All rights reserved.

Made in China
