USER MANUAL MS3042G1 LG

Please read this owner's manual thoroughly before operating.

MS304***

(optional, please check model specification)

PRECAUTIONS

Precautions to avoid possible exposure to excessive microwave energy.

You cannot operate your oven with the door open due to the safety interlocks built into the door mechanism. These safety interlocks automatically switch off any cooking activity when the door is opened; which in the case of a microwave oven could result in harmful exposure to microwave energy.

It is important not to tamper with the safety interlocks.

Do not place any object between the oven front face and the door or allow food or cleaner residue to accumulate on sealing surfaces.

Do not operate your oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door(bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

Your oven should not be adjusted or repaired by anyone except qualified service personnel.

Warning

Please ensure cooking times are correctly set as over cooking may result in the FOOD catching fire and subsequent damage to your oven.

When heating liquids, e.g. soups, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

1. Avoid using straight sided containers with narrow necks.
2. Do not overheat.
3. Stir the liquid before placing the container in the oven and again halfway through the heating time.
4. After heating, allow to stand in the oven for a short time and check the temperature of the liquid before consumption to avoid burns (especially, contents of feeding bottles and baby food jars).

Warning

Always allow food to stand after being cooked by microwaves and check the temperature of them before consumption. Especially contents of feeding bottles and baby food jars. Never leave lids on bottles when heating as they will explode and may cause personal injury and damage the oven.

How the Microwave Oven Works

Microwaves are a form of energy similar to radio and television waves and ordinary daylight. Normally, microwaves spread outwards as they travel through the atmosphere and disappear without effect. Microwave ovens, however, have a magnetron which is designed to make use of the energy in microwaves. Electricity, supplied to the magnetron tube, is used to created microwave energy.

These microwaves enter the cooking area through openings inside the oven. A turntable or tray is located at the bottom of the oven. Microwaves cannot pass through metal walls of the oven, but they can penetrate such materials as glass, porcelain and paper, the materials out of which microwave-safe cooking dishes are constructed.

Microwaves do not heat cookware, though cooking vessels will eventually get hot from the heat generated by the food.

A very safe appliance

Your microwave oven is one of the safest of all home appliances. When the door is opened, the oven automatically stops producing microwaves. Microwave energy is converted completely to heat when it enters food, leaving no “left over” energy to harm you when you eat your food.

CONTENTS

PRECAUTIONS 2

CONTENTS 3

UNPACKING & INSTALLING 4

FEATURE DIAGRAM 6

CONTROL PANEL 6

OPERATING INSTRUCTIONS 7

SETTING CLOCK 7

ENERGY SAVING 7

CHILD LOCK 7

AUSSIE COOKING 8

AUSSIE COOKING TABLE 8

FRENCH COOKING 9

FRENCH COOKING TABLE 9

ITALIAN COOKING 9

ITALIAN COOKING TABLE 11

MIDDLE EASTERN COOKING 12

MIDDLE EASTERN COOKING TABLE 12

HEATING OR REHEATING GUIDE 17

FRESH VEGETABLE GUIDE 18

MICROWAVE-SAFE UTENSILS 19

FOOD CHARACTERISTICS & MICROWAVE COOKING 20

IMPORTANT SAFETY INSTRUCTIONS 22

QUESTION & ANSWERS 26

PLUG WIRING INFORMATION/TECHNICAL SPECIFICATIONS 27

UNPACKING & INSTALLING

By following the basic steps on these two pages you will be able to quickly check that your oven is operating correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your oven make sure you remove all accessories and packing.

Check to make sure that your oven has not been damaged during delivery.

Unpack your oven and place it on a flat level surface.

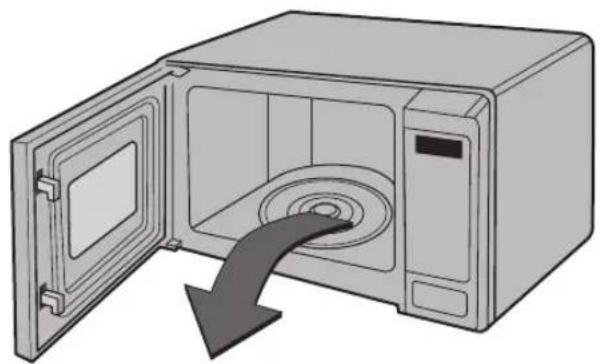

Illustration of a microwave oven with an open door and a curved arrow indicating airflow or movement (no text or symbols)

GLASS TRAY

ROTATING RING

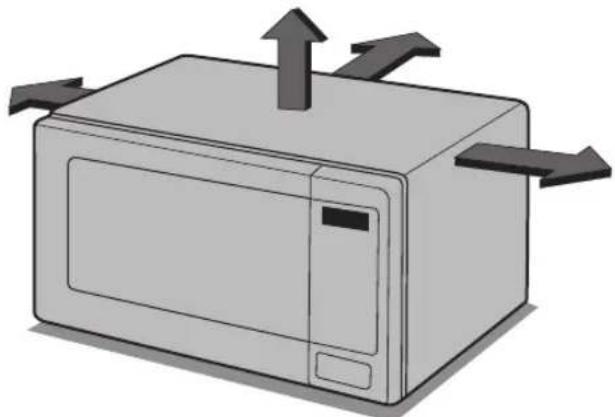

Place your oven on a flat, level surface but make sure there is at least 20 cm of space on the top and FP on the rear and sides so there is air flow for ventilation. Exhaust outlets are ed in the back and side of your oven. Blocking the outlets can damage your oven. The microwave must not be placed in a cabinet.

Illustration of a microwave oven with upward arrows indicating airflow or heat flow (no text or symbols)

THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL CATERING PURPOSES, IT IS INTENDED FOR INDOOR DOMESTIC USE ONLY.

UNPACKING & INSTALLING

Plug your oven into a standard household socket. Make sure your oven is the only appliance connected to the socket. If your oven does not operate properly, unplug it from the trical socket and then plug it back in.

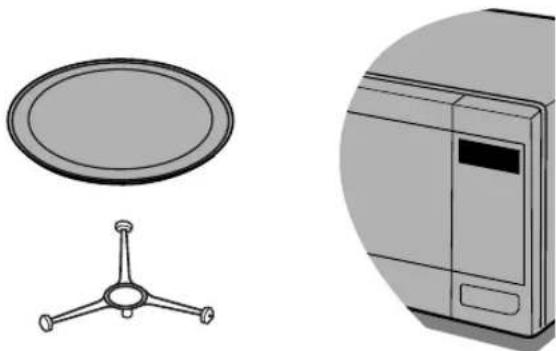

Open your oven door by pressing the DOOR OPEN button. Place the ROTATING RING inside the oven and

place the GLASS TRAY on top.

Illustration of a circular table with a three-pole stand and a microwave oven (no text or symbols)

Fill a microwave safe container with 300 ml (1/2 pint) of water. Place on the GLASS TRAY and close the oven door. If you have any doubts about what type of container to use please

refer to page 19.

Illustration of a hand holding a cup and a black arrow pointing to a circular component (no text or symbols)

Enter the time by touching [3] and [0]. And touch START/Q-START.

The DISPLAY will count down from 30 seconds. When it reaches 0 it will sound BEEPS. Open the oven door and test the temperature of the water. If your oven is operating the water HOT. Be careful when removing the container it may be hot.

Illustration of a hand holding a steaming cup (no text or symbols)

YOUR OVEN IS NOW INSTALLED

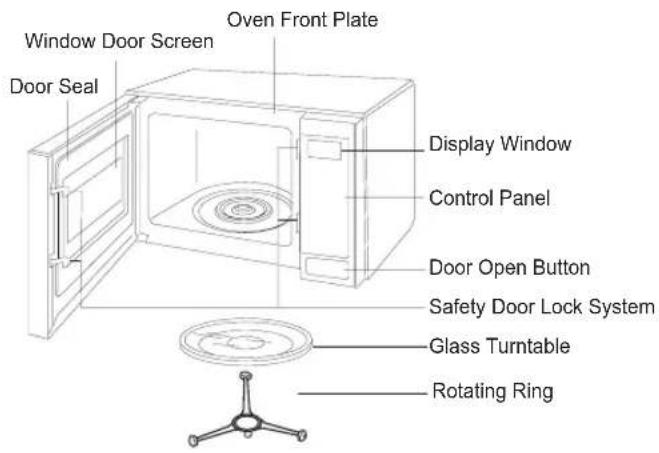

FEATURE DIAGRAM

Window Door Screen Door Seal Oven Front Plate Display Window Control Panel Door Open Button Safety Door Lock System Glass Turntable Rotating Ring

Remove your Microwave Oven and all material from the shipping carton. Your oven will be packed with the following materials:

Glass Turntable ....1 each

Owner's Manual....1 each

Rotating Ring......1 each

This microwave oven is designed for household use only. It is not recommended for commercial purposes.

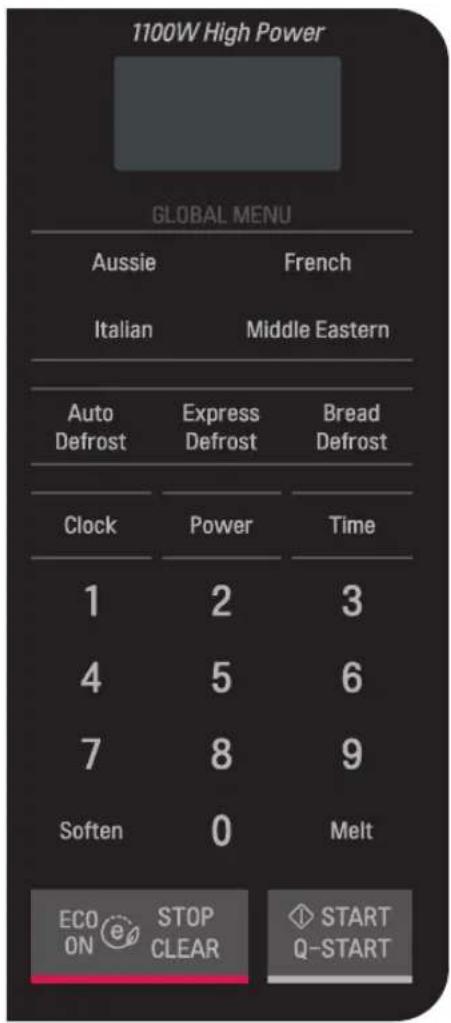

CONTROL PANEL

1100W High Power GLOBAL MENU Aussie French Italian Middle Eastern Auto Express Bread Defrost Defrost Defrost Clock Power Time 1 2 3 4 5 6 7 8 9 Soften 0 Melt ECO STOP ON CLEAR START Q-START

NOTE: A beep sounds when a pad on the control panel is touched to indicate setting has been entered.

OPERATING INSTRUCTIONS

SETTING CLOCK

When your oven is plugged in for the first time or when power resumes after a power interruption, the numbers in the display reset to "0".

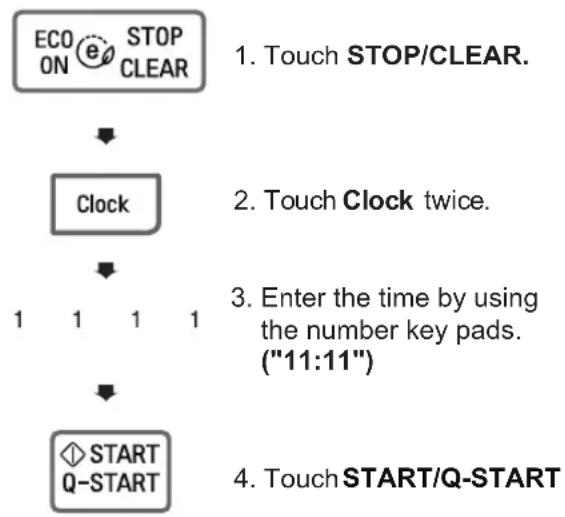

Example: To set 11:11.

ENERGY SAVING

ECO ON feature saves energy by turning off the display. This feature only operates when the STOP/ CLEAR (ECO ON) button is touched and then cancels when the door is opened or any button is touched.

To set the ECO ON

1. Touch STOP/CLEAR (ECO ON) The display will go out and ECO ON will be active.

Touchthe STOP/CLEAR (ECO ON) or any other button to cancel this feature when it is on.

CHILD LOCK

This is a unique safety feature that prevents unwanted oven operations. Once the CHILD LOCK is set, no cooking can take place.

To set the child lock

Touch and hold STOP/CLEAR or 0, until L appears in the display and two beeps are heard. If the time of day was already set, the time of day will disappear on the display window.

If the CHILD LOCK was already set and you touch another cooking pad, the word L shows in the display. You can cancel the CHILD LOCK according to below procedure.

To cancel the child lock

Touch and hold STOP/CLEAR or 0, pad until L disappears in the display.

After the CHILD LOCK is turned off, the time of day will return to the display window. The oven will operate normally.

OPERATING INSTRUCTIONS

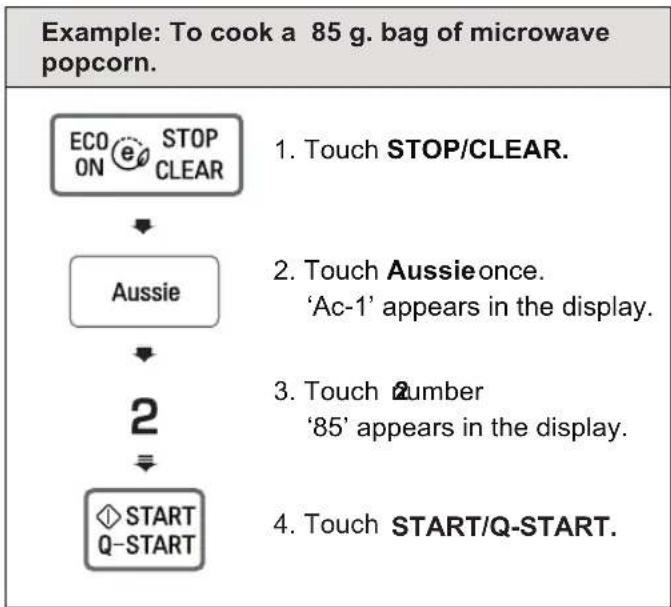

AUSSIE COOKING

AUSSIE COOKING allows you to cook most of your favorite food easily by selecting the food type and the weight of the food.


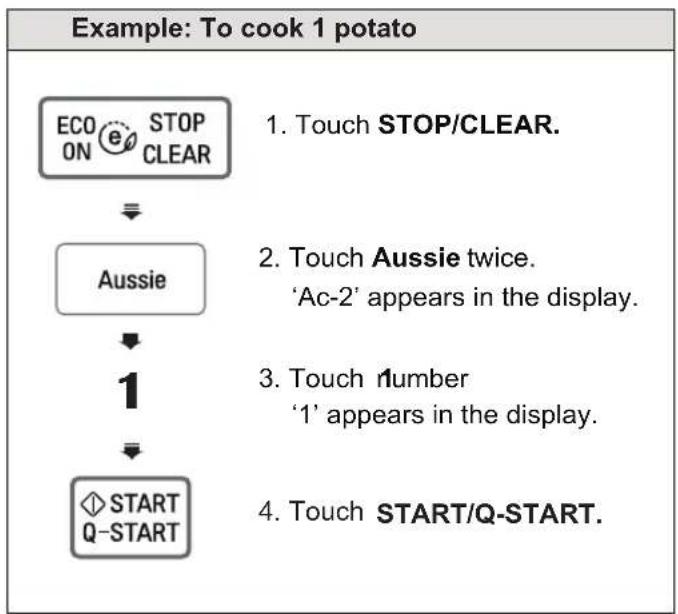

'Ac-2' appears in the display.| F
    C -->|3. Touch number
'1' appears in the display.| G
    D -->|4. Touch START/Q-START.| H

AUSSIE COOKING TABLE

Category	Weight Limit	Utensil	Food Temp.	Instructions
Popcorn (Ac-1)	1 bag (100g, 85g)	Bag on the glass tray	Room	Use popcorn product for microwave oven. Remove plastic overwrap. Place unfolded bag in the oven. (Follow the package directions) After popping, remove bag from the oven.CAUTION: Product is HOT! Open bag carefully by pulling diagonally on corners.
Potato (Ac-2)	1-4 potatoes (1 potato = 200g)	Paper towel on the glass tray	Room	Choose medium sized potatoes 180 -220g. Wash and dry potatoes.Pierce potatoes several times with a fork.Place potatoes in the oven. Choose the menu and press start to cook.After cooking, stand covered with aluminum foil for 5 minutes.
Vegetable (Ac-3)	1-4 cups (1cup = 130g)	Microwave-safe bowl	Room	Place vegetables in a microwave-safe bowl.Add the amount of water according to the quantity.** 0.2kg - 0.4kg : 2 tablespoons of water** 0.6kg - 0.8kg : 4 tablespoons of waterCover with plastic wrap. Place food in the oven.After cooking, stir for 3-4 seconds. Stand covered for 3 minutes.
Dinner plate (Ac-4)	1 serving (300g, 454g)	Microwave-safe plate	Refrigerated	Place leftover food (meat, chicken, mashed potato, vegetable etc.) on a plate.Cover with 2^cm vented plastic wrap.Place plate in the oven. Choose the menu and weight, press start.After cooking, allow to stand for 3 minutes.
Porridge (Ac-5)	1-4 servings	Microwave-safe bowl	Refrigerated		1 serving 2	servings 3 servings 4 servings
				Oats package (30-40g)	1 package 2	packages 3 packages 4 packages
				Cold Milk 180ml 360ml 540ml 720ml
				1. Place oats and milk in a deep and large microwave-safe bowl. Do not cover.2. Place food in the oven. Choose the menu and press start to cook.3. After cooking, stir and stand for 1 minute.
Baked beans (Ac-6)	0.2-0.8kg	Microwave-safe bowl	Room	Pour beans into a microwave-safe bowl.Cover with plastic wrap. Place food in the oven.After heating, stir and stand covered for 3 minutes.

OPERATING INSTRUCTIONS

FRENCH COOKING

FRENCH COOKING allows you to cook most of your favorite food easily by selecting the food type.

Example: To cook 1.5kg French onion soup.

1. Touch STOP/CLEAR.

2. Touch Frenchonce. ‘Fc-1’ appears in the display.

3. Touch START/Q-START.

ITALIAN COOKING

ITALIAN COOKING allows you to cook most of your favorite food easily by selecting the food type.

Example: To cook 1.5kg Stuffed pepper.

1. Touch STOP/CLEAR.

2. Touch Italian twice. 'Ic- 2' appears in the display.

3. Touch START/Q-START.

FRENCH COOKING TABLE

Category	Weight Limit	Utensil	Food Temp.	Instructions
French onion soup (Fc-1)	1.5kg	Microwave-safe bowl	Room	Ingredients4 onions, thinly sliced50g butter1 teaspoon white sugar1 tablespoon all-purpose flour3 cups beef stock 12 cup red wine8 slices of toasted French bread1cup grated cheese
				1. Cook onions in a frying pan with butter and sugar until golden brown.2. Add cooked onions and flour in a deep and large bowl, mix well and add beef stock and red wine. Cover with plastic wrap and vent.3. Place food in the oven. Choose the menu and press start to cook. Stir at least twice during cooking.4. After cooking, stir and ladle soup into serving bowls.5. Place 1 slice toasted bread on top of the soup in each bowl and spread cheese on toasted bread. Cook for 1~2 minutes on Microwave 1100 watts until cheese melted.
Spinach cream soup (Fc-2)	1.2kg	Microwave-safe bowl	Room	Ingredients600g vegetable purée1 12 cups chicken stock2 tablespoons all-purpose flour2 tablespoons butter1 cup creamNutmeg, salt and pepper to taste
				1. Add all ingredients in a deep and large bowl and mix well. Cover with plastic wrap and vent.2. Place food in the oven. Choose the menu and press start to cook. Stir at least twice during cooking.※Vegetable purée400g spinach, chopped2 onions, chopped4 tablespoons water1. Place vegetables in a microwave-safe bowl.2. Add water and cover with plastic wrap.3. Place food in the oven. Cook for 7~9 minutes on Microwave 1100 watts.4. After cooking, blend cooked vegetables using a blender or food processor until the purée is smooth and uniform in texture.

OPERATING INSTRUCTIONS

FRENCH COOKING TABLE

Category	Weight Limit	Utensil	Food Temp.	Instructions
Ratatouille 1 (Fc-3)	5kg	Microwave-safe bowl	Room	Ingredients1 onion, cut into chunks1 eggplant, cut into chunks1 zucchini, cut into chunks1 colored sweet pepper, cut into chunks3 tomatoes, chopped1 tablespoon tomato paste2 garlic cloves, crushed1 tablespoon fresh greens, chopped2 tablespoons vinegar1 teaspoon sugarSalt and pepper to taste
				1. Add all ingredients in a deep and large bowl and mix well. Cover with plastic wrap and vent.2. Place food in the oven. Choose the menu and press start to cook. Stir at least twice during cooking.
Stuffed tomatoes (Fc-4)	1.2kg	Microwave-safe dish	Room	Ingredients4 medium tomatoesSalt and pepper to tasteStuffing1. Cut tops off tomatoes to form hats and remove seeds, taking care notto pierce flesh or skin. Then sprinkle each tomatoes with salt and pepper.2. Fill tomatoes with stuffing and replace hat.3. Place stuffed tomatoes on a dish and cover with plastic wrap.4. Place food in the oven. Choose the menu and press start to cook.※ Stuffing400g ground beef 12 cup bread crumbs2 garlic cloves, crushed1 tablespoon Dijon mustard1 tablespoon dried greens1 tablespoon parmesan cheese1. Add all ingredients in a bowl, mix well, and cover with plastic wrap.2. Place food in the oven. Cook for 3~5 minutes on Microwave 1100 watts. Stir at least once during cooking.
Stuffed mushrooms (Fc-5)	0.5kg	Microwave-safe dish	Room	Ingredients15~20 champignon mushrooms, stemmedStuffing50g grated cheese1. Remove stem of each mushroom and put on a dish.2. Fill each mushroom cap with stuffing.3. Add cheese on top of each stuffed mushroom.4. Place food on the rack. Choose the menu and press start to cook.※ Stuffing2 tablespoons butterRemaining mushroom stems, chopped 14 cup red wine30g bread crumbs3 tablespoons fresh greens, chopped 12 cup creamSalt and pepper to taste1. Cook mushroom stems in a frying pan with butter. Add red wine, bread crumbs and parsley, mix well.2. Add cream and simmer on low heat until cream has thickened. Season with salt and pepper.
Chicken legs with prunes (Fc-6)	1.2kg	Microwave-safe bowl	Room	Ingredients1 onion, sliced1 carrot, sliced500g chicken legs15 pitted prunes, halved1 cup chicken stockSalt and pepper to taste1. Add all ingredients in a deep and large bowl and mix well. Cover with plastic wrap and vent.2. Place food in the oven. Choose the menu and press start to cook. Stir at least twice during cooking.

OPERATING INSTRUCTIONS

ITALIAN COOKING TABLE

Category	Weight Limit	Utensil	Food Temp.	Instructions
Eggplant with tomato and cheese (lc-1)	1.0kg	Microwave-safe dish	Room	Ingredients1~2 eggplants1~2 tomatoesSalt and pepper to taste100g grated cheese
				1. Cut eggplants and tomatoes into 1.5cm slices and season with salt and pepper.2. Layer the eggplants and tomatoes on a dish and add cheese on top of each tomatoes.3. Place food on the rack. Choose the menu and press start to cook.
Stuffed pepper (lc-2)	1.5kg	Microwave-safe dish	Room	Ingredients4 colored sweet peppers2 canned tuna2 piece dry black bread, chopped1 garlic clove, crushed100g parmesan cheeseSalt and pepper to taste200g tomato puree
				1. Cut tops off peppers, remove seeds.2. Mix tuna, bread, garlic, parmesan cheese, salt and pepper.3. Stuff peppers with tuna mixture and place stuffed peppers on a dish.4. Add tomato puree on top and cover with plastic wrap.5. Place food in the oven. Choose the menu and press start to cook.
Spaghetti bolognaise (lc-3)	1.0kg	Microwave-safe bowl	Room	Ingredients for bolognaise sauce1 tablespoon olive oil1 onion, chopped1 garlic clove, crushed400g ground beef100g tomato paste2 chopped tomatoes1 tablespoon dried greensSalt and pepper to tasteIngredients for pasta150g pasta, cooked as package direction1 tablespoon parmesan cheese
				1. Add all ingredients of the bolognaise sauce in a deep and large bowl and mix well. cover with plastic wrap and vent.2. Place food in the oven. Choose the menu and press start to cook. Stir at least twice during cooking.3. After cooking, stir and add bolognaise sauce to cooked pasta and garnish with parmesan cheese or as desired before serving.
Spaghetti carbonara (lc-4)	0.4kg	Microwave-safe bowl	Room	Ingredients for carbonara sauce100g smoked bacon, chopped1 garlic clove, crushed 12 cup cream4 egg yolks100g parmesan cheeseSalt and pepper to tasteIngredients for pasta150g pasta, cooked as package direction1 tablespoon parmesan cheese
				1. Cook bacon in a lightly oiled frying pan with garlic until lightly browned and drain away excess fat.2. Add cooked bacon, cream, egg yolks, parmesan cheese, salt and pepper in a deep and large bowl and mix well. Cover with plastic wrap and vent.3. Place food in the oven. Choose the menu and press start to cook.4. After cooking, stir and add carbonara sauce to cooked pasta and garnish with parmesan cheese or as desired before serving.
Risotto (lc-5)	1.2kg	Microwave-safe bowl	Room	Ingredients200g risotto rice1 12 cups water or stock 12 cup milk200g beef, chopped2 eggs1 onion, chopped50g green peas100g grated cheeseSalt and pepper to taste
				1. Add all ingredients in a deep and large bowl and mix well. Cover with plastic wrap and vent.2. Place food in the oven. Choose the menu and press start to cook. Stir at least twice during cooking.

OPERATING INSTRUCTIONS

MIDDLE EASTERN COOKING

MIDDLE EASTERN COOKING allows you to cook most of your favorite food easily by selecting the food type.

MIDDLE EASTERN COOKING TABLE
Example: To cook 1.0kg Dolma.

1. Touch STOP/CLEAR.

2. Touch Middle eastern once.‘Oc-1’ appears in the display.

3. Touch START/Q-START.

Category	Weight Limit	Utensil	Food Temp.	Instructions
Dolma(Oc-1)	1.0kg	Microwave-safe bowl	Room	Ingredients1 pot of grapes leaves200g cooked rice500g ground beef1 onion, choppedSalt and pepper to taste 12 cup water 12 cup sour creamAdd cooked rice, ground beef, onion, salt and pepper in a bowl and mix well.Place grape leaf on a flat surface and place 1 12 spoonfuls of the rice mixture in the center of the leaf. Wrap rice mixture with leaf.Put all wrapped leaves in rows into a deep and large bowl and add water. Cover with plastic wrap.Place food in the oven. Choose the menu and press start to cook.After cooking, serve with sour cream or as desired.
Rice pilaf(Oc-2)	1.2kg	Microwave-safe bowl	Room	Ingredients300g beef, cut into chunks1 onion, chopped1 carrot, chopped3 garlic cloves, crushed1 teaspoon tumericSalt and pepper to taste200g long grain rice, rinsed and drained2 cups water or stockCook beef, onion, carrot and garlic in a lightly oiled frying pan until lightly browned. Add tumeric, salt and pepper, mix well.Place the cooked beef mixture into a deep and large bowl and add rice and water.Cover with plastic wrap and vent.Place food in the oven. Choose the menu and press start to cook. Stir at least twice during cooking.
Curry chicken(Oc-3)	1.5kg	Microwave-safe bowl	Room	Ingredients400g chicken breasts, cut into chunks 14 cup olive oil2 onions, chopped4 garlic cloves, crushed1 ginger root, peeled1 cinnamon stick2 dried red chilies1 teaspoon tumericpowder400g tomato sauce 12 cup water or stock 12 cup plain yogurt1 tablespoon lemon juiceSalt and pepper to tasteAdd all ingredients in a deep and large bowl and mix well. Cover with plastic wrap and vent.Place food in the oven. Choose the menu and press start to cook. Stir at least twice during cooking.
Shawarma(Oc-4)	0.8kg	Microwave-safe dish	Room	Ingredients4~6 lavash or thin bread200g chicken breasts, cooked and chopped1 tomato, chopped1 cucumber, chopped3 tablespoons fresh greens, choppedSauce :1 tablespoon mayonnaise1 tablespoon sour cream1 tablespoon ketchup1 garlic clove, crushedAdd chicken breasts, tomato, cucumber and greens in a deep and large bowl and mix well.Mixall ingredients of the sauce in anotherbowl.Place lavashon a flat surface and put sauce and chicken mixture. Wrap into rolls.Place rolls on a dish and cover with plastic wrap.Place food in the oven. Choose the menu and press start to cook.

OPERATING INSTRUCTIONS

MICROWAVE COOKING

This function allows you to cook food for a desired time. There are 11 power levels available. The example below shows how to set 80% power level for the desired time.

Example: To cook food on 80% Power (Power8) for 5 minutes 30 seconds

1. Touch STOP/CLEAR.

1. Touch Time.

1. Enter 5 minutes 30 seconds by touching [5], [3], and [0].

1. Touch Power. P-HI appears in the display. This is to tell you that the oven is set on HI unless a different power setting is chosen.

1. Touch 8. To select power level 80%. Display shows P-80.

2. Touch START/Q-START.

When cooking is complete, four short tones will sound. The word End shows in the display window. Then the oven shuts itself off.

NOTE:

If you do not select the power level, the oven will operate at power HIGH. To set HI-POWER cooking, skip steps 4 & 5 above.

2 STAGE TIMED COOKING

For Two Stage cooking, repeat timed cooking steps 2 to 5 from the above example before pressing the START/Q-START button. The 2nd stage will continue on from the 1st stage by applying the set time and set power level automatically. Auto Weight Defrost can be programmed before the first stage to defrost first and then cook.

Your microwave oven is equipped with eleven power levels to give you maximum flexibility and control over cooking. The adjacent table will give you some idea of which foods are prepared at each of the various power levels.

* The adjacent chart shows the power level settings for your oven.

Microwave Power Level Table

Power Level	Use
10 (High)	Boiling waterMaking candyCooking poultry pieces, fish, & vegetables.Cooking tender cuts of meat.Whole poultry
9	Reheating rice, pasta, & vegetables.
8	Reheating prepared foods quicklyReheating sandwiches.
7	Cooking egg, milk, & cheese dishes.Cooking cakes, breads.Melting chocolate.
6	Cooking veal.Cooking whole fish.Cooking puddings & custard.
5	Cooking ham, whole poultry, & lamb.Cooking rib roast, sirloin tip.
4	Thawing meat, poultry, & seafood.
3	Cooking less tender cuts of meat.Cooking pork chops, roast.
2	Taking chill out of fruit.Softening butter.
1	Keeping casseroles & main dishes warm.Softening butter & cream cheese.
0	Standing time.

QUICK START

The QUICK START feature allows you to set 30 seconds intervals of HIGH power cooking with a touch of the START/Q-START.

Example: Set 2 minutes of cooking on high power.

1. Touch STOP/CLEAR.

2. Touch START/Q-START Four times on high power

The oven will start before you have finished the fourth touch.

During QUICK START cooking, you can extend the cooking time up to 10 minutes by repeatedly touching the START/Q-START key if longer cooking time are required.

OPERATING INSTRUCTIONS

MELMELTT SOFTENSOFTEN

The oven uses low power to melt foods (butter, chocolate, marshmallows and cheese). See the following table.

The oven uses low power to soften foods (butter, ice cream, cream cheese, and frozen juice) See the following table.

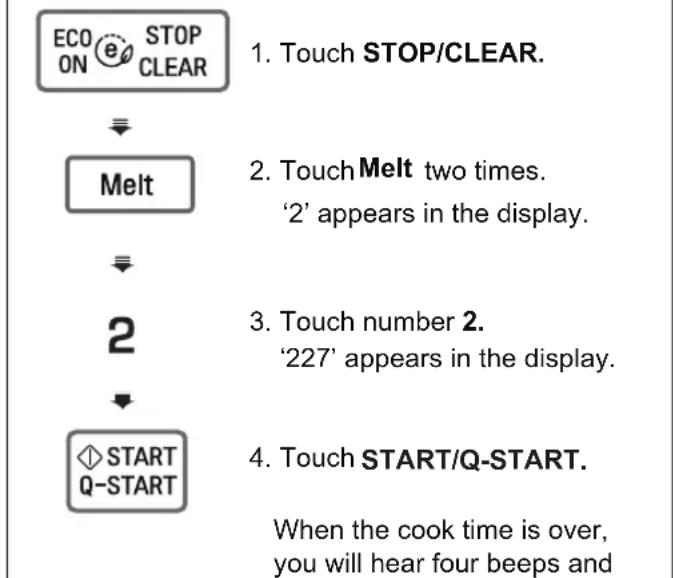

Example: To Melt 227g chocolate.

When the cook time is over, you will hear four beeps and END will be displayed.

Example : To Soften 227g Cream Cheese.

MELT TABLE

Code	Cate-Code	Category	DirectionDirection	Ammou
1	Butter/Marga-rine	Unwrap and place in Unwrap and microwavable containerNo need to cover butter.Stir at the end of cooking to be moved down and over.	and place in 1, 2 or 3 sticks
2	Choco-late	Choose the 4 or 8 oz.(actual weight) selection to melt squares of baking chocolate or chocolate morsels.Unwrap squares and place them in a microwavable container. Stir at the end of the cycle to complete melting.	113 or 227 g	227 g
		NOTE:Add time if necessary to complete melting.
3	Cheese	Use processed cheese food only. Cut into cubes.Place in a single layer in microwavable containerStir at the end of cooking to complete melting.	227 or 454 g	454 g
4	Marsh-Mallows	Large or miniature marshmallows may be Marsh. Place in microwavable containerStir at the end of cycle to complete melting.	142 or 284 g	284 g

SOFTEN TABLE

ntt Code	Cate-gory	Direction	Amount
1	Butter	Unwrap and place in microwavable container. No need to cover butter. Butter will be at room temperature and ready for use in recipe.	1, 2 or 3 sticks
2	Ice Cream	Place container in oven. Ice cream will be soft enough to make scooping easier.	Pint, Quart, Half gallon
3	Cream Cheese	Unwrap and place in microwavable container. Cream cheese will be at room temperature and ready for use in recipe.	85 or 227 g
4	Frozen Juice	Remove top. Place in oven. Frozen juice will be soft enough to easily mix with water.	170, 340 or 454 g

OPERATING INSTRUCTIONS

AUTO DEFROST

Three defrost sequences are preset in the oven. The auto defrost feature provides you with the best defrosting method for frozen foods. The cooking guide will show you which defrost sequence is recommended for the food you are defrosting.

For added convenience, the Auto Defrost includes a built-in beep mechanism that reminds you to check, turn over, separate, or rearrange to get the best defrost results. Three different defrosting levels are provided.

1 MEAT

2 POULTRY

3 FISH

*Available weight is 0.1\~4.0 kg.

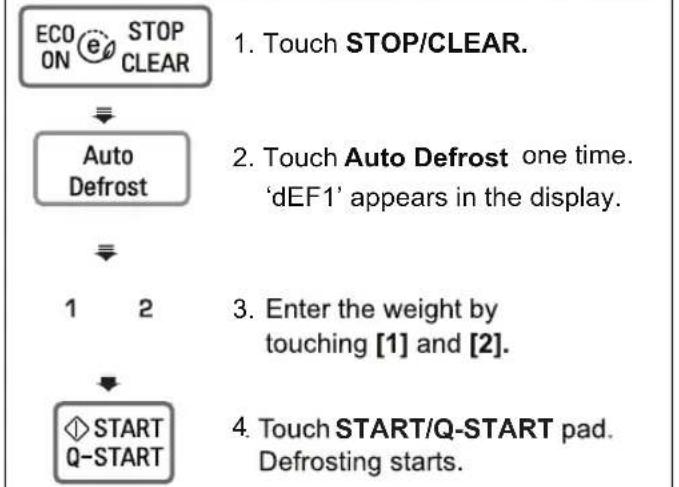

Example: To defrost 1.2 KG of meat

NOTE:

When you touch the START/Q-START pad, the display changes to defrost time count down. The oven will beep once during the DEFROST cycle. At beep, open the door and turn, separate, or rearrange the food.

Remove any portions that have thawed. Return frozen portions to the oven and touch START/Q-START to resume the defrost cycle.

*For best results, remove fish, shellfish, meat, and poultry from its original wrapping paper or plastic package. Otherwise, the wrap will hold steam and juice close to the foods, which can cause the outer surface of the foods to cook.

*For best results, shape your ground meat into the form of a doughnut before freezing. When defrosting, separate any thawed meat when the beep sounds and continue defrosting.

*Place foods in a shallow container or on a microwave roasting rack to catch drippings.

*Food should still be somewhat icy in the center when removed from the oven.

OPERATING INSTRUCTIONS

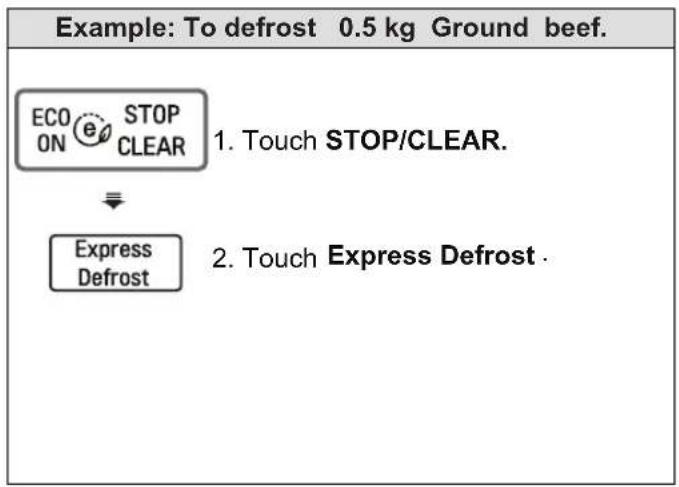

EXPRESS DEFROST

This feature should be used only when you defrost 0.5 kg of frozen ground beef.


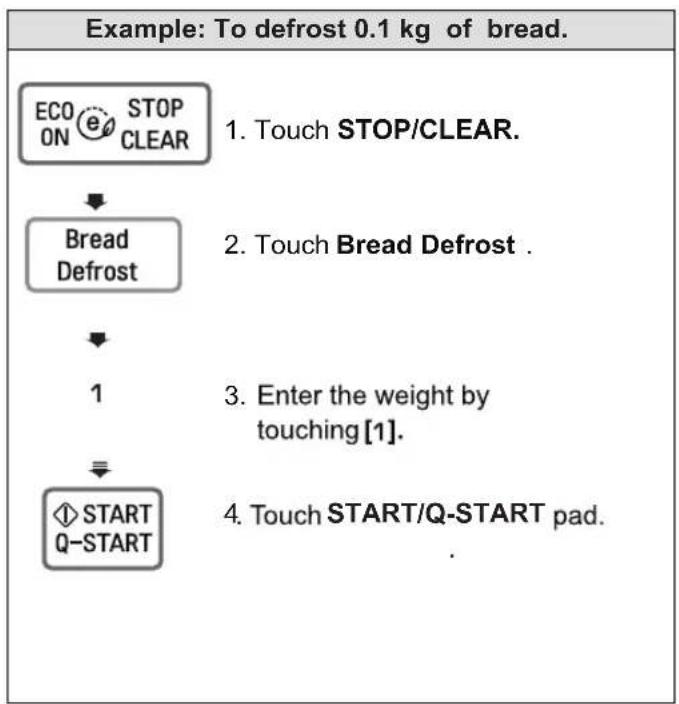

BREAD DEFROST

The bread defrost feature provides you with the best defrosting method for frozen bread.

*Available weight is 0.1\~0.5 kg.

AUTO DEFROST TABLE

Category	Food to be Defrosted
DEF 1 MEAT	BeefGround beef, Round steak,Cubes for stew, Tenderloin steak,Pot roast, Rib roast, Rump roast,Chuck roast, Hamburger pattyLambChops (25.4 mm thick), Rolled roastPorkChops (12.7 mm thick), Hot dogs,Spareribs, Country-style ribs.Rolled roast, SausageVealCutlets (0.5 kg, 12.7 mm thick)
DEF 2 POULTRY	PoultryWhole (under 4.0 kg.), Cut-up, Breast(boneless)Cornish HensWholeTurkeyBreast
DEF 3 FISH	Steaks/ChopsRound beef steak, Tenderloin steakLamb chops (25.4 mm thick)Pork chops (12.7 mm thick)Veal cutlets (0.5 kg, 1/2 inch thick)FishFillets, Whole SteaksShellfishCrab meat, Lobster tails, Shrimp,Scallops

OPERATING INSTRUCTIONS

HEATING OR REHEATING GUIDE

To heat or reheat successfully in the microwave, it is important to follow several guidelines. Measure the amount of food in order to determine the time needed to reheat. Arrange the food in a circular pattern for best results. Room temperature food will heat faster than refrigerated food. Canned foods should be taken out of the can and placed in a microwavable container. The food will be heated more evenly if covered with a microwavable lid or plastic wrap and vented. Remove cover carefully to prevent steam burns. Use the following chart as a guide for reheating cooked food. Never cook or reheat with lids fitted to containers or bottles.

Items Cook time	Special Instructions(at HIGH)
Sliced meat Place sliced meat on microwavable plate.3 slices (0.5 cm thick) 1-2 minutes Cover with plastic wrap and vent.*Note: Gravy or sauce helps to keep meat juicy.
Chicken pieces1 breast1 leg and thigh	2-3 minutes 3-312 minutes	Place chicken pieces on microwavable plate. Cover with plastic wrap and vent.
Fish fillet Place fish on microwavable plate. Cover with plastic wrap and(230 g) 1-2 minutes vent.
Lasagna Place lasagna on microwavable plate. Cover with plastic wrap1 serving (300 g) 4-6 minutes and vent.
Casserole1 cup4 cups 4 -7 minutes	112-3 minutes 12	COOK covered in microwavable casserole dish. Stir once halfway through cooking.
Casserole –cream or cheese1 cup 1-2 minutes4 cups 3	1/2 1/2-6 minutes	COOK covered in microwavable casserole dish. Stir once halfway through cooking.
Sloppy Joe orBarbecued beef1 sandwich 1 -2( 1/2 cup meat filling)without bun	1/2 minutes	Reheat filling and bread separately.Cook filling covered in microwavable casserole dish. Stir once.Heat bun as directed in chart below.
Mashed potatoes1 cup 1 -3 minutes4 cups 6-9 minutes	1/2 1/2	COOK covered in microwavable casserole dish. Stir once halfway through cooking.
Baked beans1 cup	112-3 minutes	COOK covered in microwavable casserole dish. Stir once halfway through cooking.
Ravioli or pasta in sauce1 cup 24 cups 7	1/2-4 minutes 1/2-11 minutes	COOK covered in microwavable casserole dish. Stir once halfway through cooking.
Rice1 cup4 cups	1-1112 minutes 312-5 minutes	COOK covered in microwavable casserole dish. Stir once halfway through cooking.
Sandwich roll or bun1 roll	15-30 seconds	Wrap in paper towel and place on glass microwavable rack
Vegetables1 cup4 cups	112-212 minutes4-6 minutes	COOK covered in microwavable casserole dish. Stir once halfway through cooking.
Soup1 serving (230 g)	112-2 minutes	COOK covered in microwavable casserole dish. Stir once halfway through cooking.

FRESH VEGETABLE GUIDE

VegetableAmountInstructions		Cook time Standingat HIGH Time
Artichokes 2 medium (230 g each) 4 medium	4 ~71/Trim. Add 2 tsp water and 2 tsp juice. Cover. 2-3 minutes
Asparagus, 450 gFresh, Spears	2 ~6 Add 1 cup water. Cover. 2-3 minutes
Beans, Green & 450 gWax halfway through cooking.		112 cup water in 1112 qt. casserole dish. Stir 2-3 minutes
Beets, Fresh 450 g	11~16		Add 112 cup water in 1112 qt. covered casserole dish.Rearrange halfway through cooking.	2-3 minutes
Broccoli, Fresh,Spears	450 g	5~8 Place broccoli in baking dish. Add 112 cup water.		2-3 minutes
Cabbage, Fresh, 450 g Chopped	4~7 Add		112 cup water in 1112 qt. covered casserole dish.Stir halfway through cooking.	2-3 minutes
Carrots, Fresh, 2 cups Sliced	2~3		Add 114 cup water in 1 qt. covered casserole dish.Stir halfway through cooking.	2-3 minutes
Cauliflower,Fresh, Whole	450 g	5~7	Trim. Add 114 cup water in 1 qt. covered casserole dish.Stir halfway through cooking.	2-3 minutes
Flowerettes, FreshCelery, Fresh,Sliced	2 cups4 cups	2^1/2 4^1/2 6~8 Stir halfway through cooking.	Slice. Add 112 cup water in 1112 qt. covered casserole dish.	2-3 minutes
Corn, Fresh	2 cobs	4~8 Husk. Add 2 tbsp water in 1 1/2 qt. baking dish.Cover.		2-3 minutes
Mushrooms,Fresh, Sliced	230 g	2^1/2 3^1/2	Place mushrooms in 1112 qt. covered casserole dish.Stir halfway through cooking.	2-3 minutes
Parsnips, Fresh,Sliced	450 g	4~7	Add 112 cup water in 1112 qt. covered casserole dish.Stir halfway through cooking.	2-3 minutes
Peas, Green,Fresh	4 cups 6~9		Add 112 cup water in 1112 qt. covered casserole dish.Stir halfway through cooking.	2-3 minutes
Sweet PotatoesWhole Baking(170~230 g each)	2 medium4 medium	4~96~12	Pierce potatoes several times with fork.Place on 2 paper towels.Turn over halfway through cooking.	2-3 minutes2-3 minutes
White Potatoes,Whole Baking(170~230 g each)	2 potatoes4 potatoes	5~810~14	Pierce potatoes several times with fork.Place on 2 paper towels.Turn over halfway through cooking.	2-3 minutes2-3 minutes
Spinach, Fresh,Leaf	450 g	4~7	Add 112 cup water in 2 qt. covered casserole dish.	2-3 minutes
Squash, Acorn orButternut, Fresh	1 medium	6~8	Cut squash in half. Remove seeds.Place in 8 x 8-inch baking dish. Cover.	2-3 minutes
Zucchini, Fresh, 450 g Sliced		4^1/2 7^1/2	Add 112 cup water in 1112 qt. covered casserole dish.Stir halfway through cooking.	2-3 minutes
Zucchini, Fresh,Whole	450 g	6~9	Pierce. Place on 2 paper towels.Turn zucchini over and rearrange halfway through cooking.	2-3 minutes

MICROWAVE-SAFE UTENSILS

Never use metal or metal trimmed utensils in Paper

your microwave oven Paper plates and containers are convenient and

Microwaves cannot penetrate metal. They will safe to use in your microwave oven, provided that bounce off any metal object in the oven and the cooking time is short and foods to be cooked cause arcing, an alarming phenomenon that are low in fat and moisture. Paper towels are also resembles lightning. very useful for wrapping foods and for lining

Most heat resistant non metallic cooking utensils baking trays in which greasy foods such as bacon are safe for use in your microwave oven. are cooked. In general, avoid colored paper

However, some may contain materials that products as the colour may run. Some recycled render them unsuitable as microwave cookware. paper products may contain impurities which If you have any doubts about a particular utensil, could cause arcing or fires when used in the there's a simple way to find out if it can be used microwave oven.

in your microwave oven. Plastic cooking bags

Place the utensil in question next to a glass bowl Provided they are made specially for cooking, filled with water in the microwave oven. cooking bags are microwave safe. However, be Microwave at power HIGH for 1 minute. If the sure to make a slit in the bag so that steam can water heats up but the utensil remains cool to the escape. Never use ordinary plastic bags for

touch, the utensil is microwave-safe. However, if the water does not change temperature but the utensil becomes warm, microwaves are being absorbed by the utensil and it is not safe for use in the microwave oven. You probably have many items on hand in your kitchen right now that can be used as cooking equipment in your microwave oven. Just read through the following checklist.

Dinner plates

Many kinds of dinner-ware are microwave-safe. If in doubt consult the manufacturer's literature or perform the microwave test.

Glassware

Glassware that is heat-resistant is microwave-safe. This would include all brands of oven tempered glass cookware. However, do not use delicate glassware, such as tumblers or wine glasses, as these might shatter as the food warms.

Plastic storage containers

These can be used to hold foods that are to be quickly reheated. However, they should not be used to hold foods that will need considerable time in the oven as hot foods will eventually warp or melt plastic containers and cause them to pressurize and possibly explode.

cooking in your microwave oven, as they will melt and rupture.

Plastic microwave cookware

A variety of shapes and sizes of microwave cookware are available. For the most part, you can probably use items you already have on hand rather than investing in new kitchen equipment.

Pottery, stoneware and ceramic

Containers made of these materials are usually fine for use in your microwave oven, but they should be tested to be sure.

CAUTION

Some items with high lead or iron content are not suitable for cooking utensils.

Do not use any China, pottery, or stoneware utensils or items that are finished with reflective paint. Using these can cause arcing and damage the utensil.

FOOD CHARACTERISTICS & MICROWAVE COOKING

Keeping an eye on things Moisture content of food

The recipes in this book have been formulated Since the heat generated from microwaves tends with great care, but your success in preparing to evaporate moisture, relatively dry food such as them depends on how much attention you pay to roasts and some vegetables should either be the food as it cooks. Always watch your food sprinkled with water prior to cooking or covered to while it cooks. Your microwave oven is equipped retain moisture.

with a light that turns on automatically when the Bone and fat content of food oven is in operation so that you can see inside Bones conduct heat and fat cooks more quickly and check the progress of your food. Directions than meat. Care must be taken when cooking given in recipes to elevate, stir, and the like bony or fatty cuts of meat that they do not cook should be thought of as the minimum steps unevenly and do not become overcooked.

recommended. If the food seems to be cooking Quantity of food

unevenly, simply make the necessary The number of microwaves in your oven remains adjustments you think appropriate to correct the constant regardless of how much food is being problem. cooked. Therefore, the more food you place in

Factors affecting microwave cooking times

Many factors affect cooking times. The temperature of ingredients used in a recipe makes a big difference in cooking times. For Shap example, a cake made with ice-cold butter, milk, and eggs will take considerably longer to bake than one made with ingredients that are at room temperature. All of the recipes in this book give a range of cooking times. In general, you will find that the food remains under-cooked at the lower end of the time range, and you may sometimes want to cook your food beyond the maximum time given, according to personal preference. The governing philosophy of this book is that it is best for a recipe to be conservative in giving cooking times. While overcooked food is ruined for good. Some of the recipes, particularly those for bread, the cake, and custards, recommend that food be removed from the oven when they are slightly split

undercooked. This is not a mistake. When allowed to stand, usually covered, these foods will continue to cook outside of the oven as the heat trapped within the outer portions of the food gradually travels inward. If the food is left in the oven until it is cooked all the way through, the V outer portions will become overcooked or even burnt. You will become increasingly skilful in estimating both cooking and standing times for various foods.

Density of food

Light, porous food such as cakes and bread cook more quickly than heavy, dense foods such as roasts and casseroles. You must take care when microwaving porous food that the outer edges do not become dry and over cooked. Over cooked foods can be a fire hazard.

Height of food

The upper portion of tall food, particularly roasts, will cook more quickly than the lower portion. Therefore, it is wise to turn tall food during cooking, sometimes several times.

the oven, the longer the cooking time. Remember to decrease cooking times by at least one third when halving a recipe.

of food

Microwaves penetrate only about 2.5 cm into food, the interior portion of thick foods are cooked as the heat generated on the outside travels inward. Only the outer edge of food is cooked by microwave energy; the rest is cooked by conduction. The worst possible shape for a food that is to be microwaved is a thick square. The corners will burn long before the centre is even warm. Round thin foods and ring shaped foods cook successfully in the microwave.

Covering

A cover traps heat and steam which causes food to be more quickly. Use a lid or microwave cling film with a corner folded back to prevent

Browning

Meats and poultry that are cooked fifteen minutes or longer will brown lightly in their own fat. Food is cooked for a shorter period of time may be brushed with a browning sauce such as Berkshire sauce, soy sauce or barbecue

sauce to achieve an appetizing colour. Since relatively small amounts of browning sauce is added to food, the original flavour of the recipe is not altered.

Covering with greaseproof paper

Greaseproofing effectively prevents spattering and helps food retain some heat. But because it makes a looser cover than a lid or clingfilm, it allows the food to dry out slightly.

Arranging and spacing

Individual foods such as baked potatoes, small cakes and hors d'oeuvres will heat more evenly if placed in the oven an equal distance apart, preferably in a circular pattern. Never stack foods on top of one another.

FOOD CHARACTERISTICS & MICROWAVE COOKING

Stirring

Stirring is one of the most important of all microwaving techniques. In conventional cooking, food is stirred for the purpose of blending. Microwaved food, however, is stirred in order to spread and redistribute heat. Always stir from the outside towards the centre as the outside of the food heats first.

Turning over

Large, tall foods such as roasts and whole chickens should be turned so that the top and bottom will cook evenly. It is also a good idea to turn cut up chicken and chops.

Placing thicker portions facing outwards

Since microwaves are attracted to the outside portion of food, it makes sense to place thicker portions of meat, poultry and fish to the outer edge of the baking dish. This way, thicker portions will receive the most microwave energy and the food will cook evenly.

Shielding

Strips of aluminium foil (which block microwaves) can be placed over the corners or edges of square and rectangular food to prevent those portions from overcooking. Never use too much foil and make sure the foil is secured to the dish and does not come into contact with the oven cavity as it may cause ‘arcing’ in the oven.

Elevating

Thick or dense foods can be elevated so that microwaves can be absorbed by the underside and centre of the foods.

Piercing

Foods enclosed in a shell, skin or membrane are likely to burst in the oven unless they are pierced prior to cooking. Such foods include yolks and whites of eggs, clams and oysters and whole vegetables and fruits.

Testing if cooked

Food cooks so quickly in a microwave oven, it is necessary to test it frequently. Some foods are left in the microwave until completely cooked, but most foods, including meats and poultry, are removed from the oven while still slightly undercooked and allowed to finish cooking during standing time. The internal temperature of foods will rise between 3^ C and 8^ C during standing time.

Standing time

Foods are often allowed to stand for 3 to 10 minutes after being removed from the microwave oven. Usually the foods are covered during standing time to retain heat unless they are supposed to be dry in texture (some cakes and biscuits, for example). Standing allows foods to finish cooking and also helps flavour blend and develop.

To Clean Your Oven

1 Keep the inside of the oven clean

Food spatters or spilled liquids stick to oven walls and between the oven and door surface. It is best to wipe up spillovers with a damp cloth immediately. Not doing so could cause the paint finish to become damaged. Crumbs and spillovers will absorb microwave energy and lengthen cooking times. Use a damp cloth to wipe out crumbs that fall between the door and the frame. It is important to keep this area clean to assure a tight seal. Remove greasy spatters with a soapy cloth then rinse and dry. Do not use harsh detergent or abrasive cleaners. The glass tray can be washed by hand or in the dishwasher.

2 Keep the outside of the oven clean

Clean the outside of your oven with soap and water then with clean water and dry with a soft cloth or paper towel. To prevent damage to the operating parts inside the oven, the water should not be allowed to seep into the ventilation openings. To clean control panel, open the door to prevent oven from accidentally starting, and then wipe the control panel with a damp cloth, followed immediately by a dry cloth. Press STOP after cleaning whilst the door is still open.

3 If steam accumulates inside or around the outside of the oven door, wipe the panels with a soft cloth. Condensation may also form inside the door. To prevent or reduce this occurrence, reduce the cooking power, or reduce the cooking time. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.

4 The door and door seals should be kept clean. Use only warm, soapy water, rinse then dry thoroughly.

DO NOT USE ABRASIVE MATERIALS, SUCH AS CLEANING POWDERS OR STEEL AND PLASTIC PADS.

Metal parts will be easier to maintain if wiped frequently with a damp cloth.

IMPORTANT SAFETY INSTRUCTIONS

Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven.

This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

WARNING

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION".

These word means :

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

1 Do not attempt to tamper with, or make any adjustments or repairs to the door, door seals, control panel, safety interlock switches or any other part of the oven which would involve the removal of any cover protecting against exposure to of service technician.the microwave oven are faulty. Repairs should only be undertaken by a qualified service technician.

- Unlike other appliances, the microwave oven is a high-voltage and a highelectrical-current piece of equipment. Improper use or repair could result in harmful exposure to excessive microwave energy or in electric shock.

2 Do not use the oven for the purpose of dehumidification.(ex. Operating themicrowave oven with wet newspapers, clothes, toys, electric devices, pet or child etc.)

- It can be the cause of serious damage to safety such as a fire, a burn or a sudden death due to an electric shock.

3 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Improper use may cause damage such as a fire, electric shock or burn.

4 Accessible parts may become hot during use. Young children should be kept away.

• They may get a burn.

5 Liquids or other foods must not be heated in sealed containers since they are liable to explode. Remove the plastic wrapping from food before cooking or defrosting. Note though that in some cases food should be covered with plastic film, for heating or cooking.

• They could burst.

6 Be certain to use proper accessories on each operation mode.

- Improper use could result in damage to your oven and accessories, or could make spark and a fire.

7 The children should not allow to play with accessories or hang down from the door handle.

• They may get hurt.

8 If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

9 It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

10 When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

CAUTION

1 You cannot operate your oven with the door open due to the safety interlocks built into the door mechanism. It is important not to tamper with the safety interlocks.

- It could result in harmful exposure to excessive microwave energy. (Safety interlocks automatically switch off any cooking activity when the door is opened.)

2 Do not place any object (such as kitchen towels, napkins, etc.) between the oven front face and the door or allow food or cleaner residue to accumulate on sealing surfaces.

* It could result in harmful exposure to excessive microwave energy.

3 Do not operate your oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door(bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

• It could result in harmful exposure to excessive microwave energy.

4 Please ensure cooking times are correctly set, Small amounts of food require shorter cooking or heating time.

* Over cooking may result in the food catching on fire and subsequent damage to your oven.

5 When heating liquids, e.g. soups, sauces and beverages in your microwave oven,

* Avoid using straight sided containers with narrow necks.

* Do not overheat.

* Stir the liquid before placing the container in the oven and again halfway through the heating time.

* After heating, let it stand in the oven for a short time; stir or shake it again carefully and check the temperature of it before consuming to avoid burns (especially, contents of feeding bottles and baby food jars).

* Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.

6 An exhaust outlet is located on the top, bottom or side of the oven.

Don't block the outlet.

• It could result in damage to your oven and poor cooking results.

7 Do not operate the oven when empty. It is best to leave a glass of water in the oven when not in use. The water will safely absorb all microwave energy, if the oven is accidentally started.

* Improper use could result in damage to your oven.

8 Do not cook food wrapped in paper towels, unless your cook book contains instructions for the food you are cooking. And do not use newspaper in place of paper towels for cooking.

- Improper use can cause an explosion or a fire.

9 Do not use wooden containers and ceramic containers that have metallic (e.g. gold or silver) inlays. Always remove metal twist ties. Check that the utensils are suitable for use in microwave ovens before use.

Metallic containers for food and beverages are not allowed during microwave cooking.

• They may heat-up and char. Metal objects in particular may arc in the oven, which can cause serious damage.

10 Do not use recycled paper products.

• They may contain impurities which may cause sparks and/or fires when used in cooking.

11 Do not rinse the tray and rack by placing it in water just after cooking. This may cause breakage or damage.

- Improper use could result in damage to your oven.

12 Be certain to place the oven so the front of the door is 8 cm or more behind the edge of the surface on which it is placed, to avoid accidental tipping of the appliance.

- Improper use could result in bodily injury and oven damage.

13 Before cooking, pierce the skin of potatoes, apples or any such fruit or vegetable.

• They could burst.

14 Do not cook eggs in their shell. Eggs in their shell and whole hardboiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

• Pressure will build up inside the egg which will burst.

15 Do not attempt deep fat frying in your oven.

• This could result in a sudden boil over of the hot liquid.

16 If smoke is observed (or emitted), switch off or unplug the appliance and keep the door closed in order to stifle any flame.

- It can cause serious damage such as a fire or electric shock.

17 When food is heated or cooked in disposable containers made of plastic, paper or other combustible materials, keep an eye on the oven and check it frequently.

- Your food may be poured due to the possibility of container deterioration, which also can cause a fire.

18 The temperature of accessible surfaces may be high when the appliance is operating. Do not touch the oven door, outer cabinet, rear cabinet, oven cavity, accessories and dishes during grill mode, convection mode and auto cook operations, before clearing make sure they are not hot.

• As they will become hot, there is the danger of a burn unless wearing thick culinary gloves.

19 The oven should be cleaned regularly and any food deposits should be removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

20 Only use the temperature probe recommended for this oven.

- You can not ascertain that the temperature is accurate with an unsuitable temperature probe.

21 Follow exact directions given by each manufacturer for their popcorn product. Do not leave the oven unattended while the corn is being popped. If corn fails to pop after the suggested times, discontinue cooking. Never use a brown paper bag for popping corn. Never attempt to pop leftover kernels.

• Overcooking could result in the corn catching a fire.

22 This appliance must be earthed.

The wires in the mains lead are colored in accordance with the following codes

BLUE \~ Neutral

BROWN \~ Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is colored BLUE must be connected to the terminal which is marked with the letter N or Colored BLACK. The wire which is colored BROWN must be connected to the terminal which is marked with the letter L or colored RED. The wire which is colored GREEN & YELLOW or GREEN must be connected to the terminal which is marked with the letter E or 12 .

If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or a similarly qualified person in order to avoid potential hazards.

- Improper use may cause serious electric damage.

23 This oven should not be used for commercial catering purposes.

- Improper use could result in damage to your oven.

24 The connection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

• Using improper plug or switch can cause an electric shock or a fire.

25 Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

26 The appliance is not intended to be operated by means of an external timer or separate remote-control system.

27 Only use utensils that are suitable for use in microwave ovens.

28 This microwave oven must not be placed in a cabinet.

29 This microwave oven is intended to be used freestanding.

30 Keep the appliance and its cord out of reach of children less than 8 years.

31 The door or the outer surface may get hot when the appliance is operating.

32 This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments

- farm houses

- by clients in hotels, motels and other residential environments

- bed and breakfast type environments

33 The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

34 The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

35 According to the installation requirements set, otherwise the impact of heat, prone to danger.

36 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

37 Steam cleaner is not to be used.

QUESTION & ANSWERS

Q What's wrong when the oven light will not glow?

A There may be several reasons why the oven light will not glow. Light bulb has blown. Door is closed.

Q Does microwave energy pass through the viewing screen in the door?

A No. The holes, or ports, are made to allow light to pass; they do not let microwave energy through.

Q Why does the beep tone sound when a pad on the Control Panel is touched?

A The beep tone sounds to assure that the setting is being properly entered.

Q Will the microwave oven be damaged if it operates empty?

A Yes. Never run it empty or without the glass tray.

Q Why do eggs sometimes pop?

A When baking, frying, or poaching eggs, the yolk may pop due to steam build up inside the yolk membrane. To prevent this, simply pierce the yolk before cooking. Never microwave eggs in the shell.

Q Why is standing time recommended after microwave cooking is over?

A After microwave cooking is finished, food keeps on cooking during standing time. This standing time finishes cooking evenly throughout the food. The amount of standing time depends on the density of the food.

Q Is it possible to pop corn in a microwave oven?

A Yes, if using one of the two methods described :

1 Popcorn-popping utensils designed specifically for microwave cooking.
2 Prepackaged microwave popcorn that contains specific times and power outputs needed for an acceptable final product.

FOLLOW EXACT DIRECTIONS GIVEN BY EACH MANUFACTURER FOR THEIR POPCORN PRODUCT. DO NOT LEAVE THE OVEN UNATTENDED WHILE THE CORN IS BEING POPPED. IF CORN FAILS TO POP AFTER THE SUGGESTED TIMES, DISCONTINUE COOKING. OVERCOOKING COULD RESULT IN THE CORN CATCHING FIRE.

CAUTION

NEVER USE A BROWN PAPER BAG FOR POPPING CORN. NEVER ATTEMPT TO POP LEFTOVER KERNELS.

Q Why doesn't my oven always cook as fast as the cooking guide says?

A Check your cooking guide again to make sure you've followed directions correctly, and to see what might cause variations in cooking time. Cooking guide times and heat settings are suggestions, chosen to help prevent overcooking, the most common problem in getting used to a microwave oven. Variations in the size, shape, weight and dimensions of the food require longer cooking time. Use your own judgement along with the cooking guide suggestions to test food condition, just as you would do with a conventional cooker.

PLUG WIRING INFORMATION

Warning

This appliance must be earthed

The wires in this mains lead are colored in accordance with the following codes

BLUE \~ Neutral

BROWN \~ Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is colored BLUE must be connected to the terminal which is marked with the letter N or Colored BLACK.

The wire which is colored BROWN must be connected to the terminal which is marked with the letter L or colored RED.

The wire which is colored GREEN & YELLOW or GREEN must be connected to the terminal which is marked with the letter E or 12 .

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard;

TECHNICAL SPECIFICATIONS

MODEL	MS3042G1 /MS3042X1
Power Supply	230 ~ 240 V 50 Hz
Rated Power Consumption	1500 W
Microwave Output power.	*1100 W
Frequency	2450 MHz
Overall Dimensions(WXHXD)	505 X 291X 395(mm)
Oven Cavity Dimensions(WXHXD)	358 X 226X 364(mm)
NET WEIGHT	12.9 Kg / 13.1Kg
SHIPPING WEIGHT	15.7 Kg / 15.9Kg

*IEC 60705 RATING STANDARD
Specifications subject to change without prior notice.

LG

Life's Good

FOR CUSTOMER SERVICE PLEASE CONTACT LG SERVICE ON 1300 LG CARE (1300 54 2273) AUSTRALIA, OR 0800 LG CARE (0800 54 2273) NEW ZEALAND.

LG Electronics Australia

2 Wonderland Drive

Eastern Creek NSW 2766

(ABN: 98 064 531 264)

LGEAP

LG Customer Information Centre

All Product related queries or questions Please contact

Toll free number AUSTRALIA 1300 54 2273 NEW ZEALAND 0800 54 2273

Customer Service Website: http://au.igservice.com

Please refer to the owner's manual for connection and operation related issues, prior to contacting customer information centre.
