READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

Page No

Introduction	Product Features	3
	Safety Information	4
	Identification of Parts	10
	Function Information	11
Before Starting to Wash	Preparation Before Washing	12
	Use of Water, Detergent, Bleach and Softener	13
	Special Guide for Stain Removal	16

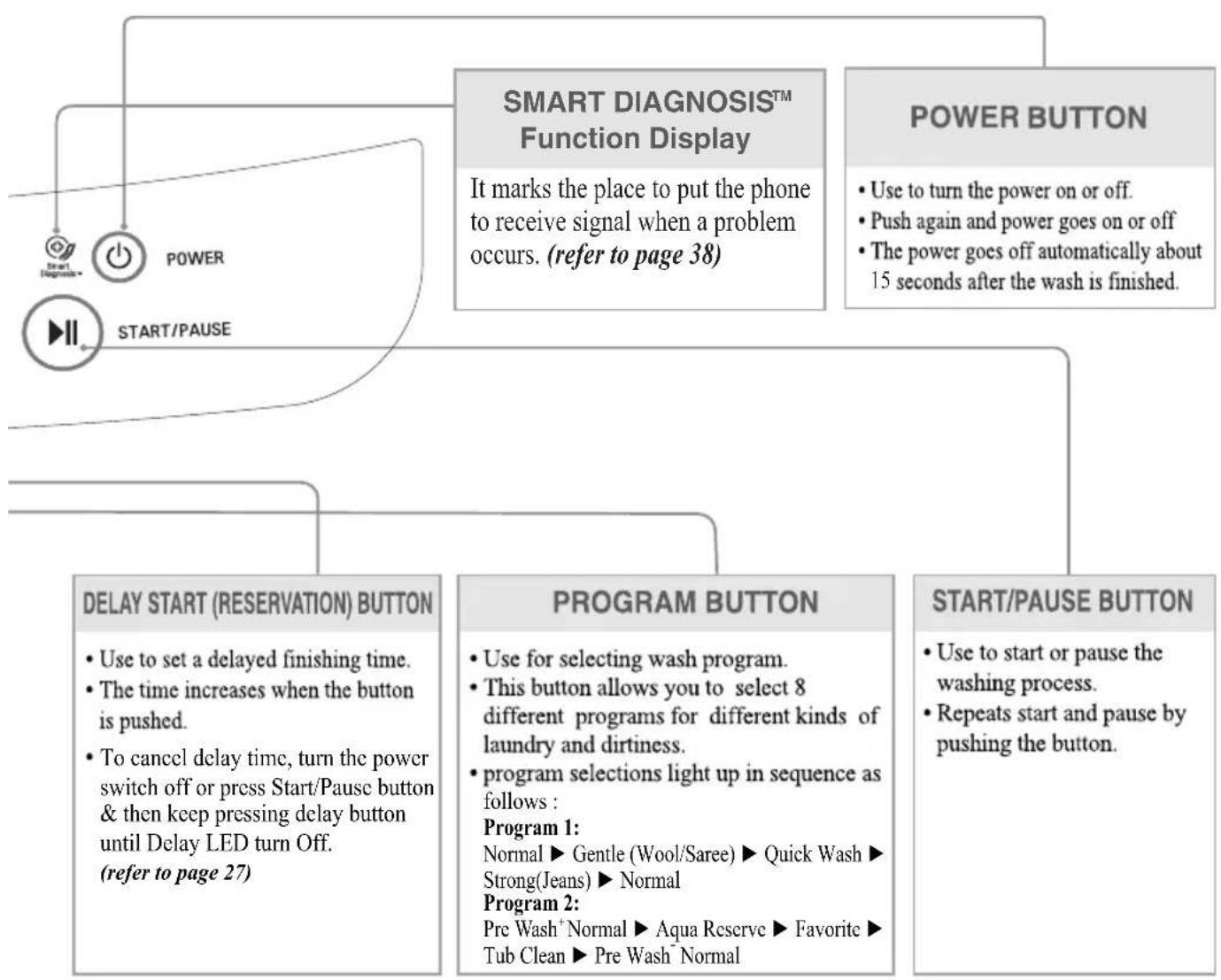

	Function of each Button	18
Washing Programs*	Normal Wash	20
	Gentle(Wool/ Saree)	20
	Quick Wash	20
	Strong (Jeans) Wash	20
	Pre Wash+ Normal Wash	20
	Soak Wash	22
	Favorite	23
	Aqua Reserve Wash	23
Additional Function Program*	TUB CLEAN	24
	AIR DRY	25
	Option Washing	25
	DELAY START (RESERVATION) Wash	27
	Other Useful Functions	28
Installation	Placing, Leveling and Installation	29
	Connecting Hose	30
Care and Maintenance	Grounding Method	32
	Cleaning and Maintenance	33
	Smart Closing Door	35
	Disposal of Old Appliance	35
Troubleshooting	Common Washing Problems	36
	Troubleshooting	37
	Smart DiagnosisTM	38
Features & Specifications	Features & Specifications	39
Installation Check Sheet	Installation Check Sheet
Terms of Warranty	Terms of Warranty

* Product feature may vary according to different models. Refer page 39 for modelwise features for your purchased model.

Droduct Features\*

Washer doesn't operate while the lid is opened. If the lid is opened during the wash, rinse or spin cycles, the operation stops for safety.

Pre Wash ^+ Normal

- The purpose of this program is to deliver best Wash Performance by adding extra 8 minutes of uniquely designed washing pattern before the main wash cycle.

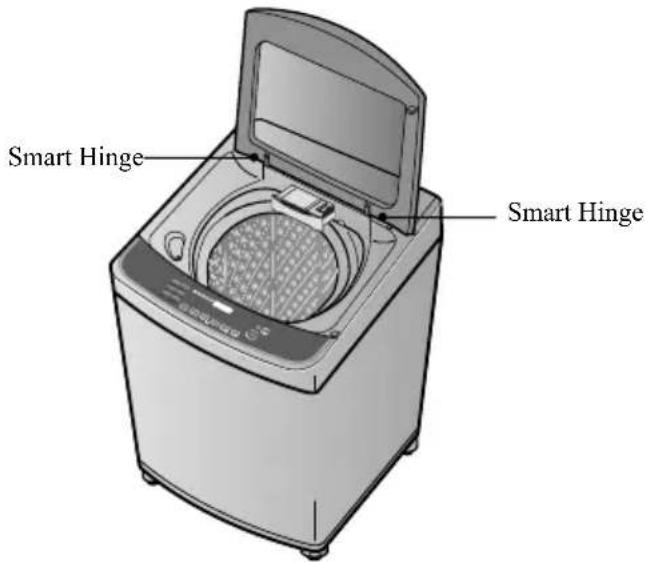

Smart Closing Door

● Smart hinge prevents sudden closing of the door. Gives you a soft and safe door closing.

Normal logic control

● A built-in load sensor automatically detects the laundry load and a microprocessor optimizes washing conditions such as ideal WATER LEVEL and washing time.

● Advanced technology is built into the Electronic Control System which ensures the best washing result.

TurboDrum washing

- When "Punch + 3" washing wings turn, the washing tub turns in the opposite direction. This makes the both sides current of water which improve wash-performance by rubbing clothes strongly.

3 Step washing

- 3 step washing makes the best washing performance with low tangling.

Rubbing

Rubbing and Shaking

Shaking and Disentangling

NOTE : Be sure to remove the product from the carton base, otherwise the machine will not be able to operate properly.

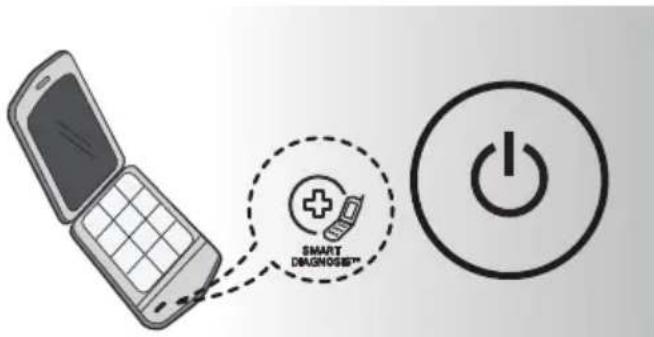

Smart Diagnosis™

- It is the technology to transmit the anomalies to the service center when there is a problem with the washer. It provides the service that gives faith and trust to the customers through precise and fast analysis.

Smart Diagnosis™

Auto Restart

- Auto Restart allows the program to restart all by itself in case of power failure. It does from the stage where it stopped.

afety Information

Read carefully and thoroughly go through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product.

This booklet is divided into 2 parts : Warning and Caution.

: This is a warning sign specifying user's applications which might be dangerous.

: This is a sign specifying 'Strictly Forbidden' applications.

WARNING

: Failure to comply with the instructions under this sign may result in major physical injuries or death.

CAUTION

: Failure to comply with the instructions under this sign may result in minor physical injuries or damages to the product.

WATERHEATERSAFETY	WARNING
	·Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances. If the HOT water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all Hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the HOT water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.
PROPERINSTALLATION	CAUTION
	·The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.·Install or store where it will not be exposed to temperature below freezing or exposed to the weather (Rain/Water Splash/ Direct Sunlight).If the product is exposed to such conditions, electric shock, fire, break down or deformation may occur.·Properly ground washer to confirm with all governing codes and ordinances. Follow details in Installation Instructions.If not grounded properly, break down and leakage of electricity may occur, which may cause electric shock.·Machine must be positioned so that the plug is accessible.If the plug is placed between the wall and the machine, it may get damaged, possibly causing fire or electric shock.·Make sure the plug is completely pushed into the outlet.Failure to do so may cause electric shock and fire due to overheating.·Do not connect ground to a gas pipe.It can cause explosion.·Do not connect ground to telephone wires or lightning rods.This may be dangerous during electrical storms.·Washer shall be placed in dry areas specifically during rainy season.Humid conditions may cause rusting which may result in product failure.

WARNING

CAUTION

रक्षा जानकारी

YOUR LAUNDRY AREA	WARNING
	·Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc.Operating with such materials around the machine may trigger explosion or fire. ▲·Close supervision is necessary if this appliance is used by or near children.Do not allow children to play on, with, or inside this or any other appliance.There is potential danger that children might drown in the tub. Do not touch the power plug with a wet hand.It will cause electric shock ▲Do not put your hand, foot or anything under the washing machine while the washing machine is in operation.There is a rotating mechanism under the machine, so you could be injured.
WHEN USING THE WASHER	CAUTION
	·Use this appliance only for its intended purpose as described in this Owner's Manual.·Use this appliance only for Household Purpose .·The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.·To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.NOTE:Pressing Power button to turn off does NOT disconnect the appliance from the power supply.·Make sure that drainage is working properly.If water is not drained properly, your floor may get flooded.Flooded floors may induce electricity leakage, further resulting in electric shock or fire.·If, during spinning, opening the lid does not stop the tub within about 15 seconds, immediately discontinue operating the machine.Call for repair. A machine that spins with its door open may cause injuries. Never reach into the machine while it is running.Wait until the machine has completely stopped before opening the lid.Even slow rotation can cause injury. Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.Operating with a damaged plug may cause electric shock.Do not use water hotter than 60°C. Use of excessively hot water may cause damage to fabrics or cause leakage of water. Ensure No water logging near or below washer to prevent rusting.Rusting on certain parts may result in product failure

dentification of Parts

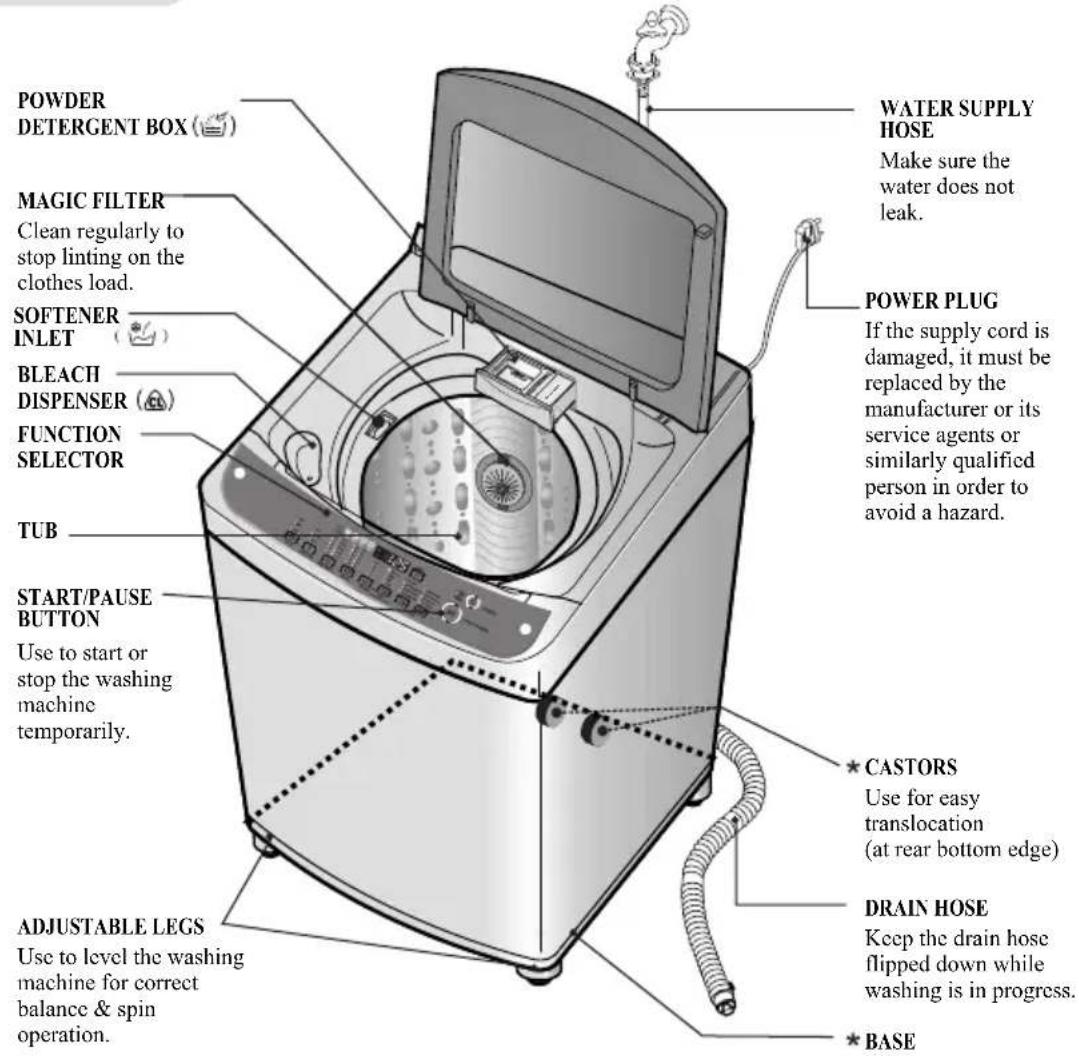

Body

POWDER DETERGENT BOX (☐) MAGIC FILTER Clean regularly to stop linting on the clothes load. SOFTENER INLET BLEACHI DISPENSER (☐) FUNCTION SELECTOR TUB START/PAUSE BUTTON Use to start or stop the washing machine temporarily. ADJUSTABLE LEGS Use to level the washing machine for correct balance & spin operation. WATER SUPPLY HOSE Make sure the water does not leak. POWER PLUG If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard. CASTORS Use for easy translocation (at rear bottom edge) DRAIN HOSE Keep the drain hose flipped down while washing is in progress. BASE

Accessories

Water supply hose

For Cold Water

Drain hose

Diagram of a curved pipe with a circular inset showing a ring and two protrusions (no text or symbols)

Snap Ring

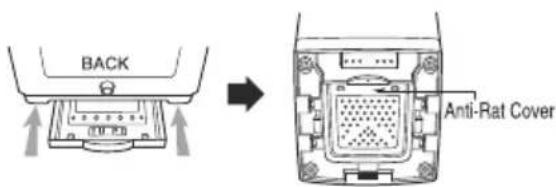

Anti-rat cover

Line drawing of a rectangular electronic component with mounting holes and a central square slot (no text or symbols)

NOTE

“*” Parts can be different according to the model.
- Please do not match this figure with model as it may be different from your model. These are schematic diagrams only.
• Due to continuous improvements at LG, specification of washing machine are subject to change without prior notice.

unction Information\*

Our machine provides various washing methods which suits various conditions and types of laundry.

Different types of laundry washing

Normal Wash

Use this Program for everyday washing e.g. sheets, towels, T-shirt(refer to page 20)

Strong (Jeans) Wash

Use this Program for heavily soiled durable garments.g. overalls, jeans

Thick and heavy clothes or those which are excessively dirty like jeans or working uniforms can be washed (refer to page 20)

Pre Wash ^+ Normal Wash

Use as pre treatment to heavily soiled/ dirty cloths to get best wash performance. (refer to page 20)

Gentle (Wool/Saree)

Delicate clothes (lingerie, woolens, saree, etc.) which may be easily damaged can be washed. (refer to page 23)

The machine washable woolens or saree are specifically made to prevent damage during machine-washing.

Most hand-knitted garments are not machine washable, so recommend you to hand wash them.

- For the washing instruction, check the clothing label before wash.

- A neutral detergent is recommended for the woolens or saree.

- Do not use a tumble dryer to prevent damage.

- To avoid direct sunlight, cover up the clothes with towels during natural dry.

Some woolens or sweater may clog a drain hose by their lint, so recommend you to use spin only after hand-wash them.

FAVORITE Wash

This setting allows you to store your FAVORITE wash conditions in the normal cycle memory. (refer to page 23)

Aqua Reserve Wash

Use this program to prevent automatic draining of water at the end of cycle.(refer to page 23)

Washing according to the condition of laundry

Quick Wash

Quick Wash can be selected to wash lightly soiled clothes of less than 2.0kg in a short time. (refer to page 20)

Soak Wash

Soak Wash can be selected to wash heavily soiled laundry by soaking in water for some time to remove dirt and grime. (refer to page 22)

Other washing method

Tub Clean

Use this program to clean the inside of washing machine especially Inner tub & Outer tub. (refer to page 24)

Delay Start Wash

Delay Start Wash is used to delay the finishing time of the operation.

The number of hours to be delayed can be set by the user accordingly. (refer to page 27)

Option Wash

When the user needs only SPIN, RINSE/SPIN,RINSE, WASH/RINSE, WASH, WASH/RINSE/SPIN. (refer to page 25)

* Product feature may vary according to different models. Refer page 39 for modelwise features for your purchased model.

Preparation Before Washing

Care Labels

Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it should be washed.

Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and spin speed.

Sorting

To get the best results, different fabrics need to be washed in different ways.

• SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil.
• COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.
• LINT (Lint Producers, Collectors) Separate lint producers and lint collectors.
Lint Producers Terry cloth, Towels, Nappies, Diapers
Lint Collectors Synthetics, Socks

Check before Loading

• Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches, pens, coins, and keys can damage both your washer and your clothes.
• Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
• Remove belts, underwires, etc. to prevent damage to the machine or your clothes.
• Pretreat any dirt and stains.
• Make sure the clothes are washable in water.
• Check the washing instructions.
• Remove tissue from pockets.

CAUTION

Do not wash or spin any item labeled or known to be water-proof or water-resistant, even if the product care label on the item permits machine washing. Failure to follow these instructions could result in severe damage to your laundry, your washer and/or property damage as a result of abnormal vibration of the washer.

- Examples of water-proof or water-resistant items include certain mattress pads, mattress covers, rain gear, camping gear, skiing apparel, outdoor gear and similar items.

Pretreatment on stains or heavy soil

• Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer.
  Beforewashing treat special stainswith bar soaps, liquid Detergent or a paste of water and granular Detergent.
• Use a pretreat soil and stain remover.
  Treat stains AS SOONAS POSSIBLE. The longer they are left the harder they are to remove.

(For more detail refer to page16)

Loading

Do not wash fabrics containing flammable materials (waxes, cleaning fluids etc.)

Load Size

The WATER LEVEL should just cover the clothes. Adjust the load size accordingly. Loosely load clothes not higher than the top row of holes in the washer tub. To add items after washer has started, press Start button and submerge additional items. Close the lid and press Start button again to restart.

WARNING / चेतावनी

Fire Hazard

Never place items in the washer that are dampened with gasoline or other flammable fluids. No washer can completely remove oil. Do not dry anything that has ever had any type of oil on it (including cooking oils). Doing so can result in death, explosion, or fire.

आग का खतरा

Light and Large-sized clothing

Clothes like down and woollens are light weight, large and float easily. Use nylon net* and wash them in asmall amount of water. If the laundry floats during the wash cycle, it may become damaged. Use dissolved Detergent to prevent the detergent from clumping.

Long laundry items

Use nylon nets* for long, DELICATE items. For laundry with long strings or long length, a net will prevent tangling during washingFasten zippers, hook, and strings to make that these items don't snag on other clothes. * Nylon net is not supplied by LG.

se of Water, Detergent, Bleach and Softener

Using Water

Amount of WATER LEVEL\*

• This machine detects the quantity of laundry automatically, then set the WATER LEVEL
• When you select a wash program, the WATER LEVEL will be shown on the control panel.

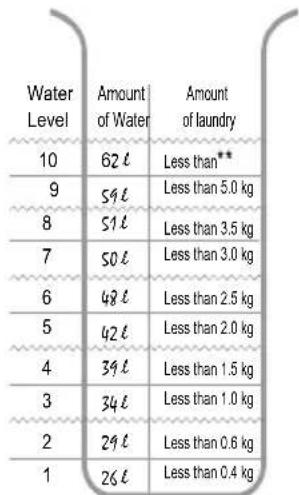

• The following table shows the amount of water level.
• When the WATER LEVEL is automatically detected, it may differ depending on the quantity of laundry even though the same WATER LEVEL is indicated on the control panel.

9 10 7 8 5 6 3 4 1 2

NOTE

[Minimum water amount]

It depends on laundry load and washer mode. Or manually you can pour a certain amount water into tub directly to some height. That's because if water level reaches to the some height sensed by washer itself, washer automatically operates. In other words, it is needed to pour water to the point when washer start operating.

NOTE

If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary for severe cases.

- When washing in COLD water additional steps may be needed;

• Adjust Detergent amount and pre-dissolve Detergent in WARM water
  • Pre-treat spot and stains
• Soak heavily soiled items
• Use appropriate bleach

* Temperature below 18°C... (65°F) will not activate laundry additives and may cause lint, residue, poor cleaning etc.

In addition, Detergent manufactures and care labels is define COLD water as 26-29°C... (80-85°F).

If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and clean effectively.

Using Detergent

Detergent

Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems. Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.

Choosing the right Detergent

We recommend the use of domesticDetergent, (powder, liquid or concentrated). Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens remember to us Detergent suitable for washing woolens.

se of Water, Detergent, Bleach and Softener

Water Level and Amount of Detergent

• Concentrated detergent: 20g per 30 liters of water.
• Regular synthetic detergent: 30g per 30 liters of water.
- When sensing water levels automatically, the amount of detergent can differ according to the amount of laundry even at the same water level.
- For synthetic detergent, use one that generates less bubbles. This type of detergent is specially designed for washers
- In case of using liquid detergent, dissolve it with water (detergent: water=1:1) and deposit it through the bleach deposit hole
- The correct amount of detergent will vary depending on the amount of soil in your clothes. (Jeans and work clothes may need more detergent, while bath towels usually need less.)
- For liquid and concentrated detegants, follow the recommendations of the detergent manufacturer.

Applicable for models 7.0kg and lesser
** Rated Capacity of Model

Note : To check you are using the correct amount of Detergent, lift the lid of your machine about halfway through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam may look good, but it does not contribute to cleaning your clothes. No foam means not enough Detergent has been used, soil and lint can settle back on the clothes or the washing machine. If excess Detergent is used, the rinse will not be efficient. Also, it could cause environmental pollution, so use it accordingly.

Adding the detergent \*

Add measured detergent to the detergent compartment of the dispenser drawer. We recommend the use of powdered detergent in the dispenser when using a delay wash function.

Detergent is flushed through the dispenser at the beginning of the wash phase. Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load.

Avoid using too much detergent in your washer, as it can lead to oversudsing and detergent residue being left on the clothes.

D2 not open

OR

Using Liquid Bleach

• Check clothing care label for special instruction and separate the laundry to be bleached.
  • Dilute liquid chlorine bleach.
• Measure the recommended amount of liquid bleach carefully following instructions on the bottle.
• Before starting thewasher, pour measured amount of bleach directly into bleach dispenser. Avoid splashing or overfilling. Powdered bleach should be mixed with water before pouring

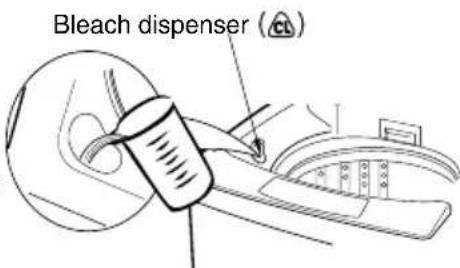

Bleach dispenser (CL)

NOTE

■ Never pour undiluted liquid bleach directly onto clothes or intowash basket.
This may cause change of color or damage the laundry
■ Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remove Mixing can release a toxic gas which may cause death.
■ Do not pour powdered bleach into bleach dispenser.

* Part may vary according to model.

se ofWater, Detergent, Bleach and Softener

Using Fabric Softener

• Dilute fabricsoftener with water. Undiluted fabricsoftener may result in spots that look like oil stains.
• Measure and add the recommended amount of fabric softener into the compartment marked with this symbol( ). Follow manufacturer's direction.

Fabricsoftener is automatically dispensed in the final rins with indication beep.
If you want extra rinse, you must add fabrisoftener manually when indication beep rings in the final rinse. This maximize the fabrisoftener function.

- Do not overfill. The dispenser hold max 35ml.

Never add more than 35ml.

Overfilling can cause early dispensing of the fabric softener which could result in stained clothes. A cup with a pouring spout will help you avoid spilling.

- The effect of adding fabricsoftener may vary according to its viscosity. The tickier fabric softener makes its effect the lower. For sticky fabric softener it is recommended that it be diluted with water, then be manually correct time to dispense manually is optionally applied to some models. Please keep it mind that fabricsoftener has to be diluted with water before dispensed and never poured directly on clothes.

Attention

• Do not mix with detergent or bleach.
• Never pour fabricsoftener directly on clothes. It may stain them.
• Do not stop thewasher during the first spin for timely dispensing.
• Option washing is not designed to be used with fabrisoftener dispenser.

Softener dispenser( 📋 )

Simple line drawing of a mechanical component with motion lines (no text or symbols)

Scrud (Waxy Build up)

Scrud is the name given to the waxy build-up that can occur within any washer when the fabrisoftener comes into contact with Detergent. This build-up is not brought about by a fault in the machine.

If scrud is allowed to build-up in the machine it can result in stains on you clothes or an unpleasant smell in your washer.

If you wish to use fabric softener we recommend

• Using fabric softener sparingly.
- When filling the dispenser, do not splash or overfill.
- Clean dispenser assoon as the cycle is finished.
- Clean your machine regularly (refer to page 24 or 33)
- Cold water washing increases the chance of this build-up occurring. We recommend a regular WARM HOT wash e.g. every 5th wash should be at least a warm one.
- Fabricsoftener of thinner consistency is less likely to leave residue on the dispenser and contribute to build-up.

pecial Guide for Stain Removal

WARNING

Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.
■ To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:

• Read and comply with all instructions on stain removal products.
• Keep stain removal products in their original labeled containers and out of children's reach
  • Thoroughly wash any utensil used.
• Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
• Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.
• Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.

⚠️ चेतावनी

For successful stain removal:

• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in the stain removal chart below
• To pretreat stains, usea prewash product, liquid Detergent, or a paste made from granular Detergent and water.
• Use COLD water on unknown stains because HOT water can set stains.
• Check care label instructions for treatments to avoid on specific fabrics.
• Check for color fastness by testing stain remover on an inside seam.
• Rinse and wash items after stain removal.

Follow fabric care label instructions

Stain Removal
STAIN	TREATMENT
Adhesive tape, chewing gum, rubber cement	Apply ice. Scrape off excess. Plastain face down on paper towels. Saturat with prewash stain removor nonflammable dry cleaning fluid.
Baby formula, dairy products, egg	Use product containing enzymes to pretreat or soak stains.
Beverages (coffee, tea, soda, juice, alcoholic beverages)	Pretreat stain. Wash using COLDwater and bleach safe for fabric.
Blood	Rinsewith COLDwater. Rub with bar soap. Or pretreat or soak wiproduct containing enzymes. Wash using bleach safe for fabric.
Candle wax, crayon	Scrape off surfacewax. Place stain facdown between paper towelsPress with warm iron until wax isabsorbed. Replace paper towels frequently.treat remaining stainwith prewash stain remover or nonflammable dry cleaning fluid. Hand washto removesolvent. Wash using bleach safe forfabric.
Chocolate	Pretreat or soak inWARM water using product containing enzymeWash usingbleach safe for fabric.
Collar or cuff soil, cosmetics	Pretreat with prewash stain removcrub with bar soap.
Dye transfer on white fabric	Use packaged color remover. Washing bleach safefor fabric.
Grass	Pretreat or soak in WARM water using product containing enzymes. Washing bleach safe for fabric.
Grease, oil, tar (butter, fats, salad dressing, cooking oils, car grease, motor oils)	Scrape residue from fabric. Pretreat. Wash using hottewater safe for fabric. For heavy stainand tar, apply nonflammable dry cleaning fluid back of stain. Replaceowels under stain frequently. Rinse throughWash using hottest water safe for fabric
Ink	Some inks may be impossible to removeWashing may set somenks. Use prewash stain remover, denatured alcohol or nonflammable dry cleaning fluid
Mildew, scorch	Wash with chlorine bleach safe for fabric, or soak in oxygen bleach and HOT water before washing. Badly mildewed fabrics mabe Permanently damaged.
Mud	Brush off dry mud. Pretrecor soak with productcontaining enzymes.
Mustard, tomato	Pretreat with prewash stain removeWash using bleach safe for fabric.
Nail polish	May be impossible to remove. Plastain face down on papetowels. Applynail polish remover to back of stain. Repeat, replacing papetowels frequentlyDo not use on acetate fabrics.
Paint, varnish	WATER BASED : Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed OIL BASED & VARNISH : Use solvent recommended on can label. Rinse thoroughly before washing.
Rust, brown or yellow discoloration	For spots, use rust remover safe for fabrfor discoloration of an entire load, usphosphateDetergent and nonchlorine bleachDo not use chlorine bleach because it may intensify discoloration.
Shoe polish	LIQUID : Pretreat with a paste of granular Detergent and water. PASTE : Scrape residue from fabric. Pretreat prewash stain remover or nonflammable dry cleaning fluid. Rub Detergent into dampened area, Wash using bleach safe for fabric.

with

unction of each Button#

Beeper Button

- If you want to use the washing machine without alarm signal sounds, pressing Beeper buttons allow you to select: High ▶ Off ▶ Low ▶ High respectively. Default setting is High

WATER LEVEL BUTTON

• Use to select the proper amount of water in relation to the weight and type of laundry.
  • Automatically controlled, but can be selected manually by pressing the WATER Button.
• WATER LEVEL is automatically selected for normal program.
  The following settings are indicated as the button is pushed
  7▶8•9▶10▶1▶2•3▶4▶5•6▶7

TIME LEFT, DELAY START (RESERVATION), ALARM INDICATION

• Time left - During operation, the remaining time is indicated.
- DELAY START INDICATION (RESERVATION) - When DELAY START (RESERVATION) program is selected, it indicates the finishing time. (RES.=DELAY)
- Alarm indication -When an error occurs, an error message appears to indicate the abnormality. For example, dE indicates that the lid is open.

TurboDrum

With inverter technology

★ Press & Hold Index, for Extra Functions

High

8.1592

1.00

-

Beeper

.

.

•

15

13

01

Wate

。

•

•

1

1

。

s 21 s

• 21 • • 25 •

• 15 •

13

19

3

+ Was

84

1.3

12

+1

m = 311

Rins

Air Dry

1. High

a. Mid

1 Low

C

Jewness

normal

ventoon

Quick W

Strong;

1

Normal

1. Amya Re

• Aqua Reserve

• Favorites

- Tub Clean

Program

AIR DRY

• This button is used for air-drying of your laundry.
• Air dry selections light up by Press & hold Spin for 3 Sec.
- Press Power button to deselect.

CHILD LOCK FUNCTION

• Use to lock or unlock the control buttons to prevent settings from being changed by a child.
  • To lock, press & hold Beeper & Rinse key simultaneously for 3 sec. To unlock ,press & hold Beeper and Rinse key simultaneously one more time for 3 sec.

(refer to page 28)

WASH. RINSE. SPIN BUTTON

• Use when wash, rinse, spin time need to be adjusted.
  • The time increases when the button is pressed.
• If adjustments are needed during the wash, press the [start/pause] button before making any changes.
• When the button is pressed during washing, total remaining cycle time is displayed.

NOTE

* Do not press any three or four buttons simultaneously, it may cause malfunctioning.

Do not match above picture with your purchased model, the Control Panel may differ according to different models.

Product feature may very according to different models. Refer page 39 for modelwise features for your purchase model.

Washing Programs	POWER	Add the laundry	[XXWW] PROGRAM	Close the lid
Normal WashUse this program for washing normal clothes, this mode automatically selects the most appropriate conditions and completes the sequence in one operation. The built-in sensor detects the size of the load and ideal wash power & wash, rinse and spin times are set accordingly.			Normal program is set by default
GENTLE (Wool/Saree)Use this program for washing delicate fabrics such as lingerie, woolens (wash only "water washable" clothes.Before washing your woolens check the care label for the washing instruction.			.Select the GENTLE (Wool/Saree) program on the control panel.
QUICK WASHUse this mode when washing lightly soiled clothes for a short time. The highly recommended laundry amount is under 2.0kg.			.Select Quick Wash program on the Control Panel
STRONG (JEANS)Use Jean program when washing Jeans of different sizes			Spread the jeans evenly in the tub	.Select Strong (Jeans) program on the Control Panel
Pre Wash- NormalUse as pre treatment to wash heavily soiled, shirt neck collar & sleeves, kids soccer / sports wear.8 minutes of unique pre washing operation will be performed before main wash.Wash (2min) ▶ Soak (2min) ▶Wash (2min) ▶ Soak (2min)			.Select PreWash+ Normal program on the Control Panel

* Product feature may vary according to different models. Refer page 39 for modelwise features for your purchased model.

START PAUSE	Add the Detergent	Finish	Caution & Note
			- If the water is already in the tub, or putting wet laundry into the tub before starting will increase the WATER LEVEL.- Changes to WATER LEVEL is possible, only after pressing START/PAUSE button during operation.(refer to page 18)
Wash tub rotates twice to detect the laundry load.Water level will be indicated and water will be supplied	Open the lid and add appropriate quantity of detergent as shown on water level indicator or follow the Detergent manufacturer's instructionsClose the lid	When the wash program ends, the buzzer will ring and the power goes off automatically after 15 secs.
			- When setting the WATER LEVEL manually, do not set to medium to prevent damage to laundry.It should always be high.Washing with HOT water may damage the laundry (Water is set to cold automatically). Ensure that the load is under 2kg.In order to avoid damage to laundry, the spin cycle may appear slow.This also avoids wrinkles and clothing may still contain some water.This is normal.
			When Static pressure of water is more than 2kg/cm2, the QUICK WASH course time will be23min:Models 8kg or less27min:Models 9kg or above

OAK Wash

Use this mode to wash normal clothes or thick and heavy clothes which are excessively dirty. SOAK mode can be used with NORMAL or STRONG (JEANS) or AQUA RESERVE WASH program.

1 Press the POWER button to turn power on.

POWER

2 Press the PROGRAM button to select the washing program.

- SOAK will not work in GENTLE(WOOL/SAREE), PREWASH ^ NORMAL & QUICK WASH programs.

3 Press the WASH button, to select SOAK program.

• Keep pressing the WASH button until the light turns on 'SOAK' and 'WASH' simultaneously as next image.
• Segment display total cycle time.
• For e.g. After wash selection of 25 minutes, each consecutive wash button press, sets soak wash for 15, 25, 35 minutes respectively.

4 Add the laundry and press the START/PAUSE button.

START PAUSE

- The WATER LEVEL will be shown and water will be supplied.

5 Add the Detergent.

6 Close the lid.

• Water will be supplied for 2 minutes after the start of the wash to supplement the absorbed water by the laundry.

Finish

- When the wash program ends, the buzzer will ring and the power goes off automatically after 15 secs.

NOTE

• Order of Soak-Wash timing

Soak-Wash

- Select soaking time 15minutes, 25minutes, or 35minutes (excluding washing time) by pressing the Wash button repeatedly.

- If necessary, select the times of Rinse and the time for Spinning by pressing the Rinse or Spin buttons till you reach the desired times.

* Starting time in Order of Soak-Wash timing may vary model to model

AVORITE Wash\*

Pressing the FAVORITE button allows you to store your FAVORITE wash conditions in the normal cycle memory and then recall it for use at a later time.

Press the POWER button to turn power on.

POWER

Select the FAVORITE program.

Program

Select your FAVORITE wash conditions.

- Press the WATER LEVEL button to select WATER LEVEL.

Press the WASH button, the RINSE button & the SPIN button to select wash time, rinse times & spin time respectively you want to store.

Press the START/PAUSE button to store & start your FAVORITE wash cycle. Power turns off automatically after wash.

START PAUSE

NOTE

To recall your FAVORITE cycle.

1. Press POWER on.
2. Select the FAVORITE cycle by pressing the PROGRAM.
3. Press the START/PAUSE button. Then the wash cycle starts.

QUA RESERVE Wash

Use this program to reuse the water for second round of wash load

Press the POWER button to turn power on.

POWER

Press the PROGRAM button to select AQUA RESERVE program.

Program

Add the laundry into the washing tub.

Press the START/PAUSE button.

START PAUSE

Add the Detergent and close the lid.

NOTE

• Do not keep water hold for long time after the end of cycle
This may cause bad odour and damage the laundry.
- SPIN function cannot be done in AQUA RESERVE wash program.

TUB CLEAN

If scrud is allowed to build-up in the machine it can result in stains on your clothes or unpleasant smell in your washer.

Scrud is the wax build-up that can occur within any washer when the fabric softener comes into contact with Detergent, and according to particular degree of dirtiness or quality of water to be use, in these case, use this program to clean inner tub and outer tub.

1 Press the POWER button to turn power on.

2 Press the PROGRAM button to select the TUB CLEAN program.

× Ex-Large WATER is set automatically.

3 Press the START/PAUSE button. • Left time is displayed.

4 After 10 minutes of water supplement. Add the oxygenated bleach (about 300m ).

• Do not use Detergent box.
• Do not place any laundry inside tub.

5 Close the lid. When the lid is open the machine will not operate, and an

NOTE

• Before using this program remove lint inside lint filter.
• When using this program, do not place any laundry inside tub.
  • This program takes about 2hrs to be completed.
  • After using this program, remove dirt inside filter.
  • After finishing this program, open the lid to remove irritant odour.
• Do not pour bleach into the tub directly. It might cause damage to the tub.
• Do not leave diluted oxygenated bleach inside tub for long time, as it may rust the tub.
• Use this program once in every month.
• Do not use this program repeatedly.

IR DRY

1

POWER

Press the POWER button to turn power on.

2

Spin * Air Dry

Press Spin for 3 seconds to select Air Dry.

• Other function cannot be selected during Air Dry.
  • Automatically set to 30 minutes upon selection.
• Press Spin button again to select duration.(30min ▶ 1hr ▶ 1:30hr ▶ 2hr)
  • To deselect Air Dry press power button.

3

START/PAUSE

Press the START/PAUSE button.

When the wash program ends, the buzzer will ring and the Power goes off automatically after 15 secs.

When you select Air Dry for more than 1 hour

1) You can reduce the drying time by minimizing the moisture in the laundry.
2) Always keep the laundry amount to 2kg or less and make sure to spread it out evenly.
3) Select 1 hour for cotton laundry and 2 hours for synthetic fiber laundry for effective Moisture removal.

ption Washing

When you only need the SPIN, RINSE/SPIN,RINSE, WASH/RINSE, WASH, WASH/RINSE/SPIN these can be set manually.

1

Press the POWER button to turn power on.

POWER

2

Only Wash

Only Rinse

Only Spin

- Press the WASH button to select the desired timing.

- Press the RINSE button till No Rinse Selection (Rinse Lamp off).

- Press the SPIN button till No Spin Selection (Spin Lamp off).

- Press the RINSE button to select the desired no. of rinse cycles.

- Press the SPIN button till No Spin Selection (Spin Lamp off).

- Press the SPIN button to select the desired time of spin.

ption Washing

Only Wash,Rinse

Only Rinse, Spin

Only Drain

- Press the WASH button to select the desired timing.

- Press the RINSE button to select the desired no. of rinse cycles.

- Press the SPIN button till No Spin Selection (Spin Lamp off).

You can use this option for preventing wrinkles of laundry

- Press the RINSE button to select the desired no. of rinse cycles.

- Press the SPIN button to select the desired time of spin.

When you want to only drain, press SPIN button.

Then press START/PAUSE button.

Wait until the water in the washing tub drains completely and then press POWER button to finish the activity.

3 Press the WATER LEVEL button, to control the water level according to the amount of laundry. If you do not specify the water level, then it will be automatically selected, only after load detection. (Not applicable for only spin process).

4 Add the laundry into the washing tub.

5 Press the START/PAUSE button.

6 Add the detergent and close the lid. (Add detergent only where wash cycle is selected)

NOTE

• When a RINSE, WASH/RINSE, WASH option is selected, after the wash is completed the water will not be drained off. If you wish to drain the water, press SPIN button after that press the START/PAUSE button and wait until the water in the tub has drained completely.
• If only Rinse is selected, the process will start from Water Supply.

ELAY START (RESERVATION) Wash

DELAY START (RESERVATION) Wash is used to delay the finishing time of the operation. The hours to be delayed can be set by the user accordingly. The time on the display is the finishing time, not the start time.

1 Press the POWER button to turn power on.

POWER

2 Press the PROGRAM button to select the washing program.

Program

- Select the program for laundry on the Control panel. This program will not work in GENTLE (WOOL/SAREE) and TUB CLEAN Program.

3 Press the DELAY START (RESERVATION) button.

Press Time Delay (Reservation) button to set reservation time.

- If reservation button is pressed, it will turn on reservation lamp and show up 3:00.

ex) It is 1:00 PM and if you want to finish laundry by 7:00 PM

- Keep press reservation button to set desired laundry ending time. (7:00-1:00=6hours)

• Reservation can be made up to 3\~18 hours.
• For 3\~12 hours, reservation can be set in 1 hour interval
• For 12\~18 hours, reservation can be set in 2 hour interval.
  • Less than 3 hour is cannot be reserved.

4 Add the laundry and press the START/PAUSE button.

START PAUSE

- When you press the START/PAUSE button the light will blink.

5 Add the Detergent.

6 Close the lid.

• Water will be supplied for 2 minutes after the start of the wash to supplement the water the laundry has absorbed.

Finish

• The washing will be finished according to the delayed time.

NOTE

• Finishing time can be delayed from 3\~18 hours. Delaying from 3\~12 hours can be done in 1 hour time intervals and from 12\~18 hours in 2 hour time intervals.
• If the lid is open, the machine will not work, and an alarm signal will alarm to remind you to close the lid.
• To select washing time, rinsing times, spinning time, water level, hot/cold or wash program manually, press the DELAY START (RESERVATION) button and select the desired option. Then press the START/PAUSE button.
• When the laundry cannot be taken out immediately after the wash program ends, it is better to omit the spinning program. (The laundry will be wrinkled if left for a long time after spinning.)

ther Useful Functions

Child Lock Function

If you want to lock all the keys to prevent settings from being changed by a child, you can use the child lock option.

How to Lock

Press the POWER button.

POWER

- Turn Power on.

Press the START/PAUSE button to start washing.

START PAUSE

• After all washing conditions are set according to the manual.

Press and hold Beeper and Rinse Button simultaneously for 3 seconds.

18:68 Beeper + Rinse times

• The child lock is set, it will not be released automatically even if the cycle is terminated.
• Thus, you should turn power on washing machine and then terminate function by pressing "Beeper and Rinse" button simultaneously for 3 sec.

How to Unlock

If you want to unlock, press & hold the Beeper and Rinse Button simultaneously for 3 seconds again.

NOTE

• “[L]” & the remaining time are alternatively shown on the display while they are locked.
• Power On/Off button can operate while Child Lock function is activated.

lacing, Leveling and Installation

Please ensure that transit restraint has been removed before operating your machine.

Improper installation of the washer may cause noise and malfunctioning.

Note : 1. The ventilating openings in the base area must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.

1. Install the washing machine on a level and firm surface.

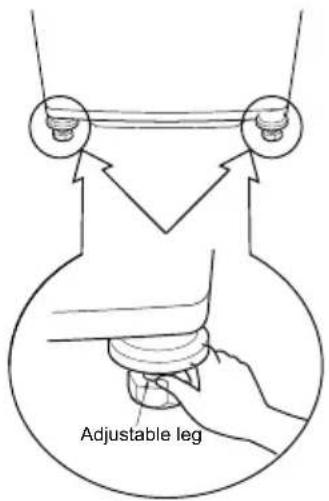

How to adjust leveling

Adjustable leg

Turn the adjustable legs to set the washer horizontal (Both the front legs).

Don't add anything under back side legs.

Distance between drain hose and the wall

Distance between drain hose and the wall should be more than 10cm, and the distance between the other part or the rear part and the wall should be more than 2 cm.

More than 2cm More than 10cm More than 2cm

Anti-rat cover installation

Insert the Anti rat cover firmly from back side side of washing machine.

BACK Anti-Rat Cover

Installation area

Install the washer on flat and firm surface.

Simple line drawing of a cartoon character sitting on a surface (no text or symbols)

Checking level

The Basement is not flat, fill the water just touching the Pulsator and see uniform distribution. If not, adjust the legs as shown in the figure.

Top View

Checking Proper placement

Close-up of a person's hands holding a white object on a surface, with no visible text or symbols.

Press the corners of the machine diagonally as shown in the figure, If any movement is observed, adjust the legs for proper leveling.

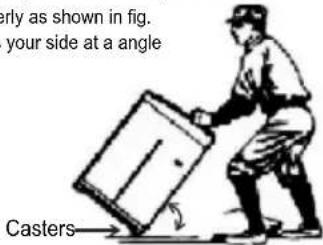

# Moving of the Machine

Casters are provided for easy translocation of your machine

* Grip the machines properly as shown in fig.
* Tilt the machine towards your side at a angle 45^ 55^ .

erly as shown in fig. your side at a angle Casters

Note: * Be careful that you should not drop the machine.

* Never move the machine on casters when there is load inside.

Caution

If the power is supplied from a cord extension set or generator, the cord extension set or electrical portable outlet device should be positioned so that it is not exposed to splashing or ingress of moisture.

# Product feature may vary according to different models. Refer page 39 for modelwise features for your purchased model.

Please do not match the figures with model as it may be different from your model. These are schematic diagrams only.

onnecting Hose

Water Supply Hose

Normal Type

(Normal tap without thread & one touch type inlet hose.)

1 Separate Middle connector from Water Supply Hose

Separate Middle connector from the Water Supply Hose by pulling the Pressing Rod and the Pressing Handle that is attached to the Water Supply Hose

Middle connector

Fixed Sticker Pressing Handle Pressing Rod

Water Supply Hose

2 Loosen the fixed nuts to connect the connector to the tap

Untighten the screw of the connector so that the tap can be placed in the middle.

Rubber packing screw

Fixed sticker

NOTE

In case tap is too large. If the tap diameter is too large or isquare, untighten the 4 screws and remove the guide plate. Then follow step1

Guide plate Rubber packing

3 Fixing Connectors to the Tap

Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws

Connector

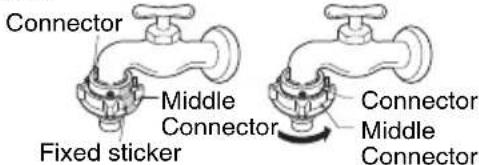

4 Fixing Upper Connector and Middle Connector

Remove the fixed sticker in between the Upper and Middle Connectors. Tighten the connectors by holding one connector and twist middle connector to the right.

Connector Middle Connector Fixed sticker Connector Middle Connector

5 Connecting Middle Connector and Water Supply Hose

Press down the pressing rod of the Water Supply Hose which was separated from middle connector (refer to Step1) and then join it to the middle connector.

Pressing rod

e Pressi

Pressing handle

Water Supply Hose

6 Check for water leakage

After connecting the other end of hose to machine open the tap to check for any water leakage. If the connection leaks, close the tap and start again from step 1. If you skip step 1, water leakage may occur.

Illustration of a faucet with water splashing (no text or symbols)

Remove foreign substances (dirt, sand or sawdust)

After connecting inlet hose to water faucets, turn on the water faucets to flush out foreign substances (dirt, sand or sawdust) in the water lines. Let water drain into a bucket, and check the water condition.

NOTE

• For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized parts.
  * Use new hoses when you install the washing machine. Do not reuse old hoses. Use only the inlet hoses provided with the washer. LG does not recommend the use of aftermarket hoses.
  * Periodically check the hoses for cracks, leaks and wear, and replace the hoses every 5 years.
• Do not stretch the water hoses intentionally, and make sure that they are not crushed by other objects.

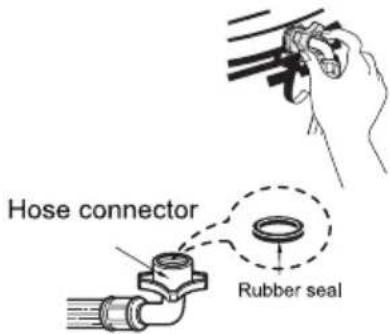

Connecting Water Supply Hose to the machine

• Connect the water supply hose to inlet valve of the washing machine, and then lock it by turning the hose connecting part.
• Check to see if there is a rubber seal inside the connector.

Hose connector Rubber seal

Drain Hose

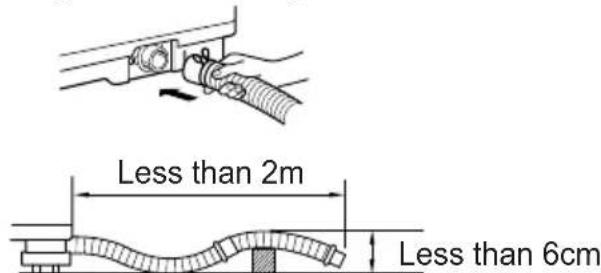

How to connect the drain hose

1 Insert the drain hose to the connecting area at the body.

Less than 2m Less than 6cm

The hose is placed over a doorsill.

The hose is clogged by alien substances.

Make sure that the hose is not crushed.

Extension hose is used.

1. Press the hose clip.
2. While pressing, push the hose towards the body.
3. Release the hose clip after pushing the hose.

se. Less than 10cm

Make sure that the hose is not crushed between the wall and the washer

Simple line drawing of a pipe being inserted into a container with a valve, no text or symbols present

Avoid submerging the end of hose.

rounding Method

Earth wire should be connected.

If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage.

Grounding Method with Ground insertspace Terminal

If the AC current outlet has a ground terminal, then separate grounding is not required.

Ground terminal Grounding is not needed

CAUTION / सावधानी

Concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance

Other Grounding Method

Burying Copper Plate

Connect the Ground Wire to a Ground Copper Plate and bury it more than 75cm in the ground.

Ground Wire 75cm Ground Copper Plate

Using Ground Wire

Connect the ground Wire to the socket provided exclusively for Grounding.

Using a Short Circuit Breaker

If grounding methods described above are not possible, a separate circuit breaker should be employed and installed by a qualified electrician.

leaning and Maintenance

Cold water washing

- If you always use COLD water, we recommend that a WARM or HOT wash be used at a regular intervals e.g. every 5th wash should be at least a WARM one.

When you have finished

• Turn off taps to prevent the chance of flooding should a hose burst
  • Always unplug the power cord after use.

When water supply into the tub is not clean or the filter is clogged with particles (such as sand), clean the filter in the inlet valve occasionally.

(The figure of power cord and water tap may vary)

To Clean the Filter in the Inlet Valve#

Close the tap before turning off the power. Then press the [START/PAUSE] button to remove water from the machine completely.

Turn off the power before pulling out the cord.

After Stopping the water supply, Remove inlet hose connected to the machine and pull out the filter as shown.

4 (BACK SIDE)

Replace the filter after cleaning it.

Then use a brush to clean the filter.

NOTE

- Before cleaning the filter, the impurities in the water supply hose should be removed.

To Clean the Magic Filter

NOTE

- If the magic filter is damaged, purchase a new one from LG Authorised Service Center.

Product feature may vary according to different models. Refer page 39 for model wise features for your purchased model.

Please do not match the figures with model as it may be different from your model. These are schematic diagrams only.

leaning and Maintenance

When there is a fear of freezing

• Close the water taps and remove the Water Supply Hose.
• Remove the water which remains in the water supply.
• Lower the drain hose and drain the water in the bowl and the drain hose by spinning.

If frozen

• Remove the water supply hose, and immerse it in HOT water at approx.. 40°C.
• Pour approx. 2 liters of HOT water at approx. 40^ , into the bowl and let it stand for 10 minutes.
• Connect the water supply hose to the water tap and confirm that the washing machine performs the supply and drainage of water.

Wash Inner-tub

Leave the lid open after washing to allow moisture to evaporate. If you want to clean the inner-tub use a clean softcloth dampened with liquid Detergent, then rinse. (Do not use harsh or gritty cleaners.)

Inlet Hoses

Hoses connecting washer to faucet should be replaced every 5 years.

Exterior

Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

Long Vacations

Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

Cleaning the Insideof your Washer

If you use fabric softener or do regular COLD water washing, it is very important that you occasionally clean the inside of your washer.

• Fill your washer with HOT water.
- Add about two cups of a powdered Detergent that contains phosphate.

- Let it operate for several minutes.

- Stop the washer, open the lid and leave it to soak overnight.

• After soaking, drain the washer and run it through a normal cycle.

Or use TUB CLEAN PROGRAM periodically.

We do not recommend that you wash clothes during this procedure.

Products that might damage your washing machine

• Concentrated bleaches and diaper sanitizer will cause damage to the paintwork and components of your washer.
• Hydrocarbon solvents i.e. petrol, paint thinners and lacquer thinners, etc. can dissolve plastic and blister paint (Be careful when washing garments stained with these solvents as they are flammable DO NOT put them in washer or dryer.)
• Some pretreatment sprays or liquids can damage your washer's control panel.
• Use of dyes in your washer may cause staining of the plastic components. The dye will not damage the machine but we suggest you thoroughly clean your washer afterwards. We do not recommend the use of dye strippers in your washer.
• Do not use your washer lid as a work surface.

smart Closing Door\*

• Washing process can be seen inside the tub through tempered safety glass.
  • Smart hinge prevents sudden closing of the door.
• Door is heavy, be careful while closing of the door. Do not let your hands or any other material to caught below door. It might cause injury or damage.

Smart Hinge Smart Hinge

*

• Door closing time is dependent on ambient temperature.
• Higher the ambient temperature, lower the door closing time and vice versa.
• Smart Closing Door performs best when lid is closed from full open condition.

Disposal of old appliance

Disposal of your old appliance (as per e-waste Rules)

1. When this crossed out wheeled bin symbol is depicted on the product and its operator's manual, it means the product is covered by the e-waste Management and Handling Rules, 2011 and are meant to be recycled, dismantled, refurbished or disposed off.

2. Do's:

a. The product is required to be handed over only to the authorized recycler for disposal.

b. Keep the product in isolated area, after it becomes non-functional/un-repairable so as to prevent its accidental breakage.

Don't:

a. The product should not be opened by the user himself/herself, but only by authorized service personnel.

b. The product is not meant for re-sale to any unauthorized agencies/scrap dealer/kabariwalah.

c. The product is not meant for mixing into household waste stream.

d. Do not keep any replaced spare part(s) from the product in exposed area.

1. Any disposal through unauthorized agencies/person will attract action under Environment (Protection) Act 1986.
2. "This product is complied with the requirement of Hazardous Substances as specified under Rule 13 (1) & (2) of the E-Waste (Management & Handling) Rules, 2011".
3. To locate a nearest collection centre or call for pick-up (limited area only) for disposal of this appliance, please contact Toll Free No. 1800-315-9999 / 1800-180-9999 for details. All collection centre and pick up facilities are done by third parties with LG Electronics India Pvt. Ltd. Merely as a facilitator.

For more detailed information, please visit: http://www.lg.com/in

Problems	Possible Causes	Solutions & PreventiveMeasures
Poor soil removal	Not enough DetergentWash Water Temperature too low.Overloading the washerIncorrect wash cycleIncorrect sortingPretreat stain not done	Use correct amount of Detergent for load size, amount of soil and water hardness.Use WARM or HOT water for normal soil.Different Water Temperature may be required according to soil type. (refer to page 13)Reduce load size.Wash with STRONG (JEANS) or SOAK & STRONG (JEANS) wash cycle for heavy soiled laundry.Separate heavily soiled items from lightly soiled ones.Pretreat stain and heavy soil according to directions shown on page 12.
Blue Stains	Undiluted fabric softener dispensed directly onto fabric	Rub the stain with bar soap.Do not overfill fabric softener dispenser and do not pour liquid fabric softener directly onto fabric.See page 15 for more instructions.
Black or gray marks on clothes	A buildup caused by the interaction of fabric softener and Detergent can flake off and mark clothesNot enough Detergent	Keep the recommendations against Scrud(waxy buildup). (refer to scrud page15.)Use correct amount of Detergent for load size, amount of soil and water hardness.
Yellow or brown rust stains	Iron or manganese in water supply, water pipes, or water heater	To restore discolored load of whites, use rust remover safe for fabric.Install nonprecipitating water softener or an iron filter in your water supply system for an ongoing problem.Before washing, run water for a few minutes to clear lines.
Lint	Incorrect sortingTissues left in pocketOverloading the washer	Wash lint giverseg. towels, flannelette sheets, cparately from lint collectorseg. synthetic fabrics and remove tissues in pockets before wash. See page 12 for sorting and caring before loading.Do not overload the washer
Residue or Detergent	Overloading the washerUndissolved DetergentUse too much Detergent	Do not overload the washer.SomeDetergents need to be pre-dissolved, check the Detergent instructions. Try pre-dissolving the Detergent.IncreaseWater Temperature using HOT water safe for fabric.Use proper amount of Detergent.
Holes, tears, or snags	Incorrect use of chlorine bleach.Unfastened zippers, hooks, bucklesRibs, tears and broken threadsOverloading the washerDegradation of fabric	Never pour chlorine bleach directly on fabric.See page 14 for adding liquid bleach.Fasten zippers, hooks, and buckles.Remove objects in pockets. See page 12 for caring before loading.Do not overload the washer.

roubleshooting

Self-diagnostic error mode

The machine will display and playback the error messages if there is any error in machine for your suitable action.

Symptom Error Display		Checkup
Water Supply Failure		• Is the water tap shut off?• Is the water supply cut off ?• Is the tap or water supply hose frozen ?• Is the water pressure low or is the filter of the inlet valve clogged with impurities?• Is the Hot hoseconnected to cold?• Is the Cold hoseconnected to hot?
Drainage Failure		• Is the drain hose positioned correctly?• Is the drain hose bent or placed too high?• Is the internal part of the hose or drain pump (only pump model) clogged with impurities?• Check if electric power has gone off ?
Spin Failure		• Is the laundry evenly balanced?• Is the washing machine placed on a flat surface.?
Door(Lid) Open		• Is the lid closed?- Close the lid properly.- Press Start button to remove dE error.- Press Start button again to resume the machine operation.
Internal sensing failure		• Please call your nearest LG Electronics service center for help.
Power failure
Motor Error
Overflow failure
Child Lock		• Once Child Lock is applied, it will not deactivate automatically after Power Turn Off and again Turn On. To deactivate Child Lock, Press & Hold Beeper and Rinse key simultaneously for 3 Sec.

Smart Diagnosis™

\* USING SMARTDIAGNOSISTM

• Only use this feature when instructed to do so by the LG Customer Service Call Center. The transmission sound is similar to a fax machine, and so has no meaning except to the call center.
• SmartDiagnosis™ cannot be activated if the washer does not power up. If this happens, then troubleshooting must be done without SmartDiagnosis™.

If you experience problems with your washer, call to Customer information center. Follow the call center agent's instructions, and do the following steps when requested:

1 Press the POWER button to turn on the washer. Do not press any other buttons or turn the cycle selector knob.
② When instructed to do so by the call center, place the mouthpiece of your phone very close to the POWER button.

SMART DIAGNOSSE™ Power

3 Press and hold the Water level button for three seconds, while holding the phone mouthpiece to the icon or POWER button.
Keep the phone in place until the tone transmission has finished. This takes about 6 seconds, and the display will count down the time.
- For best results, do not move the phone while the tones are being transmitted.
- If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.
5 Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you using the information transmitted for analysis at the call center.

Smart Diagnosis is a troubleshooting feature designed to assist, not replace, the traditional method of troubleshooting through service calls.

The effectiveness of this feature depends upon various factors, including, but not limited to, the reception of the cellular phone being used for transmission, any external noise that may be present during the transmission, and the acoustics of the room where the machine is located.

Accordingly, LG does not guarantee that Smart Diagnosis would accurately troubleshoot any given issue

* Product feature may vary according to different models. Refer page 39 for modelwise features for your purchased model.

eatures & Specifications

a M H

Water Tap Pressure should be between 30-800 Kpa (0.3 - 8.0 Kgf/cm²)
* In our continuing effort to improve the quality of our appliances, it may be necessary to make changes to the appliance without revising this manual.

www.lg.com/in/support

www.facebook.com/lghomeappliances www.twitter.com/LGIndia

To know more about LG, visit www.lg.com/in For Corporate/Institutional enquiries, please write to [e-mail]
