Owner's Manual

Please read this manual carefully and thoroughly before operating this unit.

Record model name and serial number of the set. Quote this information to your dealer when you require service.

MODEL : WF-T8519PS

WF-T8519PB

WF-T8019QS

WF-T8019QB

WF-T8019QW

WF-T7519QS

WF-T7519QW

WF-T7519JG

WF-T7519JW

WF-T7239KS

WF-T7269KN

WF-T7549KG

roduct Features

Washer doesn't operate while the lid is open. If the lid is open during the wash, rinse or spin cycles, the operation stops for safety.

1 sensor (Only for WF-T8519PS / WF-T8519PB)

- The sensor automatically detects the quantity of a Detergent put by a user and the temperature and the quality of water to make the best washing algorithm for washing and rinsing, which can give the best washing effect.

SMART CLEANING (Only for WF-T8519PS / WF-T8519PB)

- The purpose of this cycle is to optimize detergent residues during the washing and rinsing cycles, in order to implement this effect, the washer adds more rinsing times by I-sensor. Rinse can be added until max 5 times.

EXTRA CLEANING

(Only for WF-T8019QS / WF-T8019QB / WF-T8019QW / WF-T7519QS / WF-T7519QW / WF-T7519JG / WF-T7519JW WF-T7549KG / WF-T7239KS / WF-T7269KN)

- The purpose of this cycle is to reduce detergent residues during the washing and rinsing cycles. In order to implement this effect the washer adds one rinsing cycle. (Total 3 rinsing cycles)

FUZZY logic control

- A built-in load sensor automatically detects the laundry load and a microprocessor optimizes washing conditions such as ideal WATER LEVEL and washing time.

START

SENSING

Laundry Sensor

Water Level Sensor

SETTING

Optimum

Washing

WASHING

AUTO

POWER

OFF

● Advanced technology is built into the Electronic Control System which ensures the best washing result.

Turbo drum washing

- When "Punch + 3" washing wings turn, the washing tub turns in the opposite direction. This makes the both sides current of water which improve wash-performance by rubbing clothes strongly.

3 Step washing

● 3 step washing makes the best washing performance with low tangling.

Rubbing

Rubbing and Shaking

Shaking and Disentangling

NOTE : Be sure to remove the unit from the carton base, otherwise the machine will not be able to operate properly.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

Introduction	Safety Information 4
	Identification of Parts 7
	Function Information 8
Before Starting to Wash	Preparation Before Washing 9
	Use of Water, Detergent, Bleach and Softener	10
	Special Guide for Stain Removal	13

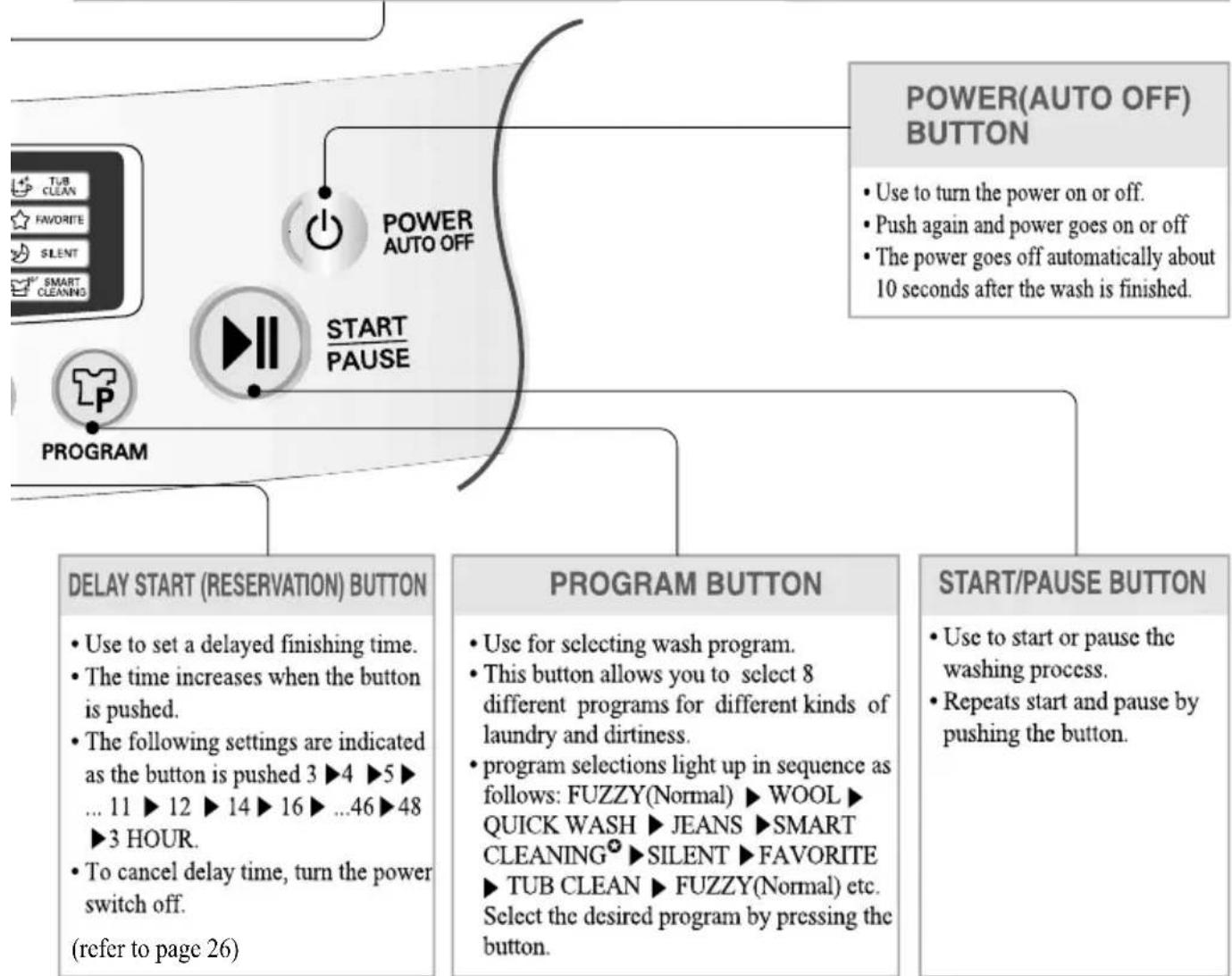

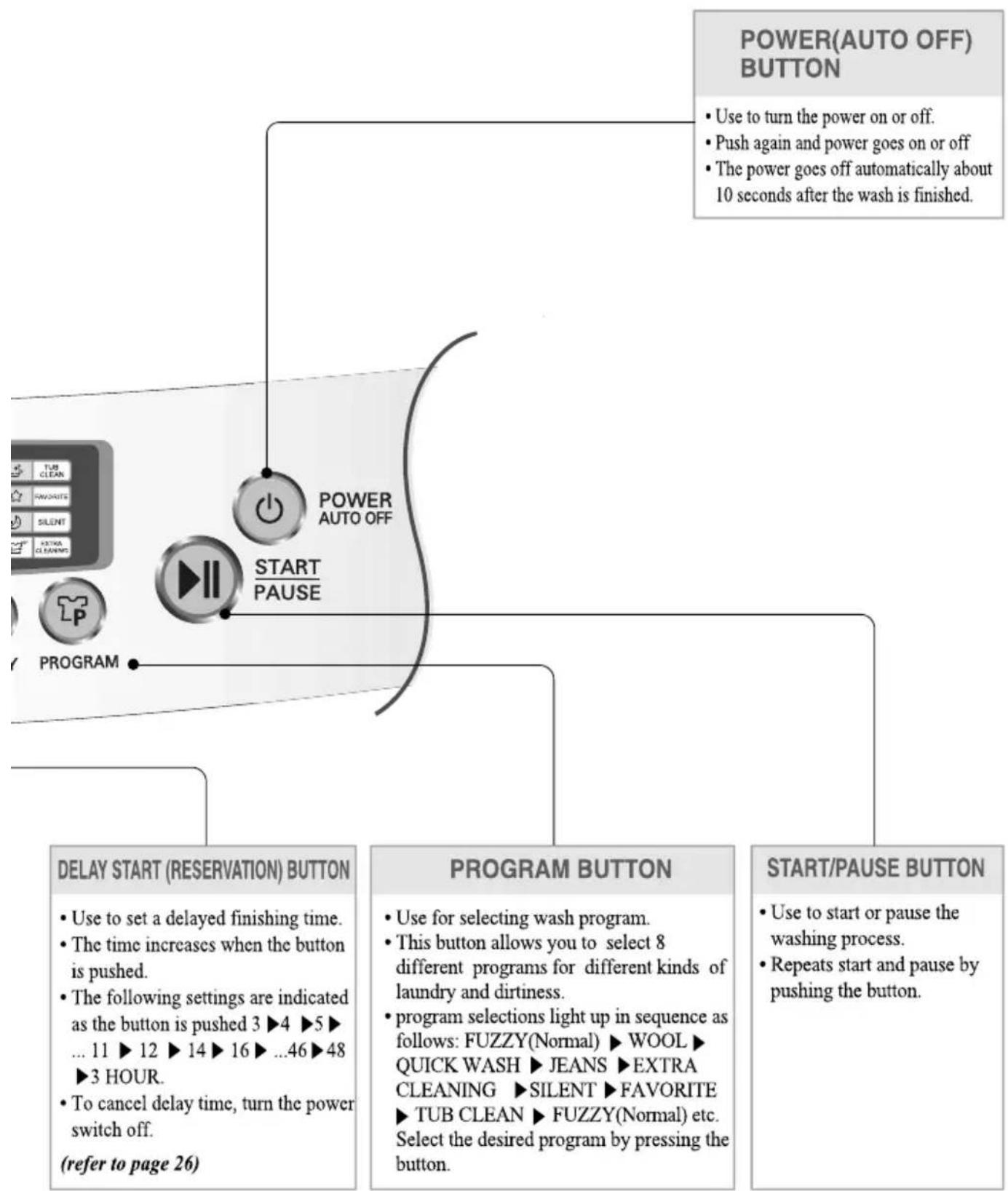

	Function of each Button 14
Washing Programs	FUZZY Wash (Normal Wash) 18
	WOOL Wash 18
	QUICK WASH 18
	JEANS Wash 18
	SMART CLEANING 18
	SOAK Wash	20
	FAVORITE Wash	21
	SILENT Wash	22
Additional Function Program	TUB CLEAN	23
	AIR DRY	24
	Option Washing	25
	DELAY START (RESERVATION) Wash	26
	Other Useful Functions	27

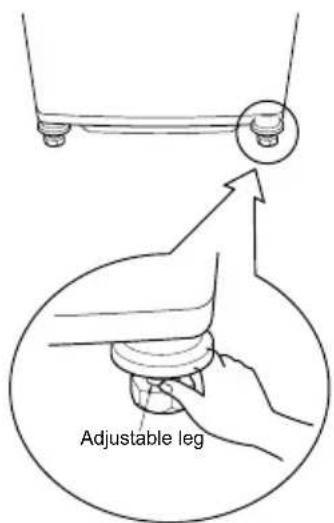

Installation	Placing and Leveling	28

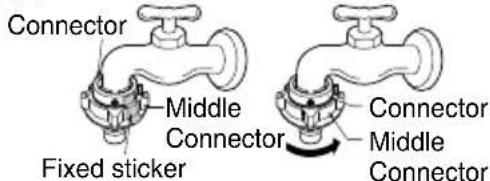

	Connecting Water Supply Hose	29

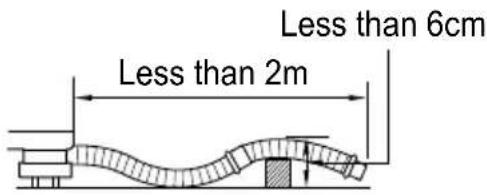

	Connecting Drain Hose	30
Care and Maintenance	Grounding Method	31
	Cleaning and Maintenance	32
Troubleshooting	Common washing problems	34
	Troubleshooting	35
Specification	Specification	36
Installation Check Sheet	Installation Check Sheet
Terms of Warranty	Terms of Warranty

afety Information

Read carefully and thoroughly through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product.

This booklet is divided into 2 parts: Warning and Caution.

: This is a warning sign specifying user's applications which might be dangerous.

: This is a sign specifying 'Strictly Forbidden' applications.

WARNING

: Failure to comply with the instructions under this sign may result in major physical injuries or death.

CAUTION

: Failure to comply with the instructions under this sign may result in minor physical injuries or damages to the product.

WATERHEATERSAFETY	WARNING
	·Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances. If the HOT water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all Hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the HOT water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.
PROPERINSTALLATION	CAUTION
	·The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.·Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.If the product is exposed to such conditions,electric stock, fire, break down or deformation may occur.·Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.If not grounded properly, break down and leakage of electricity may occur, which may cause electric shock.·Must be positioned so that the plug is accessible.If the plug is placed between the wall and the machine, it may get damaged, possibly causing fire or electric shock.·Make sure the plug is completely pushed into the outlet.Failure to do so may cause electric shock and fire due to overheating.·Do not connect ground to a gas pipe.It can cause explosion.·Do not connect ground to telephone wires or lightning rods.This may be dangerous during electrical storms.

WARNING

CAUTION

• The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
• Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.

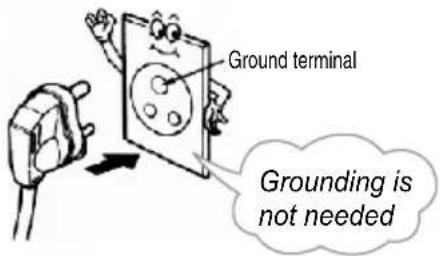

• Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.

- Must be positioned so that the plug is accessible.

• Make sure the plug is completely pushed into the outlet.

- Do not connect ground to a gas pipe.

- Do not connect ground to telephone wires or lightning rods.

Safety Information

YOUR LAUNDRY AREA	WARNING
	·Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc.Operating with such materials around the machine may trigger explosion or fire.·Close supervision is necessary if this appliance is used by or near children.Do not allow children to play on, with, or inside this or any other appliance.There is potential danger that children might drown in the tub.Do not touch the power plug with a wet hand.It will cause electric shockDo not put your hand, foot or anything under the washing machine while the washing machine is in operation.There is a rotating mechanism under the machine, so you could be injured.
WHEN USING THE WASHER	CAUTION
	·Use this appliance only for its intended purpose as described in this Owner's Manual.·The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.·To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.NOTE:Pressing Power button to turn off does NOT disconnect the appliance from the power supply.·Make sure that drainage is working properly.If water is not drained properly, your floor may get flooded.Flooded floors may induce electricity leakage, further resulting in electric shock or fire.·If, during spinning, opening the lid does not stop the tub within about 15 seconds, immediately discontinue operating the machine.Call for repair. A machine that spins with its door open may cause injuries.Never reach into washer while it is moving.Wait until the machine has completely stopped before opening the lid.Even slow rotation can cause injury.Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.Operating with a damaged plug may cause electric shock.Do not use water hotter than 60°C.Use of excessively hot water may cause damage to fabrics or cause leakage of water.

Safety Information

WHEN USING THE WASHER	WARNING
	Do not use a plug socket and wiring equipment for more than their rated capacity. Exceeding the limit may lead to electric shock, fire , break down, and/or deformation of parts. Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover.Mixing different chemicals can produce toxic gases which may cause death.[3Y38] Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, dry-cleaning solvents, kerosene, etc). Do not add these substances to the wash water.Do not use or place these substances around your washer or dryer during operation.It may ignite or explode.
WHEN NOT IN USE	CAUTION
	Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they may need replacement after 5years.When the air temperature is high and the water temperature is low, condensation may occur and thus wet the floor.Wipe off dirt or dust on the contacts of the power plug.Using unclean power plug may cause fire.Before discarding a washer, or removing it from service, remove the washer lid to prevent children from hiding inside.Children may be trapped and suffocated if the lid is left intact. Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner's Manual, or in published user-repair instructions that you understand and have the skills to carry out.Operating the machine with improperly replaced parts may be a cause for fire or electric shock. Do not tamper with controls.It may lead to electric shock, fire , break down, deformation. Do not yank the power cord in an attempt to disconnect the power plug.Securely hold the power plug to unplug the machine.Failure to observe these instructions may cause electric shock or fire due to short-circuit. When you are cleaning the washing machine, do not apply water directly to any part of the washing machine.It will cause short circuit and electric shock.

dentification of Parts

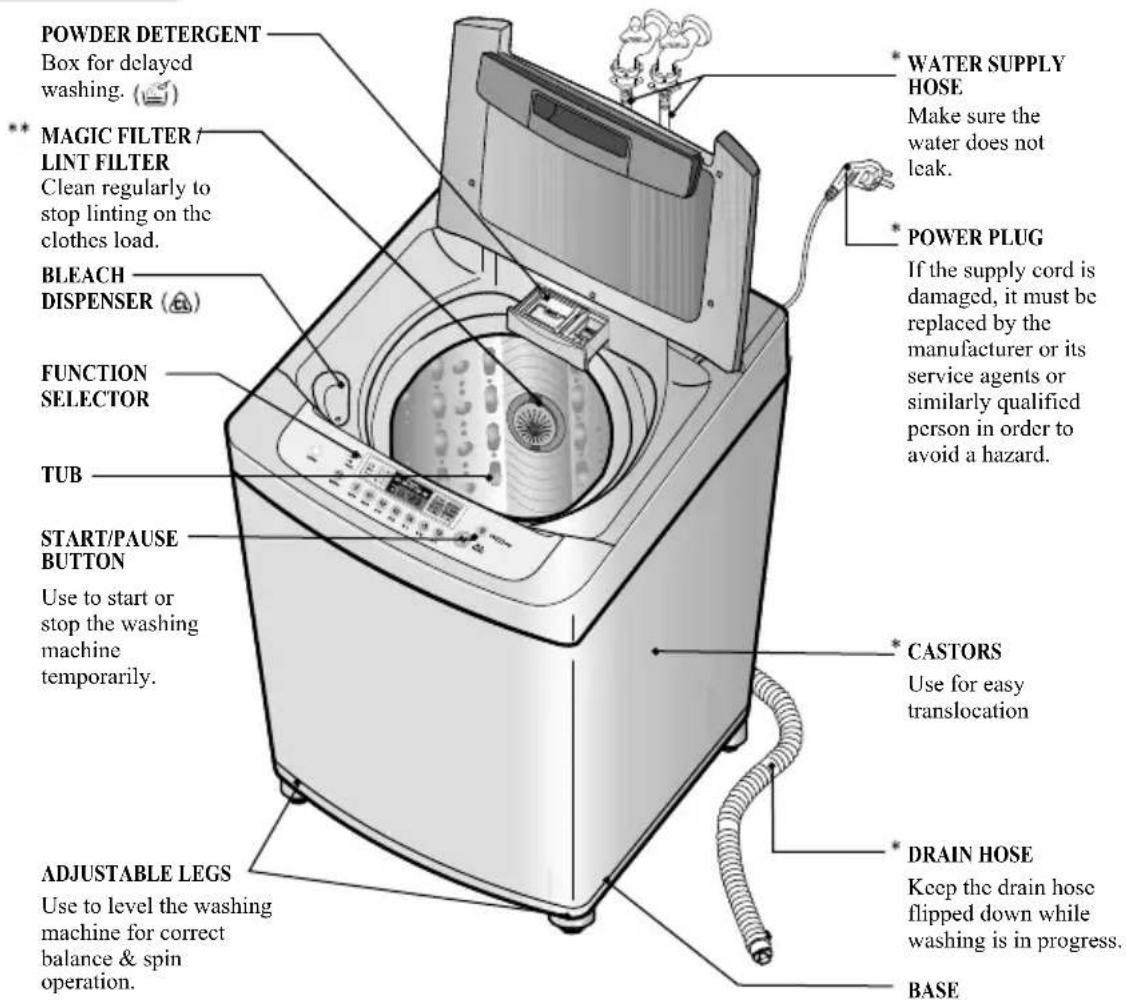

Body

POWDER DETERGENT Box for delayed washing. () ** MAGIC FILTER/ LINT FILTER Clean regularly to stop linting on the clothes load. BLEACH DISPENSER () FUNCTION SELECTOR TUB START/PAUSE BUTTON Use to start or stop the washing machine temporarily. ADJUSTABLE LEGS Use to level the washing machine for correct balance & spin operation. * WATER SUPPLY HOSE Make sure the water does not leak. * POWER PLUG If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard. * CASTORS Use for easy translocation * DRAIN HOSE Keep the drain hose flipped down while washing is in progress. BASE

(2 adjustable legs are optional, some models have provision for 1 adjustable leg)

Accessories
Water supply hoses

Drain hose

Snap Ring

Anti-rat cover

Screw

NOTE

"*" Parts can be different according to the model.

"**" LINT FILTER (Only for WF-T7549KG / WF-T7269KN)

Function Information

Our machine provides various washing methods which suits various conditions and types of laundry.

Different types of laundry washing

FUZZY(Normal) Wash

Use this Program for everyday washing e.g. sheets, towels, T-shirts(refer to page 18)

JEANS Wash

Use this Program for heavily soiled durable garments.g. overalls, jeans

Thick and heavy clothes or those which are excessively dirty like jeans or working uniforms can be washed (refer to page 18)

SMART CLEANING (Only for WF-T8519PS / WF-T8519PB)

Use this program to get better rinsing performance. (refer to page 18)

EXTRA CLEANING (Only for WF-T8019QS / WF-T8019QB / WF-T8019QW / WF-T7519QS / WF-T7519QW / WF-T7519JG / WF-T7519JW / WF-T7549KG / WF-T7239KS / WF-T7269KN)

Use this program to get better rinsing performance. (refer to page 18)

WOOL Wash

Wool clothes (lingerie, wool, etc.) which may beasily damaged can bewashed. (refer to page 18)

The fibers of machinewashable woolens have been specifically modified to prevent felting when they are machinewashed.

Most handknitted garments are not made of machinewashablewool and we recommend that you hand wash them

- Before washing your woolenscheck the care label for thewashing instructions.

- When washing woolens use a mild Detergent recommended for washing wool.

- Hand washed woolens may bespun in awashing machine to reduce the time they take to dry.

- To dry woolens lay down them flat on a towel and pat into shape. Dry woolens out of direct sunlight.

(The heat and tumbleaction of a dryer may cause shrinkage or felting of woolen garments).

Some wool underlays and sheepskin productscan be washed in awashing machine but may cause pump blockages.

(Ensure that the whole article issuitable for machine washing and not just the backing material.)

You may wish to handwash these articles and place them in the machine to spin dry.

FAVORITE Wash

This setting allows you to store your FAVORITE was h conditions in the normal cycle memory. (refer to page 21)

SILENT Wash

Use this program to wash quietly at night. (refer to page 22)

Washing according to the condition of laundry

QUICK WASH

QUICK WASH can be selected to wash lightly soiled clothes of less than 2.0 kg in short time. (refer to page 18)

SOAK Wash

SOAK Wash can be selected to wash heavily soiled laundry by soaking in water for some time to remove dirt and grime. (refer to page 20)

Other washing method

TUB CLEAN

Use this program to clean the inside of washing machine especially Inner tub & Outer tub (refer to page 23)

DELAY START Wash

DELAY START Wash is used to delay the finishing time of the operation.

The number of hours to be delayed can beset by the user accordingly(refer to page 26)

OPTION WASH

When the user needs only SPIN, RINSE/SPIN, RINSE, WASH/RINSE, WA SH, WA SH/RINSE/SPIN, SOAK/WASH/RINSE/SPIN. (refer to page 25)

D reparation BeforeWashing

Care Labels

*Look for acare label on your clothes This will tell you about the fabric content of your garment and how it should be washed.

Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and spin speed.

Sorting

To get the best results, different fabrics need to be washed in different ways.

• SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil.

• COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.

- LINT (Lint Producers, Collectors) Separate lint producers and lint collectors.

Lint Produ cers

Lint Collectors

Terry cloth, Chenille Towels, Nappies, Diapers

Synthetics, Corduroy, Permanent Press, Socks

Check before Loading

- Check all pockets to make sure that they are empty. Things such as nails, hairclips,, matches, pens, coins, and keys can damage both your washer and your clothes.

- Mend any torn garments or loose buttons. Tears or holes may become larger during washing.

- Remove belts, underwires, etc. to prevent damage to the machine or your clothes.

- Pretreat any dirt and stains.

• Make sure the clothes are washable in water.

- Check the washing instructions.

- Remove tissue in pockets.

Pretreatment on stains or heavy soil

- Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer.

Before washing treat special stains with bar soaps, liquid Detergent or a paste of water and granular Detergent.

- Use a pretreat soil and stain remover.

Treat stains AS SOONAS POSSIBLE. The longer they are left the harder they are to remove.

(For more detail refer to page13)

Loading

Do not wash fabrics containing flammable materials (waxescleaning fluids etc.).

Load Size

The WATER LEVELF should just cover the clothes. Adjust the load size accordingly. Loosely load clothes not higher than the top row of holes in the washer tub. To add items after washer has started, press Start button and submerge additional items. Close the lid and press Start button again to restart.

Light and Large-sized clothing

Clothes like down and woollens are light weight, large and float easily. Use nylon net and wash them in asmall amount of water. If the laundry floats during the wash cycle, it may become damaged. Use dissolved Detergent to prevent the detergent from clumping.

Long laundry items

Use nylon nets for long, DELICATE items. For laundry with long strings or long length, a net will pretangling during washing Fasten zippers, hook, and strings to mature that these items don't snag on other clothes

* Nylon net is not supplied by LG.

se of Water, Detergent, Bleach and Softener

Using Water

Amount of WATER LEVEL

• This machine detects the quantity of laundry automatically, then sets the WATER LEVEL and proper amount of Detergent.
• When you select a wash program, the WATER LEVEL will be shown on the control panel.
• The following table shows the amount of water.
• When the WATER LEVEL is automatically detected, it may differ depending on the quantity of laundry even though the same WATER LEVEL is indicated on the control panel.

Water Level - 10 Nos. : (Applicable for WF-T8519PS, WF-T8519PB, WF-T8019QS, WF-T8019QB, WF-T8019QW, WF-T7519QS, WF-T7519QW)

Water Level - 5 Nos. : (Applicable for WF-T7519JG, WF-T7519JW, WF-T7549KG / WF-T7239KS, WF-T7269KN)

Water-Detergent
9	10
7	8
5	6
3	4
1	2

XXL

XL

L

M

S

Water Temperature

• You can change the Water Temperature by pressing the WATER TEMP. button. (refer to page 14 or 16) (Machine does not have internal heater, water temp. indicates the temp of inlet water feeded to machine)

• The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results. We recommend temperatures of:

• HOT 49\~60°C...(120-140 F) White items, diapers, underclothing and heavily soiled, colorfast items.

• WARM 29\~40°C..(85-105 F) Most items
• COLD* 18\~24°C...(65-75 F) Only very bright colors with light soil.

- When washing in COLDwater additional steps may be needed:

• Adjust Detergent amount and pre-dissolve Detergent in WARMwater
• Pretreat spots and stains
• Soak heavily soiled items
• Use appropriate bleach

* Temperature below 18°C...(65 F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc. In addition, Detergent manufactures and care labels defineCOLD water as 26\~29°C...(80-85 F). If the temperature of the water in the tub is too cold for your hands, theDetergent will not activate and clean effectively.

NOTE

If iron is present in the water the clothes may become an all-over yellow or they may be attained with brown or orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary for severe cases.

Using Detergent

Detergent

Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems. Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.

Choosing the right Detergent

We recommend the use of domestic Detergent, (powder, liquid or concentrated). Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens remember to use Detergent suitable for washing woolens.

Water Level and Amount of Detergent

• Concentrated detergent: 20g per 30 liters of water.
  ● Regular synthetic detergent: 30g per 30 liters of water.
• When sensing water levels automatically, the amount of detergent can differ according to the amount of laundry even at the same water level.
• For synthetic detergent, use one that generates less bubbles. This type of detergent is specially designed for washers
• In case of using liquid detergent, dissolve it with water (detergent: water = 1:1) and deposit it through the bleach deposit hole

Water Level
XXL	10
	9
XL	8
	7
L	6
	5
M	4
	3
S	2
	1

Amount of Water	Amount of laundry	Amount of Detergent
		Concentrated	Regular synthetic
65	Less than	About 45g	About 65g
61	Less than 4.0kg	About 39g	About 58g
51	Less than 3.5kg	About 38g	About 57g
42	Less than 3.0kg	About 33g	About 49g
38	Less than 2.5kg	About 29g	About 44g
34	Less than 2.0kg	About 25g	About 38g
32	Less than 1.5kg	About 22g	About 33g
29	Less than 1.0kg	About 19g	About 28g
29	Less than 0.6kg	About 16g	About 24g
23	Less than 0.3kg	About 13g	About 20g

* Rated Capacity of model.

Water Level - 10 Nos.: (Applicable for WF-T8519PS, WF-T8519PB, WF-T8019QS, WF-T8019QB, WF-T8019QW, WF-T7519QS, WF-T7519QW)

Water Level - 5 Nos.: (Applicable for WF-T7519JG, WF-T7519JW, WF-T7549KG, WF-T7239KS, WF-T7269KN)

Note : To check you are using the correct amount of Detergent, lift the lid of your machine about half-way through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam may look good, but it does not contribute to cleaning your clothes. No foam means not enough Detergent has been used; soil and lint can settle back on the clothes or the washing machine.

If excess Detergent is used, the rinse will not be as clean and efficient. Also, it could cause environmental pollution, so use it accordingly.

Adding the detergent

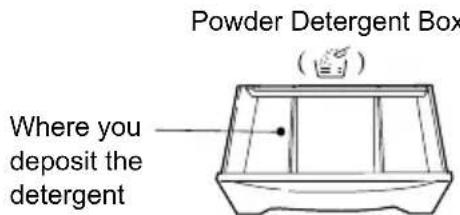

Open the detergent dispenser and deposit that appropriate amount of detergent where you deposit the detergent Powder Detergent dispenser.

Some detergentsMUST be fully dissolved before adding to your machine to get the best wash results.

Check the instructions on the detergent packet.

If you use powdered detergent it is essential that the required amount be fully dissolved in very hot water before being added to warm or hot water for thactual wash.

Pre-dissolving detergent in warm water when washing in cold water can improve its performance.

Powder Detergent Box Where you deposit the detergent

Using Liquid Bleach

• Check clothing care label for special instruction and separate the laundry to be bleached
  • Dilute liquid chlorine bleach.
  • Measure the recommended amount of liquid bleach carefully following instructions on the bottle.
• Before starting the washer, pour measured amount of bleach directly into bleach dispenser. Avoid splashing or overfilling. Powdered bleach should be mixed with water before pouring

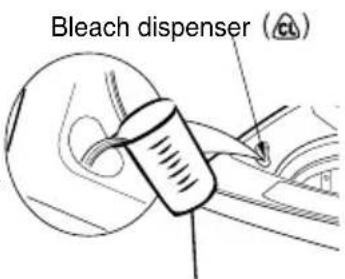

Bleach dispenser (CL)

NOTE

■ Never pour undiluted liquid bleach directly onto clothes or into wash basket.
This may cause change of color or damage the laundry
■ Do not pour powdered bleach into bleach dispenser.

se ofWater, Detergent, Bleach and Softener

Using Fabric Softener

• Dilute fabric softener with water.
  Undiluted fabricsoftener may result in spots that look like oil stains.
• Measure and add the recommended amount of fabric softener into the compartment marked with this symbol( ).
  Follow manufacturer's direction.

Fabric softener is automatically dispensed in the final rinse with indication beep.

If you want extra rinse, you must add fabrisoftener manually when indication beep rings in the final rinse.

This maximize the fabricsoftener function.

- Do not overfill. The dispenser hold max 35ml. Never add more than 35ml.

Overfilling can cause early dispensing of the fabric softener which could result in stained clothes.

A cup with a pouring spout will help you avoid spilling.

- The effect of adding fabric softener may vary according to its viscosity. The stickier fabric softener makes its effect the lower. For sticky fabric softener it is recommended that it be diluted with water, then be manually correct time to dispense manually is optionally applied to some models. Please keep it mind that fabric softener has to be diluted with water before dispensed and never poured directly on clothes.

Softener dispenser( 📄)

Simple line drawing of a cylindrical object with a diagonal line extending from it, no text or symbols present.

Attention

• Do not mix with detergent or bleach.
• Never pour fabricsoftener directly on clothes. It may stain them.
• Do not stop the washer during the first spin for timely dispensing.
• Option washing is not designed to be used with fabrisoftener dispenser.

Scrud (Waxy Build up)

Scrud is the name given to the waxy build-up that can occur within any washer when the fabrisoftener comes into contact with Detergent. This build-up is not brought about by a fault in the machine.

If scrud is allowed to build-up in the machine it can result in stains on yoolothes or an unpleasant smell in yourwasher.

If you wish to use fabric softener we recommend

• Using fabric softener sparingly.
- When filling the dispenser, do not splash or overfill.
- Clean dispenser assoon as the cycle is finished.
- Clean your machine regularly (refer to page 23 or 33)
- Cold water washing increases the chance of this build-up occurring. We recommend a regular WARMr HOT wash e.g. every 5th wash should beat least awarm one.
- Fabricsoftener of thinner consistency is less likely to leave residue on the dispenser and contribute to build-up.

pecial Guide for Stain Removal

For successful stain removal:

• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in that removal chart below
• To pretreat stains, usea prewash product, liquid Detergent, or a paste made from granular Detergent and water.
• Use COLD water on unknown stains because HOT water can set stains.
• Check care label instructions for treatments to avoid on specific fabrics.
• Check for colorfastness by testing stain remover on an insideam.
• Rinse and wash items after stain removal.

Line drawing of a blouse with ruffled collar and pleated top (no text or symbols)

Follow fabric care label instructions

Stain Removal
STAIN	TREATMENT
Adhesive tape, chewing gum, rubber cement	Apply ice. Scrape off excess. Plastain face down on paper towels. Saturawith prewash stain remover nonflammable dry cleaning fluid.
Baby formula, dairy products, egg	Use product containing enzymes to pretreat or soak stains.
Beverages (coffee, tea, soda, juice, alcoholic beverages)	Pretreat stain. Washusing COLDwater and bleach safe for fabric.
Blood	Rinsewith COLDwater. Rubwith bar soap. Or pretreat or soak wiproduct containing enzymes. Wash using bleach safe for fabric.
Candlewax, crayon	Scrape off surfacewax. Placestain facodown between paper towelsPresswith warm iron until wax isabsorbed. Replace paper towels frequentlyreat remaining stainwith prewash stain remover or nonflammable dry cleaning fluid. Hand washto removesolvent. Washusing bleach safe fofabric.
Chocolate	Pretreat or soak inWARM water using product containing enzymewash usingbleach safe for fabric.
Collar or cuff soil, cosmetics	Pretreat with prewash stain removerrub with bar soap.
Dye transfer on white fabric	Use packaged color remover. Washusing bleach saffor fabric.
Grass	Pretreat or soak in WARM water using product containing enzymes. Washing bleach safe for fabric.
Grease, oil, tar (butter, fats, salad dressing, cooking oils, car grease motor oils)	Scrape residue from fabric. Pretreat. Wash using hotwater safe for fabric. For heavy stainsand tar, apply nonflammable dry cleaning flutback of stain. Replacdowels under stain frequently. Rinse throughlyWash using hottest water safe for fabric
Ink	Some inks may be impossible to removeWashing may set sominks. Use prewash stain remover, denatured alcohol or nonflammable dry cleaning fluid
Mildew, scorch	Wash with chlorine bleach safe for fabric. Or, soak in oxygen bleach and HOT water before washingBadly mildewed fabrics myab eP ermanently damaged.
Mud	Brush off dry mud. Pretreator soak with productcontaining enzymes.
Mustard, tomato	Pretreat with prewash stain removeWash using bleach safe for fabric.
Nail polish	May be impossible to remove. Plastain face down on papetowels. Applynail polish remover to back of stain. Repeat, replacing papetowels frequentlyDo notuse on acetate fabrics.
Paint, varnish	WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed. OIL BASED & VARNISH: Use solvent recommended on can label. Rinse thoroughly before washing.
Rust, brown or yellow discoloration	For spots, use rust remover safe for fabrifor discoloration of an entire load, upphosphate Detergent and nonchlorine bleachDo not use chlorine bleach because it may intensify discoloration.
Shoe polish	LIQUID: Pretreat with paste of granular Detergent and water. PASTE: Scrape residue frfabric. Pretreat with prewash stainremover omonflammable dry cleaning fluidRub Detergent into dampened area, Washing bleach safe for fabric.

unction of each Button

Applicable for WF-T8519PS / WF-T8519PB / WF-T8019QS / WF-T8019QB / WF-T8019QW / WF-T7519QS / WF-T7519QW

WATER TEMPERATURE BUTTON (OPTION)

• Use to select Water Temperature.
Pressing the button allows you to select COLD ▶
WARM (HOT&COLD) ▶
HOT ▶ COLD
respectively.
Default setting is COLD.

WATER LEVEL BUTTON

• Use to select the proper amount of water in relation to the weight and type of laundry.
  • Automatically controlled, but can be selected manually by pressing the WATER Botton.
• WATER LEVEL is automatically selected for FUZZY(normal) program.
  The following settings are indicated as the button is pushed
  7 ▶ 8 • 9 ▶ 10 ▶ 1 ▶ 2 • 3 ▶ 4 ▶ 5 • 6 ▶ 7

TIME LEFT, DELAY START (RESERVATION), ALARM INDICATION

• Time left - During operation, the remaining time is indicated.
- DELAY START INDICATION (RESERVATION) - When DELAY START (RESERVATION) program is selected, it indicates the finishing time. (RES.=DELAY)
- Alarm indication -When an error occurs, an error message appears to indicate the abnormality. For example, E indicates that the lid is open.

(min.) 120 90 60 Tub Dry TEMP. HOT WARM COLD Water-Detergent 9 10 7 8 5 6 3 4 1 2 AIR DRY TEMP. WATER WASH RINSE SPIN DELAY START 88 HOUR MIN. Fuzzy WOOL QUICK WASH JEANS AIR DRY CHILD LOCK FUNCTION • This button is used for air-drying of your laundry. • Air dry selections light up in sequence as follows. TUB DRY ▶ 60 ▶ 90 ▶ 120 ▶ TUB DRY. This button is used for making inner tub moisture free. Do not put any laundry during this operation.(refer to page 24) WASH. RINSE. SPIN BUTTON • Use to lock or unlock the control buttons to prevent settings from being changed by a child. To lock, push the RINSE and SPIN buttons simultaneously and to unlock push them one more time during the washing process. (refer to page 27) • Use when wash, rinse, spin time need to be adjusted. • The time increases when the button is pressed . • If adjustments are needed during the wash, press the [start/pause] button before making any changes. • When the button is pressed during washing, the remaining time is displayed.

NOTE

* For optimizing the washing algorithm, the displaying time may be changed during washing-increased by 8 minutes at maximum and decreased by 4 minutes at maximum.
* If the Detergent quantity is put more than the standard, for increasing the rinsing performance, it automatically adds rinsing, and the remaining time may be increased.
* The standard detected by the sensor changing the algorithm is set by the normal standard. It may not be same to the washing habit of a specific user. So, it does not matter that the user uses it according to her/his washing habit.
* The sensor for a Detergent quantity is designed to detect based on a synthetic Detergent powder. If you put a liquid one or a natural one or too much bleaching agent, the detecting ability of the sensor may be decreased.

WASHING CONDITION INDICATOR (Only for WF-T8519PS / WF-T8519PB)

• It only operates in FUZZY Program.
• During being detected by the sensor, the LED flashes green, orange and red in turn. And, after detecting, the LED lights a specific color according to the detecting condition as follows:
  * If the current washing condition (Detergent quantity, Water Temperature, water quality, etc.) is determined as better than the standard one, it optimizes the algorithm to save the energy by decreasing washing time/strength, and the LED automatically turns to red.
  * If the current washing condition is determined as worse than the standard one, it optimizes the algorithm by increasing washing time/strength, and the LED automatically turns to orange.
  * If the current washing condition is determined as equal to the standard one, the algorithm has no change and the LED turns to green.

* Because the detecting ability of the sensor may be decreased by using it for a long time, periodically use TUB CLEAN course to clean the tub. (refer to page 23)
* Even if the water level or the water temperature are changed by the user in FUZZY(Normal) Program, the sensor will still work. The sensor algorithm may differ according to models.
* The control panel may differ according to different models.
- SMART CLEANING - WP-T8519PS / WF-T8519PB

EXTRA CLEANING - WP-T8019QS / WP-T8019QB / WF-T8019QW / WF-T7519QS / WF-T7519QW

unction of each Button

Applicable for WF-T7519JG / WF-T7519JW / WF-T7549KG / WF-T7239KS / WF-T7269KN

WATER TEMPERATURE BUTTON (OPTION)

• Use to select Water Temperature. Pressing the button allows you to select COLD ▶ WARM (HOT&COLD) ▶ HOT ▶ COLD respectively. Default setting is COLD.

*Applicable for WF-T7519JG / WF-T7519JW

WATER LEVEL BUTTON

• Use to select the proper amount of water in relation to the weight and type of laundry.
  • Automatically controlled, but can be selected manually by pressing the WATER Botton.
• WATER LEVEL is automatically selected for FUZZY(normal) program.
  The following settings are indicated as the button is pushed

TIME LEFT, DELAY START (RESERVATION), ALARM INDICATION

• Time left - During operation, the remaining time is indicated.
- DELAY START INDICATION (RESERVATION) - When DELAY START (RESERVATION) program is selected, it indicates the finishing time. (RES.=DELAY)
- Alarm indication -When an error occurs, an error message appears to indicate the abnormality. For example, dE indicates that the lid is open.

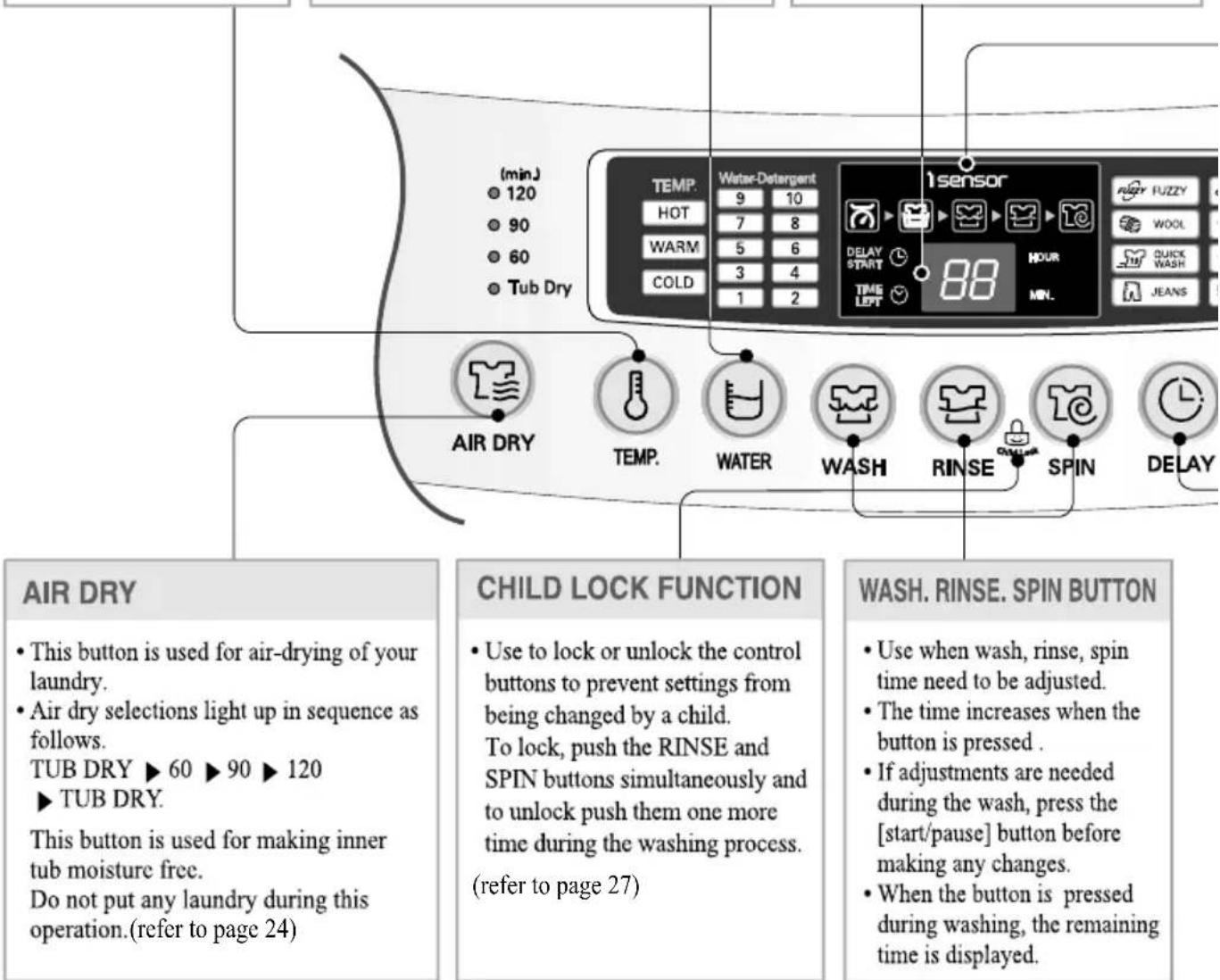

AIR DRY

• This button is used for air-drying of your laundry.
• Air dry selections light up in sequence as follows.

30▶60▶90▶120▶30.

This button is used for making inner tub moisture free.

Do not put any laundry during this operation. (refer to page 24)

CHILD LOCK FUNCTION

• Use to lock or unlock the control buttons to prevent settings from being changed by a child.
  To lock, push the RINSE and SPIN buttons simultaneously and to unlock push them one more time during the washing process.

(refer to page 27)

WASH. RINSE. SPIN BUTTON

• Use when wash, rinse, spin time need to be adjusted.
  • The time increases when the button is pressed.
• If adjustments are needed during the wash, press the [start/pause] button before making any changes.
• When the button is pressed during washing, the remaining time is displayed.

ashing Programs

Washing Programs	POWER AUTO OFF	Add the laundry	PROGRAM		Add the Detergent
FUZZY(Normal Wash)Used for normal loads, this mode automatically selects the most appropriate conditions and completes the sequence in one operation. The built-in sensor detects the size of the load and the ideal wash power and wash, rinse and spin times are set accordingly		[4A0Q]			[WIDA]Add the appropriate quantity of Detergent as indicated by the WATER LEVEL next to WATER DETERGENT.Or follow the Detergent manufacturer's instructions
WOOLUse this program for washing delicate fabrics such as lingerie and woolens. (wash only "water washable" clothes)Before washing your woolens check the care label for the washing instructions.(wash only water washable clothes)		[DA4A]	[92ZY]	Select the WOOL program on the Control panel.	[24H4]Use neutral Detergent appropriate for the laundry.When washing woolens use a mild Detergent recommend- ed for washing wool.
[75K] QUICK WASHUse this mode when washing lightly soiled clothes for a short time. The highly recommended laundry amount is under 2.0kg.		[67TB]	[95DD]	[ADKA]Select the QUICK WASH program on the Control panel.	Add the appropriate quantity of Detergent as indicated by the WATER LEVEL next to WATER DETERGENT.Or follow the Detergent manufacturer's instructions
[9HA3] JEANSUse Jean program when washing Jeans of different sizes			[TH4G]Spread the jean evenly in the tub	[ITT2]Select the JEANS program on the Control panel.	[27T6]
[9XAT] SMART CLEANINGUse this program to increase rising performance.This would include underwear and baby clothes.If someone has sensitive skin or skin trouble,use this program.		[CX80]	[46TG]	[00H3]Select the SMART* CLEANING / EXTRA* CLEANING program on the Control panel.

START PAUSE	Close the lid	Finish	Caution & Note
			· If water is already in the tub, or putting wet laundry into the tub before starting will increase the WATER LEVEL.· With lightweight bulky loads, WATER LEVEL can be set low.· Changes to Water Temperature (HOT/COLD) and wash level are possible during operation. (refer to page 14)
· The pulsator rotates for 8 seconds to detect the laundry load.· Then the WATER LEVEL and the amount of Detergent to be used will be shown and water will be supplied.	· Water will be supplied for 2 minutes after the start of the wash to supplement the water the laundry has absorbed.	· When the wash program ends, the buzzer will ring for 10 seconds before the Power goes off automatically.
			· When setting the WATER LEVEL manually, do not set to Medium to prevent damage to laundry.· Washing with HOT water may damage the laundry (Water is set to cold automatically). Ensure that the load is under 2kg.· In order to avoid damage to laundry, the spin cycle may appear slow. This also avoids wrinkles and clothing may still contain some water. This is normal.
			· When static pressure of water is more than 2 kg/cm^2 ,the QUICK WASH course will be within 19min.
			* Smart Cleaning : WF-T8519PS / WF-T8519PB * Extra Cleaning : WF-T8019QS / WF-T8019QB / WF-T8019QW / WF-T7519QS / WF-T7519QW / WF-T7519JG / WF-T7519JW / WF-T7549KG / WF-T7239KS / WF-T7269KN

OAK Wash

Use this mode to wash normal clothes or thick and heavy clothes which are excessively dirty. SOAK mode can be used with FUZZY or JEAN or SILENT or FAVORITE program.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2 Press the PROGRAM button to select the washing program.

PROGRAM

- SOAK will not work in WOOL and QUICK WASH, TUB CLEAN Program.

3 Press the WASH button, to select SOAK program.

WASH

- Keep pressing the WASH button until the light turns on 'SOAK' and 'WASH' simultaneously as next image.

• SOAK program only works when socking time is 40, 50 or 60 minutes.

4 Add the laundry and press the START/PAUSE button.

START PAUSE

• The WATER LEVEL will be shown and water will be supplied.

5 Add the Detergent.

6 Close the lid.

• Water will be supplied for 2 minutes after the start of the wash to supplement the absorbed water by the laundry.

Finish

- When the wash program ends, the buzzer will ring for 10 seconds before the Power goes off automatically.

NOTE

• Order of Soak-Wash timing

Soak-Wash

• Select soaking time 40minutes, 50minutes, or 60minutes (including washing time) by pressing the Wash button repeatedly.
• If necessary, select the times of Rinse and the time for Spinning by pressing the Rinse or Spin buttons till you reach the desired times.

AVORITE Wash

Pressing the FAVORITE button allows you to store your FAVORITE wash conditions in the normal cycle memory and then recall it for use at a later time.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2 Select the FAVORITE program.

PROGRAM

3 Select your FAVORITE wash conditions.

• Press the WATER TEMP. button to select wash Water Temperature.
• Press the WATER LEVEL button to select WATER LEVEL.
• Press the WASH button, the RINSE button & the SPIN button to select wash time, rinse time & spin time respectively you want to store.

4 Press the START/PAUSE button to store & start your FAVORITE wash cycle. Power turns off automatically after wash.

START PAUSE

NOTE

To recall your FAVORITE cycle.

1. Press POWER on.
2. Select the FAVORITE cycle by pressing the PROGRAM.
3. Press the START/PAUSE button. Then the wash cycle starts.

ILENT Wash

Use this program to wash quietly in SILENT especially during late night and dawn.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2 Press the PROGRAM button to select SILENT program.

3 Add the laundry into the washing tub.

4 Press the START/PAUSE button.

START PAUSE

5 Add the Detergent and close the lid.

NOTE

• SILENT program takes longer washing time than FUZZY(Normal) program.
  • To reduce noise in spinning, spin rpm is lower than normal spinning rpm. So the laundry has more moisture than normal.

TUB CLEAN

If scrud is allowed to build-up in the machine it can result in stains on your clothes or unpleasant smell in your washer.

Scrud is the way build-up that can occur within any washer when the fabric softener comes into contact with Detergent, and according to particular degree of dirtiness or quality of water to be use, in these case, use this program to clean inner tub and outer tub.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2 Press the PROGRAM button to select the TUB CLEAN program.

PROGRAM

Ex-Large WATER is set automatically.

3 Press the START/PAUSE button. • Left time is displayed.

START PAUSE

4 After 10 minutes of water supplement. Add the oxygenated bleach (about 300m ).

• Do not use Detergent box.
• Do not place any laundry inside tub.

5 Close the lid.

- When the lid is open the machine will not operate, and an alarm signal will remind you to close the lid.

NOTE

• Before using this program remove lint inside lint filter.
• When using this program, do not place any laundry inside tub.
  • This program takes about 3 hours to be completed.
  • After using this program, remove dirt inside filter.
  • After finishing this program, open the lid of wash to remove irritant odor.
• Do not pour bleach into the tub directly. It might cause damage the tub.
• Do not leave diluted oxygenated bleach inside tub for long time. It rusts the tub must drain the remained diluted oxygenated water out.
• Use this program once for every month.
• Do not use this program repeatedly.

IR DRY

AIR DRY for your laundry.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2 Press the AIR DRY button to select the desired timing.

3 Press the START/PAUSE button.

START PAUSE

4 Closed the lid.

NOTE

- Select "Air Dry" 30min' TUB DRY

-Use this mode to keep inner tub from getting moldy caused by remaining moisture.

- Do not place any laundry inside tub.

- Use this mode once a week.

Caution) For better performance, put drain hose down to the floor so that water inside will be completely drained out.

- Select "Air Dry" above 1 hour

- Use this mode to reduce the drying time by minimizing remaining moisture on the laundry.

- In general, this is very effective on synthetic items(100% polyester).

- Do place laundry which is evenly distributed(Under 2kg).

- For normal clothes : Select 1 hour

- For synthetic items(100% polyester): Select 2 hours or 3 hours(on some models)

ption Washing

When you only need the Wash, Wash/Rinse or Rinse cycles, these can be set manually.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER AUTO OFF

2	Only Wash	Only Rinse	Only Spin
	Press theWASHbutton to select the desired timing.WASH	Press the RINSE button to select the desired no. of rinse cycles.RINSE	Press theSPINbutton to select the desired times of spin.SPIN
	Only Wash,Rinse	Only Rinse,Spin	Only Drain
	Press theWASHbutton to select the desired timing.WASHPress theRINSEbutton to select the desired times of rinse.RINSEYou can use this option for preventing wrinkles of laundry	Press theRINSEbutton to select the desired times of rinse.RINSEPress theSPINbutton to select the desired times of spin.SPIN	When you want to only drain, press SPIN button.SPINThen press START/PAUSE button.START PAUSEWait until the water in the washing tub drains completely and then press POWER button to finish the activity.

3 Press the WATER LEVEL button, to control the water level according to the amount of laundry. If you do not choose anything, it is set the middle

water level automatically.

WATER LEVEL

4 Add the laundry into the washing tub.

5 Press the START/PAUSE button.

START PAUSE

6 Add the detergent and close the lid.

NOTE

• When a Wash, Wash/Rinse or Rinse only option is selected, after the wash is completed the water will not be drained off. If you wish to drain the water, press SPIN button and wait until the water in the tub has drained completely. Then press the START/PAUSE button.
• If you do not specify the water level, then Medium will be automatically selected.
• If only Rinse is selected, the process will start from Water Supply.

ELAY START (RESERVATION) Wash

DELAY START (RESERVATION) Wash is used to delay the finishing time of the operation.

The hours to be delayed can be set by the user accordingly.

The time on the display is the finishing time, not the start time.

1 Press the POWER (AUTO OFF) button to turn power on.

POWER

AUTO OFF

2 Press the PROGRAM button to select the washing program.

PROGRAM

- Select the program for laundry on the Control panel. This program will not work in WOOL and TUB CLEAN Program.

3 Press the DELAY START (RESERVATION) button.

DELAY

(For models - WF-T7519JG / WF-T7519JW /

- The light will 'DELAY' turn on and 'TIME LEFT' will be marked.

- Press the button repeatedly to set the desired finishing time. For example, To finish washing in 9 hours from now, by make the number 9:00 pressing the DELAY START (RESERVATION) button repeatedly.

4 Add the laundry and press the START/PAUSE button.

START

PAUSE

- When you press the START/PAUSE button the light will blink.

5 Add the Detergent.

6 Close the lid.

• Water will be supplied for 2 minutes after the start of the wash to supplement the water the laundry has absorbed.

Finish

• The washing will be finished according to the delayed time.

NOTE

• Finishing time can be delayed from 3\~48 hours. Delaying from 3\~12 hours can be done in 1 hour time intervals and from 12\~48 hours in 2 hour time intervals.
• If the lid is open, the machine will not work, and an alarm signal will alarm to remind you to close the lid.
• To select washing time, rinsing times, spinning time, water level, hot/cold or wash power manually, press the DELAY START (RESERVATION) button and select the desired option. Then press the START/PAUSE button.
• When the laundry cannot be taken out immediately after the wash program ends, it is better to omit the spinning program. (The laundry will be wrinkled if left for a long time after spinning.)

ther Useful Functions

Child Lock Function

If you want to lock all the keys to prevent settings from being changed by a child, you can use the child lock option.

How to Lock

1 Press the POWER (AUTO OFF) button.

POWER AUTO OFF

- Turn Power on.

2 Press the START/PAUSE button to start washing.

START PAUSE

• After all washing conditions are set according to the manual.

3 Press both the RINSE button and the SPIN button simultaneously.

DELAY START TIME MFT 88 MOUR MPN. WASH RINSE SPIN

- During the wash program, all the buttons are locked until washing is completed or it is child-lock function is deactivated manually.

How to Unlock

If you want to unlock during wash, press both the RINSE and the SPIN button simultaneously again.

NOTE

- " [L]" & the remaining time are alternatively shown on the display while they are locked.

Mute Option

If you want to use the washing machine without alarm signal sounds, press both the WASH and SPIN buttons simultaneously.

To make buzzer work, press both the WASH and SPIN buttons simultaneously one more time.

Seeing Remaining Time

To see the remaining time for each process, first press START/PAUSE button and then press one of the WASH, RINSE and SPIN buttons.

D lacing, Leveling and Installation

Please ensure that transit restraint has been removed before operating your machine.

Improper installation of the washer may cause noise and malfunctioning.

Note : 1. The ventilating openings in the base area must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.

1. Install the washing machine on a level and firm surface, any tilt should be less than 4°.

How to adjust leveling

Adjustable leg

Turn the adjustable legs to set the washer horizontal (Both the front legs).

(2 adjustable legs are optional, some models have provision for 1 adjustable leg)

★ Don't add anything under back side legs.

Distance between drain hose and the wall

Distance between drain hose and the wall should be more than 10cm, and the distance between the other part or the rear part and the wall should be more than 2 cm.

More than 2cm More than 2cm More than 10cm

1 Installation area

Install the washer on flat and firm surface.

Simple line drawing of a cartoon character standing on a textured surface (no text or symbols)

2 Checking level

The Basement is not flat, fill the water just touching the Pulsator and see uniform distribution. If not, adjust the legs as shown in the figure.

Two identical diagrams of a mechanical fan or vent device with internal blades and mounting holes (no text or symbols)

Top View

3 Checking Proper placement

Press the corners of the machine diagonally as shown in the figure, If any movement is observed, adjust the legs for proper leveling.

Anti-rat cover installation

Insert the anti rat cover firmly from back side or Front side of washing machine and screw it.

High Base

SETTING SCREW Anti-Rat Cover

Low Base

Screws Anti Hot Cover Adjustable Leg

Moving of the Machine

Casters are provided for easy translocation of your machine

* Grip the machines properly as shown in fig.
* Tilt the machine towards your side at a angle 45^ 55^ .

Casters

own in fig. at a angle

Note: * Be careful that you should not drop the machine.

* Never move the machine on casters when there is load inside.
* Applicable only for WF-T8519PS, WF-T8519PB, WF-T8019QS,
WF-T8019QB, WF-T8019QW, WF-T7519QS, WF-T7519QW,

WF-T7519JG, WF-T7519JW, WF-T7549KG

onnecting Water Supply Hose

Normal Type

(Normal tap without thread & one touch type inlet hose.)

1 Separate Middle connector from Water Supply Hose

Separate Middle connector from the Water Supply Hose by pulling the Pressing Rod and the Pressing Handle that is attached to the Water Supply Hose

Middle connector

Fixed Sticker Pressing Handle Pressing Rod

Water Supply Hose

2 Loosen the fixed nuts to connect the connector to the tap

Untighten thescrew of theconnector so that the tap can be placed in the middle.

Rubber packing screw Fixed sticker

NOTE

In case tap is too large.

If the tap diameter is too large or is square, untighten the 4 screws and remove the guide plate. Then follow step1.

Guide plate Rubber packing

3 Fixing Connectors to the Tap

Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws.

Connector

4 Fixing Upper Connector and Middle Connector

Remove the fixed sticker in between thUpper and Middle Connectors. Tighten the connectors by holding one connector and twist middle connector to the right.

Connector Middle Connector Fixed sticker Connector Middle Connector

5 Connecting Middle Connector and Water Supply Hose

Press down the pressing rod of the Water Supply Hose which was separated from middle connector (refer to Step1) and then join it to the middle connector.

Water Supply Hose

Pressing rod

e Pressi

Pressing handle

6 Check for water leakage

After connecting the hose, open the tap to check for any water leakage.

If the connection leaks, close the tap and start again from step 1.

If you skip step 1, water leakage may occur.

Illustration of a faucet with water droplets falling (no text or symbols)

onnecting Drain Hose

Before connecting Drain Hose, check your Drain Hose model and choose the correct instructions.

How to connect the drain hose

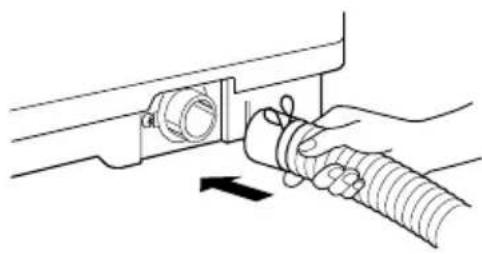

1 Insert the drain hose to the connecting area at the body.

Illustration of a hand holding a coiled cable or hose with a valve, no text or symbols present

1. Press the hose clip.
2. While pressing, push the hose towards the body.
3. Release the hose clip after pushing the hose.

Line drawing of a hand holding a coiled pipe or hose component (no text or symbols)

Less than 2m Less than 6cm

Less than 10cm

The hose is placed over a doorsill.

Make sure that the hose is not crushed between the wall and the washer

The hose is clogged by alien substances.

Pure mechanical diagram showing a beam with a cross symbol, no text or labels present

Diagram of a pipe being inserted into a container with a cross mark indicating pressure or displacement (no text or symbols present)

Make sure that the hose is not crushed.

Avoid submerging the end of hose.

Less than 3m

Extension hose is used.

rounding Method

Earth wire should be connected.

If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage.

Grounding Method with Ground insertspace Terminal

If the AC current outlet hasa ground terminal, then separate grounding is not required.

Ground terminal Grounding is not needed

Concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Other Grounding Method

Burying Copper Plate

Connect the Ground Wire to a Ground Copper Plate and bury it more than 75cm in the ground.

Ground Wire 75cm Ground Copper Plate

Using Ground Wire

Connect the ground Wire to the socket provided exclusively for Grounding.

Ground Wire

Using a Short Circuit Breaker

If grounding methods described above are not possible, a separate circuit breaker should be employed and installed by a qualified electrician

Short-circuit breaker

leaning and Maintenance

Cold water washing

- If you always use COLD water, we recommend that a WARM or HOT wash be used at a regular intervals e.g. every 5th wash should be at least a WARM one.

When you have finished

- Turn off taps to prevent the chance of flooding should a hose burst. - Always unplug the power cord after use.

When water supply into the tub is not clean or the filter is clogged with particles (such as sand), clean the filter in the inlet valve occasionally.

(The figure of power cord and water tap may vary according to the country)

To Clean the Filter in the Inlet Valve

1 Close the tap before turning off the power. Select both HOT/COLD and then press the [START/PAUSE] button to remove water from the machine completely.

2 Turn off the power before pulling out the cord.

3 After removing the water supply hose pull out the filter. Then use a brush to clean the filter.

4 Replace the filter after cleaning it.

NOTE

- Before cleaning the filter, the impurities in the water supply hose should be removed.

To Clean the Magic Filter

Illustration of a hand holding a circular object with directional arrows, no text or symbols present

Illustration of hands washing a bowl with a tool, no text or symbols present

NOTE

- If the magic filter is damaged, purchase a new one from LG Authorised Service Center.

To Clean the Lint Filter

1 Press and then pull forward the lint filter from the washing tub to the arrow direction.

Press & Pull

2 Turn inside out and wash it to remove dirt.

Illustration of two hands washing a large bowl with a cloth (no text or symbols)

3 Insert it back into same place and push until click sound heard.

Push

- When the lint filter is worn out, etc., contact a LG Service Center for a new one.

cleaning and Maintenance

When there is a fear of freezing

• Close the water taps and remove the Water Supply Hose.
• Remove the water which remains in the water supply.
• Lower the drain hose and drain the water in the bowl and the drain hose by spinning.

If frozen

• Remove the water supply hose, and immerse it in HOT water at approx.. 40 C.
• Pour approx.. 2 liters of HOT water at approx.. 40C , into the bowl and let it stand for 10 minutes.
• Connect the water supply hose to the water tap and confirm that the washing machine performs the supply and drainage of water.

Wash Inner-tub Leave the lid open after washing to allow moisture to evaporate. If you want to clean the inner-tub use a clean soft cloth dampened with liquid Detergent, then rinse. (Do not use harsh or gritty cleaners.)

Inlet Hoses Hoses connecting washer to faucet should be replaced every 5 years.

Exterior Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

Long Vacations Be sure water supply is shut off at faucets. Drainall water from hoses if weather will be below freezing.

Cleaning the Insideof your Washer

If you use fabric softener or do regular COLD water washing, it is very important that you occasionally clean the inside of your washer.

• Fill your washer with HOT water.
• Add about two cups of a powdered Detergent that contains phosphate.
• Let it operate for several minutes.
• Stop the washer, open the lid and leave it to soak overnight.
  • After soaking, drain the washer and run it through a normal cycle.

Or use TUB CLEAN PROGRAM periodically.

We do not recommend that you wash clothes during this procedure.

Products that might damage your washing machine

• Concentrated bleaches and diaper sanitizer will cause damage to the paintwork and components of your washer.
• Hydrocarbon solvents i.e. petrol, paint thinners and lacquer thinners, etc. can dissolve plastic and blister paint (Be careful when washing garments stained with these solvents as they are flammable DO NOT put them in washer or dryer.)
• Some pretreatment sprays or liquids can damage your washer's control panel.
• Use of dyes in your washer may cause staining of the plastic components. The dye will not damage the machine but we suggest you thoroughly clean your washer afterwards. We do not recommend the use of dye strippers in your washer.
• Do not use your washer lid as a work surface.

ommon washing problems

Many washing problems involve poor soil & stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these instructions.

WASH PROBLEM

Problems	Possible Causes	Solutions & PreventiveMeasures
Poor soil removal	Not enough DetergentWash Water Temperature too low.Overloading the washerIncorrect wash cycleIncorrect sortingDo not pretreat stain	Use correct amount of Detergent for load size, amount of soil and water HardnessUse WARM or HOT water for normal soil.Different Water Temperature may be required according to soil type.(refer to page 10)Reduce load size.Wash with JEANS or SOAK & JEANS wash cycle for heavy soiled laundry.Separate heavily soiled items from lightly soiled ones.Pretreat stain and heavy soil according to directions shown on page 9.
Blue Stains	Undiluted fabric softener dispensed directly onto fabric	Rub the stain with bar soap. Wash.Do not overfill fabric softener dispenser and do not pour liquid fabric softener directly onto fabric.See page 12 for more instructions.
Black or gray marks on clothes	A buildup caused by the interaction of fabric softener and Detergent can flake off and mark clothesNot enough Detergent	Keep the recommendations against Scrud(waxy buildup).(refer to scrud page12.)Use correct amount of Detergent for load size, amount of soil and water Hardness.
Yellow or brown rust stains	Iron or manganese in water supply, water pipes, or water heater	To restore discolored load of whites, use rust remover safe for fabric.Install nonprecipitating water softener or an iron filter in your water supply system for an ongoing problem.Before washing, run water for a few minutes to clear lines.
Lint	Incorrect sortingTissues left in pocketOverloading the washer	Wash lint giverseg towels, flannelettesheets, separately from lint collectoreg synthetic fabrics and remove tissuesin pockets beforewash. See page 9 for sorting and caring before loading.Do not overload thewasher
Residue or Detergent	Overloading the washerUndissolved DetergentUse too much Detergent	Do not overload thewasher.Some Detergents need to be pre-dissolved, check the Detergent instructions. Try pre-dissolving the Detergent.IncreaseWater Temperature usingHOT water safe for fabric.Use proper amount of Detergent.
Holes, tears, or snags	Incorrect use of chlorine bleach.Unfastened zippers, hooks, bucklesRibs, tears and broken threadsOverloading the washerDegradation of fabric	Never pour chlorine bleach directly on fabric.See page 11 for adding liquid bleach.Fasten zippers, hooks, and buckles.Remove objects in pockets. See page 9 for caring before loading.Do not overload thewasher.

roubleshooting

Before calling for service, check the problem against the list bellows.

Symptom Error	Message	Check up
Water Supply Failure		• Is the water tap shut off?• Is the water supply cut off?• Is the tap or water supply hose frozen ?• Is the water pressure low or is the filter of the inlet valve clogged with impurities?• Is the Hot hoseconnected to cold?• Is the Cold hoseconnected to hot?
Drainage Failure		• Is the drain hose positioned correctly?• Is the drain hose bent or placed too high?• Is the internal part of the hose or drain pump (only pump model) clogged with impurities?• Check if electric power has gone off.
Spin Failure		• Is the laundry evenly balanced?• Is the washing machine placed on a flat surface?
Door(Lid) Open		• Is the lid closed?
Internal sensing failure		• Please call your nearest LG Electronics service center for help.
Power failure
Overflow failure

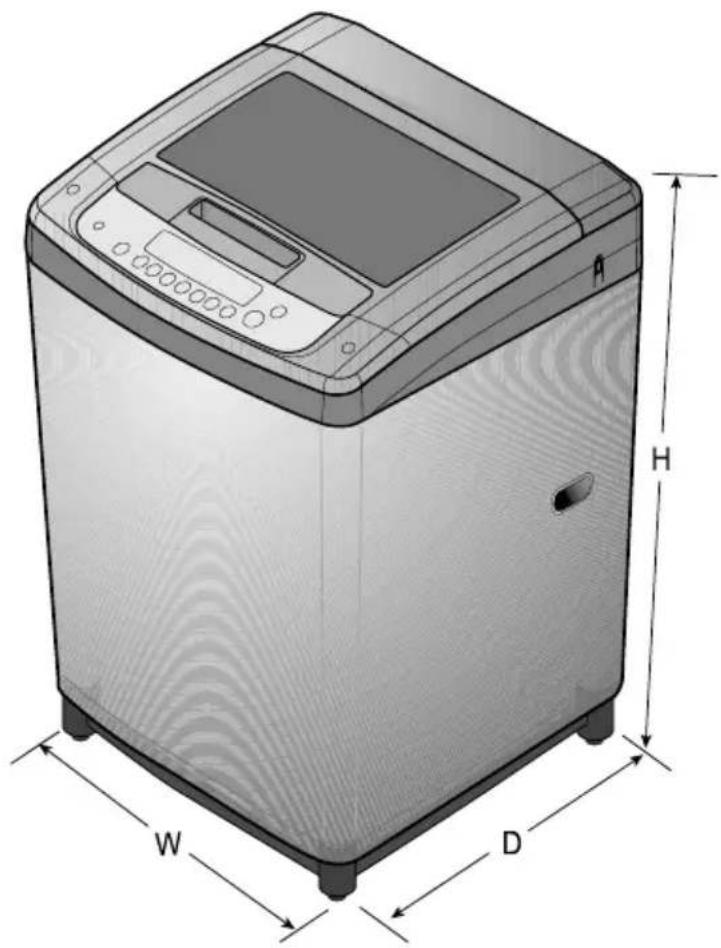

Specification

W D H

Model	(A) WF-T8519PS / WF-T8519PB / WF-T8019QS / WF-T8019QB / WF-T8019QW / WF-T7519QS / WF-T7519QW / WF-T7519JG / WF-T7519JW / WF-T7549KG(B) WF-T7239KS / WF-T7269KN
Size	(A) 540(W)x540(D)x890(H)(B) 540(W)x540(D)x815(H)
Weight	(A) 33.5kg(B) 31.5kg
Water tap pressure	30 - 800 kPa (0.3 - 8.0 kgf/cm2)

* In our continuing effort to improve the quality of our appliances, it may be necessary to make changes to the appliance without revising this manual.

For any further information, please contact LGEIL Branches

BRANCH BRANCH OFFICE ADDRESS PHONE NO. / FAX NO.

Ahmedabad	LGEIL, 233-234, Platinum Plaza, Nr. Judges Bunglow Cross Road, Bodakdev, Ahmedabad-54	40040013-14
Asansol	LGEIL, Block-E, Ist Floor, P C Chattarjee Market, Rambandhu Tala, GT Road (E) Asansol-713303	3292009/3292010 (Fax) 2215170
Aurangabad	LGEIL, 302 CIDCO No. 3, Opp. Hotel Ramgiri, Jalna Road, Aurangabad-431003	5625705 / (Fax) 2474055/32095436/32095437/32095438
Bangalore	LGEIL, No. 914, 2nd Floor, Shri Venkateshwara Complex, Opp. IBP Petrol Bunk, 80ft Road, 6th Block, Koramangala - Banglore - 560095	41145145/41144750/41144751
Bhopal	LG Electronics India Private Limited, 2nd Floor, Alankar Complex, Plot No. 10, M.P. Nagar, Zone-II, Bhopal-462011	4262847/4229861 (Fax) 4262848
Bhubaneshwar	LGEIL, Plot No. 02,1st Flr., Bapuji Nagar, Bhubaneshwar-751009	2531430, 2534280
Calcutta	LGEIL, 1, Ho-Chi-Min-Sarani, 6th Floor, Metro Towers, Calcutta-700071	22883254 (51) Fax
Chandigarh	LGEIL, SCO No. 142-143, 3rd Floor, Sector-34A, Chandigarh-160002	5087389\90 (Fax) 5089107
Chennai	LGEIL, AA11, 2nd Avenue, Fatima Tower, Anna Nagar West, Chennai-600040	65510501~04 (Fax) 26203506
Cochin	LGEIL, 40/1270, Vasudeva Buildings, T.D. Road, Ernakulam Cochin-682011	2369765,2369743, 2370744, 4027444, 4027555, 2360977 (Fax)
Coimbatore	LGEIL, 250A, Sanganur Main Road, Kannappa Nagar, Coimbatore-641027	2332197, 2332195
Delhi	LGEIL, A-27, Mohan Co-operative, Industrial Estate, New Delhi	26991412/11/13 (Fax) 26991410
Dehradun	LGEIL, M-22, Commercial Motors Compound, Mohabewala Indl. Area, Delhi-Saharan Road, Dehradun (Uttarakhand)	2644213/283
Gurgaon	LGEIL, lInd Flr, A Block, Centre Point Bldg, Sushant Lok , Ph-l, Gurgaon-122001	4047461- 62 - 63/4272867, 4047460 (Fax)
Ghaziabad	LGEIL, J-10, RDC Rajnagar, Ghaziabad - 201001	9811354152/3/64/65/266
Guwahati	LGEIL, Shantineer Bhawan, C K Aggarwal Path, Chenikurthi, Guwahati-781003	2663895/2666958/2665983/2668984 (Telefax)
Hyderabad	LGEIL, 1st Floor, Survey No. 54, Pulla Reddy Building, Vikarampuri, Main Road, Kharkhana, Secunderabad-500009	27207504, 05, 06/27204094 27201462 (Fax)
Hubli	LGEIL, 1 Floor, Above Bellad & Co., Near Bannigida Busstop, Gokul Road, Hubli-580030	4250251/52
Indore	LGEIL, 3rd flr., 304 Bansi Trade Centre, 581/5 M.G. Road, Indore-452003	4065523~24, 4082157 (Fax)
Jaipur	LGEIL, B-71, Sahakar Marg, Lal Kothi Scheme, Jaipur-302015	5111118/5113028/5105392, 5111540 (Fax)
Jammu	LGEIL, Plot No. 52, Yard No. 6,Transport Nagar, Narwal, Jammu-180006	2477420, 2477419, 2474396, 2474384
Jodhpur	LGEIL, 22(1-A)/21(2-B)/2, RIICO Heavy Industrial Area, Jodhpur-342003	2742384, 392 / 5120030 (Fax)
Karnal	LG Electronics India Pvt Ltd, Super Tyre Building, Near New Anaj Mandi, Opp. New World Restauarnt, G.T. Road Karnal, Haryana	2219201,2219202 (Telefax)
Lucknow	LGEIL, B-537, Hari Kunj, Keshav Nagar, Sitapur Road, Lucknow-226020	2757538,39,2759121 (Fax) 2757559
Ludhiana	LGEIL, Village Jhande, Near Badowal Railway Station, Opp. Ferozpur Road, Ludhiana.	2804412 - 19
Mumbai(N & S)	LGEIL, Trade Star, 4th Floor, A Wing, J.B. Nagar, Andheri Kurla Road, Andheri (E) Mumbai-400059	28352882-2887 / 28352889 (Fax)
Nagpur	LGEIL, 5A, Road No.13, Behind Msrtc Workshop, MIDC Hinga, Nagpur-440016	235120, 235122, Fax : 234401
Patna	LGEIL, 2nd Floor, Ankit Chandra Deep Complex, Bander Bageecha, Near Samrat Hotel, Patna-800001.	3298714, 2541845 (Fax)
Pune	LGEIL, 105/106, Premium Point, GM Road, Opp. Modern High School, Ilrd Floor, Shivaji Marg, Pune-411005	66030100,732/733/734/735, 66030740 (Fax)
Rajkot	LGEIL, Sanskruti Apartment, Opp. Dr. Ambedkar Bhawan, Near Atithi Chowk, Akshar Road , Rajkot - 360004	2481499,2467692 (Fax)
Raipur	613 to 616 , 6th Floor, Offizo, Magneto - The Mall, GE Road, Raipur - 492001	4053171/4037470 (Fax) 4038426/10/11
Ranchi	LGEIL, 402, Commerce Tower, Opp. Gel Church Complex, Main Road, Ranchi	3294026, 2331815
Surat	LGEIL, 1001-1004, Ascon Plaza, lInd Flr, Anand Mahal Road, Behind Bhulka Bhavan School, Adajan, Surat-395009	2730982/83, 2730984 (Fax)
Thane	LGEIL, Gall Shop No - 206,207, 2nd Floor, Sai Plaza , Above Vijay Sales Opp. Cine Wonder Mall, Ghodbunder Road , Thane(West)-400607	25472633/2637 25472602(Fax)
Varanasi	LGEIL, Pama Complex, DLW, Lahartara Road, Shivdaspur, Manduadih, Varanasi, UP-221002	2373432/36/37
Vijaywada	LGEIL, Door No. 32-2/1-7, Ratnamamba Street, Prajasakti Nagar, Vijaywada-520010, Andhra Pradesh	2497283/87, (Fax) 2497284
Warangal	LGEIL, House No. 1-8-598/1, First Floor, Beside HDFC Bank, Nakkalgutta, Hanamakonda-506001 (Warangal)	2551453
Kozhikode	3/568, Thripuri Building, Wayanadu Road, First Floor,Near K.S.F.E, East Nadakkavu, Calicut-673011	2366755, 2366756, 2366678, (Fax) 2766678

LG Electronics
