SONIFEX Redbox

Redbox

User Handbook No 2

Matching Converters, Distribution Amplifiers & Headphone Amplifiers

RB-UL1 Single stereo unbalanced to balanced converter

RB-UL2 Dual stereo unbalanced to balanced converter

RB-UL4 Quad stereo unbalanced to balanced converter

RB-LU4 Quad stereo balanced to unbalanced converter

RB-BL2 Single stereo bi-directional matching converter

RB-BL4 Dual stereo bi-directional matching converter

RB-PA2 Dual stereo RIAA phono amplifier

RB-LI2 Stereo line isolation unit

RB-PLI6 6 way mono passive line isolation unit

RB-DA6 6 way stereo distribution amplifier

RB-DA6G 6 way stereo distribution amplifier with output gain control

RB-DA4x5 4 input, 4 x 5 output distribution amplifier/mixer

RB-DDA6A 6 way stereo AES/EBU digital distribution amplifier

RB-DDA6S 6 way stereo S/PDIF digital distribution amplifier

RB-DDA6W 6 way word clock digital distribution amplifier

RB-HD1 Stereo headphone amplifier

RB-HD2 Dual stereo headphone amplifier

RB-HD6 6 way stereo headphone distribution amplifier

RB-DHD6 Digital 6 way stereo headphone distribution amplifier

Abstract red and yellow gradient background with vertical white streaks (no text or symbols)

Revision 2.03 March, 2008

©Sonifex Ltd, 2000-8

All Rights Reserved

Sonifex Ltd, 61, Station Road, Irthlingborough,

Northants, NN9 5QE, England.

Tel: [phone]

Fax : [phone]

Email : [e-mail] or [e-mail]

Web : http://www.sonifex.co.uk

Information in this document is subject to change without notice and does not represent a commitment on the part of Sonifex Ltd. Sonifex Ltd shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, for any purpose other than the purchaser's personal use, without the express written permission of Sonifex Ltd.

Unless otherwise noted, all names of companies, products and persons contained herein are part of a completely fictitious adaptation and are designed solely to document the use of Sonifex products.

Warranty i

Warranty and Liability - important the purchaser is advised to read this clause i Unpacking the Redbox ii Returning the Warranty Card iii

Safety Information iii

Safety of Mains Operated Equipment iii Voltage Setting Checks iii Fuse Rating iii Power Cable and Connection iv Ordering the Correct Mains Lead iv

Installation Information iv

Atmosphere iv Electromagnetic Radiation iv Fitting Redboxes iv WEEE & RoHS Directives - Sonifex Statement vi

MATCHING CONVERTERS

1 RB-UL1 Single, RB-UL2 Dual & RB-UL4 Quad Stereo Unbalanced To Balanced Converters 1

Introduction 1
System Block Diagram 1
Rear Panel Connections and Operation 2
RCA Phono Inputs (Left and Right) 3
Outputs (Left and Right) 3
Output Level Adjustment 3
Technical Specifications 4

2 RB-LU4 Quad Stereo Balanced To Unbalanced Converter 5 Introduction 5 System Block Diagram 6 Rear Panel Connections and Operation 7 Inputs 1-4 (Left and Right) 7 RCA Phono Outputs 1-4 (Left and Right) 7 Output Level Adjustment 7 Technical Specifications 8

3 RB-BL2 Single & RB-BL4 Dual Bi-Directional Matching Converter 9 Introduction 9 System Block Diagram 10 Rear Panel Connections and Operation 10 Balanced to Unbalanced Connections 11 Inputs 1 (& 3) (Left & Right) 11 RCA Phono Outputs 1 (&3) (Left & Right) 11 Output Level Adjustment 11 Unbalanced to Balanced Connections 11 RCA Phono Inputs 2 (& 4) (Left & Right) 11 Outputs 2 (& 4) (Left & Right) 11 Technical Specifications 12

Abstract red and white pattern with vertical streaks (no text or symbols)

Abstract red and orange gradient background with vertical white lines (no text or symbols)

4 RB-PA2 Dual Stereo RIAA Phono Amplifier 13

Introduction 13

System Block Diagram 13

Rear Panel Connections and Operation 14

RCA Phono Inputs (Left and Right) 14

Outputs (Left and Right) 14

Output Level Adjustment 14

Pick-up Grounding Post 14

Technical Specifications 15

5 RB-LI2 Stereo Line Isolation Unit 16

Introduction 16

System Block Diagram 16

Rear Panel Connections and Operation 17

Inputs 17

Isolated Outputs 17

Loop Outputs 17

Output Level Adjustment 17

Internal Jumpers 18

Technical Specifications 18

6 RB-PLI6 6 Way Mono Passive Line Isolation Unit 19

Introduction 19

System Block Diagram 19

Rear Panel Connections and Operation 20

Inputs 20

Outputs 20

Ground-link Internal Jumpers 20

Technical Specifications 21

AUDIO DISTRIBUTION AMPLIFIERS

7 RB-DA6 & RB-DA6G 6 Way Stereo Distribution Amplifier 22

Introduction 22

System Block Diagram 23

Connections and Operation 24

Inputs (Left & Right) 24

Stereo Outputs 1-6 (Mono Outputs 1-12) 24

Input Gain Control (RB-DA6) 24

Output Gain Control (RB-DA6G) 24

Stereo/Mono Operation 25

Technical Specifications 25

8 RB-DA4x5 4 Input 4 x 5 Output Distribution Amplifier/Mixer 26

Introduction 26

System Block Diagram 27

Rear Panel Connections and Operation 27

Audio Inputs 1-4 27 D-Type Audio Output Groups 1-4 28

Monitor LEDs 28

Input Level Adjustment 28

Output Level Adjustment 28

Routing Selection 28

Alignment Test Tone 29

Technical Specifications 29

9 RB-DDA6A 6 Way Stereo AES/EBU Digital Distribution Amplifier and RB-DDA6S 6 Way Stereo S/PDIF Digital Distribution Amplifier 3

0

Introduction 30

System Block Diagrams 31-32

Rear Panel Connections and Operations 33

AES/EBU Input 33

AES/EBU Outputs 33

S/PDIF Input 33

S/PDIF Outputs 33

Technical Specifications 34

10 RB-DDA6W 6 Way Word Clock Distribution Amplifier 35

Introduction 35

System Block Diagram 36

Rear Panel Connections and Operations 37

Word Clock Input 37

Word Clock Outputs 37

Technical Specifications 37

HEADPHONE DISTRIBUTION AMPLIFIERS

11 RB-HD1 Stereo Headphone Amplifier & RB-HD2 Dual Headphone Amplifier

38

Introduction 38

System Block Diagrams 39

Front Panel Connections and Controls 40

Stereo Outputs 1-2 (Mono Outputs1-2) 40

Volume Level Control 40

Stereo Outputs 1-2 (Mono Outputs 1-2) 40

Channel Volume Controls 40

Rear Panel Connections and Operation 41

Main Stereo Inputs (Left and Right) 41

Stereo Input Gain Adjustment (RB-HD1) 41

Stereo/Mono Operation 42

Mono Mix Input (RB-HD1) 42

Mono Mix Input Gain Adjustment (RB-HD1) 42

Local/Remote Control Operation (RB-HD1) 42

Remote Connector (RB-HD1) 42

Technical Specifications 43

12 RB-HD6 6 Way Headphone Distribution Amplifier 44

Introduction 44

System Block Diagram 45

Rear Panel Connections and Operation 46

Stereo Input (Left and Right) 46

Stereo/Mono Operation 46

Channel Insertion Inputs/Parallel Outputs 46

Removing the Equipment Covers 46

Configuring Insert Inputs/Parallel Outputs 47

Front Panel Connections and Controls 47

Stereo Outputs 1-6 (Mono Outputs 1-6) 47

Master Level Control 48

Channel Volume Controls 48

Technical Specifications 48

Abstract red and white pattern with no discernible text or symbols

Abstract red and orange gradient background with blurred vertical streaks (no text or symbols)

13 RB-DHD6 Digital 6 Way Headphone Distribution Amplifier 49

Introduction 49

System Block Diagram 49

Front Panel Indicators & Controls 49

Sync & Power Indicator 50

Headphone Outputs 50

Volume Control 50

Rear Panel Connections and Operation 50

AES/EBU Input 50

S/PDIF Input 50

Status Select Switches 50

Digital Input Select Button 51

Technical Specifications 51

14 Connectors & Cabling 52

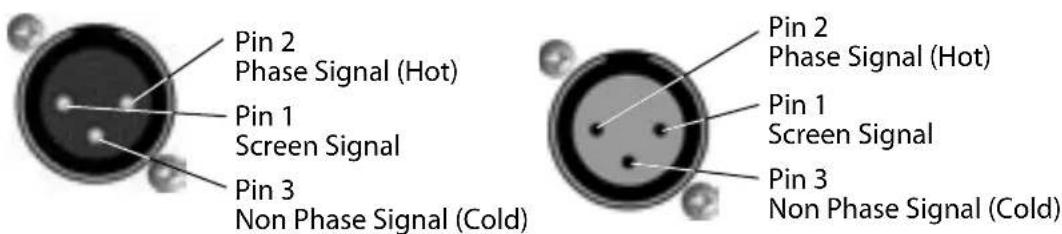

XLR 3 Pin Connectors 52

RCA Phono Connectors 52

1/4" Jack Connector 52

D-Type Connectors 53

15 Glossary 54

Figures

Fig A: Packing List. ii

Fig B: Mains Cable Wire Colours iv

Fig C: Mains Lead Table. iv

Fig D: RB-RK1Small Redbox Front Rack-mount Kit. v

Fig E: RB-RK2 Small Redbox Rear Rack-mount Kit. v

Fig F: RB-RK3 Large Redbox Rear Rack-mount Kit. v

Fig 1-1: RB-UL1 & RB-UL2 Front Panel. 1

Fig 1-2: RB-UL4 Front Panel. 1

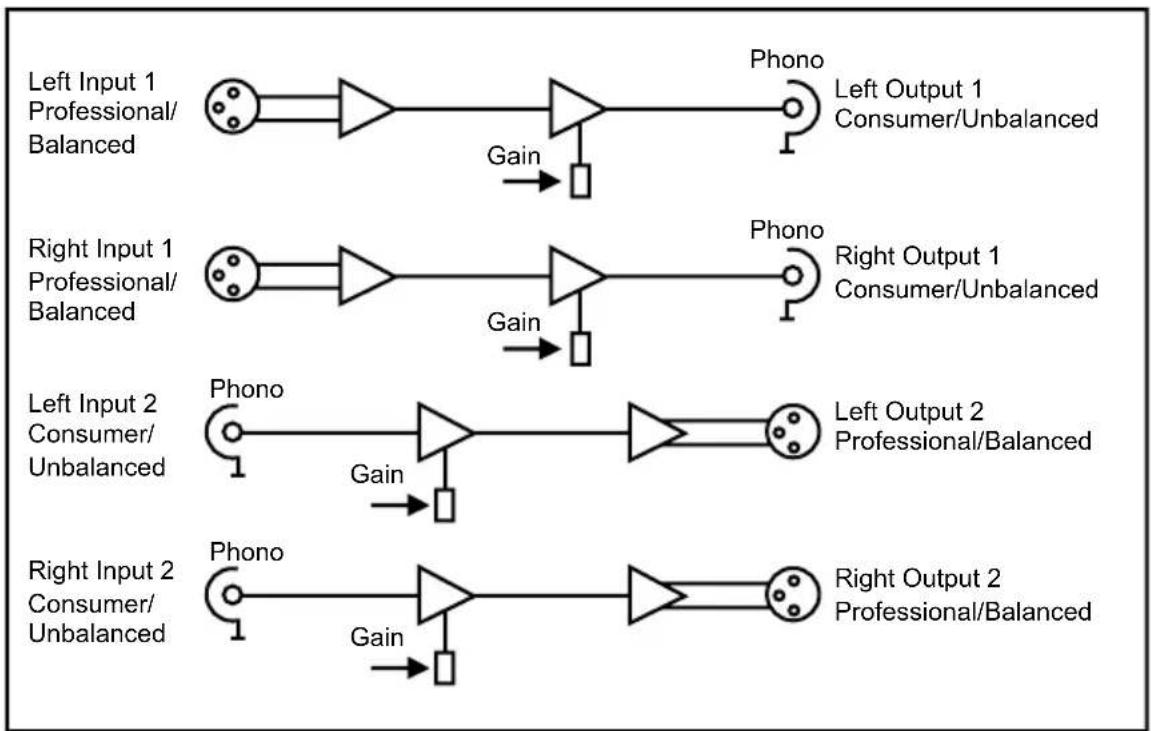

Fig 1-3: Block Diagram For a Single Channel (x2 for RB-UL2, x4 for RB-UL4). 1

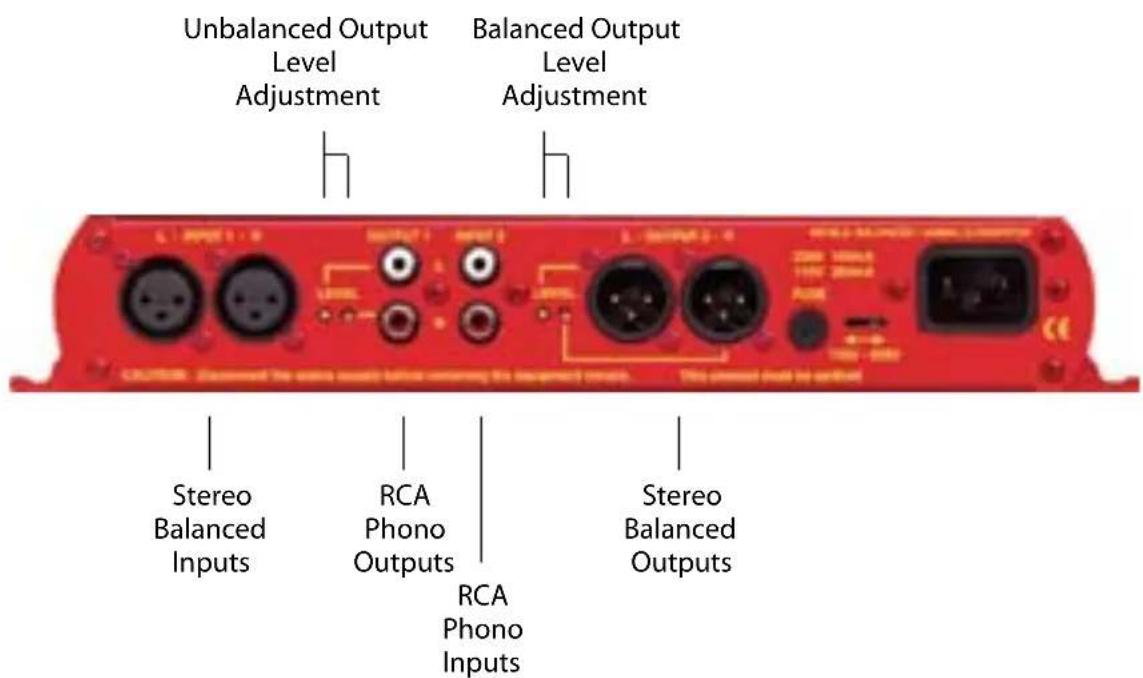

Fig 1-4: RB-UL1 Rear Panel. 2

Fig 1-5: RB-UL2 Rear Panel. 2

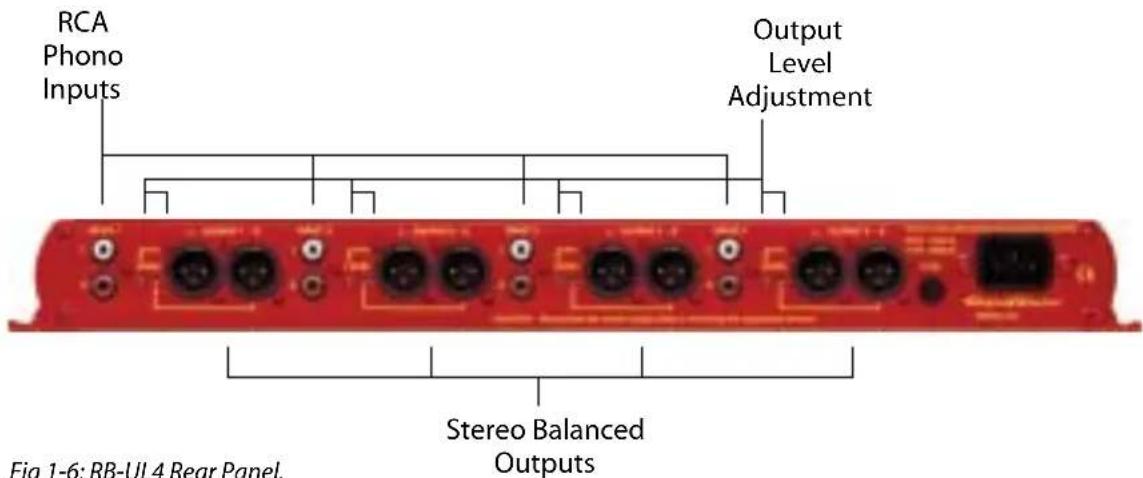

Fig 1-6: RB-UL4 Rear Panel. 2

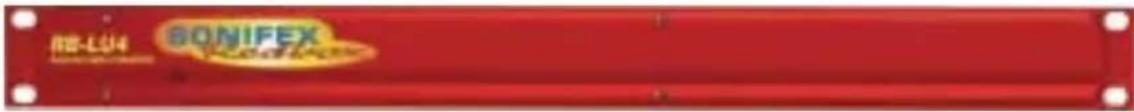

Fig 2-1: RB-LU4 Front Panel. 5

Fig 2-2: RB-LU4 Block Diagram. 6

Fig 2-3: RB-LU4 Rear Panel. 7

Fig 3-1: RB-BL2 Front Panel. 9

Fig 3-2: RB-BL4 Front Panel. 9

Fig 3-3: RB-BL2/BL4 Block Diagram Single Stereo Channel. 10

Fig 3-4: RB-BL2 Rear Panel. 10

Fig 3-5: RB-BL4 Rear Panel. 11

Fig 4-1: RB-PA2 Front Panel. 13

Fig 4-2: RB-PA2 Block Diagram For a Single Stereo Channel. 13

Fig 4-3: RB-PA2 Rear Panel. 14

Fig 5-1: RB-LI2 Front Panel. 16

Fig 5-2: RB-LI2 System Block Diagram. 16

Fig 5-3: RB-LI2 Rear Panel. 17

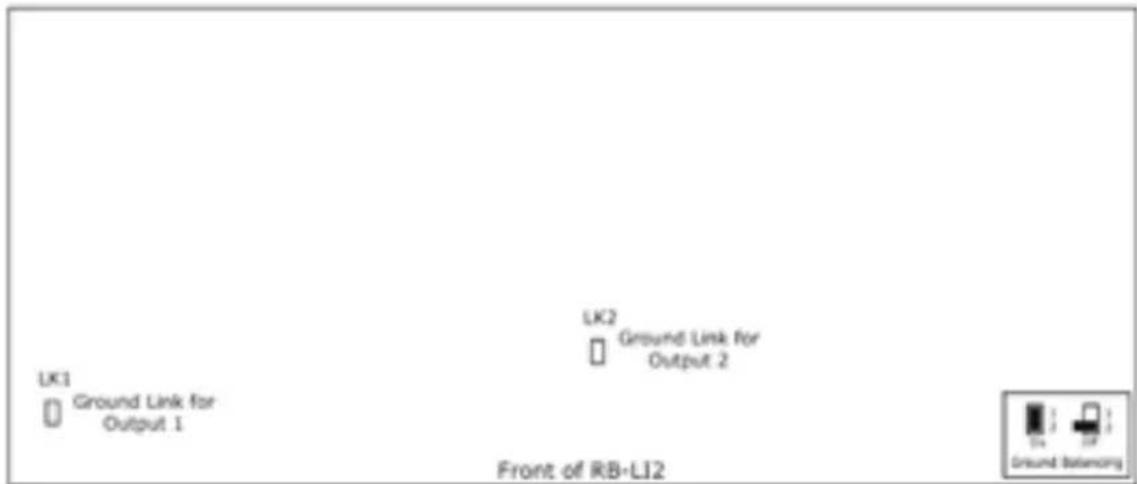

Fig 5-4: RB-LI2 Jumper Positions on the PCB. 18

Fig 6-1: RB-PLI6 Front Panel. 19

Fig 6-2: RB-PLI6 System Block Diagram. 19

Fig 6-3: RB-PLI6 Rear Panel. 20

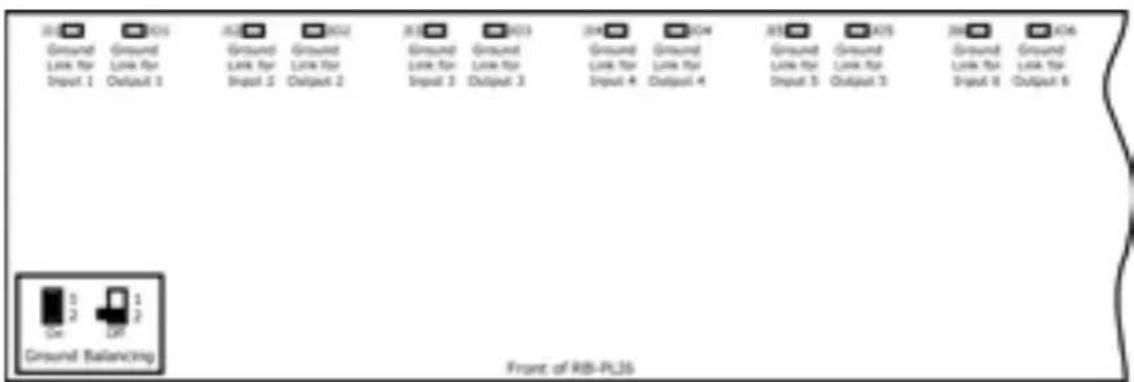

Fig 6-4: RB-PLI6 Ground-link Jumper Settings. 20

Fig 7-1: RB-DA6 Front Panel. 22

Fig 7-2: RB-DA6G Front Panel. 22

Fig 7-3: RB-DA6 Block Diagram. 23

Fig 7-4: RB-DA6G Block Diagram. 23

Fig 7-5: RB-DA6 & RB-DA6G Rear Panel. 24

Fig 7-6: RB-DA6 Front Panel. 24

Fig 7-7: RB-DA6G Front Panel. 25

Fig 8-1: RB-DA4x5 Front Panel. 26

Fig 8-2: RB-DA4x5 Block Diagram. 27

Fig 8-3: RB-DA4x5 Rear Panel. 27

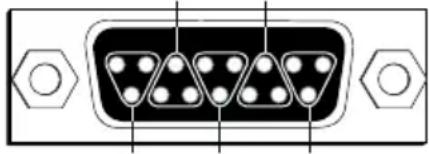

Fig 8-4: RB-DA4x5 Audio Output Group15-Way D-Type Plug. 28

Abstract red and white pattern with vertical streaks (no text or symbols)

Abstract red and white pattern with vertical streaks (no text or symbols)

Fig 8-5: RB-DA4x5 Pinout for Audio Output Group Connector. 28

Fig 8-6: RB-DA4x5 Routing Selection Switch. 28

Fig 8-7: RB-DA4x5 Routing Selection Switch Functions. 29

Fig 9-1: RB-DDA6A/S Front Panel. 30

Fig 9-2: RB-DDA6A System Block Diagram. 31

Fig 9-3: RB-DDA6S System Block Diagram. 32

Fig 9-4: RB-DDA6A Rear Panel. 33

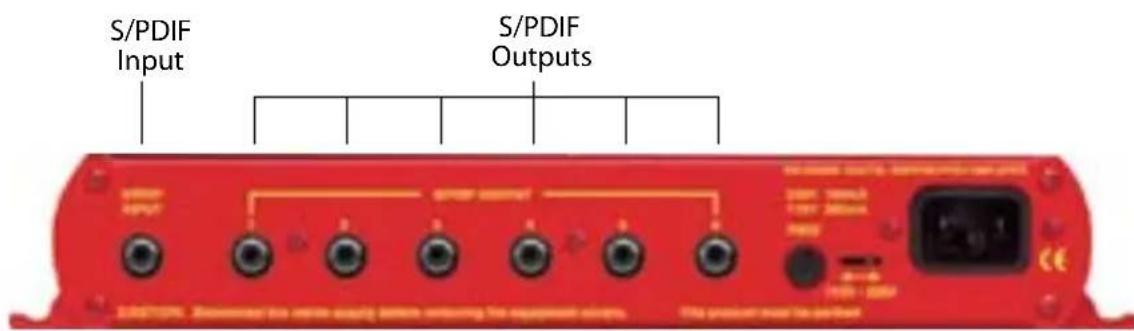

Fig 9-5: RB-DDA6S Rear Panel. 33

Fig 10-1: RB-DDA6W Front Panel. 35

Fig 10-2: RB-DDA6W System Block Diagram. 36

Fig 10-3: RB-DDA6W Rear Panel. 37

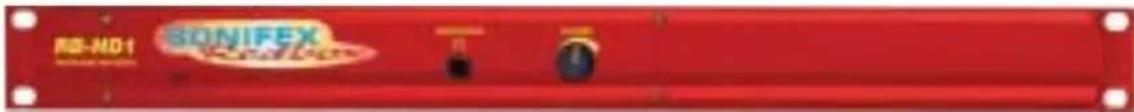

Fig 11-1: RB-HD1 Front Panel. 38

Fig 11-2: RB-HD2 Front Panel. 38

Fig 11-3: RB-HD1 Block Diagram. 39

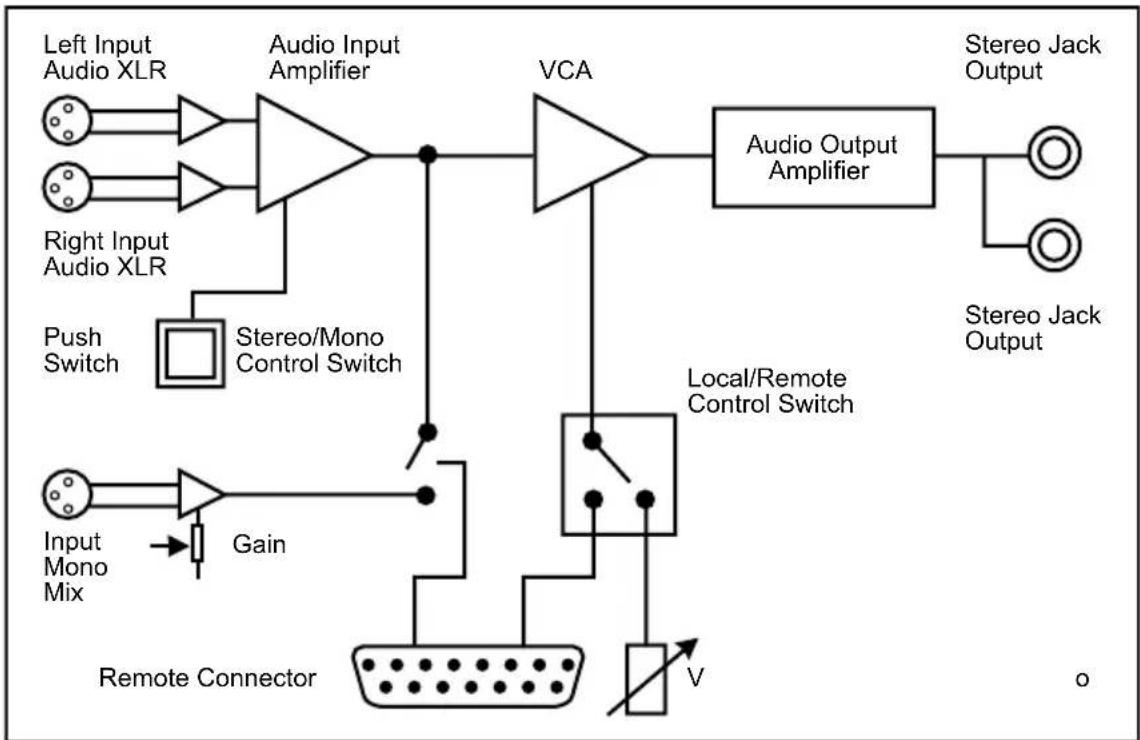

Fig 11-4: RB-HD2 Block Diagram. 39

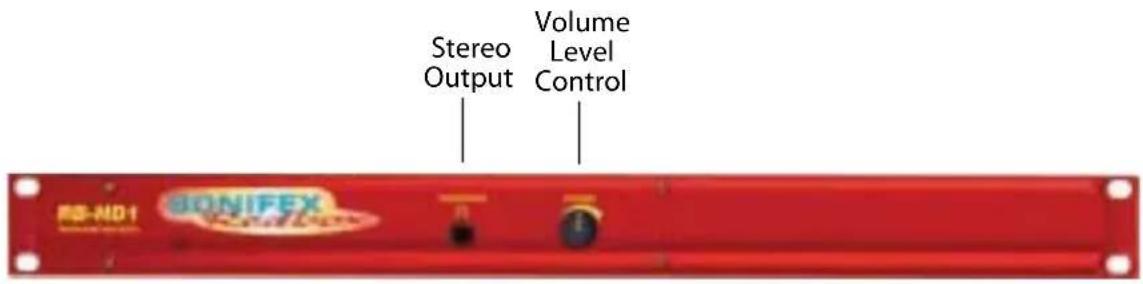

Fig 11-5: RB-HD1 Front Panel Controls. 40

Fig 11-6: RB-HD2 Front Panel Controls. 40

Fig 11-7: RB-HD1 Rear Panel. 41

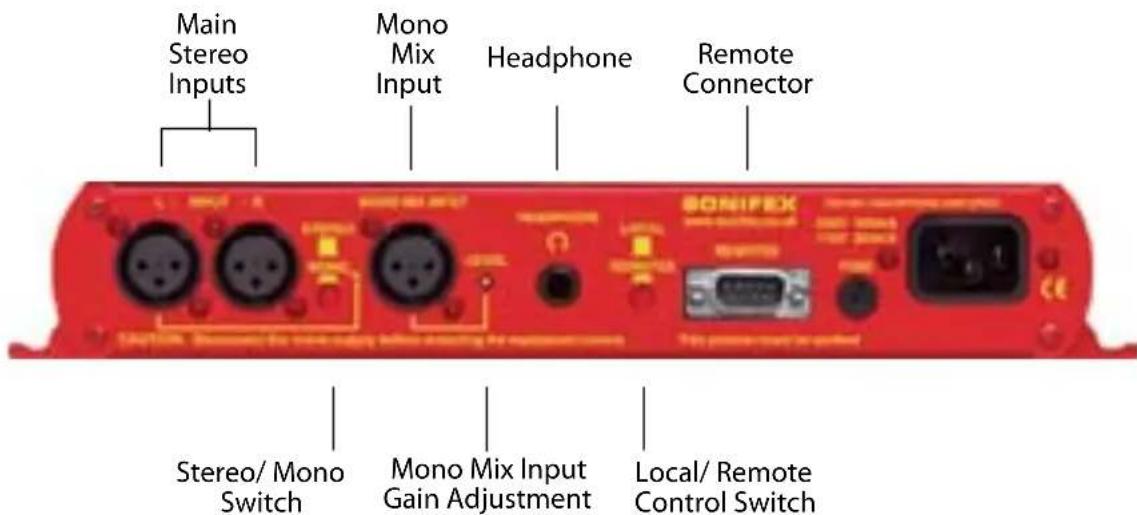

Fig 11-8: RB-HD2 Rear Panel. 41

Fig 11-9: RB-HD1 Remote Connector 42

Fig 12-1: RB-HD6 Front Panel. 44

Fig 12-2: RB-HD6 Block Diagram. 45

Fig 12-3: RB-HD6 Rear Panel. 46

Fig 12-4: RB-HD6 Jumper Assignments. 47

Fig 12-5: RB-HD6 Jumper Positions. 47

Fig 12-6: RB-HD6 Front Panel Controls. 47

Fig 12-7: RB-HD6 Master Level Control. 48

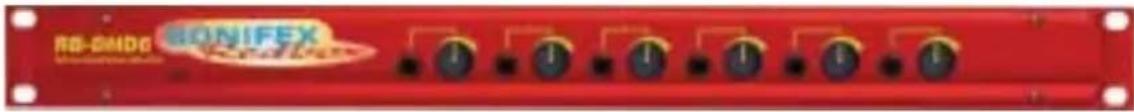

Fig 13-1: RB-DHD6 Front Panel. 49

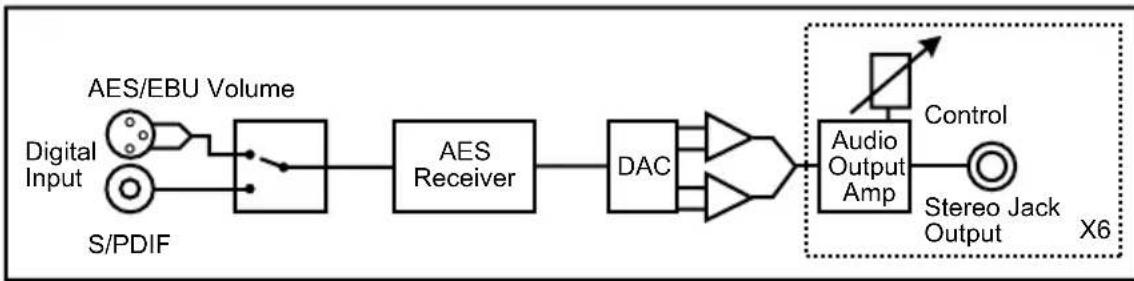

Fig 13-2: RB-DHD6 System Block Diagram. 49

Fig 13-3: RB-DHD6 Front Panel Controls. 49

Fig 13-4: RB-DHD6 Rear Panel. 50

Fig 13-5: RB-DHD6 Status Select Switches. 50

Fig 14-1: XLR Connectors. 52

Fig 14-2: RCA Phono Connector. 52

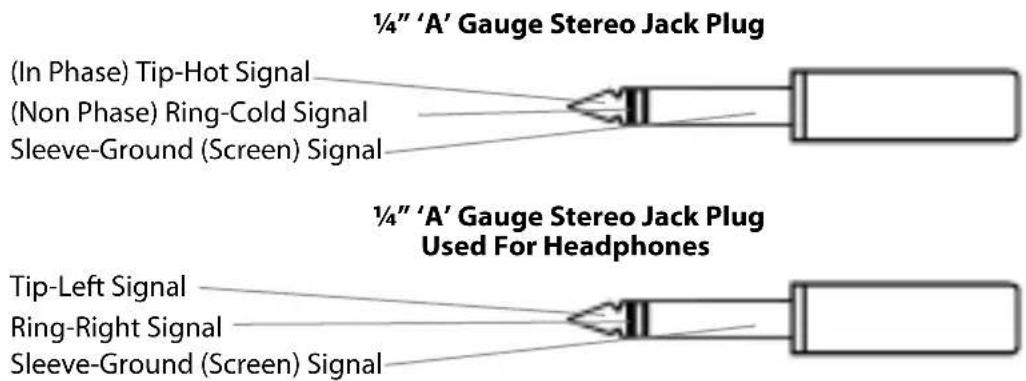

Fig 14-3: ¼" Jack Connector. 52

Fig 14-4: 25 Way D-Type Connectors. 53

Fig 14-5: 15 Way D-Type Connectors. 53

Fig 14-6: 9 Way D-Type Connectors. 53

Warranty

Warranty and Liability - important the purchaser is advised to read this clause

(a) The Company agrees to repair or (at its discretion) replace Goods which are found to be defective (fair wear and tear excepted) and which are returned to the Company within 12 months of the date of despatch provided that each of the following are satisfied:

(i) Notification of any defect is given to the Company immediately upon its becoming apparent to the Purchaser;
(ii) The Goods have only been operated under normal operating conditions and have only been subject to normal use (and in particular the Goods must have been correctly connected and must not have been subject to high voltage or to ionising radiation and must not have been used contrary to the Company's technical recommendations);

(iii) The Goods are returned to the Company's premises at the Purchaser's expense;

(iv) Any Goods or parts of Goods replaced shall become the property of the Company;

(v) No work whatsoever (other than normal and proper maintenance) has been carried out to the Goods or any part of the Goods without the Company's prior written consent;

(vi) The defect has not arisen from a design made, furnished or specified by the Purchaser;

(vii) The Goods have been assembled or incorporated into other goods only in accordance with any instructions issued by the Company;

(viii) The defect has not arisen from a design modified by the Purchaser;

(ix) The defect has not arisen from an item manufactured by a person other than the Company. In respect of any item manufactured by a person other than the Company, the Purchaser shall only be entitled to the benefit of any warranty or guarantee provided by such manufacturer to the Company.

(b) In respect of computer software supplied by the Company the Company does not warrant that the use of the software will be uninterrupted or error free.

(c) The Company accepts liability:

(i) For death or personal injury to the extent that it results from the negligence of the Company, its employees (whilst in the course of their employment) or its agents (in the course of the agency);

Abstract red and yellow gradient background with no visible text or symbols

(ii) For any breach by the Company of any statutory undertaking as to title, quiet possession and freedom from encumbrance.

(d) Subject to conditions (a) and (c) from the time of despatch of the Goods from the Company's premises the Purchaser shall be responsible for any defect in the Goods or loss, damage, nuisance or interference whatsoever consequential economic or otherwise or wastage of material resulting from or caused by or to the Goods. In particular the Company shall not be liable for any loss of profits or other economic losses. The Company accordingly excludes all liability for the same.
(e) At the request and expense of the Purchaser the Company will test the Goods to ascertain performance levels and provide a report of the results of that test. The report will be accurate at the time of the test, to the best of the belief and Knowledge of the Company, and the Company accepts no liability in respect of its accuracy beyond that set out in Condition (a).
(f) Subject to Condition (e) no representation, condition, warranty or other term, express or implied (by statute or otherwise) is given by the Company that the Goods are of any particular quality or standard or will enable the Purchaser to attain any particular performance or result, or will be suitable for any particular purpose or use under specific conditions or will provide any particular capacity, notwithstanding that the requirement for such performance, result or capacity or that such particular purpose or conditions may have been known (or ought to have been known) to the Company, its employees or agents.
(g) (i) To the extent that the Company is held legally liable to the Purchaser for any single breach of contract, tort, representation or other act or default, the Company's liability for the same shall not exceed the Price of the Goods.

(ii) The restriction of liability in Condition (g)(i) shall not apply to any liability accepted by the Seller in Condition (c).

(h) Where the Goods are sold under a consumer transaction (as defined by the Consumer Transactions (Restrictions on Statements) Order 1976) the statutory rights of the Purchaser are not affected by these Conditions of Sale.

Unpacking the Redbox

The Redbox is shipped with the following equipment. Please check your packaging to ensure that you have all of the items below. If anything is missing, please contact the supplier of your equipment immediately.

Item Quantity

Redbox audio interface 1
IEC Mains lead fitted with moulded mains plug	1
Handbook and warranty card	1

Fig A: Packing List.

Each Redbox is shipped in protective packaging and should be inspected for damage before use. Where an item is found to have transit damage, notify the carrier immediately with all the relevant details of the shipment. Packing materials should be kept for inspection and also for if the product needs to be returned.

Returning the Warranty Card

In order to register the date of purchase so that we can keep you informed of any design improvements or modifications, it is important to complete the warranty registration document that is enclosed and return it to Sonifex Ltd in the UK, or register online at www.sonifex.co.uk/register

For your own records you should write down the serial number (which can be found on the rear of the Redbox.

Serial Number ....

Safety Information

Safety of Mains Operated Equipment

This equipment has been designed to meet the safety regulations currently advised in the country of purchase and it conforms to the safety regulations specified by use of the CE Mark.

Warning : There are no user serviceable parts inside the equipment. If you should ever need to look inside the unit, always disconnect the mains supply before removing the equipment covers.

Voltage Setting Checks

Ensure that the machine operating voltage is correct for your mains power supply by checking the rear panel of your Redbox. The available voltage settings are 115V, or 230V. Please note that all Redboxes are either switchable between 115V and 230V, or have a universal power supply.

Fuse Rating

The Redboxes are supplied with a single fuse in the live conducting path of the power infeed at the power supply. For reasons of safety it is important that the correct rating and type of fuse is used. Incorrectly rated fuses could present a possible fire hazard, under equipment fault conditions. See the Technical Specifications of each product for the fuse rating. The active fuse is fitted on the outside rear panel of the unit.

Abstract red and orange gradient background with faint vertical white lines (no text or symbols)

Abstract red and orange background with faint vertical white lines (no text or symbols)

SAFETY & INSTALLATION INFORMATION

Power Cable and Connection

An IEC power connector is supplied with the Redbox, which has a moulded plug, attached – this is a legal requirement. If no moulded plug has been supplied with your Redbox, please contact your supplier, because an IEC connector is always supplied from the Sonifex factory. If for any reason, you need to use the Redbox with a different power cable, you should use the following wiring guidelines:

Wire Colour Connection

Green, or green and yellow Earth (E)

Blue, or Black Neutral (N)

Brown, or Red Live (L)

Fig B: Mains Cable Wire Colours

Ordering the Correct Mains Lead

When ordering a Redbox from Sonifex, it is helpful if you can specify your required operating voltage and mains lead. After the product code add:

UK, for 230V, UK 3 pin to IEC lead

EC, for 230V, European Schuko 2 pin to IEC lead

US, for 115V, 3 pin to IEC lead

AU for 230V, Australasian 3 pin to IEC lead

Fig C: Mains Lead Table.

E.g. order RB-BL2 UK for a UK IEC lead to be supplied.

Installation Information

Atmosphere

The units should be installed in an area that is not subject to excessive temperature variation (<0°C, >50°C), moisture, dust or vibration.

Electromagnetic Radiation

The cover is connected to earth by means of the fixing screws. It is essential to maintain this earth ground connection to ensure a safe operating environment and provide electromagnetic shielding.

Fitting Redboxes

Redboxes can be fixed to the underside of a mixing desk, or other surfaces using 4.2mm holes in the sides and fixed with 2 x M4 screws or 2 x No. 6 countersink wood screws.

They can also be rack-mounted, with either the front, or rear of the Redbox positioned at the front of the rack:

Front Mounting Redboxes: For rack mounting smaller (28cm) units the optional RB-RK1 (Red) or RB-RK1B (Black) kit can be used (which include 4 off M6 panel fixing screws).

SONIPEX The company

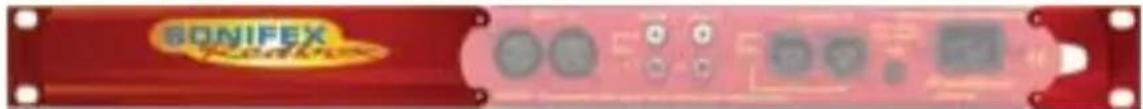

Fig D: RB-RK1 Small Redbox Front Rack-mount Kit.

Wherever you see this symbol an RB-RK1 front panel rack kit can be used :

Rear Mounting Redboxes: For rear panel mounting you can use either the RB-RK2, or RB-RK3, depending on the size of your Redbox.

RB-RK2 1U rear panel rack kit for small Redbox range, e.g., RB-BL2

Two red metal plates with mounting holes, one upright and one with a notch (no text or symbols visible)

Fig E: RB-RK2 Small Redbox Rear Rack-mount Kit.

e.g. for fitting an RB-BL2:

SONIFEX Feretris

Wherever you see this symbol an RB-RK2 small Redbox rear panel 19" rack kit can be used :

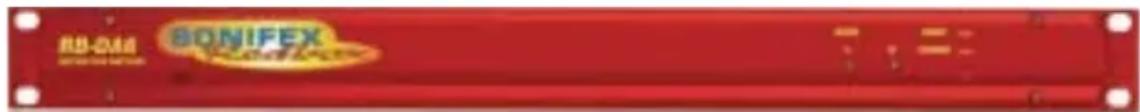

RB-RK3 1U rear panel rack kit for large Redbox range, e.g., RB-DA6

Fig F: RB-RK3 Large Redbox Rear Rack-mount Kit.

e.g. for fitting an RB-DA6:

Red industrial control panel with multiple circular components and mounting brackets (no visible text or symbols)

Wherever you see this symbol an RB-RK3 large Redbox rear panel 19" rack kit can be used :

Note: When fitting the rear-mounting rack-kits, a notch has been left on the inside of the right-hand rack-piece for the mains cable to pass through. Make sure that the mains cable has been put through the notch before attaching the right hand rack-piece.

Abstract red and white pattern with no discernible text or symbols

SAFETY & INSTALLATION INFORMATION

WEEE & RoHS Directives - Sonifex Statement

The Waste Electrical and Electronic Equipment (WEEE) Directive was agreed on 13 February 2003, along with the related Directive 2002/95/EC on Restrictions of the use of certain Hazardous Substances in electrical and electronic equipment (RoHS).

The Waste Electrical and Electronic Equipment Directive (WEEE) aims to minimise the impacts of electrical and electronic equipment on the environment during their life times and when they become waste. It applies to a huge spectrum of products. It encourages and sets criteria for the collection, treatment, recycling and recovery of waste electrical and electronic equipment. All products manufactured by Sonifex Ltd have the WEEE directive label placed on the case. It gives a contact for individuals who are unsure about the correct procedure when the product has reached its “end of use”.

Sonifex Ltd will be happy to give you information about local organisations that can reprocess the products, or alternatively all products that have reached “end of use” can be returned to Sonifex and will be reprocessed correctly free of charge.

Sonifex Ltd has phased out the use of certain hazardous substances identified in the European Union's Restriction of Hazardous Substances (RoHS) directive. The RoHS directive limits the use of certain hazardous substances currently used in EEE manufacture, including lead, mercury, cadmium, hexavalent chromium, and halide-containing compounds PBB (polybrominated biphenyl) and PBDE (polybrominated diphenyl ether). Elimination of these substances will result in more environmentally friendly recycling of electronic equipment. For the products which Sonifex manufacture, the main area where products were affected was in the use of lead for manufacturing and assembling electronics circuit boards.

Sonifex Ltd practices lead-free (LF) manufacturing processes. LF solder is used on the surface-mount PCB manufacturing processes and for hand soldering. The printed circuit boards (PCBs) used are either gold plated, or immersion tin plated, both of which use no lead. Historically the PCBs were hot air solder levelled (HASL) PCBs which used tin/lead based solder.

The manufacturing processes include the assembly of purchased components from various sources. Product is offered as RoHS compliant, or LF, only after sufficient evidence is received from the component manufacturers that their components are RoHS compliant. Sonifex Ltd relies solely on the distributor, or manufacturer, of the components for identification of RoHS compliance. Thus whilst every effort is made to ensure compliance, Sonifex Ltd makes no warranty, or certification, or declaration of compliance concerning said components.

Sonifex Ltd defines "Lead Free" as pertaining to any product, which has been manufactured by Sonifex Ltd using components which have been declared by the manufacturers as "Lead Free". All statements by Sonifex Ltd of RoHS compliance are based on component manufacturer documentation.

1 RB-UL1 Single, RB-UL2 Dual & RB-UL4 Quad Stereo Unbalanced To Balanced Converters

Introduction

SONIFEX Redbox

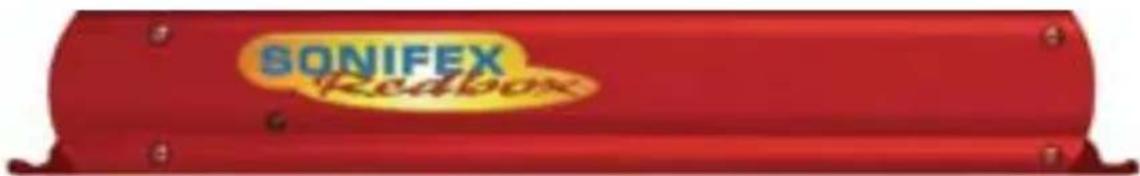

Fig 1-1: RB-UL1 & RB-UL2 Front Panel.

RB-UL4 RONIFEX

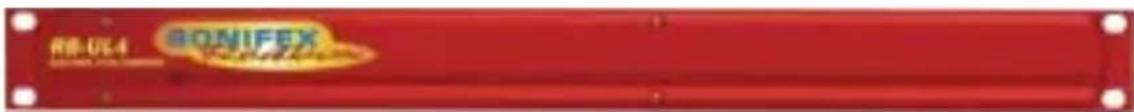

Fig 1-2: RB-UL4 Front Panel.

The RB-UL1 single, RB-UL2 dual & RB-UL4 quad stereo units are used for interfacing domestic, or semi-pro unbalanced equipment to professional balanced line levels.

All connections are on the rear panel. The RCA unbalanced inputs have an impedance of 10k bridging and are routed to the balanced XLR-3 outputs with an output impedance of < 50 .

The RB-UL1 has two inputs & outputs, the RB-UL2 has four inputs & outputs and the RB-UL4 has eight inputs & outputs.

The output gain can be individually adjusted for left and right channels by using pre-set potentiometers accessible through the rear panel. A LED power indicator on the front panel displays the power supply connection.

System Block Diagram


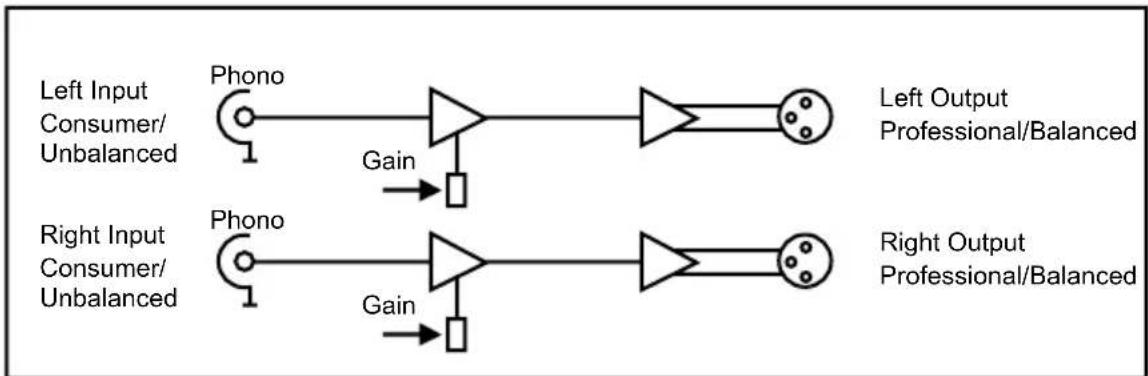

Fig 1-3: Block Diagram For a Single Channel (x2 for RB-UL2, x4 for RB-UL4).

Abstract red and white pattern with vertical streaks and a small yellow banner at bottom (no readable text or symbols)

1

MATCHING CONVERTERS

Abstract red and white pattern with no discernible text or symbols

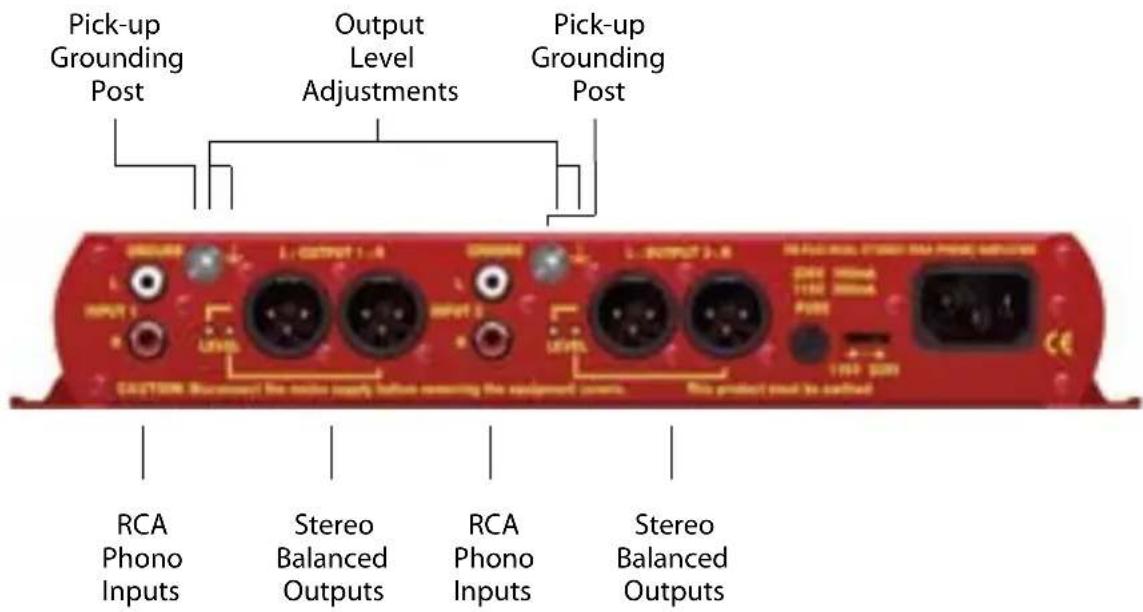

Rear Panel Connections and Operation

RCA Phono Inputs Stereo Outputs Output Level Adjustment

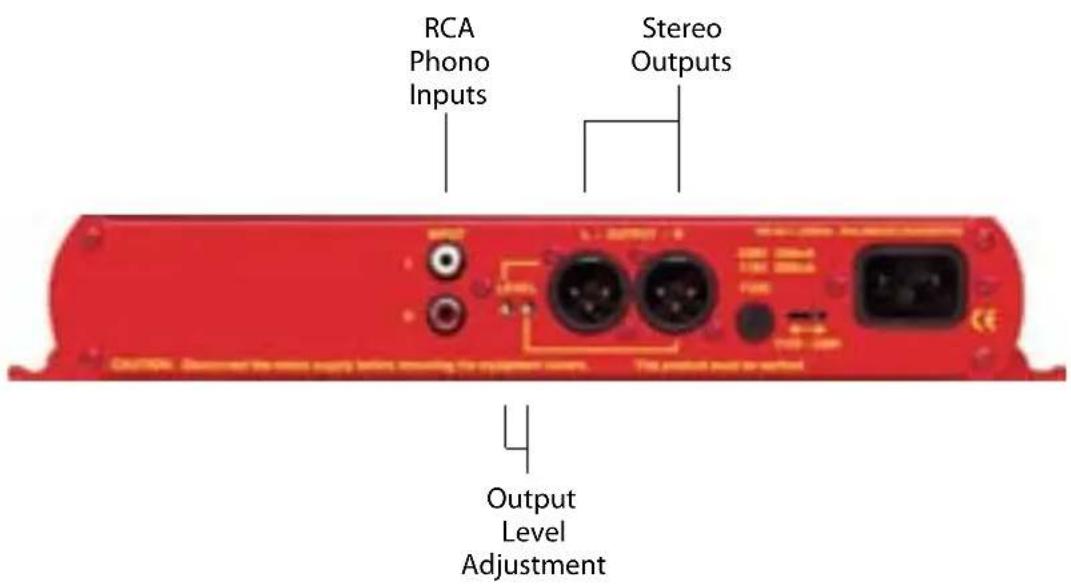

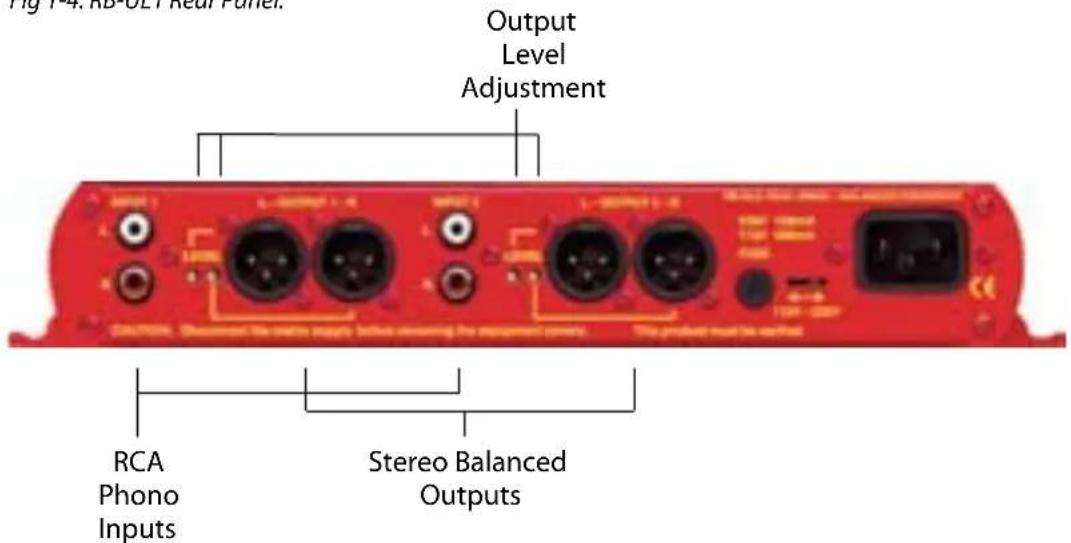

Fig 1-4: RB-UL1 Rear Panel.

Fig 4. HD O2F Rear Panel. Output Level Adjustment RCA Phono Inputs Stereo Balanced Outputs

Fig 1-5: RB-UL2 Rear Panel.

RCA Phono Inputs Output Level Adjustment Stereo Balanced Outputs Fig 1-6: RB-UL4 Rear Panel.

RCA Phono Inputs (Left and Right)

The stereo left and right RCA inputs are unbalanced and have an impedance of 10k . They are routed to the stereo balanced XLR 3 pin output connectors.

Outputs (Left and Right)

The XLR 3 pin output plug connectors are electronically balanced with an output impedance of <50 . They have the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Output Level Adjustment

The output gain can be individually adjusted for left and right channels through pre-set potentiometers which are accessible through the rear panel. The gain range of the unbalanced to balanced converter is -15dBu to +15dBu ref -15dBu into the unbalanced input.

Abstract red and yellow gradient background with no visible text or symbols

1

MATCHING CONVERTERS

Abstract red and orange gradient background with vertical white lines (no text or symbols)

Technical Specifications

Audio Specifications

Maximum Input Level: +28dBu

Input Impedance: >10kΩ

Output Impedance: <50Ω

Maximum Output Level: +28dBu

Distortion: 0.01% THD @ 1kHz ref +8dB output

Noise: -100dB unity gain, ref +8dB output

Common Mode Rejection: >66dB typically

Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)

Gain Range: Balanced output: -15dBu to 15dBu, ref -15dBu into unbalanced RCA input

Connections

Inputs: 2, 4 (RB-UL2) or 8 (RB-UL4) x RCA phono (unbalanced)

Outputs: 2, 4 (RB-UL2) or 8 (RB-UL4) x XLR 3 pin male (balanced)

Mains Input: Filtered IEC, 110V-120V, or 220-240V switchable, fused, 6W maximum

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-UL1: Single stereo unbalanced to balanced converter RB-UL2: Dual stereo unbalanced to balanced converter

RB-UL4: Quad stereo unbalanced to balanced converter

Physical Specifications

RB-UL1 & RB-UL2:

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

Weight RB-UL1: Nett: 1.00kg Gross: 1.45kg

Weight RB-UL2: Nett: 1.05kg Gross: 1.5kg

RB-UL4:

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed): 53cm (W) x 20.5cm (D) x 6cm

Weight: Nett: 1.3kg Gross: 1.9kg

2 RB-LU4 Quad Stereo Balanced To Unbalanced Converter

Introduction

BSE-LU4 SONIFEX SOMATEX

Fig 2-1: RB-LU4 Front Panel.

The RB-LU4 is a quad stereo unit for interfacing professional balanced equipment to domestic, or semi-pro unbalanced line levels.

All connections are on the rear panel. The eight XLR-3 electronically balanced inputs have an impedance of 20kΩ bridging and are routed to eight unbalanced RCA phono outputs with an output impedance of <50Ω.

The output gain can be individually adjusted for left and right channels by using pre-set potentiometers accessible through the rear panel. An LED power indicator is situated on the front panel, which displays the power supply connection.

Abstract red and orange gradient background with vertical white streaks (no text or symbols)

2

MATCHING CONVERTERS

Abstract red and orange background with blurred vertical light streaks (no text or symbols)

System Block Diagram


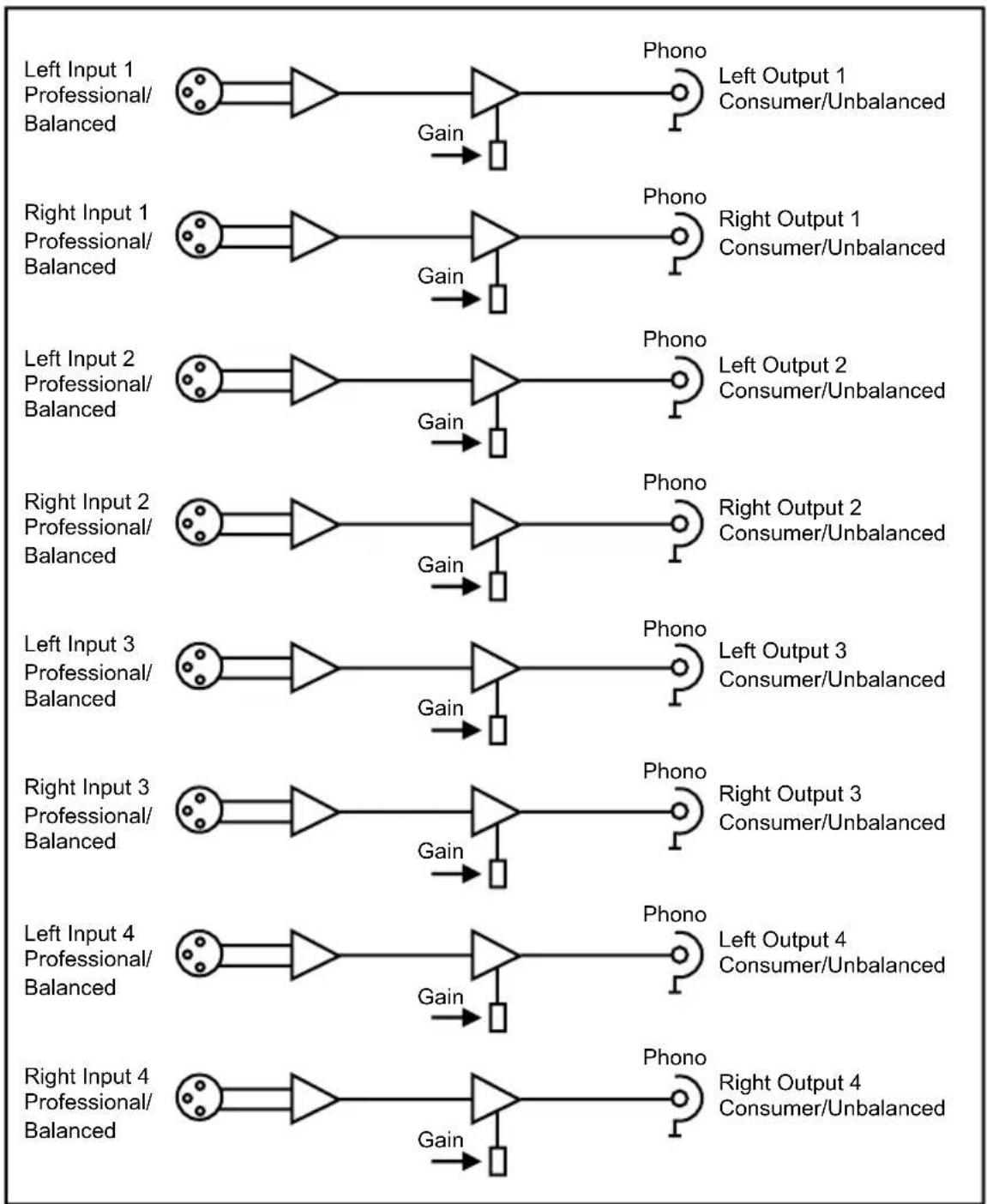

Fig 2-2: RB-LU4 Block Diagram.

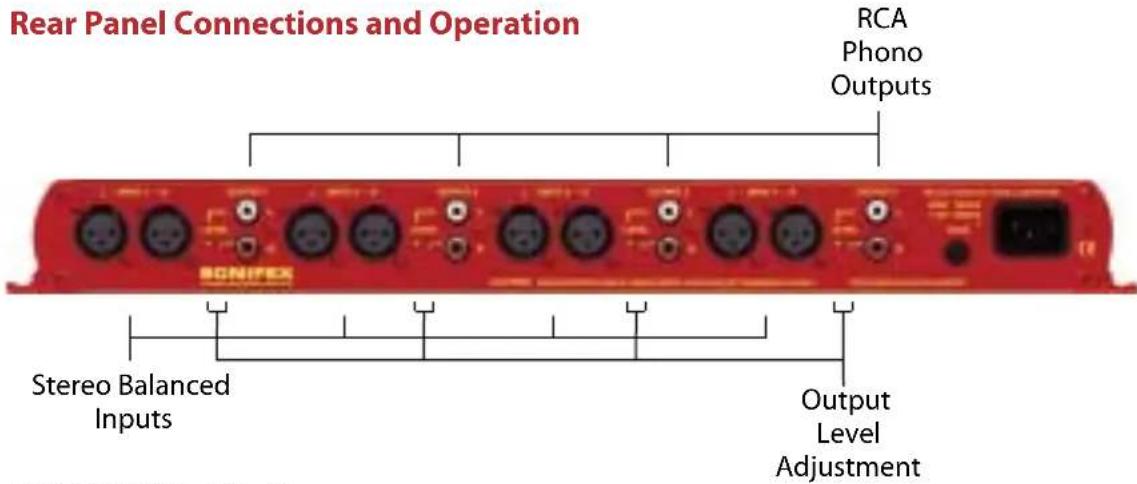

Rear Panel Connections and Operation RCA Phono Outputs Stereo Balanced Inputs Output Level Adjustment

Fig 2-3: RB-LU4 Rear Panel.

Inputs 1-4 (Left and Right)

The XLR 3 pin sockets used for the left and right channel inputs of Input 1 are electronically balanced and have an impedance of 20k bridging. They are routed to an unbalanced RCA (phono) output with an output impedance of <50 . Each XLR has the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

RCA Phono Outputs 1-4 (Left and Right)

These RCA (phono) outputs are unbalanced and have an output impedance of < 50 .

Output Level Adjustment

The output gain can be individually adjusted for left and right channels through pre-set potentiometers which are accessible through the rear panel. The gain of the balanced to unbalanced converter is variable within a range of -28dBu to +15dBu ref. -15dBu into the balanced input.

Abstract red and white pattern with no discernible text or symbols

2

MATCHING CONVERTERS

Abstract red and orange background with faint vertical white lines (no text or symbols)

Technical Specifications

Audio Specifications

Maximum Input Level: +28dBu

Input Impedance (XLR): >20kΩ balanced bridging

Output Impedance (RCA) : <50Ω

Maximum Output Level: +22dBu

Distortion: 0.01% THD @ 1kHz, ref +8dBu output

Noise: -100dB, unity gain, ref +8dBu output

Common Mode Rejection: >66dB typically

Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)

Gain Range: Unbalanced Output: -28dBu to +15dBu, ref -15dBu into balanced XLR input

Connections

Inputs: 8 x XLR 3 pin female (Balanced)

Outputs: 8 x RCA phono (Unbalanced)

Mains Input: Filtered IEC, 110V-120V, or 220-240V switchable, fused, 6W maximum

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-LU4:

Quad stereo balanced to unbalanced converter

Physical Specifications

Dimensions (Raw):

48cm (W) × 10.8cm (D) × 4.2cm (H) (1U)

Dimensions (Boxed):

53cm (W) x 20.5cm (D) x 6cm (H)

Weight:

Nett: 1.3kg

Gross: 1.9kg

3 RB-BL2 Single & RB-BL4 Dual Bi-Directional Matching Converter

Introduction

SONIFEX RedBox

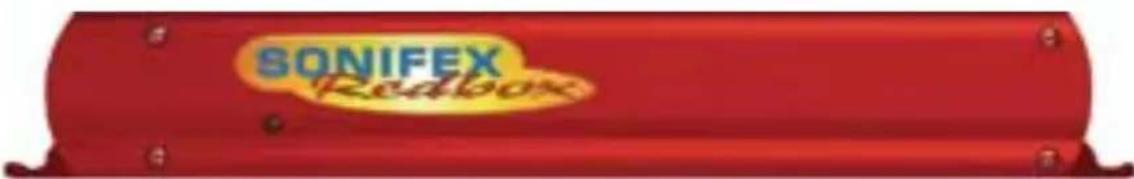

Fig 3-1: RB-BL2 Front Panel.

SONIFEX SonicBox

Fig 3-2: RB-BL4 Front Panel.

The RB-BL2 is a bi-directional stereo unit for interfacing domestic, or semi-pro unbalanced equipment to professional balanced line levels, and vice-versa. The RB-BL4 has dual bi-directional stereo capability.

All connections are on the rear panel. The XLR-3 electronically balanced inputs have an impedance of 20kΩ bridging and are routed to unbalanced RCA (phono) outputs with an output impedance of <50Ω.

The RCA unbalanced inputs have an impedance of 10k bridging and are routed to balanced XLR-3 outputs with an output impedance of <50 .

The output gain can be individually adjusted for left and right channels by using pre-set potentiometers accessible through the rear panel. An LED power indicator on the front panel displays the power supply connection.

Abstract red and yellow background with faint vertical lines and no discernible text or symbols

Abstract red and purple gradient background with no visible text or symbols

System Block Diagram

Fig 3-3: RB-BL2/BL4 Block Diagram Single Stereo Channel.

(Note RB-BL4 contains 2 of these circuits)

Rear Panel Connections and Operation

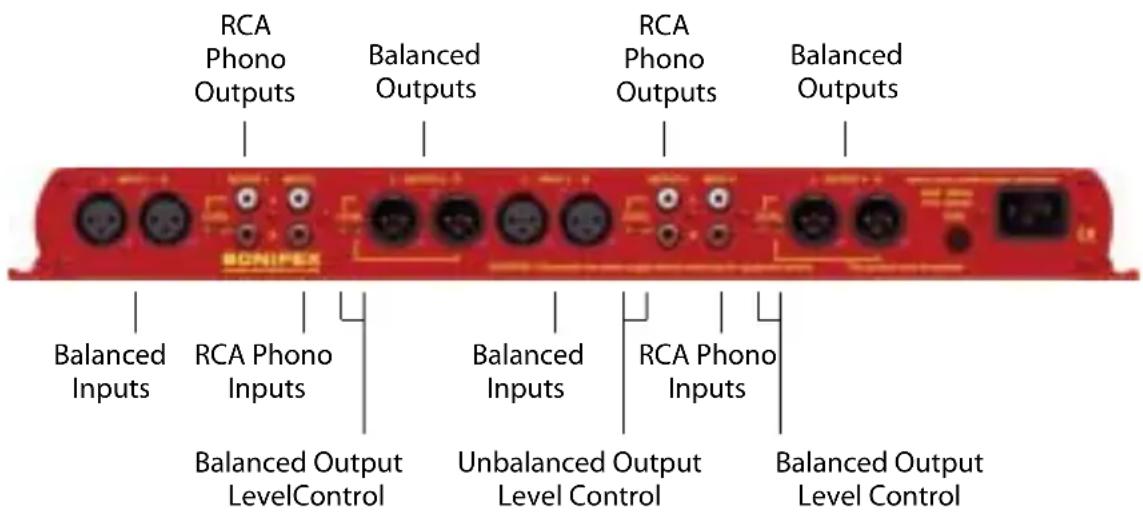

Unbalanced Output Level Adjustment Balanced Output Level Adjustment Stereo Balanced Inputs RCA Phono Outputs RCA Phono Inputs Stereo Balanced Outputs

Fig 3-4: RB-BL2 Rear Panel.

RCA Phono Outputs Balanced Outputs RCA Phono Outputs Balanced Outputs Balanced Inputs RCA Phono Inputs Balanced Output LevelControl Balanced Inputs Unbalanced Output Level Control RCA Phono Inputs Balanced Output Level Control

Fig 3-5: RB-BL4 Rear Panel.

Balanced to Unbalanced Connections

Inputs 1 (& 3) (Left & Right)

The XLR 3 pin sockets used for the left and right channel signals of Inputs 1 & 3 are electronically balanced and have an impedance of 20kΩ bridging. They are routed to unbalanced RCA (phono) outputs with an output impedance of <50Ω. Each XLR has the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

RCA Phono Outputs 1 (& 3) (Left & Right)

These RCA (phono) outputs are unbalanced and have an output impedance of <50 .

Output Level Adjustment

The output gain can be individually adjusted for left and right channels through pre-set potentiometers which are accessible through the rear panel. The gain of the balanced to unbalanced converter is variable within a range of 0dBu to -28dBu ref -0dBu into the balanced input.

Unbalanced to Balanced Connections

RCA Phono Inputs 2 (& 4) (Left & Right)

The left and right RCA inputs 2 & 4 are unbalanced and have an impedance of 10kΩ. They are routed to the balanced XLR 3 pin outputs 2 & 4.

Outputs 2 (& 4) (Left & Right)

The XLR 3 pin output plug connectors are electronically balanced with an output impedance of <50 . They have the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Abstract red and yellow background with blurred white streaks (no text or symbols)

Technical Specifications

Audio Specifications

Maximum Input Level: +28dBu

Maximum Output Level: +28dBu

Input Impedance (RCA) : >10kΩ unbalanced

Input Impedance (XLR): >20kΩ balanced bridging

Output Impedance (RCA): <50Ω

Output Impedance (XLR): <50Ω

Distortion: 0.01% THD @ 1kHz, ref +8dBu output

Noise: -100dB, unity gain, ref +8dBu output

Common Mode Rejection: >66dB typically

Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)

Gain Range: Unbalanced Output: -28dBu to +15dBu, ref -15dBu into balanced XLR input

Gain Range: Balanced Output: -15dBu to +15dBu, ref -15dBu into unbalanced RCA input

Connections

Inputs: 2 (4 on RB-BL4) x XLR 3 pin female (balanced),

2 (4 on RB-BL4) x RCA phono (unbalanced)

Outputs: 2 (4 on RB-BL4) x XLR 3 pin male (balanced),

2 (4 on RB-BL4) x RCA phono (unbalanced)

Mains Input: Filtered IEC, 110V-120V, or 220-240V switchable, fused, 6W maximum

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-BL2:

Single stereo bi-directional matching converter

RB-BL4:

Dual stereo bi-directional matching converter

Physical Specification

RB-BL2:

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

Weight: Nett: 1.0kg Gross: 1.4kg

RB-BL4:

Dimensions (Raw) 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed) 53cm (W) x 20.5cm (D) x 6cm (H)

Weight Nett: 1.3kg Gross: 1.9kg

4 RB-PA2 Dual Stereo RIAA Phono Amplifier

Introduction

SONIFEX Feather

Abstract red and white pattern with vertical streaks (no text or symbols)

Fig 4-1: RB-PA2 Front Panel.

The RB-PA2 is a dual stereo RIAA equalised phono amplifier. This record player preamp amplifies the small signal from your pick up cartridge (either moving magnet or high output moving coil magnetic) and provides the necessary RIAA equalisation required for vinyl records, to match it to a line input of your mixer, or amplifier. It uses a clean RIAA response making it ideal for use with broadcast turntables and DJ decks and where vinyl records are being archived to CD for high quality transfers, or for converting albums to mp3.

It operates with phono cartridges with a nominal output of 1mV to 25mV and has been specifically tested to work with the Technics SL-1200 ^™ and 1210 ^™ range of turntables. Quality high specification components have been used together with low noise, fast acting operational amplifiers to produce a superbly transparent signal path. Additionally, the RB-PA2 runs without a rumble filter to produce a powerful bass response.

The RB-PA2 is a dual stereo unit to interface up to two turntables. The inputs are phono connectors with Neutrik XLR connectors for the balanced outputs, which may be wired unbalanced if required. Output gain is individually adjustable for left and right channels in the range 35dB to 65dB by using pre-set potentiometers. Frequency response is held within 0.5dB of the RIAA curve and noise is typically better than -84dB RMS A weighted at 40dB gain.

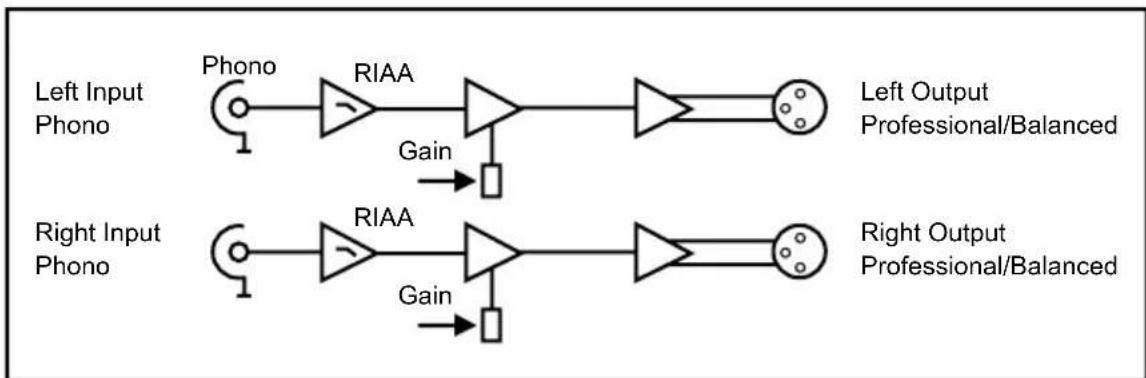

System Block Diagram

Fig 4-2: RB-PA2 Block Diagram For a Single Stereo Channel.

4

MATCHING CONVERTERS

Abstract red and white pattern with vertical streaks (no text or symbols)

Rear Panel Connections and Operation

Pick-up Grounding Post Output Level Adjustments Pick-up Grounding Post RCA Phono Inputs Stereo Balanced Outputs RCA Phono Inputs Stereo Balanced Outputs

Fig 4-3: RB-PA2 Rear Panel.

RCA Phono Inputs (Left and Right)

The stereo left and right RCA inputs are unbalanced and have an impedance of 47kΩ. They are routed to the stereo balanced XLR 3 pin output connectors.

Outputs (Left and Right)

The XLR 3 pin output plug connectors are electronically balanced with an output impedance of < 50 . They have the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Output Level Adjustment

The output gain can be individually adjusted for left and right channels through pre-set potentiometers which are accessible through the rear panel. The gain range of each channel is adjustable between 30dB gain and 58dB gain.

Pick-up Grounding Post

This acts as an earth ground connection to connect to a turntable pick-up ground point.

Technical Specifications

Audio Specifications

Maximum Input Level: +28dBu

Input Impedance: >47kΩ

Input Sensitivity Range: 1mV to 25mV (ref 1kHz)

Maximum Output Level: +28dBu

Output Impedance: <50Ω

Output Gain Range: Adjustable 38dB to 58dB gain via 4 multi-turn pots

Crosstalk: Better than -80dBu at 1kHz

Frequency Response: 10Hz-150kHz (-3dB)

RIAA Accuracy: Within 0.5dB of RIAA curve

Distortion: 0.01% THD @ 1kHz, ref +8dBu output

Noise: -77dB (CCIR Q-Pk, 20Hz-20kHz)

Headroom: 27dB for 3mV input

Dynamic Range: 90dB

Connections

Inputs:	4 x RCA phono (unbalanced)
Outputs:	4 x XLR 3 pin male (balanced)
Earth Tag:	Grounding turret tag
Mains Input:	Filtered IEC, 110V-120V, or 220-240V switchable, fused 6W maximum
Fuse Rating:	Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-PA2:

Dual stereo phono amplifier and RIAA gram amplifier

Physical Specifications

Dimensions (Raw):

28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

Weight RB-PA2 Nett: 1.1kg Gross: 1.5kg

Abstract red and yellow background with faint vertical lines and shapes (no text or symbols)

5

MATCHING CONVERTERS

Abstract red and yellow background with blurred white vertical streaks (no text or symbols)

5 RB-LI2 Stereo Line Isolation Unit

Introduction

SONIFEX Felsor

Fig 5-1: RB-LI2 Front Panel.

The RB-LI2 stereo line isolation unit is used to isolate audio signals from inter area ground hum loops, which could be caused by equipment being powered by different mains power supplies, or different phases on the same supply. The input and output are connected together through a transformer, which has internal jumpers allowing the outputs to be balanced about ground.

There is also a loop-through output, so that the RB-LI2 can be inserted into a line, forming a transformer balanced distribution point.

This unit is useful where audio is required to be driven over a relatively long length of cable. By isolating the signal using transformers, ground loop currents that can be present in non-isolated signals, are eradicated completely.

System Block Diagram


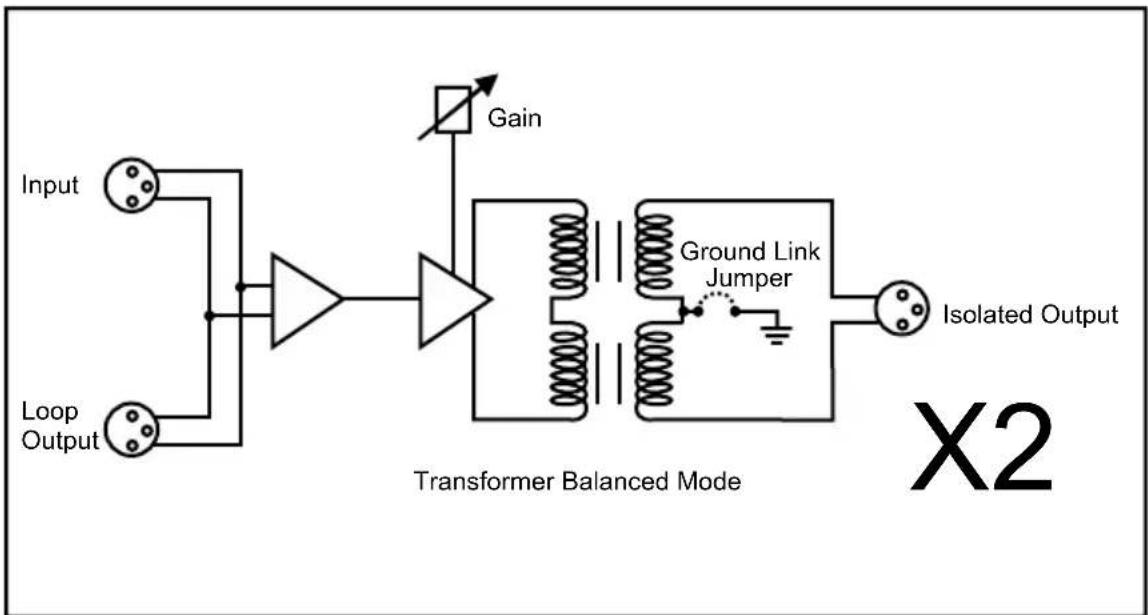

Fig 5-2: RB-LI2 System Block Diagram.

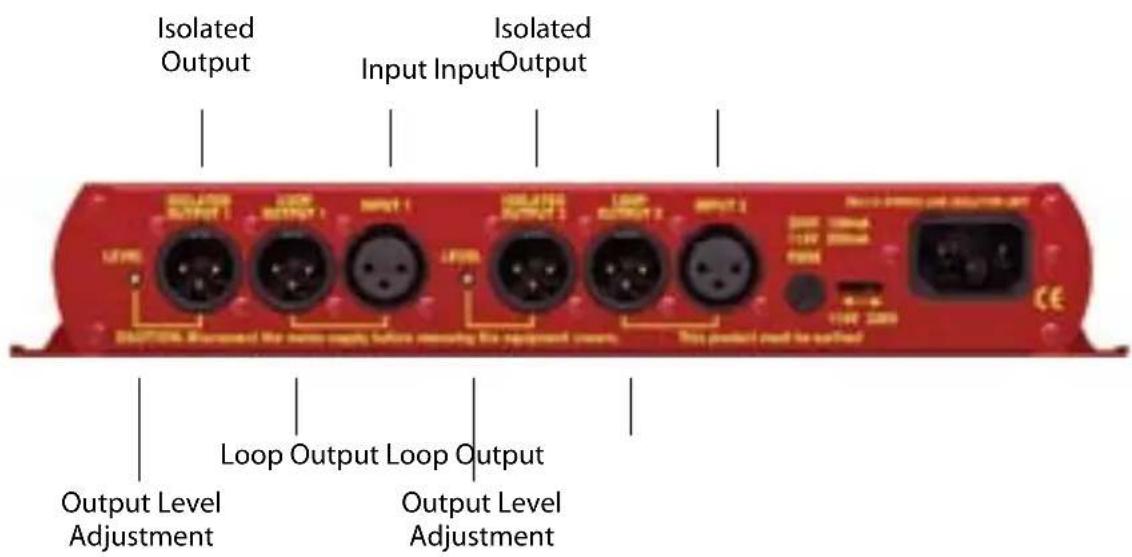

Rear Panel Connections and Operation

Isolated Output Input Input Isolated Output OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8 OUTPUT 9 OUTPUT 10 OUTPUT 11 OUTPUT 12 OUTPUT 13 OUTPUT 14 OUTPUT 15 OUTPUT 16 OUTPUT 17 OUTPUT 18 OUTPUT 19 OUTPUT 20 OUTPUT 21 OUTPUT 22 OUTPUT 23 OUTPUT 24 OUTPUT 25 OUTPUT 26 OUTPUT 27 OUTPUT 28 OUTPUT 29 OUTPUT 30 OUTPUT 31 OUTPUT 32 OUTPUT 33 OUTPUT 34 OUTPUT 35 OUTPUT 36 OUTPUT 37 OUTPUT 38 OUTPUT 39 OUTPUT 40 OUTPUT 41 OUTPUT 42 OUTPUT 43 OUTPUT 44 OUTPUT 45 OUTPUT 46 OUTPUT 47 OUTPUT 48 OUTPUT 49 OUTPUT 50 OUTPUT 51 OUTPUT 52 OUTPUT 53 OUTPUT 54 OUTPUT 55 OUTPUT 56 OUTPUT 57 OUTPUT 58 OUTPUT 59 OUTPUT 60 OUTPUT 61 OUTPUT 62 OUTPUT 63 OUTPUT 64 OUTPUT 65 OUTPUT 66 OUTPUT 67 OUTPUT 68 OUTPUT 69 OUTPUT 70 OUTPUT 71 OUTPUT 72 OUTPUT 73 OUTPUT 74 OUTPUT 75 OUTPUT 76 OUTPUT 77 OUTPUT 78 OUTPUT 79 OUTPUT 80 OUTPUT 81 OUTPUT 82 OUTPUT 83 OUTPUT 84 OUTPUT 85 OUTPUT 86 OUTPUT 87 OUTPUT 88 OUTPUT 89 OUTPUT 90 OUTPUT 91 OUTPUT 92 OUTPUT 93 OUTPUT 94 OUTPUT 95 OUTPUT 96 OUTPUT 97 OUTPUT 98 OUTPUT 99 OUTPUT 100

Fig 5-3: RB-LI2 Rear Panel.

Inputs

There are 2 input XLR 3 pin sockets. They have the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Isolated Outputs

Each of the 2 inputs has a corresponding isolated output, an XLR 3 pin plug with the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Loop Outputs

Each of the 2 inputs has a corresponding loop-through output, an XLR 3 pin plug with the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Output Level Adjustment

The isolated outputs can be individually adjusted using pre-set potentiometers, which are accessible through the rear panel. The gain range of the stereo line isolation unit is -15dB to +13.5dB (28.5dB).

Abstract red and orange background with blurred vertical lines and a small yellow banner at bottom (no readable text or symbols)

5

MATCHING CONVERTERS

Abstract red and orange background with faint vertical streaks (no text or symbols)

Internal Jumpers

The unit has jumpers that are used to balance the output about ground. By default these are not fitted when the unit leaves the factory.

To get inside the RB-LI2, first ensure that it has been disconnected from the mains power and that the mains IEC lead to the unit has been removed. Observing anti-static precautions, undo the four-crosshead screws on the back panel at the far left and far right of the panel (2 at each end). Also undo the small brass screws, which hold the top and bottom panels to the rear panel. The rear panel should slide backwards out of the unit together with the main circuit board.

LK1 Ground Link for Output 1 LK2 Ground Link for Output 2 Front of RB-LI2 Ground balancing

Fig 5-4: RB-LI2 Jumper Positions on the PCB.

Technical Specifications

Audio Specification

Output Impedance: <150Ω
Frequency Response: 10Hz to 36kHz ±0.5dB
Common Mode Rejection: <64dB
Distortion: 0.5% THD @ 40Hz, ref +17dBu output
Noise: -100dB unity gain ref +8dB
Gain Range: -15dB to +13.5dB (28.5dB)

Connections

Inputs: 2 x XLR 3 pin female

Isolated Outputs: 2 x XLR 3 pin male

Loop Outputs: 2 x XLR 3 pin male

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-LI2: Stereo line isolation unit

Physical Specifications

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

Weight: Nett: 1.10kg Gross: 1.50kg

6 RB-PLI6 6 Way Mono Passive Line Isolation Unit

Introduction

SONIFEX SOMIFEX

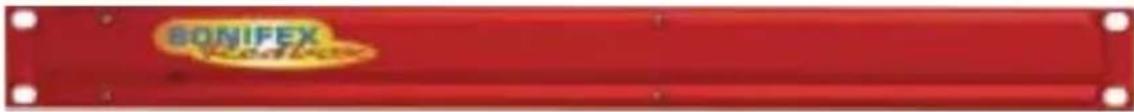

Fig 6-1: RB-PLI6 Front Panel.

The RB-PLI6 6 way mono passive line isolation unit is used to isolate audio signals from inter area ground hum loops, which could be caused by equipment being powered by different mains power supplies or phases on the same supply.

The input and output are connected together through a transformer and the unit has internal jumpers allowing the inputs and/or outputs to be balanced about ground. The unit requires no mains power for operation.

This unit is useful where audio is required to be driven over a relatively long length of cable. By isolating the signal using transformers, ground loop currents that can be present in non-isolated signals, are eradicated completely.

System Block Diagram

Ground Balancing Input Output X6

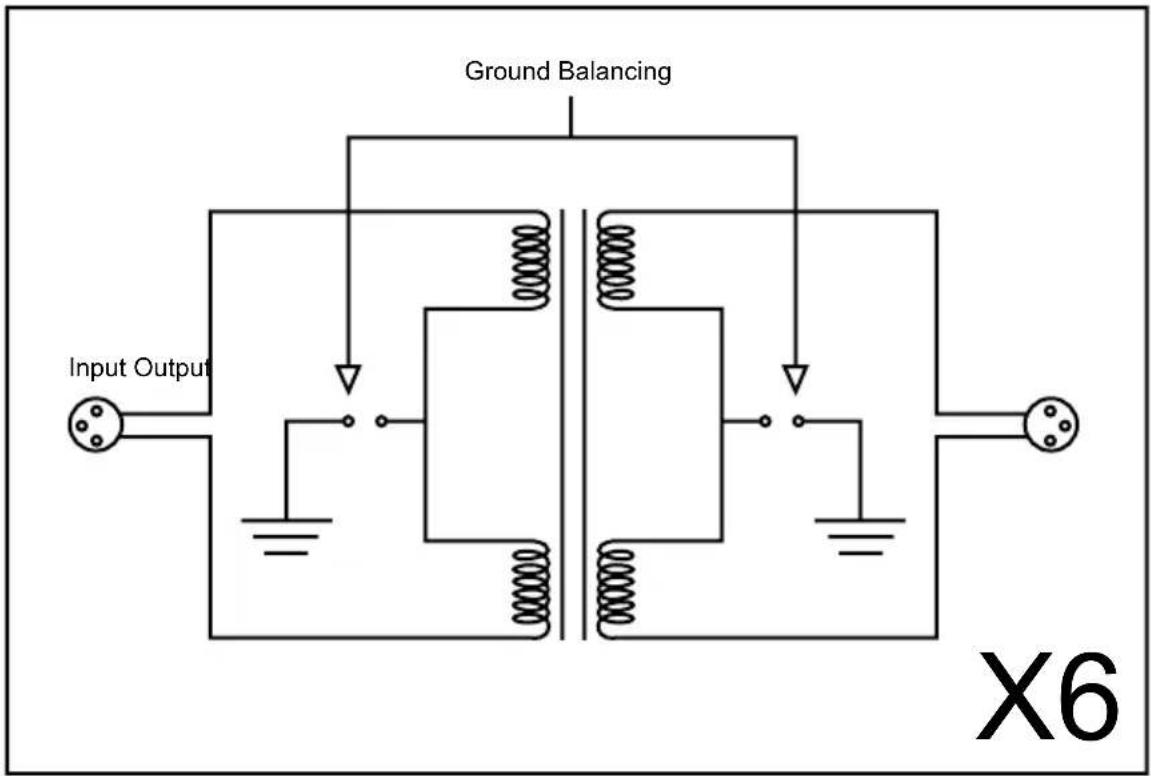

Fig 6-2: RB-PLI6 System Block Diagram.

Abstract red and orange background with blurred vertical white lines (no text or symbols)

6

MATCHING CONVERTERS

Abstract red and orange background with blurred vertical light streaks (no text or symbols)

Rear Panel Connections and Operation

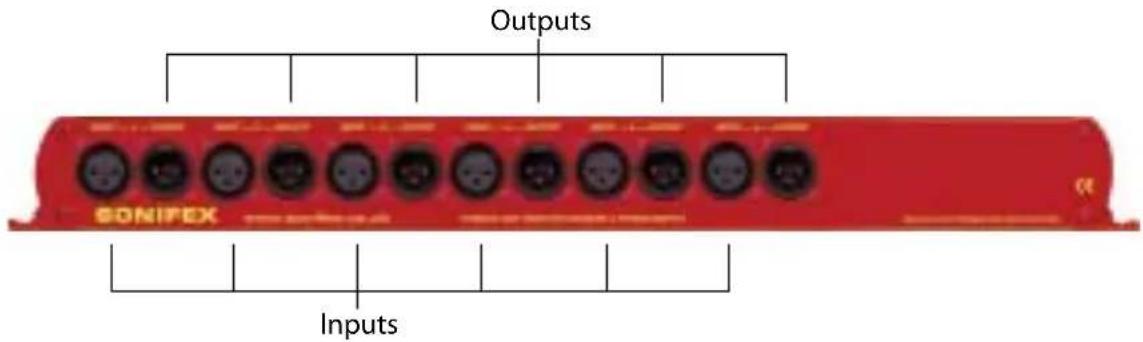

Outputs SONIFEX Inputs

Fig 6-3: RB-PL16 Rear Panel.

Inputs

There are 6 off XLR 3 pin socket inputs. They have the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Outputs

There are 6 off XLR 3 pin plug outputs. They have the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Ground-link Internal Jumpers

The unit has jumpers that are used to balance either the input, or the output, about ground. By default these are not fitted when the unit leaves the factory.

To get inside the RB-PLI6, observing anti-static precautions, undo the four crosshead screws on the back panel at the far left and far right of the panel (2 at each end). Also undo the small brass screws, which hold the top and bottom panels to the rear panel. The rear panel should slide backwards out of the unit together with the main circuit board.

Ground Link for Input 1 Ground Link for Output 1 Ground Link for Input 2 Ground Link for Output 2 Ground Link for Input 3 Ground Link for Output 3 Ground Link for Input 4 Ground Link for Output 4 Ground Link for Input 5 Ground Link for Output 5 Ground Link for Input 6 Ground Link for Output 6 Ground Balancing Front of RBI-PL26

Fig 6-4: RB-PLI6 Ground-link Jumper Settings.

Technical Specifications

Audio Specification

Output Impedance: <150Ω

Distortion: 0.5% THD @ 40Hz, ref +17dBu output

Common Mode Rejection: <64dB typically

Frequency Response: 10Hz to 36kHz ±0.5dB

Connections

Inputs: 6 x XLR 3 pin female (balanced)

Outputs: 6 x XLR 3 pin male (balanced)

Equipment Type

RB-PLI6: 6 way mono passive line isolation unit

Physical Specifications

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H-1U nominally)

Dimensions (Boxed): 53cm (W) x 20.5cm (D) x 6cm

Weight: Nett: 1.5kg Gross: 1.9kg

Abstract red and white pattern with no discernible text or symbols

7

AUDIO DISTRIBUTION AMPLIFIERS

Abstract red and orange background with blurred vertical lines and circular shapes (no text or symbols)

7 RB-DA6 & RB-DA6G 6 Way Stereo Distribution Amplifier

Introduction

RB-048 SONIFEX Sonicom

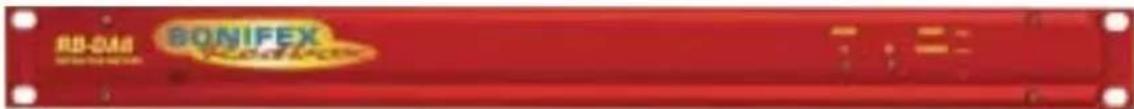

Fig 7-1: RB-DA6 Front Panel.

BB-0460 SONIFEX SINNIFEX

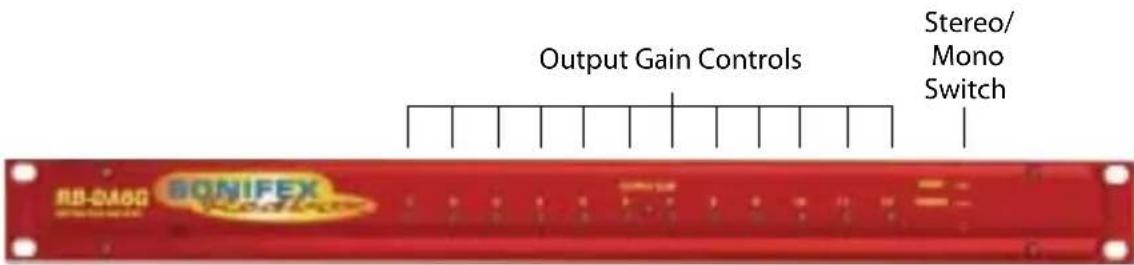

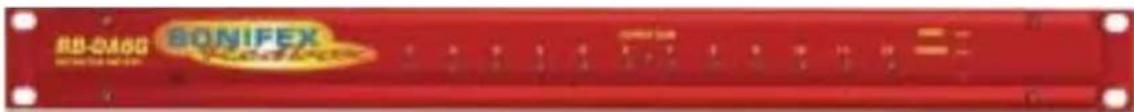

Fig 7-2: RB-DA6G Front Panel.

The RB-DA6 and RB-DA6G are high performance 6 way stereo analogue distribution amplifiers for splitting a source to a number of different outputs. The RB-DA6 has 1 stereo input and 6 stereo outputs with gain control on both inputs. It can also be configured so that 1 mono input can be distributed to 12 outputs. As a variant of the RB-DA6, the RB-DA6G, has an individual gain control on every output.

The XLR-3 inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one won't affect the others. The outputs can be wired unbalanced.

The RB-DA6 has master left and right gain controls which are pre-set potentiometers accessible through the front panel. On the RB-DA6G each channel has an individual output gain control (normalising) which are all pre-set potentiometers, also accessible through the front panel. The 1-12 mono, 1-6 stereo switch is recessed on the front panel to prevent accidental knocking. An LED power indicator on the front panel displays the power supply connection.

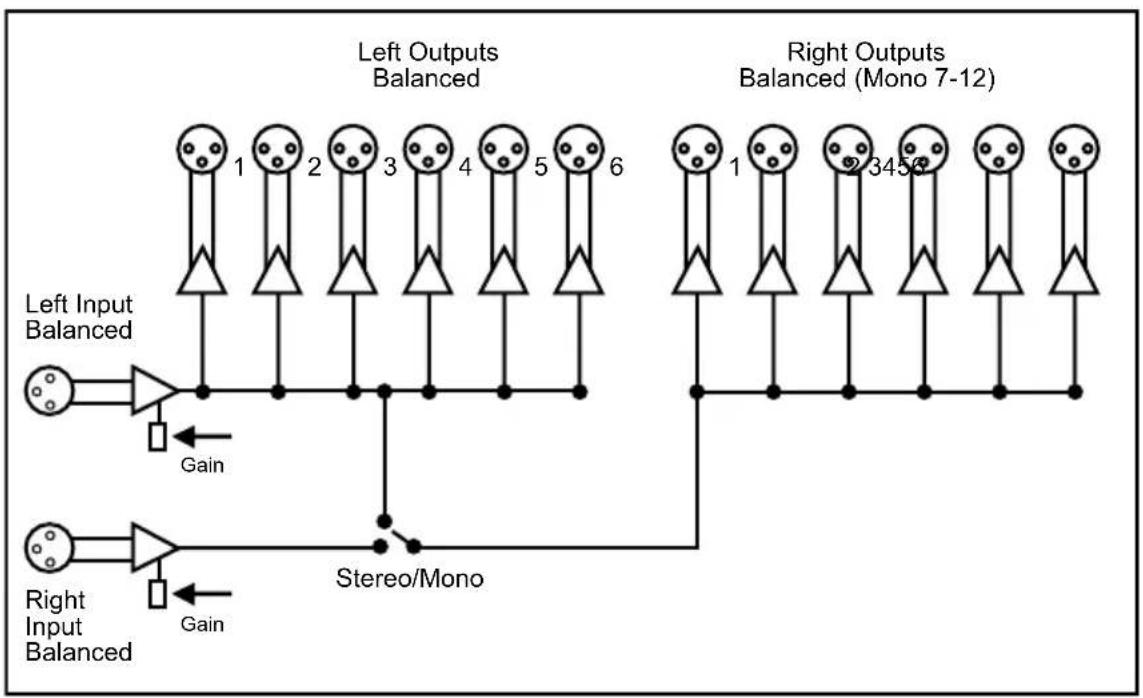

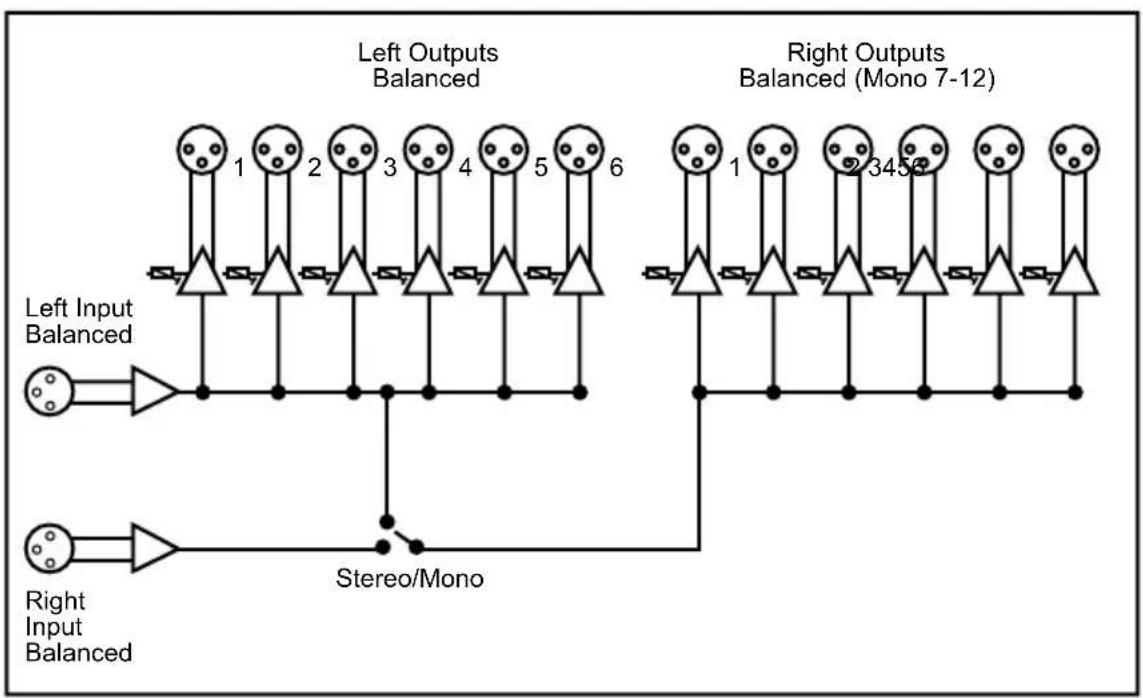

System Block Diagrams
    subgraph_Left_Outputs_Balanced["Left Outputs Balanced"]
        A1["1"] --> B1["△"]
        A2["2"] --> B2["△"]
        A3["3"] --> B3["△"]
        A4["4"] --> B4["△"]
        A5["5"] --> B5["△"]
        A6["6"] --> B6["△"]
    end

    subgraph Right_Outputs_Balanced(Mono 7-12)[Right Outputs Balanced (Mono 7-12)]
        B1["1"] --> C1["△"]
        B2["2"] --> C2["△"]
        B3["3"] --> C3["△"]
        B4["4"] --> C4["△"]
        B5["5"] --> C5["△"]
        B6["6"] --> C6["△"]
    end

    Left_Input_Balanced["Left Input Balanced"] --> B1
    Left Input_Balanced --> B2
    Left Input_Balanced --> B3
    Left Input_Balanced --> B4
    Left Input_Balanced --> B5
    Left Input_Balanced --> B6
    Right_Input_Balanced["Right Input Balanced"] --> B1
    Right Input_Balanced --> B2
    Right Input_Balanced --> B3
    Right Input_Balanced --> B4
    Right Input_Balanced --> B5
    Right Input_Balanced --> B6
    B1 -->|Gain| C1
    B2 -->|Gain| C2
    B3 -->|Gain| C3
    B4 -->|Gain| C4
    B5 -->|Gain| C5
    B6 -->|Gain| C6
    C1 --> Stereo/Mono["Stereo/Mono"]
    C2 --> Stereo/Mono
    C3 --> Stereo/Mono
    C4 --> Stereo/Mono
    C5 --> Stereo/Mono
    C6 --> Stereo/Mono

Fig 7-3: RB-DA6 Block Diagram.
    subgraph_Left_Outputs_Balanced["Left Outputs Balanced"]
        A1["1"] --> B1["△"]
        A2["2"] --> B2["△"]
        A3["3"] --> B3["△"]
        A4["4"] --> B4["△"]
        A5["5"] --> B5["△"]
        A6["6"] --> B6["△"]
    end
    subgraph Right_Outputs_Balanced(Mono 7-12)[Right Outputs Balanced (Mono 7-12)]
        B1["1"] --> C1["△"]
        B2["2"] --> C2["△"]
        B3["3"] --> C3["△"]
        B4["4"] --> C4["△"]
        B5["5"] --> C5["△"]
        B6["6"] --> C6["△"]
    end
    Left_Input_Balanced["Left Input Balanced"]
    Right_Input_Balanced["Right Input Balanced"]
    B1 --> Stereo/Mono["Stereo/Mono"]
    B2 --> Stereo/Mono
    B3 --> Stereo/Mono
    B4 --> Stereo/Mono
    B5 --> Stereo/Mono
    B6 --> Stereo/Mono
    Stereo_Mono --> B1
    Stereo_Mono --> B2
    Stereo_Mono --> B3
    Stereo_Mono --> B4
    Stereo_Mono --> B5
    Stereo_Mono --> B6

Fig 7-4: RB-DA6G Block Diagram.

Abstract red and white pattern with vertical streaks (no text or symbols)

7

AUDIO DISTRIBUTION AMPLIFIERS

Abstract red and orange background with blurred vertical white lines (no text or symbols)

Connections and Operation

Red electronic device rear panel with multiple power connector pins and control buttons

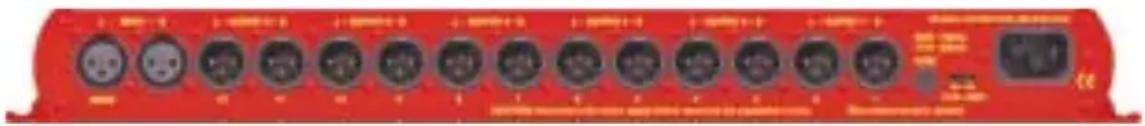

Fig 7-5: RB-DA6 & RB-DA6G Rear Panel.

Inputs (Left and Right)

The XLR-3 input connectors can take balanced professional levels, or unbalanced by using the front panel gain controls, and by connecting the non-phase to the signal ground. The input can be configured as either a stereo input with six stereo outputs or a mono input with twelve outputs. The XLR 3 pin input has the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Stereo Outputs 1-6 (Mono Outputs 1-12)

The XLR 3 pin outputs are electronically balanced, and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output will not affect the others. They have the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Input Gain Control (RB-DA6)

The input gain on the RB-DA6 can be varied -8dB to 18db by adjusting the pre-set potentiometers. These are accessible through the holes in the front panel. The RB-DA6 has separate left and right master gain controls.

BB-016 SONIFEX SONIFEX

Fig 7-6: RB-DA6 Front Panel.

Output Gain Control (RB-DA6G)

The output gain on the RB-DA6G can be varied -8dB to 18dB by adjusting the pre-set potentiometers. These are accessible through the holes in the front panel. The RB-DA6G has output gain controls on every output.

Output Gain Controls Stereo/ Mono Switch

Fig 7-7: RB-DA6G Front Panel.

Stereo/Mono Operation

The mode of operation may be switched between a stereo distributed channel to 6 stereo channels, and a mono channel to 12 mono channels, by the push button on the front panel, which is recessed to prevent accidental switching.

Technical Specifications

Audio Specifications

Input Impedance >20kΩ bridging

Output Impedance <50Ω

Maximum Input Level +28dBu

Maximum Output Level +28dBu

Frequency Response 20Hz to 20kHz ± 0.1dB (600Ω load, ref 1kHz)

Gain Range Adjustable 8dB loss to 18dB gain

Common Mode Rejection >66dB typically

Distortion 0.01% THD @ 1kHz, ref +8dBu output

Noise -100dB unity gain ref +8dB (RB-DA6)

-88dB unity gain ref +8dB (RB-DA6G)

Connections

Inputs 2 x XLR 3 pin female (Balanced, can be unbalanced)

Outputs 12 x XLR 3 pin male (Balanced, can be unbalanced)

Mains Input Filtered IEC, 110V-120V, or 220-240V, fused, 6W maximum

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DA6: 6 way stereo distribution amplifier

RB-DA6G: 6 way stereo distribution amplifier with output gain

Physical Specifications

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed): 53cm (W) x 20.5cm (D) x 6cm (H)

Weight: Nett: 1.3kg Gross: 1.9kg

Abstract red and white pattern with vertical lines and a small yellow shape at the bottom (no text or symbols)

8

AUDIO DISTRIBUTION AMPLIFIERS

Abstract red and orange background with faint vertical white lines (no text or symbols)

8 RB-DA4x5 4 Input 4 x 5 Output Distribution Amplifier/Mixer

Introduction

Output Gain Controls Input Selectors Input Gain Controls Input/ Output Levels

SONIFEX SONIFEX

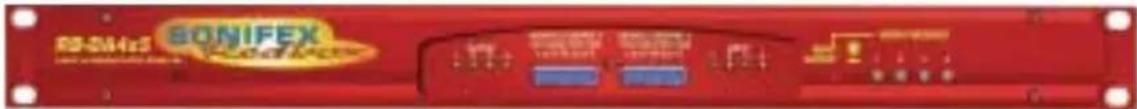

Fig 8-1: RB-DA4x5 Front Panel.

The RB-DA4x5 is a 1U rack-mount combined distribution amplifier and mixer. It has 4 mono analogue audio inputs on female XLR and 4 groups of 5 outputs on 15 way D-type connectors. Each output group has a five way front-panel DIP switch assigned to it which is used to select the input(s) to send to the output group. This enables each of the four inputs, and a 1kHz 0dBu tone, to be mixed to the output group.

The inputs and outputs are electronically balanced and can be wired unbalanced. Each input has adjustable gain using a preset potentiometer, providing a gain range of -8dB to +18dB. Each output is individually buffered so that a short circuit on one output will not affect the others. The output gain of each group can similarly be adjusted between -8dB and +18dB using preset potentiometers.

The DIP switch settings and gain controls are recessed beneath a front-mounting screw-on cover so that settings can not be accidentally altered, for secure applications. Four bright front-panel signal present LEDs show the levels of either the inputs or the output groups by pressing the AUDIO PRESENCE button. The LEDs will show green illumination from -12dBu through to 0dBu, amber from 0dBu through to +6dBu and red for inputs and outputs at +6dBu and over.

System Block Diagram

    N["Meter In 1"] --> O["Meter Out 1"]
    N --> P["Meter In 2"]
    N --> Q["Meter Out 2"]
    N --> R["Meter In 3"]
    N --> S["Meter Out 3"]
    N --> T["Meter In 4"]
    N --> U["Meter Out 4"]
    N --> V["Meter In 5"]
    N --> W["Meter Out 5"]
    N --> X["Meter In 6"]
    N --> Y["Meter Out 6"]
    N --> Z["Meter In 7"]
    N --> AA["Meter Out 7"]

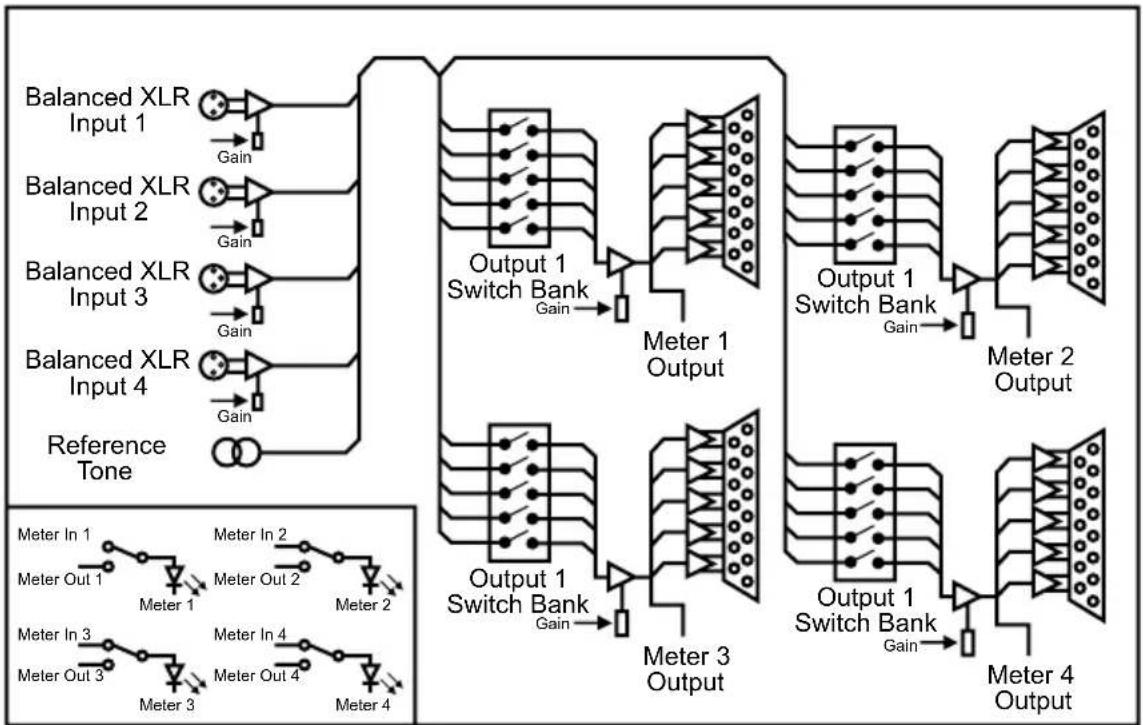

Fig 8-2: RB-DA4x5 Block Diagram.

Rear Panel Connections and Operation

Inputs Outputs

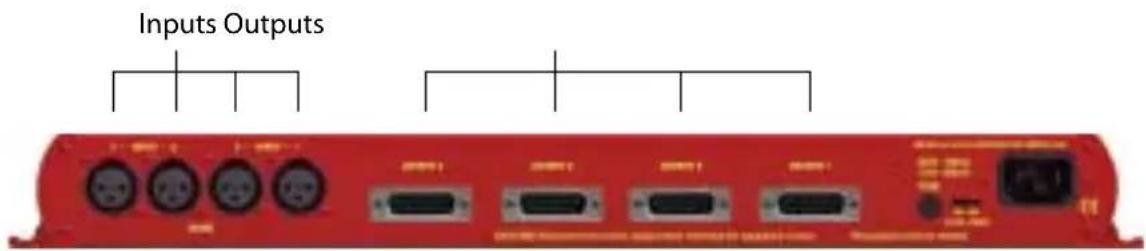

Fig 8-3: RB-DA4x5 Rear Panel.

Audio Inputs 1-4

The XLR 3 pin sockets used for the audio inputs are electronically balanced and have an impedance of 20kΩ bridging. They are routed to the switch matrix. Each XLR has the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Abstract red and yellow gradient background with no visible text or symbols

Abstract red and orange gradient background with no visible text or symbols

D-Type Audio Output Groups 1-4

Each output group connector has 5xDA driven balanced audio outputs on a D-type connector outputs each with an output impedance of <50 .

1 8

Front view of a 2.5x2.58 VGA connector (no text or symbols visible)

9 15

Output 2
Output 4

Diagram of a 16-pin D-sub connector with hexagonal connectors (no text or labels)

Output 1
Output 3
Output 5
Fig 8-4: RB-DA4x5 Audio Output Group15-Way D-Type Plug.

Function Output 1 Output 2 Output 3 Output 4 Output 5

Out + Pin No. 1 3 4 6 7

Out - Pin No. 9 10 12 13 15

Signal Ground Pin No. 2 11 5 14 8

Fig 8-5: RB-DA4x5 Pinout for Audio Output Group Connector.

Monitor LEDs

There are 4 LEDs on the front panel that indicate the relative levels of the audio signals at the inputs or outputs. A pushbutton switch on the front panel toggles the function of these LEDs between input and output. These LEDs indicate the levels of the signals by illuminating green for signals between -12 and 0dBu, illuminating yellow for signals between 0 and +6dBu, and illuminating red for signals over +6dBu.

Input Level Adjustment

The gain for each input can be adjusted through pre-set potentiometers that are accessible from behind the removable plate on the front panel. The gain of each balanced input is variable within a range of -8dB to +18dB into the router input.

Output Level Adjustment

The gain for each output group can be adjusted through pre-set potentiometers that are accessible from behind the removable plate on the front panel. The gain of each output group is variable within a range of -8dB to +18dB from the router output.

Routing Selection

Each output group is capable of selecting its signal from any combination of inputs and the test tone. Set the appropriate dip-switch for that group & that input to the on position to include the signal in the group's output.

OUTPUT 1 | OUTPUT 2 TEST TONE | TEST TONE 1 2 3 4 | 1 2 3 4 |

On ↓

123456789 10

Fig 8-6: RB-DA4x5 Routing Selection Switch.

Function	Group 1Routing	Group 2Routing	Group 3Routing	Group 4Routing
Input 1 SW1-1 On SW1-6 On SW2-1 On SW2-6 On
Input 2 SW1-2 On SW1-7 On SW2-2 On SW2-7 On
Input 3 SW1-3 On SW1-8 On SW2-3 On SW2-8 On
Input 4 SW1-4 On SW1-9 On SW2-4 On SW2-9 On
Test Tone SW1-5 On SW1-10 On SW2-5 On SW2-10 On

Fig 8-7: RB-DA4x5 Routing Selection Switch Functions.

Alignment Test Tone

Each of the output groups has the capability of selecting a 1kHz, 0dBu test tone. This signal can be used as a reference to set the output gain levels. Once these values are known then the input gains can be set by providing a known tone to the input and adjusting the input gain to the required level. It is possible to use this test tone as a reference level for the input gain by adjusting the output gains to unity and then looping back any output to the input connector. The on-board oscillator is temperature sensitive and in cold conditions may take a short time to start oscillating. In any case you should always allow the unit to fully come to its normal operating temperature before adjusting the gains.

Technical Specifications

Audio Specifications

Maximum Input Level: +28dBu

Input Impedance (XLR): >20kΩ balanced bridging

Output Impedance: <50Ω

Maximum Output Level: +28dBu

Distortion: 0.01% THD @ 1kHz, ref +8dBu output

Noise: -100dB, unity gain, ref +8dBu output

Common Mode Rejection: >66dB typically

Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)

Input Gain Range: Adjustable 8dB loss to 18dB gain (channel 1-4 adjust)

Output Gain Range: Adjustable 8dB loss to 18dB gain (group 1-4 adjust)

Connections

Inputs (4 x mono):	4 x XLR 3 pin female (Balanced)
Outputs (20 x mono):	4 x 15 way D-type (Balanced)
Mains Input:	Filtered IEC, 110V-120V, or 220-240V switchable, fused, 9W maximum
Fuse Rating:	Anti-surge fuse 100mA 20 x 5mm (230VAC)Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DA4x5: 4 input to 20 output distribution amplifier & mixer

Physical Specifications

Dimensions (Raw):	48cm (W) x 15.8cm (D*) x 4.2cm (H) (1U)
Dimensions (Boxed):	53cm (W) x 25.5cm (D*) x 6cm (H)
Weight:	Nett: 1.6kg Gross: 2.2kg

* Note that this product is deeper than standard redboxes.

Abstract red and orange gradient background with no visible text or symbols

9 RB-DDA6A 6 Way Stereo AES/EBU Digital Distribution Amplifier and RB-DDA6S 6 Way Stereo S/PDIF Digital Distribution Amplifier

Introduction

SONIFEX RedBox

Fig 9-1: RB-DDA6A/S Front Panel.

The RB-DDA6A digital distribution amplifier is used for distributing digital audio data in AES/EBU format, repeating both the audio data and the status information of the input whilst re-normalising to standard digital audio levels.

It has a single XLR-3 female AES/EBU audio input which is distributed to 6 XLR-3 male AES/EBU outputs.

Applications include distributing audio from a digital mixing desk to multiple digital recorders, or feeding multiple studios with an output from a DAT machine.

It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit. So, it can be used for standard CD signal distribution at 16 bit 44.1kHz, as well as for high quality 24 bit 96kHz recording.

The RB-DDA6S digital distribution amplifier is similar to the RB-DDA6A except that it is used for distributing digital audio data in S/PDIF format.

It has a single S/PDIF audio input which is distributed to 6 x S/PDIF audio outputs at the same level and condition as the input signal. It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit.

Uses include audio distribution at 16 bit 44.1kHz from a consumer CD player to multiple digital recorders, distribution of high quality 24 bit 96kHz signals from digital mixing desks to recorders and connection of the output of, say, a DVD player to multiple studios.

System Block Diagrams


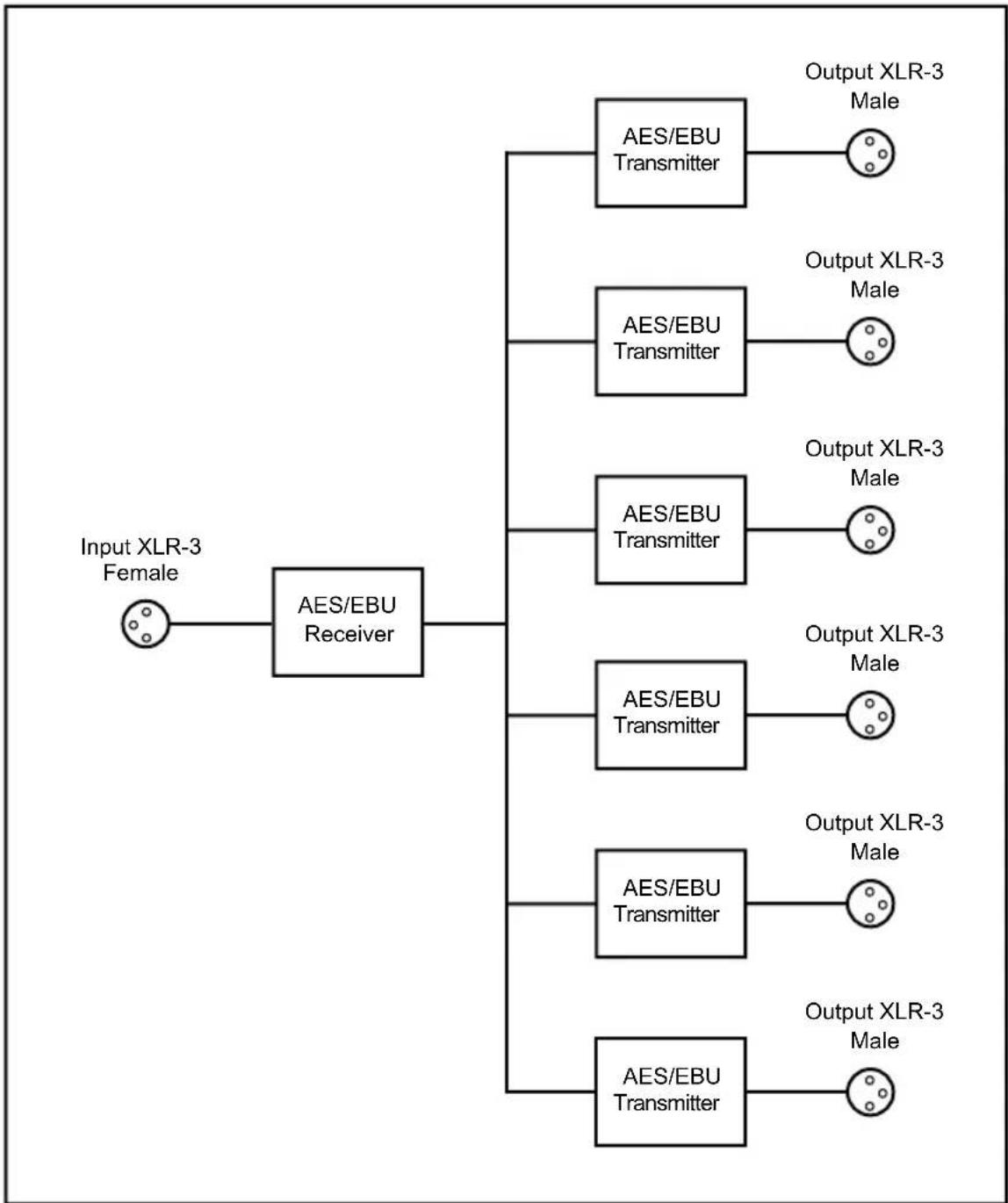

Fig 9-2: RB-DDA6A System Block Diagram.

Abstract red and yellow background with blurred vertical streaks (no text or symbols)

Abstract red and orange background with blurred white vertical lines (no text or symbols)

AUDIO DISTRIBUTION AMPLIFIERS-RB-DDA6A & RB-DDA6S


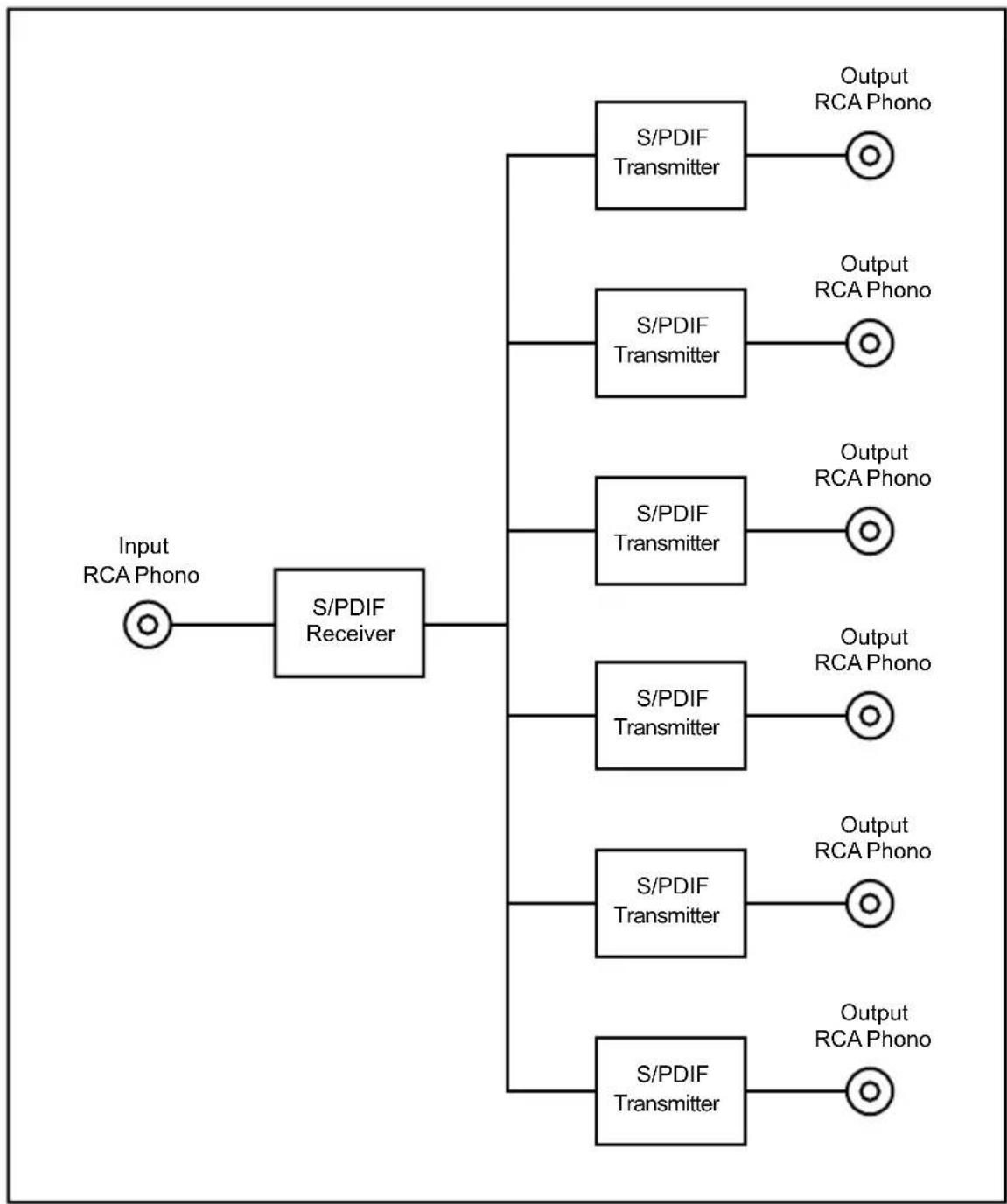

Fig 9-3: RB-DDA6S System Block Diagram.

Rear Panel Connections and Operations

AES/EBU Input AES/EBU Outputs

Abstract red and orange background with faint vertical white lines (no text or symbols)

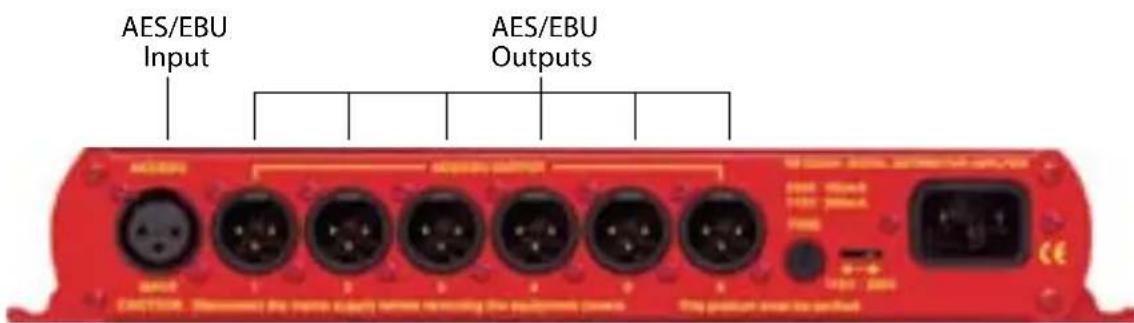

Fig 9-4: RB-DDA6A Rear panel.

AES/EBU Input

The XLR 3 pin socket has an impedance of 110Ω. It has the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

AES/EBU Outputs

The XLR 3 pin sockets have an impedance of 110Ω. They have the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

S/PDIF Input S/PDIF Outputs

Fig 9-5: RB-DDA6S Rear Panel.

S/PDIF Input

The S/PDIF phono input has an impedance of 75Ω.

S/PDIF Outputs

The S/PDIF phono outputs have an impedance of 75Ω.

Abstract red and brown gradient background with no visible text or symbols

Technical Specifications

Audio Specifications

RB-DDA6A

Input Impedance: 110Ω ± 20% balanced

Output Impedance: 110Ω ± 20% balanced

Sample Freq Range: 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz and 96kHz)

Signal Level: 3V/10V peak to peak min/max

RB-DDA6S

Input Impedance: 75Ω ±5% unbalanced

Output Impedance: 75Ω ±5% unbalanced

Sample Freq Range: 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz and 96kHz)

Signal Level: Balanced min 0.5V ±20% peak to peak

Connections

RB-DDA6A

Input: 1 x AES/EBU XLR 3 pin female (balanced)

Outputs: 6 x AES/EBU XLR 3 pin male (balanced)

Mains Input Filtered IEC, 110-120V, or 220-240V switchable, fused, 6W max

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

RB-DDA6S

Input (unbalanced): 1 x S/PDIF RCA phono female

Outputs: 6 x S/PDIF RCA phono female (unbalanced)

Mains Input: Filtered IEC, 110-120V, or 220-240V switchable, fused, 6W max

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DDA6A 6 way AES/EBU stereo digital distribution amplifier

RB-DDA6S

6 way stereo S/PDIF digital distribution amplifier

Physical Specifications

RB-DDA6A

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

Weight: Nett: 0.95kg Gross: 1.4kg

RB-DDA6S

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)

Weight: Nett: 0.9kg Gross: 1.35kg

10 RB-DDA6W 6 Way Word Clock Distribution Amplifier

Introduction

SONIFEX Recallor

Abstract red and orange gradient background with vertical white lines (no text or symbols)

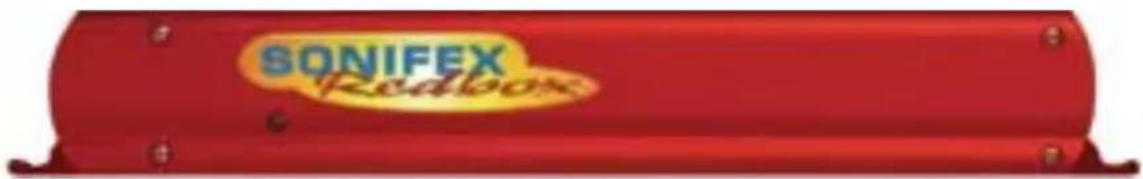

Fig 10-1: RB-DDA6W Front Panel.

The RB-DDA6W 6 Way Word Clock Distribution Amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned. It is used in distributing reference clocks for digital audio systems.

It has a single female BNC input which is distributed to 6 female BNC outputs.

The unit's primary application is to distribute a master TTL word clock source to multiple pieces of equipment that need to be synchronised from the master.

10 AUDIO DISTRIBUTION AMPLIFIERS

Abstract red and orange background with blurred vertical lines and a small circular symbol (no readable text or symbols)

AUDIO DISTRIBUTION AMPLIFIERS - RB-DDA6W

System Block Diagram


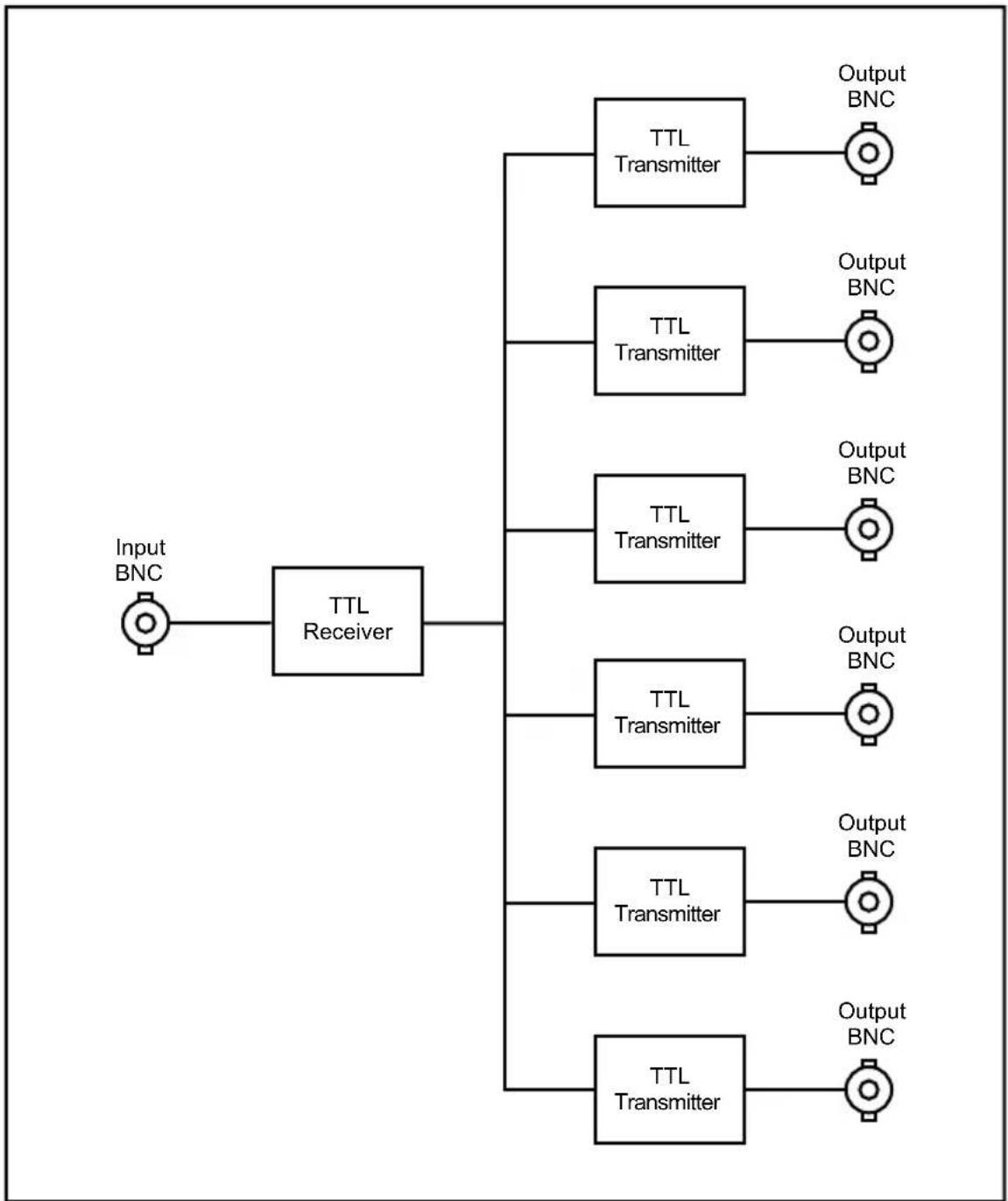

Fig 10-2: RB-DDA6W System Block Diagram.

Rear Panel Connections and Operations

Word Clock Input Word Clock Outputs

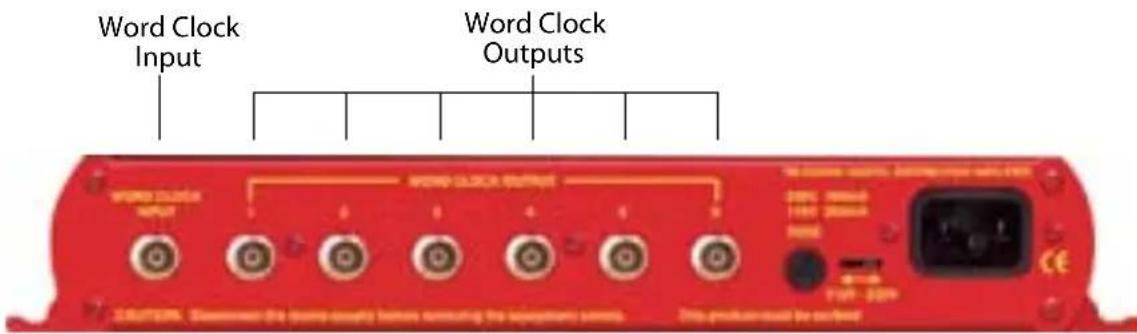

Fig 10-3: RB-DDA6W Rear Panel.

Word Clock Input

The Word Clock BNC input has an impedance of 75 Ω.

Word Clock Outputs

The Word Clock BNC outputs have an impedance of <50 .

Technical Specifications

Signal Specifications

Input Impedance 75Ω

Output Impedance <50Ω

Connections

Input 1 x BNC female

Outputs 6 x BNC female

Mains Input Filtered IEC, 110-120V, or 220-240V switchable, fused, 6W max

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DDA6W 6 way word clock distribution amplifier

Physical Specifications

Dimensions (Raw) 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed) 36cm (W) x 20.5cm (D) x 6cm (H)

Weight

Nett:

0.9kg

Gross:

1.35kg

Abstract red and brown gradient background with faint vertical white lines (no text or symbols)

11

HEADPHONE DISTRIBUTION AMPLIFIERS

Abstract red and orange background with faint vertical white lines (no text or symbols)

11 RB-HD1 Stereo Headphone Amplifier & RB-HD2 Dual Headphone Amplifier

Introduction

RS-ND1 SONIFEX SOPRISON

Fig 11-1: RB-HD1 Front Panel.

The RB-HD1 is a 1U rack-mount stereo headphone amplifier for driving up to two pairs of professional stereo headphones from a single stereo or mono input. One headphone socket is on the front panel with one on the rear.

The main stereo input uses electronically balanced XLR-3 connectors on the rear panel, which can be wired un-balanced. The output volume for the headphones can be controlled either by a pot situated on the front panel or a VCA signal supplied externally via the remote connector.

A mono input can be mixed into the main headphone feed, for example, for mixing in talkback to the headphones. This has an input level control via a recessed adjustable potentiometer. The mono mix input can also be controlled remotely.

A stereo/mono switch is recessed on the rear panel to prevent accidental knocking. With mono selected, audio is sent to both left and right ear pieces. A LED power indicator on the front panel displays the power supply connection.

BOMIFEX BOMIFEX

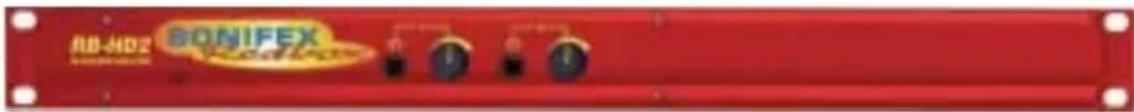

Fig 11-2: RB-HD2 Front Panel.

The RB-HD2 is a high performance 2-way stereo headphone distribution amplifier for driving up to 2 pairs of professional stereo headphones from a single stereo or mono input. A switch on the rear panel enables the distribution of a mono signal to all four outputs (i.e. both earpieces of a pair of stereo headphones) via the left channel input. The stereo/mono switch is located on the rear panel to prevent accidental knocking.

The XLR-3 inputs are electronically balanced and can be wired unbalanced. There are two pre-set controls on the rear panel that adjust the level of the master input signal to the outputs.

Each output is on a 14 " stereo jack socket and is designed to drive 150mW into 32 ohm to 600 ohm stereo headphones. The outputs are individually buffered with their own front panel volume control. A LED power indicator on the front panel displays the power supply connection.

System Block Diagrams

Fig 11-3: RB-HD1 Block Diagram.


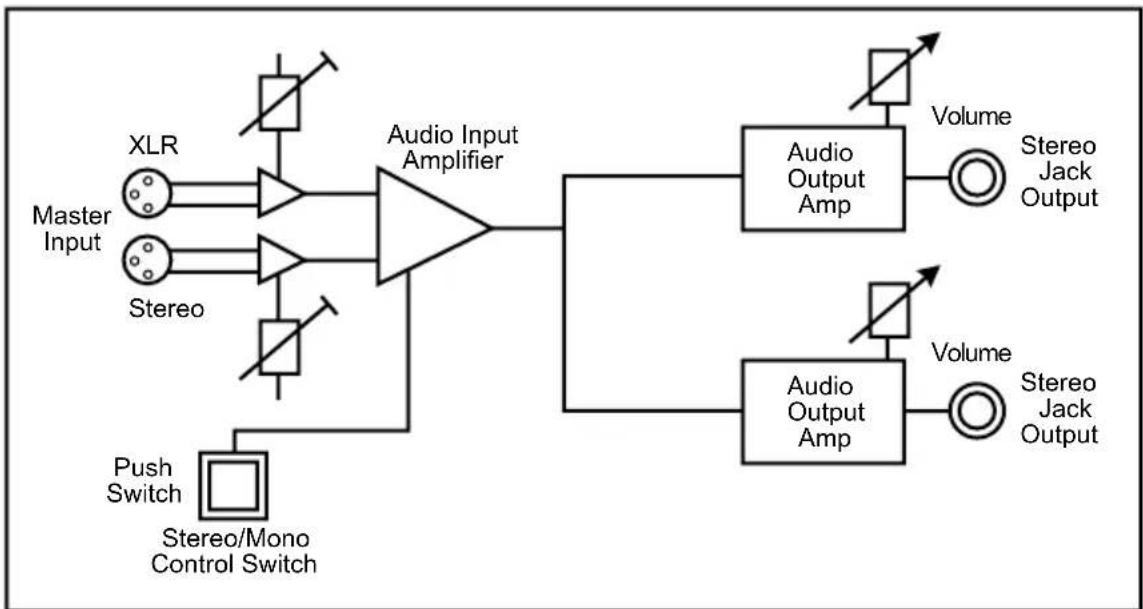

Fig 11-4: RB-HD2 Block Diagram.

Abstract red and orange background with faint vertical white lines (no text or symbols)

11 HEADPHONE DISTRIBUTION AMPLIFIERS

Abstract red and brown background with faint vertical white lines (no text or symbols)

Front Panel Connections and Controls

Stereo Output Volume Level Control BONIFFEX R3-RD1

Fig 11-5: RB-HD1 Front Panel Controls.

Stereo Outputs 1-2 (Mono Outputs1-2)

The outputs available on the front and rear panel through 14 " stereo jack sockets are push-pull, designed to drive 150 mW into 32Ω to 600Ω professional headphones. Each output is individually buffered.

Volume Level Control

The volume level control sets the output level of the two stereo headphone sockets.

The two headphone outputs have a maximum output of +11dBu.

Stereo Output Stereo Output Volume Level Control Volume Level Control

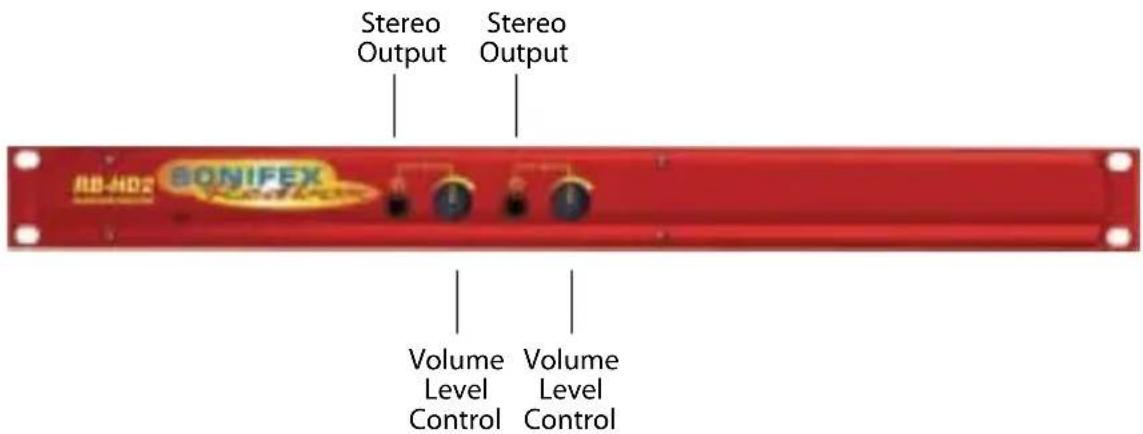

Fig 11-6: RB-HD2 Front Panel Controls.

Stereo Outputs 1-2 (Mono Outputs 1-2)

The outputs available on the front panel through 14 " stereo jack sockets are push-pull, designed to drive 150 mW into 32Ω to 600Ω professional headphones. Each output is individually buffered.

Channel Volume Controls

Each channel has its own volume control so that you have control of the signal volume to an individual output from the master input.

Rear Panel Connections and Operation

Main Stereo Inputs Mono Mix Input Headphone Remote Connector Stere0/ Mono Switch Mono Mix Input Gain Adjustment Local/ Remote Control Switch

Fig 11-7: RB-HD1 Rear Panel.

Main Stereo Inputs Stereo/Mono Switch SONIFEX www.sonifex.co.uk 200V 1600A 110V 2000A 70Hz 1199-24W CREATION (Measurement) the audio quality before removing the equipment screen. Stereo Input Gain Adjustment

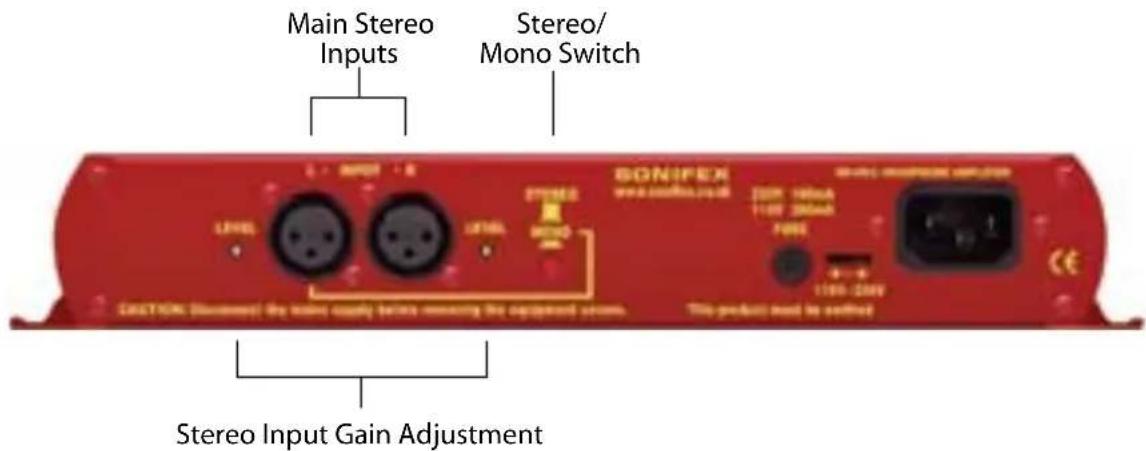

Fig 11-8: RB-HD2 Rear Panel.

Main Stereo Inputs (Left and Right)

The XLR-3 input connectors can take balanced professional levels, or unbalanced by using the volume control to increase the input level, and by connecting the non-phase to the signal ground. The input can be configured as either a stereo input with two stereo outputs or a mono input with two mono paired outputs. The XLR 3 pin input has the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Stereo Input Gain Adjustment (RB-HD1)

There are two preset controls on the rear panel that adjust the level of the master input signal to the outputs from -12dB to +20dB gain.

Abstract red and white pattern with no discernible text or symbols

11 HEADPHONE DISTRIBUTION AMPLIFIERS

Abstract red and orange background with faint vertical white lines (no text or symbols)

Stereo/Mono Operation

The mode of operation may be switched between a stereo distributed channel to 2 stereo channels, or a mono channel to two mono paired outputs (i.e. the same signal to both ear pieces) by using the push button, mounted on the rear panel to prevent accidental switching.

Mono Mix Input (RB-HD1)

The XLR-3 input connector can take balanced professional levels, or unbalanced by connecting the non-phase to the signal ground. This input is used for mixing with the main stereo input, which is controlled by the MIX_EN pin (pin 8 on the remote connector) on the remote connector. While this signal is shorted to the ground pin (pin 9 on the remote connector) mixing is enabled and is only disabled once the signal from MIX_EN to pin 9 is open on the remote connector. The XLR 3 pin input has the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Mono Mix Input Gain Adjustment (RB-HD1)

A rotary pre-set potentiometer can be used to adjust the gain of the mono mix input by 22dBu.

Local/Remote Control Operation (RB-HD1)

The level to the two outputs can be controlled in one of two ways, either locally, by the pot situated on the front panel or remotely, by a VCA signal supplied externally to the remote connector.

Remote Connector (RB-HD1)

The remote connector is a 9-pin D-type socket, which is situated on the rear panel. It has connections as shown below.

Pin No. Signal I/O Description

Pin 1 Pot wiper I Volume control signal

Pin 2 Pot top O +5V

Pin 3 N/C - No connection

Pin 4 N/C - No connection

Pin 5 N/C - No connection

Pin 6 Pot bottom - Ground

Pin 7 N/C - No connection

Pin 8 MIX_EN I Make to pin 9

Pin 9 0V - Ground

Fig 11-9: RB-HD1 Remote Connector

Technical Specifications

Audio Specifications RB-HD1 & RB-HD2:

Maximum Input Level: +28dBu

Input Impedance: >20kΩ balanced bridging (main)

Input Gain Range: -12dB to +20dB (pre-set pots) (RB-HD2)

Output Level: Drives 150 mW into 32Ω to 600Ω headphones

Volume Control: -80dB to +11dB gain

Mono Mix Input Gain Range: 22dBu (RB-HD1)

Connections

RB-HD1:

Main Stereo Input: 2 x XLR 3 pin female (Balanced, can be wired unbalanced)

Mono Mix Input: 1 x XLR 3 pin female (Balanced, can be wired unbalanced)

Outputs: 2 × 1/4'' (6.35mm) A/B gauge 3-pole stereo jack sockets

Remote Control: 9-pin D-type socket

Mains Input: Filtered IEC, 110V-120V, or 220-240V switchable, fused, 9W maximum

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

RB-HD2:

Main Stereo Input 2 x XLR 3 pin female (Balanced, can be wired unbalanced)

Outputs 2 x 1/4" (6.35mm) A/B gauge 3-pole stereo jack sockets

Mains Input Filtered IEC, 110V-120V, or 220-240V, fused, switchable, 9W maximum

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-HD1: Stereo headphone amplifier

RB-HD2: Dual stereo headphone amplifier

Physical Specifications

RB-HD1:

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed): 53cm (W) x 20.5cm (D) x 6cm

Weight: Nett: 1.35kg Gross: 2.0kg

RB-HD2:

Dimensions (Raw): 48cm (W) × 10.8cm (D) × 4.2cm (H) (1U)

Dimensions (Boxed): 53cm (W) x 20.5cm (D) x 6cm

Weight: Nett: 1.35kg Gross: 2.0kg

Abstract red and orange gradient background with no visible text or symbols

12

HEADPHONE DISTRIBUTION AMPLIFIERS

Abstract red and orange background with faint vertical white lines (no text or symbols)

12 RB-HD6 6 Way Headphone Distribution Amplifier

Introduction

RB-HDB SONIFEX Rally on the right side of the panel

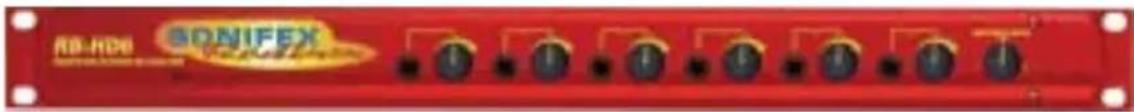

Fig 12-1: RB-HD6 Front Panel.

The RB-HD6 is a high performance 6-way stereo headphone distribution amplifier for driving up to 6 pairs of professional stereo headphones from a single stereo or mono input. A switch on the rear panel enables the distribution of a mono signal to all twelve outputs (i.e. both earpieces of a pair of stereo headphones) via the left channel input.

Alternatively, the RB-HD6 can be used as six separate stereo headphone amplifiers by using the override (insert-point, or break-jack) input associated with each outlet. A typical application might be to provide common headphone feeds for guests around a table in a radio studio, with a separately derived feed, perhaps including talkback, for the presenter. The over-ride inputs can also be configured as parallel outputs (to the front outputs) by altering jumper settings inside the unit.

The XLR-3 inputs are electronically balanced and can be wired unbalanced. There is a master control that adjusts the level of the master signal to all the outputs. This master control can be disabled by the use of internal jumpers. Each output is designed to drive 150 mW into 32Ω to 600Ω stereo headphones and is individually buffered with its own volume control.

The input level and output volume controls are all potentiometers on the front panel. The stereo/mono switch is recessed on the rear panel to prevent accidental knocking. A LED power indicator on the front panel displays the power supply connection.

System Block Diagram

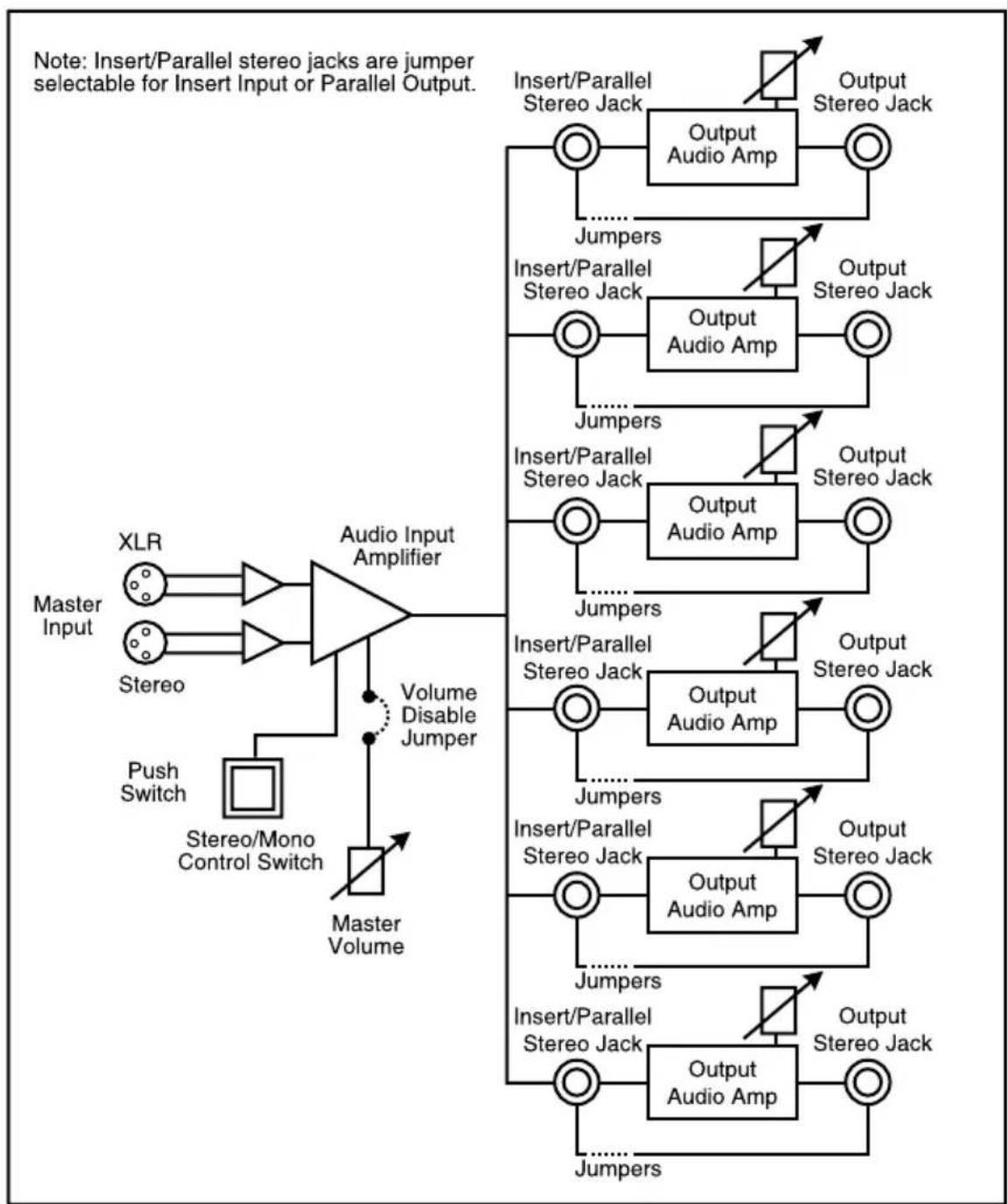

Fig 12-2: RB-HD6 Block Diagram.

Abstract red and yellow background with vertical white lines (no text or symbols)

12 HEADPHONE DISTRIBUTION AMPLIFIERS

Abstract red and yellow background with vertical white lines (no text or symbols)

Rear Panel Connections and Operation

Stereo Inputs Channel Insertion Inputs Stereo/Mono Operation

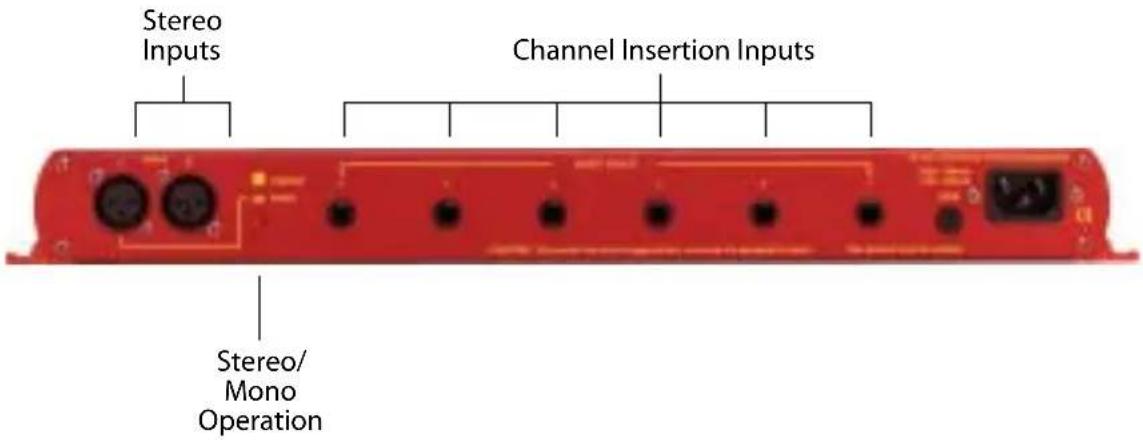

Fig 12-3: RB-HD6 Rear Panel.

Stereo Input (Left and Right)

The XLR-3 input connectors can take balanced professional levels, or unbalanced by using the front panel master control to increase the input level, and by connecting the non-phase to the signal ground. The input can be configured as either a stereo input with six stereo outputs or a mono input with six mono paired outputs. The XLR 3 pin input has the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

Stereo/Mono Operation

The mode of operation may be switched between a stereo distributed channel to 6 stereo channels, or a mono channel to six mono paired outputs (i.e. the same signal to both ear pieces), by the push button on the rear panel which is recessed to prevent accidental switching.

Channel Insertion Inputs/Parallel Outputs

Each channel has an unbalanced override/insertion input via a 14 " stereo audio jack socket on the rear panel, which overrides the master input.

Each connector can also be individually configured as a parallel output providing the same signal as the output on the front of the unit. To configure the jack connector as an output, you'll need to alter some jumper settings inside the unit.

Removing the Equipment Covers

To get inside the RB-HD6, first ensure that it has been disconnected from the mains power and that the mains IEC lead to the unit has been removed. Observing anti-static precautions, undo the four cross-head screws on the back panel at the far left and far right of the panel (2 at each end). Also undo the small brass screws which hold the top and bottom panels to the rear panel. The rear panel should slide backwards out of the unit together with the main circuit board.

Configuring Insert Inputs/Parallel Outputs

On the main circuit board, you'll see some jumpers (small black rectangles), the position of which will define whether a particular jack socket operates as an input or output.

The drawings below show the different jumper settings available. Each input/output can be configured individually, so you could have three jacks set as inputs and three as outputs if needed.

Input/Output 1		2 3 4 5 6
Jumpers to Alter	Left JP	1 & 2 JP5 & 6	JP9 & 10 JP	13 & 14 JP17	& 18 JP21 &	22
	Right	JP3 & 4 JP7 &	8 JP11 & 12	JP15 & 16 JP	19 & 20 JP23	& 24

Fig 12-4: RB-HD6 Jumper Assignments.

Left Channel 1 2 3 1 2 3 1 2 3 Right Channel 1 2 3 For Parallel Output For Insert Input

Fig 12-5: RB-HD6 Jumper Positions.

Once you've set up the jumpers, slide the circuit board back into the Redbox housing using the slots along the inside edge of the metalwork as a guide. Replace the screws on the top, bottom and rear panels of the RB-HD6.

Important Note: The screws provide earthing protection to the chassis and grounding protection for CE approval – it is important that you reinsert all the screws provided.

Front Panel Connections and Controls

Volume Controls Master Volume Control Headphone Outputs

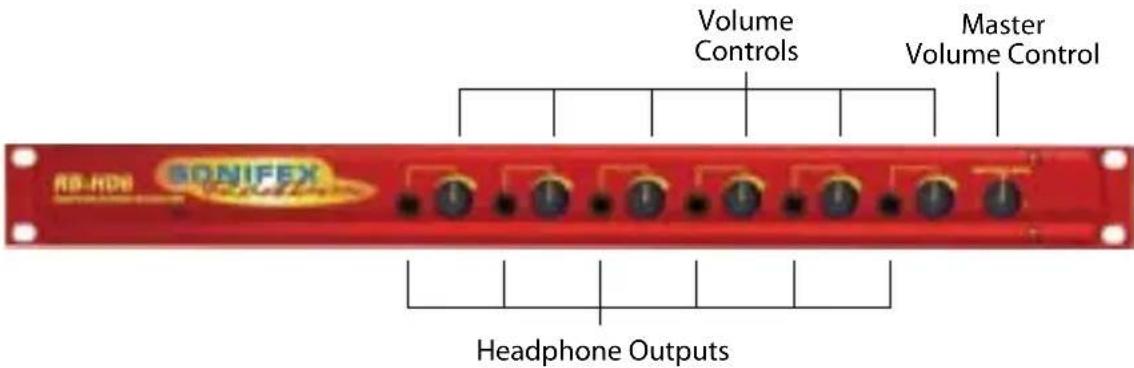

Fig 12-6: RB-HD6 Front Panel Controls.

Stereo Outputs 1-6 (Mono Outputs 1-6)

The outputs available on the front panel through 14 " stereo jack sockets are push-pull, designed to drive 150 mW into 32Ω to 600Ω professional headphones. Each output is individually buffered.

Abstract red and brown gradient background with no visible text or symbols

12 HEADPHONE DISTRIBUTION AMPLIFIERS

Abstract red and yellow gradient background with vertical white lines (no text or symbols)

Master Level Control

The master level control will set the maximum level of all channels and will need to be set high if an unbalanced consumer input level (-10dbu) is used. This level control can be disabled by setting jumpers within the unit. See Page 46 for details on removing the equipment covers. The two jumpers JP25 and JP26 can be found near the volume potentiometer VR1 :

Jumper JP25 JP26
Enable Master Level Control On On
Disable Master Level Control Off Off

Fig 12-7: RB-HD6 Master Level Control.

Channel Volume Controls

Each channel has its own volume control so that you have control of the signal volume to an individual output whether it is from the master input or the override input.

Technical Specifications

Audio Specifications

Input Impedance: >20kΩ balanced bridging (main), >10kΩ unbalanced (insert points)

Maximum Input Level: +28dBu

Output Level: Drives 150 mW into 32Ω to 600Ω headphones

Override Inputs: +3dBu for full volume at +18dB gain

Individual Volume Control: -60dB to +18dB gain

Master Volume Control: ±10dB gain

Connections

Main Stereo Inputs:	2 x XLR 3 pin female (Balanced, can be wired unbalanced)
Insert Inputs &	6 x 14 " (6.35mm) A-gauge 3-pole stereo jack sockets
Parallel Outputs:	(unbalanced, jumper configured)
Outputs:	6 x 14 " (6.35mm) A-gauge 3-pole stereo jack sockets
Mains Input:	Filtered IEC, 110V-120V, or 220-240V switchable, fused,9W maximum
Fuse Rating:	Anti-surge fuse 100mA 20 x 5mm (230VAC)
Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-HD6:	6 way stereo headphone distribution amplifier
RK3

Physical Specifications

Dimensions (Raw):	48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Boxed):	53cm (W) x 20.5cm (D) x 6cm (H)
Weight:	Nett: 1.35kg Gross: 2.0kg

13 RB-DHD6 Digital 6 Way Headphone Distribution Amplifier

Introduction

RO-OMDG RONIFEX RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO-OMDG RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- RIO- S

Fig 13-1: RB-DHD6 Front Panel.

The RB-DHD6 digital 6 way headphone distribution amplifier is a 1U rack-mount which receives a digital input signal, as either AES/EBU or S/PDIF and converts it to 6 individually buffered, jack-plug, headphone outputs, each with their own volume control.

Useful for connection to digital mixing desks, digital routers and matrices, the RB-DHD6 connects directly to an AES/EBU or S/PDIF output to provide the highest quality audio directly to the headphones. The input connectors consist of a single balanced XLR-3 for the AES/EBU input and a single unbalanced phono connector for the S/PDIF input.

A button located on the rear panel is used to select either the AES/EBU, or S/PDIF, input and de-emphasis on the output can be controlled via dipswitch. If de-emphasis is selected, the RB-DHD6 will decode 50/15 s emphasis when indicated by certain channel status bits in the incoming digital audio data.

When operating, the front panel power LED flashes red and amber whenever the unit is not synchronised to the incoming digital signal.

System Block Diagram

Fig 13-2: RB-DHD6 System Block Diagram.

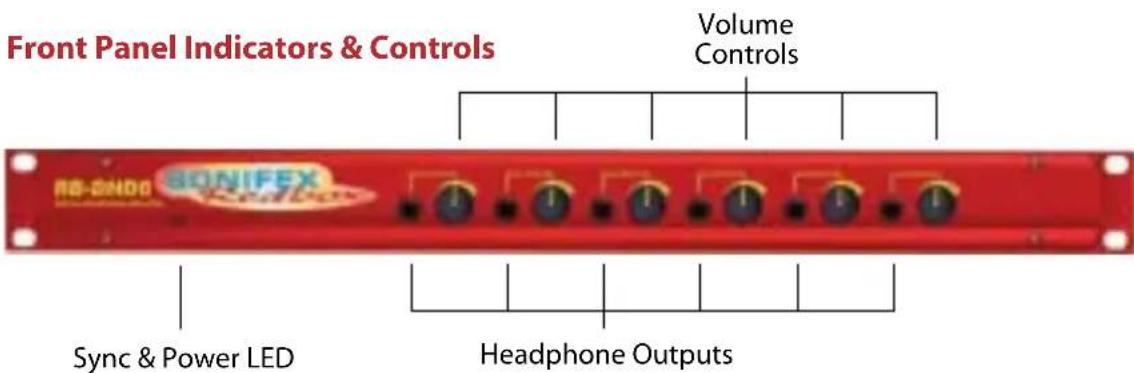

Front Panel Indicators & Controls Volume Controls RN-DNDO SONIFEX Sync & Power LED Headphone Outputs

Fig 13-3: RB-DHD6 Front Panel Controls.

Abstract red and yellow textured background with no visible text or symbols

13 AUDIO DISTRIBUTION AMPLIFIERS

Abstract red and orange background with blurred vertical streaks (no text or symbols)

Sync & Power Indicator

The LED on the front panel is normally red to indicate that power is present on the unit. However, it also has a secondary role to indicate the status of the digital inputs

Flashing between red and amber – indicates a loss of a valid digital input signal.

Headphone Outputs

The headphone outputs on the front panel consist of six 14 " stereo jack sockets, designed to drive 150 mW into 32Ω to 600Ω professional headphones.

Volume Control

The headphone outputs each have their own volume control and have a maximum output level of +12dBu.

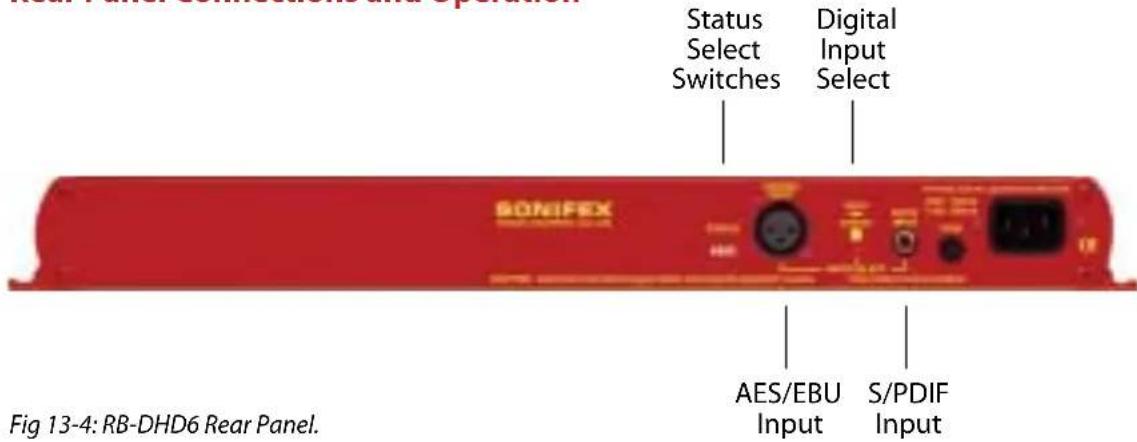

Rear Panel Connections and Operation

Status Select Switches Digital Input Select SONIFEX AES/EBU Input S/PDIF Input Fig 13-4: RB-DHD6 Rear Panel.

AES/EBU Input

The digital input XLR 3 pin socket has an impedance of 110Ω. It has the following connections:

Pin 1: Screen

Pin 2: Phase

Pin 3: Non-phase

The signals on this connector should meet the IEC 60968 specification

S/PDIF Input

The S/PDIF digital phono input has an impedance of 75Ω.

Status Select Switches

Status

1 On De-emphasis On

1 Off De-emphasis Off

2 Reserved

3 Reserved

4 Reserved

Fig 13-5: RB-DHD6 Status Select Switches.

If de-emphasis is 'on' (switch 1) the RB-DHD6 will decode 50/15 s emphasis when indicated by certain channel status bits in the incoming digital audio data. When 'off', no de-emphasis is applied. The switch is 'on' when it is down.

Digital Input Select Button

This button is used to switch the digital input between the AES/EBU XLR connector (button out) and the S/PDIF phono connector (button in).

Technical Specifications

Audio Specification

Input Impedance: 110 ± 20% AES/EBU

75Ω ±5% S/PDIF

Sample Freq. Range: 30kHz – 100kHz

Dynamic Range: >100dB

Headphones: Drives 150 mW into 32Ω to 600Ω headphones

Max Output Level: +12dBu

Headphone Gain Range: -80dBu to +12dBu

Connections

Digital Inputs: 1 x AES/EBU XLR 3 pin female

1 x S/PDIF RCA phono

Headphone Outputs: 6 x 1/4" (6.35mm) A/B gauge 3-pole stereo jack sockets

Mains Input: Filtered IEC, 110-120V, or 220-240V switchable,

fused 10W max

Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)

Anti-surge fuse 250mA 20 x 5mm (115VAC)

Operational Controls

Digital Input Select: AES/EBU or S/PDIF, via push-switch

De-emphasis: DIP switch

Equipment Type

RB-DHD6

Digital 6 way stereo headphone distribution amplifier

Physical Specifications

Dimensions (Raw) 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)

Dimensions (Boxed) 53cm (W) x 20.5cm (D) x 6cm (H)

Weight Nett: 1.6kg Gross: 2.2kg

Abstract red and orange gradient background with faint vertical white lines (no text or symbols)

14 CONNECTORS & CABLING

Abstract red and white pattern with vertical streaks (no text or symbols)

14 Connectors & Cabling

Many of the problems associated with installing and maintaining studio equipment are due to the use of poor cables or faulty connections. It is recommended that, wherever possible, pre-wired cables are purchased from recommended manufacturers. If you need bespoke cables making, please ensure that a qualified engineer carries out the work.

The main types of connectors used with the Redboxes are the following:

XLR 3 Pin Connectors

The following diagram shows the pin details for the 3 pin XLR sockets and plugs:

Male Female

Pin 2 Phase Signal (Hot) Pin 1 Screen Signal Pin 3 Non Phase Signal (Cold) Pin 2 Phase Signal (Hot) Pin 1 Screen Signal Pin 3 Non Phase Signal (Cold)

Fig 14-1: XLR Connectors.

RCA Phono Connectors

The following diagram shows the connection details for the RCA phono connectors:

Ground Signal

Fig 14-2: RCA Phono Connector.

1/4 " Jack Connector

The following diagram shows the connection details for the jack connector:

1/4" 'A' Gauge Stereo Jack Plug (In Phase) Tip-Hot Signal (Non Phase) Ring-Cold Signal Sleeve-Ground (Screen) Signal 1/4" 'A' Gauge Stereo Jack Plug Used For Headphones Tip-Left Signal Ring-Right Signal Sleeve-Ground (Screen) Signal

Fig 14-3: ¼" Jack Connector.

D-Type Connectors

The following diagram shows the connection details for the D-type connectors as viewed from the rear of a Redbox :

Pin 1 Male Pin 13Pin 13

Pin 14
Pin 25

Female

Pin 25
Pin 1
Pin 14

Fig 14-4: 25 Way D-Type Connectors.
Pin 1 Male Pin 9 Pin 9

Pin 10
Pin 15

Female

Pin 15
Pin 1
Pin 10

Fig 14-5: 15 Way D-Type Connectors.
Pin 1 Male Pin 5 Pin 5

Pin 6
Pin 9

Female

Pin 9
Pin 1
Pin 6
Fig 14-6: 9 Way D-Type Connectors.

Abstract red and white pattern with vertical streaks (no text or symbols)

15

GLOSSARY

Abstract red and orange gradient background with faint vertical white lines (no text or symbols)

15 Glossary

1kHz 1000Hz or 1 kilohertz tone of 1kHz is often used for line-up and testing.

ADSL Asynchronous Digital Subscriber Link - a broadband delivery system over standard telephone lines (between the exchange and the user).

AES Audio Engineering Society.

AES/EBU Professional digital audio standard covering frame format, connections and interfaces. Interface is usually on XLR sockets and plugs.

AM Amplitude Modulation - older analogue modulation standard used on long, medium and short wave.

APT-X Data reduction process for reducing the amount of storage or bit-rate need for audio.

ATRAC Adaptive Transform Acoustic Coding - the data reduction of compression scheme used in Mini-disk machines.

Attenuation The reduction of a signal level. Attenuation is usually measured in dB.

B-Channel Bearer Channel - the main carrier channels used in ISDN.

Balance The relative levels of the left and right channels of a stereo signal.

Balanced A way of sending audio over cable that protects it from induced

Audio interference.

CAR See racks room.

CAT 5 Category 5 - type of cabling/connectivity standards used in computer networking.

CD Compact Disc.

Cleanfeed A cleanfeed is a signal produced by a telco module on a mixer which is used as the output to be fed back to a caller on a telephone line.

The cleanfeed is a sum of all the other signals which constitute the programme output, except for the caller's audio. A cleanfeed signal will generally be of a better quality than a mix-minus signal.

Clipping The onset of severe distortion in the signal path, usually caused by the peak signal voltage being limited.

CMRR Common Mode Rejection Ratio. This is the ratio of the extent to which a differential amplifier will cancel noise, which is present on both inputs, compared to its ability to amplify the signal.

CODEC COder-DECoder - used to change a signal from one format to another and back again.

Codecs Using digital circuits being offered by telecom providers, usually ISDN (Integrated Services Data Networks) or other data transfer methods, audio can be transferred with good to excellent quality over what almost amount to dial-up telephone lines. The units operate by Coding the audio into a digital data stream that can be transferred over the digital circuit which is Decoded at the receiving end (Thus CoDec).

By using single or multiple circuits, very high quality audio can be transferred from one place to another, even internationally.

Cross-talk This is the amount of a signal from a bus which appears, or is induced, on a different signal. The problem is usually most prevalent with adjacent channels.

DA Distribution Amplifier.

DAB Digital Audio Broadcasting = now called Digital Radio.

DAT Digital Audio Tape.

dB (decibel) A ratio of two voltages or signal levels, expressed by the equation dB=20LOG(V1/V2)

Adding the suffix "u" denotes that the signal is relative to 0.775V RMS. Adding the suffix "v" denotes that the signal is relative to 1V RMS.

DCF This is radio code signal sourced from Mainflingen, near Frankfurt in Germany, which can be used to automatically synchronize the Sentinel+ audio logger and PC time to an accurate atomic clock, European Time.

DDS & DDS and DDS-2 are world-wide standards established by Sony and

DDS-2 Hewlett-Packard which introduce many levels of error checking as data is written to a DAT tape. DDS(-2) drives and tapes are used in security products all over the world. 120m DDS-2 DAT tapes are more accurate and reliable than DDS tapes and are able to store twice as much audio data.

DI Direct Inject - a means of driving audio, usually from an instrument such as a guitar, to allow the audio signal to be fed directly into a sound desk input.

DLS Dynamic Label segment - a text message scheme used in digital radio, usually to carry information about the programme. Like the radio-text scheme used in RDS.

DSP Digital Signal Processing.

EBU European Broadcasting Union.

EIN Equivalent input noise. It is the ratio of output noise to the gain. It describes the level of noise which would need to be fed into an ideal amplifier to produce the measured output noise.

ENG (Electronic news gathering). Machines that can record audio and video information digitally.

EON (RDS) Enhance Other Networks - a scheme for switching a listener's radio to another Effective Radiated Power.

EQ (Equalisation). This is a method of cutting or boosting selected bands of frequencies in a signal.

FM Frequency Modulation - a way of sending audio or data over a radio carrier, the 88 - 108 Broadcast Band is often known as the FM Band.

FSD Full Scale Digits - This is the analogue representation of the maximum digital value that the converter in question can see before digital clipping occurs.

3G Third generation mobile telephone system that may allow broadband transmission of Global Positioning System.

Gain The degree of amplification, or attenuation, applied to a signal.

GRAM Gramophone Reproducer - a turntable with a 'pick-up' amplifier and remote start interface.

HDLC High Speed Data Link.

Hybrid See TBU

IEC International Elecrotechnical Commission - often used to refer to a mains connectivity standard, i.e. A type of plug/socket similar to that of a kettle, used on most pro-audio equipment.

ISDN Integrated Services Digital Network - a system for sending high bandwidth material over standard telephone lines.

Abstract red and white pattern with no discernible text or symbols

kbps Kilo-bits per second - the number of 1s or 0s transmitted or transferred in one second.

kHz Kilo Hertz (samples per second).

LAN Local Area Network - scheme where several computers on the same premises are connected together so that they can exchange data.

LCD Liquid Crystal Display (grey displays e.g. on calculators).

LED Light Emitting Diode (small lights e.g. on computers).

LNB Low Noise Block - the RF amplifier attached to a satellite dish.

MCR See racks room.

MDU Mains Distribution Unit - a panel of mains outlets for power distribution.

MF Medium Frequency - another name for Medium Wave - roughly frequencies between 300kHz and 3MHz.

MHz Mega-hertz - One million cycles per second.

Mix-minus A mix-minus is similar to a cleanfeed except that the caller's voice is removed from the signal electronically. Due to phasing problems at the signal band edges, the mix-minus method often produces a lower grade signal.

Mono Monophonic sound (system of broadcasting, recording or reproducing sound) using only one channel between source and loudspeaker.

MP3 MPEG 1 Layer 3 - see MPEG.

MPEG (ISO MPEG) Motion Picture Experts Group. For audio, this is used to refer to a framing format standard. There are several layers and variants. Most common ones are listed below.

MPEG 1 Layer 1 Used for Digital Compact Cassette.

MPEG 1 Layer 2 (Musicam) used in digital radio, digital terrestrial television, ISDN and many hard-disk storage systems.

MPEG 1 Layer 3 Known as MP3. A more elaborate version of MPEG 1 Layer 2 that allows for audio storage using low bit-rates.

MSF This is radio code signal sourced from Rugby in England, which can be used to automatically synchronize the Sentinel+ audio logger and PC time to an accurate atomic clock, UK Time.

Musicam Masking Pattern Universal Sub-Band Encoding.

MUX Short for Multiplex - a 'package' of digital radio services.

Pan This controls the levels sent to the left and right outputs and is an abbreviation of 'panorama'.

PFL (Pre Fade Listen, or Cue). This is a method of auditioning audio material independently of the programme output, without routing the signal to air. The PFL button on each channel routes the signal to the PFL bus, where it can be monitored.

PI Code (RDS) Programme Information Code used to identify an FM RDS station.

PPM Peak Performance Meter (BBC Specification).

Promo Something used to promote a product.

PS Name Programme Service Name - 8 characters used for naming an

(RDS) FM RDS station.

PSU Power Supply Unit.

PTY (RDS and DAB) Programme Type. A code transmitted to describe the overall programme content of a radio station (Static PTY) and/or the moment by moment content (Dynamic PTY). RDS has 32 codes although 3 are used in special circumstances only.

Racks Room Often called the Master Control Room (MCR) or Central Apparatus Room (CAR), the racks room is an engineering area containing studio routing to transmitter equipment. Outside sources, phone-in equipment, off-air and transmitter status monitoring and logging equipment (or the transmitter itself!) are stored here with limited access.

RDS Radio Data System.

Reverb An echo (in very basic terms).

RF Radio Frequency.

RJ-45 A connection standard used in computer networking.

S/PDIF Sony/Phillips Digital Interface. Domestic digital audio interface standard using phono connectors or optically using fibre-optic connectors.

SPL Sound Pressure Level.

TA Traffic Announcement (flag) - a means of signalling to a radio with FM RDS indicating that traffic/travel news is being broadcast.

T/B Talk-back (and reverse talk-back). This is the ability for two or more studios to communicate with each other off-air.

TBU See Telephone Balance Unit

TCP/IP Transmission Control Protocol / Internet Protocol. Computer interconnection methodology used on the internet and LANs.

Telephone Telephone hybrids provide the interface between professional audio Balance equipment and the public telephone network. They provide protection

Unit (TBU) for your equipment and the public telephone lines, allowing for varying or Hybrid line signals and line conditions. Automatically cancelling out the unwanted signal they also facilitate two-way communication down a single telephone line. In most European countries, including the UK, the TBU must be approved for connection to telephone company lines. Sonifex TBU's carry British Telecom and pan European approval.

THD The Total Harmonic Distortion is the percentage presence of signals outside the measured reference frequency.

TMC (RDS) Traffic Message Channel.

TP Traffic Programme (flag) - a means of indicating to an RDS radio that a station will carry traffic announcements.

U A height measurement for rack-mount equipment:

1U = 1.75 inches

2U = 3.5 inches

3U = 5.25 inches

4U = 7 inches

UPS Uninterruptible Power Supply. A device which maintains power to equipment when the electricity supply fails.

VHF Very High Frequency - frequencies between 30MHz and 300MHz.

VP Vertical Polarisation i.e. of FM radio transmission.

VSWR Voltage Standing Wave Radio

VU Voltage units

WAP Wireless Application Protocol - a system for delivering mini-web pages to mobile phones from the Internet.

X21 A data communications protocol used in synchronous connections.

XLR Professional, robust lockable audio connector - sometimes known as a

'Cannon' after one of the earlier manufacturers.
