USER MANUAL 47LV5700 LG

Please read manual careful before operating your set and reain if for future reference.

72LZ9700

32LV5700

37LV5700

42LV5700

47LV5700

P/NO : SAC34453514(1103-REV00)

Printed in China

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

DOLBY.

DIGITAL PLUS

PULSE

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HDMI

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

DIVX+

HD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® and DivX Plus ™ HD (H.264/MKV) video up to 1080p HD including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

TABLE OF CONTENTS

2 LICENSES

5 ASSEMBLING AND PREPARING

5 Unpacking
6 Separate purchase
7 Parts and buttons
10 Setting up the TV
11 Desktop pedestal installation
11 Wall mount:horizontal installation
12 Careful installation advice
12 Kensington security system
13 Tidying cables
13 Securing the TV to a table

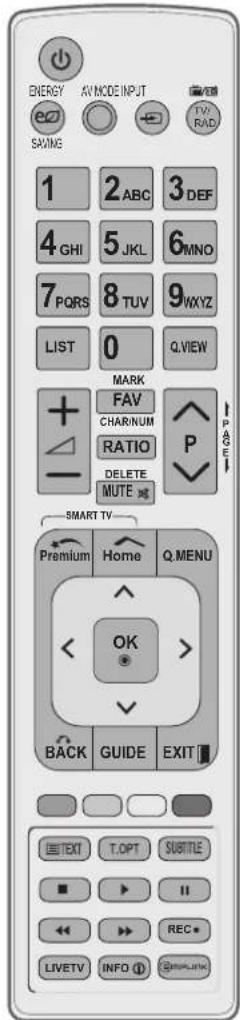

14 REMOTE CONTROL

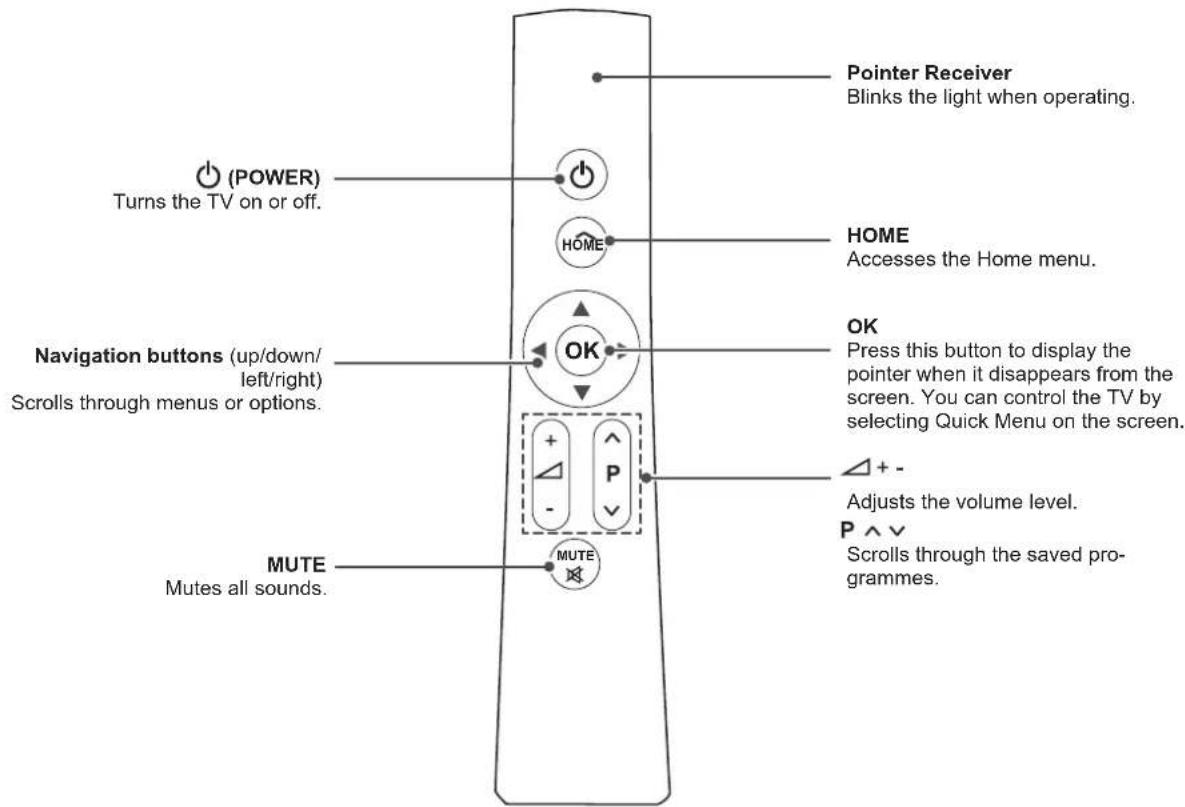

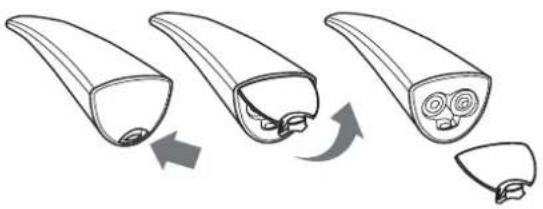

15 Magic Motion Remote Control Functions
16 - Registrating Magic Motion Remote Control
16 - How to use Magic Motion Remote Control
16 - Precautions to Take when Using the Magic Motion Remote Control

17 WATCHING TV

17 Connecting to an antenna
17 - Connecting an antenna
17 Turning the TV on for the first time
17 Watching TV

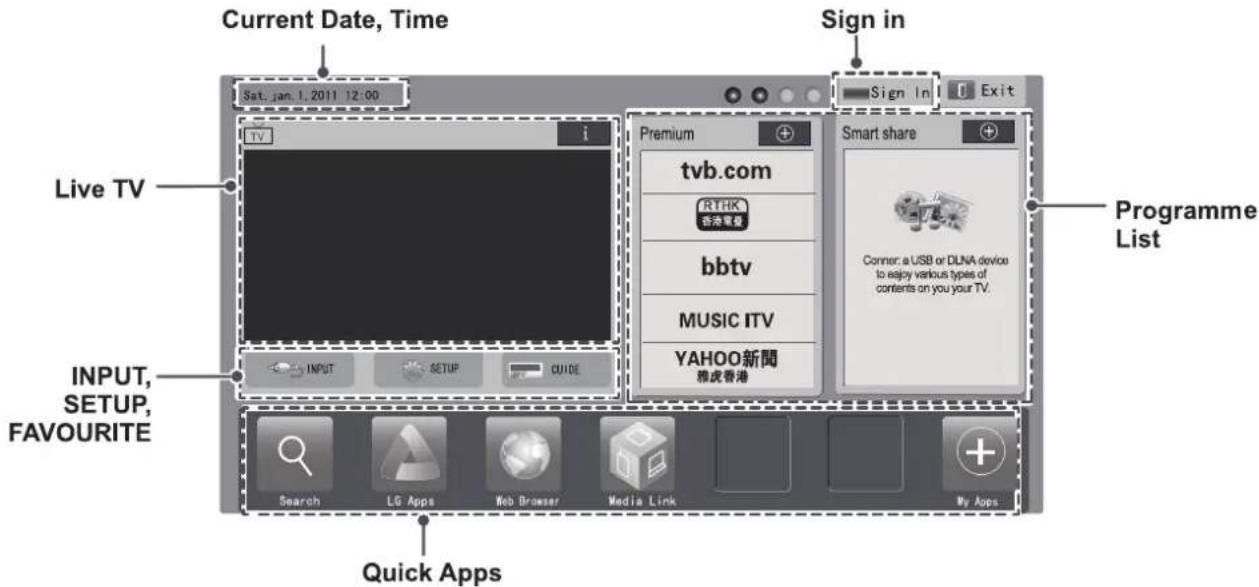

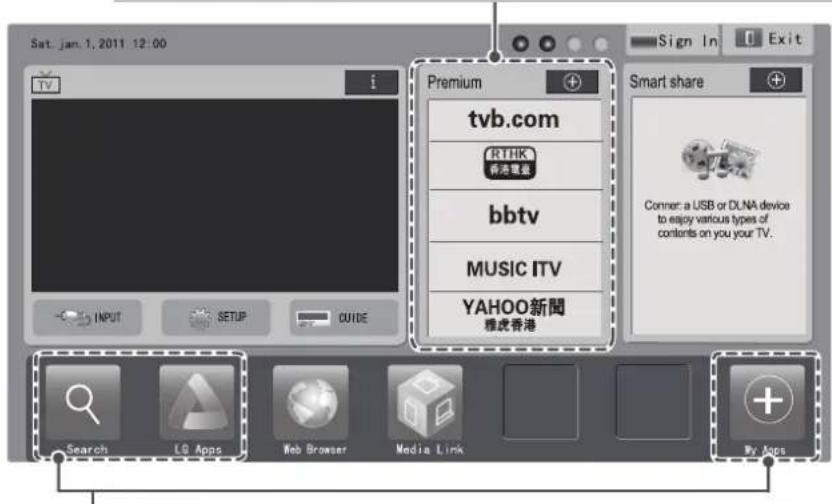

18 Accessing Home menu

19 - Manually setting up programme (In digital mode)

19 - Manually setting up programme (In analogue mode)

21 - Editing your programme list
22 - Using favourite programmes
22 - Booster(In air digital mode)

23 Using additional options
23 - Adjusting aspect ratio
23 - Changing AV modes

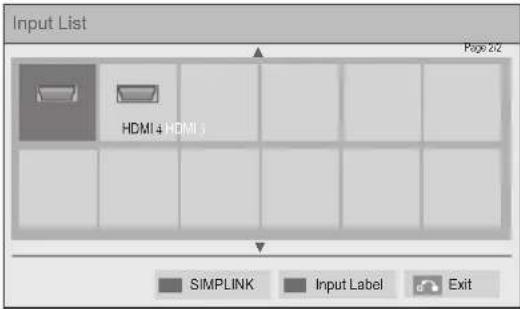

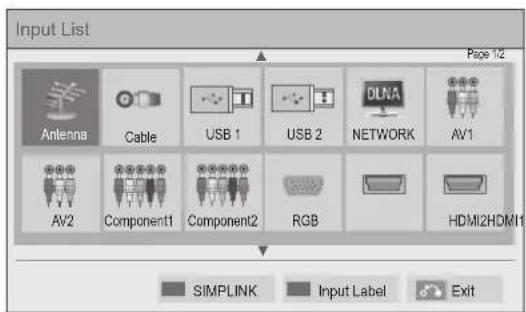

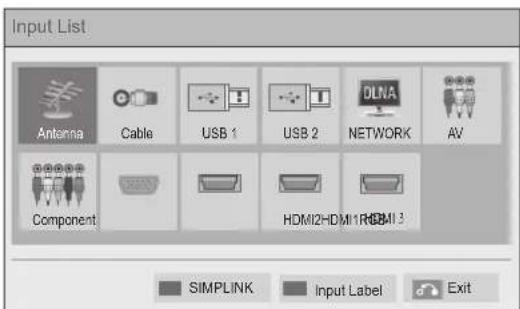

23 - Using the input list
25 Using the quick menu

26 ENTERTAINMENT

26 Connecting the TV to a network

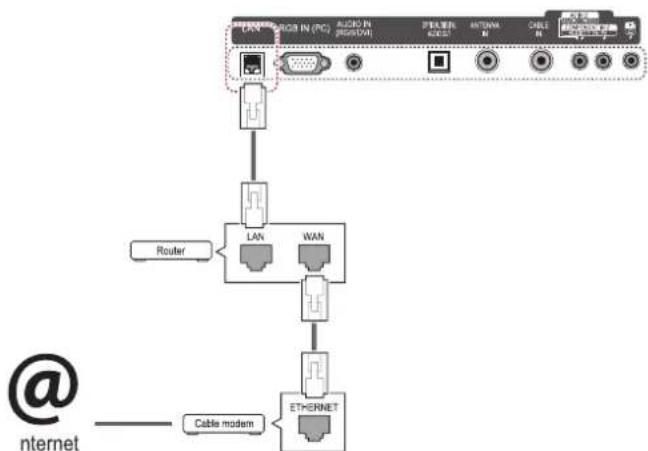

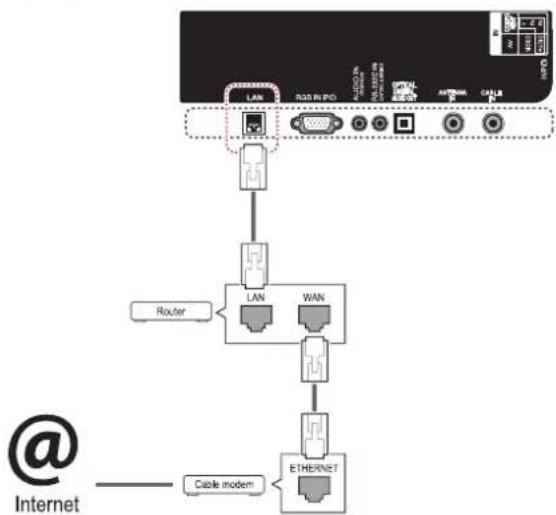

26 - Connecting the wired network

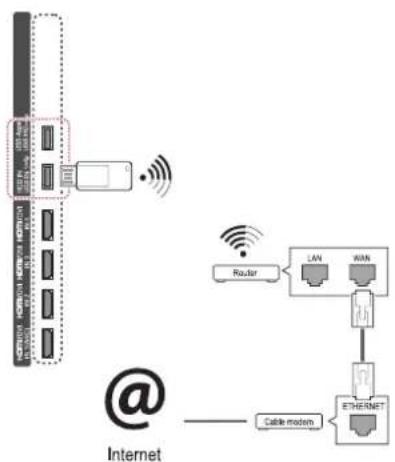

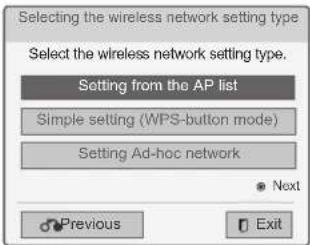

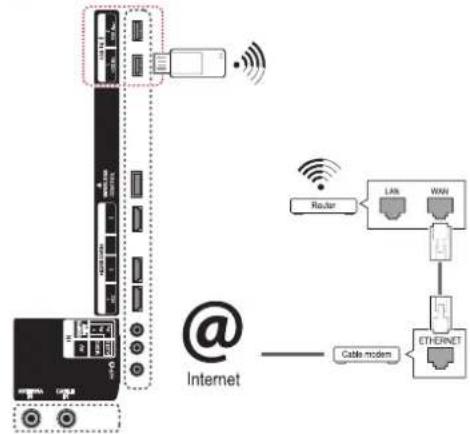

27 - Connecting the wireless network

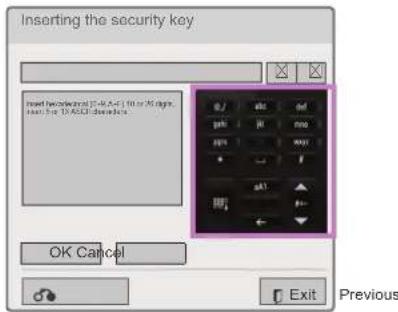

29 - When a security code is already set
32 - Network Status

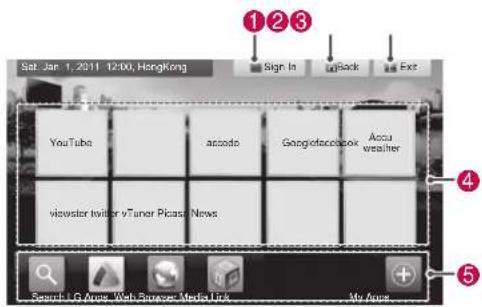

33 Premium card function

35 My Media Card Function

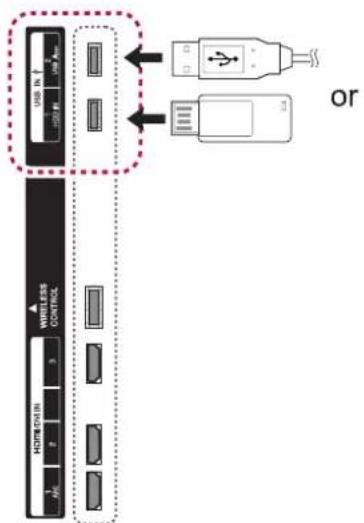

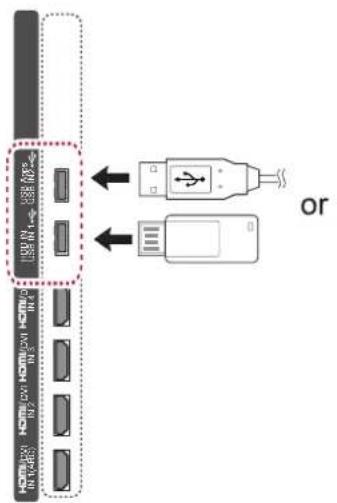

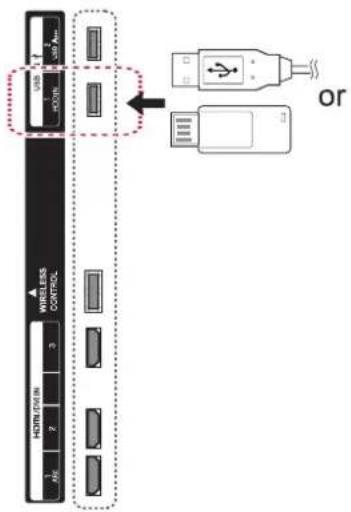

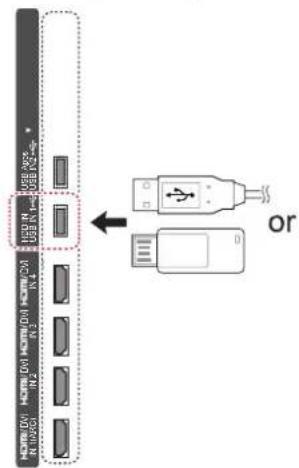

35 - Connecting USB storage devices
37 - DLNA DMP (Digital Living Network Alliance, Digital Media Player)
40 - DLNA DMR (Digital Living Network Alliance, Digital Media Renderer)

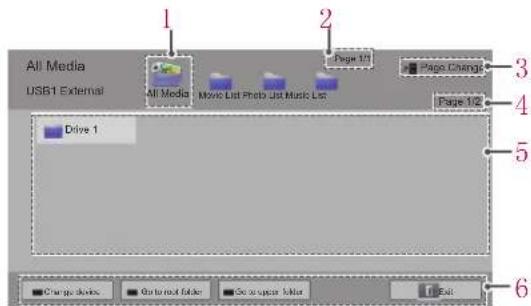

41 - Browsing files

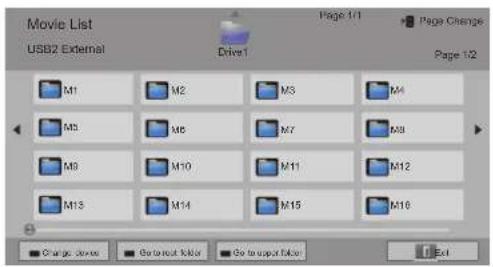

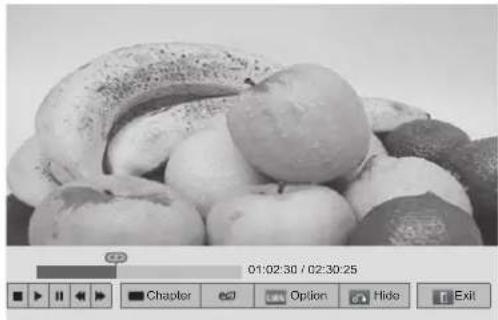

42 - Viewing videos

45 - DivX registration code

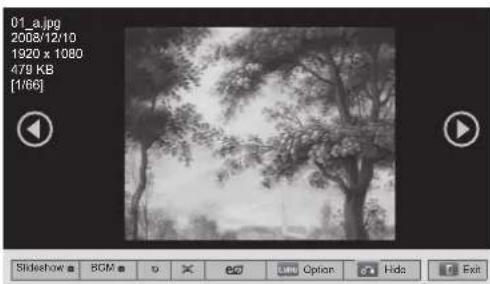

46 - Viewing photos

48 - Listening to music

50 Time Machine Card Function

50 - Precautions when using the USB Device

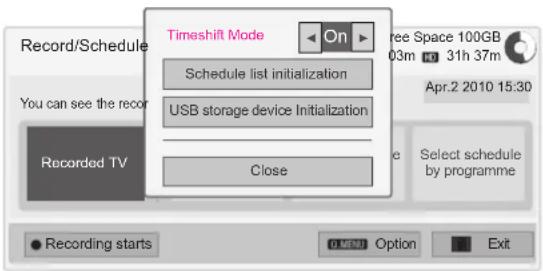

51 - TIME MACHINE (PAUSE & REPLAY OF LIVE TV)

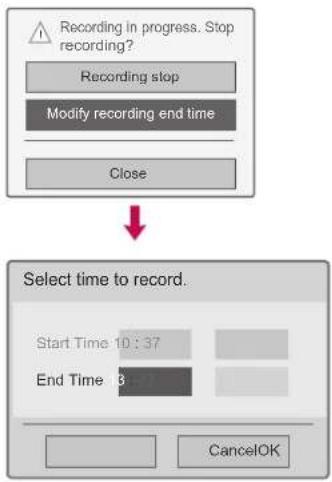

55 - RECORDING

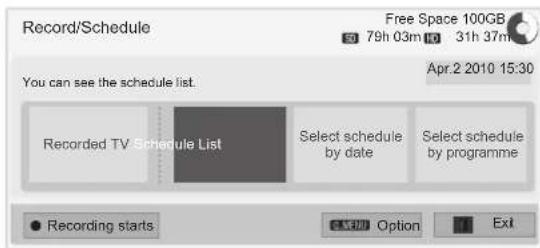

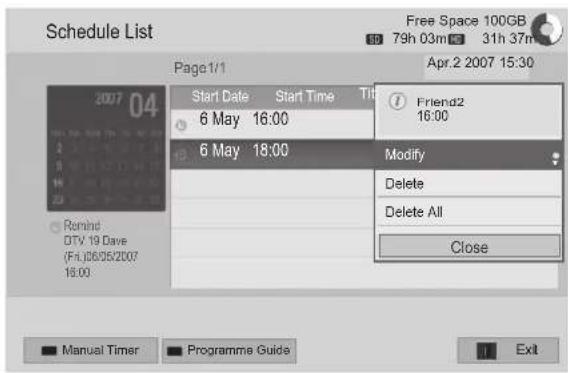

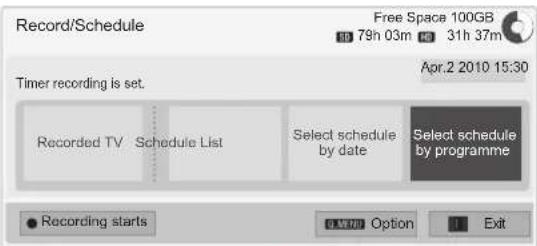

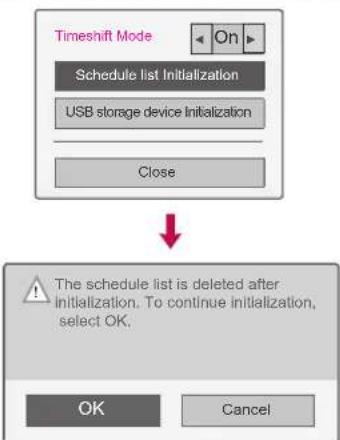

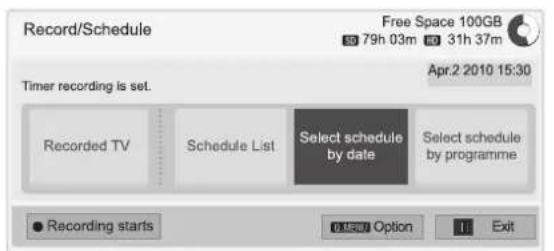

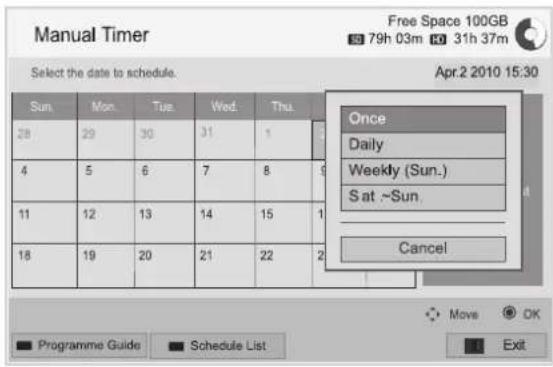

57 - SCHEDULE

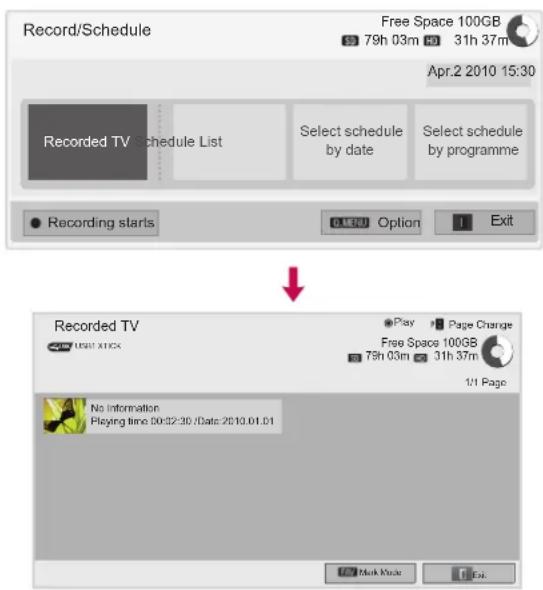

59 - RECORDED TV

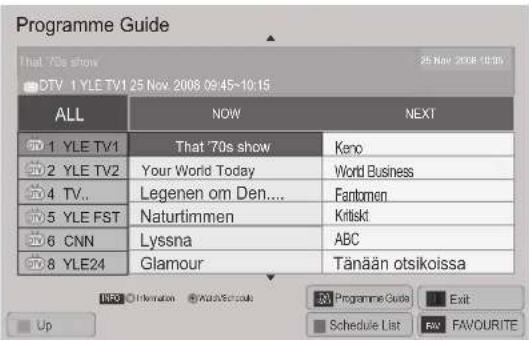

62 EPG (Electronic Programme Guide) Card Function (In digital mode)

62 - Switch on/off EPG
62 - Select a programme
63 - NOW/NEXT Guide Mode
63 - 8 Day Guide Mode
63 - Date Change Mode
63 - Extended Description Box

64 CUSTOMIZING TV SETTINGS

64 Accessing SETUP Menu
65 Customizing Settings

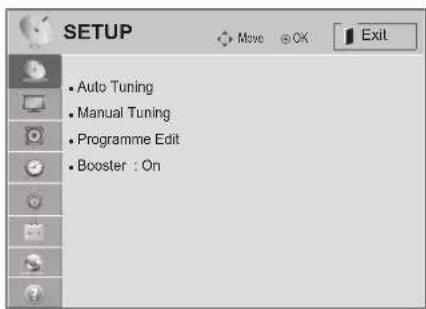

65 - SETUP Settings

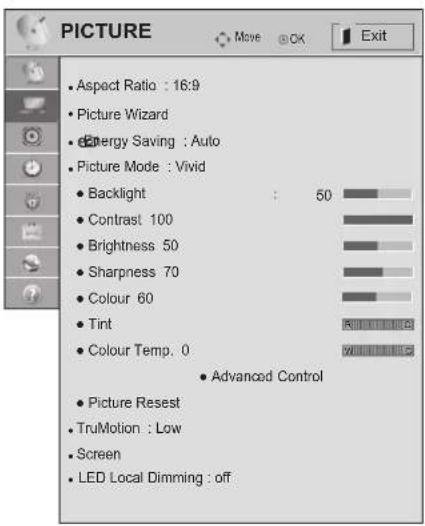

66 - PICTURE Settings

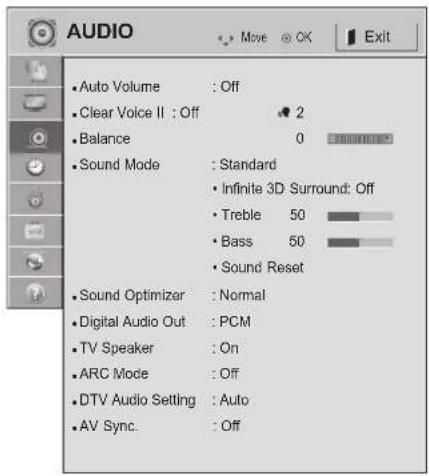

69 - AUDIO Settings

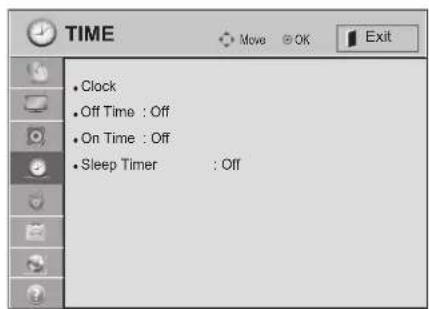

72 - TIME Settings

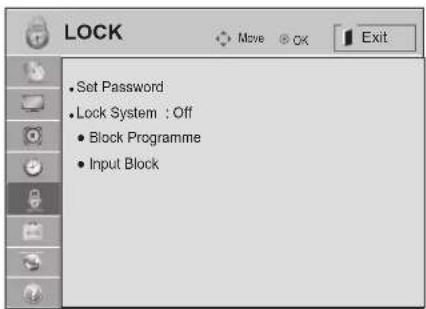

73 - LOCK Settings

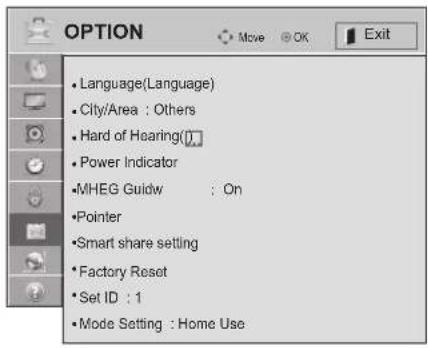

74 - OPTION Settings

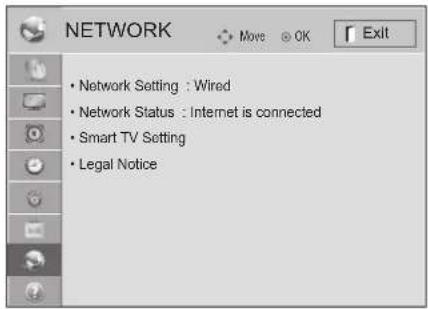

77 - NETWORK Settings

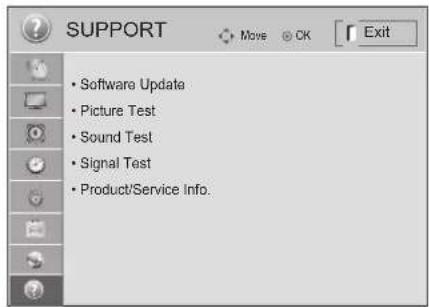

78 - SUPPORT Settings

79 MAKING CONNECTIONS

79 Making Connections

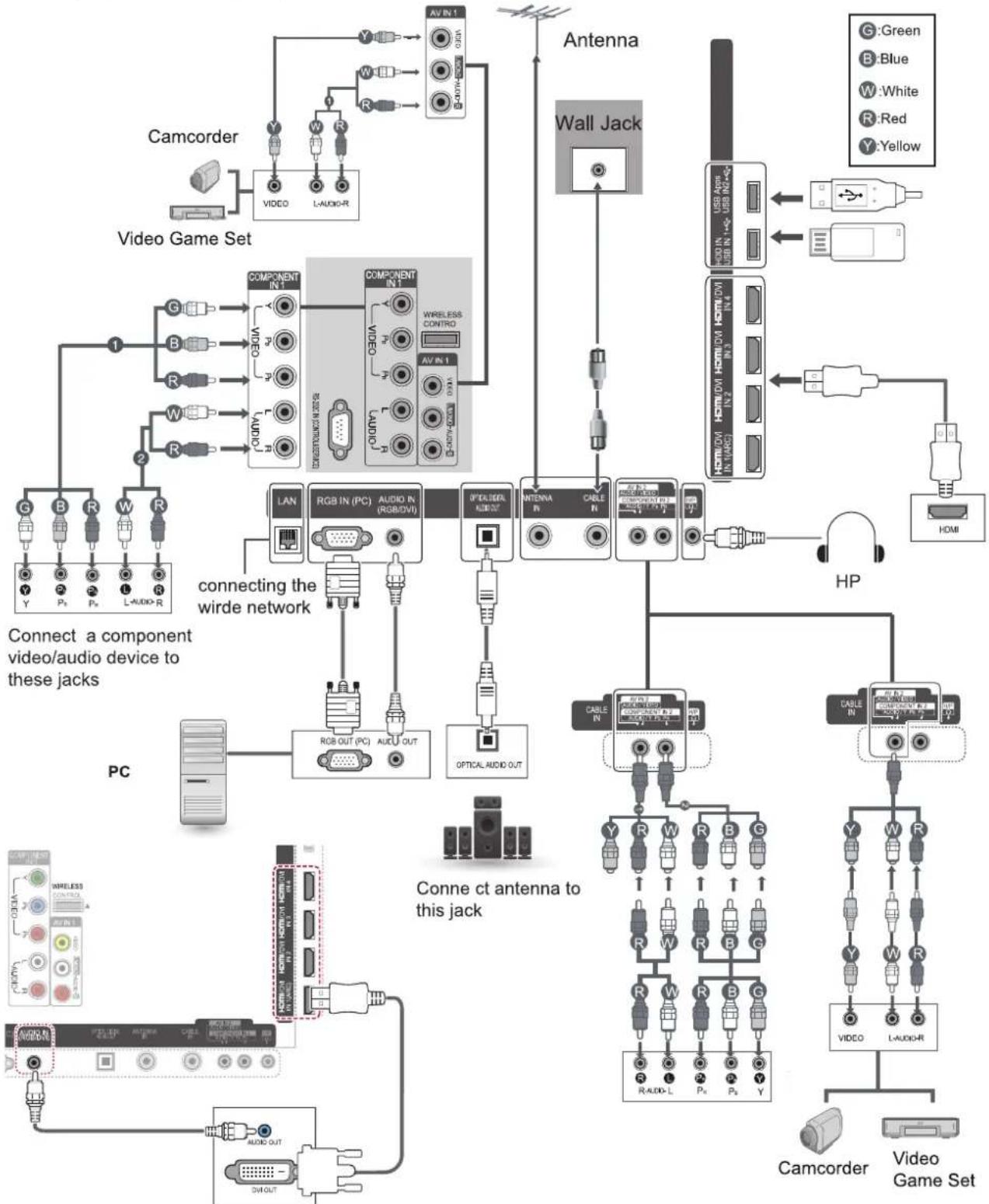

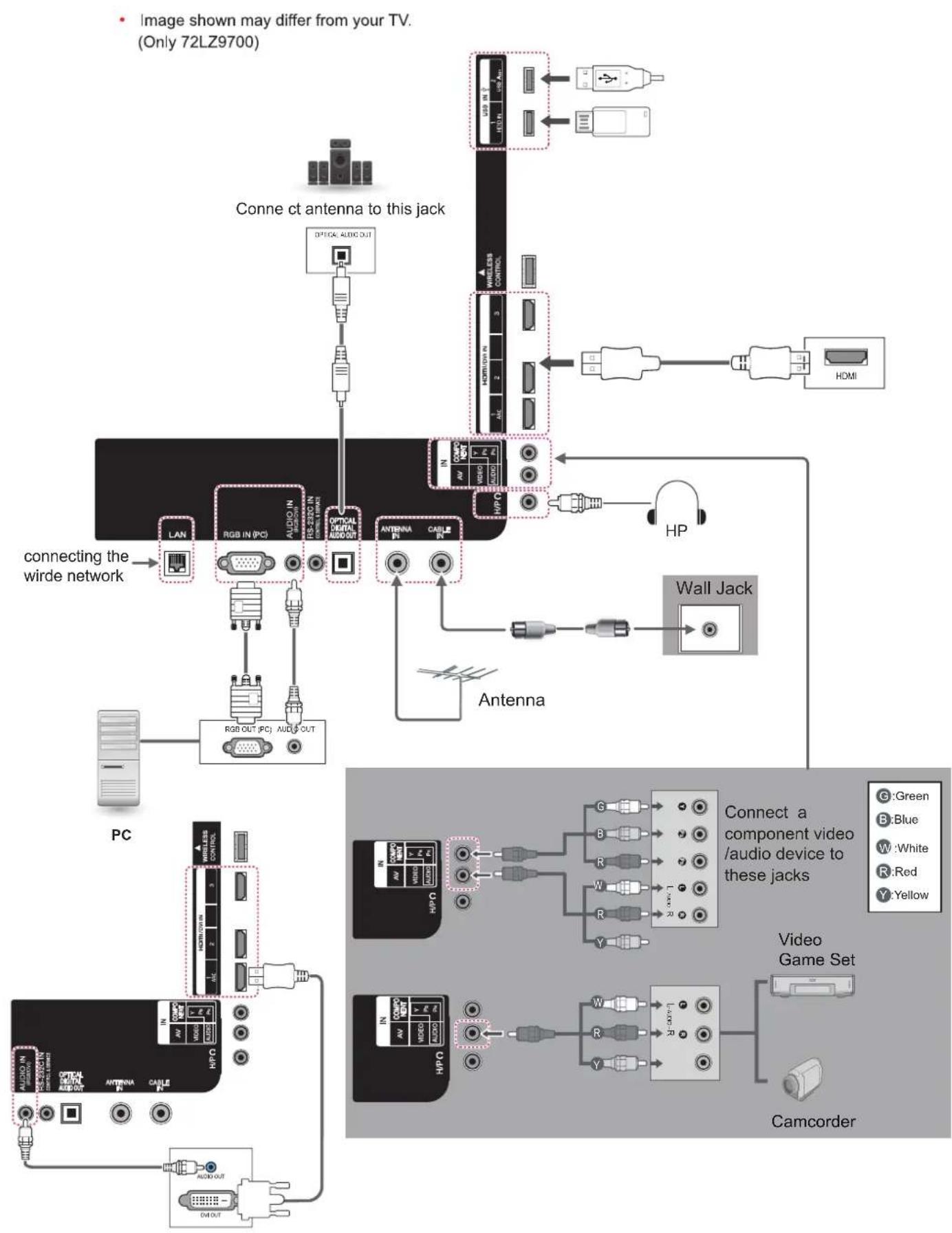

80 External Equipment Setup

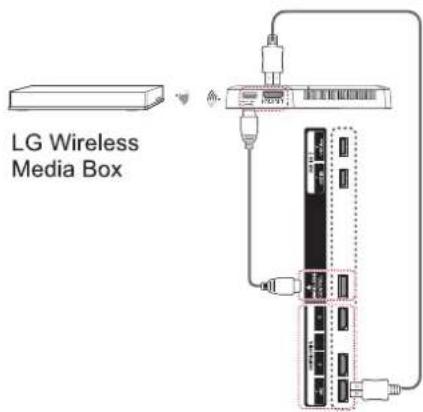

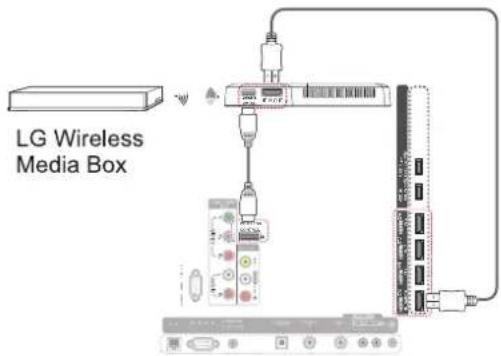

82 Connecting to a equipment wirelessly
83 SIMPLINK connection
83 - Activating and Using the SIMPLINK menus

84 MAINTENANCE

84 Updating the TV firmware
85 Cleaning your TV
85 - Screen and frame
85 - Cabinet and stand
85 - Power cord
86 Preventing "Image burn" or "Burn-in" on your TV screen

87 TROUBLESHOOTING

89 SPECIFICATIONS

93 APPENDIX

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. and item.

Remote control and batteries (AAA)

Motion Remote Control, Batteries (AA) (Only 72LZ9700)

Owner's manual & card

Polishing cloth

Nero MediaHome 4 Essentials CD

M4×12

M5×35

M4 x 20
Screw for assembly (Only 72LZ9700)
Screw for assembly (Only 72LZ9700)

Screw for assembly (Only 32/37/42/47LV5700)

Component gender cable x 1 AV gender cable x 1

Cable holder (Only 32/37/42/47LV5700)

Cable holder (Only 72LZ9700)

Screw for fixing (Only 32/37LV5700)

Power Cord (Only 72LZ9700)

Separate purchase

Optional extras can be changed or modified for quality improvement without any notification.

Contact your dealer for buying these items.

This device only works with compatible LG LED LCD TV or LCD TV.

(Only 32/37/42/47LV5700)

Motion Remote Control, Batteries (AA)

M-Rmote Dongle (Use with the Motion Remote Control)

Model	72LZ9700	32LV5700	37LV5700	42/47LV5700
VESA (A x B)	600 x 400	200 x 100	200 x 200	400 x 400
Standard screw	M8	M4	M6	M6
Number of screws	4	4	4	4
Wall mount bracket	LSW600B	LSW100B	LSW200B	LSW400B

Wireless Intelligent Media Box

Wireless LAN for Broadband
/DLNA Adaptor
(AN-WF100)

CAUTION

• Do not use any pirated items to ensure the safety and product life span.
• Any damages or injuries by using pirated items are not covered by the warranty.
• Do not use any pirated items to ensure the safety and product life span.
• Any damages or injuries by using pirated items are not covered by the warranty.

Parts and buttons

Image shown may differ from your TV.

NOTE

TV can be placed in standby mode in order to reduce the power consumption. And TV should beswitched off using the power switch on the TV if it will not be watched for some time, as this will reduce energy consumption.

The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

CAUTION

Do not step on the glass stand or subject it to any impact. It may break, causing possible injury from fragments of glass, or the TV may fall.

Do not drag the TV. The floor or the product may be damaged.

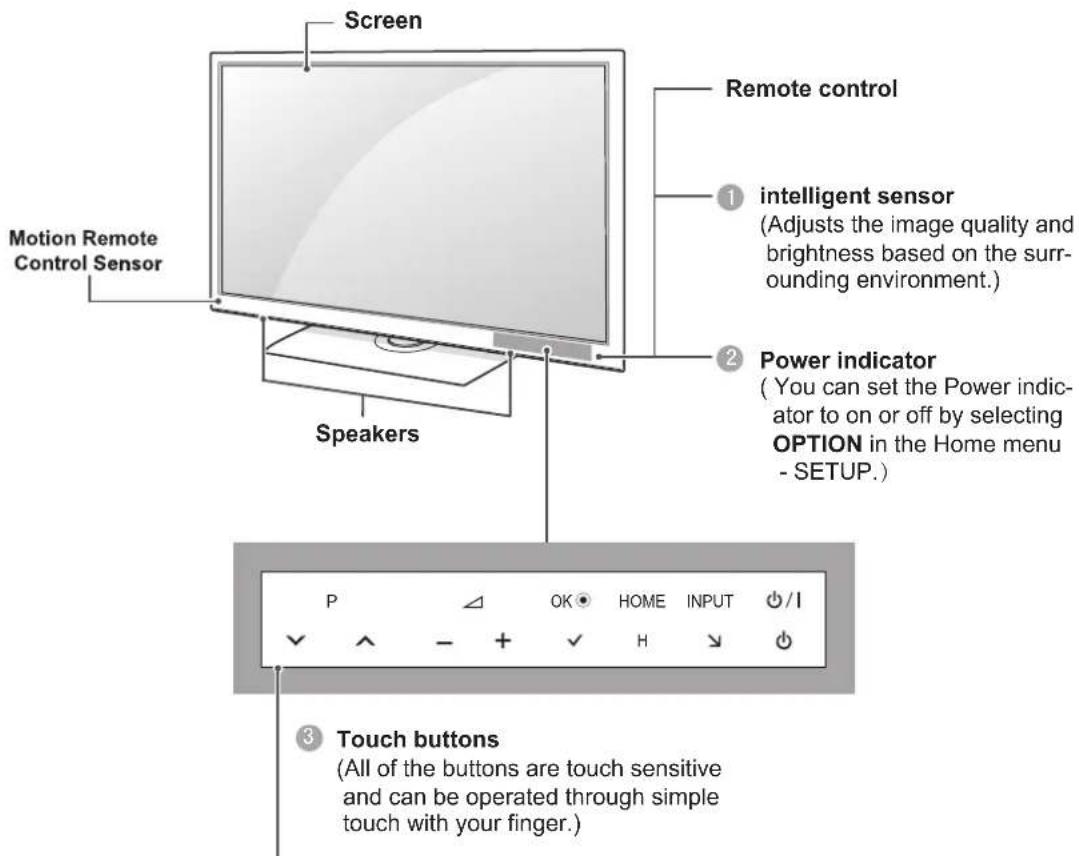

FRONT PANEL

(only 72LZ9700) Image shown may differ from your TV.

Screen Motion Remote Control Sensor Speakers Remote control ① intelligent sensor (Adjusts the image quality and brightness based on the surrounding environment.) ② Power indicator ( You can set the Power indicator to on or off by selecting OPTION in the Home menu - SETUP.) P OK HOME INPUT / ✓ ^ - + ✓ H ✓ ③ Touch buttons (All of the buttons are touch sensitive and can be operated through simple touch with your finger.)

Touch button ^2	Description
∅/I	Turns the power on or off
INPUT	Changes the input source
HOME	Accesses the Home menu, or saves your input and exits the menus.
OK∅	Selects the highlighted menu option or confirms an input
- ∆ +	Adjusts the volume level
√ P ^	Scrolls through the saved programmes

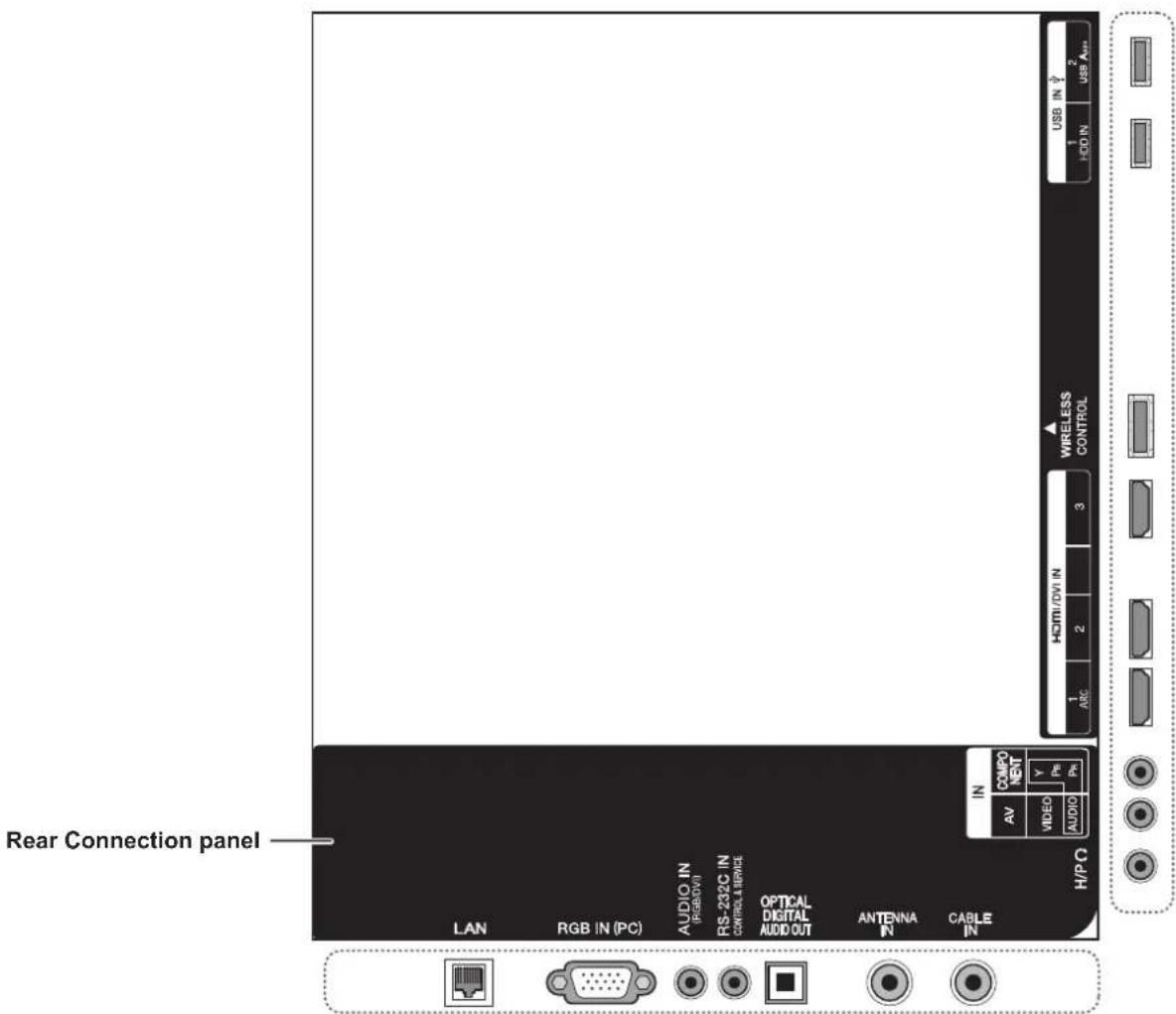

BACK PANEL

(only 72LZ9700) Image shown may differ from your TV.

Rear Connection panel LAN RGB IN (PC) AUDIO IN (RGB/DVI) RS-232C IN CONTROL & SERVICE OPTICAL DIGITAL AUDIO OUT ANTENNA N CABLE IN COMP NET AV V_Ph VIDEO Ph AUDIO H/P Ω USB IN 1/2 HOD IN 2/3 USB A+/- WIRELESS CONTROL

(Only 32/37/42/47LV5700) Image shown may differ from your TV.

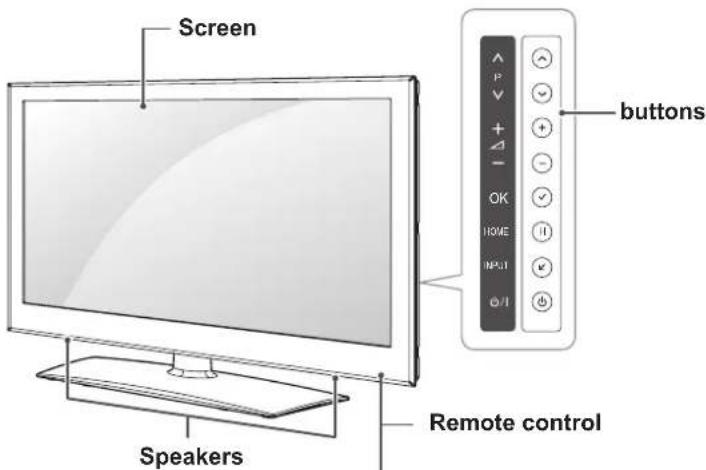

FRONT PANEL

Screen speakers buttons Remote control

Touch button ^2	Description
ⓕ/1	Turns the power on or off
INPUT	Changes the input source
HOME	Accesses the Home menu, or saves your input and exits the menus.
OK Ⓞ	Selects the highlighted menu option or confirms an input
- +	Adjusts the volume level
√P^∧	Scrolls through the saved programmes

1 intelligent sensor

(Adjusts picture according to the surrounding conditions.)

2 Power indicator

( You can set the Power indicator to on or off by selecting OPTION in the Home menu - SETUP.)

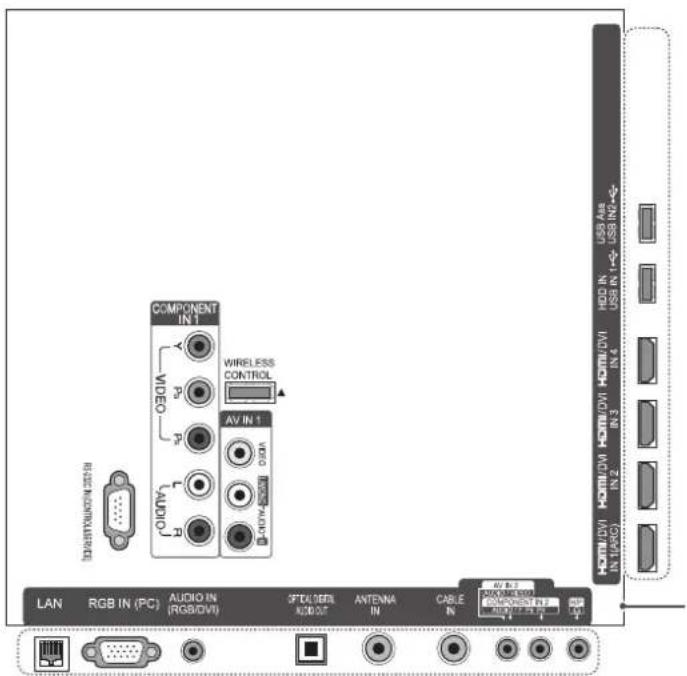

BACK PANEL

COMPONENT IN 1 WIRELESS CONTROL AV IN 1 AUDIO LAN RGB IN (PC) AUDIO IN (RGB/DVI) GPTD/ISEL ACID OUT ANTENNA IN CABLE IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB In USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN USB IN

Rear Connection panel

Setting up the TV

If you are not mounting the TV to a wall, use the following instructions to attach the stand.

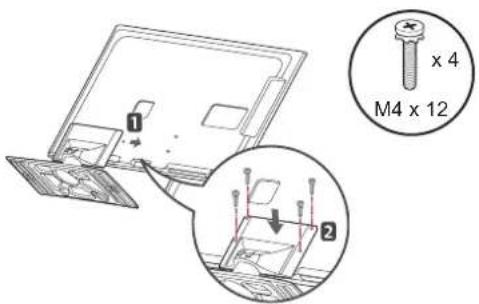

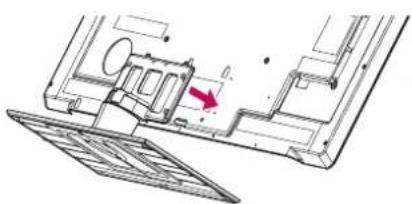

Attaching the stand

(Only 32/37/42/47LV5700)

* Image shown may differ from your TV.

1 Carefully place the TV screen sidde down on a cushioned surface to protect the screen from damage.
2 Assemble the parts of the Stand Body with the Stand Base of the TV.

Stand Body Stand Base

3 Assembel the TV as shown.

Diagram of a laptop with an inset close-up showing the screen and keyboard (no text or symbols present)

4 Secure the TV and the stand with the 4 screws.

1 x 4 M4 x 12 2

(Only LZ9700)

* Image shown may differ from your TV.

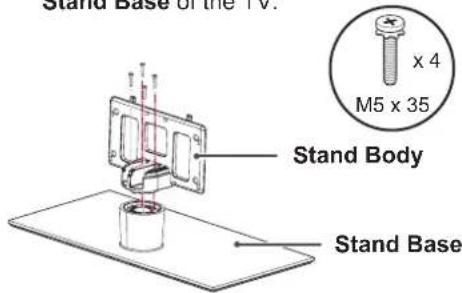

1 Carefully place the TV screen sidde down on a cushioned surface to protect the screen from damage.
2 Assemble the parts of the Stand Body with the Stand Base of the TV.

Stand Base of the 1 V. x 4 M5 x 35 Stand Body Stand Base

3 Assemble the TV as shown.

Technical line drawing of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

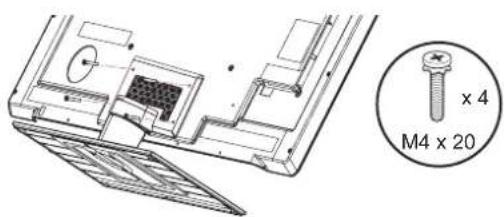

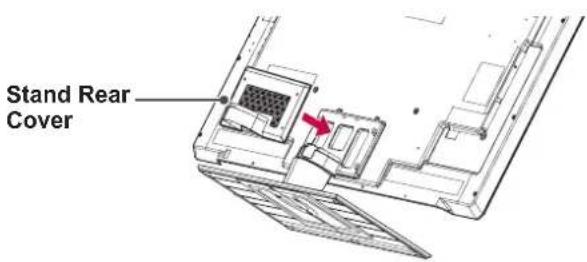

4 Assemble the parts of the Stand Rear Cover with the TV.

Stand Rear Cover

5 Secure the TV and the stand with the 4 screws.

x 4 M4 x 20

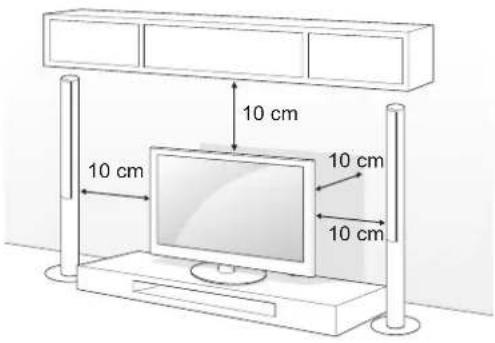

DESKTOP PEDESTAL INSTALLATION

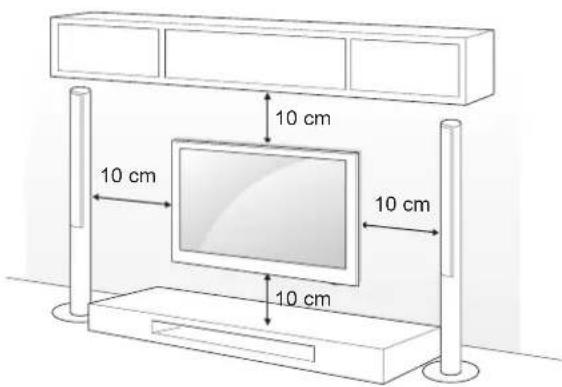

■ Image shown may differ from your TV For adequate ventilation allow a clearance of 10cm all around the TV.

1 Lift and tilt the TV into its upright position on a table.

10 cm 10 cm 10 cm 10 cm

2 Connect the power cord to a wall outlet.

CAUTION

Do not place the TV near or on sources of heat, as this may result in fire or other damage.

SWLVEL STAND

■ Image shown may differ from your TV. After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suit your viewing position.

20° 20°

WALL MOUNT:HORIZONTAL INSTALLATION

We recommend the use of a LG Brand wall mounting bracket when mounting the TV to a wall
We recommend that you purchase a wall mounting bracket which supports VESA standard.
■ LG recommends that wall mounting be performed by a qualified professional installer.

NOTE

■ Should install wall mount on a solid wall perpendicular to the floor.
- Should use a special wall mount, if you want to install it to ceiling or slanted wall.
The surface that wall mount is to be mounted on should be of sufficient strength to support the weight of TV set; e.g: concrete, natural rock brick and hollow block.
- Installing screw type and length depends on the wall mount used. Further information, refer to the instructions included with the mount.
■ LG is not liable for any accidents or damage to property or TV due to incorrect installation:
—Where a non-compliant VESA wall mount is used.
—Incorrect fastening of screws to surface which may cause TV to fall and cause personal injury.
—Not following the recommended Installation method.

10 cm 10 cm 10 cm 10 cm

CAREFUL INSTALLATION ADVICE

This feature is not available for all models. Image shown may differ from your TV.

■ You should purchase necessary components to fix the TV safety and secure to the wall on the market.
■ Position the TV close to the wall to avoid the possibility of it falling when pushed.

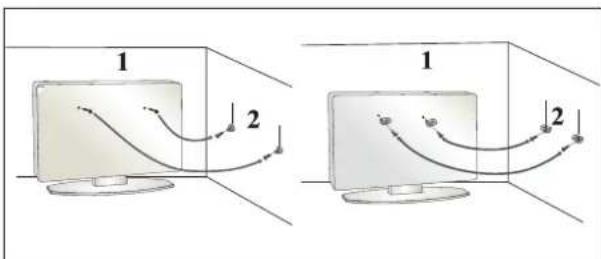

The instructions shown below are a safer way to set up the TV, by fixing it to the wall, avoiding the possibility of it falling forwards if pulled.
This will prevent the TV from falling forward and causing injury. This will also prevent the TV from damage. Ensure that children do not climb or hang from the TV.

1 2 1 2

1. Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture. (If your TV has bolts in the eyebolts, loosen then bolts.)

* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

2、Secure the wall brackets with the bolts on the wall. Match the height of the bracket that is mounted on the wall.

Simple line drawing of a vertical monitor with a base, labeled '3' on the side (no text or symbols on the device itself)

1. Use a sturdy rope to tie the product for alignment. It is safer to tie the rope so it becomes horizontal between the wall and the product.

CAUTION

■ When moving the TV undo the cords first.
Use a platform or cabinet strong and large enough to support the size and weight of the TV.
To use the TV safely make sure that the height of the bracket on the wall and on the TV is the same.

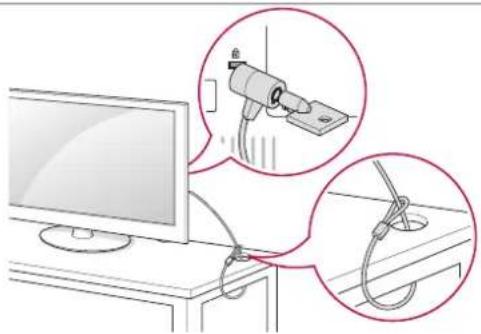

KENSINGTON SECURITY SYSTEM

This feature is not available for all models. Image shown may differ from your TV.

The TV is equipped with a Kensington Security System connector on the back panel. Connect the Kensington Security System cable as shown below.

For the detailed installation and use of the Kensington Security System, refer to the user's guide provided with the Kensington Security System.

For further information, contact http://www.kensington.com, the internet homepage of the Kensington company. Kensington sells security systems for expensive electronic equipment such as notebook PCs and LCD projectors.

CAUTION

The Kensington Security System is an optional accessory.
If the TV feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with TV.
Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.
Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

Illustration of a computer monitor connected to a mechanical device with two magnified insets showing the same components (no text or symbols present)

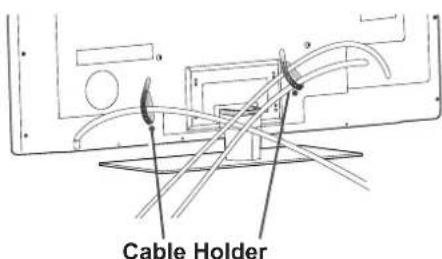

Tidying cables

Only 32/37/42/47/55LV5700

Image shown may differ from your TV.

1 Gather and bind the cables with the cable holder.

Cable Holder

Only 72LZ9700

Image shown may differ from your TV.

1 Gather and bind the cables with the cable holder.

Cable Holder

2 Pull the cable management on the stand cover and organize cables. Then, put it back.

Pure mechanical assembly diagram without any text, numbers, or symbols

CAUTION

Do not move the TV by holding the cable management clip, as the cable management clip may break, and injuries and damage to the TV may occur.

Securing the TV to a table

Only 32/37LV5700

Image shown may differ from your TV.

Fix the TV to a table to prevent from tilting forward, damage, and potential injury.

Mount the TV on a table, and then insert and tighten the supplied screw on the rear of the stand.

Line drawing of a monitor mounted on a stand with a circular base and a pointer, no text or symbols present.

WARNING

To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

REMOTE CONTROL

Open the battery compartment cover on the back and install the batteries m-atching correct polarity (+with +,-with -). Install two 1.5V AAA batteries. Do not mix old or used batteries with new one Close cover.

CAUTION

Do not mix old and new batteries, as this may damage the remote control. Make sure to point the remote control at the remote control sensor on the TV.

• Image shown may differ from your TV.

ENERGY AV MODE INPUT SAXIME 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9WXYZ LIST 0 Q.VIEW MARK FAV CHARNUM RATIO DELETE MUTE SMART TV Premium Home Q MENU OK > BACK GUIDE EXIT TEXT T.OPT SUBTITLE REC LIVETV INFO @www.com

(Power)	Switches the TV on from standby or on to standby.
ENERGY SAVING	Adjusts the brightness of the screen to reduce energy consumption.
AV MODE	Selects an AV mode.
INPUT	External in put mode rotate in regular sequence.
TV/RAD	Selects Radio, TV and DTV programme.
Alphanumeric buttons	Enters letters and numbers.
LIST	Accesses the saved programme list.
Q.VIEW	Returns to the previously viewed programme.
Δ+ -	Adjusts the volume level.
MARK	Check and un-check programmes in the USB menu.
FAV	Accesses your favourite programme list.
CHAR/NUM	Switches between Letter and Number input modes.
RATIO	Selects your desired Aspect Ratio af picture.
DELETE	Deletes letters and numbers.
MUTE	Mutes all sounds.
P ∧ ∨	Move from one full set of screen information to the next one.
PAGE	Moves to the previous or next screen.
PREMIUM	Accesses the Premium menus.
HOME	Accesses the Home menu.
Q.MENU	Accesses the quick menus.
Navigation buttons(up/down/left/right)	Allows you to navigate the on-screen menus and adjust the system setting to your preference
OK	Selects menus or options and confirms your input.
BACK	Returns to the previous level.
GUIDE	Shows programme guide.
EXIT	Clears all on-screen displays and return to TV viewing.
Coloured buttons	These buttons are used for teletext (on TELETEXT models only),Programme edit.
SUBTITLE	Recalls your preferred subtitle in digital mode.
INFO	Views the information of the currently programme and the screen.
Control buttons( ■, ▶, II, ◀, ▶ )	Controls the Time Machine or MY MEDIA menus or the SIMPLINK compatible devices (USB,SIMPLINK or Time Machine).
LIVE TV	Return to the LIVE TV.
REC	Uses to adjust Timeshift Mode.

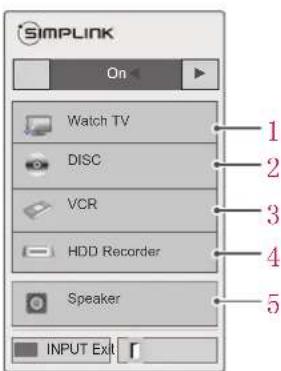

Simplink	Accesses the AV devices connected to the TV;Opens the SIMPLINK menu.

Magic Motion Remote Control Functions

This item is not included for all models.

The descriptions in this manual are based on the buttons of the remote control.

Please read this manual carefully and use the TV correctly.

When the message "Magic motion remote control battery is low. Change the battery." is displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching + and ⏰ ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control to the remote control sensor on the TV.

To remove the batteries, perform the installation actions in reverse.

Diagram showing three stages of a biological or mechanical process with arrows indicating transformation (no text or symbols)

CAUTION

Do not mix old and new batteries, as this may damage the remote control

Make sure to point the remote control to the remote control sensor on the TV.

(only 72LZ9700) Image shown may differ from your TV.

Pointer Receiver Blinks the light when operating. (POWER) Turns the TV on or off. HOME Accesses the Home menu. Navigation buttons (up/down/ left/right) Scrolls through menus or options. OK Press this button to display the pointer when it disappears from the screen. You can control the TV by selecting Quick Menu on the screen. MUTE Mutes all sounds. Adjusts the volume level. P ∧ ∨ Scrolls through the saved pro- grammes.

Registrating Magic Motion Remote Control

The Magic Motion Remote Control operates by pairing with your TV.

Register the Magic Motion Remote Control after purchasing the TV.

Illustration of a computer monitor with a red circular highlight on the right side (no text or symbols)

How to register the Magic Motion Remote Control

To register the Remote Control, press the OK button on the Remote Control while aiming it at your TV.

How to Re-register the Magic Motion Remote Control after Registration Failure

Reset the remote control by pressing and holding both the OK and MUTE buttons for 5 seconds.

(Once the reset is complete, the light on the Pointer RF Receiver blinks.) Then repeat the above procedure to register the remote control.

How to use Magic Motion Remote Control

1 Press OK button if there is no pointer on your TV screen. The pointer will then appear on the screen.

If the pointer has not been used for a certain period of time, it will disappear.

2 You can move the pointer by aiming the Pointer Receiver of the remote control at your TV then move it left, right, up or down.

If the pointer does not work properly after clicking the OK button, leave the remote control for 10 seconds then use it again.

Illustration of a hand pointing at a screen with a starburst symbol (no text or symbols present)

Precautions to Take when Using the Magic Motion Remote Control

Use the remote control within the maximum communication distance (10 m). Using the remote control beyond this distance, or with an object obstructing it, may cause a communication failure.
A communication failure may occur due to nearby devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as this will use the same bandwidth (2.4 GHz) as the Magic Motion Remote Control.
The Magic Motion Remote Control may be damaged or may malfunction if it is dropped or receives a heavy impact.
When playing a game using the Magic Motion Remote Control, hold it securely by wrapping its strap around your wrist and adjusting the length with the adjustable ring.
Take care not to bump into nearby furniture or other people when using the Magic Motion Remote Control.
■ Manufacturer and installer cannot provide service related to human safety as the applicable wireless device has possibility of electric wave interference.

WATCHING TV

Connecting to an antenna

Connect an antenna to watch TV referring to the following.

To prevent damage do not connect to the mains outlet until all connections are made between the devices.

Connecting an antenna

Connect the TV to a wall antenna socket with a RF cable (75 Ω).

NOTE

■ Use a signal splitter to use more than 2 TVs.
If the image quality is poor, install a signal amplifier properly to improve the image quality.
If the image quality is poor with an antenna connected, aim the antenna to the proper direction.
■ An antenna cable and converter are not supplied.

Turning the TV on for the first time

When you turn the TV on for the first time, the Initial setting screen appears. Select a language and customize the basic settings.

1 Connect the power cord to a power outlet.
2 In Standby mode, press POWER to turn the TV on.
The Initial setting screen appears if you turn the TV on for the first time.

NOTE

- You can also access Factory Reset by accessing OPTION in the Home menu-SETUP.

3 Follow the on-screen instructions to customize your TV settings according to your preferences.

Selects a country to display.

Selects Home Use for the home environment.

Sets the power indicator. (When you select Home Use from Mode Setting)

Scans and saves available programmes automatically.

NOTE

For those countries without confirmed DTV broadcasting standards, some DTV features might not work, depending on the DTV broadcasting environment.
■ To display images in the best quality for your home environment, select Home Use.
■ Store Demo is suitable for the retail environment.
If you select Store Demo, the previously customized settings will switch to the default settings of Store Demo in 5 minutes.

4 When the basic settings are complete, press OK.

NOTE

If you do not complete the Initial setting, it will appear whenever the TV turns on. Disconnect the power cord from the power outlet when you do not use the TV for a long period of time.

Watching TV

1 In Standby mode, press POWER to turn the TV on.
2 Press INPUT and select Antenna.
3 To turn the TV off, press POWER. The TV switches to Standby mode.

Accessing Home menu

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to one of the following menus and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want and press OK.
4 When you are finished, press EXIT.

■ Image shown may differ from your TV

Current Date, Time Sat. jan 1, 2011 12:00 Sign in Sign In Exit Live TV INPUT, SETUP, FAVOURITE Programme List Premium tvb.com RTHK 香港電視 bbtv MUSIC ITV YAHOO新聞 雅虎香港 Smart share Conner: a USB or DLNA device to enjoy various types of contents on you your TV. Search LG Apps Web Browser Media Link My Apps Quick Apps

Notes:
the "Premium" item list is under the testing process; it will be available by updating the software after July 2011, and the instruction could be find on page 84 of the user's guide on software updating.

Sat. Jan. 1, 2011 12:00 TV i Input SETUP GUIDE Premium tvb.com RTHK 香港電話 bbtv MUSIC ITV YAHOO新聞 雅虎香港 Smart share + Conner: a USB or DLNA device to enjoy various types of contents on you your TV. Search LG Apps Web Browser Media Link My Apps

Notes:
click the "Quick Apps" icon, jump out the "Coming Soon" window. this implies the fact that the "Quick Apps" is under the development process. it will be available by updating the software after July 2011, and the instruction could be find on page 84 of the user's guide on software updating.

Manually setting up programme (In digital mode)

Manual Tuning lets you manually add a programme to your programme list.

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to DTV and press OK.
5 Scroll through the programme types, and then add or delete programmes.
6 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

If the TV scans a blocked programme, you will be prompted to enter your password to keep the programme scanned.
that are set up at Auto Tuning for each of necessary item.
■ When the change is needed, please first perform Auto Tuning.
- Please inquire of the cable service provider about the correct values.

Manually setting up programme (In analogue mode)

Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to TV or Cable TV and press OK.
5 Scroll through the programme types, and then add or delete programmes.
6 Press the Navigation buttons to scroll to TV System.
7 Press the Navigation buttons to scroll to V/UHF or Cable.
8 Press the Navigation buttons or Number buttons to scroll to the desired channel number.
9 Press the Navigation buttons to scroll to commence searching.
10 Press the Navigation buttons to scroll to su uev qninut yllaunam nehW Store and press OK.
11 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

If the TV scans a blocked programme, you will be prompted to enter your password to keep the programme scanned.

I: PAL I/II (U.K. / Ireland / Hong Kong / South Africa)
■ DK : PAL D/K (East Europe / China / Africa / CIS)
■ NTSC M : USA / Korea / Philippines To store another channel, repeat steps 5 to 10.

Assigning a station name

You can assign a station name with five characters to each programme number.

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to TV or Cable TV.
5 Press the Navigation buttons to scroll to Name and press OK.
6 Press the Navigation buttons to scroll Select the position and make your choice of the second character, and so on. You can use an the alphabet A to Z, the number 0 to 9, +/- , and blank and press OK.
7 Press the Navigation buttons to scroll to Store and press OK
8 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Fine Tuning

Normally fine tuning is only necessary if reception is poor.

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Manual Tuning and press OK.
4 Press the Navigation buttons to scroll to TV or Cable TV.
5 Press the Navigation buttons to scroll to Fine.
6 Fine tune for the best picture and sound. Press the Navigation buttons to scroll to
7 Store and press OK
8 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Editing your programme list

When a programme number is skipped, it means that you will be unable to select it using P ∧ ∨ button during TV viewing.

If you wish to select the skipped programme, directly enter the programme number with the NUMBER buttons or select it in the Programme edit menu.

This function enables you to skip the stored programmes.

You can change the programme number using "Move" function, if "Automatic Numbering" is unchecked when you start Auto Tuning.

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Programme Edit and press OK.
4 Edit programmes using the following buttons.

Button Description
^	Highlight the programme type.
^V <>	Scrolls through programme types or programmes.
OK Edits programmes.
P ^ V	Moves to the previous or next page.
Red button Selects your desired favourite programme group.

6 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Selecting a programme on the programme list

1 Press LIST to access the programme list.

Button Description
< >	Selects programme list or recent programme list.
^ v	Scrolls through programme.
OK	Selects the highlighted programme to view.
P ^ v	Moves to the previous or next page.
Red button Ed	its programme.
FAV Sets up a	favourite programme list.

2 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

NOTE

If you select the blocked programme, you will be prompted to enter your password.

Using favourite programmes

Add the programmes that you watch frequently to the favourite list.

1 Select a programme to add to the favourite list.
2 Press FAV.

NOTE

☑You can also access the input favourite list by selecting Favourite List in the Home menu.

Button Description
<>	Selects a desired programme group.
P^v	Moves to the previous or next page.
Red button Moves to the Programme Edit.
Green button	Register or cancel the selected programme.
FAV Moves to the Programme List.

3 When you are finished, press EXIT.

NOTE

You can also setup Favourite List in the SETUP menu - Programme Edit.

Booster(In air digital mode)

If reception is poor select Booster to "On". When the signal is strong, select "Off".

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Booster and press OK.
4 When you are finished, press EXIT.

Using additional options

Adjusting aspect ratio

Resize an image to view at its optimal size by pressing RATIO while you are watching TV.

NOTE

You can also change the image size by pressing Q. MENU or accessing Aspect Ratio in the PICTURE menus.
■ You can adjust the enlarge proportion using the Navigation buttons.
■ You can only select 16:9, 4:8,9 , Cinema Zoom1 in Component mode.
■ You can only select16:9, Original, 4:3, 14:9, Cinema Zoom 1 in HDMI mode.
■ You can only select 16:3, in RGB-PC mode only.
In DTV/HDMI/Component (over 720p) mode, Just Scan is available.
In DTV mode, Full Wide is available.

- 16:9: Resizes images to fit the screen width.

Black and white photo of a pool ball on a gravel surface (no text or symbols visible)

- Just Scan: Displays video images in the original size without disappearing parts at the edge of the image.

Just Scan

NOTE

If you select Just Scan, you may see image noises at the edge of the original signal.

- Original: When your TV receives a wide screen signal it will automatically change to the picture format broadcast.

Original

- Full Wide: When TV receives the wide screen signal, it will lead you to adjust the picture horizontally or vertically, in a linear proportion, to fill the entire screen fully.

Full Wide

4:3 and 14:9 video is supported in full screen without any video distortion through DTV input.

- 4:3: Resizes images at the standard 4:3 without distortion.

Close-up of a small, rounded object with smooth surfaces and a pointed tip, possibly a button or knob (no text or symbols visible)

- 14:9 : You can view a picture format of 14:9 or a general TV programme in the 14:9 mode. The 14:9 screen is viewed in the same way as in 4:3, but is moved to the up and down.

Black and white photo of spherical objects on a textured surface (no visible text or symbols)

- Cinema Zoom: Choose Cinema Zoom when you want to enlarge the picture in correct proportion.

To change the ratio of the cinema zoom, press <> and its range is from 1 to 16.

To move the zoom focus up or down, press v.

Close-up of a ball with smooth surfaces and highlights, no visible text or symbols

NOTE

If you enlarge or reduce an image, the image may be distorted.

Changing AV modes

Each AV mode has the optimized image and sound settings.

Press AV MODE repeatedly to select an appropriate mode.

Mode Description
Off Changes to the previously customized settings.
Cinema or THX Cinema	Use the optimized image and sound setting for the cinematic look.
Game Use the	optimized image and sound setting for fast gaming.When playing a video game using PlayStation or Xbox, it is recommended to use the Game mode.When in Game mode, functions related to picture quality will be optimized for playing games.

Using the input list

Selecting an input source

1 Press INPUT to access the input sources.

- The connected device displays on each input source.

NOTE

You can also access the input source list by selecting INPUT in the Home menu.

2 Press the Navigation buttons to scroll to one of the input sources and press OK.

Image shown may differ from your TV.

(Only 32/37/42/47LV5700)

Input List Page 1/2 Antenna Cable USB 1 USB 2 DLNA NETWORK AV1 AV2 Component1 Component2 RGB HDMI2HDMI1 SIMPLINK Input Label Exit

Input List Page 2/2 HDMI 4 HDMI 1 SIMPLINK Input Label Exit

(Only 72LZ9700)

Input List Antenna Cable USB 1 USB 2 DLNA NETWORK AV Component HDMI2HDMI1RDMI3 SIMPLINK Input Label Exit

Input source	Description
Antenna or Cable	Watch TV over the air, cable, and digital cable broadcast.
USB Use the movie, photo or music file.
NETWORK Use	it for DLNA.
AV Watch the contents in a VCR or other external devices.
Component Watch	tch the contents in a DVD or other external devices, or through a digital set-top box.
RGB View a PC	display on the screen.
HDMI Watch contents in a HTS or other high definition devices.

The connected input sources display in black and the disconnected input sources in grey.

• To add an input label, press the Green button. You can easily identify a device connected to each input source.
• If you connect a new external device to the TV, a pop-up window appears. Select Yes on the pop-up window to select an input source.
• To access the SIMPLINK, press the Red button. If you select "SIMPLINK and On", the pop-up window for the HDMI input will not display.

Adding an Input label

Add a label to an input source so that you can easily identify a device connected to each input source.

■ Image shown may differ from your TV.

(Only 32/37/42/47LV5700)

Input Label AV1 AV2 Component1 Component2 RGB Page 1/2 Close

Input Label HDMI1 HDMI2 HDMI3 HDMI4 Page 22 Close

(Only 72LZ9700)

Input Label AV Component RGB HDMI1 HDMI2 Page 12 Close

Input Label HDMI3 Page 29 Close

1 Press INPUT to access the input sources.
2 Press Green button.
3 Press the Navigation buttons to scroll to one of the input sources.
4 Press the Navigation buttons to scroll to one of the input labels.
5 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Using the quick menu

Customize the frequently using menus.

1 Press Q. MENU to access the quick menus.
2 Press Navigation buttons to scroll through the following menus and press OK.

Menu Description
Aspect Ratio Changes the image size (16:9, Just Scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom)
Picture Mode Changes the image mode (Intelligent Sensor, Vivid, Standard, Cinema, Game, Expert1, Expert2)
Sound Mode Changes the sound mode (Standard, Music, Cinema, Sport, Game)
Sleep Timer Sets the length of time until the TV to turns off
Subtitle Language	The subtitles can be turned on or off
Audio Language	Changes the sound output.
Energy Saving Reduces the power consumption by adjusting the screen brightness. (Auto, Off, Minimum, Medium, Maximum, Screen Off)
AV Mode Sets the optimized image and sound settings (Off, Cinema, Game)
Skip Off/On Sets the Skip Off/On.
USB Device Eject a USB device.

NOTE

The available menus and options may differ from the input source that you are using.

3 Press Navigation buttons to scroll to the option you want.
4 When you are finished, press Q. MENU.

ENTERTAINMENT

Connecting the TV to a net-work

Connecting the wired network

Connect the TV and a local area network (LAN) via the LAN port as shown on the following illustration and set up the network settings.

If wired and wireless networks are both available, wired is the preferred method.

After making a physical connection, a small number of home networks may require the TV network settings to be adjusted.

For detail information, contact your internet provider or router manual.

• Image shown may differ from your TV. (Only 32/37/42/47LV5700)

(Only 72LZ9700)

CAUTION

• Do not connect a modular phone cable to the LAN port.
  ■ Since there are various connection methods, please follow the specifications of your telecommunication carrier or internet service provider.
  ■ After connecting the LAN port, use the Premium or TV Apps menu. For more information about Premium or TV App setup and troubleshooting, visit http://lgknowledgebase.com.

To set up the network settings,

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to NETWORK and press OK.
4 Press the Navigation buttons to select Network Setting and press OK.
5 If wired and wireless are simultaneously connected, press the Navigation buttons to select Wired and press OK.
6 If you already set Network Setting, select Resetting. The new connection settings resets the current network settings.

7 Select IP Auto Setting or IP Manual Setting.

• If selecting IP Manual Setting, press the Navigation and Number buttons. IP addresses will need to be input manually.
• IP Auto Setting: Selects if there is a DHCP server on the local area network (LAN) via wired connection, the TV will automatically be allocated an IP address. If you're using a broadband router or broadband modem that has a DHCP (Dynamic Host Configuration Protocol) server function. The IP address will automatically be determined.
• IP Manual Setting: Selects if there is no DHCP server on the network and you want to set the IP address manually.

8 When you are finished, press EXIT.

NOTE

If you want to access the Internet directly on your TV, the broadband internet connection should always be on.
If you cannot access the Internet, check the network conditions.
■ When you use Network Setting, check the LAN cable or check if the DHCP in the router turns on.
If you do not complete the network settings, the network may not work properly.

Connecting the wireless network

The LG Wireless LAN for Broadband/DLNA Adaptor, which is sold separately, allows the TV to connect to a wireless lan network.

The network configuration and connection method may vary depending on the equipment in use and the network environment. Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.

Setting up the AP (Access Point) or the wireless router is required before connecting the TV to the network.

• Image shown may differ from your TV. (Only 32/37/42/47LV5700)

(Only 72LZ9700)

Internet Router Lfd WAN ETHERNET Cable modem

NOTE

For enjoying pictures, music, or video stored in the PC using the router, the use of wired port in the router is recommended.
When the wireless port of the router is used, there may be restrictions for some functions. It is recommended that an Access Point (AP) is installed more than 1 m away from the
TV. If the AP is installed closer than 1 m, the magic motion remote control may not perform as expected due to frequency interference.

To set up the network settings,

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to NETWORK and press OK.
4 Press the Navigation buttons to select Network Setting and press OK.
5 Press the Navigation buttons to select Wireless and press OK.
6 If you already set Network Setting, select Resetting and press OK. The new connection settings resets the current network settings.
7 Press the Navigation buttons to select Setting from the AP list and press OK.

- Scan the all available AP (Access Point) or wireless routers within range and display them as a list.

Selecting the wireless network setting type Select the wireless network setting type. Setting from the AP list Simple setting (WPS-button mode) Setting Ad-hoc network Next Previous Exit

8 Press the Navigation buttons to select an AP (Access Point) or wireless router on the list. (If your AP is locked, insert the security key of AP) and press OK.

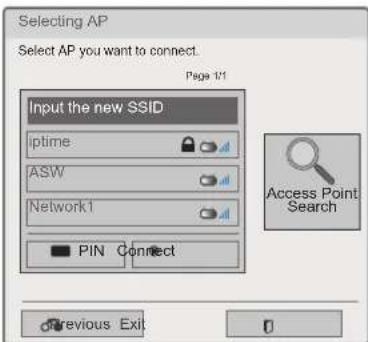

Selecting AP Select AP you want to connect. Page 1/1 Input the new SSID iptime ASW Network1 PIN Connect Access Point Search Previous Exit

9 Press the Number buttons to Input the security key of AP and press OK.

Inserting the security key Reset hardware (1-4,5,6) to 30 days. Start the 10 GPIO settings. OK Cancel Exit Previous

10 Repeat step 6-7 on "Connecting the wired network".

When a security code is already set

PIN (Personal Identification Number)

If you want to connect the AP (Access Point) or router with PIN, use this feature.

1 Repeat step 1-7 on "Connecting the wireless network".
2 Press Red button to connect the access point with PIN mode.
3 You can see the Network ID and Security Key on your TV screen. Enter the PIN number to your device. PIN number is the unique 8 digit number of the dongle.

4 Press OK to select Connect.

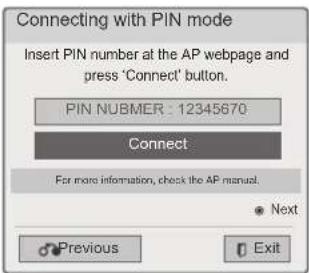

Connecting with PIN mode Insert PIN number at the AP webpage and press 'Connect' button. PIN NUBMER : 12345670 Connect For more information, check the AP manual. ● Next Previous Exit

5 Repeat step 6-7 on "Connecting the wired network".

WPS (Wi-Fi Protected Setup)

If your access point or wireless router that supports PIN or WPS(Wi-Fi Protected Setup), it's available to use your access point or wireless router within 120 counts. You do not need to know the access point name (SSID: Service Set Identifier) and security code of your access point or wireless router.

1 Repeat step 1-7 on "Connecting the wireless network".
2 Press the Navigation buttons to select the Simple setting (WPS-button mode).
3 Press OK to select Connect.
4 Repeat step 6-7 on "Connecting the wired network".

Ad-hoc Mode

This is the method of communicating directly with the machine to communicate without AP. This is the same as connecting two PCs with a cross cable.

1 Repeat step 1-5 on "Connecting the wireless network".
2 Press the Navigation buttons to select Setting Ad-hoc network and press OK.
3 Press the Navigation buttons to select OK and press OK.
4 Press OK to select Connect to connect Ad-hoc network.

• You can see the Network ID and Security Key on your TV screen.
• Enter this Network ID and Security Key to your device.
• If a network may not operate, change the setting information using the Red button.

NOTE

Example of the PC setting that supports a wireless network

■ Find a wireless network device in your PC.
■ Select LGTV10 that appears in the list. (Select the same name as the network ID that appears on your TV screen.)
■ Type 111111111 in the Inserting the security key dialog. (Type the security key that appears on your TV screen.)

5 Press the Navigation buttons to insert the IP address and press OK.

Option Description
PC Setting	Internet Protocol(TCP/IP) of PC needs to be set manually.IP address, Subnet Mask, and default Gateway can be set with your own discretion.i.e) IP address: 192.168.0.1 / Subnet Mask: 255.255.255.0 / default Gateway: 192.168.0.10
TV Setting	Verify IP address and gateway of PC.Input Gateway address of PC to IP Address, and IP Address of PC to Gateway, and select OK.i.e) IP address: 192.168.0.10 / Subnet Mask: 255.255.255.0 / default Gateway: 192.168.0.1

6 Press the Navigation buttons to select Close after Network setting is completed.
7 Press the OK.

Tips for Network setting

For more information about Premium or TV App setup and troubleshooting, visit http:// lgknowledgebase.com.
Use a standard LAN cable with this TV. Cat5 or better with a RJ45 connector.
Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.
■ Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP. LG is not responsible for any malfunction of the TV and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.
■ LG is not responsible for problems within your internet connection.
Some content available through the network connection may not be compatible with the TV. If you have questions about such content, please contact the producer of the content.
- You may experience undesired results if the network connection speed does not meet the requirements of the content being accessed.
Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.
■ Any fees charged by an ISP including, without limitation, connection charges are your responsibility.
A 10 Base-T or 100 Base-TX LAN port is required for connection to this TV. If your internet service does not allow for such a connection, you will not be able to connect the TV.
A DSL modem is required to use DSL service and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this TV or you may be limited to the number of devices you can connect at the same time. (If your ISP limits sub-scription to one device, this TV may not be allowed to connect when a PC is already connected.)

The use of a “Router” may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.
The wireless network operates at 2.4 GHz radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be affected by interference from them. It can be interrupted by the device using 5 Ghz radio frequencies. It is same device with LG wireless media box, cordless telephone, other Wi-Fi device.
It may decrease the service speed using Wireless network by surrounding wireless condition.
■ Turn off all unused network equipment in your local home network. Some devices may generate network traffic.
In some instances, placing the access point or wireless router higher up away from the floor may improve the reception.
The reception quality over wireless depends on many factors such as type of the access point, distance between the TV and access point, and the location of the TV.
When connecting internet through the wired/wireless sharing machine, it may interrupt the connection because of the use limitation and confirmation of service company.
To connect wireless AP, an AP that supports the wireless connection is necessary, and the wireless connection function of the AP needs to be activated. Please enquire to the AP supplier for the possibility of AP wireless connections.
Please verify the security settings of AP SSID for wireless AP connection, and enquire to the AP supplier for the AP SSID security settings.
The TV can become slower or malfunction with wrong settings of network equipments (wired/wireless router, hub, etc). Please install correctly by referring to the manual of the equipment, and set the network.
When AP is set to include 802.11 n(Except for Russia), and if Encryption is designated as WEP(64/128bit) or WPA(TKIP/AES), the connection may not be possible. There may be different connection methods according to the AP manufacturers.

Network Status

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to NETWORK and press OK.
4 Press the Navigation buttons to select Network Status.
5 Press OK to check the network status.

Option Description
Setting	Return to the network setting menu or wireless network setting type menu.
Test	Test the current network status after setting the network.
Close Return to the previous menu.

Premium card function

LG's Premium technology allows you to access a variety of online services or contents directly on your TV. Your TV offers instant streaming of movies, TV shows, videos, and Widget-based services with Premium and the Internet connection.

Enjoy entertainment including not only entertainment content, but also up-to-the minute news, stock information, weather updates, photo management, and more by simply using the TV's remote control without a separate PC.

1 Press Premium to access the Premium option.

2 Press the Navigation buttons to scroll to the contents you want and press OK.

■ Image shown may differ from your TV

Set. Jan. 1, 2011 12:00, HongKong Sign In Log Back Exit YouTube accada Googefaccaook Accu weather viewer twitter vTuner Please News Search LG Audio Web Source Media Link My Answer

OptionDescription
1	Sign into the premium service.
2	Moves to the previous menu screen.
3	Returns to TV viewing.
4	Selects your desired online service.■ If a service requires you to log in, you must first sign up for the service on your computer and then log into the service on the TV.
5	Launcher bar

3 Enjoy Online service.

Notes:

the "Premium" item list is under the testing process;

it will be available by updating the software after July 2011, and the instruction could be find on page 84 of the user's guide on software updating.

CAUTION

These services are provided by separate Content Provider.
Please visit the content providers web site for specific information on their service (But, some content manual maybe not provide depending on Content Provider).
■ Premium menu can differ by country.
If a service requires you to log in, you must first sign up to the service website on your computer and then log into the service on the TV.
Note that content may be updated automatically depending on the service provider, so the content layout or operation method may change without notice. Please refer to the help menu on the screen.
Content may be changed or deleted without prior notice depending on the Content Provider.
All content furnished by the contents provider are subject to change at any time including, but not limited to the removal of content. Should you have any inquiry or problem related to the content, you may refer to the cervice provider's website for the most up-to-date information. Please note that LG is not responsible for any content provided by the content provider or any changes concerning such content.
Some content may be harmful to minors depending on the service provider.

NOTE

The videos list searched from the TV may different with the list searched from a web browser on PC.
The playback of videos may be paused, stopped or buffering occurring often depending on your broadband speed.
For service that requires log in, join the applicable service on the website using the PC and log in through the TV to enjoy various additional functionalities.

Legal Notice

IMPORTANT NOTICE RELATING TO NETWORK SERVICE

All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorized by the content owner or service provider. Without limiting the foregoing, unless expressly authorized by the applicable content owner or service provider, you may not copy, upload, post, transmit, translate, sell, modify, create derivative works, or distribute in any manner or medium any content or services displayed through this device.

YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT THE DEVICE AND ALL THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED. LG ELECTRONICS EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO ANY CONTENT AND SERVICES, EITHER EXPRESS OR, IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. LG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND DOES NOT WARRANT THAT THE DEVICE OR SERVICES WILL MEET YOUR REQUIREMENTS, OR THAT OPERATION OF THE DEVICE OR SERVICES WILL BE UNINTERRUPTED OR ERROR-FREE. UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL LG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR ANY OTHER DAMAGES ARISING OUT OF, ANY INFORMATION CONTAINED IN, OR ANY CONTENT OR SERVICE ACCESSED BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Third party services may be changed, suspended, removed, terminated or interrupted, or access may be disabled at any time, without notice, and LG

makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which LG has no control. LG may impose limits on the use of or access to certain services or content, in any case and without notice or liability. LG expressly disclaims any responsibility or liability for any change, interruption, disabling, removal of or suspension of any content or service made available through this device. LG is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.

My Media Card Function

Connecting USB storage devices

Connect USB storage devices such as a USB flash drive, external hard drive, or MP3 player to the TV and use multimedia features (See "Browsing files" on p.41).

Connect a USB flash drive or USB memory card reader to the TV as shown on the following illustration.

• Image shown may differ from your TV. (Only 32/37/42/47LV5700)

HDMI HDMI/201 HDMI HDMI HDMI/201 USB port USB port or

(Only 72LZ9700)

USB IN USB IN USB IN HOTTER HOTTER CONTENTS HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTTER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTATER HOTISTER

To disconnect a USB storage device, make sure to end the connection properly to prevent damages to the TV or files.

1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to USB Device and press OK.
3 Disconnect the USB storage device only when the message says that it is safe to remove.

CAUTION

Do not turn the TV off or remove a USB storage device while the USB storage device is connected to the TV, as this could result in loss of files or damage to the USB storage device.
■ Back up your files saved on a USB storage device frequently, as you may lose or damage the files and this may be not covered by the warranty.

Tips for using USB storage devices

The TV recognizes only a USB storage device.
If you connect a USB storage device to the TV through a USB hub, your TV may not recognize the USB storage device.
The TV may not recognize a USB storage device that uses its own.
The recognition speed of a USB storage device may differ depending on the device. Only use a USB storage device which has normal music or image files.
Use only USB storage devices that are formatted as a FAT 32 or NTFS file system. If you format a USB storage device as a NTFS file system, you cannot delete the saved files.
You may need to connect a USB storage device to an external power supply with a power adapter.
If the TV does not recognize a connected USB storage device, replace the cable and try again. Do not use an excessively long cable.
The TV does not support some USB storage devices properly.
You can use a multi-partition (up to 4) USB storage device.
- You can use up to 4 USB storage devices at a time by using a USB multi-card reader.
The file alignment method of a USB storage device is similar to the one of Window XP.
- You cannot create or delete a folder saved in a USB storage device directly on the TV.
The number of characters for a file name is up to 100 English characters.
The recommended capacity for a USB external hard disk is 1 TB or less and for a USB storage device is 40 GB or less.
If a USB external hard disk with the Energy Saving feature does not work, turn the USB external hard disk off and on again to make it work properly. For more information, refer to the user manual of the USB external hard disk.
USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.

DLNA DMP (Digital Living Network Alliance, Digital Media Player)

This TV can display and play many types of movie, photo and music files from your DLNA server and has been certified by DLNA for photos.

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through a wired or wireless network in the home.

The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA server software or other DLNA compatible device is connected to this TV, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

Please refer to "Using integrated media features" for additional information on supported file types and other instructions.

NOTE

The supplied Nero MediaHome 4 Essentials CD-ROM is a customized software edition only for sharing files and folders to this TV.

The supplied Nero MediaHome 4 Essentials software does not support following functions: Transcoding, Remote UI, TV control, Internet services and Apple iTunes

This manual explains operations with the English version of Nero MediaHome 4 Essentials as examples. Follow the explanation referring to the actual operations of your language version.

If there are too many folders and files in one folder, it may not operate properly.

For the DLNA option, use the Nero Media-Home programme that is provided with the TV. However, we cannot guarantee that third party programme will work perfectly.

■ You can select a programme while viewing the small preview programme list on your TV screen.

- Check your network settings when the DLNA option does not work properly.

If there is an abnormal operation or an error occurs in Nero Media Home, the DLNA option may not work properly. In this case, exit Nero Media Home and restart the

programme. You can download the latest version of Nero Media Home by clicking the question mark at the bottom-left of the programme.

When the network is unstable, the device may be slower or may need to load during playback.

■ When playing a video in DLNA mode, the Multi Audio and Closed Caption features are not supported.

■ When selecting Full Screen in DLNA mode, the ratio of the outputted screen may differ from the original.

When more than one TV is connected to a single server in DLNA mode, a file may not play properly, depending on the server performance.

If the play time information is not provided by the server, it is displayed as "--:--:"

When using Movie List, DRM files in the DLNA server cannot be played.

■ DLNA operation may not work properly according to the AP manufacturers.

Installing Nero MediaHome 4 Essentials

Nero MediaHome 4 Essentials is easy to use DLNA server software for Windows.

1 Start up your computer.
2 Close all Microsoft Windows programmes and exit any anti-virus software that may be running.
3 Insert the Nero MediaHome 4 Essentials CD-ROM into your computer's CD-ROM drive.
4 Click Nero MediaHome 4 Essentials. The installation is prepared and the installation wizard appears.
5 Click the Next button to display the serial number input screen. Click Next to go to the next step.
6 If you accept all conditions, click I accept the License Conditions check box and click Next. Installation is not possible without this agreement.
7 Click Typical and click Next. The installation process is started.
8 If you want to take part in the anonymous col-

lection of data, select the check box and click the Next button.

9 Click the Exit button to complete the installation.

Sharing files and folders

After installing Nero MediaHome, you must add folders you wish to share.

1 Double-click the Nero MediaHome 4 Essentials icon on the desktop.
2 Click Network icon on the left and define your network name in the Network name field. The Network name you enter will be recognized by your TV.
3 Click Shares icon on the left.
4 Click Local Folders tab on the Shared screen.
5 Click Add icon to open the Browse Folder window.
6 Select the folder containing the files you want to share. The selected folder is added to the list of shared folders.
7 Click Start Server icon to start the server.

NOTE

If the shared folders or files are not displayed on the TV, click the folder on the Local Folders tab and click Rescan Folder at the More button.

- Visit http://www.nero.com for more information and software tools.

Playing back shared contents

You can display and play movie, photo and music content stored on your computer or other DLNA media servers.

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to Smart Share and press OK.
3 Press the Navigation buttons to scroll to the device you want and press OK.
4 Press the Navigation buttons to select DLNA. Depending on the media server, this TV may need to get the permission from the server. If you want to re-scan available media server, press blue colour button.

NOTE

To play the file on the media server, the TV and the media server must be connected to the same access point.
Because the compatibility and available playback functions on the My Media menu are tested on the bundle DLNA server (Nero MediaHome 4 Essentials) environment, file requirements and
■ playback functions on the My Media may differ depending on media servers.
The file requirements on this page are not always compatible. There may have some restrictions by file features and media server's ability.
Even the files that are not supported can be displayed in photo thumbnail or music thumbnail.
■ Movie thumbnail is only supported when DLNA server supports a Movie thumbnail. If there is an unplayable music file in the My Media menu, the TV will skip the file and play next file.
The file information indicated on the screen may not always correct for music and movie files in My Media menu.
This TV only supports movie subtitle files supplied by Nero MediaHome 4.
The subtitle file name and movie file name have to be the same and located at the same folder.
If subtitle files have been added after a directory has been indexed already, the user has to remove and re-add the folder to the list of shares.
The playback and operating quality of the My Media function may be affected by your home network condition.
The files from removable media such as USB drive, DVD-drive etc. on your media server may not share properly.
When playing the Media through DLNA connection, it does not support the DivX file play which is protected by DRM.
Up to 999 including folders and files can be recognized.
If there are too many folders and files in one folder, it may not operate properly.
■ Files in a folder can be played only when they are of the same type.

DLNA DMR (Digital Living Network Alliance, Digital Media Renderer)

If the PC uses Windows 7, or a device (e.g. mobile phone) with the DLNA DMC certificate is connected to a network, you can play music, videos or photos etc. on the TV.

The DMR function only works properly when the TV and PC are configured to use the same network.

1 To play a file, select the file by using the Remote Play feature in Windows 7. To do this, right-click on the file you want to play.

Refer to the mobile phone's user manual to find out how to use it to play a file.

You can change the name of a connected TV by double-clicking the item you want to change in Control Panel > Network and Internet > View network computers and devices.

You cannot change the name of a TV while DMR media is playing. Change it when playback is stopped.

2 To exit, press the EXIT button on the remote control. During play, only the volume, mute, exit and backwards buttons are available.

NOTE

The DMR function may not work properly in a wireless network.
The seek function of the DMC only works on video files.
The DMR is not available when another function is operating (recording, playback or my media work etc.).

Browsing files

Access the photo, music, or movie lists and browse files.

1 Connect a USB storage device.
2 Press HOME to access the Home menu.
3 Press the Navigation buttons to scroll to Smart Share and press OK.
4 Press the Navigation buttons to scroll to the device you want and press OK.

5 Press Navigation buttons to scroll to All Media, Movie List, Photo List, or Music List and press OK.

• All Media: Shows all files in the file list.
• Movie List, Photo List, or Music List: Shows only one type of file in the file list.

6 Press Navigation buttons to select a folder or file you want.

All Media US61 External 1 2 Page 13 Page Change 3 4 Page 12 Drive 1 5 6 Charge Book Get to next Order Get as upper Order Exit

No.	Description
1	Shows all media folder.
2	Current page number/total number of pages of folder.
3	Moves to the previous or next page.
4	Current page number/total number of pages of contents.
5	Files info or thumbnail.
6	Available buttons on the remote control.

Thumbnail information

Type	Abnormal files Non-supported files
Movie
Music

Tips for using USB storage devices

Type	Supported file format
Video	■ MPG, MPEG, DAT, TS, TRP, TP, VOD, MP4, MOV, MKV, DivX, AVI, Motion JPEG (AVI, MP4, MKV), ASF, WMV, FLV■ Resolution: under 1920 pixel (width) x 1080 pixel (height)■ Frame Rate: under 30 frame/sec (1920 x 1080), under 60 frame/sec (1280 x 720)■ Max bitrate of playable movie file: 20 Mbps (Mega bit per second)Bit rate of audio format: within 32 kbps to 320 kbps (MP3)■ Supported subtitle format: *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *ssa, *txt (TMPlayer), *.psb (PowerDivX)
Photo	■ JPG■ Available sizeBaseline: 64 pixel (W) x 64 pixel (H) - 15360 pixel (W) x 8640 pixel (H)Progressive: 64 pixel (W) x 64 pixel (H) - 1920 pixel (W) x 1440 pixel (H)* Do not use the progressive option when saving JPG files on your PC.■ It may take some time to open high-resolution images in full screen.
Music	MP3Bit rate range 32 Kbps to 320 KbpsSampling rate (Sampling Frequency)MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHzMPEG2 layer 3: 16 kHz, 22.05 kHz, 24 kHz* A copy-protected file will not play.

Viewing videos

Play video files on the TV. Your TV can display video files from a USB storage device.

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to Smart Share and press OK.
3 Press the Navigation buttons to scroll to Movie List and press OK.
4 Press Navigation buttons to select a folder or file you want and press OK.

5 Play a movie by using the following menus/buttons.

Movie List USB2 External Drive1 Page 1/1 Page Change Page 1/2 M1 M2 M3 M4 M3 M6 M7 M8 M9 M10 M11 M12 M13 M14 M15 M16 Charge drive Get out key Get up key Ext

Button Description
Navigation button	Scrolls the file.
OK Plays	the highlighted file.
P ∧ ∨	Moves to the previous or next page.
Red button	Change device: Changes to a different input.
Green button	Go to root folder.
Yellow button	Go to upper folder.

6 Control playback by using the following buttons.

Black-and-white photo of assorted fruits in a bowl, no visible text or symbols

Button Description
■	Stops the playback.
▶	Plays a video.
II	Pauses or resumes the playback
◀	Scans backward in a file
▶	Scans forward in a file
II and ▶	Plays videos in slow motion
Red buttonand < >	Selects the frame directly.The entire file is divided into 10 frames.Frames may not be displayed depending on the file.
ENERGYSAVING	Increases or deceases the brightness of your screen.
Q.MENU Shows the Option menu (See p. 44).
HIDE	To see the menu again, press OK but-ton to display.
EXIT Moves to the previous menu screen.

Tips for playing video files

Some user-created subtitles may not work properly.
Subtitles may not display some special characters or HTML tags.
Subtitles in the non-supported languages are unavailable.
The time information in an external subtitle file should be arranged in ascending order to play.
The screen may suffer from temporary interruptions such as image stoppage or faster playback when you change the audio language.
If you play a damaged video file, the video file may not be played correctly or some player functions may not be unavailable.
The TV may not properly play the video files produced with certain encoders.
If the recorded file does not have video or audio, either video or audio is not outputted
If the TV plays the recorded file without video or audio, either video or audio is not outputted.
The TV may not smoothly play the video files with a resolution higher than the supported resolution for each frame.
The TV may not properly play the video files not included on the specified type and format.
The TV may not play the files encoded with GMC (Global Motion Compensation) or quarter-pel motion estimation.
The TV supports the only files saved in AS-CII code in subtitles.
The maximum number of characters displayed on each subtitle line is 250 (Korean), 500 (English), and 500 (Numbers).
The TV supports the only 10,000 sync blocks within the subtitle file.
The TV supports the H.264 codec up to the profile level 4.1.
The TV does not support DTS audio codec. The TV cannot play a video file whose size is larger than 30 GB.
If you play a video file through the USB connection that does not support the high speed, the video player may not work properly.
The TV supports a USB storage device whose version is lower than 2.0. However, the USB storage device may not work properly in the movie list.

The video file and its subtitle should be in the same folder and the name of the video file and subtitle should be identical.
You can adjust the image by using and < > . But you cannot customize image options of each mode.
The TV may not play the video files in the supported file format depending on the encoded condition.
The TV will not play the video files that has a damaged index or no index.

Q.MENU options for movie list

1 Press Q. MENU.
A pop-up window will appears.
2 Press the Navigation buttons to scroll to movie list option and press OK.
3 Press the Navigation buttons to scroll to one of the following options and press OK.

Set Video Play.

Option Description
Picture Size	Selects your desired picture format for videos.■ Full Mode: Files are played in full screen mode regardless of the aspect ratio of video.■ Original Mode: Files are played according to the aspect ratio of video.
Audio Language	Changes the Language Group of the audio for video files. Files with a single audio track cannot be selected.
Subtitle Language	The subtitles can be turned on or off.
Language	Activated for SMI subtitles and can select the language within the subtitle.
Code Page	Subtitle font selection. When set to default, contents are displayed in the language set in "Option - Language - Menu Language."
	Subtitle Language Supported Language
	Latin1 English, Spanish, French, German, Italian, Swedish, Finnish, Dutch, Portuguese, Danish, Romanian, Norwegian, Albanian, Gaelic, Welsh, Irish, Catalan, Valencian
	Latin2 Bosnian, Polish, Croatian, Czech, Slovak, Slovenian, Serbian, Hungarian
	Latin4 Estonian, Latvian, Lithuanian
	Cyrillic Bulgarian, Macedonian, Russian, Ukrainian, Kazakh
	Greek Greek
	Turkish Turkish
Sync	When the video is not synchronized with the captions, it can be adjusted by 0.5 second.
Position Move the location of the subtitles.
Size Changes the subtitle font size.
Repeat	Turn on/off repeat function of movie playback. When turned on, the file within the folder will be played back repeatedly. When turned off, if the next file name is similar to the previous file, it can be played sequentially.

NOTE

• Option values changed in Movie List does not affect Photo List and Music List.
  Option value changed in Photo List and
  ■ Music List are changed likewise in Photo List and Music List excluding Movie List.
• When replaying a video file after stopping, you can play from where it stopped automatically.
  If you select "Yes" when playing the same file after the video file has been stopped, it will restart where it stopped previously.
  If continuous series files exist within the folder, the next file will automatically be played. But, this excludes cases when the Repeat function of Movie List Option is turned "On".

Set Video.

Control the menu option (Refer to "PICTURE Settings" on page 66).

Set Audio.

Control the menu option (Refer to "AUDIO Settings" on page 69).

DivX registration code

Registering the DivX code

Check and register the DivX registration code of your TV so that you can rent or purchase the latest movies at www.divx.com/vod. To play a rented or purchased DivX file, the file's registration code should be same with your TV's DivX registration code.

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Smart Share Setting (DivX/DLNA) and press OK.
4 Press the Navigation buttons to scroll to DivX VOD Registration and press OK.

5 View the registration code of your TV.

You must register your device to play DivX protected videos. Registration code ; xxxxxxxxxxxx Register at http://vod.divx.com Close

6 When you are finished, press EXIT.

NOTE

■ While you are checking the registration code, some buttons may not work.
If you use the DivX registration code of another device, you cannot play the rented or purchased DivX file. Make sure to use the DivX registration code assigned to your TV.
The video or audio files that are not converted by the standard DivX codec may be corrupted or not be played.
The DivX VOD code allows you to activate up to 6 devices under one account.

Deactivating the DivX feature

Deactivate all of the devices through the web server and block devices from activating. Delete the existing authentication information to receive a new DivX user authentication for the TV. Once this function is executed, a DivX user authentication is required again to see DivX DRM files.

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to Smart Share Setting (DivX/DLNA) and press OK.
4 Press the Navigation buttons to scroll to DivX Deactivation and press OK.

5 Select Yes to confirm.

Deregistration code: Deregister at http://vod.divx.com Continue with registration? Yes No

6 When you are finished, press EXIT.

Viewing photos

View image files saved in a USB storage device. The displays on the screen may differ from the model.

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to Smart Share and press OK.
3 Press the Navigation buttons to scroll to Photo List and press OK.
4 Press the Navigation buttons to scroll to a folder/file you want and press OK.
5 View photos by using the following menus/buttons.

Photo List USB2 External Drive1 Page 1/1 Page Change Page 1/2 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 Change device Go to next folder Go to top folder Edit

Button	Description
Navigation button	Scrolls the file.
OK	Views the highlighted file.
P ∧ ∨	Moves to the previous or next page.
Red button	Change device: Changes to a different input.
Green button	Go to root folder.
Yellow button	Go to upper folder.

6 Use the following options while viewing photos.

01_a.jpg 2008/12/10 1920 x 1080 479 KB [1/66] Slideshow ▪ BCM ▪ p X ECT Use Option Hide F Exit

Option	Description
Slideshow	Starts or stops a slideshow.All photos saved in the current folder display during a slideshow.To set a slideshow speed, select Option.
BGM(Background Music)	Turns the background music on or off.To set the background music folder, select Option.
○ (Rotate)	Rotates photos clockwise ( 90^ , 180^ , 270^ , 360^ ).NOTEThe supported photo size is limited. You cannot rotate a photo if the resolution of the rotated width is larger than the supported resolution size.
✕✕✕	Views the photo in full mode or original mode.
e✕(ENERGY SAVING)	Increases or decreases the brightness of your screen.
Option	Shows the Option menu (See p. 47).
Hide	Hides the option window.To display the options, press OK.
Exit	Moves to the previous menu screen.

Q.MENU options for photo list

1 Press Q. MENU.
A pop-up window will appears.
2 Press the Navigation buttons to scroll to photo list option and press OK.
3 Press the Navigation buttons to scroll to one of the following options and press OK.

Set Photo View.

Option Description
Slide Speed	Selects a slideshow speed (Fast, Medium, Slow).
BGM	Selects a music folder for the back-ground music.Select Repeat or Random option.
	NOTEYou cannot change the music folder while the background music is playing.

NOTE

■ Option values changed in Photo List do not affect Movie List and Music List.
Option values changed in Photo List or Music List are changed likewise in Photo List and Music List, but not Movie List.

Set Video.

Control the menu option (Refer to "PICTURE Settings" on page 66).

Set Audio.

Control the menu option (Refer to "AUDIO Settings" on page 69).

Listening to music

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to Smart Share and press OK.
3 Press the Navigation buttons to scroll to Music List and press OK.
4 Press the Navigation buttons to select a folder or file you want and press OK.
5 Play music by using the following menus/buttons.

Music List USB2 External Drive1 Page 1/1 Page Change Page 1/2 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12 M13 M14 M15 M16 Change output Go to normal order Go to square key End

Button Description
Navigation button	Scrolls the file.
OK Plays	the highlighted file.
P ∧ ∨	Moves to the previous or next page.
Red button	Change device: Changes to a different input.
Green button	Go to root folder.
Yellow button	Go to upper folder.
Blue button	Open music player.It is enabled during palying a music.

6 Control playback by using the following buttons.

Music List USB2 External M1 M2 M3 Page 1/1 Page Change Page 1/2 001 - 007.mp3 00.03 002 - 002.mp3 00.03 003 - 005.mp3 00.03 004 - 006.mp3 00.03 005 - 007.mp3 00.03 011 - 012.mp3 01.03 012 - 013.mp3 01.03 013 - 014.mp3 01.03 014 - 015.mp3 01.03 015 - 016.mp3 01.03 016 - 017.mp3 01.03 017 - 018.mp3 01.03 018 - 019.mp3 01.03 019 - 020.mp3 01.03 020 - 021.mp3 02.03 021 - 022.mp3 02.03 022 - 023.mp3 02.03 023 - 024.mp3 02.03 024 - 025.mp3 02.03 025 - 026.mp3 02.03 026 - 027.mp3 02.03 027 - 028.mp3 02.03 028 - 029.mp3 02.03 029 - 030.mp3 02.03 030 - 031.mp3 03.03 031 - 032.mp3 03.03 032 - 033.mp3 03.03 033 - 034.mp3 03.03 034 - 035.mp3 03.03 035 - 036.mp3 03.03 036 - 037.mp3 03.03 037 - 038.mp3 03.03 038 - 039.mp3 03.03 040 - 041.mp3 04.03 041 - 042.mp3 04.03 042 - 043.mp3 04.03 043 - 044.mp3 04.03 044 - 045.mp3 04.03 045 - 046.mp3 04.03 046 - 047.mp3 04.03 047 - 048.mp3 04.03 048 - 049.mp3 04.03 049 - 050.mp3 05.12 - 55.12.mp3 55.12 - 55.12.mp3

Button Description
■	Stops playback.
▶	Plays a music file.
II	Pauses or resumes playback.
◀	Skips to the next file.
▶	Skips to the previous file.
< >	Indicates a cursor.
e∅(ENERGY SAVING)	Increases or deceases the brightness of your screen.
Q.MENU Shows the Option menu (See p. 49).
BACK	Hides the option window.To display the options, press OK.
EXIT Moves to the previous menu screen.

Q.MENU options for music list

1 Press Q. MENU.
A pop-up window will appears.
2 Press the Navigation buttons to scroll to photo list option and press OK.
3 Press the Navigation buttons to scroll to one of the following options and press OK.

Set Audio Play.

Select Repeat or Random option.

Set Audio.

Control the menu option (Refer to "AUDIO Settings" on page 69).

NOTE

■ Option values changed in Movie List does not affect Photo List and Music List.
Option value changed in Photo List and Music List are changed likewise in Photo List and Music List excluding Movie List.
■ You can listen to the music only within the device currently played.

NOTE

A copy-protected file will not play.
If the TV is not in use for some time during playback, the information box as a screen-saver will appear to prevent image burn.
To return to the Music list screen, press OK.

File name 002. B02.mp3 00:31 / 04:04 Time elapsed /Duration

Time Machine Card Function

(This feature is not available for all models.)

Precautions when using the USB Device

NOTE

■ Only a USB storage device is recognizable.
If the USB storage device is connected through a USB hub, the device is not recognizable.
A USB storage device using an automatic recognition programme may not be recognized.
A USB storage device which uses its own driver may not be recognized.
In case of several partitions or a card reader, up to four memory cards are concurrently recognizable.
The recognition speed of a USB storage device may depend on each device.
Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
Please connect a USB storage device with cable is offered by USB maker. If connected with cable is not offered by USB maker or an excessively long cable, the device may not be recognized.
■ Some USB storage devices may not be supported or operate properly.
The TV will display up to 128 characters of a files name.
■ Please backup important files because data on USB device may be damaged. Data
■ management is consumer's responsibility and as a result, the manufacturer does not cover data damage.
The recommended capacity is 1TB or less for a USB HDD and 40GB or over for USB memory.
■ Any device with more than the recommended capacity may not work properly.
- Playing a movie via a USB connection that doesn't support high speed may not work

properly.

USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.
Please maintain the stability of external HDD by using the HDD benchmarking tool in order to guarantee smooth action of HDD.
The HDD benchmarking tools is checking the performance of HDD that is read/write rate, access time, stability. It will be able to search at website and use easily it after download the HDD benchmarking tool.
■ Time machine USB hard disk supports only SSD or HDD disk types. (USB storage is not supported.)
A SSD (Solid State Drive) has a limited number of write/delete cycles. A HDD (Hard Disk Drive) is recommended for this product.

TIME MACHINE (PAUSE & REPLAY OF LIVE TV)

This function allows the unit to automatically record live TV and make it available for viewing at any time.

With the Time Machine turned on, you may pause and rewind normal TV viewing at any time without missing any of the live broadcast.

Time Machine and Recording functions may not work if the signal strength is weak.

This function is only operated after initializing USB Device.

Connecting USB storage devices

• Image shown may differ from your TV. (Only 32/37/42/47LV5700)

USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N USB N or

(Only 72LZ9700)

USB HOT/RIS/III WIRELESS CONTROL OR or

1 Connect the USB device to the USB IN 1/HDD IN jacks on the side of TV.

2 To use the USB device (over 40 GB) for Timemachine, execute USB Device Initialization.

NOTE

It initializes the HDD connected to the USB as disk mode for Timemachine.
It is activated only when the USB HDD available for Timemachine is connected.
When USB Device Initialization is executed, all the data stored in the USB device is deleted.
While performing USB Device Initialization, do not remove the USB device. It may cause error on the TV and the storage device.

USB device Initialization

1 Connect an unformatted USB for DVR and press REC to initialize the USB device.
2 Press the Navigation buttons to scroll to OK and press OK.
3 Press Navigation buttons to scroll to On or Off and press OK.

NOTE

When initialization is completed, a popup notice of completion is displayed and the connected USB HDD is available for Timemachine.
Depending on the capacity of the USB device, the initialization time may vary.
The initialized USB device is not recognized by the PC.
When a USB device of less than 40 GB is connected, the USB Device Initialization is not activated.
■ Supported maximum external HDD size for back-up is up to 1TB.

Timeshift Mode change during using Time Machine

Record/Schedule You can see the record Recorded TV Timeshift Mode On Schedule list initialization USB storage device Initialization Close Recording starts 0 MBT Option Exit Free Space 100GB 03m 31h 37m Apr.2 2010 15:30 Select schedule by programme

1 After selecting Timeshift Mode-On, press the OK button.
2 Press Yellow button to show the Time Machine option menu and press Q.MENU.
3 Press the Navigation buttons to scroll to Timeshift Mode and press OK.
4 Press Navigation buttons to scroll to On or Off and press OK.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Menu Description
Recorded TV Moves to the Recorded TV .
Schedule List Moves to the Schedule List.
Select schedule by date	Moves to the Manual Timer.
Select schedule by programme	Set up timer recording by going to the Programme Guide

NOTE

■ Timeshift Mode is available in DTV mode.
■ Radio or satellite channels cannot be recorded.

USB Device Reinitialization during using Time Machine

1 After selecting Timeshift Mode-On, press the OK button.
2 Press Yellow button to show the Time Machine option menu and press Q.MENU.
3 Press the Navigation buttons to scroll to USB device Initialization and press OK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.

Time Machine Progress

1 2 00:35 00:35 Recording stars Live TV Recorded TV Rec./Schedule

1 After selecting Timeshift Mod-On, press the OK button.

• As soon as Time Machine starts, a progress bar indicating the current recording status is displayed in the bottom of the screen.
• It Press the BACK button to hide the 'Progress Bar' or press the OK button to display the 'Progress Bar'.
• This function is preserved even change a programme on progressing the Time Machine.

The 'Progress Bar'?

This function indicates what Time Machine reviewing is possible, a current on-screen and live broadcasting position.

1 Preview
② Current location and progress time in playback
3 Total progress time of the Time Machine

▶ Playback
Fast forward
Rewind
Pause
Direct view +
Direct view -
By one screen
Slow playback

NOTE

In order to save hard-disk space, nothing is saved when there is no signal.
■ Time Machine can be used for maximum of 3 hours.
■ You can't do the programme change or input conversion on recording.
■ When turning power on, it may take up to a maximum of 3 minutes to initialize the HDD.
■ Recording or playing the recorded programme may not initiate for a copy-protected programme.
■ Instant recording time is set to 3 hours and supported maximum time is up to 5 hours.
A thumbnail is created every 3 minutes for recordings longer than 18 minutes and every 1 to 3 minutes for recordings shorter than 18 minutes.
■ Up to 6 thumbnails are created on one screen.

Playback during the Time Machine

During the Time Machine play, the following options are available.

Use of remote control

You can playback the temporarily saved part in various methods during the Time Machine.

Button Description
◀▶	During playback, repeatedly, press the REW (◀) or FF (▶) button to speed up.- Every time you press the button, the search speed will increase by stage (up to 5 stages).
II▶	During playback, press the Pause(II) button.- Pause screen is displayed.- Every time you press the Pause(II) button from the pause screen, it will move screen by screen (II▶).- Press the Pause(II) button and then use the FF (▶) button for slow motion (I▶).
<>, OK	When you move the cursor using the Time Machine (<>) button during playback, and then press the OK button, the screen will directly play at the applicable screen where the cursor is located. (○, ○)
LIVE TV To view the current live broadcast, press the LIVE TV button during playback.

RECORDING

Use this function when you cannot watch the desired programme due to being out.

Start/Stop record

You can record the programme you are watching.

Start record

1 Press REC to start the recording.

Stop record

Recording in progress. Stop recording? Recording stop Modify recording end time Close

1 Press REC to stop the recording.
2 Press Navigation buttons to scroll to Recording stop and press OK.

NOTE

You can also stop the recording by pressing STOP.

Modify recording end time

1 Press REC on the recording.
2 Press Navigation buttons to scroll to Modify recording end time and press OK.
3 Press Navigation buttons to scroll to set the recording end time and press OK.

NOTE

When recording, if the available storage space is not sufficient, the recording will automatically Stop.
■ Recordings of less than 10 seconds will not be saved.
To save disk space while recording broadcasts, no data will be saved if there is no signal.
The recording function will not initiate for a copy-protected programme.
The displayed time may differ slightly from the actual time.
When there is no signal or a film source is being viewed, the displayed time may differ slightly from the actual time.

Manual Timer

This function is easy to register to reserved recording. Timer recording is set.

Record/Schedule Free Space 100GB 50 79h 03m 10 31h 37m Apr.2 2010 15:30 Timer recording is set. Recorded TV Schedule List Select schedule by date Select schedule by programme Recording starts ORDER Option Exit

Manual Timer Free Space 100GB 79h 03m 31h 37m Select the date to schedule. Apr.2 2010 15:30 Sun Mon Tue Wed Thu 28 29 30 31 1 4 5 6 7 8 11 12 13 14 15 18 19 20 21 22 2 Once Daily Weekly (Sun.) Sat ~Sun Cancel Programme Guide Schedule List Exit

1 After selecting Timeshift Mode-On, press the OK button.
2 Press Yellow button.
3 Press Navigation buttons to scroll to Select schedule by date and press OK.
4 Press Navigation buttons to scroll to select a date and press OK.
5 Press Navigation buttons to scroll to select repeat option and press OK.
6 Press Navigation buttons to scroll to set the schedule type, time and programme and press OK.
7 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

■ Recording is not possible with copy-protected programmes.
When a poor quality external source is recorded the quality of the recording will not be optimal.
■ Manual Recording available time is maximum 5 hours and minimum 2 minutes.
When broadcasting station send the wrong time information, reserved recording may be failed.
If different programmes are set for the same time for on time and reserved recording, this TV is powered on to the reserved recording programme.
If you turn off the power during the recording, the programme being recorded may not be saved. Therefore it is good to press the STOP (■) button and check the reserved/recorded list, and then turn off the power.
■ Recording cannot be reserved for a period less than 10 seconds.
Because the title and time of the programme for Record/Remind is based on the information transmitted from the broadcasting station, they may be different than the actual ones depending on the situation of the broadcasting station.
■ Recording time may differ depending on resolution of input signal or USB HDD capacity.
When it is time for the reserved recording to start and the power of the TV is turned off, the TV will turn on the power of the part required for the recording and proceed to the reservation.
When it is time for the reserved recording to start and the Immediate recording is in progress, the recording of the programme currently being recorded will be stopped and saved, and then proceed to the reserved recording.
If the TV is unplugged once or turn off, the reserved recording will not work.

SCHEDULE

Schedule List

This function is used to show scheduled recordings. You can store up to 30 programmes.

Record/Schedule Free Space 100GB 50 79h 03m 10 31h 37m You can see the schedule list. Apr.2 2010 15:30 Recorded TV Schedule List Select schedule by date Select schedule by programme Recording starts Option Exit

Schedule List Free Space 100GB 79h 03m 31h 37m Page 1/1 Apr.2 2007 15:30 Start Date Start Time Tip 6 May 16:00 6 May 18:00 Modify Delete Delete All Close Remind DTV 19 Dave (F4,06/05/2007 18:00 ■ Manual Timer ■ Programme Guide ■ Exit

1 After selecting Timeshift Mode-On, press the OK button.
2 Press Yellow button.
3 Press Navigation buttons to scroll to Schedule List and press OK.
4 Press Navigation buttons to select a desired programme and press OK.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Menu Description

Modify Edit the contents of Start date/Start time/End time/Title/Repeat. You must press the BACK button to save the edited contents. This feature is disable in reserved reminding.

Delete Delete the selected item in the list.

Delete All Delete all items in the list.

Close Close the pop-up menu.

Schedule List Initialization

This function is to reset the schedule list.

1 After selecting Timeshift Mode-On, press the OK button.
2 Press Yellow button to show the Time Machine option menu and press Q.MENU.
3 Press the Navigation buttons to scroll to Schedule list Initialization and press OK.
4 Press Navigation buttons to scroll to OK and press OK. Start the Schedule List Initialization.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Programme Guide

This function is easy to register to reserved recording. Timer recording is set.

Record/Schedule Free Space 100GB 79h 03m 31h 37m Timer recording is set. Apr.2 2010 15:30 Recorded TV Schedule List Select schedule by date Select schedule by programme Recording starts Option Exit

Programme Guide That '70s show 25 Nov 2008 10:35 DTV 1 YLE TV1 25 Nov 2008 09:45-10:15 ALL NOW NEXT #1 YLE TV1 That '70s show Keno #2 YLE TV2 Your World Today World Business #4 TV.. Legenen om Den.... Fantomen #5 YLE FST Naturtimmen Kritiskt #6 CNNLyssna ABC #8 YLE24 Glamour Tänään otsikoissa

1 After selecting Timeshift Mode-On, press the OK button.
2 Press Yellow button.
3 Press Navigation buttons to scroll to Select schedule by programme and press OK.
4 Press Navigation buttons to scroll to select a programme and press OK.
5 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

RECORDED TV

You can view the recorded programme list at a glance.

The recorded programme stored in the USB device can be played.

Recorded TV List

Record/Schedule Free Space 100GB 79h 03m 31h 37m Apr.2 2010 15:30 Recorded TV Schedule List Select schedule by date Select schedule by programme Recording starts OK/OKU Option Exit Recorded TV USB XICK Play Page Change Free Space 100GB 79h 03m 31h 37m 1/1 Page No Information Playing time 00:32:30 / Date: 2010.01.01 Mark Music Exi

1 After selecting Time Timeshift Mode, press the OK button.
2 Press Green button.
3 Press Navigation buttons to scroll to Recorded TV and press OK.
4 Press Navigation buttons to recorded programme and press OK.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

NOTE

If there is a bad sector in the disk, part or all of the items of the Recording list can be deleted.
■ Maximum number of recordings within the Recording list is 200. When the number of recordings in the Recording list is 200, you cannot record any more.
When the full duration of the recording is played back, the screen will stay in the stopped condition for 10 seconds and then automatically end the playback.
The recording can be played back even during the recording/reserved recording.
During the playback of the recording, the hard disk can generate a certain level of noise.
This noise is irrelevant from the performance and reliability of the product and is normal for a hard drive to have a certain level of noise.

Mark Mode

Recorded TV Play Page Change Free Space 100GB 79m 03m 31h 37m 1/1 Page No Information Playing time 00:02:30 /Date 2013.01.01 OK Next Save Edit

1 After selecting Timeshift Mode-On, press the OK button.
2 Press Green button.
3 Press Navigation buttons to scroll to Recorded TV and press OK.
4 Press Navigation buttons to select a desired recorded programme.
5 Press FAV to mark your desired recorded programme.
6 Press Yellow button to play the marked recorded programme.

Button	Description
Red button	Unmark All: Change marked recorded programmes to unmarked recorded programmes.
Green button	Mark All: Mark all recorded programmes in the list.
Yellow button	Play Marked: Play the first selected file. Once recorded programmes finishes playing, the next selected one will be played automatically.
Blue button	Delete Marked: Delete the marked recorded programmes.
FAV	Exit Mark Mode.

Playing Recorded programmes

You can play a selected programme from the recorded list.

1 2 00:35 00:35 Clip-Edit repeat Option Hide Exit

1 After selecting Timeshift Mode-On, press the OK button.
2 Press Green button.
3 Press Navigation buttons to scroll to Recorded TV and press OK.
4 Press Navigation buttons to recorded programme and press OK.
5 Press Navigation buttons to scroll to select play option and press OK.
6 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

Menu	Description
Play on previous playtime.	Resumes playing at the previously stopped point.
Play from the start	Playback of selected recorded programmes.
Delete	Delete the programme.

The 'Progress Bar'?

This function indicates what Time Machine reviewing is possible, a current on-screen and live broadcasting position.

1 Preview
2 Current location and progress time in playback
③ Total progress time of the Time Machine

▶ Playback
Fast forward
Rewind
Pause
Direct view +
Direct view -
By one screen
Slow playback
A ^1 (Blue) Start repeat interval
A¹ (Yellow) Start clip-edit interval
^1 B (Blue) End repeat interval
^1 B (Yellow) End clip-edit interval
Repeating interval

Use of remote control

programme play.

dedrocer eht g

Button	Description
	During playback, repeatedly, press the REW (◀) or FF (▶) button to speed up.- Every time you press the button, the search speed will increase by stage (up to 5 stages).
Green button	Option:Press the GREEN button to switch between video/audio settings.
Yellow button	Clip-Edit:Press the YELLOW button at the starting point where you want to set the Interval clip-edit and press it again at the ending point. To save, select Yes.- The start of the Interval clip-edit is displayed as A1 and end of the Interval clip-edit as B in the recording progress bar at the bottom of the screen. Start and end of the Interval clip-edit can be set both in forward and reverse direction.- Interval shorter than 10 seconds cannot be save.
Blue button	Repeat:Press the BLUE button at the starting point where you want to set the Interval repeat and press it again at the ending point. To cancel the playback for the interval repeat, press the BLUE button one more time.- The start of the Interval repeat is displayed as A1 and end of the Interval repeat as B in the recording progress bar at the bottom of the screen. Start and end of the Interval repeat can be set both in forward and reverse direction.- Interval shorter than 10 seconds cannot be set.- When the Interval repeat is canceled, it will return to normal playback from the end point of the interval.
II ▶	During playback, press the Pause(II) button.- Pause screen is displayed.- Every time you press the Pause(II) button from the pause screen, it will move screen by screen (I▶).- Press the Pause(II) button and then use the FF (▶) button for slow motion (▶).- If you don't press any button 10 minutes after the pause, it will return to the playback.
< >, OK	When you move the cursor using the Time Machine (< >) button during playback, and then press the OK button, the screen will directly play at the applicable screen where the cursor is located. (○, ○)

EPG (Electronic Programme Guide) Card Function (In digital mode)

This system has an Electronic Programme Guide (EPG) to help your navigation through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of these programme details will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies. You must set the Clock in the Time menu, before using EPG function.

The EPG displays the programme details for 8 days.

DTV 18 The HITS Movers and Shakers - AG-06 19:00 PM 18:00 PM A look back at the hottest dance moves of the past 20 years. Wed. 7 Feb. 16:28 MREO 4.3 576

■ Press INFO to show current programme information.

	Displayed with a TV or DTV Programme.
	Displayed with a Radio Programme.
HE-AAC	Displayed with a HE-AAC Programme.
4:3	Aspect ratio of broadcasting programme.
16:9	Aspect ratio of broadcasting programme.
	Displayed with a Teletext Programme.
	Displayed with a Subtitle Programme.
	Displayed with a Scramble Programme.
	Displayed with a Dolby Digital Programme.
	Displayed with a Dolby Digital PLUS Pro-gramme.
576i/p, 720p, 1080i/p : Resolution of broadcasting programme
>	Shows next programme information.
^v	Shows other programme information.

OK	Record : A pop-up window for record settings appear.
^√	Select Timer Record/Remind setting mode.

Switch on/off EPG

1 Press GUIDE to switch on or off EPG.

Select a programme

1 Press Navigation buttons or P ∧ ∨ to select desired programme.

Programme Guide That 70s show 28 Nov 2008 16:05 DTV 1 YLE TV1 29 Nov. 2008 09:45-10:15 ALL NOW NEXT 1 YLE TV1 That '70s show Keno 2 YLE TV2 Your World Today World Business 4 TV.. Legenen om Den.... Fantomen 5 YLE FST Naturtimmen Kritiskt 6 CNNLyssna ABC 8 YLE24 Glamour Tänään otsikoissa

NOW/NEXT Guide Mode

You can view a programme being broadcasted and one scheduled to follow.

Button Description
Red button Change EPG mode.
Yellow button Enter Manual Timer mode.
Blue button Enter Schedule List mode.
OK	When 'NOW' is selected, it is moved to selected Programme and EPG disappears.When 'NEXT' is selected, a reservation pop-up window appears.
<>	Select NOW or NEXT Programme.
^ v	Select the Broadcast Programme.
P ^ v	Page Up/Down.
GUIDE	Switch off EPG.BACK
EXIT
TV/RAD Select	DTV or RADIO Programme.
INFO Detail information on or off.

Date Change Mode

Button Description
Green button	Switch off Date setting mode.
v
BACK
OK Change to the selected date.
<>	Select a date.
GUIDE	Switch off EPG.
EXIT

8 Day Guide Mode

Button Description
Red button Change EPG mode.
Green button Enter Date setting mode.
Yellow button Enter Manual Timer mode.
Blue button Enter Schedule List mode.
OK	When 'Currently broadcasting programme' is selected, it is moved to selected programme and EPG disappears.When 'Future broadcasting programme' is selected, a reservation pop-up window appears.
<>	Select Programme.
^√	Select the Broadcast Programme.
P^√	Page Up/Down.
GUIDE	Switch off EPG.BACK
EXIT
TV/RAD Select	DTV or RADIO Programme.
INFO Detail information on or off.

Extended Description Box

Button Description
INFO The detail	information on or off.
^ ∨	Text Up/Down.
< >	Select Timer Record/Remind setting mode.
GUIDE	Switch off EPG.
EXIT

CUSTOMIZING TV SETTINGS

Accessing SETUP Menu

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to select the SETUP menu and press OK.
3 Press the Navigation buttons to scroll to one of the following menus and press OK.
4 Press the Navigation buttons to scroll to the setting or option you want and press OK.
5 When you are finished, press EXIT.

Menu Description
	SETUP Sets up and edit programmes.
	PICTURE Adjusts the image size, quality, or effect.
	AUDIO Adjusts the sound quality, effect, or volume level.
	TIME Sets the time, date, or timer feature.
	LOCK Locks or unlocks channels and programmes.
	OPTON Customizes the general settings.
	NETWORK Sets up the network setting.
	SUPPORT Checks the customer information.

Customizing Settings

SETUP Settings

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to SETUP and press OK.
4 Press the Navigation buttons to scroll to the setting or option you want and press OK.
- To return to the previous level, press BACK.

5 When you are finished, press EXIT.

SETUP • Auto Tuning • Manual Tuning • Programme Edit • Booster : On

The available programme settings are described in the following:

Setting Description
Auto Tuning Tunes and stores all available programmes through antennas or cable inputs.
Manual Tuning	Tunes and stores the programmes you want manually (See p. 19).
Programme Edit	Adds or deletes programmes on the programmes (See p. 21).
Booster (See p. 22)

PICTURE Settings

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to PICTURE and press OK.
4 Press the Navigation buttons to scroll to the setting or option you want and press OK.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Auto • Picture Mode : Vivid • Backlight : 50 • Contrast 100 • Brightness 50 • Sharpness 70 • Colour 60 • Tint • Colour Temp. 0 • Advanced Control • Picture Reset • TruMotion : Low • Screen • LED Local Dimming : off

The available picture settings are described in the following.

Setting	Description
Aspect Ratio	Changes the image size to view images at its optimal size (See p. 23).
Picture Wizard	Adjusts the image quality and calibrates the screen.The customized options will be saved asExpert1in thePicture Mode.
	NOTEIf you usePicture Wizard, the Energy saving feature will turn off automatically.To reset changes made byPicture Wizard, operatePicture Resetwhen Picture Mode is onExpert1.In RGB-PC/HDMI-PC/DVI-PC mode, the changedColour, Tintand H/V Sharpness values are not applied.
Energy Saving Reduces the power consumption by adjusting the screen brightness.
			NOTEWhen adjusting Energy Saving in MHEG/MHP mode, the Energy Saving setting is applied after MHEG/MHP is finished.Selecting ‘Screen Off’ while tuned to a radio station channel will reduce power consumption.When selectingAuto or Maximum,Backlightwill not work.
			Option
			Auto	The backlight is adjusted automatically corresponding to the surroundings when selectingAuto using theIntelligent sensorfeature.
			Off	The Energy Saving is off
			Minimum/Me-dium/Maximum	Selects the brightness level.
			Screen off	The screen turns off in 3 seconds.
Setting Description
Picture Mode	Selects one of the preset image or customizes options in each mode for the best TV screen performance. You are also able to customize advanced options of each mode.The available preset picture modes vary depending on the TV.
	NOTEIf you select Intelligent Senesor, the option of the Energy saving feature will switch to Auto automatically.
	Mode
	Intelligent Sensor Sets the TV to adjust the image settings, such as contrast, brightness, sharpness, colour, or tint, automatically corresponding to the surrounding environments.
	Vivid Adjusts the video image for the retail environment by enhancing the contrast, brightness, colour, and sharpness.
	Standard Adjusts the image for the normal environment.
	Cinema (Depending on models)Optimizes the video image for a cinematic look to enjoy movies as if you are in a movie theater.
	Game Optimizes the video image for a fast gaming screen such as PCs or games.
	Expert Adjusts the detailed video image settings for video experts as well as general viewers.
TruMotion	Advance video technology that provides clearer, smoother images, even during fast action scenes creating a more stable structure for a crisper picture.TruMotion works with all inputs except PC mode.
	NOTEIf you enable “TruMotion”, noise may appear on the screen. If this occurs, set “TruMotion” to “Off”.If you select “Picture Mode-Game”, set “TruMotion” to “Off”.
	Mode
	High Provides smoother picture movement.
	Low Provides smooth picture movement. Use this setting for standard use.
	Off Turn off TruMotion operation.
	UserDe-Judder: Adjusts noise of the screen.De-Blur: Adjusts after-image of the screen.
SCREEN	Customizes the PC display options.
	Option
	Resolution Selects a proper resolution when your PC uses.
	Auto Configure Sets the TV to optimize the options automatically for the TV display.
	Position Locates the image at the proper position.
	Size Adjusts the image size.
	Phase Eliminates horizontal streaking.
	Reset Restores the options to the default setting.

Basic image options

Setting Description
Backlight	Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the brightness level, the screen becomes darker and the power consumption will be reduced without any video signal loss.
	NOTEIf you use the “Energy saving - Off, Minimum, Medium”, Backlight will be available.
Contrast	Increases or decreases the gradient of the video signal. You may use Contrast when the bright part of the picture is saturated.
Brightness Adjusts the base level of the signal in the picture.
Sharpness	Adjusts the level of crispness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.
Colour Adjusts intensity of all colours.
Tint Adjusts the balance between red and green levels.
Colour Temp.	Set to warm to enhance hotter colours such as red, or set to cool to enhance cooler colours such as blue.
Advanced Control Customizes the advanced options
Picture Reset Restores the options of each mode to the factory default
NOTEIt is not available to use this function in “Intelligent Sensor”.You cannot adjust colour, sharpness and tint in the RGB-PC/HDMI-PC mode.When the Expert 1/2 is selected, you can select Backlight, Contrast, Brightness, H Sharpness, V Sharpness, Colour or Tint.

Advanced image options (Depending on model)

Setting Description
Dynamic Contrast	Adjusts the contrast to keep it at the best level according to the brightness of the screen. The picture is improved by making bright parts brighter and dark parts darker.
Dynamic Colour	Adjusts screen colours so that they look livelier, richer and clearer. This feature enhances hue, saturation and luminance so that red, blue and green white look more vivid.
Clear White	Make the white area of screen brighter and more white.
Skin Colour	It detects the skin area of video and adjusts it to express a natural skin colour.
Noise Reduction	Reduces screen noise without compromising video quality.
Super Resolution	This function provides a crystal-clear picture by improving the details in an area that has a blurry or unclear picture.
MPEG Noise Reduc-tion	Reduces noise regarding MPEG compressed video.

AUDIO Settings

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to AUDIO and press OK.
4 Press the Navigation buttons to scroll to the setting or option you want and press OK.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.

AUDIO • Auto Volume : Off • Clear Voice II : Off 2 • Balance 0 • Sound Mode : Standard • Infinite 3D Surround: Off • Treble 50 • Bass 50 • Sound Reset • Sound Optimizer : Normal • Digital Audio Out : PCM • TV Speaker : On • ARC Mode : Off • DTV Audio Setting : Auto • AV Sync. : Off

The available audio settings are described in the following.

Setting Description
Auto Volume	Activates the Auto Volume feature to keep the volume level consistent whenever you change channels. The volume level may not be consistent due to different signal conditions of broadcasting stations.
Clear Voice II	Sets whether to enhance human voice clarity. You can adjust the level of clarity when you set this feature on.
	NOTEIf you select "On" for Clear Voice II, Infinite 3D Surround feature will not work.
Balance Adjust balance between the left and right speakers according to your room environment.
Sound Mode Selects one of the preset sound modes or customizes options in each mode.
Sound Opti-mizer	This function optimizes the sound depending on the environment in which the TV is installed.
	Mode
	Normal Normal sound mode.
	Wall Mount Type Optimized sound mode for a wall-mounted TV.
	Stand Type Optimized sound mode for a stand-type TV.
Digital Audio Out	This function allows you to select your preferred Digital Audio Output.When Dolby Digital is available, selecting Auto in the Digital Audio Out menu will set SPDIF(Sony Philips Digital InterFace) output to Dolby Digital.If Auto is selected in the digital audio out menu when Dolby Digital is not available, SPDIF output will be PCM(Pulse-code modulation).Even if both Dolby Digital and Audio language have been set in a channel which broadcast Dolby Digital Audio, only Dolby Digital will be played.
	Item Audio Input Digital Audio output
	Auto	MPEGDolby DigitalDolby Digital PlusHE-AAC	PCMDolby DigitalDolby DigitalDolby Digital
	PCM	All PCM
TV Speaker	Turns on the internal speaker of the TV when using an external Hi-Fi system. You can use the TV speaker as an audio output device even if there is no video input.
	NOTEWhen the TV speaker is turned off while the Simplink home theater is operating, the sound output automatically switches to the Home theater speaker, but when the TV speaker is turned on, the sound output the TV speaker.Some menus in AUDIO are disabled when TV speaker is set to Off.
ARC Mode (Audio Return Channel)	When using an external audio device with the Audio Return Channel (ARC) feature, optical SPDIF can be output using only a High Speed HDMI cable without an additional optical cable, and SIM-PLINK can be enabled.
	NOTESome HDMI cables may not support this mode. (A High Speed HDMI cable is recommended.)The ARC mode only works for HDMI 1.
	Mode
	On If the device with the	ARC feature is turned On , the device speaker is automatically used when SIMPLINK is enabled.
	Off Even if the device with the	ARC feature is turned On and SIMPLINK is enabled, the device speaker is not automatically used.
DTV Audio Set-ting (In digital mode)	When different audio types exist in an input signal, this function allows you to select the audio type you want.
	Mode
	Auto	Automatically outputs in the order HE-AAC > Dolby Digital+ > Dolby Digital > MPEG.
	HE-AAC,Dolby Digital+, Dolby Digital,MPEG	Allows users to select the audio type they want.ex) If MPEG is selected, MPEG is always outputted.If MPEG is not supported, another audio type is set in that order.
AV Sync. If the video and sound are not synced, you can adjust it manually.- : Make audio output faster than the default.+: Make audio output slower than the default.

Stereo/Dual Reception (In Analogue Mode Only)

When a programme is selected, the sound information for the station appears with the programme number and station name.

1 Press Q. MENU.
2 Press the Navigation button to access the Audio or Audio Language and press OK
3 Press the Navigation button to scroll to the sound output and press OK.

Broadcast On Screen Display
Mono	MONO
Stereo	STEREO
Dual	DUAL I, DUAL II, DUAL I + II

Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono. In mono reception, the clarity of sound is improved.

Language selection for dual language broadcast

If a programme can be received in two languages (dual language), you can switch to DUAL I, DUAL II or DUAL I+II.

DUAL I Sends the primary broadcast language to the loudspeakers.

DUAL II Sends the secondary broadcast language to the loudspeakers.

DUAL I+I I Sends a separate language to each loudspeaker.

Nicam Reception (In Analogue Mode Only)

If the TV is equipped with a receiver for NICAM reception, high quality NICAM (Near Instantaneous Companding Audio Multiplex) digital sound can be received.

Sound output can be selected according to the type of broadcast received.

1 When NICAM mono is received, you can select NICAM MONO or FM MONO.

2 When NICAM stereo is received, you can select NICAM STEREO or FM MONO. If the stereo signal is weak, switch to FM MONO.

3 When NICAM dual is received, you can select NICAM DUAL I, NICAM DUAL II or NICAM DUAL I+II or FM MONO.

Speaker Sound Output Selection

In AV, Component, RGB and HDMI mode, you can select output sound for the left and right loudspeakers. Select the sound output.

L+R: Audio signal from audio L input is sent to the left loudspeaker and audio signal from audio R input is sent to the right loudspeaker.

L+L: Audio signal from audio L input is sent to left and right loudspeakers.

R+R: Audio signal from audio R input is sent to left and right loudspeakers.

TIME Settings

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to TIME and press OK.
4 Press the Navigation buttons to scroll to the setting or option you want and press OK.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.

TIME Clock Off Time : Off On Time : Off Sleep Timer : Off

The available time settings are described in the following

Setting Description
Clock Sets the time, date, time zone, and daylight-saving time feature.The time will be set automatically according to a digital channel signal which includes time information provided by the broadcasting station. If not, set the time and date manually.
Off Time/On Time	Sets the time to turn on or off the TV automatically. To use this function, you should set the current time and date in advance.
	NOTEIf you do not press any button within 2 hours after the TV turns on by the On Time feature, the TV enters the Standby mode automatically.If you set both Off time and On time features to the same time, the Off time feature overrides the On time feature.
Sleep Timer	Sets the length of time until the TV to turns off. When you turn the TV off and turn it on again, the Sleep timer feature will be set to off.

LOCK Settings

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to LOCK and press OK.
4 Press the Navigation buttons to scroll to the setting or option you want and press OK.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.

SET Password Lock System : Off Block Programme Input Block

The available lock settings are described in the following.

Setting Description
Set Password Changes the 4-digit password. The default PIN is '0', '0', '0', '0'.If you forget your password, press '0', '3', '2', '5' on the remote control handset.
Lock System Activates or deactivates the lock system.
Block Programme	Blocks the programmes that contain inappropriate contents for children. The programmes can be selected but the screen blank and the audio is muted.To watch a locked programme, enter the password.It is available to use this function in Lock System "On".
Input Block Block	the input sources.It is available to use this function in Lock System "On".

OPTION Settings

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to OPTION and press OK.
4 Press the Navigation buttons to scroll to the setting or option you want and press OK.
- To return to the previous level, press BACK.

5 When you are finished, press EXIT.

The available general settings are described in the following:

OPTION Language(Language) City/Area : Others Hard of Hearing(1) Power Indicator MHEG Guidw : On Pointer Smart share setting Factory Reset Set ID : 1 Mode Setting : Home Use

Setting Description
Language Selects a language for the display or audio.
Option
Menu Language Select your desired language.
Audio Language The Audio function allows selection of a preferred language.If audio data in a selected language is not broadcast, the default language audio will be played.
Subtitle Language Use the Subtitle function when two or more subtitle languages are broadcast. If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.
NOTEThe audio/subtitles can be displayed in a simpler form with 1 to 3 characters broadcast by the service provider.When you select supplementary Audio (Audio for “Visual/Hearing Impaired”) the TV may output a part of the Main audio.
City/Area Selects a desired country.
	If you do not finish the set-up Installation Guide by pressing BACK or if you time out on the OSD (On Screen Display) the installation menu will continuously appear until the set up is completed whenever the TV is switched on.DTV mode control buttons may not function based on country broadcasting circumstances.In country that Digital broadcasting regulation isn't fixed, some DTV function may not work depending on digital broadcasting circumstances.
Hard of Hearing	This function is for the blind, and provides explanatory audio describing the current situation in a TV programme in addition to the basic audio.
Power Indicator	Sets to turn on or off the indicator light on the TV.
	Option
	Standby Light Set to turn on or off the indicator light in Standby mode.
	Power Light Set to turn on or off the indicator light when you turn on the power.
Factory Reset	Resets the TV to factory default and erases all stored programmes.Customizes the TV settings to suit your preference. The factory reset screen will appear when you turn on the TV for the first time.In Lock System “On”, if you forget your password, press ‘0’, ‘3’, ‘2’, ‘5’ on the remote control handset.
Set ID	Adds an ID to the connected devices

If you do not finish the set-up Installation Guide by pressing BACK or if you time out on the OSD (On Screen Display) the installation menu will continuously appear until the set up is completed whenever the TV is switched on.
■ DTV mode control buttons may not function based on country broadcasting circumstances.
In country that Digital broadcasting regulation isn't fixed, some DTV function may not work depending on digital broadcasting circumstances.

Setting Description
Mode Setting	Default selection is “Home Use”. We recommend setting the TV to “Home Use” mode for the best picture in your home environment.
	Option
	Home Use Selects it for the home environment.
	Store Demo Selects it for the retail environment.
	Demo Mode Sets to show special features of the TV.You can cancel the demo mode by pressing any buttons except the Volume and Mute buttons.
	NOTEIt is not possible to use Demo Mode in Home Use mode.In Store Demo, Demo Mode is automatically set to On.Once Demo Mode is set to Off in Store Demo, Demo Mode does not run and only the screen is reset.The screen is reset automatically after 5 minutes in Demo Mode.

NETWORK Settings

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to NETWORK and press OK.
4 Press the Navigation buttons to scroll to the setting or option you want and press OK.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.

NETWORK • Network Setting : Wired • Network Status : Internet is connected • Smart TV Setting • Legal Notice

The available network settings are described in the following.

Setting Description
Network Setting	Configure the network settings (See p. 26).
Network Status	Display the network status (See p. 32).
Smart TV Setting	Stream movies, TV shows and video, or get up to the minute news, stock information or weather updates directly to your TV.
Legal Notice	Display the Legal notice. (See p. 34)

SUPPORT Settings

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to SUPPORT and press OK.
4 Press the Navigation buttons to scroll to the setting or option you want and press OK.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.

SUPPORT • Software Update • Picture Test • Sound Test • Signal Test • Product/Service Info.

The available support settings are described in the following.

Setting Description
Software Update Update the TV with the latest firmware.
Picture Test Executes picture or built-in melody sound tests.
Sound Test	» If this test has an error, select Yes. You can see the product or service information.» If this test has no errors, check the connection status of external devices and refer to the manual of external devices.
Signal Test	Views information on the Manufacturer, Model/Type, Serial Number and Software Version.
	NOTE■ This displays the information and signal strength of the tuned *MUX.■ This displays the signal information and service name of the selected MUX. (*MUX: A higher directory of channels in digital broadcasting (a single MUX contains multiple channels.))
Product/Service Info.	Shows the product or service information.Customer Service Center can differ by country.

MAKING CONNECTIONS

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, camcorders or cameras, gaming devices, and other external devices.

NOTE

* If you record a TV programme on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
* The external device connection may differ from the model.
* Connect external devices to the TV regardless of the order of the TV port.
* The TV can receive video and audio signals simultaneously when using an HDMI cable.
* If the DVD does not support Auto HDMI, you must set the output resolution appropriately.
* Check that your HDMI cable is High Speed HDMI Cable. If the HDMI cables are not High Speed HDMI Cable flickering or no screen display can result. , Please use the High Speed HDMI Cable.
* If cables are installed incorrectly, it could case the image to display in black and white or with distorted colour. Check to ensure the cable are matched with the corresponding colour connection.
* If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.
* It is recommended to use the TV set with the HDMI connection for the best image quality.
* If you use an external audio device instead of the built-in speaker, set the TV speaker feature to off
* Do not look into the optical output port. Looking at the laser beam may damage your vision.
* AUDIO menu items are disabled when connecting a headphone.
* When changing AV MODE with a headphone connected, the change is applied to video but not to audio.
* Optical Digital Audio Out is not available when connecting a headphone.
* Headphone impedance: 16 Ω
* Max audio output of headphone: 10 mW to 15 mW
* Headphone jack size: 0.32 cm

EXTERNAL EQUIPMENT SETUP

■ To avoid damaging any equipment, never plug in any power cord until you have finished connecting all equipment.

■mage shown may differ from your TV.

(Only 32/37/42/47LV5700)
    note1["• Image shown may differ from your TV. (Only 72LZ9700)"]
    note2["• Image shown may differ from your TV. (Only 72LZ9700)"]

NOTE

There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode. Change the PC mode to another resolution or change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
The synchronization input waveform for Horizontal and Vertical frequencies are separate.
We recommend using 1920x1080, 60 Hz for the PC mode, this should provide the best picture quality.

Connect the signal cable from the monitor output port of the PC to the RGB (PC) port of the TV or the signal cable from the HDMI output port of the PC to the HDMI IN (or HDMI/DVI IN) port on the TV.

■ Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included with the TV).
If using a sound card, adjust PC sound as required.
If the graphic card on the PC does not output analogue and digital RGB simultaneously, connect only one of either RGB or HDMI IN (or HDMI/DVI IN) to display the PC output on the TV.
If the graphic card on the PC does output analogue and digital RGB simultaneously, set the TV to either RGB or HDMI; (the other mode is set to Plug and Play automatically by the TV.)
■ DOS mode may not work depending on the video card if you use an HDMI to DVI cable.
If you use too long an RGB-PC cable, there may be interference on the screen. We recommend using under 5m of cable. This provides the best picture quality.

Connecting to a equipment wirelessly

LG TVs with a Wireless Control port support the LG Wireless Media Box, which is sold separately. When you connect the Wireless Ready Dongle (included with the Wireless Media Box) to the TV, external devices can be connected to the LG Wireless Media Box and video and audio will be sent to the TV wirelessly.

• Image shown may differ from your TV. (Only 32/37/42/47LV5700)

LG Wireless Media Box

(Only 72LZ9700)

LG Wireless Media Box

NOTE

When using the external device connected to the Wireless Media Box, some functions of the TV menu may not work.

SIMPLINK connection

Use the TV remote control to play and control the AV device connected with the HDMI cable through HDMI-CEC. Your TV only works with the devices that support HDMI-CEC.

Connect one end of the HDMI cable to the HDMI/DVI IN or HDMI IN terminal on the rear of the TV and the other end to the SIMPLINK device.

In wireless external output, SIMPLINK function is not supported.

NOTE

If the connected device does not support HDMI-CEC, the SIMPLINK feature is unavailable.
To operate SIMPLINK, an High Speed HDMI Cable with *CEC function should be used. (*CEC: Consumer Electronics Control).

Activating and Using the SIM- PLINK menus

1 Press SIMPINK to access the SIMPLINK menus.
2 Press the Navigation buttons to scroll to On.
3 Press the Navigation buttons to scroll to one of the devices and press OK.

SIMPLINK On Watch TV DISC VCR HDD Recorder Speaker INPUT Exit

No.	Description
1	Displays the previously viewed TV channel.
2	Plays discs. When multiple discs are available, the title of the disc appears at the bottom of the screen.
3	Controls the connected VCR.
4	HDD recordings playback: Controls the recording stored in HDD.
5	Audio out to home theater speaker or Audio out to TV: Changes the audio output between Home theater speaker and TV speaker.

• A check mark appears in front of the selected device.
• Available devices display in a bright colour.
• Unavailable devices display in grey.

3 Control the selected AV device.

• Direct Play: After connecting AV devices to the TV, you can directly control the devices and play media without additional settings.
• Select AV device: Enables you to select one of the AV devices connected to the TV.
• Disc playback: Control connected AV devices by pressing the Navigation buttons, OK,

• Power off all devices: When you power off the TV, all connected devices are turned off.
• Switch audio-out: Offers an easy way to switch audio-out.
• Sync Power on: When the equipment with SIMPLINK function connected HDMI terminal starts to play, The TV will automatically turn on.

NOTE

If you change the input source by pressing INPUT, the progressing function of the SIMPLINK device will stop.
If you select a device that has the home theater feature, the sound output automatically switches to the home theater speaker and the TV speaker turns off.
If a connected SIMPLINK home theater system does not play the audio from the TV, connect the DIGITAL AUDIO OUT terminal on the rear of the TV to the DIGITAL AUDIO IN terminal on the back of the SIMPLINK device with an optical cable.

MAINTENANCE

Update and clean your TV regularly to keep the best performance and to extend the product lifespan.

Updating the TV firmware

Download and install the latest firmware by connecting to the firmware update server to enhance or change the product function, or add new features.

The firmware update may not work properly depending on the Internet environment. If so, you may obtain the latest firmware update from the authorized LG Electronics service center.

To check the current firmware version or update the firmware,

1 Press HOME to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press OK.
3 Press the Navigation buttons to scroll to SUPPORT and press OK.
4 Press the Navigation buttons to scroll to Software Update and press OK. The current firmware version displays.
5 Select Check Update Version to check a new firmware version manually.

Software Update On • Current Version 01.00.09 Check Update Version Close

If selecting Software Update - On, the TV finds a new firmware through the NSU* and the update pop-up window will appear on the screen.

* NSU (Network Software Update): If the TV is connected to the internet, the TV finds a new firmware uploaded on the LG server.

NOTE

While you are updating the firmware, Don't disconnect the LAN cable, turn the TV off, or unplug the power cord.
If you change the channel during the firmware update through OTA, the update is stopped.
If you change the channel during the firmware update via OTA, the update stops. The process resumes when you go back to the original channel. The update continues even when the power is switched off using the remote control. In this case, it is normal that the colour of the power indicator may change and a dim light may be displayed on the screen. The system operates normally once the update is complete.
■ Premium service is disabled while the software is being updated through NSU.

6 When the update is complete, the TV will automatically restart in 5 seconds. You may need to reset some SETUP, PICTURE, or AUDIO menus.

NOTE

• You cannot downgrade back to an older firmware version.
  The period of time for the firmware update may be different depending on the firmware size, network condition or DTV signal strength.

Cleaning your TV

CAUTION

■ Make sure to turn the power off and disconnect the power cord and all other cables first.
When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen and frame

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions.
Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as these may as these may damage the screen's finish and cause discolorations.

Cabinet and stand

To remove dust or light dirt, wipe the cabinet with a dry, clean, and soft cloth.

To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a small amount of mild detergent. Then wipe immediately with a dry cloth.

CAUTION

Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
- Do not use any chemicals as this may deteriorate the surface.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

Preventing "Image burn" or "Burn-in" on your TV screen

If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is "image burn" or "burn-in" and not covered by the warranty.
If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen.
Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD, 1 or more hours for the Plasma TV) to prevent image burn.

TROUBLESHOOTING

General

Problem Resolution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed (+ to + to). -Check if the appropriate input mode such as TV or VCR is set for using the remote control.
No image display and no sound is produced.	Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products.
Image appears slowly when the TV turns on.	The image is muted during the product startup process. This is normal. If the image does not appear in a few minutes, unplug the TV for 30 seconds and try again. If the image still does not appear, contact the authorized service center in your local area.
Cannot connect external devices.	Refer to the “Connection overview” and connect an external device.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted.Check if the Auto sleep feature is activated in the Time settings.Refer to the “Sleep Timer”If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

Audio

Problem Resolution
No sound is produced while images are displaying.	Press + or - button.Check if the sound is muted by pressing MUTE.Scroll to other channels. There may a problem with the broadcast.Check if the audio cables are connected properly.
One of the speakers produce noises or does not produce sound.	A change in ambient humidity or temperature may result in an unusual noise when the product turns on or off.There is no problem with your product.

Video

ProblemResolution
An image displays in black and white or the colour quality is poor.	Adjust the colour setting in the Picture menu (See p. 68).Keep a sufficient distance between this product and other electronic products.Scroll to other channels. There may a problem with the broadcast.
Horizontal or vertical bars appears or images blur	Check if there are local interferences such as an electrical appliance or power tool.
Lines or streaks appear on images	Check the antenna or aim the antenna to the proper direction.
Afterimages (ghosts) appear when the product turns off	Pixels may have been damaged from a fixed image displayed for a long time (image burn). Use a screen saver to prevent the pixel damage on the screen.
The power is on but the screen appears extremely dark.	Adjust the brightness and contrast in the Picture menu (See p. 68).
“No Signal” appears on the screen.	Check if the signal cable is connected between the TV and products properly.Check the selected input source by pressing INPUT.
Black spots appear on the screen.	Several pixels in red, green, white, or black may appear on the screen that can attribute to the characteristics of the LCD panel.This is normal.
The display offset is wrong.	Adjust the position setting in the Picture menu (See p. 68).Check if the video card resolution and frequency are supported by the product.If the frequency is out of range, set to the recommended resolution using the display settings on the external device.
Thin lines appear in the background of the screen.	Check the video cable connections.
Horizontal noises appear or characters blur.	Adjust the Phase setting in the Picture menu.Refer to the “SCREEN”
The reception on some channels is poor	Scroll to other channels. There may a problem with the broadcast.The station signal may be weak. Aim the antenna to the proper direction.Check if there are local interferences such as an electrical appliance or power tool.

MODELSITEM		32LV5700 37LV5700
Dimensions(W x H x D)	With stand	766mm x 545mm x 240mm	887mm x 616mm x 240mm
	Without stand	766mm x 491mm x 36mm	887mm x 558mm x 35.9mm
Weight With	stand	10.7kg	12.8kg
	Without stand	8.9kg	11kg
Power requirement		AC 100-240V~50/60Hz,1.2A	AC 100-240V~50/60Hz,1.3A
MODELSITEM		42LV5700	47LV5700
Dimensions(W x H x D)	With stand	999mm x 681mm x 255mm	1109mm x 744mm x 255mm
	Without stand	999mm x 623mm x 30.9mm	1109mm x 684mm x 30.9mm
Weight With	stand	15.7kg	20.2kg
	Without stand	13.4kg	17.9kg
Power requirement		AC 100-240V~50/60Hz,1.4A	AC 100-240V~50/60Hz,1.5A
MODELSITEM		72LZ9700
Dimensions(W x H x D)	With stand	1721.0mm x 1126.0mm x 410.0mm
	Without stand	1721.0mm x 1045.0mm x 69.9mm
Weight With	stand	79.7kg
	Without stand	64.7kg
Power requirement		AC 100-240V~50/60Hz,5.2A

MODELSITEM		32LV5700	37LV5700	42LV5700	47LV5700	72LZ9700
Environment condition	Operating Temperature Operating Humidity	0 °C to 40 °CLess than 80 %
	Storage Temperature Storage Humidity	-20 °C to 60° CLess than 85 %
Supported movie files		Refer to p.91

■ The specifications shown above may be changed without prior notice for quality improvement.

RGB-PC, HDMI/DVI-PC supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x40031.4	6870.08
640x48031.4	6959.94
800x60037.8	7960.31
1024x76848.3	6360.00
1360x76847.7	259.80
1920x1080(RGB-PC)	66.58759.93
1920x1080(HDMI-PC)	67.560.00

Component port connecting information

Component ports on the TV

Y

P_B

P_R

Video output ports on DVD player	Y	P_B	P_R
	Y B-Y	R-Y
	Y Cb	Cr
	Y Pb	Pr

HDMI/DVI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x480	31.469	59.94
	31.5	60
720x576 31.25 50
1280x720	37.5	50
	44.96	59.94
	45	60
1920x1080	33.72	59.94
	33.75	60
	28.125	50
	26.97	23.97
	27	24
	33.716	29.976
	33.75	30.00
	56.25	50
	67.43	59.94
	67.5	60

Signal Component
480i/576i O
480p/576p O
720p/1080i	O
1080p	O(50 Hz / 60 Hz only)

Video supported mode

File Extensions	Audio/Video	Codec Profile	Level Support Explanation
.asf.wmv	Video	VC-1 Advanced Profile	Advanced Profile@Level 3 (e.g. 720p60, 1080i60, 1080p30)	Only streams compliant to SMPTE 421M VC-1 standard are supported.
		VC-1 Simple and Main Profiles	Simple Profile@Medium Level (e.g. CIF, QVGA)Main Profile@High Level (e.g. 1080p30)
	Audio	WMA Standard
		WMA 9 Professional
.divx.avi	Video	DivX3.11		Global motion compensation or quarterpel motion estimation does not supported. Streams using this syntax are not supported.
		DivX4DivX5DivX6	Advanced Simple Profile (e.g. 720p/1080i)
		XViD
		H.264 / AVC	Main Profile@ Level 4.1High Profile@ Level 4.1(e.g. 720p60, 1080i60, 1080p30)
	Audio	MPEG-1 Layer I, IIMPEG-1 Layer III (MP3)Dolby Digital
.mp4.m4v	Video	H.264 / AVC	Main Profile@ Level 4.1High Profile@ Level 4.1(e.g. 720p60, 1080i60, 1080p30)	Global motion compensation or quarterpel motion estimation does not supported. Streams using this syntax are not supported.
		MPEG-4 Part 2	Advanced Simple Profile (e.g. 720p/1080i)
	Audio A	AC AAC-LC and HE-AAC
.mkv	Video H	H.264 / AVC	Main Profile@ Level 4.1High Profile@ Level 4.1(e.g. 720p60, 1080i60, 1080p30)	Most of the MKV content available is encoded by the open source x264 codec.
	Audio	AAC AAC-LC and HE-AAC
		Dolby Digital
.ts.trp.tp	Video	H.264 / AVC	Main Profile@ Level 4.1High Profile@ Level 4.1(e.g. 720p60, 1080i60, 1080p30)
		MPEG-2	Main Profile@High Level (e.g. 720p60, 1080i60)
		VC-1	Simple Profile@Medium Level (e.g. CIF, QVGA)Main Profile@High Level (e.g. 1080p30)Advanced Profile@Level3 (e.g. 720p60, 1080i60, 1080p30)	Only streams compliant to SMPTE 421M VC-1 standard are supported.
	Audio	MPEG-1 Layer I, IIMPEG-1 Layer III (MP3)Dolby DigitalDolby Digital Plus
		AAC AAC-LC and HE-AAC
.vob	Video	MPEG-1
		MPEG-2	Main Profile@High Level (e.g. 720p60, 1080i60)
	Audio	Dolby DigitalMPEG-1 Layer I, IIDVD-LPCM
.mpg	Video M	MPEG-1	Main Profile@High Level (e.g. 720p60, 1080i60)	Only streams compliant configured properly for TS, PS or ES
	Audio M	MPEG-1 Layer I, II

RF specifications (Only 72LZ9700)

■ RF module(BM-LDS201) specification

For TV by using a 2.4 GHz bandwidth radio frequency (RF).

■ Output: 1 dBm or lower
■ Maximum Communication Distance: 10 m in an open space
■ Bandwidth: 2.4 GHz (2.4035 GHz to 2.4783 GHz)
■ Transfer Rate: 250 kbps

APPENDIX

OPEN SOURCE SOFTWARE NOTICE

The following GPL executables and LGPL, MPL libraries used in this product are subject to the GPL2.0/LGPL2.1/MPL1.1 License Agreements:

GPL EXECUTABLES:

Linux kernel 2.6, busybox, e2fsprogs, jfsutils, lzo, mtd-utils, ntpclient, procps, udhcpc

LGPL LIBRARIES:

Atk, cairo, directFB, ffmpeg, glib, GnuTLS, gtk+, iconv, libintl, libgcrypt, libgpg-error, libsoup, libusb, pango, uClibc, webkit

MPL LIBRARIES:

Nanox, spidermonkey

LG Electronics offers to provide source code to you on CD-ROM for a charge covering the cost of performing such distribution, such as the cost of media, shipping and handling upon e-mail request to LG Electronics : [e-mail]

This offer is valid for a period of three (3) years from the date of the distribution of this product by LG Electronics.

You can obtain a copy of the GPL, LGPL, MPL licenses on the CD-ROM provided with this product. Also you can obtain the translation of GPL, LGPL licenses from http://www.gnu.org/licenses/old-licenses/gpl-2.0-translations.html, http://www.gnu.org/licenses/old-licenses/lgpl-2.1-translations.html.

This product includes other open source software.

■ boost C++: software developed by http://www.boost.org distributed under the Boost Software License, Version 1.0
■ c-ares : copyright © 1998 by the Massachusetts Institute of Technology

■ expat:

• copyright © 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper
• copyright © 2001-2007 Expat maintainers.

■ fontconfigcopyright © 2001, 2003 Keith Packard

■ freetype: copyright © 2003 The FreeType Project (www.freetype.org).

■ ICU: copyright © 1995-2008 International Business Machines Corporation and others.

■ libcurl: copyright © 1996 - 2008, Daniel Stenberg.

■ libjpeg: This software is based in part on the work of the Independent JPEG Group copyright © 1991 – 1998, Thomas G. Lane.

■ libmng: copyright © 2000-2007 Gerard Juyn, Glenn Randers-Pehrson
■ libpng: copyright © 1998-2008 Glenn Randers-Pehrson
■ libupnp: copyright © 2000-2003 Intel Corporation
■ libxml2 : copyright © 1998-2003 Daniel Veillard
■ libxslt: copyright © 2001-2002 Daniel Veillard
■ lua interpreter: copyright © 1994–2008 Lua.org, PUC-Rio
■ md5: copyright © 1991-2, RSA Data Security, Inc
■ openSSL:

• cryptographic software written by Eric Young.
• software written by Tim Hudson.
• software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org)

■ pixman:

• copyright © 1987, 1988, 1989, 1998 The Open Group
• copyright © 1987, 1988, 1989 Digital Equipment Corporation
• copyright © 1999, 2004, 2008 Keith Packard
• copyright © 2000 SuSE, Inc.
• copyright © 2000 Keith Packard, member of The XFree86 Project, Inc.
• copyright © 2004, 2005, 2007, 2008 Red Hat, Inc.
• copyright © 2004 Nicholas Miell
• copyright © 2005 Lars Knoll & Zack Rusin, Trolltech
• copyright © 2005 Trolltech AS
• copyright © 2007 Luca Barbato
• copyright © 2008 Aaron Plattner, NVIDIA Corporation
• copyright © 2008 Rodrigo Kumpera
• copyright © 2008 André Tupinambá
• copyright © 2008 Mozilla Corporation
• copyright © 2008 Frederic Plourde

■ portmapopyright © 1983,1991 The Regents of the University of California.

■ tiff: copyright © 1987, 1993, 1994 The Regents of the University of California.

■ tinyxml: copyright © 2000-2006 Lee Thomason

xyssl:

• copyright © 2006-2008 Christophe Devine
• copyright © 2009 Paul Bakker

zlib: copyright © 1995-2005 Jean-loup Gailly and Mark Adler

All rights reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

APPENDIX OPEN SOURCE LICENSE

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

APPENDIX

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

APPENDIX

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright (C)

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type 'show w'. This is free software, and you are welcome to redistribute it under certain conditions; type 'show c' for details.

The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w' and `show c'; they could even be mouse-clicks or menu items--whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program 'Gnomovision' (which makes passes at compilers) written by James Hacker.

, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

APPENDIX

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

APPENDIX

c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

1. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

APPENDIX

1. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright (C)

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking knobs) written by James Random Hacker.

, 1 April 1990 Ty Coon, President of Vice

APPENDIX

MOZILLA PUBLIC LICENSE

Version 1.1

1. Definitions.

1.0.1. "Commercial Use" means distribution or otherwise making the Covered Code available to a third party.
1.1. "Contributor" means each entity that creates or contributes to the creation of Modifications.
1.2. "Contributor Version" means the combination of the Original Code, prior Modifications used by a Contributor, and the Modifications made by that particular Contributor.
1.3. "Covered Code" means the Original Code or Modifications or the combination of the Original Code and Modifications, in each case including portions thereof.

1.4. "Electronic Distribution Mechanism" means a mechanism generally accepted in the software development community for the electronic transfer of data.

1.5. "Executable" means Covered Code in any form other than Source Code.

1.6. "Initial Developer" means the individual or entity identified as the Initial Developer in the Source Code notice required by Exhibit A.

1.7. "Larger Work" means a work which combines Covered Code or portions thereof with code not governed by the terms of this License.

1.8. "License" means this document.

1.8.1. "Licensable" means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or subsequently acquired, any and all of the rights conveyed herein.

1.9. "Modifications" means any addition to or deletion from the substance or structure of either the Original Code or any previous Modifications. When Covered Code is released as a series of files, a Modification is:

A. Any addition to or deletion from the contents of a file containing Original Code or previous Modifications.

B. Any new file that contains any part of the Original Code or previous Modifications.

1.10. "Original Code" means Source Code of computer software code which is described in the Source Code notice required by Exhibit A as Original Code, and which, at the time of its release under this License is not already Covered Code governed by this License.

1.10.1. "Patent Claims" means any patent claim(s), now owned or hereafter acquired, including without limitation, method, process, and apparatus claims, in any patent Licensable by grantor.

1.11. "Source Code" means the preferred form of the Covered Code for making modifications to it, including all modules it contains, plus any associated interface definition files, scripts used to control compilation and installation of an Executable, or source code differential comparisons against either the Original Code or another well known, available Covered Code of the Contributor's choice. The Source Code can be in a compressed or archival form, provided the appropriate decompression or de-archiving software is widely available for no charge.

1.12. "You" (or "Your") means an individual or a legal entity exercising rights under, and complying with all of the terms of, this License or a future version of this License issued under Section 6.1.

For legal entities, "You" includes any entity which controls, is controlled by, or is under common control with You. For purposes of this definition, "control" means (a) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (b) ownership of more than fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The Initial Developer Grant.

The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party intellectual property claims:

(a) under intellectual property rights (other than patent or trademark) Licensable by Initial Developer to use, reproduce, modify, display, perform, sublicense and distribute the Original Code (or portions thereof) with or without Modifications, and/or as part of a Larger Work; and

APPENDIX

(b) under Patents Claims infringed by the making, using or selling of Original Code, to make, have made, use, practice, sell, and offer for sale, and/or otherwise dispose of the Original Code (or portions thereof).
(c) the licenses granted in this Section 2.1(a) and (b) are effective on the date Initial Developer first distributes Original Code under the terms of this License.
(d) Notwithstanding Section 2.1(b) above, no patent license is granted: 1) for code that You delete from the Original Code; 2) separate from the Original Code; or 3) for infringements caused by: i) the modification of the Original Code or ii) the combination of the Original Code with other software or devices.

2.2. Contributor Grant.

Subject to third party intellectual property claims, each Contributor hereby grants You a world-wide, royalty-free, non-exclusive license

(a) under intellectual property rights (other than patent or trademark) Licensable by Contributor, to use, reproduce, modify, display, perform, sublicense and distribute the Modifications created by such Contributor (or portions thereof) either on an unmodified basis, with other Modifications, as Covered Code and/or as part of a Larger Work; and
(b) under Patent Claims infringed by the making, using, or selling of Modifications made by that Contributor either alone and/or in combination with its Contributor Version (or portions of such combination), to make, use, sell, offer for sale, have made, and/or otherwise dispose of: 1) Modifications made by that Contributor (or portions thereof); and 2) the combination of Modifications made by that Contributor with its Contributor Version (or portions of such combination).
(c) the licenses granted in Sections 2.2(a) and 2.2(b) are effective on the date Contributor first makes Commercial Use of the Covered Code.
(d) Notwithstanding Section 2.2(b) above, no patent license is granted: 1) for any code that Contributor has deleted from the Contributor Version; 2) separate from the Contributor Version; 3) for infringements caused by: i) third party modifications of Contributor Version or ii) the combination of Modifications made by that Contributor with other software (except as part of the Contributor Version) or other devices; or 4) under Patent Claims infringed by Covered Code in the absence of Modifications made by that Contributor.

3. Distribution Obligations.

3.1. Application of License.

The Modifications which You create or to which You contribute are governed by the terms of this License, including without limitation Section 2.2. The Source Code version of Covered Code may be distributed only under the terms of this License or a future version of this License released under Section 6.1, and You must include a copy of this License with every copy of the Source Code You distribute. You may not offer or impose any terms on any Source Code version that alters or restricts the applicable version of this License or the recipients' rights hereunder. However, You may include an additional document offering the additional rights described in Section 3.5.

3.2. Availability of Source Code.

Any Modification which You create or to which You contribute must be made available in Source Code form under the terms of this License either on the same media as an Executable version or via an accepted Electronic Distribution Mechanism to anyone to whom you made an Executable version available; and if made available via Electronic Distribution Mechanism, must remain available for at least twelve (12) months after the date it initially became available, or at least six (6) months after a subsequent version of that particular Modification has been made available to such recipients. You are responsible for ensuring that the Source Code version remains available even if the Electronic Distribution Mechanism is maintained by a third party.

3.3. Description of Modifications.

You must cause all Covered Code to which You contribute to contain a file documenting the changes You made to create that Covered Code and the date of any change. You must include a prominent statement that the Modification is derived, directly or indirectly, from Original Code provided by the Initial Developer and including the name of the Initial Developer in (a) the Source Code, and (b) in any notice in an Executable version or related documentation in which You describe the origin or ownership of the Covered Code.

3.4. Intellectual Property Matters

(a) Third Party Claims.

If Contributor has knowledge that a license under a third party's intellectual property rights is required to exercise the rights granted by such Contributor under Sections 2.1 or 2.2, Contributor must include a text file with the Source Code distribution titled "LEGAL" which describes the claim and the party making the claim in sufficient detail that a recipient will know whom to contact. If Contributor obtains such knowledge after the Modification is made available as described in Section 3.2, Contributor shall promptly modify the LEGAL file in all copies Contributor makes available thereafter and shall take other steps (such as notifying appropriate mailing lists or newsgroups) reasonably calculated to inform those who received the Covered Code that new knowledge has been obtained.

APPENDIX

(b) Contributor APIs.

If Contributor's Modifications include an application programming interface and Contributor has knowledge of patent licenses which are reasonably necessary to implement that API, Contributor must also include this information in the LEGAL file.

(c) Representations.

Contributor represents that, except as disclosed pursuant to Section 3.4(a) above, Contributor believes that Contributor's Modifications are Contributor's original creation(s) and/or Contributor has sufficient rights to grant the rights conveyed by this License.

3.5. Required Notices.

You must duplicate the notice in Exhibit A in each file of the Source Code. If it is not possible to put such notice in a particular Source Code file due to its structure, then You must include such notice in a location (such as a relevant directory) where a user would be likely to look for such a notice. If You created one or more Modification(s) You may add your name as a Contributor to the notice described in Exhibit A. You must also duplicate this License in any documentation for the Source Code where You describe recipients' rights or ownership rights relating to Covered Code. You may choose to offer, and to charge a fee for, warranty, support, indemnity or liability obligations to one or more recipients of Covered Code. However, You may do so only on Your own behalf, and not on behalf of the Initial

Developer or any Contributor. You must make it absolutely clear than any such warranty, support, indemnity or liability obligation is offered by You alone, and You hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor as a result of warranty, support, indemnity or liability terms You offer.

3.6. Distribution of Executable Versions.

You may distribute Covered Code in Executable form only if the requirements of Section 3.1-3.5 have been met for that Covered Code, and if You include a notice stating that the Source Code version of the Covered Code is available under the terms of this License, including a description of how and where You have fulfilled the obligations of Section 3.2. The notice must be conspicuously included in any notice in an Executable version, related documentation or collateral in which You describe recipients' rights relating to the Covered Code. You may distribute the Executable version of Covered Code or ownership rights under a license of Your choice, which may contain terms different from this License, provided that You are in compliance with the terms of this License and that the license for the Executable version does not attempt to limit or alter the recipient's rights in the Source Code version from the rights set forth in this

License. If You distribute the Executable version under a different license You must make it absolutely clear that any terms which differ from this License are offered by You alone, not by the Initial Developer or any Contributor. You hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor as a result of any such terms You offer.

3.7. Larger Works.

You may create a Larger Work by combining Covered Code with other code not governed by the terms of this License and distribute the Larger Work as a single product. In such a case, You must make sure the requirements of this License are fulfilled for the Covered Code.

4. Inability to Comply Due to Statute or Regulation.

If it is impossible for You to comply with any of the terms of this License with respect to some or all of the Covered Code due to statute, judicial order, or regulation then You must: (a) comply with the terms of this License to the maximum extent possible; and (b) describe the limitations and the code they affect. Such description must be included in the LEGAL file described in Section 3.4 and must be included with all distributions of the Source Code. Except to the

extent prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary skill to be able to understand it.

5. Application of this License.

This License applies to code to which the Initial Developer has attached the notice in Exhibit A and to related Covered Code.

6. Versions of the License.

6.1. New Versions.

Netscape Communications Corporation ("Netscape") may publish revised and/or new versions of the License from time to time. Each version will be given a distinguishing version number.

6.2. Effect of New Versions.

Once Covered Code has been published under a particular version of the License, You may always continue to use it under the terms of that version. You may also choose to use such Covered Code under the terms of any subsequent version of the License published by Netscape. No one other than Netscape has the right to modify the terms applicable to Covered Code created under this License.

6.3. Derivative Works.

If You create or use a modified version of this License (which you may only do in order to apply it to code which is not already Covered Code governed by this License), You must (a) rename Your license so that the phrases "Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL", "NPL" or any confusingly similar phrase do not appear in your license (except to note that your license differs from this License) and (b) otherwise make it clear that Your version of the license contains terms which differ from the Mozilla Public License and Netscape Public License. (Filling in the name of the Initial Developer, Original Code or Contributor in the notice described in Exhibit A shall not of themselves be deemed to be modifications of this License.)

7. DISCLAIMER OF WARRANTY.

COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COVERED CODE IS FREE OF DEFECTS, MERCHANTABILITY, FIT FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE COVERED CODE IS WITH YOU. SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR ANY OTHER CONTRIBUTOR) ASSUME THE COST OF ANY NECESSARY SERVICING, REPAIR OR CORRECTION. THIS DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This License and the rights granted hereunder will terminate automatically if You fail to comply with terms here in and fail to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the Covered Code which are properly granted shall survive any termination of this License. Provisions which, by their nature, must remain in effect beyond the termination of this License shall survive.
8.2. If You initiate litigation by asserting a patent infringement claim (excluding declaratory judgment actions) against Initial Developer or a Contributor (the Initial Developer or Contributor against whom You file such action is referred to as "Participant") alleging that:
(a) such Participant's Contributor Version directly or indirectly infringes any patent, then any and all rights granted by such Participant to You under Sections 2.1 and/or 2.2 of this License shall, upon 60 days notice from Participant terminate prospectively, unless if within 60 days after receipt of notice You either: (i) agree in writing to pay Participant a mutually agreeable reasonable royalty for Your past and future use of Modifications made by such Participant, or (ii) withdraw Your litigation claim with respect to the Contributor Version against such Participant. If within 60 days of notice, a reasonable royalty and payment arrangement are not mutually agreed upon in writing by the parties or the litigation claim is not withdrawn, the rights granted by Participant to You under Sections 2.1 and/or 2.2 automatically terminate at the expiration of the 60 day notice period specified above.
(b) any software, hardware, or device, other than such Participant's Contributor Version, directly or indirectly infringes any patent, then any rights granted to You by such Participant under Sections 2.1(b) and 2.2(b) are revoked effective as of the date You first made, used, sold, distributed, or had made, Modifications made by that Participant.
8.3. If You assert a patent infringement claim against Participant alleging that such Participant's Contributor Version directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the initiation of patent infringement litigation, then the reasonable value of the licenses granted by such Participant under Sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license.
8.4. In the event of termination under Sections 8.1 or 8.2 above, all end user license agreements (excluding distributors and resellers) which have been validly granted by You or any distributor hereunder prior to termination shall survive termination.

9. LIMITATION OF LIABILITY.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLIGENCE), CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY DISTRIBUTOR OF COVERED CODE, OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY PERSON FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS EXCLUSION AND LIMITATION MAY NOT APPLY TO YOU.

APPENDIX

10. U.S. GOVERNMENT END USERS.

The Covered Code is a "commercial item," as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of "commercial computer software" and "commercial computer software documentation," as such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June 1995), all U.S. Government End Users acquire Covered Code with only those rights set forth herein.

11. MISCELLANEOUS.

This License represents the complete agreement concerning subject matter hereof. If any provision of this License is held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This License shall be governed by California law provisions (except to the extent applicable law, if any, provides otherwise), excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity chartered or registered to do business in the United States of America, any litigation relating to this License shall be subject to the jurisdiction of the Federal Courts of the Northern District of California, with venue lying in Santa Clara County, California, with the losing party responsible for costs, including without limitation, court costs and reasonable attorneys' fees and expenses. The application of the United Nations Convention on Contracts for the International Sale of Goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed against the drafter shall not apply to this License.

12. RESPONSIBILITY FOR CLAIMS.

As between Initial Developer and the Contributors, each party is responsible for claims and damages arising, directly or indirectly, out of its utilization of rights under this License and You agree to work with Initial Developer and Contributors to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to constitute any admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial Developer may designate portions of the Covered Code as "Multiple-Licensed". "Multiple-Licensed" means that the Initial Developer permits you to utilize portions of the Covered Code under Your choice of the NPL or the alternative licenses, if any, specified by the Initial Developer in the file described in Exhibit A.

EXHIBIT A -Mozilla Public License.

The contents of this file are subject to the Mozilla Public License Version 1.1 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.mozilla.org/MPL/

Software distributed under the License is distributed on an "AS IS" basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the License for the specific language governing rights and limitations under the License.

The Original Code is ____.

The Initial Developer of the Original Code is ____. Portions created by ____ are Copyright (C) ____. All Rights Reserved.

Contributor(s): ____.

Alternatively, the contents of this file may be used under the terms of the ____ license (the "[____] License"), in which case the provisions of [____] License are applicable instead of those above. If you wish to allow use of your version of this file only under the terms of the [____] License and not to allow others to use your version of this file under the MPL, indicate your decision by deleting the provisions above and replace them with the notice and other provisions required by the [____] License. If you do not delete the provisions above, a recipient may use your version of this file under either the MPL or the [____] License."

[NOTE: The text of this Exhibit A may differ slightly from the text of the notices in the Source Code files of the Original Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for Your Modifications.]

LG

Life's Good

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

Model :

Serial No.:
