USER MANUAL 28LN500B LG

OWNER'S MANUAL LED TV\*

Diagram showing a computer monitor connected to a finger icon with a question mark, with an instructional arrow and magnified view of the finger.

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your TV and retain it for future reference.

28LN500B

TABLE OF CONTENTS

3 LICENSES

4 INSTALLATION PROCEDURE

5 ASSEMBLING AND PREPARING

5 Unpacking

7 Parts and buttons

9 Lifting and moving the TV

10 Setting up the TV

10 - Attaching the Stand Base

10 - Detaching the Stand Base

12 - Mounting on a table

13 - Tidying cables

13 - Using the Kensington security system

14 - Mounting on a wall

16 WATCHING TV

16 Turning the TV on for the first time

18 MAKING CONNECTIONS

18 Connecting an antenna

18 - Connecting an antenna or basic cable

19 - Connecting with a cable box

20 Connecting to a HD receiver, DVD Player, VCR or Gaming device

20 - HDMI Connection

21 - HDMI to DVI Connection

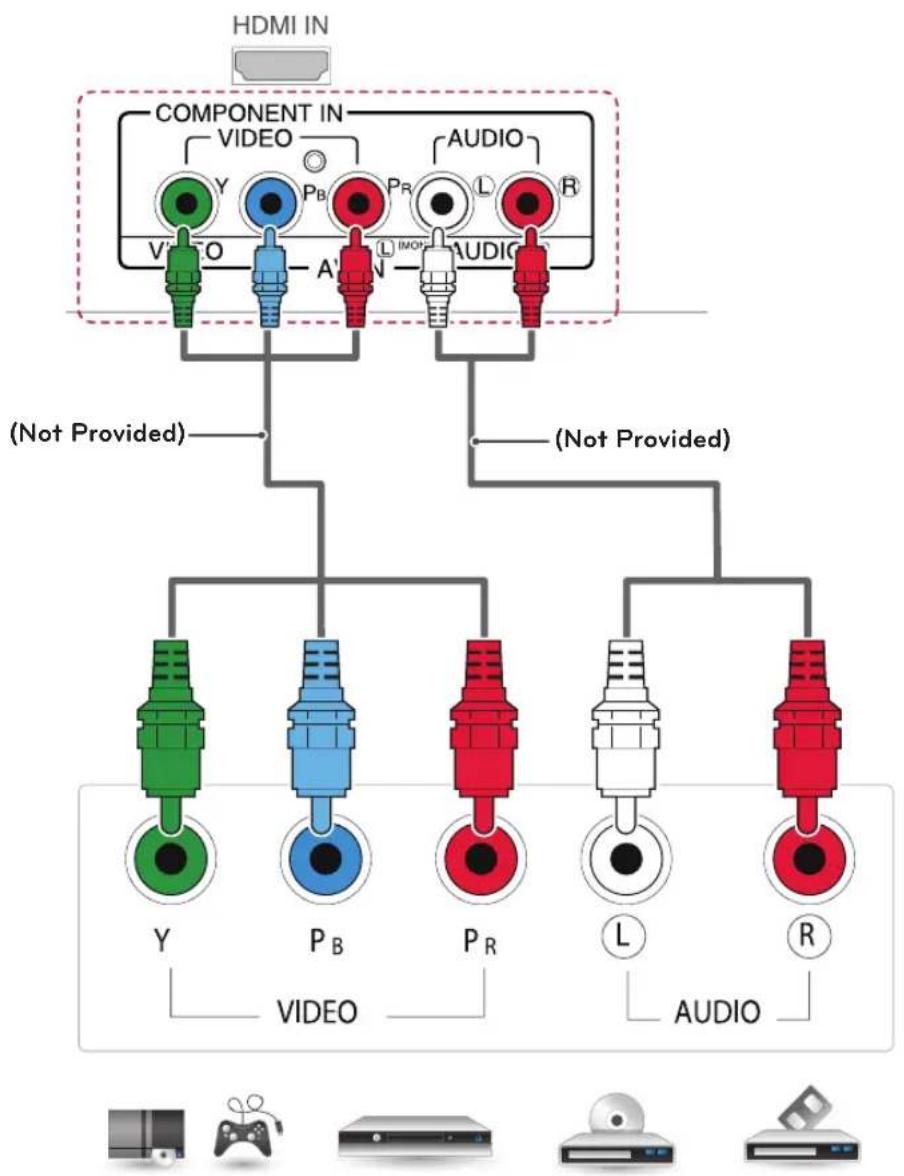

22 - Component Connection

23 - Composite Connection

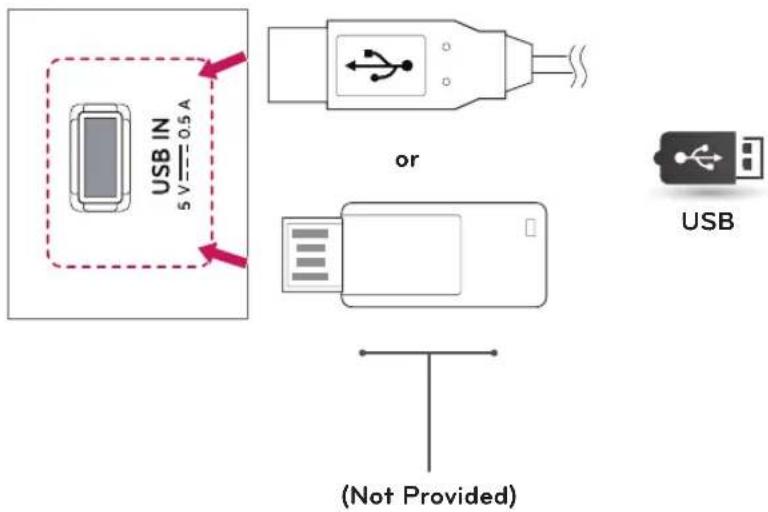

24 Connecting a USB Device

25 Connecting to a PC

26 - HDMI connection

27 - HDMI to DVI connection

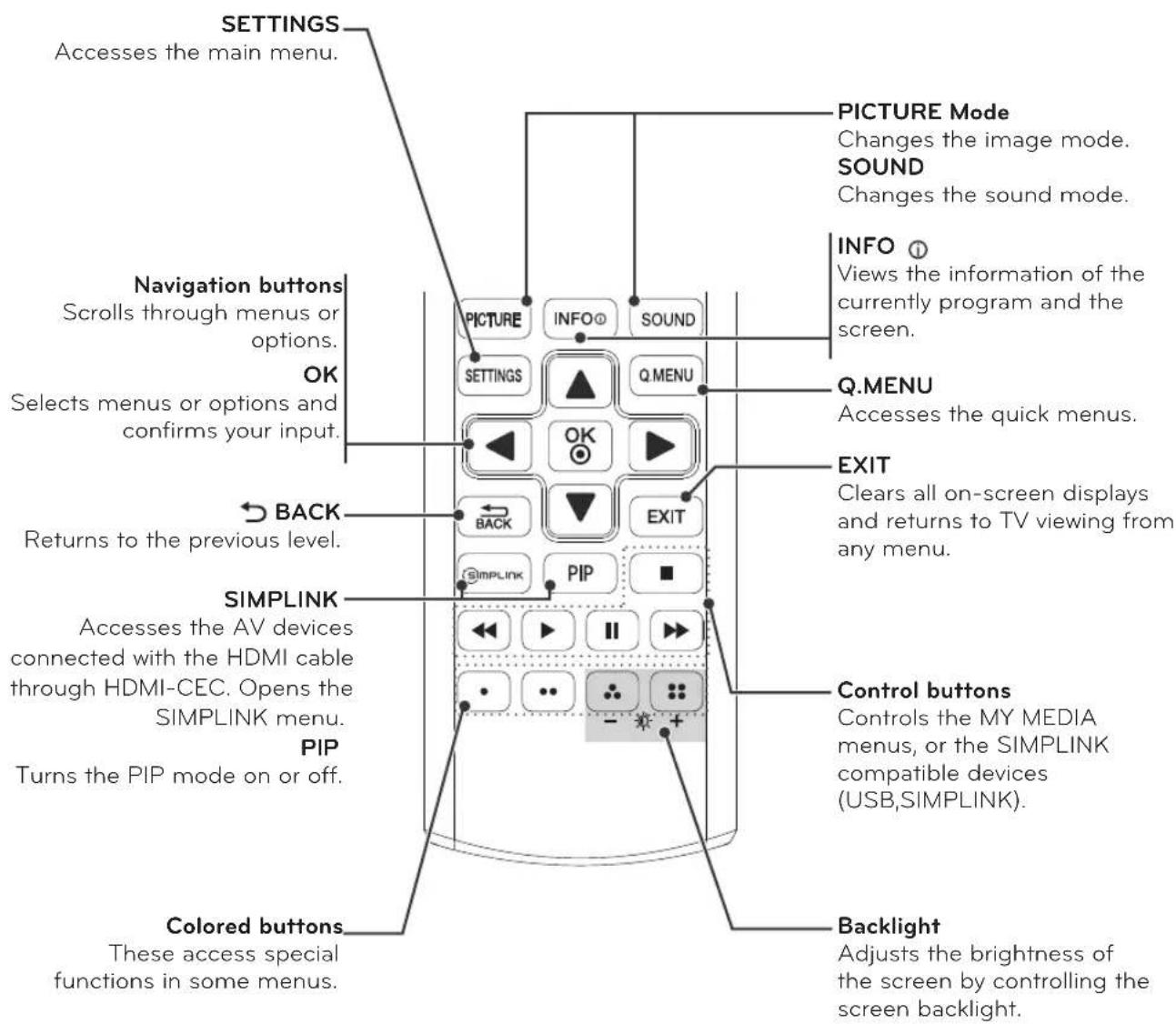

28 REMOTE CONTROL

30 CUSTOMIZING SETTINGS

30 Accessing the Main Menus

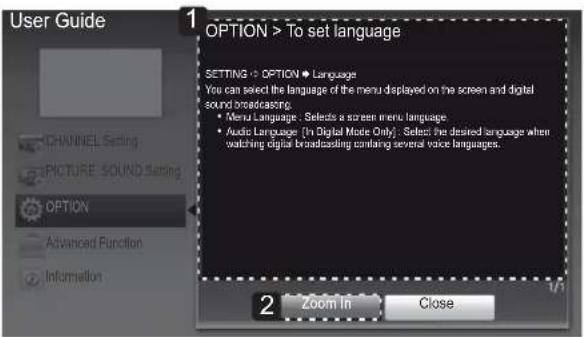

31 USING THE USER GUIDE

31 Accessing the On-Screen User Guide

31 - Using the TV menu

31 - Using the Remote Control

32 MAINTENANCE

32 Cleaning Your TV

32 Screen and frame

32 Cabinet and stand

32 Power cord

33 Preventing "Image burn" or "Burn-in" on your TV screen

34 TROUBLESHOOTING

34 General

35 SPECIFICATIONS

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

DOLBY. DIGITAL PLUS

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX ^® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ^® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ^® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX Certified ^® to play DivX ^® video up to HD 1080p, including premium content.

DivX ^® , DivX Certified ^® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV.
3 Connect an external device to the TV.

NOTE

• Image shown may differ from your TV.
- Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
- The available menus and options may differ from the input source or product model that you are using.
- New features may be added to this TV in the future.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

NOTE

• The accessories supplied with your product may vary depending on the model.
- Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

CAUTION

• Do not use any pirated items to ensure the safety and product life span.
• Any damages or injuries by using unapproved or counterfeit parts or accessories are not covered by the warranty.

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

*A ≤10 mm
*B ≤ 18 mm

1.5V AAA 1.5V AAA

Remote Control Batteries (AAA)

(See p.28, See p.29)

Illustration of a CD or DVD disc and its corresponding physical case (no text or symbols)

CD (Owner's Manual) Cards

Simple line drawing of a mechanical component with a conical top and rectangular base (no text or symbols)

Stand Base

(See p.10)

Line drawing of a coiled electrical plug (no text or symbols)

Power Cord AC-DC Adapter

( Depending on the country )

Line drawing of a cable and rectangular electronic device (no text or symbols)

or

Simple line drawing of a connected electrical component with wires (no text or symbols)

AC-DC Adapter

( Depending on the country )

(See p.12)(See p.12) (See p.12)

Parts and buttons

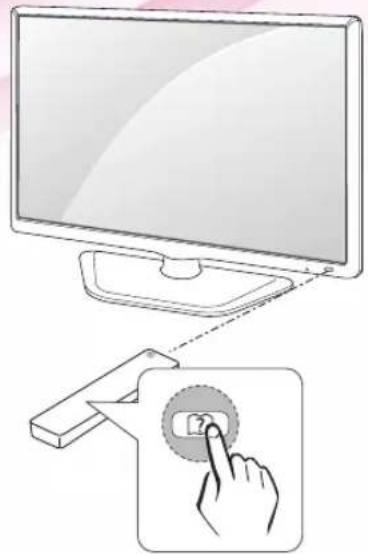

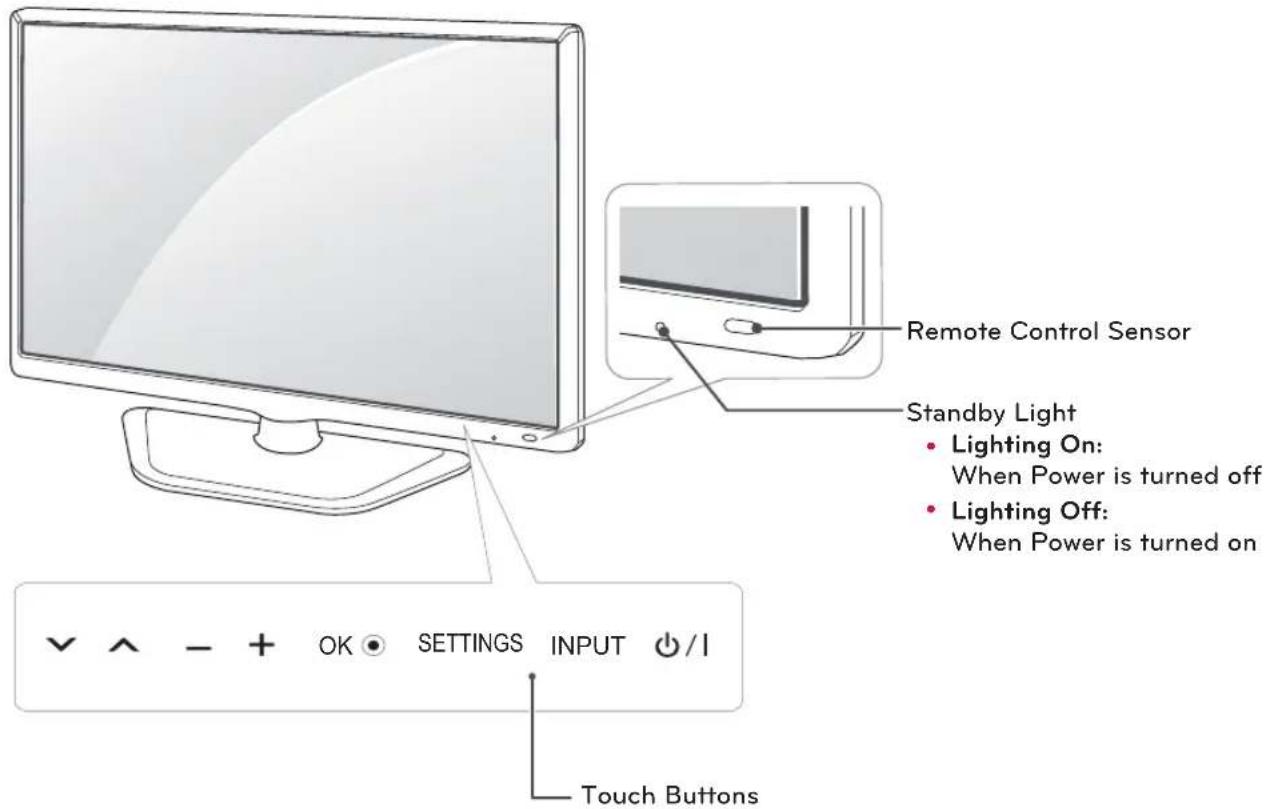

Remote Control Sensor Standby Light • Lighting On: When Power is turned off • Lighting Off: When Power is turned on ✓ ↑ - + OK ● SETTINGS INPUT ⏻/1 Touch Buttons

Touch buttons Description
∨ ∧	Scrolls through the saved channels.
- +	Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
∅ / I	Turns the power on or off.

NOTE

All of the buttons are touch sensitive and can be operated through simple touch with your finger.

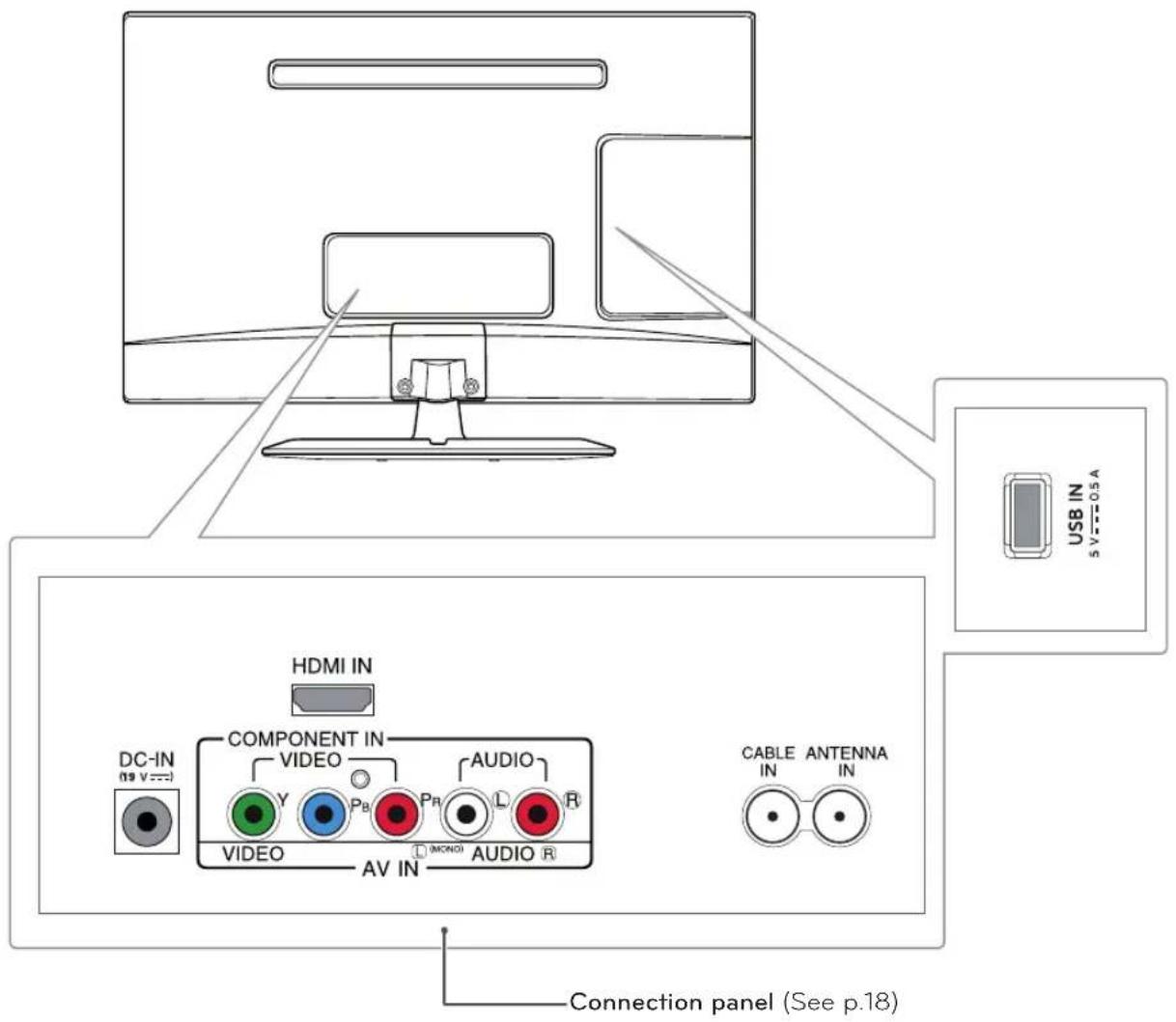

USB IN 5V 0.05A HDMI IN COMPONENT IN VIDEO AUDIO DC-IN (19 V=) Y Pa Pr L R VIDEO AV IN MONO AUDIO R CABLE ANTENNA IN IN Connection panel (See p.18)

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for save transportation regardless of its type and size.

CAUTION

Avoid touching the screen at all times, as this may result in damage to the screen or some of the pixels used to create images.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.

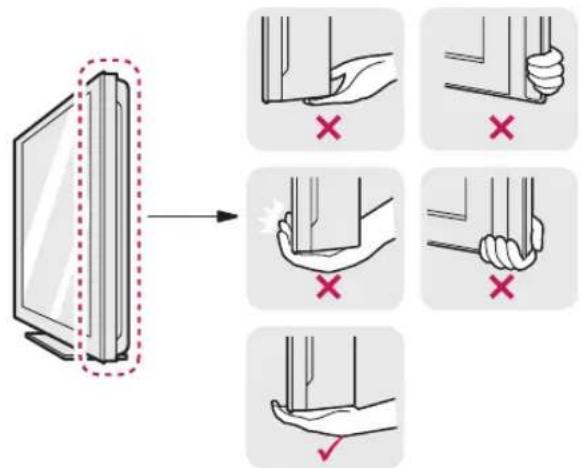

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating hand positioning and stress application on a screen, with labeled correct and incorrect states indicated by red X marks.

- When holding the TV, the screen should face away from you to prevent the screen from scratches.

Prohibition sign with silhouette and crossed-out circle, indicating no prohibition or exclusion

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side, or tilt towards the left or right.

Setting up the TV

Image shown may differ from your TV.

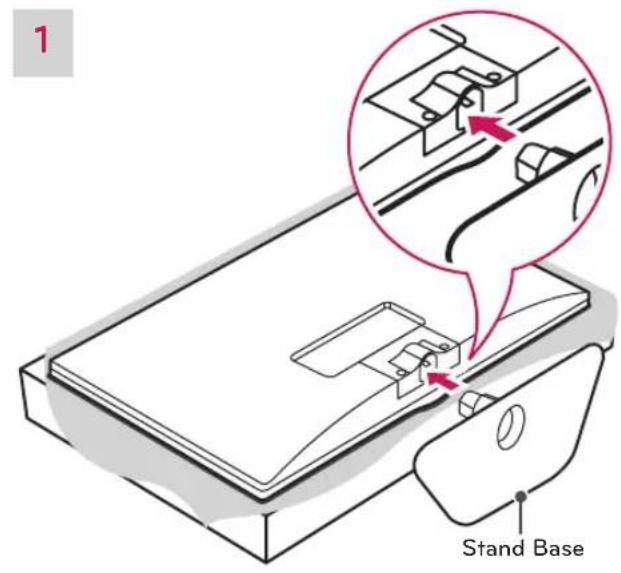

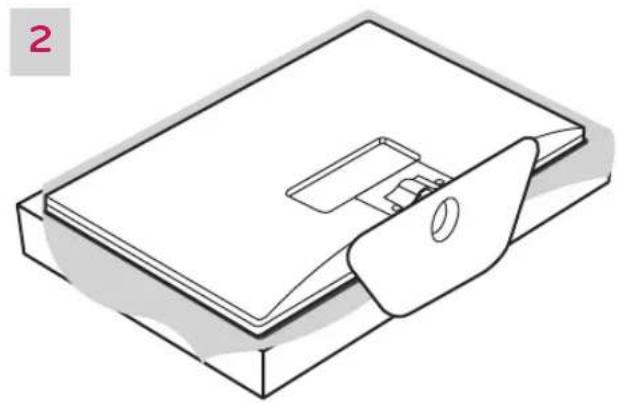

Attaching the Stand Base Detaching the Stand Base

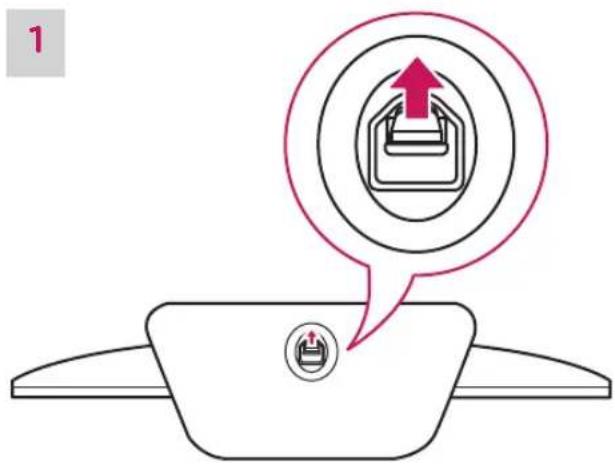

1 Stand Base

1

NOTE

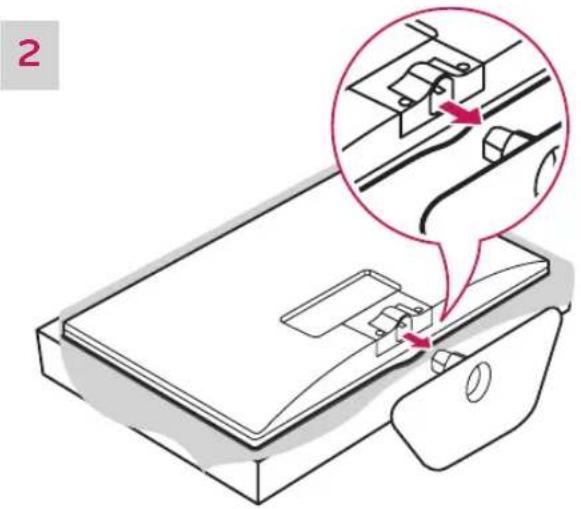

When Detaching the stand from TV, Detach the stand with lifting up the lever in the direction of the arrow.

Isometric line drawing of a rectangular electronic device with a slot and handle (no text or symbols)

2

CAUTION

• Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
• When attaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

CAUTION

• Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
• When attaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

CAUTION

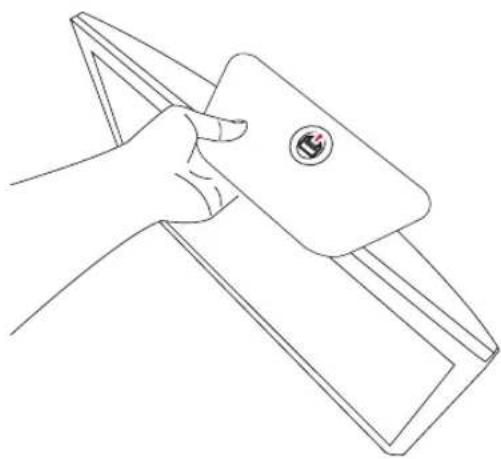

Line drawing of a hand holding a smartphone with a circular logo on the cover (no text or symbols)

• Do not carry the monitor upside-down as this may cause it to fall off its stand, resulting in damage or injury.
  • The illustration shows a general example of installation and may look different from the actual product.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

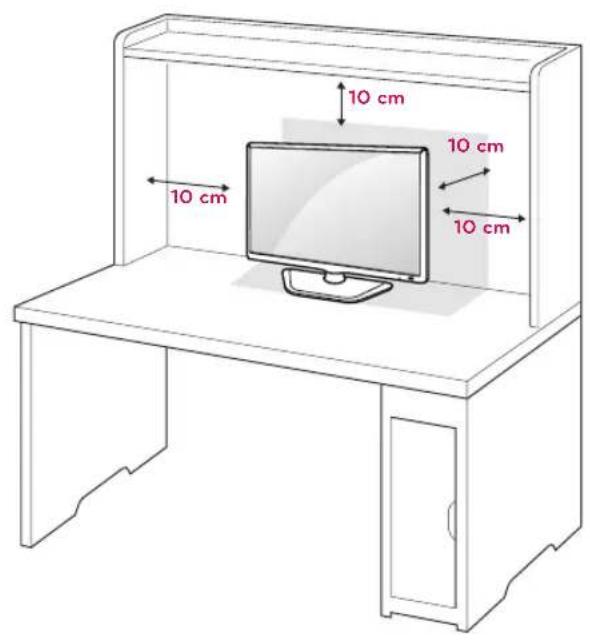

Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm

CAUTION

Disconnect the power cord first, and then move or install the TV. Otherwise electric shock may occur.

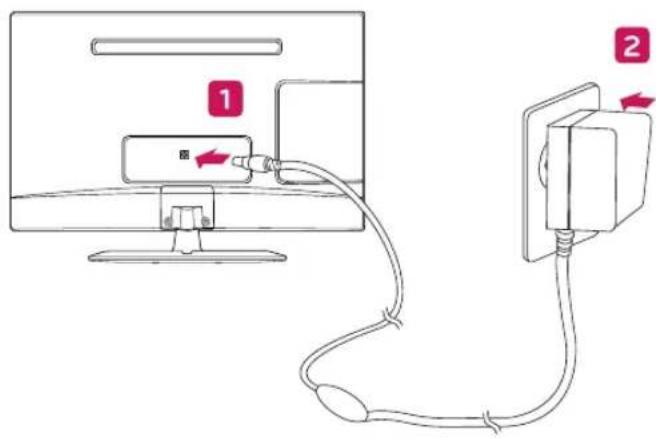

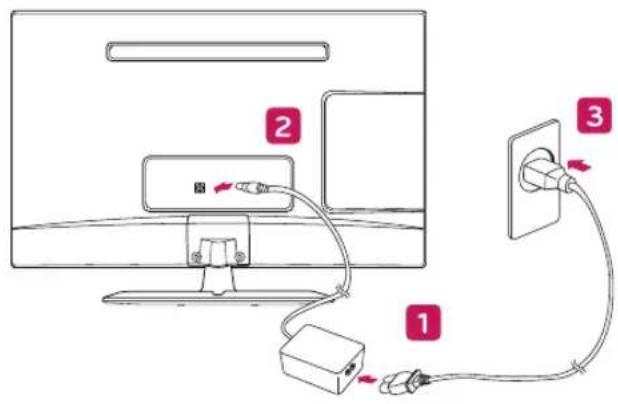

2 Connect the AC-DC Adapter and Power Cord to a wall outlet.

Diagram showing cable connection between a monitor and an electrical outlet, with labeled components 1, 2, and 3.

or

Diagram showing cable connection between a monitor and a switch, labeled with component number 1 and 2

CAUTION

Do not place the TV near or on sources of heat, as this may result in fire or other damage.

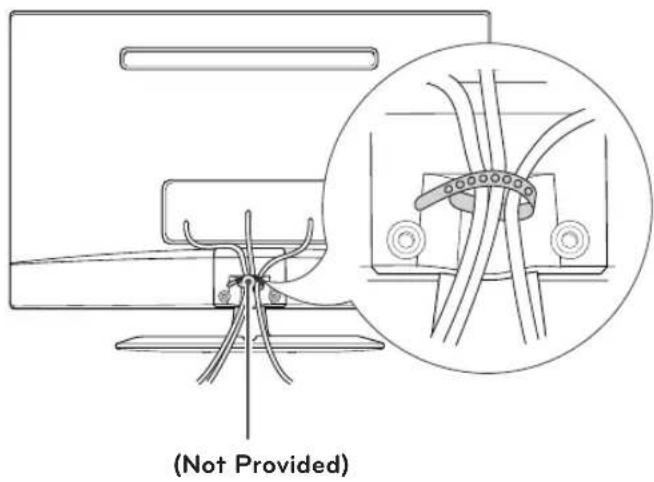

Tidying cables

Gather and bind the cables with the supplied cable tie.

(Not Provided)

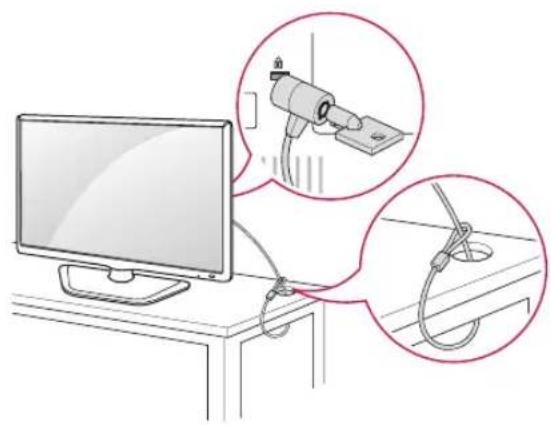

Using the Kensington security system

The Kensington security system connector is located at the back of the TV. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

Illustration of a monitor connected to a cable with two magnified insets showing cable installation details (no text or symbols present)

NOTE

The Kensington security system is optional. You can obtain additional accessories from most electronics stores.

Mounting on a wall

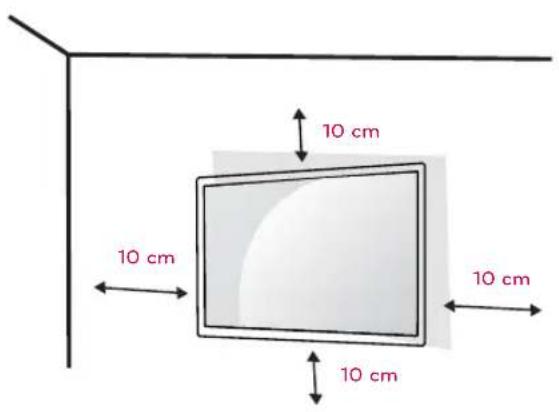

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm 10 cm 10 cm 10 cm

If you intend to mount the TV to a wall, attach Wall mounting interface (optional parts) to the back of the TV.

When you install the TV using the wall mounting interface (optional parts), attach it carefully so it will not drop.

1 Please, Use the screw and wall mount interface in accordance with VESA Standards.
2 If you use screw longer than standard, the TV might be damaged internally.
3 If you use improper screw, the product might be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.
4 VESA compatible only with respect to screw mounting interface dimensions and mounting screw specifications.

5 Please use VESA standard as below.

• 784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm
• 787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad and screws.

VESA (A x B) 100 x 100
Standard screw M4
Number of screws 4
Wall mount bracket (optional)	RW120

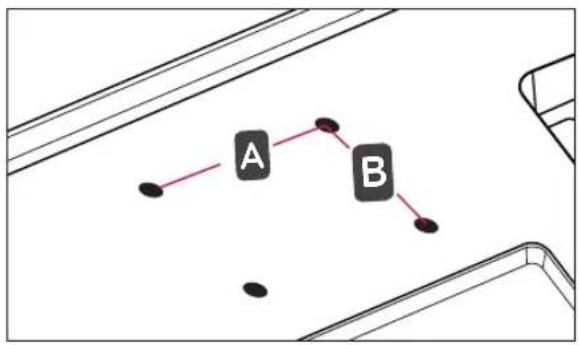

- VESA (A × B)

CAUTION

• Disconnect the power cord first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury.
• Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is optional. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Be sure to use the proper length.
• For more information, refer to the instructions supplied with the wall mount.

WATCHING TV

Turning the TV on for the first time

When you access the TV for the first time, the initial setting screen appears. Select a language and customize the basic settings.

1 Connect the power cord to a power outlet.
2 Press on the TV or power button on the remote control to turn the TV on.
The Standby Light is turned off.

NOTE

When the TV is in Power saving mode, the Standby Light turns amber.

3 The initial setting screen appears if you access the TV for the first time.

NOTE

If you do not operate the TV within 40 seconds when the setting menu screen appears, the setting menus will disappear.

4 Follow the on-screen instructions to customize your TV according to your preferences.

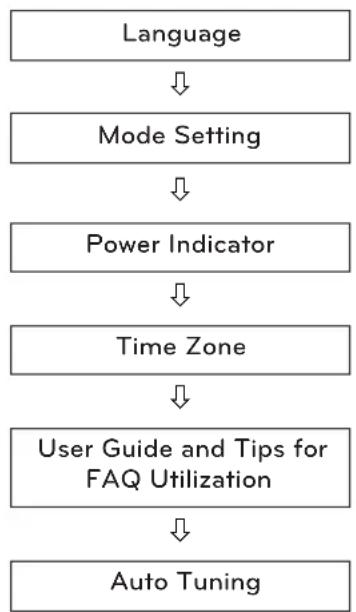


Selects a language for the display.

Selects Home Use for the home environment.

Selects the Standby Light. If you select On, the TV turns on the Standby Light in the front panel when the TV is off.

Selects the time zone and daylight saving.

Shows how to use User Guide and FAQ.

Scans and saves available programs automatically.

NOTE

• For those countries without confirmed DTV broadcasting standards, some DTV features might not work, depending on the DTV broadcasting environment.
  • To display images in the best quality for your home environment, select Home Use mode.
• Store Demo mode is suitable for the retail environment.
• If you select Store Demo mode, the previously customized settings will switch to the default settings of Store Demo mode in 5 minutes.

5 When the basic settings are complete, press OK.

NOTE

If you do not complete the initial setting, it will appear whenever you access the TV.

6 To turn the TV off, press down the TV.

The Standby Light is turned on.

CAUTION

Disconnect the power cord from the power outlet when you do not use the TV for a long period of time.

NOTE

• You can also switch the TV from PC mode to TV mode, press TV/PC.
• You can also access Factory Reset by accessing OPTION in the main menus.

MAKING CONNECTIONS

Connect various external devices to the TV and switch input modes to select an external device. For more information about an external device's connection, refer to the manual supplied with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, camcorders or cameras, gaming devices, and other external devices.

NOTE

• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the manual supplied with the connected device.
• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.

Connecting an antenna

Connect an antenna, cable or cable box to watch TV referring to the following. The illustrations may differ from the actual accessories and an RF cable is optional.

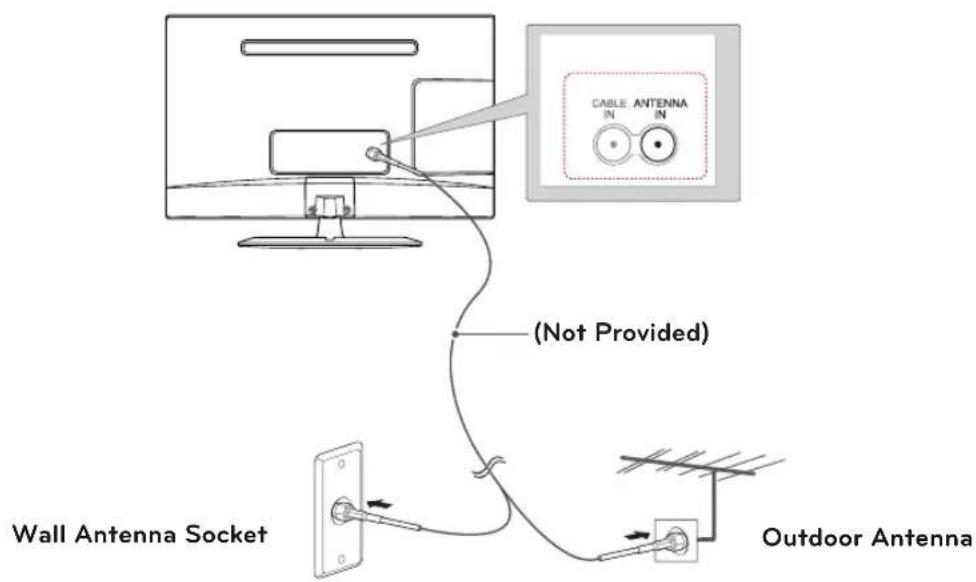

Connecting an antenna or basic cable

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

CABLE ANTENNA IN IN (Not Provided) Wall Antenna Socket Outdoor Antenna

NOTE

• Use a signal splitter to use more than 2 TVs.
- If the image quality is poor, install a signal amplifier properly to improve the image quality.
- If the image quality is poor with an antenna connected, aim the antenna to the proper direction.
- Visit http://AntennaWeb.org for more information about the antenna and cable connection.

Connecting with a cable box

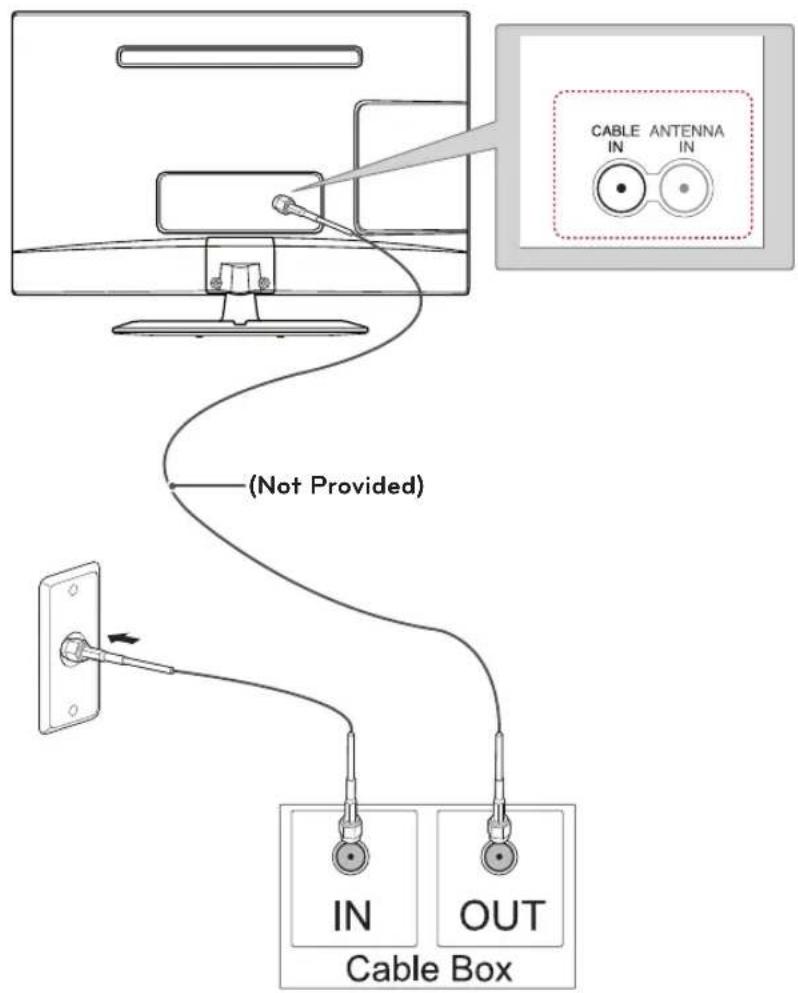

Connect the TV to a cable box and the cable box to a wall antenna socket with 2 RF cables (75 Ω).

(Not Provided) IN Cable Box OUT CABLE ANTENNA IN IN

CAUTION

• Make sure not to bend the copper wire of the RF cable.

Copper wire

- Complete all connections instructions between devices, and then connect the power cord to the power outlet to prevent damages to your TV.

Connecting to a HD receiver, DVD Player, VCR or Gaming device

Connect a HD receiver, DVD Player, VCR or Gaming device to the TV and select an appropriate input mode.

HDMI Connection

HDMI is the best way to connect a device.

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with an HDMI cable as shown on the following illustration.

NOTE

• Use a High Speed HDMI™ Cable.
- High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
- Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 KHz, 32 KHz / 44.1 KHz / 48 KHz / 88 KHz / 96 KHz / 176 KHz / 192k, DTS Not supported.)

HDMI IN COMPON IN VIF VIDEO AV IN AUDIO PR L (MONO) AUDIO R (Not Provided) HDMI OUT

Four grayscale icons representing different media and entertainment devices: CD, DVD, monitor, and controller (no text or symbols)

DVD / Blu-Ray / HD Cable Box / HD STB / Gaming device

HDMI to DVI Connection

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with an HDMI to DVI cable as shown in the following illustration. To transmit an audio signal, connect an optional audio cable.

NOTE

• If you do not use an optional external speaker, connect the external device to the TV with an optional audio cable.
• When using the HDMI/DVI cable, only Single link is supported.

HDMI IN COMPOI IN VIDEO AV IN AUDIO L B (Not Provided) (Not Provided) DVI OUT AUDIO OUT

DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device

Component Connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the component cable as shown on the following illustration. Component connections support HD, but some devices will not output HD on Component (due to copyright issues).

NOTE

• If cables are installed incorrectly, it could case the image to display in black and white or with distorted color.
• Check to ensure each cable is matched with the corresponding color connection.

HDMI IN COMPONENT IN VIDEO AUDIO V' O A' N L IMOH AUDIO (Not Provided) (Not Provided) Y P B P R L R VIDEO P B P R L AUDIO R

DVD / Blu-Ray / HD Cable Box / HD STB / Gaming device

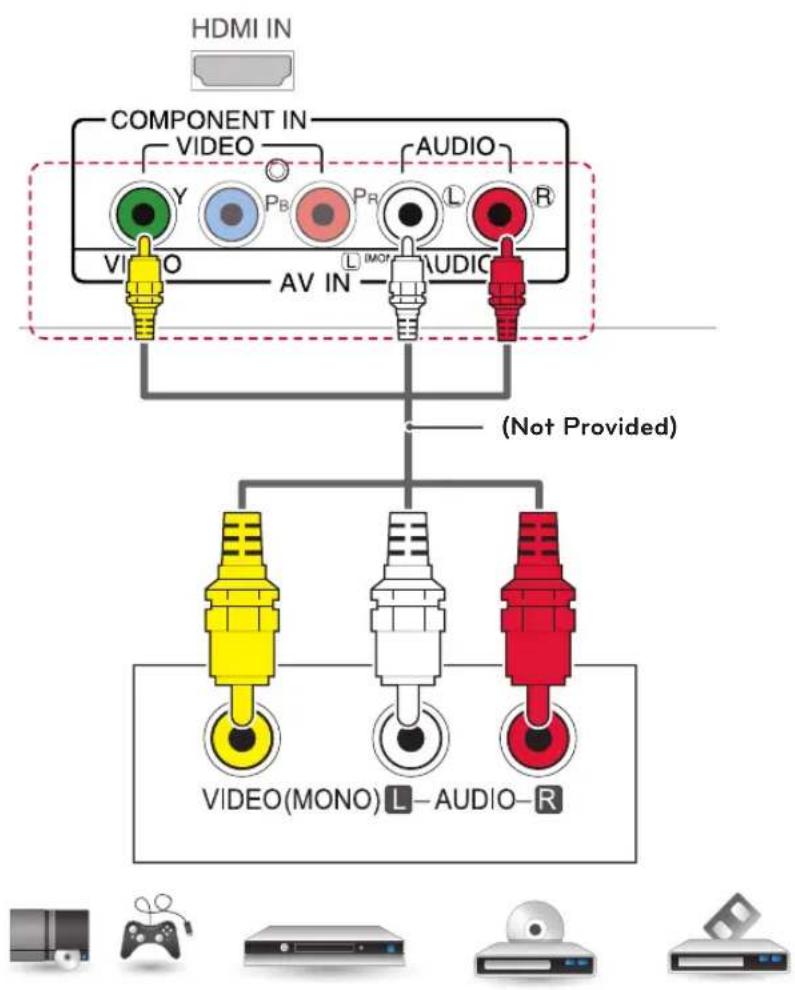

Composite Connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown on the following illustration.

NOTE

Check to ensure each cable is matched with the corresponding color connection.

HDMI IN COMPONENT IN VIDEO AUDIO Y PB PR L R VIDEO AV IN AUDIO (Not Provided) VIDEO(MONO) L-AUDIO-R

DVD / Blu-Ray / HD Cable Box / HD STB / Gaming device

Connecting a USB Device

Connect a USB storage device such as s USB flash memory, external hard drive, MP3 player or a USB memory card reader to the TV and access the USB menu to use various multimedia files.

USB IN 5V=0.5A or USB (Not Provided)

Connecting to a PC

Your TV supports the Plug & Play* feature and has the built-in speakers with Virtual Surround that reproduces sound clearly and rich bass.

* Plug & Play: The function when a PC recognizes a connected device and requires no driver to be installed.

NOTE

• It is recommended to use the TV with an HDMI connection for the best image quality.
• If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
• If you turn the TV on when the set is cold, the screen may flicker. This is normal.
  • Some red, green, or blue spots may appear on the screen. This is normal.
• Connect the signal input cable and tighten it by turning the screws clockwise.
• Do not press the screen with your finger for a long time as this may result in temporary distortion on the screen.
• Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screensaver if possible.
• When using the HDMI/DVI cable, only Single link is supported.

NOTE

• If you want to use HDMI-PC mode, you must set the input label to PC mode.
• The OSD (On Screen Display) is displayed on the screen as shown below.

» When turning the product on in HDMI input.
» When switching to HDMI input.

Is the input connected to your PC? Yes No Do not show message again.

• If you select "Yes" the size and image quality are optimised for your PC.
• If you select "No" the size and image quality are optimised for the AV device (DVD player, set-top box, gaming device).
• If you select "Do not show message again" this message does not appear until the TV is reset. You can change the set value in SETTINGS ▶ INPUT ▶ Input Label.

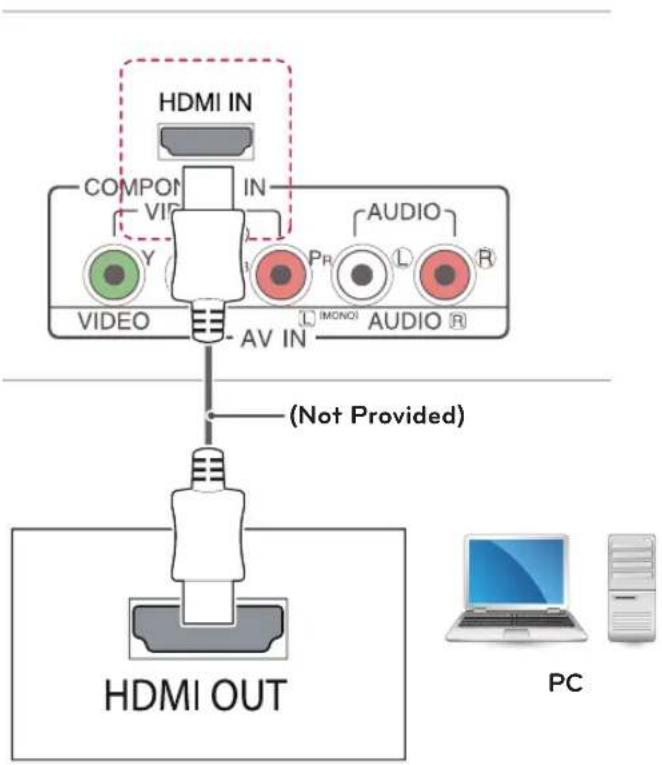

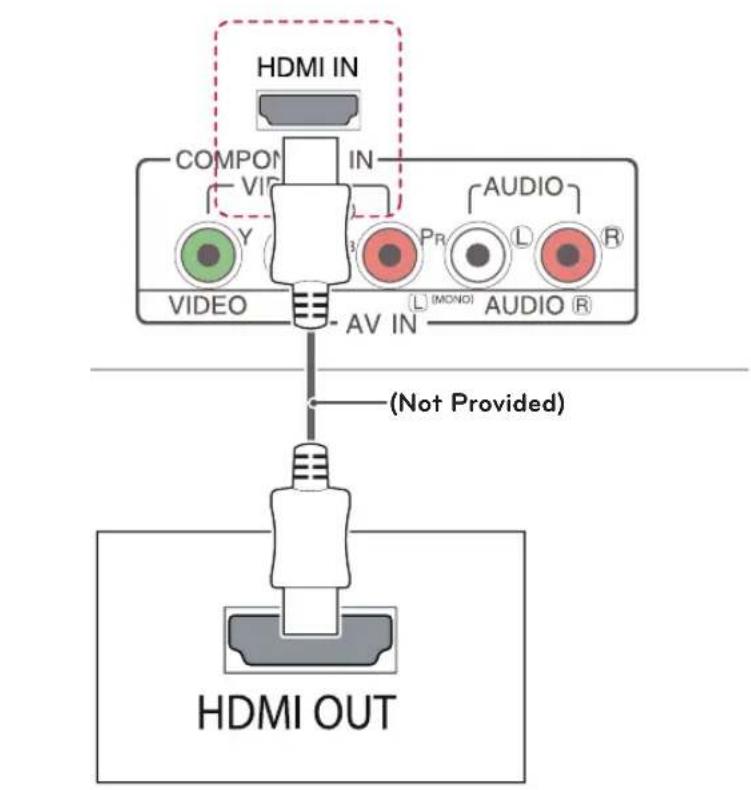

HDMI connection

Transmits the digital video and audio signals from your PC to the TV. Connect the PC and the TV with an HDMI cable as shown in the following illustrations. You should change the input label on the TV's HDMI port (this can be done in the input menu).

NOTE

• Use a High Speed HDMI™ Cable.
• High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
- If you want to use HDMI-PC mode, you must set the input label to PC or DVI mode.
- Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 KHz, 32 KHz / 44.1 KHz / 48 KHz / 88 KHz / 96 KHz / 176 KHz / 192 KHz, DTS Not supported.)

HDMI IN COMPON VIN IN AUDIO VIDEO AV IN (MONO) AUDIO R (Not Provided) HDMI OUT PC

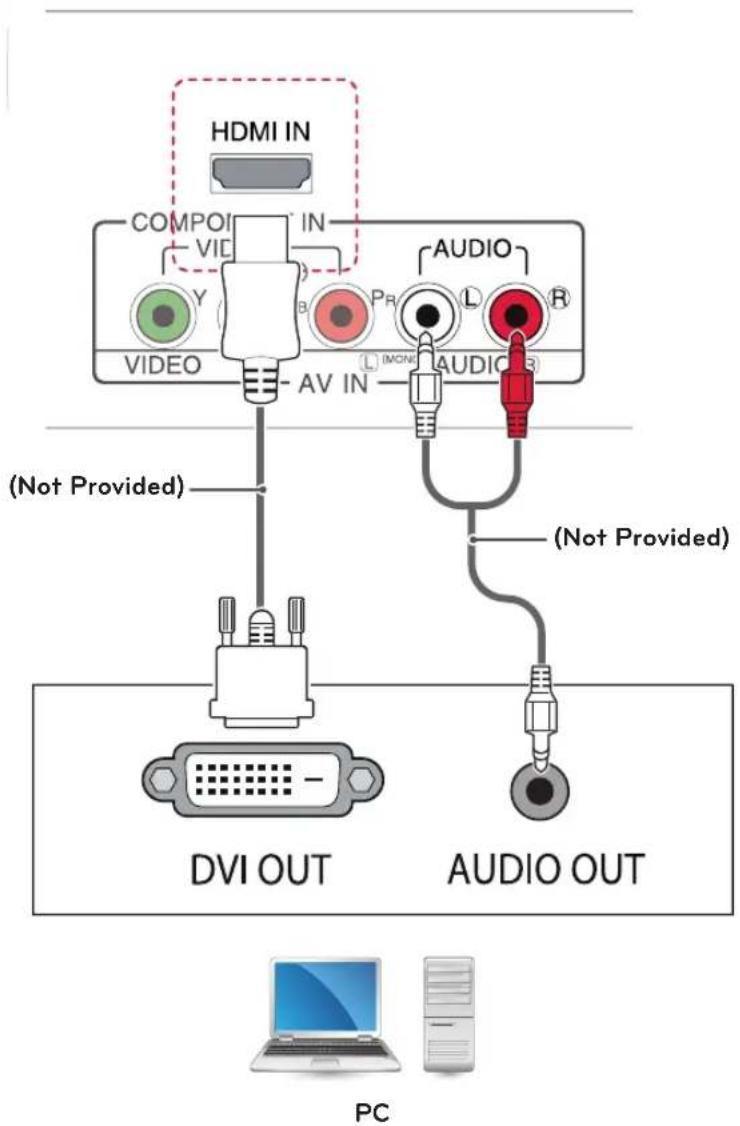

HDMI to DVI connection

Transmits the digital video signal from your PC to the TV. Connect the PC and the TV with an HDMI to DVI cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.

NOTE

• If you want to use HDMI-PC mode, you must set the input label to DVI mode.
• If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
• When using the HDMI/DVI cable, only Single link is supported.

HDMI IN COMPOI IN VII Y B PR L R VIDEO AV IN AUDIO L AUDIC (Not Provided) (Not Provided) DVI OUT AUDIO OUT PC

REMOTE CONTROL

The descriptions in this manual are based on the buttons of the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this may damage the remote control.

Diagram showing two steps of a mechanical or electrical component with labeled parts 1 and 2

Make sure to point the remote control to the remote control sensor on the TV. Image shown may differ from your TV.

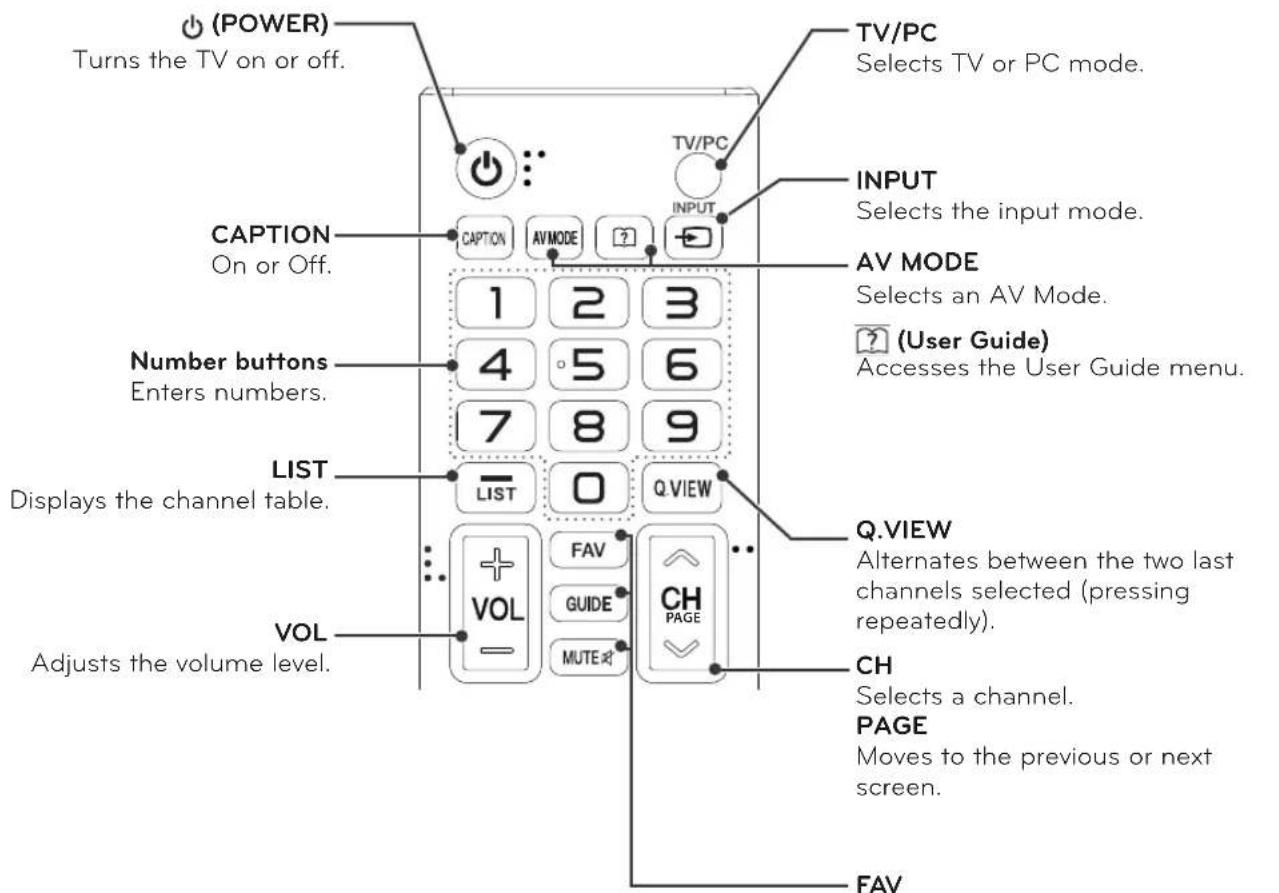

(POWER) Turns the TV on or off. CAPTION On or Off. Number buttons Enters numbers. LIST Displays the channel table. VOL Adjusts the volume level. TV/PC Selects TV or PC mode. INPUT Selects the input mode. AV MODE Selects an AV Mode. (User Guide) Accesses the User Guide menu. Q.VIEW Alternates between the two last channels selected (pressing repeatedly). CH Selects a channel. PAGE Moves to the previous or next screen. FAV

Accesses your favorite channel list.

GUIDE

Displays the program event according to time scheduler.

MUTE

Mutes all sounds.

SETTINGS Accesses the main menu. Navigation buttons Scrolls through menus or options. OK Selects menus or options and confirms your input. BACK Returns to the previous level. SIMPLINK Accesses the AV devices connected with the HDMI cable through HDMI-CEC. Opens the SIMPLINK menu. PIP Turns the PIP mode on or off. Colored buttons These access special functions in some menus. PICTURE Mode Changes the image mode. SOUND Changes the sound mode. INFO 🔒 Views the information of the currently program and the screen. Q.MENU Accesses the quick menus. EXIT Clears all on-screen displays and returns to TV viewing from any menu. Control buttons Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK). Backlight Adjusts the brightness of the screen by controlling the screen backlight.

CUSTOMIZING SETTINGS

Accessing the Main Menus

1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to one of the following menus and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want and press OK.

4 When you are finished, press EXIT.

When you return to the previous menu, press BACK.

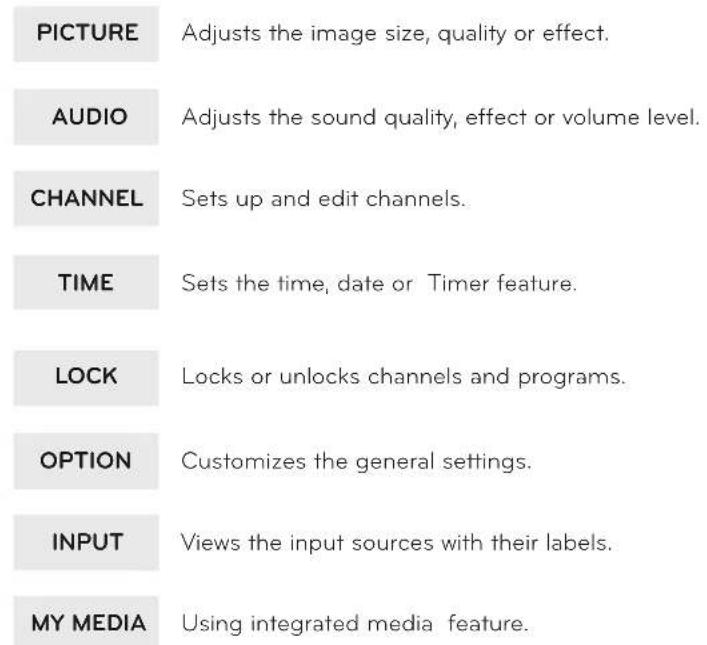

PICTURE Adjusts the image size, quality or effect. AUDIO Adjusts the sound quality, effect or volume level. CHANNEL Sets up and edit channels. TIME Sets the time, date or Timer feature. LOCK Locks or unlocks channels and programs. OPTION Customizes the general settings. INPUT Views the input sources with their labels. MY MEDIA Using integrated media feature.

• Press RED button to access the Customer Support menus.
• Press GREEN Button to access the FAQ menus.

Press OK(☐) to set your option settings.

Exit

Customer Support

Using Customer Support feature.

• Software Update
• Picture Test
• Sound Test
  • Product/Service Info.
• User Guide

FAQ

Shows answers to frequently asked questions about TV viewing and sets the related menus.

USING THE USER GUIDE

Accessing the On-Screen User Guide

Using the TV menu

1 Press SETTINGS to access the main menus.
2 Press the RED button to access the Customer Support menus.
3 Press the Navigation button to scroll to User Guide and press OK.
4 Press the Navigation buttons to scroll to the option you want and press OK.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK.

Using the Remote Control

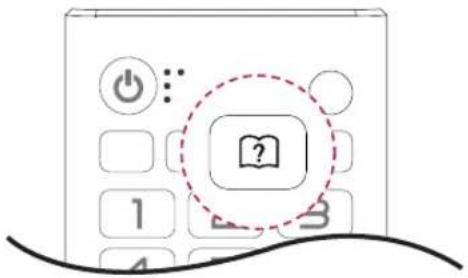

Diagram showing a control panel with buttons and a question mark icon, likely illustrating a basic computer interface or function.

1 Press (User Guide) to access the User Guide.
2 Press the Navigation buttons to scroll to the option you want and press OK.
3 When you are finished, press EXIT. When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

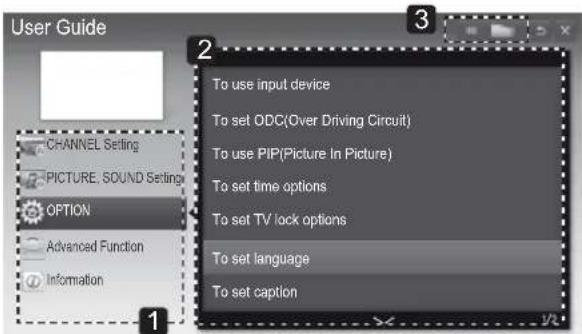

User Guide CHANNEL Setting PICTURE. SOUND Settings OPTION Advanced Function Information To use input device To set ODC(Over Driving Circuit) To use PIP(Picture In Picture) To set time options To set TV lock options To set language To set caption

1 Allows to select the category you want.
2 Allows to select the item you want. You can use ▲/▼ to move between pages.
3 Allows to browse the description of the function you want from the index.

User Guide CHANNEL Setting PICTURE SOUND SETTING OPTION Advanced Function Information 1 OPTION > To set language SETTING ➔ OPTION ➔ Language You can select the language of the menu displayed on the screen and digital sound broadcasting. ■ Menu Language : Selects a screen menu language. ■ Audio Language [In Digital Mode Only] : Select the desired language when watching digital broadcasting containing several voice languages. 2 Zoom In Close

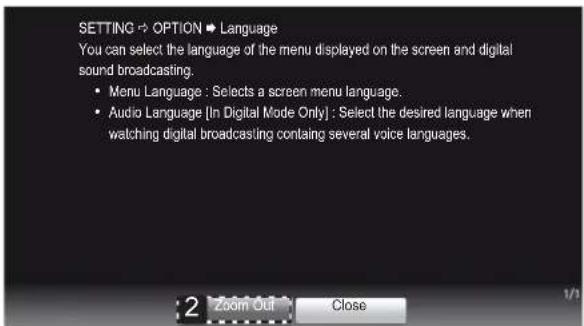

SETTING → OPTION → Language You can select the language of the menu displayed on the screen and digital sound broadcasting. • Menu Language : Selects a screen menu language. • Audio Language [In Digital Mode Only] : Select the desired language when watching digital broadcasting containing several voice languages.

1 Shows the description of the selected menu. You can use ▲/▼ to move between pages.
2 Zooms in or out the screen.

MAINTENANCE

Cleaning Your TV

Clean your TV regularly to keep the best performance and to extend the product's lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen and frame

To remove dust, wipe the surface with a dry and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a clean and dry cloth.

CAUTION

• Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions.
• Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as these may damage the screen's finish and cause discolorations.

Cabinet and stand

To remove dust, wipe the cabinet with a dry and soft cloth.

To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a small amount of mild detergent.

CAUTION

• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
• Do not use any chemicals as this may deteriorate the surface.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

Preventing "Image burn" or "Burn-in" on your TV screen

Black-and-white illustration of fresh tomatoes (no text or symbols)

Black-and-white illustration of a cluster of tomatoes with stems, enclosed in a red dashed bounding box (no text or symbols)

Illustration of a cluster of tomatoes with dashed lines indicating measurement or alignment (no text or symbols)

• If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is "image burn" or "burn-in" and not covered by the warranty.
• If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen.
• Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD) to prevent image burn.

TROUBLESHOOTING

General

ProblemResolution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed(⊕ to + fe ). ⏻
No image display and no sound is produced.	Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted.Check if the Auto sleep feature is activated in the Time settings.If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

SPECIFICATIONS

Television System NTSC, PAL-M/N, SBTVD

Program Coverage VHF 2-13, UHF 14-69, CATV 1-135

Panel Screen Type	700 mm Wide (28 inch)	Visible diagonal size : 700 mm
	Pixel Pitch 0.445 mm (H) x	0.445 mm (V)
Video Signal Max.	Resolution 1366 × 768 @ 60 Hz
	Recommended Resolution	1366 × 768 @ 60 Hz
	Horizontal Frequency	30 kHz to 61 kHz
	Vertical Frequency	56 Hz to 75 Hz
	Synchronization Type	Digital
Input Connector TV, Component, AV(CVBS), HDMI, USB
Power Rated Voltage	19 V 2.0 A	---
	Power Consumption	On Mode : 29 W (typ.)Off Mode ≤ 0.4 W
AC/DC Adapter		Manufacturer: Lien Chang, Model:LCAP16B-B, LCAP25BManufacturer: LG Innotek, Model: PSAB-L205F, PSAB-L204B
Dimensions (Width x Depth x Height)Weight		With Stand
		645.3 mm x 182.1 mm x 447.9 mm5.1 kg
		Without Stand
		645.3 mm x 78.7 mm x 401.6 mm4.7 kg
Environmental conditions	Operating Temperature	10 °C to 35 °C
	Operating Humidity	20 % to 80 %
	Storage Temperature	-10 °C to 60 °C
	Storage Humidity	5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

HDMI (PC) supported mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 400 31.468	70.080
640 x 480	31.469 59.940
640 x 480	37.500 75.000
800 x 600	37.879	60.317
800 x 600	46.875 75.000
1024 x 768	48.363 60.004
1024 x 768	60.023 75.029
1280 x 800	49.702 59.810
1366 x 768	47.717	59.790

NOTE

The optimal display resolution is 1366 x 768 @ 60 Hz. The optimal timing is vertical frequency 60Hz in each mode.

Component supported mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 480 15.730	59.940
720 x 480 15.750	60.000
720 x 576 15.625	50.000
720 x 480 31.470	59.940
720 x 480 31.500	60.000
720 x 576 31.250	50.000
1280 x 720 44.960	59.940
1280 x 720 45.000	60.000
1280 x 720 37.500	50.000
1920 x 1080 33.7	20 59.940
1920 x 1080 33.7	50 60.000
1920 x 1080 28.1	25 50.000
1920 x 1080 56.2	50 50.000
1920 x 1080 67.4	32 59.940
1920 x 1080 67.5	00 60.000

HDMI (DTV) supported mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 480 31.469	31.500	59.94060.000
720 x 576 31.250	50.000
1280 x 720 37.500	50.000
1280 x 720 44.960	45.000	59.94060.000
1920 x 1080 33.720	33.750	59.94060.000
1920 x 1080 28.125	50.000
1920 x 1080 27.000	24.000
1920 x 1080 33.750	30.000
1920 x 1080 56.250	50.000
1920 x 1080 67.430	67.500	59.94060.000

Component port connecting information

Component ports on the TV	Y	P_B	P_R
Video output ports on DVD player	Y	P_B	P_R
	Y B-Y	R-Y
	Y	Cb	Cr
	Y	Pb Pr

NOTE

• Avoid keeping a fixed image on the set's screen for prolonged periods of time. The fixed image may become permanently imprinted on the screen. Use a screen saver when possible.
• There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode. Change the PC mode to another resolution or change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
• The synchronization input waveform for Horizontal and Vertical frequencies are separate.
• Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included with the TV).
• If using a sound card, adjust PC sound as required.
• DOS mode may not work depending on the video card if you use an HDMI to DVI cable.

LG Life's Good

Make sure to read the Safety Precautions before using the product.

Keep the Owner's Manual (CD) in an accessible place for future reference.

The model and serial number of the TV is located on the back and one side of the TV. Record it below should you ever need service.

MODEL

SERIAL

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http:// opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail].

This offer is valid for three (3) years from the date on which you purchased the product.
