USER MANUAL AE050JXYDEH SAMSUNG

Pure electrical circuit lines without any symbols

Model : AE***JXYDEH/EU

AE***JXYDGH/EU

I. Products

1. Nomenclature
2. Line-up

II. Specifications

1. Specification
2. Capacity Tables

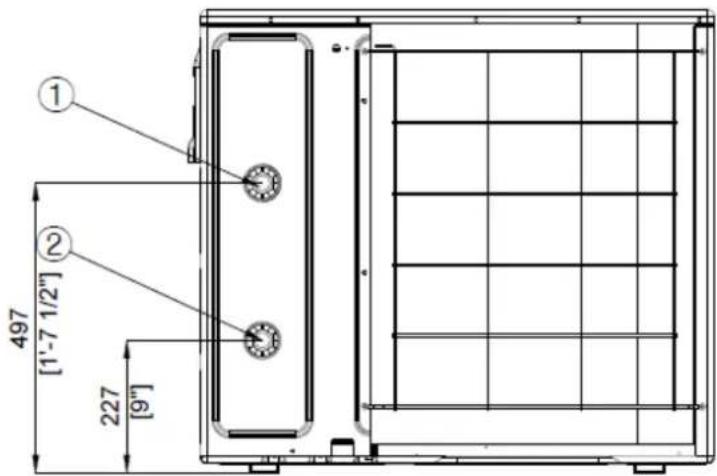

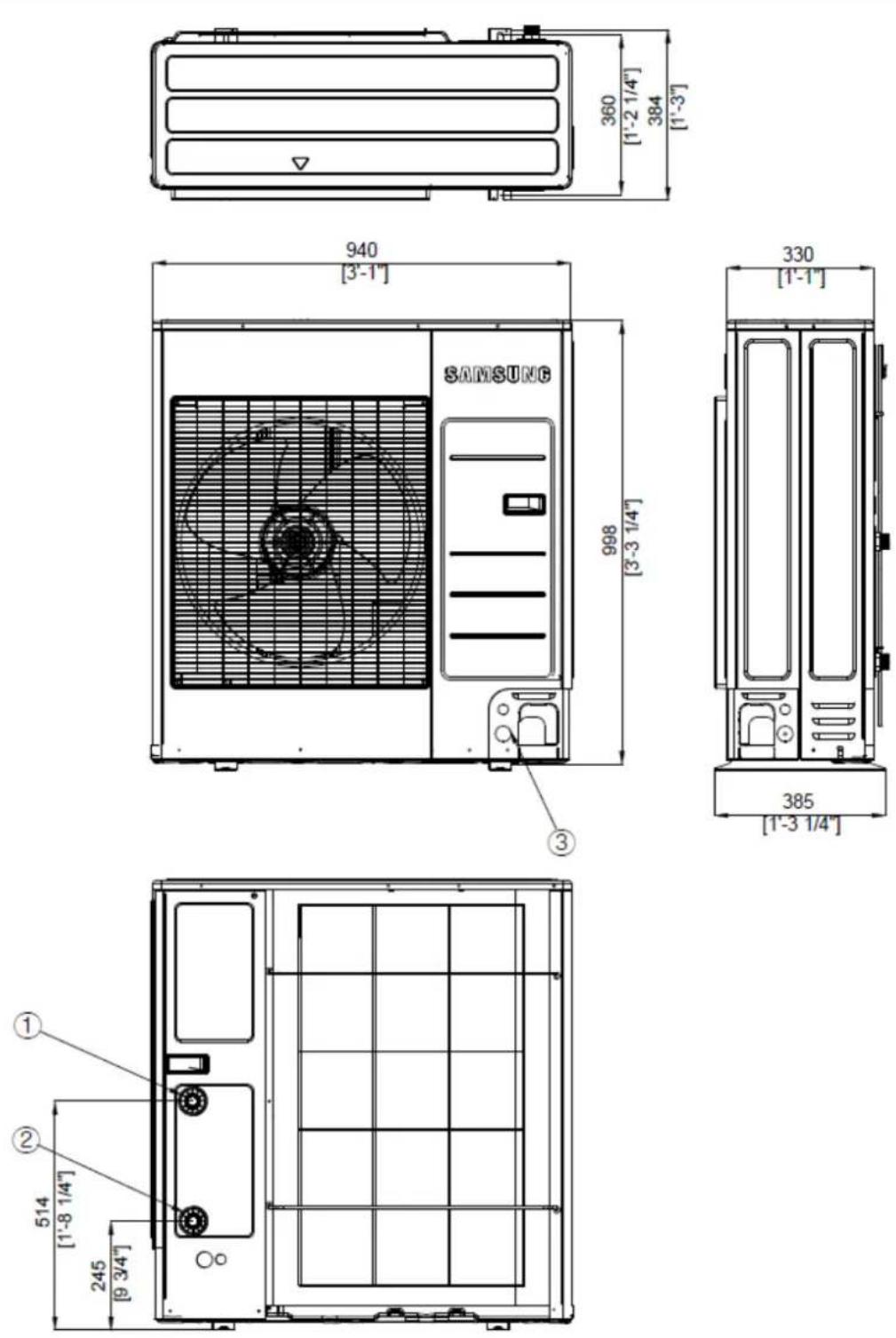

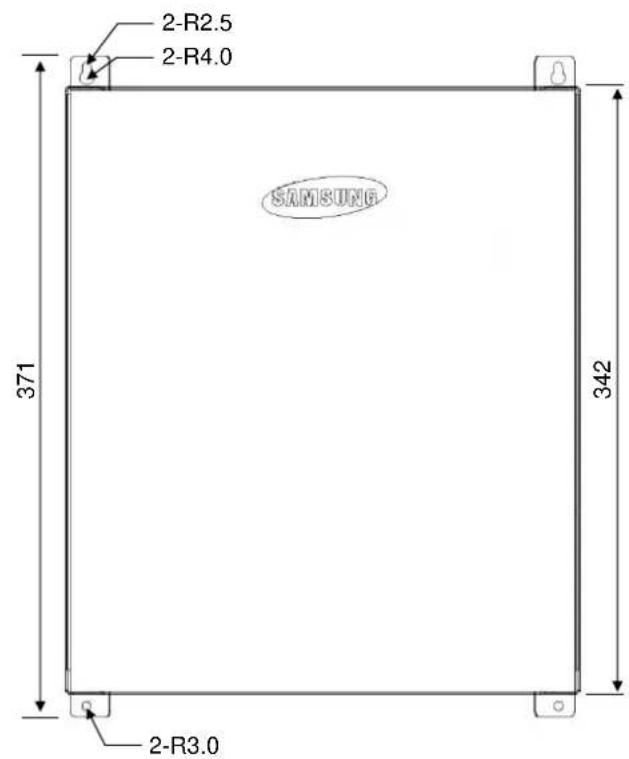

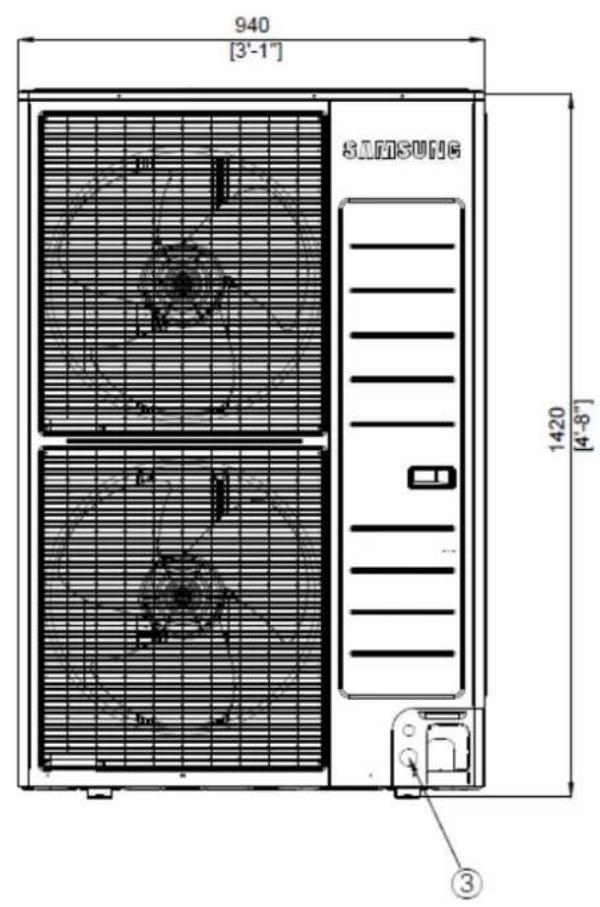

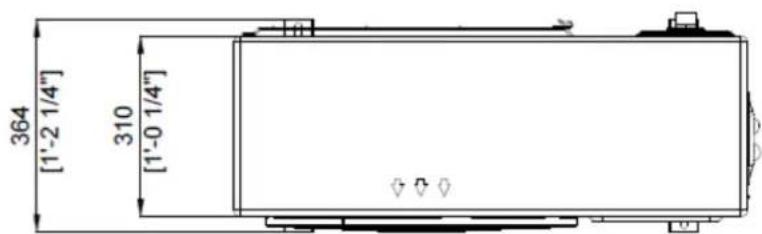

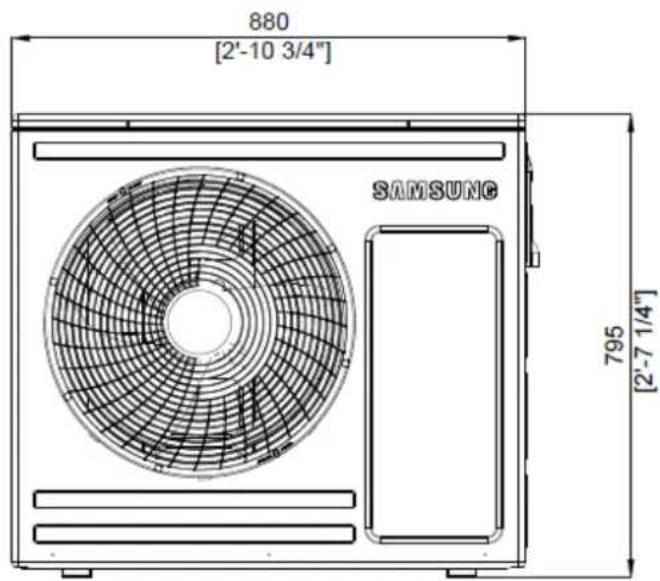

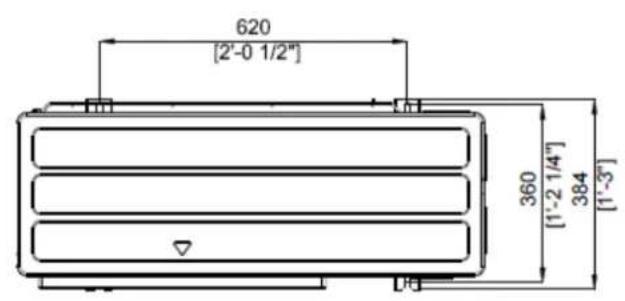

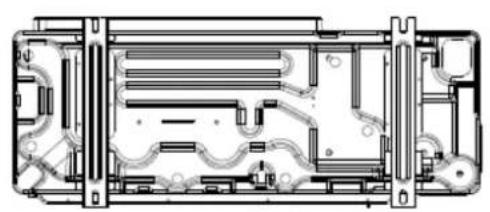

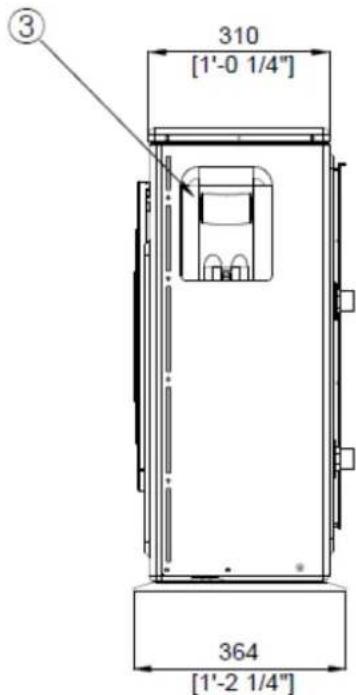

3. Dimensional Drawings

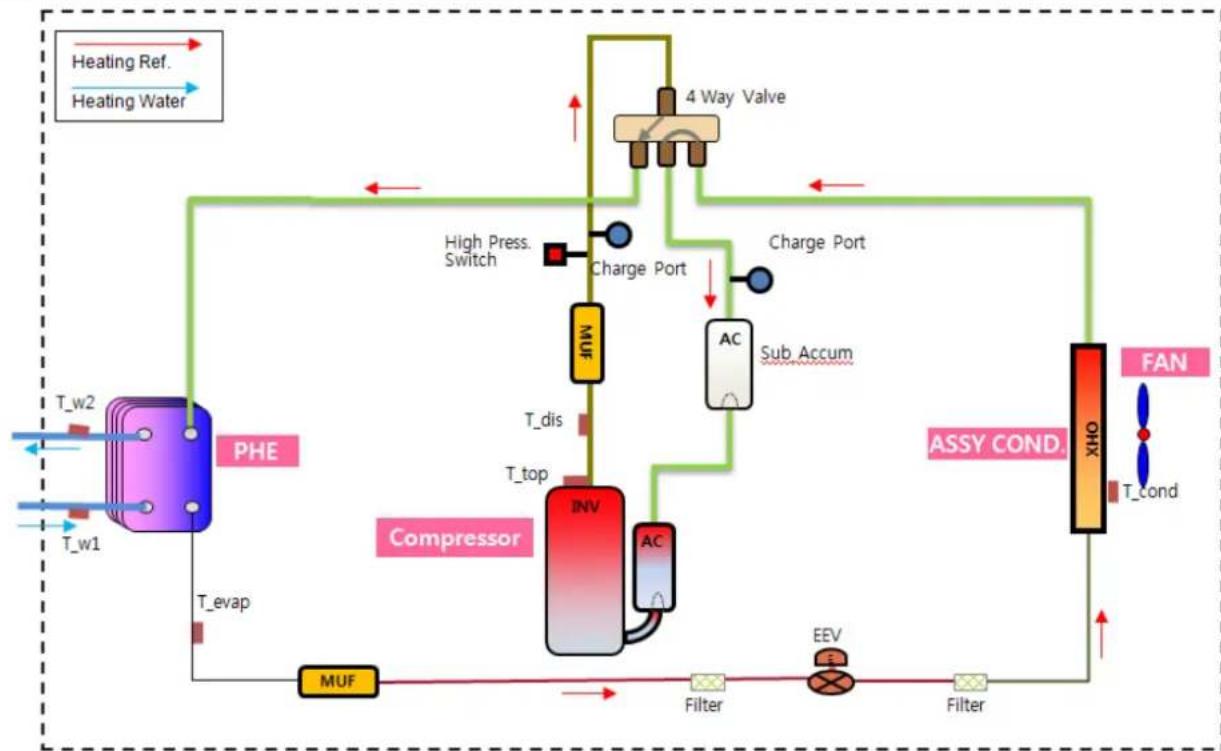

4. Piping Diagrams

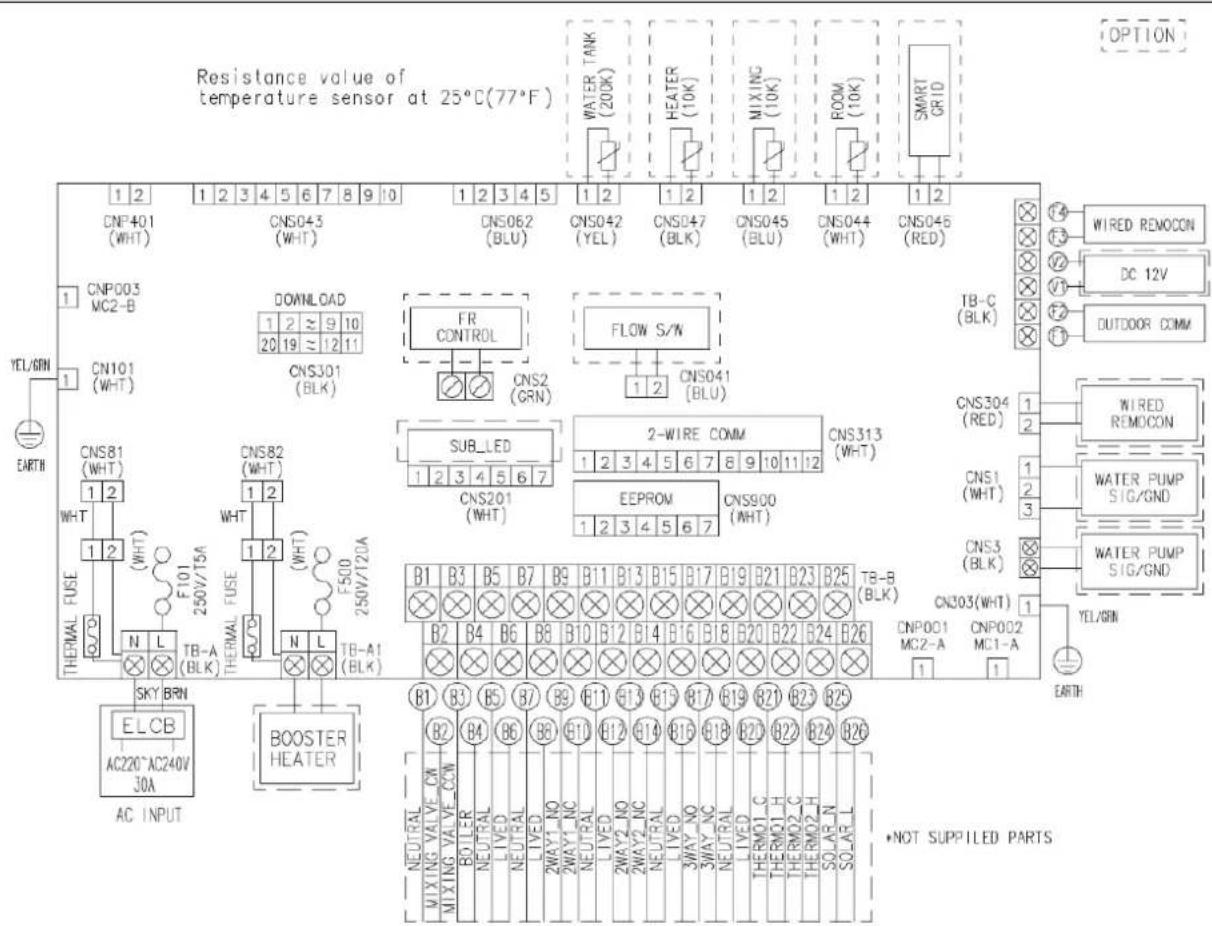

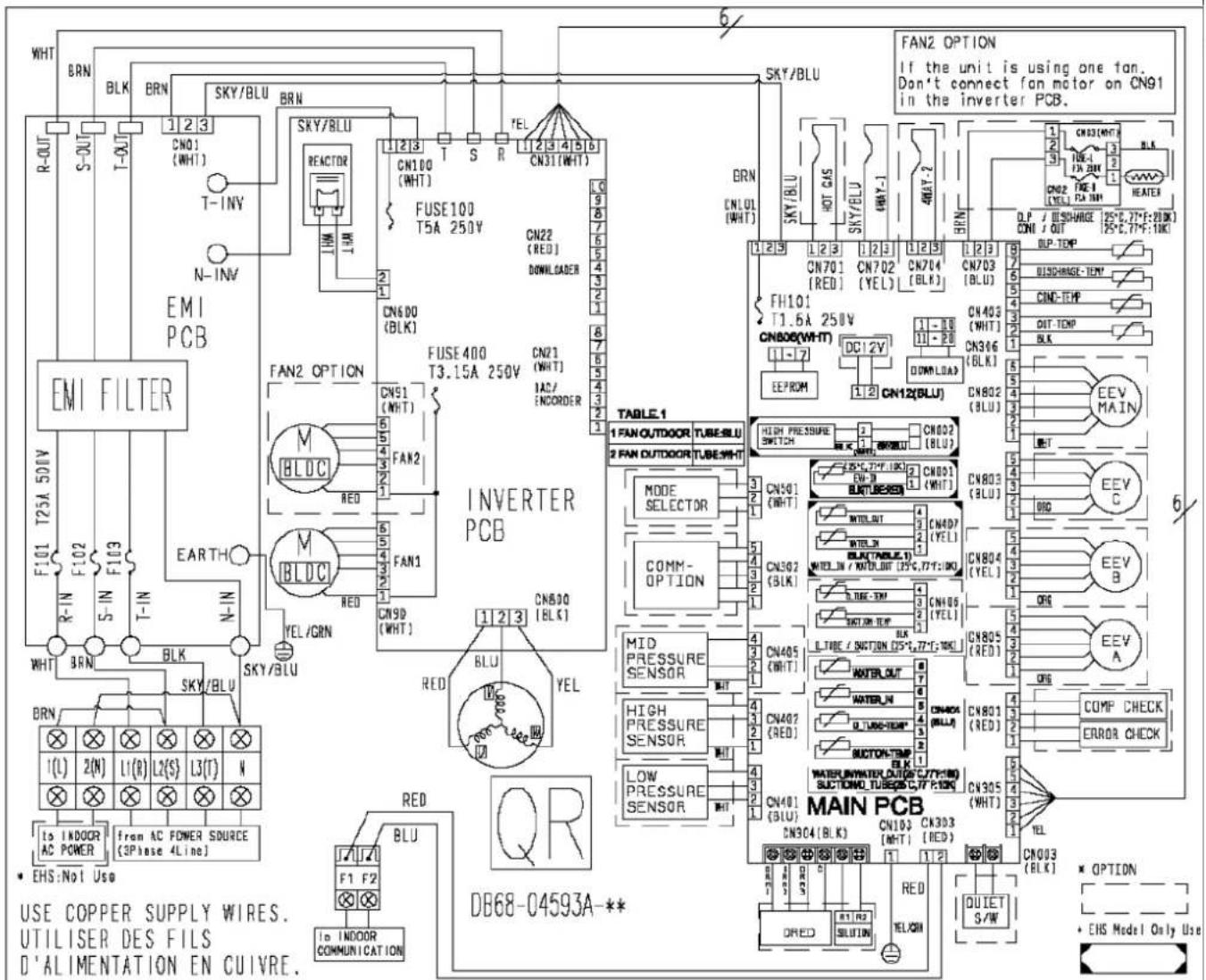

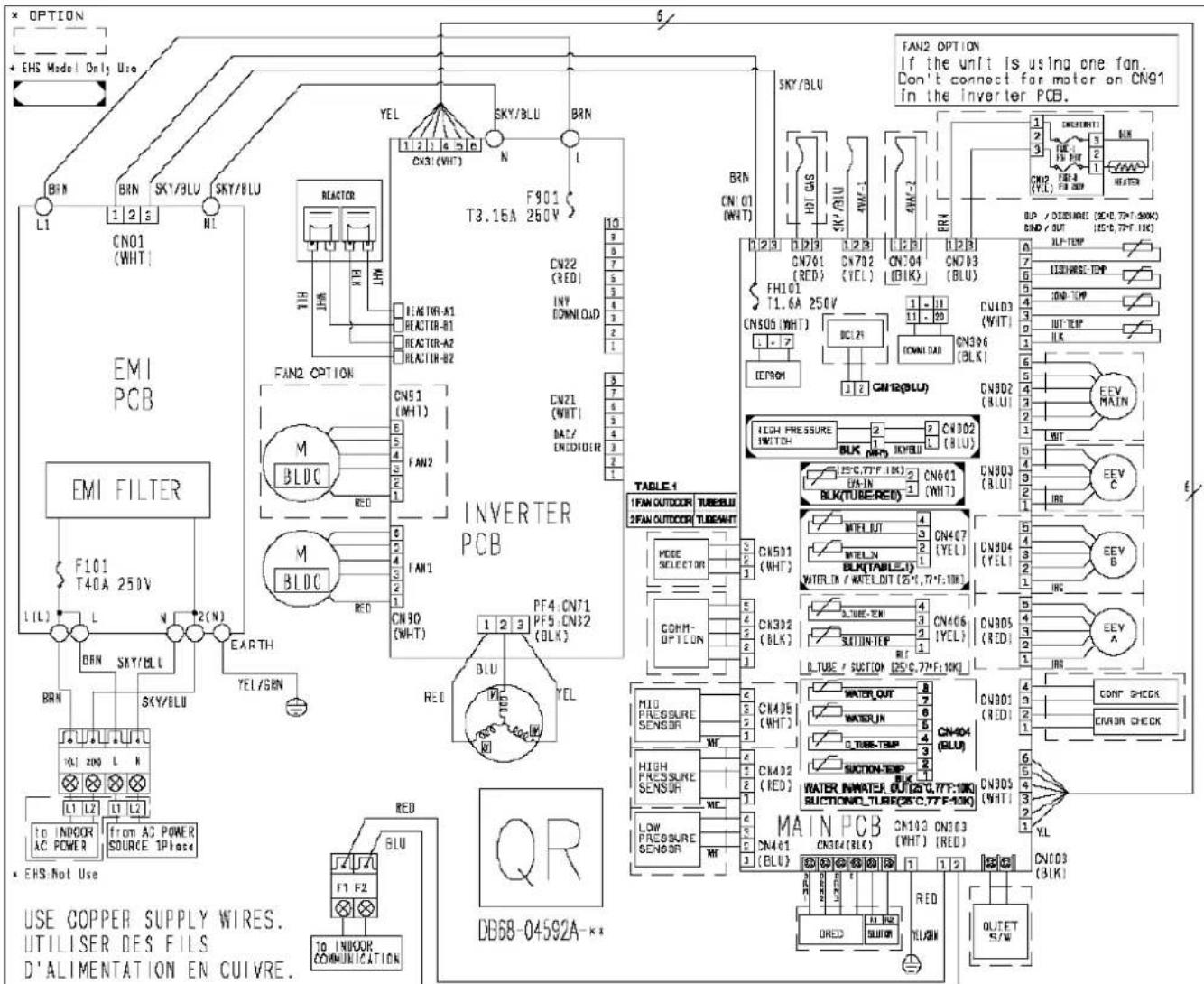

5. Wiring Diagrams
6. Electric Specifications

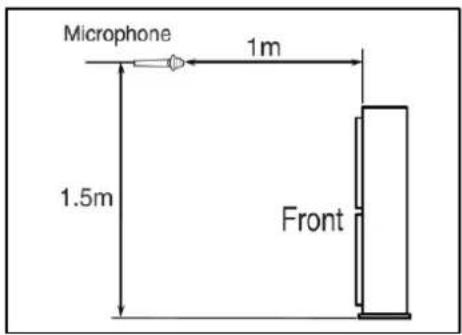

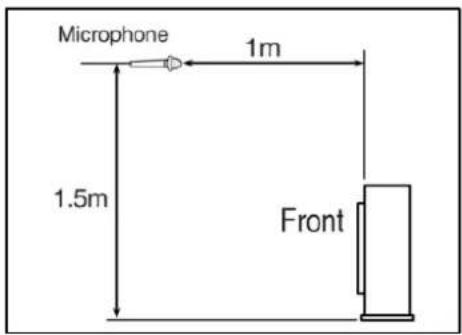

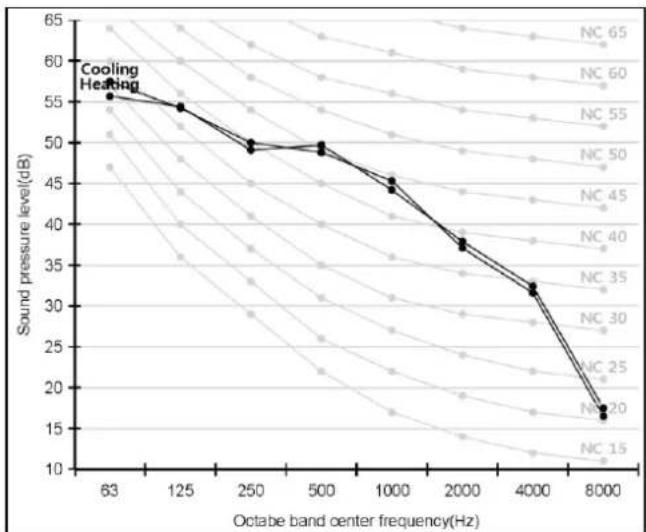

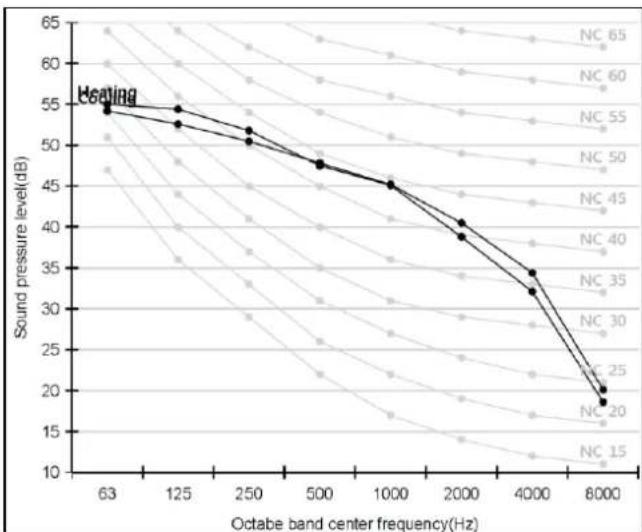

7. Sound Pressure Level
8. Operation Range

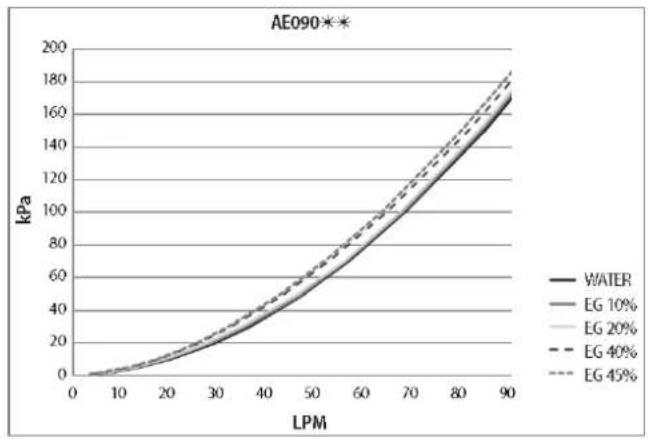

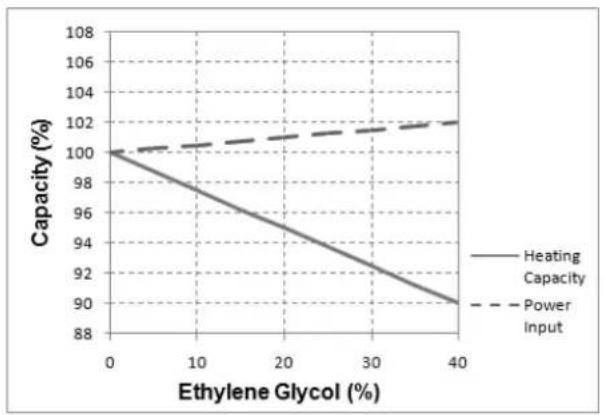

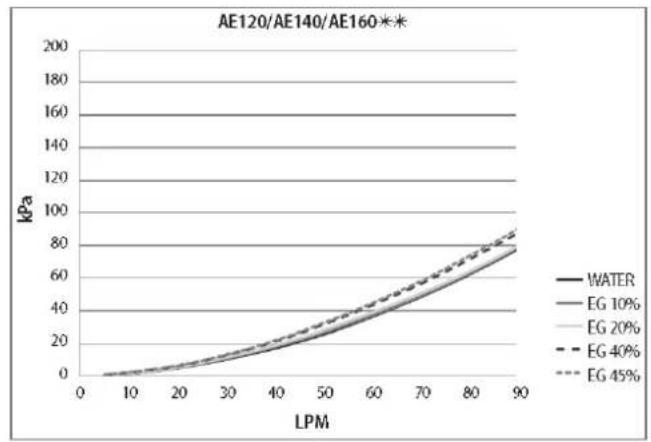

9. Hydraulic Performance

III. Application

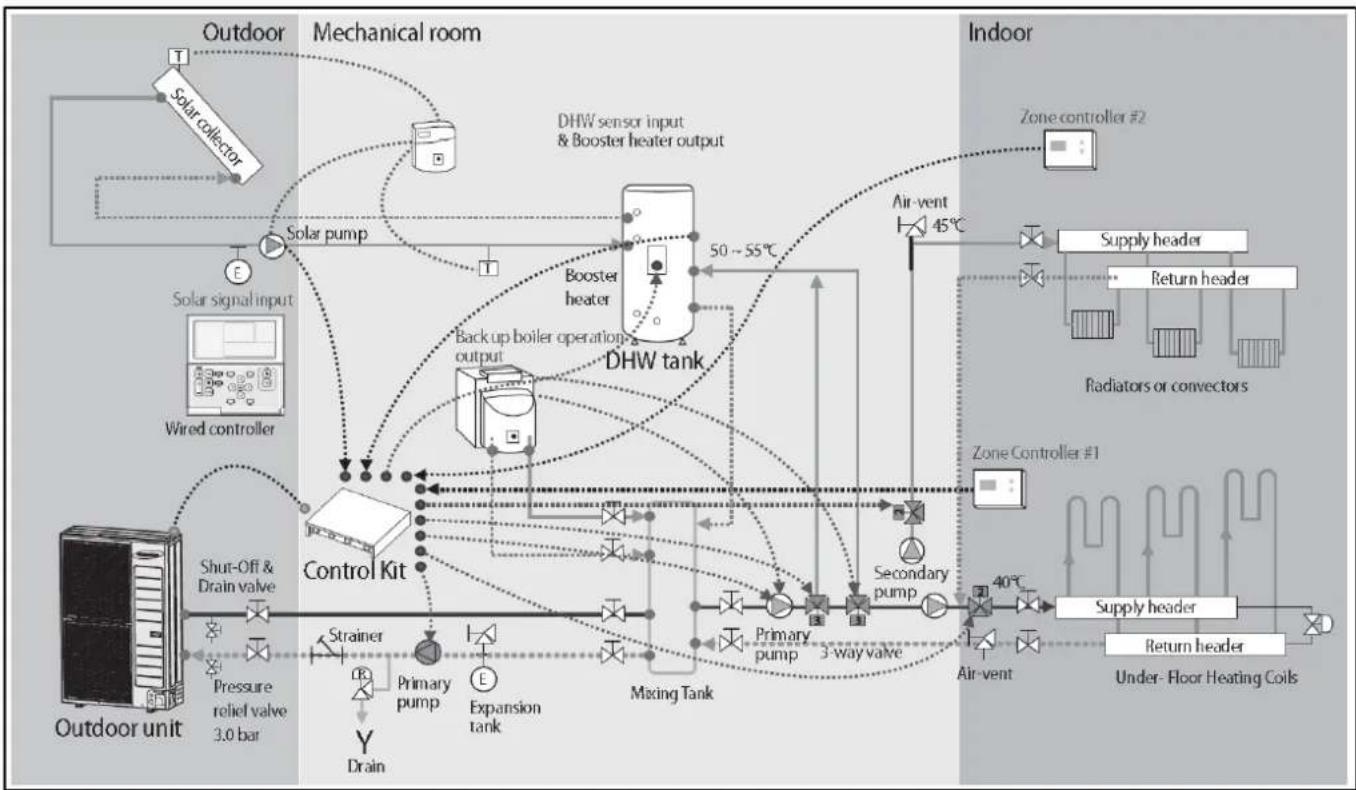

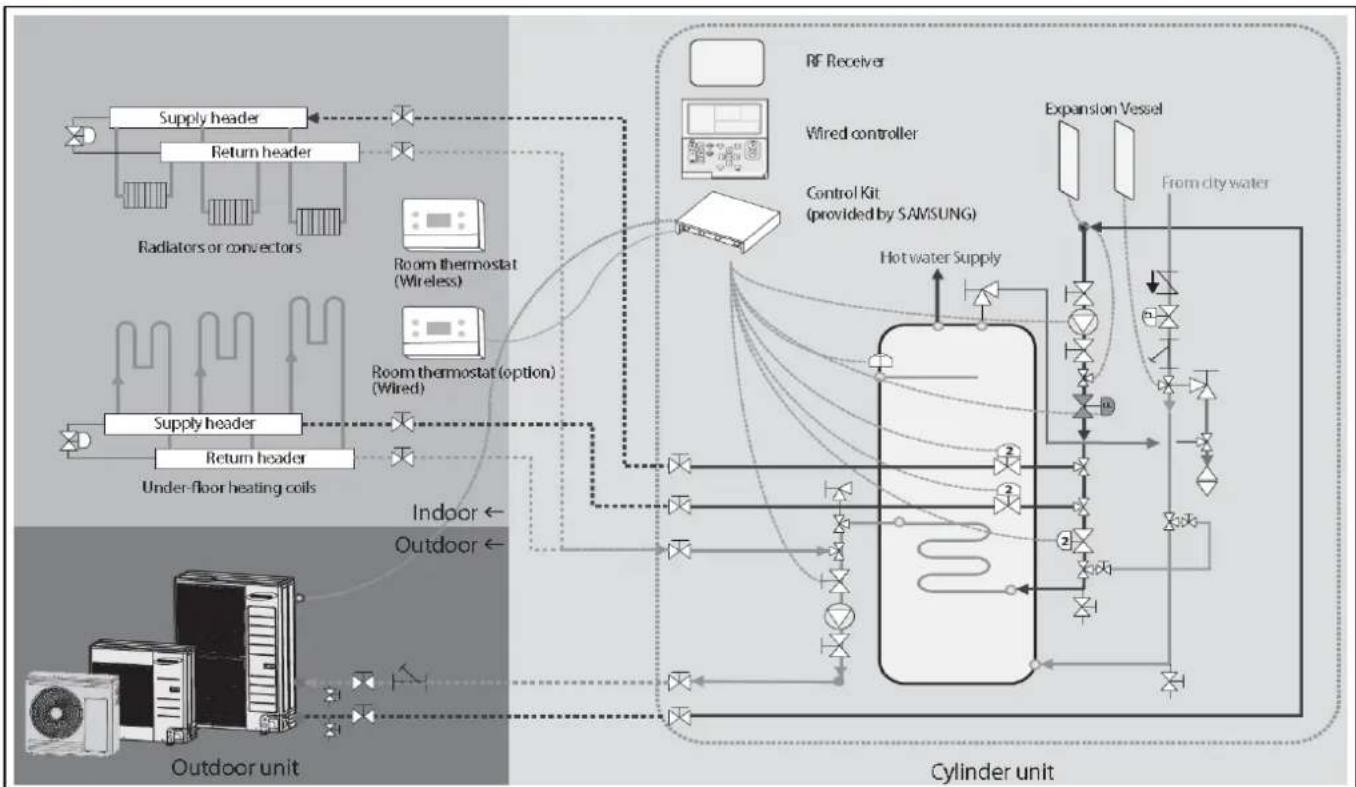

1. Application Example

I. Products

1. Nomenclature
2. Line-up

1. Nomenclature

1-1. Outdoor Unit

Model Name (New)

AE 90 / (1) (2) (3) (4) (5) (6) X Y D E H (Buyer) (8)

(1) Classification

AE EHS

(2) Capacity

x 1/10 kW (3 digits)

(3) Version

J 2015

(4) Product Type

N Indoor

X Outdoor

(5) Type
Y Mono (Outdoor Unit)
(6) Feature 1
D DELUXE (Basic)
(7) Rating Voltage
E	1Φ, 220~240V, 50Hz
G 3Φ, 380~415V, 50Hz
(8) Mode
H Heat Pump		R410A

2. Line-up

2-1. Outdoor Unit

Mono Type	Capacity (kW)
	5.0 9.0 12.0 14.0 16.0
1 Phase	AE050JXYDEH	AE090JXYDEH	AE120JXYDEH	AE140JXYDEH	AE160JXYDEH
3 Phases	N/A	AE090JXYDGH	AE120JXYDGH	AE140JXYDGH	AE160JXYDGH

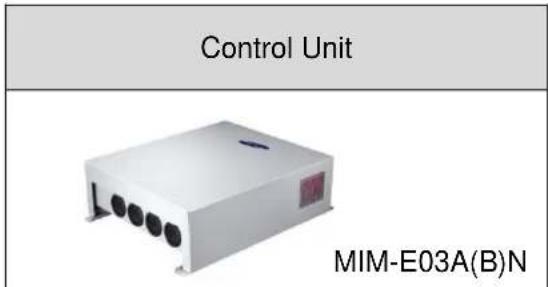

2-2. Control Kit

Control Unit MIM-E03A(B)N

II. Specifications

1. Specifications
2. Capacity Tables
3. Dimensional Drawings
4. Piping Diagrams
5. Wiring Diagrams
6. Electric Specifications
7. Sound Pressure Level
8. Operation Range
9. Hydraulic Performance

1. Specifications

1-1. Outdoor Unit

Type Mono Mono Mono
Model Name Outdoor Unit AE050JXYDEH/EU AE090JXYDEH/EU AE120JXYDEH/EU
System	Mode - Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W)
	Performance (A7/W35)*1	Nominal Capacity (Min/Std/Max)	Heating	kW	1.667 / 5.00 / 5.00	2.20 / 9.00 / 9.00	3.75 / 12.00 / 12.00
				Btu/h	5,700 / 17,100 / 17,100	7,500 / 30,700 / 30,700	12,800 / 40,900 / 40,900
			Cooling	kW	1.625 / 5.00 / 5.00	1.75 / 7.50 / 7.50	3.30 / 12.00 / 12.00
				Btu/h	5,500 / 17,100 / 17,100	6,000 / 25,600 / 25,600	11,300 / 40,900 / 40,900
		Power Input (Nominal) (Min/Std/Max)	Heating	kW	0.348 / 1.06 / 1.06	0.49 / 2.14 / 2.14	0.809 / 2.66 / 2.66
			Cooling		0.438 / 1.21 / 1.21	0.48 / 1.95 / 1.95	0.853 / 3.16 / 3.16
		Current Input (Nominal) (Min/Std/Max)	Heating	A	1.6 / 5.1 / 5.1	2.3 / 9.2 / 9.2	3.7 / 12.0 / 12.0
			Cooling		2.0 / 5.7 / 5.7	2.2 / 9.0 / 9.0	3.9 / 14.3 / 14.3
		COP (Nominal Heating)			4,72	4.21	4.51
		EER (Nominal Cooling)			4,13	3.85	3.80
		SCOP(35°C)			4.50	4.41	4.46
		ESEER			5.29	5.07	4.98
	Performance (A2/W35)*2	Capacity	Heating	W	4,500 7,000	9,800
		COP			3.46	3.00	3.32
	Performance (A-7/W35)*3	Capacity	Heating	W	4,700 7,600	10,300
		COP			2.69	2.39	2.61
	Field Wiring	MCA		A	20	22	28
		MFA		A	25	27.5	35
	Water Connections	Water Flow Rate (Heating/Cooling)		LPM	14.5/14.5	26/22 35/35
		Water Pressure (Max)		bar	3	3	3
		Water Pipe	Inlet	Φ, inch	BSPP male 1"	BSPP male 1"	BSPP male 1"
			Outlet	Φ, inch	BSPP male 1"	BSPP male 1"	BSPP male 1"
		Leaving Water Temperature	Heating	°C	25~55	25~55 25~55
			Cooling	°C	5~25	5~25	5~25
	Refrigerant	Type			R410A	R410A	R410A
		Control Method			EEV INCLUDED	EEV INCLUDED	EEV INCLUDED
		Factory Charging		g	1,150 1,400	2,600
Outdoor Unit	Power Supply			V, Hz, Φ	220~240V, 50Hz, 1Φ	220~240V, 50Hz, 1Φ	220~240V, 50Hz, 1Φ
	Compressor	Type			BLDC Twin Rotary	BLDC Twin Rotary	BLDC Twin Rotary
		Model			UG4TH200FUAE4	UG8TH8265FJW	UG5T450FU
		Oil			POE POE	PVE
	Fan	Air Flow Rate	Cooling	CMM	51	66	99
				I/s	850	1100	1650
		Number of Unit		EA	1	1	2
	Base Heater			W	N/A	150	150
	Sound*4	Sound Pressure	Heating	dB(A)	45	48	50
			Cooling	dB(A)	45	48	50
		Sound Power	Heating	dB	61	63	64
			Cooling	dB	62	64	65
	External Dimension	Net Weight		kg	59.0	76.0	108.0
		Shipping Weight		kg	63.0	84.0	118.0
		Net Dimensions (WxHxD)		mm	880 x 798 x 310	940 x 998 x 330	940 x 1,420 x 330
		Shipping Dimensions (WxHxD)		mm	1023 x 937 x 413	995 x 1,178 x 426	995 x 1,598 x 426
	Operating Temp. Range	Heating*5		°C	-25~35	-25~35	-25~35
		Cooling		°C	10~46	10~46 10~46
		DHW Tank*6		°C	-25~43	-25~43	-25~43

*1) A2W Condition #1 : (Heating) Water In/Out 30°C/35°C, Outdoor Air DB/WB 7°C/6°C; (Cooling) Water In/Out 23°C/18°C, Outdoor Air DB 35°C.
*2) A2W Condition #2 : (Heating) Water In/Out */35°C, Outdoor Air DB/WB 2°C/1°C
*3) A2W Condition #3 : (Heating) Water In/Out */35°C, Outdoor Air DB/WB -7°C/-8°C
*4) Sound Pressure was acquired in an anechoic room. Thus actual noise level may be different depending on the installation conditions.
*5) At the temperature -25^ -20^ , operation is available but capacity cannot be guaranteed.
*6) Heat pump operating range of DHW : -25°C \~ 35°C.
7) These products contain R410A which is fluorinated greenhouse gas.

1. Specifications

1-1. Outdoor Unit

Type Mono Mono Mono
Model Name Outdoor Unit AE140JXYDEH/EU AE160JXYDEH/EU AE090JXYDGH/EU
System	Mode - Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W)
	Performance (A7/W35)*1	Nominal Capacity (Min/Std/Max)	Heating	kW	3.75 / 14.00 / 14.00	3.75 / 16.00 / 16.00	2.20 / 9.00 / 9.00
				Btu/h	12,800 / 47,800 / 47,800	12,800 / 54,600 / 54,600	7,500 / 30,700 / 30,700
			Cooling	kW	3.30 / 13.00 / 13.00	3.30 / 14.00 / 14.00	1.75 / 7.00 / 7.00
				Btu/h	11,300 / 44,400 / 44,400	11,300 / 47,800 / 47,800	6,000 / 23,900 / 23,900
		Power Input (Nominal) (Min/Std/Max)	Heating	kW	0.809 / 3.14 / 3.14	0.809 / 3.80 / 3.80	0.49 / 2.14 / 2.14
			Cooling		0.853 / 3.50 / 3.50	0.853 / 3.84 / 3.84	0.48 / 1.92 / 1.92
		Current Input (Nominal) (Min/Std/Max)	Heating	A	3.7 / 14.3 / 14.3	3.7 / 17.1 / 17.1	0.8 / 3.5 / 3.5
			Cooling		3.9 / 15.7 / 15.7	3.9 / 17.3 / 17.3	0.8 / 3.2 / 3.2
		COP (Nominal Heating)			4.46	4.21	4.21
		EER (Nominal Cooling)			3.71	3.65	3.65
		SCOP(35°C)			4.43	4.41	4.41
		ESEER			4.97	4.92	4.69
	Performance (A2/W35)*2	Capacity	Heating	W	11,200	12,500	7,000
		COP			3.26	3.10	3.00
	Performance (A-7/W35)*3	Capacity	Heating	W	10,800	13,400	7,600
		COP			2.56	2.47	2.39
	Field Wiring	MCA		A	30	32	10
		MFA		A	37.5	40	16.1
	Water Connections	Water Flow Rate (Heating/Cooling)		LPM	40/37 46/40 26/21
		Water Pressure (Max)		bar	3	3	3
		Water Pipe	Inlet	Φ, inch	BSPP male 1"	BSPP male 1"	BSPP male 1"
			Outlet	Φ, inch	BSPP male 1"	BSPP male 1"	BSPP male 1"
		Leaving Water Temperature	Heating	°C	25~55	25~55 25~55
			Cooling	°C	5~25	5~25	5~25
	Refrigerant	Type			R410A	R410A	R410A
		Control Method			EEV INCLUDED	EEV INCLUDED	EEV INCLUDED
		Factory Charging		g	2,600	2,600	1,500
Outdoor Unit	Power Supply			V, Hz, Φ	220~240V, 50Hz, 1Φ	220~240V, 50Hz, 1Φ	380~415V, 50Hz, 3Φ
	Compressor	Type			BLDC Twin Rotary	BLDC Twin Rotary	BLDC Twin Rotary
		Model			UG5T450FU	UG5T450FU	UG8T300FUCJU
		Oil			PVE	PVE	PVE
	Fan	Air Flow Rate	Cooling	CMM	108	118	66
				I/s	1800	1967	1100
		Number of Unit		EA	2	2	1
	Base Heater			W	150	150	150
	Sound*4	Sound Pressure	Heating	dB(A)	51	52	48
			Cooling	dB(A)	52	54	48
		Sound Power	Heating	dB	65	66	63
			Cooling	dB	66	69	64
	External Dimension	Net Weight		kg	108.0 108.0	76.0
		Shipping Weight		kg	118.0	118.0	84.0
		Net Dimensions (WxHxD)		mm	940 x 1,420 x 330	940 x 1,420 x 330	940 x 998 x 330
		Shipping Dimensions (WxHxD)		mm	995 x 1,598 x 426	995 x 1,598 x 426	995 x 1,178 x 426
	Operating Temp. Range	Heating*5		°C	-25~35	-25~35	-25~35
		Cooling		°C	10~46	10~46 10~46
		DHW Tank*6		°C	-25~43	-25~43	-25~43

*1) A2W Condition #1 : (Heating) Water In/Out 30°C/35°C, Outdoor Air DB/WB 7°C/6°C; (Cooling) Water In/Out 23°C/18°C, Outdoor Air DB 35°C.
*2) A2W Condition #2 : (Heating) Water In/Out */35°C, Outdoor Air DB/WB 2°C/1°C
*3) A2W Condition #3 : (Heating) Water In/Out */35°C, Outdoor Air DB/WB -7°C/-8°C
*4) Sound Pressure was acquired in an anechoic room. Thus actual noise level may be different depending on the installation conditions.
*5) At the temperature -25^ -20^ , operation is available but capacity cannot be guaranteed.
*6) Heat pump operating range of DHW : -25°C \~ 35°C.
7) These products contain R410A which is fluorinated greenhouse gas.

1. Specifications

1-1. Outdoor Unit

Type Mono Mono Mono
Model Name Outdoor Unit AE120JXYDGH/EU AE140JXYDGH/EU AE160JXYDGH/EU
System	Mode - Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W)
	Performance (A7/W35)*1	Nominal Capacity (Min/Std/Max)	Heating	kW	3.75 / 12.00 / 12.00	3.75 / 14.00 / 14.00	3.75 / 16.00 / 16.00
				Btu/h	12,800 / 40,900 / 40,900	12,800 / 47,800 / 47,800	12,800 / 54,600 / 54,600
			Cooling	kW	3.30 / 12.00 / 12.00	3.30 / 13.00 / 13.00	3.30 / 14.00 / 14.00
				Btu/h	11,300 / 40,900 / 40,900	11,300 / 44,400 / 44,400	11,300 / 47,800 / 47,800
		Power Input (Nominal) (Min/Std/Max)	Heating	kW	0.809 / 2.66 / 2.66	0.809 / 3.14 / 3.14	0.809 / 3.80 / 3.80
			Cooling		0.853 / 3.16 / 3.16	0.853 / 3.50 / 3.50	0.853 / 3.84 / 3.84
		Current Input (Nominal) (Min/Std/Max)	Heating	A	1.3 / 4.2 / 4.2 1.3 /	4.8 / 4.8 1.3 / 5.7 / 5.7
			Cooling		1.3 / 5.2 / 5.2 1.3 /	5.3 / 5.3 1.3 / 5.8 / 5.8
		COP (Nominal Heating) 4.51			4.46	4.21
		EER (Nominal Cooling)			3.80	3.71	3.65
		SCOP(35°C)			4.46	4.43	4.41
		ESEER			4.98	4.97	4.92
	Performance (A2/W35)*2	Capacity	Heating	W	9,800	11,200	12,500
		COP			3.32	3.26	3.10
	Performance (A-7/W35)*3	Capacity	Heating	W	10,300	10,800	13,400
		COP			2.61	2.56	2.47
	Field Wiring	MCA		A	10	12	12
		MFA		A	16.1	16.1	16.1
	Water Connections	Water Flow Rate (Heating/Cooling)		LPM	35/35 40/37 46/40
		Water Pressure (Max)		bar	3	3	3
		Water Pipe	Inlet	Φ, inch	BSPP male 1"	BSPP male 1"	BSPP male 1"
			Outlet	Φ, inch	BSPP male 1"	BSPP male 1"	BSPP male 1"
		Leaving Water Temperature	Heating	°C	25~55	25~55	25~55
			Cooling	°C	5~25	5~25	5~25
	Refrigerant	Type			R410A	R410A	R410A
		Control Method			EEV INCLUDED	EEV INCLUDED	EEV INCLUDED
		Factory Charging		g	2,600	2,600	2,600
Outdoor Unit	Power Supply			V, Hz, Φ	380~415V, 50Hz, 3Φ	380~415V, 50Hz, 3Φ	380~415V, 50Hz, 3Φ
	Compressor	Type			BLDC Twin Rotary	BLDC Twin Rotary	BLDC Twin Rotary
		Model			UG5T450FU	UG5T450FU	UG5T450FU
		Oil			PVE	PVE	PVE
	Fan	Air Flow Rate	Cooling	CMM	99	108	118
				I/s	1650	1800	1967
		Number of Unit		EA	2	2	2
	Base Heater			W	150	150	150
	Sound*4	Sound Pressure	Heating	dB(A)	50	51	52
			Cooling	dB(A)	50	52	54
		Sound Power	Heating	dB	64	65	66
			Cooling	dB	65	66	69
	External Dimension	Net Weight		kg	108.0 108.0 108.0
		Shipping Weight		kg	118.0 118.0 118.0
		Net Dimensions (WxHxD)		mm	940 x 1,420 x 330	940 x 1,420 x 330	940 x 1,420 x 330
		Shipping Dimensions (WxHxD)		mm	995 x 1,598 x 426	995 x 1,598 x 426	995 x 1,598 x 426
	Operating Temp. Range	Heating*5		°C	-25~35	-25~35	-25~35
		Cooling		°C	10~46	10~46	10~46
		DHW Tank*6		°C	-25~43	-25~43	-25~43

*1) A2W Condition #1 : (Heating) Water In/Out 30°C/35°C, Outdoor Air DB/WB 7°C/6°C; (Cooling) Water In/Out 23°C/18°C, Outdoor Air DB 35°C.
*2) A2W Condition #2 : (Heating) Water In/Out */35°C, Outdoor Air DB/WB 2°C/1°C
*3) A2W Condition #3 : (Heating) Water In/Out */35°C, Outdoor Air DB/WB -7°C/-8°C
*4) Sound Pressure was acquired in an anechoic room. Thus actual noise level may be different depending on the installation conditions.
*5) At the temperature -25^ -20^ , operation is available but capacity cannot be guaranteed.
*6) Heat pump operating range of DHW : -25°C \~ 35°C.
7) These products contain R410A which is fluorinated greenhouse gas.

1. Specifications

1-2. Control Kit

Model Name MIM-E03AN					MIM-E03BN
Use with			-	090/120/140/160 Model	050 Model
Power Supply V, Hz, Φ				220~240V, 50Hz, 1Φ	220~240V, 50Hz, 1Φ
External Dimension	Weight	Net kg		3.5	3.5
		Gross kg		6.0	6.0
	Dimensions (WxHxD)	Net mm		370x110x290 370x110x290
		Gross mm		439x168x329 439x168x329
Flow Switch	Set Point (Min. flow rates) LPM			16±1.5 7	±1.5
External Control	Booster Heater AC 230V (Max 20A) AC 230V (Max 20A)
	Back up Heater (/Boiler) AC 230V (Max 0.5A) AC 230V (Max 0.5A)
	Water Pump			AC 230V (Max 2A)	AC 230V (Max 2A)
	2way(or 3way) Valve			AC 230V (Max 0.5A / 120W)	AC 230V (Max 0.5A / 120W)
	Room Thermostat			AC 230V (Max 10mA)	AC 230V (Max 10mA)
	Solar Pump			AC 230V (Max 10mA)	AC 230V (Max 10mA)
	Inverter Pump			AC 230V (Max 2A) (NEW)	AC 230V (Max 2A)
	3way Mixing Valve			AC 230V (Max 0.5A / 120W) (NEW)	AC 230V (Max 0.5A / 120W)

2. Capacity Tables

2-1. AE050/090/120/140/160JXYDEH/EU (1 Phase)

1) Maximum Heating Capacity (Peak Value)

LWT (Leaving Water Temp.), Tamb (Ambient Temp.), HC (Heating Capacity), PI (Power input)

AE050JXYDEH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)
	-20	3.57	1.47	3.40	1.65	3.38	1.75	3.36	2.06
	-15	4.52	1.69	4.30	1.90	4.13	2.00	3.95	2.10	3.83	2.21
	-10	5.25	1.78	5.00	2.00	4.85	2.10	4.70	2.21	4.56	2.32	4.23	2.54
	-7	5.14	1.62	4.90	1.82	4.79	2.06	4.69	2.29	4.79	2.50	4.90	2.71
	-2	5.49	1.54	5.23	1.73	5.03	1.90	4.83	2.07	4.59	2.33	4.35	2.59
	2	5.49	1.35	5.23	1.51	4.94	1.60	4.65	1.69	4.42	1.90	4.19	2.11
	7	5.25	0.94	5.00	1.06	4.85	1.21	4.70	1.35	4.60	1.48	4.50	1.60
	10	5.73	0.95	5.46	1.07	5.32	1.22	5.18	1.36	4.93	1.53	4.67	1.70
	15	6.54	0.97	6.23	1.08	6.11	1.21	5.99	1.38	5.69	1.55	5.39	1.73
	20	7.35	0.98	7.00	1.10	6.90	1.24	6.80	1.40	6.46	1.58	6.12	1.75
AE090JXYDEH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)	PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)
	-20	6.30	2.67	6.00	3.00	5.85	3.20	5.70	3.53
	-15	7.46	2.85	7.10	3.20	6.90	3.40	6.70	3.60	6.50	3.78
	-10	9.03	3.03	8.60	3.40	8.34	3.59	8.08	3.78	7.84	3.97	7.28	4.35
	-7	8.31	2.95	7.92	3.31	7.68	3.48	7.45	3.65	6.80	3.75	6.15	3.85
	-2	8.71	2.79	8.30	3.13	8.03	3.30	7.76	3.47	7.37	3.90	6.98	4.33
	2	8.55	2.41	8.14	2.71	7.85	2.87	7.56	3.02	7.18	3.40	6.80	3.78
	7	9.45	1.90	9.00	2.14	8.55	2.27	8.10	2.39	8.05	2.68	8.00	2.96
	10	10.38	1.90	9.89	2.14	9.47	2.29	9.06	2.44	8.61	2.75	8.15	3.05
	15	11.93	1.89	11.36	2.13	11.01	2.29	10.66	2.53	10.13	2.85	9.59	3.16
	20	13.48	1.89	12.84	2.12	12.55	2.35	12.26	2.62	11.65	2.95	11.03	3.27
AE120JXYDEH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW) H C(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)
	-20	9.82	4.09	9.35	4.60	8.93	4.90	8.50	5.29
	-15	11.13	4.27	10.60	4.80	10.30	5.10	10.00	5.40	9.70	5.67
	-10	12.39	4.09	11.80	4.60	11.45	5.14	11.09	5.67	10.76	5.95	9.98	6.52
	-7	11.27	3.66	10.73	4.11	10.26	4.52	9.78	4.93	9.30	5.33	8.82	5.74
	-2	11.99	3.49	11.42	3.92	11.22	4.38	11.02	4.85	10.47	5.45	9.92	6.06
	2	11.97	3.05	11.40	3.43	11.51	3.92	11.63	4.42	11.05	4.97	10.47	5.52
	7	12.60	2.37	12.00	2.66	11.70	3.06	11.40	3.45	10.95	3.68	10.50	3.90
	10	13.91	2.35	13.25	2.64	12.89	3.02	12.54	3.40	11.91	3.83	11.28	4.25
	15	16.09	2.31	15.32	2.60	14.88	2.92	14.43	3.33	13.71	3.74	12.98	4.16
	20	18.27	2.28	17.40	2.56	16.86	2.88	16.32	3.25	15.50	3.66	14.69	4.06
AE140JXYDEH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)H C(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)
	-20	10.13	4.36	9.65	4.90	9.33	5.20	9.01	5.59
	-15	11.76	4.54	11.20	5.10	10.90	5.40	10.60	5.70	10.28	5.99
	-10	13.44	4.63	12.80	5.20	12.42	5.59	12.03	5.99	11.67	6.28	10.83	6.88
	-7	11.81	3.91	11.25	4.40	11.20	5.14	11.15	5.89	10.78	6.02	10.42	6.15
	-2	13.13	3.87	12.50	4.35	12.46	5.06	12.41	5.77	11.79	6.49	11.17	7.21
	2	13.67	3.56	13.02	4.00	12.99	4.62	12.97	5.23	12.32	5.89	11.67	6.54
	7	14.70	2.79	14.00	3.14	13.50	3.55	13.00	3.95	12.63	4.20	12.25	4.45
	10	15.67	2.79	14.92	3.13	14.42	3.52	13.92	3.90	13.23	4.39	12.53	4.87
	15	17.28	2.77	16.46	3.12	15.96	3.41	15.46	3.81	14.69	4.29	13.92	4.77
	20	18.90	2.76	18.00	3.10	17.50	3.38	17.00	3.73	16.15	4.20	15.30	4.66
AE160JXYDEH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW) P I(kW)				PI(kW)				PI(kW)
	-20 11 87 5.30 11.30 5.95 10.75 6.25 10.20 6.76 -7 15 13 65 5.61 13 00 6.30 12 50 6 13 00 6 30 13 00 6 30 13 00 6 30 13 00 6 30 13 00 6 30 13 00 6 30 13 00 6 30 13 00 6 30 13 00 6 30 13 00 6 30
	-10 15 12 5.43 14.40 6.10 13.97 6.67 13.54 7.25 13.13 7.61 12 18 8.33 -7 14.66 5.02 13.96 5.65 14.01 6.36 14.06 7.08 13.18 7.19 12 29 7.29 -2 15.45 4.78 14.72 5.37 14.19 5.83 13.66 6.29 12.98 7.08 12 30 7.86 2 15.26 4.17 14.53 4.69 13.40 4.83 12.27 4.97 11.65 5.59 11.04 6.21 7 16.80 3.38 16.00 3.80 15.35 4.20 14.70 4.60 14.60 5.00 14.50 5.40 10 18 25 3.42 17.38 3.85 16.71 4.25 16.04 4.65 15.24 5.23 14.43 5.81 15 20 68 3.49 19.69 3.92 18.98 4.26 18.27 4.72 17.36 5.31 16.44 5.90 20 23 10 3.56 22.00 4.00 21.25 4.36 20.50 4.80 19.48 5.40 18.45 6.00

1. Heating capacity: Capacity is according to Eurovent rating standard OM-3-2015 and valid for heated water range t = 3 8^
2. Cooling capacity : Capacity is according to Eurovent rating standard OM-3-2015 and valid for chilled water range t = 3 8^
3. Power input : Power input is according to Eurovent rating standard OM-3-2015.
4. Peak value : Tested without defrost operation in accordance with EN14511
5. Integrated value : Tested with defrost operation in accordance with EN14511
   ※ The real capacity would be changed according to the install environment.

2. Capacity Tables

2-1. AE050/090/120/140/160JXYDEH/EU (1 Phase)

2) Maximum Heating Capacity (Integrated Value)

LWT (Leaving Water Temp.), Tamb (Ambient Temp.), HC (Heating Capacity), PI (Power input)

AE050JXYDEH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)
	-20	3.57	1.47	3.40	1.65	3.38	1.75	3.36	2.06
	-15	4.47	1.67	4.26	1.88	4.08	1.98	3.91	2.08	3.79	2.18
	-10	5.15	1.74	4.90	1.96	4.75	2.06	4.61	2.16	4.47	2.27	4.15	2.49
	-7	4.94	1.56	4.70	1.75	4.60	1.98	4.50	2.20	4.60	2.40	4.70	2.60
	-2	4.83	1.36	4.60	1.53	4.43	1.68	4.25	1.83	4.04	2.05	3.83	2.28
	2	4.73	1.16	4.50	1.30	4.25	1.38	4.00	1.45	3.80	1.63	3.60	1.81
	7	5.25	0.94	5.00	1.06	4.85	1.21	4.70	1.35	4.60	1.48	4.50	1.60
	10	5.73	0.95	5.46	1.07	5.32	1.22	5.18	1.36	4.93	1.53	4.67	1.70
	15	6.54	0.97	6.23	1.08	6.11	1.21	5.99	1.38	5.69	1.55	5.39	1.73
	20	7.35	0.98	7.00	1.10	6.90	1.24	6.80	1.40	6.46	1.58	6.12	1.75
AE090JXYDEH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)	PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)
	-20	6.30	2.67	6.00	3.00	5.85	3.20	5.70	3.53
	-15	7.38	2.82	7.03	3.17	6.83	3.37	6.63	3.56	6.43	3.74
	-10	8.85	2.97	8.43	3.33	8.18	3.52	7.92	3.70	7.68	3.89	7.13	4.26
	-7	7.98	2.83	7.60	3.18	7.38	3.34	7.15	3.50	6.53	3.60	5.90	3.70
	-2	7.67	2.45	7.30	2.76	7.06	2.90	6.83	3.05	6.48	3.43	6.14	3.81
	2	7.35	2.07	7.00	2.33	6.75	2.47	6.50	2.60	6.18	2.93	5.85	3.25
	7	9.45	1.90	9.00	2.14	8.55	2.27	8.10	2.39	8.05	2.68	8.00	2.96
	10	10.38	1.90	9.89	2.14	9.47	2.29	9.06	2.44	8.61	2.75	8.15	3.05
	15	11.93	1.89	11.36	2.13	11.01	2.29	10.66	2.53	10.13	2.85	9.59	3.16
	20	13.48	1.89	12.84	2.12	12.55	2.35	12.26	2.62	11.65	2.95	11.03	3.27
AE120JXYDEH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW) H C(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)
	-20	9.82	4.09	9.35	4.60	8.93	4.90	8.50	5.29
	-15	11.02	4.23	10.49	4.75	10.20	5.05	9.90	5.35	9.60	5.61
	-10	12.14	4.01	11.56	4.51	11.22	5.03	10.87	5.56	10.54	5.83	9.78	6.39
	-7	10.82	3.52	10.30	3.95	9.85	4.34	9.39	4.73	8.93	5.12	8.47	5.51
	-2	10.55	3.07	10.05	3.45	9.87	3.86	9.70	4.27	9.21	4.80	8.73	5.33
	2	10.29	2.63	9.80	2.95	9.90	3.38	10.00	3.80	9.50	4.28	9.00	4.75
	7	12.60	2.37	12.00	2.66	11.70	3.06	11.40	3.45	10.95	3.68	10.50	3.90
	10	13.91	2.35	13.25	2.64	12.89	3.02	12.54	3.40	11.91	3.83	11.28	4.25
	15	16.09	2.31	15.32	2.60	14.88	2.92	14.43	3.33	13.71	3.74	12.98	4.16
	20	18.27	2.28	17.40	2.56	16.86	2.88	16.32	3.25	15.50	3.66	14.69	4.06
AE140JXYDEH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)H C(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)
	-20	10.13	4.36	9.65	4.90	9.33	5.20	9.01	5.59
	-15	11.64	4.49	11.09	5.05	10.79	5.35	10.49	5.64	10.18	5.93
	-10	13.17	4.54	12.54	5.10	12.17	5.48	11.79	5.87	11.44	6.16	10.61	6.75
	-7	11.34	3.76	10.80	4.22	10.75	4.94	10.70	5.65	10.35	5.78	10.00	5.90
	-2	11.55	3.41	11.00	3.83	10.96	4.45	10.93	5.08	10.38	5.71	9.83	6.34
	2	11.76	3.06	11.20	3.44	11.18	3.97	11.15	4.50	10.59	5.06	10.04	5.63
	7	14.70	2.79	14.00	3.14	13.50	3.55	13.00	3.95	12.63	4.20	12.25	4.45
	10	15.67	2.79	14.92	3.13	14.42	3.52	13.92	3.90	13.23	4.39	12.53	4.87
	15	17.28	2.77	16.46	3.12	15.96	3.41	15.46	3.81	14.69	4.29	13.92	4.77
	20	18.90	2.76	18.00	3.10	17.50	3.38	17.00	3.73	16.15	4.20	15.30	4.66
AE160JXYDEH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW)		PI(kW)		HC(kW) P(kW)				PI(kW)				CI(kW)
	-20	11.87	5.30	11.30		5.95	10.75	6.25	10.20	6.76
	-15	13.51	5.55	12.87		6.24	12.38	6.53	11.88	6.83	11.52	7.17
	-10	14.82	5.32	14.11		5.98	13.69	6.54	13.27	7.10	12.87	7.46	11.94	8.17
	-7	14.07	4.82	13.40		5.42	13.45	6.11	13.50	6.80	12.65	6.90	11.80	7.00
	-2	13.60	4.21	12.95		4.73	12.49	5.13	12.03	5.54	11.42	6.23	10.82	6.92
	2	13.13	3.59	12.50		4.03	11.53	4.15	10.55	4.27	10.02	4.80	9.50	5.34
	7	16.80	3.38	16.00		3.80	15.35	4.20	14.70	4.60	14.60	5.00	14.50	5.40
	10	18.25	3.42	17.38		3.85	16.71	4.25	16.04	4.65	15.24	5.23	14.43	5.81
	15	20.68	3.49	19.69		3.92	18.98	4.26	18.27	4.72	17.36	5.31	16.44	5.90
	20	23.10	3.56	22.00		4.00	21.25	4.36	20.50	4.80	19.48	5.40	18.45	6.00

1. Heating capacity: Capacity is according to Eurovent rating standard OM-3-2015 and valid for heated water range t = 3 8^
2. Cooling capacity : Capacity is according to Eurovent rating standard OM-3-2015 and valid for chilled water range t = 3 8^
3. Power input : Power input is according to Eurovent rating standard OM-3-2015.
4. Peak value : Tested without defrost operation in accordance with EN14511
5. Integrated value : Tested with defrost operation in accordance with EN14511
   ※ The real capacity would be changed according to the install environment.

2. Capacity Tables

2-1. AE050/090/120/140/160JXYDEH/EU (1 Phase)

3) Maximum Cooling Capacity

LWT (Leaving Water Temp.), Tamb (Ambient Temp.), CC (Cooling Capacity), PI (Power input)

AE050JXYDEH/EU	LWE(°C) 7	10 13 15 18 25
	Tamb(°C)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)
	10	4.21 0	90 4.54	0.90 4.87	0.90 5.20	0.90 5.54	0.90 6.09	0.92
	20	4.05 1	02 4.37	1.02 4.69	1.02 5.01	1.02 5.33	1.02 5.86	1.04
	30	3.88 1	14 4.19	1.14 4.50	1.14 4.80	1.14 5.11	1.14 5.62	1.17
	35	3.80 1	21 4.10	1.21 4.40	1.21 4.70	1.21 5.00	1.21 5.50	1.23
	46	3.62 1	34 3.91	1.34 4.19	1.34 4.48	1.34 4.77	1.34 5.24	1.36
AE090JXYDEH/EU	LWE(°C) 7	10 13 15 18 25
	Tamb(°C)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)		PI(kW)	CC(kW)	PI(kW)	PI(kW)
	10	6.09 1	39 6.64	1.41 7.18	1.44 7.55	1.46 8.09	1.49	8.82 1.52
	20	5.86 1	57 6.40	1.60 6.95	1.63 7.31	1.65 7.86	1.67	8.58 1.71
	30	5.62 1	76 6.16	1.78 6.71	1.81 7.07	1.83 7.62	1.86	8.35 1.89
	35	5.50 1	85 6.05	1.88 6.59	1.90 6.95	1.92 7.50	1.95	8.23 1.99
	46	5.24 2	05 5.78	2.08 6.33	2.11 6.69	2.13 7.24	2.15	7.97 2.19
AE120JXYDEH/EU	LWE(°C) 7	10 13 15 18 25
	Tamb(°C)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)		PI(kW)	CC(kW)	PI(kW)	PI(kW)
	10	9.97 2	37 10.79		2.37 11.61		2.37 12.15		2.37 12.97		2.37 14.06		2.37 14.06		2.37
	20	9.58 2	69 10.40		2.69 11.22		2.69 11.77		2.69 12.58		2.69 13.67		2.69 13.67		2.69
	30	9.19 3	00 10.01		3.00 10.83		3.00 11.38		3.00 12.19		3.00 13.29		3.00 13.29		3.00
	35	9.00 3	16 9.82	3.16 10.64			3.16 11.18		3.16 12.00		3.16 13.09		3.16 13.09		3.16
	46	8.57 3	51 9.39	3.51 10.21			3.51 10.75		3.51 11.57		3.51 12.66		3.51 12.66		3.51
AE140JXYDEH/EU	LWE(°C) 7	10 13 15 18 25
	Tamb(°C)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)		PI(kW)	CC(kW)	PI(kW)	PI(kW)
	10	10.76	2.62 1	1.66	2.63 12.56		2.64 13.16		2.65 14.06		2.67 15.26		2.67 15.26		2.68
	20	10.33	2.95 1	1.23	2.96 12.13		2.98 12.73		2.99 13.63		3.00 14.83		3.00 14.83		3.02
	30	9.91 3	28 10.81		3.30 11.71		3.31 12.31		3.32 13.21		3.33 14.41		3.33 14.41		3.35
	35	9.70 3	45 10.60		3.46 11.50		3.48 12.10		3.49 13.00		3.50 14.20		3.50 14.20		3.52
	46	9.24 3	82 10.14		3.83 11.04		3.84 11.64		3.85 12.54		3.87 13.74		3.87 13.74		3.89
AE160JXYDEH/EU	LWE(°C) 7	10 13 15 18 25
	Tamb(°C)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW) (PI(kW))		PI(kW)	CC(kW)	PI(kW)	PI(kW)
	10	11.54	2.85 1	2.52	2.88 13.50		2.90 14.15		2.92 15.14		2.94 16.44		2.94 16.44		2.98
	20	11.08	3.21 1	2.06	3.24 13.04		3.26 13.70		3.28 14.68		3.30 15.99		3.30 15.99		3.34
	30	10.63	3.57 1	1.61	3.60 12.59		3.62 13.25		3.64 14.23		3.66 15.54		3.66 15.54		3.69
	35	10.40	3.75 1	1.38	3.77 12.36		3.80 13.02		3.82 14.00		3.84 15.31		3.84 15.31		3.87
	46	9.90 4	14 10.88		4.17 11.86		4.19 12.52		4.21 13.50		4.23 14.81		4.23 14.81		4.27

1. Heating capacity: Capacity is according to Eurovent rating standard OM-3-2015 and valid for heated water range t = 3 8^
2. Cooling capacity : Capacity is according to Eurovent rating standard OM-3-2015 and valid for chilled water range t = 3 8^
3. Power input : Power input is according to Eurovent rating standard OM-3-2015.
4. Peak value : Tested without defrost operation in accordance with EN14511
5. Integrated value : Tested with defrost operation in accordance with EN14511
   ※ The real capacity would be changed according to the install environment.

2. Capacity Tables

2-2. AE090/120/140/160JXYDGH/EU (3 Phase)

1) Maximum Heating Capacity (Peak Value)

LWT (Leaving Water Temp.), Tamb (Ambient Temp.), HC (Heating Capacity), PI (Power input)

AE090JXYDGH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)
	-20	6.30	2.67	6.00	3.00	5.85		3.20	5.70	3.53
	-15	7.46	2.85	7.10	3.20	6.90		3.40	6.70	3.60	6.50	3.78
	-10	9.03	3.03	8.60	3.40	8.34		3.59	8.08	3.78	7.84	3.97	7.28	4.35
	-7	8.31	2.95	7.92	3.31	7.68		3.48	7.45	3.65	6.80	3.75	6.15	3.85
	-2	8.71	2.79	8.30	3.13	8.03		3.30	7.76	3.47	7.37	3.90	6.98	4.33
	2	8.55	2.41	8.14	2.71	7.85		2.87	7.56	3.02	7.18	3.40	6.80	3.78
	7	9.45	1.90	9.00	2.14	8.55		2.27	8.10	2.39	8.05	2.68	8.00	2.96
	10	10.38	1.90	9.89	2.14	9.47		2.29	9.06	2.44	8.61	2.75	8.15	3.05
	15	11.93	1.89	11.36	2.13	11.01		2.29	10.66	2.53		10.13	2.85	9.59	3.16
	20	13.48	1.89	12.84	2.12	12.55		2.35	12.26	2.62		11.65	2.95	11.03	3.27
AE120JXYDGH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(KW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)
	-20	9.82	4.09	9.35	4.60	8.93		4.90	8.50	5.29
	-15	11.13	4.27	10.60	4.80	10.30		5.10	10.00	5.40		9.70	5.67
	-10	12.39	4.09	11.80	4.60	11.45		5.14	11.09	5.67		10.76	5.95	9.98	6.52
	-7	11.27	3.66	10.73	4.11	10.26		4.52	9.78	4.93	9.30	5.33	8.82	5.74
	-2	11.99	3.49	11.42	3.92	11.22		4.38	11.02	4.85		10.47	5.45	9.92	6.06
	2	11.97	3.05	11.40	3.43	11.51		3.92	11.63	4.42		11.05	4.97	10.47	5.52
	7	12.60	2.37	12.00	2.66	11.70		3.06	11.40	3.45		10.95	3.68	10.50	3.90
	10	13.91	2.35	13.25	2.64	12.89		3.02	12.54	3.40		11.91	3.83	11.28	4.25
	15	16.09	2.31	15.32	2.60	14.88		2.92	14.43	3.33		13.71	3.74	12.98	4.16
	20	18.27	2.28	17.40	2.56	16.86		2.88	16.32	3.25		15.50	3.66	14.69	4.06
AE140JXYDGH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C (kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)
	-20	10.13	4.36	9.65	4.90	9.33		5.20	9.01	5.59
	-15	11.76	4.54	11.20	5.10	10.90		5.40	10.60	5.70		10.28	5.99
	-10	13.44	4.63	12.80	5.20	12.42		5.59	12.03	5.99		11.67	6.28	10.83	6.88
	-7	11.81	3.91	11.25	4.40	11.20		5.14	11.15	5.89		10.78	6.02	10.42	6.15
	-2	13.13	3.87	12.50	4.35	12.46		5.06	12.41	5.77		11.79	6.49	11.17	7.21
	2	13.67	3.56	13.02	4.00	12.99		4.62	12.97	5.23		12.32	5.89	11.67	6.54
	7	14.70	2.79	14.00	3.14	13.50		3.55	13.00	3.95		12.63	4.20	12.25	4.45
	10	15.67	2.79	14.92	3.13	14.42		3.52	13.92	3.90		13.23	4.39	12.53	4.87
	15	17.28	2.77	16.46	3.12	15.96		3.41	15.46	3.81		14.69	4.29	13.92	4.77
	20	18.90	2.76	18.00	3.10	17.50		3.38	17.00	3.73		16.15	4.20	15.30	4.66
AE160JXYDGH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(w)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)
	-20 11	87	5.30	1.30	5.95	10.75		6.25	10.20	6.76
	-15 13	65	5.61	13.00	6.30	12.50		6.60	12.00	6.90		7.25
	-10 15	12	5.43	14.40	6.10	13.97		6.67	13.54	7.25		13.13	7.61		12.18	8.33
	-7 14.66	5.02	13.96	5.65	14.01		6.36		14.06	7.08		13.18	7.19		12.29	7.29
	-2 15.45	4.78	14.72	5.37	14.19		5.83		13.66	6.29		12.98	7.08		12.30	7.86
	2 15.26	4.17	14.53	4.69	13.40		4.83		12.27	4.97		11.65	5.59		11.04	6.21
	7 16.80	3.38	16.00	3.80	15.35		4.20		14.70	4.60		14.60	5.00		14.50	5.40
	10 18.25	3.42	17.38	3.85	16.71		4.25		16.04	4.65		15.24	5.23		14.43	5.81
	15 20.68	3.49	19.69	3.92	18.98		4.26		18.27	4.72		17.36	5.31		16.44	5.90
	20 23.10	3.56	22.00	4.00	21.25		4.36		20.50	4.80		19.48	5.40		18.45	6.00

1. Heating capacity: Capacity is according to Eurovent rating standard OM-3-2015 and valid for heated water range t = 3 - 8^
2. Cooling capacity : Capacity is according to Eurovent rating standard OM-3-2015 and valid for chilled water range t = 3 8^
3. Power input : Power input is according to Eurovent rating standard OM-3-2015.
4. Peak value : Tested without defrost operation in accordance with EN14511
5. Integrated value : Tested with defrost operation in accordance with EN14511
   ※ The real capacity would be changed according to the install environment.

2. Capacity Tables

2-2. AE090/120/140/160JXYDGH/EU (3 Phase)

2) Maximum Heating Capacity (Integrated Value)

LWT (Leaving Water Temp.), Tamb (Ambient Temp.), HC (Heating Capacity), PI (Power input)

AE090JXYDGH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)
	-20	6.30	2.67	6.00	3.00	5.85		3.20	5.70	3.53
	-15	7.38	2.82	7.03	3.17	6.83		3.37	6.63	3.56	6.43	3.74
	-10	8.85	2.97	8.43	3.33	8.18		3.52	7.92	3.70	7.68	3.89	7.13	4.26
	-7	7.98	2.83	7.60	3.18	7.38		3.34	7.15	3.50	6.53	3.60	5.90	3.70
	-2	7.67	2.45	7.30	2.76	7.06		2.90	6.83	3.05	6.48	3.43	6.14	3.81
	2	7.35	2.07	7.00	2.33	6.75		2.47	6.50	2.60	6.18	2.93	5.85	3.25
	7	9.45	1.90	9.00	2.14	8.55		2.27	8.10	2.39	8.05	2.68	8.00	2.96
	10	10.38	1.90	9.89	2.14	9.47		2.29	9.06	2.44	8.61	2.75	8.15	3.05
	15	11.93	1.89	11.36	2.13	11.01		2.29	10.66	2.53		10.13	2.85	9.59	3.16
	20	13.48	1.89	12.84	2.12	12.55		2.35	12.26	2.62		11.65	2.95	11.03	3.27
AE120JXYDGH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(KW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)
	-20	9.82	4.09	9.35	4.60	8.93		4.90	8.50	5.29
	-15	11.02	4.23	10.49	4.75	10.20		5.05	9.90	5.35		9.60	5.61
	-10	12.14	4.01	11.56	4.51	11.22		5.03	10.87	5.56		10.54	5.83	9.78	6.39
	-7	10.82	3.52	10.30	3.95	9.85		4.34	9.39	4.73		8.93	5.12	8.47	5.51
	-2	10.55	3.07	10.05	3.45	9.87		3.86	9.70	4.27		9.21	4.80	8.73	5.33
	2	10.29	2.63	9.80	2.95	9.90		3.38	10.00	3.80		9.50	4.28	9.00	4.75
	7	12.60	2.37	12.00	2.66	11.70		3.06	11.40	3.45		10.95	3.68	10.50	3.90
	10	13.91	2.35	13.25	2.64	12.89		3.02	12.54	3.40		11.91	3.83	11.28	4.25
	15	16.09	2.31	15.32	2.60	14.88		2.92	14.43	3.33		13.71	3.74	12.98	4.16
	20	18.27	2.28	17.40	2.56	16.86		2.88	16.32	3.25		15.50	3.66	14.69	4.06
AE140JXYDGH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C (kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)
	-20	10.13	4.36	9.65	4.90	9.33		5.20	9.01	5.59
	-15	11.64	4.49	11.09	5.05	10.79		5.35	10.49	5.64		10.18	5.93
	-10	13.17	4.54	12.54	5.10	12.17		5.48	11.79	5.87		11.44	6.16	10.61	6.75
	-7	11.34	3.76	10.80	4.22	10.75		4.94	10.70	5.65		10.35	5.78	10.00	5.90
	-2	11.55	3.41	11.00	3.83	10.96		4.45	10.93	5.08		10.38	5.71	9.83	6.34
	2	11.76	3.06	11.20	3.44	11.18		3.97	11.15	4.50		10.59	5.06	10.04	5.63
	7	14.70	2.79	14.00	3.14	13.50		3.55	13.00	3.95		12.63	4.20	12.25	4.45
	10	15.67	2.79	14.92	3.13	14.42		3.52	13.92	3.90		13.23	4.39	12.53	4.87
	15	17.28	2.77	16.46	3.12	15.96		3.41	15.46	3.81		14.69	4.29	13.92	4.77
	20	18.90	2.76	18.00	3.10	17.50		3.38	17.00	3.73		16.15	4.20	15.30	4.66
AE160JXYDGH/EU	LWE(°C)	30				35				40				45				50				55
	Tamb(°C)	HC(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)	H	C( kW )		PI(kW)	H	C(kW)		PI(kW)	H	C(kW)		PI(kW)
	-20	11.87	5.30	11.30	5.95	10.75		6.25	10.20	6.76
	-15	13.51	5.55	12.87	6.24	12.38		6.53	11.88	6.83		11.52	7.17
	-10	14.82	5.32	14.11	5.98	13.69		6.54	13.27	7.10		12.87	7.46	11.94	8.17
	-7	14.07	4.82	13.40	5.42	13.45		6.11	13.50	6.80		12.65	6.90	11.80	7.00
	-2	13.60	4.21	12.95	4.73	12.49		5.13	12.03	5.54		11.42	6.23	10.82	6.92
	2	13.13	3.59	12.50	4.03	11.53		4.15	10.55	4.27		10.02	4.80	9.50	5.34
	7	16.80	3.38	16.00	3.80	15.35		4.20	14.70	4.60		14.60	5.00	14.50	5.40
	10	18.25	3.42	17.38	3.85	16.71		4.25	16.04	4.65		15.24	5.23	14.43	5.81
	15	20.68	3.49	19.69	3.92	18.98		4.26	18.27	4.72		17.36	5.31	16.44	5.90
	20	23.10	3.56	22.00	4.00	21.25		4.36	20.50	4.80		19.48	5.40	18.45	6.00

1. Heating capacity: Capacity is according to Eurovent rating standard OM-3-2015 and valid for heated water range t = 3 - 8^
2. Cooling capacity : Capacity is according to Eurovent rating standard OM-3-2015 and valid for chilled water range t = 3 8^
3. Power input : Power input is according to Eurovent rating standard OM-3-2015.
4. Peak value : Tested without defrost operation in accordance with EN14511
5. Integrated value : Tested with defrost operation in accordance with EN14511
   ※ The real capacity would be changed according to the install environment.

2. Capacity Tables

2-2. AE090/120/140/160JXYDGH/EU (3 Phase)

3) Maximum Cooling Capacity

LWT (Leaving Water Temp.), Tamb (Ambient Temp.), CC (Cooling Capacity), PI (Power input)

AE090JXYDGH/EU	LWE(°C) 7	10 13 15 18 25
	Tamb(°C)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)
	10	6.09 1	19 6.50	1.41 6.91	1.44 7.1	18 1.46	7.59 1.49	8.14 1.55
	20	5.86 1	23 6.27	1.60 6.67	1.63 6.9	5 1.65	7.36 1.67	7.90 1.74
	30	5.62 1	24 6.03	1.78 6.44	1.81 6.7	1 1.83	7.12 1.86	7.66 1.92
	35	5.50 1	94 5.91	1.88 6.32	1.90 6.5	9 1.92	7.00 1.92	7.55 2.01
	46	5.24 1	24 5.65	2.08 6.06	2.11 6.3	3 2.13	6.74 2.15	7.28 2.22
AE120JXYDGH/EU	LWE(°C) 7	10 13 15 18 25
	Tamb(°C)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)		PI(kW)	CC(kW)	PI(kW)	PI(kW)
	10	9.97 2	37 10.79		2.37 1	1.61	2.37 1	2.15	2.37 1	2.97		2.37 1	4.06	2.37
	20	9.58 2	69 10.40		2.69 1	1.22	2.69 1	1.77	2.69 1	2.58		2.69 1	3.67	2.69
	30	9.19 3	00 10.01		3.00 1	0.83	3.00 1	1.38	3.00 1	2.19		3.00 1	3.29	3.00
	35	9.00 3	16 9.82	3.16 10.64			3.16 1	1.18	3.16 1	2.00		3.16 1	3.09	3.16
	46	8.57 3	51 9.39	3.51 10.21			3.51 1	0.75	3.51 1	1.57		3.51 1	2.66	3.51
AE140JXYDGH/EU	LWE(°C) 7	10 13 15 18 25
	Tamb(°C)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)		PI(kW)	CC(kW)	PI(kW)	PI(kW)
	10	10.76	2.62 1	1.66	2.63 1	2.56	2.64 1	3.16	2.65 1	4.06		2.67 1	5.26	2.68
	20	10.33	2.95 1	1.23	2.96 1	2.13	2.98 1	2.73	2.99 1	3.63		3.00 1	4.83	3.02
	30	9.91 3	28 10.81		3.30 1	1.71	3.31 1	2.31	3.32 1	3.21		3.33 1	4.41	3.35
	35	9.70 3	45 10.60		3.46 1	1.50	3.48 1	2.10	3.49 1	3.00		3.50 1	4.20	3.52
	46	9.24 3	82 10.14		3.83 1	1.04	3.84 1	1.64	3.85 1	2.54		3.87 1	3.74	3.89
AE160JXYDGH/EU	LWE(°C) 7	10 13 15 18 25
	Tamb(°C)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)	PI(kW)	CC(kW)		PI(kW)	CC(kW)	PI(kW)	PI(kW)
	10	11.54	2.85 1	2.52	2.88 1	3.50	2.90 1	4.15	2.92 1	5.14		2.94 1	6.44	2.98
	20	11.08	3.21 1	2.06	3.24 1	3.04	3.26 1	3.70	3.28 1	4.68		3.30 1	5.99	3.34
	30	10.63	3.57 1	1.61	3.60 1	2.59	3.62 1	3.25	3.64 1	4.23		3.66 1	5.54	3.69
	35	10.40	3.75 1	1.38	3.77 1	2.36	3.80 1	3.02	3.82 1	4.00		3.84 1	5.31	3.87
	46	9.90 4	14 10.88		4.17 1	1.86	4.19 1	2.52	4.21 1	3.50		4.23 1	4.81	4.27

1. Heating capacity: Capacity is according to Eurovent rating standard OM-3-2015 and valid for heated water range t = 3 8^

2. Cooling capacity: Capacity is according to Eurovent rating standard OM-3-2015 and valid for chilled water range t = 3 8^

3. Power input : Power input is according to Eurovent rating standard OM-3-2015.

4. Peak value : Tested without defrost operation in accordance with EN14511

5. Integrated value : Tested with defrost operation in accordance with EN14511

※ The real capacity would be changed according to the install environment.

3. Dimensional Drawings

3-1. Outdoor Unit

1) AE050JXYD*H/EU

(Unit : mm)

364 [1'-2 1/4"] 310 [1'-0 1/4"]

880 [2'-10 3/4"] SAMSUNG 795 [2'-7 1/4"]

310 [1'-0 1/4"] 364 [1'-2 1/4"]

① ② 497 [1'-7 1/2"] 227 [9"]

No.	Table of Descriptions
1	Water Pipe(Out)
2	Water Pipe(In)
3	Power & Communication Wiring Conduits

3. Dimensional Drawings

3-1. Outdoor Unit

2) AE090JXYD*H/EU

(Unit : mm)

No.	Table of Descriptions
1	Water Pipe(Out)
2	Water Pipe(In)
3	Power & Communication Wiring Conduits

3. Dimensional Drawings

3-1. Outdoor Unit

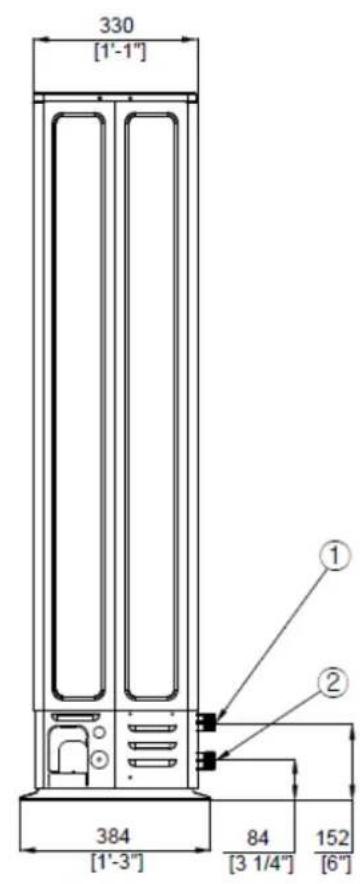

3) AE120/140/160JXYD*H/EU

(Unit : mm)

620 [2'-0 1/2"] 360 [1'-2 1/4"] 384 [1'-3]

940 [3'-1"] SAMSUNG 1420 [4'-8"] ③

330 [1'-1"] 384 [1'-3"] 84 [3 1/4"] 152 [6"]

Technical line drawing of a mechanical or electronic component with internal channels and mounting brackets (no text or symbols)

No.	Table of Descriptions
1	Water Pipe(Out)
2	Water Pipe(In)
3	Power & Communication Wiring Conduits

3. Dimensional Drawings

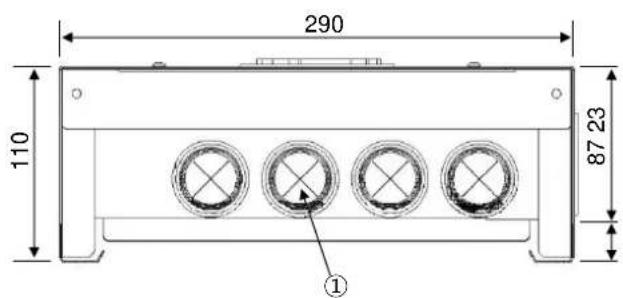

3-2. Control Kit

1) MIM-E03A(B)N

(Unit : mm)

2-R2.5 2-R4.0 SAMSUNG 371 342 2-R3.0

Pure technical line drawing of a rectangular frame with a vertical line on the right side (no text or symbols)

290 110 87 23 ①

No.	Table of Descriptions
1	Conduit for Wiring (Rubber)

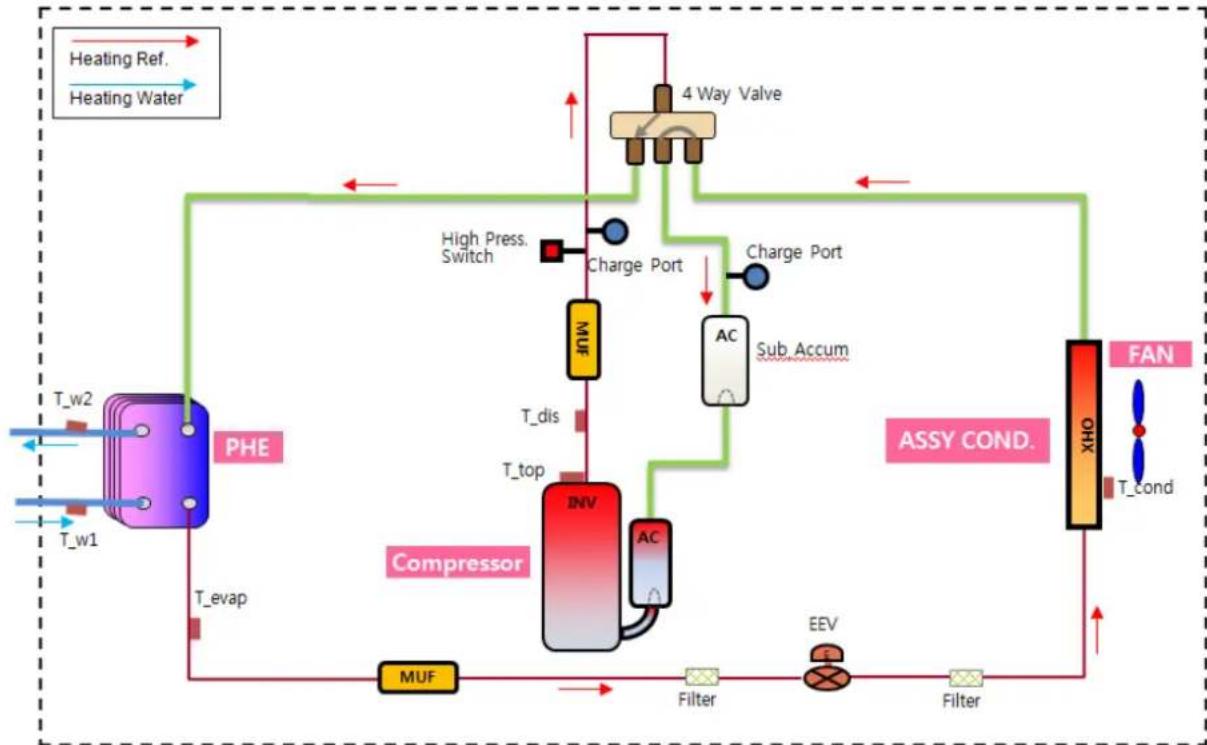

4. Piping Diagrams

4-1. AE050JXYDEH/EU

[Outdoor]

4-2. AE090JXYD\*H/EU

COMP RED BLU REACTOR XXX SMPS PBA CON03 (RED) CON02 (BLU) CON01 (BLU) T/B FUSE WATER-OUT SENSOR S5508 11213 11213 11213 11213 11213 11213 11213 11213 11213 11213 11213 11213 11213 11213 11213 11213 11213 11153 (RED) CN152 (BLU) CN150 (BLK) CN252 (YEL) CN283 (WHT) CN801 (BLU) CN809 (RED) CN151 (WHT) EMI FILTER 250V,730A HIGH PRESS SE GND/TEL 4-WAY FIF2 INDOOR COMMUNICATION MAIN AC POWER MAIN PCB MAIN PCB CN246 (RED) CN207 (BLK) CN206 (WHT) CN205 (BLK) CN204 (WHT) CN901 (WHT) CN701 (RED) CN251 (WHT) EEVA M BLDC RED RED 1 2 5 R2 BLB R1 BLB R2 BLB R3 BLB R4 BLB R5 BLB R6 BLB R7 BLB R8 BLB R9 BLB R10 BLB R11 BLB R12 BLB R13 BLB R14 BLB R15 BLB R16 BLB R17 BLB R18 BLB R19 BLB R20 BLB R21 BLB R22 BLB R23 BLB R24 BLB R25 BLB R26 BLB R27 BLB R28 BLB R29 BLB R30 BLB R31 BLB R32 BLB R33 BLB R34 BLB R35 BLB R36 BLB R37 BLB R38 BLB R39 BLB R40 BLB R41 BLB R42 BLB R43 BLB R44 BLB R45 BLB R46 BLB R47 BLB R48 BLB R49 BLB R50 BLB R51 BLB R52 BLB R53 BLB R54 BLB R55 BLB R56 BLB R57 BLB R58 BLB R59 BLB R60 BLB R61 BLB R62 BLB R63 BLB R64 BLB R65 BLB R66 BLB R67 BLB R68 BLB R69 BLB R70 BLB R71 BLB R72 BLB R73 BLB R74 BLB R75 BLB R76 BLB R77 BLB R78 BLB R79 BLB R80 BLB R81 BLB R82 BLB R83 BLB R84 BLB R85 BLB R86 BLB R87 BLB R88 BLB R89 BLB R90 BLB R91 BLB R92 BLB R93 BLB R94 BLB R95 BLB R96 BLB R97 BLB R98 BLB R99 BLB

THERMISTOR MARK BASED ON THE TEMP at 25°C, 77°F

5. Wiring Diagrams

5-1. Outdoor Unit

2) AE090\~160JXYDEH/EU

OPTION + EHS Model Only Use L1 CN01 (WHT) NI EMI PCB EMI FILTER F101 T40A 250V L (L) DRN SKY/BLU EARTH BRN SKY/BLU SNY/BLU REACTOR THR JMH KTR LHW LEACTOR-A1 REACTOR-B1 REACTOR-A2 REACTOR-B2 M BLOC FAN2 OPTION M BLOC RED FAN1 FN1 FN2 CN51 (WHT) FAN2 CN30 (WHT) PF4-CN71 PF5-CN32 (BLK) RED BLU YEL/SRN SKY/BLU YEL S/R O HED S U W R R D O Y S W R CN31 (WHT) CN22 (RED) INV DOWNLOAD CN21 (WHT) DAC/ENCHDER INVERTER PCB TABLE 4 1/FAN OUTDOOR TUBE/BLU 2/FAN OUTDOOR TUBE/BLU MODE SELECTOR CN501 (WHT) CN302 (BLK) COMM-OPTICON CN405 (WHT) CN406 (YEL) CLUTION-TIF CLUTURE SUTION (25°C,7°F,10K) MAIN PCB CN401 CN304 (BLK) CN404 (BLU) CN305 (WHT) CN306 (BLK) CN701 (RED) CN702 (YELLOW) CN703 (BLUE) DN1-1 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.6 CN704 (BLK) DN1-1 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1.2 2.8 1. CN705 (WHT) DC1Z1 CN306 (BLK) CN306 (BLK) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CN01 (WHT) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) BN CNO1 (RED) CON NOSING (35°C,7°F,300A) CON NOSING (35°C,7°F,300B) CON NOSING (35°C,7°F,300C) CON NOSING (35°C,7°F,300D) CON NOSING (35°C,7°F,300E) CON NOSING (35°C,7°F,300F) CON NOSING (35°C,7°F,300G) CON NOSING (35°C,7°F,300H) CON NOSING (35°C,7°F,300I) CON NOSING (35°C,7°F,300J) CON NOSING (35°C,7°F,300K) CON NOSING (35°C,7°F,300L) CON NOSING (35°C,7°F,300M) CON NOSING (35°C,7°F,300N) CON NOSING (35°C,7°F,300O) CON NOSING (35°C,7°F,300P) CON NOSING (35°C,7°F,300Q) CON NOSING (35°C,7°F,300R) CON NOSING (35°C,7°F,300S) CON NOSING (35°C,7°F,300T) CON NOSING (35°C,7°F,300U) CON NOSING (35°C,7°F,300V) CON NOSING (35°C,7°F,300W) CON NOSING (35°C,7°F,300X) CON NOSING (35°C,7°F,300Y) CON NOSING (35°C,7°F,300Z) CON NOSING (35°C,7°F,300A) CON NOSING (35°C,7°F,300B) CON NOSING (35°C,7°F,300C) CON NOSING (35°C,7°F,300D) CON NOSING (35°C,7°F,300E) CON NOSING (35°C,7°F,3

5. Wiring Diagrams

5-1. Outdoor Unit

3) AE090\~160JXYDGH/EU

Electrical schematic diagram of an inverter PCB with labeled components, wiring, and wiring specifications for a fan motor.

5. Wiring Diagrams

5-2. Control Kit

1) MIM-E03A(B)N

Resistance value of temperature sensor at 25°C(77°F) OPTION CNP401 (WHT) CNS043 (WHT) CNS062 (BLU) CNS042 (YEL) CNS047 (BLK) CNS045 (BLU) CNS044 (WHT) CNS045 (RED) T4 F3 DC 12V OUTDOOR COMM Wired REMOCON CNS304 (RED) CNS1 (WHT) CNS3 (BLK) WATER PUMP SIG/GND WATER PUMP SIG/GND YEL/SPIN EARTH CNP003 MC2-B 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 TBE-C (BLK) DWILLOAD 1 2 9 10 20 19 12 11 CNS301 (BLK) FR CONTROL CNS2 (GRN) CNS041 (BLU) SUB_LED CNS201 (WHT) 2-WIRE COMM CNS313 (WHT) EEPROM CNS900 (WHT) B1 B3 B5 B7 B9 B11 B13 B15 B17 B19 B21 B23 B25 TB-B (BLK) B2 B4 B6 B8 B10 B12 B14 B16 B18 B20 B22 B24 B26 CNP001 CNP002 MC1-A 1 1 EARTH CNS81 (WHT) WHT WHT WHT THERMAL FUSE N L TBI-A (BLK) TBI-A (BLK) B2 B4 B6 B8 B10 B12 B14 B16 B18 B20 B22 B24 B26 CNP002 MC1-A 1 1 AC INPUT SKY BRN ELCB AC220~AC240V 30A AC INPUT BOOSTER HEATER NEUTRAL MIXING VALVE ON MIXING VALVE CON RUTTER NEUTRAL LIVED NUTRAL LIVED 2WAY NO 2WAY NO NEUTRAL LIVED 2WAY NO NEUTRAL LIVED 3WAY NO NEUTRAL LIVED C H THERMOH C THERMOH C THERMOH H SOLAR N SOLAR L NOT SUPPLIED PARTS

NO.		IN/OUT	CONNECTING PART	IN/OUT TYPE
TB-A	N	INPUT	MAIN POWER	NEUTRAL
	L	INPUT	MAIN POWER	LIVE
TB-A1	N	OUTPUT	HEATER POWER	NEUTRAL
	L	OUTPUT	HEATER POWER	SWITCHED LIVE
TB-B	B1	OUTPUT	AC POWER-INV WATER PUMP	NEUTRAL
	B2	OUTPUT	RELAY POWER-MIXING VALVE CW	SWITCHED LIVE
	B3	OUTPUT	RELAY POWER-MIXING VALVE CCW	SWITCHED LIVE
	B4	OUTPUT	RELAY POWER-BACKUP BOILER	SWITCHED LIVE
	B5	OUTPUT	AC POWER-NEUTRAL	NEUTRAL
	B6	OUTPUT	AC POWER-INV WATER PUMP	FUSED LIVE
	B7	OUTPUT	AC POWER-AC WATER PUMP	NEUTRAL
	B8	OUTPUT	AC POWER-AC WATER PUMP	SWITCHED LIVE
	B9	OUTPUT	2WAY VALVE 1 NORMAL OPEN TYPE	SWITCHED LIVE
	B10	OUTPUT	2WAY VALVE 1 NORMAL CLOSED TYPE	SWITCHED LIVE
	B11	OUTPUT	AC POWER-2WAY VALVE 1,2	NEUTRAL
	B12	OUTPUT	AC POWER-2WAY VALVE 1,2	FUSED LIVE
	B13	OUTPUT	2WAY VALVE 2 NORMAL OPEN TYPE	SWITCHED LIVE
	B14	OUTPUT	2WAY VALVE 2 NORMAL CLOSED TYPE	SWITCHED LIVE
	B15	OUTPUT	AC POWER-3WAY VALVE	NEUTRAL
	B16	OUTPUT	AC POWER-3WAY VALVE	FUSED LIVE
	B17	OUTPUT	3WAY VALVE NORMAL OPEN TYPE	SWITCHED LIVE
	B18	OUTPUT	3WAY VALVE NORMAL CLOSED TYPE	SWITCHED LIVE
	B19	OUTPUT	THERMOSTAT POWER	NEUTRAL
	B20	OUTPUT	THERMOSTAT POWER	FUSED LIVE
	B21	INPUT	COMMAND SIGNAL-ZONE,1 COOLING	SWITCHED LIVE
	B22	INPUT	COMMAND SIGNAL-ZONE,1 HEATING	SWITCHED LIVE
	B23	INPUT	COMMAND SIGNAL-ZONE,2 COOLING	SWITCHED LIVE
	B24	INPUT	COMMAND SIGNAL-ZONE,2 HEATING	SWITCHED LIVE
	B25	INPUT	SOLAR MODE SIGNAL-SOLAR PANEL OPERATION	SWITCHED NEUTRAL
	B26	INPUT	SOLAR MODE SIGNAL-SOLAR PANEL OPERATION	SWITCHED LIVE
TB-C	F1	COMM.	COMMUNICATION LINE A-OUTDOOR UNIT	RS-485
	F2	COMM.	COMMUNICATION LINE B-OUTDOOR UNIT	RS-485
	V1	OUTPUT	DC12V	DC12V
	V2	OUTPUT	GROUND	GROUND
	F3	COMM.	COMMUNICATION LINE A-WIRED REMOTE C.	RS-485
	F4	COMM.	COMMUNICATION LINE B-WIRED REMOTE C.	RS-485
CNS3	SIG	OUTPUT	INV PUMP SIGNAL	DC SIGNAL
	GND	OUTPUT	GROUND	GROUND
CNP002	MC1-A	OUTPUT	BACKUP HEATER STEP 2	SWITCHED LIVE
CNP001	MC2-A	OUTPUT	BACKUP HEATER STEP 1	SWITCHED LIVE
CNP003	MC2-B	OUTPUT	AC POWER-BACKUP HEATER CONTROL NEUTRAL	CONTROL NEUTRAL
CNP401	1	OUTPUT	AC POWER-BACKUP HEATER NEUTRAL	NEUTRAL
	2	INPUT	AC POWER-BACKUP HEATER CONTROL NEUTRAL	CONTROL NEUTRAL

6. Electric Specifications

6-1. Outdoor Unit

Product	Model Name	Rated		Voltage Range		MCA MFA
		Hz	Volts Min.	Max.
Mono	AE050JXYDEH/EU 50		220-240	198	264	20.0	25.0
	AE090JXYDEH/EU 50		220-240	198	264	22.0	27.5
	AE120JXYDEH/EU 50		220-240	198	264	28.0	35.0
	AE014JXYDEH/EU 50		220-240	198	264	30.0	37.5
	AE160JXYDEH/EU 50		220-240	198	264	32.0	40.0
	AE090JXYDGH/EU 50		380-415	342	457	10.0	16.1
	AE120JXYDGH/EU 50		380-415	342	457	10.0	16.1
	AE014JXYDGH/EU 50		380-415	342	457	12.0	16.1
	AE160JXYDGH/EU 50		380-415	342	457	12,0	16.1

※ Notes
1. The power cable is not supplied with air conditioner.
2. Supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene sheathed flexible cord. (Code designation IEC:60245 IEC 57 / CENELEC:H05RN-F)
3. This Equipment complies with IEC 61000-3-12.

※ Abbreviations

1. MCA : Min. Circuit Amps. (A)

2. MFA : Max. Fuse Amps. (A)

6-2. Control Kit

Product	Model Name	Load	Power supply	Power cable	Max. Length Type	GL
				mm2, wires m	A
Control Kit	MIM-E03AN MIM-E03BN	No Heater (Water Pump, Valve, Wired RMC)	1Φ, 220~240V, 50Hz	1.5 / 3	< 10m	10
				2.5 / 3	10m < L < 20m	10
		Booster Heater (3kW)		4.0 / 3	< 10m	20
				6.0 / 3	10m < L < 20m	20
		Booster Heater (~3kW) + Backup Heater (~3kW)		4.0 / 3	< 10m	40
				6.0 / 3	10m < L < 20m	40

※ Notes
1. The power cable is not supplied with the heat pump.
2. For power cable, use the grade H07RN-F materials in 10 system.
3. If you connect Backup Heater at separated power cable, you can reduce wire size.
(Please refer to indoor unit installation manual)

7. Sound Pressure Level

7-1. Operation Sound Level

Microphone 1m 1.5m Front

Unit (dB(A))

Model Heating Cooling
AE050JXYDEH/EU 45 45
AE090JXYDEH/EU 48 48
AE090JXYDGH/EU 48 48

7-2. NC Curve

1. These operation values were obtained in an anechoic room. Sound pressure level will vary depending on a range of factors such as the construction of the particular room where the equipment is installed.

2. Operation sound level may differ depending on operation and ambient conditions.

7. Sound Pressure Level

7-1. Operation Sound Level

Microphone 1m 1.5m Front

Unit (dB(A))

Model Heating Cooling
AE120JXYDEH/EU 50 50
AE120JXYDGH/EU 50 50
AE140JXYDEH/EU 51 52
AE140JXYDGH/EU 51 52

7-2. NC Curve

1) AE120JXYDEH/EU 2) AE120JXYDGH/EU

1. These operation values were obtained in an anechoic room. Sound pressure level will vary depending on a range of factors such as the construction of the particular room where the equipment is installed.

2. Operation sound level may differ depending on operation and ambient conditions.

7. Sound Pressure Level

7-1. Operation Sound Level

Microphone 1m 1.5m Front

Unit (dB(A))

Model Heating Cooling
AE160JXYDEH/EU 52 54
AE160JXYDGH/EU 52 54

7-2. NC Curve

1. These operation values were obtained in an anechoic room. Sound pressure level will vary depending on a range of factors such as the construction of the particular room where the equipment is installed.

2. Operation sound level may differ depending on operation and ambient conditions.

8. Operation Range

8-1. Outdoor Unit

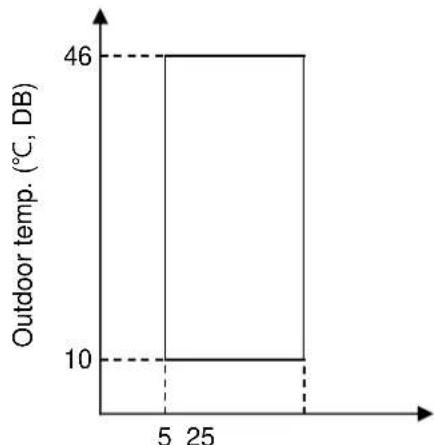

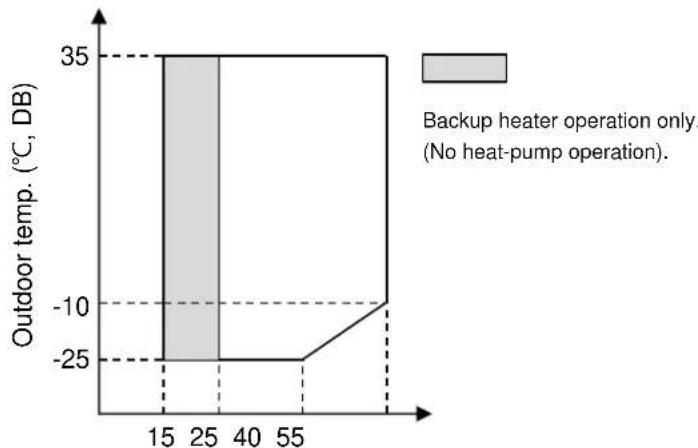

1) Cooling 2) Heating

Leaving water temp. (°C)

Leaving water temp. (°C)

Outdoor Unit		Water Temp. (°C) Water			Flow Rates (LPM) Air Temp. (°C, DB/WB)
		Min Std	Max Min	Std Max	Min Std	Max
Controller	Cooling 5	-	25
	Heating	15	-	55
Cooling	Inlet	- 23	(12 *3)	30	16 (7*1)	(Δ 5°C)	58 (42*2)	10/-	35/24	46/27
	Outlet 5	18 (7 *3)		25
Heating	Inlet	5	30 (40*3)	-				-25/-	7/6 35/24
	Outlet	25(15*4)	35 (45*3)	55

*1) Figures in brackets are for 5kW model.
*2) Figures in brackets are for 5kW/9kW models.
*3) Figures in brackets are based on Eurovent Test Condition #2
*4) Figures in brackets are based on back up heater operation only.

※ Special condition( 35°C < Outdoor temp. ≤ 43°C) is operated by only Booster Heater.
SAMSUNG doesn't supply DHW for EHS Mono.
Since it is a reference data, you have to check DHW operation range for yours.

9. Hydraulic Performance

9-1. Correction Graph

1) AE050/090JXYD*H/EU

2) AE120/140/160JXYD*H/EU

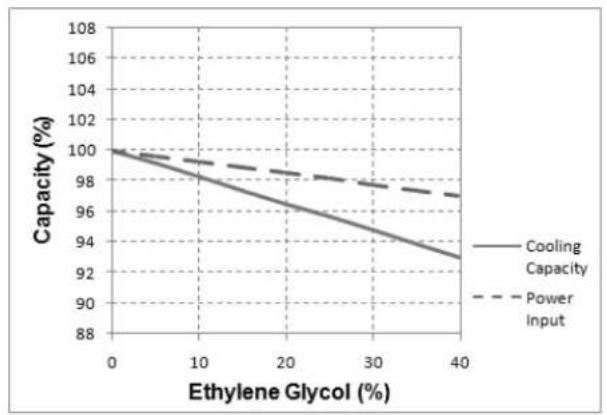

9-2. Capacity Correction

1) Heating 2) Cooling

Notes

1. To ensure correct operation and predict the expected performance, this graph can be used.
2. Flow and resistance characteristic is dependent on anti-freezer concentration.
3. Tested with Ethylene Glycol.

※ Abbreviations

1. EG : Ethylene Glycol

III. Application

1. Application Examples

1. Application Examples

1-1. Outdoor Unit + Control Kit

2) Outdoor Unit + Cylinder Unit
    subgraph_Ventilator_Units["Outdoor unit"]
        A["Return header"] --> B["Radiators or connectors"]
        C["Return header"] --> D["Room thermostat (wireless)"]
        E["Return header"] --> F["Room thermostat (option) (wired)"]
        G["Supply header"] --> H["Under-floor heating coils"]
        I["Supply header"] --> J["Indoor ←"]
        K["Return header"] --> L["Indoor ←"]
        M["RF Receiver"] --> N["Control Kit (provided by SAMSUNG)"]
        O["Wired controller"] --> P["Hot water Supply"]
        Q["Expansion Vessel"] --> R["From city water"]
    end
    subgraph_Cylinder_Unit["Cylinder unit"]
        S["2x1"] --> T["2x2"]
        U["2x3"] --> V["2x4"]
        W["2x5"] --> X["2x6"]
        Y["2x7"] --> Z["2x8"]
        AA["2x9"] --> AB["2x10"]
        AC["2x11"] --> AD["2x12"]
        AE["2x13"] --> AF["2x14"]
        AG["2x15"] --> AH["2x16"]
        AI["2x17"] --> AJ["2x18"]
        AK["2x19"] --> AL["2x20"]
        AM["2x21"] --> AN["2x22"]
        AO["2x23"] --> AP["2x24"]
        AQ["2x25"] --> AR["2x26"]
        AS["2x27"] --> AT["2x28"]
        AU["2x29"] --> AV["2x30"]
        AW["2x31"] --> AX["2x32"]
        AY["Outdoor unit"] --> AZ["Indoor ←"]
        BA["RF Receiver"] --> BB["Wired controller"]
    end

SAMSUNG
