WRF900CS - Range hood WESTINGHOUSE - Free user manual and instructions

Product Type	Range Hood
Brand	Westinghouse
Model	WRF900CS
Width	90 cm (35.4 inches)
Depth	50 cm (19.7 inches)
Height (min-max)	10 - 15 cm (4 - 6 inches) adjustable
Weight	Approx. 15 kg (33 lbs)
Power Supply	120 V / 60 Hz
Rated Power	150 W
Number of Fan Speeds	3 speeds (Low, Medium, High)
Max Airflow	600 CFM (cubic feet per minute)
Noise Level (max)	65 dB(A)
Lighting	2 x 40 W halogen or LED (depending on version)
Filter Type	Aluminum mesh grease filter (washable)
Ducting	Top or rear outlet, 6 inches (15 cm) round duct
Control Type	Push buttons or slide control
Installation Type	Under cabinet or wall mount
Maintenance	Clean grease filter monthly with warm soapy water; replace charcoal filter if recirculating
Safety Features	Thermal overload protection; requires proper grounding
Spare Parts Available	Grease filter, charcoal filter, light bulbs, fan motor, control board
Warranty	1 year limited warranty (parts and labor)
Certifications	ETL listed, suitable for residential use

Frequently Asked Questions - WRF900CS WESTINGHOUSE

How do I install the WRF900CS range hood?

Installation should be done by a qualified professional. Ensure the hood is mounted securely under a cabinet or on the wall, with proper ductwork to the outside. Refer to the user manual for detailed steps and safety instructions.

How often should I clean the grease filter?

Clean the aluminum mesh grease filter at least once a month or more frequently if you cook heavily. Wash it in warm soapy water or in the dishwasher (top rack) and let it dry completely before reinstalling.

Can I use this hood in recirculation mode?

Yes, if you cannot vent outside, you can use the hood in recirculation mode. You will need to install a charcoal filter (sold separately) to absorb odors. Replace the charcoal filter every 3-6 months.

What type of light bulbs does it use?

The WRF900CS uses 2 x 40W halogen bulbs (G4 base) or equivalent LED bulbs. Ensure the bulbs are rated for high temperatures and replace them with the same type.

Why is my range hood noisy?

Noise may come from a clogged filter, loose components, or improper installation. Check the filter for debris, tighten screws, and ensure ductwork is secure. Normal operation can reach up to 65 dB on high speed.

How do I reset the filter reminder?

If your model has a filter reminder light, press and hold the fan speed button (or dedicated reset button) for 3-5 seconds until the light turns off. Refer to your manual for exact steps.

What are the dimensions of the WRF900CS?

The hood is 90 cm wide, 50 cm deep, and 10-15 cm tall (adjustable). It fits standard 90 cm cooktops. Ensure your cabinet opening matches these dimensions.

Does this hood come with a charcoal filter?

No, the WRF900CS comes with a grease filter only. If you plan to use recirculation mode, you must purchase a compatible charcoal filter separately.

What is the warranty coverage?

Westinghouse offers a 1-year limited warranty covering parts and labor for manufacturing defects. Proof of purchase is required. Does not cover damage from improper installation or misuse.

Can I convert the hood from ducted to recirculating?

Yes, the hood can be converted. You need to purchase a charcoal filter kit and remove the duct cover. Instructions are provided in the manual. Ensure the damper is closed if recirculating.

USER MANUAL WRF900CS WESTINGHOUSE

Isometric line drawing of a three-tiered metal HVAC unit with a flat base (no text or symbols)

CANOPY RANGEHOOD

WRC904SC, WRF600, WRF600CS, WRF900CS, WRG630CW, WRG630CS, WRG930CW, WRG930CS, RCD690S, RCD990S

IMPORTANT INFORMATION THAT MAY IMPACT YOUR MANUFACTURER'S WARRANTY

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Westinghouse manufacturer's warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Westinghouse manufacturer's warranty in the event that your product fault is due to failure to adhere this manual.

These cooker hoods are domestic appliances which have been manufactured and tested to comply with Australian and New Zealand Standard AS/NZS 3350.2.31.

These appliance are intended to be used in household and similar applications such as: Staff kitchen areas in shops, offices and other working environments; Farm Houses; By clients in hotels, motels and other residential type environments; Bed and breakfast type environments.

Safety Warnings

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Ensure the cooker hood is switched off before carrying out maintenance, to avoid any possibility of electric shock.
Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire.
Do not flamb'e under the range hood.
This cooker hood is not recommended for barbeques.
The exhaust air from the cooker hood must not be discharged into any heating flue, which may carry combustion products from other sources.
Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
Always cover lit gas burners with pots or pans when the cooker hood is in use.
▶ Always switch off gas burners before you remove pots or pans.
CAUTION: Accessible parts may become hot when used with cooking appliance.
▶ Regulations concerning the discharge of air have to be fulfilled.
There is a fire risk if cleaning is not carried out in accordance with the instructions.

Cleaning

Wipe the cooker hood body and ue with a sponge or soft cloth soaked in warm soapy water. Do not use oven cleaners or other abrasive materials.

Electrical Connection

Check that the mains voltage matches with the voltage on the data plate inside the cooker hood.
▶ Check that the installation complies with standards of local gas and electricity authorities.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Accessories

Use 125mm round exhaust ducting for best performance.
When using flexible duct always install duct with the wire helix pulled taut to minimise pressure loss.
Try to keep exhaust duct short and straight.
Keep bends in the exhaust duct to a minimum.
Do not reduce the size or restrict exhaust duct.

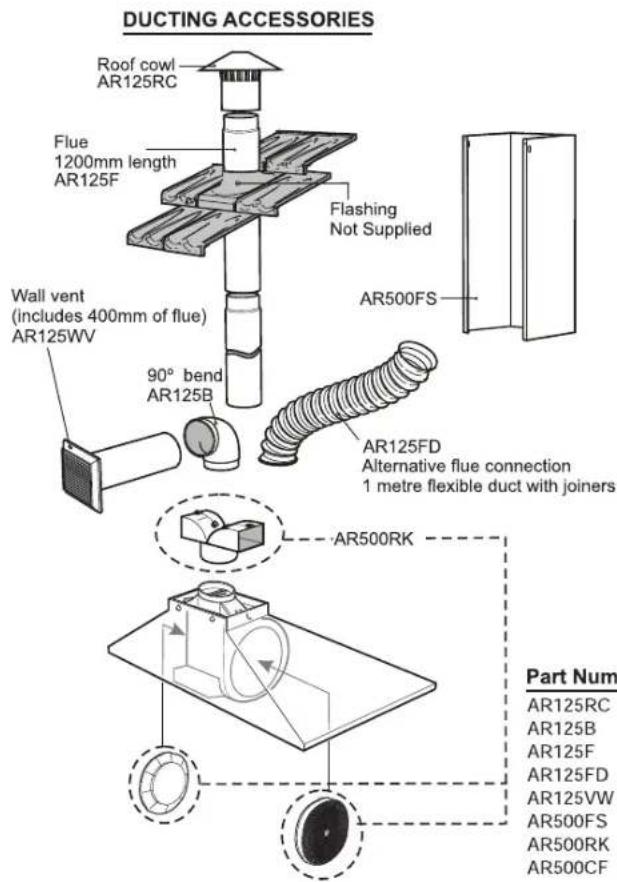

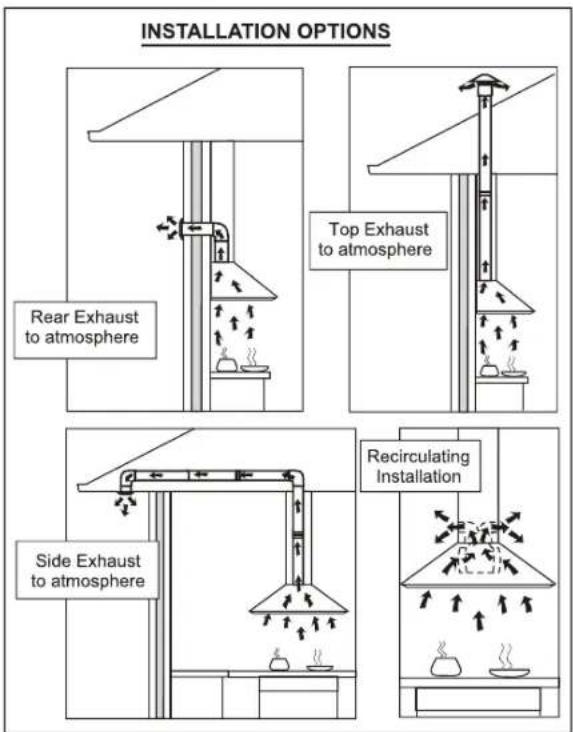

DUCTING ACCESSORIES Roof cowl AR125RC Flue 1200mm length AR125F Flashing Not Supplied AR500FS Wall vent (includes 400mm of flue) AR125WV 90° bend AR125B AR125FD Alternative flue connection 1 metre flexible duct with joiners AR500RK Part Num AR125RC AR125B AR125F AR125FD AR125VW AR500FS AR500RK AR500CF

Part Numbers:

AR125RC

AR125B

AR125F

AR125FD

AR125VW

AR500FS

AR500RK

AR500CF

Description:

Roof Cowl

90° Bend

Flue 1200mm Long

Flexible Duct - 1 Metre Long When Expanded

Wall Vent Kit

Extra Length Flue Cover 1100mm Length Brushed Stainless Steel

Recirculating Kit

Replacement Carbon Filters

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

COMPONENTS LIST

➢ 1 body assembly with grease filters (900-3 grease filters / 600-2 grease filters)
1 telescopic flue cover set
2 cover flue mounting brackets
1 instruction book
1 plastic bag containing screws for fixing telescopic flue covers
1 plastic duct transition: oblong to round

COMPONENTS NOT INCLUDED

➢ Fixings required to attach cover flue mounting brackets to wall
- Fixings required to attach the cooker hood to wall

INSTALLING THE COOKER HOOD

Before installing the cooker hood, peel off any protective plastic covering.

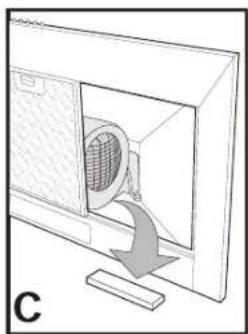

Remove polystyrene packaging from inside behind fan motor. (Diagrams C)

Diagram of a computer monitor with a ventilation grille and a scroll, showing airflow direction (no text or symbols)

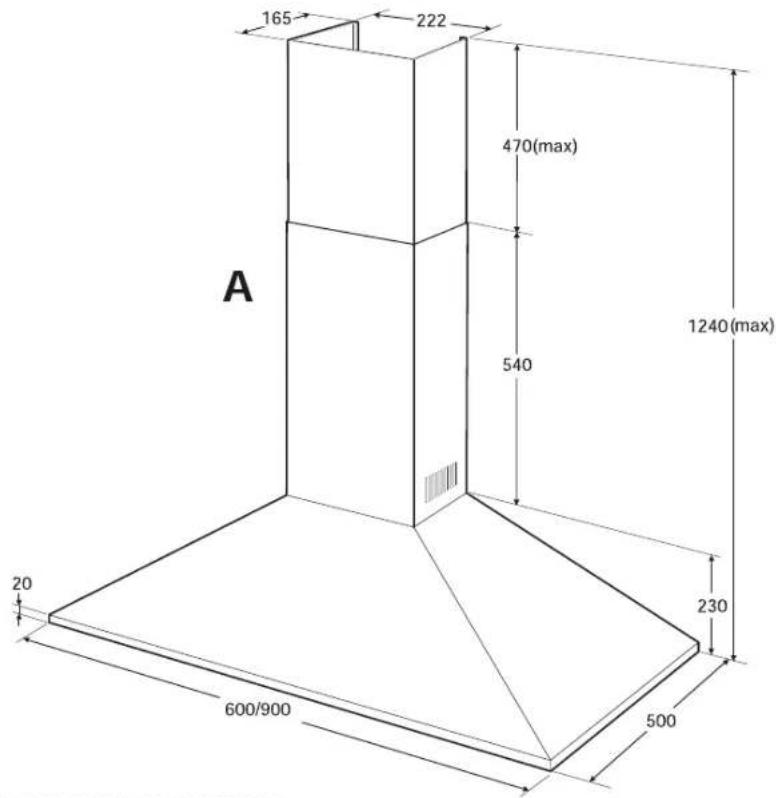

165 222 470(max) 540 1240(max) A 20 600/900 500

DIMENSIONS ARE IN MILLIMETRES

NOTE: Some installations may require flue cover cut to length. Cut with a fine-tooth hack saw blade, to distort or dent flue cover. The maximum space between screw top is 5mm. Diagram B: • Recommended working • Cover flue mounting br • Telescopic cover flue fix B 65 65 490 75 75 245 38 303 303 Hood base 203 203 (600 model) (600 model) 600 models as per this diagram with these dimensions the only variables MINIMUM: 600 electric 650 gas MAXIMUM: 800 mm Top of hob

NOTE:

Some installations may require telescopic flue cover cut to length. Cut with tin snips or a fine-tooth hack saw blade, taking care not to distort or dent flue cover. The maximum space between the wall and screw top is 5mm.

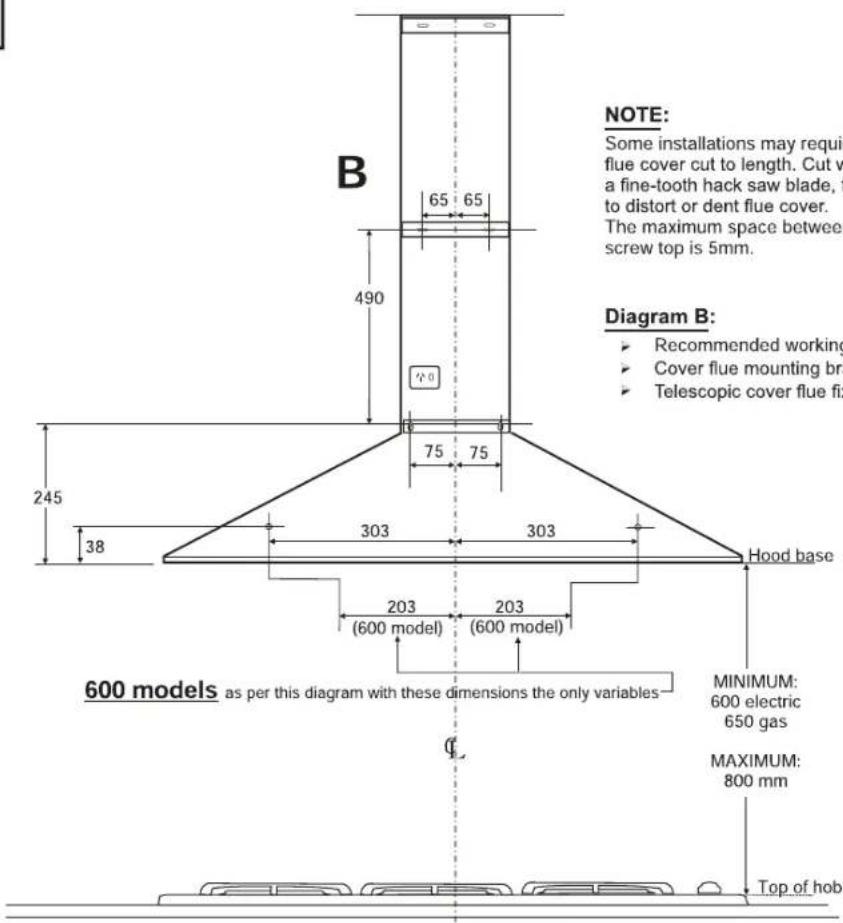

Diagram B:

Recommended working heights.
▶ Cover flue mounting bracket locations.
Telescopic cover flue fixing points.

NOTE:

If the instructions of the hob specify a greater distance than the minimum, then that shall be the minimum height for the installation

RECOMMENDED INSTALLATION SEQUENCE

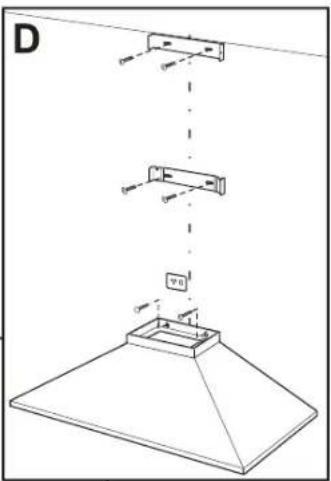

Diagram D

Install cooker hood body.

Determine working height, mark wall to suit.

Install cover flue mounting brackets.

Diagram E

Fix duct transition to cooker hood body.

Install internal exhaust duct to suit installation type.

E

D

Technical line drawing of a mechanical assembly with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a lever and base plate (no text or symbols)

G 0=0 1=0

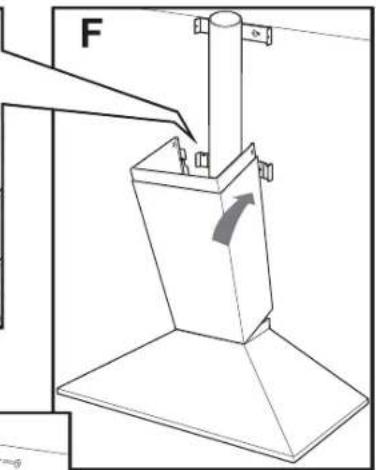

Diagram(s) F

Install bottom section of telescopic flue cover.

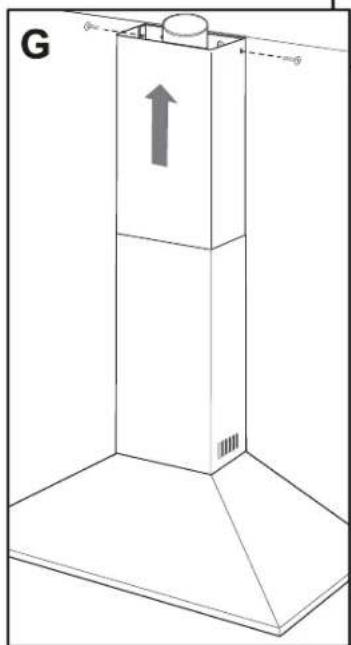

Diagram G

Install top section of telescopic flue cover.

IMPORTANT: The Edison Screw lamps may have come loose during transportation. Ensure that lamps are tightened firmly into the socket before power is applied.

Best results are obtained by using a low fan speed for normal conditions and a high fan speed when odours are more concentrated. Turn the hood on a few minutes before you start cooking. It should be left on after cooking for about 15 minutes or until all odours have disappeared.

01 0123

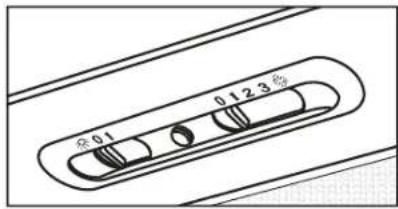

Slide switch controls:

Light switch: - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - This switch is used to turn the light fitted in the hood on and off.

Extractor fan switch: ---- Used to select fan speeds.

Slide position I: Fan speed Low

Slide position 2: Fan speed Medium

Slide position 3: Fan speed High

Press button switch controls

Light switch: Depress light button to turn light

ON. Press light button to turn light OFF.

Extractor fan switch interlocked switching:

Select a fan speed, depress button to turn fan ON. Press button (O) to turn fan OFF.

木

NOTE:

This product is fitted with a safety cutout device. If the cooker hood is installed to close to the cooktop, flambe cooking, operating the cooktop without cooking utensils and blocked filters may activate the safety cutout device. If the hood stops during operation, correct the faults and allow time for the safety cutout device to reset, the cooker hood will then function correctly.

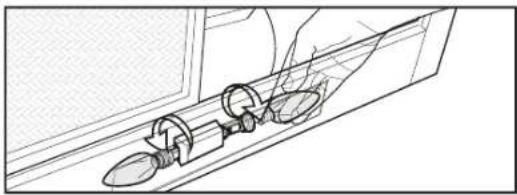

Replacing lamps:

Ensure the appliance is switched off before carrying out maintenance, to avoid any possibility of electric shock. Remove grease filter to replace lamp. Replace with 40W (maximum) E14 candle lamp.

Line drawing of a hand holding a tool near a window with a screwdriver (no text or symbols)

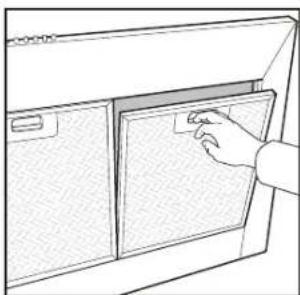

Maintenance:

Clean grease filters every three to four weeks maximum.

Greasy filters are a fire risk.

Remove the grease filters, soak and agitate in hot soapy water.

Rinse, drain and shake well before replacing filters.

Do not use oven cleaners or other caustic materials.

Line drawing of a hand placing a rectangular object into a cabinet (no text or symbols)

NOTES

NOTES
