USER MANUAL UA78HU9800J SAMSUNG

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model____ Serial No.____

Contents

Quick Guide

Using the Smart TV

Using Voice Control

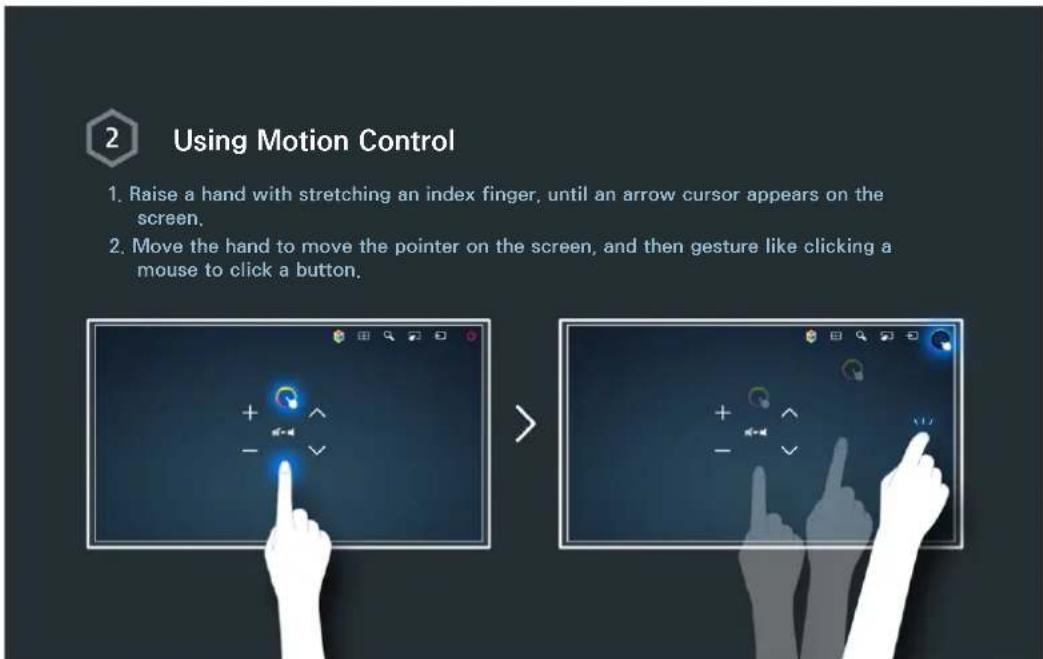

Using Motion Control

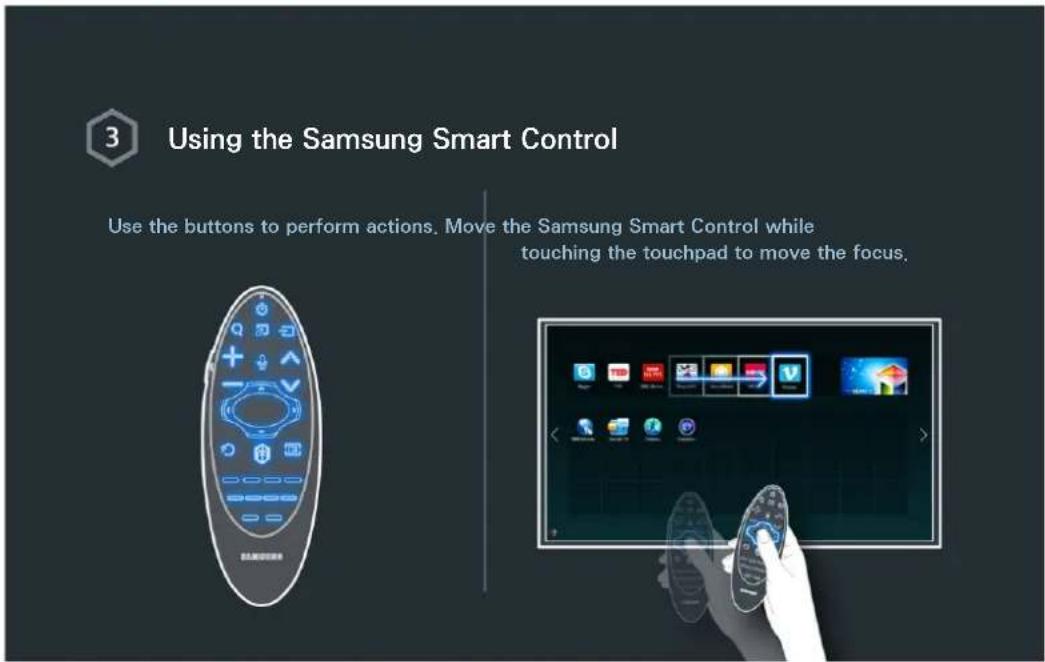

Using the Samsung Smart Control

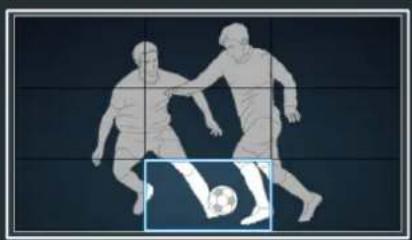

Using the Soccer Mode / Football Mode

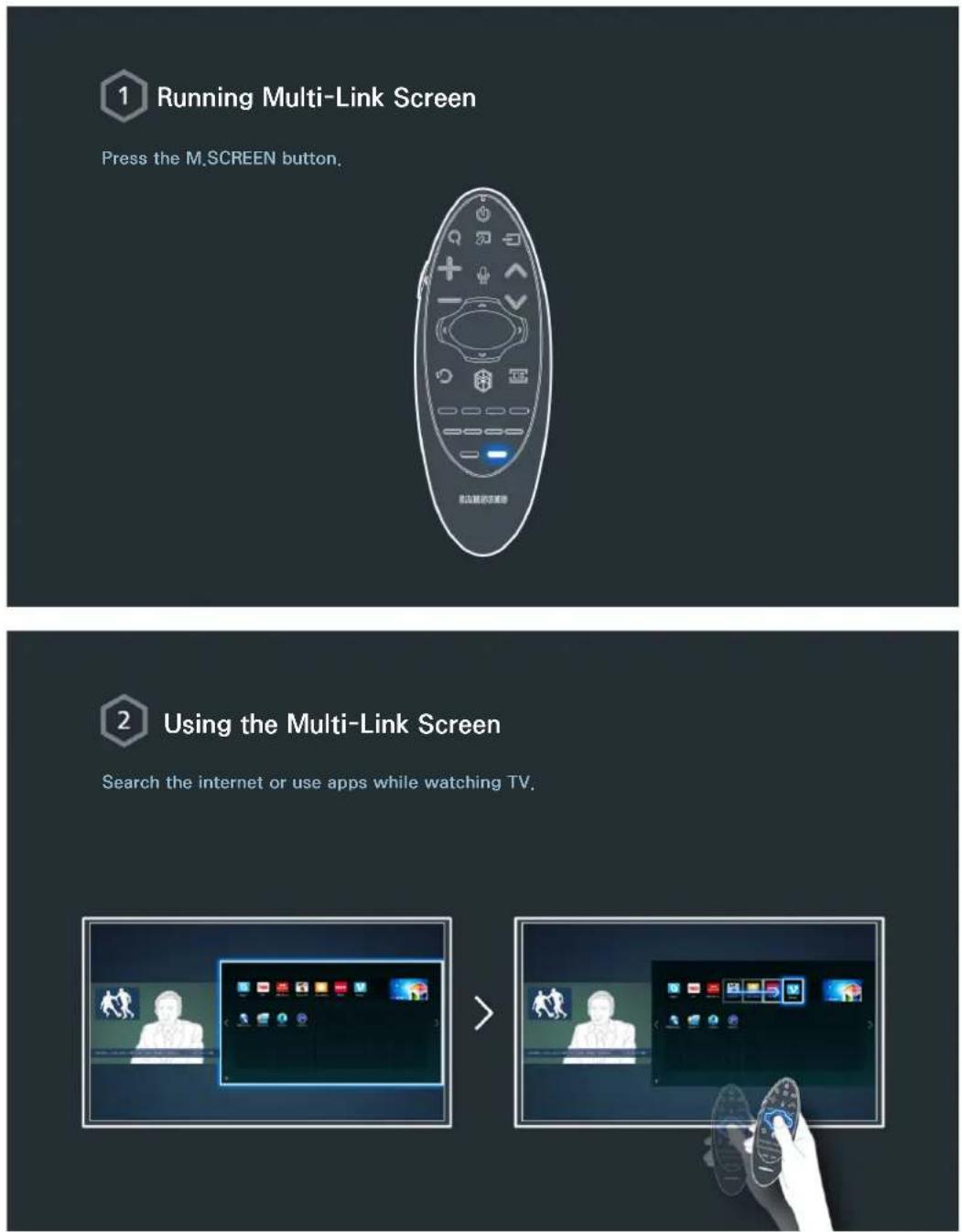

Using the Multi-Link Screen

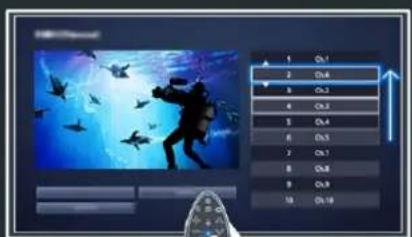

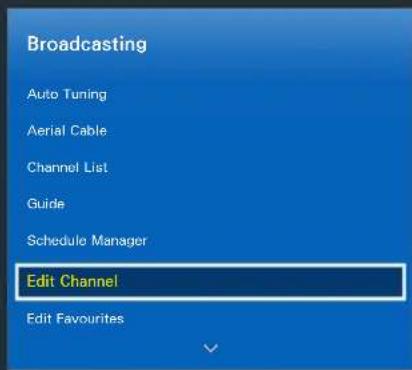

Editing channels

Connecting Antenna and External devices

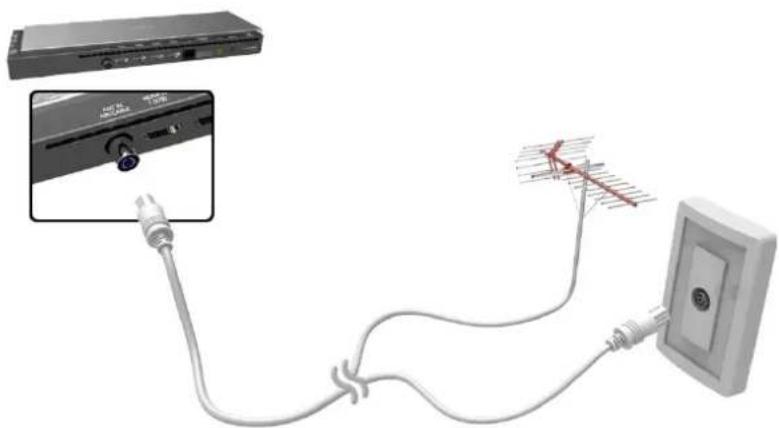

Aerial Connection

Video Device Connection

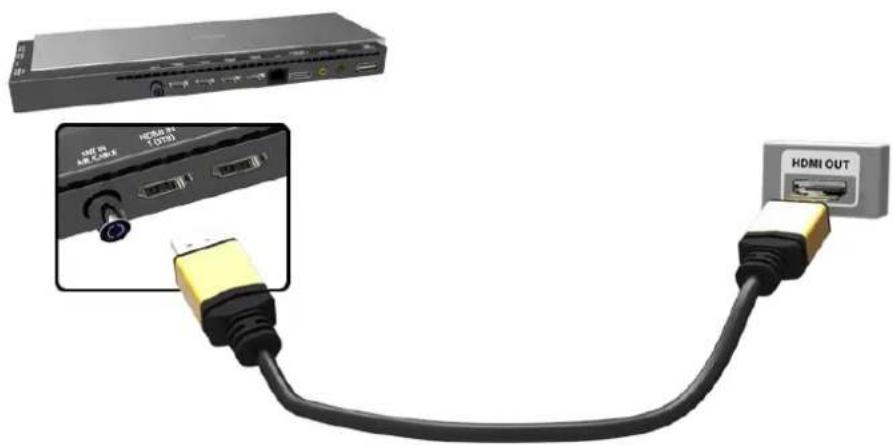

13 HDMI Connection

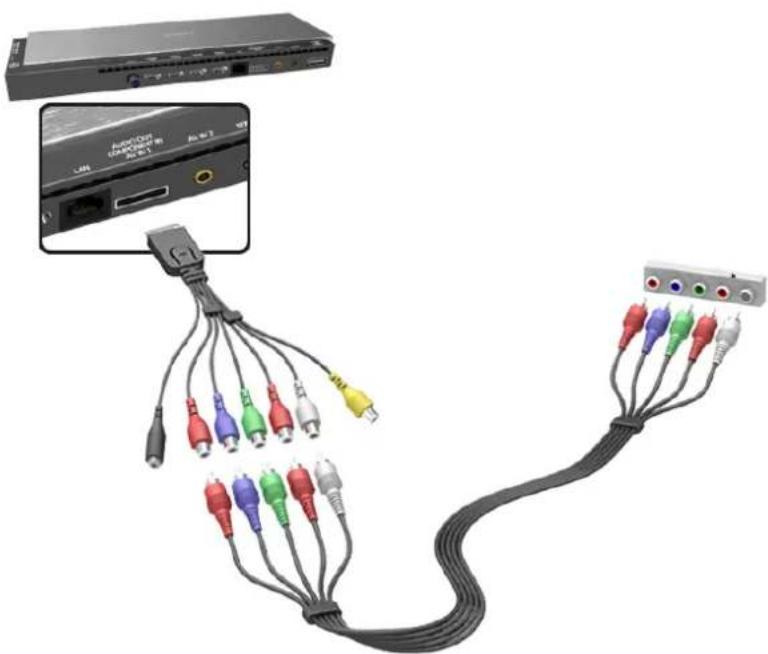

14 Component Connection

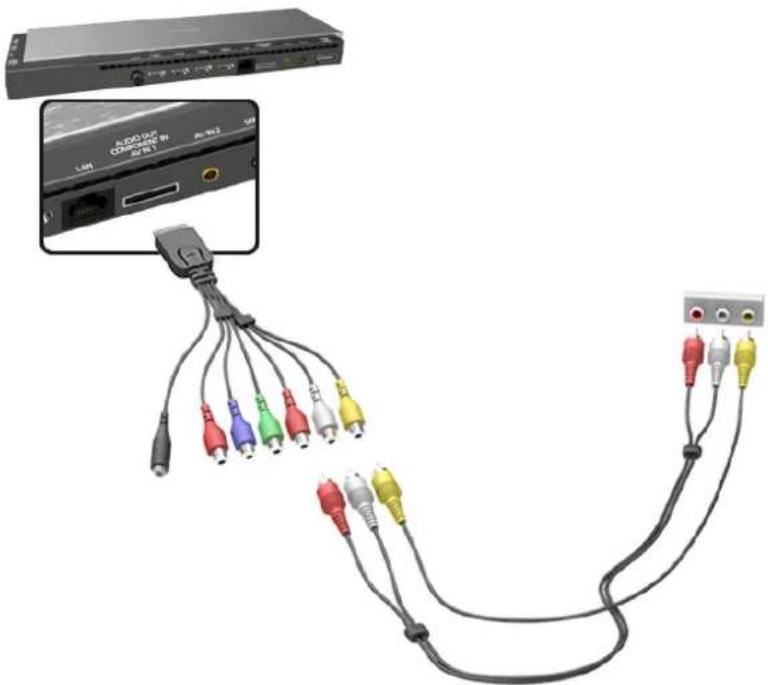

15 Composite (A/V) Connection

TV Audio through the External Speakers

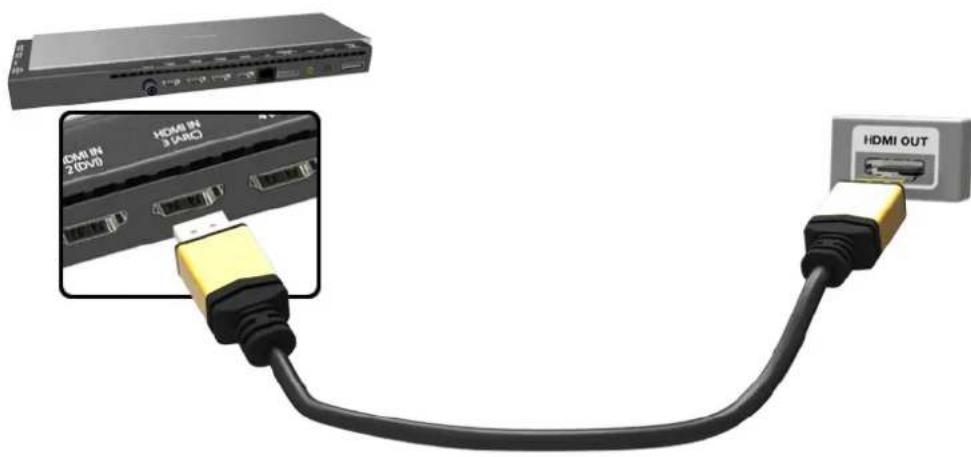

16 HDMI (ARC) Connection

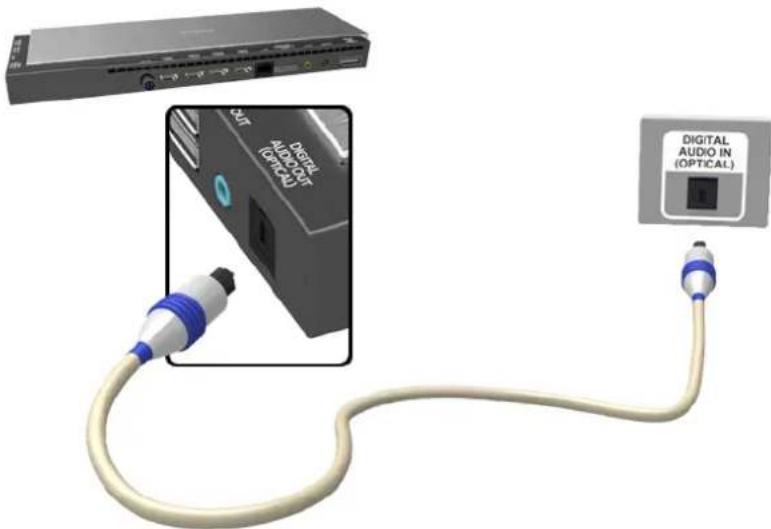

17 Digital Audio (Optical) Connection

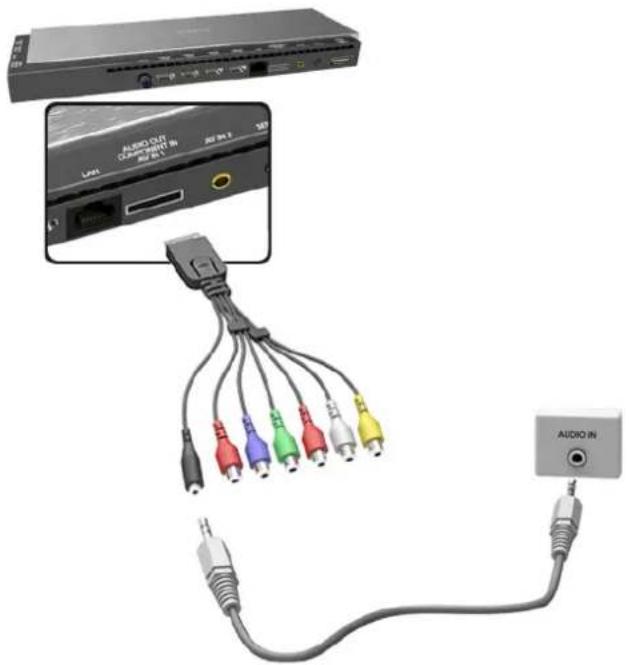

18 Audio Output Connection

Connecting to a Computer

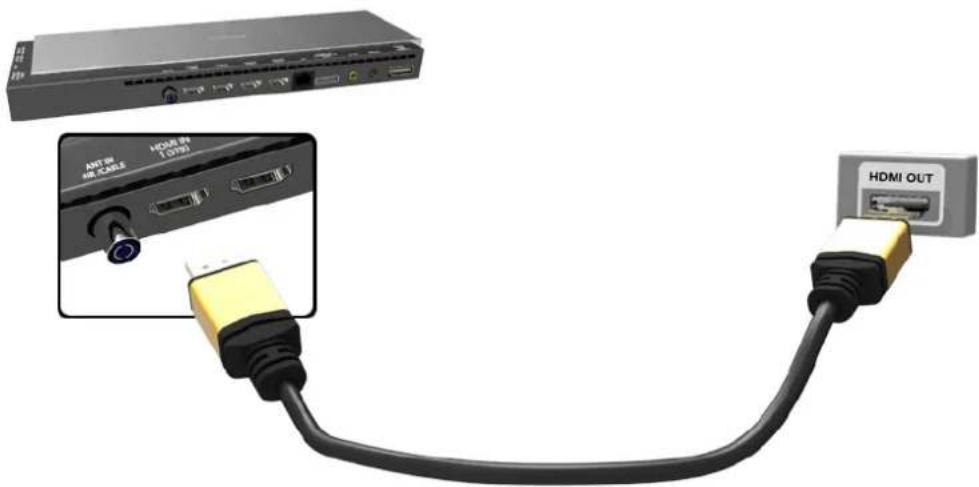

20 Connecting via HDMI Port

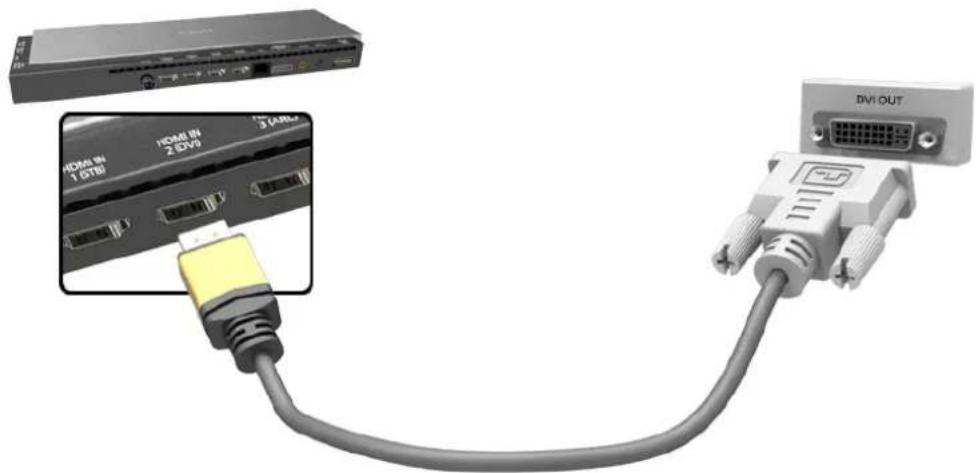

21 Connecting with the HDMI (DVI) Port
22 Connecting via Samsung Link
22 Connecting via Home Network (DLNA)

Connecting with a Mobile Device

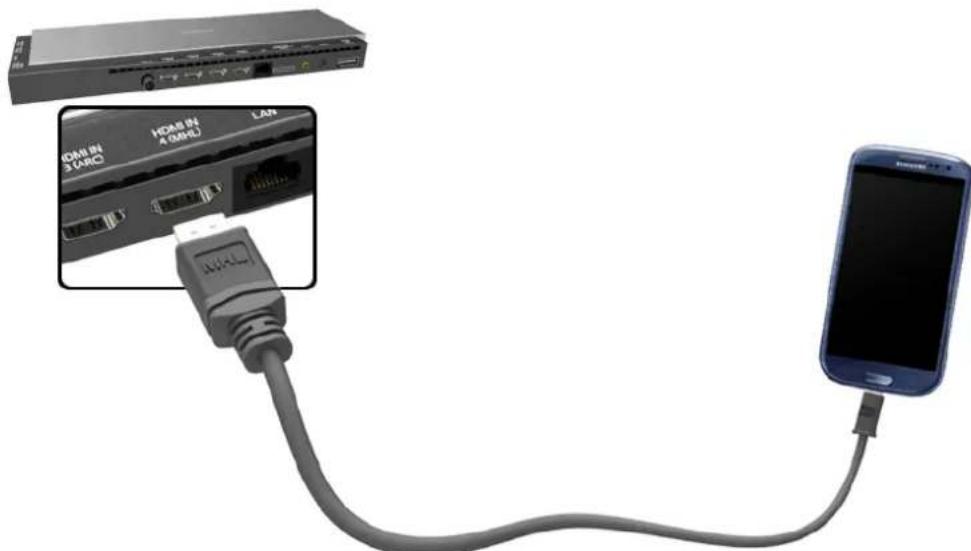

24 Connecting with MHL-to-HDMI Cable
25 Mobile Device Screen on TV (Screen Mirroring)

25 Connecting Mobile Devices without a Wireless Router (Wi-Fi Direct)
25 Connecting via Smart View
26 Connecting via Samsung Link
26 Connecting via Home Network (DLNA)
27 Name of TV on Network

Input Signal Selection

Using Remote and Peripheral Devices

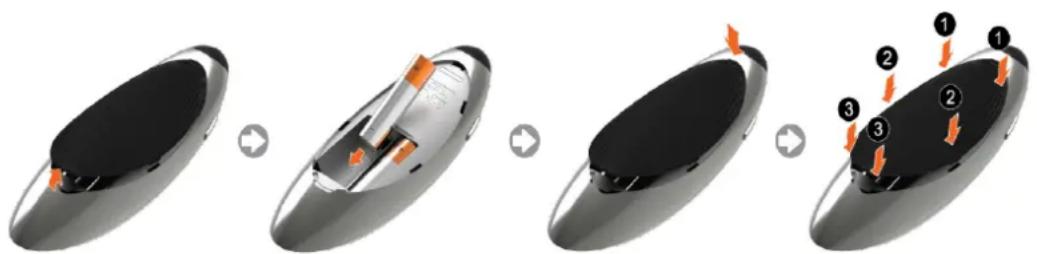

Inserting Batteries into Samsung Smart Control

28 When you see this alarm icon on the screen

Pairing Samsung Smart Control

29 Reconnecting Samsung Smart Control

Using Samsung Smart Control

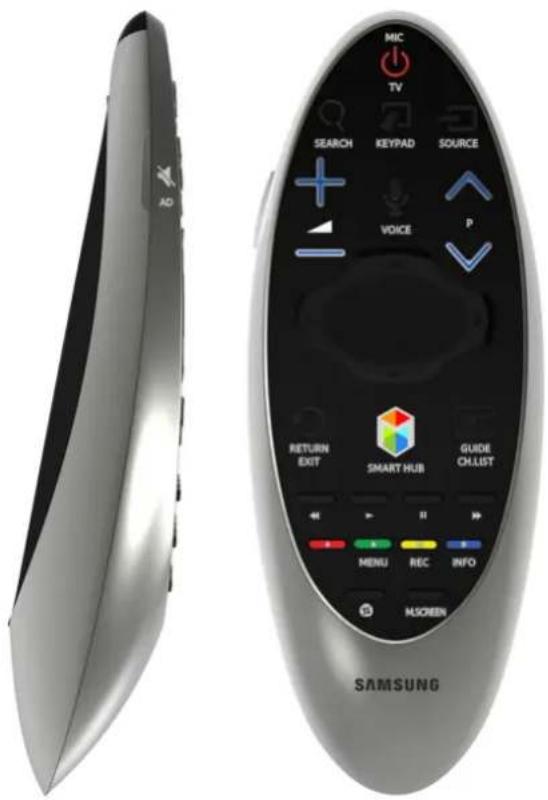

30 Button Functions

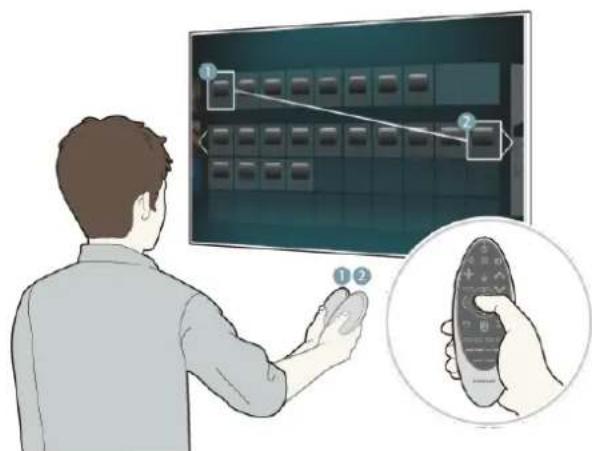

32 Using the TV by Moving the Samsung Smart Control
33 Using the TV with the Touchpad

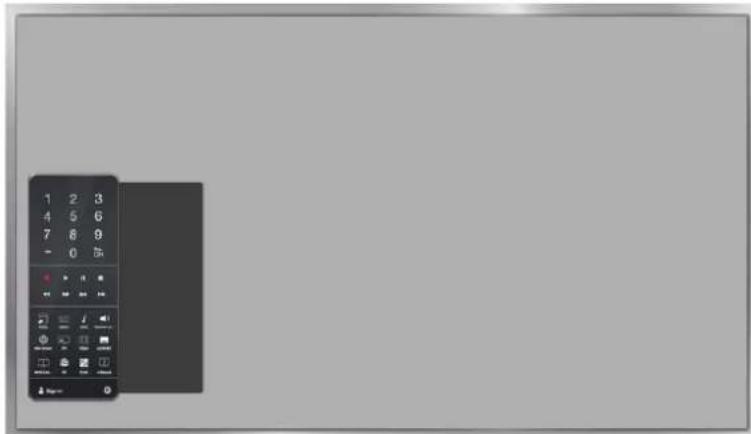

35 Displaying the Remote Control on the Screen (virtual remote control)

Controlling External Devices with the TV Remote (Universal Remote Setup)

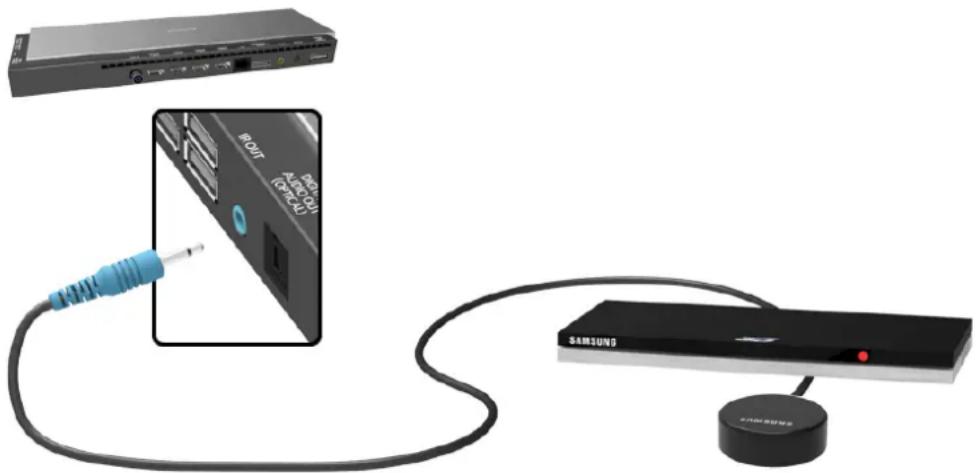

37 Setting Up the Universal Remote Control
38 Controlling External Devices with the TV Remote
39 Universal Remote Features

Controlling the TV with a Keyboard

40 Connecting a Keyboard
41 Using the Keyboard

Controlling the TV with a Mouse

42 Connecting a Mouse
43 Using the Mouse

Entering Text Using QWERTY

44 Using Additional Functions

Internet Connection

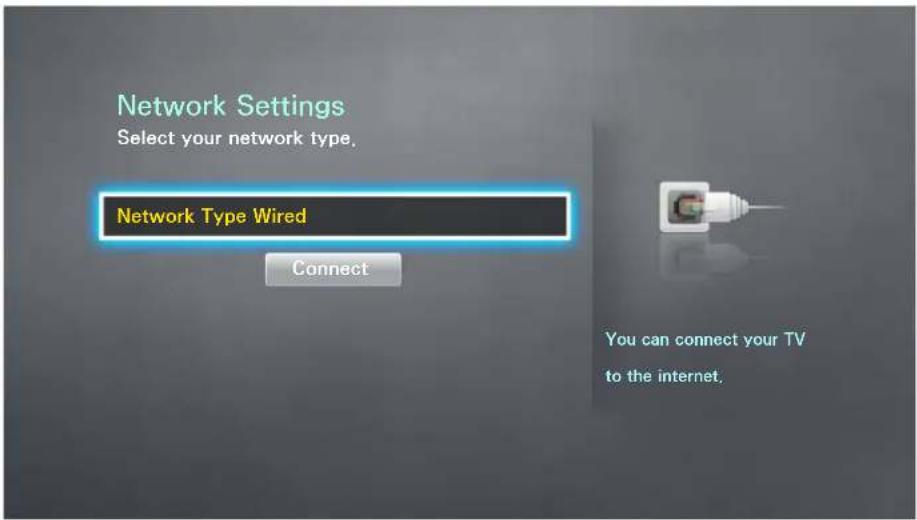

Establishing a Wired Internet Connection

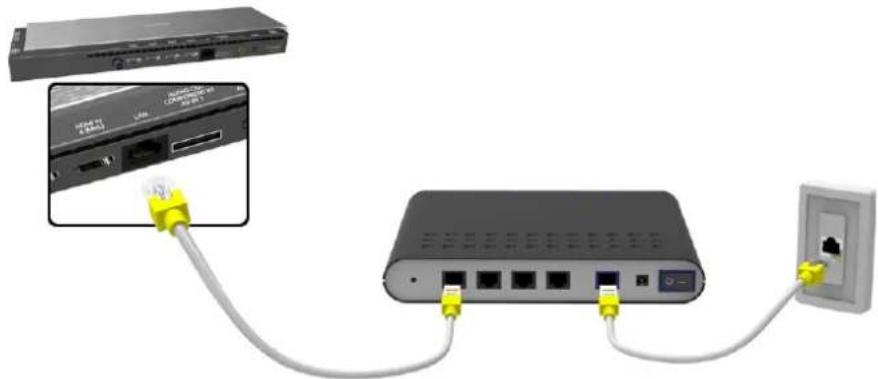

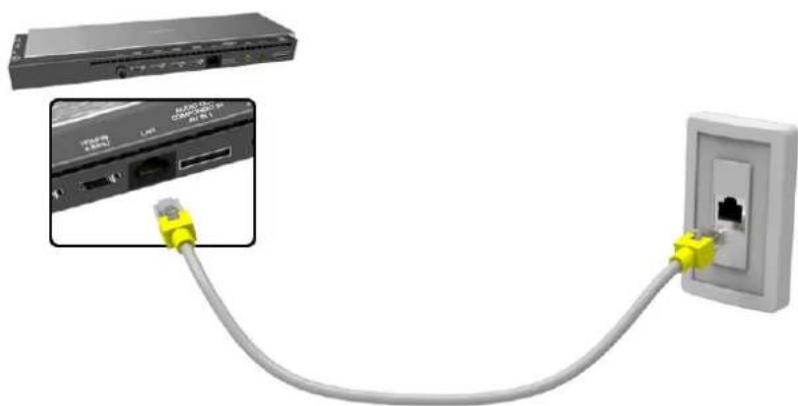

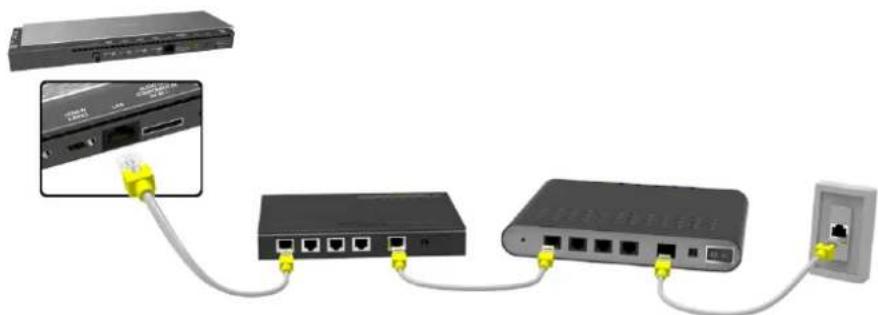

45 Connecting a LAN Cable

46 Connecting to a Wired Internet Network Automatically

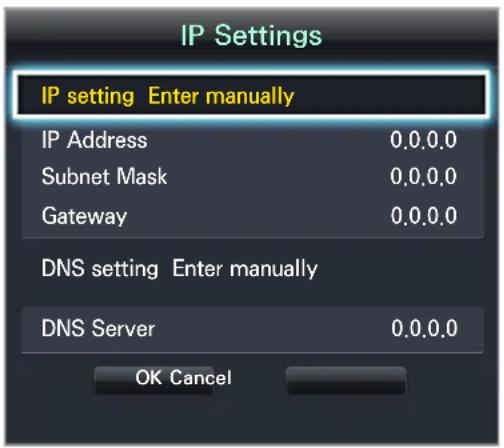

46 Connecting to a Wired Internet Network Manually

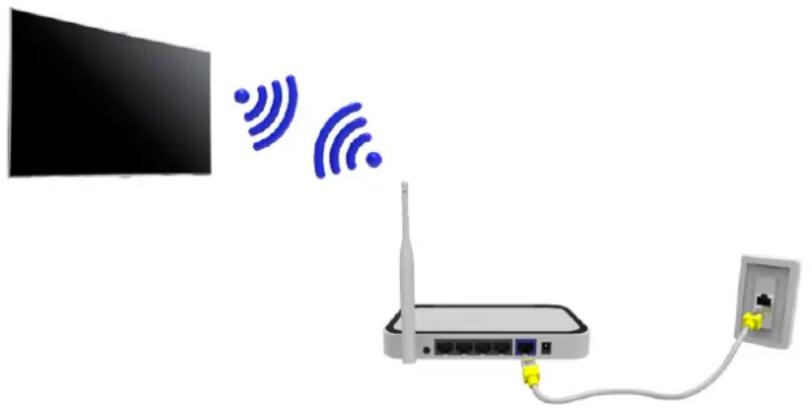

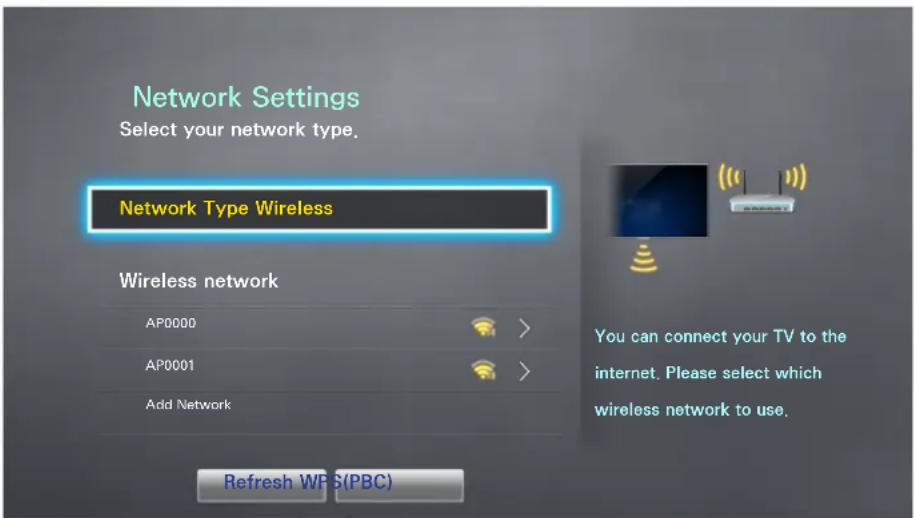

Establishing a Wireless Internet Connection

48 Connecting to a Wireless Internet Network Automatically

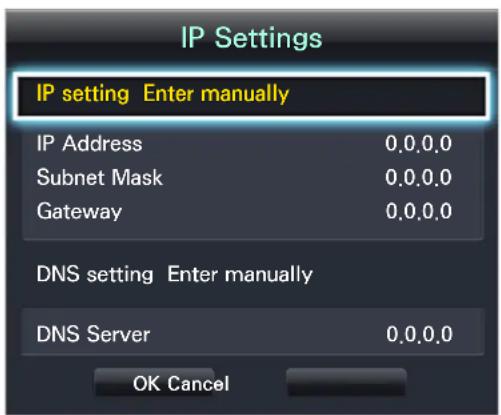

49 Connecting to a Wireless Internet Network Manually

50 Connecting to a Wireless Internet Network with WPS

Troubleshooting Internet Connectivity Issues

51 Troubleshooting Wired Internet Connectivity Issues

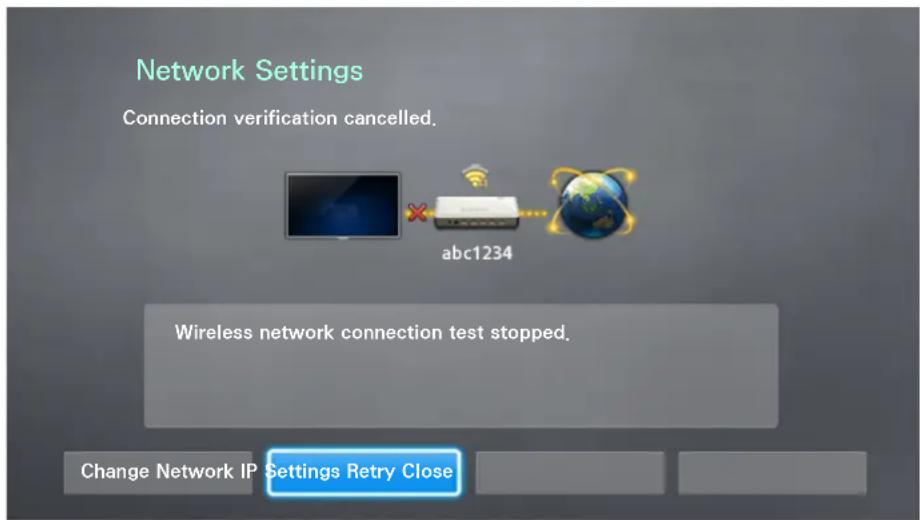

52 Troubleshooting Wireless Internet Connectivity Issues

Checking the Internet Connection Status

Smart Features

Multiple Functions on a Single Screen

54 Launching Multi-Link Screen

54 Selecting a Feature

54 Changing the Channel/Volume

55 Pairing Bluetooth Headphones

55 Selecting the Audio-Source Screen

Smart Hub

56 Testing Smart Hub connections

57 Using the Smart Hub Tutorial

57 Resetting Smart Hub

Using Smart Hub with Samsung Account

58 Creating a Samsung Account

60 Signing into Samsung Account

61 Linking My Samsung and App Accounts

62 Changing and Adding Information to Samsung Account

62 Deleting All Samsung Accounts from the TV

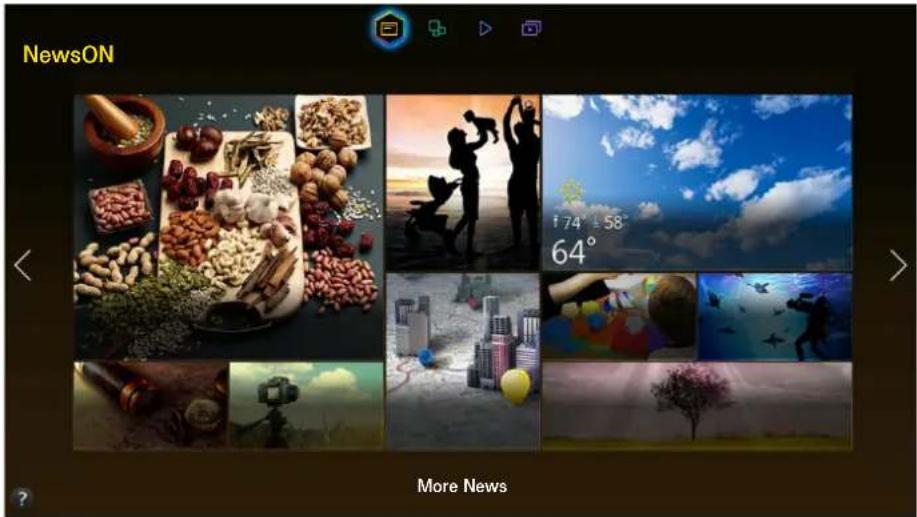

Using the NewsON Panel

63 News

63 Weather

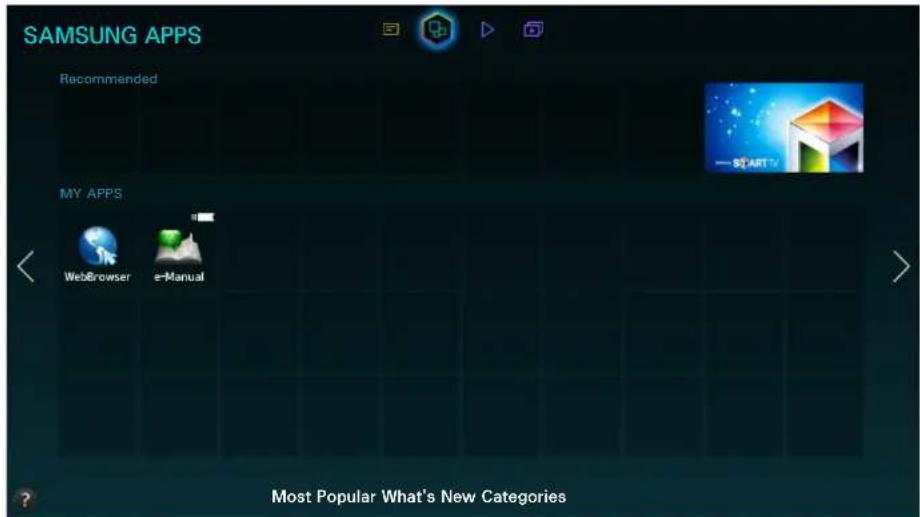

Using SAMSUNG APPS Panel

65 Using Pop-Up Menu Functions

66 Installing an App

67 Default Apps

67 Rearranging Apps on the SAMSUNG APPS Screen

68 Removing an App from the TV

69 Updating an App

69 SAMSUNG APPS Features

Using MOVIES & TV SHOWS Panel

72 Watching a Movie/TV Programme

72 Preventing Children from Watching Adult UHD Content

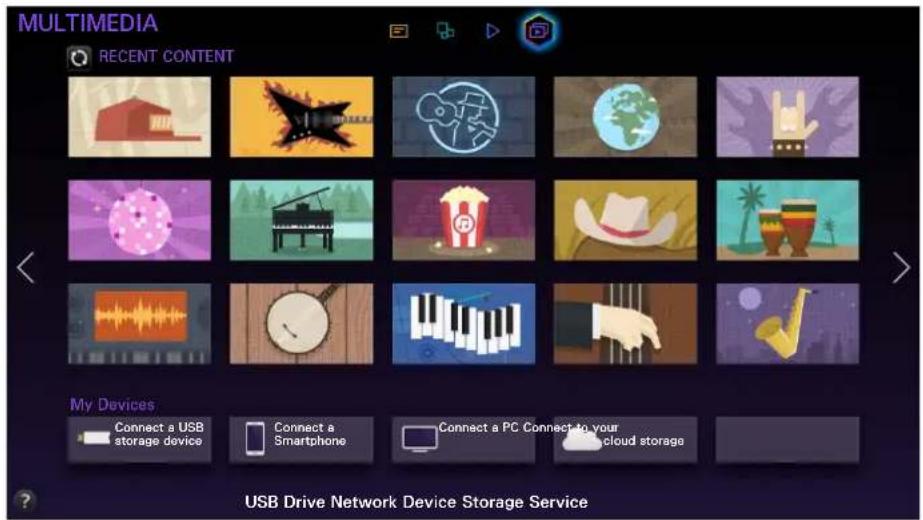

Playing Photos, Videos, and Music (MULTIMEDIA)

73 Playing Media Content from a USB Device

74 Playing Multimedia Content Saved in a Computer/Mobile Device

76 Playing Media Content from a Storage Service

77 Buttons and Functions Available while Viewing Photos

78 Buttons and Functions Available while Watching Video

80 Buttons and Functions Available while Playing Music

81 Functions on the Media Content List Screen

82 Listening to Music in HD Quality

82 Listening to 3D Audio in 3D Mode

82 Resetting All Sound Settings

TV Control using your Voice

83 Enabling Voice Control

85 Using Voice Control Interactively

TV Control using your Voice (SEK-2500U Model)

87 Testing Noise Around the TV's Built-in Microphone

90 Using the Voice Interaction function Interactively

TV Control using Motions

91 Testing Ambient Illumination Using the TV Camera

92 Activating Motion Control

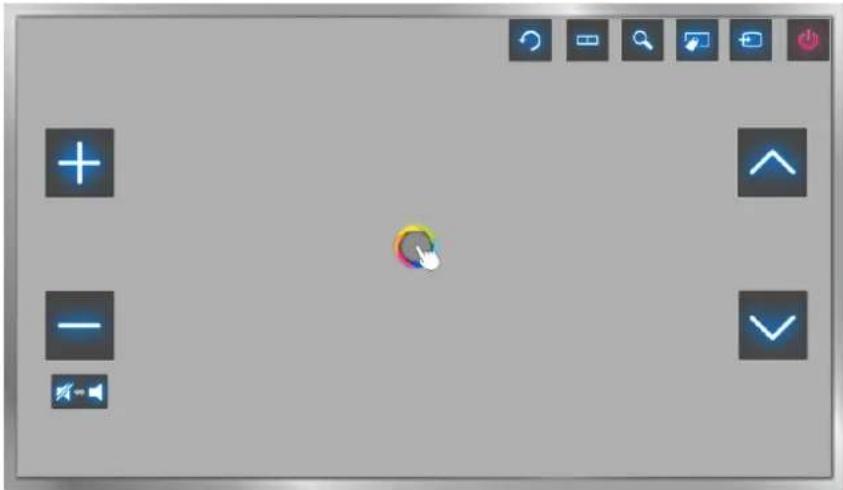

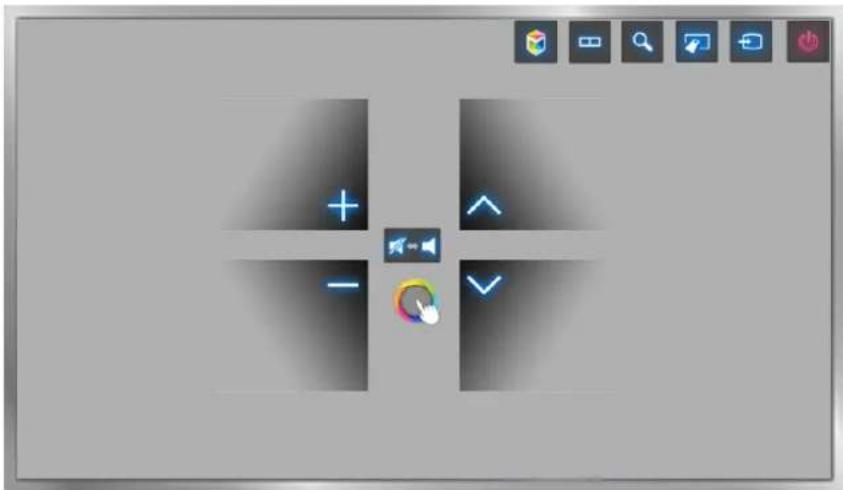

96 Motion Control Screen Layout

Signing in with Face Recognition

99 Registering Your Face to Your Samsung Account
100 Changing Login Method to Face Recognition
100 Singing into Samsung Account with Your Face

TV Viewing and Recording Features

Digital Broadcast Information at a Glance

101 Using the Guide
102 Checking the Current Programme Info
102 Change the Broadcast Signal
102 Digital Signal Info and Strength

Recording Programmes

103 Creating a USB Recording Device
105 Recording Programmes
106 Buttons and Functions Available While Recording a Programme
107 Managing the Schedule Recording List
108 Viewing Recorded Programmes
111 Managing Recorded Files

Setting Up a Schedule Viewing

112 Setting Up Schedule Viewing
113 Managing the Schedule Viewing List

Using Timeshift

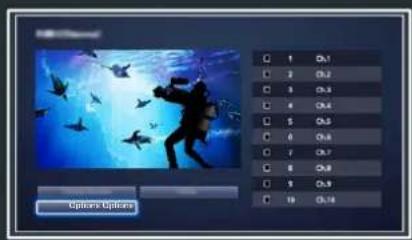

Using the Channel List

Registering, Removing, and Editing Channels

116 Registering and Removing Channels

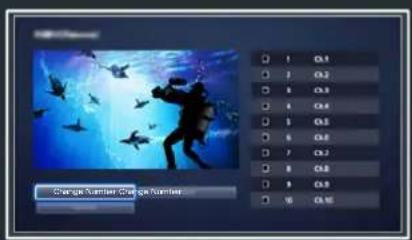

117 Editing Registered Channels
117 Enabling/Disabling Password Protection on Channels
117 Locking/Unlocking Channels

Creating a Personal Favourites List

118 Registering a Channel as Favourites
119 Viewing Favourites List Channels Only
119 Editing a Favourites List

Adding Realism to Sports

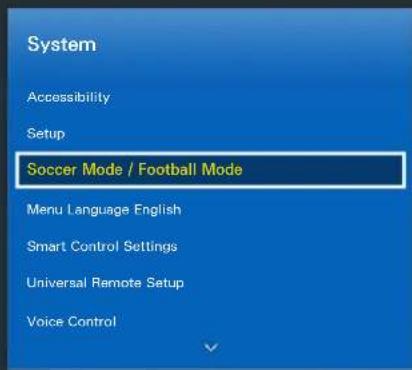

122 Enabling Soccer Mode / Football Mode
122 Extracting Highlights Automatically
123 Functions Available in Soccer Mode / Football Mode
124 Viewing a Sports Event Recorded in Soccer Mode / Football Mode

TV-Viewing Support Features

125 Showing Subtitles
125 Subtitle Options
126 PIP Broadcast Viewing
127 Scanning for Available Channels
128 Selecting the Broadcast Audio Options
128 Audio Description

Using the Channel Settings

129 Manual Tuning
130 Fine-Tuning the Screen

Picture and Sound Settings

Changing the Picture Mode and Adjusting the Picture Quality

131 Choosing the Right Picture Mode for the Viewing Environment
132 Adjusting the Picture Quality for Each Picture Mode
133 Fine-Tuning Each Picture Mode (Advanced Settings)
135 Adjusting the Picture for Easier Viewing (Picture Options)

Viewing in 3D

138 Starting 3D
139 Changing the 3D Mode
140 Adjusting the 3D Effect

Picture Support Functions

141 PIP Broadcast Viewing
142 Changing the Picture Size and Position
145 Listening to Audio Only with the Screen Turned Off (Picture Off)
145 Resetting the Picture Mode Settings

Changing the Sound Mode and Using Sound Effects

146 Choosing the Right Sound Mode for the Environment

147 Using Sound Effects

Customising Sound (Sound Customiser)

148 Customising Sound

148 Using a Custom Sound Profile

149 Renaming and Deleting Custom Sound Profiles

149 Modifying a Custom Sound

Sound Support Functions

150 Selecting Speakers

150 Designating the TV's Installation Type

150 Listening to TV Sound through Samsung Bluetooth Audio

151 Enabling the Sound (Additional Settings)

General

Setting the Time and Using the Timer

152 Setting the Current Time

153 Using the Timers

Using the Screen Burn Protection and Energy Saving Features

155 Preventing Screen Burn

155 Using Energy Saving Features

Using Anynet+ (HDMI-CEC)

156 Setting Up Anynet+ (HDMI-CEC)

157 Using Anynet+ (HDMI-CEC)

Using the e-Manual

158 Launching the e-Manual

158 Additional e-Manual Features

159 Updating the e-Manual to the Latest Version

Updating the Software

160 Updating Software over the Internet

160 Updating Software using a USB connection

161 Enabling Automatic Software Updates

Protecting the TV from Hacking and malicious code

161 Checking the TV and Connected Storage Media

162 Automatically Scanning when the TV is Powered On

162 Automatically Adding malicious code to the Blocked List

Using Other Functions

163 Enabling Voice Guide for the Visually Impaired

164 Enabling the High Contrast

164 Adjusting the Menu Transparency

165 Expanding the Smart Hub's Focus Area

165 Changing the Menu Language

165 Checking Notifications

165 Setting Up a Password

166 Enabling Game Mode

166 Enjoying Rich Colours and Superior Picture Quality (BD Wise)

167 Enabling/Disabling Sound Feedback

167 Locking/Unlocking the Panel Keys

167 Showing/Hiding the Samsung Logo while Booting

167 Enabling the TV to Boot Faster

167 Enabling/Disabling the Front Indicators

168 Evolution Kit Backup

169 Registering the TV as a DivX-Certified Device (Watching Paid DivX Movies)

170 Restoring the TV to the Factory Settings

170 Turning the TV into a Display Model (for retail stores)

Troubleshooting

Getting Support

171 Support through Remote Management

173 Finding the Information You Need for Service

There is a problem with the screen

173 Testing the Picture

I can't hear the sound clearly

176 Testing the Sound

I can't see 3D images clearly

177 Testing 3D Picture Quality

There is a problem with the broadcast

The computer won't connect

I can't connect to the Internet

The Schedule Recording/Timeshift function isn't working

Anynet+ (HDMI-CEC) isn't working

I am having trouble launching/using apps

My file won't play

I want to reset the TV

Other Issues

Notes and Precautions

Before Using the Recording and Timeshift Functions

184 Before Using the Recording and Schedule Recording Functions

185 Before the Using Timeshift Function

S-Recommendation Disclaimer

186 S Recommendation with Voice Interaction

186 S Recommendation

Before Using 3D Viewing Mode

187 3D Precautions

190 Supported Resolutions for each 3D Mode

Supported Resolutions for UHD

192 HDMI Connector except for the MHL-to-HDMI Connector

Read Before Using Voice, Motion, or Face Recognition

193 Precautions for Voice, Motion, and Face Recognition

195 Requirements for Using Voice, Motion, or Face Recognition

Read Before Using SAMSUNG APPS

Web Browser Restrictions

Photo, Video, and Music File Limitations

200 Storage Device File Transfers

201 Supported External Subtitles

201 Supported Internal Subtitles

202 Supported Image Formats and Resolutions

202 Supported Music Formats and Codecs

203 Supported Video Codecs

Read After Installing the TV

205 Picture Sizes and Input Signals

206 Installing an Anti-Theft Kensington Lock

206 Read Before Setting Up a Wireless Internet Connection

Computer Connection Precautions

207 IBM

207 MAC

208 VESA DMT

Licence

Glossary

Using the Smart TV

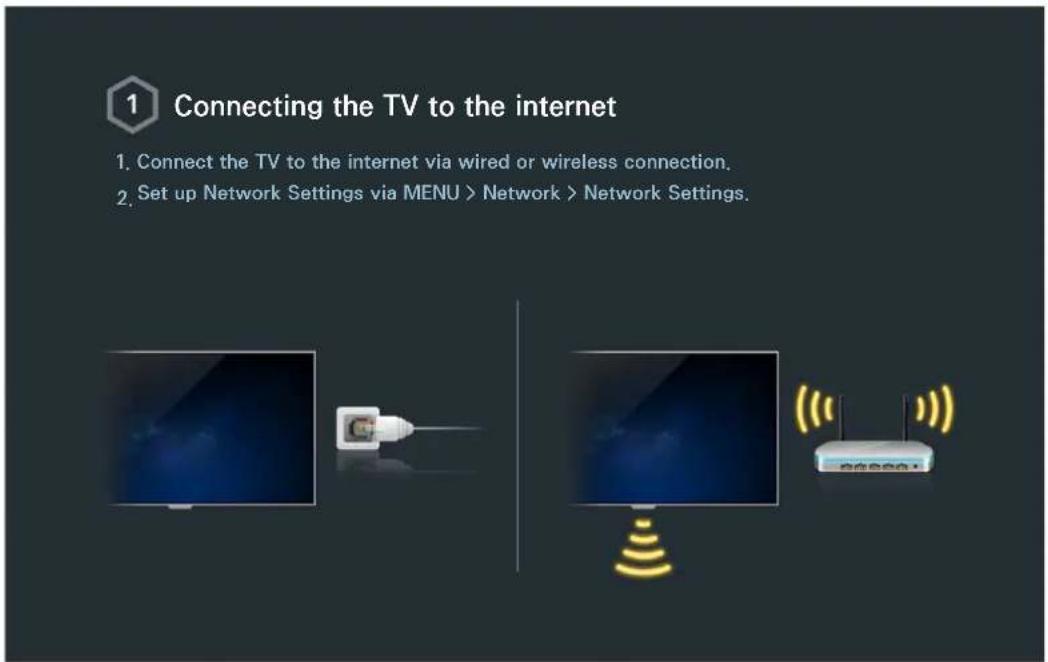

1 Connecting the TV to the internet 1. Connect the TV to the internet via wired or wireless connection. 2. Set up Network Settings via MENU > Network > Network Settings.

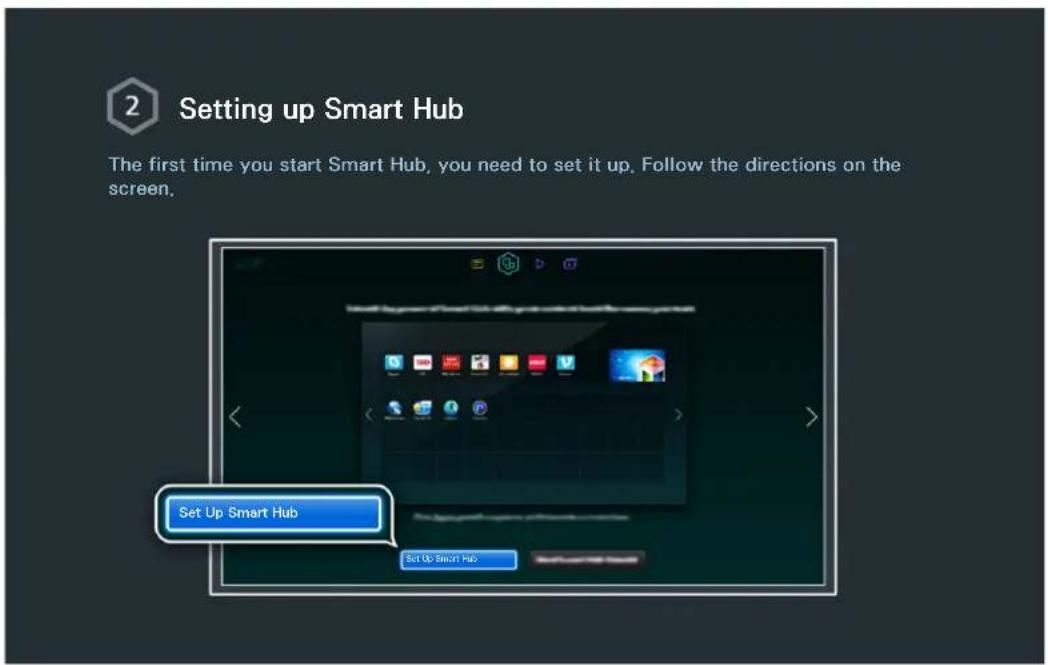

2 Setting up Smart Hub The first time you start Smart Hub, you need to set it up. Follow the directions on the screen. Set Up Smart Hub Set Up Smart Hub

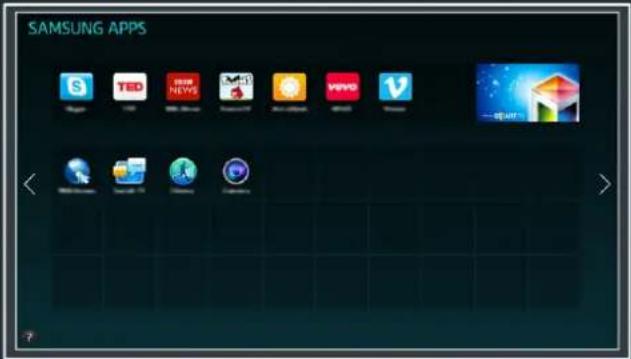

Using Smart Hub

Go to Smart Hub > Apps and download applications from Samsung Smart TV.

SAMSUNG APPS Google TED NEWS MNTS Microsoft Teams Veeva V GETABLE SOFTWARE Smartphone Smartphone Smartphone Smartphone Smartphone Smartphone

For more information, refer to "Smart Hub".

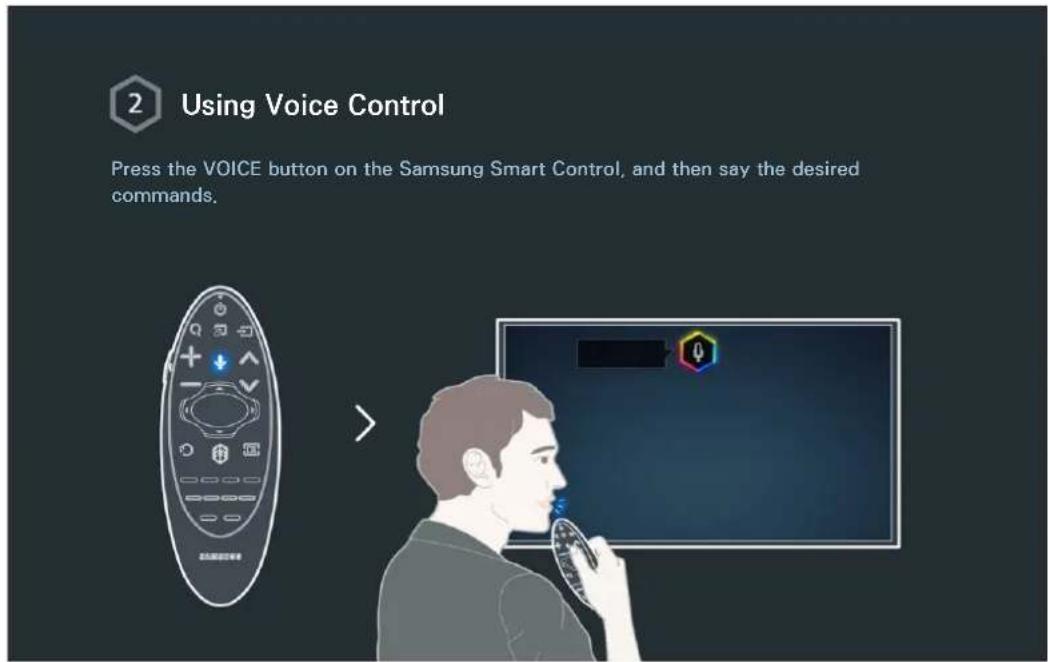

Using Voice Control

Setting up Voice Control

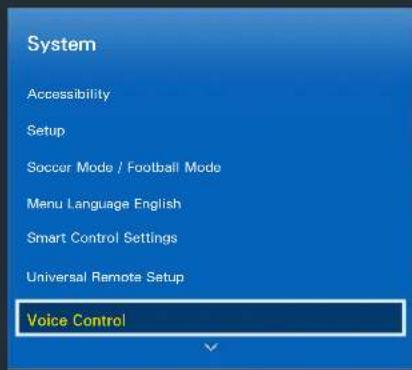

Set up the desired value via MENU > System > Voice Control.

System Accessibility Setup Soccer Mode / Football Mode Menu Language English Smart Control Settings Universal Remote Setup Voice Control

Actual menu screen may differ depends on the specific model and area.

2 Using Voice Control Press the VOICE button on the Samsung Smart Control, and then say the desired commands.

For more information, refer to "TV Control using your Voice".

Using Motion Control

Availability depends on the specific model and area.

Setting up Motion Control

Enter required values via MENU > System > Motion Control.

System Setup Soccer Mode / Football Mode Menu Language English Smart Control Settings Universal Remote Setup Voice Control Motion Control On

Actual menu screen may differ depends on the specific model and area.

2 Using Motion Control 1. Raise a hand with stretching an index finger, until an arrow cursor appears on the screen. 2. Move the hand to move the pointer on the screen, and then gesture like clicking a mouse to click a button.

For more information, refer to "TV Control using Motions".

Using the Samsung Smart Control

Connecting the TV

Press and hold the RETURN and GUIDE buttons on the remote control for 3 seconds to pair Samsung Smart Control with the TV.

移动地图浏览器

Setting the Samsung Smart Control

Set the Smart Control Settings via MENU > System > Smart Control Settings.

System Accessibility Setup Soccer Mode / Football Mode Menu Language English Smart Control Settings Universal Remote Setup Voice Control

Actual menu screen may differ depends on the specific model and area.

3 Using the Samsung Smart Control Use the buttons to perform actions. Move the Samsung Smart Control while touching the touchpad to move the focus.

For more information, refer to "Using Samsung Smart Control".

Using the Soccer Mode / Football Mode

Activating Soccer Mode / Football Mode

To record the sports game, connect the USB device to the TV and go to MENU > System > Soccer Mode / Football Mode, Set Soccer Mode / Football Mode to On,

System Accessibility Setup Soccer Mode / Football Mode Menu Language English Smart Control Settings Universal Remote Setup Voice Control

Actual menu screen may differ depends on the specific model and area,

Using Soccer Mode / Football Mode

Press Touchpad/Enter button while watching a sports game and then press the desired button on the screen. Record, use social media, zoom, and save and view highlights.

Two soccer players in action, one blocking the ball while the other defends (no text or symbols visible)

Silhouette of soccer players in action against a dark blue background, with no visible text or symbols.

For more information, refer to "Adding Realism to Sports".

Using the Multi-Link Screen

1 Running Multi-Link Screen Press the M.SCREEN button. 2 Using the Multi-Link Screen Search the internet or use apps while watching TV.

For more information, refer to "Multiple Functions on a Single Screen".

Editing channels

Running Editing Channel

Run Edit Channel and go to MENU > Broadcasting > Edit Channel.

Broadcasting Auto Tuning Aerial Cable Channel List Guide Schedule Manager Edit Channel Edit Favourites

Change the channel number or name.

Select a digital channel in the list. Select Change Number, and then change the channel's order in the list.

Change Number Change Number 1 CM1 2 CM2 3 CM3 4 CM4 5 CM5 6 CM6 7 CM7 8 CM8 9 CM9 10 CM10

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Sorting the channel list

1. Select a digital channel in the list and then select Options > Sorting.
2. Select a desired method for sorting the list.

1 2 3 4 5 6 7 8 9 10 Options Options

Sorting

Aerial Connection

Before connecting any external devices and cables to the TV, first verify the model number. A sticker containing the model number is attached to the back of the TV. The connection method varies depending on the model.

An aerial must be connected to the TV in order to receive broadcast signals.

An aerial connection is not necessary when a cable box is used.

Connect the cable from an aerial or cable outlet to the One Connect's ANT IN connector as shown in the diagram below.

Diagram showing a cable being inserted into a device via a cable to a wall-mounted power outlet, with an inset close-up of the device (no text or symbols visible)

Video Device Connection

Your TV has a variety of connectors for video input from external devices such as cable boxes, Blu-ray players, DVD players, camcorders, and gaming consoles. Below is a list of featured connectors shown in descending order of picture quality.

• HDMI
- Component
- External Input

Connect a video device to the TV via an HDMI connector for the best picture quality. If the device does not have an HDMI connector, try a component connector to get the next best picture quality.

The number of connectors and their names and locations may vary depending on the model.

Refer to the external device's operating manual when connecting it to the TV. The number of external device connectors and their names and locations may vary depending on the manufacturer.

HDMI Connection

The following types of HDMI cables are recommended:

• High-Speed HDMI Cable
• High-Speed HDMI Cable with Ethernet

HDMI cables have certain requirements:

Use an HDMI cable with a thickness of 14 mm or less.
Using a non-certified HDMI cable may result in a blank screen or a connection error.
Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications.
This TV does not support HDMI Ethernet Channel. Ethernet is a LAN (Local Area Network) built with coaxial cables standardised by the IEEE.
Use cable shorter than 3M to get the next best UHD 60P viewing quality.
HDCP 2.2 can only use the HDMI(MHL) port. HDCP is short for 'High-bandwidth Digital Content Protection' and is for video copyright protection.

Refer to the diagram and connect the HDMI cable to the video device's HDMI OUT connector and the One Connect's HDMI IN 1 (STB) connector.

The number of connectors and their names and locations may vary depending on the model.

Diagram showing a USB cable connecting to an HDMI output port, with an inset image of the device showing ports and cables (no text or symbols on main components)

Once the connection has been made, you will be able to select the connected external device using the SOURCE button.

Component Connection

Refer to the diagram and connect the Component cable to the One Connect's COMPONENT IN connectors and the device's COMPONENT OUT connectors. Make sure the cable colours match the connector colours.

Note: When pulling out the plug that connects the One Connect component input connector, please press and hold the snap button on the plug instead of directly pulling the plug out!

Diagram showing connections between an audio player interface and a USB cable, with no visible text or symbols.

Once the connection has been made, you will be able to select the connected external device using the SOURCE button.

Composite (A/V) Connection

Refer to the diagram and connect the AV cable to the One Connect's AV input connectors and the device's AV output connectors.

If you are using the One Connect's AV IN 1 connectors, refer to the diagram and connect the device's audio and video output to the TV. Make sure the cable colours match the connector colours.

Diagram showing audio jack connected to a device via cable, with no visible text or symbols on the components.

Once the connection has been made, press the SOURCE button to select the connected external device.

TV Audio through the External Speakers

Your TV has a variety of connectors for audio input from devices such as Blu-ray players and DVD players and for audio output to such devices as amplifiers. The connectors are listed below.

• ARC (Audio Return Channel)
• Digital Audio (Optical)

There are several issues to bear in mind when using audio input:

• For better audio quality, it is a good idea to use an AV receiver.
• The number of connectors and their names and locations may vary depending on the model.
- Refer to the external device's operating manual when connecting it to the TV. The number of external device connectors and their names and locations may vary depending on the manufacturer.

HDMI (ARC) Connection

ARC (Audio Return Channel) enables digital sound output using just an HDMI cable. However, ARC is only available through the HDMI IN 3 (ARC) port and only when the TV is connected to an ARC-enabled AV receiver.

Some models may not support ARC.

The number of connectors and their names and locations may vary depending on the model.

Connect an HDMI cable to the One Connect's HDMI IN 3 (ARC) connector and the device's HDMI OUT connector.

DVI IN 2 (DVI) HDMI IN 3 (ARC) HDMI OUT

Digital Audio (Optical) Connection

Connecting an AV receiver to the TV via a digital audio (optical) connector lets you listen to digital audio.

Connecting a device using an optical cable does not automatically turn off the TV speakers. To turn off the TV's speakers, set TV Sound Output (Sound > Speaker Settings > TV Sound Output) to something other than TV Speaker.

Adjust the audio device's volume using its remote control.

An unusual noise coming from the audio device while you are using it may indicate a problem with the audio device itself. If this occurs, ask for assistance from the audio device manufacturer.

Digital audio is only available with 5.1-channel broadcasts.

Refer to the diagram and connect the optical cable to the One Connect's DIGITAL AUDIO OUT(OPTICAL) connector and the device's DIGITAL AUDIO IN(OPTICAL) connector.

3D diagram showing a USB cable being connected to an electronic device labeled 'DIGITAL AUDIO IN (OPTICAL)' via a cable, with no visible text or symbols on the device itself.

Audio Output Connection

Availability depends on the specific model and area.

Refer to the diagram and connect the audio cable to One Connect's AUDIO OUT connector and the device's AUDIO IN connector.

Audio cable connection diagram showing audio input via USB cable to a device (no text or symbols visible)

Connecting to a Computer

You can directly connect a computer to the TV or to the network to view the computer screen or content on the TV. Connect the computer to the TV as follows.

- Connecting via HDMI Port

You can connect the computer to the TV using the HDMI cable to display the computer screen on the TV.

• Connecting with the HDMI (DVI) Port

You can connect a computer to the TV by connecting the computer's DVI port to the TV's HDMI port with the DVI to HDMI cable to display the computer screen on the TV.

• Connecting via Samsung Link

Quickly access the photo, video and music files saved on a computer on which Samsung Link software is installed, even if you do not connect the TV directly to the computer.

- Connecting via Home Network (DLNA)

Quickly access the photo, video and music files saved on a computer by connecting the TV and the computer to the same router or AP.

Connecting via HDMI Port

For HDMI connection, one of the following HDMI cable types is recommended:

• High-Speed HDMI Cable
• High-Speed HDMI Cable with Ethernet

Use an HDMI cable with a thickness of 14 mm or less. Using a non-certified HDMI cable may result in a blank screen or a connection error.
Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications.
This TV does not support HDMI Ethernet Channel. Ethernet is a LAN (Local Area Network) built on coaxial cables standardised by the IEEE.
Use cable shorter than 3M to get the next best UHD 60P viewing quality.
HDCP 2.2 can only use the HDMI(MHL) port, HDCP is short for 'High-bandwidth Digital Content Protection' and is for video copyright protection.
Some computers do not support HDMI interface, depending on its graphics adapter specifications. In this case, use a DVI-to-HDMI cable to connect the computer to the TV.

Refer to the diagram and connect the HDMI cable to the external video device's HDMI OUT connector and the One Connect's HDMI IN 1 (STB) connector.

ANT OF AIR CABLE HOME IN (0792) HDMI OUT

Once the connection has been made, you will be able to select the connected external device using the SOURCE button.

Connecting with the HDMI (DVI) Port

If the graphics adapter of your computer does not support HDMI interface, connect the computer to the TV with the DVI (Digital Visual Interactive) to HDMI cable. However, DVI-to-HDMI connection is supported by the HDMI port for DVI only and does not support audio signal transmission. To listen to the computer sound, connect the external speaker to the computer's audio output connector.

For information on resolutions supported by the TV, refer to "Computer Connection Precautions".

Refer to the diagram and connect the DVI to HDMI cable to the One Connect's HDMI IN 2 (DVI) port and the computer's DVI OUT port.

Diagram showing a USB cable connecting an HDMI OUT port via a 2.5V3 drive, with a separate inset image of a network interface (no text or symbols on the diagram itself)

When the connection is established, press the SOURCE button to choose an external device connected to the TV.

Connecting via Samsung Link

Quickly access photo, video and music files saved on a computer with Samsung Link software installed. Also, use Samsung Link to play and view the content of a computer that has been registered to Samsung Link under your Samsung account, even if the computer and the TV are not connected to the same router or AP.

1. Visit the Samsung content and service portal (http://link.samsung.com) on a computer and sign into your Samsung account.

To install Samsung Link desktop software, you will need to first sign into your Samsung account. If you don't have a Samsung account, create one first.

1. Install Samsung Link desktop software. When the installation is complete, the computer will be registered to Samsung Link.

2. Specify the folder you wish to link to the TV. You can view and play photo, video and music files contained in the specified folder on the TV screen.

For more information on using Samsung Link desktop software, refer to the software's Help section.

Connecting via Home Network (DLNA)

Quickly access and view/play photo, video and music files from a computer on the TV screen.

1. Connect the TV and the computer to the same router or AP. A home network will be configured once the two connections are established.

Home Network (DLNA) enables content-sharing between the TV, computers and mobile devices connected to the same wired or wireless router.

1. From the computer, select [Control Panel] > [Network and Internet] > [Network and Sharing Centre] > [Change advanced sharing settings] and select [Choose media streaming options...] to activate media streaming.

2. From the list, set TV to [Allowed].

3. Launch Windows Media Player from the computer, select [Settings] > [Library Management] and then add the location where the photo, video and music files are saved to view/play the files on the TV screen.

It will be possible to view/play on the screen files moved to Windows Media Player's default folder.

As long as File Sharing is activated, unauthorised access may be allowed. Disable File Sharing if data access is not required.

Connecting with a Mobile Device

Connect mobile device such as a smartphone or tablet to the TV directly or indirectly over a shared network and display the mobile device screen or content on the TV screen. Connect the mobile device to the TV as follows.

- Connecting with MHL-to-HDMI Cable

Connect the mobile device's USB port to the TV's HDMI port with the MHL-to-HDMI cable to view the mobile device screen on the TV.

• Mobile Device Screen on TV (Screen Mirroring)

Wirelessly connect the TV to the mobile device with the mirroring function to view the mobile device's screen on the TV.

This option is available only with mobile devices that support mirroring.

- Connecting Mobile Devices without a Wireless Router (Wi-Fi Direct)

Wi-Fi Direct enables you to connect the TV to a mobile device without a router or AP. Quickly access and play photo, video and music files from a connected mobile device on the TV screen.

This option is available only with mobile devices that support Wi-Fi Direct.

- Connecting via Samsung Link

Samsung Link enables you to play photo, video and music files from a Samsung Link-enabled mobile device without having to manually connect the device to the TV.

- Connecting via Home Network (DLNA)

View/play on the TV photo, video and music files from a mobile device connected to the same router or AP as the TV.

- Connecting via Smart View

Install and run the Smart View app on your mobile device, and connect it to the TV in the same network. However, Smart View does not work when this function is in use.

When you are playing UHD-level video saved on a USB device.

When viewing the digital channel with UHD-level resolution.

Connecting with MHL-to-HDMI Cable

Your TV supports MHL (Mobile High-definition Link) via an MHL cable. MHL enables viewing and playing video, image, and audio files from mobile devices on the TV. However, MHL is only available through the TV's HDMI IN (MHL) port and only when used in conjunction with an MHL-enabled mobile device.

For information on configuring MHL on your mobile device, refer to the device's User Manual.

Connecting an MHL-to-HDMI cable automatically switches Picture Size to Screen Fit. This setting will not change automatically if you are using an HDMI adapter. In this case, change the setting manually in the menu.
If you are using an HDMI cable, the TV recognises the signal as an HDMI signal and may respond differently than it would to an MHL-to-HDMI cable connection.
Use cable shorter than 3M to get the next best UHD 60P viewing quality.
HDCP 2.2 can only use the HDMI(MHL) port. HDCP is short for 'High-bandwidth Digital Content Protection' and is for video copyright protection.

Refer to the diagram and connect the MHL-to-HDMI cable to the One Connect's HDMI IN 4 (MHL) port and the mobile device's USB port.

IOMIN 3 (V-RC) IOMIN 4 (MHL) LAN

Once the connection has been made, you will be able to select the connected external device using the SOURCE button.

Mobile Device Screen on TV (Screen Mirroring)

Network > Screen Mirroring

Screen Mirroring lets you display a mobile device's screen on your TV wirelessly.

Screen Mirroring is only available with mobile devices that support AllShare Cast. For more information, visit the mobile device manufacturer's website.
Poor network conditions can cause video and/or audio interruptions while using Screen Mirroring.
Navigate to Network > Screen Mirroring > Device Manager to allow connection requests or remove devices from device list.

1. Run Screen Mirroring. Alternatively, press SOURCE and then choose Screen Mirroring from the list.
2. Launch Screen Mirroring on your mobile device. Select the TV's name on the mobile device screen.

If the connection fails, try again after turning the TV and the mobile device off and then turning them back on again.

Connecting Mobile Devices without a Wireless Router (Wi-Fi Direct)

Network > Wi-Fi Direct Try Now

Wi-Fi Direct lets you connect mobile devices directly to your TV using wireless technology. After connecting a device to the TV using Wi-Fi Direct, it will be possible to view/play video, photo, and music files from the device on the TV.

The mobile device must support Wi-Fi Direct. Make sure the mobile device you intend to use supports Wi-Fi Direct.

1. Enable Wi-Fi Direct on the mobile device and then launch Wi-Fi Direct. The TV automatically scans for and displays a list of available devices. The TV's name also appears on the mobile device.

2. Select the device from the list to initiate a connection. If a connection request is made by the TV, a permission message appears on the mobile device and vice versa.

3. Allow the connection. This completes the connection process.

Connecting via Smart View

By installing and running the Smart View app on the mobile device, you can view the device screen on the TV, or play the device's multimedia content (videos, photos, and music) on the TV.

However, Smart View does not work when this function is in use.

When you are playing UHD-level video saved on a USB device.

When viewing the digital channel with UHD-level resolution.

Go to Google Play, and search for and install Smart View on your mobile device. Smart View is a cross-platform multi-screen app that enables you to load the TV screen on a mobile device, share multimedia contents between two devices, and control the TV remotely. For more information, refer to the Smart View manual.

Connecting via Samsung Link

Samsung Link enables you to view/play photo, video and music files from a Samsung Link-enabled mobile device with ease. Also, use Samsung Link to play and view the content of a mobile device that has been registered to Samsung Link under your Samsung account, even if the mobile device and the TV are not connected to the same router or AP.

1. Run the Samsung Link app on the mobile device and then sign in with your Samsung account.

To use Samsung Link, you have to sign in with a Samsung account. If you don't have a Samsung account, create one first.

1. Quickly access and play photo, video and music files from the mobile device running Samsung Link app under your Samsung account.

For more information on using the Samsung Link app, refer to the Help section of the manual.

Connecting via Home Network (DLNA)

View/play photo, video and music files from a mobile device on the TV.

1. Connect both the TV and the mobile device to the same router or AP. A home network will be configured once the connections are established.

Home Network (DLNA) enables content-sharing between the TV, computers and mobile devices connected to the same wired or wireless router.

1. Enable File Sharing on the mobile device. The mobile device's shared content can be viewed/played on the TV.

As long as File Sharing is activated, unauthorised access may be allowed. Disable File Sharing if data access is not required.

Name of TV on Network

Network > Device Name Try Now

Choose or enter a TV name to be displayed on the network.

1. Select Device Name from the Network menu. A list will appear.
2. Choose a name from the list. Alternatively, select User Input to enter a name manually. You can view the specified TV name on the network.

Input Signal Selection

You can select a connected external device using the SOURCE button.

For example, to switch to a gaming console connected to the second HDMI connector, press SOURCE. From the Source list, select HDMI2 to change the input signal to HDMI mode. Connector names may vary depending on the model.

The following options are available in the Source screen:

- Options

Select a port connected to an external device, and press and hold the Touchpad/Enter button. The following functions are available:

Available options for each connector may vary.

• Edit Name: Rename devices connected to the TV for easier identification of external sources. For example, you can designate a computer connected to the TV via an HDMI-DVI cable as DVI PC. Alternatively, simply designate a computer connected to the TV via an HDMI cable as PC. You can also designate an AV device connected to the TV via an HDMI-DVI cable as DVI Devices.
• Information: View detailed information about the connected devices.
• Anynet+ (HDMI-CEC): Displays a list of Anynet+ (HDMI-CEC)-compliant devices that are connected to the TV.

This option is only available with Anynet+ (HDMI-CEC) set to On.

- Format Device: Formats USB recording devices connected to the TV.

This option is only available when a USB device has been selected.

- Disconnect USB Device: Used to safely remove a USB device connected to the TV.

This option is only available when a USB device has been selected.

• Universal remote setup

Select Universal remote setup on the screen to configure the universal remote function. By configuring a universal remote control, you can control cable boxes, Blu-ray players, home theatres, and other external devices using a single remote control.

Availability depends on the specific model and area.

Inserting Batteries into Samsung Smart Control

To use Samsung Smart Control, first refer to the figure below and insert batteries into the unit.

Colours and shape may vary depending on the model.
Availability depends on the specific model and area.

1. Gently pull on the battery cover's notch and then remove the cover completely once it comes loose.
2. Insert 2 AA alkaline batteries, making sure to align the positive and negative polarities correctly.
3. Place the battery cover on the remote control and insert the top part of the cover into the remote control.
4. Press the catches on both sides of the battery cover in the order shown so that the cover is completely attached to the remote control.

When you see this alarm icon on the screen

Following alarm icon indicates Samsung Smart Control's batteries are low. If the alarm icon pops up, replace the batteries. Samsung recommends using alkaline batteries for a longer operating life.

Close-up of a remote control with a battery icon (no text or symbols visible)

Pairing Samsung Smart Control

To control the TV with Samsung Smart Control, you need to pair Samsung Smart Control to the TV via Bluetooth.

Samsung Smart Control can only be paired to a single TV.

1. Point Samsung Smart Control at the remote control sensor of the TV and press the TV button to turn the TV on.

Remote control receiver's location may vary depending on the model.

1. The Bluetooth icon will appear on the screen as shown below. The TV will then attempt to connect to the Samsung Smart Control unit automatically.

Reconnecting Samsung Smart Control

If the Samsung Smart Control stops operating or works abnormally, replace the batteries as this may be due to insufficient battery power.

If the problem persists, the Samsung Smart Control restore pairing with the TV.

1. Press RETURN button and GUIDE button simultaneously for 3 seconds.

You must place the Samsung Smart Control approximately 30cm \~ 40cm away from the TV and ensure it is pointing towards the remote control receiver.

1. Connection image is appeared on the screen. And then, Samsung Smart Control is connecting to TV automatically.

Diagram showing a remote control with navigation arrows and three UI icons: refresh, cube, and timer.

Using Samsung Smart Control

Samsung Smart Control makes it even easier and more convenient to use the TV. Pressing the KEYPAD button displays a virtual remote control that allows you to easily enter digits, control content, and activate functions on the screen.

We recommend using Samsung Smart Control at a distance of less than 6m. Effective range may vary depending on wireless network conditions.

Button Functions

MIC TV SEARCH KEYPAD SOURCE VOICE P RETURN EXIT SMART HUB GUIDE CH.LIST MENU REC INFO MSCREEN SAMSUNG

Colours and shape may vary depending on the model.

Button Description
TV	Turns the TV on/off.
SEARCH	Press this button to use the search window, Available with various services.Use recent-viewing history to check previously watched/accessed channels and content.
KEYPAD	With the virtual remote control on the screen, you can easily enter digits, control content, and use functions.
SOURCE	Changes the source.
+ ▲ -	Changes the volume.
VOICE	Starts voice recognition. When the microphone icon appears on the screen, say a voice command into the microphone. Say "Help" to learn about basic usage and voice commands.Say a voice command 10cm to 15cm from the microphone and at an appropriate volume.
& / AD	Turns the sound on/off.
^ P √	Changes the channel.
^, √, <, >	Moves the pointer or focus.
Touchpad	Place a finger on the touch pad and move the Samsung Smart Control. The pointer on the screen moves in the direction and as much as the Samsung Smart Control is moved. Tap on the touchpad to run the focused item.
◀, ▶, ll, ▶	Controls for when viewing/playing a video, photo or music file or watching a recorded programme. You can also use the buttons to control content from an external device.
A, B, C, D	Use these colour buttons to access additional options specific to the feature in use.
RETURN / EXIT	Returns to the previous menu.
SMART HUB	Launches Smart Hub. Pressing SMART HUB while an application is running terminates the application.
GUIDE / CH.LIST	Displays the digital channel broadcasting schedule.
INFO	Shows the information about the current digital broadcast programme or content.
◎	Enable Soccer Mode / Football Mode for an optimal sports viewing experience.
M.SCREEN	You can split the TV screen and use various functions such as watching TV, surfing the web, watching video, and so on,

Additional Functions

Press and hold the following buttons for 1 second to use additional functions.

Button Description
GUIDE / CH.LIST	Press and hold to launch the CH.LIST.
RETURN / EXIT	Press and hold this button to exit all currently running applications
/ AD	Press and hold to turn on or turn off the Voice Guide, Audio Description, Subtitle, High Contrast, and Enlarge functions.This service or some of functions of it may be not available in some countries or region.
B	Press and hold to displays a menu on the screen.
C	Press and hold to record the broadcast.
D	Press and hold to view information about the current digital channel or media file.

Using the TV by Moving the Samsung Smart Control

The Samsung Smart Control has a motion sensor (gyro sensor) that allows you to easily control the TV by holding and moving the Samsung Smart Control.

After placing a finger on the touchpad, a pointer appears on the screen. Hold and move the Samsung Smart Control. The pointer moves the same way the Samsung Smart Control is moved. It's also possible to scroll up and down on scrollable screens.

If you remove the finger from touchpad, the screen pointer disappears.

Navigate to System > Smart Control Settings, and select Motion Sensitivity to adjust the pointer speed.

If the Voice Guide is set to On, the Samsung Smart Control's motion sensor(gyro sensor) does not work. To use the Samsung Smart Control's motion sensor, set the Voice Guide to Off.

Illustration showing a person interacting with a touchscreen display and a hand holding a remote control, with numbered UI elements.

Using the TV with the Touchpad

Navigate to the Support menu and select the Smart Control Tutorial option to learn how to use the touchpad, following the on screen instructions. Try Now

Moving the Focus/Pointer

Illustration of a hand holding a remote control with various icons on the screen (no text or symbols visible)

Press the directional buttons (up, down, left, and right) to move the pointer or focus in the direction.

Menu Access & Item Selection

Illustration of a hand holding a remote control with icons on the screen (no text or symbols visible)

Tap on the touchpad. This lets you access a TV menu or select an item.

Displaying the Channel List

Illustration of a hand holding a remote control with a stopwatch and 1s timer (no text or symbols on the device itself)

Press and hold the touchpad while watching TV to bring up the Channel List on the screen.

Displaying the Context-sensitive Menu on Smart Hub

Illustration of a hand holding a Samsung remote control with a stopwatch icon (no text or symbols on the device itself)

Tap and hold on the touch pad from the Smart Hub screen. The Options menu available to the selected item appears.

The Options menu depends on the context.

Moving to the Smart Hub panel

Illustration of a hand holding a remote control with icons and a green arrow indicating navigation (no text or symbols)

On the Smart Hub screen, drag left or right on the touchpad. This will move the Smart hub panels left or right.

Scrolling on the Web Browser

Illustration of a hand holding a remote control with icons on the keypad (no text or symbols)

Drag up/down on the touchpad in the web browser screen. This scrolls through the web screen.

Displaying the Remote Control on the Screen (virtual remote control)

Press the KEYPAD button to display the virtual remote control on the screen. You can easily enter digits, control content, and use TV buttons with the virtual remote control.

The virtual remote control buttons may vary depending on the TV's current status.

1 2 3 4 5 6 7 8 9 - 0 % - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Button Description
1 2 34 5 67 8 9- 0 Pre-CH	You can directly enter the channel number to switch to that channel. Select Pre-CH to return to the previous channel.
● ▶ II □◀ ▶◀ ▶◀	Controls the item when you are playing a video, photo or music file or watching a recorded programme. You can also use the buttons to control the content on an external device.
TOOLS	Use frequently used functions while watching TV. In addition, you can use additional functions that may vary depending on the currently running function.
INFO	Shows the information about the current digital broadcast programme or content.
MENU	Displays the menu on the screen.
Speaker Settings	Select the speakers which you want to use to listen to the TV's sound. To set this option, external speakers must be connected to the TV.
PIP	Display the video from an external device or computer on the main screen and the TV as a picture-in-picture.
3D	Turn the 3D effect on or off.
Multi-Link Screen	You can split the TV screen and use various functions such as watching TV, surfing the web, watching video, and so on.
AD/SUBT	Turns the audio description on and off (not available in some locations). / Displays digital subtitles.
P.SIZE	Select the picture size.
DUAL	When you press the Dual I II button the first time, the current dual mode is displayed on the screen.Press the Dual I II button again to change the dual mode.
Web Browser	Launch the Web Browser.
e-Manual	Launch the e-manual.
Sign In / Sign Out Log in or out of your Samsung account.
	Move to the right / Move to the left: You can move the virtual remote control on the screen.Large size / Standard size: You can resize the virtual remote control on the screen.Alternatively, navigate to the System > Smart Control Settings menu and select and set the Onscreen Remote Size option.Touch Sensitivity: You can change the touchpad sensitivity.Alternatively, navigate to the System > Smart Control Settings menu and select and set the Touch Sensitivity option.Motion Sensitivity: Put a finger on the touchpad and move it to adjust the speed of the pointer on the screen%.Navigate to System > Smart Control Settings, and select Motion Sensitivity to enable this option.Universal Remote Setup: Moves to the Universal Remote Setup screen.Cancel: Close the pop-up menu.

Controlling External Devices with the TV Remote (Universal Remote Setup)

System > Universal Remote Setup Try Now

Availability depends on the specific model and area.

The universal remote control feature lets you control cable boxes, Blu-ray players, home theatres, and other external devices connected to the TV using the TV's remote control. In order to use the TV's remote control as a universal remote, you must first connect the IR extender cable (included).

You can also use the Anynet+ (HDMI-CEC) function to operate some external Samsung devices with your TV's remote control without any additional setup. Refer to the "Using Anynet+ (HDMI-CEC)" section for more information.

Certain external devices connected to the TV may not support the universal remote feature.

Setting Up the Universal Remote Control

To use the TV remote as a universal remote, connect the IR extender cable (included) to the One Connect, and then position it within 10cm of the external device's remote control receiver.

The colour and design of the IR extender cable may vary depending on the model.

When you connect the cable, you have to match the cable's colour and socket's colour.

Connect the IR extender cable to the One Connect's IR output connector as shown in the diagram, and place the transmitter end within 10 cm of the external device's receiver pointing in the direction of the remote receiver. However, there must be no obstacles between the IR extender cable and the external device. The presence of obstacles interferes with the transmission of the remote control signal.

When you use an external device registered with the Universal Remote Control on the Samsung Smart Control, you can use the external device without connecting an IR extender cable. However, if you want to use an external device using Motion Control or Voice Control, be sure to connect an IR extender cable.

Diagram showing a device connected to a Samsung via cable, with a close-up of its internal components (no text or symbols visible)

Controlling External Devices with the TV Remote

External Device Registration

1. Turn on the external device to set up the universal remote function for, and bring up the Source screen.
2. Select 📄 Universal remote setup from the top of the screen. This initiates the universal remote setup process.
3. Follow the on-screen instructions and register the external device.

Using the TV Remote

Registering an external device to the TV remote also registers the connector through which the device is connected. Accordingly, simply selecting the external device using the SOURCE button makes it possible to control the device using the TV's remote.

Universal Remote Features

1. Press SOURCE to go to the Source screen.
2. Select Universal remote setup from the top of the screen. This initiates the universal remote setup process.
3. Select an external registered device on the Universal remote setup screen. The following options are available:

• Use External Speakers

Listen to the audio from the external device through the connected home theater.

This is available only on the set-top box or Blu-ray player.

- Link Set-top Box

Listen to the audio from the set-top box through the home theater that is connected to the TV.

This is available only on the home theater system.

- Link Blu-ray Player

Listen to the audio from the Blu-ray player through the home theater that is connected to the TV.

This is available only on the home theater system.

- Source Setup

Change the TV's input source to your selected external device.

- Sync with TV power

Configure the set-top box to turn off when the TV is turned off.

This is available only on the set-top box.

- Rename

Rename the registered external device (up to 15 characters long).

- Delete

Remove the registered external device.

Controlling the TV with a Keyboard

System > Device Manager > Keyboard Settings Try Now

You can use a keyboard to control the TV.

Certain models do not support USB HID class keyboards.

Connecting a Keyboard

Connecting a USB Keyboard

Plug the keyboard cable into the One Connect's USB port. A connection message appears on the screen.

Connecting a Bluetooth Keyboard

Availability depends on the specific model and area.

1. Place the Bluetooth keyboard into the standby status.

Refer to the keyboard manual for information on putting the keyboard into the standby status.

1. Select System > Device Manager > Keyboard Settings > Add Bluetooth Keyboard. The Add Bluetooth Keyboard screen will appear and automatically scan for available keyboards,

If your keyboard was not detected, position the keyboard close to the TV and then select Refresh. This initiates a scan for available keyboards again.

1. Select the Bluetooth keyboard from the scan list and then select Pair and connect. A number appears on the screen.

2. Enter the number on the Bluetooth keyboard.

Select Yes to change the keyboard's options or No to leave them as they are.

Using the Keyboard

Use the following remote features with the USB or Bluetooth keyboard connected to the TV.

- Arrow Keys (moving the focus), Windows Key (MENU Button), Menu List Key (TOOLS Button), Enter Key (Select/run item), ESC (RETURN Button), Number Keys (Number Buttons)

- F1 (A), F2 (B), F3 (C), F4 (D), F5 (F), F6 (SOURCE Button), F7 (CH.LIST Button), F8 (MUTE Button), F9/F10 (Volume Buttons), F11 / F12 (Channel Buttons)

F1, F2, F3 and F4 only function as color keys. They are different than those color keys on Samsung Smart Control, with which you can activate other functions by pressing and holding for 1 second.

• Page Up/Page Down: Scroll web browser pages up/down.

- Holding down the Enter key: On the Smart Hub screen, navigate to an item and hold down the Enter key to display the Options menu.

The Options menu depends on the context.

Changing Keyboards Try Now

Availability depends on the specific model and area.

Select System > Device Manager > Keyboard Settings > Select Keyboard. Designate which keyboard to use.

Only one keyboard can be used at a time.

Input Languages, Keyboard Type, and Switch Language Key Try Now

Select System > Device Manager > Keyboard Settings > Keyboard Options. The following options are available:

- Keyboard Language

If the keyboard supports multiple languages, choose which language you want to use from the list.

- Keyboard type

Specify the type of language selected under Keyboard Language.

The Keyboard type list varies depending on which language was selected under Keyboard Language.

- Switch Input Language

If the keyboard supports multiple languages, choose from the list which key to use to switch between languages.

Controlling the TV with a Mouse

System > Device Manager > Mouse Settings Try Now

This TV can be operated with ease using a mouse instead of a remote control.

Certain models do not support USB HID class mice.

Connecting a Mouse

Connecting a USB Mouse

Plug the mouse cable into the One Connect's USB port. A connection message appears on the screen.

Connecting a Bluetooth Mouse

Availability depends on the specific model and area.

1. Place the Bluetooth mouse in standby status.

Refer to the mouse manual for information on putting the mouse in standby status.

1. Select System > Device Manager > Mouse Settings > Add Bluetooth Mouse. The Add Bluetooth Mouse screen will appear and automatically scan for available mice.

2. Select the Bluetooth mouse from the scanned list, and then select Pair and connect. This pairs the Bluetooth mouse with the TV.

Using the Mouse

Once a USB or Bluetooth mouse is connected to the TV, a pointer will appear on the TV's screen. You can use this pointer to control the TV as you would a computer.

- Selecting and Running an Item

Left-click on the mouse.

- Displaying the Volume, Mute, and Channel Buttons

Select the volume/channel icon on the screen while watching TV. Use the onscreen buttons to adjust the volume or switch the channel.

Select the volume/channel icon again to hide the buttons.

• Showing Tools Buttons

Right-clicking shows the Tools buttons on the screen so that you can easily use the TV functions.

The Tools buttons may vary depending on the function.

- Displaying the Context-sensitive Menu on Smart Hub

On the Smart Hub screen, navigate to an item, and hold down the left mouse button for 1 second. The Options menu available to the selected item appears.

The Options menu depends on the context.

• Scrolling the TV Menu or Screen

Move the mouse wheel up or down. This scrolls the TV menu or screen up/down.

- Exiting the TV Menu or Feature

Click on the X button. This closes the menu.

The X button appears when a mouse is being used. Left-clicking once while using a feature displays the X button.

Changing Mice Try Now

Select System > Device Manager > Mouse Settings > Select Mouse. Designate which mouse to use.

Only one mouse may be used at a time.

Changing Mouse Buttons and Pointer Speed Try Now

Select System > Device Manager > Mouse Settings > Mouse Options. The following options are available:

- Primary Button

Choose which (left or right) button to use to select and run items.

- Pointer Speed

Adjust the movement speed of the pointer that appears on the screen.

Entering Text Using QWERTY

A QWERTY keypad appears when you need to enter text (entering the network password, logging into your Samsung account, etc.), allowing you to enter text using your remote control.

Using Additional Functions

Select on the QWERTY keyboard screen. The following options are available:

- Recommend text

Enable/disable the Recommended Text feature. Enabling the Recommend text feature allows you to quickly enter text starting with the characters you typed in by displaying recommended words. To enter the word "Internet," for example, all you have to do is enter "In" and select the word "Internet" from the list of recommended words. The word is memorised so that you can enter the same text again more easily.

- Reset recommended text data

Delete both the recommended words and the memorised words to clear the list.

• Predict Next Letter

Enable/disable the Text Prediction feature. Enabling the Text Prediction feature eliminates the need to find and select individual character keys. To enter the word "Internet," for example, select "I". A predicted word will then appear next to the I key. Simply select the predicted word to enter "Internet".

This feature is limited to words that have previously been added to the dictionary.

Establishing a Wired Internet Connection

Connecting the TV to the Internet gives you access to online services and SMART features, and lets you update the TV's software quickly and easily through the Internet.

Connecting a LAN Cable

Use a LAN cable.

The TV will not be able to connect to the Internet if the network speed is below 10Mbps.

Use Cat 7 LAN cables to link your TV to the Internet Access Points.

There are three ways to connect the TV to your Internet Access Points. Using Cat 7 cables, connect the One Connect's LAN port to the Access Points as shown in one of the following illustrations.

- External Modem

Diagram showing a network device connected to a router via cable, with an inset image of its ports (no text or symbols visible)

- ① IP Router + ② External Modem

Three network switches connected by yellow cables, one showing a device with ports and a cable (no text or symbols visible)

• Wall-mounted LAN Outlet

Diagram showing a network connection between an Ethernet switch and a device, with no visible text or symbols.

Connecting to a Wired Internet Network Automatically

Network > Network Settings Try Now

Automatically connect to an available network.

1. Set the Network Type to Wired, and then select Connect.
2. The TV attempts to connect to an available network. Once successful, you will see a confirmation message. Select OK. If the attempt fails, try again, or connect manually.

Connecting to a Wired Internet Network Manually

Network > Network Settings

With networks that require a static IP address, you will need to enter the IP address, subnet mask, gateway, and DNS values manually to connect to the network. To get these values, contact your Internet Service Provider (ISP).

Refer to the "Dynamic versus Static IP Addresses" section for more information on dynamic IP and static IP addresses.

1. Set the Network Type to Wired, and then select Connect.

Network Settings Select your network type, Network Type Wired Connect You can connect your TV to the internet,

1. Select Stop when the TV attempts to connect to the network. Once the network connection has been interrupted, select IP Settings.

Network Settings Connection verification cancelled. Wired network connection test stopped. Change Network IP Settings Retry Close

1. In the IP Settings screen, set the IP setting to Enter manually, enter the IP Address, Subnet Mask, Gateway, and DNS Server values, and then select OK.

- Use one of the following methods to enter the numerical values.

Set the numbers using the ▲ and ▼ buttons.

Press KEYPAD button and enter the numbers directly. Only use for Samsung Smart Control.

For general remote control, enter the numbers directly. (Availability depends on the specific model and area.)

IP Settings IP setting Enter manually IP Address 0.0.0.0 Subnet Mask 0.0.0.0 Gateway 0.0.0.0 DNS setting Enter manually DNS Server 0.0.0.0 OK Cancel

1. The TV attempts to connect to the network again using the specified settings. A confirmation message appears once a connection is established. Select OK.

The network connection speed may differ depending on the DNS server settings.
For details on the DNS server settings, contact your Internet service provider (ISP).

Establishing a Wireless Internet Connection

Connecting the TV to the Internet gives you access to online services and SMART features, and lets you update the TV's software quickly and easily through the Internet.

Illustration of a remote network device with a monitor and wireless signal waves (no text or symbols)

Connecting to a Wireless Internet Network Automatically

Network > Network Settings

Connect the TV to the Internet via a wireless router. Make sure you have the wireless router's SSID (name) and security key settings before attempting to connect. The security key can be found on the wireless router's configuration screen.

1. On the Network Settings screen, set Network Type to Wireless. The TV automatically displays a list of available wireless networks.
2. Select a network (SSID). If the network you want doesn't appear in the list, select Add Network, and enter the network's SSID manually.
3. Enter the security key and select Done. If the selected network is not security-enabled, the TV attempts to connect right away.
4. A network connection will be attempted. Once a connection is established, the TV displays a confirmation message. Select OK. If the attempt fails, try again, or connect manually.

Connecting to a Wireless Internet Network Manually

Network > Network Settings

With networks that require a static IP address, you will need to enter the IP address, subnet mask, gateway and DNS values manually to connect to the network. To get the IP address, subnet mask, gateway and DNS values, contact your Internet Service Provider (ISP).

Refer to the "Dynamic versus Static IP Addresses" section for more information on dynamic IP and static IP addresses.

1. Setting the Network Type to Wireless automatically displays a list of available wireless networks.

Network Settings Select your network type. Network Type Wireless Wireless network AP0000 AP0001 Add Network Refresh WPS(PBC) You can connect your TV to the internet. Please select which wireless network to use.

1. Select the network (SSID) you want to connect to. If the wireless router doesn't appear in the list, select Add Network, and enter the network's SSID manually.
2. Enter the security key and select OK. If the selected network is not security-enabled, the TV attempts to connect right away.
3. Select Stop when the TV attempts to connect to the network. Once the network connection has been interrupted, select IP Settings.

Network Settings Connection verification cancelled. abc1234 Wireless network connection test stopped. Change Network IP Settings Retry Close

1. In the IP Settings screen, set the IP setting to Enter manually, enter the IP Address, Subnet Mask, Gateway, and DNS Server values, and then select OK.

- Use one of the following methods to enter the numerical values.

Set the numbers using the ▲ and ▼ buttons.

Press KEYPAD button and enter the numbers directly. Only use for Samsung Smart Control.

For general remote control, enter the numbers directly. (Availability depends on the specific model and area.)

IP Settings IP setting Enter manually IP Address 0.0.0.0 Subnet Mask 0.0.0.0 Gateway 0.0.0.0 DNS setting Enter manually DNS Server 0.0.0.0 OK Cancel

1. The TV attempts to connect to the network again using the specified settings. A confirmation message appears once a connection is established. Select OK.

The network connection speed may differ depending on the DNS server settings.

For details on the DNS server settings, contact the Internet service provider (ISP).

Connecting to a Wireless Internet Network with WPS

Network > Network Settings

With wireless routers that support WPS (Wi-Fi Protected Setup) or PBC (Push Button Configuration), it's possible to press a button on the router to connect the TV to the Internet.

This functionality is not available with wireless routers that do not support WPS. Check to see if your wireless router supports WPS.

1. Setting the Network Type to Wireless automatically displays a list of available wireless networks.
2. Select WPS(PBC) and then press the WPS or PBC button located on the wireless router within two minutes.
3. The TV exchanges the network name (SSID) and security key automatically and then attempts to connect to the Internet. A confirmation message appears once a connection is established. Select OK.

Troubleshooting Internet Connectivity Issues

If you are not able to connect the TV to the Internet, read the information below.

Troubleshooting Wired Internet Connectivity Issues

No network cable found Try Now Try Now

Make sure the network cable is plugged in. If it is connected, make sure the router is turned on. If it is on, try turning it off and on again.

IP auto setting failed Try Now

Do the following or configure the IP Settings manually.

1. Ensure that the DHCP server is enabled on the router and reset the router.
2. If this does not work, contact your Internet Service Provider for more information.

Unable to connect to the network Try Now

Do the following:

1. Check all IP Settings.
2. Ensure that the DHCP server is enabled on the router. Then, unplug the router and plug it back in.
3. If this does not work, contact your Internet Service Provider for more information,

Connected to a local network, but not to the Internet Try Now

1. Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in the IP Settings.
3. If the problem persists, contact your Internet Service Provider.

Network setup is complete, but unable to connect to the Internet Try Now

If the problem persists, contact your Internet Service Provider.

Troubleshooting Wireless Internet Connectivity Issues

Wireless network connection failed Try Now Try Now

Selected wireless router not found. Go to Network Settings and select the correct router.

Unable to connect to a wireless router Try Now Try Now

Check the following:

1. Check if the router is turned on. If it is, turn it off and on again.
2. Enter the correct security key if required.

IP auto setting failed Try Now

Do the following or configure the IP Settings manually.

1. Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back in.
2. Enter the correct security key if required.
3. If this does not work, contact your Internet Service Provider for more information.

Unable to connect to the network Try Now

Do the following:

1. Check all IP Settings.
2. Enter the correct security key if required.
3. If this does not work, contact your Internet Service Provider for more information.

Connected to a local network, but not to the Internet Try Now

1. Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in the IP Settings.
3. If the problem persists, contact your Internet Service Provider.

Network setup is complete, but unable to connect to the Internet Try Now

If the problem persists, contact your Internet Service Provider.

Checking the Internet Connection Status

Network > Network Status Try Now

Network

Network Status

Network Settings

Wi-Fi Direct

Multimedia Device Settings

Screen Mirroring

Device Name [TV]Samsung LE...

Actual menu screen may differ depending on the TV model.

View the current network and Internet status.

Multiple Functions on a Single Screen

This allows you to search the Web, use apps, and much more while watching TV.

Before using Multi-Link Screen, make sure the TV is connected to the Internet. Using Multi-Link Screen requires an Internet connection.

Before using Smart Hub with Multi-Link Screen, finish configuring Smart Hub.

Launching Multi-Link Screen

Picture > Open Multi-Link Screen

From the Picture menu, run Open Multi-Link Screen.

Press M.SCREEN on the Samsung Smart Control to launch Multi-Link Screen.

Using Multi-Link Screen

UHD and FHD contents and channels cannot be viewed simultaneously.

Launching Smart Hub while using Multi-Link Screen automatically terminates Multi-Link Screen.

Certain TV features and apps may not be supported by Multi-Link Screen. If this is the case, exit from Multi-Link Screen and then use the feature.

Selecting a Feature

1. Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. The Options menu appears.

2. Select a feature from the Options menu. This initializes the selected feature.

Features supported by Multi-Link Screen vary depending on the country.

Changing the Channel/Volume

1. Place the pointer or focus over the screen for which you want to change the channel or adjust the volume.

2. Use the channel buttons to change the channel or the volume buttons to adjust the volume. This changes the selected screen's channel/volume.

Pairing Bluetooth Headphones

Pairing Bluetooth Headphones to the TV makes it possible to hear the audio from a different screen through the headphones.

Compatibility issues may arise. The mobile phone may not work.

Depending on the device, there may be audio and video async problems.

The devices may disconnect depending on the distance between the TV and headphones.

You can't use Bluetooth headphones and SoundShare Settings (Sound > Speaker Settings > SoundShare Settings) features simultaneously.

1. Put the Bluetooth Headphones in the pairing-ready status.

Refer to the headphones' manual for instructions on enabling the pairing-ready status.

1. Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. The Options menu appears.

2. Select Settings from the Options menu.

3. Select pair Connect Bluetooth Headphones from the Settings menu. The TV will display the Bluetooth pairing window and then automatically scan for available headphones.

If the scan fails to locate your headphones, try placing the headphones closer to the TV and then select Refresh. This will scan for the headphones again.

1. Select your headphones from the list of scanned headphones and then select Pair and connect. This pairs the headphones to the TV.

Selecting the Audio-Source Screen

It's possible to listen to audio from one screen through the speakers and audio from a different screen through the Bluetooth headphones.

1. Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. The Options menu appears.

2. Select Settings from the Options.

3. Select Speaker Settings from the Settings menu.

4. Select a screen for TV Speaker and another for Bluetooth Headphone.

The same screen cannot be selected for both TV Speaker and Bluetooth Headphone.

Select Auto to listen to audio from the screen with the pointer or focus placed at the top.

Smart Hub

Smart Hub > Open Smart Hub Try Now

Select opening the Smart Hub, the Mini Smart Hub interface will appear. Click on the Touchpad/Enter button to start Smart Hub. With Smart Hub, you can surf the web, download apps, and stay in touch with family and friends through social networking services. In addition, you can use photo, video, and music files stored on external storage devices.

Some Smart Hub services are paid services. To purchase such a service, the service provider account or Samsung Apps TV account (Samsung account) is required.
Make sure the TV is connected to the Internet. The TV must be connected to the Internet in order to use Smart Hub.
Some features of Smart Hub require an Internet connection and may not be available depending on the service provider, language, or region.
To use Smart Hub, you must agree to the end user agreement and privacy policy. Otherwise, you will not be able to access the features and services related to them. You can view the entire content of the Terms & Policy by navigating to Smart Hub > Terms & Policy. If you don't wish to use Smart Hub anymore, you can withdraw the agreement.

Testing Smart Hub connections

Support > Self Diagnosis > Smart Hub Connection Test

If Smart Hub is not functioning, navigate to Support > Self Diagnosis > Smart Hub Connection Test. Diagnose the problem by checking the internet connection, your ISP, the Samsung server and the Samsung Apps panels.

After completing the test, if Smart Hub continues to have problems, contact your Internet Service Provider or a Samsung Contact Centre.

Press to start the Mini Smart Hub. After clicking on the Touchpad/Enter button, you can start Smart Hub. Select an icon on top of the screen to use the services of the corresponding panel.

Usability depends on the specific model and local region.

NewsON

(Depending on the country) NewsON provides a real-world service that informs users of news and weather-related information in one place without the need for a newspaper, smartphone, or computer.

• SAMSUNG APPS

You can enjoy variety of free and paid news, sports, weather, and gaming apps on the TV as you would on a smart phone or tablet.

• MOVIES & TV SHOWS

You can directly purchase and view a movie or TV programme through the app provided by Smart Hub without connecting an external video source such as a DVD or Blu-ray player.

• MULTIMEDIA

You can play back photo, video, and music files from an external storage device or watch recorded videos.

Using the Smart Hub Tutorial

Support > Smart Hub Tutorial

From the Support menu, select Smart Hub Tutorial. This will familiarize yourself with the basics of Smart Hub and panels.

Resetting Smart Hub

Smart Hub > Reset Smart Hub Try Now

Reset all saved information relating to Samsung accounts and linked service accounts, as well as Smart Hub service agreements and applications.

Using Smart Hub with Samsung Account

Samsung Account

Log In

Edit profile

Link Service Accounts

Remove Account from TV

Create Account

Terms and Conditions, Privacy Policy

Actual menu screen may differ depending on the TV model.

Creating a Samsung Account

Smart Hub > Samsung Account

Some Smart Hub services are paid services. To purchase such a service, the service provider account or Samsung Apps TV account (Samsung account) is required.

You can create a Samsung Account using your email address.

To create a Samsung Account, you must agree to the Samsung Account end user agreement and privacy policy. Otherwise, you cannot create a Samsung Account. You can view the entire content of the agreement by navigating to Smart Hub > Samsung Account > Terms and Conditions, Privacy Policy. If you don't wish to use a Samsung Account anymore, you can withdraw the agreement.
Alternatively, you can create a Samsung Account at http://content.samsung.com. You can use one ID for both the TV and the website.
Once a Samsung Account has been created, a confirmation email will be sent to the email address you entered as your ID. Open the confirmation email and click the confirmation button to finalize the Samsung Account setup process.

Creating a Samsung Account using Sign Up Samsung Account Menu

1. Navigate to Smart Hub > Samsung Account > Create Account and select Create a Samsung account.
2. Agree to use a Samsung Account and select Next.
3. Create a Samsung Account according to the instructions on the Create Account screen.
   Once a Samsung Account is created, you will be automatically logged in to Smart Hub.

Creating a Samsung Account using a Facebook Account

Availability depends on the specific model and area.

A Facebook user can easily obtain necessary information from Facebook and create a Samsung Account.

1. Navigate to Smart Hub > Samsung Account and select Log In. The Sign In screen appears.
2. Select ⊕ and select the Create with Facebook on the Sign In screen.
3. Enter your Facebook ID and password and select Sign In.
4. Agree to use a Samsung Account and select Next.
5. Create a Samsung Account according to the instructions on the Create Account screen. Once a Samsung Account is created, you will be automatically signed in.

If you create a Samsung Account using your Facebook account, they are automatically linked.

Signing into Samsung Account

Smart Hub > Samsung Account > Log In

Logging into and Saving a Samsung Account

If you haven't logged into your Samsung Account on the TV, you must save your Samsung Account on the TV.

1. Navigate to Smart Hub > Samsung Account and select Log In.
2. Select + and select Sign In on the Sign In screen.
3. Enter your ID and password and then select Sign In.

Check the Sign me in automatically option if you wish to log into Smart Hub automatically.
If you forgot your password, select Reset password to receive password reset instructions via email.

1. Select an image to be used as the profile picture. The Samsung Account has been saved on the TV.

2. Select Done to log into your Samsung Account.

Easily Logging Into Your Samsung Account Saved on the TV

1. Navigate to Smart Hub > Samsung Account and select Log In.
2. Choose your Samsung Account on the Sign In screen and select Sign In.
3. Using the login method configured for the selected Samsung Account, log into your Samsung Account.

Linking My Samsung and App Accounts

Smart Hub > Samsung Account > Link Service Accounts

Linking your Samsung Account to accounts of apps installed on the TV lets you automatically log into your linked app accounts when you log into your Samsung Account. For example, you can download the Facebook app and link your Facebook account to your Samsung Account. In this case, logging into your Samsung Account then automatically logs you into your Facebook account as well.

To use Link Service Accounts, you must first log into your Samsung Account.

Availability depends on the specific model and area.

Linking an App Account

1. Navigate to Smart Hub > Samsung Account and select Link Service Accounts. A list of apps that can be linked to your Samsung Account is shown.

2. Select an app from the list. The Link to other accounts window appears on the screen.

3. Enter the current ID and password of the app to log in. When the login is complete, the app account is linked to the Samsung Account.

Disconnecting a Linked Account

1. Navigate to Smart Hub > Samsung Account, select Link Service Accounts. Select an app to unlink.
2. A confirmation dialog box appears. Select Yes to unlink the app.

Changing and Adding Information to Samsung Account

Smart Hub > Samsung Account

Using the Samsung Account menu, you can manage your Samsung Account.

To change the account information, you must be logged into your Samsung Account.

1. Navigate to Smart Hub > Samsung Account and select Edit profile.
2. Enter the password and then select Done. The edit profile screen appears.

The profile editing screen provides the following features.

• Changing Profile Image

If you select Edit Profile Picture on the login screen, you can change the profile image.

• Registering Your Face to Samsung Account

If you select Register face on the login screen, you can register your face to your Samsung Account. The registered face is used by the Sign-in Method.

- Choosing a Samsung Account Login Method for TV

Select Sign-in Method on the login screen and choose a login method. You can determine how to log into the TV with the saved Samsung Account.

- Setting Auto Login

Check the Sign me in automatically option if you wish to log into Smart Hub automatically

- Entering Basic User Information

You can enter your given name, surname, and date of birth.

• Receiving e-mail about Samsung services

You can determine whether to receive e-mail about Samsung services. Containing the latest information.

Deleting All Samsung Accounts from the TV

Smart Hub > Samsung Account > Remove Accounts from TV

Navigate to Smart Hub > Samsung Account and select Remove Accounts from TV. The account and password information saved on the TV is deleted, and the account information of any linked apps are also deleted.

To delete your account information, you must be signed in with your Samsung Account.

Using the NewsON Panel

NewsON 64° 74 ± 58 More News

Actual menu screen may differ depending on the TV model.

This service or some of functions of it may be not available in some countries or region.

NewsON provides a real-world service that informs users of news and weather-related information in one place without the need for a newspaper, smartphone, or computer.

NewsON users can find daily information on a wide variety of topics in a smart and convenient way. Updated in real time, NewsON informs users of the latest headlines, top stories, popular issues, and weather forecasts.

News

News articles are updated in real time. Simply select an article on the screen. The selected article will be displayed on the screen in details.

For longer articles, press the touchpad^ or √, or press the ▲ or ▼ button on the remote control to scroll the screen.

To move to a different article, press the touchpad to the< or >, or press the ◀ or ▶ button on the remote control.

Weather

Weather information is provided for major cities of the user's country. Select a weather-related item on the screen. The selected item will be displayed in details.

Using SAMSUNG APPS Panel

SAMSUNG APPS Recommended MY APPS WebBrowser e-Manual Most Popular What's New Categories

Actual menu screen may differ depending on the TV model.

This service or some of functions of it may be not available in some countries or region.

Smart Hub offers a variety of free and paid news, sports, weather, and gaming content you can install directly on your TV the same way as you would on a smartphone or tablet.

Before you use SAMSUNG APPS, make sure the TV is connected to the Internet. Your TV must be connected to the Internet in order to use SAMSUNG APPS.

Launching Smart Hub for the first time installs the default apps automatically. The default apps may differ depending on the region.

Using Pop-Up Menu Functions

Move the focus to an app and press and hold the Touchpad button. You can use the following functions:

- Move

Relocates the selected app.

- Delete

Removes the selected app.

- Delete Multiple

Removes multiple apps at once.

• View Details

Move to the detailed information of the selected app.

- Change view

You can change view mode sort by Custom view or Most Played.

- Lock/Unlock

You can lock or unlock a selected app from the screen.

- Update Apps

You can update the selected app.

Installing an App

When the TV's internal memory is insufficient, you can install an app on a USB device.

Only when the USB device is connected are the app icons installed on the USB viewable on the SAMSUNG APPS screen. You can use an app installed on a USB device only when the USB device is connected to the TV. If the USB device is disconnected while the app is running, the app is terminated.

The app installed on the USB device is not available on a different TV, or a PC.

Quick Installation

1. On the SAMSUNG APPS screen, select Most Popular, What's New, or Categories.

The Most Popular and What's New show the most popular and newest Samsung Apps. To view the entire app list, select Categories. You can view all Samsung Apps classified by genre.

1. Move the focus to an app and press and hold the Touchpad/Enter button. A pop-up menu appears.

2. On the pop-up menu on the screen, select Download.

You must purchase paid apps with App Cash to install it. Visit the Samsung Apps TV website at http://tv.samsungapps.com to replenish your account with App Cash before purchasing paid apps.

While an app is being installed, the progress bar appears at the bottom of the app icon so that you can easily figure out the installation progress.

1. The selected app is installed on the TV.

You can view installed apps on the SAMSUNG APPS screen.

Installing an App from the Detailed App Information Screen

1. On the SAMSUNG APPS screen, select Most Popular, What's New, or Categories.

The Most Popular and What's New show the most popular and the newest Samsung apps. To view the entire app list, select Categories. You can view all Samsung Apps by category.

1. Select an app from the list. Detailed information about your selection appears on the screen.

2. Select Download on the detailed information screen to install the selected app on the TV.

You must purchase paid apps with App Cash to install it. Visit the Samsung Apps TV website at http://tv.samsungapps.com to replenish your account with App Cash before purchasing paid apps.

When an app is being installed, a progress bar appears underneath the app icon.

1. When the installation is complete, the Download button turns to Open.

You can view installed apps on the SAMSUNG APPS screen.

Launching an App

Select an app on the SAMSUNG APPS screen to launch it.

The icons indicate the following:

• 📋: The app supports motion control.
• 0 : The app supports voice control.
• : The app is installed on a USB device.
• : The app supports a pointer that can move by the Samsung Smart Control.

Default Apps

e-Manual

The embedded e-manual contains information.

WebBrowser

WebBrowser is an Internet browsing app. Using WebBrowser, you can surf the Internet on the TV in the same manner as you would using a PC even while watching a TV programme on PIP. Use a keyboard and mouse for a more convenient web browsing experience.

The browsing page may differ from that on a PC.

Rearranging Apps on the SAMSUNG APPS Screen

1. On the SAMSUNG APPS screen, move to the app you wish to change the order.
2. Press and hold the Touchpad/Enter button. A pop-up menu appears.
3. On the pop-up menu, select Move.
4. Move an app to a desired location and select the app again.

Removing an App from the TV

Note that if an app is removed, the data related to the app is also deleted.

Removing an App

1. On the SAMSUNG APPS screen, move to the app you wish to remove.
2. Press and hold the Touchpad/Enter button. A pop-up menu appears.
3. On the pop-up menu on the screen, select Delete. A removal confirmation window appears. Select Yes. The selected app is removed.

Removing an app with your Samsung Account removes the app from the account only. The app will remain for all other accounts.

Removing an app without logging into a Samsung Account removes the app from the TV.

Removing Multiple Apps

1. On the SAMSUNG APPS screen, move to the app you wish to remove.
2. Press and hold the Touchpad/Enter button. A pop-up menu appears.
3. On the pop-up menu on the screen, select Delete Multiple. A check box appears on the app icons.
4. Select all the apps you wish to remove and then select Delete. A removal confirmation window appears. Select Yes. Selected apps are removed.

If you remove an app with your Samsung Account, the app is just removed from your account, but not from other accounts or before you log in.

Removing an app with your Samsung Account removes the app from the account only. The app will remain for all other accounts.

Updating an App

1. On the SAMSUNG APPS screen, move to the app you wish to update.
2. Press and hold the Touchpad/Enter button. A pop-up menu appears.
3. On the pop-up menu on the screen, select Update Apps. A pop-up window appears.
4. Select all the apps you wish to update and then select Update. All the selected apps are updated to the latest versions.

Setting Auto App Update

Smart Hub > Apps Settings

To update apps automatically, navigate to Smart Hub > Apps Settings and set Auto update to On. The apps installed on the TV are automatically updated as updates become available.

SAMSUNG APPS Features

Smart Hub > Apps Settings

You can configure the features related to the apps installed on your TV.

Enabling Automatic Tickers

You can configure selected tickers to display automatically when the TV is turned on. Ticker Service enables you to use other services while watching TV. You can receive news, stock, and weather information and more in real-time while watching TV.

To use this feature, make sure that an app supporting the Auto Ticker function is installed on the TV.

1. Navigate to Smart Hub > Apps Settings and select Auto Ticker. A list of installed apps that support Ticker Autorun appears.
2. From the list, select apps you wish to run automatically when the TV is turned on.

Setting Push Notification

Push notification function enables apps installed on the TV to send alerts and messages to the user.

1. Navigate to Smart Hub > Apps Settings > Push Notification Settings and set the Push Notification to On.

2. Set the Push Notification setting of apps you wish to receive push notifications from to On. Push notification function of the selected apps is activated.

The Push Notification app list only shows installed apps that support Push Notification Settings.

Using an App while Watching TV

If an app linked to a channel is installed on the TV, you can view programme information and use related services offered by the app while watching TV.

Navigate to Smart Hub > Apps Settings and set Channel-Bound Apps to On.

This feature is only available with apps supporting Channel-Bound Apps installed on the TV.

Using MOVIES & TV SHOWS Panel

MOVIES & TV SHOWS More

Actual menu screen may differ depending on the TV model.

This service or some of functions of it may be not available in some countries or region.

Use this feature to purchase and view movies and TV programmes recommended by MOVIES & TV SHOWS without having to use an external device such as a DVD player or a Blu-ray player. MOVIES & TV SHOWS provides an easy access to a collection of movies and TV programmes available in Smart Hub.

Not all the MOVIES & TV SHOWS options may be available depending on the content you are trying to access or your region.

Before you use MOVIES & TV SHOWS, make sure the TV is connected to the Internet. The TV must be connected to the Internet in order to use MOVIES & TV SHOWS.

Watching a Movie/TV Programme

If you are using MOVIES & TV SHOWS for the first time or have not logged into your Samsung Account, new and popular movies and TV shows will be shown in the MOVIES & TV SHOWS list. To view a customised recommendation list in MOVIES & TV SHOWS, first log into your Samsung Account. You can view a list of frequently played content on MOVIES & TV SHOWS screen in addition to the default recommended content list.

1. On MOVIES & TV SHOWS screen, select a movie or TV programme you wish to watch. Detailed information about your selection appears on the screen.

2. On the detailed information screen, select an app to play the content. This launches the selected app and displays detailed information about the content.

If the selected app is not installed, a pop-up window will appear. From the pop-up window, move to the detailed app information page or install the app.

1. You can play the content in the detailed information of the content.

If the selected content is free, you can instantly watch the content. If the content is a paid content, you must first purchase the content in the app (In-App Purchase).

The purchasing procedures on the app may differ depending on the app. You may need to log into the app or enter payment information.

Preventing Children from Watching Adult UHD Content

Smart Hub > UHD Video Rating Lock

You can lock UHD content rated as adult so that children cannot access it.

Navigate to Smart Hub and set UHD Video Rating Lock to On.

To turn the UHD Video Rating Lock on or off, the security password is required.

Playing Photos, Videos, and Music (MULTIMEDIA)

MULTIMEDIA RECENT CONTENT My Devices Connect a USB storage device Connect a Smartphone Connect a PC Connect to your cloud storage USB Drive Network Device Storage Service

Actual menu screen may differ depending on the TV model.

This service or some of functions of it may be not available in some countries or region.

You can play media content saved on a USB device, smartphone, camera, computer, or Storage Service on the TV.

You cannot play media content if the content or the storage device are not supported by the TV. For more information, refer to "Photo, Video, and Music File Limitations".

Backup important files before connecting a USB device. Samsung shall not be held responsible for damaged or lost files.

Playing Media Content from a USB Device

1. Press the button, then tap on the Touchpad or Enter button, and select USB Drive in the MULTIMEDIA panel. USB devices connected to the TV are listed.

2. Select the device you wish to access. Folders and files of the selected USB device are listed.

3. Select the media content you wish to play. This plays the selected content.

Alternatively, move to the media content to play and press the ▶ button to play the content.

If you connect a USB device to the TV while watching the TV, a pop-up window appears on the screen so that you can easily navigate the folders and files of the USB device.

Alternatively, if you select a USB device on the Source screen, a pop-up window appears on the screen so that you can easily navigate the folders and files of the USB device.

Safely Removing a USB Device

1. Press the SOURCE button. The Source screen appears.
2. Navigate the USB device you wish to remove, and press and hold the Touchpad/Enter button. An options window appears.
3. Select Disconnect USB Device from the list.

Playing Multimedia Content Saved in a Computer/Mobile Device

To view a guide about the PC connection, select Connecting to PC under Network Device.

To view a guide about a Smartphone or tablet connection, select Connect to a Phone under Network Device.

Allowing Connection with a Computer/Mobile Device

To play multimedia content in a computer or mobile device on the TV, you need to allow the connection with the computer on the TV.

You can connect to a computer or mobile device on any DLNA DMC device, DLNA DMC function enables users to connect a mobile device to the TV, search for multimedia content and control play operations on the TV.

1. Press the button, then tap on the Touchpad or Enter button, and select Network Device in the MULTIMEDIA panel. Devices connected to the TV are listed.
2. Select Options and then Multimedia device settings. Devices connected to the TV are listed.

Alternatively, select Multimedia Device Settings from the Network menu to see the list of the devices connected to the TV.

1. Allow connection with the desired device you wish to connect to the TV. You can only play media files from devices that have been allowed to connect to the TV.

If a computer or mobile device requests the multimedia content play, the connection allowance confirmation window appears on the TV so that you can easily connect the computer or mobile device.

When Connected through Home Network (DLNA)

To connect a computer through home network (DLNA).

To connect a mobile device through home network (DLNA).

You may experience compatibility issues when attempting to play media files via a third-party DLNA server.

However, the content shared by a computer of a mobile device may not play depending on the encoding type and file format of the content. In addition, some functions may not be available.

The multimedia content may not smoothly play depending on the network status. If this is the case, use a USB storage device.

1. Press the button, then tap on the Touchpad or Enter button, and select Network Device in the MULTIMEDIA panel. Devices connected to the TV are listed.
2. Select a device connected via the home network (DLNA). Folders and files shared by the selected device will be listed.
3. Select a media content you wish to play from the list. This plays the selected content.

Alternatively, move to the media content and press ▶ to play.

When Connected through Samsung Link

To connect a computer through Samsung Link.

To connect a mobile device through Samsung Link.

However, the content shared by a computer of a mobile device may not play depending on the encoding type and file format of the content. In addition, some functions may not be available.

The multimedia content may not smoothly play depending on the network status. If this is the case, use a USB storage device.

1. Navigate to Smart Hub > Samsung Account menu and select Log In to sign in with your the Samsung Account.

2. Press the button, then tap on the Touchpad or Enter button, and select Network Device in the MULTIMEDIA panel. Devices connected to the TV are listed.

3. Select a device connected via Samsung Link. Folders and files shared by the selected device will be listed.

4. Select a media content you wish to play from the list. This plays the selected content.

Alternatively, move to the media content and press ▶ to play.

Playing Media Content from a Storage Service

Storage Services store user content such as photo, video, and music files on a server so that they can be viewed/played on the TV over the Internet. It's also possible to view your media content saved on Storage Services such as Dropbox and SkyDrive from the TV.

To play content from a Storage Service, you must log into your Samsung Account and link it to the Storage Service account.

1. Navigate to Smart Hub > Samsung Account menu and select Log In to sign into your Samsung Account.
2. Press the 📋, then tap on the Touchpad or Enter button and select Storage Service in the MULTIMEDIA panel. Storage Services linked to your Samsung Account appears.
3. Select a Storage Service, Folders and files found in the selected Storage Service are listed.
4. Select the media content you wish to play from the list. This plays the selected content.

Alternatively, move to the media content and press ▶ to play.

Buttons and Functions Available while Viewing Photos

Press Touchpad/Enter to access the following buttons. Pressing RETURN hides the playback buttons.

- Pause / Play

Start or stop the slide show. The slide show feature displays all the photos contained in the selected folder, one photo at a time.

- Previous / Next

View the previous/next photo in the queue.

- Settings

Function Description
Slideshow Settings	Speed: Set the slide show speed.Effects: Apply transition effects to the slide show.
Rotate	Rotate the photo.
Zoom	Zoom in by up to a factor of 4.
Picture Mode	Change Picture Mode.
Background Music	Listen to background music while viewing photos.The music file must be located on the same device as the photo files.A mini player appears on the screen when background music is played. Use the mini player to pause the music or play a different music file.
Sound Mode	Change Sound Mode.This option is supported only when background music is playing.
Select Speakers	Choose speakers for the background music.
Send	This function is the same as the "Copy" function of a computer. Use this function to send the current photo to another storage device.For information on storage devices supported by this feature, refer to "Storage Device File Transfers".
Information	View detailed information about the current photo.

Buttons and Functions Available while Watching Video

Press Touchpad/Enter to access the following buttons. Pressing RETURN hides the playback buttons.

- Pause / Play

Pause or play the video.

When the video is paused, you can use the following functions. However, audio will not be heard while the video is paused.

• Step: Press Ⅱ to scan the paused video one frame at a time.
• Slow Motion: Select the ▶ button to play the video at reduced speed (1/8, 1/4, 1/2).

- Rewind / Fast Forward

Rewind or Fast Forward the video. Repeatedly select the button to make the rewind/fast forward speed faster by up to 3 times. To restore normal playback speed, select.

- Previous / Next

Select twice to play the previous video. Selecting once reloads the current video from the beginning.

To play the next video, select the▶ button.

Function Description
Select Scene	Thumbnails: Select a scene and play the video from the scene. ✓ Thumbnails is not available when 1) the thumbnail of the video is not extracted yet, 2) the video contains audio only or 3) the video play time is shorter than 60 seconds. Chapter Titles: Select and play another video in the same folder. Time Bar: You can use the <, > buttons to scan through the video in 10 seconds intervals or enter a specific time value to jump to that point in the video.
Subtitles	Control the subtitle of the video. Language: Turn the subtitles on or off. Sync: When the video and the subtitles are not synchronized, you can adjust the synchronization. Reset Sync: Reset the subtitle synchronization adjustment to 0. Size: Choose the font size for the subtitles. Encoding: If the subtitles are broken, you can change the encoding language.
Repeat	Set the repeat mode. Repeat One repeats the current programme only. Repeat All repeats all programmes contained in the folder.
Rotate	Rotate the video.
Picture Size	Change the picture size. However, the supported picture size is determined by the video content.
Picture Mode	Change the Picture Mode setting.
Sound Mode	Change the Sound Mode setting.
Select Speakers	Choose a speaker to play the audio.
Audio Language	Choose a desired audio language. This option works only when the video supports multi-track sound.
Information	View detailed information about the video.

Buttons and Functions Available while Playing Music

Press Touchpad/Enter to access the following buttons. Pressing RETURN hides the playback buttons.

- Pause / Play

Pause or resume the music.

- Rewind / Fast Forward

Rewind or fast forward the music. Repeatedly select the button to rewind/fast forward faster by up to a factor of 3. To restore normal playback speed, select.

- Previous / Next

Select ◀ twice to play the previous music file. Selecting ◀ once reloads the current music file from the beginning.

To play the next music file, select the▶ button.

- Repeat

Set the repeat mode. Repeat One repeats the current music file only. Repeat All repeats all music files contained in the folder.

- Shuffle

Play the music files in order or randomly.

- Select Speakers

Choose a speaker to play the audio.

- Sound Mode

Change the Sound Mode setting.

Functions on the Media Content List Screen

The media content screen for the selected storage device includes the following functions.

- Filter

Use this option to filter the list to see only the photo, video, or music files contained in the storage device.

- Sort by

Sort the list by content type.

This function is not available when Filter is set to All.

- Options

This function is not available when Filter is set to All.

Function Description
Slide Show	Start the slide show.This option is available for photo files. This option is not available with Sort by set to Folder.
Play Selected	Play only the selected content.
Send	This function is the same as the "Copy" function of a computer. Use this function to send the media content to another storage device.For information on storage devices supported by this feature, refer to "Storage Device File Transfers".
Encoding	If the media content's title is being displayed incorrectly, you can change the encoding method.This function is available only for music files.
Rename Playlist	Rename your playlist.This function is available only when the media content is music.
Delete Playlist	Delete a playlist that you have created.This function is available only for music files.
Add to Playlist	Add a file to an existing playlist or create a new playlist.This function is available only for music files.
Index	If the content list is too long to navigate efficiently, select a letter to quickly skip to that section of the list.This is not available when Sort by is set to Folder.

Listening to Music in HD Quality

Use MULTIMEDIA on the Smart Hub screen to play HD music in HD native quality.

Standard audio signals are sampled at 48 kHz while HD audio signals are sampled at 96 kHz.
Some S/PDIF receivers may not be compatible. For such incompatible receivers, deactivate HD Audio mode and use normal audio mode instead.
The HD audio signals available on the TV are not available on external audio players connected via HDMI, Bluetooth, or Wi-Fi networks.

1. Navigate to Sound > Additional Settings, and set HD Audio Mode to On.

2. Select SMART HUB to open the Smart Hub.

3. Navigate to Smart Hub > MULTIMEDIA, and specify the file to play in HD quality.

HD music files have the HD icon next to them in the playlist.

Navigate to the music file and select ▶ to play it.

Setting HD Audio mode to Off during the playback will stop playing the HD music.

Playing an HD music file while the Smart View is running will automatically terminate the Smart View.

Listening to 3D Audio in 3D Mode

Sound > 3D Audio Try Now

3D audio technology provides immersive sound that matches the pop-up effect of 3D video by using perspective in the audio depth control.

Only available in 3D mode.

Resetting All Sound Settings

Sound > Reset Sound Try Now

Use to reset all sound settings to the factory defaults.

TV Control using your Voice

System > Voice Control

You can access and select certain menu options and functions using voice commands. For more effective voice recognition, speak slowly and clearly in the language specified in the System > Voice Control > Language option.

Voice Control is classified into two: interactive voice control that enables conversational instructions, and imperative voice control where only pre-defined instructions are used. Smart Hub setup, and time settings, as well as the user's agreement on the use terms. Trying the interactive voice control without completing any of these requirements will display a notification pop-up. Follow the onscreen instructions and complete the necessary settings. The imperative voice control is available regardless of the interactive voice control settings. Use only "pre-defined commands" in the imperative voice control mode.

Please read through the instructions before using Voice Control. For more information, refer to "Read Before Using Voice, Motion, or Face Recognition".

Enabling Voice Control

1. Press the VOICE button on the Samsung Smart Control. The microphone icon appears on the screen when Voice Control is enabled.

2. Say a command. You can use Voice Control to operate the TV when you are watching the TV or other videos.

Say the command from 10cm to 15cm away from the microphone on the Samsung Smart Control. Voice commands may not be recognised properly if you speak too softly or loudly. The optimal volume for voice commands is between 75dB and 80dB.

Using the Voice Control Tutorial

Support > Voice Recognition Tutorial

This lets you familiarize yourself with the basics of using Voice Control. Run Voice Recognition Tutorial from the Support menu, or press the VOICE button on the Samsung Smart Control and say "Tutorial".

Learning Voice Control Basics

- Moving the focus

Say "Left", "Right", "Up", or "Down" to move the focus. However, these commands can only be used in situations when the focus can be moved.

- Selecting an item

Say "Select" to confirm the selection.

• All Voice Commands

Say "Help" to display the complete list of voice commands, organised by category. Say the name of a category.

• Deactivating Voice Control

Press VOICE button. This terminates Voice Control.

The TV recognises predefined voice commands only, and the voice commands may differ from the manual depending on the version.

Changing Voice Control Language Try Now

System > Voice Control > Language

Navigate to System > Voice Control > Language, and select a preferred language from the list. Now you can use Voice Control in the specified language.

Interactive Voice Control is not available in some languages. If this is the case, choose a different language.

Turning On the TV Using Voice Control

To turn on the TV using a voice command, say "(the trigger word) + Turn On". (Example: "Hi TV, Turn On")

To turn on the TV using Voice Control, make sure Voice Control is activated.

Using Voice Control Interactively

Availability depends on the specific model and area.

Voice Control allows you to set up Schedule Recording/Schedule Viewing, access VODs, search and launch applications, and execute various other commands using voice commands and without having to remember specific commands or keywords. Saying "Turn off the TV in 30 minutes", for example, instructs the TV to turn off after 30 minutes (Sleep Timer).

Activate Voice Control and say a command. See the examples below:

- When you don't know which channel a specific programme is on:

"Watch ***** (Title)". / "Play ***** (Title)". / "Run ***** (Title)"

- When you want to find a specific programme or content item:

"*** (Title)" / "Find *** (Title)."

- When you want to reserve and record a programme:

"Remind me to watch *** (Title)." / "Set up a timer to record *** (Title)." / "Record *** (Title)."

- When you want to know various daily information:

"What's the weather in *** (place name)." / "What is the *** (company) stock price?"

- When you want programme recommendations:

"Recommend something to me." / "Are there any popular drama (genre) out?"

- When you want to operate the TV:

"Volume ** (level)" / "Channel ** (Number) / ** (channel name)"

- When you play an app for the camera, such as skype, or for fitness:

"Camera" / "Fitness" / "Skype"

- When you log in or out of the Samsung Account:

"Sign In *** (User name)" / "Sign Out *** (User name)"

Enabling/Disabling TV Voice

Enable/disable the TV's voice responses to your Voice Control commands. Navigate to System > Voice Control menu and select Use TV Voice.

Enabling TV Voice in Selected Voice Gender

Navigate to System > Voice Control > Voice Gender, and select a voice gender. Enjoy the TV voice in the selected voice gender.

TV Control using your Voice (SEK-2500U Model)

System > Voice Control

You can access and select certain menu options and functions using voice commands. For more effective voice recognition, speak slowly and clearly in the language specified in the System > Voice Control > Language option.

Voice Control is classified into two: interactive voice control that enables conversational instructions, and imperative voice control where only pre-defined instructions are used. Smart Hub setup, and time settings, as well as the user's agreement on the use terms. Trying the interactive voice control without completing any of these requirements will display a notification pop-up. Follow the onscreen instructions and complete the necessary settings. The imperative voice control is available regardless of the interactive voice control settings. Use only "pre-defined commands" in the imperative voice control mode.
Please read through the instructions before using Voice Control. For more information, refer to "Read Before Using Voice, Motion, or Face Recognition".
If you use the Voice Control function interactively at least once, the TV will change the on-screen menu name from Voice Control to Analogue Clean View.

Voice Control can be used in the following ways:

• Using the TV's built-in microphone (from a distance)
• Using the VOICE button (up close)

If you use the TV's built-in microphone, ambient noise may interfere with Voice Control. If this is the case, press VOICE and then say the command word/phrase 10cm to 15cm away from the microphone on the remote control. Voice commands may not be recognised properly if you speak too softly or loudly. The optimal volume for voice commands is between 75 dB and 80dB.

Testing Noise Around the TV's Built-in Microphone

System > Voice Control > Voice Recognition Environment Test

To enable Voice Control using the TV's built-in microphone, you must run the Voice Control Environment Test to improve the voice recognition rate.

1. Navigate to System > Voice Control and run Voice Recognition Environment Test, and stand within 4 m of the TV.
2. Select Start to measure the ambient noise. If the ambient noise level is suitable, the test will proceed to the next step. If this part of the test fails, remain quiet and try again.
3. This test measures the volume and clarity of the user's voice. The TV will play an audio recording of the command shown on the screen. Repeat the command loud and clear within 30 seconds. If the TV successfully recognises your voice command, the test is complete and the TV proceeds to the next step. If this part of the test fails, try again.
4. The level of echo in the surrounding area is measured. If the echo level is suitable, the Voice Control Environment Test will end.

Checking Ambient Noise and Illumination (Voice & Motion Control Environment Check)

Support > Self Diagnosis > Voice & Motion Control Environment Check

Navigate to Support > Self Diagnosis and select Voice & Motion Control Environment Check.

This function measures the ambient noise and illumination levels around the built-in camera and microphone of the TV to check if they are suitable for voice and motion control use.

Enabling Voice Control

Make sure that Voice Control (System > Voice Control > Voice Control) is enabled.

While Voice Control is activated, the TV can turn on automatically due to an environmental input.

1. To use the TV's built-in microphone, say the Trigger Word within 4m from the TV. To use the remote control's microphone, Press the VOICE button on the Samsung Smart Control. The microphone icon appears on the screen when Voice Control is enabled.

2. Say a command. You can use Voice Control to operate the TV when you are watching the TV or other videos.

Say the command from 10cm to 15cm away from the microphone on the Samsung Smart Control. Voice commands may not be recognised properly if you speak too softly or loudly. The optimal volume for voice commands is between 75 dB and 80dB.

Using the Voice Recognition Tutorial

Support > Voice Recognition Tutorial

This lets you familiarise yourself with the basics of using Voice Control. Run Voice Recognition Tutorial from the Support menu, or press the VOICE button on the Samsung Smart Control and say "Tutorial".

Using the Voice Sensitivity

Availability depends on the specific model and area.

System > Voice Control > Voice Sensitivity

Set the sensitivity of the TV microphone.

Learning Voice Control Basics

- Moving the focus

Say "Focus left", "Focus right", "Focus up", or "Focus down" to move the focus. However, these commands can only be used in situations when the focus can be moved.

- Selecting an item

Say "Select" to confirm the selection.

• All Voice Commands

Say "Help" to display the complete list of voice commands, organised by category.

• Deactivating Voice Control

Press VOICE button. This terminates Voice Control.

The TV recognises predefined voice commands only, and the voice commands may differ from the manual depending on the version.

Changing Voice Control Language

System > Voice Control > Language

Navigate to System > Voice Control > Language, and select a preferred language from the list. Now you can use Voice Control in the specified language.

Interactive Voice Control is not available in some languages. If this is the case, choose a different language.

Changing the Trigger Words

System > Voice Control > Trigger Word

Navigate to System > Voice Control > Trigger Word and select a Trigger Word from the list. You can choose a trigger word to start Voice Control. If the TV recognises the trigger word, it activates Voice Control.

Turning On the TV Using Voice Control

To turn on the TV using a voice command, say "(the trigger word) + Turn On". (Example: "Hi TV, Turn On")

To turn on the TV using Voice Control make sure Voice Control is activated.

Using the Voice Interaction function Interactively

Voice Control allows you to set up Schedule Recording/Schedule Viewing, access VODs, search and launch applications, and execute various other commands using voice commands and without having to remember specific commands or keywords. Saying "Turn off the TV in 30 minutes", for example, instructs the TV to turn off after 30 minutes (Sleep Timer).

If you use the Voice Control function interactively at least once, the TV will change the on-screen menu name from Voice Control to Analogue Clean View.

Activate Voice Interaction and say a command. See the examples below:

- When you don't know which channel a specific programme is on:

"Watch ***** (Title)". / "Play ***** (Title)". / "Run ***** (Title)"

- When you want to find a specific programme or content item:

"*** (Title)" / "Find *** (Title)."

- When you want to reserve and record a programme:

"Remind me to watch *** (Title)." / "Set up a timer to record *** (Title)." / "Record *** (Title)."

- When you want to know various daily information:

"What's the weather in *** (place name)." / "What is the *** (company) stock price?"

- When you want programme recommendations:

"Recommend something to me." / "Are there any popular drama (genre) out?"

- When you want to operate the TV:

"Volume ** (level)" / "Channel ** (Number) / ** (channel name)"

- When you play an app for the camera, such as skype, or for fitness:

"Camera" / "Fitness" / "Skype"

- When you log in or out of the Samsung Account:

"Sign In *** (User name)" / "Sign Out *** (User name)"

Enabling/Disabling TV Voice

Enable/disable the TV's voice responses to your Voice Control commands. Navigate to System > Voice Control menu and select Use TV Voice.

Enabling TV Voice in Selected Voice Gender

Navigate to System > Voice Control > Voice Gender, and select a voice gender. Enjoy the TV voice in the selected voice gender.

TV Control using Motions

Availability depends on the specific model and area.

System > Motion Control

It's possible to use motion commands to change channels, adjust the volume, and control the pointer while searching the web using Smart Hub.

Please note, that not all apps support Motion Control.

Please read through the instructions before using Voice Control. For more information, refer to "Read Before Using Voice, Motion, or Face Recognition".

Motion Control is not available while Voice Control is activated.

Testing Ambient Illumination Using the TV Camera

System > Motion Control > Motion Control Environment Test

Run this test before using Motion Control to ensure proper functionality.

1. Initiate the Motion Control Environment Test, and select Start 1.5m to 4m away from the TV. If the light is reflected onto the TV's screen, or there are moving objects in the background, the motion may not be properly recognised by the TV.
2. Face the TV camera, and follow the onscreen instructions to raise your hand from a comfortable position with the index finger spreading upwards, and move it left or right slowly. A pointer appears on the screen when the TV recognises the action. If the recognition fails, change the hand position and try again.

Checking Illumination (Voice & Motion Control Environment Check)

Support > Self Diagnosis > Voice & Motion Control Environment Check

Navigate to Support > Self Diagnosis menu and select Motion Control Environment Check. This function measures the illumination levels around the built-in camera and microphone of the TV to check if they are suitable for motion control use.

Activating Motion Control

System > Motion Control > Motion Control Try Now

To enable Motion Control, face the TV camera and raise your hand from a comfortable position with the index finger spreading upwards, and move it left or right slowly. When your hand is successfully recognised by the TV camera, Motion Control is activated and a pointer appears on the screen.

If Motion Control is activated, a pop-up window appears and guides you through basic use of Motion Control.
Moving your hand out of the range of the TV camera deactivates Motion Control. To reactivate Motion Control, simply raise your hand towards the TV camera within 3 seconds.
The recognition may be terminated if the index finger does not fully spread out or is moved too fast.

Using Motion Control Tutorial

Support > Motion Control Tutorial

This lets you familiarize yourself with the basics of using Motion Control. From the Support menu, run Motion Control Tutorial.

If Motion Control is activated, a pop-up window appears and guides you through basic use of Motion Control.

Learning Motion Control Basics

The following basic motion control commands are available:

- Moving the pointer

Moving your hand moves the pointer accordingly.

- Selecting an item

Fold and then spread your index finger as if clicking on a mouse. You can select a TV menu or run a function. Keeping your index finger folded is like holding down the remote control button.

• Returning to the previous menu

Make a large counterclockwise circle with your hand to return to the previous menu.

A small circle may not be recognised by the TV.

- Moving to the Smart Hub panel

Illustration of two hands pointing in opposite directions with a blue curved arrow indicating rotation (no text or symbols)

Move your hand from left to right or from right to left as you would turn a book page. You can directly move from Smart Hub to another panel screen. (Example: SAMSUNG APPS panel→MOVIES & TV SHOWS panel)

• Displaying Smart Hub's context menu

On the Smart Hub screen, fold your index finger for more than 1 second and spread it out. This displays the selected item's context menu.

The screen's option menu differs depending on the selected lists.

• Zooming in and zooming out

Illustration of two hands holding a pair, with one hand slightly taller and the other shorter, both facing each other with bidirectional arrows indicating measurement (no text or symbols)

Raise both hands in the direction of the TV camera with both index fingers also raised. Two pointers appear on the screen when the TV recognises the hands. Fold both index fingers and horizontally spread your hands apart or bring them closer. Doing so zooms in on/out from the item displayed on the screen (web page, map, or photo).

• Panning while zoomed in

Illustration of two hands pointing to a finger with blue circular markers (no text or symbols)

While zoomed in on a picture, fold your index finger and move your hand, and then spread the finger to release. This allows you to pan through a zoomed in picture.

- Rotating a picture

Illustration of two hands holding a circular arrow symbol (no text or labels)

Raise both of hands toward the TV camera with both index fingers also raised. Two pointers appear on the screen when the TV recognises the hands. Fold both index fingers and make either a clockwise or counterclockwise circle with your hands. This is available for a photo image that displays on the screen.

A small circle may not be recognised by the TV.

• Using Like function

With Motion Control, inactive, raise and hold your thumb for 2 seconds toward the TV camera. You can automatically add Facebook's Like function. However, this is only available in Facebook.

Showing and Hiding Animated Motion Guide

Navigate to System > Motion Control, and select Animated Motion Guide from the menu. Now you can display an animated guide when Motion Control is activated.

Adjusting Pointer Speed

Navigate to System > Motion Control > Pointer Speed, and select a pointer speed.

Motion Control Screen Layout

Motion Control Layout on the TV Screen

Activating Motion Control while watching the TV displays the following icons on the screen:

Pure UI interface with control buttons and navigation icons, no text or symbols present

Icon Description
	Adjusts the volume.
	Mutes or unmutes the TV. Icon may differ from model and region.
	Changes the channel.
	Launches Smart Hub.
	You can split the TV screen and use variable functions such as watching the TV, surfing the web and watching the video and so on.
	Press this button to search for information through the search window in various services. You can easily view channels and content that you have viewed with the recent viewing history.
	The virtual remote control appears.
	Changes the source.
	Turns the TV off.

Motion Control Layout on the Smart Hub Screen

Activating Motion Control while using Smart Hub displays the following icons on the screen:

User interface toolbar with navigation and action buttons (no text or symbols)

Icon Description
	Adjusts the volume.
	Mutes or unmutes the TV. Icon may differ from model and region.
	Changes the channel.
	Returns to the previous menu.
	You can split the TV screen and use variable functions such as watching the TV, surfing the web and watching the video and so on.
	Press this button to search for information through the search window in various services. You can easily view channels and content that you have viewed with the recent viewing history.
	The virtual remote control appears.
	Changes the source.
	Turns the TV off.

Displaying Hidden Icons When Using Smart Hub

When using Motion Control with Smart Hub, the icons will disappear automatically after 2 seconds of inactivity. To display the hidden icons, move the pointer to one of the three edges shown below (marked in blue) and then hold it there for 1 second. The icons will reappear on the screen.

① ② ③

Icon Description
1
2
3

Signing in with Face Recognition

Availability depends on the specific model and area.

Users can register their faces using the TV camera, and sign in with their Samsung accounts through Face Recognition. One face may be registered per account. Depending on the ambient illumination level and/or shadows over the face, the TV may have difficulty recognising the user's face.

Please read through the instructions before using Face Recognition. For more information, refer to "Read Before Using Voice, Motion, or Face Recognition".

Registering Your Face to Your Samsung Account

Register your face to your Samsung Account to allow the TV to recognise you by your face. Create a new account if you do not already have one.

First, you must sign in with your Samsung Account.

1. Navigate to Edit profile (Smart Hub > Samsung Account > Edit profile) and select Register face in the account information screen.

To register your face using the Virtual Remote panel, press KEYPAD to select your active Samsung Account and then select Edit profile.

1. Read the information displayed in the pop-up window, select OK, and then enter the account password.
2. On the face registration screen, select Take picture and then align your face with the dotted red line displayed on the screen. The dotted line will turn green once your face is recognised.

Your entire face must be visible to the camera. Make sure the face is brightly lit. Shadows prevent the camera from recognising your face accurately.
Keep your expression as neutral as possible. In addition, keep your mouth closed but at the same time as neutral as possible.
Check the box to add password entry to the sign-in process using Facial Recognition for additional security. Select Try Again to try again.

1. On the Samsung Account information screen, select Save. This completes the face registration process.

Changing Login Method to Face Recognition

To sign in with your Samsung Account using face recognition, navigate to Edit profile (Smart Hub > Samsung Account > Edit profile) and change the login method.

First, you must sign in with your Samsung Account.

1. Navigate to Smart Hub > Samsung Account and select Edit profile.

To register your face using the Virtual Remote panel, press KEYPAD to select your active Samsung Account and then select Edit profile.

1. Enter the password in the password input box and then select Done. The edit profile screen appears.

2. Select Sign-in Method and change the login method to Face Recognition.

3. Select Save.

Singing into Samsung Account with Your Face

1. Navigate to Smart Hub > Samsung Account and select Log In.

Press KEYPAD on Samsung Smart Control, and select Sign In to access the Sign In screen.

1. Choose your Samsung Account in the login screen.

2. Face towards the TV camera. If you have set the login method to face recognition, the TV will automatically match your face with your Samsung Account. If recognition fails, try again.

Password entry is required when logging into accounts that have been configured to require password entry during face registration.
The user's entire face must be visible to the camera. Make sure the face is brightly lit. Shadows prevent the camera from recognising your face accurately.
Keep your expression as neutral as possible. In addition, keep your mouth closed but at the same time as neutral as possible.
Even if more than one registered face matches your face, the TV signs you in with the matching face's account.

Digital Broadcast Information at a Glance

Broadcasting > Guide Try Now

The Guide provides an overview of each digital channel's programme lineup. You can check the programme schedules and set up a Schedule Viewing or Schedule Recording.

Press GUIDE to launch the guide.

The information in the Guide is for digital channels only. Analogue channels are not supported.

Using the Guide

• Navigating the Programme Schedule

Press to the ◀, ▶ button to navigate the programme schedule by 24 hours. You can only view the future programme schedule.

It is available for moving the page using the^, √ button.

Move to the programme schedule and then press and hold the Touchpad/Enter button. The following options are available:

• Changing the Channel List

If you select Channel Filter, you can change the channels displayed in the channel lists.

- Moving to the Schedule Manager

You can move to the Schedule Manager screen.

- Adding Favourites

Click Edit Favourite Channels to add the selected programme to the Favourites.

• Viewing Detailed Information

View detailed information about the selected programme. The programme information may vary depending on the type of incoming signal and may not be available at all for certain programmes.

• Select a current programme on another channel and select View Details to Watch or Record the programme.
• Select an upcoming programme and select View Details for Schedule Viewing or Schedule Recording.

Checking the Current Programme Info

While watching TV, select INFO to view information about the current programme.

In order to view the programme info, you must first set the TV's clock. Set the Clock (System > Time > Clock).
The programme information may vary depending on the type of incoming signal and may not be available at all for certain programmes.

In addition, select right button to view information about the next programme, and press Touchpad/Enter button, to set up a Schedule Viewing or Schedule Recording for the upcoming programme.

Change the Broadcast Signal

Broadcasting > Aerial Try Now

Choose your preferred method of receiving digital broadcasts.

Digital Signal Info and Strength

Support > Self Diagnosis > Signal Information Try Now

Select Support > Self Diagnosis > Signal Information. Displays the digital channel's signal information and strength.

If your TV is attached to a separate, over-the-air antenna, you can use the signal strength information to adjust the antenna for increased signal strength and improved HD channel reception.
This is only available for digital channels.

Recording Programmes

You can record current and upcoming programmes using a USB device instead of a video recorder.

However, this is only available for digital channels. The 🎨 icon appears next to programmes and channels for which a Schedule Recording has been set.

We recommend a USB hard disk drive with a minimum speed of 5,400rpm for TV recording. USB memory sticks are not supported.

Read all precautions before using recording.

Creating a USB Recording Device

MULTIMEDIA > USB Drive

In order to record programmes on a USB device connected to the TV, the device must first be formatted for the TV. Use the Format Device option to prepare the USB device.

Formatting a USB device erases all data contained on the device. Back up the data before proceeding. Samsung will not be held responsible for damaged or lost files.

1. Press to launch Smart Hub, then tap on the Touchpad or Enter button, and then choose USB Drive from the bottom of the MULTIMEDIA screen.
2. Select Format, and then select Format Device. This will bring up the Format Device screen and allow you to format the device for TV recordings.
3. Once formatting is complete, the USB device is tested to see if it has been properly formatted. You will be able to start using the device after the test is completed. If the device fails the test, it means that this device cannot be used to record TV.

Managing USB Recording Devices

You can use the following to manage USB recording devices.

1. Press 📋 to launch Smart Hub and then choose USB Drive from the bottom of the MULTIMEDIA screen. A list of connected devices appears.
2. Select a USB recording device from the list. The list of recordings contained on the device appears.
3. Select Options from the top of the screen and then Manage Devices. The Manage Devices screen appears.

The following options are available from the Manage Devices screen:

• Format Device: Formats the USB device for TV recordings.
• Check Device: Tests the USB device for TV-recording compatibility.
• Device Performance Test: Tests the performance of the USB device. This test tells you whether the USB device can be used for TV recordings.
• Default Recording Device: If there are multiple USB recording devices connected to the TV, use this option to specify the default device.

Recording Programmes

You can record current and upcoming programmes.

Instant Recording

Press the REC button to begin recording the current programme right away.

The Instant and Schedule Recording options from the Guide

Select a current programme from the Guide and then select INFO.

You can instantly start recording the programme. Alternatively, select a programme that will air in the future.

The Instant and Schedule Recording options from the Programme Info

Select INFO to display information about the current programme. In the information screen, select a programme that is currently airing to start recording it right away. Alternatively, press, > button and select a programme that will air in the future to record it.

The Schedule Recording option on a Specified Date and Time

1. Select Broadcasting > Schedule Manager.
2. Select Schedule from the Schedule Manager to bring up a pop-up menu. Select Schedule Recording.
3. Specify the Aerial, Channel, Repeat, Start Time, and End Time options for the programme you want to record, and then select OK to finish.

Buttons and Functions Available While Recording a Programme

Press Touchpad/Enter button while recording a programme. The following buttons will appear as well as the recording progress bar.

• Information

This displays detailed information about the programme being recorded.

The programme information may differ depending on the broadcasting signal and may not be available at all for certain programmes.

- Recording Time

You can select the recording time.

- Stop Recording

You can stop recording.

- Rewind / Fast Forward

Pressing these buttons decreases or increases playback by up to 5 times. To restore normal playback speed, select Play.

Fast Forward cannot be used while watching the Current Programme.

- Pause / Play

Pause/resume video.

- Channel List

You can view the channel list.

- Tools

You can launch the Tools menu. The Tools menu provides functions that you can use while watching a recorded programme.

Managing the Schedule Recording List

Broadcasting > Schedule Manager

You can change the settings of scheduled recording sessions or cancel scheduled sessions altogether.

Deleting Schedule Recording Sessions

You can delete scheduled recording sessions.

1. Select Broadcasting > Schedule Manager.
2. Select a session from the Schedule Manager. A pop-up window appears.
3. Select Delete. This cancels the selected recording session.

Editing Schedule Recording Sessions

You can change the settings of scheduled recording sessions.

1. Select Broadcasting > Schedule Manager.
2. Select a session from the Schedule Manager. A pop-up window appears,
3. Select Edit and change the settings of the selected session.
4. Once finished, select OK. This applies the changes you made to the selected recording session.

Viewing Recorded Programmes

> MULTIMEDIA > USB Drive

Recorded broadcasts can be viewed using the USB Drive option at the bottom of the MULTIMEDIA screen.

1. Select a USB recording device. A list of recordings appears.

2. Select a recording file from the list or select to play the selected file.

3. Press to launch Smart Hub, then tap on the Touchpad, and then choose USB Drive from the bottom of the MULTIMEDIA screen.

Available Buttons and Features while Playing Recordings

Press Touchpad/Enter. Playback controls will appear. To hide the controls, press Return.

Buttons that appear are different depending on the file being played.

- Zoom

You can pause the current file (recorded programme) and zoom in on one of 9 different sections of the screen.

You can only use this function for programmes recorded in Soccer Mode / Football Mode.

- Stop

Stop playback of the file (recorded programme).

- Pause / Play

Pause the file (recorded broadcast) or resume if already paused.

When the video is paused, you can use the following functions. However, audio will not be heard while the video is paused.

• Step: Press Ⅱ to scan the paused video one frame at a time.
• Slow Motion: The ▶ button plays the video back at 1/4 the normal speed.

- Rewind / Fast Forward

Rewind or Fast Forward the recording file (recorded programme). Repeatedly select the button to make the rewind/fast forward speed faster by up to 5 times. To restore normal playback speed, press the ▶ button.

- Previous / Next

To play the previous file (recorded programme), press twice. Selecting once reloads the current video from the beginning.

To play the next file (recorded programme), press▶.

- Highlights Player

Select Highlights Player to view highlights from the current recording.

This feature is only available for programmes that were recorded in Soccer Mode / Football Mode and along with highlight data have been saved.

Live TV

This function enables the PIP feature so that you can watch a live programme through PIP.

Channels cannot be changed.

You can only use this function for programmes recorded in Soccer Mode / Football Mode.

Function Description
Search	Search Scene: This will take you to a scene in the video.Search Scene cannot be used if 1) the extraction of the thumbnails from the file (Recorded broadcast) being played back is not finished, 2) playing back a file with audio only (recorded broadcast), or 3) the duration of the recorded file (recorded broadcast) is less than 60 seconds.Search Titles: Select and play a different file located in the same folder.Search Time Bar: Press <, > button to scan through the file in 1-minute increments or enter a specific time value to jump to that point in the video.
Subtitle Settings	Subtitle: Turn the subtitles On or Off.Subtitle Language: Used to change the language.This option works only when the video supports subtitles display.
Repeat Mode	This changes the repeat mode. Choose Repeat One to repeat playing the current file and Repeat All to repeat playing all files contained in the same folder.
Picture Size	Used to change the size of the screen. The supported picture sizes vary depending on the video.
Picture Mode	Change the Picture Mode setting.
Sound Mode	Used to change the Sound Mode.
Select Speakers	Choose a speaker to play the audio.
Audio Language	Choose a desired audio language. This option works only when the video supports multi-track sound.
Information	Displays detailed information about the current file.

Managing Recorded Files

> MULTIMEDIA > USB Drive

Select USB Drive at the bottom of the MULTIMEDIA screen to lock/unlock, rename, delete, and generally manage the recording files.

1. Press to launch Smart Hub, then tap on the Touchpad or Enter button, and then choose USB Drive from the bottom of the MULTIMEDIA screen.
2. Select a USB recording device. A list of recordings appears.

Saved File List Features

- Sorting the Saved File List

Sorting with Sort by: Select Sort by at the top of the screen and then select a viewing mode. The list is sorted based on the selected viewing mode.

Sorting with Filter: Select Filter at the top of the screen and then select a filter. The list is refreshed to only show files that match the selected filter.

- Options

Function Description
Play Selected	Select files from the file list and then select Play. You can create a playlist.
Lock	You can lock files that are inappropriate for children. Select the files and then select Lock. This locks all the selected files.
Unlock	Use this option to unlock any locked files. Select the files and then select Unlock. This unlocks all selected files.
Delete	Deletes recording files. Select the files and then select Delete. This deletes all selected files.
Rename	Renames the file. Enter the new name using the keypad and then select Done to finish. The new name can be up to 29 characters long.
Index	When navigating a large number of media items, select a character. Media items starting with that character appear.
Manage Devices	Used to manage USB recording devices connected to the TV.

Setting Up a Schedule Viewing

Configure the TV to show a specific channel or programme at a specific time and date. The icon appears next to programmes that have been configured for a Schedule Viewing.

To set up a Schedule Viewing, you must first set the TV's clock. Go to Clock (System > Time > Clock).

Setting Up Schedule Viewing

Digital Channel Schedule Viewing

You can set up Schedule Viewing for programmes on digital channels on the following screens:

• The Guide Screen

Select an upcoming programme from the Guide to set up a Schedule Viewing for it.

• The Programme Info Screen

Select INFO to display information about the current programme. From the programme information screen, select right button to view information about the next programme, and press Touchpad/Enter, to set up a Schedule Viewing or Schedule Recording for the upcoming programme.

Analogue Channel Schedule Viewing

Broadcasting > Schedule Manager Try Now

The Schedule Viewing function for programmes on analogue channels can be set up by specifying the time and date.

1. Select Broadcasting > Schedule Manager.
2. Select Schedule from the Schedule Manager to bring up a pop-up menu. Select Schedule Viewing.
3. Specify the Aerial, Channel, Repeat, and Start Time options for the programme you want to watch and then select OK to finish.

Managing the Schedule Viewing List

Broadcasting > Schedule Manager

You can change the settings of Schedule Viewing sessions or cancel scheduled sessions altogether.

Deleting Schedule Viewing Sessions

You can delete Schedule Viewing sessions.

1. Select Broadcasting > Schedule Manager.
2. Select a session from the Schedule Manager. A pop-up window appears.
3. Select Delete. This cancels the selected viewing session.

Editing Schedule Viewing Sessions

1. You can change the settings of Schedule Viewing sessions. Select Broadcasting > Schedule Manager.
2. Select a session from the Schedule Manager. A pop-up window appears.
3. Select Edit and change the settings of the selected session.
4. Once finished, select OK. This applies the changes you made to the selected recording session.

Using Timeshift

Timeshift lets you pause and rewind live TV as you would a DVD. Timeshift is only available for digital channels and activating Timeshift disables the Broadcasting option.

Timeshift requirements:

• A USB recording device must be connected to the TV in order to use Timeshift.
• We recommend a USB hard disk drive with a minimum speed of 5,400rpm for use with the TV's Timeshift feature. USB memory sticks are not supported.
• Read all precautions before using the Timeshift function.

Press ▶ while watching TV to activate the Timeshift function. This activates Timeshift and displays a progress bar and the following buttons at the top of the screen:

• Information

Displays detailed information about the current programme.

The programme information may vary depending on the type of incoming signal and may not be available at all for certain programmes.
This button is only available while watching a live programme.

- Go to Live TV / Stop Timeshift

Watches the live TV or Exits the Timeshift.

- Pause

Pauses the screen.

The following features are available while paused. However, audio is not supported while the video is paused.

• Step: 1 Scans the paused video one frame at a time.
• Slow Playback: Select ◀ / ▶ to play the video back at 1/4 the normal speed.

- Rewind / Fast Forward

Slows down or speeds up playback by a factor of up to 5. To restore the normal playback speed, press ▶.

Fast Forward cannot be used while watching the Current Programme.

- Channel List

Displays the channel list.

- Tools

You can launch the Tools menu. Open the Tools menu to access the context menus available in Timeshift mode.

Using the Channel List

Broadcasting > Channel List Try Now

Launch the Channel List while watching TV to change channels or to see what's on other channels. Press and hold the Touchpad/Enter button. To launch the Channel List.

Select a channel from the Channel List to jump to it right away. To quickly scroll through the list, use the channel up/down buttons. This moves the focus one page at a time.

The Channel List screen contains the following icons:

• A : An analogue channel
• ♥ : A favourites channel
• : A locked channel

- Using Options

Press < button to select Options. The following options are available:

Function Description
Aerial	Choose between Terrestrial, Cable.
Category	If you select a Category, its channels appear in the list among the TV's channels.
Sorting	Sort the list by Channel Number or by Name. (Digital channels only)
Genre	Sort the list to include channels of the selected genre only. However, Genre can only be used channels contain the genre information.Check the network and make sure the TV is connected to the Internet. Your TV needs to be connected to the Internet in order to receive the channel's genre information.
Edit Favourites	Designate favourites channels.

• Changing to Favourites

Press > button to select Favourites 1 through Favourites 5. This shows the selected list's channels. However, a Favourites list can only be selected if it contains at least one favourites channel. If you haven't created a Favourites list yet, you need to create one first.

Registering, Removing, and Editing Channels

Broadcasting > Edit Channel Try Now

Remove channels from the index of channel restore removed channels, and rename analogue channels. The Edit Channel screen icons indicate the following:

• A : An analogue channel
• ♥ : A favourites channel
• : A locked channel

Registering and Removing Channels

Broadcasting > Edit Channel

Removing Registered Channels

Remove registered channels from the index.

1. Select the channels you want to remove. Unselect channels by choosing them again. To select all the channels, select Options from the bottom of the screen and then select Select All from the list.
2. Once you have made your selection, select Delete from the bottom of the screen to remove the selected channels.

Editing Registered Channels

Broadcasting > Edit Channel

Select Options at the bottom of the screen to access the following options. However, the available options may vary depending on the broadcast signal.

• Select All
  Selects all channels displayed in the Edit Channel screen.
• Sorting
  (Digital channels only)
  Change the list ordered by Channel Name or Number.

- Aerial

Choose between Terrestrial, Cable.

Category

If you select a Category, its channels appear in the list among the TV's channels.

- Edit Favourites

Organize favourites lists to find favourite channels and switch between channels more easily.

- Rename channel

Rename Analogue Channels. The new name can be up to 5 characters long.

- Channel Info

Check the information of the channel.

• Information

View detailed information about the current programme.

Enabling/Disabling Password Protection on Channels

Broadcasting > Edit Channel

You can lock channels you don't want your children to view.

To enable password protection, set Channel Lock to On. First, navigate to Broadcasting > Channel Lock and set it to On. Try Now

Locking/Unlocking Channels

Select channels from the Edit Channel screen and then select Lock or Unlock at the bottom of the screen. When the password entry window appears, enter the password. This locks or unlocks the selected channels.

Creating a Personal Favourites List

Broadcasting > Edit Favourites Try Now

You can designate frequently watched channels as favourites. Favourites channels are highlighted in the Edit Channel and Channel List screens with the ♥ symbol. You can create up to 5 favourites channel lists.

Registering a Channel as Favourites

Broadcasting > Edit Favourites

Registering the Current Channel as a Favourites

Add the current channel to a Favourites list.

1. Press the KEYPAD button to display the virtual remote control on the screen then select TOOLS button or please used TOOLS key on the Remote, while watching TV to display a list of options. Select Edit Favourites from the list.
2. From the pop-up window, select all the Favourites lists you want to add the current channel to and then select OK.
3. This adds the current channel to the selected Favourites list(s). Select OK.

Registering Multiple Channels as Favourites

It's possible to register multiple channels as favourites at the same time.

1. Select Broadcasting > Edit Favourites.
2. Select Category from the bottom of the screen to change the channel list to the one containing that channels you want to register.
   Recently Viewed and Most Viewed are only available if they contain channels.
3. Select the channels from the list in the middle of the screen.
4. Select Change Fav, and then change the Favourites 1 to the Favourites 5 you want to use.
5. Select Add.

Viewing Favourites List Channels Only

It's possible to flip through Favourites list channels using only the channel up/down buttons.

A Favourites list can only be selected if it contains at least one favourites channel.

1. Run Channel List. (Broadcasting > Channel List).
2. Press > button to select Favourites 1 through Favourites 5.
3. Choose a channel from the selected Favourites list. This changes the channels and Channel List changes to the selected Favourites channel.

Editing a Favourites List

Broadcasting > Edit Favourites

You can rename and edit Favourites lists.

Edit Favourites Features

Select Options from the bottom of the Edit Favourites screen to access the following options:

• Copy to Favourites

Copy channels from one favourites channels list to another.

This can only be used when the focus has selected a channel registered to a Favourites list.

- Rename Favourites

Rename an existing favourites channels list.

This can only be used when the focus has selected a channel registered to a Favourites list.

- Sorting

Change the list ordered by Channel Name or Number. This function is not available on analogue channel.

- Aerial

Choose between Terrestrial, Cable.

- Edit Channel

You can manage the channels saved on the TV.

• Information

View detailed information about the current programme.

Removing Registered Channels from a Favourites List

Remove channels from a favourites channels list.

1. Select Change Fav. at the bottom of the screen and then change the Favourites list to the Favourites list you want to use.
2. Select the channels you want to remove from the selected Favourites list.
3. Select Delete.

Rearranging a Favourites List

Rearrange the order of the channels in a Favourites Channels List.

1. Select Change Fav. at the bottom of the screen and then change the Favourites list to the Favourites list you want to use.
2. From the selected Favourites list, select the channels you want to rearrange.
3. Select Change order from the bottom of the screen and then rearrange the selected channels. Press Touchpad/Enter button to finish.

Renaming a Favourites List

Rename an existing favourites channels list.

1. Select Change Fav. at the bottom of the screen and then change the Favourites list to the Favourites list you want to use.
2. From the selected Favourites list, select the channels you want to rename.
3. Select Options. A list appears.
4. Select Rename Favourites from the list. A pop-up window appears. Rename the list in the pop-up window. The new name can be up to 20 characters long.

Copying a Favourites List to a Different Favourites List

Copy channels from one favourites channels list to another.

1. Select Change Fav, and then change the Favourites list on the side of the screen to the Favourites list you want to use.
2. From the Favourites list displayed on the side of the screen, select all the channels you want to copy.
3. Select Options. A list appears.
4. Select Copy to Favourites from the list. A pop-up window appears.
5. From the pop-up window that appears on the screen, select the Favourites lists you want to copy the selected channels to. This copies the selected channels to the selected Favourites lists.

Copy to Favourites is only available when there are channels in the Favourites list.

Adding Realism to Sports

System > Soccer Mode / Football Mode

Soccer Mode / Football Mode enables optimal picture and sound settings for sports events, making them appear and sound as if you were actually there. In addition, it will be possible to use video recording and time shift functions at the same time while watching a sports event and manually or automatically designated highlight scenes if a recording device is connected to the TV when you are using Soccer Mode / Football Mode.

For more information about recording a programme and using a recording device, refer to the "Recording Programmes" section.

For more information about the "Time Shift" feature, refer to the "Using Timeshift" section.

Enabling Soccer Mode / Football Mode

System > Soccer Mode / Football Mode > Soccer Mode / Football Mode

Select System > Soccer Mode / Football Mode and then set Soccer Mode / Football Mode to On. Picture and sound settings of the TV are automatically optimised for sports events.

Enabling Soccer Mode / Football Mode changes the Picture Mode to Stadium and the Sound Mode to Stadium, and disables some Picture and Sound menus.

Press ☑ while watching TV to activate/deactivate Soccer Mode / Football Mode.

Extracting Highlights Automatically

System > Soccer Mode / Football Mode > Auto Highlight

Select System > Soccer Mode / Football Mode and set the Auto Highlight to On. You can set the TV to automatically save highlights without user intervention.

However, Auto Highlight is not available with these TV operations:

• Recording two channels simultaneously
• While Auto Description is active
- Switching the input signal using the SOURCE button
- When 3D mode is active

The Auto Highlight performance depends on the signal characteristics.

It is advisable to use Auto Highlight only while watching a soccer/football game. Using this for other sporting events may display irrelevant picture frames.

Functions Available in Soccer Mode / Football Mode

Press Touchpad/Enter button. The following buttons will appear.

- Zoom

You can pause the current video and zoom in on one of 9 different sections of the screen. Pan the zoomed-in image using ∧, ∨, ⟨,⟩ buttons.

You cannot use this function when watching a 3D channel or when PIP or MULTIMEDIA is active.

- Manual Highlight

Pressing this button saves 10 seconds of video leading up to that point and 10 seconds of video that follows as a highlight.

This function can also be accessed using the B button.
Available only while recording is in progress.
Also possible to configure the TV to automatically save highlights without user intervention. Select System > Soccer Mode / Football Mode and then set Auto Highlight to On.

- Stop Recording / Go to Live TV

Use this button while watching a live programme to stop recording it. Use while watching a recorded programme to watch a live programme.

Available only when recording is in progress.

- Record

Start recording the sports event being watched.

- Rewind

Rewind the current video. Select repeatedly to increase the rewind speed by up to 5 times.

- Pause / Play

Pause/resume video.

- Fast Forward

Fast forward the current video. Select repeatedly to increase the fast forward speed by up to 5 times.

- Highlights Player

Use Highlights Player to view manually or automatically saved highlight segments of the recording.

However, Highlights Player is not available with these TV operations:

• Recording two channels simultaneously
• While Auto Description is active
- Switching the input signal using the SOURCE button
- When 3D mode is active

Available only when recording is in progress.

• Watch Live TV at the same time

Select while viewing a recorded programme to watch live TV on a PIP window. Press once more to exit PIP mode.

However, Watch Live TV at the same time is not available with these TV operations:

• Recording two channels simultaneously
• While Auto Description is active
- Switching the input signal using the SOURCE button
- When 3D mode is active

• Information

Displays detailed information about the current programme.

Available only when recording is in progress.

- SOCIAL TV

Used to launch an SNS app.

This service or some of functions of it may be not available in some countries or region.

Viewing a Sports Event Recorded in Soccer Mode / Football Mode

View recorded sports events using the USB Drive option in the MULTIMEDIA screen.

TV-Viewing Support Features

Showing Subtitles

System > Accessibility > Subtitle Try Now

Show subtitles. Subtitles will be displayed when watching a broadcast that supports subtitles. Switches subtitles On or Off.

Press and hold the 🔔 button on the Samsung Smart Control to turn on or off Subtitle.

DVD subtitles are only available if the DVD player is connected to an external input connector.

- Subtitle Mode

Set the subtitle mode.

- Subtitle Language

Set the subtitle language.

The TV cannot control or modify DVD or Blu-ray subtitles. To control DVD or Blu-ray subtitles, use the subtitle feature of the DVD or Blu-ray player and the player's remote control.

Subtitle Options

System > Accessibility > Subtitle

Select a subtitle mode. The list of modes may vary depending on the broadcast.

- Primary Subtitle

Set the primary subtitle language.

• Secondary Subtitle

Set the secondary subtitle language.

PIP Broadcast Viewing

Picture > PIP Try Now

Use the PIP (Picture-In-Picture) function to watch TV in a small window while also watching images from an external source such as a DVD player, a Blu-ray player, or a computer in the background.

Select Picture > PIP to display the PIP settings window. This settings window contains the following options:

- PIP

Activates/deactivates PIP.

- Aerial

Select the PIP sub-picture broadcast signal.

- Channel

Select the PIP sub-picture channel.

- Size

Select the PIP sub-picture size.

- Position

Select the PIP sub-picture position.

- Sound Select

Select the audio source.

PIP restrictions:

• PIP cannot be used while Smart Hub or 3D is active.
• Turning off the TV automatically disables PIP.
• Playing a game or using the karaoke feature on the main screen can result in lower PIP picture quality.
• For PIP to work, the main screen's source must be Component or HDMI and the input resolution must be less than Full HD (FHD - 1080p). The sub picture supports TV source only.

Scanning for Available Channels

Broadcasting > Auto Tuning Try Now

Automatically scans and indexes all channels received through the TV's antenna input connector.

If there are saved channels, this feature deletes the existing list and then saves the newly scanned channels.

If the TV is connected to a cable box, you do not need to do this.

1. Select Broadcasting > Auto Tuning.
2. Select Start when prompted. This initiates the Auto Programme function. The process can take up to 30 minutes to complete.

- Auto Tuning

Scans for channels automatically and stores them in the TV's memory.

- Cable Search Option (when the aerial was set to Cable)

Availability depends on the specific model and area.

Sets additional search options such as the frequency and symbol rate for a cable network search.

Selecting the Broadcast Audio Options

Broadcasting > Audio Options Try Now

- Audio Language

(Digital channels only)

Change the default value for audio languages.

Primary Audio: Set the primary audio language.

Secondary Audio: Set the secondary audio language.

The available language may differ depending on the broadcast.

- Audio Format

(Digital channels only)

Change a desired audio format. The supported audio format may vary depending on the broadcast programme.

Audio Description

System > Accessibility > Audio Description

(Not available in all locations) (Digital channels only)

This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster.

Audio Description: Turn the audio description function on or off.
Volume: Adjust the audio description volume.

Using the Channel Settings

Broadcasting > Channel Settings

Manual Tuning

Broadcasting > Channel Settings > Manual Tuning Try Now

Scans for a channel manually and stores in the TV.

If a channel is locked using the Channel Lock function, the PIN input window appears.

This function depends on the country and region.

When Aerial Source is set to Terrestrial or Cable

• Digital Channel Tuning

Scans for a digital channel.

1. Select the New.

When selecting Aerial → Terrestrial: Channel, Frequency, Bandwidth
When selecting Aerial → Cable: Frequency, Modulation

1. Select the Search. When scanning has finished, a channel is updated in the channel list.

• Analogue Channel Tuning

Scans for an analogue channel.

1. Select the New.
2. Set the Programme, Colour System, Sound System, Channel and Search.
3. Select the Store. When scanning has finished, a channel is updated in the channel list.

Channel mode

• P (programme mode)

When tuning is complete, the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode.

• C (aerial channel mode) / S or Z (cable channel mode)

These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

Fine-Tuning the Screen

Broadcasting > Channel Settings > Fine Tune Try Now

Available for analogue broadcasts only.

Analogue pictures can become shaky and full of noise. If this happens, you can fine-tune the signal and/or reduce noise to clear up the picture.

1. Select Broadcasting > Fine Tune. An adjustment bar appears on the screen.
2. Make adjustments using the Samsung Smart Control until the picture clears up and then select Save or Close. Select Reset to reset the Fine-Tune operation.

Changing the Picture Mode and Adjusting the Picture Quality

Choosing the Right Picture Mode for the Viewing Environment

Picture > Picture Mode Try Now

The following picture modes utilize different contrast and brightness settings to provide the best viewing experience for the environment.

When connected to a PC via an HDMI / HDMI-DVI cable, only the Standard and Entertain modes can be chosen.

- Dynamic

If the ambient lighting is too bright and makes the screen blurry, use this mode to make the picture clearer.

- Standard

This is the default mode suitable for most environments.

Natural

This mode is useful for reducing eye strain.

- Movie

Appropriate for darkened rooms, for watching movies, and when experiencing eye fatigue. Darkens the screen and reduces glare.

- Entertain

Sharpens images for a more dynamic viewing experience.

This mode is only available when connected to a computer via an HDMI / HDMI-DVI cable.

Adjusting the Picture Quality for Each Picture Mode

Picture > Backlight, Contrast, Brightness, Sharpness, Colour or Tint (G/R)

Select one of the settings to display its slide bar. Change the adjustment value using . Change the item using , . Adjusted values are applied to the current source and picture mode.

The Colour and Tint (G/R) settings cannot be adjusted when the TV is connected to a computer via an HDMI / HDMI-DVI cable.

Choose a Picture Mode and then adjust the settings.

- Backlight Try Now

Adjusts the brightness of individual pixels. Decreasing the brightness reduces power consumption.

- Contrast Try Now

Adjusts the screen contrast.

- Brightness Try Now

Adjusts the overall brightness.

- Sharpness Try Now

Sharpens or dulls the edges of objects.

- Colour Try Now

Adjusts the overall colour saturation.

- Tint (G/R) Try Now

Adjusts the ratio of green to red. Increase the green value to saturate the greens and the red value to saturate the reds.

Adjusted values are saved by the TV for the current source and picture mode, and remain in effect each time the source and picture mode are selected. Consequently, the TV can have different picture settings for each external source.

Applying the Current Picture Settings to Other Input Sources

Picture > Apply Picture Mode Try Now

You can apply the picture quality setting that you configured for the TV to all external devices connected to the TV or to the current source only.

To apply the setting to all external devices connected to the TV, select All Sources. To apply the setting to the current input only, select Current Source.

Fine-Tuning Each Picture Mode (Advanced Settings)

Picture > Advanced Settings Try Now

Select Picture > Advanced Settings to fine-tune how images are displayed on the TV screen for each Picture Mode.

Advanced Settings is only available when the Picture Mode is set to Standard or Movie.

When the TV is connected to a computer via an HDMI-DVI cable, only White Balance and Gamma can be adjusted.

Choose a Picture Mode and then adjust the settings.

• Dynamic Contrast Try Now

Automatically adjusts the screen contrast. Use this option to achieve the optimal contrast setting.

- Black Tone Try Now

Adjusts the black colour depth.

- Flesh Tone Try Now

Darkens or lightens skin tones.

• RGB Only Mode Try Now

Adjusts the red, green, and blue levels individually.

• Colour Space Try Now

Adjusts the range of colours that can be displayed on screen. Auto automatically adjusts the colour space depending on the input signal. Native applies a range that is wider than the input signal. Custom allows you to adjust the colour space manually.

• White Balance Try Now

Adjust the colour temperature of the picture to make white objects look white, and the overall picture appear natural.

2 Point: Adjust each of the 3 colour's luminosity with the offset menu and the brightness with the gain menu. To restore the default values, select Reset.

10 Point: Adjust the white balance by adjusting the brightness of each of the 10 sections of red, green, and blue colours of the input signal. To choose a section, select a desired section in Level field.

You can use the 10 Point function only when the Picture Mode is set to Movie. Some external devices may not support this,

- Gamma Try Now

Adjusts the primary colour intensity.

• Motion Lighting Try Now

Adjusts the brightness in response to on-screen movements to reduce power consumption.

This feature is only available when the Picture Mode is set to Standard and is not available in 3D mode.

Adjusting the Contrast, Brightness, and other picture quality settings deactivates the feature.

Adjusting the Picture for Easier Viewing (Picture Options)

Picture > Picture Options Try Now

Select Picture > Picture Options to make additional adjustments for an easier viewing experience.

When the TV is connected to a computer via an HDMI-DVI cable, only Colour Tone can be adjusted.

Choose a Picture Mode and then adjust the settings.

• Colour Tone Try Now

Adjusts the colour tone. The setting is applied on an individual Picture Mode basis. When a Picture Mode is changed, the corresponding setting will be applied automatically.

If the Picture Mode is set to Dynamic, you will only be able to choose Cool or Standard.

• Digital Clean View Try Now

Reduces static and ghosting caused by a weak signal. Selecting Auto Visualisation displays the signal strength at the bottom the screen. Green indicates the best possible signal.

Auto Visualisation available for analogue channels only.

• MPEG Noise Filter Try Now

Reduces MPEG noise and improves video quality.

• HDMI Black Level Try Now

Some external devices connected to the TV via an HDMI cable can have issues, such as low black level, low contrast, and dull colours. Use HDMI Black Level to adjust the black level to compensate.

This is only available when using an external device connected to the TV via an HDMI connector.

• HDMI UHD Color

If an external UHD player is connected to the TV, follow these steps to convert the TV's HDMI connector to a mode optimised for the UHD 50P/60P signals.

Each HDMI connector can be individually optimised for HDMI UHD Color. However, HDMI UHD Color is available only with a video source featuring the specification of UHD 50P/60P 4:4:4 and 4:2:2.

1. Turn off the external UHD player, and then disconnect the HDMI cable between the TV and the external device.
2. Navigate to Picture > Picture Options, and then select HDMI UHD Color. The Settings screen appears.
3. In the Settings screen, set the UHD player-connected HDMI connector to On. A pop-up window appears.
4. Select Yes. The TV automatically turns off and then on again to set the selected HDMI connector to HDMI UHD Color.

Before selecting Yes from the pop-up window, make sure that the HDMI cable is not connected to the TV. The HDMI UHD Color settings will be completed only when the HDMI cable is not connected to the HDMI connector.

1. When the settings are complete, a confirmation message will be displayed. Select OK.

2. Connect the TV to the external UHD player using the HDMI cable, and then turn on the external UHD player.

After setting the HDMI connector to On, it takes some time to complete the conversion.

If the HDMI connector with HDMI UHD Color enabled is connected to a device that does not support UHD content, the device may not operate properly. If this is the case, set HDMI UHD Color for the HDMI connector to Off.

The HDMI connector with HDMI UHD Color set to Off supports up to UHD 50P/60P 4:2:0, while the HDMI connector with HDMI UHD Color set to On supports up to UHD 50P/60P 4:4:4 and 4:2:2. For more information, refer to "Supported Resolutions for UHD".

• Film Mode Try Now

Optimises the picture quality for movies. Select this mode for watching movies.

This feature is only available when watching TV or when the input signal is AV, Component (480i, 1080i), or HDMI (1080i).

• Motion Plus Try Now

Availability depends on the specific model and area.

Removes blurring and judder from scenes with rapid movement. If you select Custom, you can configure Blur Reduction and Judder Reduction manually and set LED Clear Motion on for a sharper LED image.

The Info screen on your TV displays the resolution and frequency of the incoming signal (60Hz), but not the frequency the TV is generating for the image it is displaying by using Motion Plus function.

If noise occurs on the screen, please set up the Motion Plus to Off. If Motion Plus is Custom, you can set up the Blur Reduction, Judder Reduction, LED Clear Motion and Reset manually.

Blur Reduction: Adjusts the blur reduction level from video sources.

Judder Reduction: Adjusts the judder reduction level from video sources when playing films.

LED Clear Motion: Removes drag from fast scenes with a lot of movement to provide a clear picture.

If LED Clear Motion is On at 60Hz video signal, the screen may flicker.

Reset: Reset the custom settings to the factory defaults.

If you have Motion Plus on, and then bring up the INFO screen, the INFO screen displays the resolution and frequency of the incoming video signal (60Hz). This frequency is not the same as the frequency of the picture the TV is displaying when Motion Plus is on.

- Analogue Clean View

This function reduces diagonal noise in the picture caused by signal crosstalk (interference). If your TV picture displays diagonal noise or distortion when you watch, turn on this function.

- Smart LED

This controls the brightness of individual areas on screen to maximum contrast automatically.

This function is not supported depending on the region or model.

- Cinema Black

In Movie mode, this feature dims the top and bottom areas of the video image to provide a more immersive viewing experience.

Viewing in 3D

Picture > 3D Try Now

The 3D option lets you view 3D media content and broadcasts. You will need to wear Samsung 3D Active Glasses to play 3D content. IR-type Samsung 3D Active Glasses and third-party 3D glasses are not supported.

Carefully read the health and safety information concerning 3D viewing before viewing 3D content. Refer to the "3D Precautions" section for more information.

Whether 3D video is displayed in true HD is usually determined by the quality of the content.

Starting 3D

1. Play 3D content or turn on a channel that's showing a 3D broadcast.

2. Put the Samsung 3D glasses on and then select 3D. 3D viewing is enabled.

The ideal viewing distance is three times the height of the screen or more. 3D images may not appear if you do not adhere to the recommended viewing angle or distance.

The 3D feature may not work properly if there is another 3D product or an electronic device running nearby. If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses.

The left and right 3D images may initially overlap when the TV is turned on. It takes a moment for the display to optimise for the overlapping to go away.

There are several restrictions when using 3D TV:

• Launching Smart Hub automatically disables 3D mode.
• PIP cannot be used.
  • Certain Picture options are disabled.

Changing the 3D Mode

Picture > 3D > 3D Mode Try Now

1. Launch 3D and then select 3D Mode under Picture > 3D.

2. Choose from the 3D modes that appear on the screen. Supported 3D Mode may vary depending on the 3D content.

3D Mode is automatically configured for most 3D content.

The following 3D Mode is available. However, mode availability may vary depending on the 3D content's format.

The supported resolutions vary for each mode. Refer to the "Supported Resolutions for each 3D Mode" section for more information.

• Off (Off)

Deactivates 3D viewing.

• (Normal)

Converts normal images to 3D images.

Some formats do not support this mode.

• (L/R)

Splits a single image into left and right overlapping images to create the 3D effect.

• (T/B)

Splits a single image into top and bottom overlapping images to create the 3D effect.

Adjusting the 3D Effect

Picture > 3D

Configure the viewpoint, depth, and other 3D settings for a custom viewing experience.

• Adjusting the 3D perspective Try Now

Select Picture > 3D > 3D Perspective. Use the adjustment bar shown on the screen to adjust the perspective.

• Adjusting the 3D Depth Try Now

Select Picture > 3D > Depth. Use the adjustment bar shown on the screen to adjust the depth.

This option cannot be used if 3D mode is set to 📄/R) or 📄B).

• Reversing the Left/Right 3D Images Try Now

Select Picture > 3D > L/R Change. This option is used to reverse the left and right images.

• Displaying 3D Content in 2D

Select Picture > 3D > 3D → 2D. This option is used to enable 2D viewing of 3D content.

This function is not available if 3D mode is set to Normal) or (if).

• Automatically Turning on 3D if 3d Content is Detected

Select Picture > 3D > 3D Auto View. Use 3D Auto View to set the TV to automatically activate 3D mode when 3D content or a 3D broadcast is detected. If 3D Auto View is set to Message Alert, a window confirming 3D activation will be displayed. 3D is activated once confirmed.

3D is not displayed while certain applications are running. To watch the TV in 3D mode, exit the application.

Picture Support Functions

PIP Broadcast Viewing

Picture > PIP

Use the PIP ("Picture-In-Picture") function to watch TV in a small window while also watching content from a DVD player, Blu-ray player, computer, or a different external device in the background.

Select Picture > PIP to display the PIP settings window. This settings window contains the following options:

- PIP

Activates/deactivates PIP.

- Aerial

Select the PIP sub-picture broadcast signal.

- Channel

Select the PIP sub-picture channel.

- Size

Select the PIP sub-picture size.

- Position

Select the PIP sub-picture position.

- Sound Select

Select the audio source.

PIP restrictions:

• PIP cannot be used while Smart Hub or 3D is active.
• Turning off the TV automatically disables PIP.
• Playing a game or using the karaoke feature on the main screen can result in lower PIP picture quality.
• For PIP to work, the main screen's source must be Component or HDMI and the input resolution must be less than Full HD (FHD - 1080p). The sub picture supports digital channels only.

Changing the Picture Size and Position

Choosing the Right Screen Size

Picture > Picture Size > Picture Size Try Now

Most TV programmes and videos are displayed in full screen, but some programmes and videos are larger or smaller. Change the screen size for such programmes and videos so that the picture fits the screen better.

Supported screen sizes vary depending on the input signal. Refer to the "Picture Sizes and Input Signals" section for more information about supported screen sizes.

The Picture Size option is not available for images in the UHD resolution because the supported screen size is fixed.

Picture > Picture Size > 21:9 Wide Mode

Set the picture to the 21:9 screen.

Depending on the model.

When the signal is set to general(16:9), the screen may be distorted in 21:9 Wide Mode.

Supported screen sizes vary depending on the input signal. Refer to the "Picture Sizes and Input Signals" section for more information about supported screen sizes.

21:9

You can set the picture to a 21:9 ratio.

• 16:9

Set the picture to the 16:9 wide-screen format.

- Caption

When viewing the videos with subtitles, change the subtitle settings for more comfortable viewing.

- Wide Zoom

Magnifies the picture size more than 4:3. A magnified picture can be moved up and down.

- Zoom

Magnifies the 16:9 wide pictures vertically to fit the screen size. A magnified picture can be moved up and down.

Zoom is not available when Picture Size set to Wide Zoom.

4:3

Sets the picture to basic 4:3 mode.

Do not leave the TV in 4:3 mode for an extended period. The dark borders displayed on the left and right / top and bottom of the screen may cause image retention. This phenomenon can appear on LED and PDP TVs. (Screen burn - this phenomenon can appear on PDP TVs.) This is not covered by the warranty.

- Screen Fit

Displays the full image without any cutoff.

- Smart View 1

Reduces a 16:9 picture by 50%.

- Smart View 2

Reduces a 16:9 picture by 25%.

Adjusting the Screen Position

Picture > Picture Size > Zoom/Position or Position

Adjusts the screen position.

This option is only available with Picture Size set to Wide Zoom, Zoom, or Screen Fit. When the TV is tuned to a digital channel, the screen position cannot be adjusted if the Picture Size is set to Screen Fit.

The Picture Size option is not available for images in the UHD resolution be cause the supported screen size is fixed.

1. To adjust the screen's position, select Picture > Picture Size > Zoom/Position or Position. A pop-up window appears.
2. Select Zoom or Position again from the pop-up window.
3. Adjust the screen. Once done, select Zoom or Position and then Close. Select Reset to reset the screen position.

Selecting the Screen ratio (UHD S9W model)

Picture > Picture Size > Options

This is possible to select a suitable screen and ratio when you set it to 21:9 Wide Mode.

1. Select Picture > Picture Size > Options. A pop-up window appears.
2. Select the screen size and ratio from the pop-up window.

Adjusting the Screen Position (UHD S9W model)

Picture > Picture Size > Position

Adjusts the screen position.

This option is only available with 21:9 Wide Mode set to Zoom, Subtitle or Wide Zoom.
The Picture Size option is not available for images in the UHD resolution because the supported screen size is fixed.

1. To adjust the screen's position, select Picture > Picture Size > Position. A pop-up window appears.
2. Select Position again from the pop-up window.
3. Adjust the screen. Once done, select Position and then Close. Select Reset to reset the screen position.

Adjusting the 4:3 Screen Size (UHD S9W model)

Picture > Picture Size > 4:3 Screen Size

Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size.

Not available in Component or HDMI mode.

Listening to Audio Only with the Screen Turned Off (Picture Off)

Picture > Picture Off Try Now

Turns off the screen and plays audio through the speakers only. To turn the screen back on, press any button other than the TV and VOLUME buttons.

Resetting the Picture Mode Settings

Picture > Reset Picture Try Now

Use this option to reset the current Picture Mode to its factory settings. This does not affect the settings of other Picture Modes.

Changing the Sound Mode and Using Sound Effects

Choosing the Right Sound Mode for the Environment

Sound > Sound Mode Try Now

Sound modes apply preset adjustments to the sound output, optimised for different viewing and listening circumstances.

The sound modes cannot be used when you are listening to audio through external speakers.

- Standard

This is the normal sound mode.

Music

This mode emphasizes normal music instead of voice.

- Movie

This mode is calibrated to provide the best sound for movies.

- Clear Voice

This mode emphasizes voice.

- Amplify

This mode increases the overall intensity of high-frequency sounds for a better listening experience. It is designed for hearing-impaired listeners.

- Stadium

Setting Soccer Mode / Football Mode (System > Soccer Mode / Football Mode) to On automatically configures Sound Mode to Stadium for a more realistic viewing experience.

Stadium cannot be selected by the user.

Using Sound Effects

Sound > Sound Effect Try Now

Use sound effects to alter how the TV projects sound.

Restrictions:

• Sound effects can only be used with the Sound Mode set to Standard.
• Sound effects cannot be used when you are listening to audio through external speakers.

Choose a Sound Effect and then adjust the settings.

• Virtual Surround Try Now

Produces sound that will make you feel like you are sitting in a movie theatre or concert hall.

• Dialog Clarity Try Now

Increases voice intensity to make dialog clearer.

• Equaliser Try Now

Lets you adjust the speaker balance and make bandwidth adjustments. Select Reset to reset the settings.

Customising Sound (Sound Customiser)

Sound > Sound Customiser Try Now

Sound Customiser lets you calibrate the TV for optimal sound quality based on your hearing capabilities and the ambient conditions.

Customising Sound

Sound > Sound Customiser > Add Custom Sound Try Now

Customise sound in a quiet environment to ensure accurate measurements.

1. Select Sound > Sound Customiser > Add Custom Sound.
2. Select Start to preview a test tone. Select Next.
3. A 6-step test will start. During each stage, select Yes when you can hear the test tone. If you want to listen to it again, select No. Once the test is complete, you can compare the original sound to the calibrated sound.
4. Select Next and enter a name for the calibrated sound profile. Once the settings have been saved, you will be able to play TV sound that has been optimised for the user's sense of hearing and the ambient environment.

Using a Custom Sound Profile

Sound > Sound Customiser > Custom Sound Profile Try Now

If there are multiple Custom Sounds, simply choose the one you want to use.

1. Select Sound > Sound Customiser > Custom Sound Profile.
2. Select a Custom Sound Profile from the list.

Renaming and Deleting Custom Sound Profiles

Sound > Sound Customiser > Manage Custom Sound Try Now

Rename or delete custom sound profiles.

Custom Sound Profile must contain a Custom Sound Profile.

1. Select Sound > Sound Customiser > Custom Sound Profile.
2. Choose a Custom Sound Profile you want to rename or delete.
3. Select Sound > Sound Customiser > Manage Custom Sound. This brings up the Manage Custom Sound window.
4. Select a Custom Sound Profile you want to rename or delete and then select Rename or Delete. Selecting Rename brings up the on-screen keyboard. Use the keyboard to change the name. Delete the selected Custom Sound Profile.

Modifying a Custom Sound

Sound > Sound Customiser > Edit Custom Sound Try Now

Modify the sound settings of a Custom Sound profile.

1. Select Sound > Sound Customiser > Edit Custom Sound and then select the Custom Sound you want to edit from the pop-up window.
2. Select Preview to listen to the preview test tone, and then select Next. Select Next.
3. A 6-step test will start. During each stage, select Yes when you can hear the test tone. If you want to listen to it again, select No. Once the test is complete, you can compare the original sound to the calibrated sound.
4. Select Next and enter a name for the calibrated sound profile. Once the settings have been saved, you will be able to enjoy TV sound that has been optimised for the your sense of hearing and the ambient environment.

Sound Support Functions

Selecting Speakers

Sound > Speaker Settings > TV Sound Output

This lets you choose which speakers the TV uses for audio output. To listen to the audio through the speakers of a connected receiver or home theatre only, select Receiver or Audio Out. To listen to audio through the TV's speakers and the speakers of a connected AV receiver or home theatre simultaneously, select TV Speaker. If this causes an echo effect, choose any speaker option other than TV Speaker to mute the TV speakers, or turn off the receiver or home theatre.

Using external speakers alone disables the volume button and the mute function. In addition, certain Sound options will also be disabled.

Designating the TV's Installation Type

Sound > Speaker Settings > TV Installation Type

Specify the TV's installation type. Choose between Wall Mount and Stand to optimise the TV's sound automatically.

Listening to TV Sound through Samsung Bluetooth Audio

Sound > Speaker Settings > SoundShare Settings

Connect the TV to a Samsung audio device for a richer, clearer sound.

This option is only available for Samsung audio devices that support SoundShare.

Pair the Samsung audio device using the TV's Bluetooth function. Refer to the Samsung audio device's operating manual for more information on pairing.

• Samsung Audio Device List

Displays a list of paired Samsung audio devices. Select a device to display its menu options. You can activate/deactivate the audio device or remove it from the list.

- Add New Device

Enables/disables SoundShare. The connection signals from new devices are ignored if Add New Device is set to Off.

When listening to TV audio through a Samsung audio device, certain types of content may produce video-to-audio synching issues.

Enabling the Sound (Additional Settings)

Sound > Additional Settings Try Now

Configure additional settings for optimum audio output.

• DTV Audio Level Try Now

(Digital channels only)

The TV cannot freely control the volume of the digital audio that it sends to the AV receiver. Use this to set the digital audio volume at a comfortable level.

According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB.

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

• Audio Format, Audio Delay

This Smart TV is SPDIF-enabled. The Sony Philips Digital Interface (SPDIF) provides digital audio output to speakers and various digital devices, including A/V Receivers and home theatres.

Audio Format Try Now

Selects the Digital Audio output (SPDIF) format. The available Digital Audio output (SPDIF) formats may vary depending on the input source.

Audio Delay Try Now

This setting helps correct timing mismatches between the audio and video tracks when you are watching TV and listening to audio through a digital audio device. Enabling the feature displays a slide bar that you can use to adjust the delay by up to 250ms.

• Dolby Digital Comp Try Now

Some digital TV programmes provide 5.1-channel Dolby audio. This TV converts Dolby audio to stereo audio so that it can play the sound through the TV's speakers. There are two methods to choose from. RF is for better sound at lower volumes, and Line is for higher volumes.

• HD Audio

Listen to the audio from the TV in HD quality.

Standard audio signals are sampled at 48 kHz while HD audio signals are sampled at 96 kHz.

Some S/PDIF receivers may not be compatible. For such incompatible receivers, deactivate HD Audio and use normal audio mode instead.

The HD audio signals available on the TV are not available on external audio players connected via HDMI, Bluetooth, or Wi-Fi networks.

• Auto Volume Try Now

When you change channels, video sources, or content, Auto Volume automatically adjusts the TV's volume level so that the volume level remains the same for all sources. For example, if you switch from a streaming video application to a Blu-ray player or a favourite TV channel, Auto Volume can modify the volume up to 12db to equalise the sound.

The Auto Volume function has two settings: Normal and Night. Normal applies a normal level of volume adjustment. Night applies a slightly lower volume level and is ideal for late-night TV viewing. If you want to use the volume control of a connected source device to control the sound, deactivate the Auto Volume function. When you use the Auto Volume function with a source device, the device's volume control may not function properly.

Setting the Time and Using the Timer

Setting the Current Time

System > Time > Clock Try Now

Set the clock manually or automatically. Once the clock has been set, you can select the INFO button to check the current time.

The clock must be reset every time the power is disconnected.

Setting the Clock using Digital Broadcast Info

System > Time > Clock > Clock Mode Try Now

Set Clock Mode to Auto. The TV automatically downloads the correct time from a digital channel. To enable this option, the TV's Antenna jack must be connected to either an antenna or a cable output and must be receiving digital broadcasts. The accuracy of the time information received may vary depending on the channel and signal. If your TV is connected to a set-top-box using HDMI or Component connections, you must set the time manually.

If the Clock is Wrong in Auto Mode

System > Time > Clock > Time Offset Try Now

If the time set automatically is incorrect, you can offset the clock in 1-hour increments by as much as -/+ 12 hours. Select System > Time > Clock > Time Offset and offset the clock to the correct time.

Time Offset adjusts the time through network connections and is only available if the Clock is set to Auto and the TV is connected to the Internet though a local area network.

Time Offset will adjust the time if the TV fails to receive time information through normal digital broadcast signals.

Setting the Clock Manually

Manually enter the time. Set Clock Mode to Manual and then select Clock Set to enter the current time and date.

Clock Set: Set the current Date and Time.

Using the Timers

Using the Sleep Timer

System > Time > Sleep Timer Try Now

This automatically shuts off the TV after a preconfigured period of time. Select System > Time > Sleep Timer. You can set the timer up to 180 minutes in 30-minute increments.

Turning On the TV using On Timer

System > Time > On Timer Try Now

Set the On Timer so that the TV turns on automatically at a chosen time. Select System > Time > On Timer. The timer configuration window appears. Configure the following settings:

The On Timer is only available if the Clock has been set.

- Setup

Specify the dates and the duration. Use Manual to specify the days of the week.

• Time

Set the time that the TV turns on automatically.

Volume

Specify the volume when the TV turns on.

- Source

Select the signal source from the list. Specify the channel or source to be displayed when the TV turns on. To specify a USB device, a USB device must first be connected to the TV. To play media from an HDMI or Component source such as a DVD player or Blu-ray player, the device must already be turned on, and playing the media when the TV is turned on.

- Aerial

Set the Source to TV to select a broadcast signal.

- Channel

Set the Source to TV to select a channel.

- Music / Photo

Set the Source to USB to choose a USB folder that contains music or photo files. Selecting both music and image files plays the music files and displays the images at the same time.

Restrictions:

• This feature will not function properly if the selected USB device does not contain media files or a folder has not been specified.
• The slideshow will not start if there is only one image file on the USB device.
• Folders with long names cannot be selected.
  • Always use different folder names for multiple USB devices.
• Use a USB memory stick or multi-card reader. The On Timer may not work with certain battery-powered USB devices, MP3 players, or PMPs because the TV may take too long to recognise the device.

Turning Off the TV Using Off Timer

System > Time > Off Timer Try Now

Set the Off Timer to turn the TV off automatically at a specific time. Select System > Time > Off Timer. The timer configuration window appears, Configure the following settings:

The Off Timer is only available if the Clock has been set.

- Setup

Specify the dates and the duration. Use Manual to specify the days of the week.

• Time

Set the time that the TV turns off automatically.

Using the Screen Burn Protection and Energy Saving Features

Preventing Screen Burn

System > Auto Protection Time Try Now

Still images can leave burned-in after-images on the screen if left for a long time. Use Screen Burn Protection to protect the screen. Select System > Auto Protection Time and then choose a time setting from the list. If a still image is shown on the screen for longer than the time you selected, the TV will automatically activate Screen Burn Protection to prevent burned-in after-images that may damage the screen.

Using Energy Saving Features

System > Eco Solution Try Now

Eco Solution adjusts the TV's brightness level and prevents overheating to reduce overall power consumption.

• Energy Saving Try Now

Select a brightness setting from the list to reduce the TV's power consumption.

- Eco Sensor Try Now

Automatically adjusts the TV's brightness level based on the ambient light level to reduce the TV's power consumption. If the Eco Sensor has adjusted the screen's brightness level, you can manually adjust the screen's minimum brightness level by adjusting the Min. Backlight. Changing the Picture menu's Backlight setting while Eco Sensor is running automatically disables Eco Sensor.

• No Signal Power Off Try Now

Select a time from the list. If no signal is received for the specified duration, the TV automatically cuts off the power to reduce power consumption.

• Auto Power Off Try Now

If the TV remains turned on for four hours without any user input, the TV will automatically turn off to prevent overheating.

Using Anynet+ (HDMI-CEC)

Use Anynet+ (HDMI-CEC) to control all external devices that support HDMI-CEC using just the TV's remote control. Note that Anynet+ (HDMI-CEC) only works with the TV's remote control and not with the panel keys.

You can configure the TV's universal remote function to control third-party cable boxes, Blu-ray players, and home theatres that do not support HDMI-CEC using the TV's remote control.

Anynet+ Requirements:

• Anynet+ cannot be used to control external devices that do not support HDMI-CEC.
• Anynet+ devices must be connected to the TV using an HDMI cable. Some HDMI cables may not support Anynet+ (HDMI-CEC). In this case, you will need to replace the HDMI cable.
• The TV remote control may not function under certain circumstances. If this occurs select the Anynet+ device again.
• Anynet+ (HDMI-CEC) only works with external devices that support HDMI-CEC and only when those devices are either in standby mode or turned on.
• Anynet+ (HDMI-CEC) can control up to 12 compatible external devices (up to 3 of the same type). With home theatre systems, however, the number of systems that can be controlled is limited to one.
• To listen to 5.1-channel audio from an external device, connect the device to the TV via an HDMI cable and the device's digital audio output connector directly to the home theatre system.
• A home theatre system that has been connected to the TV using an HDMI cable and an optical cable supports 2-channel audio only. 5.1-channel audio is, however, available for digital broadcasts with 5.1-channel audio.

Setting Up Anynet+ (HDMI-CEC)

System > Anynet+ (HDMI-CEC) Try Now

• Anynet+ (HDMI-CEC) Try Now

Enables/disables Anynet+ (HDMI-CEC). Set to Off to disable all Anynet+ related features. Set to On to enable all Anynet+ (HDMI-CEC) related features.

• Auto Turn Off Try Now

When set to Yes. turns off Anynet+ (HDMI-CEC) compatible external devices when the TV is turned off.

Some Anynet+ (HDMI-CEC) compatible devices do not support this feature.

• Search for Devices

Search for Anynet+ (HDMI-CEC) compatible devices.

Using Anynet+ (HDMI-CEC)

Selecting an External Device

1. Press the KEYPAD button to display the virtual remote control on the screen then select TOOLS button or please used TOOLS key on the Remote. The Tools list appears.
2. Select Anynet+ (HDMI-CEC) from the list. The Select Device screen appears.
3. Select a device and wait for the switch to take place. This process may take up to 2 minutes to complete and cannot be cancelled once started.

Accessing the External Device's Menu

Once the TV has switched over to the selected device, you can access the device's menu using the TV's remote control.

Press the KEYPAD button to display the virtual remote control on the screen then select TOOLS button or please used TOOLS key on the Remote. When the Tools list appears, select Anynet+ (HDMI-CEC).

The following list appears, though it may differ based on the external device:

• Anynet+ (HDMI-CEC)

Displays a list of HDMI-CEC-compliant devices connected to the TV. Select View TV to exit Anynet+ (HDMI-CEC), and start watching TV. To switch to the screen of an external device, simply select that respective device.

• (Connected Device) Menu

Display the menu of the connected device. If the target device is a DVD player, the DVD menu is shown.

• (Connected Device) Tools

Displays a list of frequently-used functions available for the device. If the target device is a DVD player, the DVD playback menu is shown.

Some external devices may not support this option.

• (Connected Device) Title Menu

Display the connected device's title menu. If the target device is a DVD player, the DVD title menu is shown.

Some external devices may not support this option.

Using the e-Manual

Launching the e-Manual

Support > e-Manual

The embedded e-manual contains information.

You can also download a copy of the e-manual from Samsung's website, and read it on your computer or print it out.
Yellow words indicate a menu item; white bold words indicate remote control buttons. Arrows are used to indicate the menu path. (Example: Picture > Picture Mode)

1. Select e-Manual. The e-Manual loads.
2. Select a category from the side of the screen. Once a selection has been made, the contents of the selected category appear.
3. Select an item from the list. This opens the e-manual on the corresponding page.

If a description doesn't fit on a single screen

You can scroll pages in one of the following ways.

• Position the focus on the page to display / on the screen.
• Press the ^, √ buttons on Samsung Smart Control to use the scrolling function of Samsung Smart Control

Additional e-Manual Features

Loading Pages using Keywords

Select Search from the side of the screen to bring up the search screen. Enter a search term and then select Done. Select an item from the search results to load the corresponding page.

Loading Pages from the Index Page

Select Index from the side of the screen to bring up the index screen. Select a keyword from the list to navigate to the relevant page.

Using History to Load Previously Read Pages

Select Opened page from the side of the screen. A list of previously read pages is shown. Select a page. The e-Manual jumps to the selected page.

Accessing the Menu from the e-Manual (Try Now)

Select 📄 (Try Now) on a feature-description to directly move to the corresponding menu and try out the feature.

If you want to read an e-Manual entry on a specific screen menu feature, press the KEYPAD button and select e-Manual using Samsung Smart Control.

Certain menu options cannot be used.

Loading Reference Pages

Select Link (Link) from the side of a feature-description page to access the corresponding reference page.

Updating the e-Manual to the Latest Version

You can update the e-Manual in the same way as updating apps.

1. Press 🧑 then tap on the Touchpad or Enter button, to load the SAMSUNG APPS screen.
2. Press and hold the Touchpad/Enter button. The Options menu appears.
3. From the Options menu on the screen, select Update Apps. A pop-up window appears. You can update the e-Manual to the latest version.

Update Apps is shown on the screen only when an update is required.

1. Select e-Manual in the pop-up window and then select Update. You can update the e-Manual to the latest version.

Updating the Software

Support > Software Update Try Now

Check your TV's software version and upgrade it if necessary.

If the TV is connected to the Internet, TV is set to update software automatically. If you don't want to update it automatically, set Auto update (Software Update > Auto update) to Off.

Updating Software over the Internet

Support > Software Update > Update now

Select Support > Software Update > Update now. An online upgrade downloads and installs the upgrade software directly from the Internet.

This option requires an Internet connection.

DO NOT turn off the TV's power until the upgrade is complete. The TV will turn off and on automatically after completing the software upgrade. All video and audio settings return to the default settings after a software upgrade.

Updating Software using a USB connection

Support > Software Update > Update now

1. Visit Samsung's website on a computer and download the update package to a USB device.

Save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the update package.

1. Connect the USB device with the update package to the TV.

2. Select Support > Software Update > Update now. The software is updated using the update package on the USB device.

DO NOT turn off the TV's power until the upgrade is complete. The TV will turn off and on automatically after completing the software upgrade. All video and audio settings return to the default settings after a software upgrade.

Enabling Automatic Software Updates

Support > Software Update > Auto update Try Now

If the TV is connected to the Internet, the Auto update option upgrades the TV's software while it is in Standby Mode. In Standby Mode, the TV appears to be turned off, but still has access to the Internet. This allows the TV to upgrade itself automatically while it is not in use.

This option requires an Internet connection.

Because the TV's internal processes are operating, the screen may emit a faint glow, and this may continue for more than 1 hour until the software download is complete.

If you agree to the Smart Hub terms and conditions, Auto update will be set to On, If you don't want the TV's software updated automatically, set Auto update (Support > Software Update > Auto update) to Off.

1. Select Support > Software Update > Auto update.

2. Specify when you want the upgrade to take place. The TV will connect to the server at the specified time, download the update package, and upgrade its own software.

Protecting the TV from Hacking and malicious code

System > Smart Security

When the TV is connected to the Internet, it is vulnerable to hacks and malicious code. Smart Security protects the TV and storage media connected to the TV from such threats.

Navigate to System > Smart Security and set Smart Security to On.

Checking the TV and Connected Storage Media

System > Smart Security > Scan

Navigate to System > Smart Security and select Scan. This scans the TV and connected media for the presence of malicious code. If no malicious code is detected, a notification window appears on the screen.

If malicious code is detected

If malicious code was found, the results of the scan will appear on the screen. This result window displays all malicious code found, and provides options to either quarantine the code or allow them to continue.

1. Select all malicious code to quarantine or allow.
2. Select Block or Allow. This moves the selected malicious code to the Isolated List or Allowed List.

The Isolated List displays all blocked malicious code. You can also relocate codes from this list to the Allowed List.

The Allowed List displays all allowed malicious code. You can also relocate codes from this list to the Isolated List.

Automatically Scanning when the TV is Powered On

System > Smart Security > Settings > Auto Scan

Navigate to System > Smart Security > Settings and then set Auto Scan to On. This automatically scans the TV and connected storage media when the TV is powered on.

Automatically Adding malicious code to the Blocked List

System > Smart Security > Settings > Move to Isolated List automatically

Navigate to System > Smart Security > Settings and set Move to Isolated List automatically to On. Malicious code found during the scanning process is automatically added to the Blocked List.

Using Other Functions

Enabling Voice Guide for the Visually Impaired

This service or some of functions of it may be not available in some countries or region.

System > Accessibility > Voice Guide

Voice Guide provides guiding information in voice to aid the visually impaired to use the TV more conveniently. Enabling this option provides voice guide regarding focus change, channel change, volume change, and various other TV statues.

Navigate to System > Accessibility > Voice Guide and set Voice Guide to On.

Press and hold the MUTE button on the Samsung Smart Control to turn on or off the Voice Guide.

The Voice Guide is only provided in the language set in the Menu Language(System > Menu Language). However, some of the languages are not supported by Voice Guide even though they are listed in the Voice Guide screen. If this is the case, choose a different language.

To change the speaker's gender for the Voice Guide option, navigate to System > Voice Control > Use TV Voice and change the Voice Gender option.

The Voice Guide will give information for the following functions on the TV.

Some sub-functions or function menus may not provide Voice Guide. In this case, the TV will tell you that Voice Guide is not provided.

• Change Channels
• Changing TV Volume
  • Programme Info Window (Information)
• Channel List
  Source
• Guide
• Voice Control
• TV' menu

Changing the Volume, Speed and Level of Voice Guide

Navigate to System > Accessibility and then select Voice Guide. Using the following functions, you can configure the Voice Guide feature's volume, speed, and level settings.

Volume

Change the Voice Guide option's volume level.

The Voice Guide volume may vary depending on the TV volume setting.

- Speed

Change the Voice Guide option's tempo.

• Description Level

Adjust the Voice Guide option to better suit the user's description Level.

Enabling the High Contrast

System > Accessibility > High Contrast

Navigate to System > Accessibility and set the High Contrast option to On. This option changes major service screens to white text on black background or change the transparent TV menus to opaque so that text can be more easily read.

Press and hold the MUTE button on the Samsung Smart Control to turn on or off High Contrast.

Adjusting the Menu Transparency

System > Accessibility > Menu Transparency Try Now

Navigate to System > Accessibility and adjust the opacity level. Adjust the menu's transparency.

When the High Contrast (System > Accessibility > High Contrast) setting is set to On, menu display is automatically set to opaque and you cannot change the Menu Transparency settings.

Expanding the Smart Hub's Focus Area

System > Accessibility > Enlarge

Navigate to System > Accessibility and set Enlarge to On. This zooms in the focused item when you use Smart Hub.

Press and hold the 🔔 button on the Samsung Smart Control to turn on or off Enlarge.

Changing the Menu Language

System > Menu Language Try Now

Select System > Menu Language and then choose a language from the list. Use this option to change the menu language.

Checking Notifications

System > Notifications Try Now

Select Notifications from the System menu to view the list of event messages generated by the TV. Notifications appear on the screen when events such as an update release for an app or Samsung Account login/logout occurs.

Select Delete All to delete all notifications.

Select Service Notice to check the SMART TV service notifications in a web browser.

Setting Up a Password

System > Change PIN Try Now

Set a PIN (Personal Identification Number) to lock channels, reset the TV, and change the TV settings.

1. Select System > Change PIN. The PIN input window appears.
2. Enter a PIN. The default PIN is 0000. (For France, Italy: "1-1-1-1")
3. Enter a new PIN and then enter it again to confirm it. The PIN change is complete.

If you forget your PIN, you can reset it using the Samsung Smart Control. With the TV turned on, press the following buttons on the remote to reset the PIN to 0000: MUTE → + → RETURN → — → RETURN → + → RETURN. + is the Volume Up button. — is the Volume Down button. The MUTE button is on the left side of the remote.

For the Standard Remote Control: In Standby mode: 4 → 8 → 2 → 4 → ⏻ (ON)

Enabling Game Mode

System > General > Game Mode Try Now

Game Mode optimises the TV's settings for playing video games on a gaming console such as PlayStation ^™ or Xbox ^™ .

Requirements:

• Game Mode cannot be used for normal TV viewing.
- Connect the gaming console before enabling Game Mode. Otherwise, the picture quality may suffer.
• The screen may shake a little.
- Enabling Game Mode automatically sets the Picture Mode to Standard and the Sound Mode to Movie.
• To use a different external device, first disconnect the game console and disable Game Mode.

Enjoying Rich Colours and Superior Picture Quality (BD Wise)

System > General > BD Wise Try Now

Connecting a Samsung DVD player, Blu-ray player, or home theatre system that supports BD Wise enables the richest colours and best possible picture quality. Enabling BD Wise automatically optimises the TV's resolution.

This feature is only available when the external device is connected via an HDMI cable.

Enabling/Disabling Sound Feedback

System > General > Sound Feedback Try Now

Sound Feedback provides audio cues as you navigate through menus and select menu options.

Locking/Unlocking the Panel Keys

System > General > Panel Lock Try Now

Use to lock and unlock the TV's front panel buttons.

Showing/Hiding the Samsung Logo while Booting

System > General > Boot Logo Try Now

Use to enable or disable the Samsung logo display that appears when the TV starts up.

Enabling the TV to Boot Faster

System > General > Samsung Instant On

Enable or disable the functionality that enables your TV to turn on quickly.

Depending on the model.

Enabling/Disabling the Front Indicators

System > General > Light Effect Try Now

Use to turn the indicators on the front of the TV on/off. Turning the Light Effect off reduces the TV's power consumption.

The colour of the TV's light may vary depending on the model,

Availability depends on the specific model and area.

Evolution Kit Backup

System > Evolution Kit Backup

Upgrade your Samsung TV with the 2015 Evolution Kit for more benefits. However, this upgrade requires backing up and converting existing data in your TV and apps accordingly to ensure they remain on the upgraded device.

1. Connect a USB storage device to the TV.
2. In the System menu, select Evolution Kit Backup. The Evolution Kit Backup screen appears.
3. Select Start. Data in the TV will be backed up to the USB storage.

Do not turn the TV off or unplug the power cable of the TV during this backup.
Do not disconnect the USB storage device during this backup.

1. When the backup is complete, you will be asked to use a recording USB device for converting backed-up recorded programs. If a recording USB device is available for you, disconnect the USB storage and connect the recording USB device to the USB 3.0 5V1A terminal at the One Connect of the TV. The Update Recorded Programmes screen appears.

Select No if no USB recording device is available for you. The Backup Complete screen appears. Select Done to restart the TV, and start again with the first step above.

Proceed with the conversion of recorded programs in System > Update Recorded Programmes.

1. Select Start. The Evolution Kit then converts the recorded programs that were already converted by the recording USB device so that they are properly played on the TV.

Do not turn the TV off or unplug the power cable of the TV during this conversion.

Do not disconnect the USB recording device during this conversion.

1. When complete, select Done.

Registering the TV as a DivX-Certified Device (Watching Paid DivX Movies)

System > DivX® Video On Demand Try Now

Viewing DivX® DRM-protected DivX movies on the TV first requires registration of the TV as a DivX-certified device.

DRM ("Digital rights management") Digital Rights Management is a digital security measure designed to protect copyright.
You can watch personally-created and free DivX content without registering the TV.
Visit the DivX website (http://www.divx.com) and log into your user account before registering the TV as a DivX-certified device. If you do not have an account, please create one.

1. Select System > DivX® Video On Demand. A window with a registration code appears on the screen.
2. Visit the DivX website on a computer and click [Register Your Device] under [Support] from the top menu.
3. Enter the registration code shown on the TV's screen in the [Enter your registration code] field,
4. Enter the TV's name in the [Name your device] field and then select [NEXT].
5. Click [DOWNLOAD] and save the [device_name.divx] file.
6. Transfer the [device_name.divx] file from the computer onto a USB device and then plug the USB device into the TV.
7. Play the [device_name.divx] file on the TV to register the TV as a DivX-certified device.

Restoring the TV to the Factory Settings

Support > Self Diagnosis > Reset Try Now

This option restores all TV settings (excluding the Internet) to the factory defaults.

1. Select Support > Self Diagnosis > Reset. The Security PIN entry window appears on the screen.
2. Enter the Security PIN and then select Yes. All settings are then reset. The TV turns off and on again automatically, and then displays the Setup screen.

For more information on Setup, refer to the user manual that came with the TV.

Turning the TV into a Display Model (for retail stores)

Support > Use Mode Try Now

Select Support > Use Mode > Store Demo. This turns the TV into a display model for use in a retail environment.

For all other uses, select Home Use.

Store Demo should be used in retail environments only. With Store Demo, certain functions are disabled and the TV automatically resets itself after a certain amount of time.

Getting Support

The TV has several built-in systems designed for user and TV system support.

Support through Remote Management

Support > Remote Management Try Now

If you need assistance with your TV, you can use this feature to let Samsung Electronics diagnose your TV remotely. You will need to read and agree to the service agreement before using this feature. A Samsung Electronics technician will then diagnose, repair, and update your TV remotely.

This option requires an Internet connection.

What Does Remote Service Do?

Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely.

• Diagnose your TV
• Adjust the TV settings for you
  • Perform a factory reset your TV
  • Install recommended firmware updates

How Does it Work?

Having a Samsung Tech remotely service your TV is easy.

Illustration of a laptop displaying a profile with a call-to-action button and a telephone handset nearby (no text or symbols)

Call the Samsung Contact Centre and ask for remote support.

MENU SUPPORT

Open the menu on your TV and go to the Support section.

Select Remote Management, and then read and agree to the service agreements. When the PIN screen appears, provide the PIN number to the agent.

SAMSOME

The agent accesses your TV.

Finding the Information You Need for Service

Support > Contact Samsung Try Now

Use this option to find the support service website's address and contact number, your TV's model number, your TV's software version, the Smart Hub info, and other information you need to receive the service support.

Press A to view the open source licence.

There is a problem with the screen

Testing the Picture

Support > Self Diagnosis > Picture Test Try Now

Before you review the list of problems and solutions below, run the Picture Test to determine if the problem is caused by the TV. The Picture Test displays a high definition picture you can examine for flaws or faults. If the test picture does not appear or there is noise or distortion, the TV may have a problem. Contact Samsung's Call Centre for assistance. If the test picture is displayed properly, there may be a problem with an external device. Please check the connections. If the problem persists, check the signal strength or refer to the external device's user manual.

If the test picture does not appear or there is noise or distortion, the TV may have a problem. Contact Samsung's Call Centre for assistance.
If the test picture is displayed properly, there may be a problem with the external device. Please check the connections. If the problem persists, check the signal strength or refer to the external device's user manual.

The Problem Try this!

Flickering and Dimming	If your Samsung Television is flickering or dimming sporadically, you may need to disable some of the energy efficiency features. Disable Energy Saving (System > Eco Solution > Energy Saving) or Eco Sensor (System > Eco Solution > Eco Sensor).
Component Connections/Screen Colour	If the colour on your Samsung television screen is not correct or the black and white colours are off, run Picture Test (Support > Self Diagnosis > Picture Test). If the test results indicate that the problem is not caused by the TV, do the following:Confirm that the TV's video input connectors are connected to the correct external device video output connectors.Check the other connections as well. If the TV is connected to an external device via a component cable, confirm that the Pb, Pr, and Y jacks are plugged into their proper connectors.
In HDMI mode, there is something wrong with the screen.	HDMI UHD Color is specific to a UHD source, and does not operate properly for any other source. In this case, navigate Picture > Picture Options > HDMI UHD Color menu, and then set the HDMI UHD Color-enabled HDMI connector to Off.
Screen Brightness	If the colours on your Samsung TV are correct but just a little too dark or bright, try adjusting the following settings first.Go to the Picture menu and adjust the Contrast, Brightness, Sharpness, Colour, and Tint (G/R) settings.
Motion Plus/Blur	If you notice ghosting or blurring on the screen, use the Motion Plus option (Picture > Picture Options > Motion Plus) to resolve the issue.
Unwanted Powering Off	If your Samsung TV appears to turn off by itself, try disabling some of the TV's energy efficiency features. See if Sleep Timer (System > Time > Sleep Timer) has been enabled. The Sleep Timer automatically turns the TV off after a specified period of time. If the Sleep Timer has not been enabled, see if No Signal Power Off (System > Eco Solution > No Signal Power Off) or Auto Power Off (System > Eco Solution > Auto Power Off) has been enabled and disable them.
Problems Powering On	When the TV is turned on, the remote control receiver flashes 5 times before the screen turns on.If you are having problems powering on your Samsung television, there are a number of things to check before calling the service department. Confirm that the TV's power cord is connected correctly at both ends and that the remote control is operating normally. Make sure that the antenna cable or cable TV cable is firmly connected. If you have a cable box confirm that it is plugged in and turned on.
Unable to find a Channel	Launch Setup (System > Setup) or Auto Tuning (Broadcasting > Auto Tuning). If your TV is not connected to a cable box, run Setup (System > Setup) or Auto Tuning (Broadcasting > Auto Tuning).

The Problem Try this!

The TV image does not look as good as it did in the store.	Store displays are all tuned to digital, HD (high definition) channels.If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality.Many HD channels are upscaled from SD (Standard Definition) content. Look for a channel that is broadcasting true HD content.Cable Subscribers: Try HD channels from the channel lineup.Terrestrial/Cable Aerial Connection: Try HD channels after running the Auto Tuning function.Adjust the cable box's video output resolution to 1080i or 720p.
The picture is distorted.	The compression of video content may cause picture distortions, especially in fast moving pictures from sports programmes and action movies.A weak or bad quality signal can cause picture distortions. This is not an issue with the TV.Mobile phones used close to the TV (within 1 m) may cause noise in analogue and digital channels.
The colour is wrong or missing.	If you're using a Component connection, make sure that the Component cables are connected to the correct jacks. Incorrect or loose connections may cause colour problems or a blank screen.
The colour is poor or the picture is not bright enough.	Go to thePicture menu and then adjust thePicture Mode,Brightness,Sharpness, andColoursettings.See ifEnergy Saving (System > Eco Sensor > Energy Saving) has been enabled.Try resetting the picture. (Picture > Reset Picture)
There is a dotted line on the edge of the screen.	If thePicture Sizehas been set toScreen Fit, change the setting to16:9.Change the cable box resolution.
The picture is black and white.	If you are using AV composite input, connect the video cable (yellow) to the TV's green component jack.
The colour is wrong or missing.	If you are using a Component connection, make sure that the Component cables are connected to the correct jacks. Incorrect or loose connections may cause colour problems or a blank screen.
When changing channels, the picture freezes or is distorted or delayed.	If the TV is connected to a cable box, try to reset the box. (Disconnect and then reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes.)Set the output resolution of the cable box to 1080i or 720p.

I can't hear the sound clearly

Testing the Sound

Support > Self Diagnosis > Sound Test Try Now

Before you review the list of problems and solutions below, make sure that the Speaker Select menu item is set to TV Speaker, and then listen to the speakers again. If the TV still does not play audio, run the Sound Test, The Sound Test uses a built-in melody to check for sound problems. If the TV does not play sound during the Sound Test, or the sound is distorted, there may be a problem with the TV. Contact Samsung's Call Centre for assistance. If the TV plays the Sound Test melody without distortion, there may be a problem with an external device. Please check the connections. If the problem persists, refer to the external device's user manual.

If you can't hear the melody or there is a problem, make sure Sound > Speaker Settings > TV Sound Output is set to TV Speaker and then try again. If the problem persists, there may be a problem with the TV. Contact Samsung's Call Centre for assistance.
If the melody is played, there may be a problem with the external device. Please check the connections. If the problem persists, refer to the external device's user manual.

The Problem Try this!
There is no sound or the sound is too low at maximum volume.	Check the volume control of the device (cable box, DVD, Blu-ray, etc.) connected to your TV.
The picture is good but there is no sound.	SetSound >Speaker Settings >TV Sound Output to TV Speaker.If you are using an external device, check the device's audio output option. (For example, you may need to change your cable box's audio option to HDMI if the box connected to your TV is using an HDMI cable.)To listen to the computer sound, connect the external speaker to the computer's audio output connector.If your TV has a headphone jack, make sure there is nothing plugged into it.Reboot the connected device by disconnecting and then reconnecting the device's power cable.
The speakers are making an odd sound.	Make sure that the audio cable is connected to the correct audio output connector on the external device.For antenna or cable connections, check the signal information. A low signal level may cause sound distortions.RunSound Test (Support >Self Diagnosis >Sound Test).
In HDMI mode, an audio is intermittently stop or there is no sound.	HDMI UHD Coloris specific to a UHD source, and does not operate properly for any other source. In this case, navigatePicture >Picture Options >HDMI UHD Color menu, and then set theHDMI UHD Color-enabled HDMI connector to Off.

I can't see 3D images clearly

Testing 3D Picture Quality

Support > Self Diagnosis > 3D Picture Test Try Now

If you have not paired your 3D glasses with the TV, pair them first. To test 3D picture quality, the TV and the 3D glasses must have been paired.

Put on the 3D glasses, navigate to Support > Self Diagnosis and select 3D Picture Test. The 3D Picture Test displays a high definition picture to examine the 3D screen for flaws or faults. If the test fails to identify a problem, there may be a problem with an external device or the signal strength.

If the test picture does not appear or there is noise or distortion, the TV may have a problem. Contact Samsung's Call Centre for assistance.

If the test picture is displayed properly, there may be a problem with the external device. Please check the connections. If the problem persists, check the signal strength or refer to the external device's user manual.

The Problem Try this!

The 3D glasses are not working correctly.	Make sure the glasses are powered on.The 3D feature may not work properly if there is another 3D product or an electronic device running nearby.If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses.
I can't see 3D images clearly.	The ideal viewing distance is three times or more the height of the screen.We also recommend watching 3D content with your eyes level with the screen.
The batteries in the 3D glasses are flat.	Turn off the 3D glasses when they are not in use. If you leave the 3D glasses on, the battery lifespan is shortened.

There is a problem with the broadcast

The Problem Try this!
The TV is not receiving all channels.	If your TV is not connected to a cable box:Confirm that the coaxial cable is securely connected to the TV.If you are using an antenna, verify it is positioned correctly and the all the connections are secure.Run Setup (System > Setup) or Auto Tuning (Broadcasting > Auto Tuning).
There are no captions with digital channels.	Go to Subtitle (System > Accessibility > Subtitle) and change the Subtitle Mode. Some channels may not have caption data.
The picture is distorted.	The compression of the video content may cause picture distortions. This is especially true with fast moving pictures from sports programmes and action movies.A weak signal can cause picture distortions. This is not a problem with the TV.

The computer won't connect

The Problem Try this!
The "Mode Not Supported" message appears.	Set your PC's output resolution so it matches a resolution supported by the TV.
The video is OK but there is no audio.	If you are using an HDMI connection, check the audio output setting on your PC.If you are using a DVI to HDMI cable, a separate audio cable is required.

I can't connect to the Internet

The Problem Try this!
The wireless network connection failed.	Make sure the TV is connected to a wireless IP router.
The software update over the Internet has failed.	Check the network connection status.If the TV is not connected to a network, connect to a network.The upgrade stops if you already have the latest software version.

The Schedule Recording/Timeshift function isn't working

The Problem Try this!
The TV cannot recognise the USB device or the Format Device, Check Device and Device Performance Test functions fail.	Refer to the USB device's manual and see if data can be stored on it.Check if the USB device is in a locked state.Check if the USB device was formatted when it was connected to a computer. Formatting a USB device after connecting it to the TV may result in a formatting failure. If Device Performance Test or Format Device has failed, there may be a problem with the USB device or its specifications. Try using a different USB device.
There is a message saying I need to format the USB Drive.	Check if the USB device is in a locked state.Use the USB recovery function to recover the USB device.
Schedule Recording cannot be used.	Check if there is a USB device connected to the TV.Check if the channel is a digital channel that can be recorded, Recording will automatically stop if the signal becomes too weak. The Timeshift function will not work if there isn't enough storage space on the USB device.
I get a performance test failure message and then Schedule Recording and the Timeshift operation stops working.	This problem can occur when using a low-performance USB Drive that does not support recording. A USB hard drive with a speed of 5,400rpm or above is recommended. A USB memory stick is not supported.

Anynet+ (HDMI-CEC) isn't working

The Problem Try this!

Anynet+ does not work.	Confirm that the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.Only one external device can be connected using the Receiver function.Check if the power cord of the Anynet+ device is properly connected.Check the cable connections of the Anynet+ device.Go to System and see if Anynet+ (HDMI-CEC) has been set to On.Check whether the TV remote control is in TV mode.Check whether the remote control is Anynet+ compatible.Anynet+ may not function when certain functions are operational. (Channel Search, Smart Hub, set up, etc.)If you have disconnected and then reconnected the HDMI cable, scan for devices again or turn your TV off and on.HDMI UHD Color is specific to a UHD source, and does not operate properly for any other source. In this case, navigate Picture > Picture Options > HDMI UHD Color menu, and then set the HDMI UHD Color-enabled HDMI connector to Off.
I want to start Anynet+.	Check if the Anynet+ device is properly connected to the TV and then navigate to the System menu to see if Anynet+ (HDMI-CEC) is set to On.Once verified, press the KEYPAD button to display the virtual remote control on the screen then select TOOLS button or please used TOOLS key on the Remote. A list appears, Select Anynet+ (HDMI-CEC) from the list and then a device.
I want to exit Anynet+.	Select View TV from the Anynet+ menu.Select a non-Anynet+ device from the Source list.
The message "Connecting to Anynet+ device..." or "Disconnecting from Anynet+ device" appears on the screen.	You cannot use the remote control when you are configuring Anynet+ or switching to a viewing mode. Use the remote control after the TV has completed the Anynet+ configuration or has switched to a viewing mode.
The Anynet+ device won't play.	You cannot use the play function when Setup is in progress.
The connected device is not displayed.	Check whether the device supports Anynet+.Check whether the HDMI cable is properly connected.Go to System and see if Anynet+ (HDMI-CEC) has been set to On.Scan for Anynet+ devices again.Anynet+ devices must be connected to the TV using an HDMI cable. Make sure the device is connected to your TV with an HDMI cable. Some HDMI cables may not support Anynet+.If the connection is terminated because there has been a power failure or the HDMI cable has been disconnected, please scan for the device again.
The TV audio is not being played through the receiver.	Connect an optical cable to the TV and the receiver.ARC enables digital sound to be outputted via the HDMI (ARC) port.However, ARC is only available when the TV is connected to an audio receiver that supports ARC.

I am having trouble launching/using apps

The Problem Try this!
I launched an app, but it's in English. How can I change the language?	Languages supported by the app may be different from the user interface language. The ability to change the language depends on the service provider.
My application is not working.	Check with the service provider.Refer to the help section on the application service provider's website.

My file won't play

The Problem Try this!
Some files can't be played.	This problem may occur with high-bitrate files. Most files can be played back, but you might experience problems with high-bitrate files.

I want to reset the TV

Reset Path Description
Reset Settings	Support > Self Diagnosis > Reset	Reset Picture, Sound, Channel, Smart Hub, and all other settings except for the network settings to their factory default settings.
Resetting Smart Hub	Smart Hub > ResetSmart Hub	Reset all saved information relating to Samsung accounts and linked service accounts, as well as Smart Hub service agreements and applications.

Other Issues

The Problem Try this!

The TV is hot.	Watching TV for an extended period of time causes the panel to generate heat. The heat from the panel is dissipated through internal vents running along the top of the TV. The bottom, however, may feel hot to the touch after extended use. Children watching TV need constant adult supervision to prevent them from touching the TV. This heat, however, is not a defect and does not affect the TV's functionality.
The picture won't display in full screen.	HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) content.Black bars will appear at the top and bottom of the screen when you watch movies that have aspect ratios different from your TV.Adjust the picture size options on your external device or set the TV to full screen.
The "Mode Not Supported" message appears.	The output resolution of the attached device is not supported by the TV. Check the supported resolutions of the TV and adjust the external device's output resolution accordingly.
The Subtitle item in the TV menu is grayed out.	You cannot select the Subtitle menu if you have selected a source connected to the TV via HDMI or Component connections. To view subtitle, turn on the external device's subtitle function.
The TV smells of plastic.	This smell is normal and will dissipate over time.
The Signal Information option under Self Diagnosis isn't activated.	Verify that the current channel is a digital channel.The Signal Information is only available for digital channels.
The TV is tilted to the side.	Remove the base stand from the TV and reassemble it.

The Problem Try this!

The Broadcasting option has been deactivated.	Broadcasting is only available when the Source is set to TV.The Broadcasting menu cannot be accessed while watching TV using a cable box.Certain Broadcasting menus cannot be accessed while recording or while the TimeShift operation is in progress.
The settings are lost after 30 minutes or every time the TV is turned off.	If the Use Mode is set to Store Demo, the TV's audio and video settings are automatically reset every 30 minutes.Change the Use Mode (Support > Use Mode) to Home Use.
There is an intermittent loss of audio or video.	Check the cable connections and reconnect them.Loss of audio or video can be caused by using overly rigid or thick cables.Make sure the cables are flexible enough for long term use. If you are mounting the TV to a wall, we recommend using cables with 90-degree connectors.
There are small particles on the TV's bezel.	This is part of the product's design and is not a defect.
The PIP menu is not available.	PIP functionality is only available when you are using an HDMI or Component source.
A POP (TV's internal banner ad) appears on the screen.	Change the Use Mode (Support > Use Mode) to Home Use.
The TV is making a popping noise.	The expansion and contraction of the TV's outer casing may cause a popping noise. This does not indicate a product malfunction. The TV is safe to use.
The TV is making a humming noise.	Your TV utilizes high-speed switching circuits and high levels of electrical current. Depending on the TV's brightness level, the TV may seem slightly noisier than a conventional TV.Your TV has undergone strict quality control procedures that meet our demanding performance and reliability requirements.Some noise coming from the TV is considered normal and is not an acceptable cause for an exchange or refund.

Before Using the Recording and Timeshift Functions

Availability depends on the specific model and area.

Before Using the Recording and Schedule Recording Functions

• To set up a Schedule Recording, you must first set the TV's clock. Set the Clock (System > Time > Clock).
• Recordings are DRM-protected and therefore cannot be played back on a computer or on a different TV. In addition, these files cannot be played back on your TV if its video circuit has been replaced.
• A USB hard drive with a speed of 5,400rpm or above is recommended. However, RAID-type USB hard drives are not supported.
  • USB memory sticks are not supported.
• The total recording capacity may vary depending on the amount of available hard drive space and the recording quality level.
• Schedule Recording requires at least 100MB of free space on the USB storage device. Recording will stop if the available storage space falls below 50MB while recording is in progress.
• If the available storage space falls below 500MB while both the Schedule Recording and Timeshift functions are in progress, only the recording will stop.
  • The maximum recording time is 360 minutes.
• A video is played according to the TV settings.
• If the input signal is changed while recording is in progress, the screen will go blank until the change is made. In this case, recording will resume, but ●will not be available.
• Device Performance Test must be performed on the USB storage device connected to the TV before a recording can be made. To perform the Device Performance Test, select USB Drive in the MULTIMEDIA panel and then select the recording device. When you make a recording on the Guide or Programme Info screen, if the USB storage device has failed in the Device Performance Test, the Format Device and Device Performance Test are performed again.
• When using the Record or Schedule Recording function, the actual recording may start a second or two later than the specified time.
• If the Schedule Recording function is operating while a recording is being made on an HDMI-CEC external device, the priority is given to the Schedule Recording.
• Connecting a recording device to the TV automatically deletes abnormally saved recording files.
• If the Off Timer or Auto Power Off has been set, the TV will override these settings, continue to record, and turn off after the recording has ended.

Before the Using Timeshift Function

• A USB hard drive with a speed of 5,400rpm or above is recommended. However, RAID-type USB hard drives are not supported.
• USB memory sticks or flash drives are not supported.
• The total recording capacity may vary depending on the amount of available hard drive space and the recording quality level.
• If the available storage space falls below 500MB while both the Schedule Recording and Timeshift functions are in progress, only the recording will stop.
• The maximum amount of time available for the Timeshift function is 90 minutes.
• The Timeshift function is not available for locked channels.
• A time-shifted video is played according to the TV settings.
• Before the Timeshift function can be used, the Device Performance Test must be performed on the USB storage device connected to the TV. To perform the Device Performance Test, select USB Drive in the MULTIMEDIA panel and then select the recording device.
• The Timeshift function may be terminated automatically once it reaches its maximum capacity.
• The Timeshift function requires at least 1.5GB of free space available on the USB storage device.
• Launching an app, switching to an analogue channel, or changing the TV to a mode that does not support the Timeshift function automatically terminates the Timeshift function. The Timeshift operation will resume if the TV is changed back to a digital channel again.

S-Recommendation Disclaimer

Availability depends on the specific model and area.

S Recommendation with Voice Interaction

Recommendation given to common speech commands

Voice Interaction limited to the official language of the country of purchase. Performance may vary based on content availability, clarity and volume of your voice, and ambient noise levels. Strong regional accents may not be recognised.

Certain Samsung Smart TV features may not be available without express consent to the collection and use of personal information.

Certain features within S Recommendation require internet access and may not be available based on service provider, language, dialect and region.

Visit www.samsung.com for more information about service operator compatibility.

Actual remote control may differ from image shown.

S Recommendation

Content recommendations to fit your TV viewing preferences

Certain Samsung Smart TV features may not be available without express consent to the collection and use of personal information.

Certain features within S Recommendation require internet access and may not be available based on service provider, language, dialect and region.

Visit www.samsung.com for more information about service operator compatibility.

Actual remote control may differ from image shown.

Before Using 3D Viewing Mode

3D Precautions

Warning

- In 3D viewing mode, the screen may flicker under fluorescent lighting (50Hz \~ 60Hz) or three-wave lighting.

If this occurs, turn off the lighting or adjust it to a low level.

- When you switch the picture mode from 3D view, the 3D view mode turns off, and the 3D glasses no longer provide a 3D view.

When you turn off 3D mode, the 3D glasses also turn off in a few moments.

- If you are watching TV with 3D glasses and you lie on your side, the picture may look darker or may not be visible.

- If the 3D glasses are defective or damaged, they cannot be repaired and need to be exchanged for a new pair. The repair service is free of charge within the warranty period. Note that the warranty does not cover damage caused by the user.

- The actual 3D effect may be experienced differently depending on the viewer. The 3D effect may not be experienced by persons who has a large difference of vision between the left and right eyes.

- In 3D viewing mode, watch TV within the recommended distance.

The 3D functionality of the glasses may not work properly if you move out of the recommended range for about 3 seconds or more.

If you stay outside the recommended range, the 3D glasses lose wireless wireless communications with the TV. If this occurs, the 3D display turns off and, a few seconds later the glasses turn off.

- The 3D glasses may not work properly if there are any nearby active 3D devices or electronic or wireless communication devices (for example, a device that uses the 2.4GHz frequency range such as a microwave or AP). If this occurs, move the devices away from the 3D glasses.

- The Samsung Multi View 3D Glasses may not work properly near metal objects or near an electromagnetic field. If this occurs, move the metal objects or the electromagnetic device away from the 3D glasses.

- The vividness of the image may degraded if you watch a 3D movie in a location exposed to direct sunlight or illumination.

- The temples of the 3D glasses do not fold. Do not attempt to fold the temples. You can damage the 3D glasses.

• When watching 3D content for an extended period of time without averting your eyes, the 3D glasses may turn off automatically (applicable to the SSG-3570 only).
• Take off the 3D glasses and put them on again if they do not work in 3D viewing mode first (applicable to the SSG-3570 only).

Caution

3D Health and Safety Information Users are required to read the following information before using 3D.

• A supervising adult should check on any children watching 3D TV regularly. Children experiencing eye fatigue, headaches, dizziness, and/or nausea while viewing 3D TV should stop watching immediately.
• Do not use the 3D glasses for any purpose other than their intended purpose. Do not use them as general eyeglasses, sunglasses, or protective goggles.
• Some users may feel dizzy, nauseous, or experience headaches in the 3D or Samsung Multi View function. If you experience any of these symptoms, stop watching the 3D item, remove the 3D glasses, and rest.
• An extended period of watching TV in 3D viewing mode may cause eye fatigue. In this case, stop watching 3D immediately, take off the 3D glasses, and allow your eyes to rest.
• Do not use the 3D function or 3D glasses while walking or moving around. Using 3D mode or wearing 3D glasses while moving around may result in injury due to walking into objects, tripping and/or falling.
• Wearing the 3D glasses and lying on your side while watching TV may damage the temples of the 3D glasses.
• The temples of the 3D glasses are unfolded. This may damage the 3D glasses.
• Because the 3D glasses react to acceleration, repeatedly shaking the 3D glasses may consume the battery faster than normal (applicable to the SSG-3570 only).

Safety Precautions

The following information is designed to ensure the user's safety and prevent property damage. Read the information carefully.

• Do not expose the product to direct sunlight or a hot or humid environment. Failure to do so may result in fire or a product malfunction.
• Do not apply force to the lenses of the 3D glasses. Do not drop or bend the product. This may result in a product malfunction.
• Keep the 3D glasses and accessories out of the reach of children so that they do not swallow them. If they swallow them, consult a doctor immediately.
• Do not spray water or detergent directly onto the product to clean it. This may result in fire, electric shock, damage to the exterior, and/or the removal of the markings.
• Do not apply chemicals containing alcohol, solvent, or surfactant such as wax, benzene, thinner, pesticide, air freshener, lubricant, or cleaner to the product. These chemicals may cause the product's exterior to become discoloured or cracked, or labels or instructions to be removed. Use only a soft cloth made from superfine fibers or cotton flannels for cleaning the product as the surface or the lenses can easily crack. Because the product is easily scratched by a foreign substance, make sure to dust off the cloth before using it.
• Do not sleep while wearing the 3D glasses. Wearing the 3D glasses while sleeping may damage them.
• Do not disassemble, repair, or modify the 3D glasses yourself. Do not use a product that is damaged.
• Take care that you do not injure your eyes with the edges of the frame of the 3D glasses when wearing them.
• Put the 3D glasses on and take them off with both hands.
• Use only approved batteries, and make sure to insert the batteries in the correct polarities. If the batteries are inserted in the wrong polarities, the batteries may explode or leak internally, which may result in fire, injury, or contaminate the environment (applicable to the SSG-5100 only).
• Swallowing the cylindrical (button type) battery can cause serious damage to your internal organs. If this happens, contact a doctor immediately. (applicable to the SSG-5100 only)
• Keep old batteries out of the reach of children to prevent children from swallowing them. If they swallow them, consult a doctor immediately (applicable to the SSG-5100 only).

Supported Resolutions for each 3D Mode

• These specifications apply to the 16:9 display ratio only.
• 21:9 Wide Mode applies to the 21:9 display ratio or 16:9 only. (UHD S9W model)

HDMI

• 3D Mode: (L/R), (T/B)

Resolution Frequency (Hz)
1280 x 720p 50 / 59.94 / 60
1920 x 1080i 50 / 59.94 / 60
1920 x 1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
3840 x 2160p 24 / 25 / 30

• 3D Mode: (Horizontal Line), (Vertical Line), (Pixel), (Frame)

Resolution Frequency (Hz)
1280 x 720p 50 / 59.94 / 60
1920 x 1080i 50 / 59.94 / 60
1920 x 1080p 23.98 / 24 / 25 / 29.97 / 30

Component

Resolution Frequency (Hz)
1280 x 720p 50 / 59.94 / 60
1920 x 1080i 50 / 59.94 / 60
1920 x 1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

Digital Channel

Resolution Frequency (Hz)
1280 x 720p 50 / 59.94 / 60
1920 x 1080i 50 / 59.94 / 60
1920 x 1080p 25

Videos/Photos

Refer to the "Photo, Video, and Music File Limitations" section.

Computer via HDMI Cable

The optimal resolution for computers connected to the TV via an HDMI cable is 3840 × 2160 . If you select another resolution, the TV may not display 3D images correctly and may not be able to display the computer video in full screen.

Supported Resolutions for UHD

HDMI Connector except for the MHL-to-HDMI Connector

If HDMI UHD Color is set to Off

• Resolution: 3840 x 2160p, 4096 x 2160p

The HDMI connector with HDMI UHD Color set to Off supports up to UHD 50P/60P 4:2:0, while the HDMI connector with HDMI UHD Color set to On supports up to UHD 50P/60P 4:4:4 and 4:2:2.

Frequency (Hz) RGB	YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
24 / 25 / 30 O O O -
50 / 60 --- O

If HDMI UHD Color is set to On

• Resolution: 3840 x 2160p, 4096 x 2160p

The HDMI connector with HDMI UHD Color set to Off supports up to UHD 50P/60P 4:2:0, while the HDMI connector with HDMI UHD Color set to On supports up to UHD 50P/60P 4:4:4 and 4:2:2.

Frequency (Hz) RGB	YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
24 / 25 / 30 O O O -
50 / 60 O O O O

MHL-to-HDMI Connector

• Resolution: 3840 x 2160p, 4096 x 2160p

The MHL-to-HDMI connector supports the following specifications regardless of the HDMI UHD Color settings.

Frequency (Hz) RGB YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
24 / 25 / 30 O O O -
50 / 60 -- - O

Read Before Using Voice, Motion, or Face Recognition

Precautions for Voice, Motion, and Face Recognition

Face Recognition

• This product saves thumbnail images of users' faces for use during the Face Login.
• Logging into the Smart Hub via Face Recognition may be less secure than logging in using an ID and password.

Using the TV Camera

• Under some circumstances and under certain legal conditions, the use/misuse of the TV camera may result in illegal actions. There may be obligations under local privacy laws regarding the protection of individuals concerning personal data and on the free movement of such data, and possibly other laws including criminal laws regulating camera surveillance both in the workplace and elsewhere.
• By using the TV camera, users agree that it will not be used (i) in locations where cameras are generally prohibited (such as bathrooms, locker rooms or changing rooms), (ii) in any manner that will result in an invasion of a person's privacy, or (iii) in violation of any applicable laws, regulations or statutes.
• If you are using a camera, first check the back for a sticker.
• Remove the sticker cover before adjusting the angle of the TV camera.
• When you are no longer using the camera, rotate the lens downward and secure it in place. This prevents any inadvertent or unintentional camera operation,

Motion Control

• Motion Control uses the camera. For Motion Control to work, you must be within the camera's recognition range. The camera's recognition range varies depending on the ambient light level and other factors.
• Run the Motion Control Environment Test before using Motion Control to determine the camera's recognition range.
• You may experience physical fatigue when using Motion Control for extended periods

Voice Control

• For the best Voice Control experience, we recommend that you use a Samsung Smart Control.
• Voice Control does not support signs such as the minus (−) symbol and special characters, neither a word nor sentence that contains numbers or signs. It may be not available for certain languages or dialects, or in some areas. It also differs in performance depending on the selected language, pronunciation, voice sound level, and ambient noise.
• Voice Text Input requires that you agree to any third-party app's voice privacy policy and that you provide Samsung with the your MAC address and other private information.
• Voice Text Input lets you enter text using voice commands instead of a mouse, keyboard, or remote control. This feature is particularly useful for searching, browsing the web, and using applications.
• You must agree to the following privacy notices before using Interactive Voice Control:

– Voice Recognition Privacy Notice and Nuance Privacy Notice

Requirements for Using Voice, Motion, or Face Recognition

Requirements for Using Voice Recognition

• Voice Control and the Turn TV On voice command should be used within 4m of the TV.

Availability depends on the specific model and area.

- The voice recognition rate varies depending on the volume/tone, pronunciation, and ambient sound environment (TV sound and ambient noise).

Requirements for Using Motion Recognition

• Before using motion recognition, make sure the TV's camera has been turned on.
• You should be located between 1.5m and 4m from the camera. The actual recognition range may vary depending on the camera angle and other factors.
• Adjust the camera's angle using the wheel on the back of the camera. Do not point the camera directly at the sun or any other light source or obstruct its view.
• For the camera to recognise movement, you have to stand out from the background.
• The appropriate ambient brightness is 50 to 500 lux. (100 Lux: Bathroom, 400 Lux: Living Room)
• Avoid direct sunlight when using Motion Control.
• Run the Motion Control Environment Test to assess the camera's recognition range before using Motion Control.

Requirements for using Face Recognition

• You should be located between 1.5m and 4m from the camera. The actual recognition range may vary depending on the camera angle and other factors.
• The appropriate ambient brightness is 50 to 500 lux. (100 Lux: Bathroom, 400 Lux: Living Room)
• Face Recognition can recognise up to 5 different users at a time.

• The TV may have difficulty recognising twins and people with similar faces as two different individuals.
  • Note the following when using Face Recognition:

• Do not cover your face with a hat, a pair of sunglasses, or your hair.

• Your entire face must be visible to the camera. Avoid shadows over your face. Shadows prevent the camera from recognising your face accurately
• Keep your expression as neutral as possible. In addition, keep your mouth closed and as neutral as possible.
• When you log into your Samsung account, your facial expression must be the same as the facial expression you had when you registered. Facial expression you had during the registration process.

Read Before Using SAMSUNG APPS

• Due to the product characteristics featured on the Samsung Smart Hub, as well as limitations in available content, certain features, applications, and services may not be available on all devices or in all territories. Some Smart Hub features may also require additional peripheral devices or membership fees. Visit http://www.samsung.com for more information on specific device information and content availability. Services and content availability are subject to change without prior notice.
• Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services caused by the service provider for any reason.
• Application services may be provided in English only and available content may vary depending on the area.
• For more information about applications, visit the applicable service provider's website.
• An unstable Internet connection may cause delays or interruptions. In addition, applications may terminate automatically depending on the network environment. If this occurs, check your Internet connection and try again.
• Application services and updates may become unavailable.
• Application content is subject to change by the service provider without prior notice.
• Specific services may vary depending on the version of the application installed on the TV.
• An application's functionality may change in future versions of the application. If this occurs, run the application's tutorial or visit the service provider's website.
• Depending on the service provider's policies, certain applications may not support multitasking.

Web Browser Restrictions

• Select Web Browser. The browsing screen may differ from the one on your computer.
• The web browser is not compatible with Java applications.
• You cannot download files. If you attempt to download a file, you will receive an error message instead.
• The web browser may not be able to access certain websites.
• Playing Flash videos may be restricted.
  • E-commerce for online purchases is not supported.
• With websites that have scrollable windows, scrolling a window can result in corrupted characters.
  • ActiveX is not supported.
• Certain options are not accessible in Link Browsing mode. (Switch to Pointer Browsing to activate those options.)
• Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.
• The response to remote commands and the resulting on-screen display may be delayed while a webpage is loading.
• Loading a webpage may be delayed or suspended completely with certain operating systems.
• The copy and paste operations are not supported.
• When composing an email or a simple message, certain functions such as the font size and colour selection may not be available.
• There is a limit to the number of bookmarks and the size of the log file that can be saved.

• The number of windows that can be opened concurrently varies depending on the search conditions and the TV model.

• The web browsing speed will vary depending on the network environment.

• Playing embedded video automatically disables PIP. Video playback may not commence after PIP is disabled. In this case, you will have to reload the page.
• The web browser supports .mp3 audio files only.
• The web browser supports a specific file format for importing and exporting bookmarks. (Compatible Format: Netscape-bookmark file- 1)
• The folder tree information is not included when importing and exporting bookmarks.
• Exporting bookmarks to a USB device connected to the TV saves the bookmarks under a folder named "Samsung SmartTV Bookmark".
• If the Clock (System > Time > Clock) has not been set, the browsing history will not be saved.
• The browsing history is saved from latest to oldest, with the oldest entries being overwritten first.
• Depending on the types of video/audio codecs supported, it might not be possible to play certain video and audio files while playing Flash content.
• Video sources from PC-optimised streaming service providers may not play properly on our proprietary web browser.
• Using the on-screen QWERTY keyboard automatically disables PIP. (Except when entering a URL.)

Photo, Video, and Music File Limitations

• The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass USB Drives. Types of MSC devices include external hard drives, flash card readers, and digital cameras. (USB hubs are not supported.) These kinds of devices must be connected directly to the TV's USB port. The TV may not be able to recognise the USB device or read the files on the device if it is connected to the TV via a USB extension cable. Do not disconnect the USB device while transferring files.
• When connecting an external hard drive, use the USB 3.0 (5V 1.0A) port. We recommend that you use an external hard drive with its own power adapter.
• Certain digital cameras and audio devices may not be compatible with the TV.
• If there are multiple USB devices connected to the TV, the TV might not be able to recognise some or all the devices. USB devices that use high-power input (500mA or 5V) may not be supported.
• The TV supports the FAT, exFAT, and NTFS file systems.
• After sorting files in the Folder view mode, the TV can display up to 1000 files per folder. If the USB device contains more than 8,000 files and folders, however, some files and folders might not be accessible.
• The PTP (pier to pier) connection mode is available only for digital cameras. If you connect a smartphone or tablet to the TV using PTP mode, the TV will not recognise it.

Storage Device File Transfers

Storage device containing media content Target device
USB Device	DLNA Device, SugarSync, Dropbox, SkyDrive, Ndrive.Mobile Device
Camera DLNA Device
DLNA Device USB Device
SugarSync, Dropbox, SkyDrive, Ndrive USB Device
Mobile Device USB Device

Supported External Subtitles

Certain files, depending on how they were encoded, may not play on the TV.

Name Format
MPEG-4 Timed text .ttxt
SAMI .smi
SubRip .srt
SubViewer .sub
Micro DVD .sub or .txt
SubStation Alpha .ssa
Advanced SubStation Alpha .ass
Powerdivx .psb
SMPTE-TT Text .xml

Supported Internal Subtitles

Certain files, depending on how they were encoded, may not play on the TV.

Name	Container
Xsub	AVI
SubStation Alpha MKV
Advanced SubStation Alpha MKV
SubRip MKV
VobSub	MKV
MPEG-4 Timed text MP4
TTML in smooth streaming	MP4
SMPTE-TT TEXT	MP4
SMPTE-TT PNG	MP4

Supported Image Formats and Resolutions

Certain files, depending on how they were encoded, may not play on the TV.

File Extension Format Resolution
*.jpg*.jpeg	JPEG 15360x8640
*.png PNG 4096x4096
*.bmp BMP 4096x4096
*.mpo MPO 15360x8640

Supported Music Formats and Codecs

Certain files, depending on how they were encoded, may not play on the TV.

File Extension	Format Codec Note
*.mp3 MPEG	MPEG1	Audio Layer 3
*.m4a*.mpa*.aac	MPEG4	AAC
*.flac	FLAC	FLAC	Supports up to 2 channels
*.ogg	OGG	Vorbis	Supports up to 2 channels
*.wma	WMA	WMA	Supports up to 10 Pro 5.1 channelsWMA lossless audio is not supportedSupports up to the M2 profile
*.wav	wav	wav
*.mid*.midi	midi	midi	Supports type 0 and type 1"Seek" not supportedAvailable only on USB storage devices
*.ape	ape	ape	NonSmart not supported
*.aif*.aiff	AIFF	AIFF
*.m4a	ALAC	ALAC

Supported Video Codecs

Certain files, depending on how they were encoded, may not play on the TV.

File Format	Container Video Codecs Resolution			Frame Rate (fps)	Bitrate (Mbps)	Audio Codec
*.avi HEVC(H.265)*.mkv*.asf*.wmv*.mp4*.mov*.3gp*.vro*.mpg*.mpeg*.ts*.tp*.trp*.mov*.flv*.vob*.svi*.m2ts*.mts*.divx	AVIMKVASFMP43GPMOVFLVVROVOBPSSTSVAF	H.264 BP/MP/HP UHD: MAX 30Motion JPEG 4096x2160		FHD: MAX 30 HD: MAX 60 UHD: 60	60	AC3LPCMADPCM(IMA, MS)AACHE-AACWMA DD+MPEG(MP3)DTS(Core, LBR)G.711(A-Law, μ-Law)
		Divx 3.11 / 4 / 5 / 6	1920x1080	FHD: 30 HD: 60	30
		MPEG4 SP/ASP
		Microsoft MPEG-4 v1, v2, v3
		Window Media Video v7(WMV1), v8(WMV2)
		Window Media Video v9(VC1)
		MPEG2
		MPEG1
		VP6
		H.263 Sorrenson
		MVC 60
*.webm	WebM	VP8	1920x1080	6~30	20	Vorbis
*.rmvb	RMVB	RV8/9/10 (RV30/40)	1920x1080	6~30	20	RealAudio 6

Other Restrictions

• Codecs may not function properly if there is a problem with the content data.
• Video content does not play or does not play correctly if there is an error in the content or container.
• Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility ratings.
• If the Index Table is wrong, the Seek (Jump) function does not work.
• When playing video over a network connection, the video may not play smoothly because of data transmission speeds.
• Some USB/digital camera devices may not be compatible with the player.
  • HEVC codec is only available in MKV /MP4 / TS containers.

Video Decoders

• Supports up to H.264, Level 4.1 (does not support FMO/ASO/RS)
• VC1 AP L4 is not supported.
- All video codecs excluding WMV v7, v8, MSMPEG4 v3, MVC, and VP6:
Below 1280x720: 60 frame max
Above 1280x720: 30 frame max
• GMC 2 or above is not supported.
- SVAF supports Top/Bottom, Side by side, and Left/Right view sequence types (2 ES).
• This can only support the BD MVC specifications.
• HEVC is supported up to level 5.1.

Audio Decoders

• WMA is supported up to 10 Pro 5.1 channels. Supports up to the M2 profile. This does not support WMA lossless audio.
  • QCELP and AMR NB/WB are not supported.
  • Vorbis is supported for up to 2 channels.
  • DD+ is supported for up to 5.1 channels.
• The DTS LBR codec is only available for MKV / MP4 /TS containers.

Read After Installing the TV

Picture Sizes and Input Signals

Picture Size Input Signal
16:9	ATV, AV, DTV (576i/p, 720p, 1080i, 1080p), Component (480i/p, 576i/p, 720p, 1080i, 1080p), HDMI (480i/p, 576i/p, 720p, 1080i, 1080p), HDMI (4096 x 2160p)
Wide Zoom, Zoom	ATV, AV, DTV (576i/p, 720p, 1080i, 1080p), Component (480i/p, 576i/p, 720p, 1080i, 1080p), HDMI (480i/p, 576i/p, 720p, 1080i, 2160p)
4:3	ATV, AV, DTV (576i/p, 720p, 1080i, 1080p), Component (480i/p, 576i/p, 720p, 1080i, 1080p), HDMI (480i/p, 576i/p, 720p, 1080i, 720p), HDMI (480i/p, 576i/p, 720p, 1080i, 1080p)
Smart View 1	HDMI (480i/p, 576i/p, 720p, 1080i, 1080p)
Smart View 2	DTV (576i/p, 720p, 1080i, 1080p), HDMI (480i/p, 576i/p, 720p, 1080i, 1080p)
Screen Fit	DTV (1080i, 1080p), Component (1080i, 1080p), HDMI (720p, 1080i, 1080p), HDMI (3840 x 2160p, 4096 x 2160p)

The Picture Size setting is applied to the current source. The applied Picture Size will remain in effect whenever you select that source unless you change it.

The Picture Size option is not available for images in the UHD resolution because the supported screen size is fixed.

UHD S9W model

The 21:9 Wide Mode setting is applied to the current source. The applied 21:9 Wide Mode will remain in effect whenever you select that source unless you change it.

Picture Size Input Signal
21:9	ATV, EXT, Component (480i/p, 720p, 1080i, 1080p), DTV (720p, 1080i, 1080p), HDMI (720p, 1080i, 1080p), HDMI (3840 x 2160p, 4096 x 2160p)
16:9	ATV, EXT, Component (480i/p, 720p, 1080i, 1080p), DTV (720p, 1080i, 1080p), HDMI (720p, 1080i, 1080p), HDMI (3840 x 2160p, 4096 x2160p)
Wide Zoom, Zoom	ATV, EXT, Component (480i/p, 720p, 1080i, 1080p), DTV (720p, 1080i, 1080p), HDMI (720p, 1080i, 1080p), HDMI (3840 x 2160p, 4096 x 22160p)
4:3	ATV, EXT, Component (480i/p, 720p, 1080i, 1080p), DTV (720p, 1080i, 1080p), HDMI (720p, 1080i, 1080p), HDMI (3840 x 2160p, 4096 x 20160p)
Subtitle	ATV, EXT, Component (480i/p, 720p, 1080i, 1080p), DTV (720p, 1080i, 1080p), HDMI (720p, 1080i, 1080p), HDMI (3840 x 2160p, 4096 x 25160p)

Installing an Anti-Theft Kensington Lock

A Kensington Lock is a physical device that can be used to protect the TV against theft. Look for the Kensington slot on the back of the TV. The slot has aicon next to it. To use the lock, wrap the lock cable around an object that is too heavy to carry and then thread it through the TV's Kensington slot. The lock is sold separately.

The method of using a Kensington Lock may differ for each TV model. Refer to the Kensington Lock manual for more information.

Read Before Setting Up a Wireless Internet Connection

Wireless Internet Precautions

• This TV supports the IEEE 802.11a/b/g /n communication protocols. Samsung recommends using IEEE 802.11n. Video files stored on a device connected to the TV via DLNA may not play back smoothly.
• To use wireless Internet, the TV must be connected to a wireless router or modem. If the wireless router supports DHCP, the TV can use a DHCP or static IP address to connect to the wireless network.
• Select a channel that is not currently in use for the wireless router. If the channel set for the wireless router is currently being used by another device, the result is usually interference and/or a communications failure.
• Most wireless networks have an optional security system. To enable a wireless network's security system, you need to create a security key using characters and numbers. This security key is then needed to connect to a security-enabled AP.

Wireless Security Protocols

The TV only supports the following wireless network security protocols and is unable to connect to non-certified wireless routers:

• Authentication Modes: WEP, WPAPSK, WPA2PSK
  • Encryption Types: WEP, TKIP, AES

In compliance with the newest Wi-Fi certification specifications, Samsung TVs do not support WEP or TKIP security encryption in networks running in the 802.11n mode.

If the wireless router supports WPS (Wi-Fi Protected Setup), you can connect the TV to your network using PBC (Push Button Configuration) or a PIN (Personal Identification Number). WPS automatically configures the SSID and WPA key settings.

Computer Connection Precautions

When you connect your TV to a computer, set the computer's video card to one of the standard resolutions listed in the tables below or on the next page. The TV will automatically adjust to the resolution you choose. Note that the optimal and recommended resolution is 1920 x1080.

Choosing a resolution not included in the tables can result in a blank screen or just the power indicator turning on. Refer to the user manual of your graphics card for compatible resolutions.

IBM

Resolution(DotsxLines)	Display Format	Horizontal Frequency(KHz)	Vertical Frequency(Hz)	Clock Frequency(MHz)	Polarity(Horizontal/Vertical)
720x400 70Hz	31,469 70,087 28,322	-/+

MAC

Resolution(DotsxLines)	Display Format	Horizontal Frequency(KHz)	Vertical Frequency(Hz)	Clock Frequency(MHz)	Polarity(Horizontal/Vertical)
640x480 67Hz	35.000 66.667 30.240	-/-
832x624 75Hz	49.726 74.551 57.284	-/-
1152x870 75Hz	68.681 75.062 100.000	-/-

VESA DMT

Resolution(DotsxLines)	Display Format	Horizontal Frequency(KHz)	Vertical Frequency(Hz)	Clock Frequency(MHz)	Polarity(Horizontal/Vertical)
640x480 60Hz 31.469 59.940 25.175	-/-
640x480 72Hz 37.861 72.809 31.500	-/-
640x480 75Hz 37.500 75.000 31.500	-/-
800x600 60Hz 37.879 60.317 40.000	+/+
800x600 72Hz 48.077 72.188 50.000	+/+
800x600 75Hz 46.875 75.000 49.500	+/+
1024x768 60Hz 48.363 60.004 65.000	-/-
1024x768 70Hz 56.476 70.069 75.000	-/-
1024x768 75Hz 60.023 75.029 78.750	+/+
1152x864 75Hz 67.500 75.000 108.000	+/+
1280x720 60Hz 45.000 60.000 74.250	+/+
1280x800 60Hz 49.702 59.810 83.500	-/+
1280x1024 60Hz 63.981 60.020 108.000	+/+
1280x1024 75Hz 79.976 75.025 135.000	+/+
1366x768 60Hz 47.712 59.790 85.500	+/+
1440x900 60Hz 55.935 59.887 106.500	-/+
1600x900RB 60Hz 60.000 60.000 108.000	+/+
1680x1050 60Hz 65.290 59.954 146.250	-/+
1920x1080 60Hz 67.500 60.000 148.500	+/+

Licence

DIVX HD

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

dts®

Premium Sound | 5.1

Manufactured under a licence from U.S. Patent No's: 5,956,674, 5,974,380, 5,978,762, 6,487,535, 6,226,616, 7,212,872, 7,003,467, 7,272,567, 7,668,723, 7,392,195, 7,930,184, 7,333,929 and 7,548,853. DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS Premium Sound | 5.1 is a trademark of DTS, Inc. ©2012 DTS, Inc. All Rights Reserved.

DOLBY. DIGITAL PLUS

This product was manufactured under a licence from Dolby Laboratories, "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Open Source Licence Notice

Open Source used in this product can be found on the following webpage. (http://opensource.samsung.com)

Open Source Licence Notice is written only English.

MHL

Glossary

• 480i/480p/720p/1080i/1080p

Generally refers to the number of effective scanning lines that determines the screen's resolution. There are two scanning methods: interlaced and progressive.

- Scanning

Sequential projection of pixels to form images. The higher the number of pixels, the clearer and more vivid the images.

- Progressive

A sequential scanning method that scans every line, one after another.

- Interlaced

A staggered scanning method that scans every other line until the end of the screen and then fills in the remaining lines.

Example) If the number of horizontal scan lines is 480i

Scans 240 lines from start to finish and then scans the remaining 240 lines for a total of 480 lines.

* General differences between 480i and 480p are as follows:

	480i 480p
Horizontal Frequency	15.75Khz 31.5Khz
FPS 30 60
Lines on Screen	480 480

• ARC (Audio Return Channel)

Generally, a separate RCA or optical cable needs to be connected in order for the TV audio to be heard through an AV receiver. With receivers that support ARC, however, digital audio can be transmitted via the HDMI cable only.

• DVI (Digital Visual Interface)

Connecting the TV's DVI connector to a computer's DVI connector via an HDMI-to-DVI cable lets you use the TV as a computer monitor. However, HDMI-to-DVI cables deliver video signals only. You must connect a set of speakers to the computer using a separate cable to hear the computer's audio.

• HDMI (High Definition Multimedia Interface)

HDMI is a method of transmitting both video and audio signals via a single cable.

• Dynamic versus Static IP Addresses

If the network requires a dynamic IP address, use an ADSL modem or router that supports the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway and DNS values the TV needs to access the Internet, so they do not have to be entered manually. Most home networks use a dynamic IP address.

If the network requires a static IP address, enter the IP address, subnet mask, gateway, and DNS values manually when setting up the network connection. To get the IP address, subnet mask, gateway and DNS values, contact your Internet Service Provider (ISP).

If the network requires a static IP address, use an ADSL modem that supports DHCP. ADSL modems that support DHCP also allow static IP addresses.

- Ethernet

Ethernet is a LAN (Local Area Network) that uses coaxial cables standardised by the IEEE.

- Component Connection

Component connections are mostly used for game consoles and transmit the video signal by splitting it into a luminance signal (Y) and two colour signals (Pb and Pr). The connector is marked as [Component IN]_(Pr, Pb, Y) on the back of the TV. On some devices, it is sometimes marked as Cr, Cb, Y. Cb and Cr are the digital conversions of the Pb and Pr signals.

The connectors are normally colour-coded red (R), blue (B), and green (G) and offer the best picture quality possible for an analogue connection.
