USER MANUAL UA55JU7500K SAMSUNG

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model____ Serial No.____

Contents

Quick Guides

Using Smart Hub

1 Connecting to the Internet

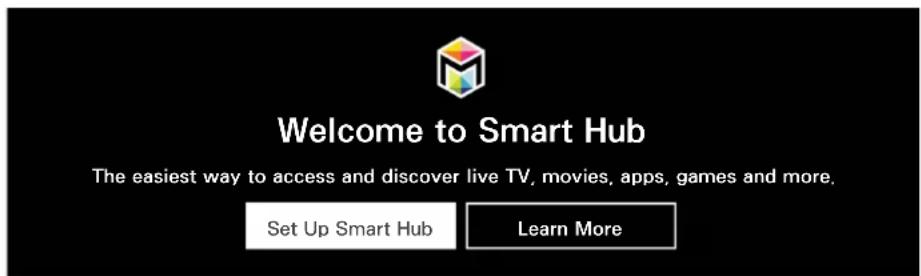

1 Setting up Smart Hub
1 Using Smart Hub

Controlling the TV with Your Voice

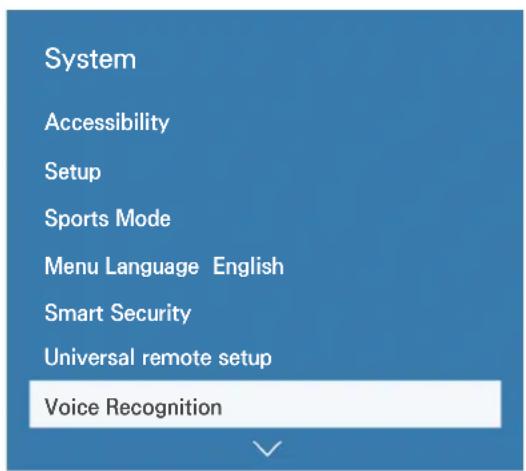

2 Setting up Voice Recognition

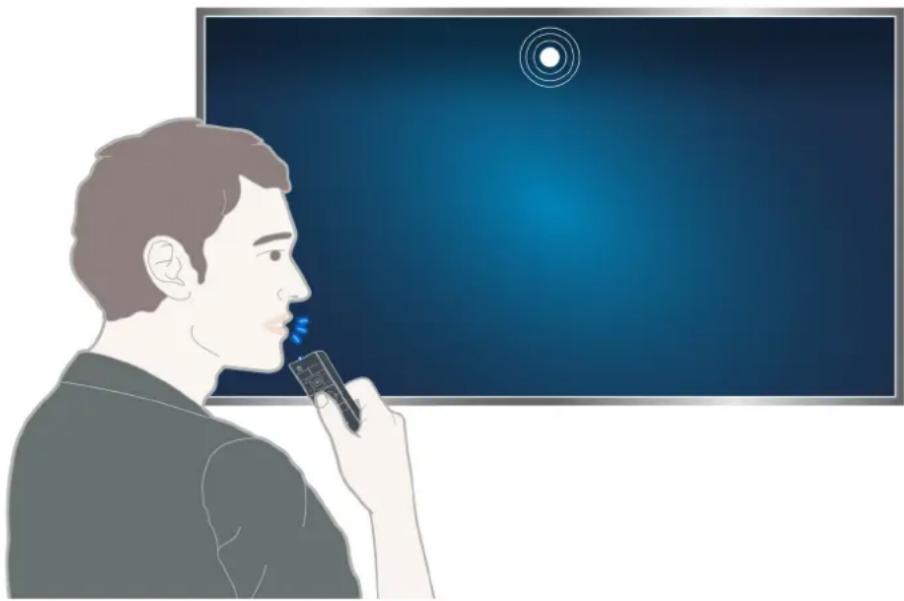

3 Controlling the TV with your voice

Controlling the TV with Your Motion

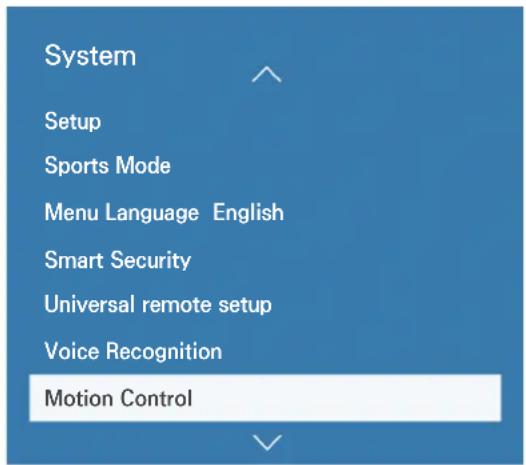

4 Setting up Motion Control

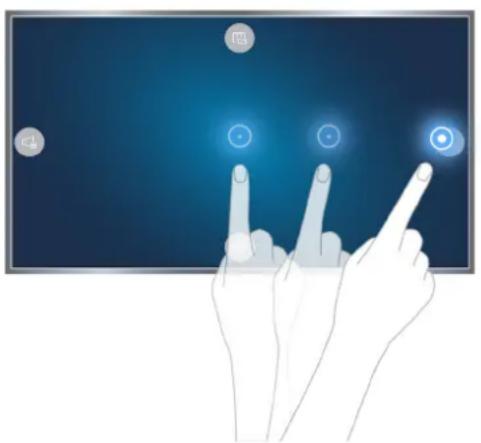

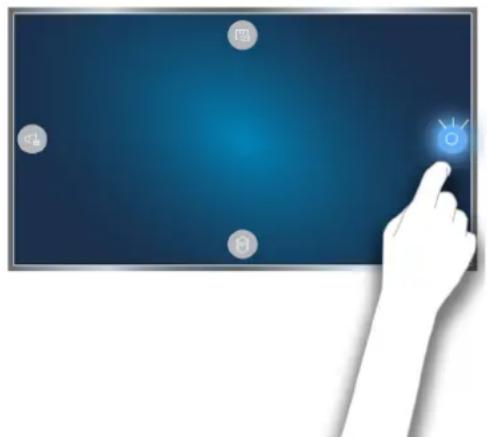

5 Controlling the TV using motions

Using the Samsung Smart Control

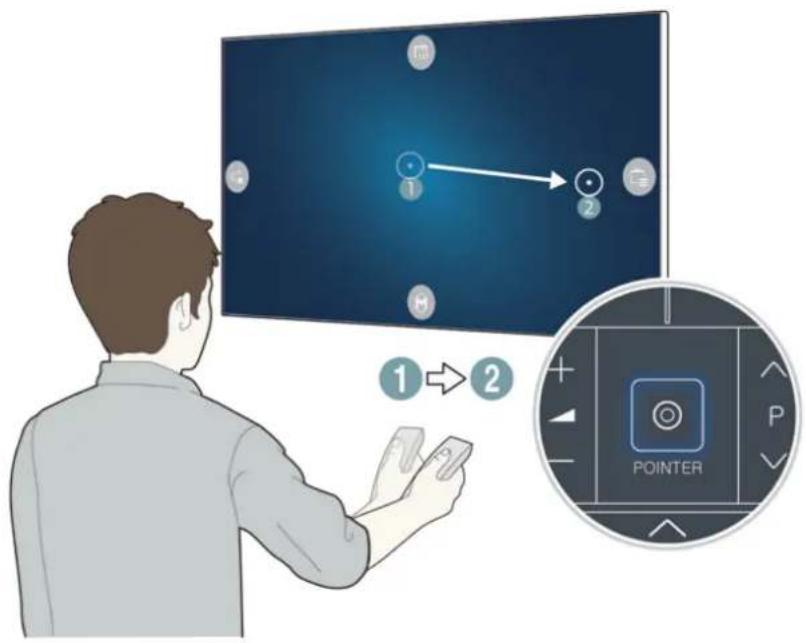

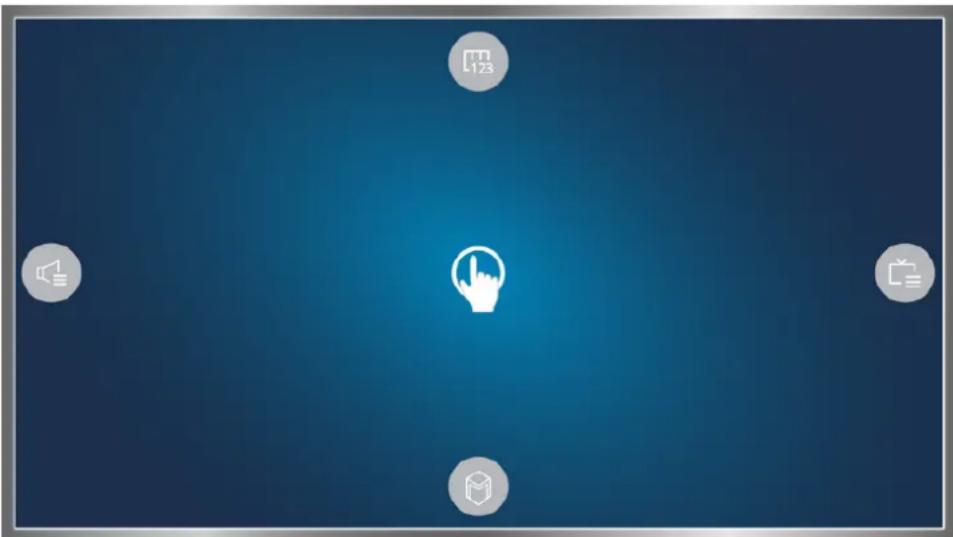

6 Operating the TV with the POINTER button

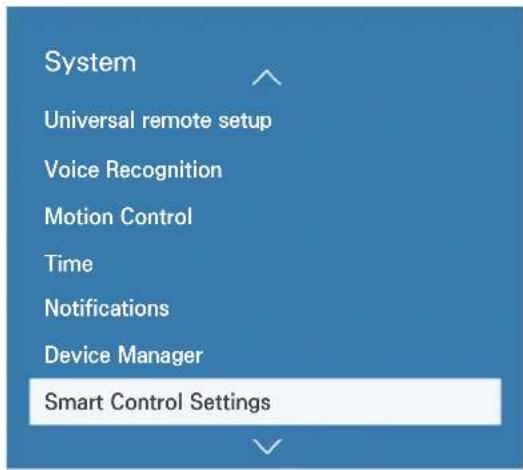

7 Setting up the Samsung Smart Control

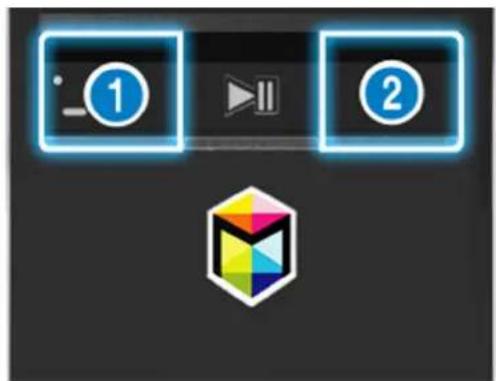

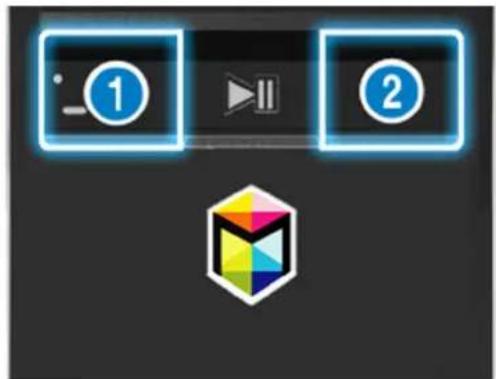

7 Pairing the TV to the Samsung Smart Control

Improving the Viewing Experience of Sports Events

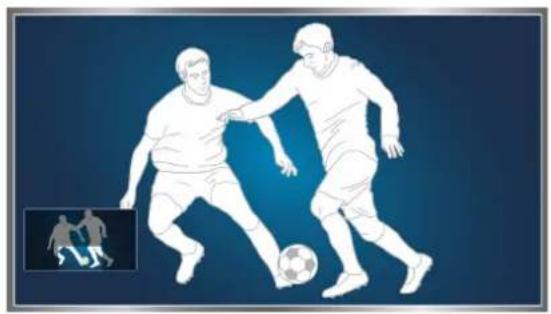

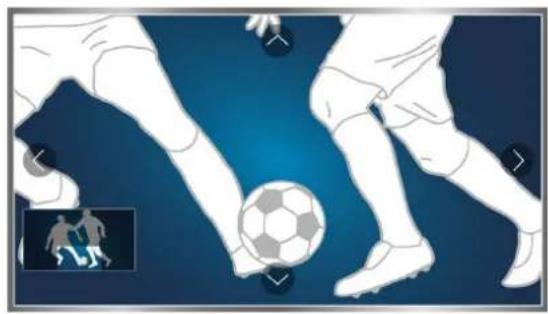

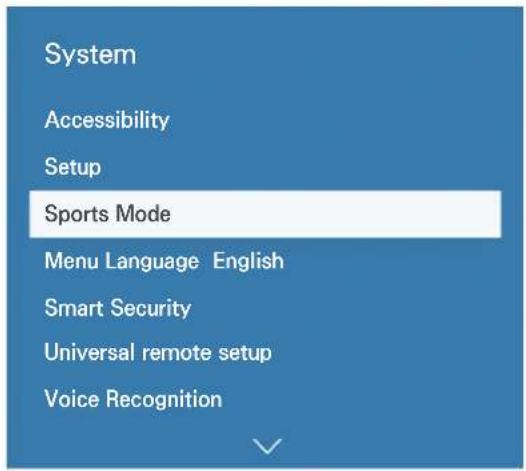

8 Activating Sports Mode

Editing Channels

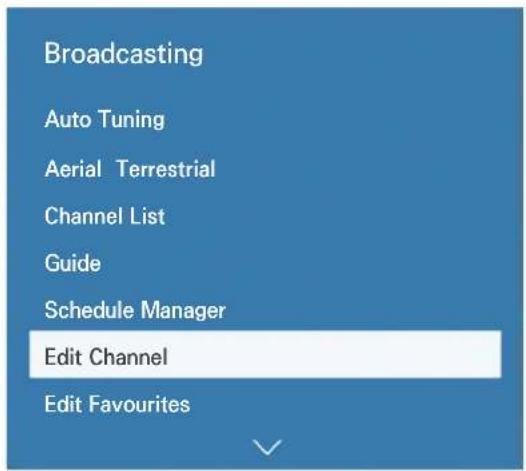

9 Running the Edit Channel function

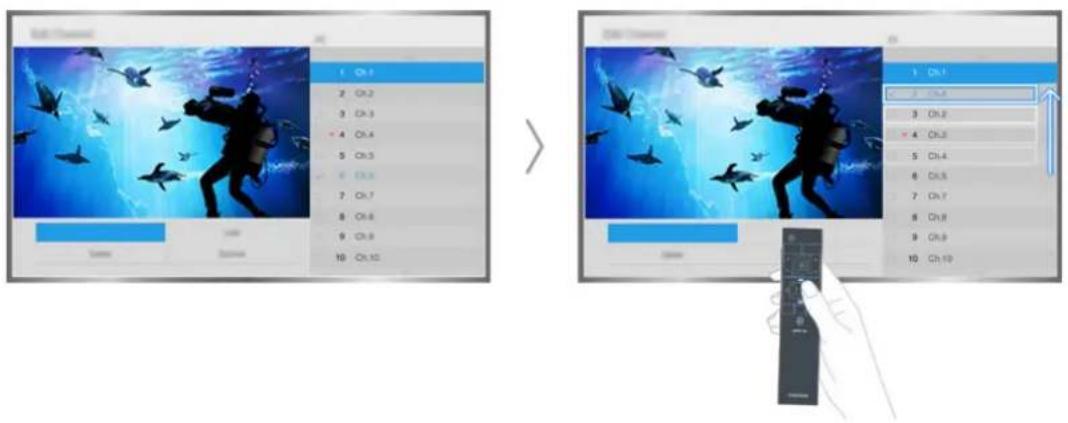

9 Rearranging or deleting channels

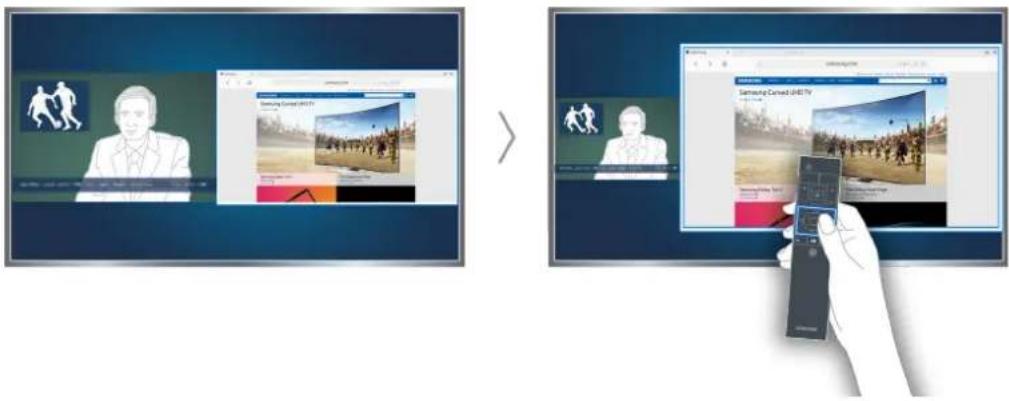

Playing Multiple Screens

Connections

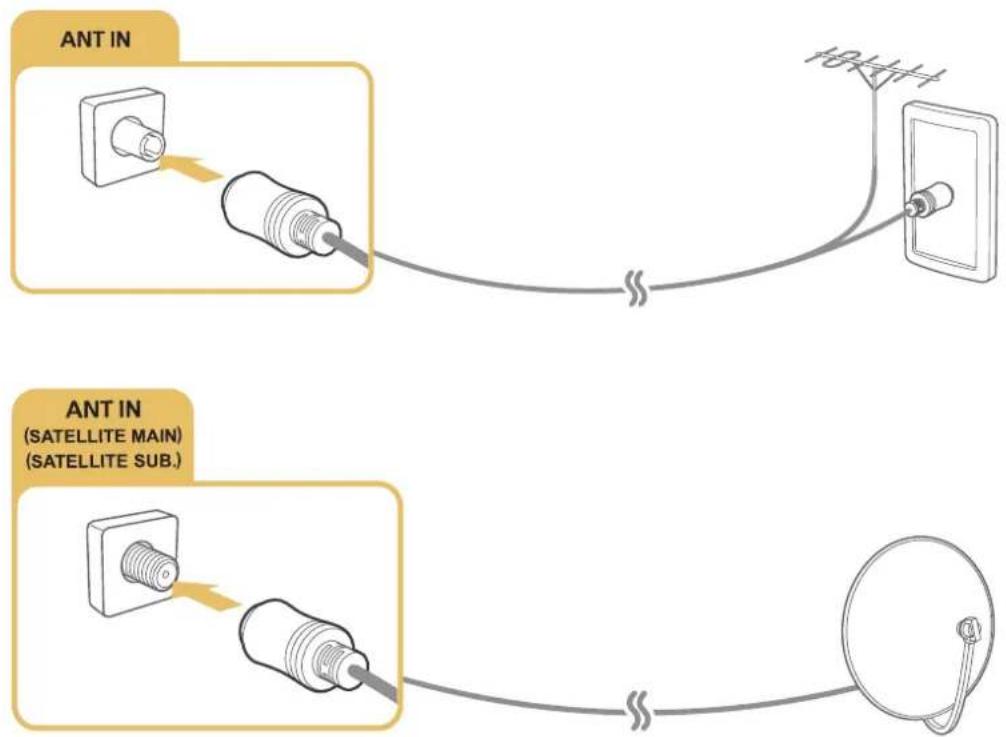

Connecting an Antenna (Aerial)

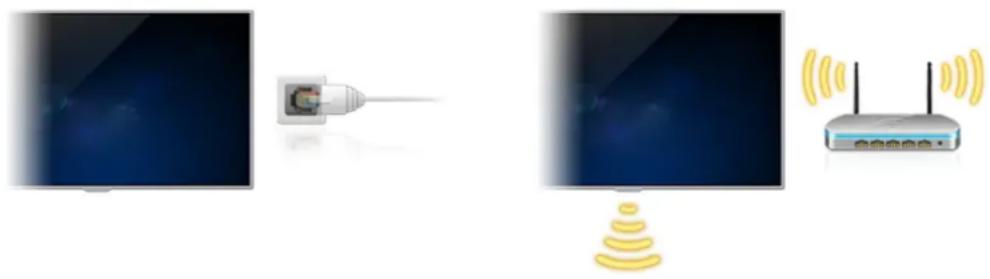

Connecting to the Internet

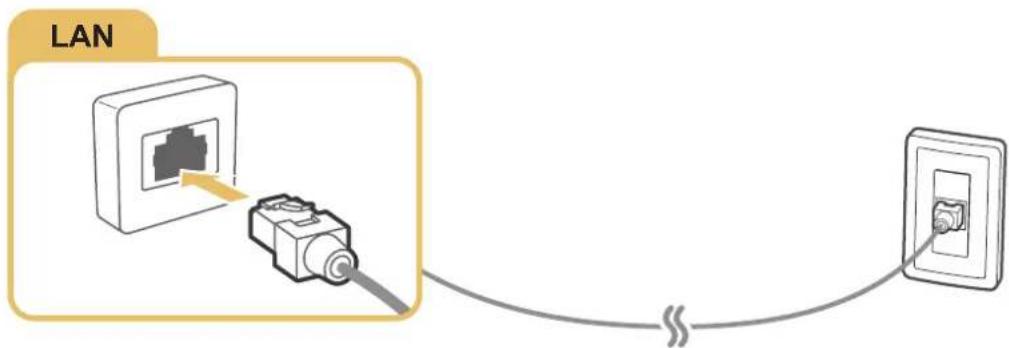

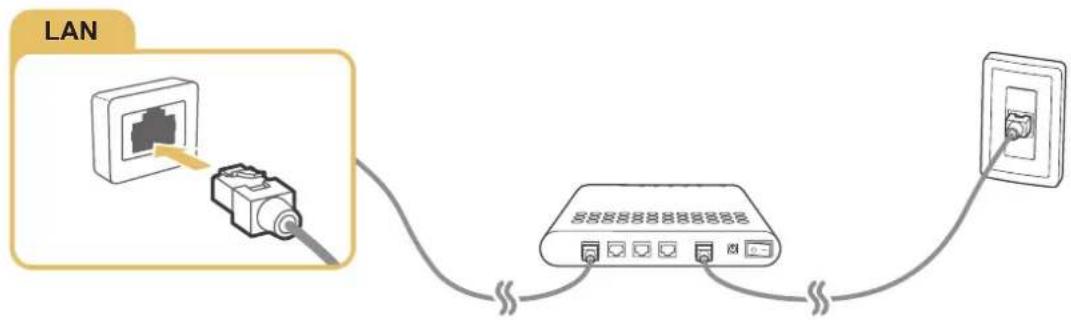

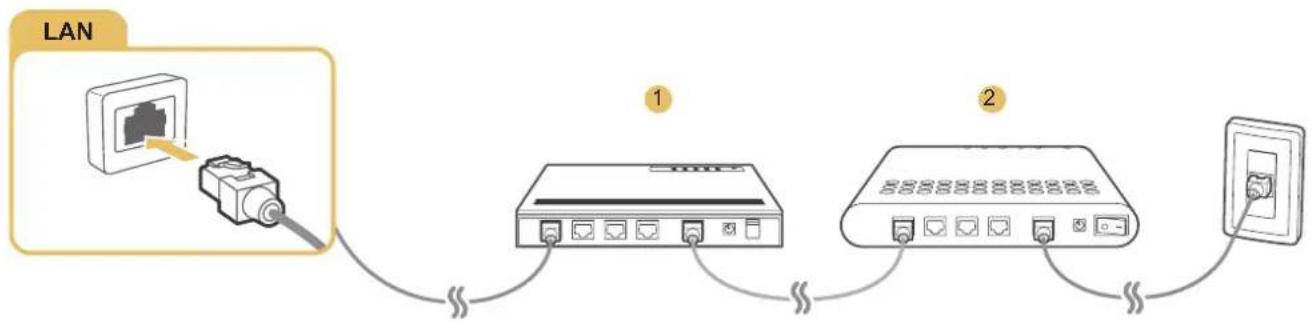

12 Establishing a wired Internet connection

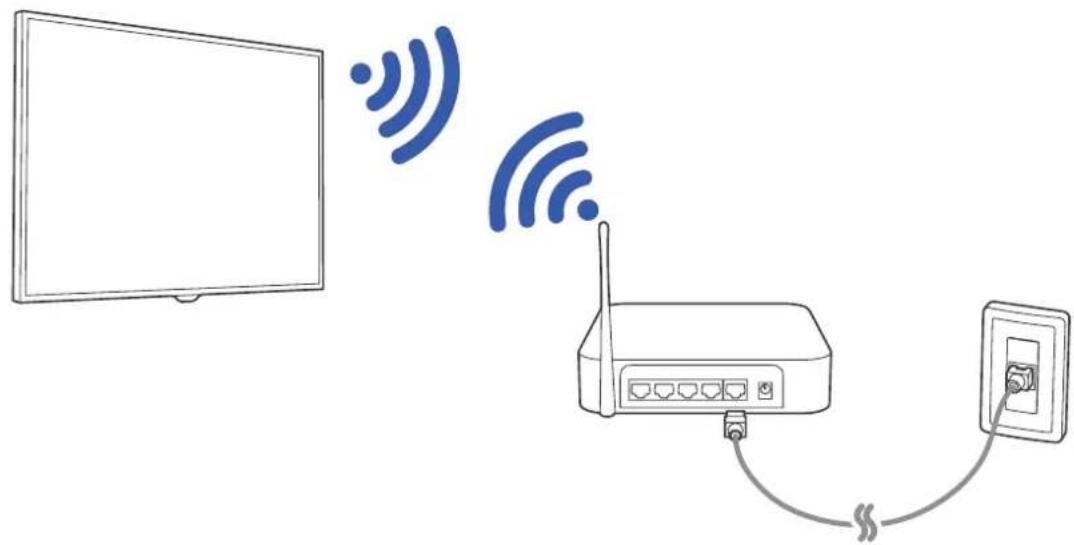

14 Establishing a wireless Internet connection

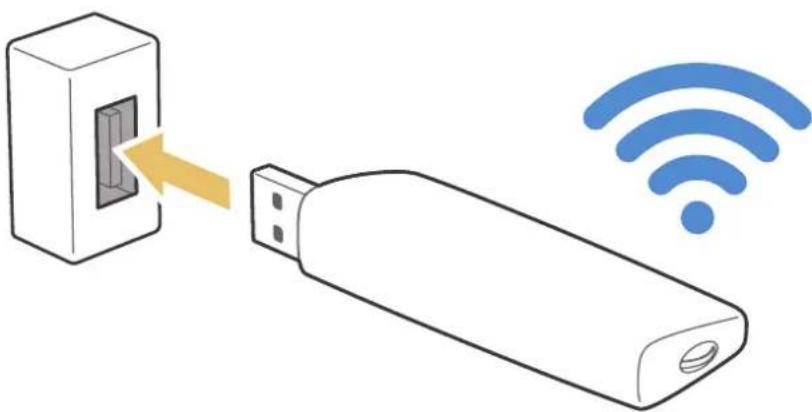

Connecting to a Network via a Mobile Dongle

Troubleshooting Internet Connectivity Issues

18 Troubleshooting wired Internet connectivity issues
19 Troubleshooting wireless Internet connectivity issues

Connecting Video Devices

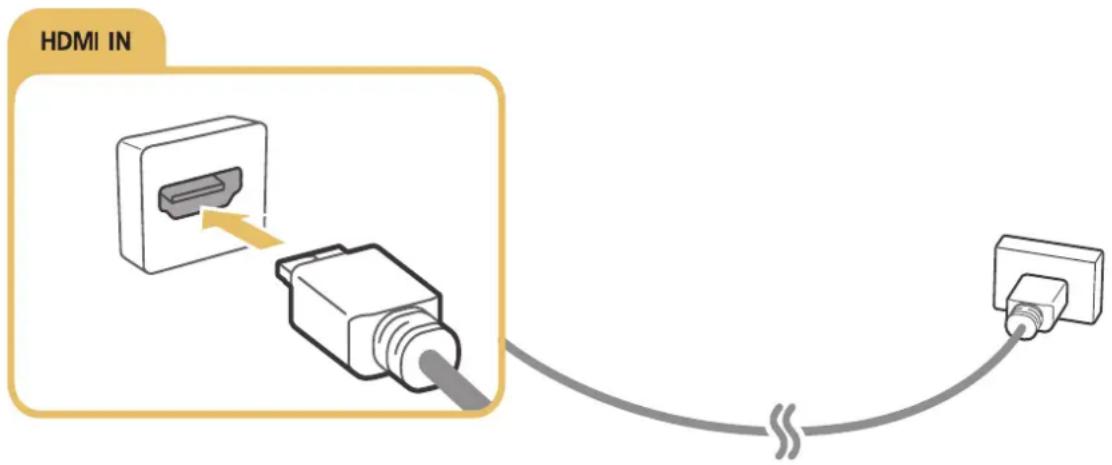

21 Connecting with an HDMI cable

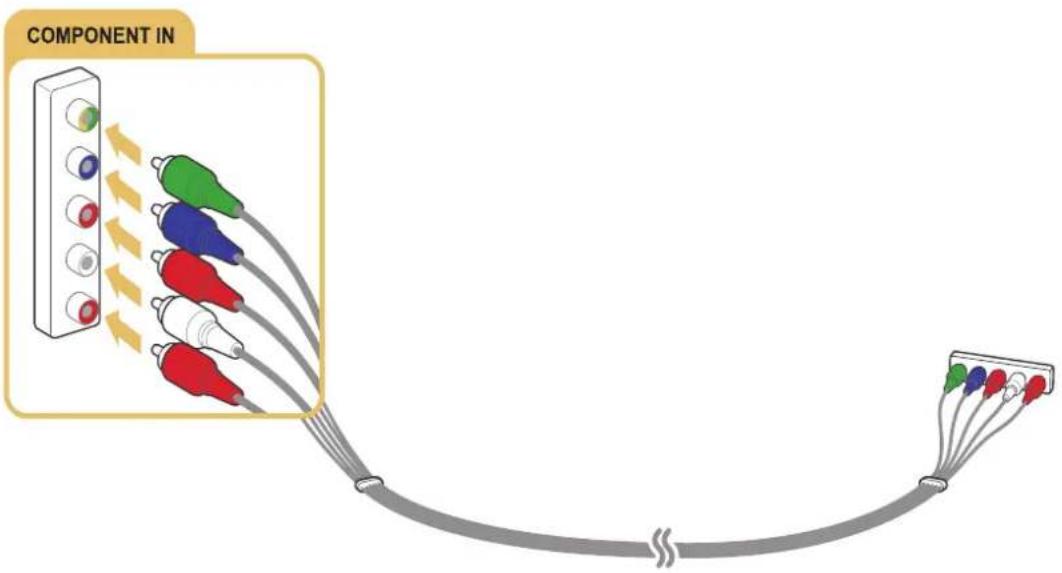

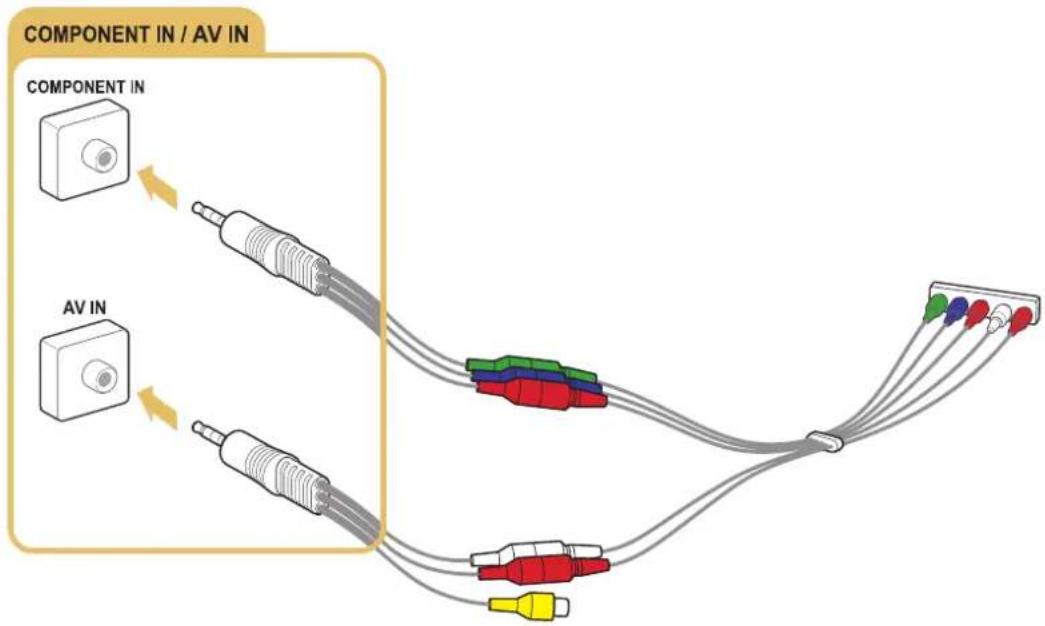

22 Connecting with a component cable

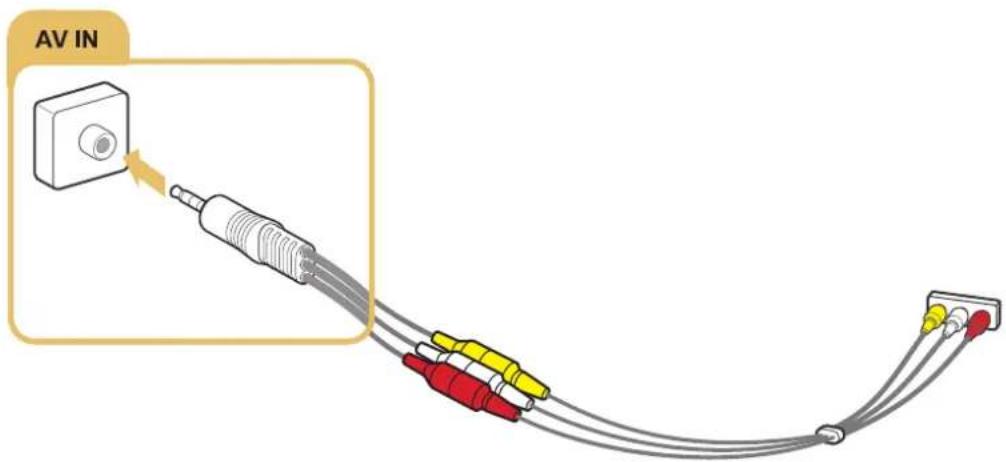

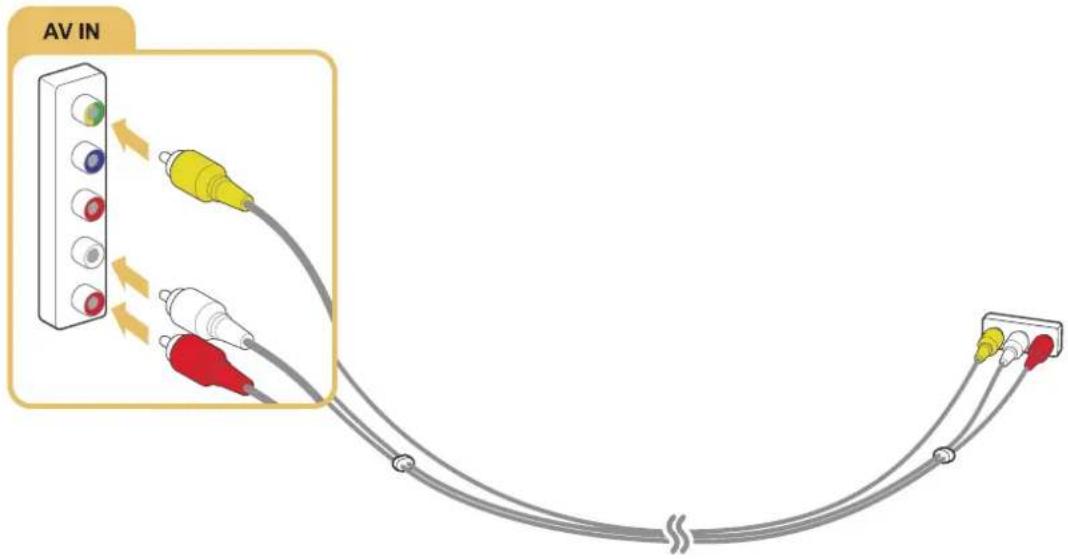

23 Connecting with a composite (A/V) cable

Audio Input and Output Connections

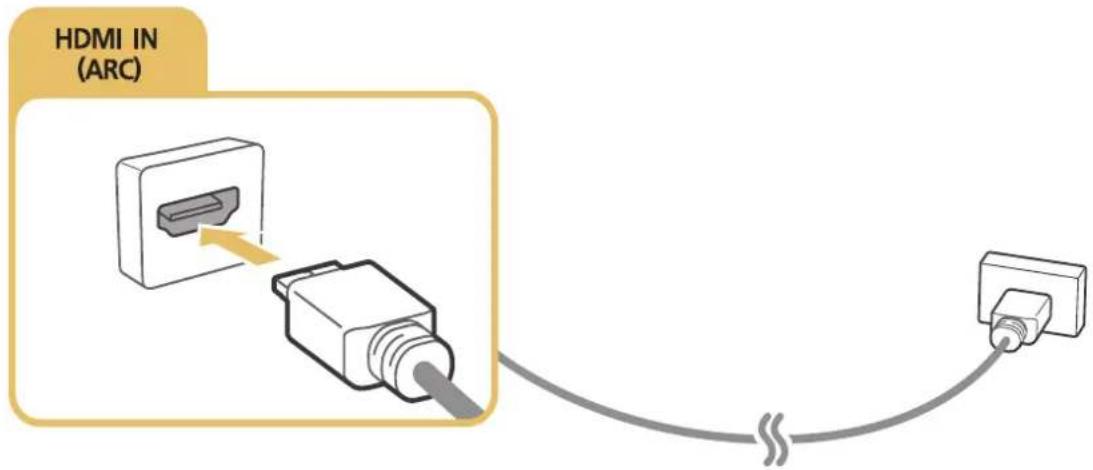

24 Connecting with an HDMI (ARC) cable

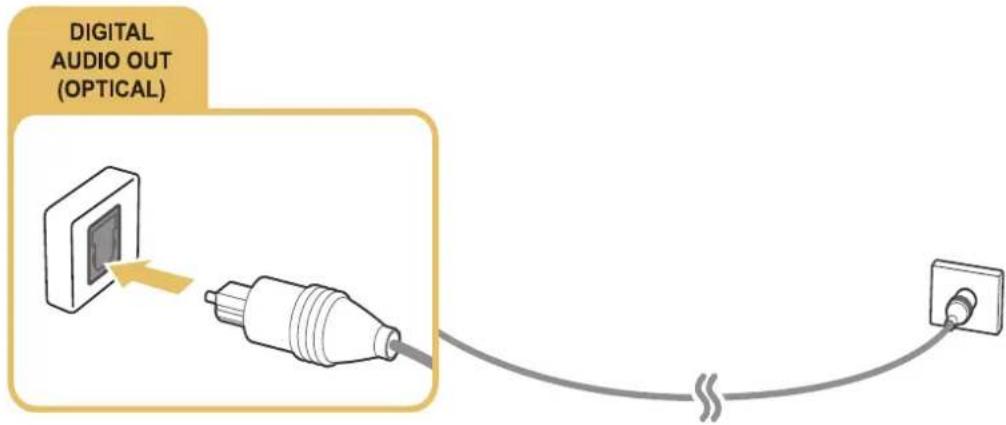

25 Connecting with a digital audio (optical) cable

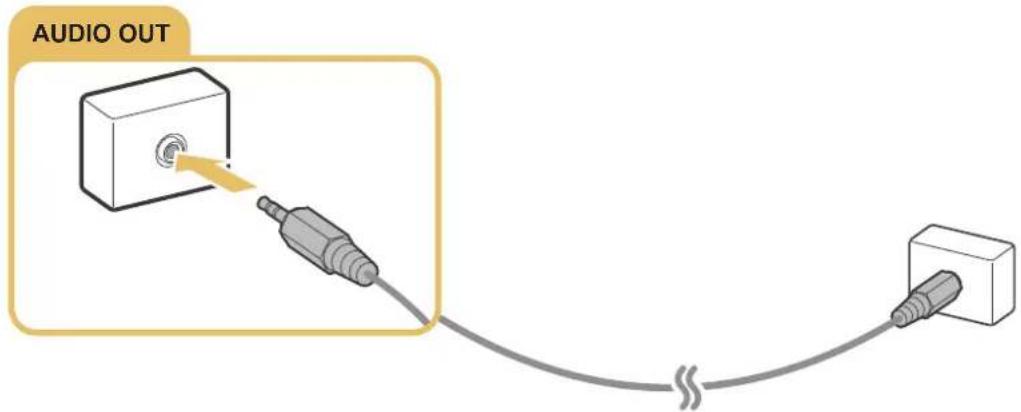

25 Connecting with a stereo audio cable

Connecting a Computer

26 Connecting through the HDMI port

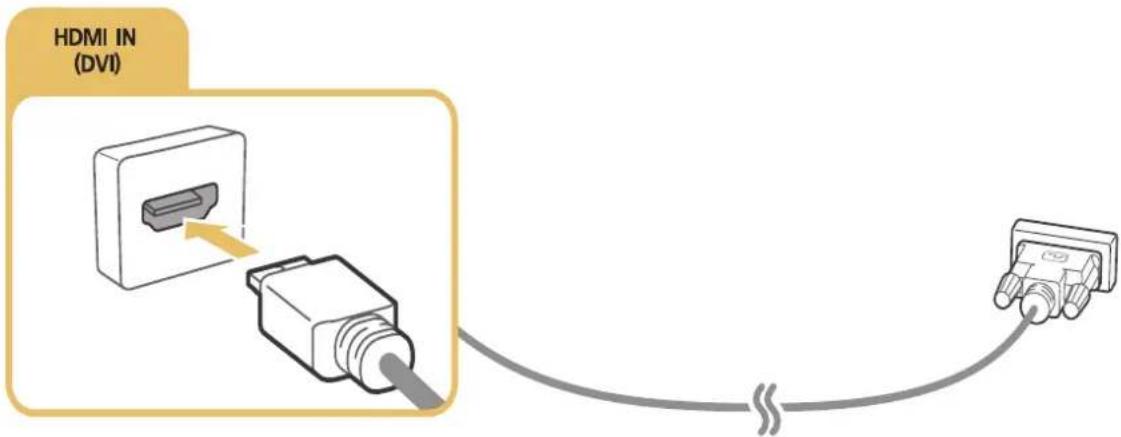

27 Connecting with an HDMI-to-DVI cable
28 Connecting through your home network

Connecting a Mobile Device

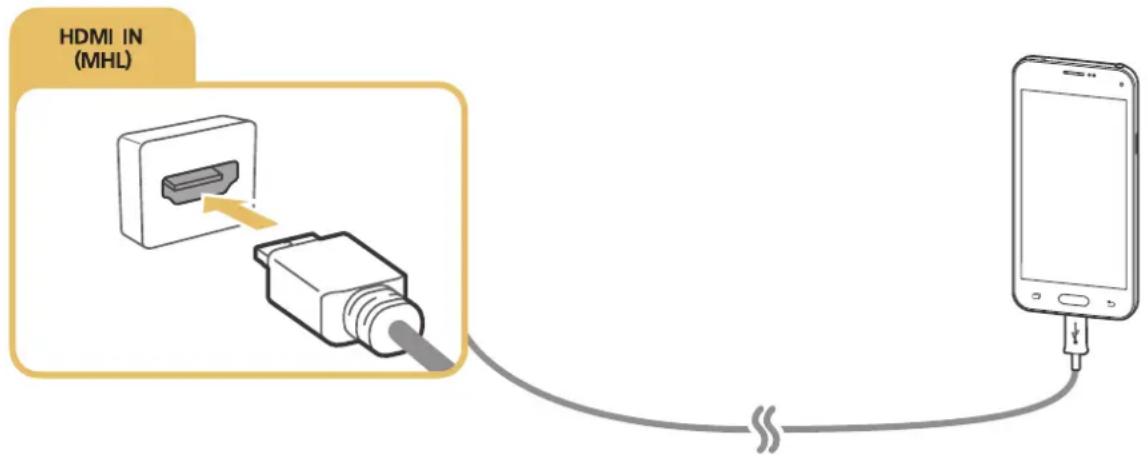

29 Connecting with an MHL-to-HDMI Cable
30 Using Screen Mirroring
31 Connecting mobile devices without a wireless router (Wi-Fi Direct)
31 Connecting a mobile device via Samsung Smart View 2.0

Changing the input signal with external devices

Connection Notes!

33 Connection notes for HDMI
34 Connection notes for audio devices
34 Connection notes for computers
34 Connection notes for mobile devices

Remote Control and Peripherals

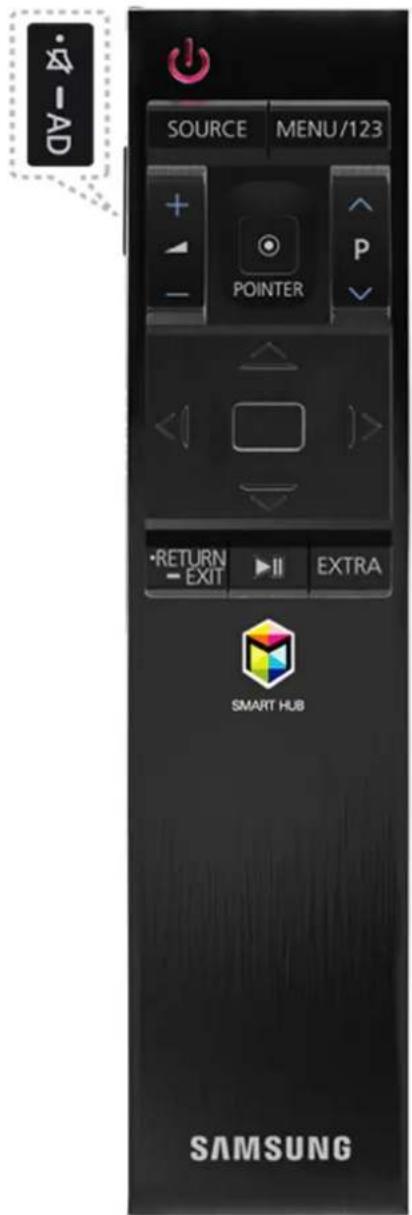

About the Samsung Smart Control

Using the Samsung Smart Control

37 Operating the TV with the POINTER button
37 Operating the TV with the directional buttons and the Enter button

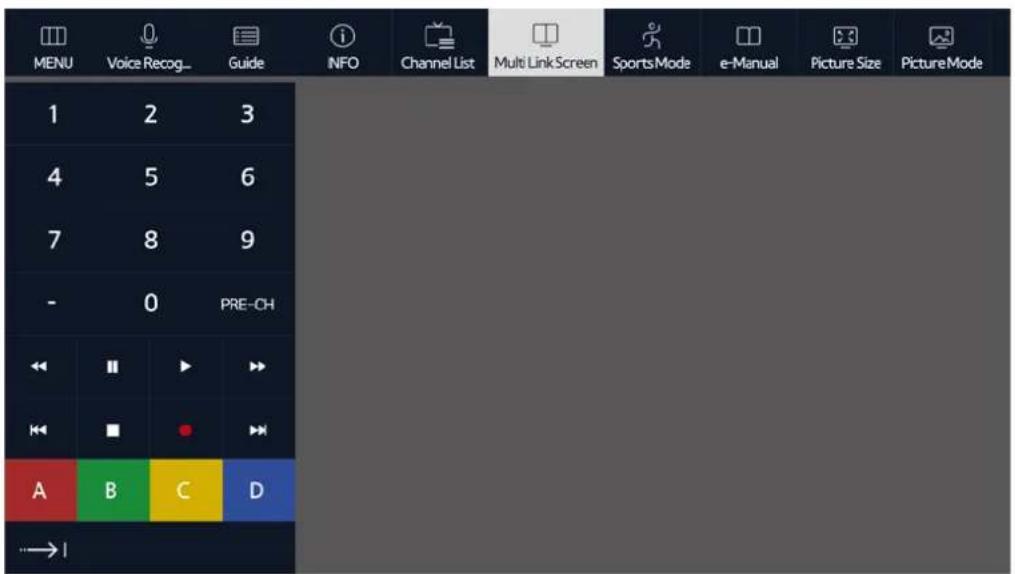

38 Displaying and using the On-screen Remote
40 Pairing the TV to the Samsung Smart Control

Controlling External Devices with the TV Remote - Using the Universal Remote

41 Setting up the universal remote control

Controlling the TV with a Keyboard

42 Connecting a keyboard

43 Using the keyboard

Controlling the TV with a Mouse

44 Connecting a USB mouse

45 Using a mouse

Connecting a Bluetooth Gamepad

Entering Text using the On-Screen QWERTY Keypad

46 Using additional functions

Smart Features

Viewing Multiple Screens or Features with Multi-Link Screen

47 Using Multi-Link Screen

Smart Hub

49 Launching Smart Hub automatically

49 Removing or pinning an item in the Recent group

50 Testing Smart Hub connections

50 Using the Smart Hub Tutorial

50 Resetting Smart Hub

Using Smart Hub with a Samsung Account

51 Creating a Samsung account

52 Signing in to a Samsung account

52 Linking your Samsung account to external service accounts

53 Changing and adding information to a Samsung account

53 Deleting a Samsung account from the TV

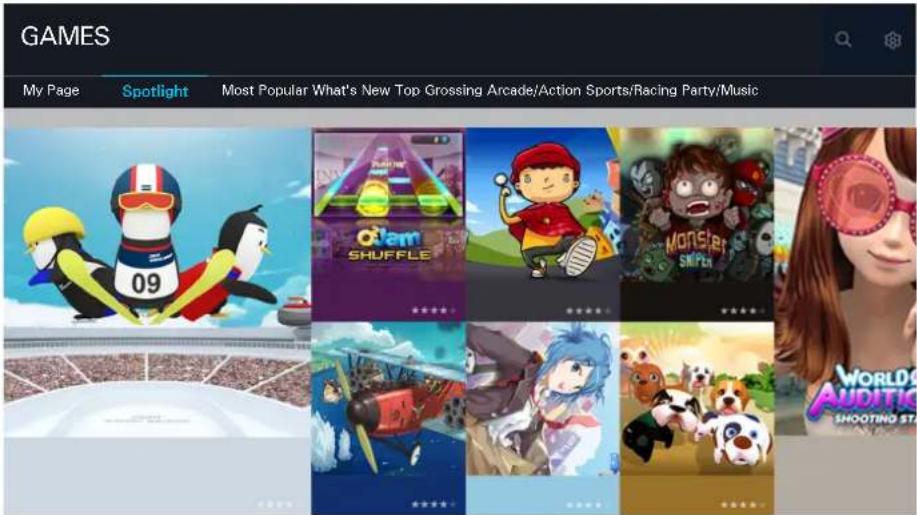

Using the GAMES Service

54 Managing games with the pop-up Options menu

55 Installing and running a game

55 Managing downloaded or purchased games

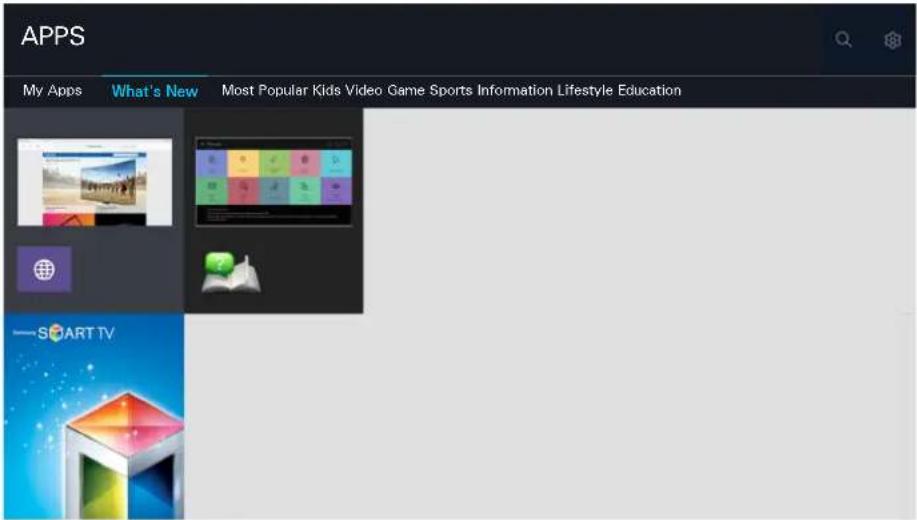

Using the Apps Service

57 Managing Apps with the pop-up Options menu

58 Installing an app

59 Removing an app from the TV

59 Locking and unlocking apps

59 Updating apps

59 Rearranging apps

60 Rating and sharing a purchased content

60 Using other app features and functions

Using the e-Manual

61 Launching the e-Manual

62 Using the buttons in the e-Manual

Using the web browser

63 Browsing preferences

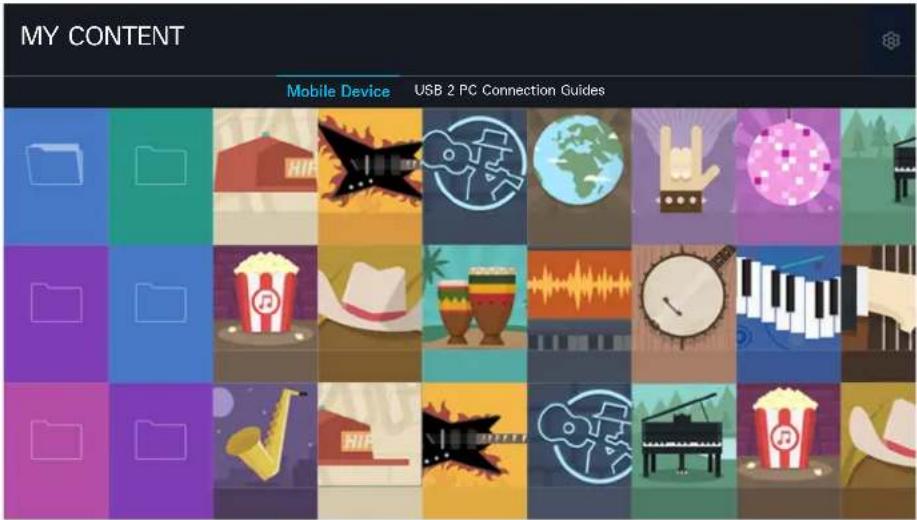

Using the MY CONTENT Service

64 Read before playing media content

65 Playing multimedia content in a computer or mobile device

65 Playing media content saved on a USB device

66 Buttons and functions available while viewing photos

68 Buttons and functions available while viewing videos

70 Buttons and functions available while playing music

71 Listening to music in HD quality

72 Functions on the media content list screen

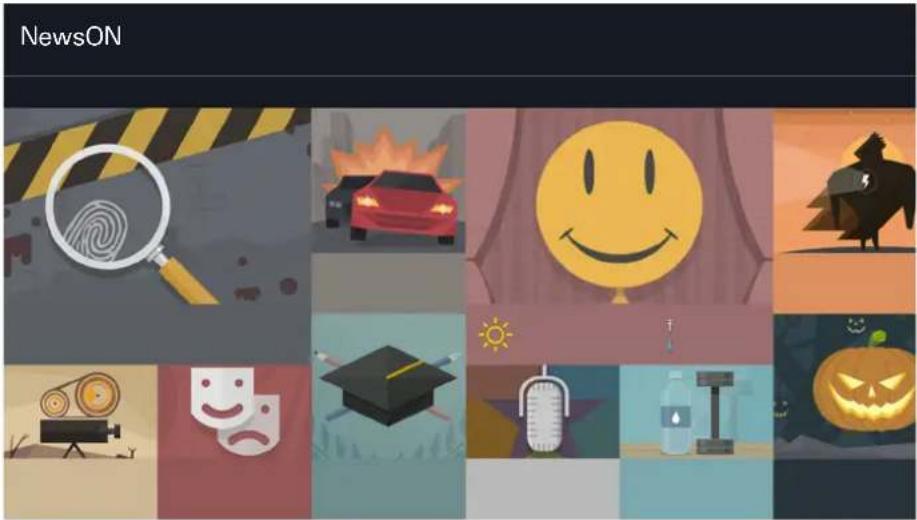

Using the NewsON Service

73 News

73 Weather

Controlling the TV with Your Voice

75 Read before using voice recognition

75 Learning voice recognition basics

77 Using imperative voice recognition

77 Using interactive voice recognition at a short distance

78 Using the Voice Recognition Tutorial

Controlling the TV using Motions (Motion Control)

79 Testing ambient illumination using the TV camera
80 Activating motion control

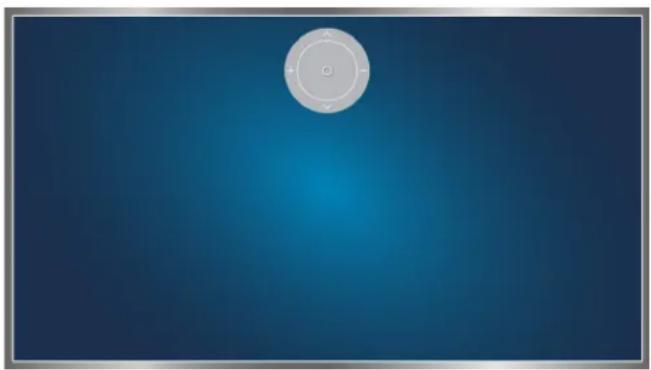

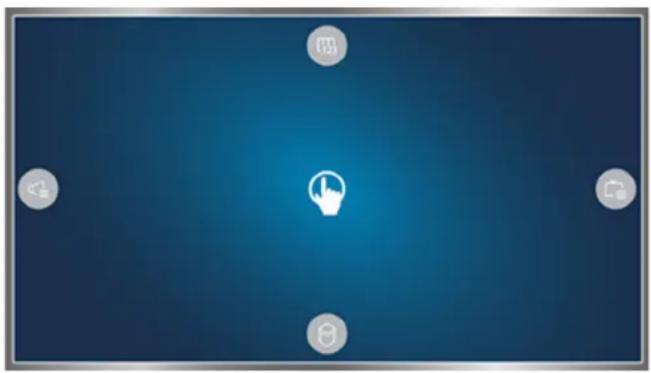

83 Changing the motion control screens

Using Face recognition

86 Registering your face to your samsung account
87 Changing your login method of face recognition
87 Signing in to a Samsung account using face recognition

TV Viewing

Viewing Digital Broadcast Information at a Glance

88 Using the guide
90 Checking current programme info
90 Changing the broadcast signal
90 Checking digital channel signal info and strength

Recording Programmes

91 Recording programmes
92 Using the functions available while recording a programme
93 Using the buttons on the remote control while recording a programme
93 Managing the schedule recording list
94 Viewing recorded programmes
96 Managing recorded files

Setting Up a Schedule Viewing

97 Setting up a schedule viewing for a channel

Using Timeshift

100 Using the buttons on the remote control while using Timeshift

Using the Channel List

Registering, Removing, and Editing Channels

103 Registering and removing channels
103 Editing registered channels
104 Enabling / Disabling password protection on channels
104 Locking / Unlocking channels
104 Enabling/Disabling Edit Channel Number function

Creating a Personal Favourites List

105 Registering channels as favourites
105 Viewing and selecting channels on favourites lists only

Editing a Favourites List

106 Using the Edit Favourites screen menu items

Making Sports programmes More Realistic with Sports Mode

108 Enabling sports mode
108 Choosing the sports type
109 Extracting highlights automatically
110 Using the functions available while watching sports in sports mode
112 Viewing a game recorded in sports mode

TV-Viewing Support Features

113 Showing subtitles
113 Enabling Subtitles
114 Setting the preferred languages
114 Scanning for available channels
115 Selecting the broadcast audio language
115 Audio Description

Using the Channel Settings

116 Setting the country (area)
116 Tuning broadcast signals manually
117 Fine-Tuning the screen
118 Transferring channel list
118 Reading digital text
119 Setting satellite system
119 Changing teletext language

Picture and Sound

Adjusting the Picture Quality

120 Choosing a picture mode
121 Adjusting the picture quality
122 Adjusting advanced settings
123 Adjusting picture options

Viewing in 3D

126 Starting 3D
128 Adjusting 3D effects

Picture Support Functions

129 Viewing a picture-in-picture (PIP)
130 Changing the picture size and position
132 Listening to audio only (Picture Off)
132 Resetting the picture mode settings

Adjusting the Sound Quality

133 Choosing a sound mode
134 Applying sound effects

Using the Sound Support Functions

135 Selecting speakers
135 Listening to TV sound through a Samsung Bluetooth audio device
136 Listening to the TV through Bluetooth headphones
137 Listening to TV sound through a Samsung Multiroom Link compatible speaker
139 Enabling digital audio output
140 Listening to 3D audio in 3D mode
140 Resetting all sound settings

System and Support

Setting the Time and Using the Timer

141 Setting the current time
143 Using the timers

Using the Screen Burn Protection and Energy Saving Functions

145 Preventing screen burn
145 Reducing the energy consumption of the TV

Using Anynet+ (HDMI-CEC)

147 Setting up Anynet+ (HDMI-CEC)
148 Using Anynet+ (HDMI-CEC)

Updating the TV's Software

150 Updating the TV's software to the latest version
150 Updating the TV automatically

Protecting the TV from Hacking and Malicious Code

151 Checking the TV and connected storage for malicious code
152 Configuring additional functions

Using Other Functions

153 Running the accessibility functions quickly
153 Enabling voice guides for the visually impaired
154 Adjusting the menu transparency
154 White text on black background (high contrast)
154 Enlarging font (for the visually impaired)
155 Learning about the remote control (for the visually impaired)
155 Listening to the TV through Bluetooth headphones (for the hearing impaired)
155 Using the Indian Cinema Mode
155 Changing the menu language
156 Setting up a password
156 Checking Notifications
156 Enabling game mode
157 Richer colours and superior picture quality (BD Wise)
157 Enabling/Disabling sound feedback
157 Locking/Unlocking the Control Stick
157 Showing/Hiding the Samsung logo while booting
158 Enabling the TV to boot faster
158 Enabling/Disabling the front indicators
158 Removing Flickering
158 Registering the TV as a DivX-certified device (watching for pay DivX movies)
159 Restoring the TV to the factory settings
159 Using the TV as a display model (for retail stores)

Enabling/ Disabling Data Service function (HbbTV)

Connecting to a TV Viewing Card slot

161 To connect the CI CARD Adapter, follow these steps:

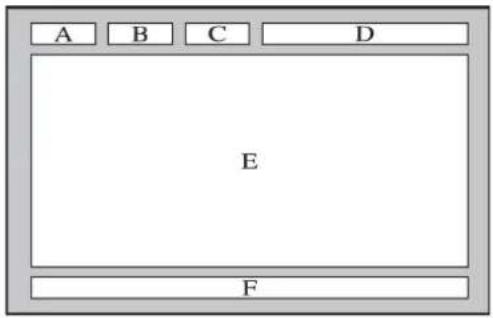

Teletext Feature

Troubleshooting

Getting Support

165 Support through Remote Management
166 Finding the contact information for service

There Is a Problem with the Picture

167 Testing the picture

I Can't Hear the Sound Clearly

170 Testing the sound

I Can't See 3D Images Clearly

171 Testing 3D picture quality

There Is a Problem with the Broadcast

My Computer Won't Connect

I Can't Connect to the Internet

The Schedule Recording/Timeshift Function Isn't Working

Anynet+ (HDMI-CEC) Isn't Working

I Have Trouble Launching/Using Apps

My File Won't Play

I Want to Reset the TV

Other Issues

Precautions and Notes

Before Using the Recording and Timeshift Functions

178 Before using the recording and Schedule Recording functions

180 Before using the Timeshift function

Read Before Using 3D Mode

181 3D precautions

S Recommendation disclaimer

186 S Recommendation with Voice Interaction

186 S Recommendation

Supported Resolutions for 3D Modes

187 HDMI

188 Component

188 Digital channel

188 Videos/Photos

Supported Resolutions for each of UHD Input Signals

189 If HDMI UHD Color is set to Off

189 If HDMI UHD Color is set to On

Read Before Using Voice, Motion, or Face recognition

190 Precautions for Voice, Motion, and Face recognition

191 Requirements for using Voice, Motion, or Face recognition

Read Before Using Apps

Read Before Using the Web Browser

Read Before Playing Photo, Videos, or Music Files

197 Limitations on use of Photo, Videos, and Music files

198 Supported external subtitles

198 Supported internal subtitles

199 Supported image formats and resolutions

199 Supported music formats and codecs

200 Supported video codecs

Read After Installing the TV

203 Picture sizes and input signals

204 Installing an anti-theft lock

204 Read before setting up a wireless Internet connection

Read Before Connecting a Computer (Supported Resolutions)

206 IBM

206 MAC

207 VESA DMT

Supported Resolutions for Video Signals

208 CEA-861

Read Before Using Bluetooth Devices

209 Restrictions on using Bluetooth

Licence

Glossary

Using Smart Hub

Connecting to the Internet

(MENU/123) > MENU > Network > Network Settings

Connect the TV to the Internet wired or wirelessly.

Diagram showing wireless network connection: a device connected to a router with signal waves, alongside a separate monitor displaying the same network.

Setting up Smart Hub

Press the button on your remote control. When you start Smart Hub for the first time, the Set Up Smart Hub screen appears. Follow the instructions on the screen to configure the required settings and complete the setup.

Welcome to Smart Hub The easiest way to access and discover live TV, movies, apps, games and more. Set Up Smart Hub Learn More

Using Smart Hub

Enjoy the multiple functions provided by Smart Hub on a single screen.

For more information, refer to "Smart Hub."

Controlling the TV with Your Voice

This function is only supported by the models with the Samsung Smart Control.

Setting up Voice Recognition

(MENU/123) > MENU > System > Voice Recognition

Finish the settings required for voice recognition, such as the language to use and whether to use Use TV Voice.

System Accessibility Setup Sports Mode Menu Language English Smart Security Universal remote setup Voice Recognition

Your TV's menu may differ from the image above, depending on the model.

Controlling the TV with your voice

(MENU/123) > MENU > System > Voice Recognition > Usable Microphone

Press and hold the MENU/123 button on the Samsung Smart Control. The Voice Recognition screen appears. When the Voice Recognition icon appears on the screen, speak commands slowly, in a moderately loud voice, into the microphone on the Samsung Smart Control.

Illustration of a person using a remote while watching a screen with a circular light source (no text or symbols)

This function is only supported by the models with the Samsung Smart Control.
For more information, refer to "Controlling the TV with Your Voice."

Controlling the TV with Your Motion

This function is only supported by the models with the Samsung Smart Control.

Setting up Motion Control

(MENU/123) > MENU > System > Motion Control

Perform Motion Control Environment Test, then finish the settings required to run motion control, such as how to adjust Pointer Speed and whether to show Animated Motion Guide.

System Setup Sports Mode Menu Language English Smart Security Universal remote setup Voice Recognition Motion Control

Your TV's menu may differ from the image above, depending on the model.

Controlling the TV using motions

(MENU/123) > MENU > System > Motion Control > Motion Control

1. Set Motion Control to On.
2. Face the TV camera, raise your hand to a comfortable position, and then move your index finger to the left or right slowly with it fully extended upwards.
3. Move your hand left or right slowly to move the pointer to a function.
4. Curl your index finger down to select a function, and then raise it again to run the selected function.

Illustration of two hands pointing at three illuminated circular buttons on a dark screen (no text or symbols)

Hand interacting with a blue screen displaying a glowing icon (no text or symbols)

This function is not available on certain models in specific geographical areas.
Motion Control is available in either direction control or motion pointing mode.
To use this function, your TV should be connected to the optional TV camera.
For more information, refer to "Controlling the TV using Motions (Motion Control)."

Using the Samsung Smart Control

The Samsung Smart Control may not be provided with specific model and country.

Operating the TV with the POINTER button

Blue gradient background with white circular icons and a central icon of a hand pointing to it, surrounded by speech bubbles and document symbols (no text or labels)

Place a finger on the POINTER button and move the Samsung Smart Control. The pointer on the screen moves in the direction you moved the Samsung Smart Control. Move the pointer to one of the following icons on the screen, and then press the POINTER button.

• : Displays the On-screen Remote.
• Allows you to adjust the volume or select speakers.
• : Displays the channel list.
• Launches Smart Hub.

Setting up the Samsung Smart Control

(MENU/123) > MENU > System > Smart Control Settings

Configure the basic settings for using the Samsung Smart Control.

System Universal remote setup Voice Recognition Motion Control Time Notifications Device Manager Smart Control Settings

Your TV's menu may differ from the image above, depending on the model.

Pairing the TV to the Samsung Smart Control

When you turn on the TV, the Samsung Smart Control is paired to the TV automatically. To re-pair it to the TV, press the ① and ② buttons on the Samsung Smart Control simultaneously for 3 seconds or more.

Game interface icons showing play button, play button labeled '1', and numbered button '2' with a colorful cube icon below.

Improving the Viewing Experience of Sports Events

Activating Sports Mode

(MENU/123) > MENU > System > Sports Mode

Set Sports Mode to On. The TV automatically configures the picture and sound settings so that they are suitable for soccer events.

System Accessibility Setup Sports Mode Menu Language English Smart Security Universal remote setup Voice Recognition

Illustration of two soccer players in action, one kicking a ball while the other assists a shot (no text or symbols)

Illustration of two soccer players in action, one kicking a ball and the other running (no text or symbols)

You can zoom in the screen while you are using the sports mode. Move the focus to the part of screen to magnify.
Your TV's menu may differ from the image above, depending on the model.
The actual name may differ from specific geographical areas.
For more information, refer to "Making Sports programmes More Realistic with Sports Mode."

Editing Channels

Running the Edit Channel function

(MENU/123) > MENU > Broadcasting > Edit Channel

Broadcasting Auto Tuning Aerial Terrestrial Channel List Guide Schedule Manager Edit Channel Edit Favourites

Your TV's menu may differ from the image above, depending on the model.

Rearranging or deleting channels

(MENU/123) > MENU > Broadcasting > Edit Channel > Change Number or Delete

You can rearrange the order of channels or delete channels. To change the order of a channel, select it and then select Change Number. To delete a channel, select it and then select Delete.

Screenshot showing a video editing interface with a diver underwater scene and its effect on a clip's color adjustment panel.

Playing Multiple Screens

This function is only available on certain models in specific geographical areas.

You can surf the web or run an app while viewing the TV. You can change the size of each screen by dragging the circle in the middle of the screen to the left or right.

Diagram illustrating video editing process with user profile, screen capture, and smartphone interface showing Samsung Carvad 2017.

The image of the remote control may differ with the TV model.

For more information, refer to "Viewing Multiple Screens or Features with Multi-Link Screen".

Connecting an Antenna (Aerial)

Connect the TV to an antenna to receive broadcast signals.

Connect a cable from an antenna to the ANT IN connector, as shown in the image below.

An antenna connection is not necessary if you connect a cable box or satellite receiver.

ANT IN 18+14+1 ANT IN (SATELLITE MAIN) (SATELLITE SUB.)

Connecting to the Internet

Establishing a wired Internet connection

Using LAN cables

There are three ways to connect the TV to your Internet access points, as shown in the following illustrations:

• Wall-mounted LAN Outlet

LAN

- External Modem

LAN 888888888888888888888888888888888888888888888888888888888888

• ① IP Router + ② External Modem

We recommend using Cat 7 LAN cables to link your TV to the Internet Access Points.

The TV will not be able to connect to the Internet if the network speed is below 10Mbps.

Connecting to a wired Internet network automatically

(MENU/123) > MENU > Network > Network Settings Try now

Automatically connect to an available network.

1. Select Wired.

2. Once network connection is successful, you will see a confirmation message. If it fails, try again or connect manually.

Establishing a wireless Internet connection

Illustration of a remote network device connected to a wall-mounted switch, with wireless signals shown as waves (no text or labels)

Connecting to a wireless internet network automatically

(MENU/123) > MENU > Network > Network Settings

Make sure that you have the wireless router's SSID (name) and password settings before attempting to connect.

1. Select Wireless. The TV automatically displays a list of available wireless networks.
2. Select a network. If the network you want doesn't appear in the list, select Add Network, and then enter the network's SSID (name) manually.
3. If your network is security enabled, enter the password. If your network is not security-enabled, the TV will bypass the on-screen keyboard and attempt to connect right away.

Connecting to a wireless internet network with WPS

(MENU/123) > MENU > Network > Network Settings

If the router has a WPS(wi-fi protected setup) push button, you can use it to connect the TV to the router automatically.

1. Select Wireless. The TV automatically displays a list of available wireless networks.
2. Select Stop and then select WPS.
3. Press the WPS or PBC buttons on your wireless router in less than two minutes.
4. The TV is connected to the network automatically.

Checking the internet connection status

(MENU/123) > MENU > Network > Network Status Try now

Network

Network Status

Network Settings

Wi-Fi Direct

Multimedia Device Manager

Screen Mirroring

Device Name Tizen_Device

Your TV's menu may differ from the image above, depending on the model.

View the current network and Internet status.

Changing the name of the TV on a network

(MENU/123) > MENU > Network > Device Name Try now

You can change a name for the TV that will appear on mobile devices and laptop computers.

1. Select Device Name from the Network menu.
2. Select a name from the list that appears. Alternatively, select User Input to enter a name manually.

Connecting to a Network via a Mobile Dongle

You can make the TV to connect to a network via a mobile device by connecting a mobile dongle to the TV. Connect the mobile dongle to the USB port in the TV.

This function is not available on certain models in specific geographical areas.

When you use a large mobile dongle(Data Card), USB devices may not work properly due to interferences among the USB ports, or the wireless network may not work properly due to interferences from the peripherals and surroundings. In this case, use a USB extension cable.

Auto Ticker is not available when you set up mobile network.

If you have any problems using online services, please contact your Internet service provider.

Illustration of a USB device connected to a rectangular device with a Wi-Fi signal icon (no text or symbols)

The mobile service providers and their devices that support this function are as follows:

• Vodacom (Model No: K4605)
• MTN (Model No: E3131S, E3251)
• Safaricom (Model No: E303)

• Glo Bolt (Model No: E303)
• Etisalat (Model No: E303)
• Smart Communication (Model No: E3131S-3)
• Globe Telecom (Model No: E3331, E359S-2)
• Viettel (Model No: E173Eu-1)
• Vinaphone (Model No: E303u-1, E303s-1)
• DTAC (Model No: E3131)
• AIS (Model No: E3131, E303)
• Telkomsel (Model No: E303)
• Indosat (Model No: E303)
- Airtel (Model No: E1731, E3276S, E3276s-920, E3272, E8231)
• Idea (Model No: E1732, E8231)
• Tata Docomo (Model No: E177, E8231)
- Open Dongles (Airtel, Idea, TataDocomo, Aircel, Vodafone) (Model No: E303C, E303U, E3121B, E3131B, E369 mini, E8221)
• Zain (Model No: E367u-1, E303s-1)
• Orange (Model No: E367u-1, E3131s-2)

Troubleshooting Internet Connectivity Issues

Troubleshooting wired Internet connectivity issues Try now

No network cable found

Make sure that the network cable is plugged in. If it is connected, make sure that the router is turned on. If it is on, try turning it off and on again.

IP auto setting failed

Do the following or configure the IP Settings manually.

1. Make sure that the DHCP server is enabled on the router, and reset the router.
2. If the problem persists, contact your Internet Service Provider.

Unable to connect to the network

1. Check all IP Settings.
2. Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back in.
3. If this does not work, contact your Internet Service Provider.

Connected to a local network, but not to the Internet

1. Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in IP Settings.
3. If the problem persists, contact your Internet Service Provider.

Network setup is complete, but unable to connect to the Internet

If the problem persists, contact your Internet Service Provider.

Troubleshooting wireless Internet connectivity issues

Wireless network connection failed

If a selected wireless router is not found, go to Network Settings and select the correct router.

Unable to connect to a wireless router

1. Check if the router is turned on. If it is, turn it off and on again.
2. Enter the correct password if required.

IP auto setting failed

Do the following or configure the IP Settings manually.

1. Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back in.
2. Enter the correct password if required.
3. If the problem persists, contact your Internet Service Provider.

Unable to connect to the network

1. Check all IP Settings.
2. Enter the correct password if required.
3. If the problem persists, contact your Internet Service Provider.

Connected to a local network, but not to the Internet

1. Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in IP Settings.
3. If the problem persists, contact your Internet Service Provider.

Network setup is complete, but unable to connect to the Internet

If the problem persists, contact your Internet Service Provider.

Connecting Video Devices

Your TV has a variety of connectors for video input from external devices. Below is a list of featured connectors shown in descending order of picture quality.

• HDMI
- Component
- Composite (A/V)

Connect a video device to the TV with an HDMI connector for the best picture quality. If the device does not have an HDMI connector, try a component connector.

Connecting with an HDMI cable

The following types of HDMI cables are recommended:

• High-Speed HDMI Cable
• High-Speed HDMI Cable with Ethernet

Connect the HDMI cable to the HDMI input connector of the TV and the HDMI output connector of the device as shown in the image below.

HDMI IN

Set Edit Device Type to DVI PC for a computer connected with a HDMI-to-DVI cable, and PC for a computer connected with HDMI cable. Also, set Edit Device Type to DVI Devices for an A/V device with a HDMI-to-DVI cable.

Connecting with a component cable

Connect the component cable to the component input connectors of the TV and the component output connectors of the device as shown in the image below.

Make sure the cable colours match the connector colours.

The models without the One Connect Mini

COMPONENT IN

The models with the One Connect Mini

Connecting with a composite (A/V) cable

Connect the AV cable to the AV input connectors of the TV and the AV output connectors of the device as shown in the image below.

Make sure the cable colours match the connector colours.

The models without the One Connect Mini

AV IN

The models with the One Connect Mini

AV IN

Audio Input and Output Connections

Your TV has a variety of connections for audio input from external devices. The connections are listed below.

• HDMI/ARC (Audio Return Channel)
• Digital Audio (Optical)
- Audio (Analogue)

Connecting with an HDMI (ARC) cable

ARC(Audio Return Channel) lets the TV output digital sound to an audio device and input digital sound from the same audio device through one HDMI cable. ARC is only available through the HDMI (ARC) port and only when the TV is connected to an ARC-enabled AV receiver.

Connect an HDMI cable to the HDMI (ARC) input connector of the TV and the HDMI output connector of the device as shown in the image below.

HDMI IN (ARC)

Connecting with a digital audio (optical) cable

You can listen to digital audio by connecting an AV receiver to the TV via a digital audio (optical) connector.

Connect the optical cable to digital audio output connector of the TV and the digital audio input connector of the device as shown in the image below.

DIGITAL AUDIO OUT (OPTICAL)

Connecting with a stereo audio cable

If using the AUDIO OUT/COMPONENT IN/AV IN 1 connectors of the TV, connect an audio cable to the AUDIO/COMPONENT/AV Adapter(accessory) and connect it to the AUDIO OUT/COMPONENT IN/AV IN 1 connectors of the TV and the audio output connectors of the device as shown in the image below.

AUDIO OUT

Connecting a Computer

The kinds of connections you can make are listed below.

To use the TV as a computer monitor

• Connect through the HDMI port with an HDMI cable.
• Connect though the HDMI (DVI) port with an HDMI-to-DVI cable.

To view or play the content saved in a computer on the TV

- Connect through using your home network.

Connecting through the HDMI port

For an HDMI connection, we recommend one of the following HDMI cable types:

• High-Speed HDMI Cable
• High-Speed HDMI Cable with Ethernet

Connect an HDMI cable to the HDMI input connector of the TV and the HDMI output connector of the device as shown in the image below.

HDMI IN

Connecting with an HDMI-to-DVI cable

If the graphics adapter of your TV does not support the HDMI interface, connect the computer to the TV with a DVI (Digital Visual Interactive)-to-HDMI cable. Note that the HDMI-to-DVI connection is only supported by the HDMI (DVI) port and does not transmit audio. To listen to the computer sound, connect external speakers to the audio output connector of the computer.

Connect the HDMI-to-DVI cable to the HDMI (DVI) port of the TV and the DVI output port of the computer as shown in the image below.

HDMI IN (DVI)

For the resolutions supported by the TV, refer to "Read Before Connecting a Computer (Supported Resolutions)."

Connecting through your home network

You can quickly access and play photo, video, and music files stored on a computer on the TV.

1. Connect the TV and the computer to the same router or AP. Once you connect them to the same router or AP, a home network is configured.
2. On the computer, select [Control Panel] > [Network and Internet] > [Network and Sharing Centre] > [Change advanced sharing settings], and select [Choose media streaming options...] to activate media streaming.
3. From the list, set the TV to [Allowed].
4. Launch Windows Media Player on a computer. Select [Settings] > [Library Management] and add the location where photo, video, and music files are saved to play them on the TV. For more information about playing content, refer to "Playing multimedia content in a computer or mobile device."

Alternatively, you can move the files to the default folder specified by Windows Media Player, and then play or view them on the TV.

Connecting a Mobile Device

You can connect a mobile device such as a smartphone or tablet directly to the TV, or connect it to the network and display the mobile device's screen or play its content on the TV. The kinds of connections you can make are listed below.

• View the mobile device's screen on the TV screen by using an MHL-to-HDMI cable.
- Connect by mirroring the mobile device's screen on the TV (Screen Mirroring).
- Connect mobile devices without a wireless router (Wi-Fi Direct).
- Connect a mobile device via Samsung Smart View 2.0.

Connecting with an MHL-to-HDMI Cable

You can use the Mobile High-definition Link (MHL) function to display a mobile device's screen on the TV. However, MHL is only available through the TV's HDMI (MHL) port and only when used in conjunction with an MHL-enabled mobile device. For information on configuring MHL on your mobile device, refer to the device's User Manual.

If you connect a mobile device to the TV with an MHL-to-HDMI cable, the TV automatically switches the picture size of each content saved on the mobile device to the original picture size of that content.

Connect the MHL-to-HDMI cable to the HDMI (MHL) input connector of the TV and the mobile device's USB port as shown in the image below.

HDMI IN (MHL)

Using Screen Mirroring

(MENU/123) > MENU > Network > Screen Mirroring Try now

You can wirelessly connect a mirroring-enabled mobile device to the TV and play the video and audio files stored on the device on the TV. Mirroring refers to the function that plays the video and audio files located on a mobile device on a TV and on the mobile device simultaneously.

Connecting via a mobile device

1. Launch the Screen Mirroring function on your mobile device. The mobile device searches for available devices to connect to.
2. Select the TV from the list, and then enter the password. The TV automatically allows the connection and the device connects.
3. Select Allow to connect the mobile device.

All previously allowed mobile devices will automatically connect without needing approval.

If you select Deny, the device cannot connect. To change the connection status of a denied device, select (MENU/123) > MENU > Network > Multimedia Device Manager, select the device, and select Allow. Try now

Connecting by automatically allowing the connection

1. Select Network > Screen Mirroring, You can also start screen mirroring by pressing the SOURCE button on your remote and selecting Screen Mirroring from the list at the top of the screen.
2. Launch Screen Mirroring function on your mobile device. The mobile device searches for available devices to connect to.
3. Select the TV from the list. The TV automatically allows the connection and the device connects.

If the mobile device cannot connect, turn off and on the TV and mobile device.

Connecting mobile devices without a wireless router (Wi-Fi Direct)

(MENU/123) > MENU > Network > Wi-Fi Direct Try now

You can connect a mobile device with the Wi-Fi Direct feature directly to the TV without using a wireless router or AP. By connecting a mobile device to the TV through Wi-Fi Direct, you can play photo, video, and music files saved on the mobile device on the TV.

Enable Wi-Fi Direct on the mobile device, and then run Wi-Fi Direct on the TV. The TV automatically scans for and displays a list of available devices. The TV's name also appears on the mobile device.

Select the device from the list to initiate a connection. If a connection request is made by the TV, a permission message appears on the mobile device and vice versa.

Allow the connection. The TV and mobile device connect.

For more information, refer to "Playing multimedia content in a computer or mobile device."

To confirm the mobile devices that allows or denies the connection, select (MENU/123) > MENU > Network > Multimedia Device Manager.

When you place the mobile device closer to the TV with Wi-Fi Direct activated, the connection allowance confirmation window appears on the left bottom of the screen so that you can easily connect it.

Managing the connection status of previously connected mobile devices

1. Select (MENU/123) > MENU > Network > Multimedia Device Manager. The TV displays a list of devices that have previously connected to the TV or have tried to connect to the TV and been denied. The status of the connection (Allow/Deny) is also displayed. Try now

2. Select a device.

3. Select connection type or delete the device from the list.

This function is only available if the devices have previously connected to the TV or have previously attempted to connect and been denied.

Connecting a mobile device via Samsung Smart View 2.0

This function is not available on certain models in specific geographical areas.

You can play the mobile device's multimedia content, such as videos, photos, and music, when you install and launch Samsung Smart View 2.0 on a mobile device connected to the TV. You can send text messages or control the TV using the mobile device.

Changing the input signal with external devices

Press the SOURCE button to switch between external devices connected to the TV.

- Options

To view the options menu, press the down directional button. The functions that appear in the options menu can include any of the following:

The connector names may vary depending on the product.

• Edit Device Type: Changes the types of the external devices. Select an external device to change. For example, you can select the name PC for a PC connected to an HDMI connection and Blu-ray for a Blu-ray player connected to another HDMI connection. When you display the source list, the TV displays the name of each connection and the name of the device connected to each connection.
• Edit Name: You can rename devices connected to the TV to facilitate identifying external sources.
• Anynet+ (HDMI-CEC): Displays a list of Anynet+ (HDMI-CEC)-compliant devices that are connected to the TV.

This option is only available when Anynet+ (HDMI-CEC) is set to On.

– Information: Displays information about the connected devices.
- Remove USB Device: Removes a USB device connected to the TV.
- Remove Source Thumbnail: Removes the captured images of the video that you viewed most recently saved on the external device connected to the TV.
This function is not available on certain models in specific geographical areas.
- Delete Universal Remote: Deletes the external device connected to the TV via the Universal Remote function.
This function is only supported for the 6600 series models or higher.

• Universal remote setup: You can use your TV remote control to control external devices.

This function is only supported for the 6600 series models or higher.

For more information on using the Universal Remote function, refer to "Controlling External Devices with the TV Remote - Using the Universal Remote."

Connection Notes!

The number of connectors and their names and locations may vary depending on the model.

Refer to the external device's operating manual when connecting it to the TV. The number of external device connectors and their names and locations may vary depending on the manufacturer.

Connection notes for HDMI

• Use an HDMI cable with a thickness of 14mm or less.
• Using a non-certified HDMI cable may result in a blank screen or a connection error.
• Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications.
• This TV does not support HDMI Ethernet Channel. Ethernet is a LAN (Local Area Network) built with coaxial cables standardised by the IEEE.
• Try a cable shorter than 3m to get the next UHD viewing quality.
• HDCP 2.2 is supported only by the TV's HDMI (MHL) port. HDCP is short for "High bandwidth Digital Content Protection" and is used for video copyright protection.
• Many computer graphics adaptors do not have HDMI ports, but have DVI ports instead. If your computer graphics adaptor has a DVI port, use an HDMI-to-DVI cable to connect the computer to the TV. For more information, refer to "Connecting with an HDMI-to-DVI cable."
• If you are using an HDMI adapter, the TV recognises the signal as an HDMI signal and may respond differently than it would to an MHL-to-HDMI cable connection.
• Certain functions such as Smart Hub may not be available if the Source is set to HDMI and 3D Auto View is set to Auto1 or Auto2. If this is the case, set 3D Auto View or 3D Mode to Off.

Connection notes for audio devices

• For better audio quality, it is a good idea to use an AV receiver.
• Connecting a device using an optical cable does not automatically turn off the TV speakers. To turn off the TV's speakers, set Speaker Select ((MENU/123) > MENU >Sound >Speaker Settings >Speaker Select) to something other than TV Speaker.
• An unusual noise coming from the audio device while you are using it may indicate a problem with the audio device itself. If this occurs, ask for assistance from the audio device's manufacturer.
  • Digital audio is only available with 5.1-channel broadcasts.

Connection notes for computers

• For the resolutions supported by the TV, refer to "Read Before Connecting a Computer (Supported Resolutions)."
• As long as file sharing is activated, unauthorised access may occur. When you do not need to access data, disable file sharing.
• Your PC and Smart TV must be connected on the same network.

Connection notes for mobile devices

• To use the Screen Mirroring function, the mobile device must support a mirroring function such as AllShare Cast or Screen Mirroring. To check whether your mobile device supports the mirroring function, please visit the mobile device manufacturer's website.
• To use Wi-Fi Direct, the mobile device must support the Wi-Fi Direct function. Please check if your mobile device supports Wi-Fi Direct.
• The mobile device and your Smart TV must be connected with each other in the same network.
• The video or audio may intermittently stop depending on network conditions.

About the Samsung Smart Control

SOURCE MENU/123 + - POINTER P RETURN EXIT EXTRA SMART HUB SAMSUNG

The Samsung Smart Control may not be provided with specific model and country.

Button Description
	Press this button to mute the sound temporarily. Press and hold this button to bring upAccessibility Shortcuts that enables or disablesAccessibility ((MENU/123) > MENU > System > Accessibility) menus.
MENU/123	Displays numeric buttons, content control button, and other function buttons on the screen so that you can run a function conveniently. Press and hold this button to run the Voice Recognition function. For more information, refer to "Displaying and using the On-screen Remote."
POINTER	Place a finger on the POINTER button and move the Samsung Smart Control. The pointer on the screen moves in the direction you moved the Samsung Smart Control. Press the POINTER button to select or run a focused item. For more information, refer to "Operating the TV with the POINTER button."
4 directional buttons Moves	the focus, and changes the values seen on the TV's menu.
Enter	Selects or runs a focused item. Press and hold this button to launch Guide while you are watching the TV.
RETURN / EXIT	Returns to the previous menu or channel. Press and hold to exit the currently running function on the TV's screen.
	Launches Smart Hub applications.
▶, II	Controls the content when playing the media content such as movie, picture, or music.
EXTRA	Displays related information about the current programme.
SOURCE	Displays and selects the available video sources.

The images of the Samsung Smart Control may differ depending on the model.
The buttons and functions of the Samsung Smart Control may differ with the model.
Use the Samsung Smart Control at a distance of less than 6m. The usable distance may differ with the wireless environmental conditions.

Using the Samsung Smart Control

The Samsung Smart Control may not be provided with specific model and country.

Operating the TV with the POINTER button

Place a finger on the POINTER button and move the Samsung Smart Control. The pointer on the screen moves in the direction you moved the Samsung Smart Control. Move the pointer to select an item on the screen.

Illustration showing a person using a computer with a game board and a pointer control interface, labeled with numbered steps 1 and 2.

Operating the TV with the directional buttons and the Enter button

Press the directional buttons (up, down, left, and right) to move the pointer, focus, or cursor in the direction you want or change a setting shown on the focused item. Press the Enter button to select an item or run a focused item. Press and hold the Enter button to view the Guide while watching the TV.

To adjust the pointer speed, select (MENU/123) > MENU > System > Smart Control Settings > Motion Sensitivity. Try now
To use the POINTER button and the movement of the Samsung Smart Control to operate your TV, Voice Guide must be set to Off.
To view a tutorial that shows how to use the POINTER button, select (MENU/123) > MENU > Support > Smart Control Tutorial. Try now

Displaying and using the On-screen Remote

You can display and use the On-screen Remote on the TV's screen by pressing the MENU/123 button on the Samsung Smart Control.

MENU Voice Recog_ Guide INFO Channel List Multi Link Screen Sports Mode e-Manual Picture Size Picture Mode 1 2 3 4 5 6 7 8 9 - 0 PRE-CH A B C D →

Button Description

Menu	Displays the menu on the screen.
Voice Recognition	Runs the Voice Recognition function.
Guide	Displays the Guide screen.
Info	Displays information about the current programme or content.
Channel List	Launches the Channel List.
Multi-Link Screen	Splits the TV screen and allows you to use multiple functions - such as watching TV, surfing the web, and playing a video - at the same time. For more information, refer to "Viewing Multiple Screens or Features with Multi-Link Screen".
Button Description
Sports Mode	Turns the Sports Mode on or off. For more information, refer to "Making Sports programmes More Realistic with Sports Mode".
Indian Cinema Mode	Provides an optimal picture and sound for the popular content in your geographical area. This function is only available in specific geographical areas.
Extra	Displays related information about the current programme.
e-Manual	Opens the e-Manual.
Picture Size	Changes the picture size.
Picture Mode	Changes the picture mode.
Speakers	Allows you to select the speakers that will play the TV's audio.
Dual	When you press the Dual button the first time, the current dual mode is displayed on the screen. Press the Dual button again to change the dual mode.
Audio Description/Subtitles	Displays the Accessibility Shortcuts. Select the options to turn them on or off.
Audio Language	Selects a audio language.
3D	Turns on or off the 3D function.
Sleep Timer	Shuts off the TV automatically after a preset period of time.
Tools	Displays the Tools menu on the screen.
Source	Displays the Source screen.
Power	Turns off the TV.
A B C D	Use these coloured buttons to access additional options specific to the feature in use.
Move Number Pad to the Right / Move Number Pad to the Left	Moves the number pad to the left or right.

The On-screen Remote buttons may vary, depending on the TV model and the TV functions you are using.
To change the order of the menu options on the first row, select a menu option to move, press and hold the Enter button, and then select the directional buttons displayed to specify a new position.

Pairing the TV to the Samsung Smart Control

When you turn on the TV, the Samsung Smart Control is paired to the TV automatically. To re-pair it to the TV, press the ① and ② buttons on the Samsung Smart Control simultaneously for 3 seconds or more.

Game interface screenshot showing two numbered UI elements with a play button and a colorful cube icon below

Controlling External Devices with the TV Remote - Using the Universal Remote

(MENU/123) > MENU > System > Universal remote setup Try now

This function is only supported for the 6600 series models or higher.

You can control external devices connected to the TV using the TV's remote control.

You can also use the Anynet+ (HDMI-CEC) function to operate external Samsung devices with your TV's remote control without any additional setup. Refer to "Using Anynet+ (HDMI-CEC)" for more information.

Certain external devices connected to the TV may not support the universal remote feature.

Setting up the universal remote control

1. Connect the external device to control with the universal remote control to the HDMI port on the TV, and then turn on the external device.
2. Press the SOURCE button on your remote control to bring up the Source screen.
3. Select the Universal remote setup.
4. Follow the directions on the screen to complete the set up and register the device. The directions will be different, depending on the device you want to control.

If the external device does not respond after being registered, register it again using its model number.

The TV memorises both the external device and the connection (HDMI1, HDMI2, etc.) the device is connected to.

Controlling the TV with a Keyboard

(MENU/123) > MENU > System > Device Manager > Keyboard Settings Try now

Certain models are not compatible with USB HID class keyboards.

Connecting a keyboard

Connecting a USB keyboard

Plug the keyboard cable into the TV's USB port.

Connecting a Bluetooth keyboard

1. Place the Bluetooth keyboard into standby status.
2. Select (MENU/123) > MENU > System > Device Manager > Keyboard Settings > Add Bluetooth Keyboard. The TV automatically scans for available keyboards. Try now
   If your keyboard was not detected, position the keyboard close to the TV, and then select Refresh. The TV scans for available keyboards again.
3. Select the Bluetooth keyboard from the scan list, and then select Pair and connect. A number appears on the screen.
4. Enter the number using the Bluetooth keyboard. This pairs the Bluetooth keyboard to the TV.

Using the keyboard

You can use the following remote features with the USB or Bluetooth keyboard connected to the TV.

Keyboard Remote Control Functions
Directional keys Moves the focus
Windows key Displays the menu
Menu list key Displays the On-screen Remote
Enter key Selects or runs a focused item
ESC key Returns to the previous screen
F1 / F2 / F3 / F4 key	A / B / C D
F5 key	Launches the button
F6 key Displays the source screen
F7 key Launches the Channel List
F8 key Mutes the sound
F9 / F10 key Adjusts the volume
F11 / F12 key Changes the channel

Changing keyboard settings

Select (MENU/123) > MENU > System > Device Manager > Keyboard Settings > Keyboard Options. Try now

- Keyboard Language

Displays the languages you can use on your keyboard and lets you select a language.

- Keyboard type

Displays a list of keyboard types and lets you select a type that matches the Keyboard language you selected.

The list of keyboard type differs depending on the language you selected under Keyboard Language.

- Switch Input Language

Displays a list of keys you can use to toggle between languages and lets you select a key.

Controlling the TV with a Mouse

(MENU/123) > MENU > System > Device Manager > Mouse Settings (Try now

Certain models are not compatible with USB HID class mice.

Connecting a USB mouse

Plug the mouse cable into the TV's USB port.

Connecting a Bluetooth mouse

1. Place the Bluetooth mouse in standby status.
2. Select (MENU/123) > MENU > System > Device Manager > Mouse Settings > Add Bluetooth Mouse. Try now
3. Select the Bluetooth mouse from the scanned list, and then select Pair and connect. This pairs the Bluetooth mouse to the TV.

Using a mouse

You can use a pointer to control the TV in the same way you use a pointer on a computer.

• Selecting and running an item
  Left-click the mouse.
• Scrolling the TV menu or screen
  Scroll the mouse wheel up or down.
• Exiting the TV menu or feature

Place the pointer in any blank point on the screen, and then left-click the mouse.

Changing mouse buttons and pointer speed

(MENU/123) > MENU > System > Device Manager > Mouse Settings > Mouse Options Try now

- Primary Button

Select which button (left or right) to use when selecting and running items.

- Pointer Speed

Adjust the movement speed of the pointer.

Connecting a Bluetooth Gamepad

(MENU/123) > MENU > System > Device Manager > Bluetooth Gamepad Settings Try now

You can play the games downloaded and installed on the Smart Hub service using a Bluetooth gamepad.

Select Bluetooth Gamepad Settings, and then place your Bluetooth gamepad close to your TV. The TV scans for available Bluetooth gamepads automatically. (DualShock®4, a gamepad optimised for PlayStation, is recommended.) After scanning, you can use the Bluetooth gamepad to play games.

This function is not available on certain models in specific geographical areas.

If the TV fails to find your Bluetooth gamepad, place it closer to the TV, and then select Refresh. For more information on pairing, refer to the Bluetooth gamepad's operating manual,

Entering Text using the On-Screen QWERTY Keypad

Using additional functions

Select on the QWERTY keyboard screen. The following options are available:

- Recommend text

Enables or disables the recommended text feature. The keyboard displays recommended words so that you can enter the text more easily.

- Reset recommended text data

Deletes both the recommended words and the memorised words to clear the list.

• Predict Next Character (when using direction buttons)

Enables or disables the text prediction feature.

- Language

Selects a language from the list.

This function is not available on certain models in specific geographical areas.

Viewing Multiple Screens or Features with Multi-Link Screen

(MENU/123) > MENU > Picture > Open Multi-Link Screen

You can search the Web, use apps, and much more simultaneously while watching TV.

This function is not available on certain models in specific geographical areas.

Using Multi-Link Screen

Learning the basic functions

- Changing the channel and volume of a Multi-Link Screen

To change the channels of a Multi-Link Screen, press the channel buttons while you are watching the TV. To adjust the volume of a Multi-Link Screen, move to the screen to adjust the volume, and then press the volume buttons.

- Changing the web browser and apps

While you are using a Multi-Link Screen, the recently used web browser or apps are displayed at the right side of the screen. You can change these apps to others by using the Smart Hub.

- Changing the size of a Multi-Link Screen

To change the size of a Multi-Link Screen, move the focus to the screen you want to resize, and then use the up or down directional button. Alternatively, drag the line in the middle of the screen to the left or right. To display the focused Multi-Link Screen in full screen mode, select ✉.

- Selecting a speaker device for a Multi-Link Screen

Press the volume button, and then press the left directional button. The speaker list is displayed on the screen. Select Custom to turn on or off the sound from the selected screen. If you connect a Bluetooth headphone, you can only select Bluetooth Headphones.

On the Samsung Smart Control, press the MENU/123 button, and then select Speakers to set the speaker of each screen.

Read before using Multi-Link Screen

Before using Multi-Link Screen, make sure the TV is connected to the Internet.
UHD content and channels cannot be viewed simultaneously.
Certain TV features and apps may not be supported by Multi-Link Screen. If this is the case, exit from Multi-Link Screen and then use the feature.
You can hear the selected audio while you are using the Multi-Link Screen and you can hear the other screen's audio through the Bluetooth headphones.
The Timeshift function is not available when Multi-Link Screen is running. For more information, refer to "Using Timeshift"

Selecting the audio-source screen

You can listen to audio from one screen through the speakers and audio from a different screen through the Bluetooth headphones.

1. Move to the left screen and press and hold the Enter button while the Multi-Link Screen is open. The Options menu appears.
2. Select Settings.
3. Select Speaker Settings.
4. Select a screen for TV Speaker and another for Bluetooth Headphone.

The same screen cannot be selected for both TV Speaker and Bluetooth Headphone.

Auto is only supported by the TV Speaker. Bluetooth headphones are not supported.

Smart Hub

(MENU/123) > MENU > Smart Hub > Open Smart Hub Try now

Recent Featured NEWS GAMES Search YouTube TuneIn Vimeo YuppTV AccuWest... MY CO... APPS

The image may differ with the specific model and area.

You can surf the web, download apps with Smart Hub. In addition, you can enjoy photo, video, and music files stored on external storage devices. Place a finger on the POINTER button to display the pointer on the screen. Select at the bottom of the screen to launch Smart Hub.

To run Smart Hub while you are using a service provided by Smart Hub, go to the same path as described above.

Launching Smart Hub automatically

(MENU/123) > MENU > Smart Hub > Auto-Start Settings > Smart Hub (Try now

You can start Smart Hub automatically when you turn on the TV.

Removing or pinning an item in the Recent group

To remove or pin an item in the Recent group, select that appears above the item. The following icons are available.

On the standard remote control, press the button.

Deletes the item. Although you remove an item from the Recent group, it is not removed from your TV.

: Pin the item to the first position. To unpin the item, select again.

: Runs the item in a multiple screen with the Multi-Link Screen function. ((MENU/123) > MENU > Picture > Open Multi-Link Screen)

This icon may not be displayed depending on the item.

Testing Smart Hub connections

(MENU/123) > MENU > Support > Self Diagnosis > Smart Hub Connection Test Try now

When Smart Hub is not working, select Smart Hub Connection Test. The connection Test diagnoses the problem by checking the internet connection, your ISP, the Samsung server, and the Apps service.

If Smart Hub continues to have problems after completing the test, contact your Internet Service Provider or a Samsung Service Centre.

Using the Smart Hub Tutorial

(MENU/123) > MENU > Support > Smart Hub Tutorial

You can learn the basics of using Smart Hub and the Smart Hub service in detail.

Resetting Smart Hub

(MENU/123) > MENU > Smart Hub > Reset Smart Hub Try now

You can remove the Samsung accounts saved in the TV and everything linked to them, including apps.

Some of the Smart Hub services are for pay services. To use a for paid service, you must have an account with the service provider or a Samsung account. For more information, refer to "Using Smart Hub with a Samsung Account."
To use this feature, the TV must be connected to the Internet.
Some Smart Hub features may not be available depending on the service provider, language, or region.
Smart Hub service outages can be caused by disruptions in your Internet service.
To use Smart Hub, you must agree to the end user agreement and privacy policy. Otherwise, you will not be able to access the features and services associated with them. You can view the entire text of the Terms & Policy by navigating to (MENU/123) > MENU > Smart Hub > Terms & Policy. If you want to stop using Smart Hub, you can cancel the agreement. Try now
To view help information about Smart Hub, select the button on the Recent screen,

Using Smart Hub with a Samsung Account

Creating a Samsung account

(MENU/123) > MENU > Smart Hub > Samsung Account Try now

Some of the services are for paid services. To use a for paid service, you must have an account with the service provider or a Samsung account.

You can create a Samsung account using your email address as your ID.

To create a Samsung account, you must agree to the Samsung account end user agreement and privacy policy. Otherwise, you cannot create a Samsung account. You can view the entire content of the agreement by navigating to (MENU/123) > MENU > Smart Hub > Samsung Account > Terms and Conditions, Privacy Policy.

You can also create a Samsung account at http://content.samsung.com. Once you have an account, you can use the same ID on both the TV and the Samsung website.

Creating a Samsung account

(MENU/123) > MENU > Smart Hub > Samsung Account > Create Account > Create a Samsung account

You can create the Samsung account by following the on-screen instructions. Once a Samsung account is created, you are automatically signed in to your Samsung account.

If you want to review the Terms and Conditions, select View Details.

If you want your account to be protected, select Password (Security: High) in the field below the password field.

If you want the TV to log you in to your account automatically when you turn the TV on, tick Sign me in automatically.

Creating a Samsung account using a Facebook account

(MENU/123) > MENU > Smart Hub > Samsung Account > Create Account > Create a Samsung account using Facebook

Enter your Facebook ID and password, and then follow the on-screen instructions to complete account setup. Once a Samsung account is created, you are automatically signed in to your Samsung account.

Samsung account and Facebook account are automatically linked when you create a Samsung account with your Facebook account.

Signing in to a Samsung account

(MENU/123) > MENU > Smart Hub > Samsung Account > Sign In

You can automatically sign in to your Samsung account and use the Smart Hub feature.

Registering your Samsung account to the TV

If you already have a Samsung account, you can register that account to the TV. Select + > Sign In on the Samsung account screen and follow the on-screen instructions.

Signing in to a registered Samsung account saved on the TV

If you register a Samsung account, it is saved on the TV. To sign in to a registered Samsung account, just select it on the TV.

Linking your Samsung account to external service accounts

You can automatically log in to the linked apps' accounts when you log into your Samsung account by linking your Samsung account to an external service accounts.

To use Link Service Accounts, you must first log into your Samsung account.

Linking or disconnecting a service account

(MENU/123) > MENU > Smart Hub > Samsung Account > Link Service Accounts

- Linking a service account

Select an account from the list and log in to the account by following the on-screen instructions.

The service account is linked to the Samsung account.

- Disconnecting a linked account

Select an account from the list and unlink the account by following the on-screen instructions.

Changing and adding information to a Samsung account

(MENU/123) > MENU > Smart Hub > Samsung Account > Edit profile

You can manage your Samsung account. Enter your password with the keyboard displayed on the TV's screen, and then select Done. You can perform the following functions on the screen.

To change the account information, you must be logged in to your Samsung account.

• Change Your Profile Image
• Register Your Face to your Samsung Account
Registered face is used for Sign-in Method.
- Selecting a Samsung Account sign-in method
• Turning auto login on or off
- Entering Basic User Information
• Subscribing to the Samsung e-Newsletter

Deleting a Samsung account from the TV

(MENU/123) > MENU > Smart Hub > Samsung Account > Remove Accounts from TV

You can remove a Samsung account and password information from your TV. The account information for any external accounts linked to the account is also removed from the TV.

To remove the account information, you must be logged in to your Samsung account.

Using the GAMES Service

Featured >GAMES

GAMES My Page Spotlight Most Popular What's New Top Crossing Arcade/Action Sports/Racing Party/Music 09 dAm SHUFFLE Monster SKIP WORLD'S AUDITIC SHOOTING ST

The image may differ with the specific model and area.

You can download and play the optimised game apps for your TV. Select a category from the top of the screen. You can install and run the apps arranged by genres, such as Spotlight, Most Popular, What's New, Top Grossing. You can also manage the downloaded game apps in My Page.

To use this feature, the TV must be connected to the Internet.

This function is not available on certain models in specific geographical areas.

Managing games with the pop-up Options menu

Move the focus to a game and then press and hold the Enter button. You can use the following functions.

• Download / Delete
  • View Details
• Update

The pop-up menu may differ with the app you selected.

Viewing the Detailed Information screen

Move the focus to a game, and then press the Enter button. You can also select the View Details function. See above.

Installing and running a game

Installing games

Select a game to install and press and hold the Enter button. Select Download in the context-sensitive window or install the game in the detailed game information screen.

To get the information about the game controllers that are compatible with the downloaded game, select GAMES > Options > Game Controller Guide. Alternatively, select 📂 on the game's detailed information screen,

When the TV's internal memory is insufficient, you can install a game on a USB device.

You can play a game installed on a USB device only when the USB device is connected to the TV. If the USB device is disconnected during game playing, the game is terminated.

You cannot play the game installed on the USB device on a PC or another TV.

Launching an installed game

To run a game, you need to sign in to your Samsung account first. After signing in, select a game on GAMES > My Page on the GAMES screen. The detailed information screen about the selected game appears. Select Play. The game starts.

Managing downloaded or purchased games

Select My Page on the GAMES service.

Updating a game

Select My Page > Options > Update My Games. You can update games installed on the TV.

Editing a nickname

1. Select 📄 on the GAMES service screen, and then select Edit Nickname.
2. Enter your nickname with the on-screen keyboard, and then select Done.

Your nickname is displayed on the My Page screen.

Enabling automatic game updates

(MENU/123) > MENU > Smart Hub > App & Game Auto Update or App Auto Update

To update games automatically, set App & Game Auto Update or App Auto Update to On. Games will be updated automatically when an update becomes available.

The actual name may differ from specific geographical areas.

Removing a game

1. Select 🎨 at My Page screen, and then select Delete My Games.
2. Select a game remove and then press the Enter button. To select all games, select Select All.
   You can remove a game by pressing and holding the Enter button with the game selected.
3. When the selection is complete, select Delete.

Rating a game

You can rate a game on the detailed information screen.

This feature is only available when the game is installed on your TV.

Registering a coupon

Enter the coupon number in the My Page screen to register it.

Using the Apps Service

>Featured >Apps

APPS My Apps What's New Most Popular Kids Video Game Sports Information Lifestyle Education —SPORT TV

The image may differ with the specific model and area.

You can enjoy a wide range of content including free news, sports, weather, and games by installing corresponding apps on your TV. You can download the apps from Smart Hub. Select a category from the top of the screen. You install and run the apps arranged by genres, such as What's New, Most Popular.

To use this feature, the TV must be connected to the Internet.

When Smart Hub is launched for the first time, the default apps are automatically installed. The default apps may differ with the region.

Managing Apps with the pop-up Options menu

Move the focus to an app in the second row or below, and then press and hold the Enter button. The option menu appears displaying the following functions.

• Delete
  • View Details
• Reinstall

The pop-up menu may differ with the apps.

Installing an app

Installing an app quickly

1. Select a category on the Apps screen.
2. Move the focus to an app, and then press and hold the Enter button. The context-sensitive menu appears.
3. Select Download. The selected app is installed on the TV.

You can view installed apps on the Apps screen.
You can also, install the app from detailed information screen.
When the TV's internal memory is insufficient, you can install an app on a USB device.
You can run an app installed on a USB device only when the USB device is connected to the TV. If the USB device is disconnected while an app is running, the app is terminated.
You cannot run an app installed on the USB device on a PC or another TV.

Launching an app

You can launch an app by selecting an app on the Apps screen. The icons below appear in the selected apps and indicate the following:

• ☐: The app is installed on a USB device.
• 📄: The app has a password.
• The app is installed.

Removing an app from the TV

Select an app to remove on the Apps screen and press and hold the Enter button to confirm it. If you want to remove multiple apps, select all the apps to delete and select Options from the top of the screen, and then select Delete My Apps.

Ensure that the related app data is also removed when you remove an app.

Locking and unlocking apps

Select Options > Lock/Unlock My Apps on the Apps screen. The password input screen appears. Enter your password, and then select apps to lock or unlock. When done selecting, select Save. All selected apps are locked or unlocked.

Updating apps

Select Options > Update Apps on the Apps screen. The TV searches for app updates, and then displays the list. After scanning, you can update some apps or all apps.

Rearranging apps

Select Options > Sort by on the Apps screen, and then sort the apps by date, time or others by selecting requirements.

Rating and sharing a purchased content

Rating Content

You can set the star score by using the left or right directional button on the detailed information screen.

Using other app features and functions

(MENU/123) > MENU > Smart Hub > Auto-Start Settings > Channel-bound Apps & Ticker

You can configure additional app features and functions.

Using channel bound apps

You can receive the information on TV programmes and other relevant services while viewing TV by using an app installed on the TV and linked to a specific channel.

This function is only available when an app supporting Channel-bound Apps & Ticker is installed on the TV.

Using the e-Manual

Launching the e-Manual

(MENU/123) > MENU > Support > e-Manual

You can view the embedded e-Manual containing information about your TV's key features. Press the MENU/123 button, and then select e-Manual.

1. Select a category from the e-Manual screen. The content of the selected category appear on the screen.
2. Select an item from the list. The corresponding e-Manual topic appears.

On the standard remote control, press the E-MANUAL button.
Alternatively, you can download a copy of the e-Manual from Samsung's website.
Words in blue (e.g., Picture Mode) indicate a menu item.

The arrows in the menu navigator indicate the menu path. For example, MENU/123 > MENU > Picture > Picture Mode means you press the MENU/123 button on the Samsung Smart Control, and then select MENU, Picture, Picture Mode in order on the screen.

Using the buttons in the e-Manual

Search): Brings up the search screen. Enter a search term, and then select Done. Select an item from the search result to load the corresponding page.
(A-Z) (Index): Brings up the index screen. Select a topic from the list to navigate to the relevant page.

Availability depends on the area or language.

(Recent pages): Displays a list of previously read pages. Select a page. The e-Manual jumps to the selected page.

Accessing the associated menu screen from an e-Manual topic page

(Try now): Allows you to access the corresponding menu item and try out the feature right away.
(Link): Allows you to access the corresponding reference page.

The e-Manual cannot be accessed from some menu screens.

Updating the e-Manual to the latest version

You can update the e-Manual in the same way you update apps.

Using the web browser

You can surf the Internet on the TV in the same manner as you would using a PC - even while watching a TV programme using PIP. Select Help to view the information of the Internet web browser.

For a more convenient web browsing experience, use a keyboard and mouse.

The browsing page may differ from that on a PC.

The PIP function in the web browser is not available on models with the Multi-Link Screen feature.

Browsing preferences

Select ≡ >Settings. Configure the browsing settings to meet you needs.

- General

Hides taps or menu bars automatically after a period of inactivity, or resets all user settings.

The bookmarks and browsing histories that you made will not be reset.

- Home Page

Sets the homepage when you launch the web browser.

- Search Engine

Searches for information that you entered and display the result web pages.

• Privacy & Security

Prevents you from accessing inappropriate web pages or sets not to save the browsing history.

- Blocked pages

Blocks or unblocks pages. You can manage a list of pages to block.

- Approved pages

Limits to use only the page that you have approved. To use this option, set a password. You can add or remove the approved pages.

- Encoding

Set the encoding to Auto, or selects an encoding method from the list.

- About

Displays the current version of Web Browser.

Using the MY CONTENT Service

Featured

MY CONTENT

Try now

MY CONTENT Mobile Device USB 2 PC Connection Guides

The image may differ with the specific model and area.

You can play the media content saved on the storage devices, such as a USB device, mobile device, and camera, in the TV. When you connect a storage device to the TV, the TV displays a tab with the name of the connected device. Select the tab to confirm the content saved on the storage device.

You cannot play media content if the content or the storage device is not supported by the TV. For more information, refer to "Read Before Using Voice, Motion, or Face recognition."

Backup important files before connecting a USB device. Samsung is not responsible for damaged or lost files.

Read before playing media content

To connect the TV to a computer, refer to "Connecting a Computer."

To connect the TV to a USB or external storage device, connect the device to the TV's USB port.

To connect the TV to a mobile device, refer to "Connecting a Mobile Device."

Playing multimedia content in a computer or mobile device

Before connecting to a computer or mobile device, configure the network settings.

Playing multimedia content saved on a computer or mobile device

>Featured MY CONTENT

To play multimedia content located on a computer or mobile device on the TV, you must allow the connection with the computer or mobile device on the TV.

1. Connect a computer or mobile device. The TV displays the devices' name and lists the media contents in the device.
2. Select the media content to play from the list. The selected media content plays.
3. To stop playing media contents, press the button or RETURN button.

Alternatively, move to the media content you want to play, and then press the button to play the content.
To connect a computer through your home network, refer to "Connecting a Computer."
The content shared by a computer or a mobile device may not be played depending on the encoding type and file format of the content.
The content may not be played smoothly depending on the network status. If this occurs, transfer the content to a USB storage device, and then play the content from the device.
To connect a mobile device through Smart View 2.0, refer to "Connecting a Mobile Device."

Playing media content saved on a USB device

1. Select a USB device name on the MY CONTENT screen. The TV displays a thumbnail list of the media contents saved on a USB device.
2. Select the media content to play from the list. The media selected content plays.
3. To stop playing media contents, press the button or RETURN button.

While video with UHD-level resolution is being played, Motion Control is not available.

Alternatively, if you select a USB device on the Source screen, the TV jumps to the MY CONTENT screen automatically.

Safely Removing a USB Device

1. Press the SOURCE button. The Source screen appears.
2. Select the USB device to remove and press and hold the Enter button.
3. Select Remove USB Device in the list.

Buttons and functions available while viewing photos

Press the Enter button while viewing photos to display available options. You can also view the thumbnails of photos saved on the TV while viewing photos. The options disappear when you press the RETURN button.

• Pause / Play
  Start or stop the slideshow. Using slideshow, you can play all the photos in a folder one by one.

- Previous / Next

View the previous or the next photo.

- Pause BGM / Play BGM

Start or stop background music.

Function Description
Slideshow Speed	Sets the slideshow speed.
Slideshow Effect	Applies transition effects for the slide show.
Rotate and Zoom	Zooms in by up to a factor of 4.Rotates the photo.
Background Music	Plays background music while the TV displays photos.The music files must be saved in the same USB device as the photo file.When background music plays, the music icon appears on the screen. Using the music icon, you can pause the current music file or play another music file.
Sound Mode	Displays a list of Sound Modes and allows you to select a mode.This mode is supported only when background music is playing.
Speaker List	Selects the speakers to play the audio through. This function is only available when you have a home theatre or receiver connected to the TV.TV Speaker: Plays the background music through the TV speakers.Audio Out/Optical: Plays the background music through the external speakers.Speaker Settings: Plays the background music through a speaker that you want.Sound Mode: Changes the sound mode during playback when you play the music through the TV speakers.Equaliser: Allows you to adjust the loudness of specific frequency ranges to control the richness of the sound. To restore the defaults, selectReset.
Picture Mode	Displays a list of Picture Modes and allows you to select a mode.
Information	Displays detailed information about the current photo.

Buttons and functions available while viewing videos

Press the Enter button while viewing videos to display available options. Preview images of the frames at the same time intervals are displayed so that you can move to a specific frame easily. The options disappear when you press the RETURN button.

- Pause / Play

Pauses or plays the video. You can use the following functions when the video is paused. With the video paused, the TV does not play audio.

• Step: Scans the paused video one frame at a time by pressing the button.
• Slow Motion: Plays the video in slow playback speed (1/8, 1/4, 1/2) by pressing the button.

- Rewind / Fast Forward

Rewinds or fast forwards the video. To increase the rewind or fast forward speed up to 3 times faster than normal, select the button repeatedly. To restore normal playback speed, press the button.

- Previous / Next

Plays the previous or next video. Press the button twice to play the previous video. Press the button once starts the current video from the beginning.

Press the ▶ button to play the next video.

- Repeat

Plays the current video file repeatedly or all video files in the same folder repeatedly.

Function Description
Picture Size	Changes the size of the screen. The supported picture sizes differ with the video.
Subtitles	Controls the subtitles of the video.Subtitles:Turns the subtitles on or off.Language:Sets the subtitle languageSync:Adjusts the synchronisation when the video and the subtitles are not synchronised.Reset Sync:Resets the subtitle synchronisation adjustment to 0.Size:Changes the font size for the subtitles.Encoding:Changes the encoding language when the subtitles are displayed incorrectly.
Rotate	Rotates the video.
Picture Mode	Displays a list of Picture Modes and allows you to select a mode.
Sound Mode	Displays a list of Sound Modes and allows you to select a mode.
Speaker List	TV Speaker:Plays the background music through the TV speakers.Audio Out/Optical:Plays the background music through the external speakers.Speaker Settings:Plays the background music through a speaker that you want.Sound Mode:Changes the sound mode during playback when you play the music through the TV speakers.Equaliser:Allows you to adjust the loudness of specific frequency ranges to control the richness of the sound. To restore the defaults, select Reset.
Audio Language	Selects a audio language. This function is only available when the video supports multi-track sound.
Information	Displays detailed information about the video.

Buttons and functions available while playing music

- Pause / Play

Pauses or resumes the music.

- Previous / Next

Plays the previous or next music file. Press the button twice to play the previous music file. Press the button once starts the current music file from the beginning.

Press the ▶ button to play the next music file.

- Repeat

Plays the current music file repeatedly or all music files in the same folder repeatedly.

- Shuffle

Plays the music files in random order.

- Speaker List

• TV Speaker: Plays the background music through the TV speakers.
  – Audio Out/Optical: Plays the background music through the external speakers.
  – Speaker Settings: Plays the background music through a speaker that you want.
• Sound Mode: Changes the sound mode during playback when you play the music through the TV speakers.
• Equaliser: Allows you to adjust the loudness of specific frequency ranges to control the richness of the sound. To restore the defaults, select Reset.

- Picture Off

Plays the music files only with the screen off.

Listening to music in HD quality

You can enjoy HD music in HD native quality. Move to MY CONTENT service and select a music file to play in HD quality.

Set HD Audio ((MENU/123) > MENU > Sound > Additional Settings > HD Audio) to On before playing music in the HD Audio format.

Standard audio signals are sampled at 48 kHz while HD audio signals are sampled at 96 kHz.
Some S/PDIF receivers may not be compatible. For such incompatible receivers, deactivate HD Audio mode and use normal audio mode instead.
Some external audio players connected via HDMI, Bluetooth, or Wi-Fi networks are not able to play the HD audio signals.
If a music file supports the HD audio format, the HD icon appears in the list.
Select the music file, and then select to play it.
When you set HD Audio mode to Off during playback, the next music file is played with standard audio signals.
When you play an HD music file while the Multi-Link Screen is running, Multi-Link Screen is automatically terminated.

Functions on the media content list screen

You can use the following functions on the media content list screen of a storage device.

- Filter By

Filters the media content to display the type of media you want.

- Sort By

Sorts the content list. The sorting methods change depending on the type of content you have selected.

This function is not available when Filter By is set to All.

- Delete

Deletes the recorded media content from the media content list.

This function is not available when Filter By is set to All.

- Play Selected

Plays the selected media content from the media content list.

This function is not available when Filter By is set to All.

Using the NewsON Service

Featured NewsON

NewsON

The image may differ with the specific model and area.

You can find daily information on a wide variety of topics in a smart and convenient way, updated in real time. NewsON brings you the latest headlines, top stories, popular issues, and weather forecasts.

Before you use the NewsON Service, check if the TV is connected to the Internet.

The image may differ with the model.

This service or some of functions is not available on all countries or region.

News

Select an article on the screen. The selected article will be displayed on the screen in detail. The articles are updated in real time.

Weather

Select a weather-related item on the screen. The selected item will be displayed in detail.

The weather information is provided for major cities of your country.

Controlling the TV with Your Voice

MENU/123 >Voice Recognition

This function is only supported by the models with the Samsung Smart Control.

Illustration of a person using a remote on a TV screen (no text or symbols visible)

The Voice Recognition screen may differ from the image above, depending on the model.

When you run Voice Recognition, the Voice Recognition User Guide appears at the top of the screen. This Guide differs by the language for which Voice Recognition is supported.

You can run Voice Recognition in the short distance recognition mode that uses the microphone built into the Samsung Smart Control:

- Press the MENU/123 button, and then select Voice Recognition.

- Press and hold the MENU/123 button.

Press and hold the MENU/123 button and say the command 10 to 15cm from the microphone on the Samsung Smart Control. The optimal volume for voice commands is between 75 dB and 80dB.

Read before using voice recognition

(MENU/123) > MENU > System > Voice Recognition

You can access and select certain menu options and functions using voice commands. For more effective voice recognition, speak slowly and clearly in the language specified in the (MENU/123) > MENU > System > Voice Recognition Language option.

For more information about voice recognition, refer to "Read Before Using Voice, Motion, or Face recognition".

Learning voice recognition basics

• View all voice commands:

Press the down directional button on the Samsung Smart Control to display a complete list of voice commands by category. Alternatively, say "Help."

• Deactivating voice recognition:

Say "Close", or press the RETURN button to terminate voice recognition.

The TV recognises predefined voice commands only. These voice commands may differ from the manual depending on the version of the TV.

Enabling or disabling TV voice

(MENU/123) > MENU > System > Voice Recognition > Use TV Voice Try now

Enable or disable the TV voice with your voice commands.

Selecting a gender for the TV voice

(MENU/123) > MENU > System > Voice Recognition > Voice Gender Try now

You can select a gender of the TV voice when you use the Voice Recognition function.

Changing the voice recognition language

(MENU/123) > MENU > System > Voice Recognition > Language Try now

You can select a language to use with the Voice Recognition function.

Interactive voice recognition is not available in some languages. If the selected language is not available, select a different language.

Using imperative voice recognition

1. Say the trigger word 4m from the TV. Or, press the MENU/123 button on the Samsung Smart Control. When the microphone icon appears on the screen, you can use the Voice Recognition function.

2. Say a command. You can use voice recognition function to operate the TV while you are watching a TV programme or other videos.

This function is dependent on the specific model.

Using interactive voice recognition at a short distance

You can set up a schedule viewing, access VODs (Videos on Demand), search for and launch applications, and execute various other functions using specified voice commands without having to remember specific commands or keywords.

Activate Voice Interaction and say a command. See the examples below:

• When you want to find a specific content:
  "***(Title)" / "Find *** (title)"
• When you want to know specific information:
  "What's the weather in *** (place name)," / "What is the *** (company) stock price?"
• When you use the TV's function:

"Set Sleep Timer after 30 minutes"

Some sentences above may not be supported depending on the country.

Checking ambient noise and illumination (Voice and motion recognition environment Check)

(MENU/123) > MENU > Support > Self Diagnosis > Voice & Motion Control Environment Check or Motion Control Environment Check Try now

You can test the ambient noise and brightness levels affecting the TV camera and microphone to ensure that they are suitable for voice and motion recognition use.

The actual name may differ from specific geographical areas.

Using the Voice Recognition Tutorial

(MENU/123) > MENU > Support > Voice Recognition Tutorial Try now

The tutorial lets you familiarise yourself with the basics of using Voice Recognition. Run Voice Recognition Tutorial from the Support menu, or run Voice Recognition and say "Tutorial".

Controlling the TV using Motions (Motion Control)

(MENU/123) > MENU > System > Motion Control Try now

Motion Control is not available.

• When you are playing UHD-level video saved on a USB device
• When you are viewing the digital channel with UHD-level resolution
• When you are using the Samsung Smart Control or a mouse

This function is not available on certain models in specific geographical areas.
This function is not supported by some apps.
For more information, refer to "Read Before Using Voice, Motion, or Face recognition."

To use this function, your TV should be connected to the optional TV camera. The optional TV camera must be connected to the dedicated USB port at the back of the TV. Other USB ports do not support the TV camera or Motion Control.

Testing ambient illumination using the TV camera

(MENU/123) > MENU > System > Motion Control > Motion Control Environment Test Try now

Run this test before using Motion Control to ensure proper functionality.

1. Stand 1.5 to 3.5m from the TV screen. Start Motion Control Environment Test, and then select Start.

If the TV screen is reflecting light or there are objects moving in the background, the TV may not recognise the motion of your hand.

1. Face the TV camera, and follow the onscreen instructions.

Activating motion control

(MENU/123) > MENU > System > Motion Control > Motion Control Try now

Face the TV camera. Lower your hand to a comfortable position. Raise your hand with your index finger fully extended upwards, and then move your hand slowly to the left or right. When your hand is successfully recognised by the TV camera, motion control is activated, and a pointer and motion control icons appear on the screen.

To deactivate motion control, move your hand out of the range of the TV camera. To reactivate it, simply move your hand toward the TV camera within 3 seconds.

Motion Control may be terminated if your index finger is not fully extended or you move it to fast.

Using the Motion Control Tutorial

(MENU/123) > MENU > Support > Motion Control Tutorial Try now

You can learn the basics of using motion control.

Learning motion control basics

The following actions are available:

Moving the pointer

Move your hand to move the pointer accordingly.

Selecting an item

Fold down and raise your index finger to select items. You can select a TV menu or run a function. Keeping your index finger lowered is like holding down a remote control button.

Returning to the previous menu

Hand pointing upward with a blue circular arrow icon (no text or symbols)

Make a circle with your hand in the counterclockwise direction to return to the previous screen menu.

Displaying the context-sensitive menu / Viewing broadcast information

Fold your index finger down for 1 second and then raise it. This action displays the context-sensitive menu. / While viewing broadcasts, fold down your index finger for 1 second, and then raise it at any blank point on the screen. You can view the broadcast information saved automatically for all channels.

Showing and hiding the animated motion guide

(MENU/123) > MENU > System > Motion Control > Animated Motion Guide Try now

You can display an animated guide when motion control is activated,

When you run an app using motion control for the first time, the animated guide appears.

Adjusting pointer speed

(MENU/123) > MENU > System > Motion Control > Pointer Speed Try now

Select a pointer and adjust its speed.

Changing the motion control screens

Showing the motion control screens while viewing a broadcast

You can display the following screen icons by activating motion control while watching the TV. Select an icon to perform the associated action or function.

Blue gradient background with a white circular icon at the top (no text or symbols)

Blue gradient background with white circular icons and a central white hand cursor icon (no text or symbols)

Direction Control Mode Motion Pointing Mode

• Direction Control Mode

If you run Motion Control for the first time by raising you hand while viewing a broadcast, the Direction Control Mode screen appears. The screen contains the Direction Control icon.

- Motion Pointing Mode

Point at the centre of the Direction Control icon with your index finger, and then fold down your index finger. The four icons allowing you to run the main functions of your TV appear. To switch to the Direction Control Mode screen, move your hand out of the screen and then raise your index finger at the screen.

Icon Description
	Select and to adjust the volume.Select and to change the current channel.Select the point at the centre of this icon to change to the Motion Pointing Mode screen.
	Allows you to adjust the volume or select the speakers to use.
	Displays the channel list or information about the current programme.
	Launches Smart Hub.
	Displays the On-screen Remote.

Showing the Direction Control icon while not viewing a broadcast

To display the Direction Control icon while not viewing a broadcast, move to the centre of the top side of the screen, and then fold down you index finger. After the Direction Control icon appears, move the focus to the 📁 or 🌐, and then fold down your index finger to display the On-screen Remote or launch Smart Hub. The Direction Control icon disappears when there is no user action for 5 or more seconds.

Displaying the hidden direction control icon while using various services when not viewing broadcasts.

Using Face recognition

You can register your face using the TV camera, and sign in to your Samsung accounts using the face recognition function. Only one face can be registered per account. Depending on the ambient illumination level and/or shadows over a face, the TV may have difficulty recognising it.

This function is only supported for the 6400 series models or higher.
For more information, refer to "Read Before Using Voice, Motion, or Face recognition."
This function is not available on certain models in specific geographical areas.

To use this function, your TV should be connected to the optional TV camera. The optional TV camera must be connected to the dedicated USB port at the back of the TV. Other USB ports do not support the TV camera or Face recognition.

Registering your face to your samsung account

Select after entering your account password. To create a Samsung Account if you do not already have one, and then select Take picture, align your face within the red circle. When the circle turns green, the TV has recognised your face.

To use this function, you must sign in to your Samsung account.
Your entire face must be visible to the camera. Avoid shadows over your face. Shadows prevent the camera from recognising your face accurately.
Keep your expression as neutral as possible. In addition, keep your mouth closed as neutral as possible.
For more information, refer to "Creating a Samsung account."

Changing your login method of face recognition

(MENU/123) > MENU > Smart Hub > Samsung Account > Edit profile

You can change the log in method to face recognition. To change the log in method, follow these steps:

1. Enter your password, and then select OK.
2. On the Edit Profile screen, select Sign-in Method. In the drop down list that appears, select Profile image selection and facial recognition (Medium security).
3. Select Done.

Signing in to a Samsung account using face recognition

(MENU/123) > MENU > Smart Hub > Samsung Account > Edit profile

To log in using Face recognition, follow these steps:

1. Select your Samsung account.

2. If you have set the Samsung account sign in option to Face Recognition, the TV automatically recognises your face. If recognition fails, try again.

Your entire face must be visible to the camera. Avoid shadows over your face. Shadows prevent the camera from recognising your face accurately.
Keep your expression as neutral as possible. In addition, keep your mouth closed as neutral as possible.
Once recognition succeeds, the TV logs in to Smart Hub automatically. If the TV recognises two or more registered faces, a list of corresponding accounts appears. Select the appropriate account. If the TV detects an unregistered face, it displays “Unregistered” on the screen.

Viewing Digital Broadcast Information at a Glance

Using the guide

(MENU/123) > MENU > Broadcasting > Guide Try now Try now

You can get an overview of each digital channel's programme lineup from the Guide.

You can move through the Guide in 24 hours jumps in either direction each time you press the◀ or ▶ button. You can select the buttons that appear at the bottom of the screen by using the POINTER button of the Samsung Smart Control.

The information in the Guide is for digital channels only. Analogue channels are not supported.

To view the Guide, you must first set the TV's clock ((MENU/123) > MENU > System > Time > Clock).

To access the Guide functions after launching the Guide, press and hold the Enter button on the remote control. A pop-up window listing the following functions appears.

- Channel Filter

Filters the channels displayed in the Guide by the following categories: All, TV, Radio, Free, Scrambled, and Favourites 1 – Favourites 5.

- Schedule Manager

Displays the schedule manager.

For information about the schedule manager, refer to "Setting Up a Schedule Viewing."

• Edit Favourite Channels

Allows you to set a channel that you select in the Guide as a favourite.

• View Details

Displays detailed information about a selected programme. The programme information may differ with the broadcast signal and may not be available at all for certain programmes.

• Select a current programme on another channel, and then View Details to Watch or Record the programme.
• Select an upcoming programme, and then select View Details to set up a Schedule Viewing or Schedule Recording.

On the standard remote control, press the INFO button.
For more information about watching or Schedule Viewing, refer to "Setting Up a Schedule Viewing."
You can only view programmes scheduled after the current time,
For more information on Schedule Recording, refer to "Recording Programmes."

- Record

Starts instant recording for the selected programme.

Checking current programme info

To get information about a show that you are watching, press the Enter or INFO button.

To view information about, start instant recording for, or apply the Timeshift function on a current programme, select it in the Programme Info window.

To view information about upcoming programmes, use the left or right directional button. To set up a Schedule Viewing or Schedule Recording for a programme, select that programme.

To view the programme info, you must first set the TV's clock ((MENU/123) > MENU > System > Time > Clock).

For more information on Schedule Recording, refer to "Recording Programmes."

On the standard remote control, press the INFO button.

The programme information may differ with the type of incoming signal and may not be available at all for certain programmes,

For more information on Schedule Viewing, refer to "Setting Up a Schedule Viewing."

Changing the broadcast signal

(MENU/123) > MENU > Broadcasting > Aerial Try now

You can choose your preferred method of receiving digital broadcasts.

This function is not needed if your TV is connected to a cable or satellite box,

Checking digital channel signal info and strength

(MENU/123) > MENU > Support > Self Diagnosis > Signal Information Try now

You can check the digital channel's signal information and strength.

If your TV is attached to a separate, over-the-aerial antenna, you can use the signal strength information to adjust the antenna for increased signal strength and improved HD channel reception.

This function is only available for digital channels.

Recording Programmes

The 📊 appears next to programmes and channels for which a Schedule Recording has been set.

This function is not available on certain models in specific geographical areas.

Read all precautions before using the recording feature. Refer to "Before Using the Recording and Timeshift Functions" for more information.

Recording programmes

You can record current and upcoming programmes.

Instant recording

To begin recording the current programme right away, press the button on the standard remote control. However, this button is not available on certain models.

Or, press the MENU/123 button on the Samsung Smart Control, and then select the ● button on the On-screen Remote.

Using the instant and schedule recording options from the guide

To start instant recording of a current programme, select that programme from the Guide, and then select Record. To start a schedule recording of a programme that will aerial in the future, select that programme from the Guide, press and hold the Enter button, select View Details, and then select Schedule Recording.

Using the Instant and Schedule Recording options from programme info window

To start instant recording or a schedule recording of a programme, press the Enter button. The Programme Info window appears. To start instant recording of a current programme, select. To start a schedule recording of a programme that will aerial in the future, press the left or right directional button to move to that programme, press the Enter button, and then select.

On the standard remote control, press the Enter button or INFO button.

Using schedule recording to record on a specified date and time

(MENU/123) > MENU > Broadcasting > Schedule Manager > Schedule

1. Select Schedule Recording.
2. Specify the Source, Channel, Repeat, Start Time, and End Time options for the programme you want to record, and then select OK to finish.

Using the functions available while recording a programme

Press the Enter button while recording a programme. The following buttons and the recording progress bar appear on the screen.

- More Info

Displays detailed information about the programme being recorded.

The programme information may differ with the broadcasting signal and may not be available at all for certain programmes,

- Recording Time

Sets the recording time.

- Stop Recording / Go to Live TV

Stops recording. / Shifts viewing to live TV.

Using the buttons on the remote control while recording a programme

- Pause / Play

Press the ▶ or □ button on the remote control to pause the recording screen or resume the paused recording screen.

When the recording is paused, you can use the following functions. However, no audio is heard while the recording is paused.

- Step: Press the MENU/123 button on the Samsung Smart Control, and then select the button to scan through a video one frame at a time.

On the standard remote control, press the button.

- Slow Motion: MENU/123 button on the Samsung Smart Control, and then select the ➕ button to play the video back at 1/2 the normal speed.

On the standard remote control, press the button.

- Rewind / Fast Forward

Press the MENU/123 button on the Samsung Smart Control, and then select◀ or ▶ button to speed up rewind or fast forward to maximum speed in 7 steps.

On the standard remote control, press the ◀ or ▶ button.

This function is not available while you are watching a programme that is currently being broadcast.

Managing the schedule recording list

(MENU/123) > MENU > Broadcasting > Schedule Manager

You can change the settings of scheduled recording sessions or cancel scheduled sessions altogether.

Viewing recorded programmes

>Featured MY CONTENT

1. Select a USB recording device. The CONTENTS folder appears.

2. Select a recorded programme file from the CONTENTS folder to play the selected file.

This function is not available on certain models in specific geographical areas.

Using the functions available while playing a recording

Press the Enter button. The following buttons appear. To hide the buttons, press the RETURN button.

Buttons that appear are different depending on the file being played.

- Pause / Play

Pauses the file (recorded programme) or resumes playing the file if paused.

When the video is paused, you can use the following functions. However, no audio is heard while the video is paused.

• Step: Select the button, to scan through a video one frame at a time.
• Slow Motion: Select the ▶button to play the video back at 1/2 the normal speed.

- Previous / Next

To restart the current video from the beginning, press the button once.

To play the next recorded programme file, select the ▶ button.

- Repeat

Plays the current file repeatedly or all files in the same folder repeatedly.

- Rewind / Fast Forward

Speeds up rewind/fast forward to its maximum speed in 3 steps. To restore normal playback speed, select ▶.

This function is not available while you are watching a programme that is currently being broadcast.

• Highlights Player

Displays highlights of the current recording.

This function is only available when highlights of a programme which was recorded in Sports Mode have been saved.

- Options

Function Description
Picture Size	Changes the size of the screen. The supported picture sizes differ with the video.
Subtitle	Subtitle: Turns the subtitles on or off.Subtitle Language: Changes the language.
Picture Mode	Changes the picture mode.
Sound Mode	Changes the sound mode.
Speaker List	Allows you to select the speakers to play the audio through.This function is only available when you have a home theatre or receiver connected to the TV.
Audio Language	Allows you to select a different audio language.This function is only available with files that support multi-track sound.
Information	Displays detailed information about the current file.

Managing recorded files

>Featured MY CONTENT

Select a USB device containing recordings. A list of recordings appears.

This function is not available on certain models in specific geographical areas.

Using the functions for the saved file list

• Filter By
  Displays only files that match the selected filter.
• Sort By
  Sorts files according to the selected viewing mode.

This function is unavailable if Filter By is set to All.

- Delete

Deletes the selected files, except for locked files.

This function is unavailable if Filter By is set to All.

- Play Selected

Plays the selected files. Select files from the file list and then select Play.

If the viewing mode is set to Folder view, you can select the files included in the same folder only. Change the viewing mode to add a file contained in other folders to the playlist.

This function is unavailable if Filter By is set to All.

Setting Up a Schedule Viewing

The 📁 appears next to programmes that have been configured for a Schedule Viewing.

To set up a Schedule Viewing, you must first set the TV's clock ((MENU/123) > MENU > System > Time > Clock).

Setting up a schedule viewing for a channel

Setting up a schedule viewing for digital channel

You can set up a schedule viewing for a digital channel on the Guide or Information screen.

• The Guide screen

On the Guide screen, press the left or right directional button to move to a programme you would like to view, and then press and hold the Enter button. Select Schedule Viewing on the pop-up menu that appears. The programme is scheduled for viewing. The Guide screen re-appears.

• The Information screen

Press the Enter button while you are watching the TV. The Programme Info window appears. Press the left or right directional button to move to a programme you would like to view, and then Press the Enter button. Select that appears on the Programme Info window. The programme is scheduled for viewing.

On the standard remote, press the Enter or INFO button.

Setting up a schedule viewing for analogue channel

(MENU/123) > MENU > Broadcasting > Schedule Manager Try now

You can set up a scheduled viewing for an analogue channel. Select Schedule > Schedule Viewing.

Specify the Source, Channel, Repeat, and Start Time options for the programme you want to watch, and then select OK to finish.

Editing a Schedule Viewing

(MENU/123) > MENU > Broadcasting > Schedule Manager

On the Scheduled screen, select a Schedule Viewing. A pop-up menu appears. Select Edit. Change the time, days, or channel. Select OK when done.

Cancelling a Schedule Viewing

(MENU/123) > MENU > Broadcasting > Schedule Manager

On the Scheduled screen, select a Schedule Viewing. A pop-up menu appears. Select Delete. Select OK in the pop-up menu. The Schedule Viewing is removed.

You can set up a maximum total of 30 Schedule Viewing and Schedule Recording entries.

Using Timeshift

You can pause and rewind live TV as you would a DVD by using Timeshift.

Activating this function disables the Broadcasting function.

Read all precautions before using the Timeshift function. For more information, refer to "Before Using the Recording and Timeshift Functions."

This function is not available on certain models in specific geographical areas.

To activate the Timeshift function while watching TV, press the Enter button, and then select on the Programme Info window. The TV displays a progress bar and the following buttons at the top of the screen:

- More Info

Displays detailed information about the current programme.

The programme information may differ with the type of incoming signal and may not be available at all for certain programmes.

This button is only available when you are watching a live programme.

- Record

Starts instant recording for the current programme.

- Go to Live TV / Stop Timeshift

Shifts to live TV or exits Timeshift.

Using the buttons on the remote control while using Timeshift

- Pause / Play

Pauses the screen.

Press the ▶ or ▪ button on the remote control to pause or resume the current programme while using the Timeshift function. The following functions are available while the current programme is paused. However, there is no audio output while the current programme is paused.

- Step: Press the MENU/123 button on the Samsung Smart Control, and then select the button to scan through a video one frame at a time.

On the standard remote control, press the button.

- Slow Playback: Press the MENU/123 button on the Samsung Smart Control, and then select the ▶or ▶tton to play current programme back at 1/2 the normal speed.

- Rewind / Fast Forward

Press the MENU/123 button on the Samsung Smart Control, and then select the◀ or ▶button to speed up rewind or fast forward to maximum speed in 7 steps.

On the standard remote control, press the ◀ or ▶ button.

The Fast Forward function is not available while you are watching a programme that is currently being broadcast.

Using the Channel List

(MENU/123) > MENU > Broadcasting > Channel List Try now

By using the Channel List, you can change the channel or check programmes on other digital channels while watching TV. To display the Channel List, place a finger on the POINTER button on the Samsung Smart Control, and then select the 📋 icon that appears at the right side of the screen.

The Channel List screen contains the following icons:

• A: An analogue channel
• ♥: A favourite channel
• 🔒: A locked channel

Press the left directional button. The following options are available:

The available options may differ with the broadcast signal.

• History
  Displays a list of channels that you viewed recently.
• Add a New List
  Allows you to create a new channel list by adding channels from a favourites list.
  This option is available only if you have registered one or more channels to at least one favourites list.
• All / Free / Analogue / Data/Other / TV / Radio / Scrambled / Favourites 1 \~ Favourites 5 Displays the selected channel list.

Option Description
Aerial	Allows you to choose between Terrestrial, Cable, and Satellite.This option is only available on certain models in specific geographical areas.
Sort	Sorts the list by Channel Number or by Name.
Edit Channel Lists	Allows you to rearrange the order of channels in the channel list or remove channels from the channel list.
Edit Channel	Allows you to remove channels from the channel index, restore removed channels, and rename analogue channels.
Edit Favourites	Sets favourite channels.For more information, refer to "Creating a Personal Favourites List."

Registering, Removing, and Editing Channels

(MENU/123) > MENU > Broadcasting > Edit Channel Try now

The Edit Channel screen icons indicate the following:

• A: An analogue channel
• ♥: A favourite channel
• : A locked channel

Registering and removing channels

Removing registered channels

You can remove a registered channel or all channels from the channel index. To remove a channel, select it, and then select Delete. To remove all channels, select Options > Select All, and then select Delete.

Editing registered channels

The available options may differ with the broadcast signal.

You can access the following options by selecting Options on the screen.

• Select All / Deselect All
  Selects or deselects all channels displayed on the Edit Channel screen.

- Sort

Sort the list ordered by Number or Name.

This option is only available for digital channels.

- Aerial

Allows you to choose between Terrestrial, Cable or Satellite.

This function is not available on certain models in specific geographical areas.

Category

Displays the channels of a selected category in the list. The channels stored in the TV are grouped into the following categories: All, TV, Radio, Analogue, Free, Data/Other, Searched, and Scrambled.

- Edit Favourites

Sets favourite channels.

For more information, refer to "Creating a Personal Favourites List."

- Rename channel

Renames analogue channels. The new name can be up to 5 characters long.

• Information

Displays detailed information about the current programme.

Enabling / Disabling password protection on channels

(MENU/123) > MENU > Broadcasting > Edit Channel

You can enable password protection on the channels that you don't want your children to view.

Before enabling password protection, ensure that Channel Lock ((MENU/123) > MENU > Broadcasting > Channel Lock) is set to On.

Locking / Unlocking channels

You can lock or unlock channels. Select channels from the Edit Channel screen and then select Lock or Unlock at the bottom of the screen. When the password entry window appears, enter the password.

Enabling/Disabling Edit Channel Number function

(MENU/123) > MENU > Broadcasting > Edit Channel Number

Use this to change channel number. When channel number is changed, channel information is not updated automatically.

This function is not available on certain models in specific geographical areas.

Creating a Personal Favourites List

Favourite channels are highlighted in the Edit Channel and Channel List screens with the ♥ symbol. You can create up to 5 favourite channel lists.

Registering channels as favourites

(MENU/123) > MENU > Broadcasting > Edit Favourites Try now

You can register multiple channels as favourites at the same time.

1. Select the channels that you want to add to your Favourites list(s) from the list in the screen.
2. Select Change Fav. on the screen to select a favourites list.
3. Select Add on the screen. The TV adds the channels you selected to the Favourites list you chose.

Viewing and selecting channels on favourites lists only

(MENU/123) > MENU > Broadcasting > Channel List

You can flip through only the favourite list channels and select a channel using the channel up/down buttons.

1. Press the left directional button. A favourites list appears.
2. Highlight a channel from the selected favourites list using the channel up/down buttons, and then select it. The channel changes.

A favourites list can be selected only if it contains at least one favourite channel.

Editing a Favourites List

(MENU/123) > MENU > Broadcasting > Edit Favourites

Using the Edit Favourites screen menu items

You can access the following options by selecting Options on the Edit Favourites screen.

- Select All / Deselect All

Selects or deselects all channels saved on the TV.

• Copy to favourites

Copies channels from one favourite channels list to another.

For more information, refer to "Copying channels from one favourites list to another."

This option is available only if you have registered one or more channels to at least one favourites list.

- Rename Favourites

Rename an existing favourite channels list.

For more information, refer to "Renaming a favourites list."

This option is available only if you have registered one or more channels to at least one favourites list.

- Sort

Sort the list ordered by Number or Name.

This option is only available for digital channels.

- Aerial

Allows you to choose between Terrestrial, Cable, and Satellite.

This function is not available on certain models in specific geographical areas.

- Edit Channel

Allows you to manage the channels saved on the TV.

For more information, refer to "Registering, Removing, and Editing Channels."

Removing registered channels from a favourites list

Select Edit Favourites > Change Fav. to move to the favourites list that has the channels you want to remove. Select the channels, and then select Delete.

Rearranging a favourites list

Select Edit Favourites > Change Fav. to move to the favourites list that has the channels you want to rearrange. Select the channels, and then select Change order. The Change order highlight appears. Press the up/down arrow buttons to indicate the new location for the channels. Press the Enter button to set the channels into their new location.

Renaming a favourites list

Select Edit Favourites > Options > Rename Favourites. Select the favourites list you want to rename. Enter a new name using the on-screen keyboard that appears, and then select Done. Select OK.

Copying channels from one favourites list to another

Select Edit Favourites > Change Fav. to move to the source favourites list, and then select the channels to copy. Select Options > Copy to favourites. Select the destination favourites list, and then select OK. Select OK again.

Copy to favourites is only available if there are channels in at least one favourites list.

Making Sports programmes More Realistic with Sports Mode

(MENU/123) > MENU > System > Sports Mode Try now

You can use Sports Mode to get optimal picture and sound settings for sports events, making them appear and sound as if you are there. In addition, if a recording device is connected to the TV when you are using Sports Mode, you can use both the video recording and Timeshift functions at the same time while watching the sports game, as well as watching the highlights extracted from the recorded sports game automatically or manually.

For more information about recording a programme and using a recording device, refer to "Recording Programmes."

This function is not available on certain models in specific geographical areas.

For more information about the Timeshift function, refer to "Using Timeshift."

Enabling sports mode

(MENU/123) > MENU > System > Sports Mode > Sports Mode

You can set Sports Mode to On to make the picture and sound modes of the TV optimised automatically for sports events.

Enabling Sports Mode changes Picture Mode to Stadium and Sound Mode to Stadium, and disables some Picture and Sound menus.

Choosing the sports type

(MENU/123) > MENU > System > Sports Mode > Sports Type Try now

You can enjoy optimal picture and sound settings for a selected sports type.

This function is not available on certain models in specific geographical areas.

Extracting highlights automatically

(MENU/123) > MENU > System > Sports Mode > Auto Highlights Try now

You can set Auto Highlights to On to configure the TV to extract highlights of a sports match automatically.

However, Auto Highlights is not available with these TV operations:

• Switching the input signal using the SOURCE button
• When 3D mode is active
• When Audio Description is on
• When you are viewing the content in MY CONTENT
• When the Screen Mirroring function is running
• When you are viewing highlights of the current soccer game in the UHD resolution by using the Highlights Player function

This function is not available on certain models in specific geographical areas.

The performance of Auto Highlights depends on the characteristics of the transmitted signal.

It is advisable to use Auto Highlights only while watching a soccer game. If you use this function for other sporting events, it may display irrelevant picture frames,

Using the functions available while watching sports in sports mode

You can use the following functions when you press the Enter button in sports mode.

- Zoom

Pauses the current screen and zooms in any part of the screen by using 4 directional buttons.

On the standard remote control, press the Abutton.
This function is not available when watching 3D channels or when PIP or MY CONTENT is active.
This function is not available when Data Service is active.

- Manual Highlight

Saves a video from 10 seconds before pressing this button to 10 seconds after.

On the standard remote control, press the B button.
This function is only available when a recording is in progress.
You can set the TV to automatically save highlights without user intervention. Select (MENU/123) > MENU > System > Sports Mode, and then set Auto Highlights to On.

- Recording Time

Sets the recording time.

This function is only available when a recording is in progress.

- Stop Recording / Go to Live TV

• Stops a recording when you are watching a live programme.
  – Switches to a live programme when you are watching a recorded programme.

This function is only available when a recording is in progress.

- Record

Instantly records the game that you are currently watching on the TV.

This function is only available when the recording function is supported.

- Rewind / Fast Forward

Press the MENU/123 button on the Samsung Smart Control, and then select ◀ or ▶ speed up rewind or fast forward.

On the standard remote control, press the ◀ or button.

This function is only available when a recording is in progress.

This function is not available while you are watching a programme that is currently being broadcast.

- Pause / Play

Pauses or resumes the video.

This function is only available when a recording is in progress.

• Highlights Player

Displays the Highlights Player screen and plays automatically or manually the saved highlights in the recorded file. However, Highlights Player is not available with these TV operations:

- Switching the input signal using the SOURCE button.

- When 3D mode is active

- When Audio Description is on

This function is only available when a recording is in progress,

• Watch Live TV at the same time

Allows you to watch a current programme in a PIP window while watching a recorded programme. To exit PIP mode, press the button again. However, Watch Live TV at the same time is not available with these TV operations:

• Switching the input signal using the SOURCE button.
• When 3D mode is active
• When Audio Description is on
• When you are viewing a soccer game in the UHD resolution.

This function is only available when a recording is in progress.

This function is only available while you are watching a recorded programme.

- More Info

Displays detailed information about the current programme.

This function is only available while you are watching a live programme.

Viewing a game recorded in sports mode

You can view a recorded game using Recorded TV on the MY CONTENT screen.

This function is not available on certain models in specific geographical areas.

For more information, refer to "Viewing recorded programmes."

TV-Viewing Support Features

Showing subtitles

(MENU/123) > MENU > System > Accessibility > Subtitle Try now

You can watch TV broadcasts with subtitles.

Subtitles may not be displayed by programmes that do not support subtitles.

Enabling Subtitles

(MENU/123) > MENU > System > Accessibility > Subtitle > Subtitle (Try now

The TV cannot control or modify DVD or Blu-ray subtitles. To control DVD or Blu-ray subtitles, use the subtitle feature of the DVD or Blu-ray player and the player's remote control.

Changing the subtitle mode

(MENU/123) > MENU > System > Accessibility > Subtitle > Subtitle Mode Try now

You can select a subtitle mode suitable for your viewing environment. Select Normal or Hearing Impaired.

Setting the subtitle language

(MENU/123) > MENU > System > Accessibility > Subtitle > Subtitle Language Try now

You can view subtitles in your preferred languages. Select Preferred to view subtitles in the language that you set as Primary Subtitle.

Setting the preferred languages

(MENU/123) > MENU > System > Accessibility > Subtitle

You can view subtitles in a language that you set as Primary Subtitle or Secondary Subtitle. Set your most preferred language as Primary Subtitle and your second preferred language as Secondary Subtitle.

The language displayed on the TV's screen may differ with the geographical area.

Scanning for available channels

(MENU/123) > MENU > Broadcasting > Auto Tuning > Auto Tuning Try now

You can make the TV automatically scan and index all channels received through the TV's antenna input connector. Select Start.

This function is not available on certain models in specific geographical areas.

If the TV is connected to a cable box or satellite receiver, you do not need to do this.

Selecting the broadcast audio language

(MENU/123) > MENU > Broadcasting > Audio Options Try now

You can select an audio option suitable for the broadcast content.

- Audio Language

Changes the default audio languages.

– Primary Audio: Sets the primary audio language.

- Secondary Audio: Sets the secondary audio language.

The available language may differ with the broadcast.

- Audio Format

Changes the audio format.

The supported audio format may differ with the broadcast programme.

This option is only available on digital channels.

Audio Description

(MENU/123) > MENU > System > Accessibility > Audio Description

You can use the Audio Stream for the Audio Description (AD) which is sent along with the Main audio from the broadcaster. Adjust the audio description volume using Volume.

This function is only available on digital channels.

• Audio Description

Turns the Audio Description function on or off.

Volume

Adjusts the audio description volume.

Using the Channel Settings

Setting the country (area)

(MENU/123) > MENU > Broadcasting > Channel Settings > Country (Area)

You can select your country so that the TV can correctly auto-tune the broadcasting channels.

1. Enter your PIN number.
2. Change your area. To change the country for digital channels, select Digital Channel. To change the country of analogue channels, select Analogue Channel.

This function is not available in all geographical areas.

The list of countries (areas) displayed on the TV's screen may differ with the geographical area,

Tuning broadcast signals manually

(MENU/123) > MENU > Broadcasting > Channel Settings > Manual Tuning Try now

You can scan for all the channels manually and store the scanned channels in the TV. To stop scanning, select Stop.

This function is not available on certain models in specific geographical areas.

This function is only available when Aerial is set to Terrestrial or Cable.

Tuning digital channels

(MENU/123) > MENU > Broadcasting > Channel Settings > Manual Tuning > Digital Channel Tuning Select New > Search to scan for digital channels automatically and store the scanned channel list in the TV.

Tuning analogue channels

(MENU/123) > MENU > Broadcasting > Channel Settings > Manual Tuning > Analogue Channel Tuning

Select New and configure Programme, Colour System, Sound System, Channel, and Search to scan for analogue channels. Then, select Store to store the scanned channels in the TV.

his function is only available for analogue broadcasts.

Channel mode

• P (programme mode)

When tuning is complete, the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode.

• C (aerial channel mode) / S (cable channel mode)

These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

Fine-Tuning the screen

(MENU/123) > MENU > Broadcasting > Channel Settings > Fine Tune Try now

When analogue pictures become shaky and full of noise, fine-tune the signal to clear up the picture.

his function is only available for analogue broadcasts.

Transferring channel list

(MENU/123) > MENU > Broadcasting > Channel Settings > Transfer Channel List

You can import or export the channel list to a USB storage.

• Import from USB: Imports channel list from a USB storage.
• Export to USB: Exports channel list saved in the TV to a USB storage.

This function is available when USB is connected.

This function is not available on certain models in specific geographical areas.

Reading digital text

(MENU/123) > MENU > Broadcasting > Channel Settings > Digital Text

You can use this function when you watch a broadcast that includes both text and multimedia content.

This function is not available on certain models in specific geographical areas.

Multimedia and Hypermedia Information Coding Experts Group (MHEG) is an International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video files as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various fields including Video-On-Demand (VOD), Interactive TV (ITV), Electronic Commerce (EC), tele education, teleconferencing, digital libraries and network games.

Setting satellite system

(MENU/123) > MENU > Broadcasting > Channel Settings > Satellite System

You can configure a set of satellite dish settings before performing a channel scan.

This function is only available on certain models in specific geographical areas.

Changing teletext language

(MENU/123) > MENU > Broadcasting > Channel Settings > Teletext Language

You can set or change the teletext language. To watch the teletext broadcast in your preferred language, select a language to use in Primary teletext. If this language is not supported, you can watch the teletext broadcast in your secondary preferred language set in Secondary teletext.

This function is not available on certain models in specific geographical areas.

Adjusting the Picture Quality

Choosing a picture mode

(MENU/123) > MENU > Picture > Picture Mode Try now

You can select the picture mode that provides the best viewing experience.

- Dynamic

Makes the picture clearer when the ambient lighting is so bright that it makes the picture difficult to see.

- Standard

Is the default mode suitable for most environments.

Natural

Reduces eye strain.

- Movie

Darkens the screen, reduces glare, and relieves eye fatigue. Use this mode while viewing the TV in a darkened room or watching a movie.

- Entertain

Sharpens images for a more dynamic viewing experience.

When the Input source is set to PC, Standard and Entertain modes are only available.

When a PC is connected to the TV, but the Entertain mode is not available, set Edit Device Type to DVI PC or PC.

- Stadium

When you turn Sports Mode ((MENU/123) > MENU > System > Sports Mode) to On, Picture Mode is set to Stadium automatically to configure the picture settings suitable to sports events.

Adjusting the picture quality

(MENU/123) >MENU Picture

You can adjust the following picture quality settings manually for each combination of an input source and picture mode.

- Backlight Try now

Adjusts the brightness of individual pixels. Decrease this brightness to reduce power consumption.

- Contrast Try now

Adjusts the screen contrast.

- Brightness Try now

Adjusts the overall brightness.

- Sharpness Try now

Sharpens or dulls the edges of objects.

- Colour Try now

Adjusts the overall colour saturation.

- Tint (G/R) Try now

Adjusts the ratio of green to red. Increase the green value to saturate the greens and the red value to saturate the reds.

The TV saves the adjusted values for the current input source and picture mode and applies these values each time you select the same input source and picture mode.

The Colour and Tint (G/R) settings cannot be adjusted when the TV is connected to a computer via an HDMI-to-DVI cable.

Applying the current picture settings to other input sources

(MENU/123) > MENU > Picture > Apply Picture Mode Try now

You can apply the picture quality settings to the current source and other input sources.

- All Sources

Applies the settings to all external devices connected to the TV.

- Current Source

Applies the settings to the current source only.

Adjusting advanced settings

(MENU/123) > MENU > Picture > Advanced Settings Try now

You can fine-tune how images are displayed on the TV screen for the Standard and Movie picture modes.

• Dynamic Contrast Try now

Automatically adjusts the screen contrast for an optimal contrast setting.

- Black Tone Try now

Adjusts the black colour depth.

- Flesh Tone Try now

Darkens or lightens skin tones.

• RGB Only Mode Try now

Adjusts the red, green, and blue levels individually.

• Colour Space Try now

Adjusts the range of colour that can be displayed on the screen.

- Auto: Automatically adjusts the Colour Space to match the input signal.

- Native: Applies a range of colours that is wider than the input signal.

- Custom: Allows you to adjust the Colour Space manually. Select a colour, and then change its Red, Green, and Blue saturations. Reset allows you to restore the default values for Colour Space.

You can configure the Colour function only when Colour Space is set to Custom.

The availability of Custom depends on the specific model and area.

• White Balance Try now

Adjusts the colour temperature of the picture to make white objects look white and the overall picture appear natural.

• 2 Point: Allows you to adjust red, green, and blue luminosity with the offset menu and brightness with the gain menu. Reset allows you to restore the default values.
• 10 Point: Divides red, green, and blue into 10 sections each, and allows you to modify the white balance by adjusting the brightness of each section. Level allows you to select the section to adjust.

You can use the 10 Point function only when Picture Mode is set to Movie. This function may not be supported by some external devices.

This function is not available on certain models in specific geographical areas.

- Gamma Try now

Adjusts the primary colour intensity.

Advanced Settings is only available when Picture Mode is set to Standard or Movie.

White Balance and Gamma are only available when the TV is connected to a computer with an HDMI-to-DVI cable.

Adjusting picture options

(MENU/123) > MENU > Picture > Picture Options Try now

You can adjust the picture options to optimise your viewing experience. Select a picture mode and then adjust the picture options.

• Colour Tone Try now

Adjusts the colour tone. The colour tone you select is stored in the TV's memory. When you change the current picture mode, the stored colour tone is applied to the new picture mode automatically.

Cool and Standard are only available when Picture Mode is set to Dynamic.

Colour Tone is only available when the TV is connected to a computer via an HDMI-to-DVI cable.

• Digital Clean View Try now

Reduces static and ghosting caused by a weak signal. When you select Auto Visualisation, it displays the signal strength on the bottom of the screen. Green indicates the best possible signal.

This function is available for analogue channels only.

• MPEG Noise Filter Try now

Reduces MPEG noise and improves video quality.

• HDMI Black Level Try now

Compensates for effects caused by a low black level, such as low contrasts and dull colours.

This function is only available when the input signal, connected to the TV via an HDMI connector, is set to RGB444.

• HDMI UHD Color

Allows you to set the HDMI UHD Color mode to On or Off for each HDMI connector on the TV. When set to On, the TV optimises processing of UHD 50P/60P signals.

If you set the HDMI connection to On, the TV turns off and then on automatically.

The HDMI connection with HDMI UHD Color set to Off supports up to UHD 50P/60P 4:2:0 input signals, while the HDMI connection with HDMI UHD Color set to On supports up to UHD 50P/60P 4:4:4 and 4:2:2 input signals. For more information, refer to "Supported Resolutions for each of UHD Input Signals".

For the 7 series or higher models except for 7200 series model, each HDMI connection can be individually optimised for HDMI UHD Color. When you connect the TV to the external device that supports only UHD 24 or 30 Hz frequency or any FHD frequency, the HDMI UHD Color function may not be available. In this case, set HDMI UHD Color to Off.

For the 6 series models or lower and 7200 series model, make sure to connect to the HDMI IN (STB/DVI) port of the TV. Although the HDMI cable is connected to this port, the HDMI UHD Color function is not available on the 6000 series models.

• Film Mode Try now

Optimises the picture quality for movies.

This function is only available when the input signal is TV, AV, Component (480i, 1080i), or HDMI (1080i).

- Analogue Clean View

Reduces noise in the form of a diagonal line that occurs due to interferences between signals.

This function is only supported for analogue broadcasts.

• Auto Motion Plus

Removes blurring and judder from scenes with rapid movement. If you select Custom, you can configure Blur Reduction and Judder Reduction manually and set LED Clear Motion to On for a sharper LED image. To return to the default settings, select Reset.

When LED Clear Motion is set to On, the screen appears darker than when it is Off.

If LED Clear Motion is set to On, at 60Hz video signal, the screen may flicker.

This function is not available on certain models in specific geographical areas.

• LED Clear Motion

Controls LED backlight duty to move picture more clearly.

This function is not available on certain models in specific geographical areas.

- Smart LED

Controls the brightness of individual areas on the screen to maximise contrast automatically.

This function is not available on certain models in specific geographical areas.

Viewing in 3D

(MENU/123) > MENU > Picture > 3D

You can view 3D media content and broadcasts. To view 3D content, you need to wear current Samsung 3D Active Glasses. IR-type Samsung 3D Active Glasses and third-party 3D glasses are not supported.

This function is only available on certain models in specific geographical areas.

Before viewing 3D content, carefully read the health and safety information concerning 3D viewing. For more information, refer to "3D precautions."

Whether 3D video is displayed in true HD is usually determined by the quality and format of the video.

To use the 3D function, you must purchase the 3D glasses.

Starting 3D

Put on and then turn on the Samsung 3D glasses, and then select a 3D Mode. Note that the 3D modes that are available at any given time depend on the format of the 3D content you are watching.

• off (Off)

Deactivates 3D viewing.

• (Normal)

Converts normal images to 3D images.

• (L/R)

Splits a single image into left and right overlapping images to create the 3D effect.

• (T/B)

Splits a single image into top and bottom overlapping images to create the 3D effect.

When the TV is connected to a computer:

The supported resolutions vary for each mode. For more information, refer to "Supported Resolutions for 3D Modes."

The ideal viewing distance is three times the height of the screen or more. 3D images may not appear if you do not adhere to the recommended viewing angle or distance.

The 3D function may not work properly if there is another 3D product or an electronic device running nearby. If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses.

The left and right 3D images may initially overlap when the TV is turned on. It takes a moment for the display to optimise and the overlapping to stop.

When you select to use the 3D mode, note the following limitations:

• 3D mode is automatically disabled when you launch Smart Hub.
- PIP cannot be used.
• Certain picture options are disabled.

Adjusting 3D effects

(MENU/123) > MENU > Picture > 3D

You can configure the viewpoint, depth, and other 3D settings for a custom viewing experience.

All 3D effects with the exception of 3D Auto View can only be used while watching 3D content.

• 3D Perspective Try now

Adjusts overall 3D perspective for images on the screen.

3D Depth

Adjusts overall 3D depth for images on the screen.

This function cannot be used if 3D Mode is set to (L/R) or (T/B).

• L/R Change Try now

Switches the left image to the right image and vice versa.

• 3D → 2D Try now

Converts 3D images to 2D images.

This function is not available if 3D Mode is set to (Normal) or Off (Off).

• 3D Auto View Try now

Activates 3D Mode automatically whenever it detects 3D content or a 3D broadcast.

You might not be able to view the TV in 3D mode while some applications are running. To view the TV in 3D mode, exit those applications.

Allows you to optimise 3D pictures with an adjustment bar.

All 3D effects, except for 3D Auto View can only be used while you are viewing 3D content.

Picture Support Functions

Viewing a picture-in-picture (PIP)

(MENU/123) > MENU > Picture > PIP Try now

While viewing video from an external device such as a Blu-ray player on the main screen, you can view a TV broadcast in a picture-in-picture (PIP) window.

• PIP
  Activates/deactivates PIP.
• Aerial
  Selects the input source for the PIP window.
• Source
  Selects the PIP sub-picture source.

This function is not available on certain models in specific geographical areas.

- Channel

Selects the PIP channel.

- Size

Sets the PIP window size.

- Position

Sets the PIP window position.

- Sound Select

Selects the audio source.

PIP cannot be used while Smart Hub or 3D is active.

Playing a game or using the karaoke function on the main screen can result in lower PIP picture quality.

The PIP function is only available under the following conditions: 1) The main screen's source is a Component or HDMI connection, 2) The input resolution is less than FHD (Full HD).

The PIP window supports digital channels only and does not support UHD channels.

Changing the picture size and position

Changing the picture size

(MENU/123) > MENU > Picture > Picture Size > Picture Size Try now

You can change the size of the picture displayed on the TV screen.

16:9

Sets the picture size to the 16:9 wide screen format.

- Zoom

Magnifies 16:9 pictures vertically. A magnified picture can be moved up and down.

- Custom

Magnifies or shrinks 16:9 pictures vertically and/or horizontally. A magnified or shrunk picture can be moved left, right, up, and down.

4:3

Sets the picture size to the basic 4:3 mode.

Do not watch TV in 4:3 mode for an extended period of time. This action may cause black bars to appear and rest for a while at the top, bottom, left, and right sides of the screen. Note that this information is not presented on the Warranty.

Supported picture sizes differ with the input signal. For more information about supported picture sizes, refer to "Picture sizes and input signals."

Changing the picture size automatically

(MENU/123) > MENU > Picture > Picture Size > Auto Wide

When set to On, Your TV will automatically use the picture size recommended by the programme provider.

This function is not available on certain models in specific geographical areas.

Changing the picture size in 4:3 or Screen Fit mode

(MENU/123) > MENU > Picture > Picture Size > 4:3 Screen Size

You can select a picture size suitable for your geographical area while you are watching TV in the 4:3 or Fit to screen mode. The supported screen sizes differ with the country and this function allows you to adjust the picture size in this case.

The 4:3 mode is not available when an external device is connected to the TV via a Component connector or an HDMI connector.

This function is not available on certain models in specific geographical areas.

Fitting the picture to the screen

(MENU/123) > MENU > Picture > Picture Size > Fit to screen Try now

You can configure the TV so that the full picture fits the screen without any cutoff in the size you have chosen.

This function is not available depending on the Picture Size.

Adjusting the picture position

(MENU/123) > MENU > Picture > Picture Size > Zoom/Position Try now

Magnifies or shrinks 16:9 pictures vertically and/or horizontally. A magnified or shrunk picture can be moved left, right, up, and down.

This function is only available when Picture Size is set to Zoom or Custom. However, you cannot change the picture position when the TV is tuned to a digital channel and Picture Size is set to Custom.

Listening to audio only (Picture Off)

(MENU/123) > MENU > Picture > Picture Off Try now

You can turn off the screen and play only the audio through the speakers. To turn the screen back on, press any button other than the Power and Volume buttons.

Resetting the picture mode settings

(MENU/123) > MENU > Picture > Reset Picture Try now

You can reset the current picture mode to its factory defaults. This action does not affect the settings of other picture modes.

Adjusting the Sound Quality

Choosing a sound mode

(MENU/123) > MENU > Sound > Sound Mode Try now

You can select a sound mode to optimise your listening experience.

• Standard
  Music
  Emphasises music instead of voices.

Is the default mode suitable for most environments.

- Movie

Provides the best sound for movies.

- Clear Voice

Emphasises voices.

- Amplify

Increases the overall intensity of high-frequency sound to help hearing-impaired listeners.

- Stadium

When you turn Sports Mode ((MENU/123) > MENU > System > Sports Mode) to On, Sound Mode is set to Stadium automatically so that the sound settings are fixed at settings most suitable for sporting events.

This mode is set automatically by the TV. You cannot set this mode manually.

This function is not available when you are listening to audio through external speakers.

Whether Soccer Mode or Sports Mode is displayed depends on the area.

Applying sound effects

(MENU/123) > MENU > Sound > Sound Effect Try now

You can apply sound effects to alter how the TV emits sound.

• Virtual Surround Try now

Produces sound that makes you feel like you are sitting in a movie theatre or concert hall.

• Dialog Clarity Try now

Increases voice intensity to make dialog clearer.

• Headphone Surround

Produces sound that, through your headphones, will make you feel like you are sitting in a home theatre.

This function is not available on certain models in specific geographical areas.

• Balance Try now

Allows you to adjust the sound settings of the left and right speakers for a better sound balance. To restore the defaults, select Reset.

• Equaliser Try now

Allows you to adjust the loudness of specific frequency ranges to control the richness of the sound. To restore the defaults, select Reset.

This function is not available when you are listening to audio through external speakers.

This function is only available when Sound Mode is set to Standard.

Using the Sound Support Functions

Selecting speakers

(MENU/123) > MENU > Sound > Speaker Settings > Speaker Select Try now

You can select which speakers the TV uses for audio output.

When Speaker Select is set so that sound comes from external speakers only, Volume and Mute buttons and some Sound functions are disabled.

Listening to TV sound through a Samsung Bluetooth audio device

(MENU/123) > MENU > Sound > Speaker Settings > TV SoundConnect

You can connect Samsung Bluetooth audio devices to the TV. They must be paired using the TV's Bluetooth function. For more information on pairing, refer to the Samsung Bluetooth audio device's operating manual.

This function is not available on certain models in specific geographical areas.

- Add New Device

Adds a new device to the list of paired devices. If Add New Device is set to Off, the connection signals from new devices are ignored.

• Samsung Audio Device List

Displays a list of paired Samsung audio devices. Select a device to display its menu options. You can activate/deactivate the audio device or remove it from the list.

This function is only available for Samsung audio devices that support TV SoundConnect.

TV SoundConnect, Surround, and Bluetooth headphones can't be used simultaneously.

Before using a Bluetooth device, refer to "Read Before Using Bluetooth Devices."

Listening to the TV through Bluetooth headphones

(MENU/123) > MENU > Sound > Speaker Settings > Bluetooth Headphones

You can connect Bluetooth headphones to the TV. They must be paired using the TV's Bluetooth function. For more information on pairing, refer to the Bluetooth Headphone's operating manual.

This function is not available on certain models in specific geographical areas.

- Bluetooth headphone List

Displays a list of Bluetooth headphones that can be paired with the TV. Select a Bluetooth headphone to display its menu options. From this menu, you can activate/deactivate (i.e., pair/unpair) the Bluetooth headphone or remove it from the list.

If the TV fails to find a headphone, place the headphone closer to the TV, and then select Refresh.
When you turn on a paired Bluetooth headphone, the TV detects it automatically, and then displays a pop-up window. Use this pop-up window to activate/deactivate the Bluetooth headphone.

- Multi-output Audio

Allows you to listen to audio through the TV's speakers and the connected Bluetooth headphones simultaneously.

If the TV fails to find a headphone, place the headphone closer to the TV, and then select Refresh.
When you turn on a paired Bluetooth headphone, the TV detects it automatically, and then displays a pop-up window. Use this pop-up window to activate/deactivate the Bluetooth headphone.
Before using a Bluetooth device, refer to "Read Before Using Bluetooth Devices."

Listening to TV sound through a Samsung Multiroom Link compatible speaker

(MENU/123) > MENU > Sound > Speaker Settings > Multiroom Link > Multiroom Link Settings

You can connect a Samsung Multiroom Link compatible speaker to the TV to enjoy a richer sound,

- Settings

Sets the Samsung Multiroom Link compatible speaker(s) to one of the following options.

- Surround

Select this option when you want to enjoy a surround system using multiple Samsung Multiroom Link compatible speakers in a single space or room.

- SoundBar+Surround

Select this option when you want to enjoy a surround sound system by connecting a soundbar and two speakers to the TV in one space or room.

• Volume Level

Adjusts the volume of the speakers selected in the list.

- Speaker Test

Sends a test sound to each speaker to make sure that your Multiroom Link system works properly.

- Edit Name

Allows you to give a name to each speaker.

The Multiroom Link function is only available when at least one Samsung Multiroom Link compatible speaker is connected to the TV.

The Multiroom Link function is deactivated when you activate Screen Mirroring.

The networked speakers may disconnect on their own, depending on your network environment,

The sound quality may be affected by the condition of your wireless network,

Audio and video may become out of sync depending on your TV model.

The audio from the secondary device(s) may lag behind the audio and video of the main device which is playing the source content.

You can hear the selected audio while you are using the Multi-Link Screen and you can hear the other screen's audio through the Bluetooth headphones.

For more information, refer to the Multiroom Link manual on the Samsung web site. (www.samsung.com) SUPPORT > Manuals & Downloads)

Enabling digital audio output

(MENU/123) > MENU > Sound > Additional Settings Try now

Since this Smart TV is Sony/Philips Digital Interface Format (S/PDIF)-enabled, you can make the TV provide digital audio output to various digital audio devices, such as speakers, A/V receivers, and home theatres, by adjusting the following settings.

DTV Audio Level

Allows you to adjust the volume when you are viewing digital broadcasts on the TV through an A/V receiver.

This function is only available on digital channels.
The volume can be adjusted between 0 db and 10 db. However, this volume range may differ with the broadcast signal.
For the MPEG/HE-AAC broadcast signal, the volume can be adjusted between 0 db and 10 db.

• HDMI Audio Format

Sets the audio input signal format suitable for the external device connected to the TV's HDMI port.

• Audio Format Try now

Selects the digital audio output (S/PDIF) format. The available formats are dependent on the input source.

• Audio Delay Try now

Helps correct timing mismatches between the audio and video tracks when you are watching TV and listening to audio through a digital audio device. You can adjust the delay by up to 250 ms.

• Dolby Digital Comp Try now

Sets the Dolby Digital compression mode.

• HD Audio

Provides the TV sound resampled at HD audio quality.

Standard audio signals are sampled at 48 kHz while HD audio signals are sampled at 96 kHz.
Some S/PDIF receivers may not be compatible. For incompatible receivers, deactivate this mode and use normal audio mode instead.
The HD audio signals available on the TV are not available on external audio players connected via HDMI, Bluetooth, or Wi-Fi networks.

• Auto Volume Try now

Automatically adjusts the TV's volume level when you change channels, video sources or content so that the volume level remains the same for all sources. Auto Volume can modify the volume up to 12 dB to equalise the sound. Normal can apply a normal level of volume adjustment, and Night can apply a slightly lower volume level. This option is ideal for late-night TV viewing.

If you want to use the volume control of a connected source device to control the sound, deactivate Auto Volume. When you use Auto Volume with a source device, the device's volume control may not function properly.

Listening to 3D audio in 3D mode

(MENU/123) > MENU > Sound > 3D Audio Try now

You can adjust audio depth so that the TV provides immersive sound that matches the pop-up effect of the 3D video that you are viewing.

This function is only available on certain models in specific geographical areas.

This function is only available in 3D mode.

Resetting all sound settings

(MENU/123) > MENU > Sound > Reset Sound Try now

Resets all sound settings to the factory defaults.

Setting the Time and Using the Timer

Setting the current time

(MENU/123) > MENU > System > Time > Clock Try now

You can set the clock manually or automatically.

To view the time after the clock is set:

- Samsung Smart Control: Press the MENU/123 button, and then select INFO on the On-screen Remote.

- Standard remote control: Press the INFO button.

The clock must be reset every time the power is disconnected.

Setting the clock using digital broadcast info

(MENU/123) > MENU > System > Time > Clock > Clock Mode Try now

You can make the TV automatically download time information from a digital channel and set the current time. To activate this function, set Clock Mode to Auto. If the TV is connected to a set-top box or satellite box using HDMI or Component connectors, you must set the current time manually.

This function works only when the TV's antenna jack is connected to either an antenna or a cable output and is receiving digital broadcasts.

The accuracy of the time information received may differ with the channel and signal.

Setting the clock manually

(MENU/123) > MENU > System > Time > Clock > Clock Set Try now

You can set the clock manually. Set Clock Mode to Manual, and then input present date and time.

Setting the clock automatically

(MENU/123) > MENU > System > Time > Clock > Time Zone

Selects your time zone.

This function is only available when the Clock Mode is set to Auto.

This function is only available in specific geographical areas.

If the clock is wrong in auto mode...

(MENU/123) > MENU > System > Time > Clock > Time Offset Try now

You can offset the clock in 1-hour increments by as much as -/+ 12 hours if the TV fails to display the correct automatically-set time, for whatever reason.

Time Offset adjusts the time through a network connection. This function is only available if Clock Mode is set to Auto and the TV is connected to the Internet though a local area network,

Time Offset adjusts the time if the TV fails to receive time information through normal digital broadcast signals.

Using the timers

Using the sleep timer

(MENU/123) > MENU > System > Time > Sleep Timer Try now

You can use this function to automatically shut off the TV after a pre-configured period of time. You can set the timer for 30 minute increments, for up to 3 hours.

Turning on the TV using the on timer

(MENU/123) > MENU > System > Time > On Timer Try now

You can set On Timer to make the TV turn on automatically at a specific time. You can use up to three separate configurations: On Timer 1, 2, and 3. On Timer is only available when Clock has already been set.

- Setup

If you select Manual, you can highlight and select each day to select the specific days that you want On Timer to turn on the TV.

• Time
Volume
- Source

From the list, select a signal source for the TV to use when it turns on. If you want to play content saved in a USB device or content from an HDMI or Component source, such as a DVD player, Blu-ray player, or set-top box, connect the device to the TV before you start On Timer setup. Then, do not disconnect the device from the TV.

- Aerial

Allows you to select a broadcast signal source, when Source is set to TV.

- Channel

Allows you to select a channel, when Source is set to TV.

- Music / Photo

Allows you to specify a USB device folder containing music files in the music field and/or a folder containing photos in the photo field, when Source is set to USB. If you select both a folder that contains music files and a folder that contains photo files, the TV plays the music files and displays the photos at the same time.

If the folder that you choose has sub-folders, you can select a sub-folder in the same fashion.

This function does not work properly if the selected USB device does not contain media contents or a folder has not been specified.

No slideshow starts if there is only one image file on the USB device.

Folders with long names cannot be selected.

Make sure to use different folder names for multiple USB devices.

Use a USB memory stick or multi-card reader. On Timer may not work with certain battery-powered USB devices, MP3 players, or PMPs because the TV may take too long to recognise the device.

Turning off the TV using the off timer

(MENU/123) > MENU > System > Time > Off Timer Try now

You can set Off Timer to turn off the TV automatically at a specified time. You can set up three separate configurations: Off Timer 1, 2 and 3. Off Timer is only available when Clock has already been set.

- Setup

Sets days of the week that the TV is turned off automatically. If you select Manual, you can highlight and select each specific day.

- Time

Sets the time for the TV to turn off automatically.

Using the Screen Burn Protection and Energy Saving Functions

Preventing screen burn

(MENU/123) > MENU > System > Auto Protection Time Try now

You can use the Screen Burn Protection function to protect the screen. Still images can leave burned-in after-images if left on the screen for a long period of time. Select a time setting from the list. If a still image is shown on the screen for longer than the time that you selected, the TV automatically activates the Screen Burn Protection function.

Reducing the energy consumption of the TV

(MENU/123) > MENU > System > Eco Solution Try now

You can adjust the brightness level of the TV and prevent overheating to reduce overall power consumption.

• Energy Saving Try now

Allows you to select a brightness setting from the list to reduce the TV's power consumption.

- Eco Sensor Try now

Automatically adjusts the brightness level of the TV, according to the ambient light level, to reduce power consumption. If the Eco Sensor has adjusted the screen's brightness level, you can select the Min. Backlight to manually adjust the minimum screen brightness.

When the Eco Sensor is set to On, the screen is darker than usual.

• No Signal Power Off Try now

Allows you to select a time from the list. If no signal has been received for a specified duration, the TV automatically cuts off the power to reduce power consumption.

• Auto Power Off Try now

Automatically turns off the TV to prevent overheating when the TV remains on for the specified period of time without any user input.

• Motion Lighting Try now

Adjusts the brightness in response to on-screen movements to reduce power consumption.

This function is only available when Picture Mode is set to Standard.

This function is not available when the TV is in the 3D mode.

This function is deactivated when you adjust a picture quality setting, such as Contrast and Brightness

Using Anynet+ (HDMI-CEC)

You can use the TV's remote control to control external devices that are connected to the TV by an HDMI cable and that support Anynet+ (HDMI-CEC). Note that you can only set up and operate Anynet+ (HDMI-CEC) with the remote control.

Setting up Anynet+ (HDMI-CEC)

(MENU/123) > MENU > System > Anynet+ (HDMI-CEC) Try now

• Anynet+ (HDMI-CEC) Try now

You can enable or disable Anynet+ (HDMI-CEC). Set to Off or On to disable or enable all Anynet+ related functions.

• Auto Turn Off Try now

When set to Yes, turns off Anynet+ compatible external devices when the TV is turned off.

This function is not supported by some Anynet+ compatible devices.

• Search for Devices Try now

Automatically searches for and identifies Anynet+ (HDMI-CEC) compatible external devices that are connected to the TV.

Using Anynet+ (HDMI-CEC)

Selecting an external device

After connecting external devices to the TV, select (MENU/123) > MENU > System > Anynet+ (HDMI-CEC) > Search for Devices. The TV displays a list of Anynet+ (HDMI-CEC)-compliant devices that you can set up as Anynet+ (HDMI-CEC)-enabled devices (i.e., devices that can be controlled with the TV's remote control). To set up an Anynet+ (HDMI-CEC)-compliant device as an Anynet+ (HDMI-CEC)-enabled device, you must select it on the Source screen. Follow the instructions in the next section.

Accessing the menu of the external device

1. Press the SOURCE button on the remote control. On the Source screen, select the device and the down directional button.
2. Select Anynet+ (HDMI-CEC) from the Tools list. The selected device is set up as an Anynet+ (HDMI-CEC)-enabled device. The following menu options are available.

The menu options available in the pop-up menu may differ with the external device.

• Anynet+ (HDMI-CEC)

Sets up the selected device as an Anynet+ (HDMI-CEC)-enabled device and then displays a list of Anynet+ (HDMI-CEC)-compliant devices connected to the TV. Select View TV to exit Anynet+ (HDMI-CEC), and start watching TV.

Read before connecting an Anynet+ (HDMI-CEC)

You can configure the TV's universal remote control to control third-party cable boxes, Blu-ray players, and home theatres that do not support HDMI-CEC. For more information, refer to "Controlling External Devices with the TV Remote - Using the Universal Remote."
Anynet+ cannot be used to control external devices that do not support HDMI-CEC.
Anynet+ devices must be connected to the TV with an HDMI cable. Note that some HDMI cables may not support Anynet+ (HDMI-CEC).
The TV remote control may not work under certain circumstances. If this occurs, select the Anynet+ device again.
Anynet+ (HDMI-CEC) works only with external devices that support HDMI-CEC and only when those devices are either in standby mode or turned on.
Anynet+ (HDMI-CEC) can control up to 12 compatible external devices (up to 3 of the same type). With home theatre systems, however, the only one system can be controlled.
To listen to 5.1-channel audio from an external device, connect the device to the TV via an HDMI cable and connect the home theatre system directly to the TV's digital audio output connector.
A home theatre system that has been connected to the TV with an HDMI cable and an optical cable only supports 2-channel audio, 5.1-channel audio is, however, available for digital broadcasts with 5.1-channel audio.

Updating the TV's Software

(MENU/123) > MENU > Support > Software Update Try now

You can view your TV's software version and update it if necessary.

Updating the TV's software to the latest version

(MENU/123) > MENU > Support > Software Update > Update now Try now

You can update your TV's software by downloading the update from the Internet directly to your TV or copying the update from a USB device that contains it to your TV.

This function requires an Internet connection.

Save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the update package.

DO NOT turn off the TV's power until the update is complete. The TV turns off and on automatically after completing the software update. All video and audio settings return to the default settings after a software update.

Updating the TV automatically

(MENU/123) > MENU > Support > Software Update > Auto update Try now

If the TV is connected to the Internet, you can have the TV's software update itself automatically while you are watching the TV. When the background update is completed, it is applied the next time the TV is used.

This function may take a longer time if a different networking function is running concurrently.

This function requires an Internet connection.

If you agree to the Smart Hub terms and conditions, Auto update is set to On automatically. If you do not want the TV's software to update itself automatically, set Auto update to Off.

Protecting the TV from Hacking and Malicious Code

(MENU/123) > MENU > System > Smart Security Try now

You can use Smart Security to protect the TV from hacking and malicious code when connected to the Internet.

Checking the TV and connected storage for malicious code

(MENU/123) > MENU > System > Smart Security > Scan Try now

You can scan the TV and connected media to detect the presence of malicious code. If there is no malicious code detected, a notification window appears on the screen.

If malicious code is detected...

If malicious code is found, the results of the scan will appear on the screen. This result window displays all malicious code found. You can quarantine (isolate) the code from executing.

1. Select all the malicious code to quarantine.
2. Select Isolate. These options relocate the selected malicious code to the Isolated List.

The Isolated List displays all quarantined malicious codes.

Configuring additional functions

(MENU/123) > MENU > System > Smart Security > Settings Try now

You can scan your TV against viruses or activate additional security functions, for example, the network security function.

• Antivirus
  Monitors the TV in real-time to prevent viruses from infecting the TV.
  • Network Security
  Protects the TV from hacking to minimise a leaks of private information.

- Camera

Permits the cameras connected to the TV to be used.

- Microphone

Permits the microphones connected to the TV to be used.

- Auto Scan

Makes the TV automatically scan itself and connected storage media when it is turned on.

- Auto Isolate

Adds malicious codes found during the scanning process to the Isolated List automatically.

Using Other Functions

Running the accessibility functions quickly

(MENU/123) > MENU > System > Accessibility Try now

You can use the Accessibility Shortcuts menu to quickly run the accessibility functions for the impaired. Press and hold the button on the Samsung Smart Control. Or, press the AD/SUBT, button on the standard remote control. The Accessibility Shortcuts menu lists the Voice Guide, Menu Transparency, Audio Description, High Contrast, Enlarge, Subtitle, Learn About your Remote Control, and Multi-output Audio menu options.

Even if Voice Guide is set to Off or the Mute mode is activated, you can run the Voice Guide function from the Accessibility Shortcuts menu.

This function is not available on certain models in specific geographical areas.

Enabling voice guides for the visually impaired

(MENU/123) > MENU > System > Accessibility > Voice Guide Try now

You can activate Voice Guides that describe the menu options aloud to aid the visually impaired. To activate this function, set Voice Guide to On. Then the TV provides Voice Guides for focus movement, channel change, volume change, programme information, schedule viewing, programme recording, other TV functions, and various content on the Web Browser, Search or MY CONTENT.

The Voice Guide is provided in the language that is specified on the Menu Language screen. However, some languages are not supported by Voice Guide even though they are listed in the Menu Language screen. English is always supported.
If Voice Guide is set to On, the Samsung Smart Control's motion sensor does not work. To use the motion sensitivity sensor, set Voice Guide to Off.
If Voice Guide is set to On, the Motion Control function is disabled. To enable this function again, set Voice Guide to Off.

Changing the volume, speed and pitch of the Voice Guide

You can configure the volume, speed, pitch and level of the Voice Guide.

Volume
Changes the Voice Guide's volume level.
- Pitch
Tunes the pitch of the Voice Guide.
- Speed
Changes the Voice Guide's tempo.

Adjusting the menu transparency

(MENU/123) > MENU > System > Accessibility > Menu Transparency Try now

You can adjust the menu's transparency.

Setting High Contrast to On automatically switches the menu display mode to opaque. You cannot manually change the Menu Transparency settings.

White text on black background (high contrast)

(MENU/123) > MENU > System > Accessibility > High Contrast Try now

You can change major service screens to white text on a black background or change the transparent TV menus to opaque so that text can be more easily read. To activate this function, set High Contrast to On.

Enlarging font (for the visually impaired)

(MENU/123) > MENU > System > Accessibility > Enlarge Try now

You can zoom in the font on the screen. To activate this function, set Enlarge to On.

Learning about the remote control (for the visually impaired)

(MENU/123) > MENU > Support > e-Manual > Learn About your Remote Control Try now

This function helps individuals with a visual impairment to learn the positions of the buttons on the remote control. When this function is activated, press a button on the remote control and the TV tells you its name. To exit Learn About your Remote Control, press the RETURN button twice.

Listening to the TV through Bluetooth headphones (for the hearing impaired)

(MENU/123) > MENU > Sound > Speaker Settings > Bluetooth Headphones > Multi-output Audio

You can turn on both of the TV speaker and Bluetooth headphones at the same time. With this function active, when you adjust the TV's volume, you can set the volume of the Bluetooth headphones to be louder than TV speaker.

This function is not available on certain models in specific geographical areas.

When you connect the Bluetooth headphones to the TV, Multi-output Audio menu is activated. For more information about connecting Bluetooth headphones to the TV, refer to "Listening to the TV through Bluetooth headphones".

Using the Indian Cinema Mode

MENU/123 > MENU > System > Indian Cinema Mode

When you set Indian Cinema Mode to On, the TV provides an optimal picture and sound for popular content.

This function is only available in specific geographical areas.

Changing the menu language

(MENU/123) > MENU > System > Menu Language Try now

You can use this function to change the menu language. Choose a language from the list.

Setting up a password

(MENU/123) > MENU > System > Change PIN Try now

You can set a Personal Identification Number (PIN) to lock channels, reset the TV, and change TV settings.

The PIN input window appears. Enter a PIN. Enter it again to confirm it. The default PIN is 0000.

If you forget your PIN, you can reset it with your remote control. With the TV turned on, press the following buttons on the remote control to reset the PIN to 0000: MUTE → +(Volume Up) → RETURN → -(Volume Down) → RETURN → + → RETURN.

Checking Notifications

(MENU/123) > MENU > System > Notifications Try now

You can view the list of event messages generated by the TV. Notifications appear on the screen when events such as an update release for an app or Samsung Account login/logout occurs.

To delete all notifications, select Delete All.

To check the SMART TV's service notifications in a web browser, select Service Notice.

Enabling game mode

(MENU/123) > MENU > System > General > Game Mode Try now

You can enable the game mode to optimise the TV's settings for playing video games with a gaming console, such as a PlayStation ^TM or Xbox ^TM .

The game mode is not available for normal TV viewing.

The screen may shake somewhat.

When the Game Mode is enabled, Picture Mode and Sound Mode are switched to Game automatically.

To use a different external device, first disconnect the game console and disable the Game Mode.

Richer colours and superior picture quality (BD Wise)

(MENU/123) > MENU > System > General > BD Wise Try now

You can enhance colours and picture quality if you connect a Samsung DVD player, Blu-ray player, or home theatre system that supports BD Wise. When BD Wise is enabled, it automatically optimises the TV's resolution.

This function is only available when the external device is connected via an HDMI cable.

Enabling/Disabling sound feedback

(MENU/123) > MENU > System > General > Sound Feedback Try now

You can use Sound Feedback to get audio cues as you navigate through menus and select menu options. You can set it to Low, Medium, High, or Off.

Locking/Unlocking the Control Stick

(MENU/123) > MENU > System > General > Panel Lock Try now

You can lock and unlock the front panel buttons (menu, channel, and volume) of the TV and the Control Stick on the back of the TV.

Showing/Hiding the Samsung logo while booting

(MENU/123) > MENU > System > General > Boot Logo Try now

You can enable or disable the Samsung logo display that appears when the TV starts up.

This function is not available when Samsung Instant On is set to On.

Enabling the TV to boot faster

(MENU/123) > MENU > System > General > Samsung Instant On (Try now

You can set Samsung Instant On to On so that the TV boots up faster.

When Samsung Instant On is set to On, the use history of the apps that you used on the TV may be stored in the TV.
The Samsung Instant On function works when you turn on the TV while its power cable is still connected after you set Samsung Instant On to On. If you disconnect, reconnect the power cable, and then turn on the TV, this function does not work.
Even if the Samsung Instant On function is on, the power consumption while the TV is turned off meets the standby power consumption specification presented on the product label.

Enabling/Disabling the front indicators

(MENU/123) > MENU > System > General > Light Effect Try now

You can turn the indicators on the front of the TV on and off. When you set Light Effect to Off, it reduces the TV's power consumption.

This function is not available on certain models in specific geographical areas.
The colour of the TV's light may differ with the model.

Removing Flickering

(MENU/123) > MENU > System > General > Anti Flicker

Change the power frequency for the cable to stop the camera from flickering.

This function is not available on certain models in specific geographical areas.

Registering the TV as a DivX-certified device (watching for pay DivX movies)

(MENU/123) > MENU > System > DivX® Video On Demand

You can watch DivX DRM protected movies on the TV, only if it is registered as a DivX-certified device.

Digital Rights Management (DRM) functions as a technical security mechanism to protect the content provider's copyright.
You can watch recorded movies or free DivX movies without registration.
Visit the DivX website (http://www.divx.com) and log in to your user account before registering the TV as a DivX-certified device. If you do not have an account, create one.

Restoring the TV to the factory settings

(MENU/123) > MENU > Support > Self Diagnosis > Reset Try now

You can restore all TV settings (excluding the Internet and network settings) to the factory defaults.

1. Select Reset. The security PIN entry window appears.
2. Enter the security PIN and select Yes. All settings are then reset. The TV turns off and on again automatically and displays the Setup screen.

For more information on Setup, refer to the user manual that came with the TV.

Using the TV as a display model (for retail stores)

(MENU/123) > MENU > Support > Use Mode Try now

You can turn the TV into a display model for retail environments by setting this mode to Store Demo.

For all other uses, select Home Use.

With Store Demo, some functions are disabled, and the TV automatically resets itself after a preset amount of time.

Enabling/ Disabling Data Service function (HbbTV)

In some countries, HbbTV is a data service.

This function is not available on certain models in specific geographical areas.

Some broadcasting may not support the HbbTV.

To use HbbTV, download, install and run HbbTV Widget from Apps, then follow the instructions on the screen.

HbbTV is turned off by default. To use HbbTV, go to (MENU/123) > MENU > System Data Service and set it Enable. (Depending on the country)

• HbbTV is not available when Timeshift is running or when a recorded video is being played back.
• An application on HbbTV may malfunction temporarily depending on the circumstances of the broadcast station or application provider.
• An application is only available for use on HbbTV when the TV network is connected to an external network. The application may malfunction depending on the network conditions.
• If the current channel is compatible with both the HbbTV and non-HbbTV text input modes, activate TTX by select TTX key twice.

Using HbbTV:

• When the screen indicates (with the Aetc.) that HbbTV is being accessed.
• Select TTX using the remote once to enter the HbbTV text-input mode.
• Select TTX using the remote twice to enter the non-HbbTV text-input mode.

Connecting to a TV Viewing Card slot

This function is not available on certain models in specific geographical areas.

To connect the CI CARD Adapter, follow these steps:

We recommend attaching the adapter before installing the wall mount, or inserting the "CI or CI+ CARD".

Turn the TV off to connect or disconnect a CI card adapter.

COCON INTERFATE COCON INTERFATE ① ②

1. Insert the CI CARD Adapter into the two holes on the product 1.

Please find two holes on the rear of the TV. Two holes are beside the COMMON INTERFACE port.

1. Connect the CI CARD Adapter into the COMMON INTERFACE port on the product 2.

2. Insert the "CI or CI+ CARD"

We recommend that you insert the CI card before you mount the TV on a wall. It may be difficult to insert after the mounting. Insert the card after attaching the CI-Module on TV. It is difficult to attach the module if you insert the card before attaching.

Using the "CI or CI+ CARD"

CI CARD™ COMMON INTERFACE SV ONLY

To watch paid channels, the "CI or CI+ CARD" must be inserted.

• If you don't insert the "CI or CI+ CARD", some channels will display the message "Scrambled Signal".
• The pairing information containing a telephone number, the "CI or CI+ CARD" ID the Host ID and other information will be displayed in about 2\~3 minutes. If an error message appears please contact your service provider.
• When the configuration of channel information has finished, the message "Updating Completed" appears indicating the channel list is updated.

Requirements:

• You must obtain a "CI or CI+ CARD" from a local cable service provider.
• When removing the "CI or CI+ CARD", carefully pull it out with your hands since dropping the "CI or CI+ CARD" may cause damage to it.
• Insert the "CI or CI+ CARD" in the direction marked on the card.
  • The location of the COMMON INTERFACE slot may be different depending on the model.

Teletext Feature

This function is not available on certain models in specific geographical areas.

The index page of the Teletext service gives you information on how to use the Service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

You can change Teletext pages by select numeric using your remote control.

Teletext on / mix / off: Activates the Teletext mode for the current channel. Press twice to overlap the Teletext mode with the current broadcasting screen. Press it one more time to exit teletext.
Store: Stores the Teletext pages.
Size: Displays the teletext on the upper half of the screen in double-size. To move the text to the lower half of the screen, press it again. For normal display, press it once again.
Hold: Holds the display at the current page, in the case that there are several secondary pages that follow automatically. To undo, press it again.

Colour buttons (red, green, yellow, blue): If the FASTEXT system is used by the broadcasting company, the different topics on a Teletext page are colour-coded and can be selected by coloured buttons. Press the colour corresponding to the topic of your choice. A new colour coded page appears. Items can be selected in the same way. To display the previous or next page, select corresponding coloured button.

Mode: Selects the Teletext mode (LIST / FLOF). If pressed during LIST mode, switches the mode to List save mode. In List save mode, you can save a Teletext page into a list using the ☐ (store) button.
Sub-page: Displays the available sub-page.
Page up: Displays the next Teletext page.
Page down: Displays the previous Teletext page.
Index: Displays the index (contents) page at any time while you are viewing Teletext.
☐? Reveal: Displays the hidden text (answers to quiz games, for example). To display the normal screen, press it again.
Cancel: Shrinks the Teletext display to overlap with the current broadcast.

Typical Teletext page

A B C D E F

Part Contents

A Selected page number.

B Broadcasting channel identity.

C Current page number or search indications.

D Date and time.

E Text.

F Status information. FASTEXT information.

Getting Support

Support through Remote Management

(MENU/123) > MENU > Support > Remote Management Try now

If you need assistance with your TV, you can use this feature to let Samsung Electronics diagnose your TV remotely. You will need to read and agree to the service agreement before using this feature. A Samsung Electronics technician will then diagnose, repair, and update your TV remotely.

This option requires an Internet connection.

What Does Remote Service Do?

Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely.

• Diagnose your TV
- Adjust the TV settings for you
• Perform a factory reset your TV
• Install recommended firmware updates

How Does it Work?

Having a Samsung Tech remotely service your TV is easy.

Laptop screen displaying a news app interface with a user profile and a blue telephone handset symbolizing communication or messaging.

Call the Samsung Contact Centre and ask for remote support.

MENU SUPPORT

Open the menu on your TV and go to the Support section.

Select Remote Management, and then read and agree to the service agreements. When the PIN screen appears, provide the PIN number to the agent.

Illustration of a doctor on a computer monitor displaying ECG waveform (no text or symbols)

The agent accesses your TV.

Finding the contact information for service

(MENU/123) > MENU > Support > Contact Samsung

You can view the address of the Samsung website, the call centre phone number, your TV's model number, your TV's software version, the Smart Hub info, and other information you may need to get service support from a Samsung call agent or the Samsung website.

to view the Open Source Licence, press the A button.

There Is a Problem with the Picture

Testing the picture

(MENU/123) > MENU > Support > Self Diagnosis > Picture Test Try now

Before you review the list of problems and solutions below, use Picture Test to determine if the problem is caused by the TV. The Picture Test displays a high definition picture you can examine for flaws or faults.

The problem Try this!
Flickering and Dimming	If your Samsung Television is flickering or dimming sporadically, you may need to disable some of the energy efficiency features. DisableEnergy Saving((MENU/123) >MENU >System >Eco Solution >Energy Saving) or Eco Sensor ((MENU/123) >MENU >System >Eco Solution >Eco Sensor).
Component Connections/Screen Colour	If the colour on your Samsung television screen is not correct or the black and white colours are off, runPicture Test((MENU/123) >MENU >Support Self Diagnosis >Picture Test).If the test results indicate that the problem is not caused by the TV, do the following:Confirm that the TV's video input connectors are connected to the correct external device video output connectors.Check the other connections as well. If the TV is connected to an external device via a component cable, confirm that the Pb, Pr, and Y jacks are plugged into their proper connectors.
Screen Brightness	If the colours on your Samsung TV are correct but just a little too dark or bright, try adjusting the following settings first.Go to thePicture menu and adjust theBacklight, Contrast, Brightness, Sharpness, Colour, and Tint (G/R) settings.
Ghosting, Blurring, or Juddering	If you notice ghosting or blurring on the screen, use theAuto Motion Plusfunction((MENU/123) >MENU >Picture >Picture Options >Auto Motion Plus) to resolve the issue.

The problem Try this!

Unwanted Powering Off	If your Samsung TV appears to turn off by itself, try disabling some of the TV's energy efficiency functions. See if Sleep Timer ((MENU/123) > MENU > System > Time > Sleep Timer) has been enabled. The Sleep Timer automatically turns the TV off after a specified period of time. If the Sleep Timer has not been enabled, see if No Signal Power Off ((MENU/123) > MENU > System > Eco Solution > No Signal Power Off) or Auto Power Off ((MENU/123) > MENU > System > Eco Solution > Auto Power Off) has been enabled and disable them.
Problems Powering On	When the TV is turned on, the remote control receiver flashes 5 times before the screen turns on.If you are having problems powering on your Samsung television, there are a number of things to check before calling the service department. Confirm that the TV's power cord is connected correctly at both ends and that the remote control is operating normally. Make sure that the antenna cable or cable TV cable is firmly connected. If you have a cable/satellite box confirm that it is plugged in and turned on.
Unable to find a Channel	If your TV is not connected to a cable box or satellite box, run Setup ((MENU/123) > MENU > System > Setup) or Auto Tuning (Broadcasting > Auto Tuning).
The TV image does not look as good as it did in the store.	Store displays are all tuned to digital, HD (high definition) channels.If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality.Many HD channels are upscaled from SD (Standard Definition) content. Look for a channel that is broadcasting true HD content.Cable/Satellite Subscribers: Try HD channels from the channel lineup.Terrestrial/Cable Antenna Connection: Try HD channels after running the Auto Tuning function.Adjust the cable/satellite box's video output resolution to 1080i or 720p.
The problem Try this!
The picture is distorted.	The compression of video content may cause picture distortions, especially in fast moving pictures from sports programmes and action movies.A weak or bad quality signal can cause picture distortions. This is not an issue with the TV.Mobile phones used close to the TV (within 1m) may cause noise in analogue and digital channels.
The colour is wrong or missing.	If you're using a Component connection, make sure that the Component cables are connected to the correct jacks. Incorrect or loose connections may cause colour problems or a blank screen.
The colour is poor or the picture is not bright enough.	Go to thePicturemenu and then adjust thePicture Mode,Brightness,Sharpness, andColoursettings.See ifEnergy Saving((MENU/123)>MENU>System>Eco Solution>Energy Saving) has been enabled.Try resetting the picture. ((MENU/123)>MENU>Picture>Reset Picture)
There is a dotted line on the edge of the screen.	ChangePicture Sizeto 16:9.Change the cable/satellite box resolution.
The picture is black and white.	If you are using AV composite input, connect the video cable (yellow) to the TV's green component jack.

If the test picture does not appear or there is noise or distortion, the TV may have a problem. Contact Samsung's Call Centre for assistance.
If the test picture is displayed properly, there may be a problem with an external device. Please check the connections.
If the problem persists, check the signal strength or refer to the external device's user manual.

I Can't Hear the Sound Clearly

Testing the sound

(MENU/123) > MENU > Support > Self Diagnosis > Sound Test Try now

If the TV plays the Sound Test melody without distortion, there may be a problem with an external device or the broadcast signal's strength.

The problem Try this!
There is no sound or the sound is too low at maximum volume.	Check the volume control of the device (cable/satellite box, DVD, Blu-ray, etc.) connected to your TV.
The picture is good but there is no sound.	Set (MENU/123) > MENU > Sound > Speaker Settings > Speaker Select to TV Speaker.If you are using an external device, check the device's audio output option. (For example, you may need to change your cable box's audio option to HDMI if the box connected to your TV is using an HDMI cable.)To listen to the computer sound, connect the external speaker to the computer's audio output connector.If your TV has a headphone jack, make sure there is nothing plugged into it.Reboot the connected device by disconnecting and then reconnecting the device's power cable.
The speakers are making an odd sound.	Make sure that the audio cable is connected to the correct audio output connector on the external device.For antenna or cable connections, check the signal information. A low signal level may cause sound distortions.Run Sound Test ((MENU/123) > MENU > Support > Self Diagnosis > Sound Test).

I Can't See 3D Images Clearly

Testing 3D picture quality

(MENU/123) > MENU > Support > Self Diagnosis > 3D Picture Test Try now

If the test picture does not appear or there is noise or distortion, the TV may have a problem. Contact Samsung's Call Centre for assistance.

This function is only available on certain models in specific geographical areas.

To test 3D picture quality, you must be wearing 3D glasses and the glasses and the TV must be paired.

The problem Try this!

The 3D glasses are not working correctly.	Make sure the glasses are powered on.The 3D feature may not work properly if there is another 3D product or an electronic device running nearby.If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses.
I can't see 3D images clearly.	The ideal viewing distance is three times or more the height of the screen.We also recommend watching 3D content with your eyes level with the screen.
The batteries in the 3D glasses are discharged.	Turn off the 3D glasses when they are not in use. If you leave the 3D glasses on, the battery lifespan is shortened.

There Is a Problem with the Broadcast

The problem Try this!
The TV is not receiving all channels.	Confirm that the coaxial cable is securely connected to the TV.Run Setup ((MENU/123) > MENU > System > Setup) or Auto Tuning((MENU/123) > MENU > Broadcasting > Auto Tuning).If you are using an antenna, verify it is positioned correctly and the all the connections are secure.
There are no subtitles with digital channels.	Go to Subtitle ((MENU/123) > MENU > System > Accessibility > Subtitle) and change the Subtitle Mode.Some channels may not have subtitle data.
The picture is distorted.	The compression of the video content may cause picture distortions. This is especially true with fast moving pictures from sports programmes and action movies.A weak signal can cause picture distortions. This is not a problem with the TV.

My Computer Won't Connect

The problem Try this!
The "Mode Not Supported" message appears.	Set your PC's output resolution so it matches a resolution supported by the TV.
The video is OK but there is no audio.	If you are using an HDMI connection, check the audio output setting on your PC.If you are using an HDMI-to-DVI cable, a separate audio cable is required.

I Can't Connect to the Internet

The problem Try this!
The wireless network connection failed.	Confirm your wireless modem/router is on and connected to the Internet.
The software update over the Internet has failed.	Check the network connection status ((MENU/123) > MENU > Network > Network Status).If the TV is not connected to a network, connect to a network.The upgrade stops if you already have the latest software version.

The Schedule Recording/Timeshift Function Isn't Working

The problem Try this!
Schedule Recording cannot be used.	Check if there is a USB device connected to the TV.Recording will automatically stop if the signal becomes too weak. The Timeshift function will not work if there isn't enough storage space on the USB device.

Anynet+ (HDMI-CEC) Isn't Working

The problem Try this!
Anynet+ does not work.	Confirm that the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.Check if the power cord of the Anynet+ device is properly connected.Check the cable connections of the Anynet+ device.Go to Anynet+ (HDMI-CEC) ((MENU/123) > MENU > System >Anynet+ (HDMI-CEC)) and see if Anynet+ (HDMI-CEC) has been set to On.Check whether the TV remote control is in TV mode.Check whether the remote control is Anynet+ compatible.Anynet+ may not function when some other functions are active, including Channel Search, Smart Hub, Plug & Play, etc.If you have disconnected and then reconnected the HDMI cable, scan for devices again or turn your TV off and on.
I want to start Anynet+.	Check if the Anynet+ device is properly connected to the TV, and then select the Anynet+ (HDMI-CEC) ((MENU/123) > MENU > System >Anynet+ (HDMI-CEC)) menu to see if Anynet+ (HDMI-CEC) is set to On.
I want to exit Anynet+.	Select View TV from the Anynet+ menu.Select a non-Anynet+ device from the Source list.
The message "Connecting to Anynet+ device..." or "Disconnecting from Anynet+ device" appears on the screen.	You cannot use the remote control when you are configuring Anynet+ or switching to a viewing mode. Use the remote control after the TV has completed the Anynet+ configuration or has switched to a viewing mode.
The Anynet+ device won't play.	You cannot use the play function when Setup is in progress.
The connected device is not displayed.	Check whether the device supports Anynet+.Check whether the HDMI cable is properly connected.Go to Anynet+ (HDMI-CEC) ((MENU/123) > MENU > System >Anynet+ (HDMI-CEC)) and see if Anynet+ (HDMI-CEC) has been set to On.Scan for Anynet+ devices again.Anynet+ devices must be connected to the TV using an HDMI cable. Make sure the device is connected to your TV with an HDMI cable. Some HDMI cables may not support Anynet+.If the connection is terminated because there has been a power failure or the HDMI cable has been disconnected, please scan for the device again.
The TV audio is not being played through the receiver.	Connect an optical cable to the TV and the receiver.ARC enables the TV to output digital sound via the HDMI (ARC) port.However, ARC is only available when the TV is connected to an audio receiver that supports ARC.

I Have Trouble Launching/Using Apps

The problem Try this!
I launched an app, but it's in English. How can I change the language?	Languages supported by the app may be different from the user interface language. The ability to change the language depends on the service provider.
My application is not working.	Check with the service provider.Refer to the Help section on the application service provider's website.

My File Won't Play

The problem Try this!
Some files can't be played.	This problem may occur with high-bitrate files. Most files can be played back, but you might experience problems with high-bitrate files.

I Want to Reset the TV

Reset Path Description
Reset Settings	(MENU/123) > MENU> Support >SelfDiagnosis >Reset	Reset Picture, Sound, Channel, Smart Hub, and all other settings, except for the network settings, default settings.
Resetting Smart Hub	(MENU/123) > MENU> Smart Hub >ResetSmart Hub	Resets all Smart Hub settings to their factory defaults and deletes all information related to Samsung accounts, linked service accounts, Smart Hub service agreements, and Smart Hub applications.

Other Issues

The problem Try this!
The TV is hot.	Watching TV for an extended period of time causes the panel to generate heat. The heat from the panel is dissipated through internal vents running along the top of the TV. The bottom, however, may feel hot to the touch after extended use. Children watching TV need constant adult supervision to prevent them from touching the TV. This heat, however, is not a defect and does not affect the TV's functionality.
The picture won't display in full screen.	HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) content.Black bars will appear at the top and bottom of the screen when you watch movies that have aspect ratios different from your TV.Adjust the picture size options on your external device or set the TV to full screen.
The "Mode Not Supported" message appears.	The output resolution of the attached device is not supported by the TV. Check the TV's supported resolutions and adjust the external device's output resolution accordingly.
The Subtitles item in the TV menu is greyed out.	You cannot select the Subtitles menu if you have selected a source connected to the TV via HDMI or Component. To view captions, turn on the external device's caption function.
The TV smells of plastic.	This smell is normal and will dissipate over time.
The Signal Information option under Self Diagnosis isn't activated.	Verify that the current channel is a digital channel.The Signal Information is only available for digital channels.
The TV is tilted to the side.	Remove the base stand from the TV and reassemble it.

The problem Try this!

The Broadcasting option has been deactivated.	Broadcasting is only available when the Source is set to TV.The Broadcasting menu cannot be accessed while you watch TV using a cable box or satellite receiver.The Broadcasting menu cannot be accessed while a recording is in progress or the timeshift function is running.
The settings are lost after 5 minutes or every time the TV is turned off.	If the Use Mode is set to Store Demo, the TV's audio and video settings are automatically reset every 5 minutes.Change the Use Mode ((MENU/123) > MENU > Support > Use Mode) to Home Use.
There is an intermittent loss of audio or video.	Check the cable connections and reconnect them.Loss of audio or video can be caused by using overly rigid or thick cables.Make sure the cables are flexible enough for long term use. If you are mounting the TV to a wall, we recommend using cables with 90-degree connectors.
There are small particles on the TV's bezel.	This is part of the product's design and is not a defect.
The PIP menu is not available.	PIP functionality is only available when you are viewing video from an HDMI or Component source on the main screen.
A POP (TV's internal banner ad) appears on the screen.	Change the Use Mode ((MENU/123) > MENU > Support > Use Mode) to Home Use.
The TV is making a popping noise.	The expansion and contraction of the TV's outer casing may cause a popping noise. This does not indicate a product malfunction. The TV is safe to use.
The TV is making a humming noise.	Your TV utilises high-speed switching circuits and high levels of electrical current. Depending on the TV's brightness level, the TV may seem slightly noisier than a conventional TV.Your TV has undergone strict quality control procedures that meet our demanding performance and reliability requirements.Some noise coming from the TV is considered normal and is not an acceptable cause for an exchange or refund.

Before Using the Recording and Timeshift Functions

This function is not available on certain models in specific geographical areas.

Before using the recording and Schedule Recording functions

• To set up a Schedule Recording, you must first set the TV's clock. Set the Clock ((MENU/123) > MENU > System > Time > Clock).
• You can set up a maximum total of 30 Schedule Viewing and Schedule Recording entries.
• Recordings are DRM-protected and therefore cannot be played back on a computer or on a different TV. In addition, these files cannot be played back on your TV if its video circuit has been replaced.
• A USB hard drive with a speed of 5,400rpm or above is recommended. However, RAID-type USB hard drives are not supported.
  • USB memory sticks are not supported.

• The total recording capacity may differ with the amount of available hard drive space and the recording quality level.

• Schedule Recording requires at least 100MB of free space on the USB storage device. Recording will stop if the available storage space falls below 50MB while recording is in progress.

• If the available storage space falls below 500MB while both the Schedule Recording and Timeshift functions are in progress, only the recording will stop.
  • The maximum recording time is 720 minutes.
• A video is played according to the TV settings.
• If the input signal is changed while recording is in progress, the screen will go blank until the change is made. In this case, recording will resume, but ● will not be available.
• When using the Record or Schedule Recording function, the actual recording may start a second or two later than the specified time.
• If the Schedule Recording function is operating while a recording is being made on an HDMI-CEC external device, the priority is given to the Schedule Recording.
• Connecting a recording device to the TV automatically deletes abnormally saved recording files.
• If the Off Timer or Auto Power Off has been set, the TV will override these settings, continue to record, and turn off after the recording has ended.

Before using the Timeshift function

• A USB hard drive with a speed of 5,400 rpm or above is recommended. However, RAID-type USB hard drives are not supported.
• USB memory sticks or flash drives are not supported.
• The total recording capacity may differ with the amount of available hard drive space and the recording quality level.
• If the available storage space falls below 500MB while both the Schedule Recording and Timeshift functions are in progress, only the recording will stop.
• The maximum amount of time available for the Timeshift function is 90 minutes.
• The Timeshift function is not available for locked channels.
• A time-shifted video is played according to the TV settings.
• The Timeshift function may be terminated automatically once it reaches its maximum capacity.
• The Timeshift function requires at least 1.5GB of free space available on the USB storage device.

Read Before Using 3D Mode

This function is only available on certain models in specific geographical areas.

3D precautions

Warning

• When viewing a 3D video under a fluorescent lamp (50 Hz - 60 Hz) or 3-wavelength lamp, you may notice a small amount of screen flickering.
  If this symptom occurs, dim or turn off the light.
• Switching the input mode while watching a 3D movie may disable the 3D function on the TV.
  If this symptom occurs, the 3D glasses may automatically turn off.
• If you lie on your side while watching TV with 3D active glasses, the picture may appear dark or may not be visible. The actual 3D effect may be experienced differently depending on the viewer. The 3D effect may not be visible if the visual ability of your left eye differs greatly from the visual ability of your right eye.
• If a part of the 3D glasses or lenses is defective or damaged, it cannot be repaired and the glasses should be replaced. If the glasses stop working within the warranty period, the glasses can be repaired or replaced for free. If the glasses have been damaged due to the fault of the customer or the warranty period has expired, a new pair of glasses will have to be purchased.

• If the eye sight in one of your eyes differs greatly from the eye sight in the other eye, you may perceive 3D effects to a lesser degree than other persons or may not perceive 3D effects at all.

• Ensure you are within the working distance of the glasses when you view a 3D video.
  The images may not be viewable in 3D if you move outside of the working distance for 3 seconds.
  If the 3D glasses are moved outside of their working distance, the signal from the TV will disconnect and the glasses' 3D function will turn off after several seconds. When this happens, the red LED will turn on for 3 seconds.

• The 3D glasses may not work properly due to interference from other 3D products or electronic devices that operate on the 2.4 GHz frequency such as a microwave oven or Internet AP. If the 3D function malfunctions due to interference, please move all other electronic or wireless communication devices as far away from the glasses and the TV as possible.
• The vividness of the image may appear degraded if you view 3D video in a place that is exposed to direct sunlight or illumination.
• The 3D glasses may malfunction if there is an electric field or metallic object such as a steel plate nearby. Keep the glasses as far away as possible from electric fields and metallic objects.
• With SSG-3570 model glasses, the glasses may power off if you remain stationary while viewing 3D video for an extended period of time.
• With SSG-3570 model glasses, if the 3D glasses do not function immediately after you put them on when the TV is in 3D mode, take them off and then put them back on.

Caution

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D IMAGES. READ THE FOLLOWING CAUTIONS BEFORE YOU OR YOUR CHILD USE THE 3D FUNCTION.

• Adults should frequently check on children who are using the 3D function. If there are any complaints of tired eyes, headaches, dizziness, or nausea, stop the child from viewing the 3D TV and ensure that they rest.
• Do not use the 3D glasses for other purposes such as general wear, sunglasses, protective goggles, etc.
• Some viewers may experience discomfort such as dizziness, nausea, and headaches while viewing 3D TV. If you experience any of these symptoms, stop viewing the 3D TV, remove the 3D glasses, and rest for awhile.
• Watching 3D pictures for an extended period of time may cause eye strain. If you experience any eye strain, stop viewing the 3D TV, remove the 3D glasses, and rest for awhile.
• Do not use the 3D function or 3D glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may result in injury from running into objects, tripping, and/or falling.
• Do not sleep with the 3D glasses on. You can damage or break the temples.
• The temples on your 3D glasses are not foldable. Forcing the temples to fold will damage the 3D glasses.
• With SSG-3570 model glasses, do not shake your 3D glasses repeatedly. Shaking the glasses will power them on and can cause the battery to discharge faster than it would normally.
• With SSG-5100GB and SSG-5150GB models glasses, there is a danger of explosion if the battery is incorrectly replaced.
• With SSG-5100GB and SSG-5150GB models glasses, make sure to replace the battery with the same type.

Safety precautions

The following safety instructions are given to ensure your personal safety and prevent property damage. Please read the following to ensure the proper use of the product.

• Do not place the product in a location exposed to direct sunlight, heat, fire, or water. Exposure may result in a product malfunction or fire.
• Do not apply force to the lenses of the 3D glasses. Do not drop or bend the product. Applying force, dropping, or bending may result in a 3D glasses malfunction.
• Keep the components of the 3D glasses out of reach of children. Especially, ensure children do not swallow any of the components. If your child swallows a component, consult your doctor immediately.
• When cleaning the product, do not spray water or cleaner directly onto the surface of the product. Spraying water or cleaner directly onto the glasses may result in fire or electric shock, damage to the product's surface, or cause the indicator labels on the product's surface to come loose.

• Do not apply chemicals containing alcohol, solvent, or surfactant such as wax, benzene, thinner, pesticide, aerial freshener, lubricant, or cleaner to the product. These chemicals may cause the product's exterior to be discoloured or cracked, or labels or instructions to be removed. Use only a soft cloth such as superfine fibers or cotton flannels for cleaning the product as the surface or the lenses easily crack. Because the product can be easily scratched with foreign substances, make sure to dust off the cloth before using.

• Do not disassemble, or attempt to repair or modify your 3D active glasses by yourself.

• Be careful not to let the temple ends of the 3D active glasses harm your eye.
• Do not sleep with the 3D glasses on. You can break the arms.
• Use your hands to put on or remove the 3D glasses.
• For SSG-5100 and SSG-5150 model glasses, use only the specified standard batteries. When replacing the battery, insert the battery so that its polarity (+, -) is correct. Failing to do so may damage the battery or result in fire, personal injury or environmental damage caused by liquid leaking from the battery.
• For SSG-5100 and SSG-5150 model glasses, keep the used battery out of the reach of children so that they do not accidentally swallow it. If your child swallows the battery, consult your doctor immediately.
• Swallowing the cylindrical (button type) battery can cause serious damage to your internal organs. If this happens, contact a doctor immediately.

S Recommendation disclaimer

Some of the features recommended by S Recommendation may not be available on all models.

S Recommendation with Voice Interaction

For recommendations given in response to common speech commands:

Voice Interaction is limited to the official language of the country of purchase. Performance may vary based on content availability, the clarity and volume of your voice, and ambient noise levels. Strong regional accents may not be recognised.

Certain Samsung Smart TV features may not be available if you do not give your expressed consent to the collection and use of personal information.

Certain features within S Recommendation require Internet access and may not be available based on service provider, language, dialect, and region.

Your remote control may differ from the images shown in this manual.

S Recommendation

For content recommendations given to fit your TV viewing preferences:

Certain Samsung Smart TV features may not be available if you do not give your expressed consent to the collection and use of personal information.

Certain features within S Recommendation require Internet access and may not be available based on service provider, language, dialect, and region.

Your remote control may differ from the images shown in this manual,

Supported Resolutions for 3D Modes

These specifications apply to the 16:9 display ratio only.
This function is only available on certain models in specific geographical areas.

HDMI

• 3D Mode: (L/R), (T/B)

Resolution Frequency (Hz)
1280 x 720p 50 / 60
1920 x 1080i 50 / 60
1920 x 1080p 24 / 25 / 30 / 50 / 60
3840 x 2160p 24 / 25 / 30 / 50 / 60

Component

Resolution Frequency (Hz)
1280 x 720p 59.94 / 60
1920 x 1080i 59.94 / 60
1920 x 1080p 23.98 / 24 / 29.97 / 30 / 59.94 / 60

Digital channel

Resolution Frequency (Hz)
1280 x 720p 59.94 / 60
1920 x 1080i 59.94 / 60

Videos/Photos

Refer to "Read Before Playing Photo, Videos, or Music Files."

Supported Resolutions for each of UHD Input Signals

• Resolution: 3840 x 2160p, 4096 x 2160p

The HDMI connection with HDMI UHD Color set to Off supports up to UHD 50P/60P 4:2:0 input signals, while the HDMI connection with HDMI UHD Color set to On supports up to UHD 50P/60P 4:4:4 and 4:2:2 input signals.

If HDMI UHD Color is set to Off

Frame rate (fps)	Colour Depth / Chroma Sampling	RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
50 / 60 8 bit	-- - O

If HDMI UHD Color is set to On

Frame rate (fps)	Colour Depth / Chroma Sampling	RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
50 / 60 10 bit	8 bit O O O O
	-- O O
	12 bit -- O O

For the 6 series models or lower and 7200 series model, make sure to connect to the HDMI IN (STB/DVI) port of the TV. Although the HDMI cable is connected to this port, the HDMI UHD Color function is not available on the 6000 series models.

Read Before Using Voice, Motion, or Face recognition

The Voice Recognition is only supported for the 6600 series models or higher except for 7200 series model.

The Motion Control and Face recognition are only supported for the 6400 series models or higher,

Precautions for Voice, Motion, and Face recognition

Face recognition

• This product saves thumbnail images of users' faces for use during the Face Login.
• Logging into the Smart Hub via Face recognition may be less secure than logging in using an ID and password.

Using the TV camera

• Under some circumstances and under certain legal conditions, the use/misuse of the TV camera may result in illegal actions. There may be obligations under local privacy laws regarding the protection of individuals concerning personal data and on the free movement of such data, and possibly other laws including criminal laws regulating camera surveillance both in the workplace and elsewhere.
• By using the TV camera, users agree that it will not be used (i) in locations where cameras are generally prohibited (such as bathrooms, locker rooms or changing rooms), (ii) in any manner that will result in an invasion of a person's privacy, or (iii) in violation of any applicable laws, regulations or statutes.
• When you are no longer using the camera, keep it retracted inside the TV. This prevents any inadvertent or unintentional camera operation.

Motion Control

• Motion Control is worked through the camera connected to the TV. For Motion Control to work, you must be within the camera's recognition range. The camera's recognition range differ with the ambient light level and other factors.
• Run the Motion Control Environment Test before using Motion Control to determine the camera's recognition range.
• You may experience physical fatigue when using Motion Control for extended periods.

Voice Recognition

• Voice Recognition is not available in all languages, dialects, or regions. The performance differs with the language chosen, voice volume, and ambient noise levels in the surrounding area.
• Voice Text Input requires that you agree to any third-party app's voice privacy policy.
• Voice Text Input lets you enter text using voice commands instead of a mouse, keyboard, or remote control. This feature is particularly useful for searching, browsing the web, and using applications.
• You must agree to the following privacy notices before using Interactive Voice Recognition:
  – Voice Recognition Privacy Notice, Nuance Privacy Notice

Requirements for using Voice, Motion, or Face recognition

Requirements for using voice recognition

• The voice recognition rate differs with the volume/tone, pronunciation, and ambient sound environment (TV sound and ambient noise).
• Say the command 1.2m to 1.8m from the microphone on the Samsung Smart Control. The optimal volume for voice commands is between 75 dB and 80 dB.

Requirements for Using Motion Recognition

• Be sure to use Motion Control within recommended distances:
  – TV Camera (Sold Separately): between 1.5m and 3.5m
• The actual recognition range may differ with the camera angle and other factors.
• For the camera to recognise movement, you must stand out from the background.
• The appropriate ambient brightness is 50 to 500 lux. (100 Lux: Bathroom, 400 Lux: Living Room)
• Avoid direct sunlight when using Motion Control.
• Run the Motion Control Environment Test to assess the camera's recognition range before using Motion Control.

Requirements for using Face recognition

- Be sure to use Face recognition within recommended distances:

– TV Camera (Sold Separately): between 1.5m and 4m

- The actual recognition range may differ with the camera angle and other factors.

- The appropriate ambient brightness is 50 to 500 lux. (100 Lux: Bathroom, 400 Lux: Living Room)

- Face recognition can recognise up to 5 different users at a time.

- The TV may have difficulty recognising twins and people with similar faces as two different individuals.

• Note the following when using Face Recognition:

- Do not cover your face with a hat, a pair of sunglasses, or your hair.

- Your entire face must be visible to the camera. Avoid shadows over your face. Shadows prevent the camera from recognising faces accurately.

- Keep your expression as neutral as possible. In addition, keep your mouth closed and as neutral as possible.

- When you log into your Samsung account, your facial expression must be the same as the facial expression you had when you registered.

Read Before Using Apps

• Due to the product characteristics featured on the Samsung Smart Hub, as well as limitations in available content, certain features, applications, and services may not be available on all devices or in all territories. Some Smart Hub features may also require additional peripheral devices or membership fees. Visit http://www.samsung.com for more information on specific device information and content availability. Services and content availability are subject to change without prior notice.
• Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services caused by the service provider for any reason.
• Application services may be provided in English only and available content may differ with the area.
• For more information about applications, visit the applicable service provider's website.
• An unstable Internet connection may cause delays or interruptions. In addition, applications may terminate automatically depending on the network environment. If this occurs, check your Internet connection and try again.
• Application services and updates may become unavailable.
• Application content is subject to change by the service provider without prior notice.
• Specific services may differ with the version of the application installed on the TV.
• An application's functionality may change in future versions of the application. If this occurs, run the application's tutorial or visit the service provider's website.
• Depending on the service provider's policies, certain applications may not support multitasking.

Read Before Using the Web Browser

• The browsing screen may differ from the one on your computer.
• The Web Browser is not compatible with Java applications.
• You cannot download files. If you attempt to download a file, you will receive an error message instead.
• The Web Browser may not be able to access certain websites.
• Playing Flash videos may be restricted.
  • E-commerce for online purchases is not supported.
• With websites that have scrollable windows, scrolling a window can result in corrupted characters.
  • ActiveX is not supported.
• Certain options are not accessible in Link Browsing mode. (Switch to Pointer Browsing to activate those options.)
• Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.
• The response to remote commands and the resulting on-screen display may be delayed while a webpage is loading.
• Loading a webpage may be delayed or suspended completely with certain operating systems.

• The copy and paste operations are not supported.

• When composing an email or a simple message, certain functions such as the font size and colour selection may not be available.

• There is a limit to the number of bookmarks and the size of the log file that can be saved.
• The number of windows that can be opened concurrently differs with the search conditions and the TV model.
• The web browsing speed will differs with the network environment.
• Playing embedded video automatically disables PIP. Video playback may not commence after PIP is disabled. In this case, you will have to reload the page.
• The web browser supports .mp3 audio files only.
• If the Clock ((MENU/123) > MENU > System > Time > Clock) has not been set, the browsing history will not be saved.
• The browsing history is saved from latest to oldest, with the oldest entries being overwritten first.
• Depending on the types of video/audio codecs supported, it might not be possible to play certain video and audio files while playing Flash content.
• Video sources from PC-optimised streaming service providers may not play properly on our proprietary web browser.
• Using the on-screen QWERTY keyboard automatically disables PIP. (Except when entering a URL.)

Read Before Playing Photo, Videos, or Music Files

Limitations on use of Photo, Videos, and Music files

• The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass storage devices. Types of MSC devices include external hard drives, flash card readers, and digital cameras. (USB hubs are not supported.) These kinds of devices must be connected directly to the TV's USB port. The TV may not be able to recognise the USB device or read the files on the device if it is connected to the TV via a USB extension cable. Do not disconnect the USB device while transferring files.
• When connecting an external hard drive, use the USB (HDD) port. We recommend that you use an external hard drive with its own power adapter.
• Certain digital cameras and audio devices may not be compatible with the TV.
• If there are multiple USB devices connected to the TV, the TV might not be able to recognise some or all the devices. USB devices that use high-power input should be connect the USB [5V, 1A] port.
• The TV supports the FAT, exFAT, and NTFS file systems.
• After sorting files in the Folder view mode, the TV can display up to 1000 files per folder. If the USB device contains more than 8,000 files and folders, however, some files and folders might not be accessible.
• The PTP (Picture Transfer Protocol) connection mode is available only for digital cameras. If you connect a smartphone or tablet to the TV using PTP mode, the TV will not recognise it.
• Be sure to connect a USB or external Hard Drive, supporting USB 3.0, to the USB 3.0 port.
• Certain files, depending on how they were encoded, may not play on the TV.
• Certain files are not available depending on the model.

Supported external subtitles

Name Format
MPEG-4 Timed text .ttxt
SAMl .smi
SubRip .srt
SubViewer 2.0 .sub
Micro DVD .sub or .txt
SubStation Alpha .ssa
Advanced SubStation Alpha .ass
Powerdivx .psb
SMPTE-TT Text .xml

Supported internal subtitles

Name Container
Xsub AVI
SubStation Alpha	MKV
Advanced SubStation Alpha	MKV
SubRip	MKV
VobSub	MKV
MPEG-4 Timed text	MP4
TTML in smooth streaming	MP4
SMPTE-TT text	MP4
SMPTE-TT PNG	MP4

Supported image formats and resolutions

File extension Format Resolution
*.jpg*.jpeg	JPEG 15360 x 8640
*.png PNG 4096 x 4096
*.bmp BMP 4096 x 4096
*.mpo MPO 15360 x 8640

Supported music formats and codecs

File extension	Format Codec Note
*.mp3 MPEG MPEG1 Audio Layer 3
*.m4a *.mpa *.aac	MPEG4	AAC
*.flac	FLAC	FLAC	Supports up to 2 channels
*.ogg	OGG	Vorbis	Supports up to 2 channels
*.wma WMA		WMA	Supports up to 10 Pro 5.1 channels.WMA lossless audio is not supported.Supports up to the M2 profile.
*.wav	wav	wav
*.mid *.midi	midi	midi	Supports type 0 and type 1.Search is not supported.Supports USB device only.
*.ape	ape	ape
*.aif *.aiff	AIFF	AIFF
*.m4a	ALAC	ALAC

Supported video codecs

File format	Container	Video codecs Resolution		Frame rate (fps)	Bitrate (Mbps)	Audio codecs
*.avi*.mkv*.asf*.wmv*.mp4*.mov*.3gp*.vro*.mpg*.mpeg*.ts*.tp*.trp*.mov*.flv*.vob*.svi*.m2ts*.mts*.divx	AVI MKV ASF MP4 3GP MOV FLV VRO VOB PS TS SVAF	H.264 BP/MP/HP	4096x2160 60	4096x2160: 243840x2160: 30	40	Dolby Digital LPCM ADPCM(IMA, MS) AAC HE-AAC WMA Dolby Digital Plus MPEG(MP3) DTS(Core, LBR) G.711(A-Law, μ-Law)
		HEVC (H.265 - Main, Main10, Main4:2:2 10)		60 80
		Motion JPEG 30 80
		MVC
		DivX 3.11/4/5/6
		MPEG4 SP/ASP 60
		Window Media Video v9(VC1)
		MPEG2 1920x1080
		MPEG1 20
		Microsoft MPEG-4 v1, v2, v3		30
		Window Media Video v7(WMV1), v8(WMV2)
		H.263 Sorrenson
		VP6
*.webm	WebM	VP8 1920 x 1080 90				Vorbis
		VP9	4096 x 2160	4096x2160: 243840x2160: 30

Other restrictions

• Codecs may not function properly if there is a problem with the content.
• Video content does not play or does not play correctly if there is an error in the content or container.
• Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility ratings.
• If the Index Table is has an error, the Seek (Jump) function will not work.
• When playing video over a network connection, the video may not play smoothly because of data transmission speeds.
• Some USB/digital camera devices may not be compatible with the TV.
  • HEVC codec is only available in MKV/MP4/TS containers.

Video decoders

• H.264 FHD is supported up to Level 4.1. (does not support FMO/ASO/RS)
• H.264 UHD is supported up to Level 5.1.
• HEVC FHD is supported up to Level 4.1, and HEVC UHD is supported up to Level 5.1.
• VC1 AP L4 is not supported.
- All video codecs excluding WMV v7, v8, MSMPEG4 v3, MVC, and VP6:
Below 1280x720: 60 frame max
Above 1280x720: 30 frame max
• GMC 2 or above is not supported.
• Supports SVAF Top/Bottom, Side by Side, and Left/Right view sequence type (2ES) only.
• Supports BD MVC specs only.

Audio decoders

• WMA 10 Pro supports up to 5.1 channels. Supports up to the M2 profile. WMA lossless audio is not supported.
  • QCELP and AMR NB/WB are not supported.
  • Vorbis is supported for up to 5.1 channels.
  • Dolby Digital Plus is supported for up to 5.1 channels.
• The DTS LBR codec is only available for MKV/MP4/TS containers.
• The supported sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 KHz, and differ by the codec.

Read After Installing the TV

Picture sizes and input signals

The Picture Size setting is applied to the current source. The applied Picture Size will remain in effect whenever you select that source unless you change it.

Input signal Picture size
Component	16:9, Zoom, Custom, 4:3
Component (1080i, 1080p)	16:9, Zoom, Custom, 4:3
Digital channel (720p, 1080i, 1080p)	16:9, Zoom, Custom, 4:3
Digital channel (3840 x 2160p)	16:9, Zoom, Custom
Digital channel (4096 x 2160p)	16:9, Zoom, Custom
HDMI (720p)	16:9, Zoom, Custom, 4:3
HDMI (1080i, 1080p)	16:9, Zoom, Custom, 4:3
HDMI (3840 x 2160p)	16:9, Zoom, Custom
HDMI (4096 x 2160p)	16:9, Zoom, Custom

Installing an anti-theft lock

• An anti-theft lock is a physical device that can be used to protect the TV against theft. Look for the lock slot on the back of the TV. The slot has a icon next to it. To use the lock, wrap the lock cable around an object that is too heavy to carry and then thread it through the TV's lock slot. The lock is sold separately.
• The method of using an anti-theft lock may differ for each TV model. Refer to the lock's user manual for more information.

This function is not available on certain models in specific geographical areas.

Read before setting up a wireless Internet connection

Precautions for wireless Internet

- This TV supports the IEEE 802.11a/b/g/n/ac communication protocols. Samsung recommends using IEEE 802.11n. Video files stored on a device connected to the TV via Home Network may not play back smoothly.

IEEE 802.11 ac communication protocol is not available on certain models.

- To use wireless Internet, the TV must be connected to a wireless router or modem. If the wireless router supports DHCP, the TV can use a DHCP or static IP address to connect to the wireless network.

- Select a channel that is not currently in use for the wireless router. If the channel set for the wireless router is currently being used by another device, the result is usually interference and/or a communications failure.

- Most wireless networks have an optional security system. To enable a wireless network's security system, you need to create a password using characters and numbers. This password is then needed to connect to a security-enabled AP.

Wireless security protocols

- The TV only supports the following wireless network security protocols.

– Authentication Modes: WEP, WPAPSK, WPA2PSK
– Encryption Types: WEP, TKIP, AES

• In compliance with the newest Wi-Fi certification specifications, Samsung TVs do not support WEP or TKIP security encryption in networks running in the 802.11n mode.
• If the wireless router supports WPS (Wi-Fi Protected Setup), you can connect the TV to your network using PBC (Push Button Configuration) or a PIN (Personal Identification Number). WPS automatically configures the SSID and WPA key settings.
• The TV cannot connect to non-certified wireless routers.

Read Before Connecting a Computer (Supported Resolutions)

When you connect your TV to a computer, set the computer's video card to one of the standard resolutions listed in the tables below or on the next page. The TV will automatically adjust to the resolution you choose. Note that the optimal and recommended resolution is 3840 x 2160 at 60 Hz.

Choosing a resolution not included in the tables can result in a blank screen or just the power indicator turning on. Refer to the user manual of your graphics card for compatible resolutions.

For the 6000 series models, optimal and recommended resolution is 3840 x 2160 at 30Hz.

IBM

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
720 x 400 70 Hz	31.469 70.087	28.322 - / +

MAC

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
640 x 480 67 Hz	35.000 66.667	30.240 - / -
832 x 624 75 Hz	49.726 74.551	57.284 - / -
1152 x 870 75 Hz	68.681 75.062	100.000 - / -

VESA DMT

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
640 x 480 60 Hz	31.469 59.940	25.175 - / -
640 x 480 72 Hz	37.861 72.809	31.500 - / -
640 x 480 75 Hz	37.500 75.000	31.500 - / -
800 x 600 60 Hz	37.879 60.317	40.000 + / +
800 x 600 72 Hz	48.077 72.188	50.000 + / +
800 x 600 75 Hz	46.875 75.000	49.500 + / +
1024 x 768 60 Hz	48.363 60.004	65.000 - / -
1024 x 768 70 Hz	56.476 70.069	75.000 - / -
1024 x 768 75 Hz	60.023 75.029	78.750 + / +
1152 x 864 75 Hz	67.500 75.000	108.000 + / +
1280 x 720 60 Hz	45.000 60.000	74.250 + / +
1280 x 800 60 Hz	49.702 59.810	83.500	- / +
1280 x 1024	60 Hz 63.981	60.020 108.000	+ / +
1280 x 1024	75 Hz 79.976	75.025 135.000	+ / +
1366 x 768 60 Hz	47.712 59.790	85.500 + / +
1440 x 900 60 Hz	55.935 59.887	106.500	- / +
1600 x 900RB	60 Hz 60.000	60.000 108.000	+ / +
1680 x 1050	60 Hz 65.290	59.954 146.250	- / +
1920 x 1080	60 Hz 67.500	60.000 148.500	+ / +

Supported Resolutions for Video Signals

CEA-861

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
720 (1440) x 480i 60 Hz	15.734 59.940	27.000 - / -
720 (1440) x 576i 50 Hz	15.625 50.000	27.000 - / -
720 x 576 50 Hz	31.250 50.000	27.000 - / -
720 x 480 60 Hz	31.469 59.940	27.000 - / -
1280 x 720 60 Hz	45.000 60.000	74.250 + / +
1280 x 720 50 Hz	37.500 50.000	74.250 + / +
1920 x 1080i 60 Hz	33.750 60.000	74.250 + / +
1920 x 1080i 50 Hz	28.125 50.000	74.250 + / +
1920 x 1080 60 Hz	67.500 60.000	148.500 + / +
1920 x 1080 50 Hz	56.250 50.000	148.500 + / +
1920 x 1080 30 Hz	33.750 30.000	74.250 + / +
1920 x 1080 25 Hz	28.125 25.000	74.250 + / +
1920 x 1080 24 Hz	27.000 24.000	74.250 + / +
3840 x 2160 24 Hz	54.000 24.000	297.000	+ / +
3840 x 2160 25 Hz	56.250 25.000	297.000	+ / +
3840 x 2160 30 Hz	67.500 30.000	297.000	+ / +
*3840 x 2160	50 Hz	112.500	50.000	594.000	+ / +
*3840 x 2160	60 Hz	135.000	60.000	594.000	+ / +
4096 x 2160 24 Hz	54.000 24.000	297.000	+ / +
4096 x 2160 25 Hz	56.250 25.000	297.000	+ / +
4096 x 2160 30 Hz	67.500 30.000	297.000	+ / +
*4096 x 2160	50 Hz	112.500	50.000	594.000	+ / +
*4096 x 2160	60 Hz	135.000	60.000	594.000	+ / +

*: For the 6 series models or lower and 7200 series model, make sure to connect to the HDMI IN (STB/DVI) port of the TV. Although the HDMI cable is connected to this port, the HDMI UHD Color function is not available on the 6000 series models.

Read Before Using Bluetooth Devices

Restrictions on using Bluetooth

• The Samsung Bluetooth Speaker is only available when a device is supporting TV SoundConnect.
• You can't use Bluetooth Devices, Speaker Select ((MENU/123) > MENU > Sound > Speaker Settings > Speaker Select) and Surround features simultaneously.
• Compatibility issues may occur, depending on the Bluetooth Devices. (A Mobile exclusive headphone may not be available, depending on the environment.)
• Lip-sync errors may occur.

• The TV and Bluetooth Devices may disconnect, depending on the distance between them.
  • A Bluetooth device may hum or malfunction

• When a part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the TV.

• When the device is subject to electrical variation from obstructions caused by a wall, corner, or office partitioning.
• When the device is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

- If the problem persists, be sure to use a Digital Sound Output (Optical) port or HDMI (ARC) port.

Licence

DIVX HD

This DivX Certified® device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274.

This device supports DivX Plus Streaming® for enjoying HD movies and TV shows with advanced features

(multi-language subtitles, multiple audio tracks, chapters, smooth FF/RW, etc.) streamed to your device.

dts®

Premium Sound | 5.1

For DTS patents, see http://patents.dts.com, Manufactured under license from DTS, Inc, DTS, the Symbol, DTS in combination with the Symbol, DTS Premium Sound|5.1, DTS Digital Surround, DTS Express, and DTS Neo2:5 are registered trademarks or trademarks of DTS, Inc, in the United States and/or other countries.

© DTS, Inc. All Rights Reserved.

dts® HEADPHONE

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and HEADPHONE:X and the DTS HEADPHONE:X logo are trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

DOLBY. DIGITAL PLUS

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Open Source License Notice

Open Source used in this product can be found on the following webpage.

(http://opensource.samsung.com) Open Source License Notice is written only English.

MHL

Glossary

• 480i / 480p / 720p / 1080i / 1080p

Generally refers to the number of effective scanning lines that determines the screen's resolution. There are two scanning methods: interlaced and progressive.

- Scanning

Sequential projection of pixels to form images. The higher the number of pixels, the clearer and more vivid the images.

- Progressive

A sequential scanning method that scans every line, one after another.

- Interlaced

A staggered scanning method that scans every other line until the end of the screen and then fills in the remaining lines.

Example) If the number of horizontal scan lines is 480i

Scans 240 lines from start to finish and then scans the remaining 240 lines for a total of 480 lines.

* General differences between 480i and 480p are as follows:

	480i 480p
Horizontal Frequency 15.75Khz	31.5Khz
FPS 30 60
Lines on Screen 480 480

• ARC (Audio Return Channel)

ARC lets the TV output digital sound to an audio device and input digital sound from the same audio device through one HDMI cable. However, ARC is only available through the HDMI (ARC) port and only when the TV is connected to an ARC-enabled AV receiver.

• DVI (Digital Visual Interface)

Connecting the TV's DVI connector to a computer's DVI connector via an HDMI-to-DVI cable lets you use the TV as a computer monitor. However, HDMI-to-DVI cables deliver video signals only. You must connect a set of speakers to the computer using a separate cable to hear the computer's audio.

• HDMI (High Definition Multimedia Interface)

HDMI is a method of transmitting both video and audio signals via a single cable.

• Dynamic versus Static IP Addresses

If the network requires a dynamic IP address, use an ADSL modem or router that supports the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway and DNS values the TV needs to access the Internet, so they do not have to be entered manually. Most home networks use a dynamic IP address.

If the network requires a static IP address, enter the IP address, subnet mask, gateway, and DNS values manually when setting up the network connection. To get the IP address, subnet mask, gateway and DNS values, contact your Internet Service Provider (ISP).

If the network requires a static IP address, use an ADSL modem that supports DHCP. ADSL modems that support DHCP also allow static IP addresses.

- Bluetooth

Bluetooth is a short-distance wireless communication protocol allowing information exchange between connected mobile phones, laptops, earphones and headphones with Bluetooth-compatible devices. It is mostly used for low-power consuming wireless connections within a very short-distance of 10m.

- Ethernet

Ethernet is a LAN (Local Area Network) that uses coaxial cables standardised by the IEEE.

- Component Connection

Component connections are mostly used for game consoles and transmit the video signal by splitting it into a luminance signal (Y) and two colour signals (Pb and Pr). The connector is marked as [Component IN]_(Pr, Pb, Y) on the back of the TV. On some devices, it is sometimes marked as Cr, Cb, Y. Cb and Cr are the digital conversions of the Pb and Pr signals.

The connectors are normally colour-coded red (R), blue (B), and green (G) and offer the best picture quality possible for an analogue connection.
