UN55NU7100G - TV SAMSUNG - Free user manual and instructions

Product Type	Television
Brand	Samsung
Model	UN55NU7100G
Screen Size	55 inches (138 cm diagonal)
Display Technology	LED (UHD)
Resolution	3840 x 2160 (4K UHD)
Smart TV Platform	Smart Hub (Tizen OS)
Voice Assistant	Bixby (requires Samsung Smart Remote with microphone)
Ambient Mode	Not supported (available only on QLED models)
Connectivity	HDMI (3), USB (2), Component In, Composite In, Optical Audio Out, Ethernet (LAN), Wi-Fi, Bluetooth
Remote Control	Samsung Smart Remote (model may vary)
Power Consumption (Typical)	120 W (estimated)
Standby Power Consumption	< 0.5 W (estimated)
Dimensions (With Stand)	1240.2 x 793.1 x 310.2 mm (estimated)
Weight (With Stand)	17.2 kg (estimated)
VESA Mount Pattern	400 x 400 mm (common)
Audio Output	2.0 channels, 20 W (estimated)
Main Functions	Smart Hub, Bixby voice control, channel guide, recording to USB, timeshift, screen mirroring, accessibility features
Safety Features	Auto Protection Time, child lock, software update for security
Maintenance	Clean with a soft, dry cloth. Do not use liquid cleaners or sprays.
Spare Parts & Reparability	Contact Samsung service center for parts and repairs. Software updates available via USB or Internet.

Frequently Asked Questions - UN55NU7100G SAMSUNG

How do I pair the Samsung Smart Remote to the TV?

The remote pairs automatically when you first turn on the TV. If it doesn't, point the remote at the TV's sensor and press and hold the Return and Play/Pause buttons simultaneously for 3 seconds.

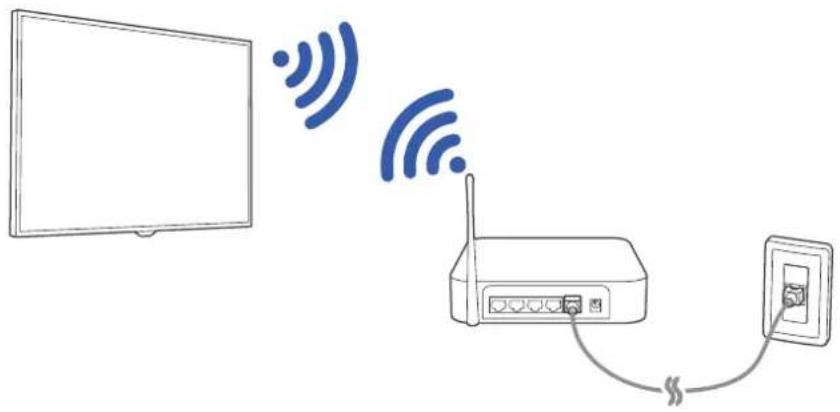

How can I connect the TV to Wi-Fi?

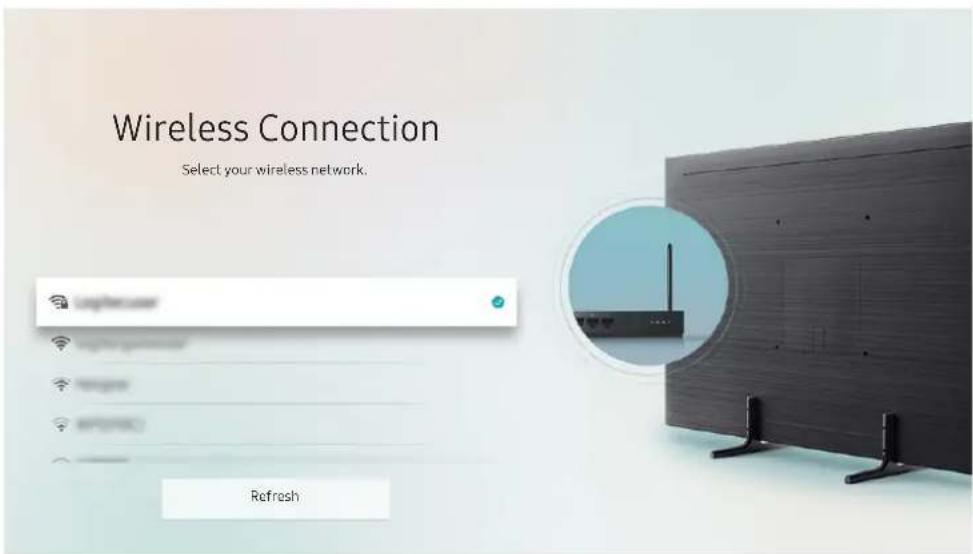

Go to Settings > General > Network > Open Network Settings, select Wireless, choose your network, and enter the password. You can also use WPS if your router supports it.

How do I use Bixby voice control?

Press and hold the Bixby button on the Samsung Smart Remote, speak a command into the microphone, then release the button. The TV must be connected to the Internet and the language must be supported.

How do I update the TV's software?

Go to Settings > Support > Software Update. You can update via the Internet (requires connection) or by downloading the update from Samsung's website onto a USB drive and inserting it into the TV.

How do I connect external devices like a Blu-ray player or game console?

Use an HDMI cable to connect the device to any HDMI port on the TV. Then press the Source button on the remote and select the corresponding input. You can also rename the input in the Source menu.

Why is there no sound from the TV?

First, check the volume and mute status. Then go to Settings > Sound > Sound Output to ensure the correct speakers are selected. If using external speakers, verify connections. You can also run a sound test under Settings > Support > Self Diagnosis.

Can I record TV programs?

Yes, connect a USB hard drive to the TV. Then, while watching a program, press and hold the Select button on the remote and choose Record. You can also schedule recordings from the Guide. Note: This feature may not be available in all regions.

How do I enable accessibility features like Voice Guide?

Go to Settings > General > Accessibility > Voice Guide Settings and turn Voice Guide on. You can also press and hold the Volume button for 1 second to open Accessibility Shortcuts.

How do I reset the Smart Hub?

Go to Settings > Support > Self Diagnosis > Reset Smart Hub. You will need to enter the PIN (default 0000). This will erase all downloaded apps and accounts.

What should I do if the TV won't connect to the Internet?

Check that the router is on and the LAN cable is connected (if wired). For wireless, go to Settings > General > Network > Network Status to diagnose. Try resetting the network under Reset Network or power cycling the router.

USER MANUAL UN55NU7100G SAMSUNG

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com

Model ____ Serial No. ____

To directly go to the page that provides instructions on how to use the manual for visually impaired users, select the Learn the Menu Screen link below.

"Learn the Menu Screen" Link

Contents

Quick Guides

Connecting the Samsung Smart Remote to the TV

Using Smart Hub

Using the Ambient Mode

10 Screen states related to Ambient Mode

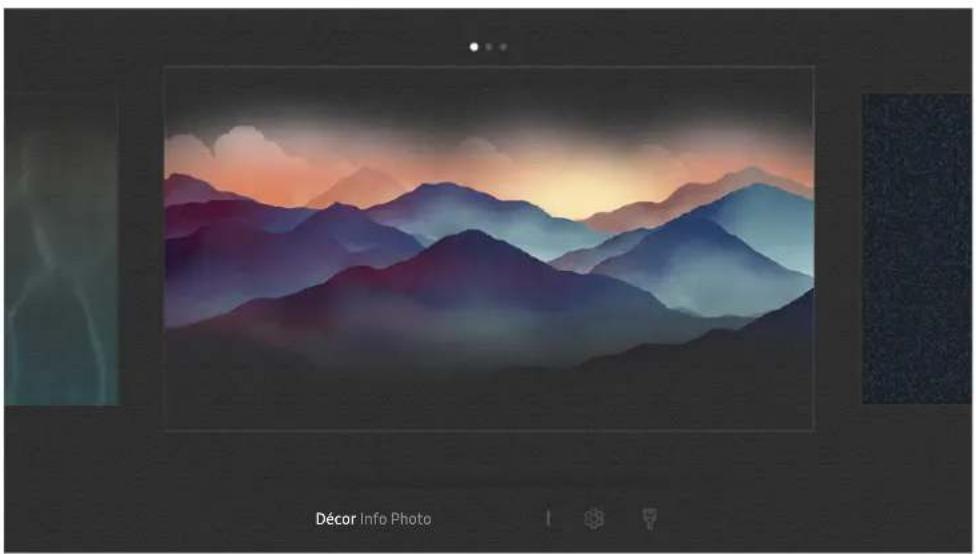

11 Changing the content and settings for Ambient Mode

Using Bixby

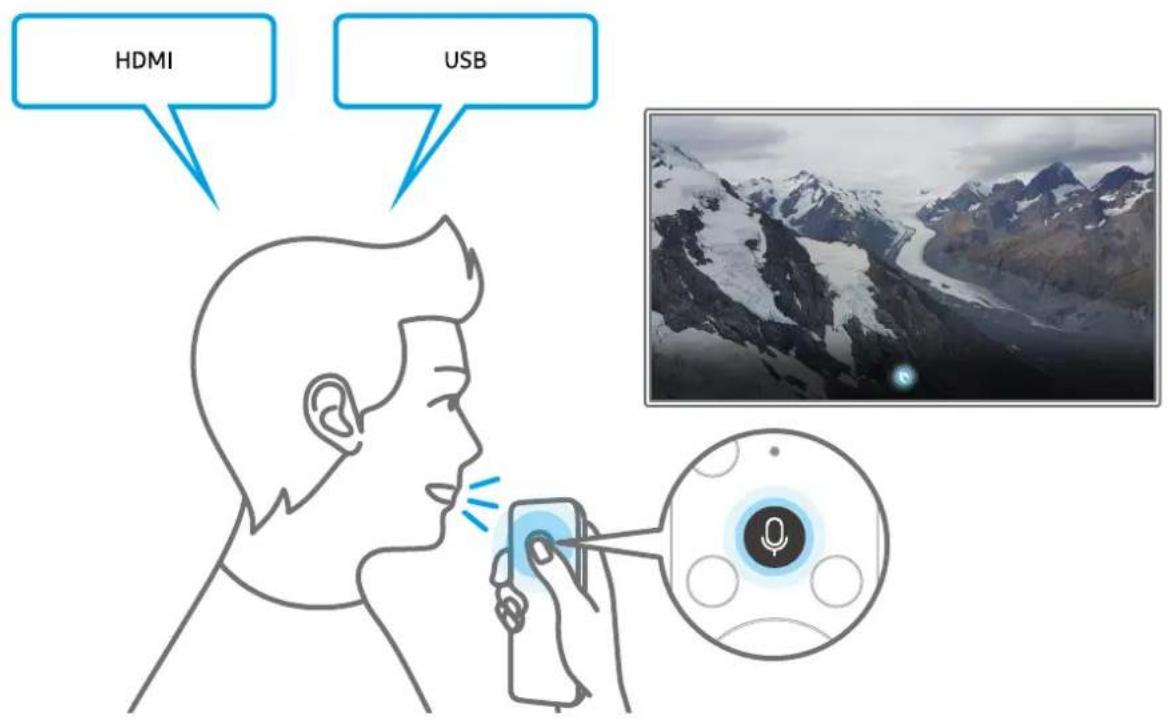

13 Running Bixby

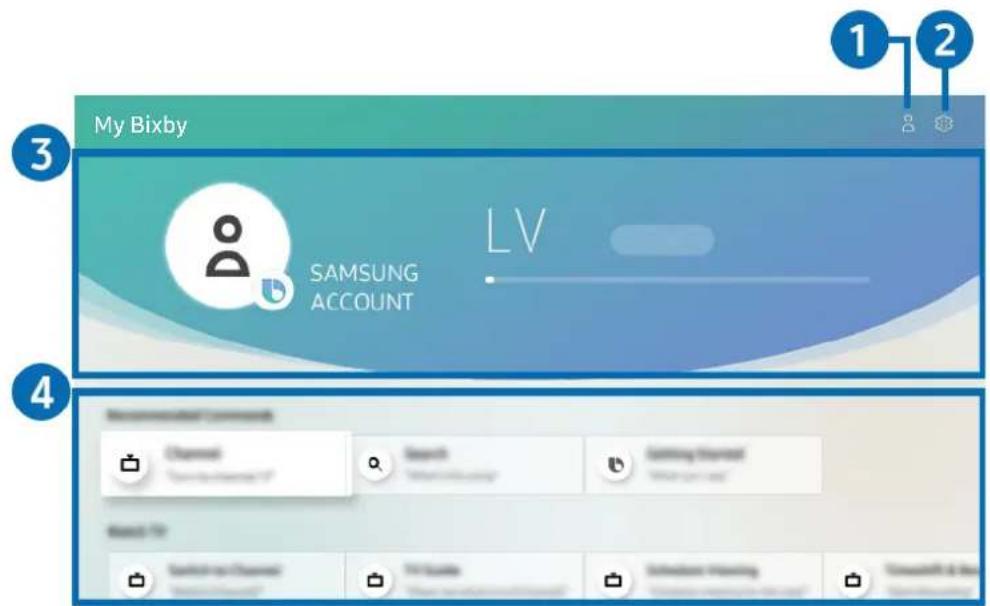

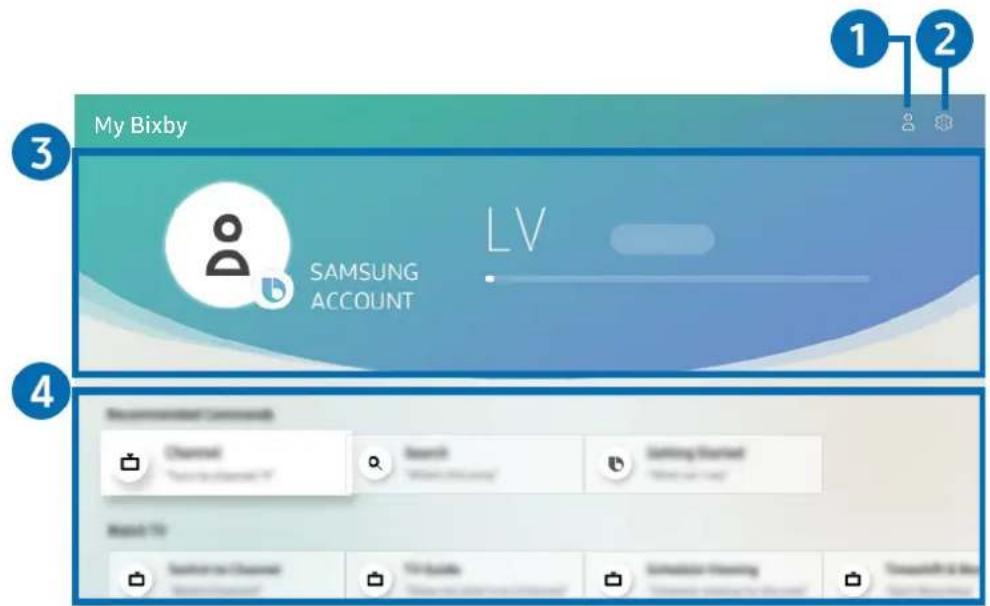

14 Learning about My Bixby
15 Read Before Using Bixby

Updating the TV's Software

16 Updating the TV's software to the latest version
16 Updating the TV automatically

Getting Support

17 Getting support through Remote Management
18 Finding the contact information for service
18 Requesting service

Connections

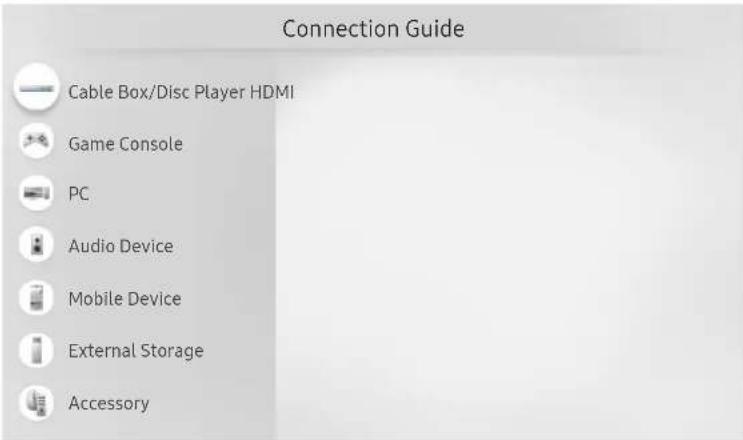

Connection Guide

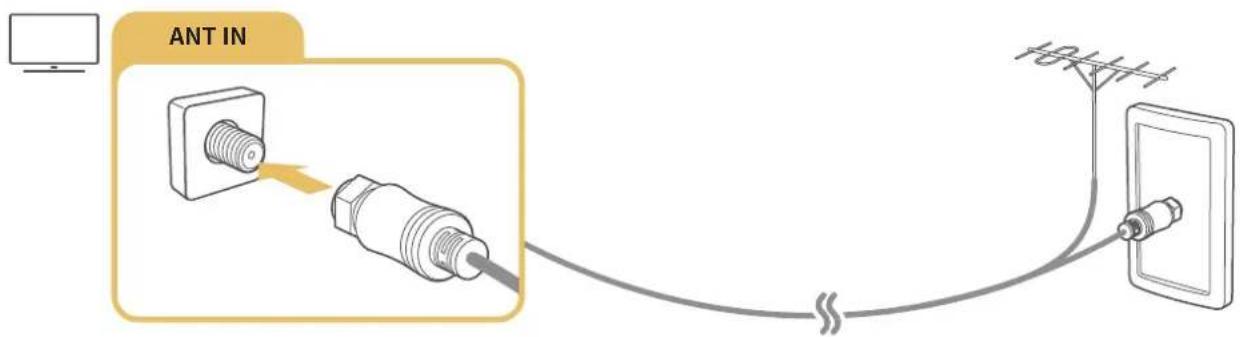

Connecting an Antenna

Connecting to the Internet

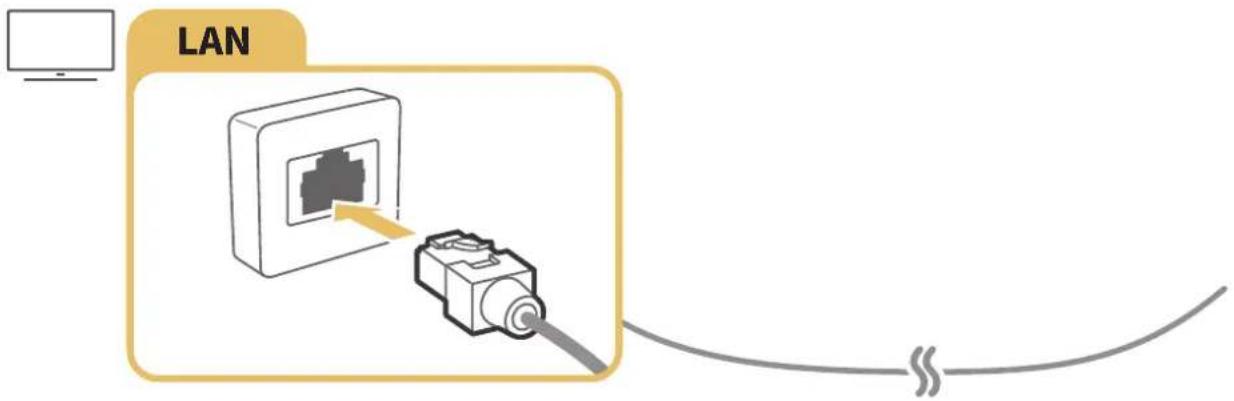

20 Connecting to your Internet network
22 Resetting Your Network
22 Turning on the TV with a mobile device
22 Connecting an IP control device to the TV
22 Setting up an Internet connection over IPv6
22 Changing the name of the TV on a network

Troubleshooting Internet Connectivity Issues

23 Troubleshooting Internet connectivity issues

Connecting Video Devices

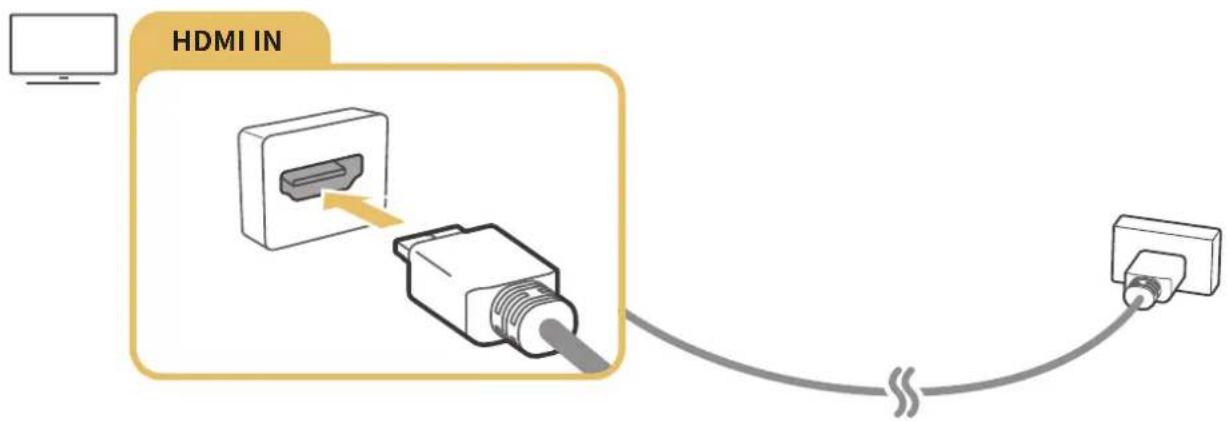

25 Connecting with an HDMI cable

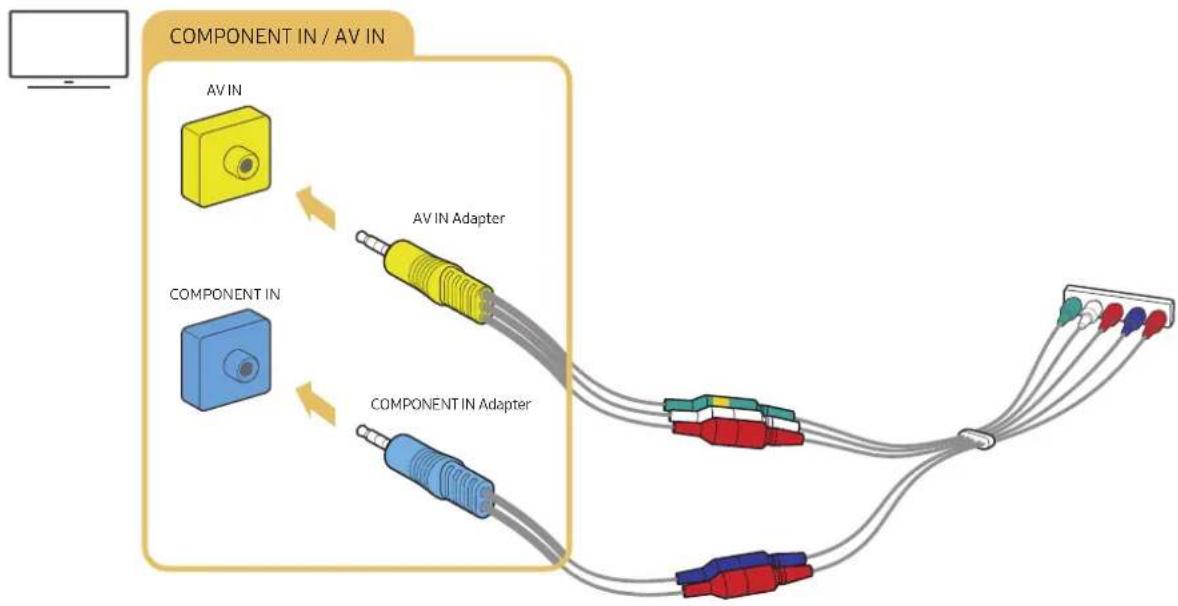

26 Connecting with a component cable (Only for models with COMPONENT IN / AV IN)

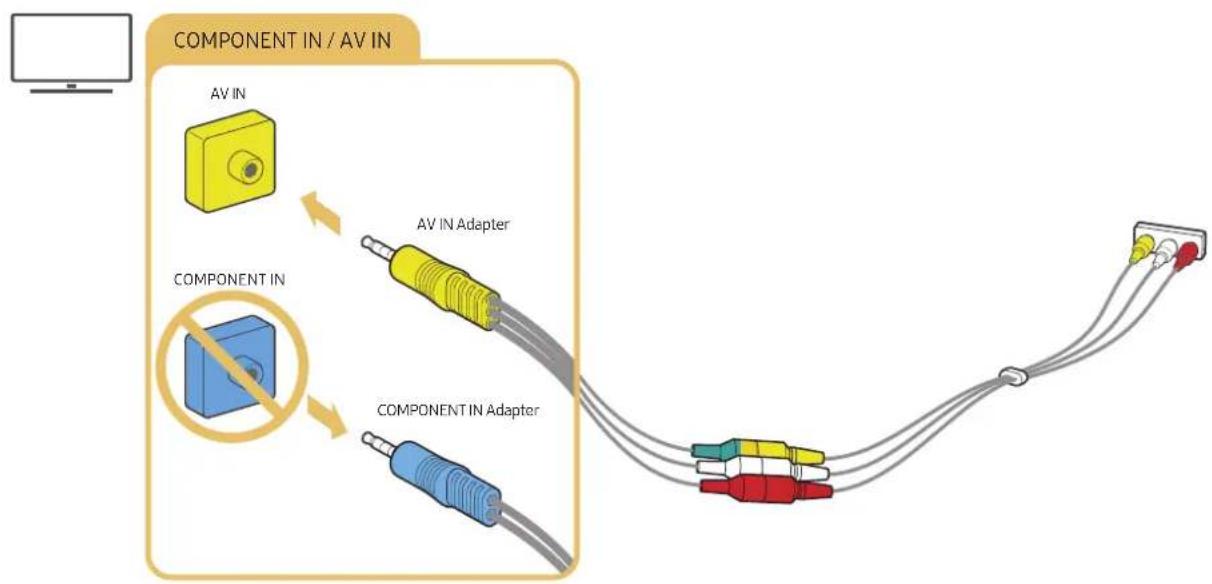

27 Connecting with a composite cable (Only for models with COMPONENT IN / AV IN)

Audio Input and Output Connections

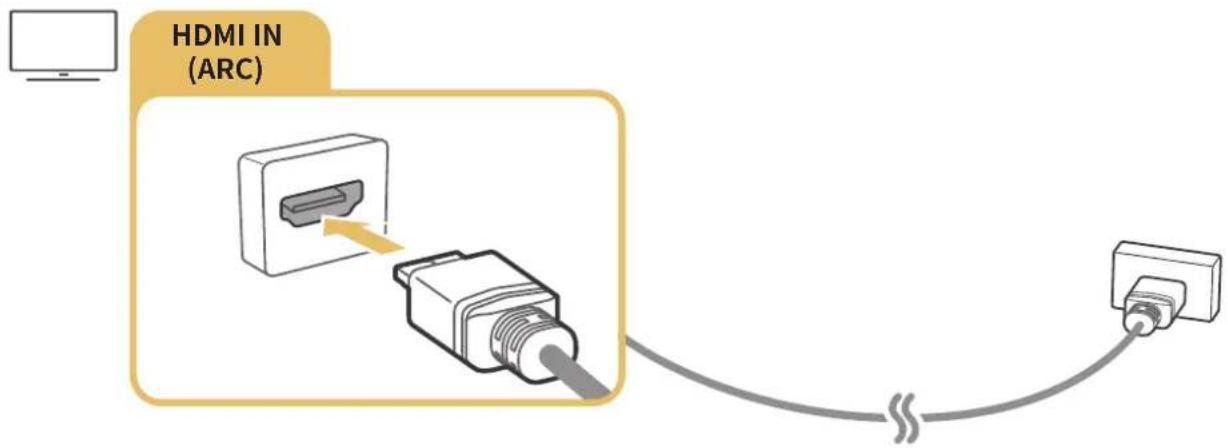

28 Connecting with an HDMI (ARC) cable

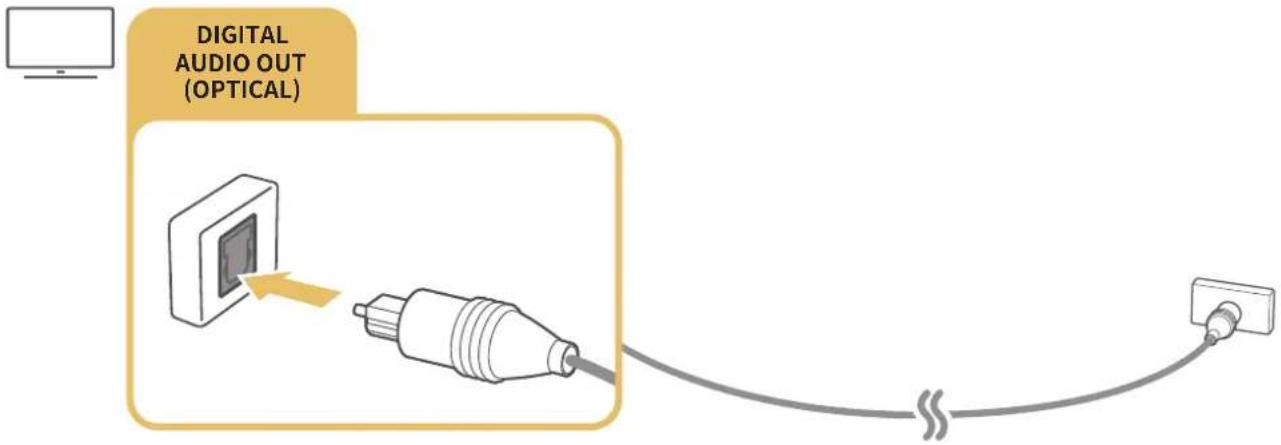

28 Connecting with a digital audio (optical) cable
28 Connecting through a wireless network
29 Connecting Bluetooth Devices

Connecting a Computer

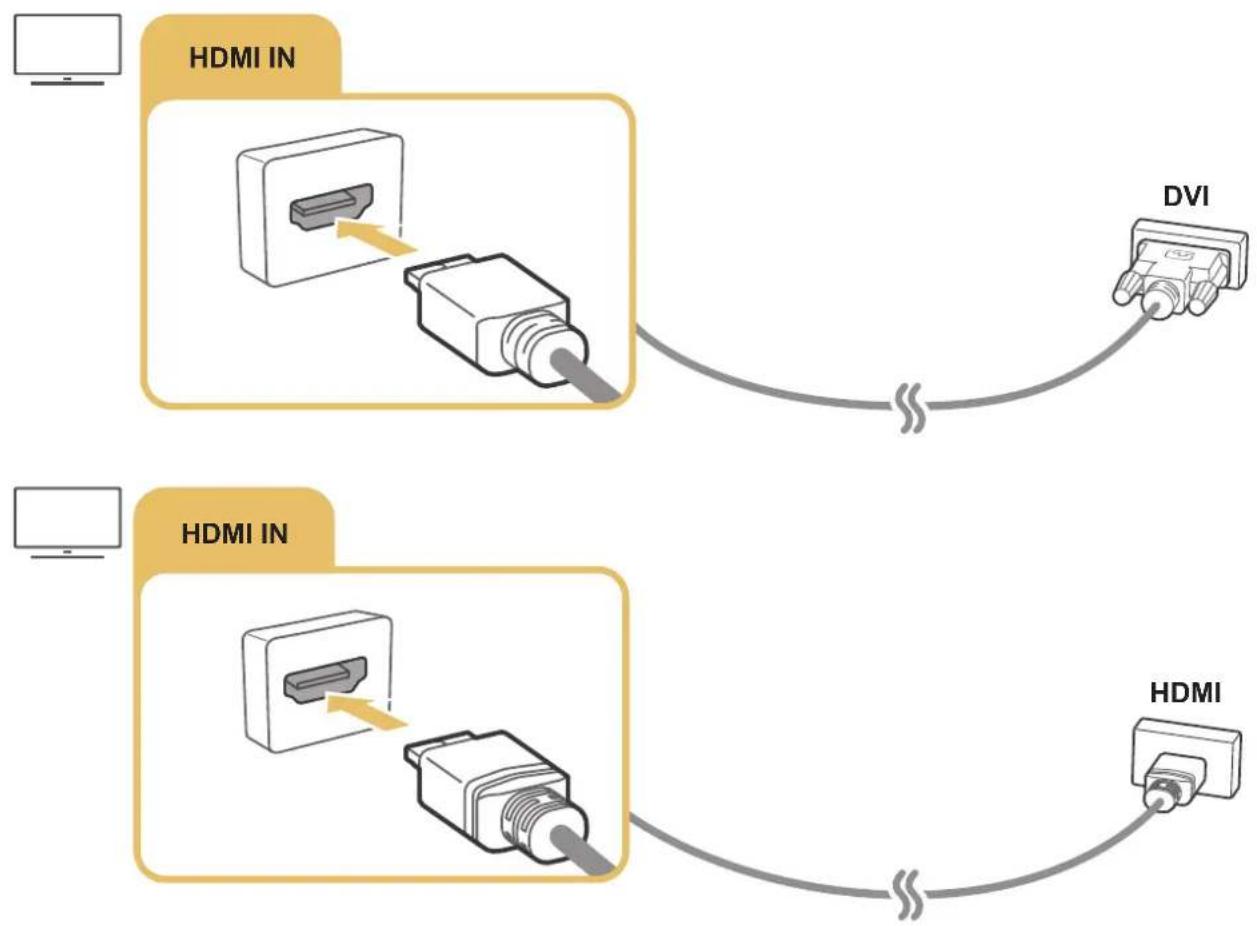

29 Connecting through the HDMI port — Screen sharing (HDMI)

Connecting Your Mobile Device

30 Connecting to the TV via the SmartThings app
31 Bidirectionally mirroring your TV and mobile device using the SmartThings app
32 Managing Mobile Devices

Switching between external devices connected to the TV

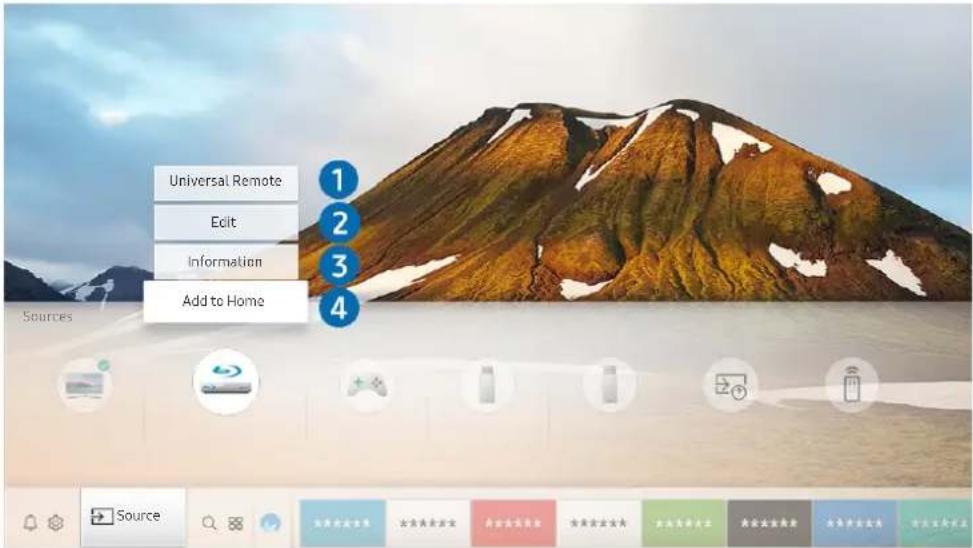

32 Changing the input signal
33 Editing the name and icon of an external device
34 Using additional functions

Connection Notes

34 Connection notes for HDMI
35 Connection notes for audio devices
36 Connection notes for computers
36 Connection notes for mobile devices

Remote Control and Peripherals

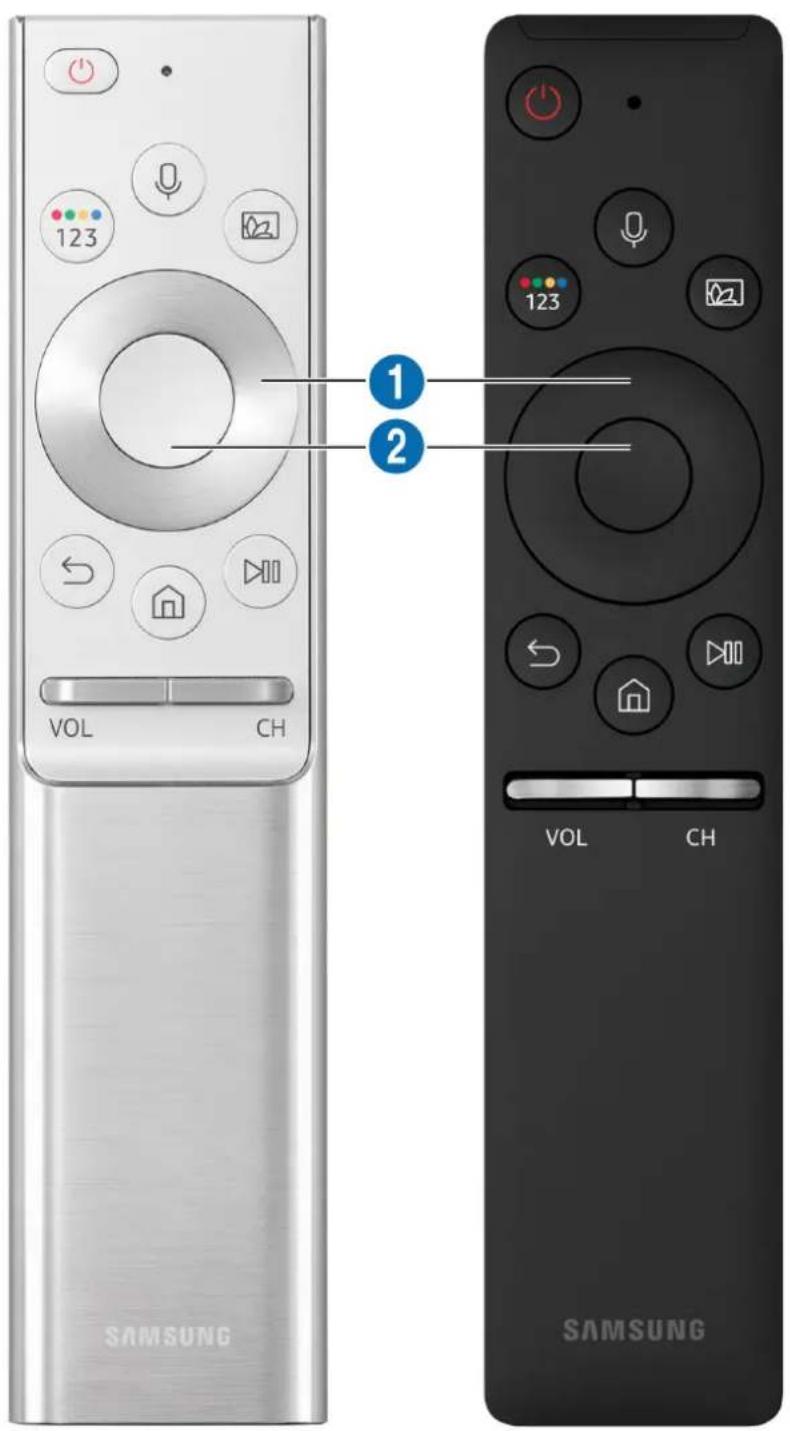

About the Samsung Smart Remote (QLED TV)

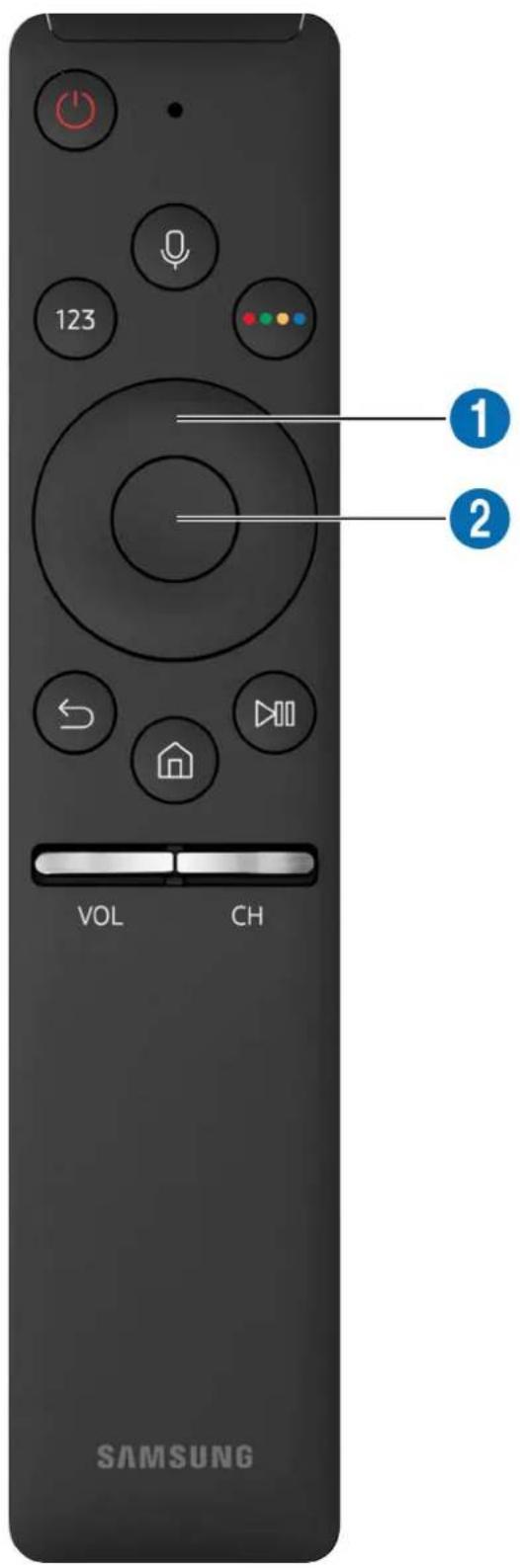

About the Samsung Smart Remote (UHD TV)

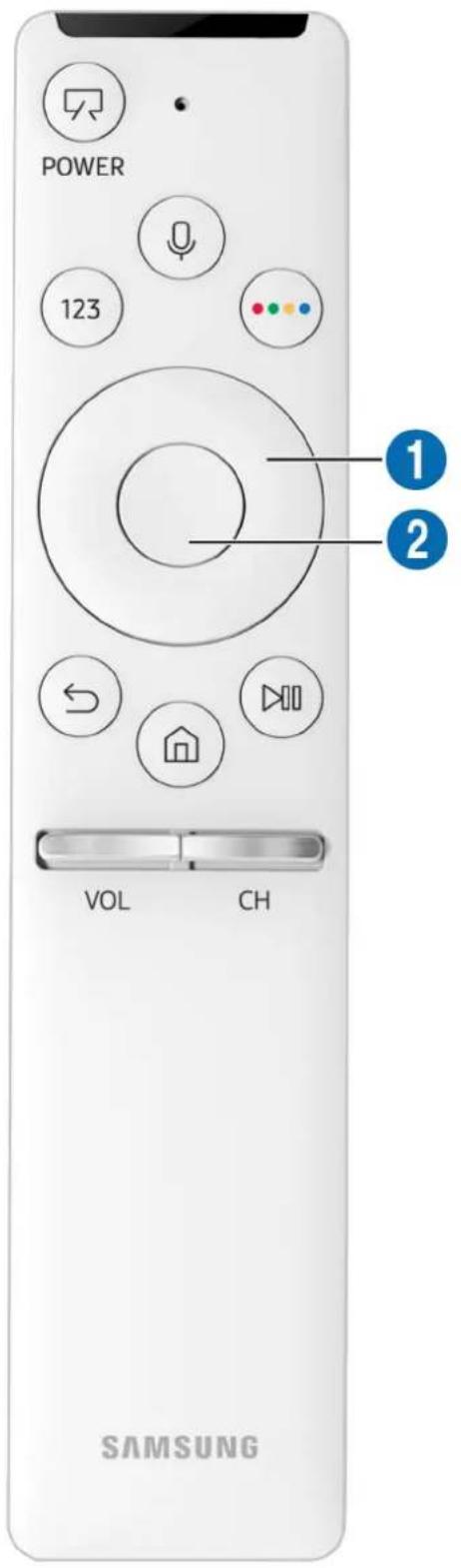

About the Samsung Smart Remote (THE FRAME)

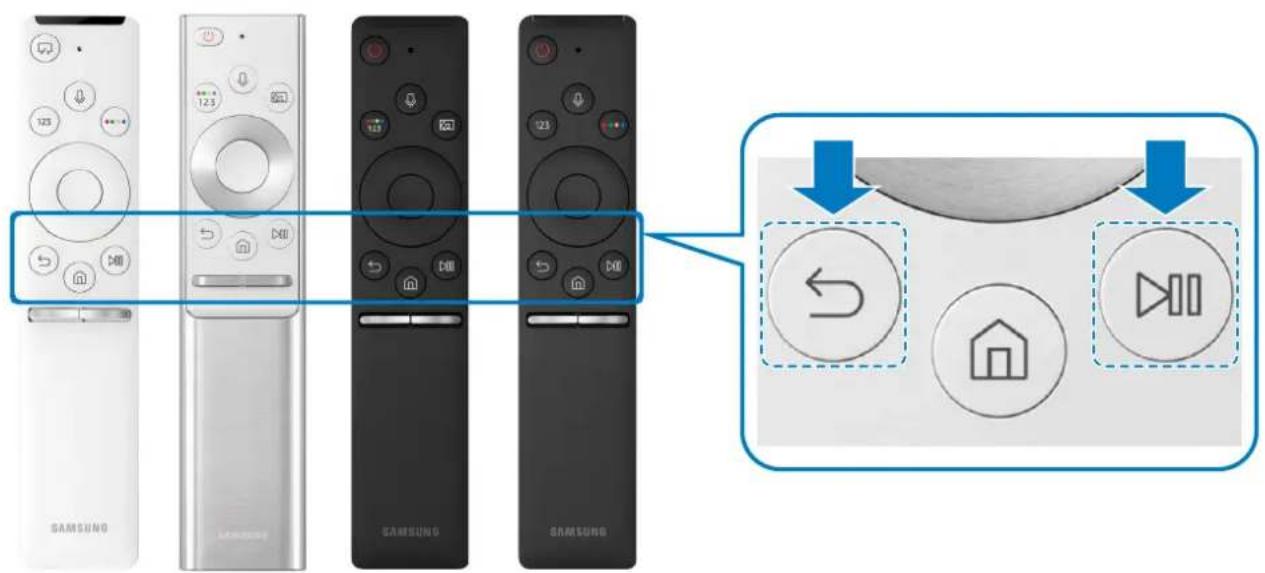

Connecting to the Samsung Smart Remote

Controlling External Devices with the Samsung Smart Remote - Using the Universal Remote

Using Anynet+ (HDMI-CEC)

44 Connecting an external device through Anynet+ and using their menus

Controlling the TV with a Keyboard or Mouse

45 Connecting a USB keyboard or mouse

45 Connecting a Bluetooth keyboard or mouse

45 Using the keyboard and mouse

46 Setting up the input devices

Entering Text using the On-Screen Virtual Keyboard

48 Entering Text using the remote control's microphone and the on-screen virtual keyboard

Smart Features

Smart Hub

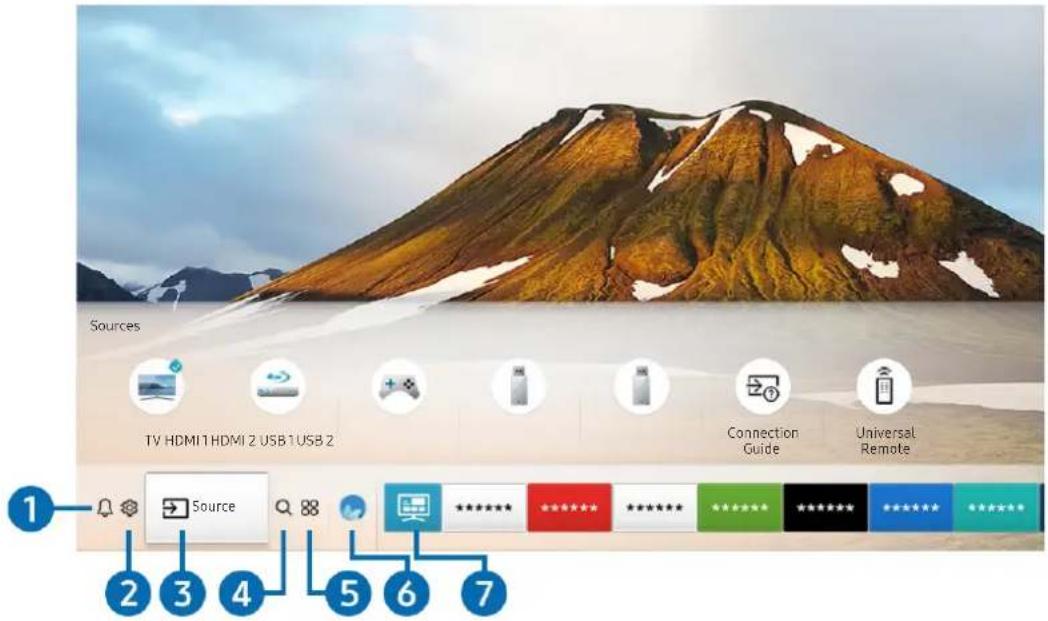

50 Displaying the Home Screen

53 Launching Smart Hub automatically

53 Launching the last used app automatically

54 Testing Smart Hub connections

54 Resetting Smart Hub

Using a Samsung account

54 Creating and managing your Samsung account

55 Signing in to a Samsung account

Using the Ambient Mode

57 Screen states related to Ambient Mode

58 Changing the content and settings for Ambient Mode

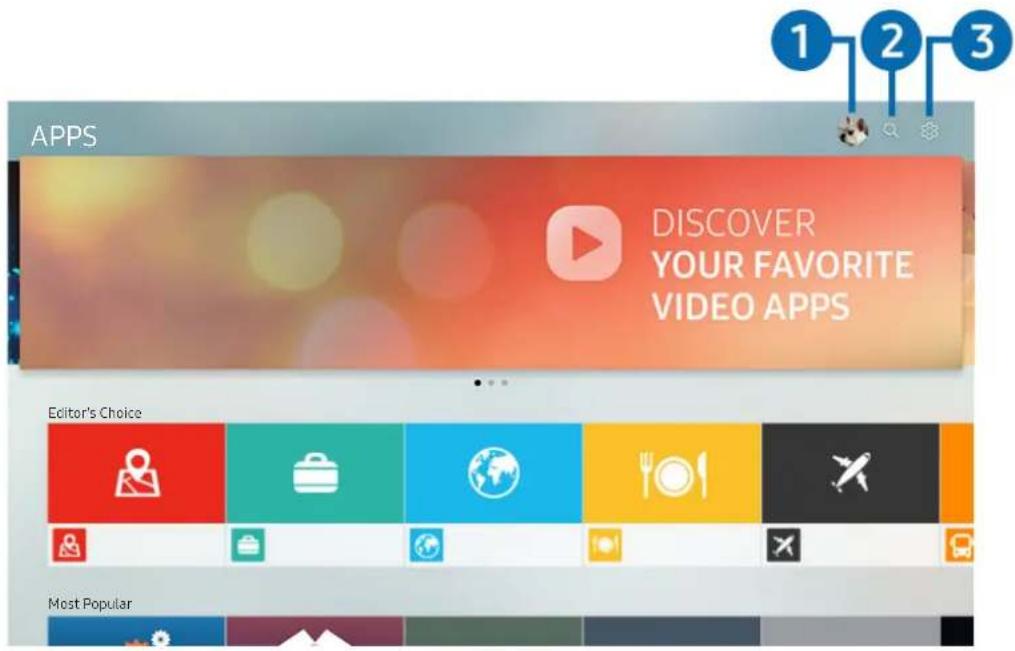

Using the APPS Service

61 Installing and running an app

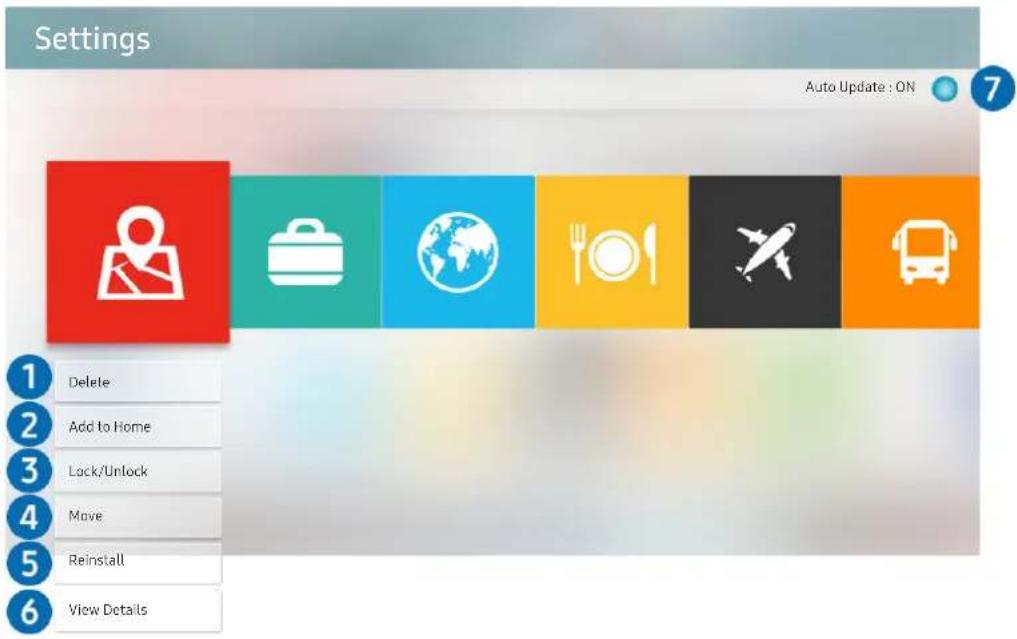

62 Managing purchased or installed apps

63 Rating apps

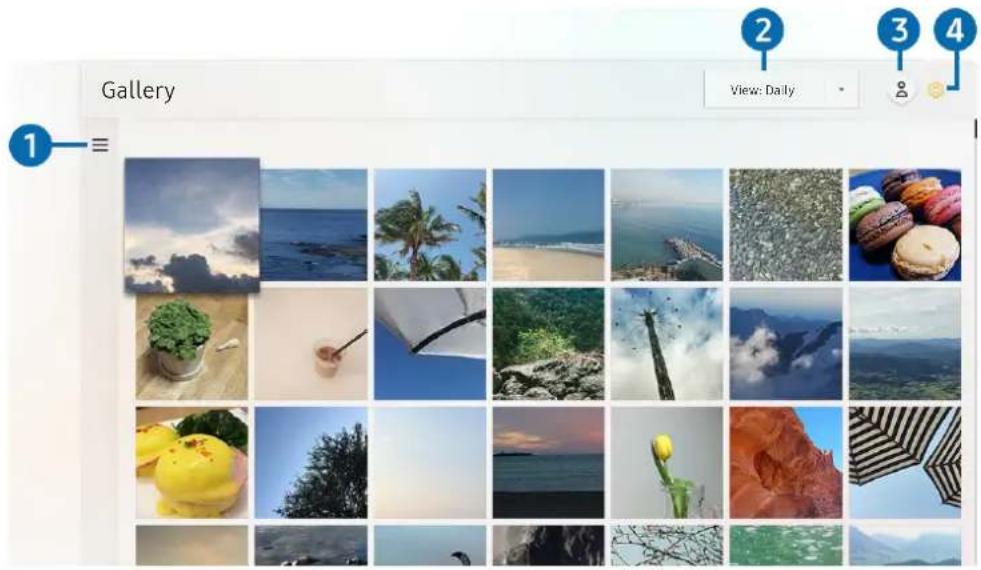

Using the Gallery App

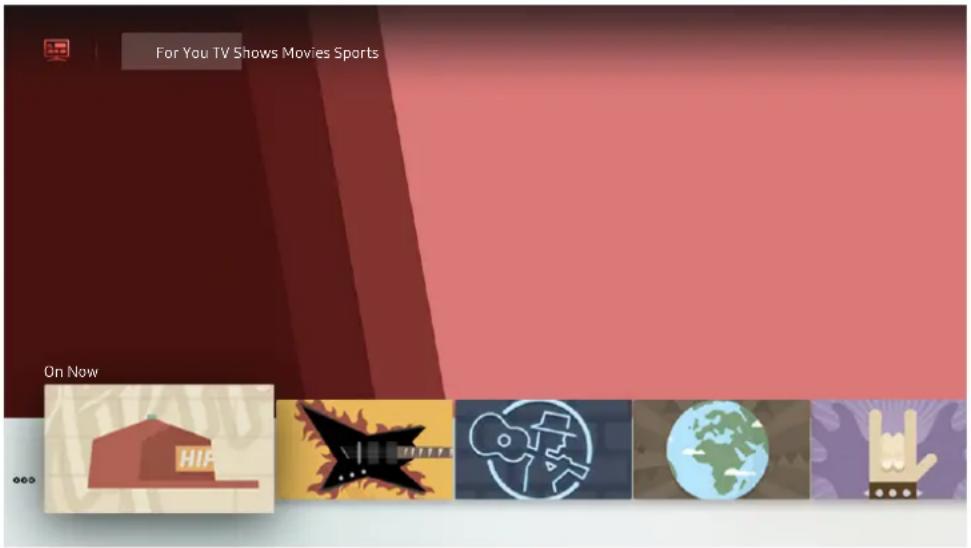

Using the Universal Guide App

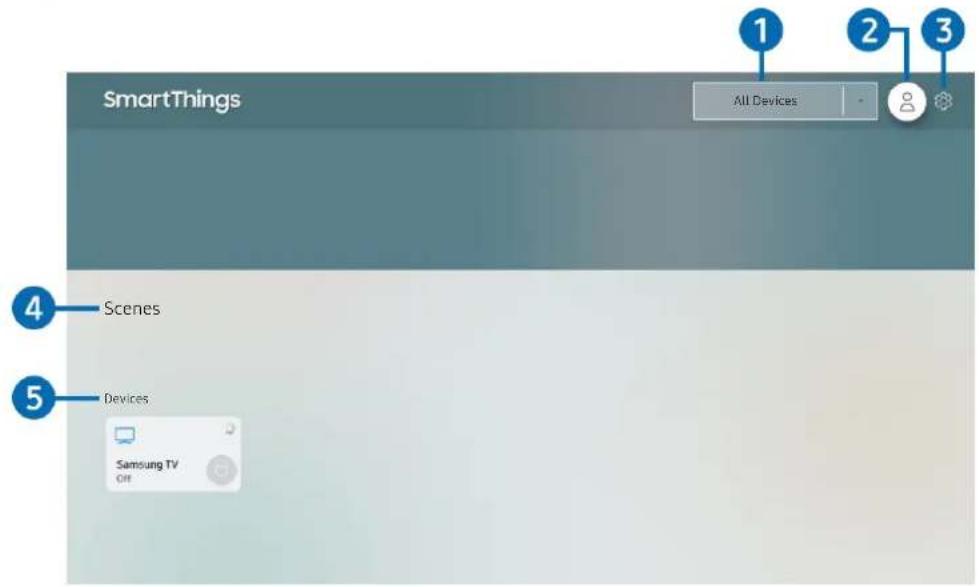

Using the SmartThings App

Using the e-Manual

67 Launching the e-Manual

68 Using the buttons in the e-Manual

Using the Internet

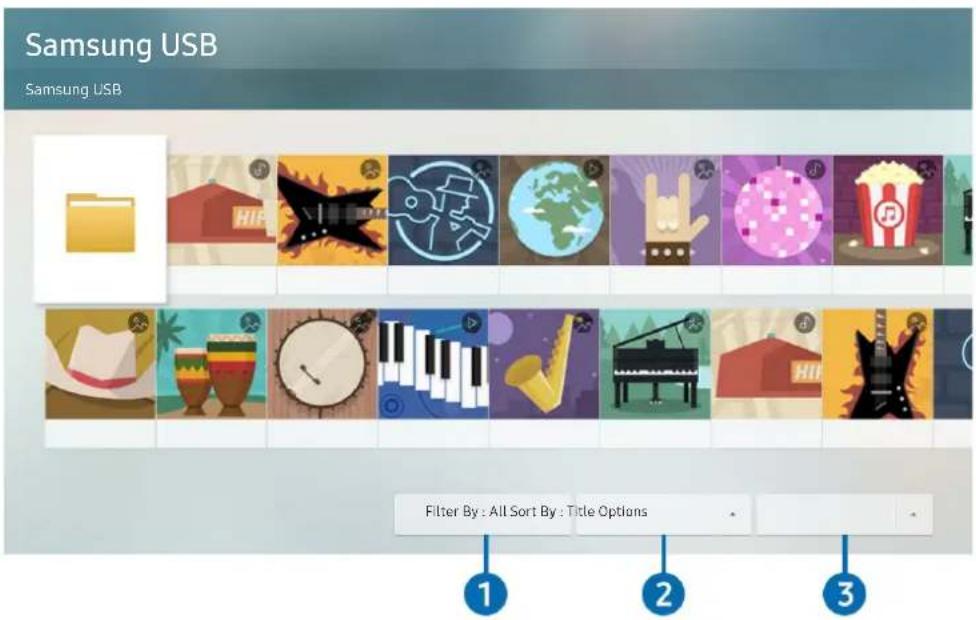

Playing pictures/video/music

70 Playing media content

Using Bixby

71 Running Bixby

72 Learning about My Bixby

73 Read Before Using Bixby

TV Viewing

Viewing Broadcast Information at a Glance

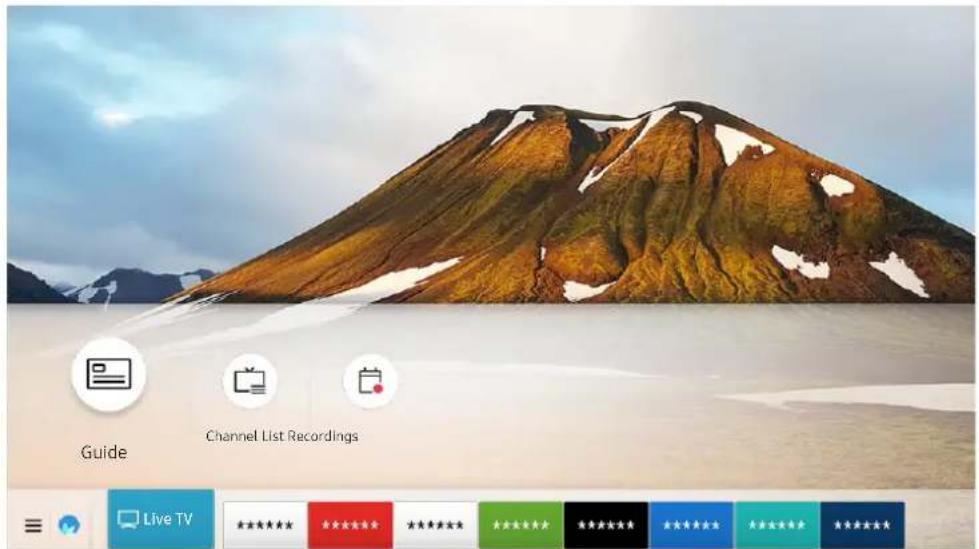

74 Using the guide

Recording Programs

76 Recording programs

77 Managing the schedule recording list

77 Viewing recorded programs

78 Setting up a schedule recording start

Setting Up a Schedule Viewing

78 Setting up a schedule viewing for a channel

79 Editing a schedule viewing

Using Timeshift

Buttons and functions available while recording a program or Timeshift

Using the Channel List

Editing channels

83 Removing registered channels

83 Editing registered channels

84 Using Program Rating Lock

Creating a Personal Favorites List

84 Registering channels as favorites
85 Viewing and selecting channels on Favorites lists only

Editing a Favorites List

85 Adding channels to a favorites list
85 Removing channels from a favorites list
85 Rearranging a favorites list
85 Renaming a favorites list

TV-Viewing Support Functions

86 Changing the broadcast signal
86 Scanning for available channels
86 Restricting Viewing to Specific Channels
86 Configuring advanced broadcasting settings
86 Checking digital channel signal info and strength
87 Fine-tuning analog broadcasts
87 Choosing an appropriate video input color
87 Configuring advanced broadcasting audio settings
87 Showing TVkey Interface menu

Picture and Sound

Adjusting the Picture Quality

88 Choosing a picture mode
88 Configuring advanced picture settings

Setting the Viewing Environment for External Devices

90 Playing games on an optimized screen
90 Configuring game mode details
91 Viewing UHD videos
91 Using HDMI black level

Changing the Picture Size and Position

92 Changing the picture size
92 Fitting the picture to the screen
92 Adjusting the picture size and/or position

Configuring a Sound Mode and Expert Settings

93 Choosing a sound mode
93 Configuring advanced sound settings

Using the Sound Support Functions

94 Selecting speakers
94 Listening to the TV through Bluetooth devices
95 Listening to the TV through a Samsung audio device that supports the Wi-Fi function

System and Support

Using the Time Functions and the Timers

96 Setting the current time
97 Using the timers

Using the Auto Protection Time and Energy Saving Functions

98 Setting the Auto Protection Time
98 Reducing the energy consumption of the TV

Updating the TV's Software

99 Updating the TV's software to the latest version
99 Updating the TV automatically

Protecting the TV from Hacking and Malicious Code

100 Scanning the TV and connected storage for malicious code

Using Other Functions

101 Running the accessibility functions
101 Running Accessibility Shortcuts
101 Enabling voice guides for the visually impaired
102 White text on black background (high contrast)
102 Setting the screen to black and white
102 Inverting the screen color
102 Enlarging the font (for the visually impaired)
102 Learning about the remote control (for the visually impaired)
103 Learning about the TV menu
103 Showing captions
104 Listening to the TV through Bluetooth devices (for the hearing impaired)
104 Configuring advanced system settings
105 Restoring the TV to the factory settings

Running Data Service Automatically

Troubleshooting

Getting Support

106 Getting support through Remote Management

107 Finding the contact information for service

107 Requesting service

Diagnosing TV operational issues

There Is a Problem with the Picture

108 Testing the picture

I Can't Hear the Sound Clearly

111 Testing the sound

There Is a Problem with the Broadcast

My Computer / Game Console Won't Connect

The TV Won't Connect to the Internet

Data Service

The Schedule Recording/Timeshift Function Isn't Working

Anynet+ (HDMI-CEC) Isn't Working

I Have Trouble Launching/Using Apps

My File Won't Play

I Want to Reset the TV

Other Issues

Precautions and Notes

Before Using the Recording and Timeshift Functions

120 Before using the recording and schedule recording functions

121 Before using the timeshift function

Read Before Using APPS

Read Before Using the Internet Function

124 Read before setting up a wireless Internet connection

Read Before Playing Photo, Video, or Music Files

125 Limitations to the use of photo, video, and music files

126 Supported external subtitles

126 Supported internal subtitles

127 Supported image formats and resolutions

127 Supported music formats and codecs

128 Video codecs supported by NU7100 model series or higher

129 Video codecs supported by NU7090 model series or lower

Read After Installing the TV

131 Picture sizes and input signals

131 Installing an anti-theft lock

Supported Resolutions for UHD Input Signals

132 If HDMI UHD Color is set to Off

132 If HDMI UHD Color is set to On

Supported Resolutions for FreeSync

Read Before Connecting a Computer (Supported Resolutions)

133 IBM

133 MAC

134 VESA DMT

134 VESA CVT

135 CTA-861

Supported Resolutions for Video Signals

135 CTA-861

136 VESA CVT

Read Before Using Bluetooth Devices

137 Restrictions on using Bluetooth

Buttons and functions available while playing multimedia content

License

Accessibility Guidance

Learn the Menu Screen

Using the Remote control

142 Orientation of the Samsung Smart Remote
142 Description of the Samsung Smart Remote

Using the accessibility menu

144 Accessibility Shortcuts menu
145 Step by Step instructions to run the options
147 Setting accessibility settings using Bixby

Using the TV with Voice Guide on

148 Watching TV

Using the guide

Setting Up a Schedule Viewing

154 Cancelling a scheduled viewing

Using the Channel List

156 Creating a Personal Favorites List

Recording

158 Using the instant and schedule recording options from the guide screen:
159 Using the Instant and Schedule Recording options from the program info window
159 Changing the recording time
160 Viewing recorded programs
160 Deleting a recorded program

Using Smart Hub

161 Smart Hub
162 Using the Home Screen in Smart Hub

Launching the e-Manual

Using Bixby

166 Running Bixby

Quick Guides

You can learn quickly how to run and use the frequently used functions, such as Bixby, Ambient Mode, and Smart Hub.

Connecting the Samsung Smart Remote to the TV

Connect the Samsung Smart Remote to your TV to operate the TV.

When you turn on the TV for the first time, the Samsung Smart Remote pairs to the TV automatically. If the Samsung Smart Remote does not pair to the TV automatically, point it at the remote control sensor of the TV, and then press and hold the 📋d but 📋ns simultaneously for 3 seconds or more.

Diagram showing four Samsung remote devices with control buttons and a UI interface with icons for playback, home, and play.

The images, buttons, and functions of the Samsung Smart Remote may differ with the model.
For more information about the Samsung Smart Remote that comes with the QLED TV, refer to "About the Samsung Smart Remote (QLED TV)."
For more information about the Samsung Smart Remote that comes with the UHD TV, refer to "About the Samsung Smart Remote (UHD TV)."
For more information about the Samsung Smart Remote that comes with THE FRAME TV, refer to "About the Samsung Smart Remote (THE FRAME)."
The Samsung Smart Remote may not be supported depending on the model or geographical area.

Using Smart Hub

Connect to Smart Hub for apps, games, movies, and more.

Enjoy the multiple functions provided by Smart Hub simultaneously on a single screen.

Sources TV HDMI 1 HDMI 2 USB 1 USB 2 Connection Guide Universal Remote 1 Source

The image on your TV may differ from the image above depending on the model and geographical area.

When you press the button on your remote control, you can use the following functions and features.

1 Notification

You can view a list of notifications for all events that occur on your TV. A notification appears on the screen when it is time to broadcast a scheduled program or when an event occurs on a registered device.

For more information, refer to "Displaying the Home Screen."

2 Settings

When the focus is moved to the ⚙️ icon, a list of quick settings icons appears above the top of the menu. You can quickly set frequently used functions by clicking the icons.

3 → Source

You can select an external device connected to the TV.

For more information, refer to "Switching between external devices connected to the TV."

4 Search

You can search for channels, programs, movie titles, and apps from Smart Hub.

To use this feature, the TV must be connected to the Internet.

5 APPS

You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.

To use this feature, the TV must be connected to the Internet.

For more information, refer to "Using the APPS Service."

6 Ambient Mode

In Ambient Mode, you can view beautiful screens, various visual information, and notifications.

To enter Ambient Mode, press the 📋 button. To return to the TV mode, press the 🔊 button. To shut off the TV, press the 📋 button.

If you press the 📋 button when the TV is turned off, the TV turns on in Ambient Mode.

If you use a remote control other than the Samsung Smart Remote, there may be restrictions to entering Ambient Mode.

Because this function is a QLED TV-specific function, it may not be supported depending on the model.

For more information about the Ambient Mode, refer to "Using the Ambient Mode."

7 Universal Guide

Universal Guide is an app that allows you to search for and enjoy various content such as TV shows, dramas, and movies in one place. Universal Guide can recommend content tailored to your preferences and notify you of new drama series.

For more information about the Universal Guide, refer to "Using the Universal Guide App."

Images may look blurry depending on the service provider's circumstances.

This function may not be supported depending on the model or geographical area.

Art

When you are not watching TV or when the TV is turned off, you can use the Art mode function to edit image content such as artworks or photos or to display the content.

This function is supported only in THE FRAME model.

For more information, refer to the provided user manual.

Using the Ambient Mode

Learn about the functions available in Ambient Mode, which is a QLED TV-specific function.

> Ambient Mode

In Ambient Mode, you can view beautiful screens, various visual information, and notifications.

To enter Ambient Mode, press the 📊 button. To return to the TV mode, press the 🔒 button. To shut off the TV, press the 📊 button.

If you press the 📋 button when the TV is turned off, the TV turns on in Ambient Mode.

If you use a remote control other than the Samsung Smart Remote, there may be restrictions to entering Ambient Mode.

Because this function is a QLED TV-specific function, it may not be supported depending on the model.

To activate the ⚙ and ⚪ menus, first select a content item in Ambient Mode.

Screen states related to Ambient Mode

- Ambient Mode

In Ambient Mode, you can set up and enjoy visual information and design. In this state, less power is consumed and brightness is automatically adjusted by the illuminance sensor.

- Getting dark state

In Ambient Mode, the TV screen changes automatically according to the surroundings. When the surroundings get dark, the TV screen becomes darker. When the surroundings get bright before the TV screen turns completely black or when the remote control or the Bixby function is operated, the TV screen returns to Ambient Mode.

You can change the auto brightness setting for Ambient Mode by using ⚙ in the Ambient Mode browser screen.

In this state, the TV can activate voice guides and process voice commands.

- Black screen state

In Ambient Mode, if the surroundings get to a specific level of darkness, the TV turns soft-off. To turn the screen back on in Ambient Mode, press the 📋 button on the remote control.

You can change the auto brightness setting for Ambient Mode by using ⚙ in the Ambient Mode browser screen.

In this state, the TV cannot activate voice guides and process voice commands.

- TV off state

To enter Ambient Mode when the TV is turned off, press the 📄 button on the remote control. To enter TV mode when the TV is turned off, press the 📄 button. In TV mode, you can watch broadcasts or enjoy the content on the external connected devices.

Changing the content and settings for Ambient Mode

Mountain landscape at sunset with soft lighting and mist, displayed in a photo editing interface (no text on mountain peaks)

The image on your TV may differ from the image above depending on the model and geographical area.

When you press the 📄 or ⬇ button in Ambient Mode, the Ambient Mode browser screen appears. In the Ambient Mode browser screen, you can select content and change the Ambient Mode settings.

Setting up the content for Ambient Mode

The Ambient Mode browser screen displays content at the top and categories at the bottom. Use the left or right directional buttons in the content list at the top to move the focus to content you want, and then press the Select button. The selected content is played in Ambient Mode.

In the future, more content that you can set up in the Ambient Mode browser will be provided.

You can select the following categories and content:

• Décor: Allows you to select beautiful screens.
- Info: Provides information such as weather, news headlines, and more.

This function may not be supported depending on the geographical area.

- Photo: Allows you to set a picture stored in your mobile device as the wallpaper of the Ambient Mode screen. You can configure special layouts using your photos.

To save photos from your mobile device to the TV and import them in Ambient Mode, use the SmartThings app on your mobile device.

Setting up the Ambient Mode details

In the Ambient Mode browser screen, move the focus to ⚙, and then press the Select button. You can change the following settings:

• Brightness: Adjusts the screen brightness for Ambient Mode.
  • Color Tone: Adjusts the colors of the screen for Ambient Mode.
  • Auto Brightness: Changes the auto brightness setting for Ambient Mode.

When this function is set to Off, the brightness level of the TV screen is not automatically adjusted according to the ambient light level.
This function may not be supported depending on the model.

- Ambient Off Timer: Sets the time that the Ambient Mode screen turns off automatically.

If there is no remote control input for the set time, the screen goes off. To turn the screen back on in Ambient Mode, press the button on the remote control.

Changing the background color of Ambient Mode

To change the background color of Ambient Mode, move the focus to ☑ in the Ambient Mode browser screen, and then press the Select button. You can change the background color or pattern. Move the focus to a color or pattern you want, and then press the Select button.

Take a picture of a wall using the SmartThings app on your mobile device to set it as the background of Ambient Mode. This function may have a delay in image transmission and optimization depending on the network conditions.

Using Bixby

Speak into the microphone on your Samsung Smart Remote to control your TV.

This function may not be supported depending on the model or geographical area.

The supported language may differ depending on the geographical area.

Running Bixby

Press and hold the button on your Samsung Smart Remote, say a command, and then release the button. The TV recognizes the voice command.

To view the Bixby guide, press the 📷 tton once:

• When you press the ⏻ button for the first time, the Using Bixby button appears at the bottom of the screen. Press the Select button. The Using Bixby popup window appears and a tutorial on using Bixby is shown.
• When you press the 📋 button after the first time, the Explore Now button appears at the bottom of the screen. Press the Select button to go to the My Bixby screen.

HDMI USB

Learning about My Bixby

My Bixby SAMSUNG ACCOUNT LV 1 2 3 4

The image on your TV may differ from the image above depending on the model and geographical area.

1 Samsung Account

Go to the Samsung Account screen to create a new account or sign out of your account.

If you are signed out of your Samsung account, select Sign In or 📁 to log in.

2 Settings

You can change the voice responses and the voice style of Bixby.

You can also select a music service provider in the Default music service provider tab.

The Default music service provider tab may not be supported depending on the model or geographical area.

3 User information and the experience points (XP) guide

You can see user information and the experience points (XP) that you can get from using Bixby.

You must be signed in to your Samsung account to view the user information and the experience points (XP).

This function may not be supported depending on the model or geographical area.

4 Bixby guide

You can learn the voice commands that let you use Bixby in various situations. Use the directional buttons to move to the desired command, and then press the Select button. You can operate the TV with various voice commands.

To view a tutorial on Bixby, use the directional buttons to move to the bottom, and then select the View Tutorial item.

Read Before Using Bixby

Precautions for Bixby

• The supported voice interaction languages and features may differ depending on the geographical area.
• If the language set differs from the language of your country, some features are not available.
• Bixby is available only when the TV is connected to the Internet.
• Even if the TV is connected to the Internet, there may be no response due to a Bixby server error.
• The existing functional specifications may be changed if Bixby is updated.
• Bixby is available only on TVs that support it and come with remote controls that have a microphone.
• Symbols including "-" and special characters are not supported. Consequently, if a word or sentence contains numeric values or symbols, the function may not operate properly.
• Searched results may not provide complete results.
• You may be required to pay for some apps. Consequently, you may encounter a service application or contract.
• To change the current channel by saying channel names as voice commands, you must finish Set Up Your Service Provider. If Set Up Your Service Provider is not completed, you can complete it using the following menu.

- > Settings > General > Start Setup Try Now

• To use the voice text input function and Smart Search function, you must consent to provisions allowing third parties to collect and use your voice data.
  • To use the Bixby function, you must:

– Agree to Smart Hub's Terms of Use

– Agree to a guidance regarding the collection and use of personal information for the Smart Hub service.
– Consent to the collection and use of personal information for the voice interaction-based service.

Requirements for using Bixby

• The voice interaction rate differs with the volume/tone, pronunciation, and ambient sound environment (TV sound and ambient noise).
• The optimal volume for voice commands is between 75 dB and 80 dB.

Updating the TV's Software

View your TV's software version and update it if necessary.

Settings > Support > Software Update Try Now

Updating the TV's software to the latest version

DO NOT turn off the TV's power until the update is complete. The TV will turn off and on automatically after completing the software update. Video and audio settings will be reset to their defaults after a software update.

Updating through the Internet

Settings > Support > Software Update > Update Now Try Now

Updating from the Internet requires an active Internet connection.

Updating through a USB device

Settings > Support > Software Update > Update Now

After downloading the update file from the Samsung website and storing it on a USB device, connect the USB device to the TV to update.

To update using a USB flash drive, download the update package from Samsung.com to your computer. Then, save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the update package.

Updating the TV automatically

Settings > Support > Software Update > Auto Update Try Now

If the TV is connected to the Internet, you can have the TV's software update itself automatically while you are watching the TV. When the background update is completed, it is applied the next time the TV is turned on.

If you agree to the Smart Hub terms and conditions, Auto Update is set to On automatically. If you want this function disabled, use the Select button to turn it off.

This function may take a longer time if another network function is running concurrently.

This function requires an Internet connection.

Getting Support

Get help directly from Samsung if you have a problem with your TV.

Getting support through Remote Management

Settings > Support > Remote Management Try Now

After consenting to our service agreement, you can use Remote Management to access Remote Support and have a Samsung service technician diagnose your TV, correct problems, and update your TV's software remotely via the web. You can also turn Remote Management on and off.

You can also start this function by pressing and holding the button for 5 or more seconds.

This function requires an Internet connection.

What is Remote Support?

Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely:

• Diagnose your TV
• Adjust the TV settings for you
  • Perform a factory reset on your TV
  • Install recommended firmware updates

How does Remote Support Work?

You can easily get Samsung Remote Support service for your TV.

1. Call the Samsung Contact Center and ask for remote support.
2. Open the menu on your TV and go to the Support section. ( Ⓜ > ⚙ Settings > Support)
3. Select Remote Management, then read and agree to the service agreements. When the PIN screen appears, provide the PIN number to the technician.
4. The technician will then access your TV.

Finding the contact information for service

Settings > Support > About This TV Try Now

You can view the address of the Samsung website, the call center phone number, your TV's model number, your TV's software version, Open Source License and other information you may need to get service support from a Samsung call agent or the Samsung website.

You can also view information by scanning the QR code of your TV.

You can also start this function by pressing and holding the ▶ button for 5 or more seconds. For standard remote control, press and hold the ▶ play) button for 5 or more seconds. Continue holding the button until the customer information pop-up window appears.

Requesting service

Settings > Support > Request Support Try Now

You can request service when you encounter a problem with the TV. Select the item matching the problem that you encountered, and then select Request Now or Schedule Appointment > Request > Send. Your service request will be registered. The Samsung Contact Center will contact you to set up or confirm your service appointment.

You must agree to the terms and conditions for the service request.

This function may not be supported depending on the geographical area.

This function requires an Internet connection.

Connections

You can watch live broadcasts by connecting an antenna and antenna cable to your TV and can get access to the Internet by using a LAN cable or wireless router. Using various connectors, you can also connect external devices.

Connection Guide

You can view detailed information about external devices that can be connected to the TV.

Connection Guide

It shows you how to connect various external devices such as cable boxes, game consoles, and PCs using pictures. If you select the connection method and an external device, the connection details appear.

Connection Guide Cable Box/Disc Player HDMI Game Console PC Audio Device Mobile Device External Storage Accessory

The image on your TV may differ from the image above depending on the model and geographical area.

Connecting an Antenna

You can connect an antenna cable to your TV.

An antenna connection is not necessary if you connect a cable box or satellite box.

ANT IN 10+4+4+4

Connecting to the Internet

You can get access to the Internet through your TV.

Connecting to your Internet network

Settings > General > Network > Open Network Settings Try Now

Connect to an available network.

Establishing a wired Internet connection

Settings > General > Network > Open Network Settings > Wired

If you connect a LAN cable, the TV automatically accesses the Internet.

LAN

Use a CAT 7 (*STP type) cable for the connection.

* Shielded Twist Pair

The TV will not be able to connect to the Internet if your network speed is below 10 Mbps.

Establishing a wireless Internet connection

> Settings > General > Network > Open Network Settings > Wireless

Make sure that you have the wireless router's SSID (name) and password settings before attempting to connect. The network name (SSID) and security key are available on the wireless router's configuration screen. See the wireless router's user manual for more information.

Line drawing of a network device with a monitor, wireless signal waves, and a router connected to an electrical outlet (no text or symbols)

Wireless Connection Select your wireless network. Refresh

The image on your TV may differ from the image above depending on the model and geographical area.
If no wireless router is found, select Add Network at the bottom of the list and enter the network name (SSID).
If your wireless router has a WPS or PBC button, select Use WPS at the bottom of the list, and then push the WPS or PBC button on your router within 2 minutes. The TV will connect automatically.

Checking the Internet connection status

> Settings > General > Network > Network Status Try Now

View the current network and Internet status.

Resetting Your Network

Settings > General > Network > Reset Network Try Now

Restore the network settings to the factory default.

Turning on the TV with a mobile device

Settings > General > Network > Expert Settings > Power On with Mobile

You can turn on the TV using a mobile device connected to the same network as the TV.

Connecting an IP control device to the TV

Settings > General > Network > Expert Settings > IP Remote

You can connect an IP control device to the TV remotely to manage your IP device.

The image is too blurry to recognize any text content.

To use this function, Power On with Mobile must be turned on.

#

Turning this feature on may allow other IP control devices to control your TV. We recommend turning this feature on only if an authorized third-party custom controller is installed and configured specifically for a Samsung TV and if your Wi-Fi network is password protected.

#

This function may not be supported depending on the model or geographical area.

Setting up an Internet connection over IPv6

Configuring the IPv6 connection settings

Settings > General > Network > Expert Settings > IPv6

#

This function may not be supported depending on the model or geographical area.

Checking the Internet connection set up over IPv6

Settings > General > Network > Expert Settings > IPv6 Status

[Non-Text]

This function may not be supported depending on the model or geographical area.

Changing the name of the TV on a network

Settings > General > System Manager > Device Name Try Now

You can change the name of the TV on the network. Select User Input at the bottom of the list and change the name.

Troubleshooting Internet Connectivity Issues

If your TV won't connect to the Internet, try the solutions below.

Troubleshooting Internet connectivity issues Try Now

After reading the following content, troubleshoot the Internet connection issue. If the problem persists, contact your Internet Service Provider.

No network cable found

Make sure that the LAN cable is plugged in on both ends. If it is plugged in, make sure that the router is turned on. If the router is on, try turning it off and then on.

Wireless network connection failed

If a selected wireless router is not found, go to Open Network Settings, and then select the correct router.

Settings > General > Network > Open Network Settings

Unable to connect to a wireless router

1. Check if the router is turned on. If it is, turn it off and then on.
2. Enter the correct password if required.

IP auto setting failed

1. Configure the settings in IP Settings.

- > Settings > General > Network > Network Status > IP Settings

1. Make sure that the DHCP server is enabled on the router, and then unplug the router and plug it back in.

2. Reset the router if required.

- For wireless connection, enter the correct password if required.

Unable to connect to the network

1. Check all IP Settings.

- > Settings > General > Network > Network Status > IP Settings

1. After checking the DHCP server status (must be active) on the router, remove the LAN cable, and then connect it again.

- For wireless connection, enter the correct password if required.

Connected to a local network, but not to the Internet

1. Make sure that the Internet LAN cable is connected to the router's external LAN port.

2. Check the DNS values in IP Settings.

- > Settings > General > Network > Network Status > IP Settings

Network setup is complete, but unable to connect to the Internet

If the problem persists, contact your Internet Service Provider.

Connecting Video Devices

Make the correct video connections between your TV and your external devices.

Connecting with an HDMI cable

HDMI IN

Connecting with a component cable (Only for models with COMPONENT IN / AV IN)

A Component connection lets you enjoy video resolutions up to 1080p. To watch video from most DVD and Blu-ray players, use the Component connection.

Review the illustration below, and then connect Component IN and AV IN on the TV to Component OUT on the external device by using the provided component and AV adaptors. Make sure to connect the same color connectors together. (blue to blue, yellow to yellow, etc.)

To use component equipment, connect both the component adapter (blue) and the AV adapter (yellow).

Connecting with a composite cable (Only for models with COMPONENT IN / AV IN)

Through the AV connection, you can enjoy video resolution up to 480i.

Review the illustration below, and then connect AV IN on the TV to AV OUT on the external device by using the provided composite cable and AV adapter. When connecting the cables, be sure to match the colors of the cables to the colors of the ports.

Connect AV (composite) equipment to AV In only. Do not connect to Component In.

Audio Input and Output Connections

Make the correct audio connections between your TV and your external devices.

For more information about how to select external speakers, refer to "Selecting speakers."

Connecting with an HDMI (ARC) cable

HDMI IN (ARC)

Connecting with a digital audio (optical) cable

DIGITAL AUDIO OUT (OPTICAL)

Connecting through a wireless network

You can connect the TV to a Samsung audio device that supports the Wi-Fi function through your wireless network. The two devices must be connected to the same network. For more information about how to connect and use a Samsung audio device that supports the Wi-Fi function, refer to its user manual.

Connecting Bluetooth Devices

For more information about how to connect and use external speakers, refer to the Connection Guide (→) Source > Connection Guide > Audio Device > Bluetooth) and to the speakers' user manuals.

This function may not be supported depending on the model or geographical area.

Connecting a Computer

Use the TV as a computer monitor or connect the TV to a computer via your network and access the computer's content.

Connecting through the HDMI port — Screen sharing (HDMI)

When you have connected a PC, go to 📋 > → Source, and then select the PC icon from the external device icon list. For more information about the port settings, refer to "Editing the name and icon of an external device."

Connecting Your Mobile Device

Connect your mobile device to the TV on the same network to control the TV with the mobile device or enjoy the content of the mobile device on the TV.

Use the SmartThings app on your mobile device to quickly and easily connect to the TV and control its main settings. In addition, you can remotely check and control the statuses of various devices such as Samsung smart devices, home appliances, and speakers registered to the server.

Make sure that your TV supports SmartThings. You can check this with the Supported Devices menu in the SmartThings app.
To use the SmartThings app, you must be signed in to your Samsung account on the TV.
This function may not be supported depending on the TV model or mobile device.
The supported functions may differ depending on the version of the SmartThings app.

You can install the SmartThings app from App Store or Google Play Store.

Connecting to the TV via the SmartThings app

1. Turn on the TV.
2. Start the SmartThings app on your mobile device.
3. Tap Add Device on the dashboard of the SmartThings app. Connectable TVs are searched for.
4. From the search results, select the model of your TV.
5. Enter the PIN number displayed on the TV screen.

Once the TV is registered with your Samsung account, you can use the SmartThings app to control the TV.

If your TV is not found on your mobile device, turn both of them off and on, and then try again.
If you have more than one TV, you can easily select the TV you want by setting different TV names at General > System Manager > Device Name.

Bidirectionally mirroring your TV and mobile device using the SmartThings app

Bidirectional mirroring refers to either outputting the screen and sound of a mobile device on a TV or outputting the screen and sound of a TV on a mobile device. You can use the SmartThings app to enjoy the screen and sound of the TV on your mobile device or to play the screen and sound of your mobile device on the TV.

Start the SmartThings app on your mobile device. Tap your TV from the dashboard or device.

- You can enjoy the screen and sound of the mobile device on your TV.

After you connect a mobile device that supports screen mirroring to your TV, you can use screen mirroring to enjoy the screen and sound of the mobile device on your TV wirelessly and play the video, audio, or photo files currently playing on the mobile device on your TV.

• You can enjoy TV screen and sound on your mobile device.
• You can only listen to the TV sound on your mobile device.

You can add a new device through the SmartThings app on your mobile phone. Please refer to the user guide in the SmartThings app for more details.
This function may not be supported depending on the TV model or mobile device.
The supported functions may differ depending on the version of the SmartThings app.
If your TV is not found on your mobile device, turn both of them off and on, and then try again.
If you have multiple TVs, assign a different name to each TV in 📄 > Settings > General > System Manager > Device Name to make selection easy.

Managing Mobile Devices

Settings > General > External Device Manager > Device Connect Manager Try Now

- Access Notification

Set whether to display a notification when a mobile device attempts to connect to the TV.

- Device List

View, edit, or remove a list of mobile devices registered to the TV.

Switching between external devices connected to the TV

You can switch between TV programs and the content of external devices.

Changing the input signal

Source

When you select a connected external device on the Source screen, the output of the selected device is displayed on the TV's screen.

On the standard remote control, press the SOURCE button.

To control a device (Blu-ray player, game console, etc.) that supports universal remote control with the TV's remote control, connect the device to an HDMI port on the TV, and then turn on the device. You can switch to the output of the device automatically or you can configure universal remote control for the device automatically. To configure the device for universal remote control automatically, point the TV's remote control at the device.
When a USB device is connected to the USB port, a pop-up message appears that lets you switch easily to the media content listed on the device.
This function may not be supported depending on the device and geographical area.

Editing the name and icon of an external device

> Source

You can change the port name for a connected external device or add it to the Home Screen.

Universal Remote Edit Information Add to Home Sources Source

The image on your TV may differ from the image above depending on the model and geographical area.

1. Move the focus to a connected external device.

2. Press the up directional button. The following functions become available.

Available functions may differ depending on the port type.

1 Universal Remote

You can control external devices connected to the TV using the Samsung Smart Remote. To control external devices, register them by following the instructions on the screen.

This function may not be supported depending on the model or geographical area.

For more information, refer to "Controlling External Devices with the Samsung Smart Remote - Using the Universal Remote".

2 Edit

You can rename the input ports and change the device icons.

3 Information

You can view detailed information about an external device.

4 Add to Home

You can add the port of an external device to the Home Screen for quick switching.

Using additional functions

You can use the following features on the Source screen.

• Connection Guide: Displays device connection instructions.
• Universal Remote: Lets you register external devices to your Samsung Smart Remote and control them using the Remote.
  This function may not be supported depending on the model or geographical area.
  For more information, refer to "Controlling External Devices with the Samsung Smart Remote - Using the Universal Remote."

Connection Notes

When connecting an external device, note the following.

The number of connectors and their names and locations may differ with the model.
Refer to the external device's operating manual when connecting it to the TV. The number of external device connectors and their names and locations may differ with the manufacturer.

Connection notes for HDMI

- The following types of HDMI cables are recommended:

- High-Speed HDMI Cable - High-Speed HDMI Cable with Ethernet

• Use an HDMI cable with a thickness of 0.66 inches (17 mm) or less.
• Using a non-certified HDMI cable may result in a blank screen or a connection error.
• Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications.
• This TV does not support HDMI Ethernet Channel. Ethernet is a Local Area Network (LAN) built with coaxial cables standardized by the IEEE.

• Use a cable shorter than 3 m to get the best UHD viewing quality.

• Many computer graphics adaptors do not have HDMI ports, but have DVI ports instead. If your PC does not support HDMI video out, connect your PC with an HDMI-DVI cable.

• For One Connect supported models, when the TV is connected to an external device such as a DVD/BD player or a set-top box via HDMI, power sync mode will be automatically activated. In this power sync mode, the TV continues to detect and connect external devices via HDMI cable. This function can be deactivated by removing HDMI cable of connected device.

Connection notes for audio devices

• For better audio quality, it is a good idea to use an AV receiver.
• If you connect an external audio device using an optical cable, the Sound Output setting is automatically changed to the connected device. However, to make this happen, you must turn on the external audio device before connecting the optical cable. To manually change the Sound Output setting, do one of the following:

– Use the Quick Settings screen to change to the connected device:
Use the Select button to select Audio Out/Optical on the Sound Output menu. ( Settings > up directional button Sound Output).
– Use the Settings screen to change to the connected device:
Select Audio Out/Optical on the Sound Output menu. (图标 > Settings > Sound > Sound Output).

- An unusual noise coming from a connected audio device while you are using it may indicate a problem with the audio device itself. If this occurs, ask for assistance from the audio device's manufacturer.

• Digital audio is only available with 5.1 channel broadcasts.

Connection notes for computers

• For the resolutions supported by the TV, refer to "Read Before Connecting a Computer (Supported Resolutions)."
• As long as file sharing is activated, unauthorized access may occur. When you do not need to access data, disable file sharing.
• If you want to connect your PC and TV wirelessly, both of them must be connected to each other on the same network.
• When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage system, sharing may not be supported due to the network's configuration, quality, or functionality, for example, if the network has an NAS (Network-Attached Storage) device.

Connection notes for mobile devices

• To use the Smart View function, the mobile device must support a mirroring function such as Screen Mirroring or Smart View. To check whether your mobile device supports the mirroring function, refer to the mobile device's user manual.
• The Screen Sharing (Smart View) feature may not operate smoothly in a 2.4 GHz environment. For better experience, 5.0 GHz is recommended. 5 GHz may be available depending on the model.
• To use Wi-Fi Direct, the mobile device must support the Wi-Fi Direct function. To check whether your mobile device supports Wi-Fi Direct function, refer to the mobile device's user manual.
• The mobile device and your Smart TV must be connected to each other on the same network.
• The video or audio may stop intermittently, depending on network conditions.
• When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage system, sharing may not be supported due to the network's configuration, quality, or functionality, for example, if the network has an NAS (Network-Attached Storage) device.

Remote Control and Peripherals

You can control TV operations with your Samsung Smart Remote. Pair external devices such as a keyboard for ease of use.

About the Samsung Smart Remote (QLED TV)

Learn about the buttons on the Samsung Smart Remote that comes with the QLED TV.

1 2 VOL CH SAMSUNG 123 123 VOL CH SAMSUNG

Button Description
(Bixby)	Runs Bixby. Press and hold the button, say a command, and then release the button to run Bixby.When you press the button, the Explore Now menu appears at the bottom of the screen.
(Color / Number button)	Each time you press this button, the colored buttons window and the virtual numeric pad are displayed alternately.Use these colored buttons to access additional options that are specific to the feature in use.Press to bring up the virtual numeric pad on the screen. Use the numeric keypad to enter numeric values. Select numbers and then select Done to enter a numeric value. Use to change the channel, enter a PIN, enter a ZIP code, etc.If the Color Button appears with a number strip on the screen, select the Color Button, and then select a specific color by using the directional pad (up/down/left/right). Use this to access additional options that are specific to the feature in use.
(Ambient Mode)	In TV mode, press the button to enter Ambient Mode.If you press the button when the TV is turned off, the TV turns on in Ambient Mode.
Directional pad (up/down/left/right)	Moves the focus.
Select	Selects or runs a focused item. When pressed while you are watching content, detailed program information appears.
(Return)	Press to return to the previous menu. When pressed for 1 second or more, the running function is terminated. When pressed while you are watching a program, the previous channel appears.
(Smart Hub)	Press to return to the Home Screen.
(Play/pause)	When pressed, the playback controls appear. Using these controls, you can control the media content that is playing.
VOL (Volume)	Move the button up or down to adjust the volume. To mute the sound, press the button. When pressed for 1 second or more, the Accessibility Shortcuts appears.
CH (Channel)	Move the button up or down to change the channel. To see the Guide screen, press the button. Press and hold the button up or down to quickly change the channel.

Use the Samsung Smart Remote less than 6 m from the TV. The usable distance may vary with the wireless environmental conditions.
The images, buttons, and functions of the Samsung Smart Remote may differ with the model.
The Samsung Smart Remote may not be supported depending on the model or geographical area.
To use the Samsung Smart Remote to control a compatible external device that does not support HDMI-CEC (Anynet+), you must configure universal remote control for the device. For more information, refer to "Controlling External Devices with the Samsung Smart Remote - Using the Universal Remote."
To use the Samsung Smart Remote to control a compatible external device that does support HDMI-CEC (Anynet+), connect the device to an HDMI port on the TV using an HDMI cable. For more information, refer to "Using Anynet+ (HDMI-CEC)."

About the Samsung Smart Remote (UHD TV)

Learn about the buttons on the Samsung Smart Remote that comes with the UHD TV.

123 ① ② VOL CH SAMSUNG

Button Description
(Bixby)	Runs Bixby. Press and hold the button, say a command, and then release the button to run Bixby.When you press the button, the Explore Now menu appears at the bottom of the screen.
(Number button)	Press to bring up the virtual numeric pad on the screen. Use the numeric keypad to enter numeric values.Select numbers and then select Done to enter a numeric value. Use to change the channel, enter a PIN, enter a ZIP code, etc.
(Color button)	When pressed, colored buttons appear on the screen. Use these colored buttons to access additional options specific to the feature you are using.
Directional pad (up/down/left/right)	Moves the focus.
Select	Selects or runs a focused item. When pressed while you are watching content, detailed program information appears.
(Return)	Press to return to the previous menu. When pressed for 1 second or more, the running function is terminated. When pressed while you are watching a program, the previous channel appears.
(Smart Hub)	Press to return to the Home Screen.
(Play/pause)	When pressed, the playback controls appear. Using these controls, you can control the media content that is playing.
VOL (Volume)	Move the button up or down to adjust the volume. To mute the sound, press the button. When pressed for 1 second or more, the Accessibility Shortcuts appears.
CH (Channel)	Move the button up or down to change the channel. To see the Guide screen, press the button. Press and hold the button up or down to quickly change the channel.

Use the Samsung Smart Remote less than 6 m from the TV. The usable distance may vary with the wireless environmental conditions.
The images, buttons, and functions of the Samsung Smart Remote may differ with the model.
The Samsung Smart Remote may not be supported depending on the model or geographical area.
To use the Samsung Smart Remote to control a compatible external device that does not support HDMI-CEC (Anynet+), you must configure universal remote control for the device. For more information, refer to "Controlling External Devices with the Samsung Smart Remote - Using the Universal Remote."
To use the Samsung Smart Remote to control a compatible external device that does support HDMI-CEC (Anynet+), connect the device to an HDMI port on the TV using an HDMI cable. For more information, refer to "Using Anynet+ (HDMI-CEC)."

About the Samsung Smart Remote (THE FRAME)

Learn about the buttons on the Samsung Smart Remote that comes with THE FRAME TV.

POWER 123 1 2 VOL CH SAMSUNG

Button Description
(Power)	When watching TV, press to switch to Art mode. In Art mode, press to switch to watching TV. Press and hold to turn off the TV completely.When the TV turns off and on again, display the last used mode.
(Bixby)	Runs Bixby. Press and hold the button, say a command, and then release the button to run Bixby.When you press the button, the Explore Now menu appears at the bottom of the screen.
(Number button)	Press to bring up the virtual numeric pad on the screen. Use the numeric keypad to enter numeric values.Select numbers and then select Done to enter a numeric value. Use to change the channel, enter a PIN, enter a ZIP code, etc.
(Color button)	When pressed, colored buttons appear on the screen. Use these colored buttons to access additional options specific to the feature you are using.To immediately set Color & Brightness while enjoying Art mode, press the button.
Directional pad (up/down/left/right)	Moves the focus.
Select	Selects or runs a focused item. When pressed while you are watching content, detailed program information appears.
(Return)	Press to return to the previous menu. When pressed for 1 second or more, the running function is terminated. When pressed while you are watching a program, the previous channel appears.
(Smart Hub)	Press to return to the Home Screen.Press in Art mode to switch to TV mode.
(Play/pause)	When pressed, the playback controls appear. Using these controls, you can control the media content that is playing.
VOL (Volume)	Move the button up or down to adjust the volume. To mute the sound, press the button. When pressed for 1 second or more, the Accessibility Shortcuts appears.
CH (Channel)	Move the button up or down to change the channel. To see the Guide screen, press the button. Press and hold the button up or down to quickly change the channel.

Use the Samsung Smart Remote less than 6 m from the TV. The usable distance may vary with the wireless environmental conditions.
The images, buttons, and functions of the Samsung Smart Remote may differ with the model.
The Samsung Smart Remote may not be supported depending on the model or geographical area.
To use the Samsung Smart Remote to control a compatible external device that does not support HDMI-CEC (Anynet+), you must configure universal remote control for the device. For more information, refer to "Controlling External Devices with the Samsung Smart Remote - Using the Universal Remote."
To use the Samsung Smart Remote to control a compatible external device that does support HDMI-CEC (Anynet+), connect the device to an HDMI port on the TV using an HDMI cable. For more information, refer to "Using Anynet+ (HDMI-CEC)."

Connecting to the Samsung Smart Remote

Pair the TV with the Samsung Smart Remote.

When you turn on the TV for the first time, the Samsung Smart Remote pairs to the TV automatically. If the Samsung Smart Remote does not pair to the TV automatically, point it at the remote control sensor of the TV, and then press and hold the 📋 and buttons simultaneously for 3 seconds or more.

The images, buttons, and functions of the Samsung Smart Remote may differ with the model.
The Samsung Smart Remote may not be supported depending on the model or geographical area.

Controlling External Devices with the Samsung Smart Remote - Using the Universal Remote

Control the TV and connected external devices with the Samsung Smart Remote.

rce Universal Remote

You can control external devices connected to the TV using the Samsung Smart Remote. To control external devices, register them by following the instructions on the screen.

This function may not be supported depending on the model or geographical area.
You can also use the Anynet+ (HDMI-CEC) function to operate external Samsung devices with your TV's remote control without any additional setup. For more information, refer to "Using Anynet+ (HDMI-CEC)."
Specific external devices connected to the TV may not support the universal remote feature.
Do not place any obstacles in front of an external device. It may cause signals from the remote control to be transmitted improperly.
The TV memorizes both the external device and its connection port (HDMI 1, HDMI 2, etc.).
For models that came with One Connect, if you have difficulty in controlling external devices with the Universal Remote, try adjusting the positions of the One Connect and the external devices.

Using Anynet+ (HDMI-CEC)

Control an external device connected via Anynet+ (HDMI-CEC) with the remote control.

You can use the TV's remote control to control external devices that are connected to the TV by an HDMI cable and that support Anynet+ (HDMI-CEC). Note that you can only set up and operate Anynet+ (HDMI-CEC) with the remote control.

Connecting an external device through Anynet+ and using their menus

> Settings > General > External Device Manager > Anynet+ (HDMI-CEC) Try Now

1. Set Anynet+ (HDMI-CEC) to On.
2. Connect an HDMI-CEC-compliant device to the TV.
3. Turn on the connected external device. The device is automatically connected to the TV. After the connection process is finished, you can access the menu of the connected device using your TV remote and control the device.
   The connecting process can take up to 2 minutes to complete.

Read before connecting an Anynet+ (HDMI-CEC) device

Anynet+ (HDMI-CEC)-enabled devices must be connected to the TV with an HDMI cable. Note that some HDMI cables may not support Anynet+ (HDMI-CEC).
You can configure the TV's Universal Remote to control third-party cable boxes, Blu-ray players, and home theaters that do not support HDMI-CEC. For more information, refer to "Controlling External Devices with the Samsung Smart Remote - Using the Universal Remote."
Anynet+ cannot be used to control external devices that do not support HDMI-CEC.
The TV remote control may not work under certain circumstances. If this occurs, set up the device as an Anynet+ (HDMI-CEC)-enabled device again.
Anynet+ (HDMI-CEC) works only with external devices that support HDMI-CEC and only when those devices are either in standby mode or turned on.
Anynet+ (HDMI-CEC) can control up to 12 compliant external devices (up to 3 of the same type) except for home theaters. Anynet+ (HDMI-CEC) can control only one home theater system.
To listen to 5.1 channel audio from an external device, connect the device to the TV via an HDMI cable and connect a 5.1 home theater system directly to the external device's digital audio output connector.
If an external device has been set up for both Anynet+ and a universal remote control, the device can be controlled only with the universal remote control.

Controlling the TV with a Keyboard or Mouse

Connecting a keyboard or mouse to make it easier to control the TV.

Settings > General > External Device Manager > Input Device Manager Try Now

You can connect a keyboard or mouse to make it easier to control the TV.

Connecting a USB keyboard or mouse

Plug the keyboard or mouse cable into the USB port.

If you connect a mouse, it is available only in the Internet app.

Connecting a Bluetooth keyboard or mouse

Settings > General > External Device Manager > Input Device Manager > Bluetooth e List

This function may not be supported depending on the model or geographical area.

If your device was not detected, position the keyboard close to the TV, and then select Refresh. The TV scans for available devices again.

If you connect a mouse, it is available only in the Internet app.

Using the keyboard and mouse

Button Description
Directional keys Moves the focus
Windows key Displays the TV settings
Enter key Selects or runs a focused item
ESC key Returns to the previous screen
F1 / F2 / F3 / F4 key	Color buttons — 🐎 / 🐎 🐎 🐎
F5 key Displays the Home Screen
F6 key Displays theSourcescreen
F7 key Displays theChannel List
F8 key Mutes the sound
F9 / F10 key Adjusts the volume
F11 / F12 key	Changes the channel
Page Up / Page Down Scrolls a	web page displayed by theInternetapp.
Left-click	Available only in theInternetapp. You can click a menu or link to start a function as you do on a PC.
Right-click	Available only in theInternetapp. You can use the following functions:The options displayed in the menu may differ depending on the selected item.OpenOpen Link in New TabEnable Scroll Mode

The key operations may differ on some apps.

Setting up the input devices

Setting up the keyboard

> Settings > General > External Device Manager > Input Device Manager > Keyboard Settings

You can set up the keyboard with the following functions:

• Keyboard Language
• Keyboard Type

Setting up the mouse

Settings > Settings > General > External Device Manager > Input Device Manager > Mouse Settings

You can set up the mouse with the following functions:

• Primary Button
• Pointer Speed

Entering Text using the On-Screen Virtual Keyboard

Use the virtual keyboard to enter text on your TV.

Recommended text Options Predict Next Character www. .com / < / >

The image on your TV may differ from the image above depending on the model and geographical area.

1 Recommended text

When you type a word you want to use as a search term, this function displays related suggestions from which you can choose one.

2 Options

Select on the virtual keyboard screen. The following options are available:

The options available may differ depending on the function running currently.

• Recommended text
- Reset Recommended Text Memory
• Predict Next Character (when using direction buttons)
- Language

3 Predict Next Character

Each time you type a character on the virtual keyboard, the next characters predicted to be typed are displayed. You can use the directional buttons on the remote control to select one.

Entering Text using the remote control's microphone and the on-screen virtual keyboard

When the virtual keyboard is on the screen, press and hold the button 📷 on the Samsung Smart Remote, speak into the microphone on the Samsung Smart Remote, and then release the button. What you say appears on the screen as text.

This function may not be supported depending on the model or geographical area.

Smart Features

You can enjoy various apps with Smart Hub.

Smart Hub

View descriptions of Smart Hub's basic functions.

From Smart Hub, you can use the Internet search function, install and use various apps, view photos and videos, or listen to music stored on external storage devices, and perform more functions.

Some Smart Hub services are paid services.
To use Smart Hub, the TV must be connected to the Internet.
Some Smart Hub features may not be supported depending on the service provider, language, or geographical area.
Smart Hub service outages can be caused by disruptions in your Internet service.
To use Smart Hub, you must agree to the Smart Hub service agreement, and collection and use of personal information. Without giving consent, you cannot use the additional features and services. You can view the entire text of the Terms & Privacy document by navigating to > Settings > Terms & Privacy. Try Now
If you want to stop using Smart Hub, you can cancel the agreement. To cancel the Smart Hub service agreement, select Reset Smart Hub (图标 > Settings > Support > Self Diagnosis > Reset Smart Hub).

Displaying the Home Screen

Press the 📄 button.

Sources TV HDMI 1 HDMI 2 USB 1 USB 2 Connection Guide Universal Remote 1 2 3 4 5 6 7

The image on your TV may differ from the image above depending on the model and geographical area.

On the Home Screen, you can easily run the apps you have used previously or frequently. The apps can also be moved or deleted from the screen.

1 Notification

You can view a list of notifications for all events that occur on your TV. A notification appears on the screen when it is time to view a scheduled program or when an event occurs on a registered device.

If you move the focus to Notification, and then press the Select button, a notification window appears on the right and the following functions are available:

- Delete All

You can delete all your notifications.

- Settings

- You can select services you want to be notified about.

- When you select Allow sound, notifications are displayed with a notification sound.

2 Settings

When the focus is moved to the ⚙️ icon, a list of quick settings icons appears above the top of the menu. You can quickly set frequently used functions by clicking the icons.

- Picture Mode

You can select the picture mode that provides the best viewing experience. To change the picture mode, press the Select button. To make fine adjustments, press the up directional button, and then select Picture Setup.

- Sound Mode

You can select a sound mode to optimize your listening experience. To change the sound mode, press the Select button. To make fine adjustments, press the up directional button, and then select Equalizer Setup.

- Sound Output

You can select which speakers the TV uses for audio output. To change the audio output, press the Select button. To connect to a Bluetooth speaker, press the up directional button, and then select ✗Speaker List.

Connecting Bluetooth speaker may not be supported depending on the model or geographical area.

- Game Mode

You can enable game mode to optimize the TV's settings for playing video games with a gaming console, such as a PlayStation™ or Xbox™. To turn Game Mode on or off, press the Select button. To set the detailed options, press the up directional button, and then select Go to Game Mode Settings.

- Audio Language

You can select a audio language.

This function may not be supported depending on the model or geographical area.

- Caption

You can watch TV broadcasts with captions. To activate/deactivate the Caption function, press the Select button. To run Accessibility Shortcuts, press the up directional button, and then select Accessibility Shortcuts.

This function may not be supported depending on the model or geographical area.

- Sleep Timer

You can automatically shut off the TV after a pre-set period of time. To set the sleep time to up to 180 minutes, press the Select button. To make detail off timer, press the up directional button, and then select Set Up Off Timer.

This function may not be supported depending on the model or geographical area.

- Network

You can view the current network and Internet status. Press the up directional button, and then select Network Status or Network Settings.

Pressing Settings displays all setting menus available.

This function may not be supported depending on the model or geographical area.

3 → Source

You can select an external device connected to the TV.

For more information, refer to "Switching between external devices connected to the TV."

4 Search

You can search for channels, programs, movie titles, and apps from Smart Hub.

To use this feature, the TV must be connected to the Internet.

5 APPS

You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.

To use this feature, the TV must be connected to the Internet.

For more information, refer to "Using the APPS Service."

6 Ambient Mode

In Ambient Mode, you can view beautiful screens, various visual information, and notifications.

To enter Ambient Mode, press the 📋 button. To return to the TV mode, press the 🔊 button. To shut off the TV, press the 📋 button.

If you press the 📋 button when the TV is turned off, the TV turns on in Ambient Mode.

If you use a remote control other than the Samsung Smart Remote, there may be restrictions to entering Ambient Mode.

Because this function is a QLED TV-specific function, it may not be supported depending on the model.

For more information about the Ambient Mode, refer to "Using the Ambient Mode."

7 Universal Guide

Universal Guide is an app that allows you to search for and enjoy various content such as TV shows, dramas, and movies in one place. Universal Guide can recommend content tailored to your preferences and notify you of new drama series.

For more information about the Universal Guide, refer to "Using the Universal Guide App."

Images may look blurry depending on the service provider's circumstances.

This function may not be supported depending on the model or geographical area.

Art

When you are not watching TV or when the TV is turned off, you can use the Art mode function to edit image content such as artworks or photos or to display the content.

This function is supported only in THE FRAME model.

For more information, refer to the provided user manual.

8 Move Remove 9

The image on your TV may differ from the image above depending on the model and geographical area.

8 Moving an item on the Home Screen

Move the focus to the app you want to move, press the down directional button on the remote control, and then select Move. Move the app to the desired position by pressing the left or right directional button, and then press the Select button. The selected app is moved on the Home screen.

9 Removing an item on the Home Screen

Move the focus to the app you want to delete, press the down directional button on the remote control, and then select Remove. The selected app is deleted.

You can add the apps you want to use often to the Home Screen using APPS. To add your favorite apps to the Home Screen, refer to "Managing purchased or installed apps."

Launching Smart Hub automatically

Settings > General > Smart Features > Autorun Smart Hub Try Now

When you set Autorun Smart Hub to On, the TV displays the Home Screen automatically when you turn the TV on. You can also turn this function on or off: press the Select button at the current menu.

Launching the last used app automatically

Settings > General > Smart Features > Autorun Last App Try Now

If Autorun Last App is set to On, the last used app is automatically run when you turn on the TV. You can also turn this function on or off: press the Select button at the current menu.

This function may not be supported depending on the app.

Testing Smart Hub connections

Settings > Support > Self Diagnosis > Start Smart Hub Connection Test Try Now

Resetting Smart Hub

Settings > Support > Self Diagnosis > Reset Smart Hub Try Now

You can reset the Smart Hub settings. To reset Smart Hub, enter the PIN. The default PIN is "0000." You can set the PIN in Settings > General > System Manager > Change PIN.

Using a Samsung account

Create and manage your own Samsung account.

Settings > General > System Manager > Samsung Account Try Now

Creating and managing your Samsung account

You can view the entire text of the Terms & Policy in 📄 > Settings > General > System Manager > Samsung Account > My Account > Terms & Conditions, Privacy Policy after logging in to your Samsung account.

You can also create a Samsung account at http://account.samsung.com. Once you have an account, you can use the same ID on both the TV and the Samsung website.

Add Account appears or not, depending on whether you are logged in to your Samsung account.

Creating a new account

Settings > General > System Manager > Samsung Account > (Add Account) > Create ount

To create a new Samsung account, follow the instructions on the screen.

For more information about the terms, select View Details.

To protect personal information, select Profile image selection and password entry (High security) in the field below the password entry bar.

If you want the TV to log you into your account automatically whenever you turn on the TV, click Sign me in automatically.

Creating a Samsung account using a PayPal account

Settings > General > System Manager > Samsung Account > (Add Account) > Create with PayPal

This function may not be supported depending on the model or geographical area.

Signing in to a Samsung account

Settings > General > System Manager > Samsung Account > Sign In

Changing and adding information to a Samsung account

Settings > General > System Manager > Samsung Account > My Account > Edit profile

To change the account information, you must be logged in to your Samsung account.

Managing payment information saved on the TV

Settings > General > System Manager > Samsung Account > My Account > Payment Info

To manage the payment information, you must be logged in to your Samsung account.

Configure the sync Internet settings

Settings > General > System Manager > Samsung Account > My Account > Sync Internet

Once you sign in to your Samsung account and configure the sync Internet settings, you can share the favorites that you registered on other devices.

To configure the sync Internet settings, you must be logged in to your Samsung account.

Deleting a Samsung account from the TV

Settings > General > System Manager > Samsung Account > My Account > Remove Account

To remove account information, you must be logged in to your Samsung account.

Although you have deleted your Samsung account, you are not unsubscribed. To unsubscribe from your Samsung Account, visit the Samsung Accounts website (http://account.samsung.com).

Signing out of your Samsung account

To sign out of your Samsung account, move the focus to your account at 📄 > Settings > General > System Manager > Samsung Account, and then press the Select button. Or move to My Account ( 📄 > Settings > General > System Manager > Samsung Account > My Account), and then select Sign Out.

Viewing the user agreement and privacy policy

Settings > General > System Manager > Samsung Account > My Account > Terms & Conditions, Privacy Policy

To view the user agreement and privacy policy, you must be logged in to your Samsung account.

Using the Ambient Mode

Learn about the functions available in Ambient Mode, which is a QLED TV-specific function.

> Ambient Mode

In Ambient Mode, you can view beautiful screens, various visual information, and notifications.

To enter Ambient Mode, press the 📊 button. To return to the TV mode, press the 🔒 button. To shut off the TV, press the 📊 button.

If you press the 📋 button when the TV is turned off, the TV turns on in Ambient Mode.

If you use a remote control other than the Samsung Smart Remote, there may be restrictions to entering Ambient Mode.

Because this function is a QLED TV-specific function, it may not be supported depending on the model.

To activate the ⚙ and ⚪ menus, first select a content item in Ambient Mode.

Screen states related to Ambient Mode

- Ambient Mode

In Ambient Mode, you can set up and enjoy visual information and design. In this state, less power is consumed and brightness is automatically adjusted by the illuminance sensor.

- Getting dark state

In Ambient Mode, the TV screen changes automatically according to the surroundings. When the surroundings get dark, the TV screen becomes darker. When the surroundings get bright before the TV screen turns completely black or when the remote control or the Bixby function is operated, the TV screen returns to Ambient Mode.

You can change the auto brightness setting for Ambient Mode by using ⚙ in the Ambient Mode browser screen.

In this state, the TV can activate voice guides and process voice commands.

- Black screen state

In Ambient Mode, if the surroundings get to a specific level of darkness, the TV turns soft-off. To turn the screen back on in Ambient Mode, press the 📋 button on the remote control.

You can change the auto brightness setting for Ambient Mode by using ⚙ in the Ambient Mode browser screen.

In this state, the TV cannot activate voice guides and process voice commands.

- TV off state

To enter Ambient Mode when the TV is turned off, press the 📄 button on the remote control. To enter TV mode when the TV is turned off, press the 📄 button. In TV mode, you can watch broadcasts or enjoy the content on the external connected devices.

Changing the content and settings for Ambient Mode

Mountain landscape at sunset with soft lighting and mist, displayed in a photo editing interface (no text or symbols on the mountain peaks)

The image on your TV may differ from the image above depending on the model and geographical area.

When you press the 📄 or ↻ button in Ambient Mode, the Ambient Mode browser screen appears. In the Ambient Mode browser screen, you can select content and change the Ambient Mode settings.

Setting up the content for Ambient Mode

The Ambient Mode browser screen displays content at the top and categories at the bottom. Use the left or right directional buttons in the content list at the top to move the focus to content you want, and then press the Select button. The selected content is played in Ambient Mode.

In the future, more content that you can set up in the Ambient Mode browser will be provided.

You can select the following categories and content:

• Décor: Allows you to select beautiful screens.
- Info: Provides information such as weather, news headlines, and more.

This function may not be supported depending on the geographical area.

- Photo: Allows you to set a picture stored in your mobile device as the wallpaper of the Ambient Mode screen. You can configure special layouts using your photos.

To save photos from your mobile device to the TV and import them in Ambient Mode, use the SmartThings app on your mobile device.

Setting up the Ambient Mode details

In the Ambient Mode browser screen, move the focus to ⚙, and then press the Select button. You can change the following settings:

• Brightness: Adjusts the screen brightness for Ambient Mode.
  • Color Tone: Adjusts the colors of the screen for Ambient Mode.
  • Auto Brightness: Changes the auto brightness setting for Ambient Mode.

When this function is set to Off, the brightness level of the TV screen is not automatically adjusted according to the ambient light level.
This function may not be supported depending on the model.

- Ambient Off Timer: Sets the time that the Ambient Mode screen turns off automatically.

If there is no remote control input for the set time, the screen goes off. To turn the screen back on in Ambient Mode, press the button on the remote control.

Changing the background color of Ambient Mode

To change the background color of Ambient Mode, move the focus to ☑ in the Ambient Mode browser screen, and then press the Select button. You can change the background color or pattern. Move the focus to a color or pattern you want, and then press the Select button.

Take a picture of a wall using the SmartThings app on your mobile device to set it as the background of Ambient Mode. This function may have a delay in image transmission and optimization depending on the network conditions.

Using the APPS Service

Download and run various apps from Smart Hub.

> APPS

You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.

To use this feature, the TV must be connected to the Internet.
When Smart Hub is launched for the first time, the default apps are automatically installed. The default apps may differ depending on the geographical area.

1 2 3 APPS DISCOVER YOUR FAVORITE VIDEO APPS Editor's Choice Most Popular

The image on your TV may differ from the image above depending on the model and geographical area.

1 Sign In

Go to the Samsung Account screen to create a new account or sign in to your account.

2 App Search

You can search for available apps.

3 Settings

You can manage the installed apps.

Installing and running an app

Installing an app

1. Move to the app you want to install, and then press the Select button. The detailed information screen appears.
2. Select Install. When the installation is complete, the Open menu appears.
3. Select Open to run the app immediately.

You can view installed apps on the Settings screen.
If the TV's internal memory is insufficient, you can install some specific apps on a USB device.
You can run an app installed on a USB device only when the USB device is connected to the TV. If the USB device is disconnected while an app is running, the app is terminated.
You cannot run an app installed on a USB device on a PC or another TV.

Launching an app

You can run the app desired from Downloaded App.

The icons below appear within the selected app's icon and indicate the following:

• The app is installed on a USB device.
• The app has a password.
• ©: The app needs to be updated.
• The app supports the mirroring function.

Managing purchased or installed apps

Select Settings on APPS. You can manage installed apps.

Settings Auto Update : ON 7 1 Delete 2 Add to Home 3 Lock/Unlock 4 Move 5 Reinstall 6 View Details

The image on your TV may differ from the image above depending on the model and geographical area.

1 Removing an app

1. Move the focus to an app to delete.
2. Select Delete.
3. The selected app is deleted.
   Ensure that the related app data is also removed when you remove an app.

Standard apps cannot be uninstalled.

2 Adding apps to the Home Screen

1. Move the focus to an app to add.
2. Select Add to Home.
3. After the Home screen appears, move the selected app to the desired location.
4. Press the Select button.
5. The selected app is added to the Home Screen.

3 Locking and unlocking apps

1. Move the focus to an app to lock or unlock.
2. Select Lock/Unlock.
3. The selected app is locked or unlocked.

To lock or unlock an app, enter the PIN. The default PIN is "0000." You can set the PIN in > Settings > General > System Manager Change PIN.

4 Moving apps

1. Move the focus to an app to move.
2. Select Move.
3. Move the selected app to the desired location.
4. Press the Select button.
5. The selected app is moved.

This function may not be supported depending on the model or geographical area.

5 Reinstalling an app

1. Move the focus to the app to install again.
2. Select Reinstall.
3. Reinstallation starts.

6 Checking the app information details

1. Move the focus to the app to check.
2. Select View Details.
3. The app information screen appears.

7 Automatically updating apps

Installed apps can be automatically updated. If you do not want apps automatically updated, set Auto Update to OFF.

Automatic update is enabled only when the TV is connected to the Internet.

Rating apps

You can rate an app on the detailed information screen.

Using the Gallery App

View photos and videos synchronized with the Samsung Cloud.

×Gallery

Gallery View: Daily 1≡ 2 3 4

The image on your TV may differ from the image above depending on the model and geographical area.

You can enjoy various content synchronized with a mobile device that supports the Samsung cloud. The available content types are photos, videos, stories, and other content shared through your groups.

If you have shared content from your groups, you can access them in notifications.

To use the Gallery app, you must be signed in to your Samsung account.

≡ Open category

Move to ≡ at the top left of the screen using the directional buttons on the remote control to view the content synchronized with the Samsung Cloud by category.

View: Daily / View: Monthly

Sort the content by day or month.

Sign In

Go to the Samsung Account screen to create a new account or sign in to your account.

Gallery Settings

Restrict access to the Gallery app to protect your privacy, or view the user agreement and privacy policy.

Using the Universal Guide App

Search for and enjoy content such as TV shows, dramas, movies, and sports broadcasts.

>Universal Guide

For You TV Shows Movies Sports On Now

The image on your TV may differ from the image above depending on the model and geographical area.

Universal Guide is an app that allows you to search for and enjoy various content such as TV shows, dramas, and movies in one place. Universal Guide can recommend content tailored to your preferences and notify you of new drama series.

You can use this feature on your mobile with Samsung SmartThings app.

To enjoy the content from these apps on your TV, they must be installed on the TV.
When you watch some paid content, you may need to make a payment using their associated app.
Some content may be restricted depending on your network conditions and your subscriptions to paid channels.
Parental control is necessary when children use this service.
Images may look blurry depending on the service provider's circumstances.
This function may not be supported depending on the model or geographical area.

Using the SmartThings App

Monitor and configure the smart devices you have connected to the SmartThings service.

>SmartThings

SmartThings All Devices Scenes Devices Samsung TV Off

The image on your TV may differ from the image above depending on the model and geographical area.

From your TV, you can monitor and configure smart devices you connected to the SmartThings service via the SmartThings app installed on them. You can receive notifications about the statuses of your smart devices.

To use this function, you must be logged in to your Samsung account.

This function may not be supported depending on the model or geographical area.

1 Location selection list

Press the Select button to identify all connected devices or the devices specific to a location.

2 Sign In

Go to the Samsung Account screen to create a new account or sign in to your account.

3 Settings

Turn notifications on or off for the connected smart devices.

4 Scenes

Control multiple devices with one command after setting scenes via the SmartThings app on your mobile device.

The Scenes function is only available on a connected smart device.

5 Device list

View a list of the connected smart devices and their statuses.

You can add the new device through SmartThings app in your mobile device. Please refer to the user guide in SmartThings app on your mobile device for more details.

Using the e-Manual

Control and read the manual embedded in your TV.

Launching the e-Manual

Settings > Support > Open e-Manual

You can view the embedded e-Manual that contains information about your TV's key features.

Alternatively, you can download a copy of the e-Manual from Samsung's website.

Words in blue (e.g., Picture Mode) indicate a menu item.

Using the buttons in the e-Manual

• (Search): Select an item from the search results to load the corresponding page.
• A-Z (Index): Select a keyword to navigate to the relevant page.
- 📁 (Recently Viewed Topics): Select a topic from the list of recently viewed topics.
- (Try Now): Allows you to access the corresponding menu item and try out the feature right away.
- (Link): Access an underlined topic referred to on an e-Manual page immediately.

Some menu screens cannot be accessed from the e-Manual.

Using the Internet

Surf the Internet on your TV.

Internet

When you run Internet, you can see recently viewed web sites or featured recommendations. When you select a desired web site, you can get immediate access to it.

You can use the Internet function more easily after connecting a keyboard and mouse.

You can scroll web pages with the Directional Pad.

The web pages may differ from those on a PC.

Before using the Internet, refer to "Read Before Using the Internet Function."

Playing pictures/video/music

Play media content stored on your TV, USB devices, smartphones, cameras, PCs, etc.

Source > Connected Device Try Now

Samsung USB Samsung USB Filter By : All Sort By : Title Options

The image on your TV may differ from the image above depending on the model and geographical area.

You can play media content saved on storage devices, such as USB devices, mobile devices, and cameras on the TV.

You cannot play media content if the content or the storage device is not supported by the TV. For more information, refer to "Read Before Playing Photo, Video, or Music Files."
Backup important files before connecting a USB device. Samsung is not responsible for damaged or lost files.

You can use the following functions on the media content list screen of a storage device.

1 Filter By

Filters the media content by type of media.

2 Sort By

Sorts the content list by title or date.

This function may not be supported depending on the type of external device.

3 Options

Deletes or plays the selected media content in the media content list. When you select Refresh, the content list is reloaded.

You can delete only the recorded content. To delete content, change the Filter By option to Recorded.

Playing media content

Playing multimedia content on a PC or mobile device

1. Select a device with media content in ➕ → Source. The media content list in the device appears.
2. Select a media content item from the list.
3. The content is played.
   For more information about buttons, refer to "Buttons and functions available while playing multimedia content."
   The content may not be played depending on the encoding method or file format. Furthermore, several functions may be restricted.
   Content on devices connected to the TV via your network may not play smoothly due to network communication problems. If this occurs, use a USB device.
   For more information about connecting to mobile devices, refer to "Connecting Your Mobile Device."

Playing multimedia content on a USB device

1. Connect a USB device to the USB port. When a pop up message appears on the screen, select Browse to easily move to the list of multimedia content stored on the device.
2. Select a content item to play from the list.
3. The content is played.

Listening to your mobile device sound through the TV speaker using Sound Mirroring

1. Search for and connect to your TV from the Bluetooth device list on your mobile device.
2. Play media content you want on your mobile device.
3. Enjoy your mobile device sound through the TV speaker.
   This function may not be supported depending on the TV model.
   If the TV and the sound bar are connected wirelessly, the operation may be restricted.

Using Bixby

Speak into the microphone on your Samsung Smart Remote to control your TV.

This function may not be supported depending on the model or geographical area.

The supported language may differ depending on the geographical area.

Running Bixby

Press and hold the button on your Samsung Smart Remote, say a command, and then release the button. The TV recognizes the voice command.

To view the Bixby guide, press the 📷tton once:

• When you press the 📊 button for the first time, the Using Bixby button appears at the bottom of the screen. Press the Select button. The Using Bixby popup window appears and a tutorial on using Bixby is shown.
• When you press the 📋 button after the first time, the Explore Now button appears at the bottom of the screen. Press the Select button to go to the My Bixby screen.

HDMI USB

Learning about My Bixby

My Bixby SAMSUNG ACCOUNT LV 1 2 3 4

The image on your TV may differ from the image above depending on the model and geographical area.

1 Samsung Account

Go to the Samsung Account screen to create a new account or sign out of your account.

If you are signed out of your Samsung account, select Sign In or 📁 to log in.

2 Settings

You can change the voice responses and the voice style of Bixby.

You can also select a music service provider in the Default music service provider tab.

The Default music service provider tab may not be supported depending on the model or geographical area.

3 User information and the experience points (XP) guide

You can see user information and the experience points (XP) that you can get from using Bixby.

You must be signed in to your Samsung account to view the user information and the experience points (XP).

This function may not be supported depending on the model or geographical area.

4 Bixby guide

You can learn the voice commands that let you use Bixby in various situations. Use the directional buttons to move to the desired command, and then press the Select button. You can operate the TV with various voice commands.

To view a tutorial on Bixby, use the directional buttons to move to the bottom, and then select the View Tutorial item.

Read Before Using Bixby

Precautions for Bixby

• The supported voice interaction languages and features may differ depending on the geographical area.
• If the language set differs from the language of your country, some features are not available.
• Bixby is available only when the TV is connected to the Internet.
• Even if the TV is connected to the Internet, there may be no response due to a Bixby server error.
• The existing functional specifications may be changed if Bixby is updated.
• Bixby is available only on TVs that support it and come with remote controls that have a microphone.
• Symbols including "-" and special characters are not supported. Consequently, if a word or sentence contains numeric values or symbols, the function may not operate properly.
• Searched results may not provide complete results.
• You may be required to pay for some apps. Consequently, you may encounter a service application or contract.
• To change the current channel by saying channel names as voice commands, you must finish Set Up Your Service Provider. If Set Up Your Service Provider is not completed, you can complete it using the following menu.

- > Settings > General > Start Setup Try Now

• To use the voice text input function and Smart Search function, you must consent to provisions allowing third parties to collect and use your voice data.
  • To use the Bixby function, you must:

– Agree to Smart Hub's Terms of Use

– Agree to a guidance regarding the collection and use of personal information for the Smart Hub service.
– Consent to the collection and use of personal information for the voice interaction-based service.

Requirements for using Bixby

• The voice interaction rate differs with the volume/tone, pronunciation, and ambient sound environment (TV sound and ambient noise).
• The optimal volume for voice commands is between 75 dB and 80 dB.

TV Viewing

You can use convenient features while watching TV. Additionally, you can edit the channel list or create favorite channel lists.

Viewing Broadcast Information at a Glance

See an overview of each channel's program lineup.

Using the guide

Live TV

Guide

Now

Guide Channel List Recordings Live TV ★★★★★ ★★★★★ ★★★★★ ★★★★★ ★★★★★ ★★★★★ ★★★★★

The image on your TV may differ from the image above depending on the model and geographical area.

In the Guide, you can see the daily program schedules for each broadcaster, see program information, choose a program to watch, and set up a schedule viewing or recording.

In the Guide, you can see only the TV programs scheduled after the current time.

The Guide also appears when you press the CH button while watching TV.

On the standard remote control, press the GUIDE button.

To see information about analog channels and use the analog channel functions of the Guide, you must finish the service provider settings in initial setup.

To view the Guide, you must first set the TV's clock ( [icon] > Settings > General > System Manager > Time > Clock).

To start Schedule viewing, Schedule recording, and other function for a program listed in the Guide, first move the cursor to it and then press and hold Select button on the remote control to use follows functions:

• Record: You can make a recording of a current program.

This function may not be supported depending on the model or geographical area.

- Schedule Viewing: You can schedule viewing of a broadcast scheduled program.

For more information about Schedule Viewing, refer to "Setting Up a Schedule Viewing."

- Schedule Recording: You can schedule recording of a broadcast scheduled program.

This function may not be supported depending on the model or geographical area.

For more information about recording or Schedule Recording, refer to "Recording Programs."

- Edit Recording Time: You can change the start and end times of scheduled program recordings.

This function may not be supported depending on the model or geographical area.

- Stop: You can stop the recording function that is currently running.

- Cancel Scheduled Viewing / Cancel Scheduled Recording: You can cancel scheduled viewings or recordings.

This function may not be supported depending on the model or geographical area.

- View Details: You can see detailed information about the selected program. The information may differ with the broadcast signal. If information is not provided with the program, nothing appears.

To move to the Channel Filter or Antenna Type, Schedule Manager screen: Press the 123 or 123 button. (If the remote control button is 123 less it twice.)

- Channel Filter: You can view channels and programs categorized by the types defined in Channel List.

- Antenna Type: You can change the type of broadcast signals to receive.

- Schedule Manager: You can see the Schedule Manager or Recording & Schedule Manager screen.

This function may not be supported depending on the model or geographical area.

Recording Programs

Record a current or upcoming program using a USB device instead of a video recorder.

This function may not be supported depending on the model or geographical area.
Read all precautions before using the recording feature. Refer to "Before Using the Recording and Timeshift Functions" for more information.
You can record only the programs that are received through an antenna.
The 🔒 appears next to the programs and channels scheduled for recording.
If you go to Live TV while no USB device is connected, the Schedule Manager screen appears in place of the Recordings screen.

Recording programs

Using the instant and schedule recording options from the guide screen

- Instant Recording

Select a live program from the Guide, press and hold the Select button, and then select Record from the pop-up menu to start recording immediately.

- Schedule Recording

Select a program scheduled to be broadcast, press the Select button, and then select Schedule Recording to set up a scheduled recording of the scheduled program.

Using the instant and schedule recording options while watching a program

- Instant Recording

If you select Record after pressing the 123 or button while watching a broadcast, recording starts.

- Schedule Recording

Press the Select button while watching a program to display the program info window. Use the left or right directional button to select a scheduled program. Press the Select button, and then select Schedule Recording to set up a scheduled recording of the scheduled program.

Scheduling a video recording after entering the date and time

Live TV > Schedule Manager or Recordings > Schedules > Add Recording

To schedule a recording, set the values for Antenna, Channel, Repeat, Date, Start Time, and End Time of the broadcast program to record, and then select Save.

Check the current time in Settings > General > System Manager > Time > Clock.

Managing the schedule recording list

Live TV > Schedule Manager or Recordings > Schedules

You can change scheduled recording information or cancel scheduled recordings.

You can schedule up to 30 recordings or viewings at once using Schedule Recording and Schedule Viewing.

Setting the Schedule Recording Time

Live TV > Schedule Manager or Recordings > Schedules > Edit

You can set the start and end times for a schedule recording. You can set the start time up to 10 minutes before the program starts and the end time up to 10 minutes after the program ends.

Canceling a scheduled recording

Live TV > Schedule Manager or Recordings > Schedules > Delete

Checking scheduled recordings

Live TV > Schedule Manager or Recordings > Schedules > View Details

Viewing recorded programs

Live TV > Schedule Manager or Recordings > Recordings

Select a file containing a recording from the list. The file is played back.

Buttons that appear may differ depending on the file being played. For more information about control buttons, refer to "Buttons and functions available while recording a program or Timeshift."

Setting up a schedule recording start

Live TV > Schedule Manager or Recordings > Settings

• Start Recording Early: You can set the time to start the recording earlier than the broadcast start time in the program guide.
• Continue Recording After: You can set the time to end the recording later than the broadcast end time in the program guide.
• Symbol Information: Provide users with the information of the symbol and the explanation about an icon used in the schedule manager.

The menus may not appear depending on the model or geographical area.

Setting Up a Schedule Viewing

Configure the TV to show a specific channel or program at a specific time and date.

The 🔒 appears next to programs that have been configured for a scheduled viewing.
To set up a schedule viewing, you must first set the TV's clock ( > Settings > General > System Manager > Time > Clock).

Setting up a schedule viewing for a channel

Using the schedule viewing options from the guide screen

On the Guide screen, select a program you would like to view, press and hold the Select button, and then select Schedule Viewing in the pop-up menu that appears.

Using the schedule viewing options in the program info window

Press the Select button while watching TV. The Program Info window appears. Select a program that will be broadcast using the left or right directional buttons. Press the Select button, and then select Schedule Viewing to schedule viewing of that program.

Using schedule viewing to view programs at a specified time on a specified date

Live TV > Schedule Manager or Recordings > Schedules > Add Viewing

To schedule a viewing, set the values for Antenna, Channel, Repeat, Date and Start Time of the broadcast program to view, and then select Save.

Check the current time in > Settings > General > System Manager > Time > Clock.

This function may not be supported depending on the model or geographical area.

Editing a schedule viewing

Live TV > Schedule Manager or Recordings > Schedules

You can set up a maximum total of 30 Schedule Viewing and Schedule Recording entries.

Setting the Schedule Viewing Time

Live TV > Schedule Manager or Recordings > Schedules > Edit

You can set the start time of a scheduled viewing. If you choose a program from the Guide, the Start Time can be set up to 10 minutes before the program.

Canceling a scheduled viewing

Live TV > Schedule Manager or Recordings > Schedules > Delete

Checking scheduled viewings

Live TV > Schedule Manager or Recordings > Schedules > View Details

Using Timeshift

Play, pause, or rewind live TV.

You can pause and rewind live TV by using Timeshift. Activating this function disables the Broadcasting function.

Try Now

To activate the Timeshift function while watching TV, press the 123 or button and then select Timeshift, or press the ▶Button.

This function may not be supported depending on the model or geographical area.
When the Timeshift function is running, some functions are not available in > Settings > Broadcasting.
To use Timeshift, you must connect a USB device for recording.
Read all precautions before using the Timeshift function. For more information, refer to "Before Using the Recording and Timeshift Functions."

Buttons and functions available while recording a program or Timeshift

Review available buttons and functions of how they are used while recording a program or Timeshift.

This function may not be supported depending on the model or geographical area.
The available buttons and functions may differ with the functions.

When you press the down directional button, the control bar appears and the following options are available:

• Edit Recording Time

You can set for what period of time the program will be recorded.

This function is only available when a program is being recorded.

- Record

You can switch from the Timeshift function to the recording function. When switching to the recording function, you can include the content recorded by the Timeshift function in the new recording.

This function is only available when the Timeshift function is running.

- Go to Live TV

Select to return to the current scenes of the program when the recording or Timeshift function is playing its past scenes.

- Stop Recording / Stop Timeshift

Ends the recording or Timeshift function.

- Info

Displays the program info window of the program you are recording or time-shifting.

- Pause / Play

You can use the following functions when the video is paused. Note that with the video paused, the TV does not play audio.

- Slow Rewind or Slow Forward: Allows you to play the video slowly (1/8, 1/4, 1/2) backward or forward by selecting the or option. To increase the rewind or forward speed in slow mode up to 3 times, select the option repeatedly. To return to normal speed, select the option.

When the Slow Rewind function is activated, you can view the difference between the current recording time and the current rewind time.

- Jump Backward / Jump Forward

Press the up directional button to move the focus to the playback control bar, and then select the left or right directional button in the playback control bar to move backward or forward by 10 seconds in the video.

When the Jump Backward function is activated, you can view the difference between the current recording time and the current rewind time.

- Rewind / Fast Forward

This function is not available while you are watching a program that is currently being broadcast.

Using the Channel List

Change the channel or check programs on other digital channels.

Live TV Channel List

Using the Channel List, you can change the channel or check programs on other digital channels while watching TV.

The Channel List screen contains the following icons:

• ♥: A favorite channel
- A locked channel.

If you press the right directional button when viewing the Channel List screen, you can use the following functions:

- All Channels

Displays the channels that the TV found during the Auto Program channel search.

- Favorites

Displays Favorites 1 to Favorites 5.

- Channel Type

Sorts the list so that it includes channels of a selected type. However, Channel Type can only be used channels contain the type information.

This function may not be supported depending on the incoming broadcast signal.

- Air or Cable

To allow you to select Air or Cable as the DTV mode, move the focus to Air or Cable, and then press the Select button. Air is suitable for homes equipped with separate, over-the-air antennas. Cable is suitable for homes that subscribe to a local cable-service. You do not need to use this function if your TV is connected to a cable box or satellite box.

This function may not be supported depending on the incoming broadcast signal.

This function may not be supported depending on the model or geographical area.

• TV PLUS

While the TV is connected to the Internet, you can watch popular programs or highlights for each theme through a virtual channel at any time. As in a general channel, it provides the daily program schedules of TV PLUS.

This function may not be supported depending on the model or geographical area.

Editing channels

Edit the channels stored on your TV.

Live TV > Channel List > All Channels > Edit Channels

The Edit Channels screen contains the following icons:

• ♥: A favorite channel
- A locked channel.

Removing registered channels

To remove a channel, select it from the Edit Channels screen, and then select Delete. Removed channels do not appear in the Channel List.

Editing registered channels

You can access the following options by selecting All > Edit Channels:

- Locking or unlocking a channel After selecting a target channel in Edit Channels, select Lock or Unlock. Then the channel is locked or unlocked. A locked channel cannot be viewed.

If you want to set the password, set > Settings > Broadcasting > Apply Channel Lock to On.

For more information about how to set your password, refer to "Setting up a password."

- Changing a channel name After selecting a channel to change in Edit Channels, select Rename Channel to change the channel name.

This function is only available for selected channels.

This function is only available for analogue broadcasts.

- Change Number

After selecting a channel to change in Edit Channels, select Change Number to change the channel number.

This function may not be supported depending on the model or geographical area.

When a channel number is changed, its channel information is not updated automatically.

Using Program Rating Lock

Settings > Broadcasting > Program Rating Lock

This function is useful for controlling what children watch on TV. Program Rating Lock does not, however, block programs originating from external sources, such as Blu-ray players, DVD players, or USB files.

Every time you access Program Rating Lock, you must enter the security PIN. You must also enter this PIN to watch a blocked program. The default PIN is "0000." To change the PIN, go to > Settings > General > System Manager Change PIN.

Program Rating Lock may not be supported depending on your input signal.

For more information about how to set your password, refer to "Setting up a password."

Watching blocked / restricted programs

To watch a blocked program, enter the PIN when requested.

When initially showing a restricted program or movie, the screen is blank because the Program Rating Lock blocks it. Enter the PIN to unblock the program when a message appears requesting the code.

Creating a Personal Favorites List

Designate frequently watched channels as favorite channels.

Favorite channels are highlighted in the Edit Channels and Channel List screens with the ♥ symbol. You can create up to five favorites lists so that your family members can create their own personal favorites list.

Registering channels as favorites

Live TV Channel List

1. Press the right directional button on your remote control.
2. Select Favorites.
3. Select one of the five favorites lists.
4. Move to Edit Favorites.
5. Select a channel to add to the favorites list.
6. Select Icon.

The selected channel is registered in the favorites list.

Viewing and selecting channels on Favorites lists only

Live TV Channel List

1. Press the right directional button on your remote control.
2. Select Favorites.
3. Select the desired list among the five favorites lists on the screen.

The channels in the selected favorites list appear.

Only favorites lists that contain registered channels will display channels.

Editing a Favorites List

Edit a favorites channel list.

Live TV Channel List

After pressing the right directional button on your remote control, select Favorites > Favorites 1 - Favorites 5 > Edit Favorites. The Edit Favorites screen appears.

Adding channels to a favorites list

Select channels to add, and then select the icon. The selected channels are added to the favorites list.

Removing channels from a favorites list

Select channels in a favorites list, and then select the icon.

Rearranging a favorites list

Select one or more channels, and then select Change order. The Change order highlight appears. Press the up/down directional buttons to indicate the new location for the channels. Press the Select button to set the channels into their new location.

Renaming a favorites list

Select the favorites list you want to rename, and then select Rename Favorites. Enter a new name using the on-screen keyboard that appears, and then select Done.

TV-Viewing Support Functions

Use the functions that are available while watching TV.

Changing the broadcast signal

Live TV Channel List

After pressing the right directional button on your remote control, and then move the focus to Air, Cable or Channel Type, press the Select button.

You do not need to use this function if your TV is connected to a cable box or satellite box.

Scanning for available channels

> Settings > Broadcasting > Auto Program Try Now

Automatically scans and indexes all channels received through the TV's antenna input connector.

Do not use this function if your TV is connected to a cable box or satellite box.
If the TV has saved channels, Auto Program deletes the existing list, and then saves the newly scanned channels.
This function may not be supported depending on the model or geographical area.
The actual name may differ with specific geographical area.

Restricting Viewing to Specific Channels

> Settings > Broadcasting > Apply Channel Lock Try Now

By selecting the menu, you can turn on or off the Apply Channel Lock function.

Configuring advanced broadcasting settings

> Settings > Broadcasting > Expert Settings Try Now

Checking digital channel signal info and strength

> Settings > Support > Self Diagnosis > Signal Information Try Now

If your TV is attached to a separate, over-the-air antenna, you can use the signal strength information to adjust the antenna for increased signal strength and improved HD channel reception.
This function may not be supported depending on the model or geographical area.
Signal Information is only available for digital channels.

Fine-tuning analog broadcasts

Settings > Broadcasting > Expert Settings > Fine Tune Try Now

This function is only available for analog broadcasts.

Choosing an appropriate video input color

Settings > Broadcasting > Expert Settings > Color System

This function is only available for analog broadcasts.

Configuring advanced broadcasting audio settings

Settings > Broadcasting > Expert Settings > Audio Options

Audio Options functions differently for analog and digital channels.

This function may not be supported depending on the model or geographical area.

Selecting a Language

Settings > Broadcasting > Expert Settings > Audio Options > Audio Language

This is the language you will hear while watching TV if the language is included in the broadcast signal.

The available language may differ with the broadcast.

Listening to Multi-Track Sound

Settings > Broadcasting > Expert Settings > Audio Options > Multi-Track Sound

This function may not be supported depending on the model or geographical area.

Showing TVkey Interface menu

Settings > Broadcasting > Expert Settings > TVkey Interface

Show TVkey Interface menu information.

• TVkey Menu: Show TVkey Interface menu.
• Guide: Select the guide you want to use when watching with TVkey.
- Delete TVkey Operator Profile: Show the TVkey operator list to delete.

This function may not be supported depending on the model or geographical area.

Picture and Sound

You can change the settings for the picture and the sound according to your preference.

Adjusting the Picture Quality

Change the Picture Mode and adjust Expert Settings.

Choosing a picture mode

Settings > Picture > Picture Mode Try Now

You can select the Picture Mode that provides the best viewing experience.

• Dynamic
Makes the picture brighter and clearer in bright viewing environments.
- Standard
Is the default mode suitable for general viewing environments.
Natural
Reduces eye strain for a comfortable viewing experience.
- Movie
Is suitable for watching TV or movies in a dark room.

This function may not be supported depending on the model.

Configuring advanced picture settings

Settings > Picture > Expert Settings Try Now

Configure the screen settings to your taste by using the following functions:

• Backlight Try Now
• Brightness Try Now
• Contrast Try Now

• Sharpness Try Now
  • Color Try Now

• Tint (G/R) Try Now
  • Apply Picture Settings Try Now
  • Digital Clean View Try Now

• Auto Motion Plus Settings Try Now

When LED Clear Motion is set to On, the screen appears darker than when it is Off.

- Local Dimming

This function may not be supported depending on the model or geographical area.

• Contrast Enhancer Try Now

- HDR+ Mode

Automatically provide an optimal HDR effect based on the video source.

The HDR (High Dynamic Range) technology implements video images that are very similar to the images seen through human eyes by finely adjusting the contrast of the source.

This function may not be supported depending on the model or geographical area.

• Film Mode Try Now

This function is only available when the input signal is TV, AV, Component (480i, 576i, 1080i), or HDMI (1080i).

• Color Tone Try Now

• White Balance Try Now

- Gamma Try Now

- RGB Only Mode Try Now

• Color Space Settings Try Now

- Reset Picture Try Now

Setting the Viewing Environment for External Devices

You can optimize the TV for viewing specific video formats.

Playing games on an optimized screen

Settings > General > External Device Manager > (Game Mode Settings) > Game Mode

You can enable game mode to optimize the TV's settings for playing video games with a gaming console, such as a PlayStation ^™ or Xbox ^™ .

The Game Mode Settings may not appear depending on the model.

The game mode is not available for normal TV viewing.

The screen may shake somewhat.

When Game Mode is enabled, Picture Mode and Sound Mode are switched to Game automatically.

To use a different external device on the same port, remove the game console connection, set Game Mode to Off, and then connect the external device to the port.

Configuring game mode details

Configuring Game Motion Plus

Settings > General > External Device Manager > Game Mode Settings > Game Motion Settings

You can configure the Game Motion Plus settings.

This function may not be supported depending on the model or geographical area.

Setting the FreeSync function

> Settings > General > External Device Manager > Game Mode Settings > FreeSync

You can play your gaming experience more pleasantly by eliminating screen tearing and stuttering.

• Be sure to set this function for only the external devices that support the FreeSync feature of AMD Radeon.
• For an optimized game environment, set the resolution of the external device to 1080p at 120 Hz. For more information, refer to "Supported Resolutions for FreeSync."

If the resolution is not supported, the operation may not be smooth.

When the FreeSync options are set or the FreeSync function is operated for an external device, the screen may flicker.

Slight brightness changes may occur during FreeSync operation due to frequency variation of the external device.

Before playing a game, set FreeSync to Basic or Ultimate.

This function may not be supported depending on the model or geographical area.

Viewing UHD videos

> Settings > General > External Device Manager > HDMI UHD Color Try Now

If an external UHD player is connected to the TV, use the HDMI UHD Color function to convert the TV's HDMI connector to a mode optimized for the UHD 50P/60P signals.

When you select the HDMI connector you want to use for HDMI UHD Color, and then press the Select button to set the HDMI UHD Color function to On, the TV screen flickers.

The HDMI connection with HDMI UHD Color set to Off supports up to UHD 50P/60P 4:2:0 input signals, while the HDMI connection with HDMI UHD Color set to On supports up to UHD 50P/60P 4:4:4 and 4:2:2 input signals. For more information, refer to "Supported Resolutions for UHD Input Signals."

When you connect the TV to an external device that supports only the UHD 24 or 30 Hz frequency or any FHD frequency, the HDMI UHD Color function may not be available. In this case, set HDMI UHD Color to Off.

Using HDMI black level

> Settings > General > External Device Manager > HDMI Black Level Try Now

Use HDMI Black Level to adjust the black level to compensate for low black levels, low contrast, or dull colors generated by external devices connected to the TV via an HDMI cable.

This function is only available when the input signal connected to the TV via an HDMI connector is set to RGB444.

Changing the Picture Size and Position

Change the picture size and position for your TV.

Changing the picture size

Settings > Picture > Picture Size Settings > Picture Size Try Now

You can change the size of the picture displayed on the TV screen.

• Custom
  4:3

• 16:9 Standard

Supported picture sizes differ with the input signal. For more information about supported picture sizes, refer to "Picture sizes and input signals."

Fitting the picture to the screen

Settings > Picture > Picture Size Settings > Fit to Screen Try Now

This function may not be supported depending on the Picture Size setting.

This function may not be supported depending on the broadcast signals.

Adjusting the picture size and/or position

Settings > Picture > Picture Size Settings > Zoom and Position Try Now

This function is available only if Picture Size is set to Custom.

To change the picture position on analog channels, first enlarge the picture and then change the position.

Configuring a Sound Mode and Expert Settings

Change the Sound Mode and adjust Expert Settings.

Choosing a sound mode

Settings > Sound > Sound Mode Try Now

You can select a favorite sound mode suitable for the content type or the listening environment.

• Standard
• Optimized
• Amplify

This function may not be supported depending on the model.

When an external device is connected, Sound Mode may change accordingly.

Configuring advanced sound settings

Settings > Sound > Expert Settings Try Now

You can personalize the sound quality by adjusting the following settings.

• Balance Try Now
• Equalizer Try Now
• HDMI Input Audio Format Try Now
• Digital Output Audio Format Try Now

If you use a receiver that does not support Dolby Digital Plus, you will hear no sound if you select Dolby Digital+.

The Dolby Digital+ option is only available via ARC(HDMI) for external devices that support the format.

• Audio Delay Try Now

- Auto Volume

• Sound Feedback Try Now

- Reset Sound Try Now

Using the Sound Support Functions

Configure the sound settings for your TV.

Selecting speakers

Settings > Sound > Sound Output Try Now

You can select which speakers the TV uses for audio output.

External speakers may not be controlled with the Samsung Smart Remote. When an external speaker is enabled, some sound menus are not supported.

Listening to the TV through Bluetooth devices

Settings > Sound > Sound Output > ✦Speaker List

You can connect Bluetooth audio devices to the TV. They must be paired using the TV's Bluetooth function. For more information on pairing, refer to the Bluetooth audio device's operating manual.

This function may not be supported depending on the model or geographical area.
If the TV fails to find a Bluetooth audio device, place the device closer to the TV, and then select Refresh.
When you turn on a paired Bluetooth audio device, the TV detects it automatically, and then displays a pop-up window. Use this pop-up window to activate/deactivate the Bluetooth audio device.
The sound quality may be affected by the condition of the Bluetooth connection.
Before using a Bluetooth audio device, refer to "Read Before Using Bluetooth Devices."

Listening to the TV through a Samsung audio device that supports the Wi-Fi function

For more information about how to connect and use a Samsung audio device that supports the Wi-Fi function, refer to its user manual.

This function may not be supported depending on the model.

Using Samsung audio devices that support the Wi-Fi function to create a surround sound configuration

> Settings > Sound > Wi-Fi Speaker Surround Setup Try Now

If you've connected one or more Samsung wireless audio devices that support the Wi-Fi function to the TV, you can create an optimal sound set up by configuring the surround effect settings. You can select any of the surround sound configurations, with or without a sound bar.

A surround sound configuration can be used if all of the following conditions are met:

• Two or more Samsung wireless speakers of the same type must be connected to the same wireless network.
• The Samsung audio devices that support the Wi-Fi function must be connected to the same wireless network as the TV.

Surround sound configurations with a sound bar may not be supported depending on the product.

If you activate the Screen Mirroring function while using Samsung audio devices that support the Wi-Fi function, the Wi-Fi connection is disconnected.

Mismatched video and audio lip-syncing may occur depending on the device type.

System and Support

You can configure system and support settings such as clock, timers, energy usage and software updates.

Using the Time Functions and the Timers

Set the current time and use the timer function.

Setting the current time

Settings > General > System Manager > Time Try Now

You can set the Clock manually or automatically. Once the Clock is set, you can view the current time on the TV anytime.

You must set the clock in the following cases:

• The power cable is disconnected and then connected.
  • The Clock Mode is changed from Auto to Manual.
  • The TV is not connected to the Internet.
  • No broadcast signals are received.

Setting the clock automatically

Settings > General > System Manager > Time > Clock > Clock Mode > Auto

This function works only when the TV is connected to the Internet or is receiving digital broadcasts through a connected antenna.
The accuracy of the time information received may differ with the channel and signal.
If you get your TV signal from a cable broadcast receiver/set-top box or a satellite receiver/satellite set-top box connected to an HDMI or Component port, you must set the current time manually.

Adjusting the clock for DST and time zone

Settings > General > System Manager > Time > Clock

Sets the right time by setting Daylight Savings Time (DST) and your local time zone.

- Time Zone

Selects your time zone.

This function is only available when the Clock Mode is set to Auto.

Changing the current time

Settings > General > System Manager > Time > Clock > Time Offset

Time Offset adjusts the time through a network connection.

This function is available only when all the following conditions are met:

Clock Mode is set to Auto, the TV is connected to the Internet through a local area network, and the TV fails to receive time information through normal broadcast signals.

Setting the clock manually

Settings > General > System Manager > Time > Clock > Clock Mode > Manual

When Clock Mode is set to Manual, you can directly enter the current time. Select the Date and Time by using the directional buttons on the remote control.

Using the timers

Using the sleep timer

Settings > General > System Manager > Time > Sleep Timer

You can use this function to automatically shut off the TV after a pre-set period of time. You can set the sleep timer for up to 180 minutes after which it will turn off the TV.

This function may not be supported depending on the model or geographical area.

Turning off the TV using the off timer

Settings > General > System Manager > Time > Off Timer

You can set Off Timer to shut off the TV automatically at a specific time. Off Timer is only available if the Clock has been set.

This function may not be supported depending on the model or geographical area.

Using the Auto Protection Time and Energy Saving Functions

Setting the Auto Protection Time and reduce the TV's energy consumption.

Setting the Auto Protection Time

Settings > General > System Manager > Auto Protection Time Try Now

Activate a screensaver when your TV displays a still image for two hours or more.

This function is not supported in Art mode.

Reducing the energy consumption of the TV

Settings > General > Eco Solution Try Now

You can adjust the brightness level of the TV, reduce overall power consumption, and prevent overheating.

• Ambient Light Detection Try Now Automatically adjusts the brightness level of the TV, according to the ambient light level, to reduce power consumption. If Ambient Light Detection has adjusted the screen brightness to a too bright or dark level, you can select Minimum Backlight to manually adjust the minimum screen brightness.
• Minimum Backlight Try Now When Ambient Light Detection is turned on, you can manually adjust the minimum brightness of the TV screen. This function acts only when the value is less than the setting in > Settings > Picture > Expert Settings >Backlight.
• Power Saving Mode Try Now Allows you to select a brightness setting from the list to reduce the TV's power consumption.
• Motion Lighting Try Now Adjusts the brightness in response to on-screen movements to reduce power consumption.
• Auto Power Off Try Now Automatically turns off the TV to reduce unnecessary power consumption if there is no operation for 4 hours.

Updating the TV's Software

View your TV's software version and update it if necessary.

Settings > Support > Software Update Try Now

Updating the TV's software to the latest version

DO NOT turn off the TV's power until the update is complete. The TV will turn off and on automatically after completing the software update. Video and audio settings will be reset to their defaults after a software update.

Updating through the Internet

Settings > Support > Software Update > Update Now Try Now

Updating from the Internet requires an active Internet connection.

Updating through a USB device

Settings > Support > Software Update > Update Now

After downloading the update file from the Samsung website and storing it on a USB device, connect the USB device to the TV to update.

To update using a USB flash drive, download the update package from Samsung.com to your computer. Then, save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the update package.

Updating the TV automatically

Settings > Support > Software Update > Auto Update Try Now

If the TV is connected to the Internet, you can have the TV update its software automatically while you are watching the TV. When the background update is completed, it is applied the next time the TV is turned on.

If you agree to the Smart Hub terms and conditions, Auto Update is set to On automatically. If you want this function disabled, use the Select button to turn it off.

This function may take a longer time if another network function is running concurrently.

This function requires an Internet connection.

Protecting the TV from Hacking and Malicious Code

Protect your TV from hacking attempts and malicious code.

Settings > General > System Manager > Smart Security Try Now

You can use Smart Security to protect the TV from hacking and malicious code when it is connected to the Internet.

Scanning the TV and connected storage for malicious code

Settings > General > System Manager > Smart Security > Scan

If malicious code is found, the results of the scan will appear on the screen. This result window displays all malicious code found. You can quarantine (isolate) the code. Quarantining prevents it from executing.

1. Select all the malicious code to quarantine.
2. Select Isolate.

The selected malicious code is relocated to the Isolated List.

The Isolated List displays all quarantined malicious codes.

Using Other Functions

View other functions.

Running the accessibility functions

Settings > General > Accessibility Try Now

Running Accessibility Shortcuts

The Accessibility Shortcuts provide easy access to the accessibility functions. To display the Accessibility Shortcuts, press and hold the Volume button for 1 second or more. You can easily turn on or turn off the functions such as Voice Guide, High Contrast, Enlarge, Grayscale, Color Inversion, Learn TV Remote, Learn Menu Screen, Caption, Multi-output Audio, etc.

On the standard remote control, press the CC/VD button.

Even if the Voice Guide is set to Off or muted, the voice guide for Accessibility Shortcuts is enabled.

The menus may not appear depending on the model or geographical area.

Enabling voice guides for the visually impaired

Settings > General > Accessibility > Voice Guide Settings Try Now

You can activate voice guides that describe the menu options aloud to aid the visually impaired. To activate this function, set Voice Guide to On. With Voice Guide on, the TV provides voice guides for channel change, volume adjust, information on current and upcoming programs, schedule viewing, other TV functions, and various content in the Internet, and in Search.

You can go to Voice Guide, and then press the Select button to turn the function on or off.

The Voice Guide is provided in the language that is specified on the Language screen. However, some languages are not supported by Voice Guide even though they are listed in the Language screen. English is always supported.

For more information about the TV language settings, refer to "Changing the menu language."

Changing the volume, speed, and pitch of the Voice Guide

You can configure the volume, speed, and pitch of the voice guide.

White text on black background (high contrast)

Settings > General > Accessibility > High Contrast Try Now

You can change Smart Hub and setting menu screens to white text on a black background or change the transparent TV menus to opaque so that text can be more easily read. To activate this function, set High Contrast to On.

If High Contrast is on, some Accessibility menus are not available.

Setting the screen to black and white

Settings > General > Accessibility > Grayscale Try Now

You can change the color of the TV screen to black and white to sharpen blurred edges caused by colors.

If Grayscale is on, some Accessibility menus are not available.
This function may not be supported depending on the model or geographical area.

Inverting the screen color

Settings > General > Accessibility > Color Inversion Try Now

You can invert the colors of the text and background displayed on the TV screen to make it easier to read them.

If Color Inversion is on, some Accessibility menus are not available.
This function may not be supported depending on the model or geographical area.

Enlarging the font (for the visually impaired)

Settings > General > Accessibility > Enlarge Try Now

You can enlarge the size of the font on the screen. To activate, set Enlarge to On.

Learning about the remote control (for the visually impaired)

Settings > General > Accessibility > Learn TV Remote Try Now

This function helps individuals with a visual impairment to learn the positions of the buttons on the remote control. When this function is activated, you can press a button on the remote control and the TV will tell you its name. Press the 📋 button twice to exit Learn TV Remote.

This function is only available when Voice Guide is enabled.

Learning about the TV menu

Settings > General > Accessibility > Learn Menu Screen Try Now

Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you select.

This function is only available when Voice Guide is enabled.

Showing captions

Settings > General > Accessibility > Caption Settings Try Now

Set Caption to On to watch programs with the captions displayed.

Captions are not displayed by programs that do not support captions.
The TV cannot control or modify DVD or Blu-ray subtitles. To control DVD or Blu-ray subtitles, use the sub-title feature of the DVD or Blu-ray player and the player's remote control.

Selecting the caption language

Settings > General > Accessibility > Caption Settings > Caption Mode

- Default / CC1 \~ CC4 / Text1 \~ Text4

(Analog channels only) Operates in either analog TV channel mode or when a signal is supplied from an external device to the TV. (Depending on the broadcast signal, the analog caption function may or may not work with digital channels.)

- Default / Service1 \~ Service6 / CC1 \~ CC4 / Text1 \~ Text4

(Digital channels only) Works with digital channels. Service1 – Service6 may not be available in digital caption mode depending on the broadcast.

Listening to the TV through Bluetooth devices (for the hearing impaired)

Settings > General > Accessibility > Multi-output Audio

You can turn on both the TV speaker and Bluetooth devices at the same time. When this function is active, you can set the volume of the Bluetooth devices higher than the volume of the TV speaker.

This function may not be supported depending on the model or geographical area.

When you connect Bluetooth devices to the TV, Multi-output Audio is activated. For more information about connecting Bluetooth devices to the TV, refer to "Listening to the TV through Bluetooth devices."

Configuring advanced system settings

Settings > General > System Manager Try Now

Changing the menu language

Settings > General > System Manager > Language Try Now

Setting up a password

Settings > General > System Manager > Change PIN Try Now

The PIN input window appears. Enter a PIN. Enter it again to confirm it. The default PIN is "0000."

If you forget your PIN, you can reset it with your remote control. With the TV turned on, press the following buttons on the remote control in the order shown to reset the PIN to "0000."

On the Samsung Smart Remote: Select VOL button. > Volume Up > Volume Down > Volume Up >

On the standard remote control: Select button. ( ) (Volume Up) Select RETURN button. () (Volume Down) > Select RETURN button. () (Volume Up) Select RETURN button.

Enabling the AV Color System

Settings > General > System Manager > AV Color System

Normally the TV can receive image and sound with good quality when the AV Color System mode set to Auto. This mode detects the signal color system automatically. In case of some signal reception with color unsatisfactory, select the AV Color System mode to PAL-M, PAL-N or NTSC.

Available only in AV input mode.

Selecting Usage or Retail Mode

> Settings > General > System Manager > Usage Mode Try Now

You can using the TV for retail environments by setting Usage Mode to Retail Mode.

For all other uses, select Home Mode.

With Retail Mode, some functions are disabled, and the TV automatically resets itself after a preset amount of time.

Restoring the TV to the factory settings

> Settings > Support > Self Diagnosis > Reset Try Now

You can restore all TV settings (excluding the Internet and network settings) to the factory defaults.

1. Select Reset. The security PIN entry window appears.
2. Enter the security PIN, and then select Yes. All settings are then reset. The TV turns off and on again automatically and displays the Start Setup screen.
   For more information on Start Setup, refer to the user manual that came with the TV.

Running Data Service Automatically

Allows the user to use information (text, still images, graphics, documents, software, etc.) transmitted via broadcast media.

This function may not be supported depending on the model or geographical area.

> Settings > Broadcasting > Expert Settings > Auto Run Data Service

You can set whether or not to automatically run data service. If the channel you are currently watching provides data service, you can enjoy a variety of data services by selecting the red color button.

This function is not available when any other secondary function is under way.
Provided data service information may vary depending on the broadcast.
Changing the channel with the numeric keys while using data service may not be available, depending on the service.
If Auto Run Data Service is On, the loading screen is displayed and the function is not available temporarily.

Troubleshooting

If you have a problem with your TV, you can access various solutions while watching TV. If your problem is not addressed in the Troubleshooting section, contact the Samsung Call Center.

Getting Support

Get help directly from Samsung if you have a problem with your TV.

Getting support through Remote Management

Settings > Support > Remote Management Try Now

After consenting to our service agreement, you can use Remote Management to access Remote Support and have a Samsung service technician diagnose your TV, correct problems, and update your TV's software remotely via the web. You can also turn Remote Management on and off.

You can also start this function by pressing and holding the ⏰ button for 5 or more seconds.

This function requires an Internet connection.

What is Remote Support?

Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely:

• Diagnose your TV
• Adjust the TV settings for you
  • Perform a factory reset on your TV
  • Install recommended firmware updates

How does Remote Support Work?

You can easily get Samsung Remote Support service for your TV.

1. Call the Samsung Contact Center and ask for remote support.
2. Open the menu on your TV and go to the Support section. ( Ⓜ > ⚙ Settings > Support)
3. Select Remote Management, then read and agree to the service agreements. When the PIN screen appears, provide the PIN number to the technician.
4. The technician will then access your TV.

Finding the contact information for service

Settings > Support > About This TV Try Now

You can view the address of the Samsung website, the call center phone number, your TV's model number, your TV's software version, Open Source License and other information you may need to get service support from a Samsung call agent or the Samsung website.

You can also view information by scanning the QR code of your TV.

You can also start this function by pressing and holding the ▶ button for 5 or more seconds. For standard remote control, press and hold the ▶ play) button for 5 or more seconds. Continue holding the button until the customer information pop-up window appears.

Requesting service

Settings > Support > Request Support Try Now

You can request service when you encounter a problem with the TV. Select the item matching the problem that you encountered, and then select Request Now or Schedule Appointment > Request > Send. Your service request will be registered. The Samsung Contact Center will contact you to set up or confirm your service appointment.

You must agree to the terms and conditions for the service request.

This function may not be supported depending on the geographical area.

This function requires an Internet connection.

Diagnosing TV operational issues

You can diagnose issues with your TV and Smart Hub and run reset functions.

Settings > Support > Self Diagnosis Try Now

You can use the Picture Test to help diagnose video issues and the Sound Test to diagnose sound issues. You can also view signal strength information for over-the-air digital signals, test the Smart Hub Internet connection, and run the Smart Hub and TV factory reset functions.

• Start Picture Test
• Start Sound Test
  • Signal Information
  • Start Smart Hub Connection Test
• Reset Smart Hub
• Reset

There Is a Problem with the Picture

When the TV has trouble with the picture, these steps may help resolve the problem.

Testing the picture

Settings > Support > Self Diagnosis > Start Picture Test Try Now

Before you review the list of problems and solutions below, use Start Picture Test to determine if the problem is caused by the TV. Start Picture Test displays a high definition picture you can examine for flaws or faults.

The problem Try this!
Flickering and Dimming	If your TV is flickering or dimming sporadically, you may need to disable some of the energy efficiency features.Disable Ambient Light Detection, Power Saving Mode, or Motion Lighting.➢ Settings > General > Eco Solution > Ambient Light Detection➢ Settings > General > Eco Solution > Power Saving Mode➢ Settings > General > Eco Solution > Motion Lighting
Component Connections/Screen Color	If the color on your TV screen is not correct or the black and white colors are off, run Start Picture Test.➢ Settings > Support > Self Diagnosis > Start Picture TestIf the test results indicate that the problem is not caused by the TV, do the following:Confirm that the video input connectors are connected to the correct external device video output connectors.Check the other connections as well. If the TV is connected to an external device via a component cable, confirm that the Pb, Pr, and Y jacks are plugged into their proper connectors.
Screen Brightness	If the colors on your TV are correct but just a little too dark or bright, try adjusting the following settings first.➢ Settings > Picture > Expert Settings > Backlight➢ Settings > Picture > Expert Settings > Contrast➢ Settings > Picture > Expert Settings > Brightness➢ Settings > Picture > Expert Settings > Sharpness➢ Settings > Picture > Expert Settings > Color➢ Settings > Picture > Expert Settings > Tint (G/R)
Blurring, or Juddering	If you notice blurring or juddering on the screen, use theAuto Motion Plus Settingsfunction to resolve the issue.➢Settings>Picture>Expert Settings>Auto Motion Plus Settings
Unwanted Powering Off	If your TV appears to turn off by itself, try disabling some of the TV's energy efficiency functions.See ifSleep Timerhas been enabled. TheSleep Timerautomatically turns the TV off after a specified period of time.➢Settings>General>System Manager>Time>Sleep TimerIf theSleep Timerhas not been enabled, see ifAuto Power Offor Off Timerhas been enabled and disable it.➢Settings>General>Eco Solution>Auto Power Off➢Settings>General>System Manager>Time>Off Timer
Problems Powering On	If you are having problems powering on your TV, there are a number of things to check before calling the service department.Confirm that the TV's power cord is connected correctly at both ends and that the remote control is operating normally.Make sure that the antenna cable or cable TV cable is firmly connected.If you have a cable box or satellite box, confirm that it is plugged in and turned on.
Unable to find a Channel	If your TV is not connected to a cable box or satellite box, runAuto Program.➢Settings>Broadcasting>Auto Program
The TV image does not look as good as it did in the store.	Store displays are tuned to a digital HD channel.If you have an analog cable box or satellite box, upgrade to a digital cable box or satellite box. Use HDMI or Component cables to deliver HD (high definition) picture quality.Many HD channels are upscaled from SD (Standard Definition) content. Look for a channel that is broadcasting HD content.Cable/Satellite Subscribers: Try HD channels from the channel lineup.Air/Cable Antenna Connection: Try HD channels after running theAuto Programfunction.➢Settings>Broadcasting>Auto ProgramAdjust the cable box or satellite box's video output resolution to 1080i or 720p.
The picture is distorted.	The compression of video content may cause picture distortions, especially in fast moving pictures from sports programs and action movies.If the signal reception is weak or poor, screen distortion may be visible but it is not a malfunction.Mobile phones used close to the TV (within 3.2 ft) may cause noise on analog and digital channels.
The color is wrong or missing.	If you're using a Component connection, make sure that the Component cables are connected to the correct jacks.Incorrect or loose connections may cause color problems or a blank screen.
The color is poor or the picture is not bright enough.	Go to Picture and then adjust the Picture Mode, Brightness, Sharpness, and Color settings.● > Settings > Picture > Picture Mode● > Settings > Picture > Expert Settings > Brightness● > Settings > Picture > Expert Settings > Sharpness● > Settings > Picture > Expert Settings > ColorSee if Power Saving Mode has been enabled.● > Settings > General > Eco Solution > Power Saving ModeTry resetting the picture.● > Settings > Picture > Expert Settings > Reset Picture
There is a dotted line on the edge of the screen.	Change Picture Size to 16:9 Standard.● > Settings > Picture > Picture Size Settings > Picture Size > 16:9 Standard
The picture is black and white.	If you are using AV or analog equipment, disconnect the adapter from the Component (Blue) input port on the TV and connect it to the AV (Yellow) input port.The Component or AV input port may not be provided depending on the model or geographical area.Check whether the Grayscale is set to On.● > Settings > General > Accessibility > Grayscale

If the test picture does not appear or there is noise or distortion, the TV may have a problem. Contact Samsung's Call Center for assistance.
If the test picture is displayed properly, there may be a problem with an external device. Please check the connections.
If the problem persists, check the signal strength or refer to the external device's user manual.

I Can't Hear the Sound Clearly

When the TV has difficulties with sound, these steps may help resolve the problem.

Testing the sound

Settings > Support > Self Diagnosis > Start Sound Test Try Now

If the TV plays the Start Sound Test melody without distortion, there may be a problem with an external device or the broadcast signal's strength.

The problem Try this!
There is no sound or the sound is too low at maximum volume.	Check the volume control of your TV, and then check the volume control of the external device (cable box or satellite box, DVD, Blu-ray, etc.) connected to your TV.
The picture is good but there is no sound.	SetSound Outputto TV Speaker.➢Settings >Sound >Sound OutputIf you are using an external device, check the device's audio output option.For example, you may need to change your cable box's audio option to HDMI if the box connected to your TV is using an HDMI cable.To listen to computer sound, connect an external speaker to the computer's audio output connector.If your TV has a headphone jack, make sure there is nothing plugged into it.Reboot the connected device by disconnecting and then reconnecting the device's power cable.
No sound is heard.	Check whether theDigital Output Audio Formatis set toDolby Digital+.If you are using a receiver that does not support Dolby Digital Plus, you will hear no sound when you selectDolby Digital+.➢Settings >Sound >Expert Settings >Digital Output Audio Format>Dolby Digital+
The speakers are making an odd sound.	RunStart Sound Test.➢Settings >Support >Self Diagnosis >Start Sound TestMake sure that the audio cable is connected to the correct audio output connector on the external device.For antenna or cable connections, check the signal information. A low signal level may cause sound distortions.

There Is a Problem with the Broadcast

When the TV has difficulties receiving broadcasts, these steps may help resolve the problem.

The problem Try this!
“Weak or No Signal”displayed in TV mode/cannot find channel.	Make sure the antenna cable is connected securely to the TV.Select ➤ ➤ Source to confirm that the correct input source has been selected.If the TV is not connected to a cable box or satellite box, runAuto Programto search for channels.➢ > Settings > Broadcasting > Auto Program
The TV is not receiving all channels.	Confirm that the coaxial cable is securely connected to the TV.Run Start Setup or Auto Program.➢ > Settings > General > Start Setup➢ > Settings > Broadcasting > Auto Program
There are no captions with digital channels.	Go toCaption Settingsand change the Caption Mode.➢ > Settings > General > Accessibility > Caption Settings > Caption ModeSome channels may not have caption data.
The picture is distorted.	The compression of the video content may cause picture distortions.This is especially true with fast moving pictures from sports programs and action movies.A weak signal can cause picture distortions. This is not a problem with the TV.
The picture quality is low. Select high definition (HD) channels or programs.

My Computer / Game Console Won't Connect

When the TV has difficulties connecting to a PC or game console, these steps may help resolve the problem.

The problem Try this!
The "Mode Not Supported" message appears.	Set output resolution of your PC or game console so it matches a resolution supported by the TV.
The video is OK but there is no audio.	If you are using an HDMI connection, check the audio output setting on your PC.If you are using an HDMI-to-DVI cable, a separate audio cable is required.Note that the HDMI-to-DVI connection is only supported by the HDMI (DVI) port and this port does not transmit audio.To listen to the computer sound, connect external speakers to the audio output connection of the computer.

The TV Won't Connect to the Internet

When the TV has difficulties connecting to the Internet, these steps may help resolve the problem.

The problem Try this!
The TV cannot connect to your network or apps (for Internet compatible models only).	Make sure the TV has a network connection.● > Settings > General > Network > Network StatusContact your Internet service provider.
The wireless network connection failed.	Confirm your wireless modem/router is on and connected to the Internet.
The wireless network signal is too weak.	Position your wireless router, modem router, or access point in a central location.Avoid putting it in a corner.Use a wireless repeater to get an instant boost in your wireless signal strength.Place the repeater halfway between your wireless router and your TV.

Data Service

> Settings > Broadcasting > Expert Settings > Auto Run Data Service

When the TV has difficulties using Data Service, these steps may help resolve the problem.

This function is not available when any other secondary function is under way.

Provided data service information may vary depending on the broadcast.

The Problem Try this!
Why am I getting on-screen messages when I haven't selected the Data Service option?	If Auto Run Data Service is set to On, messages will automatically appear on the screen when you watch a broadcast that supports the Data Service. If the broadcast doesn't support the Data Service, no messages will appear on the screen.If you do not wish to receive Data Service messages, disable Auto Run Data Service.
How do I hide Data Service messages?	Press and hold the RETURN Button. If you do not wish to receive Data Service messages, disable Auto Run Data Service.
How do I use the Data Service?	Enabling the Auto Run Data Service option automatically displays messages on the screen whenever you watch a broadcast that supports the Data Service. You can press the corresponding buttons shown on the screen to access additional features and functions offered by that broadcast.
What is an interactive service and how does it work?	Interactive services include viewer surveys, quizzes, ticket requests, product purchases, and other interactions between the viewer and the TV station. Generally, you will need to set up an account with the broadcaster and log in to the account in order to enjoy the interactive services they offer. Note that interactive services are only available when your TV is connected to the Internet. In addition, T-Commerce requires that you have a certificate.Copy your certificate from the computer to a USB device and connect that device to the TV. (Interactive services are not being offered yet. The actual service launch date varies depending on the broadcaster.)
A message displays "Receiving" but no change happens.	This indicates an error has occurred while receiving data. An execution error message will also appear on the screen. If this happens, try again.
Nothing appears on the screen after the Data Service is launched.	The Data Service may be initialising or the signal may have been severed by the broadcaster.
What is Blur Reduction?	The Data Service can cause the same screen to appear and create a blur. Blur Reduction prevents this blurring effect. If you see a message saying that the Data Service is about to terminate because of Auto Protection Time, press any button. This will keep the Data Service running.

The Schedule Recording/Timeshift Function Isn't Working

When Timeshift or Schedule recording aren't working, these steps may help resolve the problem.

The problem Try this!
Schedule Recording cannot be used.	Check if there is a USB device connected to the TV.Recording will automatically stop if the signal becomes too weak.Check the free space on the USB device.The function will not work if there isn't enough storage space on the USB device.

This function may not be supported depending on the model or geographical area.

Anynet+ (HDMI-CEC) Isn't Working

When Anynet+ (HDMI-CEC) isn't working, these steps may help resolve the problem.

The problem Try this!
Anynet+ does not work.	Confirm that the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.Check if the power cord of the Anynet+ device is properly connected.Check the cable connections of the Anynet+ device.Go to Anynet+ (HDMI-CEC) and see if Anynet+ (HDMI-CEC) has been set to On.• > Settings > General > External Device Manager > Anynet+ (HDMI-CEC)Anynet+ may not function when some other functions are active, including Channel Search, Smart Hub, Initial Setup, etc.If you have disconnected and then reconnected the HDMI cable, scan for devices again or turn your TV off and on.
I want to start Anynet+.	Move the focus to the Anynet+ device at > Source, press the up directional button to move to Anynet+, and then press the Select button.Check if the Anynet+ device is properly connected to the TV, and then select Anynet+ (HDMI-CEC) menu to see if Anynet+ (HDMI-CEC) is set to On.• > Settings > General > External Device Manager > Anynet+ (HDMI-CEC)
I want to exit Anynet+.	Set Anynet+ (HDMI-CEC) to Off.• > Settings > General > External Device Manager > Anynet+ (HDMI-CEC)
The message "Connecting to Anynet+ device..." or "Disconnecting from Anynet+ device" appears on the screen.	You cannot use the remote control when the TV is configuring Anynet+ or switching to a viewing mode.Use the remote control after the TV has completed the Anynet+ configuration or has switched to a viewing mode.
The Anynet+ device won't play.	You cannot use the play function when Start Setup is in progress.
The connected device is not displayed.	Check whether the device supports Anynet+.Anynet+ devices must be connected to the TV using an HDMI cable. Make sure the device is connected to your TV with an HDMI cable. Some HDMI cables may not support Anynet+.Check whether the HDMI cable is properly connected.Go to Anynet+ (HDMI-CEC) and see if Anynet+ (HDMI-CEC) has been set to On.• > Settings > General > External Device Manager > Anynet+ (HDMI-CEC)Scan for Anynet+ devices again.If the connection is terminated because there has been a power failure or the HDMI cable has been disconnected, please scan for the device again.
The TV audio is not being played through the AV receiver.	Make sure that the AV receiver is connected to the TV's HDMI (ARC) port with an HDMI cable. Confirm that the AV receiver is HDMI (ARC) compatible.If the AV receiver is not HDMI (ARC) compatible, connect the TV and the AV receiver with an optical cable.

I Have Trouble Launching/Using Apps

When apps aren't working, these steps may help resolve the problem.

The problem Try this!
I launched an app, but it's in English. How can I change the language?	Languages supported by the app may be different from the user interface language.The ability to change the language depends on the service provider.
My application is not working.	Check with the service provider.Refer to the Help section on the application service provider's website.

My File Won't Play

When files don't play, this may help resolve the problem.

The problem Try this!
Some files can't be played.	This problem may occur with high-bitrate files.Most files can be played back, but you might experience problems with high-bitrate files.

I Want to Reset the TV

Initialize the settings to factory defaults.

Reset Path Description
Reset Settings	>Settings >Support Self Diagnosis >Reset	Resets Picture, Sound, Broadcasting, and all other settings, except for the network settings, to the default settings.
Reset Smart Hub	>Settings >Support Self Diagnosis >Reset Smart Hub	Resets all Smart Hub settings to their factory defaults and deletes all information related to Samsung accounts, linked service accounts, Smart Hub service agreements, and Smart Hub applications.
Reset Picture	>Settings >Picture Expert Settings >Reset Picture	Resets current picture settings to the default settings.
Reset Sound	>Settings Sound >Expert Settings Reset Sound	Resets current sound settings to the default settings.

Other Issues

Use these procedures to resolve other issues that may occur.

The problem Try this!
The TV is hot.	Watching TV for an extended period of time causes the panel to generate heat.The heat from the panel is dissipated through internal vents running along the top of the TV.The bottom, however, may feel hot to the touch after extended use.Children watching TV need constant adult supervision to prevent them from touching the TV.This heat, however, is not a defect and does not affect the TV's functionality.
The picture won't display in full screen.	HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) content.Black bars will appear at the top and bottom of the screen when you watch movies that have aspect ratios different from your TV.Adjust the picture size options on your external device or set the TV to full screen.● > Settings > Picture > Picture Size Settings
The "Mode Not Supported" message appears.	The output resolution of the attached device is not supported by the TV.Check the TV's supported resolutions and adjust the external device's output resolution accordingly.
The Captions item in the TV is grayed out.	When an external device is connected with an HDMI or Component cable, the Caption function is unavailable.Adjust the caption setting on the external device.
The TV smells of plastic. This smell is normal and will dissipate over time.
Signal Information under Self Diagnosis isn't activated.	Verify that the current channel is a digital channel.Signal Information is only available for digital channels.● > Settings > Support > Self Diagnosis > Signal Information
The TV is tilted to the side. Remove the base stand from the TV and reassemble it.
The stand is wobbly or crooked.	Make sure the indicator arrows on the stand and stand holder are properly aligned.
The remote control and/or voice control does not work.	The TV ships with protective stickers covering some of the sensors. Make sure all of the stickers have been removed.
The Broadcasting function has been deactivated.	Broadcasting is only available when the Source is set to TV.Broadcasting cannot be accessed while you watch TV using a cable box or satellite box.Broadcasting cannot be accessed while a recording is in progress or the Timeshift function is running.
The settings are lost after 5 minutes or every time the TV is turned off.	If Usage Mode is set to Retail Mode, the TV's audio and video settings are automatically reset every 5 minutes.Change Usage Mode to Home Mode.● > Settings > General > System Manager > Usage Mode
A POP (TV's internal banner ad) appears on the screen.	Change Usage Mode to Home Mode.● > Settings > General > System Manager > Usage Mode
The TV is making a popping noise.	The expansion and contraction of the TV's outer casing may cause a popping noise.This does not indicate a product malfunction.The TV is safe to use.
The TV is making a humming noise.	Your TV utilizes high-speed switching circuits and high levels of electrical current.Depending on the TV's brightness level, the TV may seem slightly noisier than a conventional TV.Your TV has undergone strict quality control procedures that meet our demanding performance and reliability requirements.Some noise coming from the TV is considered normal and is not an acceptable cause for an exchange or refund.
The software update over the Internet has failed.	Check the network connection status.● > Settings > General > Network > Network StatusIf the TV is not connected to a network, connect it to a network.The upgrade stops if you already have the latest software version.

Precautions and Notes

You can get instructions and information that you must read after installation.

Before Using the Recording and Timeshift Functions

Read these instructions before using Recording and Timeshift.

Before using the recording and schedule recording functions

Recording may not be supported depending on the model or geographical area.

- To set up a Schedule Recording, you must first set the TV's clock. Set the Clock.

- > Settings > General > System Manager > Time > Clock

- You can set up a maximum total of 30 Schedule Viewing and Schedule Recording entries.

- Recordings are DRM-protected and therefore cannot be played back on a computer or on a different TV. In addition, these files cannot be played back on your TV if its video circuit has been replaced.

- A USB hard drive with a speed of 5,400 rpm or above is recommended. However, RAID-type USB hard drives are not supported.

• USB memory sticks are not supported.

- The total recording capacity may differ with the amount of available hard drive space and the recording quality level.

- Schedule Recording requires at least 100 MB of free space on the USB storage device. Recording will stop if the available storage space falls below 50 MB while recording is in progress.

- If the available storage space falls below 500 MB while both the Schedule Recording and Timeshift functions are in progress, only the recording will stop.

- The maximum recording time is 720 minutes.

• Videos are played according to the TV settings.

- If the input signal is changed while recording is in progress, the screen will go blank until the change is made. In this case, recording will resume, but will not be available.

• When using the Record or Schedule Recording function, the actual recording may start a second or two later than the specified time.
• If the Schedule Recording function is operating while a recording is being made on an HDMI-CEC external device, the priority is given to the Schedule Recording.
• Connecting a recording device to the TV automatically deletes abnormally saved recorded files.

• If the Sleep Timer or Auto Power Off has been set, the TV will override these settings, continue to record, and turn off after the recording has ended.

• Settings > General > System Manager > Time > Sleep Timer

• Settings > General > Eco Solution > Auto Power Off

Before using the timeshift function

Timeshift may not be supported depending on the model or geographical area.

• A USB hard drive with a speed of 5,400 rpm or above is recommended. However, RAID-type USB hard drives are not supported.
• USB memory sticks or flash drives are not supported.
• The total recording capacity may differ with the amount of available hard drive space and the recording quality level.
• If the available storage space falls below 500 MB while both the Schedule Recording and Timeshift functions are in progress, only the recording will stop.
• The maximum amount of time available for the Timeshift function is 90 minutes.

- The Timeshift function is not available for locked channels.

- Time-shifted videos are played according to the TV settings.

- The Timeshift function may be terminated automatically once it reaches its maximum capacity.

- The Timeshift function requires at least 1.5 GB of free space available on the USB storage device.

Read Before Using APPS

Read this information before using APPS.

• Due to the product characteristics featured on Samsung Smart Hub, as well as limitations in available content, certain features, applications, and services may not be available on all devices or in all territories. Visit http://www.samsung.com for more information on specific device information and content availability. Services and content availability are subject to change without prior notice.
• Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services caused by the service provider for any reason.
• Application services may be provided in English only and available content may differ with the geographical area.
• For more information about applications, visit the applicable service provider's website.
• An unstable Internet connection may cause delays or interruptions. In addition, applications may terminate automatically depending on the network environment. If this occurs, check your Internet connection and try again.
• Application services and updates may become unavailable.
• Application content is subject to change by the service provider without prior notice.
• Specific services may differ with the version of the application installed on the TV.
• An application's functionality may change in future versions of the application. If this occurs, run the application's tutorial or visit the service provider's website.
• Depending on the service provider's policies, certain applications may not support multitasking.

Read Before Using the Internet Function

Read this information before using the Internet function.

• The Internet function is not compatible with Java applications.
• File download is not supported.
• The Internet function may not be able to access certain websites.

- The TV does not support playback of flash videos.

- E-commerce for online purchases is not supported.

- With websites that have scrollable windows, scrolling a window can result in corrupted characters.

• ActiveX is not supported.

- Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.

- The response to remote commands and the resulting on-screen display may be delayed while a web page is loading.

- Loading a web page may be delayed or suspended completely with certain operating systems.

- Copy and paste operations are not supported.

• When composing an email or a simple message, certain functions such as the font size and color selection may not be available.
• There is a limit to the number of bookmarks and the size of the log file that can be saved.
• The number of windows that can be opened concurrently differs with the search conditions and the TV model.
• Web browsing speed will differ with the network environment.

- If the Clock has not been set, browsing history will not be saved.

- > Settings > General > System Manager > Time > Clock

• Browsing history is saved from latest to oldest, with the oldest entries being overwritten first.
• Depending on the types of video/audio codecs supported, you may not be able to play certain HTML5 video and audio files.
• Video sources from PC-optimized streaming service providers may not play properly on our proprietary Internet browser.

Read before setting up a wireless Internet connection

Precautions for wireless Internet

- This TV supports the IEEE 802.11 a /b /g /n /ac communication protocols. Samsung recommends using IEEE 802.11n. Video files stored on a device connected to the TV via a Home Network may not play back smoothly.

Some of the IEEE 802.11 communication protocols may not be supported depending on the model.

• To use wireless Internet, the TV must be connected to a wireless router or modem. If the wireless router supports DHCP, the TV can use a DHCP or static IP address to connect to the wireless network.
• Select a channel that is not currently being used by the wireless router. If the channel set is currently being used by the wireless router to communicate with another device, the result is usually interference and/or a communications failure.
• Most wireless networks have an optional security system. To enable a wireless network's security system, you need to create a password using characters and numbers. This password is then needed to connect to a security-enabled AP.

Wireless security protocols

The TV only supports the following wireless network security protocols. The TV cannot connect to non-certified wireless routers.

– Authentication Modes: WEP, WPAPSK, WPA2PSK
– Encryption Types: WEP, TKIP, AES

In compliance with the newest Wi-Fi certification specifications, Samsung TVs do not support WEP or TKIP security encryption in networks running in the 802.11n mode. If the wireless router supports WPS (Wi-Fi Protected Setup), you can connect the TV to your network using PBC (Push Button Configuration) or a PIN (Personal Identification Number). WPS automatically configures the SSID and WPA key settings.

Read Before Playing Photo, Video, or Music Files

Read this information before playing media content.

Limitations to the use of photo, video, and music files Try Now

• The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass storage devices. Types of MSC devices include external hard drives, flash card readers, and digital cameras. (USB hubs are not supported.) These kinds of devices must be connected directly to the USB port. The TV may not be able to recognize a USB device or read the files on the device if it is connected with a USB extension cable. Do not disconnect USB devices while they are transferring files.
• When connecting an external hard drive, use the USB (HDD) port. We recommend that you use an external hard drive with its own power adapter.
• Certain digital cameras and audio devices may not be compatible with the TV.
• If there are multiple USB devices connected to the TV, the TV might not be able to recognize some or all the devices. USB devices that use high-power input should be connect to the USB [5V, 1A] port.
• The TV supports the FAT, exFAT, and NTFS file systems.
• After sorting files in the Folder view mode, the TV can display up to 1,000 files per folder. If the USB device contains more than 8,000 files and folders, however, some files and folders might not be accessible.
• Certain files, depending on how they are encoded, may not play on the TV.
• Certain files are not supported on all models.
  • UHD Video Pack content is not supported by Samsung UHD TVs produced in 2017 or later.
  • DivX and DTS codecs are not supported by the Samsung TV models released in 2018.

Supported external subtitles

Name Format
MPEG-4 Timed text .ttxt
SAMI .smi
SubRip .srt
SubViewer .sub
Micro DVD .sub or .txt
SubStation Alpha .ssa
Advanced SubStation Alpha .ass
SMPTE-TT Text .xml

Supported internal subtitles

Name Container
Xsub AVI
SubStation Alpha MKV
Advanced SubStation Alpha MKV
SubRip	MKV
VobSub	MKV
MPEG-4 Timed text	MP4
TTML in smooth streaming	MP4
SMPTE-TT TEXT	MP4
SMPTE-TT PNG	MP4

Supported image formats and resolutions

File extension Format Resolution
*.jpg	JPEG 15360 x 9024
*.png PNG 4096 x 4096
*.bmp BMP 4096 x 4096
*.mpo MPO 15360 x 8640

The MPO format is supported partly.

Supported music formats and codecs

File extension Format Codec Note
*.mp3	MPEG	MPEG1 Audio Layer 3
*.m4a*.mpa*.aac	MPEG4	AAC
*.flac	FLAC	FLAC	Supports up to 2 channels
*.ogg	OGG	Vorbis	Supports up to 2 channels
*.wma	WMA	WMA	WMA is supported up to 10 Pro 5.1 channels, M2 profile.WMA1, WMA lossless / Voice are not supported.
*.wav	wav	wav
*.mid*.midi	midi	midi	Supports type 0 and type 1.Seek is not supported.Supports USB device only.
*.ape	ape	ape
*.aif*.aiff	AIFF	AIFF
*.m4a	ALAC	ALAC

Video codecs supported by NU7100 model series or higher

File format	Container Video codecs Resolution			Frame rate (fps)	Bitrate (Mbps)	Audio codecs
*.avi*.mkv*.asf*.wmv*.mp4*.mov*.3gp*.vro*.mpg*.mpeg*.ts*.tp*.trp*.mov*.flv*.vob*.svi*.m2ts*.mts	AVIMKVASFMP43GPMOVFLVVROVOBPSSTSVAF Window Media Video v7 (WMV1),v8 (WMV2)H.263 SorrensonVP6	H.264 BP/MP/HP	4096 x 2160	4096 x 2160: 303840 x 2160: 60	60	Dolby DigitalLPCMADPCM(IMA, MS)AACHE-AACWMADolby Digital PlusMPEG(MP3)MPEG-HAC-4G.711(A-Law, μ-Law)OPUS
		HEVC (H.265 - Main, Main10) 60 80
		Motion JPEG 3840 x 2160 30 80
		MVC	1920 x 1080 20
		MPEG4 SP/ASP
		Window Media Video v9 (VC1) 60
		MPEG2
		MPEG1
		Microsoft MPEG-4 v1, v2, v3		30
		H.263 Sorrenson
		VP6
*.webm WebM		VP8 1920 x 1080	60 20			Vorbis
		VP9 (Supported up to profile 0, profile 2)	3840 x 2160	3840 x 2160: 60	80
*.rmvb	RMVB	RV8/9/10 (RV30/40)	1920 x 1080	60	20	RealAudio 6

Video codecs supported by NU7090 model series or lower

File format	Container Video codecs Resolution			Frame rate (fps)	Bitrate (Mbps)	Audio codecs
*.avi*.mkv*.asf*.wmv*.mp4*.mov*.3gp*.vro*.mpg*.mpeg*.ts*.tp*.trp*.mov*.flv*.vob*.svi*.m2ts*.mts	AVIMKVASFMP43GPMOVFLVVROVOBPSSTSVAF Window Media Video v7 (WMV1),v8 (WMV2)H.263 SorrensonVP6	H.264 BP/MP/HP	3840 x 2160	3840 x 2160: 301920 x 1080: 60	50	Dolby DigitalLPCMADPCM(IMA, MS)AACHE-AACWMADolby Digital PlusMPEG(MP3)MPEG-HAC-4G.711(A-Law, μ-Law)OPUS
		HEVC (H.265 - Main, Main10) 60 50
		Motion JPEG
		MVC
		MPEG4 SP/ASP
		Window Media Video v9 (VC1) 60
		MPEG2 1920 x 1080 20
		MPEG1
		Microsoft MPEG-4 v1, v2, v3		30
		H.263 Sorrenson
		VP6
*.webm WebM	VP8 1920 x 1080 20			60 50		Vorbis
	VP9 (Supported up to profile 0, profile 2)		3840 x 2160
*.rmvb	RMVB	RV8/9/10 (RV30/40)	1920 x 1080		20	RealAudio 6

Other restrictions

• Codecs may not function properly if there is a problem with the content.
• Video content does not play or does not play correctly if there is an error in the content or container.
  Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility ratings.
• If the Index Table is has an error, the Seek (Jump) function will not work.
• When playing video over a network connection, the video may not play smoothly because of data transmission speeds.
  • Some USB/digital camera devices may not be compatible with the TV.
  • HEVC codec is only available in MKV / MP4 / TS containers.
  • The MVC codec is supported partly.

Video decoders

• H.264 UHD is supported up to Level 5.1, and H.264 FHD is supported up to Level 4.1. (TV does not support FMO / ASO / RS)
  • HEVC UHD is supported up to Level 5.1.
  • VC1 AP L4 is not supported.
  • GMC 2 or above is not supported.

Audio decoders

• WMA is supported up to 10 Pro 5.1 channels, M2 profile.
• WMA1, WMA lossless / Voice are not supported.
• QCELP and AMR NB/WB are not supported.
• Vorbis is supported for up to 5.1 channels.
- Dolby Digital Plus is supported for up to 5.1 channels.
- The supported sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 KHz, and differ with the codec.

Read After Installing the TV

Read this information after installing the TV.

Picture sizes and input signals

The Picture Size settings are applied to the current source. The applied Picture Size Settings will remain in effect whenever you select that source unless you change them.

Input signal Picture size
Component	16:9 Standard, Custom, 4:3
Digital channel (720p)	16:9 Standard, Custom, 4:3
Digital channel (1080i, 1080p)	16:9 Standard, Custom, 4:3
Digital channel (3840 x 2160p @ 24/30 Hz)	16:9 Standard, Custom
Digital channel (3840 x 2160p @ 50/60 Hz)	16:9 Standard, Custom
Digital channel (4096 x 2160p) 16:9 Standard, Custom
HDMI (720p)	16:9 Standard, Custom, 4:3
HDMI (1080i, 1080p)	16:9 Standard, Custom, 4:3
HDMI (3840 x 2160p) 16:9 Standard, Custom
HDMI (4096 x 2160p) 16:9 Standard, Custom
USB (720p)	16:9 Standard, Custom, 4:3
USB (1080i/p @ 60 Hz)	16:9 Standard, Custom, 4:3
USB (3840 x 2160p @ 24/30 Hz)	16:9 Standard, Custom
USB (3840 x 2160p @ 60 Hz)USB (4096 x 2160p @ 24/30/60 Hz)	16:9 Standard, Custom

Installing an anti-theft lock

An anti-theft lock is a physical device that can be used to protect the TV against theft. Look for the lock slot on the back of the TV. The slot has a 📁 icon next to it. To use the lock, wrap the lock cable around an object that is too heavy to carry and then thread it through the TV's lock slot. The lock is sold separately. The method of using an anti-theft lock may differ for each TV model. Refer to the lock's user manual for more information.

This function may not be supported depending on the model or geographical area.

Supported Resolutions for UHD Input Signals

Check the supported resolution for UHD input signals.

• Resolution: 3840 x 2160p, 4096 x 2160p

An HDMI connection with HDMI UHD Color set to Off supports up to UHD 50P/60P 4:2:0 input signals, while an HDMI connection with HDMI UHD Color set to On supports up to UHD 50P/60P 4:4:4 and 4:2:2 input signals.

If HDMI UHD Color is set to Off

Frame rate (fps)	Color Depth / Chroma Sampling	RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
50 / 60 8 bit - - - O

If HDMI UHD Color is set to On

Frame rate (fps)	Color Depth / Chroma Sampling	RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
50 / 60	8 bit	O	O	O	O
	10 bit	-- O	O
	12 bit	-- O	O

Supported Resolutions for FreeSync

Check the supported resolution for the FreeSync function.

- Settings of FreeSync mode: Off / Ultimate (48\~120 Hz) / Basic (90\~120 Hz)

The supported FreeSync modes may differ depending on the external device.

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	SCAN
1920 x 1080	120 Hz	135.000	120.000	297.000	progressive

This function may not be supported depending on the model or geographical area.

Read Before Connecting a Computer (Supported Resolutions)

Check the resolutions supported for PC input signals.

When you connect your TV to a computer, set the computer's video card to one of the standard resolutions listed in the tables below or on the next page. The TV will automatically adjust to the resolution you choose. Note that the optimal and recommended resolution is 3840 x 2160 at 60 Hz. Choosing a resolution not included in the tables can result in a blank screen or just the power indicator turning on. Refer to the user manual of your graphics card for compatible resolutions.

The native resolution is 3840 x 2160 at 60 Hz with the HDMI UHD Color set to On. The native resolution is 3840 x 2160 at 30 Hz with the HDMI UHD Color set to Off.

IBM

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
720 x 400 70 Hz	31.469 70.087 28.322	- / +

MAC

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
640 x 480 67 Hz	35.000 66.667 30.240	- / -
832 x 624	75 Hz	49.726	74.551	57.284	- / -
1152 x 870	75 Hz	68.681	75.062	100.000	- / -

VESA DMT

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
640 x 480 60 Hz	31.469 59.940 25.175	- / -
640 x 480 72 Hz	37.861 72.809 31.500	- / -
640 x 480 75 Hz	37.500 75.000 31.500	- / -
800 x 600	60 Hz	37.879	60.317	40.000	+ / +
800 x 600	72 Hz 48.077	72.188 50.000	+ / +
800 x 600	75 Hz 46.875	75.000	49.500 + / +
1024 x 768	60 Hz	48.363	60.004	65.000	- / -
1024 x 768	70 Hz	56.476	70.069	75.000	- / -
1024 x 768 75 Hz	60.023 75.029	78.750	+ / +
1152 x 864 75 Hz	67.500 75.000 108.000 + / +
1280 x 720	60 Hz	45.000	60.000	74.250	+ / +
1280 x 800	60 Hz	49.702	59.810	83.500	- / +
1280 x 1024	60 Hz	63.981	60.020	108.000	+ / +
1280 x 1024	75 Hz	79.976	75.025	135.000	+ / +
1366 x 768	60 Hz	47.712	59.790	85.500	+ / +
1440 x 900	60 Hz	55.935	59.887	106.500	- / +
1600 x 900	60 Hz	60.000	60.000	108.000	+ / +
1680 x 1050	60 Hz	65.290	59.954	146.250	- / +
1920 x 1080	60 Hz	67.500	60.000	148.500	+ / +

VESA CVT

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
2560 x 1440	120 Hz	182.996	119.998	497.750	+ / -

The resolution may not be supported depending on the model.

CTA-861

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
3840 x 2160 30 Hz	67.500 30.000 297.000 - / -
*3840 x 2160 60 Hz	135.000 60.000 594.000 - / -
**1920 x 1080	100 Hz	112.500	100.000	297.000	+ / +
**1920 x 1080	120 Hz	135.000	120.003	297.000	+ / +

*: This resolution is only supported by HDMI 2.0 mode.

**: The resolution may not be supported depending on the model.

Supported Resolutions for Video Signals

Check the resolutions supported for video signals.

CTA-861

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
720 (1440) x 576i	50 Hz	15.625	50.000	27.000	- / -
720 (1440) x 480i	60 Hz	15.734	59.940	27.000	- / -
720 x 576 50 Hz	31.250	50.000 27.000	- / -
720 x 480	60 Hz	31.469	59.940	27.000	- / -
1280 x 720	50 Hz	37.500	50.000	74.250	+ / +
1280 x 720	60 Hz	45.000	60.000	74.250	+ / +
1920 x 1080i	50 Hz	28.125	50.000	74.250	+ / +
1920 x 1080i	60 Hz	33.750	60.000	74.250	+ / +
1920 x 1080	24 Hz	27.000	24.000	74.250	+ / +
1920 x 1080	25 Hz	28.125	25.000	74.250	+ / +
1920 x 1080	30 Hz	33.750	30.000	74.250	+ / +
1920 x 1080	50 Hz	56.250	50.000	148.500	+ / +
1920 x 1080	60 Hz	67.500	60.000	148.500	+ / +
3840 x 2160	24 Hz	54.000	24.000	297.000	+ / +
3840 x 2160 25 Hz	56.250 25.000 297.000 + / +
3840 x 2160 30 Hz	67.500 30.000 297.000 + / +
*3840 x 2160 50 Hz	112.500 50.000 594.000 + / +
*3840 x 2160 60 Hz	135.000 60.000 594.000 + / +
4096 x 2160	24 Hz	54.000	24.000	297.000	+ / +
4096 x 2160 25 Hz	56.250 25.000 297.000 + / +
4096 x 2160 30 Hz	67.500 30.000 297.000 + / +
*4096 x 2160 50 Hz	112.500 50.000 594.000 + / +
*4096 x 2160 60 Hz	135.000 60.000 594.000 + / +
**1920 x 1080	100 Hz	112.500	100.000	297.000	+ / +
**1920 x 1080	120 Hz	135.000	120.003	297.000	+ / +

*: This resolution is only supported by HDMI 2.0 mode.
**: The resolution may not be supported depending on the model.

VESA CVT

Resolution(Dots x lines)	Display format	Horizontal frequency(KHz)	Vertical frequency(Hz)	Clock frequency(MHz)	Polarity(horizontal / vertical)
2560 x 1440	120 Hz	182.996	119.998	497.750	+ / -

The resolution may not be supported depending on the model.

Read Before Using Bluetooth Devices

Read this information before using a Bluetooth device.

This function may not be supported depending on the model or geographical area.

Restrictions on using Bluetooth

• You can't use Bluetooth devices and the Wi-Fi Speaker Surround Setup feature simultaneously.
• Compatibility issues may occur, depending on the Bluetooth device. (A Mobile exclusive headphone may not be available, depending on the environment.)
• Lip-sync errors may occur.
• The TV and Bluetooth device may disconnect, depending on the distance between them.

- A Bluetooth device may hum or malfunction:

• When a part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the TV.
• When the device is subject to electrical variation from obstructions caused by a wall, corner, or office partitioning.
• When the device is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

- If the problem persists, we recommend you use a wired connection.

– DIGITAL AUDIO OUT (OPTICAL) port
- HDMI (ARC) port

Buttons and functions available while playing multimedia content

Review available media playback, control, and record buttons and descriptions of how they are used.

Press the Select button while playing any video, photo, or recorded content. The following buttons appear.

The provided buttons and functions may not be supported depending on the model or geographical area.

The available buttons and functions may differ with the content you are viewing or playing.

- Pause / Play

Pauses or plays the multimedia content. You can use the following functions when the video is paused. Note that with the video paused, the TV does not play audio.

- Slow Rewind or Slow Forward: Allows you to play a video slowly backward or forward by selecting the or ▶ option. There are 3 playback speeds. To change the playback speed, press the option repeatedly. To return to normal speed, select the option or press the button.

- Jump Backward / Jump Forward

Press the up directional button to move the focus to the playback control bar, and then select the left or right directional button in the playback control bar to move backward or forward by 10 seconds in the video.

- Move to a specific playback section, move up the focus on the playback bar, and then select one of the five thumbnails.

This function may not be supported depending on the file format.

- Previous / Next

Displays the previous or the next multimedia content file.

- Rewind / Fast Forward

Rewinds or fast forwards the multimedia content. To increase the rewind or fast forward speed up to 3 times faster than normal, select the button repeatedly. To return to normal speed, select the option or press the ▶ button.

• 360 Auto Rotation

Automatically adjusts the video's viewing angle by analyzing the amount of image changes during playback of a video file that provides a 360-degree view. When this function is started, the rotation starts in a short time.

• General
• Dynamic
• Natural

The 360 Auto Rotation function does not work in General mode.
This function may not be supported depending on the file format.
Video files that use the mjpeg codec do not support a 360-degree view.
When a video does not support a 360-degree view, applying 360 rotation to it may cause the screen to look distorted.
Videos may be interrupted if 360 rotation is applied during double speed playback.
Videos that support a 360-degree view may be interrupted if 360 rotation is simultaneously applied with other functions during playback.

360 Mode

Provides a 360-degree view for videos and photos.

This function may not be supported depending on the file format.
Video files using the mjpeg codec do not support a 360-degree view.
When a video or photo does not support a 360-degree view, applying 360 rotation to it may cause the screen to look distorted.
Videos may be interrupted if 360 rotation is applied during double speed playback.
Videos that support a 360-degree view may be interrupted if 360 rotation is simultaneously applied with other functions during playback.

- Repeat

Plays the current multimedia content repeatedly or all multimedia content files in the same folder repeatedly.

- Shuffle

Plays music files in random order.

Picture Off

Plays multimedia content with the screen off.

• Screen Fit
  Fits a photo to the screen.
• Rotate left / Rotate right Rotates a photo left or right.

- Zoom

Zooms in a photo.

- Background Music

During a slideshow, pauses or resumes the background music.

- Options

The available options may differ with the model and content.

Function Description
Slideshow Speed Sets the slideshow speed.
Slideshow Effect Applies transition effects to the slide show.
Background Music	Plays background music while the TV displays photos.The music files must be saved in the same USB device as the photo files.To pause the background music, selectBackground Musicon the playback screen bottom.
Subtitles	Controls video subtitles.Subtitles:Turns the language of the subtitles on or off.Sync:Adjusts the synchronization when the video and the subtitles are not synchronized.Reset Sync:Resets the subtitle synchronization adjustment to 0.Size:Changes the font size of the subtitles.Encoding:Displays a list of encoding languages. Allows you to change the encoding language when subtitles are displayed incorrectly.Edge Type:Adjusts the position of text and subtitle edges.Edge Color:Changes the color of subtitle edges.
Rotate Rotates the video.
Audio Language	Changes the audio language.This function is only available if the video supports multi-track sound.
Information Displays detailed information about the current multimedia content.

License

Check the license information and trademarks applied in your TV.

DOLBY AUDIO™

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Open Source License Notice

Open Source used in this product can be found on the following webpage. (http://opensource.samsung.com) Open Source License Notice is written only English.

POWERED BY

QUICKSET

This license may not be supported depending on the model or geographical area.

HEVC Advance™

Covered by Patents at patentlist.hevcadvance.com

Accessibility Guidance

Provides a menu and a remote control guide that aid the visually impaired.

Learn the Menu Screen

Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you select.

Using the Remote control

Guide for the Samsung Smart Remote.

The Samsung Smart Remote may not be supported depending on the model or geographical area.

Orientation of the Samsung Smart Remote

Hold the remote control with the buttons facing towards you. The remote is slightly thinner towards the top and thicker towards the bottom.

Description of the Samsung Smart Remote

From top to bottom and left to right:

• The ⏻ or ⏱ button is at the top left.
- There is a small LED to the right of the 🎯 or 📌 button, but it cannot be felt by hand.
- Below the LED is a round button which is the button.
- Of the two buttons below the 📁 button on the Samsung Smart Remote that comes with the QLED TV, the left one is the 📁 button and the right one the button.
- Of the two buttons below the 0 button on the Samsung Smart Remote that comes with the UHD TV or THE FRAME, the left one is the 123tton and the right one the button.
- Underneath these two buttons is the directional button which consists of a large outer circle with a round button in the middle.
- Underneath the directional button are three buttons, one on the left, one on the right, and one in the center. The one on the left is the button and the one on the right is the button. The round button in the middle is the button.

- Underneath the button are two thin horizontal buttons. These buttons protrude higher above the surface than the other buttons on the remote control. The one on the left is the volume button and the one on the right is the channel button. Push up from beneath or down from above to use these as rocker buttons to change the channel or volume.

– Briefly press the VOL button to mute the sound.
- Press and hold the VOL button to open the Accessibility Shortcuts menu.
- Briefly press the CH button to open the Guide.
- Press and hold the CH button to open the Channel List.

This function may not be supported depending on the model or geographical area.

The color buttons

If you press the 123 or button while viewing a program, the Record, Timeshift, Stop (when Record or Timeshift is running), Info, red, green, yellow, blue, and Move to the top (or Move to the bottom) options appear.

This function may not be supported depending on the geographical area.

The play/pause button

If you press the ▶ button while watching a TV program, the screen you are watching stops and a control bar appears. You can select Rewind, Play, Pause, Fast Forward, Stop Timeshift, Record, Go to Live TV, or Info. You can press the up directional button to go to the playback screen and check the time that the actual broadcast program is running and the timeshift time.

This function may not be supported depending on the model or geographical area.
To use Record or Timeshift, you must connect a USB device.
You can use the Slow Rewind or Slow Forward functions when select the Pause option.

Using the accessibility menu

View descriptions of accessibility menu functions.

This function may not be supported depending on the model or geographical area.

Accessibility Shortcuts menu

Press and hold the VOL button to display the Accessibility Shortcuts menu.

The Accessibility Shortcuts menu allows you to turn Voice Guide and other Accessibility functions on or off. Voice Guide speaks the names of the menu items displayed on the screen so that people who cannot see the screen can easily use the TV.

The menu contains a number of items including:

• Voice Guide: This function works on every screen on the TV and when turned on speaks to identify items displayed on screen. For example, it tells you the selected volume, the current channel and program information. It also reads out the program information in the Electronic Program Guide (EPG).
• High Contrast: This function allows you to display all menus with an opaque black background and a white font, providing maximum contrast.
• Enlarge: This function enlarges important elements on the screen such as the names of programs.
• Learn TV Remote: Learn the names and functions of the buttons on remote control. On this screen, pressing the power button (top left button) will turn off the TV, but when any other button is pressed the TV will say the button name and briefly tell what that button does. This teaching mode helps you to learn the location and operation of the buttons on the remote without affecting normal TV operation. Press the 📋 button twice to exit Learn TV Remote.
• Learn Menu Screen: Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you select.

Opening the Accessibility Shortcuts menu

On the Samsung Smart Remote, there are two thin horizontal rocker buttons next to each other located slightly below the middle of the remote. The one on the left is the volume rocker button. Press and hold the volume rocker button to open the Accessibility Shortcuts menu.

If you press and hold the VOL button while Voice Guide is turned off, the Accessibility Shortcuts menu appears and Voice Guide starts. You can turn on or turn off the functions such as Voice Guide, High Contrast, Enlarge, Grayscale, Color Inversion, Caption, Multi-output Audio, and you can move to the Learn TV Remote and Learn Menu Screen pages.

Learn TV Remote and Learn Menu Screen are only available when Voice Guide is enable.

Using the Accessibility Shortcuts menu

To use the Accessibility Shortcuts menu, you will need to locate the Directional and Select buttons. To learn where the buttons are located, refer to the Learn TV Remote menu.

Use the up and down directional buttons to move between the menu items. Press the Select button to turn on or turn off the function indicated by the menu where you are located. Again, use the up and down directional buttons to move between options and press Select to choose an option. To close this menu, use the right directional button to get to the Close option and select this, or press the ← button.

Step by Step instructions to run the options

Turning on Voice Guide

1. Press and hold the VOL button on the remote. The Accessibility Shortcuts menu appears.
2. Press the up or down directional buttons on the remote to move to and highlight the Voice Guide option.
3. Press the Select button on the remote to turn Voice Guide on or off.
4. Close the menu either by pressing 🔑 the remote or by pressing the right directional button to highlight Close, and then pressing the Select button.

Learning TV Remote

1. Press and hold the VOL button on the remote. The Accessibility Shortcuts menu appears.
2. Press the up or down directional buttons on the remote to move to and highlight the Learn TV Remote option.
3. Press the Select button on the remote. You are now in the e-Manual and specifically on the Learn TV Remote page.
4. Press a button on the remote. The name and function of the button are heard.
5. When you have finished and want to exit the e-Manual, press the ⏻ button twice to exit Learn TV Remote.
   This function is only available when Voice Guide is enabled.

Accessing the main accessibility menu to change Voice Guide settings

You can also go to an accessibility menu from the TV settings menu. This provides more options, for example, to change the speed of Voice Guide.

The TV will not verbalize this menu unless Voice Guide is already turned on.

1. Press the button.
2. Press the left directional button until you reach Settings.
3. Press Select and a menu will open.
4. Press the down directional button to reach General, and then press Select to open this menu.
5. Use the directional buttons to go to the Accessibility menu, and then press Select to open this menu.
6. The menu will appear with Voice Guide Settings being the first menu. Highlight Voice Guide Settings, and then press Select.
7. A menu appears with the options to change Voice Guide and Volume, Speed, Pitch.
8. Select the menu using the directional buttons, and then press Select.

Setting accessibility settings using Bixby

Bixby lets you control your TV with voice commands spoken into the microphone built into the Samsung Smart Remote. To use Bixby, the TV must be set up and tuned and must be connected to the Internet. You can connect the TV to the Internet during the initial setup or do it later through the settings menu.

There are many commands you can say to control the TV. These can be used together with Voice Guide to give you voice input and voice output.

To speak a command, press and hold the 📊 button (located near the top of the Samsung Smart Remote, directly below the LED power indicator and above the directional button) and say the command, and then release the 📊 button. The TV will confirm the command.

For example you can:

Turn Voice Guide on:

Press the 📋 button on the Samsung Smart Remote, and then say "Voice Guide on".

Turn High Contrast on:

Press the 📊 button on the Samsung Smart Remote, and then say "High Contrast on".

Using the TV with Voice Guide on

You can turn on Voice Guide that describe the menu options aloud to aid the visually impaired.

Watching TV

Turning the TV on

Press the 📄 button to turn the TV on.

When the TV turns on in the TV mode, voice guide will speak the channel name.

Changing channel

You can change the channel in a number of ways. Every time you change channels, the new channel details will be announced. The ways to change the channel are below.

• Channel List ( > Live TV > Channel List)

Press the button. The Home Screen appears. Use the left or right directional buttons to move to Live TV, press the up directional button to move to the top row, press the right directional button to move to Channel List, and then press the Select button. In the Channel List, use the up or down directional buttons to move to the desired channel, and then press the Select button.

• CH button: Of the two buttons that protrude from the center of the Samsung Smart Remote, the right one is the CH button. Push up or pull down the CH button to change the channel.
• Use the number buttons directly or press the CH button on the standard remote control to change the channel.
• Use the 123 or 123 button on the Samsung Smart Remote to display the virtual numeric pad on the screen.

Using on-screen number entry via the Samsung Smart Remote:

Use the virtual numeric pad to enter numbers e.g. to enter a channel number or to enter a PIN.

Press the 123 or 123 button on the Samsung Smart Remote and the virtual numeric pad with 2 rows appears on screen. Voice Guide speaks "virtual numeric pad, 6" which indicates that the number strip is on screen and the focus is on the number 6. This strip has the following buttons:

• On the bottom row: From the far left: 1 - 9, 0, -(dash), Delete, Move to the top (or Move to the bottom)
  • The top row has one option, Done.

This function may not be supported depending on the model or geographical area.

Use the left and right directional buttons to move along the row, and then press Select to choose the numeric pad. When you have finished selecting all the numbers you need (for example, 123), press the up directional button to move to the Done option, and then press Select to finish.

When entering a channel number, you can enter the number, and then select the Done option on the top row or you can enter the channel number and wait. After a short while, the channel will change and the virtual numeric pad will disappear from the screen.

Changing volume

Use the VOL button on the left to change the volume. Every time you change the volume, the new volume level will be announced.

• VOL button: Of the two buttons that protrude from the center of the Samsung Smart Remote, the left one is the VOL button. Push up or pull down the VOL button to change the volume.
• Press the VOL button on the standard remote control to adjust the volume.

Using program information

When watching TV, press the Select button to view program information which then appears at the top of the screen. Voice Guide will say program subtitles or audio descriptions if they are available. To view more detailed program information, press and hold the Select button. Voice Guide will say more details such as a synopsis of the program.

Press the left or right directional button to see what you can watch next on the same channel. Press the up or down directional button to move to other channels and to see which programs are currently being broadcast on them.

Press to go back or close the program details.

This function may not be supported depending on the geographical area.

Using the guide

See an overview of each channel's program lineup.

When you want to know the program information for each channel while watching a broadcast program, press the CH button on the Samsung Smart Remote. Use the directional buttons to view the program information.

On standard remote control, press the GUIDE button.

Live TV Guide

You can see the daily program schedules for each broadcaster and program information in the Guide. You can select programs to schedule for viewing or recording.

You can also open the Guide using Bixby. Press and hold the 📋 button on your Samsung Smart Remote, and then say the command "guide".

This function may not be supported depending on the model or geographical area.

The information in the Guide is for digital channels only. Analog channels are not supported.

If the Clock is not set, the Guide is not provided. Set the Clock first. ( [icon] > Settings > General > System Manager > Time Clock)

If you need to set the clock again, follow the instructions below.

1. Press the Button to open Smart Hub.
2. Press the left directional button to move to Settings.
3. Press the Select button to display the Settings menu screen.
4. Use the up and down directional buttons to move to the General menu, and then press the Select button.
5. Use the up and down directional buttons to move to the System Manager menu, and then press the Select button.
6. Select the Time menu, and then press the Select button.
7. Select the Clock menu, and then press the Select button.
8. Select the Clock Mode menu, press the Select button, and then select Auto or Manual.

If you select Manual, you can move to the Date or Time menu below to set the time.

When you open the Guide, a table grid of channels and programs is displayed. The top row displays Channel Filter then the day and times. Each row has a channel name on the left and programs on that channel on the right.

In the Guide, use the up and down directional buttons to move between channels and use the left and right directional buttons to move between programs within a channel. You can also use the 123 or 123 button to enter a channel number and go to that channel directly. You can use the ▶ button to go to the current time.

When you move the focus to a program, you will hear the detailed information about the selected program. You will also hear if the Caption is available for the program. When you move the focus to a different channel, you will hear the channel name and number, and the program details. If you move to a different day, you will hear the day announced for the first program you reach on that day. The day is not repeated, so if you are not sure what the day is, you can move forwards and backwards 24 hours and then the day will be announced.

To view a program on now

In the Guide, move to the program currently broadcasting, and then press the Select button to go to live TV on the selected channel and program.

Other options in the guide

In the Guide, move to a broadcast scheduled program, and then press the Select button. A pop-up menu listing the functions below appears. For the program you are currently watching, press and hold the Select button.

Use the up and down directional buttons to move within this menu, and then press Select to choose an item. Press

← to close the menu and go back to the Guide.

- Record

You can record the program that you are currently watching or a program on another channel.

This function may not be supported depending on the model or geographical area.

- Schedule Viewing

You can schedule viewing for a broadcast scheduled program.

- Schedule Recording

You can schedule recording for a broadcast scheduled program.

This function may not be supported depending on the model or geographical area.

For more information on Schedule Recording, refer to "Recording."

- Edit Recording Time

You can change the start and end times of scheduled program recordings.

This function may not be supported depending on the model or geographical area.

- Stop

You can stop the recording function that is currently running.

- Cancel Scheduled Viewing / Cancel Scheduled Recording

You can cancel your scheduled viewings and recordings.

This function may not be supported depending on the model or geographical area.

• View Details

You can see the detailed information on the selected program. The information may differ with the broadcast signal. If the information is not provided with the program, nothing appears.

Press Select on the View Details option. This will open the details pop-up window for that program which will display a synopsis. The details pop-up window consists of detailed information and the OK option. After reading the detailed information, press the Select button on the remote control to close the pop-up window.

Displaying your favorite channels:

If you have set up favorite channels, you will be able to filter the Guide so that only those channels are shown. This makes it easier to find channels you want.

To display your favorites list, move to the current time (press the ▶ button) and then press the left directional button to move to the list of channels. Use the up directional button to move up the list until you reach the Filter By : All option. Press Select to bring up a list of options. Use the up and down directional buttons to move between the categories in the list. Highlight the option you want, for example, Favorites 1, and then press Select. The Guide will then show the information for only those channels.

When you have set a filter in the Guide, it will remain when you close and re-open the Guide. If you find that you don't have the channels you think you should, it is a good idea to check the category, and then select "Filter By: All" which will display all tuned channels.

Setting Up a Schedule Viewing

Configure the TV to show a specific channel or program at a specific time and date.

The icon appears next to programs that have been configured for a schedule viewing.

To set up a schedule viewing, you must first set the TV's clock ( Ⓜ > Settings > General > System Manager > Time > Clock).

Setting up a schedule viewing

• The Guide Screen

On the Guide screen, select a program you would like to view, and then press and hold the Select button. Select Schedule Viewing on the pop-up menu that appears.

• The Program Info Screen

Press the Select button while watching the TV. The Program Info window appears. Select a broadcast scheduled program by using the left or right directional buttons, and then press the Select button. You can schedule watching the program by selecting Schedule Viewing.

Cancelling a scheduled viewing

You have two ways to cancel a scheduled viewing.

1. Cancelling a scheduled viewing from the Guide

Live TV Guide

Move to the program you want to cancel scheduled viewing for, and then press the Select button. Move to Cancel Scheduled Viewing, and then press the Select button. When a pop-up message asking you to cancel the selected scheduled viewing appears, select Yes. The selected scheduled viewing is canceled and the screen returns to the Guide screen.

2. Cancelling a scheduled viewing from Smart Hub

> Live TV > Schedule Manager or Recordings > Schedules > Delete

1. Press the button to open Smart Hub, and then press the left or right directional button to move to Live TV. Press the up directional button to move to the top row, and then press the left or right directional button to move to Schedule Manager or Recordings.
2. Press Select to open Schedule Manager or Recordings.
3. Press the up directional button to move to the Schedules menu.
4. Use the down directional button to move to the list of programs scheduled to view.
5. Use the right directional button to move to the Delete option, and then press the Select button to delete the selected item.

This function may not be supported depending on the model or geographical area.

Using the Channel List

See how to list the channels available on your TV.

Live TV Channel List

Using Channel List, you can change the channel or check programs on other digital channels while watching TV.

Press the button. The Home Screen appears. Use the left or right directional buttons to move to Live TV, press the up directional button to move to the top row, press the right directional button to move to Channel List, and then press the Select button. This shows a list of the channels and the program currently on. The focus will be on the channel you are currently watching, showing channel name, channel number, and program title.

Use the up and down directional buttons to move within the channel list (or use the CH button to go up and down a page at a time). You can also use the 123 or 123 button to enter a channel number and go to that channel directly.

Press the right directional button in the Channel List to move to the Category List. Use the up and down directional buttons to move within this list. Press the Select button to choose a category you want from the Category List. The Category List contains All Channels and Favorites. Use the up and down directional buttons to move to a channel you want to view, and then press the Select button.

- All Channels

Displays the channels that have been automatically searched.

- Favorites

Displays Favorites 1 to Favorites 5. Use the up and down directional buttons to move between the lists of favorites. Highlight the one you want, and then press Select. The channel list will now show only the channels in this list.

- Channel Type

Sorts the list so that it includes channels of a selected type. However, Channel Type can only be used channels contain the type information.

This function may not be supported depending on the incoming broadcast signal.

- Air or Cable

To allow you to select Air or Cable as the DTV mode, move the focus to Air or Cable, and then press the Select button. Air is suitable for homes equipped with separate, over-the-air antennas. Cable is suitable for homes that subscribe to a local cable-service. You do not need to use this function if your TV is connected to a cable box or satellite box.

This function may not be supported depending on the incoming broadcast signal.

This function may not be supported depending on the model or geographical area.

• TV PLUS

While the TV is connected to the Internet, you can watch popular programs or highlights for each theme through a virtual channel at any time. As in a general channel, it provides the daily program schedules of TV PLUS.

This option is only available on specific models in specific geographical areas.

Creating a Personal Favorites List

Designate frequently watched channels as favorite channels.

Favorite channels are highlighted in the Edit Channel and Channel List screens with the symbol ♥.

Registering channels as favorites

Live TV Channel List

1. Press the right directional button to move to the Category List.
2. Select Favorites.
3. Select a favorites list. When you select a favorites list, the Edit Favorites screen appears.
4. Move to the channel you want to add, and then press the Select button.
5. Repeat Step 4 to select all the channels you want to add.
6. Press the right directional button to move to the ▶ icon, and then press the Select button. The selected channels are added to the favorites list.

To add channels to a favorites list - Detail

1. Open the Channel List.
2. Press the right directional button to move to the Category List.
3. Use the up and down directional buttons to move to Favorites, and then press Select. You will see Favorites 1 to Favorites 5. Move to the list to which you want to add channels, and then press the Select button.
4. Use the up directional button to move to Edit Favorites, and then press the Select button.
5. In the Edit Favorites screen, move to a channel you want to add to the favorites list, and then press the Select button.
6. Repeat Step 5 to select all channels you want to add.
7. Press the right directional button to move to the ▶ icon, then press the Select button. The selected channels are added to the favorites list.

Deleting channels from a favorites list – Detail

1. Open the Channel List.
2. Press the right directional button to move to the Category List.
3. Use the up and down directional buttons to move to Favorites, and then press Select. You will see Favorites 1 to Favorites 5. Move to the list from which you want to delete channels, and then press the Select button.
4. Use the up directional button to move to Edit Favorites, and then press the Select button.
5. In the Edit Favorites screen, move to a channel you want to delete from the favorites list, and then press the Select button.
6. Repeat Step 5 to select all channels you want to delete.
7. Press the left directional button to move to the icon, and then press the Select button. The selected channels are deleted from the favorites list.

Viewing and selecting channels on favorites lists only

Live TV Channel List

1. Open the Channel List.
2. Press the right directional button to move to the Category List.
3. Use the up and down directional buttons to move to Favorites, and press the Select button.
4. The Favorites 1 to Favorites 5 appear. Move to the list you want, and then press the Select button. The channels in the selected favorites list appear.

Recording

Recording a program to an external hard drive connected via USB.

This function may not be supported depending on the model or geographical area.
Read all precautions before using the recording feature. For more information, refer to "Before Using the Recording and Timeshift Functions."

Using the instant and schedule recording options from the guide screen:

To record a program that is on now, open the program guide, move to the program, and then press and hold the Select button. You will get a pop-up menu. Use the up and down directional buttons to move to Record. Press select to record the program. You will be returned to the program guide. Recording automatically ends at the time when the program ends.

To stop recording, move to Guide, and then press the Select button. The Stop Recording popup window appears. Move the focus to Stop, and then press the Select button.

To record a program that is on later, move to the program in the Guide, and then press Select. You will get a pop-up menu. Use the up and down directional button to move within this menu. Move to the Schedule Recording, and then press Select. You will hear a message saying the program has been set to record and then you will be returned to the program guide.

The icon is placed visually next to the program title to show it is set to record. To find out if a program is set to record or to cancel a scheduled recording, press select on the program. If it is already set to record, then the option on the menu will be Cancel Scheduled Recording. You can press the Select button to cancel the scheduled recording or just press the Button to go back to the program guide without cancelling the recording.

Using the Instant and Schedule Recording options from the program info window

Recording the program you are watching

To display a menu for recording a program or starting the Timeshift function, press the 123 or button while watching the program. You can select the following functions on the menu:

• Record: Immediately starts to record the program you are watching.
  • Timeshift: Starts the Timeshift function.
• Stop: Stops the recording or the Timeshift function that is running.
• Info: Displays the details about the program you ware watching.

Scheduling viewing from the program info window

Press the Select button while viewing a program to display the program info window. In the program info window, use the left and right directional buttons to select a broadcast scheduled program, and then press the Select button. To schedule a recording for the program, select Schedule Recording.

Changing the recording time

When recording a live program you can specify how long you want to record for.

Press the down directional button to display the control bar at the bottom. Press the left or right directional buttons to move to Edit Recording Time, and then press the Select button. A slider scale appears and you will hear the recording time currently set. Use the left and right directional buttons to change the time, and then press the Select button. You will hear a menu that gives information about the recording time. To return to the program you are watching, press the button on the remote.

The maximum recording time differs depending on the capacity of the USB device.

Viewing recorded programs

> Live TV > Schedule Manager or Recordings > Record

Open Smart Hub by pressing the button on the remote control. Use the left or right directional button to move the focus to Live TV. Press the up directional button to move to the top row, and then use the left or right directional button to move to Guide.

Press the right directional button to move to Recordings, and then press Select. This will open the Recording & Schedule Manager screen.

To play a program, use the up and down directional buttons to move between program titles. Press Select to play the program or press the right directional button to move to a list of options. Use the up and down directional buttons to move between the options in this list. You can play, remove (or delete) the program, or view the program details.

Select the Play option to play the program. The program will start. If you have watched part of this program before, you will get a pop-up menu on screen allowing you to Play (from start), Resume (from where you left off), or Cancel. Use the left and right directional buttons to move to the required option, and then press Select.

This function may not be supported depending on the model or geographical area.

Deleting a recorded program

To delete a recorded program, go to the list of Recordings. Use the up and down directional buttons to move to the recording you want to delete.

Press the right directional button to move to a list of 3 options. Press the down directional button to move to the Delete option, and then press Select.

You will be asked if you want to remove the selected item. Press the left directional button to move to the Delete button, and then press Select to delete the program title. The program will be deleted and you will be returned to the list of Recordings.

Using Smart Hub

Learn how to open Smart Hub to access apps, games, movies, and more.

Smart Hub

After pressing the button on your remote control, you can surf the web and download apps with Smart Hub.

Some Smart Hub services are for pay services.

To use Smart Hub, the TV must be connected to the Internet.

Some Smart Hub features may not be supported depending on the service provider, language, or geographical area.

Smart Hub service outages can be caused by disruptions in your Internet service.

To use Smart Hub, you must agree to the Smart Hub service agreement, and collection and use of personal information. Without giving consent, you cannot use the additional features and services. You can view the entire text of the Terms & Privacy document by navigating to > Settings > Terms & Privacy.

If you want to stop using Smart Hub, you can cancel the agreement. To cancel the Smart Hub service agreement, select Reset Smart Hub (☐ > Settings > Support > Self Diagnosis > Reset Smart Hub).

Press the button on your remote. This will bring up a display with 2 rows. Try moving the focus to Live TV or another item on the bottom row. The options on the top row change depending on the item selected in the bottom row.

The buttons to the right of Live TV provide quick access to apps such as Netflix and Amazon. Currently, many of these apps are not accessible with Voice Guide.

Use the left and right directional buttons to move between a menu or apps on a row and the up and down directional buttons to move between rows. Press Select to access a menu or apps.

When you open Smart Hub, move the focus to Live TV or TV PLUS. Press the up directional button to move to the top row. You will be on the Guide item. The items in this row are:

• Guide: Select to go to the Program Guide where you can view the program schedules for multiple channels.
• Channel List: Select to open the channel list to view and move to programs that are being broadcast on other channels.
• Schedule Manager or Recordings: You can go to the Schedule Manager or Recording & Schedule Manager screen.

This function may not be supported depending on the model or geographical area.

- To the right of Schedule Manager or Recordings, you can see the programs you viewed most recently and the programs that are currently broadcasting on other channels. To go to one of those channels, move to it, and then press the Select button.

Using the Home Screen in Smart Hub

On the leftmost part of the Home Screen in Smart Hub is the static menu listed below. You can quickly and easily use the listed menu items to access the main TV settings or external devices, search, and apps.

- Notification

You can view a list of notifications for all events that occur on your TV. A notification appears on the screen when it is time to broadcast a scheduled program or when an event occurs on a registered device.

If you move the focus to Notification, and then press the Select button, a notification window appears on the right and the following functions are available:

– Delete All: You can delete all your notifications.
Settings: You can select services you want to be notified about. When you select Allow sound, notifications are displayed with a notification sound.

- Settings

When the focus is moved to the ✕ icon, a list of quick settings icons appears above the top of the menu. You can quickly set frequently used functions by clicking the icons.

– Picture Mode

You can select the picture mode that provides the best viewing experience. To change the picture mode, press the Select button. To make fine adjustments, press the up directional button, and then select Picture Setup.

- Sound Mode

You can select a sound mode to optimize your listening experience. To change the sound mode, press the Select button. To make fine adjustments, press the up directional button, and then select Equalizer Setup.

- Sound Output

You can select which speakers the TV uses for audio output. To change the audio output, press the Select button. To connect to a Bluetooth speaker, press the up directional button, and then select ✗Speaker List.

Connecting Bluetooth speaker may not be supported depending on the model or geographical area.

- Game Mode

You can enable game mode to optimize the TV's settings for playing video games with a gaming console, such as a PlayStation™ or Xbox™. To turn Game Mode on or off, press the Select button. To set the detailed options, press the up directional button, and then select Go to Game Mode Settings.

- Audio Language

You can select a audio language.

This function may not be supported depending on the model or geographical area.

- Caption

You can watch TV broadcasts with captions. To activate/deactivate the Caption function, press the Select button. To run Accessibility Shortcuts, press the up directional button, and then select Accessibility Shortcuts.

This function may not be supported depending on the model or geographical area.

- Sleep Timer

You can automatically shut off the TV after a pre-set period of time. To set the sleep time to up to 180 minutes, press the Select button. To make detail off timer, press the up directional button, and then select Set Up Off Timer.

This function may not be supported depending on the model or geographical area.

- Network

You can view the current network and Internet status. Press the up directional button, and then select Network Status or Network Settings.

This function may not be supported depending on the model or geographical area.

- Source

You can select an external device connected to the TV.

For more information, refer to "Switching between external devices connected to the TV."

• Search

A virtual keyboard appears on the screen, and you can search for channels, programs, titles of movies, or apps provided by the Smart Hub service.

To use this feature, the TV must be connected to the Internet.

• APPS

You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.

To use this feature, the TV must be connected to the Internet.

For more information, refer to "Using the APPS Service."

- Ambient Mode

In Ambient Mode, you can view beautiful screens, various visual information, and notifications.

To enter Ambient Mode, press the 📄 button. To return to the TV mode, press the 🔒 button. To shut off the TV, press the 📄 button.

If you press the ☐ button when the TV is turned off, the TV turns on in Ambient Mode.

If you use a remote control other than the Samsung Smart Remote, there may be restrictions to entering Ambient Mode.
Because this function is a QLED TV-specific function, it may not be supported depending on the model.
For more information about the Ambient Mode, refer to "Using the Ambient Mode."

• Universal Guide

Universal Guide is an app that allows you to search for and enjoy various content such as TV shows, dramas, and movies in one place. Universal Guide can recommend content tailored to your preferences and notify you of new drama series.

For more information about the Universal Guide, refer to "Using the Universal Guide App."
Images may look blurry depending on the service provider's circumstances.
This function may not be supported depending on the model or geographical area.

• Art

When you are not watching TV or when the TV is turned off, you can use the Art mode function to edit image content such as artworks or photos or to display the content.

This function is supported only in THE FRAME model.
For more information, refer to the provided user manual.

Launching the e-Manual

Open the user manual embedded in your TV.

Press the E-MANUAL button on the standard remote control to open the menu. Alternatively, press the 📋 button to open Smart Hub, press the left directional button to move to ⚙ Settings, and then press the Select button.

Use the up and down directional buttons to move to Support, and then select Open e-Manual to open the e-Manual.

> Settings > Support > Open e-Manual

You can view the embedded e-Manual containing information about your TV's key features.

Alternatively, you can download a copy of the e-Manual from Samsung's website.
Words in blue (e.g., Picture Mode) indicate a menu item.

The e-Manual contains 2 rows of menu icons. Use the up and down directional buttons to move between rows and the left and right directional buttons to move within a row. Press Select to open the section you want to read.

The e-Manual contains a section called "Learn TV Remote" in "Accessibility Guidance" (at the right corner of the screen). This is particularly useful for people who cannot easily see the buttons on the control or who are not clear what each button does. When you are viewing this section of the e-Manual, pressing the buttons on the remote control will not affect the TV. Note that "Accessibility Guidance" item is only available when Voice Guide (m) > Settings > General > Accessibility > Voice Guide Settings > Voice Guide) is enabled.

Using Bixby

A guide to using Bixby to control your TV.

To use Bixby, your TV must be connected to the Internet and you must use the microphone on your Samsung Smart Remote.

To use Bixby, press and hold the 0 button on the Samsung Smart Remote, say a command into the microphone on the remote, and then release the button to run Bixby.

The existing functional specifications may be changed if Bixby is updated.

Running Bixby

Press and hold the 📁 button on the Samsung Smart Remote. Bixby is activated in the listening mode, the Bixby icon appears at the bottom of the TV screen, and the TV beeps. Say a command, and then release the button. The TV provides feedback on how it understands the command, and then performs the commanded task.

If the TV does not understand the command, try again with more precise pronunciation.
This function may not be supported depending on the model or geographical area.
The supported language may differ depending on the geographical area.
You can find a detailed description of the voice commands at My Bixby. Press the 📷 button. The Explore Now button appears at the bottom of the screen. Press the Select button to go to the My Bixby screen.
