Operating Instructions

GB

⚠️ Before operating the TV, please read the “Safety information” section of this manual.

Retain this manual for future reference.

KLV-52X350A KLV-52X300A

KLV-46X350A KLV-46X300A

KLV-40X350A KLV-40X300A

BRAVIA

Introduction Trademark information

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• Adobe is a registered trademark or a trademark of Adobe Systems Incorporated in the United States and/or other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

ENERGY STAR

The illustrations used in this manual are of the KLV-46X300A unless otherwise stated.

Table of Contents

Start-up Guide 4

Safety information 8

Precautions 10

Overview of the remote 11

Overview of the TV buttons and indicators ....13

Watching TV

Watching TV....14

Using Optional Equipment

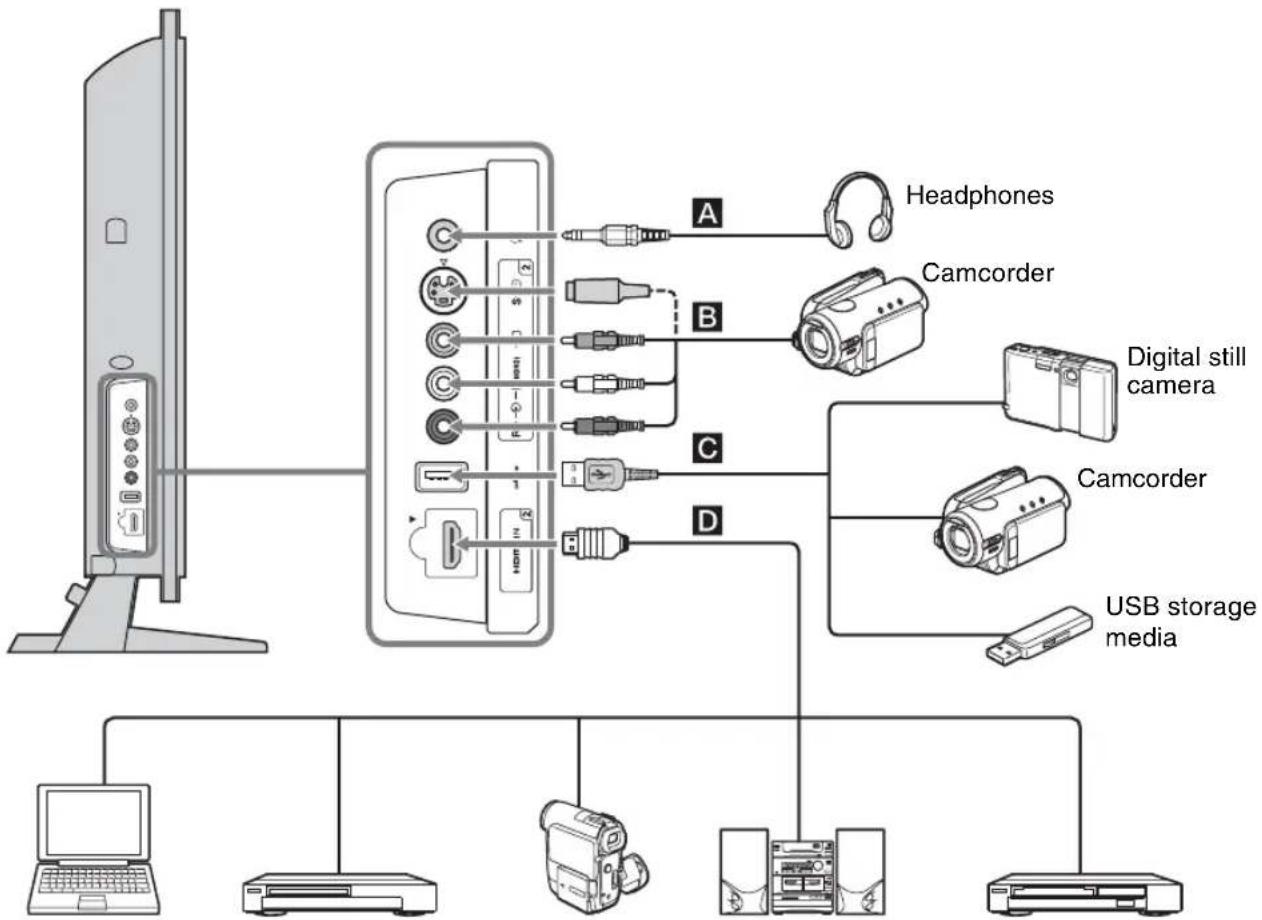

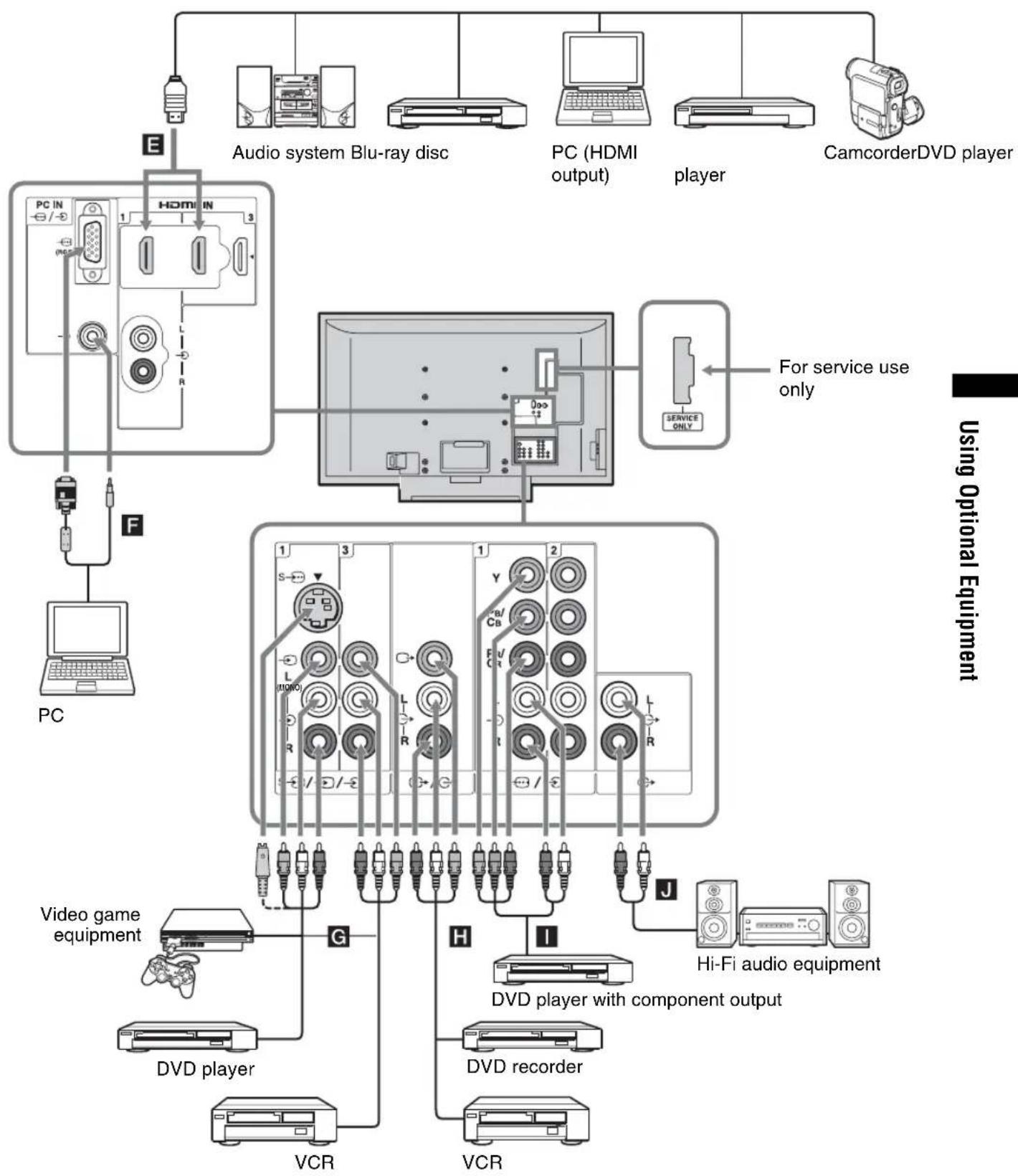

Connecting optional equipment....16

Viewing pictures from the connected equipment 19

Using the remote....21

Using USB photo viewer 24

Using HDMI control....24

Using Menu Functions

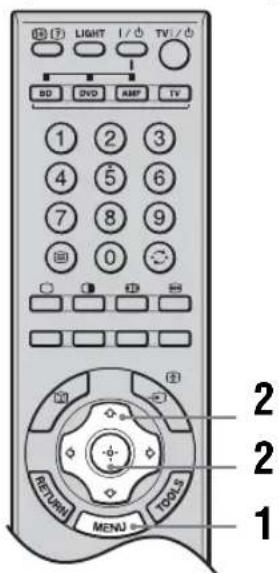

Navigating through menus 25

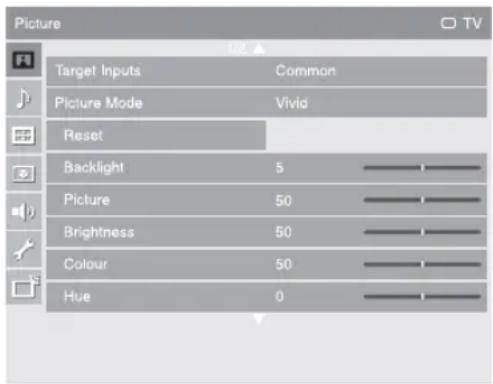

Picture menu....26

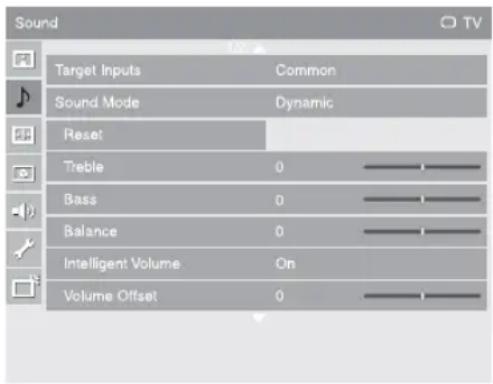

Sound menu....29

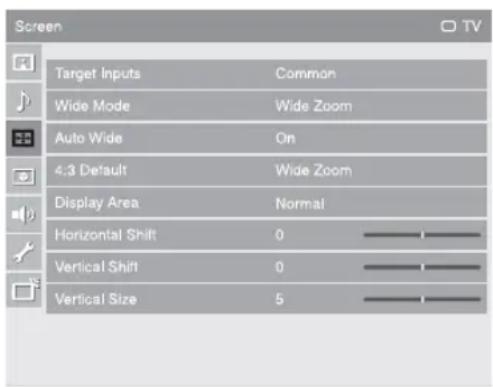

Screen menu (except for PC input)....31

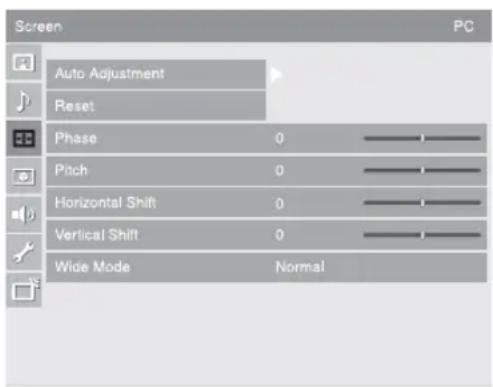

Screen menu (for PC input) 33

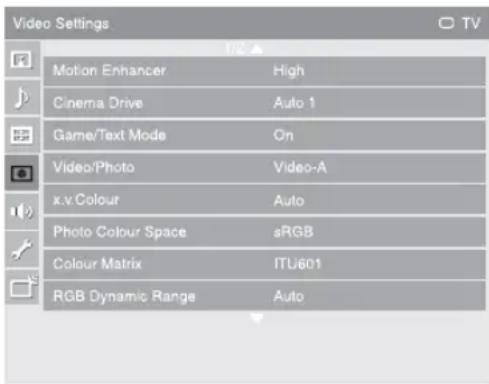

Video Settings menu....34

Audio Settings menu....36

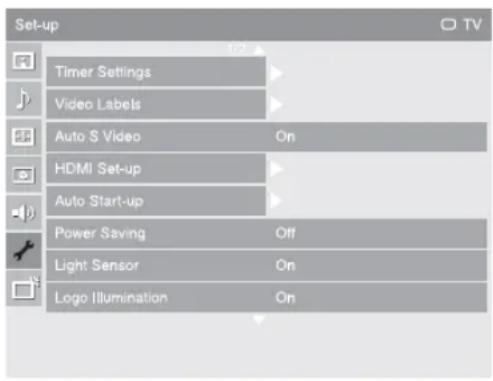

Set-up menu....37

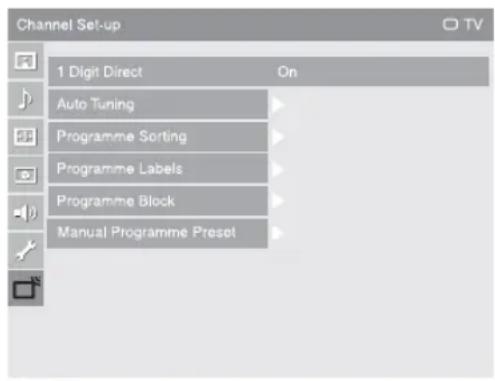

Channel Set-up menu 40

Additional Information

Specifications 43

Cleaning 45

Troubleshooting 45

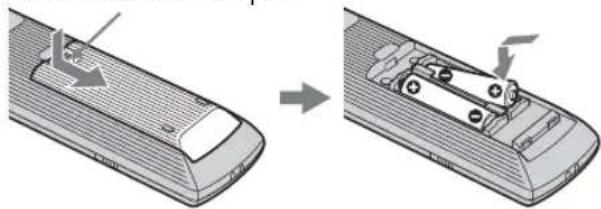

1: Inserting batteries into the remote

Push and slide to open.

Diagram showing a device being processed from a base to a battery pack, with no visible text or symbols.

4

• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.
• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote in a location near a heat source, a place subject to direct sunlight, or a damp room.

To replace the bezel unit (only for KLV-52X300A/46X300A/40X300A)

The bezel unit can be replaced with others that are sold separately. However, do not remove the unit except to replace it. For details, see the instructions supplied with bezel units.

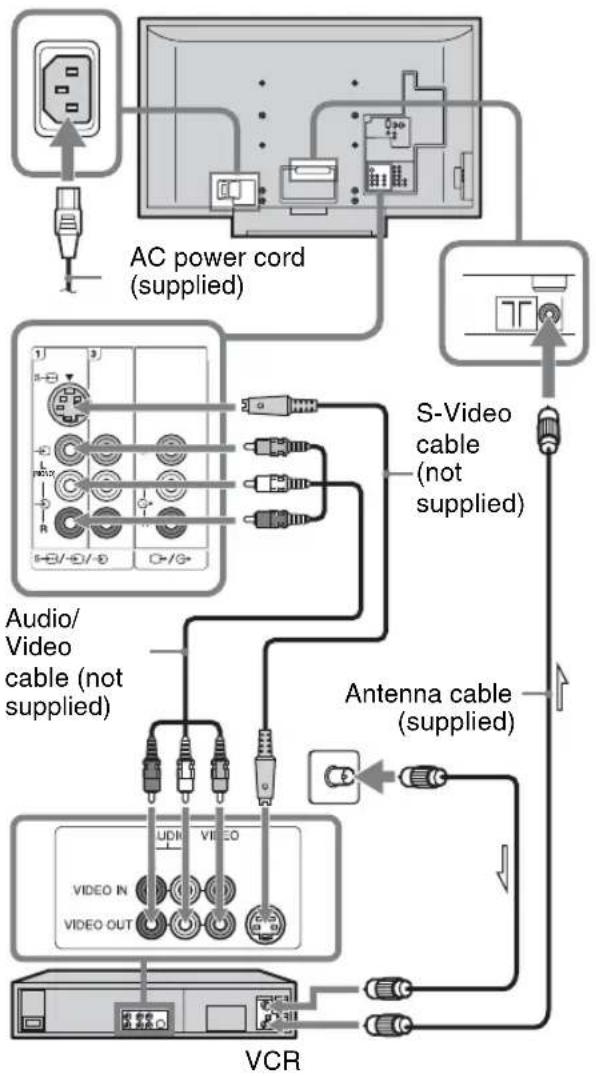

2: Connecting an antenna/cable/VCR

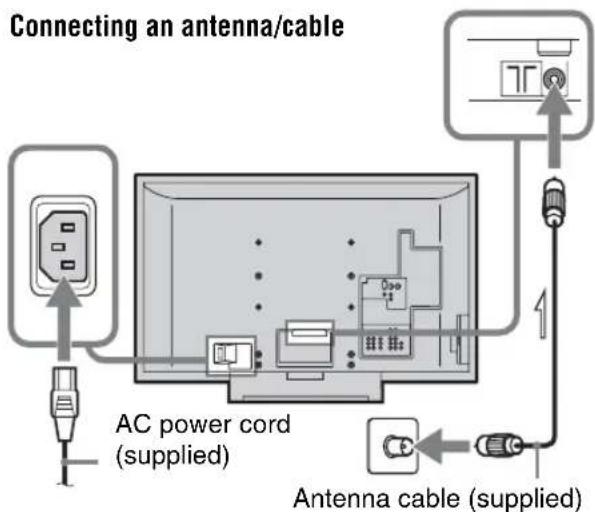

Connecting an antenna/cable

Connecting an antenna/cable AC power cord (supplied) Antenna cable (supplied)

Connecting an antenna/cable and VCR


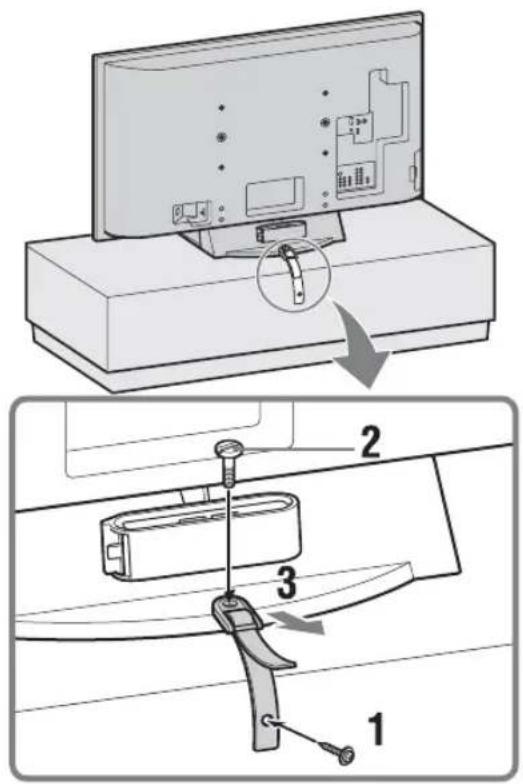

3: Preventing the TV from toppling over

Technical diagram showing a device with labeled parts including a cable, switch, and battery, with numbered annotations.

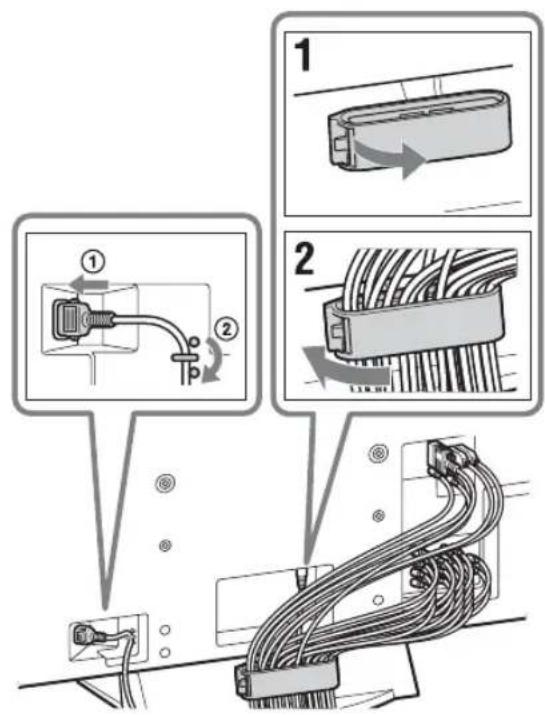

4: Bundling the cables

Diagram showing cable installation steps with labeled components and wiring connections

The hook of the cable holder can be opened from either sides depending on attaching position.

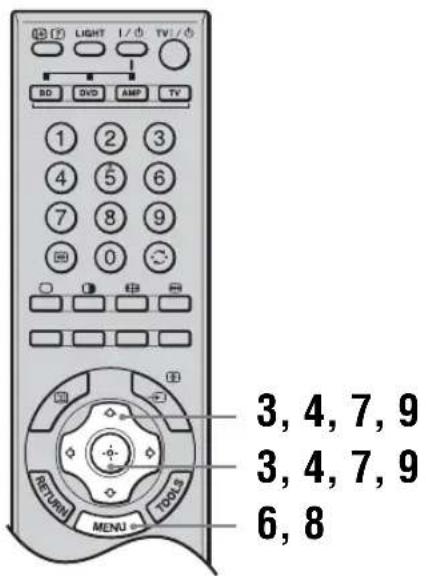

5: Performing the initial set-up

Diagram showing a monitor with a power switch labeled 1 and 2, connected to a cable or cable outlet.

LIGHT TV DO DVD AMP TV 1 2 3 4 5 6 7 8 9 0 RETURN MENU TOOLS 3, 4, 7, 9 3, 4, 7, 9 6, 8

Selecting the language

1 Connect the TV to your AC power outlet (110–240 V AC, 50/60 Hz).
2 Press ⏻ on the right side of the TV. When you turn on the TV for the first time, the Language menu appears on the screen.
3 Press / to select the language displayed on the menu screens, then press ⊕.

Language Select language English 中文 ภาษาไทย عربي فارسii

Auto tuning the TV

4 Press ⇔/→ to select "OK", then press ⊕.

Auto Tuning Do you want to start Auto Tuning? OK Cancel

The TV starts searching for all available channels. This may take some time, so do not press any buttons on the TV or remote while proceeding.

If a message appears for you to confirm the antenna connection

No channels were found. Check all the antenna connection and press ⇔/⇔ to select "Yes", then press ⏻to start auto tuning again.

5 When the Programme Sorting menu appears on the screen, follow the steps of "Programme Sorting" on page 40. If you do not wish to change the order in which the channels are stored on the TV, go to step 6.
6 Press MENU to display the Clock Set menu.
7 Press ⬆/⇨/⇨/⇨ to set the day and time (hour and minute), then press ⊕
8 Press MENU to exit. The TV has now tuned in all the available channels.
9 Press ⇔/⇒ to select the desired setting in "Display this menu next time?" dialogue, then press ⏻to exit.

If "Yes" is selected and the TV is turned off by pressing ⏻ on the TV, or is disconnected from the AC power outlet, the auto startup procedure restarts the next time the TV is turned on.

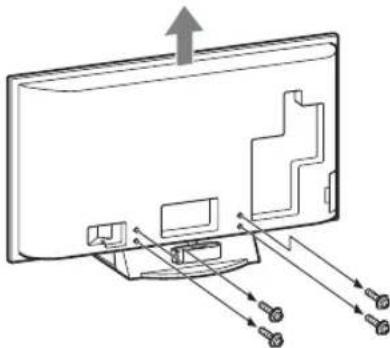

Detaching the Table- Top Stand from the TV

Do not remove the Table-Top Stand for any reason other than to wall-mount the TV or to attach the optional TV Stand.

Diagram of a monitor with cable connectors and an upward arrow indicating motion (no text or symbols)

Safety information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible AC power outlet.
• Place the TV set on a stable, level surface.
• Only qualified service personnel should carry out wall installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:
• Wall-mount bracket SU-WL500

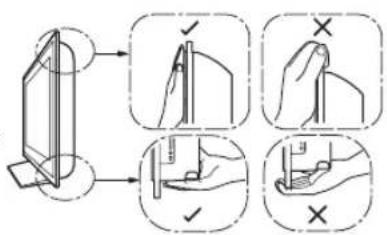

Transporting

KLV-46X350A/46X300A/40X350A/40X300A

• Before transporting the TV set, disconnect all cables.
- Two or three people are needed to transport a large TV set.
- When transporting the TV set by hand, hold it as shown on the right. Do not put stress on the LCD panel and frame around the screen.
- When lifting or moving the TV set, hold it firmly from the bottom.
- When transporting the TV set, do not subject it to jolts or excessive vibration.
- When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

KLV-52X350A/52X300A

Illustration of a hand placing a box into a container with a tray, no text or symbols present

Diagram illustrating hand gesture application with check and cross icons for correct and incorrect states

Ventilation

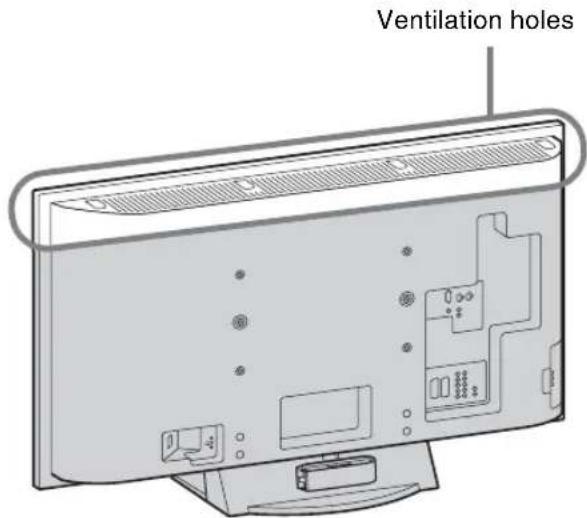

• Never cover the ventilation holes or insert anything in the cabinet.

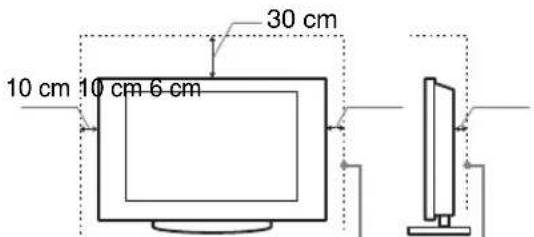

• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony wall-mount bracket in order to provide adequate air-circulation.

Installed on the wall

30 cm 10 cm 10 cm 10 cm

Leave at least this space around the set.

Installed with stand

30 cm 10 cm 10 cm 6 cm

Leave at least this space around the set.

• To ensure proper ventilation and prevent the collection of dirt or dust:

• Do not lay the TV set flat, install upside down, backwards, or sideways.
• Do not place the TV set on a shelf, rug, bed or in a closet.
• Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.

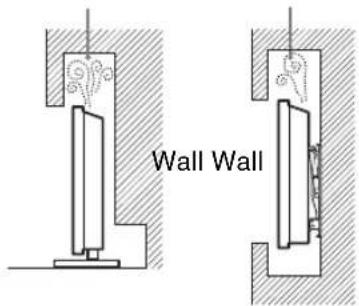

• Do not install the TV set as shown below.

Air circulation is blocked.

Wall Wall

AC power cord

Handle the AC power cord and outlet as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

• The shape of AC power plug, which is supplied with the TV set, varies depending on the regions. Be sure to connect the appropriate supplied AC power cord with the plug that fits into the AC power outlet.
• Connect the TV set using a three-wire grounding type AC power plug to a AC power outlet with a protective earthing connection.
• Use only Sony supplied AC power cords, not those of other brands.
• Insert the plug fully into the AC power outlet.
• Operate the TV set on a 110–240 V AC supply only.
• When wiring cables, be sure to unplug the AC power cord for your safety and take care not to catch your feet on the cables.
• Disconnect the AC power cord from the AC power outlet before working on or moving the TV set.
• Keep the AC power cord away from heat sources.
• Unplug the AC power plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Notes

• Do not use the supplied AC power cord on any other equipment.
• Do not pinch, bend, or twist the AC power cord excessively. The core conductors may be exposed or broken.
• Do not modify the AC power cord.
• Do not put anything heavy on the AC power cord.
• Do not pull on the AC power cord itself when disconnecting the AC power cord.
• Do not connect too many appliances to the same AC power outlet.
• Do not use a poor fitting AC power outlet.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location:

Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

Environment:

Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situation:

Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from AC power outlet and antenna during lightning storms.

Broken pieces:

• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.
• If the surface of the TV set cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result.

When not in use

• If you will not be using the TV set for several days, the TV set should be disconnected from the AC power for environmental and safety reasons.
• As the TV set is not disconnected from the AC power when the TV set is just turned off, pull the plug from the AC power outlet to disconnect the TV set completely.
• However, some TV sets may have features that require the TV set to be left in standby to work correctly. The instructions in this manual will inform you if this applies.

For children

• Do not allow children to climb on the TV set.
• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur...

Turn off the TV set and unplug the AC power cord immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel.

When:

• AC power cord is damaged.
  – Poor fitting of AC power outlet.
• TV set is damaged by being dropped, hit or having something thrown at it.
  – Any liquid or solid object falls through openings in the cabinet.

Precautions

Viewing the TV

• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD screen contains a small amount of liquid crystal and mercury. The fluorescent tubes used in this TV set also contain mercury. Follow your local ordinances and regulations for disposal.

Handling and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the AC power cord connected to the TV set from AC power outlet before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

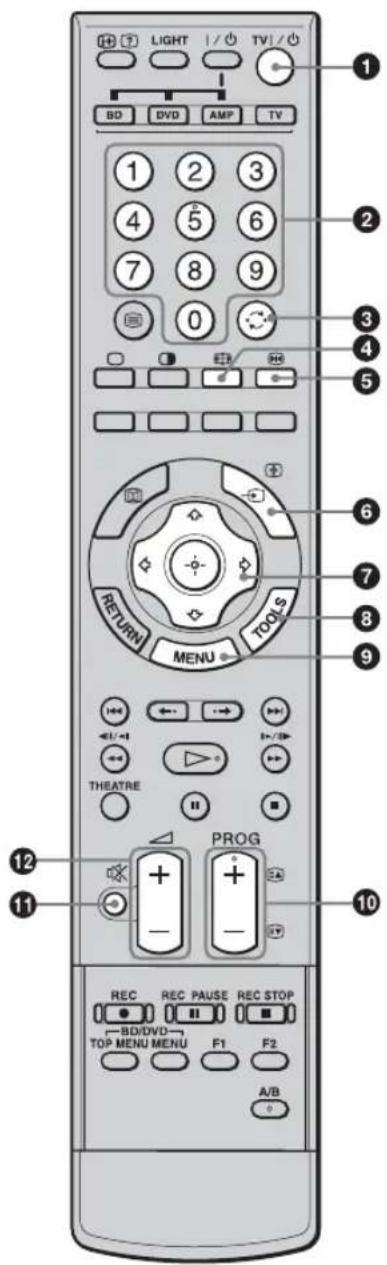

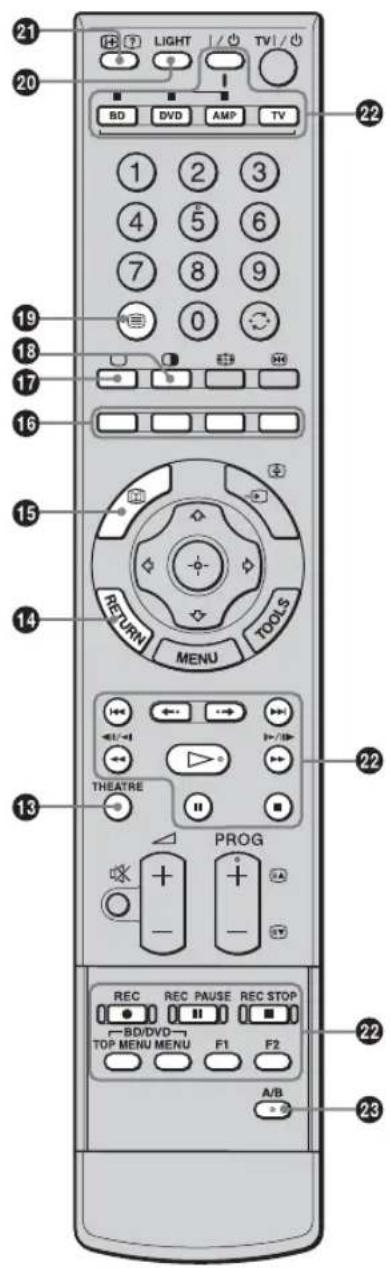

Overview of the remote

LIGHT TV BD DVD AMP TV 1 2 3 4 5 6 7 8 9 0 RETURN MENU TOOLS THEATRE PROG REC REC PAUSE REC STOP BD/DVD TOP MENU MENU F1 F2 A/B

① TV I/⏻ — TV standby

Turns the TV on and off from standby mode.

②Number buttons

• In TV mode: Selects channels. For channel numbers 10 and above, enter the second digit quickly.
• In Text mode: Enters the page number to select the page.

③ Previous channel

Returns to the previous channel watched (for more than five seconds).

④ Wide Mode (page 15)

⑤ Picture freeze (page 14)

Freezes the TV picture.

6/→Input select / Text hold

• In TV mode (page 19): Displays the connected equipment list and selects the input source.
• In Text mode (page 14): Holds the current page.

⑦ ↗/↓/↔/→/⊕ (page 25)

⑧TOOLS (page 15, 19)

Enables you to access various viewing options and change/make adjustments according to the source and Wide Mode.

⑨MENU (page 25)

⑩PROG +/- / [EA] [EV]

• In TV mode (page 14): Selects the next (+) or previous (−) channel.
• In Text mode (page 14): Selects the next () or previous () page.

110× — Mute (page 14, 19)

⑫ △ +/- — Volume (page 19)

The number 5, ▷, PROG + and A/B buttons have tactile dots. Use the tactile dots as references when operating the TV.

Continued

Diagram of a remote control with labeled buttons and function keys for TV, audio, and home control.

13 THEATRE

You can set Theatre Mode on or off. When Theatre Mode is set to on, the optimum audio output (if the TV is connected with an audio system using an HDMI cable) and picture quality for film-based contents are automatically set.

If you turn the TV off, Theatre Mode is also turned off.

14RETURN

Returns to the previous screen of any displayed menu.

15

This button does not work with this model.

⑯ Coloured buttons (page 14)

⑰ TV mode (page 19)

Exit Text mode, or return to TV mode.

18 Twin Picture (page 20)/PIP (page 20) (for PC input)

Displays two pictures simultaneously.

19—Text (page 14)

20 LIGHT

Illuminates the buttons on the remote so that you can see them easily even if the room is dark.

21/ Info / Text reveal

• In TV mode: Displays information such as current channel number and Wide Mode.
• In Text mode (page 14): Reveals hidden information (e.g. answers to a quiz).

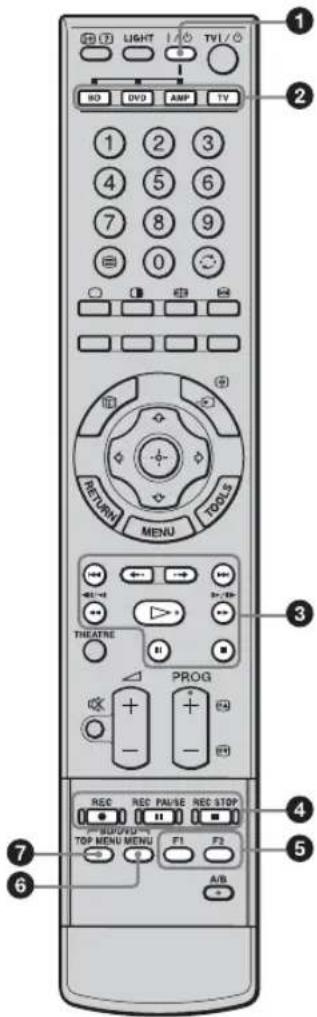

22 Buttons for using optional equipment

See page 21.

23A/B — Dual Sound (page 30)

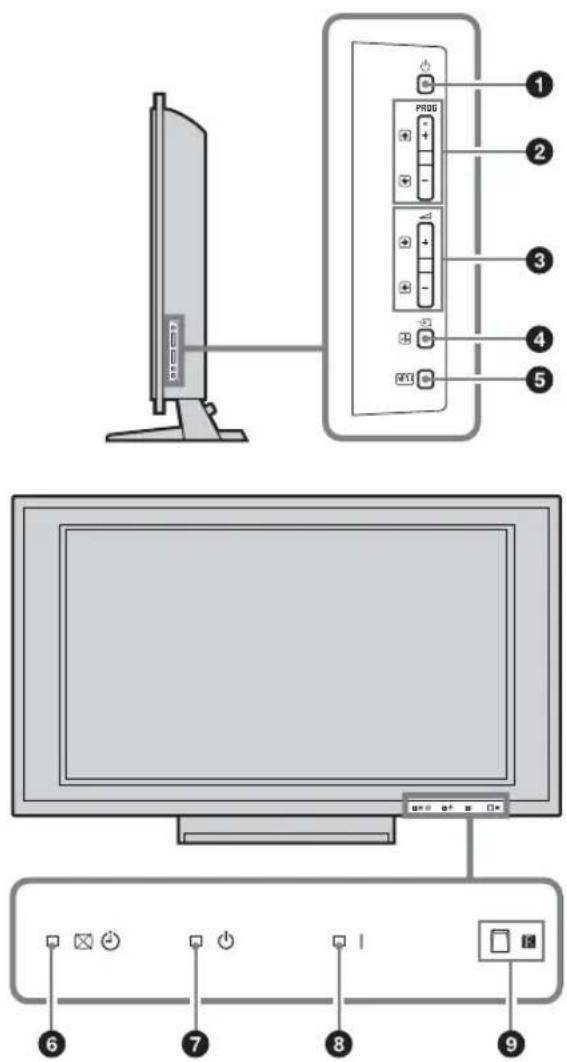

Overview of the TV buttons and indicators

Diagram showing a monitor setup with labeled components including a screen, control panel, and display indicators.

① ⏻ — Power

Turns the TV on or off.

4

To disconnect the TV from the AC power completely, pull the plug from the AC power outlet.

②PROG +/- /↑ ↓

• In TV mode: Selects the next (+) or previous (−) channel.
• In TV menu: Moves through the options up ( ) or down ( )

③ ∠ + / - / / → ←

• In TV mode: Increases (+) or decreases (−) the volume.
• In TV menu: Moves through the options right (→ or left (→)

4/ Input select / OK

• In TV mode (page 19): Displays the connected equipment list and selects the input source.
• In TV menu: Selects the menu or option, and confirms the setting.

⑤ (page 25)

6 Picture Off / Timer indicator

• Lights up in green when the picture is switched off (page 38).
• Lights up in orange when the timer is set (page 37).

⑦ ⏻ — Standby indicator

Lights up in red when the TV is in standby mode.

⑧I — Power indicator

• Lights up in green when the TV is turned on.
- Flashes while the remote is being operated.

9 Remote control sensor / Light sensor (page 39)

• Receives IR signals from the remote.
• Do not put anything over the sensor, as its function may be affected.

_23

Make sure that the TV is completely turned off before unplugging the AC power cord. Unplugging the AC power cord while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.

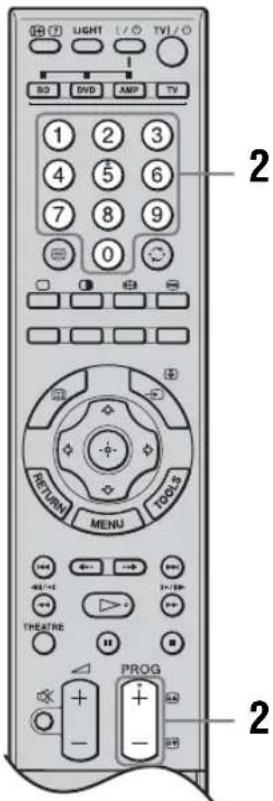

Watching TV

Watching TV

Diagram showing a monitor connected to a power button labeled '1', with a switch symbol indicating current direction.

1 2 3 4 5 6 7 8 9 0 RETURN MENU TOOLS THEATNE PROG 2

1 Press ⏻ on the right side of the TV to turn on the TV.

When the TV is in standby mode (the ⏻ (standby) indicator on the TV front panel is red), press TV ⚠/⏻ on the remote to turn on the TV.

2 Press the number buttons or PROG +/- to select a TV channel.

To select channel numbers 10 and above using the number buttons, enter the second digits quickly.

Additional operations

To Press
Freeze the picture (Picture freeze)	Press again to return to normal TV mode.This function is not available for a PC input source.
Mute the sound ☐X.	Press again to restore.
Turn on the TV without sound from standby mode	☐X.

To access Text

Press ☐. Each time you press ☐, the display changes cyclically as follows:

Text and TV picture → Text → No Text (exit the Text service)

To select a page, press the number buttons or 📄 To hold a page, press → 🌐

To reveal hidden information, press ④ To jump a page, press ⑤ and ⑥/▽, then press (for three digit pages).

4

Text Language displays can be either English, Persian or French depending on your broadcast signal.

When four coloured items appear at the bottom of the Text page, Fastext is available. Fastext allows you to access pages quickly and easily. Press the corresponding coloured button to access the page.

To change the Wide Mode manually

Press repeatedly to select the desired Wide mode.

Wide Zoom*

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

Enlarges the centre portion of the picture. The left and right edges of the picture are stretched to fill the 16:9 screen.

Normal

Geometric diagram with a central circle surrounded by five smaller circles, no text or symbols present.

Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen.

Full

Simple diagram with five white oval shapes arranged around a central white oval, enclosed in a gray rectangle (no text or symbols)

Stretches the 4:3 picture horizontally, to fill the 16:9 screen.

Zoom*

Geometric diagram with a central circle surrounded by smaller semicircles and rectangles (no text or symbols)

Displays cinemascopic (letter box format) broadcasts in the correct proportions.

* Parts of the top and bottom of the picture may be cut off.

[NO TEXT]

Some characters and/or letters at the top and the bottom of the picture may not be visible in "Wide Zoom". In such a case, you can select "Vertical Size" using the "Screen" menu and adjust vertical size to make it visible.

• When “Auto Wide” is set to “On”, the TV will automatically select the best mode to suit the input from an external equipment (page 31).
• You can adjust the position of the picture when selecting "Wide Zoom" or "Zoom". Press / to move up or down (e.g. to read subtitles).
• Select "Wide Zoom" or "Zoom" to adjust for 720p, 1080i or 1080p source pictures with edge portions cut off.
• “Full 1”, “Full 2” and “Normal” are available for “Wide Mode” when PC input is selected (page 33).

Using the Tools menu

Press TOOLS to display the following options when viewing a TV programme.

Options Description

Close Closes the Tools menu.

Picture Mode See page 26.

Sound Mode See page 29.

Motion Enhancer See page 34.

Speaker See page 36.

Twin Picture See page 20.

Volume See page 36.

Sleep Timer See page 37.

Power Saving

See page 38.

Using Optional Equipment

Connecting optional equipment

You can connect a wide range of optional equipment to your TV.

PC (HDMI output) Blu-ray disc player Camcorder Audio system DVD player

Continued

Connect to Input symbol on screen		Description
A Ω		You can listen to sound from the TV on headphones.
B 2 or 2, and 2	s-Video 2 or Video 2	To avoid picture noise, do not connect the camcorder to the video jack and the S video 2 jack at the same time. If you connect mono equipment, connect to the 2D jack.
C ψ (USB)		You can view photographs on the Sony digital still camera, camcorder or USB storage media connected to the TV . For details, see page 24.
D HDMI IN 2 HDMI IN 1 or 3	HDMI 2 HDMI 1 or HDMI 3	The digital video and audio signals are input from the equipment.In addition, when HDMI control compatible equipment is connected, communication with the connected equipment is supported. Refer to page 38 to set up this communication. If the equipment has a DVI jack, connect the DVI jack to the HDMI IN 1 jack through a DVI - HDMI adaptor interface (not supplied), and connect the equipment's audio out jacks to the audio in jacks in the HDMI IN 1 jacks.The HDMI jacks only support the following video inputs: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 1080/24p. For PC video inputs, see page 44.Be sure to use only an HDMI cable that bears the HDMI logo.When connecting an HDMI control compatible audio system, be sure to also connect to the audio output jack
F PC IN (RGB)/ PC It is recommended to use the supplied PC cable with ferrite cores.
G s-or 1 or 3 and 1 or 3	s-Video 1 or Video 1 or Video 3	To avoid picture noise, do not connect the camcorder to the video jack and the S video jack at the same time. If you connect mono equipment, connect to the L(MONO) jack 1 or 3.
H G-/G-		Use to record the analogue video and sound from the TV to a DVD recorder or VCR. To turn off the sound of the TV speakers, set “Speaker” to “Audio System” (page 36). If you connect mono equipment, connect to the L jackThe monitor output jacks cannot support HD/DVD, HDMI and PC signals source pictures, also digital audio signal for sound.
I -/-1 or 2	HD/DVD 1 or HD/DVD 2	For better picture quality, component connection is recommended if your DVD player has a component video output.
J G-		You can listen to the sound from the TV on Hi-Fi audio equipment.

Viewing pictures from the connected equipment

Turn on the connected equipment, then press ✅ to display the connected equipment list. Press ⬇/▽ to select the desired input source, then press ⊕(The highlighted item is selected if 2 seconds pass without any operation after pressing ⬇/▽.)

When the input source is set to "Skip" in the "Video Labels" menu under the "Set-up" menu (page 37), that input does not appear in the list.

Additional operations

To Do this
Return to normal TV mode	Press .
Change the volume of the connected HDMI control compatible audio system	Press +/-.
Mute the sound of the connected HDMI control compatible audio system	Press .Press again to restore.

Using the Tools menu

Press TOOLS to display the following options when viewing pictures from connected equipment.

Options Description
Close Closes the Tools menu.
Picture Mode See page 26.
Sound Mode See page 29.
Motion Enhancer See page 34.
Speaker See page 36.
Twin Picture (except PC input mode)	See page 20.
PIP (in PC input mode only)	See page 20.
Auto Adjustment (in PC input mode only)	See page 33.
Horizontal Shift (in PC input mode only)	See page 33.
Volume	See page 36.
Sleep Timer (except PC input mode)	See page 37.
Power Saving	See page 38.

Continued

To view two pictures simultaneously – Twin Picture

You can view two pictures (external input and TV programme or two TV programmes) on the screen simultaneously.

To view external input, connect an optional equipment (page 16), and make sure that images from the equipment appear on the screen (page 19).

4

- This function is not available for a PC input source.

- You cannot change the size of the pictures.

- Pictures input through the HDMI and component jacks are not displayed on the right.

1 Press

Two pictures are displayed simultaneously. The picture from connected equipment is displayed on the left and the TV programme is displayed on the right. Or, the last channel is displayed on both sides.

2 Press ⇔/⇒ to select active picture.

3 Press number buttons or PROG +/- to select the TV channel.

To return to single picture mode

Press ⊕ or RETURN.

[Symbol]

- The picture framed in green is audible. You can switch the audible picture by pressing / .

- You can also use the Twin Picture feature by selecting "Twin Picture" from the Tools menu.

To view two pictures simultaneously – PIP (Picture in Picture)

You can view two pictures (PC input and TV programme) on the screen simultaneously.

To view a PC input source, connect a PC (page 16), and make sure that images from the PC appear on the screen.

1 Press

Two pictures are displayed simultaneously. The picture from the connected PC is displayed with full size and the TV programme is displayed on the right corner. You can use // to move the TV programme screen position.

2 Press number buttons or PROG +/- to select the TV channel.

To return to single picture mode

Press RETURN.

C

- You can switch the audible picture by selecting “TV Sound / PC Sound” from the Tools menu.

- You can also use the PIP feature by selecting "PIP" from the Tools menu.

Using the remote

Buttons for using optional equipment

1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 10 RETURN MENU TOOLS 21 31 THEATRE PROG REC REC PAUSE REC STOP BUD/VD TOP MENU MENU F1 F2 A/B 7 6

①1/
Turns on or off the optional equipment selected from the function buttons.
②Function buttons
Enables you to operate the corresponding equipment. For details, see "Programming the remote" on page 22.

③BD/DVD operating buttons

• ◀◀◀ : Replays the current programme from the previous chapter mark (if any).
• ▶▶▶ : Advances forward to the next chapter mark (if any).
• :Replays the current programme for a set period of time.
  • Advances forward a set period of time.
  • ◀◀ : Plays a programme in fast reverse mode.
• ▶▶: Plays a programme in fast forward mode.
  • ▷ : Plays a programme at a normal speed.
  • II : Pauses playback.
  • ■ : Stops the playback.

④ DVD record buttons

• REC: Starts recording.
- REC PAUSE: Pauses the recording.
- ■ REC STOP: Stops the recording.

5F1/F2

• Selects a disc when using a DVD changer.
• Selects a function when using a combination unit (e.g. a BD/DVD).
  For details, see the operating instructions supplied with the DVD changer or combination unit.

⑥BD/DVD MENU

Displays the DVD disc menu. For details, see the operating instructions supplied with the connected equipment.

⑦BD/DVD TOP MENU

Displays the top menu of the DVD disc. For details, see the operating instructions supplied with the connected equipment.

The ▷ button has a tactile dot. Use the tactile dot as a reference when operating other equipment.

Continued

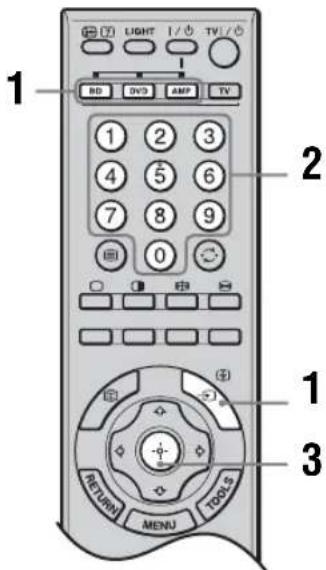

Programming the remote

This remote is preset to operate Sony TVs, most Sony BDs, DVDs and AMPs (Home Theatre, etc.). To control BDs and DVDs of other manufacturers (and some other Sony BD, DVD and AMP models), do the following procedure to programme the remote.

_10

Before you start, look up the three-digit code for your brand of BD, DVD or AMP from the “Manufacturer’s codes” on page 22.

1 2 3 RETURN MENU 0 1 2 3 4 5 6 7 8 9 DVD AMP TV LIGHT TV/1/2

1 Press and hold the BD, DVD or AMP function button you want to programme on the remote, then press ⚡, keeping the function button pressed down.

The selected function button (BD, DVD or AMP) will flash.

2 Press the number buttons to enter the three-digit manufacturer's code number when the button flashes.

If code is not entered within 10 seconds, you must perform the step 1 again.

3 Press ⊕

When the programming is correct, the selected function button will flash twice, and when not, it will flash five times.

4 Turn on your equipment and check that the following main functions work.

▷ ( playback), ■ (stop), ◀◀ (rewind), ▶▶ (fast forward), channel selection for both BDs and DVDs, TOP MENU/MENU and ◊/▽/◇/⇒ only for DVDs.

If your equipment is not working, or some of the functions do not work

Enter the correct code or try the next code listed for the brand. However, not all models of every brand may be covered.

To return to normal TV operation

Press the TV function button.

Manufacturer's codes

DVD brand list

DVD Player

Brand Code

SONY 001, 029, 030, 036-044, 053-055

AIWA 021

AKAI 032

DENON 018, 027, 020, 002

GRUNDIG 009, 028, 023, 024, 016, 003

HITACHI 025, 026, 015, 004, 035

JVC 006, 017

KENWOOD 008

LG	015, 014, 034

LOEWE 009, 028, 023, 024, 016, 003

MATSUI

013, 016

ONKYO

022,033

PANASONIC

018, 027, 020, 002, 045 - 047

PHILIPS

009, 028, 023, 024, 016, 003, 031

PIONEER

004, 050, 051, 052

SAMSUNG

011,014

SANYO

007

SHARP

019, 027

THOMSON

012

TOSHIBA

003, 048, 049

YAMAHA

018, 027, 020, 002

BD (Blu-ray Disc) Player

Brand Code

SONY 101 - 103

DVD/VCR Player

Brand Code

SONY 251

DVD recorder

Brand Code

SONY 201 - 203

VCR brand list
Brand Code

SONY 301-310,362

AIWA 325, 331, 351

AKAI 326, 329, 330

DAEWOO 342, 343

GRUNDIG 358, 355, 360, 361, 320, 351, 366

HITACHI 327, 333, 334

JVC 314, 315, 322, 344, 352–354, 348, 349

LG 332, 338

LOEWE 358, 355, 360, 361, 320, 351

MATSUI 356, 357

ORION 328

PANASONIC

321, 323

PHILIPS

311-313, 316-318, 358, 359, 363, 364

SAMSUNG 339-341,345

SANYO 335,336

SHARP 324

THOMSON 319, 350, 365

TOSHIBA 337

AUX Sony systems brand list
DAV Home Theatre System

Brand Code
SONY (DAV)	401 – 404

AV receiver

Brand Code

SONY

451 – 454

Digital terrestrial receiver

Brand Code

SONY

501 - 503

Using USB photo viewer

You can view photographs (in JPEG format) stored in a Sony digital still camera, camcorder or USB storage media on your TV.

1 Connect a supported USB device to the TV.
2 Press MENU.
3 Press ↩/▽ to select "Photo", then press ⊕. The thumbnail screen appears.
4 Press ↩/▽/◀/⇨ to select the photograph or folder you want to view, and then press ⊕ If you want to view a slide show, press ◁/▽ to select “Slide Show”, then press ⊕

Advanced operations

Press ⇔/▽ to select an option, then press ⊕.

Options Description

Device Selection Select the device if multiple devices are connected.

Picture Settings You can make “Backlight” (page 26), “Picture” (page 26) and “Colour Temperature” settings.

Set-up You can make advanced settings for the slide show and set the display sequence for the thumbnails.

6

• USB photo viewer only supports DCF-compliant JPEG photographs.
• Set the camera's USB connection mode to Auto or “Mass Storage” mode when you are connecting Sony digital still camera. For more information about USB connection mode, see the instructions supplied with the device that you use.
• Do not turn off the TV or connected USB device, or disconnect the USB cable or remove the recording media while the data on the recording media is being accessed. The data on the recording media may be damaged.
• Using unsupported USB device is not guaranteed and may cause malfunctions.
• Sony cannot be held liable for any damage to or loss of data on the recording media due to a malfunction of any connected devices or the TV.
• Check the website below for the up to date information about compatible USB devices. http://www.sony-asia.com/bravia/flash.html

Using HDMI control

The HDMI control function allows equipment to control each other using HDMI CEC (Consumer Electronics Control) specified by HDMI.

You can connect Sony HDMI control compatible equipment such as TVs, hard disk DVD recorders and audio systems (with HDMI cables) to let them work integratedly.

Be sure to correctly connect and set the compatible equipment to use the HDMI control function.

To connect the HDMI control compatible equipment

Connect the compatible equipment and the TV with an HDMI cable. When connecting an audio system, in addition to the HDMI cable, be sure to also connect to the audio output jacks to listen to the sound from the TV on audio system. For details, see page 16.

To make the HDMI control settings

HDMI control must be set on both the TV side and the connected equipment side. See “HDMI Set-up” on page 38 for the TV side settings. See the operating instructions of the connected equipment for setting details.

HDMI control functions

• Turns the connected equipment automatically off when you turn the TV off.
• Turns the TV on and automatically switches the input to the connected equipment when the equipment starts to play.
• If you turn on a connected audio system while the TV is on, the sound output switches from the TV speaker to the audio system.
• Adjusts the volume and mutes the sound of a connected audio system.

Using Menu Functions

Navigating through menus

Menu functions allow you to enjoy various convenient features of this TV. You can easily select channels or inputs sources and change the settings for your TV.

LIGHT TV BD DVD AMF TV 1 2 3 4 5 6 7 8 9 0 RETURN MENU TOOLS 1 2 2 1

1 Press MENU.
2 Press ↩/▽ to select an option, then press ⊕.

To exit the menu, press MENU.

MENU 1 Programme List 2 External Inputs 3 Photo 4 Settings Show available TV programmes

①Programme List

Displays available TV channels.

• To watch the desired channel, select the channel, then press ⊕
- To assign a label to a channel, select "Edit Programme Labels", then see page 40.

②External Inputs

Selects equipment connected to your TV.
- To watch the desired external input, select the input source, then press ⊕
- To assign a label to an external input, select "Edit Video Labels" (page 37).
- To select the connected HDMI control compatible equipment, select "HDMI Device Selection".

③Photo

The thumbnail screen appears (page 24).

④ Settings

Displays the “Settings” menu where most of the advanced settings and adjustments are performed.

1 Press ↩/▽ to select a menu icon, then press ⊕.
2 Press ↩/↙/↙/→ to select an option or adjust a setting, then press ⊕

For details about settings, see pages 26 to 42.

The options you can adjust vary depending on the situation. Unavailable options are greyed out or not displayed.

Picture menu

Picture Target Inputs Common Picture Mode Vivid Reset Backlight 5 Picture 50 Brightness 50 Colour 50 Hue 0

You can select the options listed below on the “Picture” menu. To select options in “Settings”, refer to “Navigating through menus” (page 25).

Target Inputs	For the input currently being viewed, select whether to use the common setting or to set each item separately.“Common”: Applies common settings whose adjustments are shared with other inputs in which “Target Inputs” is set to “Common”.Current input name (e.g. Video 1): Allows you to set each option separately for the current input.ⓆSet each input to “Common” if you require the same settings to apply to each input.
Picture Mode	Selects the picture mode. The options for “Picture Mode” may differ depending on the “Video/Photo” setting (page 34).“Vivid”: For enhanced picture contrast and sharpness.“Standard”: For standard picture. Recommended for home entertainment.“Cinema”: For viewing film-based contents. Most suitable for viewing in a theatre-like environment.“Photo”: Sets the optimum picture quality for photographs.“Custom”: Allows you to store your preferred settings.
Reset	Resets all the “Picture” settings except “Target Inputs”, “Picture Mode” and “Advanced Settings” to the factory settings.
Backlight	Adjusts the brightness of the backlight.
Picture	Increases or decreases picture contrast.
Brightness	Brightens or darkens the picture.
Colour	Increases or decreases colour intensity.
Hue	Increases or decreases the green tones and red tones.​“Hue” can only be adjusted for an NTSC colour system (e.g. U.S.A. video tapes).
Colour Temperature	Selects the picture whiteness option.“Cool”: Gives the white colours a blue tint.“Neutral”: Gives the white colours a neutral tint.“Warm 1”/“Warm 2”: Gives the white colours a red tint. “Warm 2” gives a redder tint than “Warm 1”.​“Warm 1” and “Warm 2” are not available when “Picture Mode” is set to “Vivid”.
Sharpness	Sharpens or softens the picture.
Noise Reduction	Reduces the picture noise (snowy picture) in a weak broadcast signal.“Auto”: Automatically reduces the picture noise (in TV broadcast and Video 1/2/3 composite and S video input signals only).“High”/“Medium”/“Low”: Modifies the effect of the noise reduction.“Off”: Turns off the “Noise Reduction” feature.
MPEG Noise Reduction	Reduces the picture noise in MPEG-compressed video.
DRC Mode	Produces a high-resolution picture for high-density sources (e.g., Blu-ray disc player, DVD player).“Mode 1”: Recommended mode.“Mode 2”: Only available for 1080i format. “Mode 2” is especially effective when original standard-definition signals have been up-converted to 1080i format.“Off”: Turns off the “DRC Mode”.

Continued

DRC Palette

Customizes the level of detail (“Reality”) and smoothness (“Clarity”) for each input signal. For example, you can create a custom setting for your cable input’s picture, and create another for your DVD player’s pictures.The “DRC Palette” appears. Press ⇌/ ⇌/ ⇌/ ⇌ to adjust the position of the marker (●). As you move the ● higher along the “Reality” axis, the picture becomes more detailed. As you move the ● to the right along the “Clarity” axis, the picture becomes smoother.

Advanced Settings

Customizes the Picture function in more detail. When you set “Picture Mode” to “Vivid”, you cannot set/change these settings.“Reset”: Resets all the advanced settings to the factory settings.“Black Corrector”: Enhances black areas of the picture for stronger contrast.“Adv. Contrast Enhancer”: Automatically adjusts “Backlight” and “Picture” to the most suitable settings judging from the brightness of the screen. This setting is especially effective for dark images scenes. It will increase the contrast distinction of the darker picture scenes.“Gamma”: Adjusts the balance between bright and dark areas of the picture.“Clear White”: Emphasizes white colours.“Colour Space”: Changes the colour reproduction gamut. “Wide” reproduces the vivid colour and “Standard” reproduces the standard colour.“Live Colour”: Makes colours more vivid.“White Balance”: Adjusts the colour temperature colour by colour.“Detail Enhancer”: Enhances the details of the picture.“Edge Enhancer”: Enhances the outline of the picture.

Sound menu

Sound Target Inputs Common Sound Mode Dynamic Reset Treble 0 Bass 0 Balance 0 Intelligent Volume On Volume Offset 0

You can select the options listed below on the “Sound” menu. To select options in “Settings”, refer to “Navigating through menus” (page 25).

Target Inputs	For the input currently being viewed, select whether to use the common setting or to set each item separately.“Common”: Applies common settings whose adjustments are shared with other inputs in which “Target Inputs” is set to “Common”.Current input name (e.g. Video 1): Allows you to set each option separately for the current input.💡Set each input to “Common” if you require the same settings to apply to each input.
Sound Mode	“Dynamic”: Enhances treble and bass.“Standard”: For standard sound. Recommended for home entertainment.“Custom”: Flat response. Also allows you to store your preferred settings.
Reset	Resets all the “Sound” settings except “Target Inputs”, “Sound Mode” and “Dual Sound” to the factory settings.
Treble	Adjusts higher-pitched sounds.
Bass	Adjusts lower-pitched sounds.
Balance	Emphasizes left or right speaker balance.
Intelligent Volume	Keeps a constant volume level even when volume level gaps occur (e.g. adverts tend to be louder than programmes).
Volume Offset	Adjusts the volume level of the current input relative to other inputs, when “Target Inputs” is set to the current input name (e.g. Video 1).

Continued

Surround	“S-FORCE Front Surround”: Available for normal stereo broadcast and 5.1ch broadcast surround audio, and the audio input from connected equipment.“Simulated Stereo”: Adds a surround-like effect to mono programmes.“Off”: Converts and reproduces 5.1ch and other broadcast surround audio as normal stereo audio (2ch). Reproduces the original audio of other broadcasts as is.
Voice Zoom	Adjusts the clarity of human voices. For example, if the voice of a news announcer is indistinct, you can turn up this setting to make the voice clearer. Conversely, if you are watching a sports programme, you can turn down this setting to soften the voice of the commentator.
Sound Booster	Gives sound more impact by compensating for phase effects in speakers.
Dual Sound	Selects the sound from the speaker for a stereo or bilingual broadcast.The selection varies, depending on the Broadcasting.
	Broadcasting Selection
	NICAM stereo Stereo (stereo sound)Mono (regular sound)
	NICAM bilingual Main (main sound)Sub (sub sound)Mono (regular sound)
	NICAM monaural Main (main sound)Mono (regular sound)
	A2 (German) stereo Stereo (stereo sound)Mono (regular sound)
	A2 (German) bilingual Main (main sound)Sub (sub sound)
	If the signal is very weak, the sound becomes monaural automatically.If the stereo sound is noisy when receiving a NICAM programme, select “Mono”. The sound becomes monaural, but the noise is reduced.The “Dual Sound” setting is memorized for each programme position.You cannot receive a stereo broadcast signal when “Mono” is selected for the programme position.You cannot receive stereo or dual sound when “Low” or “High” is selected in “Audio Filter” (page 41).NICAM is receivable in following countries/regions. Hong Kong, Singapore, New Zealand, Malaysia, Thailand, etc.A2 (German) is receivable in following countries/regions. Australia, Malaysia, Thailand, etc.If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “Main” or “Sub”. However, when the external equipment connected to the HDMI jack is selected, this is fixed to “Stereo” (except when using the audio in jacks).

Screen menu (except for PC input)

Screen Target Inputs Common Wide Mode Wide Zoom Auto Wide On 4:3 Default Wide Zoom Display Area Normal Horizontal Shift 0 Vertical Shift 0 Vertical Size 5

You can select the options listed below on the “Screen” menu. To select options in “Settings”, refer to “Navigating through menus” (page 25).

Target Inputs	For the input currently being viewed, select whether to use the common setting or to set each item separately.“Common”: Applies common settings whose adjustments are shared with other inputs in which “Target Inputs” is set to “Common”.Current input name (e.g. Video 1): Allows you to set each option separately for the current input.💡Set each input to “Common” if you require the same settings to apply to each input.
Wide Mode	For details about “Wide Mode”, see “To change the Wide Mode manually” on page 15.
Auto Wide	Automatically changes “Wide Mode” according to the broadcast signal. To keep your setting, select “Off”.💡Even if “Auto Wide” is set to “On” or “Off”, you can always modify the Wide Mode by pressing ➕ repeatedly.
4:3 Default	Selects the default Wide Mode for use with 4:3 broadcasts.“Wide Zoom”: Enlarges the 4:3 picture to fill the 16:9 screen, keeping the original image as much as possible.“Normal”: Displays conventional 4:3 broadcasts in the correct proportions.“Off”: Keeps the current “Wide Mode” setting when the channel or input is changed.

Continued

Display Area	Adjusts the screen area for displaying the picture.“Full Pixel”: Displays the picture for 1080i or 1080p sources in the original size when parts of the picture are cut off.“+1”: Displays the original picture area. This setting can be selected for HDMI input signals except for 1080i or 1080p signals.“Normal”: Displays the recommended picture area.“-1”/“-2”: Enlarges the picture to hide the edge of the picture.
Horizontal Shift	Adjusts the horizontal position of the picture.
Vertical Shift	Adjusts the vertical position of the picture when “Wide Mode” is set to “Wide Zoom” or “Zoom”.
Vertical Size	Adjusts the vertical size of the picture when “Wide Mode” is set to “Wide Zoom”.

Screen menu (for PC input)

Screen Auto Adjustment Reset Phase 0 Pitch 0 Horizontal Shift 0 Vertical Shift 0 Wide Mode Normal

When you select the PC input, you can select the options listed below on the “Screen” menu. To select options in “Settings”, refer to “Navigating through menus” (page 25).

Auto Adjustment	Automatically adjusts the display position, phase and pitch of the picture when the TV receives an input signal from the connected PC. “Auto Adjustment” may not work well with certain input signals. In such cases, manually adjust “Phase”, “Pitch”, “Horizontal Shift” and “Vertical Shift”.
Reset	Resets all the “Screen” settings for PC input to the factory settings.
Phase	Adjusts the phase when the screen flickers.
Pitch	Adjusts the pitch when the picture has unwanted vertical stripes.
Horizontal Shift	Adjusts the horizontal position of the picture.
Vertical Shift	Adjusts the vertical position of the picture.
Wide Mode	Selects a Wide mode for displaying input from your PC. “Normal”: Displays the picture in its original size. “Full 1”: Enlarges the picture to fill the vertical display area, keeping its original horizontal-to-vertical aspect ratio. “Full 2”: Enlarges the picture to fill the display area.

Video Settings menu

Video Settings Motion Enhancer High Cinema Drive Auto 1 Game/Text Mode On Video/Photo Video-A x.v.Colour Auto Photo Colour Space sRGB Colour Matrix ITU601 RGB Dynamic Range Auto

You can select the options listed below on the “Video Settings” menu. To select options in “Settings”, refer to “Navigating through menus” (page 25).

Motion Enhancer	Provides smoother picture movement and reduces picture blur.“High”: Provides smoother picture movement such as for film-based contents.“Standard”: Provides smooth picture movement. Use this setting for standard use.“Off”: Use this setting when the “High” and “Standard” settings result in noise.Depending on the video, you may not see the effect visually, even if you have changed the setting.
Cinema Drive	Provides improved picture movement when playing DVD or VCR images taken on film, reducing picture blur and graininess.“Auto 1”: Provides smoother picture movement than the original film-based content. Use this setting for standard use.“Auto 2”: Provides the original film-based content as is.“Off”: Turns off the “Cinema Drive” feature.If the image contains irregular signals or too much noise, “Cinema Drive” will be automatically turned off even if “Auto 1” or “Auto 2” is selected.
Game/Text Mode	Provides the optimum screen for viewing images with fine lines and characters that are input from video game equipment and PCs. Set to “On” for the sharp display of fine lines or characters.
Video/Photo	Provides suitable image quality by selecting the option depending on the input source (video or photograph data).“Video-A”: Sets suitable image quality, depending on the input source, video data or photograph data when directly connecting Sony HDMI output-capable equipment that supports “Video-A” mode.“Video”: Produces suitable image quality for moving pictures.“Photo”: Produces suitable image quality for still images.The setting is fixed to “Video” when Video-A mode is not supported on the connected equipment, even if “Video-A” is selected.
x.v.Colour	Displays moving pictures that is more faithful to the original source by matching the colour space of source.42The setting is fixed to “Normal” when the input signal is HDMI (RGB), even if “x.v.Colour” is selected.
Photo Colour Space	Selects the option to match the output colour space within the output signal from the equipment connected to the HDMI or component input jacks. Select “sYCC” when using the equipment that supports “x.v.Colour”.43The setting is fixed to “sRGB” when the input signal is HDMI (RGB), even if “sYCC” is selected.
Colour Matrix	Usually used in the factory setting (Video1, 2, 3 (Composite and S video input signal) is set to “ITU601”, and HD/DVD 1, 2 (Component input signal) is set to “Auto”). If the colour tone of the picture from the input source does not match the colour standard and looks unnatural, select either “ITU601” or “ITU709”, which normalizes the colour tone.
RGB Dynamic Range	Produces natural colour by changing the luminance tone reproduciton of HDMI input colour signals (RGB). Set to “Auto” for standard use. Change the settings only when the luminance tone of the display is unnatural.
Colour System	Selects the colour system (“Auto”, “PAL”, “SECAM”, “NTSC3.58” or “NTSC4.43”) according to the input signal from the input source.

Audio Settings menu

Audio Settings Speaker TV Speaker Headphone Settings Audio Out Variable

You can select the options listed below on the “Audio Settings” menu. To select options in “Settings”, refer to “Navigating through menus” (page 25).

Speaker	Turns on/off the TV’s internal speakers.“TV Speaker”: The TV speakers are turned on in order to listen to the TV’s sound through the TV speakers.“Audio System”: The TV speakers are turned off in order to listen to the TV’s sound only through your external audio equipment connected to the audio output jacks. When HDMI control compatible equipment is connected, you can turn on the equipment whose operations are linked to the TV. This setting must be made after connecting the equipment.
Headphone Settings	○ Speaker LinkSwitches the TV’s internal speakers on/off when headphones are connected.“On”: Sound is output only from headphones.“Off”: Sound is output from both the TV and headphones.○ VolumeAdjusts the volume of the headphones when “○ Speaker Link” is set to “Off”.
Audio Out	“Variable”: The audio output from your audio system can be controlled by the TV’s remote.“Fixed”: The audio output of the TV is fixed. Use your audio receiver’s volume control to adjust the volume (and other audio settings) through your audio system.

Set-up menu

Set-up Timer Settings Video Labels Auto S Video On HDMI Set-up Auto Start-up Power Saving Off Light Sensor On Logo Illumination On

You can select the options listed below on the “Setup” menu. To select options in “Settings”, refer to “Navigating through menus” (page 25).

Timer Settings

Sets the timer to turn on/off the TV.

Sleep Timer

Sets a period of time after which the TV automatically switches itself into standby mode.

When “Sleep Timer” is activated, the ⒺTimer) indicator on the TV front panel lights up in orange.

- If you turn off the TV and turn it on again, "Sleep Timer" is reset to "Off".

- A notification message appears on the screen one minute before the TV switches to standby mode.

On Timer

Sets the timer to turn on the TV from standby mode.

“Day”: Selects the day on which you want to activate the “On Timer”.

“Time”: Sets the time to turn on the TV.

“Duration”: Selects the time period after which the TV automatically switches to standby mode again.

"Volume Set-up": Sets the volume for when the timer turns on the TV.

Clock Set

Allows you to adjust the clock manually.

Video Labels

Assigns a name to any equipment connected to the side and rear jacks. The name will be displayed briefly on the screen when the equipment is selected. You can skip input signals from connected equipment that you do not want displayed on the screen.

1 Press ↩/▽ to select the desired input source, then press ⊕.

2 Press ↩/▽ to select the desired option below, then press ⊕.

Equipment labels: Uses one of the preset labels to assign a name to connected equipment.

“Edit”: Creates your own label. Follow steps 2 to 4 of “Programme Labels” (page 40).

"Skip": Skips an unnecessary input source.

Continued

Auto S Video	Selects the input signal from S video jacks 3 or 2 when / 1 or 2 jacks are both connected.“On”: Switches automatically between the S video jack and the composite video jacks depending on the cable connection.“Off”: Activates the composite video jacks.
HDMI Set-up	This is used to set the HDMI control compatible equipment connected to the HDMI jacks. Note that the link setting must also be made on the side of the HDMI control compatible equipment that is connected.HDMI ControlSets whether or not to link the operations of the HDMI control compatible equipment and the TV. When set to “On”, the following menu items can be performed.Auto Devices OffWhen this is set to “On”, any connected HDMI control compatible equipment will be turned off with the TV.Auto TV OnWhen this is set to “On”, the TV turns on when any connected HDMI control compatible equipment is turned on.HDMI Device ListDisplays the connected HDMI control compatible equipment.You cannot use “HDMI Control” if the TV operations are linked to the operations of an audio system that is compatible with HDMI control.
Auto Start-up	Starts the initial set-up to select the language, and tune in all available channels. Usually, you do not need to do this operation because the language will have been selected and channels already tuned when the TV was first installed (page 6). However, this option allows you to repeat the process (e.g. to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).
Power Saving	Selects the power saving mode to reduce the power consumption of the TV. When “Picture Off” is selected, the picture is switched off and the ×Picture Off) indicator on the TV front panel lights up in green. The sound remains unchanged.
Light Sensor	"On": Automatically optimises the picture settings according to the ambient light in the room."Off": Turns off the "Light Sensor" feature.23Be sure not to put anything over the sensor, as its function may be affected. See page 13 for further information on the sensor.
Logo Illumination	Lights up and turns off the Sony logo on the front of the TV.
PC Power Management	Switches the TV to standby mode if no signal is received for 30 seconds in the PC input.
Language	Selects the language in which the menus are displayed.
Product Information	Displays your TV's product information.
All Reset	Resets all settings to the factory settings and then displays the "Auto Start-up" screen.45Be sure not to turn the TV off during this period (it takes about 30 seconds) or press any buttons.All settings, including language, auto tuned channels, etc. will be reset.

Channel Set-up menu

Channel Set-up 1 Digit Direct On Auto Tuning Programme Sorting Programme Labels Programme Block Manual Programme Preset

You can select the options listed below on the “Channel Set-up” menu. To select options in “Settings”, refer to “Navigating through menus” (page 25).

1 Digit Direct	When “1 Digit Direct” is set to “On”, you can select a channel using one preset number button (0 – 9) on the remote.
	When “1 Digit Direct” is set to “On”, you cannot select channel numbers 10 and above entering two digits using the remote.
Auto Tuning	Tunes in all the available channels.This option allows you to retune the TV after moving house, or to search for new channels that have been launched by broadcasters.
Programme Sorting	Changes the order in which the channels are stored on the TV.1 Press ⇧/⇨ to select the channel you want to move to a new position, then press ⊕.2 Press ⇧/⇨ to select the new position for your channel, then press ⊕.
Programme Labels	Assigns a channel name of your choice up to five letters or numbers. The name will be displayed briefly on the screen when the channel is selected.1 Press ⇧/⇨ to select the channel you want to name, then press ⊕.2 Press ⇧/⇨ to select the desired letter or number (“_” for a blank space), then press ➔.If you input a wrong characterPress ⇧/⇨ to select the wrong character. Then, press ⇧/⇨ to select the correct character.To delete all the charactersSelect “Reset”, then press ⊕3 Repeat the procedure in step 2 until the name is completed.4 Select “OK”, then press ⊕
Programme Block	Blocks an individual channel from being watched.1 Press ⇧/⇨ to select the channel you want to block, then press ⊕.2 Press ⇧/⇨ to select “Block”, then press ⊕To watch the channel, select “Allow”.
Manual Programme Preset	Before selecting “Label”/“AFT”/“Audio Filter”/“Skip”, press PROG +/- to select the programme number with the channel. You cannot select a programme number that is set to “Skip” (page 42).Programme/TV SystemPresets programme channels manually.1 Press ⇧/⇨ to select “Programme”, then press ⊕2 Press ⇧/⇨ to select the programme number you want to manually tune (if tuning a VCR, select channel 00), then press ⊕3 Press ⇧/⇨ to select “TV System”, then press ⊕.4 Press ⇧/⇨ to select the best received TV broadcast systems, then press ⊕.5 Press ⇧/⇨ to select “VHF Low”, “VHF High” or “UHF” then press ⊕.6 Press ⇧/⇨ until the desired channel’s broadcast appears on the TV screen, then press ⊕LabelAssigns a name of your choice, up to five letters or numbers, to the selected channel. This name will be displayed briefly on the screen when the channel is selected. To input characters, follow steps 2 to 4 of “Programme Labels” (page 40).AFTAllows you to fine-tune the selected programme number manually if you feel that a slight tuning adjustment will improve the picture quality.You can adjust the fine tuning over a range of -15 to +15. When “On” is selected, the fine tuning is performed automatically.Audio FilterImproves the sound for individual channels in the case of distortion in mono broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or intermittent sound muting when watching mono programmes.If you do not experience any sound distortion, we recommend that you leave this option set to the factory setting “Off”.↘↘You cannot receive stereo or dual sound when “Low” or “High” is selected.

Skip

Skips unused channels when you press PROG +/- to select channels. (You can still select a skipped channel using the number buttons.)

Sensitivity

Adjusts the TV reception sensitivity if the TV signal is too strong and the picture is distorted. Press to select “Low”, then press

Colour System

Selects the colour system (“Auto”, “PAL”, “SECAM”, “NTSC3.58”, or “NTSC4.43”) according to the channel.

Signal Level

Displays the signal level for programme currently being watched.

Additional Information

Specifications

Model name		KLV-40X350A/40X300A	KLV-46X350A/46X300A	KLV-52X350A/52X300A
System
Panel System		LCD (Liquid Crystal Display) Panel
TV System		B/G, I, D/K, M
Colour System		PAL, SECAM, NTSC 3.58, NTSC 4.43 (only Video In)
Channel Coverage		B/G: VHF: E2 to E12/ UHF: E21 to E69/ CATV: S01 to S03, S1 to S41VHF: 1 to 11/ UHF: 21 to 69/ CATV: S01 to S03, S1 to S41 (New Zealand only)I: UHF: B21 to B69/ CATV: S01 to S03, S1 to S41D/K: VHF: C1 to C12, R1 to R12/ UHF: C13 to C57, R21 to R60/ CATV: S01 to S03, S1 to S41, Z1 to Z39M: VHF: A2 to A13/ UHF: A14 to A79/ CATV: A-8 to A-2, A to W+4, W+6 to W+84
Sound Output		11 W + 11 W
Input/Output jacks
Antenna		75 ohm external terminal for VHF/UHF
s→1, 2		S video input (4-pin mini DIN)
→1, 2, 3		Video input (phono jack)
→1, 2, 3		Audio input (phono jacks): 500 mVrms, Impedance: 47 kilohms
→1/→2		Supported formats: 1080p, 1080i, 720p, 576p, 576i, 480p, 480iY: 1 Vp-p, 75 ohms, 0.3V negative sync/Pb/Cb: 0.7 Vp-p, 75 ohms/Pr/CR: 0.7 Vp-p, 75 ohms
HDMI IN 1, 2, 3		Video: 1080/24p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480iAudio: Two channel linear PCM32, 44.1 and 48 kHz, 16, 20 and 24 bitsAnalogue audio input (phono jacks): 500 mVrms, Impedance: 47 kilohms (HDMI IN 1 only)
→		Video output (phono jack)
→		Audio output (phono jacks)
PC IN (RGB)		PC Input (D-sub 15-pin) (see page 44)G: 0.7 Vp-p, 75 ohms, non Sync on Green/B: 0.7 Vp-p, 75 ohms/R: 0.7 Vp-p, 75 ohms/HD: 1-5 Vp-p/VD: 1-5 Vp-p→PC audio input (minijack)
→		Headphones jack
↓		USB port
Power and others
Power Requirements		110-240 V AC, 50/60 Hz
Screen Size		40 inches (Approx. 101.6 cm measured diagonally)	46 inches (Approx. 116.8 cm measured diagonally)	52 inches (Approx. 132.2 cm measured diagonally)
Display Resolution		1,920 dots (horizontal) × 1,080 lines (vertical)
Power Consumption		260 W 300 W 350 W
Standby Power Consumption*		0.3 W
Dimensions (w × h × d)	(with stand)	Approx. 1,111 × 717 × 322 mm	Approx. 1,262 × 795 × 322 mm	Approx. 1,415 × 890 × 384 mm
	(without stand)	Approx. 1,111 × 657 × 123 mm/Approx. 1,111 × 657 × 121 mm	Approx. 1,262 × 734 × 123 mm/Approx. 1,262 × 734 × 121 mm	Approx. 1,415 × 827 × 125 mm/Approx. 1,415 × 827 × 123 mm
Mass (with stand)		Approx. 31.0 kg Approx. 38.0 kg	Approx. 49.0 kg
		Approx. 26.0 kg Approx. 33.0 kg	Approx. 42.0 kg
Optional Accessories		Wall-Mount Bracket SU-WL500
		Colour Variation Unit CRU-40X1 (KLV-40X300A only)	Colour Variation Unit CRU-46X1 (KLV-46X300A only)	Colour Variation Unit CRU-52X1 (KLV-52X300A only)

* Specified standby power is reached after the TV finishes necessary internal processes.

Design and specifications are subject to change without notice.

PC Input Signal Reference Chart

Signals	Horizontal (Pixel) Vertical (Line)		Horizontal frequency (kHz)	Vertical frequency (Hz)	Standard
VGA 640 480 31.5 60 VGA
	640 480 37.5 75 VESA
	720 400 31.5 70 VGA-T
SVGA 800 600 37.9 60 VESA Guidelines
	800 600 46.9 75 VESA
XGA 1024 768 48.4 60 VESA Guidelines
	1024 768 56.5 70 VESA
	1024 768 60.0 75 VESA
WXGA 1280 768 47.4 60 VESA
	1280 768 47.8 60 VESA
	1280 768 60.3 75
	1360 768 47.7 60 VESA
SXGA	1280	1024	64.0	60	VESA
	1280	1024	80.0 75 VESA
HDTV	1920	1080	67.5	60

• This TV's PC input does not support Sync on Green or Composite Sync.
• This TV's PC input does not support interlaced signals.
• For the best picture quality, it is recommended to use the signals (boldfaced) in the above chart with a 60 Hz vertical frequency from a personal computer. In plug and play, signals with a 60 Hz vertical frequency will be selected automatically.

Cleaning

Clean the ventilation holes of this TV set regularly (once a month). If dust accumulates, the cooling fan may not operate properly.

Ventilation holes

Troubleshooting

Check whether the ⏻ (standby) indicator is flashing in red.

When it is flashing

The self-diagnosis function is activated.

1 Count how many ⏻ (standby) indicator flashes between each two second break. For example, the indicator flashes three times, then there is a two second break, followed by another three flashes, etc.

2 Press ⏻ on the right side of the TV to turn it off, disconnect the AC power cord, and inform your dealer or Sony service centre of how the indicator flashes (number of flashes).

When it is not flashing

1 Check the items listed below.

2 If the problem still persists, have your TV serviced by qualified service personnel.


No picture (screen is dark) and no sound

• Check the antenna/cable connection.
• Connect the TV to the AC power outlet, and press ⏻ on the right side of the TV.
• If the ⏻ (standby) indicator lights up in red, press TV I/⏻.

No picture or no menu information from equipment connected to the video input jack

• Press /—to display the connected equipment list, then select the desired input.
• Check the connection between the optional equipment and the TV.

Double images or ghosting

• Check the antenna/cable connection.
• Check the antenna location and direction.

Only snow and noise appear on the screen

• Check if the antenna is broken or bent.
• Check if the antenna has reached the end of its serviceable life (three to five years in normal use, one to two years at the seaside).

Continued

Distorted picture (dotted lines or stripes)

• Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers or optical equipment.
• When installing optional equipment, leave some space between the optional equipment and the TV.
• Make sure that the antenna/cable is connected using the supplied antenna cable.
• Keep the antenna cable away from other connecting cables.

Picture or sound noise when viewing a TV channel

- Adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception (page 41).

Some tiny black points and/or bright points appear on the screen

- The picture of a display unit is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.

No colour on programmes

- Select "Reset" (page 26).

No colour or irregular colour when viewing a signal from the 1 or 2 jacks

- Check the connection of the 1-or-3 jacks and check if each jacks are firmly seated in their respective jacks.

Sound

No sound, but good picture

• Press + / - or ※ (Mute).
• Check if the “Speaker” is set to “TV Speaker” (page 36).

There is a whirring sound

- This is the sound of internal fans of the TV (except for KLV-52X350A/52X300A). This is not a malfunction.

Channels

Some channels are blank

• Scrambled/Subscription only channel. Subscribe to the pay TV service.
• Channel is used only for data (no picture or sound).
• Contact the broadcaster for transmission details.

General

The TV turns off automatically (the TV enters standby mode)

- Check if the “Sleep Timer” is activated, or confirm the “Duration” setting of “On Timer” (page 37).

The TV turns on automatically

- Check if the "On Timer" is activated (page 37).

Some input sources cannot be selected

- Select "Video Labels" and cancel "Skip" of the input source (page 37).

The remote does not function

- Replace the batteries.

The "Store Display Mode: On" message appears on the screen

- Select "All Reset" in the "Set-up" menu (page 39).

The picture contours are disrupted

- Select “Standard” or “Off” in “Motion Enhancer” (page 34).

Weak signal (signal level indicator (page 42) displayed in red)

• Check the antenna/cable connection.
• Confirm the “Sensitivity” setting of “Manual Programme Preset” (page 42) and select “High” when “Low” is selected.

http://www.sony.net/

Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)-free vegetable oil based ink.
