USER MANUAL M40/74G-GB-FTCU-UK UMC

Full HD LCD TV with Freeview & USB Media Player

User Guide

Line drawing of a flat-screen computer monitor with a blank screen (no text or symbols)

Model No M40/74G-GB-FTCU-UK

IMPORTANT SAFETY INSTRUCTIONS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Warnings

• To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects filled with liquids on or near the television.
- Do not place the television in a confined space, ensure that nothing can obstruct the ventilation openings at the rear of the television.

To prevent spread of fire, keep candles or other open flames away from this product at all times

• Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

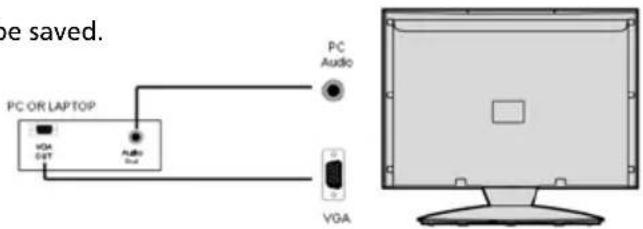

• Should not be used as a PC monitor

Safety

• For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• The television should be connected to a main socket outlet with a protective earthing connection.
• Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
  • Always place the television on a flat level surface avoiding anywhere which may be subject to strong vibration.
• Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the television. If interference is apparent, move the device causing the interference away from the television.
• To disconnect the apparatus from the mains, please use the all pole mains switch located on the side, underside or rear of the TV. The switch shall remain readily operable.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
  • Install the product at least 5cm from the wall for ventilation.

Maintenance

• To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.
- Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.
- Never use alcohol, paint thinner or benzene to clean this unit.
- Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Mild detergent

Packaging

• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays

The extended use of fixed image program material can cause a permanent "shadow image" on the LCD panel.

This background image is viewable on normal programs in the form of a stationary fi xed image. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the fixed image for extended periods of time.
3. Turn the power off when not in actual use.

Examples of images that you need to watch out for are as follows (this is not an exhaustive list):

• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.
- Time Displays
- Teletext: Do not view a stationary page for long period of time
• TV/DVD Menus: e.g. Listings of DVD disk content
- Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or videos.

Important - Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your Local Authority or retailer for recycling advice.

Batteries

• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries.
  Please consult your local authority.

Two identical diagrams showing a trash bin with crossed-out lines and a horizontal bar, no text or symbols present.

Cd

CONTENTS

Manufacturers Guarantee Information....3

Important Safety Instructions....4-5

What is included in the box 8

Attaching/Detaching the stand and wall mounting....9

Important installation instructions .... 10

Getting Started - Initial Set Up....11

TV Buttons and Input Source Menu....12

Remote Control....13

Connections....14-15

TV Menu Operation 16-21

Channel Menu 16

Picture Menu 17

Sound Menu 18

Time Menu 19

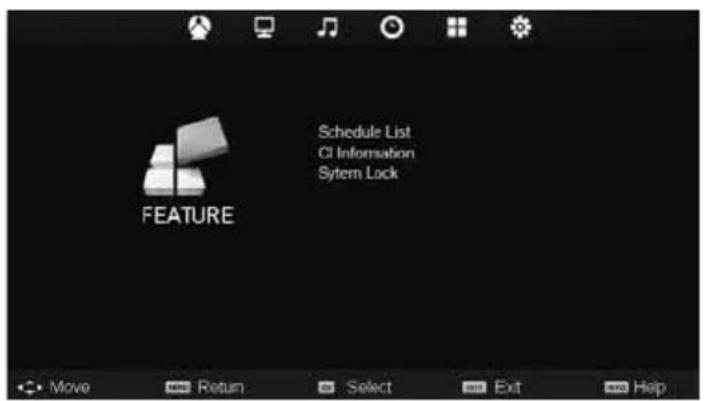

Feature Menu 20

Setup Menu 21

PC Operation....22-23

7 Day TV Guide 24

USB Mode / Media Player 25

General Information....26-30

Operating the TV with a universal or Sky (BSKYB) remote control ..... 26

Frequently Asked Questions 27

Technical Specifications 28

Index 29

Digital Switchover 29-30

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories:

1 x User Guide

User Guide

1 x Quick Start Guide

Quick Start Guide

1 x RF Cable

Coiled black cable with two connectors (no text or symbols visible)

1 x Blanking plate for use when wall mounting

1 x Remote Control

2 x AAA Batteries

1 x TV

Illustration of a flat-screen computer monitor with no visible text or symbols on the screen.

1 x Stand plus screws

Please save your packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in it's original box/packaging.

ATTACHING/DETACHING THE STAND

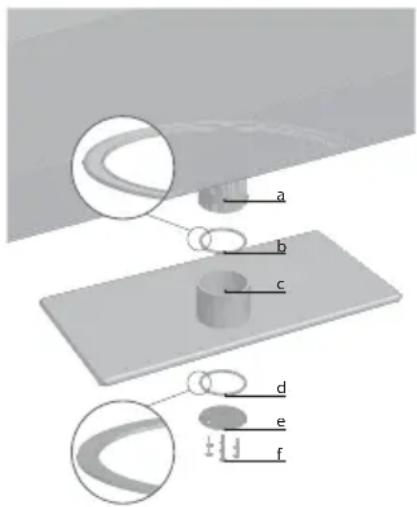

Attaching the Stand

To complete stand installation you will need a Philips screwdriver

1) Insert 66mm plastic ring (b) (making sure the notch is facing upwards) into the hole in the stand(c) 2) Slot the stand (c) into the TV neck (a) with 66mm plastic ring (b) inside

3) Align 68mm plastic ring (d) making sure the notch is facing downwards with the hole at the bottom of the TV stand
4) Align the holes in metal plate (e) with the holes in the bottom of the TV stand
5) Secure the stand using 7 screws (f)

a b c d e f

Detaching the Stand

1) Remove the screws highlighted

Black-and-white photo of a flat-screen television with an open rear panel and a circular button highlighting the front panel (no visible text or symbols)

2) Although there are no live parts exposed when removing the stand, (in the event of wall mounting the TV) for aesthetic purposes, included in the accessory pack is a cover plate which can be clipped into the underside of the TV.

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes.

Wall mounting the TV

This television requires a VESA 400 x 200 wall mount, or equivalent.

1) Remove the four screws highlighted below.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below.

Front view of a black computer monitor with four circular buttons on the front panel (no visible text or symbols)

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

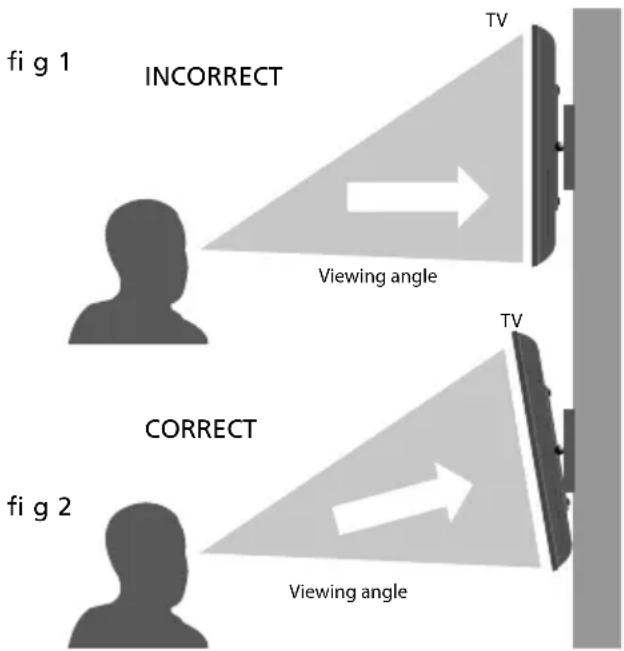

fi g 1 INCORRECT TV Viewing angle fi g 2 CORRECT TV Viewing angle

IMPORTANT INSTALLATION INSTRUCTIONS

WARNING

To prevent injury, this apparatus must be securely attached to the floor, wall or TV cabinet in accordance with these installation instructions

Securing the TV to a Wall

• Position the TV close to the wall to avoid the possibility of it falling when pushed.
• The instructions shown below are a safer way to set up the TV, by fi xing it tothe wall, avoiding the possibility of it falling forwards if pulled. This will prevent the TV from falling forward and causing injury. This will also prevent the TV from damage.
• This method is used if the TV is placed on a glass surface or you do not wish to screw anything into your furniture.
• Ensure that children do not climb or hang onto the TV.

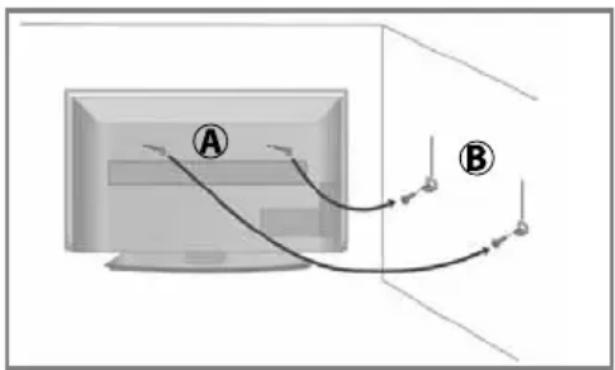

For this type of installation you will need a fastening chord (available free of charge from the helpline)

A) Using one/both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening chord/s to the TV.
B) Secure the other end of the fastening chord/s to your wall. (you will need screws/fi xings suitable for your wall type - available separately from most DIY stores)

Diagram showing two labeled points (A and B) connected by curved arrows, likely illustrating a flow or signal path between them.

Simple line drawing of a vertical cylindrical object with a base, no text or symbols present

GETTING STARTED - INITIAL SET UP

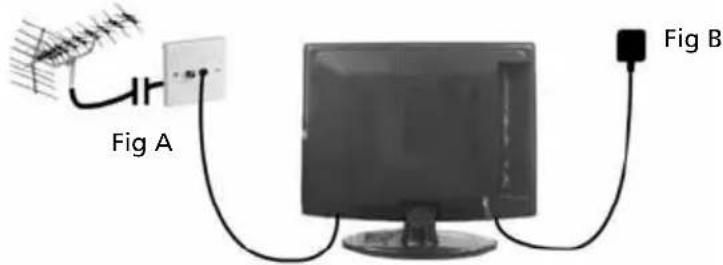

1) Using the RF cable supplied, connect the TV to the TV Aerial wall socket (Fig A)

2) Connect the power cable to the Electrical outlet (Fig B)

Fig A Fig B

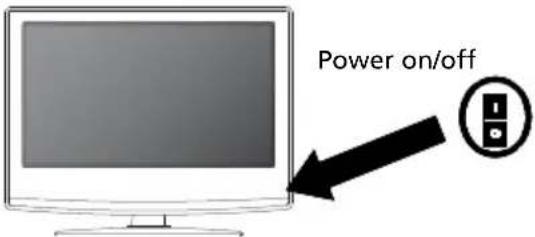

3) Switch on the television using the power on/off switch. Located on the underside of the TV.

4) Insert the batteries supplied into the Remote control and press the Standby button to power on the TV

Power on/off

Illustration of a hand holding a clip next to a blank screen (no text or symbols)

5) You will now be welcomed with the initial set-up screen. If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear. Press OK on the remote control and tuning will start.

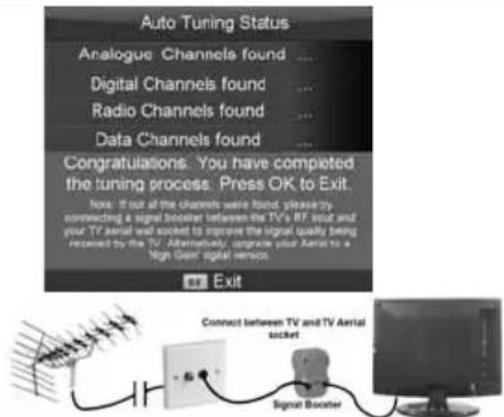

6) After tuning the following screen will appear.

First Time Installation Welcome to the setup Wizard Language English Country UK Environment Enohome 1) Connect an RF cable from the TV's input called "RF in" and to your TV Aerial socket. 2) Select required language and country. 3) Press OK on remote control to start auto-living.

Auto Tuning Status Analogue Channels found ... Digital Channels found ... Radio Channels found ... Data Channels found ... Congratulations. You have completed the tuning process. Press OK to Exit. Note: If out all the channels were found, please try contracting a signal booster between the TV's RF slot and your TV aerial wall socket to improve the signal quality being removed by the TV. Alternatively, upgrade your Aerial to a High Gear digital version. Exit Connect between TV and TV Aerial socket Signal Booster

If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.

As part of our ongoing development to reduce power consumption, we have added an extra function to this Television called 'Ecohome' (you will see this during the first time installation set up). Power consumption using the Ecohome function is approximately 15% lower than some other modes. The picture brightness is reduced using the Ecohome function. If this function is not suitable for your viewing environment, you can select other modes as necessary. (Please note, 'Professional' mode is for optimum default picture settings, however, power consumption is approximately 15% higher than 'Ecohome' mode) Please refer to the user guide section 'Picture settings' in order to change the mode to one that maybe more suitable for your environment. There is also a shortcut button on the remote control called 'P-Mode' should you wish to change to another mode.

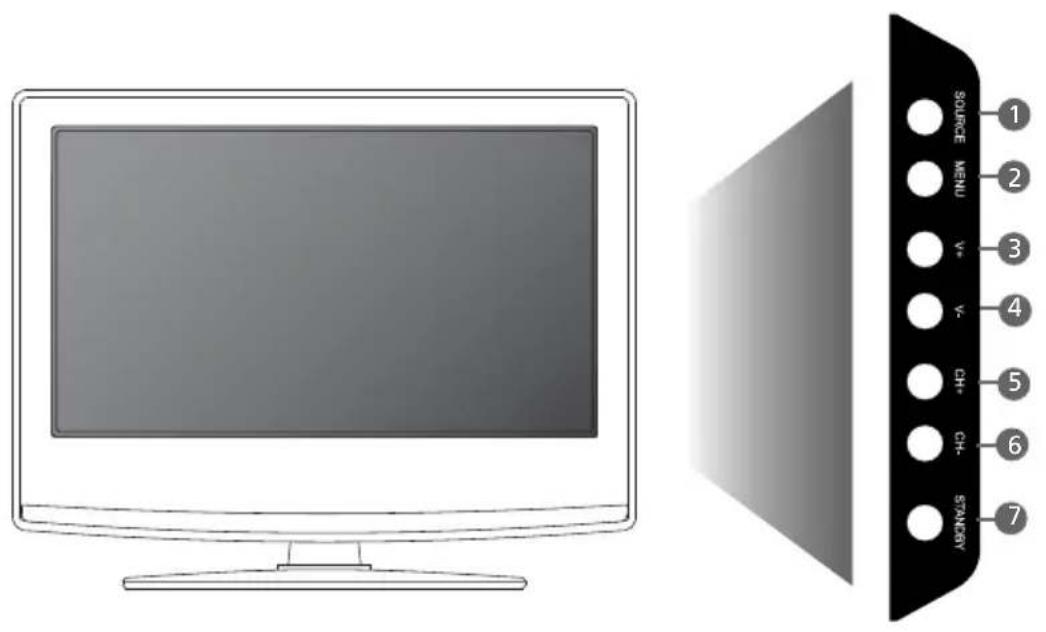

TV BUTTONS & SOURCE MENU

1 Displays the input source menu
2 Displays Menu/OSD
3 Volume up and menu right
4 Volume down and menu left
5 Programme/Channel up and menu up
6 Programme/Channel down and menu down
7 Standby Power On/Off

SOURCE MENU V+ V- CH+ CH- STANLEY 1 2 3 4 5 6 7

Choosing Mode Input/Source

To switch between the different input/ connections.

A) Using the buttons on the remote control:

1) Press [SOURCE/ AV] - The source menu will appear
2) Press [V] or [A] to select the input you require.
3) Press [OK]

B) Using the buttons on the Television:

1) Press [SOURCE]
2) Scroll up / down using CH+/CH- buttons to the input/source you require
3) Press Vol+ to change input/source to the one selected.

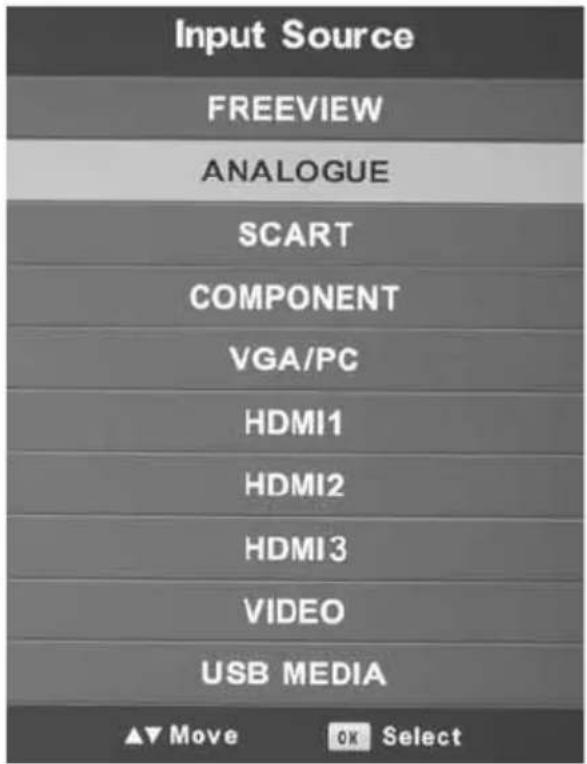

Input Source FREEVIEW ANALOGUE SCART COMPONENT VGA/PC HDMI1 HDMI2 HDMI3 VIDEO USB MEDIA ▲▼ Move OK Select

REMOTE CONTROL

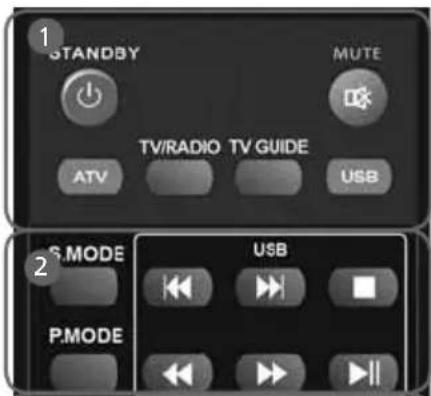

1 STANDBY - Switch on TV when in standby or vice versa MUTE - Mute the sound or vice versa
TV/RADIO - Switch to Freeview and switch between TV and radio in Freeview mode
TV GUIDE - Opens the 7 Day TV Guide (Freeview mode)
ATV - Switch to analogue TV source
USB - Switch to USB Source

2 S.MODE - Scrolls through sound mode options P.MODE - Scrolls through picture mode options

• To restart the current chapter
• To advance forward to the next chapter
• To stop the playback
• To play in fast rewind mode
• To play in fast forward mode
• To play/pause

Only operate when a USB key is inserted

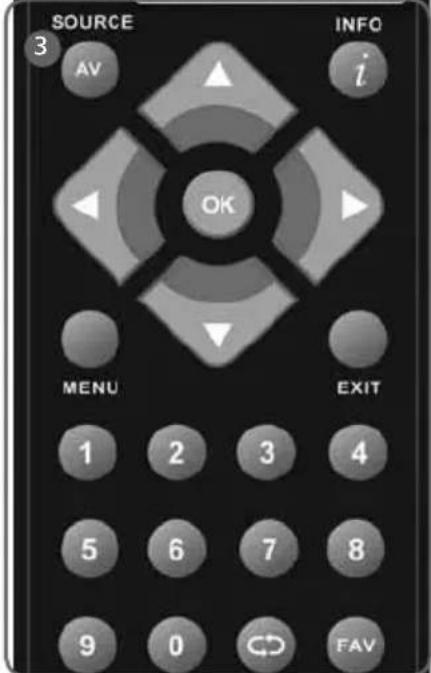

3 SOURCE/AV - To display the input/source menu INFO - Press once for now/next channel information Press twice for programme information about current programme

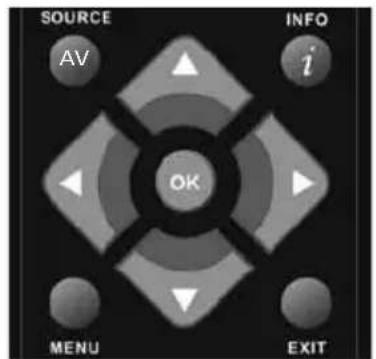

(▲/▼/◄/►/OK) - Allows you to navigate the on-screen menus and adjust the system settings to your preference

MENU - To display OSD menu

EXIT - To exit all menus

NUMBER BUTTONS - 0 - 9 to select a TV channel directly.

- To return to the previous channel viewed

FAV - To display favourites menu

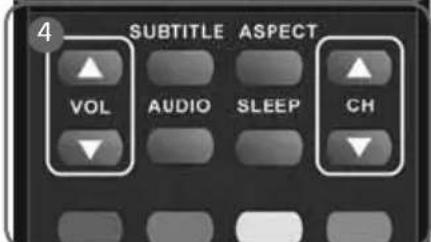

4 VOL ▲ To increase / decrease the sound level SUBTITLE - To switch the dialogue at the bottom of the screen (on/off)

ASPECT - To switch the screen between the different picture formats

AUDIO - To change the audio language (if available)

SLEEP - Press repeatedly to cycle through the sleep options

CH ▲To increase or decrease the channel being watched

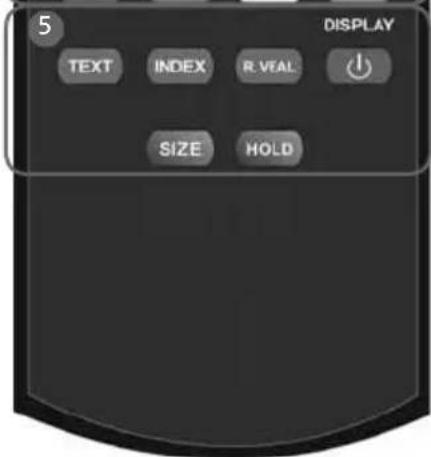

5 TEXT - Teletext mode - To enter Teletext INDEX - Teletext mode - To display the index page REVEAL - Teletext mode - To reveal or hide the hidden words. DISPLAY - To switch off the screen when listening to radio SIZE - Teletext mode - To change the display size in Teletext mode

HOLD - Teletext mode - Hold current page which is displayed

STANDBY MUTE TV/RADIO TV GUIDE ATV USB S.MODE USB P.MODE

SOURCE AV INFO i OK MENU EXIT 1 2 3 4 5 6 7 8 9 0 FAV

4 SUBTITLE ASPECT VOL AUDIO SLEEP CH

5 DISPLAY TEXT INDEX R.VEAL SIZE HOLD

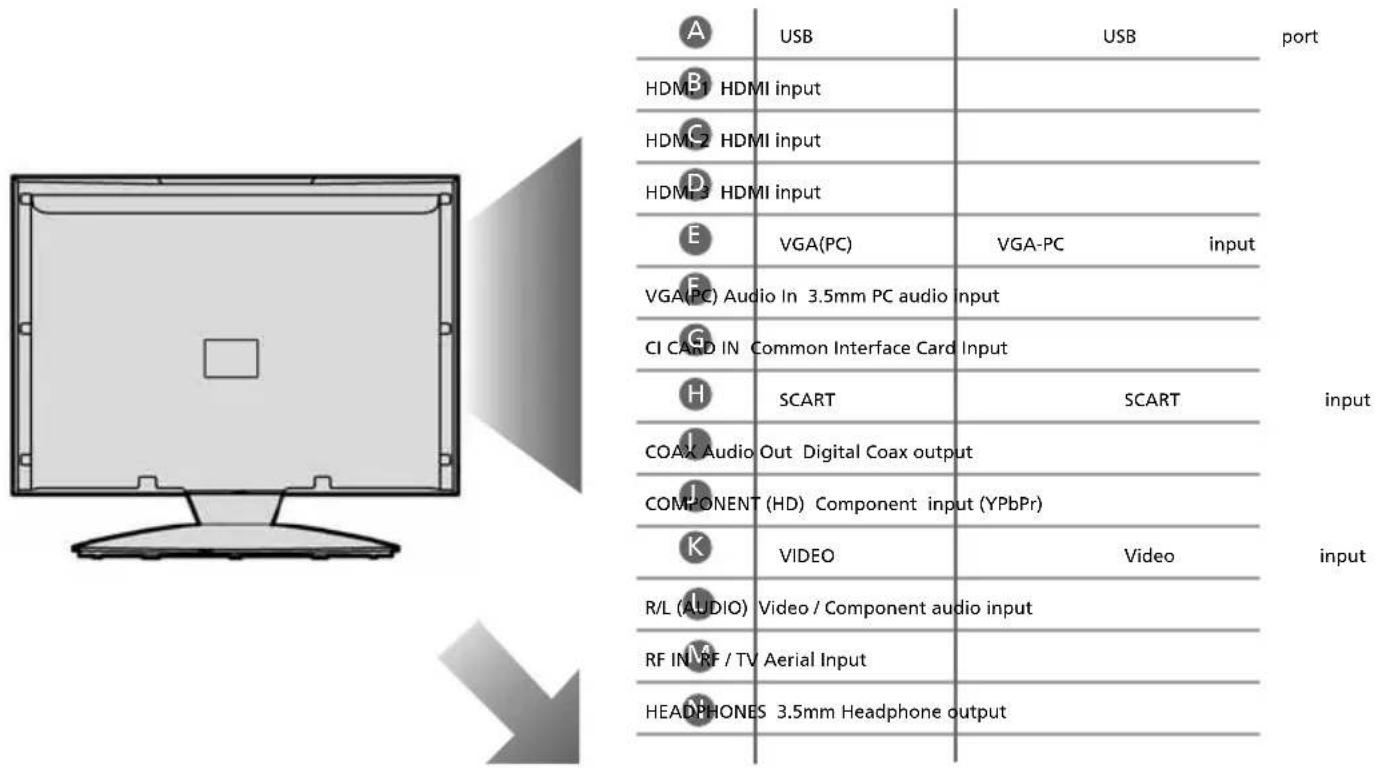

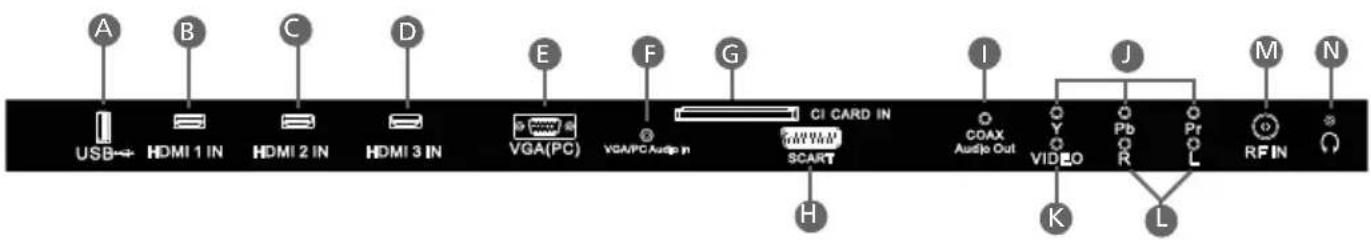

A USB USB port HDMI HDMI input HDMI HDMI input HDMI HDMI input E VGA(PC) VGA-PC input VGA(PC) Audio In 3.5mm PC audio input CI CARD IN Common Interface Card Input H SCART SCART input COAX Audio Out Digital Coax output COMPONENT (HD) Component input (YPbPr) K VIDEO Video input R/L (AUDIO) Video / Component audio input RF IN RF / TV Aerial Input HEADPHONES 3.5mm Headphone output

A USB→ B HDMI 1 IN C HDMI 2 IN D HDMI 3 IN E VGA(PC) F VGA/PC Audio n G CI CARD IN SCART I COAX Audio Out J Y VIDEO Pb R Pr L M RFIN N K L

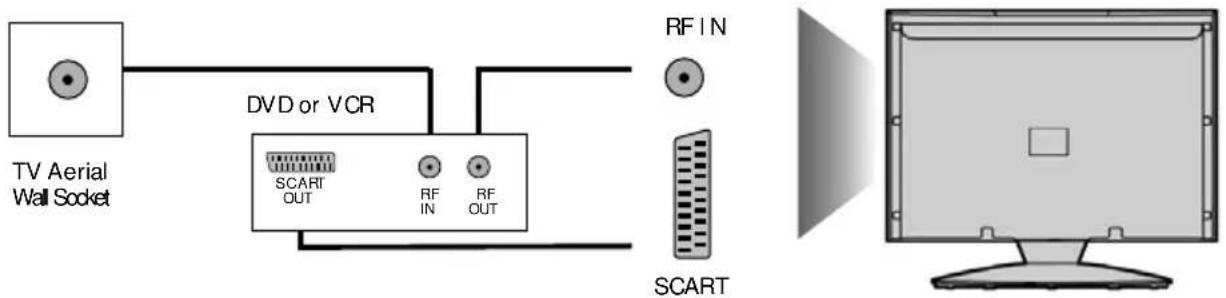

Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box
TVs Input/Source should be set to SCART

CONNECTIONS

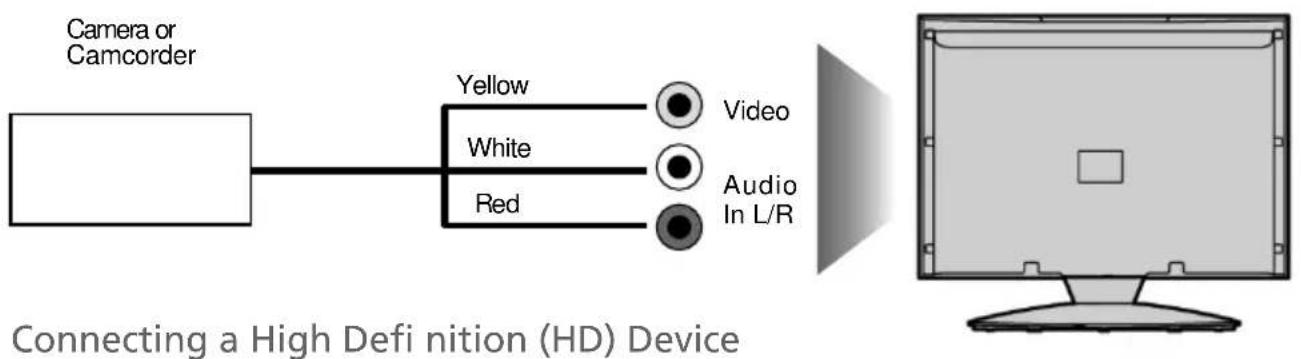

Connecting a Camcorder, Camera or Games Console

Source should be set to Video

Option 1 - via HDMI to HDMI cable
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

TVs Input/Source should be set to HDMI.

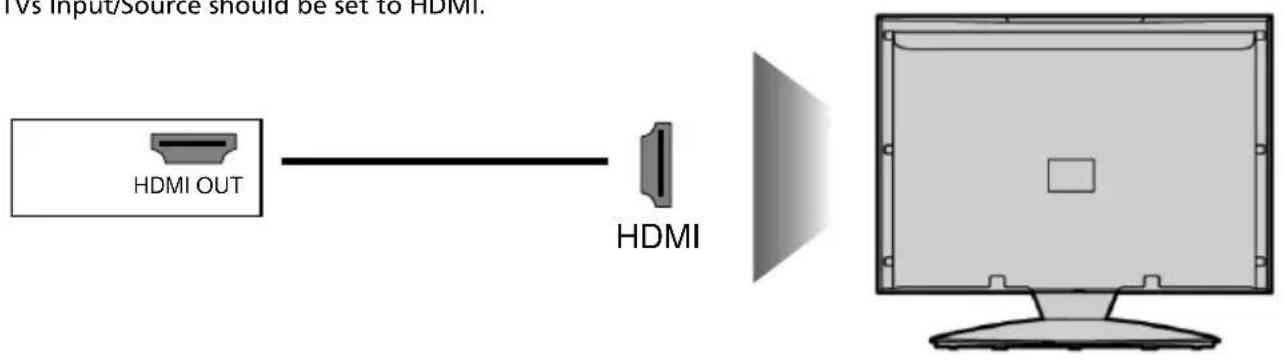

TVs Input/source should be set to HDMI. HDMI OUT HDMI

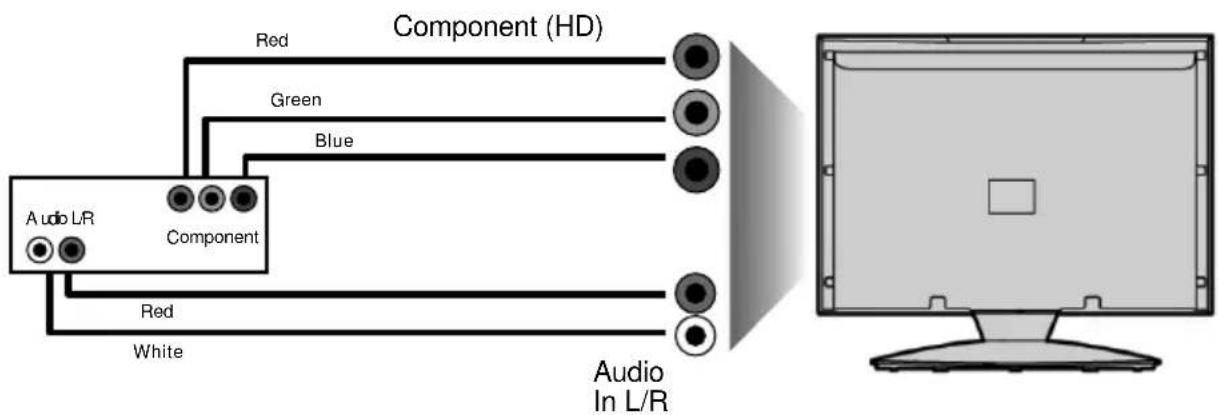

Option 2 - via Component cable
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component.


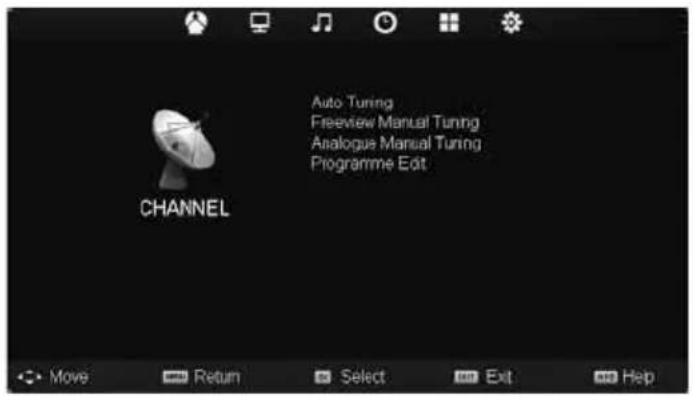

CHANNEL MENU

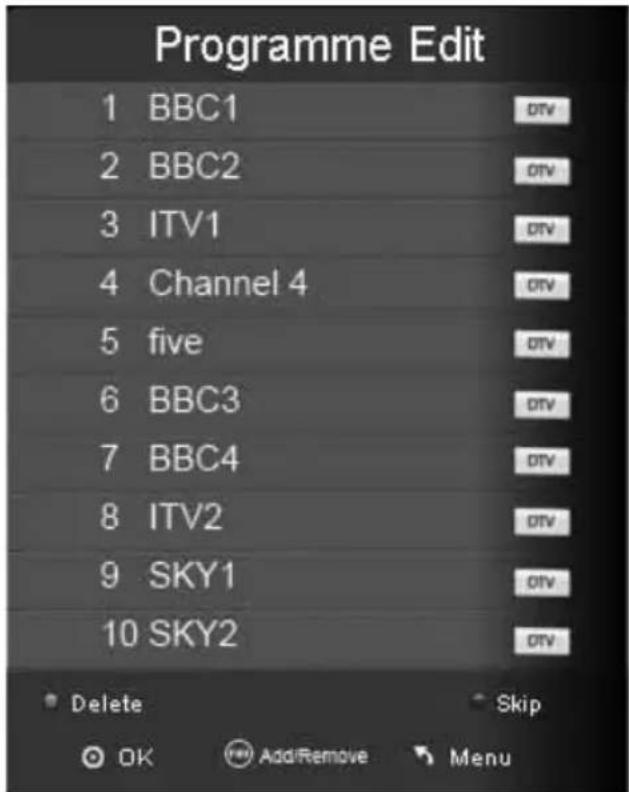

Auto Tuning Freewiew Manual Tuning Analogue Manual Tuning Programme Edit CHANNEL Move Return Select Exit Help

SOURCE AV INFO i OK MENU EXIT

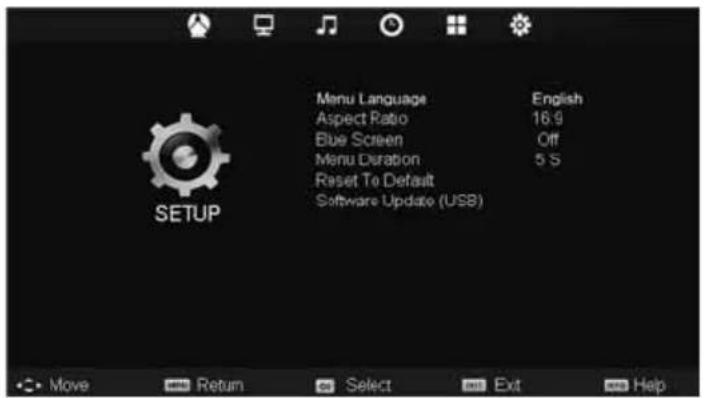

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▲▼▲ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels.

Freeview Manual Tuning- Allows you to manually tune your digital signal

Analogue Manual Tuning - Allows you to manually tune your analogue signal

Programme Edit - Allows you to delete, skip and add favourite channels.

Programme Edit 1 BBC1 2 BBC2 3 ITV1 4 Channel 4 5 five 6 BBC3 7 BBC4 8 ITV2 9 SKY1 10 SKY2 Delete Skip OK AddRemove Menu

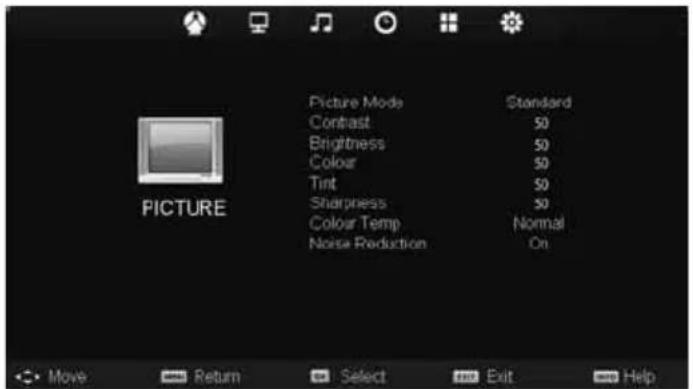

PICTURE MENU

Picture Mode Contrast Brightness Colour Tint Sharpness Colour Temp Noise Reduction Standard 50 50 50 50 Normal On PICTURE Move Return Select Exit Help

SOURCE AV INFO i OK MENU EXIT

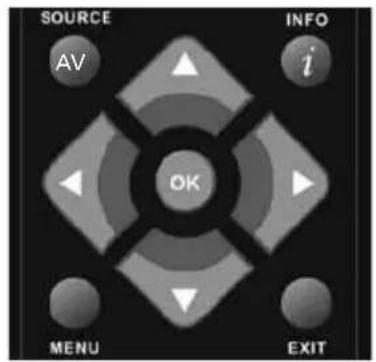

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets

Standard	Default	settings
Dynamic	Recommended settings for fast moving pictures
Mild	Set to be lighter in colour and less bright
Personal	Lets you manually alter all the settings
Ecohome	15% less power consumption

Contrast - Switch the balance between black and white

Brightness - Increase or decrease the brightness of the picture

Colour - Increases the colour from black and white

Tint - Lets you increase or decrease the level of tint within the picture

Sharpness - Increase or decrease the sharpness of the picture

Colour Temperature - Choose from the following presets

Normal	Default	settings
Warm	Increases red within the picture
Cool	Increases blue within the picture

Noise Reduction - Choose from the following presets

Off Turns noise reduction off
Low Minor system adjustment
Middle Medium system adjustments
High Maximum system adjustments
Default	Default settings

Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'Menu Duration' section.

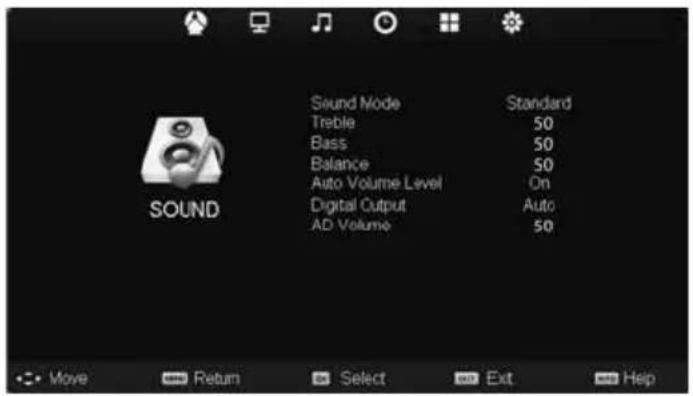

SOUND MENU

Sound Mode Treble Bass Balance Auto Volume Level Digital Output AD Volume Standard 50 50 50 On Auto 50 Move Return Select Exit Help

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Sound Mode - Choose from the following presets

Standard	Default	settings
Music	Emphasises music over voices
Movie	Provides live and full sound for movies
Personal	Selects your personal sound settings
Sports	Emphasises sound for sports

Tip: Treble and bass levels can only be adjusted when the sound mode 'Personal' is selected.

Treble - To adjust the amount of high frequency within the sound

Bass - To adjust the amount of low frequency within the sound

Balance - To switch the sound between the left and right speakers

Auto Volume Level (AVL) - When 'on' is selected, the volume will stay at a constant level regardless of input/source

Digital Output - This is the digital COAX Audio output. Choose from the following options:

Off	Off
Auto Selects the best settings automatically
PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

AD Volume - Increase or decrease the overall volume

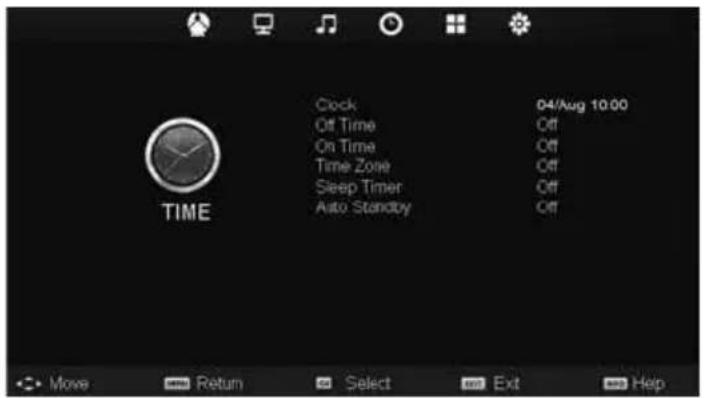

TIME MENU

TIME Clock Off Time On Time Time Zone Sleep Timer Auto Standby 04/Aug 10:00 Off Off Off Off Off Off Move Return Select Exit Help

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▶▶ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Clock - Set the date and time

Off Time - Allows you to set a specific time for your TV to turn off

On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.

Time Zone - Change your current time zone

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min

Auto standby - Toggle the Function on and off

FEATURE MENU

FEATURE Schedule List CI Information Sytem Lock Move Return Select Exit Help

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▲▲▲ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Schedule List - Lists your programme reminders

CI Information - Pay per view services require a "smartcard" to be inserted into the TV.

If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use the ◀ button to quit the password input. Use the ▶ button to clear. Default password is 0000

SETUP MENU

Menu Language Aspect Ratio Blue Screen Menu Duration Reset To Default Software Update (USB) English 16.9 Off 5 S SETUP Move Return Select Exit Help

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▲▲▲ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Menu language - Allows you to change the language of the menu

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs

Auto

Automatically displays the best picture format. So the picture is in the correct position. May have black lines At the top/bottom and/or sides.

Original

Will display the picture from the broadcaster without any change

Zoom

Geometric pattern of white circles and semicircles on a gray background (no text or symbols)

The picture is the correct proportion but zoomed in to fi ll the screen

4:3

Geometric diagram with five circles arranged in a grid within a rectangle (no text or symbols)

Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen
16:9

Abstract geometric pattern with five white circles arranged in a grid within a rectangular frame (no text or symbols)

Fills the screen with a regular 16:9 signal.

14:9

Abstract diagram with five white oval shapes arranged in a rectangular pattern (no text or symbols)

Displays the 14:9 picture in the correct proportion. As a result side bars are shown on the screen

Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources)

Menu Duration - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing

Reset to default

Reset Menu System - This resets the menus to factory settings.

Reset TV Channels - This clears all the TV channels from the television.

Software Update (USB) - From time to time we may release new firmware to improve the operation of the television (available to download). This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer to the 'product support' section of the website.

USING THE TELEVISION AS A COMPUTER MONITOR

IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the television. You MUST do this using your old monitor.

How to set up for Windows XP & Windows Vista (connecting via VGA cable to the TV)

1) Switch on your computer
2) When fi nished booting up right click your mouse anywhere on the screen

Arrange Icons By Refreshs Paste Paste Shortcut Save As Scheme... Graphics Options Display Modes Now Properties

XP Screen

View Sot Bo Refresh Page Paste Shorted Undo Copy Ctrl+2 Graphics Properties... Graphics Options New No. Personalize

VISTA Screen

4) Left click your mouse on Setting/Display Settings. Ensure the screen resolution is set to what is shown in the technical specifications section toward the rear of this user guide. To correct the resolution to that of the television move the slider.

Size Properties Name: Densin Size Type: Custom Options: Cancel 1 2 Details Size Properties: Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size Size

XP Screen

Display Settings 1 Resolution: Low High Display Mode: High: 0.0000 Display Mode: 0.0000

VISTA Screen

3) Left click your mouse on Properties/Personalise

Table 1 General Analytics Microsoft Teams Macromedia Appurizers and Services www.macromedia.com Microsoft Teams Macromedia Appurizers and Services www.macromedia.com Macromedia Appurizers and Services www.macromedia.com Macromedia Appurizers and Services www.macromedia.com Macromedia Appurizers and Services www.macromedia.com Macromedia Appurizers and Services www.macromedia.com Macromedia Appurizers and Services www.macromedia.com Macromedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com MacromMedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macromedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers and Services www.macromedia.com Macrommedia Appurizers, Macrommedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macromedia, Macrom Media

VISTA Screen

5) Left click your mouse on Advance/Advanced Settings and left click on Monitor

File, and Fig. modifier, and similar EXPERTOLOGIES ONLY... PRTS User Resources Browse Name: Date: 2015-07-03 Address: Access Help Find and Find Details Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Browse Binds to the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: Binds from the following: A B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B

XP Screen

Add User to Data Analytics Store Name: Address: 1000000000 Delete Settings Remove default user All Users □ No change from the user's default user □ No change from the user's default user to the user's default user. □ No change from the user's default user to the user's default user.

VISTA Screen

6) Left click on the drop down for Screen refresh rate and select 60 Hertz, if you experience picture noise or 'fl ickering', select 50 hertz or 70 hertz.
7) Click on Apply, then click Yes and the settings will be saved.
8) Now switch off your computer and connect the television (as shown)
9) Switch on the TV, select the input/source to VGA/PC and re-start your PC.

PC OR LAPTOP VGA SET Audio VGA PC Audio

Connecting a Laptop

In addition to the above if you are connecting a laptop to the television you will also need to activate the VGA connection on the laptop. This can vary based on the brand of laptop you have, on many brands/models, it is as per below.

1) Connect the laptop to the television
2) On the Laptop push buttons The screen will now switch to the television.

Fn + F5 B/O

PC SETTINGS

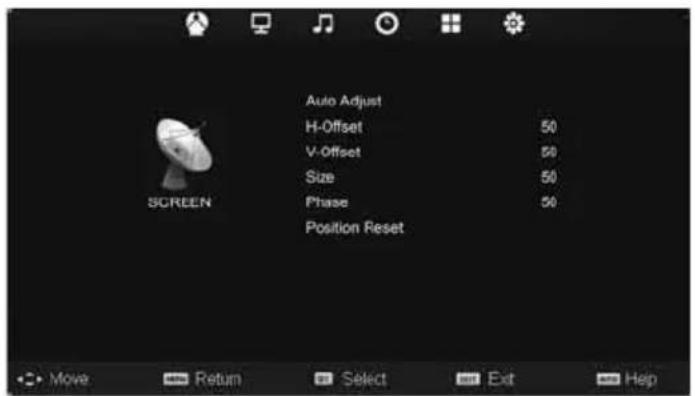

Auto Adjust H-Offset 50 V-Offset 50 Size 50 Phase 50 Position Reset SCREEN

SOURCE AV INFO i OK MENU EXIT

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶▲ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Auto Adjust - Lets you automatically confi gure the television to be used as a computer monitor

H Offset - Changes the horizontal position of the picture

V Offset - Changes the vertical position of the picture

Size - increase picture size

Phase - To adjust delay time of phase in order to reduce the noise of picture

Position Reset - Changes back to the original settings

Tip: If the computer is left in-active for a period of time, the television will switch into a 'sleep' state (the screen will power off to save power). To switch back on press the standby button.

7 DAY TV GUIDE

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.

7 Day TV GUIDE
10 Years Younger: The Challenge Season 2 Support worker Janice Cassidy's lifestyle of long working hours and a penchant for tanning has taken its toll, while the stress of bringing up two daughters and heavy smoking has affected interior designer Shere Morady. Surgeon Jan Stanek and the team set out to provide
		04 Aug 2010 10:42
BBC1	05:00-06:00	10 Years Younger: The Challenge
BBC2	06:00-06:30	The Simpsons
ITV1	06:30-07:00	Hollyoaks
Channel 4	07:00-08:00	Channel 4 News
five	08:00-09:00	How to Look Good Naked
BBC3	09:00-10:00	Newlyweds: The One Year Itch
BBC4	10:00-11:15	Big Brother
ITV2	11:15-11:45	The Big Bang Theory

2) Navigate through the menu using ▲▼▶◀

You can now:

Set a reminder by pressing GREEN

View a previous day by pressing YELLOW

View the next day by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide.

USB MODE / MEDIA PLAYER

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

Please refer to technical specification page for compatible fi le types

On switching to USB source the above menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

C1 PHOTO MUSIC MOVE TEXT

1) You can navigate through the menus using the scroll ▲▼▶◀ buttons. To confirm the item you wish to play/view press [OK] button.

PHOTO Return C

2) Select the drive you require. (If your drive only has 1 partition you will only see 1 item).

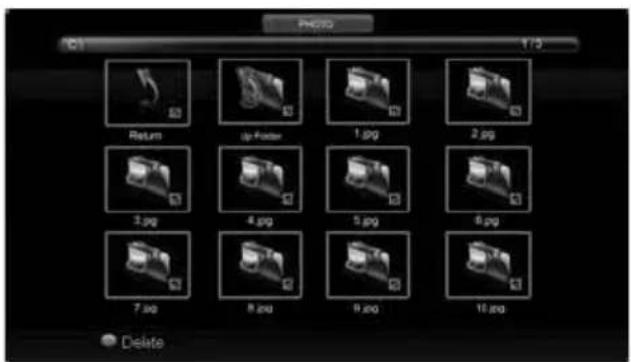

PH250 C: 1 / 5 Return Up-Folder 1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 7.jpg 8.jpg 9.jpg 10.jpg Delete

3) You can now access the item. Press OK to view. 4) While viewing you control the item using

Black-and-white aerial view of a rugged landscape with trees and hills, no visible text or symbols.

REC PVR DVD REC LIST

or by pressing (i) and using ▲▼▶◀ and (OK)

OPERATING THE TV WITH A UNIVERSAL OR SKY (BSKYB) REMOTE CONTROL

Using a Universal Remote Control.

You may wish to use a Universal Remote control to operate your Television. In order to do so, you will need to enter the 'code' below into your universal remote control, to do this, please follow the instructions included with the Universal remote control. Please note that if your remote control does not accept the code, this is because the software/fi rmware installed on the remote control is too old. Please contact the manufacturer of the Universal Remote control for assistance.

Universal Remote Code - 2106 (TV functions) 2302 (DVD Functions - where included on the TV)

Using a Sky / Sky+ / Sky HD Remote Control

If you wish to use your Sky remote control to operate your Television, you need to programme a 4 digit code into your Sky, Sky+ or Sky HD remote control.

Please note that the code below will only be accepted if the Sky remote control is a Revision 9 (launched Autumn 2010) or later.

To find out which version of Sky remote you have, remove the battery cover, you should see a sticker showing the 'Rev' number.

If your Sky remote is Rev 8 or earlier, you will need to purchase a new Sky Remote control in order to operate the TV's functions. At the point of manufacture of this TV, the latest Revision 9 remote controls are only available to purchase directly from Sky, alternatively, you can purchase our versions from the helpline / website.

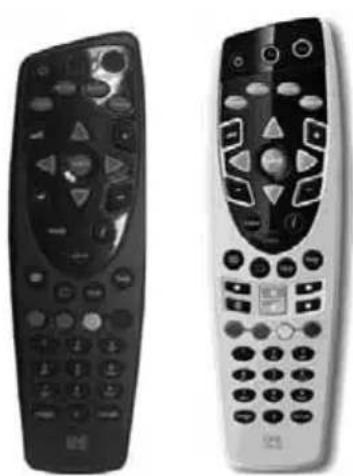

Two remote control devices shown side by side, one black and one white, with no visible text or symbols on the devices themselves.

Sky Sky+/Sky HD

The very latest versions of remote controls to operate your Sky / Sky+ / Sky HD in addition to operating the functions of the Television can be purchased from the helpline or website.

www.skymediauk.co.uk

Our versions (from One for All) are slightly smaller than the regular Sky remotes and operate your Sky box the same way your current Sky remote does, in addition, our versions operate the functions of your television as they include the very latest software/fi rmware.

Please note that as we have to install the necessary software / fi rmware onto the remote control prior to shipping, you must provide us with your TV model number in order that we can do this.

If your Sky remote control is a Revision 9 or later, please follow the instructions below.

1) Switch on the TV set
2) Press the 'TV' button on the Sky Remote
3) Hold down the 'select' and 'red' buttons for 2-3 seconds until the LED blinks twice
4) Press the 'TV' button on the Sky Remote again
5) Enter the 4 digit code (see below)
6) The LED should blink twice, if not recheck the 4 digit code used and go back to step 1
7) Press the 'standby' button on the Sky Remote (The TV should go to standby)
8) Press 'select' to store this setting
Sky / Sky+ / Sky HD Remote code - 2134 (Revision 9 or later only)

FREQUENTLY ASKED QUESTIONS

General I would like to have louder sound by connecting additional speakers	Subject to the TV model and connections, it is possible to connect the TV to an external amplifi er or surround sound (subject to connections/inputs on the device) as follows:-1) Connect a COAX cable* from the TV's COAX output to your amplifi er/ surround systems COAX input2) Connect a 3.5mm jack to L/R phono cable* from the TV's headphone socket (where fi tted) to your amplifi er/surround sound L/R input. Please note sound to the TV's speakers will be disabled.3) On selected models, it maybe possible to connect a SCART input/ output* switch with an additional L/R Phono cable* to the TV's SCART socket and to the L/R Phono Input of your amplifi er/surround sound. Please note due to copyright laws it is not possible to output video/sound from the TV on certain sources, i.e. HDMI, DVD etc.*cables and switches mentioned are available to purchase separately from your retailer.
General Why are some options in the menu unavailable and greyed out	Some options are only available in certain sources, i.e. HDMI, PC/VGA. They are unavailable in the other sources where they have no affect.
TV I have tuned in Digital TV but I am not receiving any or all of the channels and/ or the channels I receive are breaking up	1) Check you are in an area that can receive Freeview. Visit www.freeview.co.uk.2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent Freeview coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/indoor type aerial. This may change once the analogue signal is switched off in 2012 and the Digital signal strength is increased.
TV I have re-tuned my television but when I switch it off it is not storing the channels	Complete a fi rst time installation, please refer to the set-up menu section of the manual for how to do this
VCR/DVD Recorder	I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording
Game Consoles I have connected my PS3 to the TV via HDMI, but I am not receiving any pictures or sound on my Television	1) Ensure the TVs source is on HDMI2) Check your settings on your PS3 are as per the PS3 instruction manual
Game Consoles I have connected my Xbox 360 to the TV via Component Cables (Red, Green & Blue) but I am not receiving any sound	Component cables only provide HD Pictures. For the sound you will need to connect the Red & White audio cables on the Xbox to the Red & White phono inputs on the rear of the TV. Please refer to the 'Connections' pages.
USB Mode I have inserted a USB Memory Key, but the TV does not recognise it	Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Can I use a USB portable hard drive with my TV?	If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 fi le system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives. Please refer to the web site for more information.
System Lock I have changed the password on the television and now forgotten it	There is a master password of 4711, to gain access to the TV menu and reset the normal password

TECHNICAL SPECIFICATION

Model M40/74G-GB-FTCU-UK
Screen size (diagonal) 40"/101cm
Resolution 1920x1080
Contrast Ratio 4000:1
Brightness cd/m2 430
PC RGB Yes
RF 75 ohm Antenna / PAL-SECAM
Video Inputs 1 x SCART, 1 x Video, 1 x Component (YPbPr - 1080p), 3 x HDMI (up to 1080p)
Sound Inputs 1 x 3.5mm jack for PC audio input, 1 x pair RCA Audio input shared for Video and YPbPr (component)
Sound Outputs 1 x Coax Audio output, 1 x 3.5mm headphone jack
Sound power, watts (RMS)	2 x 9
Voltage and power consumption	110-240V 50/60Hz 220W (in standby less than 1W)
Dimensions including stand (mm)	987W x 672H x 291D mm
Net weight (Kgs) 16.8kg

INDEX

Attaching the stand 9
Aspect Ratio 21
Auto Conf i guration of screen (PC) 23
Auto Tuning 16
Auto Volume Level 18
Balance 18
Bass 18
Blue Screen 21
Brightness 17
Clock 19
Colour 17
Colour Temperature 17
Common Interface 20
Connections....14-15
Contrast 17
Detaching the base/stand 9
Digital Output 18
Digital Switchover 29
First Time Installation 11
Frequently Asked Questions 27
Getting Started 11
Horizontal Position (PC) 23
Important installation instructions .... 10
Language 21
Manual Search 16
Noise Reduction 17
Operating the TV with a universal or
Sky (BSKYB) remote control 26
Phase (PC) 23
Picture Mode 17
Remote control 13
Reset to default 21
Sharpness 17

Sleep Timer 19
Sound Mode 18
Source Menu 12
System Lock 20
Technical Specifications 28
Treble 18
TV buttons 12
TV Guide 24
USB Mode / Media Player 25
Using the television as a computer monitor 22
Vertical Position (PC) 23
Wall mounting 9
What is included in the box 8

DIGITAL SWITCHOVER

Television in the UK is going digital, bringing us all more choice and new services. Starting late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

How the switchover affects your TV equipment.

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or whether you will have to wait until the switchover at www.digitaluk.co.uk)

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your TV in order to continue receiving your existing TV channels and also to pick up new ones.

Digital UK, the body leading the digital switchover, will advise you when you need to retune during the switchover.

How to retune.

Retuning your TV is a very quick and simple process. We recommend that you retune every few months to ensure you are receiving the very latest TV and radio channels that are broadcast.

1) On the remote control press [MENU] followed by 8 - 8 - 8 - 8 (so the number 8 button four times)

2) The First Time Installation menu will appear. Press [OK] and tuning will take place.

For help and support regarding the digital switchover, please contact Digital UK:

Telephone: [phone] (calls charged at local call rate, approx 3p per minute daytime or 1p per minute evenings from a BT landline)

Digital UK website: www.digitaluk.co.uk
