USER MANUAL INTERNET STICK CS-17 NOKIA

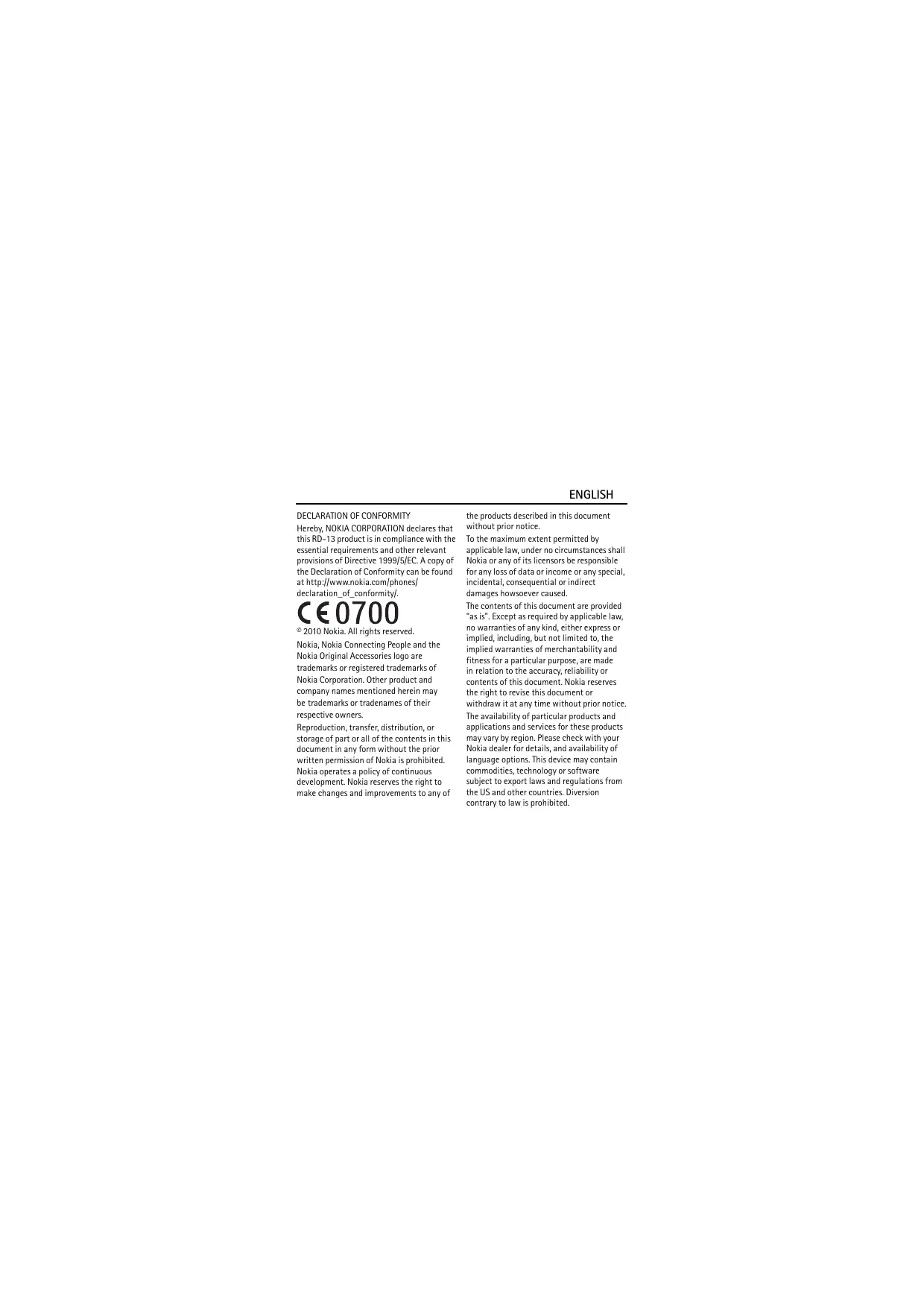

DECLARATION OF CONFORMITY

Hereby, NOKIA CORPORATION declares that this RD-13 produet is in compliance with the essential requirements and ather relevant provisions af Directive 1999/S/EC. À copy of te Declaration of Confarmiy can be found athttpy{mnokia com/phones/ declaraion_of_ confarmit. C€0700 22010 Nokia. All rights reserved. Nokia, Nokia Connecting People and the Nokia Original Accessories logo are trademarks or registered trademarks of Nokia Corporation. Other product and company names mentioned herein may. be trademarks or tradenames of their respective owners. Reproduction, transfer distribution, or storage of part or all of te contents in this document in any form without the prior ritten permission of Nokia is prohibited. Nokia operates a palicy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Ta the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of it lcensors be responsible for any loss of data ar income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided Fasis’. Except as required by applicable law, n9 warranties of any Kind, either express or implied, including but not limited to, the implied warranties of merchantablity and fitness for a particular purpose, are made in relation to the aceuracy, reliability or contents of this document. Nokia reserves he right to revise this document or withdrawitat any time without prior notice. The availability of particular products and applications and services for these products may vary by region. Please check with your Nokia dealer for detail, and availability of language options. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries, Diversion contrary to law is prohibited.

ENGLISH SAFETY Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information.

Do not suitch the device on when wireless phone use is prohibited or when it may cause interference or danger. A INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. M About your device ‘The wireless device described in this guide is approved for use on the (E)6SM 850, 900, 1800, and 1900, and UMTS 900/1900/2100 HSPA networks.

SUITCH OFFIN RESTRICTED

À AREAS Follow any restrictions. Suitch the device offinaircrat,near medical equipment, fuel, chemicals, or blasting areas. QUALIFIED SERVICE Only qualified personnel may repair this product. WATER-RESISTANCE Your device is not water- resistant. Keep it dry Contact your service provider for more information about networks. During extended operation, such as 2 high speed data connection, the device may feel warm. In most cases, this

ENGLISH condition is normal. If you suspect the device is not working properly, take it to the nearest authorised service facility B Network services To use the device you must have service from a wireless service provider. Some features are not available on all networks; other features may require that you make specific arrangements with your service provider t use them. Network services involve transmission of data. Check with your service provider for Introduction When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatible products details about fees in your home network and when roaming in other networks. Your service provider can explain what charges will apply. Some networks may have limitations that affect how you can use some features of this device requiring network Support The Nokia Internet Stick CS-17 is a wireless modem that lets you transfer data in cellular networks. To use the device with your computer, you need the Nokia Internet Modem application that is automatically installed when you connect the device to the computer for the first time. Read this guide carefully before using the device. Also read the user guides for the Nokia Internet Modem application, your computer, operating

ENGLISH system, and any software that you use with the internet connection set up through the device. For additional information, go to wwvnokia.com/support or your local Nokia website. ‘The operating temperature of this device is-15"C to 35°C (5°F to 95°F), and the storage temperature is -40°C to 85°C (-40°F to 185°F).

Warning: The plug of this

& device may contain a small amount of nickel. Persons who are sensitised to nickel may have symptoms from prolonged skin contact with the plug Read the user guide for Nokia Internet Modem To read the user guide for the Nokia Internet Modem application, you must have a PDF reader application installed on your computer. You can download the PDF reader for example, from the Adobe website. To access the user guide, select the question mark (Help) in the main view ofthe Nokia Internet Modem application. The user guide is displayed in the language that you selected during the installation of the application. Supported hardware and software The USB plug on the device supports the data transfer rates defined in the USB specification version 2.0. To use the device for data transfer with your computer, the computer must have a 500 MHz 32-bit (x86) or 64-bit (x64) processor or faster, 2 compatible USB port, and 360 megabytes of available space on the hard disk. You also need one of the following operating systems: Microsoft Windows XP (Service Pack 2

ENGLISH with Hotfix KB943198, or Service Pack | Microsoft Windows XP 64-bit Edition 3 or newer), Microsoft Windows Vista, _ is not supported. Windows 7, Linux Ubuntu 9.04, or Apple Mac OS 10.4, 10.5, or 10.6. Get started The device contains the following Insert the SIM card parts shown on the title page Warning: K g: Keep the indicator ight (1), USB plug covered {Âge protection cap out ofthe with a protection cap (2), and cover of Pen ofemal ehldren. the SIM card slot (3) € SIM card slot (3) 1. Remove the protection cap (5). Antenna locations 2. Lift the cover of the SIM card Yaur device has internal antennas. slot (6) Avaid touching the antenna area (4) Insert the SIM card (7) unnecessarly while the antenna is transmitting or receiving. Contact with Ensure that the contact surface on antennas affects the communication the card is facing down, and the quality and may cause à higher power bevelled corner is on the right. Level during operation and may reduce 4. Ta close the cover, press it against the computer battery life. the device (8), and slide it into place.

ENGLISH First time setup To set upthe device for your computer, you may need the administrator rights for the operating system. You may also need to change the firewall settings of your operating system to let the device access the internet.

1. Ensure that a SIM card is inserted

in the device. Remove the protection cap from the USB plug Switch on your computer, and connect the device to the USB port on the computer, so that the Nokia logo is facing up. LA Tip: To connect the device 7@° to a compatible computer using the Nokia Connectivity Cable CA-175D, connect the cable to the USB plug and the USB port on the computer.

To install the device and the Nokia Internet Modem application, do one of the following: In Windows, the installer opens automatically ifthe autorun feature is enabled. In Mac OS, double-click the Nokia Internet Stick CS-17 setup icon and then the Nokia Internet Modem icon. In Linux, double-click the CD drive and then the nokialnternetmodem.deb icon. Select Install Package. Select the desired language from the list, and select OK. Follow the displayed instructions. Carefully read the end-user license agreement and accept it. ‘The application and the needed drivers are installed on your computer. The installation may take several minutes.

6. Based on your SIM card, the device

automatically tries to define the settings for the cellular network of your service provider (operator). When prompted, enter the personal identification number (PIN) code of our SIM card. The PIN code helps to protect your SIM card against unauthorised use and is usually supplied with the card. The main view of the Nokia Internet Modem application is displayed. To exit the Nokia Internet Modem application, select X. To disconnect the device from the computer, unplug the device from the USB port. You may need to stop the device before disconnecting it, if your operating system supports this function Indicator light Ithe indicator light is red, the device cannot register to a cellular network because the SIM card is not valid or properiy inserted or cannot find à supported network in your location. Ithe red light flashes, the device is not registered to a cellular network because you have not entered the PIN code, if the PIN code request is enabled in the Nokia Internet Modem application. Ithe indicator light is green, the device is registered to a GSM network and transferring data. Ifthe green light flashes, the device is registered 0 a GSM network, but the data connection is not active. Ithe indicator light is blue, the device is registered to a 36 network and transferring data. If the blue light flashes, the device is registered to à 36 network but the data connection is not active.

ENGLISH Uninstall + In Windows, select the uninstall To uninstall the device and the Nokia #PPlication from the Start menu. Internet Modem application from your _ *_ In Mac 05, select the uninstall icon computer, do ane of the following in the Nokia folder. In Linux, use the package manager. Connect to the internet Forthe availability of data services, Programs > Nokia > Nokia pricing, and tariffs, contact your Internet Modem > Nokia service provider. Internet Modem.

1. When a SIM cardisinsertedinthe + In Mac OS, select the

device, switch on the computer, application from the Finder. and connect the device to the In Linux, select Applications > computer. Internet > Nokia Internet

2. Ifthe Nokia Internet Modem Modem.

application does not start 3. If prompted, enter the PIN code of automatically, do one of the your SIM card. following:

4. Check the network indicator light

+ In Windows, start the to see whether a network application from the Start connection is available. menu. For example, in Windows XP, select Start >

ENGLISH To connect to the internet, select Internet Connection > à. Start using the connection with the software you want. During data transfer the Internet Connection window shows the transmission rate of sent (Rate out} and received (Rate in) data, the duration of the current session, and the total amount of data sent and received during the session (Volume), Ifthe computer enters standby or hibernation mode, data transfer may Stop. Using the device for data transfer increases the demand on computer battery power and reduces the battery life. To close the connection, in the Internet Connection window, select 2. To exit the application, select X. This also closes the connection. To minimise the application without losing the active connection, select =. To restore the application window, select the icon of the minimised application. Taking care of your device Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you protect your warranty coverage. + Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. your device does get wet, allow it to dry completely.

ENGLISH De not use or store the device in dusty dirty areas. lts moving parts and electronic components can be damaged. De not store the device in high or cold temperature. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics. When the device warms toits normal temperature from a cold temperature, moisture ‘an form inside the device and damage electronic circuit boards. D not attempt te open the device ‘other than as instructed in this guide. De not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics. De not use harsh chemicals, cleaning solvents, or strong detergents ta clean the device. Only use a soft, clean, dry cloth to clean the surface of the device. + Do not paint the device. Paint can log the moving parts and prevent proper operation These suggestions apply equally to your device or any accessony. Recycle Aleays return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontralled waste disposal and promo the recycling of materials. Check product environmental information and hou to recycle your Nokia products at wwnokia.com/werecycle, or www nokia.mobi/werecycle. x ‘The crossed-out wheeled-bin symbol on your produet, mm tien literature, or packaging reminds you that al electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies in the European Union. Do not

ENGLISH dispose of these products as unsorted municipal waste. For more environmental information, see the product Eco-Declarations at wwwnokia.com/ environment. Additional safety information M Small children Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children. M Operating environment This device model has been tested and meets RF exposure guidelines when positioned at least 0.5 centimeter {1/5 inch) away from the body when lugged directly into a USB port on the host device or used at the end of the Nokia Connectivity Cable CA-175D that may be supplied in the sales package. M Medical devices Operation of any radio transmitting equipment, including wireless phones, may interfere with the function of inadequately protected medical devices Consuit a physician or the manufacturer of the medical device to determine whether they are adequately shielded from external RF energy. Switch off your device when regulations posted instruct You to do so. Hospitals or health care facilities may use equipment sensitive to external RF energy: Implanted medical devices Manufacturers of medical devices recommend à minimum separation of

ENGLISH 153 centimeters (6 inches) between à wireless device and an implanted medical device, such as a pacemaker or implanted cardioverter defibrillator, to avoid potential interference with the medical device. Persons who have such devices should Always keep the wireless device more than 153 centimeters (6 inches) from the medical device. Turn the wireless device offif there is any reason 10 suspect that interference is taking place. + Follow the manufacturer directions for the implanted medical device. If you have any questions about using vour wireless device with an implanted medical device, consult your health care provider. Hearing aids Some digital wireless devices may interfere with some hearing ads, M Vehicles RF signals may affect improperiy installed or inadequately shielded electronic systems in motor vehicles such 2s electron fuel injection, electronic antilock braking, electronic speed control, and air bag systems. For more information, check with the manufacturer of your vehicle or ts equipment. Only qualified personnel should service the device. Faulty service may be dangerous and may invalidate your warranty. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or accessories Switch off your device before boarding an aireraft, The use of wireless teledevices in an aircraft may be dangerous to the operation of the aireraft and may be illegal

ENGLISH M Potentially explosive environments Switeh off your device in any area with à potentially explosive atmosphere. Obey all posted instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or death, Suitch off the device at refuelling points Such as near gas pumps at service Stations. Observe restrictions in fuel depots, storage, and distribution areas; chemical plants; or where blasting operations are in progress. Areas with potentially explosive atmosphere are often, but not always, clearly marked. They include areas where you would be advised to turn off your vehicle engine, below deck on boats, chemical transfer or storage facilities and where the air contains chemicals or particles such as grain, dust, or metal powder. You should check with the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane] to determine if this device can be safely used in their vicinity. B Certification information (SAR) This mobile device meets guidelines for exposure to radio waves. Your device is à radio transmitter and receiver is designed not to exceed the limits for exposure te radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organisation ICNIRP and include safety margins designed to assure the protection of al persons, regardless of age and health The exposure guidelines for mobile devices employ à unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 watts)kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certfied power level in all tested frequency bands.

ENGLISH The actual SAR level of an operating device can be below the maximum value because the device is designed to use only the power required to reach the network. That amount changes depending on a number of Factors such as how close you are to a network base station. SAR values may vary depending on national reporting and testing requirements and the network band. Additional SAR information may be provided under product information at wwwnokia.com. his device model has been tested and meets RF exposure guidelines when positioned at least 0.5 centimeter {15 inch) away from the body when lugged directiy into a USB port on the host device or used at the end of the Nokia Connectivity Cable CA-175D that may be supplied in the sales package.
