USER MANUAL DA9091 MIELE

Operating and installation instructions Cooker hood

Black-and-white photo of a cooking pot with steam rising, no visible text or symbols

To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time.

Contents

Warning and Safety instructions.... 3

Caring for the environment 12

Modes of operation 13

Guide to the cooker hood.... 14

Operation.... 16

Switching the fan on.... 16

To select a power level 16

Run-on time....16

Switching the hob lighting on/off 16

Power management 16

Activating/deactivating Power management.... 17

Safety switch-off 17

Energy saving tips.... 18

Cleaning and care 19

Housing 19

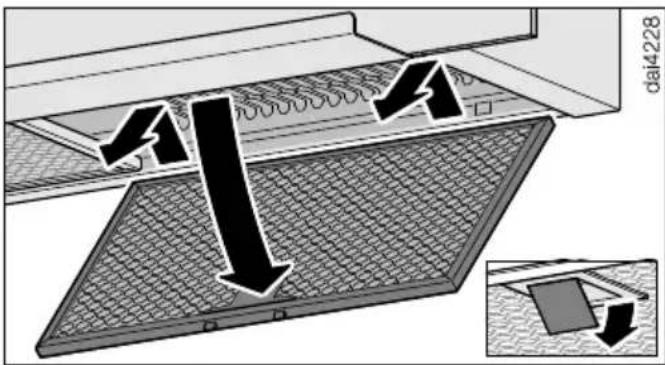

Grease filters 19

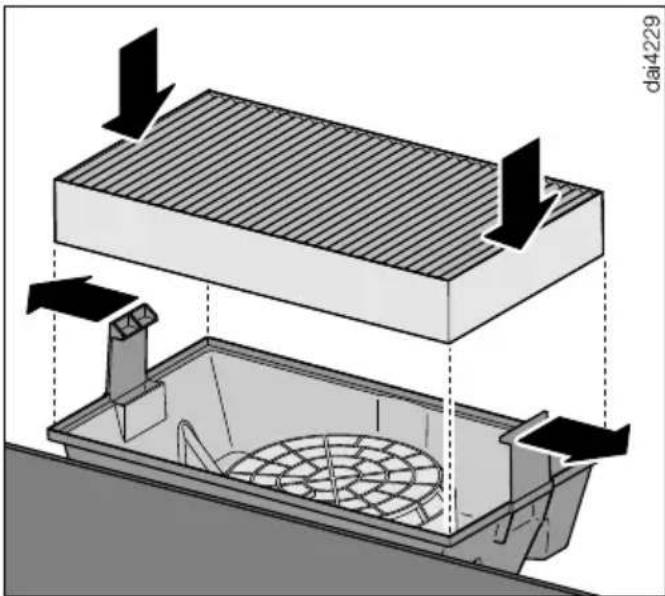

Charcoal filter 21

Disposing of charcoal filters 21

Reactivatable charcoal filter 21

Service.... 22

Contact in the event of a fault 22

Position of the data plate 22

Warranty 22

Installation.... 23

Before installation.... 23

Protective foil.... 23

Installation materials.... 23

Appliance dimensions 24

Safety distance between hob and cooker hood (S) 25

Installation recommendations 26

Drilling diagram for wall mounting.... 26

Connection for air extraction.... 27

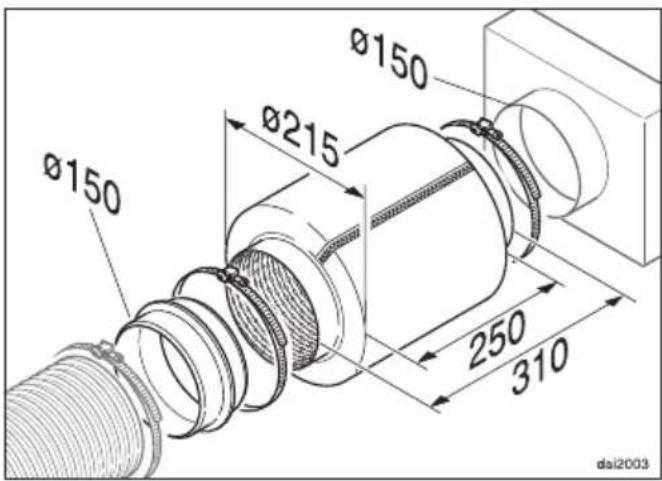

Silencer....28

Electrical connection 28

Technical data.... 29

Optional accessory for recirculation mode 29

This cooker hood complies with all relevant local and national safety requirements. Inappropriate use can, however, lead to personal injury and material damage.

Read the operating and installation instructions carefully before using the cooker hood. They contain important information on its safety, installation, use and maintenance. This prevents both personal injury and damage to the cooker hood.

In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in the chapter on installing the appliance as well as the safety instructions and warnings.

Miele cannot be held liable for injury or damage caused by non-compliance with these instructions.

Keep these instructions in a safe place and pass them on to any future owner.

Correct application

This cooker hood is intended for use in domestic households and similar working and residential environments.
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours and remove odours from cooking.

Any other usage is not supported by the manufacturer and could be dangerous.

▶ Where a recirculation cooker hood is fitted above a gas hob, please ensure that there is an adequate supply of fresh air into the room in which it is installed. Please seek the advice of a qualified gas fitter (e.g. GasSafe in the UK) for more information if necessary.

The cooker hood can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised whilst using it, or have been shown how to use it in a safe way and recognise and understand the consequences of incorrect operation.

Safety with children

Children under 8 years of age must be kept away from the cooker hood unless they are constantly supervised.
Children aged 8 and older may only use the cooker hood without supervision if they have been shown how to use it and are able to do so in a safe manner. Children must be able to understand and recognise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the cooker hood unsupervised.
▶ Please supervise children in the vicinity of the cooker hood and do not let them play with it.
The hob lighting is very intensive.

Ensure, in particular, that babies/small children do not look at the light.

Danger of suffocation! Whilst playing, children may become entangled in packaging material (such as plastic wrapping) or pull it over their head with the risk of suffocation. Keep packaging material away from children.

Technical safety

▶ Unauthorised installation, maintenance and repairs can cause considerable danger for the user. Installation, maintenance and repairs must only be carried out by a Miele authorised technician.
▶ A damaged appliance can be dangerous. Check it for visible signs of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt please have the electrical installation tested by a qualified electrician.
▶ Reliable and safe operation of this cooker hood can only be assured if it has been connected to the mains electricity supply.
The connection data (voltage and frequency) on the data plate of the cooker hood must match the mains electricity supply in order to avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a multi-socket unit or an extension lead. These are a fire hazard and do not guarantee the required safety of the appliance.

For safety reasons, this appliance may only be used after it has been built in.
The cooker hood must not be used in a non-stationary location (e.g. on a ship).
▶ Touching electrical components and tampering with electrical and mechanical parts is highly dangerous to the user and can cause operational faults.

Only open the housing as described in the instructions given in the installation sheet and in the Cleaning and care section of this booklet. Under no circumstances should any other parts of the housing be opened.

The manufacturer's warranty will be invalidated if the appliance is not repaired by a Miele authorised technician.

▶ Miele can only guarantee the safety of the appliance when genuine original Miele replacement parts are used. Faulty components must only be replaced by Miele spare parts.

If the electrical connection cable is faulty it must only be replaced by a Miele authorised technician to protect the user from danger.

During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply.

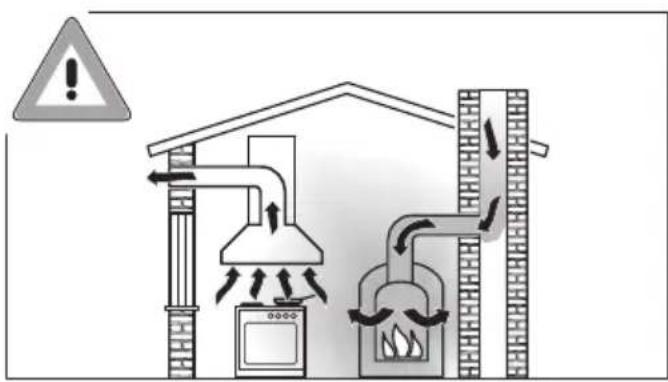

Using at the same time as another heating appliance that depends on the air from the room

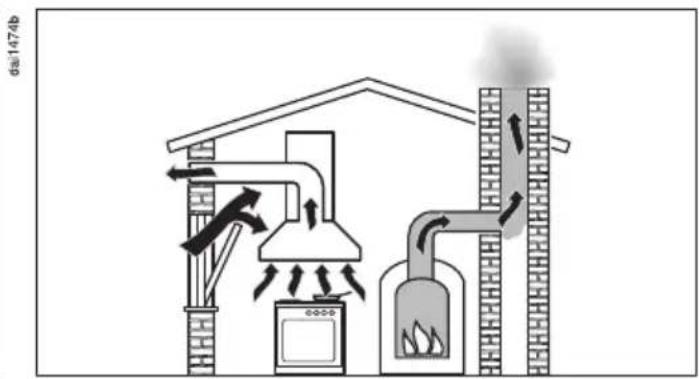

Diagram illustrating airflow and heating system in a building, showing air flow from a chimney to a stove with steam and fire.

ds:1474b

Danger of toxic fumes!

Great care should be taken when using the cooker hood in the same room or the same area of the house at the same time as another heating appliance that depends on the air from the room. Such heating appliances draw in air from the room and duct exhaust gases out through a chimney or extraction ducting. They include gas, oil, wood and coal-fired boilers and heaters, continuous flow or other water heaters, gas hobs and ovens.

The cooker hood draws in air from the kitchen and from neighbouring rooms. This applies to the following modes of operation:

- Extraction mode - Recirculation mode with a recirculation box installed outside the room.

If there is insufficient air, negative pressure will occur. The heating appliance may be starved of oxygen. This impairs combustion.

Harmful gases could be drawn from the chimney or extraction ducting back into the room. Risk of death!

In order to ensure safe operation and to prevent gases given off by the heating appliance from being drawn back into the room when the cooker hood and the heater are both operated simultaneously, an underpressure in the room of 0.04 mbar (4 Pa) is the maximum permissible.

Sufficient ventilation can be maintained by air inlets which cannot be blocked, e.g. in windows, doors and outside wall vents. The cross-section of the inlet openings must enable sufficient ventilation. A ventilation brick alone is not generally sufficient to ensure safe ventilation.

The overall ventilation condition of the dwelling must be taken into account. If in any doubt, ask a competent building regulations inspector or qualified gas fitter (if appropriate).

If the cooker hood is being operated in recirculation mode, whereby the air is redirected into the room in which it is installed, the above restrictions do not apply.

Correct use

▶ Open flames are a fire hazard.

The use of an open flame under the cooker hood is not permitted. To avoid the danger of fire, do not flambé or grill over an open flame. When switched on, the cooker hood could draw flames into the filter. Fat deposits could ignite, presenting a fire hazard.

The cooker hood can become damaged when exposed to excessive heat.

- When using the cooker hood over a gas hob, ensure that any burners in use are always covered by a pan. Switch the cooking zone off when a pan is removed, even for a short time.

- Select a pan which is suitable for the size of the burner.

- Regulate the flame so that it does not burn up the sides of the pan.

- Avoid overheating the pan (e.g. when cooking with a wok).

▶ Always switch the cooker hood on when a cooking zone is in use, otherwise condensation may collect in the hood, which could cause corrosion.

▶ Overheated oil and fat can ignite, causing fire damage to the cooker hood.

When cooking with oil or fat, chip pans and deep fat fryers, etc, do not leave the pans unattended. Similarly, never leave an open grill unattended when grilling.

Do not use the cooker hood without the filters in place. This way you will avoid the risk of grease and dirt getting into the appliance and hindering its smooth operation.
There is a risk of fire if the cooker hood is not cleaned as described in these operating instructions.
The cooker hood can get very hot during cooking due to heat rising from the hob.

Do not touch the housing or the grease filters until the cooker hood has cooled down.

Proper installation

▶ Refer to the cooker or hob manufacturer's instructions as to whether a cooker hood may be operated above the cooker/hob.
▶ Safety regulations prohibit the fitting of a cooker hood over solid fuel stoves.
An insufficient safety distance between the hob and the cooker hood can result in damage to the cooker hood.

The minimum safety distances between the top of the cooker or hob and the bottom of the cooker hood given in the “Installation” section of this booklet must be maintained, unless the hob manufacturer states that a greater safety distance is required.

If more than one cooking appliance is fitted beneath the cooker hood, and they have different minimum safety distances to the cooker hood, select the greater distance.

The information provided in “Installation” must be observed when fixing the ventilation hood.

Components can have sharp edges which may cause injury. Wear gloves to protect your hands from being cut.

Exhaust ducting must be of non-inflammable material. Suitable material is available from Miele specialist dealers or the Miele Spares Dept.

The appliance must not be connected to a chimney or flue which is in use. Neither should it be connected to ducting which ventilates rooms with fireplaces.

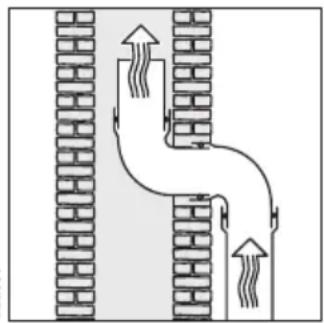

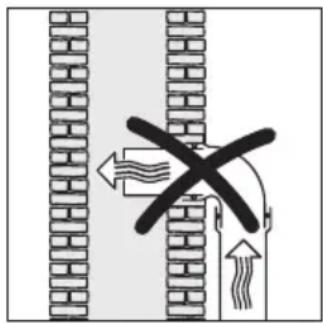

If exhaust air is to be extracted into a chimney or ventilation duct no longer used for other purposes, seek professional advice.

Cleaning and care

There is a risk of fire if the cooker hood is not cleaned as described in these operating instructions.

Do not use a steam cleaning appliance to clean this appliance. The steam could reach electrical components and cause a short circuit.

Accessories

Only use genuine original Miele accessories and spare parts with this appliance. Using accessories or spare parts from other manufacturers will invalidate the warranty and Miele cannot accept liability.

Disposal of the packing material

The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.

Disposing of your old appliance

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.

Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances, or contact your dealer or Miele for advice. You are also responsible for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.

Depending on the model of the cooker hood, the following options are available:

Extraction mode

Simple line drawing of a house with a fan and directional arrow, no text or symbols present.

dai0494a

The air is drawn in and cleaned by the grease filters and directed outside.

Non-return flap

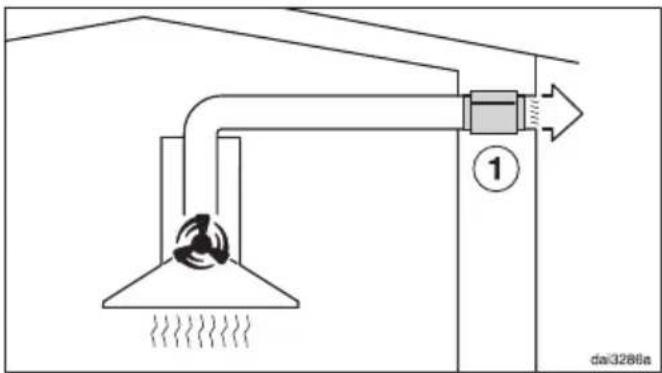

A non-return flap fitted in the vent system ensures that when the cooker hood is not in operation the duct is closed and no exchange of room air and outside air can take place.

The flap is closed when the cooker hood is switched off.

When the cooker hood is switched on, the non-return flap opens for the cooking vapours to be blown directly outside.

If the on-site ventilation system does not have a non-return flap, one is supplied with the cooker hood. It must be fitted in the exhaust socket on the motor unit.

Recirculation mode

A charcoal filter is required. Please purchase separately. See “Technical data”.

Simple line drawing of a house with a fan and steam lines, no text or symbols present.

dai0494b

The air is drawn in and cleaned first by the grease filters and then by a charcoal filter. The cleaned air is then recirculated back into the kitchen.

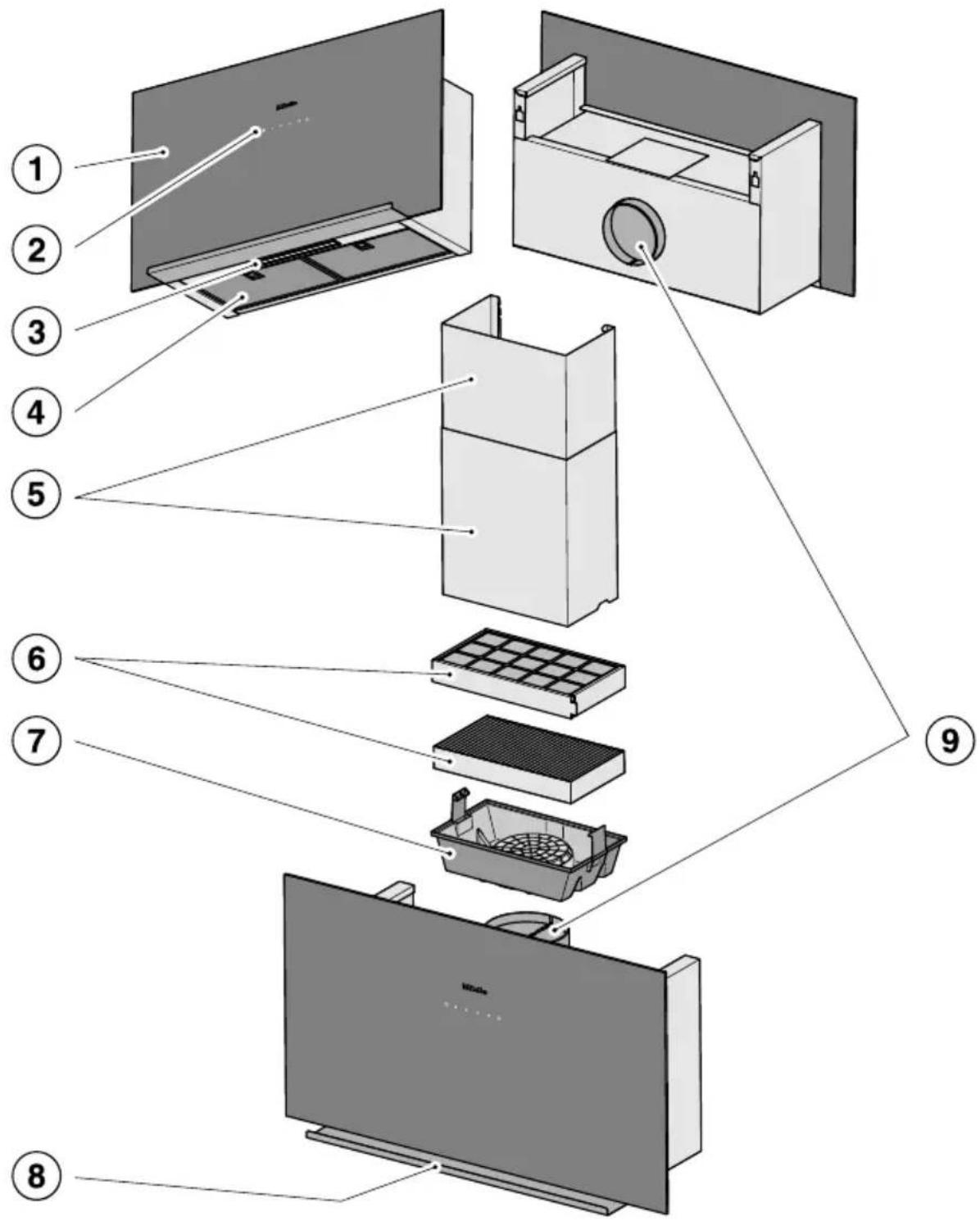

Exploded diagram of a smart TV system with numbered components for identification

① 1 2 3 B ⑩ ⑪ ⑫

dai4224

① Canopy
② Control elements
③ Hob lighting
④ Grease filters
⑤ Tower

Optional accessory For extraction mode only

⑥ Charcoal filter

Disposable or reactivatable charcoal filter Optional accessory for recirculation mode

⑦ Charcoal filter cassette
⑧ Shelf
⑨ Vent outlet

Extraction ducting can be directed through the back of the cooker hood or upwards to the ceiling.

For recirculation mode, extraction ducting can only be directed upwards.

⑩ Sensor control for switching the fan on and off
⑪ Sensor controls for selecting the fan power level
⑫ Sensor control for switching the hob lighting on and off

Switch the fan on as soon as you start cooking. This is to ensure that vapours are captured right from the start.

■ Touch the On/Off control ⏻.

The fan will come on at power level 2.

To select a power level

For light to heavy cooking vapours and odours, select from power levels 1 to 3.

For short periods of cooking food with intensive vapours and a strong aroma, e.g. when searing meat, select Booster setting B.

■ Select the power level required by touching a control from 1 to B.

Reducing power down from the Booster setting

If power management is activated (default setting), the fan automatically switches back to level 3 after 5 minutes.

Run-on time

■ It is advisable to run the fan for a few minutes after cooking has finished.

This helps to remove any lingering vapours and odours from the air.

It also reduces the risk of residues accumulating in the cooker hood and any resultant odours.

■ Press the On/Off control ⏻ to switch the fan off.

Switching the hob lighting on/off

The hob lighting can be switched on and off independently of the fan.

■ Touch the lighting control ⚙ to turn the hob lighting on and off.

Power management

The cooker hood is fitted with a power management system. Power management helps to save energy. It ensures that the fan power level is reduced automatically and that the lighting is switched off.

- If the Booster setting has been selected, the fan will automatically switch to level 3 after 5 minutes.

- From fan power levels 3, 2 or 1, the power will be reduced by one level after 2 hours and then in 30-minute stages until the fan finally switches off.

- The hob lighting will switch off automatically after 12 hours.

Activating/deactivating Power management

You can deactivate Power management.

Keep in mind that this may increase energy consumption.

■ Switch off the fan and the lighting.
■ Touch the 1 and B controls at the same time for approx. 10 seconds, until 1 lights up.
■ Then touch the following controls in turn:
- the lighting control ⚙️,
- the 1 control and then
- the lighting control - again.

When Power management is activated, the 1 and B indicators light up constantly.

When it is deactivated, the 1 and B indicators flash.

■ To deactivate Power management, touch 1.

The 1 and B indicators will flash.

■ To activate Power management, touch B.

The 1 and B indicators will light up constantly.

■ Confirm your choice with the on/off control ⏻.

All the indicator lights will go out.

If you do not confirm your choice of setting within 4 minutes, the cooker hood will revert to the old setting.

Safety switch-off

If Power management has been deactivated, the cooker hood will switch itself off automatically after 12 hours if it has been left on (fan and hob lighting).

■ To switch it on again press the On/Off ⏻ control or the lighting control ⚙️.

This cooker hood operates very efficiently and economically. The following will help you to save even more energy when using it:

• Ensure that there is sufficient ventilation in the kitchen when cooking. In extraction mode, if there is insufficient air flow the cooker hood cannot operate efficiently and this causes increased operating noise levels.
• Always cook with the lowest possible setting. This produces fewer cooking vapours, so you can use a lower cooker hood power level and therefore benefit from reduced energy consumption.
• Check the power level selected on the cooker hood. A lower power level is generally sufficient for the majority of cooking. Only use the Booster setting when necessary.
• When a large volume of cooking vapours is being produced, switch to a high power level in good time. This is more efficient than operating the cooker hood for longer to try to capture cooking vapours which have already been distributed throughout the kitchen.
• Make sure that you switch the cooker hood off after use.
• Clean or change the filters at regular intervals. Heavily soiled filters reduce performance, increase the risk of fire and are unhygienic.

⚠️ Before proceeding with any maintenance or cleaning task, the cooker hood must be disconnected from the power supply (see “Warning and Safety instructions”).

Housing

General information

⚠️ The surfaces and controls are susceptible to scratches and abrasion. Please observe the following cleaning instructions.

■ All external surfaces and controls can be cleaned using hot water with a small amount of washing-up liquid applied with a well wrung-out soft sponge or cloth.
■ After cleaning, wipe the surfaces dry using a soft cloth.

Do not use:

• cleaning agents containing soda, acids, chlorides or solvents,
• abrasive cleaning agents, e.g. powder cleaners or cream cleaners and abrasive sponges, as well as pot scourers or sponges which have been used previously with abrasive cleaning agents. These will damage the surface material.

Important for appliances with glass surfaces

■ Glass surfaces can be cleaned using a proprietary non-abrasive cleaning agent designed specifically for use on glass.

Grease filters

! Fire hazard

Oversaturated grease filters are a fire hazard. Clean the grease filters at regular intervals.

The re-usable metal grease filters in the appliance remove solid particles (grease, dust, etc.) from the kitchen vapours, preventing soiling of the cooker hood.

The grease filters must be cleaned at regular intervals.

Heavily soiled grease filters hinder air extraction and will lead to increased levels of soiling in the cooker hood and in the kitchen.

Cleaning interval

Accumulated grease solidifies over a longer period of time and makes cleaning more difficult. The grease filters should therefore be cleaned every 3 to 4 weeks.

Removing a grease filter

When handling a grease filter, be careful not to drop it. This can result in damage to the filter and the hob below. Make sure you hold the filter securely at all times when handling it.

da4228

■ To take out a grease filter, release the locking clip on the filter, lower the filter approx. 45°, unhook it at the back and remove it.

Cleaning the grease filters by hand

- Clean the filters with a soft nylon brush in a mild solution of hot water and a small amount of washing-up liquid. Do not use “neat” washing up liquid.

Unsuitable cleaning agents

Unsuitable cleaning agents can cause damage to the surface of the filters if used regularly.

Do not use:

• cleaning agents containing descaling agents
• powder cleaners, cream cleaners
• aggressive multi-purpose cleaning agents or spray cleaners for grease
• oven sprays

Cleaning the grease filters in the dishwasher

■ Place the grease filters upright or slightly inclined in the lower basket. Ensure the spray arm is not obstructed.
■ Use a commercially available household dishwasher detergent.

■ Select a dishwasher programme with a wash temperature between 50 °C and 65 °C.

Depending on the detergent used, cleaning the filters in a dishwasher may cause the inside filter surfaces to become discoloured. This will not affect the functioning of the grease filters in any way.

After cleaning

■ After cleaning, leave the filters to dry on an absorbent surface before replacing them.
■ When removing the filters for cleaning, also clean off any residues of oil or fat from the now accessible housing to prevent the risk of these catching fire.
■ Replace the grease filters, making sure that the locking clips are facing down towards the hob.

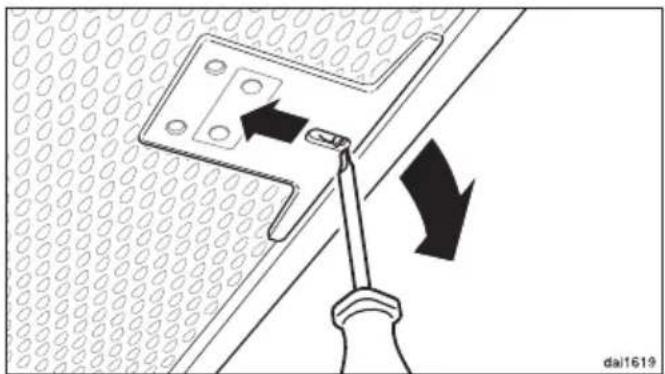

Diagram showing a screwdriver inserted into a metal bracket with an arrow indicating direction (no text or symbols present)

If a grease filter is inadvertently replaced upside down, insert a small screwdriver blade into the slit to disengage the clip.

Charcoal filter

For recirculation mode, a charcoal filter must be fitted in addition to the grease filter. The charcoal filter is designed to absorb cooking odours.

The charcoal filter is fitted in the top of the cooker hood.

Fitting/replacing charcoal filters

■ Take the charcoal filter out of its packaging.

Diagram of a roof drainage system with a rectangular basin and ventilation duct (no text or symbols)

■ Insert the charcoal filter into the charcoal filter cassette.

The charcoal filter cassette is supplied either ready installed or separately with the cooker hood.

Follow the directions included on the accompanying installation plan.

When to change the charcoal filter

■ Replace the charcoal filter when it no longer absorbs kitchen odours effectively. It should, however, be replaced at least every 6 months.

Disposing of charcoal filters

■ Used charcoal filters can be disposed of with normal household waste.

Reactivatable charcoal filter

A reactivatable charcoal filter is available for this cooker hood. It can be used several times after being reactivated in the oven.

■ Please follow the operating instructions supplied with the filter.

Charcoal filters are available to order via the Miele Webshop, the Miele Spare Parts Department (see end of this booklet for contact details) or from your Miele dealer.

The charcoal filters are listed under "Technical data" at the back of this booklet.

Contact in the event of a fault

In the event of any faults which you cannot remedy yourself, please contact your Miele dealer or the Miele Customer Service Department.

You can book a Miele Customer Service Department call-out online at www.miele.com/service.

Contact information for the Miele Customer Service Department can be found at the end of this document.

Please quote the model identifier and serial number of your appliance (Fabr./SN/Nr.) when contacting the Miele Customer Service Department. This information can be found on the data plate.

Please note that telephone calls may be monitored and recorded for training purposes and that a call-out charge will be applied to service visits where the problem could have been resolved as described in this booklet.

Position of the data plate

The data plate is visible after removing the grease filter.

Warranty

For information on the appliance warranty specific to your country please contact Miele. See back cover for address.

In the UK, your appliance warranty is valid for 2 years from the date of purchase. However, you must activate your cover by calling 0330 160 6640 or registering online at www.miele.co.uk.

Before installation

⚠️ Before installation, it is important to read the information given on the following pages as well as the “Warning and Safety instructions” at the beginning of this booklet.

Protective foil

The housing components have protective foil around them to protect them from transport damage.

■ Please remove this foil before fitting the housing components. It can be peeled off easily.

Installation materials

1 vent connection

for exhaust ducting ∅ 150 mm.

1 non-return flap

for fitting into the exhaust socket on the motor unit (not needed for recirculation mode). Depending on the model, the non-return flap may already be fitted.

Cover foil

for sealing the casing.

Technical line drawing of a screw and nut assembly (no text or symbols)

5x60neu+D8te8bc60

4 screws 5 x 60 mm and

4 plugs 8 x 50 mm

for securing to the wall.

⚠️ The screws and plugs are designed for use in solid walls only.

For other types of wall construction, alternative fixings will be required.

Make sure the wall is able to take the weight of the cooker hood.

AblageDA9090

2 screws M4 x 8 mm,

2 washers and

2 caps

for securing the shelf.

C:\10000000 Mitaro

dna3mle

Installation plan

See the installation plan for details on the individual steps involved in the installation of this appliance.

08565780

08272520

08164991

Appliance dimensions

290* 680 - 1040* 170* 398 276 ø200 500 128 S 22 320 ① ② ③ ④ 695 80 250 695 880 64 50 40 150 dai4226

The drawing is not to scale

① Ducting upwards or to the rear
② Recommended area for the mains connection
③ A ducting outlet with ∅ 200 mm ensures sufficient space through the wall for the ducting to flex
④ Ventilation grille for recirculation mode. The distance to the ceiling or to furniture installed above the appliance should be at least 300 mm.

Vent connection ∅ 150 mm

* Installation with DADC 9000 tower (optional accessory). Note the possible area for the ducting outlet in the accompanying installation diagram.

Safety distance between hob and cooker hood (S)

When planning the installation height of your cooker hood, the minimum safety distance between the top of a cooker or hob and the bottom of the cooker hood is as follows, unless a greater distance is specified by the manufacturer of your cooking appliance.

See “Warning and Safety” instructions for further information.

Cooking appliance Minimum distance S
Electric hob 450 mm
Electric grill, deep fat fryer (electric) 650 mm
Multi-burner gas hob,total output ≤ 12.6 kW, no burner > 4.5 kW	650 mm
Multi-burner gas hob,total output > 12.6 kW and ≤ 21.6 kW,no burner > 4.8 kW.	760 mm
Multi-burner gas hob,total output > 21.6 kW,or multi-burner gas hob where one burner > 4.8 kW.	Not possible
Single burner gas hob, output ≤ 6 kW. 650 mm
Single burner gas hob, output > 6 kW and ≤ 8.1 kW. 760 mm	mm
Single burner gas hob, output > 8.1 kW Not possible

Installation recommendations

• Account should also be taken of the height of the person who will be using the hood most often. They should have sufficient space to work comfortably at the hob, and be able to reach the cooker hood controls with ease.
• Please be aware that if positioned too high, extraction will be inefficient.
• To achieve optimum vapour extraction, the cooker hood must be positioned centrally over the hob, not to the side.
• The installation area must be easily accessible. The cooker hood should be easily accessible and easy to dismantle in the event that service is required. This should be taken into consideration when planning the position of cupboards, shelves, ceilings or features in the vicinity of the cooker hood.

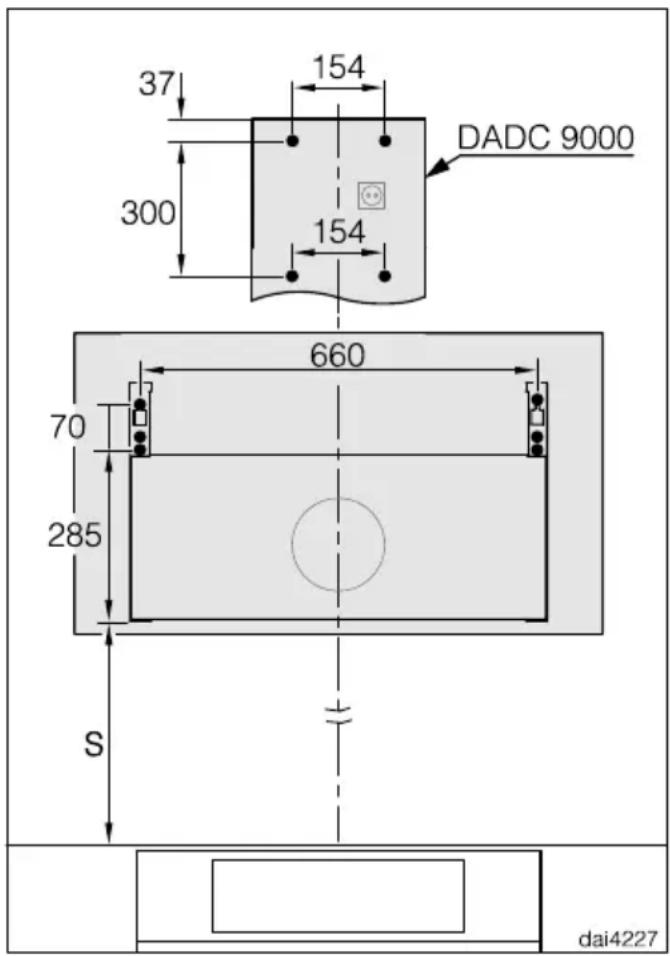

Drilling diagram for wall mounting

■ When drilling, please follow the directions contained on the accompanying installation sheet.

37 154 DADC 9000 300 154 660 70 285 S dai4227

■ When installing a custom back wall with pre-drilled holes, please refer to the drilling distances in the drawing above (screws ∅ 5 mm).

Connection for air extraction

⚠️ If the cooker hood is used at the same time as a heating appliance that relies on oxygen from the same room, there is a risk in certain circumstances of toxic fumes building up.

It is essential that the “Warning and Safety” instructions are observed.

The cooker hood should be installed according to local and national building regulations. Seek approval from the building inspector where necessary.

For ducting, use smooth pipes or flexible ducting made from approved non-flammable materials.

To achieve the most efficient air flow rate with the lowest noise levels, please note the following:

• The diameter of the exhaust ducting should not be less than 150 mm.
• If flat ducting is being used, the cross section must not be smaller than the cross sectional area of the exhaust connection.
• The ducting should be as short and straight as possible.
• Only use wide radius bends.
• The ducting must not be kinked or compressed.
• Ensure that all connections are strong and airtight.
• If the ducting has flaps, these must be opened when the cooker hood is switched on.

Remember that any constriction of the air flow will reduce the air flow rate and increase operating noise.

If the exhaust is ducted through an outside wall, a telescopic wall vent or a roof vent (available as an optional accessory) is recommended.

Diagram showing a cross-shaped object with arrows indicating flow or movement, possibly representing a mechanical or fluid system.

dai2538

Diagram of a pipe system with two vertical brick walls and one curved pipe, showing airflow or fluid flow direction (no text or labels)

■ If the exhaust air is to be ducted into a flue, the ducting must be directed in the flow direction of the flue.
■ If the flue is used by several ventilation units, the cross-section of the flue must be large enough.
■ Where ducting is horizontal, it must be laid to slope away at a gradient of at least 1 cm per metre. This is to ensure that condensate cannot drain back into the cooker hood.
If the ducting is to run through cool rooms, ceiling space, etc., there may be significant variations in temperature between the different areas. The problem of condensation will need to be addressed. The ducting will need to be suitably insulated.

Miele shall not accept warranty claims for any functional defects or damage caused by inadequate ducting.

Silencer

Ø150 Ø215 Ø150 250 310 dai2003

To achieve even further reductions in noise levels, a special silencer (optional accessory) can be fitted in the ducting system.

Extraction mode

da3286a

The silencer not only reduces noise from the motor outside the house, but also sounds from outside (e.g. traffic noise). For this reason the silencer must be positioned as close as possible to the ducting exit ①.

Electrical connection

Refer to the notes in “Electrical connection” and “Warnings and safety notes” before connecting to the power supply.

The connection data (voltage, frequency) on the data plate must match the data of the mains electricity supply. The position of the data plate is explained in the “Service” chapter.

The cooker hood is equipped with a power cable and a safety plug.

The connection must be made via a socket which remains accessible after the cooker hood has been installed. If the socket is no longer accessible after installation, there must be a suitable means of disconnection for all poles in the household electrical system which meets the requirements of overvoltage category III.

Safety can be increased by fitting the appliance with a residual current device.

Only qualified electricians are permitted to carry out work on the household electrical system.

This appliance must be earthed.

Fan motor 200 W
Hob lighting 3.2 W
Total rated load 203.2 W
Mains voltage, frequency AC 230 V, 50 Hz
Fuse rating 5 A
Power connection cable length 1.5 m
Weight
DA 9091 W 21 kg

Optional accessory for recirculation mode

One charcoal filter DKF 29 or DKF 29-R (reactivatable)

Data sheet for household cooker hoods

In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No. 66/2014

MIELE
Model name/identifier DA 9091 W Screen
Annual Energy Consumption (AEC _hood ) 67,7 kWh/year
Energy efficiency class B
Energy efficiency index (EEI _hood ) 66,1
Fluid Dynamic Efficiency (FDE _hood ) 23,5
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) B
Lighting Efficiency (LE _hood ) 93,8 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 92,8%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) B
Airflow at best efficiency point	412,8 m ^3 /h
Air flow (min. speed)	205 m ^3 /h
Air flow (max. speed)	415 m ^3 /h
Air flow (intensive or boost setting)	670 m ^3 /h
Max. air flow (Q _max )	670 m ^3 /h
Air pressure at best efficiency point 319 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 39	dB
Airborne acoustical A-weighted sound power emissions (max. speed) 50	dB
Airborne acoustical A-weighted sound power emissions (intensive or boost setting)	62 dB
Electrical power input at best efficiency point 155,1 W
Power consumption in off mode (P _o )	W
Power consumption in standby mode (P _s ) 0,25 W
Nominal power of lighting system	3,2 W
Average illumination of the lighting system on the cooking surface	300 lx
Time increase factor	1,2

United Kingdom

Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW

Tel: [phone], Internet: www.miele.co.uk/service, E-mail: [e-mail]

Australia

Miele Australia Pty. Ltd.

ACN 005 635 398

ABN 96 005 635 398

1 Gilbert Park Drive

Knoxfield, VIC 3180

Tel: [phone]

Internet: www.miele.com.au

China Mainland

Miele Electrical Appliances Co., Ltd.

1-3 Floor, No. 82 Shi Men Yi Road

Jing' an District

200040 Shanghai, PRC

Tel: [phone]

Fax: [phone]

E-mail: [e-mail],

Kowloon Bay, Hong Kong

Tel: [phone]

Fax: [phone]

Email:

[e-mail]

Website: www.miele.hk

India

Miele India Pvt. Ltd.

Ground Floor, Copia Corporate Suites29 Media Circle

Plot No. 9, Jasola

New Delhi - 110025

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Internet: www.miele.in

Ireland

Miele Ireland Ltd.

2024 Bianconi Avenue

Citywest Business Campus

Dublin 24

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.miele.ie

Malaysia

Miele Sdn Bhd

Suite 12-2, Level 12

Menara Sapura Kencana

Petroleum

Solaris Dutamas No. 1

Jalan Dutamas 1

50480 Kuala Lumpur, Malaysia

Phone: [phone]

Fax: [phone]

New Zealand

Miele New Zealand Limited

IRD 98 463 631

8 College Hill

Freemans Bay, Auckland 1011

New Zealand

Tel: [phone]

Internet: www.miele.co.nz

Singapore

Miele Pte. Ltd.

s29 Media Circle

11-04 ALICE@Mediapolis

Singapore 138565

sTel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.miele.sg

South Africa

Miele (Pty) Ltd.

63 Peter Place

Bryanston 2194

P.O. Box 69434

Bryanston 2021

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Internet: www.miele.co.za

Thailand

Miele Appliances Ltd.

BHIRAJ TOWER at EmQuartier

43rd Floor Unit 4301-4303

689 Sukhumvit Road

North Klongton Sub-District

Vadhana District

Bangkok 10110, Thailand

United Arab Emirates

Miele Appliances Ltd.

Showroom 1

Eiffel 1 Building

Sheikh Zayed Road, Umm Al She

P.O. Box 114782 - Dubai

Tel. [phone]

Fax. [phone]

800-MIELE (64353)
