Product Type	Blu-ray Player
Brand	Onkyo
Model	BD-SP807
Dimensions (W x H x D)	17-1/8 x 4-1/4 x 12-5/16 inches (435 x 108 x 312 mm)
Weight	11.0 lbs (5.0 kg)
Power Supply	120 V AC, 60 Hz
Power Consumption	30 W (Standby: 0.6 W)
Signal System	NTSC
Operating Temperature	41°F to 104°F (5°C to 40°C)
Operating Humidity	Less than 80% (no condensation)
Disc Playback	BD, DVD, CD, AVCHD, MP3, JPEG

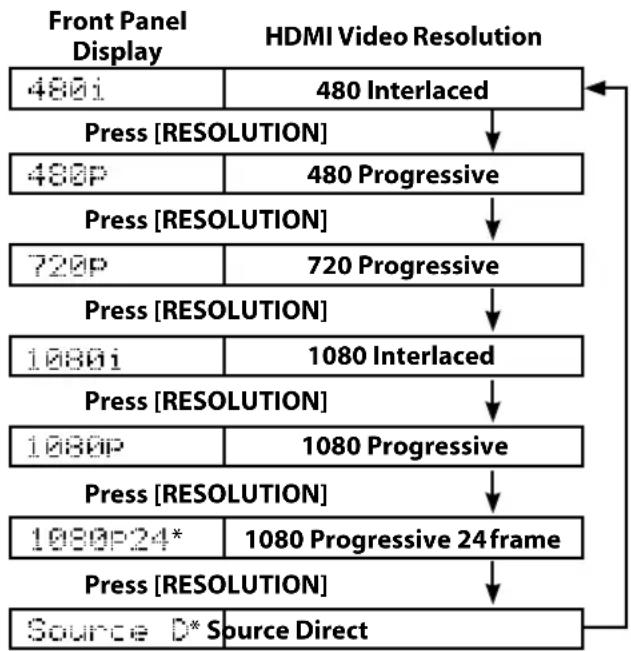

Video Output	Full HD 1080p, upconvert DVD to 1080p via HDMI, Component, Composite
Audio Output	7.1ch analog, digital optical/coaxial, HDMI
HDMI Features	Deep Color, 1080p/24 fps, CEC
Network Connectivity	Ethernet (10BASE-T/100BASE-TX) for BD-Live
SD Card Slot	SD/SDHC for AVCHD, MP3, JPEG, BD-Live storage
Special Playback Features	PIP (BONUSVIEW), BD-Live, Pop-up menu, Rapid playback, Program/Random play
Region Code	BD: Region A; DVD: Region 1
Safety	Class 1 laser product; do not open; moisture condensation precautions
Maintenance	Clean with soft dry cloth; no solvents; wipe discs from center out
Spare Parts & Repairability	No user-serviceable parts; contact Onkyo dealer for service
Accessories Included	Remote control with AA batteries, RCA audio/video cables, AC cord, quick start guide

Frequently Asked Questions - BD-SP807 ONKYO

What disc formats does the Onkyo BD-SP807 support?

The Onkyo BD-SP807 supports Blu-ray Disc (BD), DVD, CD, as well as AVCHD, MP3, and JPEG files on BD, DVD, CD-RW/-R, and SD Memory Cards. It also plays BD-RE/R (BDMV format) and finalized DVD-RW/R in video mode.

How do I connect the player to my HDTV?

Use an HDMI cable for the best picture and sound. Connect the HDMI OUT jack on the player to an HDMI input on your TV. For older TVs, use component or composite video cables along with analog audio cables. Ensure both devices are off during connection.

How can I reset the video output if no picture appears?

Press and hold the PLAY button (▶) on the front panel for more than 5 seconds. This resets the HDMI Video Resolution and Component Output settings to default, restoring the picture.

Can I play discs from other regions?

The player is designed for BD region A and DVD region 1. It will not play BD discs with other region codes or DVD discs labeled for regions other than 1 or ALL.

How do I use the BD-Live feature?

Insert an SD card into the SD CARD slot for local storage, connect the player to the Internet via Ethernet, then press the BD-Live button on the remote (if available) or navigate to the disc's BD-Live menu. Make sure the network settings are configured in the setup menu.

What should I do if the remote control stops working?

Check the batteries (replace if needed). Ensure no obstacles block the infrared sensor on the front panel. You can test the remote by pointing it at a digital camera or phone camera; if you see a blinking light, the remote is working. Also, avoid strong sunlight or fluorescent lights near the player.

How do I clean the player and discs?

For the player, unplug it and wipe with a soft, dry cloth. For discs, use a clean, soft cloth to wipe from the center outward. Do not use solvents, alcohol, or abrasive cleaners. Never wipe in a circular motion.

Why is there no sound or distorted sound?

Check the audio output settings in the setup menu: ensure HDMI Audio Out matches your connected device (e.g., HDMI Multi (Normal) for AV receiver). If using optical/coaxial, set Digital Out to Bitstream or LPCM. Also verify the BD Audio Mode (HD Audio Output or Mix Audio Output). Make sure the TV or receiver is set to the correct input.

Can I play audio CDs and MP3 files in random or programmed order?

Yes. In stop mode, press MODE to access program or random playback options. Select tracks/files and press ENTER to create a program, or choose random play. The player supports up to 20 tracks/programs.

How do I update the player's firmware?

Connect the player to the Internet via Ethernet. Go to the setup menu, select Software Upgrade, and follow the on-screen instructions. You can also check for updates via the Network Connection menu under Network Update.

USER MANUAL BD-SP807 ONKYO

Thank you for purchasing an Onkyo BLU-RAY DISC PLAYER. Please read this manual thoroughly before making connections and plugging in the unit.

Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new BLU-RAY DISC PLAYER.

Please retain this manual for future reference.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

AVIS

RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The caution marking is located on the rear or bottom of the cabinet.

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service

Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen into the apparatus,
C. If the apparatus has been exposed to rain or water,
D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in any way, and

F. When the apparatus exhibits a distinct change in performance this indicates a need for service.

1. Object and Liquid Entry

Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus.

Don't put candles or other burning objects on top of this unit.

1. Batteries

Always consider the environmental issues and follow local regulations when disposing of batteries.

1. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation.

Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

1. Recording Copyright—Unless it's for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.
2. AC Fuse—The AC fuse inside the unit is not user-serviceable. If you cannot turn on the unit, contact your Onkyo dealer.
3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don't use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

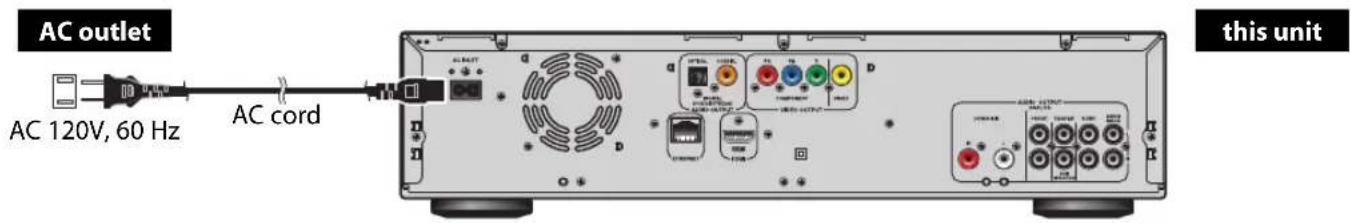

AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit's rear panel (AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Pressing ⏻ON// STANDBY] to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure Warning

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes

• If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it.
• Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.

- This unit's top and rear panels may get warm after prolonged use. This is normal.

• If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.
• When you've finished using this unit, remove all discs and turn off the power.

9. Installing this Unit

• Install this unit in a well-ventilated location.
- Ensure that there's adequate ventilation all around this unit, especially if it's installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction.

- Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup.

• Avoid damp and dusty places, and places subject to vibrations from loudspeakers.
• Never put the unit on top of, or directly above a loud-speaker.
• Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction.

• If you install this unit near a TV, radio, or VCR, the picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR.

• To Obtain a Clear Picture—This unit is a high-tech, precision device. If the lens on the optical pickup, or the disc drive mechanism becomes dirty or worn, the picture quality may be affected. To maintain the best picture quality, we recommend regular inspection and maintenance (cleaning or worn part replacement). Contact your Onkyo dealer.

11. Moisture Condensation

Moisture condensation may damage this unit.

Read the following carefully:

Moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit.

- Moisture condensation can occur in the following situations:

• The unit is moved from a cold place to a warm place.
• A heater is turned on, or cold air from an air conditioner is hitting the unit.

• In the summer, when this unit is moved from an air conditioned room to a hot and humid place.
  – The unit is used in a humid place.

• Do not use this unit when there's the possibility of moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit. If condensation does occur, remove all discs and leave this unit turned on for two to three hours. By this time, the unit will have warmed up and any condensation will have evaporated.
  12.RegionCodes—The BD/DVD standard uses region codes to control how discs can be played around the world, the world being divided into three regions (BD) or six regions (DVD). This unit will only play BD/DVD discs that match its region code, which can be found on its rear panel (A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Z, A, B, C,D, E, F, G, H, I, J, K

• About this Manual—This manual explains how to use all of this unit's functions. Although the BD/DVD standard offers many special features, not all discs use them all, so depending on the disc being played, this unit may not respond to certain functions. See the disc's sleeve notes for supported features.

This unit contains a semiconductor laser system and is classified as a "CLASS 1 LASER PRODUCT". So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit.

To prevent being exposed to the laser beam, do not try to open the enclosure.

CAUTION:

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO BEAM.

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

The label on the right is applied on the rear panel.

1. This unit is a CLASS 1 LASER PRODUCT and employs a laser in the cabinet.
2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel.

For U.S. Models

FCC Information for User

CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE: THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

Supplied Accessories

remote control with AA (1 5V) battery x 2

instruction manual

RCA audio / video cables

AC cord

quick start guide

Note about Recycling

• This unit's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.
• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Maintenance

Servicing

• Please refer to relevant topics on "TROUBLESHOOTING" on page 50 before returning the product.
• If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit to the standby mode, unplug the power plug, and please contact your Onkyo dealer.

Disc handling

- For best results, keep your discs clean. Fingerprints and dust can affect the sound and picture quality and should be removed as follows. Using a clean, soft cloth, wipe from the center outwards, as shown. Never wipe in a circular direction.

• To remove stubborn dust or dirt, wipe the disc with a damp, soft cloth, and then dry it with a dry cloth.
- Never use solvent-based cleaning fluids, such as thinner or benzine, commercially available cleaners, or antistatic sprays intended for vinyl records, because they may damage the disc.

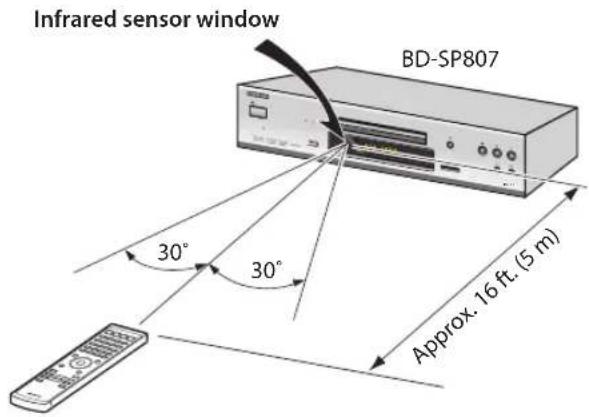

IR signal check

- If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.

With a digital camera

(including built-in cell phone cameras):

Point a digital camera towards the remote control. Push any button on the remote control and look through the digital camera. If the infrared light appears through the camera, the remote control is working.

Illustration of a remote control with wireless signal and a digital camera (no text or symbols)

Copyright

- It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material without permission. Commercial BD-video/DVD-video discs are copy-protected, and any recordings made from these discs will be distorted. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Trademark Information

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

TRUEHD

DIGITAL PLUS

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

dts-HD

Master Audio | Essential

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio | Essential are trademarks of DTS, Inc. ©1996-2008 DTS, Inc. All Rights Reserved.

THX and the THX logo are trademarks of THX Ltd. which may be registered in some jurisdictions. All rights reserved.

x.v.Color

"x.v.Color" and "x.v.Color" logo are trademarks of Sony Corporation.

"Blu-ray Disc" and are trademarks.

is a trademark of DVD Format/Logo Licensing Corporation.

Java

POWERED

Java and all other Java trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and / or other countries.

AVCHD™

"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

BONUS VIEW™

"BONUSVIEW" is trademark of Blu-ray Disc Association.

"BD-LIVE" logo is trademark of Blu-ray Disc Association.

CONTENTS

Introduction

PRECAUTIONS 3

FEATURES 8

Features 8

Symbols Used in this Manual 8

FUNCTIONAL OVERVIEW 9

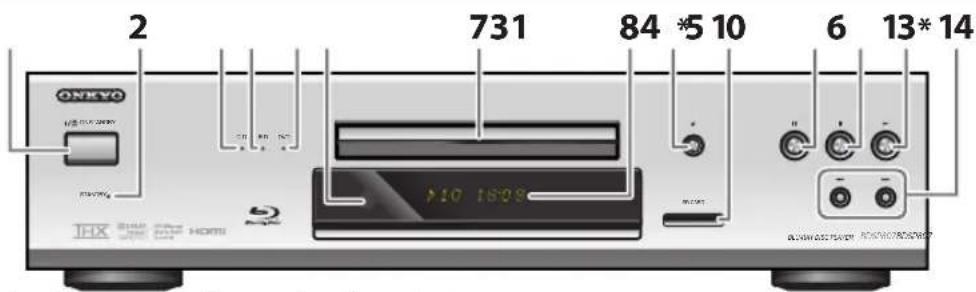

Front Panel 9

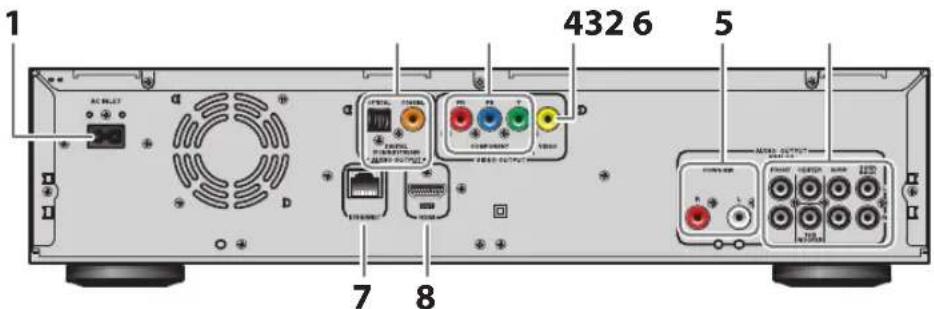

Rear Panel 9

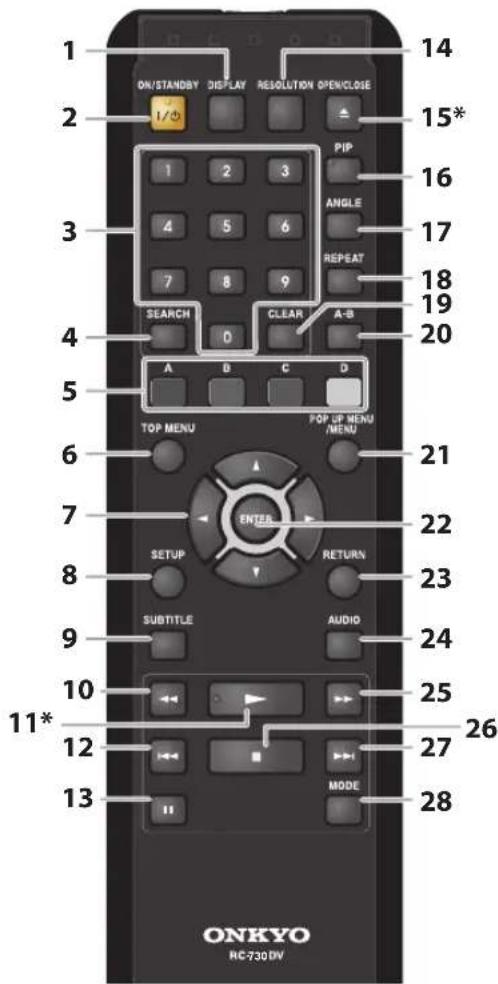

Remote Control 10

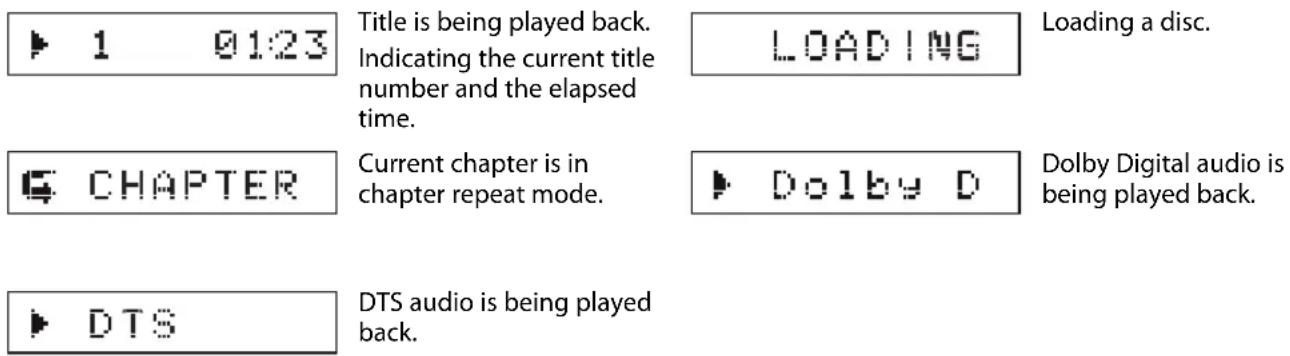

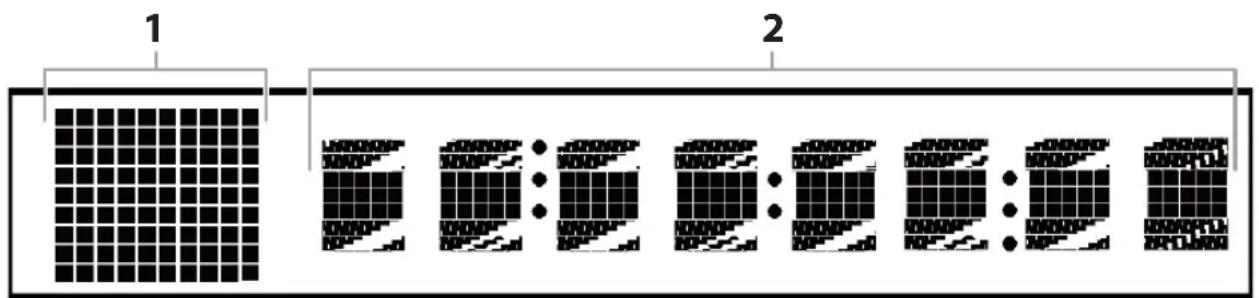

Front Panel Display.... 12

Connections

CONNECTIONS.... 13

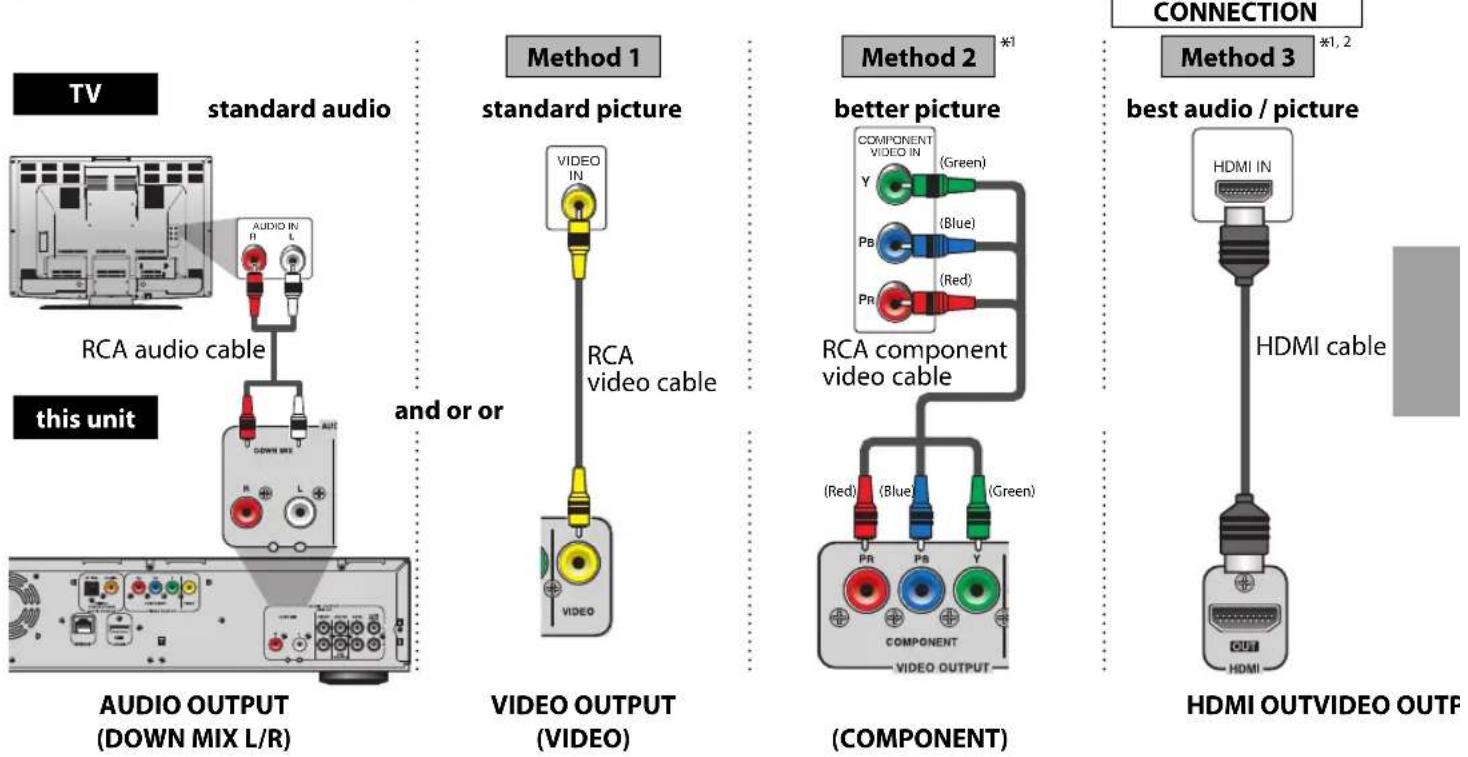

Connection to the TV.... 13

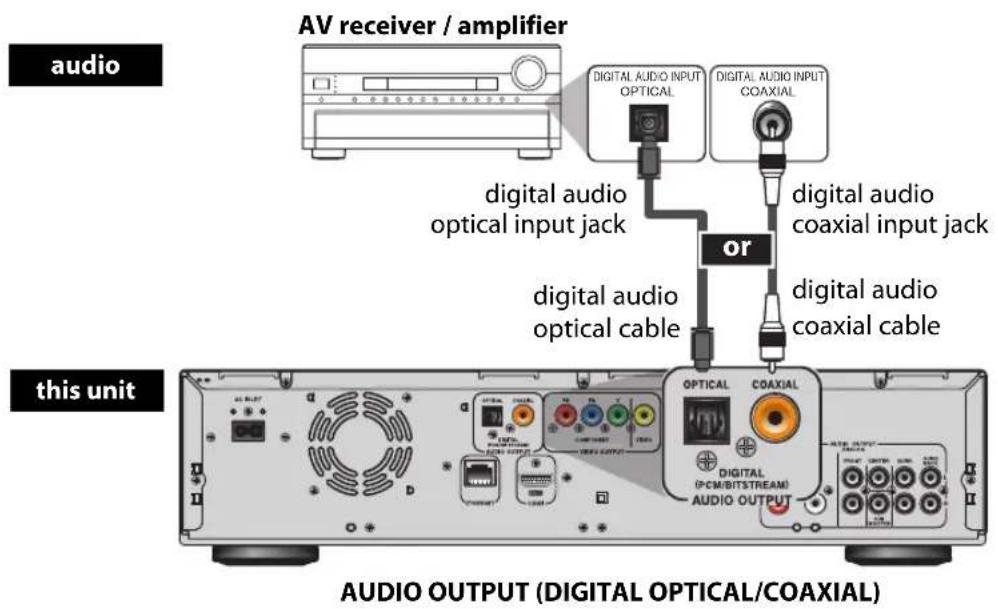

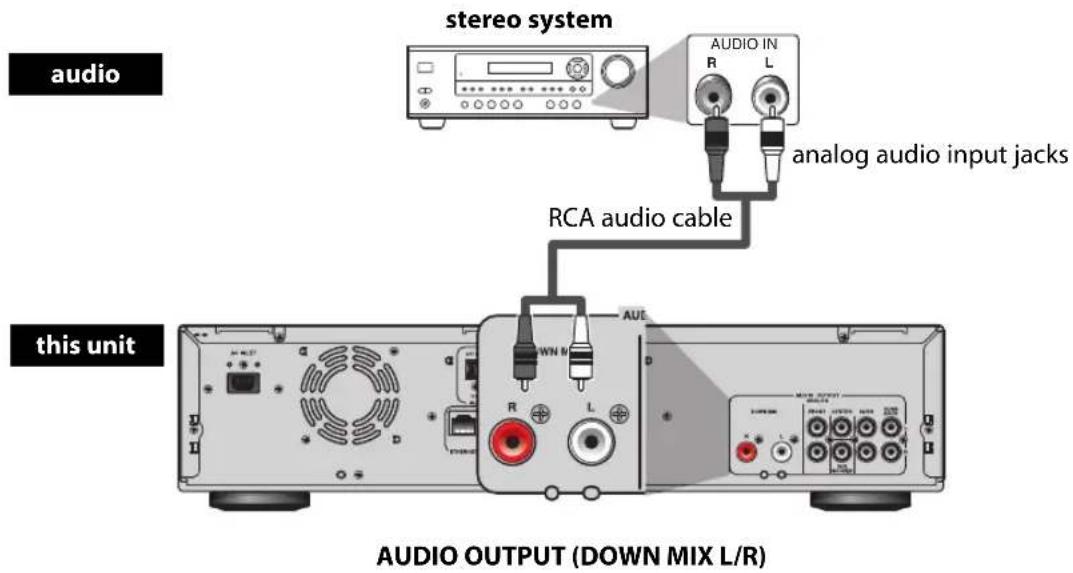

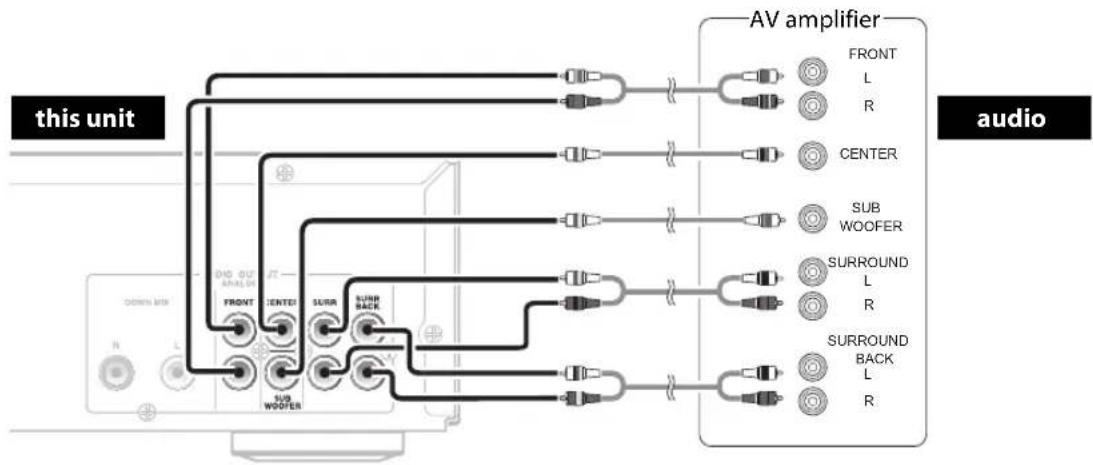

Connection to an Audio System 16

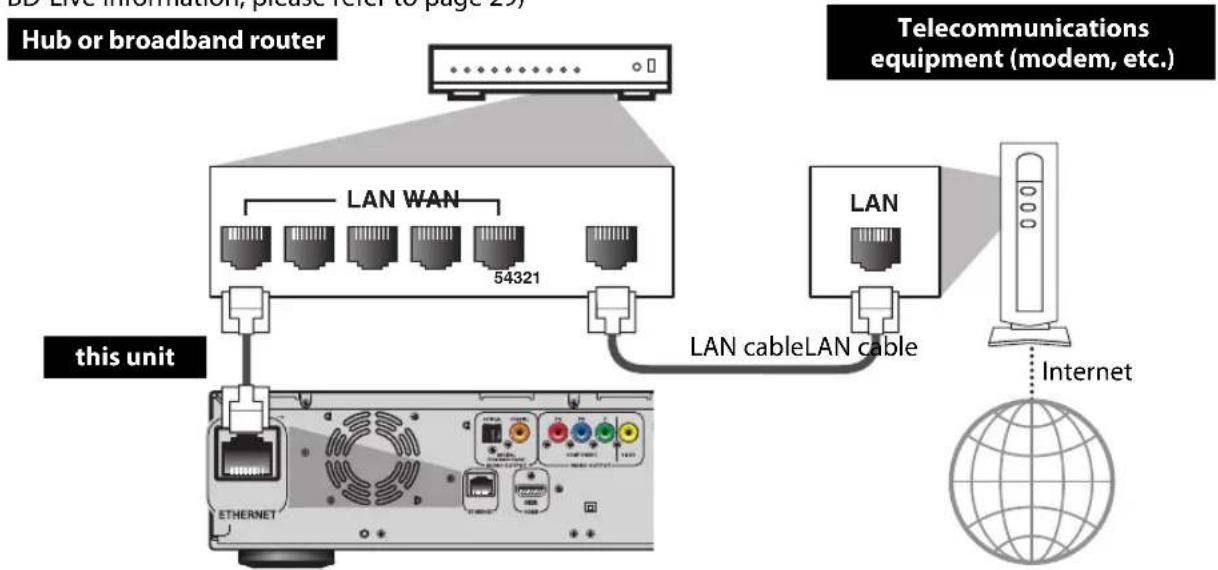

Network Connection with LAN 18

Playback

INFORMATION ON PLAYBACK 19

BASIC PLAYBACK 22

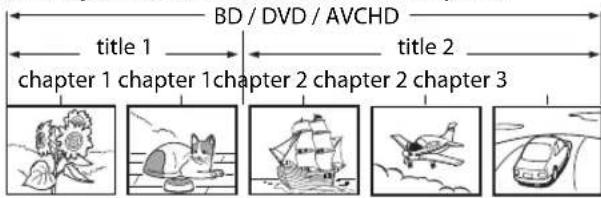

Playing Back a BD, DVD or a Disc with AVCHD files ... 22

Operations Using Title Menu,

Disc Menu, and Pop-up Menu 23

Pause....23

Resume Playback 23

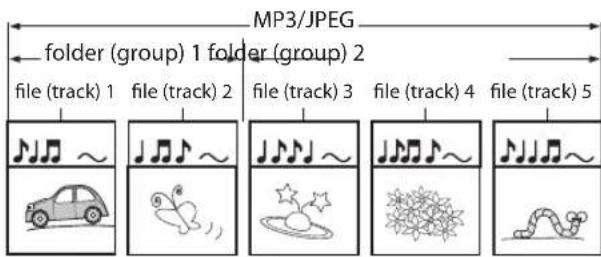

Playing Back an Audio CD or a Disc with MP3 files... 24

Reading the SD Memory Card 25

SPECIAL PLAYBACK 26

Fast Forward / Fast Reverse. 26

Slow Forward Playback.... 26

Step by Step Playback.... 26

Repeat Playback 26

A-B Repeat.... 27

PIP (Picture in Picture) (BONUSVIEW) Setting..... 27

Program Playback 27

Random Playback 28

Rapid Playback.... 29

Camera Angle.... 29

Enjoying BD-Live Discs with Internet. 29

SEARCH 30

SPECIAL SETTINGS 31

Switching Subtitles.... 31

Switching Audio Soundtrack 31

Setting the BD Audio Mode 32

Adjusting the Picture.... 32

Function Setup

FUNCTION SETUP 33

Using the Setup Menu.... 33

Network Connection 45

Software Upgrade.... 48

Others

TROUBLESHOOTING ....50

GLOSSARY 52

LANGUAGE CODE 54

SPECIFICATIONS 55

FEATURES

Features

Full high-definition video playback

Watch movies in the highest picture quality available for your HDTV. This unit offers full high-definition video playback up to 1080p resolution for an amazing viewing experience. A highly detailed picture and increased sharpness delivers a more true-to-life picture.

Upconvert DVD for enhanced picture quality

Your current DVD will look even better than before thanks to video upconversion. Upconversion will increase the resolution of standard definition DVD to high definition up to 1080p over an HDMI connection. The picture will be less jagged and more realistic for a near high-definition experience.

Enjoy your content on different kinds of media

Full backwards compatibility with DVD, CD and SD Card ensures that you can continue to enjoy your current audio-video collection. Additionally, you can enjoy JPEG/MP3 files.

Listen to the rich multi-channel surround sound

Multi-channel surround sound, which realizes real-to-life sound and makes you feel that you are really there.

Easy and simple connection to your HDTV via HDMI

Connect this unit to your HDTV with one single HDMI (high definition multimedia interface) cable. It is recommended to use High Speed HDMI Cable for better compatibility. The high definition video output signal will be transferred to your HDTV without conversion to analog signals, so you will get an excellent picture and sound quality, completely free from noise.

Thanks to other multiple outputs, you can also easily connect to your home theater system or amplifier.

About HDMI CEC (consumer electronics control)

This unit supports HDMI CEC, which allows integrated system control over HDMI and is part of the HDMI standard. Onkyo does not guarantee 100% interoperability with other brands of HDMI CEC compliant devices.

PIP (Picture in Picture) (BONUSVIEW) setting

Some BD-video have the PIP (picture-in-picture) function which enables you to display the secondary video in the primary video. You can call up the secondary video by pressing [PIP] whenever the scene contains the secondary video.

BD-Live

BD-Live (BD-ROM ver. 2 (Profile 2.0/Profile 1.1)) that allows interactive functions to be used when this unit is connected to the Internet in addition to be BONUSVIEW function. The various functions differ depending on the disc.

Pop-up menu

Some BD-video have pop-up menu which is a navigation menu that can be called up and be operated on the TV screen without interrupting the playback. You can call up the pop-up menu by pressing [POP UP MENU / MENU].

Contents in the pop-up menu vary depending on the disc.

Rapid playback

Playback in slightly faster speed while keeping the sound output.

Rapid playback is available only on discs recorded in the Dolby Digital format.

HDMI Deep Color

Deep Color reduces the posterization effect of the playback image. Refer to "HDMI Deep Color" in "FUNCTION SETUP" on page 36.

HDMI1080p / 24 fps output (BD only)

This unit is equipped with the feature which can provide the smooth movement in the playback of film originated material with the frame rate of 24 frames per second with progressive. (Available only when the TV is connected by an HDMI cable and compatible with 1080p24 frame input.) Refer to "HDMI Video Resolution" in "FUNCTION SETUP" on page 36.

Playing back the contents in SD Memory Card

You can play back AVCHD/MP3/JPEG stored in an SD Memory Card.

You can store picture-in-picture commentary, subtitles or other extras for BD-ROM Ver. 2 (Profile 2.0/Profile 1.1) files in an SD Memory Card and play back with the BD-video.

Playing back AVCHD files

This unit supports playback of AVCHD format files (new format for high definition video camcorders) recorded on disc/SD card. Your high definition personal archive is playable in HD quality.

Analog 7.1ch Surround Output

This player is equipped with analog 7.1-channel surround audio out jacks for playback.

x.v.Color

This unit supports playback of video contents on discs recorded with "x.v.Color" technology. To watch this video content with the "x.v.Color" space, a TV or other display device supporting both video image reproduction using "x.v.Color" standard and capability of manual switching of its color space setting is required. Please refer to the owner's manual of your display device for further information.

Symbols Used in this Manual

To specify for which media type each function is, we put the following symbols at the beginning of each item to operate.

Symbol Description

BD-V	Description refers to BD-video and BD-RE (ver. 2.1) / BD-R (ver. 1.1/1.2/1.3) recorded in BDMV format
DVD-V	Description refers to DVD-video
AVCHD	Description refers to DVD-RW/-R and SD Card / SDHC Card with AVCHD files
CD	Description refers to audio CD / DTS-CD
MP3	Description refers to BD, DVD, CD-RW/-R and SD Memory Card with MP3 files
JPEG	Description refers to BD, DVD, CD-RW/-R and SD Memory Card with JPEG files

If you do not find any of the symbols listed above under the function heading, the operation is applicable to all media.

FUNCTIONAL OVERVIEW

Front Panel

* The unit can also be turned on by pressing these buttons.

1. I/ON/STANDBY button

- Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord)

2. STANDBY indicator

- This indicator lights up in red when the unit is in standby mode and turns off when the unit is active.

3. CD indicator

- This indicator lights up in green when a CD is inserted in this unit.

4. BD indicator

- This indicator lights up in blue when a BD is inserted in this unit.

5. DVD indicator

- This indicator lights up in orange when a DVD is inserted in this unit.

6. Infrared sensor window

- Receive signals from your remote control so that you can control the unit from a distance.

7. Disc tray

- Place a disc when opening the disc tray.

8. Display

- Refer to "Front Panel Display" on page 12.

9. ▲ (open / close) button\*

- Press to open or close the disc tray.

10. SD CARD slot

- Insert an SD Memory Card, and play back the contents in it.

11.Ⅱ(pause) button

- Press to pause playback.

12.■ (stop) button

- Press to stop playback.

13.▶ (play) button\*

- Press to start or resume playback.

14. |◀◀ /▶▶| (skip down / up) buttons

- Press to skip down / up titles / chapters / tracks/files.

Rear Panel

1. AC INLET terminal

• Connect the supplied AC power cord for a standard AC outlet to supply power to this unit.
• Unplug this cord from the AC outlet to completely shut down the unit.

2. AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks

- Use to connect an AV receiver / amplifier, Dolby Digital / DTS decoder or other device with a digital audio optical / coaxial input jack with a digital audio optical / coaxial cable.

3. VIDEO OUTPUT (COMPONENT) jacks

- Use to connect a TV or AV receiver with component video inputs with an RCA component video cable.

4. VIDEO OUTPUT (VIDEO) jack

- Use to connect a TV, an AV receiver or other device with an RCA video cable.

5. AUDIO OUTPUT (DOWN MIX L / R) jacks

- Use to connect a TV, an AV receiver / amplifier or other device with an RCA audio cable.

6. AUDIO OUTPUT (ANALOG 7.1ch) jacks

- Use an RCA audio cable to connect these jacks to the 7.1-channel audio input jacks of your amplifier with 7.1-channel input terminals.

7. ETHERNET terminal

- Use to connect a telecommunications equipment with LAN cable.

8. HDMI OUT jack

- Use to connect a TV, an AV receiver / amplifier or other device with an HDMI compatible port with an HDMI cable.

Note

• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
  • This unit does not have the RF modulator.

Remote Control

* The unit can also be turned on by pressing these buttons.

1. DISPLAY button

- Press to display the on-screen display menu.

1. ON/STANDBY I/ ⏻ button

- Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord)

1. Number buttons

- Press to enter the title, chapter, track or file number.

- Press to enter values in the input field.

1. SEARCH button

- Press to display the search menu.

1. A / B / C / D button

- Press to select items on some BD menus.

- When file list is shown, press to switch between pages.

1. TOP MENU button

- Press to display the top menu.

1. Cursor ▲ / ▼ / ◀ / ▶ buttons

- Press to select items or settings.

1. SETUP button

- Press to display the setup menu.

1. SUBTITLE button

- Press to display the subtitle menu.

1. REV ◀ button

- During playback, press to fast reverse the playback.

11.PLAY▶ button*

- Press to start playback or resume playback.

12.SKIP|◀◀ button

- During playback, press once to return to the beginning of the current title, chapter, track or file.

- During playback, press twice to return to the previous title, chapter, track or file.

- During the JPEG playback, press to return to the previous file.

13.PAUSE|| button

- Press to pause playback.

- When playback is in pause mode, press repeatedly to forward the playback step by step.

1. RESOLUTION button

- Press to set the HDMI output mode.

1. OPEN/CLOSE▲ button*

- Press to open or close the disc tray.

1. PIP button

- Press to display the setting for picture-in-picture (only applicable to BD-video which supports the PIP function).

1. ANGLE button

- Press to access various camera angles on the disc.

- Press to rotate the JPEG files clockwise by 90 degrees.

1. REPEAT button

- Press to toggle between various repeat modes.

1. CLEAR button

- Press to clear the information once entered, to clear the marker settings, or to cancel the programming for audio CD, etc.

20.A-Bbutton

- Press to play back a defined section between point A and B repeatedly.

1. POP UP MENU/MENU button

- Press to display the pop-up menu / disc menu.

1. ENTER button

- Press to confirm or select menu items.

1. RETURN button

- Press to return to the previously displayed menu screen.

1. AUDIO button

- Press to display the audio menu.

25.FWD▶▶ button

- During playback, press to fast forward the playback.

• In pause mode, press to slow forward the playback.

26.STOP■ button

- Press to stop playback.

27.SKIP▶▶| button

- During playback, press to skip to the next title, chapter, track or file.

1. MODE button

- During BD, DVD or AVCHD files playback, press to display the setting for the rapid playback and the picture adjustment.

- During BD playback, press to display the setting for the picture-in-picture (only applicable to BD-video which supports the PIP function).

- During the JPEG playback, press to display menus for changing the visual effect for switching the image or changing the size of the image.

- In stop mode with BD inserted, press to display a menu for setting the BD audio mode.

- In stop mode with audio CD, or a disc with MP3 or JPEG files inserted, press to display menus for program and random playback.

Installing the Batteries in the Remote Control

Install 2 AA (1.5V) batteries matching the polarity indicated inside battery compartment of the remote control.

1 Open the cover.

Simple line drawing of a device with a handle and lever, enclosed in a circle (no text or symbols)

2 Insert batteries.

Diagram of a battery pack inside a circular housing, showing internal components and polarity indicators (no text or labels)

Make sure to match + and - on the batteries to the marks indicated in the battery compartment.

3 Close the cover.

Diagram of a device being inserted into a slot, enclosed in a circular frame (no text or symbols)

Note

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

• Do not mix new and old batteries together.
• Do not use different kinds of batteries together. Although they may look similar, different batteries may have different voltages.
• Make sure that the + and - ends of each battery match the indications in the battery compartment.
• Remove batteries from battery compartment that is not going to be used for a month or more.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.
• Do not recharge, short-circuit, heat, burn or disassemble batteries.

Using a Remote Control

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote control and the infrared sensor window on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the infrared sensor window of the unit.
• Remote control for different devices can interfere with each other. Avoid using remote control for other device located close to the unit.
• Replace the batteries when you notice a fall off in the operating range of the remote control.
• The maximum operable ranges from the unit are as follows.

Front Panel Display

• Brightness of the display can be adjusted. Refer to "Panel Display" in "FUNCTION SETUP" on page 43.

• Displays playback status icon. Refer to the table below.

• Displays various kinds of information such as title number, elapsed time, repeat mode, etc.

Playback status icon		Mode
Disc SD Memory Card
		Playback is in progress
		Stop mode
		Pause mode
		Fast forward mode
[KD0T]		Fast reverse mode
[H6A3]	(for AVCHD only)	Slow forward mode
[7224]		Appears while repeat function is set

Example of Display Message

CONNECTIONS

Connection to the TV

- Make one of the following connections, depending on the capabilities of your existing device.

AUDIO CONNECTION
VIDEO CONNECTION

*1) This unit is compatible with the progressive scan system. The feature provides you with the higher quality pictures than traditional output system does. To utilize this feature, a component or an HDMI connection is required. Refer to "HDMI Video Resolution" or "Component Output" setting on page 36 to set the video resolution.

^*2) Analog audio connection is not required for this connection.

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1
- RCA video cable x 1

Please purchase the rest of the necessary cables at your local store.

Note

• Connect this unit directly to the TV. If the RCA audio / video cables are connected to a VCR, pictures may be distorted due to the copy-protection system.
• If the picture is not output properly to the TV because of "HDMI Video Resolution" or "Component Output" setting, press and hold [▶(play)] on the front panel for more than 5 seconds. "HDMI Video Resolution" and "Component Output" setting will be reset to the default automatically. You cannot change the video resolution during Blu-ray Disc playback. To change the resolution, stop playback.
• A simple 1-cable connection with a device having an HDMI (high-definition multimedia interface) jack allows digital transfer of both digital video signals and multi-channel audio signals.

HDMI Output Mode and Actual Output Signals

Press [RESOLUTION] to change the resolution of the video signal being output from HDMI OUT jack. The video resolution changes as follows every time [RESOLUTION] is pressed.

Press [RESOLUTION]

Copyright protection system

To play back the digital video images of a BD / DVD via an HDMI connection, it is necessary that both the unit and the TV (or an AV receiver) support a copyright protection system called HDCP (high-bandwidth digital content protection system). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV device. This unit supports HDCP. Please read the operating instructions of your TV (or AV receiver) for more information.

* Do not set "HDMI Video Resolution" to "Source Direct" or "1080p24" if the connected display device does not support the video resolution of 1080p24. If "HDMI Video Resolution" is set to "Source Direct", it may take a while to display the playback picture, when the video resolution of a disc material switches during playback.

Note

- When using HDCP-incompatible TV, the image will not be viewed properly.

- The audio signals from HDMI OUT jack (including the sampling frequency, the number of channels and bit length) maybe limited by the device that is connected.

- Among the devices that support HDMI, some do not support audio output (e.g. projectors). In connections with device such as this unit, audio signals are not output from HDMI OUT jack.

• Video and audio signals may be distorted temporarily when switching to / from the HDMI output mode.

- You can change the HDMI output mode with [RESOLUTION] during playback as well. (This is not available during BD/AVCHD playback.)

- You can also change the HDMI output mode from "HDMI Video Resolution" setting in "Video" menu. In this menu, you can confirm what HDMI video resolutions are supported by connected TV. Refer to page 36.

- In order to get natural and high quality film reproduction of 24-frame film material, use an HDMI cable (High Speed HDMI Cable is recommended) and select "1080p24" if the connected TV is compatible with 1080p24 frame input.

- If the disc contains 1080p24 frame material, 60-frame or 50-frame image will be output unless "1080p24" is selected.

- For AVCHD, 24-frame film material will be output as 60 frame, even if the connected device is compatible with 1080p24 frame input and "HDMI Video Resolution" is set to "1080p24", "Auto" or "Source Direct".

- When "HDMI Video Resolution" is set to "1080p", "1080p24" or "Source Direct", the "Component Output" will be set to "480i" automatically.

- If the video is not properly from HDMI OUT jack after you set the "HDMI Video Resolution" setting, change the HDMI video resolution to the compatible resolution by pressing [RESOLUTION] or press and hold [▶(play)] on the front panel for more than 5 seconds to reset the setting.

- HDMI Deep Color" is available only when the display device is connected by HDMI cable and supports HDMI Deep Color.

- For "Auto" in "HDMI Deep Color", using the High Speed HDMI cable is recommended.

HDMI Audio Out Setting

When using HDMI connections make "HDMI Audio Out" setting in "Audio" menu according to the specifications of the device to be connected. Refer to page 38.

Device to be connected “HDMI Audio Out” setting Output HDMI audio signal
Device compatible with Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD decoding	HDMI Multi (Normal) Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, or DTS-HD bitstream are output from HDMI OUT jack. Make the speaker settings on the connected AV receiver, etc.
Device compatible with 3 or more channels of audio inputs (not Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD compatible)	HDMI Multi (LPCM) Multi-channel audio signals are output from HDMI OUT jack. Make the speaker settings with the speaker setting items appear after you select “HDMI Multi(LPCM)”. Refer to page 38.
Device compatible with 2-channel audio input or device not compatible with audio input	HDMI 2ch Down-mixed 2-channel audio signals are output from HDMI OUT jack.
Device to be connected “HDMI	Audio Out” setting Output HDMI	audio signal
HDMI connection to a TV and digital audio connection (optical/coaxial) to an AV receiver	Audio Mute HDMI audio will be mute, and DolbyDigital / DTS bitstream or LPCM will be output from AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks depending on “Digital Out” setting. Refer to page 39.

■ Audio signals output from HDMI OUT jack

	“HDMI Audio Out” setting “HDMI →	Multi (Normal)” “HDMI Multi (LPCM)” “HDMI 2ch”
	“BD Audio Mode” setting →	“HD Audio Output”	“Mix Audio Output”	“HD Audio Output”	“Mix Audio Output”	“HD Audio Output”	“Mix Audio Output”
Media ↓	Audio Source Wh ↓	ch audio format can be output depends on the compatibility of the connected device.
BD-video	Dolby Digital	Dolby Digital	Dolby Digital	Multi PCM	Multi PCM	Downmix 2ch PCM	Downmix 2ch PCM
	Dolby Digital Plus	Dolby Digital Plus	Dolby Digital	Multi PCM*1	Multi PCM*2	Downmix 2ch PCM*1	Downmix 2ch PCM*2
	Dolby TrueHD	Dolby TrueHD	Dolby Digital	Multi PCM*3	Multi PCM*4	Downmix 2ch PCM*3	Downmix 2ch PCM*4
	DTS DTS	DTS		Multi PCM*6	Multi PCM*6	Downmix 2ch PCM	Downmix 2ch PCM
	DTS-HD	DTS-HD	DTS	Multi PCM*1,6	Multi PCM*5,6	Downmix 2ch PCM*1	Downmix 2ch PCM*5
	LPCM	Multi PCM	Multi PCM Multi	PCM Multi PCM		Downmix 2ch PCM	Downmix 2ch PCM
AVCHD	Dolby Digital	Dolby Digital		Multi PCM		Downmix 2ch PCM
	LPCM	Multi PCM		Multi PCM		Downmix 2ch PCM
DVD-video	Dolby Digital	Dolby Digital		Multi PCM		Downmix 2ch PCM
	DTS	DTS		Multi PCM		Downmix 2ch PCM
	LPCM	2ch PCM		2ch PCM		2ch PCM
Audio CD / MP3	PCM	2ch PCM		2ch PCM		2ch PCM
DTS-CD	DTS	DTS		Multi PCM		Downmix 2ch PCM

^*1 Full decoded.
*2 Only the independent substream is decoded.
*3 Dolby TrueHD stream is decoded.
*4 Only the Dolby Digital substream is decoded.
*5 Only the core substream is decoded.
When audio source is Multi-channel, decoded as 7.1ch. However, number of the output audio channel will depend on the number of the connected speakers.
- If the connected device is not compatible with the HDMI BITSTREAM, audio will be output as multi LPCM or 2-channel down-mixed LPCM depending on the capability of the connected device even if you select "HDMI Multi(Normal)" in "HDMI Audio Out" setting. Refer to page 38.
- When playing back a BD-video which only contains the primary audio, the audio output will be the same case as the "HD Audio Output" even if the "BD Audio Mode" is set to "Mix Audio Output".

Note

• The audio signals from HDMI OUT jack (including the sampling frequency, the number of channels and bit length) maybe limited by the device that is connected.
• Among the devices that support HDMI, some do not support audio output (e.g. projectors). In connections with device such as this unit, audio signals are not output from HDMI OUT jack.
  • Video and audio signals may be distorted temporarily when switching to / from the HDMI output mode.

Connection to an Audio System

• When you change the connections, all devices should be turned off.
• Refer to the manual accompanying external devices for more information.

2-Channel Analog Audio Connection

Digital Audio Connection

Supplied cables used in this connection are as follows:

- RCA audio cable (L/R) x 1 Please purchase the rest of the necessary cables at your local store.

Note for Digital Audio Optical Cable

• Digital audio optical cable may be damaged when bent at sharp angles. Endure cables are coiled in loops with a diameter of 6 inches (15cm) or more when storing them.
• Use a cable which is 9.8 feet (3m) or shorter.
• Insert cable plugs firmly into the connectors when making connections.
• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.

Note

- When connecting to a 2-channel audio stereo device, use the AUDIO OUTPUT (DOWN MIX L/R) jacks. If the AUDIO OUTPUT (ANALOG 7.1ch) jacks are used, set "7.1ch Audio Out" in the "Audio" menu to "2 Channel" (Refer to page 38). For software recorded in multi-channel, analog signals that have been down-mixed into 2 channels are output. (For sources which are prohibited from down-mixing, only the FRONT L/R signals are output.)

■ Audio signals output from AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks

For the settings in the "Digital Out" to take effect, "HDMI Audio Out" should be set to "Audio Mute". Otherwise, the settings made in the "HDMI Audio Out" will have a priority, and the same signal as being output from the HDMI OUT jack will be output from the AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks as well. (Except that Dolby Digital will be output instead of Dolby Digital Plus and Dolby TrueHD, and DTS signal will be output instead of DTS-HD.)

	“Digital Out” setting→	“Bitstream” “LPCM”
	“BD Audio Mode” setting→	“HD Audio Output” “Mix Audio Output” “HD Audio Output” “Mix Audio Output”
Media↓	Audio Source↓	Which audio format can be output depends on the compatibility of the connected device.
BD-video	Dolby Digital	Dolby Digital Dolby Digital		Downmix 2ch PCM Downmix 2ch PCM
	Dolby Digital Plus Dolby Digital	Dolby Digital	Dolby Digital	Downmix 2ch PCM*1	Downmix 2ch PCM*2
	Dolby TrueHD	Dolby Digital Dolby Digital		Downmix 2ch PCM*3	Downmix 2ch PCM*4
	DTS DTS DTS Downmix 2ch PCM Downmix 2ch PCM
	DTS-HD	DTS DTS	Downmix 2ch PCM *1		Downmix 2ch PCM*5
	LPCM	Downmix 2ch PCM	Downmix 2ch PCM	Downmix 2ch PCM Downmix 2ch PCM
AVCHD	Dolby Digital	Dolby Digital		Downmix 2ch PCM
	LPCM	Downmix 2ch PCM		Downmix 2ch PCM
DVD-video	Dolby Digital	Dolby Digital		Downmix 2ch PCM
	DTS	DTS		Downmix 2ch PCM
	LPCM	2ch PCM		2ch PCM
Audio CD / MP3	PCM	2ch PCM		2ch PCM
DTS-CD	DTS	DTS		Downmix 2ch PCM

^_1 Full decoded.
^2 Only the independent substream is decoded.
^_3 Dolby TrueHD stream is decoded.
*4 Only the Dolby Digital substream is decoded.
^5 Only the core substream is decoded.
- When playing back a BD-video which only contains the primary audio, the audio output will be the same case as the "HD Audio Output" even if the "BD Audio Mode" is set to "Mix Audio Output".

Note

- In order to output LPCM signal from AUDIO OUTPUT (DIGITAL OPTICAL / COAXIAL) jacks while outputting the HDMI audio signal, set "HDMI Audio Out" setting to "HDMI Multi(LPCM)".

Surround Connections to a Device with 7.1/5.1-channels of Analog Audio Inputs

Analog 7.1ch/5.1ch audio signals can be output from AUDIO OUT (ANALOG 7.1ch) jacks.

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1

Please purchase the rest of the necessary cables at your local store.

Note

- If you connect to 5.1-channel surround system, do not connect to SURR BACK L/R (surround back L/R) jacks, then set "Surround Back" in "Speaker Size" to "None".

Network Connection with LAN

- You can use a disc which offers BD-Live function by connecting the unit to the Internet. (For BD-Live information, please refer to page 29)

Make sure to connect the telecommunications equipment (modem, etc.) to the ETHERNET terminal via Hub or broadband router.

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store.

Note

• After connecting to the Internet, set up necessary network settings.
- Do not insert any cable other than a LAN cable to the ETHERNET terminal to avoid damaging the unit.
- If your telecommunications equipment (modem, etc.) does not have broadband router functions, connect a broadband router.
- If your telecommunications equipment (modem, etc.) has broadband router functions but there is no vacant port, use a hub.
- For a broadband router, use a router which supports 10BASE-T/100BASE-TX.
- Do not connect your PC directly to the ETHERNET terminal of this unit.
- For the network setup, refer to "Network Connection" on pages 45-48.
- For more information about cables or connections, see the manual accompanying modem, broadband router and hub you use.

Connecting the AC Cord

After you made all necessary connections, connect the AC cord to the AC INLET. Then connect the AC cord to the AC outlet.

Insert the plugs securely. Incomplete connections will result in the generation of noise.

Supplied cables used in this connection are as follows:

- AC cord x 1

INFORMATION ON PLAYBACK

Before you start playing back a disc, read the following information.

playable Discs and Files

This unit is compatible to play back the following discs / files. To play back a disc / file, make sure that it meets the requirements for region codes and color systems as described below. You can play back discs that have the following logos. Other disc types are not guaranteed to play back.

playable discs Logos

Blu-ray Disc

• BD-video (single / dual layer)
• BD-RE*(ver. 2.1) (single / dual layer) (Recorded in BDMV format)

- BD-R (ver. 1.1/1.2/1 3) (single / dual layer) (Recorded in BDMV format) (Unclosed discs may not be played back.)

DVD-video	DVDVIDEO
DVD-RW (single layer)(finalized video mode discsonly)	DVDRW
DVD-R (single / dual layer)(finalized video mode discsonly)	DVDR

CD-DA (audio CD)	DISCDIGITAL AUDIO
CD-RW	COMPACTDISCDIGITAL AUDIOReWritable	COMPACTDISCReWritable
CD-R	COMPACTDISCDIGITAL AUDIOLRecordable	COMPACTDISCRecordable

* Due to the intentional progression of the Blu-ray Disc format by its standard setting authority, the company cannot guarantee or warrant the playability of future extensions of the Blu-ray Disc format with this product.

playable files Media

AVCHD	DVD, SD Memory Card (including SDHC), miniSD Card, microSD
MP3	BD, DVD, CD-RW/-R, SD Memory Card (including SDHC), miniSD Card, microSD Card
JPEG

Readable cards Playable files / data

SD Memory Card (8MB - 2GB)	AVCHD, MP3, JPEG, picture-in-picture commentary, subtitles or other extras for BD-ROM ver. 2 (Profile 2.0/Profile 1.1)
SDHC Memory Card (4GB - 8GB)
miniSD Card (8MB - 2GB)
microSD Card (8MB - 2GB)

Note for SD Memory Cards

• Do not remove the SD Memory Card or turn the unit to the standby mode while the contents of the card is in playback. It may result in malfunction or loss of the card's data.
• Please keep the SD Memory Cards in their cases when you are not using them.
• Do not try to open or modify the card.
• Do not touch the terminal surface with your fingers or any metals.
• Do not attach additional labels or stickers to cards.
• Do not remove the label of the SD Memory Cards.
• This unit supports SD Memory Card with FAT12/FAT16 file system, and SDHC Memory Card with FAT32 file system.
• This unit may not read the SD Memory Cards formatted on computer. If that is the case, please reformat the SD Memory Cards in this unit and try again.
• This unit does not support miniSDHC and microSDHC Memory Card.
• For miniSD Card and microSD Card, the adapter is necessary.

- Portions of this product are protected under copyright law and are provided under license by ARIS / SOLANA / 4C.

Unplayable Discs and Files

The following discs will not be played back in this unit.

• CD-ROM • CD-I (compact disc-interactive)
  • DVD-RAM • VSD (video single disc)
  • DVD-audio • video CD
  • HD DVD • SVCD
• unfinalized disc
• BD / DVD / CD / SD Memory Card contains DivX® and Windows Media™ Audio files.
  • BD/DVD hybrid disc (played back as a BD-video only)
  • BD that contains AVCHD files
• DVD-RW/-R recorded in VR mode or non compatible recording format.

- super audio CD - Only the sound on the CD layer can be heard. The sound on the high-density super audio CD layer cannot be heard.

- Playability of dual discs are not guaranteed.

- BD-RE/-R recorded in BDAV format or non compatible recording format.

Color Systems

BD-video and DVD-video are recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada).

This unit employs NTSC color system, so the disc you play back must be recorded in the NTSC system. You cannot play back the disc recorded in other color systems.

Region Codes

This unit has been designed to play back BD-video with region "A" and DVD-video with region "1" or "ALL". You cannot play back BD-video or DVD-video that are labeled for other regions. Look for the symbols on the right on your BD-video or DVD-video. If these region symbols do not appear on your BD-video or DVD-video, you cannot play back the disc in this unit. The letter or number inside the globe refers to region of the world. A BD-video or DVD-video labeled for a specific region can only be played back in the unit with the same region code.

BD-video

DVD-video

Structure of Disc / SD Memory Card Contents

The contents of BD/DVD are generally divided into titles. Titles may be further subdivided into chapters.

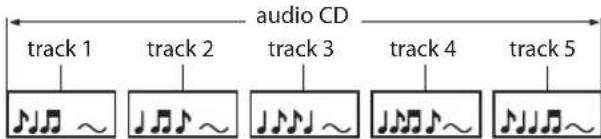

Audio CDs are divided into tracks.

Data discs or SD Memory Cards containing MP3 / JPEG are divided into folders, and the folders are subdi vided into files.

On-Screen Display

You can check information about the current disc by pressing [DISPLAY].

To call the on-screen display menu, press [DISPLAY] during playback. Every time you press [DISPLAY], the information changes. Depending on the media, available information varies.

BD-V AVCHD

off ➔ Title / Chapter information

→ Title information (elapsed time)
→ Title information (remaining time)
→ HDMI information → off

DVD-V

off → Chapter information (elapsed time)

→ Chapter information (remaining time)
→ Title information (elapsed time)
→ Title information (remaining time)
→ Bit rate information → HDMI information → off

CD

off (Track information (elapsed time))

→ Track information (remaining time)
→ Disc information* (elapsed time)
→ Disc information* (remaining time)
→ off (Track information (elapsed time))

(*not available during the program/random playback)

MP3

off (File information (elapsed time))

→ File name information
→ off (File information (elapsed time))

JPEG

off → File information
→ File name information → off

■ Chapter information
