BD-SP808 - Blu-ray player ONKYO - Free user manual and instructions

Product Type	Blu-ray Disc Player
Model	BD-SP808
Brand	Onkyo
Dimensions (W x H x D)	430 x 60 x 250 mm (16.9 x 2.4 x 9.8 inches)
Weight	3.5 kg (7.7 lbs)
Power Supply	AC 110-240 V, 50/60 Hz
Power Consumption	25 W (Standby: 0.5 W)
Disc Compatibility	Blu-ray, DVD, CD, SACD, DVD-Audio
Video Output	HDMI 1.4a, Component, Composite
Audio Output	HDMI, Optical, Coaxial, Analog Stereo
Other Ports	USB 2.0, Ethernet, RS-232C
Supported Audio Formats	Dolby TrueHD, DTS-HD Master Audio, LPCM
Supported Video Formats	MPEG-2, MPEG-4, H.264, VC-1
Internet Connectivity	Yes, via Ethernet (no built-in Wi-Fi)
Smart Features	BD-Live, BonusView, Network Update
Remote Control	Included (RC-819S)
Cleaning Method	Use a soft, dry cloth. Do not use liquids.
Safety Precautions	Do not expose to rain or moisture. No user-serviceable parts inside.
Spare Parts Availability	Remote control, power cord, user manual available from Onkyo support.
Manual Languages	English (original), other languages available via request.

Frequently Asked Questions - BD-SP808 ONKYO

What discs can I play on the Onkyo BD-SP808?

The BD-SP808 supports Blu-ray Discs, DVDs, CDs, SACDs, and DVD-Audio discs. It also plays BD-R/RE and DVD±R/RW formats.

Does the BD-SP808 support 3D playback?

No, the BD-SP808 does not support 3D Blu-ray playback. It is a standard 2D Blu-ray player.

How do I connect the player to my TV?

Use an HDMI cable for best video and audio quality. Alternatively, you can use component (analog video) or composite (standard video) outputs.

Can I stream content from the internet?

The BD-SP808 has an Ethernet port for network connectivity, but it does not have built-in Wi-Fi. It supports BD-Live and firmware updates via the internet.

How do I update the firmware?

Download the latest firmware from the Onkyo support website onto a USB drive, then insert it into the player and follow the on-screen update instructions.

Why is there no picture on my TV?

Check that the HDMI cable is securely connected and the TV is set to the correct input. Also ensure the player's resolution settings match your TV's capabilities.

Can I play audio CDs on this player?

Yes, the BD-SP808 can play standard audio CDs and also supports playback of CD-R/RW discs with MP3 or WMA files.

How do I clean the player?

Use a soft, dry cloth to clean the exterior. Do not use any liquids or abrasive cleaners. For the disc tray, gently remove any dust with a dry cotton swab.

Where can I find a replacement remote control?

Replacement remote controls (model RC-819S) can be ordered from Onkyo's official spare parts service or authorized dealers.

The player disc tray does not open. What should I do?

Unplug the player from the power outlet for 30 seconds, then plug it back in. If the issue persists, there may be a mechanical failure; contact Onkyo support.

USER MANUAL BD-SP808 ONKYO

Function Setup......40

Others 56

Thank you for purchasing an Onkyo BLU-RAY DISC PLAYER. Please read this manual thoroughly before making connections and plugging in the unit.

Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new BLU-RAY DISC PLAYER.

Please retain this manual for future reference.

PRECAUTIONS

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

AVIS

RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

The caution marking is located on the rear or bottom of the cabinet.

The symbol for CLASS II (Double Insulation)

Caution

1. Do not attempt to open the cabinet. There are no parts you can service inside. Refer all servicing to qualified service personnel.
2. Slots and openings in the cabinet and the sides or bottom are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered.
   Avoid installation in enclosed spaces such as bookcases unless proper ventilation is provided.
3. Keep the unit away from radiators and other heat sources.
4. Avoid use near strong magnetic fields.
5. Do not push objects of any kind into the unit through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.
6. To prevent fire or shock hazard, do not expose this apparatus to dripping or splashing, no objects filled with liquids, such as vases, should be placed on the apparatus.
7. Do not stand the unit up vertically. Use this unit in a horizontal (flat) position only.
8. This product is in Stand-by mode when it turns off while the power cord is connected.
9. Do not place any combustible objects on the device (candles, etc.).
10. Before moving the unit, be sure to remove any discs and unplug the mains cable from the AC outlet.
11. Disconnect the mains plug to shut off when find trouble or not in use.
12. The mains plug shall remain readily operable.
13. Read the manual instructions to ensure correct and safe installation and interconnection of the unit in multimedia systems.
14. Keep the distances 20 cm around apparatus of ventilation openings.

Positioning

Do not place the unit directly on top of, or underneath, your TV set. Ensure that there is at least 20 cm between the unit and the TV set, and that air can circulate freely through the ventilation openings of the unit.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

A Note about Recycling

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. This product consists of materials which can be recycled and reused if disassembled by a specialised company.

1. Recording Copyright—Unless it's for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not user-serviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don't use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit's rear panel (AC110-240V, 50 / 60Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

5. Preventing Hearing Loss

Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure

Warning

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—

Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes

- If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it.

- Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.

- This unit's top and rear panels may get warm after prolonged use. This is normal.

- If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

- When you've finished using this unit, remove all discs and turn off the power.

9. Installing this Unit

• Install this unit in a well-ventilated location.
- Ensure that there's adequate ventilation all around this unit, especially if it's installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction.
- Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup.
- Avoid damp and dusty places, and places subject to vibrations from loudspeakers.
- Never put the unit on top of, or directly above a loud-speaker.
- Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction.
- If you install this unit near a TV, radio, or VCR, the picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR.

To Obtain a Clear Picture 10 This unit is a high-tech, precision device. If the lens on the optical pickup, or the disc drive mechanism becomes dirty or worn, the picture quality may be affected. To maintain the best picture quality, we recommend regular inspection and maintenance (cleaning or worn part replacement). Contact your Onkyo dealer.

11. Moisture Condensation

Moisture condensation may damage this unit.

Read the following carefully:

Moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit.

- Moisture condensation can occur in the following situations:

• The unit is moved from a cold place to a warm place.

• A heater is turned on, or cold air from an air conditioner is hitting the unit.
  – In the summer, when this unit is moved from an air conditioned room to a hot and humid place.
  – The unit is used in a humid place.

• Do not use this unit when there's the possibility of moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit. If condensation does occur, remove all discs and leave this unit turned on for two to three hours. By this time, the unit will have warmed up and any condensation will have evaporated.

• RegionCodes—The BD/DVD standard uses region codes to control how discs can be played around the world, the world being divided into three regions (BD) or six regions (DVD). This unit will only play BD/DVD discs that match its region code, which can be found on its rear panel.
• About this Manual—This manual explains how to use all of this unit's functions. Although the BD/DVD standard offers many special features, not all discs use them all, so depending on the disc being played, this unit may not respond to certain functions. See the disc's sleeve notes for supported features.

This unit contains a semiconductor laser system and is classified as a "CLASS 1 LASER PRODUCT". So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit.

To prevent being exposed to the laser beam, do not try to open the enclosure.

CAUTION:

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS FAILED OR DEFEATED. DO NOT STARE INTO BEAM.

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

The label on the right is applied on the rear panel.

1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet.
2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel.

For European Models

Declaration of Conformity

We, ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY

ONKYO EUROPE ELECTRONICS GmbH

Supplied Accessories

Remote Control with R6 (1.5V) battery x 2

Instruction Manual

Instruction Manual (CD-ROM)

RCA audio/video cables

AC cord

Quick Start Guide

Note about Recycling

• This unit's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.
• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Maintenance

Servicing

• Please refer to relevant topics on "TROUBLESHOOTING" on page 56 before returning the product.
• If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit to the standby mode, unplug the power plug, and contact your Onkyo dealer.

Disc handling

- For best results, keep your discs clean. Fingerprints and dust can affect the sound and picture quality and should be removed as follows. Using a clean, soft cloth, wipe from the centre outwards, as shown. Never wipe in a circular direction.

• T remove stubborn dust or dirt, wipe the disc with a damp, soft cloth, and then dry it with a dry cloth.
• Never use solvent-based cleaning fluids, such as thinner or benzine, commercially available cleaners, or antistatic sprays intended for vinyl records, because they may damage the disc.

IR signal check

- If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.

With a digital camera (including built-in cell phone cameras):

Point a digital camera towards the remote control. Push any button on the remote control and look through the digital camera. If the infrared light appears through the camera, the remote control is working.

Copyright

- It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material without permission. Commercial BD-video/DVD-video discs are copy-protected, and any recordings made from these discs will be distorted. This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Note about AC Cord

• Use only the supplied AC cord.
• Do not use the supplied AC cord to other units.

Trademark Information

	HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.		DivX®, DivX Certified® and associated logos are registered trademarks of DivX, Inc. and are used under license.
	Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.	AVCHDTM	"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.
		BONUS VIEWTM	"BONUSVIEW" is trademark of Blu-ray Disc Association.
	Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio | Essential and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.	BDLIVETM	"BD-Live" and "BD-Live" logo are trademarks of Blu-ray Disc Association.
		dlnaCERTIFIED	DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
		"Blu-ray Disc" and Blu-ray Disc are trademarks. DVD is a trademark of DVD Format/Logo Licensing Corporation.
	THX and the THX logo are trademarks of THX Ltd. which are registered in some jurisdictions. All rights reserved.
	"x.v.Color" and "x.v.Color" logo are trademarks of Sony Corporation.
	Java and all other Java trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and/or other countries.
	Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

CONTENTS

Introduction

PRECAUTIONS 2

FEATURES 8

Features 8

Symbols Used in this Manual 9

FUNCTION OVERVIEW 10

Front Panel 10

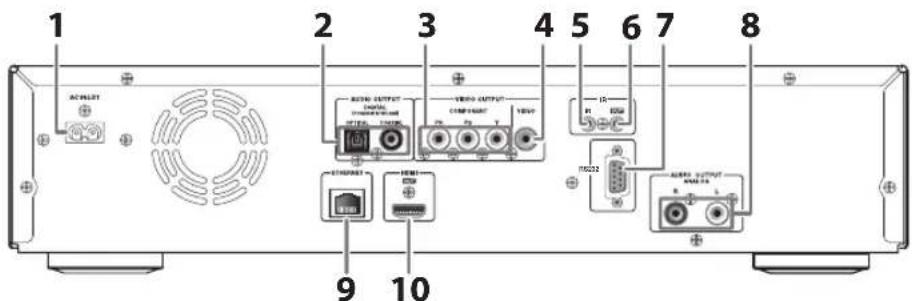

Rear Panel 10

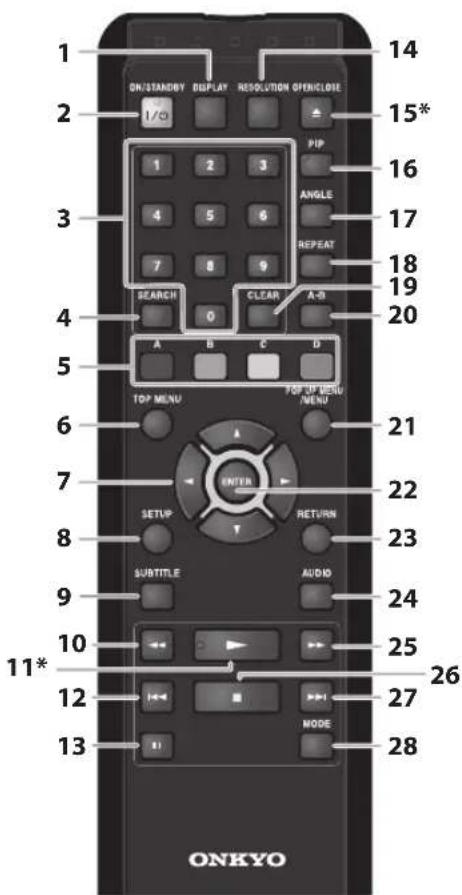

Remote Control 11

Opening Screen 12

Front Panel Display 13

Connections

CONNECTIONS 14

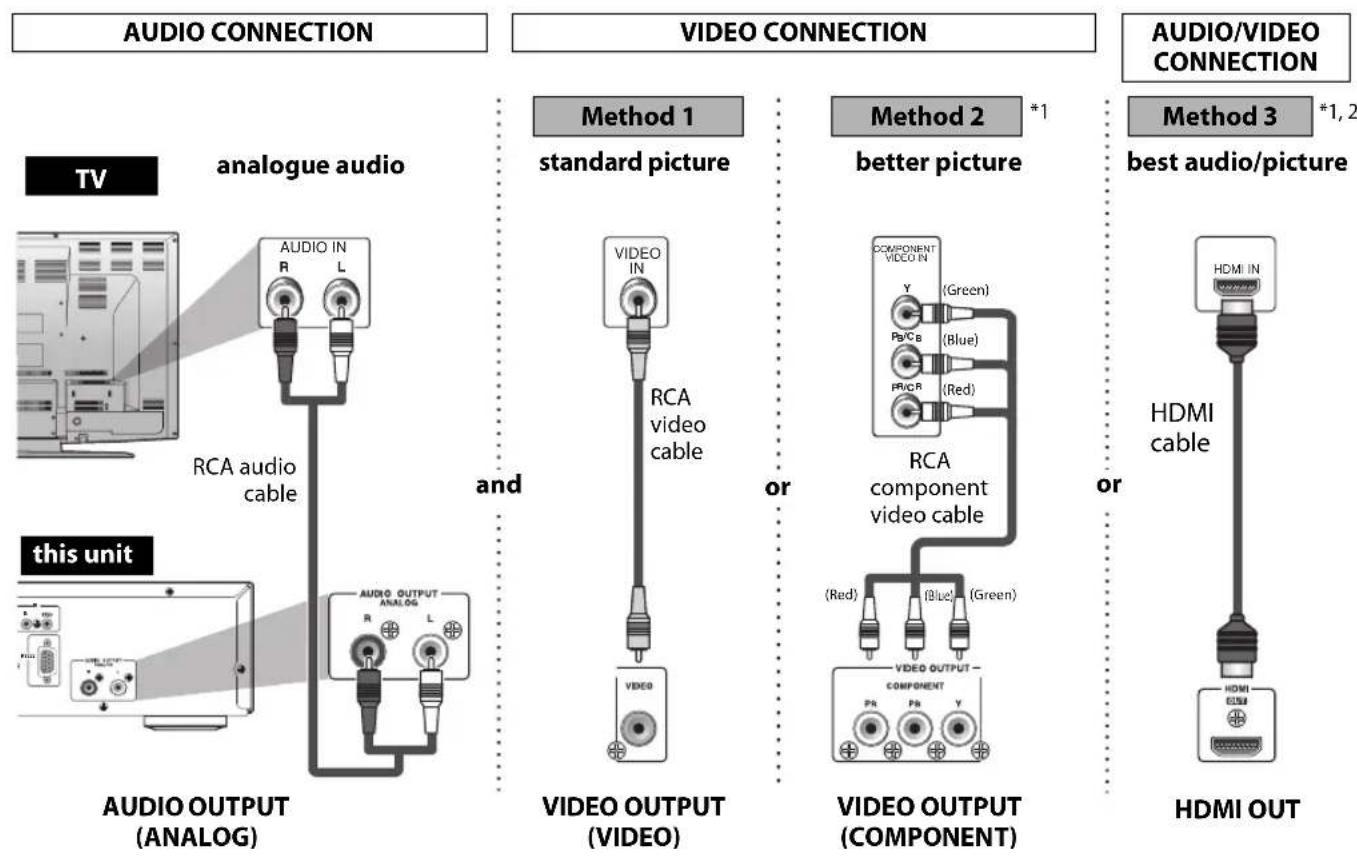

Connection to the TV 14

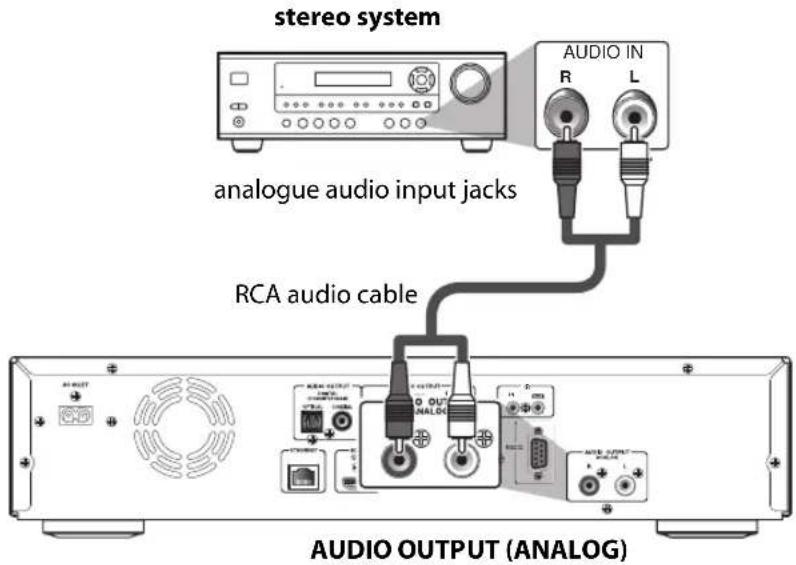

Connection to an Audio System 17

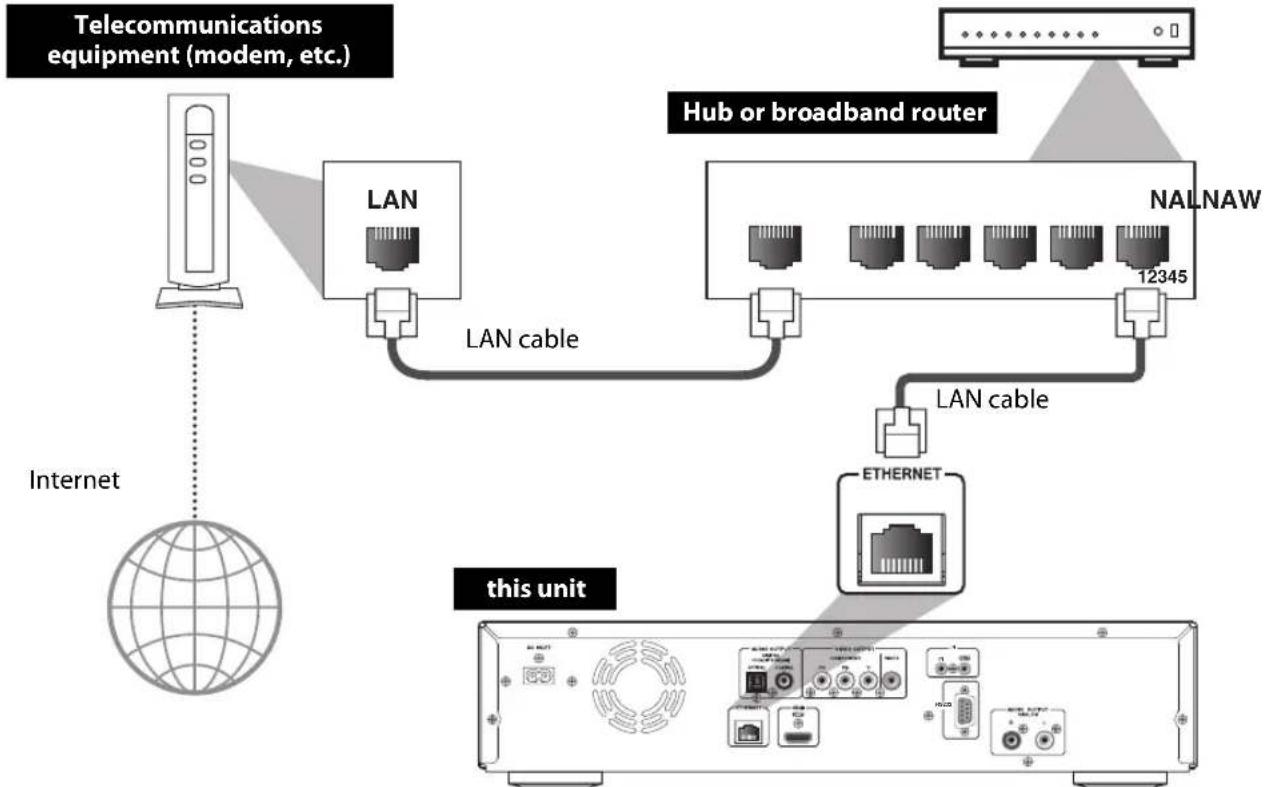

Network Connection with LAN 19

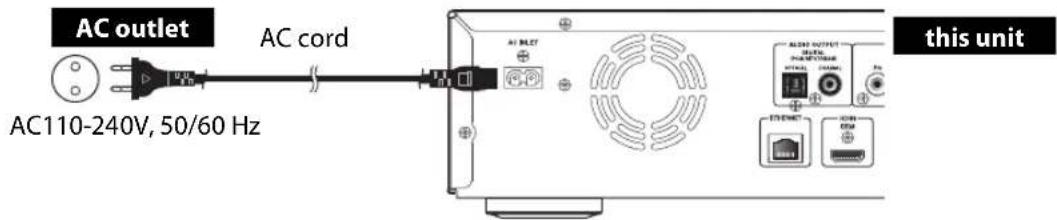

Connecting the AC Cord 19

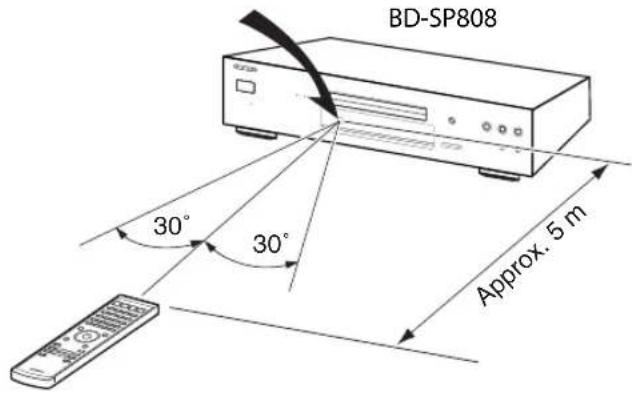

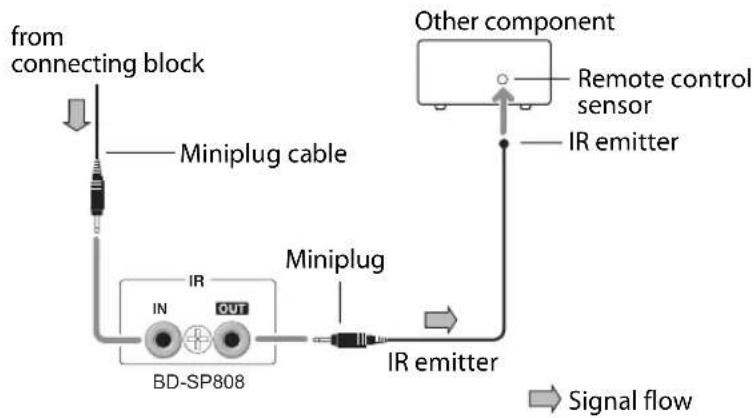

Controlling AV Components that are Out of Range 20

Playback

INFORMATION ON PLAYBACK 21

BASIC PLAYBACK 25

Playing Back a BD, DVD or a Disc with AVCHD Files 25

Operations Using Title Menu, Disc Menu, and Pop-up Menu 26

Playing Back an Audio CD or a DivX ^® , MP3, WMA and JPEG File 26

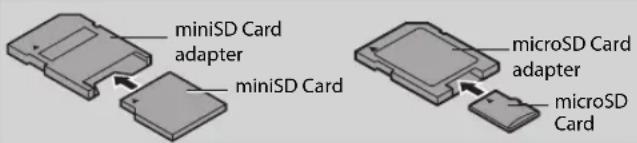

Reading the SD Memory Card 29

Playing Video/ Music/ Photo Files from DLNA Certified Home Media Servers 30

SPECIAL PLAYBACK 32

Fast Forward / Fast Reverse 32

Slow Forward Playback 32

Step by Step Playback 32

Repeat Playback 32

A-B Repeat 33

PIP (Picture in Picture) (BONUSVIEW) Setting ......33

Programme Playback 33

Random Playback 34

Rapid Playback 35

Camera Angle 35

Enjoying BD-Live Discs with Internet 35

SEARCH 36

SPECIAL SETTINGS 37

Switching Subtitles 37

Switching Audio Soundtrack 37

Setting the BD Audio Mode 38

Adjusting the Picture 39

Function Setup

FUNCTION SETUP 40

Using the Setup Menu 40

Network Connection ....51

Software Update 54

Others

TROUBLESHOOTING 56

GLOSSARY 58

LANGUAGE CODE 60

SPECIFICATIONS 61

FEATURES

Features

Full high-definition video playback

Watch movies in the highest picture quality available for your HDTV. This unit offers full high-definition video playback up to 1080p resolution for an amazing viewing experience. A highly detailed picture and increased sharpness delivers a more true-to-life picture.

DVD upscaling for enhanced picture quality

Your current DVD will look even better than before thanks to video upconversion. Upconversion will increase the resolution of standard definition DVD to high definition up to 1080p over an HDMI connection. The picture will be less jagged and more realistic for a near high definition experience.

Enjoy your content on different kinds of media

Full backwards compatibility with DVD, CD and SD card ensures that you can continue to enjoy your current audio-video collection. Additionally, you can enjoy DivX® / MP3 / WMA / JPEG files.

Listen to the rich multi-channel surround sound

Multi-channel surround sound, which recognises real-to-life sound and makes you feel like you are really there.

Easy and simple connection to your HDTV via HDMI

Connect this unit to your HDTV with one single HDMI (High-Definition Multimedia Interface) cable. It is recommended to use High Speed HDMI cable for better compatibility. The high definition video output signal will be transferred to your HDTV without conversion to analogue signals, so you will get excellent picture and sound quality, completely free from noise.

Thanks to other multiple outputs, you can also easily connect to your home theatre system or amplifier.

HDMI CEC (Consumer Electronics Control)

This unit supports HDMI CEC, which allows integrated system control over HDMI and is part of the HDMI standard. Onkyo does not guarantee 100% interoperability with other brands of HDMI CEC compliant devices.

PIP (BONUSVIEW)

Some BD-videos have the PIP function which enables you to display the secondary video in the primary video. You can call up the secondary video by pressing [PIP] whenever the scene contains the secondary video.

BD-Live

BD-Live (BD-ROM version 2 Profile 2.0) that allows interactive functions to be used when this unit is connected to the Internet in addition to the BONUSVIEW function. The various functions differ depending on the disc.

Pop-up menu

Some BD-videos have a pop-up menu which is a navigation menu that can be called up and be operated on the TV screen without interrupting playback. You can call up the pop-up menu by pressing [POP UP MENU/MENU]. Contents in the pop-up menu vary depending on the disc.

Rapid playback

Playback in slightly faster speed while keeping the sound output.

Rapid playback is available only on discs recorded in the Dolby Digital format.

HDMI Deep Color

Deep Color reduces posterisation effect of the playback image. Refer to "HDMI Deep Color" in "FUNCTION SETUP" on page 43.

HDMI 1080p24 output (BD only)

This unit is equipped with the feature which can provide the smooth movement during playback of film originated material with the frame rate of 24 frames per second with progressive. (Available only when the display device is connected by an HDMI cable.)

Refer to "HDMI Video Resolution" in "FUNCTION SETUP" on page 42.

Playing back the contents from an SD Memory Card

You can play back AVCHD/MP3/WMA and JPEG stored in an SD Memory Card. BD-ROM Profile 2.0 (BD-Live) and Profile 1.1 discs sometimes store picture-in-picture commentary, subtitles or other extras in the SD Memory Card for use during playback with the BD-video.

Playing back AVCHD files

This unit supports playback of AVCHD format files (new format for high definition video camcorders) recorded on disc/SD card. Your high definition personal archive is playable in HD quality.

Playing Back DivX® / DivX® HD File

You can enjoy DivX® files which are recorded on BD-RE/-R, DVD-RW/-R or CD-RW/-R.

x.v.Color

This unit supports playback of video contents on discs recorded with "x.v.Color" technology. To watch this video content with the "x.v.Color" space, a TV or other display device supporting both video image reproduction using "x.v.Color" standard and capability of manual switching of its colour space setting is required. Please refer to the owner's manual of your display device for further information.

Enjoy contents stored on DLNA certified home media servers

This unit is a DLNA certified media player that can play video, music and photo files stored on DLNA certified home media servers connected to your home network.

Symbols Used in this Manual

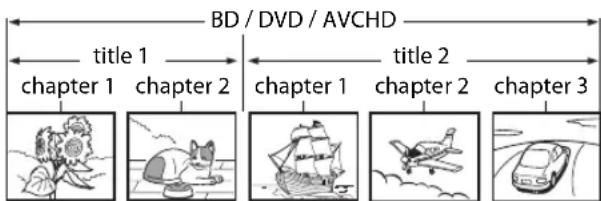

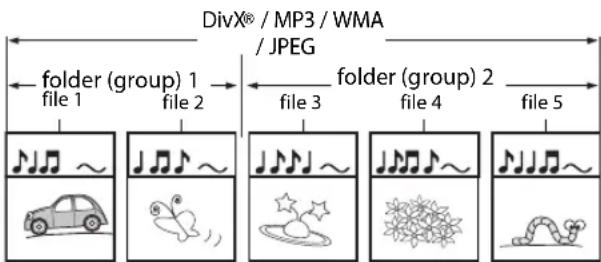

To specify for which media type each function is, we put the following symbols at the beginning of each item to operate.

Symbol	Description
BD-V	Description refers to BD-video and BD-RE (ver. 2.1) / BD-R (ver. 1.1/ 1.2/ 1.3) recorded in BDMV format
DVD-V	Description refers to DVD-video
CD	Description refers to audio CD / DTS-CD
AVCHD	Description refers to DVD-RW/-R and SD card with AVCHD files
DivX	Description refers to BD-RE/-R, DVD-RW/-R and CD-RW/-R with DivX® files
MP3	Description refers to BD-RE/-R, DVD-RW/-R, CD-RW/-R and SD card with MP3 files
WMA	Description refers to BD-RE/-R, DVD-RW/-R, CD-RW/-R and SD card with Windows MediaTM Audio files
JPEG	Description refers to BD-RE/-R, DVD-RW/-R, CD-RW/-R and SD card with JPEG files
DLNA VIDEO	Description refers to video files in the DLNA home server
DLNA MUSIC	Description refers to music files in the DLNA home server
DLNA PHOTO	Description refers to photo files in the DLNA home server

If you do not find any of the symbols listed above under the function heading, the operation is applicable to all media.

FUNCTION OVERVIEW

Front Panel

(*) The unit can also be turned on by pressing these buttons.

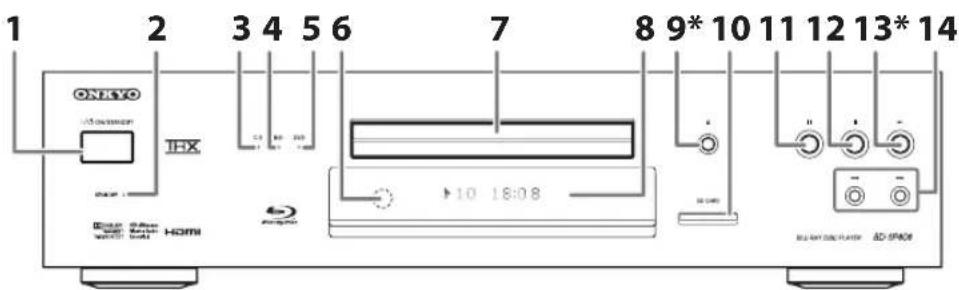

1. I/ON/STANDBY button

- Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord)

2. STANDBY indicator

- This indicator lights up in red when the unit is in standby mode and turns off when the unit is active.

3. CD indicator

• This indicator lights up in green when a CD is inserted.

4. BD indicator

- This indicator lights up in blue when a Blu-ray Disc is inserted.

5. DVD indicator

• This indicator lights up in orange when a DVD is inserted.

6. Infrared sensor window

- Receive signals from your remote control so that you can control the unit from a distance.

7. Disc tray

- Place a disc when opening the disc tray.

8. Display

- Refer to "Front Panel Display" on page 13.

9. ▲ (open/close) button\*

- Press to open or close the disc tray.

10. SD CARD slot

- Insert an SD Memory Card, and play back the contents in it.

11. II (pause) button

- Press to pause playback.

12. ■ (stop) button

- Press to stop playback.

13. ▶ (play) button\*

- Press to start or resume playback.

14. |◀◀/▶▶| (skip down/up) buttons

- Press to skip to the previous or next title / chapter / track / file.

Rear Panel

1. AC INLET terminal

- Use to connect the AC outlet with the AC cord.

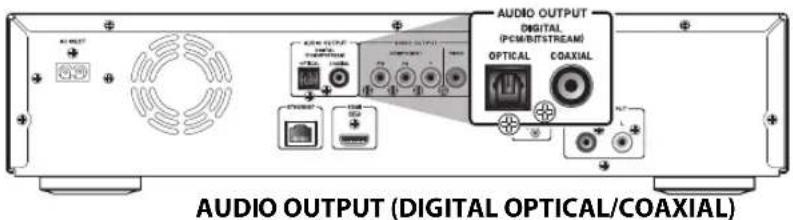

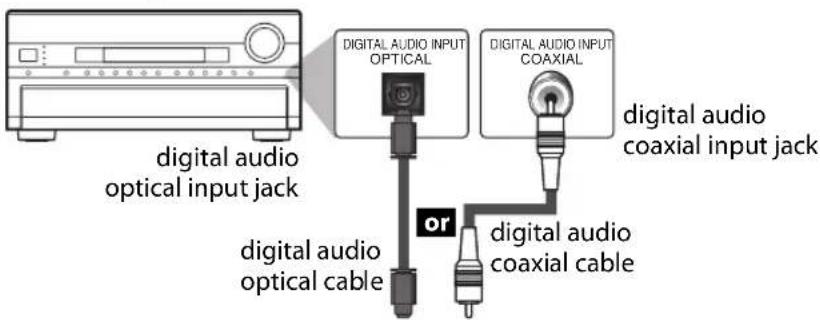

2. AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks

- Use to connect an AV receiver / amplifier, Dolby Digital / DTS decoder or other device with a digital audio optical/coaxial input jack with a digital audio optical/coaxial cable.

3. VIDEO OUTPUT (COMPONENT) jacks

- Use to connect a TV or AV receiver with component video inputs with an RCA component video cable.

4. VIDEO OUTPUT (VIDEO) jack

- Use to connect a TV, an AV receiver or other device with an RCA video cable.

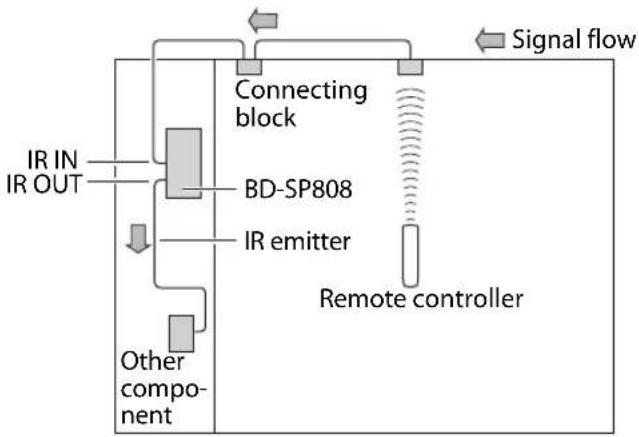

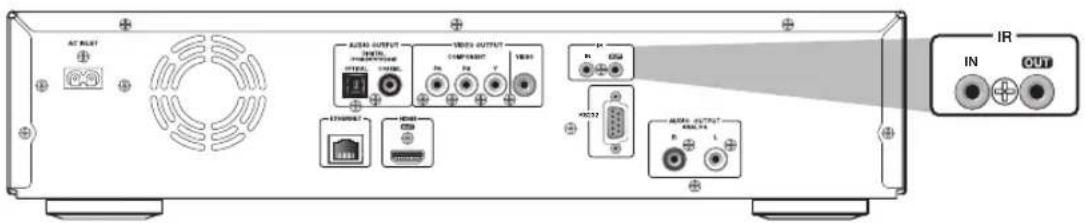

5. IR IN jack

- A commercially available IR receiver can be connected to the IR IN jack, allowing you to control the BD player when it's out of sight, for example, installed in a cabinet.

6. IR OUT jack

- A commercially available IR emitter can be connected to the IR OUT jack to pass IR (infrared) remote control signals along to other components.

7. CONTROL CONNECTOR (RS-232)

- This bidirectional RS-232 port can be connected to an external controller.

8. AUDIO OUTPUT (ANALOG) jacks

- Use to connect a TV, an AV receiver / amplifier or other device with an RCA audio cable.

9. ETHERNET terminal

- Use to connect a telecommunications equipment with LAN cable.

10.HDMI OUT jack

- Use to connect a TV, an AV receiver / amplifier or other device with an HDMI compatible port with an HDMI cable.

Note

• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
  • This unit does not have the RF modulator.

Remote Control

(*) The unit can also be turned on by pressing these buttons.

1. DISPLAY button

- Press to display the on-screen display menu.

2. ON/STANDBY I / button

- Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord)

3. Number buttons

- Press to enter the title, chapter, track or file number.

- Press to enter values in the input field.

4. SEARCH button

- Press to display the search menu.

5. A/B/C/D button

- Press to select items on some BD menus.

- When file list / thumbnail list is shown, press to switch between pages.

6. TOP MENU button

- Press to display the top menu.

- During DLNA home media server feature screen is displayed (except during playback), press to exit.

7. ▲/▼/◄/► buttons

- Press to select items or settings.

8. SETUP button

- Press to display the setup menu.

9. SUBTITLE button

- Press to display the subtitle menu.

10. ◀◀ (reverse) button

- During playback, press to fast reverse the playback.

11. ▶ (play) button\*

- Press to start playback or resume playback.

12. |◀◀ (skip) button

• During playback, press once to return to the beginning of the current title, chapter, track or file.
• During playback, press twice to return to the previous title, chapter, track or file.
• During the JPEG playback, press to return to the previous file.

13.Ⅱ (pause) button

• Press to pause playback.
• When playback is in pause mode, press repeatedly to forward the playback step by step.

14. RESOLUTION button

- Press to set the HDMI output mode.

15. OPEN/CLOSE ▲ button\*

- Press to open or close the disc tray.

16. PIP button

- During BD playback, press to display the setting for the picture-in-picture (only applicable to BD-video which supports the PIP function).

17. ANGLE button

• Press to access various camera angles on the disc.
• Press to rotate the JPEG files clockwise by 90 degrees.

18. REPEAT button

- Press to toggle between various repeat modes.

19. CLEAR button

- Press to clear the information once entered, or to cancel the programming for audio CD, etc.

20. A-B button

- Press to play back a defined section between point A and B repeatedly.

21. POP UP MENU/MENU button

- Press to display the pop-up menu / disc menu.

22. ENTER button

- Press to confirm or select menu items.

23. RETURN button

- Press to return to the previously displayed menu screen.

24. AUDIO button

- Press to display the audio menu.

25. ▶▶ (forward) button

• During playback, press to fast forward the playback.
  • In pause mode, press to slow forward the playback.

26. ■ (stop) button

- Press to stop playback.

27. ▶▶▶l (skip) button

- During playback, press to skip to the next title, chapter, track or file.

28. MODE button

• During BD, DVD or AVCHD files playback, press to display the setting for the rapid playback and the picture adjustment.
• During BD playback, press to display the setting for the picture-in-picture (only applicable to BD-video which supports the PIP function).
• During the JPEG playback, press to display menus for changing the visual effect for switching the image or changing the size of the image.
• In stop mode with BD inserted, press to display a menu for setting the BD audio mode.
• In stop mode with audio CD, a disc with MP3, WMA or JPEG files inserted, press to display menus for programme and random playback.

Installing the Batteries in the Remote Control

Install 2 R6 (1.5V) batteries matching the polarity indicated inside battery compartment of the remote control.

1) Open the cover.

Diagram of a device being inserted into a slot, showing mechanical components (no text or symbols)

2) Insert batteries.

Diagram of a battery pack with two electrolytic cells and labeled terminals (no text or symbols present)

Make sure to match + and - on the batteries to the marks indicated in the battery compartment.

3) Close the cover.

Diagram of a device being inserted into a slot, showing mechanical components (no text or symbols)

Note

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

• Do not mix new and old batteries together.
• Do not use different kinds of batteries together. Although they may look similar, different batteries may have different voltages.
• Make sure that the + and - ends of each battery match the indications in the battery compartment.
• Remove batteries from battery compartment that is not going to be used for a month or more.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.
• Do not recharge, short-circuit, heat, burn or disassemble batteries.

Using a Remote Control

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote control and the infrared sensor window on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the infrared sensor window of the unit.
• Remote control for different devices can interfere with each other. Avoid using remote control for other device located close to the unit.
• Replace the batteries when you notice a fall off in the operating range of the remote control.
• The maximum operable ranges from the unit are as follows.

Infrared sensor window

Opening Screen

In stop mode and "Mode Select" is set to "Network", opening screen is displayed.

"Home Network": To access the list of DLNA home server

Front Panel Display

* Brightness of the display can be adjusted. Refer to "Panel Display" in "FUNCTION SETUP" on page 49.

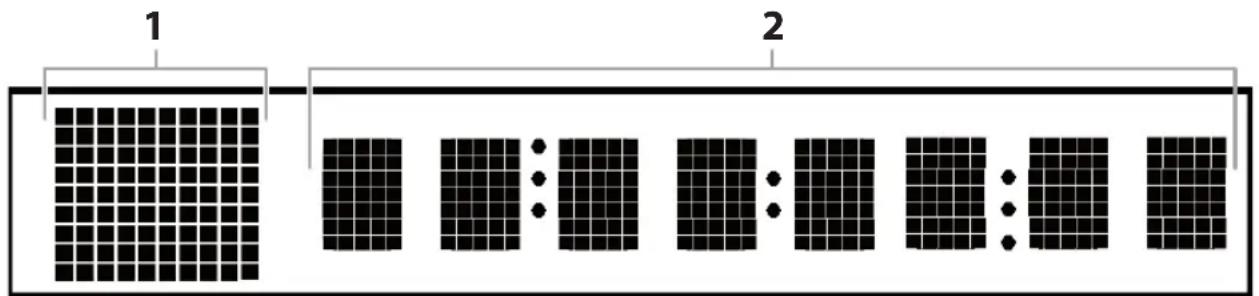

1. Displays playback status icon. Refer to the table below.
2. Displays various kinds of information such as title number, elapsed time, repeat mode, etc.

Playback Status Icon		Mode
Disc	SD Memory Card
[2262]		Playback is in progress
	[4027]	Stop mode
[XGGR]		Pause mode
		Fast forward mode
[584T]		Fast reverse mode
	(for AVCHD only)	Slow forward mode
		Appears while repeat function is set
[YWYB]		Appears when DLNA home media server is active

Example of Display Message

Title is being played back. Indicating the current title number and the elapsed time.

Loading a disc.

Current chapter is in chapter repeat mode.

Dolby Digital audio is being played back.

DTS audio is being played back.

CONNECTIONS

Connection to the TV

- Make one of the following connections, depending on the capabilities of your existing device.

*1) This unit is compatible with the progressive scan system. The feature provides you with the higher quality pictures than traditional output system does. To utilise this feature, a component or an HDMI connection is required. Refer to "HDMI Video Resolution" or "Component Output" setting on pages 42-43 to set the video resolution.
*2) - Analogue audio connection is not required for this connection. - High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for better compatibility. - Use an HDMI cable with the HDMI logo (a certified HDMI cable) for this connection.

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1
- RCA video cable x 1

Please purchase the rest of the necessary cables at your local store.

Note

• Connect this unit directly to the TV. If the RCA audio / video cables are connected to a VCR, pictures may be distorted due to the copy-protection system.
• If the picture is not output properly to the TV because of "HDMI Video Resolution" or "Component Output" setting, press and hold [▶ (play)] on the front panel for more than 5 seconds. "HDMI Video Resolution" and "Component Output" setting will be reset to the default automatically. You cannot change the video resolution during Blu-ray Disc playback. To change the resolution, stop playback.
• A simple 1-cable connection with a device having an HDMI (High-Definition Multimedia Interface) jack allows digital transfer of both digital video signals and multi-channel audio signals.

HDMI Output Mode and Actual Output Signals

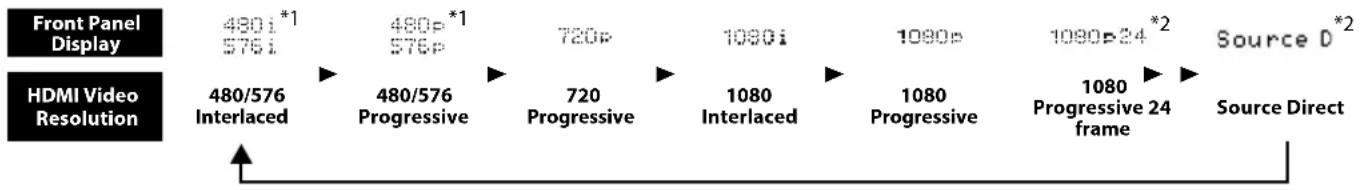

Press [RESOLUTION] to change the resolution of the video signal being output from HDMI OUT jack. The video resolution changes as follows every time [RESOLUTION] is pressed.

Copyright protection system

To play back the digital video images of a BD / DVD via an HDMI connection, it is necessary that both the unit and the TV (or an AV receiver) support a copyright protection system called HDCP (high-bandwidth digital content protection system). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV device. This unit supports HDCP. Please read the operating instructions of your TV (or AV receiver) for more information.

*1) "480i" and "480p" will be displayed only when an NTSC disc or a1080p24 frame material is being played back.
*2) Even if "HDMI Video Resolution" is set to "Source Direct", HDMI video resolution will be changed when your TV is not compatible with the video resolution of a disc material.

Note

• When using HDCP-incompatible TV, the image will not be viewed properly.
• The audio signals from HDMI OUT jack (including the sampling frequency, the number of channels and bit length) maybe limited by the device that is connected.
• Among the devices that support HDMI, some do not support audio output (e.g. projectors). In connections with device such as this unit, audio signals are not output from HDMI OUT jack.
  • Video and audio signals may be distorted temporarily when switching to / from the HDMI output mode.
• You can also change the HDMI output mode from "HDMI Video Resolution" setting in "Video" menu. In this menu, you can confirm what HDMI video resolutions are supported by connected TV. Refer to page 42.
• You can change the HDMI output mode with [RESOLUTION] during playback as well. (This is not available during BD/AVCHD playback.)
• In order to get natural and high quality film reproduction of 24-frame film material, use HDMI cable (High Speed HDMI cable is recommended) and select "1080p24", "Auto" or "Source Direct" if the connected display device is compatible with 1080p24 frame input.
• If the disc contains 1080p24 frame material, 60-frame or 50-frame image will be output unless "1080p24" is selected.
• For AVCHD and DivX®, 24-frame film material will be output as 60 frame, even if the connected device is
  compatible with 1080p24 frame input and "HDMI Video Resolution" is set to "1080p24", "Auto" or "Source Direct".
• When "HDMI Video Resolution" is set to "1080p", "1080p24" or "Source Direct", the "Component Output" will be set to "480i/576i" automatically.
• If the video is not properly from HDMI OUT jack after you set the "HDMI Video Resolution" setting, change the HDMI video resolution to the compatible resolution by pressing [RESOLUTION] or press and hold [▶ (play)] on the front panel for more than 5 seconds to reset the setting.
• "HDMI Deep Color" is available only when the display device is connected by HDMI cable and supports HDMI Deep Color.
• For "Auto" in "HDMI Deep Color", using the High Speed HDMI cable is recommended.

HDMI Audio Setting

When using HDMI connections make "HDMI Audio Out" setting in "Audio" menu according to the specifications of the device to be connected. Refer to page 44.

Device to be connected	“HDMI Audio Out” setting	Output HDMI audio signal
Device compatible with Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD decoding	HDMI Multi(Normal)	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, or DTS-HD bitstream are output from HDMI OUT jack. Make the speaker settings on the connected AV amplifier, etc.
Device compatible with 3 or more channels of audio inputs (not Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD compatible)	HDMI Multi(LPCM)	Multi-channel audio signals are output from HDMI OUT jack. Make the speaker settings with the speaker setting items appear after you select “HDMI Multi(LPCM)”. Refer to page 44.
Device compatible with 2-channel audio input or device not compatible with audio input	HDMI 2ch	Down-mixed 2-channel audio signals are output from HDMI OUT jack.
HDMI connection to a TV, and digital audio connection (coaxial/optical) to an AV amplifier	Audio Mute	HDMI audio will be muted, and Dolby Digital / DTS bitstream or LPCM will be output from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks depending on “Digital Out” setting. Refer to page 45.

■ Audio signals output from HDMI OUT jack

	“HDMI Audio Out” setting →	“HDMI Multi(Normal)”		“HDMI Multi(LPCM)”		“HDMI 2ch”
	“BD Audio Mode” setting →	“HD Audio Output”	“Mix Audio Output”	“HD Audio Output”	“Mix Audio Output”	“HD Audio Output”	“Mix Audio Output”
Media ↓	Audio Source ↓	Which audio format can be output depends on the compatibility of the connected device.
BD-video	Dolby Digital	Dolby Digital	Dolby Digital	Multi PCM	Multi PCM	Downmix 2chPCM	Downmix 2chPCM
	Dolby Digital Plus	Dolby Digital Plus	Dolby Digital	Multi PCM*1	Multi PCM*2	Downmix 2chPCM *1	Downmix 2chPCM*2
	Dolby TrueHD	Dolby TrueHD	Dolby Digital	Multi PCM*3	Multi PCM*4	Downmix 2chPCM *3	Downmix 2chPCM*4
	DTS®	DTS®	DTS®	Multi PCM*6	Multi PCM*6	Downmix 2chPCM	Downmix 2chPCM
	DTS-HD®	DTS-HD®	DTS®	Multi PCM*1, 6	Multi PCM*5, 6	Downmix 2chPCM *1	Downmix 2chPCM*5
	LPCM	Multi LPCM	Multi PCM	Multi PCM	Multi PCM	Downmix 2chPCM	Downmix 2chPCM
DVD-video	Dolby Digital	Dolby Digital		Multi PCM		Downmix 2ch PCM
	DTS®	DTS®		Multi PCM		Downmix 2ch PCM
	LPCM	2ch PCM		2ch PCM		2ch PCM
	MPEG	MPEG		Multi PCM		Downmix 2ch PCM
Audio CD	PCM	2ch PCM		2ch PCM		2ch PCM
DTS-CD	DTS®	DTS®		Multi PCM		Downmix 2ch PCM
AVCHD	Dolby Digital	Dolby Digital		Multi PCM		Downmix 2ch PCM
	LPCM	Multi PCM		Multi PCM		Downmix 2ch PCM
DivX®	Dolby Digital	Dolby Digital		Multi PCM		Downmix 2ch PCM
	PCM	2ch PCM		2ch PCM		2ch PCM
MP3	MP3	2ch PCM		2ch PCM		2ch PCM
WMA	WMA	2ch PCM		2ch PCM		2ch PCM
DLNA Video	Dolby Digital	Dolby Digital		Multi PCM		Downmix 2ch PCM
	MP2	2ch PCM		2ch PCM		2ch PCM
	LPCM	Multi PCM		Multi PCM		Downmix 2ch PCM
DLNA Music	MP3/WMA/LPCM	2ch PCM		2ch PCM		2ch PCM

*1 Full decoded.
^*2 Only the independent substream is decoded.
*3 Dolby TrueHD stream is decoded.
*4 Only the Dolby Digital substream is decoded.
*5 Only the core substream is decoded.
*6 When audio source is multi-channel, decoded as 7.1ch. However, number of the output audio channel will depend on the number of the connected speakers.
- If the connected device is not compatible with the HDMI BITSTREAM, audio will be output as multi LPCM or 2-channel down-mixed LPCM depending on the capability of the connected device even if you select "HDMI Multi(Normal)" in "HDMI Audio Out" setting. Refer to page 44.
- If the connected device is not compatible with AAC, audio will be output as PCM depending on the capability of the connected device.
- When playing back a BD-video which only contains the primary audio, the audio output will be the same case as the "HD Audio Output" even if the "BD Audio Mode" is set to "Mix Audio Output".

Note

- The audio signals from HDMI OUT jack (including the sampling frequency, the number of channels and bit length) maybe limited by the device that is connected.

- Among the devices that support HDMI, some do not support audio output (e.g. projectors). In connections with device such as this unit, audio signals are not output from HDMI OUT jack.

• Video and audio signals may be distorted temporarily when switching to / from the HDMI output mode.

Connection to an Audio System

• When you change the connections, all devices should be turned off.
• Refer to the manual accompanying external devices for more information.

2-Channel Analogue Audio Connection
audio
this unit

Digital Audio Connection
audio

AV receiver / amplifier

this unit

Supplied cables used in these connections are as follows:

- RCA audio cable (L/R) x 1 Please purchase the rest of the necessary cables at your local store.

Note for Digital Audio Optical Cable

• Digital audio optical cable may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diameter of 15cm or more when storing them.
• Use a cable which is 3m or shorter.
• Insert cable plugs firmly into the connectors when making connections.
• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.

■ Audio signals output from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks

For the settings in the "Digital Out" to take effect, "HDMI Audio Out" should be set to "Audio Mute". Otherwise, the settings made in the "HDMI Audio Out" will have a priority, and the same signal as being output from the HDMI OUT jack will be output from the AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks as well. (Except that Dolby Digital will be output instead of Dolby Digital Plus and Dolby TrueHD, and DTS signal will be output instead of DTS-HD.)

	“Digital Out” setting →	“Bitstream” “LPCM”
	“BD Audio Mode” setting →	“HD Audio Output”	“Mix Audio Output”	“HD Audio Output”	“Mix Audio Output”
Media ↓	Audio Source ↓	Which audio format can be output depends on the compatibility of the connected device.
BD-video	Dolby Digital	Dolby Digital	Dolby Digital	Downmix 2ch PCM	Downmix 2ch PCM
	Dolby Digital Plus	Dolby Digital	Dolby Digital	Downmix 2ch PCM*1	Downmix 2ch PCM*2
	Dolby TrueHD	Dolby Digital	Dolby Digital	Downmix 2ch PCM*3	Downmix 2ch PCM*4
	DTS®	DTS®	DTS®	Downmix 2ch PCM	Downmix 2ch PCM
	DTS-HD®	DTS®	DTS®	Downmix 2ch PCM*1	Downmix 2ch PCM*5
	LPCM	Downmix 2ch PCM	Downmix 2ch PCM	Downmix 2ch PCM	Downmix 2ch PCM
DVD-video	Dolby Digital	Dolby Digital		Downmix 2ch PCM
	DTS®	DTS®		Downmix 2ch PCM
	LPCM	2ch PCM		2ch PCM
	MPEG	MPEG		Downmix 2ch PCM
Audio CD	PCM	2ch PCM		2ch PCM
DTS-CD	DTS®	DTS®		Downmix 2ch PCM
AVCHD	Dolby Digital	Dolby Digital		Downmix 2ch PCM
	LPCM	Downmix 2ch PCM		Downmix 2ch PCM
DivX®	Dolby Digital	Dolby Digital		Downmix 2ch PCM
	PCM	2ch PCM		2ch PCM
MP3	MP3	2ch PCM		2ch PCM
WMA	WMA	2ch PCM		2ch PCM
DLNA Video	Dolby Digital	Dolby Digital		Downmix 2ch PCM
	MP2	2ch PCM		2ch PCM
	LPCM	Downmix 2ch PCM		Downmix 2ch PCM
DLNA Music	MP3/WMA/LPCM	2ch PCM		2ch PCM

*1 Full decoded.
^*2 Only the independent substream is decoded.
*3 Dolby TrueHD stream is decoded.
*4 Only the Dolby Digital substream is decoded.
*5 Only the core substream is decoded.

- When playing back a BD-video which only contains the primary audio, the audio output will be the same case as the "HD Audio Output" even if the "BD Audio Mode" is set to "Mix Audio Output".

- If the connected device is not compatible with AAC, audio will be output as PCM depending on the capability of the connected device.

Note

- In order to output LPCM signal from AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL) jacks while outputting the HDMI audio signal, set "HDMI Audio Out" setting to "HDMI Multi(LPCM)".

Network Connection with LAN

- By connecting this unit to the Internet, you can update the software via the Internet, play contents stored on DLNA home media servers or access BD-Live.

• For more information about software update, refer to "Network Update" on page 54.
• For more information about DLNA, refer to "Playing Video / Music / Photo Files from DLNA Certified Home Media Servers" on page 30.
• For more information about BD-Live, refer to "Enjoying BD-Live Discs with Internet" on page 35.

Make sure to connect the telecommunications equipment (modem, etc.) to the ETHERNET terminal via hub or broadband router.

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store.

Note

• After connecting to the Internet, set up necessary network settings.
- Do not insert any cable other than a LAN cable to the ETHERNET terminal to avoid damaging the unit.
- If your telecommunications equipment (modem, etc.) does not have broadband router functions, connect a broadband router.
- If your telecommunications equipment (modem, etc.) has broadband router functions, use a hub.
- For a broadband router, use a router which supports 10BASE-T/100BASE-TX.
- Do not connect your PC directly to the ETHERNET terminal of this unit.
- For the network setup, refer to "Network Connection" on pages 51-54.
- For more information about cables or connections, see the manual accompanying modem, broadband router and hub you use.
- Please purchase shielded LAN cables at your local store and use them when you connect to network equipment.

Connecting the AC Cord

After you made all necessary connections, connect the AC cord to the AC INLET. Then connect the AC cord to the AC outlet. Insert the plugs securely. Incomplete connections will result in the generation of noise.

Supplied cables used in this connection are as follows:

- AC cord x 1

Controlling AV Components that are Out of Range

You can use the following multi-room kits to control the BD-SP808 when it's out of range of the remote controller: • Multiroom kits such as those made by Niles and Xantech.

Controlling Other Out-of-Range AV Components

If another AV component is out of range of its remote controller, you can use a commercially available IR emitter to retransmit the remote controller signals received at the BD-SP808's IR IN jack, as shown below.

Connect the IR emitter to the BD-SP808's IR OUT jack, and place the IR emitter in front of the other AV component's remote control sensor (usually located on its front panel), as shown below. See the instructions supplied with the IR emitter.

Only remote controller signals received by the BD-SP808's IR IN jack are fed through to the IR OUT jack. Signals picked up by the BD-SP808's remote control sensor are not output.

INFORMATION ON PLAYBACK

Before you start playing back a disc, read the following information.

playable Discs and Files

This unit is compatible to play back the following discs / files.

To play back a disc / file, make sure that it meets the requirements for region codes as described on the back cover and colour systems as described below. You can play back discs that have the following logos.

Other disc types are not guaranteed to play back.

Playable discs	Logos
Blu-ray Disc
- BD-video(single / dual layer)
- BD-RE* (ver. 2.1)(single / dual layer)(recorded in BDMV format)
- BD-R (ver. 1.1/ 1.2/ 1.3)(single / dual layer)(recorded in BDMV format)(Unclosed discs may not be played back.)
DVD-video
DVD-RW (single layer)(finalised video mode discs only)
DVD-R (single/dual layer)(finalised video mode discs only)
CD-DA (audio CD)
CD-RW
CD-R
DTS-CD	-

* Due to the intentional progression of the Blu-ray Disc format by its standard setting authority, the company cannot guarantee or warrant the playability of future extensions of the Blu-ray Disc format with this product.

Disc/Card/Media Type
File type/ Disc format/ Data ↓	BD-RBD	REDVD-R/-RWCD-R/-RW		SD Memory Card (8MB - 2GB) SDHC Memory Card (4GB - 8GB) miniSD Card (8MB - 2GB) microSD Card (8MB - 2GB)	DLNA
BDMVO	○		-	-	-	-
video mode	-	-	○	-	-	-
audio CD	-	-	-	○	-	-
DivX®	○	○	○	○	-	-
MP3, WMA	○	○	○	○	○	○
JPEG	○	○	○	○	○	○
MPEG1, MPEG2	-	-	-	-	-	○
AVCHD	-	-	○	-	○	-
Picture-in-picture commentary, subtitles or other extras for BD-ROM ver. 2 (Profile 2.0 / Profile 1.1)					○	-

O:Supported

Note

• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.
• DivX Certified ^® to play DivX ^® video up to HD 1080p, including premium content.
• Discs containing the DivX® files with the DivX® GMC (Global Motion Compensation) playback feature, which is DivX® supplemental function, cannot be played back on this unit.

Note for SD Memory Cards

• Do not remove the SD Memory Card or turn the unit to the standby mode while the contents of the card is in playback. It may result in malfunction or loss of the card's data.
• Please keep the SD Memory Cards in their cases when you are not using them.
• Do not try to open or modify the card.
• Do not touch the terminal surface with your fingers or any metals.
• Do not attach additional labels or stickers to cards.
• Do not remove the label of the SD Memory Cards.
• This unit supports SD Memory Card with FAT12/ FAT16 file system, and SDHC Memory Card with FAT32 file system.
• This unit may not read the SD Memory Cards formatted on computer. If that is the case, please reformat the SD Memory Cards in this unit and try again.
• This unit does not support miniSDHC and microSDHC Memory Card.
• For miniSD Card and microSD Card, the adapter is necessary.

- Portions of this product are protected under copyright law and are provided under license by ARIS / SOLANA / 4C.

Unplayable Discs and Files

The following discs will not be played back in this unit.

• CD-ROM
  • CD-I (compact disc-interactive)
• DVD-RAM
  • VSD (video single disc)

• DVD-audio • video CD

• HD DVD• SVCD

- unfinalised disc

- SD Memory Card contains DivX® files.

- BD/DVD hybrid disc (played back as a BD-video only)

• BD that contains AVCHD files

- DVD-RW/-R recorded in VR mode or non compatible recording format.

- Super audio CD - Only the sound on the CD layer can be heard. The sound on the high-density super audio CD layer cannot be heard.

- Playability of dual discs are not guaranteed.

- BD-RE/-R recorded in BDAV format or non compatible recording format.

- This unit cannot play back the disc contents protected by Windows Media™ Digital Rights Management (DRM).

Colour Systems

BD and DVD are recorded in different colour systems throughout the world. The most common colour system, used primarily in the U.K. and other EU countries, is PAL. This unit uses the PAL system. However, it is also possible to play back BD and DVD using other colour systems, such as NTSC.

Structure of Disc / SD Memory Card Contents

The contents of BD/DVD are generally divided into titles. Titles may be further subdivided into chapters.

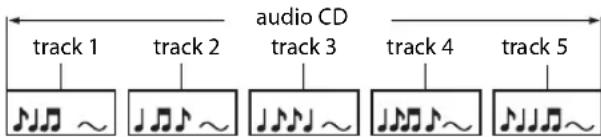

Audio CDs are divided into tracks.

Data discs or SD Memory Cards containing DivX® / MP3 / WMA / JPEG are divided into folders, and the folders are subdivided into files.

On-Screen Display

You can check information about the current disc by pressing [DISPLAY].

To call the on-screen display menu, press [DISPLAY] during playback. Every time you press [DISPLAY], the information changes. Depending on the media, available information varies.

BD-V

AVCHD

off → Title / Chapter information

→ Title information (elapsed time)
→ Title information (remaining time)
→ Decoding format information → off

DVD-V

off → Chapter information (elapsed time)

→ Chapter information (remaining time)
→ Title information (elapsed time)
→ Title information (remaining time)
→ Decoding format information → off

CD

off (Track information (elapsed time))

→ Track information (remaining time)
→ Disc information* (elapsed time)
→ Disc information* (remaining time)
→ off (Track information (elapsed time))

(* not available during programme/random playback)

DivX

off → File information (elapsed time)

→ File information (remaining time)
→ File name information → Decoding format information
→ off

MP3

off (File information (elapsed time))

→ File name information
→ off (File information (elapsed time))

WMA

off (File information (elapsed time))

→ File name information
→ Tag information (title name)
→ Tag information (artist name)
→ off (File information (elapsed time))

JPEG

off → File information

→ File name information → off

INFORMATION ON PLAYBACK

■ Chapter information
