Contents

Safety information......vi

About this guide....vii

Z97-DELUXE/USB 3.1 specifications summary....ix

Package contents....xv

Installation tools and components...... xviii

Chapter 1: Product Introduction

1.1 Special features....1-1

1.1.1 Product highlights....1-1
1.1.2 Other special features....1-2

1.2 Motherboard overview....1-3

1.2.1 Before you proceed....1-3

1.2.2 Motherboard layout 1-4

1.2.3 Central Processing Unit (CPU) 1-6

1.2.4 System memory 1-7

1.2.5 Expansion slots....1-21

1.2.6 Onboard buttons and switches....1-23

1.2.7 Jumpers 1-28

1.2.8 Onboard LEDs 1-29

1.2.9 Internal connectors....1-36

Chapter 2: Basic installation

2.1 Building your PC system....2-1

2.1.1 Motherboard installation....2-1

2.1.2 CPU installation....2-3

2.1.3 CPU heatsink and fan assembly installation....2-4

2.1.4 DIMM installation.... 2-6

2.1.5 ATX Power connection....2-7

2.1.6 SATA device connection....2-8

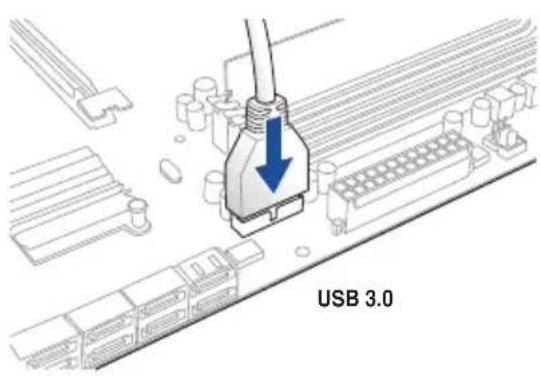

2.1.7 Front I/O Connector 2-9

2.1.8 Expansion Card installation.... 2-10

2.1.9 Wi-Fi antenna installation....2-11

2.2 BIOS update utility 2-12

2.3 Motherboard rear and audio connections....2-14

2.3.1 Rear I/O connection 2-14

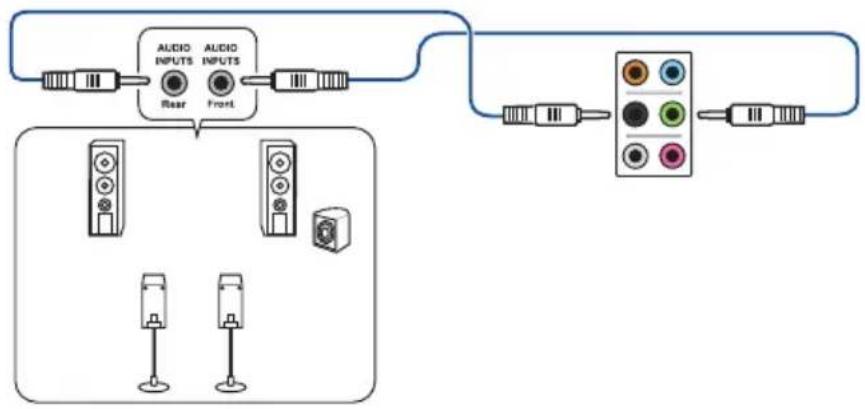

2.3.2 Audio I/O connections....2-16

2.4 Starting up for the first time....2-18

2.5 Turning off the computer 2-19

Chapter 3: BIOS setup

3.1 Knowing BIOS....3-1
3.2 BIOS setup program 3-2

3.2.1 EZ Mode....3-3
3.2.2 Advanced Mode 3-4
3.2.3 QFan Control....3-7
3.2.4 EZ Tuning Wizard 3-9

3.3 My Favorites 3-11
3.4 Main menu 3-13
3.5 Ai Tweaker menu....3-15
3.6 Advanced menu 3-31

3.6.1 CPU Configuration 3-32
3.6.2 PCH Configuration 3-35
3.6.3 PCH Storage Configuration.... 3-36
3.6.4 System Agent Configuration 3-38
3.6.5 USB Configuration 3-39
3.6.6 Platform Misc Configuration....3-40
3.6.7 Onboard Devices Configuration....3-42
3.6.8 APM Configuration....3-44
3.6.9 Network Stack Configuration.... 3-45
3.6.10 Intel(R) Rapid Storage Technology....3-46

3.7 Monitor menu 3-47
3.8 Boot menu 3-51
3.9 Tool menu....3-57

3.9.1 ASUS EZ Flash 2 Utility 3-57
3.9.2 ASUS O.C. Profile....3-58
3.9.3 ASUS DRAM SPD Information 3-59

3.10 Exit menu....3-60
3.11 Updating BIOS....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

3.11.1 EZ Update....3-61

Chapter 4: Software support

4.1 Installing an operating system 4-1
4.2 Support DVD information....4-1

4.2.1 Running the support DVD 4-1

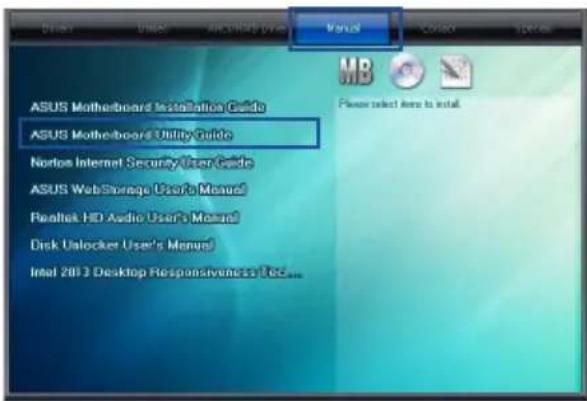

4.2.2 Obtaining the software manuals.... 4-3

4.3 Software information 4-4

4.4 Al Suite 3....4-4

4.4.1 Ai Charger+....4-7

4.4.2 USB 3.0 Boost....4-8

4.4.3 EZ Update....4-9

4.4.4 USB BIOS Flashback....4-11

4.4.5 USB Charger+....4-13

4.4.6 Push Notice....4-14

4.4.7 System Information 4-17

4.5 Audio configurations....4-18

Chapter 5: RAID support

5.1 RAID configurations .... 5-1

5.1.1 RAID definitions 5-1

5.1.2 Installing Serial ATA hard disks 5-2

5.1.3 Setting the RAID item in BIOS 5-2

5.1.4 Intel® Rapid Storage Technology Option ROM utility 5-3

5.2 Creating a RAID driver disk 5-7

5.2.1 Creating a RAID driver disk without entering the OS....5-7

5.2.2 Creating a RAID driver disk in Windows 5-8

5.2.3 Installing the RAID driver during Windows ^ OS installation......5-8

Appendices

Notices ...... A-1

ASUS contact information.... A-5

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

This user guide contains the information you need when installing and configuring the motherboard.

How this guide is organized

This guide contains the following parts:

1. Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports. It includes description of the switches, jumpers, and connectors on the motherboard.

2. Chapter 2: Basic installation

This chapter lists the hardware setup procedures that you have to perform when installing system components.

3. Chapter 3: BIOS setup

This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

4. Chapter 4: Software support

This chapter describes the contents of the support DVD that comes with the motherboard package and the software.

5. Chapter 5: RAID support

This chapter describes the RAID configurations.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS website

The ASUS website (www.asus.com) provides updated information on ASUS hardware and software products.

2. Optional documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text

Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

Keys enclosed in the less-than and greater-than sign

means that you must press the enclosed key.

Example: means that you must press the Enter or Return key.

+ + If you must press two or more keys simultaneously, the key names are linked with a plus sign (+).

Z97-DELUXE/USB 3.1 specifications summary

CPU	LGA1150 socket for the 4th Generation and New 4th Generation Intel®CoreTM i7/Intel® CoreTM i5/ Intel® CoreTM i3, Pentium® and Celeron®processorsSupports Intel® Turbo Boost Technology 2.0** The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® Z97 Express Chipset
Memory	4 x DIMM, max. 32 GB, DDR3 3300 (O.C.)* / 3200 (O.C.)* / 3100 (O.C.)* / 3000 (O.C.)* / 2933 (O.C.)* / 2800 (O.C.)* / 2666 (O.C.)* / 2600 (O.C.)* / 2500 (O.C.)* / 2400 (O.C.)* / 2200 (O.C.)* / 2133 (O.C.)* / 2000 (O.C.)* / 1866 (O.C.)* / 1800 (O.C.)* / 1600 / 1333 MHz, non-ECC, un-buffered memoryDual channel memory architectureSupports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL (Qualified Vendors List) for details.
Expansion slots	2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode)1 x PCI Express 2.0 x16 slot* (max. at x4 mode, compatible with PCIe x1 and x4 devices)4 x PCI Express 2.0 x1 slots* The PCIe x16_3, USB3_E12 and SATA Express_E1 connectors share the same bandwidth. The PCIe x16_3's default setting is in Auto mode that automatically optimizes the system bandwidth. If you use two of these connectors, the system automatically disables the unused connector.
VGA	Integrated Graphics Processor - Intel® HD Graphics supportMulti-VGA output support: DisplayPort/Mini DisplayPort/HDMI portSupports DisplayPort 1.2* with max. resolution of 4096 x 2160 @24 Hz / 3840 x 2160 @60 Hz (for DisplayPort and Mini DisplayPort)Supports HDMI with max. resolution of 4096 x 2160 @24 Hz / 2560 x 1600 @60 HzSupports Intel® InTruTM 3D, Intel® Quick Sync Video, Intel® Clear Video HD Technology, and Intel® InsiderTMSupports up to three displays simultaneouslyMaximum shared memory 512 MB* DisplayPort 1.2 Multi-Stream Transport compliant; supports DisplayPort 1.2 monitor daisy-chain up to 3 displays
Multi-GPU support	Supports NVIDIA® Quad-GPU SLITM Technology (with 2 PCIe x16 graphics card)Supports AMD® 3-Way/Quad-GPU CrossFireXTM Technology
Storage	Intel® Z97 Express Chipset with RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology 13 support- 1 x SATA Express port (black at bottom, compatible with 2 x SATA 6 Gb/s ports)- 1 x M.2 socket 3*

(continued on the next page)

Z97-DELUXE/USB 3.1 specifications summary

Storage	- 4 x SATA 6 Gb/s ports (gray)- Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology**ASMedia® SATA Express controller***- 1 x SATA Express ports (black at top slot, compatible with 2 x SATA 6 Gb/s ports)ASMedia® SATA 6 Gb/s controller***- 2 x SATA 6 Gb/s ports (black)* M.2 Socket 3 shares bandwidth with SATAExpress_1, and supports M Key and type 2260/2280 storage devices.** These functions work depending on the CPU installed.*** These SATA ports are for data hard drives only. ATAPI devices are not supported.
LAN	Dual Gigabit LAN controllers—802.3az Energy Efficient Ethernet (EEE) appliance- Intel® I218-V Gigabit LAN - Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)- Intel® I211-AT Gigabit LAN controller
Wireless Data Network	Speedy Wi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHzASUS Wi-Fi GO! Utility
Bluetooth	Bluetooth v4.0
Audio	Realtek® ALC1150 8-channel high definition audio CODEC featuring Crystal Sound 2- Separate layer for left and right track, ensuring both sounds deliver equal quality- Top notch audio sensation delivers according to the audio configuration- Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference- EMI protection cover to prevent electrical noise to affect the amplifier quality- Audio Amplifier to enhance the highest quality sound for headphone and speakers- Premium Japan-made audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity- High Quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording (Line-in) support- Absolute pitch 192 KHz/24-bit True BD Lossless Sound- BD audio layer content protection- DTS UltraPC II- DTS Connect- Supports jack-detection, multi-streaming and front panel jack-retasking (MIC)- Optical S/PDIF out ports at rear I/O

(continued on the next page)

Z97-DELUXE/USB 3.1 specifications summary

USB

Intel® Z97 Express Chipset - supports ASUS USB 3.0 Boost- 4 x USB 3.0/2.0 ports at rear panel (blue)- 8 x USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at rear panel)ASMedia® USB 3.1 controller - support ASUS USB 3.1 Boost- 2 x USB 3.1/3.0/2.0 ports at rear panel (teal blue)ASMedia® USB 3.0 Hubs - support ASUS USB 3.0 Boost- 4 x USB 3.0/2.0 ports at mid-board for front panel support

ASUS Exclusive Features

High Performance5-Way Optimization by Dual Intelligent Processors 5- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo APP together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.DIGI+ Power ControlCPU Power- Industry leading digital 16-phase power design- ASUS CPU power utilityDRAM Power- Industry leading digital 2-phase DRAM power design- ASUS DRAM power utilityTPU- Auto Tuning, TPU, GPU Boost, 2-level TPU switchEPU- EPU, EPU switchASUS Fan Xpert3- Featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control.Turbo App- Featuring automatic system performance tuning, network priority, and audio scene configuration for selected applications.UEFI BIOS- Most advanced options with fast response timeM.2 and SATA Express onboard- The latest transfer technologies with up to 10 Gb/s data transfer speedsSpecial Memory O.C. Design- Superb memory O.C. capability under full load by minimizing the coupling noise and signal reflection effect

(continued on the next page)

Z97-DELUXE/USB 3.1 specifications summary

ASUS Exclusive Features

Thunderbolt Ready (Optional)- Blistering-fast 20 Gb/s data transfer upgrades with ThunderboltEX II seriesInteractive HomeCloudWi-Fi GO!- Wi-Fi GO! function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS7 and Android 4.0 systemsMedia Streamer- Pipe music or movies from your PC to a smart TV- Media Streamer app for portable smartphone/tablet, supporting iOS7 and Android 4.0 systemsNFC Express 2 support (Optional)- NFC receiver and 2-port USB 3.0 hubs- NFC one-touch features: Video-to-go, Photo Express, Remote Desktop, Quick Launch, Windows® 8 Login and Bluetooth pairingGaming ScenarioTurbo APP- Featuring tuning system performance customization, network priority, and automatic audio scene configurations for selected applicationsTurbo LAN- Experience smooth online gaming with lower pings and less lagsCrystal Sound 2- Feel the sound power with different usage scenarios.Steam support- Compatible with the most fun gaming platform under Windows® systemASUS EZ DIYPush Notice- Monitor your PC status with smart devices in real timeUSB BIOS Flashback- with USB BIOS Flashback Wizard for EZ BIOS download schedulingUEFI BIOS EZ Mode- featuring friendly graphics user interface- ASUS O.C. Tuner- ASUS CrashFree BIOS 3- ASUS EZ Flash 2

(continued on the next page)

Z97-DELUXE/USB 3.1 specifications summary

ASUS Exclusive Features	Q-Design- ASUS Q-Code- ASUS Q-Shield- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM- ASUS Q-Connector
ASUS Special Features	5X Protection featuring all-round protection provides the best quality, reliability, and durabilityUSB 3.1 BoostUSB Charger+Ai Charger+Disk UnlockerAI Suite 3MemOK!EZ XMP
ASUS Quiet Thermal Solution	Quiet Thermal Design- ASUS Fan Xpert 3- ASUS Fanless Design: Heat-pipe solution
ASUS Exclusive Overclocking Features	Precision Tweaker 2-vCore: Adjustable CPU Core voltage at 0.001 V increment-iGPU: Adjustable CPU Graphics voltage at 0.001 V increment-vCCIO: Adjustable Analog and Digital I/O voltage at 0.001 V increment-vCCIN: Adjustable CPU Input voltage at 0.01 V increment-vCCSA: Adjustable CPU System Agent voltage at 0.001 V increment-vDRAM Bus: 144-step Memory voltage control-vPCH: 88-step Chipset voltage controlSFS (Stepless Frequency Selection)- BCLK/PCIE frequency tuning from 80 MHz to 300 MHz at 0.1 MHz increment.Overclocking Protection- ASUS C.P.R. (CPU Parameter Recall)
Rear Panel I/O Ports	1 x DisplayPort1 x Mini DisplayPort1 x HDMI port1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v 4.0)1 x Optical S/PDIF Out port2 x LAN (RJ45) ports (2 x Intel® LAN)2 x USB 3.1/3.0/2.0 ports (teal blue)4x USB 3.0/2.0 ports (blue, bottom port of USB3_34 supports USB BIOS Flashback)4 x USB 2.0/1.1 ports8-channel Audio I/O ports

(continued on the next page)

Z97-DELUXE/USB 3.1 specifications summary

Internal I/O connectors	2 x 19-pin USB 3.0/2.0 connectors support additional 4 USB ports2 x USB 2.0/1.1 connectors support additional 4 USB ports1 x M.2 Socket 32 x SATA Express connectors (black)6 x SATA 6 Gb/s connectors (4 x gray, 2 x black)1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control*1 x 4-pin CPU Optional Fan connector (CPU_OPT)4 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control1 x Front panel audio connector (AAFP)1 x S/PDIF out header1 x 5-pin Thunderbolt header for Thunderbolt add-on card support1 x TPM connector1 x 24-pin EATX Power connector1 x 8-pin EATX 12V Power connector1 x Clear CMOS button1 x USB BIOS Flashback button1 x MemOK! button1 x EPU switch1 x TPU switch (with advanced two-stage adjustments)1 x Power-on switch1 x Reset switch1 x EZ XMP switchSystem Panel (Q-Connector)* The CPU Q-Fan control setting is set as default in Auto mode for detecting the type of CPU fan installed and switches to the control mode automatically.
BIOS Features	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2,CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function,F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI	2.7, WOL by PME, PXE
Support DVD contents Drivers	ASUS UtilitiesEZ UpdateAnti-virus software (OEM version)
Operating system support	Windows® 8.1Windows® 8Windows® 7
Form factor ATX form factor:	12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Specifications are subject to change without notice.

Package contents

Check your motherboard package for the following items

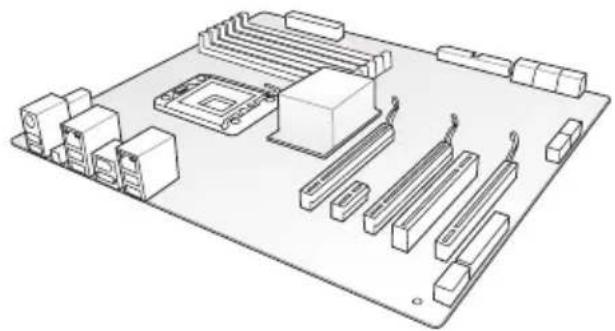

Isometric line drawing of a computer motherboard with slots, RAM slots, and a central processor (no text or labels)

ASUS Z97-DELUXE/USB 3.1 Series motherboard

Line drawing of a coiled cable or hose with two connectors (no text or symbols)

6 x Serial ATA 6 Gb/s cables

1 x ASUS SLI™ bridge connector

Pure diagram of a rectangular enclosure with internal compartments and circular elements, no text or symbols present.

1 x ASUS Q-Shield

Line drawing of an electronic device with a labeled 'ASLS' on top, showing internal components and mounting brackets (no readable text or symbols beyond the label)

Support DVD

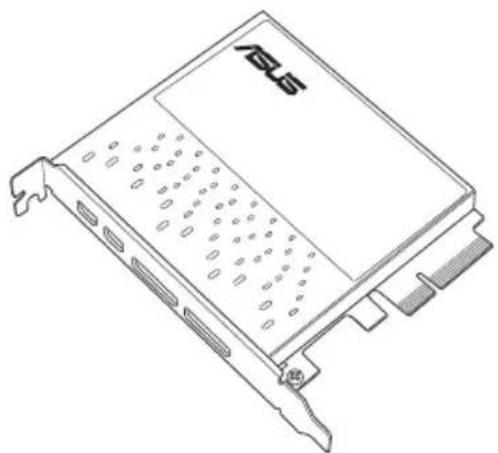

ASUS ThunderboltEX II/DUAL card package*
1 x 2-in-1 ASUS Q-Connector kit

Simple line drawing of a USB flash drive connected to a rectangular device (no text or symbols)

Line drawing of a rectangular electronic device with two ports and a lid (no text or symbols)

ASUS NFC Express 2 package*

User Manual

User manual

1 x 2T2R dual-band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)

• If any of the above items is damaged or missing, contact your retailer.
• The illustrated items above are for reference only. Actual product specifications may vary with different models.
• * The availability of these packages may vary with your Z97-DELUXE/USB 3.1 package. For more details, refer to sections ASUS NFC Express 2 package contents and ASUS ThunderboltEX II/Dual card package contents.

ASUS NFC Express 2 package contents

The ASUS NFC Express 2 package is only available with Z97-DELUXE/USB 3.1 (NFC & WLC) package.

Check your ASUS NFC Express 2 package for the following items

Line drawing of a rectangular electronic device casing with two ports and a flat top (no text or symbols)

ASUS NFC Express 2

Line drawing of a USB flash drive (no text or symbols)

ASUS NFC Express 2 wireless charger

Illustration of a USB cable with two USB connectors (no text or symbols on the cable itself)

Line drawing of a multi-core cable with two connectors and a USB port (no text or symbols)

micro USB cable

Simple line drawing of a rectangular object with a looped handle, resembling a tag or clip (no text or symbols)

NFC tag

Line drawing of a USB drive with two leads (no text or symbols)

Power adapter

• If any of the above items is damaged or missing, contact your retailer.
• The illustrated items above are for reference only. Actual product specifications may vary with different models.
  • The power adapter varies by country or region.

ASUS ThunderboltEX II/DUAL card package contents

The ASUS ThunderboltEX II/DUAL card package is only available with Z97-DELUXE/USB 3.1 (NFC & WLC) package.

Check your ASUS ThunderboltEX II/DUAL card package for the following items

Line drawing of a computer RAM card with visible ports and slots (no text or symbols)

ASUS ThunderboltEX II/DUAL card

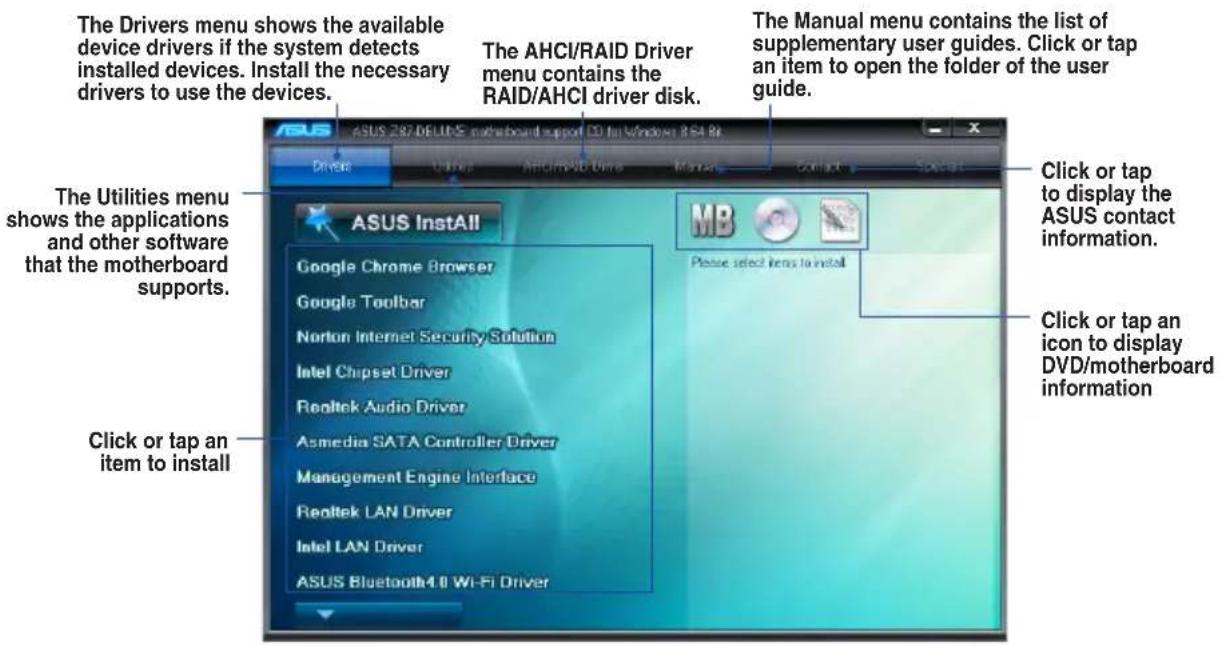

Support DVD

User Manual

User manual

Line drawing of a U-shaped cable with two connectors (no text or symbols)

TB Header cable

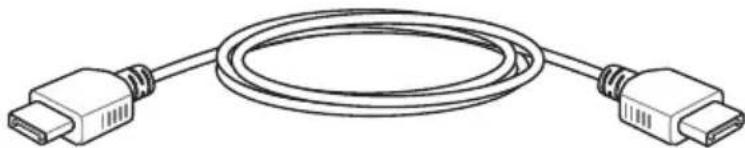

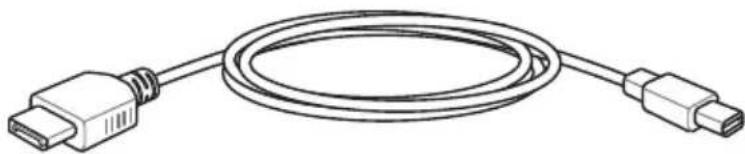

Line drawing of a USB cable with two connectors (no text or symbols)

Mini DisplayPort cable

Line drawing of a USB cable with two connectors (no text or symbols)

DisplayPort cable

- If any of the above items is damaged or missing, contact your retailer.

- The illustrated items above are for reference only. Actual product specifications may vary with different models.

Installation tools and components

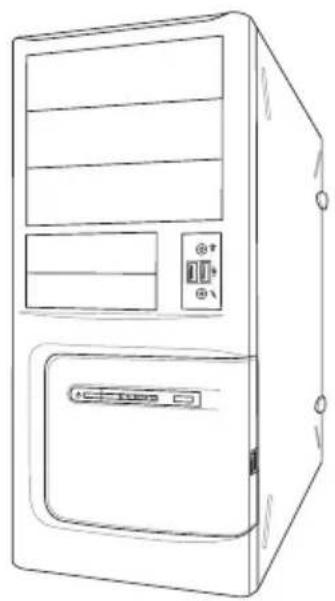

Line drawing of a desktop computer tower case with ventilation slots and indicator lights (no text or symbols)

PC chassis

Line drawing of a four-legged computer fan with visible blades and mounting feet (no text or symbols)

Intel® LGA1150 compatible CPU Fan

Isometric line drawing of a layered electronic component or chip stack (no text or symbols)

Intel® LGA1150 CPU

Isometric line drawing of a rectangular electronic device with a circular cutout on top (no text or symbols)

SATA hard disk drive

Line drawing of a screwdriver with a flathead and pointed tip (no text or symbols)

Philips (cross) screwdriver

Simple line drawing of a rectangular box with a small electrical outlet (no text or symbols)

Power supply unit

1 bag of screws

Line drawing of a 8-pin RAM module with no text or symbols on its body

DIMM

Line drawing of a CD-ROM drive (no text or symbols)

SATA optical disc drive (optional)

Technical line drawing of a mechanical component with no visible text or symbols

Graphics card

The tools and components in the table above are not included in the motherboard package.

Product introduction

1

1.1 Special features

1.1.1 Product highlights

LGA1150 socket for the 4th Generation and the New 4th Generation Intel® Core™ i7/Intel® Core™ i5/Intel® Core™ i3, Pentium® and Celeron® processors

This motherboard supports 4th generation and new 4th generation Intel ^® Core ^TM i7/Intel ^® Core ^TM i5/Intel ^® Core ^TM i3, Pentium ^® , and Celeron ^® processors in the LGA1150 package. It provides great graphics and system performance with its GPU, dual-channel DDR3 memory slots and PCI Express 2.0/3.0 expansion slots.

Intel® Z97 Express Chipset

Intel® Z97 Express Chipset is a single chipset that supports the LGA1150 socket for the 4th generation and new 4th generation Intel® Core™ i7/Intel® Core™ i5/Intel® Core™ i3, Pentium®, and Celeron® processors. It utilizes the serial point-to-point links, which increases bandwidth and enhances the system's performance. It natively supports up to six USB 3.0 ports, six SATA 6 Gb/s ports, and M.2 support for faster data retrieval. It also enables the iGPU function for Intel® integrated graphics performance.

PCI Express® 3.0

PCI Express ^® 3.0 (PCIe 3.0) is the PCI Express bus standard that provides twice the performance and speed of PCIe 2.0. It provides an optimal graphics performance, unprecedented data speed and seamless transition with its complete backward compatibility to PCIe 1.0/2.0 devices.

Intel® Desktop Responsiveness Technologies

Intel Desktop Responsiveness Technologies comprise of three technologies: Intel Rapid Start Technology, Intel Smart Response Technology, and Intel Smart Response Technology. These technologies provide faster and better performance for your computer, allow your system to receive the freshest updates from the Internet, and quickly resume your system from a deep sleep or hibernate mode.

Quad-GPU SLI and 3-WAY CrossFireX™ Support

This motherboard features NVIDIA SLI and 3-Way AMD CrossfireX support that enables mulit-GPU setup, giving you the full power of the latest graphics technologies. It also features native support for 4K/UHD (ultra high definition) resolution of up to 4096 x 2160 via HDMI or DisplayPort, resulting in four times the number of pixels for incredible visual clarity, detail, and realism.

SATA Express support

SATA Express provides faster data transfer speeds of up to 10 Gb/s, allowing your system to catch up with the speed of the SSDs. It also features backward compatibility with up to two SATA drives of the same speed.

Dual-Channel DDR3 3300 (O.C) / 1600 / 1333 MHz Support

The motherboard supports the dual-channel DDR3 memory that features data transfer rates of DDR3 3300 (O.C.)* / 1600 / 1333 MHz to boost the system's performance, and to meet the higher bandwidth requirements of 3D graphics, multimedia and Internet applications.

M.2 Support

This motherboard features the M.2 slot, which shares bandwidth with PCI Express x2 slot to speed up data transfer up to 10 Gb/s. This helps enhance the performance of your SSD (Solid State Drive) that is dedicated only to the operating system. The M.2 slot also includes Intel Rapid Storage Technology support for faster access to data and applications, and quicker wake up time for your system.

Complete USB 3.1 integration

This motherboard has the latest USB 3.1 connectivity built in with dual Type-A ports for the very fastest USB data transfers — that's up to 10 Gb/s, or twice as fast as USB 3.0. The next-generation standard is completely backward-compatible with your existing USB devices, and you'll be all set for USB 3.1's breakneck speeds.

Extra SATA 6 Gb/s support

The Intel Z97 Express chipset natively supports the Serial ATA (SATA) interface, delivering up to 6 Gb/s of data transfer. This motherboard features an extra 6 Gb/s ports for an enhanced scalability, faster data retrieval, and double bandwidth of current bus systems.

1.1.2 Other special features

DTS Connect

To get the most out of your audio entertainment across all formats and quality levels, DTS Connect combines two enabling technologies, DTS Neo:PC™ upmixes stereo sources (CDs, MP3s, WMAs, internet radio) into as many as 7.1 channels of incredible surround sound. Consumers can connect their PC to a home theater system. DTS Interactive is capable of performing mult-channel encoding of DTS bitstreams on personal computers, and sending encoded bitstreams out of a digital audio connection (such as S/PDIF or HDMI) designed to deliver audio to an external decoder.

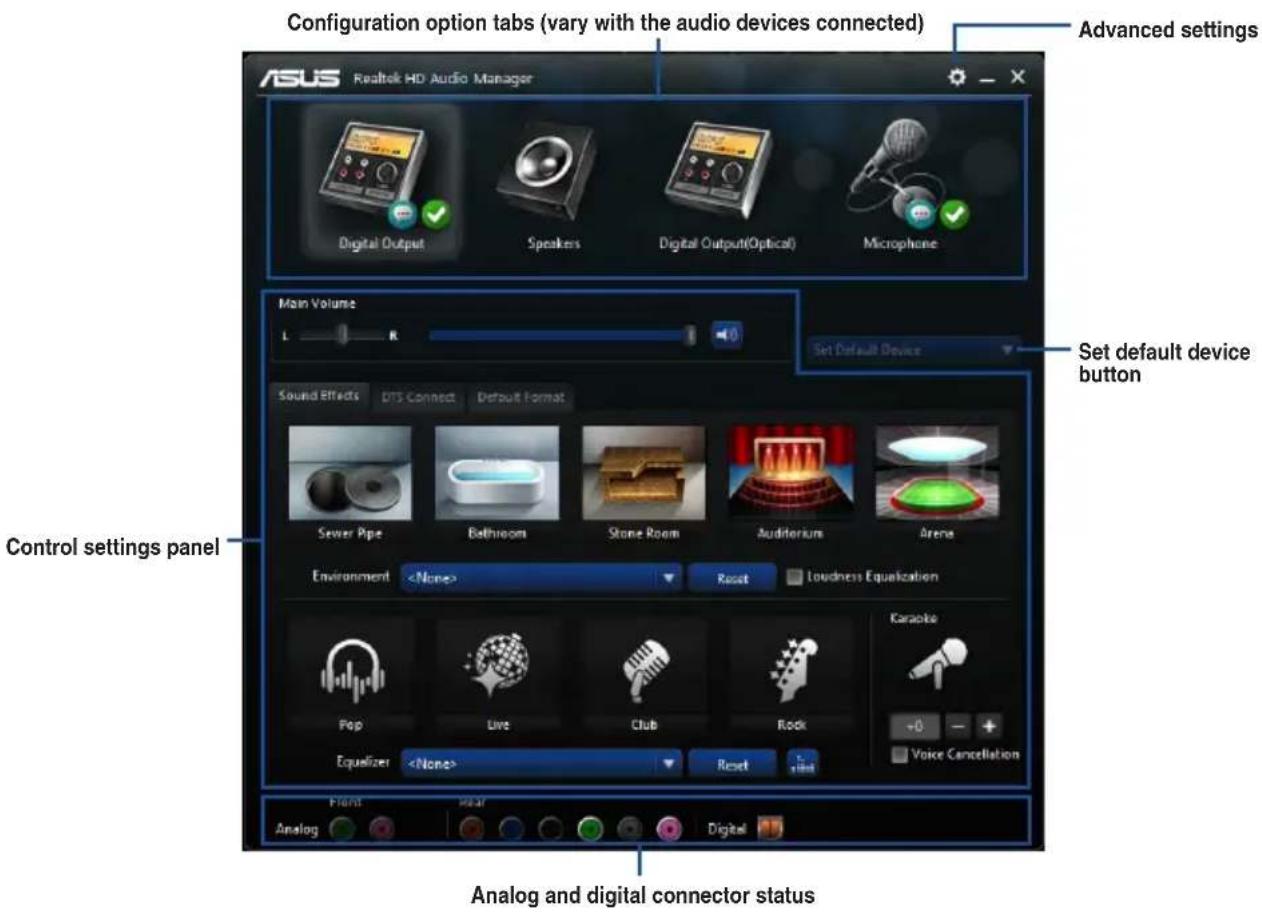

DTS UltraPC II

DTS UltraPC II delivers a superior surround sound experience through your system's speakers and headphones while monitoring and balancing the loudness level difference between digital audio formats. It also ehnances the audio settings through augmenting low and high frequencies of musical tones, restores compressed or re-mastered sounds, improves bass performance even without a subwoofer, and improves dialogues derived from DVD or Blu-ray Disc™.

ErP Ready

The motherboard is European Union's Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirement in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.

1.2 Motherboard overview

1.2.1 Before you proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

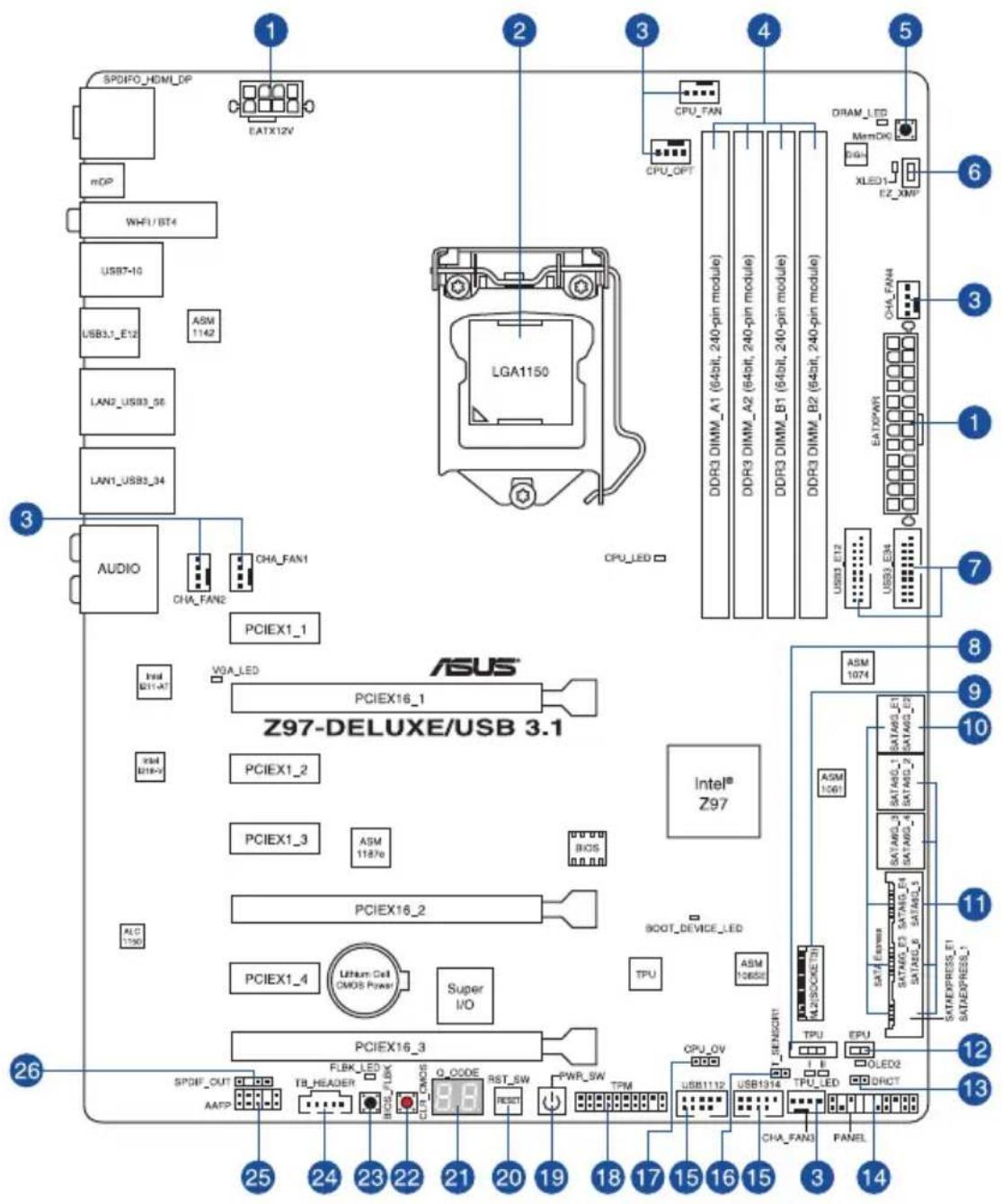

1.2.2 Motherboard layout

SPDIFO_HDMI_DP mDP WiFi/BT4 USB7-10 USB3_1_E12 LAN2_USB3_56 LAN1_USB3_34 AUDIO CHA_FAN2 CHA_FAN1 PCIEX1_1 VGA_LED VGA-B1-V PCIEX16_1 Z97-DELUXE/USB 3.1 PCIEX1_2 PCIEX1_3 ASM 1187e PCIEX16_2 PCIEX1_4 Lithium Cell CMOS Power Super I/O PCIEX16_3 SPDIF_OUT AAFP FLBK_LED TB_HEADER BIOS FLBK O_CODE CLR CMOS Q_CODE RST_SW RESET PWR_SW TPM CPU_OFF CPU_FAN CPU_LED DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module) DRAM_LED MemOK XLED1 EZ_XMP USB3_E12 USB3_E34 CHA_FAN4 EATOPAR USB3_E12 CPU_LED Intel® Z97 ASM 1074 ASM 1081 SAT/MOS_E1 SAT/MOS_E2 SAT/MOS_E3 SAT/MOS_E4 SAT/MOS_E5 SAT/MOS_E6 SAT/MOS_E7 SAT/MOS_E8 SAT/MOS_E9 SAT/MOS_E10 SAT/MOS_E11 SAT/MOS_E12 SAT/MOS_E13 SAT/MOS_E14 SAT/MOS_E15 SAT/MOS_E16 SAT/MOS_E17 SAT/MOS_E18 SAT/MOS_E19 SAT/MOS_E20 SAT/MOS_E21 SAT/MOS_E22 SAT/MOS_E23 SAT/MOS_E24 SAT/MOS_E25 SAT/MOS_E26 SAT/MOS_E27 SAT/MOS_E28 SAT/MOS_E29 SAT/MOS_E30 SAT/MOS_E31 SAT/MOS_E32 SAT/MOS_E33 SAT/MOS_E34 SAT/MOS_E35 SAT/MOS_E36 SAT/MOS_E37 SAT/MOS_E38 SAT/MOS_E39 SAT/MOS_E40 SAT/MOS_E41 SAT/MOS_E42 SAT/MOS_E43 SAT/MOS_E44 SAT/MOS_E45 SAT/MOS_E46 SAT/MOS_E47 SAT/MOS_E48 SAT/MOS_E49 SAT/MOS_E50 SAT/MOS_E51 SAT/MOS_E52 SAT/MOS_E53 SAT/MOS_E54 SAT/MOS_E55 SAT/MOS_E56 SAT/MOS_E57 SAT/MOS_E58 SAT/MOS_E59 SAT/MOS_E60 SAT/MOS_E61 SAT/MOS_E62 SAT/MOS_E63 SAT/MOS_E64 SAT/MOS_E65 SAT/MOS_E66 SAT/MOS_E67 SAT/MOS_E68 SAT/MOS_E69 SAT/MOS_E70 SAT/MOS_E71 SAT/MOS_E72 SAT/MOS_E73 SAT/MOS_E74 SAT/MOS_E75 SAT/MOS_E76 SAT/MOS_E77 SAT/MOS_E78 SAT/MOS_E79 SAT/MOS_E80

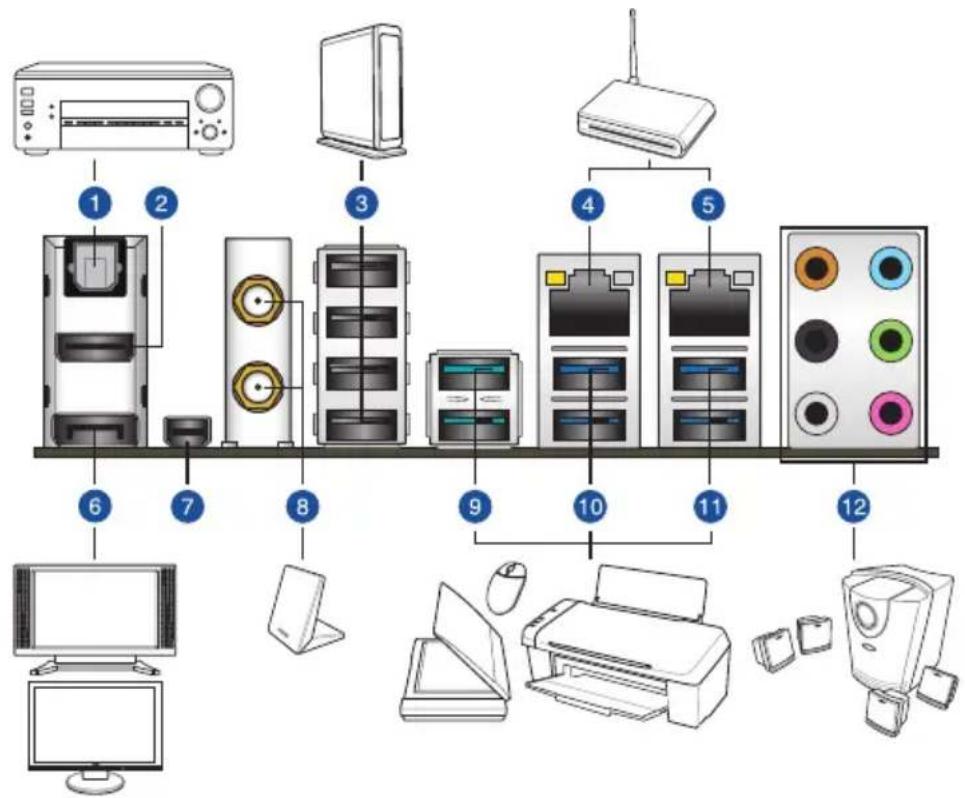

Refer to 1.2.9 Internal connectors and 2.3.1 Rear I/O connection for more information about rear panel connectors and internal connectors.

Layout contents

Connectors/Jumpers/Buttons and switches/Slots Page

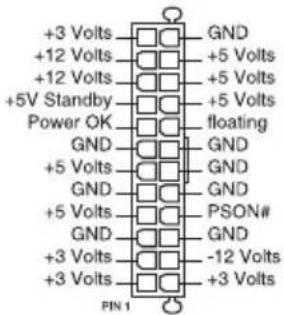

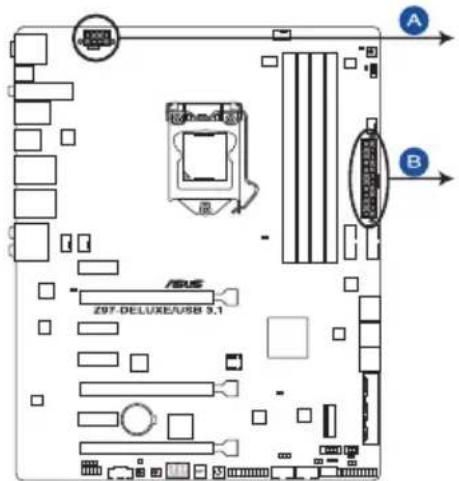

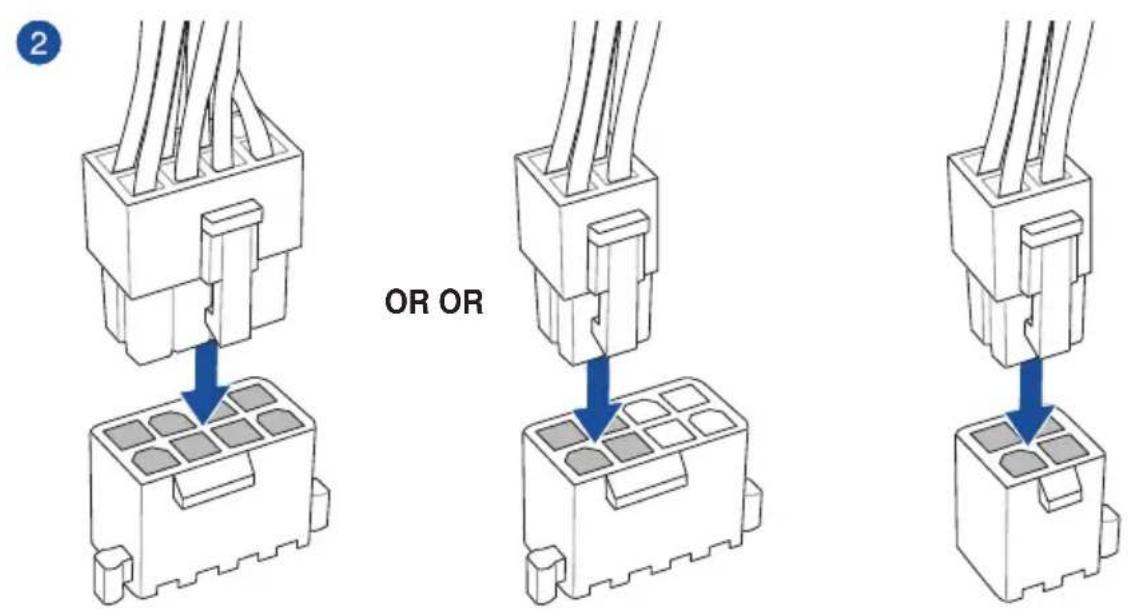

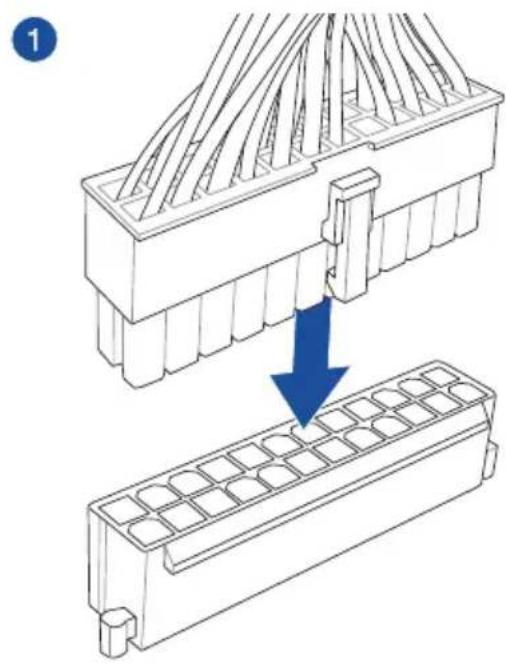

1. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V) 1-42
2. LGA1150 CPU socket 1-6

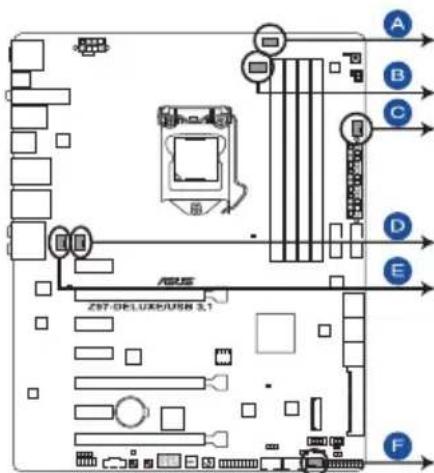

3. CPU, CPU optional, and chassis fan connectors (4-pin CPU_FAN, 4-pin CPU_OPT, 4-pin CHA_FAN1-4)	1-41
4. DDR3 DIMM slots 1-7

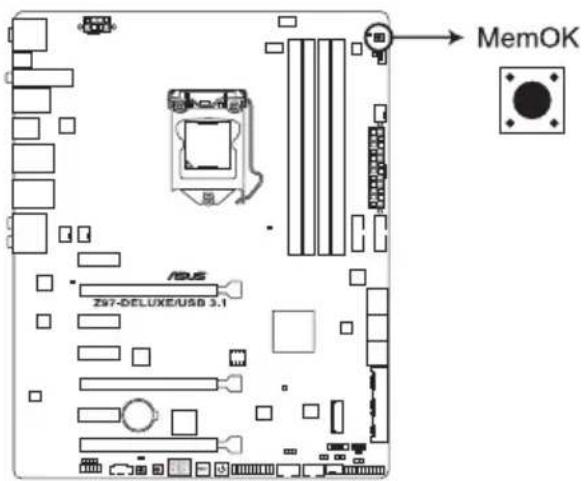

5. MemOK! button 1-24

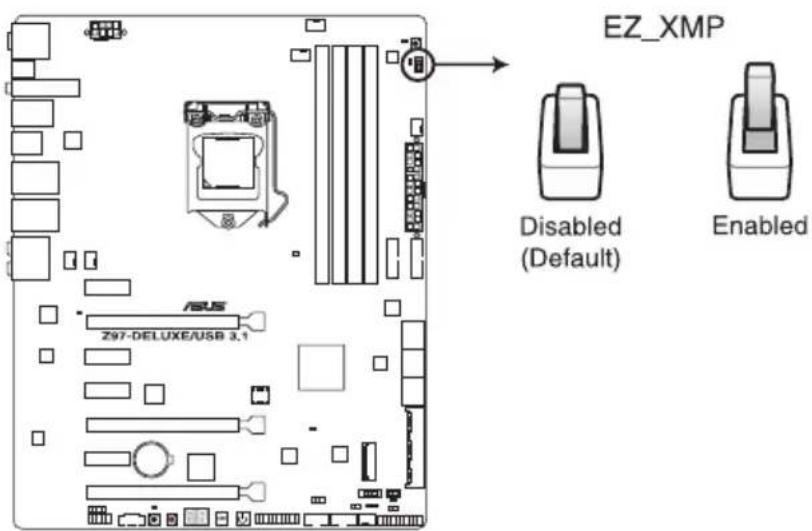

6. EZ XMP switch 1-27

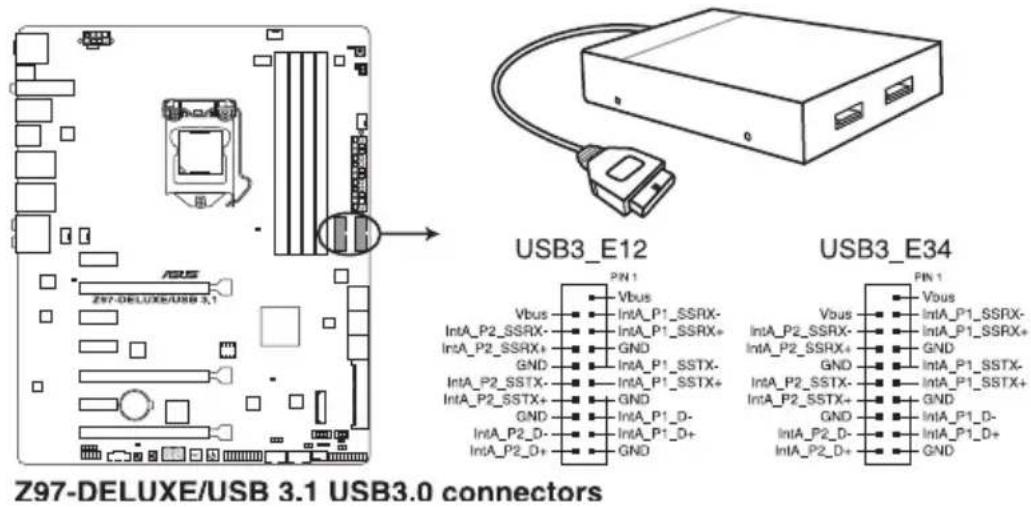

7. USB 3.0 connectors (20-1 pin USB3_E12, USB3_E34) 1-39

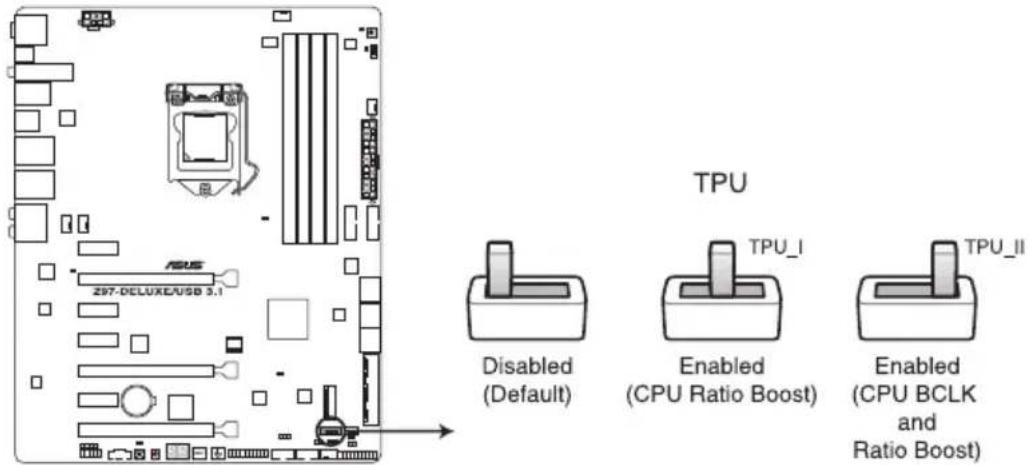

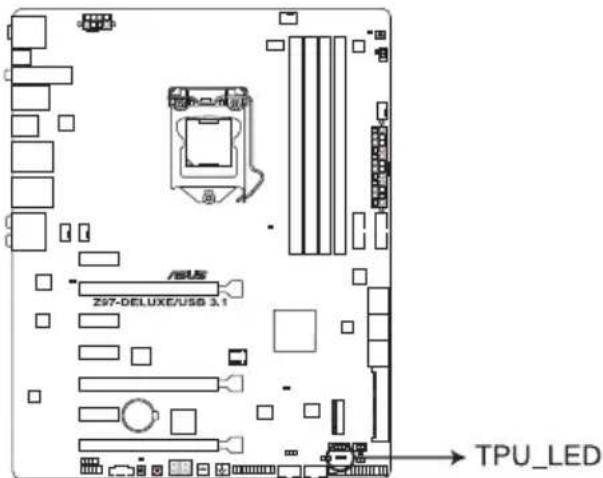

8. TPU switch 1-25

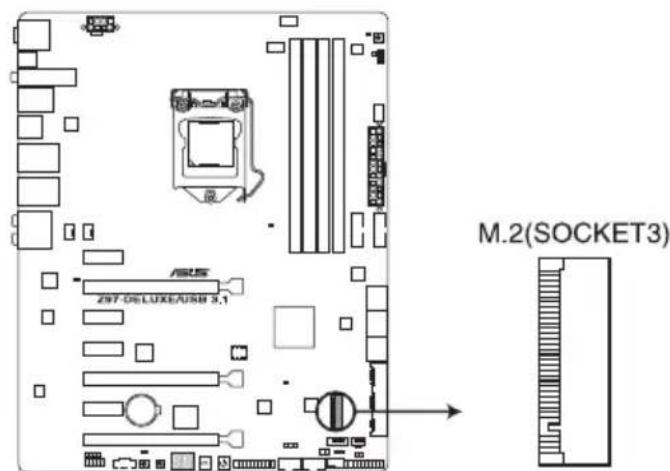

9. M.2 Socket 3 1-45

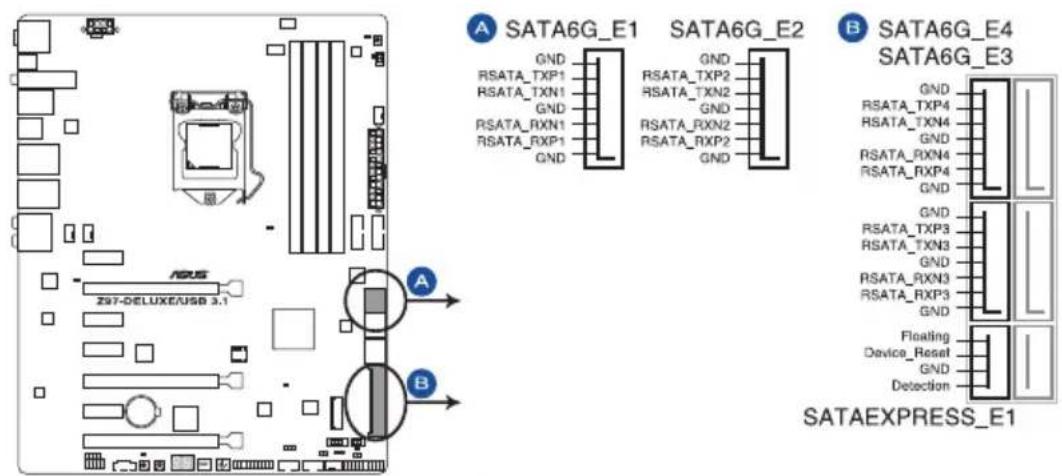

10. ASMedia® Serial ATA 6 Gb/s connectors (7-pin SATA6G_E12, SATA6G_E34/SATAEXPRESS_E1)	1-37

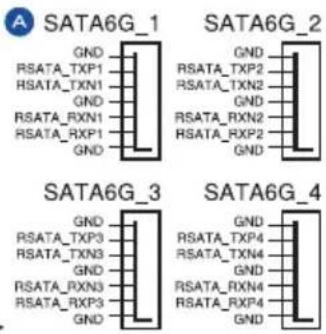

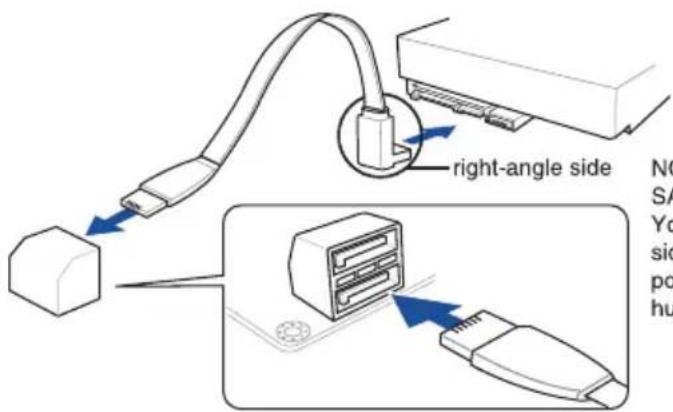

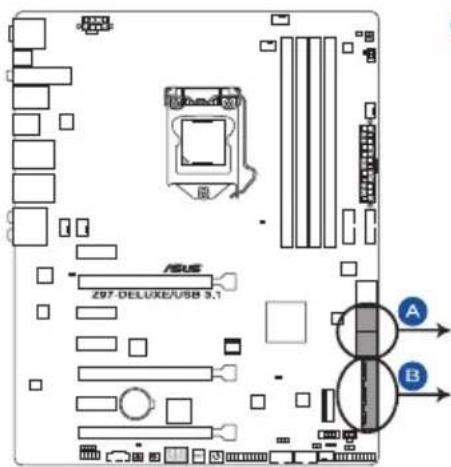

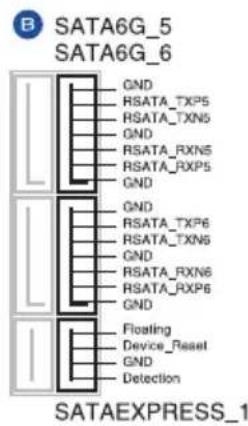

11. Intel® Serial ATA 6 Gb/s connectors (7-pin SATA6G_12, SATA 6G_34, SATA 6G_56/SATAEXPRESS_1)	1-36

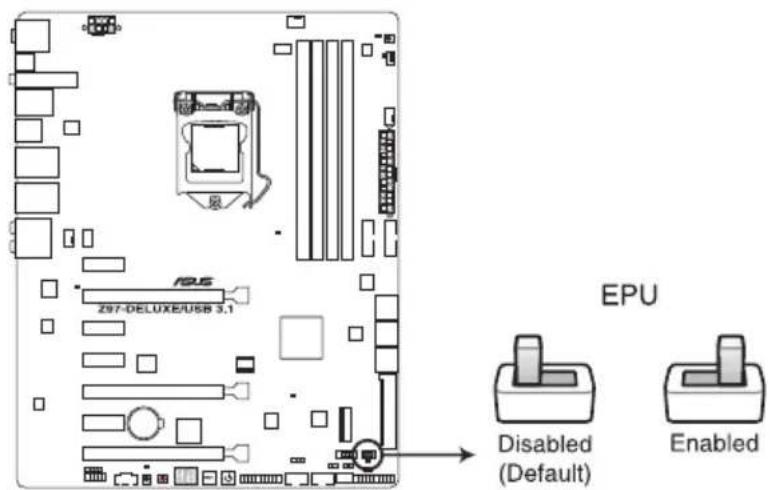

12. EPU switch 1-26

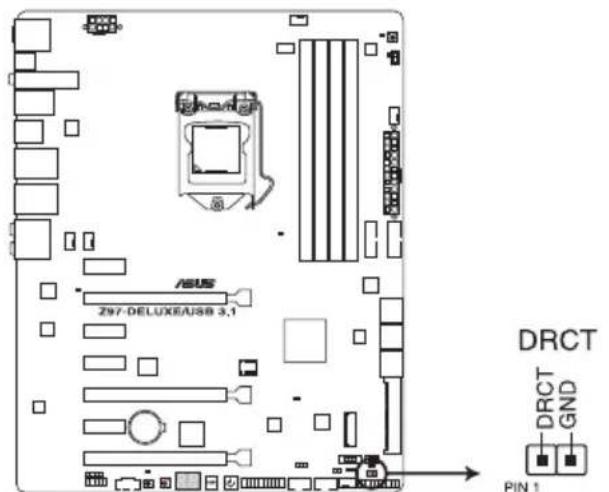

13. DirectKey connector (2-pin DRCT) 1-44

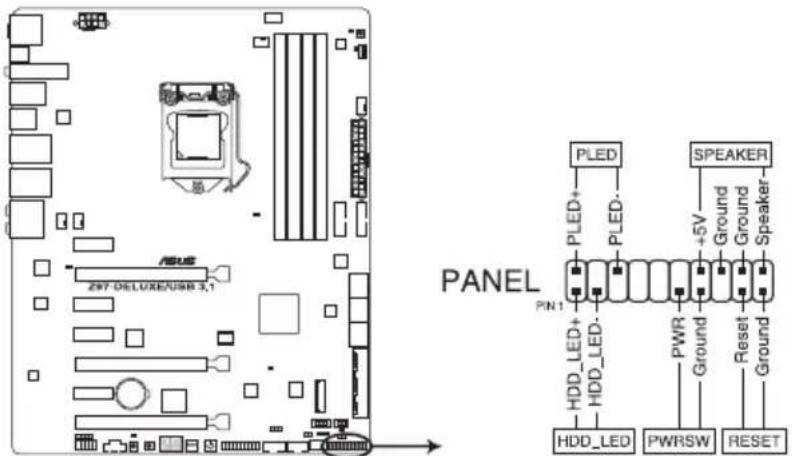

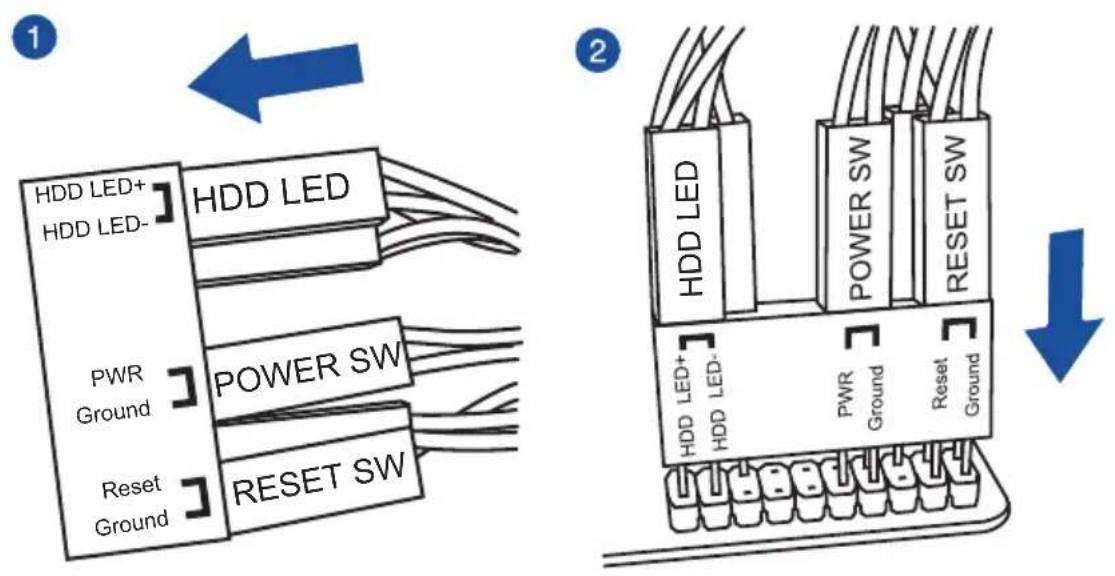

14. System panel connector (20-8 pin PANEL)	1-43

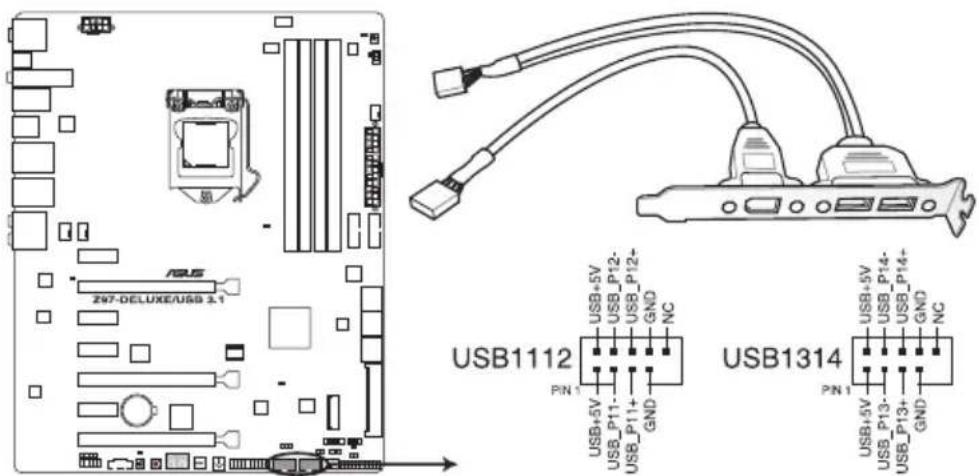

15. USB 2.0 connectors (10-1 pin USB1112; USB1314)	1-40

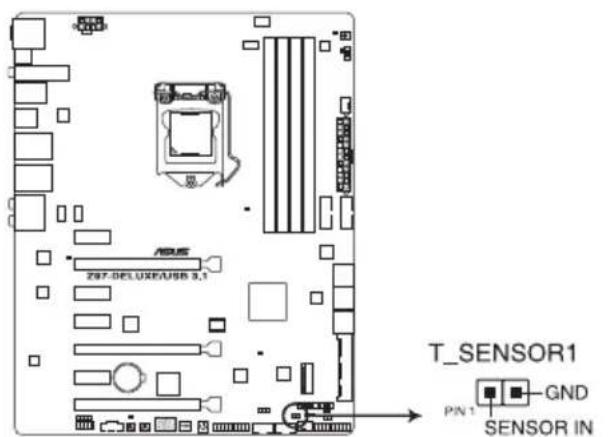

16. T Sensor connector (2-pin T_SENSOR1)	1-38

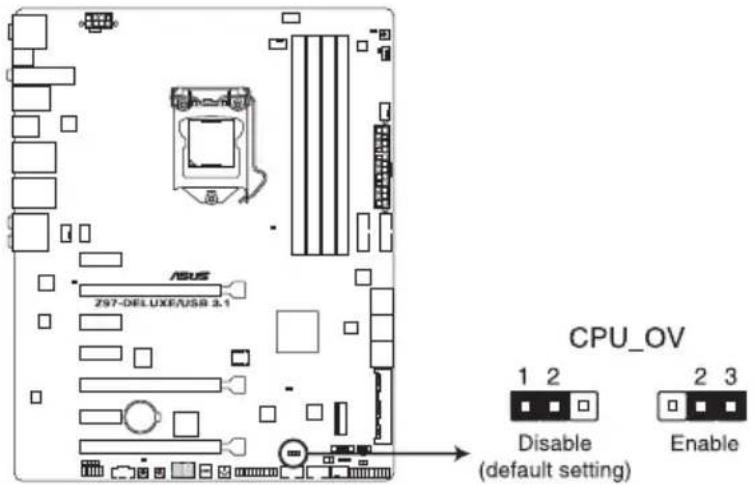

17. CPU Over Voltage jumper (3-pin CPU_OV)	1-28

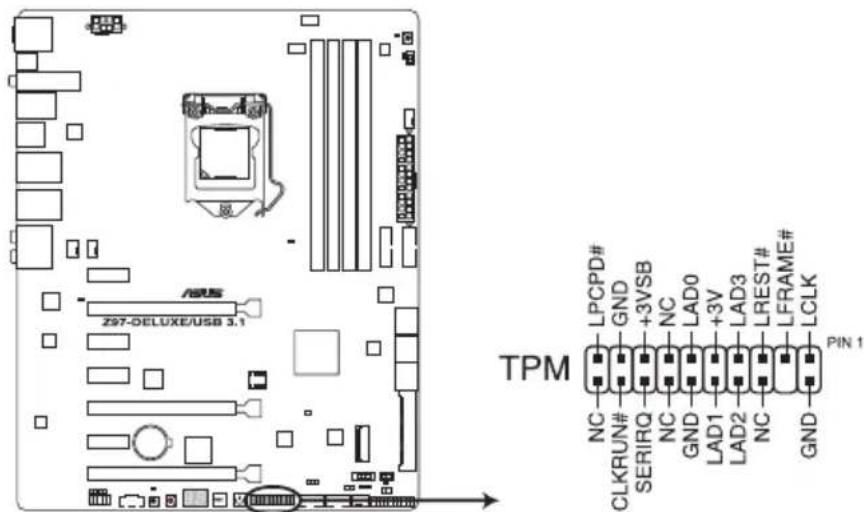

18. TPM connector (20-1 pin TPM)	1-44

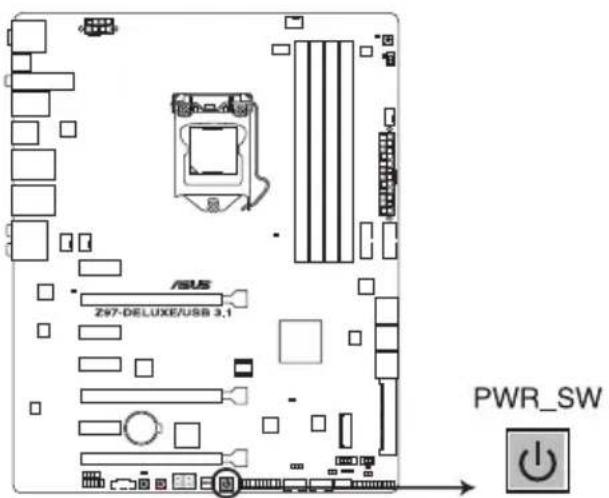

19. Power-on button	1-23

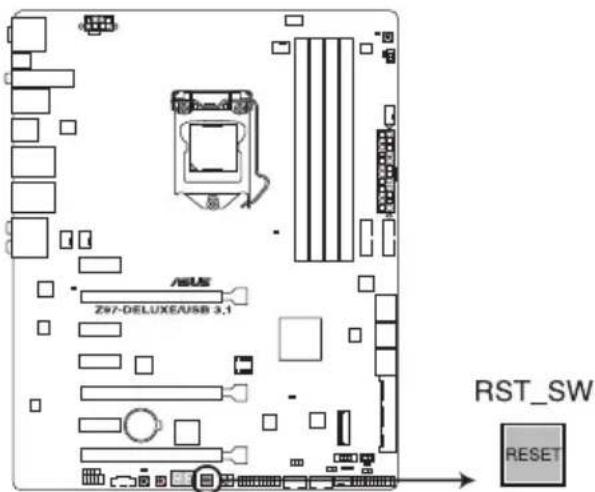

20. Reset button	1-23

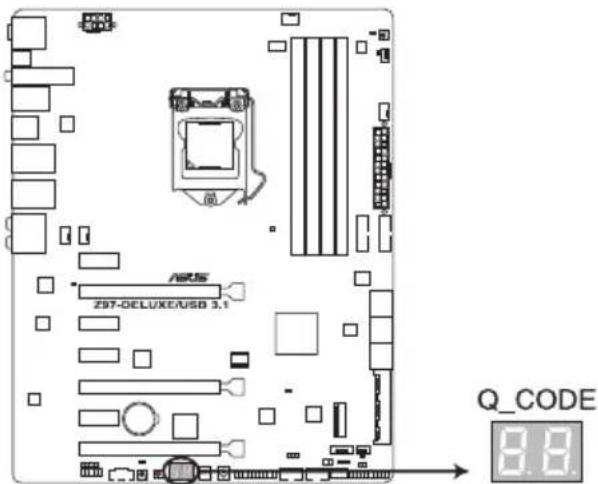

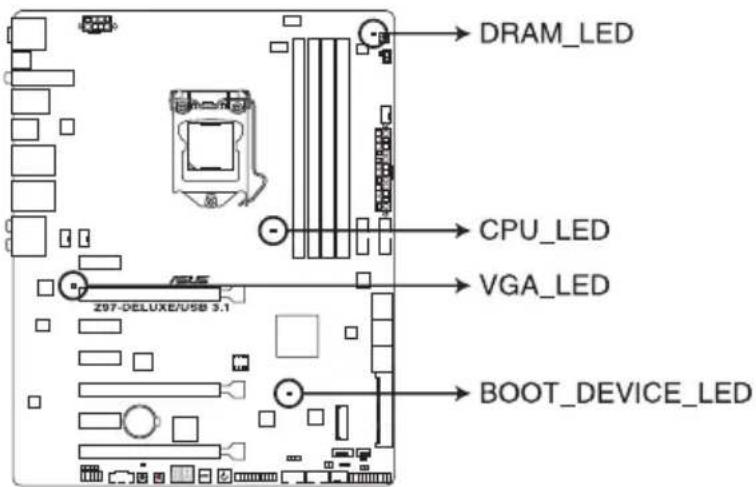

21. Q-Code LEDs	1-31

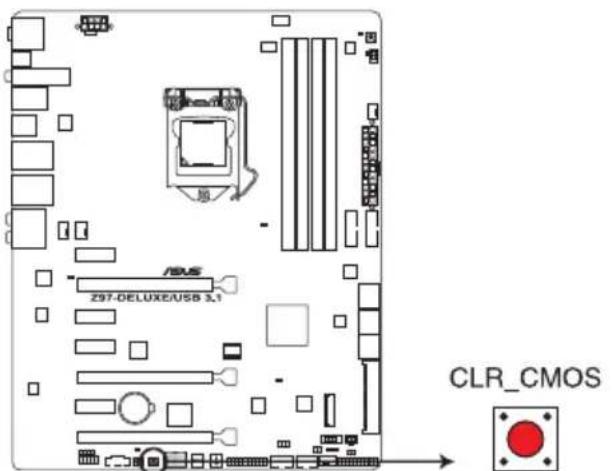

22. Clear CMOS button (CLR_CMOS) 1-27

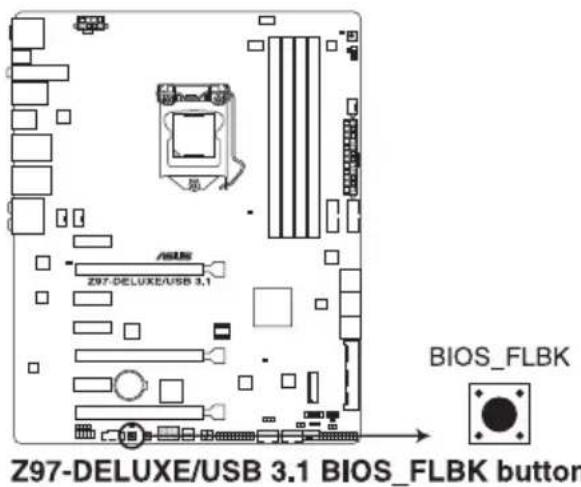

23. BIOS Flashback button	2-12

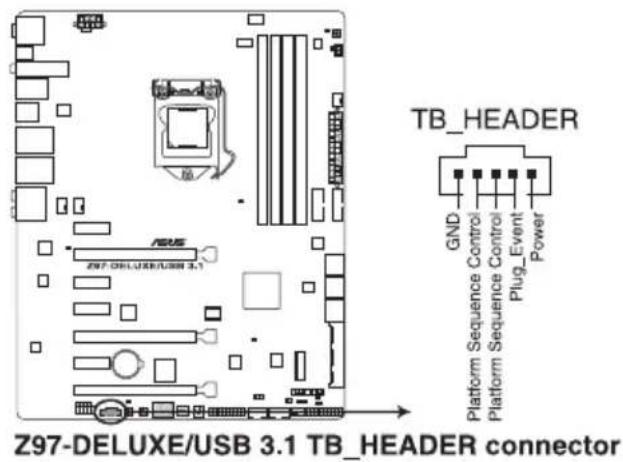

24. Thunderbolt header (5-pin TB_HEADER)	1-45

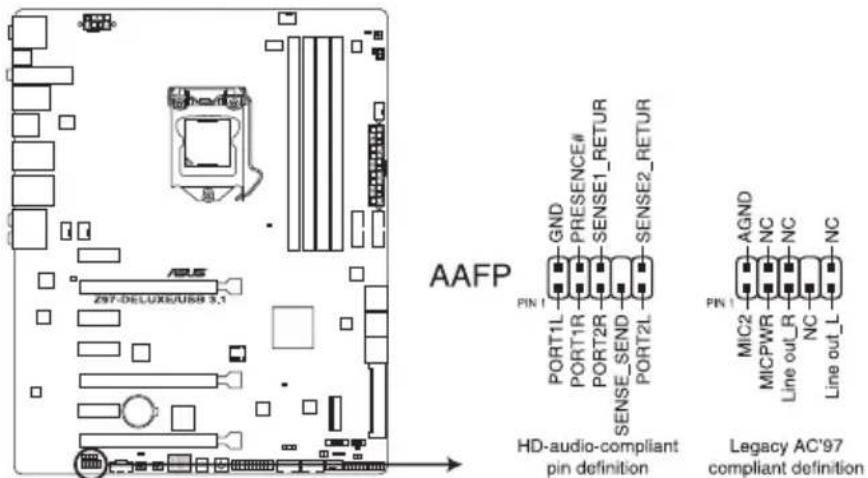

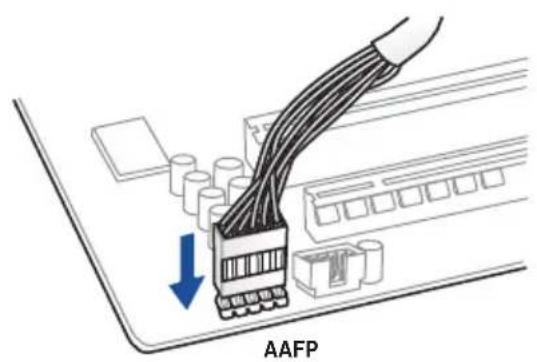

25. Front panel audio connector (10-1 pin AAFP)	1-38

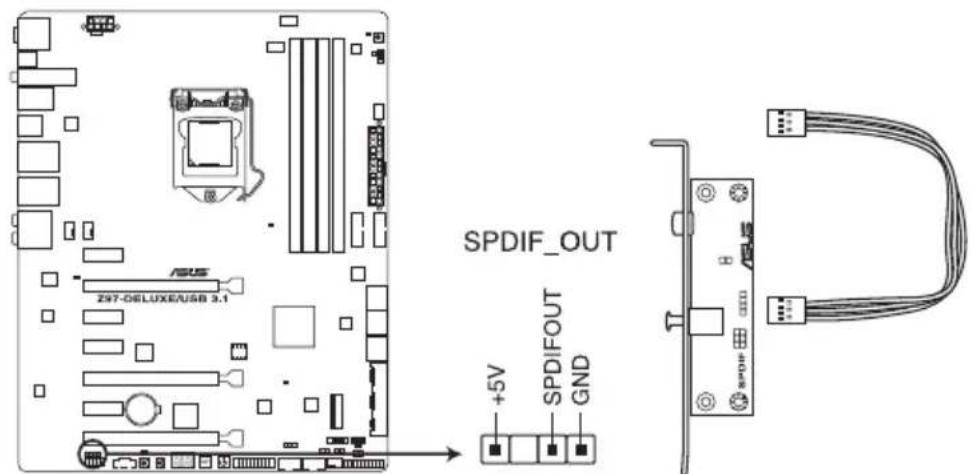

26. Digital audio connector (4-1 pin SPDIF_OUT)	1-37

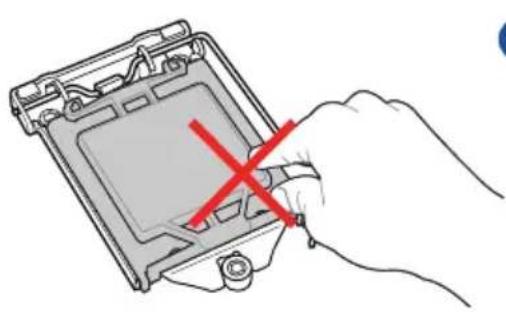

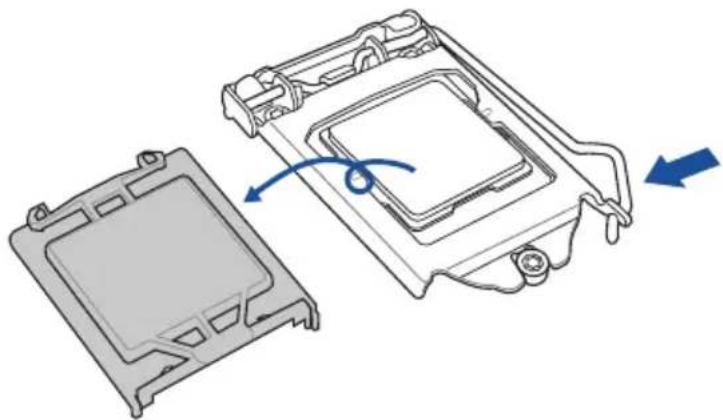

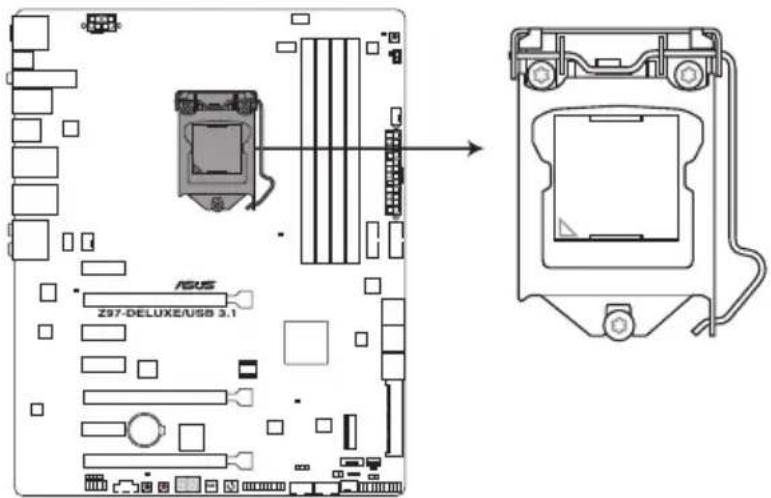

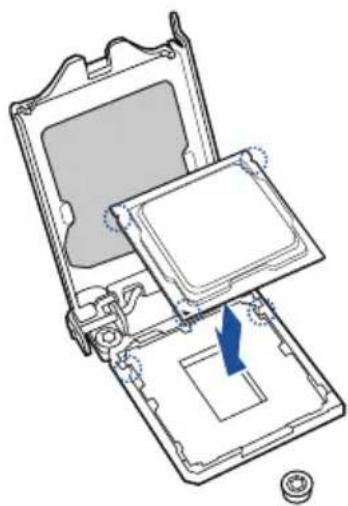

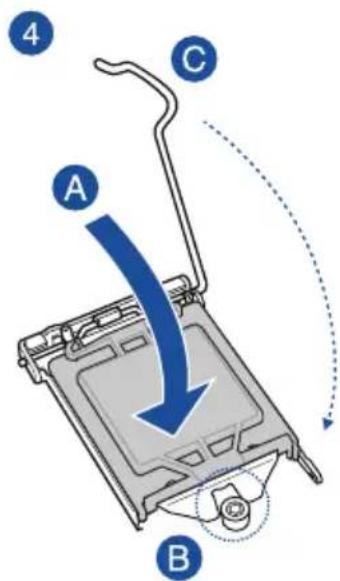

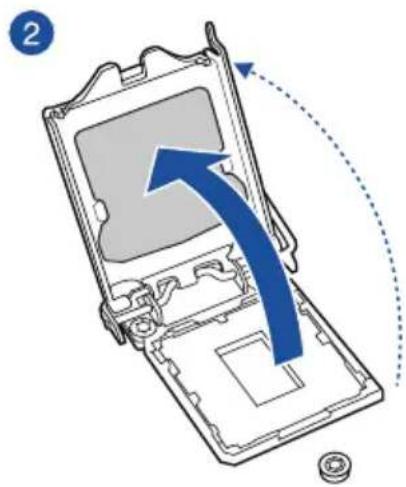

1.2.3 Central Processing Unit (CPU)

The motherboard comes with a surface mount LGA1150 socket designed for the 4th Generation and the New 4th Generation Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3, Pentium®, and Celeron® processors.

ASUS Z97-DELUXE/USB 3.1

Z97-DELUXE/USB 3.1 CPU LGA1150

Ensure that you install the correct CPU designed for LGA1150 socket only. DO NOT install a CPU designed for LGA1155 and LGA1156 sockets on the LGA1150 socket.

• Ensure that all power cables are unplugged before installing the CPU.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1150 socket.
• The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

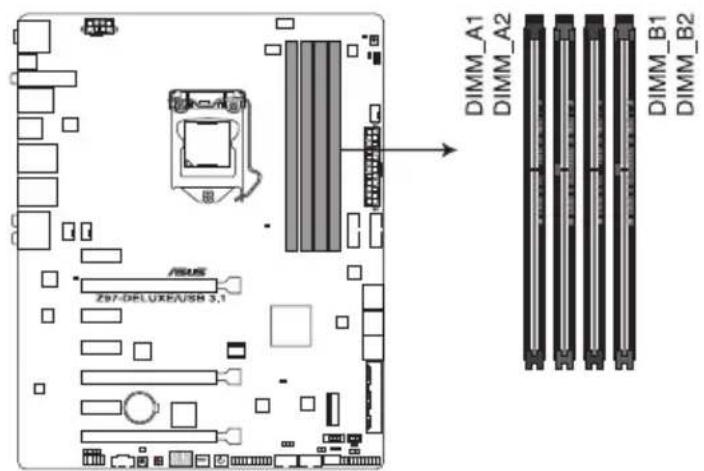

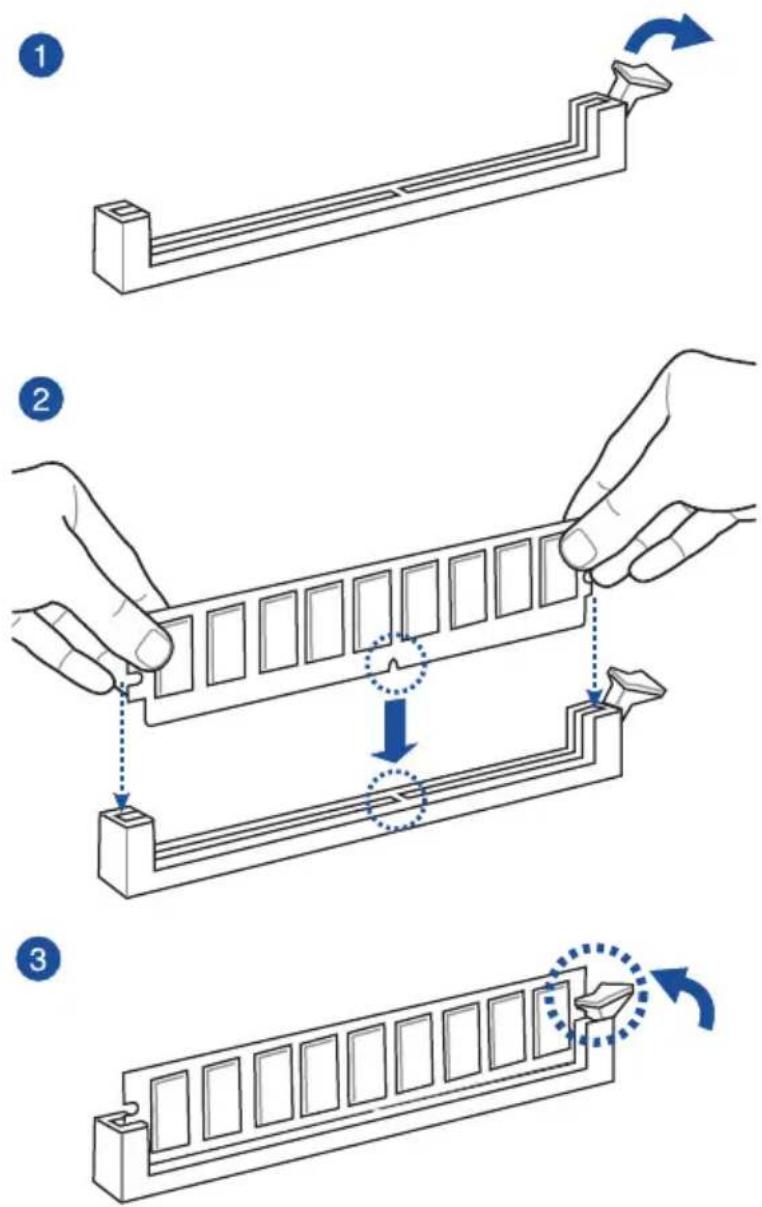

1.2.4 System memory

The motherboard comes with eight DDR 3 (Double Data Rate 3) Dual Inline Memory Modules (DIMM) slots.

A DDR3 module is notched differently from a DDR or DDR2 module. DO NOT install a DDR or DDR2 memory module to the DDR3 slot.

DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2 ASUM Z97-DELUXEA/SH 3.1

Z97-DELUXE/USB 3.1 240-pin DDR3 DIMM socket

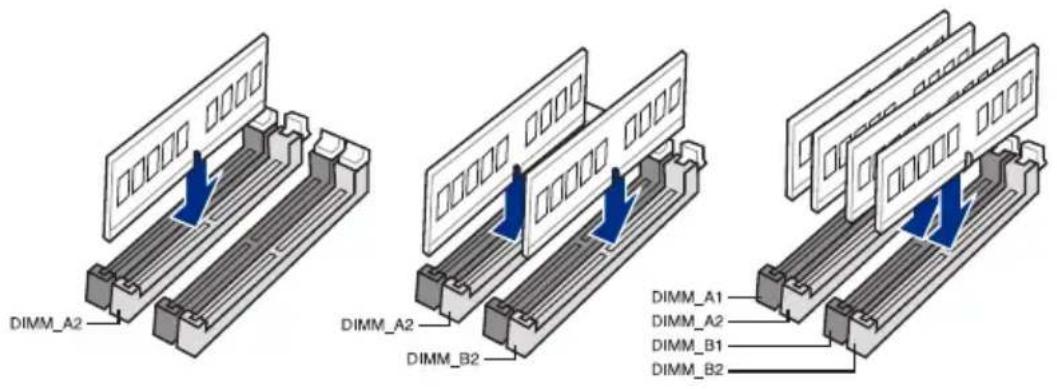

Recommended memory configurations

DIMM_A2 DIMM_A2 DIMM_B2 DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2

Memory configurations

You may install 2 GB, 4 GB and 8 GB unbuffered and non-ECC DDR3 DIMMs into the DIMM sockets.

• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.
• According to Intel ^ CPU spec, DIMM voltage below 1.65 V is recommended to protect the CPU.
• Due to the memory address limitation on 32-bit Windows ^ OS, when you install 4GB or more memory on the motherboard, the actual usable memory for the OS can be about 3GB or less. For effective use of memory, we recommend that you do any of the following:
  a) Use a maximum of 3GB system memory if you are using a 32-bit Windows ^ OS.
  b) Install a 64-bit Windows OS when you want to install 4 GB or more on the motherboard.
  c) For more details, refer to the Microsoft ^ support site at http://support.microsoft.com/kb/929605/en-us.

- This motherboard does not support DIMMs made up of 512 Mb (64 MB) chips or less (Memory chip capacity counts in Megabit, 8 Megabit/Mb = 1 Megabyte/MB).

• The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. To operate at the vendor-marked or at a higher frequency, refer to section 3.5 Ai Tweaker menu for manual memory frequency adjustment.
• For system stability, use a more efficient memory cooling system to support a full memory load (4 DIMMs) or overclocking condition.
• Memory modules with memory frequency higher than 2133MHz and their corresponding timing or the loaded XMP profile is not the JEDEC memory standard. The stability and compatibility of the memory modules depend on the CPU's capabilities and other installed devices.
• Always install the DIMMS with the same CAS Latency. For an optimum compatibility, we recommend that you install memory modules of the same version or data code (D/C) from the same vendor. Check with the vendor to get the correct memory modules.

Z97-DELUXE/USB 3.1 Motherboard Qualified Vendors Lists (QVL)

DDR3 3300 (O.C.) MHz capability

Vendors Part No.		Size	SS/DS	Chip Brand	Chip NO.	Timing	Voltage DIMM socket support (Optional)
							1 2	4
G.SKILL	FE-3300C13D-8GTXDG (XMP)	8GB (2x4GB)	SS	-	-	13-15-15-35	1.65	•

DDR3 3200 (O.C.) MHz capability

Vendors Part No. Size SS/DS Chip			Brand	Chip NO.	Timing Voltage DIMM socket support (Optional)
AVEXIR AVD3UH32001304G-4CI(XMP)	16GB(4x4GB)	SS --			13-15-15-35	1.65V •••
G.SKILL F3-3200C12Q-16GTXDG(XMP)	16GB(4x4GB)	SS --			12-15-15-35	1.65V •••

DDR3 3100 (O.C.) MHz capability

Vendors Part No. Size SS/DS Chip			Brand	Chip NO.	Timing Voltage	DIMM socket support (Optional)
AVEXIR AVD3UH31001204G-4CI(XMP)	16GB (4x4GB)	SS	-	-	12-14-14-35	1.65V	•	•	•
A-DATA AX3U3100W4G12-DMV(XMP)	8GB (2x4GB)	SS	-	-	12-14-14-36	1.65V	•	•	•

DDR3 3000 (O.C.) MHz capability

Vendors	Part No.	Size	SS/DS Chip Brand		Chip NO.	Timing	Voltage	DIMM socket support (Optional)
								1	24
AVEXIR AVD3UH30001204G-4BZ1(XMP)		16GB (4x4GB)	SS	-	-	12-14-14-35	1.65V	•	•	•
G.SKILL	F3-3000C12Q-16GTXDG(XMP)	16GB (4x4GB)	SS	-	-	12-14-14-35	1.65V	•	•	•
G.SKILL	F3-3000C12D-8GTXDG(XMP)	8GB (2x4GB)	SS			12-14-14-35	1.65V	•	•	•
CORSAIR	CMY8GX3M2A 3000C12R(XMP)	8GB (2x4GB)	SS			12-14-14-36	1.65V	•	•

DDR3 2933 (O.C.) MHz capability

Vendors Part No.		Size SS/DS	Chip		Brand	Chip NO.	Timing Voltage DIMM socket
									support (Optional)
									1	2
AVEXIR	AVD3UH29331204G-4CI(XMP)	16GB (4x4GB)	SS			12-14-14-35	1.65V	•	•	•
AVEXIR	AVD3UH29331208G-4BZ1(XMP)	32GB (4x8GB)	DS			12-14-14-35 1.65V • •		•
GEIL	GPW38GB2933C12ADC(XMP)	8GB (2x4GB)	SS			12-14-14-36	1.65V	•	•	•
APACER	78.BAGHB.AFL0C(XMP)	8GB (2x4GB)	SS			12-14-14-35	1.65V	•	•	•
APACER	78.CAGHB.AFM0C(XMP)	16GB (2x8GB)	SS			12-14-14-35	1.65V	•	•	•
A_DATA	AX3U2933W4G12(XMP)	16GB (4x4GB)	SS			12-14-14-36	1.65V	•	•	•
G.SKILL	F3-2933C12D-8GTXDG(XMP)	8GB (2x4GB)	SS			12-14-14-35	1.65V	•	•	•
G.SKILL	F3-2933C12Q-16GTXDG(XMP)	16GB (4x4GB)	SS			12-14-14-35	1.65V	•	•	•
G.SKILL	F3-2933C12D-16GTXDG(XMP)	16GB (2x8GB)	DS			12-14-14-35	1.65V	•	•	•
G.SKILL	F3-2933C12Q-32GTXDG(XMP)	32GB (4x8GB)	DS			12-14-14-35	1.65V	•	•	•
CORSAIR	CMY16GX3M4A2933C12R(XMP)	16GB (4x4GB)	SS			12-14-14-36	1.65V	•	•	•

DDR3 2800 (O.C.) MHz capability

Vendors Part No. Size SS/DS Chip					Brand	Chip NO.	Timing Voltage DIMM socket support (Optional)
								1 2 4
AVEXIR AVD3UH28001208G-4BZ1(XMP)		32GB (4x8GB) DS -- 12-14-14-35 1.65V •••
A_DATA	AX3U2800W4G12(XMP)	16GB (4x4GB)	SS	-	-	12-14-14-36	1.65V	•	•	•
A_DATA	AX3U2800W8G12(XMP)	32GB (4x8GB)	DS	-	-	12-14-14-36	1.65V	•	•
G.SKILL	F3-2800C12Q-32GTXD(XMP)	32GB (4x8GB)	DS	-	-	12-13-13-35	1.65V	•	•	•
G.SKILL F3-2800C12Q-32GTXDG(XMP)		32GB (4x8GB) DS -- 12-14-14-35 1.65V •••
G.SKILL	F3-2800C11Q-16GTXD(XMP)	16GB (4x4GB)	DS	-	-	11-13-13-35	1.65V	•	•	•
G.SKILL	F3-2800C11D-8GTXD(XMP)	8GB (2x4GB)	DS	-	-	11-13-13-35	1.65V	•	•	•
G.SKILL F3-2800C11D-8GTXDG(XMP)		8GB (2x4GB) DS -- 11-14-14-35 1.65V •••
G.SKILL F3-2800C11Q-16GTXDG(XMP)		16GB (4x4GB) DS -- 11-14-14-35 1.65V •••
G.SKILL	F3-2800C10D-8GTXD(XMP)	8GB (2x4GB)	DS	-	-	10-12-12-35	1.65V	•	•	•
G.SKILL F3-2800C12Q-16GTXDG(XMP)		16GB (4x4GB) DS -- 12-14-14-35 1.65V •••
G.SKILL F3-2800C11D-16GTXDG(XMP)		16GB (2x8GB) DS -- 11-14-14-35 1.65V •••
G.SKILL F3-2800C11Q-32GTXDG(XMP)		32GB (4x8GB) DS -- 11-14-14-35 1.65V •••
G.SKILL	F3-2800C11D-16GTXD(XMP)	16GB (2x8GB)	DS	-	-	11-13-13-35	1.65V	•	•	•
G.SKILL	F3-2800C11Q-32GTXD(XMP)	32GB (4x8GB)	DS	-	-	11-13-13-35	1.65V	•	•	•
G.SKILL	F3-2800C12D-16GTXD(XMP)	16GB (2x8GB)	DS	-	-	12-14-14-35	1.65V	•	•	•
APACER	78.BAGH5.AFD0C(XMP)	8GB (2x4GB)	DS	-	-	12-14-14-35	1.65V	•	•
APACER	78.CAGH6.AFD0C(XMP)	16GB (2x8GB)	DS	-	-	12-14-14-35	1.65V	•	•
CORSAIR CMD16GX3M4A2800C11(XMP)		16GB (4x4GB) DS -- 11-14-14-35 1.65V •••
CORSAIR CMD16GX3M4A2800C12(XMP)		16GB (4x4GB) DS -- 12-14-14-36 1.65V •••
CORSAIR CMY16GX3M4A2800C12R(XMP)		16GB (4x4GB) SS -- 12-14-14-36 1.65V •••
KINGSTON	KHX28C12T2K2/8X	8GB (2x4GB)	SS			12-14-14-32	1.65V	•	•	•
Team	TXD38G2800HC12DBK(XMP)	32GB (4x8GB)	DS	-	-	11-14-14-35	1.65V	•	•	•

DDR3 2666 (O.C.) MHz capability

Vendors Part No.		Size	SS/DS Chlp		Brand	Chip NO.	Timing	Voltage DIMM socket support (Optional)
								1 2	4
Apacer	78.BAGFF.AFC0C(XMP)	8GB (2x4GB)	DS	-	-	12-13-13-35	-	•	•	•
Apacer	78.BAGFR.AFD0C(XMP)	8GB (2x4GB)	DS	-	-	12-13-13-35	-	•	•	•
Apacer	78.CAGFF.AFD0C(XMP)	16GB (2x 8GB)	DS	-	-	12-13-13-35	-	•	•	•
CORSAIR CMD16GX3M4A2666C11(Ver5.12)(XMP)		16GB (4x4GB)	DS	-	-	11-13-13-35	1.65	•	•	•
G.SKILL	F3-2666CL10Q-16GBZHD(XMP)	16GB (4x4GB)	DS	-	-	10-12-12-31	1.65	•	•	•
GEIL	GOC332GB2666C11QC(XMP)	32GB (4x8GB)	DS	-	-	11-13-13-32	1.65	•	•	•
KINGSTON	KHX26C11T2K2/8X(XMP)	8GB (2x4GB)	SS	-	-	2666-11-13-13-32	1.65	•	•

DDR3 2500 (O.C.)* MHz capability

Vendors	Part No.	Size	SS/DS Chip Brand		Chip NO.	Timing	Voltage DIMM socket support (Optional)
							1 2	4
G.SKILL	F3-20000CL10Q-16GBZHD(XMP)	16GB (4x4GB)	DS	-	-	10-11-11-31	1.65	•	•

* The above QVL is for the DDR3 2500 MHz memory module. Due to CPU behavior, DDR3 2500 MHz memory module will run at DDR3 2400 MHz frequency.

DDR3 2400 (O.C.) MHz capability

Vendors Part No. Size SS/DS Chip				Brand	Chip NO.	Timing Voltage DIMM socket		support (Optional)
								1 2 4
A-DATA AX3U2400W4G11-DMV(XMP)		8GB (2x4GB) SS - - 11-13-13-35 1.65 • • •
A-DATA AX3U2400W8G11-DMV(XMP)		16GB (2x8GB)	DS	-	-	11-13-13-35	1.65	•	•	•
Apacer	78.BAGFL.AFD0C(XMP)	8GB (2x4GB)	DS	-	-	11-12-12-30	-	•	•	•
Apacer	783BAGF3.AFD0C(XMP)	8GB (2x4GB)	DS	-	-	11-11-11-30	-	•	•	•
CORSAIR CMD16GX3M2A2400C10(Ver4.21)(XMP)		16GB (2x8GB)	DS	-	-	10-12-12-31	1.65	•	•	•
CORSAIR CMD32GX3M4A2400C10(Ver5.29)(XMP)		32GB (4x8GB)	DS	-	-	10-12-12-31	1.65	•	•	•
CORSAIR CMY16GX3M2A2400C10A(Ver4.21)(XMP)		16GB (8x2GB)	DS	-	-	10-12-12-31	1.65	•	•	•
CORSAIR CMY16GX3M2A2400C10R(Ver4.21)(XMP)		16GB (2x8GB)	DS	-	-	10-12-12-31	1.65	•	•	•
CORSAIR CMZ16GX3M2A2400C10(Ver4.21)		16GB (2x8GB)	DS	-	-	10-12-12-31	1.65	•	•	•
G.SKILL	F3-19200CL10Q2-64GBZHD(XMP)	64GB (8x8GB)	DS	-	-	10-12-12-31	1.65	•	•	•
G.SKILL	F3-2400C11Q-32GXM(XMP)	32GB (4x8GB)	DS	-	-	11-13-13-31	1.65	•	•	•
G.SKILL	F3-19200CL10Q-32GBZHD(XMP)	32GB (4x8GB) DS	- - 10-12-12-31 1.65 •
G.SKILL	F3-19200CL11Q-16GBZHD(XMP)	16GB (4x4GB)	DS	-	-	11-11-11-31	1.65	•	•	•
G.SKILL	F3-19200CL9Q-16GBZMD(XMP)	16GB (4x4GB)	DS	-	-	9-11-11-31	1.65	•	•	•
GEIL	GOC316GB2400C10QC(XMP)	16GB (4x4GB)	DS	-	-	10-11-11-30	1.65	•	•	•
GEIL	GOC316GB2400C11QC(XMP)	16GB (4x4GB)	DS	-	-	11-11-11-30	1.65	•	•	•
Kingston	KHX2400C11D3K4/8GX(XMP)	8GB (4x2GB) SS - - 11-13-11-30 1.65 •
KINGSTON	KHX24C11K4/16X(XMP)	16GB (4x4GB)	DS	-	-	11-13-13-30	1.65	•	•	•
KINGSTON	KHX24C11T2K2/8X(XMP)	8GB (2x4GB)	DS	-	-	-	1.65	•	•	•
KINGSTON	KHX24C11T3K2/16X(XMP)	16GB (2x8GB)	DS	-	-	2400-11-13-13-32	1.65	•	•
KINGSTON	KHX24C11 T3K4(XMP)	16GB (4x4GB)	DS	-	-	2400-11-13-13-30	1.65	•	•	•
KINGSTON	KHX24C11T3K4/32X(XMP)	32GB (4x8GB)	DS	-	-	9-9-9-24	1.65	•	•	•
Mushkin	997122R(XMP)	16GB (2x8GB)	DS	-	-	2400-10-12-12-28	1.65	•	•	•
Silicon Power SP004GXLYU240NSA(XMP)		4GB SS - - 2400-11-13-13-32 -
Transcend	TX2400KLN-8GK(XMP)	8GB (2x4GB)	DS	-	-	2400-11-12-11-29	1.6	•	•	•

DDR3 2200 (O.C.) MHz capability

Vendors	Part No.	Size	SS/DS Chip Brand		Chip NO.	Timing	Voltage	DIMM socket support (Optional)
								1	2	4
G.SKILL	F3-17600CL7D-4GBFLS(XMP)	4G (2x2G)	DS	-	-	7-10-10-28	1.65	•	•
GEIL	GET34GB2200C9DC(XMP)	4GB (2x2GB)	DS	-	-	9-10-9-28	1.65	•	•	•
GEIL	GET38GB2200C9ADC(XMP)	8GB (2x4GB)	DS	-	-	9-11-9-28	1.65	•	•

DDR3 2133 (O.C.) MHz capability

Vendors Part No. Size SS/DS Chip		Brand	Chip NO.	Timing Voltage DIMM socket		support (Optional)1 2 4
A-DATA AX3U2133W4G10-DR(XMP)		8GB (2x4GB) SS - - 10-11-11-30 1.65 •••
A-DATA AX3U2133W8G10-DR(XMP)		16GB (2x8GB) DS - - 10-11-11-30 1.65 •••
Apacer	78.BAGE4.AFD0C(XMP)	8GB (2x4GB) DS - - 9-9-9-24	-	•••
Apacer	AHU04GFB33CAQ3R(XMP)	4GB DS - - 11-13-13-31	-	•••
CORSAIR CMD16GX3M2A2133C9(Ver4.21)(XMP)		16GB (2x8GB) DS - - 9-11-11-31	1.65 •••
CORSAIR CMD32GX3M4A2133C9(Ver4.21)(XMP)		32GB (4x8GB) DS - - 9-11-11-31	1.65 •••
CORSAIR CMD8GX3M2A2133C9(Ver1.5)(XMP)		8GB (2x4GB) DS - - 9-11-10-27	1.5	••
CORSAIR CMD8GX3M2B2133C9(Ver5.12)(XMP)		8GB (2x4GB) DS - - 9-11-11-31	1.65 •••
CORSAIR CMY8GX3M2A2133C11R (Ver4.21)(XMP)		8GB (2x4GB) DS - - 11-11-11-27 1.5	•••
CORSAIR CMZ8GX3M2A2133C11R (Ver4.21)(XMP)		8GB (2x4GB) DS - - 11-11-11-27	1.5	•••
G.SKILL	F3-17000CL11Q2-64GBZLD(XMP)	64GB (8x8GB) DS - - 11-11-11-30 1.5	•••
G.SKILL	F3-17000CL9Q-16GBXLD(XMP)	16GB (4x4GB) DS - - 9-11-9-28	1.65 •••
G.SKILL	F3-17000CL9Q-16GBZH(XMP)	16GB (4x4GB) DS - - 9-11-10-28	1.65 •••
G.SKILL	F3-2133C10Q-32GSR(XMP)	32GB (4x8GB) DS - - 10-12-12-31 1.5	•••
G.SKILL	F3-2133C11Q-32GZL(XMP)	32GB (4x8GB) DS - - 11-11-11-31 1.5	•••
KINGSTON	KHX2133C11D3K4/16GX(XMP)	16GB (4x4GB) DS - - 11-12-11-30	1.65 •••
KINGSTON	KHX21C11T3FK8/64X(XMP)	64GB (8x8GB) DS - - 9-9-9-24	1.5	•••
Silicon Power SP004GXLYU213NSA(XMP)		4GB SS - - 2133-11-12-11-30	-	•••
Silicon Power SP008GXLYU213NSA(XMP)		8GB DS - - 2133-11-12-11-30	-	•••
Transcend TX2133KLH-16GK(XMP)		16GB (2x8GB) DS	-	-	2133-10-11-10-27	1.6
Transcend	TX2133KLN-8GK(XMP)	8GB (2x4GB) DS	-	-	2133-10-11-10-27	1.6

DDR3 1866 (O.C.) MHz capability

Vendors Part No. Size SS/DS Chip					Chip NO. Timing Voltage DIMM socket support (Optional)
					Brand		1 2 4
AEXEA AXA3ES4GK2000LG28V(XMP)	4GB (2x2GB) DS --- 1.65 ***
Asint	SLA302G08-ML2HB(XMP)	4GB	DS	Hynix	H5TQ2G83BFRH9C	9-9-9-27 -	***
GEIL	GUP34GB2000C9DC(XMP)	4GB (2x2GB)	DS	-	-	9-9-9-28	1.65	• • •
CORSAIR	CMD16GX3M2A1866C9(Ver5.29)(XMP)	16GB (2x8GB)	DS -- 1866	9-9-		9-27	1.5	• •
CORSAIR	CMD16GX3M4A1866C9(Ver4.13)(XMP)	16GB (4x4GB)	DS -- 9-10-9-27	1.5	• • •
CORSAIR	CMD16GX3M4A1866C9(Ver8.16)(XMP)	16GB (4x4GB)	DS -- 9-10-9-27	1.5	• • •
CORSAIR	CMD32GX3M4A1866C9(Ver3.24)(XMP)	32GB (4x8GB)	DS -- 9-10-9-27	1.5	• • •
CORSAIR	CMD8GX3M2A1866C9(Ver4.13)(XMP)	8GB (2x4GB)	DS --- 1.5	• • •
CORSAIR	CMD8GX3M2A1866C9(Ver5.12)(XMP)	8GB (2x4GB)	DS -- 9-10-9-27	1.5	• •
CORSAIR	CMD8GX3M2A1866C9(Ver8.16)(XMP)	8GB (2x4GB)	DS -- 9-10-9-27	1.5	• •
CORSAIR	CMT32GX3M4X1866C9(Ver3.23)(XMP)	32GB (4x8GB)	DS -- 9-10-9-27	1.5	• • •
CORSAIR	CMY16GX3M2A1866C9 (Ver4.21)(XMP)	16GB (2x8GB)	DS -- 9-10-9-27	1.5	• • •
CORSAIR	CMY8GX3M2A1866C9(Ver3.24)(XMP)	8GB (2x4GB)	DS -- 9-10-9-27	1.5	• • •
CORSAIR	CMZ16GX3M2A1866C10(Ver5.29)(XMP)	16GB (2x8GB)	DS -- 10-11-			10-30	1.5	• • •
CORSAIR	CMZ16GX3M2A1866C9(XMP)	16GB (2x8GB)	DS -	-	-	1866-9-10-9-27	1.5	• • •
CORSAIR	CMZ32GX3M4X1866C10(Ver3.23)(XMP)	32GB (4x8GB)	DS -- 10-11-			10-27	1.5	• • •
CORSAIR	CMZ32GX3M4X1866C10(Ver3.23)(XMP)	32GB (4x8GB)	DS -- 10-11-			10-27	1.5	• • •
CORSAIR	CMZ8GX3M2A1866C9(Ver8.16)(XMP)	8GB (2x4GB)	DS -- 9-10-9-27	1.5	• • •
CORSAIR	CMZ8GX3M2A1866C9(XMP)	8GB (2x4GB)	DS -	-	-	9-10-9-27	1.5	• •
CORSAIR	CMZ8GX3M2A1866C9G(Ver5.12)(XMP)	8GB (2x4GB)	DS -- 1866			9-10-9-27	1.5	• • •
Cricial	BLE8G3D1869DE1TX0.16FED(XMP)	16GB (2x8GB)	DS -- 1866-9-9-			9-27	1.5	• • •
Crucial	BLE4G3D1869DE1XT0.16FMD(XMP)	4GB	DS -	-	-	9-9-9-27	1.5	• • •
G.SKILL	F3-14900CL10Q-32GBZL(XMP)	32GB (4x8GB)	DS -- 10-11-			10-30	1.5	• • •
G.SKILL	F3-14900CL9D-8GBSR(XMP)	8GB (2x4GB)	DS -	-	-	9-10-9-28	1.5	• • •
G.SKILL	F3-14900CL9Q-16GBXL(XMP)	16GB (4x4GB)	DS -	-	-	9-10-9-28	1.5	• • •
G.SKILL	F3-14900CL9Q-16GBZL(XMP)	16GB (4x4GB)	DS -	-	-	9-10-9-28	1.5	• • •
G.SKILL	F3-14900CL9Q-16GBZL(XMP)	16GB (4x4GB)	DS -	-	-	9-10-9-28	1.5	• •
G.SKILL	F3-1866C10Q2-64GZM(XMP)	64GB (2x8GB)	DS -	-	-	10-11-10-30	1.5	• • •
G.SKILL	F3-1866C10Q2-64GZM(XMP)	64GB (2x8GB)	DS -	-	-	10-11-10-30	1.5	• • •
G.SKILL	F3-1866C9Q-32GXM(XMP)	32GB (4x8GB)	DS -	-	-	9-10-9-28	1.5	• • •
GEIL	GEEL316GB1866C9DC(XMP)	16GB (2x8GB)	DS -	-	-	1866-9-10-9-28	1.65 • • •
KINGSTON	KHX1866C9D3K2/8GX(XMP)	8GB (2x4GB)	DS -	-	-	-	1.65	• • •

(continued on the next page)

DDR3 1866 (O.C.) MHz capability

Vendors Part No. Size SS/DS Chip				Brand	Chip NO.	Timing Voltage DIMM socket support (Optional)
							1 2 4
Silicon Power SP004GXLYU186NSA(XMP) 4GB SS - - 1866-9-						11-9-27	- • • •
Silicon Power SP008GXLYU186NSA(XMP) 8GB DS - - 1866-9-						11-9-27	- • • •
Team TED34GM1866C13BK 4GB DS Hynix H5TC2G					83EFR	13-13-13-32	1.5 • • •
Team TED38GM1866C13BK 8GB DS Hynix H5TQ4G					83AFR	13-13-13-32	1.5 • • •
Team	TLD34G1866HC9KBK(XMP)	8GB (2x4GB)	DS	-	-	9-11-9-27	1.5	•	•
Team TLD38G1866HC10SBK(XMP) 16GB (2x8GB) DS - - 10-11-						10-30	1.5 • • •

DDR3 1600 MHz capability

Vendors	Part No.	Size SS/DS Chlp		Brand	Chip NO. Timing Voltage		DIMM socket support(Optional)
							1	24
A-DATA	AD3U1600W4G11	4GB	SS	A-DATA	3WCD-1211A	11-11-11-28	-	••	•
A-DATA	AD3U1600W8G11	8GB	DS	A-DATA	3WCD-1211A	11-11-11-28	-	••	•
A-DATA ADDU1600W4G11-B 4GB SS		A-DATA	DWND-		1211A	9-9-9-24	-	•	•
A-DATA	ADDU1600W8G11-B	8GB	DS	ELPIDA	J4208EBBG-GN-F	9-9-9-24	-	•	•
A-DATA AX3U1600W4G9-DB(XMP)		8GB(2x4GB)	SS	-	-	9-9-9-24	1.5	•	•
A-DATA AX3U1600W8G9-DB(XMP)		16GB(2x8GB)	DS	-	-	9-9-9-24	1.5	•	•
AMD	AE32G1609U1-U	2GB	SS	AMD	23EY4587MB6H	-	1.5	••	•
AMD	AE34G1609U2-U	4GB	DS	AMD	23EY4587MB6H	-	1.5	••	•
AMD	AP38G1608U2K(XMP)	8GB(2x4GB)	DS	-	-	9-9-9-28	1.65	•	•
Apacer	78.B1GE3.9L10C	4GB	DS	Apacer	AM5D5908DEQSCK	-	1.65	•	•
Apacer	78.B1GET.9K00C	4GB	SS	Apacer	AM5D6008BQQSCK	11-11-11-28	-	•	•
Apacer	78.C1GET.9K10C	8GB	DS	Apacer	AM5D6008BQQSCK	11-11-11-31	-	•	•
Apacer	AHU04GFA60C9Q1D(XMP)	4GB	DS	-	-	9-9-9-27	1.65	•	•
Apacer	AHU04GFA60C9Q3R(XMP)	4GB DS	-	-	11-11-11-28	-	-	•	•
Apacer	AHU08GFA60CBT3R(XMP)	8GB	DS	-	-	9-9-9-24	-	•	•
Asint	SLA302G08-EGG1C(XMP)	4GB	DS	Asint 302G08-GG1C		9-9-9-27	-	•	•
Asint	SLA302G08-EGJ1C(XMP)	4GB	DS	Asint 302G08-GJ1C		9-9-9-27	-	•	•

(continued on the next page)

DDR3 1600 MHz capability

Vendors Part No. Size SS/DS Chip					Brand	Chip NO. Timing Voltage DIMM socket support (Optional)
									124
Asint SLA302G08-EGN1C 4GB DS ASint 302G08-						GN1C	- - • • •
Asint	SLA304G08-ENG1B	4GB	SS	Asint	304G08-GN1B	9-11-11-28 - •	• •
Asint	SLB304G08-EGJ1B(XMP)	8GB	DS	-	-	9-9-9-27	-	•	•	•
Asint	SLB304G08-EGN1B 8GB	DS ASint 304G08-				GN1B	- - •	•	•
Asint	SLZ302G08-EGN1C	2GB	SS	ASint	302G08-GN1C	- - •	•	•
AVEXIR	AVD3U16000904G-2CW(XMP)	8GB(2x4GB)	DS -	-		11-11-11-28	1.5 • • •
CORSAIR	CMD16GX3M2A1600C9(Ver8.21)(XMP)	16GB(2x8GB)	DS	-	-	9-9-9-24	1.5	•	•
CORSAIR	CMD8GX3M2A1600C8(Ver5.12)(XMP)	8GB(2x4GB)	DS -	-		1600 8-8-8-24	1.5 • • •
CORSAIR	CMD8GX3M2A1600C9(Ver2.12)(XMP)	8GB(2x4GB)	DS	-	-	9-9-9-24	1.5	•	•	•
CORSAIR	CML16GX3M2A1600C9(Ver2.21)(XMP)	16GB(2x8GB)	DS -	-		10-10-10-27	1.5 • • •
CORSAIR	CML16GX3M4X1600C8(Ver 2.12)(XMP)	16GB(4x4GB)	DS -	-		Heat-Sink Package	1.5 • •
CORSAIR	CML8GX3M2A1600C9(Ver7.12)(XMP)	8GB(2x4GB)	DS	-	-	9-9-9-24	1.5	•	•	•
CORSAIR	CMV8GX3M1A1600C11	8GB	DS	-	-	11-11-11-30	- •	•	•
CORSAIR	CMX8GX3M2A1600C9(Ver3.19)(XMP)	8GB(2x4GB)	SS	-	-	9-9-9-24	1.65	•	•	•
CORSAIR	CMZ16GX3M2A1600C10(Ver3.24)(XMP)	16GB(2x8GB)	DS -	-		10-10-10-27	1.5 • • •
CORSAIR	CMZ16GX3M4A1600C9(XMP)	16GB(4x4GB)	DS	-	-	9-9-9-24	1.5	•	•	•
CORSAIR	CMZ16GX3M4X1600C9(Ver8.16)(XMP)	16GB(4x4GB)	DS -	-		1600-9-9-9-24	1.5 • • •
CORSAIR	CMZ32GX3M4X1600C10(Ver2.2)(XMP)	32GB(4x8GB)	DS -	-		10-10-10-27	1.5 • • •
CORSAIR	CMZ4GX3M1A1600C9(Ver8.16)(XMP)	4GB(1x4GB)	DS	-	-	9-9-9-24	1.5	•	•
CORSAIR	CMZ8GX3M1A1600C10(Ver3.23)(XMP)	8GB(1x8GB)	DS -	-		10-10-10-27	1.5 • •
CORSAIR	CMZ8GX3M1A1600C10(Ver8.21)(XMP)	8GB(1x8GB)	DS -	-		10-10-10-27	1.5 • •
CORSAIR	CMZ8GX3M2A1600C8(XMP)	8GB(2x4GB)	DS	-	-	8-8-8-24	1.5	•	•	•
CORSAIR	CMZ8GX3M2A1600C9(XMP)	8GB(2x4GB)	DS	-	-	9-9-9-24	1.5	•	•
Crucial	BLS4G3D1609DS1S00.16FMR(XMP)	4GB DS -	-		1600-9-9-9-24		1.5 • • •
Crucial	BLT4G3D1608DT1TX0.16FM(XMP)	4GB	DS	-	-	8-8-8-24	1.5	•	•	•
Elixir M2X2G64CB88G7N-DG(XMP)		2GB SS	Elixir N2CB2G8			0GN-DG	9-9-9-28	-	•	•
Elixir M2X4G64CB8HG5N-DG(XMP)		4GB DS Elixir N2CB2G80				GN-DG	9-9-9-28	-	•	•

(continued on the next page)

DDR3 1600 MHz capability

Vendors Part No. Size SS/DS Chip Brand Chip NO. Timing Voltage DIMM socket support
									(Optional)1 2 4
G.SKILL F3-12800CL9D-8GBSR2(XMP)		8GB(2x4GB)	DS - - 9-9-9-24 1.25 •••
G.SKILL F3-12800CL9Q-16GBXL(XMP)		16GB(4x4GB)	DS - - 9-9-9-24 1.5 •••
G.Skill	F3-12800CL9Q-16GBZL(XMP)	16GB(4x4GB)	DS - - 9-9-9-24 1.5 •••
G.SKILL F3-1600C9Q-32GXM(XMP)		32GB(4x8GB)	DS - - - 1.5 •••
GEIL	GUP34GB1600C7DC(XMP)	4GB(2x2GB)	DS - - 7-7-7-24 1.6 •••
GEIL	GVP38GB1600C8QC(XMP)	8GB(4x2GB)	DS - - 8-8-8-28 1.6 ••
Hynix	HMT351U6CFR8C-PB	4GB	DS Hynix H5TQ2G83CFR			-	-	••
Hynix	HMT41GU6MFR8C-PB	8GB	DS Hynix H5TQ4G83MFR			-	-	••
KINGMAX	FLGE85F-C8KL9A(XMP)	2GB	SS KINGMAX N/A			9-9-9-28	-	•	•	•
KINGMAX	FLGF65F-C8KL9A(XMP)	4GB	DS KINGMAX N/A			9-9-9-28	-	•	•	•
KINGSTON	KHX16009CD3K2/8GX(XMP)	8GB(2x4GB)	DS - - 9-9-9-27 1.65 •••
KINGSTON	KHX1600C9D3B1/4G(XMP)	4GB SS	- - 9-9-9-27 1.65 •••
KINGSTON	KHX1600C9D3K3/12GX(XMP)	12GB(3x4GB)	DS - - 9 1.65 ••
KINGSTON	KHX1600C9D3K3/6GX(XMP)	6GB(3x2GB)	DS - - 9 1.65 •••
KINGSTON	KHX1600C9D3K3/6GX(XMP)	6GB(3x2GB)	DS - - 9 1.65 •••
KINGSTON	KHX1600C9D3K4/16GX(XMP)	16GB(4x4GB)	DS - - 9-9-9-24 1.65 •••
KINGSTON	KHX1600C9D3K6/24GX(XMP)	24GB(6x4GB)	DS - - 9 1.65 •••
KINGSTON	KHX1600C9D3K8/32GX(XMP)	32GB(8x4GB)	DS - - 9-9-9-27 1.65 ••
KINGSTON	KHX1600C9D3LK2/8GX(XMP)	8GB(2x4GB)	DS - - 9-9-9-24 1.35 •••
KINGSTON	KHX1600C9D3P1K2/8G	8GB(2x4GB)	DS - - 9 1.5 •••
KINGSTON	KHX16C10B1K2/16X(XMP)	16GB(2x8GB)	DS - - 1.5 •••
KINGSTON	KHX16C9K2/16 16GB(2x8GB)	DS - - 1333-9-9-9-24 1.5 •••					1.5 •••
KINGSTON	KHX16C9P1K2/16	16GB(2x8GB)	DS - - 1.5 •••
KINGSTON	KVR16N11/4	4GB	DS KINGSTON D2568JPUCPGGBU 11-11-11-28-1				-	•••
KINGSTON	KVR16N11/4	4G	DS Hynix H5TQ2G83CFRPBC - 1.5 •••
MICRON	MT16JTF1G64AZ-1G6D1	8GB	DS MICRON D9PBC - 1.5 • •
Micron MT16JTF1G64AZ-1G6E1		8GB	DS Micron D9QBJ - - • • •

(continued on the next page)

DDR3 1600 MHz capability

Vendors Part No. Size SS/DS Chip Brand Chip NO. Timing Voltage DIMM socket support
								(Optional)1 2 4
MICRON MT16KTF51264AZ-1G6M1		4GB DS MICRON D9PFJ 11-11-				11-28	-···
MICRON MT16KTF51264AZ-1G6M1		4GB DS MICRON D9PFJ -			-···
Micron MT8JTF51264AZ-1G6E1		4GB	SS	Micron	D9QBJ	-	-	•	•	•
MICRON MT8KTF25664AZ-1G6M1		2GB	SS	MICRON	D9PFJ	-	-	•	•	•
Patriot	PV316G160C9K(XMP)	16GB(2x4GB)	SS	-	-	1600-9-9-9-24	1.5···	•
Patriot	PV316G160C9K(XMP)	16GB(2x8GB)	SS	-	-	1600-9-9-9-24	1.5···	•
PSC	AL9F8L93B-GN2E	4GB	SS	PSC	A3P4G 3BLF	-	-	•	•
PSC ALAF8L93B-GN2E	8GB DS PSC	A3P4G			F3BLF	-	-···
SanMax SMD-4G28N1P-16KM		4GB SS	ELPIDA J4208B BBG-			1600 - •	•	•
SanMax SMD-4G68HP-16KZ		4GB DS Hynix	H5TQ2G83			BFRPBC	-	1.5···	•
SanMax SMD-4G68NG-16KK		4GB DS ELPIDA J2108BD				BG-GN-F	-	-•	•	•
SanMax SMD-8G28NP-16KM		8GB DS ELPIDA J4208BB				BG-GN-F	1600 - •	•	•
Silicon Power	SP002GBLTU160V02(XMP)	2GB	SS	S-POWER	20YT5NG	9-11-11-28	1.5···	•
Silicon Power	SP004GBLTU160V02(XMP)	4GB	DS	S-POWER	20YT5NG	9-9-9-24	1.5	•	•	•
Silicon Power	SP004GXLYU160NSA(XMP)	4GB SS	-	-	1600-9-9-9-27		-•	•	•
Silicon Power	SP008GXLYU160NSA(XMP)	8GB DS -		-	1600-9-9-9-27		-•	•	•
Team	TED34GM1600C11BK	4GB DS Hynix		H5TC2G	83EFR	11-11-11-28	1.5···	•
Team	TED38GM1600C11BK	8GB DS Hynix		H5TQ4G	83AFR	11-11-11-28	1.5···	•
Team	TLD34G1600HC9BK(XMP)	8GB(2x4GB)	DS	-	-	9-9-9-24	1.5	•	•	•
Team	TLD38G1600HC9BK(XMP)	16GB(2x8GB)	DS	-	-	9-9-9-24	1.5	•	•	•
Team	TXD34096M1600HC9-D(XMP)	4GB DS Hynix		H5TC2G8	3BFRH9A	9-9-9-24	1.5···	•
Transcend	TS1GLK64V6H(620945)	8GB DS SAMSUNG		K4B4G0	846B	-	-•	•	•
Transcend	TS1GLK64W 6H	8GB	DS	SAMSUNG	K4B4G0846B	11-11-11-28-1	-•	•	•
Transcend	TS512MLK64 W6H	4GB	SS	SAMSUNG	K4B4G0846B	11-11-11-28-2	-•	•	•

DDR3 1333 MHz capability

Vendors Part No. Size SS/DS Chip					Brand	Chip NO. Timing Voltage DIMM socket support (Optional)
								1 2 4
AMD AE32G1339U1-U 2GB SS AMD 23EY4587M					B3H	- 1.5 •••
AMD AE34G1339U2-U 4GB DS AMD 23EY4587M					B3H	- 1.5 •••
Apacer 78.B1GDE.9L10C 4GB DS Apacer AM5D5908C					EHSBG	9	- •••
Asint SLA302G08-EDJ1C	2GB SS ASint 302G08-DJ1C	- - •••
Asint SLA304G08-EDJ1B	4GB SS Asint 304G08-DJ1B	9-10-				10-26	- •••
Asint SLB304G08-EDJ1B	8GB DS Asint	304G08-DJ1B	9-9-9-24	-	•	•	•
Asint SLZ302G08-EDJ1C	4GB DS ASint 302G08-DJ1C	- - ••
BUFFALO D3U1333-1G 1GB SS Elpida	J1108BFBG-		DJ-F	- - •••
BUFFALO D3U1333-2G 2GB DS Elpida	J1108BFBG-		DJ-F		- •••
BUFFALO D3U1333-4G 4GB DS NANYA	NT5CB256M		8BN-CG		- •••
CORSAIR CMV8GX3M1A1 333C9	8GB DS	-	-	9-9-9-24	-	•	•	•
CORSAIR CMV8GX3M2A13 33C9	8GB (2x4GB) DS	-	N/A	9-9-9-24	-	•	•	•
CORSAIR CMX4GX3M1A13 33C9 (Ver2.12)	4GB (1x4GB) DS	-	-	9-9-9-24	1.5	•	•
CORSAIR CMX4GX3M1A13 33C9 (Ver5.11)	4GB (1x4GB) DS	-	-	9-9-9-24	1.5	•	•
CORSAIR CMX8GX3M1A13 33C9 (Ver2.2)	8GB DS	-	-	9-9-9-24	1.5	•	•
CORSAIR CMX8GX3M2A 1333 C9(XMP)	8GB (2x4GB) DS	-	-	9-9-9-24	1.5	•	•	•
Elixir M2F2G64CB88 G7N-CG	2GB SS Elxir	N2CB2G80GN- CG	- - ••
ELPIDA EBJ41UF8BCF0-DJ-F	4GB DS ELPIDA	J2108BCSE- DJ-F	- - ••
G.SKILL F3-10666CL9D-8GBXL	8GB (2x4GB) DS	-	-	9-9-9-24	1.5	•	•	•
GEIL GG34GB1333C 9DC	4GB (2x2GB) DS GEIL	GL1L128M88 BA15B	9-9-9-24	1.3 •••
GEIL GVP34GB1333C 9DC	4GB (2x2GB) DS	-	-	9-9-9-24	1.5	•	•	•
GEIL GVP38GB1333C 9DC	8GB (2x4GB) DS	-	-	9-9-9-24	1.5	•	•	•
INNODISK M3UN-2GHJBC09	2GB SS Hynix H5TQ2G83CF		RH9C	9-9-9-24	- •••
INNODISK M3UN-4GHJAC09	4GB DS Hynix H5TQ2G83CF		RH9C	9-9-9-24	- •••
KINGMAX FLFE85F-C8KL9 2GB SS KINGMAX KFC8FNLBF-			GXX-12A	- - •••
KINGMAX FLFE85F-C8KL9 2GB SS KINGMAX KFC8FNLXF-			DXX-15A	- - •••
KINGMAX FLFF65F-C8KL9 4GB DS KINGMAX KFC8FNLBF-			GXX-12A	- - ••

(continued on the next page)

DDR3 1333 MHz capability

Vendors Part No. Size SS/DS Chip				Brand	Chip NO. Timing Voltage DIMM socket support (Optional)
								1 2 4
KINGMAX FLFF65F-C8KL9 4GB DS KINGMAX KFC8FNLXF-					DXX-15A	---···
KINGSTON KVR1333D3E9 S/4G	4GB DS Elpida J2108ECSE-				DJ-F	9 1.5···
KINGSTON KVR1333D3N9 H/4G	4GB DS ELPIDA		J2108BDBG-		GN-F	- 1.5···
KINGSTON KVR1333D3N9 H/8G	8GB DS ELPIDA		J4208EASE-		DJ-F	9-9-9-24	1.5···
KINGSTON	KVR13N9S8H/4	4GB	SS	ELPIDA	J4208BBBG-GN-F	- 1.5···
Mach Xtreme	MXD3U1333 16GQ	16GB (4x4GB)	DS	-	-	-	-	•	•
Mach Xtreme	MXD3V13332GS	2GB SS Mach		Xtreme	C2S46D3 0-D313	---···
MICRON	MT16JTF1 G64AZ-1G4D1	8GB DS MICRON		D9PCP	---···
MICRON	MT8JTF25 664AZ-1G4M1	2GB	SS	MICRON	D9PFJ	-	-	•	•
Patriot	PSD32G1 3332	2GB	DS	Prriot	PM128M8 D3 BU-15	9 -···
RiDATA C304627CB 1AG22Fe		2GB DS RiDATA		C304627CB	1AG22Fe	9 -···
RiDATA E304459CB 1AG32Cf		4GB DS RiDATA		E304459C	B1AG32Cf	9 -···
Silicon Power	SP001GBLT U133S02	1GB	SS	S-POWER	10YT3E5	9	-	•	•
Silicon Power	SP002GBLT U133V02	2GB	SS	S-POWER	20YT3NG	9-9-9-24	-	•	•
Silicon Power	SP004GBLT U133V02	4GB	DS	S-POWER	20YT3NG	9-9-9-24	-	•	•
Team	TED34096M 1333HC9	4GB DS Team T3D2568LT-13		---···
Team	TED34GM13 33C9BK	4GB DS Hynix		H5TQ2GB8	3CFR	9-9-9-24	1.5 •	••
Team	TED38GM1333 C9BK	8GB DS Hynix		H5TQ4G83	AFR	9-9-9-24	1.5 •	••
Transcend	TS1GLK64V3H (620053)	8GB	DS	MICRON	D9QBJ	-	-	•	•

Side(s): SS - Single-sided DS - Double-sided DIMM support:

1 Supports one (1) module inserted into any slot as Single-channel memory configuration. We suggest that you install the module into A2 slot.
2 Supports two (2) modules inserted into one pair of the dark gray slots or the black slots as one pair of dual-channel memory configuration. We suggest that you install the modules into slots A2 and B2 for better compatibility.
4 Supports four (4) modules inserted into both the dark gray slots and black slots as two pairs of quad-channel memory configuration. We suggest that you install the modules into slots A1, A2, B1, and B2 for better compatibility.

• ASUS exclusively provides hyper DIMM support function.
- Hyper DIMM support is subject to the physical characteristics of individual CPUs. Load the X.M.P. or D.O.C.P. settings in the BIOS for the hyper DIMM support.
- Visit the ASUS website for the latest QVL.

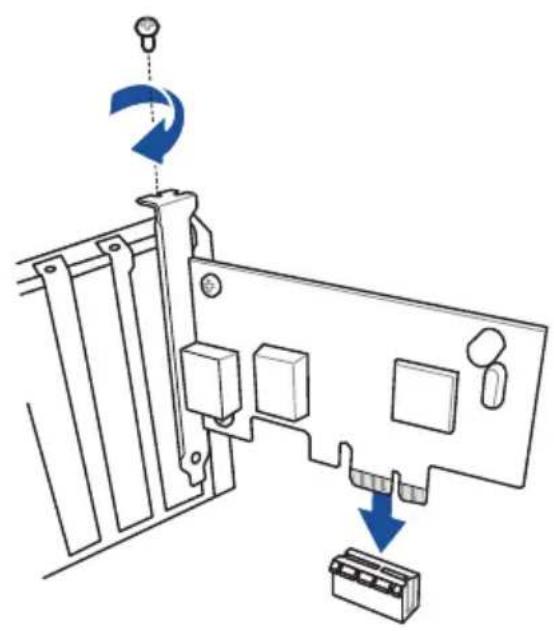

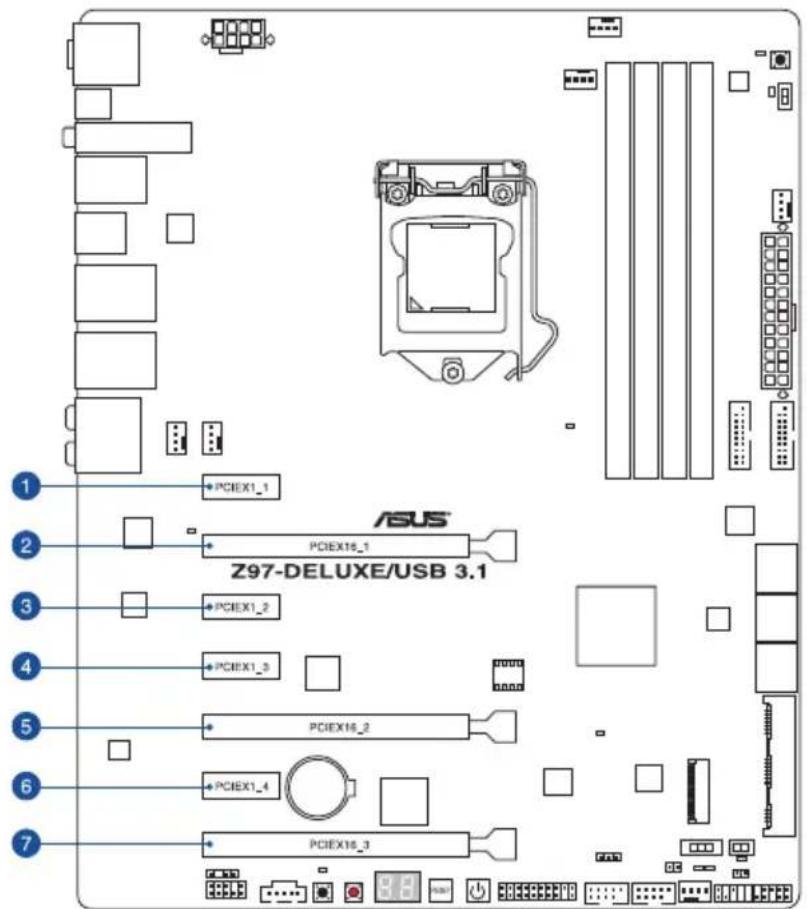

1.2.5 Expansion slots

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

1 PCIEX1_1 2 PCIEX16_1 Z97-DELUXE/USB 3.1 3 PCIEX1_2 4 PCIEX1_3 5 PCIEX16_2 6 PCIEX1_4 7 PCIEX16_3

Slot No. Slot Description

1 PCIe 2.0 x1_1 slot

2 PCIe 3.0/2.0 x16_1 slot

3 PCIe 2.0 x1_2 slot

4 PCIe 2.0 x1_3 slot

5 PCIe 3.0/2.0 x16_2 slot

6 PCIe 2.0 x1_4 slot

7 PCIe 2.0 x16_3 slot

VGA configuration	PCI Express 3.0 operating mode
	PCIe 3.0/2.0 x16_1	PCIe 3.0/2.0 x16_2
Single VGA/PCIe card	x16 (single VGA recommended)	N/A
Dual VGA/PCIe card	x8	x8

• We recommend that you provide sufficient power when running CrossFireX™ or SLI™ mode.
• Connect a chassis fan to the motherboard connector labeled CHA_FAN1-4 when using multiple graphics cards for better thermal environment.

IRQ assignments for this motherboard

A B C D E F G H
PCIe x16_1 shared - - - - -
PCIe x16_2	- shared	- - - - - -
PCIe x16_3 shared - - - - -
PCIe x1_1	shared -	-	- - - - - -
PCIe x1_2	-	-	- shared - - - - -
PCIe x1_3 shared - - - - -
PCIe x1_4 - - shared - - - - -
SMBUS Controller - - shared - - - - -
Wi-Fi/Bluetooth 4.0 -	shared	- - - - -
Intel® SATA Controller	-	-	- shared - - - - -
Intel® LAN1 (i218)	-	-	- shared - - - -
Intel® LAN2 (i211) - shared - - - - -
ASMedia SATA Controller 1 (1061)	-	- shared	- - - - -
ASMedia SATA Controller 2 (106SE)	shared	-	- - - - -
Intel® xHCI - - - - - shared - -
Intel® EHCI 1 - - - - - - shared
Intel® EHCI 2	shared	- - - - -
HD Audio - - - - - - shared -
ASMedia Controller 1142	-	shared	- - - - -

1.2.6 Onboard buttons and switches

Onboard buttons and switches allow you to fine-tune performance when working on a bare or open-case system. This is ideal for overclockers and gamers who continually change settings to enhance system performance.

1. Power-on button

The motherboard comes with a power-on button that allows you to power up or wake up the system. The button also lights up when the system is plugged to a power source indicating that you should shut down the system and unplug the power cable before removing or installing any motherboard component.

ASUS 297-DELUXE/USB 3.1 PWR_SW

Z97-DELUXE/USB 3.1 Power on button

2. Reset button

Press the reset button to reboot the system.

ASUS ZW-DELUXE/USB 3.1 RST_SW RESET

Z97-DELUXE/USB 3.1 Reset button

3. MemOK! button

Installing DIMMs that are not compatible with the motherboard may cause system boot failure, and the DRAM_LED near the MemOK! button lights continuously. Press and hold the MemOK! button until the DRAM_LED starts blinking to begin automatic memory compatibility tuning for successful boot.

MemOK 297-DELUXE/USB 3.1

Z97-DELUXE/USB 3.1 MemOK! button

• Refer to section 1.2.8 Onboard LEDs for the exact location of the DRAM_LED.
- The DRAM_LED also lights up when the DIMM is not properly installed. Turn off the system and reinstall the DIMM before using the MemOK! function.
- The MemOK! button does not function under Windows ^ OS environment.
- During the tuning process, the system loads and tests failsafe memory settings. It takes about 30 seconds for the system to test one set of failsafe settings. If the test fails, the system reboots and test the next set of failsafe settings. The blinking speed of the DRAM_LED increases, indicating different test processes.
- Due to memory tuning requirement, the system automatically reboots when each timing set is tested. If the installed DIMMs still fail to boot after the whole tuning process, the DRAM_LED lights continuously. Replace the DIMMs with ones recommended in the Memory QVL (Qualified Vendors Lists) in this user manual or at www.asus.com.
- If you turn off the computer and replace DIMMs during the tuning process, the system continues memory tuning after turning on the computer. To stop memory tuning, turn off the computer and unplug the power cord for about 5–10 seconds.
- If your system fails to boot up due to BIOS overclocking, press the MemOK! button to boot and load the BIOS default settings. A message will appear during POST reminding you that the BIOS has been restored to its default settings.
• We recommend that you download and update to the latest BIOS version from www.asus.com after using the MemOK! function.

4. TPU switch

With its two-level adjustment functions, the TPU allows you to automatically adjusts the CPU ratio and clock speed for an optimal system performance.

• Enable this switch when the system is powered off.
• When the TPU switch is set to Enabled (TPU_I: CPU Ratio Boost), the system automatically adjusts the CPU ratio for an enhanced performance.
• When the TPU switch is set to Enabled (TPU_II: CPU BCLK and Ratio Boost), the system automatically adjusts the base clock rate (BLCK) and the CPU ratio for a more enhanced performance.

TPU Disabled (Default) TPU_I Enabled (CPU Ratio Boost) TPU_II Enabled (CPU BCLK and Ratio Boost)

Z97-DELUXE/USB 3.1 TPU switch

• The TPU LED (TPU_LED) near the TPU switch lights up when the TPU switch is enabled. Refer to section 1.2.8 Onboard LEDs for the exact location of the TPU LED.
• If you enable this switch under Windows ^ OS environment, the TPU function will be activated after the next system bootup.

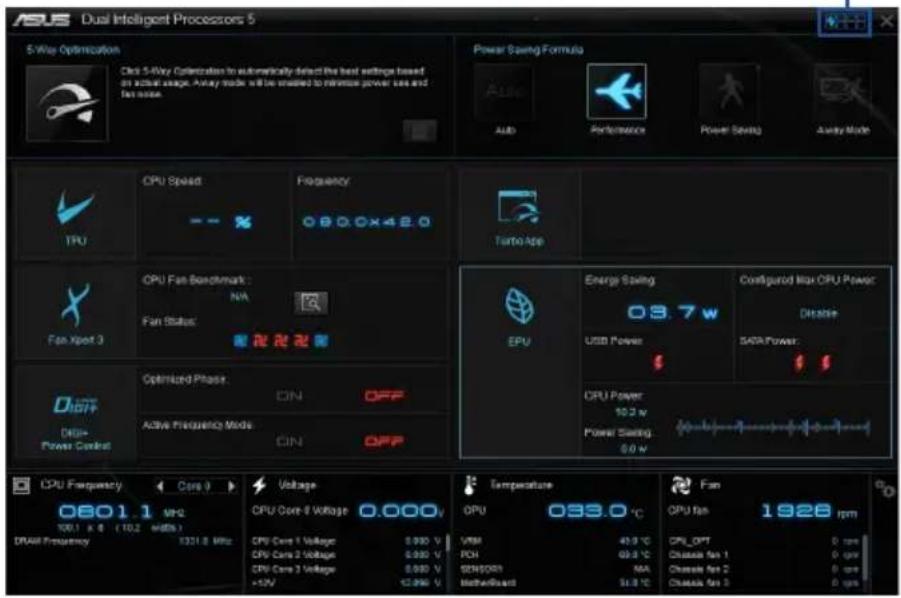

• You may use the 5-Way Optimization and TPU feature in the AI Suite 3 application, adjust the BIOS setup program or enable the TPU switch at the same time. However, the system will use the last setting you have made.

5. EPU switch

Enable this switch to automatically detect the current PC loadings and intelligently moderate the power consumption.

Enable this switch when the system is powered off.

EPU Disabled (Default) Enabled

Z97-DELUXE/USB 3.1 EPU switch

• The EPU LED (OLED2) near the EPU switch lights up when the EPU switch is enabled. Refer to section 1.2.8 Onboard LEDs for the exact location of the EPU LED.
• If you enable this switch under Windows ^ OS environment, the EPU function will be activated after the next system bootup.
• You may change the EPU settings in the software application or BIOS setup program and enable the EPU function at the same time. However, the system will use the last setting you have made.

6. Clear CMOS button (CLR\_CMOS)

Press this button to clear the BIOS setup information only when the systems hangs due to overclocking.

RAMS 297-DELUXE/USB 3.1 CLR_CMOS

Z97-DELUXE/USB 3.1 CLR_CMOS button

7. EZ XMP switch

Enable this switch to overclock the installed DIMMs, allowing you to enhance the DIMM's speed and performance.

EZ_XMP Disabled (Default) Enabled Z97-DELUXE/USB 3.1

1.2.7 Jumpers

1. CPU Over Voltage jumper (3-pin CPU\_OV)

The CPU Over Voltage jumper allows you to set a higher CPU voltage for a flexible overclocking system, depending on the type of the installed CPU. To gain more CPU voltage setting, insert the jumper to pins 2-3. To go back to its default CPU voltage setting, insert the jumper to pins 1-2.

CPU_OV 1 2 Disable (default setting) 2 3 Enable

Z97-DELUXE/USB 3.1 CPU_OV setting

1.2.8 Onboard LEDs

1. POST State LEDs

The POST State LEDs provide the status of these key components during POST (Power-On-Self Test): CPU, memory modules, VGA card, and hard disk drives. If an error is found, the critical component's LED stays lit up until the problem is solved.

DRAM_LED CPU_LED VGA_LED BOOT_DEVICE_LED 207-DELUXE/USB 3.1

Z97-DELUXE/USB 3.1 CPU/ DRAM/ BOOT_DEVICE/ VGA LED

2. TPU LED (TPU\_LED)

The TPU LED lights up when the TPU switch is enabled.

ASUS 297-DELUXE/USB 3.1 TPU_LED

Z97-DELUXE/USB 3.1 TPU LEDs

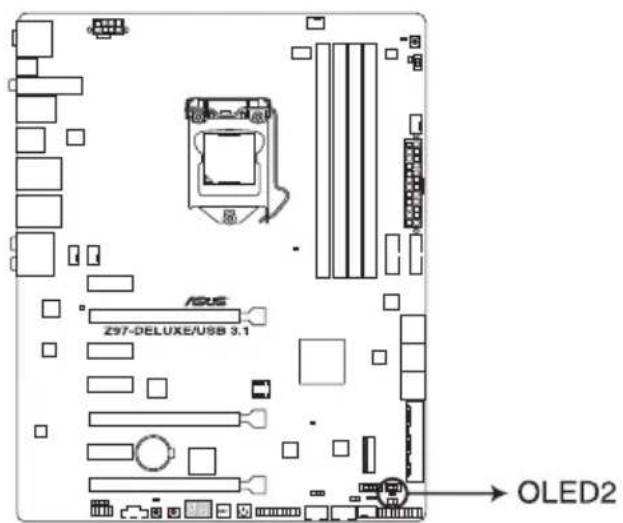

3. EPU LED (OLED2)

The EPU LED lights up when the EPU switch is enabled.

ASUS Z97-DELUXE/USB 3.1 OLED2

Z97-DELUXE/USB 3.1 EPU LED

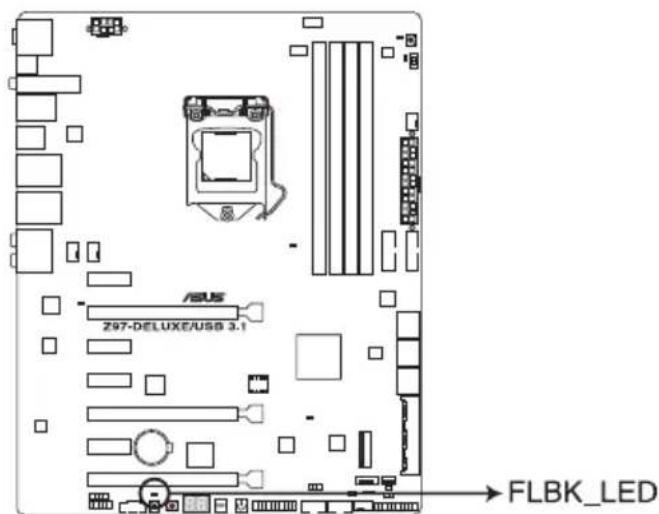

4. USB BIOS Flashback LED (FLBK\_LED)

The BIOS Flashback LED flashes when you press the BIOS Flashback button for BIOS update.

ASUS Z97-DELUXE/USB 3.1 FLBK_LED

Z97-DELUXE/USB 3.1 FLBK_LED

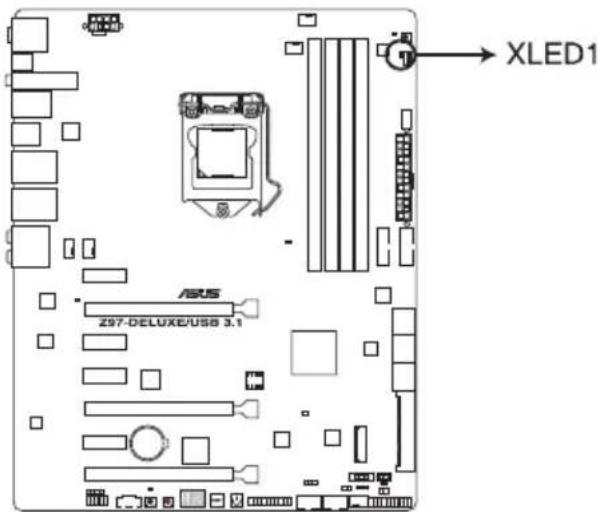

5. EZ XMP LED (XLED1)

This LED lights up when you enable the EZ XMP switch.

XLED1 ASUS Z97-DELUXE/USB 3.1

Z97-DELUXE/USB 3.1 XLED1

6. Q-Code LEDs

The Q-Code LED design provides you with a 2-digit error code that displays the system status. Refer to the Q-Code table on the next page for details.

ASIS 297-DELUXE/USB 3.1 Q_CODE

Z97-DELUXE/USB 3.1 Q-Code LED

Q-Code table

Code Description
00 Not used
01 Power on. Reset type detection (soft/hard).
02 AP initialization before microcode loading
03 System Agent initialization before microcode loading
04 PCH initialization before microcode loading
06 Microcode loading
07 AP initialization after microcode loading
08 System Agent initialization after microcode loading
09 PCH initialization after microcode loading
0B Cache initialization
0C - 0D Reserved for future AMI SEC error codes
0E Microcode not found
0F Microcode not loaded
10 PEI Core is started
11 - 14 Pre-memory CPU initialization is started
15 - 18 Pre-memory System Agent initialization is started
19 - 1C Pre-memory PCH initialization is started
2B - 2F Memory initialization
30 Reserved for ASL (see ASL Status Codes section below)
31 Memory Installed
32 - 36 CPU post-memory initialization
37 - 3A Post-Memory System Agent initialization is started
3B - 3E Post-Memory PCH initialization is started
4F DXE IPL is started
50 - 53	Memory initialization error. Invalid memory type or incompatible memory speed
54 Unspecified memory initialization error
55 Memory not installed
56 Invalid CPU type or Speed
57 CPU mismatch
58 CPU self test failed or possible CPU cache error
59 CPU micro-code is not found or micro-code update is failed
5A Internal CPU error
5B Reset PPI is not available
5C - 5F Reserved for future AMI error codes
E0 S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)
E1 S3 Boot Script execution
E2 Video repost
E3 OS S3 wake vector call
E4 - E7 Reserved for future AMI progress codes
E8 S3 Resume Failed

(continued on the next page)

Code Description

E9 S3 Resume PPI not Found

EA S3 Resume Boot Script Error

EB S3 OS Wake Error

EC - EF Reserved for future AMI error codes

F0 Recovery condition triggered by firmware (Auto recovery)

F1 Recovery condition triggered by user (Forced recovery)

F2 Recovery process started

F3 Recovery firmware image is found

F4 Recovery firmware image is loaded

F5 - F7 Reserved for future AMI progress codes

F8 Recovery PPI is not available

F9 Recovery capsule is not found

FA Invalid recovery capsule

FB - FF Reserved for future AMI error codes

60 DXE Core is started

61 NVRAM initialization

62 Installation of the PCH Runtime Services

63 - 67 CPU DXE initialization is started

68 PCI host bridge initialization

69 System Agent DXE initialization is started

6A System Agent DXE SMM initialization is started

6B - 6F System Agent DXE initialization (System Agent module specific)

70 PCH DXE initialization is started

71 PCH DXE SMM initialization is started

72 PCH devices initialization

73 - 77 PCH DXE Initialization (PCH module specific)

78 ACPI module initialization

79 CSM initialization

7A - 7F Reserved for future AMI DXE codes

90 Boot Device Selection (BDS) phase is started

91 Driver connecting is started

92 PCI Bus initialization is started

93 PCI Bus Hot Plug Controller Initialization

94 PCI Bus Enumeration

95 PCI Bus Request Resources

96 PCI Bus Assign Resources

97 Console Output devices connect

98 Console input devices connect

99 Super IO Initialization

9A USB initialization is started

9B USB Reset

(continued on the next page)

Code Description

9C USB Detect

9D USB Enable

9E - 9F Reserved for future AMI codes

A0 IDE initialization is started

A1 IDE Reset

A2 IDE Detect

A3 IDE Enable

A4 SCSI initialization is started

A5 SCSI Reset

A6 SCSI Detect

A7 SCSI Enable

A8 Setup Verifying Password

A9 Start of Setup

AA Reserved for ASL (see ASL Status Codes section below)

AB Setup Input Wait

AC Reserved for ASL (see ASL Status Codes section below)

AD Ready To Boot event

AE Legacy Boot event

AF Exit Boot Services event

B0 Runtime Set Virtual Address MAP Begin

B1 Runtime Set Virtual Address MAP End

B2 Legacy Option ROM Initialization

B3 System Reset

B4 USB hot plug

B5 PCI bus hot plug

B6 Clean-up of NVRAM

B7 Configuration Reset (reset of NVRAM settings)

B8-BF Reserved for future AMI codes

DO CPU initialization error

D1 System Agent initialization error

D2 PCH initialization error

D3 Some of the Architectural Protocols are not available

D4 PCI resource allocation error. Out of Resources

D5 No Space for Legacy Option ROM

D6 No Console Output Devices are found

D7 No Console Input Devices are found

D8 Invalid password

D9 Error loading Boot Option (LoadImage returned error)

DA Boot Option is failed (StartImage returned error)

DB Flash update is failed

DC Reset protocol is not available

ACPI/ASL Checkpoints (under OS)

Code Description
03 System	is entering S3 sleep state
04 System	is entering S4 sleep state
05 System	is entering S5 sleep state
30 System	is waking up from the S3 sleep state
40 System	is waking up from the S4 sleep state
AC System	has transitioned into ACPI mode. Interrupt controller is in PIC mode.
AA System	has transitioned into ACPI mode. Interrupt controller is in APIC mode.

1.2.9 Internal connectors

1. Intel® Z97 Serial ATA 6 Gb/s connectors (7-pin SATA6G\_12, SATA6G\_34, SATA6G\_56/SATAEXPRESS\_1)

These connectors connect to Serial ATA 6 Gb/s hard disk drives via Serial ATA 6 Gb/s signal cables.

If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10 configuration with the Intel® Rapid Storage Technology through the onboard Intel® Z97 chipset.

ASUS 297-DELUXE/USB 3.1 A B

A SATA6G_1 GND RSATA_TXP1 GND RSATA_TXN1 GND RSATA_RXN1 GND RSATA_RXP1 GND SATA6G_2 GND RSATA_TXP2 GND RSATA_TXN2 GND RSATA_RXN2 GND RSATA_RXP2 GND SATA6G_3 GND RSATA_TXP3 GND RSATA_TXN3 GND RSATA_RXN3 GND RSATA_RXP3 GND SATA6G_4 GND RSATA_TXP4 GND RSATA_TXN4 GND RSATA_RXN4 GND RSATA_RXP4 GND

B SATA6G_5 SATA6G_6 GND RSATA_TXP5 RSATA_TXN5 GND RSATA_RXN5 RSATA_RXP5 GND GND RSATA_TXP6 RSATA_TXN6 GND RSATA_RXN6 RSATA_RXP6 GND Floating Device_Reset GND Detection SATAEXPRESS_1

Z97-DELUXE/USB 3.1 Intel® SATA 6 Gb/s connectors

right-angle side NO SA Yo sid po hu

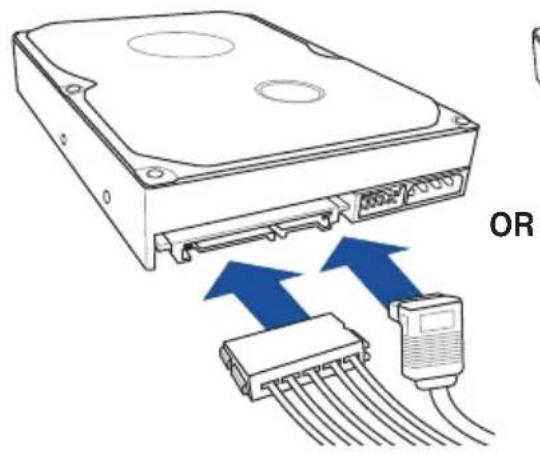

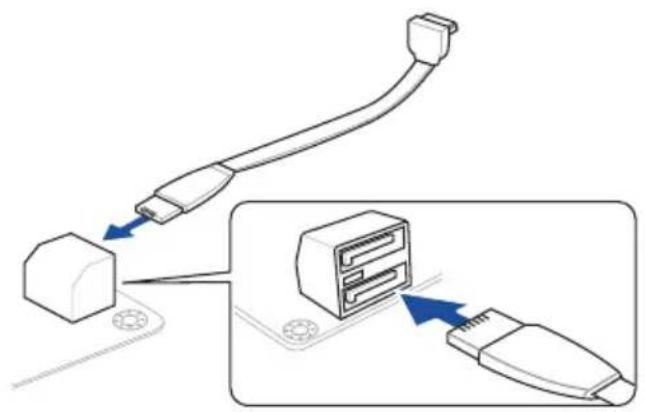

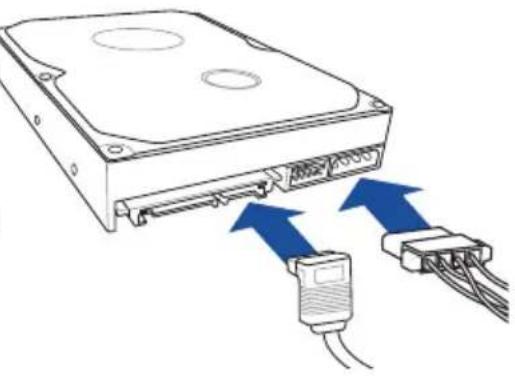

NOTE: Connect the right-angle side of SATA signal cable to SATA device. You may also connect the right-angle side of SATA cable to the onboard SATA port to avoid mechanical conflict with huge graphics cards.

• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID Mode]. Refer to section 3.6.3 PCH Storage Configuration for details.

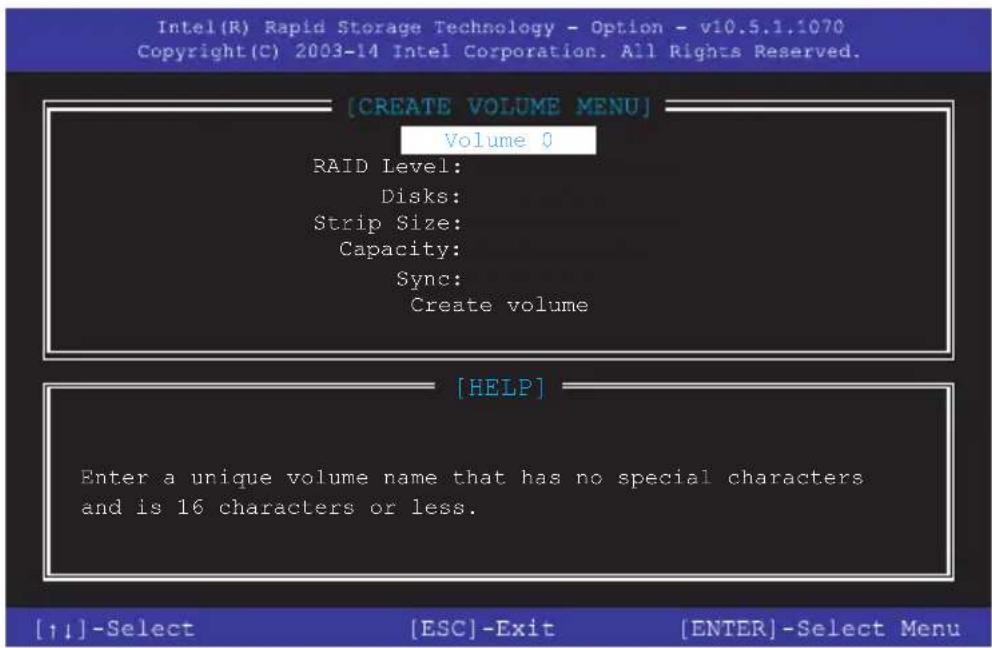

• Before creating a RAID set, refer to section 5.1 RAID configurations or the manual bundled in the motherboard support DVD.

• The M.2 Socket 3 and SATAEXPRESS_1 connectors share the same PCIe x2 bandwidth. When you use both connectors, the system automatically detects the devices connected to these connectors and set a higher priority to M.2 Socket 3 than SATAEXPRESS_1 interface. Refer to section 3.6.3 PCH Storage Configuration of this user guide for more details.
• The SATAEXPRESS_1 connector can support one SATA Express device or two SATA devices.

2. ASMedia ^® Serial ATA 6 Gb/s connectors (7-pin SATA6G\_E12, SATA6G\_E34/SATAEXPRESS\_E1)

These connectors connect to Serial ATA 6 Gb/s hard disk drives via Serial ATA 6 Gb/s signal cables.

A SATA6G_E1 SATA6G_E2 B SATA6G_E4 GND GND RSATA_TXP1 RSATA_TXP2 RSATA_TXN1 RSATA_TXN2 GND GND RSATA_RXN1 RSATA_RXN2 RSATA_RXP1 RSATA_RXP2 GND GND A B SATAEXPRESS_E1 ADUS Z97-DELUXE/USB 3.1

Z97-DELUXE/USB 3.1 ASMedia® SATA 6 Gb/s connectors

• ASMedia storage controller can only support AHCI mode.
  • These SATA ports are for data drives only.
• The SATAEXPRESS_E1 connector can support one SATA Express device or two SATA devices.

3. Digital audio connector (4-1 pin SPDIF\_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect the S/PDIF Out module cable to this connector, then install the module to a slot opening at the back of the system chassis.

SPDIF_OUT +5V SPDIFOUT GND Z97-DELUXE/USB 3.1

Z97-DELUXE/USB 3.1 Digital audio connector

The S/PDIF module is purchased separately.

4. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.

AAFP GND PRESENCE# SENSE1_RETUR SENSE2_RETUR PIN 1 PORT1L PORT1R PORT2R SENSE_SEND PORT2L HD-audio-compliant pin definition Legacy AC'97 compliant definition

Z97-DELUXE/USB 3.1 Analog front panel connector

• We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high-definition audio capability.
• If you want to connect a high-definition or an AC'97 front panel audio module to this connector, set the Front Panel Type item in the BIOS setup to [HD] or [AC97].

5. T\_Sensor connector (2-pin T\_SENSOR1)

This connector is for the thermistor cable that allows you to monitor the temperature of your motherboard's critical components and connected devices.

T_SENSOR1 GND PIN 1 SENSOR IN

Z97-DELUXE/USB 3.1 T_SENSOR connector

The thermistor cable is purchased separately.

6. USB 3.0 connectors (20-1 pin USB3\_E12, USB3\_E34)

These connectors allow you to connect a USB 3.0 module for additional USB 3.0 front or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benefits of USB 3.0 including faster data transfer speeds of up to 5 Gb/s, faster charging time for USB-chargeable devices, optimized power efficiency, and backward compatibility with USB 2.0.

The USB 3.0 module is purchased separately.

• These connectors are based on xHCI specification. We recommend you to install the related driver to fully use the USB 3.0 ports under Windows® 7.
• The plugged USB 3.0 device may run on xHCI or EHCI mode depending on the operating system's setting.
• These USB 3.0 ports support native UASP transfer standard in Windows ^® 8 / Windows ^® 8.1 and Turbo Mode when using USB 3.0 Boost feature.

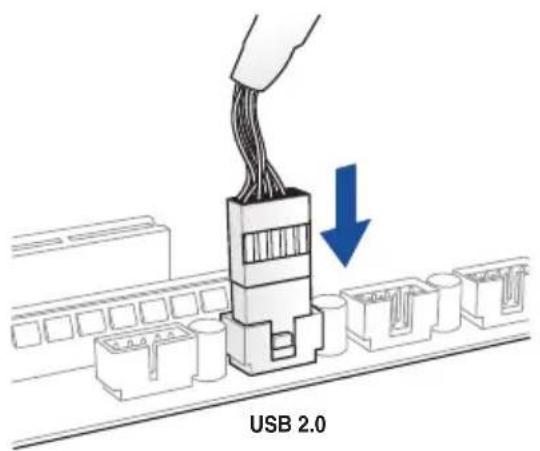

7. USB 2.0 connectors (10-1 pin USB1112; USB1314)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 48 Mb/s connection speed.

USB1112 USB1314 297-DELUXE/USB 3.1 USB+5V USB_P11- USB_P11+ GND NC USB+5V USB_P12- USB_P12+ GND PN1 USB+5V USB_P13- USB_P13+ GND NC

Z97-DELUXE/USB 3.1 USB2.0 connectors

DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

You can connect the front panel USB cable to the ASUS Q-Connector (USB) first, and then install the Q-Connector (USB) to the USB connector onboard if your chassis supports front panel USB ports.

The USB 2.0 module is purchased separately.

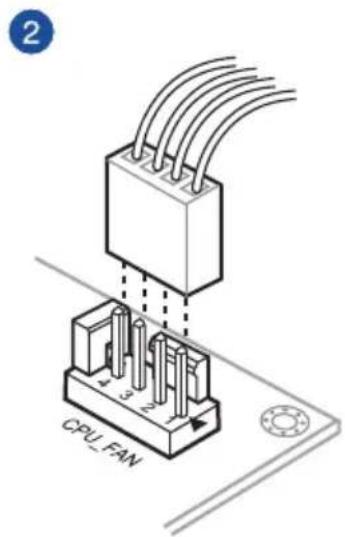

8. CPU, CPU optional, and chassis fan connectors

(4-pin CPU\_FAN; 4-pin CPU\_OPT; 4-pin CHA\_FAN1-4)

Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

• DO NOT forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors!
• Ensure that the CPU fan cable is securely installed to the CPU fan connector.

A B C D E F ASUS ZBT-DELUX/USB 3.1

A CPU_FAN

B CPU_OPT

CHA_FAN4

Z97-DELUXE/USB 3.1 Fan connectors
CHA_FAN1

CHA_FAN2

CHA_FAN3

• The CPU_FAN connector supports the CPU fan of maximum 1A (12 W) fan power.
• The CPU_FAN connector and CHA_FAN connectors support the ASUS FAN Xpert 3 feature.
• The CPU fan connector detects the type of CPU fan installed and automatically switches the control modes. To configure the CPU fan's control mode, go to Advanced Mode > Monitor > CPU Q-Fan Control item in BIOS.
• The chassis fan connectors support DC and PWM modes. To set these fans to DC or PWM, go to Advanced Mode > Monitor > Chassis Fan 1/4 Q-Fan Control items in BIOS.

9. ATX power connectors (24-pin EATXPWR; 8-pin EATX12V)

These connectors are for ATX power supply plugs. The power supply plugs are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.

A B RUS 297 DELUXE/USB 3.1

EATX12V

B EATXPWR

+3 Volts +12 Volts +12 Volts +5V Standby Power OK GND +5 Volts GND +5 Volts GND +5 Volts GND +3 Volts +3 Volts GND +5 Volts GND +5 Volts GND +12 Volts +3 Volts GND +5 Volts GND +5 Volts GND +5 Volts GND +5 Volts GND +5 Volts GND +5 Volts GND +5 Volts GND +5 Volts GND +5 Volts GND +5 Volts GND +5 Volts GND +5 Volts GND +5 Volts FLOATING

Z97-DELUXE/USB 3.1 ATX power connectors

• For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12 V Specification 2.0 (or later version) and provides a minimum power of 350 W.
• DO NOT forget to connect the 4-pin/8-pin EATX12 V power plug. Otherwise, the system will not boot.
• We recommend that you use a PSU with a higher power output when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.
• If you want to use two or more high-end PCI Express x16 cards, use a PSU with 1000W power or above to ensure the system stability.
• If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support.asus.com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

10. System panel connector (20-8 pin PANEL)

This connector supports several chassis-mounted functions.

ASUS ZBT DELUXEUSB 3.1 PANEL PLED+ PLED- +5V Ground Ground Speaker- PIN1 HDD_LED+ HDD_LED- PWR Ground Reset Ground PLED+ PLED- SPEAKER HDD_LED- PWRSW RESET

Z97-DELUXE/USB 3.1 System panel connector

• System power LED (2-pin PLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

• Hard disk drive activity LED (2-pin HDD\_LED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The HDD LED lights up or flashes when data is read from or written to the HDD.

• System warning speaker (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

• ATX power button/soft-off button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the operating system settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF.

- Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

11. TPM connector (20-1 pin TPM)

This connector supports a Trusted Platform Module (TPM) system, which securely store keys, digital certificates, passwords and data. A TPM system also helps enhance network security, protect digital identities, and ensures platform integrity.

ASRS 297-DELUXE/USB 3.1 TPM LPCPD# GND +3VSB NC LAD0 +3V LAD3# LREST# LFRAME# LCLK PIN 1 NC CLKRUN# SERIRQ NC GND LAD1 LAD2 NC GND

Z97-DELUXE/USB 3.1 TPM connector

The TPM module is purchased separately.

12. DirectKey connector (2-pin DRCT)

This connector is for the chassis-mounted button that supports the DirectKey function. Connect the button cable that supports DirectKey, from the chassis to this connector on the motherboard.

ASUS 297-DELUXE/USB 3.1 DRCT DRCT GND PIN 1

Z97-DELUXE/USB 3.1 DRCT connector

Ensure that your chassis comes with the extra button cable that supports the DirectKey feature. Refer to the technical documentation that came with the chassis for details.

13. Thunderbolt header (5-pin TB\_HEADER)

This connector is for the add-on Thunderbolt I/O card that supports Intel's Thunderbolt Technology, allowing you to connect up to six Thunderbolt-enabled devices and a DisplayPort-enabled display in a daisy-chain configuration.

Z97-DELUXE/USB 3.1 TB_HEADER connector TB_HEADER GND Platform Sequence Control Platform Sequence Control Plug Event Power

The add-on Thunderbolt I/O card and Thunderbolt cables are purchased separately.

14. M.2 socket 3

This socket allows you to install an M.2 (NGFF) SSD module.

M.2(SOCKET3) ASLS Z97-DELUXE/USB 3.1

Z97-DELUXE/USB 3.1 M.2(SOCKET3)

• This socket supports M Key and type 2260/2280 storage devices.
• The M.2 Socket 3 shares bandwidth with SATAEXPRESS_1. Refer to section 3.6.3 PCH Storage Configuration of this user guide for more details.
• When using Intel ^ Desktop Responsiveness technologies with PCIe M.2 device, ensure to set up the Windows ^ UEFI operating system under RAID mode.

The M.2 (NGFF) SSD module is purchased separately.

Basic installation

2

2.1 Building your PC system

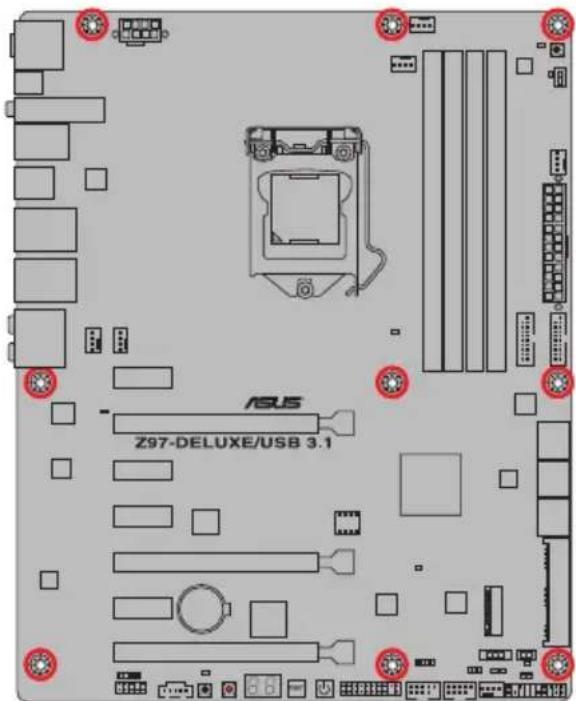

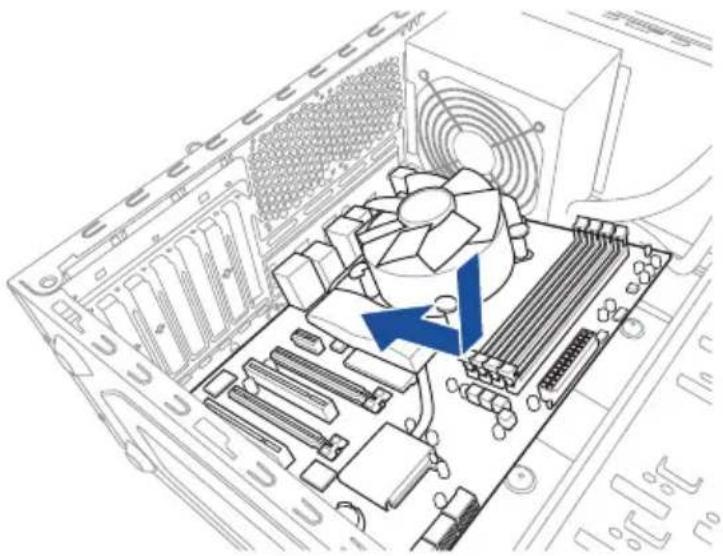

2.1.1 Motherboard installation

The diagrams in this section are for reference only. The motherboard layout may vary with models, but the installation steps are the same for all models.

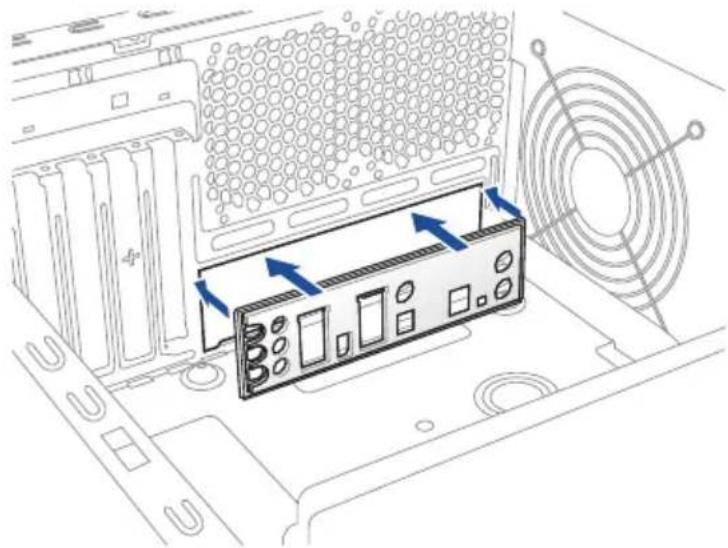

1. Install the ASUS Q-Shield to the chassis rear I/O panel.

Diagram of a computer tower rack with ventilation ducts and fan array (no text or symbols)

1. Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to the chassis' rear I/O panel.

Diagram of a computer motherboard showing CPU socket, fan, and drive mechanism (no text or labels)

1. Place nine screws into the holes indicated by circles to secure the motherboard to the chassis.

Technical line drawing of a computer motherboard with CPU socket and screwdriver (no text or symbols)

ASUS Z97-DELUXE/USB 3.1

DO NOT overtighten the screws! Doing so can damage the motherboard.

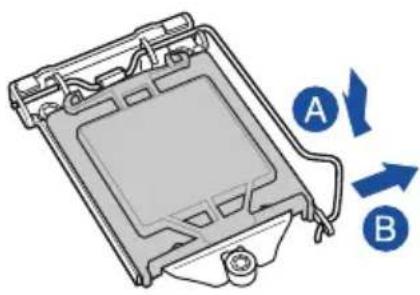

2.1.2 CPU installation

Ensure that you install the correct CPU designed for LGA1150 socket only. DO NOT install a CPU designed for LGA1155 and LGA1156 sockets on the LGA1150 socket.

Hand holding a device with a red X mark, no visible text or symbols

1

Diagram of a device with labeled components A and B, showing internal wiring and a central screen (no text or symbols beyond labels)

2

3

Diagram of a computer case with an open case and a blue arrow indicating a component (no text or symbols present)

4 A C B

5

Technical illustration of a computer processor casing with an arrow indicating rotation (no text or symbols present)

2.1.3 CPU heatsink and fan assembly installation

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

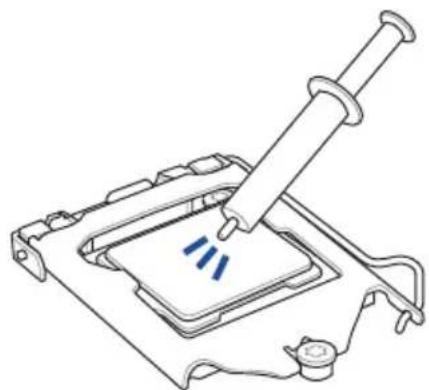

Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan, if necessary.

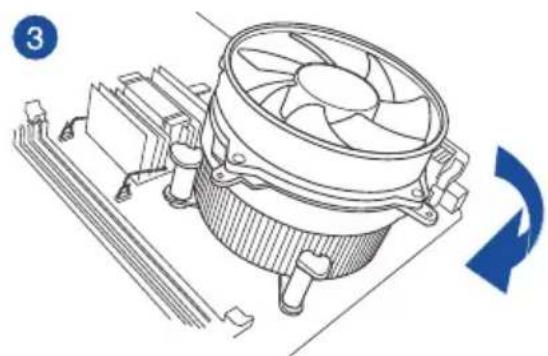

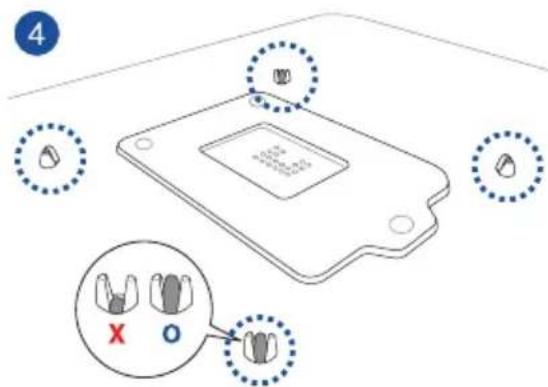

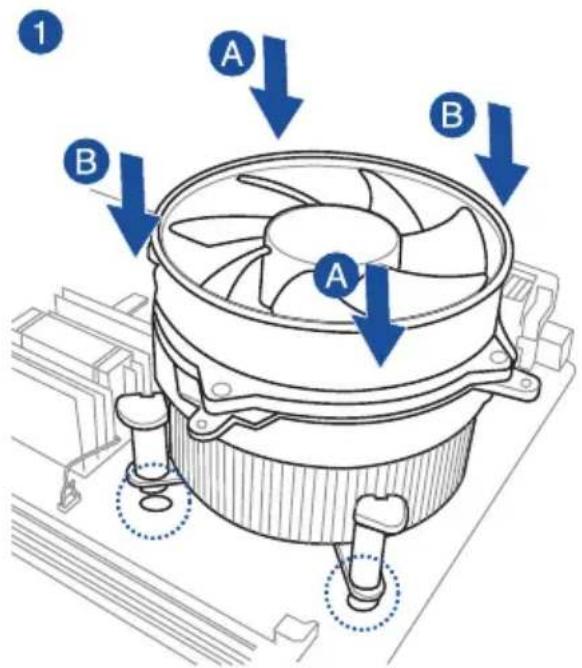

To install the CPU heatsink and fan assembly

1 A B A B

2 CPU_FAN

Technical line drawing of a CPU fan with cooling fins and heat exchangers, showing mechanical assembly (no text or symbols)

4 10.00 10.00 10.00 10.00 X O

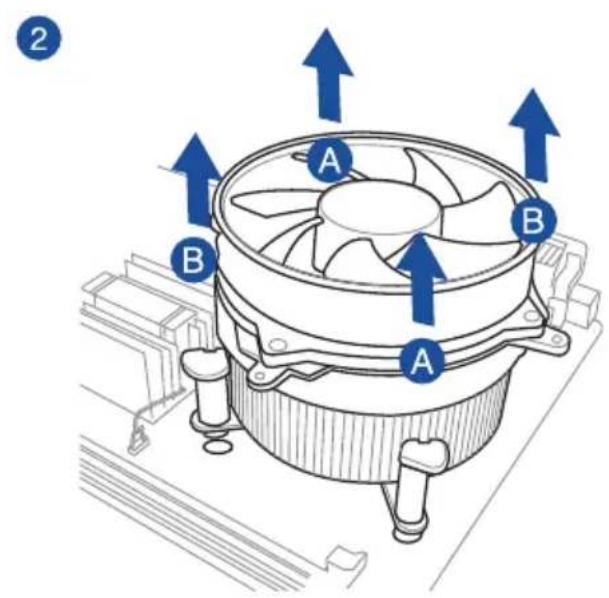

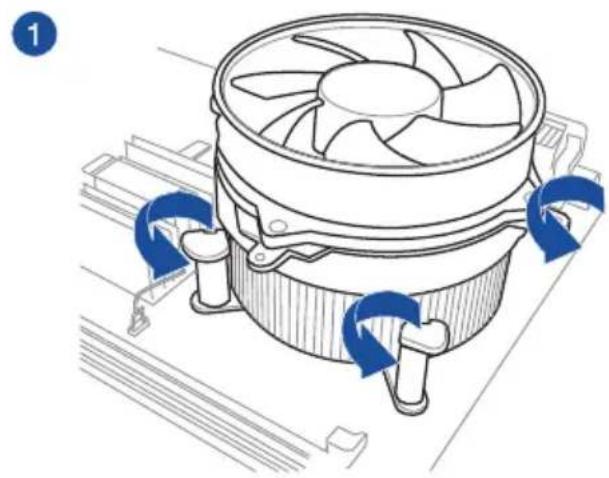

To uninstall the CPU heatsink and fan assembly

Diagram of a CPU fan with blue arrows indicating rotation or cooling mechanism (no text or symbols present)

2 A B A B

2.1.4 DIMM installation

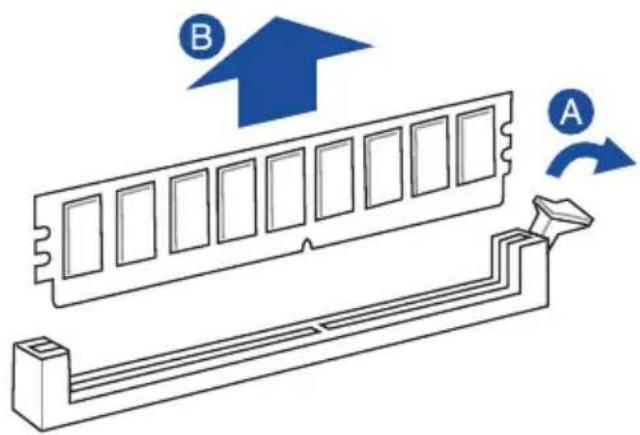

To remove a DIMM

Diagram of a computer RAM module with two labeled arrows (A and B) indicating directional flow or movement, no text or symbols present.

2.1.5 ATX Power connection

Diagram showing two stages of a connector assembly: top-down view with cable routing and bottom view with grid-like structure (no text or symbols)

2 OR OR

2.1.6 SATA device connection

1

OR

Diagram of an internal hard drive connected to two external cables, showing bidirectional cable routing (no text or symbols present)

2

Diagram showing two connected USB connectors with a connector pin, illustrating internal connection (no text or symbols)

OR

Diagram of a cable connector with a blue arrow indicating assembly or insertion (no text or symbols present)

2.1.7 Front I/O Connector

To install ASUS Q-Connector

To install USB 2.0 connector To install front panel audio connector

USB 2.0

AAFP

To install USB 3.0 connector

USB 3.0

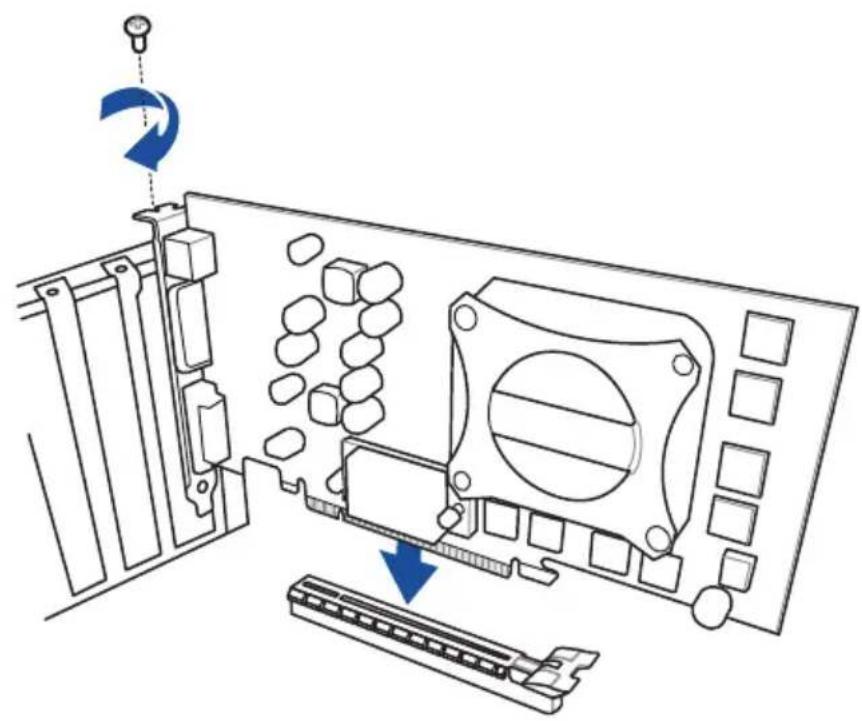

2.1.8 Expansion Card installation

To install PCIe x16 cards

Technical diagram of a computer monitor internal structure with no visible text or symbols

To install PCIe x1 cards

Diagram of a computer monitor with labeled ports and directional arrows indicating motion (no text or symbols present)

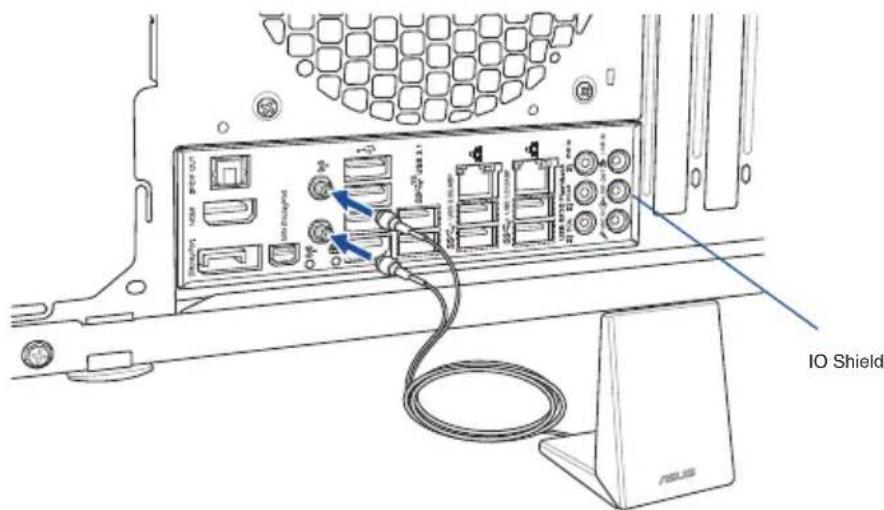

2.1.9 Wi-Fi antenna installation

Installing the ASUS 2T2R dual band W-Fi antenna

Connect the bundled ASUS 2T2R dual band Wi-Fi antenna connector to the Wi-Fi ports at the back of the chassis.

IO Shield

• Ensure that the ASUS 2T2R dual band Wi-Fi antenna is securely installed to the Wi-Fi ports.
• Ensure to install the Bluetooth driver before installing the Wi-Fi GO! software.

The illustration above is for reference only. The I/O port layout may vary with models, but the Wi-Fi antenna installation procedure is the same for all models.

2.2 BIOS update utility

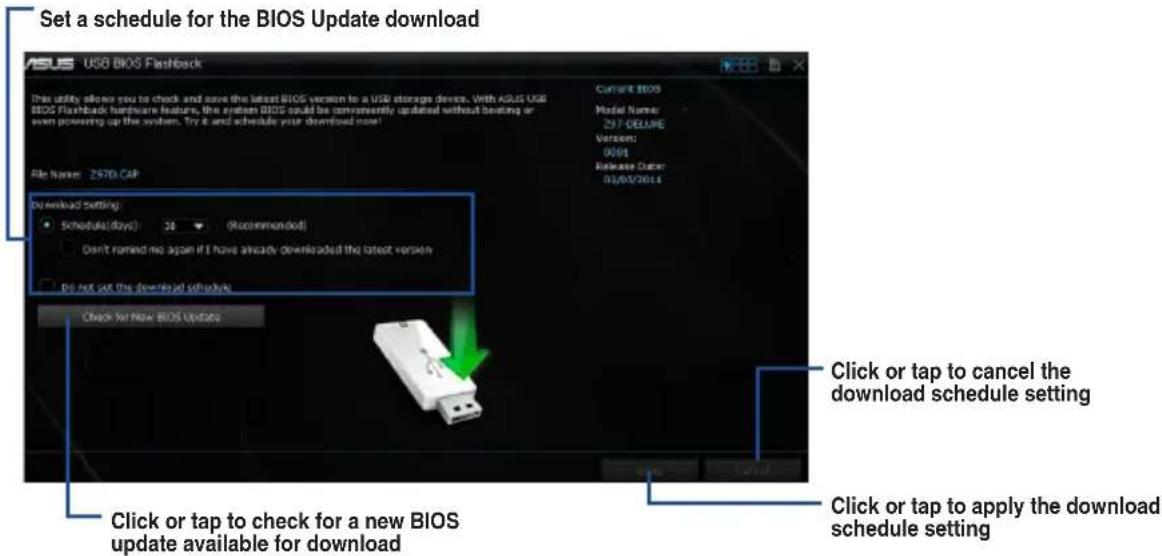

USB BIOS Flashback

USB BIOS Flashback allows you to easily update the BIOS without entering the existing BIOS or operating system. Simply insert a USB storage device to the USB port (the USB port hole marked in green on the I/O shield) then press the USB BIOS Flashback button for three seconds to automatically update the BIOS.

To use USB BIOS Flashback:

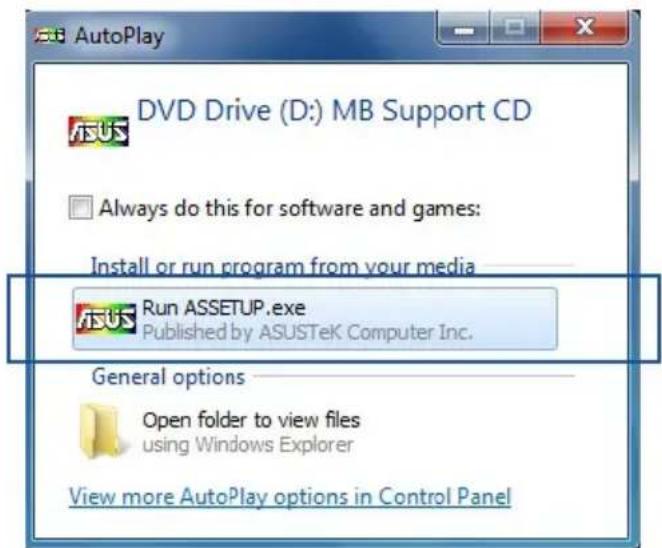

1. Place the bundled support DVD to the optical drive and install the USB BIOS Flashback Wizard. Follow the onscreen instructions to complete the installation.

2. Insert the USB storage device to the USB Flashback port.

- We recommend you to use a USB 2.0 storage device to save the latest BIOS version for better compatibility and stability.

- Refer to section 2.3.1 Rear I/O connection for the location of the USB port that supports USB BIOS Flashback.

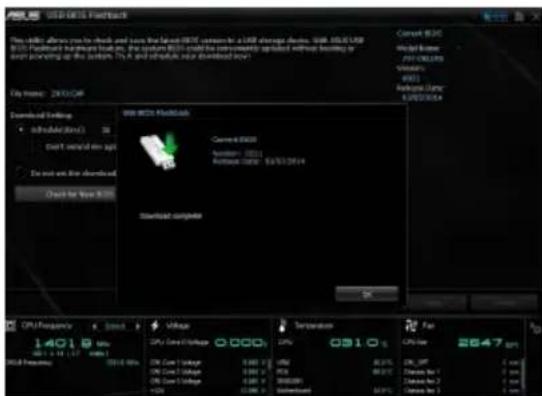

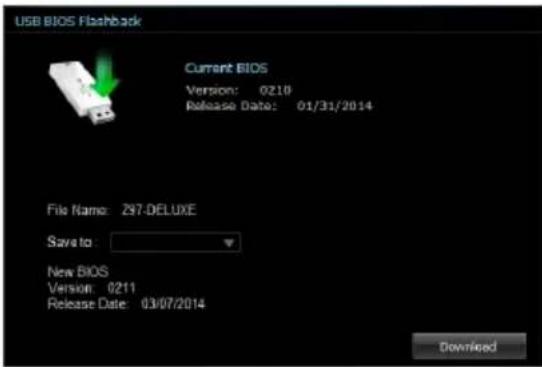

1. Launch the USB BIOS Flashback Wizard to automatically download the latest BIOS version.

2. Shut down your computer.

3. On your motherboard, press the BIOS Flashback button for three seconds until the Flashback LED blinks three times, indicating that the BIOS Flashback function is enabled.

Z97-DELUXE/USB 3.1 BIOS_FLBK button

Refer to section 1.2.7 Onboard LEDs for more information of the Flashback LED.

1. Wait until the light goes out, indicating that the BIOS updating process is completed.

For more BIOS update utilities in BIOS setup, refer to the section 3.11 Updating BIOS in Chapter 3.

• Do not unplug portable disk, power system, or press the CLR_CMOS button while BIOS update is ongoing, otherwise update will be interrupted. In case of interruption, please follow the steps again.
• If the light flashes for five seconds and turns into a solid light, this means that the BIOS Flashback is not operating properly. This may be caused by improper installation of the USB storage device and filename/file format error. If this scenario happens, please restart the system to turn off the light.
• Updating BIOS may have risks. If the BIOS program is damaged during the process and results to the system's failure to boot up, please contact your local ASUS Service Center.

2.3 Motherboard rear and audio connections

2.3.1 Rear I/O connection

Diagram showing the hierarchical structure of computer hardware and equipment, labeled with numbered components from top to bottom.

Rear panel connectors

1.	Optical S/PDIF Out port	7.	Mini DisplayPort
2.	HDMI port	8.	Wi-Fi 802.11 a/b/g/n/ac, Bluetooth V4.0*
3.	USB 2.0 ports 7-10	9.	USB 3.1 ports E12 (supports USB 3.1 Boost).
4.	Intel® LAN port (LAN2)**	10.	USB 3.0 ports 56, support ASUS USB 3.0 Boost Turbo Mode.
5.	Intel® LAN port (LAN1)**	11.	USB 3.0 ports 34, Bottom port supports USB BIOS Flashback and USB Charger+.
6.	DisplayPort	12.	Audio I/O ports***

*, ** and ***: Refer to the tables on the next page for Bluetooth/Wi-Fi module LEDs, LAN port LEDs, and audio port definitions.

• The plugged USB 3.0 device may run on xHCI mode or EHCI mode, depending on the operating system's setting.
  • USB 3.0 devices can only be used as data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and better performance for your USB 3.0 devices.
• Due to the design of the Intel ^ 9 series chipset, all USB devices connected to the USB 2.0 and USB 3.0 ports are controlled by the xHCI controller. Some legacy USB devices must update their firmware for better compatibility.
• Multi-VGA output supports up to three displays under Windows ^ OS environment, two displays under BIOS, and one display under DOS.
• Intel display architecture design supports the following maximum supported pixel clocks (Pixel Clock = H total x V Total x Frame Rate (Fresh screen rate)):

- DisplayPort / Mini DisplayPort: 533 MHz

- HDMI port: 300 MHz

\*Bluetooth and Wi-Fi module LED indications

Wi-Fi LED Bluetooth LED
Status Description Status Description
Off No link	Off No link
Green Linked	Blue	Linked
		Blinking	Data activity

Wi-Fi LED Bluetooth LED Wi-Fi 802.11 a/b/g/n/ac, Bluetooth v4.0

* The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such mark by ASUSTeK Computer Inc. is under license. Other trademarks and trade names are those of their respective owners.

\*\* LAN ports LED indications

Activity Link LED Speed LED
Status Description Status Description
Off	No link Off 10 Mbps connection
Orange	Linked Orange 100	Mbps connection
Orange (Blinking)	Data activity Green	1 Gbps connection
Orange (Blinking then steady)	Ready to wake up from S5 mode

ACT/LINK LED SPEED LED LAN port

You can disable the LAN controllers in BIOS. Due to hardware design, the LAN1 port's LEDs may continue to blink even when disabled.

*** Audio 2, 4, 6, or 8-channel configuration

Port Headset	2-channel	4-channel	6-channel	8-channel
Light Blue	Line In Line In		Line In	Line In
Lime Line Out	Front Speaker Out		Front Speaker Out	Front Speaker Out
Pink Mic In	Mic In		Mic In	Mic In
Orange --			Center/Subwoofer	Center/Subwoofer
Black - Rear	Speaker Out		Rear Speaker Out	Rear Speaker Out
Gray --			Side Speaker Out*	Side Speaker Out

* For Windows® 8.1 only

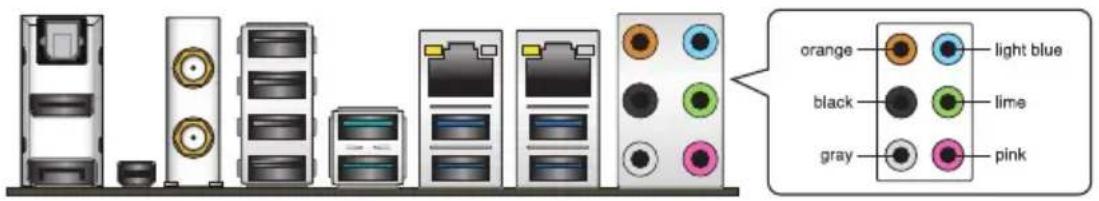

2.3.2 Audio I/O connections

Audio I/O ports

orange light blue black lime gray pink

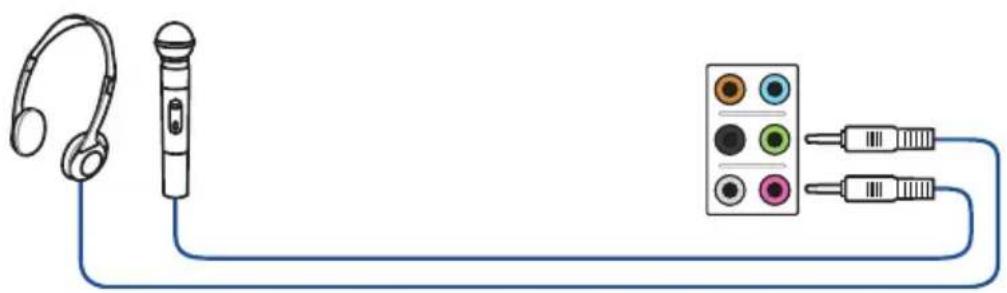

Connect to Headphone and Mic

Diagram showing audio recording setup with headphones, a microphone, and three connected cables (no text or labels)

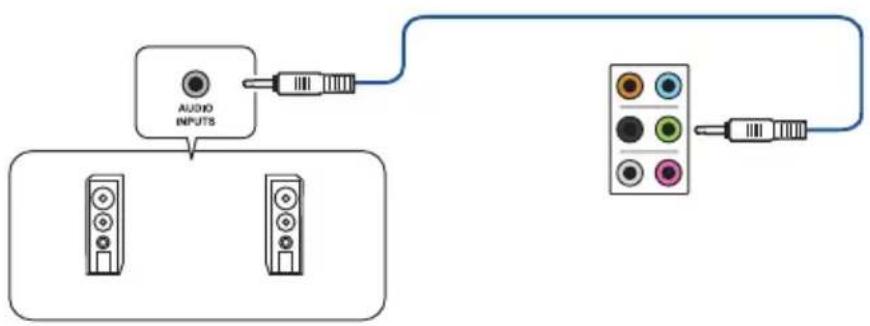

Connect to Stereo Speakers


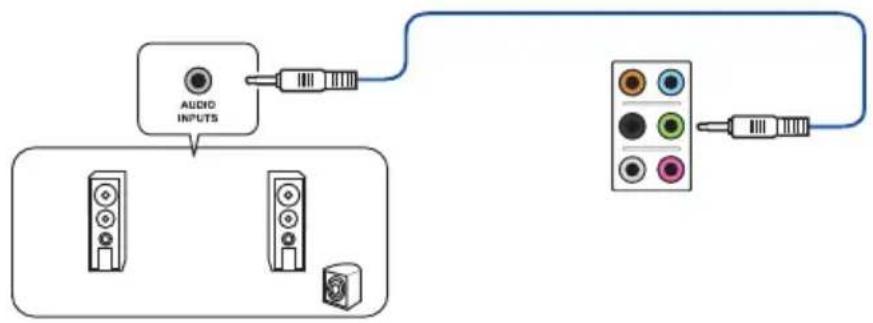

Connect to 2.1 channel Speakers

Connect to 4.1 channel Speakers


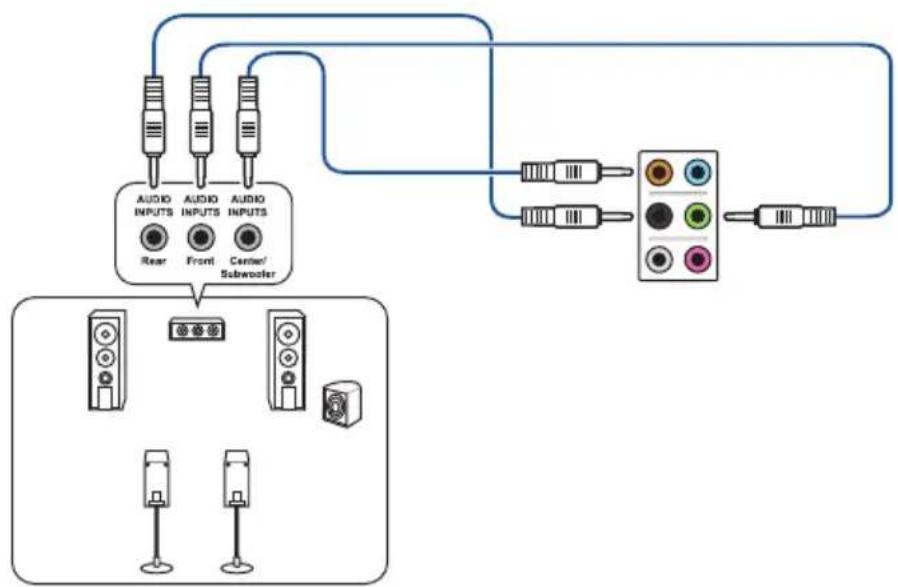

Connect to 5.1 channel Speakers

If you are using Windows 8.1 platform, use only the gray audio port for Side Speaker Out in a 6-channel configuration.

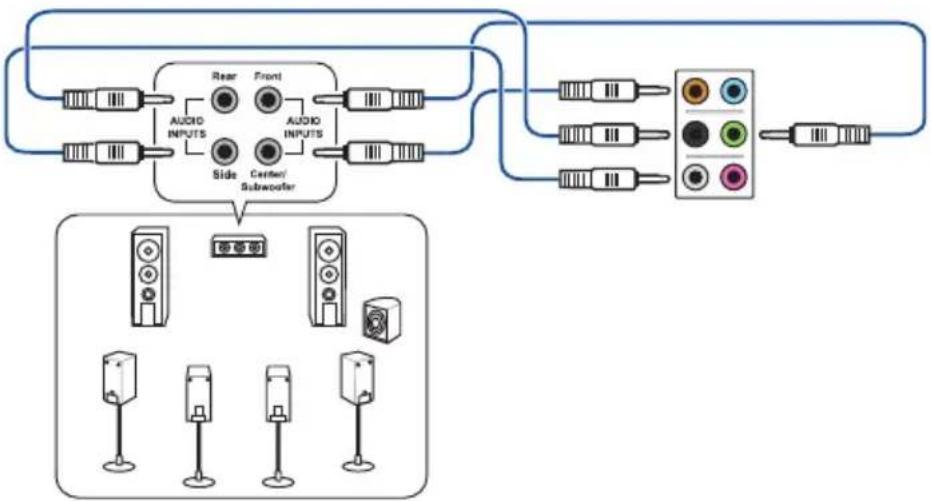

Connect to 7.1 channel Speakers

When the DTS UltraPC II function is enabled, ensure to connect the rear speaker to the gray port.

2.4 Starting up for the first time

1. After making all the connections, replace the system case cover.
2. Ensure that all switches are off.
3. Connect the power cord to the power connector at the back of the system chassis.
4. Connect the power cord to a power outlet that is equipped with a surge protector.
5. Turn on the devices in the following order:

a. Monitor

b. External SCSI devices (starting with the last device on the chain)

c. System power

1. After applying power, the system power LED on the system front panel case lights up. For systems with ATX power supplies, the system LED lights up when you press the ATX power button. If your monitor complies with the "green" standards or if it has a "power standby" feature, the monitor LED may light up or change from orange to green after the system LED turns on.

The system then runs the power-on self tests (POST). While the tests are running, the BIOS beeps (refer to the BIOS beep codes table) or additional messages appear on the screen. If you do not see anything within 30 seconds from the time you turned on the power, the system may have failed a power-on test. Check the jumper settings and connections or call your retailer for assistance.

BIOS Beep Description
One short beep VGA detected	Quick boot set to disabledNo keyboard detected
One continuous beep followed by two short beeps then a pause (repeated)	No memory detected
One continuous beep followed by three short beeps	No VGA detected
One continuous beep followed by four short beeps	Hardware component failure

1. At power on, hold down the key to enter the BIOS Setup. Follow the instructions in Chapter 3.

2.5 Turning off the computer

While the system is ON, press the power button for less than four seconds to put the system on sleep mode or soft-off mode, depending on the BIOS setting. Press the power switch for more than four seconds to let the system enter the soft-off mode regardless of the BIOS setting.

BIOS setup

3.1 Knowing BIOS

The new ASUS UEFI BIOS is a Unified Extensible Interface that complies with UEFI architecture, offering a user-friendly interface that goes beyond the traditional keyboard-only BIOS controls to enable a more flexible and convenient mouse input. You can easily navigate the new UEFI BIOS with the same smoothness as your operating system. The term “BIOS” in this user manual refers to “UEFI BIOS” unless otherwise specified.

BIOS (Basic Input and Output System) stores system hardware settings such as storage device configuration, overclocking settings, advanced power management, and boot device configuration that are needed for system startup in the motherboard CMOS. In normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. DO NOT change the default BIOS settings except in the following circumstances:

• An error message appears on the screen during the system bootup and requests you to run the BIOS Setup.
• You have installed a new system component that requires further BIOS settings or update.

Inappropriate BIOS settings may result to instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.

When downloading or updating the BIOS file, rename it as Z97DU31.CAP for this motherboard.

3.2 BIOS setup program

Use the BIOS Setup to update the BIOS or configure its parameters. The BIOS screen include navigation keys and brief onscreen help to guide you in using the BIOS Setup program.

Entering BIOS at startup

To enter BIOS Setup at startup, press during the Power-On Self Test (POST). If you do not press , POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

• Press ++ simultaneously.
• Press the reset button on the system chassis.
• Press the power button to turn the system off then back on. Do this option only if you failed to enter BIOS Setup using the first two options.

After doing either of the three options, press key to enter BIOS.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.
• Ensure that a USB mouse is connected to your motherboard if you want to use the mouse to control the BIOS setup program.
• If the system becomes unstable after changing any BIOS setting, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey . See section 3.10 Exit Menu for details.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value. See section 1.2.6 Onboard buttons and switches for information on how to erase the RTC RAM via the Clear CMOS button.
• The BIOS setup program does not support the Bluetooth devices.

BIOS menu screen

The BIOS Setup program can be used under two modes: EZ Mode and Advanced Mode. You can change modes from the Exit menu or from the Exit/Advanced Mode screen.

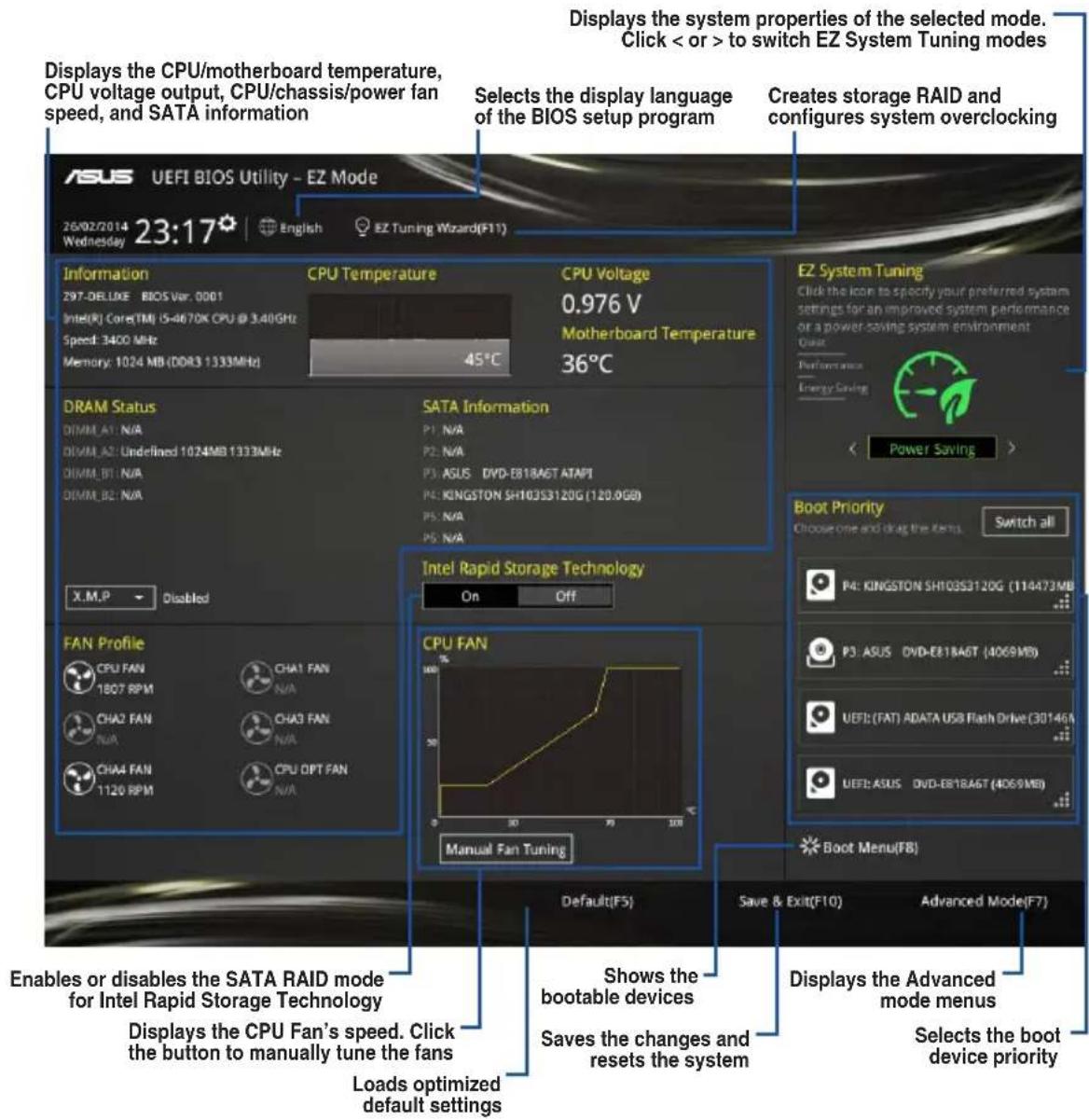

3.2.1 EZ Mode

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ Mode provides you an overview of the basic system information, and allows you to select the display language, system performance mode and boot device priority. To access the Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode or press hot key for the advanced BIOS settings.

The default screen for entering the BIOS setup program can be changed between EZ Mode or Advanced Mode. Refer to the Setup Mode item in section 3.8 Boot menu for details.

Displays the system properties of the selected mode. Click < or > to switch EZ System Tuning modes Displays the CPU/motherboard temperature, CPU voltage output, CPU/chassis/power fan speed, and SATA information Selects the display language of the BIOS setup program Creates storage RAID and configures system overclocking ASUS UEFI BIOS Utility - EZ Mode 26/02/2014 23:17 English EZ Tuning Wizard(F11) Information 297-DELUXE BIOS Ver. 0001 Intel(R) Core(TM) IS-4670K CPU @ 3.40GHz Speed: 3400 MHz Memory: 1024 MB (DDR3 1333MHz) 45°C CPU Temperature CPU Voltage 0.976 V Motherboard Temperature 36°C DRAM Status DIMM_A1: N/A DIMM_A2: Undefined 1024MB 1333MHz DIMM_B1: N/A DIMM_B2: N/A SATA Information P1: N/A P2: N/A P3: ASUS DVD-E818A6T ATAPI P4: KINGSTON SH103S3120G (120.0GB) P5: N/A P6: N/A X.M.P Disabled Intel Rapid Storage Technology On Off Boot Priority Choose one and drag the items. Switch all FAN Profile CPU FAN 1807 RPM CHA1 FAN N/A CHA2 FAN CHA3 FAN N/A CHA4 FAN CPU OPT FAN N/A N/A CPU FAN 100% Manual Fan Tuning P3: ASUS DVD-E818A6T (4069MB) UEFI:(FAT) ADATA USB Flash Drive (30146A) UEFI:ASUS DVD-E818A6T (4069MB) Boot Menu(F8) Default(F5) Save & Exit(F10) Advanced Mode(F7) Shows the bootable devices Displays the Advanced mode menus Displays the CPU Fan's speed. Click the button to manually tune the fans Loads optimized default settings Shows the bootable devices Saves the changes and resets the system Selects the boot device priority Enables or disables the SATA RAID mode for Intel Rapid Storage Technology

The boot device options vary depending on the devices you installed to the system.

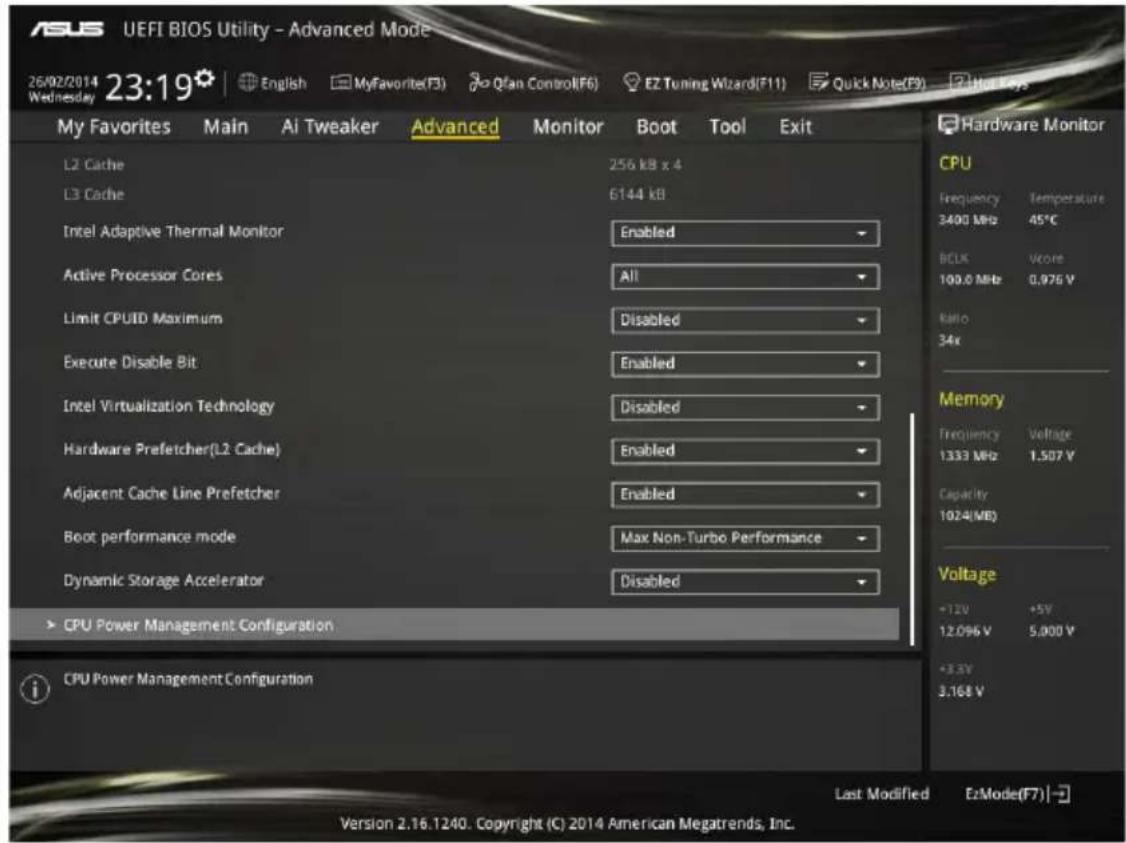

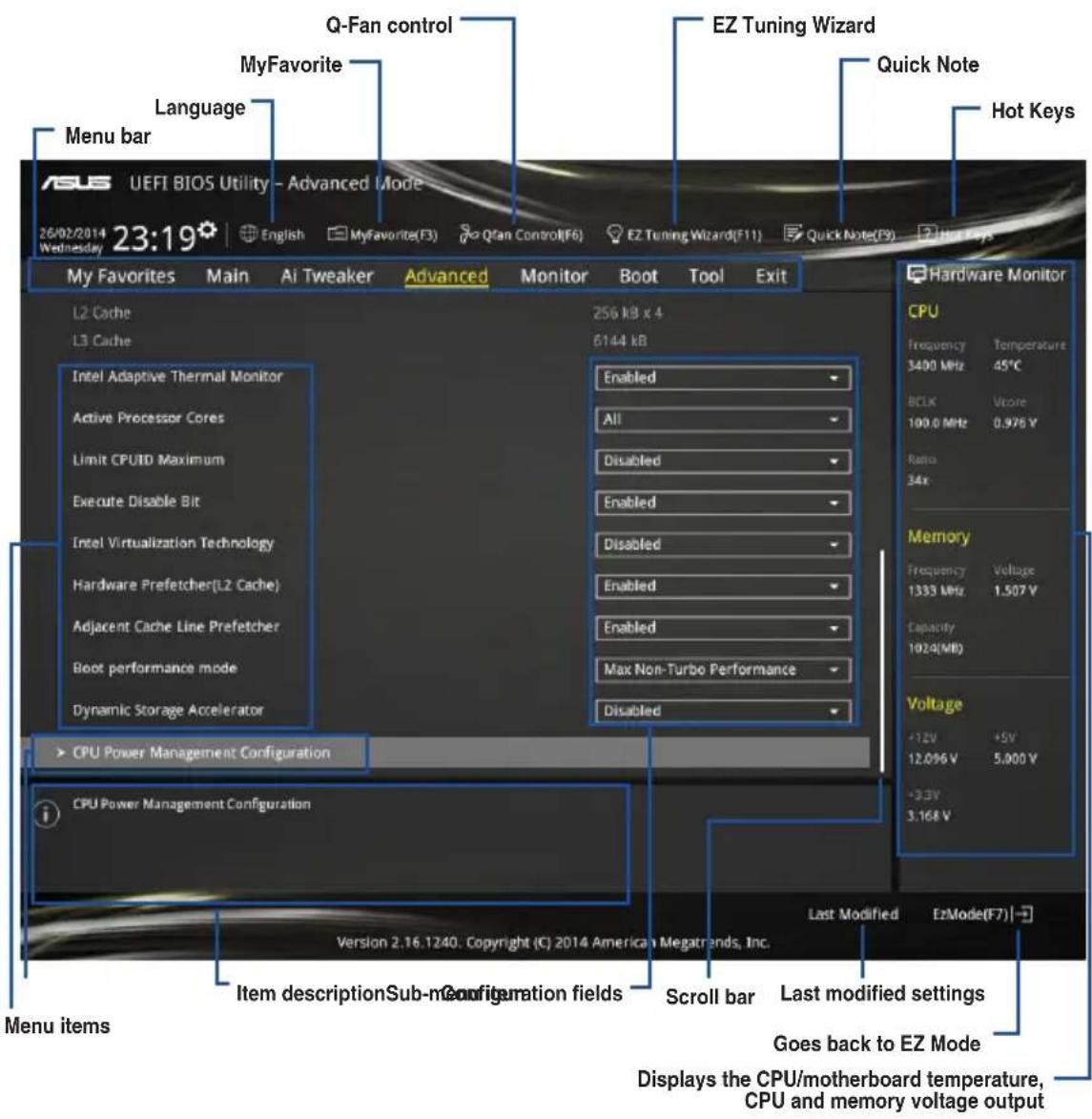

3.2.2 Advanced Mode

The Advanced Mode provides advanced options for experienced end-users to configure the BIOS settings. The figure below shows an example of the Advanced Mode. Refer to the following sections for the detailed configurations.

To switch from EZ Mode to Advanced Mode, click Advanced Mode or press F7 hotkey.

Q-Fan control MyFavorite Language Menu bar ASUS UEFI BIOS Utility - Advanced Mode 26/02/2014 Wednesday 23:19 English MyFavorite(F3) QFan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit L2 Cache 256 kB x 4 L3 Cache 6144 kB Intel Adaptive Thermal Monitor Active Processor Cores Limit CPU/D Maximum Execute Disable Bit Intel Virtualization Technology Hardware Prefetcher(L2 Cache) Adjacent Cache Line Prefetcher Boot performance mode Dynamic Storage Accelerator CPU Power Management Configuration CPU Power Management Configuration Last Modified EzMode(F7) Frequency Temperature 3400 MHz 45°C BCLK Vccore 100.0 MHz 0.976 V Ratio 24x Memory Frequency Voltage 1333 MHz 1.507 V Capacity 1024(MB) Voltage +12V +5V 12.096 V 5.000 V +3.3V 3.168 V Item description Sub-m Configuration fields Scroll bar Last modified settings Goes back to EZ Mode Displays the CPU/motherboard temperature, CPU and memory voltage output Menu items

Menu bar

The menu bar on top of the screen has the following main items:

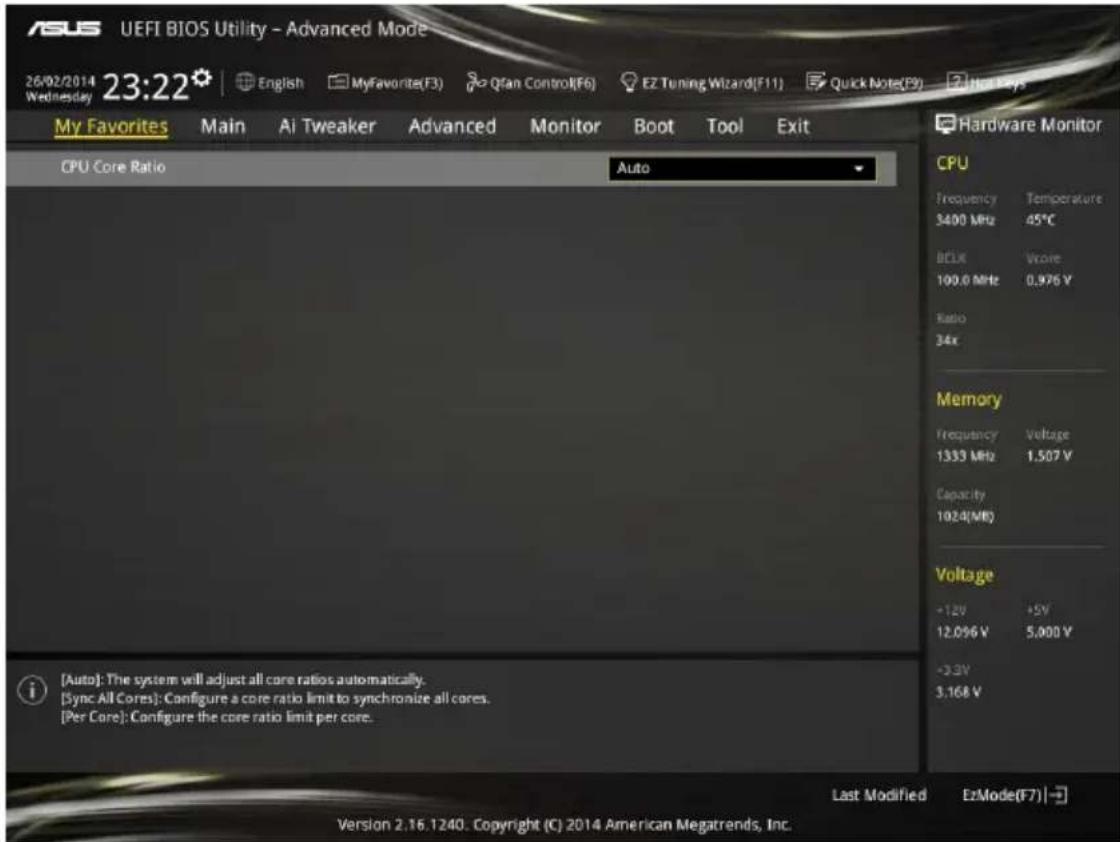

My Favorites	For saving the frequently-used system settings and configuration.

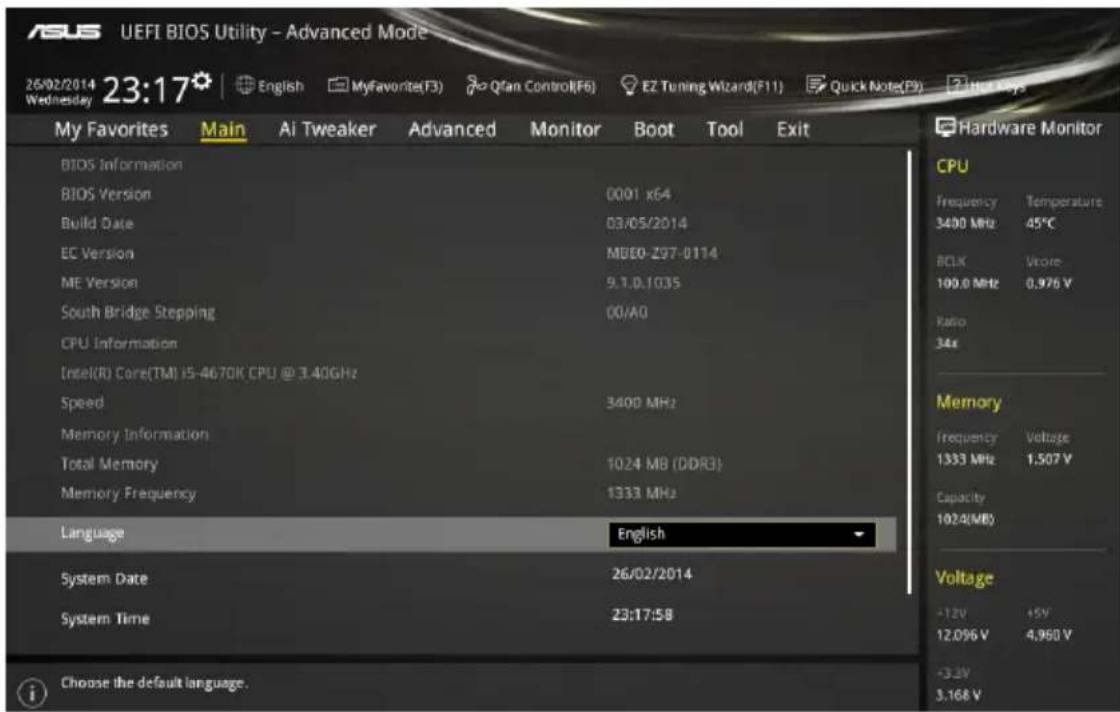

Main	For changing the basic system configuration

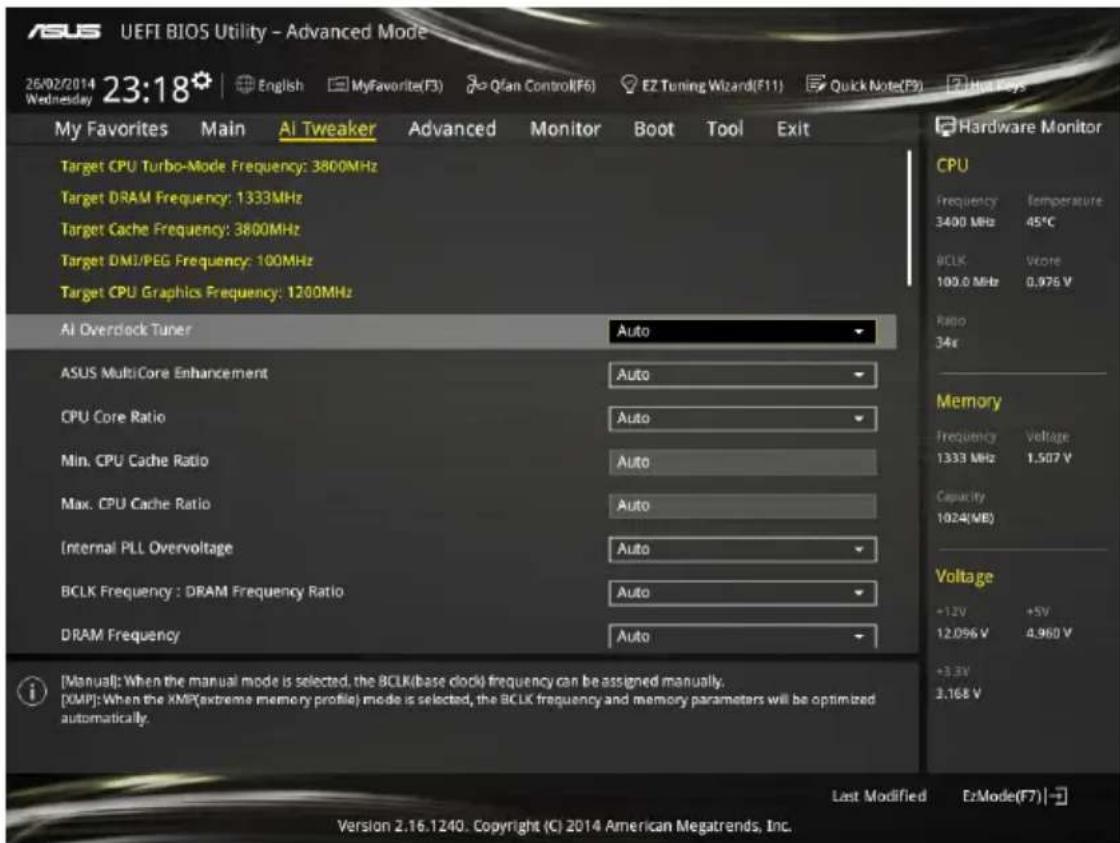

Ai Tweaker	For changing the overclocking settings
Advanced	For changing the advanced system settings

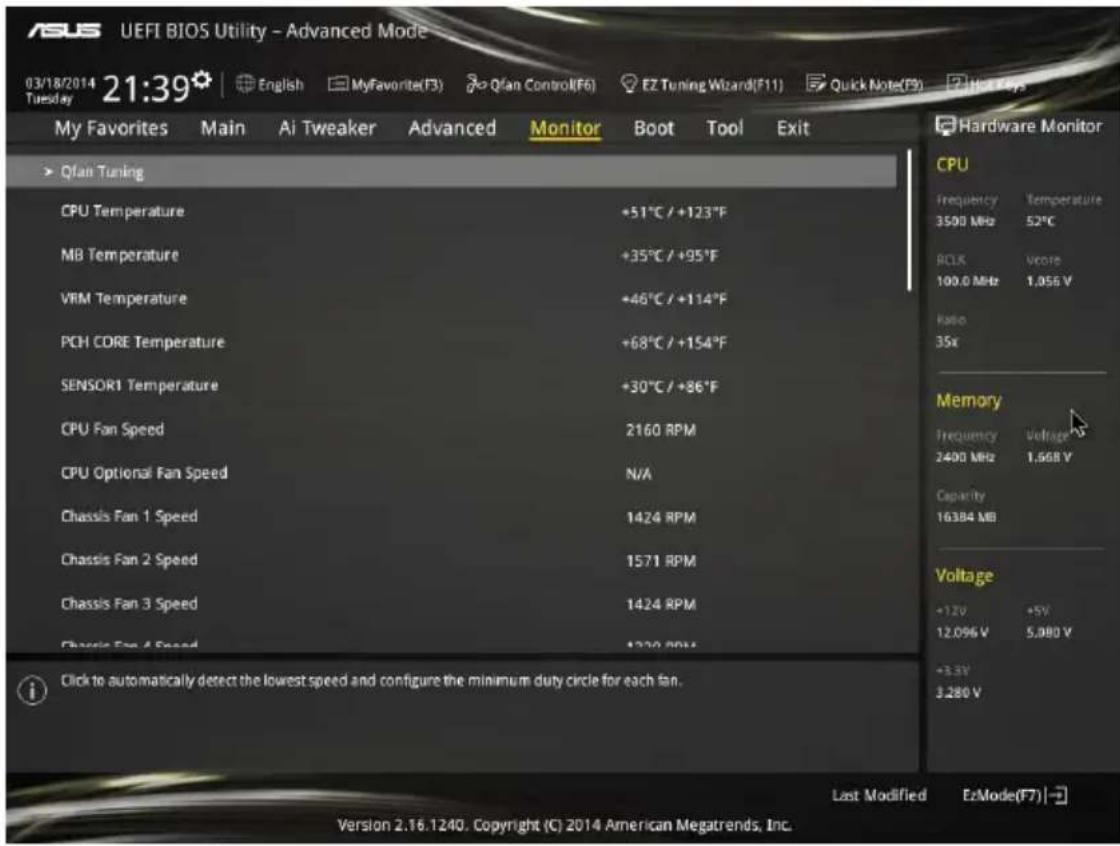

Monitor	For displaying the system temperature, power status, and changing the fan settings.
Boot	For changing the system boot configuration
Tool	For configuring options for special functions

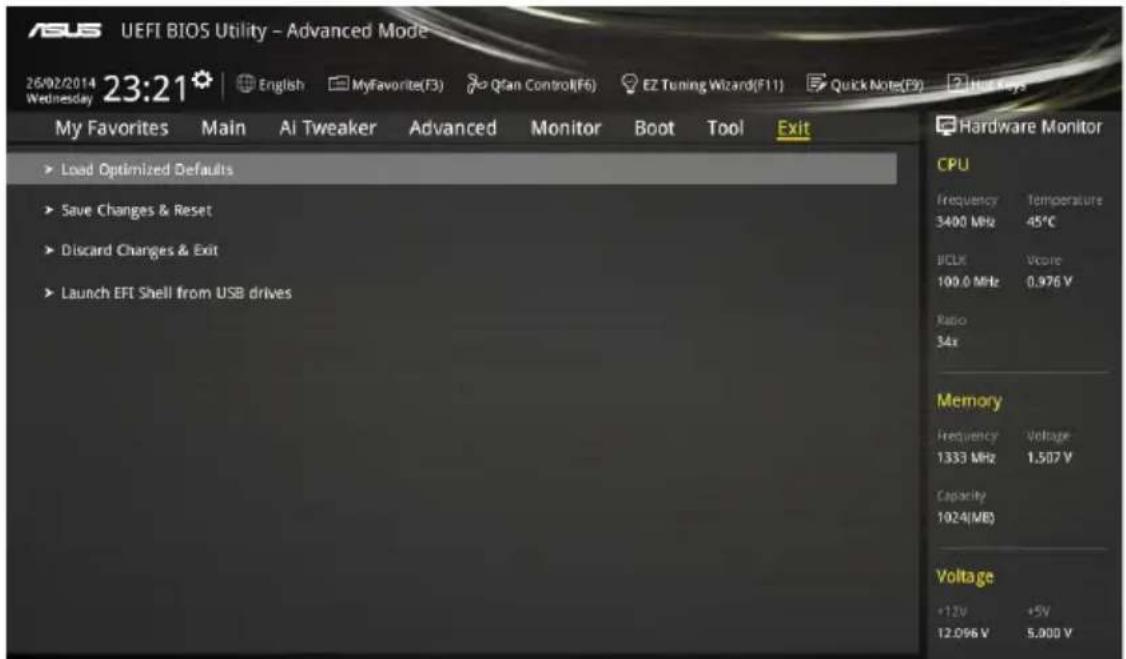

Exit	For selecting the exit options and loading default settings

Menu items

The highlighted item on the menu bar displays the specific items for that menu. For example, selecting Main shows the Main menu items.

The other items (My Favorites, Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have their respective menu items.

Submenu items

A greater than sign (>) before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press .

Language

This button above the menu bar contains the languages that you can select for your BIOS. Click this button to select the language that you want to display in your BIOS screen.

MyFavorites (F3)

This button above the menu bar shows all BIOS items in a Tree Map setup. Select frequently-used BIOS settings and save it to MyFavorites menu.

Refer to section 3.3 My Favorites for more information.

Q-Fan Control (F6)

This button above the menu bar displays the current settings of your fans. Use this button to manually tweak the fans to your desired settings.

Refer to section 3.2.3 QFan Control for more information.

EZ Tuning Wizard (F11)

This button above the menu bar allows you to view and tweak the overclocking settings of your system. It also allows you to change the motherboard's SATA mode from AHCI to RAID mode.

Refer to section 3.2.4 EZ Tuning Wizard for more information.

Quick Note (F9)

This button above the menu bar allows you to key in notes of the activities that you have done in BIOS.

• The Quick Note function does not support the following keyboard functions: delete, cut, copy and paste.
• You can only use the alphanumeric characters to enter your notes.

Hot keys

This button above the menu bar contains the navigation keys for the BIOS setup program. Use the navigation keys to select items in the menu and change the settings.

Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not fit on the screen. Press the Up/Down arrow keys or / keys to display the other items on the screen.

General help

At the top right corner of the menu screen is a brief description of the selected item. Use key to capture the BIOS screen and save it to the removable storage device.

Configuration fields

These fields show the values for the menu items. If an item is user-configurable, you can change the value of the field opposite the item. You cannot select an item that is not user-configurable.

A configurable field is highlighted when selected. To change the value of a field, select it and press to display a list of options.

Last Modified button

This button shows the items that you last modified and saved in BIOS Setup.

3.2.3 QFan Control

The QFan Control allows you to set a fan profile or manually configure the operating speed of your CPU and chassis fans.

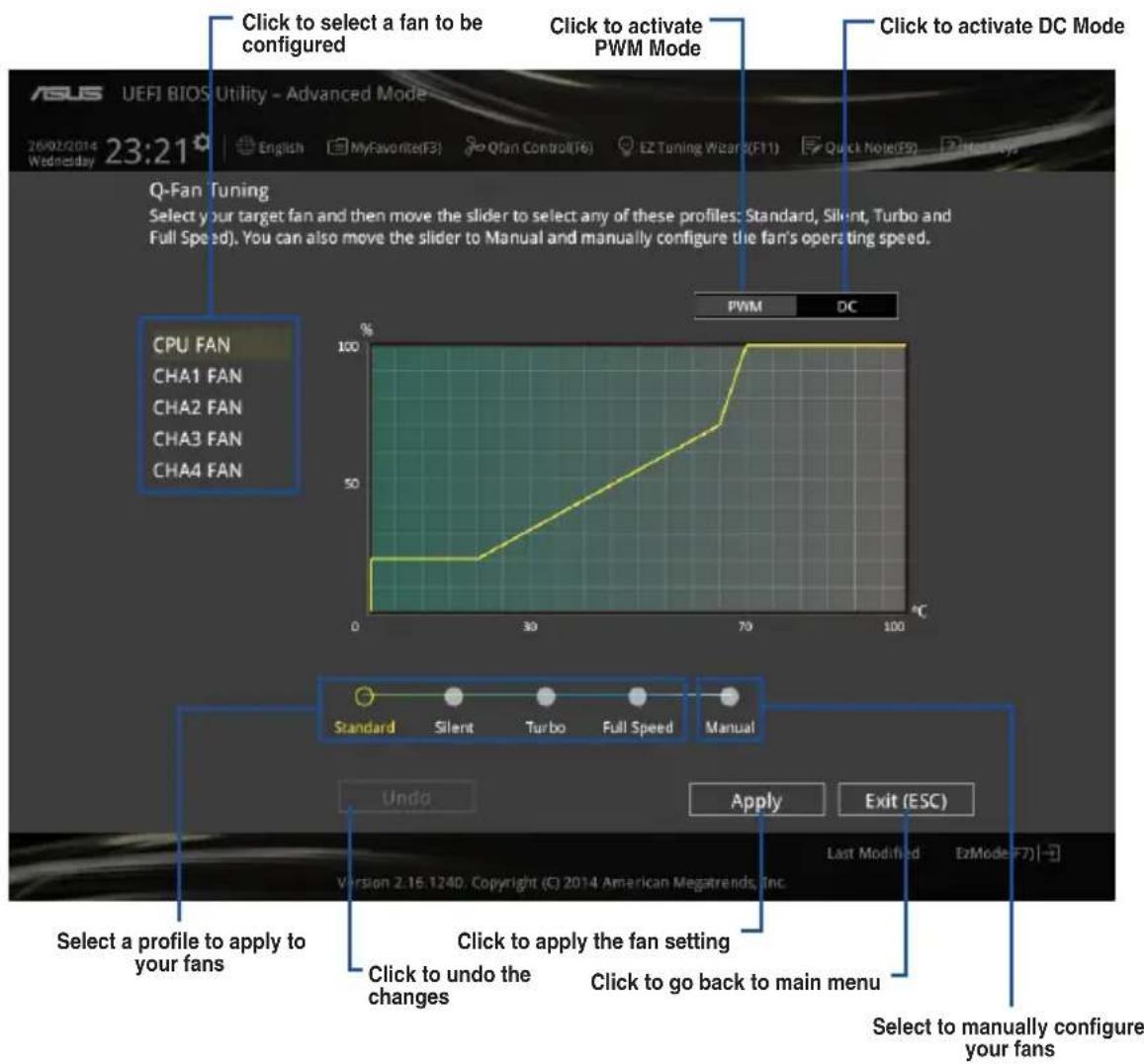

Click to select a fan to be configured Click to activate PWM Mode Click to activate DC Mode CPU FAN CHA1 FAN CHA2 FAN CHA3 FAN CHA4 FAN Select your target fan and then move the slider to select any of these profiles: Standard, Silent, Turbo and Full Speed). You can also move the slider to Manual and manually configure the fan's operating speed. PWM DC Standard Silent Turbo Full Speed Manual Undo Apply Exit (ESC) Select a profile to apply to your fans Click to apply the fan setting Click to undo the changes Click to go back to main menu Last Modified EzMode(F7) Select to manually configure your fans

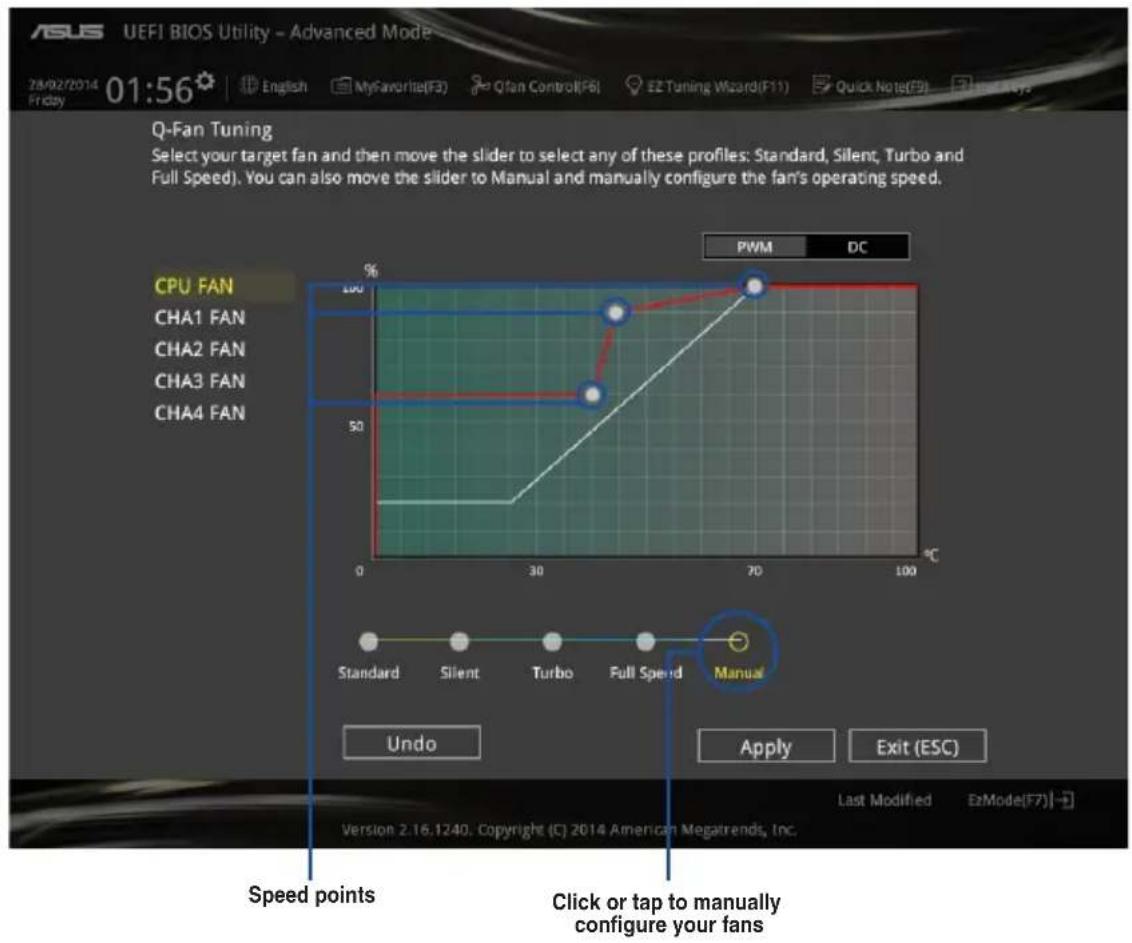

Configuring fans manually

Select Manual from the list of profiles to manually configure your fans' operating speed.

ASUS UEFI BIOS Utility - Advanced Mode 28/02/2014 01:56 English MyFavorite(F3) Q fan Controll(F6) EZ Tuning Wizard(F11) Quick Note(F9) E2 Fan Q-Fan Tuning Select your target fan and then move the slider to select any of these profiles: Standard, Silent, Turbo and Full Speed). You can also move the slider to Manual and manually configure the fan's operating speed. CPU FAN CHA1 FAN CHA2 FAN CHA3 FAN CHA4 FAN PWM DC 100 100 50 0 30 70 100 °C Standard Silent Turbo Full Spend Manual Undo Apply Exit (ESC) Speed points Click or tap to manually configure your fans Last Modified EzMode(F7)

To configure your fans:

1. Select the fan that you want to configure and to view its current status.
2. Click and drag the speed points to adjust the fans' operating speed.
3. Click Apply to save the changes then click Exit (ESC).

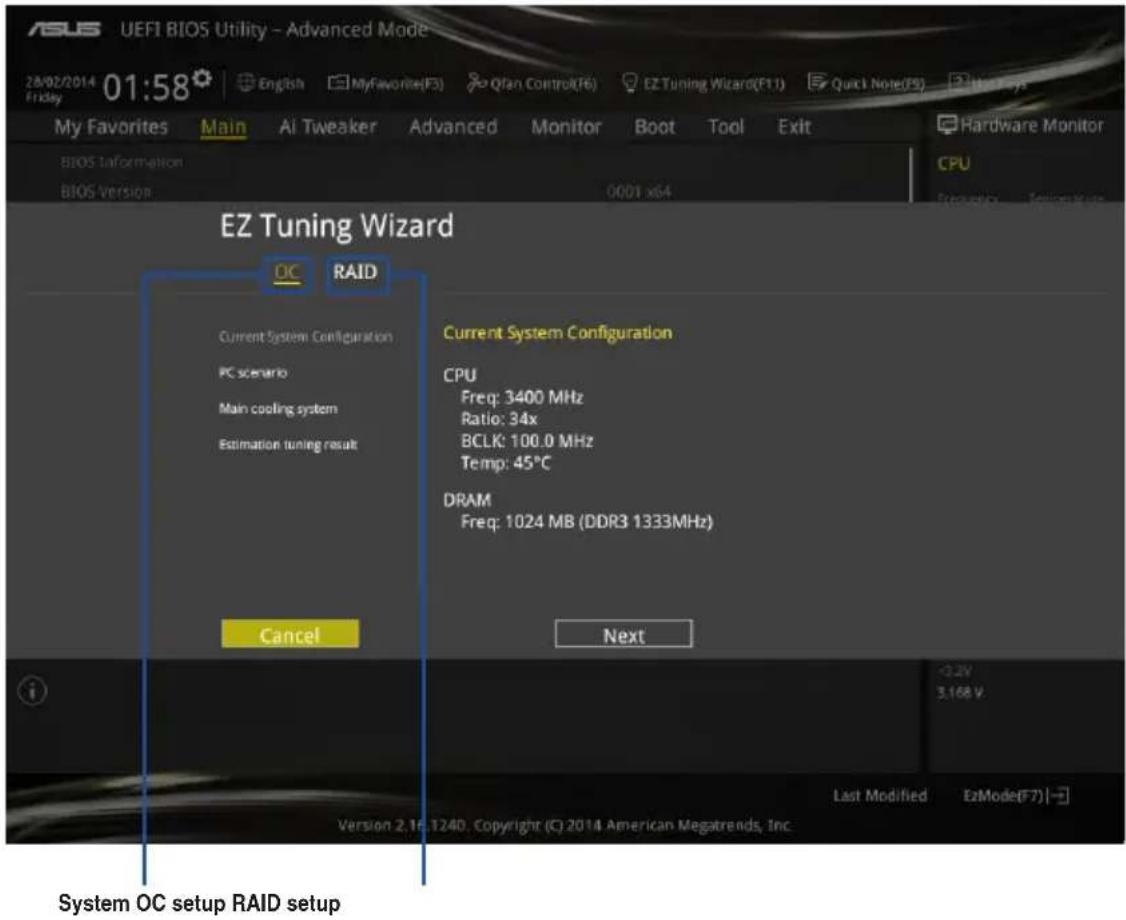

3.2.4 EZ Tuning Wizard

EZ Tuning Wizard allows you to overclock your CPU and DRAM, computer usage, and CPU fan to their best settings. You can also easily set RAID in your system using this feature.

USI UEFI BIOS Utility - Advanced Mode 28/02/2014 01:58 English MyFavorite(F3) Qian Control(F6) EZ Tuning Wizard(F11) Quick Note(F5) Hardware Key My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit Hardware Monitor BIOS Information CPU BIOS Version 0001 x64 Processed Togetable EZ Tuning Wizard OC RAID Current System Configuration Current System Configuration PC scenario CPU Freq: 3400 MHz Ratio: 34x BCLK: 100.0 MHz Temp: 45°C DRAM Freq: 1024 MB (DDR3 1333MHz) Cancel Next System OC setup RAID setup <2.2V 3,168 V Last Modified EzMode(F7)→ Version 2.16.124D. Copyright (C) 2014 American Megatrends, Inc.

Tuning your system settings

To tune your settings:

1. Press on your keyboard or click from EZ Tuning Wizard screen, then click Next.
2. Select a PC scenario Daily Computing or Gaming/Media Editing, then click Next.
3. Select the CPU fan type (Box cooler, Tower cooler, or Water cooler) that you installed then click Next.

If you are not sure of the CPU fan type, click I'm not sure. The system automatically detects the CPU fan type.

1. Click Next then click Yes to confirm auto-tuning.

Creating RAID

To create RAID:

1. Press on your keyboard or click from EZ Tuning Wizard screen.

2. Click RAID then click Next.

• Ensure that your HDDs have no existing RAID volumes.

• Ensure to connect your HDDs to Intel ^® SATA connectors.

• Select the type of storage for your RAID Easy Backup or Super Speed, then click Next.

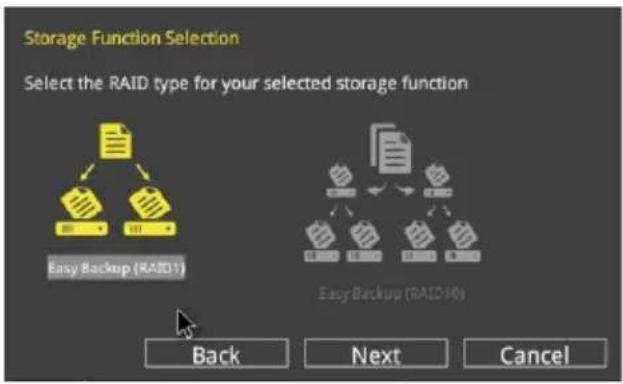

a. For Easy Backup, click Next then select from Easy Backup (RAID1) or Easy Backup (RAID10).

You can only select Easy Backup (RAID 10) if you connect four (4) HDDs.

Storage Function Selection Select the RAID type for your selected storage function Easy Backup (RAID1) Easy Backup (RAID10) Back Next Cancel

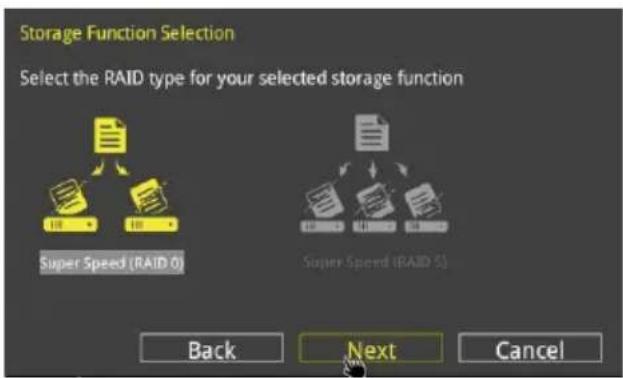

b. For Easy Backup, click Next then select from Super Speed (RAID0) or Super Speed (RAID5).

Storage Function Selection Select the RAID type for your selected storage function Super Speed (RAID 0) Super Speed (RAID 5) Back Next Cancel

1. After selecting the type of RAID, click Next then click Yes to continue the RAID setup.
2. After the RAID setup is done, click Yes to exit the setup then click OK to reset your system.

3.3 My Favorites

MyFavorites is your personal space where you can easily save and access your favorite BIOS items.

USI UEFI BIOS Utility - Advanced Mode 26/02/2014 23:22 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Heat Keys Wednesday My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit Hardware Monitor CPU Core Ratio Auto CPU Frequency Temperature 3400 MHz 45°C BCLK Vccore 100.0 MHz 0.976 V Ratio 34x Memory Frequency Voltage 1333 MHz 1.507 V Capacity 1024(MB) Voltage -12V +5V 12.096 V 5,000 V -3.3V 3.168 V (Auto): The system will adjust all core ratios automatically. (Sync All Cores): Configure a core ratio limit to synchronize all cores. (Per Core): Configure the core ratio limit per core. Last Modified EzMode(F7)→ Version 2.16.1240. Copyright (C) 2014 American Megatrends, Inc.

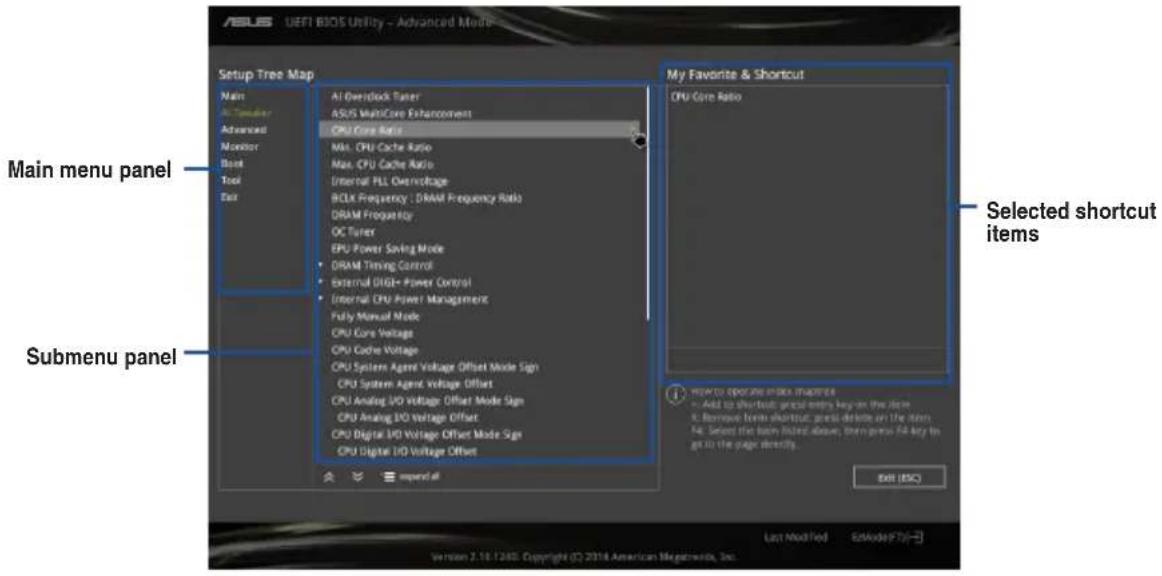

Adding items to My Favorites

To add BIOS items:

1. Press on your keyboard or click from Setup Tree Map screen.

2. On the Setup Tree Map screen, select the BIOS items that you want to save in MyFavorites screen.

ASUS UEFI BIOS Utility - Advanced Modem Setup Tree Map Main A-Tender Advanced Monitor Reset Tool Exit Main menu panel Submenu panel AI Overlock Timer ASUS MultiCore Enhancement CPU Core Ratio Max. CPU Cache Ratio Max. CPU Cache Ratio Internal PLL Overvoltage BCLK Frequency : DRAM Frequency Ratio DRAM Frequency: OC Timer EPU Power Saving Mode DRAM Timing Control External DIO+ Power Control Internal CPU Power Management Fully Manual Mode CPU Core Voltage CPU Cache Voltage CPU System Agent Voltage Offset Mode Sign CPU System Agent Voltage Offset CPU Analog I/O Voltage Offset Mode Sign CPU Analog I/O Voltage Offset CPU Digital I/O Voltage Offset Mode Sign CPU Digital I/O Voltage Offset My Favorite & Shortcut CPU Core Ratio Selected shortcut items 1. KEY TO OPERATE STOCK IMPRINTS - Add to shortcut press entry key on the item - Remove format shortcut press delete on the item - Select the team list above, then press FA key to go to the page directly. EXR (ESC) Last Modified Edit Mode(F7)- Version 2.10.1245 Copyright © 2016 American Magatews, Inc.

1. Select an item from main menu panel, then click the submenu that you want to save as favorite from the submenu panel and tap or click press on your keyboard.

You cannot add the following items to My Favorite items:

• Items with submenu options
• User-managed items such as language and boot order

• Configuration items such as Memory SPD Information, system time and date.

• Click Exit (ESC) or press key to close Setup Tree Map screen.

• Go to My Favorites menu to view the saved BIOS items.

3.4 Main menu

The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup program. The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings.

26/02/2014 23:17 English MyFavorite(F3) Qian Control(F6) EZ Tuning Wizard(F11) Quick Note(P3) Hot Keys Wednesday My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit BIOS Information BIOS Version 0001 x64 Build Date 03/05/2014 EC Version MBE0-Z97-0114 ME Version 9.1.0.1035 South Bridge Stepping 00/A0 CPU Information Intel(R) Core(TM) I5-4670K CPU @ 3.40GHz Speed 3400 MHz Memory Information Total Memory 1024 MB (DDR3) Memory Frequency 1333 MHz Language English System Date 26/02/2014 System Time 23:17:58 Choose the default language. Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C BCLK Vice 100.0 MHz 0.976 V Ratio 34x Memory Frequency Voltage 1333 MHz 1.507 V Capacity 1024(MB) Voltage +12V +5V 12.096 V 4.960 V +3.2V 3.168 V

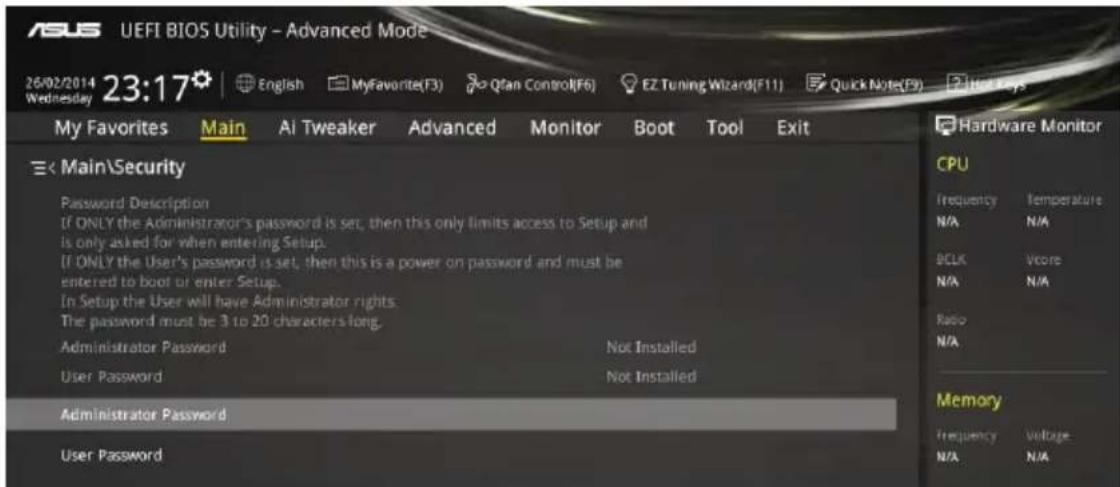

Security

The Security menu items allow you to change the system security settings.

26/02/2014 23:17 English MyFavorite(F3) Qtan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit ≡< Main\Security Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password must be 3 to 20 characters long. Administrator Password Not Installed User Password Not Installed Administrator Password User Password Hardware Monitor CPU Frequency Temperature N/A N/A BCLK Vcore N/A N/A Radio N/A Memory Frequency Voltage N/A N/A

• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC) RAM to clear the BIOS password. See section 1.2.6 Onboard buttons and switches for information on how to erase the RTC RAM via the Clear CMOS button.
• The Administrator or User Password items on top of the screen show the default [Not Installed]. After you set a password, these items show [Installed].

Administrator Password

If you have set an administrator password, we recommend that you enter the administrator password for accessing the system. Otherwise, you might be able to see or change only selected fields in the BIOS setup program.

To set an administrator password:

1. Select the Administrator Password item and press .
2. From the Create New Password box, key in a password, then press .
3. Confirm the password when prompted.

To change an administrator password:

1. Select the Administrator Password item and press .
2. From the Enter Current Password box, key in the current password, then press .
3. From the Create New Password box, key in a new password, then press .
4. Confirm the password when prompted.

To clear the administrator password, follow the same steps as in changing an administrator password, but press when prompted to create/confirm the password. After you clear the password, the Administrator Password item on top of the screen shows Not Installed.

User Password

If you have set a user password, you must enter the user password for accessing the system. The User Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a user password:

1. Select the User Password item and press .
2. From the Create New Password box, key in a password, then press .
3. Confirm the password when prompted.

To change a user password:

1. Select the User Password item and press .

2. From the Enter Current Password box, key in the current password, then press .

3. From the Create New Password box, key in a new password, then press .

4. Confirm the password when prompted.

To clear the user password, follow the same steps as in changing a user password, but press when prompted to create/confirm the password. After you clear the password, the User Password item on top of the screen shows Not Installed.

3.5 Ai Tweaker menu

The Ai Tweaker menu items allow you to configure overclocking-related items.

Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect field values can cause the system to malfunction.

The configuration options for this section vary depending on the CPU and DIMM model you installed on the motherboard.

Scroll down to display other BIOS items.

ASUS UEFI BIOS Utility - Advanced Mode 26/02/2014 23:18 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys Wednesday My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit Target CPU Turbo-Mode Frequency: 3800MHz Target DRAM Frequency: 1333MHz Target Cache Frequency: 3800MHz Target DMI/PEG Frequency: 100MHz Target CPU Graphics Frequency: 1200MHz AI Overclock Tuner Auto ASUS MultiCore Enhancement Auto CPU Core Ratio Auto Min. CPU Cache Ratio Auto Max. CPU Cache Ratio Auto Internal PLL Overvoltage Auto BCLK Frequency : DRAM Frequency Ratio Auto DRAM Frequency Auto Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C BCLK Vice 100.0 Mb 0.975 V Ratio 34x Memory Frequency Voltage 1333 MHz 1.507 V Capacity 1024(MB) Voltage +1.2V +5V 12.096 V 4.960 V +3.3V 3.168 V i [Manual]: When the manual mode is selected, the BCLK(base clock) frequency can be assigned manually. [XMP]: When the XMP(extreme memory profile) mode is selected, the BCLK frequency and memory parameters will be optimized automatically. Last Modified EzMode(F7)| Version 2.16.1240. Copyright (C) 2014 American Megatrends, Inc.

Ai Overclock Tuner [Auto]

This item allows you to select the CPU overclocking options to achieve the desired CPU internal frequency. Select any of these preset overclocking configuration options:

[Auto] Loads the optimal settings for the system.

[Manual] Automatically optimizes the CPU ratio and BCLK frequency.

The following item appears only when you set the Ai Overclocking Tuner to [Manual].

CPU Strap [Auto]

This item allows you to select a strap close to your target BCLK (base clock) for an extreme overclocking, or leave it at [Auto] for the BIOS to upgrade.

Configuration options: [Auto] [100MHz] [125MHz] [166MHz] [250MHz]

The following item appears only when you set the CPU Strap to [100MHz], [125MHz], [167MHz], or [250MHz].

Source Clock Tuner [Auto]

This item allows you to select the source clock based on the assigned CPU strap for a better overclocking capability.

Configuration options: [8Ohm dbl] [7Ohm dbl] [6Ohm dbl] [5Ohm dbl] [4Ohm dbl] [3Ohm dbl] [2Ohm dbl]

PLL Selection [Auto]

This item is set to LC PLL by default for better stability. Select SB PLL when the BCLK (base clock) frequency is far away from 100 MHz. This may affect the function of other devices that need precise clock jitters.

Configuration options: [Auto] [LC PLL] [SB PLL]

Filter PLL [Auto]

Set this item to high BCLK (base clock) mode when using a very high BCLK to improve overclocking capability.

Configuration options: [Auto] [Low BCLK mode] [High BCLK mode]

BCLK Frequency [Auto]

This item allows you to set the BCLK (base clock) frequency to enhance the system performance. Use the <+> or <-> to adjust the value. The values range from 80.0 MHz to 300.0 MHz.

We recommend you to set the value based on the CPU specification, as high BCLK frequencies may damage the CPU permanently.

Initial BCLK Frequency [Auto]

This item allows you to start overclocking the system from the initial BCLK (base clock) frequency to the assigned BCLK frequency. Use the <+> or <-> to adjust the value. The value ranges depend on the value you set on BCLK Frequency.

ASUS MultiCore Enhancement [Auto]

[Auto] This item allows you to maximize the overclocking performance optimized by ASUS core ratio settings.

[Disabled] This item allows you to set to default core ratio settings.

CPU Core Ratio [Per Core]

This item allows you to set the CPU core ratio limit per core or synchronize automatically to all cores.

Configuration options: [Auto] [Sync All Cores] [Per Core]

When the CPU Core Ratio is set to [Per Core], the following items appear:

1-Core Ratio Limit [Auto]

Select [Auto] to apply the CPU default Turbo Ratio setting or manually assign a 1-Core Limit value that must be higher than or equal to the 2-Core Ratio Limit.

2-Core Ratio Limit [Auto]

Select [Auto] to apply the CPU default Turbo Ratio setting or manually assign a 2-Core Limit value that must be higher than or equal to the 3-Core Ratio Limit.

If you assign a value for 2-Core Ratio Limit, do not set the 1-Core Ratio Limit to [Auto].

3-Core Ratio Limit [Auto]

Select [Auto] to apply the CPU default Turbo Ratio setting or manually assign a 3-Core Limit value that must be higher than or equal to the 4-Core Ratio Limit.

If you assign a value for 3-Core Ratio Limit, do not set the 1-Core Ratio Limit and 2-Core Ratio Limit to [Auto].

4-Core Ratio Limit [Auto]

Select [Auto] to apply the CPU default Turbo Ratio setting or manually assign a 4-Core Limit value that must be higher than or equal to the 3-Core Ratio Limit.

If you assign a value for 4-Core Ratio Limit, do not set the 1-Core Ratio Limit, 2-Core Ratio Limit, and 3-Core Ratio to [Auto].

Min. CPU Cache Ratio [Auto]

This item allows you to set the minimum possible ratio on the Uncore part of the processor. Use the <+> or <-> keys to adjust the value. The values depend on the CPU installed.

Max. CPU Cache Ratio [Auto]

This item allows you to set the maximum possible ratio on the Uncore part of the processor. Use the <+> or <-> keys to adjust the value. The values depend on the CPU installed.

Internal PLL Overvoltage [Auto]

This item allows you to enable the internal PLL Overvoltage for K-SKU CPUs to get the extreme overclocking capability.

Configuration options: [Auto] [Enabled] [Disabled]

DRAM Frequency [Auto]

This item allows you to set the memory operating frequency. The configurable options vary with the BCLK (base clock) frequency setting. Select the auto mode to apply the optimized setting.

Configuration options: [DDR3-800MHz] [DDR3-1066MHz] [DDR3-1333MHz] [DDR3-1400MHz] [DDR3-1600MHz] [DDR3-1800MHz] [DDR3-1866MHz] [DDR3-2000MHz] [DDR3-2133MHz] [DDR3-2200MHz] [DDR3-2400MHz] [DDR3-2600MHz] [DDR3-2666MHz] [DDR3-2800MHz] [DDR3-2933MHz] [DDR3-3000MHz] [DDR3-3200MHz] [DDR3-3400MHz]

Max. CPU Graphics Ratio [Auto]

[Auto] This option allows you to automatically optimize the CPU Graphics Ratio depending on the system loading.

[Manual] This option allows you to set a value for an optimal CPU Graphics Ratio. Use the <+> or <-> keys to adjust the CPU graphics ratio. The minimum value depends on the installed CPU.

OC Tuner [Keep Current Settings]

This item allows you to automatically overclock the CPU and DRAM frequencies and voltage for an enhanced system performance. It also accelerates the CPU graphics performance to the extreme depending on the CPU graphics loading.

Configuration options: [Keep Current Settings] [Ratio First] [BCLK First]

Ensure that you installed an efficient CPU fan for CPU and graphics loading before selecting either [BCLK First] or [Ratio First]. To keep the current overclocking tuner status, select [Keep Current Settings].

EPU Power Saving Mode [Disabled]

The ASUS EPU (Energy Processing Unit) sets the CPU in its minimum power consumption settings. Enable this item to set lower CPU VCCIN and Vcore voltages and achieve the best energy saving condition.

Configuration options: [Disabled] [Enabled]

DRAM Timing Control

The subitems in this menu allow you to set the DRAM timing control features. Use the <+> or <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard and press the key.

Changing the values in this menu may cause the system to become unstable! If this happens, revert to the default settings.

Primary Timings

DRAM CAS# Latency [Auto]

Configuration options: [Auto] [1] - [31]

DRAM RAS# to CAS# Delay [Auto]

Configuration options: [Auto] [1] - [31]

DRAM RAS# PRE Time [Auto]

Configuration options: [Auto] [1] - [31]

DRAM RAS# ACT Time [Auto]

Configuration options: [Auto] [1] - [63]

DRAM Command Rate [Auto]

Configuration options: [Auto] [1] - [2]

Secondary Timings

DRAM RAS# to RAS# Delay [Auto]

Configuration options: [Auto] [1] - [15]

DRAM REF Cycle Time [Auto]

Configuration options: [Auto] [1] - [511]

DRAM Refresh Interval [Auto]

Configuration options: [Auto] [1] - [65535]

DRAM WRITE Recovery Time [Auto]

Configuration options: [Auto] [1] - [16]

DRAM READ to PRE Time [Auto]

Configuration options: [Auto] [1] - [15]

DRAM FOUR ACT WIN Time [Auto]

Configuration options: [Auto] [1] - [255]

DRAM WRITE to READ Delay [Auto]

Configuration options: [Auto] [1] - [15]

DRAM CKE Minimum Pulse Width [Auto]

Configuration options: [Auto] [1] - [15]

DRAM CAS# Write Latency [Auto]

Configuration options: [Auto] [1] - [31]

RTL IOL control

DRAM RTL Initial Value [Auto]

Configuration options: [Auto] [1] - [63]

DRAM RTL (CHA\_R0D0) [Auto]

Configuration options: [Auto] [1] - [63]

DRAM RTL (CHA\_R0D1) [Auto]

Configuration options: [Auto] [1] - [63]

DRAM RTL (CHA_R1D0) [Auto]

Configuration options: [Auto] [1] - [63]

DRAM RTL (CHA_R1D1) [Auto]

Configuration options: [Auto] [1] - [63]

DRAM RTL (CHB_R0D0) [Auto]

Configuration options: [Auto] [1] - [63]

DRAM RTL (CHB_R0D1) [Auto]

Configuration options: [Auto] [1] - [63]

DRAM RTL (CHB_R1D0) [Auto]

Configuration options: [Auto] [1] - [63]

DRAM RTL (CHB_R1D1) [Auto]

Configuration options: [Auto] [1] - [63]

DRAM IO-L (CHA_R0D0) [Auto]

Configuration options: [Auto] [1] - [15]

DRAM IO-L (CHA_R0D1) [Auto]

Configuration options: [Auto] [1] - [15]

DRAM IO-L (CHA_R1D0) [Auto]

Configuration options: [Auto] [1] - [15]

DRAM IO-L (CHA_R1D1) [Auto]

Configuration options: [Auto] [1] - [15]

DRAM IO-L (CHB_R0D1) [Auto]

Configuration options: [Auto] [1] - [15]

DRAM IO-L (CHB_R1D0) [Auto]

Configuration options: [Auto] [1] - [15]

DRAM IO-L (CHB_R1D1) [Auto]

Configuration options: [Auto] [1] - [15]

Third Timings

tRDRD [Auto]

Configuration options: [Auto] [1] - [7]

tRDRD_dr [Auto]

Configuration options: [Auto] [1] - [15]

tRDRD_dd [Auto]

Configuration options: [Auto] [1] - [15]

tWRRD [Auto]

Configuration options: [Auto] [1] - [63]

tWRRD_dr [Auto]

Configuration options: [Auto] [1] - [15]

tWRRD_dd [Auto]

Configuration options: [Auto] [1] - [15]

tWRWR [Auto]

Configuration options: [Auto] [1] - [7]

tWRWR_dr [Auto]

Configuration options: [Auto] [1] - [15]

tWRWR_dd [Auto]

Configuration options: [Auto] [1] - [15]

Dec_WRD [Auto]

Configuration options: [Auto] [0] [1]

tRDWR [Auto]

Configuration options: [Auto] [1] - [31]

tRDWR_dr [Auto]

Configuration options: [Auto] [1] - [31]

tRDWR_dd [Auto]

Configuration options: [Auto] [1] - [31]

MISC

MRC Fast Boot [Auto]

This item allows you to enable, disable or automatically set the MRC fast boot.

Configuration options: [Auto] [Enabled] [Disabled]

DRAM CLK Period [Auto]

This item allows you to set a DRAM clock period.

Configuration options: [Auto] [1] - [14]

Channel A/B DIMM Control [Enable Both DIMMs]

This item allows you to enable or disable the DIMMs on channels A and B.

Configuration options: [Enable Both DIMMS] [Disable DIMM0] [Disable DIMM1]

[Disable Both DIMMS]

Scrambler Setting [Optimized (ASUS)]

This item allows you to set the optimized mode to enhance system stability.

Configuration options: [Optimized (ASUS) [Default (MRC)]

MCH Full Check [Auto]

Enable this item to enhance the stability of your system. Disable this item to enhance the DRAM overclocking capability.

Configuration options: [Auto] [Enabled] [Disabled]

DIGI+ Power Control

CPU Load-line Calibration [Auto]

Load-line is defined by Intel ^® specification and affects CPU power voltage. The CPU working voltage decreases proportionally to CPU loading. Higher load-line calibration could get higher voltage and good overclocking performance, but increases the CPU and VRM thermal conditions. Select from levels 1 to 9 to adjust the CPU power voltage from 0% to 125%.

Configuration options [Auto] [Level 1] - [Level 9]

The actual performance boost may vary depending on your CPU specification.

DO NOT remove the thermal module. The thermal conditions should be monitored.

CPU VRM Switching Frequency [Auto]

This item affects the VRM transient response speed and the component thermal production. Select [Manual] to configure a higher frequency for a quicker transient response speed.

Configuration options: [Auto] [Manual]

DO NOT remove the thermal module. The thermal conditions should be monitored.

The following item appears only when you set the CPU VRM Switching Frequency to [Manual].

Fixed CPU VRM Switching Frequency (KHz) [300]

This item allows you to set a higher frequency for a quicker transient response speed. Use the <+> or <-> to adjust the value. The values range from 300 KHz to 500 KHz with an interval of 50 KHz.

VRM Spread Spectrum [Disabled]

This item allows to enhance the system stability.

Configuration options: [Disabled] [Enabled]

Active Frequency Mode [Disabled]

This item allows to enhance the power saving condition of your system.

Configuration options: [Disabled] [Enabled]

CPU Power Phase Control [Auto]

This item allows you to set the power phase control of the CPU.

Configuration options: [Auto] [Standard] [Optimized] [Extreme] [Power Phase

Response]

DO NOT remove the thermal module when setting this item to [Power Phase Response]. The thermal conditions should be monitored.

The following item appears only when you set the CPU Power Phase Control to [Power Phase Response].

Power Phase Response [Fast]

This item allows you to set a faster phase response for the CPU to increase system performance or to slower phase response to decrease DRAM power efficiency.

Configuration options: [Ultra Fast] [Fast] [Medium] [Regular]

CPU Power Duty Control [T.Probe]

DIGI + VRM Duty Control adjusts the current of every VRM phase and the thermal conditions of every phase component.

[T. Probe] Select to maintain the VRM thermal balance.

[Extreme] Select to maintain the current VRM balance.

DO NOT remove the thermal module. The thermal conditions should be monitored.

CPU Current Capability [Auto]

This item provides a total power range for CPU overclocking. A higher value setting provides higher power consumption delivery and extends the overclocking frequency range simultaneously.

Configuration options: [Auto] [100%] [110%] [120%] [130%] [140%]

CPU Power Thermal Control [120]

A higher temperature brings a wider CPU power thermal range and extends the overclocking tolerance to enlarge the overclocking potential. Use the <+> or <-> keys to adjust the value. The values depend on the CPU installed.

DO NOT remove the thermal module. The thermal conditions should be monitored.

DRAM Current Capability [100%]

This item adjusts the total power range for DRAM overclocking. Set a higher value to provide a wider total power range and extends the overclocking frequency range simultaneously.

Configuration options: [100%] [110%] [120%] [130%]

DRAM Switching Frequency [Auto]

This item affects the overclocking range and system stability. Set this item to [Manual] to manually set a fixed DRAM switching frequency for an increased overclocking range or enhanced system stability.

The following item appears only when you set the DRAM Switching Frequency to [Manual].

Fixed DRAM Switching Frequency (KHz) [300]

This item allows you to set a higher frequency for an increased overclocking range or a lower frequency for an enhanced system stability. Use the <+> or <-> to adjust the value. The values range from 300 KHz to 500 KHz with an interval of 50 KHz.

Internal CPU Power Management

The subitems in this menu allow you to set the CPU ratio and their features.

Enhanced Intel SpeedStep Technology [Enabled]

This item allows the operating system to dynamically adjust the processor voltage and cores frequency, resulting to a decreased average power consumption and decreased average heat production.

Configuration options: [Disabled] [Enabled]

Turbo Mode [Enabled]

This item allows you to enable your core processor's speed to run faster than the base operating frequency when it is below operating power, current and temperature specification limit.

Configuration options: [Disabled] [Enabled]

The following items appear only when you set the Turbo Mode to [Enabled].

Turbo Mode Parameters

Long Duration Package Power Limit [Auto]

Allows you to limit the Turbo Ratio's time duration that exceeds the TDP (Thermal Design Power) for maximum performance. Use the <+> or <-> keys to adjust the value. The values range from 1 W to 4096 W.

Package Power Time Window [Auto]

Also known as Power Limit 1, this item allows you to maintain the time window for Turbo Ratio over TDP (Thermal Design Power). Use the <+> or <-> keys to adjust the value. The values range from 1 to 127 in seconds.

Short Duration Package Power Limit [Auto]

Also known as Power Limit 2, this item allows you to provide rapid protection when the package power exceeds the Power Limit 1. Use the <+> or <-> keys to adjust the value. The values range from 1 W to 4096 W.

CPU Integrated VR Current Limit [Auto]

Allows you to set a higher current limit to prevent frequency and power throttling when overclocking. Use the <+> or <-> keys to adjust the value. The values range from 0.125 to 1023.875 with a 0.125 interval.

CPU Internal Power Switching Frequency

Frequency Tuning Mode [Auto]

This item allows you to increase or decrease the switching frequency of the internal regulator. Decrease the switching frequency to reduce the power consumption or increase the switching frequency to enhance voltage stability. When this item is set to [+] or [-] , the Frequency Tuning Offset appears that allows you to set its value from 0% to 6%.

CPU Internal Power Fault Control

Thermal Feedback [Auto]

Allows your system to take precautionary actions to protect the CPU when the thermal condition of the external regulator exceeds the threshold.

Configuration options: [Auto] [Disabled] [Enabled]

CPU Integrated VR Fault Management [Auto]

Disable this item to prevent tripping the Fully Integrated Voltage Regulator when doing over-voltage. We recommend you to disable this item when overclocking.

Configuration options: [Auto] [Disabled] [Enabled]

CPU Internal Power Configuration

CPU Integrated VR Efficiency Management [Auto]

This item allows you to improve the power rating when the CPU is in low power state, or make the FIVR (fully integrated voltage regulator work in high performance at all times.

Configuration options: [Auto] [High Performance] [Balanced]

Power Decay Mode [Auto]

This item allows your system to improve the power saving mode on the Fully Integrated Voltage Regulator as the processor goes into low current state.

Configuration options: [Auto] [Disabled] [Enabled]

Idle Power-in Response [Auto]

This item allows you to set the slew rate for the Fully Integrated Voltage Regulator when it enters manual override mode.

Configuration options: [Auto] [Regular] [Fast]

Idle Power-out Response [Auto]

This item allows you to set the slew rate for the Fully Integrated Voltage Regulator when it exits manual override mode.

Configuration options: [Auto] [Regular] [Fast]

Power Current Slope [Auto]

This item allows you to enhance the power saving condition or the system overclocking capability. Select a higher power current slope levels for power saving enhancement or lower power current slope levels for system overclocking enhancement.

Configuration options: [Auto] [LEVEL -4] - [LEVEL 4]

Power Current Offset [Auto]

This item allows you to increase or decrease the output current sensed by the CPU. It finds the balance between optimal regulating while staying below the current threshold.

Configuration options: [Auto] [100%] [87.5%] [75.0%] [62.5%] [50.0%] [37.5%] [25.0%] [12.5%] [0%] [-12.5%] [-25.0%] [-37.5%] [-50.0%] [-62.5%] [-75.0%] [-87.5%] [-100%]

Power Fast Ramp Response [Auto]

This item allows you to enhance the response of the CPU voltage regulator during the load transients. Use the <+> or <-> to adjust the value. The values range from 0.00 to 1.50.

Configuration options: [Auto] [0.00] - [1.50]

CPU Internal Power Saving Control

Power Saving Level 1 Threshold [Auto]

Lower value provides sufficient overclocking tolerance to enlarge the overclocking potential. Higher value provides better power-saving condition. Use <+> or <-> key to adjust the value. The values range from 0 A to 80 A at 1 A increment.

Power Saving Level 2 Threshold [Auto]

Lower value provides sufficient overclocking tolerance to enlarge the overclocking potential. Higher value provides better power-saving condition. Use <+> or <-> key to adjust the value. The values range from 0 A to 50 A at 1 A increment.

Power Saving Level 3 Threshold [Auto]

Lower value provides sufficient overclocking tolerance to enlarge the overclocking potential. Higher value provides better power-saving condition. Use <+> or <-> key to adjust the value. The values range from 0 A to 30 A at 1A increment.

Extreme Over-voltage

This item allows you to set higher voltages for overclocking. When you enable this item, you can choose a high level voltage to overclock, but does not guarantee the CPU life.

You can only enable this item when the onboard OC_CPU jumper is set to ON. Refer to section 1.2.7 Jumpers of this user guide for more details.

CPU Core Voltage

This item allows you to configure the amount of voltage fed to the CPU cores. Increase the voltage when setting a high Core Frequency value.

Configuration options: [Auto] [Manual Mode] [Offset Mode] [Adaptive Mode]

The following item appears only when you set the CPU Core Voltage to [Manual].

CPU Core Voltage Override [Auto]

This item allows you to set the CPU Core Voltage override. Use the <+> or <-> keys to adjust the value, The values range from 0.001V to 1.920 V with a 0.001 V interval.

The following items appear only when you set the CPU Core Voltage to [Offset Mode].

Offset Mode Sign [+]

[+] To offset the voltage by a positive value.

[-] To offset the voltage by a negative value.

CPU Core Voltage Offset

Use the <+> or <-> keys to adjust the value. The values range from 0.001

V to 0.999 V with a 0.001 V interval.

The following item appears only when you set the CPU Core Voltage to [Adaptive Mode].

Additional Turbo Mode CPU Core Voltage [Auto]

This item allows you to set the amount of voltage fed to the CPU cores when running in turbo mode. Increase the voltage when configuring a high CPU core frequency. The voltage you set is affected by the offset value. Use the <+> or <-> keys to adjust the value. The values range from 0.001V to 1.920 V with a 0.001 V interval.

Total Adaptive Mode CPU Core Voltage [Auto]

This item sums up the voltages of the CPU Core Voltage offset and Additional Turbo Mode CPU Core Voltage options.

CPU Cache Voltage [Auto]

This item allows you to set the amount of voltage fed to the CPU uncores including its cache. Increase the voltage when setting a high CPU cache frequency.

Configuration options: [Auto] [Manual Mode] [Offset Mode] [Adaptive Mode]

The following item appears only when you set the CPU Cache Voltage to [Manual Mode].

CPU Cache Voltage Override [Auto]

This item allows you to set the CPU Cache Voltage override. By default, this item takes the standard value of the installed CPU. You can use the <+> or <-> keys to adjust the value. The values range from 0.001V to 1.920 V with a 0.001 V interval.

The following items appear only when you set the CPU Core Voltage to [Offset Mode].

Offset Mode Sign [+]

[+] To offset the voltage by a positive value.

[-] To offset the voltage by a negative value.

CPU Cache Voltage Offset

Allows you to set the CPU cache voltage offset. By default, this item takes the standard value of the installed CPU. You can use the <+> or <-> keys to adjust the value. The values range from 0.001V to 0.999 V with a 0.001 V interval.

The following item appears only when you set the CPU Cache Voltage to [Adaptive Mode].

Additional Turbo Mode CPU Cache Voltage [Auto]

This item allows you to set the amount of voltage fed to the CPU cores when running in turbo mode. Increase the voltage when configuring a high CPU core frequency. The voltage you set is affected by the offset value. Use the <+> or <-> keys to adjust the value. The values range from 0.001V to 1.920 V with a 0.001 V interval.

Total Adaptive Mode CPU Cache Voltage [Auto]

This item sums up the voltages of the CPU Cache Voltage offset and Additional Turbo Mode CPU Cache Voltage options.

CPU Graphics Voltage [Auto]

This item allows you to configure the voltage amount for the integrated graphics processing unit (iGPU). Increase the voltage when setting a high iGPU frequency value.

Configuration options: [Auto] [Manual Mode] [Offset Mode] [Adaptive Mode]

The following item appears only when you set the CPU Core Voltage to [Manual].

CPU Graphics Voltage Override [Auto]

This item allows you to set the CPU Graphics Voltage override. By default, this item takes the standard value of the installed CPU. You can use the <+> or <-> keys to adjust the value. The values range from 0.001V to 1.920V with a 0.001V interval.

The following items appear only when you set the CPU Core Voltage to [Offset Mode].

Offset Mode Sign [+]

[+] To offset the voltage by a positive value.

[−] To offset the voltage by a negative value.

CPU Graphics Voltage Offset

By default, this item takes the standard value of the installed CPU. You can use the <+> or <-> keys to adjust the value. The values range from 0.001V to 0.999V with a 0.001V interval.

The following item appears only when you set the CPU Core Voltage to [Adaptive Mode].

Additional Turbo Mode CPU Graphics Voltage [Auto]

This item allows you to increase the voltage for Turbo Mode CPU Graphics. By default, this item takes the standard value of the installed CPU. You can use the <+> or <-> keys to adjust the value. The values range from 0.001V to 1.920V with a 0.001V interval.

Total Adaptive Mode CPU Graphics Voltage [Auto]

This item sums up the voltages of the CPU Graphics Voltage offset and Additional Turbo Mode CPU Graphics Voltage options.

CPU System Agent Voltage Offset Mode Sign [+]

[+] To offset the voltage by a positive value.
[-] To offset the voltage by a negative value.

CPU System Agent Voltage Offset [Auto]

This item allows you to set the amount of voltage fed to the system agent of the CPU including its PCIE controller and the PCU (power control unit). Increase the voltage to enhance the overclocking capability.

You can use the <+> or <-> keys to adjust the value. The values range from 0.001 V to 0.999 V with a 0.001 V interval.

CPU Analog I/O Voltage Offset Mode Sign [+]

[+] To offset the voltage by a positive value.
[−] To offset the voltage by a negative value.

CPU Analog I/O Voltage Offset [Auto]

This item allows you to set the amount of voltage fed to the analog portion of the I/O on the CPU. By default, this item takes the standard value of the installed CPU. Increase the amount of voltage to enhance the overclocking capability.

You can use the <+> or <-> keys to adjust the value. The values range from 0.001 V to 0.999 V with a 0.001 V interval.

CPU Digital I/O Voltage Offset Mode Sign [+]

[+] To offset the voltage by a positive value.
[-] To offset the voltage by a negative value.

CPU Digital I/O Voltage Offset [Auto]

This item allows you to set the amount of voltage fed to the digital portion of the I/O on the processor. By default, this item takes the standard value of the installed CPU. Increase the amount of voltage to enhance the overclocking capability.

You can use the <+> or <-> keys to adjust the value. The values range from 0.001 V to 0.999 V with a 0.001 V interval.

SVID Support [Auto]

Set this item to [Enabled] when overclocking your system. Disabling this item stops the CPU from communicating with the external voltage regulator.

Configuration options: [Auto] [Disabled] [Enabled]

The following item appears only when you set SVID Support to [Enabled].

SVID Voltage Override [Auto]

This item allows you to set the SVID Voltage override. By default, this item takes the standard value of the installed CPU. You can use the <+> or <-> keys to adjust the value. The values range from 0.001V to 2.440 V with a 0.001 V interval.

CPU Input Voltage [Auto]

This item allows you to set an input voltage for the CPU by the external voltage regulator. By default, this item takes the standard value of the installed CPU. You can use the <+> or <-> keys to adjust the value. The values range from 0.800 V to 2.700 V with a 0.010 V interval.

DRAM Voltage [Auto]

This item allows you to set the DRAM voltage. You can use the <+> or <-> keys to adjust the value. The values range from 1.20 V to 1.92 V with a 0.005 V interval.

According to Intel® CPU specifications, DIMMs with voltage requirement over 1.65 V may damage the CPU permanently. We recommend that you install the DIMMs with the voltage requirement below 1.65 V.

PCH Voltage [Auto]

This item allows you to set the Core voltage for the PCH (Platform Controller Hub). You can use the <+> or <-> keys to adjust the value. The values range from 0.70 V to 1.80 V with a 0.0125 V interval.

• The values of the CPU PLL Voltage, CPU Manual Voltage, CPU Offset Voltage, iGPU Manual Voltage, iGPU Offset Voltage, DRAM Voltage, VCCSA Voltage, VCCIO Voltage, and PCH Voltage items are labeled in different color, indicating the risk levels of high voltage settings.
• The system may need better cooling system for a more stable performance under high voltage settings.

PCH VLX Voltage [Auto]

This item allows you to set the I/O voltage on the PCH (Platform Controller Hub). You can use the <+> or <-> keys to adjust the value. The values range from 1.2000 V to 2.0000 V with a 0.0125 V interval.

VTTDDR Voltage [Auto]

This item allows you to set the termination voltage for the system memory. You can use the <+> or <-> keys to adjust the value. The values range from 0.6000 V to 1.0000 V with a 0.0125 V interval.

DRAM CTRL REF Voltage [Auto]

This item allows you to set the DRAM reference voltage on the control lines from the memory bus. You can use the <+> or <-> keys to adjust the value. The values range from 0.39500x to 0.63000x with a 0.00500x interval.

To set a value for the DRAM reference voltage, we recommend you to set a value close to the standard value which is 0.500000x.

DRAM DATA REF Voltage on CHA/CHB [Auto]

This item allows you to set the DRAM reference voltage on the data lines on Channels A and B. You can use the <+> or <-> keys to adjust the value. The values range from 0.39500x to 0.63000x with a 0.00500x interval.

To set a value for the DRAM reference voltage, we recommend you to set a value close to the standard value which is 0.500000x.

Clock Crossing VBoot [Auto]

This item allows you to increase the value of the clock crossing voltage boot when the rising edge of the BCLK DN is equal to the falling edge of the BCLK D+. You can use the <+> or <-> keys to adjust the value. The values range from 0.1 V to 1.9 V with a 0.00625 V interval.

Clock Crossing Reset Voltage [Auto]

This item allows you to increase the value of the clock crossing reset voltage when the rising edge of the BCLK DN is equal to the falling edge of the BCLK D+. You can use the <+> or <-> keys to adjust the value. The values range from 0.1 V to 1.9 V with a 0.00625 V interval.

Clock Crossing Voltage [Auto]

This item allows you to increase the value of the clock crossing voltage when the rising edge of the BCLK DN is equal to the falling edge of the BCLK D+. You can use the <+> or <-> keys to adjust the value. The values range from 0.1 V to 1.9 V with a 0.00625 V interval.

PLL Termination Voltage [Auto]

This item allows you to terminate the PLL Voltage. You can use the <+> or <-> keys to adjust the value. The values range from 1.00000V to 2.50000 V with a 0.01250 V interval.

CPU Spread Spectrum [Auto]

This item allows you to enhance the BCLK overclocking capability or reduce the EMI (electromagnetic disturbance) generated by the BCLK. Set this item to [Enabled] for EMI reduction, or set this item to [Disabled] to enhance BCLK overclocking.

Configuration options: [Auto] [Disabled] [Enabled]

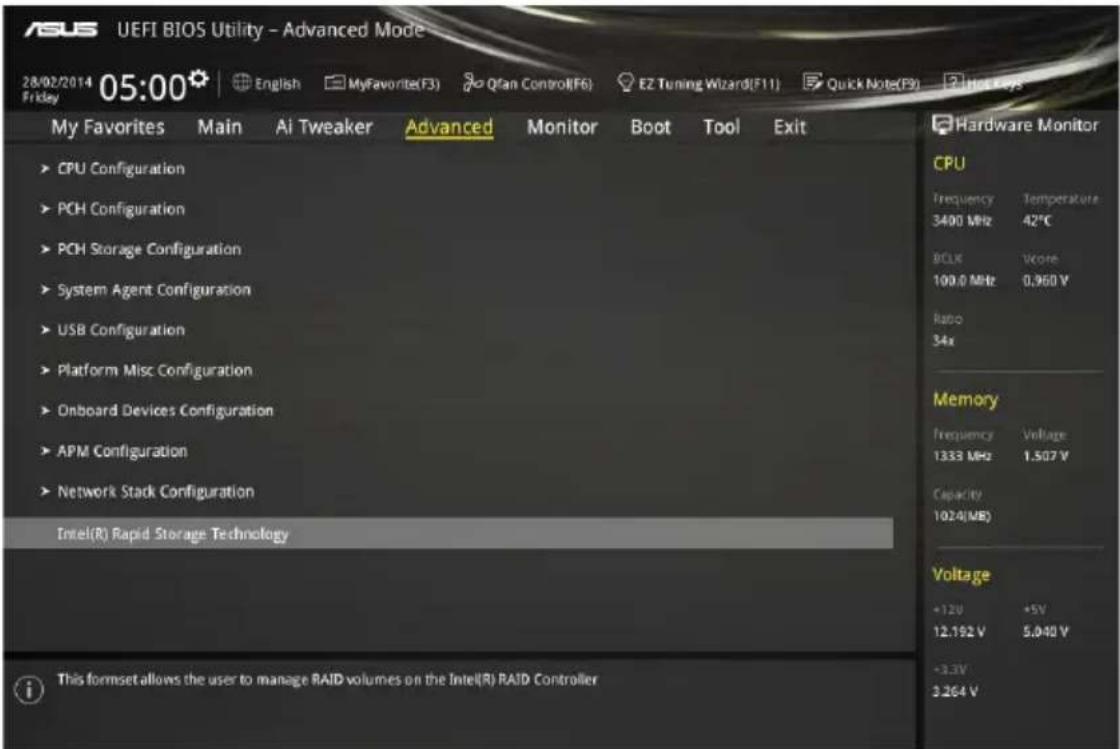

3.6 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Be cautious when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction.

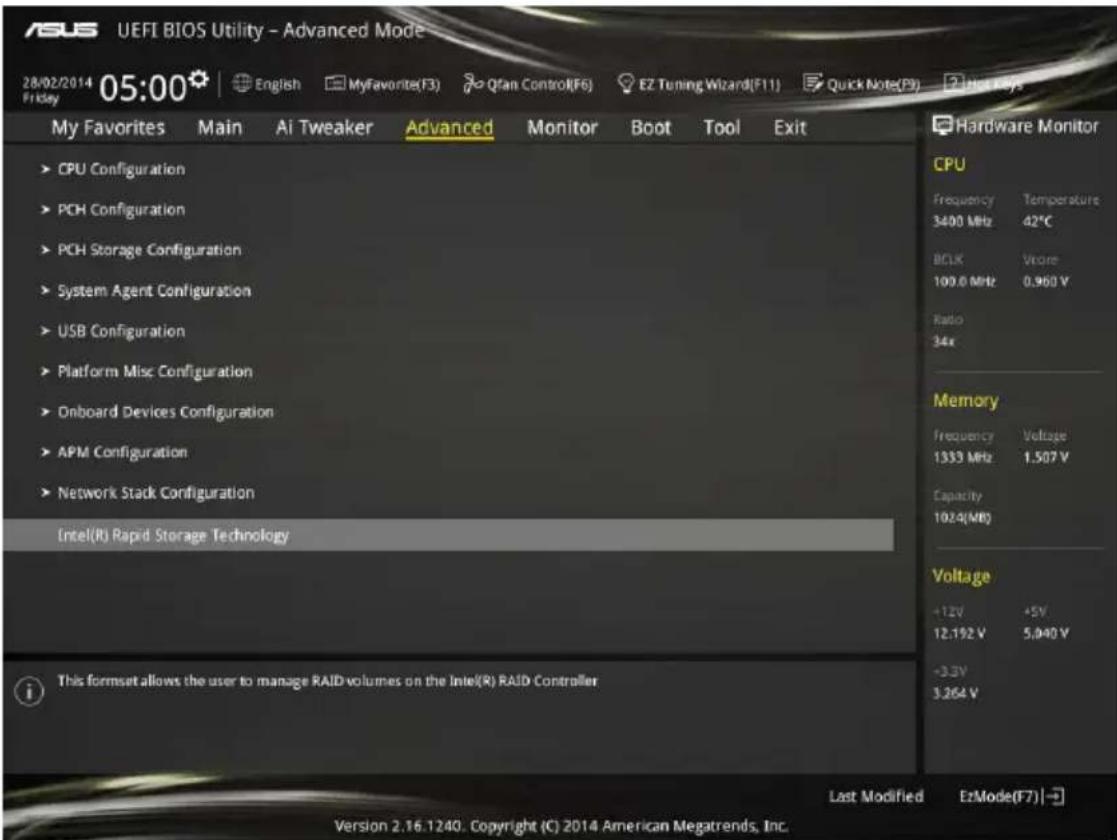

ASUS UEFI BIOS Utility - Advanced Mode 28/02/2014 05:00 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(P9) Hot Key My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit CPU Frequency Temperature 3400 MHz 42°C BCLK Vccore 100.0 MHz 0.960 V Ratio 34x Memory Frequency Voltage 1353 MHz 1.507 V Capacity 1024(MB) Voltage +12V +5V 12.192 V 5.040 V -3.3V 3.264 V This format allows the user to manage RAID volumes on the Intel(R) RAID Controller Last Modified EzMode(F7)→ Version 2.16.1240. Copyright (C) 2014 American Megatrends, Inc.

3.6.1 CPU Configuration

The items in this menu show the CPU-related information that the BIOS automatically detects.

The items in this menu may vary based on the CPU installed.

ASUS UEFI BIOS Utility - Advanced Mode 26/02/2014 23:19 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit L2 Cache 256 kB x 4 L3 Cache 6144 kB Intel Adaptive Thermal Monitor Enabled Active Processor Cores All Limit CPUID Maximum Disabled Execute Disable Bit Enabled Intel Virtualization Technology Disabled Hardware Prefetcher(L2 Cache) Enabled Adjacent Cache Line Prefetcher Enabled Boot performance mode Max Non-Turbo Performance Dynamic Storage Accelerator Disabled >CPU Power Management Configuration. CPU Power Management Configuration Last Modified EzMode(F7)→ Version 2.16.1240. Copyright (C) 2014 American Megatrends, Inc.

Intel Adaptive Thermal Monitor [Enabled]

This item allows you to protect the CPU by decreasing its frequency as it reaches the thermal throttle point. The thermal monitor includes TM1 (Thermal monitor 1), TM2 (Thermal monitor 2), and EMTTM (Enhanced Multi-threaded Thermal Monitoring).

Configuration options: [Disabled] [Enabled]

Active Processor Cores [All]

This item allows you to select the number of CPU cores to activate in each processor package.

Configuration options: [All] [1] [2] [3]

Limit CPUID Maximum [Disabled]

When set to [Enabled], this item allows the legacy OS to boot even without support for CPUs with extended CPUID functions.

Configuration options: [Disabled] [Enabled]

Execute Disable Bit [Enabled]

Execute Disable prevents certain classes of malicious buffer overflow attacks when combined with a supporting OS (SuSE Linux 9.2, RedHat Enterprise 3 Update 3).

Configuration options: [Disabled] [Enabled]

Intel Virtualization Technology [Disabled]

When set to [Enabled], a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Configuration options: [Disabled] [Enabled]

Hardware Prefetcher(L2 Cache) [Enabled]

This item allows the CPU to prefetch commands and data in the L2 cache, reduces the DRAM loading time and improves the system performance.

Configuration options: [Disabled] [Enabled]

Adjacent Cache Line Prefetcher [Enabled]

This item allows the mid level cache (L2) to prefetch adjacent cache lines, reducing the DRAM loading time and improves the system performance.

Configuration options: [Disabled] [Enabled]

Boot Performance Mode [Max Non-Turbo Performance]

This item allows you to select the CPU performance state during system boot before the operating system takes control. The CPU runs at a selected performance ratio based on CPU configuration.

Configuration options: [Max Non-Turbo Performance] [Max Battery] [Turbo Performance]

Dynamic Storage Accelerator [Disabled]

This item allows you to accelerate the performance of the SSDs (Solid-State Drives) by dynamically adjusting the power management during heavy multitasking.

Configuration options: [Enabled] [Disabled]

CPU Power Management Configuration

This item allows you to manage and configure the CPU's power.

Enhanced Intel SpeedStep Technology [Enabled]

This item allows your system to adjust the CPU's voltage and cores frequency, resulting in decreased power consumption and heat production.

[Disabled] The CPU runs at its default speed.

[Enabled] The system controls the CPU speed.

Turbo Mode [Enabled]

This item allows you to automatically set the CPU cores to run faster than the base operating frequency when it is below the operating power, current and temperature specification limit.

Configuration options: [Enabled] [Disabled]

CPU states [Auto]

This item allows you to set the power saving of the CPU states.

Configuration options: [Auto] [Disabled] [Enabled]

The following items appear only when you set the CPU states to [Enabled].

Enhanced C1 state [Enabled]

This item allows your CPU to reduce power consumption when the system is in idle mode.

Configuration options: [Enabled] [Disabled]

CPU C3 Report [Enabled]

This item allows you to disable or enable the CPU C3 report to the operating system.

Configuration options: [Enabled] [Disabled]

CPU C6 Report [Enabled]

This item allows you to disable or enable the CPU C6 report to the operating system.

Configuration options: [Enabled] [Disabled]

C6 Latency [Short]

This item allows you to set the duration of C6 latency for C6 state.

Configuration options: [Short] [Long]

CPU C7 Report [CPU C7s]

This item allows you to disable or enable the CPU C7 report to the operating system.

Configuration options: [Disabled] [CPU C7] [CPU C7s]

C7 Latency [Long]

This item allows you to set the duration of C7 latency for C7 state.

Configuration options: [Short] [Long]

Package C State Support [Auto]

This item allows you to set the a C-state support for the CPU package.

Configuration options: [Auto] [Enabled] [C0/C1] [C2] [C3] [C6] [CPU C7] [CPU C7s]

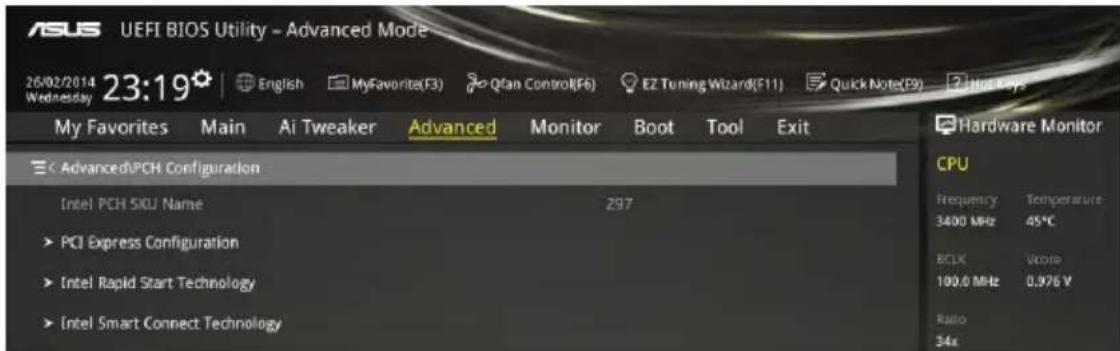

3.6.2 PCH Configuration

USI UEFI BIOS Utility - Advanced Mode 26/02/2014 23:19 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(P9) Hardware Wednesday My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit Advanced\PCH Configuration Intel PCH SKU Name 297 PCI Express Configuration Intel Rapid Start Technology Intel Smart Connect Technology Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C BCLK Victor 100.0 MHz 0.976 V Ratio 34x

PCI Express Configuration

This item allows you to configure the PCI Express slots.

PCIe Speed [Auto]

This item allows your system to automatically select the PCI Express port speed. When set to [Gen1], the PCI-E port runs at PCI-E 1.0 speed. When set to [Gen2], the PCI-E port runs at PCI-E 2.0 speed.

Configuration options: [Auto] [Gen1] [Gen2]

Intel Rapid Start Technology [Disabled]

This item allows you to enable or disable Intel® Rapid Start Technology.

Configuration options: [Enabled] [Disabled]

The following items appear only when you set the Intel® Rapid Start Technology to [Enabled].

Entry on S3 RTC Wake [Enabled]

The system automatically wakes up and set to Rapid Start Technology S3 mode.

Configuration options: [Enabled] [Disabled

Entry After [0]

This item allows you to set the RTC wake-up timer at S3 entry. The time ranges from 0 minute (immediately) to 120 minutes.

Active Page Threshold Support [Enabled]

The system automatically goes into sleep mode when the partition size is not enough for the Intel® Rapid Start Technology to work.

Configuration options: [Enabled] [Disabled]

Active Memory Threshold [0]

This item supports Intel Rapid Storage Technology when the partition size is greater than the Active Page Threshold size. When set to zero (0), it will go to Auto mode and checks if the partition size is enough at S3 entry.

Ensure that the caching partition size is larger than the total memory size.

Hybrid Hard Disk Support [Disabled]

This item allows you to enable or disable the hybrid hard disk support for a faster resume time.

Configuration options: [Enabled] [Disabled]

Intel Smart Connect Technology

This item allows the system to support Intel Smart Connect Technology, that periodically refreshes selected applications when the system is in sleep mode.

Configuration options: [Enabled] [Disabled]

3.6.3 PCH Storage Configuration

While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA Port items show Not Present if no SATA device is installed to the corresponding SATA port.

Scroll down to display the other BIOS items.

26/02/2014 23:19 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit AdvancedAPCH Storage Configuration SATA Express(SATAEXPRESS_1) and M.2 Configuration Auto SATA Mode Selection AHCI Aggressive LPM Support Disabled S.M.A.R.T. Status Check On Off SATA6G_1 (Gray) Empty >SATA6G_1 (Gray) Hot Plug Disabled SATA6G_2 (Gray) Empty >SATA6G_2 (Gray) Hot Plug Disabled SATA6G_3 (Gray) ASUS DVD-E81BA6T ATAPI >SATA6G_3 (Gray) Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C BCLK Vprime 100.0 MHz 0.976 V Ratio 34x Memory Frequency Voltage 1333 MHz 1.507 V Capacity 1024(MB) Voltage +12V +5V 12.096 V 4.960 V +3.3V 2.168 V Last Modified EzMode(F7)→ Version 2.16.1240. Copyright (C) 2014 American Megatrends, Inc.

SATA Express(SATAEXPRESS\_1) and M.2 Configuration [Auto]

This item allows you to set an automatic detection between the SATA Express devices and M.2 devices.

[Auto] The system automatically detects the connected SATA Express and M.2 devices and set a higher priority to M.2 over SATA Express interface.

[SATA Express] The system assigns the priority bandwidth to SATA Express interface.

[M.2] The system assigns the priority bandwidth to M.2 Socket 3.

By default, the system detects the first priority device. The device detection priority is as follows: PCIe M.2 > SATA Mode M.2 > PCIe SATA Express > SATA Mode SATA Express > SATA devices.

SATA Mode Selection [AHCI]

This item allows you to set the SATA configuration.

[Disabled] Disables the SATA function.

[IDE Mode] Set to [IDE Mode] when you want to use the Serial ATA hard disk drives as Parallel ATA physical storage devices.

[AHCI Mode] Set to [AHCI Mode] when you want the SATA hard disk drives to use the AHCI (Advanced Host Controller Interface). The AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to internally optimize the order of commands.

[RAID Mode] Set to [RAID Mode] when you want to create a RAID configuration from the SATA hard disk drives.

The following item appears only when you set the SATA Mode Selection to [RAID].

Pcie Nand Configuration [Auto]

This item allows you to enable or disable PCIe NAND.

Configuration options: [Disabled] [Enabled]

Aggressive LPM Support [Disabled]

This item is designed for LPM (link power management) support with a better energy saving conditions. When disabled, the hot plug function of SATA ports are disabled.

Configuration options: [Disabled] [Enabled]

S.M.A.R.T. Status Check [Enabled]

S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system that shows a warning message during POST (Power-on Self Test) when an error occurs in the hard disks.

Configuration options: [On] [Off]

Hot Plug [Disabled] (SATA6G\_1 - SATA6G\_6)

These items allow you to enable/disable SATA Hot Plug Support.

Configuration options: [Disabled] [Enabled]

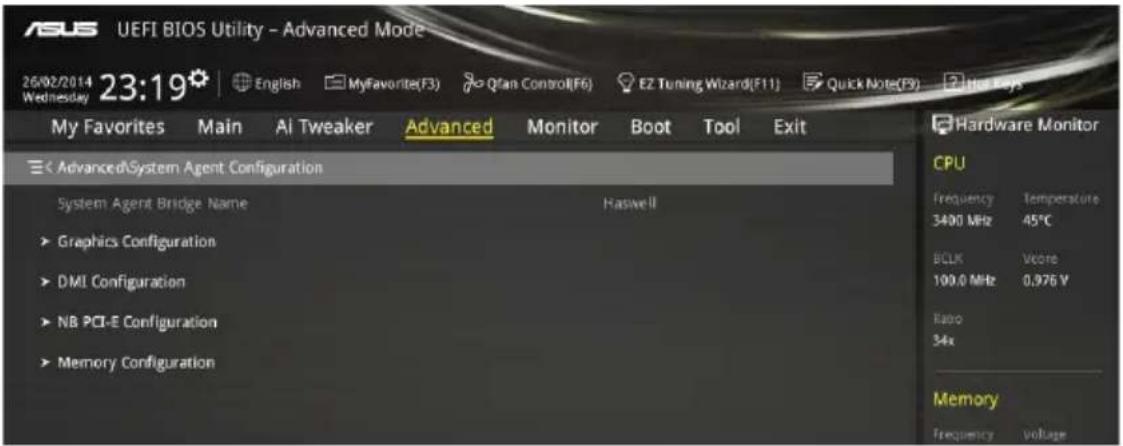

3.6.4 System Agent Configuration

USI UEFI BIOS Utility - Advanced Mode 26/02/2014 23:19 English MyFavorite(F3) Qtan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Http Keys Wednesday My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit AdvancedSystem Agent Configuration System Agent Bridge Name Haswell > Graphics Configuration > DMI Configuration > NB PCI-E Configuration > Memory Configuration Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C BCLK Vccore 100.0 MHz 0.976 V Ratio 34x Memory Frequency Voltage

Graphics Configuration

This item allows you to select a primary display from CPU and PCIe graphical devices.

Primary Display [Auto]

This item allows you to select the primary display from CPU and PCIe devices.

Configuration options: [Auto] [CPU Graphics] [PCIE]

CPU Graphics Memory [Auto]

This item allows you to empower both integrated and discrete graphics devices for the multi-monitor output. The CPU graphics shared system memory size is fixed at 64 MB.

Configuration options: [Auto] [32M] [64M] [96M] [128M] [160M] [192M] [224M] [256M] [288M] [320M] [352M] [384M] [416M] [448M] [480M] [512M]

Render Standby [Auto]

This item allows you to enable the Intel® Graphics Render Standby support to reduce iGPU power when the system is idle.

Configuration options: [Auto] [Disabled] [Enabled]

CPU Graphics Multi-Monitor [Disabled]

This item allows you to enable the iGPU Multi-Monitor. The iGPU shared system memory size is fixed 64 MB.

Configuration options: [Disabled] [Enabled]

DMI Configuration

This item allows you to control various DMI (direct media interface) to run at PCI-E 2.0 speed.

DMI Gen 2 [Auto]

Set this item to [Enabled] to run DMI at PCI-E 2.0 speed.

Configuration options: [Enabled] [Disabled]

NB PCIe Configuration

This item allows you to configure the NB PCI Express settings.

PCIEx16\_1/2 Link Speed [Auto]

This item allows you to configure the PCIEx16 speed for slots 1 and 2.

Configuration options: [Auto] [Gen1] [Gen2] [Gen3]

Memory Configuration

This item allows you to configure the memory configuration parameters.

Memory Scrambler [Enabled]

Set this item to [Enabled] to support high frequency DRAMs for a better stability.

Configuration options: [Enabled] [Disabled]

Memory Remap [Enabled]

Set this item to [Enabled] to support DRAM address remapping for 64-bit operating systems.

Configuration options: [Enabled] [Disabled]

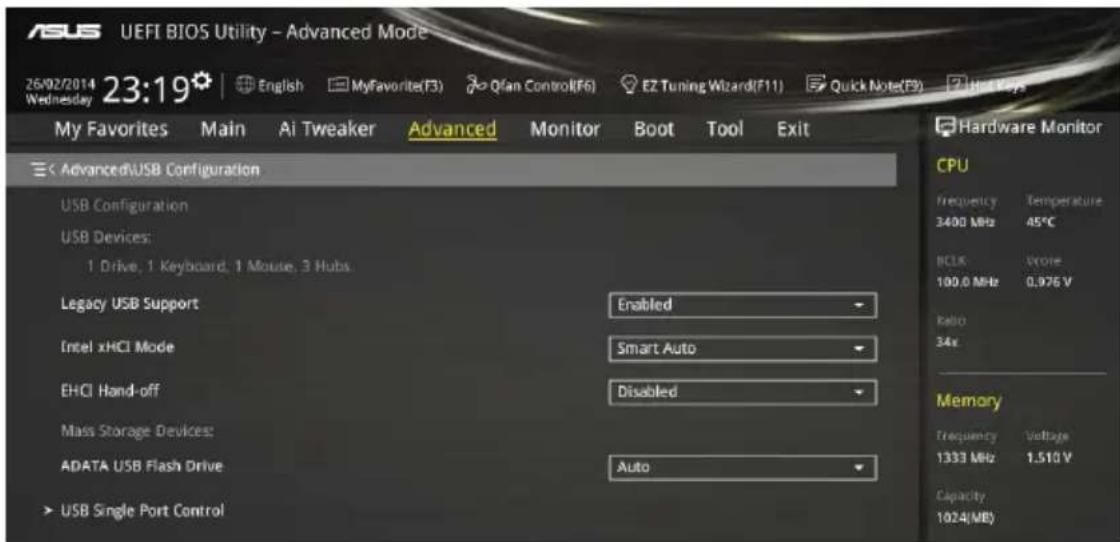

3.6.5 USB Configuration

The items in this menu allow you to change the USB-related features.

ASUS UEFI BIOS Utility - Advanced Mode 26/02/2014 23:19 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys Wednesday My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit AdvancedUSB Configuration USB Configuration USB Devices: 1 Drive, 1 Keyboard, 1 Mouse, 3 Hubs. Legacy USB Support Enabled Intel xHCI Mode Smart Auto EHCI Hand-off Disabled Mass Storage Devices: ADATA USB Flash Drive Auto > USB Single Port Control Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C BCLK Vrone 100.0 MHz 0.976 V Ratio 34x Memory Frequency Voltage 1333 MHz 1.510 V Capacity 1024(MB)

The Mass Storage Devices item shows the auto-detected values. If no USB device is detected, the item shows None.

Legacy USB Support [Enabled]

[Enabled] Your system supports the USB devices in legacy operating systems.

[Disabled] Your USB devices can be used for BIOS setup only and cannot be recognized in the boot devices list.

[Auto] Your system automatically detects the presence of USB devices at startup. If any USB devices are detected, the legacy USB support is enabled.

Intel xHCI Mode [Smart Auto]

[Auto] The xHCI is automatically enabled and runs at USB 3.0 mode when the xHCI driver is installed in the operating system.

[Smart Auto] Upon detection, the xHCI driver supports the USB 3.0 mode during both POST and operating system.

[Enabled] Enables the xHCI controller.

[Disabled] Disables the xHCI controller.

EHCI Hand-off [Disabled]

[Enabled] Enables the support for operating systems without an EHCI hand-off feature.

[Disabled] Disables the EHCI Hand-off support.

Mass Storage Devices [Auto]

This item allows your system to detect the devices according to their media formats.

Configuration options: [Auto] [Floppy] [Forced FDD] [Hard Disk] [CD-ROM]

USB Single Port Control

This item allows you to enable or disable the individual USB ports.

Refer to section 1.2.2 Motherboard layout for the location of the USB ports.

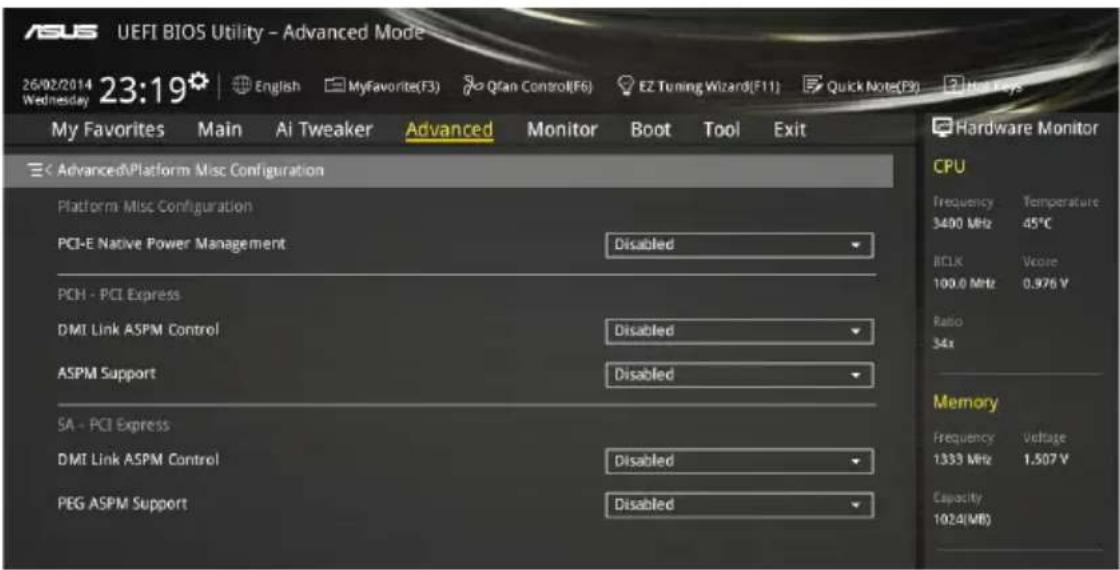

3.6.6 Platform Misc Configuration

The items in this menu allow you to configure the platform-related features.

UEFI BIOS Utility - Advanced Mode 26/02/2014 23:19 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(P3) Hot Keys My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit Advanced Platform Misc Configuration Platform Misc Configuration PCI-E Native Power Management Disabled PCH - PCI Express DMI Link ASPM Control Disabled ASPM Support Disabled SA - PCI Express DMI Link ASPM Control Disabled PEG ASPM Support Disabled Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C RCLK Vccore 100.0 MHz 0.976 V Ratio 34x Memory Frequency Voltage 1333 MHz 1.507 V Capacity 1024(MB)

PCIE Native Power Management [Disabled]

This item allows you to enhance the power saving feature of PCI Express and perform ASPM operations in the operating system.

Configuration options: [Disabled] [Enabled]

The following item appears only when you set the PCI Express Native Power Management to [Enabled].

Native ASPM [Disabled]

[Enabled] Windows ^ Vista OS controls the ASPM (active state power management) support for devices.

[Disabled] BIOS controls the ASPM support for the device.

PCH - PCI Express options

DMI Link ASPM Control [Disabled]

This item allows you to control the Active State Power Management on both NB (NorthBridge) side and SB (SouthBridge) side of the DMI Link.

Configuration options: [Disabled] [Enabled]

ASPM Support [Disabled]

This item allows you to select the ASPM state for energy-saving conditions.

Configuration options: [Disabled] [L0s] [L1] [L0sL1] [Auto]

SA - PCI Express options

DMI Link ASPM Control [Disabled]

This item allows you to control the Active State Power Management on both CPU and PCH (platform controller hub) Both DMI link ASPM control items of the CPU and PCH sides must be enabled for the ASPM to take effect.

Configuration options: [Disabled] [L0s] [L1] [L0sL1]

PEG ASPM Support [Disabled]

This item allows you to select the ASPM state for energy-saving conditions, or use the ASUS optimized energy saving profile.

Configuration options: [Disabled] [L0s] [L1] [L0sL1] [Auto]

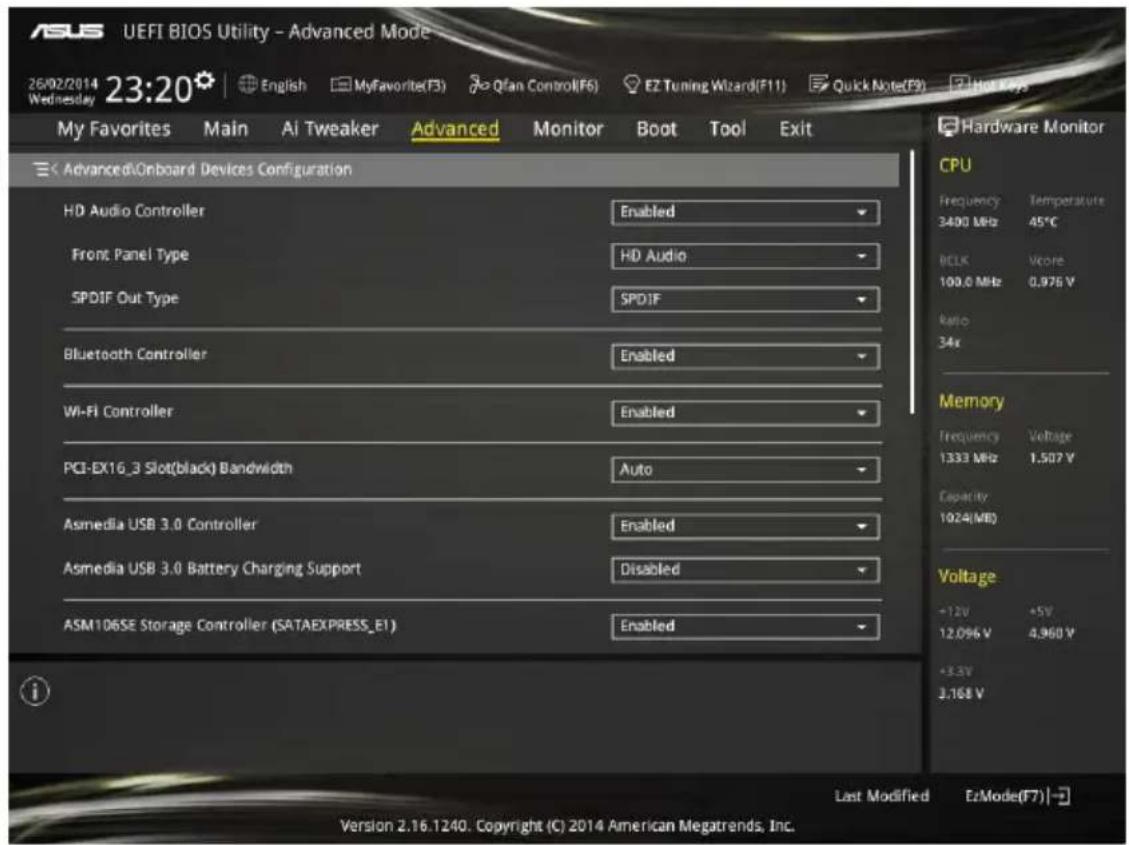

3.6.7 Onboard Devices Configuration

Scroll down to view the other BIOS items.

ASUS UEFI BIOS Utility - Advanced Mode 26/02/2014 23:20 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit Advanced\Onboard Devices Configuration HD Audio Controller Enabled Front Panel Type HD Audio SPDIF Out Type SPDIF Bluetooth Controller Enabled Wi-Fi Controller Enabled PCI-EX16_3 Slot(black) Bandwidth Auto Asmedia USB 3.0 Controller Enabled Asmedia USB 3.0 Battery Charging Support Disabled ASM106SE Storage Controller (SATAEXPRESS_E1) Enabled Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C RCLK Vcore 100.0 MHz 0.975 V ratio 34x Memory Frequency Voltage 1333 MHz 1.507 V Capacity 1024(MB) Voltage +12V +5V 12.0% 4.960 V +3.3V 3.168 V Last Modified EzMode(F7)→ Version 2.16.1240. Copyright (C) 2014 American Megatrends, Inc.

HD Audio Controller [Enabled]

This item allows you to use the Azalia High Definition Audio Controller

Configuration options: [Disabled] [Enabled]

The following items appear only when you set the HD Audio Controller to [Enabled].

Front Panel Type [HD]

This item allows you to set the front panel audio connector (AAFP) mode to legacy AC'97 or high-definition audio depending on the audio standard that the front panel audio module supports.

[HD] Sets the front panel audio connector (AAFP) mode to high definition audio.

[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC'97

SPDIF Out Type [SPDIF]

[SPDIF] Sets to an SPDIF audio output.

[HDMI] Sets to an HDMI audio output.

Bluetooth Controller [Enabled]

This item allows you to enable or disable the Bluetooth controller.

Configuration options: [Disabled] [Enabled]

Wi-Fi Controller [Enabled]

This item allows you to enable to disable the Wi-Fi controller.

Configuration options: [Disabled] [Enabled]

PCI-EX16\_3 Slot (black) Bandwidth [Enabled]

[Auto] This item allows your system to run at X2 mode and disable the SATAEXPRESS_E1 when a PCI-E device is detected. SATAEXPRESS_E1 is automatically enabled when no device is connected.

[X2 mode] This item allows your system to run at X2 mode for system resource optimization with the SATAEXPRESS_1 disabled.

[X4 mode] This item allows your system to run at X4 mode for high performance support with the SATAEXPRESS_1 and USB3_E12 disabled.

[Disabled] This item disables the slot for SATAEXPRESS_E1 and USB3_E12 support.

ASMedia USB 3.1 Controller [Enabled]

This item allows you to enable the ASMedia ^® USB 3.1 controller of your system.

Configuration options: [Disabled] [Enabled]

The following item appears only when you set the ASMedia USB 3.1 Controller to [Enabled].

ASMedia USB 3.1 Battery Charging Support [Disabled]

This item allows you to enable the ASMedia ^® USB 3.1 battery charging support of your system.

Configuration options: [Disabled] [Enabled]

ASM1061 Storage Controller (SATAEXPRESS\_E1) [Enabled]

This item allows you to enable or disable the ASM1061 storage controller 2.

Configuration options: [Disabled] [Enabled]

The following items appear only when you set the ASM1061 Storage Controller (SATAEXPRESS_E1) to [Enabled].

Hot-plug [Enabled]

This item allows you to enable or disable the Hot Plug support for SATAEXPRESS_E1.

Configuration options: [Disabled] [Enabled]

ASPM Support [Enabled]

This item allows you to enable or disable the ASPM controller to save energy when using the ASM1060 Storage Controller for SATAEXPRESS_E1.

Configuration options: [Disabled] [Enabled]

ASM1061 Storage Controller (SATA6G\_E12) [Enabled]

This item allows you to enable or disable the ASM1061 storage controller.

Configuration options: [Disabled] [Enabled]

The following items appear only when you set the ASM1061 Storage Controller to [Enabled].

Hot-plug [Enabled]

This item allows you to enable or disable the Hot Plug support for SATA6G_E12.

Configuration options: [Disabled] [Enabled]

ASPM Support [Enabled]

This item allows you to enable or disable the ASPM controller to save energy when using the ASM1060 Storage Controller for SATA6G_E12.

Configuration options: [Disabled] [Enabled]

Intel LAN Controller (LAN1-LAN2) [Enabled]

This item allows you to enable or disable the Intel LAN1/2 controllers.

Configuration options: [Disabled] [Enabled]

The following item appears only when you set the Intel LAN Controller to [Enabled].

Intel PXE OPROM (LAN1-LAN2) [Disabled]

This item allows you to enable or disable the PXE OptionRom of the Intel® LAN controller.

Configuration options: [Enabled] [Disabled]

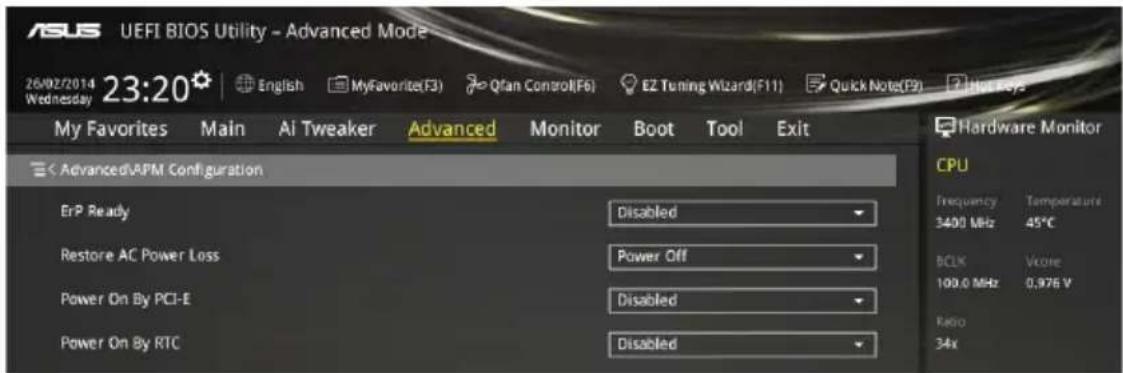

3.6.8 APM Configuration

ASUS UEFI BIOS Utility - Advanced Mode 26/02/2014 23:20 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Key My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit Advanced/APM Configuration ErP Ready Disabled Restore AC Power Loss Power Off Power On By PCI-E Disabled Power On By RTC Disabled Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C BCLK Voltage 100.0 MHz 0.976 V Ratio 34x

ErP Ready [Disabled]

This item allows you to switch off some power at S4+S5 or S5 to get the system ready for ErP requirement. When set to [Enabled], all other PME options are switched off.

Configuration options: [Disabled] [Enabled (S4+S5) [Enabled (S5)]

Restore AC Power Loss [Power Off]

This item allows your system to go to ON state, OFF state, or both states after an AC power loss. When setting your system to [Last State], it goes to the previous state before the AC power loss.

Configuration options: [Power Off] [Power On] [Last State]

Power On By PCI-E [Disabled]

This item allows you to enable or disable the Wake-on-LAN function of the onboard LAN controller or other installed PCI-E LAN cards.

Configuration options: [Disabled] [Enabled]

Power On By RTC [Disabled]

This item allows you to enable or disable the RTC (Real-Time Clock) to generate a wake event and configure the RTC alarm date. When enabled, you can set the days, hours, minutes, or seconds to schedule an RTC alarm date.

Configuration options: [Disabled] [Enabled]

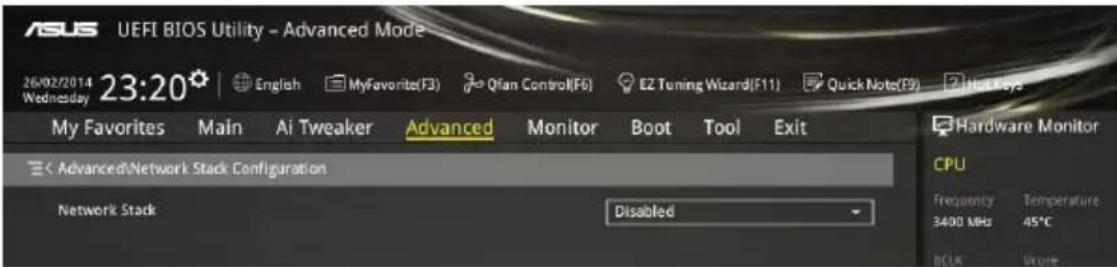

3.6.9 Network Stack Configuration

UEFI BIOS Utility - Advanced Mode 26/02/2014 23:20 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hs Key My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit Advanced\Network Stack Configuration Network Stack Disabled Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C BCUs Write

Network stack [Disable]

This item allows you to disable or enable the UEFI network stack.

Configuration options: [Disable] [Enable]

The following item appears only when you set the Network Stack to [Enabled].

Ipv4/Ipv6 PXE Support [Enabled]

This item allows you to enable or disable the lpv4/lpv6 PXE wake event. Configuration options: [Disabled] [Enabled]

3.6.10 Intel(R) Rapid Storage Technology

28/02/2014 05:00 English MyFavorite(F3) Qian Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit CPU Frequency Temperature 3400 MHz 42°C BCLK Vcore 100.0 MHz 0.960 V Ratio 34x Memory Frequency Voltage 1333 MHz 1.507 V Capacity 1024(MB) Voltage +12V +5V 12.192 V 5.040 V -3.3V 3.264 V This formset allows the user to manage RAID volumes on the Intel(R) RAID Controller

Create RAID Volume

This item allows you to create a RAID volume.

This item only appears when at least one HDD is connected to the Intel® SATA ports and set to RAID mode.

Name [Volume1]

This item allows you to key in a volume name for your RAID setup.

Use only alphanumeric characters for your RAID volume name. It should be 16 characters or less.

RAID Level [RAID0(Stripe)]

This item allows you to select the RAID level.

Configuration options: [RAID0(Stripe) [RAID1(Mirror)] [RAID5(Parity)] [Recovery]

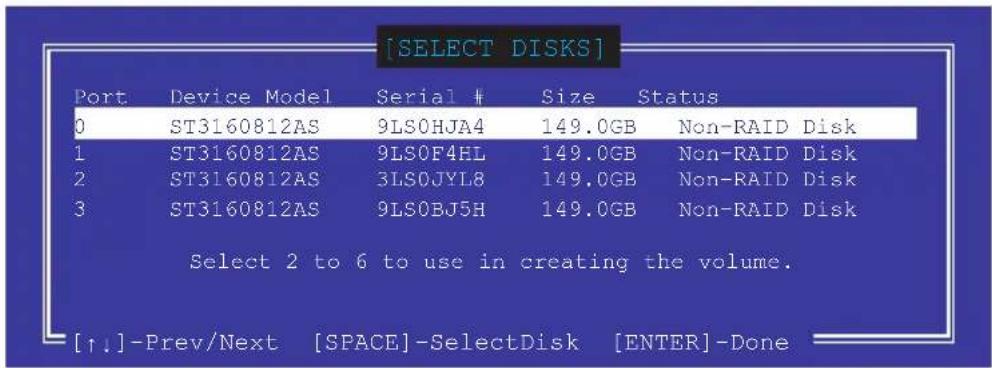

Select Disks

This item shows the connected SATA devices compatible for setting up RAID. On their dropdown lists, select X to set up the RAID.

Strip Size: [32KB]

This item allows you to strip the size of your RAID setup.

Configuration options: [4KB] [8KB] [16KB] [32KB] [64KB] [128KB]

Capacity (MB): [0]

This item allows you to set the RAID capacity.

3.7 Monitor menu

The Monitor menu displays the system temperature/power status, and allows you to change the fan settings.

Scroll down to display the other BIOS items.

ASUS UEFI BIOS Utility - Advanced Mode 03/18/2014 21:39 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit > Qfan Tuning CPU Temperature +51°C / +123°F MB Temperature +35°C / +95°F VIM Temperature +46°C / +114°F PCH CORE Temperature +68°C / +154°F SENSOR1 Temperature +30°C / +86°F CPU Fan Speed 2160 RPM CPU Optional Fan Speed N/A Chassis Fan 1 Speed 1424 RPM Chassis Fan 2 Speed 1571 RPM Chassis Fan 3 Speed 1424 RPM Chassis Fan 4 Speed +220 RPM Click to automatically detect the lowest speed and configure the minimum duty circle for each fan. Last Modified EzMode(F7) Version 2.16.1240. Copyright (C) 2014 American Megatrends, Inc.

Qfan Tuning

Click this item to automatically detect the lowest speed and configure the minimum duty cycle for each fan.

CPU Temperature / MB Temperature / VRM Temperature / PCH Core Temperature / SENSOR1 Temperature [xxx°C/xxx°F]

The onboard hardware monitor automatically detects and displays the CPU, motherboard, VRM, PCH Core, and SENSOR1 temperatures. Select [Ignore] if you do not wish to display the detected temperatures.

CPU Fan Speed [xxxx RPM] or [Ignore] / [N/A], CPU Optional Fan Speed [xxxx RPM] or [Ignore] / [N/A], Chassis Fan 1/4 Speed [xxxx RPM] or [Ignore] / [N/A]

The onboard hardware monitor automatically detects and displays the CPU, chassis, and power fan speed in rotations per minute (RPM). If the fan is not connected to the motherboard, the field shows N/A. Select [Ignore] if you do not wish to display the detected speed.

CPU Core 0/3 Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators. Select [Ignore] if you do not want to detect this item.

CPU Q-Fan Control [Auto]

This item allows you to set the CPU Q-Fan operating mode.

[Auto] Detects the type of CPU fan installed and automatically switches the control modes.

[PWM Mode] Enables the CPU Q-Fan control feature in PWM mode for 4-pin CPU fan.

[DC Mode] Enables the CPU Q-Fan control feature in DC mode for 3-pin CPU fan.

[Disabled] Disables the Q-Fan control.

The following items appear only when you set the CPU Q-Fan Control to [Auto], [PWM Mode], and [DC Mode].

CPU Fan Speed Low Limit [300 RPM]

This item allows you to set the low limit warning for CPU Fan speed.

Configuration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

CPU Fan Profile [Standard]

This item allows you to set the appropriate performance level of the CPU fan.

[Standard] Set to make the CPU fan adjust automatically depending on the CPU temperature.

[Silent] Set to minimize the fan speed for quiet CPU fan operation.

[Turbo] Set to achieve maximum CPU fan speed.

[Manual] Set to assign the detailed fan speed control parameters.

The following items appear only when you set the CPU Fan Profile to [Manual].

CPU Upper Temperature [70]

Use the <+> or <-> keys to adjust the upper limit of the CPU temperature. The values range from 20°C to 75°C.

CPU Fan Max. Duty Cycle(%) [100]

Use the <+> or <-> keys to adjust the maximum CPU fan duty cycle. The values may differ via Qfan tuning.

CPU Middle Temperature [25]

Use the <+> or <-> keys to set the value for CPU Middle Temperature. The range of the values depends on the CPU installed.

CPU Fan Middle Duty Cycle(%) [20]

Use the <+> or <-> keys to adjust the CPU fan middle duty cycle. The values may differ via Qfan tuning.

CPU Lower Temperature [20]

Use the <+> or <-> keys to adjust the CPU fan's lower temperature. The values range from 20% to 75%.

CPU Fan Min. Duty Cycle(%) [20]

Use the <+> or <-> keys to adjust the minimum CPU fan duty cycle. The values may differ via Qfan tuning.

Chassis Fan 1/4 Q-Fan Control 1/4 [Enabled]

These items allow you to set the chassis fans' Q-Fan control feature into DC Mode, PWM Mode, or disable these Q-Fan controls from your motherboard.

Configuration options: [Disabled] [DC Mode] [PWM Mode]

The following items appear only when you set the Chassis Fan 1/4 Q-Fan Control to [PWM Mode] or [DC Mode].

Chassis Fan 1/4 Q-Fan Source [DC Mode]

This item controls the assigned fan according to the selected temperature source. Configuration options: [CPU] [MB] [VRM] [PCH Core] [T_SENSOR1]

If you select T_SENSOR1, plug a thermistor cable to T_SENSOR1 header and stick the thermistor cable's head to the desired component as the temperature source.

Chassis Fan 1/4 Speed Low Limit 1/4 [300 RPM]

This item allows you to disable or set the chassis fan warning speed. Configuration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

Chassis Fan 1/4 Profile [Standard]

This item allows you to set the appropriate performance level of the chassis fan. [Standard] Set to make the chassis fan adjust automatically depending on the chassis temperature.

[Silent] Set to minimize the fan speed for quiet chassis fan operation.

[Turbo] Set to achieve maximum chassis fan speed.

[Manual] Set to assign detailed fan speed control parameters.

The following items appear only when you set the Chassis Fan Profile to [Manual].

Chassis Fan 1/4 Upper Temperature [70]

Use the <+> or <-> keys to adjust the upper limit of the CPU temperature. The values range from 40°C to 90°C.

Chassis Fan 1/4 Max. Duty Cycle(%) [100]

Use the <+> or <-> keys to adjust the maximum chassis fan duty cycle. The values may differ via Qfan tuning.

Chassis Fan 1/4 Middle Temperature [45]

Use the <+> or <-> keys to set the value for Chassis Fan Middle Temperature.

Chassis Fan 1/4 Middle Duty Cycle(%) [60]

Use the <+> or <-> keys to adjust the chassis fan middle duty cycle. The values may differ via Qfan tuning.

Chassis Fan 1/4 Lower Temperature [40]

Use the <+> or <-> keys to adjust the chassis fans' lower temperature. The values may differ via Qfan tuning.

Chassis Fan 1/4 Min. Duty Cycle(%) [60]

Use the <+> or <-> keys to adjust the minimum chassis fan duty cycle. The values may differ via Qfan tuning.

Allow Fan Stop [Disabled]

This item allows your fans to run at 0% duty cycle when the temperature of the source drops below the lower temperature.

Configuration options: [Disabled] [Enabled]

Anti Surge Support [Enabled]

This item allows you to enable or disable the OVP (Over Voltage Protection) and UVP (Under Voltage Protection) functions. This causes the system to automatically shut down when the voltage exceeds the safe range that protects the motherboard's components.

Configuration options: [Disabled] [Enabled]

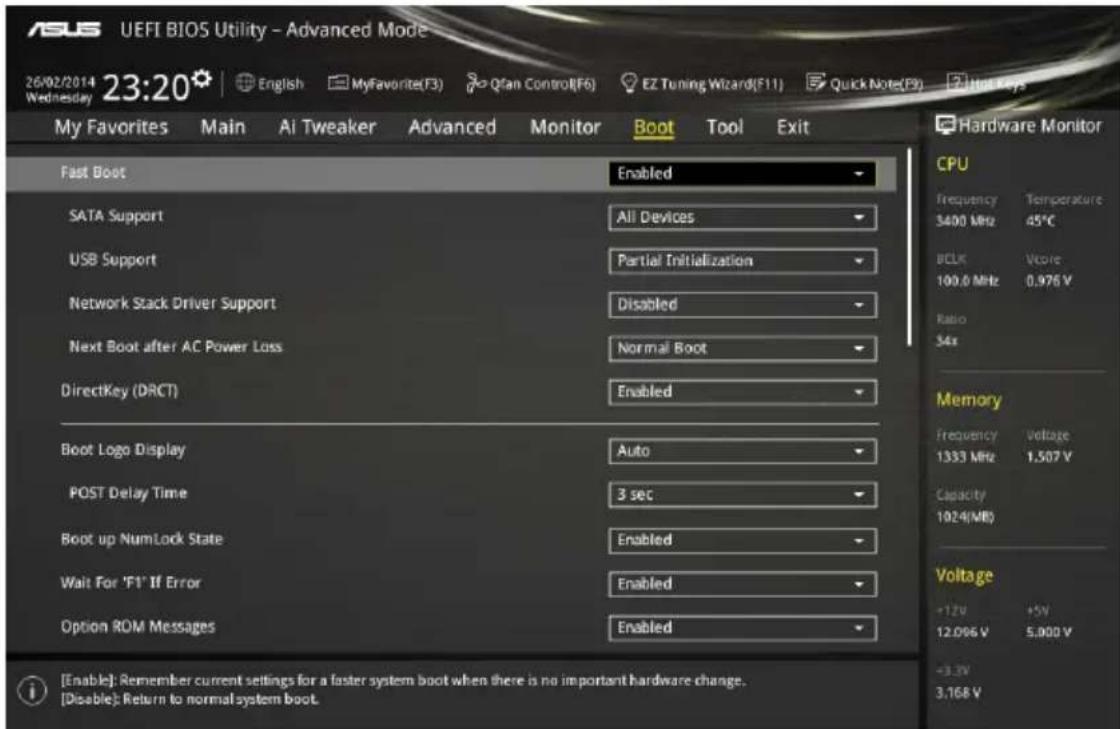

3.8 Boot menu

The Boot menu items allow you to change the system boot options.

26/02/2014 23:20 English MyFavorite(F3) Qfan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit Fast Boot Enabled SATA Support All Devices USB Support Partial Initialization Network Stack Driver Support Disabled Next Boot after AC Power Loss Normal Boot DirectKey (DRCT) Enabled Boot Logo Display Auto POST Delay Time 3 sec Boot up NumLock State Enabled Wait For 'F1' If Error Enabled Option ROM Messages Enabled Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C BCLK Vcore 100.0 MHz 0.976 V Ratio 34x Memory Frequency Voltage 1333 MHz 1.507 V Capacity 1024(MB) Voltage +12V +5V 12.096 V 5.000 V +3.2V 3.168 V [Enable]: Remember current settings for a faster system boot when there is no important hardware change. [Disable]: Return to normal system boot.

Boot Configuration

Fast Boot [Enabled]

[Disabled] This item allows your system to go back to its normal boot speed.

[Enabled] This item allows your system to accelerate the boot speed.

The following items appear only when you set the Fast Boot to [Enabled].

SATA Support [All Devices]

[All Devices] All devices connected to SATA ports are available during POST. This process extends the POST time.

[Hard Drive Only] Only hard drives connected to SATA ports are detected during POST.

[Boot Drive Only] Only boot drives connected to a SATA ports are detected during POST.

USB Support [Partial Initialization]

[Disabled] All USB devices will not be available until OS boot up for a fastest POST time.

[Full Initialization] All USB devices will be available during POST. This process will extend the POST time.

[Partial Initialization] For a faster POST time, only USB ports with keyboard and mouse connections will be detected.

Network Stack Driver Support [Disabled]

[Disabled] Select to skip the network stack driver from loading during POST.

[Enabled] Select to load the network stack driver during POST.

Next Boot after AC Power Loss [Normal Boot]

[Normal Boot] Returns to normal boot on the next boot after an AC power loss.

[Fast Boot] Accelerates the boot speed on the next boot after an AC power loss.

DirectKey (DRCT) [Enabled]

[Disabled] Disables the DirectKey button. The system will only power on or off when you press the DirectKey button.

[Enabled] Allows the system to power on and go to the BIOS Setup directly when you press the Reset button. Connect the 2-pin connector of the chassis reset buton cable to the onboard DRCT header.

Boot Logo Display [Auto]

[Auto] Sets the boot logo to display during POST.

[Full Screen] Sets the boot logo display in full screen during POST.

[Disabled] Disables the boot logo display during POST.

The following item appears only when you set the Boot Logo Display to [Auto] and [Full Screen].

Post Delay Time [3 sec]

This item allows you to select a desired additional POST waiting time to easily enter the BIOS Setup. You can only execute the POST delay time during normal boot. The values range from 0 to 10 seconds.

This feature only works when set under normal boot.

The following items appear only when you set the Boot Logo Display to [Disabled].

Post Report [5 sec]

This item allows you to select a desired POST report waiting time.

Configuration options: [1 sec] - [10 sec] [Until Press ESC]

Bootup NumLock State [Enabled]

This item allows you to enable or disable power-on state of the NumLock.

Configuration options: [Disabled] [Enabled]

Wait For 'F1' If Error [Enabled]

This item allows your system to wait for the key to be pressed when error occurs.

Configuration options: [Disabled] [Enabled]

Option ROM Messages [Enabled]

[Enabled] The third-party ROM messages will be displayed during POST.

[Disabled] Disables the ROM messages and displays only the ASUS logo during POST.

Interrupt 19 Capture [Disabled]

This item allows you to trap Interrupt 19 by the option ROMs.

Configuration options: [Disabled] [Enabled]

Above 4G Decoding [Disabled]

This item allows you to decode the 64-bit capable devices above 4G address space. Ensure that your system supports 64-bit PCI decoding.

Configuration options: [Disabled] [Enabled]

Setup Mode [EZ Mode]

[Advanced Mode] This item allows you to go to Advanced Mode of the BIOS after POST.

[EZ Mode] This item allows you to go to EZ Mode of the BIOS after POST.

CSM (Compatibility Support Module)

This item allows you to configure the CSM (Compatibility Support Module) items to fully support the various VGA, bootable devices and add-on devices for better compatibility.

Launch CSM [Enabled]

[Auto] The system automatically detects the bootable devices and the add-on devices.

[Enabled] For better compatibility, enable the CSM to fully support the non-UEFI driver add-on devices or the Windows® UEFI mode.

[Disabled] Disables the CSM to fully support the non-UEFI driver add-on devices or the Windows® UEFI mode.

The following items appear only when you set the Launch CSM to [Enabled].

Boot Devices Control [UEFI and Legacy OpROM]

This item allows you to select the type of devices that you want to boot.

Configuration options: [UEFI and Legacy OpROM] [Legacy OpROM only] [UEFI only]

Boot from Network Devices [Legacy OpROM first]

This item allows you to select the type of network devices that you want to launch.

Configuration options: [Legacy OpROM first] [UEFI driver first] [Ignore]

Boot from Storage Devices [Legacy OpROM first]

This item allows you to select the type of storage devices that you want to launch.

Configuration options: [Both, Legacy OpROM first] [Both, UEFI first] [Legacy OpROM first] [UEFI driver first] [Ignore]

Boot from PCI-E/PCI Expansion Devices [Legacy OpROM first]

This item allows you to select the type of PCIe/PCI expansion devices that you want to launch.

Configuration options: [Legacy OpROM first] [UEFI driver first]

Secure Boot

This item allows you to configure the Windows® Secure Boot settings and manage its keys to protect the system from unauthorized access and malwares during POST.

OS Type [Windows UEFI Mode]

[Windows UEFI Mode]

This item allows you to select your installed operating system. Execute the Microsoft® Secure Boot check. Only select this option when booting on Windows® UEFI mode or other Microsoft® Secure Boot compliant OS.

[Other OS]

Get the optimized function when booting on Windows® non-UEFI mode. Microsoft® Secure Boot only supports Windows® UEFI mode.

The following item appears only when you set the OS Type to [Windows UEFI mode].

Key Management

This allows you to manage the Secure Boot keys.

Install Default Secure Boot keys

This item allows you to immediately load the default Security Boot keys, Platform key (PK), Key-exchange Key (KEK), Signature database (db), and Revoked Signatures (dbx). When the default Secure boot keys are loaded, the PK state will change from Unloaded mode to loaded mode.

Clear Secure Boot keys

This item appears only when you load the default Secure Boot keys. This item allows you to clear all default Secure Boot keys.

Save Secure Boot Keys

This item allows you to save the PK (Platform Keys) to a USB storage device.

PK Management

The Platform Key (PK) locks and secures the firmware from any permissible changes. The system verifies the PK before your system enters the OS.

Delete PK

This item allows you to delete the PK from your system. Once the PK is deleted, all the system's Secure Boot keys will not be active.

Configuration options: [Yes] [No]

Load PK from File

This item allows you to load the downloaded PK from a USB storage device.

The PK file must be formatted as a UEFI variable structure with time-based authenticated variable.

KEK Management

The KEK (Key-exchange Key or Key Enrollment Key) manages the Signature database (db) and Revoked Signature database (dbx).

Key-exchange Key (KEK) refers to Microsoft® Secure Boot Key-Enrollment Key (KEK).

Delete the KEK

This item allows you to delete the KEK from your system.

Configuration options: [Yes] [No]

Load KEK from File

This item allows you to load the downloaded KEK from a USB storage device.

Append KEK from File

This item allows you to load the additional KEK from a storage device for an additional db and dbx loaded management.

The KEK file must be formatted as a UEFI variable structure with time-based authenticated variable.

DB Management

The db (Authorized Signature database) lists the signers or images of UEFI applications, operating system loaders, and UEFI drivers that you can load on the single computer.

Delete the db

This item allows you to delete the db file from your system.

Configuration options: [Yes] [No]

Load db from File

This item allows you to load the downloaded db from a USB storage device.

Append db from File

This item allows you to load the additional db from a storage device so that more images can be loaded securely.

The db file must be formatted as a UEFI variable structure with time-based authenticated variable.

DBX Management

The dbx (Revoked Signature database) lists the forbidden images of db items that are no longer trusted and cannot be loaded.

Delete the dbx

This item allows you to delete the dbx file from your system.

Load dbx from File

This item allows you to load the downloaded dbx from a USB storage device.

Configuration options: [Yes] [No]

Append dbx from File

This item allows you to load the additional dbx from a storage device so that more db's images cannot be loaded.

The dbx file must be formatted as a UEFI variable structure with time-based authenticated variable.

Boot Option Priorities

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.

• To access Windows ^ OS in Safe Mode, press after POST (Windows ^ 8 not supported).
• To select the boot device during system startup, press when ASUS Logo appears.

Boot Override

These item displays the available devices. The number of device items that appear on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device.

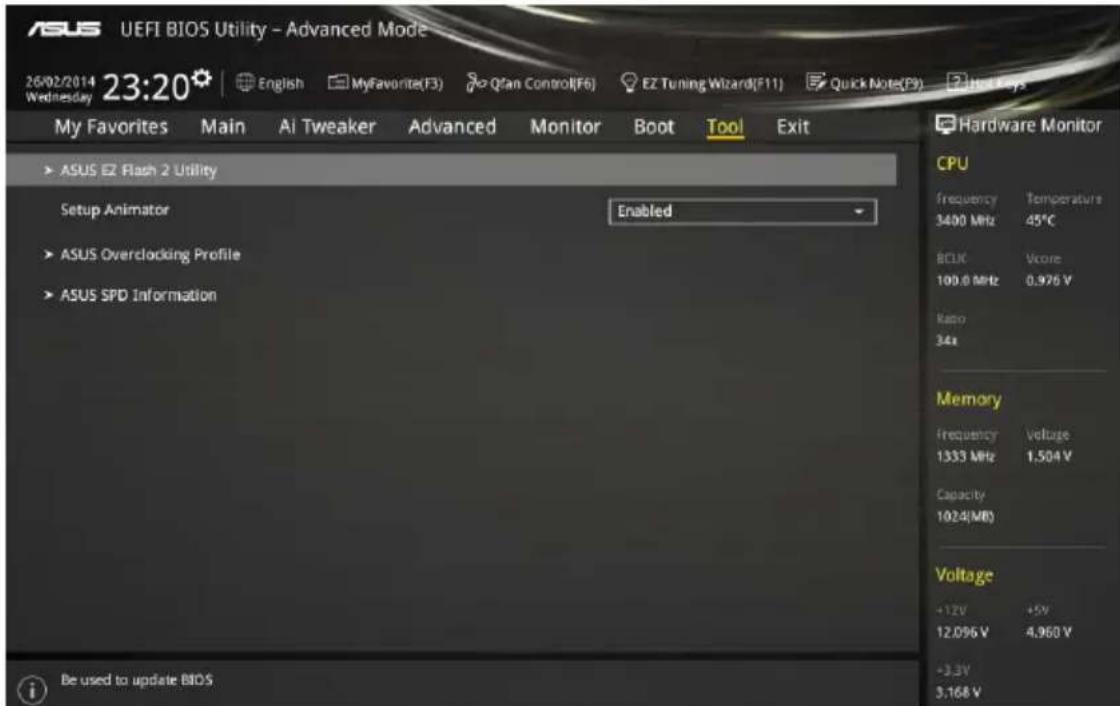

3.9 Tool menu

The Tool menu items allow you to configure options for special functions. Select an item then press to display the submenu.

ASUS UEFI BIOS Utility - Advanced Mode 26/02/2014 23:20 English MyFavorite(F3) Qian Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hot Keys Wednesday My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit > ASUS E2 Flash 2 Utility Setup Animator Enabled > ASUS Overclocking Profile > ASUS SPD Information Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C BCLK Vicore 100.0 MHz 0.976 V Ratio 34x Memory Frequency Voltage 1333 MHz 1.504 V Capacity 1024(MB) Voltage +12V +5V 12.096 V 4.960 V -3.3V 3.168 V Be used to update BIOS

Setup Animator

This item allows you to enable or disable the Setup animator.

Configuration options: [Disabled] [Enabled]

3.9.1 ASUS EZ Flash 2 Utility

This item allows you to run ASUS EZ Flash 2. When you press , a confirmation message appears. Use the left/right arrow key to select between [Yes] or [No], then press to confirm your choice.

For more details, refer to section 3.11.2 ASUS EZ Flash 2.

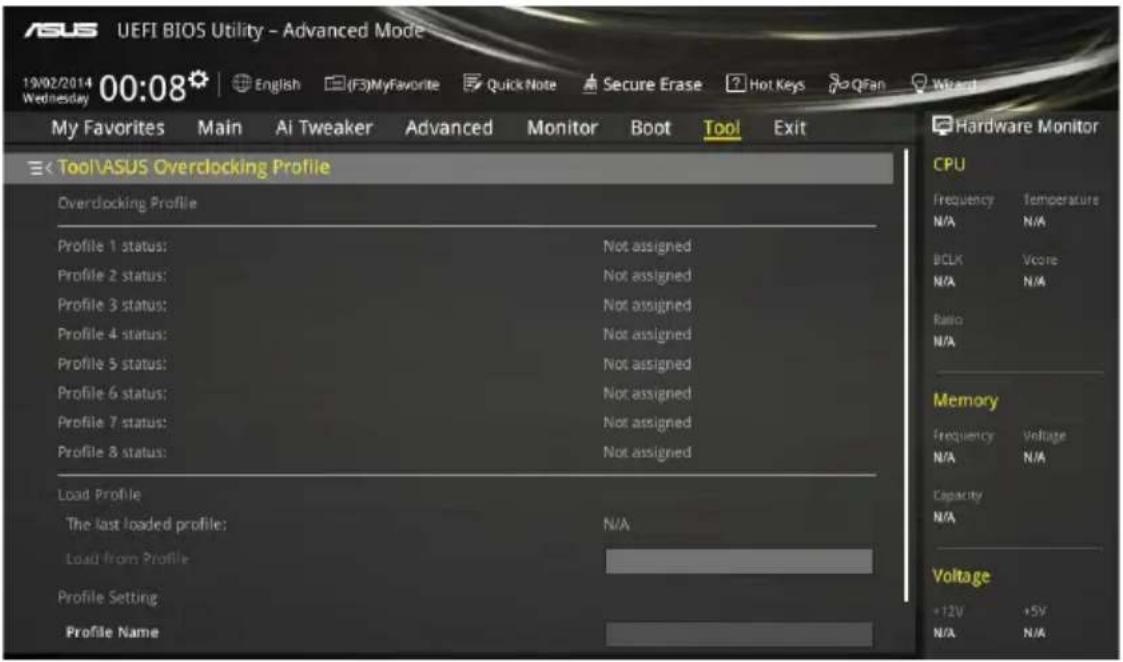

3.9.2 ASUS O.C. Profile

This item allows you to store or load multiple BIOS settings.

USU UEFI BIOS Utility - Advanced Mode 19/02/2014 00:08 English (F3)MyFavorite Quick Note Secure Erase Hot Keys SoQFan Wizard Wednesday My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit Tool\ASUS Overclocking Profile Overclocking Profile Profile 1 status: Not assigned Profile 2 status: Not assigned Profile 3 status: Not assigned Profile 4 status: Not assigned Profile 5 status: Not assigned Profile 6 status: Not assigned Profile 7 status: Not assigned Profile 8 status: Not assigned Load Profile The last loaded profile: N/A Load from Profile Profile Setting Profile Name Hardware Monitor CPU Frequency Temperature N/A N/A BCLK Vicore N/A N/A Ratio N/A Memory Frequency Voltage N/A N/A Capacity N/A Voltage +12V +5V N/A N/A

Load from Profile

This item allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the profile number that saved your BIOS settings, press , and then select Yes.

• DO NOT shut down or reset the system while updating the BIOS to prevent the system boot failure!
• We recommend that you update the BIOS file only coming from the same memory/CPU configuration and BIOS version.

Profile Name

This item allows you to key in a profile name.

Save to Profile

This item allows you to save the current BIOS settings to the BIOS Flash, and create a profile. Key in a profile number from one to eight, press , and then select Yes.

Load/Save Profile from/to USB Drive

This item allows you to load or save profile from your USB drive, load and save profile to your USB drive.

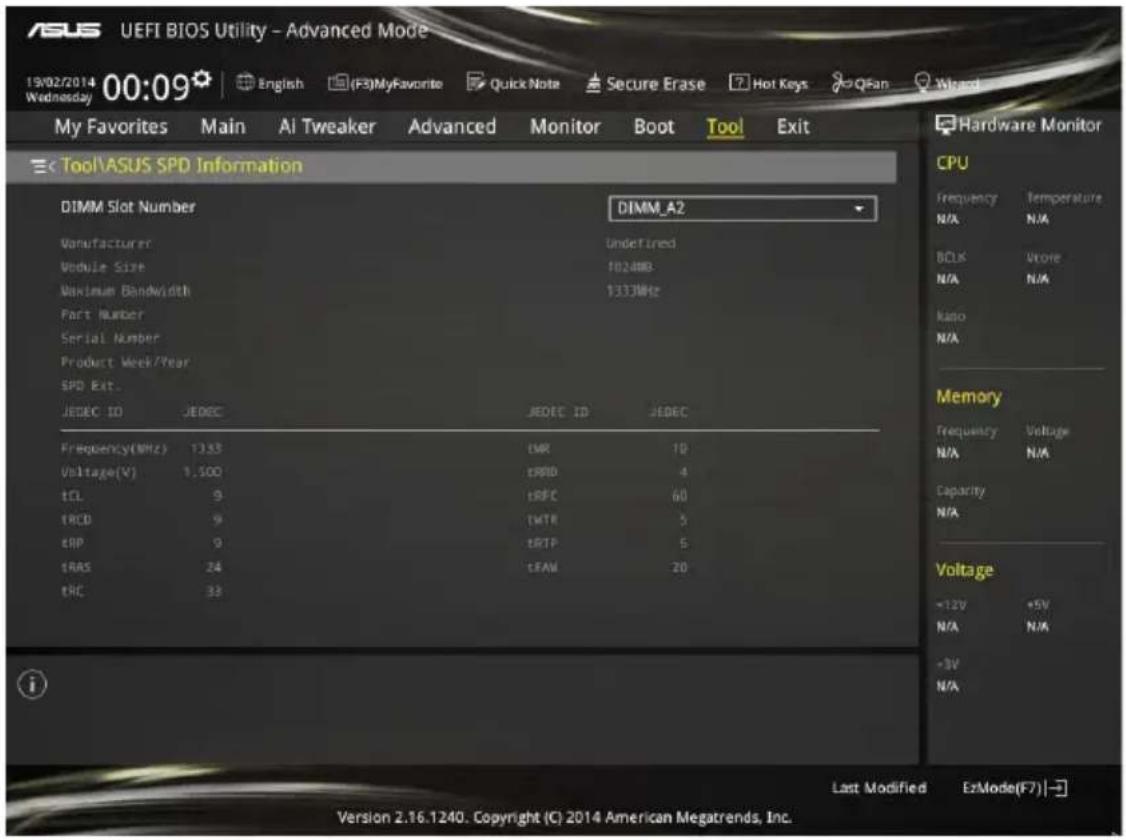

3.9.3 ASUS DRAM SPD Information

This item allows you to view the DRAM SPD information.

ASUS UEFI BIOS Utility - Advanced Mode 19/02/2014 00:09 English (F3) My Favorite Quick Note Secure Erase Hot Keys QSan Wizard Wednesday My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit Tool\ASUS SPD Information DIMM Slot Number DIMM_A2 Manufacturer Undetired Module Size 1024MB Maximum Bandwidth 1333MHz Part Number Serial Number Product Week/Year SPD Ext. JEDEC ID JEDEC JEDEC ID JEDEC Frequency(MHz) 1333 LMR 10 Voltage(V) 1.500 tRBD 4 tCL 9 tRFC 60 TRCD 9 tWTR 5 tRP 9 tRTP 5 tRAS 24 tFAM 20 tRC 33 Hardware Monitor CPU Frequency Temperature N/A N/A BCLK Vlore N/A N/A Nano N/A Memory Frequency Voltage N/A N/A Capacity N/A Voltage -12V +5V N/A N/A -3V N/A Last Modified ExMode(F7) Version 2.16.1240. Copyright (C) 2014 American Megatrends, Inc.

3.10 Exit menu

The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit menu.

ASUS UEFI BIOS Utility - Advanced Mode 26/02/2014 23:21 English MyFavorite(F3) Qtan Control(F6) EZ Tuning Wizard(F11) Quick Note(F9) Hua Toys My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit ► Load Optimized Defaults ► Save Changes & Reset ► Discard Changes & Exit ► Launch EFI Shell from USB drives Hardware Monitor CPU Frequency Temperature 3400 MHz 45°C JCLK Vccore 100.0 MHz 0.976 V Ratio 34x Memory Frequency Voltage 1333 MHz 1.507 V Capacity 1024(MB) Voltage +12V +5V 12.096 V 5.000 V

Load Optimized Defaults

This option allows you to load the default values for each of the parameters on the Setup menus. When you select this option or if you press , a confirmation window appears. Select OK to load the default values.

Save Changes & Reset

Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved. When you select this option or if you press , a confirmation window appears. Select OK to save changes and exit.

Discard Changes & Exit

This option allows you to exit the Setup program without saving your changes. When you select this option or if you press , a confirmation window appears. Select Yes to discard changes and exit.

ASUS EZ Mode

This option allows you to enter the EZ Mode screen.

Launch EFI Shell from filesystem device

This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of the available filesystem devices.

3.11 Updating BIOS

The ASUS website publishes the latest BIOS versions to provide enhancements on system stability, compatibility, and performance. However, BIOS updating is potentially risky. If there is no problem using the current version of BIOS, DO NOT manually update the BIOS. Inappropriate BIOS updating may result in system's failure to boot. Carefully follow the instructions in this chapter to update your BIOS when necessary.

Visit http://www.asus.com to download the latest BIOS file for this motherboard.

The following utilities allow you to manage and update the motherboard BIOS setup program.

1. EZ Update: Updates the BIOS in Windows ^® environment.
2. ASUS EZ Flash 2: Updates the BIOS using a USB flash drive.
3. ASUS CrashFree BIOS 3: Restores the BIOS using the motherboard support DVD or a USB flash drive when the BIOS file fails or gets corrupted.
4. ASUS BIOS Updater: Updates the BIOS in DOS environment using the motherboard support DVD and a USB flash disk drive.

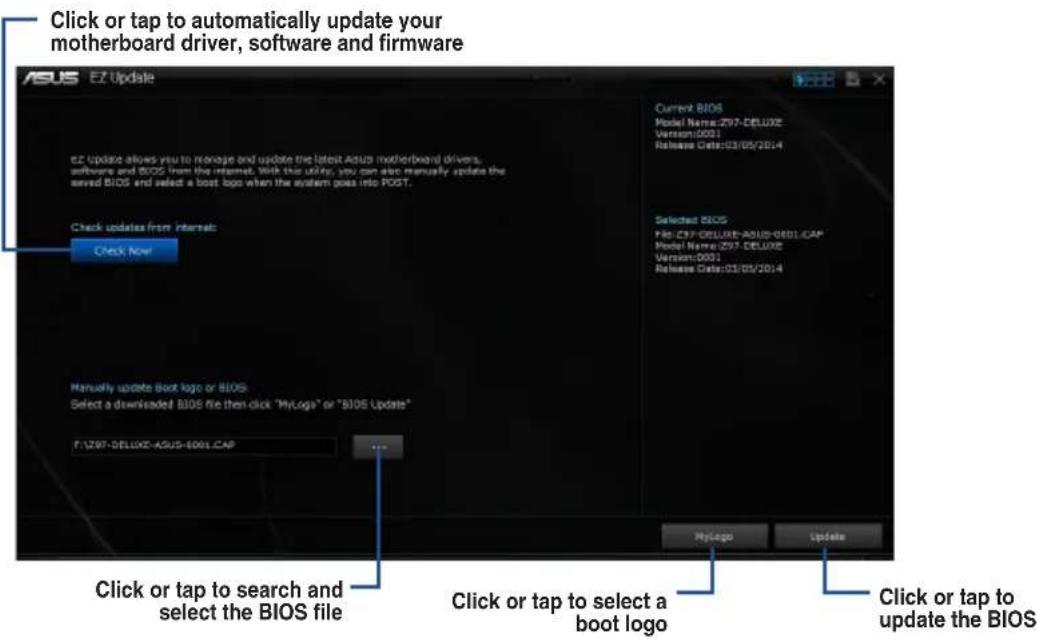

3.11.1 EZ Update

The EZ Update is a utility that allows you to update the motherboard BIOS in Windows® environment.

• EZ Update requires an Internet connection either through a network or an ISP (Internet Service Provider).
• This utility is available in the support DVD that comes with the motherboard package.
  • Refer to section 4.4.3 EZ Update of this user guide for more information.

3.11.2 ASUS EZ Flash 2

ASUS EZ Flash 2 allows you to update the BIOS without having to use a bootable floppy disk or an OS-based utility.

Before you start using this utility, download the latest BIOS from the ASUS website at www.asus.com.

To update the BIOS using EZ Flash 2:

1. Insert the USB flash disk that contains the latest BIOS file to the USB port.
2. Enter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select ASUS EZ Flash Utility and press to enable it.

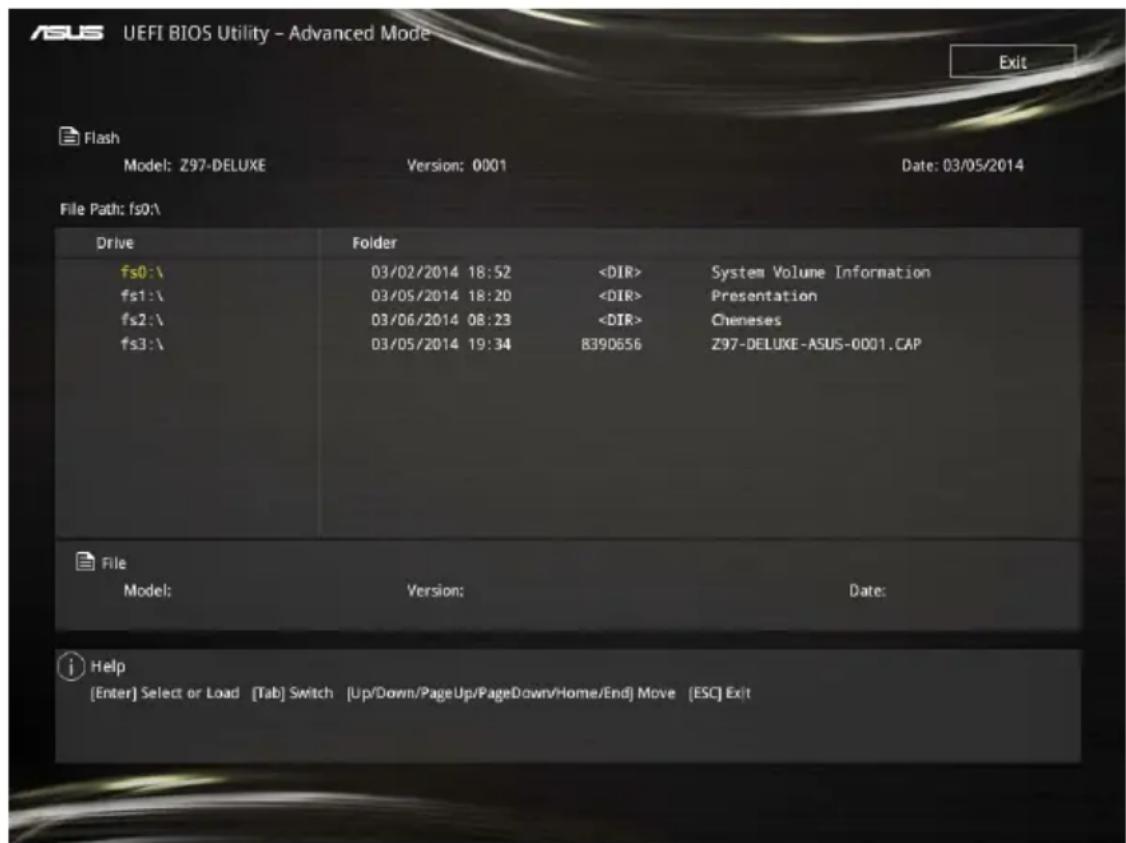

ASUS UEFI BIOS Utility - Advanced Mode Exit Flash Model: Z97-DELUXE Version: 0001 Date: 03/05/2014 File Path: fs0\. Drive Folder fs0:\ 03/02/2014 18:52 System Volume Information fs1:\ 03/05/2014 18:20 Presentation fs2:\ 03/06/2014 08:23 Cheneses fs3:\ 03/05/2014 19:34 B390656 Z97-DELUXE-ASUS-0001.CAP File Model: Version: Date: Help [Enter] Select or Load [Tab] Switch [Up/Down/PageUp/PageDown/Home/End] Move [ESC] Exit

1. Press to switch to the Drive field.
2. Press the Up/Down arrow keys to find the USB flash disk that contains the latest BIOS, and then press .
3. Press to switch to the Folder Info field.
4. Press the Up/Down arrow keys to find the BIOS file, and then press to perform the BIOS update process. Reboot the system when the update process is done.

- This function can support devices such as a USB flash disk with FAT 32/16 format and single partition only.

- DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu. See section 3.10 Exit Menu for details.

3.11.3 ASUS CrashFree BIOS 3

The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using the motherboard support DVD or a USB flash drive that contains the BIOS file.

The BIOS file in the motherboard support DVD may be older than the BIOS file published on the ASUS official website. If you want to use the newer BIOS file, download the file at http://support.asus.com and save it to a USB flash drive.

Recovering the BIOS

To recover the BIOS:

1. Turn on the system.
2. Insert the motherboard support DVD to the optical drive, or the USB flash drive containing the BIOS file to the USB port.
3. The utility automatically checks the devices for the BIOS file. When found, the utility reads the BIOS file and enters ASUS EZ Flash 2 automatically.
4. The system requires you to enter BIOS Setup to recover the BIOS setting. To ensure system compatibility and stability, we recommend that you press to load default BIOS values.

DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!

3.11.4 ASUS BIOS Updater

ASUS BIOS Updater allows you to update the BIOS in DOS environment.

The screen captures used in this section are for reference only and may not be exactly the same as actually shown on your computer screen.

Before updating BIOS

• Prepare the motherboard support DVD and a USB flash drive.
• Download the latest BIOS file and BIOS Updater from http://support.asus.com and save them in your USB flash drive.

NTFS is not supported under DOS environment. Ensure that your USB flash drive is in single partition and in FAT32/16 format.

• Turn off the computer.
• Ensure that your computer has a DVD optical drive.

Booting the system in DOS environment

To boot the system in DOS:

1. Insert the USB flash drive with the latest BIOS file and BIOS Updater to the USB port.
2. Boot your computer then press to launch the select boot device screen.
3. When the select boot device screen appears, insert the Support DVD into the optical drive then select the optical drive as the boot device.

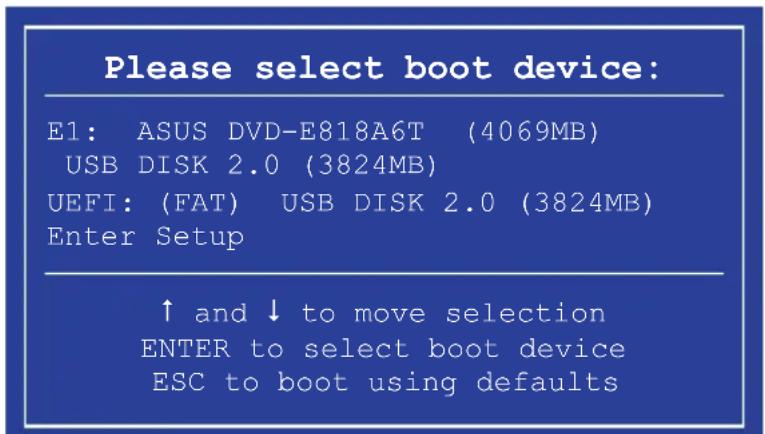

Please select boot device: E1: ASUS DVD-E818A6T (4069MB) USB DISK 2.0 (3824MB) UEFI: (FAT) USB DISK 2.0 (3824MB) Enter Setup ↑ and ↓ to move selection ENTER to select boot device ESC to boot using defaults

1. When the booting message appears, press within five (5) seconds to enter FreeDOS prompt.

ISOLINUX 3.20 2006-08-26 Copyright (C) 1994-2005 H. Peter Anvin A Bootable DVD/CD is detected. Press ENTER to boot from the DVD/CD. If no key is pressed within 5 seconds, the system will boot next priority device automatically. boot:

1. On the FreeDOS prompt, type d: then press to switch the disk from Drive C (optical drive) to Drive D (USB flash drive).

Welcome to FreeDOS (http://www.freedos.org)!
C:/> d:
D:/>

Updating the BIOS file

To update the BIOS file:

1. On the FreeDOS prompt, type bupdater /pc /g and press .

D:/> bupdater /pc /g

1. On the BIOS Updater screen, press to switch from Files panel to Drives panel then select D:.

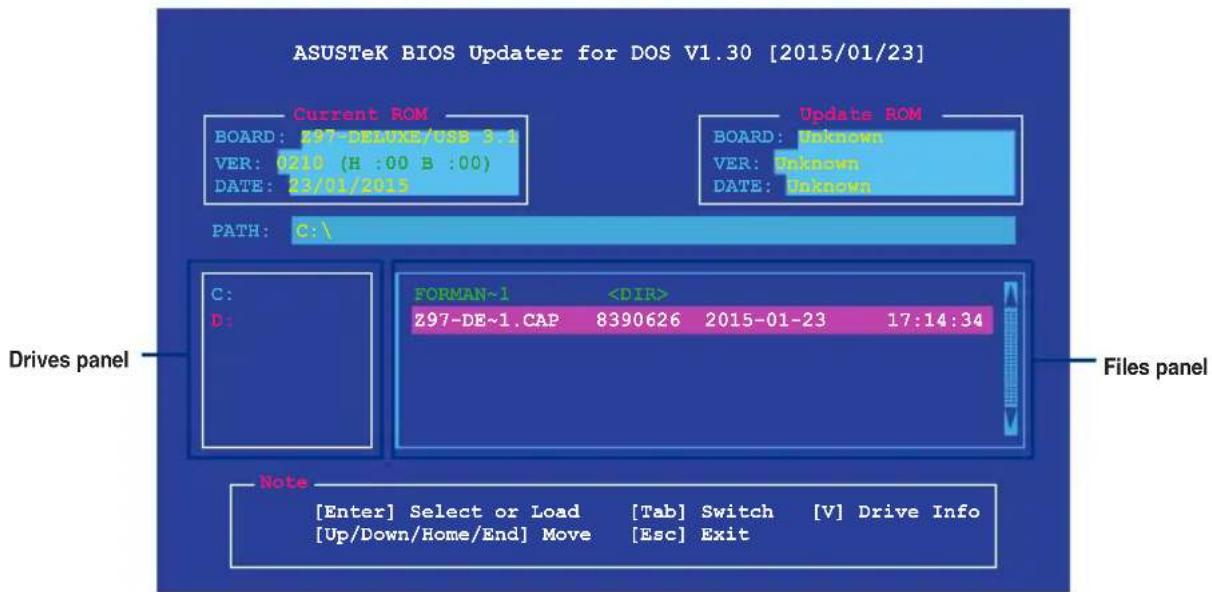

ASUSTeK BIOS Updater for DOS V1.30 [2015/01/23] Current ROM BOARD: Z97-DELUXE/USB 3.1 VER: 0210 (H :00 B :00) DATE: 23/01/2015 Update ROM BOARD: Unknown VER: Unknown DATE: Unknown PATH: C:\ C: D: FORMAN~1 Z97-DE~1.CAP 8390626 2015-01-23 17:14:34 Files panel Note [Enter] Select or Load [Tab] Switch [V] Drive Info [Up/Down/Home/End] Move [Esc] Exit

1. Press to switch from Drives panel to Files panel then press keys to select the BIOS file and press .

2. After the BIOS Updater checks the selected BIOS file, select Yes to confirm the BIOS update.

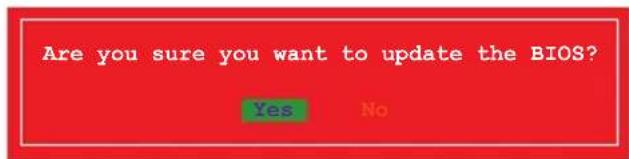

Are you sure you want to update the BIOS? Yes No

The BIOS Backup feature is not supported due to security regulations.

1. Select Yes then press . When BIOS update is done, press to exit BIOS Updater.
2. Restart your computer.

DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure.

Ensure to load the BIOS default settings to ensure system compatibility and stability. Select Load Optimized Defaults item under the Exit BIOS menu. See section 3.10 Exit menu for details.

Software support

4.1 Installing an operating system

• This motherboard supports 32-bit/64-bit Windows ^ 7, 32-bit/64-bit Windows ^ 8, and 32-bit/64-bit Windows ^ 8.1 operating systems (OS).
• Motherboard settings and hardware options vary. The setup procedures presented in this chapter are for reference only. Refer to Windows® operating system documentation for detailed information.

4.2 Support DVD information

The contents of the support DVD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

4.2.1 Running the support DVD

Ensure that you have an Administrator account before running the support DVD in Windows ^® 7, Windows ^® 8, or Windows ^® 8.1 operating systems.

To run the support DVD:

1. Place the Support DVD into the optical drive.

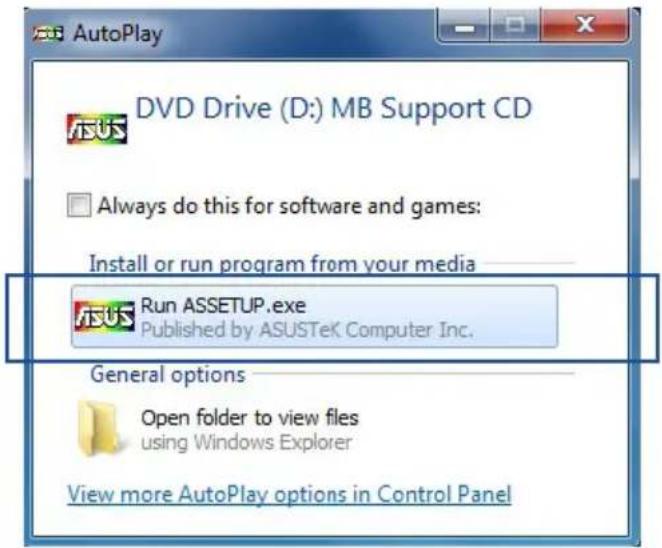

2. In the AutoPlay dialog box, click or tap Run ASSETUP.EXE.

DVD Drive (D:) MB Support CD Always do this for software and games: Install or run program from your media Run ASSETUP.exe Published by ASUSTeK Computer Inc. General options Open folder to view files using Windows Explorer View more AutoPlay options in Control Panel

If the AutoPlay dialog box does not appear, browse the contents of the support DVD and double-click or tap \bin\ASSETUP.EXE to launch the ASUS motherboard support DVD main menu.

Support DVD main menu

The Drivers menu shows the available device drivers if the system detects installed devices. Install the necessary drivers to use the devices. The Utilities menu shows the applications and other software that the motherboard supports. Click or tap an item to install ASUS InstAll Google Chrome Browser Google Toolbar Norton Internet Security Solution Intel Chipset Driver Realtek Audio Driver Asmedia SATA Controller Driver Management Engine Interface Realtek LAN Driver Intel LAN Driver ASUS Bluetooth4.0 Wi-Fi Driver The AHCI/RAID Driver menu contains the RAID/AHCI driver disk. The Manual menu contains the list of supplementary user guides. Click or tap an item to open the folder of the user guide. Click or tap to display the ASUS contact information. Click or tap an icon to display DVD/motherboard information

4.2.2 Obtaining the software manuals

The software manuals are included in the support DVD. Follow the instructions below to get the necessary software manuals.

The software manual files are in Portable Document Format (PDF). Install the Adobe® Acrobat® Reader from the Utilities tab before opening the files.

To read about your motherboard's utility guide:

1. Click or tap Manual tab > ASUS Motherboard Utility Guide.

ASUS Motherboard Installation Guide ASUS Motherboard Utility Guide Norton Internet Security User Guide ASUS Web Storage User's Manual Realtek HD Audio User's Manual Disk Unlocker User's Manual Intel 2013 Desktop Responsiveness Test...

1. From the Manual folder, open the folder of the software manual that you wish to read.

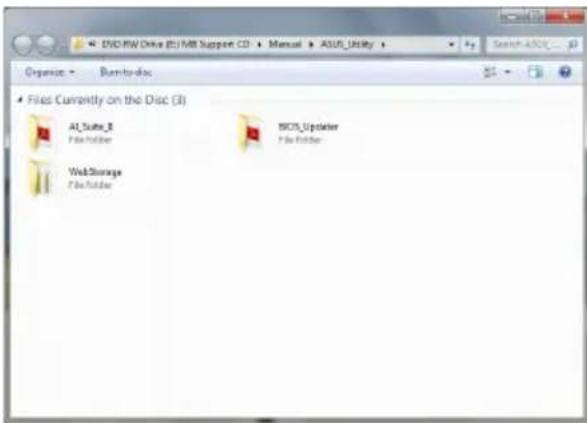

END/ROW Drive (EU) MB Support CD - Manual - ASUR_Utility Organize - Burn-to-doc Files Currently on the Disc (3) Alt_Suite_8 File folder BICS_Upticker File folder Web Storage File folder

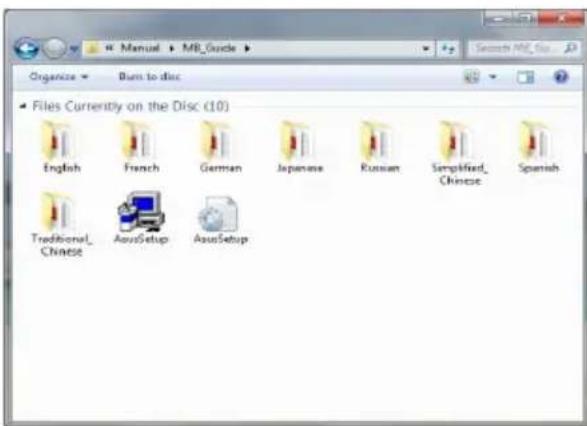

1. Some software manuals are provided in different languages. Open the language's folder to view the software manual.

Organize Burn to disc Files Currently on the Disc (10) English French German Japanese Russian Simplified Chinese Spanish Traditional Chinese AussSetup AussSetup

The screenshots in this section are for reference only. The actual software manuals containing in the support DVD vary by models.

4.3 Software information

Most of the applications in the support DVD have wizards that will conveniently guide you through the installation. View the online help or readme file that came with the software application for more information.

4.4 Al Suite 3

Al Suite 3 is an all-in-one interface that integrates several ASUS utilities and allows you to launch and operate these utilities simultaneously.

Installing AI Suite 3

Ensure that you have an Administrator account before installing Al Suite 3 in Windows ^® 7, Windows ^® 8, or Windows ^® 8.1 operating systems.

To install AI Suite 3 on your computer:

Windows® 7 OS

1. Place the Support DVD into the optical drive.
2. In the AutoPlay dialog box, click or tap Run ASSETUP.exe then select the Utilities tab.

DVD Drive (D:) MB Support CD Always do this for software and games: Install or run program from your media Run ASSETUP.exe Published by ASUSTeK Computer Inc. General options Open folder to view files using Windows Explorer View more AutoPlay options in Control Panel

1. From the Utilities tab, click or tap AI Suite 3 then follow the succeeding onscreen instructions.

Windows® 8 and Windows® 8.1 OS

1. Place the Support DVD into the optical drive then follow onscreen instructions.
2. From the ASUS motherboard support DVD main menu, select the Utilities tab and click or tap AI Suite 3.
3. Follow the succeeding onscreen instructions.

If the ASUS motherboard support DVD main menu did not appear, try the following:

a. Go to the Start Screen then click or tap the Desktop app.
b. On the lower left corner of the Desktop, click or tap File Explorer then select your DVD drive and tap or double-click or tap the Setup application.
then

Launching AI Suite 3

Windows® 7 OS

From the Desktop, click or tap Start > All Programs > ASUS > AI Suite 3 > AI Suite 3.

You can also launch AI Suite in Windows® 7 by clicking or tapping from the Notification area.

Windows ^® 8 and Windows ^® 8.1 OS

To launch Al Suite 3 in Windows ^® 8 or Windows ^® 8.1, tap the Al Suite 3 app on the Start Screen (or if you're using a mouse, click or tap the Al Suite 3 app on the Start Screen).

Al Suite 3 Main menu

The AI Suite 3 main menu gives you easy-access controls and insight to what's going on with your computer - allowing you to optimize performance settings while at the same time ensuring system stability.

The AI Suite main menu includes is a quick-access menu bar that allows you to swiftly launch any of the integrated ASUS utilities. Click or tap 📋 the top-right corner of the menu to launch the menu bar.

Click or tap to launch Al Suite 3 menu bar

ASUS Dual Intelligent Processors 5 S-Way Optimization Click S-Way Optimization to automatically detect the best settings based on actual usage. Airway mode will be enabled to minimize power use and fan noise. Power Saving Formula Auto Performance Power Swing Airway Mode CPU Speed Frequency 080.0x42.0 Turbo App Tru Fan Xpert 3 CPU Fan Benchmark: NA Fan Status: 优化配置 EPU Energy Saving 09.7 w Configured Max CPU Power Dstable USB Power SATA Power D101 CPU Power: 10.2 w Power Saving: 0.0 w D101+ Power Control Optimized Phase: ON OFF Active Frequency Mode: ON OFF CPU Frequency Core 9 Voltage CPU Core-9 Voltage 0.000V Temperature CPU 093.0 °C Fan CPU fan 1926 rpm 100.1 x 8 (10.2 watts) DUAL Frequency 1321.8 MHz CPU Core 1 Voltage 0.000 V CPU Core 2 Voltage 0.000 V CPU Core 3 Voltage 0.000 V VSM 49.9 °C POH 09.9 °C S245201 NA MotherGuard 51.9 °C Chassis fan 1 0 rpm Chassis fan 2 0 rpm Chassis fan 3 0 rpm

The Ai Suite 3 screenshots in this section are for reference only and can vary depending on motherboard model.

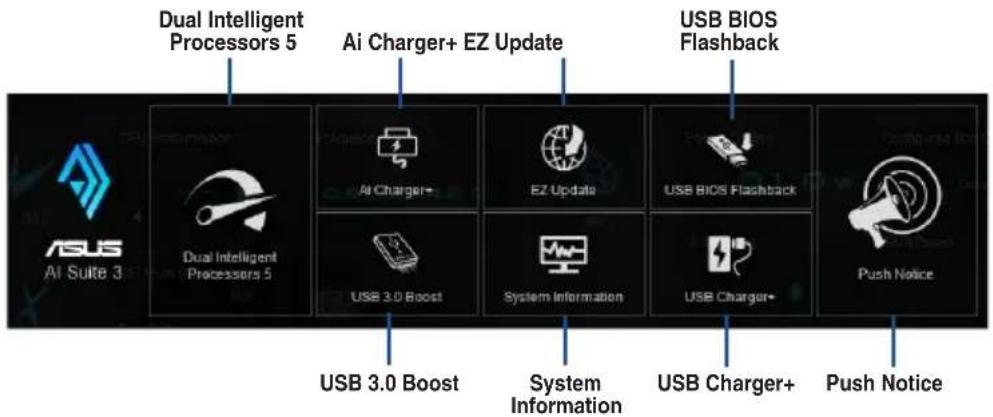

Al Suite 3 main menu bar

• Some functions in the Al Suite 3 main menu in this user guide may vary depending on the motherboard model.
• Refer to the software manual in the support DVD or visit the ASUS website at www.asus.com for detailed software configuration.

4.4.1 Ai Charger+

Ai Charger+ allows you to fast-charge your portable BC 1.1* mobile devices on your computer's USB port three times faster than the standard USB devices**.

Launching Ai Charger+

To launch Ai Charger+, click or tap 📄 the top-right corner of the AI Suite 3 main menu, then select Ai Charger+.

Ai Charger+ is available only in selected motherboard models.

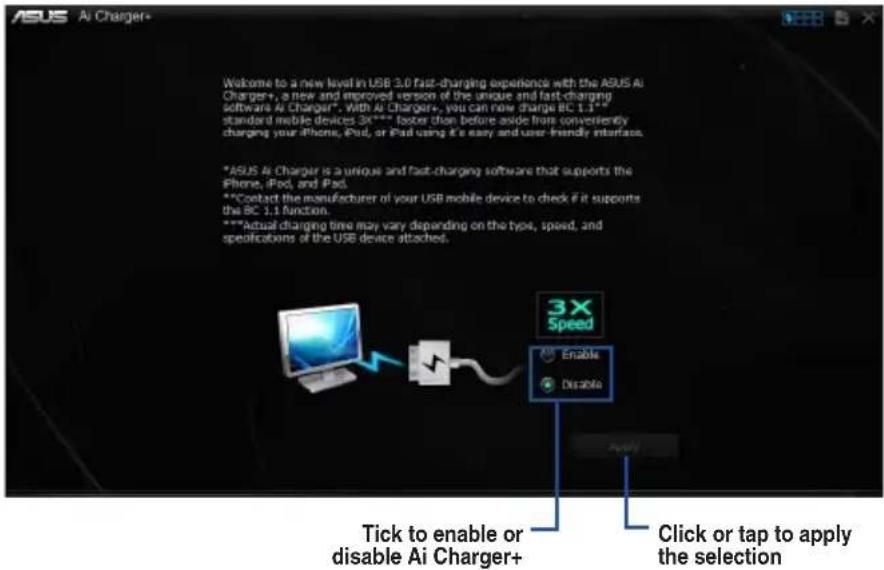

Ai Charger+ screen

ASUS AI Charger+ Welcome to a new level in USB 3.0 fast-charging experience with the ASUS AI Charger+, a new and improved version of the unique and fast-charging software AI Charger*. With AI Charger+, you can now charge BC 1.1** standard mobile devices 3X**** faster than before aside from conveniently charging your iPhone, iPod, or iPad using it's easy and user-friendly interface. *ASUS AI Charger is a unique and fast-charging software that supports the iPhone, iPod, and iPad. **Contact the manufacturer of your USB mobile device to check if it supports the BC 1.1 function. ***Actual charging time may vary depending on the type, speed, and specifications of the USB device attached. Tick to enable or disable AI Charger+ Click or tap to apply the selection

• * Check the manufacturer if your USB device is a Battery Charging Specification 1.1 (BC 1.1) compliant or compatible device.
• ** Actual charging speeds may vary depending on the charging rate and specifications of your USB device.
• To ensure normal charging function, disconnect and reconnect your USB device every time you enable or disable Ai Charger+.
• Ai Charger+ does not support USB hubs, USB extension cables, and generic USB cables.

4.4.2 USB 3.1 Boost

USB 3.1 Boost technology supports UASP (USB Attached SCSI Protocol) that automatically speeds up the transfer rates of your USB storage devices.

Launching USB 3.1 Boost

To launch USB 3.1 Boost, click or tap 📄 the top-right corner of the AI Suite 3 main menu, then select USB 3.1 Boost.

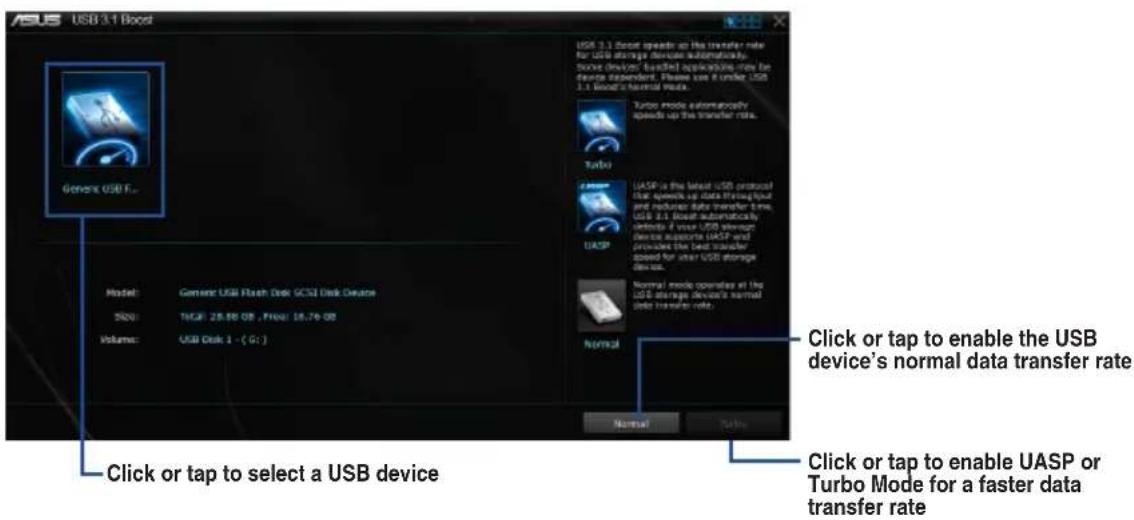

Using the USB 3.1 Boost

ASUS USB 3.1 Boost General USB F.. USB 3.1 Boost speed up the transfer rate for USB storage devices automatically. Some devices loaded applications may be device dependent. Please use it under USB 3.1 Boost's Normal Rate. Turbo UASP is the latest USB protocol that opens up data transfer time, and monitor data transfer time. USB 3.1 Boost automatically definite if user USB storage device supports UASP and provides the best transfer speed for user USB storage device. Normal mode operates at the USB storage device's normal data transfer rate. Model: Generic USB Flash Disk SCSI Disk Device Size: TACF: 25.00 GB , Preq: 18.76 GB Volume: USB Disk 1 - ( G : ) Click or tap to select a USB device Click or tap to enable the USB device's normal data transfer rate Click or tap to enable UASP or Turbo Mode for a faster data transfer rate Normal Sales Click or tap to enable the USB device's normal data transfer rate

Ensure to connect your USB 3.1/3.0 devices to the USB 3.1/3.0 ports that support USB 3.1 Boost. Refer to section 2.3.1 Rear I/O connection of your user guide for more details.

• USB 3.1 Boost automatically detects the USB 3.1/3.0 devices that support UASP.
• The data transfer speed varies with USB devices. For a higher data transfer performance, use a USB 3.1/3.0 device.

4.4.3 EZ Update

EZ Update is a utility that allows you to automatically update your motherboard's software, drivers and BIOS easily.

With this utility, you can also manually update the BIOS and select the boot logo that displays during POST.

Launching EZ Update

To launch EZ Update, click or tap the top-right corner of the AI Suite 3 main menu, then select EZ Update.

Using EZ Update

Click or tap to automatically update your motherboard driver, software and firmware EZ Update Current BIOS Model Name: Z97-DELUXE Version:0001 Release Date: 03/05/2014 Selected BIOS File: CSP-DELUXE-AIUS-0001.CAP Model Name: Z97-DELUXE Version:0001 Release Date: 03/05/2014 Check updates from Internet: Check Now Manually update Boot logo or BIOS Select a downloaded BIOS file then click "MyLogo" or "BIOS Update" F:\Z87-DELUXE-AIUS-0001.CAP Add Click or tap to search and select the BIOS file Click or tap to select a boot logo Click or tap to update the BIOS

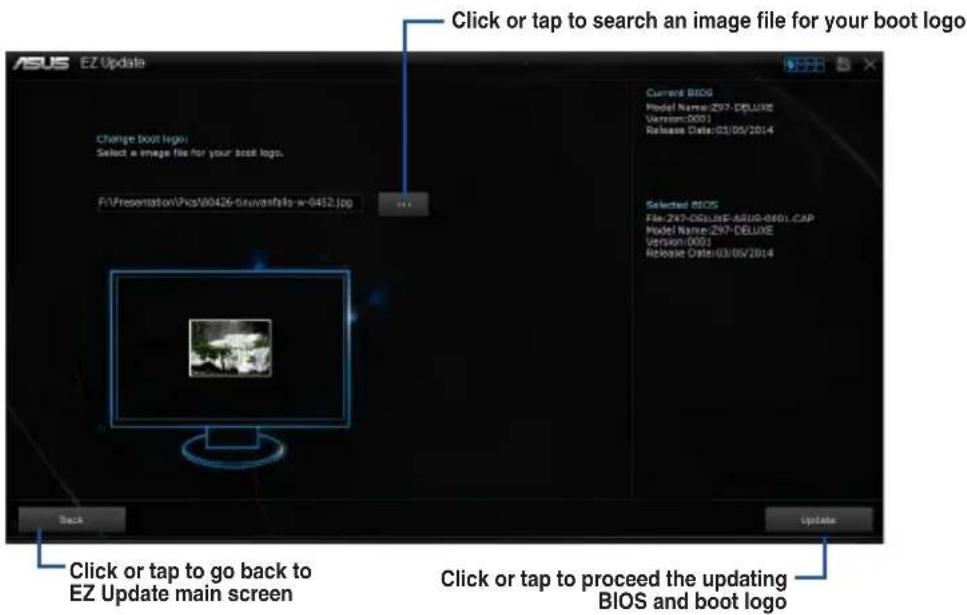

Manually update the BIOS and selecting a boot logo

ASUS EZ Update Change boot logo: Select a image file for your boot logo. F:\Presentation\Pics\80426-Gruvastalls-w-0452.jpg Back Click or tap to search an image file for your boot logo Current BIOS Model Name: 297-DELUXE Version:0001 Release Date:03/05/2014 Selected BIOS File: 297-DELUXE-ARUG-0801.CAP Model Name: 297-DELUXE Version:0001 Release Date:03/05/2014 Click or tap to go back to EZ Update main screen Update Click or tap to proceed the updating BIOS and boot logo

After you click or tap BIOS Update button, click or tap Flash to update the BIOS and upload the boot logo in your system.

4.4.4 USB BIOS Flashback

USB BIOS Flashback allows you to check and save the latest BIOS version to a USB storage device. Use this utility to quickly check for the latest available BIOS and set the BIOS download schedule.

Launching USB BIOS Flashback

To launch USB BIOS Flashback, click or tap 📋 the top-right corner of the AI Suite 3 main menu, then select USB BIOS Flashback.

USB BIOS Flashback is available only in selected motherboard models.

Using USB BIOS Flashback

Set a schedule for the BIOS Update download ASUS USB BIOS Flashback This utility allows you to check and save the latest BIOS version to a USB storage device. With ASUS USB BIOS Flashback hardware features, the system BIOS could be permanently updated without beating or even powering up the system. Try it and schedule your download now! File Name: ZSTD.CAP Download setting: Schedule(days): 38 (Recommended) Don't remind no again if I have already downloaded the latest version Do not set the download schedule Check for NEW BIOS Update Click or tap to check for a new BIOS update available for download Current BIOS Model Name: 297-DELURE Version: 0091 Release Date: 03/05/2014 Click or tap to cancel the download schedule setting Click or tap to apply the download schedule setting

Scheduling the BIOS download

1. In the Download Setting field, tick Schedule (days) then select the number of days for the BIOS download schedule.
2. Click or tap Apply to save the BIOS download schedule. Click or tap Cancel to cancel the download schedule.

Downloading the latest BIOS

Before you start downloading, ensure that you have installed the USB storage device to your computer's USB port that supports USB BIOS Flashback. Refer to section 2.3.1 Rear I/O connection of this user guide for more details.

To download the updated BIOS:

1. From the USB BIOS Flashback screen, click or tap Check for New BIOS Update.

Wait for the system to check the latest BIOS version.

USB BIOS Flashback Current BIOS Version: 0210 Release Date: 01/31/2014 Checking , please wait... Cancel

1. After the utility detects a new BIOS, click or tap ▼ from the Save to: field, select the USB flash drive, then click or tap Download.

USB BIOS Flashback Current BIOS Version: 0210 Release Date: 01/31/2014 File Name: 297-DELUXE Save to: New BIOS Version: 0211 Release Date: 03/07/2014 Download

1. After the download is complete, click or tap OK.

USB LRTS Feedback This will also alter your user to check and save the Linux USB commands for a USB adapter device. USB 1000 USB USB Platform hardware modules, the system uses the components applied without booting or user programming tool. This is good to validate our download status. File Name: 2000.CAP Downloading Settings • Download (Bus) • Don't convert on app • Do not use the download Check for User Web USB LRTS Feedback Current: 0000 Application: 100% Retention Date: 06/03/2014 Download computer CPU Frequency: 1401.8 ms Voltage: 0.000 V Temperature: 031.0 °C Fan: 2647 GHz USB Frequency: 1401.8 ms CPU Core: 1.5V CPU Core: 1.5V/Hz CPU Core: 1.5V/Hz CPU Core: 1.5V/Hz CPU Core: 1.5V/Hz CPU Core: 1.5V/Hz CPU Core: 1.5V/Hz CPU Core: 1.5V/Hz CPU Core: 1.5V/Hz CPU Core: 1.5V/Hz CPU Core: 1.5V/Hz

4.4.5 USB Charger+

USB Charger+ allows you to quick-charge your portable USB devices even if your computer is off, in sleep mode or hibernate mode.

Before using USB Charger+, ensure to disable the ErP Ready item from the Advanced >APM >ErP Ready in the Advanced mode of the BIOS Setup program.

Launching USB Charger+

To launch USB Charger+, click or tap 📄 the top-right corner of the AI Suite 3 main menu, then select USB Charger+.

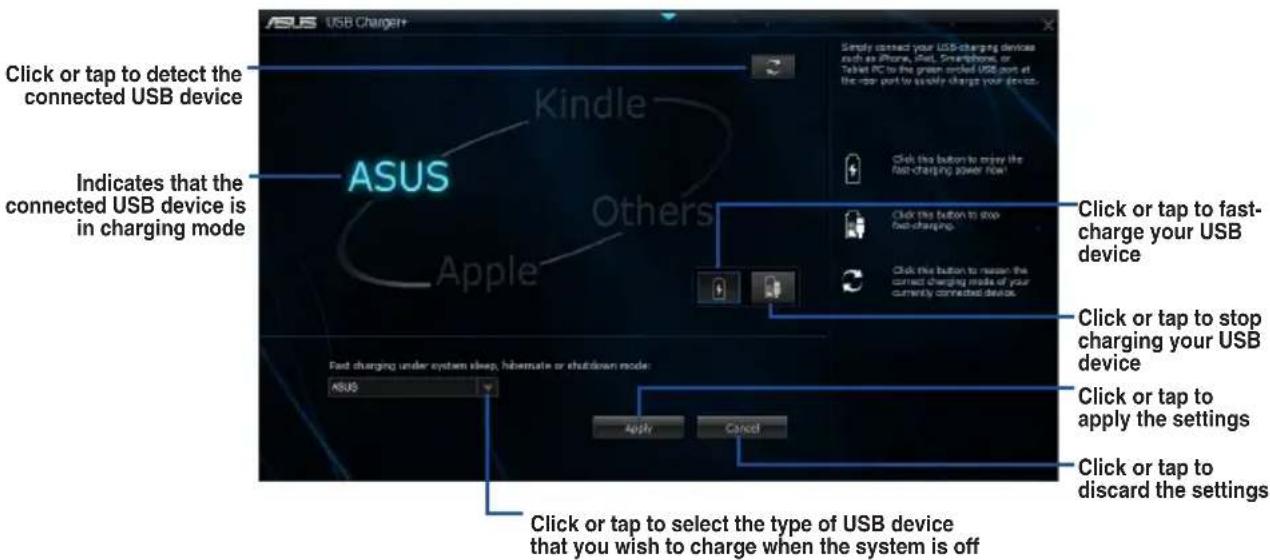

USB Charger+ screen

Click or tap to detect the connected USB device Indicates that the connected USB device is in charging mode ASUS Kindle Others Apple Fast charging under system sleep, hibernate or shutdown mode ASUS Click or tap to select the type of USB device that you wish to charge when the system is off Click or tap to select the type of USB device that you wish to charge when the system is off Click or tap to check the device to access the next port to supply charge your device. Click or tap to stop charging your USB device Click or tap to apply the settings Click or tap to discard the settings

Ensure to connect your USB device into the USB port that supports this utility. Refer to section 2.3.1 Rear I/O connection of your user guide for more details.

• The USB Charger+ does not support USB hubs and USB extension cables, and generic USB cables.
• The USB Charger+ may not recognize some ASUS devices due to a special design.

4.4.6 Push Notice

This utility allows you get the detailed status of your system to your smart device. You can also send messages to your smart device using this utility.

Before using this utility, ensure that you pair your computer with your smart device. For pairing information, refer to section Pairing your computer and smart device.

Launching Push Notice on your computer

To launch Push Notice, click or tap 📄 the top-right corner of the AI Suite 3 main menu, then select Push Notice.

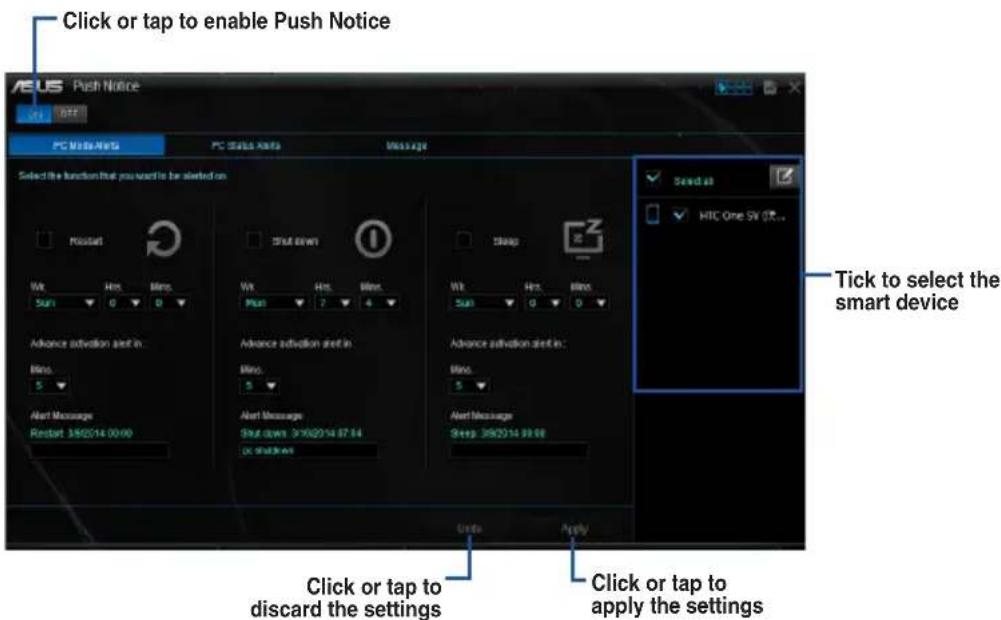

Push Notice screen

Click or tap to enable Push Notice Select the function that you want to be alerted on Reset Wk High Mins Start 0 0 Advance activation shot in: Min: 5 Alert Message Reset: 3602014 00:00 Shift Event Wk High Mins Main 7 4 Advance activation shot in: Min: 5 Alert Message Stop down: 3x10x2014 87:44 OK ShiftEvent Snap Wk High Mins Main 0 0 Advance activation shot in: Min: 5 Alert Message Stop up: 3602014 99:00 Units Apply Click or tap to discard the settings Click or tap to apply the settings

You can also enable the Push Notice via the Push Notice shortcut on the lower-right corner of your screen. To do this, click or tap << then click or tap then select.

Pairing your computer and smart device

To pair your computer and smart device:

1. On your smart device, tap

to launch Push Notice.

1. Tap Push Scan then tap the name of your computer that you want to pair with.

To pair your computer and smart device, ensure that both are connected to the same wireless network.

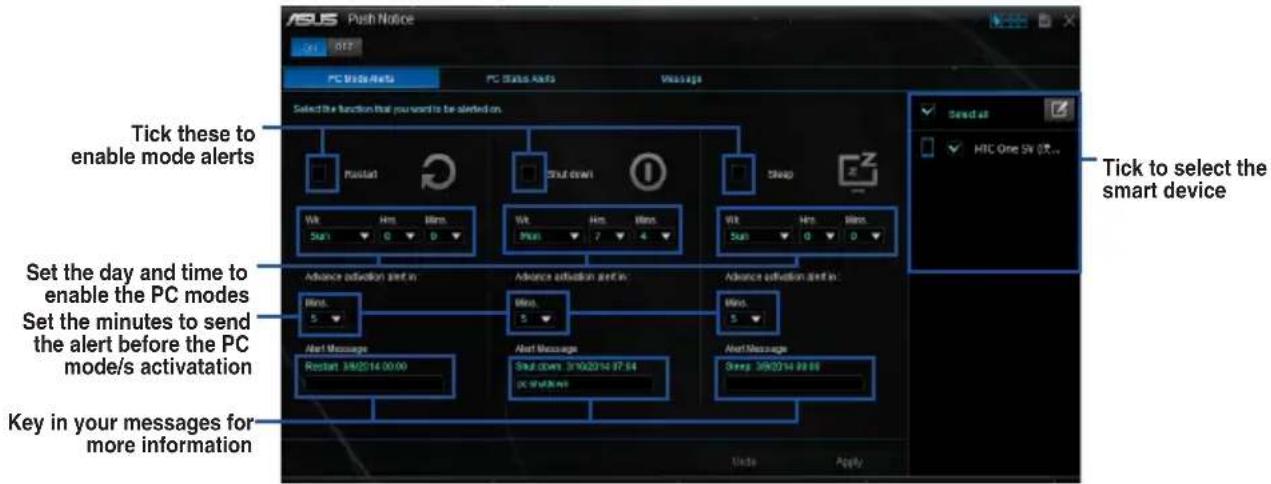

Setting up PC Mode alerts of your computer

This feature allows you to restart, shut down, or put your computer to sleep mode and sends an alert to your smart device.

ASUS Push Notice OK OFF PC Mode Alerts PC Status Alerts Message Select the function that you want to be alerted on. Pick these to enable mode alerts Wk Hms Min Shut down 1 Stop 3 Sun 0 0 7 4 Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Min Max Set the day and time to enable the PC modes Set the minutes to send the alert before the PC mode/s activation Key in your messages for more information Advance advection start in Min. 5 Alert Message Restart 3/8/2014 00:00 Alert Message Shut down 3/10/2014 07:04 PC switch Alert Message Shug 3/8/2014 09:06 Unls Apply

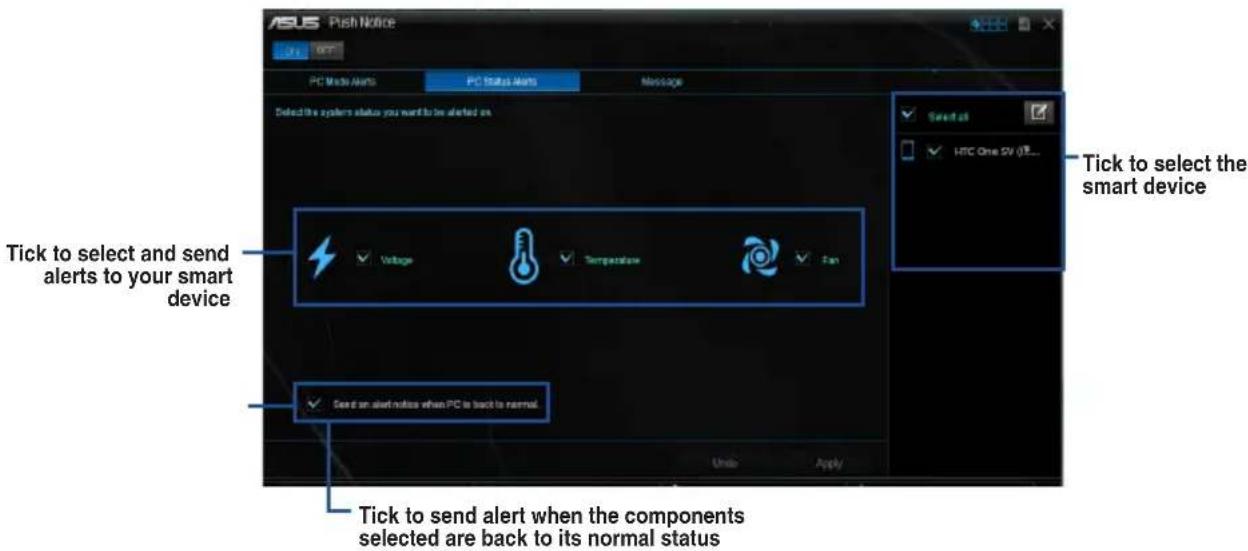

Setting up PC Status alerts

This feature allows you to send alerts of the unusual activities of the voltage, temperature, and fan settings of your computer to your smart device.

ASUS Push Notice File OFF PC Media Alerts PC Status alerts Message Select the system status you want to be alerted on. ✓ Voltage ✓ Temperature ✓ Fan Tick to select and send alerts to your smart device ✓ Send an alert notice when PC is back to normal. Unb Apply Tick to select the smart device ✓ HTC One DV (E... Tick to send alert when the components selected are back to its normal status

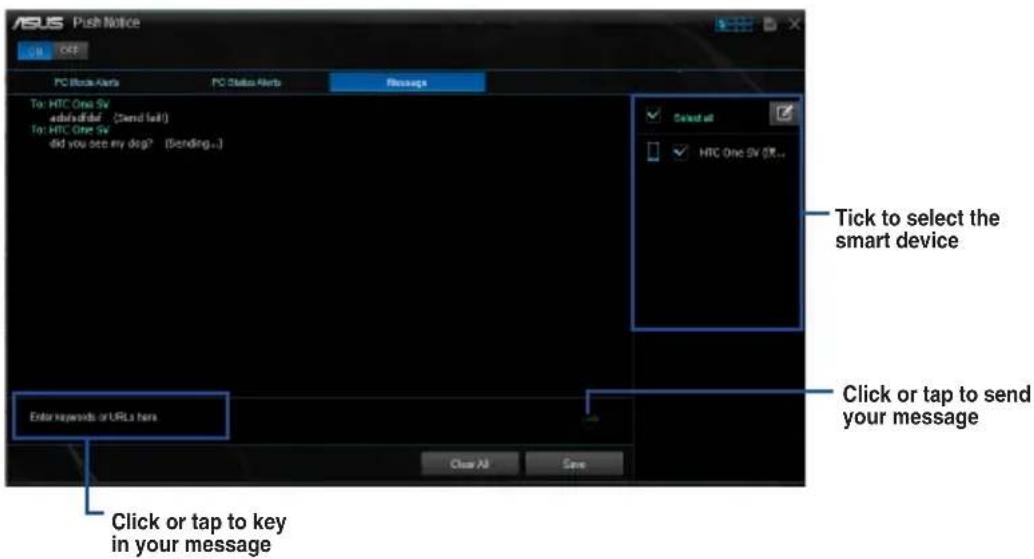

Sending messages to your smart device

This feature allows you to send messages to your smart device.

You can also send messages via the Push Notice messaging shortcut on the lower-right corner of your screen. To do this, click or tap << then click or tap then select .

ASUS Push Notice USB OFF PC Block Alerts PC Status Alerts Message To: HTC One SV add/s/did? (Stand fail) To: HTC One SV did you see my dog? (Sending...) Enter keywords or URLs here. Click or tap to key in your message. Close All Save Select all HTC One SV (OR... Tick to select the smart device Click or tap to send your message

Viewing your computer status on your smart device

Tap

on your smart device to launch Push Notice.

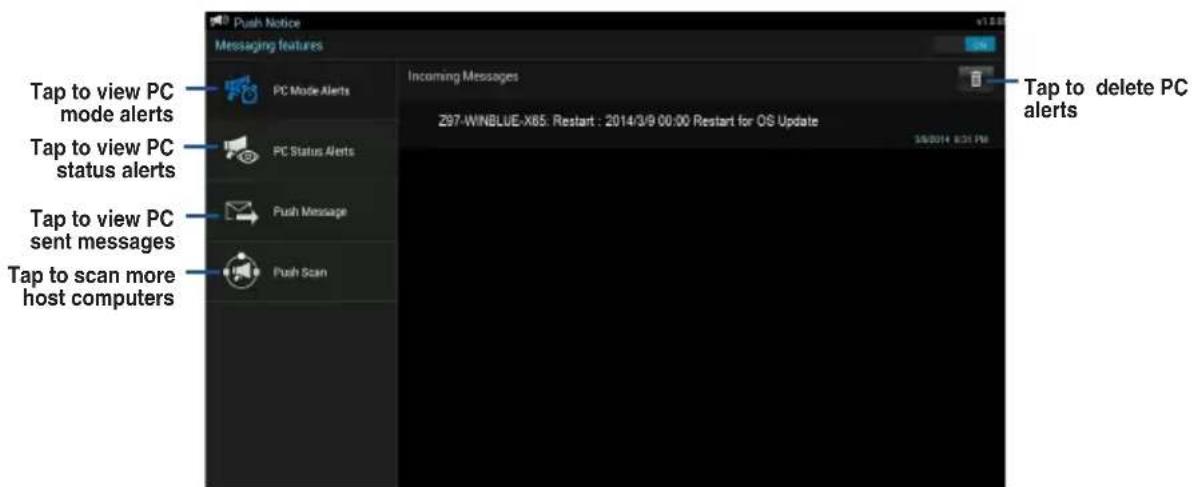

Push Notice Messaging features Tap to view PC mode alerts PC Mode Alerts Incoming Messages Z97-WINBLUE-X85: Restart : 2014/3/9 00:00 Restart for OS Update Tap to delete PC alerts Tap to view PC status alerts PC Status Alerts Push Message Push Scan Tap to view PC sent messages Tap to scan more host computers

4.4.7 System Information

This utility allows you get the detailed information of the motherboard, CPU, and memory settings.

Launching the System Information

To launch System Information, click or tap 📋 the top-right corner of the AI Suite 3 main menu, then select System Information.

Viewing the motherboard information

Click or tap the MB tab to view the motherboard's information.

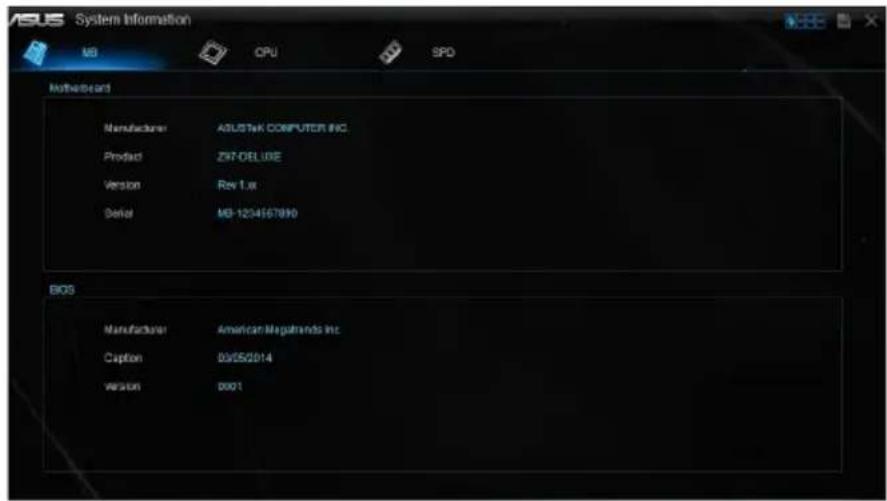

ASUS System Information MB CPU SPD Motherbeard Manufacturer ASUSTEK COMPUTER INC. Product Z97-DELUXE Version Rev 1.x Serial MD-1204567890 BIOS Manufacturer-American Magabrada Inc. Caption 03/05/2014 Version D001

Viewing the CPU information

Click or tap the CPU tab to view the processor's information.

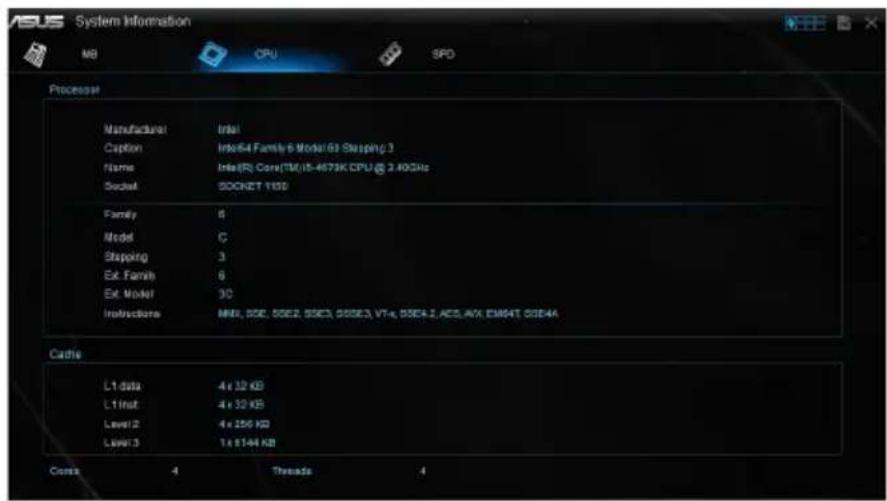

System Information MB CPU SPD Processor Manufacturer Intel Caption Info64 Family 6 Model 63 Stopping 3 Name Intel(R) Core(TM)IS-4673K CPU@ 2.40GHz Socket SOCKET 1150 Family 6 Model C Slipping 3 Ext. Family 6 Ext. Model 3C Instructions MNA, SDC, SDC2, SDC3, SDC3, VT4, SDC4.2, AOS, AFX, EM84T, SDC4A Cache L1 data 4 x 32 KB L1 Inst 4 x 32 KB Level 2 4 x 256 KB Level 3 1 x 5144 KB Core 4 Thrada 4

Viewing the SPD information

Click or tap the SPD tab to view the memory's information.

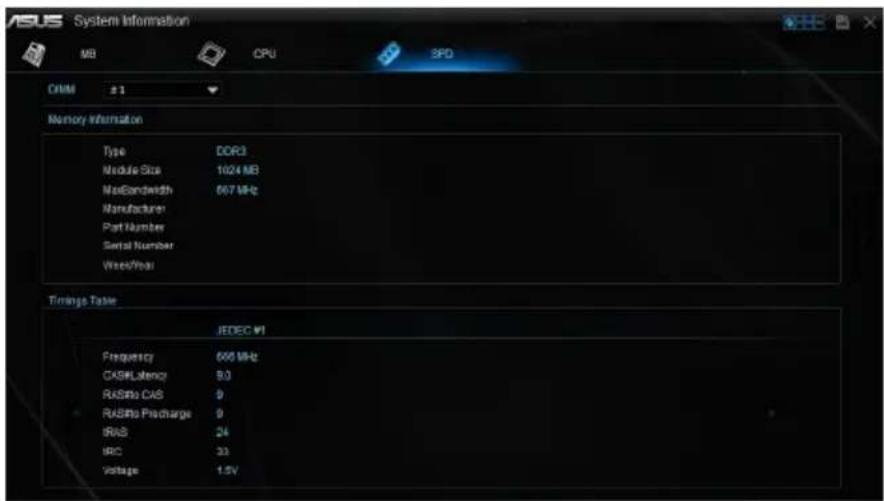

ASUS System Information MB CPU SPD CRM 3.1 Memory Information Type DDR3 Module Size 1024 MB MaxBandwidth 667 MHz Manufacturer Part Number Serial Number Wires/Year Timing Table IEDEC #1 Frequency 600 MHz CASH Latency 9.0 RASInfo CAS 0 RASInfo Package 0 tRAS 24 IRC 33 Voltage 1.5V

4.5 Audio configurations

The Realtek® audio CODEC provides 8-channel audio capability to deliver the ultimate audio experience on your computer. The software provides Jack-Sensing function, S/PDIF Out support, and interrupt capability. The CODEC also includes the Realtek® proprietary UAJ® (Universal Audio Jack) technology for all audio ports, eliminating cable connection errors, and giving users plug and play convenience.

Follow the installation wizard to install the Realtek® Audio Driver from the support DVD that came with the motherboard package.

If the Realtek® audio software is correctly installed, you will find the Realtek® HD Audio

Manager icon on the taskbar. Double-click or tap on the icon to display the Realtek® HD Audio Manager.

Realtek® HD Audio Manager

A. Realtek® HD Audio Manager with DTS UltraPC II for Windows® 8.1 / Windows® 8 / Windows® 7

Configuration option tabs (vary with the audio devices connected) Advanced settings ASUS Realtek HD Audio Manager Main Volume L R Set default Device Set default device button Control settings panel Sound Effects DTS Connect Default Format Sewer Pipe Bathroom Stone Room Auditorium Arena Environment Reset Loudness Equalization Pop Live Club Rock Equalizer Reset Voice Cancellation Analog and digital connector status

Selecting an audio output

Realtek HD Audio Manager allows you to select the type of audio output depending on the output device that you are using.

To select an audio output:

1. Insert the audio device's jack to the Line Out (lime) port. If the audio device's jack is already inserted to the corresponding port, click or tap 📄 on the Realtek HD Audio Manager.

2. On the pop-up window, tick the audio device that you plugged to the Line Out port then click or tap Next.

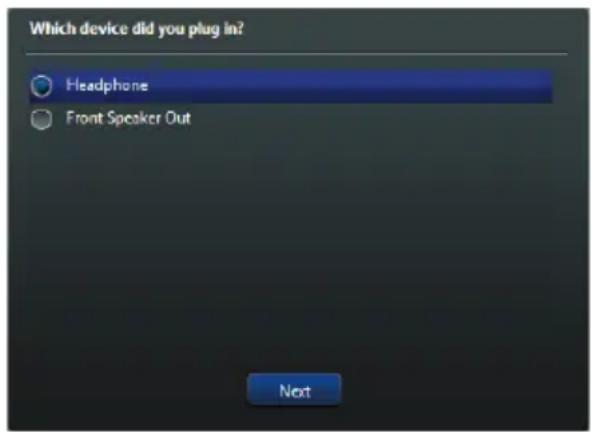

Which device did you plug in? Headphone Front Speaker Out Next

a. If you select Headphone, click or tap to select the type of headphone installed then click or tap OK.

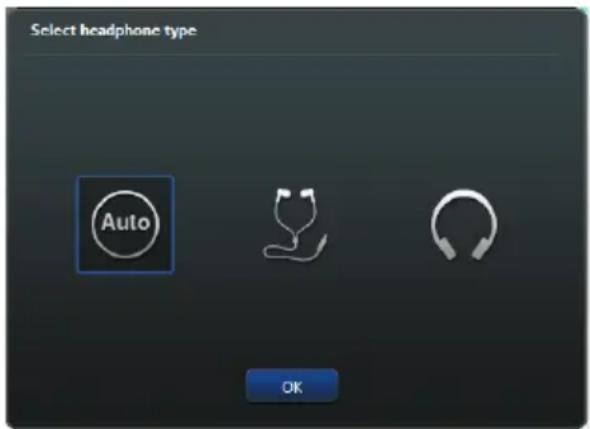

Select headphone type Auto OK

b. If you select Front Speaker Out, click or tap to select the type of speaker installed then click or tap OK.

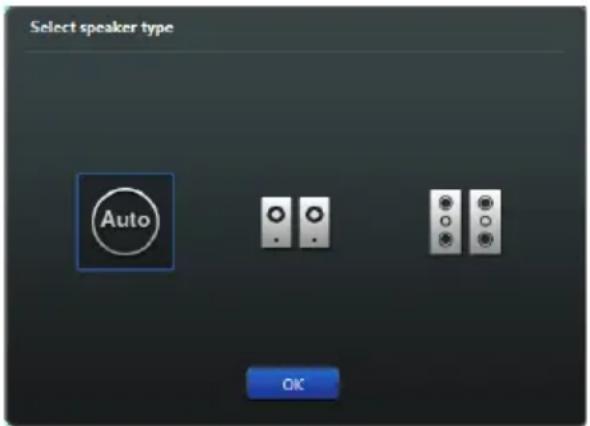

Select speaker type Auto OK

RAID support

5.1 RAID configurations

The motherboard supports Intel® Rapid Storage Technology with RAID 0, RAID 1, RAID 10, and RAID 5 solution.

If you want to install a Windows® operating system to a hard disk drive included in a RAID set, you have to create a RAID driver disk and load the RAID driver during OS installation. Refer to section 5.2 Creating a RAID driver disk for details.

5.1.1 RAID definitions

RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks. Two hard disks perform the same work as a single drive but at a sustained data transfer rate, double that of a single disk alone, thus improving data access and storage. Use of two new identical hard disk drives is required for this setup.

RAID 1 (Data mirroring) copies and maintains an identical image of data from one drive to a second drive. If one drive fails, the disk array management software directs all applications to the surviving drive as it contains a complete copy of the data in the other drive. This RAID configuration provides data protection and increases fault tolerance to the entire system. Use two new drives or use an existing drive and a new drive for this setup. The new drive must be of the same size or larger than the existing drive.

RAID 5 stripes both data and parity information across three or more hard disk drives. Among the advantages of RAID 5 configuration include better HDD performance, fault tolerance, and higher storage capacity. The RAID 5 configuration is best suited for transaction processing, relational database applications, enterprise resource planning, and other business systems. Use a minimum of three identical hard disk drives for this setup.

RAID 10 is data striping and data mirroring combined without parity (redundancy data) having to be calculated and written. With the RAID 10 configuration you get all the benefits of both RAID 0 and RAID 1 configurations. Use four new hard disk drives or use an existing drive and three new drives for this setup.

5.1.2 Installing Serial ATA hard disks

The motherboard supports Serial ATA hard disk drives. For optimal performance, install identical drives of the same model and capacity when creating a disk array.

To install the SATA hard disks for a RAID configuration:

1. Install the SATA hard disks into the drive bays.
2. Connect the SATA signal cables.
3. Connect a SATA power cable to the power connector on each drive.

5.1.3 Setting the RAID item in BIOS

You must enable the RAID function in the BIOS Setup before creating RAID sets using SATA HDDs.

To set the RAID item in BIOS:

1. Enter the BIOS Setup during POST.
2. Go to the Advanced menu > SATA Configuration, then press .

3. Set the SATA Mode item to [RAID Mode].

4. Save your changes, and then exit the BIOS Setup.

Refer to Chapter 3 for details on entering and navigating through the BIOS Setup

Due to chipset limitation, when SATA ports are set to RAID mode, all SATA ports run at RAID mode together.

5.1.4 Intel® Rapid Storage Technology Option ROM utility

To enter the Intel® Rapid Storage Technology Option ROM utility:

1. Turn on the system.
2. During POST, press + to display the utility main menu.

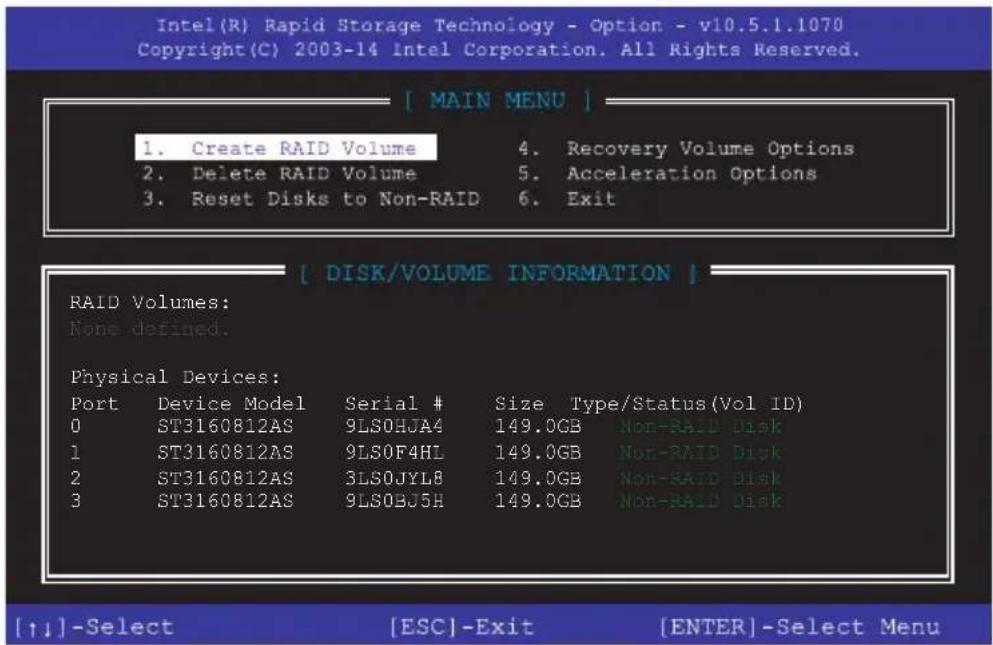

Intel(R) Rapid Storage Technology - Option - v10.5.1.1070 Copyright(C) 2003-14 Intel Corporation. All Rights Reserved. [ MAIN MENU ] 1. Create RAID Volume 4. Recovery Volume Options 2. Delete RAID Volume 5. Acceleration Options 3. Reset Disks to Non-RAID 6. Exit [ DISK/VOLUME INFORMATION ] RAID Volumes: None defined. Physical Devices: Port Device Model Serial # Size Type/Status(Vol ID) 0 ST3160812AS 9LS0HJA4 149.0GB Non-RAID Disk 1 ST3160812AS 9LS0F4HL 149.0GB Non-RAID Disk 2 ST3160812AS 3LS0JYL8 149.0GB Non-RAID Disk 3 ST3160812AS 9LS0BJ5H 149.0GB Non-RAID Disk [↑↓]-Select [ESC]-Exit [ENTER]-Select Menu

The navigation keys at the bottom of the screen allow you to move through the menus and select the menu options.

The RAID BIOS setup screens shown in this section are for reference only and may not exactly match the items on your screen.

The utility supports maximum four hard disk drives for RAID configuration.

Creating a RAID set

To create a RAID set:

1. From the utility main menu, select 1. Create RAID Volume and press . The following screen appears:

[CREATE VOLUME MENU] Volume 0 RAID Level: Disks: Strip Size: Capacity: Sync: Create volume [HELP] Enter a unique volume name that has no special characters and is 16 characters or less.

1. Enter a name for the RAID set and press .
2. When the RAID Level item is selected, press the up/down arrow key to select a RAID level to create, and then press .
3. When the Disks item is selected, press to select the hard disk drives you want to include in the RAID set. The SELECT DISKS screen appears:

[SELECT DISKS] Port Device Model Serial # Size Status 0 ST3160812AS 9LS0HJA4 149.0GB Non-RAID Disk 1 ST3160812AS 9LS0F4HL 149.0GB Non-RAID Disk 2 ST3160812AS 3LS0JYL8 149.0GB Non-RAID Disk 3 ST3160812AS 9LS0BJ5H 149.0GB Non-RAID Disk Select 2 to 6 to use in creating the volume. [↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done

1. Use the up/down arrow key to select a drive, and then press to select. A small triangle marks the selected drive. Press after completing your selection.

2. Use the up/down arrow key to select the stripe size for the RAID array (for RAID 0, 10 and 5 only), then press . The available stripe size values range from 4 KB to 128 KB. The following are typical values:

- RAID 0: 128 KB

- RAID 10: 64 KB

- RAID 5: 64 KB

We recommend a lower stripe size for server systems, and a higher stripe size for multimedia computer systems used mainly for audio and video editing.

1. When the Capacity item is selected, enter the RAID volume capacity that you want and press . The default value indicates the maximum allowed capacity.

2. When the Create Volume item is selected, press . The following warning message appears:

WARNING: ALL DATA ON SELECTED DISKS WILL BE LOST. Are you sure you want to create this volume? (Y/N)

1. Press to create the RAID volume and return to the main menu, or to go back to the CREATE VOLUME menu.

Deleting a RAID set

Be cautious when deleting a RAID set. You will lose all data on the hard disk drives when you delete a RAID set.

To delete a RAID set:

1. From the utility main menu, select 2. Delete RAID Volume and press . The following screen appears:

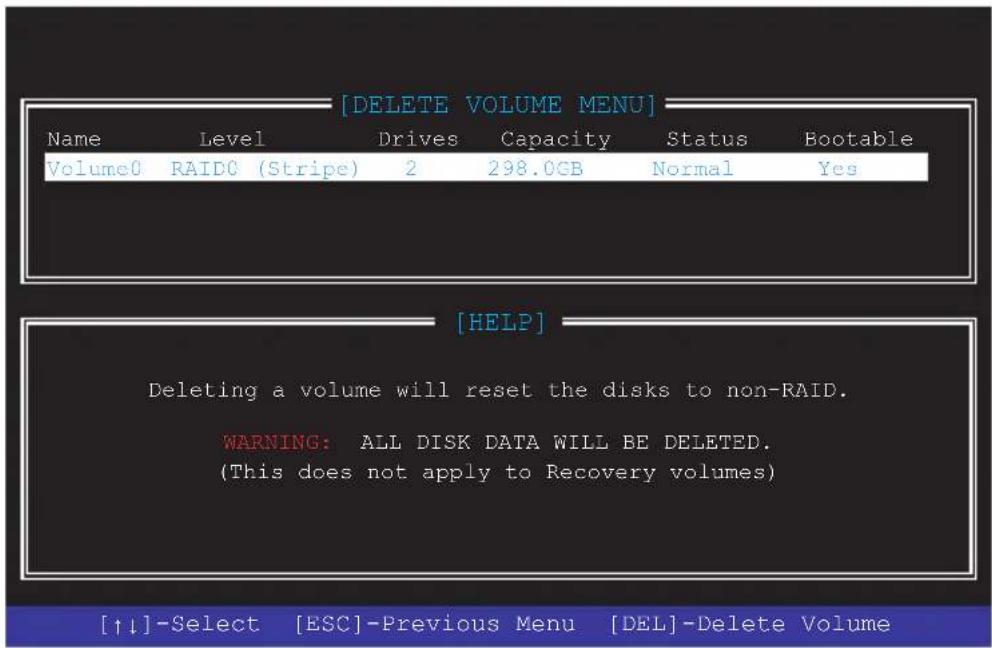

[DELETE VOLUME MENU] Name Level Drives Capacity Status Bootable Volume0 RAID0 (Stripe) 2 298.0GB Normal Yes [HELP] Deleting a volume will reset the disks to non-RAID. WARNING: ALL DISK DATA WILL BE DELETED. (This does not apply to Recovery volumes) [↑↓]-Select [ESC]-Previous Menu [DEL]-Delete Volume

1. Use the up/down arrow key to select the RAID set you want to delete, and then press . The following warning message appears:

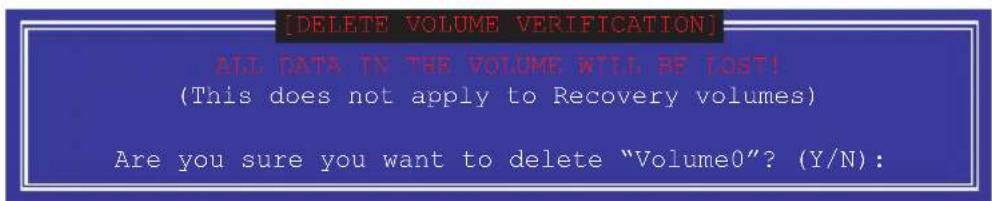

[DELETE VOLUME VERIFICATION] ALL DATA IN THE VOLUME WILL BE LOST! (This does not apply to Recovery volumes) Are you sure you want to delete "Volume0"? (Y/N):

1. Press to delete the RAID set and return to the utility main menu, or press to return to the DELETE VOLUME menu.

Exiting the Intel® Rapid Storage Technology Option ROM utility

To exit the utility:

1. From the utility main menu, select 5. Exit, then press . The following warning message appears:

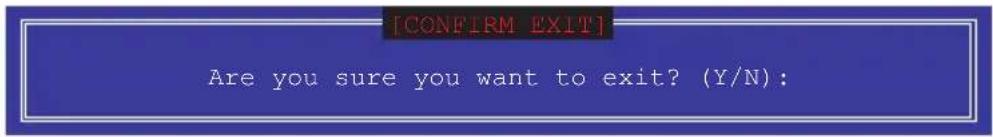

[CONFIRM EXIT] Are you sure you want to exit? (Y/N):

1. Press to exit or press to return to the utility main menu.

5.2 Creating a RAID driver disk

A floppy disk with the RAID driver is required when installing a Windows ^® operating system on a hard disk drive that is included in a RAID set.

The motherboard does not provide a floppy drive connector. You have to use a USB floppy disk drive when creating a SATA RAID driver disk.

5.2.1 Creating a RAID driver disk without entering the OS

To create a RAID driver disk without entering the OS:

1. Boot your computer.
2. Press during POST to enter the BIOS setup utility.
3. Set the optical drive as the primary boot device.
4. Insert the support DVD into the optical drive.
5. Save changes and exit BIOS.
6. When the Make Disk menu appears, press <1> to create a RAID driver disk.
7. Insert a formatted floppy disk into the USB floppy disk drive, then press .
8. Follow the succeeding screen instructions to complete the process.

5.2.2 Creating a RAID driver disk in Windows

®

To create a RAID driver disk in Windows®:

1. Start Windows ^® .
2. Plug the USB floppy disk drive and insert a floppy disk.
3. Place the motherboard support DVD into the optical drive.
4. Go to the Intel AHCI/RAID Driver menu then click Intel AHCI/RAID Driver path to open the RAID driver folder.
5. Select 32bit or 64bit folder depending on your operating system. Copy the files of the selected folder to the root path of your USB floppy disk drive.

Write-protect the floppy disk to avoid a computer virus infection.

5.2.3 Installing the RAID driver during Windows ^® OS installation

To install the RAID driver for Windows ^® 7:

1. During the OS installation, click Load Driver to allow you to select the installation media containing the RAID driver.
2. Insert the USB flash drive with RAID driver into the USB port or the support DVD into the optical drive, and then click Browse.
3. Click the name of the device you've inserted, go to Drivers > RAID, and then select the RAID driver for the corresponding OS version. Click OK.
4. Follow the succeeding screen instructions to complete the installation.

Before loading the RAID driver from a USB flash drive, you have to use another computer to copy the RAID driver from the support DVD to the USB flash drive.

To set up a Windows® UEFI operating system under RAID mode, ensure to load the UEFI driver for your optical drive.

Appendices

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
- This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

IC: Canadian Compliance Statement

Complies with the Canadian ICES-003 Class B specifications. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations.

This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

VCCI: Japan Compliance Statement

VCCI Class B Statement

情報処理装置等電波障害自主規制について

KC: Korea Warning Statement

B급 기기 (가정용 방송통신기자재)

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

RF Equipment Notices

CE: European Community Compliance Statement

The equipment complies with the RF Exposure Requirement 1999/519/EC, Council Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0–300 GHz). This wireless device complies with the R&TTE Directive.

Wireless Radio Use

This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz frequency band.

Exposure to Radio Frequency Energy

The radiated output power of the Wi-Fi technology is below the FCC radio frequency exposure limits. Nevertheless, it is advised to use the wireless equipment in such a manner that the potential for human contact during normal operation is minimized.

FCC Bluetooth Wireless Compliance

The antenna used with this transmitter must not be colocated or operated in conjunction with any other antenna or transmitter subject to the conditions of the FCC Grant.

Bluetooth Industry Canada Statement

This Class B device meets all requirements of the Canadian interference-causing equipment regulations.

NCC: Taiwan Wireless Statement

無線設備的警告聲明

Japan RF Equipment Statement

Copyright© 2014 Google Inc. All Rights Reserved.

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at:

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

ASUS contact information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259

Telephone [phone]

Fax [phone]

E-mail [e-mail]

Web site www.asus.com.com/

Technical Support

Telephone [phone]

Fax [phone], ext. 9101#

Online support http://www.asus.com/tw/support/

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA

Telephone [phone]

Fax [phone]

Web site http://www.asus.com/us/

Technical Support

Support fax [phone]

Telephone [phone]

Online support http://www.service.asus.com/

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, D-40880 Ratingen, Germany

Fax [phone]

Web site http://www.asus.com/de

Online contact http://eu-rma.asus.com/sales

Technical Support

Telephone [phone]*

Support Fax [phone]

Online support http://www.asus.com/de/support/

DECLARATION OF CONFORMITY Per FCC Part 2 Section 2. 1077(a) FC

Responsible Party Name: Asus Computer International

Address: 800 Corporate Way, Fremont, CA 94539. Phone/Fax No: [phone]/[phone]
