USER MANUAL M5A97 PLUS ASUS

Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Offer to Provide Source Code of Certain Software

This product contains copyrighted software that is licensed under the General Public License ("GPL"), under the Lesser General Public License Version ("LGPL") and/or other Free Open Source Software Licenses. Such software in this product is distributed without any warranty to the extent permitted by the applicable law. Copies of these licenses are included in this product.

Where the applicable license entitles you to the source code of such software and/or other additional data, you may obtain it for a period of three years after our last shipment of the product, either

(1) for free by downloading it from http://support.asus.com/download

or

(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc.

Legal Compliance Dept.

15 Li Te Rd.,

Beitou, Taipei 112

Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the product for which you wish to obtain the corresponding source code and your contact details so that we can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as the corresponding binary/object code.

This offer is valid to anyone in receipt of this information.

ASUSTeK is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you encounter any problems in obtaining the full corresponding source code we would be much obliged if you give us a notification to the email address [e-mail], stating the product and describing the problem (please DO NOT send large attachments such as source code archives, etc. to this email address).

Contents

Safety information iv

About this guide ...... iv

Package contents ...... vi

M5A97 PLUS specifications summary...... vi

Chapter 1: Product introduction

1.1 Before you proceed 1-1

1.2 Motherboard overview....1-2

1.3 Central Processing Unit (CPU) 1-4

1.4 System memory 1-8

1.5 Expansion slots.... 1-10

1.6 Jumpers....1-12

1.7 Connectors....1-13

1.8 Software support.... 1-20

Chapter 2: BIOS information

2.1 Managing and updating your BIOS 2-1

2.2 BIOS setup program 2-6

2.3 Main menu 2-10

2.4 Ai Tweaker menu.... 2-12

2.5 Advanced menu 2-18

2.6 Monitor menu 2-24

2.7 Boot menu 2-27

2.8 Tool menu 2-33

2.9 Exit menu.... 2-34

Appendices

Notices....A-1

ASUS contact information....A-3

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing the motherboard and adding components, carefully read all the manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

This user guide contains the information you need when installing and configuring the motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports. It includes descriptions of the switches, jumpers, and connectors on the motherboard.

• Chapter 2: BIOS information

This chapter discusses changing system settings through the BIOS Setup menus. Detailed descriptions fo the BIOS parameters are also provided.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when completing a task.

CAUTION: Information to prevent damage to the components when completing a task

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

Keys enclosed in the less-than and greater-than sign

means that you must press the enclosed key.

Example: means that you must press the Enter or Return key.

+ + If you must press two or more keys simultaneously, the key names are linked with a plus sign (+).

Package contents

Check your motherboard package for the following items.

Motherboard ASUS M5A97 PLUS motherboard

Cables 2 x Serial ATA 6.0 Gb/s cables

Accessories 1 x I/O Shield

Application DVD Support DVD

Documentation User Guide

If any of the above items is damaged or missing, contact your retailer.

M5A97 PLUS specifications summary

APU AMD	® AM3+ socket for AMD® FXTM/PhenomTM II/AthlonTM II/SempronTM100 series processorsSupport AMD® Cool n QuietTM TechnologySupports CPU up to 140WRefer towww.asus.comfor the AMD®CPU support list.
Chipset AMD	®970/SB950
System Bus Up to 5200	MT/s HyperTransportTM 3.0
Memory 4 x DIMM slots	support maximum 32GB unbuffered ECC and non-ECCDDR3 2133(O.C.)/1866/1600/1333/1066 MHz memory modulesDual-channel memory architectureDue to OS limitation, when you install a total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. We recommend a maximum of 3GB system memory if you are using a Windows® 32-bit operating system.AMD® FX Series CPU on this motherboard supports up to DDR3 1866MHz as its standard memory frequency.AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz.Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
Expansion slots 1 x PCIe	2.0 x16 slot2 x PCIe 2.0 x1 slots3 x PCI slots
Storage 6 x Serial ATA	6 Gb/s connectors with RAID 0, RAID 1, RAID 5, RAID 10 and JBOD support
LAN RTL8111F PCIe Gb LAN
Audio ALC887 7.1-Channel Audio CODEC
USB 14 x USB 2.0/1.1 ports (6 ports at mid-board, 8 ports at rear panel)

(continued on the next page)

M5A97 PLUS specifications summary

ASUS unique features	ASUS EPU- EPUASUS Exclusive Features- ASUS AI Suite II- ASUS AI Charger- ASUS ESD- 100% All High-quality Conductive Polymer CapacitorsASUS Quiet Thermal Solution- ASUS Fanless Design: Stylish Heat-sink Solution- ASUS Fan Xpert+ASUS EZ DIY- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface- ASUS CrashFree BIOS 3- ASUS EZ Flash 2- ASUS My Logo 2
Rear panel I/O ports 1 x PS/2 keyboard port1 x PS/2 mouse port1 x LAN (RJ-45) port1 x COM port3-jack 7.1-channel audio I/O ports8 x USB 2.0/1.1 ports
Internal connectors 3 x USB 2.0/1.1 connectors support additional 6 USB 2.0 ports6 x SATA 6.0 Gb/s connectors1 x High definition front panel audio connector (AAFP)1 x S/PDIF out header1 x System panel connector1 x 4-pin CPU Fan connector2 x 4-pin Chassis Fan connectors1 x 24-pin EATX power connector1 x 4-pin ATX 12V power connector
BIOS features 64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.7,ACPI V4.0a
Support DVD Drivers	ASUS PC Probe IIASUS UpdateAnti-virus software (OEM version)
Form factor ATX form factor: 12 in. x 8.5 in. (30.5 cm x 21.6 cm)

Specifications are subject to change without notice.

Product introduction

1

1.1 Before you proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

1.2 Motherboard overview

Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits.

Unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage to motherboard components.

1.2.1 Placement direction

When installing the motherboard, place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis as indicated in the image.

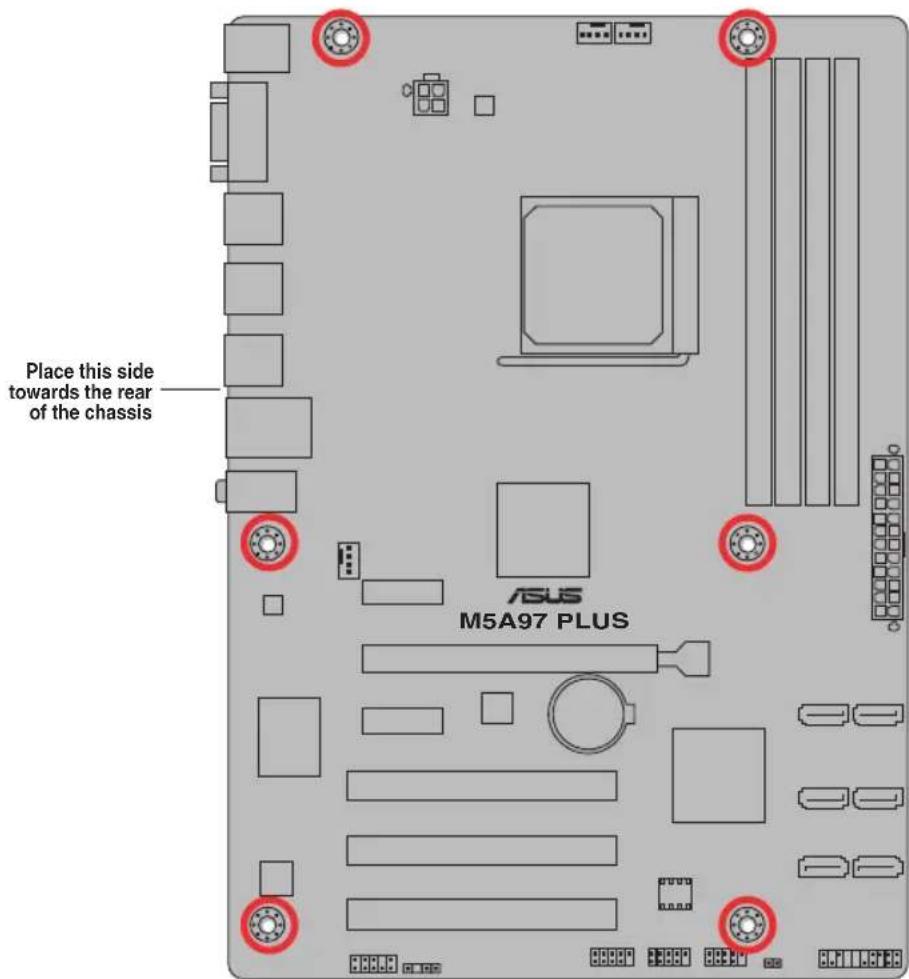

1.2.2 Screw holes

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.

Do not overtighten the screws! Doing so can damage the motherboard.

Place this side towards the rear of the chassis ASUS M5A97 PLUS

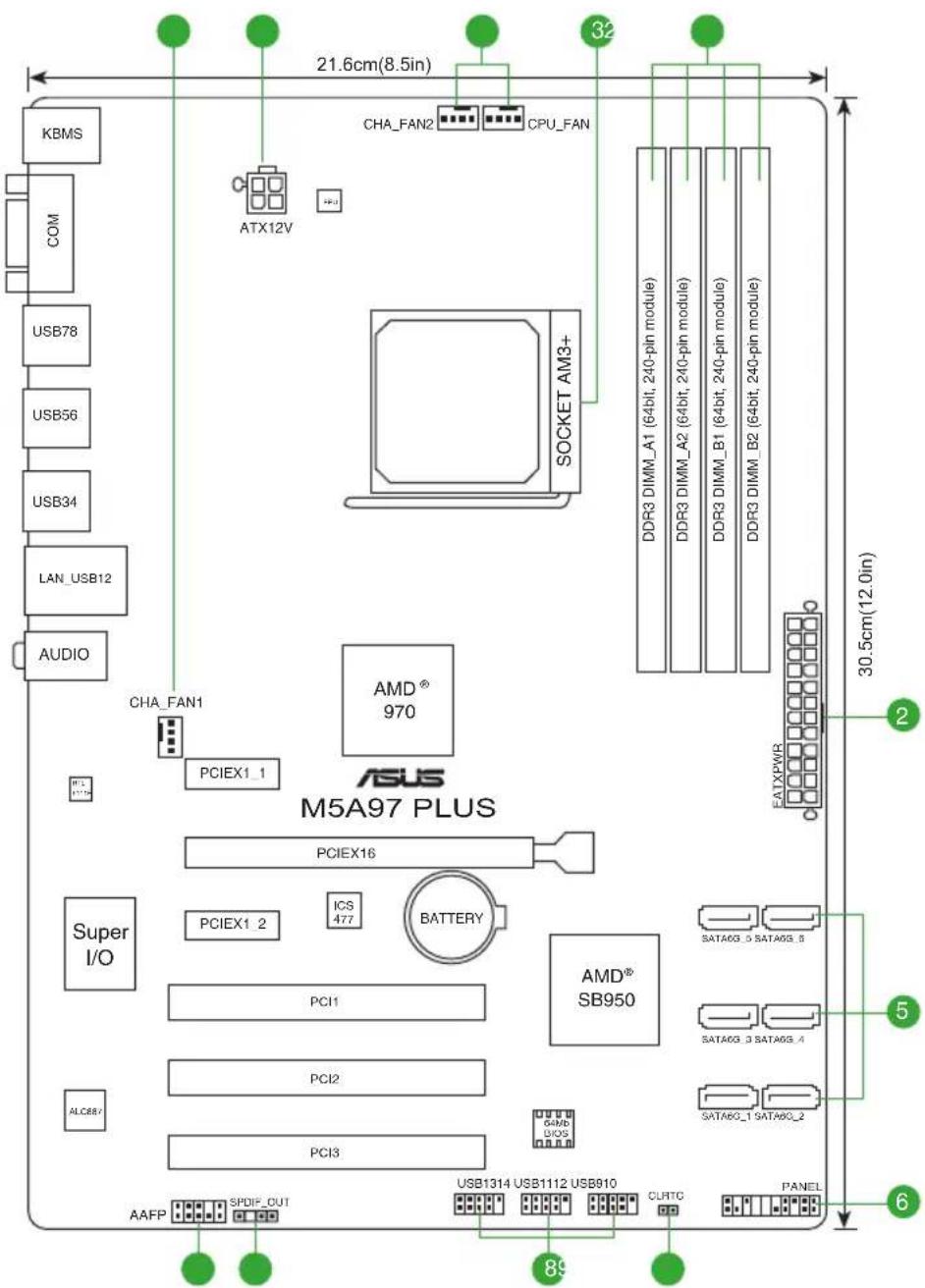

1.2.3 Motherboard layout

21.6cm(8.5in) CHA_FAN2 CPU_FAN ATX12V SOCKET AM3+ CAMF COM USB78 USB56 USB34 LAN_USB12 AUDIO CHA_FAN1 PCIEX1_1 AMD® 970 ASUS M5A97 PLUS PCIEX16 Super I/O PCIEX1_2 ICS 477 BATTERY PCI1 PCI2 PCI3 AMD® SB950 SATAOG_5 SATAOG_5 SATAOG_3 SATAOG_4 SATAOG_1 SATAOG_2 AAFP SPDIF_OUT USB1314 USB1112 USB910 CLRTC PANEL 32 30.5cm(12.0in) 2 2 5 6

1.2.4 Layout contents

Connectors/Jumpers/Slots/LED Page

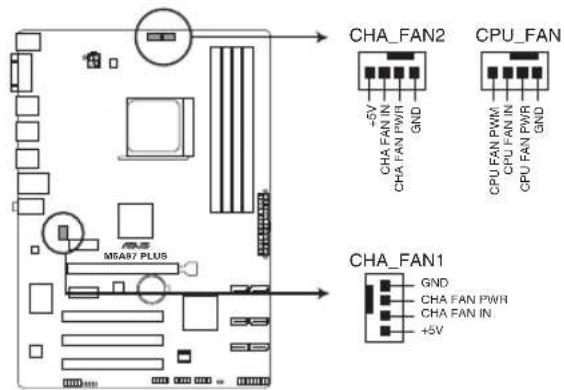

1. CPU and chassis fan connectors (4-pin CPU_FAN, and 4-pin CHA_FAN1/2) 1-15

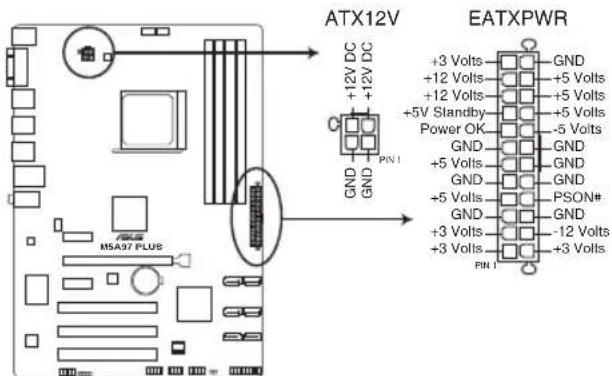

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-16

3. AMD AM3+ socket 1-4

4. DDR3 DIMM slots 1-8

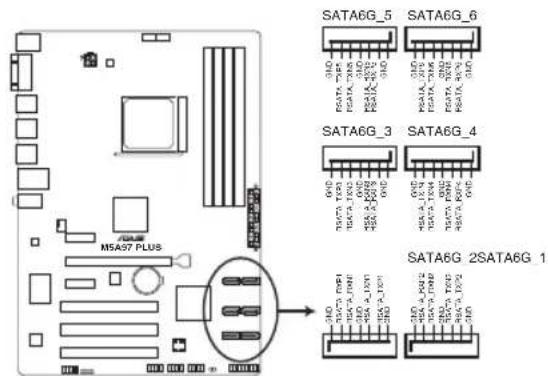

5. SATA 6.0 Gb/s connectors (7-pin SATA6G_1~6) 1-17

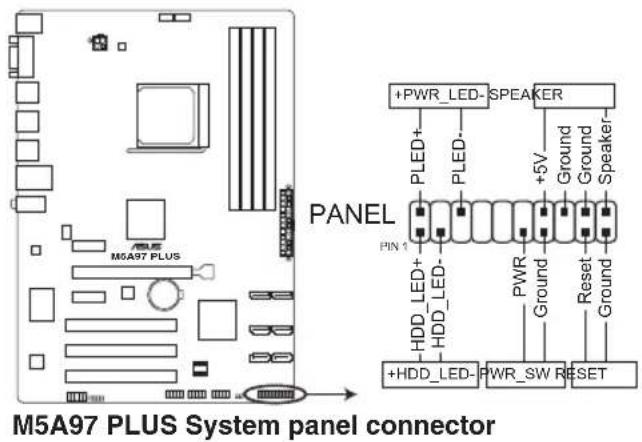

6. System panel connector (20-8 pin F_PANEL) 1-18

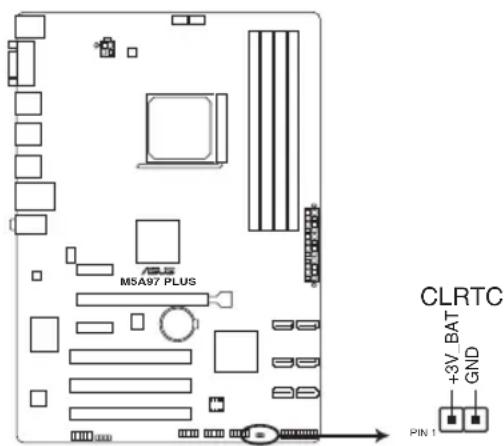

7. Clear RTC RAM (2-pin CLRTC) 1-12

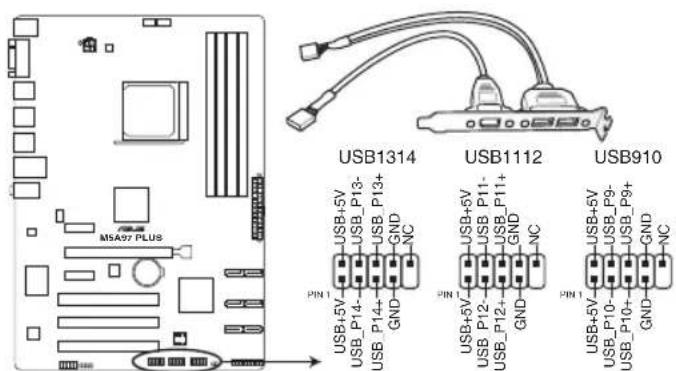

8. USB 2.0 connectors (10-1 pin USB910, USB1112, USB1314) 1-19

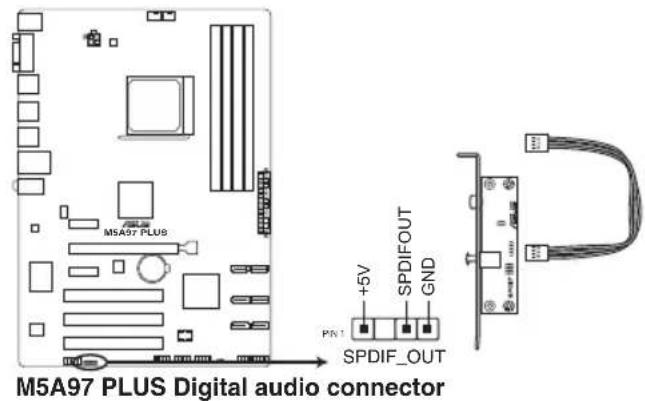

9. Digital audio connector (4-1 pin SPDIF_OUT) 1-17

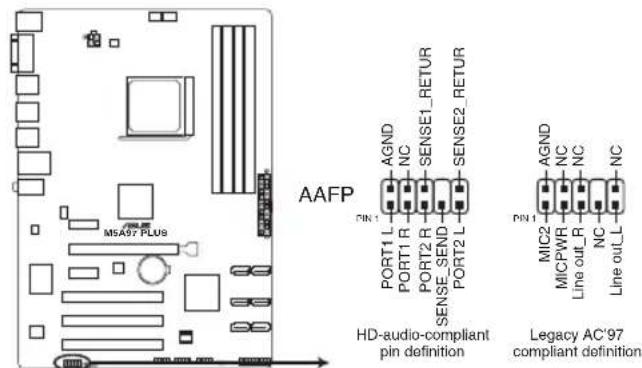

10. Front panel audio connector (10-1 pin AAFP) 1-19

1.3 Central Processing Unit (CPU)

The motherboard comes with an AM3+ socket designed for AMD ^® FX ^™ Series/Phenom ^™ II/Athlon ^™ II/Sempron ^™ 100 Series Processors.

The AM3+ socket has a different pinout from the AM2+/AM2 socket. Ensure that you usd a CPU designed for the AM3+ socket. The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the pins and damaging the CPU!

M5A97 PLUS AMD

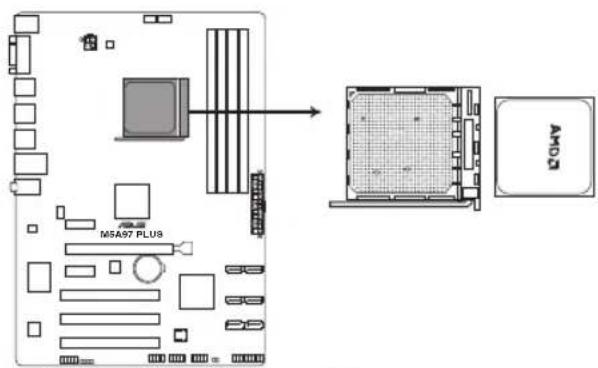

M5A97 PLUS CPU socket AM3+

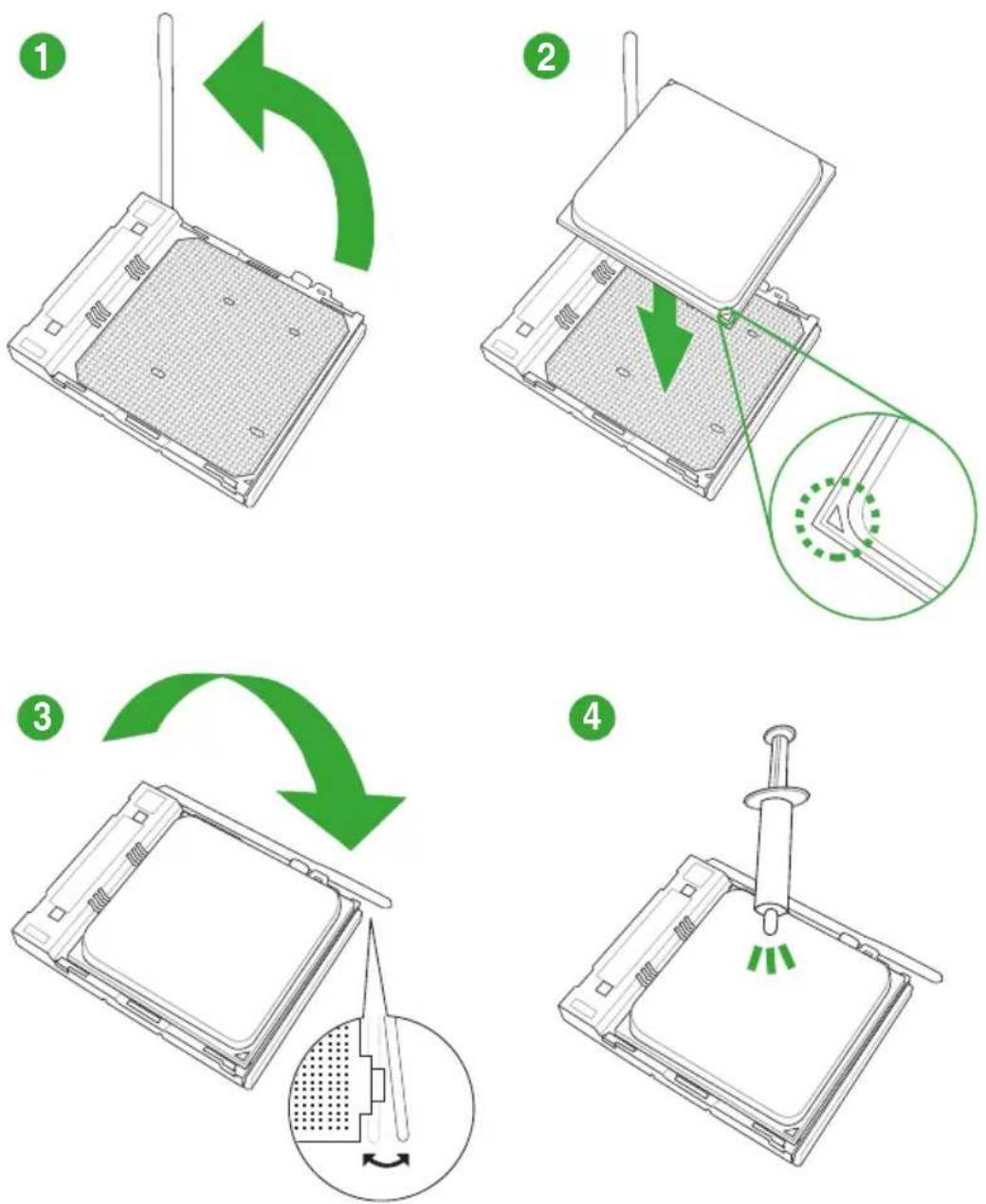

1.3.1 APU installation

1.3.2 APU heatsink and fan assembly installation

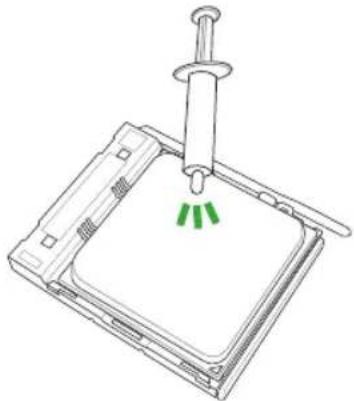

Technical line drawing of a mechanical assembly with a pipette and green laser spike (no text or symbols)

Apply the Thermal Interface Material to the APU heatsink and APU before you install the heatsink and fan if necessary.

To install the APU heatsink and fan assembly

1

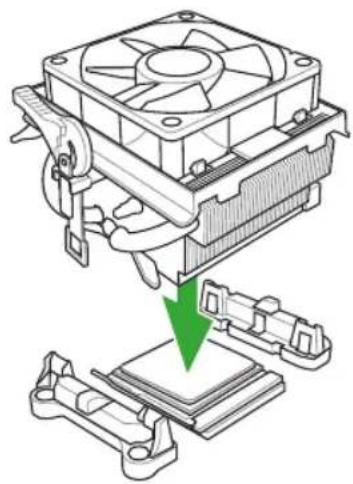

Diagram of a computer cooling system showing fan cooling and cooling mechanism (no text or labels)

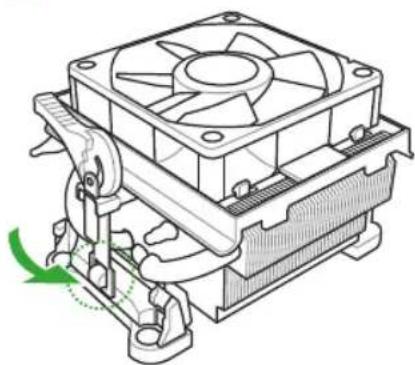

2

Technical line drawing of a computer CPU with cooling fan and heatsink (no text or symbols)

3

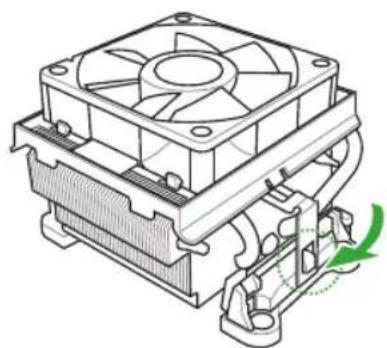

Technical line drawing of a computer cooling fan with heatsink and cooling bracket (no text or symbols)

4

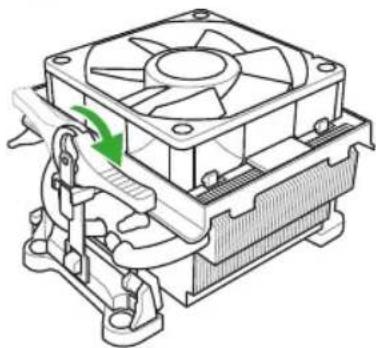

Technical line drawing of a computer cooling unit with visible fan and heatsink (no text or labels)

5

Diagram of a mechanical component with multiple wires and a labeled base (no readable text or symbols)

To uninstall the APU heatsink and fan assembly

1

Diagram of an electronic component with a green upward arrow indicating growth, no text or symbols present.

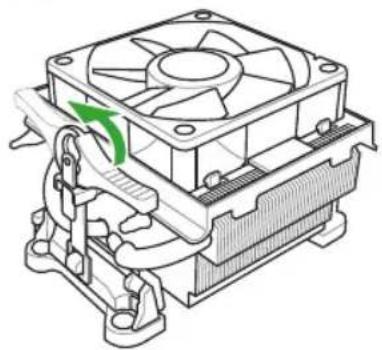

2

Technical line drawing of a CPU cooler with cooling fan and heat exchanger (no text or symbols)

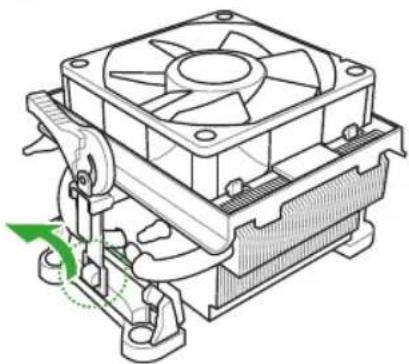

3

Technical line drawing of a computer CPU with cooling fan and heatsink (no text or symbols)

4

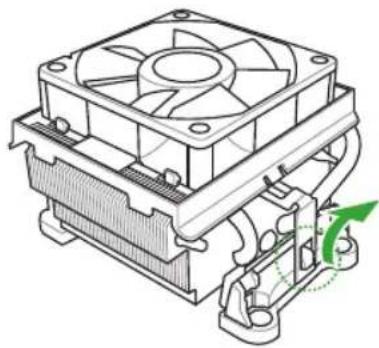

Technical line drawing of a computer cooling unit with fan and cooling fins (no text or symbols)

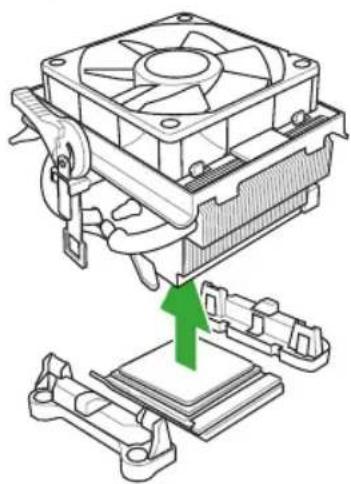

5

Diagram of a computer cooling system showing fan, heatsink, and cooling module (no text or labels)

1.4 System memory

1.4.1 Overview

This motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules (DIMM) sockets.

A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for better performance with less power consumption.

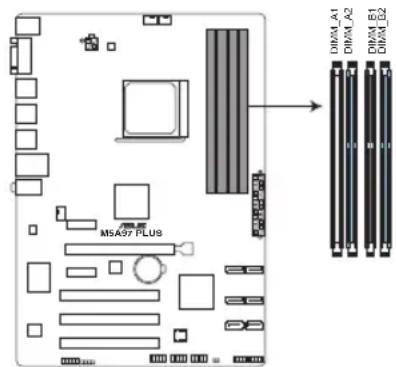

The figure illustrates the location of the DDR3 DIMM sockets:

MSA37 PLUS D0M_A1 D0M_A2 D0M_B1 D0M_B2

Channel Sockets

Channel A DIMM_A1 & DIMM_A2

Channel B DIMM_B1 & DIMM_B2

M5A97 PLUS 240-pin DDR3 DIMM sockets

1.4.2 Memory configurations

You may install 1GB, 2GB, 4GB, and 8GB unbuffered non-ECC DDR3 DIMMs into the DIMM sockets.

• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.
• Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with the retailer to get the correct memory modules.
• Due to the memory address limitation on 32-bit Windows ^ OS, when you install 4GB or more memory on the motherboard, the actual usable memory for the OS can be about 3GB or less. For effective use of memory, we recommend that you do any of the following:

- Use a maximum of 3GB system memory if you are using a 32-bit Windows ^ OS.

- Install a 64-bit Windows ^ OS if you want to install 4GB or more on the motherboard.

- For more details, refer to the Microsoft ^ support site at http://support.microsoft.com/kb/929605/en-us.

- This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less.

• The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. To operate at the vendor-marked or at a higher frequency, refer to section 2.4 Ai Tweaker menu for manual memory frequency adjustment.
• For system stability, use a more efficient memory cooling system to support a full memory load (4 DIMMs) or overclocking condition.
• Visit the ASUS website at: www.asus.com for the latest QVL.

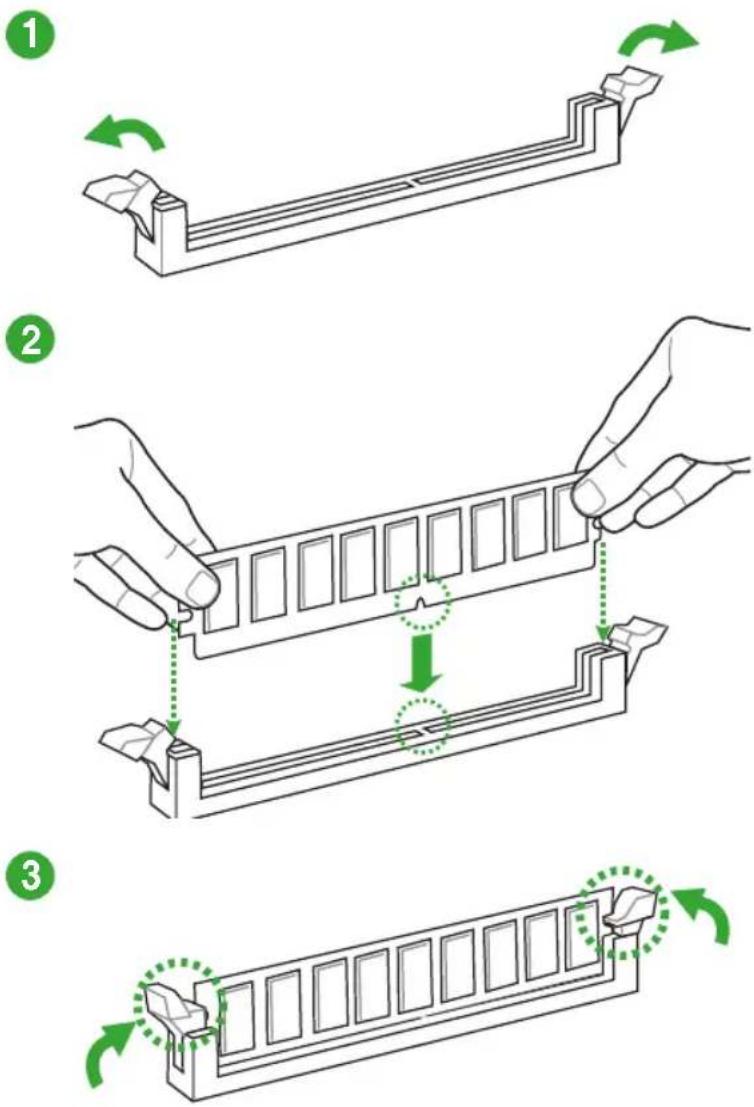

1.4.3 Installing a DIMM

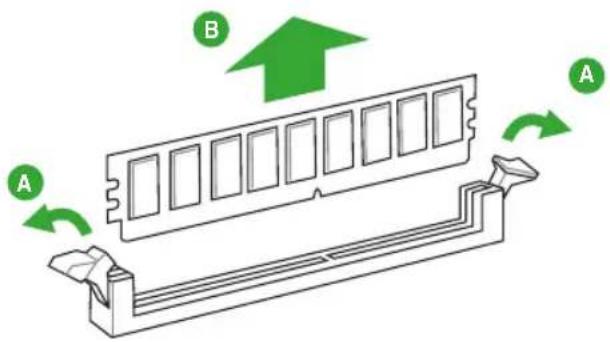

To remove a DIMM

A B A

1.5 Expansion slots

In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support.

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

1.5.1 Installing an expansion card

To install an expansion card:

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is already installed in a chassis).
3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.
4. Align the card connector with the slot and press firmly until the card is completely seated on the slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.

1.5.2 Configuring an expansion card

After installing the expansion card, configure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for information on BIOS setup.
2. Assign an IRQ to the card.
3. Install the software drivers for the expansion card.

When using PCI cards on shared slots, ensure that the drivers support "Share IRQ" or that the cards do not need IRQ assignments. Otherwise, conflicts will arise between the two PCI groups, making the system unstable and the card inoperable.

1.5.3 PCI slots

The PCI slot supports cards such as a LAN card, SCSI card, USB card, and other cards that comply with PCI specifications.

1.5.4 PCI Express 2.0 x1 slots

This motherboard supports PCI Express x1 network cards, SCSI cards, and other cards that comply with the PCI Express specifications.

1.5.5 PCI Express x16 slot

This motherboard supports PCI Express x16 network cards, SCSI cards, and other cards that comply with the PCI Express specifications.

IRQ assignments for this motherboard

A B C D E F G H
PCIEx16_1 ---- shared ---
PCIEx1_1 ---- shared -
PCIEx1_2 ---- shared --
PCI1 slot ---- shared --
PCI2 slot ---- shared --
PCI3 slot ---- shared -
Realtek LAN controller	---- shared ---
HD audio	shared ----
OnChip SATA	--- shared ----
OnChip OHCI 1	-- shared ----
OnChip EHCl 1	- shared ----
OnChip OHCI 2	---- shared ---
OnChip EHCl 2	---- shared --
OnChip OHCI 3	---- shared -
OnChip EHCl 3	---- shared
OnChip OHCI 4	-- shared ----

1.6 Jumpers

Clear RTC RAM (2-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

M5A97 PLUS CLRTC +3V_BAT GND PIN 1

M5A97 PLUS Clear RTC RAM

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.
2. Use a metal object such as a screwdriver to short the two pins.
3. Plug the power cord and turn ON the computer.
4. Hold down the key during the boot process and enter BIOS setup to re-enter data.

• If the steps above do not help, remove the onboard battery and short the two pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
• You do not need to clear the RTC when the system hangs due to overclocking. For system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature. Shut down and reboot the system, then the BIOS automatically resets parameter settings to default values.

1.7 Connectors

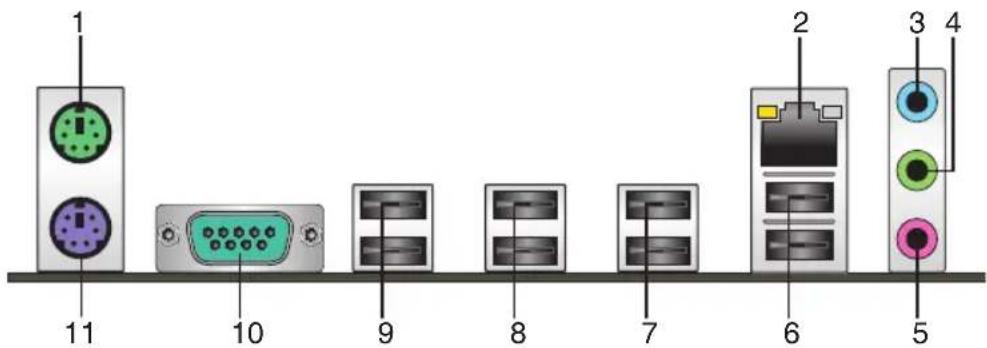

1.7.1 Rear panel connectors

1 11 10 9 8 7 6 2 3 4 5

1. PS/2 mouse port. This port is for a PS/2 mouse.
2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub.

LAN port LED indications

Activity/Link LED		Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection

ACT/LINK LED SPEED LED LAN port

1. Line In port (light blue). This port connects to the tape, CD, DVD player, or other audio sources.
2. Line Out port (lime). This port connects to a headphone or a speaker. In the 2.1, 4.1, 5.1, and 7.1-channel configurations, the function of this port becomes Front Speaker Out.
3. Microphone port (pink). This port connects to a microphone.

Refer to the audio configuration table below for the function of the audio ports in 2.1, 4.1, 5.1 or 7.1-channel configuration.

Audio 2.1, 4.1, 5.1 or 7.1-channel configuration

Port	Headset2.1-channel	4.1-channel 5.1	-channel 7.1-channel
Light Blue (Rear panel)	Line In	Rear Speaker Out	Rear Speaker Out	Rear Speaker Out
Lime (Rear panel)	Line Out	Front Speaker Out	Front Speaker Out	Front Speaker Out
Pink (Rear panel)	Mic In	Mic In	Bass/Center	Bass/Center
Lime (Front panel)	—	—	—	Side Speaker Out

To configure a 7.1-channel audio output:

Use a chassis with HD audio module in the front panel to support a 7.1-channel audio output.

1. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1 devices.
2. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1 devices.
3. USB 2.0 ports 5 and 6. These two 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1 devices.
4. USB 2.0 ports 7 and 8. These two 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1 devices.
5. Serial port (COM). This port connects a modem, or other devices that conform with serial specification.
6. PS/2 keyboard port. This port is for a PS/2 keyboard.

1.7.2 Internal connectors

1. CPU and chassis fan connectors (4-pin CPU\_FAN, and 4-pin CHA\_FAN1/2)

Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

CHA_FAN2 CPU_FAN CHA_FAN1 GND CHA FAN PWR CHA FAN IN +5V CHA FAN IN CHA FAN PWR GND CPU FAN PWR CPU FAN IN CHA FAN PWR GND MISA97 PLUS

M5A97 PLUS Fan connectors

DO NOT forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! DO NOT place jumper caps on the fan connectors.

• The CPU_FAN connector supports a CPU fan of maximum 2A (24W) fan power.
• Only the 4-pin CPU fan and 4-pin chassis fan support the ASUS Fan Xpert+ feature.

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

These connectors are for an ATX power supply. The plugs from the power supply are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.

ATX12V EATXPWR +12V DC +12V DC GND GND +5 Volts +12 Volts +12 Volts +5 V Standby +5 Volts Power OK -5 Volts GND GND +5 Volts GND GND +5 Volts PSON# GND +3 Volts +12 Volts +3 Volts +3 Volts PIN 1 +3 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +5 Volts +3 Volts +3 Volts

M5A97 PLUS ATX power connectors

• We recommend that you use an ATX 12V Specification 2.0-compliant power supply unit (PSU) with a minimum of 300W power rating. This PSU type has 24-pin and 4-pin power plugs.
- If you intend to use a PSU with 20-pin and 4-pin power plugs, ensure that the 20-pin power plug can provide at least 15 A on +12 V and that the PSU has a minimum power rating of 300W. The system may become unstable or may not boot up if the power is inadequate.
- DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will not boot up.
- We recommend that you use a PSU with higher power output when configuring a system with more power-consuming devices or when you intend to install additional devices. The system may become unstable or may not boot up if the power is inadequate.
- If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support.asus.com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

3. Serial ATA 6.0 Gb/s connectors (7-pin SATA6G 1\~6)

These connectors are for the Serial ATA 6.0 Gb/s signal cables for Serial ATA hard disk drives and optical disc drives. If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1, RAID 5, RAID 10 and JBOD configuration through the onboard controller.

MSA97 PLUS SATA6G_5 SATA6G_6 SATA6G_3 SATA6G_4 SATA6G 2SATA6G_1

M5A97 PLUS SATA 6.0Gb/s connectors

- These connectors are set to AHCI mode by default. If you intend to create a Serial ATA RAID set using these connectors, set the type of the SATA connectors in the BIOS to [RAID]. See section 2.5.4 SATA Configuration for details.

- You must install Windows ^ XP Service Pack 3 or later version before using Serial ATA hard disk drives. The Serial ATA RAID feature is available only if you are using Windows ^ XP SP3 or later version.

- When using hot-plug and NCQ, set the type of the SATA connectors in the BIOS to [AHCI]. See section 2.5.4 SATA Configuration for details.

4. Digital audio connector (4-1 pin SPDIF\_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.

M5A97 PLUS Digital audio connector M5A97 PLUS +5V SPDIFOUT GND Pb1 SPDIF_OUT

The S/PDIF module is purchased separately.

5. System panel connector (20-8 pin F\_PANEL)

This connector supports several chassis-mounted functions.

M5A97 PLUS System panel connector +PWR_LED-SPEAKER +5V Ground Ground Speaker- PIN 1 HDD_LED-HDD_LED-PWR Ground Reset Ground +HDD_LED-PWR_SW RESET PANEL MGA97 PLUS

• System power LED (2-pin +PWR_LED-)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

• Hard disk drive activity LED (2-pin +HDD_LED-)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The HDD LED lights up or flashes when data is read from or written to the HDD.

• System warning speaker (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

• ATX power button/soft-off button (2-pin PWR_SW)

This connector is for the system power button. Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the operating system settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF.

- Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

6. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either High Definition Audio or AC'97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.

MSA97 PLUS AAFP PORT1 L AGND NC SENSE1_RETUR PORT1 R PORT2 R SENSE_SEND SENSE2_RETUR PORT2 L PIN 1 HD-audio-compliant pin definition Legacy AC'97 compliant definition

M5A97 PLUS Front panel audio connector

• We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard high-definition audio capability.
• If you want to connect a high definition front panel audio module to this connector, set the Azalia Front Panel item in the BIOS to [HD]. See section 2.5.6 Onboard Devices Configuration for details.
• The front panel audio I/O module is purchased separately.

7. USB 2.0 connectors (10-1 pin USB910, USB1112, USB1314)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 480Mbps connection speed.

MSA37 PLUS USB1314 USB1112 USB910 PIN 1 USB+5V USB_P14- USB_P14+ GND- NC PIN 1 USB+5V USB_P12- USB_P12+ GND- NC PIN 1 USB+5V USB_P10- USB_P10+ GND- NC

M5A97 PLUS USB2.0 connectors

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

The USB 2.0 module is purchased separately.

1.8 Software support

1.8.1 Installing an operating system

This motherboard supports Windows ^® XP / Vista / Windows ^® 7 / Windows ^® 8 / Windows ^® 8.1 Operating Systems (OS). Always install the latest OS version and corresponding updates to maximize the features of your hardware.

- Motherboard settings and hardware options vary. Refer to your OS documentation for detailed information.

- Ensure that you install Windows ^ XP Service Pack 3 or later versions / Windows ^ Vista Service Pack 1 or later versions before installing the drivers for better compatibility and system stability.

1.8.2 Support DVD information

The Support DVD that comes with the motherboard package contains the drivers, software applications, and utilities that you can install to avail all motherboard features.

The contents of the Support DVD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

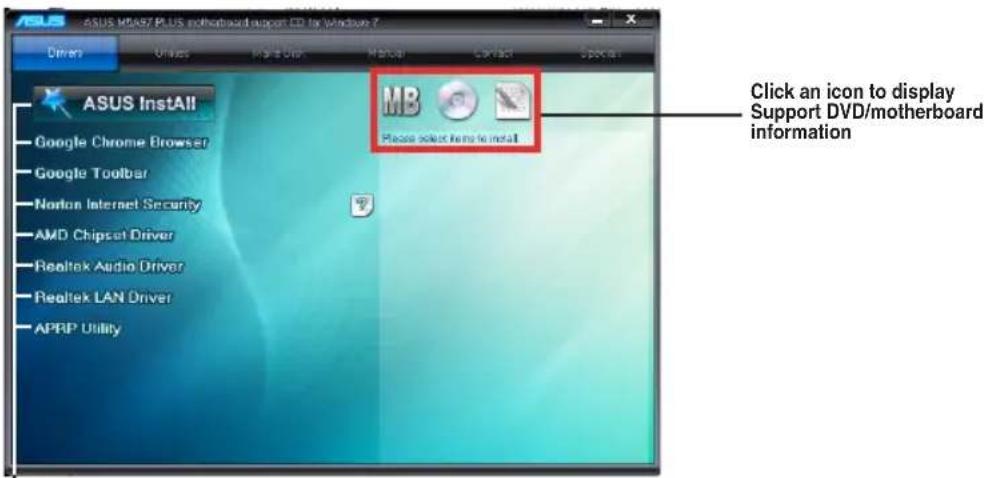

To run the Support DVD

Place the Support DVD into the optical drive. If Autorun is enabled in your computer, the DVD automatically displays the Specials screen. Click Drivers, Utilities, Make Disk, Manual, and Contact tabs to display their respective menus.

The following screen is for reference only.

ASUS M8/47 PLUS support CD for Windows 7 Drivers Driver Import Book Manual Contact Special ASUS InstAll Google Chrome Browser Google Toolbar Nordian Internet Security AMD Chipset Driver Realtek Audio Driver Realtek LAN Driver APRP Utility MB Please select items to install Click an icon to display Support DVD/motherboard information

Click an item to install

If Autorun is NOT enabled on your computer, browse the contents of the Support DVD to locate the file ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run the DVD.

BIOS information

2

2.1 Managing and updating your BIOS

Save a copy of the original motherboard BIOS file to a USB flash disk in case you need to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update utility.

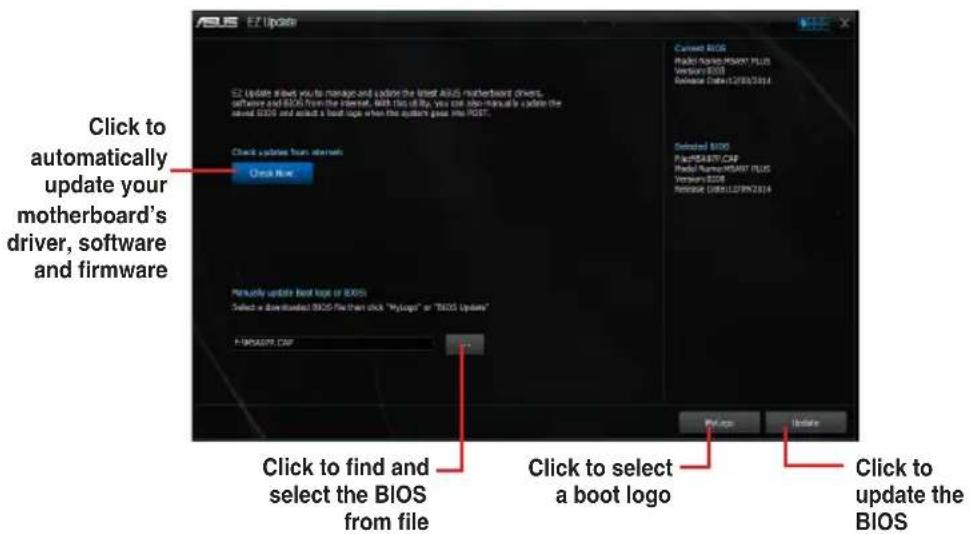

2.1.1 EZ Update

EZ Update is a utility that allows you to automatically update your motherboard's softwares, drivers and the BIOS version easily. With this utility, you can also manually update the saved BIOS and select a boot logo when the system goes into POST.

To launch EZ Update, click EZ Update on the AI Suite II main menu bar.

E2 Update is not to manage and update the latest audio motherboard driver, software and BIOS from the Internet. With this utility, you can also manually update the latest BIOS and select a boot logo when the system goes into BIOS. Click to automatically update your motherboard's driver, software and firmware Check updates from defaults Check Now Perically update boot logo or BIOS Select a downloaded BIOS file then click "MyLogo" or "BIOS Updates" FORBOS/CPF Click to find and select the BIOS from file Click to select a boot logo Click to update the BIOS

EZ Update requires an Internet connection either through a network or an ISP (Internet Service Provider).

2.1.2 ASUS EZ Flash 2

The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS-based utility.

Before you start using this utility, download the latest BIOS file from the ASUS website at www.asus.com.

To update the BIOS using EZ Flash 2:

1. Insert the USB flash disk that contains the latest BIOS file to the USB port.
2. Enter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select ASUS EZ Flash Utility and press to enable it.
3. Press to switch to the Drive field.
4. Press the Up/Down arrow keys to find the USB flash disk that contains the latest BIOS, and then press .
5. Press to switch to the Folder Info field.
6. Press the Up/Down arrow keys to find the BIOS file, and then press to perform the BIOS update process. Reboot the system when the update process is done.

• This function supports USB flash disks formatted using FAT32/16 on a single partition only.
• Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu.
• DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

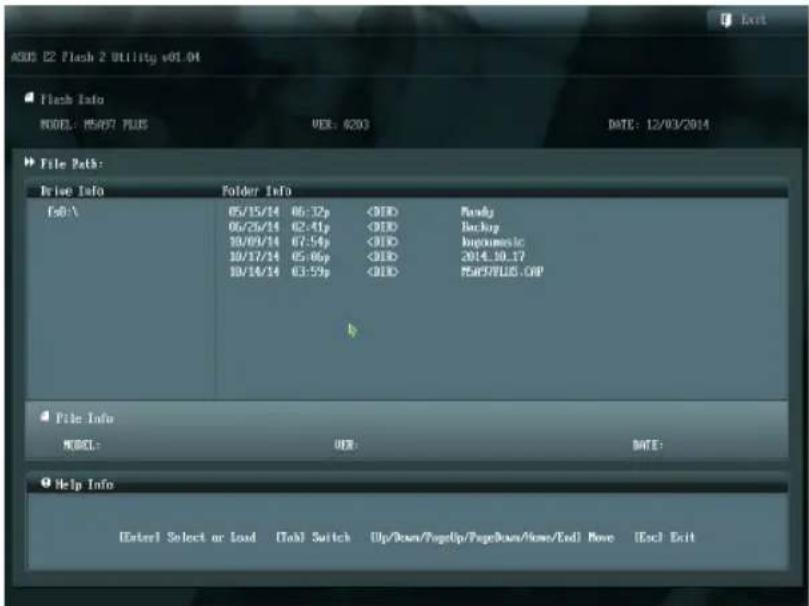

ASX0 B2 Flash 2 UTILITY v01.04 Flash Info MODEL: H5AV7 PLUS VEX: A203 DATE: 12/03/2014 File Path: Drive Info Folder Info E60\ 05/15/14 06:32p

2.1.3 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using the motherboard support DVD or a USB flash drive that contains the updated BIOS file.  - Before using this utility, rename the BIOS file in the removable device into M5A97P.CAP. - The BIOS file in the support DVD may not be the latest version. Download the latest BIOS file from the ASUS website at www.asus.com.

Recovering the BIOS

To recover the BIOS:

1. Turn on the system. 2. Insert the support DVD to the optical drive or the USB flash drive that contains the BIOS file to the USB port. 3. The utility automatically checks the devices for the BIOS file. When found, the utility reads the BIOS file and enters ASUS EZ Flash 2 utility automatically. 4. The system requires you to enter BIOS Setup to recover BIOS settings. To ensure system compatibility and stability, we recommend that you press to load default BIOS values.  DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!

2.1.4 ASUS BIOS Updater

The ASUS BIOS Updater allows you to update BIOS in a DOS environment. This utility also allows you to copy the current BIOS file that you can use as a backup when the BIOS fails or gets corrupted during the updating process.  The succeeding utility screens are for reference only. The actual utility screen displays may not be same as shown.

Before updating BIOS

1. Prepare the motherboard support DVD and a USB flash drive formatted using FAT32/16 on a single partition. 2. Download the latest BIOS file and BIOS Updater from the ASUS website at http://support.asus.com and save them on the USB flash drive.  NTFS is not supported under DOS environment. Do not save the BIOS file and BIOS Updater to a hard disk drive or USB flash drive in NTFS format. 3. Turn off the computer and disconnect all SATA hard disk drives (optional).

Booting the system to a DOS environment

1. Insert the DOS-bootable USB flash drive with the latest BIOS file and BIOS Updater to your computer's USB port. 2. Boot your computer. When the ASUS Logo appears, press to show the BIOS Boot Device Select Menu.

Please select boot device: SATA:XXXXXXXXXXXXXX USB:XXXXXXXXXXXXXX UEFI:XXXXXXXXXXXXXX Enter Setup ^ and ↓ to move selection ENTER to select boot device ESC to boot using defaults

3. Select the optical drive as the boot device. The DOS screen appears.

Welcome to FreeDOS (http://www.freedos.org)!
C:\>

Updating the BIOS file

To update the BIOS file using BIOS Updater: 1. At the FreeDOS prompt, type bupdater /pc /g and press .

D:\>bupdater /pc /g

2. The BIOS Updater screen appears as below.

ASUSTek BIOS Updater for DOS V1.30 Current ROM BOARD: M5A97 PLUS VER: 0302 DATE: 02/21/2014 Update ROM BOARD: Unknown VER: Unknown DATE: Unknown PATH: A:\ A: M5A97P.CAP 8194 2014-02-21 15:25:48 Note [Enter] Select or Load [Tab] Switch [V] Drive Info [Up/Down/Home/End] Move [B] Backup [Esc] Exit

3. Press to switch between screen fields and use the keys to select the BIOS file and press . BIOS Updater checks the selected BIOS file and prompts you to confirm BIOS update.

Are you sure to update BIOS? Yes No

4. Select Yes and press . When BIOS update is done, press to exit BIOS Updater. Restart your computer.  DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!  - For BIOS Updater version 1.30 or later, the utility automatically exits to the DOS prompt after updating BIOS. - Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu. Refer to section 2.9 Exit menu for details. - Ensure to connect all SATA hard disk drives after updating the BIOS file if you have disconnected them.

2.2 BIOS setup program

Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program.

Entering BIOS Setup at startup

To enter BIOS Setup at startup: \- Press or during the Power-On Self Test (POST). If you do not press or , POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST: - Press ++ simultaneously. - Press the reset button on the system chassis. - Press the power button to turn the system off then back on. Do this option only if you failed to enter BIOS Setup using the first two options.  Using the power button, reset button, or the ++ keys to force reset from a running operating system can cause damage to your data or system. We recommend to always shut down the system properly from the operating system.  - The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. - Ensure that a USB mouse is connected to your motherboard if you want to use the mouse to control the BIOS setup program. - The default BIOS settings for this motherboard apply for most conditions to ensure optimum performance. If the system becomes unstable after changing any BIOS settings, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit Menu. See section 2.9 Exit Menu. - If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value. Refer to section 1.6 Jumpers on how to erase the RTC RAM. - The BIOS setup program does not support the bluetooth devices.

BIOS menu screen

The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode. You can change modes from the Exit menu or from the Exit/Advanced Mode button in the EZ Mode/Advanced Mode screen.

EZ Mode

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ Mode provides you an overview of the basic system information, and allows you to select the display language, system performance mode and boot device priority. To access the Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode or press for the advanced BIOS settings.  The default screen for entering the BIOS setup program can be changed. Refer to the Setup Mode item in section 2.8 Boot menu for details.

Selects the display language of the BIOS setup program Displays the CPU temperature, CPU Voltage output and CPU/Chassis fan speed Exits the BIOS setup program without saving the changes, saves the changes and resets the system, or enters the Advanced Mode Temperature Voltage Fan Speed CPU +100.4°F/-38.0°C CPU 1.200U 5U 5.035U CPU FAN 1090RPM CHA_FAM1 N/A MB +71.6°F/-22.0°C 3.3U 3.240U 12U 11.788U CHA_FAM2 N/A System Performance Quiet Performance Energy Saving Normal Boot Priority Use the noise to drag or keyboard to navigate to decide the boot priority. Shortcut (FJ) Advanced Mode (FJ) Boot Device the system properties Advanced mode functions Power Saving mode Normal mode Loads optimized default Displays Power Saving mode ASUS Optimal mode

 - The boot device options vary depending on the devices you installed to the system. - The Boot Menu(F8) button is available only when the boot device is installed to the system.

Advanced Mode

The Advanced Mode provides advanced options for experienced end-users to configure the BIOS settings. The figure below shows an example of the Advanced Mode. Refer to the following sections for the detailed configurations.  To access the EZ Mode, click Exit, then select ASUS EZ Mode or press . General helpMenu bar Configuration fieldsMenu itemsBack bu

ASUS UEFI BIOS Utility - Advanced Mode Main 81 Timulus Advanced Monitor Boot Tool Back Advanced's CHU Configuration > CPU Configuration Socket 942: AMD Proport(a) 11 J4 95 Processor Dual Core Banning # 3000 MTR 1.50 mV Box Speed: 3000 MHz 10000 MHz Microcode Patch Level: 10000kHz Cache per Core L1 Instruction Cache: 54 KB/2-say L1 Data Cache: 54 KB/2-say L2 Cache: 512 KB/16-say Total L3 Cache per Socket: 6 MB/48-say Cool'n'Qout CIE SIM Cool'n'Qout Risabling to mini Always enabled Always enabled Enabled Enabled Disabled/Disabled the generation of AOP1_BPC,_IPS, and_PCT objects. --: Select Screen I1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortset F5: Optimized Defaults F10: Save EPC Exit F12: Print Screen Version 2.10.1200 Copyright 4Q 2012 American Monatrends, Inc.

Pop-up window Navigation keys

Menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system configuration

Ai Tweaker For changing the overclocking settings

Advanced For changing the advanced system settings

Monitor For displaying the system temperature, power status, and changing the fan settings

Boot For changing the system boot configuration

Tool For configuring options for special functions

Exit For selecting the exit options and loading default settings

Menu items

The highlighted item on the menu bar displays the specific items for that menu. For example, selecting Main shows the Main menu items. The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have their respective menu items.

Back button

This button appears when entering a submenu. Press or use the USB mouse to click this button to return to the previous menu screen.

Submenu items

A greater than sign (>) before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press .

Pop-up window

Select a menu item and press to display a pop-up window with the configuration options for that item.

Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not fit on the screen. Press the Up/Down arrow keys or / keys to display the other items on the screen.

Navigation keys

At the bottom right corner of the menu screen are the navigation keys for the BIOS setup program. Use the navigation keys to select items in the menu and change the settings.

General help

At the top right corner of the menu screen is a brief description of the selected item.

Configuration fields

These fields show the values for the menu items. If an item is user-configurable, you can change the value of the field opposite the item. You cannot select an item that is not user-configurable. A configurable field is highlighted when selected. To change the value of a field, select it and press to display a list of options.

2.3 Main menu

The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup program. The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings.

ASUS UEFI BIOS Utility - Advanced Mode Main Alt Breaker Advanced Monitor Boot Tool BIOS Information BIOS Version 9283 x64 Build Date 12/03/2014 CPU Information AMD Pheno(n) II MX 945 Processor Memory Information Total Memory 1824 MB DDR3 1333MHz System Language English System Date Saturday 01/12/2000 System Time 17:03:70 Access Level Administrator > Security Choose the system default language **: Select Screen F1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F1: Shortcut F5: Optimized Defaults F10: Save ESC: Exit F12: Print Screen Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.

2.3.1 System Language [English]

Allows you to choose the BIOS language version from the options. Configuration options: [English] [F:\span\] [Reydsch] 简体中文] [繁體中文] [日本語]

2.3.2 System Date [Day xx/xx/xxxx]

Allows you to set the system date.

2.3.3 System Time [xx:xx:xx]

Allows you to set the system time.

2.3.4 Security

The Security menu items allow you to change the system security settings.  \- If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC) RAM to clear the BIOS password. See section 1.6 Jumpers for information on how to erase the RTC RAM. \- The Administrator or User Password items on top of the screen show the default Not Installed. After you set a password, these items show Installed.

Administrator Password

If you have set an administrator password, we recommend that you enter the administrator password for accessing the system. Otherwise, you might be able to see or change only selected fields in the BIOS setup program.

To set an administrator password:

1. Select the Administrator Password item and press . 2. From the Create New Password box, key in a password, then press . 3. Confirm the password when prompted.

To change an administrator password:

1. Select the Administrator Password item and press . 2. From the Enter Current Password box, key in the current password, then press . 3. From the Create New Password box, key in a new password, then press . 4. Confirm the password when prompted. To clear the administrator password, follow the same steps as in changing an administrator password, but press when prompted to create/confirm the password. After you clear the password, the Administrator Password item on top of the screen shows Not Installed.

User Password

If you have set a user password, you must enter the user password for accessing the system. The User Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a user password:

1. Select the User Password item and press . 2. From the Create New Password box, key in a password, then press . 3. Confirm the password when prompted.

To change a user password:

1. Select the User Password item and press . 2. From the Enter Current Password box, key in the current password, then press . 3. From the Create New Password box, key in a new password, then press . 4. Confirm the password when prompted. To clear the user password, follow the same steps as in changing a user password, but press when prompted to create/confirm the password. After you clear the password, the User Password item on top of the screen shows Not Installed.

2.4 Ai Tweaker menu

The Ai Tweaker menu items allow you to configure overclocking-related items.  Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect field values can cause the system to malfunction.  The configuration options for this section vary depending on the CPU and DIMM model you installed on the motherboard.

ASUS UEFI BIOS Utility - Advanced Mode Main AI Tweaker Advanced Monitor Boot Tool Current CPU Speed : 3000Hz Target CPU Speed : 3000Hz Current Memory Frequency : 133MHz Current ND Frequency : 2000Hz Current NT Link Speed : 2000Hz AI Overclock Tuner Auto CPU Ratio Auto Memory Frequency Auto CPU/NB Frequency Auto NT Link Speed Auto CPU Spread Spectrum Auto PCIe Spread Spectrum Auto EPU Power Saving Mode Disabled > DC Tuner [O.D.C.P.1]: Select this item and the CPU Bus frequency, CPU ratio, and memory settings are auto-optimized. DManual: Select this item and the CPU Bus frequency, CPU ratio, and memory settings can be customized. IN.M.P.1: Select this item and the CPU Bus frequency, CPU ratio, and memory settings are optimized by AMP. +:- Select Screen +1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortcut F5: Optimized Defaults F10: Save ESC: Exit F12: Print Screen Version 2.10.1288. Copyright (C) 2012 American Megatrends, Inc.

Scroll down to display the following items:

> DRAM Timing Control >> DRAM Driving Control CPU Load Line Calibration Auto CPU/NB Load Line Calibration Auto CPU & NB Voltage Offset Mode CPU Offset Mode Sign - CPU Offset Voltage 1.388V Auto CPU/NB Offset Mode Sign - CPU/NB Offset Voltage 1.060V Auto CPU UDDA Voltage Auto DRAM Voltage 1.580V Auto NB Voltage 1.180V Auto NB HT Voltage Auto ND HT Voltage Min = 1.200000U Max = 1.400000U Standard = 1.209000U Increment = 6.086250V +/- : Raise/Reduce +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortout F5: Optimized Defaults F10: Save ESC: Exit F12: Print Screen

Current CPU Speed : xxxxMHz Displays the current CPU speed. Target CPU Speed : xxxxMHz Displays the target CPU speed. Current Memory Frequency : xxxxMHz Displays the current memory frequency. Current NB Frequency : xxxxMHz Displays the current NB frequency. Current HT Link Speed : xxxxMHz Displays the current HT Link speed.

2.4.1 Ai Overclock Tuner [Auto]

Allows you to select the CPU overclocking options to achieve the desired CPU internal frequency. Select any of these preset overclocking configuration options: [Auto] Loads the optimal settings for the system. [Manual] Allows you to individually set overclocking parameters. [D.O.C.P.] Allows you to select a DRAM O.C. profile, and the related parameters will be adjusted automatically.

CPU Bus Frequency [XXX]

This item appears only when you set the AI Overclock Tuner item to [Manual] or [D.O.C.P.] and allows you to adjust the CPU and VGA frequency to enhance the system performance. Use the <+> and <-> keys to adjust the value. You can also key in the desired value using the numeric keypad. The values range from 100.0MHz to 600.0MHz.

PCIE Frequency [XXX]

This item appears only when you set the AI Overclock Tuner item to [Manual] or [D.O.C.P.] and allows you to adjust PCIE frequency to enhance the system performance. Use the <+> and <-> keys to adjust the value. You can also key in the desired value using the numeric keypad. The values range from 100.0MHz to 150.0MHz.

DRAM O.C. Profile [DDR3-1600MHz]

This item appears only when you set the AI Overclock Tuner item to [D.O.C.P.] and allows you to select a DRAM O.C. profile, which applies different settings to DRAM frequency, DRAM timing and DRAM voltage. Configuration options: [DDR3-1600MHz] [DDR3-1800MHz] [DDR3-1866MHz] [DDR3-2000MHz] [DDR3-2133MHz] [DDR3-2200MHz] [DDR3-2400MHz]  The configuration options for the following sub-items vary depending on the CPU/DIMMs you install on the motherboard.

2.4.2 CPU Ratio [Auto]

Allows you to set the ratio between the CPU Core Clock and the FSB Frequency. Use the <+> and <-> keys to adjust the ratio. The valid value ranges vary according to your CPU model.

2.4.3 AMD Turbo CORE technology [Auto]

Allows you to enable or disable AMD Turbo CORE technology. Configuration options: [Auto] [Disabled] [Enabled]

2.4.4 Memory Frequency [Auto]

Allows you to set the memory operating frequency. Configuration options: [Auto] [DDR3-800MHz] [DDR3-1066MHz] [DDR3-1333MHz] [DDR3-1600MHz]  Selecting a very high memory frequency may cause the system to become unstable! If this happens, revert to the default setting.

2.4.5 CPU/NB Frequency [Auto]

Allows you to adjust the CPU/NB frequency. Use the <+> and <-> keys to adjust the value. You can also key in the desired value using the numeric keypad.

2.4.6 HT Link Speed [Auto]

Allows you to select the HyperTransport link speed. Configuration options: [Auto] [800MHz] [1000MHz] [1200MHz] [1400MHz] [1600MHz] [1800MHz] [2000MHz]

2.4.7 CPU Spread Spectrum [Auto]

[Auto] Automatic configuration. [Disabled] Enhances the BCLK overclocking ability. [Enabled] Sets to [Enabled] for EMI control.

2.4.8 PCIe Spread Spectrum [Auto]

[Auto] Automatic configuration. [Disabled] Enhances the PCIE overclocking ability. [Enabled] Sets to [Enabled] for EMI control.

2.4.9 EPU Power Saving Mode [Disabled]

Allows you to enable or disable the EPU power saving function. Configuration options: [Disabled] [Enabled]

EPU Setting [Auto]

This item appears only when The EPU Power Saving Mode is set to [Enabled] and allows you to set power saving mode. Configuration options: [Auto] [Light Power Saving Mode] [Medium Power Saving Mode] [Max Power Saving Mode]

2.4.10 OC Tuner [CANCEL]

OC Tuner utility automatically overclocks the frequency and voltage of the CPU and DRAM. Press to start auto tuning. It takes around five minutes, and the system will reboot for several times until auto tuning is completed. Configuration options: [CANCEL] [OK]

2.4.11 DRAM Timing Control

The sub-items in this menu allow you to set the DRAM timing control features. Use the <+> and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard and press .  Changing the values in this menu may cause the system to become unstable! If this happens, revert to the default settings.

DRAM CAS# Latency [Auto]

You can key in the desired value using the numeric keypad. The values range from 4 to 12.

DRAM RAS# to CAS# Delay [Auto]

You can key in the desired value using the numeric keypad. The values range from 5 to 12.

DRAM RAS# PRE Time [Auto]

You can key in the desired value using the numeric keypad. The values range from 5 to 12.

DRAM RAS# ACT Time [Auto]

You can key in the desired value using the numeric keypad. The values range from 15 to 30.

DRAM READ to PRE Time [Auto]

You can key in the desired value using the numeric keypad. The values range from 4 to 7.

DRAM RAS# to RAS# Delay [Auto]

You can key in the desired value using the numeric keypad. The values range from 4 to 7.

DRAM WRITE to READ Delay [Auto]

You can key in the desired value using the numeric keypad. The values range from 4 to 7.

DRAM CAS# write Latency [Auto]

You can key in the desired value using the numeric keypad. The values range from 5 to 12.

DRAM WRITE Recovery Time [Auto]

Configuration options: [Auto] [5] [6] [7] [8] [10] [12]

DRAM REF Cycle Time [Auto]

Configuration options: [Auto] [90ns] [110ns] [160ns] [300ns] [350ns]

DRAM Row Cycle Time [Auto]

You can key in the desired value using the numeric keypad. The values range from 11 to 42.

DRAM READ to WRITE Delay [Auto]

You can key in the desired value using the numeric keypad. The values range from 3 to 17.

DRAM WRITE to READ Delay(DD) [Auto]

You can key in the desired value using the numeric keypad. The values range from 2 to 10.

DRAM WRITE to WRITE Timing [Auto]

You can key in the desired value using the numeric keypad. The values range from 2 to 10.

DRAM READ to READ Timing [Auto]

You can key in the desired value using the numeric keypad. The values range from 2 to 10.

DRAM Refresh Rate [Auto]

Configuration options: [Auto] [Every 7.8ms] [Every 3.9ms]

DRAM Command Rate [Auto]

Configuration options: [Auto] [1T] [2T]

2.4.12 DRAM Driving Control

 The configuration options for some of the following items vary depending on the DIMMs you install on the motherboard.

DCT0 Information:

CKE drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

CS/ODT drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

ADDR/CMD drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

MEMCLK drive strength [Auto]

Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]

Data drive strength [Auto]

Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]

DQS drive strength [Auto]

Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]

Processor ODT [Auto]

Configuration options: [Auto] [240 ohms +/- 20%] [120 ohms +/- 20%] [60 ohms +/- 20%]

DCT1 Information:

CKE drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

CS/ODT drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

ADDR/CMD drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

MEMCLK drive strength [Auto]

Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x] Data drive strength [Auto] Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x] DQS drive strength [Auto] Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x] Processor ODT [Auto] Configuration options: [Auto] [240 ohms +/- 20%] [120 ohms +/- 20%] [60 ohms +/- 20%]  Some of the following items are adjusted by typing the desired values using the numeric keypad and press the key. You can also use the <+> / <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard and press the key.

2.4.13 CPU Load-Line Calibration [Auto]

Allows you to select the CPU Load-Line mode. Configuration options: [Auto] [Disabled] [Enabled]

2.4.14 CPU/NB Load-Line Calibration [Auto]

Allows you to select the CPU/NB Load-Line mode. Configuration options: [Auto] [Disabled] [Enabled]

2.4.15 CPU & NB Voltage [Offset Mode]

Allows you to set the CPU & NB Voltage Mode. Different sub-items appear according to the CPU & NB Voltage Mode item setting. Configuration options: [Offset Mode] [Manual Mode] CPU Offset Mode Sign [+] This item appears only when you set the CPU & NB Voltage item to [Offset Mode] and allows you to set the offset mode sign. Configuration options: [+] [-] CPU Offset Voltage [Auto] This item appears only when you set the CPU & NB Voltage item to [Offset Mode] and allows you to set the CPU Offset voltage. The values range from 0.006250V to 0.7V with a 0.006250V interval. CPU/NB Offset Mode Sign [+] This item appears only when you set the CPU & NB Voltage item to [Offset Mode] and allows you to set the offset mode sign. Configuration options: [+] [-] CPU/NB Offset Voltage [Auto] This item appears only when you set the CPU & NB Voltage Mode item to [Offset Mode] and allows you to set the CPU/NB Offset voltage. The values range from 0.00625V to 0.5V with a 0.00625V interval. CPU Manual Voltage [Auto] This item appears only when you set the CPU & NB Voltage item to [Manual Mode] and allows you to set a fixed CPU voltage. CPU/NB Manual Voltage [Auto] This item appears only when you set the CPU & NB Voltage item to [Manual Mode] and allows you to set a fixed CPU/NB voltage.

2.4.16 CPU VDDA Voltage [Auto]

Allows you to set the CPU VDDA voltage. The values range from 2.200000V to 2.800000V with a 0.00625V interval.

2.4.17 DRAM Voltage [Auto]

Allows you to set the DRAM voltage. The values range from 1.200000V to 2.200000V with a 0.006250V interval.

2.4.18 NB Voltage [Auto]

Allows you to set the Northbridge voltage. The values range from 1.100000V to 1.250000V with a 0.006250V interval.

2.4.19 NB HT Voltage [Auto]

Allows you to set the Northbridge HyperTransport voltage. The values range from 1.200000V to 1.400000V with a 0.006250V interval.

2.4.20 NB 1.8V Voltage [Auto]

Allows you to set the Northbridge 1.8V voltage. The values range from 1.800000V to 2.100000V with a 0.005000V interval.

2.4.21 SB Voltage [Auto]

Allows you to set the Southbridge voltage. The values range from 1.1000000V to 1.8000000V with a 0.005000V interval.

2.5 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.  Be cautious when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction.

ASUS UEFI BIOS Utility - Advanced Mode Main AI Tweaker Advanced Monitor Boot Tool CPU Configuration North Bridge South Bridge SATA Configuration USB Configuration Unboard Devices Configuration RPM Network Stack CPU Configuration Parameters + : Select Screen

2.5.1 CPU Configuration

The items in this menu show the CPU-related information that the BIOS automatically detects.  The items shown in submenu may be different due to the CPU you installed.

Cool'n'Quiet [Disabled]

[Enabled] Enables the AMD Cool'n'Quiet function. [Disabled] Disables this function.

C1E [Disabled]

[Auto] Allows automatic selection of C1E support function. [Disabled] Disables this function.

SVM [Enabled]

[Enabled] Enables the AMD Secure Virtual Machine mode. [Disabled] Disables this function.

Core C6 State [Enabled]

Enables or disables Core C6 state function. Configuration options: [Disabled] [Enabled]

HPC Mode [Enabled]

Allows you to disable or enable High Performance Computing Mode. Configuration options: [Enabled] [Disabled]

Apm Master Mode [Auto]

Enables or disables Application Power Management. Configuration options: [Auto] [Disabled] [Enabled]

2.5.2 North Bridge

IOMMU [Disabled]

Allows you to disable the IOMMU mode or select 64MB. IOMMU is supported on Linux based systems to convert 32bit I/O to 64bit MMIO. Configuration options: [Disabled] [64MB]

Memory Configuration

Allows you to set the related memory configurations.

Bank Interleaving [Auto]

Allows you to enable the bank memory interleaving. Configuration options: [Auto] [Disabled]

Channel Interleaving [Auto]

Allows you to enable the channel memory interleaving. Configuration options: [Disabled] [Auto]

Warm Boot RAM [Enabled]

Allows you to enable or disable the data reusing in RAM after warm boot to speed-up boot. Configuration options: [Disabled] [Enabled]

Memory Clear [Disabled]

Allows you to enable or disable the Memory Clear function control. Configuration options: [Disabled] [Enabled]

ECC Mode [Enabled]

Allows you to enable or disable the ECC mode. Configuration options: [Disabled] [Enabled]

Power Down Enable [Disabled]

Allows you to enable or disable the DDR power down mode. Configuration options: [Disabled] [Enabled]

Memory Hole Remapping [Enabled]

Allows you to enable or disable memory remapping around memory hole. Configuration options: [Disabled] [Enabled]

DCT Unganged Mode [Enabled]

Allows you to select unganged mode or ganged mode. Configuration options: [Disabled] [Enabled]

Initiate Graphic Adapter [PEG/PCI]

Allows you to select the primary boot graphic controller. Configuration options: [PEG/PCI] [PCI/PEG]

2.5.3 South Bridge

HPET [Enabled]

Allows you to enable or disable the HPET TIMER. Configuration options: [Disabled] [Enabled]

2.5.4 SATA Configuration

While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA Port items show Not Present if no SATA device is installed to the corresponding SATA port.

SB SATA Configuration

Allows you to set SATA options.

OnChip SATA Channel [Enabled]

Allows you to enable or disable serial ATA. Configuration options: [Enabled] [Disabled]

SATA Port1 - Port4 [AHCI]

[IDE] Set to [IDE] when you want to use the Serial ATA hard disk drives as Parallel ATA physical storage devices. [AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI (Advanced Host Controller Interface). The AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to internally optimize the order of commands. [RAID] Set to [RAID] when you want to create a RAID configuration from the SATA hard disk drives.

SATA Port5 - Port6 [AHCI]

Allows you to set the SATA port 5\~6 mode. This item can only be configured as [IDE] when SATA Port1 - Port4 is set to [IDE]. Configuration options: [AHCI] [IDE]  - When the SATA Port1–Port 4 and the SATA Port5–Port 6 items are set to [AHCI], the information of the SATA connectors 1–6 can be seen only under the OS environment or during POST. - For Windows ^ XP OS, you have to install the AHCI driver, so that you could use the SATA connectors 1–6 in AHCI mode under the OS environment.  If you use a SATA optical drive to run the Windows XP OS installation disk, we strongly recommend that you install the optical drive to the SATA connectors 5/6 and set them to [IDE] mode.

Board SATA RAID ROM [Legacy ROM]

This item appears only when you set SATA Port1 - Port4 to [RAID] and allows you to select Board SATA RAID ROM. Configuration options: [Disabled] [Legacy ROM] [UEFI DRIVER]

S.M.A.R.T. Status Check [Enabled]

[Enabled] Enables the S.M.A.R.T feature. [Disabled] Disables the S.M.A.R.T feature.

SATA ESP on Port1\~6 [Disabled]

These items appear only when you set SATA Port1 - Port6 to [AHCI]. Enable this item to support ESATA. Configuration options: [Enabled] [Disabled]

2.5.5 USB Configuration

The USB Configuration menu allows you to change the USB settings.  The USB Devices item shows the auto-detected values. If no USB device is detected, the item shows None.

Legacy USB Support [Enabled]

[Auto] Allows the system to detect the presence of USB devices at startup. If detected, the USB controller legacy mode is enabled. If no USB device is detected, the legacy USB support is disabled. [Enabled] Enables the support for USB devices on legacy operating systems (OS). [Disabled] Disables the function.

EHCI Hand-off [Disabled]

[Enabled] Enables the support for operating systems without an EHCl hand-off feature. [Disabled] Disables the function.

USB Single Port Control

Allows you to set SB USB options.

USB PORT 1\~6 [Enabled]

Allow you to enable or disable the individual USB port. Configuration options: [Enabled] [Disabled]

2.5.6 Onboard Devices Configuration

Realtek LAN Controller [Enabled]

[Enabled] Enables the Realtek LAN controller. [Disabled] Disables the function.

Realtek PXE OPROM [Disabled]

This item appears only when you set the Realtek LAN Controller to [Enabled] and allows you to enable or disable the Realtek PXE OptionROM of the Realtek LAN controller. Configuration options: [Enabled] [Disabled]

Serial Port Configuration

The sub-items in this menu allow you to set the serial port configuration.

Serial Port [Enabled]

Allows you to enable or disable the serial port (COM). Configuration options: [Enabled] [Disabled]

Change Settings [IO=3F8h; IRQ=4]

This item appears only when you set the Serial Port to [Enabled] and allows you to change settings. Configuration options: [IO=3F8h; IRQ=4] [IO=2F8h; IRQ=3] [IO=3E8h; IRQ=4] [IO=2E8h; IRQ=3]

SB HD Azalia Configuration

Allows you to change the HD Azalia configuration.

HD Audio Azalia Device [Enabled]

[Enabled] Enables the High Definition Audio Azalia device. [Disabled] Disables the device.  The following two items appear only when you set the HD Audio Azalia Device item to [Enabled].

Azalia Front Panel [HD]

Allows you to set the Azalia front panel audio connector (AAFP) type to legacy AC'97 or high-definition audio depending on the audio standard that the front panel audio module supports. [HD] Sets the front panel audio connector (AAFP) mode to high definition audio. [AC97] Sets the front panel audio connector (AAFP) mode to legacy AC'97

SPDIF Out Type [SPDIF]

[SPDIF] Sets to [SPDIF] for SPDIF audio output. [HDMI] Sets to [HDMI] for HDMI audio output.

2.5.7 APM

Restore AC Power Loss [Power Off]

[Power On] The system goes into on state after an AC power loss. [Power Off] The system goes into off state after an AC power loss. [Last State] The system goes into either off or on state, whatever the system state was before the AC power loss.

Power On By PS/2 Device [Disabled]

Allows you to use PS/2 device to turn on the system. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead. Configuration options: [Disabled] [Enabled]

Power On By PME Device [Disabled]

[Disabled] Disables the PME to wake up from S5 by PCI/PCIE devices. [Enabled] Allows you to turn on the system through a PCI/PCIE LAN or modem card. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead.

Power On By Ring [Disabled]

[Disabled] Disables to power up the computer when the external modem receives a call while the computer is in Soft-off mode. [Enabled] The computer could be powered up when the external modem receives a call while the computer is in Soft-off mode.  The computer cannot receive or transmit data until the computer and applications are fully running. Thus, connection cannot be made on the first try. Turning an external modem off and then back on while the computer is off causes an initialization string that turns the system power on.

Power On By RTC [Disabled]

[Disabled] Disables RTC to generate a wake event. [Enabled] When set to [Enabled], the items RTC Alarm Date (Days) and System Time will become user-configurable with set values.

2.5.8 Network Stack

Network Stack [Disabled]

This item allows user to disable or enable the UEFI network stack. Configuration options: [Disabled] [Enabled]  The following two items appear only when you set the previous item to [Enabled].

Ipv4 PXE Support [Enabled]

This item allows user to disable or enable the lpv4 PXE Boot support. Configuration options: [Disabled] [Enabled]

Ipv6 PXE Support [Enabled]

This item allows user to disable or enable the lpv6 PXE Boot support. Configuration options: [Disabled] [Enabled]

2.6 Monitor menu

The Monitor menu displays the system temperature/power status, and allows you to change the fan settings.

ASUS UEFI BIOS Utility - Advanced Mode Main AI Tweaker Advanced Monitor Boot Tool CPU Temperature +60°C / •154°F MB Temperature +31°C / •87°F UCORE Voltage -1.320 V 3.3V Voltage -3.240 V 5V Voltage -5.635 V 12V Voltage +11.685 V UDDA2.5V Voltage -2.500 V CPU PAN Speed 3350 RPM CHASSIS PAN 1 Speed N/A CHASSIS PAN 2 Speed N/A CPU Q-Fan Control Enabled CPU Fan Speed Low Limit 600 RPM CPU Fan Profile Standard •: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortcut F5: Optimized Defaults F10: Save ESC: Exit F12: Print Screen

Scroll down to display the following items:

Chassis Fan 1 Q-Pan Control Disabled F1: Default Help F2: Previous Values F3: Shortcut F5: Optimized Defaults F10: Save ESC: Exit F12: Print Screen Chassis Fan 2 Q-Pan Control Disabled Version 2.10.1280, Copyright (©) 2012 American Megatrends, Inc.

2.6.1 CPU Temperature / MB Temperature [xxx°C/xxx°F]

The onboard hardware monitor automatically detects and displays the CPU and motherboard temperatures.

2.6.2 VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage, VDDA2.5V Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators. Select Ignore if you do not want to detect this item.

2.6.3 CPU FAN / Chassis FAN1/2 Speed [xxxx RPM] / [N/A]

The onboard hardware monitor automatically detects and displays the CPU / chassis fan speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the field shows N/A.

2.6.4 CPU Q-Fan Control [Enabled]

[Disabled] Disables the CPU Q-Fan control feature. [Enabled] Enables the CPU Q-Fan control feature.

CPU Fan Speed Low Limit [600 RPM]

This item appears only when you enable the CPU Q-Fan Control feature and allows you to disable or set the CPU fan warning speed. Configuration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

CPU Fan Profile [Standard]

This item appears only when you enable the CPU Q-Fan Control feature and allows you to set the appropriate performance level of the CPU fan. [Standard] Sets to [Standard] to make the CPU fan automatically adjust depending on the CPU temperature. [Silent] Sets to [Silent] to minimize the fan speed for quiet CPU fan operation. [Turbo] Sets to [Turbo] to achieve maximum CPU fan speed. [Manual] Sets to [Manual] to assign detailed fan speed control parameters.  The following four items appear only when you set CPU Fan Profile to [Manual].

CPU Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range from 20°C to 75°C.

CPU Lower Temperature [20]

Use the <+> and <-> keys to adjust the lower limit of the CPU temperature. The values range from 20°C to 75°C.

CPu Fan Max. Duty Cycle(%) [100]

Use the <+> and <-> keys to adjust the maximum CPU fan duty cycle. The values range from 20% to 100%. When the CPU temperature reaches the upper limit, the CPU fan will operate at the maximum duty cycle. CPU Fan Min. Duty Cycle(%) [30] Use the <+> and <-> keys to adjust the minimum CPU fan duty cycle. The values range from 20% to 100%. When the CPU temperature is under the lower limit, the CPU fan will operate at the minimum duty cycle.

2.6.5 Chassis Fan1 /2 Q-Fan Control [Enabled]

[Disabled] Disables the Chassis fan1/2 Q-Fan control feature. [Enabled] Enables the Chassis fan1/2 Q-Fan control feature.

Chassis Fan Speed Low Limit [600 RPM]

This item appears only when you enable the Chassis1/2 Q-Fan Control feature and allows you to disable or set the chassis1/2 fan warning speed. Configuration options: [Ignore] [200RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

Chassis Fan1/2 Profile [Standard]

This item appears only when you enable the Chassis fan1/2 Q-Fan Control feature and allows you to set the appropriate performance level of the chassis fan. [Standard] Sets to [Standard] to make the chassis fan automatically adjust depending on the chassis temperature. [Silent] Sets to [Silent] to minimize the fan speed for quiet chassis fan operation. [Turbo] Sets to [Turbo] to achieve maximum chassis fan speed. [Manual] Sets to [Manual] to assign detailed fan speed control parameters.  The following four items appear only when you set Chassis Fan1/2 Profile to [Manual].

Chassis Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the chassis temperature. The values range from 40°C to 90°C.

Chassis Lower Temperature [40]

Displays the lower limit of the chassis temperature.

Chassis Fan Max. Duty Cycle(%) [60]

Use the <+> and <-> keys to adjust the maximum chassis fan duty cycle. The values range from 60% to 100%. When the chassis temperature reaches the upper limit, the chassis fan will operate at the maximum duty cycle.

Chassis Fan Min. Duty Cycle(%) [60]

Use the <+> and <-> keys to adjust the minimum chassis fan duty cycle. The values range from 60% to 100%. When the chassis temperature is under 40°C, the chassis fan will operate at the minimum duty cycle.

2.7 Boot menu

The Boot menu items allow you to change the system boot options.

ASUS UEFI BIOS Utility - Advanced Mode Main AI Twpaker Advanced Monitor Boot Tool Boot Configuration Fast Boot Enabled USB Support Partial In... PS/2 Keyboard and Mouse Support Full Init1... Network Stack Driver Support Disabled Next Boot after AC Power Loss Normal Boot Full Screen Logo Auto MST Delay Time 3 sec INT19 Trap Response Postponed Bootup NumLock State On Unit For 'F1' If Error Enabled Option ROM Messages Force BIOS Setup Mode EZ Mode Enabled/Disabled boot with initialization of a minimal set of devices required to launch active boot options. Has no effect for BBS boot options. --: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortcut PS: Optimized Defaults F10: Save ESC Exit F12: Print Screen Version 2.10.1208. Copyright (C) 2012 American Regatrends, Inc.

Scroll down to display the following items:

> CSM (Compatibility Support Module) >> Secure Boot F2: Shortcuts Default F3: Shortcut F5: Optimized Defaults F10: Save ESC: Exit F12: Print Screen Version 2.10.1208. Copyright CC 2012 American Megatrends, Inc.

2.7.1 Fast Boot [Enabled]

[Enabled] Select to accelerate the boot speed. [Disabled] Select to go back to normal boot.  The following four items appear when you set Fast Boot to [Enabled].

USB Support [Partial Initialization]

[Disabled] All USB devices will not be available until OS boot up for a fastest POST time. [Full Initialization] All USB devices will be available during POST. This process will extend the POST time. [Partial Initialization] For a faster POST time, only the USB ports with keyboard and mouse connections will be detected.

PS/2 Keyboard and Mouse Support [Auto]

Select any of these settings when PS/2 keyboard and mouse are installed. These settings only apply when Fast Boot is enabled. [Auto] For a faster POST time, PS/2 devices will only be available when the system boots up or rebooted when the PS/2 devices have not been reconnected or changed. If you disconnect or change PS/2 devices before restarting the system, PS/2 devices will not be available and BIOS setup program will not be accessible via PS/2 devices. [Full Initialization] For full system control, PS/2 devices will be available during POST at any circumstances. This process will extend POST time. [Disabled] For the fastest POST time, all PS/2 devices will not be available until your computer enters the operating system.

Network Stack Driver Support [Disabled]

[Disabled] Select to skip the network stack driver from loading during POST. [Enabled] Select to load the network stack driver during POST.

Next Boot after AC Power Loss [Normal Boot]

[Normal Boot] Returns to normal boot on the next boot after AC power loss. [Fast Boot] Accelerates the boot speed on the next boot after AC power loss.

2.7.2 Full Screen Logo [Enabled]

[Auto] Auto adjustment for Windows requirements. [Full Screen] Maximize the boot logo size. [Disabled] Hide the logo during POST.

Post Report [5 sec]

This item appears only when the Full Screen Logo item is set to [Disabled] and allows you to set the waiting time for the system to display the post report. Configuration options: [1 sec] [2 sec] [3 sec] [4 sec] [5 sec] [6 sec] [7 sec] [8 sec] [9 sec] [10 sec] [Until Press ESC]

POST Delay Time [3 sec]

This item appears only when you set Full Screen Logo to [Enabled]. This item allows you to select the desired additional POST waiting time to easily enter the BIOS setup. You can only execute the POST delay time during Normal Boot. The values range from 0 to 10 seconds.  This feature will only work under normal boot.

2.7.3 INT19 Trap Response [Postponed]

Allows you to set the BIOS reaction on INT19 trapping by Option ROM. [Immediate] Execute the trap right away. [Postponed] Execute the trap during legacy boot.

2.7.4 Bootup NumLock State [On]

[On] Sets the power-on state of the NumLock to [On]. [Off] Sets the power-on state of the NumLock to [Off].

2.7.5 Wait for 'F1' If Error [Enabled]

When this item is set to [Enabled], the system waits for the F1 key to be pressed when error occurs. Configuration options: [Disabled] [Enabled]

2.7.6 Option ROM Messages [Force BIOS]

[Force BIOS] The third-party ROM messages will be forced to display during the boot sequence. [Keep Current] The third-party ROM messages will be displayed only if the third-party manufacturer had set the add-on device to do so.

2.7.7 Setup Mode [EZ Mode]

[Advanced Mode] Sets Advanced Mode as the default screen for entering the BIOS setup program. [EZ Mode] Sets EZ Mode as the default screen for entering the BIOS setup program.

2.7.8 CSM (Compatibility Support Module)

Allows you to configure the CSM (Compatibility Support Module) items to fully support the various VGA, bootable devices and add-on devices for better compatibility.

Launch CSM [Enabled]

[Auto] The system automatically detects the bootable devices and the add-on devices. [Enabled] For better compatibility, enable the CSM to fully support the non-UEFI driver add-on devices or the Windows® UEFI mode. [Disabled] Disable the CSM to fully support the Windows ^® Security Update and Security Boot.  The following four items appear when you set Launch CSM to [Enabled].

Boot Device Control [UEFI and Legacy OpROM]

Allows you to select the type of devices that you want to boot up. Configuration options: [UEFI and Legacy OpROM] [Legacy OpROM only] [UEFI only]

Boot from Network Devices [Legacy OpROM first]

Allows you to select the type of network devices that you want to launch. Configuration options: [Legacy OpROM first] [UEFI driver first] [Ignore]

Boot from Storage Devices [Legacy OpROM first]

Allows you to select the type of storage devices that you want to launch. Configuration options: [Both, Legacy OpROM first] [Both, UEFI first] [Legacy OpROM first] [UEFI driver first] [Ignore]

Boot from PCIe/PCI Expansion Devices [Legacy OpROM first]

Allows you to select the type of PCIe/PCI expansion devices that you want to launch. Configuration options: [Legacy OpROM first] [UEFI driver first]

2.7.9 Secure Boot

Allows you to configure the Windows ^® Secure Boot settings and manage its keys to protect the system from unauthorized access and malwares during POST.

OS Type [Windows UEFI mode]

Allows you to select your installed operating system. [Windows UEFI mode] Executes the Microsoft ® Secure Boot check. Only select this option when booting on Windows® UEFI mode or other Microsoft® Secure Boot compliant OS. [Other OS] Get the optimized function when booting on Windows® non-UEFI mode, Windows® Vista/XP, or other Microsoft® Secure Boot non-compliant OS. Only on Windows® UEFI mode that Microsoft® Secure Boot can function properly.  The following item appears when OS Type is set to [Windows UEFI mode].

Key Management

This item appears only when you set Secure Boot Mode to [Custom]. It allows you to manage the Secure Boot keys.

Clear Secure Boot keys

This item appears only when you load the default Secure Boot keys. This item allows you to clear all default Secure Boot keys.

Save Secure Boot keys

This item appears only when you load the default Secure Boot keys. This item allows you to save all default Secure Boot keys.

PK Management

The Platform Key (PK) locks and secures the firmware from any non-permissible changes. The system verifies the PK before your system enters the OS.

Delete PK

Allows you to delete the PK from your system. Once the PK is deleted, all the system's Secure Boot keys will not be active. Configuration options: [Yes] [No]

Load PK from File

Allows you to load the downloaded PK from a USB storage device.  The PK file must be formatted as a UEFI variable structure with time-based authenticated variable.

KEK Management

The KEK (Key-exchange Key or Key Enrollment Key) manages the Signature database (db) and Revoked Signature database (dbx). Key-exchange Key (KEK) refers to Microsoft® Secure Boot Key-Enrollment Key (KEK).

Delete the KEK

Allows you to delete the KEK from your system. Configuration options: [Yes] [No]

Load KEK from File

Allows you to load the downloaded KEK from a USB storage device.

Append KEK from file

Allows you to load the additional KEK from a storage device for an additional db and dbx loaded management.   The KEK file must be formatted as a UEFI variable structure with time-based authenticated variable.

DB Management

The db (Authorized Signature database) lists the signers or images of UEFI applications, operating system loaders, and UEFI drivers that you can load on the single computer.

Delete the db

Allows you to delete the db file from your system. Configuration options: [Yes] [No]

Load db from File

Allows you to load the downloaded db from a USB storage device.

Append db from file

Allows you to load the additional db from a storage device so that more images can be loaded securely.  The DB file must be formatted as a UEFI variable structure with time-based authenticated variable.

DBX Management

The dbx (Revoked Signature database) lists the forbidden images of db items that are no longer trusted and cannot be loaded.

Delete the DBX

Allows you to delete the DBX file from your system. Configuration options: [Yes] [No]

Load DBX from File

Allows you to load the downloaded DBX from a USB storage device.

Append DBX from file

Allows you to load the additional DBX from a storage device so that more db's images cannot be loaded.  The DBX file must be formatted as a UEFI variable structure with time-based authenticated variable.

2.7.10 Boot Option Priorities

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.  \- To select the boot device during system startup, press when ASUS Logo appears. \- To access Windows OS in Safe Mode, press after POST.

2.7.11 Boot Override

These items displays the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device.

2.8 Tool menu

The Tools menu items allow you to configure options for special functions. Select an item then press to display the submenu.

ASUS UEFI BIOS Utility - Advanced Mode Main AI Speaker Advanced Monitor Boot Tool > ASUS EZ Flash 2 Utility > ASUS SPD Information > ASUS O-C. Profile Be used to update BIOS

2.8.1 ASUS EZ Flash 2 Utility

Allows you to run ASUS EZ Flash 2. Press [Enter] to launch the ASUS EZ Flash 2 screen.  For more details, see section 2.1.2 ASUS EZ Flash 2.

2.8.2 ASUS SPD Information

DIMM Slot # [Slot 1]

Displays the Serial Presence Detect (SPD) information of the DIMM module installed on the selected slot. Configuration options: [Slot 1] [Slot 2] [Slot 3] [Slot 4]

2.8.3 ASUS O.C. Profile

This item allows you to store or load multiple BIOS settings.  The Setup Profile Status items show Not Installed if no profile is created.

Label

Allows you to input the label of the setup profile.

Save to Profile

Allows you to save the current BIOS settings to the BIOS Flash, and create a profile. Key in a profile number from one to eight, press , and then select Yes.

Load from Profile

Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the profile number that saved your CMOS settings, press , and then select Yes.  \- DO NOT shut down or reset the system while updating the BIOS to prevent the system boot failure! \- We recommend that you update the BIOS file only coming from the same memory/CPU configuration and BIOS version.

2.9 Exit menu

The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit menu.

Exit Load Optimized Defaults Save Changes & Reset Discard Changes & Exit ASUS E2 Node Launch EFI Shell from filesystem device

Load Optimized Defaults

This option allows you to load the default values for each of the parameters on the Setup menus. When you select this option or if you press , a confirmation window appears. Select Yes to load the default values.

Save Changes & Reset

Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved. When you select this option or if you press , a confirmation window appears. Select Yes to save changes and exit.

Discard Changes & Exit

This option allows you to exit the Setup program without saving your changes. When you select this option or if you press , a confirmation window appears. Select Yes to discard changes and exit.

ASUS EZ Mode

This option allows you to enter the EZ Mode screen.

Launch EFI Shell from filesystem device

This option allows you to attempt to launch the UEFI Shell application (shellx64.efi) from one of the available devices that have a filesystem.

Appendices

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. - This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.  The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

IC: Canadian Compliance Statement

Complies with the Canadian ICES-003 Class B specifications. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cut appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Cet appareil est conforme aux normes CNR exemptes de licence d'Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l'appareil.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This class B digital apparatus complies with Canadian ICES-003.

VCCI: Japan Compliance Statement

VCCI Class B Statement

この装置は、クラスB情報技術装置です。この装置は、家庭環境で使用することを目的としていますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあります。 取扱説明書に従って正しい取り扱いをして下さい。 VCCI-B This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

KC: Korea Warning Statement

B급 기기 (가정용 방송통신기자재) 이 기기는 가정용(B급) 전자과적합기기로서 주로 가정에서 사용하는 것을 목적으로 하며, 모든 지역에서 사용할 수 있습니다. \*당해 무선설비는 전파흔신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.  DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.  DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

ASUS contact information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259 Telephone [phone] Fax [phone] E-mail \_\_\_\[e-mail] Web site http://www.asus.com

Technical Support

Telephone [phone] Fax [phone] ext. 9101# Online support http://support.asus.com/techserv/techserv.aspx

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA Telephone [phone] Fax [phone] Web site http://www.asus.com/us/

Technical Support

Support fax [phone] General support [phone] Online support http://www.service.asus.com/

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, D-40880 Ratingen, Germany Fax [phone] Web site http://www.asus.com/de Online contact http://eu-rma.asus.com/sales

Technical Support

Telephone [phone] Support Fax [phone] Online support http://www.asus.com/de/support/  EC Declaration of Conformity

Manufacturer:	ASUSTeK COMPUTER INC.
Address:	4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	HARKORT STR. 21-23, 40680 RATINGEN
Country:	GERMANY

Product name :	Motherboard
Model name : M5A97 PLUS

conform with the essential requirements of the following directives: 2004/108/EC-EMC Directive

EN 55022:2010+AC:2011EN 61000-3-2:2006+A2:2009EN 55013:2001+A1:2003+A2:2006

EN 55024:2010EN 61000-3-3:2008EN 55020:2007+A11:2011

□1999/5/EC-R&TE Directive
EN 300 328 V1.7.1(2006-10)	EN 301 489-1 V1.9.2(2011-09)
EN 300 440-1 V1.6.1(2010-08)	EN 301 489-3 V1.4.1(2002-08)
EN 300 440-2 V1.4.1(2010-08)	EN 301 489-4 V1.4.1(2009-05)
EN 301 511 V9.0.2(2003-03)	EN 301 489-7 V1.3.1(2005-11)
EN 301 908-1 V5.2.1(2011-05)	EN 301 489-9 V1.4.1(2007-11)
EN 301 908-2 V5.2.1(2011-07)	EN 301 489-17 V2.2.1(2012-09)
EN 301 893 V1.6.1(2011-11)	EN 301 489-24 V1.5.1(2010-09)
EN 302 544-2 V1.1.1(2009-01)	EN 302 326-2 V1.2.2(2007-06)
EN 302 623 V1.1.1(2009-01)	EN 302 326-3 V1.3.1(2007-09)
EN 50360:2001	EN 301 357-2 V1.4.1(2008-11)
EN 62479:2010	EN 302 291-1 V1.1.1(2005-07)
EN 50385:2002	EN 302 291-2 V1.1.1(2005-07)
EN 62311:2008

2006/95/EC-LVD Directive
EN 60950-1 / A12:2011	EN 60065:2002 / A12:2011

☐2009/125/EC-ErP Directive
☐ Regulation (EC) No. 1275/2008	☐ Regulation (EC) No. 278/2009
☐ Regulation (EC) No. 642/2009	☐ Regulation (EC) No. 617/2013

2011/65/EU-RoHS Directive	Var. 140831
CE marking

 (EC conformity marking) Position: CEO  Signature : Declaration Date: 07/01/2015 Year to begin affixing CE marking: 2015 Ver. 140331 Date: Jan. 07, 2015  Signature : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ☒ FCC Part 15, Subpart B, Unintentional Radiators Supplementary Information: Conforms to the following specifications: Model Number : M5A97 PLUS Product Name : Motherboard hereby declares that the product Phone/Fax No: [phone]/[phone] Address: 800 Corporate Way, Fremont, CA 94539. Responsible Party Name: Asus Computer International  DECLARATION OF CONFORMITY
