USER MANUAL PRIME H310M-F R2.0 ASUS

Copyright © 2018 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Offer to Provide Source Code of Certain Software

This product contains copyrighted software that is licensed under the General Public License ("GPL"), under the Lesser General Public License Version ("LGPL") and/or other Free Open Source Software Licenses. Such software in this product is distributed without any warranty to the extent permitted by the applicable law. Copies of these licenses are included in this product.

Where the applicable license entitles you to the source code of such software and/or other additional data, you may obtain it for a period of three years after our last shipment of the product, either

(1) for free by downloading it from http://support.asus.com/download

or

(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc.

Legal Compliance Dept.

15 Li Te Rd.,

Beitou, Taipei 112

Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the product for which you wish to obtain the corresponding source code and your contact details so that we can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as the corresponding binary/object code.

This offer is valid to anyone in receipt of this information.

ASUSTeK is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you encounter any problems in obtaining the full corresponding source code we would be much obliged if you give us a notification to the email address [e-mail], stating the product and describing the problem (please DO NOT send large attachments such as source code archives, etc. to this email address).

Contents

Safety information....iv

About this guide .... iv

Package contents ...... vi

PRIME H310M-F R2.0 specifications summary...... vi

Chapter 1: Product introduction

Motherboard overview 1-1

Central Processing Unit (CPU).... 1-6

System memory 1-7

Chapter 2: BIOS information

BIOS setup program....2-1

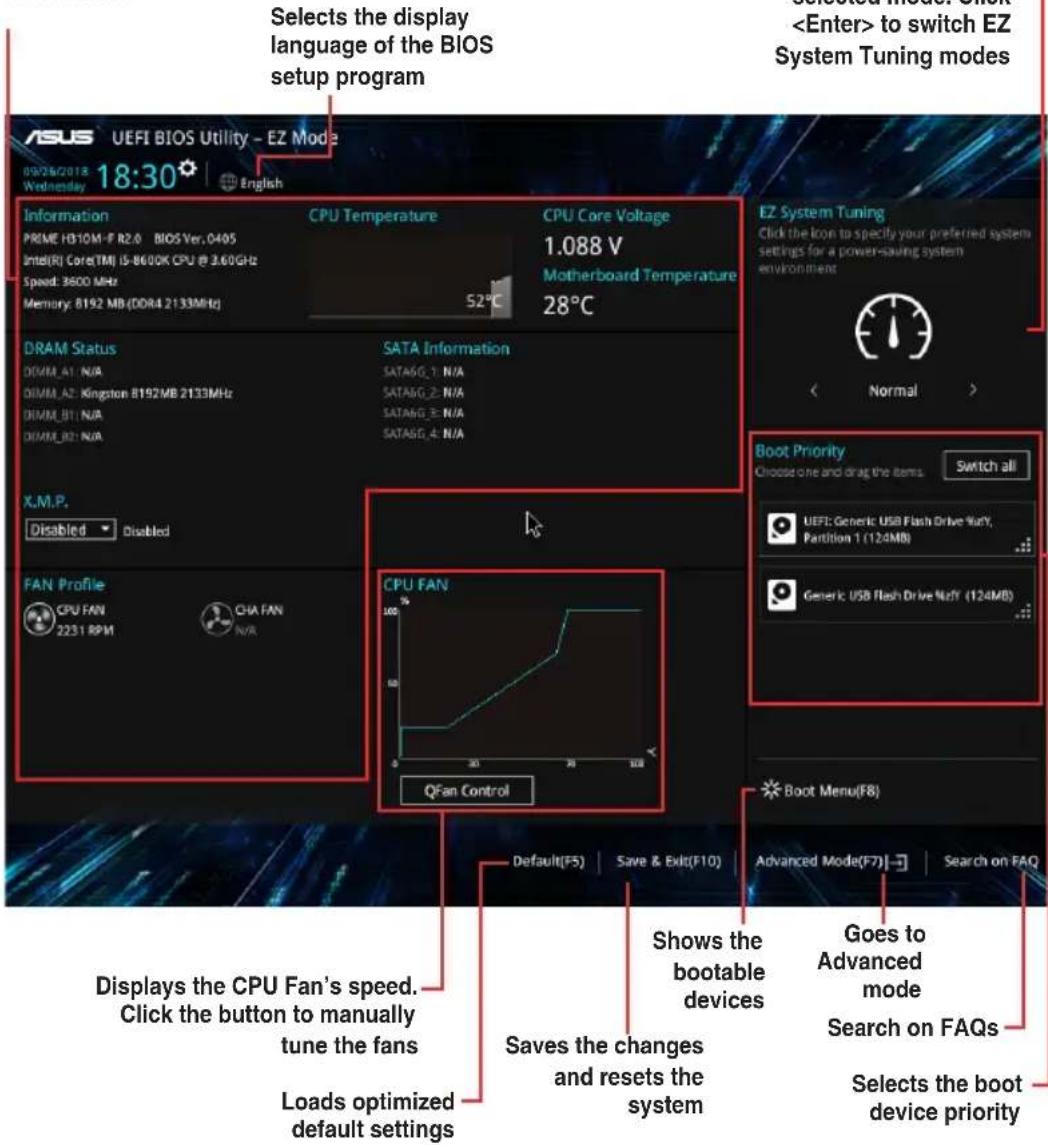

EZ Mode....2-2

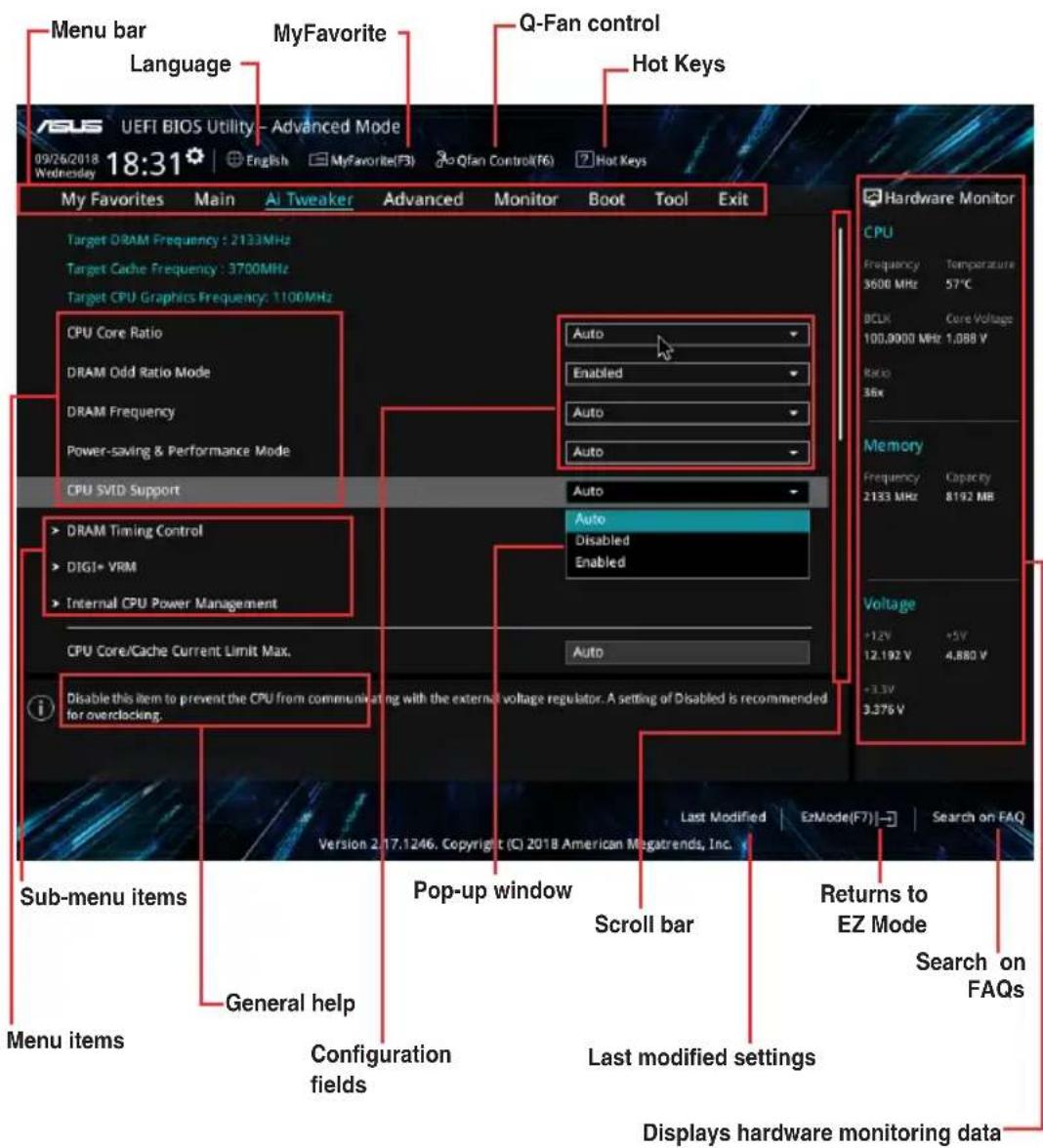

Advanced Mode 2-3

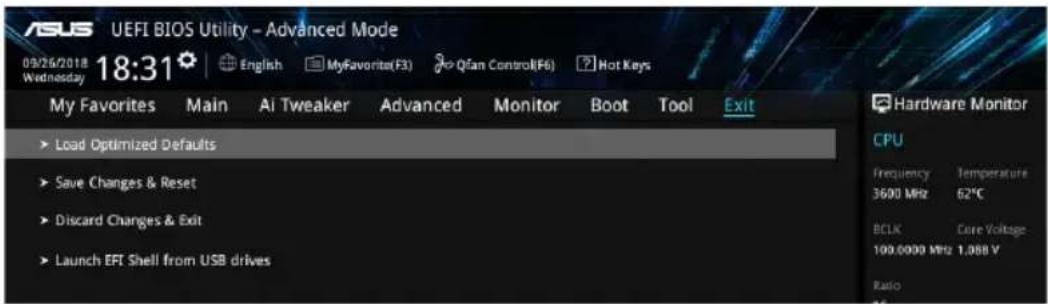

Exit menu....2-4

Appendix

Notices....A-1

ASUS contact information....A-5

Safety information Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing the motherboard and adding components, carefully read all the manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

This user guide contains the information you need when installing and configuring the motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports. It includes descriptions of the switches, jumpers, and connectors on the motherboard.

• Chapter 2: BIOS information

This chapter discusses changing system settings through the BIOS Setup menus. Detailed descriptions for the BIOS parameters are also provided.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when completing a task.

CAUTION: Information to prevent damage to the components when completing a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

Keys enclosed in the less-than and greater-than sign means that you must press the enclosed key. Example: means that you must press the Enter or Return key.

+ + If you must press two or more keys simultaneously, the key names are linked with a plus sign (+).

Package contents

Check your motherboard package for the following items.

Motherboard	ASUS PRIME H310M-F R2.0 motherboard
Cables	2 x Serial ATA 6.0 Gb/s cables
Accessories	1 x ASUS I/O Shield
Application DVD Support DVD
Documentation User Guide

If any of the above items are damaged or missing, contact your retailer.

PRIME H310M-F R2.0 specifications summary

CPU	LGA1151 socket for 9th / 8th Gen Intel® CoreTM, Pentium® Gold and Celeron® processorsSupports Intel® 14nm CPUSupports Intel® Turbo Boost Technology 2.0** The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.** Refer to www.asus.com for Intel® CPU support list.
Chipset Intel	® H310 Chipset
Memory	2 x DIMMs, max. 32GB, DDR4 2666 / 2400 / 2133 MHz, Non-ECC, Un-buffered Memory*Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP)* The maximum memory frequency supported varies by processor.** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.*** Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Expansion slots	1 x PCI Express 3.0 / 2.0 x16 slot (at x16 mode)1 x PCI Express 2.0 x1 slot
Graphics	Integrated graphics processor - Intel® HD Graphics supportMulti-VGA out support: D-Sub port- Support D-sub output with a maximum resolution of 1920 x 1200@60HzSupports Intel® InTruTM 3D/Quick Sync Video/Clear Video HD Technology/InsiderTMMaximum shared memory of 1024 MB
Storage	Intel® H310 Chipset:- 4 x SATA 6.0 Gb/s ports (gray)
LAN Realtek	® 8111H Gigabit LAN supports LANGuard
USB	Intel® H310 Chipset:- 4 x USB 3.1 Gen 1 (up to 5Gbps) ports (2 ports @ mid-board; 2 ports @ back panel, blue, Type A)- 6 x USB 2.0/1.1 ports (2 ports @ mid-board; 4 ports @ back panel)

(continued on the next page)

PRIME H310M-F R2.0 specifications summary

Audio

Realtek® ALC887 8-channel High Definition Audio CODEC*Gaming Audio:- Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference-Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals-Premium audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity-Supports jack-detection and front panel jack-retasking* Choose a chassis with a HD audio module in the front panel to support an 8-channel audio output.

ASUS special features

ASUS 5X PROTECTION III- ASUS SafeSlot Core - Fortified PCIe Slot prevents damage- ASUS LANGuard - Protects against LAN surges, lightning strikes and static - electricity discharges- ASUS Overvoltage Protection - World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O - 3x corrosion-resistance for greater durability- ASUS DIGI+ VRM - 4 phase digital power designSuperb PerformanceASUS OptiMem- Improved DDR4 stabilityUEFI BIOS- The most advanced options with a fast response timeGaming ScenarioAudio Features- Audio that roars on the battlefieldEasy PC DIYSafe motherboard mounting-Component-free areas to minimize damage riskASUS Exclusive Features- ASUS AI Charger- ASUS AI Suite 3- ASUS PC CleanerUEFI BIOS EZ Mode- Featuring friendly graphics user interface- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design- ASUS Q-DIMM- ASUS Q-Slot

(continued on the next page)

PRIME H310M-F R2.0 specifications summary

ASUS quiet thermal solution	Quiet Thermal Design- ASUS Fan Xpert- Stylish Fanless Design: PCH heatsink solution
Rear panel I/O ports	1 x PS/2 keyboard port1 x PS/2 mouse port1 x D-Sub port1 x LAN (RJ-45) port2 x USB 3.1 Gen1 (up to 5Gbps) ports Type A (blue)4 x USB 2.0 ports3 x Audio jacks support 8-channel audio output
Internal connectors	1 x USB 3.1 Gen 1 (up to 5Gbps) connector supports additional 2 USB 3.1 Gen 1 ports (19-pin)1 x USB 2.0 / 1.1 connector supports an additional 2 USB 2.0 / 1.1 ports4 x SATA 6.0Gb/s connectors1 x 4-pin CPU Fan connector for 4-pin PWM mode1 x 4-pin Chassis Fan connector for 4-pin PWM mode cooler control1 x System panel connector1 x Front panel audio connector (AAFP)1 x 24-pin EATX Power connector1 x 4-pin ATX 12V Power connector1 x Speaker connector1 x Clear CMOS jumper (2-pin)
BIOS features	64 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-languageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Manageability	WOL by PME, PXE
Support DVD	DriversASUS utilitiesEZ UpdateAnti-virus software (OEM version)
OS support	Windows® 10 (64-bit)
Form factor	uATX form factor: 8.4 in. x 7.0 in. (21.34 cm x 17.78 cm)

Specifications are subject to change without notice.

Product introduction

1

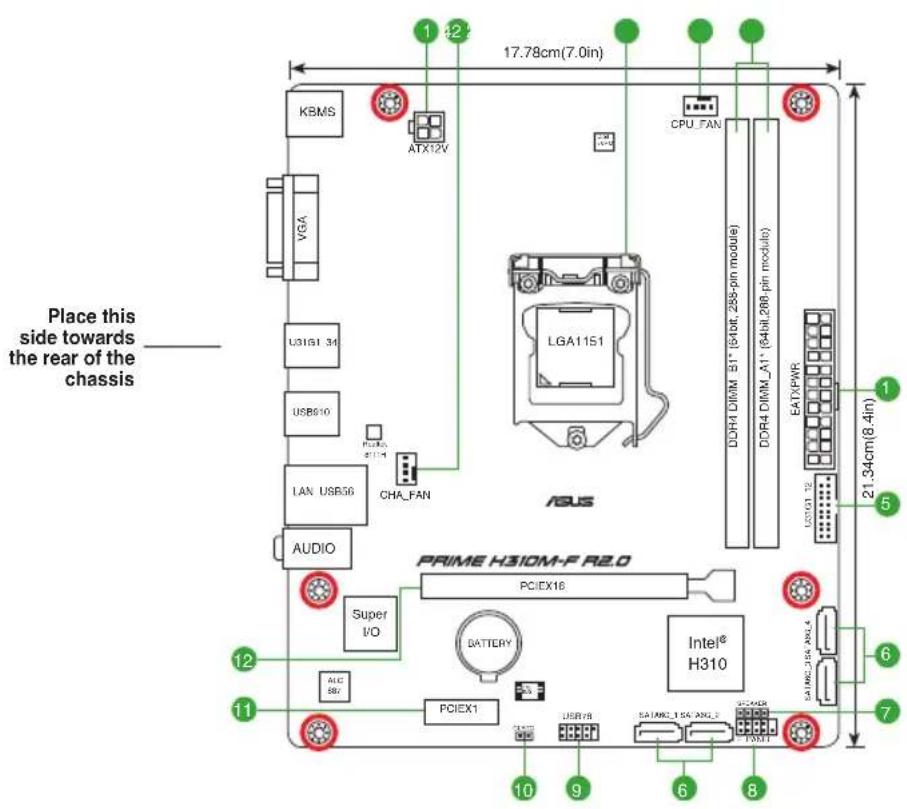

Motherboard overview

• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.
• Unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage to motherboard components.

Place this side towards the rear of the chassis 1 42 17.78cm(7.0in) KBMS ATX12V CPU_FAN VGA U3161 34 USB610 LAN USB56 CHA_FAN AUDIO Super I/O BATTERY PCIEX1 PCIEX16 Intel® H310 SEREMER 206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206-206 1 21.34cm(8.4in) 1 1 5 1 12 11 10 9 6 8 SATEMEL 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10B

Scan the QR code to get the detailed pin definitions.

QR code image containing encoded data, no visible human-readable text

1 ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

Correctly orient the ATX power supply plugs into these connectors and push down firmly until the connectors completely fit.

• For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12V Specification 2.0 (or later version) and provides a minimum power of 350 W. Ensure this PSU type has 24-pin and 4-pin power plugs.
• We recommend that you use a PSU with higher power output when configuring a system with more power-consuming devices or when you intend to install additional devices. The system may become unstable or may not boot up if the power is inadequate.
• DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will not boot up.

2 CPU and chassis fan connectors (4-pin CPU\_FAN, 4-pin CHA\_FAN)

Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! The CPU_FAN connector supports a CPU fan of maximum 0.5A (6 W) fan power.

Intel® LGA1151 CPU socket

Install Intel ^® LGA1151 CPU into this surface mount LGA1151 socket, which is designed for 9th / 8th Generation Intel ^® Core ^TM , Pentium ^® Gold, and Celeron ^® processors.

For more details, refer to Central Processing Unit (CPU).

DDR4 DIMM slots

Install 2 GB, 4 GB, 8 GB, and 16 GB unbuffered non-ECC DDR4 DIMMs into these DIMM sockets.

For more details, refer to System memory.

USB 3.1 Gen 1 (up to 5Gb/s) connector (20-1 pin U31G1\_12)

Connect a USB 3.1 Gen 1 module to this connector for additional USB 3.1 Gen 1 front or rear panel ports. This connector complies with USB 3.1 Gen 1 specifications and provides faster data transfer speeds of up to 5 Gbps, faster charging time for USB-chargeable devices, optimized power efficiency, and backward compatibility with USB 2.0.

Intel® H310 Serial ATA 6.0Gb/s connectors (7-pin SATA6G\_1\~4)

These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables.

Speaker connector (4-pin SPEAKER)

The 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

8 System panel connector (10-1 pin F\_PANEL)

This connector supports several chassis-mounted functions.

USB 2.0 connector (10-1 pin USB78)

Connect a USB module cable to this connector, then install the module to a slot opening at the back of the system chassis. This USB connector comply with USB 2.0 specifications and support up to 480Mbps connection speed.

10 Clear RTC RAM (2-pin CLRTC)

This header allows you to clear the CMOS RTC RAM data of the system setup information such as date, time, and system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Use a metal object such as a screwdriver to short the two pins.

3. Plug the power cord and turn ON the computer.

4. Hold down the key during the boot process and enter BIOS setup to re-enter data.

If the steps above do not help, remove the onboard battery and short the two pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.

11 PCI Express 2.0 x1 slot

This motherboard has a PCI Express 2.0 x1 slot that supports PCI Express x1 network cards, SCSI cards, and other cards that comply with the PCI Express specifications.

12 PCI Express 3.0 / 2.0 x16 slot

This motherboard supports a PCI Express 3.0/2.0 x16 graphic card that complies with the PCI Express specifications.

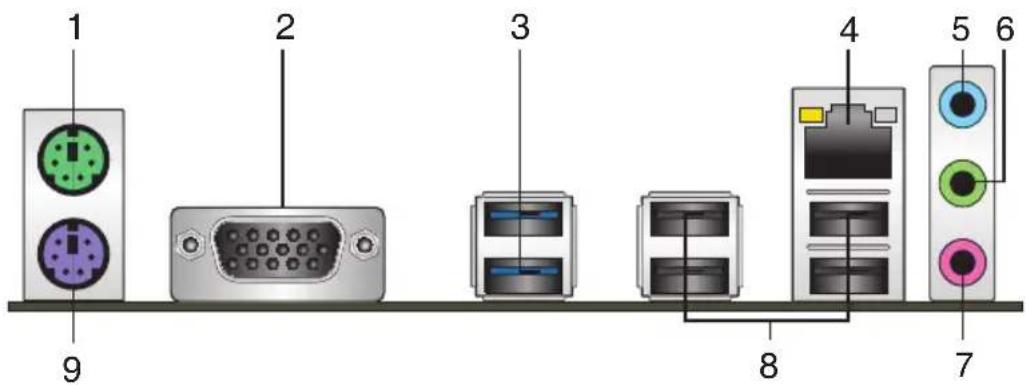

Rear panel connectors

1 2 3 4 5 6 7 8 9

1. PS/2 Mouse port (Green). This port connects to a PS/2 mouse.
2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other VGA-compatible devices.
3. USB 3.1 Gen 1 (up to 5Gb/s) ports. These two 9-pin Universal Serial Bus (USB) ports are for USB 3.1 Gen 1 devices.

• USB 3.1 Gen 1 devices can only be used for data storage.
• We strongly recommend that you connect USB 3.1 Gen 1 devices to USB 3.1 Gen 1 ports for faster and better performance from your USB 3.1 Gen 1 devices.
- Due to the design of the Intel ^ 300 series chipset, all USB devices connected to the USB 2.0 and USB 3.1 Gen 1 ports are controlled by the xHCI controller. Some legacy USB devices must update their firmware for better compatibility.

1. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub.

LAN port LED indications

Activity/Link LED Speed LED
Status Description Status Description
Off No link OFF	10Mbps connection
Orange Linked	ORANGE 100Mbps connection
Orange (Blinking)	Data activity GREEN 1Gbps connection
Orange (Blinking then steady)	Ready to wake up from S5 mode

Activity Link LED Speed LED

LAN port

1. Line In port (light blue). This port connects to the tape, CD, DVD player, or other audio sources.
2. Line Out port (lime). This port connects to a headphone or a speaker. In the 4.1, 5.1 and 7.1-channel configurations, the function of this port becomes Front Speaker Out.
3. Microphone port (pink). This port connects to a microphone.

Refer to the audio configuration table for the function of the audio ports in 2.1, 4.1, 5.1, or 7.1-channel configuration.

Audio 2.1, 4.1, 5.1 or 7.1-channel configuration

Port	Headset2.1-channel	4.1-channel 5.1-channel	7.1-channel
Light Blue (Rear panel)	Line In Rear	Speaker Out	Rear Speaker Out	Rear Speaker Out
Lime (Rear panel) Line Out	Front Speaker Out	Front Speaker Out	Front Speaker Out
Pink (Rear panel) Mic In	Mic In Bass/Center	Bass/Center
Lime (Front panel) ---				Side Speaker Out

To configure a 7.1-channel audio output:

Use a chassis with HD audio module in the front panel to support a 7.1-channel audio output.

1. USB 2.0 ports. These two 4-pin Universal Serial Bus (USB) ports are for USB 2.0 / 1.1 devices.
2. PS/2 Keyboard port (Purple). This port connects to a PS/2 keyboard.

Central Processing Unit (CPU)

This motherboard comes with a surface mount LGA1151 socket designed for the 9th / 8th Generation Intel® Core™, Pentium® Gold, and Celeron® processors.

Technical line drawing of a mechanical device with wheels and a central component (no text or symbols)

Unplug all power cables before installing the CPU.

- Ensure that you install the correct CPU designed for the LGA1151 socket only. DO NOT install a CPU designed for LGA1150, LGA1155 and LGA1156 sockets on the LGA1151 socket.

- Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components.

- Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1151 socket.

- The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

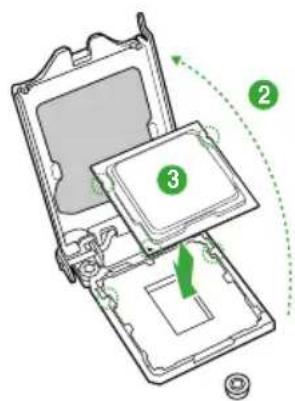

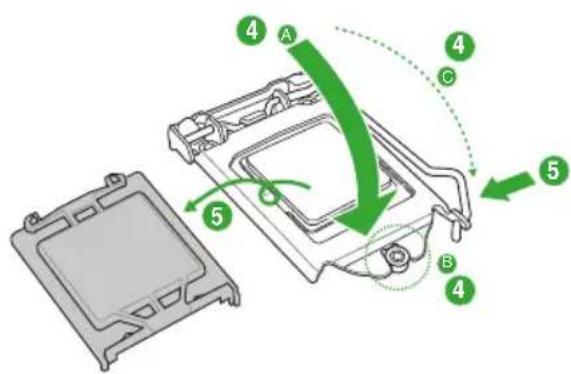

Installing the CPU

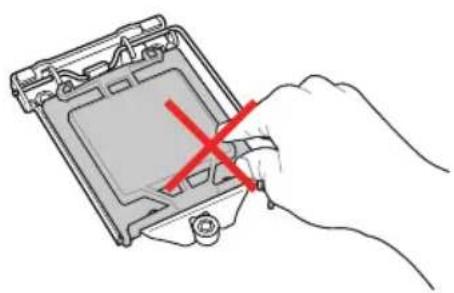

Hand holding a device with a red X mark, no visible text or symbols

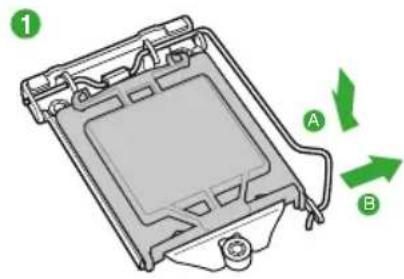

Diagram of a device with labeled components A and B, showing internal wiring and green directional arrows (no text or symbols beyond labels)

Diagram showing a device's internal components with numbered annotations and directional arrows indicating motion or assembly.

Diagram showing a device component with labeled parts A, B, C, and directional arrows indicating movement or assembly.

Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan if necessary.

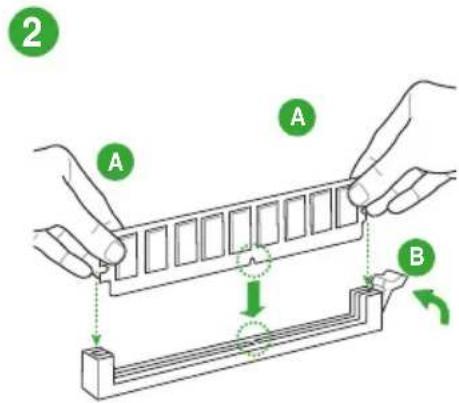

System memory

Overview

This motherboard comes with two Double Data Rate 4 (DDR4) Dual Inline Memory Module (DIMM) sockets. The figure illustrates the location of the DDR4 DIMM sockets:

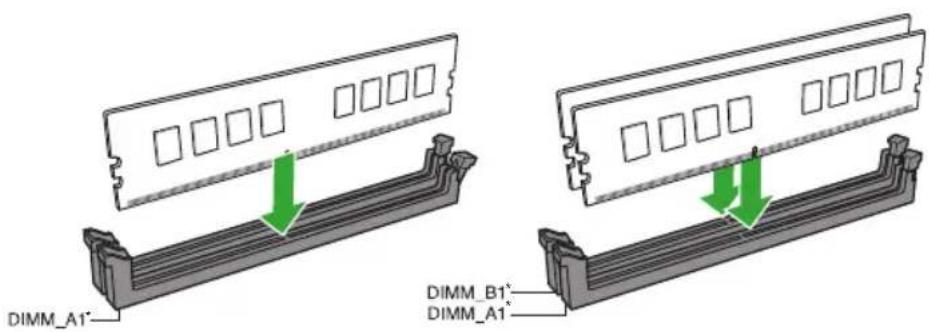

DIMM_B1* DIMM_A1*

Channel Sockets

Channel A DIMM_A1

Channel B DIMM_B1*

• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.
• Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with the retailer to get the correct memory modules.
• DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel ^® 8th Generation 6-core or higher processors.
• Memory modules with memory frequency higher than 2133 MHz and its corresponding timing or the loaded X.M.P. Profile is not the JEDEC memory standard. The stability and compatibility of these memory modules depend on the CPU's capabilities and other installed devices.

- The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value.

• Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).

Recommended memory configuration

DIMM_A1* DIMM_B1* DIMM_A1*

ASUS PRIME H310M-F R2.0

Installing a DIMM

Diagram of a mechanical component with a green arrow indicating rotation (no text or symbols)

2 A A B

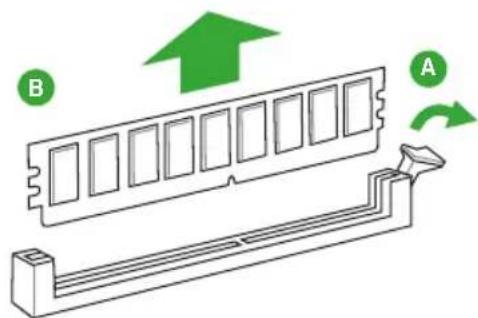

To remove a DIMM

B A

BIOS information

2

• Scan the QR code to view the BIOS update guide.
• Before using the ASUS CrashFree BIOS 3 utility, rename the BIOS file in the removable device into PH310MF2.CAP.

QR code image containing encoded data, no visible human-readable text

BIOS setup program

Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program.

Entering BIOS Setup at startup

To enter BIOS Setup at startup:

Press or during the Power-On Self Test (POST). If you do not press or , POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

Press ++ simultaneously.

Press the reset button on the system chassis.

Press the power button to turn the system off then back on. Do this option only if you failed to enter BIOS Setup using the first two options.

Using the power button, reset button, or the ++ keys to force reset from a running operating system can cause damage to your data or system. We recommend you always shut down the system properly from the operating system.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.
• Visit the ASUS website at www.asus.com to download the latest BIOS file for this motherboard.
• If the system becomes unstable after changing any BIOS setting, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey F5.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value. See section Motherboard overview for information on how to erase the RTC RAM.

BIOS menu screen

The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode. Press to change between the two modes.

EZ Mode

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ Mode provides you an overview of the basic system information, and allows you to select the display language, system performance mode, fan profile and boot device priority. To access the Advanced Mode, click Advanced Mode(F7) or press .

The default screen for entering the BIOS setup program can be changed. Go to the Setup Mode item under the Boot menu.

Displays the CPU/motherboard temperature, CPU voltage output, CPU/chassis fan speed, and SATA information

Selects the display language of the BIOS setup program to switch EZ System Tuning modes ASUS UEFI BIOS Utility - EZ Mode 09/06/2018 18:30 English Information CPU Temperature CPU Core Voltage PRIME H310M-F R2.0 BIOS Ver.0405 1.088 V Intel(R) Core(TM) IS-8600K CPU @ 3.60GHz Motherboard Temperature Speed: 3800 MHz 52°C 28°C Memory: 8192 MB (DDR4 2133MHz) DRAM Status SATA Information DIMM_A1 N/A SATA6G_1 N/A DIMM_A2 Kingston 8192MB 2133MHz SATA6G_2 N/A DIMM_B1 N/A SATA6G_3 N/A DIMM_B2 N/A SATA6G_4 N/A X.M.P. Disabled Disabled FAN Profile CPU FAN CHA FAN 2231 RPM N/A QFan Control CPU FAN % QFan Control Default(F5) Save & Exit(F10) Displays the CPU Fan's speed. Click the button to manually tune the fans Loads optimized default settings Shows the bootable devices Shows the bootable devices Search on FAQs GOES to Advanced mode Search on FAQs Selects the boot device priority

The boot device options vary depending on the devices you installed to the system.

Advanced Mode

The Advanced Mode provides advanced options for experienced end-users to configure the BIOS settings. The figure below shows an example of the Advanced Mode. Refer to the following sections for the detailed configurations.

To access the EZ Mode, click EzMode(F7) or press .

Menu bar Language MyFavorite Q-Fan control Hot Keys 09/26/2018 18:31 English MyFavorite(F3) Q-Fan Control(F6) Hot Keys ASUS UEFI BIOS Utility - Advanced Mode Wednesday 18:31 My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit Target DRAM Frequency: 2133MHz Target Cache Frequency: 3700MHz Target CPU Graphics Frequency: 1100MHz CPU Core Ratio DRAM Odd Ratio Mode DRAM Frequency Power-saving & Performance Mode CPU SVID Support Auto Enabled Auto Auto Auto DRAM Timing Control DIGI+ VRM Internal CPU Power Management CPU Core/Cache Current Limit Max. Disable this item to prevent the CPU from communicating with the external voltage regulator. A setting of Disabled is recommended for overclocking. Sub-menu items Menu items General help Configuration fields Pop-up window Scroll bar Returns to EZ Mode Last modified settings Search on FAQs Displays hardware monitoring data

Search on FAQ

Move your mouse over this button to show a QR code. Scan this QR code with your mobile device to connect to the ASUS BIOS FAQ web page. You can also scan the QR code below.

QR code image containing encoded data, no visible human-readable text

Exit menu

The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items.

ASUS UEFI BIOS Utility - Advanced Mode 09/26/2018 18:31 English MyFavorite(F3) QFan Control(F6) Hot Keys Wednesday My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit ► Load Optimized Defaults ► Save Changes & Reset ► Discard Changes & Exit ► Launch EFI Shell from USB drives Hardware Monitor CPU Frequency Temperature 3600 MHz 62°C BCLK Core Voltage 100.0000 MHz 1.088 V Ratio

Load Optimized Defaults

This option allows you to load the default values for each of the parameters on the Setup menus. When you select this option or if you press , a confirmation window appears. Select OK to load the default values.

Save Changes & Reset

Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved. When you select this option or if you press , a confirmation window appears. Select OK to save changes and exit.

Discard Changes & Exit

This option allows you to exit the Setup program without saving your changes. When you select this option or if you press , a confirmation window appears. Select OK to discard changes and exit.

Launch EFI Shell from USB drives

This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of the available USB devices.

Appendix

Notices

FCC Compliance Information

Responsible Party: Asus Computer International

Address: 48720 Kato Rd., Fremont, CA 94538, USA

Phone / Fax No: [phone] / [phone]

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-3(B)/NMB-3(B)

KC: Korea Warning Statement

B급 기기 (가정용 방송통신기자재)

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Regional notice for California

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Google™ License Terms

Copyright© 2018 Google Inc. All Rights Reserved.

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

English ASUSTeK Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related Directives. Full text of EU declaration of conformity is available at: www.asus.com/support

Address 4F, No. 150, Li-Te Road, Peitou, Taipei 112, Taiwan

Telephone [phone]

Fax [phone]

Web site www.asus.com

Technical Support

Telephone [phone]

Fax [phone], ext. 9101#

Online support http://qr.asus.com/techserv

ASUS COMPUTER INTERNATIONAL (America)

Address 48720 Kato Rd., Fremont, CA 94538, USA

Telephone [phone]

Fax [phone]

Web site http://www.asus.com/us/

Technical Support

Support fax [phone]

Telephone [phone]

Online support http://qr.asus.com/techserv

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, 40880 Ratingen, Germany

Fax [phone]

Web site http://www.asus.com/de

Online contact http://eu-rma.asus.com/sales

Technical Support

Telephone [phone]

Support Fax [phone]

Online support http://qr.asus.com/techserv

A-5

ASUS PRIME H310M-F R2.0
