Contents

Safety information iv

About this guide iv

Package contents ...... vi

H110T specifications summary...... vi

Chapter 1 Product introduction

Motherboard overview 1-1

Central Processing Unit (CPU)....1-8

System memory 1-9

Chapter 2 BIOS information

BIOS setup program....2-1

EZ Mode....2-2

Advanced Mode 2-3

Exit menu....2-4

Appendices

Notices....A-1

ASUS contact information....A-5

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing the motherboard and adding components, carefully read all the manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

This user guide contains the information you need when installing and configuring the motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports. It includes descriptions of the switches, jumpers, and connectors on the motherboard.

• Chapter 2: BIOS information

This chapter discusses changing system settings through the BIOS Setup menus. Detailed descriptions for the BIOS parameters are also provided.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when completing a task.

CAUTION: Information to prevent damage to the components when completing a task

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign means that you must press the enclosed key. Example: <Enter> means that you must press the Enter or Return key.

+ + If you must press two or more keys simultaneously, the key names are linked with a plus sign (+).

Package contents

Check your motherboard package for the following items.

Motherboard	ASUS H110T motherboard
Cables	2 x Serial ATA 6.0 Gb/s cables1 x SATA power cable
Accessories	2 x I/O Shields (1 x mini-ITX, 1 x thin mini-ITX)2 x M.2 screw packages
Application DVD 1 x Support DVD
Documentation User Guide

If any of the above items is damaged or missing, contact your retailer.

H110T specifications summary

Specifications
CPU	LGA1151 socket for 6th Generation Intel® CoreTM i7 / i5 / i3, Pentium®, and Celeron® processorsSupports Intel® 14nm CPU*Supports Intel® Turbo Boost Technology 2.0*** Supports up to 65W CPU for Intel® standard thin mini-ITX heatsink. Supports up to 95W CPU for Intel® standard LGA1151 heatsink.** The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.*** Refer to www.asus.com for Intel®CPU support list.
Chipset Intel	® H110T Chipset
Memory	2 x SO-DIMM maximum 32 GB*, DDR4 2133 MHz, non-ECC, un-buffered memoryDual-channel memory architecture* Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors List).
Expansion slots	1 x M.2 E key type 2230 for WIFI device
Graphics	Integrated graphics processorMulti-VGA output support: DP, HDMI, LVDS-Supports HDMI with maximum resolution of 4096 x 2160 @ 24Hz / 2560 x 1600 @ 60Hz-Supports LVDS with maximum resolution of 1920 x 1200 @ 60Hz-Supports DisplayPort with maximum resolution of 4096 x 2304 @ 60HzMaximum shared memory of 1024 MB
Storage	Intel® H110T Express Chipset- 2 x SATA 6.0 Gb/s connectors- 1 x M.2 Socket 3, with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)
LAN	Realtek® 8111H,Gigabit LAN ControllerIntel® I219V Gigabit LAN Controller
Audio	Realtek® ALC887-VD 4+4-channel High Definition Audio CODEC-Supports jack-detection, Multi-streaming, Front Panel Retasking

(continued on the next page)

H110T specifications summary

Specifications
USB	- 4 x USB 3.0 / 2.0 ports (4 ports at the rear panel)- 5 x USB 2.0 / 1.1 ports (5 ports at mid-board)
ASUS unique features	Proven QualityASUS 5X PROTECTION II- ASUS LANGuard - Protects against LAN surges, lightning strikes and static-electricity discharges- ASUS Overvoltage Protection - World-class circuit-protection power design- ASUS DIGI+ VRM - Digital power design- ASUS DRAM Overcurrent Protection - Enhanced DRAM overcurrent protection- ASUS Stainless Steel Back I/O - 3X corrosion-resistance for greater durabilitySuperb PerformanceM.2 onboard- The latest transfer technologies with up to 20Gb/s data transfer speedASUS Fan Xpert- Ultimate cooling and quietnessUEFI BIOS- Most advanced options with fast response timeOne Stop ControlAl Suite 3Push Notice- Monitor your PC status with smart devices in real timeMobo ConnectMedia Streamer- Pipe music or movies from your PC to a smart TV- Media Streamer app for portable smartphone/tablet, supporting iOS7 and Android 4.0 system100% All High-quality Conductive Polymer Capacitors
Rear panel I/O ports	1 x DC power connector*1 x HDMI port1 x DP port4 x USB 3.0/2.0 ports2 x Gigabit LAN (RJ-45) ports2 x Audio jacks* Supports both 19V and 12V DC input.
Internal connectors	2 x USB 2.0/1.1 2-port connectors support additional 4 USB 2.0/1.1 ports1 x USB 2.0/1.1 1-port connector supports additional 1 USB 2.0/1.1 port1 x LVDS connector2 x SATA 6.0Gb/s connectors1 x M.2 Socket 3, with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)1 x M.2 E key type 2230

(continued on the next page)

H110T specifications summary

Specifications
Internal connectors	1 x CPU Fan connector1 x Chassis Fan connector1 x Front panel audio connector (AAFP)1 x System Panel connector1 x Clear CMOS jumper1 x COM header1 x TPM header1 x Chassis intrusion connector1 x SATA power connector1 x Speaker connectorConnectors for AIO System1 x 2-pin internal DC power connector1 x Stereo speaker connector1 x DMIC headerConnectors for Flat Panel Display1 x Display panel backlight power selector1 x Flat panel display brightness connector1 x Display panel VCC power selector1 x LCD panel monitor switch header
BIOS features	128 Mb Flash ROM, AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F12 PrintScreen, F6 Qfan Control
Manageability	WfM 2.0, DMI 3.0, WOL by PME
Support DVD	DriversASUS utilitiesEZ UpdateAnti-virus software (OEM version)
OS support	Windows® 10 *Windows® 8.1*Windows® 7* 64-bit supported only
Form factor	Thin Mini-ITX Form Factor, 6.7 in x 6.7 in (17.0 cm x 17.0 cm)

Specifications are subject to change without notice.

Product introduction

Motherboard overview

1

• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.
• Unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage to motherboard components.

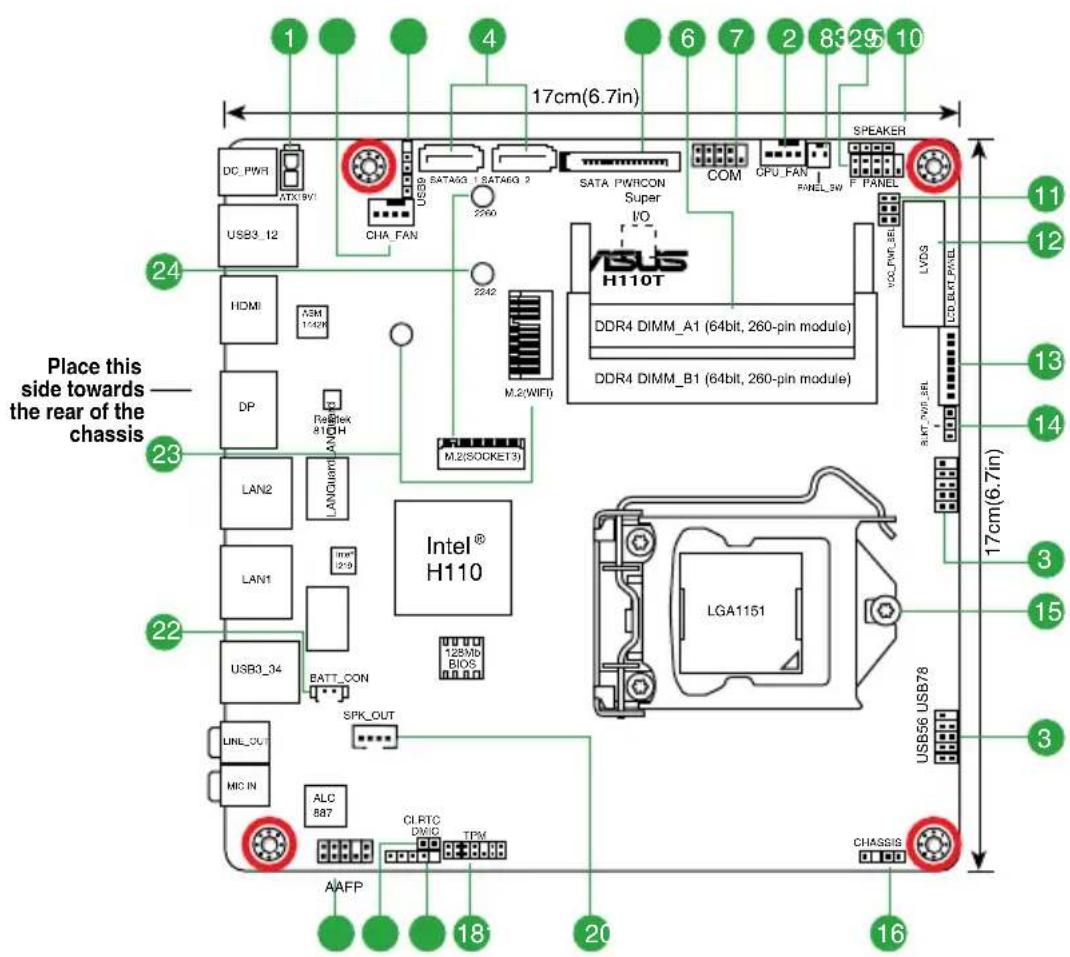

17cm(6.7in) DC_PWR ATX/SV1 USB3_12 CHA FAN USB9 SATA6G 1 SATA6G 2 SATA PWRCON Super I/O COM CPU_FAN PANEL_SW F PANEL SPEAKER H110T DDR4 DIMM_A1 (64bit, 260-pin module) DDR4 DIMM_B1 (64bit, 260-pin module) VOC_PWRCON M.2(WIFI) M.2(SOCKET3) LAN2 LANDBM LAN1 USB3_34 BATT_CON SPK_OUT LINL_OUT MIC_IN ALC 887 CI_RTC D&C TPM AAFP 18 20 16 Place this side towards the rear of the chassis 17cm(6.7in) 11 12 13 14 3 15 3 Chassis Intel® H110 LGA1151 USB56 USB78

Scan the QR code to get the detailed pin definitions.

QR code image containing encoded data, no visible human-readable text

1 Internal DC power connector (2-pin ATX19V/12V)

This connector is for an ATX power supply. The plug from the power supply is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fits.

This connector supports 12V and 19V by models. Refer to the specification sheet of the model for details.

2 CPU and chassis fan connectors (4-pin CPU\_FAN, 4-pin CHA\_FAN)

Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! The CPU_FAN connector supports a CPU fan of maximum 1A (12 W) fan power.

3 USB 2.0 connectors

Connect the USB module cable to these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specifications and support up to 480Mbps connection speed.

4 Serial ATA 6.0Gb/s connectors (SATA6G\_1/2)

These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables.

5 SATA power connector (15-pin SATA\_PWRCON)

This connector is for the SATA power cable. The power cable plug is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fit. To provide power to your SATA device, connect the SATA power cable to this connector

6 DDR4 DIMM slots

Install 2 GB, 4 GB, 8 GB, and 16 GB non-ECC un-buffered DDR4 DIMMs into these DIMM sockets.

7 Serial port connector (10-1 pin COM)

Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis.

8 LCD panel monitor switch header (2-pin PANEL\_SW)

This 2-pin header is for connecting a monitor switch that can turn off the LCD panel display backlight.

9 System panel connector (10-1 pin PANEL)

This connector supports several chassis-mounted functions.

10 Speaker connector (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

11 Display panel VCC power selector (VCC\_PWR\_SEL)

VCC_PWR_SEL

Pins Setting
1 (Default) 3V
2	5V
3 12V

LVDS connector

This connector is for an LCD monitor that supports Low-voltage Differential Signaling (LVDS) interface.

Flat panel display brightness connector (8-pin LCD\_BLKT\_PANEL)

This connector is for the LCD panel backlight and brightness controls. It enables the LCD panel backlight, provides backlight control signals, and provides brightness control signals for the brightness button on the front panel.

Display panel backlight power selector (3-pin BLKT\_PWR\_SEL)

Pins Setting
1-2 (Default) 12V
2-3 19V

Intel® LGA1151 CPU socket

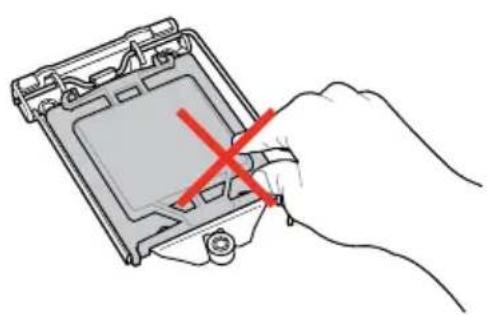

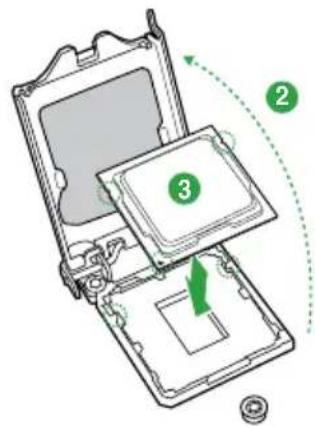

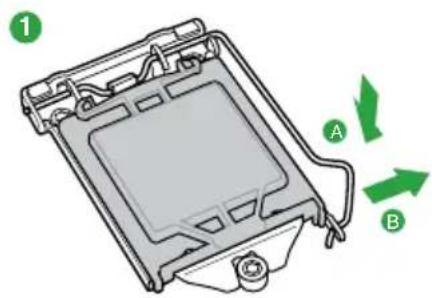

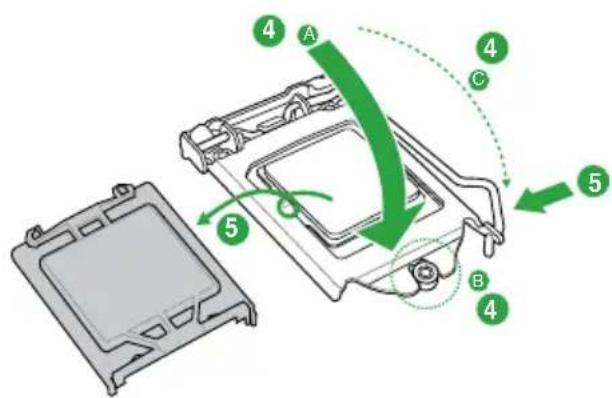

Install Intel ^® LGA1151 CPU into this surface mount LGA1151 socket, which is designed for 6th Generation Intel ^® Core ^TM i7 / i5 / i3, Pentium ^® , and Celeron ^® processors

For more details, refer to Central Processing Unit (CPU).

16 Chassis intrusion header (4-1 pin CHASSIS)

This header is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this header. The chassis intrusion sensor or switch sends a high-level signal to this header when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event.

By default, the pin labeled "Chassis Signal" and "Ground" are shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion detection feature.

17

Internal stereo speaker header (4-pin SPK\_OUT)

The internal mono speaker header allows connection to an internal, low-power speaker for basic system sound capability. The subsystem is capable of driving a speaker load of 4 Ohms at 3 Watts (rms).

18

TPM connector (14-1 pin TPM)

This connector supports a Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

19

DMIC connector (5-1-pin DMIC)

The DMIC connector is for connecting the digital microphone module used in All-in-One chassis.

20

Clear RTC RAM (2-pin CLRTC)

This header allows you to clear the CMOS RTC RAM data of the system setup information such as date, time, and system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.
2. Use a metal object such as a screwdriver to short the two pins.
3. Plug the power cord and turn ON the computer.
4. Hold down the key during the boot process and enter BIOS setup to re-enter data.

CLRTC +3V_BAT GND PIN 1

If the steps above do not help, remove the onboard battery and short the two pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.

21

Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports HD Audio. Connect one end of the front panel audio I/O module cable to this connector.

We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high-definition audio capability

22

RTC Battery header (2-pin BATT\_CON)

This connector is for the lithium CMOS battery.

M.2 WIFI

This socket connects to an M.2 WI-FI device. Use the bundled screw 3020-01810100 to secure your M.2 device.

M.2 socket 3

This socket allows you to install an M.2 (NGFF) SSD module. Use the bundled screw 13020-0181000 to secure your M.2 device.

This socket supports M Key and 2242/2260 storage devices.

IRQ assignments for this motherboard

A B C D E F G H
HD Audio Controller shared - - - - - - -
XHCI shared - - - - - - -
SATA Controller shared - - - - - - -
Realtek LAN Controller - shared - - - - - -
Intel Lan shared - - - - - -
M.2 shared - - - - - -
IGD shared - - - - - -
WLAN shared - - - - - -

When using PCI cards on shared slots, ensure that the drivers support "Share IRQ" or that the cards do not need IRQ assignments. Otherwise, conflicts will arise between the two PCI groups, making the system unstable and the card inoperable.

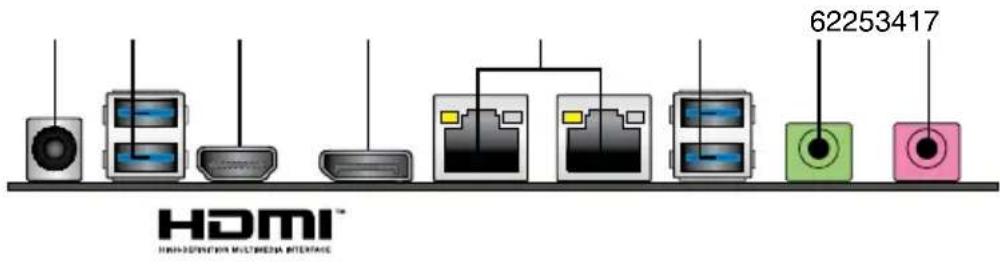

Rear panel connectors

62253417 HDMI™ HIND-DENERATION MULTIMEDIA INTERFACE

1. DC power connector. Insert the power adapter into this port.

- It can support both 19V and 12V DC input.

- The power adapter is purchased separately.

- Use the appropriate DC power adapter for the following scenarios:

- Use a 90W adapter when a 35W CPU is installed on the system.

- Use a 120W adapter when using your system with an LVDS panel.

- Use a high-rated adapter (above 90W) when a high-rated CPU (45W or higher CPU) is installed on the system.

1. USB 3.0 ports. These 9-pin Universal Serial Bus (USB) ports are for USB 3.0 / 2.0 devices.

- USB 3.0 devices can only be used for data storage.

- We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and better performance from your USB 3.0 devices.

- Due to the design of the Intel ^® 100 series chipset, all USB devices connected to the USB 2.0 and USB 3.0 ports are controlled by the xHCI controller. Some legacy USB devices must update their firmware for better compatibility.

1. HDMI port. This port is for a High-Definition Multimedia Interface (HDMI) connector, and is HDCP compliant allowing playback of HD DVD, Blu-Ray, and other protected content.

2. DisplayPort. This port is for DisplayPort-compatible devices.

3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub.

Activity Link LED Speed LED LAN port

LAN port LED indications

Activity/Link LED Speed LED
Status Description Status Description
Off No link OFF 10Mbps connection
Orange Linked ORANGE 100Mbps connection
Orange (Blinking) Data activity GREEN 1Gbps connection
Orange (Blinking then steady)	Ready to wake up from S5 mode	-	-

1. Line Out port (lime). This port connects to a headphone or a speaker.
2. Microphone port (pink). This port connects to a microphone.

Audio 2.1, 4.1, 5.1, or 7.1-channel configuration

Port	Headset2.1-channel	4.1-channel 5.1-channel	7.1-channel
Line Ourt (Rear panel) Front Speaker Out Front		Speaker Out Front Speaker Out Front Speaker Out
MIC(Rear panel)	MIC	Rear Speaker Out	Rear Speaker Out	Rear Speaker Out
Headphone (Front panel)	Headphone	Headphone	Center/SubwooferSpeaker Out	Center/SubwooferSpeaker Out
MIC (Front panel) MIC MIC MIC	Side	Speaker Out

Central Processing Unit (CPU)

This motherboard comes with a surface mount LGA1151 socket designed for 6th Generation Intel® Core™ i7 / i5 / i3, Pentium®, and Celeron® processors

Diagram of a mechanical device with a front-mounted frame and internal components (no text or symbols)

Unplug all power cables before installing the CPU.

- Ensure that you install the correct CPU designed for the LGA1151 socket only. DO NOT install a CPU designed for LGA1150, LGA1155 and LGA1156 sockets on the LGA1151 socket.

- Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components.

- Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1151 socket.

- The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

Installing the CPU

Hand holding a device with a red X mark, no visible text or symbols

Diagram of a device casing with labeled components A and B, showing internal structure and green directional arrows (no text or symbols beyond labels)

Diagram of a device's internal components with numbered parts and directional arrows indicating movement or assembly.

Diagram showing a device component with labeled parts and green arrows indicating motion or assembly steps

Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan if necessary.

System memory

Overview

This motherboard comes with two Double Data Rate 4 (DDR4) Small Outline Dual Inline Memory Module (SO-DIMM) sockets. The figure illustrates the location of the DDR4 DIMM sockets:

DIMM_B1 DIMM_A1

Pure diagram of two parallel horizontal bars with vertical connectors at both ends (no text or symbols)

Channel

Sockets

Channel A DIMM_A1

Channel B DIMM_B1

• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.
• Always install the DIMMS with the same CAS Latency. For an optimum compatibility, we recommend that you install memory modules of the same version or data code (D/C) from the same vendor. Check with the vendor to get the correct memory modules.
• Always install a DIMM into the DIMM_A1 slot for the motherboard to work properly.
  • This motherboard supports 1.2V DDR4 DIMMs.
• Due to the memory address limitation on 32-bit Windows ^ OS, when you install 4GB or more memory on the motherboard, the actual usable memory for the OS can be about 3GB or less. For effective use of memory, we recommend that you do any of the following:

- Use a maximum of 3 GB system memory if you are using a 32-bit Windows ^ OS.

- Install a 64-bit Windows motherboard.

® OS if you want to install 4GB or more on the

- For more details, refer to the Microsoft com/kb/929605/en-us.

® support site at http://support.microsoft.

Visit the ASUS website at www.asus.com for the latest QVL.

Installing a DIMM

To install a DIMM

② ① 30°

To remove a DIMM

Diagram of a device with numbered components and directional arrows indicating flow or movement

BIOS information

• Scan the QR code to view the BIOS update guide.
• Before using the ASUS CrashFree BIOS 3 utility, rename the BIOS file in the removable device into H110T.CAP.

QR code image containing encoded data, no visible human-readable text

BIOS setup program

Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program.

Entering BIOS Setup at startup

To enter BIOS Setup at startup:

Press or during the Power-On Self Test (POST). If you do not press or , POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

• Press ++ simultaneously.
• Press the reset button on the system chassis.
• Press the power button to turn the system off then back on. Do this option only if you failed to enter BIOS Setup using the first two options.

Using the power button, reset button, or the ++ keys to force reset from a running operating system can cause damage to your data or system. We recommend you always shut down the system properly from the operating system.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.
• Visit the ASUS website at www.asus.com to download the latest BIOS file for this motherboard.
• If the system becomes unstable after changing any BIOS setting, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey F5.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value. See section Motherboard overview for information on how to erase the RTC RAM.

BIOS menu screen

The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode. Press to change between the two modes.

EZ Mode

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ Mode provides you an overview of the basic system information, and allows you to select the display language, system performance mode, fan profile and boot device priority. To access the Advanced Mode, click Advanced Mode(F7) or press .

The default screen for entering the BIOS setup program can be changed. Refer to the Setup Mode item in Boot menu for details.

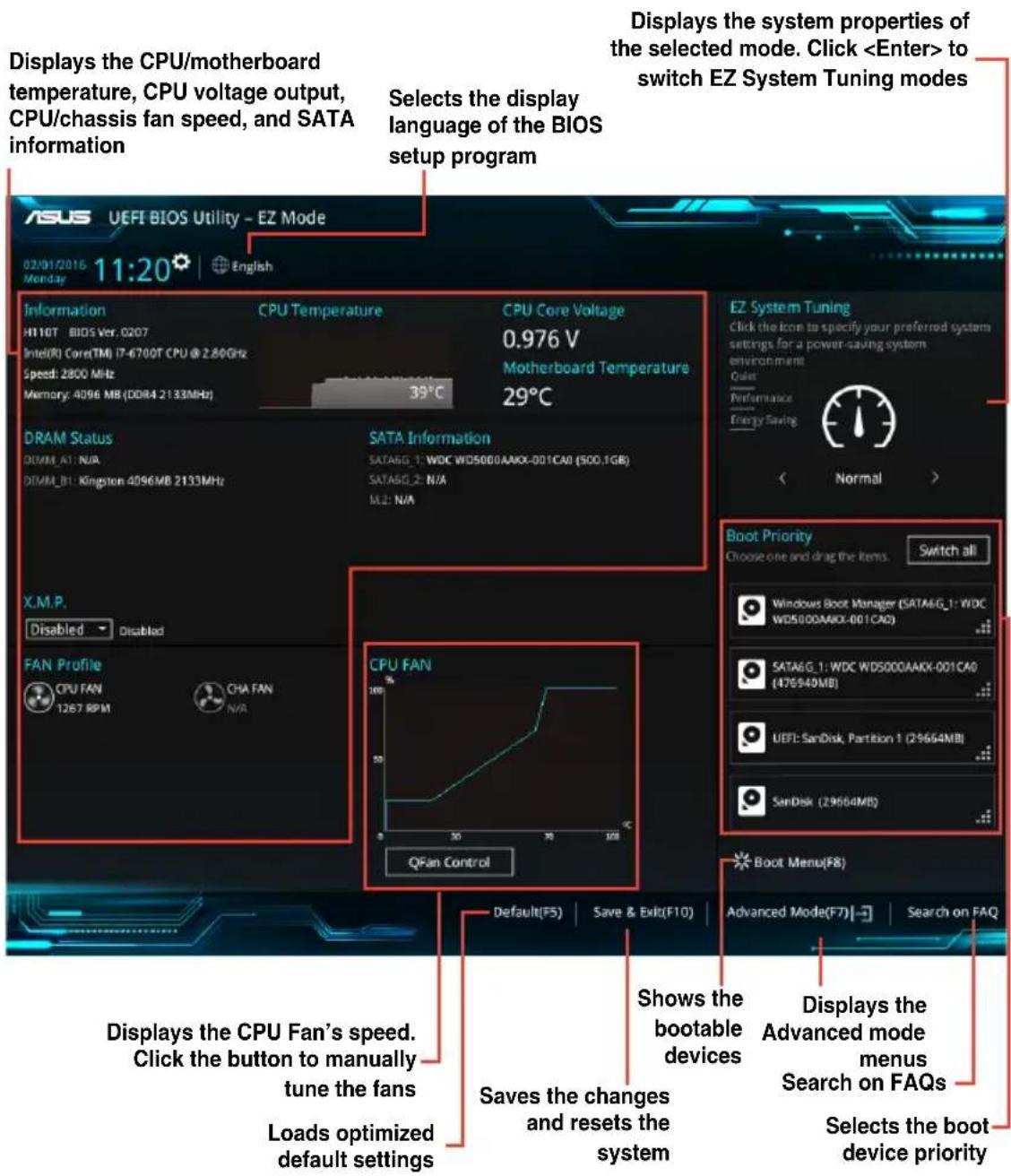

Displays the CPU/motherboard temperature, CPU voltage output, CPU/chassis fan speed, and SATA information Selects the display language of the BIOS setup program Displays the system properties of the selected mode. Click to switch EZ System Tuning modes ASUS UEFI BIOS Utility - EZ Mode 02/01/2016 11:20 English Information CPU Temperature CPU Core Voltage H110T BIOS Ver. 0207 0.976 V Intel(R) Core(TM) i7-6700T CPU @ 2.80GHz Motherboard Temperature Speed: 2800 MHz Motherboard Temperature 29°C Memory: 4096 MB (DDR4 2133MHz) DRAM Status SATA Information DIMM_A1: N/A SATAGG_1: WDC WD5000AAKX-001CA0 (500.1GB) DIMM_B1: Kingston 4096MB 2133MHz SATAGG_2: N/A X.M.P. M2: N/A Disabled Disabled FAN Profile CPU FAN CHA FAN 1267 RPM N/A QFan Control CPU FAN Default(F5) Save & Exit(F10) Switch all Windows Boot Manager (SATA6G_1: WDC WD5000AAKX-001CA0) SATAGG_1: WDC WD5000AAKX-001CA0 (476640MB) UEFI: SanDisk Partition 1 (29664MB) SanDisk (29664MB) Boot Menu(F8) Advanced Mode(F7) Search on FAQ Displays the CPU Fan's speed. Shows the bootable devices Displays the Advanced mode menus Search on FAQs Displays the button to manually tune the fans Loads optimized default settings Saves the changes and resets the system Selects the boot device priority

The boot device options vary depending on the devices you installed to the system.

Advanced Mode

The Advanced Mode provides advanced options for experienced end-users to configure the BIOS settings. The figure below shows an example of the Advanced Mode. Refer to the following sections for the detailed configurations.

To access the EZ Mode, click EzMode(F7) or press .

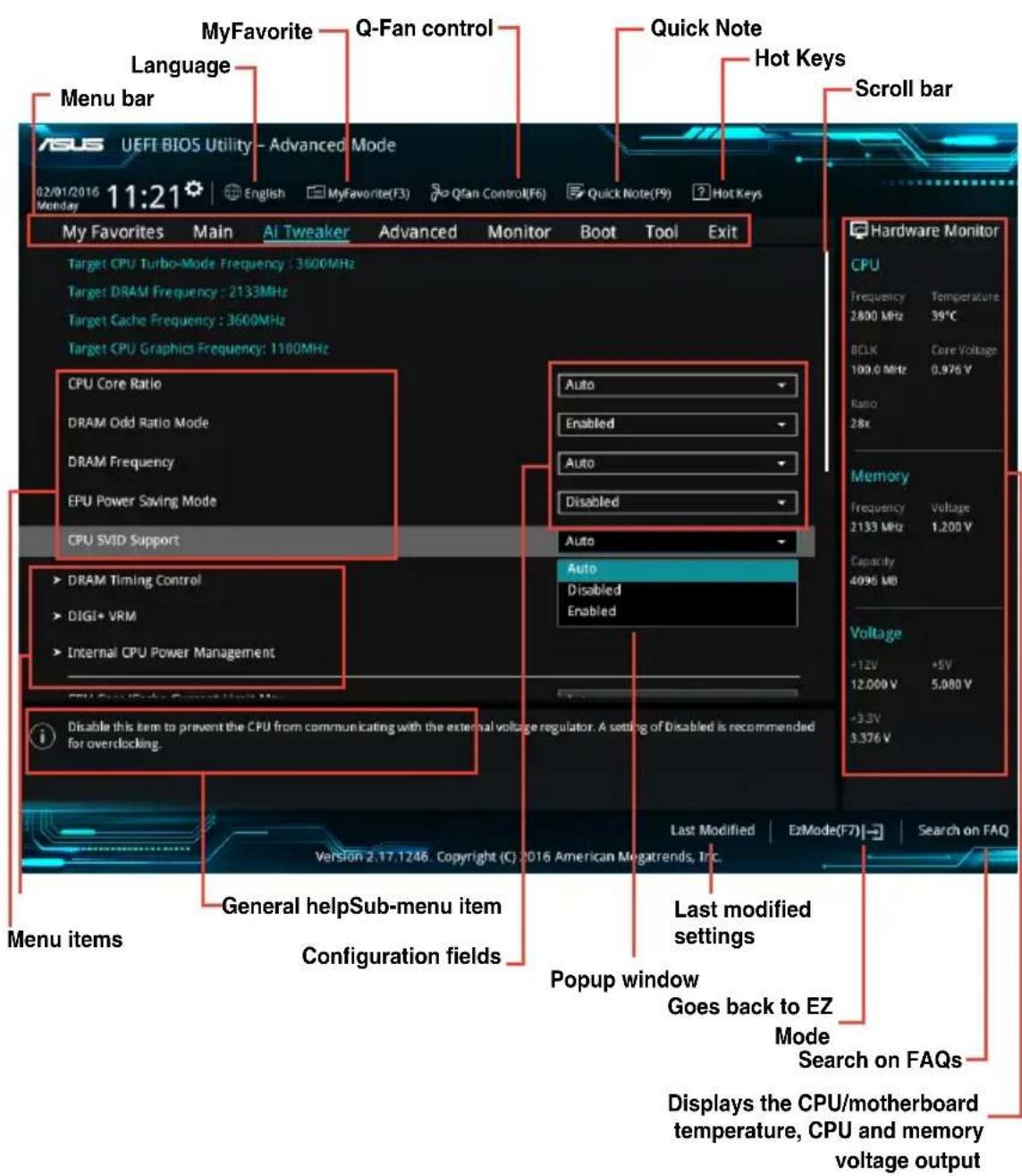

MyFavorite Q-Fan control Language Menu bar ASUS UEFI BIOS Utility - Advanced Mode 02/01/2016 Monday 11:21 English MyFavorite(F3) QFan Control(F6) Quick Note(P9) Hot Keys Scroll bar My Favorites Main AI Tweaker Advanced Monitor Boot Tool Exit Target CPU Turbo-Mode Frequency : 3600MHz Target DRAM Frequency : 2133MHz Target Cache Frequency : 3600MHz Target CPU Graphics Frequency: 1100MHz CPU Core Ratio DRAM Odd Ratio Mode DRAM Frequency EPU Power Saving Mode CPU SVID Support Auto Enabled Auto Disabled Auto Auto Disabled Enabled Hardware Monitor CPU Frequency Temperature 2800 MHz 39°C BCLK Core Voltage 100.0 MHz 0.976 V Ratio 28x Memory Frequency Voltage 2133 MHz 1.200 V Capacity 4096 MB Voltage +12V +5V 12.000 V 5.080 V +3.3V 3.376 V Disable this item to prevent the CPU from communicating with the external voltage regulator. A setting of Disabled is recommended for overclocking. Last modified settings Pop-up window Goes back to EZ Mode Search on FAQs General helpSub-menu item Configuration fields Display the CPU/motherboard temperature, CPU and memory voltage output

Search on FAQ

Move your mouse over this button to show a QR code. Scan this QR code with your mobile device to connect to the ASUS BIOS FAQ web page. You can also scan the QR code below.

QR code image containing encoded data, no visible human-readable text

Exit menu

The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items.

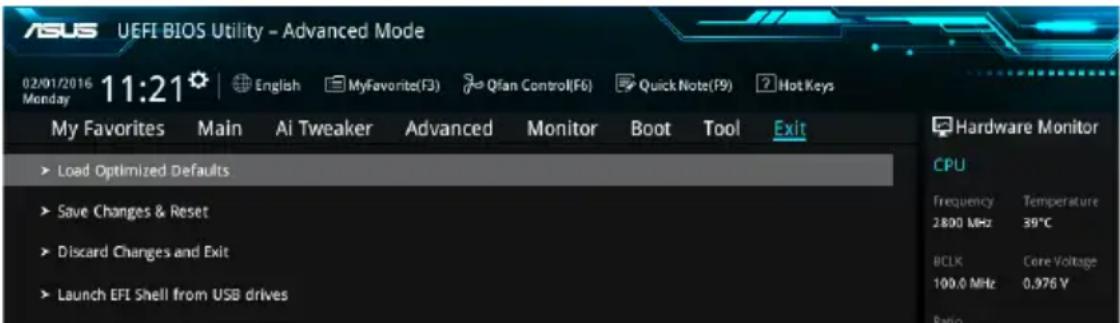

ASUS UEFI BIOS Utility - Advanced Mode 02/01/2016 11:21 English MyFavorite(F3) Qfan Control(F6) Quick Note(F9) Hot Keys My Favorites Main Ai Tweaker Advanced Monitor Boot Tool Exit ► Load Optimized Defaults ► Save Changes & Reset ► Discard Changes and Exit ► Launch EFI Shell from USB drives Hardware Monitor CPU Frequency Temperature 2800 MHz 39°C BCLK Core Voltage 100.0 MHz 0.976 V Ratio

Restore Defaults

This option allows you restore or load the default values for all the setup options. When you select this option and press , a confirmation window appears. Select Yes to apply the default values or press to exit.

Save Changes & Reset

Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved. When you select this option or if you press , a confirmation window appears. Select OK to save changes and exit.

Discard Changes and Exit

This option allows you to exit the Setup program without saving your changes. When you select this option or if you press , a confirmation window appears. Select OK to discard changes and exit.

Launch EFI Shell from USB drives

This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of the available USB devices.

Appendices

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

IC: Canadian Compliance Statement

Complies with the Canadian ICES-003 Class B specifications. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations.

This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

VCCI: Japan Compliance Statement

Class B ITE

This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

KC: Korea Warning Statement

B급 기기 (가정용 방송통신기자재)

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Google™ License Terms

Copyright© 2016 Google Inc. All Rights Reserved.

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at:

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

English AsusTek Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of CE Directives. Please see the CE Declaration of Conformity for more details.

Address 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN

Telephone [phone]

Fax [phone]

E-mail [e-mail]

Web site www.asus.com/

Technical Support

Telephone [phone]

Fax [phone], ext. 9101#

Online support http://www.asus.com/tw/support/

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA

Telephone [phone]

Fax [phone]

Web site http://www.asus.com/us/

Technical Support

Support fax [phone]

Telephone [phone]

Online support http://www.service.asus.com/

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, D-40880 Ratingen, Germany

Fax [phone]

Web site http://www.asus.com/de

Online contact http://eu-rma.asus.com/sales

Technical Support

Telephone [phone]

Support Fax [phone]

Online support http://www.asus.com/de/support/

DECLARATION OF CONFORMITY Per FCC Part 2 Section 2. 1077(a) FC

Responsible Party Name: Asus Computer International Address: 800 Corporate Way, Fremont, CA 94539. Phone/Fax No: [phone]/[phone] hereby declares that the product Product Name : Motherboard Model Number : H110T Conforms to the following specifications: □ FCC Part 15, Subpart B. Unintentional Radiators Supplementary Information: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Representative Person's Name : Steve Chang / President Steve Chang Signature : Date : Mar. 15, 2016 Ver. 140331

Manufacturer:	ASUSTek COMPUTER INC.
Address:	4F, No. 150, LTE RUI, PEITCU, TAPEI 112, TAIWAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	HARKORT STR. 21-23, 40880 RATNCEN
Country:	GERMANY
