22/207FDVD - TV Alba - Free user manual and instructions

Product Type	LED TV with built-in DVD player and Freeview HD
Screen Size	55 cm (21.5 inches) diagonal
Screen Resolution	1920 x 1080 (Full HD)
Weight (Net)	Approx. 3.5 kg
Dimensions with Stand (W x H x D)	510 x 359 x 140 mm
Power Consumption (On mode)	20.0 W
Standby Power Consumption	< 0.50 W
Annual Energy Consumption	30 kWh
Voltage	110-240 V, 50/60 Hz
VESA Wall Mount	100 x 100 mm
Tuners	Digital Freeview HD, Analog
HDMI Inputs	2 x HDMI (1 with ARC)
SCART Input	1 x SCART
USB Input	1 x USB (for media playback)
Component/Composite Input	1 x Component (YPbPr), 1 x Composite (Video + L/R audio)
Audio Outputs	1 x 3.5mm headphone jack, 1 x Coaxial digital audio
Speaker Power (RMS)	2 x 5 W
DVD Playback	Built-in DVD player, Region 2, supports DVD, CD
USB Media Support	Photo (JPEG, BMP, PNG), Music (MP3, WMA, AAC), Video (MPEG, AVI, MKV, etc.)
Special Features	Freeview HD, 7-day TV Guide, Parental Control, Sleep Timer, TruSurround HD sound
Included Accessories	Remote control, AAA batteries, RF cable, stand parts, quick start guide, user manual

Frequently Asked Questions - 22/207FDVD Alba

How can I get louder sound with external speakers?

Why are some menu options greyed out?

How do I prevent the TV from automatically turning off after 4 hours?

I am not receiving all Freeview channels or the picture breaks up. What should I do?

The TV does not save channels after retuning. How can I fix this?

I have connected my PlayStation/Xbox via HDMI but no picture or sound.

I have forgotten the parental lock password. What is the master code?

My USB memory stick is not recognised by the TV.

I inserted a DVD but it won't play. What could be wrong?

How do I eject a stuck DVD?

USER MANUAL 22/207FDVD Alba

LED TV with Freeview & USB Media Player

User Guide

Line drawing of a flat-screen computer monitor with no text or symbols on the screen

Model No

22/207F

22/207FDVD

24/207

24/207DVDB

24/207DVDW

24/207DVDP

24/207DVDS

Contents

1 Safety information

Safety information 8-11

2 Getting to know your TV

Accessories 14

Stand installation 15

Detaching the stand 16

Securing the TV with anti-tip straps 16

Wall mounting 17

TV buttons 18

Remote control 19

3 Connections

TV buttons and input source 22

TV connections 23-24

4 Standard features

How to navigate the menus 28

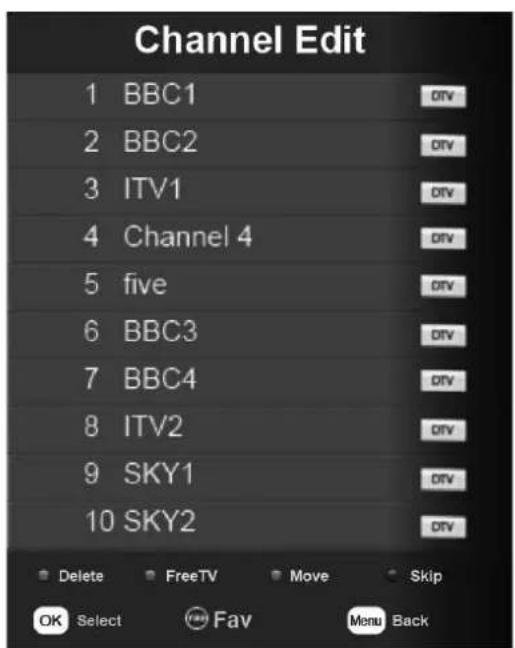

Channel menu 29

Picture menu 30

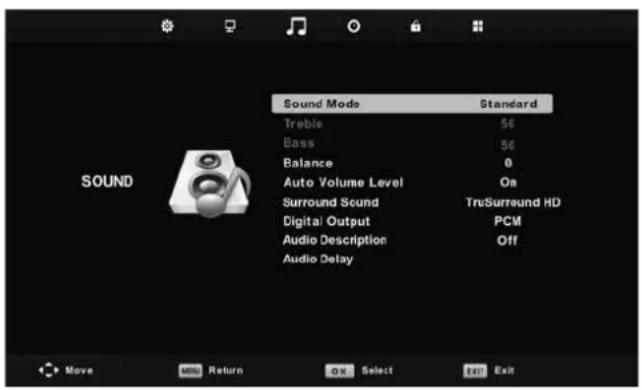

Sound menu 31

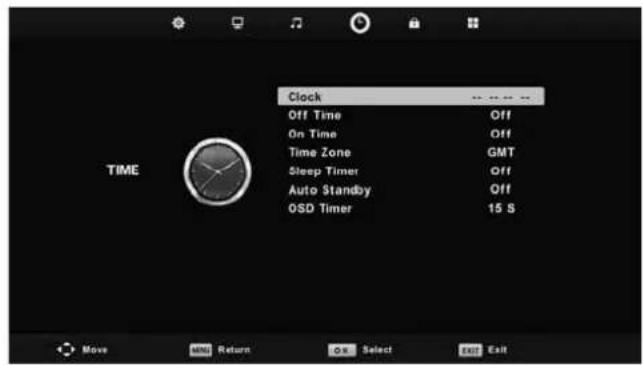

Time menu 32

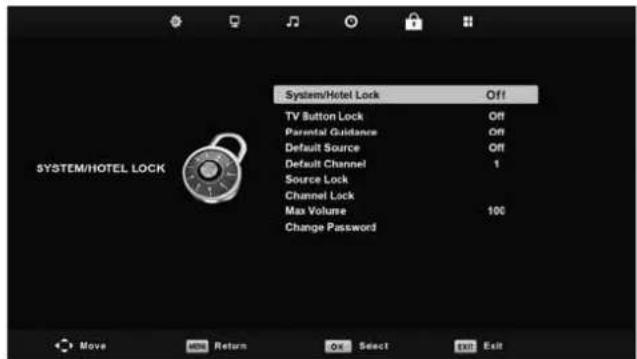

System/hotel lock menu 32

Setup menu 33

5 Advanced features

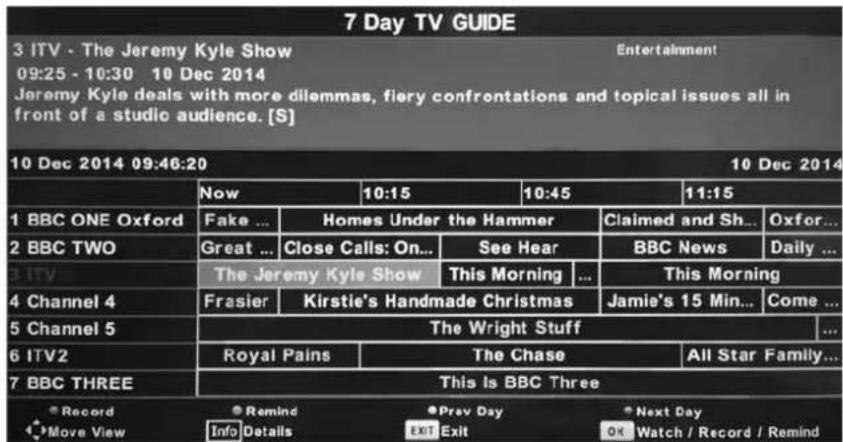

7 day TV guide 36

USB media player 37

USB Record 38

DVD setup 39

6 Product support

Connecting a sky digital set top box 42-43

Frequently asked questions 44-45

Technical specification 46-47

Alba warranty information 48

dts®

TruSurround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

1 Safe

Abstract grayscale illustration of flowing, flowing shapes with no text or symbols

Safety information

Important - Please read these instructions fully before installing or operating

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Warnings

• Television sets which weigh 20kg or more must be lifted and carried by at least 2 people.
• This television does not contain any parts that are serviceable by the user. In case of a fault, contact the manufacturer or authorised service department. Exposing the internal parts inside the TV may endanger your life. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties.

To prevent the spread of fi re, keep candles or other open fl ames away from this product at all times

• To reduce the risk of fire, electric shock or damage to the TV, do not expose it to dust, rain or moisture. Never expose the TV to dripping or splashing and do not place objects filled with liquids on or near the TV.
• Do not connect any external devices (DVD player, games console etc) when the TV is switched on. Disconnect both the TV and device from the mains before connecting. Only switch appliances on when the connection process is complete.
• Do not place the television in a confined space and do not obstruct the ventilation openings at the rear of the television.
• When installing on a wall, ensure the TV is at least 5cm from the wall for ventilation.
• Always ensure that the TV's ventilation openings are not covered with items such as newspapers, table-cloths, curtains, etc.
• Ensure this TV is used in moderate climates only.

WARNING - Never place a television set on an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Use cabinets or stands recommended by the manufacturer of the television set.
• Only use furniture that can safely support the television set.
• Ensure the television set is not overhanging the edge of the supporting furniture.
• Do not place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Do not place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Please educate children about the dangers of climbing on furniture to reach the television set or its controls.
• If your existing television set is being retained and relocated, the same considerations as above should be applied.

Safety

• Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.
• For your safety, this appliance is fitted with a fused 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.

Safety information

Important - Please read these instructions fully before installing or operating

• Always place the television on a flat level surface avoiding anywhere which may be subject to strong vibration.
- The ideal distance to watch the television is approximately five times the length of the diagonal measurements of the TV screen. Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.
- Never place mobile phones, speakers or any other device which may cause magnetic or radio interference, near the television. If interference is apparent, move the device causing the interference away from the television.
- To Isolate the TV from the mains power, please use the power switch located on the side, underside or rear of the TV set.
- Ensure that the power switch on the unit and the mains plug are always easily accessible.

WARNING: Excessive noise when using earphones and headphones can cause loss of hearing.

• To clean your TV, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

Mild detergent

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Packaging

• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need the original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package the item correctly.

IMPORTANT: Information regarding use of video games, computers, captions or other fixed image displays

The extended use of fixed image program material can cause a permanent "shadow image" on the LCD/LED panel, also known as "screen burn".

This "shadow image" can appear in the background during normal viewing. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum suitable viewing level.
2. Do not display the fixed image for extended periods of time.
3. Turn the power off when not in use.

Examples of images that are more likely to cause "screen burn" are as follows:

• TV channel logos: e.g. shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.
• Teletext: Do not view a stationary page for a long period of time
• Time displays.
  • TV/DVD menus: e.g. listings of DVD disc content.
• Pause mode: Do not leave the TV in pause mode for long periods of time, e.g. when watching DVDs or videos.

IMPORTANT: Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

Safety information

Important - Please read these instructions fully before installing or operating

Disposal

UK: Waste electrical products should not be disposed of with household waste. Please dispose of the product at a designated collection point for recycling of WEEE. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your local authority or retailer for recycling advice.

Batteries

• Do not expose batteries to high temperatures, excessive heat, prolonged sunshine or fire as this may cause leakage, explosion or ignition. Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.

• Certain regions may regulate the disposal of batteries. Please consult your local authority.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• The "HD TV" Logo is a trademark of DIGITALEUROPE.
• The "HD TV 1080p" Logo is a trademark of DIGITALEUROPE.
• The DVB logo is the registered trademark of the Digital Video Broadcasting - DVB – project.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
• Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
• FREEVIEW HD The FREEVIEW HD words and logos are trade marks of DTV Services LTD. © DTV Services Ltd.

TV Models with built in DVD players

CAUTION:

This unit is a class 1 laser product. This unit uses a visible laser beam which could cause hazardous radiation exposure if directed. Be sure to operate the player correctly as instructed.

When this unit is plugged into the wall outlet, do not place your eyes close to the openings to look into the inside of this unit.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Do not open covers and do not repair yourself. refer servicing to qualified personnel.

Getting to know your TV

2

Abstract grayscale illustration of flowing bubbles and curves (no text or symbols)

Getting to know your TV

You'll be up and running in no time

Accessories

1 x User guide 1 x Remote control

User Guide

1 x Quick start guide

1×TV

Front view of a black computer monitor with a stand (no visible text or symbols)

1 x RF cable

Coiled black cable with connectors, no visible text or symbols

2 x AAA batteries

1 x Stand installation pack

3 x M(4x12)

4 x ST(4x12)

Note: Please save your box/packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.

Getting to know your TV

You'll be up and running in no time

Stand installation

To complete the stand installation you will require a cross head screw driver.

3 × M(4×12)

4 x ST(4x12)

Simple line drawing of a door frame with a bracket and mounting bracket (no text or symbols)

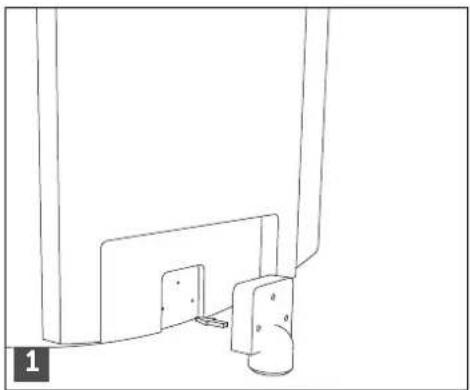

fig 1) Attach the stand neck to the rear of the TV set.

3 x M (4x12) θ θ θ 2

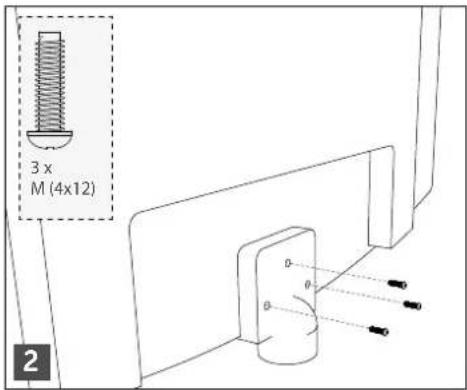

fig 2) Secure the neck to the TV using the 3 x M (4x12) screws provided.

1 1/2 3

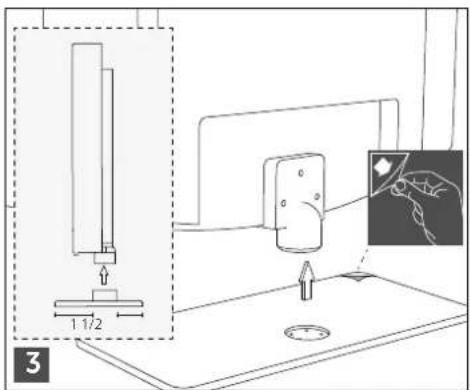

fig 3) Peel off the protective plastic cover then attach the stand base to the neck.

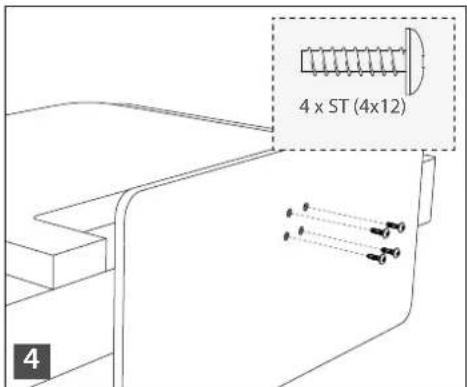

4 x ST (4x12) 4

fig 4) Secure the base to the neck using the 4 x ST (4x12) screws provided.

Helpful advice for first time stand installation

When securing the self-tapping screw/s into the base of the TV (on first installation) the screw/s may be naturally tight as they create a thread in the plastic.

a) Ensure the cross head screw driver tip fits correctly into the head of the screw and that it is not too big or small.
b) Screw in all screws individually and partially before tightening all of the screws fully.
c) If the screws become very tight try loosening and re-tightening, this will continue the process of creating the thread.

Getting to know your TV

You'll be up and running in no time

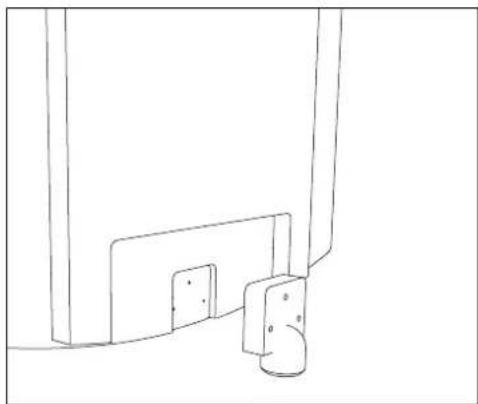

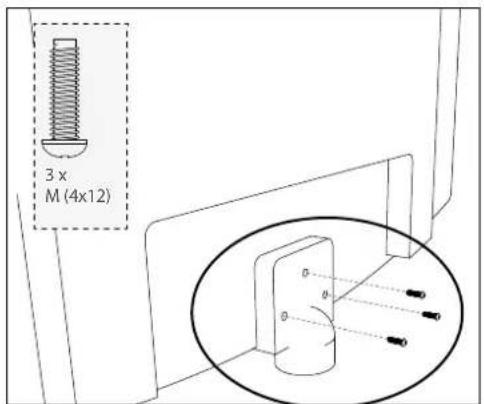

Detaching the stand

To detach the stand please remove the 3 screws highlighted then remove the stand feet from the rear of the TV set.

3 x M (4x12)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Securing the TV using anti-tip straps

For maximum security in the home, when using a TV with its stand, anti-tip straps should be fitted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and then tethered to the wall or the furniture the TV is stood on, these are fitted as follows.

NOTE: Please ensure that children do not climb on the TV set.

A) Using one or both of the top wall-mounting holes and screws fasten one end of the fastening cord/s to the TV. (the screws are already supplied in the wall mounting holes)
B) Secure the other end of the fastening cord/s to your wall. (you will need screws/fixings suitable for your wall type - available separately from most DIY stores.

Diagram showing two labeled points A and B connected by curved lines, likely illustrating a physical or engineering concept.

Simple line drawing of a vertical monitor or stand with a horizontal line extending from its top (no text or symbols)

The Royal Society for the Prevention of Accidents is urging people to take care with flat-screen televisions.

RoSPA stated in 2010 that "Toddlers are particularly at risk of pulling flat-screen televisions on to themselves. They are unsteady on their feet and are attracted by colourful television images."

The risk is increased as televisions become lighter.

If you require any technical guidance or find that your TV is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions.

Getting to know your TV

You'll be up and running in no time

Wall mounting

IMPORTANT: Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes.

Diagram of a flat-screen monitor with directional arrows indicating orientation (no text or symbols)

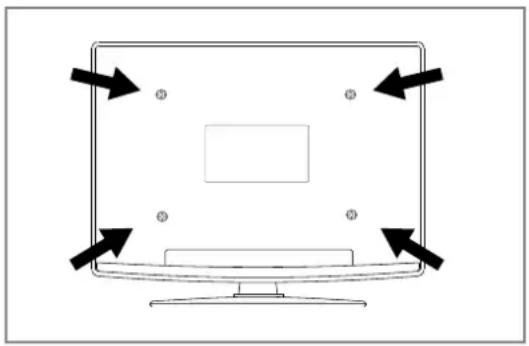

1) Remove the four screws located at the back of the TV set.
2) The wall mount can now be easily attached to the mounting holes, located on the back of the TV, using the same four screws removed.

IMPORTANT : If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

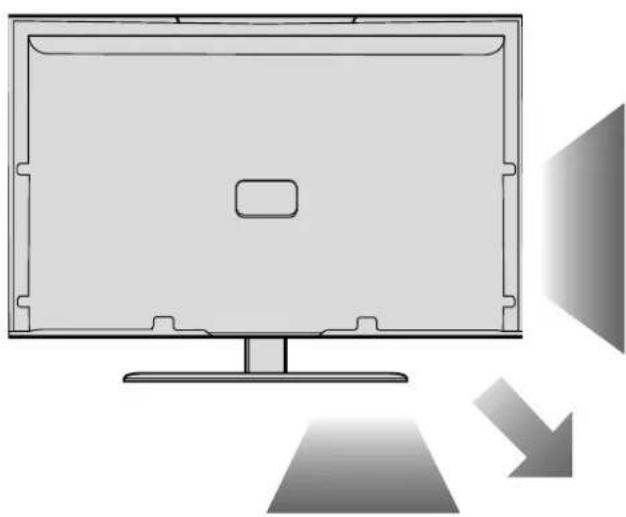

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2 below.

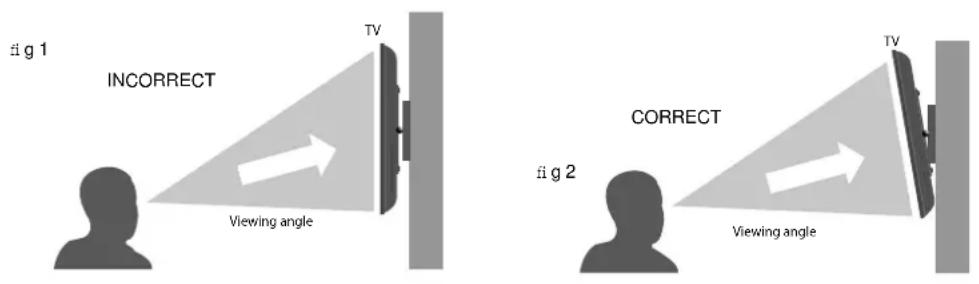

FIG 1 INCORRECT TV Viewing angle FIG 2 CORRECT TV Viewing angle

For VESA wall mounting information please refer to the Technical Specification page.

Getting to know your TV

You'll be up and running in no time

TV buttons and input source

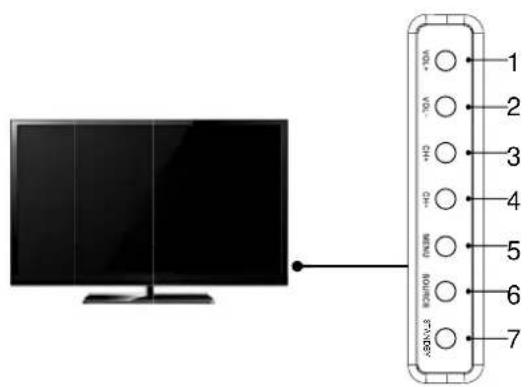

Diagram showing a monitor connected to a vertical panel with labeled ports from 1 to 7.

1) Volume up and menu right
2) Volume down and menu left
3) Programme/Channel up and menu up
4) Programme/Channel down and menu down
5) Displays Menu/OSD
6) Displays the input source menu
7) Standby Power On/Off

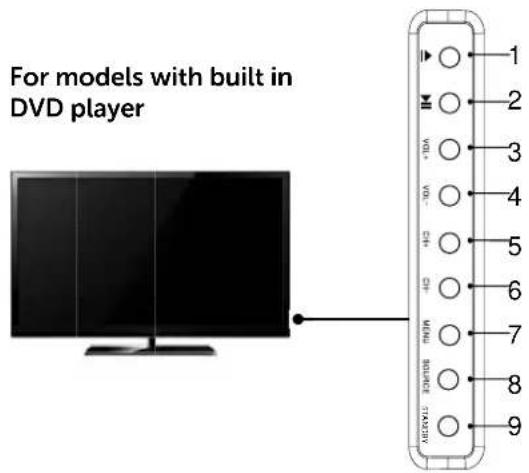

For models with built in DVD player 1 2 3 4 5 6 7 8 9

1) Stop/Eject DVD
2) Play/Pause DVD
3) Volume up and menu right
4) Volume down and menu left
5) Programme/Channel up and menu up
6) Programme/Channel down and menu down
7) Displays Menu/OSD
8) Displays the input source menu
9) Standby Power On/Off

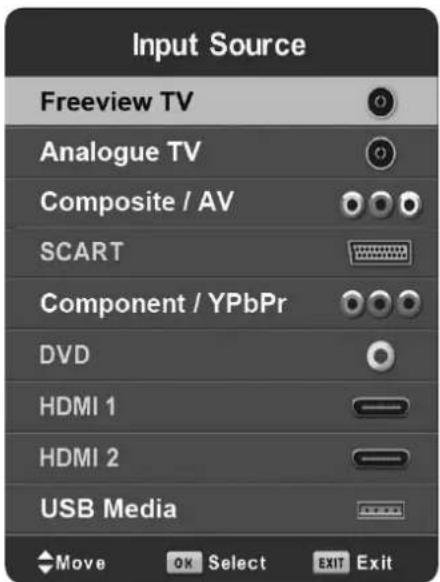

Choosing mode and input/source

To switch between the different input/connections.

A) Using the buttons on the remote control:

1) Press [SOURCE] - The source menu will appear.

2) Press [V] or [/A] to select the input you require.

3) Press [OK].

B) Using the buttons on the Television:

1) Press [SOURCE].

2) Scroll up / down using CH+/CH- buttons to the input/source you require.

3) Press Vol+ to change input/source to the one selected.

For further information on input/connections please view 'Connections' pages.

Input Source Freeview TV Analogue TV Composite / AV SCART Component / YPbPr DVD HDMI 1 HDMI 2 USB Media Move OK Select EXIT Exit

Example of Source menu depending on the TV model

Getting to know your TV

You'll be up and running in no time

Remote control functions

For Models with Integrated DVD players
For Models with PVR Function
For Models with USB Playback
For Models with 3D Feature

9) ⊕ - To return to the previous channel viewed

10) P.MODE - Scrolls through picture mode options

11) VOL ▲/▼

12) CH ▲/▼

13) S.MODE - Scrolls through sound mode options

14) FAV - To display favourites menu

15) MENU

16) EXIT

17) (▲/▼/◄/►/OK) - Allows you to navigate the on-screen menus and adjust the system settings to your preference

18) SOURCE/AV

19) INFO - Press once for now/next channel information. Press twice for programme information about current programme

20) ASPECT

21) SLEEP

22) SUBTITLE

23) AUDIO

24) TEXT

25) TEXT HOLD

26) DISPLAY

Abstract grayscale illustration of flowing bubbles and curves (no text or symbols)

Connections

Bringing it all together

Connections

Illustration of a flat-screen monitor with a blank screen and a gray arrow pointing to it (no text or symbols)

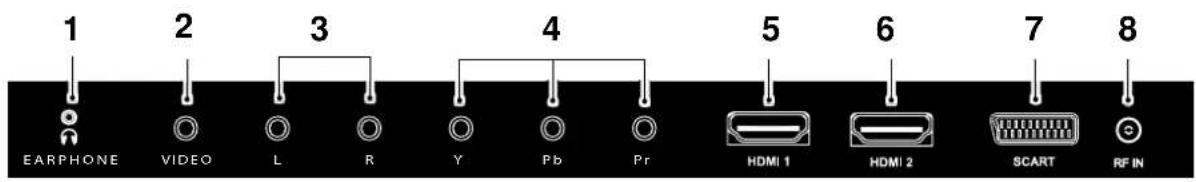

1 EARPHONE Earphone socket
2 Video Video input
3 L/R L/R audio input
4 COMPONENT (HD) Component input (YPbPr)
5 HDMI 1 HDMI input
6 HDMI 2 (ARC) HDMI input
7 SCART SCART input
8 RF IN RF / TV aerial input
9 COAX audio out Digital audio output
10 USB USB input
11 CI CARD IN Common Interface module

*The Ethernet port is used only for Freeview HD services only.

1 EARPHONE 2 VIDEO L R 3 Y Pb Pr 4 5 HDMI 1 6 HDMI 2 7 SCART RF IN

9 10 11 COAX USB CI CARD IN

If you require any technical guidance or find that your TV is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions.

Connections

Bringing it all together

Connections

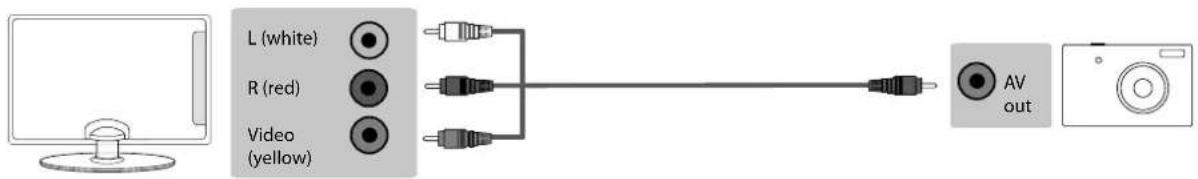

Connecting a camcorder, camera or games console.

The TV source should be set to composite/AV.

L (white) R (red) Video (yellow) AV out

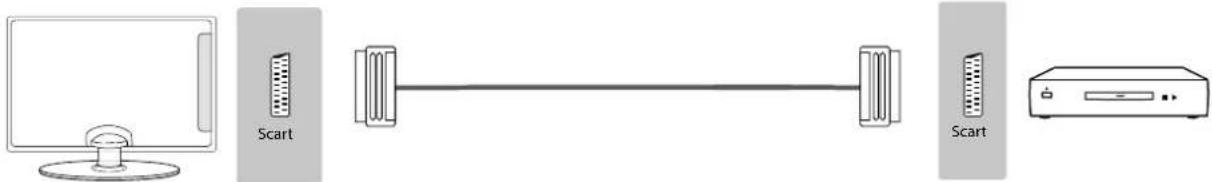

Connecting a DVD player/recorder, video recorder or cable/satellite box.

Source should be set to SCART..

Diagram showing connection between a computer monitor, a scart switch, and a device with a power outlet

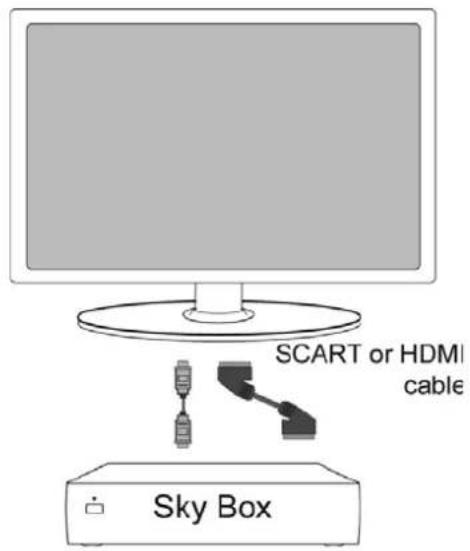

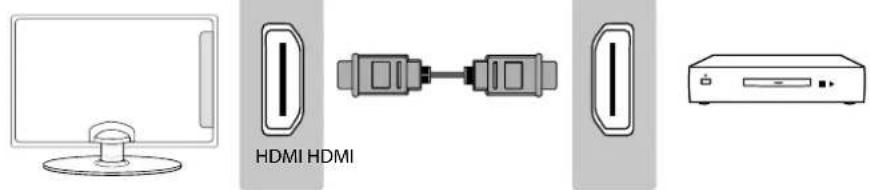

Connecting a High Definition (HD) Device Option 1 - via HDMI to HDMI cable

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

TVs Source should be set to the corresponding HDMI Port (HDMI 1, HDMI 2, etc).

HDMI HDMI

Connections

Bringing it all together

Connections

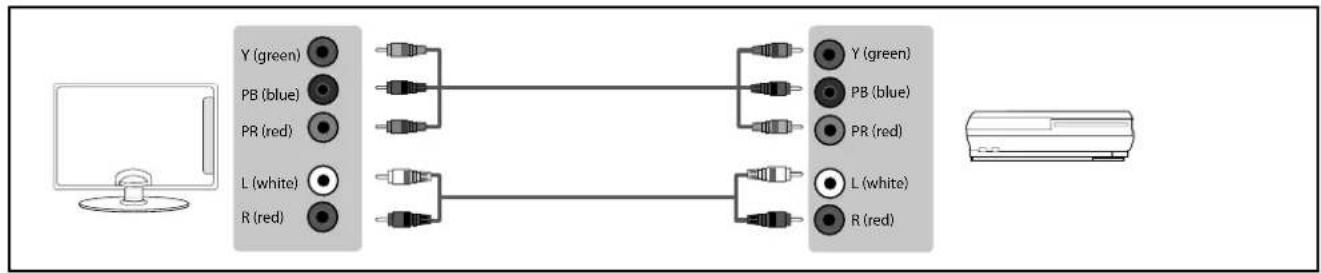

Connecting a High Definition (HD) Device Option 2 - via Component cable

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component/YPbPr.

Connecting to an external audio device (Amplifiers, Surround Sound, Sound Bars etc)

When connecting via the TV's 3.5mm Earphone output, this will disable the TV speakers.

There are two options when connecting a device via the 3.5mm Earphone Output.

OPTION 1 for 3.5mm EARNPHONE OUTPUT 3.5mm carphone 3.5mm audio in OPTION 2 for 3.5mm EARNPHONE OUTPUT 3.5mm carphone COAX audio out L (white) R (red) COAX audio in

Standard features

4

Abstract grayscale illustration of flowing bubbles and curves (no text or symbols)

Standard features

Simple everyday use

How to navigate the menus

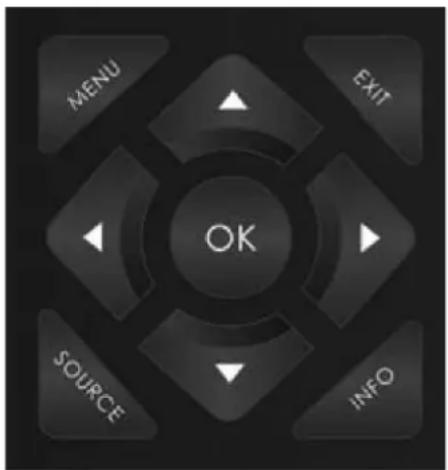

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

MENU EXIT OK SOURCE INFO

Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'OSD Timer' in the Time Menu.

Standard features

Simple everyday use

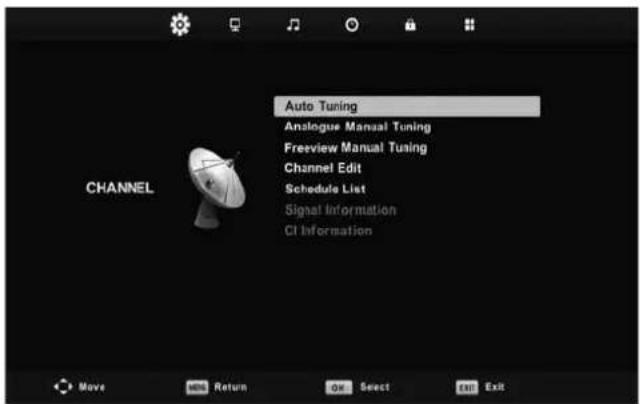

Channel menu

Auto Tuning Analogue Manual Tuning Freeview Manual Tuning Channel Edit Schedule List Signal Information CI Information

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels.

Analogue Manual Tuning - Allows you to manually tune your analogue signal

Freeview Manual Tuning - Allows you to manually tune your digital signal.

Channel Edit - Allows you to delete, move, skip and add favourite channels.

Schedule List - Lists your programme reminders

Signal Information - Displays signal strength information

CI Information - Pay per view services require a "smartcard" to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'OSD Timer' in the Time Menu.

Channel Edit 1 BBC1 2 BBC2 3 ITV1 4 Channel 4 5 five 6 BBC3 7 BBC4 8 ITV2 9 SKY1 10 SKY2 Delete FreeTV Move Skip OK Select Fav Menu Back

Standard features

Simple everyday use

Picture menu

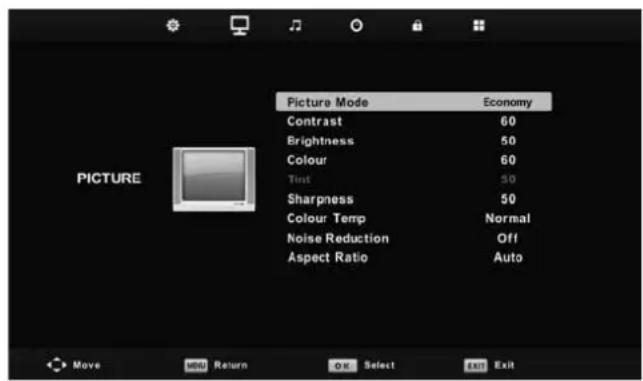

Picture Mode Economy Contrast 60 Brightness 50 Colour 60 Text 50 Sharpness 50 Colour Temp Normal Noise Reduction Off Aspect Ratio Auto Move MR Return OK Select Exit Exit

Picture Mode

• Dynamic - Recommended settings for fast moving pictures.
• Standard - Default settings.
- Mild - Set to be lighter in colour and less bright.
• Personal - Lets you manually alter all the settings.
- Economy - Power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel). In Economy mode, the TV will switch itself to Standby mode after 3-5 hours in the event that the TV buttons or remote control buttons are not pressed (change the picture mode to another setting to de-activate this function).

Contrast - Switch the balance between black and white.

Brightness - Increase or decrease the brightness of the picture.

Colour - Increases the colour from black and white.

Tint - Lets you increase or decrease the level of tint within the picture (only available in VGA/PC source mode).

Sharpness - Increase or decrease the sharpness of the picture.

Colour Temperature

• Normal - Default settings.
- Warm - Increases red within the picture.
• Cool - Increases blue within the picture.

Noise Reduction

• Off - Turns noise reduction off.
• Low - Minor system adjustment.
  • Middle - Medium system adjustments.
  • High - Maximum system adjustments.

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs.

• Auto - Automatically displays the best picture format. So the picture is in the correct position. May have black lines at the top/bottom and/or sides.
• Original - Will display the picture from the broadcaster without any change
  • 4:3 - Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen.

Computer monitor with a central blank white circle and six surrounding white circles arranged in a square pattern (no text or symbols)

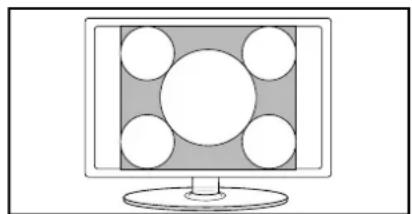

• 16:9 - Fills the screen with a regular 16:9 signal and 4:3 will stretch to fill the screen.

Simple line drawing of a computer monitor with five circular windows on the screen (no text or symbols)

- Zoom - The picture is the correct proportion but zoomed in to fill the screen.

Illustration of a computer monitor with a circular design on the screen (no text or symbols)

Standard features

Simple everyday use

Sound menu

Sound Mode Standard Treble 50 Bass 50 Balance 0 Auto Volume Level On Surround Sound TruSurreund HD Digital Output PCM Audio Description Off Audio Delay SOUND Move MEN Return OK Select EXIT Exit

Sound Mode

• Standard - Default settings.
• Music - Emphasises music over voices.
• Movie - Provides live and full sound for movies.
• Sports - Emphasises sound for sports.
• Personal - Selects your personal sound settings.

Treble - To adjust the amount of high frequency within the sound.

Balance - To switch the so und between the left and right speakers.

Auto Volume Level (AVL) - When 'on' is selected, the volume will stay at a constant level regardless of input/source.

Surround Sound

• Off - Off.
• TruSurround HD - TruSurround HD™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialog.

Audio Description - This allows the user to increase and decrease the AD (Audio Description) volume level.

(Audio Description is a service available on certain programmes. It provides a description of what is happening during the selected programme for a person who is visually impaired).

Digital Output

• Off - Off.
  • Auto - Selects the best settings automatically.
• PCM - Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal).

Audio Delay - Enables the user to adjust setting to sync picture and audio.

Tip: Treble and bass levels can only be adjusted when the sound mode 'personal' is selected.

dts®

TruSurround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Standard features

Simple everyday use

Time menu

Clock Off Time Off On Time Off Time Zone GMT Sleep Timer Off Auto Standby Off OSD Timer 15 S TIME Move NMI Return Cas Select Exit Exit

Clock - Shows the date and time.

Off Time - Allows you to set a specific time for your TV to turn off.

On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.

Time Zone - Change your current time zone.

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min.

Auto standby - Set Auto standby between 3 hours, 4 hours and 5 hours (to turn off this function you must exit Home Mode in the Picture Menu).

OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing.

System/Hotel lock menu

SYSTEM/HOTEL LOCK System/Hotel Lock Off TV Button Lock Off Parental Guidance Off Default Source Off Default Channel 1 Source Lock Channel Lock Max Volume 100 Change Password Move Return OK Select Exit

System/Hotel Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use the ◀button to quit the password input. Use the ▶button to clear. Default password is 0000.

TV Button Lock - Allows you to lock the buttons on the side of the TV set.

Parental Guidance - Allows you to set the rating to block certain content based on age information.

Default Source - Allows the user to set the default source. The default source is the source the TV starts on when first switched on.

Default Channel - Allows the user to set a channel as the default channel on the Digital source. The default channel is the channel the TV starts on when first switched on.

Source Lock - Allows you to lock the source menu.

Channel Lock - Allows you to lock certain channels manually.

Max Volume - Allows you to adjust and set the maximum volume.

Change Password - Allows you to change the password.

Standard features

Simple everyday use

Setup menu

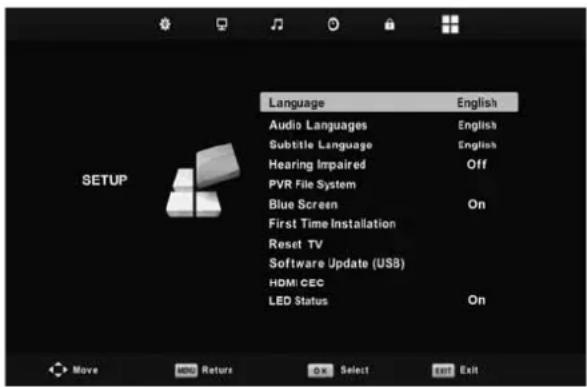

Language Audio Languages Subtitle Language Hearing Impaired PVR File System Blue Screen First Time Installation Reset TV Software Update (USB) HDMI: CEC LED Status English English Off On On SETUP Move HIND Return OK Select Exit

Language - Allows you to change the language of the menu.

Audio language - Allows the user to change the audio language.

Subtitle Language - Allows the user to change the subtitle language.

Hearing Impaired - This allows the user to turn on the Hearing Impaired function, this produces subtitles on the screen which provide a description of what is happening during the selected program.

PVR File System - Allows you to view the format and performance of a USB key. (24" models only).

Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources).

First Time Installation - Allows you to retune the television for all digital channels, digital radio stations and analogue channels.

Reset TV - This resets the menus to factory settings and will erase all TV channels stored on the television.

Software Update (USB) - This menu lets you install the new software/firmware onto the television. Further details of how to do this will be issued with the firmware. Contact the helpline or refer to the 'product support' section of the website.

HDMI CEC (Consumer Electronic Control) - Allows HDMI devices to control each other and allows the user to operate multiple devices with one remote control. (only available with compatible devices).

LED Status - Allows the user to switch the LED Power indicator light ON or OFF, when the TV is being operated.(When this option is set to OFF the LED Power indicator light will flash when the remote control is used).

Advanced features

5

Abstract grayscale illustration of flowing bubbles and curves (no text or symbols)

Advanced features

Getting the most from your TV

7 day TV guide and channel list

Record function for 24" models only.

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.

7 Day TV GUIDE 3 ITV - The Jeremy Kyle Show Entertainment! 09:25 - 10:30 10 Dec 2014 Jeremy Kyle deals with more dilemmas, fiery confrontations and topical issues all in front of a studio audience. [S] 10 Dec 2014 09:46:20 10 Dec 2014 Now 10:15 10:45 11:15 1 BBC ONE Oxford Fake ... Homes Under the Hammer Claimed and Sh... Oxford... 2 BBC TWO Great ... Close Calls: On... See Hear BBC News Daily ... The Jeremy Kyle Show This Morning ... This Morning 4 Channel 4 Frasier Kirstie's Handmade Christmas Jamie's 15 Min... Come ... 5 Channel 5 The Wright Stuff 6 ITV2 Royal Pains The Chase All Star Family... 7 BBC THREE This Is BBC Three Record Remind Prav Day Next Day Move ViewInfo Details Exit Exit OK Watch / Record / Remind

2) Navigate through the menu using ▲▼▶◀

You can now:

Record a programme by pressing RED (USB device must be connected).

View a previous day by pressing GREEN,

View the next day by pressing YELLOW

Set a reminder by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide.

Advanced features

Getting the most from your TV

USB media player

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

On switching to USB source the menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

1) You can navigate through the menus using the scroll ▲▼▶◀buttons. To confirm the item you wish to play/view press [OK] button.
2) Select the drive you require.(If your drive only has 1 partition you will only see 1 item).
3) You can now access the item. Press OK to view.
4) While viewing you control the item using (Fig A). or by pressing (i) and using ▲▼▶◀ and (OK).

Tip: If you experience a playback issue, please ensure the files being used are the correct format (example - the picture plays but no sound)

For the best performance, do not use USB extension cable. See technical specification page for compatible file types.

1)

C:\ PHOTO MUSIC MOVE TEXT

2)

PHOTO Return C

3)

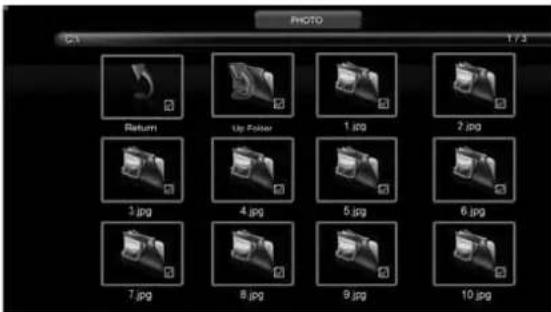

PHOTO C:\173 Return Up Folder 1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 7.jpg 8.jpg 9.jpg 10.jpg

4)

Satellite or aerial view of a rugged landscape with trees and hills, no visible text or symbols

Fig A

Advanced features

Getting the most from your TV

USB Record - Digital / Freeview Mode

USB Record – Digital/Freeview Mode for 24" models only.

Built into this television is a USB record facility. This function is available in Digital/Freeview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefits of this are as follows:

• Pause live TV and then playback, fast forward and rewind (up to live TV)
  • One button record, if you decide you want to record the current programme
• Easy programmable recording from the 7 day TV Guide
• Record TV and watch/listen back on your computer/laptop

Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads

from and writes to the memory stick at the same time, some memory sticks may not be suitable)

You can purchase high speed memory sticks from some computer stores, alternatively, we have a selection

of tested and compatible memory sticks available to purchase directly from the helpline/web site.

Minimum Specification - USB Memory Stick

Read Speed 20 MB/s (Mega Byte Per Second)

Write Speed 6 MB/s (Mega Byte Per Second)

If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear of this user guide.

Pause live TV (tme shift)

Pausing Live TV is very simple.

• Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again.
• Press fast forward to go forward in a recording (i.e. to skip adverts)
• Press fast rewind to go back in a recording (i.e. if you fast forwarded too far)

Tip: When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart time shift you must press play/pause button.

One button record

At any point in time you may decide to record the current channel that you are watching. To do this you need to press the red button highlighted below.

Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or record one channel while the television is in standby mode.

Note: USB record function is only available in Digital/Freeview TV mode. Due to copyright laws and illegal copying/recording it is not possible to record to/from any other input/output source.

Advanced features

Getting the most from your TV

DVD setup

Applies to TV models with built in DVD players only.

TV Display - Choose from the following options

4:3 Pan Scan PS Traditional picture format, often used on old film

4:3 Letter Box LB Traditional picture which has been adapted for widescreen

Wide 16:9 Widescreen picture format

Speaker Setup - Choose from the following options

LT/RT Converts from	multi-channel sound to mono
Stereo Converts from	multi-channel sound to Stereo

Dual Mono - Choose from the following options

Stereo Outputs 2 channels of sound both left and right

Mono L Outputs left side sound

Mono R Outputs right side sound

Mix Mono Outputs a single channel of sound but mix between right and left

Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital.

Full	Set this to listen with the range recorded on the disc
3/4	Set this to listen with a range equivalent to a normal television
1/2	Set this to listen with a smaller difference between the maximum and minimum volume
1/4	Set this to listen with a smaller difference between the maximum and minimum volume
Off	Set dynamic range to off

TV Type - Choose from the following options

PAL For discs from UK/Europe, Asia, Australia etc

Multi For both NTSC and PAL

NTSC For discs from North America, Japan etc

Default - Choose from the following options

Reset Resets all options in the 'DVD setup' menu back to the default settings

Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in another country that uses different region discs, please visit www.umc-uk.co.uk. Select 'Product Support', 'Changing Region'.

Product support

6

Abstract grayscale illustration of flowing bubbles and curves (no text or symbols)

Product support

Help is always at hand

Connecting a sky digital set top box

Using a Sky Remote or a Universal Remote to operate your TV

Sky Remote Control - If you wish to use your Sky remote to operate the basic functions of your TV, you need to program a 4 digit code into it. Please note - you will need a Sky Revision 9 remote control (or later). If you wish to upgrade/replace your existing Sky remote control to the latest version, you can do so on our website.

Universal Remote Control - If you wish to use a Universal remote control to operate your TV, please refer to the website for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you have an alternative brand of Universal remote, please refer to the manufacturer for the code).

Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room)

Option 1)

Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately).

If connecting by SCART, select the 'Input source' on the TV as SCART. If your TV model does not have SCART, please refer to the 'Connections' pages in this user guide for alternative ways to connect.

If connecting by HDMI, select the 'Input source' on the TV as HDMI (if the TV has more than 1 HDMI port, ensure you select the input source to match the HDMI numbered port on the rear of the TV).

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to program a 4 digit code into it.

SCART or HDMI cable Sky Box

Product support

Help is always at hand

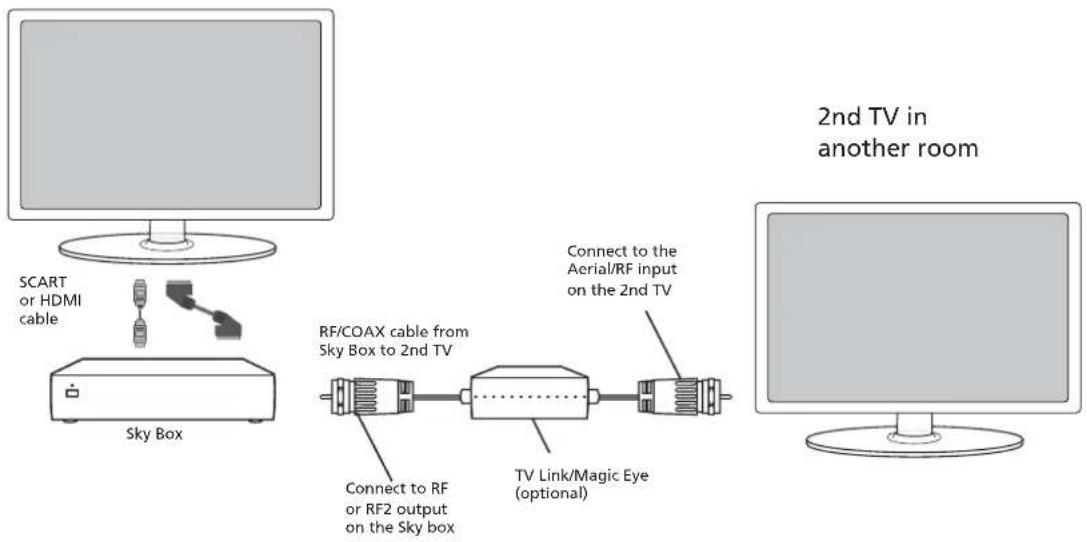

Connecting your TV to your Sky box (when your Sky box is located in a different room to the TV)

Option 2)

Please note, if you are adding a 'Magic Eye/TV Link' to your system so that you can use your Sky remote control to change the Sky channel in the room where the 2nd TV is located, please refer to the instructions included with the TV link/magic eye in order to ensure the RF or RF2 output on your Sky box is powered on. (The red LED light on the TV link/magic eye will light up if the RF/RF2 output is correctly set up) If you do not have the instructions that came with the TV link/magic eye, instructions on how to do it can be found on our website.

1) To tune the TV to the Sky box, on the 2nd TV, select the 'Analogue' input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue Manual Tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the Sky box/channel is found, press 'OK' to store it. If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to program a 4 digit code into it.

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it.

SCART or HDMI cable Sky Box RF/COAX cable from Sky Box to 2nd TV Connect to RF or RF2 output on the Sky box TV Link/Magic Eye (optional) Connect to the Aerial/RF input on the 2nd TV 2nd TV in another room

Product support

Help is always at hand

Frequently asked questions

General I would like to have louder sound by connecting additional speakers.	1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifi er/surround sound system. Please note this will deactivate the TV's built in speakers.2) Connect a COAX cable from the TV's COAX output to your amplifi er/ surround systems COAX input.
General Why are some options in the menu unavailable and greyed out.	Some options are only available in certain sources, i.e. HDMI. They are unavailable in the other sources where they have no aff ect.
General Can I stop my TV automatically turning off after 4hrs?	Yes, in the 'Time' menu settings, scroll down to Auto standby and select OFF.
TV I have tuned in Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up.	1) Check you are in an area that can receive Freeview/Saorview, visit www. freeview.co.uk or www.saorview.ie2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent digital coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/ indoor type aerial.
TV I have re-tuned my television but when I switch it off it is not storing the channels.	If the TV does not save the channels when you power it off, it's likely the channel database has become corrupt.1) Turn off the TV.2) Remove the RF/Aerial cable from the rear of the TV and then turn the TV back on again.3) Using the remote control, press Menu followed by 8-8-8-8 to enter the initial setup/fi rst time installation menu.4) Press OK (let the TV run the full tuning process).5) Once completed, turn off the TV, reconnect the RF/Aerial cable then turn the TV back on again.6) Repeat steps 3 & 4.
VCR/DVD Recorder	I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording.
Game Consoles	I have connected my Playstation/Xbox to the TV via HDMI, but I am not receiving any pictures or sound on my Television.

Product support

Help is always at hand

Frequently asked questions

Game Consoles	I have connected my Playstation/Xbox to the TV via Component cables (red, green & blue) but I am not receiving any sound.	Component cables only provide HD pictures. For the sound you will need to connect the red & white audio cables on the Playstation/Xbox to the red & white phono inputs (or mini AV input where fitted) on the rear of the TV. Please refer to the 'Connections' pages.
System Lock I have changed the password on the television and now forgotten it.		There is a master password of 4711, to gain access to the TV menu and reset the normal password.
USB Mode I have inserted a USB Memory Key, but the TV does not recognise it.		Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Using a USB portable hard drive / larger than 32GB.		If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 file system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives.Please refer to the website, www.umc-uk.co.uk, for more information.
DVD (For TV models with DVD only)	I have inserted a disc but it is not playing.	1) Ensure you have inserted the disc facing the correct way.2) Ensure the disc is clean and is not scratched.3) Some copied discs will not play.4) Check the DVD is a region 2 disc – to change the region of the DVD player, refer to www.umc-uk.co.uk, select 'Changing DVD Region' in the 'Product Support' section
DVD (For TV models with DVD only)	I have pressed the eject button but the disc is not coming out.	To eject the disc hold the stop/eject button for 4 seconds.
USB Record (For TV models with USB record only)	I cannot change the channel, access the menu or use the red button.	During time shift you cannot change the channel, access the menu or use the red button.
USB Record (For TV models with USB record only)	When using the USB to record the picture 'breaks up' or experience loss of sound.	Check the USB memory stick meets the minimum read speed requirements. Standard definition channels require a read speed of 20 MB/s (Mega Byte per second) and a write Speed of 6 MB/s (Mega Byte per second) HD channels require the read speed of 80 MB/s (Mega Byte per second) and a write speed of 40 MB/s (Mega Byte per second). USB 3.0 sticks should be used where possible.

Product support

Help is always at hand

Technical specification

Product fiche

Trademark	Alba
Model ID	22/207F 22/207FDVD 24/207			24/207DVDB24/207DVDW24/207DVDS24/207DVDP
Energy efficiency class	A
Visible screen size (diagonal)	55 cm / 21.5 inches		60 cm / 23.6 inches
On mode power consumption	20.0 W		25.0 W
Annual energy consumption *1	30 kWh		37 kWh
Standby power consumption *2	<0.50 W
Off mode power consumption	0 W
Screen resolution	1920 (H) x 1080 (V)		1366 (H) x 768 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information
RF	75 ohm Antenna / Analog / DVS
Video Inputs 2 x HDMI, 1 x SCART, 1 x USB, 1 x Composite/Video, 1 x Component/YPbPr
Sound Inputs 1 x shared audio for Composite/Video & Component/YPbPr
Sound Outputs 1 x 3.5mm headphone jack, 1 x Coax Audio output
Speaker / Amplifier Watts (RMS) 2 x 5W / 2 x 3W
Dimensions including stand (mm)	510W x 359H x 140D 560W x 386H x 140D
Net weight	3.5 kgs 4 kgs 4.6 kgs 4.9 kgs
Energy Consumption Info
Voltage and power consumption	110-240V 50 / 60Hz20 / 40W(ecomode/max)EEI - A (Energy Rating)	110-240V 50 / 60Hz20 / 50W(ecomode/max)EEI - A (Energy Rating)	110-240V 50 / 60Hz25 / 40W(ecomode/max)EEI - A (Energy Rating)	110-240V 50 / 60Hz25 / 50W(ecomode/max)EEI - A (Energy Rating)
Wall mounting VESA	100 x 100 (mm)

Product support

Help is always at hand

Technical specification

Compatible files in USB Mode

Media File Ext.		Codec		Remark
		Video Audio
Movie	.mpg MPEG-1, MPEG-2		MP3, WMA, AAC	Max Resolution: 1920x1080Max Data rate: 40 Mbps
	.avi	Xvid, MJPEG, MPEG-4 SP/ASP, H.264		Max Resolution: 1920x1080Max Data rate: 20 Mbps
	.ts MPEG-2, H.264
	.mov/.mkv	MPEG-4 SP/ASP, H.264
	.dat MPEG-1
	.mp4	MPEG-4 SP/ASP, H.264
		MPEG-1, MPEG-2		Max Resolution: 720x576Max Data rate: 40 Mbps
	.vob MPEG-2
Music	.mp3 - MP3			Sample Rate 8K-48KHzBit rate: 32K - 320KbpsChannel: Mono/Stereo
	.wma - WMA
	.m4a/.aac	- AAC		Sample Rate 16K-48KHzBit rate: 32K ~ 442KbpsChannel: Mono/Stereo
Photo	.jpg/.jpeg	Progressive JPEG Max Resolution: 1024x768
		Baseline JPEG		Max Resolution: 8192x8192
	.bmp	BMP		Max Resolution: 6500x6500Pixel Depth 1/4/8/16/24/32 bpp
	.png	Non-Interlaced		Max Resolution: 3000x3000
		Interlaced		Max Resolution: 1500x1500

Product support

Help is always at hand

ALBA

Your Alba Guarantee

This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will be repaired free of charge (or if applicable the product will be replaced or the purchase price refunded) where possible during this period by the dealer from who your purchased the unit.

The guarantee is subject to the following provisions:

• The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items.
• The product must be correctly installed and operated in accordance with the instructions contained in the manual.

• It must be used solely for domestic purposes. The guarantee will be rendered invalid if the product is re-sold or has been damaged by inexpert repair.

• Specifications are subject to change without notice.

• Alba disclaim any liability for loss or damage arising from the breakdown of the product.
• This guarantee is in addition to and does not diminish your statutory or legal rights.

Guarantor Argos Limited - 189 - 199 Avebury Blvd - Milton Keynes - MK9 2NW

If you require any technical guidance or find that your TV is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

ALBA

Abstract grayscale illustration of flowing bubbles and droplets with no text or symbols

Contact:

www.argos-support.co.uk

Helpline: 0330 024 0805

Freeview
