USER MANUAL 5400 Pro COBRA

Cobra® 5400 PRO 57 NORTH Effingham Champaign 70 EAST Indianapolis Memphis .47 Miles Cobra Manual 5400PRO_QSG_vB.indd 1 6/5/13 10:54 AM

Start Up

IMPORTANT!

It is the user's responsibility to account for the vehicle's height, width, length, HAZMAT, and other restrictions while driving. Always follow posted road signs and be aware of road conditions when making driving decisions.

Please read the "Important Safety Information" included with your unit. Power Key

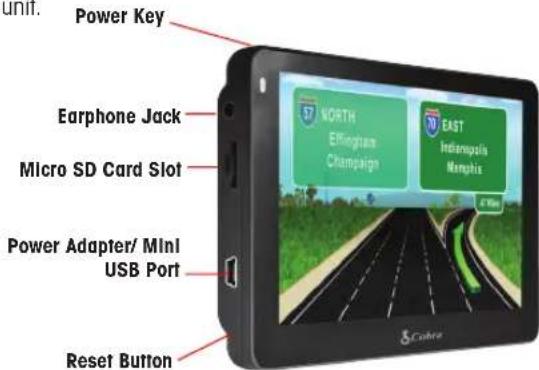

Power Key Earphone Jack Micro SD Card Slot Power Adapter/ Mini USB Port Reset Button NORTH Erlington Champaign EAST Indemopolis Memphis Cinebran

To charge the unit, connect the DC Power Adapter. The battery light will flash red and will take approximately 3 hours to charge. Once fully charged the battery will last approximately 2 hours during normal use.

Close-up of a hand inserting a small electronic component into a dark rectangular device (no visible text or symbols)

NOTE: Turn the unit ON or OFF by pressing the Power Key for 2 seconds.

Printed in China

Parl No. 480-820-P

Version B

Mount the 5400 Unit

You can mount your 5400 PRO to the inside of your vehicle's windshield using the windshield bracket provided.

• Clean the area where you wish to position the bracket thoroughly with glass cleaner.
• Assemble the suction cup bracket. Slide the mount clip onto the end of the suction cup arm.

NOTE: A significant amount of force is required to snap the mount clip into the suction cup arm.

• Place the suction cup and bracket on the windshield and push the locking lever towards the windshield to secure the bracket.
• Adjust the angle of the bracket so that when the unit is attached to it you can view the display and operate the controls safely.
• Do not place the mount in an airbag deployment area.

NOTE: Mounting your 5400 PRO in close proximity to a CB radio may interfere with GPS reception. Should you encounter such interference, position your 5400 PRO as far away from your CB radio as possible.

Close-up of a hand holding a black electronic device with a screen (no visible text or symbols)

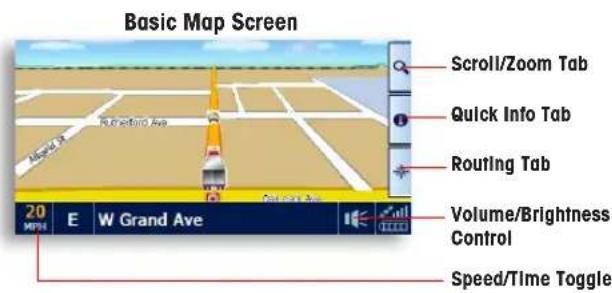

Map Screen

Basic Map Screen Scroll/Zoom Tab Quick Info Tab Routing Tab Volume/Brightness Control Speed/Time Toggle 20 MPa E W Grand Ave

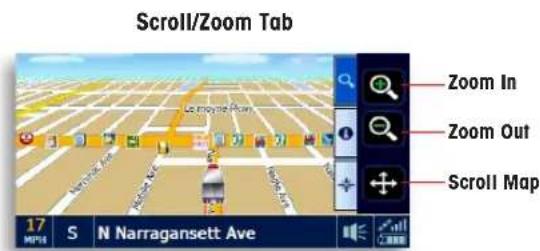

Scroll/Zoom Tab Zoom In Zoom Out Scroll Map 17 MPa6 S N Narragansett Ave

NOTE: Touch anywhere on the map to enter the Main Menu.

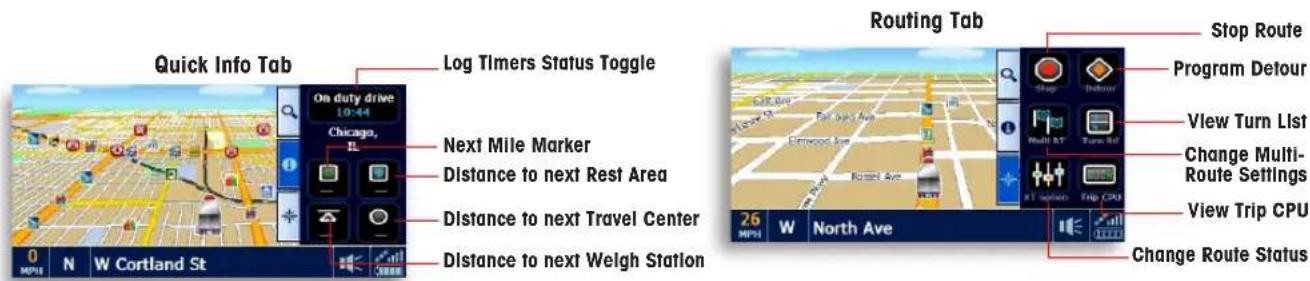

Quick Info Tab Log Timers Status Toggle On duty drive 10:44 Chicago, Next Mile Marker Distance to next Rest Area Distance to next Travel Center Distance to next Weigh Station Routing Tab Stop Route Program Detour View Turn List Change Multi- Route Settings View Trip CPU Change Route Status 26 MPH N W Cortland St

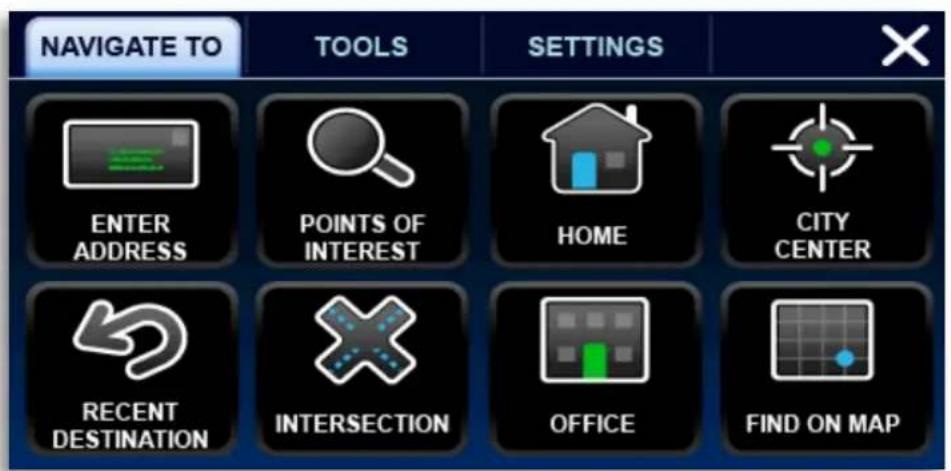

Main Menu

NAVIGATE TO TOOLS SETTINGS ENTER ADDRESS POINTS OF INTEREST HOME CITY CENTER RECENT DESTINATION INTERSECTION OFFICE FIND ON MAP

Navigate To:

• Enter Address
• Points of Interest
  • Home
• City Center
• Recent Destination
• Intersection
  • Office
• Find on Map

Tools:

• Address Book
• Multi-Route
• Trip Computer
• Calculator
• Hour Log
• Mileage Log
• GPS Status
• Backup/Restore

Settings:

• My Truck
• Map
• Device
  • Volume/Brightness
• Alerts
• Language
• Calibration

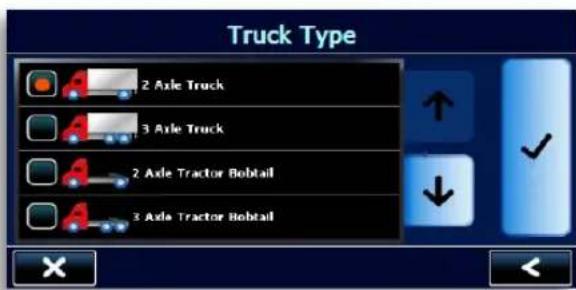

Enter Truck Info

Truck Type 2 Axle Truck 3 Axle Truck 2 Axle Tractor Bobtail 3 Axle Tractor Bobtail

• Under the Settings tab in the main menu, tap the My Truck icon to input your truck type.
• Choose your axel configuration and press
• Tap each box to enter your truck name and customize your vehicle's specifications.
• When finished, press Save. Now you are ready to navigate.

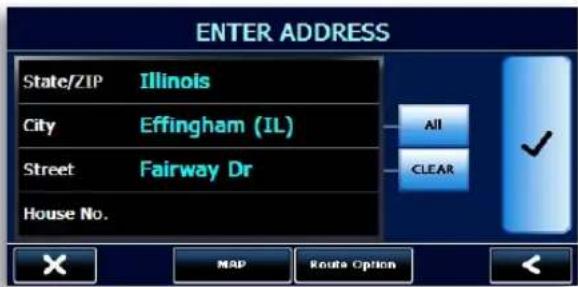

Find an Address

• Under the Navigate To tab in the main menu, tap the Enter Address icon to navigate to an address.
• Click the appropriate boxes to enter your destination's State/Zip, City, Street, and House Number.
• As you type using the keyboard, the list will automatically filter your results. You can press View List to scroll through the results or simply tap on your desired destination.
• When finished, press check and then confirm your truck information and press check again.

ENTER ADDRESS State/ZIP Illinois City Effingham (IL) Street Fairway Dr House No. All CLEAR X MAP Route Option

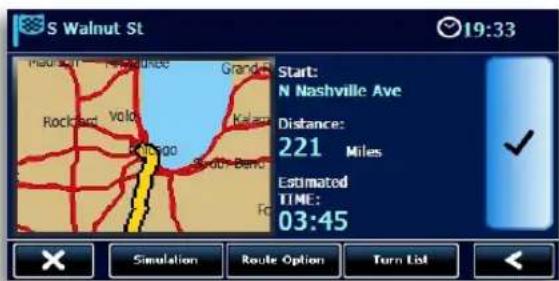

Route Option

• The Route Option Page allows you to view and customize your route.
• Press Simulation for the unit to run a real time simulation of your route including turn instructions and warnings.
• Press Route Options to Customize your route. This page allows you to avoid tollways and freeways, give preference to STAA routes, avoid specific roads, add via locations, or change your starting point.
• Press Turn List for detailed turn instructions for your route.
• When you are comfortable with your route, press to begin navigating.

S Walnut St 19:33 Start: N Nashville Ave Distance: 221 Miles Estimated TIME: 03:45 Simulation Route Option Turn List

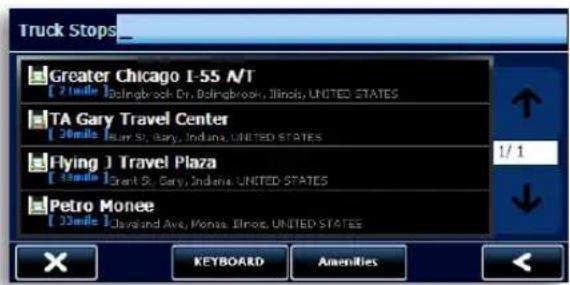

Find a POI

Truck Stops_ Greater Chicago I-55 A/T [2ndle] Boeingbrook Dr. Boeingbrook, Illinois, UNITED STATES TA Gary Travel Center [3rdle] Run St. Gary, Indiana, UNITED STATES Flying ] Travel Plaza [4thle] Grant St. Gary, Indiana, UNITED STATES Petro Monee [5thle] Cleveland Ave, Monroe, Illinois, UNITED STATES 1/1 KEYBOARD Amenities < <

• The 5400 PRO has an extensive database of Truck Specific and Standard Points of Interest. Under the Navigate To tab, click the Point of Interest icon.
• Choose where you would like the 5400 PRO to center the search.
• For truck specific POI's tap ProMiles®/TruckDown® Truck Specific POI.
• For standard POIs choose the appropriate category or press All to do a keyboard search of all categories.

NOTE: If you see ⚠️ on your map screen It means that you are not on the STAA National Network. The 5400 PRO does not have truck specific data for these areas so be alert and follow local restrictions and posted signs.

Amenity Filter

• When searching for Truck Stops the 5400 PRO gives you the ability to filter your results based on the amenities of the travel center.
• Enter a Point of Interest search, tap ProMiles®/ TruckDown® Truck Specific POI, press the down arrow, select Truck Stops, then press the Amenities button.
• Select each amenity that you require and press the button.
• To turn off the amenity filter, press Clear All and then press the button.

Amenities ✓ Fuel Card Accepted ✓ Certified Scale ✓ 24 Hour Service ✓ Internet Access ✓ Restaurant ✓ Showers ✓ Overnight Parking ✓ Laundry CLEAR ALL SET ALL

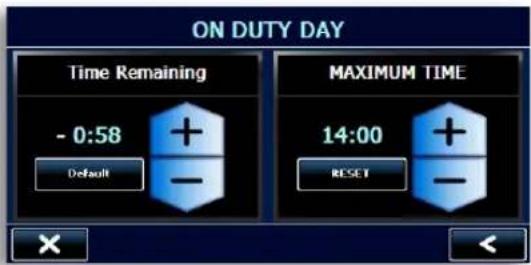

Timers and Logs

ON DUTY DAY Time Remaining - 0:58 Default MAXIMUM TIME 14:00 RESET ×

• The Hour Log and State Mileage Log can be found in the Tools menu.
• The Hour Log is a set of timers that will assist you in filling out your Hours of Service Log Book.
• Reset your timers at the beginning of your work day. Set the maximum times to your preferred limits.
• Use the Log Timers Status Toggle in the Quick Info Tab on the Map Screen to change your status.
• The timers will count down and warn you when you are approaching your maximum limit.
• The State Mileage Log automatically records the number of miles that you drive in each state.
• To export the State Mileage Log, insert a micro SD card (not included) into the unit and press the "Save to SD" button on the mileage log page. This will create a CSV file on the micro SD card that can be viewed and edited on your computer.

Configuration Options

• To reset unit to factory settings, go to the Settings Tab in the main menu, press Device, and scroll down to Reset.
• To toggle between the Truck, Car, RV, or Arrow icon go to the Settings Tab in the main menu, press Map, and scroll down to Vehicle.
• If you are having trouble with touch screen accuracy, calibrate your screen by tapping Calibration in the settings tab and follow the onscreen instructions.
• To backup/restore your Address Book or Mileage Log, press "Back-up/Restore" on the Tools Menu, insert a micro SD card (not included) into the unit and select your desired action.
  NOTE: You cannot view or edit this information from a computer.

Using and Updating

Your unit comes with 3 free months of AURA, the world's premier Red Light/Speed Camera database. Keeping your unit updated with AURA will insure that you receive the most accurate warnings of upcoming red light cameras, speed cameras, dangerous intersections, caution areas, and speed traps. Downloading/installing the Cobra HomeBase™ will allow you to keep your software up-to-date.

• To activate your 90-day free updates, go to http://www.cobra.com/homebase and download Cobra HomeBase™ docking software for your PC/Mac*.
• Follow the on-screen instructions to update your unit.
  * Windows 7/Mac OS 10.1 or higher and internet connection required.

For more information, view the full user manual at http://www.cobra.com/pages/product-manuals or call customer service at [phone].
