XRS 9400 - Gps COBRA - Free user manual and instructions

Brand	Cobra
Model	XRS 9400
Category	GPS Radar Detector
Product Type	Radar/Laser Detector with GPS
Dimensions (H x W x D)	1.2 x 3.0 x 4.5 inches
Weight	6.4 ounces
Power Source	12V DC cigarette lighter adapter
Detection Bands	X, K, Ka, Ku, Laser, VG-2
GPS Features	Red light camera and speed trap alerts
Display	OLED text display with alert indicators
Audio Alerts	Voice alerts and tones
Mounting	Windshield suction cup mount
Operating Frequency	10.525 GHz (X), 24.150 GHz (K), 33.4-36.0 GHz (Ka), 13.45 GHz (Ku)
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Do not obstruct driver view; use as permitted by law
Spare Parts / Repairability	Windshield mount and power cord available; service center recommended
General Information	Designed for vehicle use; includes city/highway modes

Frequently Asked Questions - XRS 9400 COBRA

What is the Cobra XRS 9400?

The Cobra XRS 9400 is a radar/laser detector with integrated GPS for red light and speed camera alerts.

How do I mount the XRS 9400?

Use the included windshield suction cup mount to attach the detector to the windshield, ensuring it has a clear view of the road.

What radar bands does it detect?

It detects X, K, Ka, Ku radar bands, laser signals, and VG-2 radar detector detectors.

Does it have GPS features?

Yes, the GPS provides red light camera and speed trap location alerts, updated via database.

Can I update the GPS database?

Yes, updates can be downloaded from the Cobra website and installed via USB or SD card (depending on model variant).

How do I power the device?

Plug the included 12V DC adapter into the vehicle's cigarette lighter or power outlet.

What does the voice alert feature do?

The voice alert provides spoken warnings for detected radar bands and GPS points, so you can keep eyes on the road.

Is the XRS 9400 legal to use?

Radar detectors are legal in most US states for passenger vehicles, but illegal in Virginia and Washington D.C. Check local laws.

How do I clean and maintain the detector?

Use a soft, dry cloth to wipe the exterior. Avoid liquids that may damage electronics. Keep vents clear.

Where can I find replacement parts?

Replacement windshields mounts and power cords are available from Cobra's website or authorized retailers.

USER MANUAL XRS 9400 COBRA

Cobra® 11 BAND Operating Instructions 11 BAND™ HIGH-PERFORMANCE RADAR/LASER DETECTOR WITH XTREME RANGE SUPERHETERODYNE™ TECHNOLOGY

XRS 9400

Printed in China

Part No. 480-104

Important Information

Federal Laws Governing The Use Of Radar Detectors

It is not against federal law to receive radar transmissions with your Cobra radar/laser detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action.

Safety Alert

Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area.

Safe Driving

Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product, and to obey all applicable traffic laws.

Security Of Your Vehicle

Before leaving your vehicle, always remember to conceal your radar detector in order to reduce the possibility of break-in and theft.

Customer Assistance

Customer Assistance

Should you encounter any problems with this product, or not understand its many features, please refer to this owner's manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services:

For Assistance In The U.S.A.

Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone).

Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. CT Mon. through Fri. (except holidays) 773-889-3087 (phone).

Questions English and Spanish. Faxes can be received at 773-622-2269 (fax).

Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. [e-mail] (e-mail).

For Assistance Outside The U.S.A. Contact Your Local Dealer

©2003 Cobra Electronics Corporation

6500 West Cortland Street

Chicago, Illinois 60707 USA

wwwcobra.com

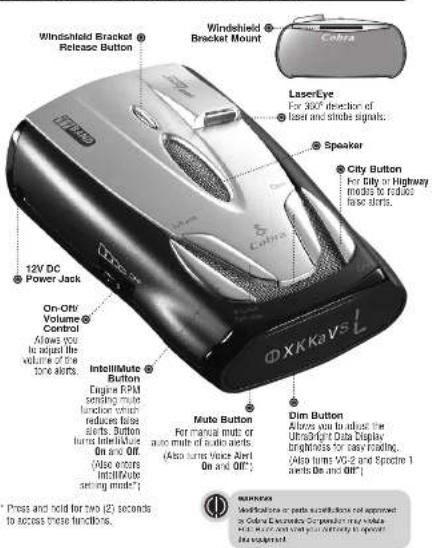

Controls, Indicators And Connections

Controls, Indicators And Connections

Windshield Bracket Release Button 12V DC Power Jack On-Off Volume Control Allow you to adjust the volume of the zone alerts. IntellMute Button Engine RPM sending mute function which reduces base sets. Button lums IntelMute On and Off. (Also enters IntelMute setting mode) Muto Button For manual mute or auto mute of auto alerts (Also turns Voice Alert On and Off) Dim Button Alstors you to adjust the Ultrabright Dua Display brightness for easy loading. (Also turns VO-2 and Spectre 1 sets Be and Off) Supervis Medical eye or paste subcellulons not approved or Cobra Exoccurring Doppler may value with you also need your authority to prevent be equipment.

English

Display And Product Features

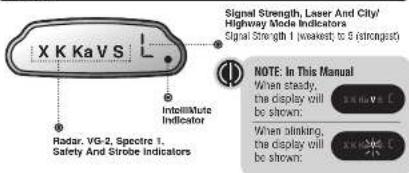

Display

X K Ka V S Signal Strength, Laser And City/ Highway Mode Indicators Signal Strength 1 (lowest; to 8 (strongest)) Interimute Indicator Radar, VG-2, Spectre 1, Safety And Strobe Indicators NOTE: In This Manual When steady, the display will be shown: When blinking, the display will be shown:

Product Features

Congratulations! You've made a smart choice by purchasing the XRS 9400 high performance radar/lasser detector from Cobra. Just look at some of the sophisticated features and capabilities your new unit includes:

Xtreme Range

Superheterodyne Technology

with super-test sweep circuitry,

XRS provides extra detection range and the best possible advantage

and the best possible advance warning to even the fastest radar nuns.

Relating And Severe Alert

Detection And Separate Alerts For: Radar signals (X, K and Ka hands

Total signals (A, K and 102 bands with signal strength indicated)

laser signals. Safety Alert signals

Strobe Alert signals. VG-2 signals

Spectre 1 signals

LaserEye

For 360" detection of laser and

strobe signals

Instant-On Ready

Detects radar guns with "instant-on"

(very fast) speed monitoring capabilities

Tone Alert or Voice Alert

With adjustable volume

This booklet provides its words into

This doublet describes the simple steps for mounting and setting up your selection, in also previous helpful information about how radar and laser guns are used and

How you can interpret the alerts you receive.

UltraBright Data Display

Easy-to-read with adjustable brightness

City Or Highway

Modes to reduce false alerts

Safety Alert

Traffic warning system distinguishes

important safety alerts from other

K band signals

Strobe Alert

Emergency vehicle warning system

Manual Mute Or Auto Mute

1. route function of audio ale

Intellium

intermediate

A mobile function which

automatically reduces false plants by aversion engine DRI

alerts by sensing engine RRMs

Mounting

Mounts easily on windshield

of cashboard

and selling up your selection

and laser guns are used and

[Non-Text]

Nothing comes close to a Cobra?

Order Form

Order Form
Name
Address (No P.O. Box)
City State/Province Zip County
Telephone
Credit Card Number Type □ Vase □ MaxerCard □ Disaster Exp Date
Customer Signature

Item # Description U.S.Cost Each Qty Amount
420-050-N-001 Straight 12V Power Cord
420-026-N-001 Colloc. 12V Power Cord
545-130-N-001 Windsold Mounting Bracket
CIL P. 28 Coal Fort Power Adapter
Average Weighting*	Test Table	U.S. B####
3121-3121-3122	32.10	###	###	###
3121-3121-3122	32.25	###, ###, ###, ###	###	###
4201-4201-3123	37.50	###, ###, ###, ###	###	###
3827-3827-3123	37.50	###, ###, ###, ###	###	###
3827-3121-3124	37.50	###, ###, ###, ###, ###, ###, ###, ###, ###	###	Total

\131.21-180.00, \16.51 \$20.71 for 195.4 \$10.20 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for 20.71 for

serina (Hepalodactuents)

Ordering From U.S.A.

Call 773-889-3087 for pricing or visit www.cobra.com.

For Credit Card Orders

Complete and return this order form to tax number 773-622-2269. Or call 773-889-3087 [Press one (1) from the main menu] 8:00 a.m. to 6:00 p.m. CT, Monday through Friday.

Make Check or Money Order Payable To

Cobra Electronics. Attn: Accessories Dept., 6500 West Cortland Street, Chicago, IL 60707 U.S.A.

To Orders Online

To order online Please visit our website: www.cobra.com

Nothing comes close to a Cobra

Installation

Your Detector

Installation

Installation

Where To Mount Your Unit

You will get optimum performance from your detector if you Mount it at a point approximately in the center of the vehicle, as low as possible on the front windshield without obstructing the unit's view of the road either to the front or rear. You can also mount it directly on the dashboard.

Windshield Mounting Dashboard Mounting

Two-panel illustration showing a car's dashboard with control panels and a small vehicle on top (no text or symbols)

The unit's lens must not be blocked and the LaserEye should have a clear view out the back window to allow 360° detection.

The LaserEye Should Have A Clear View

Top-down view of a car interior showing the rearview and dashboard with a mounted device (no text or symbols visible)

Radar and laser signals pass through glass but not through other materials and objects. Objects that can block or weaken incoming signals include:

■ Windshield wiper blades
■ Mirrored sun screens
■ Dark tinting at the top of the windshield
■ Heated windshields currently available on some vehicles (Instaclear for Ford, Electriclear for GM.) Consult your dealer to see if you have this option.

English

Windshield Mounting

1. Attach the rubber cups to the bracket.
2. Make sure the rubber cups and your windshield are clean.
3. Push the bracket firmly onto the windshield.
4. Attach the detector to the bracket. Check the angle of the unit.
5. To adjust the angle if necessary, gently push or pull on the bracket to bend it. DO NOT use the detector to bend the bracket.
6. Plug the power cord into the detector.
7. Plug the cigarette lighter adapter on the power cord into your vehicle's cigarette lighter.
8. You can temporarily remove the detector whenever you wish by pressing the bracket release button and sliding it off the bracket.

Nothing comes close to a Cobra ^2

Installation

Dashboard Mounting

1. Place the detector on the dashboard to find a location where the unit has a clear, level view of the road.The angle can NOT be adjusted after mounting.
2. Remove the paper backing from one (1) side of the hook-and-loop fastener.
3. Attach the pad to the dashboard at your chosen location and remove the other paper backing.
4. Attach the detector to the hook-and-loop fastener.You can remove and reattach the unit as often as you like.
6. Plug the power cord into the detector.
7. Plug the cigarette lighter adapter on the power cord into your vehicle's cigarette lighter.

Getting Started And Settings

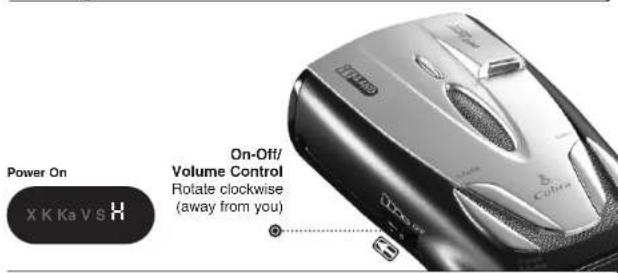

Getting Started

Power On X K Ka V S H On-Off/ Volume Control Rotate clockwise (away from you)

To Turn On The Unit And Adjust The Audio Volume

Rotate the On-Off/Volume controlclockwise (awayfrom you).	Tone Voice		Visual Display
	Three (3) beeps Testing, thenthree (3) beepsSystem Ready, thenVoice Alert		H appears in thedisplay indicatingthat the poweris On.

NOTE

In some vehicles, power is supplied to the cigarette lighter even while the ignition is Off. If this is the case with your vehicle, you should turn Off or unplug your detector when parking for lengthy periods.

Settings

When changing the Settings on your detector, please keep in mind:

■ Buttons can have multiple functions
■ Depending on your choice of Voice Alert or Tone Alert mode, you will hear either voice messages or tones confirming changes in settings.
■ All settings will be stored in memory when the power is turned Off and recalled when the power is turned back On.

Settings

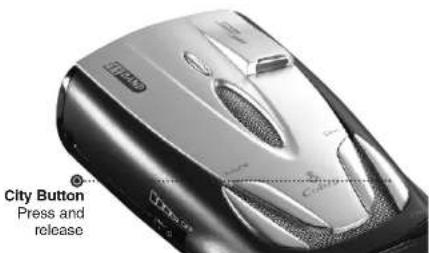

Highway/City Mode

Setting your detector to City mode delays all X band audio alerts until the signal strength reaches Level 3. (A single beep will sound when the signal is first detected.) This will reduce false alerts while you are driving in, or near, urban areas where there are many sources for conflicting X band signals such as microwave towers and automatic door openers.

To change settings, follow the procedure listed below, which indicates what you will see and hear (either in Voice Alert or Tone Alert mode) as you complete each step. The factory setting is Highway mode.

Highway Mode

X K Ka V S H

City Mode

X K Ka V S C

City Button Press and release

To Change From Highway Mode To City Mode

Press and release the City button.	Tone Voice		Visual Display
	One (1) beep City		C appears in the display

To Change From City Mode back To Highway Mode

Press and release the City button again.	Tone Voice		Visual Display
	Two (2) beeps Highway		H appears in the display

Your Detector

Settings

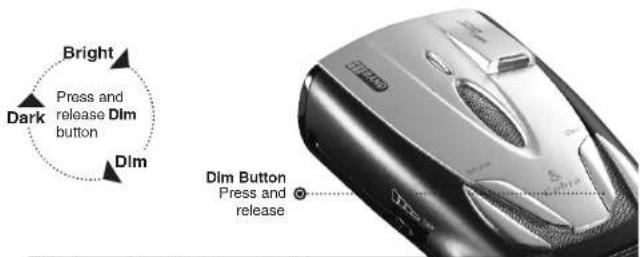

UltraBright Data Display Brightness

You can choose from three (3) settings for Brightness of the display. You can cycle through the settings by repeatedly pushing the Dim button. The factory setting is Bright.

Bright Press and release Dim button Dim Dim Button Press and release

To Change The Brightness To Dim

Press and release the Dim button once.	Tone Voice		Visual Display
	One (1) beep Dim Display dims

To Change The Brightness To Dark

Press and release the Dim button again.	Tone Voice		Visual Display
	One (1) beep Dark Display remains		dim (no visual alerts will be seen)

To Change The Brightness To Bright

Press and release the Dim button a third time.	Tone Voice		Visual Display
	Two (2) beeps Bright	Display returns	to full brightness

English

Nothing comes close to a Cobra ^2

Settings

Muting An Alert

Your detector allows you to quickly turn Off an audio Alert by momentarily pressing the Mute button. If you press the Mute button a second time during the Alert, the audio Alert will be turned back On.

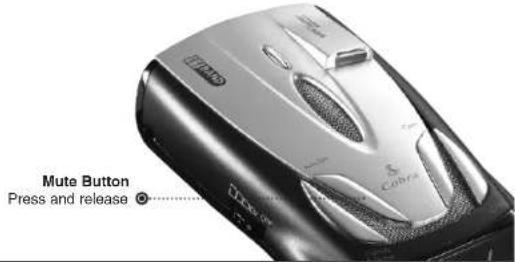

Auto Mute Mode

Auto Mute will automatically reduce the audio volume of all alerts after four (4) seconds for as long as the signal is detected. The factory setting for Auto Mute is On.

Mute Button Press and release

To Turn Auto Mute Off

Press and release theMutebutton while no alert is occurring.	Tone Voice		Visual Display
	One (1) beep Auto Mute Off None

To Turn Auto Mute On

Press and release theMutebutton again while no alert is occurring.	Tone Voice		Visual Display
	Two (2) beepsAuto	Mute On None

English

Settings

IntelliMute

IntelliMute is a unique new feature that allows you to avoid alerts you don't need to hear because you are stopped or moving slowly. By sensing the "revs" (RPMs) of your engine, IntelliMute knows when you are at low speed and automatically mutes alerts (except for strobe signals from emergency vehicles).

Before IntelliMute will work, you must set an activation point for your engine's revs (see page 11). Whenever the revs are below that point, IntelliMute will begin muting. The activation point will be stored in memory and recalled each time the power is turned On. The factory setting is IntelliMute Off.

NOTE

IntelliMute may not work with some vehicles because it cannot sense the engine's revs. In such cases, you can reduce unwanted audio alerts by using Auto Mute and City mode when appropriate.

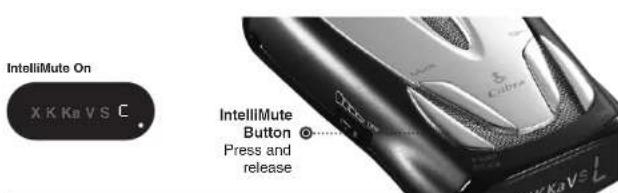

IntelliMute On X K Ka V S C IntelliMute Button Press and release

To Turn IntellMute On

Press and release the IntellMute button.	Tone Voice		Visual Display
	Two (2) beeps Intell	Mute On Dot appears	next to the large character on the right

To Turn IntellMute Off

Press and release the IntelliMute button again.	Tone Voice		Visual Display
	One (1) beep IntelliMute Off None

Settings

What To Remember While Using IntelliMute

IntelliMute works with both City and Auto Mute modes.

Whenever your engine revs are below the activation point, the dot next to the large character on the right side of the display will remain lit. Above the activation point, the dot will blink twice every two (2) seconds.

Below Activation Point

Above Activation Point

If, for any reason, the unit stops sensing your engine's revs. IntelliMute will indicate an error and automatically turn Off.

The rev point you set will be stored in the unit's memory when power is turned Off and recalled each time the power is turned On.

NOTE

The rev point must be reset if you use your detector in a different vehicle.

NOTE

When initially choosing your IntelliMute activation point, a setting of approximately 300 to 600 RPMs above idle is recommended. You can reset the activation point at any time to fit your individual preferences and driving style.

Setting The IntelliMute Activation Point

Your detector must be installed in your vehicle.

CAUTION

Do not attempt to set the rev point while driving. Your vehicle should be parked and idling.

IntelliMute must be turned On before setting the activation point. Depending on whether the unit is in Tone Alert or Voice Alert mode, you will hear a series of beeps or voice messages as you follow the steps on page 11.

Your Detector

Settings

IntelliMute Button Press and hold for two (2) seconds

To Set The IntellMute Activation Point

Press and hold the IntelliMute button for two (2) seconds.	Tone	Voice	Visual Display
	Two (2) beeps Set Engine Revs None
Rev your engine to the level you wish to set (recommend slightly above idle) and hold revs steady for two (2) seconds.	None None Three (3)	bars will	flash in succession1 2 3
At the desired rev level, press and release the IntelliMute button.	Three (3) beeps IntelliMute Set All three (3)		bars flash three (3) times1 2 3

[ICON]

If the unit is unable to sense usable pulses within three (3) seconds or if you do not set a rev point within 20 seconds of beginning these steps, IntelliMute will indicate an error and automatically turn Off.

Tone	Voice	Visual Display
Four (4) beeps IntelliMute Error, followed by IntelliMute Off		appearsX K Ka V S E

Settings

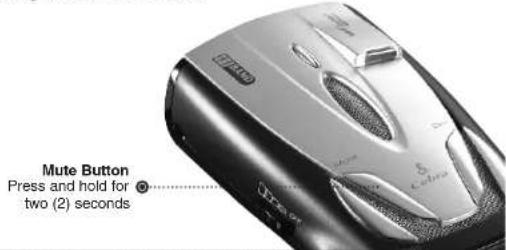

Voice/Tone Setting

You can set your detector to sound alerts with either a Voice or a Tone. You can change settings by using the Mute button.

In Voice Alert mode, you will first hear several tones, then a voice message announcing the type of signal detected, followed by more tones. In Tone Alert mode, you will hear the tones only. The factory setting is Voice Alert mode.

Mute Button Press and hold for two (2) seconds

To Change From Voice Alert To Tone Alert
While no signal is being detected, press and hold theMutebutton for two (2) seconds.	Tone Voice		Visual Display
	One (1) beep Tone Alert None

To Change From Tone Alert Back To Voice Alert
While no signal is being detected, press and hold theMutebutton for two (2) seconds again.	Tone Voice		Visual Display
	None Voice Alert None

Settings

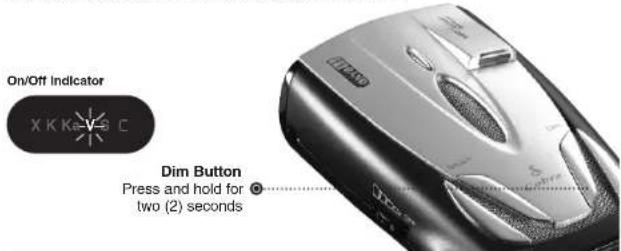

VG-2 And Spectre 1 Alert Audio Settings

The detector is undetectable by police VG-2 and Spectre 1 radar detector detectors and will alert you when such a device is in use near your vehicle. During the alert, the unit continues to detect other signals. You can choose whether or not you want your unit to show VG-2 and Spectre 1 alerts. The factory setting is VG-2 and Spectre 1 alert On.

On/Off Indicator X K Ke V S C Dim Button Press and hold for ② two (2) seconds

To Turn VG-2 And Spectre 1 Alerts Off
While no signal is being detected, press and hold the Dim button for two (2) seconds.	Tone Voice		Visual Display
	One (1) beep Spectre	VG-2 Off	V will blink once in the display

To Turn VG-2 And Spectre 1 Alerts On
While no signal is being detected, press and hold the Dim button for two (2) seconds again.	Tone Voice		Visual Display
	Two (2) beeps Spectre	VG-2 On	V will blink twice in the display

Detection

Detection

Signals Detected

The tables on the following pages show you the types of Signals your detector will detect, as well as the voice and visual alerts it provides for each of them.

Audio Alerts

In Voice Alert mode you will first hear several tones, then a voice message announcing the type of signal detected, followed by more tones. In Tone Alert mode, you will hear the tones only.

In both Voice Alert and Tone Alert modes, a distinctly different alert tone is used for each type of signal detected (including separate tones for each laser signal). For X, K and Ka band radar signals, the tones will repeat faster as you approach the signal source. The repeat rate of the tones gives you useful information about the signal detected. (See responding to alerts on page 17.)

Visual Display

An indication of the type of signal detected will appear in the UltraBright data Display. During X, K and Ka alerts, a number will also appear, indicating the strength of the signal detected. (1 = weakest, 5 = strongest)

X Signal Detected

K Signal Detected

Ka Signal Detected

During laser alerts the letter L will appear, instead of the signal strength indication.

Laser Signal Detected

During VG-2 or Spectre 1 alerts, the letter V will appear. It will be steady during VG-2 and blink during Spectre 1.

VG-2 Alert Signal Detected

Spectre 1 Alert Signal Detected

14 English

Detection

During Safety Alert and Strobe Alert the letter S will appear. It will be steady during a Safety Alert and will blink during a Strobe Alert.

Safety Alert Signal Detected Strobe Alert Signal Detected

Radar Signals, Voice And Visual Displays

Type of Signal Voice Visual Display

X Band Radar X Alert X and Signal Strength

K Band Radar K Alert K and Signal Strength

Ka Band Radar Ka Alert Ka and Signal Strength

X Signal Detected

K Signal Detected

Ka Signal Detected

Laser Signals, Voice And Visual Displays

Type of Signal Voice Visual Display

LTI 20-20* Laser Alert L is Steady

LTI Ultra-Lyte* Laser Alert L is Steady

Kustom Signals ProLaser* Laser Alert L is Steady

Kustom Signals ProLaser III*

Laser Alert

L is Steady

* Your detector provides 360° detection of these signals.

Laser Signal Detected

NOTE

Beep rate changes with different laser alerts.

Nothing comes close to a Cobra ^4

Detection

Strobe Alert Signals, Voice And Visual Displays

Type of Signal Voice Visual Display

3M Opticom or Tomar* Emergency Vehicle Approaching S Blinks

* Your detector provides 360° detection of this signal.

Strobe Alert Signal Detected

Safety Alert Signals, Voice And Visual Displays

Type of Signal Voice Visual Display

Emergency Vehicles Emergency Vehicle Approaching S is Steady

Road Hazards Road Hazard Ahead \$ is Steady

Trains Train Approaching S is Steady

Safety Alert Signal Detected

X K Ka V S C

NOTE

There are different tones for each Safety Alert.

VG-2 And Spectre 1 Alert Signals, Voice And Visual Displays

Type of Signal Voice Visual Display

Interceptor VG-2	VG-2 Alert	V is Steady
Spectre 1	Spectre Alert	V Blinks

VG-2 Alert Signal Detected

Spectre 1 Alert Signal Detected

NOTE

There are different tones for each alert.

English

Your Detector

Detection

Instant-On Detection

Your detector is designed to detect Instant-On speed monitoring signals, which can suddenly appear at full strength.

NOTE

You should take appropriate action

immediately whenever an instant-on alert is given.

Responding To Alerts

Description Interpretation		Recommended Response
Tone repeats slowly at first, then speeds up rapidly.	Probably police radar FULL ALERT
Tone sounds one (1) time only.	Probably a false alarm, but possibly pulsed radar, VG-2, or Spectre 1 nearby	Exercise caution
Tone instantly begins repeating rapidly.	Radar, VG-2, or Spectre 1 nearby has been activated suddenly	FULL ALERT
Tone repeats slowly as you approach a hill or bridge, then speeds up sharply as you reach it.	Probably police radar beyond the hill or bridge	FULL ALERT
Tone repeats slowly for a short period.	Probably a false alarm Exercise caution
Any type of laser alert. Laser	alerts are never false alarms	FULL ALERT
Any Safety Alert or Strobe Alert.	You are nearing an emergency vehicle, railroad crossing, or road hazard (construction, accident, etc.)	Exercise caution

Understanding Radar And Laser

Understanding Radar And Laser

Radar Speed Monitoring Systems

Three (3) band frequencies have been approved by the Federal Communications Commission (FCC) for use by speed monitoring radar equipment:

X band 10.525 GHz

K band 24.150 GHz

Ka band 33.400 - 36.00 GHz

Your detector detects signals in all three (3) radar bands.

VG-2 And Spectre 1

VG-2 and Spectre 1 are "detector detectors" that work by detecting low-level signals emitted by most radar detectors. Your detector does not emit signals that can be detected by VG-2 or Spectre 1, but does detect VG-2 and Spectre 1 signals and will alert you when a device is in use near your vehicle, if you so choose.

Safety Alert Traffic Warning System

FCC-approved Safety Alert transmitters emit microwave radar signals that indicate the presence of a safety-related concern. Depending on the frequency of the signal emitted, it can indicate a speeding emergency vehicle or train, or a stationary road hazard.

Because these microwave signals are within the K band frequency, most conventional radar detectors will detect Safety Alert signals as standard K band radar. Your detector, however, is designed to differentiate between standard K band and Safety Alert signals, and give separate alerts for each.

Safety Alert technology is relatively new. Safety Alert transmitters can be found in limited numbers in all 50 states, but the number is growing. Depending on your location, you may not receive these alerts regularly and may often encounter emergency vehicles, trains and road hazards without being alerted. As the number of transmitters increases, these alerts will become more common.

When you receive such an alert, please watch for emergency vehicles ahead of you, on cross streets and behind you. If you see an emergency vehicle approaching, please pull over to the right side of the road and allow it to pass.

Understanding Radar And Laser

Strobe Alert

Special strobes mounted on the light bars of authorized emergency vehicles (fire trucks, police cars, ambulances) automatically change traffic signals as the vehicle approaches an intersection. These strobes and the special strobe detectors located on the traffic signals, introduced fairly recently by 3M and Tomar, are already in use in more than 1000 cities nationwide. Cobra's exclusive Strobe Alert detector will detect these special strobes and give an emergency vehicle alert.

When you receive such an alert, please watch for an approaching emergency vehicle and pull over to allow it to pass. To inquire about coverage in your area, contact your local fire and police departments.

LIDAR (Laser)

The correct name for the technology that most people refer to as laser is actually LIDAR, which stands for Light Detection and Ranging.

LIDAR operates much like radar. Its signal spreads out like a radar signal, though not as widely. Unlike radar, LIDAR must have a clear line of sight to its target vehicle throughout the entire measurement interval. Obstructions such as sign posts, utility poles, tree branches, etc., will prevent valid speed measurement.

Some common questions about LIDAR include:

■ Does weather have any affect on LIDAR?
Yes. Rain, snow, smoke, fog, or airborne dust particles will reduce the effective range of LIDAR and can, if dense enough, prevent its operation.
■ Can LIDAR operate through glass?
Yes. Newer LIDAR guns can obtain readings through most types of glass. However, the laser pulse also can be received through glass to trigger an alarm by your detector.
■ Can LIDAR operate while in motion?
No. Because LIDAR operates by line of sight, the person using it cannot drive the vehicle, aim and operate the gun all at the same time.
■ Is LIDAR legal to use?
Yes. It is legal in all 50 states.

Maintenance

Maintenance

Maintenance Of Your Radar Detector

Your detector is designed and built to give you years of trouble-free performance without the need for service. No routine Maintenance is required.

If your unit does not appear to be operating properly, please follow these troubleshooting steps:

■ Make sure the power cord is properly connected.
■ Make sure the socket of your vehicle's cigarette lighter is clean and free of corrosion.
■ Make sure the power cord's cigarette lighter adapter is firmly seated in your cigarette lighter.
- Check the power cord fuse. (Unscrew the ribbed end cap of the cigarette lighter adapter and examine the fuse. If required, replace it with a 2-amp fuse only.)

Specifications

Specifications

Band And Frequencies

Band Frequencies

X Band 10.525 ± 0.050 GHz

K Band 24.125 ± 0.125 GHz

Safety Alert 24.070 ± 0.010 GHz

Traffic Warning

System

24.110 ± 0.010 GHz

24.190 ± 0.010 GHz

24.230 ± 0.010 GHz

Ka Band 34.700 ± 1.300 GHz

Laser 910 ± 50 nm

Strobe 700 ± 300 nm

Unit Dimensions And Weight

Dimensions* (H x W x D) Weight*

1 13 ′ × 2 34 ′ × 4 13 ′

5.11 oz.

(34 mm x 70 mm x 110 mm)

(145 g)

* Dimensions and weight measurements are approximate.

This radar detector is covered by one or more of the following U.S. patents: 5,497,148; 5,594,432; 5,612,685; 6,078,279; 6,094,148. Additional patents may be listed inside the product or pending.

English

Nothing comes close to a Cobra ^4

Warranty

Limited 1-Year Warranty

For Products Purchased In The U.S.A.

Cobra Electronics Corporation warrants that its Cobra 11 Band Radar/Laser Detectors, and the component parts thereof, will be free of defects in workmanship and materials for period of one (1) year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A.

Cobra will, without charge, repair or replace, at its option, defective 11 Band Radar/Laser Detectors, products or component parts upon delivery to the Cobra Factory Service Department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra's expense, if the product is repaired or replaced under warranty.

This warranty gives you specific rights, and you may also have other rights which vary from state to state.

Exclusions: This limited warranty does not apply:

1. To any product damaged by accident.
2. In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs.
3. If the serial number has been altered, defaced or removed.
4. If the owner of the product resides outside the U.S.A.

All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty.

Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

English

Product Service And Trademark Acknowledgement

Product Service

If you have any questions about operation or installing your new Cobra product, or if you are missing parts...

Please call Cobra first! DO NOT RETURN THIS PRODUCT TO THE STORE! See customer assistance on page A1.

If you suspect that your unit requires service, please call 773-889-3087 BEFORE shipping it to Cobra. This will ensure that you receive service as quickly as possible.

If you are asked to send your unit to the Cobra factory, please follow these steps: 1) Send the complete unit, including power cord. (It is not necessary to include the mounting bracket.) 2) For warranty repair, enclose some form of proof-of-purchase, such as a photocopy or carbon copy of a sales receipt. If you send the original receipt, it cannot be returned. 3) Enclose a typed or clearly written description of the problem you are having with your unit, plus the name and address where you want the unit returned. 4) Pack the unit securely to prevent damage during transit. If possible, use the original packing materials. 5) Ship prepaid and insured using a traceable carrier such as United Parcel Service (UPS), Federal Express, or Priority mail with delivery confirmation. Ship to: Cobra Factory Service, Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, IL 60707 U.S.A. 6) Please allow three (3) to four (4) weeks before contacting us about the status of your service. Call 773-889-3087 for assistance. If your unit is under warranty, it will either be repaired or replaced upon receipt, depending on the model. If your unit is out of warranty, you will receive a letter informing you of the repair or replacement charge.

Trademark Acknowledgement

Cobra, 6 Band, DigiView, Extra Sensory Detection, HighGear, microTALK, LaserEye, Safety Alert Traffic Warning System, Strobe Alert, VG-2 Alert and Nothing comes close to a Cobra are registered trademarks of Cobra Electronics Corporation.

Cobra Electronics Corporation, 11 Band, EasySet, IntelliMute, IntelliShield, Road Ready, SmartPower, Spectre Alert, UltraBright, Voice Alert and Xtreme Range Superheterodyne are trademarks of Cobra Electronics Corporation.

Opticom is a trademark of 3M Corporation. Instaclear for Ford is a registered trademark of Ford Motor Company, Inc. Electriclear for GM is a registered trademark of General Motors Corporation. 20-20 and Ultra-Lyte are trademarks of Laser Technology, Inc. ProLaser and ProLaser III are trademarks of Kustom Signals, Inc. Bee III and Pop are a trademarks of MPH Industries. Spectre is a trademark of Stalcar. Interceptor VB-2 is a trademark of TechniSonic Industries LTD. Tomar is a registered trademark of TOMAR Electronics, Inc.

Nothing comes close to a Cobra ^4

Optional Accessories

Optional Accessories

You can find quality Cobra products and accessories at your local Cobra dealer, or in the U.S.A., you can order directly from Cobra.

Straight 12V DC Power Cord

Includes plug and fuse Item # 420-030-N-001

Windshield Mounting Bracket

Includes suction cups Item # 545-139-N-001

Coiled 12V DC Power Cord

Includes plug and fuse Item # 420-026-N-001

Dual Port Power Adapter

Includes adjustable plug (up to 90°) and fuse Item # CLP-2B

English

Order Form

Order Form

Name

Address (No P.O. Boxes)

City State/Province Zip Country

Telephone

Credit Card Number

Type: □ Visa

□ MasterCard

Discover

Exp. Date

Customer Signature

Item # Description U.S.Cost Each Qty Amount
420-030-N-001 Straight 12V Power Cord
420-026-N-001 Coiled 12V Power Cord
545-139-N-001 Windshield Mounting Bracket
CLP-2B Dual Port Power Adapter

Amount Shipping/Handling*
10.00 or less ....8.00
10.01-25.00.... 5.50
25.01-50.00....7.50
50.01-90.00.... 10.50
90.01-130.00....13.50
130.01-200.00.... 16.50
200.01 plus.... 10% of purchase

Tax Table
Wisconsin Add 5%
Indiana, Michigan, Ohio, 4th 8%
California and 7.25
Illinois adj 6.75%
*For AK, HI and PR add additional \$26.95 for FedEx Next Day or
\$10.85 for FedEx 2nd Day. Excludes weekends and holidays shipments.
Please allow two (2) to three (3) weeks for delivery in the U.S.A.
purchase Prices subject to change without notice
Total

Ordering From U.S.A.

Call 773-889-3087 for pricing or visit www.cobra.com.

For Credit Card Orders

Complete and return this order form to fax number 773-622-2269. Or call 773-889-3087 [Press one (1) from the main menu] 8:00 a.m. to 6:00 p.m. CT, Monday through Friday.

Make Check or Money Order Payable To

Cobra Electronics, Attn: Accessories Dept.,

6500 West Cortland Street, Chicago, IL 60707 U.S.A.

To Order Online

Please visit our website: www.cobra.com

Nothing comes close to a Cobra ^4

The Cobra line of quality products includes:

CB Radios

microTALK® Radios

Radar/Laser Detectors

Safety Alert® Traffic Warning Systems

Accessories

GPS (Global Positioning System)

HighGear® Accessories

CobraMarine™ VHF Radios

Power Inverters

For more information or to order any of our products, please visit our website:

www.cobra.com
